The rare hemoglobin variants Hb O-Arab and Hb D-Punjab identified in population-based genetic screening throughout Guangxi, China

Abstract

Background:

Hemoglobinopathies are a group of autosomal recessive disorders characterized by a high degree of clinical and genetic heterogeneity. Comprehensive genetic screening for hemoglobin variants is crucial for prevention and treatment of these conditions. Single-molecule real-time (SMRT) sequencing enables efficient and reliable analysis of common and complex or rare hemoglobin variants.

Methods:

We launched a population-based genetic screening program for hemoglobinopathies in Guangxi, China, using SMRT. The in silico structural predictions based on Alphafold2 were performed for the rare variants identified. Additionally, a comprehensive literature review was conducted to elucidate the origin and genotype-phenotype correlation of these variants.

Results:

A total of 11,019 participants throughout Guangxi were recruited via the screening program. In two unrelated families, the variants, Hb O-Arab and Hb D-Punjab at the same genetic locus, were identified with an extremely low frequency of 0.0045% [1/(11,019*2), respectively] in the population. Structural prediction showed Hb O-Arab exerted a relatively significant impact on the hemoglobin structure, whereas the influence of Hb D-Punjab was minimal. This was consistent with findings from the literature review and the two recruited families, which confirmed that individuals with Hb O-Arab presented relatively obvious manifestations compared to those with Hb D-Punjab.

Conclusion:

Two rare variants, Hb O-Arab and Hb D-Punjab, were identified in Guangxi, China using SMRT. The first report of Hb O-Arab enriches the spectrum of hemoglobin variants in the Chinese population. Analyzing the frequency, origin and genotype-phenotype correlation of these variants could pave the way for clinical management and genetic counseling for hemoglobinopathies.

Introduction

Hemoglobinopathies are a group of inherited blood disorders that are classified as autosomal recessive genetic hemolytic anemias. These conditions stem from a variety of hemoglobin (Hb) variants, which often result from mutations or deletions within the genes encoding the α- or β-globin chains of hemoglobin. The genetic alterations can lead to either a reduced production of these globin chains or structural changes in the hemoglobin molecule itself. When there is a reduced production of these globin chains, the resulting conditions are collectively known as thalassemia syndromes. Structural changes in hemoglobin cause abnormal hemoglobin, such as Hb S, Hb E, Hb O, and Hb D (Harteveld et al., 2022). Globally, there are approximately 350 million carriers of thalassemia, and over 300,000 newborns are affected by hemoglobinopathies, such as sickle cell anemia or thalassemia, etc. each year (Modell et al., 2008; Weatherall, 2010). Southern China has a particularly high prevalence of thalassemia, with Guangxi Province being a hotspot, where the prevalence rate approaches 20% (Lai et al., 2017). The clinical manifestation of hemoglobinopathies varies widely, from asymptomatic carriers to severe, life-threatening conditions (Kohne, 2011). Heterozygous carriers of these variants are typically asymptomatic but may exhibit hematological characteristics. However, homozygous or compound heterozygous states can result in clinically significant phenotypes with varying degrees of severity, such as thalassemia major, thalassemia intermedia, sickle cell syndrome, and Hb E syndrome.

Hemoglobinopathies are characterized by a remarkable level of genetic diversity. To navigate this genetic landscape, specialized databases like HbVAR and ithanet have been created to document and manage numerous genetic variations associated with hemoglobinopathies (Giardine et al., 2021; Kountouris et al., 2014). The HbVAR database, in particular, has amassed an extensive catalog of over 1800 distinct variants involving hemoglobin gene cluster, including HBA1, HBA2, and HBB (Giardine et al., 2021). Among these variants, changes at the 122nd codon of the β-globin gene, specifically c.364G>A [p.(Glu122Lys)] and c.364G>C [p.(Glu122Gln)], result in Hb O-Arab and Hb D-Punjab, respectively (van Gammeren et al., 2020). These distinct amino acid substitutions lead to different clinical manifestations and effects on red blood cell morphology and function. Both variants have a global distribution, with Hb D-Punjab being more prevalent in regions such as Punjab, India, and also found in Italy, Belgium, Austria, and Turkey (Torres et al., 2015). Hb O-Arab is found in people from the Middle East, and the Mediterranean (Elbashir and Elsayed Yousif, 2023).

Given the high genetic heterogeneity and the complexity of variations in hemoglobinopathies, there is an urgent need for an efficient and reliable method for screening and diagnosing of the hemoglobinopathies. Recently, a cutting-edge approach based on single-molecule real-time (SMRT) sequencing targeting the hemoglobin gene cluster has emerged (Xu et al., 2020). Benefiting from its long-read sequencing, the SMRT method comprehensively encompasses the full spectrum of known structural variations, single nucleotide variants (SNVs), and insertions/deletions (InDels) involving the HBA1, HBA2, and HBB gene clusters. Rigorous retrospective and prospective multi-center cohort analyses have demonstrated its efficiency and reliability in identifying and analyzing the common and even complex or rare hemoglobin variations, enabling accurate diagnosis and comprehensive understanding of hemoglobinopathies (Xu et al., 2020; Liang et al., 2021).

In this study, we launched a population-based genetic screening initiative for hemoglobinopathies in Guangxi, China, using the SMRT sequencing. Two rare hemoglobin variants, Hb O-Arab and Hb D-Punjab, were identified, whose impact on the structure of the hemoglobin were predicted. Furthermore, we conducted a literature review to analyse the origins and genotype-phenotype correlations of the two variants.

Materials and methods

Population and subjects

A population-based genetic screening project for hemoglobinopathies was conducted throughout Guangxi Zhuang Autonomous Region, China, spanning from July 2021 to December 2024. Physical examination and clinical assessment were performed for the subjects and their peripheral blood samples were collected for further hematological screening and genetic analysis.

Hematological screening

Routine hematological indicators were measured by automatic hematological analyzer (LH780, Beckman Co., Nanning, China or BC-6000, Mindray Co., Nanning, China), and standard hemoglobin testing was performed by automatic high-pressure liquid-flow capillary electrophoresis (CAPILLARYS2, Sebia Co., Nanning, China), according to the manufacturer’s instructions. Normal reference ranges of the hematological indicators included mean corpuscular volume (MCV)≥82 fL, mean corpuscular Hb (MCH) ≥27 pg, Hb A₂ levels between 2.4% and 3.5%, and Hb F ≤ 2%.

Genetic screening by the SMRT sequencing

The SMRT sequencing was conducted as previously described (Xu et al., 2020; Liang et al., 2021). Briefly, genomic DNA was extracted from peripheral blood and subjected to multiple long range PCR to amplify the hemoglobin gene cluster including the HBA1, HBA2, HBB, etc. The amplified products were input for library preparation and subsequent sequencing on a PacBio Sequel II SMRT sequencer (Pacific Biosciences Inc., Menlo Park, United States), following the manufacturer’s instructions. The generated raw subreads were subsequently processed using circular consensus sequencing software (RRID: SCR_021174, Pacific Biosciences Inc., Menlo Park, United States) and the Pbbioconda package (Pacific Biosciences Inc., Menlo Park, United States) to obtain circular consensus sequencing reads, which were mapped to the GRCh38 reference genome and further used for variant calling using FreeBayes1.3.4 (RRID: SCR_010761, https://www.geneious.com/plugins/freebayes). The pathogenicity of the candidate variants was classified according to the ACMG/AMP guidelines (Richards et al., 2015) and information documented in hemoglobin variant databases, such as HbVar (https://globin.bx.psu.edu/hbvar/), ithanet (https://www.ithanet.eu/), and LOVD (https://www.lovd.nl/).

Validation of the candidate variants identified by the SMRT sequencing

Sanger sequencing was employed to verify SNVs and InDels, followed by locus-specific amplification. Multiplex ligation-dependent probe amplification (MRC Holland, Amsterdam, Netherlands) was conducted to confirm structural rearrangements, including large deletions or duplications within specific hemoglobin gene regions. Additionally, gap polymerase chain reaction (Gap-PCR) (Yilifang Bio, Shenzhen, China) was utilized to detect hotspot deletions in the Chinese population, targeting--^SEA, -α^3.7, -α^4.2, and--^THAI, according to the manufacturer’s protocol. A sample containing the known heterozygous -α^3.7 variant was used as the positive control. Meanwhile, a sample without any known HBA1 or HBA2 variants, as well as nuclease-free water, were used as the negative and blank controls, respectively. The DNA marker was included in the kit, and an amplification fragment of 1.7 kb indicated the presence of the internal control sequence.

Structural prediction and visualization

The hemoglobin structures of the wild-type and mutant forms, including Hb O-Arab and Hb D-Punjab, were predicted using the ColabFold v1.5.5 (RRID: SCR_025453, https://colab.research.google.com/github/sokrypton/ColabFold/blob/main/AlphaFold2.ipynb), an online platform for AlphaFold2. The predicted local distance difference test (pLDDT) score above 70 was considered with high confidence. All models were visualized using PyMOL (RRID: SCR_000305), with hydrogen bonds displayed using the default settings.

Retrospective analysis of similar cases reported in the literature

The literature search was performed to summarize the hematological features and clinical symptoms of individuals with the rare variants, Hb O-Arab and Hb D-Punjab. The literature search was conducted in the PubMed, Web of Science, and National Center for Biotechnology Information (NCBI) databases through keywords “hemoglobin O Arab”, “Hemoglobin O Arab”, “Hb O-Arab”, “hemoglobin D-Punjab”, “Hemoglobin D-Punjab”, “Hb D-Punjab”. Titles and abstracts selected from the initial search were first scanned, and the full papers of potentially eligible studies were reviewed. Articles were excluded for the following reasons: 1) the articles were not in English; 2) the full version of the articles were not available; 3) the articles did not report the hematological characteristics and clinical manifestations.

Results

A total of 11,019 participants from throughout Guangxi were recruited via the genetic screening program for hemoglobinopathies, with ages ranged from the neonatal period to 86 years old, including 2,673 children and adolescents, and 8,346 adults. Among these participants, there were 5,310 males and 5,709 females. Totally, 165 hemoglobin variants were identified, of which 83 were variants in the HBB gene. In two unrelated families, the hemoglobin variants, Hb O-Arab and Hb D-Punjab at the same genetic locus, were identified with an extremely low frequency of 0.0045% [1/(11,019*2), respectively] among the screened population.

A rare compound heterozygous variant Hb O-Arab and β⁰-thalassemia in family 1

The proband in Family 1, an 18-year-old Chinese man, visited our hospital with complaints of increased bilirubin, icteric sclera, and skin, but without subcutaneous bleeding, which indicated possible hemolytic anemia. The SMRT sequencing detected substitutions at codons 17 [NM_000518.5(HBB): c.52A>T p.(Lys18Ter)] and 122 [NM_000518.5(HBB): c.364G>A p.(Glu122Lys)] of the HBB gene simultaneously (Figure 1A). These two variants were located in trans and presented in a compound heterozygous pattern. Family analysis showed that the variant c.52A>T was from the father and c.364G>A was from the mother (Figures 1B,C, 2C). Additionally, a hotspot heterozygous -α^3.7 deletion (chr16: g.34164_37967del3804) was identified in the father (Figure 1B). The variants c. 52A>T and c. 364G>A were further confirmed by Sanger sequencing (Figure 2A) and the -α^3.7 was validated by Gap-PCR (Figure 2B).

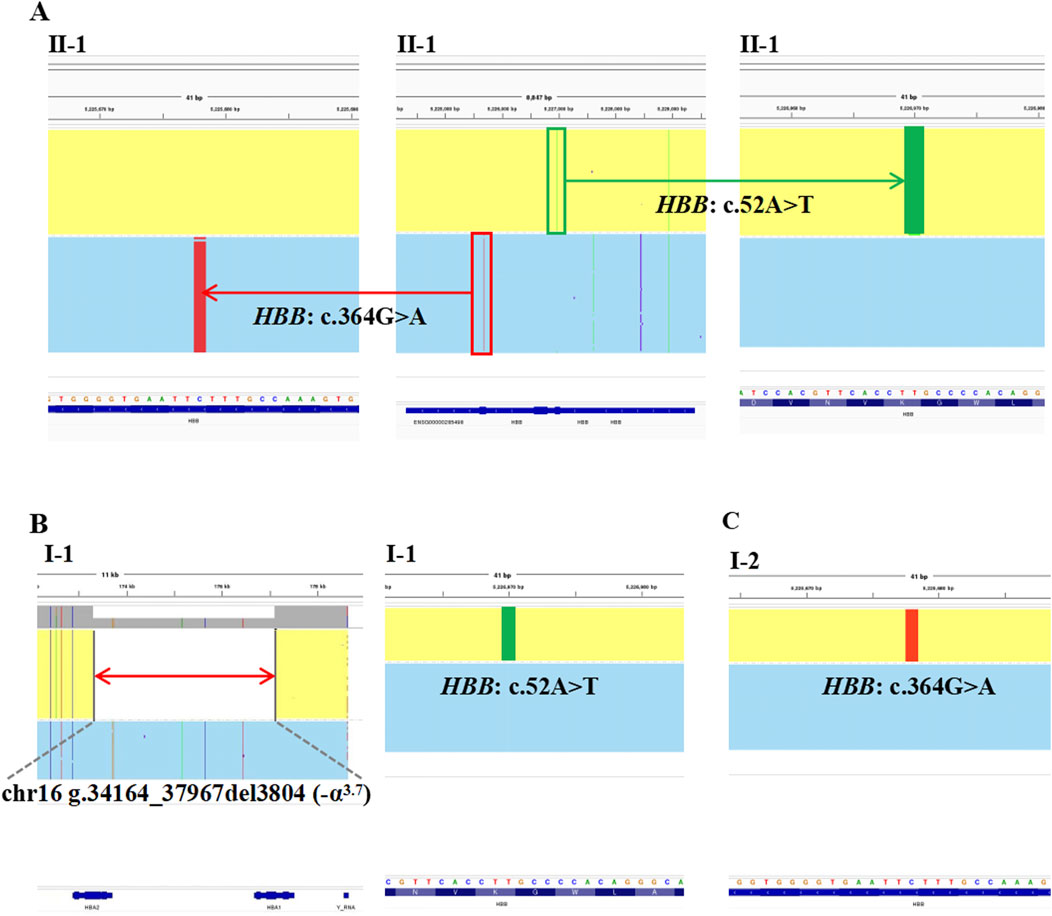

FIGURE 1

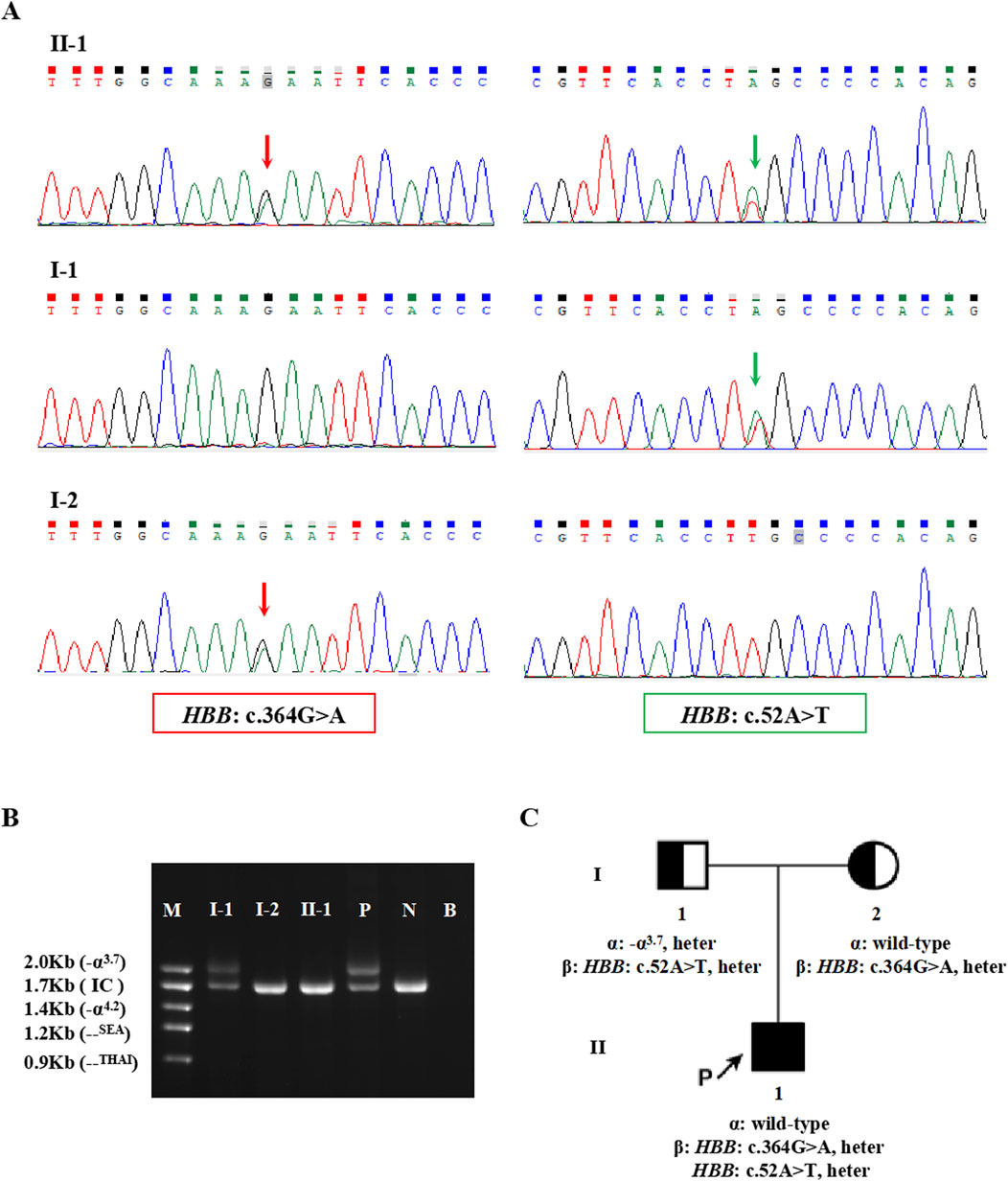

FIGURE 2

Among the two variants, c.52A>T also called CD17 (A>T) could cause β⁰-thalassemia, and c.364G>A also known as Hb O-Arab could alter the structure of hemoglobin. Thus, the heterozygosity of these two variants may explain the proband’s phenotype. This was confirmed by the routine hematological analysis, which showed significantly decreased MCV and MCH indicating microcytic hypochromic anemia (Table 1), together with abnormal hemoglobin presenting as an overlapping peak of Hb A₂ and Hb O-Arab (92.5%), an Hb F peak (6.4%) and an uncharacterized Hb X peak (1.1%), but without the Hb A peak (Figure 3A). The parents also exhibited relatively low MCV and MCH levels (Table 1). An abnormal overlapping peak of Hb A₂ and Hb O-Arab was also observed in his mother, while a mild increase in Hb A₂ (5.4%) was detected in his father (Figures 3B,C).

FIGURE 3

A rare heterozygous variant Hb D-Punjab in family 2

The proband in Family 2 was a 4 years old boy and participated in the genetic screening program for hemoglobinopathies. A heterozygous variant, NM_000518.5(HBB): c.364G>C p.(Glu122Gln), also called Hb D-Punjab, was identified in the proband by the SMRT sequencing (Figure 4A) and was validated by Sanger sequencing (Figure 4B). It was a rare Hb variant at the same genetic locus as the Hb O-Arab. Unfortunately, the hematological results of the proband were unavailable and the family refused to blood resampling for further analysis and validation.

FIGURE 4

Structural prediction and alterations of hydrogen bonds

The pLDDT scores of all the structures were above 70, which indicated that the predictions were highly confident. In wild-type hemoglobin, the glutamic acid at residue 122 showed hydrogen bonds with lysine 18 (2.6Å), phenylalanine 119 (3.1Å), and threonine 124 (3.0Å), respectively (Figure 5A). However, in Hb O-Arab, the substitution of glutamic acid by lysine at residue 122 decreased the number of hydrogen bonds with the surrounding residues, only interacting with phenylalanine 119 (3.2Å) and threonine 124 (3.0Å) (Figure 5B). The loss of hydrogen bonds may alter the stability of the protein, potentially resulting in the clinical manifestation of anemia. By contrast, in Hb D-Punjab, the substitution of glutamic acid by glutamine at residue 122 maintains interactions with lysine 18 (2.6Å), phenylalanine 119 (3.1Å), and threonine 124 (3.0Å) (Figure 5C). Both the number and length of these hydrogen bonds remained unchanged, which indicated Hb D-Punjab was unlikely to significantly alter the protein structure, further suggesting its effect on the phenotype may be minimal.

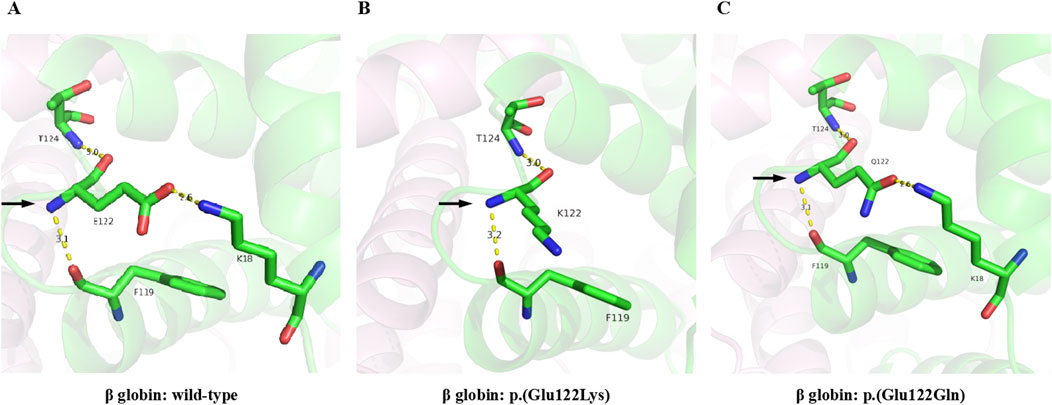

FIGURE 5

Hematological characteristics and clinical manifestations of individuals carrying the variants

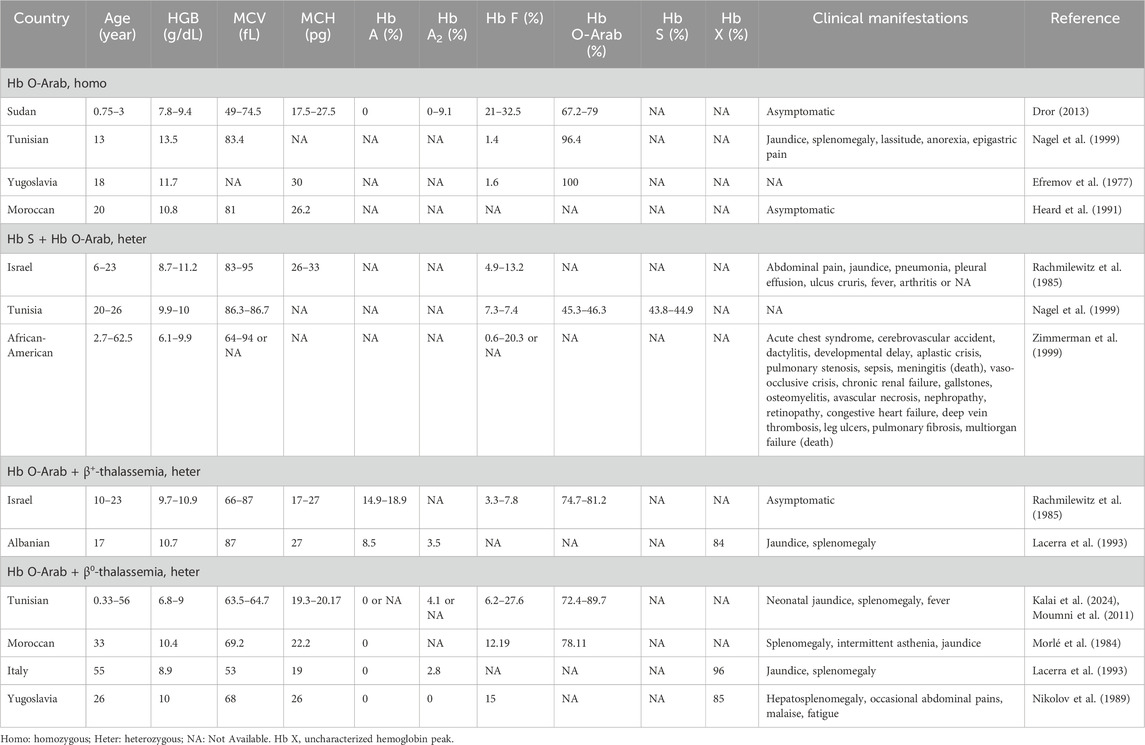

Individuals with Hb O-Arab showed various hematological features and clinical symptoms across different situations. Although the subjects with homozygous Hb O-Arab typically had mild to moderate anemia with a lower hemoglobin levels, most of them were asymptomatic, and only a few of them exhibited mild clinical symptoms such as lassitude, jaundice and splenomegaly (Dror, 2013; Nagel et al., 1999; Efremov et al., 1977; Heard et al., 1991). When the variant co-existed with Hb S, the corresponding cases usually presented with mild to moderate anemia, jaundice, and splenomegaly, as well as clinical characteristics similar to those with sickle cell disease (SCD), such as acute chest syndrome, recurrent vaso-occlusive painful events, dactylitis, hemolytic and so on (Nagel et al., 1999; Rachmilewitz et al., 1985; Zimmerman et al., 1999). Individuals carrying compound heterozygous Hb O-Arab and β-thalassemia variants typically manifested mild to moderate microcytic hypochromic anemia with reduced levels of MCV and MCH as well as an elevated level of Hb A₂, similar to β-thalassemia traits. They were typically asymptomatic, and only a few individuals exhibited mild jaundice and splenomegaly. As expected, the hematological characteristics and clinical manifestations of individuals carrying compound heterozygous Hb O-Arab and β⁰-thalassemia variants were more severe than those of individuals with Hb O-Arab and β⁺-thalassemia variants (Rachmilewitz et al., 1985; Lacerra et al., 1993; Kalai et al., 2024; Morlé et al., 1984; Moumni et al., 2011; Nikolov et al., 1989). Detailed information of the reported cases was provided in Table 2.

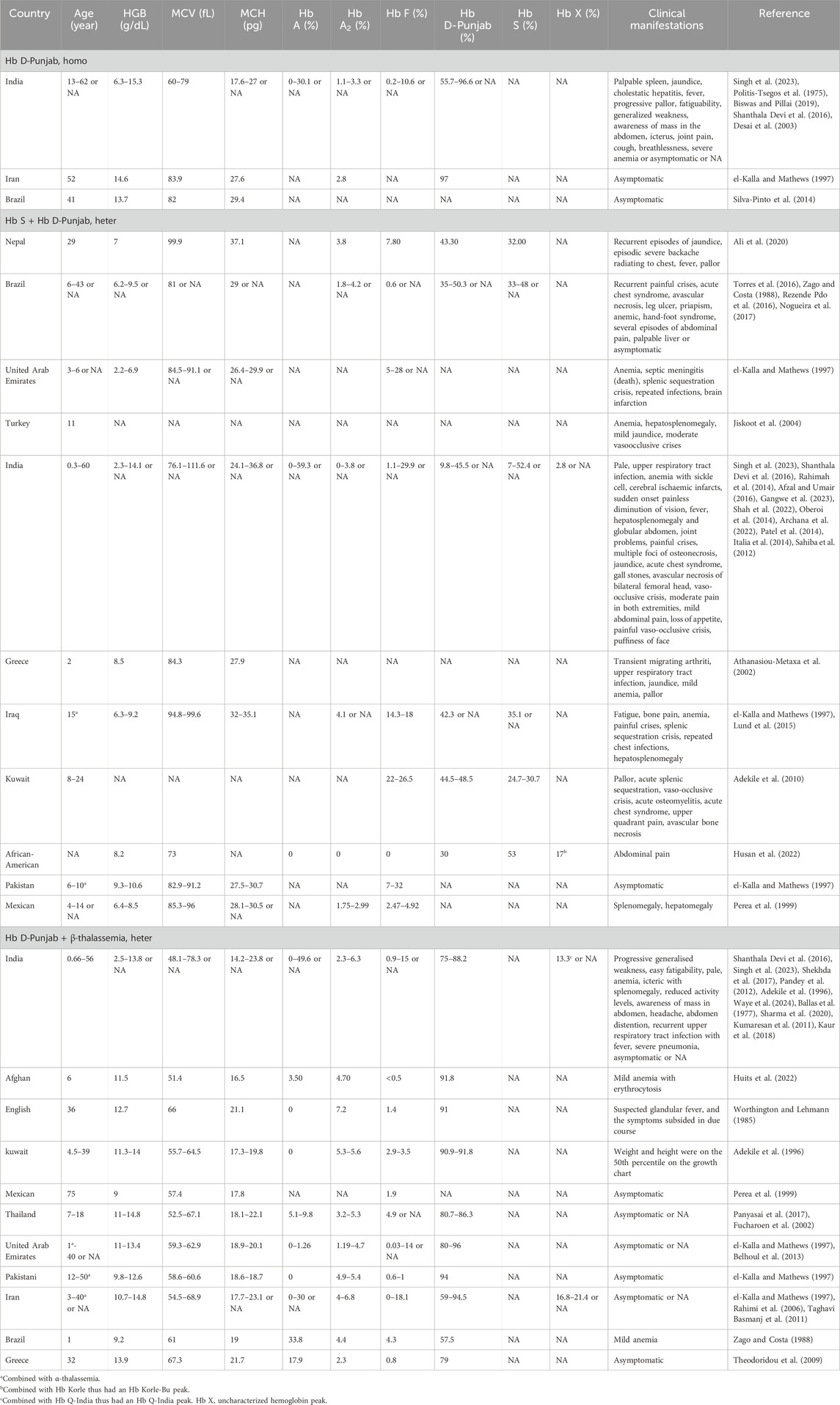

The Hb D-Punjab mainly existed in three forms: Hb D-Punjab homozygous, Hb S combined with Hb D-Punjab, Hb D-Punjab combined with β-thalassemia. Individuals with homozygous Hb D-Punjab were typically asymptomatic with normal hematological characteristics (el-Kalla and Mathews, 1997; Silva-Pinto et al., 2014), although a few of them developed mild to moderate anemia and led to pallor and fatigability (Singh et al., 2023; Spandana et al., 2022). The association of this variant with Hb S or thalassemia also occurred. Usually, the compound heterozygous Hb D-Punjab and β-thalassemia caused mild microcytic and hypochromic anemia with reductions in MCV and MCH and elevated Hb A_2, but showed no clinical changes (el-Kalla and Mathews, 1997; Perea et al., 1999; Panyasai et al., 2017; Fucharoen et al., 2002). Occasionally, individuals with this profile experienced weakness, hepatosplenomegaly and jaundice (Shekhda et al., 2017). The compound heterozygosity for Hb S and Hb D-Punjab resulted in moderately severe anemia with a reduction of Hb levels, and in addition to jaundice and hepatosplenomegaly, these individuals also presented clinical symptoms similar to those of sickle cell disease (SCD). Pain due to vaso-occlusive crisis was one of the most common complications, and acute chest syndrome as well as acute splenic sequestration (Torres et al., 2016; Adekile et al., 2010), also occurred in cases of this form. Detailed information was provided in Table 3.

Discussion

In this study, the SMRT sequencing was employed to conduct a population-based genetic screening for hemoglobinopathies among large-scale individuals all over Guangxi, China. The hemoglobin variants, Hb O-Arab and Hb D-Punjab at the same genetic locus, were identified in two unrelated families, with an extremely low frequency among the screened population. Furthermore, we predicted the impact of these two rare variants on the structure of hemoglobin, and conducted a literature review to analyze their origins and genotype-phenotype correlations.

Hb O-Arab was first described in 1960 (Ramot et al., 1960), and was then discovered to cause the substitution of glutamic acid by lysine at residue 122 (Baglioni and Lehmann, 1962). Worldwide, Hb O-Arab was most common in the Pomak village in Greece with an allele frequency of 4.4% (Kuchenbaecker et al., 2022). Its frequency increased due to high genetic drift within the Pomak population, leading to its dispersion throughout the Mediterranean basin and the Middle East, with minor variations in its haplotypic pattern (Papadopoul et al., 2005). To date, Hb O-Arab had been reported in Israeli Arabs (Rachmilewitz et al., 1985), Tunisia (Kalai et al., 2024; Moumni et al., 2011; Nagel et al., 1999), Morocco (Morlé et al., 1984), and Bulgaria (Kantchev et al., 1975). However, to the best of our knowledge, this was the first reported family with the Hb O-Arab variant in the Chinese population, among whom it was expected to have an extremely low occurrence. It was believed that the Hb O-Arab variant originated from the Ottoman Empire, as the high-incidence regions for Hb O-Arab were consistent with the areas colonized by the Ottoman Empire (Elbashir and Elsayed Yousif, 2023). Few clues could be found to support the origin of the variant in this Chinese family. Despite this, the identification of the variant expanded the mutational spectrum of the HBB gene in the Chinese population. It should be declared that this variant had not been included in the routine screening panels in most clinical settings in China, and therefore the true frequency of the variant in the population may have been higher than anticipated. Additionally, heterozygous carriers of the Hb O-Arab variant were clinically asymptomatic and could have been easily neglected in routine screening, resulting in an unusually low detection rate.

By reviewing the reported cases in the literature, we found highly variable phenotypes among individuals carrying the Hb O-Arab variant. The characteristics of Hb O-Arab homozygotes varied from asymptomatic with only mild anemia to mild symptoms, including jaundice, splenomegaly, lassitude, anorexia, and epigastric pain (Efremov et al., 1977; Dror, 2013). The phenotypes of compound heterozygotes for Hb O-Arab and Hb S were similar to those of homozygotes for Hb S disease, presenting with hemolytic anemia, jaundice, and sickle cell disease characteristics (Rachmilewitz et al., 1985). The compound heterozygotes for Hb O-Arab and the β-thalassemia variant typically manifested mild to moderate anemia, and the hematological characteristics and clinical manifestations of individuals with Hb O-Arab combined with β⁰-thalassemia individuals were considerably more severe than those of individuals with Hb O-Arab combined with β⁺-thalassemia individuals (Moumni et al., 2011; Morlé et al., 1984; Kantchev et al., 1975; Rachmilewitz et al., 1985; Kalai et al., 2024), indicating that β-thalassemia variants were the main contributors to the phenotypic variability in these individuals. A previous study reported a four-month-old infant with compound heterozygous Hb O-Arab and β⁰-thalassemia variant (HBB: c.92 + 1G>A), presenting severe manifestations, including neonatal hemolytic anemia and an enlarged spleen (Kalai et al., 2024). However, the proband in Family 1 that we reported did not present with microcytic hypochromic anemia combined with abnormal hemoglobin content, increased bilirubin, icteric sclera, and skin discoloration until the age of 18, suggesting variable severity and onset age of the manifestations in these cases.

Hb D-Punjab, also known as Hb D-Los Angeles, was one of the most common hemoglobin variants worldwide, following Hb S and Hb C. It was most prevalent in India, and also had been found in other countries, including Italy, Spain, Thailand, and so on (Torres et al., 2015). In China, Hb D-Punjab was most common in Xinjiang province, accounting for 55.6% of total abnormal hemoglobin variants (Li et al., 1986). The Hb D-Punjab variant had been reported in both heterozygous and homozygous states as well as in combination with other abnormal hemoglobins such as thalassemia or Hb S. Hb D-Punjab heterozygotes and homozygotes, the rarest form of inheritance, presented no clinical or hematological alterations, but occasionally manifested mild to moderate hemolytic anemia. Usually, the interaction between Hb D-Punjab and β-thalassemia led to mild microcytic and hypochromic anemia, but did not present relevant clinical or hematological changes. However, the co-inheritance of Hb S and D-Punjab resulted in moderate to severe clinical manifestations similar to those of homozygous Hb S. In this study, we observed a heterozygous Hb D-Punjab in the proband from Family 2, who was expected to be asymptomatic. However, the genetic counseling and carrier screening for his partner in the future are still necessary due to the increased risk of having offspring with compound heterozygosity for Hb S and Hb D-Punjab.

The selection of strategies for diagnosing hemoglobinopathies is largely determined by the variant spectrum and prevalence of the variants in the local population. In China, the conventional methods of genetic testing for thalassemia, such as Gap-PCR and PCR-RDB (Polymerase Chain Reaction-Reverse Dot Blot), typically detect only the 24 hotspot variants commonly found in the Chinese population, which cover approximately 95%–98% of α- and β-thalassemia carriers (Li and Ye, 2024). However, various rare and complex variants are booming with global migration. Population-specific assays can not fully satisfy the needs of hemoglobinopathies controlling and prevention, thus optimizing diagnostic strategies and improving testing rates are essential. Compared with conventional methods, the SMRT approach provides the ability to uncover new variations and complex structural rearrangements such as triplications of the α-globin genes which worsen β-thalassemia phenotypes with high efficiency benefiting from its free of PCR amplification during sequencing and use of ultra-long reads (Xu et al., 2024). Furthermore, it can distinguish whether the identified variants are in cis or trans configuration without pedigree analysis (Xu et al., 2020). Recently, the SMRT sequencing has emerged as a reliable method for preconception screening and prenatal testing of hemoglobinopathies (Huang et al., 2024; Liang et al., 2023). Integrating this approach into screening programs for newborns in high-incidence areas who are at high risk of hemoglobinopathies could enhance early diagnosis, enable personalized treatment, support informed decision-making, and ultimately improve public health outcomes for these conditions.

Conclusion

Two rare hemoglobin variants, Hb O-Arab and Hb D-Punjab, were identified in the population-based genetic screening throughout Guangxi, China, using the SMRT sequencing. The first report of Hb O-Arab enriches the spectrum of hemoglobin variants in the Chinese population. Analyzing the frequency, origin, and genotype-phenotype correlation of these variants could pave the way for clinical management and genetic counseling for hemoglobinopathies, including thalassemia. Due to the limited number of subjects enrolled and the complex genotype-phenotype correlation involved, further research based on a larger volume of participants in specific populations is still required to summarize the key hematological and clinical features of these rare variants. This study also verified the SMRT sequencing-based assay as a valuable and comprehensive method for the detection of rare hemoglobin variants.
