Unique target binding by the C-terminal region of FHR1 provides a new perception of aHUS pathology

Abstract

Introduction:

FHR1 is a multifunctional human plasma protein with three C-terminal domains, namely short consensus repeats (SCR) 3–5, showing 98% sequence-identity with the complement inhibitor Factor H. We show that FHR1 uses all three C-terminal SCR to make surface contact. The conserved C-terminal regions of FHR1 and Factor H are altered in patients with atypical-hemolytic-uremic-syndrome. Therefore, we compared FHR1 isoforms with sequence-variations in SCR3, and pathogenic mutants with sequence variations in SCR5.

Methods:

FHR1 binding to apoptotic cells was evaluated EM and fluorescent microscopy and in kidney biopsies. FHR1 and Factor H variants and mutants were generated and expressed. The variants and mutant proteins were tested in binding studies to C3b , C3d and heparin, in hemolytic assays and for the induction of inflammatory cytokines. The action profiles of FHR1 and Factor H were calculated and compared.

Results:

Functional data revealed that residues YVQ vs HLE in SCR3 and LA vs SV in SCR5 altered ligand binding and surface interaction, influenced target recognition and complement control. Amino-acid-sequence variations in SCR3 influenced FHR1 contact with surface constituents, such as glycosaminoglycans. By contrast, SCR5, the most C-terminal domain, was more relevant for C3b/C3d contact. Notably, wild-type FHR1_LA selected C3d, while pathogenic aHUS-associated alterations FHR1_SV selected C3b. In consequence mutant FHR1_SV altered fined-tuned FHR1-directed effector functions while pathogenic Factor H_LA modified C3-convertase control.

Discussion:

This influences timing of complement control and inflammatory effector actions at modified self-surfaces. Pathogenic FHR1_SV, directed to C3b-decorated targets, adds inflammatory activity at a time when C3-convertase control is appropriate and conversely, mutant Factor H_LA adds C3-convertase control at C3d-coated surfaces when inflammatory effector functions are favorable. Further, our computational modeling approach confirms such distinct effects of FHR1 monomers and dimers as compared to flexible Factor H. These effects may explain inappropriate timing of complement regulation and inflammation of the aHUS-derived mutant proteins FHR1_SV and Factor H_LA.

Introduction

The multiple functional human plasma protein FHR1 modulates complement activation, drives inflammatory and innate immune responses (1–3). FHR1 inhibits complement C5-convertase activity and terminal complement complex formation in vitro, and as inflammatory mediator, induces secretion of proinflammatory cytokines (4–8). Further FHR1-gene variants and mutant FHR1-proteins are associated with several human disorders including aHUS, C3 glomerulopathy, and age-related-macular-degeneration (2, 9–12).

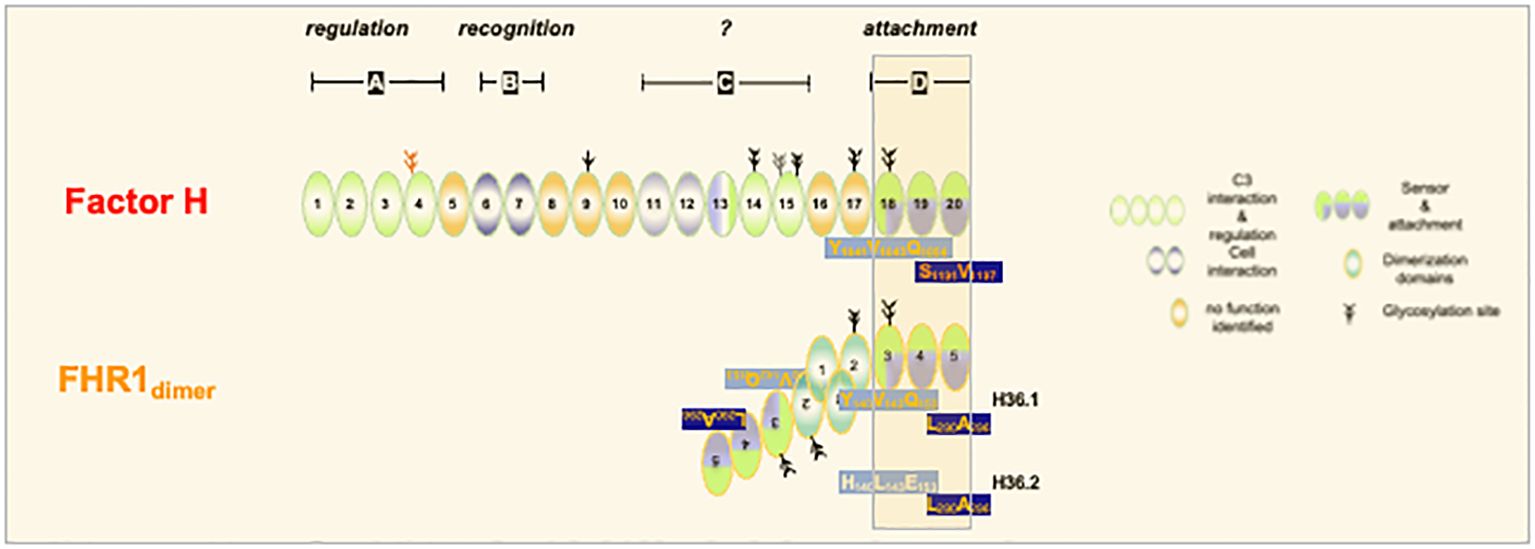

FHR1 is composed of five SCRs and forms dimers via the N-terminal SCRs1-2, which additionally mediate inflammation. FHR1_3-5 show 98% sequence-identity to the three C-terminal SCRs of Factor H. This region includes binding sites for heparin, GAGs, sialic-acids, modified cell surfaces, monomeric C-reactive protein, malondialdehyde, CRP and C3-fragments (12–17). Pathogenic microbes including Borrelia burgdorferi, Candida albicans, Aspergillus fumigatus, Plasmodium falciparum, and Leptospira interogans utilize FHR1 for immune evasion (18–22).

We previously identified two separate cDNA clones termed FHR1-H36.1 and FHR1-H36.2 which show three amino acid variations in SCR3. Clone H36.1 encodes FHR1_Y157V159Q175 and clone H36.2 encodes FHR1_HLE (23). These isoforms have different separation profiles and pI-values: pI FHR1_YVQ 7.10, pI FHR1_HLE 7.53, and they bind differently to C3b (24, 25). The human Genome-Aggregation-Database (26) indicates for Europeans a higher allelic-frequency of FHR1_YVQ.

FHR1 is a member of the FHR-Factor H protein-family, which also includes FHR2, FHR3, FHR4, FHR5, Factor H, and FHL1. All seven of these plasma proteins are exclusively composed of SCR-domains and their genes are located in the FHR-Factor H-cluster on human chromosome 1q32. This cluster is a hot spot for variations and chromosomal rearrangements reported for several human diseases (27).

FHR1 and Factor H are the only members of the FHR-Factor H family that share three almost identical C-terminal-domains. Except for the exchange of LA (FHR1) for SV (Factor H) in the most C-terminal SCR-domain, the three most C-terminal-domains of FHR1_YVQ and Factor show complete sequence-identity. The other family members FHR2, FHR3, FHR4, and FHR5 share two C-terminal SCRs with Factor H but the sequence homology is lower (28, 29).

In aHUS, the two most C-terminal SCRs of Factor H, i.e., SCRs 19-20 are a hotspot for pathogenic mutations (7, 30). These C-terminal SCRs19-20 are characterized by their structure and binding to C3-fragments and pathogenic microbes. SCRs19-20 bind to sialic acids, heparin glucosamine-glycans, and C3b (26, 28, 31–39). At present, it is unclear whether the third most C-terminal domain, SCR3 of FHR1, corresponding to SCR18 in Factor H, is involved in surface contact and recognition (30, 31).

Homozygous deletion of a chromosomal-segment including FHR1 and FHR3 is strongly associated with a risk of developing aHUS, C3-Glomerulopathy (C3G), and systemic-lupus-erythematosus (SLE) (1, 9, 40–48). However, the same deletion protects against IgAN, AMD, and cardiovascular disease (CVD) (6, 49–51) and is also found in about 6–8% of the healthy Caucasian population (6, 52, 53). Furthermore, increased FHR1-levels are reported in ANCA (antineutrophil-cytoplasmic-antibodies) associated-vasculitis and IgA-nephropathy (5, 53); and the allele encoding FHR1_YVQ is enriched in aHUS patients (24).

Chromosomal rearrangements in this FHR-Factor H-gene cluster are represented by intragenic and chromosomal deletions, as well as duplications, resulting in hybrid genes, deleted genes, or in novel hybrid genes. These FHR-variants, FHR::Factor H and Factor H::FHR hybrid-proteins, are expressed, cause pathology (26, 54).

Recently mutant FHR1-genes encoding FHR1_S290V296, which contain the C-terminal region of Factor H and pathogenic Factor H_L1191A1197 harboring the C-terminal domain of FHR1 have been reported in aHUS patients (9, 10, 54–56) (Figure 1). Thus, indicating that residues 290-FHR1/1191-Factor H and residues 296/1197 have a selective role in surface control. C3G-associated FHR1-variants have duplicated N-terminal interaction regions and have an altered FHR1 plasma repertoire (57, 58).

Figure 1

We were interested in determining whether (i) SCR3, the first domain of the conserved C-terminal segment, is part of the recognition region; (ii) the two FHR1 isoforms differ in function, and (iii) LA vs SV-exchange in the most C-terminal domain of FHR1 influences protein function. To this end, we expressed and evaluated both natural FHR1 isoforms, with amino acid variations in SCR3, and generated FHR1 mutants, which in SCR5 have the FHR1-characteristic LA-residues exchanged for Factor H-typic SV-residues, and examined their interactions with the ligands heparin and GAGs, necrotic cell surfaces, and C3b and C3d. Further, we evaluated if the exchange of LA for SV in the most C-terminal SCR of FHR1 influences complement regulation. Last, we developed a three-dimensional to-scale model and in combination with Monte-Carlo simulations show vastly different control regions for FHR1 and Factor H.

Materials and methods

Human serum and antibodies

Normal human serum (NHS) with two copies of FHR1, serum with one chromosomal copy of FHR1 (HS+/Δ) and FHR1-FHR-3 deficient serum (HSΔ/Δ) were collected from healthy individuals, upon informed consent. FHR1 copy numbers were determined by multiplex ligation dependent probe amplification (MLPA); FHR1 and Factor H levels were evaluated by Western Blotting and ELISA. FHR1 was detected either with a monoclonal antibody JHD-7.10.1 (4, 59) or with polyclonal rabbit FHR1 antiserum, which reacts with FHR1 and Factor H. Factor H was detected with M16 antibody (11, 60) polyclonal goat anti-C3 antiserum and polyclonal rabbit anti-C3a antiserum were from CompTech (Tyler, TX).

Cell culture and treatments

HUVECs (CRL-1730; ATCC) were cultivated as described (53). Necrosis and apoptosis were induced as described in DMEM lacking FBS. After washing with PBS, necrotic, apoptotic, or intact cells were incubated with FHR1-variants (10 µg/ml), Factor H or BSA for 30 min at 37°C and evaluated by to flow cytometry. CHO-K1 cells (ATCC CCL-61) were cultivated in Ham’s F-12 medium (61).

Site-directed mutagenesis and protein expression

Recombinant FHR1_YVQ was generated using FHR1 H36.2 cDNA (22). Mutations were introduced H36.1 and H36.2 cDNAs by site-directed mutagenesis according to the manufacturer’s protocol (Stratagene, LaJolla, CA). The following primers were used: FHR1_YVQ_Fwd: 5’-CCGCCCACAGTACAAAATGCTTATATAGTGTCGAGACAGAT-3’ and FHR1_YVQ_Rev: 5’-GGTGAGAGAGTACGTTATCAATGTAGGAGCCCTTAT-3’. Purified Factor H, C3b, C3d, and Factor I were from Complement Technology, Inc (Tyler, TX). In addition, the mutants FHR1_YVQ-SV and FHR1_HLE-SV were generated using FHR1_LA_Fwd: 5’-GCCAAACAGAAGCTTTATTCGAGAACAGGTGAATCAGTTGAATTTGTGTGTAAACGG-3’. After sequencing, the four proteins were expressed in Pichia pastoris and purified as described (62).

Binding assays

Heparin (Fluka), heparan-sulfate, chondroitin-sulfate-A and chondroitinsulfate-4 (Sigma-Aldrich, Taufkirchen) (50 µg/ml in DPBS), were immobilized onto heparin binding plates (EpranEx, BD). C3b, C3d, C3 or iC3b (5 µg/ml) were coated to Maxisorp ELISA plates (Nunc) or heparin binding plates (6). After washing with PBS and blocking (2%; v/v) BSA-PBS) human serum (NHS, HS+Δ, HSΔΔ), FHR1 isotypes or mutants, Factor H or BSA were added at the indicated concentrations. The mixtures were incubated at 37°C for 1h. Bound FHR1 or Factor H were detected using JHD 7.10.1, diluted (1:1000) followed by the corresponding anti-mouse secondary antiserum (1:1000; Dako). OD values were measured at 450nm.

Western blot

Protein extracts from cell lysates or human serum were lysed with RIPA-buffer containing 20 mM Tris, 150 mM NaCl, 1% Triton X-100, supplemented with a cocktail of protease inhibitors (Thermofisher, #PIA32953) separated by 10% SDS-PAGE and proteins were transferred onto nitrocellulose membranes (GE Healthcare) as described (5).

RNA isolation and RT-PCR analysis

Total RNA was extracted from cells with RNeasy (Qiagen, #75144) and from tissues with TRIzol (Thermofisher, #15596018). 1 μg of total RNA was reverse transcribed into cDNA using the iScript™ cDNA Synthesis Kit (BioRad, #1708890). RT-PCR analysis was performed as previously described (5).

Flow cytometry

Binding of FHR1 variants, Factor H, or FHR1 and Factor H C-terminals fragmentsto intact and necrotic HUVECs was determined as described (61). Briefly, cells were incubated with 10 μg FHR1 variants or BSA for 30 min at 37 °C in PBS-BSA 1%. Cells were washed with PBS and bound FHR1 was assessed by staining with JHD-7.10.1 in combination with Alexa Fluor 488 labeled donkey anti-mouse IgG (1:500, Invitrogen). Fluorescence was measured by flow cytometry (LSRII according to FSC/SSC and VD/Annexin).

Complement activation

CHO cells were challenged with complement active HSΔΔ (20%; diluted in activation buffer (20 mM Hepes, 144 mM NaCl, 7 mM MgCl₂, 10 mM EGTA, pH 7.4) in presence of the FHR1 variants (75 µg/ml), Factor H (50 µg/ml) or BSA (50 µg/ml) for 30 min at 37°C. After incubation, and washing and deposited C3b was analyzed by flow cytometry using a FITC-conjugated goat F(ab’)2 anti−human C3 (1:200 (Protos Immunoresearch, CA). C5b9 deposition was determined with mAb C5b (1:200) in combination with appropriate secondary antiserum.

Hemolytic assays

Chicken erythrocytes (CRBC) or sheep erythrocytes (both at 5x10⁶/ml) were treated with FHR1 variants (75 µg/ml) added to complement active HSΔ/Δ (20%) (40). After 30 min incubated at 37°C hemoglobin release was recorded at 414 nm.

Electron microscopy

Apoptotic HUVECs were incubated with FHR1 and Factor H. The JHD10 antibody and Factor H antiserum were added followed by gold labeled specific secondary antiserum. Then the cells were fixed with 2.5% glutaraldehyde, dehydrated and embedded in Epon as described. Samples were then processed as previously reported (63).

Immunohistochemistry

Standard immunohistochemistry was performed in paraffin fixed biopsies obtained from patients with Lupus nephritis and ANCA nephritis (61). Recombinant FHR1 was added to the biopsies and following washing specific FHR1-antiserum was added and detected with appropriate immunolabeled secondary antiserum.

Modeling the action regions of FHR1 and Factor H

A computational to-scale model of FHR1 and Factor H was developed to analyze their respective action regions. This involved an analytical approach to compute the action regions approximated by geometric shapes and millions of Monte-Carlo simulations to explore probable locations of N-terminal SCRs and their distance to C-terminal SCRs for both proteins. Detailed information can be found in the Supplementary Information.

Statistical analysis

Data are represented as mean ± SD. The groups were compared by Student’s t-test or one-way analysis of variance (ANOVA). P-values <0.05 were considered statistically significant. All statistical analyses were performed using Prism 9-software (GraphPad-Software).

Results

FHR1 levels influence Factor H binding

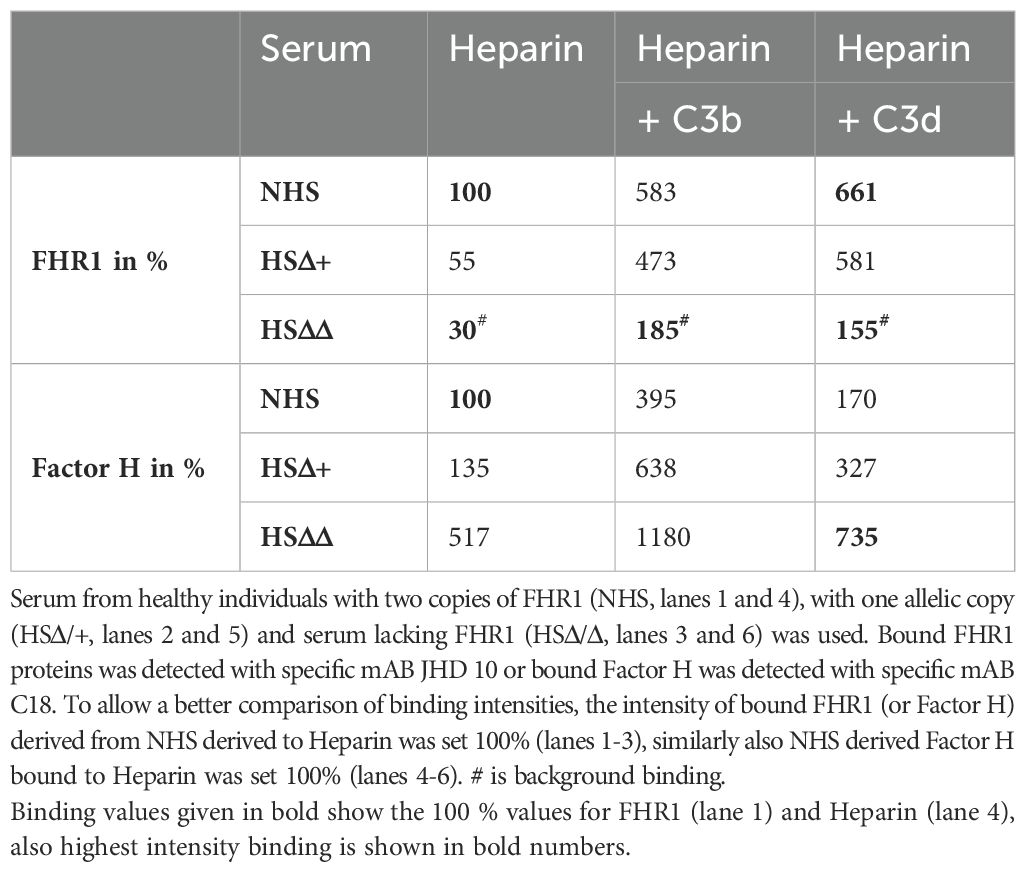

We first assayed binding of FHR1 and Factor H to heparin. For NHS, i.e., serum from individuals with two alleles of FHR1 (HS++), heparin binding was set at 100% (Table 1). For serum from an individual carrying one FHR1 allele, i.e., HS+Δ, FHR1 binding was reduced by 50% (Table 1) and with serum lacking FHR1 (HSΔΔ), binding was reduced to background-levels. Factor H binding increased by 35% with HS+Δ, and by more than 5-fold with HSΔΔ. Thus, FHR1 levels strongly influenced Factor H binding to heparin (Table 1).

The binding of FHR1 to C3b::Heparin and C3d::Heparin combinations was further tested. Using NHS, FHR1 bound 6-fold more to C3b::Heparin and almost 7-fold more to the C3d::Heparin surface (Table 1) than to heparin alone. Factor H binding to the C3b::Heparin combination increased almost 4-fold, but its binding to C3d::Heparin was lower (1.7-fold) (Table 1). FHR1 clearly preferred C3d::Heparin while Factor H preferred C3b::Heparin, suggesting a selective role for surface-attached C3-fragments.

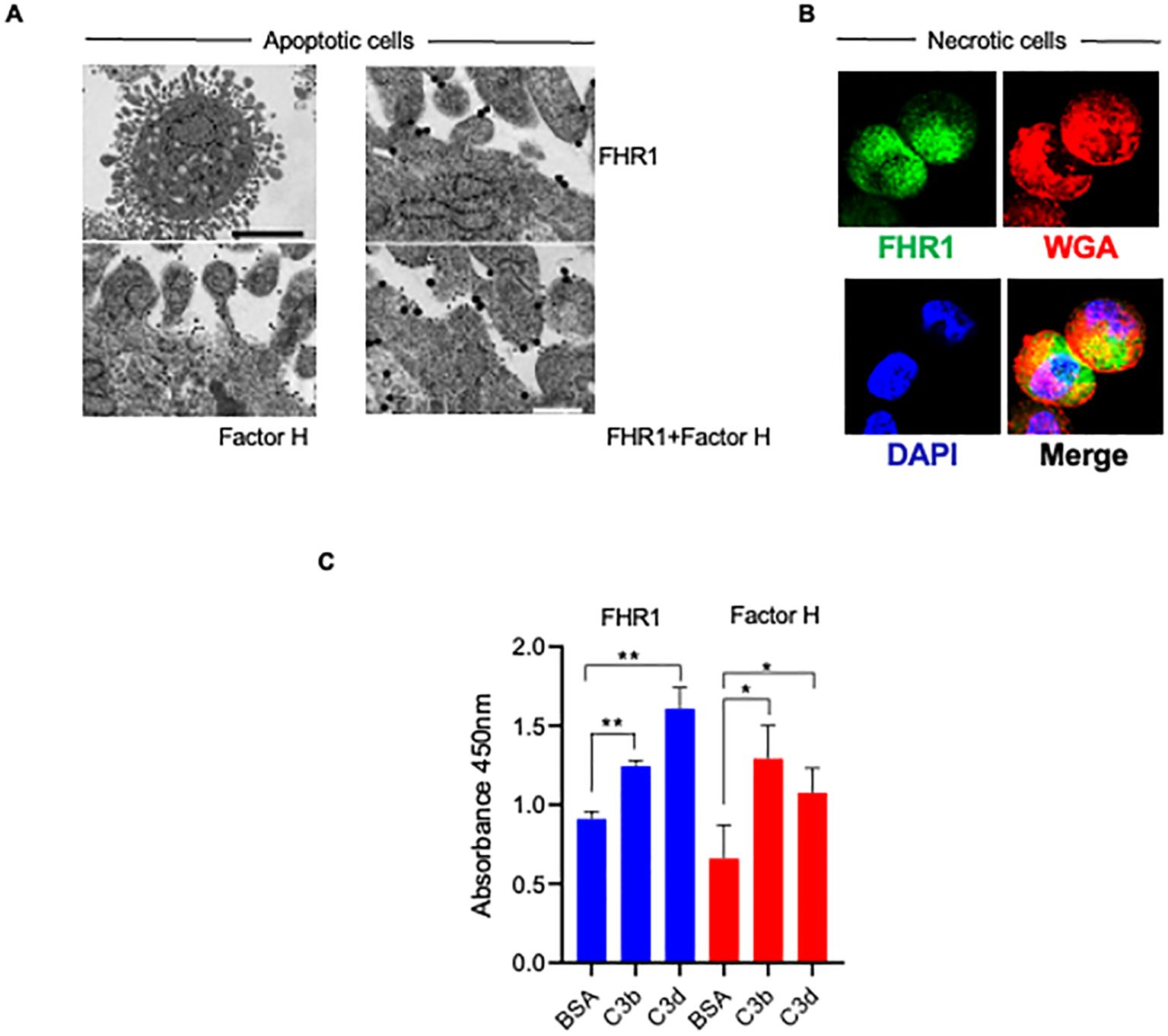

Binding of FHR1_YVQ and Factor H to late apoptotic HUVECs. Apoptotic HUVECs showed morphologic alterations and bleb formation (Figure 2A). FHR1_YVQ bound to apoptotic cells, and adjacent dots revealed that FHR1 bound as a dimer (Figure 2A). Factor H also bound to apoptotic cells, but single and adjacent dots were observed. The double dots could potentially indicate that Factor H binds as a dimer to apoptotic surfaces (Figure 2A). When FHR1_YVQ and Factor H were combined, and proteins were visualized using different sized gold particles, double-dots of different sizes were observed, indicating that FHR1 and Factor H colocalize at surfaces. Altogether, the results suggest that FHR1_YVQ bind to apoptotic surfaces as a homodimer, and that it could potentially form heterodimers with Factor H (Figure 2A).

Figure 2

Confocal microscopy revealed that FHR1_YVQ bound at low levels to intact HUVECs and more to necrotic HUVECs. FHR1 binding was most prominent at sites where membrane integrity had been lost, i.e., sites lacking WGA-staining (Figure 2B, Supplementary Figure S1).

Given their different binding strengths to C3d/C3d::Heparin combinations, we directly compared FHR1 and Factor H binding to C3b and C3d. FHR1_YVQ bound to immobilized C3b, but it bound more strongly to C3d (Figure 2C) and Factor H showed the opposite profile bound more strongly to C3b and less to C3d (Figure 2C).

FHR1 deposition was evaluated in diseased glomeruli. FHR1 revealed granular positivity in close proximity to necrotic segments in ANCA-associated necrotizing glomerular areas (Figure 3A). In Lupus nephritis FHR1 bound strongly to tissue areas within the immune complexes (Figure 3B). FHR1 deposition at specific sites in glomeruli of the two kidney diseases agrees with a local action of this effector protein.

Figure 3

FHR1 isoforms regulate complement differently

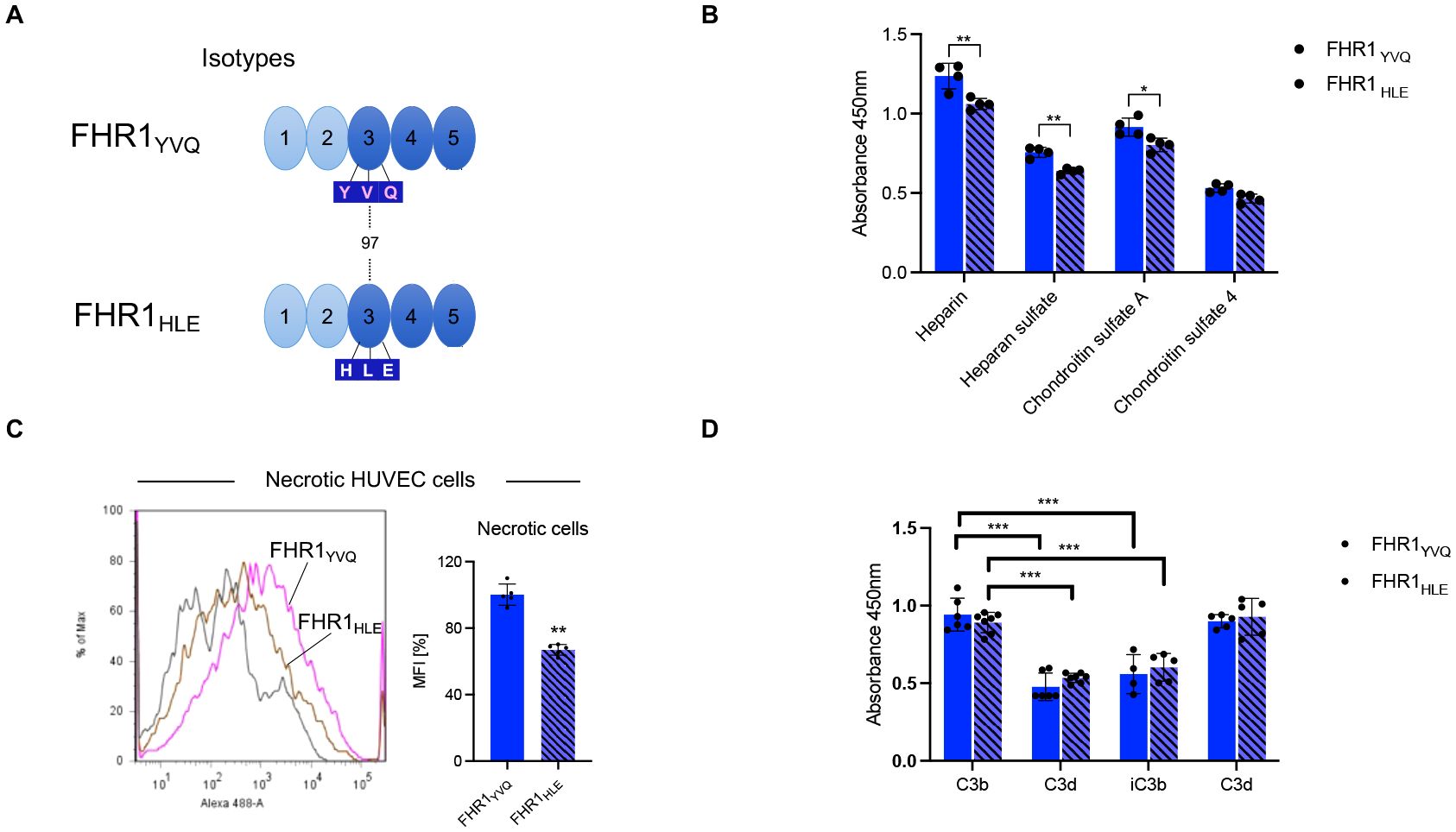

FHR1_YVQ and FHR1_HLE differ by three amino acids in SCR3. Both variants are common in the European population but whether they are functionally different is unclear (Figure 4A, Supplementary Figure 1) (25). To determine whether the amino acid differences alter ligand binding and complement action, we first assessed their binding to heparin and GAGs. Both isoforms bound to heparin, heparan-sulfate, chondroitin-sulfate-A, and chondroitin-sulfate-4 (Figure 4B, Supplementary Table 1). The FHR1_YVQ variant bound slightly better than the FHR1_HLE variant to all four ligands, and the higher binding of FHR1_YVQ to heparin, heparan-sulfate, and chondroitin-sulfate-A was significant. In addition, both variants bound to necrotic HUVECs. Again, FHR1_YVQ bound better to necrotic HUVECs than FHR1_HLE (~25%) (Figure 4C). Binding to C3 and C3-activation fragments revealed that both isoforms bound better to C3 and to C3d than to C3b and iC3b (Figure 4D). FHR1_HLE bound less to C3d than FHR1_YVQ. The differences for heparin and C3d binding demonstrate that SCR3 also contributes to ligand binding.

To evaluate complement regulation, each variant was added to active HSΔ/Δ serum and following incubation, C3b and C5b-9 deposition were recorded. Neither isoform affected C3b deposition (Figure 4A). Factor H, used as a control, reduced C3b deposition (data not shown). However, both isoforms reduced C5b-9 deposition and chicken erythrocytes lysis (Figures 4B, C). FHR1_HLE showed ~20% higher inhibitory effect than FHR1_YVQ. Thus, SCR3 contributes to ligand binding, surface recognition, and complement control.

Figure 4

FHR1 induces inflammatory cytokines

To compare their proinflammatory effects FHR1-variants were added to HSΔ/Δ and the supplemented serum was added to THP1-macrophages. Both isoforms induced IL-1β and TNFα secretion and FHR1_HLE was around 25% more effective than FHR1_YVQ (Figure 4D). Similarly, when added together with LPS, both isoforms enhanced cytokine releases and again, FHR1_HLE was more effective (Figure 4D). Thus, SCR3 influences FHR1 mediated C5b-9 deposition, hemolysis, and secretion of proinflammatory cytokines.

C-terminal FHR1-Factor H-fragments affect complement control

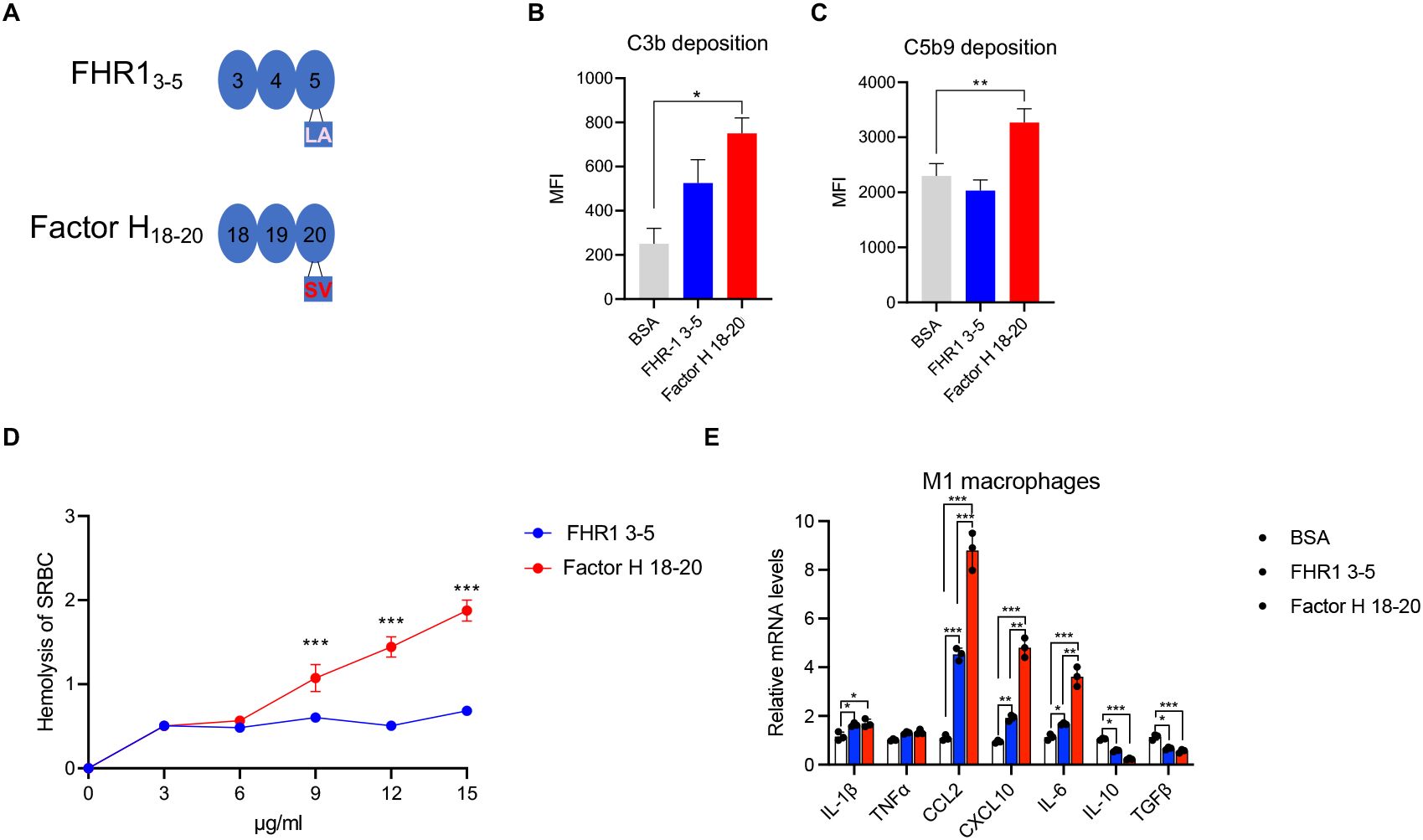

The biological effects of the C-terminal fragments, which lack the N-terminal interaction and regulatory-regions, i.e., FHR1_3-5 with LA and Factor H_18-20 with SV-motifs, were compared (Figure 5A, Supplementary Figure 1B).

Figure 5

FHR1_3-5 or Factor H_18-20 were added to HSΔ/Δ and following incubation, C3b-deposition was examined. FHR1_3-5 increased C3b-deposition, but Factor H_18-20 was more effective (Figure 5B). However, FHR1_3-5 reduced and Factor H_18-20 increased C5b-9 deposition (Figure 5C). These opposite effects highlight the relevance of the LA and SV-residues for target access and complement control. FHR1_3-5 and Factor H_18-20 at 3.0 ug/ml had similar effects on erythrocyte-lysis. At higher doses, lysis by FHR1_3-5 reached a plateau, but Factor H_18-20 continued to increase lysis dose dependently (Figure 5D). Furthermore, both fragments induced CCL2, CXC10, IL6 transcription in human monocytes (Figure 5E). However, Factor H_18-20 induced a 2-fold higher CCL2 expression levels than FHR1_3-5.

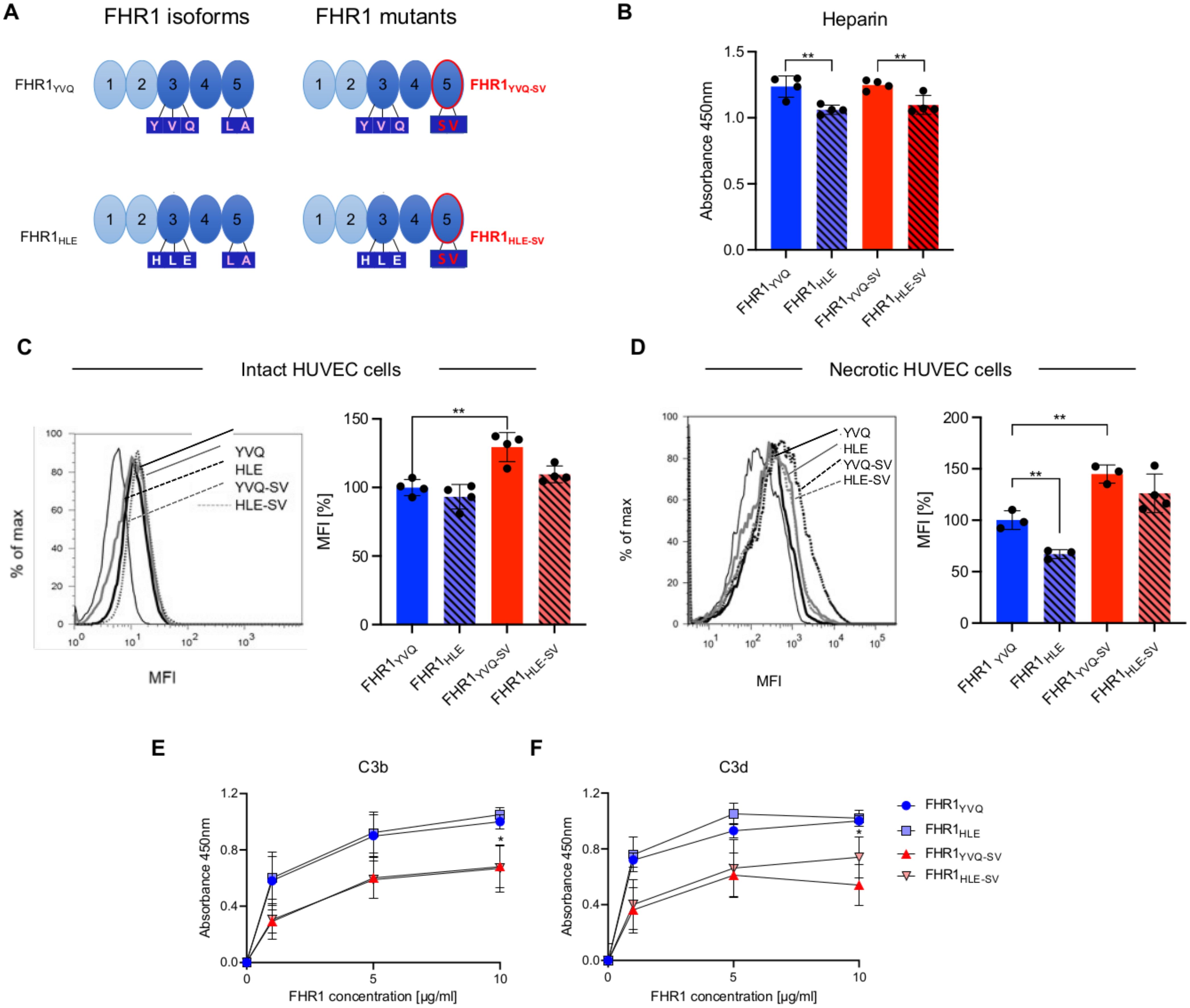

FHR1_YVQ-SV mutants induce complement activation and in inflammation

The effects of the C-terminal fragments suggest that residues 290/296 of FHR1 influence complement functions. To show this more clearly, we generated FHR1_YVQ and FHR1_HLE mutants containing the Factor H_SV motive in SCR5 (FHR1_YVQ-SV and FHR1_HLE-SV) (Figure 6A, Supplementary Figures S1A, B). FHR1_YVQ-SV and FHR1_YVQ bound more strongly to heparin, heparan-sulfate, chondroitin-sulfate-A, and chondroitin sulfate-4 than did FHR1_HLE and FHR1_HLE-SV (Figures 5B, 6B, Supplementary Table 2), confirming the importance of SCR3 and SCR5 for heparin and GAG binding.

Figure 6

FHR1_YVQ-SV and FHR_HLE-SV mutants bound more strongly to necrotic HUVECs than did wild-type equivalents (Figures 5C, 6C, D). The FHR1-mutants bound less (~20%) to C3b and C3d than did their wild-type counterparts (Figures 5D, 6C, D), confirming that the LA-SV residues in SCR5 influence FHR1 binding to necrotic surfaces and C3b/C3d.

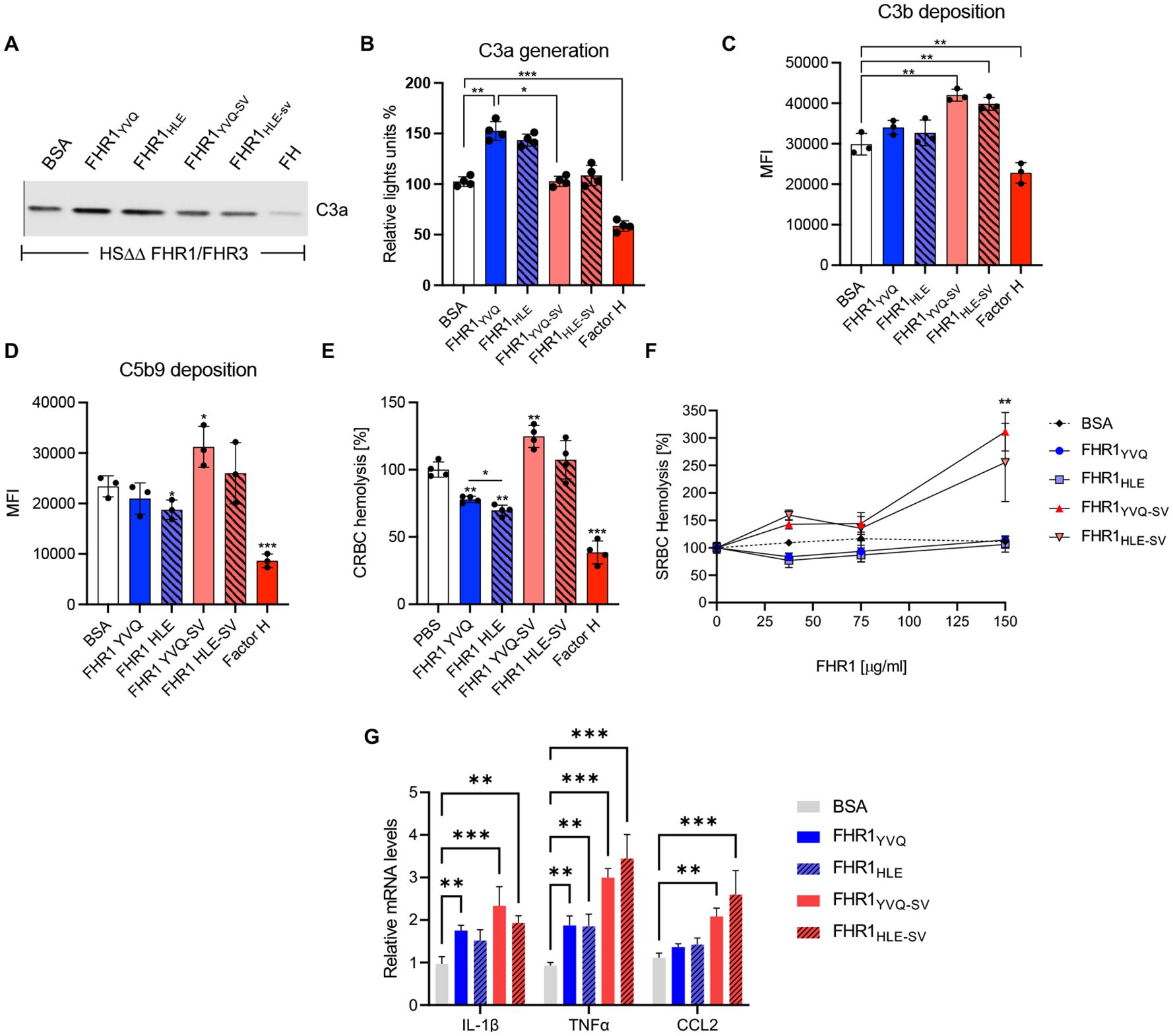

FHR1_YVQ-SV mutant promotes complement activation and inflammation. Both proteins with the YVQ-motif did affect C3a-generation to a larger extent than the YVQ forms (Figures 7A, B). Full-length Factor H reduced C3a-generation. By contrast, both FHR1_SV mutants increased C3b-deposition (by 35% and 30%), while the FHR1-isoforms showed minor effects (Figure 7C).

Figure 7

Both FHR1_SV-mutants also increased C5b-9 deposition (35% and 30%), whereas the FHR1 isoforms reduced C5b-9 deposition (Figure 7D). Factor H reduced C5b-9 deposition by 80% (Figure 7D). Similar effects were observed for erythrocyte lysis. Both FHR1-isoforms reduced chicken erythrocyte lysis by 25% and 30%, whereas both FHR1_SV-mutants increased chicken erythrocyte lysis by 25% and 18% (Figure 7E). The increase in lysis by the FHR1_SV-mutants was dose-dependent (Figure 7F). These opposite effects of the FHR1 variants and FHR1_SV-mutants show that the LA-SV residues play an important role in complement control at surfaces.

FHR1 mutants - effect on complement activation

The effect of the FHR1 variants and FHR1 mutants were tested on complement activation with FHR1 deficient complement active human serum. C3a generation upon addition of FHR1_YVQ, FHR1_HLE and also of FHR1_YVQ-SV, FHR1_HLE-SV to HSΔΔ resulted in C3a (Figures 8A, B). Factor H showed reduction. Similarly, the FHR1 variants and mutants influence C3b deposition and the effects were different to Factor H. (Figure 8C). The FHR1 variants were less efficient in C3b generation as compared to the FHR1 mutants, with the SV motive in the most C-terminal SCR. This effect can be interpreted by a more efficient competition of Factor H. Highly related effects were observed for C5b-9 deposition (Figure 8D) and lysis of both chicken and sheep erythrocytes (Figures 8E–G).

Figure 8

Surface FHR1 and Factor H control different regions

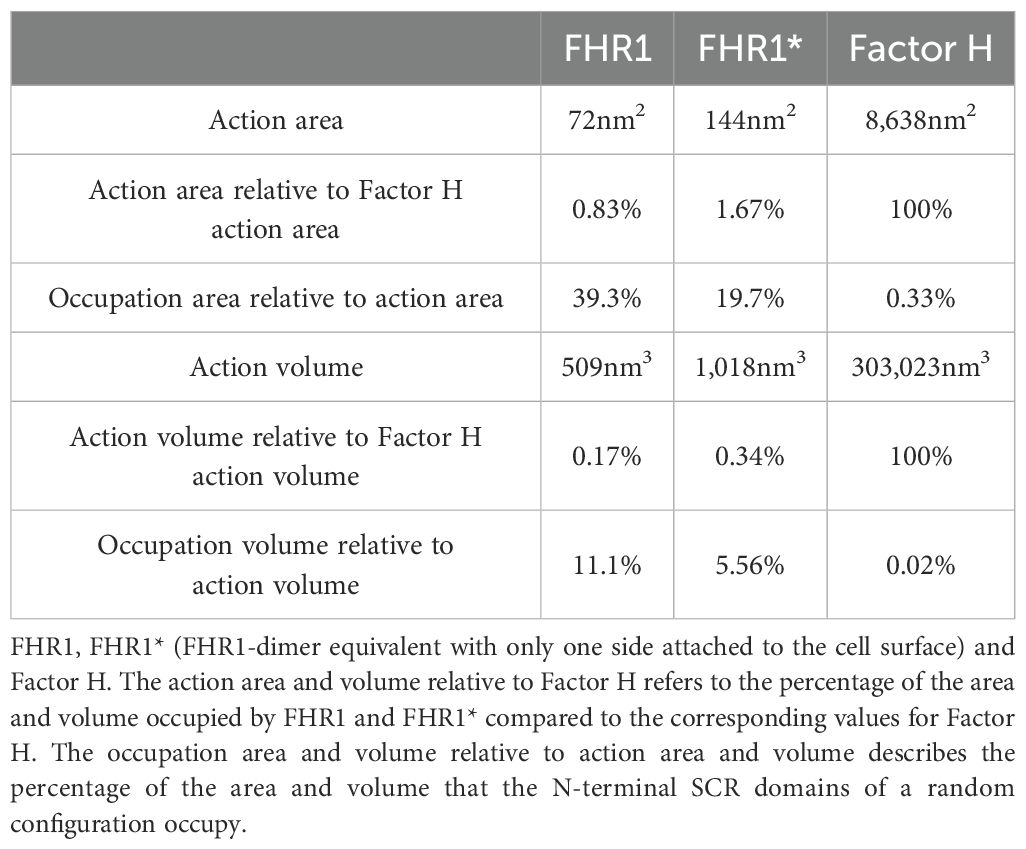

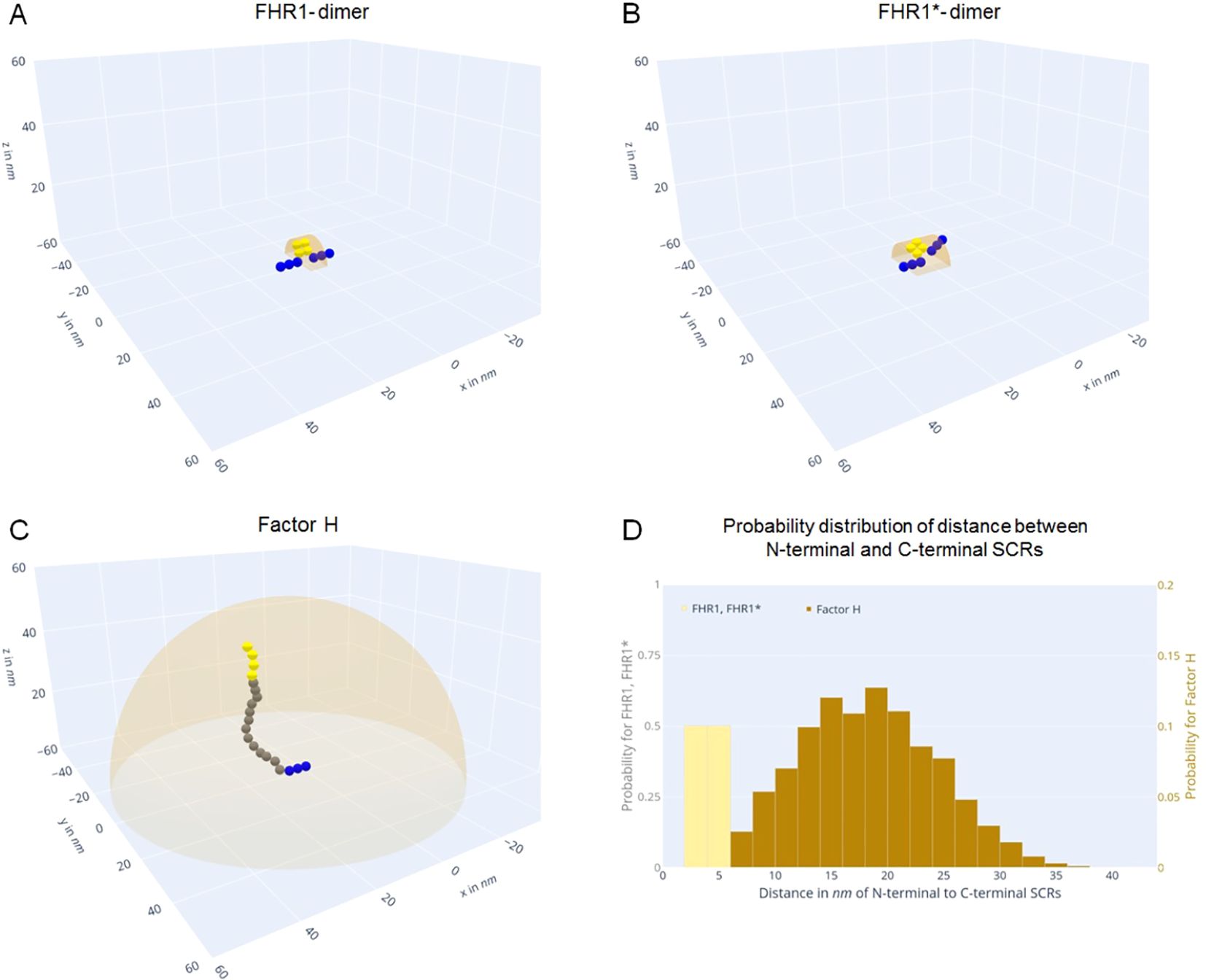

When bound via their C-termini FHR1 and Factor H control different surface areas or three-dimensional hemispheres. Our modeling approach revealed that FHR1-dimers attached via its C-termini control a rectangular area of 72 nm² and a hemicylinder with a volume of 509 nm³. Its N-terminal region occupy about two-fifth (39.3%) and one-tenth (11.1%) of its corresponding surface area and volume respectively (Table 2, Figure 9A). The FHR1*-dimer, an FHR1-dimer with only one C-terminal domain attached, can bend in two dimensions and controls twice the surface area and volume of the FHR1-dimer, yet occupies only half of its corresponding surface area and volume (Table 2, Figure 9B). By contrast, Factor H which exposes a flexible 17SCRs-long segment, controls a large circular surface area of 8,638 nm² and a hemisphere with a volume of 303,023 nm³. The N-terminal SCRs of one Factor H occupy 0.33% of its surface area and only 0.02% of its volume (Table 2, Figure 9C). However, Factor H is able to reach over 100 (50) times the surface area and over 500 (250) times the volume of FHR1 (or FHR1*) (Table 2). Interestingly, probable locations of N-terminal SCRs of FHR1 and FHR1* are uniformly distributed regarding their distance to the C-terminal SCRs (Figure 9D, Supplementary Videos 1, 2), while for Factor H, distances from C-terminal SCRs to probable locations of N-terminal SCRs form a normal distribution (Figure 9D, Supplementary Video 3). This reveals compelling differences in the action radius of both proteins.

Figure 9

Discussion

To define the role of FHR1 and the FHR1::Factor H interplay at target surfaces, and delineate the pathogenic role of FHR1_SV mutants, we characterized how sequence variations in SCR3 and SCR5 affect ligand recognition and complement action. SCR3 of FHR1 (corresponding to Factor H SCR18) contributed to target recognition. YVQ-HLE variations influenced heparin, GAG-binding, attachment to necrotic surfaces, and assisted in C3b and C3d binding. Variations in SCR5 (SCR20 of Factor H) altered binding profiles and complement regulation at target surfaces. Wild-type FHR1_LA interacted selectively with C3d, and Factor H_SV selectively with C3b, but pathogenic FHR1_SV switched its preferred interaction partner to C3b. Such altered surface contact by the aHUS-mutant modified C5b-9 deposition and hemolysis.

FHR1 inhibits the terminal pathway, blocks hemolysis, and induces cytokine and chemokine synthesis (3, 5). Here we showed that FHR1 prefers C3d and uses its C-terminal recognition-region to contact C3d, GAGs and surface ligands, simultaneously. Furthermore FHR1 plasma levels influenced Factor H access to C3b/C3d::Heparin combinations and balanced local Factor H-mediated C3 convertase control vs FHR1-mediated C5b-9 control and inflammation.

SCR3 of FHR1 mediates target recognition, binding to C3d, GAG-binding, and contact to necrotic surfaces and is part of the recognition- region. The FHR1_YVQ and FHR1_HLE variants bound with different strengths to heparin, heparan-sulfate, chondroitin-sulfate-A, and chondroitin-sulfate-4. FHR1_HLE bound ca 15% more weakly to necrotic surfaces, but binding to C3d and C3b was affected to a minor degree. However, an additional heparin-binding element is also localized in the most C-terminal domain of Factor H (53, 57, 64), suggesting that the C-terminal region can bind to heparin, GAGs and/or sialic acids via two separated cooperating sites; one located in SCR3 (Factor H_SCR18) and the other in SCR5 (Factor H_SCR20) (15, 53, 57). The FHR1_HLE variant was functionally more efficient for controlling C5b-9 deposition, hemolysis, and cytokine synthesis. Thus SCR3 is relevant for heparin and GAG binding, and sequence variations in SCR3 influence surface contact and local complement control.

FHR1_SV-mutants displaying the Factor H_SV-motif in SCR5 had different binding profiles to wild-type FHR1, and resulted in higher C5b-9 deposition and hemolysis, demonstrating the importance of residues 290 and 296 for C3b/C3d contact, protein function and explaining a pathophysiological role of the LA-vs-SV exchange. The preference of FHR1 for C3d and Factor H for C3b selects functionally different proteins and adjusts complement control at surfaces. Thereby adjusting C3-convertase inhibition vs C5-b9 inhibition and inflammatory effector functions.

Cell surfaces displaying carbohydrates, together with deposited C3b or C3d, provide different binding affinities for FHR1 and Factor H. Thus, the surface composition and C3-fragments can select for regulator vs effectors. Modified surfaces with specific GAG-profiles together with C3 fragments can select functionally distinct proteins and thereby adjust regulator vs modulator attachment. Such surface-characteristics apparently influence spatiotemporal complement dynamics, directing C3-convertase control, C3b-processing, and inflammatory opsonophagocytosis (2, 53). Using immunoelectron microscopy, we found that FHR1-homodimers attach to apoptotic surfaces and interestingly, also FHR1::Factor H heterodimers were identified.

Modeling the action regions of FHR1 and Factor H shows that Factor H controls more than 100 (500) times the surface (volume) of FHR1. However, this can be associated with limitations of different types; while FHR1-dimer configurations occupy a large proportion of their corresponding action region, the N-terminal of Factor H configuration only occupies 0.33% (0.02%) of its action area (volume) (Supplementary Videos 1–3). This indicates a rapid binding proclivity for FHR1, because potential binding partners in their controlled region must already be close (6nm) to the corresponding N-terminal SCRs, which is not the case for Factor H (Figure 9D). These binding profiles and diverse dimensions of controlled regions, show for FHR1 a rather restricted action region than for Factor H, highlighting unique local functions.

The altered binding profiles of wt FHR1_LA, vs FHR1_SV and Factor H_LA-mutants cause different complement regulation at target-sites, which could explain aspects of aHUS-pathogenesis. The Genome-Aggregation-Data-base (GenomAD) describes the FHR1-variations at 290 and 296 as missense exchanges of likely pathogenic relevance. We show however that the FHR1_SV, Factor H_LA mutants have significantly altered ligand and target binding properties and opposite functions in C5b-9-deposition and hemolysis compared to wide type FHR1_LA fragments. This is in line with the different binding characteristics of full-length FHR1 and Factor H to heparin and glycosaminoglycans, as shown here and as reported (23, 43, 53, 63). Furthermore, structural data on aHUS-mutants in Factor H_SCRs19-20 suggested that the pathogenic LA-residues are ‘buried mutations’ that might alter the domain-fold (23, 43, 53, 63, 65). The LA or SV exchange appears to induce structural alterations that alter ligand interaction and affect complement regulation. In consequence, pathogenic FHR1 and Factor H aHUS-mutants show disturbances in their recognition profiles and interactions at endothelial surfaces under complement attack (66, 67).

The opposite effects of FHR1_SV and Factor H_LA-mutants show that LA and SV residues drive selectivity and influence surface targeting. The aHUS-associated, pathogenic FHR1_SV and Factor H_LA mutants increase the number of already known recognition and regulatory regions of FHR1 proteins combinations of recognition and regulatory regions. Both mutant proteins provide new combinations of the N-terminal dimer forming region (FHR1) or the regulatory region (Factor H) with alternate recognition segments. The Factor H_LA mutant attached to C3d coated surfaces adds C3-convertase control and cofactor activity at the stage when C5b-9 inhibition and inflammatory effector action is required. Similarly, FHR1_SV attached to C3-convertases or to C3b-coated surfaces displays C5b-9 inhibitory and inflammatory functions at a stage when C3 convertase regulation or cofactor activity is required. Thus, altered surface targeting of mutant FHR1_SV and Factor H_LA cause complement deregulation, which could explain aHUS pathology.

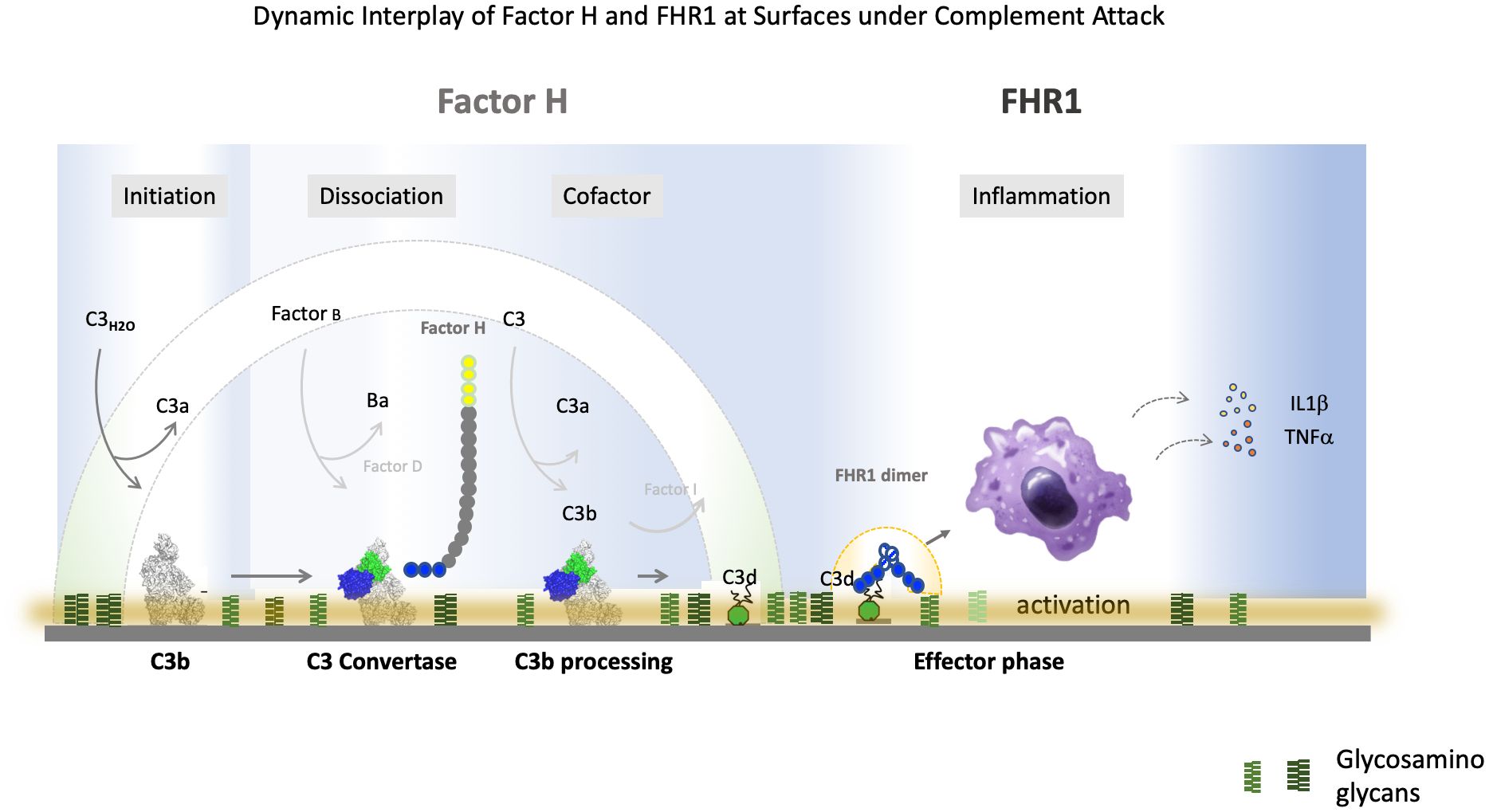

This study reveals a dynamic interplay of FHR1 and Factor H at complement activating surfaces. Despite their overall similarity, the recognition regions of the two proteins are functionally distinct and have differential effects on temporal complement control. Factor H controls immediate complement action at the C3 convertase level. FHR1 acts when deposited C3b is processed to C3d and then drives a secondary inflammatory response. Thus altered surface actions of the aHUS-associated mutants, FHR1_SV and Factor H_LA, adds a new chapter to our current understanding of misdirected complement activation at surfaces in aHUS patients.
