Abstract
In recent years, there has been an increased interest in exploring the potential synergy between nanotechnology and nuclear medicine. The application of radioactive isotopes, commonly referred to as radiopharmaceuticals, is recognized in nuclear medicine for diagnosing and treating various diseases. Unlike conventional pharmaceutical agents, radiopharmaceuticals are designed to work without any pharmacological impact on the body. Nevertheless, the radiation dosage employed in radiopharmaceuticals is often sufficiently high to elicit adverse effects associated with radiation exposure. Exploiting their capacity for selective accumulation on specific organ targets, radiopharmaceuticals have utility in treating diverse disorders. The incorporation of nanosystems may additionally augment the targeting capability of radiopharmaceuticals, leveraging their distinct pharmacokinetic characteristics. Conversely, radionuclides could be used in research to assess nanosystems pharmacologically. However, more investigation is needed to verify the safety and effectiveness of radiopharmaceutical applications mediated by nanosystems. The use of nano-radiopharmaceuticals as therapeutic agents to treat various illnesses and disorders is majorly covered in this review. The targeted approach to cancer therapy and various types of nanotools for nano-radiopharmaceutical delivery, is also covered in this article.
Introduction
Numerous commonly accessible radiopharmaceuticals are used for illustrating the structure and operation of bodily tissues, organs, and cells. These radiopharmaceuticals are designed to treat a variety of cancers, joint problems, pain relief from bony metastases, and numerous other conditions of a similar nature. Essentially, nuclear medicine constitutes a medical discipline that employs radiotracers and carrier molecules to visualize the local biochemistry of the body. Impacts on organ absorption, retention, transportation, and biological distribution toward the targeted location depends on the biochemical properties of the carrier molecule and radiotracer. Thus, for a deeper understanding, it is imperative to comprehend the biochemistry of radiopharmaceuticals (1). Nuclear pharmacists need to be aware of the action process, or how radiopharmaceuticals localize and start working. This knowledge is crucial to evaluate the pharmacokinetics and substrate specificity of the labeled medication.
According to Vallabhajosula et al., radiopharmaceuticals (2) offer us the chance to do prompt diagnostics utilizing blood flow, multimolecular cellular localization, bioenergies, tissue metabolism, the physiological activity of the specific organ, and intercellular and intracellular signaling networks. Depending on how each organ functions, distinct radiopharmaceuticals are utilized to scan different organs. Because inorganic iodine is more readily absorbed in the thyroid, labeled iodine, for instance, would be perfect for imaging thyroid cancers. In a similar vein, radiolabeled phosphate is frequently utilized for bone scans because it has been found that phosphate ions accumulate greater in bone. As a result, since tagged atoms are more concentrated in organs, they can be used for organ imaging. Numerous radiopharmaceutical agents in various phases of clinical development or already commercialized are presented in Table 1.
Table 1
| Radiopharmaceutical | Disease/disorder | Company name | Development phase/ commercial | Clinical phase identification number | References |
|---|---|---|---|---|---|
| 177Lu-labeled PSMA-617 | Metastatic Castration-Resistant Prostate Cancer | Endocyte | Phase 3 | NCT03511664 | (3) |
| 177Lu-labeled NeoBOMB1 | GRPR over expressing tumor | Novartis | Phase I/IIa | NCT03872778 | (4) |
| 166Ho microspheres | Unresectable Hepatocellular Carcinoma | Marnix Lam, UMC, Utrecht | Early Phase II Study | NCT05114148 | (5) |
| 166Ho microspheres | Neuroendocrine Tumors | Terumo | ā | NCT02067988 | (6) |
| 177Lu-labeled PSMA-R2 | Metastatic castration-resistant prostate cancer (mCRPC) | Advanced Accelerator Applications | Phase 1/2 study | NCT03490838 | (7) |
| 225Ac-labeled aCD38 | Multiple myeloma | Actinium Pharmaceuticals | Open label Phase I trial | NCT02998047 | (8) |
| 177Lu-labeled CTT-1403 | Prostrate cancer | Cancer Targeted Technology | Phase 1 clinical trial | NCT03822871 | (8) |
| 227 conjugate PSMA-TTC | Metastatic Castration Resistant Prostate Cancer (mCRPC) | Bayer | Phase 1 | NCT03724747 | (9) |
| 227Th-labeled aCD22-TTC (BAY 1862864) | Lymphoma, non-Hodgkin | Bayer | Open-label Phase I | NCT02581878 | (10) |
| 227Th-labeled MSLN-TTC | Mesothelin tumor | Bayer | Phase I/II | NCT03507452 | (11) |
| 225Ac-labeled FPX-01a | Lung cancer | J&J / Fusion Pharma | Phase I | NCT03746431 | (8, 12) |
| Radium-223 chloridea | Bone metastasis | Bayer | Commercialized | ā | (13) |
Radiopharmaceuticals in various clinical development phases.
a-alpha emitter based radiopharmaceutical therapy (RPT) agents.
There is an abundance of mechanisms via which radiation therapy affects cancer cells. The principal applications of high-energy ionizing radiations, such as gamma rays and X-rays, involve ionizing water or biological components. In selective scenarios, particulate radiations like electron, proton, or neutron beams and alpha or beta particles are utilized to target cancerous tissues. As a major constituent of cellular composition, water is the principal target for ionizing radiations. These radiations induce the lysis of water molecules through radiolysis, resulting in the generation of charged species and free radicals, including hydroxyl radicals (OHā¢), hydrogen radicals (Hā¢), superoxides (O2ā), and charged water species such as H2O+ and H2O+. In contrast to chemical lysis, this radiolysis process occurs due to the impact of radiation. Although many other biological components are harmed, DNA is the main target of ionizing radiation and radicals. Free radical interaction with cell membrane structures also results in structural damage that triggers apoptosis. The hydroxyl ion is well-documented as a primary initiator of lipid peroxidation and cellular damage. Empirical evidence has illustrated that interaction with lipid bilayers enhances cellular permeability (14).
Medical and scientific research has garnered much interest in nanomaterials (15). In their early iterations, significant amounts of drug were first delivered using nanoparticles as delivery agents. Subsequently, radionuclides were used to tag nanomaterials to investigate in-vivo biodistribution, pharmacokinetics, and pharmacodynamics. Nanomaterials attached to radionuclides have become increasingly promising for cancer treatment. Common characteristics of these formulations include high surface area-to-volume ratios, efficient radionuclide loading and labeling, and straightforward synthesis, enabling the production of constructs with diverse physico-chemical characteristics, shapes, and sizes.
Nanomaterials have a few other characteristics in addition to the ones stated above that may make them appealing for use in medicine. One of these is the ability to easily build nanotheranostics by multiplexing therapeutic and diagnostic radionuclides onto the same nanomaterial framework. Nanomaterials can be customized with vectors with homing components specifically designed to bind to overexpressed receptors on tumor cells. This enables the radiolabeled nanomaterial with several functions to engage with the target site via various receptors, resulting in increased selectivity and accumulation at higher concentrations (16). In addition to these characteristics, nanomaterials may be able to lower associated side effects and boost specificity (17). In principle, nanomaterial-based formulations can potentially augment both the conventional imaging capabilities and therapeutic efficacy of radionuclides. Additionally, they can be readily tailored to address specific limitations inherent in traditional radionuclide therapy. Based on these potentialities of nanomaterials, the present review focuses on using nano-radiopharmaceuticals as therapeutic agents for treating various diseases/disorders.
Targeted approach for cancer therapy employing radiopharmaceuticals
Exploiting specific characteristics of tumors, such as angiogenesis and the distinct tumor microenvironment that differentiates it from the vasculature and surroundings of normal tissues, intravenously administered nanostructures exhibit a notable predilection for tumor accumulation over normal tissues (18). This is referred to as the EPR effect, a physiological phenomenon characterized by increased absorption and decreased clearance, permits passive buildup of nanostructures in tumors without causing comparable accumulation levels in nearby normal tissues (19). The targeting approach employing radiopharmaceuticals to target cancer cells is illustrated in Figure 1.

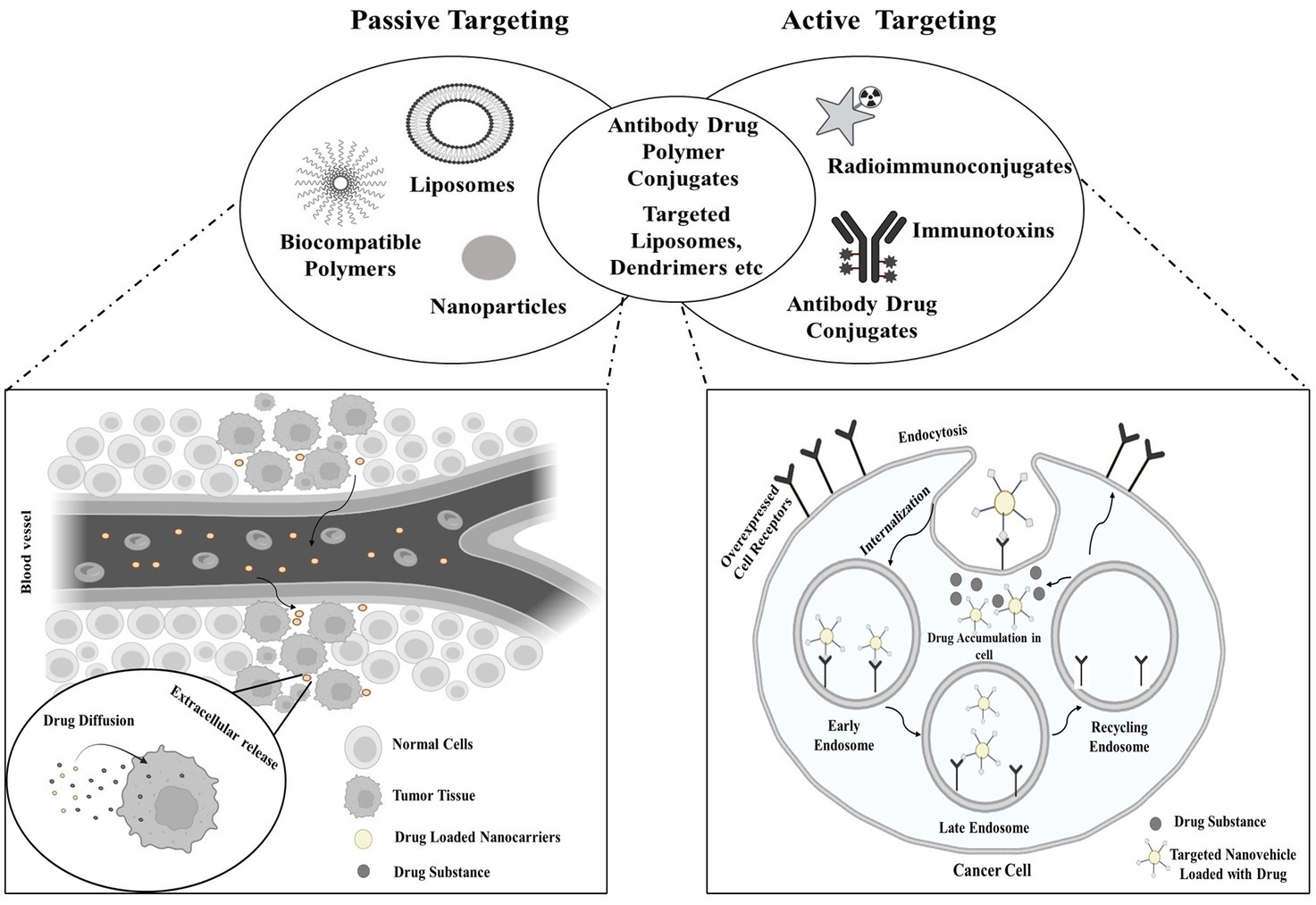

Figure 1
Passive targeting encompasses the infiltration of the targeting agent into the tumor site via permeable blood vessels and other components generated by the tumor. This involves the agent traversing the bloodstream to reach the tumor site and subsequently accruing at the tumor site due to insufficient drainage mechanisms. The effectiveness of the radiopharmaceutical in this form of targeting is dependent on the circulation time. For passive targeting, a variety of polymer-radiopharmaceutical combinations have been studied (20). The biological interaction of radiopharmaceutical agents with tumor surfaces is known as active targeting. In active targeting, the radionuclide is conjugated to tumor-specific vectors (such as peptides or antibodies), with or without the incorporation of chelators. Tumors with poor permeability are most suited for active targeting, which identifies certain cells within the tumor milieu (21).
Types of nanotools for the delivery of nano radiopharmaceuticals
An array of nanotools have been widely investigated in the past years for the delivery of therapeutics in order to treat a number of diseases (Figure 2). The following section enlists a handful of nanotools for the delivery of nano radiopharmaceuticals.
Polymeric nanoparticles

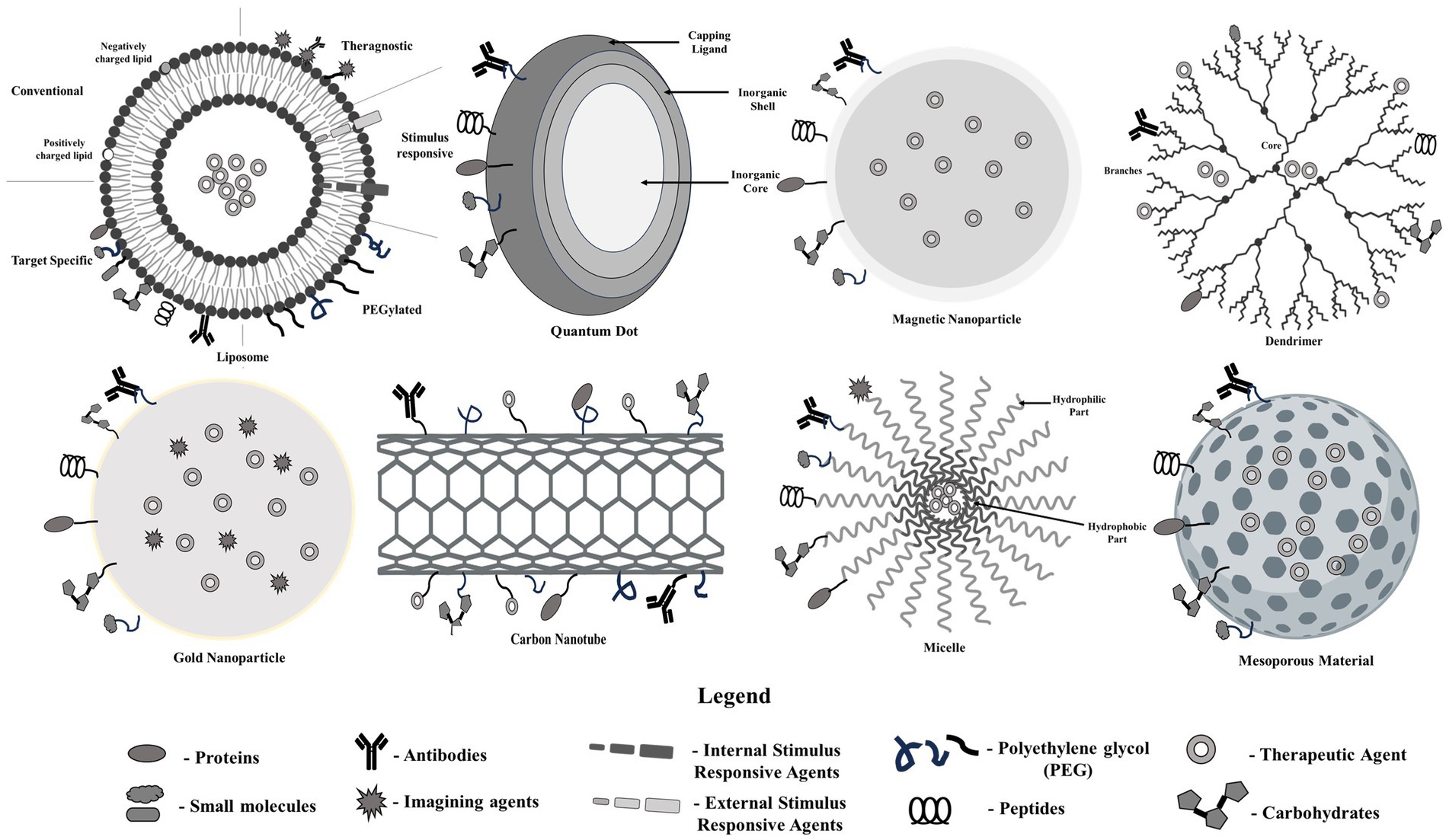

Figure 2
Polymeric nanoparticles (NPs) are solid colloidal particles that exhibit distinct characteristics like increased surface-to-volume ratio, biodegradability, quantum properties, low cytotoxicity, and the capacity to adsorb and transport additional molecules (22ā24). Furthermore, NPs are solid in nature. One of the most crucial problems in pharmaceuticals is the utilization of polymeric nanoparticles in the drug delivery sector.
About 90% of nuclear medicine diagnostic procedures utilize 99mTc (25). Nanoradiopharmaceuticals based on 99mTc and, more recently, rhenium-186 have become indispensable tools for detecting and treating various illnesses or malfunctions in the bodyās organs and systems (25, 26). The emergence of these nano radiopharmaceuticals provides an appealing alternative for tumor treatment and diagnosis, introducing a novel approach to nuclear medicine, radioprotection, and dosimetry (27). Other radiopolymers such as rhenium-186 etidronate, samarium-153 lexidronam, and strontium-89 chloride are currently employed to alleviate bone discomfort associated with bone metastases.
Despite variations in several aspects among these radiopharmaceuticals, no documented benefit in terms of a higher response rate has been observed, including physical half-life, beta energy, penetration spectrum, and biochemical characteristics (28). Technetium-99ām is the most widely employed SPECT radionuclide due to its optimal imaging properties, such as a 140ākeV γ emission and a short half-life of 6.0āh. In exploring the biodistribution features of nanoparticles (NPs), 99mTc has been utilized for a more in-depth understanding. In an effort to traverse the bloodābrain barrier (BBB), Bikhezar et al. explored (29) the utilization of polymeric nanocarriers encapsulating MEK162 (binimetinib, a MEK1/2 inhibitor). The in vitro model demonstrated the effective penetration of the nanosystem through the bloodābrain barrier, suggesting its capability to transport therapeutic medications to brain tumor locations. Furthermore, it exhibited efficacy in suppressing tumor growth when employed in conjunction with temozolomide (TMZ) and radiation therapy (RT) for treating glioma spheroids (29). Ozgur et al. (30) investigated the radiopharmaceutical potential of pheophorbide, utilizing 99mTc-labeled bovine serum albumin nanoparticles. These nanoparticles demonstrate promise for application in scintigraphic tumor imaging and drug delivery, as evidenced by their heightened uptake in breast and uterine tissues compared to 99mTc-labeled pheophorbide-a (30).
Liposomes and micelles derivatized with diethylenetriamine pentaacetic acid (DTPA) have been demonstrated to encapsulate radiolabeled 111In and 177Lu. The utilization of 111In-labeled NPs has been prevalent in assessing the biodistribution of NPs. Notably, these NPs exhibited substantial aggregation in the liver and spleen of healthy Lewis rats 12āh post-injection, with minimal intestinal excretion. Importantly, the complexes retained high radioactivity concentration, indicating minimal release of metals (31, 32). Additionally, studies have shown that 111In-labeled gold nanoparticles effectively target αvĆ3 integrin both in vivo and in vitro using human melanoma and glioblastoma models. Another investigation revealed that a ruthenium-based radiosensitizer, combined with 111In-labeled polymeric nanoparticles, may induce combinational and targeted therapeutic effects on cancer cells overexpressing the human epidermal growth factor receptor (EGFR) (33, 34).
Lipid based nanoparticles
Liposomes, characterized by a lipid bilayer structure, serve as drug delivery systems with a hydrophilic interior capable of incorporating radiopharmaceutical agents. Various techniques have been employed for radiolabeling liposomes, including the use of lipophilic chelators like 2-hydroxyquinoline with preformed liposomes to load radionuclides via ionophores. Other approaches involve employing DOTA chelators or PEGylation for surface labeling onto the lipid bilayer, as well as using chelators like DOTA for the passive encapsulation of radioisotopes or membrane labeling during the preparation process (35).
111In 111In-labeled vinca alkaloid, namely vinorelbine is an antiproliferative agent that has demonstrated reduced toxicity and improved tumor reduction in mouse models. Vinorelbine is available in liposomal formulation. Because of their dual energy release characteristics that can be used to both impact cell death and for imaging, rhenium isotopes are especially well-suited for theranostic purposes. As demonstrated in a mouse model of head and neck cancer, the concurrent administration of other cytotoxic medications, such as doxorubicin, can increase the potency of such radioisotopes. Chang et al. (36) developed a liposome formulation by combining 188Re with sorafenib.
Liposomes conjugated with vasoactive intestinal peptide have exhibited enhanced accumulation of encapsulated Tc-HMPAO (hexamethylpropyleneamine oxime) in a breast cancer model. Furthermore, liposomes created with pertechnetate and surface charge modifications have demonstrated the ability to evade the reticuloendothelial system (37). Comparable intratumoural accumulation of Tc-liposome and Doxil liposomal formulations serves as confirmation of the said approach. Developing 67Ga liposomes with specific surface charges that allow for in vivo tumor and inflammation differentiation is also possible. 64Cu has also been shown to improve in vivo tumor accumulation in neuro-endocrine, head, and neck, and breast malignancies (38). Because 1-[18F]fluoro-3,6-dioxatetracosane penetrates the blood brain barrier differently than 18F-deoxyfluoroglucose, liposomes containing it function better for in vivo neuroglioma imaging.
Patients undergoing combination therapy involving a liposome formulation and another chemotherapeutic, such as cisplatin, have exhibited positive correlations between patient outcomes and the intratumoral retention of radiotagged liposomal anticancer formulations. Medication-free radiotagged liposome diagnostic companion kits have advanced because of these results, despite the increased drug concentration inside the tumor, which does not always translate into increased efficacy. DoxilTMās comparable effectiveness to free doxorubicin across a range of cancer types is an example of the abovementioned concept. However, liposomal DoxilTM reduces cardiac tissue toxicity and lowers dosage frequency (39).
In vitro characterization studies, including assessments of particle size, zeta potential, and high-performance liquid chromatography (HPLC), were conducted alongside in vivo toxicity tests. These investigations utilized 99mTc-labeled cationic PEGylated liposomes produced through conventional thin-film hydrolysis (40). The outcome illustrated that adding free liposomes utilizing a pH gradient approach improved the radiotracerās uptake and localization. Even greater specificity was demonstrated, nevertheless, by tracer encapsulation that occurred during liposome synthesis.
Quantum dots
Quantum Dots (QDs) have emerged as potent tools for drug delivery in various scientific fields, including molecular biology, cell biology, molecular imaging, and medical diagnostics. These QDs have been extensively investigated under diverse conditions, both in cells and living animals, primarily for imaging purposes. Apart from non-specific QD distribution/accumulation usage such lymph node mapping, vascular imaging, etc. (41), several research groups have also succeeded in active tumor targeting with QD-based probes (42).
Dynamically radio-labeled Quantum Dots (r-QDs), incorporating 109Cd into the core/shell structure of QDs with various compositions, were synthesized. The in vitro and in vivo characterization of these r-QDs was subsequently investigated (43). The near-infrared emission, extended circulation half-life, minimal cytotoxicity, tiny dimensions, and low accumulation in the reticuloendothelial system, and precision in measuring their biodistribution in mice were the intriguing features of these r-QDs. The study showcased the desirable properties of intrinsically radio-labeled Quantum Dots (QDs), suggesting that their biological potential could be further enhanced through ongoing development and optimization.
One research employed antibody-conjugated Cd125mTe/ZnS QDs to target the pulmonary endothelium of mice. Biodistribution investigations and SPECT imaging were used to assess the targeting efficacy, although no optical imaging was described (44). Functionalized Cd125mTe/ZnS QDs interact with the reticuloendothelial system, and the potential advantages of vascular targeting were investigated (45). The study revealed a consistent radioactive distribution in the mouse lungs, with notably lower accumulation in the liver and spleen than non-targeted Cd125mTe/ZnS QDs. This indicated the antigen-specific absorption of antibody-conjugated Cd125mTe/ZnS QDs. Biodistribution tests were also conducted in animals with depleted phagocytic cells using clodronate-loaded liposomes, revealing a significant reduction in QD absorption and elimination from the circulation.
Mesoporous nanoparticles
Because of their high capacity, ease of breakdown, and low toxicity, mesoporous nanomaterials have proven to be good drug carriers (46). For example, mesoporous tantalum oxide (mTa2O5) nanoparticles were modified by Chen et al. using polyethylene glycol (PEG) to create novel nanocomposites (mTa2O5-PEG). Chemotherapy medications like doxorubicin (DOX) can be efficiently loaded and delivered by these mTa2O5-PEG nanocomposite materials. Ta, a high Z element, can boost radiationās anti-tumor effects and increase the amount of X-rays deposited within tumor tissues in mTa2O5-PEG/DOX nanoparticles. In comparison to free DOX administered at a similar dose in conjunction with radiotherapy (RT) in vivo, the toxicity of DOX-loaded mTa2O5-PEG nanoparticles combined with RT was significantly reduced (15). In a separate study by Liu et al., bi-based mesoporous litchi-shaped Na0.2Bi0.8O0.35F1.91:20%Yb nanoparticles were loaded into amphiphilic polyethylene glycol (PEG) as a drug delivery vehicle. This nanocomposite exhibited controlled release of chemotherapy medication like DOX. According to Liu et al. (47), NBOF-PEG nanoparticles containing the high-Z element Bi, can potentially enhance the anti-tumor efficacy of radiotherapy by increasing X-ray absorption in tumor tissues.
Conclusion
Collaborative research at the nanotechnology-nuclear medicine interface offers potential solutions to current challenges in radionuclide therapy. Cross-training scientists across disciplines is essential for sustained multidisciplinary growth, fostering innovative findings and translational opportunities. This research highlights distinct advantages and limitations in imaging modalities, nanomaterial radiolabeling, and nano-radiopharmaceutical compositions. Despite incremental improvements, challenges persist, including precise radiation dose selection, reliance on costly noble metals, and the long-term toxicity of accumulated nanoparticles. A holistic strategy, which balances drawbacks and benefits, necessitates multidisciplinary efforts at the convergence of nuclear medicine and nanomedicine. This approach holds promise for tailored solutions, facilitating the seamless transition of novel agents from bench to bedside soon. Striking a balance between potential drawbacks, such as elimination kinetics and manufacturing/regulatory challenges, and the evident benefits of nano-radiopharmaceuticals in loading efficiency and therapeutic efficacy is crucial. Anticipating future trends and promising preclinical outcomes, we foresee a prospective landscape where novel agents seamlessly transition from bench to bedside. This collaborative endeavor, driven by multidisciplinary experts, is pivotal for advancing convergent research and realizing the full potential of this intersection.
Statements
Author contributions
TD: Data curation, Software, Writing ā review & editing. ND: Methodology, Writing ā review & editing. KB: Formal analysis, Investigation, Writing ā review & editing. PS: Validation, Writing ā review & editing. TG: Formal analysis, Writing ā review & editing. SR: Conceptualization, Writing ā original draft.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1.
HollandJP. The radiopharmaceutical chemistry of seldom-used radionuclides in nuclear medicine. Radiopharmaceutical Chem. (2019) 425ā46. doi: 10.1007/978-3-319-98947-1_24
2.
VallabhajosulaSKilleenRPOsborneJR. Altered biodistribution of radiopharmaceuticals: role of radiochemical/pharmaceutical purity, physiological, and pharmacologic factors. Semin Nucl Med. (2010) 40:220ā41. doi: 10.1053/j.semnuclmed.2010.02.004
3.
MorrisMJDe BonoJSChiKNFizaziKHerrmannKRahbarKet al. Phase III study of lutetium-177-PSMA-617 in patients with metastatic castration-resistant prostate cancer (VISION). WB Saunders (2006).
4.
NockBAKaloudiALymperisEGiarikaAKulkarniHRKletteIet al. Theranostic perspectives in prostate cancer with the gastrin-releasing peptide receptor antagonist NeoBOMB1: preclinical and first clinical results. J Nucl Med. (2017) 58:75ā80. doi: 10.2967/jnumed.116.178889
5.
StellaMBraatAJvan RooijRde JongHWLamMG. Holmium-166 radioembolization: current status and future prospective. Cardiovasc Intervent Radiol. (2022) 45:1634ā45. doi: 10.1007/s00270-022-03187-y
6.
ReindersMTSmitsMLvan RoekelCBraatAJ. Holmium-166 microsphere Radioembolization of hepatic malignancies. Semin Nucl Med. (2022) 49:237ā43. doi: 10.1053/j.semnuclmed.2019.01.008
7.
RamnaraignBSartorO. PSMA-targeted radiopharmaceuticals in prostate Cancer: current data and new trials. Oncologist. (2023) 28:392ā401. doi: 10.1093/oncolo/oyac279
8.
SgourosGBodeiLMcDevittMRNedrowJR. Radiopharmaceutical therapy in cancer: clinical advances and challenges. Nat Rev Drug Discov. (2020) 19:589ā608. doi: 10.1038/s41573-020-0073-9
9.
KarlssonJSchatzCAWengnerAMHammerSScholzACuthbertsonAet al. Targeted thorium-227 conjugates as treatment options in oncology. Front Med. (2023) 9:1071086. doi: 10.3389/fmed.2022.1071086
10.
LindĆ©nOBatesATCunninghamDHindorfCLarssonECletonAet al. 227Th-labeled anti-CD22 antibody (BAY 1862864) in relapsed/refractory CD22-positive non-Hodgkin lymphoma: a first-in-human, phase I study. Cancer Biother Radiopharm. (2021) 36:672ā81. doi: 10.1089/cbr.2020.4653
11.
HagemannUBEllingsenCSchuhmacherJKristianAMobergslienACrucianiVet al. Mesothelin-targeted thorium-227 conjugate (MSLN-TTC): preclinical evaluation of a new targeted alpha therapy for mesothelin-positive cancers. Clin Cancer Res. (2019) 25:4723ā34. doi: 10.1158/1078-0432.CCR-18-3476
12.
JuergensRAZukotynskiKAJuneauDKrnezichLSimmsRForbesJet al. A phase I study of [225Ac]-FPI-1434 radioimmunotherapy in patients with IGF-1R expressing solid tumors. J Clin Oncol. (2019) 37:TPS3152. doi: 10.1200/JCO.2019.37.15_suppl.TPS3152
13.
Dalla VoltaAFormentiAMBerrutiA. Higher risk of fragility fractures in prostate Cancer patients treated with combined Radium-223 and Abiraterone: prednisone may be the culprit. Eur Urol. (2019) 75:894ā5. doi: 10.1016/j.eururo.2019.01.026
14.
HogleWP. The state of the art in radiation therapy. Semin Oncol Nurs. (2019) 22:212ā20. doi: 10.1016/j.soncn.2006.07.004
15.
ChenYSongGDongZYiXChaoYLiangCet al. Drug-loaded mesoporous tantalum oxide nanoparticles for enhanced synergetic chemoradiotherapy with reduced systemic toxicity. Small. (2017) 13:1602869. doi: 10.1002/smll.201602869
16.
Ferro-FloresGOcampo-GarcĆaESantos-CuevasCMorales-AvilaEAzorĆn-VegaE. Multifunctional radiolabeled nanoparticles for targeted therapy. Curr Med Chem. (2014) 21:124ā38. doi: 10.2174/09298673113209990218
17.
GuptaSBansalRGuptaSJindalNJindalA. Nanocarriers and nanoparticles for skin care and dermatological treatments. Indian Dermatol Online J. (2013) 4:267ā72. doi: 10.4103/2229-5178.120635
18.
LiuZParidaSPrasadRPandeyRSharmaDBarmanI. Vibrational spectroscopy for decoding cancer microbiota interactions: current evidence and future perspective. Semin Cancer Biol. (2022) 86:743ā52. doi: 10.1016/j.semcancer.2021.07.004
19.
YangSGaoH. Nanoparticles for modulating tumor microenvironment to improve drug delivery and tumor therapy. Pharmacol Res. (2017) 126:97ā108. doi: 10.1016/j.phrs.2017.05.004
20.
UlbrichKHolaKSubrVBakandritsosATucekJZborilR. Targeted drug delivery with polymers and magnetic nanoparticles: covalent and noncovalent approaches, release control, and clinical studies. Chem Rev. (2016) 116:5338ā431. doi: 10.1021/acs.chemrev.5b00589
21.
HansenAEPetersenALHenriksenJRBoerresenBRasmussenPElemaDRet al. Positron emission tomography based elucidation of the enhanced permeability and retention effect in dogs with cancer using copper-64 liposomes. ACS Nano. (2015) 9:6985ā95. doi: 10.1021/acsnano.5b01324
22.
AlexisFPridgenEMolnarLKFarokhzadOC. Factors affecting the clearance and biodistribution of polymeric nanoparticles. Mol Pharm. (2008) 5:505ā15. doi: 10.1021/mp800051m
23.
PecherJMeckingS. Nanoparticles of conjugated polymers. Chem Rev. (2010) 110:6260ā79. doi: 10.1021/cr100132y
24.
LuXYWuDCLiZJChenGQ. Polymer nanoparticles. Prog Mol Biol Transl Sci. (2011) 104:299ā323. doi: 10.1016/B978-0-12-416020-0.00007-3
25.
CostaBIlem-ĆzdemirDSantos-OliveiraR. Technetium-99m metastable radiochemistry for pharmaceutical applications: old chemistry for new products. J Coord Chem. (2019) 72:1759ā84. doi: 10.1080/00958972.2019.1632838
26.
HuaJDobruckiLWSadeghiMMZhangJBourkeBNCavalierePet al. Noninvasive imaging of angiogenesis with a 99mTc-labeled peptide targeted at αvβ3 integrin after murine hindlimb ischemia. Circulation. (2005) 111:3255ā60. doi: 10.1161/CIRCULATIONAHA.104.485029
27.
GarnettMCKallinteriP. Nanomedicines and nanotoxicology: some physiological principles. Occup Med. (2006) 56:307ā11. doi: 10.1093/occmed/kql052
28.
PaesFMSerafiniAN. Systemic metabolic radiopharmaceutical therapy in the treatment of metastatic bone pain. Semin Nucl Med. 40:89ā104. doi: 10.1053/j.semnuclmed.2009.10.003
29.
BikhezarFde KruijffRMvan der MeerAJTorrelo VillaGvan der PolSMBecerril AragonGet al. Preclinical evaluation of binimetinib (MEK162) delivered via polymeric nanocarriers in combination with radiation and temozolomide in glioma. J Neurooncol. (2020) 146:239ā46. doi: 10.1007/s11060-019-03365-y
30.
OzgurALambrechtFYOcakogluKGunduzCYucebasM. Synthesis and biological evaluation of radiolabeled photosensitizer linked bovine serum albumin nanoparticles as a tumor imaging agent. Int J Pharm. (2012) 422:472ā8. doi: 10.1016/j.ijpharm.2011.11.013
31.
PsimadasDGeorgouliasPValotassiouVLoudosG. Molecular nanomedicine towards cancer: 111In-labeled nanoparticles. J Pharm Sci. (2012) 101:2271ā80. doi: 10.1002/jps.23146
32.
LimYHTiemannKMHunstadDAElsabahyMWooleyKL. Polymeric nanoparticles in development for treatment of pulmonary infectious diseases. Wiley Interdiscip Rev Nanomed Nanobiotechnol. (2016) 8:842ā71. doi: 10.1002/wnan.1401
33.
NgQKOlariuCIYaffeeMTaelmanVFMarincekNKrauseTet al. Indium-111 labeled gold nanoparticles for in-vivo molecular targeting. Biomaterials. (2014) 35:7050ā7. doi: 10.1016/j.biomaterials.2014.04.098
34.
GillMRMenonJUJarmanPJOwenJSkaripa-KoukelliIAbleSet al. 111In-labelled polymeric nanoparticles incorporating a ruthenium-based radiosensitizer for EGFR-targeted combination therapy in oesophageal cancer cells. Nanoscale. (2018) 10:10596ā608. doi: 10.1039/C7NR09606B
35.
Van der GeestTLavermanPMetselaarJMStormGBoermanOC. Radionuclide imaging of liposomal drug delivery. Expert Opin Drug Deliv. (2016) 13:1231ā42. doi: 10.1080/17425247.2016.1205584
36.
ChangYJHsuWHChangCHLanKLTingGLeeTW. Combined therapeutic efficacy of 188Re-liposomes and sorafenib in an experimental colorectal cancer liver metastasis model by intrasplenic injection of C26-luc murine colon cancer cells. Molecular Clinical Oncol. (2014) 2:380ā4. doi: 10.3892/mco.2014.246
37.
DagarSKrishnadasARubinsteinIBlendMJĆnyükselH. VIP grafted sterically stabilized liposomes for targeted imaging of breast cancer: in vivo studies. J Control Release. (2003) 91:123ā33. doi: 10.1016/S0168-3659(03)00242-6
38.
ShokeenMAndersonCJ. Molecular imaging of cancer with copper-64 radiopharmaceuticals and positron emission tomography (PET). Acc Chem Res. (2009) 42:832ā41. doi: 10.1021/ar800255q
39.
EkladiousIColsonYLGrinstaffMW. Polymerādrug conjugate therapeutics: advances, insights and prospects. Nat Rev Drug Discov. (2019) 18:273ā94. doi: 10.1038/s41573-018-0005-0
40.
AlkandariAMAlsayedYMEl-HanbalyAM. Radiopharmaceutical encapsulated liposomes as a novel radiotracer Im-aging and drug delivery protocol. Curr Radiopharm. (2023) 16:133ā9. doi: 10.2174/1874471016666221202094628
41.
LiZBCaiWChenX. Semiconductor quantum dots for in vivo imaging. J Nanosci Nanotechnol. (2007) 7:2567ā81. doi: 10.1166/jnn.2007.628
42.
SmithBRChengZDeAKohALSinclairRGambhirSS. Real-time intravital imaging of RGDā quantum dot binding to luminal endothelium in mouse tumor neovasculature. Nano Lett. (2008) 8:2599ā606. doi: 10.1021/nl080141f
43.
CaiWHongH. In a ānutshellā: intrinsically radio-labeled quantum dots. Am J Nucl Med Mol Imaging. (2012) 2:136ā40. PMID:
44.
WoodwardJDKennelSJMirzadehSDaiSWallJSRicheyTet al. In vivo SPECT/CT imaging and biodistribution using radioactive Cd125mTe/ZnS nanoparticles. Nanotechnology. (2007) 18:175103. doi: 10.1088/0957-4484/18/17/175103
45.
KennelSJWoodwardJDRondinoneAJWallJHuangYMirzadehS. The fate of MAb-targeted Cd125mTe/ZnS nanoparticles in vivo. Nucl Med Biol. (2008) 35:501ā14. doi: 10.1016/j.nucmedbio.2008.02.001
46.
HeLLaiHChenT. Dual-function nanosystem for synergetic cancer chemoā/radiotherapy through ROS-mediated signaling pathways. Biomaterials. (2015) 51:30ā42. doi: 10.1016/j.biomaterials.2015.01.063
47.
LiuJDengYQinXLiBZhangJXuYet al. Ultrafast synthesizing bismuth mesoporous nanolitchi radiosensitizer loading high dose DOX for CT-guided enhanced chemoradiotherapy. ACS Appl Mater Interfaces. (2019) 11:42932ā42. doi: 10.1021/acsami.9b13647
