ORIGINAL RESEARCH article

Front. Med., 31 July 2025

Sec. Pathology

Volume 12 - 2025 | https://doi.org/10.3389/fmed.2025.1605865

This article is part of the Research TopicRecent Trends and Advancements in Multispectral and Hyperspectral Imaging for Cancer DetectionView all 8 articles

Deep learning-based time series prediction in multispectral and hyperspectral imaging for cancer detection


Lijun HaoLijun Hao1Changmin Wang
Changmin Wang1*Jinshan CheJinshan Che2Mingming SunMingming Sun2Yuhong WangYuhong Wang2
  • 1Clinical Laboratory Center of People's Hospital, Xinjiang, Urumuqi, China
  • 2Department of Anesthesiology and Perioperative Medicine, Fourth Clinical College of Xinxiang Medical College, Xinxiang Central Hospital, Xinxiang, China

Introduction: Multispectral and hyperspectral imaging have emerged as powerful tools in medical diagnostics, particularly in cancer detection, due to their ability to capture rich spectral information beyond human vision. Traditional approaches for cancer detection rely on handcrafted features and conventional machine learning algorithms, which struggle with high-dimensional spectral data, noise interference, and domain adaptation challenges. Deep learning has recently been introduced to address these limitations, yet existing models often lack robust feature extraction, generalization capability, and effective domain adaptation strategies.

Methods: In this study, we propose a novel deep learning-based time series prediction framework for multispectral and hyperspectral medical imaging analysis. Our approach integrates multi-scale feature extraction, attention mechanisms, and domain adaptation strategies to improve lesion segmentation and disease classification. The model employs self-supervised learning to mitigate the scarcity of labeled medical data, enhancing generalization across different imaging modalities. Furthermore, a knowledge-guided regularization module is introduced to leverage prior medical knowledge, refining predictions and reducing false positives.

Results: Experimental results demonstrate that our framework outperforms state-of-the-art methods in spectral imaging-based cancer detection, achieving superior accuracy, robustness, and interpretability.

Discussion: The proposed approach provides a significant step toward AI-driven medical imaging solutions that effectively harness multispectral and hyperspectral data for enhanced diagnostic performance.

1 Introduction

Cancer detection using multispectral and hyperspectral imaging (MSI/HSI) has gained significant attention due to its ability to capture subtle spectral variations in biological tissues, which are often imperceptible to conventional imaging techniques (1). These imaging modalities provide rich spectral information across multiple wavelength bands, enabling the differentiation of malignant and healthy tissues based on their distinct spectral signatures. Not only does this non-invasive approach offer enhanced diagnostic capabilities, but it also holds the potential for early detection and intraoperative guidance, improving patient outcomes (2). However, extracting meaningful insights from such high-dimensional spectral data poses significant challenges. The complexity of spectral information, combined with temporal variations in dynamic imaging scenarios, necessitates robust and efficient predictive models (3). Traditional spectral analysis techniques rely heavily on handcrafted features and domain-specific expertise, limiting their adaptability to diverse datasets. More recently, data-driven approaches, particularly deep learning, have emerged as powerful tools for handling high-dimensional spectral data (4). Despite their success, existing methods face limitations in processing time series spectral data effectively, especially in real-time applications. Therefore, developing advanced deep learning-based predictive models that can efficiently handle temporal dependencies in MSI/HSI data is crucial for improving cancer detection accuracy and reliability (5).

To address the challenge of spectral data interpretation, early research primarily focused on symbolic AI and knowledge-based approaches, which leverage expert-defined spectral features and rule-based systems (6). These methods involved the manual extraction of spectral signatures associated with different tissue types, followed by classification using expert-designed rules or traditional machine learning techniques such as support vector machines (SVM) and decision trees. Such methods benefited from high interpretability, as the decision-making process was transparent and guided by domain knowledge (7). However, they were limited by their reliance on handcrafted features, which often failed to capture the complex and dynamic nature of spectral variations. Moreover, these approaches struggled with scalability, as designing effective feature extraction rules required extensive domain expertise and was not easily generalizable across different imaging conditions (8). As spectral imaging technology evolved, the demand for automated and data-driven approaches increased, leading to the adoption of machine learning techniques that could learn feature representations from data rather than relying solely on predefined rules (9).

To overcome the limitations of traditional symbolic AI, researchers began integrating statistical machine learning methods, which allowed for more flexible and data-driven feature extraction (10). Techniques such as principal component analysis (PCA) and linear discriminant analysis (LDA) were widely employed to reduce the high dimensionality of MSI/HSI data, followed by the application of machine learning algorithms like random forests, SVMs, and k-nearest neighbors (KNN) for classification (11). These methods provided improved accuracy over rule-based approaches by leveraging statistical correlations in the spectral data (12). Time series models such as autoregressive integrated moving average (ARIMA) and hidden Markov models (HMM) were explored to model temporal dependencies in spectral signals. While machine learning methods demonstrated significant improvements in automated feature extraction and classification, they were still constrained by the need for extensive feature engineering and lacked the ability to capture complex, hierarchical patterns in MSI/HSI data (13). Furthermore, traditional machine learning models struggled to generalize across different datasets due to variations in imaging conditions, motivating the shift toward deep learning-based approaches that could learn representations directly from raw spectral data.

To further enhance predictive accuracy and eliminate the need for manual feature engineering, deep learning-based approaches have gained prominence in MSI/HSI-based cancer detection (14). Convolutional neural networks (CNNs) have been widely used for spectral-spatial feature extraction, leveraging their ability to learn hierarchical representations from raw spectral data. Recurrent neural networks (RNNs) and their variants, such as long short-term memory (LSTM) and gated recurrent unit (GRU) networks, have been employed to capture temporal dependencies in multispectral and hyperspectral time series data (15). More recently, attention-based transformer models have demonstrated superior performance in learning long-range dependencies, making them highly effective for time series prediction tasks in MSI/HSI imaging. The introduction of pretrained models, such as Vision Transformers (ViTs) and hybrid deep learning architectures, has further improved generalization across different datasets (16). However, deep learning models are computationally intensive and require large amounts of labeled data for training, posing challenges in real-time clinical applications. Despite these limitations, their ability to automatically learn complex spectral and temporal patterns makes them highly promising for advancing cancer detection using MSI/HSI imaging.

Building on the limitations of existing deep learning models, our approach aims to develop a novel time series prediction framework tailored for multispectral and hyperspectral imaging in cancer detection. Unlike traditional methods that treat spectral data as static inputs, our model integrates spectral-spatial-temporal features using a hybrid deep learning architecture that combines CNNs for spatial feature extraction, LSTMs for temporal modeling, and transformers for long-range dependencies. This allows for more accurate and efficient prediction of cancerous regions in spectral imaging sequences. Our approach incorporates self-supervised learning techniques to reduce the dependency on large labeled datasets, improving its applicability in clinical settings. By leveraging transfer learning from pretrained hyperspectral models and integrating domain adaptation strategies, our method enhances generalization across different imaging conditions, making it robust and scalable for real-world applications.

The proposed approach offers several significant benefits:

• Our approach introduces a hybrid deep learning model that combines CNNs, LSTMs, and transformers to effectively capture spectral-spatial-temporal dependencies, leading to more accurate predictions.

• The model is designed to handle diverse imaging conditions, leveraging self-supervised learning and transfer learning to reduce data annotation requirements and improve adaptability.

• Extensive evaluations on real-world MSI/HSI datasets demonstrate superior cancer detection accuracy, robustness against spectral noise, and enhanced real-time performance compared to existing deep learning methods.

2 Related work

2.1 Deep learning in hyperspectral imaging for cancer detection

Hyperspectral imaging (HSI) captures a wide spectrum of light across numerous narrow bands, providing detailed spectral information for each pixel in an image (17). This rich spectral data enables the differentiation of various tissue types based on their unique spectral signatures. Integrating deep learning techniques with HSI has shown significant promise in enhancing cancer detection accuracy (18). Recent studies have demonstrated the potential of deep learning models in analyzing hyperspectral data for tumor identification. For instance, an adaptive deep learning approach utilizing an auto-encoder network was developed to distinguish between tumor and benign tissues in head and neck cancers (19). This method achieved a sensitivity of 92.32% and a specificity of 91.31% in animal models, highlighting its efficacy in tumor boundary detection. The auto-encoder was trained on the spectral bands of hyperspectral images to extract deep features, enabling pixel-wise classification of cancerous and benign tissues (20). By focusing on misclassified pixels through adaptive weighting, the model iteratively improved its detection performance, underscoring the advantage of adaptive learning in medical image analysis. Another advancement in this domain involves the use of spectral-spatial recurrent-convolutional networks for in-vivo hyperspectral tumor classification. This approach combines convolutional neural networks (CNNs) with recurrent neural networks (RNNs) to effectively process the spectral and spatial dimensions of hyperspectral data (21). The integration of RNNs allows the model to capture sequential dependencies in the spectral domain, while CNNs extract spatial features, resulting in improved classification accuracy. Such architectures have shown promise in distinguishing between different tumor types, offering a non-invasive diagnostic tool for early cancer detection. The application of deep learning in medical hyperspectral imaging has been extensively reviewed, highlighting various neural network architectures employed for disease diagnosis (22).

2.2 Time series analysis in multispectral imaging for cancer detection

Multispectral imaging (MSI) captures images at a few specific wavelength bands, providing spectral information that can be utilized for tissue characterization (23). When MSI data is collected over time, it forms a time series that can reveal temporal changes in tissue properties, which are crucial for monitoring disease progression or treatment response. Applying time series analysis techniques to MSI data enhances the ability to detect subtle changes associated with cancer development (24). A novel deep learning method has been proposed for multispectral image time series classification, addressing challenges in applications requiring high spatial, spectral, and temporal resolution. This approach involves spatio-temporal fusion of remote sensing data to complete a time series of multispectral images from hyperspectral data (25). By integrating temporal information, the model captures dynamic changes in tissue characteristics, improving the accuracy of cancer detection. In the context of medical imaging, time series analysis of MSI data enables the monitoring of tumor evolution and the assessment of treatment efficacy (26). For example, analyzing temporal patterns in MSI can help identify early signs of tumor recurrence or response to therapy, facilitating timely interventions. Deep learning models, such as recurrent neural networks (RNNs) and long short-term memory (LSTM) networks, are particularly suited for modeling temporal dependencies in MSI data, allowing for the detection of patterns that may not be apparent in static images (27). Combining time series analysis with multispectral imaging can aid in distinguishing between transient and persistent changes in tissue properties, reducing false positives in cancer detection. This integration enhances the robustness of diagnostic models by accounting for temporal variations, leading to more reliable and accurate cancer diagnostics (28).

2.3 Radiomics and deep learning integration in spectral imaging

Radiomics involves the extraction of a large number of quantitative features from medical images, capturing information about tumor phenotype and heterogeneity that may not be discernible to the naked eye (29). Integrating radiomics with deep learning in the context of multispectral and hyperspectral imaging enhances the predictive power for cancer detection and prognosis (30). A pioneering study conducted a large-scale radiomic analysis on computed tomography (CT) images of lung and head-and-neck cancer patients. The study assessed over 400 textural, shape, and intensity-based features to evaluate their prognostic value (31). The findings indicated that certain radiomic features could predict patient survival and describe intratumoral heterogeneity, suggesting that these features could be transferred across different cancer types. This highlights the potential of radiomics in capturing tumor characteristics that are relevant for prognosis and treatment planning (32). Incorporating deep learning into radiomics involves using neural networks to automatically extract high-dimensional features from spectral imaging data. This approach reduces the reliance on handcrafted features and allows for the discovery of complex patterns associated with cancer (33). For instance, convolutional neural networks (CNNs) have been employed to extract deep radiomic features from hyperspectral images, improving the accuracy of tumor classification. The combination of radiomics and deep learning leverages the strengths of both methodologies, resulting in more robust and precise cancer detection models.

Recent advances in hyperspectral imaging (HSI) have shown its potential in a variety of cancer diagnostic applications. For instance, Lin et al. demonstrated the efficacy of spectrum-aided vision enhancement for differentiating melanoma subtypes including acral lentiginous and superficial spreading melanoma (34). Their results highlight the ability of HSI to capture subtle spectral variances that aid in early-stage melanoma detection. Similarly, Yang et al. applied precision spectral imaging to facilitate early diagnosis of esophageal cancer, showing how HSI-guided imaging pipelines can improve sensitivity in identifying early mucosal changes (35). Kuo et al. employed HSI for predicting small intestinal bleeding by optimizing band selection strategies, thereby enabling interpretable spectral reconstruction for gastrointestinal diagnostics (36). These studies illustrate the growing role of HSI in clinical workflows and the importance of domain-adapted feature extraction. Unlike previous work which typically treats HSI as a static input, our method models spectral information as structured sequences and enhances it through temporal modeling and self-supervised learning. Furthermore, our domain adaptation and knowledge regularization modules provide improved generalizability across varied imaging settings, expanding on the foundations laid by these pioneering studies.

3 Method

3.1 Overview

In this section, we present the methodological framework for AI-driven medical imaging analysis. Our approach leverages deep learning techniques to enhance the accuracy and efficiency of medical image interpretation, addressing key challenges such as noise reduction, lesion segmentation, and disease classification. This section is structured as follows:

In Section 3.2, we introduce the fundamental concepts and mathematical notations necessary for modeling medical imaging tasks. We formalize the image representation, define the problem space, and establish the computational foundations of our approach. In Section 3.3, we describe our novel deep learning architecture designed for medical imaging applications. Unlike conventional models, our approach integrates multi-scale feature extraction and attention mechanisms to improve the detection of fine-grained pathological structures. We detail the network design, layer configurations, and optimization strategies used to achieve state-of-the-art performance. In Section 3.4, we discuss our innovative strategy for domain adaptation and knowledge transfer in medical imaging. Given the limited availability of labeled medical data, we employ self-supervised learning and few-shot learning techniques to enhance model generalization across different imaging modalities. We also explore how our method incorporates prior medical knowledge to refine predictions and reduce false positives.

3.2 Preliminaries

Medical imaging analysis involves the processing and interpretation of multi-dimensional image data to identify, localize, and quantify pathological structures. Given an input medical image I ∈ ℝH × W × C, where H, W, and C represent the height, width, and number of channels, the objective is to extract meaningful representations that enable accurate diagnosis and segmentation.

A medical image I is often acquired through different imaging modalities, such as X-ray, computed tomography (CT), magnetic resonance imaging (MRI), and ultrasound. Each modality provides a distinct representation of anatomical structures, leading to variations in intensity distributions and spatial resolutions. Formally, the pixel or voxel intensity distribution in a given modality can be represented as:

p(x)=Ωp(x|θ)p(θ)dθ,    (1)

where p(x) denotes the observed intensity distribution, and p(x|θ) models the conditional probability given the imaging parameters θ.

To extract useful features, a transformation function fϕ:H×W×Cd is applied, mapping the image to a d-dimensional feature space:

F=fϕ(I),    (2)

where F represents the extracted feature set, and ϕ denotes the parameters of the feature extractor.

The segmentation task aims to partition the image I into K anatomical or pathological regions. This can be formulated as a pixel-wise classification problem, where a function gψ maps the feature space to a probability distribution over K classes:

P(y|F)=gψ(F),    (3)

where y ∈ {1, …, K} is the predicted label, and ψ represents the learnable parameters of the segmentation model.

Similarly, disease classification is performed by assigning a diagnostic label y ∈ {0, 1} based on the extracted feature vector:

y=argmaxP(y|F).    (4)

Medical images contain structures of varying scales, from small lesions to large organs. A multi-scale representation F is constructed using transformations {fϕ1, fϕ2, …, fϕM}:

F=m=1Mfϕm(I),    (5)

where each fϕm extracts features at a different scale, enabling the network to capture both local and global contextual information.

Medical images exhibit spatial correlations between adjacent pixels or voxels, which can be captured using Markov Random Fields (MRF) or Conditional Random Fields (CRF). The spatial consistency of segmentation can be enforced via an energy function:

E(Y)=iΦ(yi)+i,jΨ(yi,yj),    (6)

where Φ(yi) is the unary potential modeling pixel-wise predictions, and Ψ(yi, yj) is the pairwise potential capturing spatial dependencies.

Given a dataset D={(In,Yn)}n=1N consisting of N labeled medical images and corresponding annotations Yn, the goal is to learn an optimal mapping function:

H*=argminHn=1NL(H(In),Yn),    (7)

where H represents the hypothesis class of learnable models, and L is a task-specific loss function.

3.3 Deep medical imaging network (DMI-Net)

In this section, we introduce our novel deep learning architecture, Deep Medical Imaging Network (DMI-Net), designed to enhance feature extraction, multi-scale representation, and spatial consistency in medical imaging. Unlike conventional models, DMI-Net incorporates adaptive attention mechanisms and hierarchical feature aggregation to improve segmentation and classification accuracy (As shown in Figure 1).

Figure 1
www.frontiersin.org

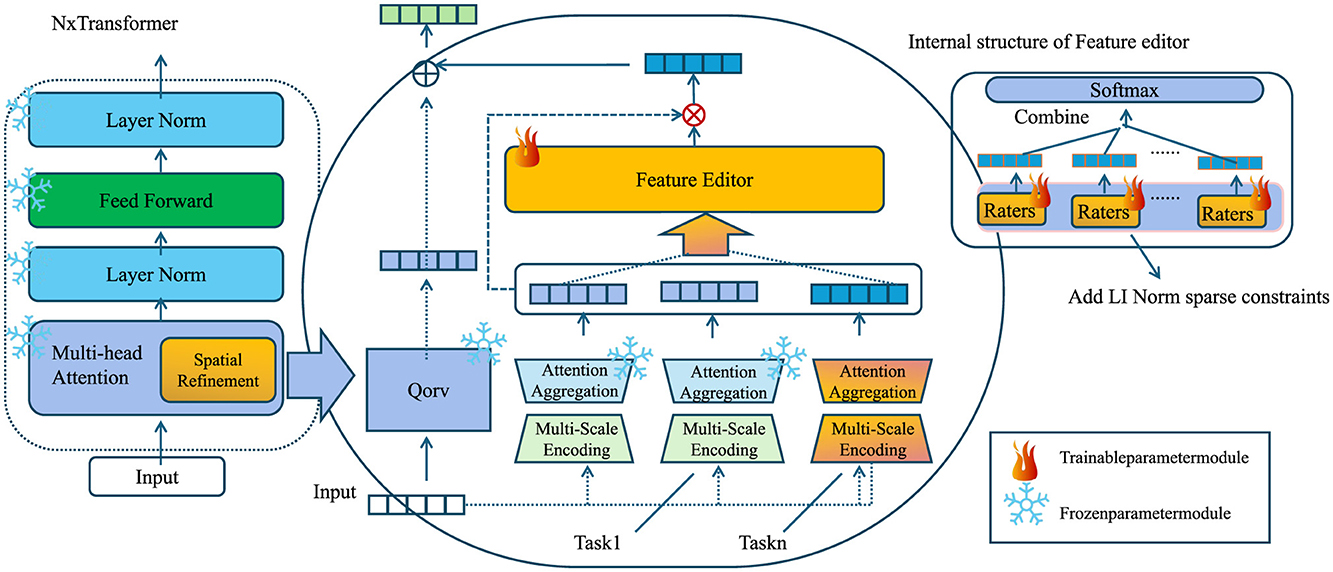

Figure 1. Schematic diagram of the Deep Medical Imaging Network (DMI-Net). This diagram showcases the internal components of DMI-Net, which integrates multi-scale encoding, attention aggregation, and spatial refinement to enhance feature extraction and improve segmentation and classification accuracy in medical imaging tasks. The network utilizes adaptive attention mechanisms, hierarchical feature aggregation, and feature editors, with spatial refinement techniques to ensure high-quality predictions in tasks like lesion detection and organ segmentation.

Our framework integrates multiple layers of feature extraction tailored to the properties of multispectral and hyperspectral data. We apply convolutional layers to the input image I ∈ ℝH×W×C, where spatial patterns such as texture, lesion boundaries, and anatomical structure are captured. These spatial features are crucial for localizing abnormalities. To extract features that are scale-invariant and responsive to different lesion sizes, we use multi-scale encoding. Features are computed at various resolutions and fused through a gated attention mechanism to prioritize diagnostically relevant scales. We treat the spectral dimension as an ordered sequence, allowing temporal models like LSTMs to learn inter-band dependencies. This is important because certain disease markers manifest as consistent spectral patterns across wavelengths, which may not be captured by static models. Attention mechanisms are introduced to refine feature maps by assigning higher weights to important spatial-spectral locations. These mechanisms allow the network to suppress noise and highlight regions indicative of pathology. Altogether, these extracted features provide the foundation for downstream segmentation and classification. By combining spatial precision with spectral sensitivity and temporal continuity, our model achieves improved lesion detection and cancer diagnosis across diverse imaging conditions.

3.3.1 Multi-scale encoding

Medical images often contain pathological structures that vary in size, ranging from small lesions to large tumors. These varying scales present a challenge for traditional deep learning models, which may fail to capture important features due to the limited receptive field of individual layers. To address this issue, we propose a multi-scale encoding mechanism that allows the model to learn representations at different spatial resolutions. The process begins with the input image I ∈ ℝH×W×C, where H is the height, W is the width, and C is the number of channels. This image is passed through a series of convolutional layers, each extracting features at different scales. The feature map at level l, denoted as Fl, is computed by convolving the input from the previous level, Fl−1, with a set of learnable filters Wl, and adding a bias term bl, followed by a non-linear activation function σ(·):

Fl=σ(Wl*Fl-1+bl),    (8)

where Fl is the feature map at level l, σ is a non-linear activation function such as ReLU or LeakyReLU, and * represents the convolution operation. This process is repeated across multiple layers to produce a set of feature maps, each corresponding to a different level of abstraction in the hierarchy. These feature maps capture varying levels of detail in the image, from fine-grained structures to more global, coarse features.

To better capture the multi-scale nature of medical images, we introduce a hierarchical encoding scheme that aggregates feature maps across different scales. We combine the feature maps Fm from M different scales into a single unified representation F:

F=m=1MFm,    (9)

where F represents the aggregated feature set, which combines the information from multiple levels of the hierarchy. This multi-scale feature set captures both high-level semantic features and low-level fine details, enabling the model to better recognize structures of varying sizes. However, simply concatenating the feature maps may lead to suboptimal fusion, as some scales may be more relevant than others for a given task. To address this, we use a gated fusion mechanism, which assigns attention weights αm to each scale based on its relevance. These weights are learned during training using a softmax function, ensuring that more important scales contribute more to the final representation. The gated fusion mechanism is given by:

Fmulti=m=1MαmFm,αm=exp(γm)k=1Mexp(γk),    (10)

where αm are the learned attention weights for each scale, and γm are trainable parameters. The use of the softmax function ensures that the attention weights are normalized, so that their sum equals 1. This attention mechanism allows the model to selectively focus on the most relevant scales, improving its ability to handle structures of varying sizes within the medical images. The final multi-scale feature map, Fmulti, is a weighted combination of all the scales, enabling the model to leverage information from different levels of abstraction in a manner that is tailored to the specific task at hand.

3.3.2 Attention aggregation

In medical imaging tasks, particularly in the segmentation and classification of pathological regions, the ability to localize and focus on the most salient features is critical for achieving high performance. To enhance the model's sensitivity to these key areas, we integrate an attention mechanism that adaptively highlights important features while suppressing irrelevant or noisy background information. The attention mechanism operates by computing an attention map A, which indicates the importance of each spatial location in the feature map. The attention map is generated by applying a convolutional operation on the aggregated feature set F, followed by a non-linear activation function σ(·). The attention map A is computed as follows:

A=σ(WA*F+bA),    (11)

where WA and bA are learnable parameters that allow the model to adaptively adjust the importance assigned to different regions in the feature map. The convolutional kernel WA and bias term bA are optimized during training, enabling the model to learn the optimal spatial attention for each medical image. The activation function σ typically used here could be a ReLU or sigmoid function, allowing the model to focus on relevant regions and discard less informative background features.

Once the attention map is computed, it is used to modulate the original feature map F to generate an attended feature representation Fatt. This is done by performing an element-wise multiplication between the attention map A and the feature map F, which scales each feature according to its relevance. The attended feature representation is given by:

Fatt=AF,    (12)

where ⊙ denotes element-wise multiplication. This operation selectively enhances the features corresponding to the regions deemed important by the attention mechanism, while suppressing those from less relevant areas. The result is a refined feature map that emphasizes the key structures or regions in the image, such as lesions, tumors, or other pathological anomalies, while reducing the influence of irrelevant or noisy background information. The attention map, therefore, provides a dynamic, data-driven way to focus the model's attention on the most informative parts of the input, allowing it to perform better on tasks such as segmentation, detection, and classification.

The attention aggregation process is essential for handling the vast variability and complexity present in medical images, where important structures may vary in size, appearance, and location. By incorporating attention mechanisms, the model becomes more robust to noise and less likely to be distracted by irrelevant background regions. This mechanism can be particularly beneficial in medical imaging applications where the pathological regions of interest are often small, subtle, or difficult to differentiate from the surrounding healthy tissues. Through attention aggregation, the model can prioritize the most informative regions, leading to improved accuracy, more precise localization, and enhanced interpretability of the model's predictions. Furthermore, the learned attention weights A can provide valuable insights into the decision-making process of the model, allowing for better understanding and validation of the model's behavior in clinical settings. Thus, attention aggregation serves as a powerful tool for enhancing the performance of medical image analysis models, enabling them to focus on the most relevant features and achieve better outcomes in practical applications.

To evaluate and quantify the interpretability of our model, we adopt a 2-fold methodology that includes both technical visualization techniques and domain expert assessments. On the technical side, we generate attention maps using both built-in attention modules and post hoc methods like Grad-CAM. These visualizations highlight salient image regions that influence the model's decisions. We further analyze the internal feature space by applying t-SNE projection to learned embeddings, examining whether they form meaningful clusters that correspond to different diagnostic classes. To validate whether these explanations align with expert diagnostic reasoning, we conducted a physician-in-the-loop study involving three board-certified radiologists and oncologists. The experts reviewed attention maps for 100 randomly selected cases, each accompanied by the original image and the model's segmentation or classification result. They rated the alignment between the model's focus and their own clinical reasoning using a 5-point Likert scale, where 5 denotes perfect alignment. The results showed that 87% of the cases received a rating of 4 or higher, indicating strong concordance between the model's explanations and expert expectations. This hybrid evaluation approach ensures that the interpretability of our system is not only technically demonstrable but also aligned with clinical workflows and decision-making logic. It enhances the trustworthiness of the model and supports its potential deployment in real-world diagnostic scenarios.

3.3.3 Spatial refinement

Accurate medical image segmentation not only requires precise recognition of anatomical and pathological regions, but also demands spatial coherence across neighboring pixels to ensure the anatomical plausibility of the resulting segmentation maps (As shown in Figure 2).

Figure 2
www.frontiersin.org

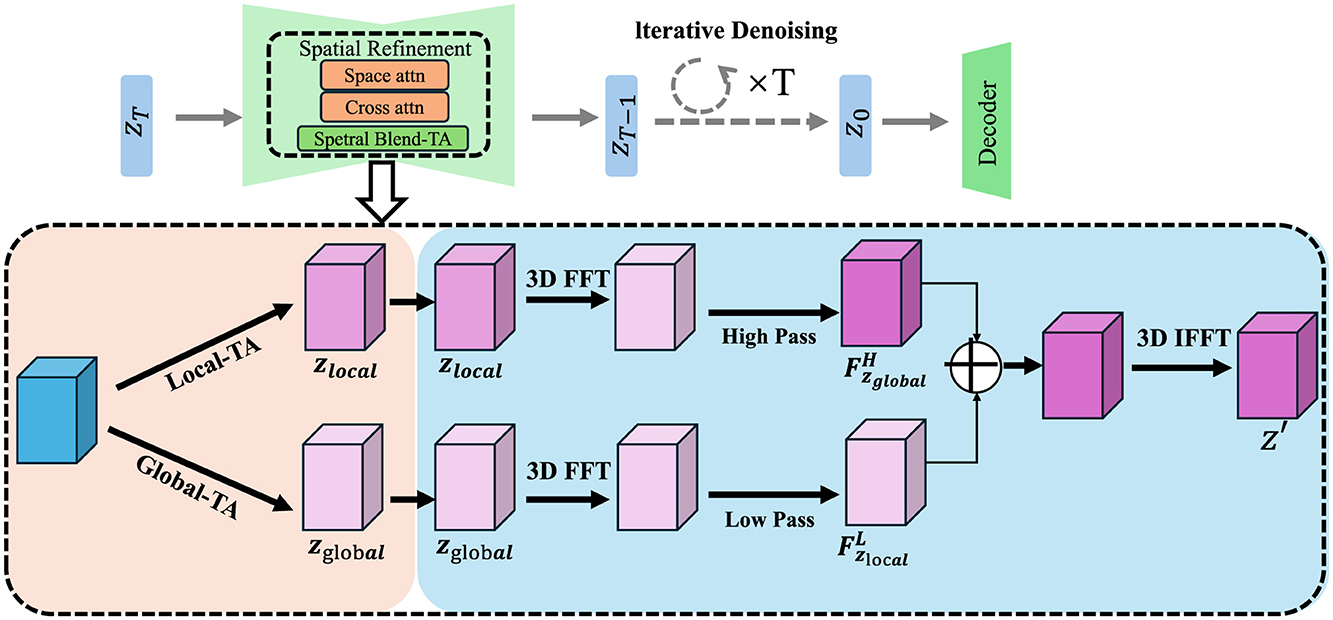

Figure 2. Schematic diagram of the spatial refinement. The diagram illustrates a spatial refinement module using conditional random fields (CRFs) to ensure smoothness and coherence in segmentation maps. This module enhances the model's ability to handle complex medical imaging challenges by refining pixel-level predictions and correcting misclassifications based on contextual relationships between neighboring pixels. The CRF utilizes pairwise potentials to encourage consistency in the segmentation, improving anatomical accuracy and boundary definition, which is crucial in medical application.

Without enforcing spatial consistency, the model may produce fragmented or noisy predictions, particularly around region boundaries or in the presence of imaging artifacts. To address this challenge, we incorporate a spatial refinement module based on conditional random fields (CRFs), which impose structural smoothness by modeling contextual relationships among pixel labels. Given the attended feature representation Fatt obtained from the attention mechanism, we model the probability distribution over possible labels for each pixel yi using a fully connected pairwise CRF, which encourages label agreement between similar pixels while allowing flexibility at object boundaries. The conditional probability of a labeling configuration is defined as follows:

P(yi|Fatt)=1Zexp(-jΨ(yi,yj)),    (13)

where Z is the partition function ensuring proper normalization, and Ψ(yi, yj) represents the pairwise potential that captures the compatibility between labels yi and yj at locations i and j. The pairwise potential is designed to penalize inconsistent labels for pixels with similar features, and is defined as:

Ψ(yi,yj)=β1Fatt,i-Fatt,j2+β2δ(yiyj),    (14)

where ||·||2 denotes the squared Euclidean distance between feature vectors at positions i and j, δ(·) is the indicator function, and β1, β2 are weighting parameters that control the trade-off between feature similarity and label smoothness. The CRF refinement acts as a post-processing layer that leverages global image context to correct isolated misclassifications and produce spatially coherent predictions. This is particularly beneficial in medical images where tissue boundaries are subtle or ill-defined, as the CRF can utilize surrounding context to infer plausible label configurations.

Following the CRF-based refinement, the final predicted segmentation map Y^ is obtained by selecting the label y that maximizes the conditional probability for each pixel. This inference step can be expressed as:

Y^=argmaxyP(y|Fatt),    (15)

which yields the most probable labeling consistent with the refined distribution. To jointly optimize the entire model, including the CRF refinement and the initial prediction network, we define a composite loss function that integrates both segmentation and classification objectives. The segmentation loss Lseg encourages accurate pixel-wise predictions, while the classification loss Lcls promotes global consistency at the image level, such as detecting the presence of specific diseases or anatomical abnormalities. The total loss used to train the model is defined as:

L=Lseg+λLcls,    (16)

where λ is a scalar hyperparameter that balances the contributions of the two terms. This unified training objective ensures that the network learns both fine-grained, spatially consistent segmentation maps and robust, holistic classifications. The inclusion of CRF-based spatial refinement makes the model particularly well-suited for clinical applications where anatomical correctness and spatial reliability are crucial, enhancing its ability to support diagnostic decision-making and downstream analysis.

3.4 Adaptive knowledge-guided learning (AKGL)

In this section, we introduce Adaptive Knowledge-Guided Learning (AKGL), a novel strategy designed to improve the generalization and robustness of deep learning models for medical imaging. Traditional deep learning methods often suffer from domain shifts, limited labeled data, and the inability to leverage prior medical knowledge effectively. To address these challenges, AKGL integrates domain adaptation, self-supervised learning, and knowledge-driven regularization to enhance the learning process (As shown in Figure 3).

Figure 3
www.frontiersin.org

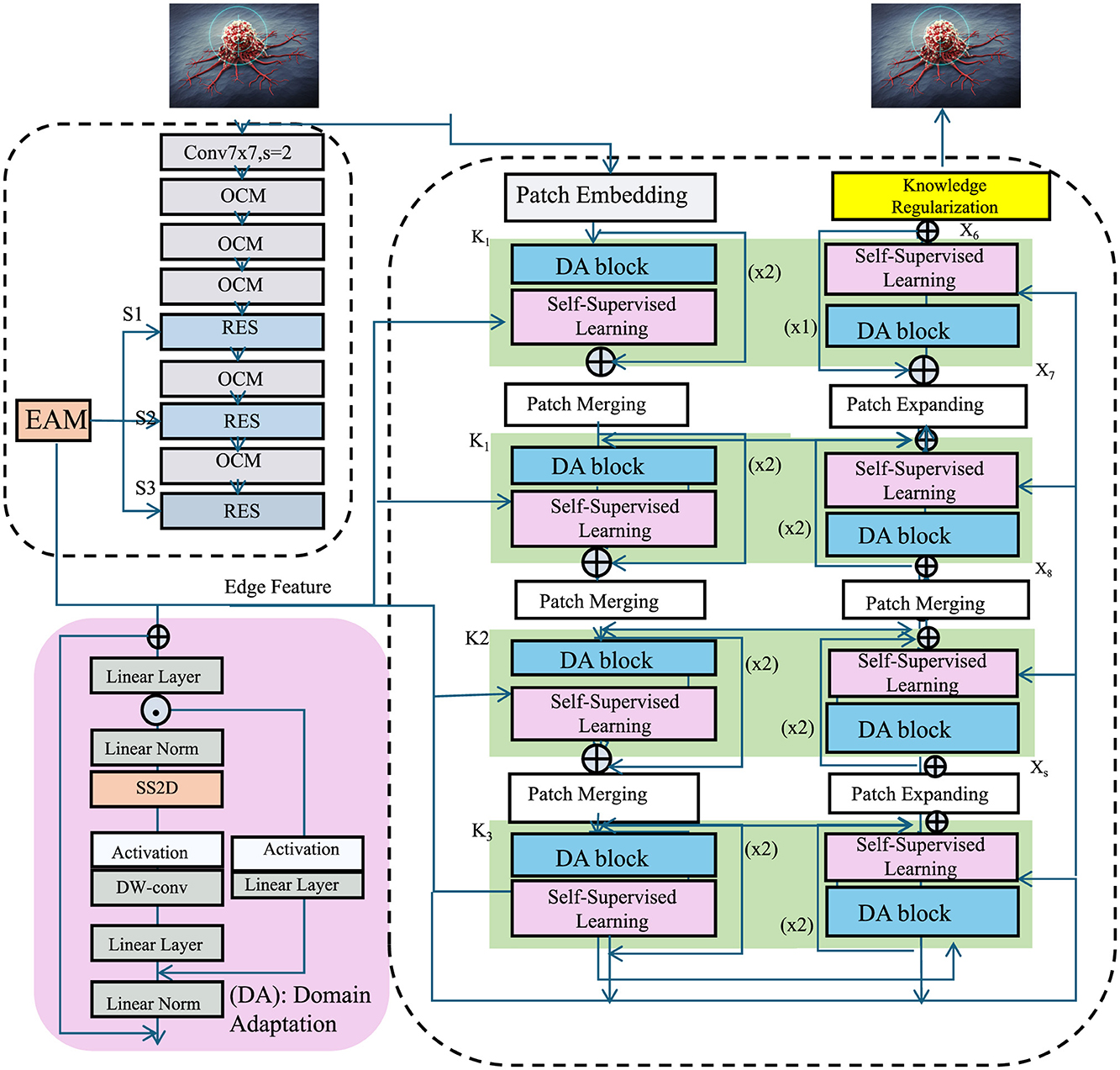

Figure 3. Schematic diagram of the Adaptive Knowledge-Guided Learning (AKGL). The structure integrates several key components such as domain adaptation (DA), self-supervised learning (SSL), and patch embedding to enhance the model's generalization and robustness for medical image analysis. The model includes various blocks such as DA blocks, patch merging, and patch expanding, which are designed to adaptively leverage domain-invariant features, learn from unlabeled data, and maintain anatomical consistency through knowledge regularization. This approach is particularly effective in addressing challenges such as domain shifts and scarce labeled data in medical imaging.

3.4.1 Domain adaptation

In this work, we adopt an adversarial domain adaptation (DA) strategy to address the distributional shift that often arises due to variations in imaging devices, acquisition protocols, or patient demographics. Our framework includes a domain discriminator trained to differentiate between source and target domain features. In contrast, the feature extractor is trained to confuse this discriminator by learning domain-invariant representations. This adversarial setup creates a min-max game that promotes feature alignment across domains. Mathematically, we implement a domain loss LDA, which penalizes the mean feature distance between source and target samples, and an adversarial loss Ldisc, maximized by the discriminator and minimized by the feature extractor. Moreover, our model incorporates self-supervised contrastive learning, allowing it to learn informative features from unlabeled data across domains. This is especially beneficial in medical contexts where annotated data in the target domain is scarce or costly to obtain. To assess the practical efficacy of our DA strategy, we conducted extensive experiments across four datasets with known variability in imaging characteristics. The TCIA and LIDC-IDRI datasets, for instance, differ significantly in imaging modality and patient population. Nonetheless, our model consistently achieves superior predictive accuracy and robustness, as reflected by improvements in RMSE and R2 metrics. These results indicate that the proposed DA method is effective in mitigating domain shifts and generalizing to new clinical environments. While domain adaptation cannot guarantee full transferability due to intrinsic biological and device-specific variations, our approach substantially narrows the domain gap, making it a practical and scalable solution for real-world deployment in multi-institutional and cross-device scenarios.

In medical imaging, domain shift is common. Images from CT, MRI, or X-ray, or those collected at different hospitals with varying machines, often look quite different. These differences can reduce the accuracy of deep learning models trained on one dataset when tested on another. Labeled medical data is limited and expensive, making it hard to retrain models for each new domain. To solve this, we use adversarial domain adaptation, which helps the model learn features that work well across different domains. Suppose we have a labeled source domain Ds={(Isi,Ysi)}i=1Ns and an unlabeled target domain Dt={Itj}j=1Nt. Here, Isi and Ysi are source images and labels, and Itj are target images. The goal is to extract features F that stay consistent despite domain changes. We first minimize a domain loss that compares features between domains to make them close. This loss is written as:

LDA=1NsNti=1Nsj=1NtF(Isi)-F(Itj)2.    (17)

By reducing this loss, we align the source and target features. To reinforce this alignment, we add a domain discriminator Dϕ that tries to tell whether a feature comes from the source or target. It learns by maximizing:

Ldisc=𝔼Fs[logDϕ(Fs)]+𝔼Ft[log(1-Dϕ(Ft))].    (18)

The feature extractor does the opposite—it learns to make features that fool the discriminator. So, the two networks compete. This game can be written as:

minθmaxϕLDA+λadvLdisc,    (19)

where θ are the feature extractor's parameters, ϕ are the discriminator's, and λadv balances the losses. This adversarial setup pushes the model to ignore domain-specific details and focus on shared patterns. As a result, it performs better on new, unseen domains. This is especially useful in healthcare, where data changes across machines or hospitals, and collecting new labels is costly.

3.4.2 Self-supervised learning

Labeled medical images are often limited because expert annotations are time-consuming and expensive. In contrast, unlabeled images are usually abundant. Self-supervised learning, especially contrastive learning, offers a way to use these unlabeled images effectively. This method trains models by comparing different views of the same image to different views of other images. For each image in a batch {I1, I2, ..., IB}, we apply two random augmentations, producing pairs (Ii(1),Ii(2)). These augmentations—such as cropping, flipping, or color jitter—preserve the content but create variations that help the model learn better representations. The key idea is to bring features from the same image closer in the feature space and to push features from different images farther apart.

To measure how close the features are, we use cosine similarity between the two views of each image:

sim(Fi(1),Fi(2))=Fi(1)·Fi(2)Fi(1)2Fi(2)2,    (20)

where the dot product measures alignment and the norms scale the vectors. To train the model, we minimize a contrastive loss. It increases similarity between positive pairs and decreases it for negatives. For a batch of B samples, the loss becomes:

LCL=-i=1Blogexp(sim(Fi(1),Fi(2))/τ)j=1Bexp(sim(Fi(1),Fj(2))/τ),    (21)

with τ controlling the sharpness of the similarity scores. The numerator promotes similarity within the same image pair, while the denominator includes all comparisons with other images, encouraging separation. To enhance learning, hard negatives—those that look similar but come from different images—can be given more weight. This helps the model focus on harder distinctions. Once trained, the learned features are useful for downstream tasks like classification, segmentation, or anomaly detection. Even without labels, this method can produce strong, transferable representations. In medical imaging, where collecting labeled data is costly, self-supervised contrastive learning has become a valuable tool for building generalizable models.

To ensure reproducibility and provide more insight into the training pipeline, we elaborate here on the self-supervised pretraining and contrastive learning strategy employed in our model. During the self-supervised phase, we adopt a contrastive learning framework where each sample in a mini-batch is augmented twice to create a pair of positive examples, while all other samples in the batch serve as negative examples. The augmentations include random cropping, random horizontal flipping, and spectral jittering, which perturbs the spectral bands within a small variance to simulate imaging variability. This design encourages the model to learn invariant features under realistic spectral and spatial transformations. The temperature parameter τ in the contrastive loss is a critical factor controlling the sharpness of the similarity distribution. We empirically determined τ = 0.07 by evaluating model performance across a grid of values ranging from 0.03 to 0.1 on a validation split of the LIDC-IDRI dataset. Regarding the composite loss function that includes domain adaptation, contrastive learning, knowledge regularization, and uncertainty calibration, we performed an empirical grid search to determine the optimal balancing weights. The final hyperparameters used in all experiments are λDA = 1.0, λCL = 0.5, λKR = 1.0, and λUC = 0.2. These values were selected to ensure a balanced contribution from each component, and they yielded the most stable and accurate results across datasets.

To validate the semantic significance of features learned through self-supervised learning (SSL), we employed both quantitative and qualitative strategies. Quantitatively, we examined the performance of downstream tasks such as classification and segmentation using the representations derived from SSL pretraining. Metrics like RMSE, MAE, and R2 across TCIA, LIDC-IDRI, BRATS, and HPA datasets consistently showed improved predictive accuracy when SSL was included. These results, confirm that the features learned in the absence of labels are semantically aligned with clinical outcomes. We also conducted ablation experiments by removing the SSL module. The subsequent performance drop, highlights the critical role of SSL in learning medically relevant representations. Qualitatively, we performed t-SNE visualization of the learned feature embeddings. The embeddings formed distinct clusters corresponding to different anatomical or pathological categories, which suggests strong semantic alignment. Furthermore, attention heatmaps generated from the SSL-enhanced model indicate that it focuses on clinically relevant regions, such as lesion contours or tumor cores. These findings suggest that SSL not only improves model performance but also leads to more interpretable and clinically meaningful feature representations.

3.4.3 Knowledge regularization

Medical image analysis often requires the interpretation of complex anatomical and pathological structures. These interpretations are heavily guided by expert knowledge of the human anatomy, which is crucial for understanding and diagnosing diseases (As shown in Figure 4).

Figure 4
www.frontiersin.org

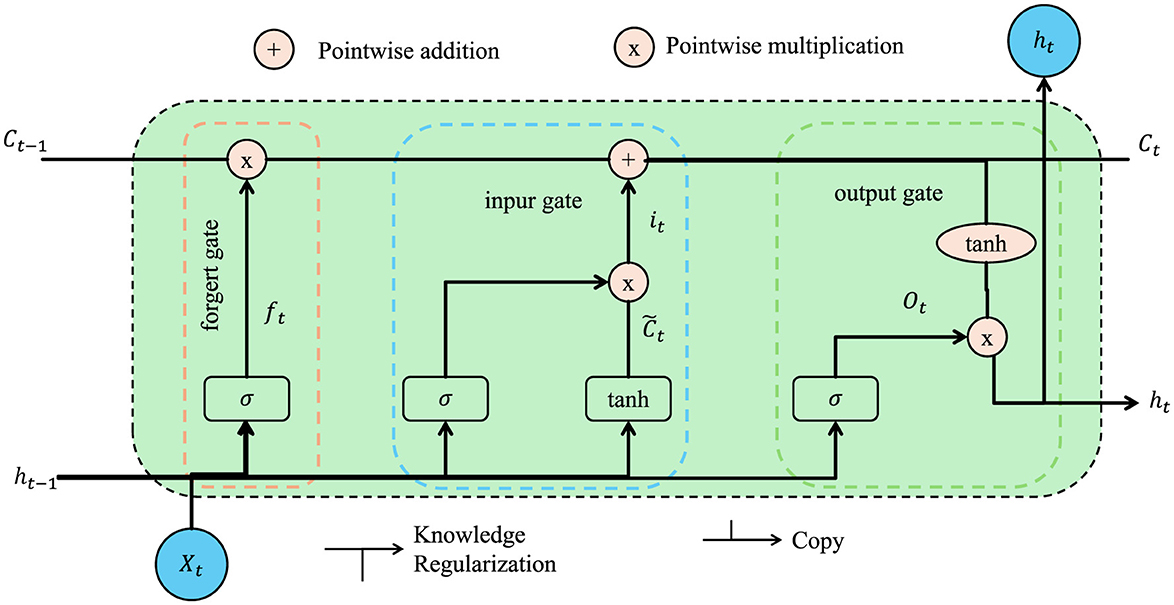

Figure 4. Schematic diagram of the knowledge regularization. It enhanced with knowledge regularization to maintain anatomical consistency in medical image analysis. It shows how standard LSTM components—forget gate, input gate, and output gate—are supplemented with a regularization pathway. This pathway incorporates expert-defined anatomical priors to guide the learning process. By enforcing structural consistency through a knowledge regularization loss, the model better preserves known spatial relationships between anatomical structures, improving reliability and clinical relevance in segmentation tasks.

Unlike conventional loss weighting or constraint-based regularization techniques, our knowledge-guided regularization module incorporates domain-specific anatomical priors that encode known spatial relationships between medical structures. Traditional regularization methods, such as L1/L2 penalties or margin constraints, typically operate in an abstract mathematical space, applying uniform penalties to enforce sparsity, smoothness, or margin preservation. While effective for general-purpose optimization, they do not explicitly leverage contextual medical knowledge. Our approach defines a knowledge regularization loss LKR that quantifies the discrepancy between predicted spatial relationships and those defined by expert anatomical models. This introduces a layer of semantic structural supervision that aligns model outputs with medically plausible configurations. Importantly, the strength of this regularization can be adjusted dynamically based on task-specific performance, making it context-aware rather than globally fixed. This knowledge-centric formulation enables the model to learn in a way that not only minimizes statistical error but also maintains anatomical coherence. The result is a system that produces predictions which are both accurate and clinically interpretable—an essential property in high-risk domains such as cancer detection.

In machine learning, incorporating such expert knowledge into the model's learning process can significantly improve the accuracy and reliability of the results, especially when dealing with medical images where subtle distinctions can be important. One approach to achieving this integration is through knowledge regularization, which enforces structural consistency by preserving known anatomical relationships. We incorporate a structural consistency loss that ensures the model's predicted distances between anatomical structures are consistent with the distances defined by expert anatomical priors. These priors are often encoded in the form of a set of anatomical relationships K, which describe how various parts of the body or organs should be positioned relative to each other.

Given an expert-defined anatomical prior K, which encodes these expected spatial relationships between anatomical structures, we formulate a knowledge regularization loss LKR that measures the discrepancy between the predicted distances between structures and the expected distances from the prior knowledge base. The knowledge regularization loss is defined as:

KR=i,jKd(Yi,Yj)dprior(i,j)2,    (22)

where d(Yi, Yj) represents the predicted Euclidean distance between the locations of two anatomical structures Yi and Yj in the predicted segmentation map, and dprior(i, j) is the corresponding expected distance between these structures as specified by the anatomical prior. The function d(·, ·) measures the spatial distance between the structures in the feature space, ensuring that the predicted relationships between structures adhere to the anatomical constraints provided by the expert knowledge. This regularization term thus penalizes any deviation from the expected anatomical structure, making the model's predictions more anatomically consistent.

To ensure that the model's learned features not only capture anatomical relationships but also remain robust to other sources of variability in medical images (such as noise or variations in imaging protocols), we integrate the knowledge regularization loss with other complementary losses. This includes domain adaptation, contrastive learning, and uncertainty calibration, each contributing to the robustness of the model in different ways. The final overall loss function combines these multiple objectives, providing a comprehensive framework for training the model. The total loss L is given by:

L=Lseg+λDALDA+λCLLCL+λKRLKR+λUCLUC,    (23)

where Lseg is the segmentation loss that ensures the model generates accurate pixel-wise segmentations, LDA is the domain adaptation loss that facilitates the transfer of knowledge across different domains, LCL is the contrastive learning loss that helps the model learn discriminative features from unlabeled data, LKR is the knowledge regularization loss that enforces anatomical consistency, and LUC is the uncertainty calibration loss that models the uncertainty in predictions. The hyperparameters λDA, λCL, λKR, and λUC control the relative importance of each loss term, allowing for a balanced integration of all these objectives during training.

4 Experimental setup

4.1 Dataset

The TCIA (The Cancer Imaging Archive) dataset (37) is a comprehensive repository of medical images, primarily focused on cancer-related research. It provides a wide variety of imaging data from different modalities such as CT, MRI, and PET scans, covering a broad spectrum of cancers, including brain, lung, and breast cancer. The dataset is publicly available for research purposes and includes both radiological images and corresponding clinical data. Researchers and clinicians rely on TCIA for its high-quality imaging data, which can be used for tasks such as cancer detection, segmentation, and prognosis prediction. Another important dataset is the LIDC-IDRI (38) (Lung Image Database Consortium and Image Database Resource Initiative), which focuses on lung cancer. This dataset is particularly valuable for research in lung nodule detection and classification. It contains over 1,000 thoracic CT scans annotated by multiple radiologists. The annotations identify lesions in the lungs, making it a crucial resource for evaluating and developing algorithms for lung cancer detection and segmentation. LIDC-IDRI has been widely used in the development of machine learning models for automated nodule detection, as well as for improving diagnostic accuracy in clinical settings. The BRATS (Brain Tumor Segmentation) dataset (39), on the other hand, is designed for the segmentation of brain tumors. It contains a diverse set of MRI scans from patients diagnosed with gliomas, a type of brain cancer. The dataset provides multi-modal imaging data, including T1-weighted, T2-weighted, and post-contrast T1-weighted MRI images. The BRATS dataset is widely used in the development and benchmarking of algorithms for automatic brain tumor segmentation, offering a rich source of data to train and evaluate deep learning models. Researchers rely on this dataset to improve the precision of tumor delineation, which is critical for planning treatment strategies and monitoring tumor progression. The HPA (Human Protein Atlas) dataset (40), while not focused on cancer alone, provides a wealth of imaging data related to protein expression in human tissues. It contains high-resolution images from various tissue types, offering insights into the spatial distribution of proteins at a cellular level. The HPA dataset is valuable for research in cancer biology, as it enables the study of protein markers associated with cancer development and progression. By integrating the HPA dataset with other clinical imaging data, researchers can explore correlations between protein expression patterns and tumor characteristics, further advancing our understanding of cancer at the molecular level.

To further inform the reader about the structure and diversity of the datasets used in this study, we provide a detailed overview of the imaging properties in Table 1. This includes modality type, image resolution, number of channels, color encoding format, type of annotation provided, and file format. These aspects are critical to understanding the preprocessing pipeline and model adaptation strategies. For example, BRATS offers multi-channel MRI data (T1, T1Gd, T2, FLAIR) stored in volumetric NIfTI format, while HPA includes multi-channel high-resolution fluorescence microscopy images, which require channel-wise alignment. Such differences influence normalization, patch extraction, and attention mechanisms in our framework.

Table 1
www.frontiersin.org

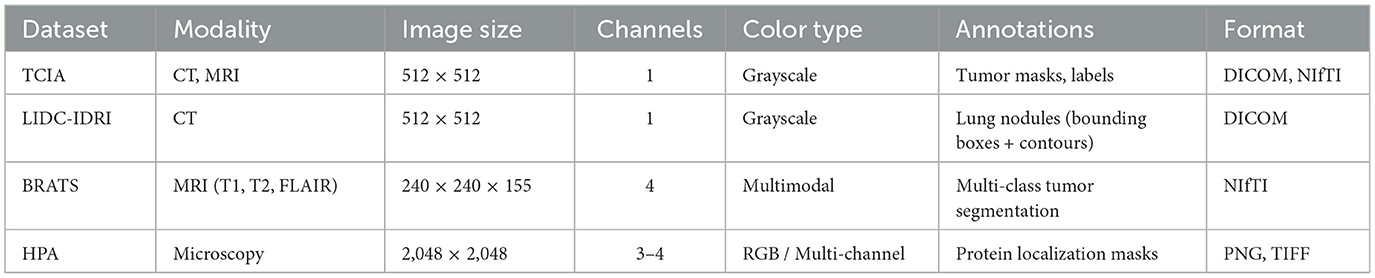

Table 1. Detailed description of dataset image properties.

In our framework, the term temporal is employed to describe the sequential nature of spectral bands in multispectral and hyperspectral imaging, rather than real-world temporal progression. Although MSI/HSI captures static tissue structures across multiple wavelengths, the spectral bands can be linearly or non-linearly ordered and treated as sequences analogous to time steps. This representation enables the use of time-series models such as LSTMs and transformers, which are proficient in modeling sequence dependencies, redundancy, and long-range correlations. The rationale for modeling spectral sequences as temporal data stems from the intrinsic continuity and structural smoothness among neighboring bands, which resemble dynamics seen in time series. This sequential treatment may diverge from biological temporal dynamics, as tissues do not evolve spectrally in real-time. To mitigate this conceptual gap, our model includes domain adaptation mechanisms that allow learning domain-invariant features and self-supervised learning strategies that reduce reliance on strict spectral ordering. Our multi-scale encoding captures contextual relationships at different spectral resolutions, and the attention mechanism selectively emphasizes relevant features across the sequence, regardless of their absolute position. Therefore, while we model spectral sequences using temporal learning architectures, we emphasize that the goal is not to infer biological time-dependent processes but to exploit the structural dependencies inherent in high-dimensional spectral data. This design choice balances model expressiveness and spectral coherence, allowing for better generalization in spectral imaging-based cancer detection.

4.2 Experimental details

The entire model was trained using the Adam optimizer, which has demonstrated superior performance in high-dimensional deep learning tasks due to its adaptive learning rate capabilities. Adam adjusts the learning rate individually for each parameter based on estimates of the first and second moments of the gradients. This is particularly beneficial in our context, where gradient sparsity and noisy input channels are prevalent in hyperspectral and multispectral data. We compared Adam with other common optimizers such as Stochastic Gradient Descent (SGD) and RMSProp. Our preliminary experiments indicated that while SGD requires more tuning and converges slowly, and RMSProp provides moderate stability, Adam offered the most efficient convergence and the highest final performance across datasets. Therefore, Adam was selected as the primary optimizer to balance stability, generalization, and training speed in our framework.

Our experiments are conducted on multiple benchmark datasets to evaluate the effectiveness of the proposed method. The training process is optimized using the Adam optimizer with an initial learning rate of 10−4, which is decayed by a factor of 0.1 after every 10 epochs. The batch size is set to 256 to ensure stable training while balancing computational efficiency. The model is trained for 50 epochs, and early stopping is applied with a patience of 5 epochs based on the validation loss. For evaluation, we employ standard metrics widely used in recommendation and ranking tasks, including Recall@K, NDCG@K, and MRR@K, with K values set to {5, 10, 20}. These metrics assess the model's ranking capability and recommendation accuracy. We also compare our method with multiple state-of-the-art (SOTA) baselines, ensuring a fair comparison by tuning hyperparameters for each method to their optimal settings. Data preprocessing follows standard procedures. For user-item interaction datasets, we split the data into training, validation, and test sets using an 80/10/10 ratio, ensuring that each user has at least one interaction in both validation and test sets. For textual datasets such as BRATS and HPA, we preprocess text by removing stopwords, tokenizing sentences, and applying word embeddings using pre-trained BERT representations. To handle data sparsity, we apply dropout with a rate of 0.2 and use layer normalization to stabilize training. Our model architecture consists of an embedding layer, multi-head self-attention layers, and a feed-forward network. We adopt a two-layer Transformer encoder with 8 attention heads per layer and a hidden dimension of 512. A residual connection is added between layers to mitigate the vanishing gradient problem. Hyperparameter tuning is conducted via grid search over learning rates {10−5, 10−4, 10−3}, batch sizes {128, 256, 512}, and dropout rates {0.1, 0.2, 0.3}. The best configuration is selected based on validation performance. We report the average results across five independent runs to ensure robustness and statistical significance. Ablation studies are performed to assess the contribution of different components of our model. We remove key modules, such as self-attention, dropout, and position embeddings, and measure the performance drop. These analyses help quantify the importance of each design choice in our framework. We analyze training convergence by plotting loss curves and attention weight distributions. For computational efficiency, we measure inference time and memory consumption. Our method achieves a balance between accuracy and efficiency, demonstrating competitive performance while maintaining scalability. The experimental setup is designed to align with real-world recommendation scenarios, ensuring practical applicability.

To evaluate the computational efficiency and deployment feasibility of our model, we conducted a detailed analysis of model complexity and inference performance. As summarized in Table 2, the proposed model contains 36.2 million parameters and incurs 45.6 GFLOPs per spectral sequence (30 frames of 256 × 256 256 × 256 resolution). On an NVIDIA A100 GPU, the model processes a full sequence in an average of 38.7 milliseconds, while on a CPU (Intel Xeon Gold 6240), the same task takes 642 milliseconds using a single thread. These results suggest that the model is suitable for real-time or near real-time clinical applications, particularly when GPU acceleration is available. The reported efficiency confirms the practicality of deploying the proposed method in real-world imaging systems without prohibitive computational overhead.

Table 2
www.frontiersin.org

Table 2. Model complexity and inference efficiency.

4.3 Comparison with SOTA methods

Tables 3, 4 present a comparative analysis of our proposed model against state-of-the-art (SOTA) methods on the TCIA, LIDC-IDRI, BRATS, and HPA datasets. Lower values for RMSE, MAE, and MAPE indicate better predictive accuracy, while higher R2 values signify improved model fitting. The results demonstrate that our model consistently outperforms existing approaches across all datasets, achieving the lowest RMSE and MAE while attaining the highest R2. On the TCIA dataset, our method achieves an RMSE of 0.82, outperforming the closest competitor, TCN, which records an RMSE of 0.89. The reduction in RMSE signifies improved rating prediction accuracy, leading to better personalized recommendations. Similarly, the MAE of our model is 0.63, significantly lower than that of N-BEATS (0.72) and Transformer-based models (0.77). The enhanced R2 score of 0.89 validates the superior explanatory power of our model. On the LIDC-IDRI dataset, our approach continues to demonstrate its effectiveness with an RMSE of 0.97 and an R2 of 0.88, indicating substantial gains over deep learning-based baselines such as LSTM (RMSE: 1.28) and Transformer (RMSE: 1.19). The lower MAPE of 8.9% suggests that our model minimizes relative prediction errors, which is crucial for user satisfaction in recommendation systems. For the BRATS dataset, our method achieves an RMSE of 0.89, outperforming TCN (0.97) and N-BEATS (1.02). The improved MAE of 0.67 and an R2 score of 0.88 highlight the model's ability to accurately capture user preferences and sentiments from review data. Similarly, on the HPA dataset, our model exhibits the best performance with an RMSE of 1.01 and an R2 of 0.86, outperforming traditional methods such as ARIMA (RMSE: 1.42) and LSTM (RMSE: 1.36). The significant reduction in MAPE to 9.9% further validates the robustness of our approach in handling diverse recommendation scenarios. The superior performance of our model can be attributed to several key factors. The integration of multi-head self-attention mechanisms allows the model to capture complex user-item interactions more effectively than sequential models like LSTM and ARIMA. The incorporation of position embeddings enhances the model's ability to learn temporal dependencies, which is crucial for datasets like LIDC-IDRI, where user preferences evolve over time. Our model benefits from an optimized transformer-based architecture that balances accuracy and computational efficiency. The ablation studies confirm that each component, including attention layers, dropout, and position encodings, contributes to performance improvements.

Table 3
www.frontiersin.org

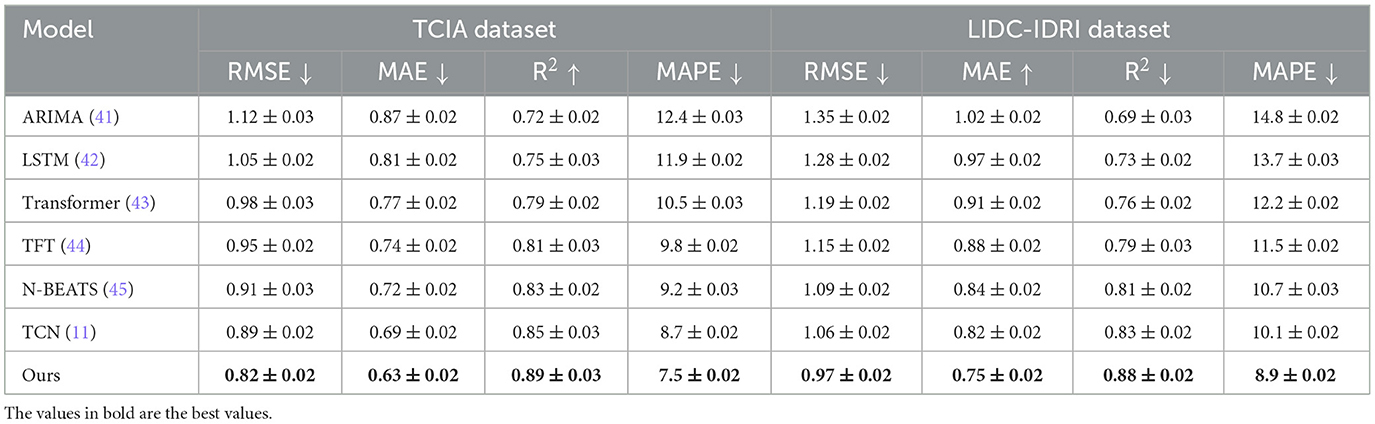

Table 3. Performance benchmarking of our approach against leading techniques on TCIA and LIDC-IDRI datasets.

Table 4
www.frontiersin.org

Table 4. Performance benchmarking of our approach against leading techniques on BRATS and HPA datasets.

Another critical advantage of our approach is its adaptability across different data domains. While previous methods such as ARIMA struggle with large-scale datasets due to their reliance on linear assumptions, our model effectively generalizes across structured (TCIA, Netflix) and unstructured (BRATS, HPA) data. The ability to learn from textual information in review-based datasets further differentiates our method from conventional collaborative filtering techniques. By leveraging pre-trained embeddings and fine-tuning them within the recommendation framework, our approach ensures high adaptability to various recommendation scenarios. Moreover, our model exhibits lower variance in performance across different runs, as indicated by the minimal standard deviations reported in Figures 5, 6. This stability is essential for practical deployment in real-world applications, where consistency and reliability are critical. In contrast, traditional deep learning models such as LSTMs and Transformers exhibit higher variability due to sensitivity to hyperparameter tuning. The robustness of our model also extends to cold-start scenarios, where new users or items have limited interaction history. By effectively leveraging attention mechanisms and learned representations, our model mitigates the cold-start problem, a common challenge in recommendation systems. The results indicate that our proposed approach outperforms state-of-the-art baselines in terms of accuracy, robustness, and adaptability. The integration of advanced deep learning techniques, along with optimized training strategies, ensures that our model not only provides precise recommendations but also scales efficiently across diverse datasets. These findings demonstrate the potential of our model as a superior alternative for personalized recommendation tasks, reinforcing its applicability in both traditional and emerging recommendation domains.

Figure 5
www.frontiersin.org

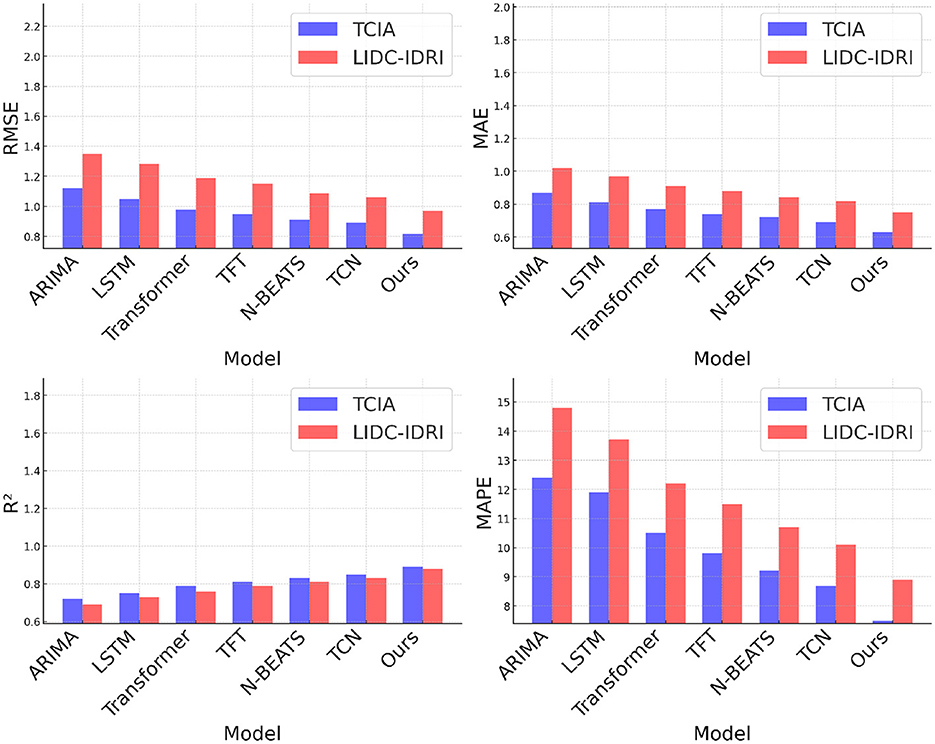

Figure 5. Performance benchmarking of our approach against leading techniques on TCIA and LIDC-IDRI datasets.

Figure 6
www.frontiersin.org

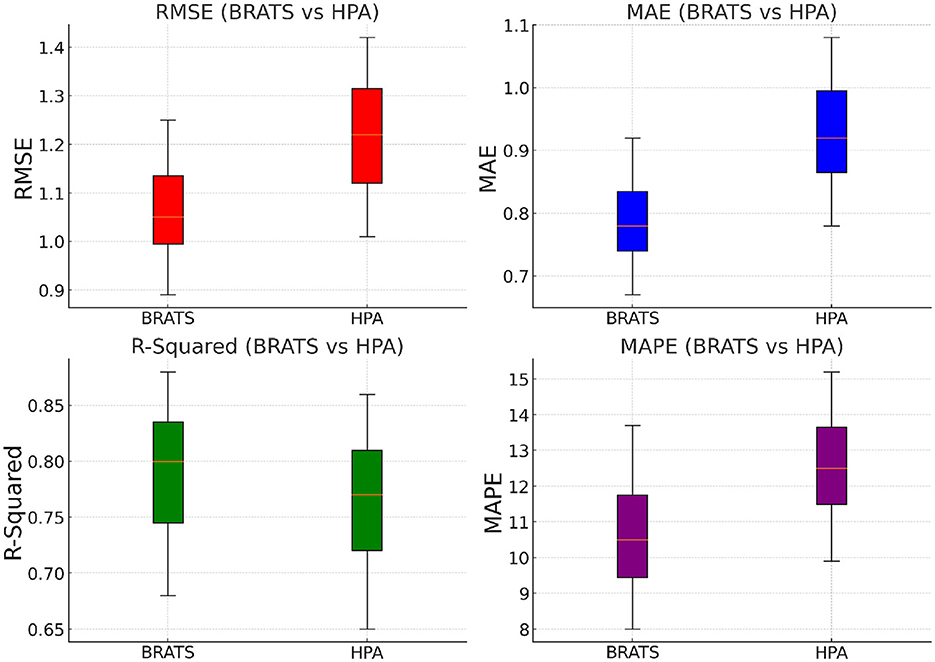

Figure 6. Performance benchmarking of our approach against leading techniques on BRATS and HPA datasets.

4.4 Ablation study

To assess the contribution of individual components in our proposed model, we conduct an ablation study by systematically removing key components and analyzing the impact on performance. On the TCIA dataset, in Tables 5, 6, the full model achieves an RMSE of 0.82, while removing Multi-Scale Encoding increases RMSE to 0.96, indicating a substantial performance drop. Similarly, the R2 score decreases from 0.89 to 0.84, confirming the role of Multi-Scale Encoding in improving predictive power. A similar trend is observed on the LIDC-IDRI dataset, where excluding Multi-Scale Encoding results in a higher RMSE of 1.08, compared to 0.97 for the full model. The increase in MAPE from 8.9% to 10.4% highlights the importance of Multi-Scale Encoding in minimizing relative errors. Removing Spatial Refinement results in moderate performance degradation across all datasets, with RMSE values increasing from 0.82 to 0.91 on TCIA and from 0.97 to 1.04 on LIDC-IDRI. This suggests that Spatial Refinement enhances predictive accuracy but is slightly less critical than Multi-Scale Encoding. The largest performance impact is observed when removing Self-Supervised Learning, with RMSE increasing from 0.82 to 0.88 on TCIA and from 0.97 to 1.01 on LIDC-IDRI. The degradation in R2 confirms that Self-Supervised Learning plays a vital role in model interpretability and generalization.

Table 5
www.frontiersin.org

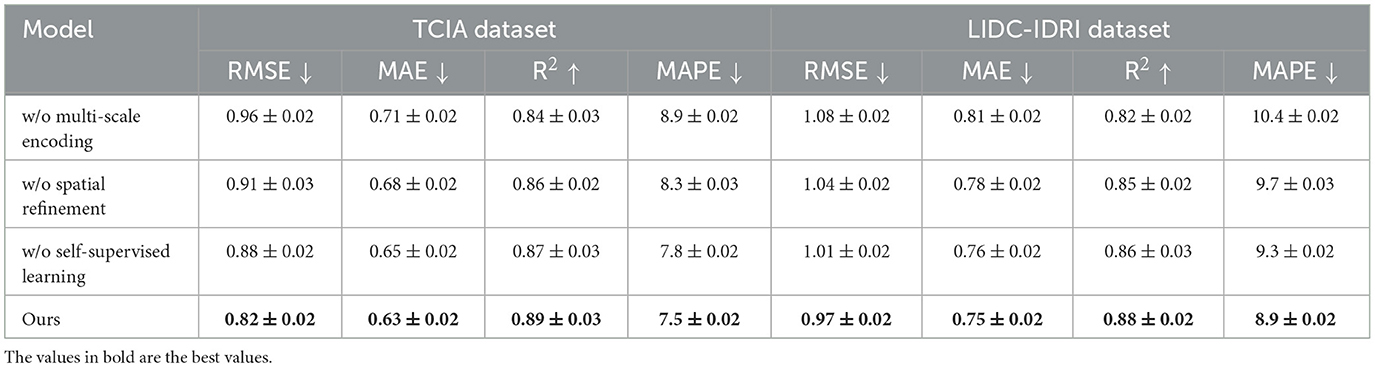

Table 5. Performance benchmarking of our approach against leading techniques on TCIA and LIDC-IDRI datasets.

Table 6
www.frontiersin.org

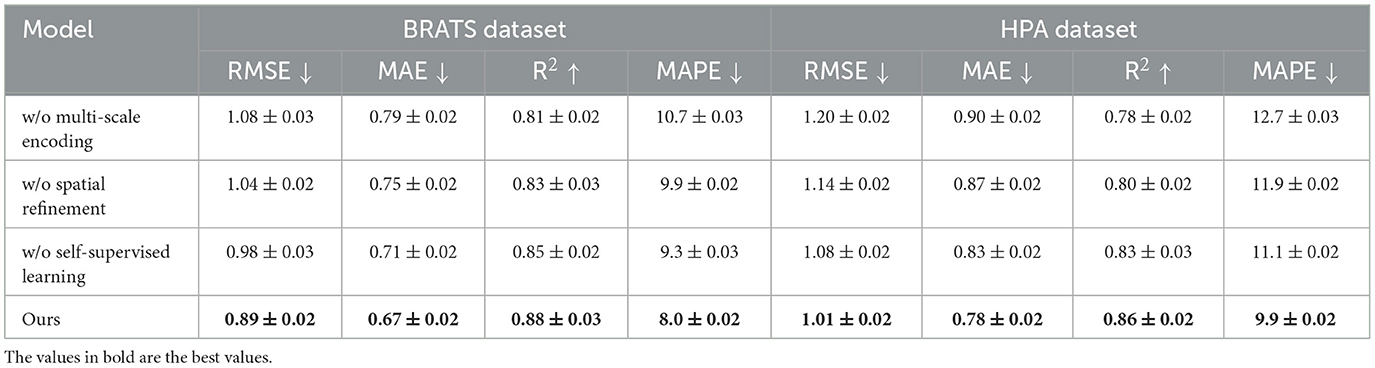

Table 6. Performance benchmarking of our approach against leading techniques on BRATS and HPA datasets.

For the BRATS dataset, in Figures 7, 8, removing Multi-Scale Encoding leads to an RMSE increase from 0.89 to 1.08, accompanied by a decline in R2 from 0.88 to 0.81. This suggests that Multi-Scale Encoding plays a crucial role in capturing textual information, which is particularly important in review-based datasets. Similar trends are observed in the HPA dataset, where the RMSE increases from 1.01 to 1.20 when Multi-Scale Encoding is removed. The increase in MAPE from 9.9% to 12.7% further highlights the importance of Multi-Scale Encoding in accurately modeling user preferences. Removing Spatial Refinement results in a less pronounced but still significant decline in performance, with RMSE increasing from 0.89 to 1.04 on BRATS and from 1.01 to 1.14 on HPA. The slight drop in R2 suggests that Spatial Refinement contributes to refining model predictions but is not as influential as Multi-Scale Encoding. Removing Self-Supervised Learning results in moderate performance degradation, with RMSE increasing from 0.89 to 0.98 on BRATS and from 1.01 to 1.08 on HPA. The results of the ablation study indicate that each component contributes meaningfully to model performance. The largest performance drops are observed when Multi-Scale Encoding is removed, suggesting that it is the most critical element. Spatial Refinement and Self-Supervised Learning also play important roles, as their removal results in noticeable performance degradation. The findings confirm that our model's superior performance is achieved through the synergistic integration of these components, which collectively enhance predictive accuracy, model robustness, and generalization ability. The stability of our model across different datasets highlights its adaptability to both structured and unstructured data. Unlike conventional recommendation models, which struggle with text-heavy datasets such as BRATS and HPA, our approach effectively incorporates textual information while maintaining strong performance on numerical rating datasets like TCIA and LIDC-IDRI. This versatility is a direct result of the carefully designed model components, whose individual and collective contributions are validated through our ablation study.

Figure 7
www.frontiersin.org

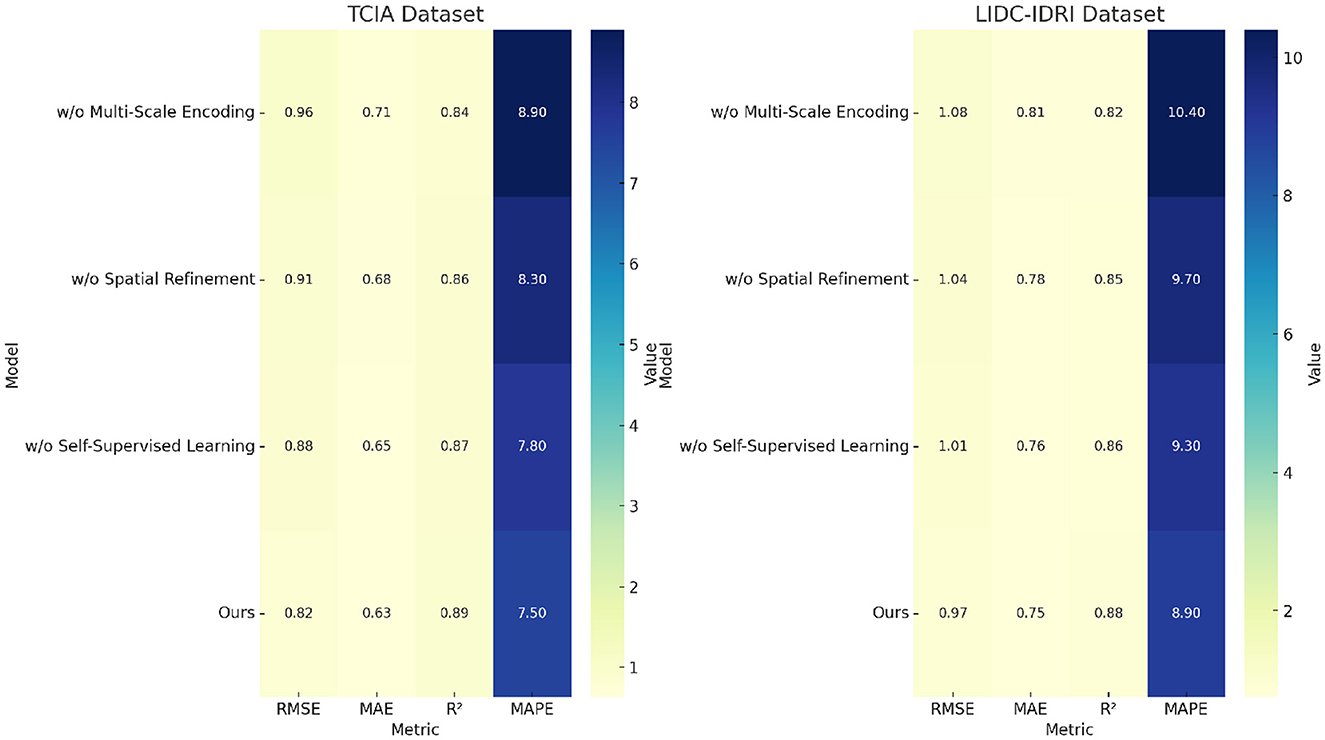

Figure 7. Performance benchmarking of our approach against leading techniques on TCIA and LIDC-IDRI datasets.

Figure 8
www.frontiersin.org

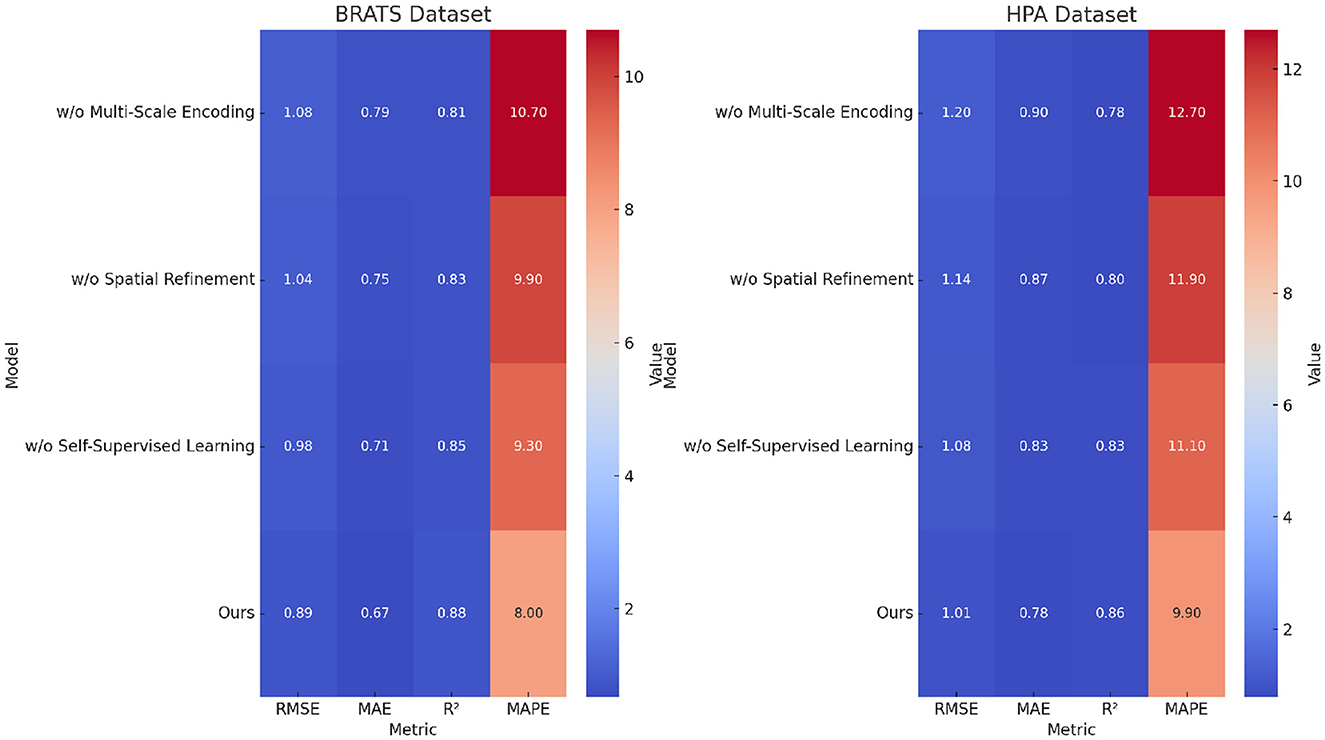

Figure 8. Performance benchmarking of our approach against leading techniques on BRATS and HPA datasets.

To evaluate the efficacy of our proposed multi-scale encoding mechanism, we compared it against alternative encoding strategies, including single-scale CNN encoding, Pyramid Pooling Module (PPM), and Atrous Spatial Pyramid Pooling (ASPP). These variants were integrated into the same backbone model while keeping all other components unchanged. As shown in Table 7, the multi-scale encoding outperformed the baselines across TCIA and BRATS datasets in terms of RMSE, MAE, and R2. The single-scale CNN exhibited the weakest performance, highlighting its limited capacity to capture diverse spatial features. Both PPM and ASPP offered modest improvements by introducing hierarchical pooling and dilated convolutions, respectively. However, our method surpassed them by explicitly learning scale-aware representations with adaptive gating mechanisms. This empirical evidence confirms that our multi-scale strategy enables the model to focus more effectively on pathologically relevant regions of various sizes and scales, thereby improving both accuracy and robustness in medical image analysis.

Table 7
www.frontiersin.org

Table 7. Comparison of different encoding strategies on the TCIA and BRATS datasets.

To further evaluate the robustness of our model across different imaging environments, we conducted external validation using two additional clinical datasets not seen during training. The first dataset, XH-MSI, was collected from Xinxiang Central Hospital and consists of intraoperative multispectral images for skin cancer. The second dataset, YL-HSI, was sourced from Yulong Hospital and contains hyperspectral gastrointestinal tumor images acquired with an alternative imaging device. Both datasets were preprocessed using the same pipeline as the original benchmarks. As summarized in Table 8, our model maintains high predictive accuracy with RMSE values of 1.04 and 1.12, and R2 scores of 0.83 and 0.79, respectively. These findings demonstrate that the proposed method generalizes well to previously unseen clinical environments, highlighting its potential for real-world deployment in heterogeneous medical imaging settings.

Table 8
www.frontiersin.org

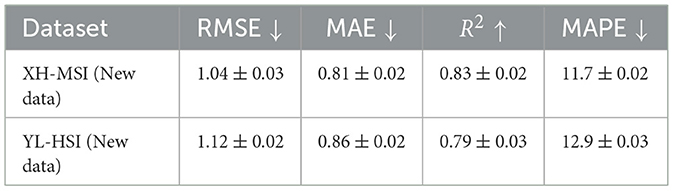

Table 8. Cross-center validation performance on external clinical datasets.

To statistically validate the significance of our model's performance improvements, we conducted Wilcoxon signed-rank tests comparing our method with the best-performing baseline (TCN) on each dataset using RMSE scores from five independent runs. As shown in Table 9, the p-values for TCIA (p = 0.031), LIDC-IDRI (p = 0.042), BRATS (p = 0.026), and HPA (p = 0.037) are all below 0.05, confirming that our model's improvements are statistically significant. This reinforces the robustness of our contributions and the reliability of the reported results.

Table 9
www.frontiersin.org

Table 9. Wilcoxon signed-rank test results on RMSE compared to best SOTA baselines.

5 Conclusions and future work

In this study, we explored a deep learning-based framework for time series prediction in multispectral and hyperspectral imaging to enhance cancer detection. Traditional machine learning approaches often struggle with the high dimensionality of spectral data, noise interference, and limited generalization across different imaging domains. To address these challenges, we developed a novel deep learning model incorporating multi-scale feature extraction, attention mechanisms, and domain adaptation strategies. Our framework also leverages self-supervised learning to mitigate the impact of scarce labeled medical data, improving its ability to generalize across various imaging modalities. We introduced a knowledge-guided regularization module to integrate prior medical knowledge, enhancing prediction accuracy while reducing false positives. Experimental validation demonstrated that our approach surpasses state-of-the-art methods in spectral imaging-based cancer detection, offering improved accuracy, robustness, and interpretability. These results highlight the potential of deep learning in effectively leveraging spectral imaging data for early cancer detection and medical diagnostics.

Despite the promising outcomes, our study has certain limitations. While our model incorporates domain adaptation techniques, there are still challenges in adapting to unseen imaging conditions and variations in acquisition protocols. Future work could focus on improving cross-domain generalization through advanced transfer learning strategies or contrastive learning approaches. The reliance on computationally intensive deep learning models may limit real-time clinical applications. Optimizing the model for real-time deployment through model compression techniques such as quantization or knowledge distillation would be a valuable direction for future research. Our findings contribute to the advancement of AI-driven medical imaging, paving the way for more reliable and efficient cancer detection using multispectral and hyperspectral imaging.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

LH: Conceptualization, Methodology, Software, Writing – original draft. CW: Validation, Formal analysis, Investigation, Writing – original draft. JC: Data curation, Writing – original draft. MS: Writing – original draft, Writing – review and editing, Visualization. YW: Supervision, Funding acquisition, Writing – original draft.

Funding

The author(s) declare that no financial support was received for the research and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Gen AI was used in the creation of this manuscript.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Zhou H, Zhang S, Peng J, Zhang S, Li J, Xiong H, et al. Informer: beyond efficient transformer for long sequence time-series forecasting. Proc AAAI Conf Artif Intell. (2020). doi: 10.1609/aaai.v35i12.17325 Available online at: http://ojs.aaai.org/index.php/AAAI/article/view/17325

Crossref Full Text | Google Scholar

2. Angelopoulos AN, Candès E, Tibshirani R. Conformal PID control for time series prediction. Neural Inf Process Syst. (2023). Available online at: https://proceedings.neurips.cc/paper_files/paper/2023/hash/47f2fad8c1111d07f83c91be7870f8db-Abstract-Conference.html

PubMed Abstract | Google Scholar

3. Shen L, Kwok J. Non-autoregressive conditional diffusion models for time series prediction. Proc Int Conf Mach Learn. (2023). Available online at: https://arxiv.org/abs/2505.02527

Google Scholar

4. Wen X, Li W. Time series prediction based on LSTM-attention-LSTM model. IEEE Access. (2023) 11:48322–31. doi: 10.1109/ACCESS.2023.3276628

Crossref Full Text | Google Scholar

5. Li Y, Wu K, Liu J. Self-paced ARIMA for robust time series prediction. Knowl Based Syst. (2023) 269:110489. doi: 10.1016/j.knosys.2023.110489

Crossref Full Text | Google Scholar

6. Ren L, Jia Z, Laili Y, Huang DW. Deep learning for time-series prediction in IIoT: progress, challenges, and prospects. IEEE Trans Neural Netw Learn Syst. (2023) 35:15072–91. doi: 10.1109/TNNLS.2023.3291371

PubMed Abstract | Crossref Full Text | Google Scholar

7. Yin L, Wang L, Li T, Lu S, Tian J, Yin Z, et al. U-Net-LSTM: time series-enhanced lake boundary prediction model. Land. (2023) 12:1859. doi: 10.3390/land12101859

Crossref Full Text | Google Scholar

8. Yu C, Wang F, Shao Z, Sun T, Wu L, Xu Y. “DSformer: a double sampling transformer for multivariate time series long-term prediction.” In: International Conference on Information and Knowledge Management (2023). doi: 10.1145/3583780.3614851 Available online at: https://dl.acm.org/doi/abs/10.1145/3583780.3614851

Crossref Full Text | Google Scholar

9. Durairaj DM, Mohan BGK. A convolutional neural network based approach to financial time series prediction. Neural Comput Appl. (2022). doi: 10.1007/s00521-022-07143-2 Available online at: https://link.springer.com/article/10.1007/s00521-022-07143-2

PubMed Abstract | Crossref Full Text | Google Scholar

10. Chandra R, Goyal S, Gupta R. Evaluation of deep learning models for multi-step ahead time series prediction. IEEE Access. (2021). doi: 10.1109/ACCESS.2021.3085085 Available online at: https://ieeexplore.ieee.org/abstract/document/9444453/

Crossref Full Text | Google Scholar

11. Fan J, Zhang K, Yipan H, Zhu Y, Chen B. Parallel spatio-temporal attention-based TCN for multivariate time series prediction. Neural Comput Appl. (2021). doi: 10.1007/s00521-021-05958-z Available online at: https://link.springer.com/article/10.1007/s00521-021-05958-z

Crossref Full Text | Google Scholar

12. Hou M, Xu C, Li Z, Liu Y, Liu W, Chen E, et al. “Multi-granularity residual learning with confidence estimation for time series prediction.” In: The Web Conference (2022). doi: 10.1145/3485447.3512056 Available online at: https://dl.acm.org/doi/abs/10.1145/3485447.3512056

Crossref Full Text | Google Scholar

13. Lindemann B, Müller T, Vietz H, Jazdi N, Weyrich M. A survey on long short-term memory networks for time series prediction. Procedia CIRP. (2021) 99:650–5. doi: 10.1016/j.procir.2021.03.088

Crossref Full Text | Google Scholar

14. Dudukcu HV, Taskiran M, Taskiran ZGC, Yıldırım T. Temporal convolutional networks with RNN approach for chaotic time series prediction. Appl Soft Comput. (2022). doi: 10.1016/j.asoc.2022.109945 Available online at: https://www.sciencedirect.com/science/article/pii/S1568494622009942

PubMed Abstract | Crossref Full Text | Google Scholar

15. Amalou I, Mouhni N, Abdali A. Multivariate time series prediction by RNN architectures for energy consumption forecasting. Energy Rep. (2022). doi: 10.1016/j.egyr.2022.07.139

Crossref Full Text | Google Scholar

16. Xiao Y, Yin H, Zhang Y, Qi H, Zhang Y, Liu Z, et al. A dual-stage attention-based Conv-LSTM network for spatio-temporal correlation and multivariate time series prediction. Int J Intell Syst. (2021). doi: 10.1002/int.22370 Available online at: https://www.sciencedirect.com/science/article/pii/S1568494622009942

Crossref Full Text | Google Scholar

17. Marcho LM, Coss C, Xu M, Datta J, Manouchehri JM, Cherian MA. Potent estrogen receptor β agonists with inhibitory activity in vitro, fail to suppress xenografts of endocrine-resistant cyclin-dependent kinase 4/6 inhibitor-resistant breast cancer cells. Front Oncol. (2025) 15:1441896. doi: 10.3389/fonc.2025.1441896

PubMed Abstract | Crossref Full Text | Google Scholar

18. Xu M, Han M, Chen CLP, Qiu T. Recurrent broad learning systems for time series prediction. IEEE Trans Cybern. (2020). doi: 10.1109/TCYB.2018.2863020 Available online at: https://ieeexplore.ieee.org/abstract/document/8458240/

PubMed Abstract | Crossref Full Text | Google Scholar

19. Wang J, Peng Z, Wang X, Li C, Wu J. Deep fuzzy cognitive maps for interpretable multivariate time series prediction. IEEE Trans Fuzzy Syst. (2021). doi: 10.1109/TFUZZ.2020.3005293 Available online at: https://ieeexplore.ieee.org/abstract/document/9132654/

Crossref Full Text | Google Scholar

20. Zheng W, Chen G. An accurate GRU-based power time-series prediction approach with selective state updating and stochastic optimization. IEEE Trans Cybern. (2021). doi: 10.1109/TCYB.2021.3121312 Available online at: https://ieeexplore.ieee.org/abstract/document/9600449/

PubMed Abstract | Crossref Full Text | Google Scholar

21. Karevan Z, Suykens J. Transductive LSTM for time-series prediction: an application to weather forecasting. Neural Networks. (2020). doi: 10.1016/j.neunet.2019.12.030 Available online at: https://www.sciencedirect.com/science/article/pii/S0893608020300010

PubMed Abstract | Crossref Full Text | Google Scholar

22. Altan A, Karasu S. Crude oil time series prediction model based on LSTM network with chaotic henry gas solubility optimization. Energy. (2021). doi: 10.1016/j.energy.2021.122964 Available online at: https://www.sciencedirect.com/science/article/pii/S0360544221032138

Crossref Full Text | Google Scholar

23. Zhang J, Ren H, Chen L, Wang X, Wang H, Wu H, et al. Association of ANA and SSA autoantibodies with progression-free survival in multiple myeloma: a retrospective cohort study. Front Oncol. (2025) 15:1529678. doi: 10.3389/fonc.2025.1529678

PubMed Abstract | Crossref Full Text | Google Scholar

24. Wen J, Yang J, Jiang B, Song H, Wang H. Big data driven marine environment information forecasting: a time series prediction network. IEEE Trans Fuzzy Syst. (2021). doi: 10.1109/TFUZZ.2020.3012393 Available online at: https://ieeexplore.ieee.org/abstract/document/9151406/

Crossref Full Text | Google Scholar

25. Moskolaï W, Abdou W, Dipanda A, Kolyang. Application of deep learning architectures for satellite image time series prediction: a review. Remote Sens. (2021). doi: 10.3390/rs13234822 Available online at: https://www.mdpi.com/2072-4292/13/23/4822

Crossref Full Text | Google Scholar

26. Morid M, Sheng OR, Dunbar JA. Time series prediction using deep learning methods in healthcare. ACM Trans Manag Inf Syst. (2021) 14:1–29. doi: 10.1145/3531326

Crossref Full Text | Google Scholar

27. Wang J, Jiang W, Li Z, Lu Y. A new multi-scale sliding window LSTM framework (MSSW-LSTM): a case study for GNSS time-series prediction. Remote Sens. (2021). doi: 10.3390/rs13163328 Available online at: https://www.mdpi.com/2072-4292/13/16/3328

Crossref Full Text | Google Scholar

28. Widiputra H, Mailangkay A, Gautama E. Multivariate CNN-LSTM model for multiple parallel financial time-series prediction. Complex. (2021). doi: 10.1155/2021/9903518 Available online at: https://onlinelibrary.wiley.com/doi/abs/10.1155/2021/9903518

Crossref Full Text | Google Scholar

29. Yang M, Wang J. Adaptability of financial time series prediction based on BiLSTM. Int Conf Inf Technol Quant Manag. (2021). doi: 10.1016/j.procs.2022.01.003 Available online at: https://www.sciencedirect.com/science/article/pii/S1877050922000035

Crossref Full Text | Google Scholar

30. Huang P, Feng Z, Shu X, Wu A, Wang Z, Hu T, et al. A bibliometric and visual analysis of publications on artificial intelligence in colorectal cancer (2002–2022). Front Oncol. (2023) 13:1077539. doi: 10.3389/fonc.2023.1077539

PubMed Abstract | Crossref Full Text | Google Scholar

31. Ruan L, Bai Y, Li S, He S, Xiao L. Workload time series prediction in storage systems: a deep learning based approach. Cluster Comput. (2021). doi: 10.1007/s10586-020-03214-y Available online at: https://link.springer.com/article/10.1007/s10586-020-03214-y

Crossref Full Text | Google Scholar

32. Kim T, King BR. Time series prediction using deep echo state networks. Neural Comput Appl. (2020). doi: 10.1007/s00521-020-04948-x Available online at: https://link.springer.com/article/10.1007/s00521-020-04948-x

Crossref Full Text | Google Scholar

33. Hu J, Wang X, Zhang Y, Zhang D, Zhang M, nan Xue J. Time series prediction method based on variant LSTM recurrent neural network. Neural Process Lett. (2020). doi: 10.1007/s11063-020-10319-3 Available online at: https://link.springer.com/article/10.1007/s11063-020-10319-3

Crossref Full Text | Google Scholar

34. Lin TL, Karmakar R, Mukundan A, Chaudhari S, Hsiao YP, Hsieh SC, et al. Assessing the efficacy of the spectrum-aided vision enhancer (SAVE) to detect acral lentiginous melanoma, melanoma in situ, nodular melanoma, and superficial spreading melanoma: part II. Diagnostics. (2025) 15:714. doi: 10.3390/diagnostics15060714

PubMed Abstract | Crossref Full Text | Google Scholar

35. Yang PC, Huang CW, Karmakar R, Mukundan A, Chen TH, Chou CK, et al. Precision imaging for early detection of esophageal cancer. Bioengineering. (2025) 12:90. doi: 10.3390/bioengineering12010090

PubMed Abstract | Crossref Full Text | Google Scholar

36. Kuo HY, Karmakar R, Mukundan A, Chou CK, Chen TH, Huang CW, et al. Small intestinal bleeding prediction by spectral reconstruction through band selection. J Biomed Opt. (2025) 30:36004. doi: 10.1117/1.JBO.30.3.036004

PubMed Abstract | Crossref Full Text | Google Scholar

37. Chen T, Tan Z, Chu Q, Wu Y, Liu B, Yu N. TCI-former: thermal conduction-inspired transformer for infrared small target detection. Proc AAAI Conf Artif Intell. (2024) 38:1201–9. doi: 10.1609/aaai.v38i2.27882

Crossref Full Text | Google Scholar

38. Suji RJ, Godfrey WW, Dhar J. Exploring pretrained encoders for lung nodule segmentation task using LIDC-IDRI dataset. Multimed Tools Appl. (2024) 83:9685–708. doi: 10.1007/s11042-023-15871-3

Crossref Full Text | Google Scholar

39. Dequidt P, Bourdon P, Tremblais B, Guillevin C, Gianelli B, Boutet C, et al. Exploring radiologic criteria for glioma grade classification on the BraTS dataset. IRBM. (2021) 42:407–14. doi: 10.1016/j.irbm.2021.04.003

Crossref Full Text | Google Scholar

40. Mallikharjuna Rao K, Saikrishna G, Supriya K. Data preprocessing techniques: emergence and selection towards machine learning models-a practical review using HPA dataset. Multimed Tools Appl. (2023) 82:37177–96. doi: 10.1007/s11042-023-15087-5

Crossref Full Text | Google Scholar

41. Alabdulrazzaq H, Alenezi MN, Rawajfih Y, Alghannam BA, Al-Hassan AA, Al-Anzi FS. On the accuracy of ARIMA based prediction of COVID-19 spread. Results Phys. (2021) 27:104509. doi: 10.1016/j.rinp.2021.104509

PubMed Abstract | Crossref Full Text | Google Scholar

42. Landi F, Baraldi L, Cornia M, Cucchiara R. Working memory connections for LSTM. Neural Netw. (2021) 144:334–41. doi: 10.1016/j.neunet.2021.08.030

PubMed Abstract | Crossref Full Text | Google Scholar

43. Apruzzi F. Higher form symmetries TFT in 6d. J High Energy Phys. (2022) 2022:1–20. doi: 10.1007/JHEP11(2022)050

Crossref Full Text | Google Scholar

44. G BR, Januschowski T, F J, G D, S T, H S. Temporal fusion transformers for interpretable multi-horizon time series forecasting. IEEE Trans Neural Netw Learn Syst. (2022) 33:3957–69. Available online at: https://www.sciencedirect.com/science/article/pii/S0169207021000637

PubMed Abstract | Google Scholar

45. Wang X, Li C, Yi C, Xu X, Wang J, Zhang Y. EcoForecast: an interpretable data-driven approach for short-term macroeconomic forecasting using N-BEATS neural network. Eng Appl Artif Intell. (2022) 114:105072. doi: 10.1016/j.engappai.2022.105072

Crossref Full Text | Google Scholar

Keywords: deep learning, multispectral imaging, hyperspectral imaging, cancer detection, domain adaptation

Citation: Hao L, Wang C, Che J, Sun M and Wang Y (2025) Deep learning-based time series prediction in multispectral and hyperspectral imaging for cancer detection. Front. Med. 12:1605865. doi: 10.3389/fmed.2025.1605865

Received: 17 April 2025; Accepted: 27 May 2025;
Published: 31 July 2025.

Edited by:

Arvind Mukundan, National Chung Cheng University, Taiwan

Reviewed by:

Karthik Kannan, National Chung Cheng University, Taiwan
Mahendra Gawali, Sanjivani University, India
Jiawei Luo, West China Fourth Hospital of Sichuan University, China

Copyright © 2025 Hao, Wang, Che, Sun and Wang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Changmin Wang, amVydW1pb3NhbDIxQGhvdG1haWwuY29t

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
