Innovative approaches in precision radiation oncology: advanced imaging technologies and challenges which shape the future of radiation therapy

Radiation oncology is undergoing a transformative shift toward precision medicine through unprecedented advances in imaging technologies that enable increasingly personalized and adaptive cancer treatment. This comprehensive review synthesizes the underlying physical principles, current clinical applications, technical challenges, and quality assurance requirements across the complete spectrum of emerging imaging-guided radiation therapy approaches. We examine magnetic resonance-guided radiotherapy systems that enable daily soft-tissue visualization and online plan adaptation, positron emission tomography-guided platforms that allow real-time tracking of metabolically active tumor regions, advanced cone beam computed tomography systems supporting rapid adaptive workflows through artificial intelligence-enhanced image generation, and novel applications including Cherenkov radiation imaging and stereoscopic guidance with surface tracking. For proton therapy, we address innovations spanning dual-energy computed tomography, proton computed tomography, and in-vivo range verification that tackle fundamental range uncertainty limitations. In theranostics, we explore sophisticated quantitative imaging for personalized radiopharmaceutical dosimetry. Our analysis reveals that while these technologies converge to enable increasingly adaptive and biology-informed dose delivery, realizing their full clinical potential requires rigorous multicenter validation, standardized quality assurance protocols, integration of multi-omics with functional imaging, trustworthy automation with continuous performance monitoring, interoperable data pipelines, enhanced workforce training, and attention to equitable access across diverse patient populations. This integrated perspective provides a forward-looking framework to guide clinicians, medical physicists, and researchers in navigating the rapidly evolving landscape of precision radiotherapy while ensuring safe and effective implementation of these transformative technologies.

1 Introduction

Radiation oncology is experiencing a transformative shift toward precision medicine, driven by unprecedented advances in imaging technologies that enable increasingly personalized and adaptive cancer treatment. Traditional anatomical imaging approaches are rapidly being complemented and, in some cases, superseded by sophisticated modalities that integrate functional, molecular, and real-time biological information into treatment planning and delivery. This evolution represents a paradigm shift from static, one-size-fits-all radiation therapy toward dynamic, patient-specific approaches that can adapt to tumor biology, anatomical changes, and treatment response in real-time.

The emergence of magnetic resonance-guided radiotherapy (MRgRT) systems has enabled daily soft-tissue visualization and online plan adaptation, particularly transforming treatment of mobile targets, such as pancreatic and gastrointestinal malignancies. Simultaneously, the integration of positron emission tomography (PET) with linear accelerators has introduced biology-guided radiotherapy (BgRT), allowing real-time tracking of metabolically active tumor regions. Advanced cone beam computed tomography (CBCT) systems now support online adaptive workflows through rapid, high-quality imaging and artificial intelligence (AI)-enhanced CT generation. Novel applications, such as Cherenkov radiation imaging, stereoscopic guidance with surface tracking, and generative AI-based image synthesis, are further expanding the precision radiotherapy toolkit. In proton therapy, innovations spanning dual-energy CT, proton CT, and in vivo range verification address fundamental range uncertainty limitations, while theranostics applications demand sophisticated quantitative imaging for personalized radiopharmaceutical dosimetry.

This comprehensive review aims to provide a critical, integrated assessment of emerging and advanced imaging technologies that are reshaping precision radiotherapy. Unlike previous reviews that examine individual modalities in isolation, we synthesize the underlying physical principles, current clinical applications, technical challenges, and quality assurance requirements across the complete spectrum of imaging-guided radiation therapy (RT) approaches. Our analysis encompasses workflow considerations, automation potential, and standardization needs while highlighting how these technologies converge to enable increasingly adaptive, biology-informed dose delivery.

This article addresses a critical gap in the literature by providing the first comprehensive, cross-platform analysis of how diverse imaging modalities complement each other within modern precision RT workflows. We emphasize practical implementation challenges—including geometric accuracy requirements, quantitative imaging uncertainties, workflow optimization, and workforce training needs—that are essential for successful clinical translation but often underemphasized in technology-focused reviews. Furthermore, we outline a forward-looking framework that integrates multi-omics data with functional and anatomical imaging, supported by trustworthy AI automation and standardized quality assurance protocols. This integrated perspective is designed to guide clinicians, medical physicists, and researchers in navigating the rapidly evolving landscape of precision radiotherapy while ensuring safe, equitable, and effective implementation of these transformative technologies across diverse patient populations.

2 Magnetic resonance imaging-guided radiotherapy

Magnetic resonance imaging (MRI)-guided radiotherapy (MRgRT) allows for direct visualization of soft tissue anatomy during treatment and supports online plan adaptation. Two commercial systems have been deployed clinically. The ViewRay (Oakwood Village OH, USA) MRIdian platform combines a 0.35 T split magnet and was initially designed to utilize three cobalt sources, (1) but it has more recently incorporated a 6 MV linear accelerator (linac) (2). The Elekta (Stockholm, Sweden) Unity platform (3) couples a 1.5 T MRI with a 7 MV linac. Both systems incorporate MRI into the treatment room geometry but differ in field strength, system architecture, and clinical workflow. The MRIdian enables real-time beam gating using multiplanar cine imaging from a balanced steady-state free precession (bSSFP) sequence (4), while Unity employs high-resolution imaging and supports plan adaptation through structured workflows that include “Adapt to Position” and “Adapt to Shape” (5). These capabilities have enabled a shift toward online adaptive planning, where a new radiation treatment plan is created each day, accounting for inter-fractional changes in patient anatomy (6).

2.1 Technological challenges

The technological requirements for MRgRT are non-trivial. Radiation delivery hardware must function reliably in the presence of magnetic fields, and MRI performance must remain stable during beam-on conditions. Integration requires mitigation of mutual interference between linac and MR subsystems, attention to magnetic shielding, and spatial coordination of isocenters. In the case of MRIdian, the split-magnet design permits radiation beam access perpendicular to the B0 field, while modifications to RF shielding and gradient coil structure support simultaneous imaging and irradiation (2). The Unity platform adopts a different approach, positioning the linac outside the magnet bore and delivering radiation along the bore axis (3). These design choices reflect different approaches to managing electromagnetic interference, gradient performance, and beam access geometry (7). Differences in image quality arise largely not only due to differences in field strength (0.35 T for MRIdian vs. 1.5 T for Unity) but also from available sequences and system constraints related to simultaneous imaging and treatment. Sequences such as T2-weighted fast spin echo (FSE) and bSSFP have reduced acquisition times to fit within clinical workflows while preserving the image quality and spatial accuracy required for planning and guidance.

2.2 Clinical applications of MRgRT

In clinical practice, the most commonly used workflow on the MRIdian system involves daily acquisition of a bSSFP image, followed by manual or semi-automated recontouring, re-optimization of the treatment plan, and delivery with respiratory gating. When performed sequentially, the entire process takes approximately 45 min, though newer software versions (A3i) have enabled partial parallelization of workflow steps to reduce overall treatment time (8). Gating is based on direct visualization of the target or a surrogate structure in the cine image, with beam delivery suspended if the structure location exits a predefined boundary. On Unity, adaptation decisions are based on comparison between the reference and daily MR images. In the “Adapt to Position” workflow, the original plan is rigidly shifted, while in “Adapt to Shape,” a new plan is generated based on the recontouring of both target and critical structures (5). Unity now supports real-time gating, though this feature was only introduced after several years of clinical use. Its higher field strength enables improved soft tissue contrast and may also facilitate integration of functional imaging (9).

Pancreatic cancer has emerged as a primary disease site in which MRgRT has had a measurable clinical impact, particularly with the MRIdian system, which possesses a much longer gating functionality. Computed tomography (CT)-based planning for pancreatic tumors is limited by poor soft tissue visibility and motion of adjacent gastrointestinal organs, which limits how aggressively they can be treated (10). MR guidance permits direct visualization of the tumor and organs at risk (OARs) at the time of treatment, enabling tighter margins and more aggressive dose prescriptions (11). Initial retrospective series demonstrated the feasibility of delivering 50 Gy in five fractions with acceptable toxicity and local control (12). These results were tested prospectively in the SMART trial, which enrolled 136 patients with locally advanced or borderline resectable pancreatic cancer and treated them using the MRIdian system. The primary endpoint was gastrointestinal toxicity, which was observed in fewer than 5% of patients. Median overall survival exceeded 14 months, and 2-year survival was over 40% (13). These outcomes compare favorably to historical controls and have contributed to the growing interest in MRgRT for tumors in anatomically complex or mobile sites. The pancreas is not the only area of application. There is also emerging evidence in the liver, lung, and prostate, where online adaptation and motion mitigation may offer advantages in selected patients (14, 15). In CNS tumors, although not one of the common applications is present for MRgRT, daily MRI may support tighter margins and improved alignment with evolving anatomical changes during long courses of therapy (16). MRgRT enables treatment in anatomically complex or mobile sites where soft tissue visualization, motion management, or daily adaptation is required.

2.3 Geometric distortion in MRgRT

Geometric accuracy remains a foundational requirement for MRgRT. MRI is inherently prone to spatial distortion from static field inhomogeneities, gradient non-linearities, and magnetic susceptibility differences (17). These distortions can result in discrepancies between the true anatomical position and its appearance on MR images, particularly at the edges of the field of view and in the presence of air–tissue interfaces (18). The magnitude of distortion varies by sequence, field strength, and choice of imaging parameters. The MRIdian system exhibits relatively low distortion due to its low field strength (19, 20). The Unity system, owing to its higher field strength, exhibits greater distortion but benefits from more robust gradient performance and improved signal-to-noise ratio (21). The International Commission on Radiation Units and Measurements (ICRU) recommends a geometric accuracy of 2 mm or better for MRI used in radiotherapy planning and emphasizes the need for routine QA to assess image fidelity (22). These recommendations are particularly relevant for stereotactic treatments (23), with sharp-dose gradients, and for intracranial cases, where millimeter-level accuracy is clinically consequential. Institutions adopting MRgRT should incorporate distortion assessment into their commissioning protocols and account for potential residual uncertainties when defining margins.

2.4 Emerging MRI functional-guided RT

MRI enables the non-invasive interrogation of some biological functions in vivo (24–27). Incorporating these capabilities into MR-guided radiotherapy remains an area of active investigation and represents a potential future direction for adaptive treatment. Functional MRI techniques, such as diffusion-weighted imaging (28), dynamic contrast-enhanced MRI (29, 30), and MR spectroscopy (31), offer the possibility of quantifying tumor biology in real time. These approaches are of particular interest in adaptive strategies where the dose may be modulated based on early treatment response. Diffusion imaging has received the most attention due to its relatively short acquisition times and growing evidence of its correlation with cellular density and therapeutic response (32). Changes in apparent diffusion coefficient (ADC) during treatment have been proposed as an early biomarker of response and may support biologically driven adaptation (33). A recent clinical trial exemplifies this approach using mid-treatment ADC changes along with changes in perfusion to stratify patients with soft tissue sarcoma into dose escalation arms (34). These efforts are preliminary, and further validation is needed to establish the reproducibility and prognostic value of such biomarkers across disease sites and platforms. Nonetheless, the capacity of MRgRT to support quantitative imaging during the course of therapy positions it as a candidate platform for future biologically adaptive radiotherapy (35, 36). Challenges remain in sequence standardization, motion management during functional imaging, and integration with planning software, but these are areas of active investigation (37).

2.5 Summary

MR-guided radiotherapy has created new possibilities for daily adaptation, motion management, and soft tissue visualization. Its clinical use has expanded most rapidly in tumors where conventional image guidance has been limited and intra-fractional motion is substantial, particularly in pancreas and other gastrointestinal malignancies. MR-guided systems enable daily adaptation and motion management while offering a platform for future integration of biologically informed planning. As the field moves toward more precise and personalized therapy, MRgRT offers a platform that supports both current adaptation strategies and future functional imaging applications (38). Its full clinical impact will depend on continued technical refinement, validation of emerging biomarkers, and systematic incorporation into disease-specific treatment paradigms.

3 PET-guided RT: advancing precision in oncology

Positron emission tomography (PET) has revolutionized oncology by providing functional and molecular insights into tumor biology, complementing traditional anatomical imaging. The integration of PET with radiation therapy (RT) has led to the emergence of PET-guided RT, a sophisticated approach aimed at enhancing treatment precision, optimizing dose delivery, and improving patient outcomes (39, 40). This review explores the fundamental principles of PET imaging, its evolution, and diverse applications in radiation oncology, including target delineation, adaptive radiotherapy, and dose painting. It also delves into the development of integrated PET-Linac systems that enable real-time guidance. Furthermore, this addresses the current challenges and limitations in the clinical implementation of PET-guided RT, such as image quantification issues and logistical complexities, while highlighting promising future directions, including the role of artificial intelligence and novel radiotracers.

RT is a cornerstone of cancer treatment, aiming to deliver a precise dose of radiation to malignant cells while sparing surrounding healthy tissues. The evolution of RT has been driven by continuous advancements in imaging technologies, allowing for increasingly accurate tumor localization and treatment delivery. PET, a nuclear imaging technique, has emerged as a critical tool in oncology, offering unique functional insights by visualizing metabolic and molecular processes within the body. Unlike conventional imaging modalities, such as CT and MRI, which primarily provide anatomical information, PET can detect changes at the cellular level, potentially identifying disease in its earliest stages and assessing treatment response (41).

The integration of PET imaging into the RT workflow has paved the way for PET-guided RT, a paradigm shift toward more personalized and biologically informed cancer treatment. This review aims to provide a comprehensive overview of PET-guided RT, covering its underlying principles, clinical applications, technological advancements, current challenges, and prospects.

3.1 Principles of PET imaging and PET-guided radiotherapy

3.1.1 Biophysics of PET

Imaging PET operates on the principle of detecting radiation emitted from radiopharmaceuticals (also known as radiotracers) injected intravenously into a patient. These radiotracers are molecules labeled with a small amount of radioactive material, designed to accumulate in specific tissues or bind to particular proteins, such as those found in tumors or areas of inflammation. The process involves positron emission, annihilation, coincidence detection, and image reconstruction.

3.1.2 PET Radiotracers in oncology

The utility of PET in oncology is significantly enhanced by the availability of various radiotracers that target specific biological processes or cancer types. Fluorine-18 Fluorodeoxyglucose (¹⁸F FDG) remains the primary, FDA-cleared radiotracer for SCINTIX BgRT in lung and bone tumors (42). It enables real-time PET-based treatment adaptation using tumor metabolism as a dynamic fiducial marker. Gallium-68/Fluorine-18 Prostate-Specific Membrane Antigen (Ga-68 PSMA/F-18 PSMA) has been shown to enable PET-guided treatment planning for prostate cancer metastases, including bone lesions, within RefleXion^® 's BgRT workflow (43–45). It offers superior sensitivity for detecting recurrent disease and precise localization of metastatic lesions, even at low PSA levels. A brief BgRT tracer is summarized in Table 1, in addition to the tracers utilized in the clinic.

Table 1

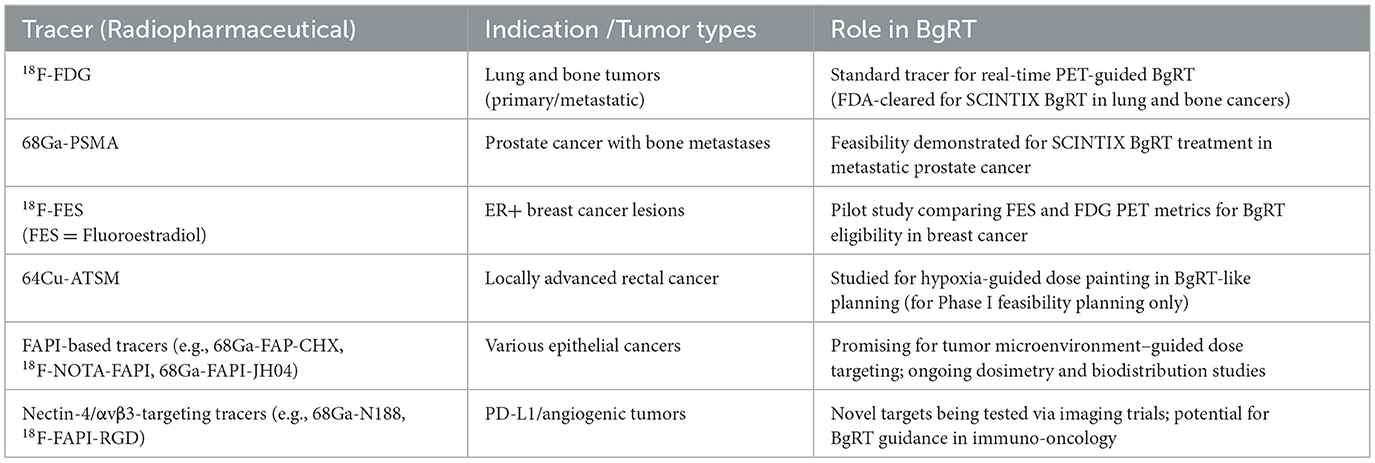

Table 1. A summary of the BgRT tracer and its utilization in the clinic.

3.2 Clinical applications of PET-guided radiotherapy

PET has become increasingly important in oncology, offering molecular-level visualization and quantification of tumor characteristics that extend beyond conventional morphologic imaging (7). These data enable (1) precise delineation of radiotherapy (RT) target volumes; (2) ongoing assessment of treatment response and effectiveness; (3) prediction of failure patterns by identifying sub-regions at high risk of recurrence; and (4) individualized dose adaptation, allowing escalation or de-escalation, where clinically warranted.

3.2.1 Target delineation and treatment planning

PET imaging, often combined with CT (PET/CT) (46, 47) or MRI (PET/MRI) (48), provides comprehensive insights into tumor biology, improving diagnostic accuracy and enhancing patient positioning for RT. PET/CT has become a standard tool for cancer detection and staging, helping to identify tumors not visible on anatomical imaging and assessing tumor activity. PET/MRI, due to its high soft tissue contrast, offers unique advantages in T-staging of various cancers and is superior in finding lymph node and distant metastases compared to CT, MRI, and PET/CT.

3.2.2 Adaptive radiotherapy (ART)

Adaptive radiotherapy (ART) is a refined approach that adjusts treatment plans to dynamic anatomical and physiological shifts within a patient's body during therapy. Through frequent imaging, including PET-guided ART (49, 50), it allows specialists to visualize changes like tumor shrinkage or organ movement, enabling precise modification of the radiation dose.

There are three levels of adaptation. (a) Offline ART: Involves adjusting treatment plans between sessions based on periodic imaging assessments. (b) Online ART: Modifies treatment plans immediately before delivery using on-couch imaging, with advanced software and AI facilitating rapid adjustments to daily anatomical variations. (c) Real-Time ART: Continuously adjusts treatment delivery based on real-time changes, creating a “living” picture for immediate detection of changes and ensuring optimal targeting. RefleXion^® X1 platform integrates PET imaging before and during treatment sessions, and it is the pioneer that can carry out the above-mentioned offline and real-time ART.

3.3 Integrated PET-linac systems

The integration of PET detectors with linear accelerators represents a technological advancement in RT (51, 52). The RefleXion^® X1 system (53, 54), for example, is characterized by its split arc design, employing two 90° PET arcs to guide therapeutic radiation beams in real-time with sub-second latency. This system also incorporates an onboard fan-beam kVCT for anatomical capabilities, offering a hybrid platform for both biologic and anatomic guidance. The workflow for BgRT involves radiotracer injections and X1 PET scans as part of treatment planning, and immediately before and during each fraction for real-time guidance (55)_. This real-time guidance allows for improved motion management for dose delivery accuracy (56, 57). Figure 1 shows the major components of RefleXion^® X1 PET/CT linac.

Figure 1

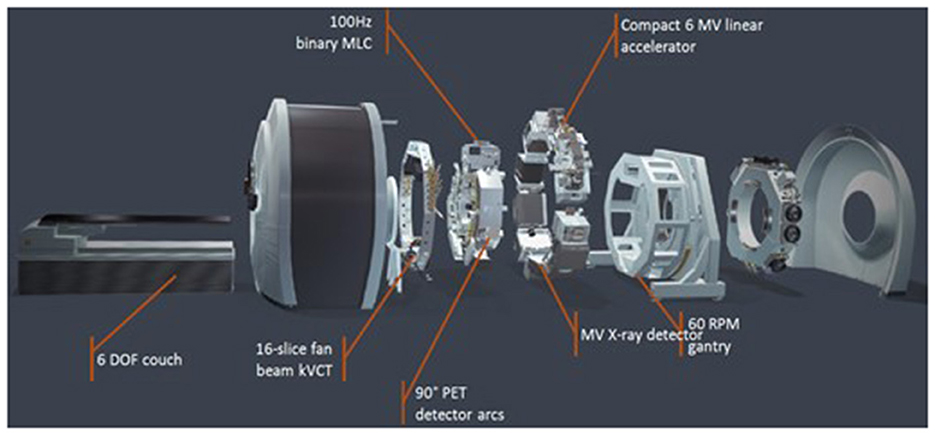

Figure 1. Major components: KVCT, PET detector arcs/MLC, MV, and 60 rpm gantry (Courtesy of RefleXion^® Medical).

3.4 Challenges and limitations

3.4.1 Image quality and quantification spatial resolution and noise

Despite the significant advancements, several challenges and limitations persist in the widespread clinical implementation of PET-guided RT.

Image Quality and Quantification Spatial Resolution and Noise: PET images often suffer from low spatial resolution and high noise characteristics, which can make accurate delineation of target regions problematic. The spatial resolution of PET systems is typically limited to around 5 mm.

Image Segmentation: Accurately segmenting tumors from blurred and noisy functional PET images is a difficult issue for PET-based treatment planning. While various segmentation approaches exist (e.g., thresholding, edge detection, and deep learning), their reliable performance on clinically relevant tasks requires objective, task-based evaluation. Inaccuracies can arise from variations in biological processes governing tracer uptake and physical/acquisition phenomena.

Quantitative Accuracy: Fundamental trade-offs between resolution and noise, along with challenges in scatter correction and attenuation correction, affect the quantitative accuracy of PET measurements.

3.4.2 Specificity of radiopharmaceuticals

While radiotracers like 18F-FDG are highly sensitive to many cancer types, they are not always specific to malignant disease, as uptake can occur in other processes with increased glucose turnover, such as infection and inflammation. This can hamper the differentiation between inflammatory changes and neoplastic tissue, or between benign lesions and well-differentiated malignant lesions with low FDG avidity. Although more specific tracers like Ga-68 PSMA have been developed, sources of false positive or negative findings can still exist.

While radiotracers like ¹⁸F-FDG are highly sensitive to many cancer types, they are not always specific to malignant disease, as uptake can occur in other processes with increased glucose turnover, such as infection and inflammation. This can hamper the differentiation between inflammatory changes and neoplastic tissue, or between benign lesions and well-differentiated malignant lesions with low FDG avidity. Although more specific tracers like Ga-68 PSMA have been developed, sources of false positive or negative findings can still exist.

The involvement of radiopharmaceuticals in PET-guided radiotherapy and the short half-life of many radiopharmaceuticals, particularly ¹⁸F-FDG (110 min), necessitates that cyclotrons be located close to the radiation oncology department. The increased patient treatment time and complexity of the entire BgRT workflow require extra labor forces and seamless coordination among physicians, nurses, nuclear medicine technicians, therapists, and others. Regulation and guidelines, such as task group reports from the American Association of Physicists in Medicine (AAPM), are under development and improvement (58).

3.5 Future directions

The field of PET-guided RT is continuously evolving, with several promising avenues for future development:

• Novel radiotracers: Research is expanding to include available and novel tracers targeting tumor metabolism, hypoxia, vascularity, and proliferation, enabling more precise dose painting and adaptive strategies.

• Artificial Intelligence (AI) and Machine Learning (ML): In PET-guided adaptive radiotherapy, artificial intelligence and machine learning are being applied through several complementary approaches that directly address clinical bottlenecks. Deep learning models, such as 3D U-Net (59), V-Net (60), and residual networks, integrate PET's metabolic data with CT's anatomical details to generate accurate tumor and organ-at-risk contours, reducing the variability and time associated with manual delineation while overcoming challenges of physiologic uptake and heterogeneous tumor activity (61). Radiomics-based methods further enhance treatment personalization by extracting quantitative texture and wavelet features from PET scans to predict response and guide adaptation, including delta-radiomics analyses that track metabolic changes during treatment (62). Together, these AI tools aim to transform PET-based radiotherapy from a labor-intensive, subjective process into a standardized and adaptive workflow that supports real-time clinical decision-making.

• Multiomics Integration: Combining PET imaging with genomic, proteomic, and other omics data to provide more comprehensive biological insights for tailored treatment strategies.

• Polymetastatic Patient Treatment: The ambition to extend BgRT to polymetastatic patients in the future, potentially in conjunction with systemic therapy, represents a significant area of growth.

• Clinical Validation: Standardized segmentation protocols and prospective clinical trials are needed to validate clinical benefits and establish PET-guided RT in routine care.

3.6 Summary

PET-guided RT represents a significant leap forward in precision oncology, moving beyond anatomical targeting to incorporate real-time biological information for optimized treatment delivery. By leveraging the functional insights provided by PET imaging and advanced radiotracers, clinicians can achieve more accurate tumor delineation, implement adaptive treatment strategies, and explore dose painting techniques to personalize therapy. While challenges related to image quantification, radiotracer specificity, and logistical complexities remain, ongoing technological advancements, particularly in integrated PET-linac systems and the application of AI, are poised to overcome these hurdles. The continued evolution of PET-guided RT holds immense promise for improving disease control, minimizing toxicity to healthy tissues, and ultimately enhancing the quality of life for cancer patients.

4 Stereoscopic imaging and surface guidance techniques for central nervous system tumors

Stereoscopic imaging represents a paradigm shift in precision radiotherapy for central nervous system (CNS) tumors, enabling submillimeter positioning accuracy through dual oblique X-ray imaging systems. Unlike conventional single-plane imaging, stereoscopic techniques provide target localization by triangulating anatomical landmarks from two simultaneously acquired oblique projections. Commercially available systems currently include ExacTrac (Brainlab, Munich, Germany), SyncTraX (Shimadzu, Kyoto, Japan), and CyberKnife (Accuray, Sunnyvale, CA, USA) (63). Among these systems, ExacTrac is the most used as an add-on imaging system to a medical linear accelerator. Stereoscopic imaging has become particularly crucial for intracranial stereotactic radiosurgery (SRS) and spinal stereotactic body RT (SBRT), where high-dose single or hypo-fractionated treatments demand exceptional geometric precision to accurately deliver therapeutic doses to lesions while sparing adjacent critical structures (64–66).

4.1 Technical principles and system architecture

The fundamental architecture of the ExacTrac imaging system consists of two kilovoltage (kV) X-ray sources recessed into the treatment room floor and the corresponding ceiling-mounted amorphous silicon flat panel detectors positioned in an oblique configuration (67). Other stereoscopic imaging systems use some variation of this geometric arrangement. The stereoscopic imaging system is calibrated such that its imaging coordinates are accurately matched to the linac's coordinates. This oblique geometric arrangement enables the acquisition of two instantaneous stereoscopic images without source-detector repositioning, facilitating continuous monitoring throughout treatment delivery, even at non-coplanar patient couch angles where conventional linac-based onboard imaging systems face geometric limitations and the risk of gantry-couch collision.

The dual X-ray generator configuration produces high-resolution stereoscopic images with adjustable kilovoltage, and the tube current parameters are optimized for different anatomical structures and imaging requirements. Typically, 90 kVp and 10 mAs are used for cranial applications, and 120 kVp and 20 mAs are used for spinal applications, though these parameters can be adjusted according to patient size and anatomy. Advancements such as higher heat capacity X-ray tubes support more frequent automated imaging sequences, while enhanced soft tissue contrast and improved readout speeds minimize motion blurring artifacts. Modern systems incorporate larger imaging panels that visualize extended anatomical regions, improving image interpretation and anatomical orientation. Advanced image fusion algorithms match acquired stereoscopic projections with digitally reconstructed radiographs (DRRs) from planning CT datasets, enabling precise six-degrees-of-freedom (6DOF) patient positioning corrections (67).

4.2 Evolution from infrared tracking to thermal surface guidance

Early ExacTrac systems utilized infrared-reflective spheres mounted on patient positioning arrays: a cranial matrix integrated with a face mask or reflective markers attached directly to the mask for intracranial treatments and a reference U-shaped array mounted on the couch sidebar for extracranial applications. Reflective markers can also be directly attached to other immobilization devices or the patient's skin. While effective, this approach required rigid body assumptions and was limited to tracking discrete marker points rather than comprehensive patient surface geometry. The accuracy of the infrared tracking depends on the quality and stability of the reflective markers, which fade with time. The positioning array served merely as a surrogate for patient motion, and its movement could not accurately reflect the patient's actual anatomical displacement. Additionally, the mechanical connection of the U-shaped array to the couch sidebar was inherently unstable, with potential for disconnection or displacement during treatment delivery, which could compromise motion monitoring reliability.

The advancement to the ExacTrac Dynamic system implements markerless surface tracking through 4D thermal camera technology. This system correlates patient heat signatures with reconstructed three-dimensional surface structures, acquiring approximately 300,000 surface points matched to thermal signatures. Thermal surface guidance provides comprehensive patient surface monitoring that eliminates the need for positioning arrays while maintaining submillimeter accuracy.

4.3 Clinical implementation in CNS stereotactic treatments

4.3.1 Initial patient setup and positioning

Patient positioning begins with the placement of the patient on the treatment couch using appropriate immobilization devices. Surface/thermal imaging provides rough initial alignment to the planning CT-generated patient surface contour. After initial stereoscopic X-ray images are acquired, suggested shifts are calculated automatically by matching the X-ray images to the reference DRRs generated from the CT simulation dataset. The calculated shifts will be sent to the 6DOF robotic couch to achieve optimal patient alignment. When positional deviations exceed system correction capabilities, manual patient repositioning is required before re-imaging. This iterative process continues until all translational and rotational parameters fall within preset tolerance thresholds, which are institution-specific and may vary based on treatment site and clinical experience. For example, tolerances of 0.5 mm/0.5° are commonly used for cranial applications, while spinal treatments may require larger tolerances (e.g., 0.7 mm/0.8°) due to the inherent challenges of reproducing exact spinal curvature and the difficulty of achieving submillimeter precision for vertebral positioning.

4.3.2 Additional verification of positioning accuracy with onboard imagers

Images acquired using the linac onboard imaging system can serve as secondary confirmation of patient positioning accuracy. For cranial cases, a kV/kV image pair acquired at couch angles near zero degrees can be used since it provides optimal anatomical visualization for skull-based registration. Spinal treatments utilize a more comprehensive verification imaging approach, incorporating kV/MV image pairs alongside cone-beam computed tomography (CBCT) to improve vertebral anatomy visualization and account for potential differences in spinal curvature between simulation and treatment setup. This secondary imaging confirmation is particularly crucial for spinal treatments, where vertebral bodies may appear similar on stereoscopic projections, and can reduce the risk of patient setup on incorrect vertebral levels. CBCT imaging allows careful review of the spinal cord canal position relative to the target, providing critical safety verification. In addition, CBCT or kV/MV imaging can also help visualize anatomical changes and patient weight loss/gain. While many centers do not routinely use secondary imaging with ExacTrac, this additional verification step can prevent targeting errors and enhance treatment safety. Deviations detected by onboard imaging are not used to adjust patient positioning. Usually, for CNS cases, only ExacTrac stereoscopic X-ray images are used to calculate and apply couch shifts for patient repositioning. However, this practice is institution-specific and may vary based on treatment site and clinical experience.

4.3.3 Multi-disciplinary image review process

All acquired images undergo systematic review by qualified medical physicists and radiation oncologists to ensure treatment accuracy and patient safety (64, 65). This verification process includes assessment of daily anatomical variation and image registration quality, evaluation of target positioning accuracy, and confirmation of critical structure avoidance. The radiation oncologist provides final approval through the Record and Verify system, while the medical physicist independently verifies all beam parameters and delivery settings before treatment initiation.

4.3.4 Pre-beam and intra-fractional verification protocol

Prior to the delivery of each treatment beam, verification of stereoscopic images is acquired to confirm the maintained patient alignment. When deviations exceed tolerance thresholds but remain within treatment system correction capabilities, calculated shifts are applied, followed by acquisition of confirmatory stereoscopic images. Only after verifying that all positioning parameters are within preset tolerances can treatment beam delivery start. Once positioning verification is achieved, new baseline thermal surface images are created using the 4D thermal camera system, establishing the reference patient surface geometry for subsequent motion monitoring during the selected treatment beam delivery. Figures 2a, b illustrate the verification of stereoscopic images for a cranial and a spinal case, respectively.

Figure 2

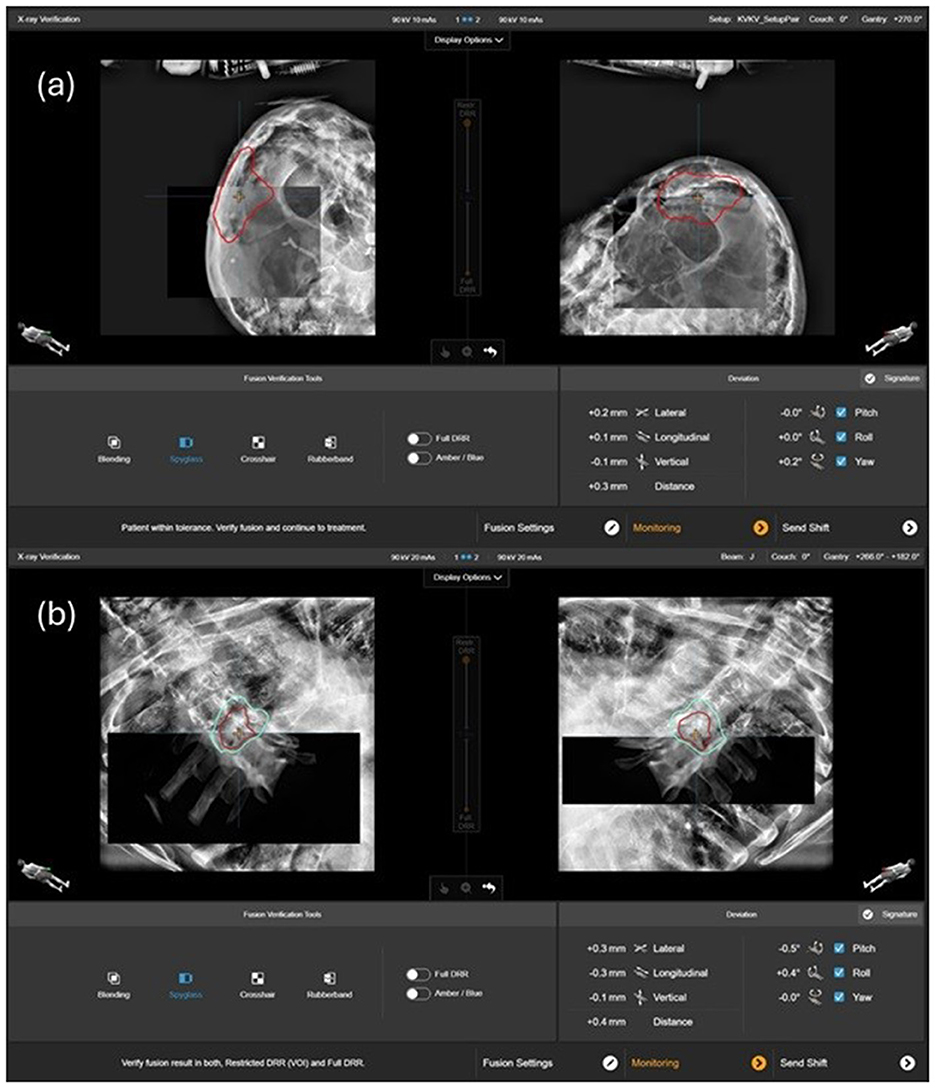

Figure 2. X-ray verification of stereoscopic images for a cranial (a) and a spinal (b) case.

4.3.5 Real-time motion monitoring during treatment

Throughout the treatment, continuous thermal surface tracking monitors patient motion in real time. The user defines specific regions of interest for surface tracking based on treatment site and clinical requirements. When patient motion exceeds preset tolerances within these monitored regions, automatic beam-hold functionality is immediately triggered to interrupt the treatment delivery. Surface tracking tolerances of 2.0 mm/2.0° are commonly used for cranial applications. However, for spinal treatments, the threshold may be relaxed since surface tracking is affected by respiratory motion, while the target vertebral structures themselves do not move with respiration. This respiratory artifact may require larger motion tolerances (>1 cm) before beam gating is triggered, limiting the clinical utility of surface monitoring for spinal cases. ExacTrac systems also allow automated X-ray triggering during treatment based on predefined gantry angles or monitor unit intervals, although this feature may not be utilized in all clinical scenarios due to practical considerations, such as limited arc ranges used for certain spine treatments. This continuous monitoring capability ensures maintained positioning accuracy throughout the entire treatment fraction, particularly crucial for lengthy stereotactic procedures where patient comfort and positioning stability may become challenging. Figures 3a, b illustrate the real-time surface motion tracking alongside the pre-beam verification stereoscopic X-ray images for a cranial and a spinal case, respectively.

Figure 3

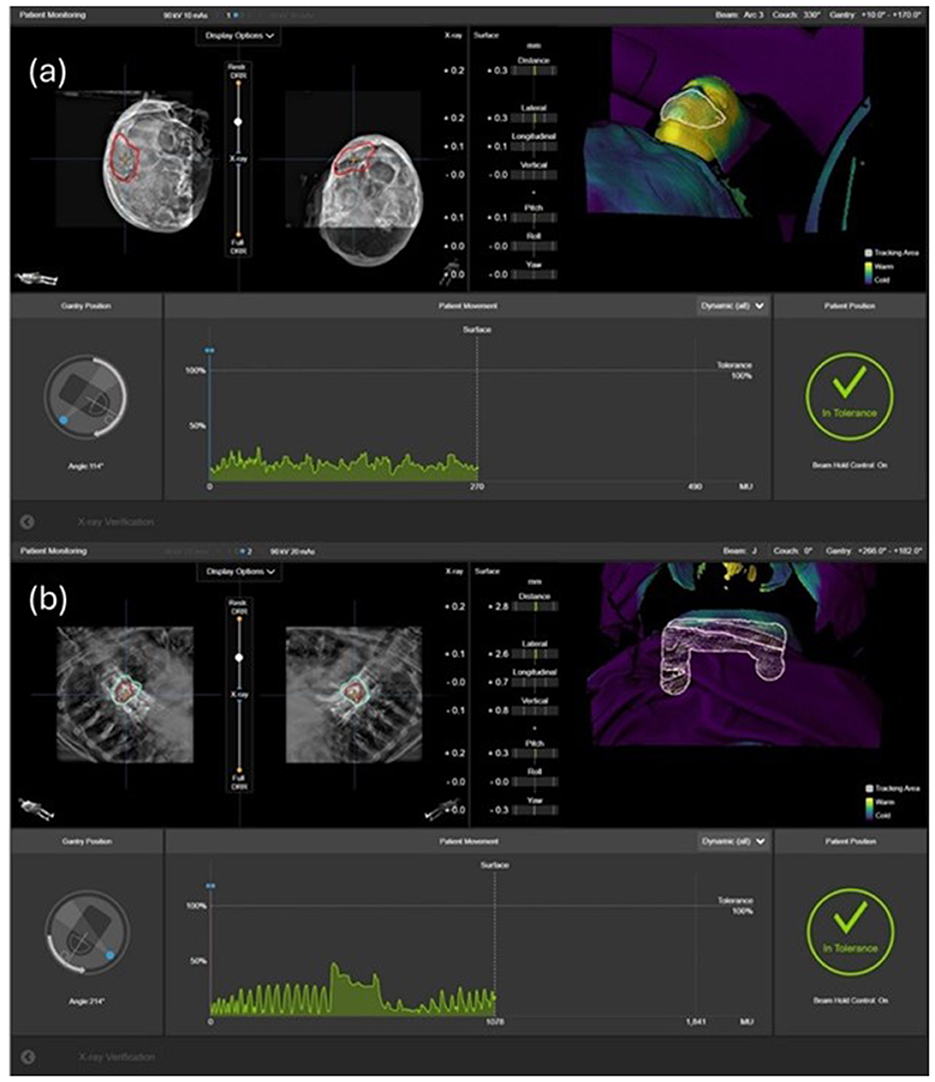

Figure 3. Real-time surface motion tracking alongside the pre-beam verification stereoscopic X-ray images for a cranial (a) and a spinal (b) case.

4.4 Current limitations and future directions

Despite significant advances, stereoscopic imaging maintains inherent limitations as a projection-based technique. Two-dimensional projections may obscure anatomical details compared to volumetric imaging modalities, and the rigid body assumption underlying motion tracking may not capture subtle non-rigid patient movements. Thermal surface tracking may not accurately represent the motion of internal organs and can be affected by environmental factors, such as room temperature variations, air conditioning drafts, patient perspiration, and variations in patient skin temperature, which may alter thermal signatures and compromise tracking accuracy. Patient comfort considerations, particularly with tight-fitting immobilization masks, remain challenging for extended treatment sessions, although different types of masks (basic, open-face, and stereotactic) are available to meet different clinical needs.

Future developments might focus on enhanced thermal surface tracking algorithms that are more robust to environmental and physiological variations, improved soft tissue contrast capabilities, and integration with X-ray and/or magnetic resonance-guided volumetric imaging platforms. Advanced motion prediction algorithms and artificial intelligence-enhanced image fusion represent promising avenues for further improving positioning accuracy and workflow efficiency.

4.5 Summary

In summary, stereoscopic imaging and surface guidance techniques have fundamentally transformed precision radiotherapy for CNS tumors, enabling submillimeter accuracy essential for safe dose escalation in SRS/SBRT applications. The evolution from purely X-ray-based imaging systems to hybrid thermal-surface guidance platforms demonstrates continued technological advancement toward optimal patient positioning and motion management. These innovations directly support the clinical goal of maximizing tumor control while minimizing normal tissue toxicity, particularly crucial for treating lesions adjacent to critical neurological structures.

5 Online adaptive radiotherapy using Ethos

The Ethos linear accelerator (Figure 4) is an online adaptive radiotherapy (OART) system with a ring-shaped gantry and an AI platform. As the FDA-cleared CBCT-guided OART device, Ethos enables high-quality, fast CBCT acquisition and on-couch treatment planning focused on patients' daily anatomical changes.

Figure 4

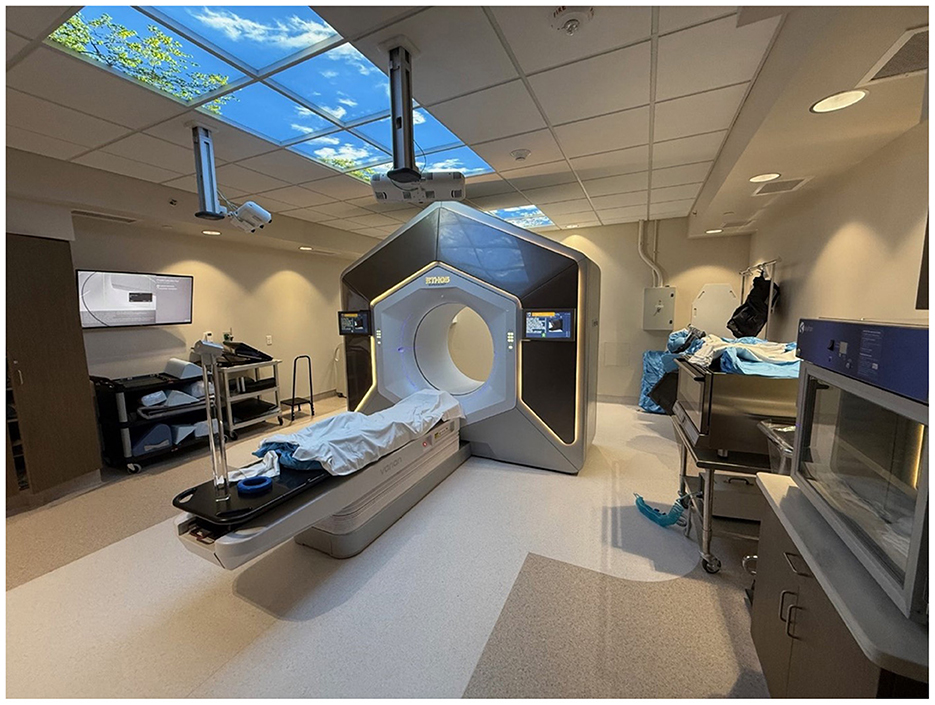

Figure 4. The all-in-one Ethos LINAC system, which can be used for CT-simulation, CBCT imaging, AI contours, GPU-based planning, surface guided imaging, QA, and treatment delivery.

Ethos utilizes a single energy of 6 MV flattening filter free (FFF) beam and features a dual-layer multi-leaf collimator (MLC) design with staggered leaves, giving an effective 5 mm MLC thickness. The dosimetric leaf gap (DLG) is in the range of tenths of a millimeter, and the leaf transmission coefficient is around 0.01%, which is much smaller than the single-layer MLC design in a conventional C-arm linac. The maximum field size is 28 cm with the full MLC travel range of 28 cm. The bore size is 1 m in diameter, and the couch has three degrees of freedom (DOF). The closed bore and compact design allow for four revolutions per minute (RPM), enabling fast treatment and minimal collision risk (68). Compared to the conventional C-arm linac, Ethos has no field light, no optical distance indicator (ODI), and no laser marking at the treatment isocenter. Instead, it relies on external lasers for patient alignment and automated shifts in the software. Compared to conventional kV CBCT imaging, Ethos HyperSight provides metal artifact reduction, more accurate HU values, fast acquisition, and superior imaging quality with an extra-large kV imager (~70 cm) and a high-precision iterative CBCT reconstruction algorithm.

Furthermore, Ethos has a dedicated treatment planning system with a pre-configured beam model, an AI-driven automatic contouring, and a plan optimization algorithm called the intelligent optimization engine (IOE) (69). Some Ethos linacs are also equipped with a surface-guided imaging system for motion management and a Mobius quality assurance (QA) system for gamma analysis. All those features in the Ethos platform enable the efficient and accurate on-couch patient adaptive radiotherapy workflows.

5.1 Advanced imaging technology of Ethos OART

In traditional adaptive workflows, such as head and neck re-planning, subsequent CT is acquired after noticeable anatomical changes are observed in the daily CBCT image. Different treatment plans based on patient anatomy changes are created when patients are off-the-couch. Subsequently, daily CBCT images are obtained prior to treatment delivery to verify patient positioning for new plans. This is called image-guided radiotherapy (IGRT) or offline/off-the-couch adaptive radiotherapy. In contrast, Ethos online adaptive process starts with the patient's daily CBCT imaging to visualize anatomy change, followed by recontouring of organs at risk (OAR) and targets, and eventually planning optimization based on that day's patient anatomy while the patient is on the couch. The fundamental difference between the Ethos and traditional RT workflows lies in the timing of CT acquisition for treatment planning. The Ethos system generates adaptive plans based on daily CT scans obtained on each treatment day, whereas traditional adaptive RT relies on CT scans acquired weeks before new adaptive treatment begins. Theoretically, this allows for better OAR sparing and potential target dose escalation than the non-adaptive workflow because a new plan is created every day based on the evolving spatial relationship between tumor and normal tissue. Many body sites can benefit from OART, such as the male and female pelvic region (70–72), the upper abdomen region (73), breast cancer (74, 75), and lung cancer (76) due to variable organ volume or the daily motion. CBCT adaptive therapy is also useful for areas of anticipated weight loss, such as the head and neck (77). A recent study demonstrated that compared to traditional adaptive workflows, the Ethos OART system enables feasible daily adaptive treatments with reduced margins while enhancing target coverage and reducing OAR doses by up to 12 Gy for head and neck patients with oropharynx and larynx cancers (78).

The HyperSight CBCT system has enhanced hardware and software components that contribute to improved scan quality and contour accuracy. The panel utilizes cesium iodide (CsI) scintillator material for higher conversion efficiency and fast readout. Compared to the prior generation of imaging panel, the HyperSight system has twice the active detector area (86 cm × 43 cm) with no lateral offset. This allows for a full-fan trajectory to be used, enabling an image acquisition time of 6 s. This faster scan time has been shown to provide reduced motion artifacts on the planning image (79). Since a plan is created based on daily contours, visualization of targets and OARs is critical to optimizing, calculating, and delivering the plan accurately. Prior to the introduction of HyperSight CBCT, the plan was calculated on a synthetic CT that mapped Hounsfield units (HU) from the simulation CT to the daily CBCT with deformable image registration. With the introduction of HyperSight on Ethos version 2.0, plans may be calculated directly on CBCT images (79). Reconstruction of CBCT images can be performed with the analytical Feldkamp-Davis-Kress algorithm or the iterative CBCT algorithm (iCBCT). An improved metal artifact reduction reconstruction algorithm, iCBCT Acuros MAR, is also included as a reconstruction mode for kV CBCT. Studies have shown that HyperSight CBCT image quality and HU accuracy are comparable to those of CT simulation images, suggesting the utility of the image data for direct dose calculation in adaptive workflows (80). Figure 5 demonstrates a CBCT-based prostate SBRT, where the adapted plan is selected over the scheduled plan for treatment because the target coverage is superior based on the specific bladder and rectal filling prior to treatment on that day.

Figure 5

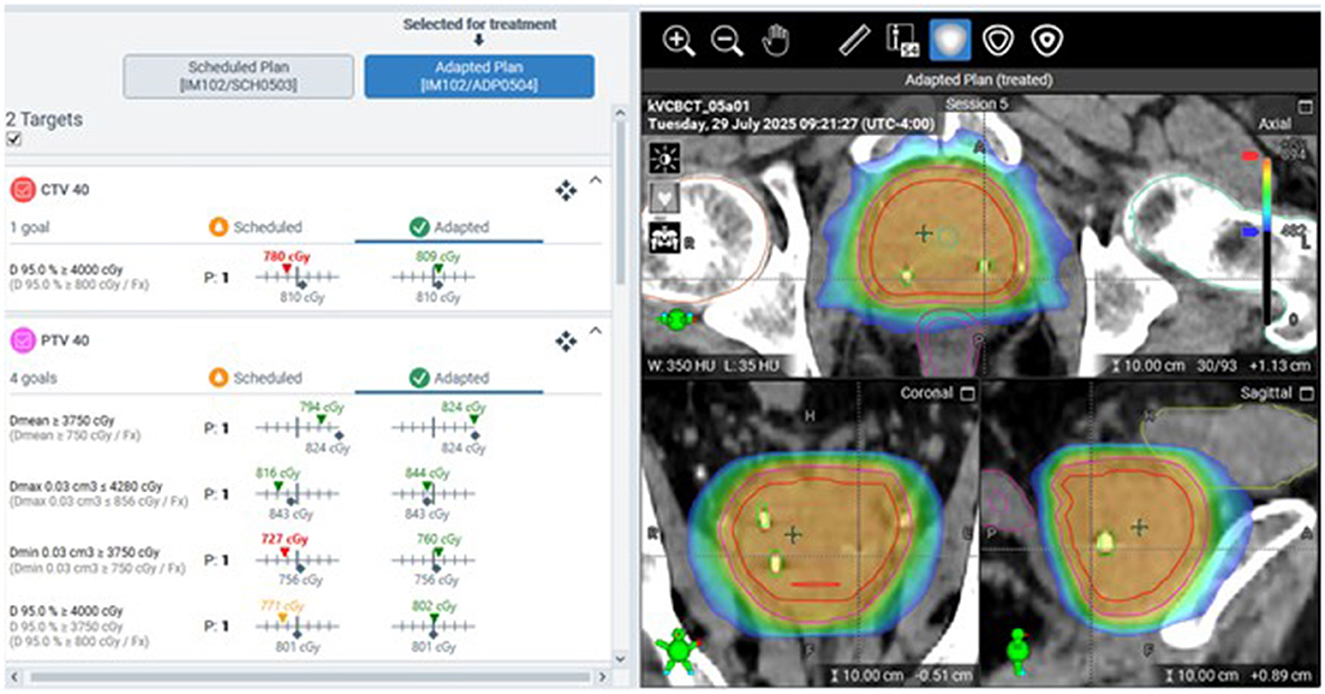

Figure 5. The adaptive plan is selected for treatment based on that day's CBCT. Fiducial markers are visible and used as the landmark for positioning verification during the on-couch adaptive process.

One promise of direct dose calculation on CBCT is the use of the Ethos linac for simulation-plan-treatment workflows. This CT-simulation free workflow has been suggested for abdominal (81) and spine SBRT (82). By utilizing library plans or diagnostic images or even phantom plans as a “pre-plan,” we can acquire the patient's CBCT image and create an adaptive plan on the day of treatment. Therefore, there is a reduction in planning time, with some sessions involving only a single visit (83).

5.2 Planning and workflow considerations for online adaptive radiotherapy

Although most patients theoretically can benefit from adaptive radiotherapy, judicious use of planning and machine time resources is important. Adaptive treatments require extended time on the machine to allow for contour generation and plan review, leading to potential patient discomfort and movement. In addition, there are additional planning considerations in the Ethos system that require additional dosimetry or physics FTE (84). Workflows vary by clinic, with some having dosimetrists in a traditional role and others utilizing physicists for all Ethos planning (85). During planning, physics and dosimetry must consider visualization of the anatomy at the machine, accuracy of reference targets and structures with their derivations, and the robustness of planning goals to changes in daily patient anatomy. Planning images from simulation should ideally be free of contrast to avoid any issues with synthetic CT (86) or image registration and large enough to cover the anatomy of interest, but small enough for efficient optimization during planning. The Ethos system utilizes daily auto-contouring of patient anatomy to help aid in on-session planning speed, so accurate delineation of these organs at the time of initial planning is important for accurate deformable image registration and target delineation at the time of treatment.

The Ethos intelligent optimization engine (IOE) translates clinical goals input by the planner into planning optimization objectives in a piecewise continuous “quality” function (87). It then iterates the quality function on a priority-quality plane until a goal point is met and does not contribute to lower priority functions. In practice, clinical goals are grouped into priorities, the order of which influences this optimization process greatly. Due to this, the planning goals and their order need to be carefully considered, both on the planning image from simulation CT and with foresight on potential anatomical changes on the CBCT. With robust planning templates, online adaptive radiotherapy has been shown to have dosimetric benefits in several sites, such as breast (75), prostate (88), and lung (80). For example, it has been reported that the adaptive plan was the preference in 95% of fractions for prostate radiotherapy. Online adaptive radiotherapy may allow us to reduce the target margin while maintaining the tumor coverage and sparing critical organs nearby (88).

5.3 Summary

In summary, the high-quality CBCT imaging-guided online adaptive radiotherapy represents a unique opportunity for delivering customized plans based on daily patient anatomy. It uses high-performance kV imaging to visualize a patient's daily changing relationship between tumor and OAR, which is integrated with efficient contouring, intelligent optimization, and precise dose calculation. Therefore, kV CBCT-based online adaptive radiotherapy has great clinical potential for dose escalation in the tumor to enhance the local control, while sparing the critical structures or lowering the toxicity to OAR with reduced target margins.

6 Image synthesis in RT

Generative deep-learning-based image synthesis is an increasingly active area of research in radiation oncology. These techniques can create one imaging modality from another, offering new ways to streamline clinical workflows. CT remains the standard for simulation and treatment planning (89). CT volumes are reconstructed by inverting measurements of the linear attenuation coefficient (μ) collected at multiple projection angles with the Radon transform (90). As voxel values map directly to electron density, CT is indispensable for accurate dose calculation.

Other modalities, such as MRI, PET, and ultrasound, provide complementary information that can guide accurate dose delivery. However, acquiring these additional scans is often time-consuming, costly, or—under some circumstances—simply impractical for clinicians and patients. Recent advances in deep learning mitigate these barriers by enabling high-quality cross-modal image synthesis, thereby reducing the need for multiple acquisitions and opening new avenues for truly personalized RT.

6.1 Deep learning networks in medical images

Deep learning (DL)—a branch of machine learning built on multi-layered artificial neural networks—now underpins many techniques for generating synthetic images in RT. Recent review articles (91–95) survey the principal DL architectures applied in this field, with convolutional neural networks (CNNs), generative adversarial networks (GANs), and diffusion-based models emerging as the most widely used.

CNNs are a class of deep-learning models inspired by the hierarchical organization of neurons in the human visual cortex (96–98). Purpose-built for grid-like data, they have become ubiquitous in medical imaging applications (99–102). Each convolutional layer deploys a bank of learnable filters that scan the input, capturing local patterns—such as edges and textures—while sharing parameters across the field of view to curb model complexity and ensure translation invariance. Stacking multiple convolutional layers with non-linear activation yields progressively abstract, hierarchical feature representations (103–105). Pooling (106) and other down-sampling operations (107) further condense contextual information, whereas random dropout (108) regularizes the network and mitigates overfitting. By learning features directly from data rather than relying on hand-crafted descriptors, CNNs have become the backbone of image analysis and synthesis tasks in RT. One of the most well-known CNN models is the U-shaped net (U-Net) proposed by Ronneberger et al. (1) (Figure 6). One important modification of the U-Net is direct skip connections between the encoder and the decoder. The U-Net does not have any fully connected layers. Instead, it only uses the valid part of each convolution, which allows the network to propagate context information to the up-sampling layers.

Figure 6

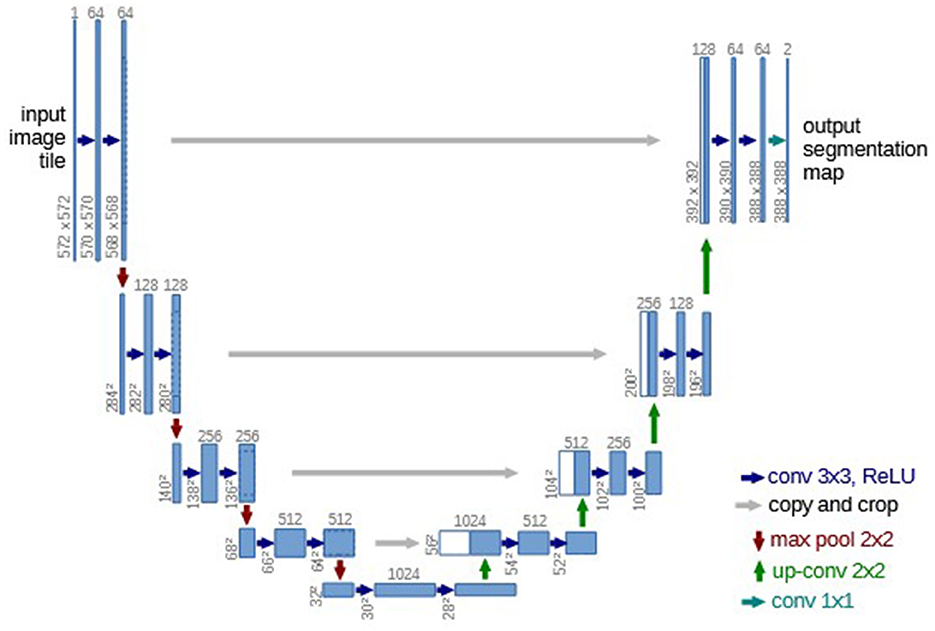

Figure 6. Architecture of the U-Net. Reprinted from Maas et al. (104).

GAN was introduced by Goodfellow et al. (109). Compared to the image generated by the CNNs, it further improves the image quality. GANs learn to synthesize realistic data through a game-theoretic contest between two neural networks: a generator (G) and a discriminator (D). The generator tries to produce realistic images that resemble the real training distribution, while the discriminator simultaneously learns to distinguish generated images from genuine ones. During training, each network improves in response to the other's progress: the generator refines its outputs to fool the discriminator, and the discriminator improves its ability to detect fake images, creating a dynamic “adversarial” loop that gradually drives the generator toward high-fidelity outputs. This framework has enabled breakthroughs in photorealistic image synthesis. Derivative networks, such as Conditional GANs (110, 111) , CycleGAN (112, 113), and StyleGAN (114, 115), extend the idea to guided generation, unpaired domain translation, and finely controllable synthesis, making GANs one of the most versatile and influential tools in modern machine learning.

Another category of generative model is the diffusion model, which was first introduced in 2015 by Sohl-Dickstein et al. (116). Diffusion models generate images by gradually contaminating training data with Gaussian noise and then learning to reverse this process iteratively. Instead of learning the image itself, the model is trained to learn the contaminated noise, which effectively denoises the dataset into realistic samples. Their iterative nature yields high-fidelity detail and inherent diversity, making them more robust to noise contamination in the training dataset. Recent studies show that denoising diffusion probabilistic models can synthesize 3-D MRI and CT volumes with realistic image quality (117, 118). Emerging “foundation” approaches such as MedDiff-FM aim to unify multiple tasks—synthesis, reconstruction, and denoising—within a single large diffusion backbone, pointing toward versatile, privacy-preserving generative pipelines across modalities (119). These advances collectively position diffusion models as a core engine for safe, scalable medical image synthesis.

6.2 Application of image synthesis in RT

Substantial progress has been achieved in image synthesis applications for RT. Notable examples include MRI to synthetic CT (sCT) conversion (120–125) and synthetic MRI (sMRI) (126–134), synthetic PET (sPET) (127, 135, 136), and CBCT to sCT conversion (137, 138).

In recent years, interest in MRI-guided RT has grown substantially within the radiation oncology community. Compared with CT, MRI offers superior soft-tissue contrast and exposes patients to no additional ionizing radiation. This advantage allows more precise delineation of tumors and organs at risk, such as the bowel and optic nerves. MRI signal intensity, however, depends on sequence-specific parameters—e.g., repetition time (TR), echo time (TE), flip angle, and inversion time (TI) (139)—and therefore lacks a direct, one-to-one correlation with electron density. As a result, MRI alone cannot support accurate dose calculation. To address this limitation, generative AI models are now used to synthesize sCT images from MRI data, making MRI-only treatment planning feasible (140, 141). Several studies have quantified the dosimetric differences between sCT and the reference planning CT (125, 142–145). In photon therapy, the mean dose deviation is approximately 1% (142). By contrast, proton therapy is more sensitive: reported proton-beam range shifts reach 5.6 mm in liver cancer (125) and 7.5 mm in prostate cancer (145), which can translate into clinically significant dose errors.

Synthetic MRI leverages advanced machine learning models—most commonly CNNs (96), GANs (109), or diffusion models (116)—to rapidly generate high fidelity MR-like images from either undersampled k-space data or alternative inputs such as CT, quantitative maps, or single contrast scans (127, 146). By learning the complex, non-linear relationship between tissue properties and MR signal formation, these models can synthesize multiple contrasts (e.g., T1, T2, or FLAIR weighted images) (147) in a single inference step, standardize intensity across patients, and even predict quantitative relaxation parameters (148). The result is a dramatic reduction in acquisition time and patient motion artifacts, more consistent image quality, and the potential to extend MRI-level soft tissue visualization to scenarios where full MRI is impractical—such as RT workflows that rely primarily on CT (149). As the techniques mature, synthetic MRI is poised to streamline imaging protocols, lower costs, and enable new precision medicine applications ranging from adaptive treatment planning to longitudinal disease monitoring.

PET is already a powerful tool in radiation oncology, which provides functional information about the metabolism of the tissues, but practical and technical barriers keep it from being used whenever it would add value. Synthetic PET imaging is driven by deep learning generators that learn to translate structural or low-count inputs into realistic tracer uptake maps (150). The field began with 3-D U-Nets that capture the global, non-linear correlation between whole-brain MRI volumes and FDG activity (151) and quickly moved to conditional GANs—such as the globally and locally aware GLA GAN (152)—which combine adversarial, pixel-wise, and structural similarity index measure (SSIM) losses so both coarse context and fine lesion details are recovered. Further refinements include frequency-aware U-Nets (153) that process low- and high-frequency bands separately to sharpen edges and textures, and bidirectional or reversible GANs (154, 155) that embed PET semantics in a shared latent space to enforce cycle consistency and boost perceptual fidelity. More recent architectures add Transformer attention to fuse multi-modal MRI/PET cues and model long-range dependencies (156) or adopt diffusion models that iteratively denoise random noise under MRI or textual guidance to yield high-fidelity standardized uptake values (SUVs) (157). These innovations underpin applications such as synthesizing full dose scans from low dose PET or from MRI alone (127, 158, 159), mitigating noise while preserving quantitative accuracy and thereby reducing radiation burden for patients.

CBCT acquired on the treatment machine employs a cone-shaped beam and a flat panel detector; scatter from the whole patient therefore overwhelms the signal, creating streaking, cupping, and other artifacts that corrupt HU (160) accuracy and compromise dose calculation (161). Deep learning pipelines now correct these limitations by translating CBCT into synthetic CT (sCT) volumes with calibrated HUs. Two complementary strategies dominate: projection domain correction (162), in which CNN or GAN models clean hundreds of 2 D x ray projections before reconstruction—leveraging the rich (>300) projection set to converge quickly and bypass many image domain artifacts—and image domain translation (163), where architectures such as U-Net (1), CycleGAN, (112, 113) or attention GAN (137) act directly on the reconstructed CBCT to recover CT-like contrast and bone detail. Projection domain networks can even be trained on non-anthropomorphic phantom projections to learn scatter patterns, enhancing generalizability, while many image domain studies rigidly register CBCT and planning CT to minimize geometric mismatch during training. By restoring HU fidelity, these DL-based CBCT to sCT techniques enable accurate daily dose recalculation, adaptive replanning, and auto contouring, transforming CBCT from a positioning aid into a quantitative backbone for modern image-guided radiotherapy.

6.3 Summary

Generative image synthesis is moving from proof of concept to a practical enabler in RT. More broadly, machine learning is reshaping the field, but clinical adoption must confront persistent risks of overfitting and domain shift. In radiation oncology, accuracy alone is not enough: even small rates of false negatives or false positives can have serious consequences. Addressing these risks requires rigorous validation, uncertainty reporting, and continuous quality assurance, with medical physicists playing a central role in understanding model limitations, monitoring performance, and integrating these rapidly evolving tools into safe, reliable workflows.

7 Cherenkov radiation imaging: emerging applications in modern RT

Cherenkov radiation emerges when charged particles traverse dielectric media at velocities exceeding the local speed of light. This phenomenon, characterized by its distinctive blue glow, occurs across the electromagnetic spectrum from ultraviolet to near-infrared wavelengths. In RT contexts, Cherenkov emission is generated whenever high-energy radiation interacts with tissue or water-equivalent phantoms, making it an intrinsic component of dose delivery processes (164–166).

The fundamental physics governing Cherenkov production follows well-established principles. The threshold condition requires β≥ 1/n, where β represents the particle velocity relative to light speed and n denotes the medium's refractive index. For electrons in liquid water, this threshold corresponds to approximately 260 MeV, with characteristic emission angles of ~41°. The Frank–Tamm formula describes Cherenkov intensity as proportional to 1/λ (2) in the wavelength domain, resulting in the characteristic-blue-weighted spectrum (167).

Under conditions of transient charged particle equilibrium, local Cherenkov intensity demonstrates strong proportionality to absorbed dose for both photon and electron beams (168–171). The presence of Cherenkov emission from radiotherapeutic proton beams has also been investigated (172). However, this relationship becomes complex due to factors including beam quality variations, spectral changes from beam hardening, and anisotropic secondary particle distributions. Furthermore, for in vivo applications, the optical transport of Cherenkov photons is dependent on patient-specific spatially heterogeneous tissue optical properties. These complications necessitate correction methodologies for accurate dosimetric applications.

7.1 Physics and detection considerations

The anisotropic nature of Cherenkov emission presents both challenges and opportunities for RT applications. In transparent media like water, Monte Carlo simulations and polarization imaging techniques can provide corrections to account for directional dependencies (169, 173). Alternatively, fluorophore doping can convert anisotropic Cherenkov light to more isotropic fluorescence, simplifying measurements while maintaining dose proportionality (174, 175).

In biological tissues, Cherenkov transport depends critically on optical properties, particularly absorption and scattering coefficients. The effective sampling depth is typically limited to several millimeters beneath tissue surfaces, with sensitivity decreasing exponentially with depth (164, 176–178). Unlike native Cherenkov spectra, tissue-emergent radiation exhibits red-shifted characteristics due to preferential absorption of shorter wavelengths (177).

Detection technologies have advanced significantly, enabling practical Cherenkov measurements in clinical environments. Modern systems employ intensified CMOS cameras to capture the relatively weak Cherenkov signals (on the level of μW cm-2 per Gy s⁻¹ for external beam therapy), the sensitivity, and noise characteristics, which have been reported in the literature (179–183). Spectral filtering of ambient lighting and temporal gating synchronized to radiation pulses effectively suppresses ambient light interference, particularly valuable in low-duty cycle applications (184–186).

7.2 Dosimetric applications in phantom studies

Camera-based Cherenkov imaging has demonstrated significant utility for beam characterization and quality assurance in phantom studies. Two-dimensional projection imaging enables rapid profiling of electron and photon beams with excellent spatial resolution (165, 174). Tomographic reconstruction techniques allow three-dimensional dose distribution mapping, validated for intensity-modulated RT (IMRT) and volumetric modulated arc therapy (VMAT) quality assurance (187, 188).

The exceptional spatiotemporal resolution achievable with Cherenkov imaging addresses critical needs in modern RT. Advanced techniques, such as stereotactic radiosurgery, microbeam therapy, and stereotactic body RT, demand precise characterization of small fields with steep dose gradients. Cherenkov imaging provides sub-millimeter spatial resolution in both 2D projection and 3D tomographic modes (175, 189). These favorable properties have been leveraged in the applications of Cherenkov imaging to routing quality assurance, including for MR linacs (190–193).

Ultra-high dose rate (UHDR) RT, known as FLASH-RT, presents unique dosimetric challenges due to dose rates exceeding 40 Gy/s—several orders of magnitude above conventional delivery rates (~2–6 Gy/min). Traditional dosimeters often exhibit dose-rate dependencies that compromise accuracy under UHDR conditions. Cherenkov imaging, combined with fast electronics and feedback systems, has successfully addressed these challenges, enabling dosimetry, monitoring, and control applications in FLASH-RT (194–196).

7.3 Chemical and biological sensing applications

Cherenkov emission spectroscopy has emerged as a powerful tool for non-invasive chemical sensing, particularly for tissue oxygenation monitoring (197) (Figure 7). Conventional oxygen measurement techniques are often invasive and complex, limiting their clinical utility. Cherenkov-based approaches leverage spectral characteristics that correlate with tissue optical properties at varying oxygenation concentrations (198, 199). Multi-channel spectral Cherenkov imaging is an emerging technology that can provide additional contrast for subsurface features by leveraging the impact of tissue composition on the emitted Cherenkov spectrum (200). This approach was also used to generate the first color images of Cherenkov emission from patients (197).

Figure 7

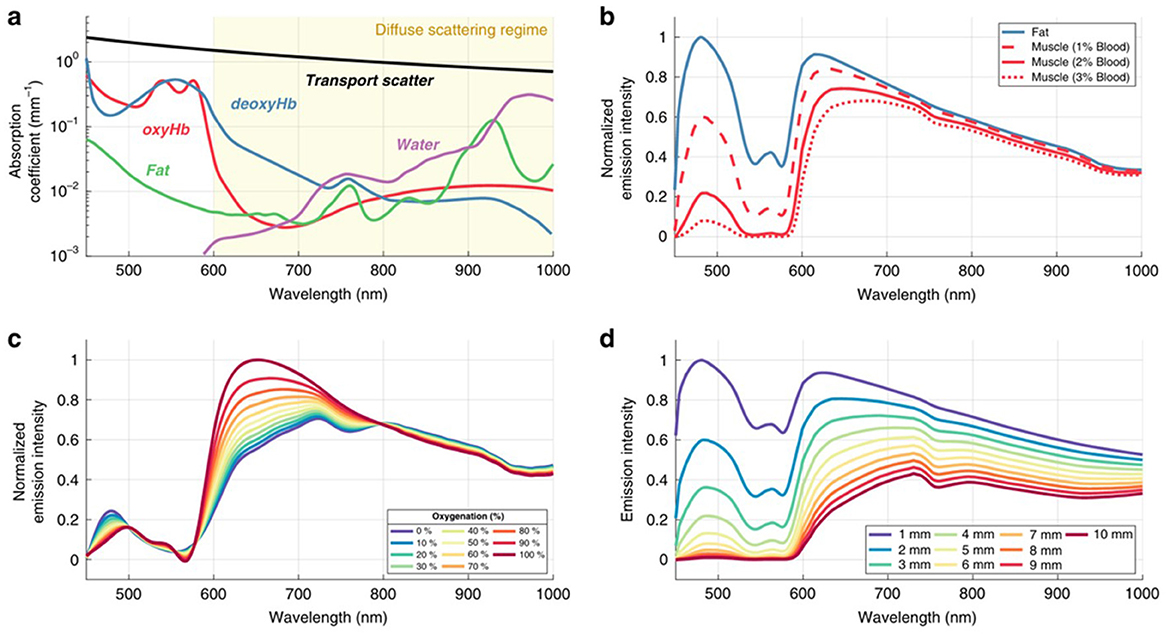

Figure 7. Spectral characteristics of tissue-emitted light are primarily determined by the absorption features of oxyhemoglobin, deoxyhemoglobin, water, and lipids, together with the general wavelength dependence of tissue scattering (A). Simulated Cherenkov emission spectra originating from a 5 mm depth are shown for fatty tissue (composition: 90% fat, 9.5% water, 0.5% blood containing equal parts Hb and HbO₂) and for radiodense tissue (mixtures of water and blood in varying ratios, again with equal Hb/HbO₂ contribution) (B). Changes in blood oxygenation within radiodense tissue containing 2% blood modify the Cherenkov spectrum owing to the distinct absorption profiles of oxy- and deoxyhemoglobin (C). Finally, (D) illustrates how varying emission depth in radiodense tissue (2% blood) influences the resulting Cherenkov emission observed at the surface. Reprinted from Vasyltsiv et al. (200).

The development of Cherenkov-excited luminescence techniques has expanded sensing capabilities beyond direct spectroscopic methods. By introducing oxygen-sensitive optical probes that can be stimulated by Cherenkov light, researchers have demonstrated real-time measurements of partial pressure of oxygen (pO₂), both in vitro and in vivo (201, 202). Diffuse optical tomography with radiation beam-optimized excitation patterns enables three-dimensional oxygen distribution reconstruction to depths of several centimeters (203, 204).

Cherenkov-excited luminescence scanned imaging (CELSI) represents another jump forward in Cherenkov-based biological sensing. This technique utilizes two-dimensional radiation sheets to generate Cherenkov emission, which subsequently excites luminescence probes distributed throughout biological tissues. By incorporating prior knowledge of beam positioning, three-dimensional optical signal distributions can be reconstructed with high spatial resolution (205–207).

7.4 In-vivo clinical applications

Human Cherenkov imaging was first demonstrated in patients with breast cancer receiving external beam RT. Synchronization of frame capture with radiation pulses enabled real-time, background-subtracted imaging at rates exceeding 10 frames per second (166, 208). These proof-of-concept studies revealed field segments projected onto patient surfaces, with intensity correlations to subsequent erythema development.

Clinical applications have expanded to encompass multiple treatment sites and techniques, including total skin electron therapy, head and neck VMAT, and frame-based intracranial stereotactic radiosurgery (209–214). Primary applications focus on motion monitoring, coverage validation, and treatment verification, though quantitative dose correlation remains challenging due to patient-specific factors, such as tissue optical properties, beam geometry, and treatment modality.

Significant progress has been made in addressing quantitative limitations through patient-specific corrections, with a particular focus on breast RT. Spatial frequency domain imaging (SFDI) enables measurement of skin optical properties for Cherenkov intensity correction (215). Additionally, X-ray attenuation values extracted from planning CT scans show a strong correlation with optical absorption, providing an alternative correction approach that utilizes readily available imaging data (216, 217). The patient's skin tone has been incorporated into the correction paradigm by leveraging the intensity of the paired time-delayed images used for online Cherenkov-background subtraction (218). Cherenkov images have been used to monitor and analyze match line quality in half-beam blocked or multi-isocenter treatments (219–221), and there are ongoing attempts to utilize biological features in the images as fiducial markers to track setup accuracy, leveraging classical and deep learning-based image analysis techniques (222–224).

Despite quantitative challenges, Cherenkov imaging offers unique advantages as a “free” signal present during any megavoltage RT without additional dose or time requirements. With the introduction of commercially available clinical Cherenkov imaging systems (BeamSite, DoseOptics, Lebanon NH, and DoseRT, Vision RT, London UK), there has been an effort to use the live Cherenkov video feed and the post-treatment cumulative image to monitor beam shape and improve or avoid non-ideal planning, delivery, or setup conditions (225, 226). Published studies on cohorts of 64 to over 600 patients have shown incident rates between 1.5% and 9% that were uniquely identified with Cherenkov imaging (227, 228) (Figure 8). Additionally, there are recent efforts to use Cherenkov images to guide the placement of in vivo dosimeters for surface dose measurements on the contralateral breast or verification of implanted electronic device dose limits (229, 230).

Figure 8

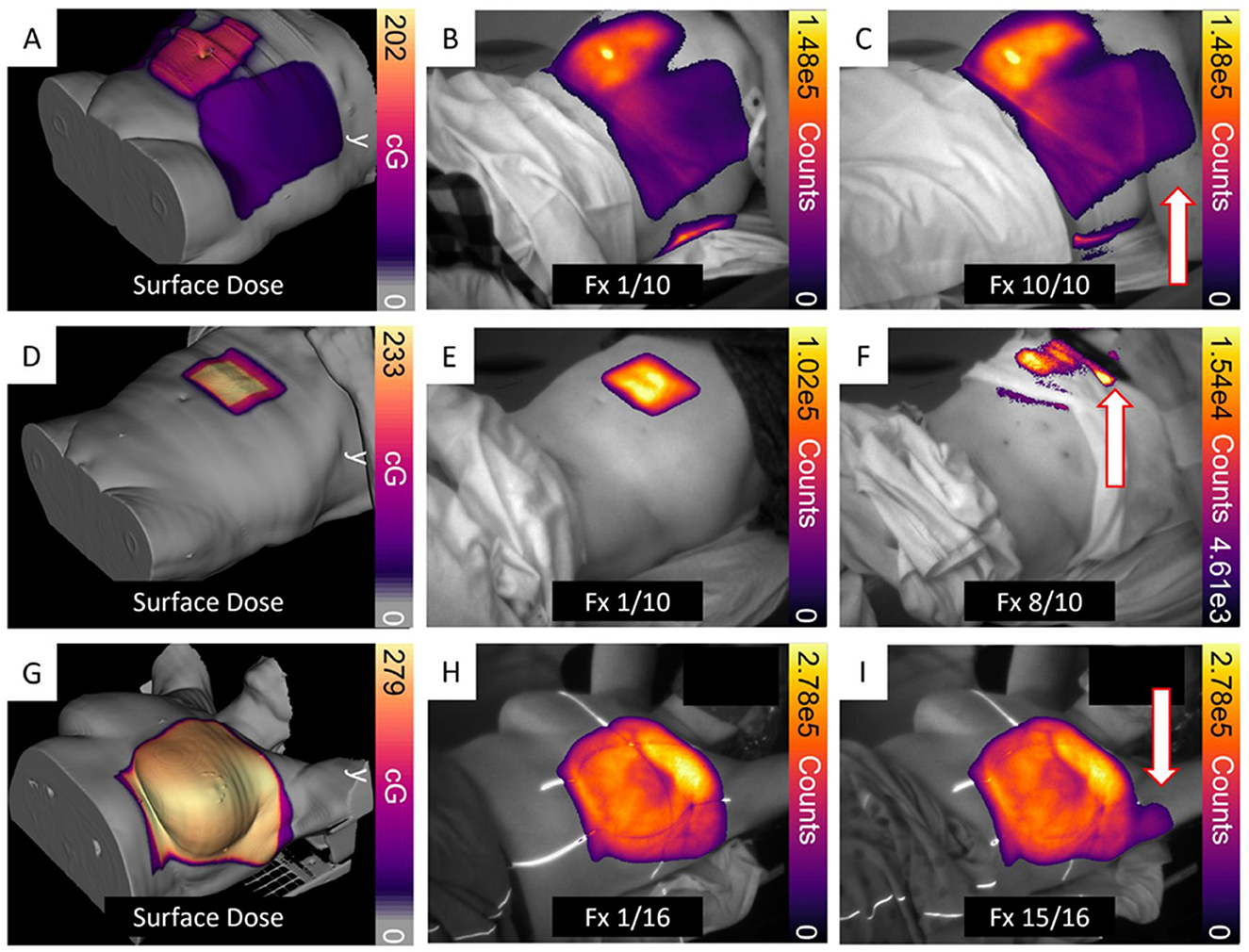

Figure 8. Examples of unintended dose delivery are illustrated for Cases 1, 2, and 3. (A–C, Case 1) depict incorrect arm positioning during 7 of 10 fractions, resulting in approximately 4.5 Gy exposure from an exit beam. (D–F, Case 2) show suboptimal hand placement that produced a small unintended dose in one of the ten fractions. (G–I, Case 3) demonstrate additional dose to the left axillary region caused by a slight displacement of the left arm in one of sixteen fractions. For all cases, surface-dose maps derived from the treatment plan were projected onto the corresponding patient CT surface, with red arrows marking the affected regions. Reprinted from Jarvis et al. (228).

Future developments focus on automated anomaly detection through machine learning applications. The large-scale data availability from always-on Cherenkov imaging enables several promising applications, including deep image denoising, motion estimation, automated patient alignment verification, and real-time treatment anomaly detection (210, 211).

7.5 Emerging applications and future directions

FLASH-RT applications represent a rapidly expanding frontier for Cherenkov imaging. The instantaneous nature of Cherenkov emission makes it ideally suited for monitoring UHDR deliveries that typically occur within fractions of a second. Real-time Cherenkov imaging has been successfully demonstrated in large animal FLASH studies, providing quality assurance and delivery control capabilities (196, 231).

Advanced imaging techniques continue to evolve, including multi-spectral Cherenkov imaging for physiological parameter estimation. Time-gated, three-channel cameras have enabled color Cherenkov emission analysis, potentially providing information about oxygen saturation, blood volume, and tissue composition (197).

Machine learning integration promises to enhance Cherenkov imaging capabilities significantly. Applications under development include automated treatment verification, real-time anomaly detection, patient-specific dose estimation, and physiological parameter extraction from spectral Cherenkov data (224, 232) (Figure 9).

Figure 9

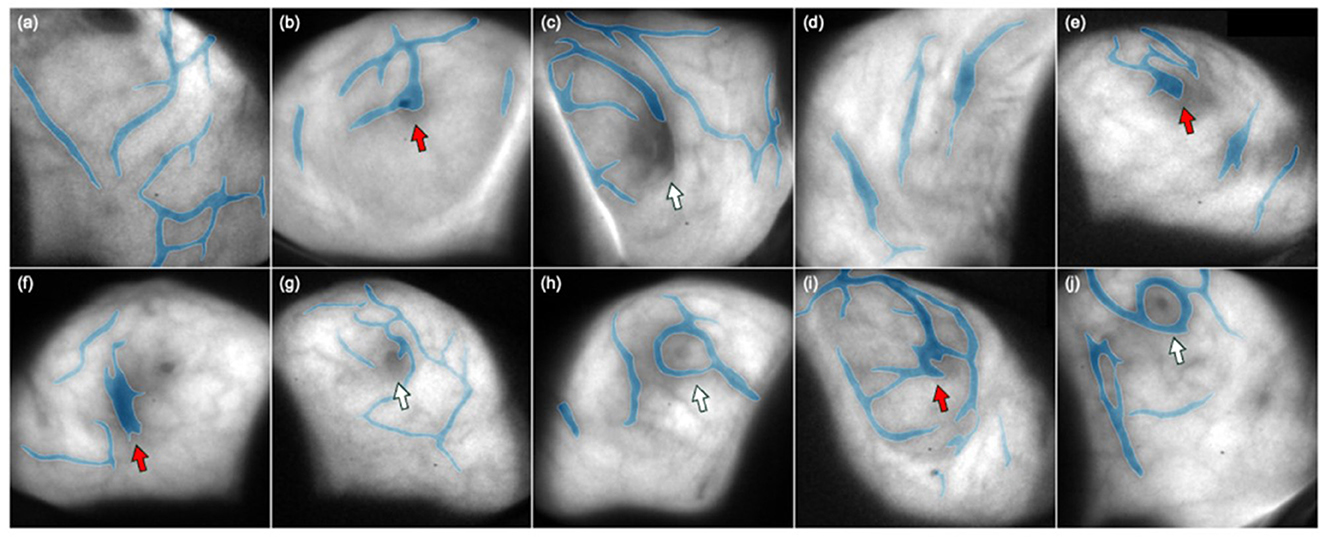

Figure 9. Visualization of segmented bio-morphological structures derived from Cherenkov imaging in ten representative breast cancer patients. (A–J) display the outputs of a fine-tuned SegResNet model, showing enhanced-edge segmentations of surface features overlaid transparently on the corresponding Cherenkov images. The segmented features primarily represent subcutaneous vasculature on the breast surface, with occasional inclusion of other anatomical details such as scars or nipples. Red arrows in (B, E, F, I) highlight segmentation errors involving scars and nipples, whereas white arrows in (C, G, H, J) indicate accurate segmentation results where vascular structures are correctly isolated. Reprinted from Alexander et al. (227).

7.6 Summary

Cherenkov radiation imaging has matured from a laboratory curiosity to a clinically viable technology with diverse applications in RT. While challenges remain in establishing quantitative dose correlations, particularly for in vivo applications, the technology offers unique advantages, such as real-time monitoring capabilities, excellent spatiotemporal resolution, and compatibility with emerging UHDR techniques. Continued technological development and clinical validation will likely expand Cherenkov imaging applications in quality assurance, biological monitoring, and treatment verification across conventional and advanced RT modalities.

8 Challenges in precision proton therapy

The popularity of proton therapy is derived from its capacity to spare healthy tissue while providing excellent dose conformity to the tumor due to proton physical properties, particularly the Bragg peak, where protons deposit their maximum energy at the end of their path at a precise depth. Thus, proton therapy is advantageous in pediatric oncology and tumors located near critical organs and structures. However, this unique characteristic comes as a double-edge sword: the precision of proton therapy is vulnerable to any uncertainties contained within the workflow of proton therapy. Even small inaccuracies during this process could lead to significant change in target coverage or unintended irradiation to the normal tissue.

Imaging plays an essential role in every step of proton therapy: from simulation, treatment planning, daily imaging-guided patient setup during treatment, and to potential adaptive planning (Figure 10). This section will first focus on imaging-related challenges in simulation and imaging guidance during daily treatment and then summarize emerging technologies and their future clinical implications.

Figure 10

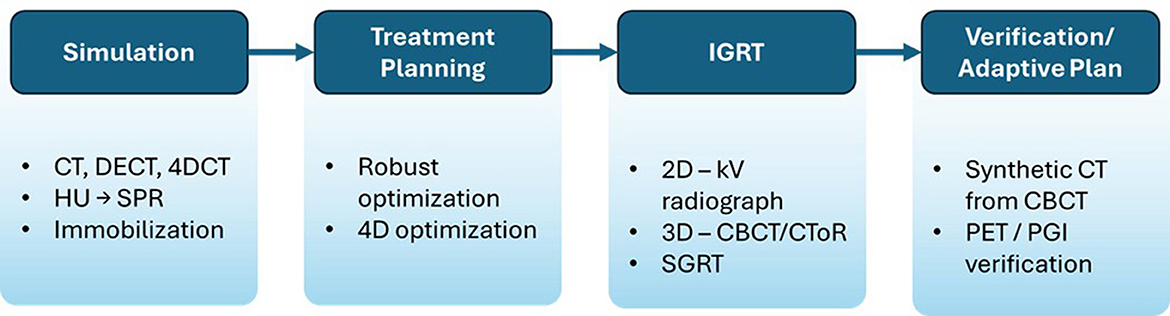

Figure 10. Imaging workflow in proton therapy.

8.1 Simulation imaging and planning accuracy

8.1.1 Patient positioning and immobilization

Like photon-based treatments, proton therapy treatment begins with simulation, during which high-quality volumetric images, typically a CT scan, are acquired to define tumor target volumes and organs at risk (OARs) and used for dose calculation during treatment planning. Thus, reproducibility of patient setup during simulation is essential to ensure the patient position can be consistently and accurately recreated during treatments. Uncertainties introduced at this stage propagate throughout the entire workflow of the treatment.

Immobilization devices, such as thermoplastic masks for brain and head and neck tumors, VacLok^® for other sites, and indexed positioning systems, aid in minimizing variations in patient position. Special attention must be paid to all items that may vary in thickness and location. Changes of these items during the treatment course would significantly impact the dose distribution during daily treatment if placed within a beam path.

8.1.2 CT HU to stopping power ratio (SPR) conversion

The cornerstone of proton therapy planning is the conversion of CT HUs to the stopping power ratio (SPR), which is used to calculate proton dose deposition. Uncertainties in this conversion are the major source of range uncertainty, which is estimated to be 2%−3% and more than 5% in the lung tissue (233, 234).

The standard clinical approach to address range uncertainty is the stoichiometric method, which involves acquiring single-energy CT (SECT) scans of various materials to establish a calibration curve. However, this curve is scanner- and protocol-dependent and assumes consistent image quality and minimal artifacts. Artifacts from metal implants or motion (e.g., respiration) introduce errors in SPR estimation, which ultimately propagate into dose calculation.

8.1.3 Advanced CT imaging techniques

To improve SPR accuracy, the feasibility of using dual-energy CT (DECT) for proton treatment planning is being explored in research and clinical settings (235, 236). DECT acquires two images at different X-ray energies, enabling the calculation of effective atomic number and electron density. This provides a more accurate pathway to SPR estimation than the stoichiometric method. Studies have shown that DECT implementation reduces range uncertainty by more than 1% compared to conventional CT.

Four-dimensional CT (4DCT) is critical in thoracic and abdominal sites where the tumor moves due to respiration and peristalsis. 4DCT allows breathing phase-based sorting of images to capture motion and inform strategies, such as internal target volume (ITV) creation or beam gating. Nowadays, treatment planning system allows users to incorporate different breathing phases during optimization, which greatly reduces the impact of breathing motion on daily dose delivery (237, 238). Proper motion management strategy reduces inter- and intra-fractional motion while improving the robustness of the proton treatment plan.

8.2 Image guidance during treatment in proton therapy

8.2.1 Imaging modalities

Table 2 compares different image modalities in proton therapy. Compared to photon therapy, which is inherently more forgiving for setup inaccuracies, proton therapy is highly sensitive to changes in water equivalent thickness (WET) along the proton beam path due to the finite range. Image-guided RT (IGRT) plays a vital role in verifying patient setup and minimizing uncertainties.

Table 2

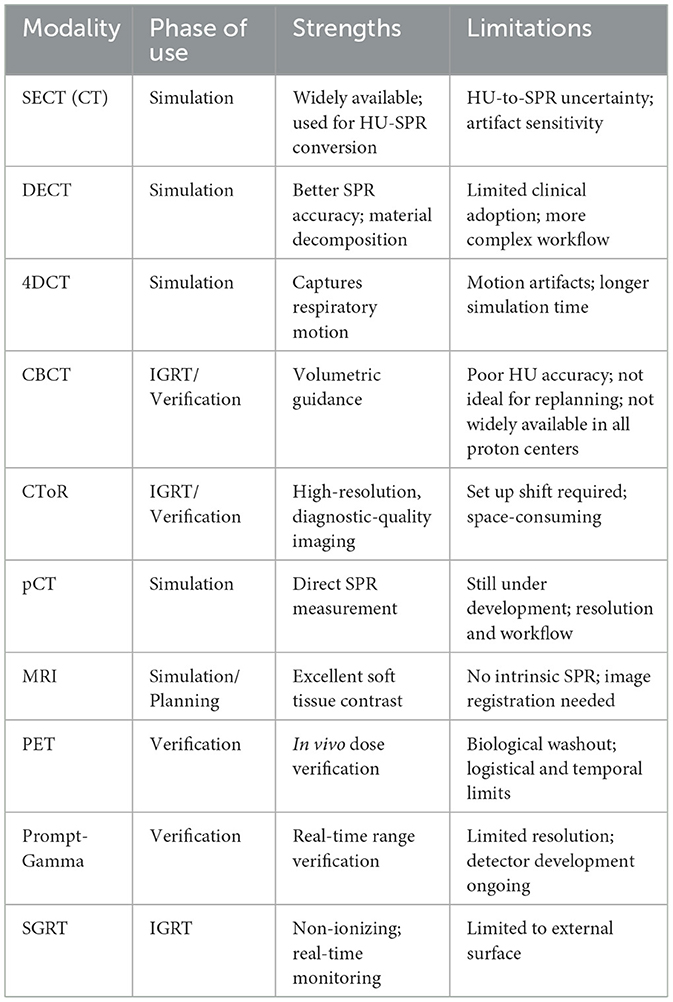

Table 2. Comparison of imaging modalities in proton therapy.

Common IGRT techniques include orthogonal kV radiographs and CBCT. Radiographs are quick and efficient for bony alignment but lack soft tissue visualization. CBCT offers volumetric information but suffers from lower image quality and longer acquisition time. Moreover, CBCT has poor HU accuracy, making it unreliable for proton range calculations (239). Nonetheless, it is superior in anatomy visualization, providing more reliable couch correction to align the anatomy on the treatment day with the simulation CT, reducing the setup uncertainties.

Surface-guided RT (SGRT) is an emerging modality used for patient positioning in superficial tumors or sites with minimal internal motion and for gating or breath-hold cases. It avoids ionizing radiation and provides real-time feedback. However, special attention needs to be paid when relying on SGRT to align the patient since it lacks internal anatomical correlation.

CT-on-Rails (CToR) has been adopted for IGRT modality in proton therapy to address the limitations of CBCT. The image quality of CBCT systems integrated into proton gantries is often compromised due to extended source-to-imager distance (SID) and limited mechanical clearance. In contrast, CToR provides diagnostic-quality volumetric imaging, offering superior soft tissue visualization and improved target delineation, which are requisite for accurate image registration and adaptive dose calculation. When implemented clinically, alignment between the CToR imaging isocenter and the treatment isocenter is critical. This alignment must be established during system installation and commissioning and maintained through routine quality assurance checks. Notably, during imaging, the treatment couch must be rotated or translated away from the treatment position to allow access to the CToR gantry—introducing the potential for setup variability if not properly managed.

8.2.2 Adaptive proton therapy

Given the sensitivity of proton beams to anatomical changes, adaptive therapy is a growing area of interest. Adaptive strategies rely on periodic or daily imaging to assess the impact of changes in patient anatomy on dose delivery and adjust the treatment plan when deemed necessary. Recent research on synthetic CT generation from CBCT using deformable registration or AI techniques holds promise in overcoming its limitation of poor HU reliability (240). CToR images show superior HU accuracy, which would be readily used for adaptive proton treatment planning.

Adaptive therapy can improve target coverage and OAR sparing, particularly in long-course treatments. However, it requires additional clinical resources, including time for recontouring and plan evaluation, making routine implementation challenging.

8.3 Emerging technologies for imaging accuracy

8.3.1 Proton radiography and proton CT

Table 3 summarizes the emerging image techniques for proton therapy. Proton radiography and proton CT (pCT) are imaging modalities that use protons themselves, rather than X-rays, to generate images of patient anatomy. Proton radiography provides 2D images and has been used in research settings for patient alignment and range verification (241). Proton CT, still under clinical development, offers 3D volumetric imaging and direct SPR mapping (242). Studies suggest that pCT can reduce range uncertainty to within 1%, though issues such as limited spatial resolution, longer acquisition times, and system integration remain barriers to clinical implementation.

Table 3

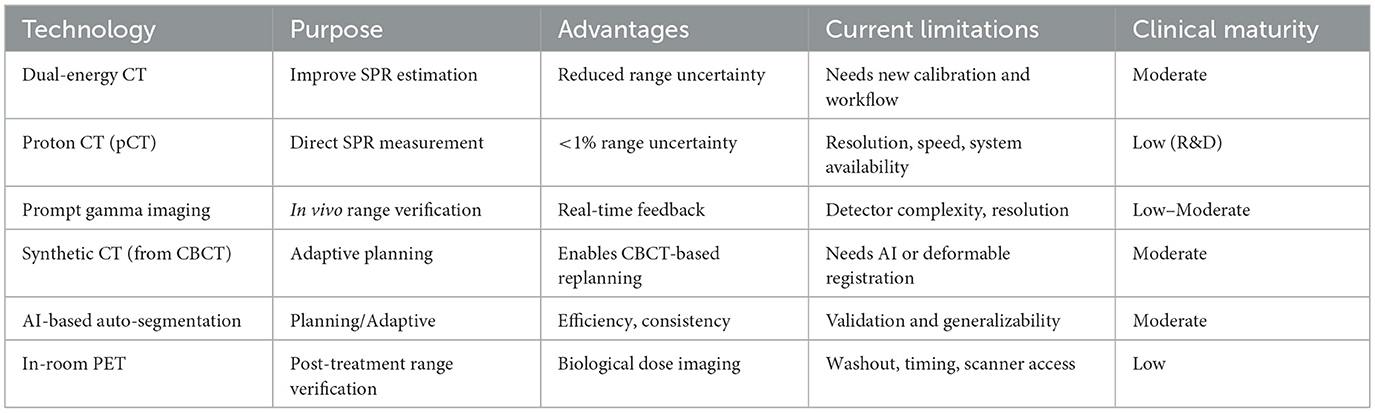

Table 3. Emerging technologies and clinical readiness.

8.3.2 Prompt gamma and PET imaging for in-vivo verification

Due to its finite range, it is impossible to measure the exit dose from proton delivery during treatment, compared to photon treatment. To verify proton beam delivery during or after treatment, prompt gamma imaging (PGI) and proton-induced PET are under active investigation.

PGI detects gamma photons emitted almost instantaneously as protons interact with nuclei in the patient. The spatial distribution of prompt gammas correlates with the proton range, offering a method for real-time verification. PGI systems are being tested clinically with encouraging results, though detector design and resolution constraints limit full clinical integration (243).

PET imaging leverages the positron-emitting isotopes generated by proton–nucleus interactions. Post-treatment PET can visualize areas where protons deposited energy. However, its clinical utility is limited by biological washout, low signal-to-noise ratios, and logistical challenges, such as the need for on-site PET scanners (243).

8.3.3 Artificial intelligence in imaging accuracy

AI and ML are increasingly being applied to enhance imaging in proton therapy. Applications include:

- Synthetic CT generation from MRI or CBCT, enabling MR-based planning or CBCT-based adaptation with reliable HU/SPR mapping (244).

- Automated segmentation of targets and OARs, reducing variability and speeding up planning.

- Image registration improvements, particularly deformable registration across modalities.

- Artifact correction in CT and CBCT, especially for motion and metal-induced artifacts.

AI tools are being developed to predict anatomical changes and guide adaptive decision-making, potentially reducing the need for daily manual planning and review. As these tools mature, they could enhance the accuracy and efficiency of imaging workflows throughout the proton therapy process.

8.4 Summary

In summary, new technologies are improving the accuracy of proton therapy. Precision is limited by range uncertainty from HU-to-stopping-power conversion, setup/motion, and imaging artifacts. Dual-energy CT tightens SPR estimates, while 4DCT characterizes respiratory motion for robust planning. For image guidance, kV radiographs and CBCT improve daily alignment, SGRT provides non-ionizing motion monitoring, and CT-on-rails offers diagnostic-quality volumetric updates. Adaptive proton therapy leverages periodic or daily imaging to replan when anatomy changes. In vivo verification via prompt-gamma and PET supplies range feedback, and pCT can directly inform water-equivalent thickness modeling. AI further enables synthetic CT, automated segmentation, deformable registration, and artifact mitigation. Broad clinical impact will hinge on rigorous validation, standardized QA/reporting, interoperable data pipelines, and staffing/training to sustain adaptive, verification-rich practice.

9 Advanced imaging and dosimetry in theranostics

Radiopharmaceutical therapy (RPT) is a form of internal radiation treatment that combines tumor-targeting molecules with radioactive isotopes to deliver cytotoxic radiation directly to cancer cells. Unlike external beam radiotherapy (EBRT), which delivers radiation from outside the body, RPT administers radiation systemically, typically via the bloodstream, allowing it to target both primary tumors and metastatic sites. This targeted, systemic approach makes RPT particularly well-suited for treating widespread metastatic disease. When used in combination with other therapies, demonstrated promising efficacy and a favorable toxicity profile, often outperforming conventional RPT has systemic treatments in clinical trials (245, 246).

A defining feature of RPT is its compatibility with personalized medicine. As the distribution of radioactive agents can be visualized within the body using imaging—either after administration or through surrogate imaging—the treatment can be precisely tailored to each patient. This imaging capability enables real-time tracking of drug biodistribution and supports individualized dosing based on organ uptake and tumor burden. The term “theranostics” describes this integration of targeted therapy (thera-) with diagnostic imaging (-nostics) (247) and has led to a resurgence in the development and clinical use of RPT over the past two decades.

Theranostics involves the use of molecular imaging, typically with PET/CT or SPECT/CT, to guide patient selection and optimize treatment strategies. A common theranostic approach uses isotope pairs that are chemically identical but differ in their radio-physical properties, such as ¹²³I/ ¹²⁴I/ ¹³¹I and ⁸⁶Y/ ⁹⁰Y. In these cases, one isotope is used for imaging to assess biodistribution and receptor targeting, while the other is used for therapeutic radiation delivery. Additionally, theranostic approaches can utilize different elements that can be chelated to the same targeting molecules, such as ⁶⁸Ga for imaging and ¹⁷⁷Lu for therapy, when bound to identical targeting vectors like DOTA-peptides. An alternative strategy involves administering a trace amount of the therapeutic agent and imaging it directly using SPECT/CT to predict the drug's distribution during the treatment. These methods enable clinicians to better evaluate treatment feasibility and personalize RPT to achieve maximum efficacy with minimal toxicity.

9.1 Current RPTs administered in the clinic

Several RPTs have received FDA approval for treating a range of cancers, reflecting the growing role of targeted radionuclide therapy in oncology. Among the most widely used radionuclides in RPT are beta (β⁻)-emitters, such as iodine-131 (¹³¹I), yttrium-90 (⁹⁰Y), and lutetium-177 (¹⁷⁷Lu). These isotopes are favored for their tissue-penetrating radiation range and ability to induce DNA damage in tumor cells, ultimately leading to cell death.

One of the earliest and most established forms of RPT is radioactive iodine (RAI) therapy, which has been used clinically for nearly a century, particularly for the treatment of differentiated thyroid cancer and benign thyroid disorders such as Graves' disease and toxic multinodular goiter (248). RAI therapy exploits the sodium iodide symporter (NIS)—a transmembrane protein that facilitates active transport of iodide ions into thyroid follicular cells. This transporter is highly expressed in differentiated thyroid cancers, allowing for the selective accumulation of radioactive iodine within malignant tissues.

Beyond therapy, radioactive iodine isotopes are also used for diagnostic imaging. Sodium iodide labeled with ¹²³I (Na¹²³I) is commonly used for SPECT/CT imaging due to its favorable gamma photon energy and shorter half-life, which minimizes radiation dose to the patient. Na¹²⁴I is a positron-emitting isotope of iodine, which is used for PET/CT imaging, providing higher spatial resolution and quantitative accuracy (249, 250).

Radium-223 dichloride (²²³RaCl₂) was approved by the FDA in 2013 for the treatment of castration-resistant prostate cancer (CRPC) with symptomatic bone metastases. As an alkaline earth metal, ²²³RaCl₂ mimics calcium and selectively localizes to areas of increased bone turnover, particularly at sites of metastatic lesions. Patients with metastatic prostate cancer often exhibit elevated bone remodeling activity driven by osteoblasts and osteoclasts, making them ideal candidates for therapies involving calcium mimetics, such as ²²³RaCl₂ (251).

²²³Ra undergoes a six-stage decay process, emitting four alpha particles per decay. These alpha particles account for approximately 95% of the total decay energy, making ²²³Ra a highly potent source of localized radiation. The emitted alpha particles have high linear energy transfer (LET), which means they deposit a substantial amount of energy along short tracks. This results in efficient induction of DNA double-strand breaks, which are lethal to tumor cells. However, due to their short range (approximately 10–100 μm), the cytotoxic effects of alpha particles are confined to a radius of 2–10 cells, thereby minimizing damage to surrounding healthy tissue.

Meta-iodo-benzyl-guanidine (mIBG) is a norepinephrine analog that targets the adrenergic tissue. When labeled with iodine-131 (¹³¹I), mIBG has been used for decades to treat neuroblastoma and other pediatric tumors (252). Despite its long history of clinical use, standard ¹³¹I -mIBG does not have formal FDA approval and is therefore prescribed by physicians under investigational or compassionate use protocols (253). One should keep in mind that the prescribed activity for ¹³¹I-mIBG is based on patient body weight and is typically much higher than other RPT drugs since pediatric patients can better tolerate bone marrow suppression and can also receive stem cell support following treatment.

More recently, a new formulation known as high-specific-activity (HSA) ¹³¹I-MIBG has been developed. This version features a much higher proportion of the mIBG molecules labeled with ¹³¹I, significantly increasing its specific activity—the amount of radioactivity per unit mass of drug (254). In standard ¹³¹I–mIBG preparations, only about 1% of mIBG molecules are radiolabeled (~123.3 MBq/mg), whereas in HSA ¹³¹I–mIBG, nearly 100% of the molecules are labeled (~92,500 MBq/mg) (255). HSA ¹³¹I–mIBG received FDA approval in 2018 for the treatment of patients with locally advanced or metastatic pheochromocytoma or paraganglioma who require systemic anticancer therapy. However, the manufacturer of HSA ¹³¹I–mIBG discontinued production of the drug in 2023.

¹⁷⁷Lu-DOTATATE was approved by the FDA in 2018 for the treatment of gastroenteropancreatic neuroendocrine tumors (GEP-NETs), which are neuroendocrine tumors originating in the pancreas or gastrointestinal tract. GEP-NETs are the most common subtype of well-differentiated neuroendocrine tumors, accounting for more than 70% of cases (256–259). ¹⁷⁷Lu-DOTATATE targets somatostatin receptors, which are overexpressed in GEP-NETs. The radiopharmaceutical consists of a somatostatin receptor agonist (SSA), the chelator DOTA, and the therapeutic radionuclide ¹⁷⁷Lu (259). To identify appropriate candidates for treatment, the companion diagnostic ⁶⁸Ga-DOTATATE is used for PET imaging to confirm somatostatin receptor expression in tumors. The standard prescribed activity of ¹⁷⁷Lu-DOTATATE is 7.4 GBq, which is administered every 8 weeks for a total of four doses.

The FDA approved ¹⁷⁷Lu-PSMA-617 in 2022 for the treatment of castration-resistant prostate cancers (CRPCs) in patients whose tumors overexpress the transmembrane protein prostate-specific membrane antigen (PSMA). PSMA is an ideal therapeutic target due to its high expression on prostate cancer cells and its cell surface localization, which makes it readily accessible to targeted agents. PSMA-617 is a small-molecule PSMA inhibitor that binds specifically to this protein, allowing for targeted delivery of the radioactive isotope ¹⁷⁷Lu to cancer cells (260).

The FDA has also approved multiple PSMA-targeted PET radiotracers for identifying patients eligible for ¹⁷⁷Lu-PSMA-617 therapy by detecting PSMA expression in tumors. These companion diagnostics are critical in guiding treatment decisions and selecting appropriate candidates for radioligand therapy. Among these, ⁶⁸Ga-gozetotide (also known as ⁶⁸Ga-PSMA-11) was the first to receive FDA approval in 2020 for use in PSMA PET/CT imaging. It remains the most extensively studied and widely used radiotracer for PSMA-targeted imaging. In addition, the FDA approved two ¹⁸F-labeled tracers: [¹⁸F]DCFPyL in 2021 and [¹⁸F]rhPSMA-7 in 2023, further expanding the toolbox of PSMA-targeted imaging agents. These radiotracers offer advantages in image resolution and logistical flexibility due to the longer half-life of ¹⁸F compared to ⁶⁸Ga.

Interestingly, the prescribed activity of ¹⁷⁷Lu-PSMA-617 is 7.4 GBq per cycle, which matches the dose used for ¹⁷⁷Lu-DOTATATE despite targeting entirely different tumors. The treatment is administered every 6 weeks, for up to six cycles, or until disease progression or unacceptable toxicity occurs.

It is increasingly evident that radiopharmaceutical therapy (RPT) is becoming a viable treatment option for a wide range of late-stage cancers. In some cases, RPT may also be used earlier in the course of disease, either as a standalone treatment or in combination with other therapeutic agents. Notably, with the exception of ¹³¹I–mIBG and HSA ¹³¹I–mIBG, the toxicity profiles observed in clinical trials of approved RPT agents are substantially lower than those associated with many conventional cancer therapies. This suggests that a significant proportion of patients may be clinically underdosed, highlighting an opportunity to optimize treatment delivery. All currently approved RPT agents emit radiation that can be imaged using SPECT/CT, enabling patient-specific dosimetry. This capability allows clinicians to personalize the administered activity for each patient based on their individual biodistribution and organ sensitivity, which is an approach that can be leveraged to maximize therapeutic efficacy while minimizing toxicity.

9.2 Advanced quantitative imaging in radiopharmaceutical therapy

Theranostics relies heavily on advanced imaging modalities to guide and monitor treatment with radiopharmaceuticals. The most commonly used imaging techniques in RPT are positron PET/CT and SPECT/CT. PET/CT, often using ⁶⁸Ga- or ¹⁸F-labeled tracers, offers high sensitivity and spatial resolution for detecting molecular targets such as PSMA or somatostatin receptors, enabling precise patient selection and treatment planning. SPECT/CT, used with gamma-emitting isotopes, such as ¹³¹I or ¹⁷⁷Lu, allows for real-time visualization of therapeutic agents and supports quantitative dosimetry to tailor treatment to individual patients. These hybrid imaging techniques not only confirm target expression before therapy but also assess biodistribution, monitor therapeutic response, and detect toxicity—making them essential tools in the practice of personalized medicine within RPT and nuclear oncology.

9.2.1 PET/CT

PET/CT imaging is an advanced medical imaging technique that combines the functional insights of PET with the detailed anatomical information of CT. By integrating these two modalities into a single imaging session, PET/CT provides a comprehensive view of both physiological activity and structural abnormalities within the body. This dual capability has made PET/CT an essential tool in clinical practice, enhancing diagnostic accuracy, guiding treatment planning, and improving overall patient management. The technology continues to advance, with ongoing research aimed at improving image quality, optimizing protocols, and expanding its clinical applications.

PET/CT plays a central role in theranostics by enabling both the selection of appropriate patients for radiopharmaceutical therapy (RPT) and the personalization of treatment. One of its most critical uses is identifying whether a patient's tumor expresses the molecular target required for specific RPTs. For example, ⁶⁸Ga-PSMA PET/CT is used to detect prostate-specific membrane antigen (PSMA) expression in patients with metastatic prostate cancer, guiding the use of ¹⁷⁷Lu-PSMA-617 therapy. Similarly, ⁶⁸Ga-DOTATATE PET/CT is used to confirm somatostatin receptor expression in patients with neuroendocrine tumors before initiating ¹⁷⁷Lu-DOTATATE treatment.

Beyond patient selection, PET/CT is also valuable for treatment planning and dosimetry. By using diagnostic isotopes such as ⁶⁸Ga or ¹⁸F, clinicians can estimate how therapeutic agents like ¹⁷⁷Lu or ⁹⁰Y will distribute throughout the body. This information allows for patient-specific dosimetry calculations, which help determine the optimal therapeutic dose while minimizing toxicity to healthy tissues. PET/CT is also routinely used to monitor treatment response by measuring changes in tracer uptake over time. A decrease in uptake on follow-up PET/CT scans can indicate a reduction in tumor activity or burden, supporting continued therapy or adjustment of the treatment plan.

Additionally, PET/CT enables early detection of disease progression or recurrence, often before structural changes are evident. For instance, ⁶⁸Ga-PSMA PET/CT is highly sensitive for identifying biochemical recurrence in prostate cancer, even at low PSA levels, allowing for earlier intervention. Finally, PET/CT can help evaluate off-target uptake, such as accumulation in the kidneys, salivary glands, or bone marrow, which may signal potential toxicity risks. This information is essential for refining treatment protocols and protecting critical organs. Overall, PET/CT is a cornerstone of theranostic practice, offering a combination of molecular insight and anatomical precision to guide effective and personalized cancer care.

9.2.2 SPECT/CT

SPECT/CT imaging is a hybrid imaging technique that combines the molecular imaging capabilities of single photon emission computed tomography (SPECT) with the anatomical precision of CT. This integration allows for the simultaneous assessment of functional processes and structural features within the body, enhancing the localization and interpretation of radiopharmaceutical uptake. SPECT/CT has become a valuable tool in clinical practice, particularly in oncology, cardiology, and endocrinology, where it supports accurate diagnosis, guides therapeutic decisions, and aids in treatment response monitoring. Its utility in radiopharmaceutical therapy (RPT) is especially notable, as it enables real-time visualization of therapeutic agent distribution and facilitates quantitative dosimetry. Continuous advancements in detector technology, image reconstruction algorithms, and radiotracer development are further expanding the clinical applications and diagnostic performance of SPECT/CT.

SPECT/CT plays a critical role in theranostics by enabling both the visualization and quantification of radiopharmaceutical distribution, particularly for therapies involving gamma-emitting isotopes. One of its key uses is in patient-specific dosimetry for radiopharmaceutical therapies such as ¹³¹I, ¹⁷⁷Lu-DOTATATE, and ²²³RaCl₂ (298). By providing three-dimensional functional imaging overlaid with anatomical detail, SPECT/CT allows clinicians to assess how the therapeutic agent distributes across tumors and normal organs, enabling precise calculation of absorbed radiation doses. This supports personalized treatment planning aimed at maximizing efficacy while minimizing toxicity. SPECT/CT is also used to monitor treatment response by evaluating changes in radiotracer uptake over time, which can indicate tumor regression or progression. In some cases, a trace amount of the therapeutic agent is administered and imaged with SPECT/CT prior to full-dose therapy to predict biodistribution and assess treatment feasibility. Additionally, SPECT/CT can identify off-target uptake, helping to detect and mitigate potential risks to critical organs such as the kidneys, salivary glands, or bone marrow. Its accessibility, compatibility with a wide range of therapeutic isotopes, and ability to support real-time imaging of therapy delivery make SPECT/CT an important tool in the theranostic workflow.

9.3 Challenges with quantitative imaging

Accurate quantitative PET/CT or SPECT/CT imaging is essential in theranostics because it directly informs critical aspects of personalized treatment planning and clinical decision-making. In theranostics, imaging is not only used for diagnosis and staging but also to measure the in vivo distribution of radiopharmaceuticals, enabling patient-specific dosimetry. Precise quantification allows clinicians to calculate the absorbed radiation doses to tumors and normal organs, which is key to balancing efficacy with safety. Inaccurate quantification could lead to underdosing, which reduces therapeutic effectiveness, or overdosing, which increases the risk of toxicity to healthy tissues.

Moreover, quantitative imaging is vital for monitoring treatment response. Changes in standardized uptake values (SUVs) or other quantitative metrics over time provide objective evidence of how well a tumor is responding to therapy. This helps guide decisions about whether to continue, adjust, or stop treatment. It is also crucial for assessing biodistribution in advance of therapy, especially when using a diagnostic surrogate or microdose of the therapeutic agent to predict how the full treatment will behave. Without accurate quantitative imaging, these predictive models become unreliable.

Finally, quantitative PET/CT and SPECT/CT play an important role in clinical research and regulatory approval, where reproducible, measurable outcomes are needed to validate new theranostic agents and protocols. In short, accuracy in quantitative imaging underpins the safety, effectiveness, and precision that define modern theranostic approaches.

Quantifying the distribution of radiopharmaceutical activity within the body is a foundational step in theranostics, as it directly informs absorbed dose calculations and guides patient-specific treatment planning and treatment response assessment. However, achieving accurate quantification is inherently complex and subject to multiple sources of uncertainty. These include limitations in imaging system resolution and sensitivity, patient movement, image noise, and challenges in correcting photon attenuation and scatter. Additionally, variability in segmentation, registration, and calibration processes further complicates the measurement of activity, particularly in small regions of interest, with a heterogeneous uptake (e.g., lesions). Understanding and addressing these sources of uncertainty is critical for improving the accuracy, reproducibility, and clinical utility of quantitative imaging in theranostics. The following sections explore the major technical and procedural factors that contribute to uncertainty in activity quantification.

9.3.1 Quantification of activity

Uncertainty in quantifying activity distribution refers to the challenges and potential sources of error in measuring how a radiopharmaceutical is distributed within the body, especially within specific organs, tissues, or lesions. Accurate quantification is essential in theranostics because it directly impacts dosimetry calculations and, ultimately, the determination of the absorbed radiation dose. Several factors contribute to this uncertainty, including the limited spatial resolution and sensitivity of the imaging system, partial volume effects (which can lead to underestimation of activity in small structures), and inaccuracies in attenuation and scatter correction. Calibration errors in the imaging system can also affect the reliability of activity measurements. Reducing these uncertainties is critical to ensure precise, patient-specific treatment planning in theranostics.

Spatial resolution: Imaging systems such as SPECT and PET have limited spatial resolution, which means they cannot accurately differentiate fine details in small structures. As a result, activity within small organs or lesions may be underestimated due to the partial volume effect (PVE)—a phenomenon where the true activity appears diluted across neighboring voxels, making small structures appear less intense than they actually are. This loss of detail leads to PVE-related inaccuracies in the reconstructed images, which is a well-known limitation of nuclear medicine cameras (261–264).

Sensitivity: The sensitivity of imaging systems varies and refers to the ability of PET or SPECT scanners to detect photons emitted by the radiopharmaceutical. However, no system detects all emitted photons perfectly. Some photons are scattered, absorbed, or missed entirely, which can result in underestimation of total activity and contribute to quantification errors (255, 265, 266).

Noise in Imaging: The signal-to-noise ratio (SNR) plays a critical role in the accuracy of quantitative imaging. Noise can arise from several factors, including limited scan duration, low radiopharmaceutical dose, and patient movement. High noise levels, particularly in areas of low radiotracer uptake (such as surrounding healthy tissue), make it difficult to accurately measure activity. Although increasing scan time and applying noise reduction techniques can improve accuracy, these solutions may reduce patient comfort and limit scanner throughput (255).

Patient motion: Motion during image acquisition, such as respiratory or involuntary movement, can blur the observed activity distribution and introduce quantification errors. This is especially problematic when imaging small structures. For example, one simulation study using ⁹⁰Y bremsstrahlung SPECT showed that respiratory motion reduced the recovery coefficient of a tumor from 90% to 66% (267, 268).

Calibration: Accurate activity quantification depends on proper calibration of the imaging system, which involves translating detected photon counts into units of radioactivity. This is typically done using radioactive phantoms with known activity distributions. The system is then adjusted to match these known values, establishing a reference for interpreting patient scans. Calibration errors—caused by system performance variability, improper calibration procedures, or aging hardware—can significantly impact quantitative accuracy (255, 269).

9.3.2 Attenuation and scatter correction

During nuclear imaging, photons emitted from radiopharmaceuticals can be absorbed or scattered by tissues as they pass through the body. This process, known as attenuation, is particularly pronounced in denser structures like bone or organs and can lead to underestimation of activity in deeper tissues if not properly corrected. While attenuation correction algorithms are routinely applied, they introduce uncertainty—especially when the patient's anatomy deviates from standard models.

Photon scatter further complicates quantification by reducing image contrast. Scattered photons contribute a diffuse background signal, which can overestimate activity in low-uptake regions and underestimate activity in high-uptake areas like tumors (269). Various scatter correction methods are used to address this, but all introduce potential sources of error depending on imaging conditions, radiopharmaceutical properties, and patient-specific factors (255, 269).

In SPECT imaging, energy window-based methods such as double energy window (DEW) and triple energy window (TEW) are commonly used. These approaches estimate scatter from adjacent energy windows and subtract it from the primary signal. However, their accuracy depends on proper window placement and assumptions about scatter distribution. Misestimation can result in over- or under-correction, affecting final quantification (270–274). For instance, phantom studies have shown that TEW improves contrast-to-noise ratio over DEW in ¹³¹I and ¹⁷⁷Lu SPECT, but may produce lower recovery coefficients, suggesting underestimation of true activity (275, 276).

More advanced approaches, such as Monte Carlo (MC)-based scatter correction, simulate individual photon interactions within the patient using detailed physical models (277, 278). These methods account for tissue composition, density, and photon transport, providing more accurate scatter estimation. Comparative studies have shown that MC methods outperform TEW for radionuclides like ^99mTc, ¹¹¹In, and ¹⁷⁷Lu, with TEW overestimating activity by up to 11% in ¹⁷⁷Lu imaging due to its inability to capture patient-specific activity distribution (277, 279, 280).

9.3.3 Partial volume effects

The partial volume effect (PVE) occurs when the spatial resolution of an imaging system is insufficient to accurately capture activity within small structures. As a result, activity appears blurred between adjacent regions, leading to underestimation in small, high-uptake areas (e.g., tumors or lymph nodes) and potential overestimation in surrounding low-uptake tissues (261, 262). Structures such as the thyroid, bone marrow, and small tumors are especially vulnerable because their dimensions often fall below the system's resolution, causing activity “spillover” into adjacent areas.

In addition to size, heterogeneous radiopharmaceutical uptake within tumors or organs can be distorted by PVE, obscuring the true distribution of activity. The magnitude of this effect is often characterized using recovery coefficients (RCs), which are derived from phantom studies that measure how much of the true activity is recovered in structures of various sizes and positions. RCs can vary widely—from below 0.1 to above 0.9—depending on factors such as isotope, object size, scanner type, and imaging settings (281). Placement within the field of view also affects RCs; one study using ¹⁷⁷Lu demonstrated significantly different RCs for the same sphere size depending on its location in the phantom (281).

To better assess PVE in anatomically relevant settings, anthropomorphic phantoms have been developed for organs such as the kidney (262, 282), liver (283), and the head and neck region (40), allowing more realistic estimation of recovery in complex geometries.

9.3.4 Segmentation

Accurate volume delineation is a critical yet time-consuming step in radiopharmaceutical therapy (RPT) dosimetry and is increasingly complex due to the need to register and interpret multi-timepoint and multimodality imaging (263, 284–286). Inter-observer variability (IOV) in segmentation is widely recognized as the largest source of uncertainty in the dosimetry process (287), potentially impacting both treatment efficacy and toxicity, as well as consistency across clinical centers.

Empirical studies have assessed the impact of segmentation variability by applying controlled changes (e.g., expansions or contractions) to segmented regions of interest (ROIs) and observing the resulting variability in mean absorbed dose (288, 289). These studies show that for organs and large tumors, contour variability is the dominant source of uncertainty, while for small tumors, sensitivity to the recovery coefficient becomes more significant.

Another approach involves directly comparing contours generated by multiple observers. For example, a recent Society of Nuclear Medicine and Molecular Imaging (SNMMI) “Dosimetry Challenge” analyzed dose estimates from 178 participants using common ¹⁷⁷Lu-DOTATATE patient data (290–292). The study found segmentation to be a major contributor to dose variability, with normalized activity variability in healthy organs at 7% and lesion variability ranging from 6.7% to 24% (293). These findings support the development of standardized segmentation guidelines to reduce variability and improve the accuracy and reproducibility of RPT dosimetry.

9.3.5 Registration

Accurate image registration is essential for reliable dosimetry in radiopharmaceutical therapy (RPT), yet it remains an underexplored area in the literature. Studies have shown that even small misregistrations—such as translations under 9 mm or rotations under 5°–can cause absorbed dose errors of up to 90% in tumor regions, especially when lesions are located away from the center of the SPECT field of view (294–297). These findings underscore the sensitivity of dose calculations to registration accuracy, particularly in tumor volumes.

While early studies focused on SPECT-only datasets, more recent research has evaluated registration techniques in multi-timepoint SPECT/CT. Comparisons between rigid and non-rigid (deformable) registration methods consistently show that non-rigid approaches provide greater alignment accuracy, especially in complex datasets. CT-based registration—where the CT images guide alignment and the corresponding SPECT data is adjusted—has shown better consistency in activity quantification than SPECT-based methods (296).

Simulated phantom studies further highlight the benefits of non-rigid registration, showing substantial reductions in alignment errors. For instance, spleen and liver misalignments dropped from 15.5% to 2.1% and from 7.3% to 0.2%, respectively, when using deformable registration instead of rigid methods (297). Patient studies echo these findings: in ¹⁷⁷Lu-DOTATATE therapy, deformable registration resulted in higher absorbed dose estimates compared to rigid registration, with differences in kidney dose ranging from −19% to 4% and in tumor dose from −67.2% to 100.7% (295).

Proper patient positioning is also critical during multi-timepoint imaging. Movement between scans introduces alignment errors that can persist even after registration, leading to further uncertainties in dosimetry. These findings emphasize the need for careful registration method selection and consistent patient positioning to improve the accuracy of dose estimates in RPT.

9.4 Summary

Radiopharmaceutical therapy (RPT) is an increasingly important modality in oncology, offering targeted, systemic radiation delivery using tumor-seeking molecules labeled with radioactive isotopes. Unlike external beam radiotherapy, RPT can treat both primary and metastatic disease sites with relatively low toxicity profiles, making it a promising option for patients with late-stage or refractory cancers. A hallmark of RPT is its integration into theranostics—combining diagnostic imaging with therapy to enable personalized treatment planning based on patient-specific biodistribution and molecular target expression.

Multiple RPT agents have gained FDA approval, including ¹³¹I for thyroid cancer, ²²³RaCl₂ for prostate cancer with bone metastases, ¹⁷⁷Lu-DOTATATE for neuroendocrine tumors, and ¹⁷⁷Lu-PSMA-617 for prostate cancer. These therapies leverage diagnostic counterparts, such as ⁶⁸Ga- or ¹⁸F-labeled PET tracers, to guide patient selection and assess target expression. Quantitative imaging using PET/CT and SPECT/CT plays a pivotal role in RPT by enabling individualized dosimetry, monitoring therapeutic response, and identifying potential off-target toxicity.

However, accurate quantification of radiopharmaceutical distribution remains technically complex. Sources of uncertainty include limited spatial resolution, sensitivity loss, partial volume effects, attenuation and scatter artifacts, segmentation variability, and image registration inaccuracies. Advances in imaging technologies, standardized protocols, and sophisticated correction algorithms are essential to improve reproducibility and optimize treatment delivery. As RPT continues to evolve, the ability to reduce these uncertainties will be critical to fully realizing the potential of precision medicine in nuclear oncology.

10 Conclusion

In conclusion, emerging technologies are rapidly reshaping the landscape of radiation oncology. Across the RT workflow, advanced imaging is enabling finer target definition, smarter motion management, and increasingly adaptive, biology-informed dose delivery. MR-guided RT brings daily soft-tissue visualization and online adaptation; PET-guided strategies and integrated PET-linac concepts extend guidance to the molecular scale; stereoscopic X-ray with thermal surface guidance supports sub-millimeter CNS positioning; and CBCT-based online adaptation (e.g., HyperSight-enabled workflows) turns daily anatomy into actionable plans. In parallel, generative AI for image synthesis is shortening acquisition chains and improving quantitation, while Cherenkov imaging offers real-time treatment verification and new avenues for QA and FLASH monitoring. In proton therapy, better HU to SPR mapping through DECT, robust motion imaging (4DCT, CToR), and in vivo range verification (prompt-gamma, PET) are converging on tighter range uncertainty. Beyond external beam, theranostics couples diagnostic specificity with patient-specific dosimetry to personalize radiopharmaceutical therapy.

Realizing these gains at scale will require rigorous multicenter validation, standardized QA and reporting, integration of multi-omics with functional/quantitative imaging, and trustworthy automation with continuous performance monitoring. Equally important are interoperable data pipelines, workforce training (especially for medical physicists), and attention to access and equity so that precision benefits reach diverse patient populations. Together, these advances point toward safer, more adaptive, and genuinely personalized RT.

Author contributions

YY: Writing – original draft, Writing – review & editing. DA: Writing – original draft. BB: Writing – original draft. LB: Writing – original draft. HC: Writing – original draft. DG: Writing – original draft. BH: Writing – original draft. CI: Writing – original draft. YL: Writing – original draft. NN: Writing – original draft. NM: Writing – original draft. NV: Writing – original draft. YW: Writing – original draft. JW: Writing – original draft. YZ: Writing – original draft. FG: Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research and/or publication of this article.

Acknowledgments

We gratefully acknowledge Dr. Tina Briere of the Department of Radiation Physics at The University of Texas MD Anderson Cancer Center for inspiring discussions and support for this work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Generative AI statement

The author(s) declare that no Gen AI was used in the creation of this manuscript.

Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Mutic S, Dempsey JF. The ViewRay system: magnetic resonance–guided and controlled radiotherapy. Semin Radiat Oncol. (2014) 24:196–9. doi: 10.1016/j.semradonc.2014.02.008

PubMed Abstract | Crossref Full Text | Google Scholar

2. Klüter S. Technical design and concept of a 0.35 T MR-Linac. Clin Transl Radiat Oncol. (2019) 18:98–101. doi: 10.1016/j.ctro.2019.04.007

PubMed Abstract | Crossref Full Text | Google Scholar

3. Raaymakers BW, Lagendijk JJW, Overweg J, Kok JGM, Raaijmakers AJE, Kerkhof EM, et al. Integrating a 1.5 T MRI scanner with a 6 MV accelerator: proof of concept. Phys Med Biol. (2009) 54:N229–N237. doi: 10.1088/0031-9155/54/12/N01

PubMed Abstract | Crossref Full Text | Google Scholar

4. Schleffler K, Lehnhardt S. Principles and applications of balanced SSFP techniques. Eur Radiol. (2003) 13:2409–18. doi: 10.1007/s00330-003-1957-x

PubMed Abstract | Crossref Full Text | Google Scholar

5. Winkel D, Bol GH, Kroon PS, van Asselen B, Hackett SS, Werensteijn-Honingh AM, et al. Adaptive radiotherapy: the Elekta Unity MR-linac concept. Clin Transl Radiat Oncol. (2019) 18:54–9. doi: 10.1016/j.ctro.2019.04.001

PubMed Abstract | Crossref Full Text | Google Scholar

6. Liveringhouse C, Netzley A, Bryant JM, Linkowski LC, Weygand J, Sandoval ML, et al. Trimodal therapy using an MR–guided radiation therapy partial bladder tumor boost in muscle invasive bladder cancer. Adv Radiat Oncol. (2023) 8:101268. doi: 10.1016/j.adro.2023.101268

PubMed Abstract | Crossref Full Text | Google Scholar

7. Rammohan N, Randall JW, Yadav P. History of technological advancements towards MR-Linac: the future of image-guided radiotherapy. J Clin Med. (2022) 11:4730. doi: 10.3390/jcm11164730

PubMed Abstract | Crossref Full Text | Google Scholar

8. La Rosa A, Mittauer KE, Rzepczynski AE, Chuong MD, Kutuk T, Bassiri N, et al. Treatment of glioblastoma using MRIdian^® A3i BrainTx: imaging and treatment workflow demonstration. Med Dosim. (2023) 48:127–33. doi: 10.1016/j.meddos.2023.02.001

PubMed Abstract | Crossref Full Text | Google Scholar

9. Smith BR, St-Aubin J, Hyer DE. Commissioning of a motion management system for a 1.5 T Elekta Unity MR-Linac: a single institution experience. J Appl Clin Med Phys. (2025) 26:e70005. doi: 10.1002/acm2.70005

PubMed Abstract | Crossref Full Text | Google Scholar

10. Heerkens HD, Van Vulpen M, Erickson B, Reerink O, Intven MP, Van Den Berg CA, et al. MRI guided stereotactic radiotherapy for locally advanced pancreatic cancer. Br J Radiol. (2018) 91:20170563. doi: 10.1259/bjr.20170563

PubMed Abstract | Crossref Full Text | Google Scholar

11. Chin S, Eccles CL, McWilliam A, Chuter R, Walker E, Whitehurst P, et al. Magnetic resonance-guided radiation therapy: a review. J Med Imaging Radiat Oncol. (2020) 64:163–77. doi: 10.1111/1754-9485.12968

PubMed Abstract | Crossref Full Text | Google Scholar

12. Rudra S, Jiang N, Rosenberg SA, Olsen JR, Roach MC, Wan L, et al. Using adaptive magnetic resonance image-guided radiation therapy for treatment of inoperable pancreatic cancer. Cancer Med. (2019) 8:2123–32. doi: 10.1002/cam4.2100

PubMed Abstract | Crossref Full Text | Google Scholar

13. Chuong MD, Lee P, Low DA, Kim J, Mittauer KE, Bassetti MF, et al. Stereotactic MR-guided on-table adaptive radiation therapy (SMART) for borderline resectable and locally advanced pancreatic cancer: a multi-center, open-label phase 2 study. Radiother Oncol. (2024) 191:110064. doi: 10.1016/j.radonc.2023.110064

PubMed Abstract | Crossref Full Text | Google Scholar

14. Bryant JM, Weygand J, Keit E, Cruz-Chamorro R, Sandoval ML, Oraiqat IM, et al. Stereotactic magnetic resonance-guided adaptive and non-adaptive radiotherapy on combination MR-linear accelerators: current practice and future directions. Cancers. (2023) 15:2081. doi: 10.3390/cancers15072081

PubMed Abstract | Crossref Full Text | Google Scholar

15. Bryant JM, Cruz-Chamorro RJ, Gan A, Liveringhouse C, Weygand J, Nguyen A, et al. Structure-specific rigid dose accumulation dosimetric analysis of ablative stereotactic MRI-guided adaptive radiation therapy in ultracentral lung lesions. Commun Med. (2024) 4:96. doi: 10.1038/s43856-024-00526-7

PubMed Abstract | Crossref Full Text | Google Scholar

16. Bryant JM, Doniparthi A, Weygand J, Cruz-Chamorro R, Oraiqat IM, Andreozzi J, et al. Treatment of central nervous system tumors on combination MR-linear accelerators: review of current practice and future directions. Cancers. (2023) 15:5200. doi: 10.3390/cancers15215200

PubMed Abstract | Crossref Full Text | Google Scholar

17. Mohamed AS, Hansen C, Weygand J, Ding Y, Frank SJ, Rosenthal DI, et al. Prospective analysis of in vivo landmark point-based MRI geometric distortion in head and neck cancer patients scanned in immobilized radiation treatment position: results of a prospective quality assurance protocol. Clin Transl Radiat Oncol. (2017) 7:13–9. doi: 10.1016/j.ctro.2017.09.003

PubMed Abstract | Crossref Full Text | Google Scholar

18. Weygand J, Fuller CD, Ibbott GS, Mohamed AS, Ding Y, Yang J, et al. Spatial precision in magnetic resonance imaging–guided radiation therapy: the role of geometric distortion. Int J Radiat Oncol Biol Phys. (2016) 95:1304–16. doi: 10.1016/j.ijrobp.2016.02.059

PubMed Abstract | Crossref Full Text | Google Scholar

19. Ginn JS, Agazaryan N, Cao M, Baharom U, Low DA, Yang Y, et al. Characterization of spatial distortion in a 0.35 T MRI-guided radiotherapy system. Phys Med Biol. (2017) 62:4525. doi: 10.1088/1361-6560/aa6e1a

PubMed Abstract | Crossref Full Text | Google Scholar

20. Marasini S, Cole M, Curcuru A, Dyke LM, Gach HM, Flores R, et al. Characterization of real-time cine MR imaging distortion on 0.35 T MRgRT with concentric cine imaging QA phantom. Phys Med Biol. (2024) 69:065009. doi: 10.1088/1361-6560/ad2d33

PubMed Abstract | Crossref Full Text | Google Scholar

21. Otazo R, Lambin P, Pignol JP, Ladd ME, Schlemmer HP, Baumann M, et al. MRI-guided radiation therapy: an emerging paradigm in adaptive radiation oncology. Radiol. (2021) 298:248–60. doi: 10.1148/radiol.2020202747

PubMed Abstract | Crossref Full Text | Google Scholar

22. Keall PJ, Glide-Hurst CK, Cao M, Lee P, Murray B, Raaymakers BW, et al. ICRU report 97: MRI-guided radiation therapy using MRI-linear accelerators. J ICRU. (2022) 22:1–100. doi: 10.1177/14736691221141950

Crossref Full Text | Google Scholar

23. Weygand J, Hao Y, Awol M, Joseph AO, Kibudde S, Malloum A, et al. Evaluating the readiness for ultra-hypofractionated prostate and breast radiotherapy in sub-Saharan Africa: a strategic needs-assessment of six leading African institutions. Ecancermedicalscience. (2025) 19:1853. doi: 10.3332/ecancer.2025.1853

Crossref Full Text | Google Scholar

24. Salzillo T, Hu J, Nguyen L, Whiting N, Lee J, Weygand J, et al. Interrogating metabolism in brain cancer. Magn Reson Imaging Clin N Am. (2016) 24:687. doi: 10.1016/j.mric.2016.07.003

PubMed Abstract | Crossref Full Text | Google Scholar

25. Wang J, Weygand J, Hwang KP, Mohamed AS, Ding Y, Fuller CD, et al. Magnetic resonance imaging of glucose uptake and metabolism in patients with head and neck cancer. Sci Rep. (2016) 6:30618. doi: 10.1038/srep30618

PubMed Abstract | Crossref Full Text | Google Scholar

26. Dutta P, Perez MR, Lee J, Kang Y, Pratt M, Salzillo TC, et al. Combining hyperpolarized real-time metabolic imaging and NMR spectroscopy to identify metabolic biomarkers in pancreatic cancer. J Proteome Res. (2019) 18:2826–34. doi: 10.1021/acs.jproteome.9b00132

PubMed Abstract | Crossref Full Text | Google Scholar

27. Salzillo TC, Mawoneke V, Weygand J, Shetty A, Gumin J, Zacharias NM, et al. Measuring the metabolic evolution of glioblastoma throughout tumor development, regression, and recurrence with hyperpolarized magnetic resonance. Cells. (2021) 10:2621. doi: 10.3390/cells10102621

PubMed Abstract | Crossref Full Text | Google Scholar

28. Le Bihan D, Breton E, Lallemand D, Grenier P, Cabanis E, Laval-Jeantet M. MR imaging of intravoxel incoherent motions: application to diffusion and perfusion in neurologic disorders. Radiology. (1986) 161:401–7. doi: 10.1148/radiology.161.2.3763909

PubMed Abstract | Crossref Full Text | Google Scholar

29. Tofts PS, Kermode AG. Measurement of the blood-brain barrier permeability and leakage space using dynamic MR imaging. 1. Fundamental concepts. Magn Reson Med. (1991) 17:357–67. doi: 10.1002/mrm.1910170208

PubMed Abstract | Crossref Full Text | Google Scholar

30. Tofts PS, Brix G, Buckley DL, Evelhoch JL, Henderson E, Knopp MV, et al. Estimating kinetic parameters from dynamic contrast-enhanced T(1)-weighted MRI of a diffusable tracer: standardized quantities and symbols. J Magn Reson Imaging. (1999) 10:223–32. doi: 10.1109/TMI.2009.2019957

Crossref Full Text | Google Scholar

31. Weygand J, Carter SE, Salzillo TC, Moussalli M, Dai B. Can an organoid recapitulate the metabolome of its parent tissue: a pilot NMR spectroscopy study. J Cancer Prev Curr Res. (2017) 7:00307. doi: 10.15406/jcpcr.2017.08.00307

Crossref Full Text | Google Scholar

32. Messina C, Bignone R, Bruno A, Bruno A, Bruno F, Calandri M, et al. Diffusion-weighted imaging in cancer: an update. Cancer. (2020) 12:1493. doi: 10.3390/cancers12061493

PubMed Abstract | Crossref Full Text | Google Scholar

33. Weygand J, Armstrong T, Bryant JM, Andreozzi JM, Oraiqat IM, Nichols S, et al. Accurate, repeatable, and geometrically precise diffusion-weighted imaging on a 0.35 T magnetic resonance imaging-guided linear accelerator. Phys Imaging Radiat Oncol. (2023) 28:100505. doi: 10.1016/j.phro.2023.100505

PubMed Abstract | Crossref Full Text | Google Scholar

34. Naghavi AO, Bryant JM, Kim Y, Weygand J, Redler G, Sim AJ, et al. Habitat escalated adaptive therapy (HEAT): a phase 2 trial utilizing radiomic habitat-directed and genomic-adjusted radiation dose (GARD) optimization for high-grade soft tissue sarcoma. BMC Cancer. (2024) 24:437. doi: 10.1186/s12885-024-12151-7

PubMed Abstract | Crossref Full Text | Google Scholar

35. Jalloul M, Miranda-Schaeubinger M, Noor AM, Stein JM, Amiruddin R, Derbew HM, et al. MRI scarcity in low- and middle-income countries. NMR Biomed. (2023) 36:e5022. doi: 10.1002/nbm.5022

PubMed Abstract | Crossref Full Text | Google Scholar

36. Munkhtuvshin T, Shagdarsuren B, Bold B, Khurelsukh K, Myagmarsuren D, Bryant JM, et al. Cultivating expertise in MRI physics in Mongolia through international collaboration. J Med Imaging Radiat Sci. (2025) 56:101897. doi: 10.1016/j.jmir.2025.101897

PubMed Abstract | Crossref Full Text | Google Scholar

37. Pollard JM, Wen Z, Sadagopan R, Wang J, Ibbott GS. The future of image-guided radiotherapy will be MR guided. Br J Radiol. (2017) 90:20160667. doi: 10.1259/bjr.20160667

PubMed Abstract | Crossref Full Text | Google Scholar

38. Kurz C, Buizza G, Landry G, Kamp F, Rabe M, Paganelli C, et al. Medical physics challenges in clinical MR-guided radiotherapy. Radiat Oncol. (2020) 15:93. doi: 10.1186/s13014-020-01524-4

PubMed Abstract | Crossref Full Text | Google Scholar

39. Fan Q, Nanduri A, Yang J, Yamamoto T, Loo B, Graves E, et al. Toward a planning scheme for emission guided radiation therapy (EGRT): FDG based tumor tracking in a metastatic breast cancer patient. Med. Phys. (2013) 40:081708. doi: 10.1118/1.4812427

PubMed Abstract | Crossref Full Text | Google Scholar

40. Shirvani SM, Huntzinger CJ, Melcher T, Olcott PD, Voronenko Y, Bartlett-Roberto J, et al. Biology-guided radiotherapy: redefining the role of radiotherapy in metastatic cancer. Br J Radiol. (2021) 94:1117. doi: 10.1259/bjr.20200873

PubMed Abstract | Crossref Full Text | Google Scholar

41. Fonti R, Conson M, Vecchio SD. PET/CT in radiation oncology. Semin Oncol. (2019) 46:202-9. doi: 10.1053/j.seminoncol.2019.07.001

PubMed Abstract | Crossref Full Text | Google Scholar

42. Chau B, Abuali T, Shirvani SM, Leung D, Al Feghali KA, Hui S, et al. Feasibility of biology-guided radiotherapy (BgRT) targeting fluorodeoxyglucose (FDG) avid liver metastases. Radiat Oncol. (2024) 19:124. doi: 10.1186/s13014-024-02502-w

PubMed Abstract | Crossref Full Text | Google Scholar

43. Wong J, Liu B, Dandapani S, Li Y, Glaser S, Liu J, et al. A prospective pilot study of the RefleXion^® X1 PET-CT subsystem imaging performance with [18F]-DCFPyL PSMA in patients with prostate cancer. J Nucl Med. (2023) 64:521.

Google Scholar

44. Hrinivich WT, Phillips R, Da Silva AJ, Radwan N, Gorin MA, Rowe SP, et al. Online prostate-specific membrane antigen and positron emission tomography guided radiation therapy for oligometastatic prostate cancer. Adv Radiat Oncol. (2020) 5:260–8. doi: 10.1016/j.adro.2019.10.006

PubMed Abstract | Crossref Full Text | Google Scholar

45. Han C, Bal G, Wong JYC, Williams TM, Liu A. Feasibility of biology-guided radiotherapy with Gallium-68 PSMA-11 radiotracer for bony metastases in prostate cancer patients. Int J Radiat Oncol Biol Phys. (2024) 120:79. doi: 10.1016/j.ijrobp.2024.07.137

Crossref Full Text | Google Scholar

46. Jarritt PH, Carson KJ, Hounsell AR, Visvikis D. The role of PET/CT scanning in radiotherapy planning. Br J Radiol. (2006) 79:S27–35. doi: 10.1259/bjr/35628509

PubMed Abstract | Crossref Full Text | Google Scholar

47. Fiorentino A, Laudicella R, Ciurlia E, Annunziata S, Lancellotta V, Mapelli P, et al. Positron emission tomography with computed tomography imaging (PET/CT) for the radiotherapy planning definition of the biological target volume: PART 2. Crit Rev Oncol Hematol. (2019) 139:117–24. doi: 10.1016/j.critrevonc.2019.03.008

PubMed Abstract | Crossref Full Text | Google Scholar

48. Créhange G, Soussan M, Gensanne D, Decazes P, Thariat J, Thureau S. Interest of positron-emission tomography and magnetic resonance imaging for radiotherapy planning and control. Cancer Radiothér. (2020) 24:398–402. doi: 10.1016/j.canrad.2020.02.010

PubMed Abstract | Crossref Full Text | Google Scholar

49. Ladbury C, Eustace N, Amini A, Dandapani S, Williams T. Biology-guided radiation therapy: an evolving treatment paradigm. Surg Oncol Clin. (2023) 32:553–68. doi: 10.1016/j.soc.2023.02.006

PubMed Abstract | Crossref Full Text | Google Scholar

50. Castadot P, Lee JA, Parraga A, Geets X, Macq B, Grégoire V. Adaptive radiotherapy of head and neck cancer. Semin Radiat Oncol. (2010) 20:84–93. doi: 10.1016/j.semradonc.2009.11.002

PubMed Abstract | Crossref Full Text | Google Scholar

51. Yang J, Yamamoto T, Mazin SR, Graves EE, Keall PJ. The potential of positron emission tomography for intratreatment dynamic lung tumor tracking: a phantom study. Med Phys. (2014) 41:021718. doi: 10.1118/1.4861816

PubMed Abstract | Crossref Full Text | Google Scholar

52. Oderinde OM, Shirvani SM, Olcott PD, Kuduvalli G, Mazin S, Larkin D. The technical design and concept of a PET/CT linac for biology-guided radiotherapy. Clin Transl Radiat Oncol. (2021) 17:106–12. doi: 10.1016/j.ctro.2021.04.003

PubMed Abstract | Crossref Full Text | Google Scholar

53. Oderinde OM, Narayanan M, Olcott P, Voronenko Y, Burns J, Xu S, et al. Demonstration of real-time positron emission tomography biology-guided radiotherapy delivery to targets. Med Phys. (2024) 51:5672–81. doi: 10.1002/mp.16999

PubMed Abstract | Crossref Full Text | Google Scholar

54. Hu Z, Bieniosek M, Ferri V, Iagaru A, Kovalchuk N, Han B, et al. Image-mode performance characterisation of a positron emission tomography subsystem designed for biology-guided radiotherapy (BgRT). Br J Radiol. (2023) 96:1141. doi: 10.1259/bjr.20220387

PubMed Abstract | Crossref Full Text | Google Scholar

55. Hwang MS, Lalonde R, Huq MS. A detailed process map for clinical workflow of a new biology-guided radiotherapy (BgRT) machine. J Appl Clin Med Phys. (2022) 23:e13606. doi: 10.1002/acm2.13606

PubMed Abstract | Crossref Full Text | Google Scholar

56. Narayanan M, Zaks D, Olcott PD, Voronenko Y, Burns J, Xu S, et al. Physical validation of biology-guided radiotherapy for delivering a tracked dose distribution to a moving PET-avid target. Int J Radiat Oncol Biol Phys. (2021) 111:S22. doi: 10.1016/j.ijrobp.2021.07.078

Crossref Full Text | Google Scholar

57. Surucu M, Ashraf MR, Romero IO, Zalavari LT, Pham D, Vitzthum LK, et al. Commissioning of a novel PET-Linac for biology-guided radiotherapy. Med Phys. (2024) 51:4389–401. doi: 10.1002/mp.17114

PubMed Abstract | Crossref Full Text | Google Scholar

58. U.S. Nuclear Regulatory Commission (NRC). Standards for protection against radiation: 10 CFR Part 20. Code of Federal Regulations. Washington, DC: U.S. Government Printing Office (2023).

Google Scholar

59. Ronneberger O, Fischer P, Brox T. U net: convolutional networks for biomedical image segmentation. In Navab N, Hornegger J, Wells W, Frangi A, editors. Medical Image Computing and Computer-Assisted Intervention – MICCAI 2015. MICCAI 2015. Lecture Notes in Computer Science, Vol. 9351. New York: Springer International Publishing (2015). p. 234–241.

Google Scholar

60. Milletari F, Navab N, Ahmadi SA. V-net: fully convolutional neural networks for volumetric medical image segmentation. in 2016 fourth international conference on 3D vision (3DV). Stanford, CA: IEEE (2016). p. 565–71.

Google Scholar

61. Gu S, Dai Z, Wu L, Liu W, Chen L. Dempster-Shafer theory empowered deep learning for enhanced 3D PET-CT medical image segmentation: a first test on automated lesion segmentation in whole-body dataset. in 2024 4th International Conference on Neural Networks, Information and Communication Engineering (NNICE). Guangzhou: IEEE (2024). p. 350–4.

Google Scholar

62. Nakajo M, Jinguji M, Ito S, Tani A, Hirahara M, Yoshiura T. Clinical application of 18F-fluorodeoxyglucose positron emission tomography/computed tomography radiomics-based machine learning analyses in the field of oncology. Jpn J Radiol. (2024) 42:28–55. doi: 10.1007/s11604-023-01476-1

PubMed Abstract | Crossref Full Text | Google Scholar

63. Perrett B, Ukath J, Horgan E, Noble C, Ramachandran P. A framework for ExacTrac dynamic commissioning for stereotactic radiosurgery and stereotactic ablative radiotherapy. J Med Phys. (2022) 47:398–408. doi: 10.4103/jmp.jmp_67_22

PubMed Abstract | Crossref Full Text | Google Scholar

64. Benedict SH, Yenice KM, Followill D, Galvin JM, Hinson W, Kavanagh B, et al. Stereotactic body radiation therapy: the report of AAPM Task Group 101. Med Phys. (2010) 37:4078–101. doi: 10.1118/1.3438081

PubMed Abstract | Crossref Full Text | Google Scholar

65. Cirino E, Benedict SH, Dupre PJ, Halvorsen PH, Kim GGY, Reyhan ML, et al. AAPM-RSS Medical Physics Practice Guideline 9. b: SRS-SBRT. J Appl Clin Med Phys. (2025) 26:e14624. doi: 10.1002/acm2.14624

PubMed Abstract | Crossref Full Text | Google Scholar

66. Chao ST, Dad LK, Dawson LA, Desai NB, Pacella M, Rengan R, et al. ACR–ASTRO practice parameter for the performance of stereotactic body radiation therapy. Am J Clin Oncol. (2020) 43:545–52. doi: 10.1097/COC.0000000000000706

PubMed Abstract | Crossref Full Text | Google Scholar

67. Jin J-Y, Yin F-F, Tenn SE, Medin PM, Solberg TD. Use of the BrainLAB ExacTrac X-Ray 6D system in image-guided radiotherapy. Med Dosim. 33:124–34. (2008). doi: 10.1016/j.meddos.2008.02.005

PubMed Abstract | Crossref Full Text | Google Scholar

68. van de Schoot AJ, Hoffmans D, van Ingen KM, Simons MJ, Wiersma J. Characterization of Ethos therapy systems for adaptive radiation therapy: a multi-machine comparison. J Appl Clin Med Phys. (2023) 24:e13905. doi: 10.1002/acm2.13905

PubMed Abstract | Crossref Full Text | Google Scholar

69. Visak J, Inam E, Meng B, Wang S, Parsons D, Nyugen D, et al. Evaluating machine learning enhanced intelligent-optimization-engine (IOE) performance for ethos head-and-neck (HN) plan generation. J Appl Clin Med Phys. (2023) 24:e13950. doi: 10.1002/acm2.13950

PubMed Abstract | Crossref Full Text | Google Scholar

70. Sibolt P, Andersson LM, Calmels L, Sjöström D, Bjelkengren U, Geertsen P, et al. Clinical implementation of artificial intelligence-driven cone-beam computed tomography-guided online adaptive radiotherapy in the pelvic region. Phys Imaging Radiat Oncol. (2021) 17:1–7. doi: 10.1016/j.phro.2020.12.004

PubMed Abstract | Crossref Full Text | Google Scholar

71. Åström LM, Behrens CP, Storm KS, Sibolt P, Serup-Hansen E. Online adaptive radiotherapy of anal cancer: normal tissue sparing, target propagation methods, and first clinical experience. Radiother Oncol. (2022) 176:92–8. doi: 10.1016/j.radonc.2022.09.015

PubMed Abstract | Crossref Full Text | Google Scholar

72. Shelley CE, Bolt MA, Hollingdale R, Chadwick SJ, Barnard AP, Rashid M, et al. Implementing cone-beam computed tomography-guided online adaptive radiotherapy in cervical cancer. Clin Trans Radiat Oncol. (2023) 40:100596. doi: 10.1016/j.ctro.2023.100596

PubMed Abstract | Crossref Full Text | Google Scholar

73. Schiff JP, Price AT, Stowe HB, Laugeman E, Chin RI, Hatscher C, et al. Simulated computed tomography-guided stereotactic adaptive radiotherapy (CT-STAR) for the treatment of locally advanced pancreatic cancer. Radiother Oncol. (2022) 175:144–51. doi: 10.1016/j.radonc.2022.08.026

PubMed Abstract | Crossref Full Text | Google Scholar

74. Stanley DN, McConnell K, Cardenas CE, Belliveau JG, Meyers K, Hotsinpiller WS, et al. Stereotactic breast radiotherapy delivered via external beam daily online adaptive replanning. Int J Radiat Oncol Biol Phys. (2022) 114:e597. doi: 10.1016/j.ijrobp.2022.07.2288

Crossref Full Text | Google Scholar

75. Pogue JA, Cardenas CE, Stanley DN, Stanley C, Hotsinpiller W, Veale C, et al. Improved dosimetry and plan quality for accelerated partial breast irradiation using online adaptive radiation therapy: a single institutional study. Adv Radiat Oncol. (2024) 9:101414. doi: 10.1016/j.adro.2023.101414

PubMed Abstract | Crossref Full Text | Google Scholar

76. Wegener S, Weick S, Schindhelm R, Tamihardja J, Sauer OA, Razinskas G. Feasibility of Ethos adaptive treatments of lung tumors and associated quality assurance. J Appl Clin Med Phys. (2024) 25:e14311. doi: 10.1002/acm2.14311

PubMed Abstract | Crossref Full Text | Google Scholar

77. Guberina M, Guberina N, Hoffmann C, Gogishvili A, Freisleben F, Herz A, et al. Prospects for online adaptive radiation therapy (ART) for head and neck cancer. Radiat Oncol. (2024) 19:4. doi: 10.1186/s13014-023-02390-6

PubMed Abstract | Crossref Full Text | Google Scholar

78. Dohopolski M, Visak J, Choi B, Meng B, Parsons D, Zhong X, et al. In silico evaluation and feasibility of near margin-less head and neck daily adaptive radiotherapy. Radiother Oncol. (2024) 197:110178. doi: 10.1016/j.radonc.2024.110178

PubMed Abstract | Crossref Full Text | Google Scholar

79. Robar JL, Cherpak A, MacDonald RL, Yashayaeva A, McAloney D, McMaster N, et al. Novel technology allowing cone beam computed tomography in 6 seconds: a patient study of comparative image quality. Pract Radiat Oncol. (2024) 14:277–86. doi: 10.1016/j.prro.2023.10.014

PubMed Abstract | Crossref Full Text | Google Scholar

80. Duan J, Pogue JA, Stanley DN, Shen S, Viscariello NN, Cardenas CE, et al. Assessing HyperSight iterative CBCT for dose calculation in online adaptive radiotherapy for pelvis and breast patients compared to synthetic CT. J Appl Clin Med Phys. (2025) 26:e70038 doi: 10.1002/acm2.70038

PubMed Abstract | Crossref Full Text | Google Scholar

81. Price AT, Schiff JP, Silberstein A, Beckert R, Zhao T, Hugo GD, et al. Feasibility of simulation free abdominal stereotactic adaptive radiotherapy using an expedited pre-plan workflow. Phys Imaging Radiat Oncol. (2024) 31:100611. doi: 10.1016/j.phro.2024.100611

PubMed Abstract | Crossref Full Text | Google Scholar

82. Wang D, Kim H, Zhuang T, Visak JD, Cai B, Parsons DD, et al. Simulation-omitting and using library patients for pre-planning online adaptive radiotherapy (SUPPORT): a feasibility study for spine stereotactic ablative radiotherapy (SAbR) patients. Cancers. (2025) 17:1216. doi: 10.3390/cancers17071216

PubMed Abstract | Crossref Full Text | Google Scholar

83. MacDonald RL, Fallone C, Chytyk-Praznik K, Robar J, Cherpak A. The feasibility of CT simulation-free adaptive radiation therapy. J Appl Clin Med Phys. (2024) 25:e14438. doi: 10.1002/acm2.14438

PubMed Abstract | Crossref Full Text | Google Scholar

84. Viscariello NN, McConnell K, Harms J, Pogue JA, Ray X, Laugeman E, et al. Quantitative assessment of full-time equivalent effort for kilovoltage-cone beam computed tomography guided online adaptive radiation therapy for medical physicists. Pract Radiat Oncol. (2025) 15:e72–81. doi: 10.1016/j.prro.2024.08.007

PubMed Abstract | Crossref Full Text | Google Scholar

85. Lin M, Kavanaugh JA, Kim M, Cardenas CE, Rong Y. Physicists should perform reference planning for CBCT guided online adaptive radiotherapy. J Appl Clin Med Phys. (2023) 24:e14163. doi: 10.1002/acm2.14163

PubMed Abstract | Crossref Full Text | Google Scholar

86. Wang Y, Liu C, Zhang X, Deng W. Synthetic CT generation based on T2 weighted MRI of nasopharyngeal carcinoma (NPC) using a deep convolutional neural network (DCNN). Front Oncol. (2019) 9:1333. doi: 10.3389/fonc.2019.01333

PubMed Abstract | Crossref Full Text | Google Scholar

87. Archambault Y, Boylan C, Bullock D, Morgas T, Peltola J, Ruokokoski E, et al. Making on-line adaptive radiotherapy possible using artificial intelligence and machine learning for efficient daily re-planning. Med Phys Int J. (2020) 8.

Google Scholar

88. Byrne M, Teh AY, Archibald-Heeren B, Hu Y, Rijken J, Luo S, et al. Intrafraction motion and margin assessment for ethos online adaptive radiotherapy treatments of the prostate and seminal vesicles. Adv Radiat Oncol. (2023) 9:101405. doi: 10.1016/j.adro.2023.101405

PubMed Abstract | Crossref Full Text | Google Scholar

89. Hermena S, Young M. CT Scan Image Production Procedures. Treasure Island, FL: StatPearls. (2023).

Google Scholar

90. Hsieh J. Computed Tomography: Principles, Design, Artifacts, and Recent Advances. Bellingham, WA: SPIE Press (2003).

Google Scholar

91. Shen C, Nguyen D, Zhou Z, Jiang SB, Dong B, Jia X. An introduction to deep learning in medical physics: advantages, potential, and challenges. Phys Med Biol. (2020) 65:05TR01. doi: 10.1088/1361-6560/ab6f51

PubMed Abstract | Crossref Full Text | Google Scholar

92. Zhou SK, Greenspan H, Davatzikos C, Duncan JS, Van Ginneken B, Madabhushi A, et al. A review of deep learning in medical imaging: imaging traits, technology trends, case studies with progress highlights, and future promises. Proc IEEE. (2021) 109:820–38. doi: 10.1109/JPROC.2021.3054390

PubMed Abstract | Crossref Full Text | Google Scholar

93. Wang T, Lei Y, Fu Y, Wynne JF, Curran WJ, Liu T, et al. A review on medical imaging synthesis using deep learning and its clinical applications. J Appl Clin Med Phys. (2021) 22:11–36. doi: 10.1002/acm2.13121

PubMed Abstract | Crossref Full Text | Google Scholar

94. Meyer P, Noblet V, Mazzara C, Lallement A. Survey on deep learning for radiotherapy. Comput Biol Med. (2018) 98:126–46. doi: 10.1016/j.compbiomed.2018.05.018

PubMed Abstract | Crossref Full Text | Google Scholar

95. Kazerouni A, Aghdam EK, Heidari M, Azad R, Fayyaz M, Hacihaliloglu I, et al. Diffusion models in medical imaging: a comprehensive survey. Med Image Anal. (2023) 88:102846. doi: 10.1016/j.media.2023.102846

PubMed Abstract | Crossref Full Text | Google Scholar

96. Eickhoff SB, Rottschy C, Kujovic M, Palomero Gallagher N, Zilles K. Organizational principles of human visual cortex revealed by receptor mapping. Cereb Cortex. (2008) 18:2637–45. doi: 10.1093/cercor/bhn024

PubMed Abstract | Crossref Full Text | Google Scholar

97. Hilgetag CC, Goulas A. ‘Hierarchy' in the organization of brain networks. Philos Trans R Soc Lond B Biol Sci. (2020) 375:20190319. doi: 10.1098/rstb.2019.0319

PubMed Abstract | Crossref Full Text | Google Scholar

98. Fukushima K. Neocognitron: a self organizing neural network model for a mechanism of pattern recognition unaffected by shift in position. Biol Cybern. (1980) 36:193–202. doi: 10.1007/BF00344251

PubMed Abstract | Crossref Full Text | Google Scholar

99. Kshatri SS, Singh D. Convolutional neural network in medical image analysis: a review. Arch Comput Methods Eng. (2023) 30:2793–810. doi: 10.1007/s11831-023-09898-w

Crossref Full Text | Google Scholar

100. Anwar SM, Majid M, Qayyum A, Awais M, Alnowami M, Khan MK. Medical image analysis using convolutional neural networks: a review. J Med Syst. (2018) 42:1–13. doi: 10.1007/s10916-018-1088-1

PubMed Abstract | Crossref Full Text | Google Scholar

101. Sarvamangala DR, Kulkarni RV. Convolutional neural networks in medical image understanding: a survey. Evol Intell. (2022) 15:1–22. doi: 10.1007/s12065-020-00540-3

PubMed Abstract | Crossref Full Text | Google Scholar

102. Abdou MA. Literature review: efficient deep neural networks techniques for medical image analysis. Neural Comput Appl. (2022) 34:5791–812. doi: 10.1007/s00521-022-06960-9

Crossref Full Text | Google Scholar

103. Nair V, Hinton GE. Rectified linear units improve restricted Boltzmann machines. in Proceedings of the 27th International Conference on Machine Learning (ICML 10). Haifa: Omnipress (2010). p. 807–14.

Google Scholar

104. Maas AL, Hannun AY, Ng AY. June. Rectifier nonlinearities improve neural network acoustic models. In Proc ICML (Vol. 30, No. 1, p. 3) 2013.

Google Scholar

105. Clevert DA, Unterthiner T, Hochreiter S. Fast and accurate deep network learning by exponential linear units (ELUs). arXiv [Preprint]. arXiv:1511.07289. (2015). doi: 10.48550/arXiv.1511.07289

Crossref Full Text | Google Scholar

106. Akhtar N, Ragavendran U. Interpretation of intelligence in CNN pooling processes: a methodological survey. Neural Comput Appl. (2020) 32:879–98. doi: 10.1007/s00521-019-04296-5

Crossref Full Text | Google Scholar

107. Zhou DX. Theory of deep convolutional neural networks: downsampling. Neural Netw. (2020) 124:319–27. doi: 10.1016/j.neunet.2020.01.018

PubMed Abstract | Crossref Full Text | Google Scholar

108. Park S, Kwak N. Analysis on the dropout effect in convolutional neural networks. In Lai SH, Lepetit V, Nishino K, Sato Y, editors. Computer Vision – ACCV 2016. ACCV 2016. Lecture Notes in Computer Science, vol. 10112. New York: Springer International Publishing. (2017). p. 189–204.

Google Scholar

109. Goodfellow IJ, Pouget Abadie J, Mirza M, Xu B, Warde Farley D, Ozair et al. Generative adversarial nets. Adv Neural Inf Process Syst. (2014) 27, 1–9.

Google Scholar

110. Wang TC, Liu MY, Zhu JY, Tao A, Kautz J, Catanzaro B. High resolution image synthesis and semantic manipulation with conditional GANs. in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Piscataway, NJ: Institute of Electrical and Electronics Engineers (IEEE) (2018). p. 8798–807.

Google Scholar

111. Sricharan K, Bala R, Shreve M, Ding H, Saketh K, Sun J. Semi supervised conditional GANs. arXiv [Preprint]. arXiv:1708.05789 (2017). doi: 10.48550/arXiv.1708.05789

Crossref Full Text | Google Scholar

112. Harms J, Lei Y, Wang T, Zhang R, Zhou J, Tang X, et al. Paired cycle GAN based image correction for quantitative cone beam computed tomography. Med Phys. (2019) 46:3998–4009. doi: 10.1002/mp.13656

PubMed Abstract | Crossref Full Text | Google Scholar

113. Zhang Y, Liu S, Dong C, Zhang X, Yuan Y. Multiple cycle in cycle generative adversarial networks for unsupervised image super resolution. in IEEE Trans Image Process, Vol. 29. Piscataway, NJ: IEEE (2019). p.1101–1112.

Google Scholar

114. Karras T, Laine S, Aittala M, Hellsten J, Lehtinen J, Aila T. Analyzing and improving the image quality of StyleGAN. in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway, NJ: Institute of Electrical and Electronics Engineers (IEEE) (2020). p. 8110–9.

Google Scholar

115. Richardson E, Alaluf Y, Patashnik O, Nitzan Y, Azar Y, Shapiro S, Cohen Or D. Encoding in style: a StyleGAN encoder for image to image translation. in 2021 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Nashville, TN: IEEE (2020). p. 2287–96.

Google Scholar

116. Sohl Dickstein J, Weiss E, Maheswaranathan N, Ganguli S. Deep unsupervised learning using nonequilibrium thermodynamics. In Int Conf on Machine Learning (pp. 2256 2265) 2015.

Google Scholar

117. Khader F, Müller-Franzes G, Tayebi Arasteh S, Han T, Haarburger C, Schulze Hagenet A, et al. Denoising diffusion probabilistic models for 3D medical image generation. Sci Rep. (2023) 13:7303. doi: 10.1038/s41598-023-34341-2

PubMed Abstract | Crossref Full Text | Google Scholar

118. Dorjsembe Z, Pao HK, Odonchimed S, Xiao F. Conditional diffusion models for semantic 3D brain MRI synthesis. IEEE J Biomed Health Inform. (2024) 28:4084–93. doi: 10.1109/JBHI.2024.3385504

PubMed Abstract | Crossref Full Text | Google Scholar

119. Yu Y, Gu Y, Zhang S, Zhang X. Meddiff FM: a diffusion based foundation model for versatile medical image applications. arXiv [Preprint]. arXiv:2410.15432 (2024). doi: 10.48550/arXiv.2410.15432

Crossref Full Text | Google Scholar

120. Sherwani MK, Gopalakrishnan S. A systematic literature review: deep learning techniques for synthetic medical image generation and their applications in radiotherapy. Front Radiol. (2024) 4:1385742. doi: 10.3389/fradi.2024.1385742

PubMed Abstract | Crossref Full Text | Google Scholar

121. Yang X, Lei Y, Shu HK, Rossi P, Mao H, Shim H, et al. Pseudo CT estimation from MRI using patch based random forest. In Proc SPIE (Vol. 10133, p. 101332Q) 2017. doi: 10.1117/12.2253936

PubMed Abstract | Crossref Full Text | Google Scholar

122. Dinkla AM, Wolterink JM, Maspero M, Savenije MH, Verhoeff JJ, Seravalli E, et al. MR only brain radiation therapy: dosimetric evaluation of synthetic CTs generated by a dilated convolutional neural network. Int J Radiat Oncol Biol Phys. (2018) 102:801–12. doi: 10.1016/j.ijrobp.2018.05.058

PubMed Abstract | Crossref Full Text | Google Scholar

123. Xu K, Cao J, Xia K, Yang H, Zhu J, Wu C, et al. Multichannel residual conditional GAN leveraged abdominal pseudo CT generation via Dixon MR images. IEEE Access. (2019) 7:163823–30. doi: 10.1109/ACCESS.2019.2951924

Crossref Full Text | Google Scholar

124. Lei Y, Harms J, Wang T, Liu Y, Shu HK, Jani AB, et al. MRI only based synthetic CT generation using dense cycle consistent generative adversarial networks. Med Phys. (2019) 46:3565–81. doi: 10.1002/mp.13617

PubMed Abstract | Crossref Full Text | Google Scholar

125. Liu Y, Lei Y, Wang Y, Wang T, Ren L, Lin L, et al. MRI based treatment planning for proton radiotherapy: dosimetric validation of a deep learning based liver synthetic CT generation method. Phys Med Biol. (2019) 64:145015. doi: 10.1088/1361-6560/ab25bc

PubMed Abstract | Crossref Full Text | Google Scholar

126. Jin CB, Kim H, Liu M, Jung W, Joo S, Park E, et al. Deep CT to MR synthesis using paired and unpaired data. Sensors. (2019) 19:2361. doi: 10.3390/s19102361

PubMed Abstract | Crossref Full Text | Google Scholar

127. Dayarathna S, Islam KT, Uribe S, Yang G, Hayat M, Chen Z. Deep learning based synthesis of MRI, CT and PET: review and analysis. Med Image Anal. (2024) 92:103046. doi: 10.1016/j.media.2023.103046

PubMed Abstract | Crossref Full Text | Google Scholar

128. Dai X, Lei Y, Fu Y, Curran WJ, Liu T, Mao H, et al. Multimodal MRI synthesis using unified generative adversarial networks. Med Phys. (2020) 47:6343–54. doi: 10.1002/mp.14539

PubMed Abstract | Crossref Full Text | Google Scholar

129. Yang H, Sun J, Yang L, Xu Z. A unified hyper GAN model for unpaired multi contrast MR image translation. In de Bruijne M, editors, et al. Medical Image Computing and Computer Assisted Intervention – MICCAI 2021. MICCAI 2021. Lecture Notes in Computer Science, vol. 12903. New York: Springer International Publishing (2021). p. 127–37.

Google Scholar

130. Kawahara D, Yoshimura H, Matsuura T, Saito A, Nagata Y. MRI image synthesis for fluid attenuated inversion recovery and diffusion weighted images with deep learning. Phys Eng Sci Med. (2023) 46:313–23. doi: 10.1007/s13246-023-01220-z

PubMed Abstract | Crossref Full Text | Google Scholar

131. Dalmaz O, Yurt M, Çukur T. ResViT: residual vision transformers for multimodal medical image synthesis. IEEE Trans Med Imaging. (2022) 41:2598–2614. doi: 10.1109/TMI.2022.3167808

PubMed Abstract | Crossref Full Text | Google Scholar

132. Zhang X, He X, Guo J, Ettehadi N, Aw N, Semanek D, et al. PTNet3D: a 3D high resolution longitudinal infant brain MRI synthesizer based on transformers. IEEE Trans Med Imaging. (2022) 41:2925–40. doi: 10.1109/TMI.2022.3174827

PubMed Abstract | Crossref Full Text | Google Scholar

133. Özbey M, Dalmaz O, Dar SU, Bedel HA, Özturk S, Güngör A, Cukur T. Unsupervised medical image translation with adversarial diffusion models. IEEE Trans Med Imaging. (2023) 42:3524–39. doi: 10.1109/TMI.2023.3290149

PubMed Abstract | Crossref Full Text | Google Scholar

134. Zhu L, Xue Z, Jin Z, Liu X, He J, Liu Z, et al. Make-a-volume: Leveraging latent diffusion models for cross-modality 3D brain MRI synthesis. In: International Conference on Medical Image Computing and Computer-Assisted Intervention. Cham: Springer Nature Switzerland. (2023). p. 592–601. doi: 10.1007/978-3-031-43999-5_56

Crossref Full Text | Google Scholar

135. Islam J, Zhang Y. GAN-based synthetic brain PET image generation. Brain Inform. (2020) 7:3. doi: 10.1186/s40708-020-00104-2

PubMed Abstract | Crossref Full Text | Google Scholar

136. Salehjahromi M, Karpinets TV, Sujit SJ, Qayati M, Chen P, Aminu M, et al. Synthetic PET from CT improves diagnosis and prognosis for lung cancer: proof of concept. Cell Rep Med. (2024) 5:101463. doi: 10.1016/j.xcrm.2024.101463

PubMed Abstract | Crossref Full Text | Google Scholar

137. Liu Y, Lei Y, Wang T, Fu Y, Tang X, Curran WJ, et al. CBCT based synthetic CT generation using deep attention cycleGAN for pancreatic adaptive radiotherapy. Med Phys. (2020) 47:2472–83. doi: 10.1002/mp.14121

PubMed Abstract | Crossref Full Text | Google Scholar

138. Landry G, Hansen D, Kamp F, Li M, Hoyle B, Weller et al. Comparing U Net training with three different datasets to correct CBCT images for prostate radiotherapy dose calculations. Phys Med Biol. (2019) 64:035011. doi: 10.1088/1361-6560/aaf496

PubMed Abstract | Crossref Full Text | Google Scholar

139. Cheng HLM. Investigation and optimization of parameter accuracy in dynamic contrast-enhanced MRI. J Magn Reson Imaging. (2008) 28:736–43. doi: 10.1002/jmri.21489

PubMed Abstract | Crossref Full Text | Google Scholar

140. Ma X, Chen X, Li J, Wang Y, Men K, Dai, J. MRI-only radiotherapy planning for nasopharyngeal carcinoma using deep learning. Front Oncol. (2008) 11:713617. doi: 10.3389/fonc.2021.713617

PubMed Abstract | Crossref Full Text | Google Scholar

141. Liu Y, Lei Y, Wang T, Kayode O, Tian S, Liu, et al. MRI-based treatment planning for liver stereotactic body radiotherapy: validation of a deep learning-based synthetic CT generation method. Br J Radiol. (2019) 92:20190067. doi: 10.1259/bjr.20190067

PubMed Abstract | Crossref Full Text | Google Scholar

142. Shafai-Erfani G, Wang T, Lei Y, Tian S, Patel P, Jani AB, et al. Dose evaluation of MRI-based synthetic CT generated using a machine learning method for prostate cancer radiotherapy. Med Dosim. (2019) 44:e64–e70. doi: 10.1016/j.meddos.2019.01.002

PubMed Abstract | Crossref Full Text | Google Scholar

143. Thummerer A, Seller Oria C, Zaffino P, Visser S, Meijers A, Guterres Marmitt G, et al. Deep learning–based 4D-synthetic CTs from sparse-view CBCTs for dose calculations in adaptive proton therapy. Med Phys. (2022) 49:6824–39. doi: 10.1002/mp.15930

PubMed Abstract | Crossref Full Text | Google Scholar

144. Shafai-Erfani G, Lei Y, Liu Y, Wang Y, Wang T, Zhong J, et al. MRI-based proton treatment planning for base of skull tumors. Int J Part Ther. (2019) 6:12–25. doi: 10.14338/IJPT-19-00062.1

PubMed Abstract | Crossref Full Text | Google Scholar

145. Liu Y, Lei Y, Wang Y, Shafai-Erfani G, Wang T, Tian S, et al. Evaluation of a deep learning-based pelvic synthetic CT generation technique for MRI-based prostate proton treatment planning. Phys Med Biol. (2019) 64:205022. doi: 10.1088/1361-6560/ab41af

PubMed Abstract | Crossref Full Text | Google Scholar

146. Dayarathna S, Wu Y, Cai J, Wong TT, Law M, Islam K, et al. MU-Diff: a mutual learning diffusion model for synthetic MRI with Application for brain lesions. npj Artif Intell. (2025) 1:11. doi: 10.1038/s44387-025-00016-8

Crossref Full Text | Google Scholar

147. Haacke EM. Magnetic Resonance Imaging: Physical Principles and Sequence Design. New York, NY: Wiley-Liss (1999).

Google Scholar

148. Bao S, Liao C, Xu N, Deng A, Luo Y, Ouyang Z, et al. Prediction of brain age using quantitative parameters of synthetic magnetic resonance imaging. Front Aging Neurosci. (2022) 14:963668. doi: 10.3389/fnagi.2022.963668

PubMed Abstract | Crossref Full Text | Google Scholar

149. Hsu SH, Han Z, Leeman JE, Hu YH, Mak RH, Sudhyadhom A. Synthetic CT generation for MRI-guided adaptive radiotherapy in prostate cancer. Front Oncol. (2022) 12:969463. doi: 10.3389/fonc.2022.969463

PubMed Abstract | Crossref Full Text | Google Scholar

150. Hussein R, Zhao MY, Shin D, Guo J, Chen KT, Armindo RD, et al. Multi-task deep learning for cerebrovascular disease classification and MRI-to-PET translation. in 2022 26th International Conference on Pattern Recognition (ICPR). Montreal, QC: IEEE (2022). p. 4306–12.

Google Scholar

151. Sikka A, Peri SV, Bathula DR. MRI to FDG-PET: cross-modal synthesis using 3D U-Net for multi-modal Alzheimer's classification. In International workshop on simulation and synthesis in medical imaging. Springer International Publishing. (2018). p. 80–9. doi: 10.1007/978-3-030-00536-8_9

Crossref Full Text | Google Scholar

152. Sikka A, Peri S, Virk JS, Niyaz U, Bathula DR. MRI-to-PET cross-modality translation using globally & locally aware GAN (GLA-GAN) for multi-modal diagnosis of Alzheimer's disease. J Precis Med Health Dis. (2025) 2:100004. doi: 10.1016/j.premed.2025.100004

Crossref Full Text | Google Scholar

153. Emami H, Liu Q, Dong M. FREA-UNet: frequency-aware U-Net for modality transfer. arXiv [Preprint]. arXiv:2012.15397 (2020). doi: 10.48550/arXiv.2012.15397

Crossref Full Text | Google Scholar

154. Fei Y, Zu C, Jiao Z, Wu X, Zhou J, Shen D, et al. Classification-aided high-quality PET image synthesis via bidirectional contrastive GAN with shared information maximization. in International Conference on Medical Image Computing and Computer-Assisted Intervention. Cham: Springer Nature Switzerland (2022). p. 527–37.

Google Scholar

155. Hu S, Lei B, Wang S, Wang Y, Feng Z, Shen, Y. Bidirectional mapping generative adversarial networks for brain MR to PET synthesis. IEEE Trans Med Imaging. (2021) 41:145–57. doi: 10.1109/TMI.2021.3107013

PubMed Abstract | Crossref Full Text | Google Scholar

156. Zhang L, Xiao Z, Zhou C, Yuan J, He Q, Yang Y, et al. Spatial adaptive and transformer fusion network (STFNet) for low-count PET blind denoising with MRI. Med Phys. (2022) 49:343–56. doi: 10.1002/mp.15368

PubMed Abstract | Crossref Full Text | Google Scholar

157. Jang SI, Lois C, Thibault E, Becker JA, Dong Y, Normandin MD, et al. Taupetgen: text-conditional tau pet image synthesis based on latent diffusion models. (2023) arXiv [Preprint] arXiv:2306.11984. doi: 10.1109/NSSMICRTSD49126.2023.10338710

Crossref Full Text | Google Scholar

158. Pan S, Abouei E, Peng J, Qian J, Wynne JF, Wang T, et al. Full-dose whole-body PET synthesis from low-dose PET using high-efficiency denoising diffusion probabilistic model: PET consistency model. Med Phys. (2024) 51:5468–78. doi: 10.1002/mp.17068

PubMed Abstract | Crossref Full Text | Google Scholar

159. Zhang J, He X, Qing L, Gao F, Wang B. BPGAN: Brain PET synthesis from MRI using generative adversarial network for multi-modal Alzheimer's disease diagnosis. Comput Methods Programs Biomed. (2022) 217:106676. doi: 10.1016/j.cmpb.2022.106676

PubMed Abstract | Crossref Full Text | Google Scholar

160. Hurrell MA, Butler APH, Cook NJ, Butler PH, Ronaldson JP, Zainon R. Spectral hounsfield units: a new radiological concept. Eur Radiol. (2012) 22:1008–13. doi: 10.1007/s00330-011-2348-3

PubMed Abstract | Crossref Full Text | Google Scholar

161. Hou J, Guerrero M, Chen W, D'Souza WD. Deformable planning CT to cone-beam CT image registration in head-and-neck cancer. Med Phys. (2011) 38:2088–94. doi: 10.1118/1.3554647

PubMed Abstract | Crossref Full Text | Google Scholar

162. Nomura Y, Xu Q, Shirato H, Shimizu S, Xing L. Projection-domain scatter correction for cone beam computed tomography using a residual convolutional neural network. Med Phys. (2019) 46:3142–55. doi: 10.1002/mp.13583

PubMed Abstract | Crossref Full Text | Google Scholar

163. Shan H, Padole A, Homayounieh F, Kruger U, Khera RD, Nitiwarangkul C, et al. Competitive performance of a modularized deep neural network compared to commercial algorithms for low-dose CT image reconstruction. Nat Mach Intell. (2019) 1:269–76. doi: 10.1038/s42256-019-0057-9

PubMed Abstract | Crossref Full Text | Google Scholar

164. Zhang R, Fox CJ, Glaser AK, Gladstone DJ, Pogue BW. Superficial dosimetry imaging of Cerenkov emission in electron beam radiotherapy of phantoms. Phys Med Biol. (2013) 58:5477. doi: 10.1088/0031-9155/58/16/5477

PubMed Abstract | Crossref Full Text | Google Scholar

165. Glaser AK, Davis SC, McClatchy DM, Zhang R, Pogue BW, Gladstone DJ. Projection imaging of photon beams by the Cerenkov effect. Med Phys. (2013) 40:012101. doi: 10.1118/1.4770286

PubMed Abstract | Crossref Full Text | Google Scholar

166. Jarvis LA, Zhang R, Gladstone DJ, et al. Cherenkov video imaging allows for the first visualization of radiation therapy in real time. Int J Radiat Oncol Biol Phys. (2014) 89:615–22. doi: 10.1016/j.ijrobp.2014.01.046

PubMed Abstract | Crossref Full Text | Google Scholar

167. Jelley JV. Cerenkov radiation and its applications. Br J Appl Phys. (1955) 6:227. doi: 10.1088/0508-3443/6/7/301

Crossref Full Text | Google Scholar

168. Glaser AK, Kanick SC, Zhang R, Arce P, Pogue BW. A GAMOS plug-in for GEANT4 based Monte Carlo simulation of radiation-induced light transport in biological media. Biomed Opt Express. (2013) 4:741–59. doi: 10.1364/BOE.4.000741

PubMed Abstract | Crossref Full Text | Google Scholar

169. Glaser AK, Zhang R, Gladstone DJ, Pogue BW. Optical dosimetry of radiotherapy beams using Cherenkov radiation: the relationship between light emission and dose. Phys Med Biol. (2014) 59:3789. doi: 10.1088/0031-9155/59/14/3789

PubMed Abstract | Crossref Full Text | Google Scholar

170. Zlateva Y, Muir BR, El Naqa I, Seuntjens JP. Cherenkov emission-based external radiotherapy dosimetry: I. Formalism and feasibility. Med Phys. (2019) 46:2370–82. doi: 10.1002/mp.13414

PubMed Abstract | Crossref Full Text | Google Scholar

171. Zlateva Y, Muir BR, Seuntjens JP, El Naqa I. Cherenkov emission-based external radiotherapy dosimetry: II. Electron beam quality specification and uncertainties. Med Phys. (2019) 46:2383–93. doi: 10.1002/mp.13413

PubMed Abstract | Crossref Full Text | Google Scholar

172. Helo Y, Kacperek A, Rosenberg I, Royle G, Gibson AP. The physics of Cerenkov light production during proton therapy. Phys Med Biol. (2014) 59:7107–23. doi: 10.1088/0031-9155/59/23/7107

PubMed Abstract | Crossref Full Text | Google Scholar

173. Cloutier É, Archambault L, Beaulieu L. Accurate dose measurements using Cherenkov emission polarization imaging. Med Phys. (2022) 49:5417–22. doi: 10.1002/mp.15693

PubMed Abstract | Crossref Full Text | Google Scholar

174. Glaser AK, Davis SC, Voigt WHA, Zhang R, Pogue BW, Gladstone DJ. Projection imaging of photon beams using Cerenkov-excited fluorescence. Phys Med Biol. (2013) 58:601–19. doi: 10.1088/0031-9155/58/3/601

PubMed Abstract | Crossref Full Text | Google Scholar

175. Ashraf MR, Bruza P, Pogue BW, et al. Optical imaging provides rapid verification of static small beams, radiosurgery, and VMAT plans with millimeter resolution. Med Phys. (2019) 46:5227–37. doi: 10.1002/mp.13797

PubMed Abstract | Crossref Full Text | Google Scholar

176. Decker SM, Alexander DA, Hachadorian RL, Zhang R, Gladstone DJ, Bruza P, et al. Estimation of diffuse Cherenkov optical emission from external beam radiation build-up in tissue. J Biomed Opt. (2021) 26:098003. doi: 10.1117/1.JBO.26.9.098003

PubMed Abstract | Crossref Full Text | Google Scholar

177. Zhang R, Glaser AK, Gladstone DJ, Fox CJ, Pogue BW. Superficial dosimetry imaging based on Cerenkov emission for external beam radiotherapy with megavoltage x-ray beam. Med Phys. (2013) 40:101914. doi: 10.1118/1.4821543

PubMed Abstract | Crossref Full Text | Google Scholar

178. Zhang R, Glaser AK, Andreozzi J, Jiang S, Jarvis LA, Gladstone DJ, et al. Beam and tissue factors affecting Cherenkov image intensity for quantitative entrance and exit dosimetry on human tissue. J Biophotonics. (2017) 10:645–56. doi: 10.1002/jbio.201500344

PubMed Abstract | Crossref Full Text | Google Scholar

179. Andreozzi JM, Zhang R, Glaser AK, Jarvis LA, Pogue BW, Gladstone DJ. Camera selection for real-time in vivo radiation treatment verification systems using Cherenkov imaging. Med Phys. (2015) 42:994–1004. doi: 10.1118/1.4906249

PubMed Abstract | Crossref Full Text | Google Scholar

180. Alexander DA, Bruza P, Farwell JCM, Krishnaswamy V, Zhang R, Gladstone DJ, et al. Detective quantum efficiency of intensified CMOS cameras for Cherenkov imaging in radiotherapy. Phys Med Biol. (2020) 65:225013. doi: 10.1088/1361-6560/abb0c5

PubMed Abstract | Crossref Full Text | Google Scholar

181. Hallett JE, Bruza P, Jermyn M, Li K, Pogue BW. Noise & mottle suppression methods for cumulative Cherenkov images of radiation therapy delivery. Phys Med Biol. (2024) 69:225015. doi: 10.1088/1361-6560/ad8c93

PubMed Abstract | Crossref Full Text | Google Scholar

182. Glaser AK, Zhang R, Andreozzi JM, Gladstone DJ, Pogue BW. Cherenkov radiation fluence estimates in tissue for molecular imaging and therapy applications. Phys Med Biol. (2015) 60:6701–18. doi: 10.1088/0031-9155/60/17/6701

PubMed Abstract | Crossref Full Text | Google Scholar

183. LaRochelle EPM, Shell JR, Gunn JR, Davis SC, Pogue BW. Signal intensity analysis and optimization for in vivo imaging of Cherenkov and excited luminescence. Phys Med Biol. (2018) 63:085019. doi: 10.1088/1361-6560/aab83b

PubMed Abstract | Crossref Full Text | Google Scholar

184. Ashraf MR, Bruza P, Krishnaswamy V, Gladstone DJ, Pogue BW. Technical note: time-gating to medical linear accelerator pulses: stray radiation detector. Med Phys. (2019) 46:1044–8. doi: 10.1002/mp.13311

PubMed Abstract | Crossref Full Text | Google Scholar

185. Parks A, Hallett J, Niver A, Zhang R, Bruza P, Pogue BW. Review of Cherenkov imaging technology advances in radiotherapy: single-photon-level imaging in high ambient light and radiation backgrounds. Biophotonics Discov. (2024) 1:020901. doi: 10.1117/1.BIOS.1.2.020901

Crossref Full Text | Google Scholar

186. Rahman M, Bruza P, Hachadorian R, et al. Optimization of in vivo Cherenkov imaging dosimetry via spectral choices for ambient background lights and filtering. J Biomed Opt. (2021) 26:106003. doi: 10.1117/1.JBO.26.10.106003

PubMed Abstract | Crossref Full Text | Google Scholar

187. Glaser AK, Voigt WHA, Davis SC, Zhang R, Gladstone DJ, Pogue BW. Three-dimensional Cerenkov tomography of energy deposition from ionizing radiation beams. Opt Lett. (2013) 38:634. doi: 10.1364/OL.38.000634

PubMed Abstract | Crossref Full Text | Google Scholar

188. Glaser AK, Andreozzi JM, Davis SC, et al. Video-rate optical dosimetry and dynamic visualization of IMRT and VMAT treatment plans in water using Cherenkov radiation. Med Phys. (2014) 41:062102. doi: 10.1118/1.4875704

PubMed Abstract | Crossref Full Text | Google Scholar

189. Bruza P, Andreozzi JM, Gladstone DJ, Jarvis LA, Rottmann J, Pogue BW. Online combination of EPID Cherenkov imaging for 3-D dosimetry in a liquid phantom. IEEE Trans Med Imaging. (2017) 36:2099–103. doi: 10.1109/TMI.2017.2717800

PubMed Abstract | Crossref Full Text | Google Scholar

190. Miao T, Bruza P, Pogue BW, Jermyn M, Krishnaswamy et al. Cherenkov imaging for linac beam shape analysis as a remote electronic quality assessment verification tool. Med Phys. (2019) 46:811–21. doi: 10.1002/mp.13303

PubMed Abstract | Crossref Full Text | Google Scholar

191. Andreozzi JM, Mooney KE, BruŽa P, Curcuru A, Gladstone DJ, Pogue BW, et al. Remote Cherenkov imaging-based quality assurance of a magnetic resonance image-guided radiotherapy system. Med Phys. (2018) 45:2647–59. doi: 10.1002/mp.12919

PubMed Abstract | Crossref Full Text | Google Scholar

192. Andreozzi JM, Bruža P, Cammin J, Pogue BW, Gladstone DJ, Green O. Optical imaging method to quantify spatial dose variation due to the electron return effect in an MR-linac. Med Phys. (2020) 47:1258–67. doi: 10.1002/mp.13954

PubMed Abstract | Crossref Full Text | Google Scholar

193. Alexander DA, Bruza P, Rassias AG, Andreozzi JM, Pogue BW, Zhang R, et al. Visual isocenter position enhanced review (VIPER): a Cherenkov imaging-based solution for MR-linac daily QA. Med Phys. (2021) 48:2750–9. doi: 10.1002/mp.14892

PubMed Abstract | Crossref Full Text | Google Scholar

194. Ashraf MR, Rahman M, Zhang R, Williams BB, Gladstone DJ, Pogue BW, et al. Dosimetry for FLASH radiotherapy: a review of tools and the role of radioluminescence and Cherenkov emission. Front Phys. (2020) 8:328. doi: 10.3389/fphy.2020.00328

Crossref Full Text | Google Scholar

195. Rahman M, Ashraf MR, Zhang R, Gladstone DJ, Cao X, Williams BB, et al. Spatial and temporal dosimetry of individual electron FLASH beam pulses using radioluminescence imaging. Phys Med Biol. (2021) 66:135009. doi: 10.1088/1361-6560/ac0390

PubMed Abstract | Crossref Full Text | Google Scholar

196. Rahman M, Ashraf R, Zhang R, Cao X, Gladstone DJ, Jarvis LA, et al. In Vivo Cherenkov imaging-guided FLASH radiotherapy. Int J Radiat Oncol Biol Phys. (2022) 114:S139–40. doi: 10.1016/j.ijrobp.2022.07.604

Crossref Full Text | Google Scholar

197. Alexander DA, Nomezine A, Jarvis LA, Gladstone DJ, Pogue BW, Bruza P. Color Cherenkov imaging of clinical radiation therapy. Light Sci Appl. (2021) 10:226. doi: 10.1038/s41377-021-00660-0

PubMed Abstract | Crossref Full Text | Google Scholar

198. Axelsson J, Glaser AK, Gladstone DJ, Pogue BW. Quantitative Cherenkov emission spectroscopy for tissue oxygenation assessment. Opt Express. (2012) 20:5133–42. doi: 10.1364/OE.20.005133

PubMed Abstract | Crossref Full Text | Google Scholar

199. Rickard AG, Yoshikawa H, Palmer GM, Liu HQ, Dewhirst MW, Nolan MW, et al. Cherenkov emissions for studying tumor changes during radiation therapy: an exploratory study in domesticated dogs with naturally-occurring cancer. PLoS ONE. (2020) 15:e0238106. doi: 10.1371/journal.pone.0238106

PubMed Abstract | Crossref Full Text | Google Scholar

200. Vasyltsiv R, Jarvis LA, Zhang R, Gladstone DJ, Bruza P. Multispectral analysis of Cherenkov emission for subsurface monitoring of tissue composition and intensity correction. In: AAPM (2024). Available online at: https://aapm.confex.com/aapm/2024am/meetingapp.cgi/Paper/13388 (Accessed July 21, 2025).

Google Scholar

201. Glaser A, Axelsson J, Zhang R, Gladstone DJ, Pogue BW. Cherenkov emission spectroscopy for tissue oxygen saturation assessment. in Biomedical Optics and 3-D Imaging, Paper JM3A.15. Washington, DC: Optica Publishing Group (2012).

Google Scholar

202. Zhang R, Glaser A, Esipova TV, Kanick SC, Davis SC, Vinogradov S, et al. Cerenkov radiation emission and excited luminescence (CREL) sensitivity during external beam radiation therapy: Monte Carlo and tissue oxygenation phantom studies. Biomed Opt Express. (2012) 3:2381–94. doi: 10.1364/BOE.3.002381

PubMed Abstract | Crossref Full Text | Google Scholar

203. Demers JL, Davis SC, Zhang R, Gladstone DJ, Pogue BW. Cerenkov excited fluorescence tomography using external beam radiation. Opt Lett. (2013) 38:1364–6. doi: 10.1364/OL.38.001364

PubMed Abstract | Crossref Full Text | Google Scholar

204. Holt RW, Zhang R, Esipova TV, Vinogradov SA, Glaser AK, Gladstone DJ, et al. Cherenkov excited phosphorescence-based pO2 estimation during multi-beam radiation therapy: phantom and simulation studies. Phys Med Biol. (2014) 59:5317. doi: 10.1088/0031-9155/59/18/5317

PubMed Abstract | Crossref Full Text | Google Scholar

205. Zhang R, D'souza AV, Gunn JR, Esipova TV, Vinogradov SA, Glaser AK, et al. Cherenkov-excited luminescence scanned imaging. Opt Lett. (2015) 40:827–30. doi: 10.1364/OL.40.000827

PubMed Abstract | Crossref Full Text | Google Scholar

206. Pogue BW, Feng J, LaRochelle EP, BruŽa P, Lin H, Zhang R, et al. Maps of in vivo oxygen pressure with submillimetre resolution and nanomolar sensitivity enabled by Cherenkov-excited luminescence scanned imaging. Nat Biomed Eng. (2018) 2:254–64. doi: 10.1038/s41551-018-0220-3

PubMed Abstract | Crossref Full Text | Google Scholar

207. Jia MJ, Bruza P, Andreozzi JM, Jarvis LA, Gladstone DJ, Pogue BW. Cherenkov-excited luminescence scanned imaging using scanned beam differencing and iterative deconvolution in dynamic plan radiation delivery in a human breast phantom geometry. Med Phys. (2019) 46:3067–77. doi: 10.1002/mp.13545

PubMed Abstract | Crossref Full Text | Google Scholar

208. Jarvis LA, Gladstone DJ, Pogue BW, Gollub S, Miao T, Bruza P, et al. Cherenkoscopy for treatment verification: correlation of radiation dose to Cherenkov emission intensity in whole breast radiation therapy. Int J Radiat Oncol. (2017) 99:E673. doi: 10.1016/j.ijrobp.2017.06.2225

Crossref Full Text | Google Scholar

209. Xie Y, Petroccia H, Maity A, et al. Cherenkov imaging for total skin electron therapy (TSET). Med Phys. (2020) 47:201–12. doi: 10.1002/mp.13881

PubMed Abstract | Crossref Full Text | Google Scholar

210. Zhong W, Ong Y, Miao T, Pogue BW, Zhu TC. Monte Carlo simulation of Cerenkov imaging for total skin electron treatment with CT DICOM realistic patient geometry. Proc SPIE Int Soc Opt Eng. (2022) 11940:49–57. doi: 10.1117/12.2609027

PubMed Abstract | Crossref Full Text | Google Scholar

211. Petroccia H, Miao T, Maity A, et al. Analysis of cumulative surface dose based on Cherenkov imaging of Total Skin Electron Therapy (TSET). In: Optical Methods for Tumor Treatment and Detection: Mechanisms and Techniques in Photodynamic Therapy XXVIII. Vol. 10860. Bellingham, WA: SPIE (2019). p. 40–60.

Google Scholar

212. Miao T, Petroccia H, Xie Y, Jermyn M, Perroni-Scharf M, Kapoor N, et al. Computer animation body surface analysis of total skin electron radiation therapy dose homogeneity via Cherenkov imaging. J Med Imaging. (2020) 7:034002. doi: 10.1117/1.JMI.7.3.034002

PubMed Abstract | Crossref Full Text | Google Scholar

213. Alexander DA, Tendler II, Bruza P, Cao X, Schaner PE, Marshall BS, et al. Assessment of imaging Cherenkov and scintillation signals in head and neck radiotherapy. Phys Med Biol. (2019) 64:145021. doi: 10.1088/1361-6560/ab25a3

PubMed Abstract | Crossref Full Text | Google Scholar

214. Tendler II, Hartford A, Jermyn M, LaRochelle E, Cao X, Borza V, et al. Experimentally observed Cherenkov light generation in the eye during radiotherapy. Int J Radiat Oncol. (2019) 106:422–9. doi: 10.1016/j.ijrobp.2019.10.031

PubMed Abstract | Crossref Full Text | Google Scholar

215. Hachadorian R, Bruza P, Jermyn M, Mazhar A, Cuccia D, Jarvis L, et al. Correcting Cherenkov light attenuation in tissue using spatial frequency domain imaging for quantitative surface dosimetry during whole breast radiation therapy. J Biomed Opt. (2018) 24:1–10. doi: 10.1117/1.JBO.24.7.071609

PubMed Abstract | Crossref Full Text | Google Scholar

216. Hachadorian RL, Bruza P, Jermyn M, Gladstone DJ, Pogue BW, Jarvis LA. Imaging radiation dose in breast radiotherapy by X-ray CT calibration of Cherenkov light. Nat Commun. (2020) 11:2298. doi: 10.1038/s41467-020-16031-z

PubMed Abstract | Crossref Full Text | Google Scholar

217. Hachadorian RL, Bruza P, Jermyn M, Gladstone DJ, Zhang R, Jarvis LA, et al. Remote dose imaging from Cherenkov light using spatially resolved CT calibration in breast radiotherapy. Med Phys. (2022) 49:4018–25. doi: 10.1002/mp.15614

PubMed Abstract | Crossref Full Text | Google Scholar

218. Decker SM, Andreozzi JM, Hernandez D, Alexander DA, Wickramasinghe V, Hachadorian RL, et al. Improving Cherenkov-based radiotherapy dose estimates in diverse patient populations via skin luminance imaging. Phys Med Biol. (2025). doi: 10.1088/1361-6560/aded68

PubMed Abstract | Crossref Full Text | Google Scholar

219. Hachadorian R, Farwell JC, Bruza P, Jermyn M, Gladstone DJ, Pogue BW, et al. Verification of field match lines in whole breast radiation therapy using Cherenkov imaging. Radiother Oncol. (2021) 160:90–6. doi: 10.1016/j.radonc.2021.04.013

PubMed Abstract | Crossref Full Text | Google Scholar

220. Li Y, Liu H, Huang N, Wang Z, Zhang C. Using Cherenkov imaging to monitor the match line between photon and electron radiation therapy fields on biological tissue phantoms. J Biomed Opt. (2020) 25:125001. doi: 10.1117/1.JBO.25.12.125001

PubMed Abstract | Crossref Full Text | Google Scholar

221. Geng C, Di X, Li X, Shu D, Zhu L, Tang X. Measurement of field match lines in electron beam radiotherapy using carbon quantum dot sheeting enhanced Cherenkov imaging. Radiat Meas. (2023) 169:107030. doi: 10.1016/j.radmeas.2023.107030

Crossref Full Text | Google Scholar

222. Zhang R, Andreozzi JM, Gladstone DJ, Beeler WH, Glaser A, Jiang S, et al. Cherenkoscopy based patient positioning validation and movement tracking during post-lumpectomy whole breast radiation therapy. Phys Med Biol. (2014) 60:L1–L14. doi: 10.1088/0031-9155/60/1/L1

PubMed Abstract | Crossref Full Text | Google Scholar

223. Chen Y, Decker SM, Bruza P, Gladstone DJ, Jarvis LA, Pogue BW, et al. Cherenkov imaged bio-morphological features verify patient positioning with deformable tissue translocation in breast radiation therapy. Adv Radiat Oncol. (2025) 10:101684. doi: 10.1016/j.adro.2024.101684

PubMed Abstract | Crossref Full Text | Google Scholar

224. Wang S, Chen Y, Jarvis LA, Tang Y, Gladstone DJ, Samkoe KS, et al. Robust Real-time segmentation of bio-morphological features in Human Cherenkov imaging during radiotherapy via deep learning. arXiv [Preprint]. arXiv:2409.05666v1 (2014). doi: 10.1002/mp.18002

PubMed Abstract | Crossref Full Text | Google Scholar

225. Chen E, Pogue BW, Bruza P, Alexander DA, Andino NL, Decker SM, et al. Clinical implementation of the first Cherenkov imaging system in a community-based hospital. Tech Innov Patient Support Radiat Oncol. (2022) 24:1–5. doi: 10.1016/j.tipsro.2022.08.011

PubMed Abstract | Crossref Full Text | Google Scholar

226. Robinson A, Tallhamer M, Orman A. Optimizing breast cancer radiation therapy with volumetric modulated arc therapy and skin flash: a case study using deep inspiration breath hold and Cherenkov imaging. Adv Radiat Oncol. (2025) 10:101798. doi: 10.1016/j.adro.2025.101798

PubMed Abstract | Crossref Full Text | Google Scholar

227. Alexander DA, Decker SM, Jermyn M, Bruza P, Zhang R, Chen E, et al. One year of clinic-wide cherenkov imaging for discovery of quality improvement opportunities in radiation therapy. Pract Radiat Oncol. (2023) 13:71–81. doi: 10.1016/j.prro.2022.06.009

PubMed Abstract | Crossref Full Text | Google Scholar

228. Jarvis LA, Hachadorian RA, Jermyn M, Bruza P, Alexander DA, Tendler II, et al. Initial clinical experience of Cherenkov imaging in EBRT identifies opportunities to improve treatment delivery. Int J Radiat Oncol. (2020) 109:1627–37. doi: 10.1016/j.ijrobp.2020.11.013

PubMed Abstract | Crossref Full Text | Google Scholar

229. Decker SM, Matous AL, Zhang R, Gladstone DJ, Grove EK, Williams BB, et al. Cherenkov imaging combined with scintillation dosimetry provides real-time positional and dose monitoring for radiotherapy patients with cardiac implanted electronic devices. Phys Imaging Radiat Oncol. (2024) 32:100642. doi: 10.1016/j.phro.2024.100642

PubMed Abstract | Crossref Full Text | Google Scholar

230. Decker SM, Bruza P, Zhang R, Pogue BW, Gladstone DJ, Jarvis LA. Visual dose monitoring for whole breast radiation therapy treatments via combined Cherenkov imaging and scintillation dosimetry. Int J Radiat Oncol Biol Phys. (2025) 121:365–74. doi: 10.1016/j.ijrobp.2024.08.033

PubMed Abstract | Crossref Full Text | Google Scholar

231. El Naqa I, Pogue BW, Zhang R, Oraiqat I, Parodi K. Image guidance for FLASH radiotherapy. Med Phys. (2022) 49:4109–22. doi: 10.1002/mp.15662

PubMed Abstract | Crossref Full Text | Google Scholar

232. Decker SM, Alexander DA, Bruza P, Zhang R, Chen E, Jarvis LA, et al. Performance comparison of quantitative metrics for analysis of in vivo Cherenkov imaging incident detection during radiotherapy. Br J Radiol. (2022) 95:20211346. doi: 10.1259/bjr.20211346

PubMed Abstract | Crossref Full Text | Google Scholar

233. Paganetti H. Range uncertainties in proton therapy and the role of Monte Carlo simulations. Phys Med Biol. 57:R99–R117. doi: 10.1088/0031-9155/57/11/R99

PubMed Abstract | Crossref Full Text | Google Scholar

234. Li B, Lee HC, Duan X, Shen C, Zhou L, Jia X, et al. Comprehensive analysis of proton range uncertainties related to stopping-power-ratio estimation using dual-energy CT imaging. Phys Med Biol. (2017) 62:7056–74. doi: 10.1088/1361-6560/aa7dc9

PubMed Abstract | Crossref Full Text | Google Scholar

235. Seco J, Spadea MF. Imaging in particle therapy: state of the art and future perspective. Acta Oncol. (2015) 54:125–48. doi: 10.3109/0284186X.2015.1075665

PubMed Abstract | Crossref Full Text | Google Scholar

236. Yang M, Virshup G, Clayton J, Miller M, Kirby N, Fuss M, et al. Theoretical variance analysis of single- and dual-energy computed tomography methods for calculating proton stopping power ratios of biological tissues. Phys Med Biol. (2012) 55:1343–62. doi: 10.1088/0031-9155/55/5/006

PubMed Abstract | Crossref Full Text | Google Scholar

237. Taasti VT, Hattu D, Vaassen F, Canters R, Velders M, Mannens J, et al. Treatment planning and 4D robust evaluation strategy for proton therapy of lung tumors with large motion amplitude. Med Phys. (2021) 48:4425–37. doi: 10.1002/mp.15067

PubMed Abstract | Crossref Full Text | Google Scholar

238. Buti G, Souris K, Montero A, Janssens G, Sterpin E, Vynckier S. Towards fast and robust 4D optimization for moving tumors with scanned proton therapy. Med Phys. (2019) 46:5434–43. doi: 10.1002/mp.13850

PubMed Abstract | Crossref Full Text | Google Scholar

239. Hua C, Weiguang Y, Takao K, Kazuo T, Saori O, Takenori N, et al. A robotic C-arm cone beam CT system for image-guided proton therapy: design and performance. Br J Radiol. (2017) 90.1079:20170266. doi: 10.1259/bjr.20170266

PubMed Abstract | Crossref Full Text | Google Scholar

240. Thummerer A, Zaffino P, Meijers A, Marmitt GG, Seco J, Steenbakkers RJHM, et al. Comparison of CBCT based synthetic CT methods suitable for proton dose calculations in adaptive proton therapy. Phys Med Biol. (2020) 65:095002. doi: 10.1088/1361-6560/ab7d54

PubMed Abstract | Crossref Full Text | Google Scholar

241. Schneider U, Pedroni E. Proton radiography as a tool for quality control in proton therapy. Med Phys. (1995) 22:353–63. doi: 10.1118/1.597470

PubMed Abstract | Crossref Full Text | Google Scholar

242. Sadrozinski HFW, Bashkirov VA, Johnson RP, Schulte RW. Development of proton computed tomography detectors. Nucl Instrum Methods Phys Res. (2013) 699:205–10. doi: 10.1016/j.nima.2012.04.029

PubMed Abstract | Crossref Full Text | Google Scholar

243. Knopf AC, Lomax A. In vivo proton range verification: a review. Phys Med Biol. (2013) 58:R131–R160. doi: 10.1088/0031-9155/58/15/R131

PubMed Abstract | Crossref Full Text | Google Scholar

244. Maspero M, Bentvelzen LG, Savenije MHF, Guerreiro F, Seravalli E, Janssens GO, et al. Deep learning-based synthetic CT generation for paediatric brain MR-only photon and proton radiotherapy. Radiother Oncol. (2020) 153:197–204. doi: 10.1016/j.radonc.2020.09.029

PubMed Abstract | Crossref Full Text | Google Scholar

245. Bodei L, Herrmann K, Schöder H, Scott AM, Lewis JS. Radiotheranostics in oncology: current challenges and emerging opportunities. Nat Rev Clin Oncol. (2022) 19:534–50. doi: 10.1038/s41571-022-00652-y

PubMed Abstract | Crossref Full Text | Google Scholar

246. Sgouros G, Bodei L, McDevitt MR, Nedrow JR. Radiopharmaceutical therapy in cancer: clinical advances and challenges. Nat Rev Drug Discov. (2020) 19:589–608. doi: 10.1038/s41573-020-0073-9

PubMed Abstract | Crossref Full Text | Google Scholar

247. Idée JM, Louguet S, Ballet S, Corot C. Theranostics and contrast-agents for medical imaging: a pharmaceutical company viewpoint. Quant Imaging Med Surg. (2013) 3:292–7. doi: 10.3978/j.issn.2223-4292.2013.12.06

PubMed Abstract | Crossref Full Text | Google Scholar

248. Hertz S, Roberts A. Radioactive iodine in the study of thyroid physiology; the use of radioactive iodine therapy in hyperthyroidism. J Am Med Assoc. (1946) 131:81–6. doi: 10.1001/jama.1946.02870190005002

PubMed Abstract | Crossref Full Text | Google Scholar

249. Durski JM, Hruska CB, Bogsrud TV, Ryder M, Johnson GB. 123I scan with whole-body retention measurement at 48 hours for simplified dosimetry before 131I treatment of metastatic thyroid cancer. Clin Nucl Med. (2021) 46:e151–3. doi: 10.1097/RLU.0000000000003464

PubMed Abstract | Crossref Full Text | Google Scholar

250. Phan HTT, Jager PL, Paans AMJ, Plukker JTM, Sturkenboom MGG, Sluiter WJ, et al. The diagnostic value of 124I-PET in patients with differentiated thyroid cancer. Eur J Nucl Med Mol Imaging. (2008) 35:958. doi: 10.1007/s00259-007-0660-6

PubMed Abstract | Crossref Full Text | Google Scholar

251. Parker C, Nilsson S, Heinrich D, Helle SI, O'Sullivan JM, Fosså SD, et al. Alpha Emitter Radium-223 and survival in metastatic prostate cancer. New Eng J Med. (2013) 369:213–23. doi: 10.1056/NEJMoa1213755

PubMed Abstract | Crossref Full Text | Google Scholar

252. Agrawal A, Rangarajan V, Shah S, Puranik A, Purandare N. MIBG (metaiodobenzylguanidine) theranostics in pediatric and adult malignancies. Br J Radiol. (2018) 91:20180103. doi: 10.1259/bjr.20180103

PubMed Abstract | Crossref Full Text | Google Scholar

253. Wieland DM, Mangner TJ, Inbasekaran MN, Brown LE, Wu JL. Adrenal Medulla imaging agents: a structure-distribution relationship study of radiolabeled aralkylguanidines1. J Med Chem. (1984) 27:149–55. doi: 10.1021/jm00368a008

PubMed Abstract | Crossref Full Text | Google Scholar

254. Pryma DA, Chin BB, Noto RB, Dillon JS, Perkins S, Solnes L, et al. Efficacy and safety of high-specific-activity 131I-MIBG therapy in patients with advanced pheochromocytoma or paraganglioma. J Nucl Med. (2019) 60:623–30. doi: 10.2967/jnumed.118.217463

PubMed Abstract | Crossref Full Text | Google Scholar

255. Dickson JC, Armstrong IS, Gabiña PM, Denis-Bacelar AM, Krizsan AK, Gear JM, et al. EANM practice guideline for quantitative SPECT-CT. Eur J Nucl Med Mol Imaging. (2022) 50:980. doi: 10.1007/s00259-022-06028-9

PubMed Abstract | Crossref Full Text | Google Scholar

256. Modlin IM, Lye KD, Kidd M. A 5-decade analysis of 13,715 carcinoid tumors. Cancer. (2003) 97:934–59. doi: 10.1002/cncr.11105

PubMed Abstract | Crossref Full Text | Google Scholar

257. Yao JC, Hassan M, Phan A, Dagohoy C, Leary C, Mares JE, et al. One hundred years after “carcinoid”: epidemiology of and prognostic factors for neuroendocrine tumors in 35,825 cases in the United States. J Clin Oncol. (2008) 26:3063–72. doi: 10.1200/JCO.2007.15.4377

PubMed Abstract | Crossref Full Text | Google Scholar

258. Strosberg J, El-Haddad G, Wolin E, Hendifar A, Yao J, Chasen B, et al. Phase 3 trial of 177 Lu-Dotatate for midgut neuroendocrine tumors . New Eng J Med. (2017) 376:125–35. doi: 10.1056/NEJMoa1607427

PubMed Abstract | Crossref Full Text | Google Scholar

259. Kulke MH, Mayer RJ. Carcinoid tumors. N Eng J Med. (1999) 340:858–68. doi: 10.1056/NEJM199903183401107

PubMed Abstract | Crossref Full Text | Google Scholar

260. Sartor O, de Bono J, Chi KN, Fizazi K, Herrmann K, Rahbar K, et al. Lutetium-177–PSMA-617 for metastatic castration-resistant prostate cancer. New Eng J Med. (2021) 385:1091–103. doi: 10.1056/NEJMoa2107322

PubMed Abstract | Crossref Full Text | Google Scholar

261. Marquis H, Willowson KP, Bailey DL. Partial volume effect in SPECT & PET imaging and impact on radionuclide dosimetry estimates. Asia Ocean J Nucl Med Biol. (2023) 11:44–54. doi: 10.22038/AOJNMB.2022.63827.1448

PubMed Abstract | Crossref Full Text | Google Scholar

262. Tran-Gia J, Lassmann M. Optimizing image quantification for 177Lu SPECT/CT based on a 3D printed 2-compartment kidney phantom. J Nucl Med. (2018) 59:616–24. doi: 10.2967/jnumed.117.200170

PubMed Abstract | Crossref Full Text | Google Scholar

263. Ljungberg M, Sjögreen-Gleisner K. The accuracy of absorbed dose estimates in tumours determined by Quantitative SPECT: a Monte Carlo study. Acta Oncol. (2011) 50:981–9. doi: 10.3109/0284186X.2011.584559

PubMed Abstract | Crossref Full Text | Google Scholar

264. Flux G, Bardies M, Monsieurs M, Savolainen S, Strand SE, Lassmann M. The impact of PET and SPECT on dosimetry for targeted radionuclide therapy. Z Med Phys. (2006) 16:47–59. doi: 10.1078/0939-3889-00291

PubMed Abstract | Crossref Full Text | Google Scholar

265. Fahey FH, Harkness BA, Keyes JW, Madsen MT, Battisti C, Zito V. Sensitivity, resolution and image quality with a Multi-Head SPECT camera. J Nucl Med. (1992) 33:1859–63.

PubMed Abstract | Google Scholar

266. Bailey DL, Willowson KP. An evidence-based review of quantitative SPECT imaging and potential clinical applications. J Nucl Med. (2013) 54:83–9. doi: 10.2967/jnumed.112.111476

PubMed Abstract | Crossref Full Text | Google Scholar

267. Kyme AZ, Fulton RR. Motion estimation and correction in SPECT, PET and CT. Phys Med Biol. (2021) 66:18TR02. doi: 10.1088/1361-6560/ac093b

PubMed Abstract | Crossref Full Text | Google Scholar

268. Bastiaannet R, Viergever MA, De Jong HWAM. Impact of respiratory motion and acquisition settings on SPECT liver dosimetry for radioembolization. Med Phys. (2017) 44:5270–9. doi: 10.1002/mp.12483

PubMed Abstract | Crossref Full Text | Google Scholar

269. Busemann Sokole E, Płachcínska A, Britten A. Acceptance testing for nuclear medicine instrumentation. Eur J Nucl Med Mol Imaging. (2010) 37:672–81. doi: 10.1007/s00259-009-1348-x

PubMed Abstract | Crossref Full Text | Google Scholar

270. Hutton BF, Buvat I, Beekman FJ. Review and current status of SPECT scatter correction. Phys Med Biol. (2011) 56:R85–112. doi: 10.1088/0031-9155/56/14/R01

PubMed Abstract | Crossref Full Text | Google Scholar

271. Can M, Karadeniz I, Çapa Kaya G, Ertay T. A study on energy window-based scatter correction methods in 99mTc and 123I imaging. J Instrum. (2023) 18:P10009. doi: 10.1088/1748-0221/18/10/P10009

Crossref Full Text | Google Scholar

272. Zaidi H, Koral KF. Scatter modelling and compensation in emission tomography. Eur J Nucl Med Mol Imaging. (2004) 31:761–82. doi: 10.1007/s00259-004-1495-z

PubMed Abstract | Crossref Full Text | Google Scholar

273. Zaidi H, Koral KF. Scatter correction strategies in emission tomography. Quant Anal Nucl Med Imaging. (2006) 205–35. doi: 10.1007/0-387-25444-7_7

Crossref Full Text | Google Scholar

274. Hamill JJ, Cabello J, Surti S, Karp JS. Energy-based scatter estimation in clinical PET. Med Phys. (2024) 51:54–69. doi: 10.1002/mp.16826

PubMed Abstract | Crossref Full Text | Google Scholar

275. Michael K, Frangos S, Iakovou I, Lontos A, Demosthenous G, Parpottas Y. The impact of dual and triple energy window scatter correction on I-123 postsurgical thyroid SPECT/CT imaging using a phantom with small sizes of thyroid remnants. Life. (2024) 14:113. doi: 10.3390/life14010113

PubMed Abstract | Crossref Full Text | Google Scholar

276. Huizing DMV, Sinaasappel M, Dekker MC, Stokkel MPM, de Wit – van der Veen BJ. 177Lutetium SPECT/CT: evaluation of collimator, photopeak and scatter correction. J Appl Clin Med Phys. (2020) 21:272–7. doi: 10.1002/acm2.12991

PubMed Abstract | Crossref Full Text | Google Scholar

277. Xiao J, De Wit TC, Zbijewski W, Staelens SG, Beekman FJ. Evaluation of 3D Monte Carlo-based scatter correction for 201Tl cardiac perfusion SPECT. J Nucl Med. (2007) 48:637–44. doi: 10.2967/jnumed.106.037259

PubMed Abstract | Crossref Full Text | Google Scholar

278. Sakellios NG, Karali E, Lazaro D, Loudos GK, Nikita KS. Monte-Carlo simulation for scatter correction compensation studies in SPECT imaging using GATE software package. Nucl Instrum Methods Phys Res A. (2006) 569:404–8. doi: 10.1016/j.nima.2006.08.056

Crossref Full Text | Google Scholar

279. Ouyang J, Fakhri G El, Moore SC. Improved activity estimation with MC-JOSEM versus TEW-JOSEM in 111In SPECT. Med Phys. (2008) 35:2029. doi: 10.1118/1.2907561

PubMed Abstract | Crossref Full Text | Google Scholar

280. Robinson AP, Tipping J, Cullen DM, Hamilton D. The influence of triple energy window scatter correction on activity quantification for (1 7 7)Lu molecular radiotherapy. Phys Med Biol. (2016) 61:5107–27. doi: 10.1088/0031-9155/61/14/5107

PubMed Abstract | Crossref Full Text | Google Scholar

281. Leube J, Claeys W, Gustafsson J, Salas-Ramirez M, Lassmann M, Koole M, et al. Position dependence of recovery coefficients in 177Lu-SPECT/CT reconstructions - phantom simulations and measurements. EJNMMI Phys. (2024) 11:52. doi: 10.1186/s40658-024-00662-y

PubMed Abstract | Crossref Full Text | Google Scholar

282. Tran-Gia J, Schlögl S, Lassmann M. Design and fabrication of kidney phantoms for internal radiation dosimetry using 3D printing technology. J Nucl Med. (2016) 57:1998–2005. doi: 10.2967/jnumed.116.178046

PubMed Abstract | Crossref Full Text | Google Scholar

283. Gear JI, Long C, Rushforth D, Chittenden SJ, Cummings C, Flux GD. Development of patient-specific molecular imaging phantoms using a 3D printer. Med Phys. (2014) 41:082502. doi: 10.1118/1.4887854

PubMed Abstract | Crossref Full Text | Google Scholar

284. Jackson P, Hardcastle N, Dawe N, Kron T, Hofman MS, Hicks RJ. Deep learning renal segmentation for fully automated radiation dose estimation in unsealed source therapy. Front Oncol. (2018) 8:215. doi: 10.3389/fonc.2018.00215

PubMed Abstract | Crossref Full Text | Google Scholar

285. Gustafsson J, Sundlöv A, Sjögreen Gleisner K. SPECT image segmentation for estimation of tumour volume and activity concentration in 177Lu-DOTATATE radionuclide therapy. EJNMMI Res. (2017) 7:18. doi: 10.1186/s13550-017-0262-7

PubMed Abstract | Crossref Full Text | Google Scholar

286. Hagmarker L, Svensson J, Rydén T, Gjertsson P, Bernhardt P. Segmentation of whole-body images into two compartments in model for bone marrow dosimetry increases the correlation with hematological response in 177Lu-DOTATATE treatments. Cancer Biother Radiopharm. (2017) 32:335–43. doi: 10.1089/cbr.2017.2317

PubMed Abstract | Crossref Full Text | Google Scholar

287. Guzene L, Beddok A, Nioche C, Modzelewski R, Loiseau C, Salleron J, et al. Assessing interobserver variability in the delineation of structures in radiation oncology: a systematic review. Int J Radiat Oncol. (2023) 115:1047–60. doi: 10.1016/j.ijrobp.2022.11.021

PubMed Abstract | Crossref Full Text | Google Scholar

288. Besemer AE, Titz B, Grudzinski JJ, Weichert JP, Kuo JS, Robins HI, et al. Impact of PET and MRI threshold-based tumor volume segmentation on patient-specific targeted radionuclide therapy dosimetry using CLR1404. Phys Med Biol. (2017) 62:6008–25. doi: 10.1088/1361-6560/aa716d

PubMed Abstract | Crossref Full Text | Google Scholar

289. Uribe CF, Esquinas PL, Tanguay J, Gonzalez M, Gaudin E, Beauregard JM, et al. Accuracy of 177Lu activity quantification in SPECT imaging: a phantom study. EJNMMI Phys. (2017) 4:1–20. doi: 10.1186/s40658-016-0170-3

PubMed Abstract | Crossref Full Text | Google Scholar

290. Brosch-Lenz J, Kurkowska S, Frey E, Dewaraja YK, Sunderland J, Uribe C. An international study of factors affecting variability of dosimetry calculations, part 3: contribution from calculating absorbed dose from time-integrated activity. J Nucl Med. (2024) 65:1166–72. doi: 10.2967/jnumed.123.267293

PubMed Abstract | Crossref Full Text | Google Scholar

291. Brosch-Lenz J, Ke S, Wang H, Frey E, Dewaraja YK, Sunderland J, et al. An international study of factors affecting variability of dosimetry calculations, part 2: overall variabilities in absorbed dose. J Nucl Med. 2023 64:1109–16. doi: 10.2967/jnumed.122.265094

PubMed Abstract | Crossref Full Text | Google Scholar

292. Uribe C, Peterson A, Van B, Fedrigo R, Carlson J, Sunderland J, et al. An international study of factors affecting variability of dosimetry calculations, part 1: design and early results of the SNMMI dosimetry challenge. J Nucl Med. (2021) 62:36S−47S. doi: 10.2967/jnumed.121.262748

PubMed Abstract | Crossref Full Text | Google Scholar

293. Kurkowska S, Frey E, Dewaraja Y, Sunderland J, Uribe C. Impact of segmentation methods on healthy organ and tumor activity estimates for 177Lu-DOTATATE therapy – results from SNMMI 177Lu dosimetry challenge. J Nucl Med. (2024) 65:242502.

Google Scholar

294. Papavasileiou P, Divoli A, Hatziioannou K, Flux GD. The importance of the accuracy of image registration of SPECT images for 3D targeted radionuclide therapy dosimetry. Phys Med Biol. (2007) 52:N539–48. doi: 10.1088/0031-9155/52/24/N01

PubMed Abstract | Crossref Full Text | Google Scholar

295. Grassi E, Fioroni F, Berenato S, Patterson N, Ferri V, Braglia L, et al. Effect of image registration on 3D absorbed dose calculations in 177Lu-DOTATOC peptide receptor radionuclide therapy. Phys Med. (2018) 45:177–85. doi: 10.1016/j.ejmp.2017.11.021

PubMed Abstract | Crossref Full Text | Google Scholar

296. Sjögreen-Gleisner K, Rueckert D, Ljungberg M. Registration of serial SPECT/CT images for three-dimensional dosimetry in radionuclide therapy. Phys Med Biol. (2009) 54:6181. doi: 10.1088/0031-9155/54/20/010

PubMed Abstract | Crossref Full Text | Google Scholar

297. Ao ECI, Wu NY, Wang SJ, Song N, Mok GSP. Improved dosimetry for targeted radionuclide therapy using nonrigid registration on sequential SPECT images. Med Phys. (2015) 42:1060–70. doi: 10.1118/1.4906242

PubMed Abstract | Crossref Full Text | Google Scholar

298. Adam DP, Grudzinski JJ, Bormett I, Cox BL, Marsh IR, Bradshaw TJ, et al. Validation of Monte Carlo 131I radiopharmaceutical dosimetry workflow using a 3D-printed anthropomorphic head and neck phantom. Med Phys. (2022) 49:5491–503. doi: 10.1002/mp.15699

PubMed Abstract | Crossref Full Text | Google Scholar
