Case Report: A case of giant emphysematous bullae successfully treated with percutaneous aspiration and sclerotherapy for staged reduction of pulmonary bullae

Giant emphysematous bullae (GEB) in COPD patients typically require high-risk surgery, with limited and minimally invasive alternatives. This report describes a 70-year-old man with COPD GOLD 3 and bilateral GEB (dominant bulla 8.5 cm× 6.2 cm) who underwent a novel percutaneous serial sclerotherapy protocol: Under CT guidance, a puncture needle was inserted into the bulla cavity on 3 consecutive days, with daily instillation of polidocanol (total 30 mL) and attempted air aspiration (successfully retrieving 1,000 mL of gas on day 3). No pneumothorax, desaturation, or bleeding occurred peri-procedurally. A follow-up CT scan at 3 months demonstrated>70% bullae volume reduction with lung re-expansion, correlating with significant clinical improvement. This first-reported percutaneous aspiration and sclerotherapy for staged reduction of pulmonary bullae (PASS) approach offers a safe, effective, minimally invasive option for GEB management in surgically high-risk COPD patients, warranting further validation of the protocol.

Introduction

Giant emphysematous bullae (GEB), characterized by one or more air-filled spaces occupying at least one-third of a hemithorax and displacing normal lung parenchyma, represent a severe complication of chronic obstructive pulmonary disease (COPD) with an estimated incidence of 2 per million individuals (1). These pathological structures progressively compress functional lung tissue, leading to debilitating dyspnea, hypoxemia, and increased mortality risk (2). Traditional management relies on surgical bullectomy, which—despite being definitive—carries substantial morbidity (15–30%), including prolonged air leaks, respiratory failure, and mortality in high-risk COPD populations (3). While bronchoscopic lung volume reduction techniques (e.g., endobronchial valves and coils) have emerged as minimally invasive alternatives (4), their efficacy is limited by anatomical prerequisites: Valves require intact interlobar fissures (>85% completeness) and target lobe absence of collateral ventilation (5), whereas coil deployment necessitates heterogeneous emphysema distribution (6). Percutaneous approaches offer theoretical advantages for peripheral bullae that are inaccessible to bronchoscopy; however, prior attempts with single-session sclerotherapy (ethanolamine oleate, autologous blood) have yielded inconsistent results due to inadequate cavity collapse or inflammation induction (7–9). Polidocanol—a detergent sclerosing agent widely used in venous malformation therapy—induces fibroblast proliferation and pleural fibrosis through protein denaturation and cytokine-mediated inflammation (10), but its application in GEB remains unexplored. The critical knowledge gap lies in developing a standardized percutaneous protocol ensuring sustained bullae reduction without procedure-related complications (pneumothorax, infection). Herein, we present the first documented case utilizing serial CT-guided polidocanol instillation over three consecutive days, resulting in a significant volume reduction in a surgically ineligible COPD patient.

Case

A 70-year-old man with severe COPD (GOLD stage 3, FEV1 < 48% predicted) and a past medical history significant for hypertension and coronary artery disease status post percutaneous coronary intervention 5 years prior, and 40-pack-year smoking history presented to hospital with recurrent cough, productive sputum, and progressive dyspnea worsening over 12 months despite maximal medical therapy (long-acting muscarinic antagonist/long-acting agonist, inhaled corticosteroids, home oxygen at 2 L/min). Physical examination findings were consistent with severe COPD and the presence of large bullae. There was no significant family history of genetic lung disease (e.g., alpha-1 antitrypsin deficiency) or other relevant psychosocial factors beyond the reported smoking history. Baseline high-resolution computed tomography (HRCT) revealed bilateral giant emphysematous bullae with the dominant lesion measuring 8.5 cm× 6.2 cm in the right upper lobe, compressing adjacent parenchyma (Figure 1A). Following multidisciplinary assessment, the patient—deemed high-risk for surgery due to severe air trapping and chronic hypercapnia—underwent a novel percutaneous aspiration and sclerotherapy for staged reduction of pulmonary bullae (PASS) protocol (Table 1) on the first day, under local anesthesia and CT guidance (Philips, Precedence 16, Netherlands), a puncture needle was directly inserted into the patient’s lung cavity, and polidocanol was injected into the cavity to ensure adequate contact with the pulmonary bullae (Figure 1B). The patient was rotated through prone, supine, and lateral decubitus positions to maximize sclerosing agent contact with bulla walls. On the second day, when the puncture needle was inserted again, an attempt was made to aspirate gas, but it proved challenging, and no reduction in the size of the bullae was observed. The injection of polidocanol into the cavity continued (Figure 1C). On the third day, gas aspiration was successful after inserting the puncture needle into the lung cavity, and polidocanol injection continued (Figure 1D). Peri-procedural monitoring showed stable oxygen saturation (SpO₂ 92–95% on 2 L/min nasal cannula) without pneumothorax or hemodynamic compromise. Post-procedure chest radiographs confirmed the absence of iatrogenic complications. At 3-month follow-up, HRCT demonstrated >70% volume reduction of the dominant bulla (residual size 2.8 cm× 3.1 cm) with re-expansion of compressed lung tissue (Figure 1E), correlating with significant symptomatic improvement: mMRC dyspnea scale decreased from 4 to 2, 6-min walking distance increased from 182 m to 310 m, and chronic oxygen therapy was discontinued. Subjectively, the patient reported a marked improvement in his ability to perform activities of daily living independently and expressed high satisfaction with the procedural outcome.

Figure 1

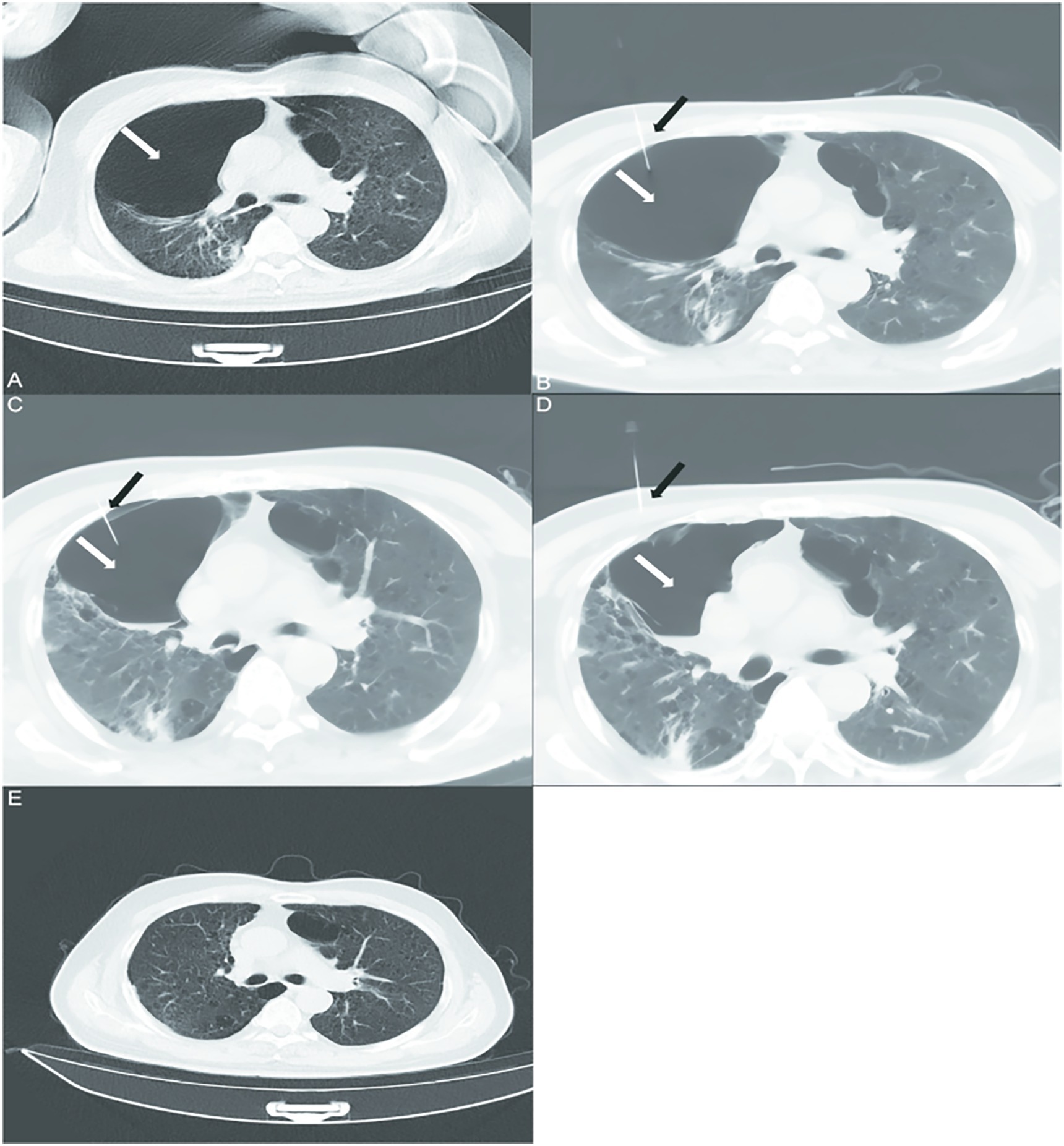

Figure 1. Axial computed tomography scans of the chest in patients with bilateral emphysema and alveoli before and after treatment with percutaneous bullae reduction surgery. (A) Chest CT shows emphysema and pulmonary bullae in both lungs(white arrows). (B–D) A puncture needle (black arrows) was inserted into the patient’s lung cavity on 3 consecutive days, and the air was aspirated and injected with polidocanol. (E) On follow-up chest CT at 3 months of treatment, the patient’s pulmonary alveoli showed significant improvement.

Table 1

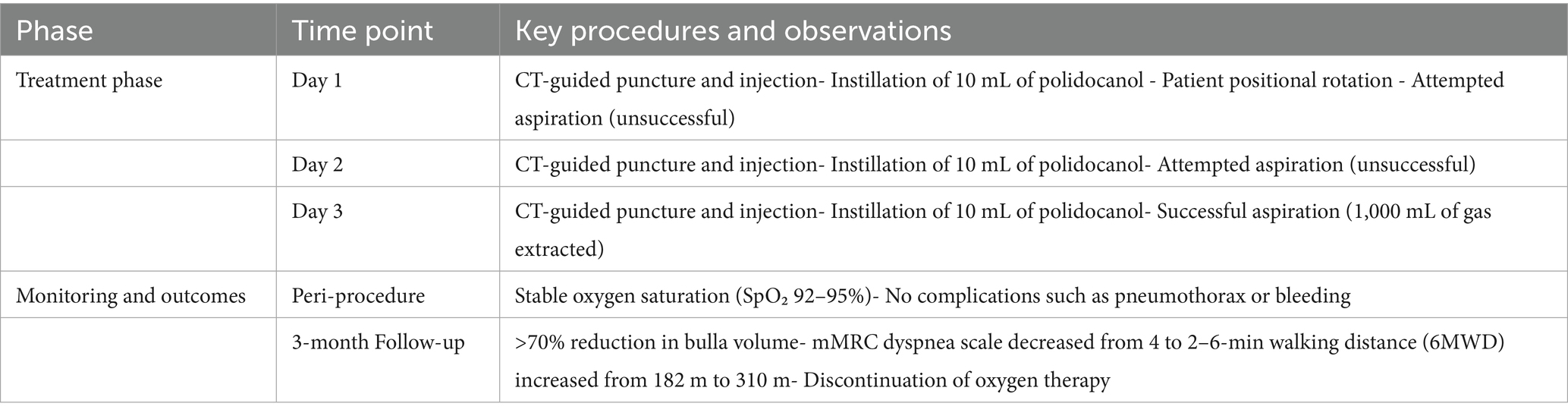

Table 1. PASS protocol: daily procedure summary.

Discussion

Management of symptomatic GEB in advanced COPD patients who are suboptimal candidates for surgery presents a significant therapeutic dilemma. While bronchoscopic lung volume reduction techniques offer a minimally invasive alternative, their application is limited by stringent anatomical criteria, which exclude a substantial proportion of patients (3). Percutaneous sclerotherapy emerged as a potential solution for peripheral bullae, yet historical attempts with single-session agents often yielded suboptimal outcomes due to inadequate cavity collapse or reperfusion (6, 7). The PASS protocol was developed to directly address these limitations through a novel, multi-mechanistic approach (see Figure 2).

Figure 2

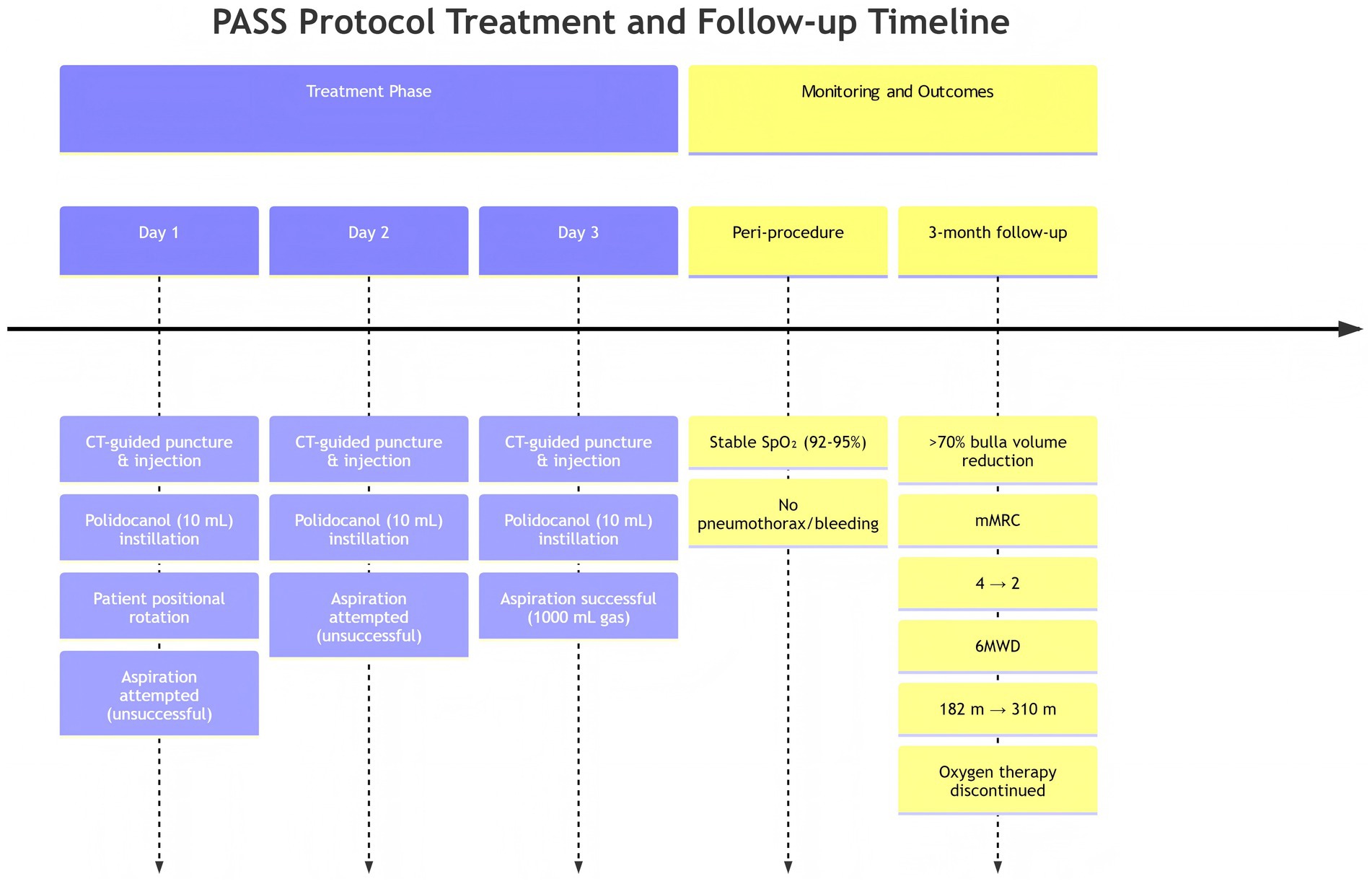

Figure 2. PASS protocol: timeline chart for PASS protocol.

The decision to intervene in GEB remains nuanced. There is consensus that asymptomatic patients, even with large bullae, can often be managed conservatively with observation, as the risks of intervention may outweigh the benefits. Surgical bullectomy or minimally invasive techniques are typically reserved for symptomatic patients who exhibit disabling dyspnea, functional impairment, or complications directly attributable to the bullae, such as recurrent pneumothorax, infection within the bulla, or significant compression of adjacent viable lung parenchyma leading to hypoxemia. Ideal surgical candidates are those with large, dominant peripheral bullae that compress healthy lung tissue, preserved lung function in the non-bullous regions, and an acceptable cardiopulmonary reserve to tolerate the procedure. Our patient, who suffered from progressive dyspnea (mMRC4), functional limitations, and radiographic evidence of lung compression, clearly fell into this symptomatic category yet was deemed unfit for surgery due to his high-risk profile, thus making him an ideal candidate for the PASS protocol. The PASS protocol described here addresses these limitations through several key innovations. First, the use of serial instillation of polidocanol over 3 consecutive days exploits the compound’s fibrogenic properties. Polidocanol, a detergent sclerosant, induces protein denaturation and robust cytokine-mediated inflammation (notably sustained TGF-β1 elevation), leading to fibroblast proliferation and accelerated collagen deposition within the bulla wall (8, 9). Histological studies confirm collagen matrix formation can commence within 72 h of polidocanol exposure (10)—significantly faster than talc (7–10 days) (11). Second, the incorporation of staged aspiration is critical. Attempted aspiration on day 2 facilitated initial decompression, while successful aspiration of 1,000 mL of gas on day 3 capitalized on the evolving inflammatory process and weakened the bulla wall, preventing pressure re-equilibration and promoting sustained collapse. Third, deliberate positional rotation of the patient after each instillation ensured circumferential contact of polidocanol with the bulla epithelium, maximizing the sclerosing effect throughout the cavity—a factor often overlooked in prior techniques.

The selection of a 72-h interval between procedures represents a strategic balance. It allows sufficient time for peak cytokine release (occurring approximately 48 h post-sclerotherapy) (8) to initiate robust inflammation and fibroblast recruitment, yet is brief enough to prevent significant re-epithelialization of the damaged bulla lining. This contrasts with staged talc pleurodesis protocols, which use longer 7-day intervals (11), reflecting the differing pharmacodynamics of the agents. Importantly, despite three transthoracic punctures, the procedure demonstrated an excellent safety profile. The absence of pneumothorax likely relates to the inherent characteristics of giant bullae: Their thick walls provide structural integrity, while the use of a small-gauge needle minimizes parenchymal trauma. This compares favorably to the 28% pneumothorax rate reported for standard CT-guided lung biopsies (12). Furthermore, no desaturation, bleeding, or infection occurred, underscoring the suitability of PASS for surgically high-risk patients, such as those with chronic hypercapnia or severe air trapping.

The clinical and radiological outcomes in this case were compelling. The >70% volume reduction of the dominant bulla at 3 months, confirmed by HRCT, translated into significant symptomatic improvement: a reduction in mMRC dyspnea score from 4 to 2, a near doubling of 6-min walking distance (182 m to 310 m), and liberation from chronic oxygen therapy. This degree of efficacy surpasses that reported in earlier percutaneous sclerotherapy trials. For instance, Saji et al. observed only a 38% volume reduction using fibrinogen-thrombin (6), while Snell et al. noted frequent reperfusion of cavities treated with single-session polidocanol (7). The staged, multi-mechanistic approach to PASS appears crucial for achieving durable collapse.

This report describes the first successful application of the PASS protocol in a single patient. While promising, the efficacy and safety require validation in larger, prospective cohorts with long-term follow-up to assess durability beyond 3 months and identify potential late complications (e.g., infection within the sclerosed cavity). Optimizing the protocol parameters (e.g., ideal sclerosing agent concentration/volume, optimal number of stages, precise aspiration timing) warrants further investigation. Patient selection criteria also need refinement; ideal candidates likely have large, tense, peripheral bullae with thick walls on CT, a compressive functional lung, and no active infection.

Conclusion

The PASS protocol—combining CT-guided percutaneous serial polidocanol sclerotherapy, staged aspiration, and positional rotation—represents a promising, truly minimally invasive therapeutic breakthrough for managing giant emphysematous bullae in high-risk COPD patients unsuitable for surgery or bronchoscopic techniques. This case demonstrates its potential for achieving significant and rapid bulla volume reduction with consequent clinical improvement and an excellent procedural safety profile. Larger clinical trials are warranted to confirm these findings and establish PASS as a viable standard option for this challenging patient population.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author contributions

CL: Software, Writing – original draft, Writing – review & editing. XH: Investigation, Software, Writing – original draft. GJ: Investigation, Writing – review & editing. YJ: Conceptualization, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the grant from by the National Natural Science Foundation of China (82400050), and the Natural Science Foundation of Hunan (2024JJ6270),and Innovation Platform and Talent Plan Project of Hunan Provincial Department of Science and Technology (No. 2023SK4056).

Acknowledgments

The authors express their gratitude to the patient for consenting to the publication of their medical data.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The authors declare that no Gen AI was used in the creation of this manuscript.

Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Gunnarsson, SI, Johannesson, KB, Gudjonsdottir, M, Magnusson, B, Jonsson, S, and Gudbjartsson, T. Incidence and outcomes of surgical resection for giant pulmonary bullae—a population-based study. Scand J Surg. (2012) 101:166–9. doi: 10.1177/145749691210100305

PubMed Abstract | Crossref Full Text | Google Scholar

2. Schipper, PH, Meyers, BF, Battafarano, RJ, Guthrie, TJ, Patterson, GA, and Cooper, JD. Outcomes after resection of giant emphysematous bullae. Ann Thorac Surg. (2004) 78:976–82. doi: 10.1016/j.athoracsur.2004.03.009

Crossref Full Text | Google Scholar

3. Criner, GJ, Sue, R, Wright, S, Dransfield, M, Rivas-Perez, H, Wiese, T, et al. A multicenter RCT of Zephyr endobronchial valve treatment in heterogeneous emphysema (LIBERATE). Am J Respir Crit Care Med. (2018) 198:1151–64. doi: 10.1164/rccm.201803-0590OC

Crossref Full Text | Google Scholar

4. Klooster, K, ten Hacken, NHT, Hartman, JE, Kerstjens, HAM, van Rikxoort, EM, and Slebos, DJ. Endobronchial valves for emphysema without Interlobar collateral ventilation. N Engl J Med. (2015) 373:2325–35. doi: 10.1056/NEJMoa1507807

PubMed Abstract | Crossref Full Text | Google Scholar

5. Deslée, G, Mal, H, Dutau, H, Bourdin, A, Vergnon, JM, Pison, C, et al. Lung volume reduction coil treatment vs usual care in patients with severe emphysema: the REVOLENS randomized clinical trial. JAMA. (2016) 315:175–84. doi: 10.1001/jama.2015.17821

PubMed Abstract | Crossref Full Text | Google Scholar

6. Saji, H, Nakamura, H, Tsuchida, T, Tsuboi, M, Kawate, N, Konaka, C, et al. Percutaneous instillation of fibrinogen and thrombin for bullous emphysema: a pilot study. Chest. (2013) 144:574–80. doi: 10.1378/chest.12-2229

Crossref Full Text | Google Scholar

7. Snell, GI, Holsworth, L, Khorramnia, S, Mestitz, H, Westall, GP, and Williams, TJ. Volume reduction of giant emphysematous bullae after intrabullous instillation of polidocanol: proof of concept. Respirol Case Rep. (2015) 3:118–21. doi: 10.1002/rcr2.126

Crossref Full Text | Google Scholar

8. Yamaki, T, Nozaki, M, Sakurai, H, Takeuchi, M, Soejima, K, and Kono, T. Prospective randomized efficacy of ultrasound-guided foam sclerotherapy compared with ultrasound-guided liquid sclerotherapy in the treatment of symptomatic venous malformations. J Vasc Surg. (2008) 47:578–84. doi: 10.1016/j.jvs.2007.10.052

Crossref Full Text | Google Scholar

9. Saito, M, Chen-Yoshikawa, TF, Nakajima, D, Tanaka, S, and Yamada, Y. Polidocanol induces pleural fibrosis by activating TGF-β1/Smad2 pathway in mesothelial cells. Respiration. (2021) 100:431–9. doi: 10.1159/000514219

Crossref Full Text | Google Scholar

10. Snell, GI, Hopkins, P, Westall, G, Holsworth, L, Carle, A, and Williams, TJ. A feasibility and safety study of bronchoscopic instillation of fibrinogen and thrombin in emphysema (FIT trial). J Bronchology Interv Pulmonol. (2013) 20:33–40. doi: 10.1097/LBR.0b013e31827cc6d4

Crossref Full Text | Google Scholar

11. Watanabe, S, Arai, K, Watanabe, T, Koda, W, and Urayama, H. Staged thoracoscopic talc poudrage pleurodesis for primary spontaneous pneumothorax with persistent air leak. Surg Endosc. (2003) 17:475–8. doi: 10.1007/s00464-002-8818-6

Crossref Full Text | Google Scholar

12. Heerink, WJ, de Bock, GH, de Jonge, GJ, Groen, HJM, Vliegenthart, R, and Oudkerk, M. Complication rates of CT-guided transthoracic lung biopsy: meta-analysis. Eur Radiol. (2017) 27:138–48. doi: 10.1007/s00330-016-4357-8

PubMed Abstract | Crossref Full Text | Google Scholar
