Abstract
Purpose:
To investigate the choroid in patients affected by pseudoxanthoma elasticum (PXE)-related retinopathy using the choroidal vascularity index (CVI).
Methods:
PXE patients and controls were recruited at the Eye Clinic in Florence. High-resolution imaging optical coherence tomography (OCT) scans (12 × 9 mm) of 32 PXE patients and 20 age-matched controls were examined. Images were binarized using the ImageJ software, and subfoveal choroidal thickness (SFCT), luminal area (LA), stromal area (SA), total choroidal area (TCA), and CVI were measured.
Results:
Sixty-four eyes of 32 PXE patients (mean age 45.65 ± 16.12; range 14–69) and 40 eyes of 20 controls (mean age 47.3 ± 13.7; range 18–71) were included in the study. SFCT was significantly lower in PXE patients compared to controls. The LA, SA, and TCA of the PXE patients were significantly reduced in comparison with those obtained for controls (p = 0.012, p < 0.001, and p = 0.001, respectively). On the contrary, the CVI did not significantly differ between patients and controls (p = 0.744). In young subjects, differences regarding SFCT, LA, SA, TCA, and CVI were not detected between PXE patients and healthy controls (p = 0.170, p = 0.990, p = 0.264, p = 0.351, and p = 0.487, respectively).
Conclusion:
In PXE-related retinopathy, choroidal impairment appears progressive with age, and there is a simultaneous, proportional impairment of both the stromal and vascular components of the choroid.
Introduction
Pseudoxanthoma elasticum (PXE; OMIM# 264800) is a rare disease with an estimated prevalence of 1:25,000, typically caused by biallelic pathogenic variants on the ABCC6 gene (–). Typical fundus abnormalities in patients affected by PXE are angioid streaks, peau d’orange/coquille d’oeuf, comet lesions, and optic nerve head drusen, whereas late-onset features are pattern dystrophy-like changes (), chorioretinal atrophy, and choroidal neovascularization (CNV) (–8). Although its exact pathophysiology is unknown, the disease is characterized by systemic calcification and fragmentation of elastic fibers in several organs (9), which also affects Bruch’s membrane (BM) (10, 11). Although the BM is thought to be the most affected eye structure in PXE patients (12–14), previous reports have suggested that the choroid is also involved in the pathogenesis of the disease (15, 16), even if a detailed characterization of the changes occurring in this tissue is lacking. With the advent of optical coherence tomography (OCT) technology, such as enhanced depth imaging (EDI) or swept-source OCT, the visualization of the choroidal structure along with a more accurate measurement of several quantitative parameters is now available. Among these, the measurement of the choroidal thickness has recently gained increasing interest. In fact, few works have analyzed the variations of the choroidal thickness in patients affected by PXE, and they report conflicting results (17, 18). However, this parameter appears to be mostly influenced by different factors such as axial length and aging, revealing that the measurement of the choroidal thickness seems not to be a sensitive biomarker to study choroidal changes.
The choroidal vascularity index (CVI), defined as the ratio of the luminal area (LA) to the total choroidal area (TCA), is a novel parameter that could be used as an alternative biomarker to monitor choroidal changes (19, 20). More precisely, the CVI has been widely used to image the choroid in several diseases such as pachychoroid neovasculopathy, central serous chorioretinopathy, panuveitis, age-related macular degeneration, and choroideremia (19, 21–23).
The analysis of the CVI may give us more detailed information about the whole choroidal structure and provide additional insights into choroidal changes by quantifying both luminal and stromal choroidal components.
The aim of our work was to evaluate the CVI and other OCT-based choroidal parameters in patients affected by PXE and compare them with those in healthy controls.
Materials and methods
In this retrospective cohort study, patients were recruited from the Regional Reference Center for Hereditary Retinal Degenerations at the Careggi Teaching Hospital in Florence. Thirty-two patients affected by PXE were recruited and compared to 20 age- and ethnicity-matched healthy controls.
Subjects were age-matched using the last available examination (if there was follow-up). The latest time-point was also used to produce graphs of age vs. OCT variables.
The present study was conducted in agreement with the Declaration of Helsinki and was reviewed and approved by an institutional review board (local ethics committee, “Comitato Etico Regionale per la sperimentazione clinica della Regione Toscana”) (Project ID: 2018/13014) before the study began. Written informed consent was obtained from each patient before enrollment in both study groups.
The diagnostic criteria for PXE included the presence of characteristic skin alterations, ocular fundus features, genetic test examination, and/or histopathologic findings in dermal biopsies. The genetic examination was performed at the Department of Life Sciences, University of Modena and Reggio Emilia. Rare sequence variants in the ABCC6 gene were detected by Sanger sequencing on genomic DNA isolated from whole blood (QIAamp blood kit, Qiagen GmbH, Hilden, Germany) as previously described (). Skin biopsies obtained from 10 patients were examined. Samples were fixed in 2.5% glutaraldehyde (Electron Microscopy Sciences, Hatfield, PA, USA) in 0.1 M cacodylate buffer at pH 7.4 and successively post-fixed in 1% osmium tetroxide using the same buffer. After dehydration, samples were embedded in Spurr (Electron Microscopy Sciences). Ultrathin sections were mounted on 150 mesh copper grids (Electron Microscopy Sciences) and observed using a Talos F200S G2 transmission electron microscope (Thermo Fisher Scientific, Waltham, MA, USA) (24).
As part of the standard clinical examination, all patients and controls underwent a comprehensive ophthalmological examination, including best corrected visual acuity (BCVA), biomicroscopy of the anterior segment, and fundus examination after dilation with tropicamide 1% eye drops. Color fundus photography (FF450 Retinograph, Carl Zeiss Meditec, Jena, Germany), fundus autofluorescence (FAF), (ultra-widefield digital scanning laser technology, Daytona, Optos, Dunfermline, Scotland, UK), and OCT examinations (DRI OCT Triton; Topcon Corporation, Tokyo, Japan) were obtained. A high-resolution horizontal OCT scan across the fovea was obtained using the swept-source (SS) OCT scans (DRI-OCT Triton; Topcon Corporation, Tokyo, Japan) and chosen for the analysis. Subfoveal choroidal thickness (SFCT) was manually measured at the fovea by two independent, experienced readers (V.M and DP.M) using the caliper tool included in the device. To be precise, SFCT was measured as the distance between Bruch’s membrane [located at the lower edge of the retinal pigment epithelium (RPE)] and the sclera-choroidal interface. The OCT images were binarized and segmented by the same examiners using a public domain software “ImageJ software” (https://imagej.net/Welcome) and using a method previously described (19): the OCT images were opened in ImageJ, and the polygon tool was used to select the region of interest (ROI) across the entire length of the OCT scan. The upper boundary of the ROI was traced along the choroidal-retinal pigment epithelium junction and the lower boundary along the choroidal-scleral junction to identify the TCA. After conversion to an 8-bit image, Niblack’s auto-local threshold was applied in order to binarize the image and demarcate the LA and the stromal area (SA) (a window size/radius of 15 pixels and a k-value of 0.0 were applied); then, the image was converted using the color threshold tool in order to select dark to white pixels. The TCA and the LA were then measured (Figures 1, 2).
Figure 1
Figure 2
To be precise, the TCA was defined as the total area of the ROI examined. The LA was represented by the black pixels and the SA by the white pixels. The SA was measured by subtracting the LA from the TCA. In particular, all measurements were performed independently by two experienced researchers, LP and DG, blinded to the clinical data. Measurements were repeated twice for each image, and the average was used. The CVI was then calculated as the ratio of the LA to the TCA. The mean value of these parameters was considered for the statistical analysis. In order to compare OCT variables between groups, age was centered at its gross mean value (45.6 years) in linear mixed models accounting for within-subject correlation between eyes, as well as multiple time-points, when available. We made this choice since we considered that centering at the mean of overall age improves the robustness of our prediction of age-related changes, avoiding making inference at the border of the data distribution. Values are expressed as mean ± SD. In all analyses, values p ≤ 0.05 were considered statistically significant. In the study, both patients and controls were identified using an anonymous ID. Statistical analyses were performed using Stata version 18.5 (StataCorp, College Station, TX, USA).
Results
All patients received a clinical diagnosis of positive PXE for at least two major phenotypic diagnostic criteria (i.e., skin and ocular manifestations) (25). To further confirm the clinical diagnosis, biomolecular tests were performed on the ABCC6 gene. Homozygous or compound heterozygous for two rare ABCC6 sequence variants were found in 28 patients; in three patients, the second pathogenic variant was not detected; and in one patient, DNA for molecular testing was not available. Dermal biopsy was available for 10 patients: in all cases, ultrastructural analysis revealed collagen fibrils with heterogeneous diameters and the presence of fragmented and calcified elastic fibers in the reticular dermis (Figure 3).
Figure 3
Sixty-four eyes of 32 PXE patients (mean age 45.65 ± 16.12; range 14–69) and 40 eyes of 20 controls (mean age 47.3 ± 13.7; range 18–71) were included in the study. The mean BCVA was 0.22 ± 2.56 logMAR (range 1.4–0) and 0.05 ± 0.14 logMAR (range 0.5–0) with a mean spherical equivalent (SE) of −0.66 ± 2.55 (range −8 to +7) (interquartile range −1.56 to 0) and −0.75 ± 1.89 (range −4.50 to +3) (interquartile range −1.94 to 0) for patients and controls, respectively. SE did not significantly differ between patients and controls. All eyes were phakic.
All patients presented angioid streaks (AS) and peau d’orange (PD). Comet lesions were visible in 40 eyes (40/64; 62.5%) of 20 patients, whereas six eyes (6/64; 9.3%) of four patients displayed optic nerve head drusen. Pattern dystrophy-like changes were detected in 22 eyes (22/64; 34.3%) of 11 patients, while 20 eyes (20/64; 31.2%) of 12 patients presented a history of CNV (bilateral involvement was detected in eight patients). The exact number of intravitreal injections was not available for four patients (4/12), as they had previously been followed up at other centers; for the remaining patients with at least 5-year follow-up, the average number of injections per year was 6.8 (considering both eyes).
In these patients, the type of the ABCC6 sequence variants (e.g., nonsense or missense) was heterogeneous, and therefore, it was not possible to relate the genotype to the severity of the clinical phenotype or the presence/absence of the pattern dystrophy. The clinical and genetic findings are summarized in Table 1.

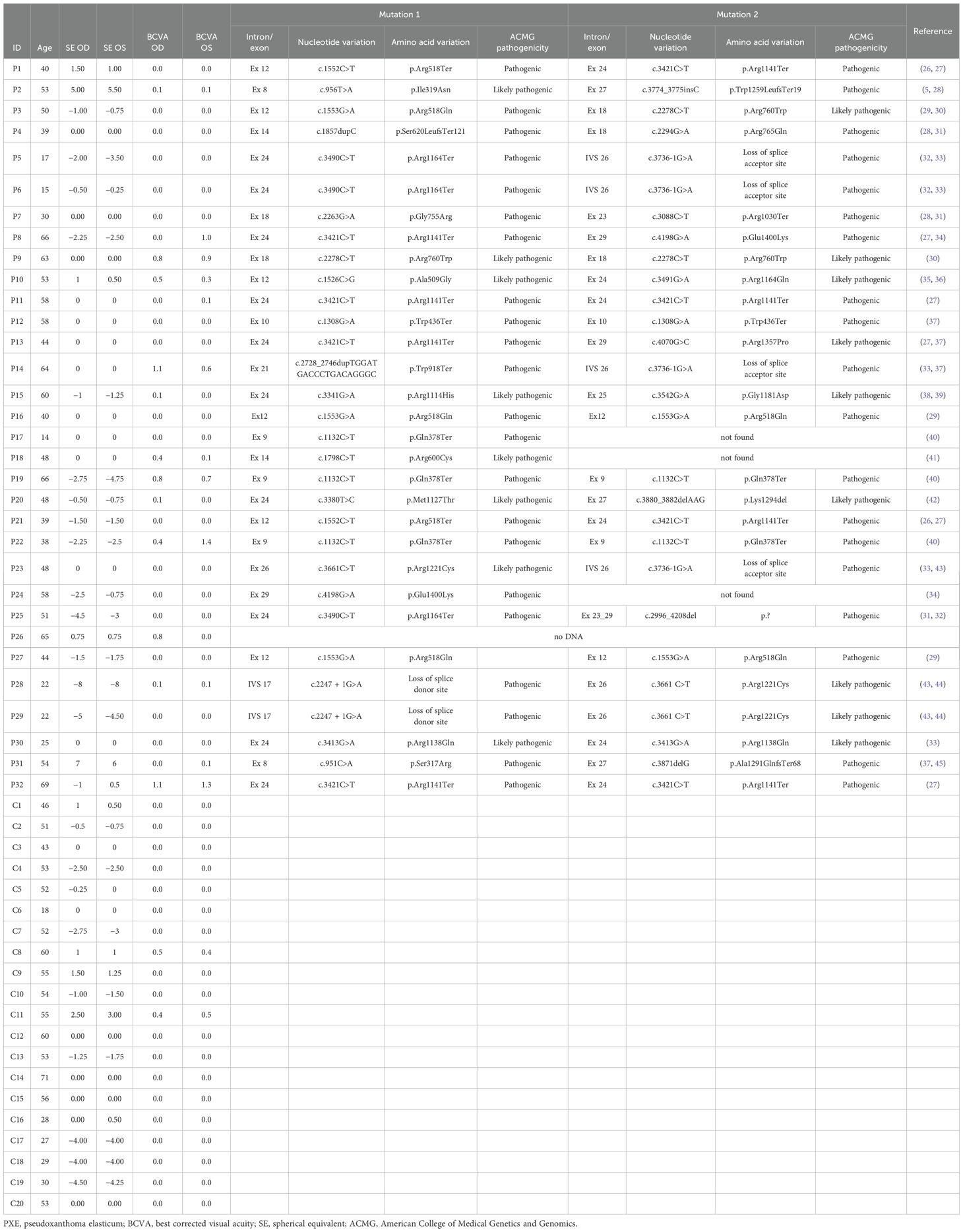

Table 1
| ID | Age | SE OD | SE OS | BCVA OD | BCVA OS | Mutation 1 | Mutation 2 | Reference | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Intron/exon | Nucleotide variation | Amino acid variation | ACMG pathogenicity | Intron/exon | Nucleotide variation | Amino acid variation | ACMG pathogenicity | |||||||
| P1 | 40 | 1.50 | 1.00 | 0.0 | 0.0 | Ex 12 | c.1552C>T | p.Arg518Ter | Pathogenic | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | (26, 27) |
| P2 | 53 | 5.00 | 5.50 | 0.1 | 0.1 | Ex 8 | c.956T>A | p.Ile319Asn | Likely pathogenic | Ex 27 | c.3774_3775insC | p.Trp1259LeufsTer19 | Pathogenic | (, 28) |
| P3 | 50 | −1.00 | −0.75 | 0.0 | 0.0 | Ex 12 | c.1553G>A | p.Arg518Gln | Pathogenic | Ex 18 | c.2278C>T | p.Arg760Trp | Likely pathogenic | (29, 30) |
| P4 | 39 | 0.00 | 0.00 | 0.0 | 0.0 | Ex 14 | c.1857dupC | p.Ser620LeufsTer121 | Pathogenic | Ex 18 | c.2294G>A | p.Arg765Gln | Pathogenic | (28, 31) |
| P5 | 17 | −2.00 | −3.50 | 0.0 | 0.0 | Ex 24 | c.3490C>T | p.Arg1164Ter | Pathogenic | IVS 26 | c.3736-1G>A | Loss of splice acceptor site | Pathogenic | (32, 33) |
| P6 | 15 | −0.50 | −0.25 | 0.0 | 0.0 | Ex 24 | c.3490C>T | p.Arg1164Ter | Pathogenic | IVS 26 | c.3736-1G>A | Loss of splice acceptor site | Pathogenic | (32, 33) |
| P7 | 30 | 0.00 | 0.00 | 0.0 | 0.0 | Ex 18 | c.2263G>A | p.Gly755Arg | Pathogenic | Ex 23 | c.3088C>T | p.Arg1030Ter | Pathogenic | (28, 31) |
| P8 | 66 | −2.25 | −2.50 | 0.0 | 1.0 | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | Ex 29 | c.4198G>A | p.Glu1400Lys | Pathogenic | (27, 34) |
| P9 | 63 | 0.00 | 0.00 | 0.8 | 0.9 | Ex 18 | c.2278C>T | p.Arg760Trp | Likely pathogenic | Ex 18 | c.2278C>T | p.Arg760Trp | Likely pathogenic | (30) |
| P10 | 53 | 1 | 0.50 | 0.5 | 0.3 | Ex 12 | c.1526C>G | p.Ala509Gly | Likely pathogenic | Ex 24 | c.3491G>A | p.Arg1164Gln | Likely pathogenic | (35, 36) |
| P11 | 58 | 0 | 0 | 0.0 | 0.1 | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | (27) |
| P12 | 58 | 0 | 0 | 0.0 | 0.0 | Ex 10 | c.1308G>A | p.Trp436Ter | Pathogenic | Ex 10 | c.1308G>A | p.Trp436Ter | Pathogenic | (37) |
| P13 | 44 | 0 | 0 | 0.0 | 0.0 | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | Ex 29 | c.4070G>C | p.Arg1357Pro | Likely pathogenic | (27, 37) |
| P14 | 64 | 0 | 0 | 1.1 | 0.6 | Ex 21 | c.2728_2746dupTGGATGACCCTGACAGGGC | p.Trp918Ter | Pathogenic | IVS 26 | c.3736-1G>A | Loss of splice acceptor site | Pathogenic | (33, 37) |
| P15 | 60 | −1 | −1.25 | 0.1 | 0.0 | Ex 24 | c.3341G>A | p.Arg1114His | Likely pathogenic | Ex 25 | c.3542G>A | p.Gly1181Asp | Likely pathogenic | (38, 39) |
| P16 | 40 | 0 | 0 | 0.0 | 0.0 | Ex12 | c.1553G>A | p.Arg518Gln | Pathogenic | Ex12 | c.1553G>A | p.Arg518Gln | Pathogenic | (29) |
| P17 | 14 | 0 | 0 | 0.0 | 0.0 | Ex 9 | c.1132C>T | p.Gln378Ter | Pathogenic | not found | (40) | |||
| P18 | 48 | 0 | 0 | 0.4 | 0.1 | Ex 14 | c.1798C>T | p.Arg600Cys | Likely pathogenic | not found | (41) | |||
| P19 | 66 | −2.75 | −4.75 | 0.8 | 0.7 | Ex 9 | c.1132C>T | p.Gln378Ter | Pathogenic | Ex 9 | c.1132C>T | p.Gln378Ter | Pathogenic | (40) |
| P20 | 48 | −0.50 | −0.75 | 0.1 | 0.0 | Ex 24 | c.3380T>C | p.Met1127Thr | Likely pathogenic | Ex 27 | c.3880_3882delAAG | p.Lys1294del | Likely pathogenic | (42) |
| P21 | 39 | −1.50 | −1.50 | 0.0 | 0.0 | Ex 12 | c.1552C>T | p.Arg518Ter | Pathogenic | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | (26, 27) |
| P22 | 38 | −2.25 | −2.5 | 0.4 | 1.4 | Ex 9 | c.1132C>T | p.Gln378Ter | Pathogenic | Ex 9 | c.1132C>T | p.Gln378Ter | Pathogenic | (40) |
| P23 | 48 | 0 | 0 | 0.0 | 0.0 | Ex 26 | c.3661C>T | p.Arg1221Cys | Likely pathogenic | IVS 26 | c.3736-1G>A | Loss of splice acceptor site | Pathogenic | (33, 43) |
| P24 | 58 | −2.5 | −0.75 | 0.0 | 0.0 | Ex 29 | c.4198G>A | p.Glu1400Lys | Pathogenic | not found | (34) | |||
| P25 | 51 | −4.5 | −3 | 0.0 | 0.0 | Ex 24 | c.3490C>T | p.Arg1164Ter | Pathogenic | Ex 23_29 | c.2996_4208del | p.? | Pathogenic | (31, 32) |
| P26 | 65 | 0.75 | 0.75 | 0.8 | 0.0 | no DNA | ||||||||
| P27 | 44 | −1.5 | −1.75 | 0.0 | 0.0 | Ex 12 | c.1553G>A | p.Arg518Gln | Ex 12 | c.1553G>A | p.Arg518Gln | Pathogenic | (29) | |
| P28 | 22 | −8 | −8 | 0.1 | 0.1 | IVS 17 | c.2247 + 1G>A | Loss of splice donor site | Pathogenic | Ex 26 | c.3661 C>T | p.Arg1221Cys | Likely pathogenic | (43, 44) |
| P29 | 22 | −5 | −4.50 | 0.0 | 0.0 | IVS 17 | c.2247 + 1G>A | Loss of splice donor site | Pathogenic | Ex 26 | c.3661 C>T | p.Arg1221Cys | Likely pathogenic | (43, 44) |
| P30 | 25 | 0 | 0 | 0.0 | 0.0 | Ex 24 | c.3413G>A | p.Arg1138Gln | Likely pathogenic | Ex 24 | c.3413G>A | p.Arg1138Gln | Likely pathogenic | (33) |
| P31 | 54 | 7 | 6 | 0.0 | 0.1 | Ex 8 | c.951C>A | p.Ser317Arg | Pathogenic | Ex 27 | c.3871delG | p.Ala1291GlnfsTer68 | Pathogenic | (37, 45) |
| P32 | 69 | −1 | 0.5 | 1.1 | 1.3 | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | Ex 24 | c.3421C>T | p.Arg1141Ter | Pathogenic | (27) |
| C1 | 46 | 1 | 0.50 | 0.0 | 0.0 | |||||||||
| C2 | 51 | −0.5 | −0.75 | 0.0 | 0.0 | |||||||||
| C3 | 43 | 0 | 0 | 0.0 | 0.0 | |||||||||
| C4 | 53 | −2.50 | −2.50 | 0.0 | 0.0 | |||||||||
| C5 | 52 | −0.25 | 0 | 0.0 | 0.0 | |||||||||
| C6 | 18 | 0 | 0 | 0.0 | 0.0 | |||||||||
| C7 | 52 | −2.75 | −3 | 0.0 | 0.0 | |||||||||
| C8 | 60 | 1 | 1 | 0.5 | 0.4 | |||||||||
| C9 | 55 | 1.50 | 1.25 | 0.0 | 0.0 | |||||||||
| C10 | 54 | −1.00 | −1.50 | 0.0 | 0.0 | |||||||||
| C11 | 55 | 2.50 | 3.00 | 0.4 | 0.5 | |||||||||
| C12 | 60 | 0.00 | 0.00 | 0.0 | 0.0 | |||||||||
| C13 | 53 | −1.25 | −1.75 | 0.0 | 0.0 | |||||||||
| C14 | 71 | 0.00 | 0.00 | 0.0 | 0.0 | |||||||||
| C15 | 56 | 0.00 | 0.00 | 0.0 | 0.0 | |||||||||
| C16 | 28 | 0.00 | 0.50 | 0.0 | 0.0 | |||||||||
| C17 | 27 | −4.00 | −4.00 | 0.0 | 0.0 | |||||||||
| C18 | 29 | −4.00 | −4.00 | 0.0 | 0.0 | |||||||||
| C19 | 30 | −4.50 | −4.25 | 0.0 | 0.0 | |||||||||
| C20 | 53 | 0.00 | 0.00 | 0.0 | 0.0 | |||||||||
Clinical and genetic findings of PXE patients and controls.
PXE, pseudoxanthoma elasticum; BCVA, best corrected visual acuity; SE, spherical equivalent; ACMG, American College of Medical Genetics and Genomics.
Regarding mean values of OCT parameters, SFCT was significantly lower in PXE patients compared to controls (218.47 ± 91.17 µm vs. 277.05 ± 59.63 µm; p = 0.031). The LA, SA, and TCA of PXE patients were significantly reduced in comparison to those obtained in controls (0.846 ± 0.29 vs. 1.056 ± 0.21 mm2, p = 0.012; 0.382 ± 0.08 vs. 0.510 ± 0.11 mm2, p < 0.001; and 1.230 ± 0.36 vs. 1.567 ± 0.31 mm2, p = 0.001, respectively). On the contrary, the CVI did not significantly differ between patients and controls (67.60 ± 5.20 vs. 67.58 ± 3.69; p = 0.744) (Table 2).

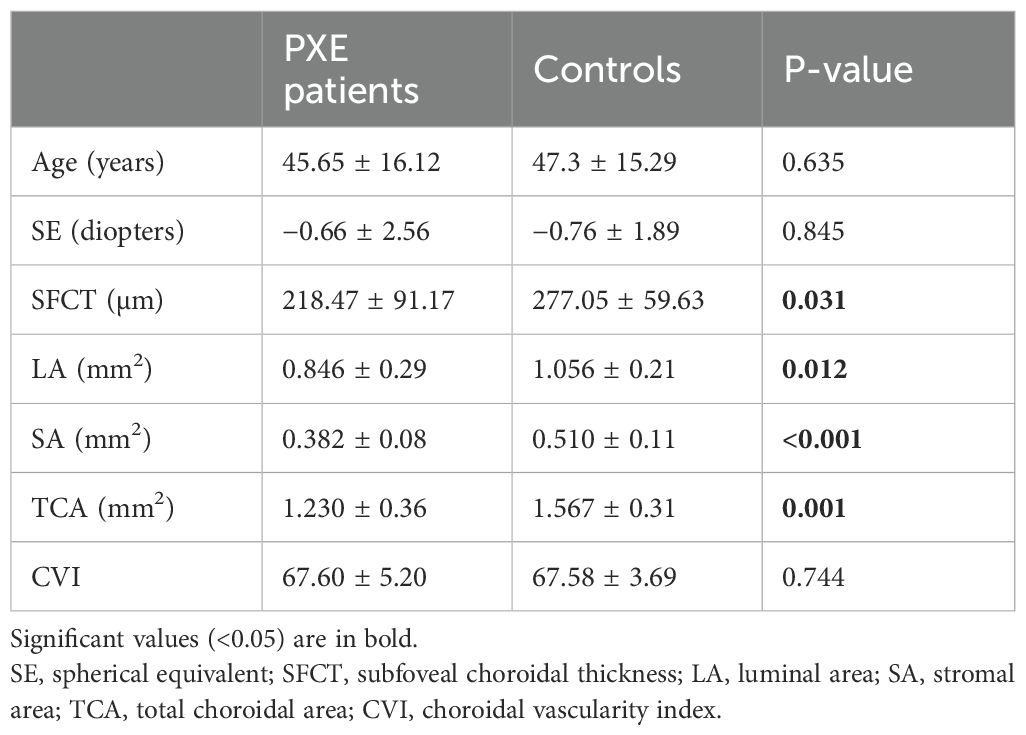

Table 2
| PXE patients | Controls | P-value | |
|---|---|---|---|
| Age (years) | 45.65 ± 16.12 | 47.3 ± 15.29 | 0.635 |
| SE (diopters) | −0.66 ± 2.56 | −0.76 ± 1.89 | 0.845 |
| SFCT (µm) | 218.47 ± 91.17 | 277.05 ± 59.63 | 0.031 |
| LA (mm2) | 0.846 ± 0.29 | 1.056 ± 0.21 | 0.012 |
| SA (mm2) | 0.382 ± 0.08 | 0.510 ± 0.11 | <0.001 |
| TCA (mm2) | 1.230 ± 0.36 | 1.567 ± 0.31 | 0.001 |
| CVI | 67.60 ± 5.20 | 67.58 ± 3.69 | 0.744 |
SFCT, LA, SA, TCA, and CVI between patients and controls.
Significant values (<0.05) are in bold.
SE, spherical equivalent; SFCT, subfoveal choroidal thickness; LA, luminal area; SA, stromal area; TCA, total choroidal area; CVI, choroidal vascularity index.
Furthermore, we took into consideration young patients (≤30 years of age), and we did not detect differences in the values of the SE, SFCT, LA, SA, TCA, and CVI between PXE patients and healthy controls (Table 3).

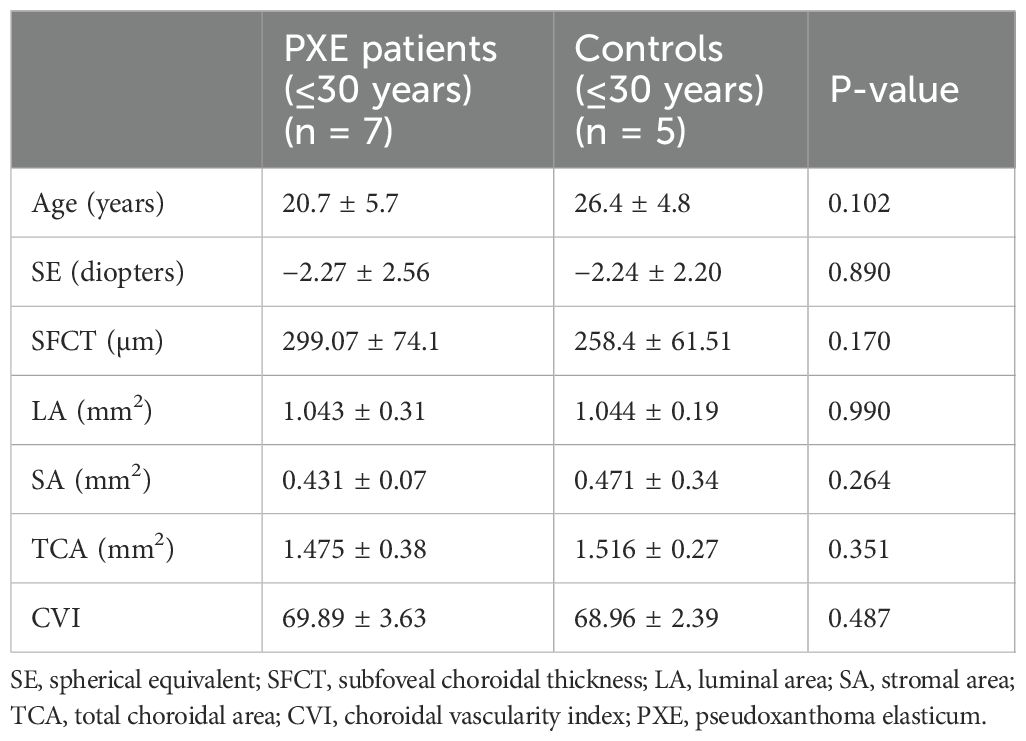

Table 3
| PXE patients (≤30 years) (n = 7) | Controls (≤30 years) (n = 5) | P-value | |
|---|---|---|---|
| Age (years) | 20.7 ± 5.7 | 26.4 ± 4.8 | 0.102 |
| SE (diopters) | −2.27 ± 2.56 | −2.24 ± 2.20 | 0.890 |
| SFCT (µm) | 299.07 ± 74.1 | 258.4 ± 61.51 | 0.170 |
| LA (mm2) | 1.043 ± 0.31 | 1.044 ± 0.19 | 0.990 |
| SA (mm2) | 0.431 ± 0.07 | 0.471 ± 0.34 | 0.264 |
| TCA (mm2) | 1.475 ± 0.38 | 1.516 ± 0.27 | 0.351 |
| CVI | 69.89 ± 3.63 | 68.96 ± 2.39 | 0.487 |
SFCT, LA, SA, TCA, and CVI between PXE patients and controls younger than 30 years.
SE, spherical equivalent; SFCT, subfoveal choroidal thickness; LA, luminal area; SA, stromal area; TCA, total choroidal area; CVI, choroidal vascularity index; PXE, pseudoxanthoma elasticum.
Table 4 shows the differences in OCT parameters between PXE patients and controls at the sample mean age. As explained in the Materials and Methods, they were obtained from a model investigating whether each OCT parameter regression slope differed with age between PXE patients and controls; this was carried out by fitting a group-by-age interaction term.

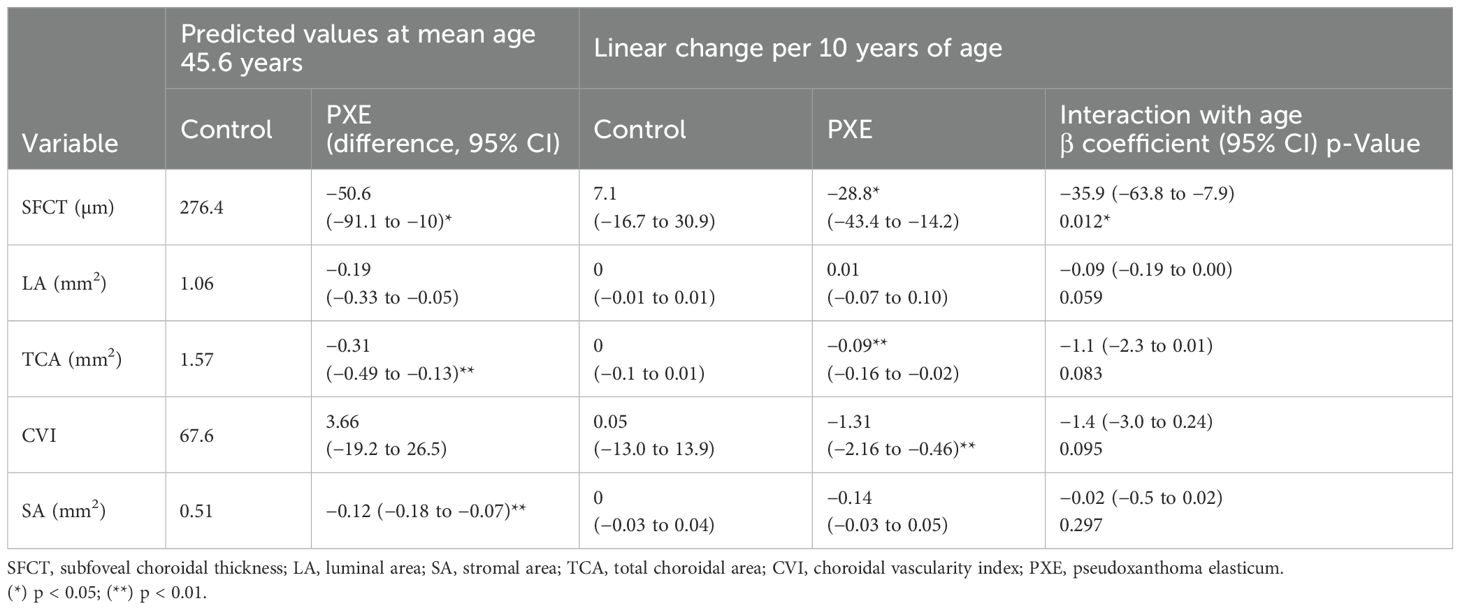

Table 4
| Variable | Predicted values at mean age 45.6 years | Linear change per 10 years of age | |||
|---|---|---|---|---|---|
| Control | PXE (difference, 95% CI) | Control | PXE | Interaction with age β coefficient (95% CI) p-Value | |
| SFCT (µm) | 276.4 | −50.6 (−91.1 to −10)* | 7.1 (−16.7 to 30.9) | −28.8* (−43.4 to −14.2) | −35.9 (−63.8 to −7.9) 0.012* |
| LA (mm2) | 1.06 | −0.19 (−0.33 to −0.05) | 0 (−0.01 to 0.01) | 0.01 (−0.07 to 0.10) | −0.09 (−0.19 to 0.00) 0.059 |
| TCA (mm2) | 1.57 | −0.31 (−0.49 to −0.13)** | 0 (−0.1 to 0.01) | −0.09** (−0.16 to −0.02) | −1.1 (−2.3 to 0.01) 0.083 |
| CVI | 67.6 | 3.66 (−19.2 to 26.5) | 0.05 (−13.0 to 13.9) | −1.31 (−2.16 to −0.46)** | −1.4 (−3.0 to 0.24) 0.095 |
| SA (mm2) | 0.51 | −0.12 (−0.18 to −0.07)** | 0 (−0.03 to 0.04) | −0.14 (−0.03 to 0.05) | −0.02 (−0.5 to 0.02) 0.297 |
Predicted values of the choroidal parameters at the mean age (45.6 years) and linear changes per 10 years of age of SFCT, LA, SA, TCA, and CVI between the study groups.
SFCT, subfoveal choroidal thickness; LA, luminal area; SA, stromal area; TCA, total choroidal area; CVI, choroidal vascularity index; PXE, pseudoxanthoma elasticum.
(*) p < 0.05; (**) p < 0.01.
SFCT differed by approximately 50 μm at the mean age of 46.5 years (p = 0.015). Moreover, the group difference in SFCT decreased with age by −29 μm per 10 years (p = 0.012 for group * age interaction). Significantly lower values of the TCA and SA were also recorded between groups at the mean sample age (p < 0.01). In addition, no OCT parameter showed a significant decrease with age, whereas this was detected for SFCT and also for the TCA and CVI in PXE patients. The consistency of the findings was remarkable for all OCT parameters despite the fact that the group-by-age interaction term was significant only for SFCT and of borderline significance (0.1 < p < 0.05) for the LA, TCA, and CVI; Figure 4 shows the scatterplot and linear fit of the relationship between OCT parameters and age at the last follow-up.

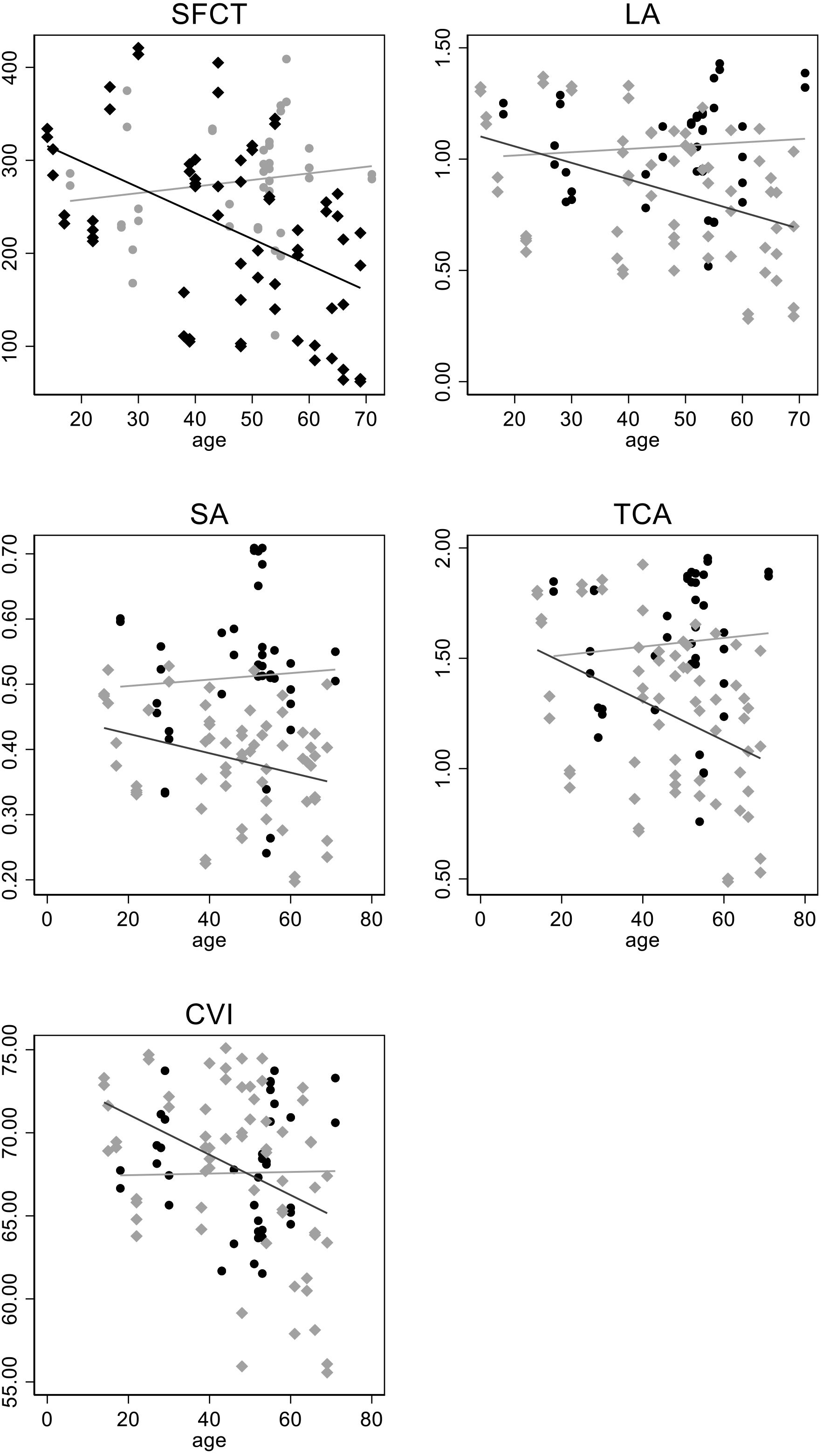

Figure 4
Discussion
In this study, we used the novel binarized technique applied to high-definition OCT scans to investigate the changes occurring in the choroid in PXE patients and to compare them with those in healthy controls. To the best of our knowledge, this is the first study that provides an extensive analysis of the choroidal tissue using the CVI in PXE patients.
In agreement with previous studies (16, 17, 46, 47), we found that SFCT was significantly lower in PXE patients compared to controls. In addition, in our work, we observed that the LA, SA, and TCA were significantly reduced compared to those in controls; therefore, the entire choroidal tissue (vascular and stromal components) was reduced in PXE patients, suggesting that choroidal angiopathy represents a process of PXE-related retinopathy. The exact mechanism of this choroidal thinning is not completely understood, even if changes in the diseased Bruch’s membrane are considered the primary pathologic alteration. More specifically, Gliem et al. (17) revealed that choroidal thinning seemed to follow the centrifugal pattern of BM calcification, suggesting that BM calcification can affect choroidal thickness and is responsible for atrophy of the outer retina and the RPE (, 48). BM calcification probably impedes the diffusion of factors secreted by the RPE, such as vascular endothelial growth factor (VEGF), which are essential for maintaining the integrity of the choroid (17, 47); in fact, histopathologic works have reported atrophic changes and disruptions of the choroid in areas of angioid streaks (49, 50) and suggested a characteristic loss of the choriocapillaris underneath a thickened and calcified BM, while choroidal vessels showed no specific alterations (51). In particular, our study revealed that the choroidal vessels of medium and large caliper were also involved due to the LA and SA abnormalities in PXE patients compared to controls.
From our results, the CVI did not differ between PXE patients and controls. Therefore, we observed a substantial proportional reduction of the vascular network of the choroid and stromal tissue in PXE patients compared to healthy subjects (CVI represents the ratio of the LA to the TCA). This result confirms the hypothesis that Bruch’s membrane could be responsible for the choroid abnormalities: as the vascular and stromal components of the choroid were reduced in the same proportion, it is plausible that this phenomenon could be attributable to the absence of trophic factors derived from the RPE (due to calcified Bruch’s membrane).
In our study, we focused on a subgroup analysis, taking into consideration younger patients (≤30 years of age): all OCT-based choroidal parameters (SFCT, LA, SA, TCA, and CVI) did not differ between the PXE patients and controls; however, this finding must be interpreted with caution due to the limited statistical power resulting from the small sample size in the young patient subgroup. These results suggested that when Bruch’s membrane already shows signs of calcification (as happens in young PXE patients) (14), the choroidal tissue is not yet involved, and normal choroidal vasculature and stroma suggested that BM calcification precedes choroidal changes. These results confirm the pathogenetic hypothesis previously explained about the primary role of a calcified Bruch’s membrane.
In order to compare OCT variables between groups, we centered age at its gross mean value (45.6 years) in linear mixed models accounting for within-subject correlation between eyes as well as multiple time-points, when available.
SFCT showed a significant decrease with age; furthermore, this was also detected for the TCA and LA in PXE patients [significant only for SFCT and of borderline significance (0.1 < p < 0.05) for the TCA and LA]. These data are very interesting because they tell us that the choroidal tissue showed progressive damage in PXE-related retinopathy. Moreover, in elderly people affected by PXE, the CVI seems to decrease with age (it was not statistically significant); this result could be due to the difficult evaluation and measurement of choroidal thickness (and of the LA, SA, and TCA) when the choroidal thickness becomes very thin, as happens in elderly PXE patients. Longitudinal studies are required to confirm all these results. Our study has several strengths, including the use of a standardized data collection, the large sample size for a rare inherited retinal disease such as PXE, and the inclusion of an age- and gender-matched control group.
An important limitation of the study is that the calculation of choroidal parameters was based on single B-scan images rather than volumetric choroidal data; other studies have calculated the CVI using volumetric data derived from multiple consecutive scans or 3D reconstruction (52). This volumetric method may provide a more comprehensive assessment of the entire choroidal structure, potentially capturing regional variations that could be missed in single-scan evaluations. However, it also requires more complex image processing and longer acquisition times, which may not always be feasible in clinical settings. Moreover, volumetric approaches are more dependent on the overall image quality: motion artifacts, poor fixation, or media opacities may affect multiple scans and compromise the reliability of the data. In addition, volumetric protocols are less standardized compared to single subfoveal B-scans, as they vary in terms of grid size, number of scans, and whether segmentation is manual or automated, making inter-study comparisons more difficult. Another limitation is the absence of axial length data, which were not routinely collected. Since choroidal thickness is known to be influenced by AL, the lack of this parameter may represent a potential confounding factor. Furthermore, due to the axial resolution limitations of OCT, subtle differences in choroidal vascularity may not be captured, potentially contributing to the lack of statistically significant differences in the CVI.
In conclusion, our work permitted us to make important considerations: in PXE-related retinopathy, there is a simultaneous, proportional impairment of both the stromal and vascular components of the choroid, and choroidal impairment appears progressive with age.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/supplementary material.
Ethics statement
The studies involving humans were approved by Comitato Etico Regionale per la Sperimentazione Clinica della Regione Toscana. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the minor(s)’ legal guardian/next of kin for the publication of any potentially identifiable images or data included in this article.
Author contributions
DM: Conceptualization, Data curation, Investigation, Methodology, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. VM: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. DG: Conceptualization, Data curation, Investigation, Methodology, Software, Validation, Visualization, Writing – original draft, Writing – review & editing. FB: Conceptualization, Data curation, Investigation, Methodology, Supervision, Validation, Writing – original draft, Writing – review & editing. LPa: Conceptualization, Data curation, Investigation, Methodology, Writing – original draft, Writing – review & editing. DQ: Conceptualization, Funding acquisition, Methodology, Supervision, Validation, Writing – original draft, Writing – review & editing. AS: Conceptualization, Supervision, Writing – original draft, Writing – review & editing. MB: Data curation, Investigation, Visualization, Writing – original draft, Writing – review & editing. LPo: Data curation, Investigation, Writing – original draft, Writing – review & editing. GV: Conceptualization, Methodology, Project administration, Supervision, Validation, Writing – original draft, Writing – review & editing. FG: Conceptualization, Supervision, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research and/or publication of this article. This work was supported by a grant from PXE Italia ODV.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
