REVIEW article

Front. Physiol., 18 February 2022
Sec. Physio-logging
This article is part of the Research Topic Robust, Reliable and Continuous Assessment in Health: The Challenge of Wearable and Remote Technologies View all 9 articles

Contactless Vital Signs Monitoring From Videos Recorded With Digital Cameras: An Overview

  • 1Unit of Measurements and Biomedical Instrumentation, Departmental Faculty of Engineering, Università Campus Bio-Medico di Roma, Rome, Italy
  • 2BHOHB – Biometrical Holistic of Human Body S.r.l., Rome, Italy

The measurement of physiological parameters is fundamental to assess the health status of an individual. The contactless monitoring of vital signs may provide benefits in various fields of application, from healthcare and clinical setting to occupational and sports scenarios. Recent research has been focused on the potentiality of camera-based systems working in the visible range (380–750 nm) for estimating vital signs by capturing subtle color changes or motions caused by physiological activities but invisible to human eyes. These quantities are typically extracted from videos framing some exposed body areas (e.g., face, torso, and hands) with adequate post-processing algorithms. In this review, we provided an overview of the physiological and technical aspects behind the estimation of vital signs like respiratory rate, heart rate, blood oxygen saturation, and blood pressure from digital images as well as the potential fields of application of these technologies. Per each vital sign, we provided the rationale for the measurement, a classification of the different techniques implemented for post-processing the original videos, and the main results obtained during various applications or in validation studies. The available evidence supports the premise of digital cameras as an unobtrusive and easy-to-use technology for physiological signs monitoring. Further research is needed to promote the advancements of the technology, allowing its application in a wide range of population and everyday life, fostering a biometrical holistic of the human body (BHOHB) approach.

Introduction

The measurement of physiological parameters is pivotal to evaluate the health status of an individual quantitatively. Among the wide range of measurable physiological data, the five vital signs routinely monitored in the clinical practice are the respiratory frequency or breathing rate (fR), the pulse or heart rate (HR), the blood pressure (BP), the blood oxygen saturation (SpO2) and the body temperature (BT; Elliott and Coventry, 2012).

Typically, physiological parameters are measured or estimated using contact-based devices that require direct contact with the skin and human body. Moreover, the different vital signs are usually retrieved from raw signals recorded in various body landmarks (e.g., fR with flow sensors at the level of the mouth (Schena et al., 2015), HR from the electrocardiogram signal recorded via skin-attached electrodes (Kranjec et al., 2014), SpO2 from the blood volume variations at the level of the finger with the photoplethysmographic (PPG) sensors (Yoon et al., 2002), and BP with a cuff-based measuring system at the level of the upper arm (Chung et al., 2013). However, these contact-based techniques may have some drawbacks, such as loss of contact, skin irritations, or damage in subjects with vulnerable and fragile skin (Harford et al., 2019; Paul et al., 2020), may compromise the reliability of measurements, and in some cases, they may not be employable for long duration and remote continuous monitoring (Kebe et al., 2020).

To overcome these issues, non-contact techniques for estimating one or more vital signs even remotely are gaining much interest (Massaroni et al., 2019b, 2021). Numerous are the fields of application in which these technologies can be suitable and advantageously employed, from healthcare and telemedicine (Zhao et al., 2013) to occupational settings (Massaroni et al., 2019a), sport science (Nicolò et al., 2020), automotive field (Zhang et al., 2017), emotion recognition (Grassmann et al., 2016; McDuff et al., 2016), and in everyday situations where unobtrusiveness and ease to use can be favorable without neglecting an adequate level of measurement’s reliability and accuracy (Hall et al., 2017). Contactless technologies for physiological monitoring are numerous and based on heterogeneous operating principles, with different levels of non-invasiveness required to capture the signals and users’ comfort (Sun, 2011; Tarassenko et al., 2014; Zhang et al., 2017; Massaroni et al., 2019a; Rossol et al., 2020).

Besides the plethora of available technologies, some promising technologies are based on retrieving valuable signals from the external surface of the body to estimate the values of fR, HR, SpO2, and BP, as Doppler radar (Boric-Lubecke et al., 2009), optical vibrocardiography (Morbiducci et al., 2007), thermal imaging (Garbey et al., 2004), Laser Doppler Vibrometry (LVD; Antognoli et al., 2020). Such techniques allow the contactless measurement of the physiological parameters without interfering with the comfort of the subject, facilitating the monitoring of physiological signs even in challenging conditions (e.g., ambient lighting and different skin tones; Hassan et al., 2017b; Shirbani et al., 2020). The only disadvantage of such techniques is the need for dedicated hardware and complex setups for measurement.

A simple video captured with a digital camera working in visible light wavelength range (approximately 380–750 nm; i.e., the optical sensors embedded in smartphones, modern security surveillance cameras, laptop webcams) can be used to retrieve physiological-related signals from different body areas (Tarassenko et al., 2014; Massaroni et al., 2018b; Antognoli et al., 2019; Rossol et al., 2020). The face and the torso provide a good trade-off between unobtrusiveness and sensitivity to cardiorespiratory changes, thus enabling the monitoring of all the other vital signs even in daily-life conditions.

The use of cameras in the visible range is attracting increasing attention within the scientific community for a wide range of healthcare applications and services. Systematic reviews exclusively focused on digital image processing techniques for the estimation of various physiological parameters (e.g., Khanam et al., 2019), as well as on specific measurement techniques (e.g., remote photoplethysmography) to estimate a limited number of parameters (Sun and Thakor, 2016; Zaunseder et al., 2018) are already present in literature. Different from what is already available, this review aims to provide a complete overview of possible use of digital cameras working in visible light wavelength range to monitor all the vital signs, specifying guidelines for using this technology and the raw signals in the different scenarios (from clinical to sports science settings) and providing an overview of current research evidence, gaps and potential developments in the field. This review investigates principles, methods and applications which were published in international journals and conferences from 2011 until 2021. Papers were searched in Digital Library and Bibliographic Search databases (e.g., Google Scholar, SCOPUS, and PubMed) with the following terms combinations: “remote,” “contactless,” “non-contact,” “video,” “camera-based,” “vital signs,” “physiological parameters,” “cardio-respiratory,” “respiratory,” “breathing,” “heart rate,” “pulse rate,” “photoplethysmography,” “SpO2,” “blood oxygen saturation,” “blood pressure,” “body temperature,” “skin temperature” in titles and abstracts. To be focused on the specific technology and its fields of application, studies using NIR/IR cameras, depth cameras, multi-camera systems working in the IR wavelength range—typically used for motion capture—were not included in the present review.

The review is structured in the following sections. The section Cardiorespiratory physiology provides basic introductory principles on body movements and vascularization of the face and hands to understand the physiological basis underneath the non-contact physiological monitoring through visible light. In the section Measurement of physiological parameters from visible light-exposed surface of the body, the main methods used to extract the different parameters are described. Then the section Monitoring of physiological parameters and possible fields of application summarizes the most important studies that use digital cameras to estimate the main vital signs (i.e., fR, HR, SpO2, BP) in different scenarios. A brief introduction on the importance of monitoring in different scenarios is provided for each parameter, along with the advantages of using remote monitoring in these settings. Finally, the last section is dedicated to Conclusions, where problems, current research gaps, potential developments in the field are reported.

Cardiorespiratory Physiology

The measurement of physiological parameters from external surface of the body is mainly related to the cardiorespiratory activity and the characteristics of both the respiratory and cardiovascular systems.

The respiratory system is composed primarily of the chest wall, lungs, and diaphragm (Figure 1A). When dealing with the need for external recording of breathing-related movements, the chest wall is surely the best measurement site. In terms of the mechanics of pulmonary ventilation, the lungs can be expanded and contracted in two manners: (i) through the downward and upward movement of the diaphragm allowing the extension and the contraction of the chest cavity; (ii) through the elevation and depression of the ribs to increase and decrease the diameter of the chest cavity. Normal quiet breathing is performed entirely by the movement of the diaphragm: during inspiration, the lungs are pulled downward by the contraction of the diaphragm, then during expiration, the diaphragm relaxes, and the compression of the lungs and the consequent exhalation of the air is facilitated by the elastic recoil of the lungs, chest wall, and abdominal structures. The raising of the rib cage allows the expansion of the lungs since, in the natural resting position, the ribs incline downward, allowing the sternum to move backward toward the vertebral column. When the rib cage is elevated, the ribs are directly forward; thus, the sternum moves forward away from the vertebral column, making the anteroposterior thickness of the chest greater during the maximum inspiration than during expiration (Hall and Guyton, 2011).

FIGURE 1
www.frontiersin.org

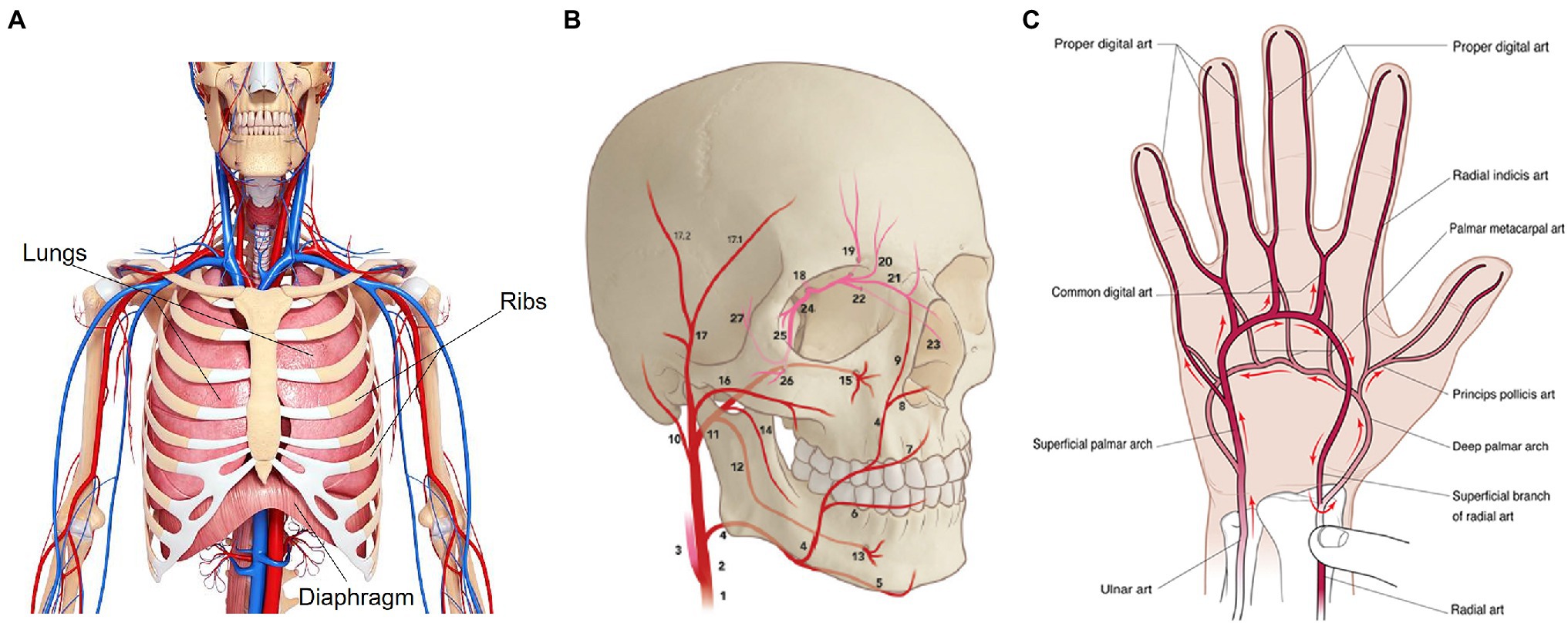

Figure 1. Anatomy of the respiratory system (A), face (B; adapted from von Arx et al., 2018), and hand (C) vascularization (from Habib et al., 2012). In (B), numbers indicate the main arteries that carry the blood to the forehead and cheeks, specifically: common carotid artery (1), external carotid artery (2), internal carotid artery (3), facial artery (4), transverse facial artery (16), superficial temporal artery (17) and frontal branch (17.1), ophthalmic artery (18).

The cardiovascular system aims to transport the blood throughout the body, and it is composed of the heart, which pumps blood, and the circulatory system. The circulatory system comprises arteries, capillaries, and veins, which contribute to maintaining the body’s tissues in healthy conditions. In this case, the face and upper extremities like hands are surely of interest for measuring cardiovascular-related phenomena with digital cameras. The systemic circulation carries the oxygenated blood from the heart to the rest of the body and transports the deoxygenated blood back to the heart to begin the process again (Al-Naji et al., 2017). Throughout the systemic circulation, there are some physical changes of vascularity (e.g., skin blanching, ecchymosis, hematoma, and edema) that are mainly visible in the face and in the palm’s hand, which are the most exposed part of the body. The supply arteries of the face are originated from the bilateral common carotid artery that starts on the right side from the brachiocephalic artery and the left side from the aorta. The common carotid artery divides into internal and external carotid arteries at the fourth cervical vertebral body level. The main arteries of the face arise either from the superficial carotid artery or from branches of the external carotid artery. Still, the major contributor to the forehead is the ophthalmic artery (i.e., artery of the orbit) originating from the internal carotid artery. Focusing on the arterial vascularization of the forehead, the frontal branch of the superficial temporal artery, with a mean diameter of about 2 mm, is the largest supplier compared to the other arteries. Instead, the main blood supply for the cheeks is from arterial perforators that originate from the transverse facial artery and the facial artery (von Arx et al., 2018; Figure 1B). The main arteries bringing oxygenated blood to the hand are the radial and ulnar arteries, the brachial artery’s terminal division. The hand has numerous networks of vessels to guarantee a proper blood flow (Nguyen and Duong, 2020). Concerning the palm’s hand, the vascular supply is derived from the superficial and the deep palmar arches (Habib et al., 2012). The superficial palmar arch is a progression of the ulnar artery and lies superficial to the flexor tendons, while the deep palmar arch, lying in the flexor tendons, is originated from the dorsal branch of the radial artery (Tan and Lahiri, 2020). The princeps pollicis artery, which supplies the thumb and the branches that communicate with the common digital arteries are originated from the deep palmar arch (Tan and Lahiri, 2020; Figure 1C).

Measurement of Physiological Parameters From Visible Light-Exposed Surface of the Body

The physiological and physical effects deriving from the cardiorespiratory activity are essential for measuring and monitoring physiological parameters from the external surface of the body without contact. It is worth clarifying that the available scientific literature does not provide sufficient evidence about the estimation of BT from the post-processing of signals recorded with digital cameras in the visible light range (Cheng et al., 2017). For this reason, the use of cameras for BT measurement will not further explored in this review.

Although the existing methods for the post-processing of the video images may be different depending on the different parameter of interest (fR, HR, SpO2, BP), all can be classified as either color intensity-based or motion-based methods.

Color-based methods rely on the detection of subtle skin color changes due to the cyclical movement of the blood. The signal associated with these changes is a plethysmographic (i.e., PPG) signal, which is typically called remote-PPG (sometimes reported as rPPG) or imaging-PPG (i-PPG in short). rPPG is based on the principle that blood absorbs light more than the surrounding tissue, so blood volume variations affect light transmission and reflectance (Verkruysse et al., 2008). The estimation of cardiac-related parameters depends on the acquisition of a rPPG signal, which is obtained by analyzing the intensity changes of the pixels in the green color channel since the hemoglobin has high ability of absorption in this channel (Davila et al., 2017). When the HR is estimated from rPPG it is typically termed as pulse rate (i.e., PR). Nevertheless, we prefer to use the term HR from here on out to avoid misunderstanding in the reading. Even fR can be estimated from the rPPG signal, as the respiratory activity modulates the cardiac activity (Bernardi et al., 2001). With respect to HR, the measurement of SpO2 requires light at two different wavelengths. SpO2 is defined as the ratio between the oxygenated hemoglobin (HbO2) and the total amount of hemoglobin (i.e., deoxygenated and oxygenated hemoglobin), which can be optically distinguished by the different absorption of light at two different wavelengths [i.e., oxyhemoglobin has high absorption at infrared light (IR) and deoxyhemoglobin has a higher absorption at red light; Foo et al., 2013]. Considering the rPPG signal, the intensity changes of the pixels in the red color channel and in the blue color channel can be used to compute the ratio of the absorbances at the two wavelengths (de Fatima Galvao Rosa and Betini, 2020) as they correspond to the red light (i.e., λ1 = 660 nm) and the IR light (i.e., λ2 = 940 nm), respectively.

Motion-based methods are those based on the detection of small-amplitude movements recorded by a video camera (Al-Naji et al., 2017). The monitoring of respiratory-related parameters relies on the detection of the thorax movements caused by the breathing activity. Since the movement of the recorded surface (i.e., chest wall movements due to the respiratory activity) affects the changes of intensity of the pixels, the resulting changes of the reflected light intensity may be used to collect breathing patterns and related parameters indirectly (Massaroni et al., 2018b, 2019a). Another approach is related to the detection of optical flow which can be used to detect the chest surface movement (Ganfure, 2019; Massaroni et al., 2019c). Optical flow allows computing the displacement between two consecutive images by tracking the features of the images (Mateu-Mateus et al., 2020). For the estimation of cardiac-related parameters, a motion-based method is based on the detection of the head motions due to the movement of the blood from the heart to the head (sometimes known as ballistocardiography, BCG). Feature tracking can be used to extract the motion of the head, and the vertical direction is the best axis to measure the upright movement of the head (Balakrishnan et al., 2013).

When the visible light is used, a digital camera is needed to implement a video camera imaging measuring technique. The working principle of this technique is based on the use of an optical sensor that records a video of the face, palm’s hand, and/or chest of a subject. When a surface is recorded by a video, the pixel of each video’s frame has an intensity level due to the light reflected by the surface over a two-dimensional grid of pixels. These intensity levels represent a digital image that is obtained through optical sensors, like Charge Coupled Device (CCD) or Complementary Metal-Oxide Semiconductor (CMOS) sensors, which convert the light radiations into electronic signals.

In Figure 2 is reported a schematic representation of the main measurement sites of the body and the main steps to retrieve the valuable signal for the estimation of the vital signs.

FIGURE 2
www.frontiersin.org

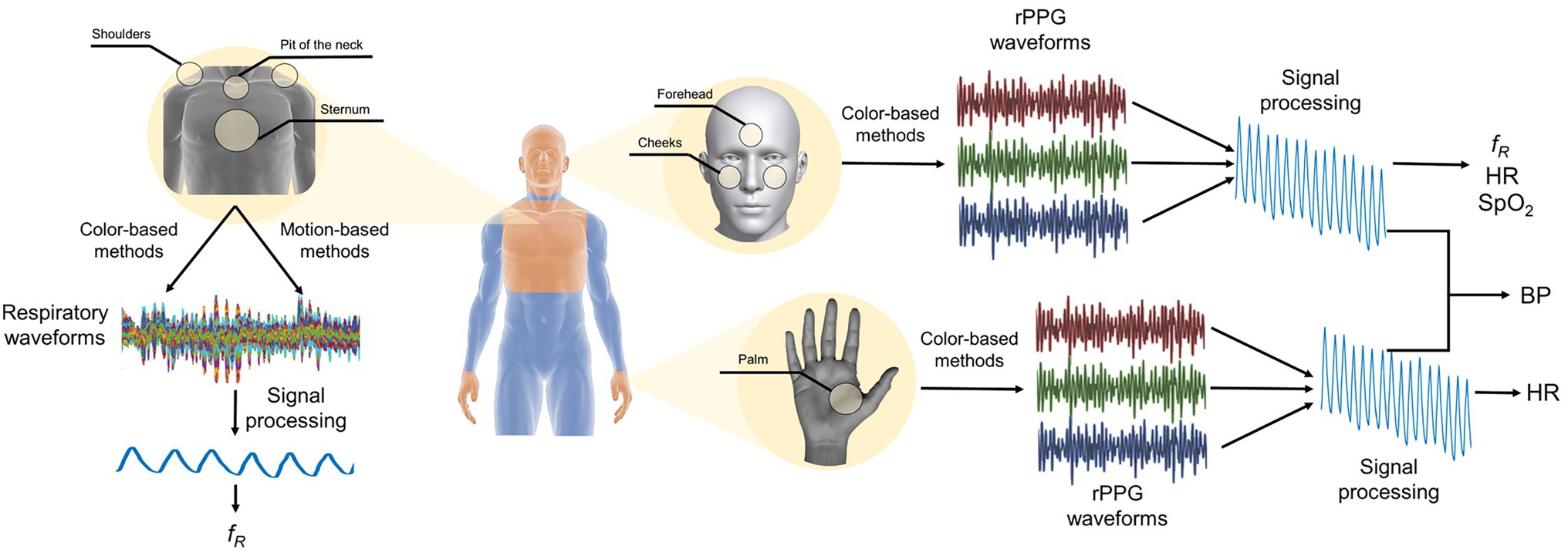

Figure 2. Measurement sites of the body and principal steps for extracting fR, HR, SpO2, and BP.

Monitoring of Physiological Parameters and Possible Fields of Application

Respiratory Frequency and Other Respiratory Parameters

The measurement of respiratory parameters mainly relies on chest wall movements, which are affected by both the cardiovascular and respiratory activities. During the inspiration and expiration, the chest wall moves to allow the expansion and contraction of the lungs. The chest wall is considered as a structure comprising two compartments, the rib cage, and the abdomen, that experience different displacements during respiratory activity. During the inspiration, the rib cage mainly moves in the ventral and cranial directions with a displacement in the range of 3–5 mm (Massaroni et al., 2017). Lateral movements outward are very small, between 1 and 2 mm, that are useful for the elevation of the ribs (de Groote et al., 1997). The abdomen mainly moves in the ventral direction so that it becomes circle during inspiration. At the end of the expiration, the ratio between the dorsoventral and transverse diameters is smaller for the rib cage than for the abdomen. Indeed, the abdominal cross section is near a circle than the rib cage cross section (de Groote et al., 1997). By recording these cyclical movements through a digital camera, a respiratory pattern can be obtained by analyzing the changes in the intensity level of the pixels of each frame of the video (Massaroni et al., 2019a). Moreover, the respiratory activity has a modulatory effect on the cardiac activity (Bernardi et al., 2001): when a person inhales, the HR tends to increase, whereas when a person exhales, the HR tends to fall. That is the reason why the fR can be extracted from rPPG signals (Chen et al., 2019b). Furthermore, as reported in (van Gastel et al., 2016), the respiration modulates the rPPG waveform in three ways: (i) respiratory induced frequency variation (RIFV); (ii) respiratory induced intensity variation (RIIV); (iii) respiratory induced amplitude variation (RIAV). However, this field of research is still little investigated (Wang and den Brinker, 2022). Beyond chest wall movements and modulation of the cardiac activity, uncommonly breathing waveform could be extracted from the shoulder movements (Liu et al., 2017), from nostril movements (Mehta and Sharma, 2020) and consequent head motion (Chen, 2018).

When digital cameras are used, the experimental setting often consists of placing a stable digital video camera in front of the user. The digital cameras used for capturing videos are mainly commercial cameras like webcams (Liu et al., 2017; Massaroni et al., 2018b), and portable device cameras (Karlen et al., 2015; Brieva et al., 2018). Different distances between camera and the user can be employed. The most common is about 1 m that allows recording breathing-related movements with frontal camera of laptop or tablet in a variety of settings (van Gastel et al., 2016; Massaroni et al., 2018a; Antognoli et al., 2019; Rossol et al., 2020). When a digital camera is used, both the framerate and resolution parameters are most important. According to the sampling theorem, a minimum sampling rate of 4 frames per second (hereinafter fps) should be guaranteed under the hypothesis that the human breathing frequency lies between 0.1 and 2 Hz (in the case of newborns; Antognoli et al., 2019; Nicolò et al., 2020). Thirty fps is the most used setting even because most of cameras work on this range. Considering the video resolutions, typically videos utilize the standard 640 × 480 pixels/frame resolution even if someone employs higher resolutions, such as 1280 × 720 pixels/frame or 1920 × 1080 pixels/frame (Ganfure, 2019; Schrumpf et al., 2019; Massaroni et al., 2019a).

The region of interest (ROI) that can be used to extract the respiratory rate and other relevant respiratory features are the torso and the face (Figure 2). In the case of the torso, different areas are used as ROI as the pit of the neck (Massaroni et al., 2018a), the sternum (Massaroni et al., 2019c), the shoulders (Liu et al., 2017). Typically, the individuation of the ROI only in the first frame is sufficient to perform continuous monitoring of the torso movement caused by the breathing activity (Massaroni et al., 2019a) even if approaches based on the continuous tracking of the selected ROI are available in the literature (Shao et al., 2014). Once a ROI has been identified, two different approaches can be used to retrieve a respiratory trace: (i) the analysis of the intensity changes of pixels in the selected ROI (Massaroni et al., 2019a); (ii) the estimation of optical flow along the image gradients (Janssen et al., 2015). The analysis of the intensity changes of the pixels is related to the decomposition of the ROI into three images in the three-color channel (i.e., red, green, and blue). Considering the torso as ROI, the respiratory trace is obtained by averaging the intensity components along with each raw of the ROI (Massaroni et al., 2018b; Figure 3A), while considering the face, the respiratory pattern is retrieved from the rPPG signal since the cardiac activity is modulated by the breathing activity (van Gastel et al., 2016; Chen et al., 2019b; Figure 3B). The estimation of optical flow along the image gradients allows detecting the chest’s motion assuming that the brightness of a feature point in two consecutive frames is the same. The breathing pattern is determined by considering only the flow in the vertical direction (Bartula et al., 2013; Liu et al., 2017; Massaroni et al., 2019c). In some studies, the magnification of the local chest wall movements can be carried out to amplify these movements allowing the detection of little breathing motions (Alinovi et al., 2018; Antognoli et al., 2019). Eulerian Video Magnification (EVM) is the most used algorithm to obtain an amplified video (Wu et al., 2012) which is based on the combination of spatial and temporal processing to accentuate subtle temporal changes in a video. After the application of EVM, the respiratory trace can be obtained by analyzing the intensity changes of pixels (Alinovi et al., 2018; Antognoli et al., 2019) or by analyzing the motion signals retrieved from the magnified videos (see (Alinovi et al., 2018) for more details). When the respiratory pattern is extracted from the head motion, deep-learning techniques (i.e., DeepPhys) can be used to overcome the brightness constancy constraint necessary for optical flow accurate measurements. In (Chen, 2018) the appearance information in video such as the color and texture of the human skin guide the choice on where and how the physiological motions must be estimated. Although there is a reduction in the mean absolute error on average fR compared with (Tarassenko et al., 2014), this method requires a learning phase.

FIGURE 3
www.frontiersin.org

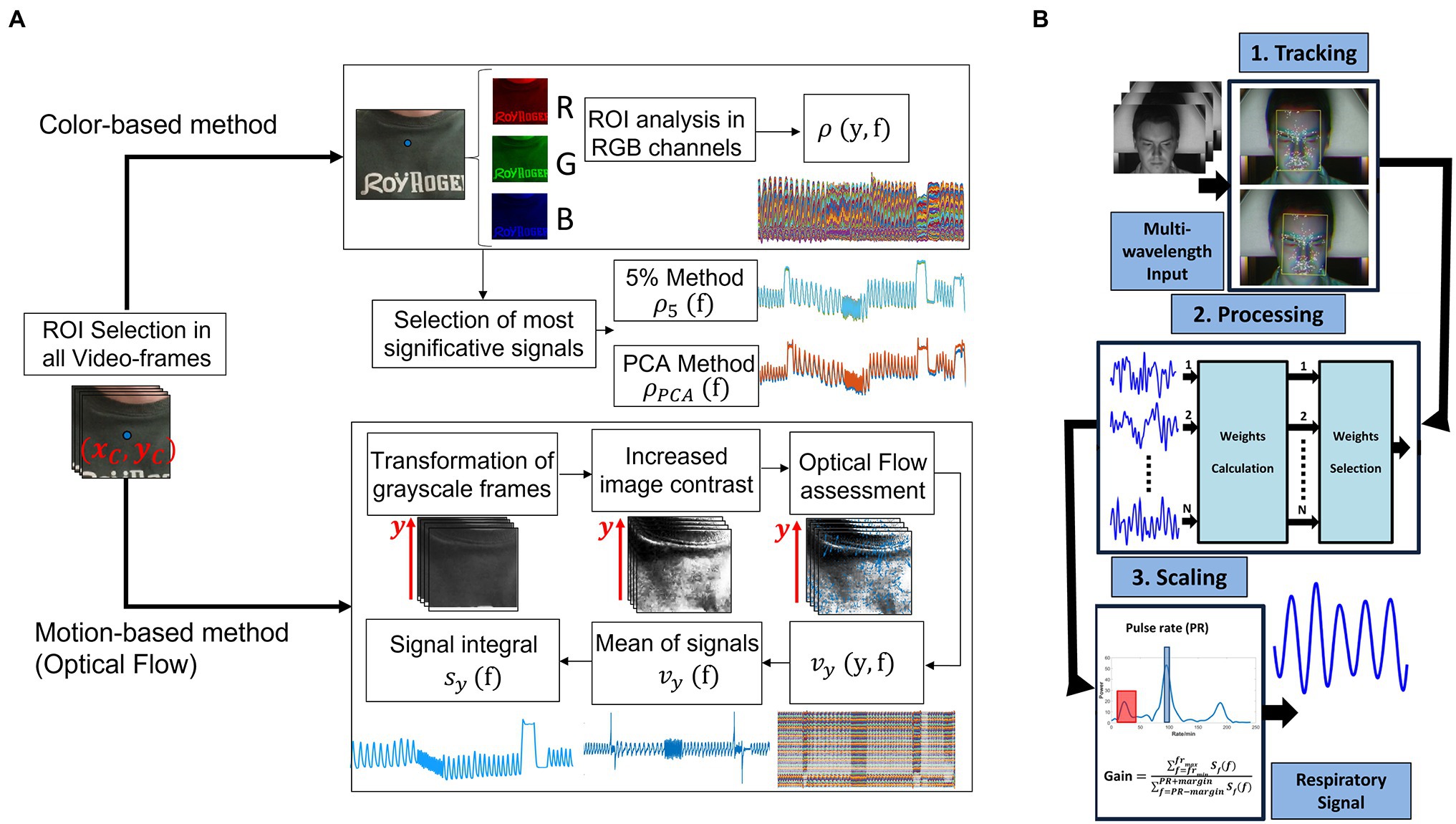

Figure 3. (A) Exemplary flowchart with the main steps to extract the breathing pattern from images by analyzing chest wall movements through color-based or motion-based methods (adapted from Romano et al., 2021). (B) Framework for respiration detection from rPPG signal (adapted from van Gastel et al., 2016).

With digital cameras, the most frequent estimated parameter is fR (usually measured in breaths per minute—breaths/min) with analysis in the frequency domain to determine the average fR values or in the time domain for a more in-depth breath-by-breath analysis. Normal values of fR in adults’ range between 12 breaths/min and 18 breaths/min, while for newborns and infants, it ranges between 20 breaths/min and 30 breaths/min. Abnormal values of fR, such as tachypnea (fR is greater than 20 breaths/min) and bradypnea (fR is less than eight breaths/min) could indicate respiratory problems (Loughlin et al., 2018; Ganfure, 2019). Moreover, in clinical scenarios, an increased value of fR is a specific predictor of serious events such as cardiac arrest and unplanned intensive care unit admission (Cretikos et al., 2008).

The adequate methods applied on video images acquired with digital cameras can be used to register respiratory activity in a range of applications. A general overview of these applications is provided, focusing on the settings used to monitor respiratory activity.

Most of the studies investigate the potentiality of camera-based technologies for monitoring respiratory activity and estimate fR in indoor environments to simulate different scenarios in which these techniques could be further applied (Sun, 2011; Bartula et al., 2013; Brieva et al., 2018; Massaroni et al., 2018b, 2019a). The typical experimental setup consists of a camera-based system (e.g., built-in RGB webcam integrated into a laptop, custom-made camera, and commercial camera) and a reference system (e.g., inductive belt, pulse oximeter, and differential digital pressure sensor) to assess the performances of the video-based system. Commonly, the indoor experiments are carried out in structured environment (i.e., laboratory room) and require the subject to be in a rest position, seated in front of the camera, remaining as motionless as possible (Bartula et al., 2013; Ganfure, 2019; Massaroni et al., 2019c). To assess the performance of the techniques, different breathing patterns and thus different values of fR are simulated, such as: (i) normal breathing or eupnea (fR between 12 breaths/min and 20 breaths/min); (ii) slow breathing (fR ~ 12 breaths/min); (ii) tachypnea (fR > 35 breaths/min; Chatterjee et al., 2016; van Gastel et al., 2016; Massaroni et al., 2019a,c).

Table 1 reports some of the studies dealing with camera-based approaches for estimating fR. In particular, the following information are reported: (i) sensor, resolution, and framerate; (ii) reference system; (iii) method used to extract the signal from the selected ROI; (iv) field of application, specifying the scenario and population; (v) main obtained results. This table and those that will come later (per each vital sign) evidence a heterogeneity of experimental protocols and conditions as well as different approaches for the estimation of vital signs values on both average or value-by-value basis, and different metrics used to evaluate the performances of methods and measurement systems. This makes some studies not easily comparable.

TABLE 1
www.frontiersin.org

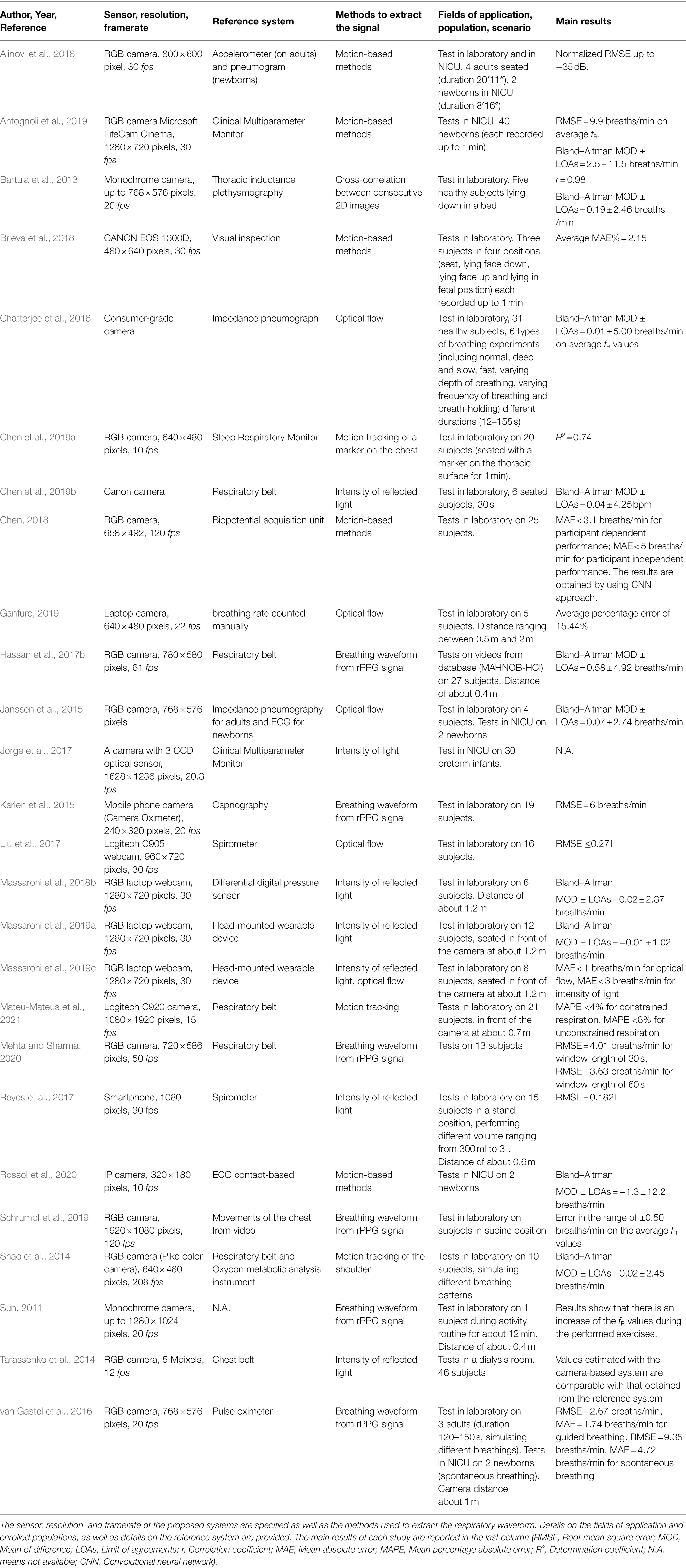

Table 1. Studies using digital cameras for estimating fR and other respiratory parameters in different fields of application.

Looking at the clinical settings applications, several of the available studies explore the potentiality of these camera-based techniques to detect the breathing activity and to monitor fR in the Neonatal Intensive Care Unit (i.e., NICU) on newborns and/or preterm infants (Janssen et al., 2015; Alinovi et al., 2018; Antognoli et al., 2019; Rossol et al., 2020). Mainly, the system involves one camera to record the video and a reference instrument to carry out a validation study (e.g., multiparameter monitor, standard hospital ECG impedance pneumography, or elastic belt for pneumogram recording and in general strain sensors). The camera must be adequately positioned to capture the chest of the baby at a distance ranging between 50 cm to about 2 m (Alinovi et al., 2018; Antognoli et al., 2019; Rossol et al., 2020). Due to the small-amplitude chest wall movements of the babies, different approaches dealing with video magnification can be used to extract respiratory waveforms. Rossol et al. (2020) have used a micromotion and stationary detection algorithm to amplify and track movements by averaging background noise; authors found a root mean square error (RMSE) of 6.36 breaths/min comparing the fR values extracted from the signal’s video and the values recorded by the electronic medical record. In (Antognoli et al., 2019) the fR value has been extracted as the highest Power Spectrum Density (PSD) peaks in the typical fR interval, and an RMSE of 4.9 breaths/min is reported. A wider range of volunteers was investigated in Alinovi et al. who tested the system both in adults and in newborns with a motion magnification algorithm. Results show that the proposed method can be promising in estimating fR when compared to the values obtained from the reference systems (i.e., accelerometer for adults, pneumography for newborns; Alinovi et al., 2018). The application of a camera system for respiratory monitoring in a dialysis room has been tested in (Tarassenko et al., 2014), where authors recorded a 4 h video for each volunteer. The system allows the estimation of fR by considering the face as ROI and extracting the respiratory trace from the rPPG signal. Results show that the values of fR estimated from the breathing-synchronous changes in the amplitude of the reflected PPG signal are comparable with that derived from the reference system (i.e., chest belt). Mainly, in the applications described above, the breathing pattern and the respiratory rate are extracted from the chest wall movements of the subject by using different methods for video analysis, that rely with the video magnification such as EVM, motion magnification algorithm, etc. (Alinovi et al., 2018; Antognoli et al., 2019; Rossol et al., 2020) prior to the extraction of the respiratory pattern. Since the tests have been carried out in clinical settings on newborns in NICU or patients in dialysis, the fR extracted are that typical of the normal breathing (e.g., for newborns fR ranges between 30 breaths/min and 70 breaths/min). Camera-based methods find interesting applications even outside the clinical scenarios. Of particular interest is the study of Mateu-Mateus et al. (2021) who proposed a video-based method to record respiratory activity by detecting the movement of three small patterns attached on a seatbelt fastened by the subject for detecting drowsiness while driving in a simulated cabin car. Comparing the proposed method with the reference system (i.e., respiratory chest belt), a mean percentage absolute error (MAPE) lower than 4% for constrained respiration and a MAPE<6% for unconstrained respiration are reported. Interestingly authors in (Sun, 2011) carried out tests on healthy volunteers to investigate respiratory variations during the simulation of various exercise levels (i.e., cycling exercise at moderate and high-intensity levels) and recovery from the exercise. In this case, the breathing pattern has been extracted from the color intensity changes of the facial skin (based on color intensity methods). Results show that the values of fR increase from 18 breaths/min to 24 breaths/min during the moderate intensity level and assumes the highest value (up to 30 breaths/min) in the high-intensity level, even if these results were not compared against reference values. In (Zhang et al., 2014), the authors investigated the performance of a camera-based system to compute fR from drivers’ face video with the aim to estimate the mental status of the subject with a real-time measurement system framework running on a laptop. As reported in (Grassmann et al., 2016), respiratory activity and thus respiratory rate are influenced by cognitive load and stress. Similarly, McDuff et al. estimate the cognitive stress of different users seated in front of a camera while doing some computer tasks by measuring physiological parameters (among others, the fR and other cardiovascular parameters). A digital camera was used to detect the rPPG waveform from the face and then to estimate the fR. This enabling technology allows finding no significant changes in the values of fR, but overall changes in all the other cardiovascular parameters extracted from the same videos (McDuff et al., 2016).

Besides fR, other respiratory-related parameters can be retrieved from the breathing pattern extracted from a video. Interesting is the study presented in (Reyes et al., 2017) where the air volumes exchange like tidal volume (VT) was estimated by digital videos, as well as the exhalation flow rate (Shao et al., 2014) or forced expiratory volume in the first second (FEV1) and forced vital capacity (FVC; Liu et al., 2017). VT is defined as the air moved with each breath and provides information about the depth of the breathing (Reyes et al., 2017), while the exhalation flow rate is proportional to the subject’s metabolic rate and can be obtained by dividing the exhalation breath volume by exhalation time (Shao et al., 2014). FEV1 and FVC are important parameters for the diagnosis and management of asthma and chronic obtrusive pulmonary disease (COPD) that can be derived from the flow volume curve (Liu et al., 2017). To obtain these respiratory-related parameters, a calibration procedure is needed (Shao et al., 2014; Reyes et al., 2017), and according to the monitored parameter, a different reference instrument (e.g., spirometer and metabolic analysis instrument) is used to assess the performances of the camera-based systems. Regarding the calibration procedure, authors in (Reyes et al., 2017) performed a linear regression between the reference VT registered by the spirometer and the absolute peak-to-peak amplitude of chest movement signal.

Heart Rate and Other Cardiac Parameters

The measurement of cardiac parameters with digital camera is mainly (but not exclusively) based on the registration of the rPPG signal from light-exposed skin regions. Typically, the face is the preferred anatomical site since the cyclical movement of the blood from the heart to the head via the abdominal aorta and the carotid arteries causes skin color changes of the face and subtle head oscillations. The main suitable sites for the estimation of these parameters are the cheeks, which include a higher proportion of capillaries, and the forehead since it is not affected by muscle movements (Hassan et al., 2017a). The optical properties of the facial skin are determined by the presence of different chromophores in the layers of the skin, due to the exchanges of gases through the cardiorespiratory action. Mainly, the skin color is given by the presence of melanin in the epidermis and the hematic pigments (i.e., hemoglobin, oxyhemoglobin, beta carotene, and bilirubin) present in the dermis/hypodermis vascular plexus (Davila et al., 2017). The dominating chromophore in the blood is hemoglobin (percentage of around 45%). The spectrum of light absorbed by the hemoglobin in the blood is different for the oxygenated and deoxygenated states: blood absorbs light more than the surrounding tissues since it is dark and opaque. Furthermore, the oxygenated blood is lighter in color than the deoxygenated blood (Al-Naji et al., 2017). Moreover, considering that the inflow of the blood from the heart to the head causes subtle head movements at each pulse, the cardiac information can be retrieved by detecting the head motions (Balakrishnan et al., 2013; Shan and Yu, 2013).

When a video-based method must be used to monitor HR, a fixed digital camera must be positioned in front of the user. As in the case of fR estimation, different cameras can be used (Poh et al., 2011; Mestha et al., 2014; Han et al., 2015; Zhang et al., 2017; Maji et al., 2020; Yang et al., 2021a) as well as different user-camera distances (Scalise et al., 2012; Sanyal and Nundy, 2018; Song et al., 2020). The most common distance is about 1 m that allows recording the facial region with the frontal camera of laptop or tablet in several settings (Rasche et al., 2016; Hassan et al., 2017b; Shoushan et al., 2021). Taking into account that the possible HR values ranges from 40 [bradycardia in young users (Kawachi et al., 1995; Longin et al., 2005; Sharma et al., 2015)] to around 220 bpm (which is the maximum HR value in young users or in newborns), a minimum sampling rate of 8 fps should be guaranteed (sampling theorem). However, considering the analysis of heart rate variability (HRV), different studies investigated the minimum sampling frequency (fs) that should be assured (Choi and Shin, 2017; Liu et al., 2020; Béres and Hejjel, 2021). Authors in (Choi and Shin, 2017) showed that the minimum fs depends on the HRV variables which can be obtained (e.g., fs > 10 Hz for LF/HF, fs > 20 Hz for NN50 and pNN50; see Choi and Shin (2017) for further details). Another study assessed the minimum fs by analyzing HRV signals obtained from PPG signal which may or may not be interpolated. Results showed that SDNN (Standard Deviation of PP interval) and RMSSD (Root Mean Square of Successive PP differences) require an fs of 50 Hz without interpolation, which can be reduced by interpolation at 10 Hz and 20 Hz, respectively (Béres and Hejjel, 2021).

Despite everything, 30 fps is the most used framerate, whereas a video resolution of 640 × 480 pixels/frame resolution is the most common, even if higher resolutions (e.g., 1280 × 720 pixels/frame or 1920 × 1080 pixels/frame) are employed in some studies dealing with HR estimation from video images (Shan and Yu, 2013; Kuo et al., 2015; Jain et al., 2016; Hassan et al., 2017b; Antognoli et al., 2019).

The ROI used to extract the HR and other related cardiac parameters is typical the facial region. In more detail, different areas can be used as ROI, like forehead, left cheek, right cheek, or the whole face (Favilla et al., 2019; Lamba and Virmani, 2020; Shoushan et al., 2021). Moreover, other studies investigated alternative regions of the skin exposed to light like the palm hand (Cennini et al., 2010; Sun et al., 2012; Sereevoravitgul and Kondo, 2014; Lu et al., 2018; van der Kooij and Naber, 2019). Typically, the ROI identified in the first frame of the video is considered the same in all the video’s frames, even if different studies employed approaches based on ROI tracking (Tasli et al., 2014) and on the use of multiple cameras to frame different positions of the face (Mcduff et al., 2017). Once a ROI has been identified, different approaches can be used to retrieve the rPPG signal valuable for the estimation of HR. There are hundreds of post-processing algorithms in this field. A detailed description of each is beyond the scope of this review; the authors recommend the following review papers on this topic (Hassan et al., 2017a; Rouast et al., 2018; Wang et al., 2018). Among the available post-processing algorithms, blind source separation (BSS) based methods and skin optical reflection model-based methods are the two main categories (see an example in Figure 4). Even combination of color channels and combination of spatially separated regions are feasible approaches (Wedekind et al., 2017). The BSS-based methods assume the source signal to satisfy some statistical nature, such as independence or correlation. The most used algorithms are the Independent Component Analysis (ICA) and the Principal Component Analysis (PCA; Poh et al., 2011; Lewandowska and Nowak, 2012; Zhang et al., 2014). ICA assumes that the set of observations (i.e., signals captured from RGB sensors) is composed of linear mixtures of the source signals (i.e., reflected plethysmographic signal; Poh et al., 2010, 2011). PCA allows recovering the directions along which the data have maximum variance, and the goal is to represent this data as a set of new orthogonal variables named principal components (Abdi and Williams, 2010). Different from the BSS-based methods, the skin optical reflection methods assume the pulse signal to satisfy a skin optical reflection mode. The most used method is based on the analysis of the intensity changes of the pixels of the selected ROI in the green channel since it is related to the high absorption of the light by the hemoglobin in the range of the visible light (Tasli et al., 2014; Kuo et al., 2015; Rasche et al., 2016; Maji et al., 2020). However, the author in (de Haan and Jeanne, 2013) firstly proposed a chrominance-based signal processing method (CHROM) to clearly extract pulse signal against specular and motion artifacts by projecting RGB channels into a chrominance subspace where the motion component is eliminated. Another method that can be used to retrieve the pulse signal is the POS (i.e., plane orthogonal to the skin) method which uses a different projection orthogonal to the skin tone compared to CHROM method, and it is considered to be more robust in complex illumination scenarios (Wang et al., 2017). In few studies, the analysis of the video is carried out in a different color space by transforming the video RGB into a HSV (Hue, Saturation, and Value) color space (Sanyal and Nundy, 2018) or in YCbCr space (Zhang et al., 2017). Furthermore, in the last years, there is a growing interest in the use of machine learning and deep-learning techniques for the estimation of HR. Authors in (Ni et al., 2021) proposed an overview of the main deep-learning methods that can be used to obtain an estimate of HR, trying to provide guidelines regarding the possible step in rPPG signal analysis where deep-learning can be used (e.g., from the extraction of the signal to the estimation of HR). As an example, authors in (Chaichulee et al., 2019) used Deep Learning to identify the patient in the field of the view of the camera and which pixels correspond to the skin. In another study, a comparison between the use of different types of deep learning techniques (i.e., Deepphys, rPPGNet, Physnet) and the traditional methods (i.e., CHROM, POS, ICA, and Green Channel) was performed in the estimation of HR (Yang et al., 2021b) under varying lighting conditions. Deep learning-based methods demonstrated superior performance compared to traditional methods (in terms of mean absolute error—MAE—and RMSE of average HR), but the latter are generally more robust to the light variations (Yang et al., 2021b).

FIGURE 4
www.frontiersin.org

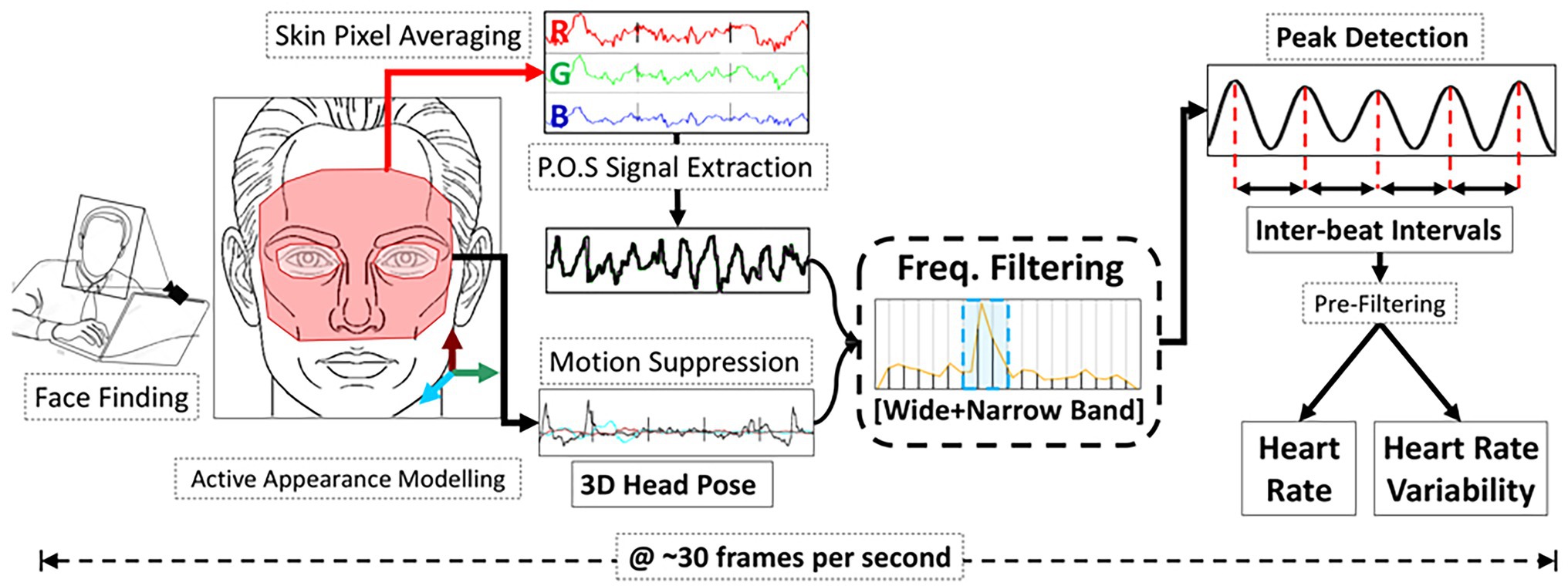

Figure 4. An example of the pipeline used to extract HR and heart rate variability from rPPG signal extracted through a color-based method based on POS post-processing algorithm (from Gudi et al., 2020).

With digital cameras, the most frequent estimated parameter is HR (measured in beats per minute—bpm or, less commonly, pulse per minute—ppm). Normal values of HR range between 60 bpm and 100 bpm in adults and range between 70 bpm and 190 bpm in children (Kebe et al., 2020). Abnormal values of HR are related to values greater than 100 bpm (i.e., tachycardia) and lower than 60 bpm (i.e., bradycardia). These abnormalities occur when the normal electrical impulse that controls the pumping action of the heart is interrupted by physiological and pathological factors (Hassan et al., 2017a).

The methods applied on video images acquired with digital cameras can be used to detect cardiac activity in a range of applications. In this section, a general overview of these applications is provided, focusing on the settings used to monitor cardiac activity.

Most studies investigate the capabilities of camera-based technologies for monitoring cardiac activity and estimating HR in indoor environments to simulate different scenarios in which these technologies could be applied (Balakrishnan et al., 2013; Tasli et al., 2014; Lamba and Virmani, 2020; Maji et al., 2020; Song et al., 2020; Shoushan et al., 2021). In few studies, experiments to simulate training sessions (e.g., running and cycling) have been performed (Sun, 2011; Tasli et al., 2014), and other studies investigate the potentiality of applying non-contact technologies in the automotive field (Zhang et al., 2014; Huan Qi, 2015; Kuo et al., 2015). The typical experimental setup is composed of one camera and a reference system (e.g., chest belt, pulse oximeter, and standard ECG) to assess the performances of the video-based system. The camera is placed at a distance ranging from 0.5 m to 3 m. Commonly, experiments are carried out in structured environments (e.g., a lab) and require the subject to be in a rest position, typically seated in front of the camera, remaining as motionless as possible (Sanyal and Nundy, 2018; Favilla et al., 2019; Maji et al., 2020). In a limited number of studies, experiments were carried out in upright position (Sanyal and Nundy, 2018). Table 2 reports some of the studies dealing with camera-based approaches for estimating HR.

TABLE 2
www.frontiersin.org

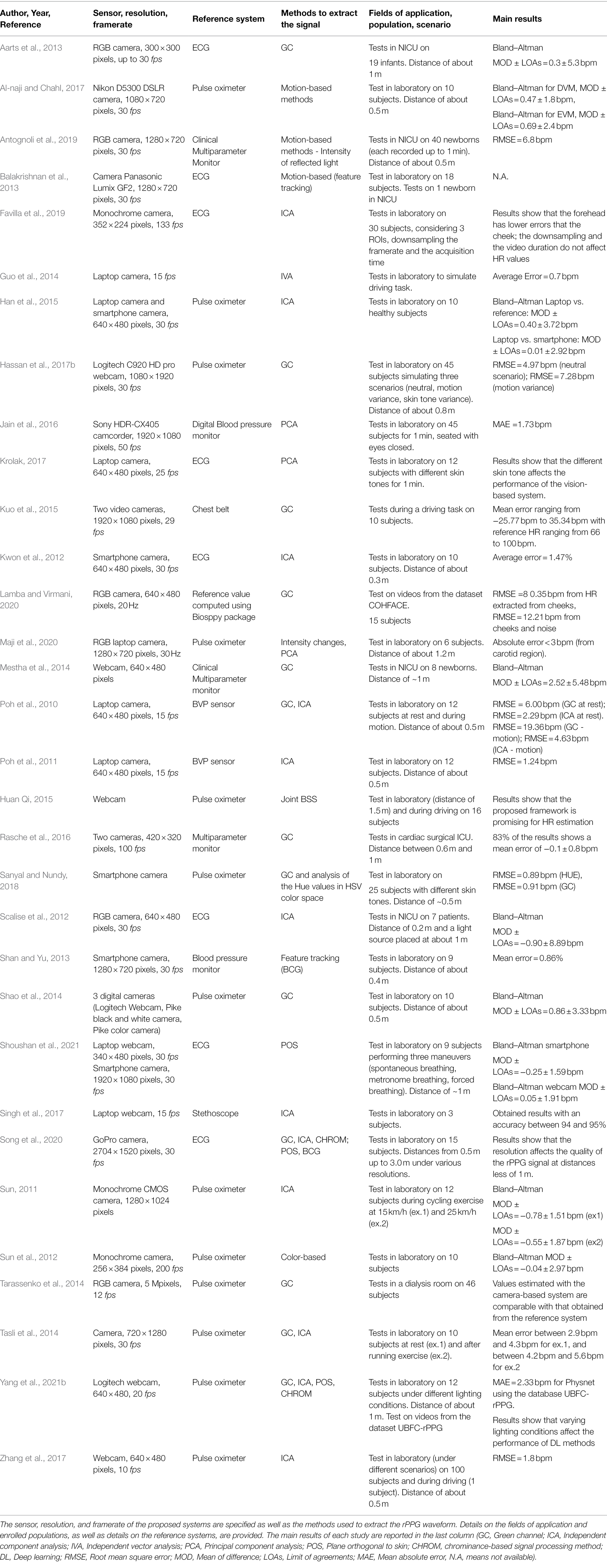

Table 2. Studies using digital cameras for estimating HR and other cardiac-related parameters in different fields of application.

As for the case of fR, considering the clinical applications, most of the available studies tested the video-based techniques to monitor HR in the NICU, on newborns and/or preterm infants on which contact-based systems can cause possible skin irritations and discomfort (Scalise et al., 2012; Antognoli et al., 2019). Mainly, the system is composed of a camera placed at a distance ranging from 20 cm (Scalise et al., 2012) to around 1 m (Mestha et al., 2014; Rasche et al., 2016) from the patient. Authors in (Scalise et al., 2012) have used the ICA algorithm to extract the blood volume pulse signal, and HR has been estimated by computing the Power Spectrum Density (PSD), a frequency domain analysis, of the extracted signal considering the frequency at which occur the maximum peak of the PSD and by multiplying this value for 60. Comparing the obtained results with that obtained from the reference system, a bias of −0.9 bpm has been found. Mestha et al. have estimated HR from the recorded video of neonates by making a ROI tracking of the face. The Green Channel (GC) component of the signal has been analyzed, and a bias of 2.52 bpm has been obtained compared to data resulting from the reference system (i.e., a multiparameter monitor; Mestha et al., 2014). Outside the NICU, camera-based systems have been tested to monitor patients in the cardiac surgical Intensive Care Unit (i.e., ICU) after elective cardiac surgery has been tested in (Rasche et al., 2016). The camera was placed to record the face and the upper body of the patient: the frontal face skin was considered as ROI, and the analysis of the G channel component of the signal was carried out. Comparing the estimated value of HR with the value taken from the ECG reference monitoring, a mean difference of −0.1 ± 0.8 bpm has been obtained. Mainly, in this kind of application, the cardiac signal is derived by using methods based on the variations of the color intensity of the facial skin (i.e., rPPG). The algorithms used to extract the rPPG signal are focused on the G channel component and ICA analysis. To estimate the values of HR, the rPPG signal was filtered in a frequency range typical of normal values of HR (i.e., 42–120 bpm). Even in an occupational scenario, digital cameras can be used to monitor HR, as in the automotive field (Zhang et al., 2014). To test the performance of the system, the authors tested the real-time system during a driving session under normal daylight conditions. The value of HR was estimated from the cardiac signal extracted from the whole face of the subject; comparing the HR values against those from the reference system (i.e., pulse oximeter), an RMSE of 4.15 bpm was found. Differently, Tasli et al. (2014) used a camera-based system to monitor HR by using a ROI tracking algorithm to detect the face of the subject during a simulated training session (i.e., a short session of running) before sitting in front of the camera. Results show that immediately after the exercise, HR value is above 120 bpm, and then it decreases slowly until 50 bpm as the subject’s state of fatigue is alleviated. An average error between 4.2 bpm and 5.6 bpm was obtained comparing the proposed algorithm with the EVM method. The application of a camera-based system during a cycling exercise at two different speeds (i.e., 15 km/h and 25 km/h) was tested in (Sun, 2011). Results showed reasonable outcomes during the moderate cycling exercise at 15 km/h, where HR gradually increases from 87 bpm to about 105 bpm, and its value reaches 120 bpm during the high-intensity exercise at 25 km/h.

Besides heart rate, other cardiac-related parameters can be estimated with enormous potentialities in neuroscience and physiology sciences. Among others, literature evidenced the possibility to estimate HRV, which is mainly related to mental stress, and the inter-beat interval (IBI). These two parameters, along with the HR, contribute to assessing the physical and psychological status of an individual (Davila et al., 2017). HRV represents the fluctuations in the time intervals between adjacent heartbeats, and it is an index of the adaptation of the heart to circumstances; thus, it is an indicator of adaptation in athletes or fatigue in drivers (Favilla et al., 2019). IBI is the time between consecutive heartbeats, expressed in milliseconds, and is calculated as the consecutive difference of time component of the R peaks (Davila et al., 2017). Considering the use of contactless methods based on cameras, HRV and IBI can be obtained from the rPPG signal extracted from a video of the subject (Poh et al., 2010; Davila et al., 2017).

Blood Oxygen Saturation

The measurement of blood oxygen saturation (SpO2) is related to the concentration of hemoglobin (Hb) and oxygenated hemoglobin (HbO2) in the blood, as it is calculated as the ratio between HbO2 and the total amount of Hb (i.e., deoxygenated and oxygenated hemoglobin; Foo et al., 2013). The main method used to estimate SpO2 is the pulse oximeter, whose working principle is associated with the different absorption of light by HbO2 and Hb at two different wavelengths (normally λ1 = 660 nm that corresponds to the red light, and λ2 = 940 nm corresponding to the infrared (IR) light; Foo et al., 2013). Values between 95 and 100% are considered normal (O’Brien et al., 2000). A lower percentage of oxygen (<95%) indicates hypoxia and causes insufficient oxygen supply to the human body (Dias and Cunha, 2018). A problem in the measurement of SpO2 is when the patient is anemic: even if the anemic patient has a lower level of hemoglobin, the value of SpO2 may be in the normal range (Elliott and Coventry, 2012).

The typical experimental setup consists of the same items as the one used for estimating HR from videos (see section “Heart Rate and Other Cardiac Parameters”). Distances ranging between 0.5 m and 1.5 m from the user are employed, even if the most common is about 1 m (Kong et al., 2013; Guazzi et al., 2015; de Fatima Galvao Rosa and Betini, 2020), allowing the recording of the cardiac activity to retrieve the rPPG signal valuable for the estimation of the SpO2. Thirty fps is the most commonly used framerate since it is the typical value of the majority of the commercial camera, even if in some studies lower framerates have been used, such as 10 fps or 25 fps (Kong et al., 2013; Shao et al., 2016; de Fatima Galvao Rosa and Betini, 2020). Different from cameras used for estimating fR and HR, RGB digital cameras are needed for estimating SpO2 values since the need to work with signals with different wavelengths (see next paragraph). Considering the video resolution, the most common is 640 × 480 pixels/frame resolution, but in few studies, higher video resolutions have been employed (Cobos-Torres and Abderrahim, 2017; Casalino et al., 2020).

The ROI used to extract the rPPG signal for the estimation of the SpO2 is the facial region. Different sites can be used as ROI, like forehead, left cheek, right cheek, or the whole face (Bal, 2015; Qayyum et al., 2017; Casalino et al., 2020; de Fatima Galvao Rosa and Betini, 2020), and in one study, the region of the lips is considered as ROI to obtain the valuable rPPG signal (Shao et al., 2016). Once a ROI has been identified, the main approach used to extract the cardiac trace is based on the analysis of the intensity changes of pixels in the selected ROI. Red and blue color channels are employed to compute the ratio of the absorbances at two typical wavelengths used in pulse oximetry (i.e., λ1 = 660 nm and λ2 = 940 nm, which corresponds to the red and IR light, respectively; Casalino et al., 2020; de Fatima Galvao Rosa and Betini, 2020). The ratio of ratio of the absorbances (RR) is computed according to the equation (1):

RR=ACλ1/DCλ1ACλ2/DCλ2=Rλ1Rλ2=ACred/DCredACblue/DCblue=RredRblue    (1)

where AC is the pulsatile component normalized by the non-pulsatile component (DC) at the wavelengths λ1 and λ2, and RR is ratio of the ratios of the absorbances at the two wavelengths (Casalino et al., 2020; de Fatima Galvao Rosa and Betini, 2020; Figure 5). The value of SpO2 can be estimated from RR, since there is a nearly linear relationship between them according to the equation (2) (Kong et al., 2013; Bal, 2015; Shao et al., 2016):

SpO2=αRR+β    (2)

where α and β are determined by considering the linear regression for each volunteer. In particular, α represents the slope of the estimated regression line, and β is the point at which the estimated regression line intersects y (Shao et al., 2016).

FIGURE 5
www.frontiersin.org

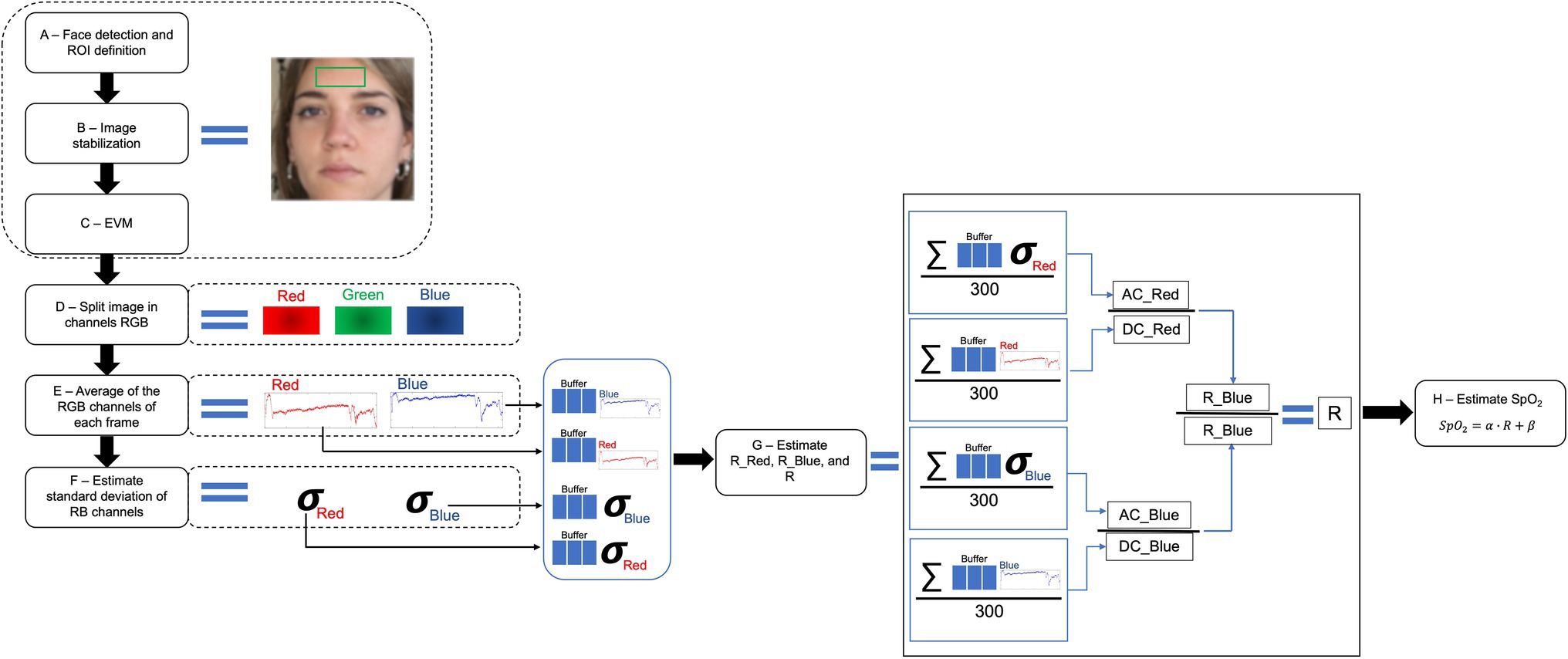

Figure 5. Overview of a typical framework to retrieve an estimation of SpO2 from the analysis of video images (adapted from Fatima Galvao Rosa and Betini, 2020).

Besides the methods described above, only recently the first convolutional neural network (CNN) scheme for the estimation of SpO2 value from a video of the palm/back side of the hand recorded with a consumer-grade RGB smartphone camera was proposed in (Mathew et al., 2021). Although the results are encouraging (see Table 3—Root Mean Square Error RMSE <3.1%), limitations related to the learning phases of the network needed for implementing this CNN scheme remain.

TABLE 3
www.frontiersin.org

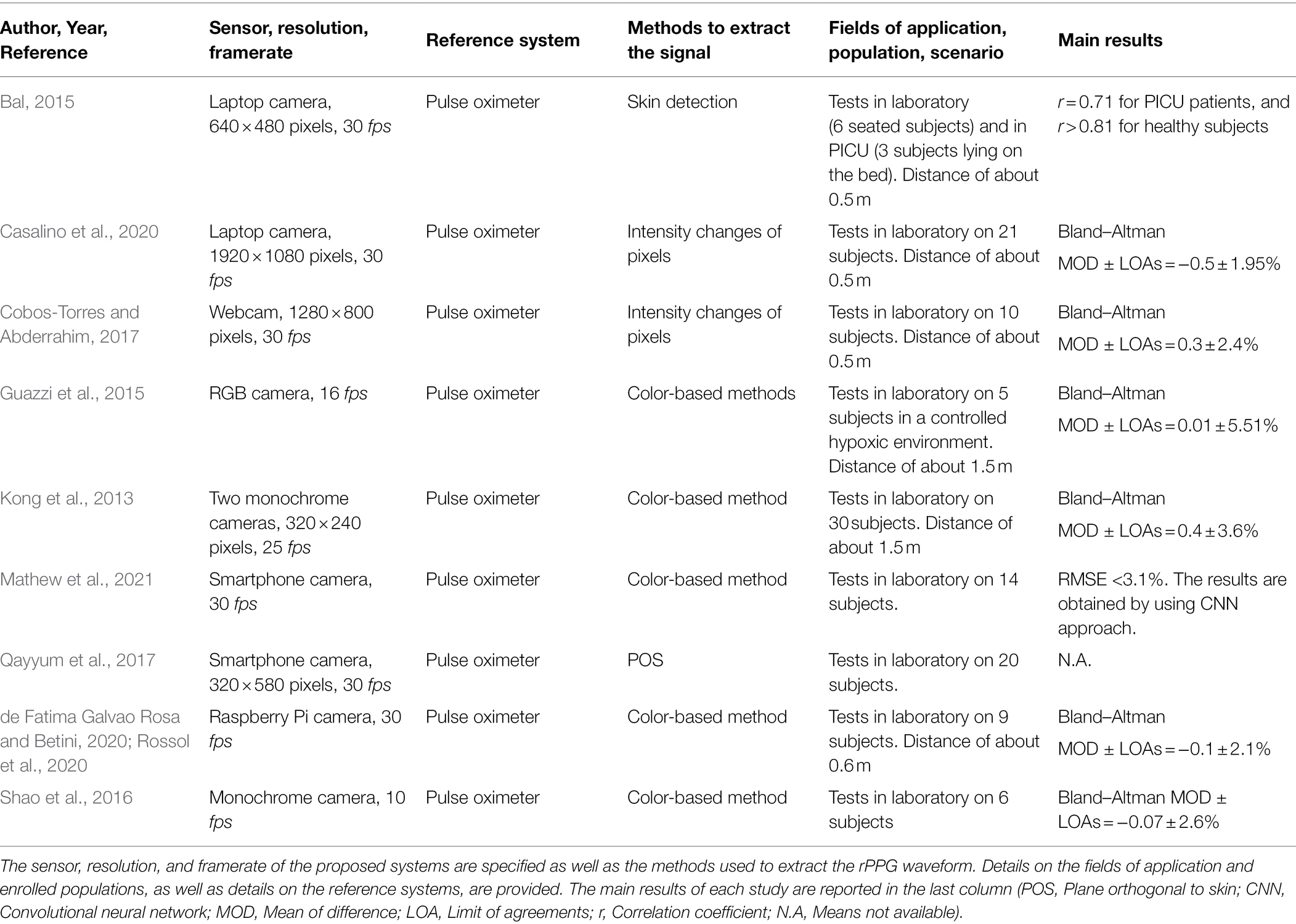

Table 3. Studies using digital cameras for estimating SpO2 in different fields of application.

Considering the fields of application, few studies tested a camera-based system for estimating SpO2 in clinical settings, such as in Pediatric Intensive Care Unit (i.e., PICU) or specific wards (e.g., dialysis ward). Commonly, the system involves a camera to record a video of the patients and a reference system (i.e., pulse oximeter) that allows the measurement of the ground truth values. Authors in (Bal, 2015) performed experiments in PICU settings to monitor pediatric patients. A built-in laptop camera was used to record a video of the face of the patient, and a pulse oximeter was used as a reference system. The video analysis has been carried out to extract the rPPG signal that is used to compute the value of SpO2 according to (2). Results show a correlation of 0.71 between the reference and the estimated values. Similarly, Tarassenko et al. tested a camera-based system by monitoring patients during a dialysis session. The rPPG signals were extracted by processing ROIs from the face of the patient minimally affected by spurious movements. SpO2 values were computed as in (2), and results show a close correspondence between the estimated values and the reference SpO2 values (Tarassenko et al., 2014). Different from the other vital signs that can be externally easily controlled by simulating elevated fR or increased HR values with exercise or stressors, SpO2 values can be controlled partially by carrying out hypoventilation exercises or apneas. Outside the clinical scenarios, most of the studies tested the camera-based system in laboratory environment to assess its performances and to evaluate the robustness of the system in the estimation of the parameter. Mainly, the system is composed of one RGB camera and a reference system (i.e., pulse oximeter). During the experiments, the subject is required to sit in front of the camera at a distance of about 0.5 m, remaining as motionless as possible: to evaluate the changes in SpO2, after normal breathing the subject is required to hold the breath for about 30 s or until he/she feels uncomfortable (i.e., during the apnea stage there is a decrease of the value of SpO2; Shao et al., 2016; Qayyum et al., 2017; Casalino et al., 2020; de Fatima Galvao Rosa and Betini, 2020). Table 3 summarizes the main studies dealing with SpO2 estimation from videos.

Blood Pressure

The measurement of blood pressure (BP) indicates the pressure exerted by blood against the arterial wall, providing information about the blood flow during the systolic phase (i.e., contraction of the heart) and the diastolic phase (i.e., relaxation of the heart; Dias and Cunha, 2018). Normal values are in the range between 90/60 mmHg and 120/80 mmHg (systolic/diastolic); instead, higher values are diagnosed as hypertension. The cuffless estimation of BP is a very hot topic even with wearable devices (Sharma et al., 2017; Bard et al., 2019). In the last years, researchers are focusing on the estimation of BP from rPPG signal recorded through digital cameras (Jain et al., 2016; Khong et al., 2017; Luo et al., 2019; Rong and Li, 2021).

The usual experimental setup consists of a video camera positioned in front of the user. Different distances between the camera and the user can be employed, ranging from 0.4 m to about 3 m (McDuff et al., 2014; Sugita et al., 2015; Shirbani et al., 2020). Since the measurement is based on the rPPG recordings, the same guidelines reported for the HR estimation should be followed. A framerate of 30 fps is the most employed since most of the cameras work on this range. However, in some studies, values of framerate higher have been employed (Jain et al., 2016; Khong et al., 2017). Considering the video resolutions, different values can be used (McDuff et al., 2014; Jain et al., 2016; Secerbegovic, 2016). Typically, the face is used as ROI and the main approach to retrieve the rPPG signal is based on the analysis of the intensity changes of pixels (Sugita et al., 2015; Khong et al., 2017). When the rPPG signal is extracted, an estimation of BP can be obtained by analyzing the morphology of the signal deriving different waveform parameters (Figure 6A), as reported in Jain et al., (2016). Authors in McDuff et al., (2014) proposed a method for the automatic identification of systolic and diastolic peaks in rPPG signals (Figure 6B) recorded by the face and found high correlation (r = 0.94) with signals collected from a fingertip sensor. Alternatively, pulse transit time (PTT) based parameters (Lu et al., 2020) can be used to estimate BP.

FIGURE 6
www.frontiersin.org

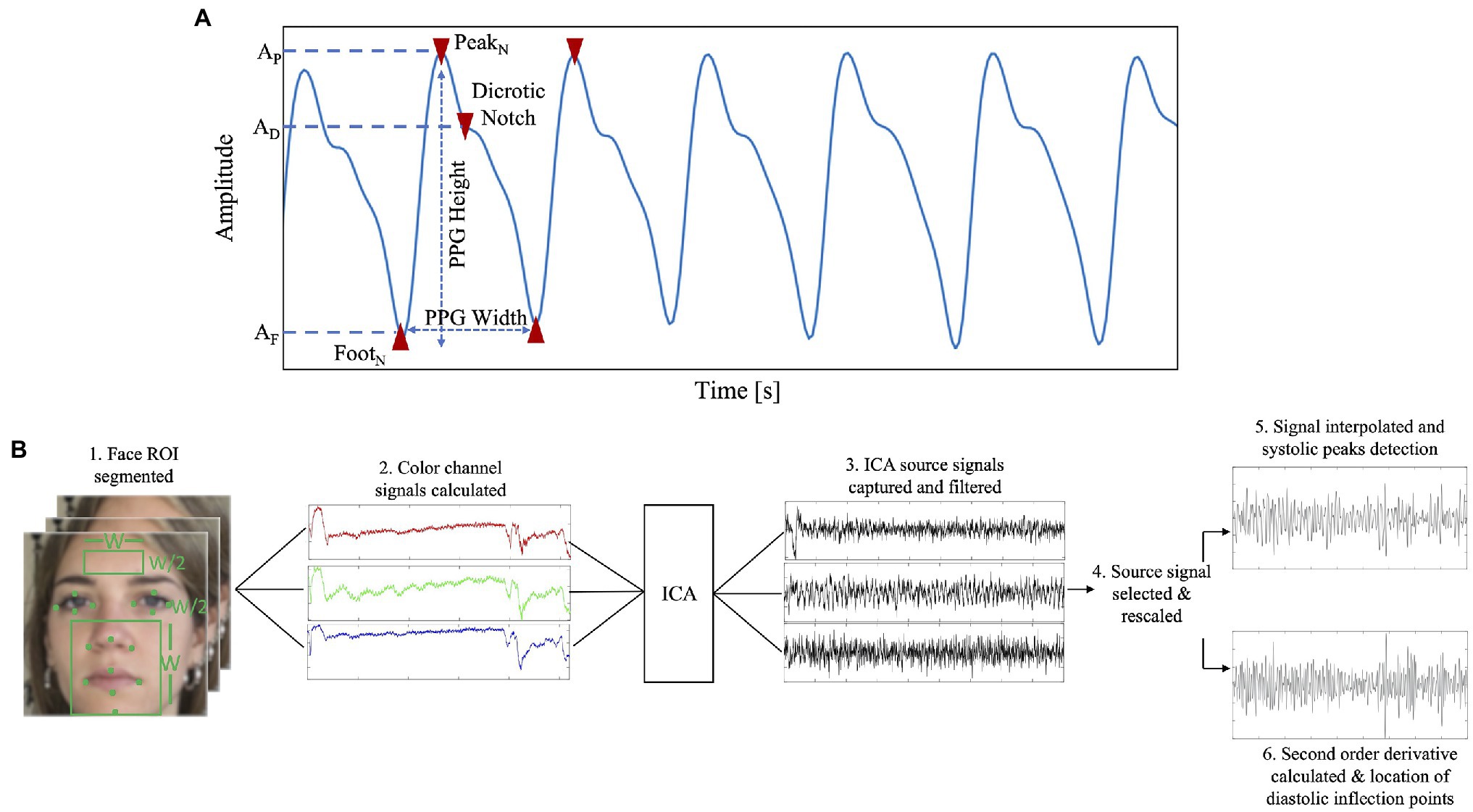

Figure 6. (A) Example of different PPG parameters which can be extracted based on the morphology of the signal (e.g., PPG width, PPG height, dicrotic notch, PPG peak, PPG foot). (B) Flowchart to retrieve SBP and DPB from a rPPG signal (adapted from McDuff et al., 2014).

An approach to derive the values of BP is to use a physical model based on PTT, which can be obtained from the pulse wave velocity (PWV; Lu et al., 2020). PWV is related to the velocity of the pulse wave flowing in blood vessel, and according to the Moens–Korteweg equation [further details are provided in (Lu et al., 2020)], it is influenced by different vascular factors (Khong et al., 2017; Lu et al., 2020). Thus, since PTT and BP have a physical relationship through PWV according to the formula (3):

PWV=LTD=E0heαPρD    (3)

where L is a length defined for TD, E0 is the stiffness for zero pressure, h is the arterial wall thickness, α is a vessel parameter, P is the blood pressure, ρ is the density of the blood, and D is the diameter of the vessels (Lu et al., 2020), different mathematical models can be derived (e.g., logarithmic, linear, or quadratic). The most popular is the linear one [formula (4)]:

BP=aPTT+b    (4)

where a and b are different constant parameters, obtained by fitting the PTT-BP data (Lu et al., 2020). However, PTT allows only the estimation of the systolic blood pressure (SBP), and in one study, the PWV has been used to estimate SBP and DBP (diastolic blood pressure; Khong et al., 2017). However, it is worth mentioning that there are alternative methods to the above mentioned, Furthermore, in some studies Machine Learning and Deep Learning techniques are implemented to obtain an estimation of SBP and DBP (Chowdhury et al., 2020; el Hajj and Kyriacou, 2020; Rong and Li, 2021; Schrumpf et al., 2021).

To the best of our knowledge, only a few studies reported experiments in lab settings aiming at evaluating the BP estimation performances. There are no specific tests in real-life scenarios, like clinical settings. In validation studies, cuff blood pressure or invasive blood pressure medical devices were used as reference systems for SBP and DBP values. During the test, the subject is required to sit in front of the camera, facing it and remaining as motionless as possible (McDuff et al., 2014; Sugita et al., 2015; Khong et al., 2017; Shirbani et al., 2020; Rong and Li, 2021). In one study, tests have been carried out after a short exercise session (i.e., self-paced running in place for 4 min; Secerbegovic, 2016), and in another study, measurements during cognitive tasks have been performed (McDuff et al., 2014). Among others, Sugita et al. obtained BP focusing on the PTT. Three ROIs were selected to extract the rPPG signals (i.e., right palm area, forehead area, and left cheek area). PTT is obtained from the time difference between the R-peak of ECG and the minimum point of the PPG signal measured from a sensor attached to the finger, while by combing the rPPG signals of the three different ROIs the pulse propagation time difference (TD) is computed as an index equivalent to PTT. A cross-correlation coefficient has been computed between the SBP and the pulse propagation time difference (TD; Sugita et al., 2015). Authors in (Khong et al., 2017) proposed a camera-based system to estimate the values of SBP and DBP from the PWV value, computed by using the (3). Comparing the obtained results with those obtained from a reference system (i.e., upper arm blood pressure monitor), the absolute error for SBP was 4.22 ± 3.5 mmHg and for DBP is 3.24 ± 2.21 mmHg, that are acceptable error for BP (i.e., error less than 5 ± 8 mmHg as reported in ANSI/AAMI/ISO 81060-2:2013 standard). Interesting is the study of (Rong and Li, 2021), where four different regression models were implemented to find the best one for BP prediction by using Machine Learning. Results show that the best algorithm to predict BP was Support Vector Regression (SVR) and comparing the results from SVR model and the AAMI standard, a MAE of 9.97 mmHg and standard deviation (STD) of 3.35 mmHg for SBP, and a MAE of 7.59 mmHg and STD of 2.58 mmHg for DBP were obtained. These values are acceptable according to the AAMI standard. Besides the reported studies, authors in (Luo et al., 2019) used Transdermal Optical Imaging (TOI) to obtain a hemoglobin-rich signal from a video of the user’s face through ML algorithms on a large population (i.e., 1,328 normotensive adults) to estimate SBP and DBP. The implemented model allows predicting BP with a measurement error of 0.39 ± 7.30 mmHg for SBP and − 0.2 ± 6.00 mmHg for DBP. Table 4 summarizes important papers focusing on BP estimation from digital camera videos.

TABLE 4
www.frontiersin.org

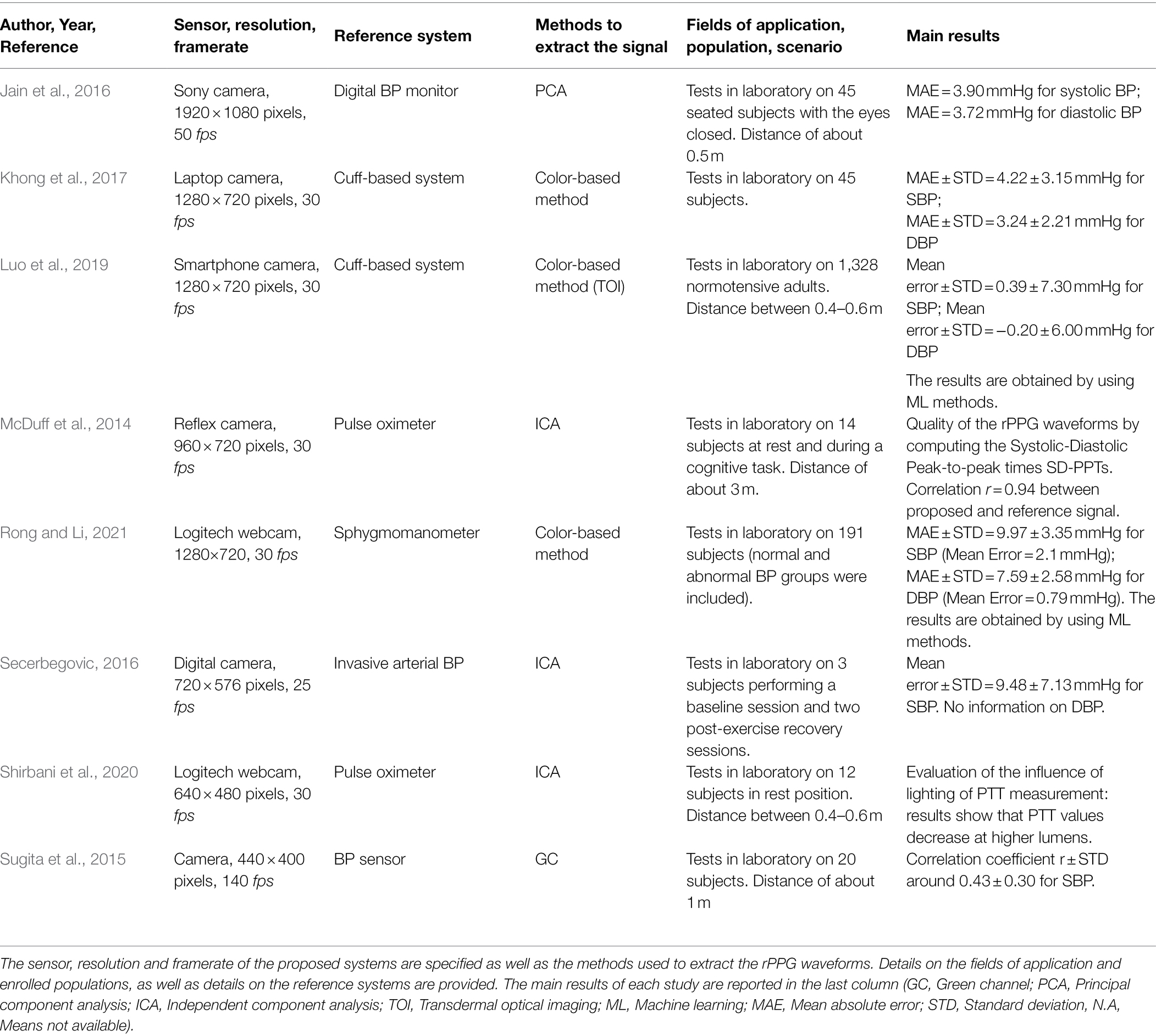

Table 4. Studies using digital cameras for estimating BP in different fields of application.

Conclusion

In the present review, we have provided an overview of the contactless methods for measuring vital signs based on the analysis of video-recorded through digital cameras. The work was stimulated by the wide interest in recording robust physiological signals with cameras, commonly integrated into off-the-shelf devices (e.g., laptop, smartphone, surveillance cameras, and smart TV), trying to overcome limitations and pitfalls of classical methods that require contact with the skin or dedicated hardware to perform the measurement. More deeply, the integrability of digital cameras in several devices also motivates the design of innovative products and solutions able to provide high quality of data with an “all in one” approach. For these reasons in the selection of the articles, we focused on all of those dealing with technical solutions for measuring vital signs from video images in the visible light range and applications of camera-based approaches for measuring physiological quantities in different scenarios (from clinical settings to occupational and sports fields).

The analysis of the literature reveals promising results in the monitoring of both cardiac and respiratory parameters (e.g., HR and fR) by using visible light cameras when compared to well-established medical-grade systems and wearable devices. Differently, only few studies investigated the potentialities for monitoring BP and SpO2, thus further validation studies are needed. Consequently, under certain experimental conditions (i.e., absence of body movements, adequate environmental light, and appropriate calibrations), the use of camera-based technologies can favor the remote monitoring of physiological quantities, that until now are measured with wearable devices or traditional hardware, with enormous potentialities in the remote personal health status assessment, clinical follow-up and in the case of integrated clinical exams (e.g., vital signs estimation during a postural evaluation with camera-based approaches; Koumbourlis, 2006; Kamelska-Sadowska et al., 2020).

Furthermore, because of the possibility to use sensors that are already available at home (e.g., video surveillance cameras, smartphones, and smart TV) or easily accessible ones (i.e., webcams), camera-based approaches for estimating vital signs could significantly influence the actual standard for vital signs monitoring of individuals under home-quarantine who need a high level of care and, in general, of those requiring continuous monitoring [e.g., after hospital discharge and during COVID-19 (Gordon et al., 2020; Massaroni et al., 2020)] with the application of a typical telemedicine approach. Moreover, monitoring the parameters reviewed in this paper could help to provide a complete representation of the clinical status of the user to the health care providers while doing televisits and teleconsultations, with a wide range of possible applications during pandemics and not. The contextual measurement of several biometrical parameters may lay the bases of a new biometrical holistic of the human body (BHOHB) approach that looks at the whole person considering their physical, emotional, and social wellbeing. As WHO reports in the Global Digital Health Strategy 2020–2025, the authors are convinced that there is space for further innovative ideas based on the reviewed technologies to address public health challenges in the post-pandemic era (WHO, 2021).

Beyond the vital parameters, camera-based systems based upon digital images analysis are still not much applied to specific domains of clinical practice. Among others, given the possibility to record the respiratory waveforms (Section “Respiratory Frequency and Other Respiratory Parameters”) and SpO2 values (Section “Blood Pressure”), these systems could enable the investigation of some respiratory disorders (e.g., identification of obtrusive sleep apnea; van Gastel et al., 2021) without requiring cumbersome instrumentation. By levering the multi-point measurement that can be carried out with a single uncalibrated camera or calibrated one (Heikkila and Silven, 1997; Zhang and Member, 2000; Scaramuzza et al., 2006; Urban et al., 2015), digital videos could be used for assessing respiratory biomechanics and to evaluate eventual thoraco-abdominal asynchronies and abnormalities that are pretty common in clinical practice and of interest in athletes (Black and Millard, 2001). We think that the great performances of traditional and machine learning algorithms in the estimation of cardiac-related parameters (Section “Heart Rate and Other Cardiac Parameters”) could stimulate research on the estimation of autonomic markers, including stress and wellbeing assessment from rPPG signal extracted from videos recorded in the visible light range. Moreover, with the recent advancement of deep learning, we envision blood oxygen saturation measurement will be much more reliable in the near future, with a significant positive impact on remote measurement of patient health status.

From a technical point of view, the main challenges are related to the reduction of motion artifacts and noise cancellation with the aim to improve the rPPG and motion-based respiratory signals quality and extend the usability of the camera-based even in the presence of unphysiological movements (i.e., during sports activities). At this scope, further research on torso and face tracking is suggested (Zhao et al., 2019; Liu et al., 2021). We think that a collaboration leveraging the expertise of clinicians, engineers, and data scientists could be interesting to facilitate the advancements in the application of camera-based systems methods in a wide range of populations and everyday life and to push innovation toward “all in one” products and solutions.
