A Novel Method of BiFormer with Temporal-Spatial Characteristics for ECG-based PVC Detection

Siyuan Chen¹Zhen Wang²Hao Wang³Shuai Wang²Yang Li^1*Bing Wang^1*

• ¹Heilongjiang University of Chinese Medicine, Harbin, China
• ²First Affiliated Hospital of Heilongjiang University of Chinese Medicine, Harbin, Heilongjiang Province, China
• ³Harbin Engineering University, Harbin, Heilongjiang Province, China

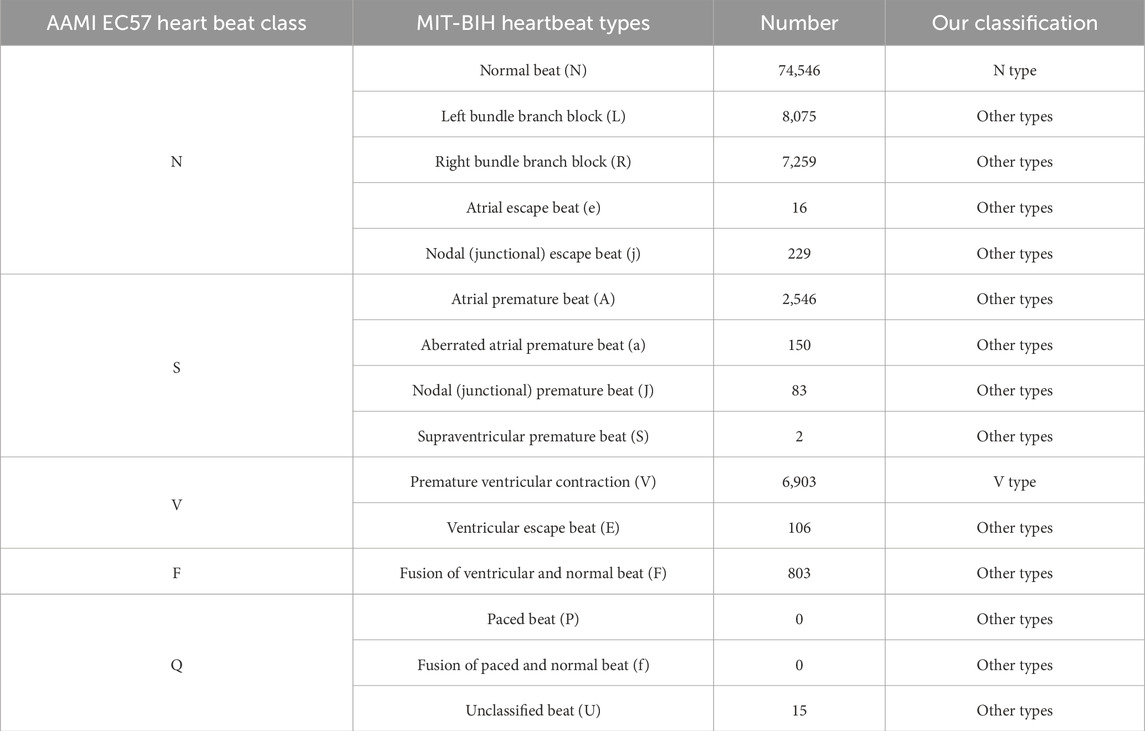

Premature Ventricular Contractions (PVCs) can be warning signs for serious cardiac conditions, and early detection is essential for preventing complications. The use of deep learning models in electrocardiogram (ECG) analysis has aided more accurate and efficient PVC identification. These models automatically extract and analyze complex signal features, providing valuable clinical decision-making support. Here, we conducted a study focused on the practical applications of this technology. We first used the MIT-BIH arrhythmia database and a sparse low-rank algorithm to denoise ECG signals. We then transformed the one-dimensional time-series signals into twodimensional images using Markov Transition Fields (MTFs), considering state transition probabilities and spatial location information to comprehensively capture signal features. Finally, we used the BiFormer classification model, which employs a Bi-level Routing Attention (BRA) mechanism to construct region-level affinity graphs, to retain only the regions highly relevant to our query. This approach filtered out redundant information, and optimized both computational efficiency and memory usage. Our algorithm achieved a detection accuracy of 99.45%, outperforming other commonly-used PVC detection algorithms. By integrating MTF and BiFormer, we effectively detected PVCs, facilitating an increased convergence between medicine and deep learning technology. We hope our model can help contribute to more accurate computational support for PVC diagnosis and treatment.
