ORIGINAL RESEARCH article

Front. Water, 21 October 2025

Sec. Water Resource Management

Volume 7 - 2025 | https://doi.org/10.3389/frwa.2025.1631938

This article is part of the Research TopicNature-based Solutions for Water Resilience under Climate ChangeView all articles

Water availability in a university campus: the role of an artificial lake as a nature-based solution

Bethy Merchn-Sanmartín,,
Bethy Merchán-Sanmartín1,2,3*Itati Arteaga-BravoItati Arteaga-Bravo1Sebastin Surez-ZamoraSebastián Suárez-Zamora2Ana Velsquez-MolinaAna Velásquez-Molina1Pablo Rosales-SerranoPablo Rosales-Serrano1Mijail Arias-Hidalgo,Mijail Arias-Hidalgo1,4María Jaya-Montalvo,,María Jaya-Montalvo1,2,5Maribel Aguilar-Aguilar,Maribel Aguilar-Aguilar1,2Paúl Carrin-Mero,Paúl Carrión-Mero1,2
  • 1Facultad de Ingeniería y Ciencias de la Tierra (FICT), Escuela Superior Politécnica del Litoral, ESPOL, Guayaquil, Ecuador
  • 2Centro de Investigación y Proyectos Aplicados a las Ciencias de la Tierra (CIPAT), Escuela Superior Politécnica del Litoral, ESPOL, Guayaquil, Ecuador
  • 3Geoscience Institute, Federal University of Pará, Belém, Brazil
  • 4Centro del Agua y Desarrollo Sustentable (CADS), Escuela Superior Politécnica del Litoral, ESPOL, Guayaquil, Ecuador
  • 5Facultad de Ingeniería en Mecánica y Ciencias de la Producción, Escuela Superior Politécnica del Litoral, ESPOL, Guayaquil, Ecuador

Introduction: Escuela Superior Politécnica del Litoral (ESPOL) is a Higher Education Institution (HEI) located in a protected tropical dry forest that uses Nature-Based Solutions (NbS) (albarradas and artificial lakes) for water resource management and ecosystem conservation. This research aims to evaluate the water availability of an artificial lake at ESPOL through the water balance, focused on two consumption scenarios for the total or partial water provision to the campus community.

Methods: The study included: (i) water availability assessment; (ii) criteria operationalization using the Analytical Hierarchy Process (AHP) and the Likert scale for the location of the Drinking Water Treatment Plant (DWTP); and (iii) analysis of Strengths, Weaknesses, Opportunities, and Threats (SWOT) for sustainable management strategies.

Results: The lake can supply the ESPOL campus’s water needs without a deficit until 2041. However, considering technical and environmental aspects, its use could be extended until 2055. Water quality tests indicate that ESPOL Lake represents an acceptable source for the proposed purposes, provided it receives adequate treatment. Furthermore, the campus has an elevated reservoir located in a high area, whose adjacent areas offer better conditions for implementing a drinking water treatment plant. Finally, the proposed strategies for the sustainable management of the lake focused on optimizing water use, enhancing water infrastructure, and promoting academic engagement.

Discussion: This research supports the concept of living and dynamic laboratories in higher education institutions through the application of NBS as necessary sustainable practices in response to global warming.

1 Introduction

Freshwater lakes are essential water collection sources that play a strategic role in providing ecosystem services such as climate regulation, flood and drought control, biodiverse habitats maintenance, and the development of anthropogenic activities (United Nations Environment Programme, 2022b). Their formation is associated with hydrogeological and climatic processes that, over time, form lake watersheds (Branstrator, 2015). However, lakes are also created artificially (reservoirs) through the construction of dams that allow water storage for various purposes (power generation, irrigation, or drinking water supply) (Ji et al., 2020).

Unfortunately, lakes constitute only 0.009% of the planet’s available water (Shiklomanov, 1993; Musie and Gonfa, 2023). Furthermore, factors such as eutrophication, acidification, pollutants from productive and domestic sectors, saline intrusion, climate change, and overexploitation (closely linked to population growth) can compromise the long-term functionality and sustainability of these ecosystems (Han et al., 2020; Alifujiang et al., 2021).

Owing to these risks, the United Nations Environment Assembly adopted a resolution on the sustainable management of lakes, recognising their importance and emphasising the need for urgent action by member states to protect and restore them (United Nations Environment Programme, 2022a). Therefore, assessing the availability of water sources is essential for using them for the community’s benefit without compromising the ecosystem integrity (Dolan et al., 2021).

The water balance is a quantitative analysis method based on mass conservation; that is, the amount of water that enters a system (hydrographic watershed, lake, or reservoir) must be equal to the amount that leaves. The method allows one to evaluate water resource availability and define conservation and sustainable use strategies (Dhote et al., 2021; Juma et al., 2022). Several studies have been based on water balance assessed the surface water availability in dams (Quinn et al., 2019), small reservoirs (Fowe et al., 2015) and underground sources (Rodríguez-Huerta et al., 2020).

In this context, the application of Nature-based Solutions (NbS) through “Water Sowing and Harvesting” techniques can improve aquifer recharge, promoting water system resilience through the efficient use of the vital resource (Albarracín et al., 2021). Integrating these practices allows for designing more sustainable and adaptive water management plans that consider the supply of population centres and ecosystem conservation (Jamion et al., 2023). In the field of urban planning, permeable pavements are considered NbS as they seek to mimic the behavior of natural soils that allow water infiltration for aquifer recharge, even generating capital savings of 5–10% compared to conventional paving techniques (Santhanam and Majumdar, 2020).

Global investment in NbS represents only 0.026% of global wealth (United Nations Environment Programme, 2021; Boston Consulting Group, 2025), which means that despite progress in the search for alternatives to water management, barriers related to financing still exist. Investments in the implementation of NbS should quadruple by 2050 if the goals of biodiversity, climate change, and land reduction are to be met (United Nations Environment Programme, 2021). To generate greater interest in financing these practices, Crockford’s study (Crockford, 2022) recommends that greater efforts should be made to give real value to the impacts of natural processes on global society.

According to the United Nations (2024), by 2024, only 17% of the 135 targets set out in the Sustainable Development Goals (SDGs) are on track to be achieved, another 17% are regressing, and the rest show marginal progress, mainly those associated with SDGs 1, 6, 8, 13, and 16. To successfully implement sustainable water management plans, a shift in education’s focus toward sustainable development (ESD) and the achievement of the SDGs is important (Teh and Koh, 2020). Higher Education Institutions (HEIs) and their operations can serve as living laboratories by developing innovative solutions to real-world challenges, with the active participation of multiple stakeholders: students, teachers, researchers, administrative staff, civil society, the private sector, and local authorities (Leal Filho et al., 2019).

There are examples of several universities around the world that have documented in scientific publications and implemented practical solutions for water conservation and sustainable use on their campuses. For example, King Faisal University (Saudi Arabia) has implemented xeriscape, a technique focused on reducing or eliminating the need for additional irrigation while creating attractive and functional landscapes (Ismaeil and Sobaih, 2022). The American University in Cairo (Egypt) designed its campus to take advantage of sandy areas, allow infiltration and improved groundwater recharge, and implement drip irrigation systems (Amr et al., 2016). Another case is that of Duke University (United States), which in 2014 built a water reuse reservoir and a pond complex to capture urban stormwater and recycle it to provide cooling to the campus and reduce the nutrient and sediment load in Lake Jordan (Richardson and Flanagan, 2024).

The Escuela Superior Politécnica del Litoral (ESPOL) is a 658-hectare HEI located in Guayaquil, Ecuador. It is home to the Bosque Protector Prosperina (BPP), a tropical dry forest with various endemic species of flora and fauna. To support the conservation of the BPP, ESPOL has implemented NbS (Nature-based Solution) through artificial lakes and wetlands strategically distributed throughout its campus. These lakes provide water for local biodiversity and ecosystem services such as forest fire mitigation, flow management for flood control on campus and adjacent urban areas, timely irrigation of green areas, and experimental farm operations (Figure 1).

Figure 1
Maps and images showing a geographical study area in Ecuador. Panel a shows a large relief map of Ecuador indicating the context of the location. Panel b zooms in on the study area at the provincial level. Panel c provides a detailed map of the study area, highlighting natural drainage and infrastructure and key areas: Engineering Zone, ZEDE Zone, Experimental Farm Zone, and various infrastructure. Panels d, e, and f show corresponding photographs of natural and built environments, including lakes and artificial wetlands. The legend explains the symbols on the map, showing roads, lakes, and structures.

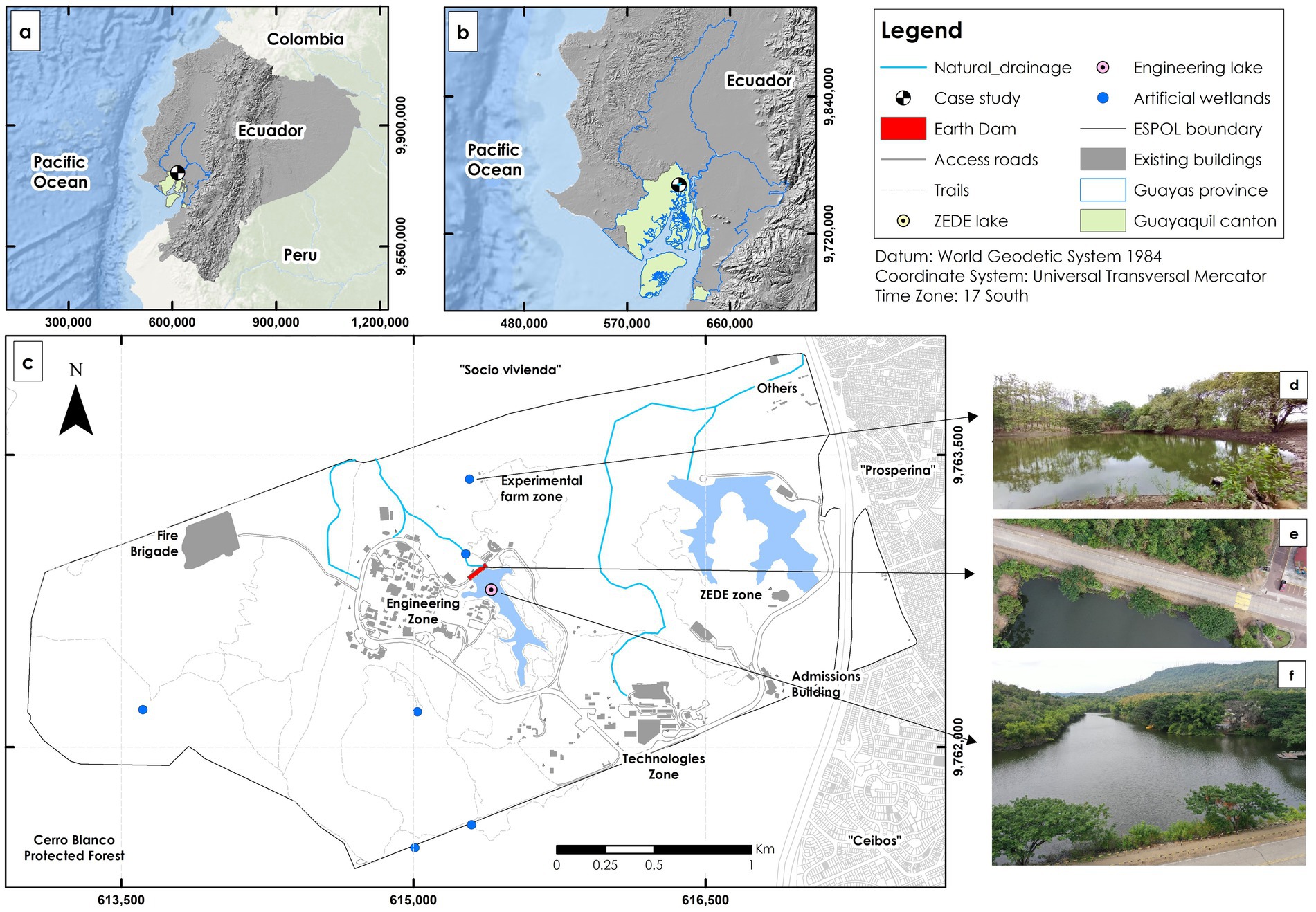

Figure 1. Case study location. (a) Geographic location of Ecuador, (b) guayaquil canton, (c) ESPOL property, (d) experimental farm artificial wetland, (e) engineering lake earth dam, (f) engineering lake.

ESPOL has been developing various studies related to the optimisation of drinking water supply and rainwater drainage systems (Merchán-Sanmartín et al., 2023), as well as the wastewater reuse (Merchán-Sanmartín et al., 2022a). These studies are aligned with ESPOL’s sustainability program, which considers operating the campus more efficiently in terms of water, energy, and waste (Sostenibilidad ESPOL, 2018). However, the lake’s capacity as a source to fully or partially supply the campus’s water demand has not been analyzed; therefore, the study poses the following research questions:

i) Does the quantity and quality of water in the artificial lake in the HEI offer favourable conditions for use in different activities, including human consumption?

ii) What would be the priority strategic factors for sustainable water resource management?

This research aims to assess the artificial lake water availability on a university campus through the water balance of its lake watershed, water quality analysis and supply/demand projection for sustainable water use. In addition, the expert-based multi-criteria analysis assesses the ideal location for the future Drinking Water Treatment Plant (DWTP) design to supply the university community. This study addresses the existing gap in research on water management as a sustainability indicator in HEIs, proposing an NbS practical example using artificial lakes on a university campus as a water source for consumption.

2 Materials and methods

The methodology implemented in this study focused on a university campus with an artificial lake as a water management element for green areas irrigation, considering the climate seasonality, and as a regulatory entity against climate change because there are peri-urban areas with serious flooding risk and forest fires. The water availability from a protective forest source that could be used for human consumption was evaluated. The research was structured in three stages: (i) water availability assessment through water balance and resource quality analysis; (ii) operationalization criteria for DWTP implementation, through the integration of the Analysis Hierarchical Process (AHP) and Likert scale; (iii) analysis of Strengths, Weaknesses, Opportunities, and Threats (SWOT) for sustainable management strategies (Figure 2).

Figure 2
Flowchart illustrating a three-stage process. Stage I,

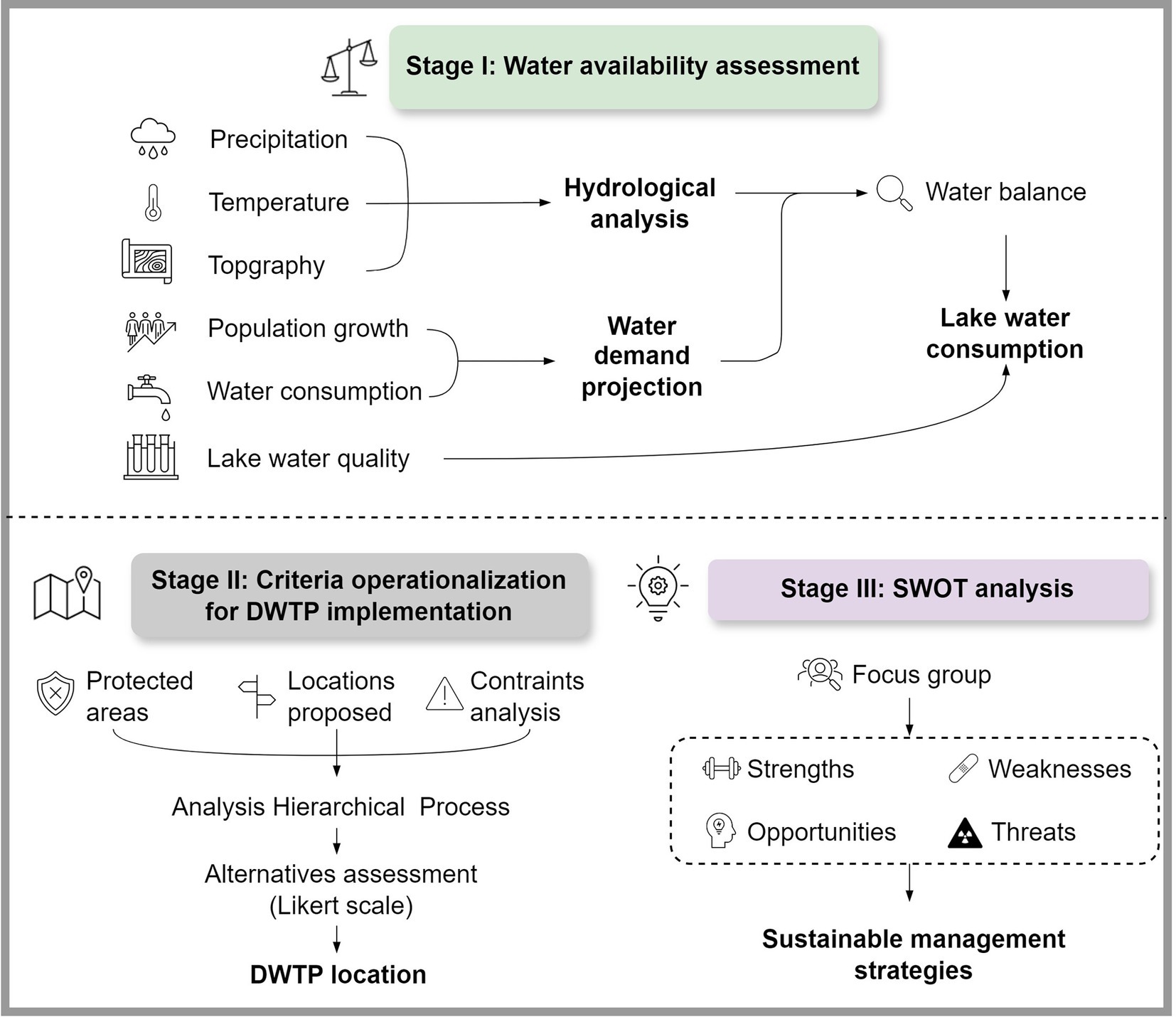

Figure 2. Stages applied to water availability assessment.

2.1 Stage I: Water availability assessment

2.1.1 Hydrological analysis

The ArcMap program (version 10.5) allowed watershed delimitation that feeds the ESPOL lake using a Digital Elevation Model (DEM) obtained from the Alaska Satellite Facility online platform (NASA, 2011), which provides raster images with a resolution of 12.5 m. The lake’s topography was obtained through studies conducted by Rosales Serrano and Velásquez Molina (2022) to estimate its dimensions and depth.

The annual precipitation data correspond to the period 1961–2019 (59 years), taken from the meteorological station M056 (Guayaquil Airport), located 8.5 km from ESPOL. The precipitation data were subjected to a goodness-of-fit test based on the Kolmogorov–Smirnov test (ΔKS), which is calculated as the absolute value of the difference between the probability of a theoretical distribution and the observed data empirical probability (Equation 1), to identify the theoretical distribution that best fits (Berger and Zhou, 2014).

ΔKS=maxF(x)P(x)    (1)

The study evaluated different distributions to analyse extreme events, such as Normal, Log-Normal, Pearson Type III, Log-Pearson III, Gumbel and Log-Gumbel. It employed the Weibull plotting position to determine the empirical probability of each observed data (Equation 2) (Villón Bejar, 2006). Subsequently, a critical value (Δo) was established that depends on the available data number and the desired significance level (for this case, a significance of 5% was considered), using Equation 3.

P(x)=mN+1    (2)
Δo=1.36N    (3)

Where:

F(x): Theoretical distribution probability.

P(x): Experimental or empirical probability.

m: Position occupied by the data when sorted in ascending order.

N: Available data number.

The theoretical distribution selected was the one with the minimum ΔKS; as long as ΔKS<Δo (Villón Bejar, 2006). According to the selected theoretical distribution, the study determined the probable maximum precipitation (Pr) for a 2-year return period (under the premise that the water contribution is minimal for this range). Equation 4 estimates the surface runoff (QRf) (Fowe et al., 2015), based on micro watershed contributing area (A), precipitation (Pr), and the runoff coefficient (K), which depends on the terrain characteristics (Te Chow et al., 1993).

QRf=KPrA    (4)

The Thornthwaite method estimates evapotranspiration in a given area and uses air temperature and the study site’s latitude as parameters (Equations 59) (Hendrayana et al., 2021). The study used mean monthly temperature values from the available historical record (1992–2013) to calculate annual evapotranspiration. The data obtained were analyzed similarly to precipitation data to determine evapotranspiration associated with a 2-year return period (Sánchez San Román, 2017).

i=(t5)1.514    (5)
ETPuncorrected=16(10tI)a    (6)
a=675x109·I3771×107·I2+1792x105·I+0.49239    (7)
I=i=112i    (8)
ETP=ETPuncorrected(N12·d30)    (9)

Where:

t: Month temperature.

ETP: Corrected potential evapotranspiration.

N: Maximum number of sun hours, taken from Aparicio Mijares (1989).

d: Month days number.

i: Constant depending on the month temperature.

a, I: Coefficient as a function of i.

2.1.2 Water demand projection

This research used the results obtained from the study by Merchán-Sanmartín et al. (2022a), which projected the ESPOL population based on the historical record analysis from different university sectors, establishing six consumption categories: (i) Undergraduate students, (ii) ESPOL workers, (iii) high school students, (iv) high school workers, (v) graduate students, (vi) admissions students. Categories (iii) and (iv) correspond to the population of an educational institution located within the ESPOL premises in the Technologies zone.

The annual water consumption was determined based on three aspects: (i) water allocation, (ii) ESPOL academic period (261 days), and (iii) consumption hours of the previously established categories. The water allocation was taken from a previous study by Merchán-Sanmartín et al. (2022b), which set an initial value equal to 50 L/hab*day based on values proposed by the Ecuadorian Construction Standard (NEC, 2011) with an annual increase of 1.25% (Ecuadorian Standardization Institute, 1992).

The water volume for green area irrigation was projected to increase by 3% annually. Table 1 shows the water extractions from the lake used for green areas (currently 107,165.86 m2) and activities in the Experimental Agricultural Farm, provided by ESPOL’s maintenance service.

Table 1
www.frontiersin.org

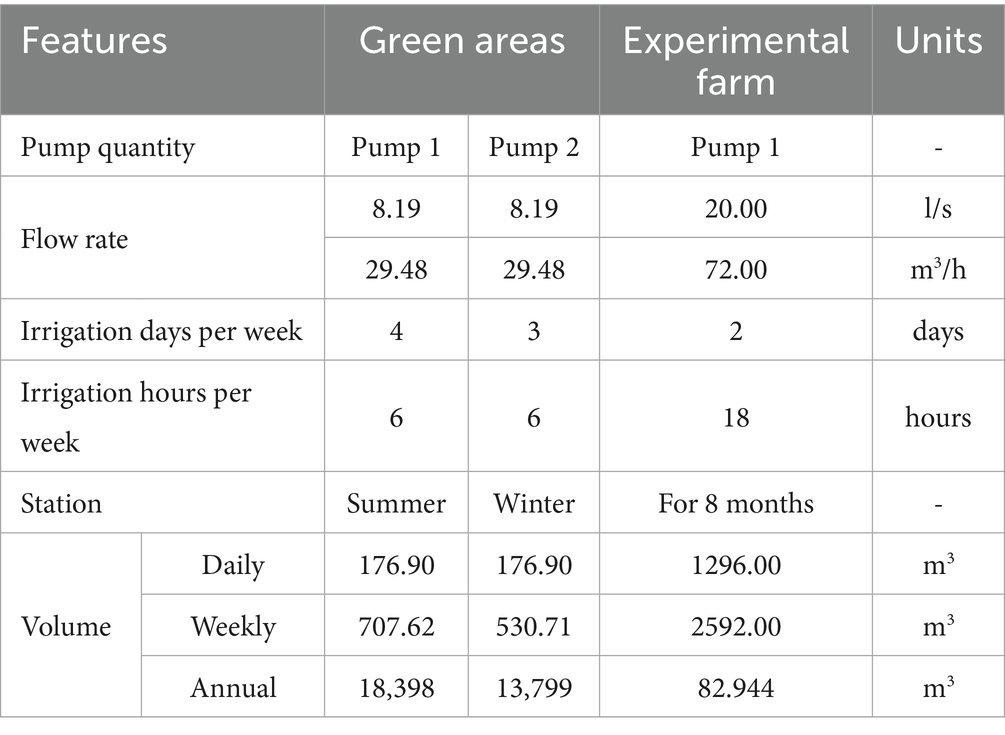

Table 1. Information on the lake uses for green areas irrigation and activities at the experimental farm.

2.1.3 Lake water quality

According to the protocols established in the Standard Methods for the Examination of Water and Wastewate (American Public Health Association, 2017), Physical, chemical, and microbiological analyses were performed on four water samples from the lake, integrating parameters such as arsenic, total coliforms, fluoride, Chemical Oxygen Demand (COD5), Biochemical Oxygen Demand (BOD5), nitrate, pH, sulfate, temperature, turbidity, and Total Dissolved Solids (TDS). The results of the analyses were compared to the water quality standards established in the Unified Text of Secondary Legislation of the Ministry of the Environment of Ecuador (TULSMA) (Ministerio del Ambiente, Agua y Transición Ecológica, 2015).

2.1.4 Water balance

The study applied the water balance to assess the annual available volume of the lake from water inputs and outputs (Equation 10) (Ozturk and Dincer, 2018). The input conditions (Qe) are based on the contribution due to precipitation (Pr) and surface runoff (QRF) on the watershed. In contrast, the output parameters focus on the existing conditions (Qs) and the future ESPOL needs (Qn). Existing conditions include the current ESPOL irrigation (VI), water use for the Experimental Agricultural Farm (VEF), and evapotranspiration of the lake (ET). Future needs included the drinking water supply for the university population (Dw) and the green areas not covered by the current irrigation (VIF).

Qe=Qs+QnPr+QRf=(VI+VEF+ET)+(Dw+VIF)    (10)

Regarding underground runoff, Ecuador’s hydrogeological map shows no evidence of aquifers in the area (Senagua-Empresa Pública Espol Tech, 2014). Additionally, according to data obtained from geoportals (Ministerio de Agricultura y Ganadería del Ecuador, 2020), the lithology of the study area consists of silty clay soils. Although these conditions suggest a scenario where the contribution of underground flow may be negligible, its contribution cannot be ruled out 100%, so its analysis is beyond the scope of this study.

The water balance application took 2022 as the starting point for the analysis, which made it possible to identify the year in which the deficit would be generated according to the estimates related to the increase in ESPOL’s water consumption. The study analyzed two consumption scenarios:

• Scenario 1: Its objective is to cover the water needs of the campus population, thoroughly irrigate green areas, and operate operations in the experimental farm area. This scenario presents an unfavourable outlook for the lake’s exploitation, as it addresses the maximum possible consumption.

• Scenario 2: The aim is to partially supply ESPOL, as the intake buildings were not shown due to their proximity to the main supply pipeline that connects to the public water service. This measure would reduce withdrawals from the lake, promoting its sustainability.

2.2 Stage II: Criteria operationalization for DWTP implementation

The study evaluated different alternatives for the possible DWTP location and identified the areas where intervention is not feasible for Protective Forest conservation reasons. The site selection process was based on the Likert scale, a scoring method that indicates a statement’s acceptance or rejection level. The scale uses scores from 1 (very unfavourable condition) to 5 (very favourable condition) (Rokooei et al., 2022). Four evaluation criteria were proposed, broken down into sub-criteria, to select the alternative that obtained the highest score (Table 2).

Table 2
www.frontiersin.org

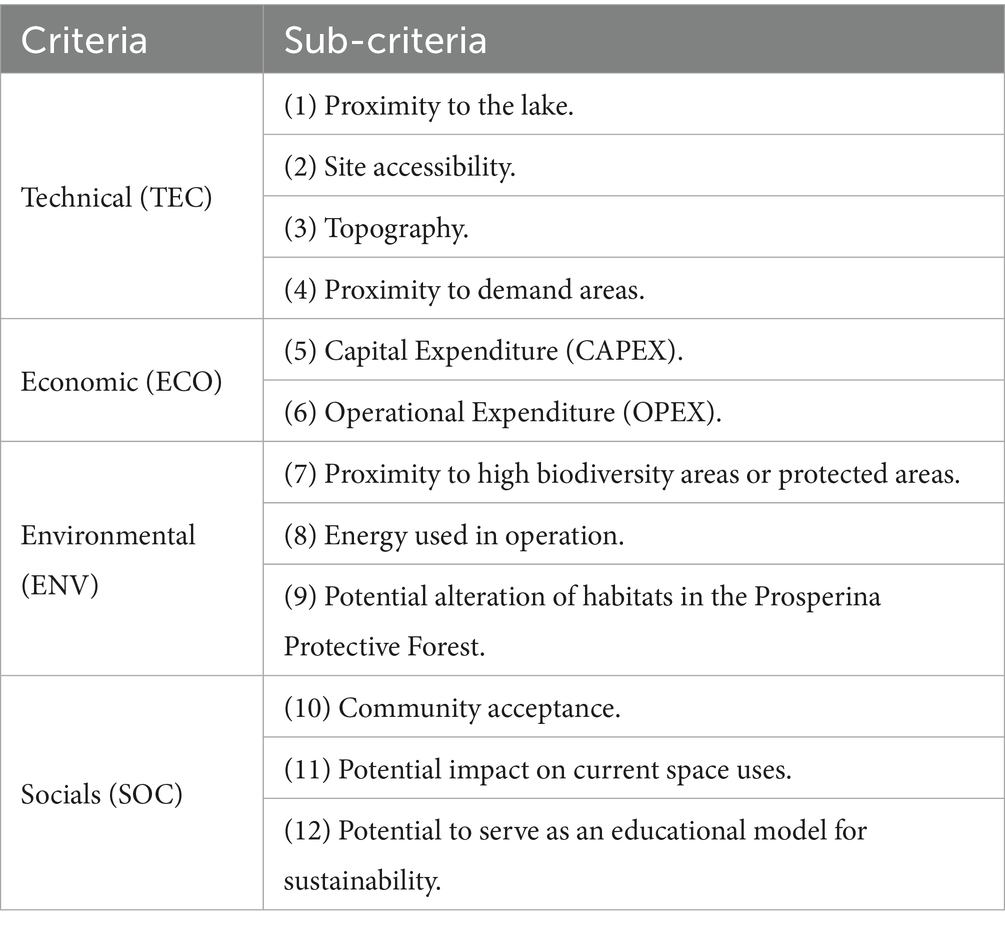

Table 2. Evaluation criteria for site selection.

However, weights were assigned to the evaluation criteria before scoring using Likert to reflect their relevance within the study context. The weights for the criteria were obtained based on an AHP, which consists of making pairwise comparisons between criteria based on their relative importance to the objective (Saaty, 1984). As described by different references (Saaty and Vargas, 2012; Prascevic and Prascevic, 2017), AHP method uses a standard scale between 1 and 9, where 1 indicates that criterion A is equally important as criterion B and progressively, 9 would indicate that criterion A has much greater relevance than criterion B. These scores are organized in a pairwise comparison matrix (M) that meets the following conditions:

• The matrix M is square, with dimensions nxn, where n is the number of criteria to be evaluated.

• Being aij an element of M, such that i,j=0,1,2n. If i=j, then aij=1.

• Being aij an element of M, such that i,j=0,1,2n, It’s true that aji=1/aij.

The following steps are then followed, where the weights of the established criteria are established, and if the matrix M is consistent:

i) A new matrix N is generated from M by dividing each element aji M by the sum elements of the corresponding column j.

ii) The matrix N allows to calculate the priority vector X¯ by averaging the values of each row of the matrix N.

iii) The product between the matrix M and the priority vector X¯, divided for each element of X¯, results in the vector λ, from which the maximum value λmax is extracted to obtain the consistency index (CI) by means of Equation 11.

CI=λmaxnn1    (11)

iv) The random consistency index (RI) is selected depending on the size of the matrix M (Chaiyaphan and Ransikarbum, 2020).

v) Finally, the consistency ratio (CR) is determined with Equation 12, where if CR0.1, then M is consistent and the values of X¯ are reliable.

CR=CIRI    (12)

Below are the mathematical expressions used to obtain the weighting of criteria from the pairwise comparison matrix (M)

M=[a11an2a21a22a1na2nan1an2ann]N=[b11bn2b21b22b1nb2nbn1bn2bnn]x¯=[x1x2xn];W=[w1w2wn];λ=[λ1λ2λn]λmax=i=0nλin

Where:

bij=aiji=1naij;xi=j=1nbijn;wi=Nx¯;λi=xiwi;Fori,j=1,2,3,,n

The M matrix was constructed by consensus among the authors of the study (with expertise in geology, hydrogeology, hydraulics, sanitation, and the environment), while the scores shown in the Likert evaluation were determined with the participation of experts linked to ESPOL’s sustainability and physical infrastructure departments, as well as professors of subjects related to water management and student representatives.

2.3 Stage III: SWOT analysis

The analysis considered the focus group participation made up of eight professionals related to five areas of management and education at ESPOL: (i) Physical Infrastructure Management (GIF); (ii) Sustainability Department; (iii) student chapter representative and teacher of the Civil Engineering program, (iv) ESPOL student federation president, (v) Earth Sciences department student association president. In the first stage of the focus group, the feasibility of implementing a DWTP on campus was introduced.

Subsequently, participants completed a survey based on a questionnaire with open questions focused on stakeholders’ opinions regarding the lake’s use and the DWTP implementation (Supplementary material). The survey was conducted anonymously online through the Google Forms platform (Hasan and Hameed, 2022). Finally, a SWOT analysis was carried out regarding the lake’s use as a supply source for ESPOL to establish strategies that guarantee water availability and ecosystem conservation. The SWOT analysis is a practical tool that allows one to organize several factors in a systematic way that are relevant to an objective and establish clear conclusions (Büyüközkan and Ilıcak, 2019; Phadermrod et al., 2019).

3 Results

3.1 Lake water availability

3.1.1 Delineation of hydrographic watersheds and reservoir modeling

The Micro-Watershed (MW) around the lake in the engineering area contributes 90.13 ha (Figure 3a). According to the topographic and bathymetric data, the lake has a volume of 380,000 m3, an area of 57,304.30 m2, and a maximum depth of 12.80 m (Figure 3b). The dam is part of the ESPOL main road, whose surface course is 80.29 meters above sea level (m.a.s.l.), while the lake’s maximum level is generally 78 m.a.s.l. The structure has an internal impermeable clay core with a maximum depth of 19.35 m on a porous rock stratum with sandstones, micro breccias, and shales with fractures. The material surrounding the clay core comprises silt and clayey sand, with a covering layer of large rocks to mitigate erosion (Supplementary Figure S1).

Figure 3
Two panels are shown: Panel “a” shows the watershed around ESPOL, with an area of 90.13 hectares; while Panel “b” displays elevation variations using different colors, ranging from 60.50 to 85.36 meters above sea level. Both sections include scale bars and north direction indicators. Datum used is World Geodetic System 1984, with the coordinate system being Universal Transversal Mercator in Zone 17 South.

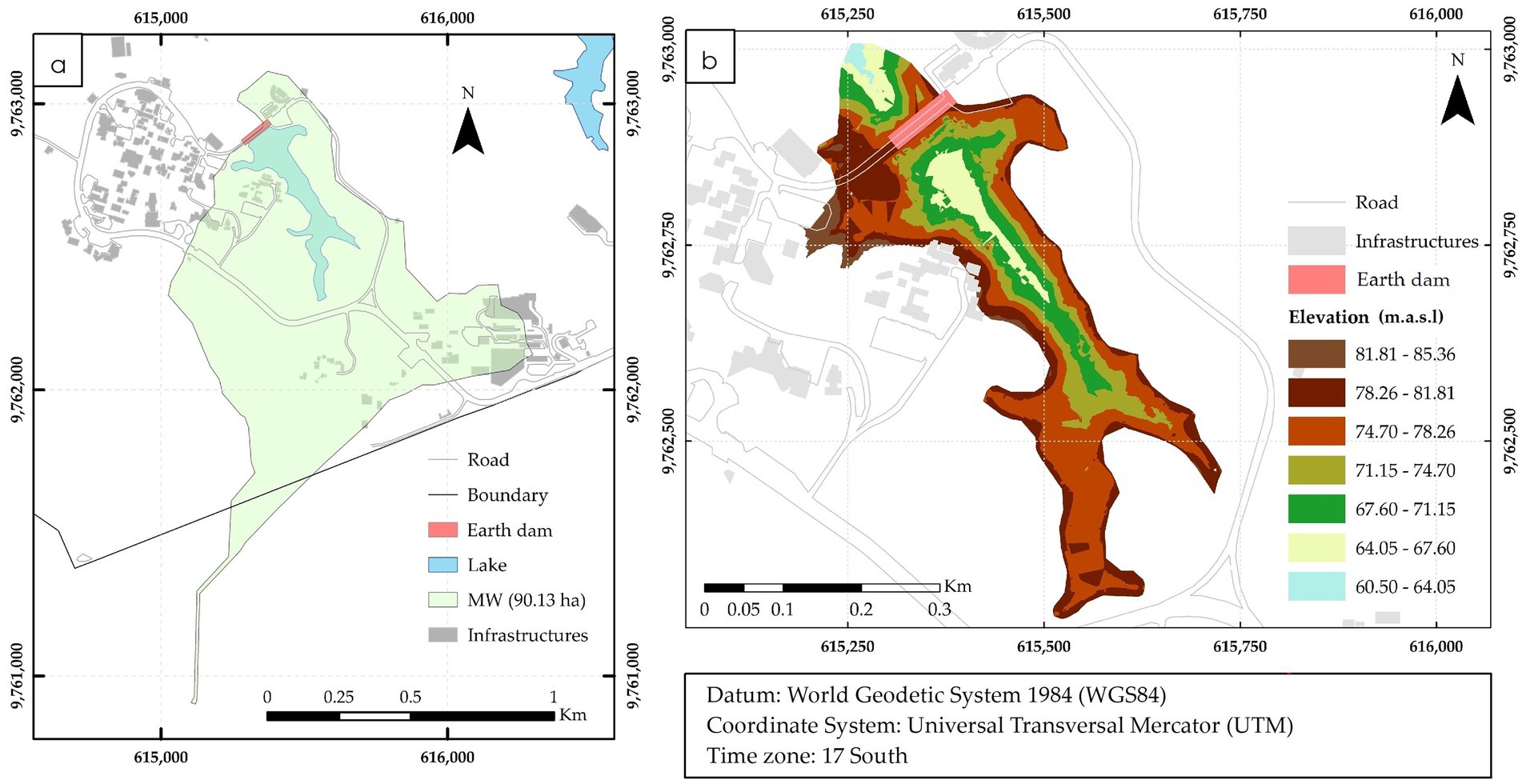

Figure 3. (a) Lake watershed delimitation; (b) engineering lake geomorphology.

3.1.2 Climatic conditions and hydrological analysis

In Guayaquil, the first months of the year are characterized by intense rains, while the dry season begins in June. Between 1961 and 2019, 8% of the annual accumulated precipitation data is less than 500 mm, while 19% is above 1,500 mm. The years 1983 and 1998 recorded peaks of 4,231 and 3,442 mm, respectively, due to the “El Niño” phenomenon. The K-S method indicated that the precipitation dataset best fits a Log-Pearson III distribution, which obtained a minimum test statistic 0.05 compared to the other distributions. This implies that for a return period of 2 years, the contribution volume due to precipitation is 58,619 mm, while the runoff volume would be 302,175.65 m3/year (Figure 4).

Figure 4
Bar chart showing accumulated annual precipitation from 1961 to 2019 categorized by color: red for over two thousand millimeters, gray for one thousand to two thousand millimeters, blue for five hundred to one thousand millimeters, and purple for under five hundred millimeters. Maximum precipitation reached 4230.7 millimeters in 1981 and 3441.6 millimeters in 1998. A flowchart details a Kolmogorov-Smirnov test for distribution models, with Log Pearson III fitting best. Precipitation measured at 58,619 cubic meters per year, with a runoff flow of 302,175.65 cubic meters per year.

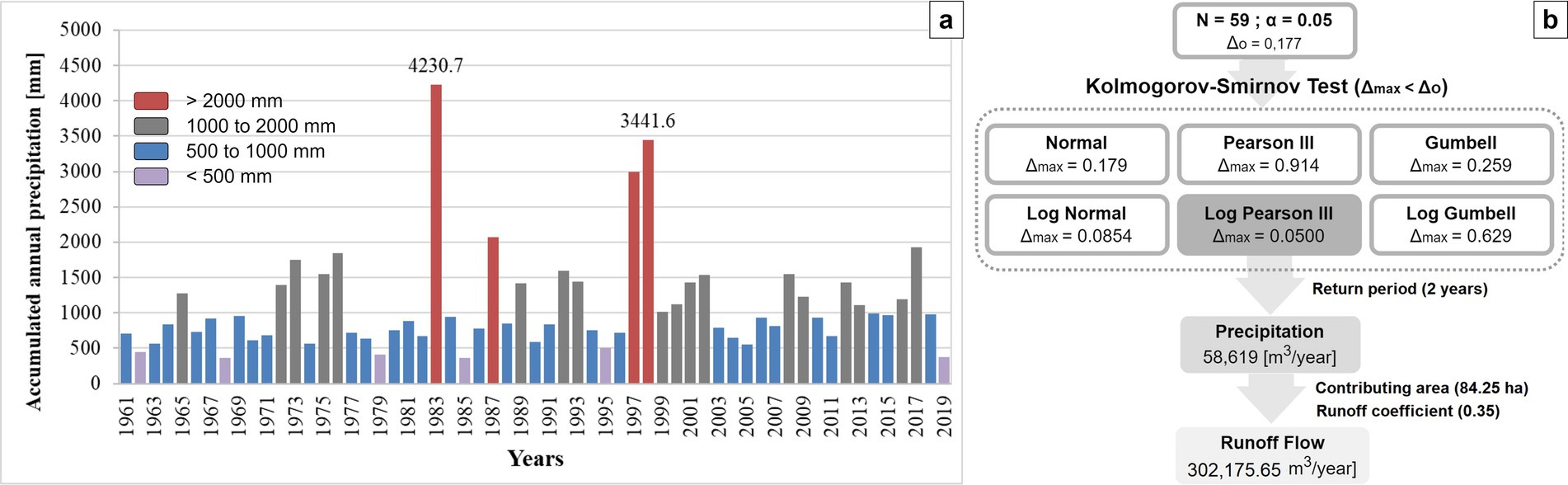

Figure 4. (a) Historical rainfall record; (b) precipitation and runoff flow for a 2-year return period.

According to the meteorological records obtained from the M056 station, the annual temperature in the study area varies from 27.5 to 24.9 °C. The annual accumulated evapotranspiration peaked at 1264.5 mm in 1997, while in 2001, a minimum value of 881 mm was recorded, leading to an average evapotranspiration of 1073.1 mm during this period. Through distribution analysis, it was estimated that for a return period of 2 years, the evapotranspiration would be 1,212.6 mm, equivalent to a volume of 69,486.9 m3/year as output to the lake (Figure 5).

Figure 5
Bar graph on the left shows accumulated evapotranspiration from 1992 to 2013, categorized into three ranges: below 1000 mm, 1000 to 1100 mm, and above 1100 mm, with corresponding purple, green, and red bars. On the right, a flowchart details a Kolmogorov-Smirnov test comparing distributions: Log Pearson III, Pearson III, Log Normal, Normal, Log Gumbell, and Gumbell. Normal distribution is highlighted with a maximum delta of 0.125, leading to an evapotranspiration result of 69,486.80 cubic meters per year and a two-year return period.

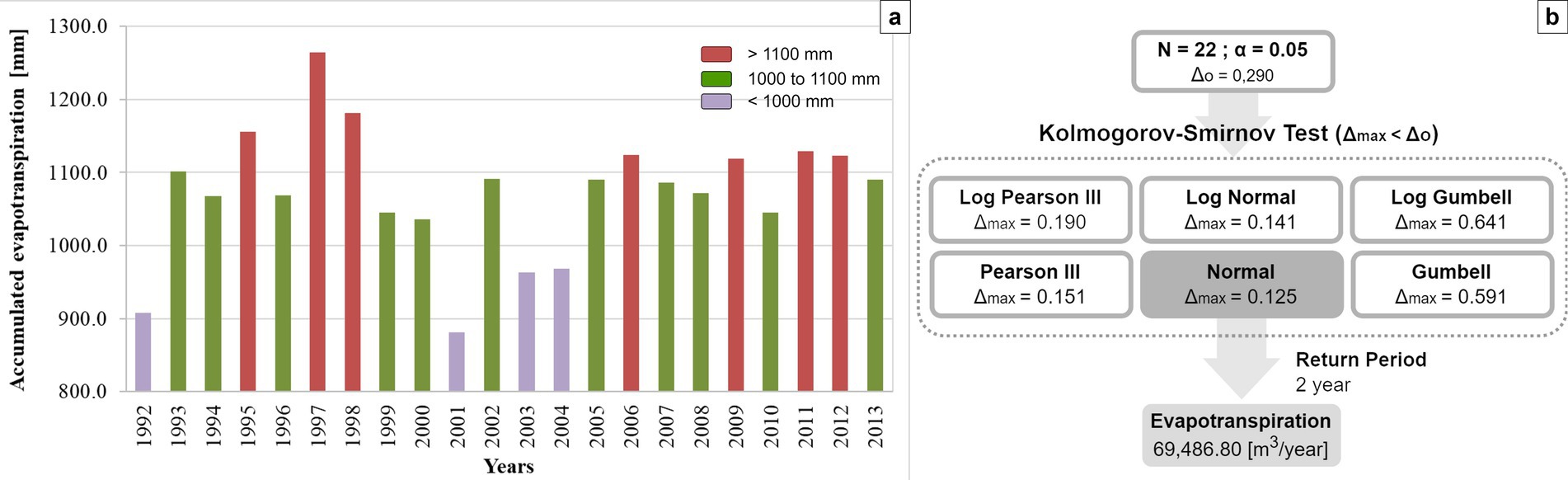

Figure 5. (a) Annual evapotranspiration from monthly historical temperature records; (b) evapotranspiration for a 2-year return period.

3.1.3 Population analysis, water demand projection and water quality

According to the consumption categories, the “undergraduate students” population represents about 53% of the total ESPOL population. In 2022, ESPOL registered 20,096 inhabitants, which, according to the population projection, will increase to 30,011 inhabitants by 2050, representing an increase of 49% (Figure 6).

Figure 6
Bar chart depicting ESPOL population projections for different groups in 2022, 2030, 2040, and 2050. Categories include undergraduate students, ESPOL workers, high school students, high school workers, admissions students, and graduate students. The numbers show varying increases across the years, with notable growth in undergraduate students by 2050.

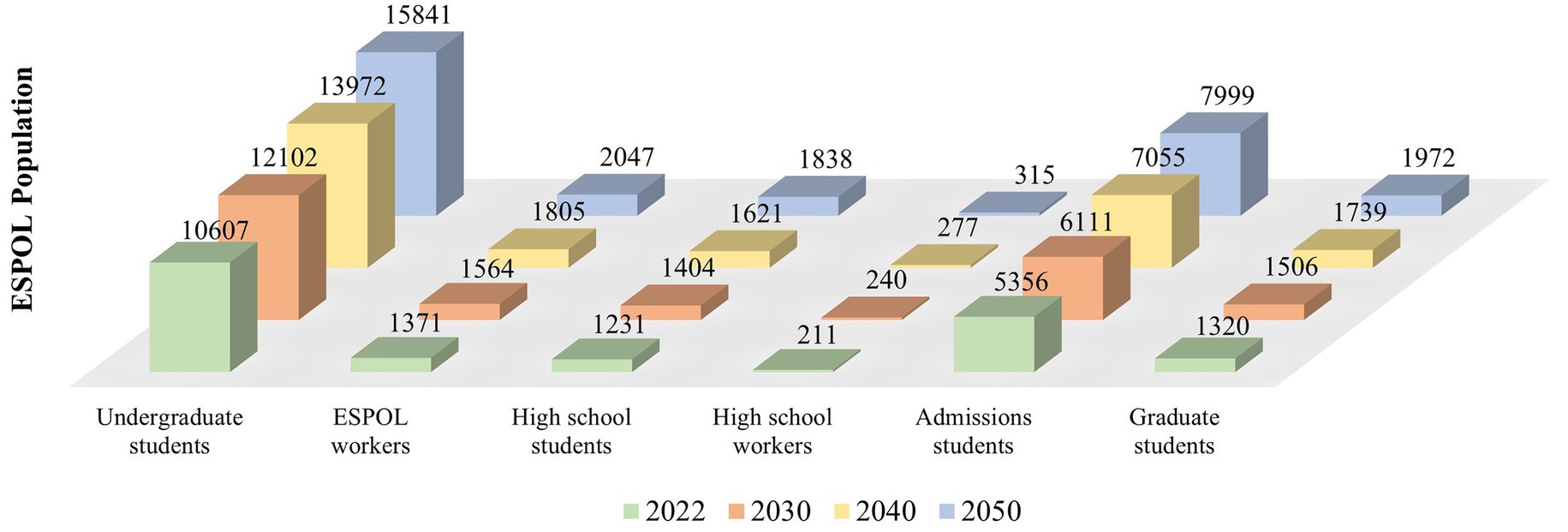

Figure 6. ESPOL population project.

For the year 2022, the water allocation resulted in 51.26 L/hab*day, which was distributed proportionally to each category’s consumption hours. Considering the university activities period (261 days), ESPOL’s annual water consumption (Qc) in 2022 was 104,974.06 m3/year. In this context, the undergraduate students category represents about 70% of ESPOL’s water consumption (Supplementary Table S1). Consumption increases as the population increases, so by 2055, it will increase by 83% in 33 years (Figure 7).

Figure 7
Bar chart illustrating projected water consumption from 2022 to 2055 in cubic meters. Values increase steadily: 104,974 in 2022, 114,212 in 2025, 129,362 in 2030, 149,203 in 2035, 159,901 in 2040, 170,598 in 2045, 181,296 in 2050, and 191,993 in 2055.

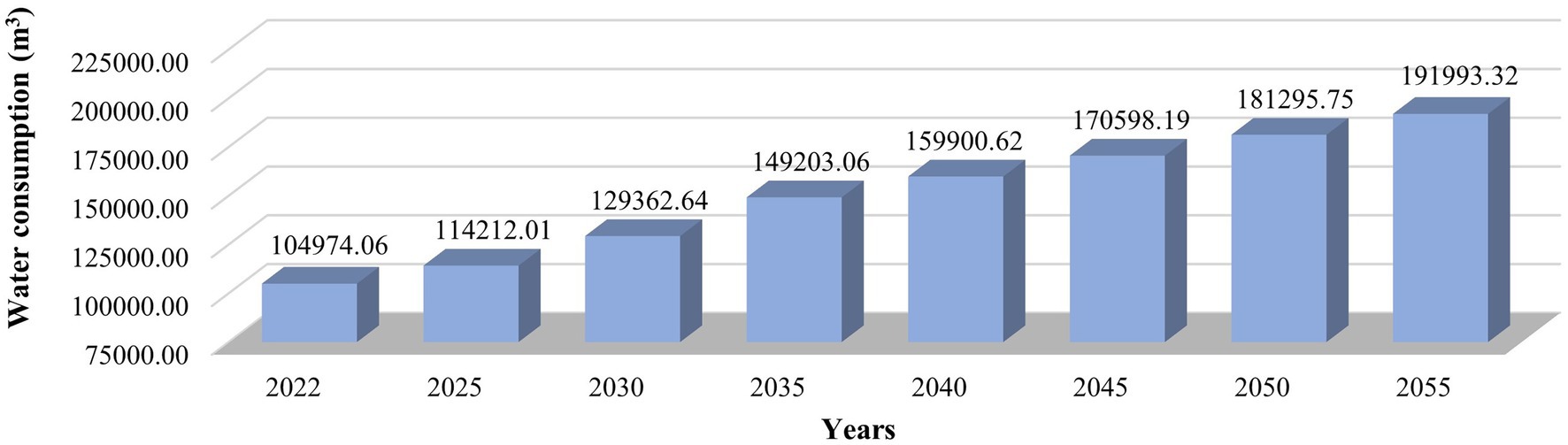

Figure 7. Water demand projection of the ESPOL population.

The total ESPOL’s green areas are 123,370.80 m2; however, only 87% are irrigated with water from the lake (107,165.86 m2); therefore, 16,205 m2 would need to be covered. Based on the data provided by ESPOL’s maintenance service, with an annual irrigation volume of 32,197 m3 and considering an irrigation frequency of 3.5 days per week (182.7 days per year), the irrigation coverage was estimated at 1.65 L/m2*day. Under the same irrigation frequency, the missing area would consume 4,868.55 m3 of water per year.

The quality water results indicate that the lake has problems associated with the Chemical Oxygen Demand (COD5) and Biochemical Oxygen Demand (BOD5), as they are above the quality standards established in TULSMA (Table 3).

Table 3
www.frontiersin.org

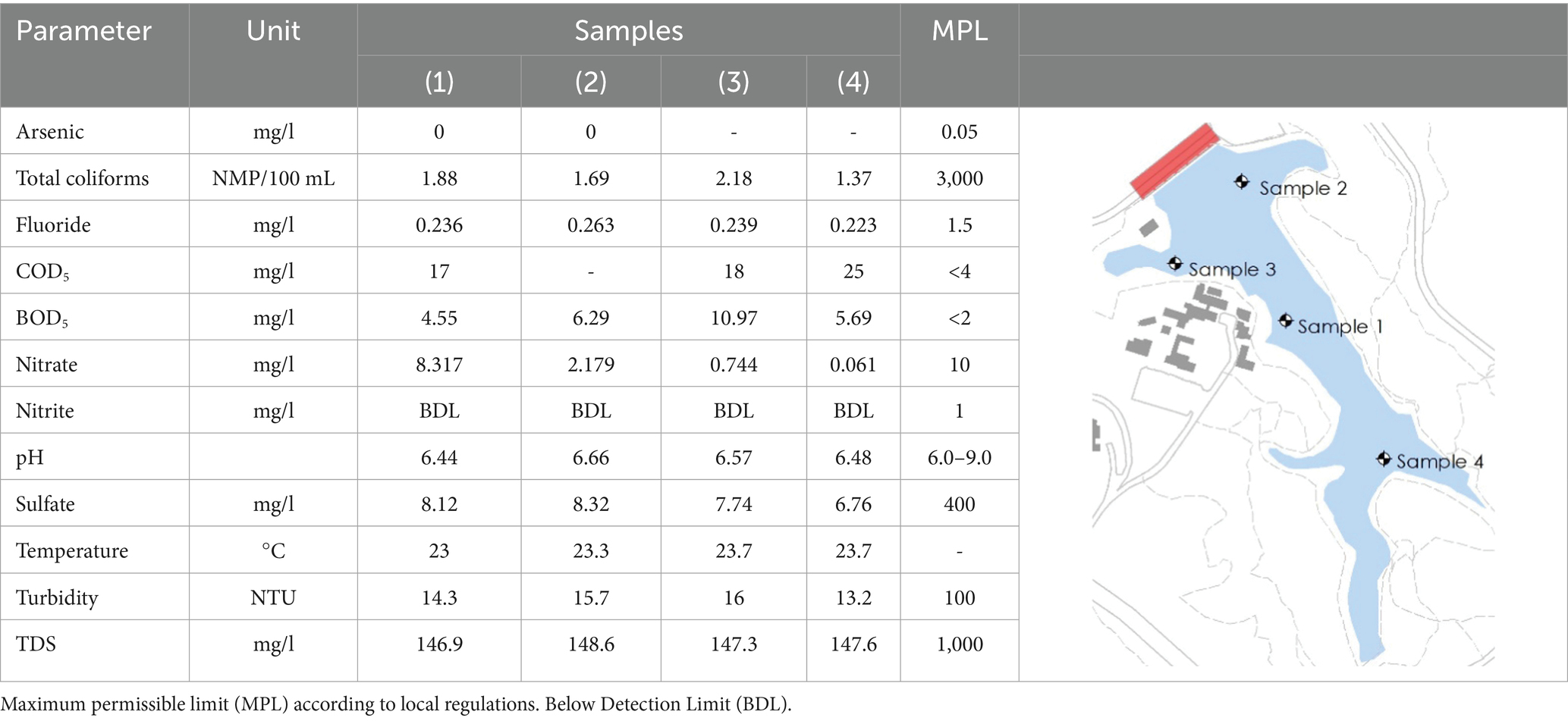

Table 3. Water samples analysis from different points of the engineering lake.

3.1.4 Water balance

Under current conditions, where the water from the engineering lake is used for specific activities, extractions can continue without generating a deficit. However, under consumption scenario 1, a deficit would be generated in 2042 due to the added population demand, representing 49% of consumption. This is followed by extractions for agricultural farms (26%), evapotranspiration (21%), and green areas (15%). The water balance results under consumption scenario 2 (more conservative) show that it is possible to take advantage of the lake’s use until 2055; after this year, the outputs exceed the inputs, causing a deficit (Table 4). It is important to mention that the buildings in the admissions area currently do not have an elevated reservoir for water distribution. Instead, they are supplied from a pumping system, which could damage pipes and sanitary appliances.

Table 4
www.frontiersin.org

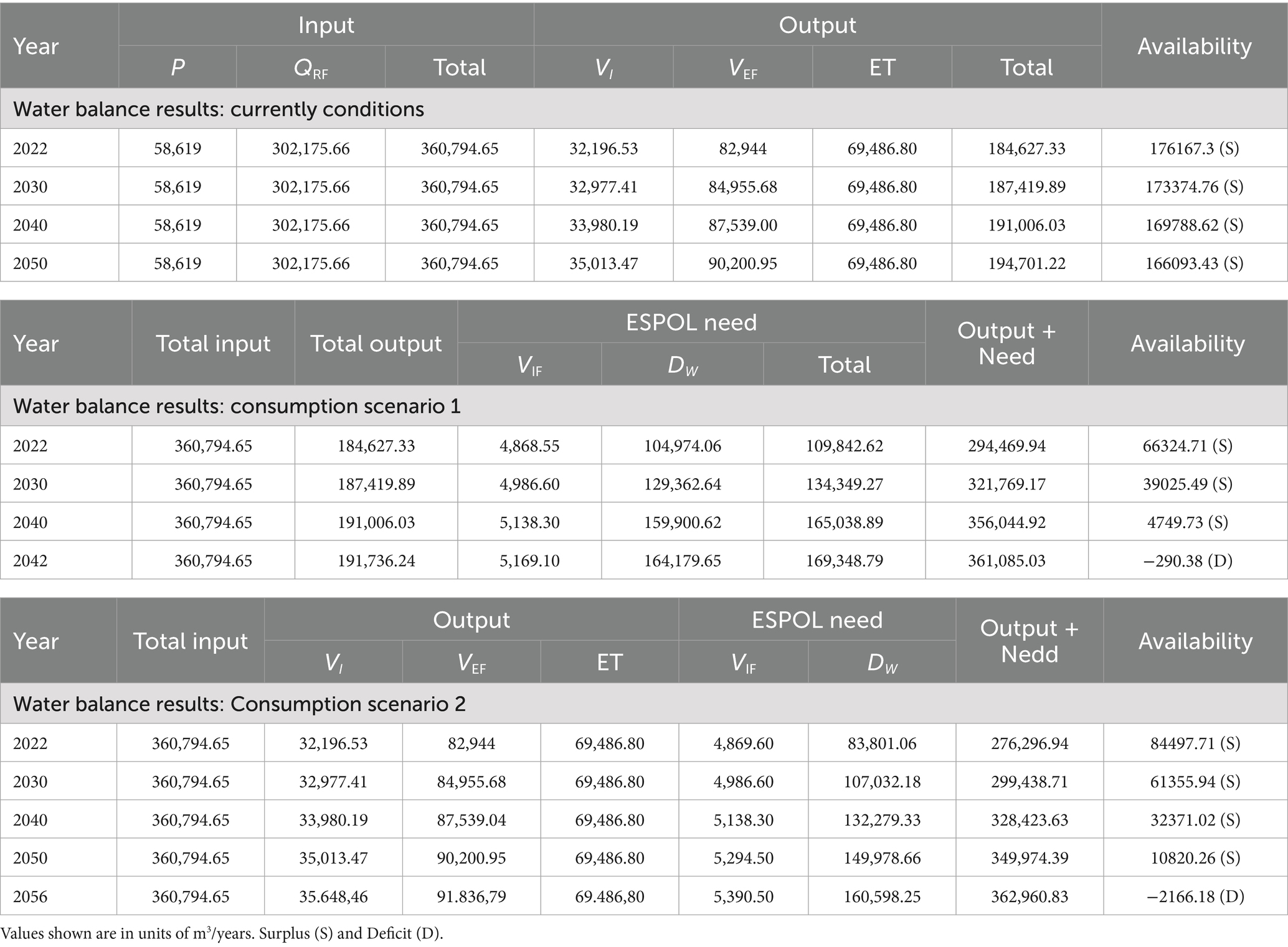

Table 4. Lake water availability under current conditions and consumption scenarios.

3.2 Drinking water treatment plant location

ESPOL’s protected areas comprise the buffer zone, nucleus 1, nucleus 2 and permanent protection zone, which total 332.30 ha, equivalent to 49% of ESPOL’s total land area, therefore, the expansion of impermeable surfaces or concrete areas is restricted. The Special Economic Development Zone (ZEDE zone in Figure 1) is a space intended to house industries focused on export and import activities of raw materials. In addition, ESPOL has a site that connects with Guyaquil’s public water service, where five ground-level reservoirs of 200 m3 each are supplied. Drinking water is transported from a pumping station to ESPOL’s elevated reservoir, with a capacity of 1,000 m3, through the supply pipeline. The admissions buildings are supplied from the supply pipeline, while the elevated tank supplies the other areas of ESPOL through the distribution network (Figure 8).

Figure 8
Map depicting an ESPOL boundary with various zones highlighted, including buffer, nucleus, and protection permanent zones. It shows buildings, roads, lakes, artificial wetlands, water supply areas, and pipelines, with a focus on an experimental farm zone. The map includes symbols for water service connections, reservoirs, earth dams, and proposed DWTP locations. A legend details these features, and coordinates are provided in WGS84-UTM-Zone 17S.

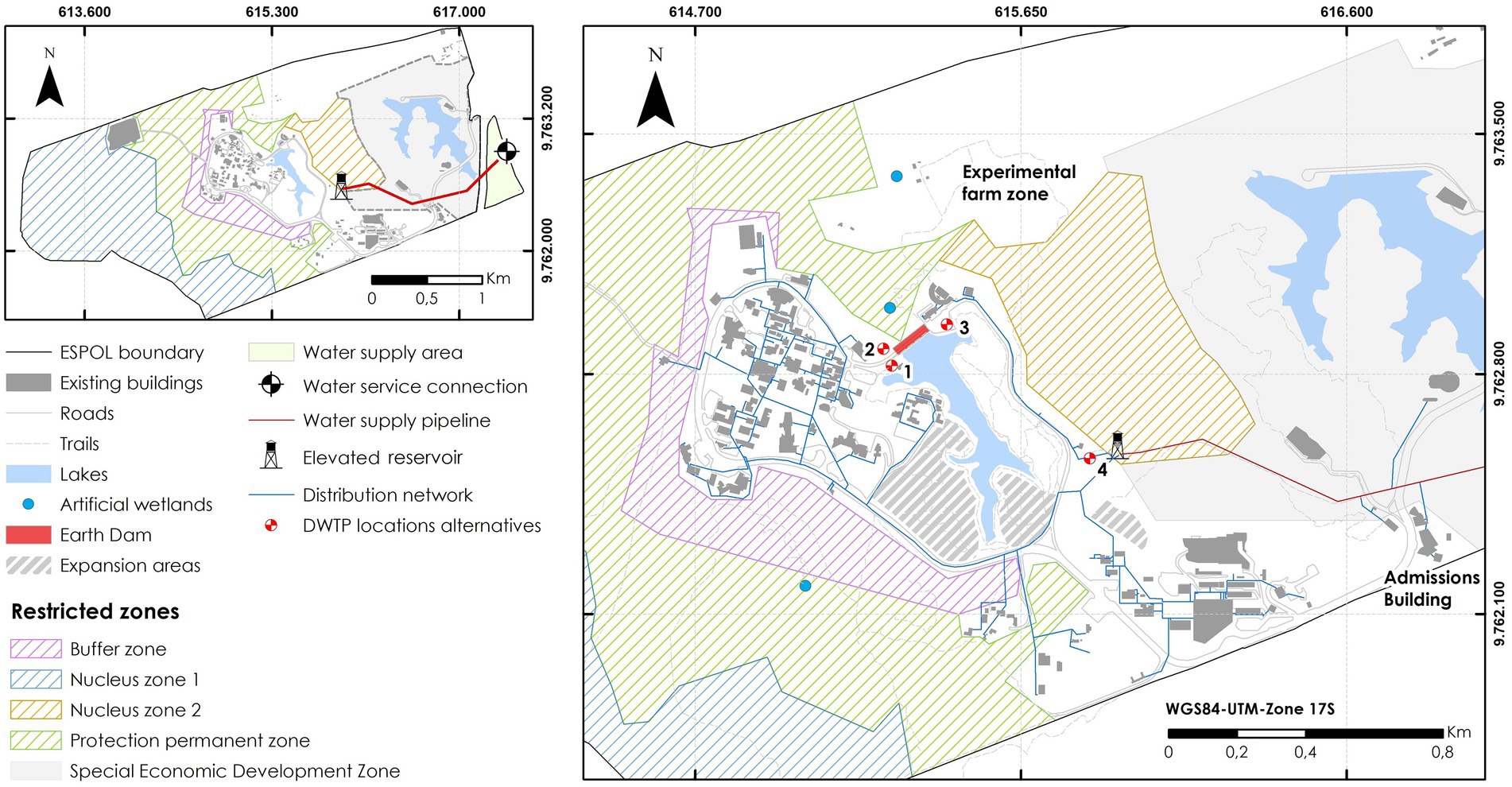

Figure 8. Protected areas and drinking water distribution network in ESPOL.

According to the focus group results in the AHP matrix, the technical criterion has the greatest weight (44%), followed by the environmental (25%), economic (25%), and social (7%) criteria. The CR coefficient was equal to 0.02, which is less than 0.10; therefore, the AHP matrix is consistent (Table 5).

Table 5
www.frontiersin.org

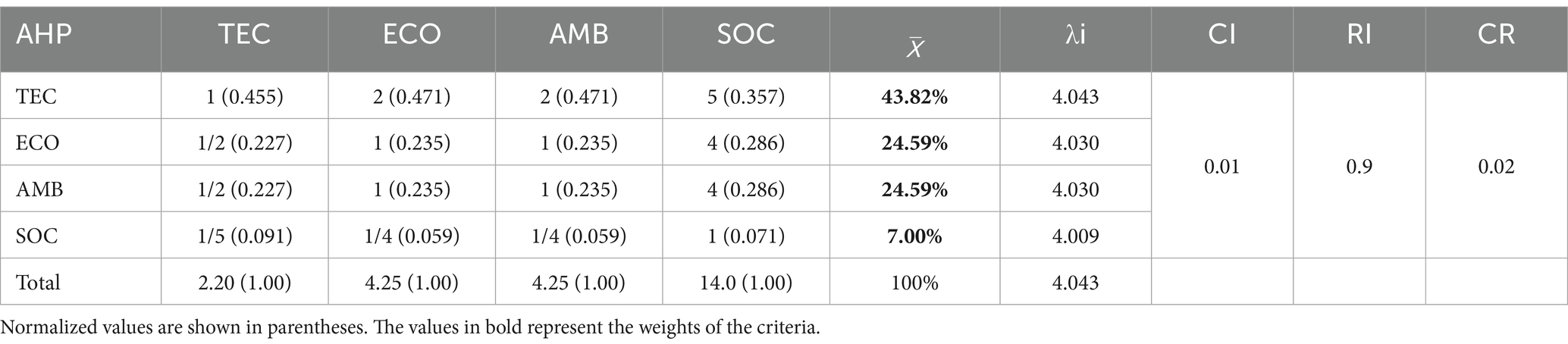

Table 5. Comparative criteria matrix: weights obtained from the AHP.

According to the scores established in each alternative using Likert and considering the weights obtained from the AHP, alternative 4 received the highest score (14.1), so it was selected for the DWTP location. This alternative is located in a high area of ESPOL and close to the existing elevated tank, allowing a better water resource distribution by gravity (Table 6).

Table 6
www.frontiersin.org

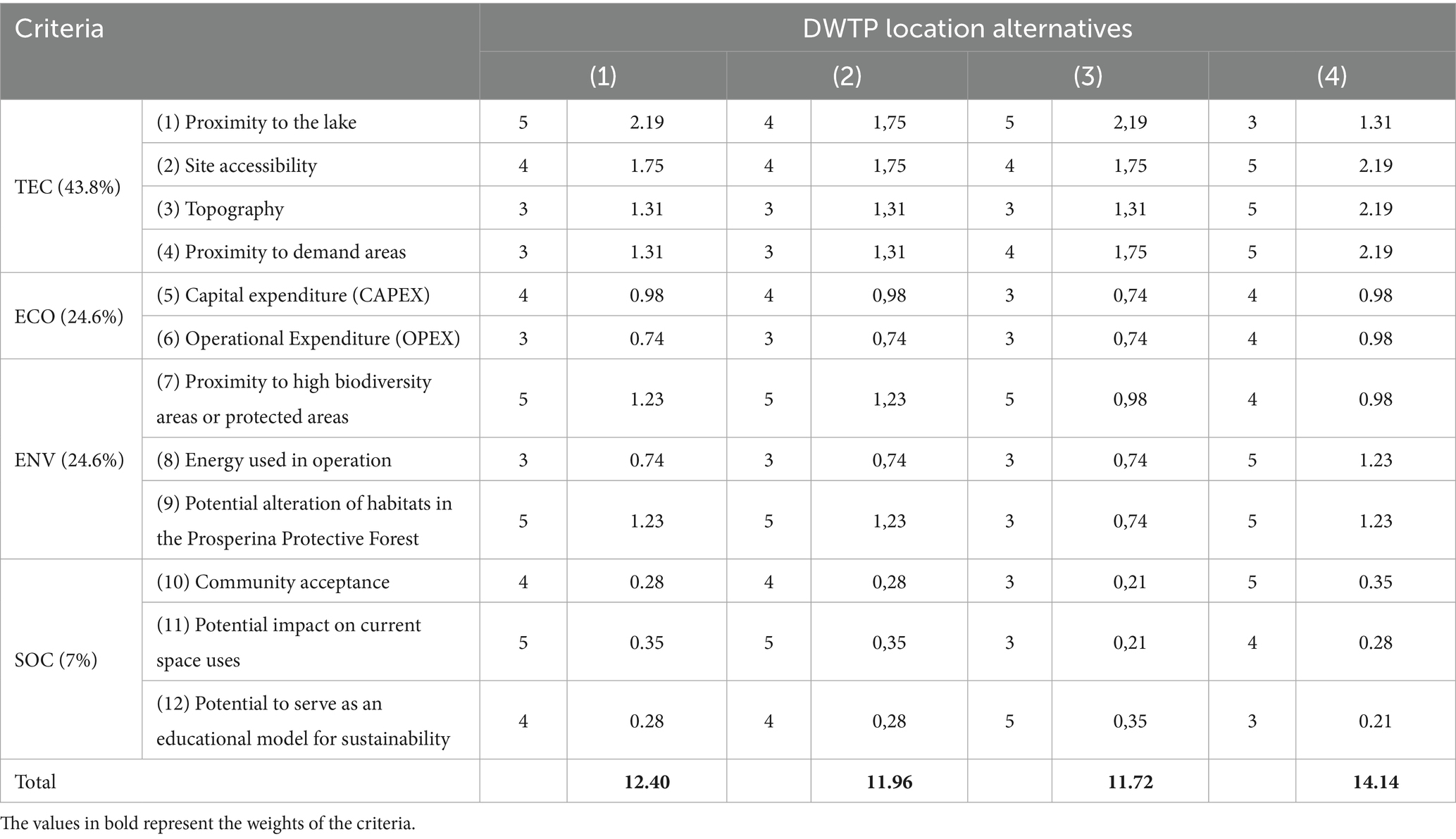

Table 6. Likert evaluation results.

3.3 Strategies for the sustainable lake use

The main weaknesses and threats identified correspond to financial limitations, climate variability, increased water consumption, and resource availability and quality. On the contrary, one of ESPOL’s main strengths is the availability of technical and scientific knowledge to develop innovative solutions for managing water resources (Table 7).

Table 7
www.frontiersin.org

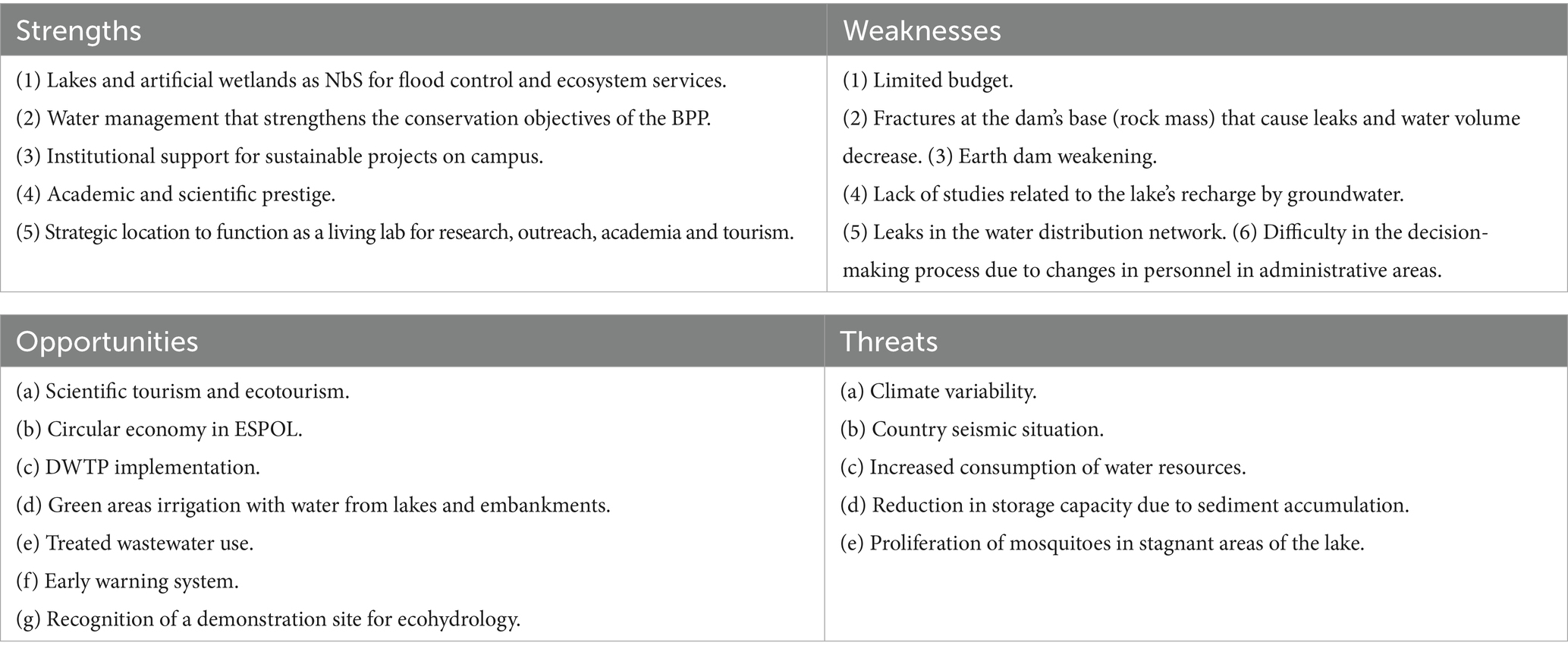

Table 7. SWOT analysis.

The study proposed 19 strategies that promote the academy’s active participation (students, teachers, and ESPOL authorities) in developing comprehensive solutions for water resource management. In addition, it highlights the importance of cooperation between the academy and the productive sectors, both public and private, as well as the support of non-profit organizations (Table 8).

Table 8
www.frontiersin.org

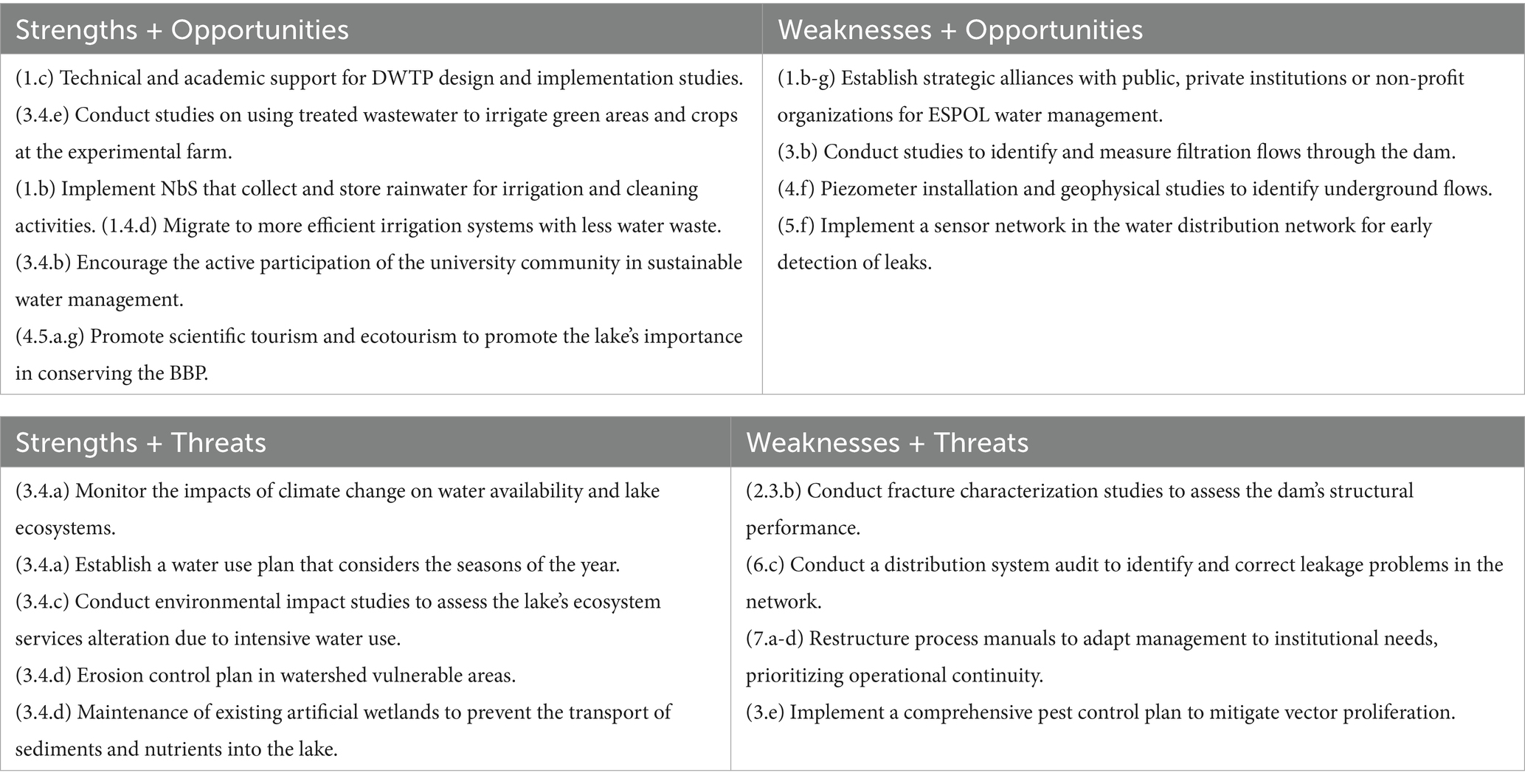

Table 8. Strategies to the sustainable water resources management.

4 Discussion

The methodological approach applied to this research promotes sustainable water resource management and ecosystem conservation in accordance with SDGs 6, 11, and 15. The lake has an estimated storage capacity of 380,000 m3, and the water balance results show that resource availability for human consumption in scenario 1 is 17 years. Scenario 2 results are more conservative than Scenario 1 since it allows its exploitation capacity to be extended up to 31 years without registering a deficit.

According to a previous study, between 2017 and 2019, an average of 296,629.33 m3 of water was consumed, which resulted in an approximate annual expenditure of $210,639 for water services ($ 0.71/m3) (Merchán-Sanmartín et al., 2022a). Under the conditions of Scenario 1, where 100% of the population is supplied, savings of $252,830.51 are expected by 2040; while, in the same year, Scenario 2 (partial supply) would generate savings of $233,216.40. This is a reference analysis based on ideal conditions, since consumption dynamics may vary over time, and it does not include the investment costs for the implementation of the proposed DWTP, or the operation and maintenance costs; therefore, a more comprehensive financial analysis is recommended.

Factors such as the sedimentation rate in lakes due to natural or anthropogenic factors could compromise their storage capacity over time and quality resources. According to Baud et al. (2021), the sediment accumulation in these water bodies is 3–4 times faster than 150 years ago, mainly due to human presence in watersheds. However, as other studies suggest, the sedimentation rate in a water body is reduced when the forest cover has not been disturbed for anthropogenic purposes (Zhao et al., 2019; Sadeghi et al., 2022), and NbS can store significant sediment amounts (Robotham et al., 2023). In this context, the existing artificial wetlands (albarradas in Spanish) in strategic ESPOL areas play an essential role in conserving the lake and providing ecosystem services.

Water quality tests at the lake’s physical, chemical and microbiological levels showed favourable conditions for its use since most of the parameters analyzed comply with the quality standards for raw water sources according to national regulations (Ministerio del Ambiente, Agua y Transición Ecológica, 2015). Although the analyses show concentrations of BOD5 and COD5 above the limits established by local environmental regulations, this can be contrasted with other regulatory texts (Consejo de las Comunidades Europeas, 1975; Conagua, 2016; Ministerio de Ambiente de Perú, 2017) that indicate Lake ESPOL represents an acceptable source for the proposed purposes, provided it receives adequate treatment. It should be noted that the presence of these pollutants may be due to stagnation, which favors the accumulation of organic matter, as well as possible diffuse contributions of wastewater from adjacent buildings. Therefore, to make the lake water suitable for human consumption, the design of a conventional DWTP is required, which involves collection, coagulation, flocculation, and filtration processes. Similarly, the city of Guayaquil captures raw water from the Daule River in the “Puente Lucia” sector (11 km north of the city), whose quality parameters exceed the standards established in the regulations (Huayamave Navarrete, 2013). The city uses a conventional DWTP to convert the raw water into a safe source for the population’s consumption, in compliance with current INEN 1108 standards (Interagua, 2015).

In addition to the water quality analyses, the study proposed an implementation area for a DWTP near the existing elevated tank (alternative 4). This allows for the direct inflow of treated water to the elevated tank, avoiding the risk of recontamination. The operational area becomes more efficient in monitoring and maintenance, and the costs associated with pumping treated water may be higher than those required for pumping raw water.

The lake use is part of the ESPOL’s sustainability plan, which seeks to create circular economy criteria, strengthen a responsible consumption culture within the university community, and serve as a replicable model for other institutions and urban areas. Self-supply of water in an academic and protected forest environment is an alternative to mitigate the dependence on external water sources that may be compromised by climate change and human activity. This approach would reduce the demand on the public network, creating an opportunity to supply other city sectors with more significant needs.

Future studies could analyse the contributions generated by underground runoff through the implementation of piezometers to adjust water balance estimates (Norton et al., 2019). The contribution of groundwater to the water balance of lakes varies significantly in terms of gains and losses. According to Rosenberry et al. (2015), in 65 cases analysed, the gain in water balance due to groundwater contribution to a lake varied between 0.01 and 94.4%, with an average value of 25%. In contrast, in terms of loss (flow from a lake to groundwater), 44 cases reported a range of 0.1 to 91%, with an average value of 34.5%.

Other approaches can be taken to generate greater long-term sustainability without compromising resource availability. In this context, previous studies show that ESPOL has the necessary infrastructure for wastewater treatment so it can be used to supply the green areas irrigation and activities on the experimental farm, reducing extractions from the lake (Merchán-Sanmartín et al., 2022a). This area of knowledge has been addressed by other universities, such as the Technical University of Panama (Geraldine et al., 2022) and Emory University in the United States (Emory University, 2020), reuse wastewater for non-potable purposes. Additionally, studies such as that by Santhanam and Majumdar (2022), offer a method for assessing the state of lake environments and the impact of urbanisation using four metrics (green-blue ratio, blue/built ratio, percentage of impervious surface, and rate of urbanisation), which may be helpful in ecological conservation areas.

Through SWOT analysis, the focus group defined a set of preventive, corrective and predictive strategies for sustainable lake use based on three main approaches:

• Implementation and adaptation of artificial wetlands as NbS for conservation measures for the ecosystem of the BPP and the engineering lake, as well as a potential source of rainwater for irrigation of green areas, activities in the experimental farm and cleaning. This strategy is aligned with the case study developed at Duke University in the United States, which successfully implemented a wetland system that not only provided water sustainability for the campus through rainwater use but also improved the resource quality downstream and served as a habitat for plant species around the wetlands (Amr et al., 2016; Richardson and Flanagan, 2024).

• Strengthening strategic alliances with public, private companies, or non-profit organizations to generate innovation through research (Lundberg and Andresen, 2012; Shvetsova and Lee, 2021). Promoting living labs offers an attractive scenario for different actors to use joint resources to search for innovative knowledge (van Geenhuizen, 2018). It is recommended that living lab managers handle their projects adaptively to avoid disagreements between stakeholders (Schuurman and Tõnurist, 2017).

• Development of competencies and skills for conservation and knowledge transfer in “living labs and sustainable water management” that are aligned with UNESCO priority areas (UNESCO, 2024).

In line with other studies that have applied different water management approaches on university campuses (Amr et al., 2016; Ismaeil and Sobaih, 2022; Richardson and Flanagan, 2024), this study presents an artificial lake as an NbS for the conservation of a protected dry forest and flood control in the surrounding urban areas. This study seeks to explore the use of greywater for the sustainable supply of water resources on a university campus. Considering that universities are spaces with operational dynamics similar to micro-cities, where the impacts associated with resource use can be significant (Ai et al., 2019; Nyborg et al., 2023), this type of study contributes to the need to seek sustainable water management models in which the concepts of urbanisation, water, nature, and circularity overlap (Katsou et al., 2020; Langergraber et al., 2021).

This research offers an approach based on ecohydrology because the study area involves the interaction of water systems, ecosystems and human activities, where the living lab concept takes on importance by fulfilling the five pillars proposed by Ståhlbröst (2012): (i) value, the case study is developed in a sensitive ecosystem in a protection state; (ii) sustainability, it seeks self-sufficiency of the water resource without affecting its availability, (iii) influence, it offers a replicable model to similar case studies, (iv) realism, since it addresses a fundamental human need (water supply) and (v) openness, because it involves multiple actors in the evaluation process that enrich the project with a holistic approach. The case study opens the possibility of connecting and applying the NbS concept to address the water sustainability challenges of HEIs; however, further analysis of critical factors related to climate variability and consumer culture is required.

5 Conclusion

The study evaluated the water availability from an artificial lake to meet the consumption needs of the ESPOL population, which in 2022 was 104,974.06 m3. Under the proposed consumption scenarios, the lake use could be feasible until 2054, benefiting approximately 30,000 users, according to the projections. Even so, using rainwater and treated wastewater for specific activities could extend the use time much longer.

The water quality results confirm that ESPOL’s lake represents a safe source of water for the university population. The lake’s physical, chemical, and microbiological conditions favour a less rigorous treatment, which could lead to lower investment, operation, and maintenance costs. However, monitoring must be carried out to assess the quality and availability of the resource.

The SWOT analysis allowed defining a set of strategies for sustainable management, reducing dependence on conventional water sources. The focus group contribution was essential to minimize some bias. Specifically, the strategies proposed for water sustainability on the university campus are summarized in three axes: (a) water management optimization and responsible resource use, (b) monitoring, maintenance and improvement of water infrastructure, and (c) academic participation, financing and sustainability.

Future studies could address water balance adjustment through the possible contribution of groundwater, changes in ESPOL’s water demand, and the impact of extreme weather events, such as the El Niño phenomenon, which would influence water supply. On the other hand, it is also essential to consider sediment accumulation and its long-term effects on the lake’s storage capacity.

Finally, some measures that would reduce lake extractions are wastewater reuse in non-potable activities, irrigation system optimization, and loss control in the distribution network. The participation of academia in developing these studies promotes the Living Labs concept within the ecohydrology framework, which is essential to address the challenges posed by a changing environment due to global warming.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

Ethical review and approval was not required for the study on human participants in accordance with the local legislation and institutional requirements. Written informed consent from the (patients/participants or patients/participants legal guardian/next of kin) was not required to participate in this study in accordance with the national legislation and the institutional requirements.

Author contributions

BM-S: Conceptualization, Formal analysis, Methodology, Supervision, Validation, Writing – review & editing. IA-B: Conceptualization, Writing – original draft. SS-Z: Conceptualization, Data curation, Methodology, Writing – original draft, Writing – review & editing. AV-M: Conceptualization, Data curation, Writing – original draft. PR-S: Conceptualization, Data curation, Writing – original draft. MA-H: Conceptualization, Formal analysis, Supervision, Validation, Writing – review & editing. MJ-M: Conceptualization, Methodology, Writing – original draft, Writing – review & editing. MA-A: Conceptualization, Methodology, Writing – original draft, Writing – review & editing. PC-M: Conceptualization, Formal analysis, Methodology, Supervision, Validation, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This research was funded by Enfoque Participativo de la Gestión del Agua, Alcantarillado Sanitario, Desechos y Aprovechamiento para el Desarrollo Sostenible, code FICT-20-2022.

Acknowledgments

Agradecemos al Departamento de Mantenimiento de ESPOL por los datos brindados para esta investigación, así como al Departamento de Sostenibilidad, Gerencia de Infraestructura Física y representantes del sector estudiantil de ESPOL por su participación en el desarrollo de la encuesta para la tercera fase del estudio.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Gen AI was used in the creation of this manuscript.

Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/frwa.2025.1631938/full#supplementary-material

References

Ai, N., Kjerland, M., Klein-Banai, C., and Theis, T. L. (2019). Sustainability assessment of universities as small-scale urban systems: a comparative analysis using fisher information and data envelopment analysis. J. Clean. Prod. 212, 1357–1367. doi: 10.1016/j.jclepro.2018.11.205

Crossref Full Text | Google Scholar

Albarracín, M., Ramón, G., González, J., Iñiguez-Armijos, C., Zakaluk, T., and Martos-Rosillo, S. (2021). The ecohydrological approach in water sowing and harvesting systems: the case of the Paltas Catacocha Ecohydrology demonstration site, Ecuador. Ecohydrol. Hydrobiol. 21, 454–466. doi: 10.1016/j.ecohyd.2021.07.007

Crossref Full Text | Google Scholar

Alifujiang, Y., Abuduwaili, J., Groll, M., Issanova, G., and Maihemuti, B. (2021). Changes in intra-annual runoff and its response to climate variability and anthropogenic activity in the Lake Issyk-Kul basin, Kyrgyzstan. Catena 198:104974. doi: 10.1016/j.catena.2020.104974

Crossref Full Text | Google Scholar

American Public Health Association (2017). Standard methods for the examination of water and wastewater. 23rd Edn. ed. American Public Health Association. Washington, DC: American Public Health Association.

Google Scholar

Amr, A. I., Kamel, S., El Gohary, G., and Hamhaber, J. (2016). Water as an ecological factor for a sustainable campus landscape. Procedia Soc. Behav. Sci. 216, 181–193. doi: 10.1016/j.sbspro.2015.12.027

Crossref Full Text | Google Scholar

Aparicio Mijares, F. J. (1989). Fundamentos de hidrología de superficie, 1st Edn. Mexico D.F.: Grupo Noriega Editores. Available online at: https://www.academia.edu/8254237/Fundamentos_de_hidrologia_de_superficie_Aparicio (Accessed April 20, 2025).

Google Scholar

Baud, A., Jenny, J.-P., Francus, P., and Gregory-Eaves, I. (2021). Global acceleration of lake sediment accumulation rates associated with recent human population growth and land-use changes. J. Paleolimnol. 66, 453–467. doi: 10.1007/s10933-021-00217-6

Crossref Full Text | Google Scholar

Berger, V. W., and Zhou, Y. (2014). “Kolmogorov–Smirnov Test: Overview” in Wiley StatsRef: Statistics reference online, eds. F. Ruggeri, N. Balakrishnan, N. T. Longford, R. S. Kenett, and W. W. Piegorsch (New Jersey: John Wiley & Sons). doi: 10.1002/9781118445112.stat06558

Crossref Full Text | Google Scholar

Boston Consulting Group (2025). Rethinking the rules for growth. Available online at: https://web-assets.bcg.com/89/d4/676a2c534cf2aa485011edbc0200/2025-global-wealth-report-june-2025.pdf

Google Scholar

Branstrator, D. K. (2015). “Origins of types of Lake basins” in Reference module in earth systems and environmental sciences, ed. Elsevier (Duluth: Elsevier), 613–624. doi: 10.1016/B978-0-12-409548-9.09550-6

Crossref Full Text | Google Scholar

Büyüközkan, G., and Ilıcak, Ö. (2019). Integrated SWOT analysis with multiple preference relations. Kybernetes 48, 451–470. doi: 10.1108/K-12-2017-0512

Crossref Full Text | Google Scholar

Chaiyaphan, C., and Ransikarbum, K. (2020). Criteria analysis of food safety using the analytic hierarchy process (AHP)—a case study of Thailand’s fresh markets. E3S Web Conf. 141:02001. doi: 10.1051/e3sconf/202014102001

Crossref Full Text | Google Scholar

Chow, V. Te, Maidment, D. R., and Mays, L. W. (1993). Hidrología aplicada., ed. McGraw-Hill. McGraw-Hill. Available online at: https://www.scribd.com/document/447733434/Hidrologia-Aplicada-Ven-Te-Chow-pdf (Accessed January 27, 2025).

Google Scholar

Conagua (2016). Evaluación Rápida de Plantas Potabilizadoras. Man. agua potable, alcantarillado y Saneam. 9–10. Available online at: https://files.conagua.gob.mx/conagua/mapas/SGAPDS-1-15-Libro45.pdf (Accessed May 5, 2025).

Google Scholar

Consejo de las Comunidades Europeas (1975). Directiva 75/440/CEE del Consejo, de 16 de junio de 1975, relativa a la calidad requerida para las aguas superficiales destinadas a la producción de agua potable en los Estados miembros. Available online at: https://eur-lex.europa.eu/legal-content/ES/TXT/PDF/?uri=CELEX:31975L0440

Google Scholar

Crockford, L. (2022). Achieving cleaner water for UN sustainable development goal 6 with natural processes: challenges and the future. Front. Environ. Sci. 10:976687. doi: 10.3389/fenvs.2022.976687

Crossref Full Text | Google Scholar

Dhote, P. R., Thakur, P. K., Shevnina, E., Kaushik, S., Verma, A., Ray, Y., et al. (2021). Meteorological parameters and water balance components of Priyadarshini Lake at the Schirmacher oasis, East Antarctica. Pol. Sci. 30:100763. doi: 10.1016/j.polar.2021.100763

Crossref Full Text | Google Scholar

Dolan, F., Lamontagne, J., Link, R., Hejazi, M., Reed, P., and Edmonds, J. (2021). Evaluating the economic impact of water scarcity in a changing world. Nat. Commun. 12:1915. doi: 10.1038/s41467-021-22194-0

PubMed Abstract | Crossref Full Text | Google Scholar

Ecuadorian Standardization Institute (1992). Norma para estudio y diseño de agua potable y disposicion de agua residuales para poblaciones mayores a 1000 habitantes. Quito. Available online at: https://archive.org/details/ec.cpe.5.9.1.1992/page/n11/mode/2up (Accessed April 5, 2025).

Google Scholar

Emory University (2020). Smarter water. EMORY Univ. Available online at: https://news.emory.edu/features/2020/04/waterhub/ (Accessed February 7, 2025).

Google Scholar

Fowe, T., Karambiri, H., Paturel, J.-E., Poussin, J.-C., and Cecchi, P. (2015). Water balance of small reservoirs in the Volta basin: a case study of Boura reservoir in Burkina Faso. Agric. Water Manag. 152, 99–109. doi: 10.1016/j.agwat.2015.01.006

Crossref Full Text | Google Scholar

Geraldine, Y., Job, N., Euclides, D., and Erick, V. (2022). Reuse of effluents from the victor Levi Sasso campus wastewater treatment system, UTP for irrigation of green areas: Reúso de Efluentes de la Sistema de Tratamiento de Aguas Residuales del campus victor Levi Sasso, UTP para Riego de las areas Verdes, in 2022 8th International Engineering, Sciences and Technology Conference (IESTEC) (IEEE), 521–527.

Google Scholar

Han, Q., Tong, R., Sun, W., Zhao, Y., Yu, J., Wang, G., et al. (2020). Anthropogenic influences on the water quality of the Baiyangdian Lake in North China over the last decade. Sci. Total Environ. 701:134929. doi: 10.1016/j.scitotenv.2019.134929

PubMed Abstract | Crossref Full Text | Google Scholar

Hasan, F. F., and Hameed, S. J. (2022). The perspective of data quality rules in Google forms. In 2022 international symposium on multidisciplinary studies and innovative technologies (ISMSIT), (IEEE), 707–710.

Google Scholar

Hendrayana, H., Widyastuti, M., Riyanto, I. A., Nuha, A., Widasmara, M. Y., Ismayuni, N., et al. (2021). Thornthwaite and Mather water balance method in Indonesian tropical area. IOP Conf. Ser. Earth Environ. Sci. 851:012011. doi: 10.1088/1755-1315/851/1/012011

Crossref Full Text | Google Scholar

Huayamave Navarrete, J. P. (2013). Estudio de las aguas y sedimentos del río Daule, en la provincia del Guayas, desde el punto de vista físico, químico, orgánico, bacteriológico y toxicológico. Las Palmas de Gran Canaria: Universidad de las Palmas de Gran Canaria.

Google Scholar

Interagua (2015). Ajuste y Revisión Del Plan Maestro de los Servicios De Agua Potable, Alcantarillado Sanitario. Guayaquil. Available online at: https://www.interagua.com.ec/sites/default/files/2023-03/tomo_i._vf_0.pdf (Accessed May 5, 2025).

Google Scholar

Ismaeil, E. M. H., and Sobaih, A. E. E. (2022). Assessing xeriscaping as a retrofit sustainable water consumption approach for a desert university campus. Water 14:1681. doi: 10.3390/w14111681

Crossref Full Text | Google Scholar

Jamion, N. A., Lee, K. E., Mokhtar, M., Goh, T. L., Simon, N., Goh, C. T., et al. (2023). The integration of nature values and services in the nature-based solution assessment framework of constructed wetlands for carbon–water nexus in carbon sequestration and water security. Environ. Geochem. Health 45, 1201–1230. doi: 10.1007/s10653-022-01322-9

PubMed Abstract | Crossref Full Text | Google Scholar

Ji, X., Wang, X., and Yang, G. (2020). A water quality assessment model for Suya Lake reservoir. Water Supply 20, 3715–3721. doi: 10.2166/ws.2020.154

Crossref Full Text | Google Scholar

Juma, L. A., Nkongolo, N. V., Raude, J. M., and Kiai, C. (2022). Assessment of hydrological water balance in lower Nzoia sub-catchment using SWAT-model: towards improved water governace in Kenya. Heliyon 8:e09799. doi: 10.1016/j.heliyon.2022.e09799

PubMed Abstract | Crossref Full Text | Google Scholar

Katsou, E., Nika, C.-E., Buehler, D., Marić, B., Megyesi, B., Mino, E., et al. (2020). Transformation tools enabling the implementation of nature-based solutions for creating a resourceful circular city. Blue-Green Systems 2, 188–213. doi: 10.2166/bgs.2020.929

Crossref Full Text | Google Scholar

Langergraber, G., Castellar, J. A. C., Andersen, T. R., Andreucci, M.-B., Baganz, G. F. M., Buttiglieri, G., et al. (2021). Towards a cross-sectoral view of nature-based solutions for enabling circular cities. Water 13:2352. doi: 10.3390/w13172352

Crossref Full Text | Google Scholar

Leal Filho, W., Shiel, C., Paço, A., Mifsud, M., Ávila, L. V., Brandli, L. L., et al. (2019). Sustainable development goals and sustainability teaching at universities: falling behind or getting ahead of the pack? J. Clean. Prod. 232, 285–294. doi: 10.1016/j.jclepro.2019.05.309

Crossref Full Text | Google Scholar

Lundberg, H., and Andresen, E. (2012). Cooperation among companies, universities and local government in a Swedish context. Ind. Mark. Manage. 41, 429–437. doi: 10.1016/j.indmarman.2011.06.017

Crossref Full Text | Google Scholar

Merchán-Sanmartín, B., Carrión-Mero, P., Suárez-Zamora, S., Aguilar-Aguilar, M., Cruz-Cabrera, O., Hidalgo-Calva, K., et al. (2023). Stormwater sewerage masterplan for flood control applied to a university campus. Smart Cities 6, 1279–1302. doi: 10.3390/smartcities6030062

Crossref Full Text | Google Scholar

Merchán-Sanmartín, B., Carrión-Mero, P., Suárez-Zamora, S., Aguilar-Aguilar, M., Cruz-Cabrera, O., Hidalgo-Calva, K., et al. (2022a). Sanitary sewerage Master plan for the sustainable use of wastewater on a university campus. Water 14:2425. doi: 10.3390/W14152425

Crossref Full Text | Google Scholar

Merchán-Sanmartín, B., Carrión-Mero, P., Suárez-Zamora, S., Morante-Carballo, F., Aguilar-Aguilar, M., Cruz-Cabrera, O., et al. (2022b). Drinking water Master plan for the management of water resources on a university campus. WIT Trans. Ecol. Environ. 258, 27–38. doi: 10.2495/SDP220031

Crossref Full Text | Google Scholar

Ministerio de Agricultura y Ganadería del Ecuador (2020). Geoportal del Agro Ecuatoriano. Minist. Agric. y Ganad. del Ecuador. Available online at: http://geoportal.agricultura.gob.ec/index.php/visor-geo (Accessed January 8, 2025).

Google Scholar

Ministerio de Ambiente de Perú (2017). Decreto Supremo-N° 004-2017-MINAM. Available online at: http://www.minam.gob.pe/wp-content/uploads/2017/06/DS-004-2017-MINAM.pdf

Google Scholar

Ministerio del Ambiente, Agua y Transición Ecológica. (2015). Reforma Texto Unificado de Legislación Secundaria, Medio Ambiente, Libro VI, Decreto Ejecutivo 3516, Registro Oficial Suplemento 2, 31/03/2003. Available online: https://www.ambiente.gob.ec/wp-content/uploads/downloads/2018/05/TULSMA.pdf

Google Scholar

Musie, W., and Gonfa, G. (2023). Fresh water resource, scarcity, water salinity challenges and possible remedies: a review. Heliyon 9:e18685. doi: 10.1016/j.heliyon.2023.e18685

PubMed Abstract | Crossref Full Text | Google Scholar

NEC (2011). Capítulo 16 Norma Hidrosanitaria Nhe Agua. Quito. Available online at: https://inmobiliariadja.files.wordpress.com/2016/09/nec2011-cap-16-norma-hidrosanitaria-nhe-agua-021412.pdf (Accessed March 19, 2025).

Google Scholar

Norton, P. A., Driscoll, D. G., and Carter, J. M. (2019). Climate, streamflow, and lake-level trends in the Great Lakes Basin of the United States and Canada, water years 1960–2015. Virginia: U.S. Geological Survey. doi: 10.3133/sir20195003

Crossref Full Text | Google Scholar

Nyborg, S., Horst, M., O’Donovan, C., Bombaerts, G., Hansen, M., Takahashi, M., et al. (2023). University campus living labs. Sci. Technol. Stud. 37, 60–81. doi: 10.23987/sts.120246

Crossref Full Text | Google Scholar

Ozturk, M., and Dincer, I. (2018). Geothermal energy conversion. Compr. Energy Syst. 4–5, 474–544. doi: 10.1016/B978-0-12-809597-3.00415-6

Crossref Full Text | Google Scholar

Phadermrod, B., Crowder, R. M., and Wills, G. B. (2019). Importance-performance analysis based SWOT analysis. Int. J. Inf. Manag. 44, 194–203. doi: 10.1016/j.ijinfomgt.2016.03.009

Crossref Full Text | Google Scholar

Prascevic, N., and Prascevic, Z. (2017). Application of fuzzy AHP for ranking and selection of alternatives in construction project management. J. Civ. Eng. Manag. 23, 1123–1135. doi: 10.3846/13923730.2017.1388278

Crossref Full Text | Google Scholar

Quinn, R., Rushton, K., and Parker, A. (2019). An examination of the hydrological system of a sand dam during the dry season leading to water balances. J. Hydrol. X 4:100035. doi: 10.1016/j.hydroa.2019.100035

Crossref Full Text | Google Scholar

Richardson, C. J., and Flanagan, N. E. (2024). Water quality and wetland vegetation responses to water level variations in a university stormwater reuse reservoir: nature-based approaches to campus water sustainability. Sci. Total Environ. 948:174616. doi: 10.1016/j.scitotenv.2024.174616

PubMed Abstract | Crossref Full Text | Google Scholar

Robotham, J., Old, G., Rameshwaran, P., Sear, D., Trill, E., Bishop, J., et al. (2023). Nature-based solutions enhance sediment and nutrient storage in an agricultural lowland catchment. Earth Surf. Process. Landforms 48, 243–258. doi: 10.1002/esp.5483

Crossref Full Text | Google Scholar

Rodríguez-Huerta, E., Rosas-Casals, M., and Hernández-Terrones, L. M. (2020). A water balance model to estimate climate change impact on groundwater recharge in Yucatan peninsula, Mexico. Hydrol. Sci. J. 65, 470–486. doi: 10.1080/02626667.2019.1702989

Crossref Full Text | Google Scholar

Rokooei, S., Vahedifard, F., and Belay, S. (2022). Perceptions of civil engineering and construction students toward community and infrastructure resilience. J. Civ. Eng. Educ. 148:04021015. doi: 10.1061/(ASCE)EI.2643-9115.0000056

Crossref Full Text | Google Scholar

Rosales Serrano, P. D., and Velásquez Molina, A. M. (2022). Valoración y análisis técnico en la búsqueda de soluciones para el aprovechamiento del lago de ingenierías de la ESPOL. Escuela Superior Politécnica del Litoral. Available online at: https://www.dspace.espol.edu.ec/handle/123456789/57838

Google Scholar

Rosenberry, D. O., Lewandowski, J., Meinikmann, K., and Nützmann, G. (2015). Groundwater—the disregarded component in lake water and nutrient budgets. Part 1: effects of groundwater on hydrology. Hydrol. Process. 29, 2895–2921. doi: 10.1002/hyp.10403

Crossref Full Text | Google Scholar

Saaty, T. L. (1984). “The analytic hierarchy process: decision making in complex environments” in Quantitative assessment in arms control, eds. R. Avenhaus and R. K. Huber (Boston, MA: Springer US), 285–308. doi: 10.1007/978-1-4613-2805-6_12

Crossref Full Text | Google Scholar

Saaty, T. L., and Vargas, L. G. (2012). Models, methods, concepts & applications of the analytic hierarchy process. Boston, MA: Springer US.

Google Scholar

Sadeghi, S. H. R., Khazayi, M., and Mirnia, S. K. (2022). Effect of soil surface disturbance on overland flow, sediment yield, and nutrient loss in a hyrcanian deciduous forest stand in Iran. Catena 218:106546. doi: 10.1016/j.catena.2022.106546

Crossref Full Text | Google Scholar

Sánchez San Román, F. J. (2017). Hidrología superficial y subterránea, 2nd Edn. Salamanca: Universidad de Salamanca. Available online at: https://hidrologia.usal.es/temas/Evapotransp.pdf (Accessed February 7, 2025).

Google Scholar

Santhanam, H., and Majumdar, R. (2020). “Permeable Pavements as Sustainable Nature-Based Solutions for the Management of Urban Lake Ecosystems,” in Nature-based Solutions for Resilient Ecosystems and Societies, (Singapore: Springer Singapore), 329–345. doi: 10.1007/978-981-15-4712-6_19

Crossref Full Text | Google Scholar

Santhanam, H., and Majumdar, R. (2022). Quantification of green-blue ratios, impervious surface area and pace of urbanisation for sustainable management of urban lake – land zones in India -a case study from Bengaluru city. J. Urban Manag. 11, 310–320. doi: 10.1016/j.jum.2022.03.001

Crossref Full Text | Google Scholar

Schuurman, D., and Tõnurist, P. (2017). Innovation in the public sector: living labs and innovation labs. Technol. Innov. Manag. Rev. 7, 7–14. doi: 10.22215/timreview/1045

Crossref Full Text | Google Scholar

Senagua-Empresa Pública Espol Tech (2014). Mapa Hidrogeológico. 1:250,000. Guayaquil. Guayaquil: Senagua.

Google Scholar

Shiklomanov, I. A. (1993). “World fresh water resources,” Water in crisis: A guide to the world’s fresh water resources P. H. Gleick New York Oxford University Press 13–24. Available online at: https://archive.org/details/waterincrisisgui00glei/page/24/mode/2up

Google Scholar

Shvetsova, O. A., and Lee, S.-K. (2021). Living labs in university-industry cooperation as a part of innovation ecosystem: case study of South Korea. Sustainability 13:5793. doi: 10.3390/su13115793

Crossref Full Text | Google Scholar

Sostenibilidad ESPOL (2018). Sostenibilidad ESPOL. Sostenibilidad ESPOL. Available online at: https://sostenibilidad.espol.edu.ec/ (Accessed May 10, 2024).

Google Scholar

Ståhlbröst, A. (2012). A set of key principles to assess the impact of living labs. Int. J. Prod. Dev. 17:60. doi: 10.1504/IJPD.2012.051154

Crossref Full Text | Google Scholar

Teh, S. Y., and Koh, H. L. (2020). “Education for sustainable development: the STEM approach in Universiti Sains Malaysia” in Universities as living labs for sustainable development. Supporting the implementation of the sustainable development goals, eds. W. Leal Filho, A. Lange Salvia, R. W. Pretorius, L. Londero Brandli, E. Manolas, and F. Alves, et al. (Cham, Switzerland: World Sustainability Series), 567–587. doi: 10.1007/978-3-030-15604-6_35

Crossref Full Text | Google Scholar

UNESCO (2024). Our six priorities. UNESCO. Available online at: https://www.iiep.unesco.org/es/six-priorities (Accessed March 6, 2025).

Google Scholar

United Nations (2024). Asamblea General Consejo Económico y Social. Progresos realizados para lograr los Objetivos de Desarrollo Sostenible. 4–5. Available online at: https://unstats.un.org/sdgs/files/report/2024/secretary-general-sdg-report-2024--ES.pdf (Accessed February 14, 2025).

Google Scholar

United Nations Environment Programme (2021). State of finance for nature 2021. Available online at: https://www.unep.org/resources/state-finance-nature-2021 (Accessed January 27, 2025).

Google Scholar

United Nations Environment Programme (2022a). Resolution adopted by the United Nations environment assembly on 2 march 2022. Nairobi. Available online at: https://wedocs.unep.org/bitstream/handle/20.500.11822/39858/

Google Scholar

United Nations Environment Programme (2022b). The interlinked threats facing lakes and why we need to protect them. United Nations environ. Program. Available at: https://www.unep.org/news-and-stories/story/interlinked-threats-facing-lakes-and-why-we-need-protect-them (Accessed May 9, 2024).

Google Scholar

van Geenhuizen, M. (2018). A framework for the evaluation of living labs as boundary spanners in innovation. Environ. Plann. C Politics Space 36, 1280–1298. doi: 10.1177/2399654417753623

Crossref Full Text | Google Scholar

Villón Bejar, M. (2006). Hidrología Estadística. 195. Available online at: https://www.google.com.ec/books/edition/Hidrología_estadística/BpnGDwAAQBAJ?hl=es&gbpv=0 (Accessed February 20, 2025).

Google Scholar

Zhao, L., Hou, R., and Fang, Q. (2019). Differences in interception storage capacities of undecomposed broad-leaf and needle-leaf litter under simulated rainfall conditions. For. Ecol. Manag. 446, 135–142. doi: 10.1016/j.foreco.2019.05.043

Crossref Full Text | Google Scholar

Keywords: sustainable development, circular economy, water balance, artificial wetland, living labs

Citation: Merchán-Sanmartín B, Arteaga-Bravo I, Suárez-Zamora S, Velásquez-Molina A, Rosales-Serrano P, Arias-Hidalgo M, Jaya-Montalvo M, Aguilar-Aguilar M and Carrión-Mero P (2025) Water availability in a university campus: the role of an artificial lake as a nature-based solution. Front. Water. 7:1631938. doi: 10.3389/frwa.2025.1631938

Received: 20 May 2025; Accepted: 24 September 2025;
Published: 21 October 2025.

Edited by:

Soumendra Bhanja, Oak Ridge National Laboratory (DOE), United States

Reviewed by:

Calogero Schillaci, Joint Research Centre (Italy), Italy
Rudrodip Majumdar, National Institute of Advanced Studies, India
Shiqiang Wu, Nanjing Hydraulic Research Institute, China

Copyright © 2025 Merchán-Sanmartín, Arteaga-Bravo, Suárez-Zamora, Velásquez-Molina, Rosales-Serrano, Arias-Hidalgo, Jaya-Montalvo, Aguilar-Aguilar and Carrión-Mero. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Bethy Merchán-Sanmartín, YmV0Z3VtZXJAZXNwb2wuZWR1LmVj

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
