NIH4215: A mutation-prone thiamine auxotrophic clinical Aspergillus fumigatus isolate

Introduction

Aspergillus fumigatus is the main cause of life-threatening invasive bronchopulmonary aspergillosis, which mainly affects patients suffering from haematological malignancies or recovering from solid organ transplantation (Pagano et al., 2011). However, it also causes severe complications in critically ill patients suffering from influenza or SARS-CoV2 infections (Montrucchio et al., 2021; Shi et al., 2022). Despite extensive research on immune responses contributing to fungal elimination, the investigation of fungal virulence determinants, and studies on antifungal drug efficacy, mortality rates from invasive aspergillosis remain high with 50 - 90% of patients succumbing to infection (Kousha et al., 2011). Therefore, further studies are needed to analyse the pathobiology of A. fumigatus and to test the efficacy of antifungal drugs under different immunosuppressive regimens.

Bioluminescence imaging in combination with other in vivo imaging techniques has opened new avenues to study fungal disease progression in temporal and spatial resolution in murine infection models (Jacobsen et al., 2014; Poelmans et al., 2018; Persyn et al., 2019; Vanherp et al., 2019; Vanherp et al., 2020; Seldeslachts et al., 2021). Currently, one of the most suitable reporters for bioluminescence imaging of fungal diseases relies on codon optimised firefly luciferases. Such optimised luciferases have been successfully used to study disease progression and antifungal therapy in filamentous fungi such as A. fumigatus (Galiger et al., 2013; Poelmans et al., 2018; Seldeslachts et al., 2021; Resendiz-Sharpe et al., 2022) and Aspergillus terreus (Slesiona et al., 2012). In addition several other studies focussed on pathogenic yeasts such as biofilm attachment, localised and disseminated organ infection and persistence of Candida albicans in the gall bladder under antifungal therapy (Jacobsen et al., 2014; Vande Velde et al., 2018), in vivo biofilm formation and urinary tract persistence of Candida glabrata (Persyn et al., 2019; Schrevens and Sanglard, 2021) and dissemination of Cryptoccocus neoformans to the brain (Vanherp et al., 2019).

To investigate the contribution of individual virulence determinants in pathogenesis of A. fumigatus, deletion mutants are frequently generated and tested for their virulence potential. However, this approach is hampered by a limited availability of transformation markers and, moreover, a preference of ectopic integration of gene deletion constructs due to a highly active non-homologous end-joining (NHEJ) repair mechanism in Aspergillus wild-type strains (Takahashi et al., 2006; Chang, 2008; Zhang et al., 2011; Zhang et al., 2016). To overcome the latter problem, it has been shown that deletion of either one of the homologues of human KU⁷⁰ and KU⁸⁰ encoding genes, which are called akuA and akuB in A. fumigatus, significantly improves the number of transformants with homologous integration (Da Silva Ferreira et al., 2006; Krappmann et al., 2006). In addition, these strains display a virulence potential in murine infection models comparable to that of parental strains (Da Silva Ferreira et al., 2006).

To combine the benefits of bioluminescence imaging with the increased rate of homologous recombination, we aimed in the construction of an A. fumigatus strain in which a codon-optimised red-shifted luciferase reporter replaces the akuB coding region in NIH4215 (ATCC MYA-1163) as previously performed on the clinical isolate CBS144.89 (Resendiz-Sharpe et al., 2022).

NIH4215 derived from a patient succumbing to a fatal case of human invasive pulmonary aspergillosis (Petraitis et al., 2003) and was of special interest as the strain had been applied to several studies investigating the efficacy of antifungal treatment in various in vitro and in vivo infection models (Petraitis et al., 2003; Such et al., 2013; Box et al., 2016; Hope et al., 2017). Unexpectedly, while strain NIH4215 showed normal growth on a range of complex media such as Sabouraud dextrose medium, cell-culture media or Potato dextrose broth (Box et al., 2016; Hope et al., 2017), we observed that the strain failed to grow on a defined synthetic Aspergillus minimal medium. Therefore, we investigated the underlying cause of the growth deficiency of NIH4215 and identified the mutation causing the growth defect. A wild-type version of the affected gene was then used to generate a bioluminescent reporter strain by replacing the akuB locus by a red-shifted codon-optimised luciferase. Subsequent analyses of strain NIH4215 and the derived reporter strains revealed that this clinical A. fumigatus isolate is highly prone to accumulate stable mutations in its genome.

Methods

Strains, media and general cultivation conditions

Wild-type strains used in this study were NIH4215 from the American Type Culture collection (ATCC; strain also found under the name MYA-1163) and an independent sample was kindly provided by T. Lehrnbecher, Goethe-University Frankfurt/Main, Germany). The genome sequenced A. fumigatus strain Af293 (also known as ATCC strain MYA-4609) and strain CBS144.89 (Westerdijk Fungal Biodiversity Institute; also known as Dal strain and parental strain of CEA10 (D’enfert et al., 1996) which is the source of the second reference genome “A1163”) were used as controls in individual experiments. Reactivation of strains from cryostocks was performed on agar slants containing malt extract medium (Sigma-Aldrich) that was solidified by the addition of 2% agar. Aspergillus minimal medium (AMM) was prepared by using per litre of medium: 0.52 g KC1, 0.52 g MgSO₄ * 7H₂0, 1.52 g KH₂PO₄, 9.6 g glucose monohydrate, and 1 ml of Hutner’s trace element solution (http://www.fgsc.net/methods/anidmed.html). As standard nitrogen source 1.46 g/l of L-glutamine (10 mM) was added. The pH of the medium was adjusted to 6.5 using 10 M NaOH. For solid media, 20 g/l of agar was added and all media were sterilised by autoclaving. If not indicated otherwise, all growth experiments were performed at 37°C and liquid cultures were agitated on a rotary shaker at 150 rpm. For inoculation of media with a defined concentration of conidia, conidia were harvested from agar slants by overlaying the colonies with 10 ml of phosphate-buffered saline (PBS) containing 0.01% Tween 80 and conidia were brought into suspension using a sterile cotton swap. Suspensions were filtered over 40 µm cell strainers (EASYstrainer, Greiner bio-one), centrifuged for 10 min at 4000 × g and resuspended in 4 ml of PBS. Conidia were counted using a Neubauer counting chamber and dilutions for spotting experiments were prepared to obtain the desired number of conidia in a total volume of 4 µl. The indicated amount of conidia was spotted on plates and incubation was started once the liquid had been completely absorbed by the underlying solid medium. Cryostocks of selected strains were prepared in Microbank cryovials (Pro-Lab Diagnostics) and stored at -80°C. A single bead was removed for strain reactivation.

Vitamin supplementation

Initial testing of vitamin requirements of strain NIH4215 was performed by using a vitamin stock solution as used for the supplementation of Candida albicans minimal medium (Otzen et al., 2013) with a composition per 100 mL in 20% ethanol of 2 mg biotin, 20 mg thiamine/HCl and 20 mg pyridoxine/HCl. This vitamin stock was used at a final concentration of 0.03%. Alternatively, individual vitamins were added in the concentrations as described for the vitamin stock or as described in individual experiments. When analysing the concentration of thiamine required to complement the growth defect of strain NIH4215, a starting concentration of 25 µg/ml was used followed by two-fold serial dilutions. Resistance against pyrithiamine was tested by the addition of pyrithiamine hydrobromide (Sigma) in a final concentration of 0.1 µg/ml.

Imaging of light emission from bioluminescent reporter strains

To analyse strains for the functional expression of a codon-optimised red-shifted luciferase, molten growth media were supplemented with D-luciferin potassium salt (Perkin Elmer) to give a final concentration of 0.3 mM. At indicated time points, plates were removed from the incubator and placed in the imaging chamber of a Bio-Rad gel-doc system equipped with a XRS+ camera. All filters were removed and the first picture was recorded under illumination to visualise the colonies present on the plate. A second picture was taken in the dark by opening the camera lens and using a picture acquisition time of 60 seconds. The pixel binning was kept at the highest resolution (254 dpi, lowest sensitivity) to keep the picture size identical to the illuminated picture. Pictures were exported to TIFF format.

Growth and resistance analysis of ΔpyrG and ΔniaD strains

For pyrG negative strains media were supplemented with 1.12 g/l of uracil (10 mM) prior to autoclaving. Uridine was added to hot media from a sterile filtered 1 M stock solution to give a final concentration of 10 mM. To test for the resistance against 5-fluoroorotic acid (FOA), uracil containing Aspergillus minimal medium with glutamine as nitrogen source was buffered with 20 mM (final concentration) HEPES-buffer (pH 7.0) and up to 4 mg/ml of UV-sterilised FOA was added. The medium was briefly boiled in a microwave to ensure complete dissolving of FOA before pouring plates. To test the utilisation of various nitrogen sources by ΔniaD strains, Aspergillus minimal media containing 50 mM glucose were supplemented with a final concentration of either 10 mM glutamine, 10 mM urea, 20 mM acetamide or 70 mM nitrate. To test for the increased chlorate resistance of ΔniaD strains, minimal medium with 20 mM acetamide as nitrogen source was supplemented with 120 mM potassium chlorate. Resistance against 5-fluorouridine was tested by preparing glucose and glutamine containing media supplemented with 12.5 µg/ml of thiamine and 10 mM uracil and with or without the addition of 2 mM 5-fluorouridine.

General molecular biology methods

For transformation of A. fumigatus strains, a PEG-mediated protoplast transformation protocol was followed as previously described (Brock et al., 2008) with some minor modifications. These modifications included a 60 min pre-incubation of harvested mycelium at 28°C in 90 mM citrate-phosphate buffer pH 7.3 containing 10 mM dithiothreitol. In addition, the previously described cell-wall degrading enzymes were replaced by a mixture of 0.1 g lysing enzymes from Trichoderma harzianum (Sigma) and 1.3 g VinoTaste Pro (Novozymes) in 20 ml of osmotic medium (0.6 M KCl, 10 mM potassium phosphate pH 5.8). For transformation of Escherichia coli, DH5α cells were used that were made chemically competent by using the Mix & Go! E. coli Transformation Kit (Zymo Research). Restriction digests of DNA were performed using FastDigest restriction enzymes (Thermo Scientific). Plasmid DNA was isolated from E. coli using the NucleoSpin plasmid isolation kit (Machery-Nagel) as described in the manufacturer’s protocol. DNA fragments were eluted from agarose gels using the Zymoclean DNA recovery kit (Zymo Research). For amplification of DNA fragments used in the generation of reporter and deletion construct the Phusion proofreading polymerase was used that was replaced by the Phire polymerase in screening approaches (both Thermo Scientific). PCR reactions were performed in a SpeedCycler² (Analytic Jena). Oligonucleotides used in this study were synthesised by Eurogentec (Kaneka Eurogentec S.A., Belgium) and are listed in Table 1.

TABLE 1

Table 1 Oligonucleotides used in this study.

Isolation of genomic DNA for transformant screening and for Southern blot analyses

To screen genomic DNA (gDNA) from ΔakuB transformants for the homologous integration of the deletion construct, a “chelex” DNA extraction method was applied. In brief: Individual wells of a 96-well microplate containing 200 µl of Aspergillus complete medium (http://www.fgsc.net/methods/anidmed.html) were inoculated with conidia from individual colonies using a 10 µl inoculation loop. The plate was sealed with a breathable film (AeraSeal, Excel Scientific) and incubated at 28°C for 16 h. A 5% Chelex 100 suspension (sodium form, Sigma) was prepared in water and 100 µl were transferred into 0.5 ml skirted micro tubes with screw-caps (Sarstedt) filled with 5 - 10 beads of lysing matrix D (MP Biomedicals). The mycelium was picked from the wells with a sterile toothpick (about 0.2 mm³), excess medium was removed with tissue paper and mycelium was transferred to the tubes. The mycelium was disrupted by two cycles of 1 min bead beating in a FastPrep-24 machine (MP Biomedicals) at 6000 rpm. Subsequently, samples were incubated for 5 min at 99°C, centrifuged at maximum speed in a microcentrifuge and 1 µl of the supernatant was used as template in PCR screening approaches. For Southern blot analyses gDNA was isolated by a protocol virtually as previously described (Dellaporta et al., 1983) and dried DNA was solved in 60 µl of 5 mM Tris-buffer pH 8.5. The quality of isolated DNA was checked by loading a 2 µl aliquot on a 0.8% agarose gel.

Genetic complementation of thiamine auxotrophy of strain NIH4215

Candidate genes of A. fumigatus thiamine biosynthesis were identified by BLASTP analyses (Altschul et al., 1990) against the Af293 genome using Saccharomyces cerevisiae thiamine biosynthesis genes as templates. Results were used to confirm the coding and flanking DNA regions at FungiDB (https://fungidb.org/fungidb/app). Oligonucleotides were deduced to amplify fragments with about 1 kb upstream and 0.3 kb downstream regions of the respective thiamine biosynthesis genes from gDNA of strain Af293. The thiE gene (accession: XP_755230; locus tag AFUA2G08970) was amplified with oligonucleotides 1 and 2, the nmt1 gene (accession: XP_748095; locus tag AFUA_5G02740) with oligonucleotides 3 and 4, the thi4 gene (accession: XP_750752; locus tag AFUA_6G08360) with oligonucleotides 5 and 6 and the tenA gene (accession: XP_755470; locus tag AFUA_2G10740) with oligonucleotides 7 and 8. The PCR products were gel-purified and directly used for protoplast transformation of strain NIH4215. Thiamine-free glucose minimal medium containing 10 mM glutamine as nitrogen source (GG10) and 1.2 M sorbitol as osmotic stabiliser was used for regeneration of transformants. A gel-purified nmt1 PCR product from strain NIH4215 was sequenced by Eurofins using oligonucleotides 3, 4 and 17.

Generation of bioluminescent ΔakuB deletion mutants

To generate bioluminescent reporter strains by simultaneously deleting the akuB locus from strain NIH4215, we constructed the plasmid ΔakuB::luc_{OPT_red}_nmt1_pUC19. The reporter containing the codon-optimised luc_{OPT_red} gene (accession number: MT554554) under control of the promoter and terminator of the glyceraldehyde-3-phosphate dehydrogenase (gpdA) gene from Aspergillus nidulans was amplified from plasmid ΔakuB::luc_{OPT_red}_ptrA_pUC19 (Seldeslachts et al., 2021; Resendiz-Sharpe et al., 2022) using oligonucleotides 9 and 10. The nmt1 sequence including 927 bp of its promoter and 260 bp of its terminator was amplified form gDNA of Af293 using oligonucleotides 11 and 12. By digesting ΔakuB::luc_{OPT_red}_ptrA_pUC19 with NotI, the ΔakuB_pUC19 plasmid fragment was obtained and used for assembly with the gel-purified PgpdAAn:luc_{OPT_red}:TgpdAAn and the nmt1 sequence by in vitro recombination using the In-Fusion HD cloning kit (Takara/Clontech). The assembled plasmid was amplified in E. coli DH5α cells and reisolated. The plasmid was digested with SmaI and the ΔakuB::luc_{OPT_red}_nmt1 fragment was gel-purified and used for protoplast transformation of strain NIH4215. Transformants were regenerated on thiamine-free GG10 medium containing 1.2 M sorbitol and 0.4 mM of D-luciferin in the top-agar to select for thiamine prototrophic and bioluminescent transformants. To narrow down the candidates containing a deletion of the akuB gene, 60 transformants were screened by positional PCR for the absence of the akuB coding sequence and presence of the nmt1 sequence in the akuB locus by using oligonucleotides 15 and 16 or 15 and 17, respectively. A total of 10 mutants with the expected profile in the PCR analysis were further tested by Southern blot analysis. The gDNA from the selected transformants and the parental strain was digested with BamHI, separated on a 0.8% agarose gel and transferred to a nylon Hybond N+ membrane (GE Healthcare). A digoxygenin-labelled probe against the downstream region of the akuB gene was synthesised with oligonucleotides 18 and 19 using digoxygenin-labelled dUTPs (Roche) and Taq DNA polymerase (New England Biolabs). After hybridisation, the probe was detected by chemiluminescence imaging using anti-Digoxigenin-AP Fab-fragments for probe detection and CDP-Star as chemiluminescence substrate (Roche).

Deletion of the niaD gene in bioluminescent reporter strains

For deletion of the niaD gene, a 943 bp upstream and a 953 bp downstream region of the niaD gene was amplified by PCR using oligonucleotides 25-28 and assembled by in vitro recombination in a SmaI digested pUC19 plasmid. The assembled ΔniaD_pUC19 plasmid was amplified in E. coli and positive clones were detected by colony PCR using oligonucleotides 28 and 29. The ptrA gene was excised from plasmid ptrA_pJet (Fleck and Brock, 2010), gel purified and ligated with the NotI restricted and dephosphorylated (FastAP; Thermo Scientific) plasmid ΔniaD_pUC19 using the Rapid DNA Ligation Kit (Thermo Scientific). Plasmids were amplified in E. coli and checked for correct assembly by colony PCR using oligonucleotides 29 and 30. The plasmid was digested with SmaI and the ΔniaD::ptrA construct was gel-eluted and used in the PEG-mediated transformation of protoplasts from ΔakuB strains 2/9 and 4/11. Transformants were selected by addition of 0.1 µg/ml pyrithiamine and 0.4 mM of D-luciferin to the transformation agar. Transformants were checked for homologous single-copy integration of the deletion construct by Southern blot analysis as described above. gDNA was digested with XhoI and a probe against the upstream region of niaD that was prepared using oligonucleotides 25 and 26.

Generation of pyrG deletion mutants

For the deletion of the pyrG gene a 760 bp up- and a 770 bp downstream region of the pyrG gene were amplified from gDNA of NIH4215 using oligonucleotides 20-23. PCR products were gel-eluted and assembled with a SmaI-digested pUC19 plasmid by in vitro recombination. The resulting ΔpyrG_pUC19 plasmid was propagated in E. coli and the correct assembly was checked by colony PCR using the oligonucleotides 23 and 24. The NotI-restricted ptrA gene was ligated into the NotI-restricted and dephosphorylated ΔpyrG_pUC19 plasmid and the correct assembly was checked by colony PCR using oligonucleotides 20 and 30. The ΔpyrG::ptrA_pUC19 plasmid was restricted with SmaI and the gel-purified ΔpyrG::ptrA cassette was used for protoplast transformation of the ΔakuB strains 2/9 and 4/11. Transformants were regenerated on osmotically stabilised transformation medium supplemented with 10 mM uracil, 10 mM uridine and in selected plates in the presence of 2mg/ml of FOA. Southern blot analysis was performed as described above and gDNA of the parental strain and transformants was digested with HindIII. A probe against the upstream region of the pyrG gene was generated using oligonucleotides 20 and 21.

Isolation and characterisation of spontaneous fluoroorotic acid mutants

Freshly harvested conidia suspensions of selected strains were adjusted to 1 × 10⁸ conidia per ml and 100 µl were plated on HEPES-buffered (20 mM, pH 7.0) Aspergillus minimal medium with glutamine as nitrogen sources and supplemented with 12.5 µg/ml of thiamine 4 mg/ml FOA. For each independent approach, five plates per strain were inoculated in parallel and plates were incubated for 7 days at 37°C. Conidia of resulting colonies were picked and transferred to fresh FOA-containing plates and incubated for 50 h prior to harvesting conidia for subsequent analyses. Randomly selected colonies were cultivated in liquid malt extract medium supplemented with thiamine and 10 mM uracil and the resulting mycelium was used for DNA extraction. Oligonucleotides 31 and 34 were used for amplification of the coding region of the pyrG gene and oligonucleotides 35 and 37 for amplification of the pyrE coding region. Phusion polymerase (Thermo) and high-fidelity buffer were used during the amplification. Amplified genes were gel-purified and sequenced by Eurofins with oligonucleotides 32 and 33 for the pyrG gene and 36 for the pyrE gene. Genomic DNA of the parental NIH4215 strain and strain CBS144.89 served as controls for gene amplification and sequencing. All sequences were aligned with the reference sequence of strain Af293 for the identification of potential gene mutations.

Virulence studies in larvae of the greater wax moth Galleria mellonella

Conidia suspensions of strain CBS144.89 (Dal), its bioluminescent KU⁸⁰ deletion strain (ΔakuB N5) (Resendiz-Sharpe et al., 2022), as well as strain NIH4215 and its bioluminescent and nmt1-complemented ΔakuB strains 2/9 and 4/11 were freshly prepared from glucose/glutamine minimal medium slopes supplemented with or without thiamine. Conidia were harvested in PBS (Gibco) containing 0.01% Tween 20, washed twice and resuspended in PBS. Larvae of the greater wax moth Galleria mellonella (Waxworms Ltd - Sheffield, UK) were kept at 15°C for up to one week before starting the infection studies. To compare the virulence of wild-type strains and bioluminescent ΔakuB transformants, groups of 10 larvae weighing 200-300 mg were inoculated each with 50 µl PBS without (mock control) or with 1 × 10⁵, 2.5 × 10⁵, 5 × 10⁵ or 1 × 10⁶ conidia. Injections into the haemolymph were performed through the second pro-leg of G. mellonella larvae, using 0.5 mL BD Micro-Fine™ insulin syringes. In addition, a group of non-injected larvae served as treatment control. After infection the larvae were kept at 37°C in the dark and their survival was monitored daily for up to 6 days post-infection. The data was plotted in Kaplan-Meier survival curves and statistical analysis was performed by log-rank test using GraphPad Prism version 8.0.0 for Windows.

Results

Identification of thiamine auxotrophy of strain NIH4215

Strain NIH4215 was selected for generation of a bioluminescent reporter strain to increase the number of independent A. fumigatus strains available for in vivo drug efficacy studies using longitudinal imaging approaches (Resendiz-Sharpe et al., 2022). Previous studies on A. fumigatus NIH4215 generally used complex media such as Saboraud medium, cell-culture media or potato dextrose for strain maintenance, conidia production and antifungal drug testing (Petraitis et al., 2003; Hope et al., 2017). However, in A. fumigatus transformations, the use of synthetic minimal media is favoured as it allows the use of selection markers such as pyrithiamine (Kubodera et al., 2000). Unexpectedly, when spotting conidia of strain NIH4215 on synthetic minimal media, control strains such as the A. fumigatus Dal strain (CBS144.89) rapidly formed colonies, whereas only a very faint background growth was observed for NIH4215 (Figure 1A). To get insights on the supplements required for growth of this strain, we cultivated NIH4215 on various different media available in the laboratory, which included a synthetic minimal medium used for cultivation of C. albicans. This medium contained a vitamin supplementation of biotin, thiamine, and pyridoxine (Otzen et al., 2013). Surprisingly, NIH4215 grew on this medium and growth was also observed when this vitamin stock solution was used to supplement Aspergillus minimal medium (Figure 1A). Subsequent testing of the three individual vitamins revealed that thiamine supplementation was essential to restore growth of NIH4215 (Figure 1A). Therefore, this wild-type strain can be classified as a thiamine auxotrophic mutant. A supplementation with 0.78 µg/ml (about 2 µM) thiamine was the lowest concentration tested and showed that it was sufficient to support growth of NIH4215 (Figure 1B). Although growth at this low concentration was markedly reduced compared to higher concentrations, thiamine may have a growth promoting effect especially at the onset of germination as also strains Af293 and CBS144.89 germinated and grew slightly faster at elevated thiamine concentrations (Figure 1B).

FIGURE 1

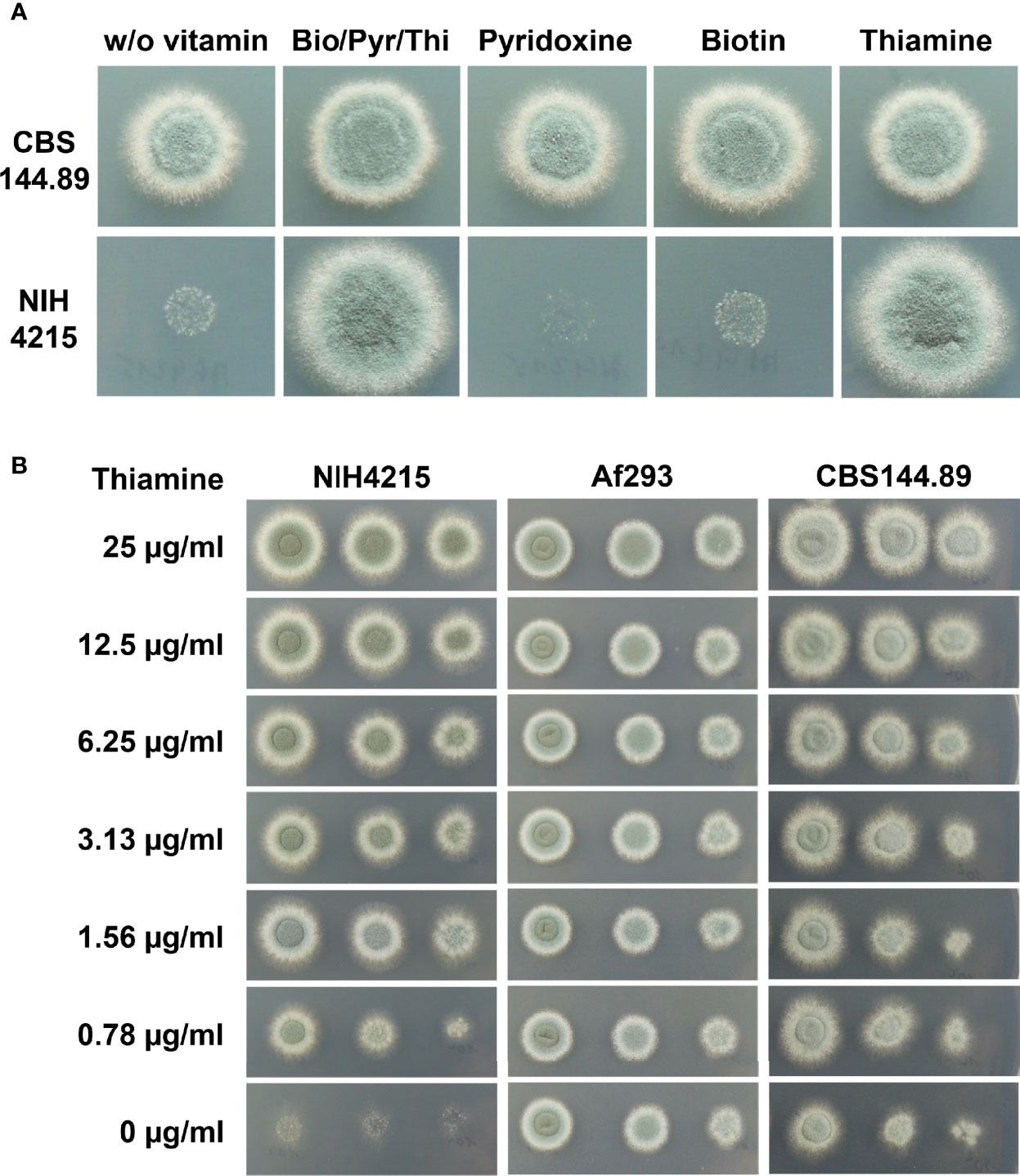

Figure 1 Growth of A. fumigatus strains on synthetic Aspergillus minimal media with or without vitamin supplementation. (A) 1 × 10⁴ conidia of strains CBS144.89 and NIH4215 were spotted and pictures were taken after 48 h of incubation at 37°C. Bio/Pyr/Thi indicates the supplementation with the three vitamins biotin, pyridoxin and thiamine. Strain NIH4215 strictly depends on the presence of thiamine for growth. (B) Media supplementation with a serial thiamine dilution. Strain NIH4215, Af293 and CBS144.89 were tested in parallel and 10-fold serial dilutions of conidia suspensions were spotted.

Identification of a putative thiamine biosynthesis pathway in A. fumigatus

Thiamine biosynthesis has been well studied in several yeasts such as Saccharomyces cerevisiae (Coquille et al., 2012) or Candida albicans (Lai et al., 2012). From these studies, it has been shown that thiamine biosynthesis derives from two branches. The pyrimidine moiety results from pyridoxal phosphate and an enzyme-derived histidine residue, whereas the thiazole moiety in fungi is formed from nicotinamide adenine dinucleotide, glycine and an enzyme-derived cysteine (Figure 2), whereby the respective thiamine azole synthase Thi4 becomes inactivated due to the incorporation of the sulphur group from the cysteine residue into the thiazole moiety (Chatterjee et al., 2011). By using the enzymes from the thiamine biosynthesis pathway of S. cerevisiae as templates, the protein database of A. fumigatus Af293 was searched for homologous proteins. The Nmt1 protein from A. fumigatus (accession: XP_748095; locus tag AFUA_5G02740) showed 67% identity to the 4-amino-5-hydroxymethyl-2-methylpyrimidine phosphate synthase Thi5 from S. cerevisiae. Use of the phosphomethylpyrimidine kinase Thi20 as template resulted in the identification of TenA (accession: XP_755470; locus tag AFUA_2G10740) from A. fumigatus. However, the sequence identity was only 33%, but the overall sequence similarity was at 50%. Furthermore, when using the bifunctional hydroxyethyl thiazole kinase/thiamine-phosphate diphosphorylase Thi6 as template a putative ThiE protein (accession: XP_755230; locus tag AFUA2G08970) with 35% sequence identity and 53% similarity was retrieved. Finally, using the thiamine thiazole synthase Thi4 as template a putative Thi4 protein (accession: XP_750752; locus tag AFUA_6G08360) with 60% sequence identity was identified in A. fumigatus. While experimental evidence for the contribution of these enzymes in A. fumigatus thiamine biosynthesis was not yet available, the identification of the putative Nmt1, TenA, ThiE and Thi4 proteins appeared sufficient for the biosynthesis of thiamine monophosphate from the respective precursor molecules (Figure 2).

FIGURE 2

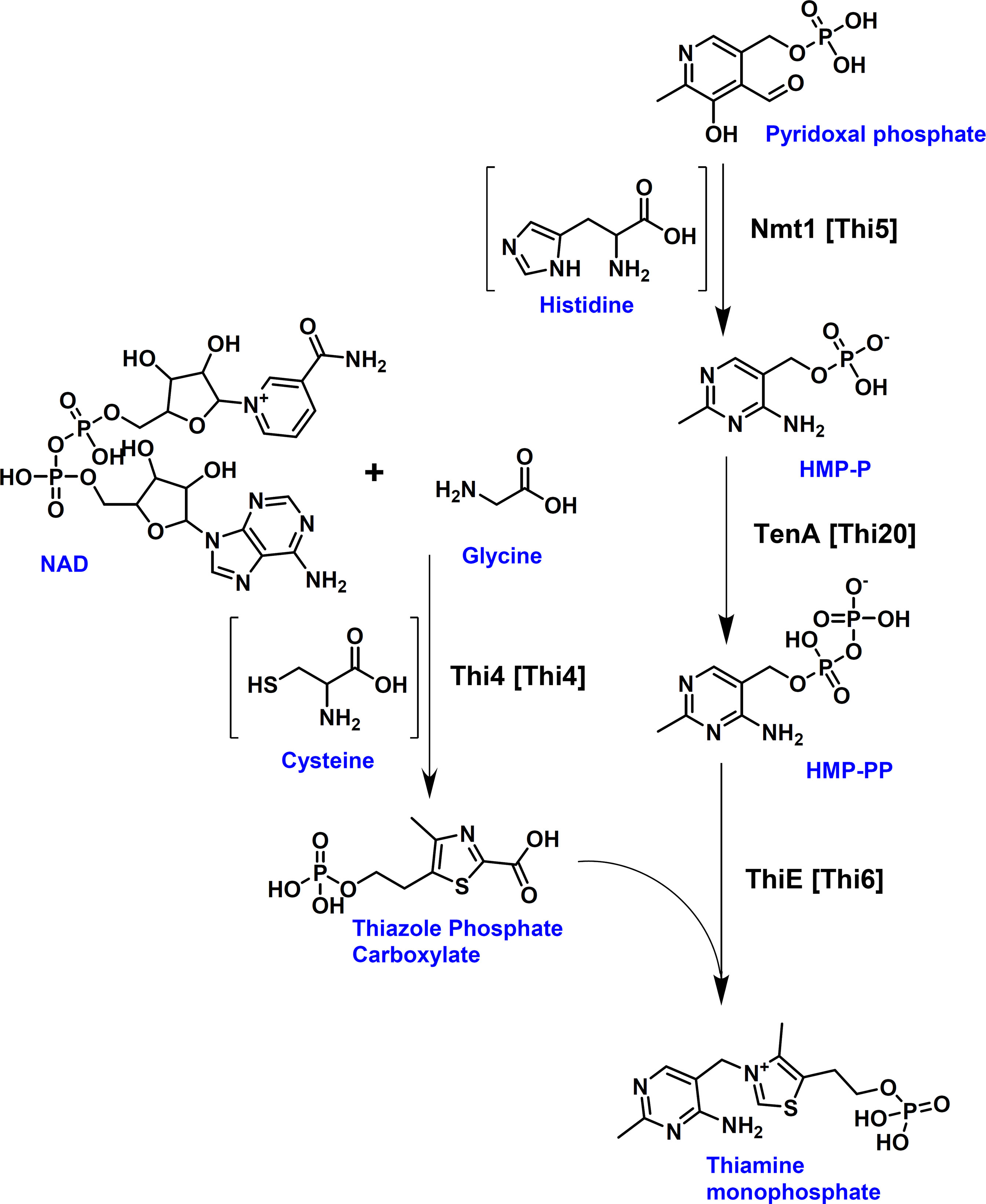

Figure 2 Fungal thiamine biosynthesis pathway. Aspergillus protein names are provided with corresponding yeast names given in brackets. [Thi4] = Thi4 = Thiamine thiazole synthase; [Thi5] = Nmt1 = 4-amino-5-hydroxymethyl-2-methylpyrimidine phosphate synthase; [Thi20] = TenA = phosphomethylpyrimidine kinase; [Thi6] = ThiE = hydroxyethyl thiazole kinase/thiamine-phosphate diphosphorylase. The pyrimidine and thiazole moieties are formed by two separate branches. Thi4 forms the thiazole moiety, whereby it uses the ADP-pentose moiety from NAD in combination with glycine and the sulphur group of an essential cysteine residue of Thi4 for the formation of the intermediate adenosine-diphospho-5-(β-ethyl)-4-methylthiazole-2-carboxylic acid (not shown), from which the thiazole phosphate carboxylate is released. This results in the inactivation of Thi4 due to the loss of the sulphur group from its cysteine residue (Chatterjee et al., 2011). Nmt1 (Thi5) catalyses the initial step in the formation of the pyrimidine moiety from pyridoxal phosphate and histidine resulting in the production of 4-amino-5-hydroxymethyl-2-methylpyrimidine phosphate (HMP-P) which is phosphorylated into its pyrophosphate (HMP-PP) by TenA (Thi20). ThiE (Thi6) joins the thiazole and the pyrimidine moieties under the formation of thiamine monophosphate.

Genetic basis of thiamine auxotrophy in strain NIH4215

With the identification of a set of genes potentially contributing to thiamine biosynthesis in A. fumigatus, we aimed to determine whether one of these genes was responsible for the observed thiamine auxotrophy of strain NIH4215. Thus, the respective genes including about 1 kb of their upstream and 200- 300 bp of downstream regions were amplified by PCR from genomic DNA of A. fumigatus Af293 and directly used for protoplasts transformation of strain NIH4215. Protoplasts were regenerated on medium without thiamine supplementation. While no colonies were obtained for transformations using the tenA, thiE or thi4 genes, several colonies became visible on transformation plates in which the nmt1 gene was used (Figure 3A). This indicated that all thiamine biosynthesis genes except that coding for Nmt1 are still functional in NIH4215. To determine whether a mutation in the coding region of nmt1 was responsible for thiamine auxotrophy, the gene was amplified from genomic DNA of NIH4215 and sequenced. Surprisingly, sequence comparison with the gene from Af293 identified the lack of one out of three consecutive cysteine encoding TGC codons (Figures 3B, C). These cysteine residues are highly conserved in fungal THI5/Nmt1 proteins as they form part of a CCCFC iron-binding motif that is essential for enzymatic activity (Coquille et al., 2012). Since all other amino acids were identical to the Nmt1 sequence from Af293, the loss of this TGC codon and the accompanied loss of iron coordination in the mutated Nmt1 is the likely sole cause of thiamine auxotrophy in NIH4215.

FIGURE 3

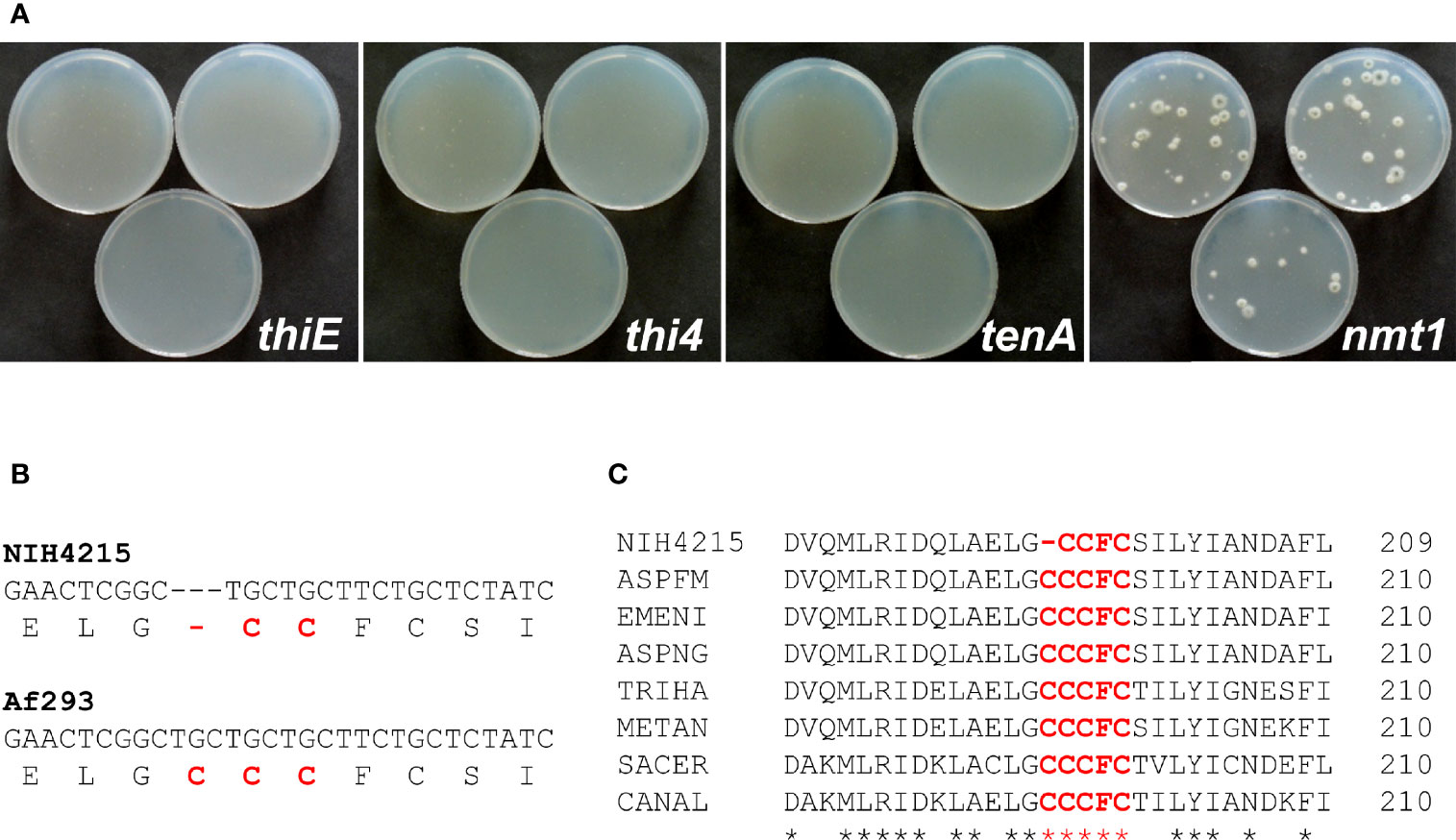

Figure 3 Identification of the molecular basis of thiamine auxotrophy of strain NIH4215. (A) Transformation of NIH4215 with thiamine biosynthesis genes from wild-type strain Af293. Pictures were taken at 72 h after transformation. Only the transformation with the nmt1 gene restores thiamine prototrophy. (B) Partial DNA sequence alignment of nmt1 genes from strains NIH4215 and Af293. The corresponding amino acid sequence is shown in 1-letter code. A cysteine codon present in the Af293 sequence is missing from the nmt1 gene from strain NIH4215. (C) Partial protein sequence alignment of Nmt1 homologous from various fungal species. The iron-binding motif CCCFC (highlighted) is highly conserved with one cysteine residue lacking in the sequence of NIH4215. NIH4215, A. fumigatus NIH4215 Nmt1; ASPFM, A. fumigatus Af293 Nmt1 (accession: XP_748095); EMENI, Aspergillus nidulans Nmt1 (accession: XP_681278); ASPNG, Aspergillus niger Nmt1 (accession: XP_001400160); TRIHA, Trichoderma harzianum Thi11 (accession: KKP02383); METAN, Metarhizium anisopliae Nmt1 (accession: KFG80226); SACER, S. cerevisiae Thi5 (accession: AJU38966); CANAL, Candida albicans Thi5 (accession: C4YMW2).

Generation of a bioluminescent akuB deletion mutant

Since complementation of thiamine auxotrophy of strain NIH4215 was achieved by transformation with the nmt1 gene from the wild-type strain Af293, we assumed that nmt1 could act as a suitable marker for gene deletions in strain NIH4215. Therefore, we aimed in using the nmt1 wild-type gene for the generation of a bioluminescent reporter strain by simultaneously replacing the coding region of the akuB locus in A. fumigatus. For that purpose, a thermostable red-shifted and codon-optimised version of the firefly luciferase (accession number: MT554554) under transcriptional control of the A. nidulans gpdA promoter and terminator was selected as previously used for generation of similar reporter strains in CBS144.89 (Resendiz-Sharpe et al., 2022). Downstream of the gpdA terminator the nmt1 gene with its own promoter and terminator sequence was cloned and the entire cassette was flanked by the upstream and downstream regions of the akuB gene. This dual deletion/reporter cassette was excised from the plasmid backbone and used for transformation of A. fumigatus NIH4215. D-Luciferin in transformation plates allowed the visualisation and selection of bioluminescent strains and 60 transformants were analysed by positional PCR to identify candidates with an akuB locus deletion that was confirmed by Southern blot analysis of the pre-selected transformants (Figure 4A). Selected mutants were tested for thiamine prototrophy in comparison to the wild-type NIH4215 (Figure 4B) and showed colony formation on thiamine-free medium. Furthermore, the selected strains were tested for bioluminescence by spotting conidia suspension from selected ΔakuB strains and from the parental strain on medium containing thiamine and D-luciferin. While the parental strain NIH4215 is non-bioluminescent, the mycelium of transformants showed a bright signal, whereby areas covered with pigmented conidia remained dark due to dormancy of conidia and light absorption by melanin (Figure 4C). These experiment confirmed that the nmt1 gene can be successfully used in gene deletion approaches and the approach resulted in “marker-free” bioluminescent A. fumigatus ΔakuB strains from strain NIH4215.

FIGURE 4

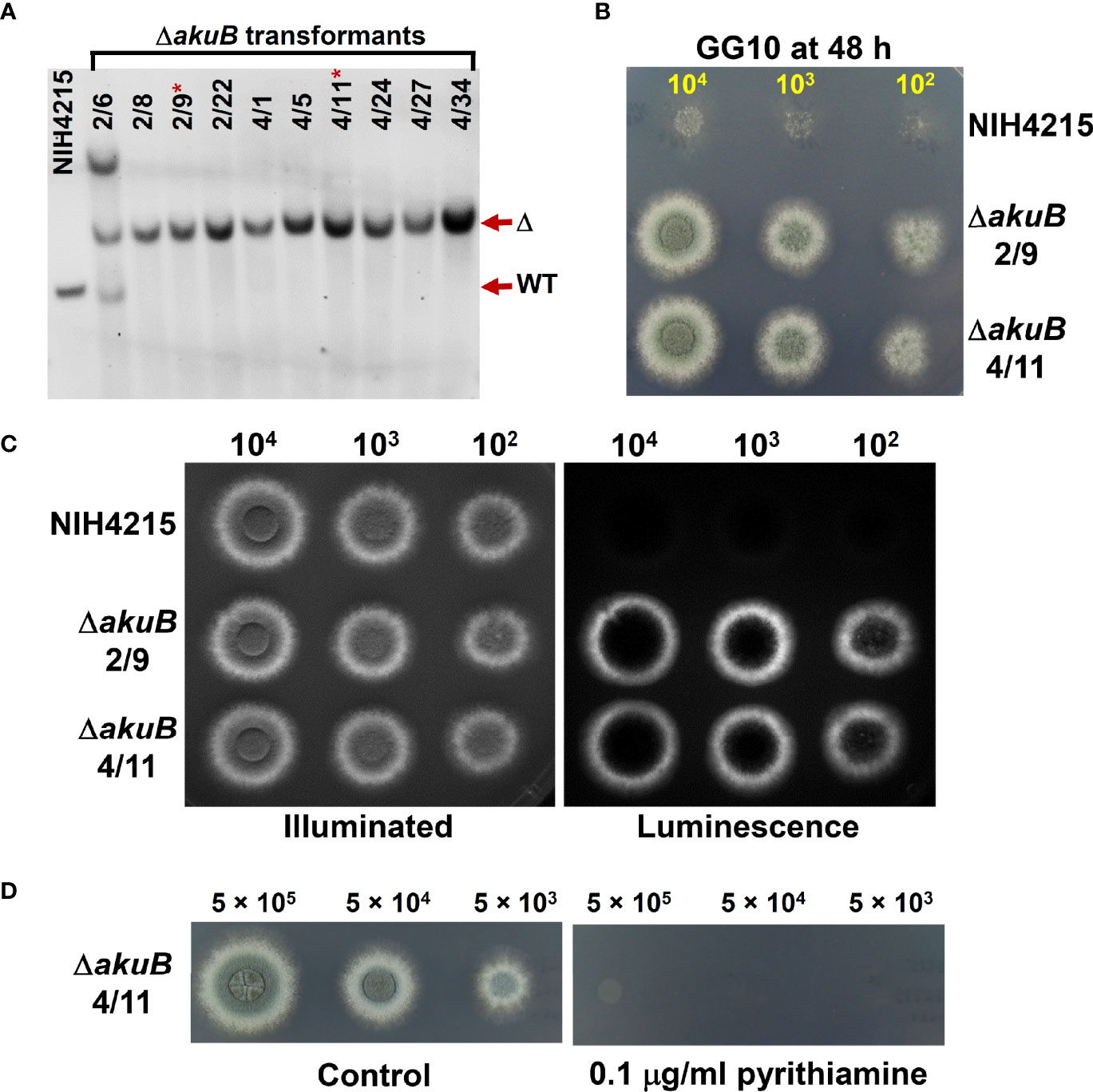

Figure 4 Southern blot and bioluminescence of ΔakuB strains generated by use of a wild-type nmt1 gene as transformation marker. (A) Southern blot analysis of selected transformants. A digoxygenin-labelled probe against the downstream region of the akuB gene was used and genomic DNA was restricted by BamHI resulting in expected signals at 2872 bp for the wild type (WT) and 4111 bp for deletion mutants (Δ). All transformants selected from PCR pre-screening showed the expected deletion signal with transformant 2/6 showing two additional integrations. Strains 2/9 and 4/11 (indicated by *) were selected for subsequent experiments. (B) Growth of the selected ΔakuB strains on thiamine-free minimal medium containing 50 mM glucose as carbon and 10 mM glutamine as nitrogen source (GG10). Serial dilutions of spore suspensions were spotted as indicated and pictures were taken after 48 h at 37°C. The akuB deletion mutants are prototrophic for thiamine. (C) Same as in (B), but plates contained 25 µg/ml thiamine to enable growth of strain NIH4215 and 0.3 mM D-luciferin to allow for bioluminescence imaging. Left side picture is an acquisition under illumination and right side the luminescence acquisition in the dark. Note that pigmented conidia on top of colonies quench the light emission. Both selected strains show the expected bioluminescence, which is not observed for the parental strain. Pictures were taken after 42 h. (D) Test of pyrithiamine resistance of the selected ΔakuB strain 4/11. Conidia suspensions were spotted on GG10 medium with or without pyrithiamine supplementation. Introduction of the nmt1 wild-type gene confers pyrithiamine sensitivity.

Pyrithiamine sensitivity of nmt1-complemented NIH4215 strains

Pyrithiamine is toxic to several aspergilli and other ascomycetes when grown on thiamine-free media (Kubodera et al., 2002) as it suppresses the production of the enzyme cofactor thiamine pyrophosphate on several levels (Kubodera et al., 2000). In filamentous fungi, a major target of pyrithiamine is the thiazole synthase Thi4 and a pyrithiamine resistance-conferring ptrA gene that carries a point mutation in the thi4 promoter region had previously been isolated from Aspergillus oryzae (Kubodera et al., 2000). While pyrithiamine is an excellent selection marker for A. fumigatus wild-type strains (Fleck and Brock, 2010), the marker was initially not available for use in the NIH4215 strain due to its need for thiamine supplementation. However, we speculated that complementation of the thiamine auxotrophy by integrating a wild-type nmt1 gene as used in the generation of the bioluminescent ΔakuB strain might restore the ability to use pyrithiamine and, thus, the ptrA gene as selection marker. To test this hypothesis, we spotted different conidia concentrations of a selected ΔakuB strain on media with and without the addition of 0.1 µg/ml pyrithiamine (Figure 4D). As expected, the strain was sensitivity towards pyrithiamine. This indicated that spending the nmt1 marker for generation of the bioluminescent ΔakuB strain freed the ptrA gene as new selection marker.

Exploitation of the ptrA gene for production of pyrG and niaD deletion mutants in the bioluminescent reporter strain

The pyrG and niaD genes are perfect markers for fungal transformation as they allow a marker recycling by mitotic out-recombination followed by a positive selection process. pyrG (or URA3 in S. cerevisiae) encodes the orotidine-5’-monophosphate decarboxylase that also converts 5-fluoroorotic acid (FOA) monophosphate into the toxic metabolite 5-fluoroorotidine monophosphate (Boeke et al., 1984). Therefore, while pyrG negative strains require the supplementation of media with uracil and/or uridine, they are resistant against FOA (D’enfert et al., 1996). Flanking of a pyrG cassette by direct DNA repeats allows a mitotic out-recombination event that results in the loss of the pyrG cassette and leads back to uracil/uiridine auxotrophic strains. FOA selection can then be used to screen for the respective strains (Geib et al., 2019). While pyrG negative A. fumigatus strains are non-pathogenic, re-introduction of the pyrG gene restores virulence (D’enfert et al., 1996). The niaD gene encodes a nitrate reductase and is essential for the use of nitrate as nitrogen source (Unkles et al., 1992). Similar to the pyrG gene, a positive selection of mutants with defect in the niaD gene is possible by their ability to grow in the presence of chlorate (Ishi et al., 2005). Thus, we generated deletion constructs for the pyrG (accession XP_755170) and niaD (XP_752653.1) gene from A. fumigatus using the pyrithiamine resistance gene ptrA as selection marker. Both deletion constructs were used for the transformation of two independent bioluminescent ΔakuB strains. Individual transformants were picked and tested by Southern blot analysis, which showed that all strains contained the desired gene deletion (Figures 5A, B). Subsequently, selected strains were analysed for bioluminescence (Figures 5C, D) and growth phenotypes under a variety of conditions (Figure 6). While the pyrG mutants showed the expected requirement of uracil, growth was slower than that of the parental strain. Most strikingly, uridine, given as sole supplement, did not restore growth and a mixture of uracil and uridine did not increase the growth speed of the mutants (Figure 6A). This was surprising since Aspergillus niger and Aspergillus oryzae pyrG mutants can be complemented by uridine (Geib et al., 2019) and the pyrG-negative A. fumigatus mutants CEA17 and CEA22 derived from strain CBS144.89 have also been described to use uridine in the complementation of the pyrG negative phenotype (D’enfert, 1996; D’enfert et al., 1996). Despite the reduced growth rate of the pyrG mutants on uracil supplemented media, all strains were positive for bioluminescence (Figure 5C). In addition, the mutants formed colonies on uracil-supplemented media in the presence of FOA, confirming the suitability of the pyrG marker in positive selection approaches. To further investigate the inability to use uridine, we speculated that strain NIH4215 might possess an increased resistance towards 5-fluorouridine (FUI) when compared to the wild-type strain CBS144.89. The addition of 2 mM of FUI retarded growth of all strains (Figure 6B), but the growth reduction was more pronounced for strain CBS144.89 compared to NIH4215 and its derived mutants. This indicates at least some level of increased FUI resistance of NIH4215 in line with its inability to utilise uridine.

FIGURE 5

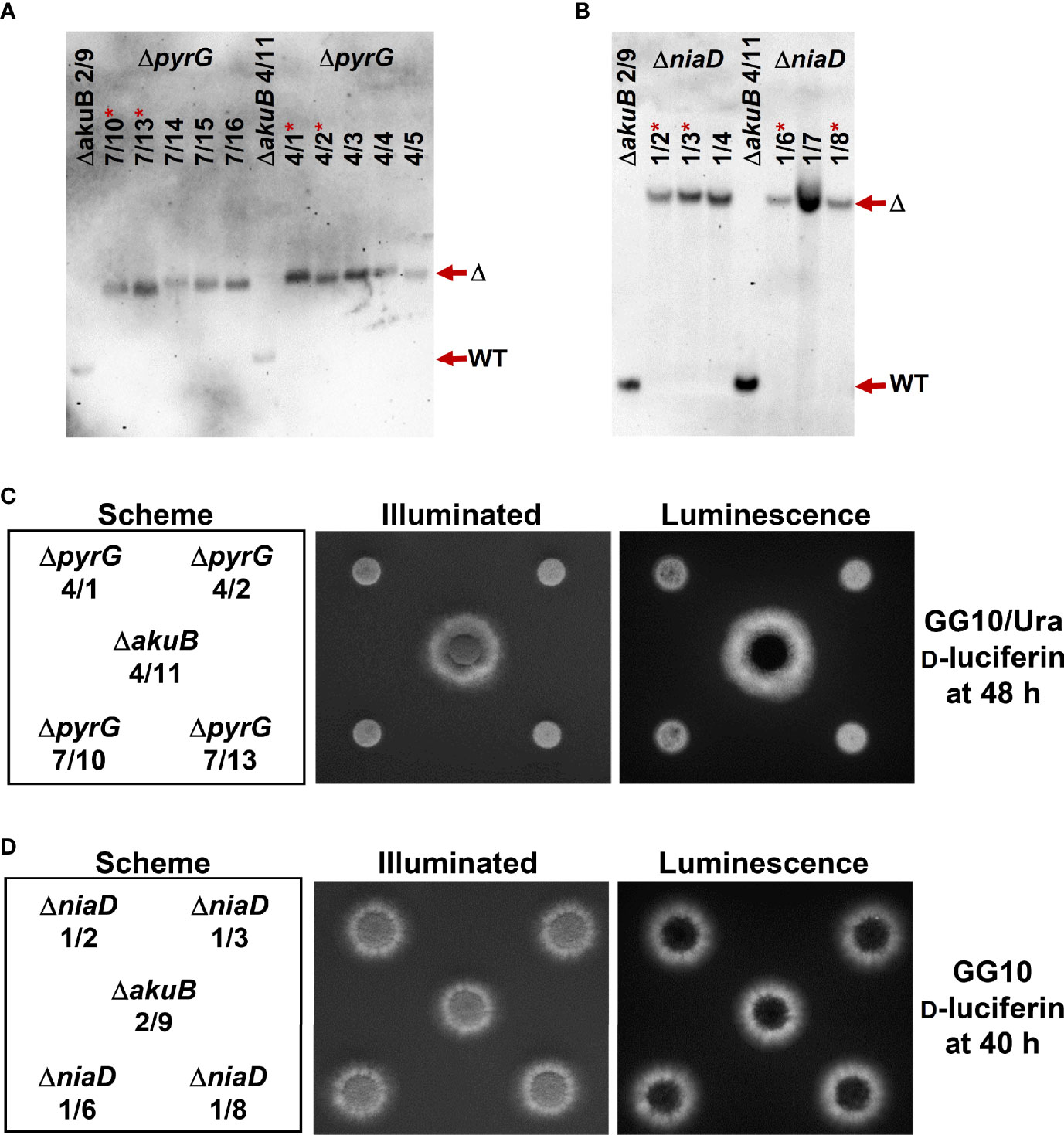

Figure 5 Southern blot and bioluminescence analysis of ΔpyrG and ΔniaD mutants generated from bioluminescent ΔakuB strains. (A, B) Southern blot analyses of randomly selected transformants obtained from the parental ΔakuB strains 2/9 and 4/11. The parental strains provide show the regions of the respective wild-type signals (WT) of pyrG and niaD. (A) ΔpyrG detection with a digoxygenin-labelled probe against the upstream region of the pyrG gene. Genomic DNA was restricted with HindIII resulting in expected signals of 2239 bp for the wild-type (WT) and 4056 bp for deletion mutants (Δ). (B) ΔniaD detection with a digoxygenin-labelled probe against the upstream region of the niaD gene. Genomic DNA was restricted with XhoI resulting in signals expected at 1635 bp for the wild-type (WT) and 6258 bp for deletion mutants (Δ). Strains in (A) and (B) denoted by a * were analysed in subsequent experiments. (C) Growth of the selected ΔpyrG strains on minimal medium containing 50 mM glucose as carbon and 10 mM glutamine as nitrogen source (GG10) and supplemented with 10 mM uracil and 0.3 mM D-luciferin. 10⁴ conidia were spotted and plates were incubated for 48 h at 37°C before luminescence was detected. All ΔpyrG strains show reduced growth rates, but are positive for bioluminescence. (D) Bioluminescence analysis of ΔniaD strains. Plates were the same as in (C), but without uracil supplementation. On this medium, no growth defect of ΔniaD is detected and all strains are positive for bioluminescence. In (C, D) a spotting scheme is shown on the left side with one parental ΔakuB strain in the centre. The picture in the middle shows an acquisition under illumination and the right side a luminescence acquisition in the dark.

FIGURE 6

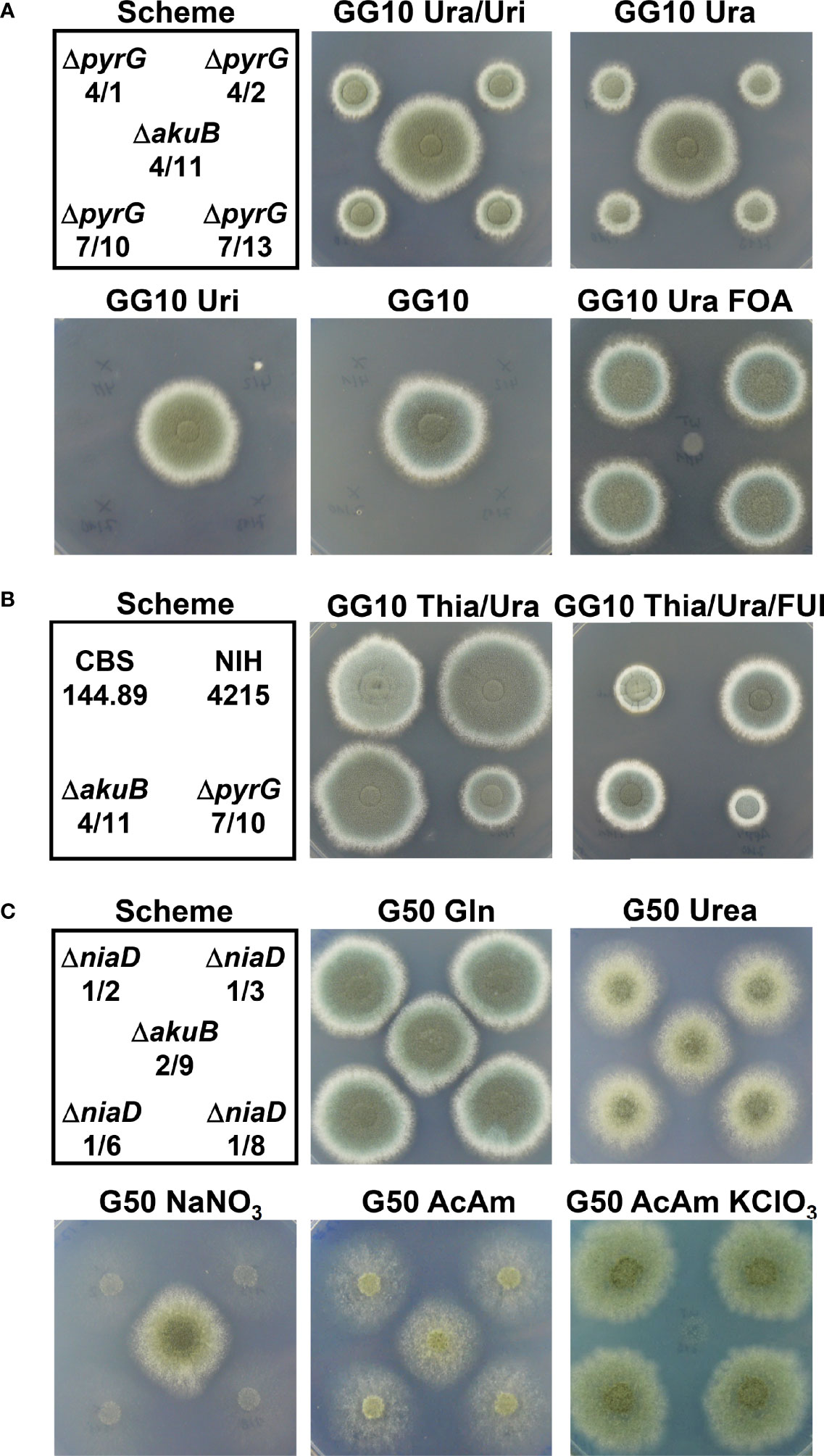

Figure 6 Growth analysis of ΔpyrG and ΔniaD mutants derived from the bioluminescent ΔakuB strains. (A) Growth analysis of ΔpyrG strains in comparison to the parental ΔakuB 4/11 strain. A spotting scheme for 10⁴ conidia from each strain is shown on the left. Glucose minimal medium with 10 mM glutamine as nitrogen source (GG10) served as basic growth medium. Media were additionally supplemented with either a combination of uracil and uridine (Ura/Uri, 10 mM each) or uracil (Ura, 10 mM) or uridine (Uri, 10 mM) alone. In addition, resistance against 4 mg/ml FOA in the presence of uracil was tested. All pictures were taken after 60 h of incubation at 37°C except for the FOA-containing plate that was photographed after 78 h. Uridine does not complement the ΔpyrG phenotype and growth in the presence or uracil is delayed. All pyrG mutants show the expected resistance against FOA. (B) Test of the A. fumigatus wild-type strain CBS144.89, the NIH4215 strain and the derived ΔakuB 4/11 and the ΔpyrG 7/10 strain against 5-fluorouridine (FUI). GG10 medium supplemented with thiamine and uracil served as control and was compared at 64 h against a medium additionally supplemented with 2 mM FUI. Although growth of all strains is affected by FUI, strain NIH4215 and derivatives show normal colony morphology and appear less affected. (C) Growth analysis of selected ΔniaD strains in comparison to the parental ΔakuB 2/9 strain. A spotting scheme for 10⁴ conidia from each strain is shown on the left. Glucose minimal medium (G50) served as basis and was supplemented with different nitrogen sources. Gln, 10 mM glutamine; Urea, 10 mM urea; NaNO₃, 70 mM sodium nitrate; AcAm, 20 mM acetamide; AcAm KClO₃, 20 mM acetamide + 120 mM potassium chlorate. All pictures were taken after 60 h of incubation at 37°C except for the chlorate –containing plate that was photographed after 120 h. All niaD mutants show the expected inability to utilise nitrate, but show an increased chlorate resistance.

All ΔniaD strains grew well on media with glutamine as nitrogen source and showed a similar bioluminescence as the parental strain (Figure 5C). As expected, the niaD mutants were unable to use nitrate as nitrogen source (Figure 6C). However, normal growth was observed on the nitrogen sources glutamine and urea, and growth on the less preferred nitrogen source acetamide was unsuspicious when compared to the parental strain (Figure 6B). Growth on acetamide was analysed as it appeared as a suitable nitrogen source when testing the chlorate sensitivity in positive selection approaches since preferred nitrogen sources such as ammonium or glutamine cause an AreA-dependent repression of the nitrate reductase (Amaar and Moore, 1998). Indeed, chlorate repressed growth of the parental strain, but allowed colony formation and sporulation of the niaD mutants (Figure 6C). In summary, pyrG and niaD mutants were generated with high frequency in the ΔakuB strain and the mutants showed the expected auxotrophy for either uracil or nitrate. The introduced markers can be used for positive selection and all strains remained bioluminescent, allowing their use in in vivo imaging approaches.

Virulence analysis in a Galleria mellonella infection model

Due to the unexpected thiamine auxotrophy of strain NIH4215, we were interested in the virulence of the auxotrophic strain in comparison to its nmt1-complemented bioluminescent ΔakuB reporter strains. As most simple virulence model we selected larvae of the greater wax moth Galleria mellonella for pathogenicity studies (Durieux et al., 2021). Since A. fumigatus strain CBS144.89 and its corresponding bioluminescent ΔakuB reporter had already been shown to possess identical virulence potential in murine infection models (Resendiz-Sharpe et al., 2022), these strains were added as virulence controls. Four different concentrations of conidia in the range between 1 × 10⁵ and 1 × 10⁶ were used for infection and larvae were incubated for a maximum of 6 days at which even at the lowest concentration a mortality of up to 100% was reached. As expected (Figure 7), a concentration dependent killing of larvae was observed with all larvae succumbing to infection at day 2 when infected with 1 × 10⁶ conidia, at day 3 with 5 × 10⁵ conidia, at day 4 with 2.5 × 10⁵ conidia and between days 4 and 6 with 1 × 10⁵ conidia. No significant differences in survival rates among all strains was observed at the lowest and most representative dose of 1 × 10⁵ conidia. In one group of the higher concentrations the CBS144.89 (Dal) strain and at another concentration its ΔakuB strain showed a statistical difference in survival rates to NIH4215 or to NIH4215 and Dal strain, respectively, but due to the short time from infection to death of all larvae these differences appear less relevant. Most importantly, the thiamine auxotrophic NIH4215 strain showed no attenuated virulence in this infection model and the akuB deletion combined with the expression of the bioluminescent reporter had no negative impact. This indicates that the host supplies sufficient thiamine for germination and growth of a thiamine auxotrophic mutant.

FIGURE 7

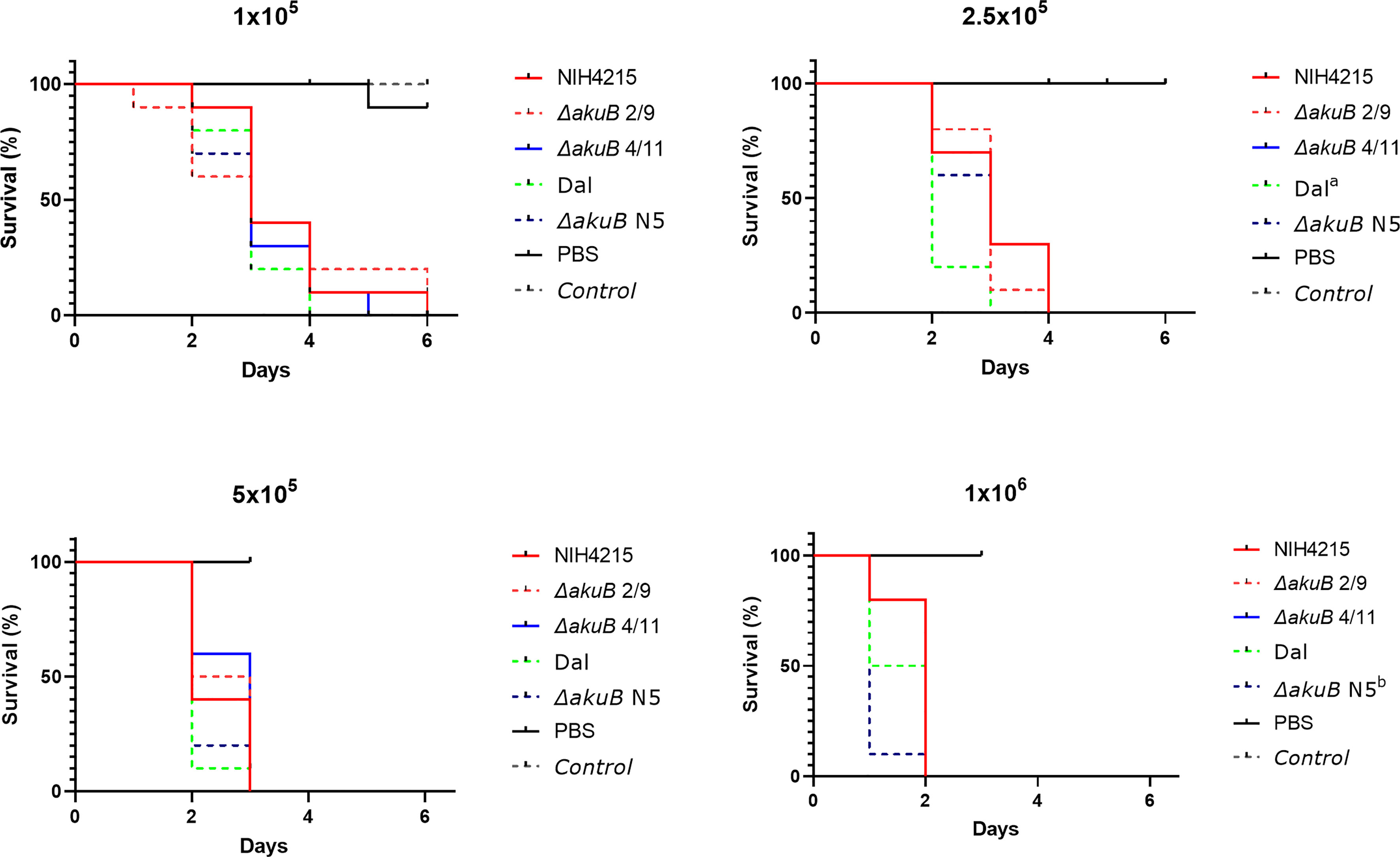

Figure 7 Virulence analysis of NIH4215 and nmt1-complemented bioluminescent ΔakuB strains. Kaplan-Meier survival curves of Galleria mellonella larvae infected with A. fumigatus wild-type strains NIH4215 and CBS144.89 (Dal) and the corresponding bioluminescent ΔakuB mutants (ΔakuB N5 for Dal; ΔakuB 2/9 and ΔakuB 4/11 for NIH4215). Each larva was injected with 50 µl of PBS or 50 µl PBS containing either 1 × 10⁵, 2.5 × 10⁵, 5 × 10⁵ or 1 × 10⁶ conidia of the individual strains. A group of untreated larvae was included as general viability control (Control). Significant differences in survival rates was tested by log-rank analysis. The NIH4215 wild type and its ΔakuB 2/9 and ΔakuB 4/11 strains did not significantly differ in their killing rate over the range of conidia concentrations tested. In the survival curve at 2.5 × 10⁵ conidia/larva the Dal strain showed a significant difference compared to the NIH4215 strain indicated by ^a (p = 0.0149). At 2.5 × 10⁵ conidia/larva the ΔakuB N5 strain differed significantly to the Dal strain (p = 0.0331) and at 1 × 10⁶ conidia/larva to strain NIH4215 (p = 0.0022) as indicated by ^b.

Spontaneous phenotypic mutations in NIH4215 and its derivatives

While thiamine auxotrophy of strain NIH4215 showed no impact on virulence, further observations indicated that this isolate seems to be prone for increased mutation rates. Besides thiamine auxotrophy and an inability to utilise uridine, morphological changes in colony sectors such as a more condensed colony morphology, fluffy sectors with increased aerial hyphae or sectors without conidia formation were observed (not shown). However, the most obvious phenotype was the spontaneous appearance of white colony sectors, which is indicative for mutations in the DHN-melanin biosynthesis pathway (Brakhage and Liebmann, 2005). This was observed for the NIH4215 wild-type strain as well as for the bioluminescent ΔakuB strains and mutants thereof (Figure 8A). To confirm that these sectors represent a stable mutation in the DHN-melanin pigment biosynthesis pathway, we picked conidia from white sectors of the parental NIH4215 strain, an ΔakuB strain and from a derived ΔniaD mutant and streaked them on fresh media either supplemented with thiamine (for NIH4215) or without thiamine, but with D-luciferin (for ΔakuB and ΔniaD). Due to the small white sector of the NIH4215 strain at the time of picking, the streak showed a mixture of green and white colonies (Figure 8B), but when individual colonies were picked and tested for growth in the absence of thiamine, green and white colonies were both auxotrophic for thiamine (Figure 8B). For the ΔakuB and ΔniaD strain, plates from streaks were imaged after 22 h and showed a strong bioluminescence signal for both white sectors streaks (Figure 8C). This analysis confirmed the origin of the white mutants from their parental bioluminescent reporter strains. When photographed after 46 h at which time conidia had formed on top of the colonies, the resulting colonies where white (Figure 8C). As white sectors spontaneously occurred in the parental NIH4215 strain and in the bioluminescent strains generated in this study, these mutations were not dependent on the deletion of the akuB locus and pointed towards a high rate of spontaneous mutations in this clinical isolate.

FIGURE 8

Figure 8 Phenotypic analysis of strains deriving from spontaneously occurring white colony sectors. (A) Visualisation of white sectors (arrows) arising on the edges of colonies of the parental strain NIH2415 and different transformants. Spores from the sectors were collected for further analysis. (B) Streak from white sector of the NIH2415 colony on thiamine containing glucose minimal medium at 46 h. Due to the small sector, a mixture of green and white colonies are growing. Spores from a green and a white single colony (arrows) were transferred to a petri dish with two compartments, one with and one without thiamine containing medium. At 48 h, the green and the white colony both show the expected thiamine auxotrophy of the parental strain. (C) Analysis of bioluminescence and conidia colouration of white sectors streaks from the ΔakuB and the ΔniaD strain. Conidia from sectors were transferred to glucose minimal medium containing 0.3 mM D-luciferin and were incubated at 37°C. Luminescence was analysed after 22 h at which initial mycelium formation becomes visible. The mature colonies with white conidia are shown after 46 h of incubation.

Comparative analysis of NIH4215 mutation rates

While the repeated isolation of white mutants from NIH4215 and its derivatives indicated a generally high mutation rate, this phenotype was difficult to quantify, as there was no positive selection method available to determine the frequency of this mutation. Since we were able to show that positive FOA selection worked well in the pyrG deletion strains (Figure 6A), we exploited the FOA resistance for determination of spontaneously occurring mutations. However, it is worth to note that in aspergilli two genes are required to convert fluoroorotic acid into the toxic metabolite fluorouridine monophosphate as previously shown for Aspergillus oryzae (Mao et al., 2015). In a first step, the orotate phosphoribosyltransferase PyrE converts fluoroorotic acid into fluoroorotidine monophosphate, which is then decarboxylated by the orotidine monophosphate decarboxylase PyrG into fluorouridine monophosphate (Mao et al., 2015). Thus, a loss-of-function mutation in either the pyrE or pyrG gene leads to uracil auxotrophy accompanied by FOA resistance. By contrast, an albino phenotype only requires a mutation in a single gene coding for the polyketide synthase PksP - also called Alb1 (Watanabe et al., 2000; Gibbons et al., 2022). However, an albino mutation may occur at much higher frequency than the phenotype of FOA resistance from the combined mutation rates from pyrE and pyrG. The pksP/alb1 gDNA spans 6662 bp and codes for a 2146 amino acid protein (accession Q4WZA8). By contrast, the pyrE gene has a size of 807 bp, contains a 66 bp intron and codes for a 246 amino acid protein (accession: XP_755462.1). The pyrG gene spans 905 bp, contains a 68 bp intron and codes for a protein of 278 amino acids (accession XP_755170.1). This means that the pksP gene encodes about 4 times more amino acids than the pyrE and pyrG gene combined. In addition, with a genome size of 29.4 Mbp (Nierman et al., 2005) the combined pyrE and pyrG gene size of 1712 bp only occupies a small fraction of the genome at which mutations may have an effect on FOA resistance. As only mutations that cause a frame shift (base insertion or base deletion) or that lead to a loss-of-function mutation will cause FOA resistance, we expected that even with an increased mutation rate the recovery of FOA-resistant mutants might be low. Indeed, in a first approach, we inoculated five FOA plates each with 1 × 10⁶ conidia, but no FOA resistant mutants were obtained. In a second approach, we inoculated five plates with 2 × 10⁷ conidia each (total of 1 × 10⁸ conidia) and obtained a total of 11 FOA resistant mutants for strain NIH4215. When we repeated the experiment with the same conidia suspension, 13 FOA resistant mutants were recovered, showing that the result from this conidia suspension was reproducible. We then prepared a fresh and independent conidia suspension and this time 18 FOA resistant mutants were retrieved (Figure 9). Similarly, when we prepared a conidia suspension from the white NIH4215 mutant we obtained 15 FOA resistant strains. To confirm that the FOA resistant mutants from strain NIH4215 were not clonal rather than resulting from independent mutation events, we randomly selected mutants for sequencing of the pyrE and pyrG gene (Table 2). Indeed, while a few duplicates were found, a broad spectrum of different mutations (transitions, transversions, base insertions, base deletions) were observed. When we plated the same amount of conidia from strain CBS144.89, we observed none or some condensed growing colonies that, when tested further, did not show a uracil/uridine auxotrophy, which indicates that these colonies did not carry a mutation in either pyrE or pyrG (Figure 9). When we plated this conidia suspension again, besides the condensed growing colonies a single FOA resistant mutant was retrieved that revealed a point mutation in the pyrE gene (Table 2). We then prepared a fresh conidia suspension of CBS144.89, but this time added uridine to the agar slopes. When this conidia suspension was tested, we obtained a total of 18 FOA resistant colonies, but when three colonies were randomly selected and sequenced, they all showed the identical mutation in the pyrE gene, which was a G to T transversion at the intron boarder of the pyrE gene. This transversion prevents intron splicing, resulting in a change of the amino acid sequence and introduces a stop codon (Table 2). This indicates that these mutants all derived from a single mutation event. Thus, while it is difficult to define an exact DNA mutation rate without next generation genome sequencing analyses (Zhu et al., 2014), our analyses indicate that in strain NIH4215 the likelihood to obtain independent FOA-resistant mutants is < 1 × 10^-7, whereas this likelihood is > 1 × 10^-8 in strain CBS144.89. This confirms that strain NIH4215 has a generally increased mutation rate compared to other A. fumigatus wild-type strains.

FIGURE 9

Figure 9 Screen for fluoroorotic acid resistant mutants. (A) Five HEPES-buffered (20 mM, pH 7.0) plates containing GG10 medium supplemented with 12.5 µg/ml thiamine, 10 mM uracil and 4 mg/ml fluoroorotic acid (FOA) were inoculated with 2 × 10⁷ conidia of strain NIH4215, the white NIH4215 mutant, or strain CBS144.89 and incubated for 7 days at 37°C. Between 2 and 6 FOA resistant colonies per plate were obtained for NIH4215 and its white mutant and between 0 and 3 colonies per plate with a condensed phenotype for CBS144.89. Representative photographs of plates are shown. (B) Analysis of selected FOA-resistant strains for uracil auxotrophy. For CBS144.89 non-condensed growing FOA-resistant mutants from various screens (see main text) were selected. For genotypes of FOA-resistant strains from NIH4215 and CBS144.89 strains refer to Table 2. (C) Analysis of Uracil auxotrophy of colonies from CBS144.89 with condensed and non-condensed phenotype. The mutants with condensed phenotype do not require uracil, but maintain the condensed colony morphology on minimal media without FOA.

TABLE 2

Table 2 Mutation analysis of fluoroorotic acid resistant mutants.

Discussion

A. fumigatus strain NIH4215 has frequently been used as wild-type strain in drug efficacy studies. Therefore, we were surprised to see that the strain was unable to grow on synthetic minimal medium and required the addition of thiamine. Previous studies did not discover this auxotrophy since strain NIH4215 grows without obvious phenotype on complex thiamine containing media such as potato dextrose broth, Sabouraud medium, Malt extract or cell culture medium. Thiamine, also called vitamin B1, is an essential cofactor in many catabolic reactions and a deficiency in humans causes cardiovascular diseases, dementia and other severe neurological conditions (Gibson et al., 2016; Chandrakumar et al., 2018; Dinicolantonio et al., 2018). By contrast, plants and most microorganisms including fungi are able to synthesise thiamine de novo as it plays an essential role in the pyruvate dehydrogenase and the α-ketoglutarate dehydrogenase complex, is vital for the degradation of branched-chain amino acids and forms part of the transketolase in the pentose phosphate pathway (Bettendorff and Wins, 2013). It also plays an essential role in the pyruvate decarboxylase (Robinson and Chun, 1993), which is required in yeasts for ethanol production during fermentative growth. Due to this central role of thiamine in primary metabolism, it could have been assumed that the virulence of strain NIH4215 is reduced. However, at least in our insect infection model, no attenuation of virulence was detected, which implies that the host provides sufficient thiamine to promote germination and growth of a thiamine biosynthesis deficient pathogen. In addition, we observed that strain NIH4215 seems to have an efficient thiamine uptake system since less than 1 µg/ml of thiamine still supported growth albeit the growth rate was slightly reduced when compared to high thiamine supplementation levels. Increased thiamine concentrations have been shown to cause a beneficial effect on stress tolerance in yeasts (Wolak et al., 2014; Wolak et al., 2015) and the same may apply to A. fumigatus. Both thiamine prototrophic A. fumigatus wild-type strains, Af293 and CBS144.89, showed increased germination and growth rate in the presence of elevated thiamine concentrations. The faster germination could also indicate a limitation of the suicide enzyme Thi4 from the thiazole biosynthesis branch (Chatterjee et al., 2011) in germinating conidia, which is compensated by thiamine supplementation.

While thiamine auxotrophy has not previously been described for a clinical A. fumigatus isolate, varying levels of thiamine auxotrophy have been described for several pathogenic yeasts and dimorphic fungi. Growth of C. albicans, C. dubliniensis, C. tropicalis and C. glabrata is significantly impaired in thiamine-free minimal media, whereby the strongest thiamine dependency was observed for C. glabrata (Wolak et al., 2015). Similarly, while Histoplasma capsulatum, a fungal pathogen that can replicate within the phagosome of macrophages, depends on functional biosynthesis pathways for pantothenate and ribovlavin, it does not require thiamine biosynthesis for intraphagosomal replication (Garfoot et al., 2014). Accordingly, studies on the nutritional requirements of this dimorphic pathogen revealed that different levels of thiamine auxotrophy were widespread among a collection of 25 H. capsulatum isolates with some isolates deriving from human infections (Mcveigh and Morton, 1965). Thiamine auxotrophy has also been described for several Paracoccidioides brasiliensis isolates (San Blas and Centeno, 1977) which is the major cause of Paracoccidiomycosis in Latin America (Ferreira, 2009). This shows that thiamine requirement is frequently observed in pathogenic yeasts and dimorphic fungi but has not been described for wild-type isolates of a saprophytic and generally free-living filamentous fungus. However, the lack of thiamine requirement during infection implies that the host environment provides sufficient thiamine to complement the auxotrophy and is in agreement with our results from G. mellonella infections. This further indicates that thiamine biosynthesis is unlikely to provide a new and suitable antifungal drug target. Nevertheless, for topical applications such as skin infections caused by Malassezia species the use of the antivitamin oxythiamine has been discussed as it significantly reduced the growth rate of Malassezia pachydermatis in complex growth media (Siemieniuk et al., 2016).

When searching for the molecular basis of thiamine auxotrophy in strain NIH4215, we identified the deletion of an entire cysteine codon in the nmt1 gene of NIH4215. This deletion disrupts an unusual CCCFC iron-binding motif in the 4-amino-5-hydroxymethyl-2-methylpyrimidine phosphate synthase and studies on the related S. cerevisiae Thi5p enzyme showed that individual mutations of each of the four cysteine residues into alanine caused thiamine auxotrophy (Coquille et al., 2012). Thus, the deletion of the cysteine codon in the nmt1 gene confirmed the importance of this iron-binding motif in the enzyme from a filamentous fungus. While this explained the observed thiamine auxotrophy of strain NIH4215, it also opened the opportunity to use a wild-type version of the nmt1 gene as auxotrophic marker to generate a bioluminescent A. fumigatus reporter strain by simultaneously deleting the akuB locus for increased frequency of homologous recombination.

The firefly luciferase is a perfect tool to investigate fungal virulence, disease progression, dissemination of infection and therapy efficacy in murine infection models as it allows quantification of the fungal burden in temporal and spatial resolution via a non-invasive bioluminescence imaging (Slesiona et al., 2012; Jacobsen et al., 2014; Poelmans et al., 2018; Persyn et al., 2019; Vanherp et al., 2019; Vanherp et al., 2020; Seldeslachts et al., 2021). Specifically the use of a red-shifted version of the firefly luciferase increases sensitivity of fungal detection as it reduces the light absorption from haemoglobin in deep-seated infections (Resendiz-Sharpe et al., 2022). Furthermore, in combination with other non-invasive imaging techniques such as micron-scale computed tomography (micro-CT) and magnetic resonance imaging (MRI), bioluminescence imaging enables to correlate the fungal burden with the formation of tissue lesions and inflammation in infected organs (Van Dyck et al., 2020). While the nmt1 gene served as excellent marker for transformation, the rate of homologous integration in the NIH4215 strain was only around 17%, which is in agreement with other A. fumigatus strains with an intact non-homologous end-joining repair mechanism (Krappmann et al., 2006). The resulting luciferase-expressing ΔakuB mutants displayed no obvious growth or morphological defects, showed no virulence attenuation in the G. mellonella infection model, were prototrophic for thiamine and showed the expected bioluminescence. Therefore, these strains can be used as “marker-free” bioluminescent reporters for further infection and gene deletion studies. Importantly, while the nmt1 marker was no longer available for a second round of transformation, we were now able to exploit the pyrithiamine resistance gene as selection marker as this marker only works in strains with an intact thiamine biosynthesis pathway (Kubodera et al., 2000). As a proof-of-concept, we decided to delete the pyrG and niaD gene from two selected bioluminescent ΔakuB strains to show (i) that the pyrithiamine resistance gene can be used in the reporter strains and (ii) to confirm the high rate of homologous integration and (iii) to generate strains with auxotrophic markers that allow a positive selection in marker recycling steps. Indeed, all transformants analysed contained a single homologous integration into the respective locus. While deletion of the niaD gene resulted in the expected inability to use nitrate as nitrogen source and mediated an increased chlorate resistance, the pyrG mutant showed a strict dependency on uracil supplementation and was resistant to fluoroorotic acid.

Unexpectedly, the ΔpyrG strains were unable to use uridine for complementation of the pyrG mutation. Uridine is an uracil base that is attached to a ribose unit (Uracil-1-β-D-ribofuranoside) and therefore shows increased water solubility compared to uracil and is a generally a good metabolite for use in the complementation of pyrG negative Aspergillus strains (Geib et al., 2019). However, in pyrimidine biosynthesis the ribose unit of uridine needs either phosphorylation or removal for further metabolism. Since uracil, but not uridine supported growth of the pyrG mutant, it seems that the strain NIH4215 possesses a mutation that either affects the uptake of uridine, the phosphorylation of uridine and/or the deglycosylation of uridine. In S. cerevisiae, the uridine permease Fui1p (ORF YBL042) is responsible for uridine uptake and a deletion leads to increased resistance against 5-fluorouridine (Wagner et al., 1998). The subsequent phosphorylation of uridine in S. cerevisiae proceeds via the uridine kinase Urk1p (Kurtz et al., 2002). However, a mutation in Urk1p is not sufficient to cause a uridine-negative phenotype a simultaneous mutation in the uridine nucleosidase (Urh1p in S. cerevisiae) is required as this enzyme removes the ribose unit from uridine to produce uracil (Kurtz et al., 2002). We did not follow the precise cause for the lack of uridine utilisation in NIH4215 ΔpyrG mutants, but the strong resistance of NIH4215 and its derivatives against 5-fluorouridine indicates that the lack of uridine utilisation was already present in the parental clinical isolate.

Strain NIH4215 appears specifically prone to increased mutation rates and future studies may involve sequencing of the genome of this isolate to investigate potential mutations in the DNA replication proofreading machinery and to search for further mutations that may have accumulated in its genome. In this respect, during prolonged growth of individual strains generated in this study, we observed the sudden appearance of white sectors, which indicates the spontaneous occurrence of mutations in the DHN-melanin biosynthesis pathway (Perez-Cuesta et al., 2020) and is in agreement with previously observed frameshift mutations in clinical albino A. fumigatus isolates (Gibbons et al., 2022). To confirm an increased mutation rate in NIH4215, we aimed in the comparative analysis of mutation rates. While precise analysis of mutation rates, including silent mutations, requires whole genome sequencing (Zhu et al., 2014), we exploited the FOA resistance caused by functional mutations in the pyrE and pyrG gene (Mao et al., 2015). As a result, we found that compared to strain CBS144.89 the isolation of FOA resistant strains from NIH4215 was increased by at least a factor of ten. Besides nucleotide transversions and transitions in the pyrG and pyrE gene resulting in loss-of-function mutations, we also detected single nucleotide insertions and deletions and in mutant N-9 we detected a 15 bp deletion in the pyrE gene resulting in a five amino acids deletion from PyrE. Such a deletion event of more than a single nucleotide is in line with the deletion of an entire cysteine codon in the nmt1 gene. Due to this obviously high mutation rate, we wondered whether the thiamine auxotrophy in NIH4215 occurred during the early activation of our stock culture. Therefore, we tested an independent NIH4215 cryostock (kindly provided by Thomas Lehrnbecher, Goethe University Frankfurt/Main, Germany) that was also auxotrophic for thiamine (not shown). This confirmed that the thiamine dependency was not a special feature of the sample analysed in this study.

We conclude from our analyses that the thiamine auxotrophy of strain NIH4215 does not negatively influence the results from previous studies performed with this strain. Thiamine biosynthesis appears dispensable during host infection and additional mutations will only accumulate when the strain is repeatedly subcultivated. However, the detection of an increased mutation rate of NIH4215 makes the wild-type strain and the derived reporter strains less attractive for future virulence studies. Nevertheless, NIH4215 and the reporter strains may be valuable tools to investigate the spontaneous occurrence of azole resistance. Azole resistance in clinical A. fumigatus isolates is a growing problem (Meis et al., 2016) and it has been assumed that most mutations causing this resistance accumulate in the environment (Meis et al., 2016; Resendiz Sharpe et al., 2018). Azole resistant strains have been found on all continents except Antarctica (Burks et al., 2021), but it is unclear whether the most frequently observed resistance-conferring mutations derived from only a few progenitors or developed de novo in individual strains. If the latter is the case, a mutation-prone strain such as NIH4215 may be an ideal candidate to study the development of azole resistance in vitro and in vivo by a similar approach as used for the selection of FOA resistant mutants.

In summary, thiamine biosynthesis does not appear to be of special importance for pathogenic fungi to establish infection in insects or humans, as thiamine auxotrophy is common in pathogenic yeasts and present in the clinical A. fumigatus isolate investigated in this study. A number of different clinical A. fumigatus isolates are in use for infection studies, but our analysis shows that individual isolates may have accumulated not only obvious, but also cryptic mutations that may affect results. While there is a great value in the use of clinical isolates from different sources, strains should be carefully analysed for growth defects on minimal media and care should be taken when drawing conclusions on the contribution of virulence determinants and efficacy of antifungal drugs when results base on a single and not well-characterised clinical isolate.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Author contributions

RPS and MB designed and performed all experiments and evaluated the data. MB drafted the manuscript and both authors agreed to the content of the final manuscript version.

Funding

This work was financially supported by the Medical Research Council (MRC) grant MR/N017528/1 to MB and RPS.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank Thomas Lehrnbecher (Johann Wolfgang Goethe-University Frankfurt, Germany) for the provision of an independent cryo-culture of strain NIH4215.
