Original Research ARTICLE

Front. Genet., 17 January 2018 | https://doi.org/10.3389/fgene.2018.00001

Genetic Pattern and Demographic History of Salminus brasiliensis: Population Expansion in the Pantanal Region during the Pleistocene

Lívia A. de Carvalho Mondin1, Carolina B. Machado2*, Emiko K. de Resende3, Debora K. S. Marques3 and Pedro M. Galetti Jr.2
  • 1Departamento de Ciências Biológicas, Universidade do Estado de Mato Grosso, Tangará da Serra, Brazil
  • 2Laboratório de Biodiversidade Molecular e Conservação, Departamento de Genética e Evolução, Universidade Federal de São Carlos, São Carlos, Brazil
  • 3Embrapa Pantanal, Empresa Brasileira de Pesquisa Agropecuária, Corumbá, Brazil

Pleistocene climate changes were major historical events that impacted South American biodiversity. Although the effects of such changes are well-documented for several biomes, it is poorly known how these climate shifts affected the biodiversity of the Pantanal floodplain. Fish are one of the most diverse groups in the Pantanal floodplains and can be taken as a suitable biological model for reconstructing paleoenvironmental scenarios. To identify the effects of Pleistocene climate changes on Pantanal’s ichthyofauna, we used genetic data from multiple populations of a top-predator long-distance migratory fish, Salminus brasiliensis. We specifically investigated whether Pleistocene climate changes affected the demography of this species. If this was the case, we expected to find changes in population size over time. Thus, we assessed the genetic diversity of S. brasiliensis to trace the demographic history of nine populations from the Upper Paraguay basin, which includes the Pantanal floodplain, that form a single genetic group, employing approximate Bayesian computation (ABC) to test five scenarios: constant population, old expansion, old decline, old bottleneck following by recent expansion, and old expansion following by recent decline. Based on two mitochondrial DNA markers, our inferences from ABC analysis, the results of Bayesian skyline plot, the implications of star-like networks, and the patterns of genetic diversity (high haplotype diversity and low-to-moderate nucleotide diversity) indicated a sudden population expansion. ABC allowed us to make strong quantitative inferences about the demographic history of S. brasiliensis. We estimated a small ancestral population size that underwent a drastic fivefold expansion, probably associated with the colonization of newly formed habitats. The estimated time of this expansion was consistent with a humid and warm phase as inferred by speleothem growth phases and travertine records during Pleistocene interglacial periods. The strong concordance between our genetic inferences and this historical data could represent the first genetic record of a humid and warm phase in the Pantanal in the period since the Last Interglacial to 40 ka.

Introduction

The genetic diversity and population structure of species are largely determined by intrinsic traits, contemporary factors that include anthropogenic activities and historical events that have affected species over geological time (Avise, 2000; Osborne et al., 2014). Phylogeographic studies have shown that the genetic diversity patterns of several populations were shaped by past geological and climatic events (Hewitt, 1996; Bonaccorso et al., 2006; Carnaval et al., 2009; Thomaz et al., 2015; Cabanne et al., 2016).

The Pleistocene (2.58–0.01 million years ago) was marked by worldwide climatic changes involving multiple successive cycles of glacial and interglacial events, associated with abrupt and dramatic changes in temperature and precipitation (Webb and Bartlein, 1992). Overall, the environmental conditions varied from warm and wet during the interglacial to cold and dry during the glacial periods (EPICA Community Members, 2004).

Although there are no records of large ice sheets covering the landscape, as happened in the Northern Hemisphere, climatic changes during the Pleistocene also drastically affected Southern Hemispheric biomes (Vuilleumier, 1971; Hewitt, 1996). Several studies have reported contractions and range expansions in the Amazon and the Atlantic Forest (Harris and Mix, 1999; Carnaval et al., 2009; Ribas et al., 2012; Cabanne et al., 2016; Ledo and Colli, 2017), replacement by savannas and arid lands (Wang et al., 2004; Carnaval and Bates, 2007; Thomé et al., 2016), climatic disturbances in humid and arid areas in the Andes (Bräuning, 2009), and fluctuations in sea levels affecting the Atlantic coast (Thomaz et al., 2015; Ponce and Rabassa, 2016). The magnitude of climatic oscillations varied in different parts of South America. However, all of these events impacted the biodiversity, driving extinction episodes, speciation, intraspecific divergence, and demographic oscillations (Vuilleumier, 1971; Hewitt, 1996; Beheregaray, 2008). However, it remains poorly understood how these historical events affected the Pantanal biome and its biodiversity.

The Pantanal is a large seasonal floodplain located in the center of South America. This region is entirely contained in the Upper Paraguay basin, which is a complex drainage network due to its geological history (Assine, 2015). Pantanal was formed recently and has mainly been associated with the Andean uplift (Assine, 2015). However, geomorphological (Assine and Soares, 2004) and palynological (Ferraz-Vicentini and Salgado-Labouriau, 1996) data have shown that the paleoclimatic fluctuations have promoted considerable landscape changes since the Late Pleistocene. Although there are historical records of environmental changes, little is known of the effects of these changes on biodiversity in the Pantanal (Márquez et al., 2006; Lopes I.F. et al., 2007; Santos et al., 2008).

Fish are one of the most diverse groups in the Pantanal floodplains (Alho, 2008). Because their distribution is restricted to freshwater drainages, which in turn reflect geomorphological or climatic changes, these animals are a suitable biological model for reconstructing paleoenvironmental scenarios (Montoya-Burgos, 2003). To try to identify any effects of Pleistocene climate changes in fish, we used genetic data from multiple sites of Salminus brasiliensis. As a top predator distributed throughout the La Plata basin (Lima and Britski, 2007), this species represents an important resource in the Pantanal floodplains. Although it plays an important ecological role in controlling the structure of the ecosystem, the genetic diversity of S. brasiliensis in the Upper Paraguay basin is unknown. Assessing the population genetic pattern of the existing species can identify how its genetic variation was affected by past climate changes and can also provide insights into its demographic response (Pil et al., 2017).

Here, we focused on assessing the genetic diversity and pattern of S. brasiliensis sampled in nine rivers to trace its demographic history in the Upper Paraguay basin using a statistical framework to test the following five scenarios: constant population (null hypothesis), old expansion, old decline, old bottleneck followed by recent expansion, and old expansion followed by recent decline. We specifically investigated whether Pleistocene climate changes affected past S. brasiliensis demography. If so, we expected to find a population reduction signature during glacial periods due to climatic conditions that reduced the habitat, when the Pantanal region was almost dry. Further, a population expansion signature was expected in the interglacial periods, when the wetlands were re-established, increasing fluvial discharge and suitable habitats for the biological model. After reconstructing the most probable demographic history for S. brasiliensis based on two mitochondrial markers (CytB and Dloop), we associated changes in population size over time with known regional climatic fluctuations. Our findings might contribute to the conservation and management of natural populations of S. brasiliensis from the Upper Paraguay basin by being used to predict whether these populations will be able to persist in future scenarios of environmental change.

Materials and Methods

Ethics Statement, Sampling Collection, DNA Extraction, and Amplification

This study was developed in accordance with Brazilian law, approved by the ethic committee on animal use at Federal University of São Carlos (CEUA number 5765010416), and carried out under a temporary scientific collection license number 32217-4 provided by ICMBio-SISBIO. A total of 52 S. brasiliensis individuals were sampled in nine rivers from the Upper Paraguay basin (Figure 1 and Supplementary Table S1). We sampled a small fragment of the caudal fin and then returned the fish to the river. All tissue samples were preserved in absolute ethanol and stored at -20°C. Total genomic DNA was extracted using the saline precipitation protocol (Aljanabi and Martinez, 1997).

FIGURE 1
www.frontiersin.org

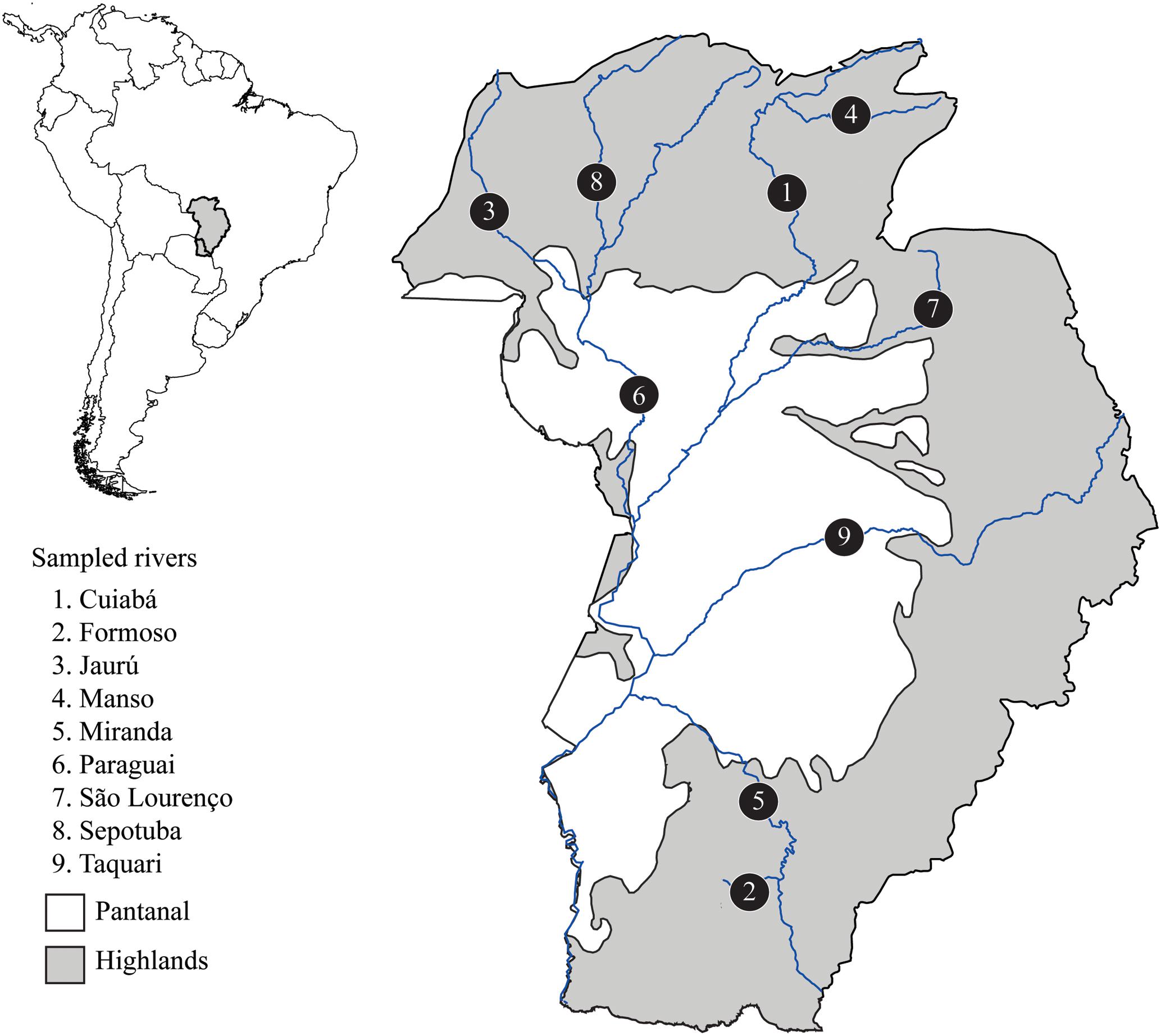

FIGURE 1. Map of the Upper Paraguay basin in Brazilian territory indicating rivers where Salminus brasiliensis were sampled. Populations are labeled with numbers. The Pantanal area is in white and represents the lowlands (below 60 m above sea level).

We amplified partial sequences of two mitochondrial DNA markers: Cytochrome B (CytB) and Dloop (see Supplementary Table S2 for primers and references). Polymerase Chain Reactions for both markers (PCR) occurred in 25 μL of final volume containing 16.9 μL of mili-Q water, 2.5 μL of 10x Invitrogen PCR buffer (1x), 2.5 μL of dNTPs mix (0.25 mM), 1 μL of MgCl2 (2 mM), 0.5 μL of each primer (0.2 mM), 0.1 μL of Platinum®Taq Polymerase (0.5 unit) and 1 μL of DNA template (50 ng/μL). The annealing temperature of PCR thermal profile was described in Supplementary Table S2. All PCR products were purified using the 20% Polyethylene glycol protocol (Lis and Schleif, 1975). Fragments were sequenced using ABI3730XL automatic sequencer. All the sequences were aligned automatically using the multiple alignment ClustalW and minor manual adjustments were made to improve it in BioEdit (Hall, 1999). The GenBank accession numbers are given in Supplementary Table S1.

Genetic Diversity and Population Structure

The genetic diversity indices for each population, including number of haplotypes, haplotype diversity, and nucleotide diversity, were calculated in DnaSP 5.0 (Librado and Rozas, 2009). We also reconstructed the haplotype networks for each molecular marker using the median-joining method (Bandelt et al., 1999) included in PopART (Population Analysis with Reticulate Trees – Leigh and Bryant, 2015).

We investigated whether there were distinct mitochondrial genetic clusters by assigning individuals to populations using a Bayesian model-based approach implemented in Bayesian Analysis of Population Structure (BAPS) v. 6.0 (Corander et al., 2008). BAPS identifies clusters based on nucleotide frequencies in DNA sequences. We concatenated mitochondrial markers and conducted a mixing analysis without spatialization (option chosen “clustering of group of individuals”). This method determines which combination of predetermined samples is best supported by the data. The program was run for 10 replicates for each K (1–10). The best clustering partition was determined by the highest value of likelihood and highest probability determined by the program.

Inference and Hypotheses Tests of Demographic Histories

Because no genetic population structuring was found in S. brasiliensis using BAPS (Supplementary Figure S1 and Supplementary Table S3), we drawn all scenarios based on historical demographic changes in a single population. Demographic history was inferred through a Bayesian skyline plot (BSP) analysis (Drummond et al., 2005) implemented in BEAST 2.4.4 (Bouckaert et al., 2014). BSP assumes a single panmictic population and uses inferred patterns of coalescence to fit a demographic model to a set of sequence data (Drummond et al., 2005).

First, we determined the best evolutionary model for each molecular marker in JModelTest 2.1.4 (Posada, 2008) using the Bayesian information criterion. The CytB and Dloop markers were set to evolve according to a HKY and HKY+I models, respectively. In BEAST 2.4.4, we chose as the tree prior the coalescent Bayesian skyline with both linked mitochondrial DNA markers to perform the BSP analysis. Priors used in this analysis were kept in default. To date the past demographic events, a molecular clock was calibrated using the mutation rate defined for the Salminus genus (Machado et al., unpublished), using the relaxed lognormal model: 6.31 × 10-3 (CytB) and 1.935 × 10-2 (Dloop) mutations per site per million years. This rate was based on a previous topology calibrated from the genus rooted with Brycon specimens (Machado et al., unpublished). This topology was reconstructed using two mitochondrial and two nuclear markers and calibrated using a biogeographic event, the uplift of the Eastern Andes Cordillera (Hoorn et al., 1995), which separated the Magdalena and Amazon paleobasins and is consistent with the divergence of S. affinis from all other Salminus.

Three independent Markov chains were initiated from random trees, run separately for 10 million generations, and sampled at intervals of 10000 steps, 25% of which were discarded as burn-in. The log and tree files for each independent Markov chain were combined using LogCombiner in BEAST 2.4.4. Tracer v1.5 (Rambaut et al., 2014) was used to check the convergence of the runs according to the effective sampling size (>200) and reconstruct the population dynamic over time through the Bayesian Skyline reconstruction option.

To corroborate the findings on the population expansion of S. brasiliensis in the Upper Paraguay basin suggested by the BSP analysis, we tested five demographic scenarios that could have happened during the Late Pleistocene (expansions and bottlenecks) using an approximate Bayesian computation (ABC) framework in DIYABC v2.1.0 (Cornuet et al., 2014): constant population (null hypothesis), old expansion, old decline, old bottleneck followed by expansion, and old expansion followed by decline (Figure 2). ABC approach allows a quantitative evaluation of the demographic and evolutionary history by strictly contrasting realistic models defined a priori and estimating relevant parameters (Beaumont et al., 2002).

FIGURE 2
www.frontiersin.org

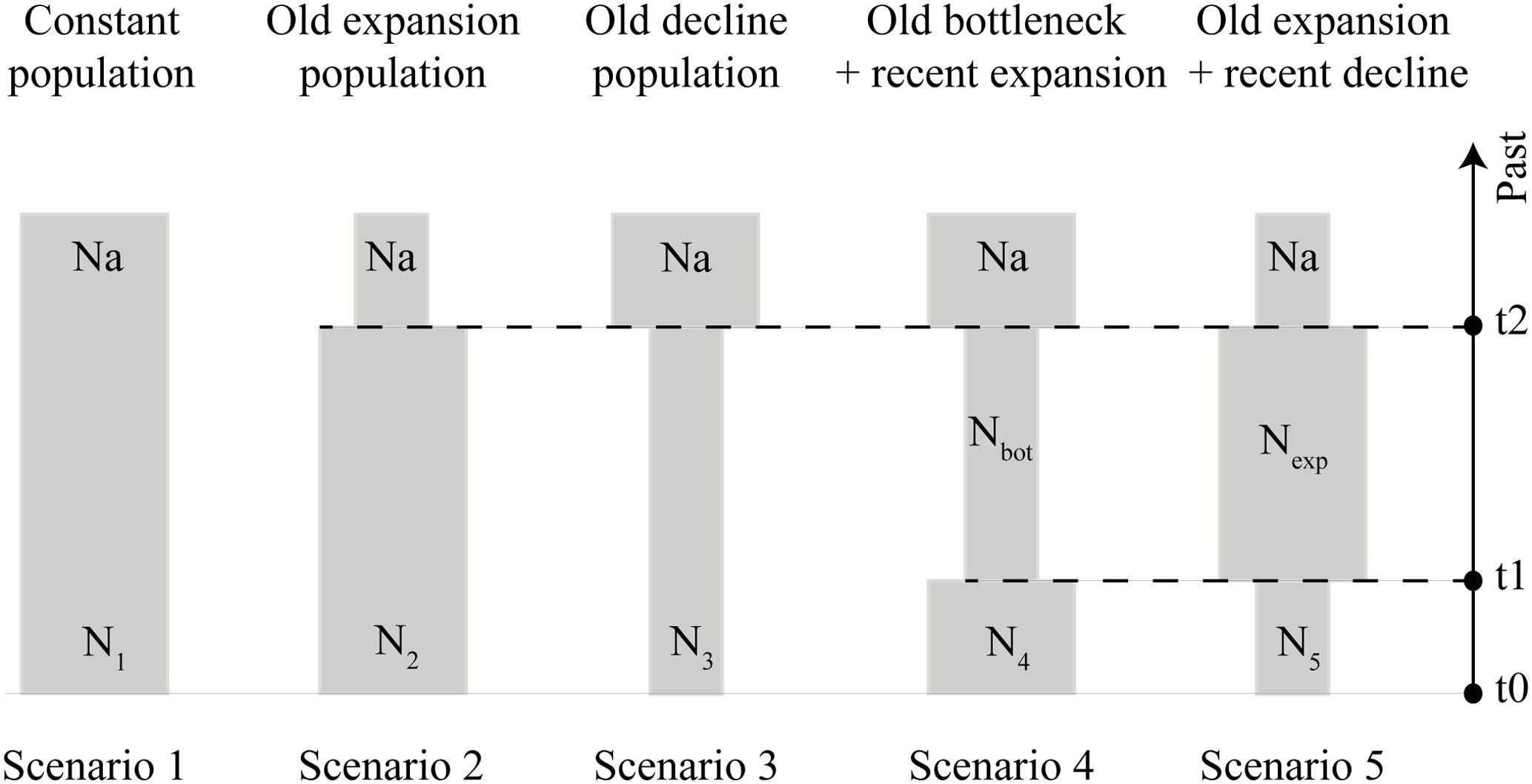

FIGURE 2. Schematic representation of five demographic scenarios, including model parameters of S. brasiliensis, tested by approximate Bayesian computation (ABC). Time and effective population size are not strictly to scale.

All scenarios assumed an initial ancestral population (Na), demographic changes occurring during the Late Pleistocene (2–120 ka for t1, and 4–120 ka for t2), and recent populations represented in t0 (Figure 2). The prior distribution of demographic parameters and the mutation rate are listed in Supplementary Table S4. For each tested scenario, we calculated the following summary statistics: the number of haplotypes, number of segregating sites, variance of pairwise differences, and variance of numbers of the rarest nucleotides at segregating sites. The summary statistics were used for comparison between simulated and observed datasets.

We ran one million simulations for each scenario and used summary statistics and principal component analysis to confirm the good fit of all scenarios with the observed data (Supplementary Figure S2). Then we compared the competing scenarios by estimating their posterior probabilities using polychotomous logistic regression on 1% of simulated datasets closest to the observed data (Cornuet et al., 2008). The best scenario was the one that showed the highest posterior probability with a 95% confidence interval (CI) non-overlapping with other scenarios’ posterior probabilities. In order to evaluate confidence in each scenario, we also calculated the posterior predictive error. Subsequently, we estimated the posterior probabilities of each parameter under the best scenario using a local linear regression on 1% closest simulated data sets and applying a logit transformation to parameter values as suggested by Cornuet et al. (2008). We assessed their precision of parameter estimation through the relative median of the absolute error (RMAE) based on 500 pseudo-observed datasets (pods) under the best scenario. Low RMAE values indicated that the parameter estimated is trustworthy (Cornuet et al., 2008). After these steps, we performed a model verification by evaluating the goodness-of-fit of the best scenario with respect to empirical dataset. This was carried out by simulating 1000 pods under the best scenario. In this step, we used different summary statistics to avoid over-estimating the fit by using the same statistics twice (Cornuet et al., 2010). We selected mean of pairwise differences, Tajima’s D, private segregating sites and mean of number of the rarest nucleotide at segregating sites.

Results

Fragments of 710 base pairs (bp) of CytB and 571 bp of Dloop were obtained from 52 individuals of S. brasiliensis from the Upper Paraguay basin. CytB had 20 polymorphic sites, of which 9 were parsimoniously informative, while Dloop had 37 polymorphic sites, of which 26 were parsimoniously informative. No insertions, deletions, or stop codons (for CytB sequences) were observed for either marker.

We identified 21 and 33 haplotypes for CytB and Dloop, respectively (Supplementary Table S5 and Supplementary Figure S1). No common haplotype was shared among all populations in any molecular markers, but a high number of private haplotypes (61.9% for CytB and 66.7% for Dloop) was observed. The distribution of the haplotypes in the network indicated no population structuring in the rivers sampled (Supplementary Figure S1). The haplotype and nucleotide diversity values for each population are shown in Supplementary Table S5. Overall, despite the nucleotide diversity exhibited was low (0.00365 for CytB) to moderate (0.01434 for Dloop), the level of haplotype diversity was high (0.928 for CytB, and 0.975 for Dloop).

The BAPS approach clustered all individuals into only one mitochondrial genetic group (Supplementary Figure S1) and the BSP analysis gave the effective population size, which underwent a process of expansion that started approximately 75 ka (Figure 3). The greatest expansion was underway through around 40 ka and continued gradually until 20 ka, when the effective population size became stable.

FIGURE 3
www.frontiersin.org

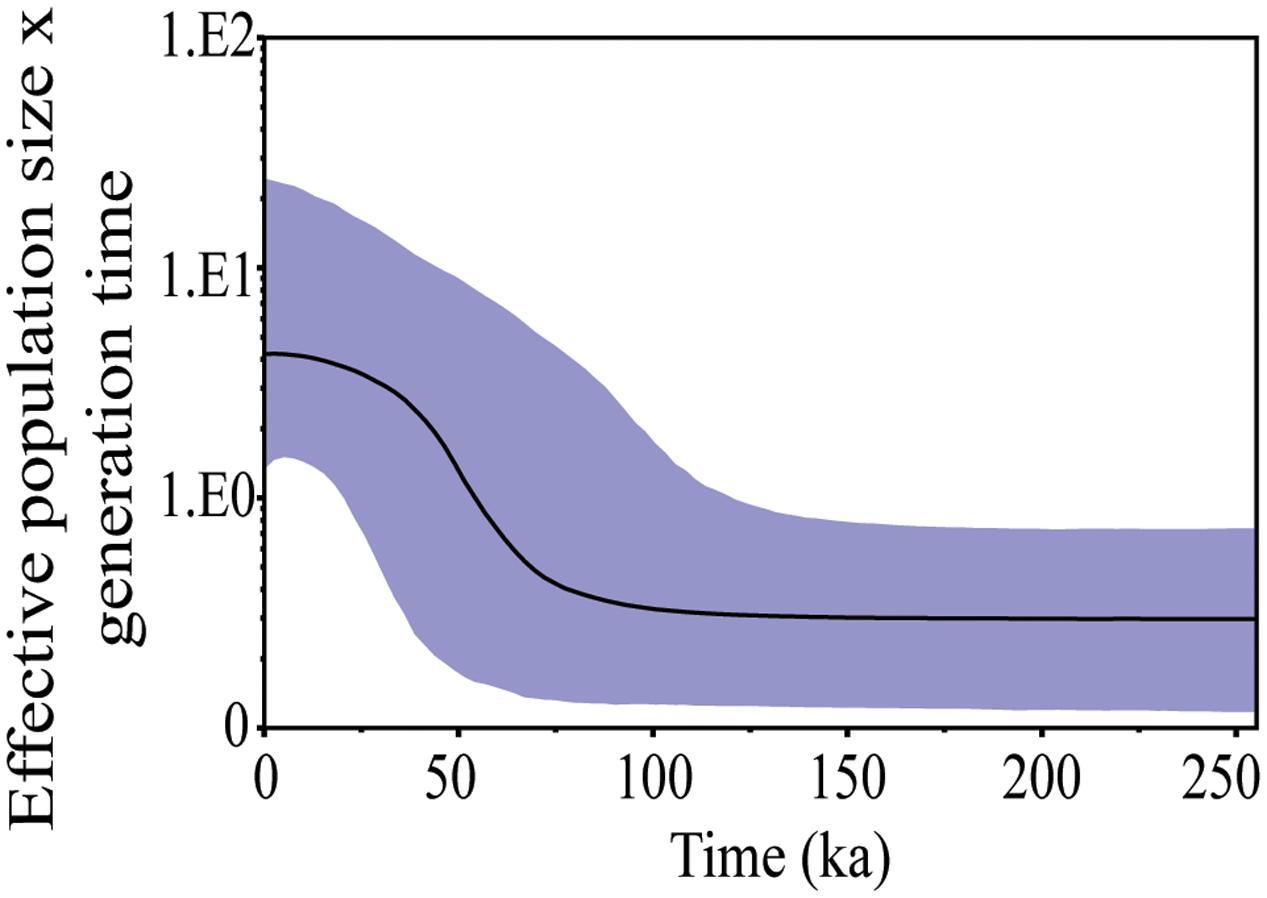

FIGURE 3. Bayesian skyline plot (BSP) showing change in effective population size of S. brasiliensis from the Upper Paraguay basin over time based on CytB and Dloop markers. The y-axis, population size × generation time; x-axis, time (indicated in thousand of years ago). Generation time measured in million years.

Approximate Bayesian computation analysis also corroborated the old expansion scenario as the most probable one to explain the current genetic diversity of S. brasiliensis from the Upper Paraguay basin (Supplementary Figure S3). The best scenario showed a posterior probability (PP) of 0.5466 (95% CI: 0.5341–0.5590), while the second PP was observed for scenario 4 (old bottleneck followed by expansion), with 0.2589 (95% CI: 0.2466–0.2712) (Supplementary Table S6). The posterior error rate was 0.303. Features such as the non-overlapping 95% CI among the scenarios’ PPs, and the signal expansion found by BSP analysis and genetic pattern (see section “Discussion”) suggest a greater confidence that scenario 2 (old population expansion) is the best of the proposed scenarios.

The best scenario recovered the ancestral population of S. brasiliensis (Na = 161000) expanding at 31000 generations ago (i.e., about 62 ka). At present, the median effective population size is estimated at N2 = 811000 (Table 1). Large confidence intervals are common in such demographic inferences. All our RMAE values are <0.2, except by current effective population size (RMAE = 0.299), indicating the parameters estimated by ABC analysis were reliable values. This was expected because mitochondrial is reliable to detect past demographic parameter estimates (Na and t2) (Cornuet et al., 2010). When we applied the model checking option to the best scenario, we observed on each PCA plane a wide cloud of data sets simulated from the prior, with the observed dataset in the middle of a small cluster of datasets from the posterior predictive distribution (Supplementary Figure S4). This indicate that the scenario 2 fits well the empirical data.

TABLE 1
www.frontiersin.org

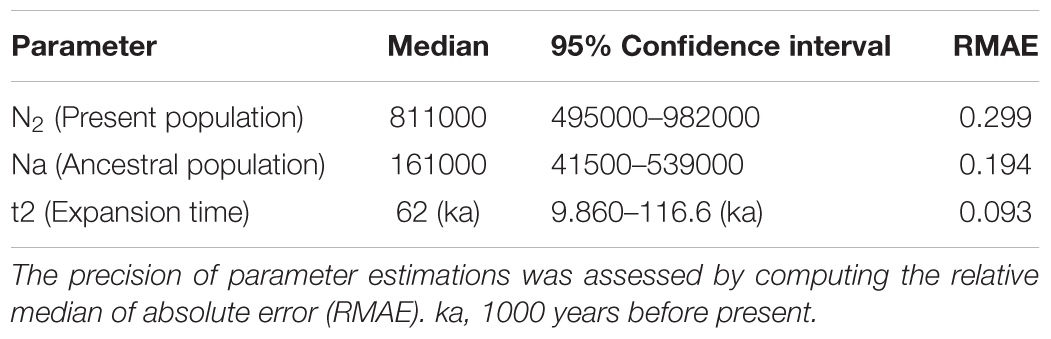

TABLE 1. Parameter estimates generated from a local linear regression on simulated datasets generated from the best scenario.

Discussion

High haplotype of genetic diversity and no spatial genetic structuring among populations of S. brasiliensis were here observed. The results also revealed that its current genetic diversity was strongly influenced by an expansion event that happened during the Pleistocene, likely associated with warm and humid weather conditions during interglacial periods. All of these findings are discussed in detail below.

Genetic Diversity and Structure of S. brasiliensis

Previous studies in different hydrographic systems and using other molecular markers, such as RAPD and microsatellites, have determined a great genetic variability for S. brasiliensis (Ramella et al., 2006; Lopes C.M. et al., 2007; Gomes et al., 2013; Ribeiro et al., 2016; Ribolli et al., 2017). High levels of haplotype diversity seem to be common in migratory freshwater fishes with large populations that occupy heterogeneous environments (see Oliveira et al., 2009). A large effective population size and high migration rates may minimize the effects of genetic drift as a force that decreases intraspecific genetic diversity (Allendorf and Luikart, 2007). Furthermore, the pattern of genetic diversity of S. brasiliensis also can be attributed to its demographic history. According to Grant and Bowen (1998), high haplotype diversity and low nucleotide diversity is associated with an expansion event after a period of small effective population size. Thus, this process could have introduced and maintained new mutations in the population of S. brasiliensis, increasing its genetic variability.

No mtDNA genetic structuring was detected in S. brasiliensis. Its higher migratory capacity (it can move 1000 km during the reproductive season; Petrere, 1985) probably played an important role in causing the lack of spatial genetic differentiation between populations. It is expected that long-distance migratory fishes within a hydrographic basin such as the Upper Paraguay, without physical, abiotic, and/or biotic barriers, will not show a spatial genetic structuring (Pil et al., 2017). However, it seems that S. brasiliensis has undergone a different process of population differentiation. Ribolli et al. (2017) identified distinct temporal genetic populations of S. brasiliensis from the Upper Uruguay basin during the reproductive season. According to those authors, individuals or populations of S. brasiliensis that occupy the same geographic location might be adapted to spawning at different times during the same reproductive season (Ribolli et al., 2017). Because our sample lacks more precise temporal information for some sampled individuals, no time-related genetic population structuring can be inferred here.

Revisiting the Pleistocene in the Pantanal Region

The demographic history of S. brasiliensis populations in the Upper Paraguay basin was addressed for the first time in this study, and it was found that a demographic expansion event probably occurred in its early evolutionary history. This took place in the late Pleistocene, before the Last Glacial Maximum (LGM, 23–19 ka). Our inference from ABC analysis, the results of BSP, the implications of star-like networks, and the patterns of genetic diversity (high haplotype diversity and low to moderate nucleotide diversity) indicated a sudden population expansion.

The ABC approach was an efficient tool for reconstructing and testing alternative demographic scenarios; this allowed us to determine the most plausible evolutionary history of S. brasiliensis, beyond making strong quantitative inferences about its demographic history. We estimated a small ancestral population size that underwent a drastic fivefold expansion, probably associated with the colonization of newly formed habitats. The time estimated for this expansion was consistent with the humid and warm phase inferred from speleothem growth phases and travertine records during Pleistocene interglacial periods (Wang et al., 2004).

Pleistocene climatic oscillations in South America drastically altered freshwater systems by changing hydrological flow and lake distributions as well as rerouting rivers (Stevaux, 2000; Cross et al., 2001; Fritz et al., 2004). As an alluvial plain dominated by rivers, the Pantanal region reveals geomorphological relicts overprinted on its modern landscape that indicate the occurrence of intense historical hydrological rearrangement (Assine and Soares, 2004). Paleochannels, changes in the levels of marginal lakes, and discontinuous sedimentation caused by intermittent flows are examples of relict landforms, which reflect environmental and climatic conditions different from those currently observed (Assine, 2015). Radiocarbon dating and palynological data support the conclusion that during colder and arid events in the Late Pleistocene/Holocene, the Pantanal experienced desert-like conditions with sparse dry vegetation, intermittent flow along the alluvial fan, and the development of paleochannels and erosional surfaces. Further, humid and warm conditions would have influenced the development of lakes and river systems and consequently expanded freshwater surface area (Ferraz-Vicentini and Salgado-Labouriau, 1996; Assine and Soares, 2004; Assine, 2015).

The pulses of the reduction and expansion of the landscape left a phylogenetic signature in regional fauna, leading to a population expansion in bird (Lopes I.F. et al., 2007; Santos et al., 2008) and mammal species (Márquez et al., 2006) stemming from the humid cycles of the Pleistocene. The signature population expansion in S. brasiliensis was dated to 62 ka. Although there is a lack of regional paleoenvironmental data extending further than 40 ka, speleothem data from the Brazilian Northeast region reveal a pluvial maxima phase at about 61.2–59.1 ka (Wang et al., 2004), reinforcing our findings from S. brasiliensis. The strong concordance between our genetic inferences and this historical data could represent the first genetic record of a humid and warm phase in the Pantanal in the period since the Last Interglacial to 40 ka.

Conclusion

In summary, we focused to identify the effect of Pleistocene climatic changes on demographic history of S. brasiliensis from the Upper Paraguay basin. Our findings suggest that Pleistocene climate fluctuations fundamentally shaped the genetic diversity and pattern of this species in this region. Coalescent-based analyses, particularly the statistical framework provided by the ABC method, supported an ancient expansion event before the LGM as the best scenario to explain the current genetic diversity of S. brasiliensis based on two mitochondrial markers.

Understanding how historical events impact genetic diversity is important for predicting whether populations will persist under future environmental changes (Pauls et al., 2013). High genetic variation in populations is desirable, because it provides the basis for evolutionary change in a species, thereby improving the chances of survival in a dynamic environment (Frankham, 1995). Although populations of S. brasiliensis from the study area show high levels of genetic diversity, our concern over its conservation status cannot wane, because its genetic pool is unique and completely different from the S. brasiliensis found in the Upper Paraná basin (Machado et al., 2017). We suggest that conservation management of this species should concentrate on maximizing the retention of diversity, and preventing severe population decline due to anthropogenic influence.

Author Contributions

LCM, CM, ER, DM, and PG conceived the ideas and designed the experiments. LCM, ER, and DM collected the samples. CM and PG performed the bioinformatics analyses. LCM, CM, and PG led the writing, with assistance from ER and DM. All authors read and approved the final manuscript.

Funding

This study was funded by the Brazilian agencies Fundação de Amparo à Pesquisa do Estado de Mato Grosso (FAPEMAT), Fundação CAPES, and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank EMBRAPA Pantanal for the use of some tissue samples.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2018.00001/full#supplementary-material

References

Alho, C. J. R. (2008). Biodiversity of the Pantanal: response to seasonal flooding regime and to environmental degradation. Braz. J. Biol. 68, 957–966. doi: 10.1590/S1519-69842008000500005

PubMed Abstract | CrossRef Full Text | Google Scholar

Aljanabi, S. M., and Martinez, I. (1997). Universal and rapid salt-extraction of high quality genomic DNA for PCR-based techniques. Nucleic Acids Res. 25, 4692–4693. doi: 10.1093/nar/25.22.4692

PubMed Abstract | CrossRef Full Text | Google Scholar

Allendorf, F. W., and Luikart, G. H. (2007). “Population subdivision,” in Conservation and the Genetics of Populations, (Hoboken, NJ: John Wiley & Sons), 197–232.

Google Scholar

Assine, M. L. (2015). “Brazilian Pantanal: a large pristine tropical wetland,” in Landscapes and Landforms of Brazil, eds B. Vieira, A. Salgado, and L. Santos (Dordrecht: Springer), 135–146. doi: 10.1007/978-94-017-8023-0_12

CrossRef Full Text | Google Scholar

Assine, M. L., and Soares, P. C. (2004). Quaternary of the Pantanal, west-central Brazil. Quat. Int. 114, 23–34. doi: 10.1016/S1040-6182(03)00039-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Avise, J. C. (2000). Phylogeography: The History and Formation of Species. Cambridge, MA: Harvard University Press.

Google Scholar

Bandelt, H.-J., Forster, P., and Röhl, A. (1999). Median-joining networks for inferring intraspecific phylogenies. Mol. Biol. Evol. 16, 37–48. doi: 10.1093/oxfordjournals.molbev.a026036

PubMed Abstract | CrossRef Full Text | Google Scholar

Beaumont, M. A., Zhang, W., and Balding, D. J. (2002). Approximate Bayesian Computation in population genetics. Genetics 162, 2025–2035.

Google Scholar

Beheregaray, L. B. (2008). Twenty years of phylogeography: the state of the field and the challenges for the Southern Hemisphere. Mol. Ecol. 17, 3754–3774. doi: 10.1111/j.1365-294X.2008.03857.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Bonaccorso, E., Koch, I., and Peterson, A. T. (2006). Pleistocene fragmentation of Amazon species’ ranges. Divers. Distrib. 12, 157–164. doi: 10.1111/j.1366-9516.2005.00212.x

CrossRef Full Text | Google Scholar

Bouckaert, R. R., Heled, J., Kuehnert, D., Vaughan, T. G., Wu, C.-H., Xie, D., et al. (2014). BEAST 2: a software platform for Bayesian evolutionary analysis. PLOS Comput. Biol. 10:e1003537. doi: 10.1371/journal.pcbi.1003537

PubMed Abstract | CrossRef Full Text | Google Scholar

Bräuning, A. (2009). Climate variability of the tropical Andes since the late Pleistocene. Adv. Geosci. 22, 13–25. doi: 10.5194/adgeo-22-13-2009

CrossRef Full Text | Google Scholar

Cabanne, G. S., Calderón, L., Trujillo Arias, N., Flores, P., Pessoa, R., d’Horta, F. M., et al. (2016). Effects of Pleistocene climate changes on species ranges and evolutionary processes in the Neotropical Atlantic Forest. Biol. J. Linn. Soc. 119, 856–872. doi: 10.1111/bij.12844

CrossRef Full Text | Google Scholar

Carnaval, A. C., and Bates, J. M. (2007). Amphibian DNA shows marked genetic structure and tracks Pleistocene climate change in Northeastern Brazil. Evolution 61, 2942–2957. doi: 10.1111/j.1558-5646.2007.00241.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Carnaval, A. C. O. Q., Hickerson, M. J., Haddad, C. F. B., Rodrigues, M. T., and Moritz, C. (2009). Stability predicts genetic diversity in the Brazilian Atlantic forest hotspot. Science 323, 785–789. doi: 10.1126/science.1166955

PubMed Abstract | CrossRef Full Text | Google Scholar

Corander, J., Marttinen, P., Sirén, J., and Tang, J. (2008). Enhanced Bayesian modelling in BAPS software for learning genetic structures of populations. BMC Bioinformatics 9:539. doi: 10.1186/1471-2105-9-539

PubMed Abstract | CrossRef Full Text | Google Scholar

Cornuet, J. M., Pudlo, P., Veyssier, J., Dehne-Garcia, A., Gautier, M., Leblois, R., et al. (2014). DIYABC v2.0: a software to make approximate Bayesian computation inferences about population history using single nucleotide polymorphism, DNA sequence and microsatellite data. Bioinformatics 30, 1187–1189. doi: 10.1093/bioinformatics/btt763

PubMed Abstract | CrossRef Full Text | Google Scholar

Cornuet, J. M., Ravigné, V., and Estoup, A. (2010). Inference on population history and model checking using DNA sequence and microsatellite data with the software DIYABC (v1.0). BMC Bioinformatics 11:401. doi: 10.1186/1471-2105-11-401

PubMed Abstract | CrossRef Full Text | Google Scholar

Cornuet, J. M., Santos, F., Beaumont, M. A., Robert, C. P., Marin, J. M., Balding, D. J., et al. (2008). Inferring population history with DIYABC: a user-friendly approach to approximate Bayesian computation. Bioinformatics 24, 2713–2719. doi: 10.1093/bioinformatics/btn514

PubMed Abstract | CrossRef Full Text | Google Scholar

Cross, S. L., Baker, P. A., Seltzer, G. O., Fritz, S. C., and Dunbar, R. B. (2001). Late quaternary climate and hydrology of tropical South America inferred from an isotopic and chemical model of Lake Titicaca, Bolivia, and Peru. Quat. Res. 56, 1–9. doi: 10.1006/qres.2001.2244

CrossRef Full Text | Google Scholar

Drummond, A. J., Rambaut, A., Shapiro, B., and Pybus, O. G. (2005). Bayesian coalescent inference of past population dynamics from molecular sequences. Mol. Biol. Evol. 22, 1185–1192. doi: 10.1093/molbev/msi103

PubMed Abstract | CrossRef Full Text | Google Scholar

EPICA Community Members (2004). Eight glacial cycles from an Antarctic ice core. Nature 429, 623–662. doi: 10.1038/nature02599

PubMed Abstract | CrossRef Full Text | Google Scholar

Ferraz-Vicentini, K. R., and Salgado-Labouriau, M. L. (1996). Palynological analysis of a palm swamp in central Brazil. J. South Am. Earth Sci. 9, 207–219. doi: 10.1016/0895-9811(96)00007-7

CrossRef Full Text | Google Scholar

Frankham, R. (1995). Conservation genetics. Annu. Rev. Genet. 29, 305–327. doi: 10.1146/annurev.ge.29.120195.001513

CrossRef Full Text | Google Scholar

Fritz, S. C., Baker, P. A., Lowenstein, T. K., Seltzer, G. O., Rigsby, C. A., Dwyer, G. S., et al. (2004). Hydrologic variation during the last 170,000 years in the southern hemisphere tropics of South America. Quat. Res. 61, 95–104. doi: 10.1016/j.yqres.2003.08.007

CrossRef Full Text | Google Scholar

Gomes, P. C., Lopera-Barrero, N. M., Vargas, L., Streit Junior, D. P., Povh, J. A., Nardez Sirol, R., et al. (2013). Genetic diversity of Salminus brasiliensis (Characiformes: Characidae) collected in the passage ladder of the Canoas I hydropower plant in the Paranapanema River, Brazil. Semin. Cienc. Agrar. 34, 1421–1432. doi: 10.5433/1679-0359.2013v34n3p1421-1432

CrossRef Full Text | Google Scholar

Grant, W. A. S., and Bowen, B. W. (1998). Shallow population histories in deep evolutionary lineages of marine fishes: insights from sardines and anchovies and lessons for conservation. J. Hered. 89, 415–426. doi: 10.1093/jhered/89.5.415

CrossRef Full Text | Google Scholar

Hall, T. A. (1999). BioEdit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Sympo. Ser. 41, 95–98.

Google Scholar

Harris, S. E., and Mix, A. C. (1999). Pleistocene precipitation balance in the Amazon Basin recorded in deep sea sediments. Quat. Res. 51, 14–26. doi: 10.1006/qres.1998.2008

CrossRef Full Text | Google Scholar

Hewitt, G. (1996). Some genetic consequences of ice ages, and their role in divergence and speciation. Biol. J. Linn. Soc. 58, 247–276. doi: 10.1111/j.1095-8312.1996.tb01434.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoorn, C., Guerrero, J., Sarmiento, G. A., and Lorente, M. A. (1995). Andean tectonic as a cause for changing drainage patterns in Miocene northern South America. Geology 23, 237–240. doi: 10.1130/0091-76131995023<0237:ATAACF<2.3.CO;2

CrossRef Full Text | Google Scholar

Ledo, R. M. D., and Colli, G. R. (2017). The historical connections between the Amazon and the Atlantic Forest revisited. J. Biogeogr. 44, 2551–2563. doi: 10.1111/jbi.13049

CrossRef Full Text | Google Scholar

Leigh, J. W., and Bryant, D. (2015). PopArt: full-feature software for haplotype network construction. Methods Ecol. Evol. 6, 1110–1116. doi: 10.1111/2041-210X.12410

CrossRef Full Text | Google Scholar

Librado, P., and Rozas, J. (2009). DnaSP v5: a software for comprehensive analysis of DNA polymorphism data. Bioinformatics 25, 1451–1452. doi: 10.1093/bioinformatics/btp187

PubMed Abstract | CrossRef Full Text | Google Scholar

Lima, F. C. T., and Britski, H. A. (2007). Salminus franciscanus, a new species from the rio São Francisco basin, Brazil (Ostariophysi: Characiformes: Characidae). Neotrop. Ichthyol. 5, 237–244. doi: 10.1590/S1679-62252007000300001

CrossRef Full Text | Google Scholar

Lis, J. T., and Schleif, R. (1975). Size fractionation of double-stranded DNA by precipitation with polyethylene glycol. Nucleic Acids Res. 2, 383–389. doi: 10.1093/nar/2.3.383

CrossRef Full Text | Google Scholar

Lopes, C. M., Almeida, F. S. D., Orsi, M. L., Britto, S. G. D. C., Sirol, R. N., and Sodré, L. M. K. (2007). Fish passage ladders from Canoas Complex–Paranapanema River: evaluation of genetic structure maintenance of Salminus brasiliensis (Teleostei: Characiformes). Neotrop. Ichthyol. 5, 131–138. doi: 10.1590/S1679-62252007000200006

CrossRef Full Text | Google Scholar

Lopes, I. F., Miño, C. I., and Del Lama, S. N. (2007). Genetic diversity and evidence of recent demographic expansion in waterbird populations from the Brazilian Pantanal. Braz. J. Biol. 67, 849–857. doi: 10.1590/S1519-69842007000500007

PubMed Abstract | CrossRef Full Text | Google Scholar

Machado, C. B., Ishizuka, T. K., Freitas, P. D., Valiati, V. H., and Galetti, P. M. (2017). DNA barcoding reveals taxonomic uncertainty in Salminus (Characiformes). Syst. Biodivers. 15, 372–382. doi: 10.1080/14772000.2016.1254390

CrossRef Full Text | Google Scholar

Márquez, A., Maldonado, J. E., González, S., Beccaceci, M. D., Garcia, J. E., and Duarte, J. M. B. (2006). Phylogeography and Pleistocene demographic history of the endangered marsh deer (Blastocerus dichotomus) from the Río de la Plata Basin. Conserv. Genet. 7:563. doi: 10.1007/s10592-005-9067-8

CrossRef Full Text

Montoya-Burgos, J. I. (2003). Historical biogeography of the catfish genus Hypostomus (Siluriformes: Loricariidae), with implications on the diversification of Neotropical ichthyofauna. Mol. Ecol. 12, 1855–1867. doi: 10.1046/j.1365-294X.2003.01857.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Oliveira, C., Foresti, F., and Hilsdorf, A. W. S. (2009). Genetics of neotropical fish: from chromosomes to populations. Fish Physiol. Biochem. 35, 81–100. doi: 10.1007/s10695-008-9250-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Osborne, M. J., Perkin, J. S., Gido, K. B., and Turner, T. F. (2014). Comparative riverscape genetics reveals reservoirs of genetic diversity for conservation and restoration of Great Plains fishes. Mol. Ecol. 23, 5663–5679. doi: 10.1111/mec.12970

PubMed Abstract | CrossRef Full Text | Google Scholar

Pauls, S. U., Nowak, C., Bálint, M., and Pfenninger, M. (2013). The impact of global climate change on genetic diversity within populations and species. Mol. Ecol. 22, 925–946. doi: 10.1111/mec.12152

PubMed Abstract | CrossRef Full Text | Google Scholar

Petrere, M. Jr. (1985). Migraciones de peces de agua dulce en America Latina: Algunos comentarios. COPESCAL Doc. Ocasional 1, 1–17.

Google Scholar

Pil, M. W., Baggio, R. A., Tschá, M. K., Marteleto, F. M., Orélis-Ribeiro, R., Patella, L., et al. (2017). The influence of paleoclimate on the distribution of genetic variability and demography of fishes in a large and highly fragmented neotropical river. Hydrobiologia 805, 97–112. doi: 10.1007/s10750-017-3285-1

CrossRef Full Text | Google Scholar

Ponce, J. F., and Rabassa, J. (2016). “Paleogeographic evolution of the Atlantic coast of South America during marine isotope stage 3 (MIS 3),” in Marine Isotope Stage 3 in Southern South America, 60 ka BP–30 ka BP, eds G. M. Gasparini, J. Rabassa, C. Deschamps, and E. P. Tonni (Cham: Springer), 155–165. doi: 10.1007/978-3-319-40000-6_9

CrossRef Full Text | Google Scholar

Posada, D. (2008). jModelTest: phylogenetic model averaging. Mol. Biol. Evol. 25, 1253–1256. doi: 10.1093/molbev/msn083

PubMed Abstract | CrossRef Full Text | Google Scholar

Rambaut, A., Suchard, M. A., Xie, D., and Drummond, A. J. (2014). Tracer v1.6. Available at: http://tree.bio.ed.ac.uk/software/tracer/

Google Scholar

Ramella, M. S., Kroth, M. A., Meurer, S., Nuñer, A. P. D. O., Zaniboni-Filho, E., and Ariai, A. C. M. (2006). Genetic variability in four fish species (Pimelodus maculatus, Prochilodus lineatus, Salminus brasiliensis and Steindachneridion scripta) from Uruguay River Basin. Braz. Arch. Biol. Technol. 49, 589–598. doi: 10.1590/S1516-89132006000500008

CrossRef Full Text | Google Scholar

Ribas, C. C., Aleixo, A., Nogueira, A. C. R., Miyaki, C. Y., and Cracraft, J. (2012). A palaeobiogeographic model for biotic diversification within Amazonia over the past three million years. Proc. R. Soc. B Biol. Sci. 279, 681–689. doi: 10.1098/rspb.2011.1120

PubMed Abstract | CrossRef Full Text | Google Scholar

Ribeiro, R., Lopera-Barrero, N. M., Povh, J. A., Rodriguez-Rodriguez, M. D. P., Fornari, D. C., Baumgartner, G., et al. (2016). Genetic diversity of Salminus brasiliensis wild populations in downstream and upstream Cachoeira Branca, Verde River MS Brazil: a preliminary view. Semin. Cienc. Agrar. 37, 507–516. doi: 10.5433/1679-0359.2016v37n1p507

CrossRef Full Text | Google Scholar

Ribolli, J., Hoeinghaus, D. J., Johnson, J. A., Zaniboni-Filho, E., de Freitas, P. D., and Galetti, P. M. (2017). Isolation-by-time population structure in potamodromous Dourado Salminus brasiliensis in southern Brazil. Conserv. Genet. 18, 67–76. doi: 10.1007/s10592-016-0882-x

CrossRef Full Text | Google Scholar

Santos, M. H., Lopes, I. F., and Del Lama, S. N. (2008). Population genetic study of mitochondrial DNA in Roseate spoonbill (Aves; Platalea ajaja) breeding colonies from the Pantanal wetlands, Brazil. Biochem. Genet. 46, 492–505. doi: 10.1007/s10528-008-9165-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Stevaux, J. C. (2000). Climatic events during the late Pleistocene and Holocene in the upper Parana River: Correlation with NE Argentina and South-Central Brazil. Quat. Int. 72, 73–85. doi: 10.1016/S1040-6182(00)00023-9

CrossRef Full Text | Google Scholar

Thomaz, A. T., Malabarba, L. R., Bonatto, S. L., and Knowles, L. L. (2015). Testing the effects of palaeodrainages versus habitat stability on genetic divergence in riverine systems: study of a neotropical fish of the Brazilian coastal Atlantic Forest. J. Biogeogr. 42, 2389–2401. doi: 10.1111/jbi.12597

CrossRef Full Text | Google Scholar

Thomé, M. T. C., Sequeira, F., Brusquetti, F., Carstens, B., Haddad, C. F. B., Rodrigues, M. T., et al. (2016). Recurrent connections between Amazon and Atlantic forests shaped diversity in Caatinga four-eyed frogs. J. Biogeogr. 43, 1045–1056. doi: 10.1111/jbi.12685

CrossRef Full Text | Google Scholar

Vuilleumier, B. S. (1971). Pleistocene changes in the fauna and flora of South America. Science 173, 771–779. doi: 10.1126/science.173.3999.771

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Auler, A. S., Edwards, R. L., Cheng, H., Cristalli, P. S., Smart, P. L., et al. (2004). Wet periods in northeastern Brazil over the past 210 kyr linked to distant climate anomalies. Nature 432, 740–743. doi: 10.1038/nature03067

PubMed Abstract | CrossRef Full Text | Google Scholar

Webb, T., and Bartlein, P. J. (1992). Global changes during the last 3 million years: climatic controls and biotic response. Annu. Rev. Eco. Evo. Syst. 23, 141–173. doi: 10.1146/annurev.es.23.110192.001041

CrossRef Full Text

Keywords: approximate Bayesian computation, mitochondrial markers, interglacial period, neotropical fish, Upper Paraguay basin

Citation: Mondin LAC, Machado CB, Resende EK, Marques DKS and Galetti PM Jr. (2018) Genetic Pattern and Demographic History of Salminus brasiliensis: Population Expansion in the Pantanal Region during the Pleistocene. Front. Genet. 9:1. doi: 10.3389/fgene.2018.00001

Received: 01 September 2017; Accepted: 03 January 2018;
Published: 17 January 2018.

Edited by:

Rodrigo A. Torres, Universidade Federal de Pernambuco, Brazil

Reviewed by:

Rubens Pazza, Federal University of Viçosa, Brazil
Silvia Helena Sofia, Universidade Estadual de Londrina, Brazil

Copyright © 2018 Mondin, Machado, Resende, Marques and Galetti. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Carolina B. Machado, carolbioms@gmail.com
