HYPOTHESIS AND THEORY article

Front. Genet., 12 May 2021 | https://doi.org/10.3389/fgene.2021.521693

The Making of Calibration Sausage Exemplified by Recalibrating the Transcriptomic Timetree of Jawed Vertebrates

  • Department of Evolutionary Morphology, Science Programme “Evolution and Geoprocesses”, Museum für Naturkunde – Leibniz Institute for Evolutionary and Biodiversity Research, Berlin, Germany

Molecular divergence dating has the potential to overcome the incompleteness of the fossil record in inferring when cladogenetic events (splits, divergences) happened, but needs to be calibrated by the fossil record. Ideally but unrealistically, this would require practitioners to be specialists in molecular evolution, in the phylogeny and the fossil record of all sampled taxa, and in the chronostratigraphy of the sites the fossils were found in. Paleontologists have therefore tried to help by publishing compendia of recommended calibrations, and molecular biologists unfamiliar with the fossil record have made heavy use of such works (in addition to using scattered primary sources and copying from each other). Using a recent example of a large node-dated timetree inferred from molecular data, I reevaluate all 30 calibrations in detail, present the current state of knowledge on them with its various uncertainties, rerun the dating analysis, and conclude that calibration dates cannot be taken from published compendia or other secondary or tertiary sources without risking strong distortions to the results, because all such sources become outdated faster than they are published: 50 of the (primary) sources I cite to constrain calibrations were published in 2019, half of the total of 280 after mid-2016, and 90% after mid-2005. It follows that the present work cannot serve as such a compendium either; in the slightly longer term, it can only highlight known and overlooked problems. Future authors will need to solve each of these problems anew through a thorough search of the primary paleobiological and chronostratigraphic literature on each calibration date every time they infer a new timetree, and that literature is not optimized for that task, but largely has other objectives.

Introduction

This work is not intended as a review of the theory or practice of node (or tip) dating with calibration dates (or tip dates) inferred from the fossil record; as the most recent reviews of methods and sources of error, I recommend those by Barido-Sottani et al. (2019), Barido-Sottani et al. (2020), Marshall (2019), Matschiner (2019), Guindon (2020), Pardo et al. (2020), Powell et al. (2020), and, with caveats of which I will address two (see section “Materials and Methods”: Calibrations: Node 152 – Placentalia), Springer et al. (2019). Neither is it intended as a review of the history of the dates assigned to certain calibrations; as an example of a recent detailed review of three commonly used calibrations, I recommend Pardo et al. (2020). Although I discuss wider implications, the scope of this work is narrow: to evaluate each of the 30 calibrations used in the largest vertebrate timetree yet published, that by Irisarri et al. (2017), and the total impact of the errors therein on the results (using the same node-dating method they used, which I do not evaluate beyond mentioning potential general points of criticism).

Irisarri et al. (2017) inferred a set of timetrees from the transcriptomes of 100 species of gnathostomes (jawed vertebrates) and combinations of up to 30 calibrations from the fossil record. On the unnumbered ninth page of their supplementary information, they described their calibration dates as “five well-accepted fossil calibrations plus a prior on the root” and “24 additional well-established calibration points with solid paleontological evidence.” For many of the calibrations, these optimistic assessments are not tenable. I have tried to present, and use, the current state of knowledge on each of these calibrations.

In doing so, the present work naturally resembles the compendia of suggested calibrations that paleontologists have occasionally compiled with the intent to provide a handy reference for molecular biologists who wish to date divergences [e.g., Müller and Reisz, 2007; Benton et al., 2015, and six other articles in Palaeontologia Electronica 18(1); Wolfe et al., 2016; Morris et al., 2018]; Irisarri et al. (2017) took 7 of their 30 calibrations from the compendium in Benton and Donoghue (2007: table 1) alone—without citing the enlarged update by Benton et al. (2015)—compared to six taken from the primary literature. However, I will show that all such compendia are doomed to be (partially) outdated almost as fast as they are published in the best case, and faster than they are published in the average case. Soon, therefore, the present work will no longer be reliable as such a compendium either; rather, it is intended to show readers where the known uncertainties and disagreements lie, and thus what anybody who wants to use a particular calibration should probably search the most recent literature for. This is why I do not generally begin my discussion of a calibration by presenting my conclusions on what the best, or least bad, minimum and maximum ages of the calibration may be (They are, however, presented without further ornament in Table 1.) Instead, I walk the reader through a sometimes meandering discovery process, demonstrating how this knowledge was arrived at and how it may soon change—how the sausage was made and how it may spoil.

TABLE 1
www.frontiersin.org

Table 1. The first four columns of Irisarri et al. (2017: supplementary table 8), here expanded to five, followed by the ages used here for the same calibrations and the differences (Δ).

Some works used as compendia in this sense are not even compiled by paleontologists: molecular biologists often copy from each other. Irisarri et al. (2017) took four of their calibrations from table 1 of Noonan and Chippindale (2006), a work that contains a phylogenetic and divergence-date analysis of molecular data and cites severely outdated paleontological primary and secondary literature (from 1981 to 2003) as its sources.

A continually updated online compendium could largely avoid the problem that knowledge has a half-life. There has been one attempt to create one, the Fossil Calibration Database (Ksepka et al., 20151; not counting separately its predecessor, called Date a Clade, which is no longer online and apparently merely presented Table 1 of Benton and Donoghue, 2007). It appears to have run out of funding long ago and has not been updated since February 2, 2018, the day on which three of the numerous calibrations proposed in Wolfe et al. (2016) were added; other calibrations from the same source were added on January 30 and 31, 2018 (one each) and December 22, 2017 (three), and no other updates were made on those days. I cannot resist pointing out that this is one of many cases where funding menial labor in the sciences—reading and interpreting papers, evaluating the contradictions between them, and entering the interpretations in a database, a task that cannot be automated—would go a long way toward improving the quality of a large number of publications, but is unlikely to be granted because it is not likely to result in a single flashy publication or in an immediately marketable application directly, even though precise and accurate timetrees are an essential component of our understanding of the model organisms used in biomedical research.

A continually updated online database aiming to represent the entire fossil record exists and is currently being funded: the Paleobiology Database, accessible through two different interfaces at http://www.pbdb.org and https://paleobiodb.org. Among many other things, it aims to contain the oldest currently known record of every taxon and would thus be useful as a source for calibrations. However, the warnings by Parham et al. (2011) still apply: the quality of the Paleobiology Database is quite heterogeneous. While some entries are written by the current top experts in the respective fields, others copy decades-old primary descriptive literature uncritically, often leading to severely outdated taxonomic, let alone phylogenetic placements (in all but the most recent literature that is not the same), not to mention misunderstandings based on the convoluted history of taxonomic nomenclature. It is not uncommon for two entries to contradict each other. Finally, despite the hundreds of contributors, our current knowledge of the fossil record is so vast that the database remains incomplete (again, of course, differently so for different taxa). Like Irisarri et al. (2017), I have not used the Paleobiology Database or the Fossil Calibration Database; I have relied on the primary literature.

Nomenclature

After the publication of the International Code of Phylogenetic Nomenclature (PhyloCode) (Cantino and de Queiroz, 2020) and its companion volume Phylonyms (de Queiroz et al., 2020), the registration database for phylogenetic nomenclature—RegNum (Cellinese and Dell, 2020)—went online on June 8, 2020; regulated phylogenetic nomenclature is therefore operational. In an effort to promote uniformity and stability in nomenclature, I have used the names and definitions from Phylonyms, Ezcurra et al. (2020: online methods) and Joyce et al. (2021) here; wherever applicable, all of them are followed by “[PN]” at least at the first mention (this includes vernacularized forms like “gnathostome”) to avoid confusion with earlier uses of the same names for different clades. I have not, however, followed the ICPN’s Recommendation 6.1A to set all taxonomic names in italics.

The definitions of these names, their registration numbers (which establish priority among the combinations of name and definition), and the exact chapter citations can be found in RegNum, which is freely accessible2.

ICPN-regulated names have not been created or converted according to a single overarching scheme. As a result, for example, the name Osteichthyes has been defined as applying to a crown group, and the corresponding total group has been named Pan-Osteichthyes, but the name Chondrichthyes has not been defined and could end up as the name for a crown group, a total group, or neither (indeed, current common usage by paleontologists is neither). This has required some awkward circumlocutions. Following Recommendation 9B of the ICPN, I have not coined any new names or definitions in the present work.

The shapes and definitions of most other taxonomic names used here do not currently compete for homonymy or synonymy under any code of nomenclature. (The ICPN is not retroactive, and the rank-based International Code of Zoological Nomenclature [International Commission on Zoological Nomenclature, 1999] does not regulate the priority of names at ranks above the family group.) In such cases, I have followed current usage where that is trivial; I occasionally mention synonyms where that seems necessary.

The usage of “stem” and “crown” requires a comment. The crown group of a clade consists of the last common ancestor of all extant members of that clade, plus all its descendants. The rest of the clade in question is its stem group. For example, Gallus is a crown-group dinosaur, and Triceratops is a stem-group dinosaur. In a development that seems not to have been foreseen by the first two or so generations of phylogeneticists that established the terminology—for example, the zoology textbook by Ax (1987) exclusively named total groups, i.e., halves of crown groups!—many clades with defined names are now identical to their crown groups (in other words, they are crown clades); they do not contain any part of their stem. Aves [PN] is an example; although Triceratops is a stem-dinosaur [PN], a stem-dinosauromorph [PN], and a stem-ornithodiran [PN] among other things, it is not a stem-bird or stem-avian because by definition there is no such thing. It is instead a stem-pan-avian [PN], i.e., a stem-group member of Pan-Aves [PN] (Ezcurra et al., 2020: online methods). If no name is available for a suitable larger group, I have resorted to the circumlocution that Triceratops, for instance, is “on the bird stem” or “in the avian total group” (expressing that it is closer to Aves than to any mutually exclusive crown group).

Materials and Methods

Although I have followed the spirit of the guidelines developed by Parham et al. (2011) for how best to justify or evaluate a proposed calibration, I have not consistently followed their letter. Most notably, the specimen numbers of the fossils that I largely refer to by genus names can all be found in the directly cited primary literature, so they are not repeated here.

Hard and Soft Minima and Maxima

Without discussing the matter, Irisarri et al. (2017) stated that they had treated all calibration ages as soft bounds, which, in the software they used, means that “a proportion of 0.05 of the total probability mass is allocated outside the specified bound(s) (which means, 5% on one side, in the cases of the pure lower and pure upper bounds, and 2.5% on each side in the case of a combination of lower and upper bound)” (Lartillot, 2015: manual). This is particularly odd for minimum ages; after all, the probability that a clade is younger than its oldest fossil is not 5% or 2.5%, it is 0%. A few other works have used soft minima as an attempt to account for phylogenetic or chronostratigraphic uncertainty of the specimens chosen as calibrations. I have not used the former approach here (despite two clumsy attempts in the first preprint of this paper—Marjanović, 2019—that were rightly pointed out as incoherent by a reviewer): in the cases of phylogenetic uncertainty discussed below, different fossils that could calibrate the age of a cladogenetic event are commonly tens of millions of years apart, a situation that cannot be smoothed over by using the oldest one as a soft minimum. Soft minima that can be justified by uncertainty over the exact age of a calibrating fossil are very rare nowadays (as already pointed out by Parham et al., 2011); within the scope of this paper, there is only one such case, the minimum age of Neognathae (node 113), which is determined by a specimen that is roughly 70 ± 1 Ma old according to a fairly long chain of inference. I have treated all other minima as hard, and I have not spelled this out below.

As recommended by Parham et al. (2011), minimum ages have generally been chosen in the literature as the youngest possible age of the calibrating specimen(s). This is practically guaranteed to result in ages that are too young for various reasons (Marshall, 2019). To account, if crudely, for non-zero branch lengths and especially for the nested phylogenetic positions of some calibrating specimens, and to counteract “the illusion of precision” (Graur and Martin, 2004: title) spread by calibration ages with five significant digits like 421.75 Ma [the minimum age chosen by Irisarri et al. (2017) for the root node, see below], I have rounded up (stratigraphically down) to the nearest million years, with a few exceptions suggested by mass extinction events.

Maximum ages are by default much more difficult to assign than minimum ages. Absence of proof is not proof of absence; absence of evidence is evidence of absence, but in most cases it is quite weak evidence. Yet, omitting maximum ages altogether and assigning only minimum ages to all calibrations automatically results in much too old divergence dates as nothing stops the 99.9% or 99.99% confidence or credibility intervals for all node ages from avoiding all overlap with the calibrated minimum ages. I have therefore followed Irisarri et al. (2017) and their sources in assigning as many maximum ages as I dare. For this purpose, I have basically followed the recommendations of Parham et al. (2011) and Pardo et al. (2020: 11), which amount to assigning a maximum age whenever we can reasonably expect (after preservation biases, collection biases, collection intensity, paleobiogeography, etc.) to have found evidence of the clade in question if it had been present at the time in question, but have not found any. This has widely been followed in the literature, but various compendia like Benton et al. (2015) have gone beyond this in many cases: in short, the oldest certain fossil provides the minimum age under that approach, while the oldest uncertain fossil of the same clade provides the maximum age. This practice is not defensible; therefore, I assign, in the aggregate, fewer and more distant maximum ages than Irisarri et al. (2017).

Given the limits of our current knowledge of the fossil record, all maximum ages might be expected to be soft bounds. In a few cases discussed below, however, I find that the absence of evidence is so hard to explain away that a hard maximum is justified. This generally concerns unrealistically old maxima that I have chosen because no younger maximum suggests itself. Ultimately, of course, this is subjective.

The choices of hard vs. soft bounds do not seem to make a great difference to the big picture. Due to practical constraints, a set of calibration ages mostly identical to the present ones was analyzed twice, with all bounds treated as soft or as hard, in the first preprint of this work (Marjanović, 2019); the results were quite similar to each other (Marjanović, 2019: figure 1 and table 2). Even so, however, in the run where all bounds were soft, most divergence dates were younger than in the run where all bounds were hard (usually negligibly so, but by 20 Ma in the extreme cases); the mean ages of some calibrated nodes even ended up younger than their minimum ages.

Calibrations

Because this journal imposes a space restriction, most of this section forms the Supplementary Material.

In the nine subsections below and the 20 sections of the Supplementary Material, I discuss the minimum and maximum ages of all 30 nodes used as calibrations by Irisarri et al. (2017), referring to each by clade names and by the node number assigned by Irisarri et al. (2017: especially supplementary table 8 and supplementary figure 19), also shown in Figure 1. The abbreviation Fm stands for Formation; ICSC refers to the International Chronostratigraphic Chart v2020/3 (Cohen K. M. et al., 2020); Ma is the quasi-SI symbol for megayear (million years).

FIGURE 1
www.frontiersin.org

Figure 1. Average timetree resulting from application of the calibrations described here (mostly in the Supplementary Material). As in Table 2 and in Irisarri et al. (2017: figure 3), the bars on the nodes are the superimposed 95% credibility intervals from the two runs in PhyloBayes. The calibrations are shown as red arrows horizontally in line with the nodes they apply to; note that the arrow that is almost aligned with the branch of Lalagobatrachia and the one that is almost aligned with the terminal branch for Silurana are the maximum and minimum ages of Node 178 (Pipidae), the one on Iguana to Node 131 (Iguania), and the one on Pelodiscus to Node 117 (Testudines). The abbreviated genus names are spelled out as clade names on their common branches; where only one species per genus is sampled, see Irisarri et al. (2017) for full species names. To the extent possible, clade names with minimum-clade (node-based) definitions are placed close to those nodes, while names with maximum-clade (branch-based) definitions are shown close to the origin of that branch (i.e., the preceding node if sampled) and undefined names stay in the middle. Period/epoch symbols from oldest to youngest: Cambrian (cut off at 500 Ma), Ordovician, Silurian, Devonian, Carboniferous, Permian, Triassic, Jurassic, Early Cretaceous, Late Cretaceous, Paleogene, and Neogene including Quaternary (which comprises the last 2.58 Ma and is not shown separately). Timescale (including colors) from the International Chronostratigraphic Chart, version 2020/03 (Cohen K. M. et al., 2020). Node numbers, also used in the text and the tables, are from Irisarri et al. (2017).

Root Node (100): Gnathostomata [PN] (Total Group Including Chondrichthyes – Pan-Osteichthyes [PN])

The cladogenesis that created the total groups of Chondrichthyes and Osteichthyes [PN] was assigned a minimum age of 421.75 Ma, a remarkably precise date close to the Silurian-Devonian boundary, and a maximum age of 462.5 Ma, which is currently (ICSC) thought to lie in the Darriwilian stage of the Middle Ordovician.

The Darriwilian should rather be regarded as the minimum age of this calibration date. While articulated bones and teeth of gnathostomes—both total-group chondrichthyans (Burrow and Young, 1999) and pan-osteichthyans (Choo et al., 2017, and references therein)—are only known from the Ludfordian (Ludlow, late Silurian) upward, a large diversity of scales that are increasingly confidently assigned to stem-chondrichthyans extends all the way down into the early Darriwilian (Sansom et al., 2012; Andreev et al., 2015, 2016a, b; Sansom and Andreev, 2018; Žigaitė-Moro et al., 2018; and references therein). The Darriwilian is currently thought to have begun 467.3 ± 1.1 Ma ago and to have ended 458.4 ± 0.9 Ma ago (ICSC); for the purposes of reducing “the middle part of the Stairway Sandstone” (Sansom et al., 2012, p. 243) to a single number, the age of 465 Ma should be adequate as the minimum age of Gnathostomata.

As a maximum age, I cautiously propose the mid-Floian (Early Ordovician) upper fossiliferous level of the Burgess-like Fezouata Shale; at both levels, gnathostomes are absent among the “over 200 taxa, about half of which are soft-bodied” (Lefebvre et al., 2017, p. 296). Note that the oldest known hard tissues of vertebrates are Floian in age as well (reviewed by Sansom and Andreev, 2018). The Floian began 477.7 ± 1.4 Ma ago and ended 470.0 ± 1.4 Ma ago (ICSC), so I suggest a soft maximum age of 475 Ma for this calibration date.

The minimum and the maximum age proposed here are unexpectedly close together. This may be a sign that one or both is an unduly optimistic assessment of our knowledge of the fossil record—or that the origin of Gnathostomata formed part of the Great Ordovician Biodiversification Event (Sansom et al., 2012; Sansom and Andreev, 2018), which does not seem implausible.

Node 105: Tetrapoda [PN] (Amphibia [PN] – Pan-Amniota [PN])

The divergence between the ancestors of lissamphibians and those of amniotes was assigned a minimum age of 330.4 and a maximum of 350.1 Ma following Benton and Donoghue (2007). Although Pardo et al. (2020) have reviewed the breadth of issues it (many raises far beyond the scope of this work), and although I broadly agree with their conclusions, a few points remain to be addressed or summarized.

For a long time, the oldest tetrapod was thought to be Lethiscus, variably supposed to be a stem-amphibian or a stem-pan-amniote (see below), which is mid-Viséan in age (Smithson et al., 2012, and references therein; the Viséan lasted from 346.7 ± 0.4 to 330.9 ± 0.2 Ma ago: ICSC). More likely, Lethiscus and the other aïstopods are rather early-branching stem-stegocephalians [PN] (Pardo et al., 2017, 2018; Clack et al., 2019; further discussion in Marjanović and Laurin, 2019). Whether Casineria from a geographically (southeastern Scotland) and stratigraphically close site (mid-late Viséan: Paton et al., 1999; Smithson et al., 2012) can replace it in that function depends on two unresolved issues: its own phylogenetic position, for which estimates range from very close to Amniota (within Tetrapoda) into Temnospondyli (Marjanović and Laurin, 2019, and references therein; Clack et al., 2019; Daza et al., 2020: supplementary figure S15), and the controversial phylogenetic position of Lissamphibia [PN] in the stegocephalian tree (Marjanović and Laurin, 2013a, 2019; Danto et al., 2019; Laurin et al., 2019; Daza et al., 2020; Pardo et al., 2020; and references in all five), which determines whether the temnospondyls are tetrapods or quite rootward stem-stegocephalians by determining which node of the otherwise largely stable tree of early stegocephalians bears the name Tetrapoda.

Anderson et al. (2015) reported a number of isolated anthracosaur [PN] (embolomere or eoherpetid) bones from a mid-Tournaisian site (the Tournaisian preceded the Viséan and began at the Devonian/Carboniferous boundary 358.9 ± 0.4 Ma ago: ICSC). Whether these are tetrapods depends on the relative positions of temnospondyls, anthracosaurs and other clades in that region of the tree (Pardo et al., 2018, 2020; Marjanović and Laurin, 2019; Ruta et al., 2020; and references in all four) in addition to the position of Lissamphibia: even if the lissamphibians are temnospondyls, the anthracosaurs may still be stem-stegocephalians.

The same site has also yielded the oldest colosteid remains (Anderson et al., 2015). Colosteidae (“Colosteida” of Pardo et al., 2020) was referred to Temnospondyli throughout the 20th century and found in that position by Marjanović and Laurin (2019) to our great surprise (also in some of the trees by Daza et al., 2020: supplementary figure S15); as pointed out by Pardo et al. (2020), this means it could belong to Tetrapoda. However, ongoing work on enlarging and improving the matrix of Marjanović and Laurin (2019) and Daza et al. (2020) shows that this result was most likely an artifact of the taxon and character sample; similarly, Ruta et al. (2020) found the colosteid they included to be a temnospondyl with weak support in their Bayesian analysis, but to lie rootward of Temnospondyli in their parsimony analyses (unweighted, reweighted, or with implied weighting).

The same site has further yielded tetrapod trackways, some of which are tetradactyl (Smithson et al., 2012, and references therein). Among Paleozoic tetrapods, tetradactyly is only known among “microsaurs” (including lysorophians), scincosaurids, some urocordylids, temnospondyls, and Colosteus (but not its close pentadactyl relative Greererpeton). (Reports of tetradactyl limbs in diplocaulids have been erroneous: Marjanović and Laurin, 2019; Milner, 2019, and references therein.) Colosteus and probably (Clack et al., 2019) the urocordylids are stem-stegocephalians, but both were fully aquatic, thus unlikely to leave trackways; “microsaurs” and probably scincosaurids were tetrapods, and most were amphibious to terrestrial; temnospondyls spanned the full range of lifestyles, but see above for their phylogenetic position. In short, whether tetradactyl trackways are evidence of tetrapods in the mid-late Tournaisian remains unclear.

The oldest uncontroversial tetrapod is thus Westlothiana from close to the end of the Viséan (Marjanović and Laurin, 2019, and references therein, especially Smithson et al., 1994, 2012). Other stegocephalians from the same site and age may or may not be tetrapods: whether the temnospondyl Balanerpeton (Milner and Sequeira, 1994; Schoch and Milner, 2014) is one depends on the resolution of the abovementioned controversy about Lissamphibia; likewise, see above on the “anthracosaur-grade” (Marjanović and Laurin, 2019; Ruta et al., 2020) animals Silvanerpeton and Eldeceeon; Ophiderpeton kirktonense is an aïstopod, on which see above; Kirktonecta (Clack, 2011) is likely a tetrapod, but needs to be fully prepared or μCT-scanned before a confident assessment can be made.

Thus, the minimum age may be as young as roughly 335 Ma (mid-late Viséan) or as old as roughly 350 Ma (early-middle Tournaisian) depending on two phylogenetic problems.

The few Tournaisian stegocephalian sites discovered so far (Smithson et al., 2012; Anderson et al., 2015; Clack et al., 2016) have not yielded any uncontroversial tetrapods, temnospondyl bones, or temnospondyl footprints; thus, if the temnospondyls are stem-tetrapodomorphs, the ages of these sites (up to roughly 350 Ma) may be useful as a maximum age. However, as stressed by Pardo et al. (2020), they represent a very small region of the Carboniferous globe, so I continue (Marjanović and Laurin, 2019) to caution against this regardless of the phylogenetic issues. Rather, the richer and better studied Famennian (end-Devonian) record, which has not so far yielded close relatives of Tetrapoda but has yielded more rootward stegocephalians and other tetrapodomorphs (Marjanović and Laurin, 2019; Ahlberg and Clack, 2020; and references therein), should be used to place a soft maximum age around very roughly 365 Ma.

Node 106: Amniota [PN] (Pan-Mammalia [PN] – Sauropsida)

The cladogenesis that separated the total group of mammals (also called Synapsida [PN] or Theropsida: Goodrich, 1916) from the total group of diapsids including turtles (Sauropsida: Goodrich, 1916) was assigned a minimum age of 288 Ma (Artinskian, Early Permian) and a maximum age of 338 Ma (Viséan, Early Carboniferous).

This minimum age is rather puzzling. I am not aware of any doubts on the membership of Hylonomus in Sauropsida since its redescription by Carroll (1964), except the very vague ones presented by Graur and Martin (2004) and taken from even more outdated literature; none are mentioned in the review by Pardo et al. (2020) either. Because of its late Bashkirian age, this calibration has often been dated to 310 Ma (as discussed by Graur and Martin, 2004). Currently (ICSC), the Bashkirian is thought to have ended 315.2 ± 0.2 and begun 323.2 ± 0.4 Ma ago, and the site (Joggins, Nova Scotia) that has yielded Hylonomus has been dated to 317–319 Ma (Carpenter et al., 2015); thus, given the phylogenetic position of Hylonomus (Ford and Benson, 2019, and references therein), I suggest a minimum age of 318 Ma for this calibration.

There appears to be pan-mammalian material from the same site (Carroll, 1964; Mann et al., 2020), which has also yielded various “microsaurs” that Pardo et al. (2017) included in Sauropsida (see also Marjanović and Laurin, 2019, and Pardo et al., 2020). I should also emphasize that the next younger sauropsids and pan-mammals (and “microsaurs”) older than 288 Ma come from several sites in each following geological stage (Moscovian through Artinskian) and represent a considerable diversity; from the Moscovian alone, four sites of successive ages are known that present more or less complete skeletons of uncontroversial amniotes, namely, sauropsids closely related to Diapsida and Hylonomus (Anthracodromeus, Brouffia, Cephalerpeton, Paleothyris), the oldest “parareptile” (Carbonodraco) as well as what appears to be the sister-group to most other sauropsids (Coelostegus), and, on the pan-mammalian side, ophiacodontids (Echinerpeton; Archaeothyris from two sites). A fifth site preserves the oldest varanopid, a group of amniotes of unclear phylogenetic position (Ford and Benson, 2018, 2019). As reviewed in detail by Pardo et al. (2020), this implies ghost lineages for several other amniote clades that might not have lived in coal swamps; several of these show up in the fossil record of the next and last two stages of the Carboniferous, which ended 298.9 ± 0.15 Ma ago (ICSC). For more information on the Carboniferous amniote record, see Reisz and Modesto (1996: figure 3), Müller and Reisz (2006), Maddin et al. (2019), Mann and Paterson (2019), Mann et al. (2019), and Pardo et al. (2020), the second and the third with phylogenetic analyses, as well as references in all six. Additionally, the oldest known diadectomorphs (“diadectamorphs” of Pardo et al., 2020) date from the Kasimovian (“Missourian” in Kissel, 2010) which follows the Moscovian; they may represent the sister-group of Amniota, or they may be what should have been called non-synapsid theropsids (Klembara et al., 2019; Marjanović and Laurin, 2019; Pardo et al., 2020; and references in all three).

The absence of amniotes (and diadectomorphs) in the Serpukhovian record preceding the Bashkirian should not be given much weight for paleoecological reasons, as reviewed by Pardo et al. (2020); note that “lepospondyls” like the Viséan Kirktonecta and Westlothiana, probably closely related to but outside Amniota, are almost unknown from this age as well (candidates were described by Carroll et al., 1991; Carroll and Chorn, 1995; Lombard and Bolt, 1999). Their absence from the somewhat richer Viséan record (discussed above) suffers in part from the same problem, in part from geographic restrictions. Thus, I refrain from recommending a maximum age other than that of the preceding Node 105, even though such an early age would imply very slow rates of morphological evolution in the earliest pan-mammals and sauropsids.

Node 107: Reptilia [PN] (Pan-Lepidosauria [PN] – Pan-Archelosauria [PN]); Node 108: Archelosauria [PN] (Pan-Testudines [PN] – Pan-Archosauria [PN])

The origin of the sauropsid crown group by a split into Pan-Lepidosauria and Pan-Archelosauria was assigned a minimum age of 252 Ma and a maximum age of 257 Ma, both in the Late Permian. Ezcurra et al. (2014; correction: The PLOS ONE Staff, 2014) agreed that the oldest unambiguous reptile that can be clearly dated is the supposed pan-archosaur Protorosaurus, which is, however, 257.3 ± 1.6 Ma old as they also discussed. Therefore, they revised the minimum age to 255.7 Ma, the younger end of this confidence interval.

However, like all other recent phylogenetic analyses of molecular data, Irisarri et al. (2017) found the turtles to be closer to Archosauria [PN] than Lepidosauria [PN]. Thus, the question whether Eunotosaurus is a member of the turtle stem (Schoch and Sues, 2017, and references therein) becomes relevant, because the earliest occurrence of Eunotosaurus is roughly middle Capitanian in age (the Capitanian, the last stage of the Middle Permian, ended 259.1 ± 0.5 Ma ago and began 265.1 ± 0.4 Ma ago: ICSC), and further because Protorosaurus would presumably belong to Pan-Archosauria and thus calibrate Node 108, not 107.

For present purposes, I set the minimum age of Archelosauria (Node 108) as 263 Ma, the approximate midpoint of the Capitanian, and do not assign a minimum age to Reptilia (Node 107). However, in general, I have to, at our current level of understanding, recommend against using either of these nodes as a calibration. The reason are two major uncertainties about the topology of the phylogenetic tree.

First, if Eunotosaurus has moved from the “parareptiles” well outside Diapsida [PN]—or well inside Diapsida, though presumably still in its stem-group (Ford and Benson, 2019)—to the turtle stem within the crown group of Diapsida (i.e., Reptilia [PN]), do any other “parareptiles” follow it? The oldest known member of that assemblage, Carbonodraco, comes from the site of Linton in Ohio (Mann et al., 2019), which is about 307–308 Ma old (compare Reisz and Modesto, 1996; Carpenter et al., 2015), so that should be the minimum age of Archelosauria if all “parareptiles” are archelosaurs; the currently available phylogenetic analyses of “parareptiles” (Laurin and Piñeiro, 2018; MacDougall et al., 2019) have not adequately tested this question. While Schoch and Sues (2017) did test the mutual relationships of “parareptiles,” Eunotosaurus, and diapsids and found Eunotosaurus nested in the latter, several nodes away from the former, these nodes were very poorly supported. The character and taxon samples of all existing matrices for analyses of amniote phylogeny need to be substantially improved (Ford and Benson, 2018, 2019; Laurin and Piñeiro, 2018; MacDougall et al., 2019; Mann et al., 2019); Ford and Benson (2019) made a large step in that direction, but deliberately excluded Eunotosaurus and the turtles from their analysis so as not to have to deal with all problems at the same time.

Second, the position of Protorosaurus as a pan-archosaur, accepted for decades, was thrown into doubt by Simões et al. (2018), who found it as such in their Bayesian analyses of morphological or combined data (Simões et al., 2018: ext. data figures 5, 6; also, after a few changes to the dataset, Garberoglio et al., 2019: figure S2; Sobral et al., 2020: figures S9, S10), but not in their parsimony analyses of morphological data without or with implied weights (ext. data figures 3, 4; likewise Garberoglio et al., 2019: figure S3; Sobral et al., 2020: figure S7, S8), where it came out as a stem-sauropsid; the question was unresolved in their Bayesian tip-dating or tip-and-node dating analyses of combined data (ext. data figures 7, 8). After a different set of changes to the dataset, Simões et al. (2020) found Protorosaurus as a pan-archosaur when they used MrBayes (supplementary figures 2–5) or when they used BEAST for dating with a correction (supplementary figure 7), but not when they used BEAST for dating without a correction (supplementary figure 6). Support was moderate throughout. However, these trees are hard to compare to that of Irisarri et al. (2017) because they all find the turtles outside the diapsid crown (with limited support); no extant archosaurs or turtles, and therefore no molecular data for them, are included in these datasets. Using a smaller dataset with much denser sampling of Triassic reptiles, Pritchard et al. (2018) found Protorosaurus closer to Archosauria than to Lepidosauria with very strong support (parsimony bootstrap value: 100%, Bayesian posterior probability: 99.06%), but whether that is on the archosaur or the archelosaur stem could not be determined because there were no turtles in that dataset.

The maximum age of either node is likewise difficult to narrow down. Uncontroversial diapsids have a notoriously patchy Paleozoic record (Ford and Benson, 2018, and references therein); the same holds for “parareptiles,” which have only two known Carboniferous records so far (Modesto et al., 2015; Mann et al., 2019). I cannot express confidence in a maximum age other than that of Node 106, which I cannot distinguish from the maximum age of Node 105 as explained above. This leaves Node 107 without independent calibrations in the current taxon sample.

Node 113: Neognathae (Galloanserae [PN] – Neoaves)

The last common ancestor of Anas, Gallus, and Meleagris on one side and Taeniopygia on the other was assigned a minimum age of 66 Ma (the Cretaceous/Paleogene boundary) and a maximum age of 86.5 Ma (Coniacian/Santonian boundary, Late Cretaceous) following Benton and Donoghue (2007).

The oldest known neognath appears to be the presbyornithid stem-anserimorph (Elżanowski, 2014; Tambussi et al., 2019; within two steps of the most parsimonious trees of Field et al., 2020) Teviornis from somewhere low in the Late Cretaceous Nemegt Fm of Mongolia; it is known only from a carpometacarpus, two phalanges, and the distal end of a humerus that all seem to belong to the same right wing (Kurochkin et al., 2002). The most recent work on the specimen has bolstered its presbyornithid identity (De Pietri et al., 2016), even though the next younger presbyornithids are middle or late Paleocene (i.e., younger than 61.6 Ma: ICSC).

The age of the Nemegt Fm is difficult to pin down; radiometric dating of this or adjacent formations has not been possible, and the only fossils available for biostratigraphy are vertebrates that have to be compared to those of North America where marine correlations and radiometric dates are known. These comparisons favor a vaguely early Maastrichtian age, without ruling out a Campanian component. Magnetostratigraphic evidence was reported in a conference abstract by Hicks et al. (2001); I have not been able to find a follow-up publication. Hicks et al. (2001) stated that the sampled sections from the Nemegt and the conformably underlying Baruungoyot Fm “can be quite reliably correlated to the Geomagnetic Reversal Time Scale […] and clearly lie in the Campanian/Maastrichtian interval that extends from the uppermost part of subchron C33n, through chron 32 into the lower half of chron 31.” Where the Baruungoyot/Nemegt boundary lies on this scale was not mentioned. The upper boundary of the Nemegt Fm is an unconformity with a Paleocene formation.

Hicks et al. (2001) also studied the Late Cretaceous Djadokhta Fm, finding that “a distinct reversal sequence is emerging that allows us to correlate the sections in a preliminary way to the late Campanian through Maastrichtian interval that ranges from C32 to C31.” While I have not been able to find a publication by an overlapping set of authors on this finding, it agrees at least broadly with Dashzeveg et al. (2005: 18, 26, 27), whose own magnetostratigraphic work on the Djadokhta Fm indicated “that the sediments were deposited during the rapid sequence of polarity changes in the late part of the Campanian incorporating the end of Chron 33 and Chron 32 between about 75 and 71 Ma […]. However, this tentative correlation to the Geomagnetic Polarity Timescale cannot yet be certainly established.” Hasegawa et al. (2008) disagreed with the stratigraphy by Dashzeveg et al. (2005), but not with their dating.

Most often, the Djadokhta Fm has been thought to underlie the Baruungoyot Fm, but a contact between the two has not so far been identified (Dingus et al., 2008; cited without comment e.g., by Chinzorig et al., 2017); they could be partly coeval (references in Hasegawa et al., 2008). Still, it seems safe to say that most of the Nemegt Fm is younger than most of the Djadokhta Fm.

According to Milanese et al. (2018: Figure 12), the Campanian-Maastrichtian boundary (72.1 ± 0.2 Ma ago: ICSC) lies near the end of chron 32. The Djadokhta Fm thus corresponds to the end of the Campanian, the Baruungoyot Fm should have at most the same age, and the youngest magnetostratigraphic sample from the Nemegt Fm, in the earlier half of chron 31, should be about 70 Ma old. Given the stratigraphic position of Teviornis low within the formation and its nested phylogenetic position within Neognathae, I propose 71 Ma (within the same subchron as 70 Ma: Milanese et al., 2018: Figure 12) as the soft minimum age of the present calibration.

Field et al. (2020, p. 400) stated that the likely stem-pangallanseran “Asteriornis provides a firm calibration point for the minimum age of divergence of the major bird clades Galloanserae and Neoaves. We recommend that a minimum age of 66.7 million years is assigned to this pivotal neornithine node in future divergence time studies, reflecting the youngest possible age of the Asteriornis holotype including geochronological uncertainty.” In their supplementary information (p. 13), however, they revealed being aware of Teviornis, citing De Pietri et al. (2016) for its position as a presbyornithid (and thus, by their own phylogenetic analyses, an anserimorph) without discussing it any further.

Should the fragmentary Teviornis fall out elsewhere, the minimum age might nonetheless not have to rest on Asteriornis, because Vegaviidae, a clade containing the late Maastrichtian (Clarke et al., 2005; Salazar et al., 2010) Vegavis, Polarornis, and Neogaeornis and probably the end-Campanian (McLachlan et al., 2017) Maaqwi, has been found on the anserimorph stem in some of the latest analyses (Agnolín et al., 2017; Tambussi et al., 2019). However, Mayr et al. (2018) discussed reasons for skepticism, and the analyses of McLachlan et al. (2017), Bailleul et al. (2019: supplementary trees 7–11, 16, 17), Field et al. (2020), and O’Connor et al. (2020) found the vegaviids they included close to but outside Aves (or at least Galloanserae in the case of Bailleul et al., 2019; O’Connor et al., 2020, who did not sample Neoaves or Palaeognathae in the analyses in question).

As the soft maximum age, I tentatively suggest 115 Ma, an estimate of the mid-Aptian age of the terrestrial Xiagou Fm of northwestern China, which has yielded a diversity of stem-birds but no particularly close relatives of the crown (Wang et al., 2013; Bailleul et al., 2019; O’Connor et al., 2020; and references therein).

Node 117: Testudines [PN] (Pan-Pleurodira [PN] – Pan-Cryptodira [PN])

The origin of the turtle crown group by split into the pleurodiran [PN] and cryptodiran [PN] total groups was assigned a minimum age of 210 Ma and no maximum age; this was taken from Noonan and Chippindale (2006), who had cited a work from 1990 as their source.

The calibration dates treated above, and correspondingly in the Supplementary Material, are almost all too young (some substantially so, others by just a few million years). This one, in contrast, is far too old. It rests on the outdated interpretation of the Norian (Late Triassic) Proterochersis as a stem-group pan-pleurodire. With one short series of exceptions (Gaffney et al., 2006, 2007; Gaffney and Jenkins, 2010), all 21st-century treatments of Mesozoic turtle phylogeny have found Proterochersis and all other turtles older than those mentioned below to lie well outside the crown group (Shao et al., 2018: figures S8, S9; Sterli et al., 2019, 2020; and references therein, in Gaffney and Jenkins, 2010; Romano et al., 2014a).

The three oldest known xinjiangchelyids [PN], of which one was referred to Protoxinjiangchelys, seem to be between 170 and 180 Ma old (Aalenian/Bajocian boundary, Middle Jurassic, to Toarcian, late Early Jurassic; Hu et al., 2020, and reference therein). In the last 3 years, the xinjiangchelyids have been found as stem-testudinates or as stem-pan-cryptodires (Shao et al., 2018; Evers et al., 2019; González Ruiz et al., 2019: Figure 6 and supplementary figure 4; Gentry et al., 2019; Anquetin and André, 2020; Sterli et al., 2020: supplementary figure “X” = 19), even in both positions when the same matrix was analyzed with different methods (Sterli et al., 2019: Supplementary file SterlietalSupplementary_material_3.pdf).

The oldest known securely dated and securely identified crown-group turtle is thus the mid-late Oxfordian stem-pan-pleurodire Caribemys (de la Fuente and Iturralde-Vinent, 2001; Shao et al., 2018; mostly referred to Notoemys as N. oxfordiensis in more recent literature, e.g., Sterli et al., 2019). Given that the Oxfordian ended 157.3 ± 1.0 Ma ago (ICSC), I suggest a minimum age of 158 Ma.

The stem-pan-trionychian [PN] cryptodire Sinaspideretes (Tong et al., 2013), which would provide a minimum age for Cryptodira (node 118) rather than only Testudines, was long thought to have the same age or to be somewhat older. Of the three known specimens, at least one (the exact localities where the type and the other specimen were found are unknown) comes from the Upper (Shang-) Shaximiao Fm (Tong et al., 2013), which conformably overlies a sequence of two supposedly Middle Jurassic formations and is overlain by two Upper Jurassic formations (Tong et al., 2011; Xing et al., 2013), so it should be about Oxfordian to Callovian in age. The biostratigraphic evidence for the age of the Upper Shaximiao Fm is conflicting; there was no consensus on whether it is Middle or Late Jurassic (Xing et al., 2013) before Wang et al. (2018) showed that the immediately underlying Lower (Xia-) Shaximiao Fm is at most 159 ± 2 Ma old, a confidence interval that lies entirely in the Late Jurassic (which began, with the Oxfordian, 163.5 ± 1.0 Ma ago: ICSC). Most likely, then, the same holds for all Sinaspideretes specimens, and none of them is older than Caribemys.

The unambiguously Early Jurassic and Triassic record of turtles throughout Pangea lies entirely on the stem and has a rather good stratigraphic fit (see Sterli et al., 2019, 2020). I therefore suggest a soft maximum age of 185 Ma (in the Pliensbachian: ICSC) that probably postdates all of these taxa but predates the oldest possible age of the oldest known xinjiangchelyids.

Node 129: Toxicofera (Pan-Serpentes [PN] – Anguimorpha + Pan-Iguania [PN])

This calibration was given a minimum age of 148 Ma (Tithonian, Late Jurassic) and no maximum age. Note that the minimum age was not operational because Node 131, Iguania [PN], was given an older minimum age of 165 Ma (see Supplementary Material); in other words, Node 129 was really not calibrated at all.

Indeed, I should first mention that the pan-squamate fossil record suffers from three problems that make it difficult to calibrate this node. First, it exhibits Carroll’s Gap (Marjanović and Laurin, 2013a) very strongly. After the Middle Triassic stem-pan-squamate Megachirella and at least one Early Triassic pan-lepidosaur that may or may not be a pan-squamate (Sophineta in particular—compare the different phylogenetic analyses in Simões et al., 2018, 2020), the pan-squamate record as known today goes completely silent (see Node 131 for the one or two supposed exceptions) until the dam suddenly breaks in the Bathonian (Middle Jurassic) and representatives of the stem as well as, by current understanding, several parts of the crown appear in several sites in the northern continents and northernmost Gondwana. Second, these early representatives are all isolated and generally incomplete bones that preserve few diagnostic characters; the oldest complete skeletons come from one Tithonian (latest Jurassic) cluster of sites (Conrad, 2017), followed by a few Early Cretaceous ones as well as the oldest partially articulated material other than Megachirella. Third, the morphological datasets so far assembled for analysis of pan-squamate phylogeny are all so plagued by correlated characters and other problems that all of them support either Pan-Iguania as the sister-group to all other squamates, or the amphisbaenians (alone or even together with the dibamids) as the sister-group to Pan-Serpentes (e.g., Simões et al., 2020: supplementary figure 2), or both (e.g., Conrad, 2017: Figures 27, 28), while both are strongly contradicted by the molecular consensus (e.g., Irisarri et al., 2017; Garberoglio et al., 2019; Simões et al., 2020: supplementary figures 1, 3, 5, 8; Sobral et al., 2020: figure S10).

[As I try to redate the exact tree topology of Irisarri et al. (2017), it is not relevant to the present work that interesting doubts about parts of the molecular consensus have been raised from the molecular data, most recently and thoroughly by Mongiardino Koch and Gauthier (2018), who also reviewed that issue.]

The oldest known toxicoferans appear to be represented by four isolated vertebral centra from the Anoual Fm of Morocco, which is early Bathonian in age (Haddoumi et al., 2015). These bones were assigned to “cf. Parviraptor” by Haddoumi et al. (2015). Other material—vertebrae and jaw fragments from Europe and North America discussed in Panciroli et al. (2020)—was originally assigned to “cf.” or “aff. Parviraptor,” including but not limited to the late Bathonian or earliest Callovian Eophis, the Kimmeridgian Diablophis and Portugalophis, and Parviraptor itself from around the Jurassic/Cretaceous (Tithonian/Berriasian) boundary. Traditionally regarded as representing the oldest anguimorphs, these fossils would calibrate Node 130, the split between Pan-Iguania [PN] and Anguimorpha; however, phylogenetic analyses following a redescription of much of the material have found it to constitute the oldest known pan-serpents, thus calibrating Node 129 (Caldwell et al., 2015; Martill et al., 2015; by implication Conrad, 2017; accepted without analysis by Garberoglio et al., 2019; Simões et al., 2020; Schineider Fachini et al., 2020). As the Bathonian began 168.3 ± 1.3 Ma ago and ended 166.1 ± 1.2 Ma ago, i.e., with uncertainty ranges that overlap in the middle (ICSC), the suggestion of 167 Ma by Caldwell et al. (2015) would then be a reasonable minimum age for this calibration.

Alifanov’s (2019) casual referral of Parviraptor to an unusually large version of Mosasauria should not be construed to contradict this: the Cretaceous aquatic squamates, mosasaurs included, are probably all pan-serpents (see below), unless they lie on the common stem of Anguimorpha and Iguania (Simões et al., 2020: supplementary figure 8, with very low support).

As mentioned, all these remains are very fragmentary, and all are disarticulated; according to a reviewer, new, apparently unpublished material shows the “parviraptorids” are not snakes, and indeed Panciroli et al. (2020) were careful not to state in the text whether they agreed with the referral to the snake stem, designating “cf. Parviraptor sp.” as “Squamata indet.” in their faunal list (Table 1).

The next younger record of a possible toxicoferan is the just as fragmentary Callovian Changetisaurus, a supposed anguimorph, though Alifanov (2019) provided reasons to doubt that it is a toxicoferan. It is followed by the several species of Dorsetisaurus, another assemblage of skull fragments with osteoderms from the Kimmeridgian through Berriasian of Europe and North America, that was explicitly accepted as an anguimorph by Caldwell et al. (2015) and, on different grounds, Alifanov (2019), but has not, to the best of my knowledge, been included in any phylogenetic analysis. (Older and secondary literature has often claimed that the oldest Dorsetisaurus specimens are 148 Ma old, but the Kimmeridgian ended 152.1 ± 0.9 Ma ago: ICSC.)

Most of the rich record of Cretaceous aquatic squamates has traditionally been referred to Anguimorpha, but more likely belongs to Pan-Serpentes (e.g., Garberoglio et al., 2019; Palci et al., 2019; Sobral et al., 2020: figure S10; Simões et al., 2020: supplementary figures 3, 4, 6, 9; and references therein). It sets in in what seems to be the Hauterivian with Kaganaias (Evans et al., 2006; Campbell Mekarski et al., 2019); the Hauterivian ended ∼129.4 Ma ago (ICSC, uncertainty not quantified). If neither the “parviraptorids” nor Changetisaurus nor Dorsetisaurus are accepted as toxicoferans, the minimum age of Node 129 should thus be 130 Ma. To err on the side of caution, that is the age I have used here.

Due to Carroll’s Gap (Marjanović and Laurin, 2013a), I agree with Irisarri et al. (2017) in not assigning a maximum age other than that for Node 125 (Supplementary Material).

Node 152: Placentalia [Atlantogenata – Boreo(eu)theria)]; Node 153: Boreo(eu)theria (Laurasiatheria – Euarchontoglires/Supraprimates)

The origin of Placentalia, the crown group of Eutheria, was given a minimum age of 95.3 Ma (Cenomanian, Late Cretaceous) and a maximum age of 113 Ma (Aptian/Albian boundary, Early Cretaceous) following Benton and Donoghue (2007). Its immediate descendant nodes were not constrained.

The minimum age rests on the assumption, commonly but not universally held in 2007, that the zhelestids are “ungulates,” i.e., belong to Placentalia, or perhaps even that the zalambdalestids are related to Glires and therefore belong to Placentalia. For a long time now, as already pointed out by Parham et al. (2011), every reinvestigation of the anatomy of these Cretaceous animals, and every phylogenetic analysis that sampled Cretaceous eutherians densely (i.e., not including Zhou et al., 2019: supplementary inf. M), has found them on the eutherian stem, often not even particularly close to Placentalia (e.g., Novacek et al., 1997; Asher et al., 2005, 2019; Wible et al., 2009; Goswami et al., 2011; Halliday et al., 2015; Manz et al., 2015; Bi et al., 2018: figures 2 and SI-1; Wang et al., 2019: ext. data figure 5; and references in Parham et al., 2011; see also Fostowicz-Frelik and Kielan-Jaworowska, 2002).

A few terminal Cretaceous (late Maastrichtian) eutherians have been attributed to Placentalia in the past. This is at best dubious for all of them. Protungulatum (Wible et al., 2009; Halliday et al., 2015, 2019: figure 1 contrary to the text; Manz et al., 2015: figure 2a; Wang et al., 2019: ext. data figure 5; Mao et al., 2019: figure S9) and Gypsonictops (Halliday et al., 2015, 2019; Manz et al., 2015: figure 2; Bi et al., 2018; Wang et al., 2019: ext. data figure 5; Mao et al., 2019: figure S9) are now placed close to but consistently outside Placentalia. Deccanolestes—at least if the teeth and the tarsal bones belong together—is placed far away (Goswami et al., 2011 [see there also for Sahnitherium]; Manz et al., 2015: figures 2 and I-1; Penkrot and Zack, 2016; Halliday et al., 2019). The single worn tooth named Kharmerungulatum, which had been assigned to Placentalia mostly through comparison to Protungulatum in the first place (Prasad et al., 2007), has more recently been found outside Placentalia as well (“Although none of the strict consensus trees supported the placement of Kharmerungulatum within the placental crown group, the limited dental material for this taxon proved insufficient for resolving its phylogenetic relationships, and so it was removed a posteriori from the MPTs to produce the reduced strict consensus trees.”—Goswami et al., 2011, p. 16334), specifically as an adapisoriculid like Deccanolestes when full molecular constraints were applied by Manz et al. (2015: figure 2b). The stylinodontid taeniodont Schowalteria (Fox, 2016, and references therein) belongs to a clade that survived into the Eocene; the conference abstract by Funston et al. (2020) reported that a very large phylogenetic analysis has found the group outside Placentalia.

The same reasons make it difficult to decide which of the earliest Paleocene eutherians should be accepted as securely enough identified placentals, but in any case, Williamson et al. (2019, p. 220) reported that the herbivorous periptychid Ectoconus, estimated to have reached about 100 kg, was “present within 0.4 Ma of the K-Pg boundary”; phylogenetic analyses have found it to be not only a placental, but a laurasiatherian—Halliday et al. (2015; regardless of constraints) found it and the other periptychids on the pholidotan stem; Halliday et al. (2019), using combined data and maximum likelihood, found a comparable result with much less resolution; Püschel et al. (2019), using a somewhat smaller matrix with, however, a focus on periptychids and new data on them, recovered them as stem-artiodactylomorphs. I therefore suggest 66 Ma, the Cretaceous/Paleogene boundary (66.021 ± 0.081 Ma: Clyde et al., 2016), as the minimum age for Node 153, the basal node of Boreoeutheria (a name apparently coined by accident by Murphy et al., 2001) or simply Boreotheria (explicitly coined by Waddell et al., 2001). For Node 152, I cannot recommend a separate minimum age.

Unambiguous placentals continue to be absent worldwide in the rich Maastrichtian record (see above as well as Halliday et al., 2016; Davies et al., 2017), and even ambiguous ones except Gypsonictops continue to be absent in the even richer Campanian record (although there are three isolated Turonian teeth indistinguishable from both species of Gypsonictops: Cohen and Cifelli, 2015; Cohen, 2017), despite the presence of stem-eutherians (all northern continents, Madagascar, and India), stem-metatherians (Asia and North America), and ecologically comparable spalacotheroids (Asia and North America), meridiolestidans (South America) and gondwanatheres (South America, Madagascar, India, and some point between the late Turonian and latest Campanian of Africa—O’Connor et al., 2019). Although the Late Cretaceous fossil record of Africa is too limited to exclude the presence of placentals, and Antarctica, Australia, and New Zealand have no known Late Cretaceous mammal record at all, biogeographic parsimony does not favor the presence of Campanian or Maastrichtian placentals on these paleocontinents (e.g., Huttenlocker et al., 2018): the closest known relatives of Placentalia come from North America, followed by Asian forms, while the Indian eutherians (discussed above) are quite distant from Placentalia and the incomplete tooth from Madagascar is similarly identified as zhelestid (Averianov et al., 2003). Neither the Cenozoic fossil record nor molecular phylogenetics suggest an African origin as most parsimonious either, let alone a more southeastern one. Therefore, I suggest the Campanian/Maastrichtian boundary, rounded to 72 Ma, as the hard maximum age for Node 152. (I cannot make a separate recommendation for Node 153.) This is more generous than the result of Halliday et al. (2016), 95% of whose reconstructions of the age of Placentalia were 69.53 Ma old or younger. The discrepancy to the published molecular ages (references in Halliday et al., 2016) is most likely due to the effects of body size (Berv and Field, 2017; Phillips and Fruciano, 2018), or perhaps other factors like generation length, on rates of molecular evolution.

At this point, readers may be wondering why I have mentioned neither the extremely large phylogenetic analysis by O’Leary et al. (2013) nor the objections by Springer et al. (2019), who wrote in their abstract that “morphological cladistics has a poor track record of reconstructing higher-level relationships among the orders of placental mammals”. It would be more accurate to say that phylogenetic analysis of morphological data has no track record of reconstructing the phylogeny of Placentalia, good or bad. To avoid long-branch attraction and long-branch repulsion, any such analysis of morphological data will have to sample the enormous and poorly understood diversity of Paleo- and Eocene eutherians very densely, which will have to entail sampling enough of the characters that unite and distinguish them without falling into the trap of accumulating redundant or otherwise correlated characters that inevitably distort the tree (Marjanović and Laurin, 2019; Sookias, 2019; Celik and Phillips, 2020; and references in all three). This is so much work, and so hard to get funded, that—at the most generous count—only three attempts at such a matrix have ever been made; I should also point out that matrices of such sizes were not computationally tractable until a few years ago, at least not in less than a few months of calculation time. The first attempt is the “phenomic” matrix by O’Leary et al. (2013); as Springer et al. (2019) pointed out repeatedly, it contains no less than 4541 characters—but several hundred of these are parsimony-uninformative (O’Leary et al., 2013), and many others are redundant, which means they represent a smaller number of independent characters of which many are weighted twice or more often. At 86 terminal taxa, almost all of which are extant, the taxon sample is hopelessly inadequate for eutherian phylogeny. It is no surprise that parts of the topology are highly implausible (e.g., the undisputed stem-whale Rodhocetus landing on the common ungulate [PN] stem, as pointed out by Springer et al., 2019) and that even such undisputed clades as Afrosoricida, Lipotyphla, and Artiodactyla are no longer recovered when the hundreds of soft-tissue characters, which cannot be scored for the extinct terminal taxa, are removed (Springer et al., 2019), which casts doubt on the ability of that matrix to place extinct taxa accurately. The second attempt began in the doctoral thesis of Zack (2009) and was further modified and merged with other datasets in Halliday’s doctoral thesis that culminated in the publication of Halliday et al. (2015). The taxon sample contains an appreciable number of Cretaceous and Paleocene eutherians; the character sample is of course more modest and contains, as usual for mammals, a large proportion of tooth characters, some of which might be redundant (e.g., Kangas et al., 2004; Harjunmaa et al., 2014). The further improved version (Halliday et al., 2019) suffers from the drawback that all characters were reduced to two states to make the matrix tractable by maximum-likelihood software; this throws away a lot of information (probably for no gain: Sansom et al., 2018; King, 2019). The third is that of the PalM group; funded by an enormous grant, it involves a lot of people each revising a group of Paleo- or Eocene eutherians as their doctoral thesis and contributing the gained knowledge (e.g., Napoli et al., 2017) to a growing matrix (ultimately based on that of Wible et al., 2009) that will then be evaluated for character redundancy and other issues. The only phylogenetic publications that have yet resulted are conference abstracts, of which I have cited Püschel et al. (2019) and Funston et al. (2020) above.

Springer et al. (2019) went on to claim that “Sansom and Wills (2013) showed that fossils are more likely to move stemward than crownward when they are only known for biomineralized characters.” Indeed, Sansom and Wills (2013) made that claim. They had taken 78 neontological matrices of extant animals with biomineralized tissues, deleted the data for soft-tissue characters from random taxa, and found that those taxa changed their phylogenetic position significantly more often than random, and further underwent “stemward slippage” as opposed to “crownward slippage” significantly more often than random. Deleting data from hard-tissue characters instead had no such effect. Sansom and Wills (2013) concluded that some mysterious factor causes hard-tissue characters to contain a systematically misleading signal much more often than soft-tissue characters do, and that therefore the phylogenetic positions of all taxa known only from hard tissues—in other words most animal fossils—are highly suspect of falsely appearing more rootward than they really are. Therefore, fossils assigned to various stem groups could really belong to the respective crown groups, and the minimum ages of divergence-date calibrations could be systematically too young (Sansom and Wills, 2013), just as Springer et al. (2019) believed. A much simpler explanation is available: hard-tissue characters are unreliable specifically among extant species because the hard-tissue anatomy of extant species is usually very poorly known. For example (Marjanović and Witzmann, 2015), the vertebrae of some of western and central Europe’s most common newt species are simply unknown to science, even after 200 years or more of research, because neontologists have focused on soft-tissue anatomy, behavior, and, more recently, the genome while treating the skeleton as an afterthought. The vertebrae of salamandrids are at least known to contain a phylogenetic signal—whether the appendicular skeleton also does is anybody’s guess at this point! As our knowledge of the skeletons of extant taxa would improve, so would, I predict, the ability of hard-tissue characters to accurately resolve the phylogenetic positions of extant taxa.

Node 188: Crown Group of Elasmobranchii (Selachimorpha – Batomorpha)

The origin of the elasmobranch crown group by split into Selachimorpha (sharks) and Batomorpha (rays and skates) was given a minimum age of 190 Ma (Sinemurian/Pliensbachian boundary, Early Jurassic) and no maximum age. (Note that the name Neoselachii is consistently treated in the paleontological literature as if defined by one or more apomorphies, not by tree topology; it probably applies to a clade somewhat larger, and possibly much older, than its crown group.)

Any attempt to date this cladogenesis suffers from the fact that the elasmobranch fossil record consists mostly of “the tooth, the whole tooth and nothing but the tooth” (as has often been said about the Mesozoic mammalian fossil record); scales and the occasional fin spine do occur, but more substantial remains are very rare. The shape of tooth crowns is naturally prone to homoplasy, the number of phylogenetically informative characters it offers is easily overestimated due to correlations between them (e.g., Kangas et al., 2004; Harjunmaa et al., 2014; Celik and Phillips, 2020; see node 157 in the Supplementary Material), and histological studies, which are needed to determine the states of certain characters (e.g., Andreev and Cuny, 2012; Cuny et al., 2017), have not been carried out on all potentially interesting tooth taxa.

Consequently, there is not as much interest in phylogeny among specialists of early elasmobranchs than among specialists of early mammals or early dinosaurs. This goes so far as to affect the use of terminology: Andreev and Cuny (2012) mentioned “stem selachimorphs” in the title of their work, implying that they understood Selachimorpha as a clade name, but quietly revealed it to be the name of a paraphyletic assemblage on p. 263 by stating that bundled enameloid is “diagnostic for Neoselachii exclusive of batomorphs, i.e., Selachimorpha”, and their consistent referral of Synechodontiformes (see below) to “Selachimorpha” is not necessarily a referral to the crown group—even though they called bato- and selachomorphs sister-groups in the next sentence.

A safe minimum age of 201 Ma, used here, is provided by the oldest unambiguous crown-group selachimorph, the total-group galeomorph Agaleus, dating from the Hettangian, apparently close to its beginning (Stumpf and Kriwet, 2019, especially figure 5, and references therein), which was the beginning of the Jurassic and happened 201.3 ± 0.2 Ma ago (ICSC); I round this down (stratigraphically up) to avoid breaching the mass extinction event at the Triassic/Jurassic boundary. The oldest batoid batomorph is only sightly younger, see Node 192 (Supplementary Material).

However, this may err very far on the side of caution. Indeed, for purposes beyond the present work, I must recommend against using the minimum age of this divergence to calibrate a timetree for at least as long as the histology of Paleozoic “shark” teeth has not been studied in much more detail in a phylogenetic context. As if by typographic error, the oldest widely accepted crown-group elasmobranch is not 190 but about 290 Ma old: the oldest fossils referred to the neoselachian Synechodus are four teeth of Sakmarian age (referred to S. antiquus, whose type tooth comes from the following Artinskian age: Ivanov, 2005; Stumpf and Kriwet, 2019), and the Sakmarian ended 290.1 ± 0.26 Ma ago (ICSC). Teeth referred to other species of Synechodus range into the Paleocene; S. antiquus is the only Permian species (Andreev and Cuny, 2012). The histology of S. antiquus remains unknown as of Koot et al. (2014); nonetheless, Cuny et al. (2017, p. 61) regarded S. antiquus as “[t]he first proven selachimorph”. Rounding up, this would suggest suggest 291 Ma as the minimum age of this calibration.

(My previous suggestion—Marjanović, 2019—to use that age as a soft minimum was incoherent, as a reviewer pointed out. A soft minimum would imply that a tail of the probability distribution of the age of this node would extend to younger ages than 291 Ma, so that an age of 290 Ma would be treated as much more probable than an age of 201 Ma. The opposite is the case: both 291 and 202 are much more probable than 290, which is younger than one potential minimum age but far older than the other. If Synechodus antiquus is a crown-group elasmobranch, so that 291 Ma is “the correct” minimum age, 290 is impossible; if it is not a crown-group elasmobranch, so that 201 is “correct,” 290 is so much older as to be much less probable than, say, 205 or 210.)

Potential crown-group elasmobranchs older than 291 Ma are known: Andreev and Cuny (2012) and Cuny et al. (2017, p. 69) suggested that the tooth taxa Cooleyella and Ginteria could be stem-batomorphs. The oldest known Cooleyella specimen dates from around the end of the Tournaisian (Richards et al., 2018), which occurred 346.7 ± 0.4 Ma ago (ICSC); Ginteria appeared in the following Viséan stage. Cuny et al. (2017, p. 21, p. 69) further pointed out that Mcmurdodus, a tooth taxon that first appeared around the Early/Middle Devonian (Emsian/Eifelian) boundary (Burrow et al., 2008), has occasionally been placed within Selachimorpha, even within Hexanchiformes in the selachimorph crown-group (Burrow et al., 2008, and references therein); they very tentatively suggested a stem-selachimorph position. Boisvert et al. (2019) wondered instead if it is a stem-chondrichthyan.

The absence of any however tentative suggestions of crown-elasmobranchs before Mcmurdodus in the rather rich total-group chondrichthyan microfossil record despite the traditional optimism of paleodontologists may, somewhat ironically, serve as a hard maximum age for this calibration; the ICSC places the Emsian/Eifelian boundary at 393.3 ± 1.2 Ma ago, so I suggest 395 Ma.

Analysis Methods

Johan Renaudie (Museum für Naturkunde, Berlin) kindly performed the divergence dating using the tree (topology and uncalibrated branch lengths), the model of evolution (CAT-GTR+Γ) and clock model (lognormal autocorrelated relaxed) inferred by Irisarri et al. (2017), and the data (“nuclear test data set”: the variable sites of the 14,352 most complete amino acid positions of their “NoDP” dataset), but the calibrations presented above and in the Supplementary Material (all at once, not different subsets).

The intent was to also use the software Irisarri et al. (2017) had used (PhyloBayes, though the latest version, 4.1c: Lartillot, 2015). However, PhyloBayes is unable to treat some bounds as hard and others as soft in the same analysis; it can only treat all as soft, as Irisarri et al. (2017) had done, or all as hard. Consequently, we ran our analysis with all bounds treated as hard in order to account for the hard minima (discussed above in the section “Materials and methods: Hard and soft minima and maxima”).

The launch code for our PhyloBayes analysis is: ./pb -d ali14352.phy -T final_tree.tre -cal dm4.txt -r outgroups -bd -cat -gtr -ln -dc dm4hardDC.1 &./pb -d ali14352.phy -T final_tree.tre -cal dm4.txt -r outgroups -bd -cat -gtr -ln -dc dm4hardDC.2.

Irisarri et al. (2017) ran 100 gene-jackknifed analyses for each of their two sets of calibrations. Lacking the necessary computational resources, we only ran two analyses of the full dataset, without jackknifing. The results (Table 2 and Figure 1) are therefore less reliable, given the data, than those of Irisarri et al. (2017), but they fully suffice as a proof of concept to show that improved calibrations lead to changes to many inferred node ages.

TABLE 2
www.frontiersin.org

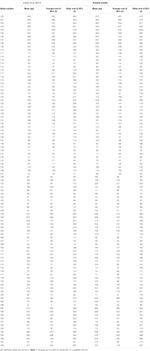

Table 2. The ages found by Irisarri et al. (2017: supplementary table 9: last three columns) when all calibrations were used (all bounds treated as soft, mean ages averaged over 100 gene-jackknifed runs, extremes absolute over all runs), and the results obtained here with the updated calibrations (all bounds treated as hard, mean ages averaged over two runs with the full dataset, extremes absolute over both runs).

Above, I describe phylogenetic uncertainty leading to two different minimum ages for Tetrapoda (Node 105), 335 Ma and “roughly” 350 Ma. Using the younger age results in a younger bound of 359 Ma on the 95% credibility interval of this node (mean age: 363 Ma, older bound: 365 Ma, i.e., the maximum age of the calibration: Table 2); therefore, I do not consider it necessary to set the minimum age of this node to 350 Ma and run a second analysis.

Having evaluated (in the preceding section) the inherent uncertainty of each calibration before the analyses unlike Irisarri et al. (2017), I did not cross-validate the calibrations. In the words of Pardo et al. (2020), “a priori assessment of the quality of a priori node calibrations must retain logical primacy in assessing the quality of a molecular clock”. “Reductio ad absurdum” cases aside (e.g., van Tuinen and Hedges, 2004, pp. 46–47; Waggoner and Collins, 2004; Matsui et al., 2008; Phillips et al., 2009; Ruane et al., 2010), apparent inconsistencies between calibrations should be seen as indicating not that the calibrations are wrong, but that the rate of evolution varies substantially across the tree, as already expected from other considerations (e.g., Berv and Field, 2017).

Results and Discussion

Bibliometry

Irisarri et al. (2017: supplementary table 8) cited 15 works as sources for their calibrations, six of them compilations made by paleontologists to help molecular biologists calibrate timetrees.

Not counting Irisarri et al. (2017) and the ICSC (which has been updated at least once a year since 2008), I cite 238 references to discuss minimum ages (mostly for the age or phylogenetic position of a potentially calibrating specimen), 27 to discuss maximum ages (mostly to argue if observed absence of a clade is reliable), and 15 for both purposes. Of the total of 280, 1 each dates to 1964, 1978, 1981, 1988, and 1991; 2 each to 1994, 1995 and 1996; 1 each to 1997 and 1998; 3 to 1999; 1 to 2000; 2 to 2001; 4 to 2002; 2 to 2003; 0 to 2004; 7 to 2005; 4 to 2006; 6 each to 2007 and 2008; 5 to 2009; 5 to 2010; 8 to 2011; 9 to 2012; 15 to 2013; 12 to 2014; 23 to 2015; 24 to 2016; 23 to 2017; 28 to 2018; 50 to 2019; 28 to 2020; 1 to 2021; and 1 was published as an accepted manuscript in 2020 and is expected to come out this year in final form. (Whenever applicable, these are the years of actual publication, i.e., public availability of the layouted and proofread work, not the year of intended publication which can be a year earlier, and not the year of print which is very often one or even two years later.) Only three of these are among the 14 used by Irisarri et al. (2017), and none of them are among the six compilations they cited.

Irisarri et al. submitted their manuscript on September 16, 2016. Assuming that half of the publications cited here that were published in 2016 came out too late to be used by Irisarri et al. (2017), the total proportion of the works cited here that would have been useful to them for calibrating their timetree but were not available amounts to 142 of 280, or 50.7%. Similarly, 252 of the works cited here, or 90%, were published since mid-2005. I conclude from this extreme “pull of the recent” that knowledge in this area has an extremely short half-life; calibration dates, therefore, cannot be taken from published compilations (including the present work) or other secondary sources, but must be checked every time anew against the current primary literature. This is time-consuming even in the digital age, much more so than I expected, and requires reading more works for context than actually end up cited (for some nodes three times as many); but there is no shortcut.

Changes in the Calibration Dates

Of the 30 minimum ages assigned by Irisarri et al. (2017), I find only one to be accurate by the current state of knowledge, that of Batrachia (Node 160: Supplementary Material) anchored by good old Triadobatrachus (see Ascarrunz et al., 2016, for the latest and most thorough redescription and stratigraphy, and Daza et al., 2020, for the latest and largest phylogenetic analysis).

The minimum age of Pleurodira (Node 124: Supplementary Material), which has long been known to be 100 Ma older than Irisarri et al. (2017) set it, turns out to be copied from the calibration of a much smaller clade in Noonan and Chippindale (2006), a secondary source whose minimum age for Pleurodira was actually better by a factor of four. The minimum age of Iguanidae (Node 132: Supplementary Material) turned out to be miscopied, most likely with a typographic error, from Noonan and Chippindale (2006), who had it as 25 Ma instead of the 125 Ma of Irisarri et al. (2017)—though 25 Ma is not tenable either, but too young by at least 28 Ma.

In four more cases (Osteichthyes: Node 102 [Supplementary Material]; Reptilia: Node 107; Placentalia: Node 152; Lalagobatrachia/Bombinanura: Node 170 [Supplementary Material]), I find myself unable to assign any minimum age specific to that node. In two of these cases (Reptilia and Placentalia), the specimen previously thought to constrain that node actually constrains a less inclusive clade (Archelosauria, Node 108; Boreo(eu)theria, Node 153) that was sampled but not constrained by Irisarri et al. (2017); I have used these minimum ages to constrain the latter two nodes.

As might be expected, 15 of the minimum ages are too young, by margins ranging from 1.4 to 100 Ma or, ignoring Pleurodira, 43.25 Ma (Table 1: last two columns). Unsurprisingly, this also holds for the two nodes that Irisarri et al. (2017) did not calibrate but I did: both of them were constrained by calibrated nodes whose minimum ages were too young for these two nodes. In eight cases, including Boreo(eu)theria (Node 153), the reason is the expected one, the more or less recent discovery of previously unknown fossils (mostly before 2016); the magnitude of the resulting changes ranges from 1.4 to 11 Ma. In four more cases, including the one used by Irisarri et al. (2017) to date Osteichthyes (Node 102) but by me to date the subsequent split of Dipnomorpha and Tetrapodomorpha (Node 104: Supplementary Material), the dating of the oldest known specimens has improved by 4–16.5 Ma. The specimen used to constrain Tetrapoda (Node 105) is probably not a tetrapod, but the oldest known certain tetrapods are now nonetheless dated as roughly 5 Ma older than the minimum assigned by Irisarri et al. (2017); depending on the phylogenetic hypothesis, isolated bones or (!) footprints roughly 20 Ma older that were published in 2015 could represent the oldest tetrapods instead. The remaining six cases, including Reptilia (Node 107) and Archelosauria (Node 108) by implication, are caused by phylogenetic reassignments of previously known specimens (mostly before 2016) and have effects ranging from 4 Ma to 43.25 Ma.

The minimum ages of the remaining 13 nodes (including, accidentally, Iguanidae) are too old; the margins vary from 1 to 96 Ma. This includes the case of Toxicofera (Node 129), whose minimum age of 148 Ma assigned by Irisarri et al. (2017) was not operational as that node was in fact constrained by the minimum age of its constituent clade Iguania (Node 131: Supplementary Material), 165 Ma; both of these ages are too old—I find minimum ages of 130 Ma for Toxicofera and 72 Ma for Iguania. Interestingly, none of the changes to minimum ages are due to more precise dating. There is one case of the opposite: I have changed the minimum age of Pipidae (Node 178: Supplementary Material) from 86 to 84 Ma because the oldest known safely identified pipid, Pachycentrata, may be somewhat older than the Coniacian/Santonian boundary (86.3 ± 0.5 Ma ago: ICSC), but also somewhat younger, so the Santonian/Campanian boundary (83.6 ± 0.2 Ma ago: ICSC) is a safer approximation. All others are due to more or less recent findings that the oldest supposed members of the clades in question cannot, or at least cannot be confidently, assigned to these clades.

I agree with the reasoning for one of the maximum ages used by Irisarri et al. (2017), that for Archosauria (Node 109: Supplementary Material), though its numeric value had to be increased by 1 Ma due to improved dating of the Permian/Triassic boundary since the source Irisarri et al. (2017) used was published in 2005.

I find myself unable to assign a separate maximum age to 7 of the 18 remaining nodes that Irisarri et al. (2017) used maximum ages for; these nodes are only constrained by the maximum ages of more inclusive clades in my reanalysis. This includes the case of Chondrichthyes (Node 187: Supplementary Material), whose maximum age of 495 Ma assigned by Irisarri et al. (2017) was not operational as that node was in fact constrained by the maximum age of the root node, 462.5 Ma; I can likewise constrain it only by the maximum age of the root, 475 Ma. In one of these cases, the new implied maximum age is younger (by 28.5 Ma) than the previously explicit maximum; in the remainder, it is older by 27–110 Ma.

Of the remaining 11 maximum ages, six were too young by 12.5–125 Ma. In one case (the root: Gnathostomata, Node 100), the old maximum is younger than the new minimum, and in two more cases (Mammalia, Node 150, and Theria, Node 151: both Supplementary Material), phylogenetic (or, in the case of Theria, possibly stratigraphic) uncertainty is the reason; the remaining three merely show greater caution on my part in interpreting absence of evidence as evidence of absence.

The remaining five I consider too old by 3.2–93 Ma; these show greater confidence on my part in interpreting absence of evidence as evidence of absence in well-sampled parts of the fossil record. The same holds, naturally, for the six nodes that lacked maximum ages in Irisarri et al. (2017) but that I propose maximum ages for; one of these new ages, however (for Lepidosauria, Node 125: Supplementary Material), is older than the previously implied maximum age provided by the next more inclusive clade, and that by 33 Ma. The other five are 60.1 Ma to no less than 261.5 Ma younger than their previously implied equivalents.

Changes in the Divergence Dates

Reanalyzing the data of Irisarri et al. (2017) with their methods, but using the calibration ages proposed and discussed above and treating them all as hard bounds in PhyloBayes instead of treating all as soft (see section “Materials and methods”: “Hard and soft minima and maxima” and “Analysis methods”), generally leads to implausibly old ages and large credibility intervals for the unconstrained nodes (Figure 1 and Table 2): e.g., the last common ancestor of chickens and turkeys (Node 115) is placed around the Cretaceous/Paleogene boundary, with a 95% credibility interval that spans half of each period, and the credibility interval of the bird crown group (Aves [PN], Node 112) spans most of the Jurassic, with a younger bound less than 10 Ma younger than the age of the distant stem-avialan Archaeopteryx (just over 150 Ma), while the oldest known crown-birds are less than half as old, about 71 Ma (see section “Materials and Methods”: Calibrations: Node 113).

There are exceptions, however. Most notably, the squamate radiation (nodes 126–129) is constrained only between the origin of Lepidosauria (Supplementary Material: Node 125: 244–290 Ma ago) and the origin of Toxicofera (Materials and methods: Calibrations: Node 129: minimum age 130 Ma), yet it is bunched up close to the latter date, unlike in Irisarri et al. (2017) where it was more spread out and generally older even though both calibrations were younger. For example, the unconstrained origin of Squamata [PN] (Node 126) was found to have a mean age of 199 Ma by Irisarri et al. (2017), but 153 Ma here (Table 2). The crucial difference may be that Lepidosauria did not have a maximum age, but this does not explain the very short internodes from Squamata to Iguania in my results. I should point out that the oldest likely squamate remains are close to 170 Ma old (reviewed in Panciroli et al., 2020).

In part, these implausible ages may be due to effects of body size (Berv and Field, 2017) or loosely related factors like generation length: most sampled squamates are small, while the two sampled palaeognath birds (Node 116, with an evidently spurious mean age of 163 Ma) are much larger than all sampled neognaths. This may be supported by the body size increase in snakes: their oldest sampled node (Macrostomata or Afrophidia: Node 136) is placed around the Early/Late Cretaceous boundary, followed by the origin of Endoglyptodonta (Node 138) in the Late Cretaceous, while any Late Cretaceous caenophidians (a clade containing Endoglyptodonta) remain unknown, all potential Cretaceous total-group macrostomates are beset with phylogenetic uncertainty, and considerably younger dates were found by Burbrink et al. (2020) despite the use of a mid-Cretaceous potential macrostomate as a minimum-age-only calibration. Similarly, the fact that the entire credibility interval for Supraprimates/Euarchontoglires (Node 155) was younger than its calibrated minimum age when all bounds were treated as soft in Marjanović (2019) may be due to the fact that one of the two sampled supraprimates is Homo, the second-largest sampled mammal and the one with the second-longest generation span.

Whelan and Halanych (2016) found that the CAT-GTR model (at least as implemented in PhyloBayes) is prone to inferring inaccurate branch lengths, especially in large datasets; this may turn out to be another cause of the results described above. The omission of the constant characters from the dataset, intended to speed up calculations (Irisarri et al., 2017), may have exacerbated this problem by leading to inaccurate model parameters (Whelan and Halanych, 2016).

It is, however, noteworthy that all terminal branches inferred here are longer, in terms of time, than in Irisarri et al. (2017).

Naturally, the changes to the calibration dates have changed the inferred ages of many calibrated nodes and the sizes of their credibility intervals. For instance, Irisarri et al. (2017) inferred a mean age of 207 Ma for Batoidea, with a 90-Ma-long 95% credibility interval that stretched from 172 Ma ago to 262 Ma ago (Node 192; Table 2); that node was calibrated with a soft minimum age set to 176 Ma, but not only was no maximum age set, no other node between there and the root node (Gnathostomata, Node 100) had a maximum age either, so that effectively the maximum age for Batoidea was that of the root node, 462.5 Ma. Following the discovery of new fossils, I have increased the hard minimum age to 184 Ma; however, out of ecological considerations, I have also introduced a hard maximum age of 201 Ma, younger than the previously inferred mean age. Naturally, the new inferred mean age is also younger: 193 Ma, with a 95% credibility interval that spans the time between the calibration dates (Table 2).

Somewhat similarly, I have increased the minimum age of Mammalia (Supplementary Material: Node 150) from 162.5 to 179 Ma following improved dating of the oldest certain mammals, increased its maximum age from 191.4 to 233 Ma to account for phylogenetic uncertainty and the limits of the Norian (middle Late Triassic) fossil record, and treated both bounds as hard. While Irisarri et al. (2017) found a mean age of 165 Ma with a credibility interval from 161 to 172 Ma, straddling the minimum age but not reaching the maximum, I find an age range that reaches the new maximum but stays far away from the new minimum (mean: 229 Ma, 95% credibility interval from 217 to 233 Ma). While the next less inclusive calibrated node (151: Theria; Supplementary Material) has an increased maximum but a barely changed minimum age, both bounds of the next more inclusive calibrated node (106: Amniota) have increased by about 30 Ma, apparently pulling the inferred age of Mammalia with them.

Pitfalls in Interpreting the Descriptive Paleontological Literature

It is widely thought that paleontologists are particularly eager to publish their specimens as the oldest known record of some taxon. Indeed, it happens that five different species of different ages are published as the oldest record of the same taxon within 10 years. In such cases, finding a specimen that can establish a minimum age for that taxon can be as simple as finding the latest publication that makes such a claim, and that can be as simple as a Google Scholar search restricted to the last few years. However, there are harder cases; I will present two.

In the Supplementary Material, I argue for using the age of Kopidosaurus, about 53 million years, as the minimum age of Iguanidae (Node 132). Kopidosaurus was named and described from a largely complete skull by Scarpetta (2020a) in a publication where the words “oldest” and “older” do not occur at all, and “first” and “ancient” only occur in other contexts—even though Scarpetta (2019) had just published on calibration dates for molecular divergence date analyses. The reason is (S. Scarpetta, personal communication 2021) that he did not think Kopidosaurus was the oldest iguanid; one of the two matrices he used for phylogenetic analyses contained the 56-Ma-old Suzanniwana, and his analyses found it as an iguanid (Scarpetta, 2020a: supplementary information; Scarpetta, 2020b). Moreover, he was aware that the publication that named and described Suzanniwana (Smith, 2009a) also named and described Anolbanolis from the same site and age and argued that both of them—known from large numbers of isolated skull bones—were iguanids. Yet, Anolbanolis has never, to the best of my knowledge, been included in any phylogenetic analysis; and Conrad (2015), not mentioning Anolbanolis and not cited by Scarpetta (2020a, b), had found the phylogenetic position of Suzanniwana difficult to resolve in the analysis of a dataset that included a much larger sample of early pan-iguanians.

Smith (2009a, pp. 312–313), incidentally, did not advertise Suzanniwana and Anolbanolis as the oldest iguanids either, accepting instead at least some of the even older jaw fragments that had been described as iguanid as “surely iguanid”, explicitly so for the “highly streamworn” over-62-Ma-old Swainiguanoides which had been described as “the oldest North American iguanid” (Sullivan, 1982). All of that and more was considered too uncertain by DeMar et al. (2017, p. 4, file S1: 26–28), who pointed out not only how fragmentary that material was (and that some of the Cretaceous specimens more likely belong to certain other squamate clades), but also that the presence of exclusive synapomorphies with Iguanidae (if confirmed) does not mean the specimens are actually inside that crown clade—they could be on its stem. As the “oldest definitive” iguanids, Dashzeveg et al. (2005: 4) accepted Anolbanolis, followed by the uncontroversial Afairiguana, which is younger than Kopidosaurus; curiously, they did not mention Suzanniwana at all.

The conclusion that the status of Suzanniwana and Anolbanolis (let alone Swainiguanoides and the like) is too uncertain and that Kopidosaurus, nowhere advertised for that purpose, should be used to set the minimum age for Node 132 was accessible to me as an outsider to the fossil record of iguanians (or indeed squamates in general), but it took me several days of searching and reading papers and their supplementary information, and I was lucky that the two papers I overlooked (pointed out by Scarpetta, personal communication 2021) do not change this conclusion.

It took me much less effort to find that, under some phylogenetic hypotheses, the oldest known tetrapod (Materials and methods: Calibrations: Node 105 – Tetrapoda) is Casineria, a specimen I have studied in person and published on (Marjanović and Laurin, 2019); yet, the idea had never occurred to me or apparently anyone else in the field, even though its possibility should have been evident since 2017 and even though the phylogenetic hypotheses in question are by no means outlandish—one of them is even majoritarian.

In short, the paleontological literature is not optimized for divergence dating; the questions of what is the oldest known member of a group or when exactly that group evolved often take a back seat to understanding the anatomy, biomechanics, ecology, extinction, phylogeny, or generally speaking evolution of that group in the minds of paleontologists—paleobiologists—and this is reflected in the literature. Mining it for bounds on divergence dates is still possible, as I hope to have shown, but also rather exhausting.

Summary and Conclusion

Irisarri et al. (2017) published the largest vertebrate timetree to date, calibrated with 30 minimum and 19 maximum ages for selected nodes (although one of each was not operational because the calibrations of other nodes set tighter constraints). With just 3 years of hindsight, only one of these dates stands up to scrutiny. Of the remaining 29 minimum ages, two had to be removed altogether, two had to be moved to previously uncalibrated nodes (with modifications to their numeric values), 15 were 4–100 Ma too young, and 13 were 1–96 Ma too old. Of the 19 maximum ages, seven had to be canceled altogether, while six were too young by 13–125 Ma, and five were too old by 3–93 Ma.

One of the minimum ages was taken from the wrong node in the cited secondary source, an earlier divergence-date analysis of molecular data (Noonan and Chippindale, 2006); another from the same source had a hundred million years added without explanation, most likely by typographic error. Only six of the 30 calibrated nodes were calibrated from primary literature. The calibration dates for seven nodes were taken from the compilation by Benton and Donoghue (2007), several from other compendia, and four from Noonan and Chippindale (2006) who had not succeeded in presenting the contemporary state of knowledge either.

Using software that was only able to treat all bounds as hard or all as soft (meaning that 2.5 or 5% of the credibility interval of each inferred node age must extend beyond the bound—younger than the minimum and older than the maximum age, where present), Irisarri et al. (2017) opted to treat all bounds as soft. For all minimum ages except one, this decision is not reproducible; it is even arguable for some of the maxima. This is not a purely theoretical problem; even the inferred mean ages of some calibrated nodes were younger than their minima in Marjanović (2019).

Redating of the tree of Irisarri et al. (2017) with the presumably improved calibrations results in many changes to the mean ages of nodes and to the sizes of their credibility intervals; not all of these changes are easily predictable.

Of the 280 references I have used to improve the calibrations, 50 were published in 2019, half of the total were published after mid-2016 [when Irisarri et al. (2017) seem to have completed the work on their manuscript], and 90% were published after mid-2005. Paleontology is a fast-moving field; secondary sources cannot keep up with the half-life of knowledge. A continually updated online compendium of calibration dates would be very useful, but the only attempt to create one (Ksepka et al., 2015) is no longer funded, has not been updated since early 2018, and had limited coverage. For the time being, each new attempt to calibrate node or tip ages will have to involve finding and studying the recent paleontological and chronostratigraphic literature on the taxa, strata, and sites in question; although the Internet has made this orders of magnitude easier, it remains labor-intensive, in part because the oldest record of a clade is often not published as such, but has to be inferred from comparing several sources on phylogeny, chronostratigraphy, and sometimes taphonomy or even phylogenetics, as I illustrate here.

I urge that such work be undertaken and sufficiently funded. Accurate and precise timetrees remain an essential component of our understanding of, for example, the model organisms that are used in biomedical research: how much they can tell us about ourselves depends on how much evolution has happened along both branches since our last common ancestor, and that is in part a function of time.

Data Availability Statement

All datasets generated for this study are included in the article/Supplementary Material.

Author Contributions

DM designed the experiments, gathered the data, interpreted the results, prepared the figure and the tables, and wrote the manuscript.

Funding

I received no funding for this work; indeed I had to interrupt it for a long time for this reason.

Conflict of Interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Glory to our pirate queen, without whose work this manuscript would at best have taken a lot longer to write and at worst would have been severely outdated before submission. Thanks to Albert Chen, Matteo Belvedere, and Jason Pardo for electronic reprints that would likely have been impossible to acquire in a timely manner otherwise; to Johan Renaudie for making me aware of another; to Olga Karicheva and the editorial office for several deadline extensions; to Jason Silviria and Paige dePolo for discussion of early eutherians; to the editor, DB, for finding five reviewers; to all five reviewers and the editor for helpful comments; and to the editor and the editorial office for several more deadline extensions. PhyloBayes only runs on Unix systems; Johan Renaudie (Museum für Naturkunde, Berlin) has access to such and kindly performed the time-consuming analyses after expertly overcoming the gaps in the documentation of PhyloBayes. The first submission of this paper was released as a preprint at bioRXiv 2019.12.19.882829v1 (Marjanović, 2019). I thank Adam Yates for finding a misused term in that preprint (now corrected), Ben King for alerting me to his important paper (King, 2019), and Tiago Simões for a partial but detailed review of the preprint. The second submission was released as a preprint at bioRXiv 2019.12.19.882829v2. I thank Simon Scarpetta for his comments on potential pan-iguanians and their phylogeny and for alerting me to the publications by Smith (2009b) and Scarpetta (2020b). The third and the fourth submissions were also released as preprints at bioRXiv 2019.12.19.882829v3 and v4.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.521693/full#supplementary-material

Footnotes

  1. ^ https://fossilcalibrations.org
  2. ^ https://www.phyloregnum.org/

References

Agnolín, F. L., Brissón Egli, F., Chatterjee, S., Garcia Marsà, J. A., and Novas, F. E. (2017). Vegaviidae, a new clade of southern diving birds that survived the K/T boundary. Sci. Nat. 104:87. doi: 10.1007/s00114-017-1508-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Ahlberg, P. E., and Clack, J. A. (2020). The smallest known Devonian tetrapod shows unexpectedly derived features. R. Soc. Open Sci. 7:192117. doi: 10.1098/rsos.192117

PubMed Abstract | CrossRef Full Text | Google Scholar

Alifanov, V. R. (2013). Desertiguana gobiensis gen. et sp. nov., a new lizard (Phrynosomatidae, Iguanomorpha) from the Upper Cretaceous of mongolia. Paleont. J. 47, 417–424. doi: 10.1134/S0031030113040023

CrossRef Full Text | Google Scholar

Alifanov, V. R. (2019). Lizards of the families Dorsetisauridae and Xenosauridae (Anguimorpha) from the Aptian–Albian of Mongolia. Paleont. J. 53, 183–193. doi: 10.1134/S0031030119020023

CrossRef Full Text | Google Scholar

Alifanov, V. R. (2020). A new lizard (Agamidae, Iguania) from the late Paleocene of south Mongolia. Paleont. J. 54, 410–413. doi: 10.1134/S0031030120040036

CrossRef Full Text | Google Scholar

Anderson, J. S., Smithson, T. R., Mansky, C. F., Meyer, T., and Clack, J. (2015). A diverse tetrapod fauna at the base of ‘Romer’s Gap’. PLOS ONE 10:e0125446. doi: 10.1371/journal.pone.0125446

PubMed Abstract | CrossRef Full Text | Google Scholar

Andreev, P. S., and Cuny, G. (2012). New Triassic stem selachimorphs (Chondrichthyes, Elasmobranchii) and their bearing on the evolution of dental enameloid in Neoselachii. J. Vert. Paleont. 32, 255–266. doi: 10.1080/02724634.2012.644646

CrossRef Full Text | Google Scholar

Andreev, P. [S]., Coates, M. I., Karatajūtė-Talimaa, V., Shelton, R. M., Cooper, P. R., Wang, N.-Z., et al. (2016a). The systematics of the Mongolepidida (Chondrichthyes) and the Ordovician origins of the clade. PeerJ 4:e1850. doi: 10.7717/peerj.1850

PubMed Abstract | CrossRef Full Text | Google Scholar

Andreev, P. S., Coates, M. I., Karatajūtė-Talimaa, V., Shelton, R. M., Cooper, P. R., and Sansom, I. J. (2016b). Elegestolepis and its kin, the earliest monodontode chondrichthyans. J. Vert. Paleont. 37:e1245664. doi: 10.1080/02724634.2017.1245664

CrossRef Full Text | Google Scholar

Andreev, P. S., Coates, M. I., Shelton, R. M., Cooper, P. R., Smith, M. P., and Sansom, I. J. (2015). Upper ordovician chondrichthyan-like scales from North America. Palaeontology 58, 691–704. doi: 10.1111/pala.12167

CrossRef Full Text | Google Scholar

Anquetin, J., and André, C. (2020). The last surviving thalassochelydia—a new turtle cranium from the Early Cretaceous. PaleorXiv: 7pa5c version 3, peer-reviewed by PCI Paleo. doi: 10.31233/osf.io/7pa5c

CrossRef Full Text | Google Scholar

Apesteguía, S., Daza, J.-D., Simões, T. R., and Rage, J. C. (2016). The first iguanian lizard from the Mesozoic of Africa. R. Soc. Open Sci. 3:160462. doi: 10.1098/rsos.160462

PubMed Abstract | CrossRef Full Text | Google Scholar

Aranciaga Rolando, A. M., Agnolin, F. L., and Corsolini, J. (2019). A new pipoid frog (Anura, Pipimorpha) from the Paleogene of Patagonia. Paleobiogeographical implications. C. R. Palevol 18, 725–734. doi: 10.1016/j.crpv.2019.04.003

CrossRef Full Text | Google Scholar

Arribas, I., Buscalioni, A. D., Royo Torres, R., Espílez, E., Mampel, L., and Alcalá, L. (2019). A new goniopholidid crocodyliform, Hulkepholis rori sp. nov. from the Camarillas Formation (early Barremian) in Galve, Spain) [sic]. PeerJ 7:e7911. doi: 10.7717/peerj.7911

PubMed Abstract | CrossRef Full Text | Google Scholar

Ascarrunz, E., Rage, J.-C., Legreneur, P., and Laurin, M. (2016). Triadobatrachus massinoti, the earliest known lissamphibian (Vertebrata: Tetrapoda) re-examined by μCT scan, and the evolution of trunk length in batrachians. Contr. Zool. 85, 201–234. doi: 10.1163/18759866-08502004

CrossRef Full Text | Google Scholar

Asher, R. J., Meng, J., Wible, J. R., McKenna, M. C., Rougier, G. W., Dashzeveg, D., et al. (2005). Stem Lagomorpha and the antiquity of Glires. Science 307, 1091–1094. doi: 10.1126/science.1107808

PubMed Abstract | CrossRef Full Text | Google Scholar

Asher, R. J., Smith, M. R., Rankin, A., and Emry, R. J. (2019). Congruence, fossils and the evolutionary tree of rodents and lagomorphs. R. Soc. Open Sci. 6:190387. doi: 10.1098/rsos.190387

PubMed Abstract | CrossRef Full Text | Google Scholar

Averianov, A. O., Archibald, J. D., and Martin, T. (2003). Placental nature of the alleged marsupial from the Cretaceous of Madagascar. Acta Palaeont. Pol. 48, 149–151.

Google Scholar

Ax, P. (1987). The Phylogenetic System: The Systematization of Organisms on the Basis of Their Phylogenesis. New York, NY: John Wiley & Sons.

Google Scholar

Báez, A. M. (2013). Anurans from the Early Cretaceous Lagerstätte of Las Hoyas, Spain: New Evidence on the Mesozoic diversification of crown-clade Anura. Cret. Res. 41, 90–106. doi: 10.1016/j.cretres.2012.11.002

CrossRef Full Text | Google Scholar

Báez, A. M., and Gómez, R. O. (2016). Revision of the skeletal morphology of Eodiscoglossus santonjae, an Early Cretaceous frog from northeastern Spain, with comments on its phylogenetic placement. Foss. Imprint 72, 67–77. doi: 10.14446/FI.2016.67

CrossRef Full Text | Google Scholar

Báez, A. M., and Gómez, R. O. (2019). Redescription of the overlooked basal frog Wealdenbatrachus reveals increased diversity among Early Cretaceous anurans. Cret. Res. 99, 14–29. doi: 10.1016/j.cretres.2019.02.006

CrossRef Full Text | Google Scholar

Bailleul, A. M., O’Connor, J. K., Zhang, S., Li, Z., Wang, Q., Lamanna, M. C., et al. (2019). An early Cretaceous enantiornithine (Aves) preserving an unlaid egg and probable medullary bone. Nat. Commun. 10:1275. doi: 10.1038/s41467-019-09259-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Barido-Sottani, J., Aguirre-Fernández, G., Hopkins, M. J., Stadler, T., and Warnock, R. (2019). Ignoring stratigraphic age uncertainty leads to erroneous estimates of species divergence times under the fossilized birth–death process. Proc. R. Soc. B 286:0685. doi: 10.1098/rspb.2019.0685

PubMed Abstract | CrossRef Full Text | Google Scholar

Barido-Sottani, J., van Tiel, N. M. A., Hopkins, M. J., Wright, D. F., Stadler, T., and Warnock, R. C. M. (2020). Ignoring fossil age uncertainty leads to inaccurate topology and divergence time estimates in time[-]calibrated tree inference. Front. Genet. 8:183. doi: 10.3389/fevo.2020.00183

CrossRef Full Text | Google Scholar

Benton, M. J., and Donoghue, P. C. J. (2007). [Correction with unabridged table 1 to:] Palaeontological evidence to date the tree of life. Mol. Biol. Evol. 24, 889–891. doi: 10.1093/molbev/msm017

CrossRef Full Text | Google Scholar

Benton, M. J., Donoghue, P. C. J., Asher, R. J., Friedman, M., Near, T. J., and Vinther, J. (2015). Constraints on the timescale of animal evolutionary history. Palaeont. Electron. 18, 1–116. doi: 10.26879/424

CrossRef Full Text | Google Scholar

Berv, J. S., and Field, D. J. (2017). Genomic signature of an avian Lilliput effect across the K-Pg extinction. Syst. Biol. 67, 1–13. doi: 10.1093/sysbio/syx064

PubMed Abstract | CrossRef Full Text | Google Scholar

Bi, S., Wible, J. R., Zheng, X., and Wang, X. (2019). “The Early Cretaceous eutherian Ambolestes and its implications for the eutherian-metatherian dichotomy,” in Proceedings of the 79th Annual Meeting: Society of Vertebrate Paleontology, Vol. 64, ed. J. V. Paleont. Available online at: http://vertpaleo.org/Annual-Meeting/Annual-Meeting-Home/SVP-Program-book-v5_w-covers.aspx

Google Scholar

Bi, S., Zheng, X., Wang, X., Cignetti, N. E., Yang, S., and Wible, J. R. (2018). An Early Cretaceous eutherian and the placental–marsupial dichotomy. Nature 558, 390–395. doi: 10.1038/s41586-018-0210-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Blackburn, D. C., Paluh, D. J., Krone, I., Roberts, E. M., Stanley, E. L., and Stevens, N. J. (2019). The earliest fossil of the African clawed frog (genus Xenopus) from sub-Saharan Africa. J. Herpetol. 53, 125–130. doi: 10.1670/18-139

CrossRef Full Text | Google Scholar

Boisvert, C. A., Johnston, P., Trinajstic, K., and Johanson, Z. (2019). “Chondrichthyan evolution, diversity, and senses,” in Heads, Jaws, and Muscles. Anatomical, Functional, and Developmental Diversity in Chordate Evolution, eds J. Ziermann and R. Diaz Jr., and R. Diogo (Cham: Springer), 65–91. doi: 10.1007/978-3-319-93560-7_4

CrossRef Full Text | Google Scholar

Bona, P., Ezcurra, M. D., Barrios, F., and Fernandez Blanco, M. V. (2018). A new Palaeocene crocodylian from southern Argentina sheds light on the early history of caimanines. Proc. R. Soc. B 285, 20180843. doi: 10.1098/rspb.2018.0843

PubMed Abstract | CrossRef Full Text | Google Scholar

Borsuk-Białynicka, M. (1996). The Late Cretaceous lizard Pleurodontagama and the origin of tooth permanency in Lepidosauria. Acta Palaeont. Pol. 41, 231–252.

Google Scholar

Botella, H., Blom, H., Dorka, M., Ahlberg, P. E., and Janvier, P. (2007). Jaws and teeth of the earliest bony fishes. Nature 448, 583–586. doi: 10.1038/nature05989

PubMed Abstract | CrossRef Full Text | Google Scholar

Burbrink, F. T., Grazziotin, F. G., Pyron, R. A., Cundall, D., Donnellan, S., Irish, F., et al. (2020). Interrogating genomic-scale data for Squamata (lizards, snakes, and amphisbaenians) shows no support for key traditional morphological relationships. Syst. Biol. 69, 502–520. doi: 10.1093/sysbio/syz062

PubMed Abstract | CrossRef Full Text | Google Scholar

Burrow, C. J., and Young, G. C. (1999). An articulated teleostome fish from the Late Silurian (Ludlow) of Victoria, Australia. Rec. West. Austral. Mus. Suppl.57, 1–14.

Google Scholar

Burrow, C. J., Hovestadt, D. C., Hovestadt-Euler, M., Turner, S., and Young, G. C. (2008). New information on the Devonian shark Mcmurdodus, based on material from western Queensland, Australia. Acta Geol. Pol. 58, 155–163.

Google Scholar

Butler, R. J., Brusatte, S. L., Reich, M., Nesbitt, S. J., Schoch, R. R., and Hornung, J. J. (2011). The sail-backed reptile Ctenosauriscus from the latest Early Triassic of Germany and the timing and biogeography of the early archosaur radiation. PlOS ONE 6:e25693. doi: 10.1371/journal.pone.0025693

PubMed Abstract | CrossRef Full Text | Google Scholar

Cadena, E. (2015). A global phylogeny of Pelomedusoides turtles with new material of Neochelys franzeni Schleich, 1993 (Testudines, Podocnemididae) from the middle Eocene, Messel Pit, of Germany. PeerJ 3:e1221. doi: 10.7717/peerj.1221

PubMed Abstract | CrossRef Full Text | Google Scholar

Caldwell, M. W., Nydam, R. L., Palci, A., and Apesteguía, S. (2015). The oldest known snakes from the Middle Jurassic-Lower [sic] Cretaceous provide insights on snake evolution. Nat. Commun. 6:5996. doi: 10.1038/ncomms6996

PubMed Abstract | CrossRef Full Text | Google Scholar

Campbell Mekarski, M., Pierce, S. E., and Caldwell, M. W. (2019). Spatiotemporal distributions of non-ophidian ophidiomorphs, with implications for their origin, radiation, and extinction. Front. Earth Sci. 7:245. doi: 10.3389/feart.2019.00245

CrossRef Full Text | Google Scholar

Cannatella, D. (2015). Xenopus in space and time: fossils, node calibrations, tip-dating, and paleobiogeography. Cytogenet. Genome Res. 145, 283–301. doi: 10.1159/000438910

PubMed Abstract | CrossRef Full Text | Google Scholar

Cantino, P. D., and de Queiroz, K. (2020). International Code of Phylogenetic Nomenclature (PhyloCode). Version 6. New York, NY: CRC Press. Available online at: http://phylonames.org/code

Google Scholar

Carneiro, L. M. (2017). A new species of Varalphadon (Mammalia, Metatheria, Sparassodonta) from the upper Cenomanian of southern Utah, North America: Phylogenetic and biogeographic insights. Cret. Res. 84, 88–96. doi: 10.1016/j.cretres.2017.11.004

CrossRef Full Text | Google Scholar

Carneiro, L. M., and Oliveira, É. V. (2017). The Eocene South American metatherian Zeusdelphys complicatus is not a protodidelphid but a hatcheriform: Paleobiogeographic implications. Acta Palaeont. Pol. 62, 497–507. doi: 10.4202/app.00351.2017

CrossRef Full Text | Google Scholar

Carpenter, D. K., Falcon-Lang, H. J., Benton, M. J., and Grey, M. (2015). Early Pennsylvanian (Langsettian) fish assemblages from the Joggins Formation, Canada, and their implications for palaeoecology and palaeogeography. Palaeontology 58, 661–690. doi: 10.1111/pala.12164

CrossRef Full Text | Google Scholar

Carroll, R. L. (1964). The earliest reptiles. Zool. J. Linn. Soc. 45, 61–83. doi: 10.1111/j.1096-3642.1964.tb00488.x

CrossRef Full Text | Google Scholar

Carroll, R. L., and Chorn, J. (1995). Vertebral development in the oldest microsaur and the problem of “lepospondyl” relationships. J. Vert. Paleont. 15, 37–56. doi: 10.1080/02724634.1995.10011206

CrossRef Full Text | Google Scholar

Carroll, R. L., Bybee, P., and Tidwell, W. D. (1991). The oldest microsaur (Amphibia). J. Paleont. 65, 314–322. doi: 10.1017/s0022336000020552

CrossRef Full Text | Google Scholar

Celik, M. A., and Phillips, M. J. (2020). Conflict resolution for Mesozoic mammals: reconciling phylogenetic incongruence among anatomical regions. Front. Genet. 11:0651. doi: 10.3389/fgene.2020.00651

PubMed Abstract | CrossRef Full Text | Google Scholar

Cellinese, N., and Dell, C. (2020). RegNum – The International Clade Names Repository [Website]. https://www.phyloregnum.org/ (accessed April 26, 2021).

Google Scholar

Chen, D., Blom, H., Sanchez, S., Tafforeau, P., and Ahlberg, P. E. (2016). The stem osteichthyan Andreolepis and the origin of tooth replacement. Nature 539, 237–241. doi: 10.1038/nature19812

PubMed Abstract | CrossRef Full Text | Google Scholar

Chester, S. G. B., Bloch, J. I., Boyer, D. M., and Clemens, W. A. (2015). Oldest known euarchontan tarsals and affinities of Paleocene Purgatorius to Primates. Proc. Natl. Acad. Sci. U.S.A. 112, 1487–1492. doi: 10.1073/pnas.1421707112

PubMed Abstract | CrossRef Full Text | Google Scholar

Chinzorig, T., Kobayashi, Y., Tsogtbaatar, K., Currie, P. J., Watabe, M., and Barsbold, R. (2017). First ornithomimid (Theropoda, Ornithomimosauria) from the Upper Cretaceous Djadokhta Formation of Tögrögiin Shiree, Mongolia. Sci. Rep. 7:5835. doi: 10.1038/s41598-017-05272-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Choo, B., Zhu, M., Qu, Q., Yu, X., Jia, L., and Zhao, W. (2017). A new osteichthyan from the late Silurian of Yunnan, China. PLOS ONE 12:e0170929. doi: 10.1371/journal.pone.0170929

PubMed Abstract | CrossRef Full Text | Google Scholar

Clack, J. A. (2011). A new microsaur from the Early Carboniferous (Viséan) of East Kirkton, Scotland, showing soft-tissue evidence. Spec. Pap. Palaeont. 29, 45–55. doi: 10.1111/j.1475-4983.2011.01073.x

CrossRef Full Text | Google Scholar

Clack, J. A., Bennett, C. E., Carpenter, D. K., Davies, S. J., Fraser, N. C., Kearsey, T. I., et al. (2016). Phylogenetic and environmental context of a Tournaisian tetrapod fauna. Nat. Ecol. Evol. 1:0002. doi: 10.1038/s41559-016-0002

PubMed Abstract | CrossRef Full Text | Google Scholar

Clack, J. A., Ruta, M., Milner, A. R., Marshall, J. E. A., Smithson, T. R., and Smithson, K. Z. (2019). Acherontiscus caledoniae: the earliest heterodont and durophagous tetrapod. R. Soc. Open Sci. 6:182087. doi: 10.1098/rsos.182087

PubMed Abstract | CrossRef Full Text | Google Scholar

Clarke, J. A., Tambussi, C. P., Noriega, J. I., Erickson, G. M., and Ketcham, R. A. (2005). Definitive fossil evidence for the extant avian radiation in the Cretaceous. Nature 433, 305–308. doi: 10.1038/nature03150

PubMed Abstract | CrossRef Full Text | Google Scholar

Clement, A. M., King, B., Giles, S., Choo, B., Ahlberg, P. E., Young, G. C., et al. (2018). Neurocranial anatomy of an enigmatic Early Devonian fish sheds light on early osteichthyan evolution. eLife 7:e34349. doi: 10.7554/eLife.34349

PubMed Abstract | CrossRef Full Text | Google Scholar

Clyde, W. C., Ramezani, J., Johnson, K. R., Bowring, S. A., and Jones, M. M. (2016). Direct high-precision U–Pb geochronology of the end-Cretaceous extinction and calibration of Paleocene astronomical timescales. Earth Planet. Sci. Lett. 452, 272–280. doi: 10.1016/j.epsl.2016.07.041

CrossRef Full Text | Google Scholar

Cohen, J. E. (2017). Radiation of Tribosphenic Mammals During the Early Late Cretaceous (Turonian) of North America. Doctoral thesis. Norman: The University of Oklahoma.

Google Scholar

Cohen, J. E., and Cifelli, R. L. (2015). “The first eutherian mammals from the early Late Cretaceous of North America,” in Proceedings of the 75th Annual Meeting:Society of Vertebrate Paleontology, Vol. 108, ed. J. V. Paleont. Available online at: http://vertpaleo.org/PDFS/SVP-2015-Program-and-Abstract-Book-9-22-2015.aspx

Google Scholar

Cohen, J. E., Davis, B. M., and Cifelli, R. L. (2020). Geologically oldest Pediomyoidea (Mammalia, Marsupialiformes) from the Late Cretaceous of North America, with implications for taxonomy and diet of earliest Late Cretaceous mammals. J. Vert. Paleont. 40:e1835935. doi: 10.1080/02724634.2020.1835935

CrossRef Full Text | Google Scholar

Cohen, K. M., Harper, D. A. T., Gibbard, P. L., and Fan, J.-X. (2020). International Chronostratigraphic Chart v2020/03 [Chart]. International Commission on Stratigraphy. Available online at: http://www.stratigraphy.org/ICSchart/ChronostratChart2020-03.jpgor.pdf (accessed April 26, 2021).

Google Scholar

Conrad, J. L. (2015). A new Eocene casquehead lizard (Reptilia, Corytophanidae) from North America. PLOS ONE 10:e0127900. doi: 10.1371/journal.pone.0127900

PubMed Abstract | CrossRef Full Text | Google Scholar

Conrad, J. L. (2017). A new lizard (Squamata) was the last meal of Compsognathus (Theropoda: Dinosauria) and is a holotype in a holotype. Zool. J. Linn. Soc. 183, 584–634. doi: 10.1093/zoolinnean/zlx055

CrossRef Full Text | Google Scholar

Conrad, J. L., and Norell, M. A. (2007). A complete Late Cretaceous iguanian (Squamata, Reptilia) from the Gobi and identification of a new iguanian clade. Am. Mus. Novit. 3584, 1–41. doi: 10.1206/0003-0082(2007)3584[1:ACLCIS]2.0.CO;2

CrossRef Full Text | Google Scholar

Cossette, A. P., and Brochu, C. A. (2018). A new specimen of the alligatoroid Bottosaurus harlani and the early history of character evolution in alligatorids. J. Vert. Paleont. 38:e1486321. doi: 10.1080/02726434.2018.1486321

CrossRef Full Text | Google Scholar

Cossette, A. P., and Brochu, C. A. (2020). A systematic review of the giant alligatoroid Deinosuchus from the Campanian of North America and its implications for the relationships at the root of Crocodylia. J. Vert. Paleont. 40:e1767638. doi: 10.1080/02724634.2020.1767638

CrossRef Full Text | Google Scholar

Cúneo, R., Ramezani, J., Scasso, R., Pol, D., Escapa, I., Zavattieri, A. M., et al. (2013). High-precision U–Pb geochronology and a new chronostratigraphy for the Cañadón Asfalto Basin, Chubut, central Patagonia: Implications for terrestrial faunal and floral evolution in Jurassic [sic]. Gondw. Res. 24, 1267–1275. doi: 10.1016/j.gr.2013.01.010

CrossRef Full Text | Google Scholar

Cuny, G., Guinot, G., and Enault, S. (2017). Evolution of Dental Tissues and Paleobiology in Selachians. London: Elsevier. doi: 10.1016/C2015-0-06183-4

CrossRef Full Text | Google Scholar

Danto, M., Witzmann, F., Kamenz, S. K., and Fröbisch, N. B. (2019). How informative is vertebral development for the origin of lissamphibians? J. Zool. 307, 292–305. doi: 10.1111/jzo.12648

CrossRef Full Text | Google Scholar

Dashzeveg, D., Dingus, L., Loope, D. B., Swisher, C. C. III., Dulam, T., and Sweeney, M. R. (2005). New stratigraphic subdivision, depositional environment, and age estimate for the Upper Cretaceous Djadokhta Formation, southern Ulan Nur Basin, Mongolia. Am. Mus. Novit. 3498, 1–31. doi: 10.1206/0003-0082(2005)498[0001:NSSDEA]2.0.CO;2

CrossRef Full Text | Google Scholar

Davies, T. M., Bell, M. A., Goswami, A., and Halliday, T. J. D. (2017). Completeness of the eutherian mammal fossil record and implications for reconstructing mammal evolution through the Cretaceous/Paleogene mass extinction. Paleobiology 43, 521–536. doi: 10.1017/pab.2017.20

CrossRef Full Text | Google Scholar

Daza, J. D., Stanley, E. L., Bolet, A., Bauer, A. M., Arias, J. S., Čerňanský, A., et al. (2020). Enigmatic amphibians in mid-Cretaceous amber were chameleon-like ballistic feeders. Science 370, 687–691. doi: 10.1126/science.abb6005

PubMed Abstract | CrossRef Full Text | Google Scholar

Daza, J. D., Stanley, E. L., Wagner, P., Bauer, A. M., and Grimaldi, D. A. (2016). Mid-Cretaceous amber fossils illuminate the past diversity of tropical lizards. Sci. Adv. 2:e1501080. doi: 10.1126/sciadv.1501080

PubMed Abstract | CrossRef Full Text | Google Scholar

de la Fuente, M. S., and Iturralde-Vinent, M. (2001). A new pleurodiran turtle from the Jagua Formation (Oxfordian) of western Cuba. J. Paleont. 75, 860–869. doi: 10.1666/0022-3360(2001)075<0860:ANPTFT>2.0.CO;2

CrossRef Full Text | Google Scholar

De Pietri, V. L., Scofield, R. P., Zelenkov, N., Boles, W. E., and Worthy, T. H. (2016). The unexpected survival of an ancient lineage of anseriform birds into the Neogene of Australia: the youngest record of Presbyornithidae. R. Soc. Open Sci. 3:150635. doi: 10.1098/rsos.150635

PubMed Abstract | CrossRef Full Text | Google Scholar

de Queiroz, K., Cantino, P. D., and Gauthier, J. A. (eds) (2020). Phylonyms – A Companion to the PhyloCode. New York, NY: CRC Press.

Google Scholar

de Souza Carvalho, I., Agnolin, F., Aranciaga Rolando, M. A., Novas, F. E., Xavier-Neto, J., de Freitas, F. I., et al. (2019). A new genus of pipimorph frog (Anura) from the Early Cretaceous Crato Formation (Aptian) and the evolution of South American tongueless frogs. J. S. Am. Earth Sci. 92, 222–233. doi: 10.1016/j.jsames.2019.03.005

CrossRef Full Text | Google Scholar

DeMar, D. G. Jr., Conrad, J. L., Head, J. J., Varricchio, D. J., and Wilson, G. P. (2017). A new Late Cretaceous iguanomorph from North America and the origin of New World Pleurodonta (Squamata, Iguania). Proc. R. Soc. B 284:20161902. doi: 10.1098/rspb.2016.1902

PubMed Abstract | CrossRef Full Text | Google Scholar

Dingus, L., Loope, D. B., Dashzeveg, D., Swisher, C. C. III., Minjin, C., Novacek, M. J., et al. (2008). The geology of Ukhaa Tolgod (Djadokhta Formation, Upper Cretaceous, Nemegt Basin, Mongolia). Am. Mus. Novit. 3616, 1–40. doi: 10.1206/442.1

CrossRef Full Text | Google Scholar

Eldridge, M. D. B., Beck, R. M. D., Croft, D. A., Travouillon, K. J., and Fox, B. J. (2019). An emerging consensus in the evolution, phylogeny, and systematics of marsupials and their fossil relatives (Metatheria). J. Mammal. 100, 802–837. doi: 10.1093/jmammal/gyz018

CrossRef Full Text | Google Scholar

Elżanowski, A. (2014). More evidence for plesiomorphy of the quadrate in the Eocene anseriform avian genus Presbyornis. Acta Palaeont. Pol. 59, 821–825. doi: 10.4202/app.00027.2013

CrossRef Full Text | Google Scholar

Evans, S. E., and Borsuk-Białynicka, M. (2009a). A small lepidosauromorph reptile from the Early Triassic of Poland. Palaeont. Pol. 65, 179–202. Available online at: http://www.palaeontologia.pan.pl/PP65/PP65_179-202.pdf

Google Scholar

Evans, S. E., and Borsuk-Białynicka, M. (2009b). The Early Triassic stem-frog Czatkobatrachus from Poland. Palaeont. Pol. 65, 79–105. Available online at: http://www.palaeontologia.pan.pl/PP65/PP65_079-106.pdf

Google Scholar

Evans, S. E., Lally, C., Chure, D. C., Elder, A., and Maisano, J. A. (2005). A Late Jurassic salamander (Amphibia: Caudata) from the Morrison Formation of North America. Zool. J. Linn. Soc. 143, 599–616. doi: 10.1111/j.1096-3642.2005.00159.x

CrossRef Full Text | Google Scholar

Evans, S. E., Manabe, M., Noro, M., Isaji, S., and Yamaguchi, M. (2006). A long-bodied lizard from the Lower Cretaceous of Japan. Palaeontology 49, 1143–1165. doi: 10.1111/j.1475-4983.2006.00598.x

CrossRef Full Text | Google Scholar

Evans, S. E., Prasad, G. V. R., and Manhas, B. K. (2002). Fossil lizards from the Jurassic Kota Formation of India. J. Vert. Paleont. 22, 299–312. doi: 10.1671/0272-4634(2002)022[0299:FLFTJK]2.0.CO;2

CrossRef Full Text | Google Scholar

Evers, S. W., Barrett, P. M., and Benson, R. B. J. (2019). Anatomy of Rhinochelys pulchriceps (Protostegidae) and marine adaptation during the early evolution of chelonioids. PeerJ 7:e6811. doi: 10.7717/peerj.6811

PubMed Abstract | CrossRef Full Text | Google Scholar

Ezcurra, M. D., Nesbitt, S. J., Bronzati, M., Dalla Vecchia, F. M., Agnolin, F. M., Benson, R. B. J., et al. (2020). Enigmatic dinosaur precursors bridge the gap to the origin of Pterosauria. Nature 588, 445–449. doi: 10.1038/s41586-020-3011-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Ezcurra, M. D., Scheyer, T. M., and Butler, R. J. (2014). The origin and early evolution of Sauria: reassessing the Permian saurian fossil record and the timing of the crocodile-lizard divergence. PLOS ONE 9:e89165. doi: 10.1371/journal.pone.0089165

PubMed Abstract | CrossRef Full Text | Google Scholar

Field, D. J., Benito, J., Chen, A., Jagt, J. W. M., and Ksepka, D. T. (2020). Late Cretaceous neornithine from Europe illuminates the origins of crown birds. Nature 579, 397–401. doi: 10.1038/s41586-020-2096-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Ford, D. P., and Benson, R. B. J. (2018). A redescription of Orovenator mayorum (Sauropsida, Diapsida) using high-resolution μCT, and the consequences for early amniote phylogeny. Pap. Palaeont. 5, 197–239. doi: 10.1002/spp2.1236

CrossRef Full Text | Google Scholar

Ford, D. P., and Benson, R. B. J. (2019). The phylogeny of early amniotes and the affinities of Parareptilia and Varanopidae. Nat. Ecol. Evol. 4, 57–65. doi: 10.1038/s41559-019-1047-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Fostowicz-Frelik, Ł., and Kielan-Jaworowska, Z. (2002). Lower incisor in zalambdalestid mammals (Eutheria) and its phylogenetic implications. Acta Palaeont. Pol. 47, 177–180.

Google Scholar

Fox, R. C. (2016). The status of Schowalteria clemensi, the Late Cretaceous taeniodont (Mammalia). J. Vert. Paleont. 36:e1211666. doi: 10.1080/02724634.2016.1211666

CrossRef Full Text | Google Scholar

Fox, R. C., and Scott, C. S. (2011). A new, early Puercan (earliest Paleocene) species of Purgatorius (Plesiadapiformes, Primates) from Saskatchewan, Canada. J. Paleont. 85, 537–548. doi: 10.1666/10-059.1

CrossRef Full Text | Google Scholar

Fraguas, Á., Comas-Rengifo, M. J., Goy, A., and Gómez, J. J. (2018). Upper Sinemurian – Pliensbachian calcareous nannofossil biostratigraphy of the E Rodiles section (Asturias, N Spain): a reference section for the connection between the Boreal and Tethyan Realms. Newsl. Strat. 51, 227–244. doi: 10.1127/nos/2017/0401

CrossRef Full Text | Google Scholar

Frey, L., Coates, M., Ginter, M., Hairapetian, V., Rücklin, M., Jerjen, I., et al. (2019). The early elasmobranch Phoebodus: phylogenetic relationships, ecomorphology and a new time-scale for shark evolution. Proc. R. Soc. B 286:20191336. doi: 10.1098/rspb.2019.1336

PubMed Abstract | CrossRef Full Text | Google Scholar

Friedman, M. (2015). The early evolution of ray-finned fishes. Palaeontology 58, 213–228. doi: 10.1111/pala.12150

CrossRef Full Text | Google Scholar

Funston, G. F., Brusatte, S. L., Williamson, T. E., Wible, J. R., Shelley, S. L., Bertrand, O. C., et al. (2020). New information on the rise of mammals. Vertebr. Anat. Morphol. Palaeont. 8:38. doi: 10.18435/vamp29365

CrossRef Full Text | Google Scholar

Gaffney, E. S., and Jenkins, F. A. Jr. (2010). The cranial morphology of Kayentachelys, an Early Jurassic cryptodire, and the early history of turtles. Acta Zool. 91, 335–368. doi: 10.1111/j.1463-6395.2009.00439.x

CrossRef Full Text | Google Scholar

Gaffney, E. S., Rich, T. H., Vickers-Rich, P., Constantine, A., Vacca, R., and Kool, L. (2007). Chubutemys, a new eucryptodiran turtle from the Early Cretaceous of Argentina, and the relationships of the Meiolaniidae. Am. Mus. Novit. 3599, 1–35. doi: 10.1206/0003-0082(2007)3599[1:CANETF]2.0.CO;2

CrossRef Full Text | Google Scholar

Gaffney, E. S., Tong, H., and Meylan, P. A. (2006). Evolution of the side-necked turtles: the families Bothremydidae, Euraxemydidae, and Araripemydidae. Bull. Am. Mus. Nat. Hist. 300, 1–698. doi: 10.1206/0003-0090(2006)300[1:EOTSTT]2.0.CO;2

CrossRef Full Text | Google Scholar

Galli, K. G., Buchwaldt, R., Lucas, S. G., and Tanner, L. (2018). New chemical abrasion thermal ionization mass spectrometry dates from the Brushy Basin Member, Morrison Formation, western Colorado: implications for dinosaur evolution. The J. Geol. 126, 473–486. doi: 10.1086/699208

CrossRef Full Text | Google Scholar

Gao, K., and Norell, M. A. (2000). Taxonomic composition and systematics of Late Cretaceous lizard assemblages from Ukhaa Tolgod and adjacent localities, Mongolian Gobi desert. Bull. Am. Mus. Nat. Hist. 249, 1–118. doi: 10.1206/0003-0090(2000)249<0001:TCASOL>2.0.CO;2

CrossRef Full Text | Google Scholar

Gao, K.-Q., and Shubin, N. H. (2003). Earliest known crown-group salamanders. Nature 422, 424–428. doi: 10.1038/nature01491

PubMed Abstract | CrossRef Full Text | Google Scholar

Gao, K.-Q., and Shubin, N. H. (2012). Late Jurassic salamandroid from western Liaoning, China. Proc. Natl. Acad. Sci. U.S.A. 109, 5767–5772. doi: 10.1073/pnas.1009828109

PubMed Abstract | CrossRef Full Text | Google Scholar

Garberoglio, F. F., Apesteguía, S., Simões, T. R., Palci, A., Gómez, R. O., Nydam, R. L., et al. (2019). New skulls and skeletons of the Cretaceous legged snake Najash, and the evolution of the modern snake body plan. Sci. Adv. 5:eaax5833. doi: 10.1126/sciadv.aax5883

CrossRef Full Text | Google Scholar

Gardner, J. D., and Rage, J.-C. (2016). The fossil record of lissamphibians from Africa, Madagascar, and the Arabian Plate. Palaeobiodiv. Palaeoenv. 96, 169–220. doi: 10.1007/s12549-015-0221-0

CrossRef Full Text | Google Scholar

Gentry, A. D., Ebersole, J. A., and Kiernan, C. R. (2019). Asmodochelys parhami, a new fossil marine turtle from the Campanian Demopolis Chalk and the stratigraphic congruence of competing marine turtle phylogenies. R. Soc. Open Sci. 6:191950. doi: 10.1098/rsos.191950

PubMed Abstract | CrossRef Full Text | Google Scholar

Giles, S., Xu, G.-H., Near, T. J., and Friedman, M. (2017). Early members of ‘living fossil’ lineage imply later origin of modern ray-finned fishes. Nature 549, 265–268. doi: 10.1038/nature23654

PubMed Abstract | CrossRef Full Text | Google Scholar

Glienke, S. (2015). Two new species of the genus Batropetes (Tetrapoda, Lepospondyli) from the Central European Rotliegend (basal Permian) in Germany. J. Vert. Paleont. 35:e918041. doi: 10.1080/02724634.2014.918041

CrossRef Full Text | Google Scholar

Gómez, R. O. (2016). A new pipid frog from the Upper Cretaceous of Patagonia and early evolution of crown-group Pipidae. Cret. Res. 62, 52–64. doi: 10.1016/j.cretres.2016.02.006

CrossRef Full Text | Google Scholar

González Ruiz, P., de la Fuente, M. S., and Fernández, M. S. (2019). New cranial fossils of the Jurassic turtle Neusticemys neuquina and phylogenetic relationships of the only thalassochelydian known from the eastern Pacific. J. Paleont. 94, 145–164. doi: 10.1017/jpa.2019.74

CrossRef Full Text | Google Scholar

Goodrich, E. S. (1916). On the classification of the Reptilia. Proc. R. Soc. Lond. B 89, 261–276. doi: 10.1098/rspb.1916.0012

CrossRef Full Text | Google Scholar

Goswami, A., Prasad, G. V. R., Upchurch, P., Boyer, D. M., Seiffert, E. R., Verma, O., et al. (2011). A radiation of arboreal basal eutherian mammals beginning in the Late Cretaceous of India. Proc. Natl. Acad. Sci. U.S.A. 108, 16333–16338. doi: 10.1073/pnas.1108723108

PubMed Abstract | CrossRef Full Text | Google Scholar

Goswami, S., Gierlowski-Kordesch, E., and Ghosh, P. (2016). Sedimentology of the Early Jurassic limestone beds of the Kota Formation: record of carbonate wetlands in a continental rift basin of India. J. Paleolimnol. 59, 21–38. doi: 10.1007/s10933-016-9918-y

CrossRef Full Text | Google Scholar

Graur, D., and Martin, W. (2004). Reading the entrails of chickens: molecular timescales of evolution and the illusion of precision. Trends Genet. 20, 80–86. doi: 10.1016/j.tig.2003.12.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Groh, S. S., Upchurch, P., Barrett, P. M., and Day, J. J. (2019). The phylogenetic relationships of neosuchian crocodiles and their implications for the convergent evolution of the longirostrine condition. Zool. J. Linn. Soc. 188, 473–506. doi: 10.1093/zoolinnean/zlz117

CrossRef Full Text | Google Scholar

Guindon, S. (2020). Rates and rocks: strengths and weaknesses of molecular dating methods. Front. Genet. 11:526. doi: 10.3389/fgene.2020.00526

PubMed Abstract | CrossRef Full Text | Google Scholar

Haddoumi, H., Allain, R., Meslouh, S., Metais, G., Monbaron, M., Pons, D., et al. (2015). Guelb el Ahmar (Bathonian, Anoual Syncline, eastern Morocco): First continental flora and fauna including mammals from the Middle Jurassic of Africa. Gondw. Res. 29, 290–319. doi: 10.1016/j.gr.2014.12.004

CrossRef Full Text | Google Scholar

Halliday, T. J. D., Brandalise, de Andrade, M., Benton, M. J., and Efimov, M. B. (2013). A re-evaluation of goniopholidid crocodylomorph material from Central Asia: biogeographic and phylogenetic implications. Acta Palaeont. Pol. 60, 291–312. doi: 10.4202/app.2013.0018

CrossRef Full Text | Google Scholar

Halliday, T. J. D., dos Reis, M., Tamuri, A. U., Ferguson-Gow, H., Yang, Z., and Goswami, A. (2019). Rapid morphological evolution in placental mammals post-dates the origin of the crown group. Proc. R. Soc. B 286:20182418. doi: 10.1098/rspb.2018.2418

PubMed Abstract | CrossRef Full Text | Google Scholar

Halliday, T. J. D., Upchurch, P., and Goswami, A. (2015). Resolving the relationships of Paleocene placental mammals. Biol. Rev. 92, 521–550. doi: 10.1111/brv.12242

PubMed Abstract | CrossRef Full Text | Google Scholar

Halliday, T. J. D., Upchurch, P., and Goswami, A. (2016). Eutherians experienced elevated evolutionary rates in the immediate aftermath of the Cretaceous–Palaeogene mass extinction. Proc. R. Soc. B 283:20153026. doi: 10.1098/rspb.2015.3026

PubMed Abstract | CrossRef Full Text | Google Scholar

Haridy, Y., MacDougall, M. J., and Reisz, R. R. (2017). The lower jaw of the Early Permian parareptile Delorhynchus, first evidence of multiple denticulate coronoids in a reptile. Zool. J. Linn. Soc. 184, 791–803. doi: 10.1093/zoolinnean/zlx085

CrossRef Full Text | Google Scholar

Harjunmaa, E., Seidel, K., Häkkinen, T., Renvoisé, E., Corfe, I. J., Kallonen, A., et al. (2014). Replaying evolutionary transitions from the dental fossil record. Nature 512, 44–48. doi: 10.1038/nature13613

PubMed Abstract | CrossRef Full Text | Google Scholar

Hasegawa, H., Tada, R., Ichinnorov, N., and Minjin, C. (2008). Lithostratigraphy and depositional environments of the Upper Cretaceous Djadokhta Formation, Ulan Nuur basin, southern Mongolia, and its paleoclimatic implication. J. As. Earth Sci. 35, 13–26. doi: 10.1016/j.jseaes.2008.11.010

CrossRef Full Text | Google Scholar

Head, J. J. (2015). Fossil calibration dates for molecular phylogenetic analysis of snakes 1: Serpentes, Alethinophidia, Boidae, Pythonidae. Palaeont. Electron. 18:6FC. doi: 10.26879/487

CrossRef Full Text | Google Scholar

Henrici, A. C. (1998). A new pipoid anuran from the Late Jurassic Morrison Formation at Dinosaur National Monument, Utah. J. Vert. Paleont. 18, 321–332. doi: 10.1080/02724634.1998.10011060

CrossRef Full Text | Google Scholar

Hermanson, G., Iori, F. V., Evers, S. W., Langer, M. C., and Ferreira, G. S. (2020). A small podocnemidoid (Pleurodira, Pelomedusoides) from the Late Cretaceous of Brazil, and the innervation and carotid circulation of side-necked turtles. Pap. Palaeont. 6, 329–347. doi: 10.1002/spp2.1300

CrossRef Full Text | Google Scholar

Hicks, J. F., Fastovsky, D., Nichols, D. J., and Watabe, M. (2001). “Magnetostratigraphic correlation of Late Cretaceous dinosaur-bearing localities in the Nemegt and Ulan [sic] Nuur basins, Gobi desert,” in Proceedings of the Geological Society of America Annual Meeting, Mongolia. Available online at: https://gsa.confex.com/gsa/2001AM/finalprogram/abstract_28817.htm

Google Scholar

Hime, P. M., Lemmon, A. R., Moriarty Lemmon, E. C., Prendini, E., Brown, J. M., Thomson, R. C., et al. (2020). Phylogenomics reveals ancient gene tree discordance in the amphibian tree of life. Syst. Biol. 70, 49–66. doi: 10.1093/sysbio/syaa034

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, X., Li, L., Dai, H., Wang, P., Buffetaut, É., Wei, G., et al. (2020). Turtle remains from the Middle Jurassic Xintiangou Formation of Yunyang, Sichuan Basin, China | Restes de tortues de la Formation Xintiangou (Jurassique moyen) de Yunyang, bassin du Sichuan, Chine. Ann. Paléont. 106:102440. doi: 10.1016/j.annpal.2020.102440

CrossRef Full Text | Google Scholar

Hutchinson, M. N., Skinner, A., and Lee, M. S. Y. (2012). Tikiguania and the antiquity of squamate reptiles (lizards and snakes). Biol. Lett. 8, 665–669. doi: 10.1098/rsbl.2011.1216

PubMed Abstract | CrossRef Full Text | Google Scholar

Huttenlocker, A. K., Grossnickle, D. M., Kirkland, J. I., Schultz, J. A., and Luo, Z.-X. (2018). Late-surviving stem mammal links the lowermost Cretaceous of North America and Gondwana. Nature 558, 108–112. doi: 10.1038/s41586-018-0126-y

PubMed Abstract | CrossRef Full Text | Google Scholar

International Commission on Zoological Nomenclature (1999). International Code of Zoological Nomenclature, 4 Edn. London: International Trust for Zoological Nomenclature. Available onlie at: https://www.iczn.org/the-code/the-international-code-of-zoological-nomenclature/the-code-online/

Google Scholar

Irisarri, I., Baurain, D., Brinkmann, H., Delsuc, F., Sire, J.-Y., Kupfer, A., et al. (2017). Phylotranscriptomic consolidation of the jawed vertebrate timetree. Nat. Ecol. Evol. 1, 1370–1378. doi: 10.1038/s41559-017-0240-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Ivanov, A. (2005). Early Permian chondrichthyans of the Middle and South Urals. Rev. Bras. Paleont. 8, 127–138.

Google Scholar

Jia, J., and Gao, K.-Q. (2016). A new basal salamandroid (Amphibia, Urodela) from the Late Jurassic of Qinglong, Hebei Province, China. PLOS ONE 11:e0153834. doi: 10.1371/journal.pone.0153834

PubMed Abstract | CrossRef Full Text | Google Scholar

Jia, J., and Gao, K.-Q. (2019). A new stem hynobiid salamander (Urodela, Cryptobranchoidea) from the Upper Jurassic (Oxfordian) of Liaoning Province, China. J. Vert. Paleont. 39:e1588285. doi: 10.1080/02724634.2019.1588285

CrossRef Full Text | Google Scholar

Jiang, J.-Q., Cai, C.-Y., and Huang, D.-Y. (2015). Progonocimicids (Hemiptera, Coleorrhyncha) from the Middle Jurassic Haifanggou Formation, western Liaoning, northeast China support stratigraphic correlation with the Daohugou beds. Alcheringa 40, 53–61. doi: 10.1080/03115518.2015.1086053

CrossRef Full Text | Google Scholar

Jones, M. E. H., Anderson, C. L., Hipsley, C. A., Müller, J., Evans, S. E., and Schoch, R. R. (2013). Integration of molecules and new fossils supports a Triassic origin for Lepidosauria (lizards, snakes, and tuatara). BMC Evol. Biol. 13:208. doi: 10.1186/1471-2148-13-208

PubMed Abstract | CrossRef Full Text | Google Scholar

Joyce, J. G., Anquetin, J., Cadena, E.-A., Claude, J., Danilov, I. G., Evers, S. W., et al. (2021). A nomenclature for fossil and living turtles using phylogenetically defined clade names. Swiss J. Palaeont. 140:5. doi: 10.1186/s13358-020-00211-x

CrossRef Full Text | Google Scholar

Kangas, A. T., Evans, A. R., Thesleff, I., and Jernvall, J. (2004). Nonindependence of mammalian dental characters. Nature 432, 211–214. doi: 10.1038/nature02927

PubMed Abstract | CrossRef Full Text | Google Scholar

Kearney, M., and Clark, J. M. (2003). Problems due to missing data in phylogenetic analyses including fossils: a critical review. J. Vert. Paleont. 23, 263–274.

Google Scholar

King, B. (2019). Which morphological characters are influential in a Bayesian phylogenetic analysis? Examples from the earliest osteichthyans. Biol. Lett. 15, 20190288. doi: 10.1098/rsbl.2019.0288

PubMed Abstract | CrossRef Full Text | Google Scholar

Kissel, R. (2010). Morphology, Phylogeny and Evolution of Diadectidae (Cotylosauria: Diadectomorpha). Doctoral thesis. Toronto, ON: University of Toronto.

Google Scholar

Klembara, J., Hain, M., Ruta, M., Berman, D. S., Pierce, S. E., and Henrici, A. C. (2019). Inner ear morphology of diadectomorphs and seymouriamorphs (Tetrapoda) uncovered by high-resolution X-ray microcomputed tomography, and the origin of the amniote crown group. Palaeontology 63, 131–154. doi: 10.1111/pala.12448

CrossRef Full Text | Google Scholar

Kligman, B. T., Marsh, A. D., Sues, H.-D., and Sidor, C. A. (2020). A new non-mammalian eucynodont from the Chinle Formation (Triassic: Norian), and implications for the early Mesozoic equatorial cynodont record. Biol. Lett. 16:20200631. doi: 10.1098/rsbl.2020.0631

PubMed Abstract | CrossRef Full Text | Google Scholar

Koot, M. B., Cuny, G., Orchard, M. J., Richoz, S., Hart, M. B., and Twitchett, R. J. (2014). New hybodontiform and neoselachian sharks from the Lower Triassic of Oman. J. Syst. Palaeont. 13, 891–917. doi: 10.1080/14772019.2014.963179

CrossRef Full Text | Google Scholar

Krause, D. W. (1978). Paleocene primates from western Canada. Can. J. Earth Sci. 15, 1250–1271. doi: 10.1139/e78-133

CrossRef Full Text | Google Scholar

Ksepka, D. T., Parham, J. F., Allman, J. F., Benton, M. J., Carrano, M. T., Cranston, K. A., et al. (2015). The Fossil Calibration Database—a new resource for divergence dating. Syst. Biol. 64, 853–859. doi: 10.1093/sysbio/syv025

PubMed Abstract | CrossRef Full Text | Google Scholar

Kurochkin, E. N., Dyke, G. J., and Karhu, A. A. (2002). A new presbyornithid bird (Aves, Anseriformes) from the Late Cretaceous of southern Mongolia. Am. Mus. Novit. 3386, 1–11. doi: 10.1206/0003-0082(2002)386<0001:ANPBAA>2.0.CO;2

CrossRef Full Text | Google Scholar

Langer, M. C., de Oliveira Martins, N., Manzig, P. C., de Souza Ferreira, G., de Almeida Marsola, J. C., Fortes, E., et al. (2019). A new desert-dwelling dinosaur (Theropoda, Noasaurinae) from the Cretaceous of south Brazil. Sci. Rep. 9, 9379. doi: 10.1038/s41598-019-45306-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Lartillot, N. (2015). PhyloBayes [Software]. Version 4.1c. Available online at http://www.atgc-montpellier.fr/phylobayes/ (accessed April 26, 2021).

Google Scholar

Laurin, M., and Piñeiro, G. (2018). Response: commentary: a reassessment of the taxonomic position of mesosaurs, and a surprising phylogeny of early amniotes. Front. Earth Sci. 6:220. doi: 10.3389/feart.2018.00220

CrossRef Full Text | Google Scholar

Laurin, M., Lapauze, O., and Marjanović, D. (2019). What do ossification sequences tell us about the origin of extant amphibians? bioRXiv: 352609 version 4, peer-reviewed by PCI Paleo. doi: 10.1101/352609v4

CrossRef Full Text | Google Scholar

Lawver, D. R., Debee, A. M., Clarke, J. A., and Rougier, G. W. (2011). A new enantiornithine bird from the Upper Cretaceous La Colonia Formation of Patagonia, Argentina. Ann. Carnegie Mus. 80, 35–42. doi: 10.2992/007.080.0104

CrossRef Full Text | Google Scholar

Lee, M. S. Y., and Yates, A. M. (2018). Tip-dating and homoplasy: reconciling the shallow molecular divergences of modern gharials with their long fossil record. Proc. R. Soc. B 285:20181071. doi: 10.1098/rspb.2018.1071

PubMed Abstract | CrossRef Full Text | Google Scholar

Lefebvre, B., Gutiérrez-Marco, J. C., Lehnert, O., Martin, E. L. O., Nowak, H., Akodad, M., et al. (2017). Age calibration of the Lower Ordovician Fezouata Lagerstätte, Morocco. Lethaia 51, 296–311. doi: 10.1111/let.12240

CrossRef Full Text | Google Scholar

Li, P.-P., Gao, K.-Q., Hou, L.-H., and Xu, X. (2007). A gliding lizard from the Early Cretaceous of China. Proc. Natl. Acad. Sci. U.S.A 104, 5507–5509. doi: 10.1073/pnas.0609552104

PubMed Abstract | CrossRef Full Text | Google Scholar

Liang, C., Liu, Y., Hu, Z., Li, X., Li, W., Zheng, C., et al. (2019). Provenance study from petrography and geochronology of Middle Jurassic Haifanggou Formation in Xingcheng Basin, western Liaoning Province. Geol. J. 55, 2420–2446. doi: 10.1002/gj.3509

CrossRef Full Text | Google Scholar

Liu, Y.-H., Gai, Z.-K., and Zhu, M. (2017). New findings of galeaspids (Agnatha) from the Lower Devonian of Qujing, Yunnan, China. Vert. PalAsiat. 56, 1–15.

Google Scholar

Lombard, R. E., and Bolt, J. R. (1999). A microsaur from the Mississippian of Illinois and a standard format for morphological characters. J. Paleont. 73, 908–923. doi: 10.1017/s0022336000040749

CrossRef Full Text | Google Scholar

López-Arbarello, A., and Sferco, E. (2018). Neopterygian phylogeny: the merger assay. R. Soc. Open Sci. 5:172337. doi: 10.1098/rsos.172337

PubMed Abstract | CrossRef Full Text | Google Scholar

López-Torres, S., and Fostowicz-Frelik, Ł. (2018). A new Eocene anagalid (Mammalia: Euarchontoglires) from Mongolia and its implications for the group’s phylogeny and dispersal. Sci. Rep. 8:13955. doi: 10.1038/s41598-018-32086-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, J., Giles, S., Friedman, M., and Zhu, M. (2017). A new stem sarcopterygian illuminates patterns of character evolution in early bony fishes. Nat. Commun. 8:1932. doi: 10.1038/s41467-017-01801-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, J., Zhu, M., Long, J. A., Zhao, W., Senden, T. J., Jia, L., et al. (2012). The earliest known stem-tetrapod[omorph] from the Lower Devonian of China. Nat. Commun. 3:1160. doi: 10.1038/ncomms2170

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, Z.-X., Yuan, C.-X., Meng, Q.-J., and Ji, Q. (2011). A Jurassic eutherian mammal and divergence of marsupials and placentals. Nature 476, 442–445. doi: 10.1038/nature10291

PubMed Abstract | CrossRef Full Text | Google Scholar

MacDougall, M. J., Tabor, N. J., Woodhead, J., Daoust, A. R., and Reisz, R. R. (2017). The unique preservational environment of the Early Permian (Cisuralian) fossiliferous cave deposits of the Richards Spur locality, Oklahoma. Palaeogeogr. Palaeoclimatol. Palaeoecol. 475, 1–11. doi: 10.1016/j.palaeo.2017.02.019

CrossRef Full Text | Google Scholar

MacDougall, M. J., Winge, A., Ponstein, J., Jansen, M., Reisz, R. R., and Fröbisch, J. (2019). New information on the early [sic] Permian lanthanosuchoid Feeserpeton oklahomensis [sic] based on computed tomography. PeerJ 7:e7753. doi: 10.7717/peerj.7753

PubMed Abstract | CrossRef Full Text | Google Scholar

Maddin, H. C., Mann, A., and Hebert, B. (2019). Varanopid from the Carboniferous of Nova Scotia reveals evidence of parental care in amniotes. Nat. Ecol. Evol. 4, 50–56. doi: 10.1038/s41559-019-1030-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Maidment, S. C. R., and Muxworthy, A. (2019). A chronostratigraphic framework for the Upper Jurassic Morrison Formation, western U.S.A. J. Sedim. Res. 89, 1017–1038. doi: 10.2110/jsr.2019.54

PubMed Abstract | CrossRef Full Text | Google Scholar

Mann, A., and Paterson, R. S. (2019). Cranial osteology and systematics of the enigmatic early ‘sail-backed’ synapsid Echinerpeton intermedium Reisz, 1972, and a review of the earliest ‘pelycosaurs’. J. Syst. Palaeont. 18, 529–539. doi: 10.1080/14772019.2019.1648323

CrossRef Full Text | Google Scholar

Mann, A., Gee, B. M., Pardo, J. D., Marjanović, D., Adams, G. R., Calthorpe, A. S., et al. (2020). Reassessment of historic ‘microsaurs’ from Joggins, Nova Scotia, reveals hidden diversity in the earliest amniote ecosystem. Pap. Palaeontol. 6, 605–625. doi: 10.1002/spp2.1316

CrossRef Full Text | Google Scholar

Mann, A., McDaniel, E. J., McColville, E. R., and Maddin, H. C. (2019). Carbonodraco lundi gen et sp. nov., the oldest parareptile, from Linton, Ohio, and new insights into the early radiation of reptiles. R. Soc. Open Sci. 6:191191. doi: 10.1098/rsos.191191

PubMed Abstract | CrossRef Full Text | Google Scholar

Manz, C. L., Chester, S. G. B., Bloch, J. I., Silcox, M. T., and Sargis, E. J. (2015). New partial skeletons of Palaeocene Nyctitheriidae and evaluation of proposed euarchontan affinities. Biol. Lett. 11:20140911. doi: 10.1098/rsbl.2014.0911

PubMed Abstract | CrossRef Full Text | Google Scholar

Mao, F., Hu, Y., Li, C., Wang, Y., Hill Chase, M., Smith, A. K., et al. (2019). Integrated hearing and chewing modules decoupled in a Cretaceous stem therian mammal. Science 367, 305–308. doi: 10.1126/science.aay9220

PubMed Abstract | CrossRef Full Text | Google Scholar

Marjanović, D. (2019). Recalibrating the transcriptomic timetree of jawed vertebrates [first preprint of this paper]. bioRXiv:2019.12.19.882829v1 [Preprint]. doi: 10.1101/2019.12.19.882829v1

CrossRef Full Text | Google Scholar

Marjanović, D., and Laurin, M. (2007). Fossils, molecules, divergence times, and the origin of lissamphibians. Syst. Biol. 56, 369–388. doi: 10.1080/10635150701397635

PubMed Abstract | CrossRef Full Text | Google Scholar

Marjanović, D., and Laurin, M. (2013a). The origin(s) of extant amphibians: a review with emphasis on the “lepospondyl hypothesis”. Geodiversitas 35, 207–272. doi: 10.5252/g2013n1a8

PubMed Abstract | CrossRef Full Text | Google Scholar

Marjanović, D., and Laurin, M. (2013b). An updated paleontological timetree of lissamphibians, with comments on the anatomy of Jurassic crown-group salamanders (Urodela). Hist. Biol. 26, 535–550. doi: 10.1080/08912963.2013.797972

CrossRef Full Text | Google Scholar

Marjanović, D., and Laurin, M. (2019). Phylogeny of Paleozoic limbed vertebrates reassessed through revision and expansion of the largest published relevant data matrix. PeerJ 6:e5565. doi: 10.7717/peerj.5565

PubMed Abstract | CrossRef Full Text | Google Scholar

Marjanović, D., and Witzmann, F. (2015). An extremely peramorphic newt (Urodela: Salamandridae: Pleurodelini) from the latest Oligocene of Germany, and a new phylogenetic analysis of extant and extinct salamandrids. PLOS ONE 10:e0137068. doi: 10.1371/journal.pone.0137068

PubMed Abstract | CrossRef Full Text | Google Scholar

Maron, M., Muttoni, G., Rigo, M., Gianolla, P., and Kent, D. V. (2018). New magnetobiostratigraphic results from the Ladinian of the Dolomites and implications for the Triassic geomagnetic polarity timescale. Palaeogeogr. Palaeoclimat. Palaeoecol. 517, 52–73. doi: 10.1016/j.palaeo.2018.11.024

CrossRef Full Text | Google Scholar

Marshall, C. R. (2019). Using the fossil record to evaluate timetree timescales. Front. Genet. 10:1049. doi: 10.3389/fgene.2019.01049

PubMed Abstract | CrossRef Full Text | Google Scholar

Martill, D. M., Tischlinger, H., and Longrich, N. R. (2015). A four-legged snake from the Early Cretaceous of Gondwana. Science 349, 416–419. doi: 10.1126/science.aaa9208

PubMed Abstract | CrossRef Full Text | Google Scholar

Mateus, O., Puértolas-Pascual, E., and Callapez, M. (2018). A new eusuchian crocodylomorph from the Cenomanian (Late Cretaceous) of Portugal reveals novel implications on the origin of Crocodylia. Zool. J. Linn. Soc. 186, 501–528. doi: 10.1093/zoolinnean/zly064

CrossRef Full Text | Google Scholar

Matschiner, M. (2019). Selective sampling of species and fossils influences age estimates under the fossilized birth–death model. Front. Genet. 10:1064. doi: 10.3389/fgene.2019.01064

PubMed Abstract | CrossRef Full Text | Google Scholar

Matsui, M., Tominaga, A., Liu, W.-Z., and Tanaka-Ueno, T. (2008). Reduced genetic variation in the Japanese giant salamander, Andrias japonicus (Amphibia: Caudata). Mol. Phyl. Evol. 49, 318–326. doi: 10.1016/j.ympev.2008.07.020

PubMed Abstract | CrossRef Full Text | Google Scholar

Matsumoto, R., and Evans, S. E. (2018). The first record of albanerpetontid amphibians (Amphibia: Albanerpetontidae) from East Asia. PLOS ONE 13:e0189767. doi: 10.1371/journal.pone.0189767

PubMed Abstract | CrossRef Full Text | Google Scholar

Mayr, G., De Pietri, V. L., Scofield, R. P., and Worthy, T. H. (2018). On the taxonomic composition and phylogenetic affinities of the recently proposed clade Vegaviidae Agnolín et al., 2017–neornithine birds from the Upper Cretaceous of the Southern Hemisphere. Cret. Res. 86, 178–185. doi: 10.1016/j.cretres.2018.02.013

CrossRef Full Text | Google Scholar

McLachlan, S. M. S., Kaiser, G. W., and Longrich, N. R. (2017). Maaqwi cascadensis: A large, marine diving bird (Avialae: Ornithurae) from the Upper Cretaceous of British Columbia, Canada. PLOS ONE 12:e0189473. doi: 10.1371/journal.pone.0189473

PubMed Abstract | CrossRef Full Text | Google Scholar

Meng, J. (2014). Mesozoic mammals of China: implications for phylogeny and early evolution of mammals. Natl. Sci. Rev. 1, 521–542. doi: 10.1093/nsr/nwu070

CrossRef Full Text | Google Scholar

Milanese, F. N., Olivero, E. B., Raffi, M. E., Franceschinis, P. R., Gallo, L. C., Skinner, S. M., et al. (2018). Mid Campanian-Lower Maastrichtian magnetostratigraphy of the James Ross Basin, Antarctica: Chronostratigraphical implications. Basin Res. 31, 562–583. doi: 10.1111/bre.12334

CrossRef Full Text | Google Scholar

Milner, A. C. (2019). A morphological revision of Keraterpeton, the earliest horned nectridean from the Pennsylvanian of England and Ireland. Earth Env. Sci. Trans. R. Soc. Edinb. 109, 237–253. doi: 10.1017/S1755691018000579

CrossRef Full Text | Google Scholar

Milner, A. R., and Sequeira, S. E. K. (1994). The temnospondyl amphibians from the Viséan of East Kirkton, West Lothian, Scotland. Trans. R. Soc. Edinb. Earth Sci. 84, 331–361. doi: 10.1017/s0263593300006155

CrossRef Full Text | Google Scholar

Missiaen, P., Escarguel, G., Hartenberger, J.-L., and Smith, T. (2012). A large new collection of Palaeostylops from the Paleocene of the Flaming Cliffs area (Ulan-Nur Basin, Gobi Desert, Mongolia), and an evaluation of the phylogenetic affinities of Arctostylopidae (Mammalia, Gliriformes). Geobios 45, 311–322. doi: 10.1016/j.geobios.2011.10.004

CrossRef Full Text | Google Scholar

Modesto, S. P., Scott, D. M., MacDougall, M. J., Sues, H.-D., Evans, D. C., and Reisz, R. R. (2015). The oldest parareptile and the early diversification of reptiles. Proc. R. Soc. B 282:20141912. doi: 10.1098/rspb.2014.1912

PubMed Abstract | CrossRef Full Text | Google Scholar

Mongiardino Koch, N., and Gauthier, J. A. (2018). Noise and biases in genomic data may underlie radically different hypotheses for the position of Iguania within Squamata. PLOS ONE 13:e0202729. doi: 10.1371/journal.pone.0202729

PubMed Abstract | CrossRef Full Text | Google Scholar

Mongiardino Koch, N., and Parry, L. A. (2020). Death is on our side: paleontological data drastically modify phylogenetic hypotheses. Syst. Biol. 69, 1052–1067. doi: 10.1093/sysbio/syaa023

PubMed Abstract | CrossRef Full Text | Google Scholar

Morris, J. L., Puttick, M. N., Clark, J. W., Edwards, D., Kenrick, P., Pressel, S., et al. (2018). The timescale of early land plant evolution. Proc. Natl. Acad. Sci. U.S.A. 115, E2274–E2283. doi: 10.1073/pnas.1719588115

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, J., and Reisz, R. R. (2006). The phylogeny of early eureptiles: comparing parsimony and Bayesian approaches in the investigation of a basal fossil clade. Syst. Biol. 55, 503–511. doi: 10.1080/10635150600755396

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, J., and Reisz, R. R. (2007). Four well-constrained calibration points from the vertebrate fossil record for molecular clock estimates. BioEssays 27, 1069–1075. doi: 10.1002/bies.20286

PubMed Abstract | CrossRef Full Text | Google Scholar

Murphy, W. J., Eizirik, E., O’Brien, S. J., Madsen, O., Scally, M., Douady, C. J., et al. (2001). Resolution of the early placental mammal radiation using Bayesian phylogenetics. Science 294, 2348–2351. doi: 10.1126/science.1067179

PubMed Abstract | CrossRef Full Text | Google Scholar

Napoli, J. G., Williamson, T. E., Shelley, S. L., and Brusatte, S. L. (2017). A digital endocranial cast of the early Paleocene (Puercan) ‘archaic’ mammal Onychodectes tisonensis (Eutheria: Taeniodonta). J. Mammal. Evol. 25, 179–195. doi: 10.1007/s10914-017-9381-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Naylor, B. G. (1981). Cryptobranchid salamanders from the Paleocene and Miocene of Saskatchewan. Copeia 1981:76. doi: 10.2307/1444042

CrossRef Full Text | Google Scholar

Ni, X., Li, Q., Li, L., and Beard, K. C. (2016). Oligocene primates from China reveal divergence between African and Asian primate evolution. Science 352, 673–677. doi: 10.1126/science.aaf2107

PubMed Abstract | CrossRef Full Text | Google Scholar

Noonan, B. P., and Chippindale, P. T. (2006). Vicariant origin of Malagasy reptiles supports Late Cretaceous Antarctic land bridge. The Am. Nat. 168, 730–741. doi: 10.2307/4122245

CrossRef Full Text | Google Scholar

Novacek, M., Rougier, G., Wible, J., McKenna, M. C., Dashzeveg, D., and Horovitz, I. (1997). Epipubic bones in eutherian mammals from the Late Cretaceous of Mongolia. Nature 389, 483–486. doi: 10.1038/39020

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Connor, P. M., Krause, D. W., Stevens, N. J., Groenke, J. R., MacPhee, R. D. E., Kalthoff, D. C., et al. (2019). A new mammal from the Turonian–Campanian (Upper Cretaceous) Galula Formation, southwestern Tanzania. Acta Palaeont. Pol. 64, 65–84. doi: 10.4202/app.00568.2018

CrossRef Full Text | Google Scholar

O’Connor, P. M., Turner, A. H., Groenke, J. R., Felice, R. N., Rogers, R. R., Krause, D. W., et al. (2020). Late Cretaceous bird from Madagascar reveals unique development of beaks. Nature 588, 272–276. doi: 10.1038/s41586-020-2945-x

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Leary, M. A., Bloch, J. I., Flynn, J. J., Gaudin, T. J., Giallombardo, A., Giannini, N. P., et al. (2013). The placental mammal ancestor and the post-K-Pg radiation of placentals. Science 339, 662–667. doi: 10.1126/science.1229237

PubMed Abstract | CrossRef Full Text | Google Scholar

Olsen, P. E. (1988). “Paleontology and paleoecology of the Newark Supergroup (early Mesozoic, eastern North America),” in Triassic-Jurassic Rifting: Continental Breakup and the Origin of the Atlantic Ocean and Passive Margins, Part A. Developments in Geotectonics 22, ed. W. Manspeizer (Amsterdam: Elsevier), 185–230.

Google Scholar

Olsen, P. E. (2010). Fossil Great Lakes of the Newark Supergroup – 30 Years Later [Field Trip Guide]. NYSGA Field Trip 4. doi: 10.1.1.407.418&rep=rep1&type=pdf

CrossRef Full Text | Google Scholar

Palci, A., Hutchinson, M. N., Caldwell, M. W., Smith, K. T., and Lee, M. S. Y. (2019). The homologies and evolutionary reduction of the pelvis and hindlimbs in snakes, with the first report of ossified pelvic vestiges in an anomalepidid (Liotyphlops beui). Zool. J. Linn. Soc. 188, 630–652. doi: 10.1093/zoolinnean/zlz098

CrossRef Full Text | Google Scholar

Panciroli, E., Benson, R. B. J., Walsh, S., Butler, R. J., Andrade Castro, T., Jones, M. E. H., et al. (2020). Diverse vertebrate assemblage of the Kilmaluag Formation (Bathonian, Middle Jurassic) of Skye, Scotland. Earth Env. Sci. Trans. R. Soc. Edinb. 111, 1–22. doi: 10.1017/S1755691020000055

CrossRef Full Text | Google Scholar

Pardo, J. D., Holmes, R., and Anderson, J. S. (2018). An enigmatic braincase from Five Points, Ohio (Westphalian D) further supports a stem tetrapod position for aïstopods. Earth Env. Sci. Trans. R. Soc. Edinb. 109, 255–264. doi: 10.1017/S1755691018000567

CrossRef Full Text | Google Scholar

Pardo, J. D., Lennie, K., and Anderson, J. S. (2020). Can we reliably calibrate deep nodes in the Retrapod tree? Case studies in deep tetrapod divergences. Front. Genet. 11:506749. doi: 10.3389/fgene.2020.506749

PubMed Abstract | CrossRef Full Text | Google Scholar

Pardo, J. D., Szostakiwskyj, M., Ahlberg, P. E., and Anderson, J. S. (2017). Hidden morphological diversity among early tetrapods. Nature 546, 642–645. doi: 10.1038/nature22966

PubMed Abstract | CrossRef Full Text | Google Scholar

Parham, J. F., Donoghue, P. C. J., Bell, C. J., Calway, T. D., Head, J. J., Holroyd, P. A., et al. (2011). Best practices for justifying fossil calibrations. Syst. Biol. 61, 346–359. doi: 10.1093/sysbio/syr107

PubMed Abstract | CrossRef Full Text | Google Scholar

Paton, R. L., Smithson, T. R., and Clack, J. A. (1999). An amniote-like skeleton from the Early Carboniferous of Scotland. Nature 398, 508–513. doi: 10.1038/19071

CrossRef Full Text | Google Scholar

Pearson, M. R. (2016). Phylogeny and systematic history of early salamanders, Doctoral thesis. London: University College London.

Google Scholar

Penkrot, T. A., and Zack, S. P. (2016). Tarsals of Sespedectinae (?Lipotyphla) from the middle Eocene of southern California, and the affinities of Eocene ‘erinaceomorphs’. J. Vert. Paleont. 36:e1212059. doi: 10.1080/02724634.2016.1212059

CrossRef Full Text | Google Scholar

Pérez-García, A. (2019). The African Aptian Francemys gadoufaouaensis gen. et sp. nov.: New data on the early diversification of Pelomedusoides (Testudines, Pleurodira) in northern Gondwana. Cret. Res. 102, 112–126. doi: 10.1016/j.cretres.2019.06.003

CrossRef Full Text | Google Scholar

Phillips, M. J., and Fruciano, C. (2018). The soft explosive model of placental mammal evolution. BMC Evol. Biol. 18:104. doi: 10.1186/s12862-018-1218-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Phillips, M. J., Bennett, T. H., and Lee, M. S. Y. (2009). Molecules, morphology, and ecology indicate a recent, amphibious ancestry for echidnas. Proc. Natl. Acad. Sci. U.S.A. 106, 17089–17094. doi: 10.1073/pnas.0904649106

PubMed Abstract | CrossRef Full Text | Google Scholar

Powell, C. L. E., Waskin, S., and Battistuzzi, F. U. (2020). Quantifying the error of secondary vs. distant primary calibrations in a simulated environment. Front. Genet. 11:252. doi: 10.3389/fgene.2020.00252

PubMed Abstract | CrossRef Full Text | Google Scholar

Prasad, G. V. R., and Manhas, B. K. (2007). A new docodont mammal from the Jurassic Kota Formation of India. Palaeont. Electron. 10:7A. Available online at: https://palaeo-electronica.org/2007_2/00117/index.html

Google Scholar

Prasad, G. V. R., Parmar, V., and Kumar, D. (2014). “Recent vertebrate fossil discoveries from the Jurassic Kota Formation of India,” in Proceedings of the 74th Annual Meeting:Abstract, Society of Vertebrate Paleontology, Vol. 208, ed. J. V. Paleont. Available online at: http://vertpaleo.org/CMSPages/GetFile.aspx?nodeguid=b51eb899-273b-4edb-ae8a-ae067050a3a8

Google Scholar

Prasad, G. V. R., Verma, O., Sahni, A., Parmar, V., and Khosla, A. (2007). A Cretaceous hoofed mammal from India. Science 318:937. doi: 10.1126/science.1149267

PubMed Abstract | CrossRef Full Text | Google Scholar

Prevosti, F. J., and Chemisquy, M. A. (2009). The impact of missing data on real morphological phylogenies: influence of the number and distribution of missing entries. Cladistics 26, 326–339. doi: 10.1111/j.1096-0031.2009.00289.x

CrossRef Full Text | Google Scholar

Pritchard, A. C., Gauthier, J. A., Hanson, M., Bever, G. S., and Bhullar, Bh.-A. S. (2018). A tiny triassic saurian from connecticut and the early evolution of the diapsid feeding apparatus. Nat. Commun. 9:1213. doi: 10.1038/s41467-018-03508-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Püschel, H. P., Shelley, S. L., Williamson, T. E., Wible, J. R., and Brusatte, S. (2019). “Testing the phylogeny of Periptychidae and “archaic” Paleocene mammals under different optimality criteria,” in Proceedings of the 9th Annual Meeting: Society of Vertebrate Paleontology, Vol. 174, ed. J. V. Paleont. Available online at: http://vertpaleo.org/Annual-Meeting/Annual-Meeting-Home/SVP-Program-book-v5_w-covers.aspx

Google Scholar

Rage, J.-C., and Dutheil, D. B. (2008). Amphibians and squamates from the Cretaceous (Cenomanian) of Morocco – A preliminary study, with description of a new genus of pipid frog. Palaeontogr. A 285, 1–22. doi: 10.1127/pala/285/2008/1

CrossRef Full Text | Google Scholar

Reeder, T. W., Townsend, T. M., Mulcahy, D. G., Noonan, B. P., Wood, P. L. Jr., and Sites, J. W. Jr., et al. (2015). Integrated analyses resolve conflicts over squamate reptile phylogeny and reveal unexpected placements for fossil taxa. PLOS ONE 10:e0118199. doi: 10.1371/journal.pone.0118199

PubMed Abstract | CrossRef Full Text | Google Scholar

Reinhard, S., Voitel, S., and Kupfer, A. (2013). External fertilisation and paternal care in the paedomorphic salamander Siren intermedia Barnes, 1826 (Urodela: Sirenidae). Zool. Anz. 253, 1–15. doi: 10.1016/j.jcz.2013.06.002

CrossRef Full Text | Google Scholar

Reisz, R. R., and Modesto, S. P. (1996). Archerpeton anthracos from the Joggins Formation of Nova Scotia: a microsaur, not a reptile. Can. J. Earth Sci. 33, 703–709. doi: 10.1139/e96-053

CrossRef Full Text | Google Scholar

Renesto, S., and Bernardi, M. (2013). Redescription and phylogenetic relationships of Megachirella wachtleri Renesto et Posenato, 2003 (Reptilia, Diapsida). Paläont. Z. 88, 197–210. doi: 10.1007/s12542-013-0194-0

CrossRef Full Text | Google Scholar

Reynoso, V.-H. (2005). Possible evidence of a venom apparatus in a Middle Jurassic sphenodontian from the Huizachal red beds of Tamaulipas, México. J. Vert. Paleont. 25, 646–654. doi: 10.1671/0272-4634(2005)025[0646:PEOAVA]2.0.CO;2

CrossRef Full Text | Google Scholar

Richards, K. R., Sherwin, J. E., Smithson, T. R., Bennion, R. F., Davies, S. J., Marshall, J. E. A., et al. (2018). Diverse and durophagous: Early Carboniferous chondrichthyans from the Scottish Borders. Earth Env. Sci. Trans. R. Soc. Edinb. 108, 67–87. doi: 10.1017/S1755691018000166

CrossRef Full Text | Google Scholar

Romano, C., Koot, M. B., Kogan, I., Brayard, A., Minikh, A. V., Brinkmann, W., et al. (2014a). Permian–Triassic Osteichthyes (bony fishes): diversity dynamics and body size evolution. Biol. Rev. 91, 106–147. doi: 10.1111/brv.12161

PubMed Abstract | CrossRef Full Text | Google Scholar

Romano, P. S. R., Gallo, V., Ramos, R. R. C., and Antonioli, L. (2014b). Atolchelys lepida, a new side-necked turtle from the Early Cretaceous of Brazil and the age of crown Pleurodira. Biol. Lett. 10:20140290. doi: 10.1098/rsbl.2014.0290

PubMed Abstract | CrossRef Full Text | Google Scholar

Romo de Vivar, P. R., Martinelli, A. G., Fonseca, P. H. M., and Bento Soares, M. (2020). To be or not to be: the hidden side of Cargninia enigmatica and other puzzling remains of Lepidosauromorpha from the Upper Triassic of Brazil. J. Vert. Paleont. 40:438. doi: 10.1080/02724634.2020.1828438

CrossRef Full Text | Google Scholar

Ronchi, A., Santi, G., Marchetti, L., Bernardi, M., and Gianolla, P. (2018). First report on swimming trace fossils of fish from the Upper Permian and Lower Triassic of the Dolomites (Italy). Ann. Soc. Geol. Pol. 88, 111–125. doi: 10.14241/asgp.2018.013

CrossRef Full Text | Google Scholar

Rong, Y.-F. (2018). Restudy of Regalerpeton weichangensis [sic] (Amphibia: Urodela) from the Lower Cretaceous of Hebei. China. Vert. PalAsiat. 56, 121–136. doi: 10.19615/j.cnki.1000-3118.170627

CrossRef Full Text | Google Scholar

Rong, Y.-F., Vasilyan, D., Dong, L.-P., and Wang, Y. (2020). Revision of Chunerpeton tianyiense (Lissamphibia, Caudata): is it a cryptobranchid salamander? Palaeoworld (in press). doi: 10.1016/j.palwor.2020.12.001

CrossRef Full Text | Google Scholar

Rougier, G. W., Chornogubsky, L., Casadio, S., Páez Arango, N., and Giallombardo, A. (2008). Mammals from the Allen Formation, Late Cretaceous, Argentina. Cret. Res. 30, 223–238. doi: 10.1016/j.cretres.2008.07.006

CrossRef Full Text | Google Scholar

Ruane, S., Pyron, R. A., and Burbrink, F. T. (2010). Phylogenetic relationships of the Cretaceous frog Beelzebufo from Madagascar and the placement of fossil constraints based on temporal and phylogenetic evidence. J. Evol. Biol. 24, 274–285. doi: 10.1111/j.1420-9101.2010.02164.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Ruta, M., Clack, J. A., and Smithson, T. R. (2020). A review of the stem amniote Eldeceeon rolfei from the Viséan of East Kirkton, Scotland. Earth Env. Sci. Trans. R. Soc. Edinb. 111, 173–192. doi: 10.1017/S1755691020000079

CrossRef Full Text | Google Scholar

Salazar, C., Stinnesbeck, W., and Quinzio-Sinn, L. A. (2010). Ammonites from the Maastrichtian (Upper Cretaceous) Quiriquina Formation in central Chile. N. Jb. Geol. Paläont. Abh. 257, 181–236. doi: 10.1127/0077-7749/2010/0072

CrossRef Full Text | Google Scholar

Sansom, I. J., and Andreev, P. S. (2018). “The Ordovician enigma. Fish, first appearances and phylogenetic controversies,” in Evolution and Development of Fishes, eds Z. Johanson, C. Underwood, and M. Richter (Cambridge: Cambridge University Press), 59–70. doi: 10.1017/9781316832172.004

CrossRef Full Text | Google Scholar

Sansom, I. J., Davies, N. S., Coates, M. I., Nicoll, R. S., and Ritchie, A. (2012). Chondrichthyan-like scales from the Middle Ordovician of Australia. Palaeontology 55, 243–247. doi: 10.1111/j.1475-4983.2012.01127.x

CrossRef Full Text | Google Scholar

Sansom, R. S., and Wills, M. A. (2013). Fossilization causes organisms to appear erroneously primitive by distorting evolutionary trees. Sci. Rep. 3:2545. doi: 10.1038/srep02545

PubMed Abstract | CrossRef Full Text | Google Scholar

Sansom, R. S., Choate, P. G., Keating, J. N., and Randle, E. (2018). Parsimony, not Bayesian analysis, recovers more stratigraphically congruent phylogenetic trees. Biol. Lett. 14:20180263. doi: 10.1098/rsbl.2018.0263

PubMed Abstract | CrossRef Full Text | Google Scholar

Scarpetta, S. G. (2019). The first known fossil Uma: ecological evolution and the origins of North American fringe-toed lizards. BMC Evol. Biol. 19:178. doi: 10.1186/s12862-019-1501-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Scarpetta, S. G. (2020a). Effects of phylogenetic uncertainty on fossil identification illustrated by a new and enigmatic Eocene iguanian. Sci. Rep. 10:15734. doi: 10.1038/s41598-020-72509-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Scarpetta, S. G. (2020b). Combined-evidence analyses of ultraconserved elements and morphological data: an empirical example in iguanian lizards. Biol. Lett. 16:20200356. doi: 10.1098/rsbl.2020.0356

PubMed Abstract | CrossRef Full Text | Google Scholar

Schineider Fachini, T., Onary, S., Palci, A., Lee, M. S. Y., Bronzati, M., and Schmaltz Hsiou, A. (2020). Cretaceous blind snake from Brazil fills major gap in snake evolution. iScience 23:101834. doi: 10.1016/j.isci.2020.101834

PubMed Abstract | CrossRef Full Text | Google Scholar

Schoch, R. R., and Milner, A. R. (2014). Temnospondyli I. Part 3A2 of Handbook of Paleoherpetology, ed. H.-D. Sues (Munich: Dr. Friedrich Pfeil).

Google Scholar

Schoch, R. R., and Sues, H.-D. (2017). Osteology of the Middle Triassic stem-turtle Pappochelys rosinae and the early evolution of the turtle skeleton. J. Syst. Palaeont. 16, 927–965. doi: 10.1080/14772019.2017.1354936

CrossRef Full Text | Google Scholar

Schoch, R. R., Werneburg, R., and Voigt, S. (2020). A Triassic stem-salamander from Kyrgyzstan and the origin of salamanders. Proc. Natl. Acad. Sci. U.S.A. 117, 11584–11588. doi: 10.1073/pnas.2001424117

PubMed Abstract | CrossRef Full Text | Google Scholar

Scott, C. S., Fox, R. C., and Redman, C. M. (2016). A new species of the basal plesiadapiform Purgatorius (Mammalia, Primates) from the early Paleocene Ravenscrag Formation, Cypress Hills, southwest Saskatchewan, Canada: further taxonomic and dietary diversity in the earliest primates. Can. J. Earth Sci. 53, 343–354. doi: 10.1139/cjes-2015-0238

CrossRef Full Text | Google Scholar

Shao, S., Li, L., Yang, Y., and Zhou, C. (2018). Hyperphalangy in a new sinemydid turtle from the Early Cretaceous Jehol Biota. PeerJ 6:e5371. doi: 10.7717/peerj.5371

PubMed Abstract | CrossRef Full Text | Google Scholar

Silcox, M. T., Bloch, J. I., Boyer, D. M., Chester, S. G. B., and López-Torres, S. (2017). The evolutionary radiation of plesiadapiforms. Evol. Anthropol. 26, 74–94. doi: 10.1002/evan.21526

PubMed Abstract | CrossRef Full Text | Google Scholar

Simões, T. R., Caldwell, M. W., Tałanda, M., Bernardi, M., Palci, A., Vernygora, O., et al. (2018). The origin of squamates revealed by a Middle Triassic lizard from the Italian Alps. Nature 557, 706–709. doi: 10.1038/s41586-018-0093-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Simões, T. R., Caldwell, M. W., Weinschütz, L. C., Wilner, E., and Kellner, A. W. A. (2017). Mesozoic lizards from Brazil and their role in early squamate evolution in South America. J. Herpetol. 51, 307–315. doi: 10.1670/16-007

CrossRef Full Text | Google Scholar

Simões, T. R., Vernygora, O., Caldwell, M. W., and Pierce, S. E. (2020). Megaevolutionary dynamics and the timing of evolutionary innovation in reptiles. Nat. Commun. 11:3322. doi: 10.1038/s41467-020-17190-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Simões, T. R., Wilner, E., Caldwell, M. W., Weinschütz, L. C., and Kellner, A. W. A. (2015). A stem acrodontan lizard in the Cretaceous of Brazil revises early lizard evolution in Gondwana. Nat. Commun. 6:8149. doi: 10.1038/ncomms9149

PubMed Abstract | CrossRef Full Text | Google Scholar

Skutschas, P. P. (2013). Mesozoic salamanders and albanerpetontids of Middle Asia, Kazakhstan, and Siberia. Palaeobiodiv. Palaeoenv. 93, 441–457. doi: 10.1007/s12549-013-0126-8

CrossRef Full Text | Google Scholar

Skutschas, P. P. (2014). Kiyatriton leshchinskiyi Averianov et Voronkevich, 2001, a crown-group salamander from the Lower Cretaceous of Western Siberia. Russia. Cret. Res. 51, 88–94. doi: 10.1016/j.cretres.2014.05.014

CrossRef Full Text | Google Scholar

Skutschas, P. P. (2015). A new crown-group salamander from the Middle Jurassic of Western Siberia, Russia. Palaeobio. Palaeoenv. 96, 41–48. doi: 10.1007/s12549-015-0216-x

CrossRef Full Text | Google Scholar

Smith, K. T. (2009a). A new lizard assemblage from the earliest Eocene (zone Wa0) of the Bighorn Basin, Wyoming, USA: biogeography during the warmest interval of the Cenozoic. J. Syst. Palaeont. 7, 299–358. doi: 10.1017/S1477201909002752

CrossRef Full Text | Google Scholar

Smith, K. T. (2009b). Eocene lizards of the clade Geiseltaliellus from Messel and Geiseltal, Germany, and the early radiation of Iguanidae (Reptilia: Squamata). Bull. Peabody Mus. Nat. Hist. 50, 219–306. doi: 10.3374/014.050.0201

CrossRef Full Text | Google Scholar

Smithson, T. R., Carroll, R. L., Panchen, A. L., and Andrews, S. M. (1994). Westlothiana lizziae from the Viséan of East Kirkton, West Lothian, Scotland, and the amniote stem. Trans. R. Soc. Edinb. Earth Sci. 84, 383–412. doi: 10.1017/s0263593300006192

CrossRef Full Text | Google Scholar

Smithson, T. R., Wood, S. P., Marshall, J. E. A., and Clack, J. A. (2012). Earliest Carboniferous tetrapod and arthropod faunas from Scotland populate Romer’s Gap. Proc. Natl. Acad. Sci. U.S.A. 109, 4532–4537. doi: 10.1073/pnas.1117332109

PubMed Abstract | CrossRef Full Text | Google Scholar

Sobral, G., Simões, T. R., and Schoch, R. R. (2020). A tiny new Middle Triassic stem-lepidosauromorph from Germany: implications for the early evolution of lepidosauromorphs and the Vellberg fauna. Sci. Rep. 10:2273. doi: 10.1038/s41598-020-58883-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Solé, F., Smith, T., de Bast, E., Codrea, V., and Gheerbrant, E. (2016). New carnivoraforms from the latest Paleocene of Europe and their bearing on the origin and radiation of Carnivoraformes (Carnivoramorpha, Mammalia). J. Vert. Paleont. 36:e1082480. doi: 10.1080/02724634.2016.1082480

CrossRef Full Text | Google Scholar

Sookias, R. B. (2019). Exploring the effects of character construction and choice, outgroups and analytical method on phylogenetic inference from discrete characters in extant crocodilians [sic]. Zool. J. Linn. Soc. 189, 670–699. doi: 10.1093/zoolinnean/zlz015

CrossRef Full Text | Google Scholar

Spaulding, M., and Flynn, J. J. (2012). Phylogeny of the Carnivoramorpha: the impact of postcranial characters. J. Syst. Palaeont. 10, 653–677. doi: 10.1080/14772019.2011.630681

CrossRef Full Text | Google Scholar

Springer, M. S., Foley, N. M., Brady, P. L., Gatesy, J., and Murphy, W. J. (2019). Evolutionary models for the diversification of placental mammals across the KPg boundary. Front. Genet. 10:1241. doi: 10.3389/fgene.2019.01241

PubMed Abstract | CrossRef Full Text | Google Scholar

Sterli, J., de la Fuente, M. S., and Rougier, G. W. (2019). New remains of Condorchelys antiqua (Testudinata) from the Early-Middle Jurassic of Patagonia: anatomy, phylogeny, and paedomorphosis in the early evolution of turtles. J. Vert. Paleont. 38:e1480112. doi: 10.1080/02724634.2018.1480112

CrossRef Full Text | Google Scholar

Sterli, J., Martínez, R. N., Cerda, I. A., and Apaldetti, C. (2020). Appearances can be deceptive: bizarre shell microanatomy and histology in a new Triassic turtle (Testudinata) from Argentina at the dawn of turtles. Pap. Palaeont. 7, 1097–1132. doi: 10.1002/spp2.1334

CrossRef Full Text | Google Scholar

Stocker, M. R., Nesbitt, S. J., Kligman, B. T., Paluh, D. J., Marsh, A. D., Blackburn, D. C., et al. (2019). The earliest equatorial record of frogs from the Late Triassic of Arizona. Biol. Lett. 15:20180922. doi: 10.1098/rsbl.2018.0922

PubMed Abstract | CrossRef Full Text | Google Scholar

Stumpf, S., and Kriwet, J. (2019). A new Pliensbachian elasmobranch (Vertebrata, Chondrichthyes) assemblage from Europe, and its contribution to the understanding of late Early Jurassic elasmobranch diversity and distributional patterns. Paläont. Z. 93, 637–658. doi: 10.1007/s12542-019-00451-4

CrossRef Full Text | Google Scholar

Sullivan, R. M. (1982). Fossil lizards from Swain Quarry “Fort Union Formation,” middle Paleocene (Torrejonian), Carbon County, Wyoming. J. Paleont. 56, 996–1010.

Google Scholar

Sun, Z.-y, Tintori, A., Lombardo, C., and Jiang, D.-y (2016). New miniature neopterygians from the Middle Triassic of Yunnan Province, South China. N. Jb. Geol. Paläont. Abh. 282, 135–156. doi: 10.1127/njgpa/2016/0610

CrossRef Full Text | Google Scholar

Sweetman, S. C., Smith, G., and Martill, D. M. (2017). Highly derived eutherian mammals from the earliest Cretaceous of southern Britain. Acta Palaeont. Pol. 62, 657–665. doi: 10.4202/app.00408.2017

CrossRef Full Text | Google Scholar

Tambussi, C. P., Degrange, F. J., de Mendoza, R. S., Sferco, E., and Santillana, S. (2019). A stem anseriform from the early Palaeocene of Antarctica provides new key evidence in the early evolution of waterfowl. Zool. J. Linn. Soc. 186, 673–700. doi: 10.1093/zoolinnean/zly085

CrossRef Full Text | Google Scholar

Tanner, L. H., and Lucas, S. G. (2015). The Triassic-Jurassic strata of the Newark Basin, USA: a complete and accurate astronomically-tuned timescale? Stratigraphy 12, 47–65.

Google Scholar

The PLOS ONE Staff (2014). Correction: The origin and early evolution of Sauria: reassessing the Permian saurian fossil record and the timing of the crocodile-lizard divergence. PLOS ONE 9:e97828. doi: 10.1371/journal.pone.0097828

CrossRef Full Text | Google Scholar

Tomiya, S. (2011). A new basal caniform (Mammalia: Carnivora) from the middle Eocene of North America and remarks on the phylogeny of early carnivorans. PlOS ONE 6:e24146. doi: 10.1371/journal.pone.0024146

PubMed Abstract | CrossRef Full Text | Google Scholar

Tomiya, S., and Tseng, Z. J. (2016). Whence the beardogs? Reappraisal of the Middle to Late [sic] Eocene ‘Miacis’ from Texas, USA, and the origin of Amphicyonidae (Mammalia, Carnivora). R. Soc. Open Sci. 3:160518. doi: 10.1098/rsos.160518

PubMed Abstract | CrossRef Full Text | Google Scholar

Tong, H., Danilov, I., Ye, Y., Ouyang, H., and Peng, G. (2011). Middle Jurassic turtles from the Sichuan Basin, China: a review. Geol. Mag. 149, 675–695. doi: 10.1017/S0016756811000859

CrossRef Full Text | Google Scholar

Tong, H., Li, L., and Ouyang, H. (2013). A revision of Sinaspideretes wimani Young & Chow, 1953 (Testudines: Cryptodira: Trionychoidae) from the Jurassic of the Sichuan Basin, China. Geol. Mag. 151, 600–610. doi: 10.1017/S0016756813000575

CrossRef Full Text | Google Scholar

Trujillo, K. C., Carrano, M. T., and Chamberlain, K. R. (2015). “A U-Pb zircon age for Reed’s Quarry 9, Upper jurassic morrison formation, Albany County, WY,” in Proceedings of the 75th Annual Meeting: Abstract, Society of Vertebrate Paleontology, Vol. 226, ed. J. V. Paleont. Available online at: http://vertpaleo.org/PDFS/SVP-2015-Program-and-Abstract-Book-9-22-2015.aspx

Google Scholar

Tykoski, R. S., Rowe, T. B., Ketcham, R. A., and Colbert, M. W. (2002). Calsoyasuchus valliceps, a new crocodyliform from the Early Jurassic Kayenta Formation of Arizona. J. Vert. Paleont. 22, 593–611. doi: 10.1671/0272-4634(2002)022[0593:CVANCF]2.0.CO;2

CrossRef Full Text | Google Scholar

van Tuinen, M., and Hedges, S. B. (2004). The effects of external and internal fossil calibrations on the avian evolutionary timescale. J. Paleont. 78, 45–50. doi: 10.1666/0022-33602004078<0045:TEOEAI>2.0.CO;2

CrossRef Full Text | Google Scholar

Vasilyan, D., and Böhme, M. (2012). Pronounced peramorphosis in lissamphibians—Aviturus exsecratus (Urodela, Cryptobranchidae) from the paleocene–eocene thermal maximum of Mongolia. PLOS ONE 7:e40665. doi: 10.1371/journal.pone.0040665

PubMed Abstract | CrossRef Full Text | Google Scholar

Vasilyan, D., Böhme, M., Chkhikvadze, V. M., Semenov, Y. A., and Joyce, W. G. (2013). A new giant salamander (Urodela, Pancryptobrancha) from the Miocene of Eastern Europe (Grytsiv, Ukraine). J. Vert. Paleont. 33, 301–318. doi: 10.1080/02724634.2013.722151

CrossRef Full Text | Google Scholar

Vijayakumar, S. P., Pyron, R. A., Dinesh, K. P., Torsekar, V. R., Srikanthan, A. N., Swamy, P., et al. (2019). A new ancient lineage of frog (Anura: Nyctibatrachidae: Astrobatrachinae subfam. nov.) endemic to the Western Ghats of Peninsular India. PeerJ 7:e6457. doi: 10.7717/peerj.6457

PubMed Abstract | CrossRef Full Text | Google Scholar

von Heyden, L. (1870). Entomologische Reise nach dem südlichen Spanien, der Sierra Guadarrama und Sierra Morena, Portugal und den Cantabrischen Gebirgen […]. Berlin: Entomologischer Verein. Available online at: https://books.google.com/books?id=FXBTAAAAcAAJ

Google Scholar

Waddell, P. J., Kishino, H., and Ota, R. (2001). A phylogenetic foundation for comparative mammalian genomics. Genome Inform. 12, 141–154. doi: 10.11234/gi1990.12.141

CrossRef Full Text | Google Scholar

Waggoner, B., and Collins, A. G. (2004). Reductio ad absurdum: testing the evolutionary relationships of Ediacaran and Paleozoic problematic fossils using molecular divergence dates. J. Paleont. 78, 51–61. doi: 10.1666/0022-33602004078<0051:RAATTE>2.0.CO;2

CrossRef Full Text | Google Scholar

Wagner, P., Stanley, E. L., Daza, J. D., and Bauer, A. M. (2021). A new agamid lizard in mid-Cretaceous amber from northern Myanmar. Cret. Res. 124:104813. doi: 10.1016/j.cretres.2021.104813

CrossRef Full Text | Google Scholar

Wang, H., Meng, J., and Wang, Y. (2019). Cretaceous fossil reveals a new pattern in mammalian middle ear evolution. Nature 576, 102–105. doi: 10.1038/s41586-019-1792-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, J., Ye, Y., Pei, R., Tian, Y., Feng, C., Zheng, D., et al. (2018). Age of Jurassic basal sauropods in Sichuan, China: a reappraisal of basal sauropod evolution. GSA Bull. 130, 1493–1500. doi: 10.1130/B31910.1

CrossRef Full Text | Google Scholar

Wang, Y., and Evans, S. E. (2006). A new short-bodied salamander from the Upper Jurassic/Lower Cretaceous of China. Acta Palaeont. Pol. 51, 127–130.

Google Scholar

Wang, Y., Dong, L., and Evans, S. E. (2015). Polydactyly and other limb abnormalities in the Jurassic salamander Chunerpeton from China. Palaeobiol. Palaeoenv. 96, 49–59. doi: 10.1007/s12549-015-0219-7

CrossRef Full Text | Google Scholar

Wang, Y.-M., O’Connor, J. K., Li, D.-Q., and You, H.-L. (2013). Previously unrecognized ornithuromorph bird diversity in the Early Cretaceous Changma Basin, Gansu Province, northwestern China. PLOS ONE 8:e77693. doi: 10.1371/journal.pone.0077693

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y.-Q., Li, C.-K., Li, Q., and Li, D.-S. (2016). A synopsis of Paleocene stratigraphy and vertebrate paleontology in the Qianshan Basin, Anhui, China. Vert. PalAsiat. 54, 89–120.

Google Scholar

Wesley, G. D., and Flynn, J. J. (2003). A revision of Tapocyon (Carnivoramorpha), including analysis of the first cranial specimens and identification of a new species. J. Paleont. 77, 769–783. doi: 10.1017/S0022336000044486

CrossRef Full Text | Google Scholar

Whelan, N. V., and Halanych, K. M. (2016). Who let the CAT out of the bag? Accurately dealing with substitutional heterogeneity in phylogenomic analyses. Syst. Biol. 66, 232–255. doi: 10.1093/sysbio/syw084

PubMed Abstract | CrossRef Full Text | Google Scholar

Wible, J. R., Rougier, G. W., Novacek, M. J., and Asher, R. J. (2009). The eutherian mammal Maelestes gobiensis from the Late Cretaceous of Mongolia and the phylogeny of Cretaceous Eutheria. Bull. Am. Mus. Nat. Hist. 327, 1–123. doi: 10.1206/623.1

CrossRef Full Text | Google Scholar

Wiens, J. J. (2003a). Incomplete taxa, incomplete characters, and phylogenetic accuracy: is there a missing data problem? J. Vert. Paleont. 23, 297–310. doi: 10.1671/0272-4634(2003)023[0297:ITICAP]2.0.CO;2

CrossRef Full Text | Google Scholar

Wiens, J. J. (2003b). Missing data, incomplete taxa, and phylogenetic accuracy. Syst. Biol. 52, 528–538. doi: 10.1080/10635150390218330

PubMed Abstract | CrossRef Full Text | Google Scholar

Wiens, J. J. (2005a). Can incomplete taxa rescue phylogenetic analyses from long-branch attraction? Syst. Biol. 54, 731–742. doi: 10.1080/10635150500234583

PubMed Abstract | CrossRef Full Text | Google Scholar

Wiens, J. J. (2005b). Missing data and the design of phylogenetic analyses. J. Biomed. Informatics 39, 34–42. doi: 10.1016/j.jbi.2005.04.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Wiens, J. J., Bonett, R. M., and Chippindale, P. T. (2005). Ontogeny discombobulates phylogeny: paedomorphosis and higher-level salamander relationships. Syst. Biol. 54, 91–110. doi: 10.1080/10635150590906037

PubMed Abstract | CrossRef Full Text | Google Scholar

Williamson, T. E., Flynn, A., Peppe, D. J., Heizler, M. T., Leslie, C. E., Secord, R., et al. (2019). “A revised, high-resolution age model for the Paleocene of the San Juan Basin, New Mexico, U.S.A[,] and implications for faunal and floral dynamics during the dawn of the age of mammals,” in Proceedings of the 79th Annual Meeting: Abstract, Society of Vertebrate Paleontology, Vol. 219, ed. J. V. Paleont. Available online at: http://vertpaleo.org/Annual-Meeting/Annual-Meeting-Home/SVP-Program-book-v5_w-covers.aspx

Google Scholar

Wolfe, J. M., Daley, A. C., Legg, D. A., and Edgecombe, G. D. (2016). Fossil calibrations for the arthropod Tree of Life. Earth-Sci. Rev. 160, 43–110. doi: 10.1016/j.earscirev.2016.06.008

CrossRef Full Text | Google Scholar

Woodburne, M. O., Goin, F. J., Raigemborn, M. S., Heizler, M., Gelfo, J. N., and Oliveira, E. V. (2014). Revised timing of the South American early Paleogene land mammal ages. J. S. Am. Earth Sci. 54, 109–119. doi: 10.1016/j.jsames.2014.05.003

CrossRef Full Text | Google Scholar

Woodhead, J., Reisz, R., Fox, D., Drysdale, R., Hellstrom, J., Maas, R., et al. (2010). Speleothem climate records from deep time? Exploring the potential with an example from the Permian. Geology 38, 455–458. doi: 10.1130/G30354.1

CrossRef Full Text | Google Scholar

Xing, L.-D., Lockley, M. G., Wei, C., Gierliński, G. D., Li, J.-J., Persons, W. S. IV., et al. (2013). Two theropod track assemblages from the Jurassic of Chongqing, China, and the Jurassic stratigraphy of Sichuan Basin. Vert. PalAsiat. 51, 107–130.

Google Scholar

Xu, G.-H. (2019). Osteology and phylogeny of Robustichthys luopingensis, the largest holostean fish in the Middle Triassic. PeerJ 7:e7184. doi: 10.7717/peerj.7184

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, C.-X., Ji, Q., Meng, Q.-J., Tabrum, A. R., and Luo, Z.-X. (2013). Earliest evolution of multituberculate mammals revealed by a new Jurassic fossil. Science 341, 779–783. doi: 10.1126/science.1237970

PubMed Abstract | CrossRef Full Text | Google Scholar

Zack, S. P. (2009). The Phylogeny of Eutherian Mammals: A New Analysis Emphasizing Dental and Postcranial Morphology of Paleogene taxa, Doctoral thesis. Baltimore: Johns Hopkins University.

Google Scholar

Zhang, Y., Wang, Y., Zhan, R., Fan, J., Zhou, Z., and Fang, X. (2014). Ordovician and Silurian Stratigraphy and Palaeontology of Yunnan, Southwest China. A guide to the field excursion across the South China, Indochina and Sibumasu [Blocks]. Beijing: Science Press.

Google Scholar

Zhou, C.-F., Bhullar, Bh.-A. S., Neander, A. I, Martin, T., and Luo, Z.-X. (2019). New Jurassic mammaliaform sheds light on early evolution of mammal-like hyoid bones. Science 365, 276–279. doi: 10.1126/science.aau9345

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, M., and Fan, J. (1995). Youngolepis from the Xishancun Formation (Early Lochkovian) of Qujing, China. Geobios 28(Suppl. 2), 293–299. doi: 10.1016/S0016-6995(95)80130-8

CrossRef Full Text | Google Scholar

Žigaitė-Moro, Ž, Karatajūtė-Talimaa, V., Joachimski, M. M., and Jeffries, T. (2018). Silurian vertebrates from northern Mongolia: diversity, ecology and environment [abstract, 5th International Palaeontological Congress]. Available online at: https://ipc5.sciencesconf.org/data/IPC5_Abstract_Book.pdf

Google Scholar

Keywords: timetree, calibration, fossil record, gnathostomata, vertebrata, stemward slippage, divergence date

Citation: Marjanović D (2021) The Making of Calibration Sausage Exemplified by Recalibrating the Transcriptomic Timetree of Jawed Vertebrates. Front. Genet. 12:521693. doi: 10.3389/fgene.2021.521693

Received: 16 January 2020; Accepted: 22 March 2021;
Published: 12 May 2021.

Edited by:

Denis Baurain, University of Liège, Belgium

Reviewed by:

Matt Phillips, Queensland University of Technology, Australia
Per Erik Ahlberg, Uppsala University, Sweden

Copyright © 2021 Marjanović. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: David Marjanović, david.marjanovic@gmx.at; orcid.org/0000-0001-9720-7726
