Comparing Apples to Oranges: Common Trends and Thresholds in Anthropogenic and Environmental Pressures across Multiple Marine Ecosystems
- 1NOAA Fisheries, National Marine Fisheries Service, Woods Hole, MA, United States
- 2International Council for the Exploration of the Seas, Copenhagen, Denmark
- 3NOAA Fisheries, Northwest Fisheries Science Center, Seattle, WA, United States
- 4NOAA Fisheries, Northeast Fisheries Science Center, Narragansett, RI, United States
- 5NOAA Fisheries, Pacific Island Fisheries Science Center, Honolulu, HI, United States
- 6NOAA Fisheries, Southwest Fisheries Science Center, Monterey Bay, CA, United States
- 7NOAA Fisheries, Alaska Fisheries Science Center, Seattle, WA, United States
- 8NOAA Fisheries, Southeast Fisheries Science Center, Miami, FL, United States
- 9NOAA Fisheries, Office of Science and Technology, Silver Spring, MD, United States
Ecosystem-based management (EBM) in marine ecosystems considers impacts caused by complex interactions between environmental and anthropogenic pressures (i.e., oceanographic, climatic, socio-economic) and marine communities. EBM depends, in part, on ecological indicators that facilitate understanding of inherent properties and the dynamics of pressures within marine communities. Thresholds of ecological indicators delineate ecosystem status because they represent points at which a small increase in one or many pressure variables results in an abrupt change of ecosystem responses. The difficulty in developing appropriate thresholds and reference points for EBM lies in the multidimensionality of both the ecosystem responses and the pressures impacting the ecosystem. Here, we develop thresholds using gradient forest for a suite of ecological indicators in response to multiple pressures that convey ecosystem status for large marine ecosystems from the US Pacific, Atlantic, sub-Arctic, and Gulf of Mexico. We detected these thresholds of ecological indicators based on multiple pressures. Commercial fisheries landings above approximately 2–4.5 t km−2 and fisheries exploitation above 20–40% of the total estimated biomass (of invertebrates and fish) of the ecosystem resulted in a change in the direction of ecosystem structure and functioning in the ecosystems examined. Our comparative findings reveal common trends in ecosystem thresholds along pressure gradients and also indicate that thresholds of ecological indicators are useful tools for comparing the impacts of environmental and anthropogenic pressures across multiple ecosystems. These critical points can be used to inform the development of EBM decision criteria.
Ecosystem-based management (EBM) of the ocean, which considers the management of the broad range of ecosystem services across ocean-use sectors (Slocombe, 1993; Leslie and McLeod, 2007), is designed to balance the needs of society for utilization of ecosystem services (e.g., living marine resources) with the sustainability and conservation of marine ecosystems. Identifying and confronting these tradeoffs within EBM is increasingly critical given the high global demand for ecosystem services, which are valued at over 112 trillion USD from marine ecosystems (Li and Fang, 2014). Ideal EBM considers the numerous threats to global marine ecosystems—such as, overexploitation of desirable fish stocks (Pauly et al., 1998; Jackson et al., 2001; Coll et al., 2008; Khan and Neis, 2010), coastal development including undesirable nutrient inputs from anthropogenic sources (Doney, 2010; Liboiron, 2015), and climate change (Pinsky and Fogarty, 2012)—but also considers the benefits to human well-being (Halpern et al., 2012), including humans as an interacting part of the ecosystem.
Effective EBM requires the quantification of reference points to locate a balance between a healthy ecosystem and multiple human uses (Dearing et al., 2014). There is a convergence of knowledge in multiple disciplines (social sciences, economics, ecology, oceanography) in current EBM research that aims to quantify this socio-ecological “sweet spot” (Levin et al., 2009; Link, 2010; Samhouri et al., 2012). While there is a great deal of interdisciplinary work being done in marine ecosystem science, there is a relatively limited set of comparative studies of ecosystem-level trends and thresholds-based reference points (e.g., Murawski et al., 2010; Samhouri et al., 2010, 2017; Large et al., 2013, 2015a,b; Foley et al., 2015; Link et al., 2015; Connell et al., in press) which are required to fully assess the ability of ecosystem science to effectively manage large marine ecosystems.
Ecological indicators are useful tools to interpret the complexity of ecosystems (Coll and Lotze, 2016). They are the backbone for research on conservation and sustainability of living marine resources in many marine management contexts including the European Union Marine Strategy Framework Directive (Rogers et al., 2010; Palialexis et al., 2014; Shephard et al., 2015; Tam et al., in press), Integrated Ecosystem Assessments (IEAs; Levin et al., 2009, 2014), and Indicators for the Seas (IndiSeas; Bundy et al., 2010; Shin and Shannon, 2010; Shin et al., 2010, 2012). Examining suites of indicators is an important facet of EBM, because they can act as proxies for functional, structural, and resilience attributes of ecosystems. A portfolio of ecological indicators can thus represent important aspects of entire ecosystems and can offer insight into ecosystem trends that may not be apparent when assessed individually (Rice and Rochet, 2005). Furthermore, combinations of ecological indicators that are representative of ecosystem status can more accurately assess how ecosystems respond to natural and human perturbations (Heymans et al., 2014).
Understanding the impacts of pressures on ecosystems is another key element of EBM (Jennings, 2005). Entire frameworks (e.g., Jennings, 2005; Kelble et al., 2013; Levin et al., 2014) have been developed describing the range of responses of indicators to a suite of pressures. Pressure variables that impact marine ecosystems span a wide range of scientific disciplines. Environmental pressures are associated with climate and oceanographic processes (e.g., PDO, AMO, MEI, wind, currents) while anthropogenic pressures include proximate (e.g., fisheries) and distal (e.g., population growth, GDP) interactions with marine ecosystems (Österblom et al., 2016). Cumulative effects of pressure variables on ecosystems can yield surprising and unexpected responses. Teichert et al. (2015) and Crain et al. (2008) both found strong evidence of non-additive, cumulative effects of pressure variables on ecosystem that would be impossible to detect without examining multiple pressure variables together. This suggests that the positive outcomes of mitigating groups of stressors that act synergistically could be disproportionately greater than mitigating a single stressor alone. The impact of pressure variables at differing scales can also reveal unexpected responses. Link et al. (2012) demonstrated that estimates of full system yield from surplus production models at the ecosystem level are lower than the sum of single species yield or multi-species yield. Being more conservative, the ecosystem level estimates indicate a potential for overharvesting certain fish stocks when ecosystem-level considerations are not made. Hence, ecosystem-level studies of multiple indicators and pressures are an important complement to single species and multi-species assessments, providing valuable guidance and a more global understanding of how to better manage marine ecosystems.
In many ecosystem studies, baseline reference points are often typically determined from comparisons of a measured value relative to the long-term average (or maximum/minimum) of a time series, from an expert-opinion derived value, or from estimates from presumed unexploited populations (Shears and Babcock, 2004; Ecosystem Assessment Program, 2012; Levin et al., 2013). More recently, there has been a shift toward thresholds-based reference points as an alternative to traditionally developed baselines (Samhouri et al., 2010; Large et al., 2013, 2015a,b; Foley et al., 2015). Thresholds are derived from pressure-response relationships and are akin to LD50 in toxicology studies where at some point along a pressure gradient (chemical or otherwise) organisms experience a median negative impact (Samhouri et al., 2010). Ecosystem thresholds can help to develop non-arbitrary targets and guide management actions that avoid unwanted shifts in ecosystem state (Samhouri et al., 2011; Foley et al., 2015). Already, there are a number of international efforts that aim to conduct EBM in shared marine spatial domains including the European Union Marine Strategy Framework Directive (Palialexis et al., 2014; Bigagli, 2015; Tam et al., in press) and the Convention for the Conservation of Antarctic Living Marine Resources (Constable et al., 2000; Constable, 2011). Ecosystem-level decision criteria based on operational reference points (quantitative reference points that can be used to make management decisions) will greatly facilitate the success and communication between and within countries regarding synergistic policies (Link, 2010). Identifying thresholds of a common suite of ecological indicators not only allows for an examination of ecosystem status between regions, but also facilitates the discovery of cross-ecosystem trends.
Here, we aim to develop operational reference points by quantifying thresholds for a suite of ecological indicators along multivariate pressure gradients (both anthropogenic and environmental). We further compare these operational reference points among multiple marine ecosystems, recognizing the value in comparative ecosystem studies (Murawski et al., 2010). Broad studies that compare ecosystems can help identify commonalities in patterns, timing and scope of marine ecosystem responses and can generate insight into the vulnerability and resilience of large marine ecosystems to various stressors; over time such consistent patterns can develop into scientific laws. Here we identify thresholds of ecological indicators that can be used for assessing ecosystem status and to identify pressures of concern in specific ecosystems. We also identify common trends across multiple ecosystems cognizant of the cumulative responses to pressure variables using methods that are novel within management context. Ultimately, we aim to provide the scientific basis for development of ecosystem-level reference points for EBM.
Materials and Methods
This study examined four Large Marine Ecosystems (LMEs: Alaska-Eastern Bering Sea, California Current, Northeast US and northern Gulf of Mexico) that are part of NOAA's IEA program (Levin et al., 2009, 2014). Each LME is a distinct type of marine ecosystem (Figure 1) and these LMEs collectively represent not only latitudinal, bathymetric, productivity, and exploitation gradients, but also encapsulate a wide range of variable habitats and taxa groups useful for contrasts (Murawski et al., 2010). The Eastern Bering Sea (hereafter Alaska), is a sub-arctic, high productivity system that is characterized by an extensive gradually sloping shelf and a deep sea basin. While the system has a relatively low population density compared to other IEA LMEs in the US, it experiences a high level of human activity in terms of commercial fishing, and to a lesser extent oil and gas development and transport (Zador et al., 2014). The California Current is a temperate Pacific coast ecosystem that extends from southern British Columbia, Canada to Baja California, Mexico. The California Current LME produces abundant ecosystem goods and services including fisheries, recreation, tourism, and energy production. This ecosystem is fueled by seasonal upwelling of cold nutrient water resulting in a very productive system (Levin et al., 2013). The Northeast US is a temperate Atlantic ecosystem with high productivity that supports a diverse array of invertebrates, pelagic fish, groundfish, seabirds, and marine mammals. With a history of fisheries spanning centuries, the region has experienced sustained impacts on the marine ecosystem (Link et al., 2002). The northern Gulf of Mexico (hereafter Gulf of Mexico) is a semi-enclosed, sub-tropical coastal sea in the Atlantic that supports a large recreational and commercial fishing industry and also provides many goods and services such as, oil and gas production, tourism, and habitat for endangered species (Karnauskas et al., 2013). Further descriptions of these ecosystems are provided in the Supplementary Materials.
Figure 1. Study large marine ecosystem (LME; gray). Solid lines represent the US exclusive economic zone (EEZ) and dotted lines represent the integrated ecosystem assessment large marine ecosystem (IEA LME).
The indicator data used in this study were compiled from NOAA's fishery-independent surveys from Alaska (1982–2013), California Current (1981–2012), Northeast US (1964–2013), and Gulf of Mexico (1992–2010) which provide information regarding the ecology and oceanography of each respective LME (Table 1). In short, each region had multiple hundreds of stations that were integrated into yearly estimates using properties of the statistical sampling design from each survey. Ecological indicators were calculated for the California Current as a combination of triennial survey data (collected from 1981 to 2004) and annual surveys (2003–2012). The ecological indicators from each dataset were similarly calculated and standardized by the total area of each study LME (Figure 1). Years with missing data (i.e., only the California Current triennial survey data) were interpolated using rolling averages (R package zoo, R Core Team, 2015). The fishery-independent monitoring program uses a depth stratified survey design run semiannually (spring and autumn in the Northeast US; summer and autumn in the Gulf of Mexico; Reid et al., 1999; Nichols, 2004; Politis et al., 2014; Pollack et al., 2016) and annually (summer in Alaska and the California Current; Levin and Schwing, 2011; Conner and Lauth, 2017). Calculated from these survey data, we chose a suite of six ecological indicators that have been vetted and found to met international standards of useful indicators for assessing ecosystem status (Garrison, 2000; Methratta and Link, 2006; Fay et al., 2013, 2015). The suite of ecological indicators represented a variety of ecosystem attributes (functional, structural, and resilience aspects of marine ecosystems) and were also chosen for universal applicability and the ability to translate across the various ecosystems examined (Table 1). These include: mean length of fish (Length), pelagic to demersal ratio (PDR), planktivore and benthivore to shrimp-fish feeder ratio (low to high trophic ratio; LHTR), mean trophic level (MTL), species richness (Rich), and diversity (effective number; EN).
A variety of both anthropogenic and environmental variables were selected to reflect pressures on ecosystems (Table 2). Landings (total live weight of commercial species landed weighted by the area of each study ecosystem) and exploitation (the ratio of landings to estimated total biomass of the LME from fishery-independent surveys) served as measures of commercial fishing. We also included a 1-year lag for both landings and exploitation to account for any lagged effects of commercial fishing (Large et al., 2015b). Other variables that track yearly fluctuations in anthropogenic pressures beyond commercial fishing such as, annual human population increase from coastal states that are part of the LME and annual changes in Gross Domestic Product of the coastal community (GDP) demand were also considered (Table 2).
Table 2. Pressure variables from the Alaska (EBS), California Current (CC), Northeast US (NEUS), and Gulf of Mexico (GOMEX) ecosystems.
Environmental variables that influence ecosystem circulation patterns, primary production, availability of nutrients, and vertical mixing were chosen for all LMEs, namely Sea Surface Temperature (SST), and broad scale climatological indicators such as, Pacific Decadal Oscillation (PDO; for the Pacific coast regions), Atlantic Multidecadal Oscillation (AMO; for the Atlantic coast regions), or Multivariate El Niño Index (MEI for all regions). A measure of system production was included (Chlorophyll a). A wide range of other environmental variables that were specific to a given region, for instance ice cover or hypoxic area, were also considered (Table 2).
Gradient Forest Analysis
We used random forest and gradient forest methods on time series of a suite of ecological indicators (Table 1) to assess the importance of anthropogenic and environmental pressures (Table 2) on ecosystems (R package randomForest, R Core Team, 2011; R package gradientForest, R Core Team, 2012) and to identify ecosystem-level thresholds across pressure gradients for each LME. Random forests are methods that can be used to examine multiple responses to pressures. Random forests are comprised of regression tress (or classification trees), where indicators are partitioned into two groups at a specific split value for each pressure to maximize homogeneity within each grouping (Ellis et al., 2012). An independent bootstrap sample of data (resampled with replacement) builds each tree for a given number of simulations. The goodness-of-fit (R2) is partitioned among the pressures and an overall importance is determined by averaging this goodness-of-fit across indicators and time (years). The data not selected in the bootstrap sample (or out-of-bag data) is used to provide cross validations of the generalized error estimates. The synthesized outputs have high classification accuracy and account for interactions among predictor variables.
While random forests are useful for quantifying the ability of pressure variables to predict response variables, gradient forests integrate individual random forest analyses over many response variables and are also used to identify thresholds in those indicator responses along anthropogenic and environmental pressure gradients (Ellis et al., 2012). In gradient forest analysis, the importance values are gathered for each pressure variable for each time period and combined to estimate the threshold of the ecological indicators along the pressure variable. Threshold ranges are determined by calculating the 95% confidence interval about the mean cumulative shift in the aggregate ecological indicator response in R2 units. In short, regression trees indicate the value of potential thresholds and integrating the trees into a “forest” confirms the range of possible shifts and thus delineates thresholds. This range is determined to be where an anticipated ecosystem shift could occur. Detailed description of these methods can be found in Ellis et al. (2012), Baker and Hollowed (2014), and Large et al. (2015a).
Because gradient forest analysis can detect thresholds in a multivariate context, this method is particularly useful for examining thresholds at the ecosystem level (see Pitcher et al., 2011; Baker and Hollowed, 2014; Large et al., 2015b). Consider that a set of species in an ecosystem is sensitive to a particular pressure, but each species within that set responds in a different way. At a given threshold along the pressure gradient, one species is present below that threshold and absent above it; whereas another species exhibits the opposite response at the same threshold. The gradient forest analysis would likely have the first (and most important) split point close to the value of that threshold, thus revealing cumulative importance about the ecosystem threshold (Ellis et al., 2012).
Generalized Additive Models
We used a set of complementary analyses to further examine the multivariate ecosystem trends across pressure variables and to confirm that detected thresholds are robust. We first distilled all of the ecological indicators used in the gradient forest analysis in each LMEinto ecosystem trends using Dynamic Factor Analysis (DFA; R package MARSS, R Core Team, 2013). DFA is a multivariate technique used to identify, detect common patterns in a set of time series (Zuur et al., 2003a,b). We considered two structures for the error covariance matrix R: (1) diagonal and equal and (2) diagonal and unequal (Zuur et al., 2003b; Large et al., 2015a). Diagonal and equal covariance matrices consider the same process variance across all-time series, while diagonal and unequal covariance matrices consider unique variance values for each time series. We selected the ecosystem trends for each region dependent on the DFA model with the lowest AICc score (Hurvich and Tsai, 1989).
Using the best model for the ecosystem, we then used Generalized Additive Models (GAM; R package mgcv, R Core Team, 2014) to examine significant ecosystem trend changes (regions of inflection) as a response to individual pressures (both environmental and anthropogenic) using methods specified in Large et al. (2013). In some instances the DFA model indicated that multiple trends were significant for each LME, in which case, we tested them all in subsequent analyses. We used the GAM models with the formula:
where Y is the ecosystem trend derived from the DFA model, α is held constant, X is the pressure variable, S() is the smoothing function and ε is error. Models that had an estimated p-value > 0.05, estimated degrees of freedom close to the lower limit, and that had generalized cross validation (GCV) scores that decreased when the smoothing term was removed from the models were considered to be linear (Wood, 2004). In this study, GAMs were run with and without a smoothing function to determine the appropriate use of a GAM (with smoothing term) over a GLM (generalized linear model; i.e. GAM without smoothing term). All models had a higher GCV score with the GAM smoother and no GLMs were considered in subsequent analyses. Significant trends and thresholds were determined by examining significant zero crossings of the first and second derivative (as in Large et al., 2013).
A potential strength and weakness of this approach is that it does not rely on a priori identification of functional relationships between response and pressure time-series. The pressure response relationships in this study are multivariate and therefore represent cumulative responses. As such the nature of the ecosystem trend and interpretations of the GAMs will identify threshold points along pressure gradients irrespective of the specific functional responses of each individual ecological indicator to pressure variables. In some cases, the direction of the response of the ecosystem trend against a given pressure may appear to be counterintuitive due to negative factor loadings of the DFA trends (Supplement 1). This combination of analyses, however, offers confirmation (when contrasted with other analyses like gradient forest analysis) of where these threshold ranges are occurring for a total ecosystem response to a given pressure in an LME that allows for comparisons between ecosystems.
The total model prediction performance from the gradient forest analysis (the proportion of variance explained in a random forest) averaged across the suite of ecological indicators from each LME ranged from 0.01 to 0.07 (R2s; Table 3). The model prediction performance for the cumulative ecological indicators had a range of 0–0.30 (R2s), which is consistent with other studies using similar analyses by Large et al. (2015b; 0–0.21 R2s), Pitcher et al. (2011; 0–0.35 R2s), but lower than Baker and Hollowed (2014; 0–0.77 R2s). These model prediction values may appear low; however, in studies with similar results using aggregated ecological indicator data (containing more unexplained variability than raw species abundance metrics) the gradient forest was still able to identify important variables and thresholds (Large et al., 2015b). In contrast to these past studies, this particular analysis focused on cross-ecosystem comparisons and only included ecological indicators that were transferrable across the differing LMEs into the analysis. Inclusion of LME-specific ecological indicators (e.g., longhorn sculpin in the Northeast US; Methratta and Link, 2006) improved the variance explained, but would not allow for true cross-ecosystem comparisons, thus they were excluded from this particular study and account for the lower overall variance explained. Additionally, and more to the point in this comparative study, although the variance explained may be low, multiple (but very different) statistical analyses yielded similar threshold points both within and across ecosystems. In all ecosystems, the ecological indicators that were included in the gradient forest models were mean length (structural) and richness and diversity (resilience) indicators (Table 3). In the Atlantic ecosystems the models maintained a higher number of the ecological indicators in the gradient forest analysis with the fewest in the Alaska ecosystem.
Table 3. Mean Model Performance (R2s) of the out-of-bag samples for the ecological indicators in each region from the gradient forest analyses.
Important Pressure Variables
Both the gradient forest analyses and GAMs did not identify a single driver that was consistently dominant across the four ecosystems, though fisheries landings was an important predictor in models for all systems (Figure 2, Table 4). Generally, anthropogenic variables ranked high in their impact, explaining a larger portion of the changes in the ecosystem trends (at least three of the five most important pressure variables were anthropogenic for all four regions in the gradient forest analysis) than environmental pressures. GAM relationships between ecosystem trends and pressure variables also showed that a larger number of anthropogenic variables significantly impacted ecosystems compared to environmental variables, given the relatively higher values of deviance explained (Table 4). Trends of pressure variable importance were consistent with the historical understanding of each region, with the Northeast US and California Current being strongly impacted by the anthropogenic pressures assessed. The pressures that were specific to a region (e.g., ice cover, hypoxic area; Table 2) were ranked less important than the large scale climatic pressures such as, PDO and AMO in explaining patterns of the cumulative ecological indicators. Exploitation had a high impact in the Atlantic regions.
Figure 2. Importance of human and environmental pressure variables across ecological indicator outputs (R2) from the gradient forest analyses for (A) Alaska, (B) California Current, (C) Northeast US, (D) Gulf of Mexico.

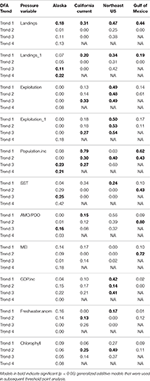

Table 4. Deviance explained for the generalized additive model results for each ecosystem trend (DFA Trend) and pressure variable (using variables common in all ecosystems).
Common landings and exploitation thresholds of ~2–4.5 t km−2 landings and ~20–40% exploitation of the total estimated biomass were detected with the gradient forest analyses (Figures 3A,C), bearing in mind that the relative importance of exploitation was low in Alaska and the Gulf of Mexico (Figure 2). Individual thresholds of ecological indicators showed how structural, functional and biodiversity properties of each ecosystem shifted across individual pressure gradients (Figure 4; see Supplement 2). Lagged fishing pressures (landings and exploitation) showed very similar threshold mean and ranges to their non-lagged counterparts (Figures 3B,D). This was also confirmed by the GAM of ecosystem trends (Table 4). The thresholds identified by the GAMs of ecosystem trends along pressure gradients were similar to the thresholds identified by the gradient forest analysis, indicating these ecosystem-level thresholds are robust (Figure 5; see Supplementary Materials). Ecosystem thresholds in response to yearly human population increases were lowest in coastal communities that were (already) most densely populated (Northeast US, Gulf of Mexico); in the lowest populated regions (Alaska) the mean thresholds were highest and they had the widest range (Figure 3E). Yearly changes in the GDP showed ecosystem shifts occurring at higher GDP increases in the Northeast US, Gulf of Mexico, and California Current, compared to Alaska where large ranges of GDP were observed (Figure 3F). SST showed differing thresholds between regions that were unique to the specific ecosystems, largely reflective of the latitudinal position of each ecosystem (Figure 3G). Thresholds for ecological indicators occurred in more positive phases of the AMO, PDO, and MEI (Figures 3H,I), although these tended to have a wide range of threshold. Freshwater anomalies generally ranked lower in terms of importance in explaining ecosystem shifts, but showed a wide threshold region in the California Current (Figure 3J). Chlorophyll a had a higher and wider threshold range in California Current (Figure 3K), indicating that higher levels of primary production in terms of chlorophyll concentration is an important driver there, likely due to upwelling. The three other regions indicate a basal concentration of ~0.7 mg m−3 chlorophyll a to avoid ecosystem shifts (Figure 3K).
Figure 3. Mean thresholds and 95% CI ranges for (A) Landings, (B) 1 year lagged landings, (C) Exploitation, (D) 1 year lagged exploitation, (E) Population increase of the coastal community, (F) Gross Domestic Product of the coastal community, (G) Sea Surface Temperature, (H) Atlantic Multidecadal Oscillation and Pacific Decadal Oscillation, (I) Multivariate ENSO Index, (J) Freshwater anomalies, and (K) Chlorophyll concentration from the gradient forest analysis for Alaska (Bering Sea), California Current, Northeast US and Gulf of Mexico.
Figure 4. Cumulative shifts (in R2 units) of ecological indicator value in response to landings (t km−2) from the gradient forest analyses for Alaska (Bering Sea), California Current, Northeast US, and Gulf of Mexico. Thresholds are defined as a steep increase in ecological indicator response to a pressure. Ecological indicators are mean length of catch (Length), species richness (Rich), pelagic to demersal ratio (PDR), low to high trophic ratio (LHTR), species diversity (EN).
Figure 5. Ecosystem trend (Trend 1 for all LMEs) responses to landings (t km−2) from Alaska (Bering Sea), California Current, Northeast US, and Gulf of Mexico ecosystems. Dotted lines are the smoothed GAM line, gray polygons surrounding the trend line are 95% CI, solid black lines indicate a significant threshold region.
The gradient forest analysis identified the relative size of the cold pool in Alaska as the only region specific pressure variable that ranked within the top five important pressures in explaining ecosystem shifts (Figure 2). The ecosystem thresholds occurred when the cold pool was ~0.2–0.3x relative to the previous year. Ecosystem thresholds along ice retreat index gradients were ~10–50%, while thresholds along north Pacific index were ~−2.0 to 0. In the California Current, ecosystem thresholds were around ~−1.0 to 1.0 for mean annual north Pacific gyre oscillation, 3,000 m3 s−1 100 m−1 total upwelling magnitude index and northern oscillation index at ~−4. Region specific thresholds in the Northeast US were between ~−2.0 and 2.0 for winter north Atlantic oscillation, ~ 0.06–0.07 N m−2 for wind stress and ~1.0–1.3 GS. Ecological indicator thresholds along gradients of mean current transport in the Gulf of Mexico had the lowest importance for the regions according to the gradient forest analysis (Figure 2). Hypoxic area (threshold at ~1.5–2.0 × 104 km2) and Atlantic warm pool (threshold at ~2.0–2.5 × 106 km2) in the Gulf of Mexico explained 0.01 and 0.012 of the ecological indicator response, respectively; which was relatively low compared to other pressure variables in that LME.
Patterns in Ecosystem Trends and Thresholds
Our results demonstrate that there are consistent patterns in ecosystem response from common pressures across four large marine ecosystems, and despite multiple potential mechanisms, the detected trends and thresholds to such pressures in these ecosystems were remarkably repeatable. Although each ecosystem examined has different socio-economic histories (Hollowed et al., 2011; Link et al., 2011a; Karnauskas et al., 2013; Levin et al., 2013), different levels of population density, and differential reliance on living marine resources that vary in the use of marine habitats and ultimately shape the stability of the ecosystems, there are a number of common trends that are surprisingly consistent across all ecosystems. These common trends would be difficult to detect if not examined at the ecosystem-level and in a multivariate context, both in terms of detecting baseline reference points and observing emergent properties of marine ecosystems. That these common trends and thresholds exist is insightful for both further understanding of marine ecosystems, as well as management thereof.
One key result is that, at an ecosystem-level, removals of biomass (via landings-based exploitation) do have repeatable and consistent thresholds. There are different ecological mechanisms in which such ecosystem-level responses can be observed, but consistently there is an impact to overall size, congruent with overfishing theory, as well as tendencies toward smaller organisms with hyper-exploitation (Pauly et al., 1998; Pauly and Palomares, 2005; Shackell et al., 2010; Darimont et al., 2015; Worm and Paine, 2016). This exploitation impacts the biomass composition in an entire ecosystem, shifting either biodiversity or measures of biomass ratios (e.g., pelagic to demersal) and implies that exploitation selectively impacts certain facets of an ecosystem consistent with what is known for the ecological effects of targeted fisheries (Shin et al., 2005; Jennings and Collingridge, 2015). Additionally, some form of broad-scale climate forcing is regularly identified as a key driver of ecosystem-level responses. The ecological mechanisms for this can vary, but largely filter through changes in vital rates and related bioenergetics processes (Holsman et al., 2016).
Another commonality was that when examining the impacts of the pressure variables to cumulative ecosystem responses, anthropogenic pressures rank high. Due to the pressure-response relationship of these analyses, this does not necessarily reflect the current status of a given ecosystem, but rather implies that certain pressures have heavily impacted these ecosystems within the history of the time series analyzed. This is not to say that environmental pressures are not important; rather that the anthropogenic pressures tended to more consistently emerge as clearer features that impact observed ecosystem dynamics.
As a particular example of such anthropenic pressures, in all the ecosystems, landings have decreased since the 1970s and 1980s, and some fish stocks have experienced a phase of rebuilding (Rosenberg et al., 2007; Worm et al., 2009; Lotze et al., 2011). Ecosystem responses to commercial fishing are surprisingly consistent in the four regions examined in this study. Ecosystem thresholds were observed at landings of ~2–4.5 t km−2 and fisheries exploitation of ~20–40% of the total estimated biomass. All landings estimates fall within previously determined ecosystem-level surplus production model threshold estimates of 1–6 t km−2 (Bundy et al., 2012; Link et al., 2012; Lucey et al., 2012), further corroborating the robustness of a potentially universal ecosystem-level fisheries yield, at least in the northern hemisphere.
Lower population increases and higher GDP in coastal communities were related to ecosystem shifts where population density is highest (population density of Northeast US: ~300 indv km−2). These threshold values increased with decreasing population densities (Gulf of Mexico: ~56 indv km−2, California Current: ~50 indv km−2. Alaska: ~0.5 indv km−2; U.S. Census Bureau, 2016). Human migration toward more heavily populated areas appears to have a disproportionately large impact on ecosystems. This could relate to a longer history of commercial fishing in a particular region or issues with urban infrastructure (e.g., sewage treatment, erosion prevention). Likely, pressures relating to human population increase act cumulatively to account for these patterns in ecosystem shifts (Halpern et al., 2008; Stallings, 2009; Madin et al., 2016). The Northeast US, California Current, and Gulf of Mexico regions exhibited higher annual GDP increases which were related to ecosystem shifts, compared to Alaska where ecosystem shifts occurred when GDP was both increasing and decreasing. There was a wider range where ecosystem shifts could occur along gradients of population and GDP increase in Alaska, suggesting that less infrastructure, fewer types of industry or lower climate regulation influence ecosystem dynamics and stability (Li and Fang, 2014).
In terms of environmental pressures, another commonality was evidence that all ecosystems appear to influenced by multi-annually varying climate drivers, albeit seen via different indices in each region. The discovery of large-scale climate patterns have been an important step in connecting climate to ecological, biological, and oceanographic patterns in marine ecosystems (Mantua and Hare, 2002; Alheit et al., 2014). Of the environmental drivers examined in this study, the large-scale climate drivers (PDO and AMO) were important in explaining ecosystem shifts when examined at a yearly time scale. Seasonal patterns of climate pressures, however, were not examined in this study to maintain consistency with other indicator and pressure variables, but other relationships and thresholds may certainly exist at different time scales. Both positive PDO and AMO anomalies are associated with dry, hot temperatures in the U.S. (McCabe et al., 2004) and generally correlate positively with SST anomalies that subsequently can cause a shallower ocean mixed layer and lower primary productivity (Mantua and Hare, 2002; Nye et al., 2014). When PDO and AMO anomalies appear to be positive, the ecosystem shifts toward a threshold response. Patterns of chlorophyll across all four ecosystems indicate a base level of primary productivity needed for sustainable fisheries at chlorophyll a concentrations of ~0.7 mg m−3, noting that chlorophyll concentration is positively associated with fisheries yields (Friedland et al., 2012). In the California Current, ecosystem shifts were observed at higher concentrations of chlorophyll which are linked periods of strong upwelling, but ecosystem stability is maintained at lower chlorophyll concentrations (Kahru et al., 2012). Scatterplots of monthly fisheries yields vs. chlorophyll concentration by Friedland et al. (2012) show spikes in observed fisheries yields when chlorophyll concentrations were at or above ~0.7 mg m−3.
The analyses in this study were not used to examine specific mechanistic links between specific pressures and responses, but rather to identify and compare significant threshold ranges of ecosystems (represented by indicators) along pressure gradients. Individual ecological indicator thresholds can also be examined across individual pressure gradients to determine specific reference points at the single indicator level (e.g., Samhouri et al., 2010; Large et al., 2013). This allows for the specific examination of shifts across gradients of individual ecological indicators that can then be examined using other methods (such as, Generalized Linear Models) to determine a trend or directional shift. While doing so would further elucidate the dynamics of a given ecosystem, this study is primarily aimed at examining the location of ecosystem thresholds across pressure gradients across ecosystems. We acknowledge that further insight into individual indicator trends and thresholds are important to gain a fuller understanding of a given ecosystem. We also assert that comparisons across ecosystems, that then detect common trends and thresholds, are equally powerful.
Thresholds as Reference Points in Management
Mechanistic links have been made between fisheries production and multiple drivers including fishing, trophodynamics, and the environment (Gaichas et al., 2012a,b; Holsman et al., 2012; Link et al., 2012; Pranovi et al., 2014; Longo et al., 2015). Multivariate thresholds analyses enable scientists and policy makers to present the complexity of multiple pressures on whole ecosystems in a way that is easier to communicate and comprehend (Peterman, 2004; Large et al., 2015a,b). The methods presented here are complex, in terms of statistical analyses, but are able to offer clear ecosystem-level outputs of threshold ranges across pressure gradients. As such, thresholds provide a powerful tool to delineate and communicate quantifiable tipping points for ecosystems (Foley et al., 2015).
Each ecosystem in this study has, at some stage in the last half century, experienced overfishing (Bakkala et al., 1979; Rosenberg et al., 2007; Walters et al., 2008; Link et al., 2011a; Miller et al., 2014). The impacts of overfishing are complex, but well researched. For example, it has been found that the concentration of fishing on large, predatory species can destabilize ecosystems, resulting in a loss of biodiversity and increasing blooms of lower-trophic organisms, often undesirable species like jellyfish (Pauly et al., 1998; Purcell et al., 2007). More recently, the position of humans within food-webs has been categorized as “hyperkeystone” (Worm and Paine, 2016) or as “super predators” (Milius, 2015), indicating that the current impacts of humans on food webs (marine or otherwise) could lead not only to lower abundances of predatory species, but also size-stunted predator populations with an impaired ability to regulate prey species even in rebuilding scenarios (Darimont et al., 2015). Here we present ecosystem thresholds that can be used as reference points to support coordinated efforts to develop sustainable fisheries via EBM policies that support rebuilding strategies for depleted fish stocks, ecosystem aggregate yield limits, and to explore the social tradeoffs and potential social benefits of changing how we use living marine resources (Murawski, 2000; Balmford, 2002; Howarth and Farber, 2002; Rosenberg et al., 2007; Worm et al., 2009; Khan and Neis, 2010; Link, 2010; Plagányi et al., 2014; DePiper et al., in press).
The thresholds developed here can also be used to build proactive strategies to avoid regime shifts due to overfishing, population increase and climate change, particularly when explored through simulation modeling (Samhouri et al., 2010; Fulton et al., 2011; Fay et al., 2013, 2015; Large et al., 2013). In particular, given the strength of bottom up controls on the systems we evaluated, climate change may be of increasing impact. There have been major breakthroughs in understanding how long-term climatic events and climate change will impact marine species. Many marine communities are predicted to have continued impact by changes in mean SST and are predicted to respond in numerous ways from range shifts (Pinsky and Fogarty, 2012; Gattuso et al., 2015; Heenan et al., 2015) to phenological shifts (Parmesan, 2006; Brown et al., 2016). While the outcomes of climate change are predicted to be overwhelmingly negative, there may be some economic and social benefits for well-managed fisheries in warming scenarios (Barange et al., 2014). Warming climate events in the Gulf of Alaska during the 1970s and 1980s caused dramatic shifts in catch compositions of groundfish, and actually increased the catch biomass of higher trophic-level groundfish by over 250% (Anderson and Piatt, 1999). Anchovy and sardines are known to have multidecadal regime shifts in the Pacific Ocean due to natural, long-term climate variability (Chavez et al., 2003). This can drastically change the catch compositions of these ecosystems over long periods of time and it is important to understand the consequences of unintentionally overfishing during these temporary regime shifts for the long-term sustainability of marine ecosystems. Systems approaches to management, including EBM, can contribute to successful resilience of ecosystems by improving the ability to detect and react to ecological feedbacks (Hughes et al., 2005). Climate thresholds presented in this study can be incorporated into local resource and ocean management and used to develop rules around total harvests of specific species based on known or predicted distributional shifts (Link et al., 2011b; Pinsky et al., 2013; Heenan et al., 2015).
While the location of ranges of ecosystem-level thresholds along both human and environmental pressure gradients are easily interpreted, these insights are best made against a backdrop of dynamic biological and environmental conditions. While it is easy for many to agree that benefits to human well-being correlate positively with ecosystem services, it is often difficult to incorporate these ideas into management (Arkema et al., 2015). Social indicators that examine the mechanistic links between human well-being and ecosystems are being examined, but are generally underdeveloped (McShane et al., 2011; Colburn and Jepson, 2012; Howe et al., 2014; Pollnac et al., 2015; Yang et al., 2015). Studies such as the one undertaken here address issues from an ecosystem-based fisheries management standpoint, but the inclusion of more social indicators (such as, GDP and human population increases) would move this work more fully toward EBM. Improving and expanding on indicators for human well-being would greatly enhance the ability to examine thresholds for societal needs within the context of this study, but also to examine the inherent tradeoffs between the needs of people and marine ecological sustainability and conservation (Dearing et al., 2014; DePiper et al., in press).
There is a sense of urgency to develop management and policy that supports ecosystem-level sustainability and conservation given the current global demand for living marine resources and marine ecosystem services (Pauly and Palomares, 2005; Mollmann et al., 2014; Worm and Paine, 2016). The thresholds presented in this study offer guidance toward developing quantifiable, defensible and robust reference points in policy and management for sustainable marine ecosystems. With the variety of ecosystem types examined (sub-polar, upwelling, temperate, and sub-tropical), these thresholds could become operational not only in the US, but also in other comparable systems globally. They are particularly useful as a baseline to develop similar reference points and policy guidelines in regions that lack sufficient data to develop analogously derived quantitative thresholds. Using ecosystem-level thresholds to make cross-ecosystem comparisons reveal interesting emergent properties that unify the current understanding of large-scale climate drivers, human population growth and commercial fishing which will further enhance global progress toward EBM.
JT authored/drafted, analyzed, provided final approval, and is accountable for this manuscript. JL and SL provided intellectual content, revised, provided final approval, and is accountable for this manuscript. RS provided intellectual content, revisions, final approval and is accountable for this manuscript. KA, KF, JG, EH, KH, MK, NT, SZ and JS provided data, revisions, final approval, and are accountable for this manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
