Effect of Siderophore on Iron Availability in a Diatom and a Dinoflagellate Species: Contrasting Response in Associated Bacteria

Introduction

Iron is one of the most functional transition metals present in the biosphere. It came to play a fundamental role in biological systems due to its high abundance during evolution in the primordial ocean and due to its flexible redox chemistry (Hunter and Boyd, 2007). Fe is an essential element in the metabolism of marine organisms (Raven, 1988) for processes such as photosynthesis, respiration, processing of reactive oxygen species and nutrient acquisition (Shaked and Lis, 2012). Yet, due to low solubility of iron(III) and formation of highly insoluble oxyhydroxides in today's oxygenated waters, dissolved iron (<0.2 or 0.45 μm) is present at extremely low concentrations (<0.5 nM) in surface ocean waters (Johnson et al., 1997). Moreover, more than 99% of dissolved iron is regarded as being bound to organic ligands (Rue and Bruland, 1995; Van Den Berg, 1995). Consequently, this low Fe concentration contributes to the limitation of primary productivity in a significant portion of the world's oceans (Martin and Gordon, 1988; De Baar, 1990). To overcome the elusiveness of iron, microorganisms have developed strategies to enhance their Fe uptake. Laboratory studies have demonstrated that some aerobic bacteria secrete siderophores as part of a high-affinity iron uptake mechanism (Butler, 2005). These molecules may be considered part of the group of strong iron-binding organic ligands found in seawater. Chemical properties of siderophores such as the conditional stability constants have been shown to be similar to constants measured in natural seawater, as a result of naturally occurring ligands (Macrellis et al., 2001; Hunter and Boyd, 2007). Siderophores appear to be part of this group of chelating agents that are able to solubilize iron hydroxides and maintain it in concentrations high enough for cell growth, thus controlling to an extent microbial iron bioavailability (Boukhalfa and Crumbliss, 2002). These Fe-binding ligands appear to be present in both surface and deep waters of the coastal and open ocean, yet there is not a complete understanding of the contribution of specific groups of siderophores to the dissolved pool of Fe due to the analytical challenges associated with measuring their low concentrations (Gledhill and Buck, 2012). To date, no eukaryotic phytoplankton have been found to excrete siderophores, while there is still a limited understanding on the effect of these compounds on the Fe bioavailability. For instance, whether differences in bioavailability have effects on the phytoplankton assemblage's composition or rates of primary production (Kustka et al., 2015).

Much of the focus on Fe bioavailability has been on HNLC and oceanic ecosystems, yet iron likely has an equally important regulatory role in coastal waters, even becoming a limiting nutrient at least on a seasonal basis (Hutchins et al., 1998; Bruland et al., 2001; Öztürk and Bizsel, 2003). Though siderophores are believed to be more abundant in oceanic environments than coastal environments, the presence of hydroxymate type siderophores has been reported for coastal waters (Mawji et al., 2008; Velasquez et al., 2011; Boiteau et al., 2016), suggesting a potential role for these types of ligands in these environments. Moreover, Fe requirements of neritic phytoplankton are not only comparatively higher relative to oceanic phytoplankton, but also differ substantially among species, so that iron fluctuations within metal-replete systems should strongly influence the composition and distribution of phytoplankton assemblages (Wells, 1999). Despite this, much of the research for coastal environments to date has been centered on few diatom species (Hutchins D. et al., 1999), with greater focus on the genus Thalassiosira (Sunda and Huntsman, 1995) and less attention on species such as Phaeodactylum tricornutum (Soria-Dengg and Horstmann, 1995; Soria-Dengg et al., 2001). Less attention has been paid to other phytoplankton groups that have been found capable of accessing iron sources other than solely the dissolved pool. For instance, in phytoflagellates Fe acquisition can occur through mixotrophy by colloid ingestion (Nodwell and Price, 2001). Dinoflagellates, also with mixotrophic capabilities, play a relevant role from both the ecological perspective by structuring phytoplankton assemblages and from the ecosystems services perspective by promotion of harmful algal blooms (HABs) (Jeong et al., 2010). Early studies reported on the relation of episodic pulses of iron from water runoff, land drainage or sediment resuspension to the initiation of red tide dinoflagellate blooms (Ingle and Martin, 1971; Glover, 1978). With respect to dinoflagellates and siderophores, claims of isolation of a siderophore from eukaryotic origin have been made for Prorocentrum minimum (Trick C. G. et al., 1983). However, evidence was not conclusive due to either lack of clean techniques at the time, or the possibility of bacterial contamination and production of siderophores (Sunda, 2001). More recent evidence has suggested that coastal dinoflagellates may be more susceptible to the effects of reduced iron availability than other neritic phytoplankton (Doucette and Harrison, 1990, 1991). More recently, several dinoflagellate species, previously defined as solely autotrophic (such as the red tide dinoflagellate Alexandrium catenella) have been later recognized as mixotrophic, hence changing the perspective of their ecologic role. Dinoflagellates capable of ingesting bacteria may a have direct impact on iron availability by predating on bacteria or may contribute indirectly by predating on protists which in turn prey upon bacteria (Bockstahler and Coats, 1993; Jeong et al., 2005, 2007).

Given the high phytoplankton diversity and the different trophic modes, competition between eukaryotes together with prokaryotes for organically bound iron strongly depends on the chemical nature of Fe complexes, with ultimate consequences for ecological niche separation and plankton community size-structure (Hutchins D. A. et al., 1999). Regardless of recent advances, the nature of the specific relationship between certain iron species being bioavailable to certain groups/species of phytoplankton is still not fully elucidated. Marine bacteria has been shown to release hydroxamate siderophores such as desferrioxamine (McCormack et al., 2003; Gledhill et al., 2004; Mawji et al., 2008). Based on this finding, desferrioxamine has become a common siderophore to be used in marine laboratory experiments. Results with desferrioxamine B have shown a wide variety of responses with regard to the bioavailability of this siderophore-complex (Hutchins D. A. et al., 1999; Hassler and Schoemann, 2009). Even within studies of the same species different results were obtained, which demonstrates that the nutritional status of cells (Maldonado and Price, 2001), and the experimental approach (Shaked and Lis, 2012) can affect the interpretation of the bioavailability of Fe complexes.

Here we aimed to study the bioavailability of iron for different species belonging to separate functional groups of phytoplankton from the coastal environment under experimental conditions. We used a dynamic approach which uses moderated addition of iron and the organic ligand desferrioxamine B (DFB). Under controlled conditions the diatom Skeletonema costatum and the dinoflagellate Alexandrium catenella, were grown under semi-continuous additions of iron and a concentration gradient of the siderophore to seek its effects on the overall physiology of the algae. Interactions with the associated bacteria are discussed with respect to the potential role for nutrient acquisition in different functional groups of phytoplankton.

Materials and Methods

Water Collection and Conditioning

Seawater collected for the cultures was obtained from the laboratory facilities of the Trondheim Biological Station (63°N), Trondheim Norway. Water intake is located at a depth of ~80 m with a bottom depth of ~100 m. Water was collected during November 2014 when concentrations of total dissolvable iron in Trondheim's fjord (10–50 m) range between 5 and 12 nM (Öztürk et al., 2002). A volume of 50 liters was collected in five 10 L acid-washed PE Nalgene bottles. All water was filtered through acid washed filters (0.45 + 0.2 μm Sartorius Sartobran 300) and autoclaved. To condition the seawater to low iron concentrations, an ion exchange resin (Chelex-100 - Bio-Rad Laboratories) was used to complex most kinetically labile Fe forms. For each 10 L bottle, 2 mL of Chelex-100 slurry (~0.4 gr dry weight) was added. Bottles were then put on a shaker for 24 h at room temperature. Afterwards, all water was filtered through silicon tubing using a peristaltic pump, passing all content through an acid-washed Poly-prep Chromatography column with a built-in polyethylene frit (pore size 100–300 μm size; Bio-Rad Laboratories). An extra 0.5 mL of Chelex slurry was added to the filters, and the water was pumped at a rate of 3 mL min⁻¹. To determine the background iron concentration, triplicate samples were collected after filtration. Extraction was carried out using a batch technique by adding 0.2 mL of ion exchange resin Toyopearl AF-Chelate 650 M (Tosoh). After 12 h on a shaker (~80 rpm), samples were extracted in a 2-step acidifying process (Ardelan et al., 2010). Initial background Fe concentrations were determined as 0.76 ± 0.4 and 2.59 ± 0.5 nM for the dissolved labile iron (DFe) and the total dissolvable iron (TDFe) respectively. The former fraction corresponds to the dissolved Fe complexed by the resin at seawater pH, while the latter corresponds to the Fe fraction extracted after acidification of the sample to pH ~1.7 for ~3 months and then brought back to pH ~6 for extraction.

Cultures Setup

Cultures were kept in a temperature- controlled room maintained between 14.5 and 15°C and 40–60% humidity. The light regime was a 24 h light cycle with fluorescent lighting with a mean luminous intensity of 80–90 μmol m⁻²s⁻¹. The organisms used in this study were obtained from the Norsk Institutt for vannforskning –NIVA (S. costatum: NIVA-BAC 36 strain culture) and from Scandinavian culture collection of Algae and Protozoa (SCAAP) from the University of Copenhagen (A. catenella K-1490 strain). The strains were maintained in a normal f/2 medium (Guillard and Ryther, 1962) and L1 (Guillard and Hargraves, 1993) medium for the diatom and dinoflagellate respectively. Both the diatom and dinoflagellate strains came from non-axenic cultures. Given that axenic dinoflagellate cultures often cannot be established, and even when they can, they require the addition of vitamins and artificial metal complexes for satisfactory viability (Green et al., 2004), the establishment of a sterile medium allowed only for the presence of the native bacterial community from each strain. Due to the intrinsic lower specific growth rate (Tang, 1996), the cell density reached for A. catenella was lower than expected at the start of the experiment. The growth exhibited resulted in a delayed response and for this reason the length of the experimental time employed with this species was longer than that in the diatom cultures.

The experiments were conducted in an EDTA/metal ion buffered seawater medium modified from the artificial algal culture medium Aquil (Price et al., 1989). All macronutrients (nitrogen, phosphorus, and silicon) were prepared and kept as independent stocks, then individually passed through a column containing Chelex-100. Trace metal enrichment was done based on a doubled concentration of EDTA (10 μM), adjusting the total concentration of each metal to achieve the same free ion concentration of pFe (18.18), pCu (13.79), pMn (8.27), pZn (10.88), and pCo (10.88) (Price et al., 1989). For the growth of dinoflagellates, selenium, nickel, vanadium, and chromium were also added. The experimental medium contained the minimum FeEDTA recommended for iron studies (Morel et al., 1979), in order to guarantee sustained growth for the duration of the experiment. In this way, the Control is determined as the growth achieved based on (a) the background DFe in the medium after chelex conditioning, (b) the dissociated Fe from the EDTA, and (c) the extra Fe(II) addition (see below). To adapt the microalgae to the growth conditions required for the experiments, 1 mL aliquots of the original f/2 and L1 media were transferred to a low iron growth medium. Following growth in the low iron medium for two consecutive batch cultures, an aliquot was transferred to a third low iron medium. Once this culture reached the late exponential phase, a 1 mL aliquot was transferred to be used in the experiment. This was done in order to minimize all possible contamination from the original f/2 and L1 media and to allow the species to adapt to low iron conditions.

Experimental Setup

Eighty-four 500 mL acid-washed polycarbonate (PC) bottles (VWR sterile tissue culture flask) were used. Half of the bottles were used with S. costatum and half with A. catenella. For each species, two combinations (total four combinations) were arranged, each consisting of one iron condition (1 or 10 nM) and six different siderophore treatments (10, 50, 100, 500, 2,500, and 10,000 nM) plus a control. Each treatment within the experimental setup was run in triplicate with 21 bottles per each combination (Table 1). Each Control had the corresponding Fe addition but no siderophore addition. All macro- and micro-nutrients required in the culture were added at the start of the experiment.

TABLE 1

Table 1. Experimental setup, including the diatom (S. costatum) and dinoflagellate (A. catenella) species, the two iron(II) conditions and the five desferrioxamine B (DFB) treatments with the respective final concentrations (nM) reached in the experiment performed.

Iron and Siderophore Addition

The two iron conditions were achieved by the addition of ammonium iron(II) sulfate hexahydrate ((NH₄)₂Fe(SO₄)₂ *6H2O). Fe(II) is considered the most readily bioavailable form of iron, and was added in order to stimulate potential uptake of Fe(II) rather than Fe(III) already present. The siderophore treatments consisted of the addition of the uncomplexed (apo-form) siderophore desferrioxamine Mesylate (DFB) salt powder (Sigma). Desferrioxamine B is a hexadentate organic ligand with hydroxamate functionalities and linear acyclic architecture (Albrecht-Gary et al., 1998). It is a strong Fe-complexing agent, capable of forming photostable complexes (Finden et al., 1984; Barbeau et al., 2003) and its conditional stability constant with respect to total inorganic iron (Fe') is 10^{16, 5} M⁻¹ in seawater (Hudson et al., 1992) Two stock solutions (80 and 400 nM) were made for Fe and two stock solutions (11.6 and 1160 μM) of DFB for the six different treatments. To achieve the target concentrations, small amounts of Fe and DFB were added every third day until the desired conditions were met. For 1 and 10 nM Fe(II) conditions (hereafter 1 and 10 nM Fe), a total of five additions of 0.2 and 2 nM Fe respectively were employed. Likewise, five partial DFB additions were performed until reaching the final concentration in each of the six DFB treatments (Table 2). The partial additions for Fe and DFB coincided and were performed immediately after sample collection. In S. costatum cultures, partial addition ended at day 12 of the experiment, whereas in A. catenella cultures, addition at day 12 was skipped, with a final addition on day 15.

TABLE 2

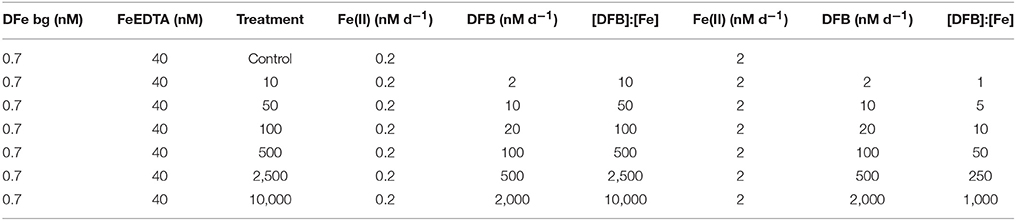

Table 2. Background dissolved labile iron (DFe) (nM) and FeEDTA complex (nM) present in the culture medium (Left). Supply ratio of desferrioxamine B (DFB) to iron(II) ratio added every other day for the 1 nM (Center) and 10 nM (Right) Fe(II) conditions until target concentrations were reached for each treatment in the experiment performed with S. costatum and A. catenella.

HPLC-ESI-MS was used to detect possible degradation of the apo- siderophore in a separate test after the conclusion of the experiment in a similar culture medium without algae presence. Analysis for DFB detection was based on Mawji et al. (2008). Non-targeted LC-MSE (MS/MS) analysis was performed on a Waters™ Acquity uHPLC Synapt-G2S Q-TOF system with ESI positive mode. Extraction efficiency (~26%) was similar to other reports (McCormack et al., 2003). Identification was by fragmentation data from collision induced dissociation (Velasquez et al., 2011).

Samples Collection and Analysis

All sample collection to determine DFe as well as the manipulation of the experimental bottles during addition and sampling was performed under a Class-100 laminar flow hood (AirClean-600 PCR Workstation) to minimize possible contamination. Samples were analyzed by High Resolution Inductive Coupled Plasma Mass Spectrometry (HR-ICP-MS) Element 2 (Thermo-Finnigan) with a PFA-Schott type spray chamber and nebulizer. The detection limit used here is three times the standard deviation of the measured method blank values (0.08 ± 0.02 nmol; n = 10). Method accuracy for total and dissolved chelex labile samples was determined by extraction of certified seawater reference material for trace metal NASS-6 (National Research Council of Canada), with a mass concentration for iron of 0.495 ± 0.046 μg.L⁻¹ (8.8 nM). The recovery was on average 87% (n = 16).

Before every Fe and DFB addition, samples (~10 mL) were collected to measure: pH, photosynthetic efficiency (Fv/Fm), in-vivo fluorescence (FSU), cell and total bacterial abundance. At the end of the experiment, samples were collected for DFe (see above). To estimate the Fv/Fm, an aliquot of the sample was transferred into a cuvette (under dim light) and measured on a field portable device AquaPen -C 100, (Photon systems instruments). For the FSU, a Turner designs (Trilogy) fluorometer was used. For the diatom and dinoflagellate abundance, aliquot counts were performed in a Bürker-Türk chamber under a microscope. For the former, the number of cells in random chamber transects (40x) was counted, while for the latter the entire chamber (20x) was covered. The initial abundances for S. costatum and A. catenella cultures were of ~8,000 and ~200 cells mL⁻¹, respectively. The growth rate, estimated in doublings per day (d⁻¹), was calculated from the linear regression from the Ln of the cell abundance (specific growth rate; μ) divided by Ln2, vs. time for each treatment (Guillard, 1973). Given the lack of a distinctive exponential phase in A. catenella cultures, the estimation of this variable resulted in larger standard deviations in the average values.

For total bacterial abundance, 1.5 mL samples from selected DFB treatments (Control, 10, 100, and 10,000 nM) were fixed with Glutaraldehyde (25%), frozen in liquid nitrogen and then stored (−20°C) until analysis by flow cytometry (Marie et al., 1997). The samples were diluted 1:10 or 1:100 with 0.1x TE-buffer, depending on cell density. The bacterial cells were stained with 10 μl 1:50 diluted SYBR Green I Nucleic Acid Gel Stain (10.000X in DMSO; Molecular Probes) per 1 mL of diluted sample, and incubated in the dark for 15 min before analysis. Flow cytometry measurements were performed on a BD Accuri C6 Flow Cytometer (BD Bioscience, San Jose) and blue laser (excitation 488 nm). All samples were analyzed with the same instrumental setting: medium flow rate (34.5 μL min⁻¹), FL1 threshold of 2,000 and sample collection for 3 min. Medium flow rate was used to increase accuracy when counting bacterial cells. Bacteria present in the cultures had initial abundances of 2,039 ± 529 and 1,597 ± 155 cell μL⁻¹ in S. costatum and A. catenella respectively.

Data Analysis

The analysis of data was performed with the statistical Software SYSTAT Sigma Plot 13. Parametric tests were carried out to determine homoscedasticity of the data. For analysis between different treatments within the same Fe(II) condition, analysis of variance (one-way ANOVA) and Post-hoc Tuckey HSD Test for differences were performed. For comparisons of response variables at different Fe(II) conditions for the same species, paired T-tests were performed. The level of significance was set to 0.05. When data was not suitable for parametric tests, ANOVA on ranks were performed.

Results

The effect of the DFB gradient on the growth and overall algal physiology was evident in both the diatom and the dinoflagellate cultures, although more attenuated in the latter (Figures 1, 2). The effect of Fe(II) addition was less consistent showing significant differences only in specific treatments and in some of the variables measured during the experiment in both S. costatum and A. catenella cultures (Table 3). Generally, DFB treatments at 10 nM Fe showed a weaker or delayed response as compared with the 1 nM Fe treatments. This effect was seen in both species. Given the trends, the results described below refer to both 1 and 10 nM Fe unless otherwise is stated.

FIGURE 1

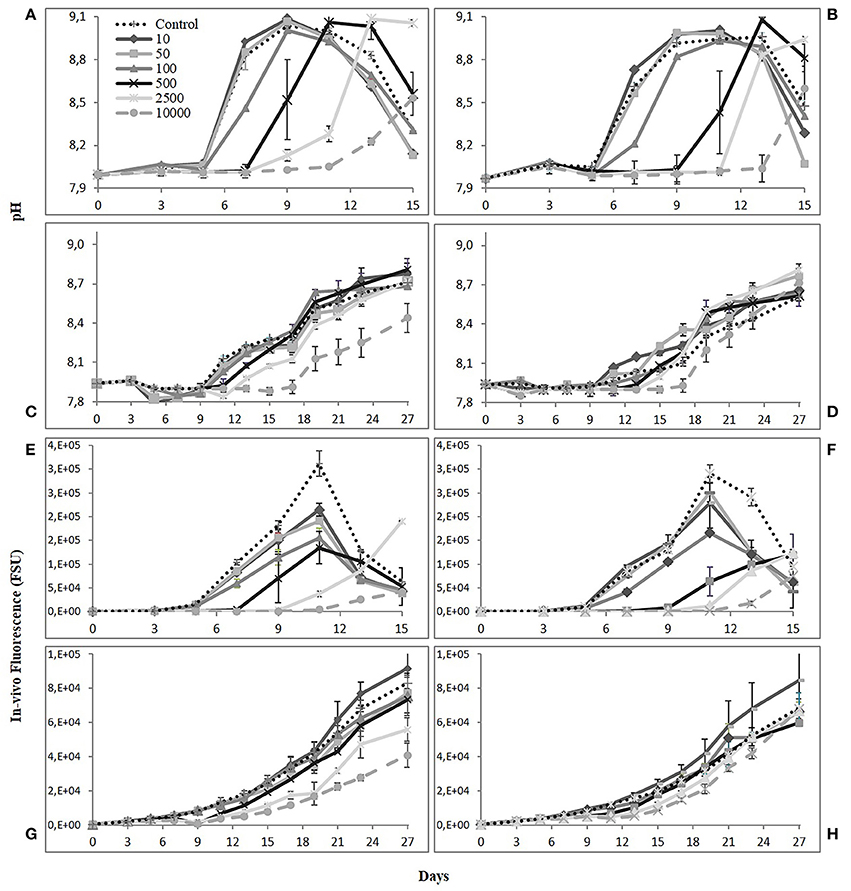

Figure 1. pH and In-vivo fluorescence (FSU) for Skeletonema costatum (A,B,E,F) and Alexandrium catenella cultures (C,D,G,H) over time. Left graphs (1 nM Fe) and right graphs (10 nM Fe). Error bars: standard deviation (n = 3).

FIGURE 2

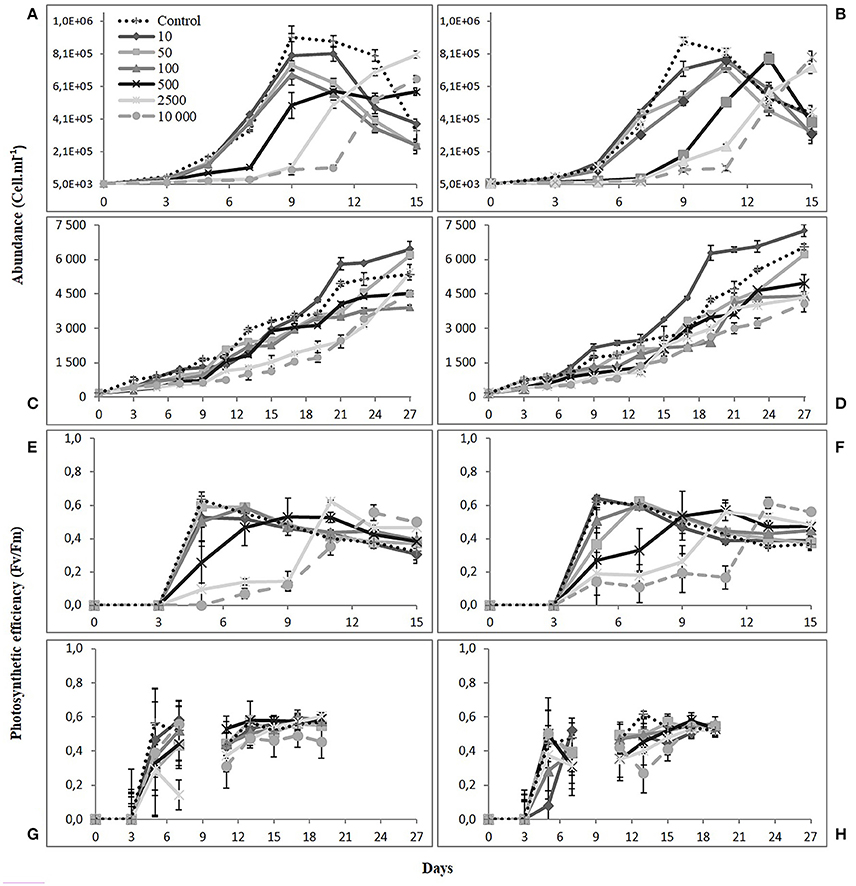

Figure 2. Cell abundance (cell mL⁻¹) and photosynthetic efficiency (Fv/Fm) for Skeletonema costatum (A,B,E,F) and Alexandrium catenella. (C,D,G,H) over time. Left graphs (1 nM Fe) and right graphs (10 nM Fe). Error bars: standard deviation (n = 3).

TABLE 3

Table 3. Paired T-test for independent samples between iron conditions (1 vs. 10 nM Fe) for sampling day 9 (S. costatum) and 27 (A. catenella) in variable response: pH, in-vivo fluorescence (FSU) and cell abundance (Cells.mL⁻¹)-left.

Skeletonema costatum Response

The concentration gradient of DFB was negatively correlated with the growth of the diatom. Cultures with the lower siderophore concentration exhibited a shorter lag phase similar to the Control. That is, 10, 50, and 100 nM DFB treatments exhibited a lesser effect and together with the Control, reached maximum densities between day 9 and 10. This is represented consistently in all other variables measured: pH, in-vivo fluorescence and photosynthetic efficiency. For the 500, 2,500, and 10,000 nM treatments, the negative effect of the siderophore on the diatom was evident as little or no growth was observed by day 7. Near half of the exponential phase in the Control, growth was observed at high DFB treatments with increasing cell densities. By day 9–10, growth was evident with the 500 nM treatments reaching half of the density in the Controls. At the end of exponential phase in the Controls (day 9–10), cell abundances ranged between 907 × 10³ and 883 × 10³ cells ${\text{mL}}_{,}^{-1}$ while abundances at 500 nM represented ~20% during the same period. By day 13, treatments with higher siderophore addition managed to reach cell densities 60–84% of the maximum reached in the Controls. Regardless of the longer lag phase in higher DFB treatments (2,500 and 10,000 nM), by the end of the experiment the cell abundance in these treatments reached similar levels to that of 10 and 50 nM reached earlier.

By day 9, the effect of Fe(II) concentration on the monitored variables at 1 nM Fe showed overall significantly higher values in the treatments than at 10 nM Fe, except at 10 nM DFB and Control (Table 3). At 10 nM Fe, the values of the monitored variables continued to increase after day 9, therefore suggesting a faster response of the diatom at lower Fe. The growth rate showed the same trend between treatments at 1 and 10 nM Fe (Figure 3A). With the exception of the 10 nM DFB, the growth rate showed a decreasing trend in treatments at both 1 and 10 nM Fe. The 10,000 DFB treatments showed the lowest growth rates with significant differences (1-way ANOVA; df = 6; Tukey HSD) compared to the respective Controls at 1 and 10 nM Fe. A further paired comparison between Fe conditions showed the growth rate in the Control at 10 nM Fe to be significantly higher. It was the only treatment in the 10 nM Fe group having a higher growth rate than those at 1 nM Fe. Although average growth rates at the same siderophore concentration were higher at 1 nM Fe, significant differences were only found at 10,000 nM DFB (Table 3). The 10 nM DFB treatment at 1 nM Fe had a significantly higher growth rate (1-way ANOVA; df = 6; Tukey HSD) than the Control, and were the only results that suggest DFB addition has an enhancing effect on the growth.

FIGURE 3

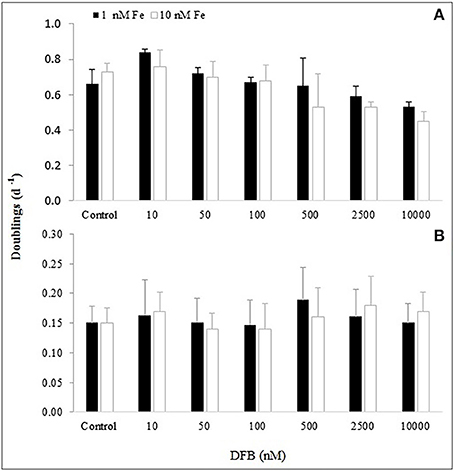

Figure 3. Growth rate (doublings d⁻¹) for (A) the diatom Skeletonema costatum and (B) the dinoflagellate Alexandrium catenella, based on cell density measured at exponential phase (Ln) for each treatment performed with desferrioxamine B (DFB).

Alexandrium catenella Response

The dinoflagellate exhibited overall slower growth regardless of the siderophore concentration. This resulted in the absence of a distinct lag phase, with a rather prolonged and smooth exponential growth pattern over the extended period of the culture. The effect of the DFB gradient on the monitored variables only showed noticeable differences between treatments from day 8 to 10 onwards. The only treatment with a positive effect on growth compared to the Control was the 10 nM DFB, as shown by cell density and FSU. This was consistent in both 1 and 10 nM Fe, only with an average higher cell abundance in the latter. Final densities in the 10 nM DFB treatment showed positive effects with values 17 and 38% higher than the Controls for 1 and 10 nM Fe respectively. In the FSU, a distinctive drop at day 9 for the 500, 2,500, and 10,000 nM DFB treatments at 1 nM Fe was observed. The same feature was present at 10 nM Fe, but at day 11 and for the 2,500 and 10,000 nM DFB treatments. The Fv/Fm data followed the same pattern of the other monitored variables measured, but the differences between treatments were lower than for pH or cell abundance. By day 7 after reaching average values of 0.4 and 0.6 in the high and low siderophore treatments respectively, the Fv/Fm remained constant throughout the experiment.

Comparisons between monitored variables at the same siderophore concentration at the end of the experiment, showed that Fe(II) addition had significant differences in the Control and lowest siderophore treatment, with higher pH and cell density at 10 nM Fe. Similarly, at 10,000 nM DFB pH and FSU were significantly higher at 10 nM Fe, whereas cell abundance at 2,500 nM was the only significantly higher value at 1 nM Fe (Table 3). The growth rate for A. catenella ranged from 0.13 to 0.19 d⁻¹ following no distinct trend in time, showing no significant effect of the DFB gradient at any of the Fe(II) conditions (Figure 3B). Except from a growth rate value significantly higher at 500 nM DFB than Control at 1 nM Fe, there were no other significant differences (ANOVA on Ranks, df = 6) between DFB treatments and Controls. A further paired comparison between Fe conditions also showed no significant differences at any DFB concentration (Table 3).

Bacterial Community Response

Figure 4 shows the trend over three points in time for the total bacterial abundance for both iron conditions in the diatom and dinoflagellate cultures. Bacteria present in S. costatum cultures exhibited a similar pattern over time to that of the diatom abundance both at 1 and 10 nM Fe. That is, the effect on the abundance of the associated bacteria was also negatively correlated to the DFB concentration, with the 10,000 nM DFB treatment showing significantly lower (ANOVA on Ranks; df = 3) numbers than the Control at the end of the experiment. The pattern was the same at the 10 nM Fe condition only with a final lower bacterial density in the Control compared to that at 1 nM Fe. On the contrary, over time A. catenella bacterial abundance presented the inverse pattern seen in S. costatum cultures. Compared to the Controls, bacterial abundance increased over time both at 1 and 10 nM Fe, positively correlated to DFB concentration. At the end of the experiment, the bacterial abundance at 10,000 nM DFB was significantly higher (1-way ANOVA; df = 3; Tukey HSD), than both Controls (1 and 10 nM Fe). The lowest densities at 10 nM DFB were not significantly different from the Controls. The Fe(II) concentration showed no effect on bacterial abundance in any of the DFB treatments (Table 3). The abundances reached in Controls of the dinoflagellate cultures were 50 and 25% lower at 1 and 10 nM Fe respectively, compared to those reached in Controls in the diatom cultures.

FIGURE 4

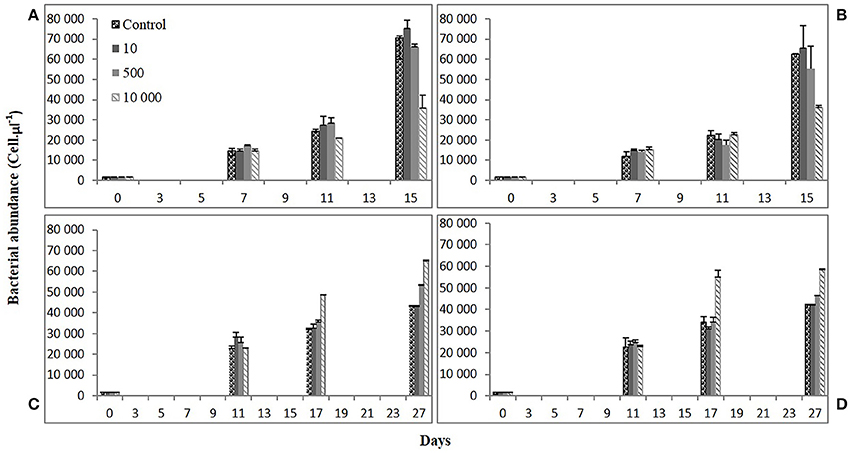

Figure 4. Bacterial abundance (cell μL⁻¹) along time for Skeletonema costatum (A,B) and Alexandrium catenella (C,D) cultures in four of the desferrioxamine (B) (DFB) treatments selected (Control, 10, 500, 10,000 nM). Error bars: standard deviation (n = 3).

Final Dissolved Labile Iron in Cultures

Final DFe measured in the three treatments plus the Control (Figure 5), showed no correlation relative to the DFB concentration in neither the diatom nor in the dinoflagellate cultures. At both 1 and 10 nM Fe in S. costatum cultures, the 10,000 nM DFB treatment had the lowest concentrations, but only significantly different at 1 nM Fe (1-way ANOVA; df = 3; Tukey HSD). At 500 nM DFB, DFe was significantly higher (1-way ANOVA; df = 3; Tukey HSD) than Control in both Fe conditions. In Alexandrium catenella cultures, final DFe had a similar distribution but all values in treatments at 1 and 10 nM Fe presented significantly higher values than the Control (1-way ANOVA; df = 3; Tukey HSD). Final DFe values in A. catenella cultures in every treatment in both Fe(II) conditions were higher than the corresponding treatment in S. costatum cultures. Also, in A. catenella cultures DFe values at 500 and 10,000 nM at 1 nM Fe, and in all treatments at 10 nM Fe were higher than values measured for initial DFe and TDFe. The latter is indicative of possible changes that occurred over time in the Fe speciation, allowing for the extraction of a larger labile Fe fraction (based on Chelex resin) compared to the beginning of the experiment.

FIGURE 5

Figure 5. Dissolved labile iron (DFe) concentration (nM) measured at the final day for four of the desferrioxamine B (DFB) treatments (Control, 10, 100, 10,000 nM) in each culture with S. costatum and A. catenella.

Discussion

Iron Supply and Under Low and High DFB

Natural seawater was used to reduce the levels of dissolved labile iron and therefore, the already present organic matter must be acknowledged as potential source of available metal binding ligands for iron. However, the TDFe measured after water conditioning indicated that only a relatively low concentration source of iron was strongly complexed. Moreover, the high conditional stability constant of desferrioxamine with respect to total Fe' (K' = 10¹³ M⁻¹), makes it a stronger Fe complexing agent than organic chelators naturally present in seawater (Rue and Bruland, 1995). Furthermore, collection of the water during the late autumn ensured the smallest amount possible of phytoplankton derived organic matter. Regarding the concentration of artificial chelators, the presence of 10 μM EDTA in the basal Aquil medium ensured an excess concentration relative to DFB in all treatments except in the highest one. However, DFB is known to react faster with Fe(OH)EDTA than with FeEDTA at seawater pH (Tufano and Raymond, 1981), so the DFB kinetics impede an efficient rate of extraction of Fe by EDTA. Also, the high affinity of EDTA for Ca²⁺⁺ and Mg²⁺⁺ (Hudson and Morel, 1990) reduce the apparent equilibrium concentration of reactive EDTA. In this way, use of an ample gradient of the siderophore offset any probable effect of unaccounted iron and ligands present in the seawater after conditioning.

The addition every third day of the apo-siderophore instead of a one-time addition of an already pre-equilibrated Fe-complex was intended to mimic the natural process when siderophores are released in the environment. This achieved a rather constant iron supply with the apo-siderophore competing against the pool of organic ligands already present. As complexation between DFB and Fe(III) occurs quickly (Hudson et al., 1992), it was then assumed that Fe(II) oxidized quickly and that the simultaneous addition of apo-siderophore complexed the newly formed Fe(III). This could be observed in the two highest DFB treatments where the partial DFB additions with a [Fe]:[DFB] ratio of at least 1:250 were able to prevent any significant growth in the diatom cultures for the first 7 days regardless of the Fe(II) concentration. Yet, this was not the same case observed in the dinoflagellate cultures, which then suggests a biological role in the alteration of the Fe speciation. In order to elucidate the main drivers for the growth patterns exhibited in both species, it is important to rule out other possible factors. In this case, detection of the apo-siderophore (m/z value: 561.3616; unpublished data) at 500 nM DFB in a culture medium without algae but with a similar light and addition regime, arguments against the abiotic degradation of the apo-siderophore. Given the presence of the stable FeDFB complex plus that of the apo-form, it could be expected that Fe speciation established at the beginning should have prevented growth throughout the experiment, as observed for the first 7 days at high DFB. Most of the manipulation experiments with siderophores have been conducted with lower concentrations closer to the range that is so far reported for natural waters (Hunter and Boyd, 2007). Given that coastal phytoplankton have been regarded to be less adept at acquiring siderophore bound Fe (Maldonado et al., 2001, 2005; Strzepek et al., 2011), the use of the high DFB gradient (up to 10 μM), also intended to determine the concentration at which the Fe complexation would render all iron unavailable for uptake in these coastal species.

Skeletonema costatum Response to FeDFB Bound

Although a ubiquitous species from the coastal environment, available research on the bioavailability of iron for S. costatum is scarce. Previous research conducted on this species (Trick C. et al., 1983), proposed that it could produce siderophores under iron-depleted cultures. Yet, currently no species of eukaryotic phytoplankton has been confirmed to produce siderophores of their own (Hopkinson and Morel, 2009). Skeletonema costatum has been previously studied under the presence of other metal organic binding ligands but not DFB. With the different siderophores used to study S. costatum, the diatom has exhibited different degrees of uptake, but none higher than under inorganic Fe (Hutchins D. A. et al., 1999). This constitutes to our knowledge, the first report for a diatom species showing this time delayed response to a siderophore gradient.

The growth pattern observed over time was consistent under the two iron conditions, which minimizes the possibility of experimental bias. It can be further argued that in the treatments above 100 nM DFB, the partial addition every third day (above 20 nM) of the siderophore was enough to achieve effective complexation of all labile iron available and any TDFe that may have become labile. The delayed growth pattern exhibited by S. costatum, particularly at high FeDFB suggests that favorable changes in the Fe speciation occurred over time, allowing the diatom to acquire Fe either directly from the FeDFB complex or previously dissociated. It is argued that natural phytoplankton populations can acquire strongly complexed Fe such as FeDFB only when there is Fe deficiency (Hutchins D. A. et al., 1999; Maldonado and Price, 1999). The most probable mechanism that has been invoked involves Fe reduction, converting the tightly bound FeDFB complex to a loosely bound ferrous complex, which in turn favors its dissociation (Tufano and Raymond, 1981). The Fe(II) formation measured in diatom cultures from the genus Thalassiosira added FeDFB, provides supporting evidence (Maldonado and Price, 2001). When comparing the same DFB concentrations between 1 and 10 nM Fe, our results suggest an effect of extra Fe(II). The higher growth rate in the Control at 10 nM Fe likely reflects the positive effect of the 10-fold Fe(II) surplus, whereas the apparently counterintuitive shift to higher growth rates at 1 nM Fe in all DFB treatments arguably reflects the Fe nutritional status of the diatoms. It is well understood that the up-regulation in the number of cell surface Fe transport systems, as would be the case for Fe-limited cells, could result in considerably faster Fe uptake rates compared to relative Fe-sufficient conditions (Hudson and Morel, 1990). In this case, S. costatum growing at 10 nM Fe was under an overall lower Fe stress across the whole DFB gradient compared to cultures at 1 nM Fe, therefore exhibiting overall lower growth rates.

Despite the difference between 1 and 10 nM Fe, the growth rate at both Fe(II) concentrations was negatively correlated to the DFB concentration, similar to that described in Maldonado and Price (2001). However, at the highest ratio of DFB to Fe present it was expected that the complexation of Fe would ensure that Fe uptake by the diatom would not be enough to sustain significant growth. Although T. oceanica, is reported to acquire Fe from the FeDFB complex, the diatom exhibited an estimated half-saturation constant for reduction at 0.68 μM (Maldonado and Price, 2001), so at such high concentrations (e.g., 10 μM), DFB competes more effectively with the surface transport ligands of the diatom for free Fe' (Nodwell and Price, 2001). Dissociation of FeEDTA due to photoreduction could potentially enhance Fe(II) production (Sunda and Huntsman, 2003), thus over time increasing the Fe pool after reoxidation. If it is assumed that most FeEDTA (40 nM) was dissociated and now bound to DFB, we obtain potential ratios [Fe]:[DFB] of ~1:60 and ~1:197 for 2,500 and 10,000 nM DFB respectively. Although no measurements for the reduction of Fe(III) where performed in this study, according to the reduction half constant estimated for the FeDFB complex, it would not have been enough to sustain growth (Nodwell and Price, 2001), let alone reach the cell densities observed in the 10,000 DFB nM treatment. This raises the question whether the mechanism underlying the late growth exhibited in those treatments is solely reduction or whether other factors such as the associated bacteria may be playing a role. However, this is a question we are not able to answer at present. Furthermore, the time frame employed in the experiment offered the possibility of a different interpretation of the results. By having a prolonged period of monitoring, it allowed to observe the full response from the diatom in all treatments, which would otherwise have been missed with a shorter timeframe. Such observation may aid in reconciling some of the contrasting results between studies that reported very low or negligible growth both in natural community and culture experiments (Wells et al., 1994; Eldridge et al., 2007; Hassler et al., 2011, 2015; Wilhelm et al., 2013).

Alexandrium catenella Response to FeDFB Bound

Current knowledge of the bioavailability of iron for dinoflagellates is scarce compared to that of diatoms, partly because of some significant challenges it presents. Due to the trophic mode and motility in this group, there is a large variety of nutrient uptake modes compared to other major phytoplankton groups. From the motility perspective, dinoflagellates are large motile cells often capable of Diel Vertical Migration (Kamykowski et al., 1998; Smayda, 2010; Peacock and Kudela, 2014), therefore not fulfilling the assumption of motionlessness of the conventional model of Fe' dependent uptake (Anderson and Morel, 1982; Völker and Wolf-Gladrow, 1999; Shaked et al., 2005). From the trophic mode perspective, mixotrophy and the difficulty of distinguishing between heterotrophic and autotrophic individuals has been reported as possible bias to account for significantly higher abundances of dinoflagellates observed in culture experiments with DFB (Hutchins D. et al., 1999).

Growth rate values reported for A. catenella under different culture conditions cover a wide range (Navarro et al., 2006; Mardones et al., 2016). With average values ranging from 0.17 to 0.44 d⁻¹, the growth rates estimated in this study fall within the literature range regardless of the siderophore concentration, hence supporting our findings of the limited effect of DFB over A. catenella. For low iron cultures in other dinoflagellate species, maximum growth rates are found from 0.34 to 0.61 d⁻¹ for Gymnodinium sanguineum (Doucette and Harrison, 1990) and Prorocentrum minimum (Sunda and Huntsman, 1995) respectively, both reporting a decrease in growth with decreasing Fe' concentration. These studies approached growth rates in dinoflagellates as if those species were solely autotrophic. However, both G. sanguineum (Bockstahler and Coats, 1993) and P. minimum (Stoecker et al., 1997; Jeong et al., 2005) have thereafter been reported as mixotrophic, feeding on ciliates and bacteria respectively. No mention of use of axenic cultures is made in these studies, making it plausible to explain the decrease in growth without having alternative sources of iron. Furthermore, arguing for siderophore production by P. minimum, Trick C. G. et al. (1983) attributed differences observed in growth rate estimation via In-vivo fluorescence and cell numbers to a drop in fluorescence measured when the described siderophore production was detected. This coincided with the conspicuous drop observed in the FSU in this study. Since it occurred earlier in 1 nM than in 10 nM Fe, it could be seen as a response to iron stress. Also, P. mimimum, showed unusual growth curves where no further growth decrease occurred when reaching certain low Fe'. Sunda and Huntsman (1995) argue that the potential release of siderophores under Fe limitation was the reason for continued growth. As no further evidence of siderophore production in dinoflagellates has been found, it may be possible to argue for mixotrophy as an alternative explanation. A possible shift to ingestion of bacteria would imply metabolic changes that could be represented in the changes in chlorophyll content observed for P. minimum and A. catenella. Likewise, the ingested prey aside from alternative sources of Fe would supply organic carbon as well as essential growth factors, hence explaining the bimodal growth in P. minimum.

Only few studies have tested mixotrophy in red tide dinoflagellates for Fe acquisition either through strongly complexed colloids or by predation upon bacteria. In an Fe-deprived culture, Alexandrium tamarense achieved growth after 20 days by adding colloid ferrihydrite at 10 and 50 nM (Wells et al., 1991). With Fe-siderophore complexes and axenic cultures, Heterocapsa circularisquama and Heterocapsa triquetra were not able to grow in a 1:1 [Fe]:[DFB] ratio based culture, whereas Karenia mikimotoi presented slow growth. None of these species grew at 1:10 or 1:100 ratios (Naito et al., 2008). As for bacterial ingestion, it has been previously disputed whether most red tide dinoflagellates are able to feed upon, as bacteria might be too small to be ingested directly (Hansen and Nielsen, 1997; Legrand et al., 1998). For A. catenella, early studies proposed pinocytosis as the only mechanism to ingest high molecular weight particles (Legrand and Carlsson, 1998), but it was recently shown that A. catenella is able to ingest bacteria (Jeong et al., 2005). If A. catenella would have shifted to prey on bacteria to compensate for the limited iron, the bacterial abundance at high DFB should have reflected this shift. Yet, the opposite results were obtained. If it is assumed that all labile iron was effectively complexed, it can then be argued that A. catenella was able to take up Fe without major constraints on growth different to that seen for S. costatum. Given that the organically bound Fe is largely membrane impermeable and not directly available for uptake (Hudson and Morel, 1990), it may be possible to assume some mechanism of pinocytosis as for A. catenella (Legrand and Carlsson, 1998) or phagocytosis as for the photosynthetic flagellate Ochromonas sp. (Nodwell and Price, 2001). Nevertheless, final DFe values revealed that a relatively large pool of labile iron remained, hence suggesting possible dissociation of the FeDFB complex over time, perhaps promoted by bacterial mediation.

Bacterial Community in the S. costatum and A. catenella Cultures

Bacteria closely associated with phytoplankton are believed to be involved in a wide range of mutualistic interactions. From nutrient provision and remineralization (Croft et al., 2005; Cruz-López and Maske, 2016), inhibition or promotion of cyst formation (Bolch et al., 2011), algicidal or bacterioprotective effects (Mayali and Doucette, 2002; Mayali et al., 2008), to the production of paralytic shellfish toxin (Hold et al., 2001; Uribe and Espejo, 2003; Green et al., 2004). Currently, several of these interactions are still poorly understood (Amin et al., 2012). Moreover, all of these interactions have not only ecological relevance but may play a key role in biogeochemical cycling. Arguably one of the most relevant interactions is the mutualistic uptake of nutrients such as iron and carbon (Kirchman et al., 2000; Jasti et al., 2005; Amin et al., 2009).

The relationship exhibited between the algae and the bacteria present in this study highlights the differences in the composition of bacterial communities associated to different phytoplankton species and functional groups. Although initial bacterial densities in both S. costatum and A. catenella cultures were similar, we observed different trends over time in the response to the siderophore concentration. Proteobacteria and Bacteroidetes are the main gram-negative heterotrophic bacterial phyla associated with diatoms, of which Sulfitobacter, Roseobacter, Alteromonas, and Flavobacterium appeared to be strongly associated genera (Amin et al., 2012 and cites therein). While most gram-negative bacteria are able to utilize FeDFB (Granger and Price, 1999), the results suggests that the presence of the FeDFB complex presented no advantage for the bacterial community associated to S. costatum. The overall lower bacterial abundance in treatments compared to that in Controls suggests that Fe uptake was also constrained or that another factor became limiting. Dissolved organic carbon (DOC) and organic matter, generally produced by the diatom, may be a probable cause. If the associated bacteria were significantly dependent on increased DOC, consequently both bacteria and diatom populations would have followed a similar growth pattern.

It is presumed that bacteria present in the dinoflagellate cultures were also to some extent influenced by the availability of DOC. This could be seen in the Controls of A. catenella cultures that had a carbon biomass ~50% of that reached in S. costatum Controls. On the other hand, the contrasting growth proportional to DFB concentration, suggests that the presence of the FeDFB complex conferred an advantage to the bacterial community associated with A. catenella, hence enhancing its growth over that in the Control. If mixotrophy did not play a role in alleviating any possible Fe stress in A. catenella by effective ingestion of bacteria, it could be speculated that in turn enhanced growth of bacteria may be playing a positive role for the dinoflagellate. Such evidence exists through the photoreduction of α-hydroxycarboxylate type siderophore complexes. In natural waters and laboratory cultures, changes in photoactive siderophore production by bacteria during and after a bloom of the dinoflagellate Lingulodinium polyedrum (Yarimizu et al., 2014); or static growth of bacteria associated to Scrippsiella trochoidea in the absence of the dinoflagellate (Amin et al., 2009), highlight the mutualistic interaction in which the increase in bacteria provides a source of bioavailable iron. This type of interaction may have further implications as it could be involved in dinoflagellate bloom initiation as for Marinobacter sp. and L. polyedrum (Yarimizu et al., 2014), or Roseobacter, frequently associated with toxic dinoflagellates Alexandrium spp. (Jasti et al., 2005). By having in an experiment the full spectrum of the associated bacterial community, being complex and diverse, can cause direct, indirect, and potentially confounding interactions with the algae and among the bacteria (Bolch et al., 2011). Nonetheless, it may also contribute to the elucidation of the complex interactions between phytoplankton and bacteria that otherwise would not be possible by having axenic algal cultures.

Conclusions

The interaction between the simultaneous additions of Fe(II) and the apo-siderophore desferrioxamine B in cultures with S. costatum and A. catenella showed a more significant effect for the diatom in terms of the impact in the overall physiology. The growth patterns exhibited over time in the diatom and the dinoflagellate differed greatly with respect to the effect of the siderophore concentration. In the former, it was negatively correlated to the DFB and only alleviated over time. In the latter, it was from moderately enhanced under low DFB to an overall attenuated negative effect at high DFB. Remarkably, the bacteria associated with each of these species presented contrasting abundance trends over time, in a certain way mimicking the trend of the corresponding diatom and dinoflagellate. Despite not being able to address the driver behind the patterns observed in both bacteria and phytoplankton species involved, it highlights the role of mutualistic interactions for nutrient acquisition, in this case the possible alleviation of induced Fe stress.

The concentration gradient of the siderophore DFB over time, allowed for the evaluation of the different uptake strategies between species of two different dominant groups of phytoplankton. Likewise, it highlights the relevance of studying the interactions of the autochthonous bacterial communities and the different phytoplankton species and their roles in the bioavailability of iron.

Author Contributions

Experimental design conceived by MA, YO, JI, HG and NS. EB and NS carried out the main experimental part and analysis, with contributions of JI and HG. OV contributed to part of the analysis. Writing was performed mainly by NS with comments and discussion of the results with all others authors.

Funding

This work was supported by the Department of Chemistry, Faculty of Natural Sciences, Norwegian University of Science and Technology (NTNU). Additional support also provided by the project: A Cross-disciplinary Integrated Eco-system Eutrophication Research and Management Approach–CINTERA (project no.: 216607), funded the Research Council of Norway and by the EU project: Ocean Food-web Patrol–Climate Effects: Reducing Targeted Uncertainties with an Interactive Network. European Commission (OCEAN-CERTAIN, FP7-ENV-2013-6.1-1: no.: 603773).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Thanks to the people at the ICML at the Universidad Austral and at the Trondheim Biological Station at NTNU for the assistance provided during the experimental phases.
