Impact Factor 3.086 | CiteScore 3.08
More on impact ›

Mini Review ARTICLE

Front. Mar. Sci., 30 April 2019 | https://doi.org/10.3389/fmars.2019.00209

SKIM, a Candidate Satellite Mission Exploring Global Ocean Currents and Waves

Fabrice Ardhuin1*, Peter Brandt2,3, Lucile Gaultier4, Craig Donlon5, Alessandro Battaglia6, François Boy7, Tania Casal5, Bertrand Chapron1, Fabrice Collard4, Sophie Cravatte8, Jean-Marc Delouis1, Erik De Witte5, Gerald Dibarboure7, Geir Engen9, Harald Johnsen9, Camille Lique1, Paco Lopez-Dekker10, Christophe Maes1, Adrien Martin11, Louis Marié1, Dimitris Menemenlis12, Frederic Nouguier1, Charles Peureux1, Pierre Rampal13, Gerhard Ressler5, Marie-Helene Rio14, Bjorn Rommen1, Jamie D. Shutler15, Martin Suess5, Michel Tsamados16, Clement Ubelmann17, Erik van Sebille18, Martin van den Oever6 and Detlef Stammer19
  • 1Univ. Brest, CNRS, IRD, Ifremer, Laboratoire d'Océanographie Physique et Spatiale (LOPS), IUEM, Brest, France
  • 2GEOMAR Helmholtz-Zentrum für Ozeanforschung Kiel, Kiel, Germany
  • 3Kiel University, Kiel, Germany
  • 4OceanDataLab, Brest, France
  • 5European Space Agency, Noordwijk, Netherlands
  • 6National Centre for Earth Observation, University of Leicester, Leicester, United Kingdom
  • 7Centre National d'Etudes Spatiales, Toulouse, France
  • 8LEGOS, University of Toulouse, CNES, CNRS, IRD, UPS, Toulouse, France
  • 9Norut Information Technology Ltd., Tromsø, Norway
  • 10Geoscience and Remote Sensing Department, Delft University of Technology, Delft, Netherlands
  • 11National Oceanography Center, Southampton, United Kingdom
  • 12Jet Propulsion Laboratory, Pasadena, CA, United States
  • 13Nansen Environmental and Remote Sensing Center, Bergen, Norway
  • 14European Space Agency, Frascati, Italy
  • 15Center for Geography and Environmental Science, University of Exeter, Exeter, United Kingdom
  • 16Centre for Polar Observation and Modelling, Earth Sciences, University College London, London, United Kingdom
  • 17Collecte Localisation Satellites, Ramonville Saint Agne, France
  • 18Institute for Marine and Atmospheric Research, Utrecht University, Utrecht, Netherlands
  • 19Centrum für Erdsystemforschung und Nachhaltigkeit, Universität Hamburg, Hamburg, Germany

The Sea surface KInematics Multiscale monitoring (SKIM) satellite mission is designed to explore ocean surface current and waves. This includes tropical currents, notably the poorly known patterns of divergence and their impact on the ocean heat budget, and monitoring of the emerging Arctic up to 82.5°N. SKIM will also make unprecedented direct measurements of strong currents, from boundary currents to the Antarctic circumpolar current, and their interaction with ocean waves with expected impacts on air-sea fluxes and extreme waves. For the first time, SKIM will directly measure the ocean surface current vector from space. The main instrument on SKIM is a Ka-band conically scanning, multi-beam Doppler radar altimeter/wave scatterometer that includes a state-of-the-art nadir beam comparable to the Poseidon-4 instrument on Sentinel 6. The well proven Doppler pulse-pair technique will give a surface drift velocity representative of the top meter of the ocean, after subtracting a large wave-induced contribution. Horizontal velocity components will be obtained with an accuracy better than 7 cm/s for horizontal wavelengths larger than 80 km and time resolutions larger than 15 days, with a mean revisit time of 4 days for of 99% of the global oceans. This will provide unique and innovative measurements that will further our understanding of the transports in the upper ocean layer, permanently distributing heat, carbon, plankton, and plastics. SKIM will also benefit from co-located measurements of water vapor, rain rate, sea ice concentration, and wind vectors provided by the European operational satellite MetOp-SG(B), allowing many joint analyses. SKIM is one of the two candidate satellite missions under development for ESA Earth Explorer 9. The other candidate is the Far infrared Radiation Understanding and Monitoring (FORUM). The final selection will be announced by September 2019, for a launch in the coming decade.

1. Science Gaps and SKIM Objectives

Satellite altimetry, combined with gravimetry and in situ drifter climatology, has provided a wealth of observations on surface currents during the past 25 years. Away from the Equator, the altimetry constellation resolves spatial scales larger than 200 km wavelength and time scales larger than 2 weeks (e.g., Ducet et al., 2000; Rio et al., 2014; Morrow et al., 2019). Large gaps remain in the observation capabilities of currents, winds and waves, especially in the Tropics, for extreme winds, and for frontal areas or small-scale processes that require high-resolution measurements. These are particularly important at high latitudes. Development in the understanding of radar echoes from the oceans in Ka-band (Yurovsky et al., 2017), allowing higher resolution measurements, and of Doppler measurements in general (Chapron et al., 2005; Yurovsky et al., 2018) show that it is feasible to measure surface currents more directly. Responding to a fast-track call from the European Space Agency, SKIM leverages the development of near-nadir instruments such as SWIM (Hauser et al., 2017) with addition of Doppler processing. This combines a classical nadir altimeter with oblique beams, all operating in Ka-band. This instrument design offers a unique opportunity to explore ocean circulation beyond geostrophy and develop a new generation of global ocean circulation observing system, building on proven altimetry techniques. Other approaches, combining higher incidence angles scatterometry techniques with new antenna technology are also under development (Chelton et al., 2019).

Today's limited knowledge of currents is particularly problematic around the Equator, since it limits our capability to analyze and predict the mixed layer heat budget because the surface temperature variability is driven by ocean dynamics, with far-reaching impacts on the global climate (Hummels et al., 2014). Ocean assimilating models and reanalyses have little skill in reproducing equatorial surface currents, particularly meridional velocity fluctuations that peak at intraseasonal timescales (e.g., Schlundt et al., 2014), resulting in limited seasonal weather forecasting skills. Measuring surface currents with an accuracy of 0.1 m/s on each component (zonal and meridional) for monthly averages at 300 km wavelengths and larger would provide a great step forward in our understanding of equatorial dynamics.

The high latitudes including ice-covered regions, and in particular the Arctic, are other regions with poor measurements of surface currents. These currents are important from a climate perspective as they transport freshwater from river run-off in the Arctic basin and melting of the Greenland ice sheet, to the North Atlantic where it can modify the intensity of deep water formation (e.g., Lique et al., 2016), impacting the global ocean circulation. Retrieving geostrophic currents from altimetry in ice-covered regions is now possible (Armitage et al., 2017, 2018), albeit at too low resolution compared to the dominant energy-containing structures, with horizontal scales characterized by the Rossby deformation radius, typically smaller than 10 km in these regions. Both small-scale eddies and wind-driven currents must be resolved in the ice-covered regions to better quantify and understand the cross-shelf fluxes of heat and freshwater (e.g., Spall et al., 2018; Stewart et al., 2018), the location and evolution of the polar and subpolar gyres (Armitage et al., 2017, 2018; Dotto et al., 2018), as well as the regions of deep water convection (e.g., Lique and Thomas, 2018).

Figures 1D–F illustrates the intense circulation patterns across the ice edge that are expected from numerical modeling but only known qualitatively because quantitative analysis methods using optical or SAR image pairs fail due to its rapid dynamics. The Arctic marginal ice zone is a “mare incognitum” that, by the year 2030, is predicted to expand significantly, under the combined effect of atmospheric and oceanic warming, enhanced ice fragmentation by waves (Aksenov et al., 2017) and increased influence of ocean mesoscale activity (Manucharyan and Thompson, 2017). Measurements are missing to address the questions on freshwater transport and ice edge evolution. SKIM will be the first mission to provide much needed data on surface currents, ice drift and wave spectra (e.g., Stopa et al., 2018), at higher spatio-temporal resolution than is available today. These observations are needed to improve the parameterizations of turbulent fluxes, sea ice rheology, wave-ice interactions, and ocean circulation in climate models and weather forecasting systems.

FIGURE 1
www.frontiersin.org

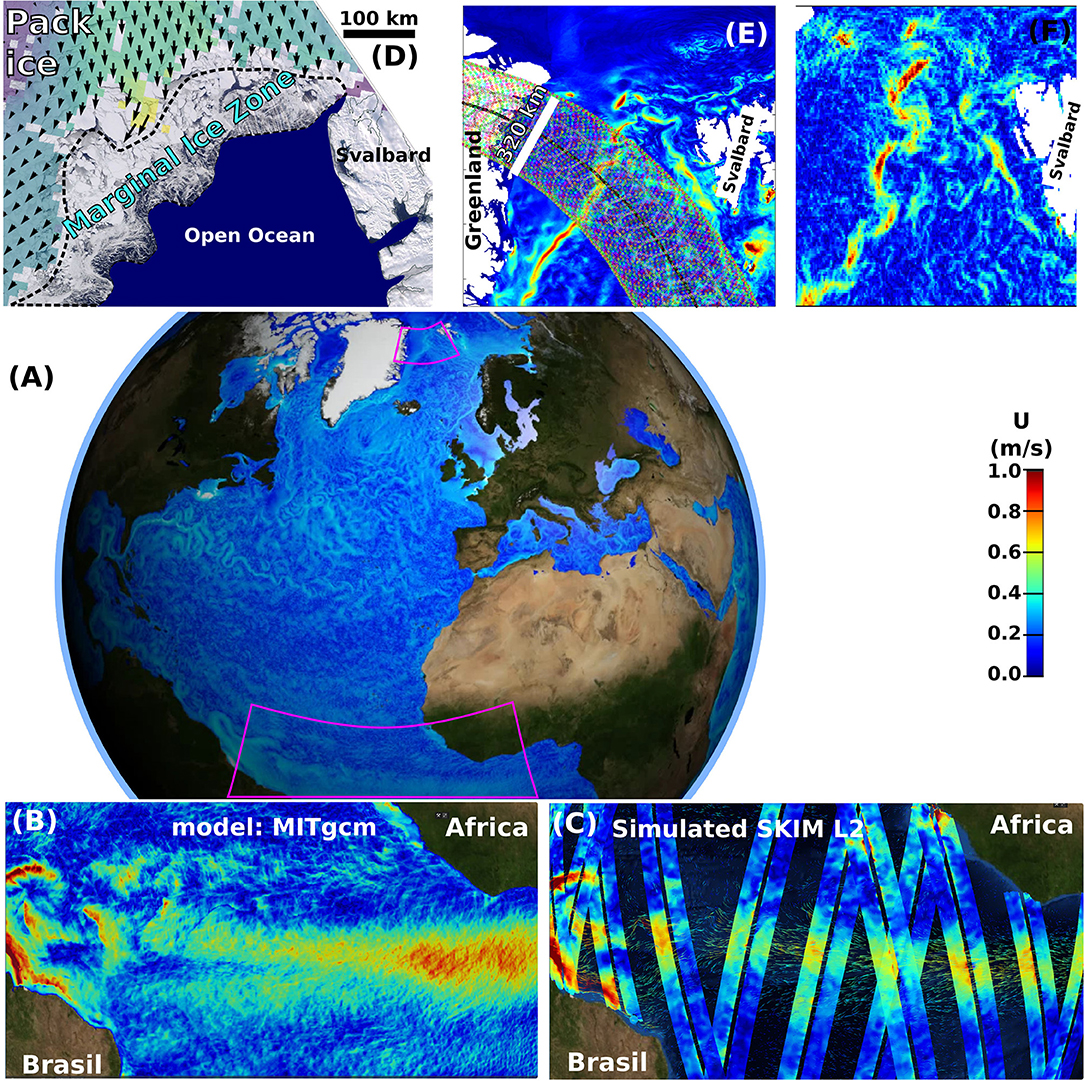

Figure 1. (A) Example snapshot of the global ocean current magnitude (color) as given by the MITgcm 1/48° global model simulation LLC4320 (Rocha et al., 2016), containing density-driven, wind-driven, and tidal currents. The pink boxes around Fram strait and the tropical Atlantic correspond to the other panels. The color bar corresponds to (B,C,E,F). (B) close-up on the Tropical Atlantic, and (C) a 1-day coverage by SKIM including realistic measurement uncertainties. The central part of the swaths is masked where uncertainties on the along-track velocity component are largest. (D) Example of marginal ice zone in Fram strait viewed with optical imagery and characterized by ice bands along the meandering ice edge, with large floes in the ice pack. Ice drift (colors and arrows) is estimated over the ice pack from Sentinel-1 image pair correlations, courtesy of A. Korosov (NERSC). (E) Modeled ocean circulation at high resolution (Hutter et al., 2018) showing intense ice-edge jets and Svalbard coastal current that would be observed several times a day by SKIM. The footprints of SKIM across a 320-km swath are represented by small colored circles. (F) Multi-swath surface current magnitude including realistic measurement uncertainties. This figure is adapted from The SKIM Team (2017).

Resolving waves down to 30 m wavelength, SKIM measurements will provide accurate estimates of the Stokes drift profile in oceans, marginal, and inland seas. Combined with the surface current measurement, Stokes drift data will lead to more accurate analysis and simulation of the poorly known pathways of floating material such as (plastic) debris, abandoned fishing gear, and biological material (Maes et al., 2018; van Sebille et al., 2018). For example, Fraser et al. (2018) showed that kelp found on Antarctic coastlines could only have traveled from lower-latitude sites where it normally grows, thanks to the southward Stokes drift that opposes the northward Ekman transport. As Lagrangian pathways are typically very sensitive to the flow field, accurate knowledge of the surface flow improves our ability to track surface floating debris and determine how microplastic at the surface ocean is transported from coastlines into the open-ocean accumulation zones (Lebreton et al., 2018). The combination of surface currents and wave measurements are also needed to better understand high sea states (Ardhuin et al., 2017; Quilfen et al., 2018) and extreme individual waves (Fedele et al., 2016). As currents define the spatial patterns of sea states at scales under 200 km, they also impact and coastal hazards in a way that is poorly known, contributing to large uncertainties in extreme coastal sea levels (e.g., Guza and Feddersen, 2012; Dodet et al., 2018).

The ocean uptake of greenhouse gases is highly variable in space and time, and has so far been responsible for the absorption of about 25% of the total anthropogenic CO2 (Le Quéré et al., 2016). This flux is strongly influenced by horizontal transport across high gradient regions. Among these, continental shelves, covering just ~5% of the world ocean's surface, play an important role in the global carbon. The heterogeneous nature of shelves (e.g., Canals et al., 2006; Bröder et al., 2018), and the difficulty to obtain reliable current estimates there, means that carbon dynamics are often poorly quantified and monitored within these regions. Accurate knowledge of surface water velocities across continental shelf boundaries, vertical shear and turbulence, and surface divergence will improve our ability to monitor how the oceans are impacted and reacting to a changing climate.

We need better measurements of surface currents and waves for all the scientific and societal questions listed above, and many other applications (The SKIM Team, 2017). This is critical to better understand the ocean's role in the Earth system. With SKIM, kinematic variables (surface current, ice drift, waves) can be resolved at smaller scales than those at which dynamic variables (sea level, wind stress) are available today, and complementary to planned higher resolution missions such as SWOT for sea level (Morrow et al., 2019), and CIMR for surface temperature and salinity (Kilic et al., 2018).

2. SKIM Measurement Principle

The SKIM mission concept, now being studied, is designed to fly in tandem with the operational satellite MetOp-SG(B), following a sun-synchronous orbit at an altitude of 824 km. The main innovation is the combination of rotating beams similar to SWIM on CFOSAT, here with incidence angles θi = 0 (nadir), 6 and 12°, with a Doppler capability that will measure the surface velocity vector and ocean wave spectra across a 320-km swath.

The sampling properties of SKIM are summarized and illustrated in Figure 2.

FIGURE 2
www.frontiersin.org

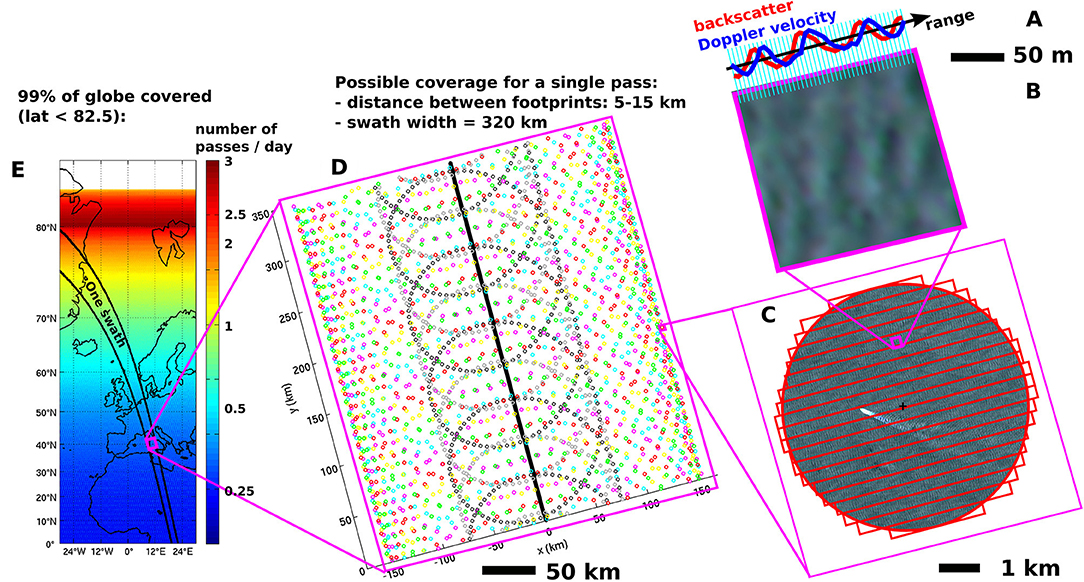

Figure 2. Spatial scales covered in the SKIM measurement, from (A) the range-resolved Doppler velocity and back-scatter power that correspond to 2,048 range gates at 0.7 m resolution (cyan lines). The data in (A) corresponds to an average over the azimuthal direction, perpendicular to the range direction. The averaged features include the wind-generated waves that appear in (B), as resolved in a Sentinel-2 image. These measurements are made within footprints such as shown in (C) that have a diameter of 6 km. Yet, different azimutal “strips” with 300-m resolution can be separated (red boxes in C). The footprints are sparsely distributed across a 320-km wide swath shown in (D). These footprints are obtained by the rotation of beams on the SKIM radar, with 3 beams looking at 12° incidence in color, 2 beams at 6° in gray, and one beam at nadir in black. The 824 km altitude orbit considered today gives an average revisit time between 8 h and 4 days shown in (E).

Starting with the lowest level data in Figure 2A, SKIM measures backscattered power and Doppler velocity in range-resolved beams with 0.7-m line of sight resolution. For 12° incidence, this gives a ground-projected resolution of 3.5 m. The velocity is given by the phase different of consecutive pulses (pulse-pairs) transmitted at a frequency of 32 KHz. This high pulse repetition frequency guarantees a high coherence between consecutive pulses. These range-resolved data correspond to averages in the azimuth direction, so that all patterns are averaged out except for features, including modulating waves, perpendicular to the range direction. This is the principle of the “matching wavefront technique” demonstrated with airborne radars (Jackson et al., 1985), and now working in space with the Ku-band SWIM radar on CFOSAT. SWIM uses much larger (18 km) footprints than SKIM, and SKIM includes a Doppler processing that is not available on SWIM. SAR-unfocused processing is used on SKIM to improve azimuthal resolution, down to 300 m, and enhance the modulation signals (see Nouguier et al., 2018). This resolution in range and azimuth will be also used to remove outliers within the radar footprint, such as the ship that appears as a white spot in Figure 2C, and to correct for Doppler biases due to variations of backscatter power with azimuth. Each footprint produces measurements of the current velocity along the local range direction, and a wavenumber spectrum of waves propagating to and from the range direction, similar to the SWIM instrument on CFOSAT (Hauser et al., 2017), but resolving shorter wave components, down to 30 m wavelength compared to 70 m with SWIM. These footprints are arranged in the pattern shown in Figure 2D.

The combination of all beams across the 320 km wide swath shown in Figure 2D is such that each 30 × 30 km square contains at least two measurements, giving the two components of the current vector. The full directional wave spectrum is obtained over a 75 × 75 km box. As discussed by Rodríguez et al. (2018) for the DopplerScat airborne instrument, this viewing geometry suffers from a Geometrical Dilution of Precision, well known for coastal HF radar instruments. Namely, the outer part of the swath mostly contains measurements of the cross-track velocity component while at nadir only the along-track velocity is measured. This, however, can be mitigated using a cross-track estimate of the geostrophic part of the current using the sea surface height anomaly given by the nadir beam.

The most novel measurement of SKIM is the line of sight velocity VLOS using off-nadir beams. Given the incidence θi, the ground projection into a radial component VLOS/sinθi that contains a non-geophysical contribution VNG/sinθi due to the satellite velocity (around 7 km/s), and Earth rotation (around 400 m/s). The residual, a few meters per second, is the geophysical velocity. In the case of the baseline pulse-pair processing, it contains a wave contribution to the Doppler UWD of the order of 1.5 m/s similar to the one measured with Envisat (Figure 5 in Chapron et al., 2005), and the surface current, of the order of 0.3 m/s, averaged over the top meter. An experimental delta-K processing with three fixed delta-K bands will also be implemented. This is similar to HF radar with a well-known UWD equal to the phase speed associated to the selected wavelength and a current averaged over different depth ranges, typically the top 5, 12, and 20 m. Therefore, SKIM will give complementary estimates, from pulse-pair and delta-K processing, of the near-surface current from the VLOS integrated over different depths,

U=(VLOS-VNG)/sinθi-UWD=UGD-UWD.    (1)

The accuracy of SKIM current retrieval relies on excellent pointing retrieval and the combination of wind vector, from MetOp-SG(B), and wave parameters from both the nadir and oblique beams, in order to estimate UWD within a few percent.

The contemporaneous measurements of ice and rain detection from the MWI radiometer on MetOp-SG(B) will provide additional flag-setting capabilities that are otherwise based on the variance of backscatter and Doppler within each SKIM footprint. Also, MWI water vapor will be used in the wet tropospheric range correction for the nadir beam. More importantly, the contemporaneous measurement of wind vectors from SCA on MetOp-SG, with currents and waves from SKIM, opens possibilities for a wide range of applications. Just like the full wave spectrum measurement will lead to a revisit in the analysis of wave-induced biases in nadir altimetry, this first measurement of full wave spectra and scatterometer winds will also be unique for estimating and correcting systematic currents (Quilfen et al., 2004) and sea state biases in wind retrievals. The combination of the two missions is also a distinctive opportunity to refine our understanding of air-sea energy (wind work) and momentum (wind stress) fluxes.

SKIM provides a higher spatial resolution than today's altimeter constellation, comparable to the resolution of SWOT, thanks to a wider swath. Because smaller scales move faster, this new data will bring particular challenges related to the aliasing of near-inertial currents, semi-diurnal internal tides, and diurnal cycles of currents that are important in the tropics. This may call for a separation of unbalanced (wind-driven, near-inertial, internal tides) and balanced (i.e., geostrophic) motions that is a very active topic of research, in particular in the context of the SWOT mission (e.g., Torres et al., 2018; Morrow et al., 2019). Although the average time revisit of SKIM (4 days) is large, part of the fast motions are coherent over 4 inertial periods and relatively large horizontal scales (e.g., Kim and Kosro, 2013). Ongoing work suggests that inertial oscillations in the SKIM data may be separated from the more slowly-evolving motions. These efforts are complementary to those focused on the sea surface expression of internal waves in the context of SWOT (Morrow et al., 2019). Finally, with a launch date in the coming decade and a design lifetime of 5 years, SKIM may fly for some time together with SWOT, with highly complementary measurements for the joint analysis of balanced and unbalanced motions, and their interactions.

3. Expected Performance

The main requirement for surface velocity measurement for SKIM is related to the scientific applications described above with a root mean square accuracy of 0.07 m/s for each velocity component, zonal and meridional, for wavelengths larger than 100 km, and time scales over 15 days. The spatial scales are relaxed to 200 km for tropical latitudes. The performance of SKIM is thus tested by verifying that simulated SKIM measurements, based on modeled currents and waves, are consistent with the input model fields. The modeled currents used here, from the MITgcm, probably overestimate the internal wave energy by about a factor 2, and underestimate the near-inertial energy by about a factor 2 (Menemenlis, personal communication). These biases are not yet corrected for when the SKIM performance is evaluated, and we expect that the effective SKIM resolution found here may be slightly optimistic away from the tropics due to the underestimated near-inertial energy.

At present, the main source of uncertainty in our retrieval of the surface current is due to the uncertainty on UWD. At Ka-band and for incidences less than 20°, UWD is of the order of 25 times the radial component of the surface Stokes drift US (Nouguier et al., 2018; Yurovsky et al., 2018), and US is approximately 1.2% of the radial wind component (Rascle et al., 2006);(Peureux et al., 2018).

Accurate measurements of the geophysical surface velocity UGD require a very accurate knowledge of the platform attitude, and characterization of the backscatter inhomogeneities within the footprint, which can be due to rain, wind variability, slicks, ships, etc. For the rotating SKIM configuration, the pitch and roll of the radar beam can be estimated from the variation in back scatter cross-section across the footprint (Ardhuin et al., 2018). More crucial is the mis-knowledge the yaw pointing. A yaw error of 0.001° causes a Doppler shift of 30 Hz amplitude for θi=12°, and is equivalent to a mean cross-track current error of ≈ 10 cm/s. The requirements on the yaw knowledge for the SKIM radar has thus been refined to take advantage of the rotating beam geometry using a data-driven approach similar to Rodríguez et al. (2018), with a residual attitude-related uncertainty on the retrieved current of a few centimeter per second, accomodated within the mission requirements.

The separation of wave UWD and current U contributions to the Doppler velocity is complicated by the natural correlation of waves and currents at the scales of interest (Ardhuin et al., 2017). Previous Doppler current measurements (Rouault et al., 2010; Martin et al., 2016) used a wind-derived proxy to correct for the wave bias. However, for any given location, UWD has root mean square variations of ±40% for any wind speed, due to the variability in the sea state (Ardhuin et al., 2018). Adding sea state parameters from the resolved modulations and the near-nadir measurements of wave height and mean square slope lead to an uncertainty on UWD that is under 10%, accounting for 30–50% of the overall uncertainty on the surface current retrieval, depending on the strength of surface current gradients and on the local wave field (Ardhuin et al., 2018). We have thus investigated different regions of interest to estimate SKIM uncertainties. Looking at the along-track coherence of the cross-track current between the simulated SKIM currents and the input surface current fields, we define the effective resolution as the wavelength at which the coherence drops below 0.5.

Starting from single footprints, 6 km in diameter, the root mean square uncertainties for the radial current component are around 0.1 cm/s. For gridded current components, uncertainties are reduced by spatial averaging. Our current approach uses optimal interpolation leading to an effective resolution that is within the requirements, typically around 70 km wavelength when considering a single swath corresponding to a snapshot of the surface current. When considering the time evolution of the surface current and comparing that to a multi-swath SKIM simulated product, the smaller scales are not resolved because they move faster, and the effective resolution ranges from 70 km at high latitude, to 250 km at the equator, as illustrated in Figure 1. We typically find 80 km at mid latitude which is half of the effective resolution of today's nadir satellite altimeter constellation.

Future work will certainly better take wave-current correlations into account. A direct assimlation of the total geophysical velocity in a coupled wave-current models should be an optimal use of the data, fully taking advantage of the combined wave and current measurements.

4. Conclusions

SKIM builds on the proven altimetry technique for sea surface height and derived geostrophic near-surface current estimates, adding a global monitoring of all ageostrophic flow components. SKIM will for the first time measure the full surface current vector at the same time as highly resolved two-dimensional and unambiguous wave spectra over the global ocean. This will reveal the transport of heat in the tropics, freshwater in the Arctic and plankton or plastics everywhere with unprecedented resolution. SKIM will also resolve the sea states in all marginal and enclosed seas. By flying in formation with MetOp-SG(B), SKIM will allow unique analyses of air-sea fluxes that will use wind vector measurements, rain rate, and sea ice concentration.

All this will happen if the SKIM concept is indeed selected to become the 9th ESA Earth Explorer mission, a selection that will happen in Summer 2019 based on the result of simulations and campaign analysis, that will benefit from the mobilization of the oceanographic community and demonstrate the soundness of the SKIM concept. We hope to celebrate this success at the upcoming OceanObs'19 conference, and we will work with the community to define a roadmap on the development of tools and validation plans. These are needed to facilitate the uptake, over the next decade, of the new globally measured variable that is the total surface current vector.

Author Contributions

DM and FA provided the numerical model output that was analyzed for SKIM performance by LG and CU. J-MD, FC, and CU performed the analysis of attitude effects and data-driven attitude corrections. PB, FA, SC, CD, DM, JS, MT, and EvS wrote the science objectives. All authors contributed to the final editing of the manuscript.

Funding

Part of this work was supported by the European Space Agency (ESA) through the Sea surface KInematics Multiscale monitoring (SKIM) Mission Science (SciSoc) Study (Contract 4000124734/18/NL/CT/gp), SKIM-MPRC (4000124664/18/NL/NA), and SKIM-PE (4000124521/18/NL/CT. Additional support was provided by CNES and ANR grants for ISblue (ANR-17-EURE-0015) LabexMER (ANR-10-LABX-19).

Conflict of Interest Statement

HJ and GE were employed by company NORUT Teknologi AS.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer SG declared a past co-authorship with one of the authors BC to the handling editor.

Acknowledgments

Discussions with and comments from L. L. Fu, S. Bacon, A. Naveira-Garabato and E. Frajka-Williams are gratefully acknowledged.
