Processes and Microorganisms Involved in the Marine Nitrogen Cycle: Knowledge and Gaps

  • 1. Unidad Académica de Ecología y Biodiversidad Acuática, Instituto de Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México, Mexico City, Mexico

  • 2. Posgrado en Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México, Mexico City, Mexico

Article metrics

View details

169

Citations

49,5k

Views

8,7k

Downloads

Abstract

Nitrogen (N) is a key element for life in the oceans. It controls primary productivity in many parts of the global ocean, consequently playing a crucial role in the uptake of atmospheric carbon dioxide. The marine N cycle is driven by multiple biogeochemical transformations mediated by microorganisms, including processes contributing to the marine fixed N pool (N2 fixation) and retained N pool (nitrification, assimilation, and dissimilatory nitrate reduction to ammonia), as well as processes contributing to the fixed N loss (denitrification, anaerobic ammonium oxidation and nitrite-dependent anaerobic methane oxidation). The N cycle maintains the functioning of marine ecosystems and will be a crucial component in how the ocean responds to global environmental change. In this review, we summarize the current understanding of the marine microbial N cycle, the ecology and distribution of the main functional players involved, and the main impacts of anthropogenic activities on the marine N cycle.

Introduction

Nitrogen (N) is a key element for life and the functioning of marine ecosystems. It plays a crucial role in marine biogeochemistry, and because of its connections to the cycles of other elements such as carbon (C) it has a strong impact on Earth’s climate (Gruber, 2008; Voss et al., 2013). Fixed N limits marine productivity in many parts of the global ocean. Its availability also regulates the strength of the biological pump, one of the mechanisms contributing to oceanic uptake of atmospheric C dioxide (CO2) (Falkowski, 1997).

N is present in different oxidation states in the ocean, ranging from -III in reduced forms like ammonium (NH4+) and organic N to +V in fully oxidized nitrate (NO3), which highlights its importance as both an electron acceptor and donor for energy metabolism in marine ecosystems (Figure 1). Microorganisms mainly mediate the redox transformations of N, changing the concentrations of N compounds in the environment. The major sources of fixed N for the ocean are biological N2 fixation (BNF) and atmospheric deposition, while the major sinks are denitrification and anaerobic ammonium oxidation (anammox) (Gruber and Galloway, 2008). Because alterations of this balance caused by anthropogenic activity may pose significant impact on marine ecosystem health, biodiversity and climate change, the study of microbial communities involved in marine N cycling has gained great interest in recent years (Lam and Kuypers, 2011; Zehr and Kudela, 2011; Voss et al., 2013).

FIGURE 1

Microbial communities related to marine N cycling have been studied extensively using both culture-dependent and independent techniques. These technologies have allowed the attainment of a wealth of genomic data, revealing enormous metabolic versatility within N-transforming microorganisms. Furthermore, the study of genes encoding key metabolic proteins along with rate measurements of N processes has provided important discoveries about the genomic potential of microorganisms participating in N processes, as well as their biogeography and activity in marine systems (Table 1; Lam and Kuypers, 2011; Devol, 2015; Damashek and Francis, 2018). However, some discrepancies have been found between different studies, which may be due to the use of different methodologies (e.g., primer-based approaches versus untargeted approaches with meta-omic signatures or direct incubation experiments versus isotopic mass balance approach). As a contribution to this understanding, this review provides a general survey of the key microbial processes that comprise the marine N cycle and the N genes involved that are used as biomarkers, as well as the ecology and distribution of participating microorganisms in different marine ecosystems. We also identify several of the knowledge gaps that we still face in the study of microbial marine N processes. We end our review with a discussion of the impacts of anthropogenic activity on the microbially mediated marine N cycle.

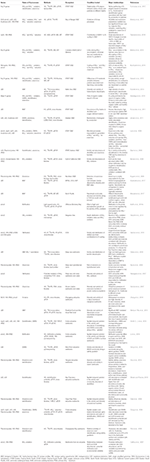

TABLE 1

GenesRates of N processesMethodsEcosystemCondition testedMajor relationshipsReferences
Key N genesNH3 and NO2 oxidation, denitrification, anammoxHC, 15N-IPE, MG, qPCR, lipid profilesETNP OMZRelationship of N players between water column and particles at different depthsNiche partitioning of N players based on tolerance to O2. Enrichment of denitrification genes associated with N2O and N2 production in particlesFuchsman et al., 2017
AOA-amoA, nxrB, nirS, Scalindua-nirS, 16S rRNANO2 oxidation, NO3 and NO2 reduction, anammoxHC, qPCR, 15N-IPEBay of Bengal OMZEvidence of N-loss processesDenitrifier and anammox populations mediate low, but significant N loss. Low O2 supports NO2 oxidation, restricting NO2 available for anammox or denitrificationBristow et al., 2017
narG, 16S rRNANO3 and NO2 reductionHC, SAG, qPCR, MG, MTETNP OMZContribution of SAR11 to N cycling in OMZGreat abundances of SAR11 lineages at anoxic depths, responsible of ∼40% of OMZ nar transcripts. SAR11 as important players of NO2 production in OMZsTsementzi et al., 2016
Key N genesNH3 and NO2 oxidation, NO3 reductionHC, 15N-IPE, MG, MTLouisiana Shelf (Gulf of Mexico)Links among NO2 accumulation, microbial taxa and metabolisms across O2 gradientsNO2 accumulation in the hypoxic zone due to a decoupling of NH3 oxidation and NO2 oxidation driven by temperature, O2 and substrate availabilityBristow et al., 2015
Nitrospina 16S rRNA, amoANH3 and NO2 oxidation, NO3 and NO2 reductionHC, 15N-IPE, IP, qPCRETNP OMZCycling of NO3 and NO2 in the secondary NO2 maximum50% of reduced NO3 to NO2 is re-oxidized back to NO3. Anammox contributes to NO2 oxidation, but is not responsible for all of itBuchwald et al., 2015
Key N genes, 16S rRNANH3 and NO2 oxidation, denitrification, anammoxHC, 15N-IPE, 16S Illumina, MG, MTETNP OMZDifferences of N metabolic activities between particle-associated and free-living communitiesN cycle activity, except denitrification, is confined to free-living communities that are dependent on particle accessGanesh et al., 2015
nifHBNFHC, 15N-incorporation, qPCR, RT-qPCR, pyrosequencingBaltic Sea OMZDiversity and activity of heterotrophic diazotrophsHigh diversity of active heterotrophic diazotrophs in anoxic NH4+-rich watersFarnelid et al., 2013
Major N genesNH3 and NO2 oxidation, DNRA, denitrification, anammoxHC, 15N-IPE, qPCRETSP OMZRole of organic matter export in N-lossN cycling is linked to the export of organic matter. N-loss is most active over the shelf, fueled by sinking organic matter and benthic NH4+ releaseKalvelage et al., 2013
nifHBNFHC, qPCR, clone librariesETSP OMZOccurrence of N2 fixation in denitrified and oxygen-deficient watersDiverse diazotrophs; high and temporal variable BNF in oxic and OMZ denitrified watersFernandez et al., 2011
nrfA, nirS, Scalindua-nirSDNRA, anammox, denitrification,HC, 15N-IPE, RT-qPCR, CARD-FISH, clone librariesArabian OMZMechanisms of biological N2 productionHighly active anammox and hardly detectable denitrification. Anammox coupled to DNRA. N-loss rates linked to organic matterJensen et al., 2011
amoA, napA, narG, nirS, Scalindua-nirS, nrfANH3 oxidation, DNRA, NO3 reduction, anammoxHC, 15N-IPE, qPCR, RT-qPCRETSP OMZMicrobial processes responsible for generation of NH4+ and NO2 for anammoxAnammox is the main N-loss pathway and obtains NO2 from NO3 reduction and aerobic NH3 oxidation, and NH4+ from DNRA and remineralization via NO3 reduction. Deep-sea NO3 accounted for 50% of N lossLam et al., 2009
nirS, Planctomycetes 16S rRNADenitrification, anammox,HC, 15N-IPE, qPCRETSP, Arabian OMZActivity and abundance of denitrifiers and anammox bacteriaN2 is mainly produced by denitrification in the Arabian OMZ and by anammox in the ESTPWard et al., 2009
amoA, Crenarchaeota 16S rRNANH3 oxidationHC, 15N-IPE, qPCR, clone librariesGulf of California OMZActivity and abundance of NH3 oxidizersAOA are the most abundant within OMZ, where nitrification may be coupled to denitrification. AOB are low or undetectable. NH3 oxidation correlated with AOABeman et al., 2008
Planctomycetes 16S rRNAAnammoxHC, 15N-IPE, FISH, clone libraries, lipid profilesNamibian OMZDetection of anammox bacteriaAnammox is mainly responsible for N2 lossKuypers et al., 2005
nifHBNFHC, 15N-IPE, qPCR, IlluminaNPSG, CCS, ESPLink between marine diazotrophic diversity and BNF ratesDistinct biogeographical patterns among the three regions. Diazotrophs are omnipresent in marine waters, but BNF is regionally restrictedGradoville et al., 2017
nifHBNFHC, 15N-IPE, MT, MT, qPCRNorth PacificDiazotroph community structure and activity along a 7500 km south-north transectDifferent diazotrophic composition between (sub)tropical gyre and cold northern regions, where BNF was also detectedShiozaki et al., 2017
amoANitrificationLight experiments, HC, 15N-IPE, qPCR, RT-qPCROffshore Monterey BayEffect of light and phytoplankton growth on the activity of NH3 oxidizersNitrification in the photic zone is more regulated by competition with phytoplankton for NH4+ than by lightSmith et al., 2014b
amoANH3 oxidationHC, 15N-IPE, qPCR, microarraysSargasso SeaDepth distribution of NH3 oxidation rates and NH3 oxidizersMaximum NH3 oxidation rates at the PNM, where AOA outnumber AOB. Below the PNM AOB outnumber AOA. A diverse AOA community is linked to seasonal biogeochemical changesNewell et al., 2013
amoA, 16S rRNA of MGI and NitrospinaNitrificationHC, IP, 15N-IPE, RT-qPCR, clone librariesCCSActivity and distribution of nitrifiers and their contributions to N cyclingAOA outnumber AOB and are distributed in shallow/deep ecotypes. AOA and MGI abundances correlated with Nitrospina abundance. Nitrification is not correlated to amoA and produces 1.5–4 times the N2O flux from deep waterSantoro et al., 2010
nifHBNF, NH4+ assimilationHC, 15N-incorporation, 15N-IPE, clone librariesDeep-sea sedimentsActivity and distribution of benthic diazotrophsHigh and heterogeneous BNF that is inhibited by NH4+. Methane-coupled sulfate reduction dependency of BNF in seep sedimentsDekas et al., 2018
Planctomycetes 16S rRNAAnammoxHC, 15N-IPE, clone libraries, lipid profilesDeep-sea hydrothermal ventsRole of anammox in hydrothermal ventsActive anammox bacteria in hydrothermal vents. Sequences suggest a new anammox cladeByrne et al., 2009
amoANitrificationPotential oxidation of NH3, competitive PCR, clone librariesDeep-sea cold seep sediments and waterDiversity and activity of NH3 oxidizersAOA outnumber AOB. Unique and psychrophilic AOA and AOB are responsible for nitrification in deep cold seep sedimentsNakagawa et al., 2007
Planctomycetes 16S rRNAAnammoxHC, 15N-IPE, FISH, clone librariesAnoxic marine sediments and waterDiversity and activity of anammox bacteria in anoxic marine ecosystemsUbiquitous presence of active anammox bacteria belonging to Ca. Scalindua in different anoxic environmentsSchmid et al., 2007
NC10 16S rRNA, pmoAN-damoHC, IPE, clone libraries, qPCRZhangjiang estuarine sedimentsDiversity and activity of n-damo bacteria in mangrove sedimentsWidespread occurrence and high diversity of N-damo bacteria, which are more active and abundance in the upper layerZhang et al., 2018
nifHBNFHC, 15N-incorporation, qPCR, RT-qPCR, illuminaRoskilde Fjord and the Great Belt straitDiversity and activity of diazotrophs in two mesohaline temperate estuariesSignificant BNF mediated by heterotrophic, photoheterotrophic and photosynthetic diazotrophs that vary in space and timeBentzon-Tilia et al., 2015
napA, narG, nrfA, nirS, 16S rRNADenitrification, DNRAHC, 15N-IPE, 16S T-RFLP, qPCR, RT-qPCR,Colne estuarine sedimentsSpatial-temporal variation in the activity and abundance of denitrifying and DNRA community along a NO3 gradientDenitrification, DNRA and corresponding gene abundances and transcripts decrease along the estuary without a temporal correlationSmith C. J. et al., 2015
amoA, 16S rRNANitrificationHC, nitrification potential, qPCR, DGGE, 16S pyrosequencingColne estuarine sedimentsSpatial-temporal variation in the activity and diversity of AOA and AOB in surface sedimentsNitrification potential differs in space and time. AOB dominate over AOA, with AOB/AOA abundance increasing from the head to the mouthLi et al., 2015
nrfADNRAHC, 15N-IPE, qPCR, pyrosequencingNew River estuarine sedimentsActivity and diversity of DNRA community along a salinity gradientVariation of DNRA community along the salinity gradient. DNRA bacterial abundance and organic carbon availability regulate DNRA activitySong et al., 2014
Planctomycetes 16S rRNAAnammox and denitrificationHC, 15N-IPE, clone libraries, qPCRYangtze estuarine sedimentsAnammox bacterial diversity and activity in marsh sedimentsSalinity defines anammox bacterial distribution, whose activity is related to temperature, nitrite, and anammox bacterial abundance. Anammox is link to denitrification, which is the main N-loss pathwayHou et al., 2013
nirK, nirSDenitrificationHC, denitrification potential, qPCR, clone librariesSan Francisco estuarine sedimentsSpatial-temporal variation in the activity and community structure of denitrifiersnirS abundance correlated with denitrification and higher than nirK abundance at every site and time point. Salinity, organic carbon, N and several metals influence denitrification rates, nir abundance and community structureMosier and Francis, 2010
Planctomycetes 16S rRNAAnammox and denitrificationHC, 15N-IPE, clone libraries, T-RFLP, qPCRCape Fear River estuarine sedimentsSpatial-temporal variation in the activity and diversity of anammox bacteriaSalinity influences diversity and abundance of anammox bacteria, which are linked to anammox ratesDale et al., 2009
narG, napA, nirS, nrfA, Planctomycetes 16S rRNADenitrification, DNRA, anammox15N-IPE, NO3 reduction potential, qPCR, RT-qPCR, clone librariesColne estuarine sedimentsSpatial variation and relationship between gene abundances and rates of denitrification, DNRA and anammoxDenitrification and DNRA rates decrease toward the mouth. DNRA potential and nrfA increase and denitrification potential and nirS decrease as NO3 declines. Anammox only detected at the headDong et al., 2009
Planctomycetes 16S rRNAAnammox and denitrificationHC, 15N-IPE, clone librariesChesapeake Bay sedimentsRelative activities of anammox and denitrification along salinity gradientsAnammox rate associated with Ca. Scalindua, contributes up to 22% of N loss in the freshwater portion and correlated with salinity and NO3Rich et al., 2008
amoA, 16S rRNANH3 oxidationHC, nitrification potential, qPCRSediments from six estuariesRelationships between AOA and AOB abundances, potential nitrification and environmental variablesPotential nitrification correlated with AOA abundance, and its variability is predicted by salinity and pore water sulfideCaffrey et al., 2007

Representative studies using N cycling genes and rate measurements of N processes in marine ecosystems: ocean minimum zones, open ocean, deep-sea, and estuarine sediments.

BNF, biological N fixation; HC, hydrochemical data; IP, isotope profiles; IPE, isotope pairing experiments; MG, metagenomics; MT, metatranscriptomics; SAG, single amplified genomes; FISH, fluorescence in situ hybridization; ETNP, Eastern Tropical North Pacific; ETSP, Eastern Tropical South Pacific; OMZ, oxygen minimum zones; NPSG, North Pacific Subtropical Gyre; CCS, California Current system; ESP, Eastern South Pacific; AOA, ammonia-oxidizing archaea; AOB, ammonia-oxidizing bacteria; PNM, primary NO2 maximum.

Microbial Processes in the Marine N Cycle

The marine N cycle is driven by multiple microbial transformations, and N-converting enzymes are found in very diverse microorganisms globally distributed throughout marine systems (Figure 2). The microbial transformations of N compounds have important effects on the balance of marine and global N budgets. Thus, understanding how they occur, their distribution and the factors making them possible is essential to comprehend the fate of marine ecosystems and the future Earth. In this section, we give a general overview of the biochemistry and ecology of the main marine N processes and the microorganisms involved in them. In order to emphasize the role of these processes in the marine and global budgets, we divide them into processes contributing to the marine fixed N (BNF) and retained N pool (derived from processes that transform one N species to another without causing its loss from the system) and processes contributing to the fixed N loss.

FIGURE 2

Bioavailable N-Gain and Retention Processes

BNF is the only biotic process adding N to marine systems and it has been estimated of ∼140 Tg N yr–1 (Eugster and Gruber, 2012; Luo et al., 2012). However, this estimate remains highly uncertain due to the incomplete knowledge of the organisms involved and their ecological controls (Gruber, 2016; Landolfi et al., 2018). Other microbial N processes such as nitrification, dissimilatory nitrate reduction to ammonia (DNRA) and N assimilation retain the fixed N. Most marine microorganisms can assimilate inorganic N forms, and also dissolved organic N compounds in estuaries and coastal waters (Damashek and Francis, 2018) and even in oligotrophic open ocean waters (Benavides et al., 2017b). Thus, addressing this process is beyond the scope of this review, but it is covered elsewhere (e.g., Allen et al., 2001; Zehr and Ward, 2002; Martiny et al., 2009; Zehr and Kudela, 2011; Damashek and Francis, 2018).

Biological N2 Fixation (BNF)

Marine N2 fixers (diazotrophs) convert dissolved N2 gas into bioavailable ammonia (NH3). This is an intensely energy-requiring process that only a small but diverse group of bacteria and archaea are able to carry out. Marine diazotrophs mainly include non-heterocystous filamentous cyanobacteria (e.g., Trichodesmium, Oscillatoria, Lyngbya), heterocystous filamentous cyanobacteria (e.g., Aphanizomenon, Nodularia), diatom symbiotic cyanobacteria (e.g., Richelia, Calothrix), and unicellular cyanobacteria (Ca. Atelocyanobacterium thalassa [UCYN-A], Crocosphaera watsonii [UCYN-B] and Cyanothece [UCYN-C]) (Villareal, 1991; Capone, 1997; Zehr et al., 2001; Thompson et al., 2012). UCYN-A is further divided into at least four sublineages; two of them (UCYN-A1 and UCYN-A2) live symbiotically with distinct prymnesiophyte microalgae (Zehr et al., 2016, and references therein). Other marine diazotrophs include heterotrophic bacteria (e.g., Klebsiella, Vibrio), phototrophic bacteria (e.g., Chlorobium, Chromatium, Rhodospirillum), strict anaerobes (e.g., Clostridium, Desulfovibrio), iron (Fe) oxidizers (e.g., Thiobacillus), methanogenic Euryarchaeota, and even members of Planctomycetes (Zehr and Paerl, 2008; Bombar et al., 2016; Delmont et al., 2018). These microorganisms share a common feature: the nitrogenase complex, which catalyzes N2 fixation.

Nitrogenase is composed of two metalloproteins: the molybdenum (Mo)–Fe protein (dinitrogenase) encoded in the nifDK genes; and the Fe protein (dinitrogenase reductase) encoded in the nifH gene. Alternative nitrogenases replace Mo with vanadium or solely contain Fe, and are encoded in the vnf and anf genes, respectively (Zehr et al., 2003). The nifH gene is the preferred biomarker in the study of diazotroph diversity because it remains highly conserved (Zehr et al., 2003; Turk et al., 2011; Jayakumar et al., 2012).

Factors affecting BNF in marine systems

Oxygen (O2), light, temperature, inorganic N forms, phosphorus (P), Fe, and organic matter are the main factors that affect marine diazotroph distribution. Nitrogenase is sensitive to O2, and diazotrophs have developed numerous protective strategies against this. For example, several cyanobacteria generate specialized N2-fixing cells called heterocysts that provide an almost anoxic environment. Temporal separation is another protection mechanism; most photosynthetic diazotrophs and certain proteobacterial diazotrophs fix N2 at night (Moisander et al., 2014), whereas Trichodesmium and heterocyst-forming cyanobacteria fix N2 during the day (Staal et al., 2007). The ability of Trichodesmium to fix N2 during daytime remains enigmatic. Several mechanisms have been considered, such as its nitrogenase is confined to specialized cells called diazocytes (Bergman and Carpenter, 1991), the photoreduction of O2 to H2O in the photosystem I (the Mehler reaction) (Milligan et al., 2007), the uncoupling of CO2 and N2 fixation in cyanophycin granules (Finzi-Hart et al., 2009), or the down-regulation of photosynthesis during the period of maximum nitrogenase activity at midday (Berman-Frank et al., 2001b), which suggests that light may also be a determinant factor for BNF. Interestingly, the symbiosis between UCYN-A (which lacks genes for oxygenic photosynthesis and C fixation, Zehr et al., 2008) and its algal host has led to enable daytime BNF (Muñoz-Marín et al., 2018), although nifH expression of UCYN-A has also been observed at night (Moisander et al., 2014).

Temperature is an important factor determining the distribution of different diazotrophs in the ocean. Trichodesmium appears to be distributed mainly in (sub)tropical surface waters (Capone, 1997); while small diazotrophs have been found in a wider latitudinal span (Moisander et al., 2010; Luo et al., 2012), from colder surface waters (e.g., Holl et al., 2007; Fernández-Méndez et al., 2016; Harding et al., 2018) to (sub)tropical marine waters (e.g., Bonnet et al., 2009; Messer et al., 2016; Berthelot et al., 2017; Stenegren et al., 2018). It is important to note that temperature may be correlated with other factors that control the distribution patterns of marine diazotrophs such as light, NO3 or O2 (Stal, 2009; Sohm et al., 2011b).

There is increasing evidence that BNF may not be as sensitive to inorganic N as previously thought (Dekaezemacker and Bonnet, 2011; Turk-Kubo et al., 2018), especially when P is not limited (Knapp, 2012). P availability influences BNF (e.g., Riemann et al., 2010; Gradoville et al., 2017) and the distribution of diazotrophs (Sohm et al., 2011b). For instance, cyanobacterial diazotrophs have been associated with high P concentration in the Arctic Ocean (Fernández-Méndez et al., 2016) and the Baltic Sea (Moisander et al., 2007b). High BNF might be also associated with denitrified waters in oxygen minimum zones (OMZs), which are limited in N relative to P (Deutsch et al., 2007; Fernandez et al., 2011; Loescher et al., 2014). Thus, N:P ratio may play a critical role, as BNF rates at high inorganic N concentrations can be offset when P is available (Knapp et al., 2012).

Diazotrophs require much more Fe for growth than other microbes, and its bioavailability directly affects BNF in many areas of the ocean (Berman-Frank et al., 2001a; Kustka et al., 2002; Knapp et al., 2016). Fe is generally depleted in surface waters of the open ocean, and Fe additions can stimulate diazotrophic activity (Turk-Kubo et al., 2012); thus the delivery of dust rich in Fe to the ocean may ultimately control the rate and distribution of marine BNF (Monteiro et al., 2011; Sohm et al., 2011b). For instance, diazotrophs, especially Trichodesmium, are abundant in the North Atlantic Ocean, in which dissolved Fe concentrations are relatively high because dust inputs are greater than in the South Atlantic Ocean, where dissolved Fe concentrations are extremely low (Langlois et al., 2008; Moore et al., 2009). Furthermore, direct experimental measurements have demonstrated that marine BNF can be co-limited by both Fe and P availability (Mills et al., 2004).

Finally, dissolved organic matter seems to stimulate heterotrophic diazotrophs in aphotic environments (Bonnet et al., 2013; Rahav et al., 2013; Benavides et al., 2015, 2016a) and coastal waters (Bentzon-Tilia et al., 2015; Severin et al., 2015) due to the high-energy requirements of the reaction. Furthermore, the interior of C-rich particles may be suitable for heterotrophic BNF (Moisander et al., 2017; Farnelid et al., 2019; and references therein). Additionally, organic matter could promote the mixotrophic nutrition of Trichodesmium when inorganic nutrients are scarce (Benavides et al., 2017b).

Distribution of diazotrophs in marine environments

The global presence of diazotrophs has been documented in recent years (Table 1; Monteiro et al., 2010; Sohm et al., 2011b; Luo et al., 2012). BNF is not only present in tropical surface waters (Capone et al., 2005; Goebel et al., 2010), but also in hypoxic basins (Hamersley et al., 2011; Farnelid et al., 2013), OMZs (Fernandez et al., 2011; Jayakumar et al., 2012), deep sea (Dekas et al., 2009), hydrothermal vents (Mehta and Baross, 2006), the Arctic Ocean (Sipler et al., 2017; Harding et al., 2018) and coral reefs (Benavides et al., 2017a), as well as in estuaries and nutrient-rich coastal upwelling regions (Mulholland et al., 2012; Bentzon-Tilia et al., 2015). These discoveries have challenged the classical paradigm that diazotrophy is constrained to warm, oligotrophic, surface waters.

Open oceans

BNF is particularly important in extremely oligotrophic environments such as open-ocean gyres, in which bioavailable N is scarce (Karl et al., 2002; Halm et al., 2012). Much of the research on diazotroph distribution has focused on Trichodesmium, which is mainly found in the North and Tropical Atlantic Ocean and the Arabian Sea, where it often forms massive surface blooms (Capone et al., 1998, 2005). The dominance of Trichodesmium in warm oligotrophic waters of the Tropical Atlantic Ocean seems to be due to a reduction of the N:P ratio by an increased uptake of inorganic N forms by non-diazotrophic cyanobacteria (Goebel et al., 2010; Singh et al., 2017), while its dominance in the Northern Atlantic Ocean seems to be due to high dissolved Fe concentrations (Langlois et al., 2008; Moore et al., 2009).

Diatom symbiotic cyanobacteria have a much patchier distribution, probably because the diatom hosts require silicon to build their cell walls (Monteiro et al., 2010; Sohm et al., 2011b). They predominate in the warm ocean, with the largest densities in the plumes of Amazon (Foster et al., 2007), Congo (Foster et al., 2009), and Mekong rivers (Grosse et al., 2010).

UCYN groups display different distributions in the ocean. UCYN-A was originally described from partial nifH fragments recovered from the North Pacific (Zehr et al., 1998) and has been recently detected in all ocean basins (Cabello et al., 2016; Farnelid et al., 2016; Martínez-Pérez et al., 2016), where UCYN-A1 dominates and frequently co-occurs with UCYN-A3 in the (sub)tropical open ocean (Thompson et al., 2014; Turk-Kubo et al., 2017). UCYN-B has been also detected in the global ocean, but dominates in (sub)tropical surface waters (e.g., Zehr et al., 2007; Bonnet et al., 2015; Stenegren et al., 2018). UCYN-C seems to be constrained to (sub)tropical open regions (e.g., Goebel et al., 2010; Berthelot et al., 2017), where is adapted to low P and high salinity waters (Turk-Kubo et al., 2015; Cheung et al., 2017).

Heterotrophic diazotrophs are also important N2 fixers in the global ocean (Bombar et al., 2016), where they are ubiquitous in the marine sunlit layer (Riemann et al., 2010; Farnelid et al., 2011; Langlois et al., 2015). Heterotrophic Proteobacteria are widespread in oceanic environments, but dominate in the Pacific coastal upwelling systems (Gradoville et al., 2017), the South Pacific Gyre (Halm et al., 2012), the Indian Ocean (Shiozaki et al., 2014), and the Arabian Sea (Kumar et al., 2017). Diverse and active heterotrophic diazotrophs are also found in sinking particles (Farnelid et al., 2019), aphotic waters (Hamersley et al., 2011; Bonnet et al., 2013; Rahav et al., 2013), OMZs (Jayakumar et al., 2012; Loescher et al., 2014; Fernandez et al., 2015), NH4+-rich sulfidic-anoxic waters of the Baltic Sea (Farnelid et al., 2013), and colder waters such as those in the Arctic Ocean (Blais et al., 2012; Fernández-Méndez et al., 2016), where nifH sequences related to anaerobic bacteria predominate (Farnelid et al., 2011; Shiozaki et al., 2018).

Estuaries and coastal zones

Little is known about the distribution and activity of diazotrophs in estuaries and coastal regions. BNF in these systems is affected by high nutrient inputs from land, so it is assumed to be unimportant (Howarth et al., 1988). However, recent studies suggest that BNF may be important in a number of estuaries and nutrient-repleted coastal upwelling regions (Fulweiler et al., 2007; Wen et al., 2017; Tang et al., 2019), where complicated relationships exist between environmental factors and distribution of different diazotrophs (Short et al., 2004; Moisander et al., 2007a; Severin et al., 2015). In the Baltic Sea, for instance, planktonic heterotrophic diazotrophs are common in a eutrophic estuary, while cyanobacterial diazotrophs are more abundant in a lower-nutrient estuary (Bentzon-Tilia et al., 2015). Furthermore, UCYN-A is the most abundant diazotroph in coastal upwelling ecosystems (Sohm et al., 2011a; Agawin et al., 2014; Moreira-Coello et al., 2019), and other nutrient-rich coastal waters (Mulholland et al., 2012, 2019; Shiozaki et al., 2015, 2017), where UCYN-A2 dominates and usually co-occurs with UCYN-A1 and sometimes with UCYN-A4 (Messer et al., 2015; Turk-Kubo et al., 2017; Henke et al., 2018). Additionally, diatom symbiotic cyanobacteria may be abundant in upwelling regions such as the Taiwan Strait (Wen et al., 2017).

BNF is also important in estuarine and coastal sediments, where heterotrophic bacteria are the dominant diazotrophs (e.g., Burns et al., 2002; Fan et al., 2015a). Finally, BNF is a key process in coastal microbial mats, whose diazotrophic community is composed mainly of filamentous cyanobacteria, anoxygenic phototrophic bacteria, and sulfate-reducing bacteria (Severin et al., 2010; Woebken et al., 2012, 2015).

Seeps and deep-sea vents

Mehta et al. (2003) provided the first evidence of nifH genes in deep-sea hydrothermal vents, where methanogenic archaea are the dominant diazotrophs (Mehta and Baross, 2006). Further, a consortium composed of an anaerobic methanotrophic archaeon (ANME) and a sulfate-reducing bacterium seems to mediate both sulfate-dependent anaerobic methane (CH4) oxidation (S-damo) and BNF in CH4 seep sediments (Dekas et al., 2009, 2014, 2018). Proteobacterial diazotrophs are also abundant in deep-sea hydrothermal vents (Wu et al., 2014; Cao et al., 2015) and CH4 seep sediments (Dang et al., 2009b).

Coral reefs

Corals are found in N-depleted (sub)tropical coastal waters; thus, BNF should play an important role in these ecosystems, providing an additional source of N for symbiotic dinoflagellates and thus improving the productivity. Corals harbor diverse communities of diazotrophs consisting mostly of heterotrophic bacteria, which are host species-specific (Rädecker et al., 2015; Benavides et al., 2017a). Diazotrophs participate in coral nutrition by three main mechanisms: as endosymbionts fixing N2 in several compartments of the holobiont (Olson et al., 2009; Lema et al., 2012; Grover et al., 2014), pelagic diazotroph ingestion (Benavides et al., 2016b) or N2 fixation products assimilated by corals (Cardini et al., 2015). Additionally, the ecological importance of N2-fixing symbionts may be determined by the trophic functional group of the host. For instance, Pogoreutz et al. (2017) found that autotrophic Pocilloporidae exhibited nifH copies and gene expression 100 times higher than those in heterotrophic Fungiidae, suggesting that BNF compensates for the low N uptake in autotrophic corals.

Nitrification

Nitrification is an aerobic process and involves three types of microorganisms: those who oxidize NH3 to nitrite (NO2), those who oxidize NO2 to NO3, and those who completely oxide NH3 to NO3via NO2 (comammox, complete ammonia oxidation).

The oxidation of NH3 is carried out by two groups of chemolithotrophic microorganisms: ammonia-oxidizing bacteria (AOB) belonging to a few genera within the Betaproteobacteria (Nitrosomonas and Nitrosospira) and Gammaproteobacteria (Nitrosococcus) classes (Purkhold et al., 2000), and ammonia-oxidizing archaea (AOA) belonging to the Thaumarchaeota phylum, such as Nitrosopumilus maritimus (Könneke et al., 2005) and Cenarchaeum symbiosum (Hallam et al., 2006). The discovery of AOA solved the long-standing mystery of the apparently rare ammonia oxidizers in the ocean (Wuchter et al., 2006).

Until recently, NH3 oxidation was thought to be a two-step process in AOB, with large gaps still remaining in the AOA pathway (Walker et al., 2010; Vajrala et al., 2013; Kozlowski et al., 2016). The first and usually rate-limiting step is the conversion of NH3 to hydroxylamine (NH2OH), catalyzed by the ammonia monooxygenase (AMO). The second step was once believed to be the conversion of NH2OH to NO2 by the hydroxylamine oxidoreductase (HAO), but recent studies indicate that NH2OH is first converted to nitric oxide (NO), and then to NO2 (Kozlowski et al., 2016; Caranto and Lancaster, 2017), raising the possibility that NH3 oxidation in AOA is also a three-step process (Carini et al., 2018). The pathways for the oxidation of NH2OH to NO and then to NO2 must be characterized to fully understand the bioenergetics of NH3 oxidation in AOB and AOA (Lancaster et al., 2018).

The AMO enzyme is encoded by the amoABC operon. The amoA gene has been widely used as a molecular marker for studying ammonia oxidizers in the environment (Rotthauwe and Witzel, 1997). The HAO enzyme is a homotrimer and is encoded in the hao gene, present in AOB with multiple copies (Arp et al., 2007). The hao gene has been little-used as a molecular marker of AOB in marine systems (Lüke et al., 2016; Rasigraf et al., 2017). No homologs of hao gene have been identified in the genome from any known AOA, suggesting that AOA probably catalyze NH2OH oxidation via a novel enzyme complex (Vajrala et al., 2013; Kozlowski et al., 2016) or produce a reactive nitroxyl (HNO) intermediate instead of NH2OH (Walker et al., 2010).

Ammonia oxidizers are important contributors to marine nitrous oxide (N2O) production (Santoro et al., 2011; Löscher et al., 2012; Trimmer et al., 2016); although the exact metabolic pathways and their relative importance for global N2O production remain unclear. AOB can produce N2O by nitrifier denitrification (see section Denitrification) through NO2 reduction via a NO intermediate (Stein, 2011), as well as a by-product of the nitrification through incomplete NH2OH oxidation to either HNO or NO (Caranto and Lancaster, 2017) or via the enzymatic oxidation of NH2OH (Caranto et al., 2016). AOA also produce N2O by pathways that are apparently similar but less well understood (Stieglmeier et al., 2014; Kozlowski et al., 2016).

The NO2 oxidation is catalyzed by the nitrite oxidoreductase (NXR), which is present in nitrite-oxidizing bacteria (NOB), a phylogenetically diverse group belonging to Chloroflexi, Nitrospirae, Nitrospinae and several classes of Proteobacteria (Daims et al., 2016). The NXR enzyme is closely related to the membrane-bound nitrate reductases (NAR) (Lücker et al., 2010), and is comprised of three subunits: NxrA, NxrB and NxrC. The nxrAB genes, along with the 16S rRNA gene, have been the most used markers for studying NOB in marine environments (e.g., Bristow et al., 2015; Rani et al., 2017). Some marine NOB, such as Nitrospira, are mixotrophs and can produce NH3 from urea, thus sustaining ammonia oxidizers that provide NO2 to Nitrospira (Koch et al., 2015). NOB of the genus Nitrospina have exclusively been found in marine environments (Mincer et al., 2007; Beman et al., 2013; Levipan et al., 2014) and have only two known cultured species to date: N. gracilis, isolated from ocean surface waters (Watson and Waterbury, 1971), and N. watsonii, isolated from the suboxic zone of the Black Sea (Spieck et al., 2014). Nitrospina is the most abundant and globally distributed marine NOB and has a key role in the oceanic NO2 oxidation and C fixation (Pachiadaki et al., 2017).

Comammox bacteria were discovered in 2015 (Daims et al., 2015; van Kessel et al., 2015) and have been classified as members of lineage II within Nitrospira (Daims et al., 2015). These organisms have a high affinity for NH3 and may be well adapted to oligotrophic environments (Kits et al., 2017). A metagenomic survey recently found a relatively high proportion of comammox bacteria in coastal water and sediment samples, whereas they were nearly undetectable in open-ocean samples (Xia et al., 2018). Further research of comammox bacteria is needed in marine environments to assess their contribution to marine nitrification.

Factors affecting nitrification in marine systems

Oxygen, NH4+, NO2, light, pH, temperature, and salinity are among the main factors allowing niche differentiation of the main nitrifier groups (Bouskill et al., 2012) and the decoupling of the two steps of nitrification in some marine environments (Heiss and Fulweiler, 2016; Zakem et al., 2018). Nitrifiers require O2, but they seem to do well in microaerophilic conditions. In this context, it has been observed that NH3 oxidation and NO2 oxidation persist even at nanomolar O2 levels in OMZs, suggesting that specialist nitrifiers have developed an exceptionally high affinity for O2 in this habitat (Füssel et al., 2012; Bristow et al., 2016, 2017; Sun et al., 2017). Furthermore, O2 and NO2 might be the primary drivers of niche differentiation of marine NOB species, since OMZ NOB species seem to be more adapted to lower O2 but higher NO2 concentrations than non-OMZ NOB species (Watson and Waterbury, 1971; Sun et al., 2017).

Photoinhibition of marine nitrifiers has been also reported (e.g., Merbt et al., 2012; Pedneault et al., 2015; Peng et al., 2016; Horak et al., 2018), but observations of nitrification and the frequent retrieval of amoA genes close to the sea surface (Mincer et al., 2007; Christman et al., 2011; Shiozaki et al., 2016) suggest that this is not universally the case. Thus, light might be an indirect control on nitrification (Zakem et al., 2018), and the base of the euphotic zone might be an optimal location for nitrifiers in stratified water columns (Santoro et al., 2010; Beman et al., 2012; Peng et al., 2016): phytoplankton outcompete slow-growing nitrifiers for NH4+ and NO2 in the sunlit ocean, but not deeper where light limits phytoplankton (Smith et al., 2014b). Differential photoinhibition has been also proposed as the mechanism that maintains the oceanic primary NO2 maximum at the base of the euphotic zone (where high NH3 oxidation rates and AOA abundance have been found; Newell et al., 2013; Peng et al., 2015) because NOB are more sensitive to light than ammonia oxidizers (Olson, 1981). Additionally, light might be an important factor structuring marine AOA in two distinct ecotypes by depth; the water column group A (WCA) or “shallow” ecotype, with putative adaptive mechanisms to reduce light-induced damage, and the water column group B (WCB) or “deep” ecotype (Luo et al., 2014). Other factors, such as different substrate affinities (Sintes et al., 2013; Smith et al., 2016) or the ability to use organic substrates (Alonso-Sáez et al., 2012; Qin et al., 2014), also influence the vertical distribution of AOA ecotypes.

Elevated temperature may drives decoupling of NH3 and NO2 oxidation, leading to NO2 accumulation in some coastal waters (Bristow et al., 2015; Schaefer and Hollibaugh, 2017), and can affect the composition and abundance of AOA communities in several bays (Mosier and Francis, 2008; He et al., 2018). Temperature also seems to be an important factor influencing the diversity of ammonia oxidizers in sponge associations (Cardoso et al., 2013) and deep-sea seep sediments (Dang et al., 2010b). Marine NOB can grow in a broad temperature range and sequences from this group have been recovered from polar environments (Rani et al., 2017) to deep-sea brines with temperatures up to 65°C (Ngugi et al., 2016).

Other factors affecting marine nitrifier communities are site-specific. For example, in deep-sea environments, total C, N and sulfur (S) seem to control the distribution of ammonia oxidizers (Xu et al., 2014; Luo et al., 2015). Moreover, salinity is an important factor driving amoA gene diversity in estuaries (e.g., Francis et al., 2003; Bernhard et al., 2005, 2010; Hou et al., 2018). High salinity also seems to affect NOB communities (Oren, 2011; Monteiro et al., 2017), although Ca. Nitromaritima RS can thrive over 11% salinity in the Red Sea brines (Luo et al., 2015).

Distribution of nitrifier communities in marine environments
Open oceans

The distribution and activity of ammonia oxidizing communities in the open ocean has been widely studied (Table 1). In this NH4+-limited environment, AOA are present throughout the water column and dominate over AOB (e.g., Beman et al., 2008; Newell et al., 2011; Pajares et al., 2019), which sometimes go undetected (Mincer et al., 2007; De Corte et al., 2009; Molina et al., 2010). A potential explanation for the marine AOA dominance is their high substrate affinity that could provide a competitive advantage over AOB (Martens-Habbena et al., 2009).

There is not a clear pattern of depth distribution of both AOB and AOA in the open ocean. For example, AOA are mainly present in the euphotic layer and AOB are confined to higher depths in the Sargasso Sea, the North Pacific Ocean, the Arctic Ocean and the Gulf of California (Beman et al., 2012; Newell et al., 2013; Shiozaki et al., 2016), while AOA are predominantly distributed below the euphotic zone in the central and subtropical Pacific Ocean (Mincer et al., 2007; Church et al., 2010). Moreover, AOA form vertical and latitudinal gradients throughout the North Atlantic, where their abundance and diversity decrease in meso- and bathypelagic waters from the north toward the equator (Agogué et al., 2008).

Abundant and active ammonia oxidizers have been found in OMZs (Newell et al., 2011; Peng et al., 2015, 2016), such as those in the Arabian Sea and the Eastern Tropical North Pacific (ETNP), where ammonia oxidizers and anammox bacteria have different vertical distributions in the anoxic layer (Pitcher et al., 2011a; Pajares et al., 2019), the Eastern Tropical South Pacific (ETSP), where both AOA and AOB exhibit a strong amoA expression in the upper OMZ (Lam et al., 2009), and the Baltic Sea, where the high abundance of AOA suggests a tolerance of this group to anoxic and sulfidic waters (Berg et al., 2015).

The two ecotypes of AOA are distributed at different depths in the open ocean (Francis et al., 2005; Luo et al., 2014). The WCA is typically more abundant in the sunlit ocean, while the WCB dominates the meso- and bathypelagic, where light is absent and the NH4+ flux is very low but the availability of other growth substrates (e.g., urea) is high (Sintes et al., 2013; Santoro et al., 2017). This distribution of AOA ecotypes has been found in different marine systems such as OMZs (Beman et al., 2008; Molina et al., 2010), coastal upwelling region (Santoro et al., 2010), warmer waters with P deficit (De Corte et al., 2009), and colder waters (Shiozaki et al., 2016; Smith et al., 2016). WCA abundance has been associated with the highest nitrification rates, suggesting that this ecotype is responsible for most of the NH3 oxidation in the ocean (Santoro et al., 2017).

In contrast with ammonia oxidizers, NOB distribution is less understood in marine environments. Nitrococcus, with only one species known to date (N. mobilis) (Watson and Waterbury, 1971), can dominate in certain marine areas such as the Namibian OMZ (Füssel et al., 2012, 2017). Nitrospina-like NOB have been found in abundance in different areas of the global ocean, such as at open-ocean benchmark research sites as the Hawaii Ocean Time-series (HOT) (DeLong et al., 2006) and San Pedro Ocean Time-series (SPOT) (Beman et al., 2010), but exhibits a preference for mesopelagic waters (Mincer et al., 2007), sediments (Reyes et al., 2017) and OMZs (Füssel et al., 2012; Levipan et al., 2014; Ganesh et al., 2015; Lüke et al., 2016). Two novel uncultured Nitrospina-like species have been recently identified in high abundance in OMZs (Sun et al., 2019), which is consistent with the detection of higher NO2 oxidation rates in OMZs than in oxic seawaters and suggests novel adaptations of specialist NOB to anoxic environments. Furthermore, it was hypothesized that NOB in OMZs might benefit from utilizing alternative terminal electron acceptors for NO2 oxidation, such as iodate, manganese or Fe (Lam and Kuypers, 2011; Casciotti and Buchwald, 2012). Their significance in OMZs, specifically in counteracting N loss through denitrification and anammox, has been recognized in recent years (Beman et al., 2013; Buchwald et al., 2015; Bristow et al., 2017).

Estuaries and coastal environments

The diversity of ammonia oxidizers in estuaries might be greater than that in the adjacent open oceans due to nutrient discharge from rivers (Cao et al., 2011; He et al., 2018). Both AOA and AOB are frequently found together in estuarine and coastal sediments, although the AOA community is usually more diverse than AOB community (Beman and Francis, 2006; Jin et al., 2011; Zheng et al., 2014; Zhang Y. et al., 2014). However, the dominance of one group over the other is unclear. In some estuaries and coasts, AOA form the most abundant ammonia oxidizer community (e.g., Caffrey et al., 2007; Lipsewers et al., 2014; Tait et al., 2014; Urakawa et al., 2014; Zhang Y. et al., 2014), while in others they are less abundant than or equal to AOB (e.g., Zheng et al., 2014; Fan et al., 2015b; Li et al., 2015; Smith J. M. et al., 2015). The salinity gradient is one of the main factors controlling the distribution and activity of nitrifier communities in estuarine sediments, where AOA and AOB seem to occupy different niches (Table 1). AOB are usually more abundant where salinity and N content are higher, while AOA dominates in the part exhibiting low salinity and N content (Mosier and Francis, 2008). Further, AOA belonging to “sediment” and “marine” clades (Nitrosopumilus-like sequences) are more abundant in the mouth, whereas AOA belonging to the “low salinity” (Nitrosoarchaeum-like sequences) and “soil” (group 1.1b) clades are more abundant in the head of many estuaries (e.g., Francis et al., 2003; Beman and Francis, 2006; Mosier and Francis, 2008; Bernhard et al., 2010). Similarly, AOB sequences belonging to the Nitrosospira-like cluster have mostly been obtained at high salinities, while the Nitrosomonas-like cluster is dominant at low salinities (Francis et al., 2003; Bernhard et al., 2005).

The structure of AOA populations follows different patterns in coastal waters. For instance, WCA organisms seem to be distributed at all depths, whereas WCB organisms are confined to low-O2 and low-chlorophyll deeper waters in the Pacific coasts (Smith et al., 2014a; Bertagnolli and Ulloa, 2017). Additionally, AOA populations fluctuate seasonally, with abundance peaks during winter in the coastal Arctic and North Sea (Christman et al., 2011; Pitcher et al., 2011b), whereas in the Chilean coast, WCB organisms are abundant during spring and summer and non-detectable during winter (Bertagnolli and Ulloa, 2017).

NOB diversity in estuaries is also strongly influenced by salinity. For instance, distinctive NOB phylotypes have been detected along a salinity gradient in estuarine sediments, where NOB increase their abundance as salinity decreases (Monteiro et al., 2017). Additionally, salinity and NO2 flux may be major factors causing niche differentiation of NOB groups in estuarine waters, where Nitrospina could be more adapted to low-nutrients and high-salinity conditions, while Nitrospira could be well adapted to eutrophic estuarine conditions (Hou et al., 2018). Finally, NH3 and NO2 oxidation are not always coupled in coastal waters (Heiss and Fulweiler, 2016), which may be due to a decoupling between AOA and Nitrospina populations (Bristow et al., 2015).

Deep-sea environments

Deep-sea sediments and hydrothermal vents are sites of active nitrification that harbor diverse ammonia-oxidizing prokaryotes (Table 1; Nakagawa et al., 2007; Dang et al., 2009a; Baker et al., 2012). In these systems, AOA are much more diverse but less abundant than AOB (Cao et al., 2012; Xu et al., 2014; Luo et al., 2015), although several exceptions have been found (Dang et al., 2010b; Nunoura et al., 2013). NOB community has been understudied in deep-sea environments, where they seem to be very abundant (Baker et al., 2013; Nunoura et al., 2013; Ngugi et al., 2016; Tully and Heidelberg, 2016). Further, distinctive distribution of NOB has been found, with Nitrospina more abundant in the bathyal waters and Nitrospira more abundant in the hadal waters (Nunoura et al., 2015).

Symbiosis with coral reefs and other marine organisms

The few studies of the nitrifying ecology in coral reefs suggest that AOA may be the main contributors to N cycling in these systems (Beman et al., 2007), with N. maritimus as an important player that oxidizes NH3 during daytime when the conditions in coral mucus are oxic (Siboni et al., 2008). However, AOB seem to dominate nitrifier communities in other coral species (Yang et al., 2013). Further research in this direction would help understand the importance of both ammonia oxidizer groups in a variety of coral species.

Ammonia oxidizers have also been studied in symbiosis with other marine organisms. The first genome assembly of a marine AOA was generated from C. symbiosum, which accounts for 65% of microorganisms associated with the sponge Axinella mexicana (Preston et al., 1996; Hallam et al., 2006). However, Nitrosospira and Nitrosopumilus-related AOA seem to be the major drivers of nitrification in different types of sponges (Mohamed et al., 2010; Radax et al., 2012; Zhang F. et al., 2014). In addition, AOA play an important nitrification role within the tissue of colonial ascidians (Martínez-García et al., 2008).

Dissimilatory Nitrate Reduction to Ammonia (DNRA)

Respiratory ammonification or DNRA is an anaerobic process in which NO3 is reduced to NO2 and then to NH4+, though the reaction may begin with NO2 directly. DNRA is mainly a heterotrophic process, but it can also be an autotrophic process driven by inorganic compounds such as sulfide (S–2), elemental S, or Fe+2 (Robertson et al., 2016; Slobodkina et al., 2017).

NO3 reduction is a major source of NO2 for other N-cycling processes, including aerobic NO2 oxidation and anammox, and in DNRA occurs in the same way as in denitrification. It is mainly catalyzed by either the NarGHI complex, present in a wide variety of microorganisms, or the periplasmic nitrate reductase complex (NapAB), present mainly in Gram-negative bacteria (Moreno-Vivián et al., 1999; Simon and Klotz, 2013). The active sites of both complexes are encoded in narG and napA genes, which have been used as biomarkers for the marine microorganisms involved in NO3 reduction (e.g., Smith et al., 2007; Lam et al., 2011).

The reduction of NO2 to NH4+ in the heterotrophic DNRA is catalyzed by the cytochrome C nitrite reductase (ccNIR), encoded in the nrfA gene, which is frequently used as a biomarker for the DNRA process (e.g., Papaspyrou et al., 2014; Welsh et al., 2014). The reduction of NO2 to NH4+ in the chemolithotrophic DNRA is mainly catalyzed by the octaheme tetrathionate reductase (Otr) (Atkinson et al., 2007) or the octaheme cytochrome C nitrite reductase (Onr) (Tikhonova et al., 2006).

A broad diversity of microorganisms is capable of DNRA, mainly prokaryotic organisms belonging to Proteobacteria, Firmicutes, Verrucomicrobia, Planctomycetes, Acidobacteria, Chloroflexi, and Chlorobia (Tiedje, 1988; Welsh et al., 2014). Marine eukaryotes capable of DNRA include diatoms, which use DNRA to enter a resting stage for long-term survival in dark anoxic sediments (Kamp et al., 2011), and fungi such as Aspergillus terreus isolated from the Arabian Sea OMZ (Stief et al., 2014). Evidence of chemolithotrophic DNRA in marine sediments has been found in Beggiatoa (Preisler et al., 2007), as well as in Thermosulfurimonas dismutans and Dissulfuribacter thermophilus, thermophilic anaerobic bacteria isolated from deep-sea hydrothermal vents (Slobodkina et al., 2017).

Factors affecting DNRA in marine systems

DNRA produces NH4+ without the release of N2 and contributes to nitrification and anammox. Therefore, understanding the mechanisms controlling the DNRA community and its interactions with other N-cycling communities is critical for understanding the fate of N in marine systems.

DNRA and denitrification compete for NO3 and there are several factors favoring DNRA over denitrification, such as high S–2 concentrations and C:NO3 ratio, elevated temperatures, salinity and anoxic conditions (e.g., Dong et al., 2011; Song et al., 2014; Yin et al., 2017). Although DNRA has a lower energetic yield than denitrification, it can accept a greater number of electrons per NO3 molecule (eight, compared to five for denitrification). For this reason, DNRA may be energetically favored over denitrification in anoxic environments where NO3 is limiting and electron donors (organic C or S–2) are in excess (Dong et al., 2011; Kraft et al., 2014). It has been suggested that DNRA is not affected by NH4+ (Tiedje, 1988) and NO2 (van den Berg et al., 2017), but it has been demonstrated that NH4+ and NO2 concentrations are positively correlated with DNRA rates in estuaries (Song et al., 2014; Lisa et al., 2015; Yin et al., 2017). Salinity seems to be another factor affecting DNRA, although there is not a clear pattern. In some estuaries DNRA rates increase with increasing salinity (Gardner et al., 2006; Giblin et al., 2010; Lisa et al., 2015), while in others DNRA rates decrease (Dong et al., 2009). Finally, elevated temperatures favor DNRA rates; therefore, DNRA may be an important pathway for NO3 reduction in (sub)tropical estuaries (Gardner and McCarthy, 2009; Dong et al., 2011; Yin et al., 2017).

Distribution of DNRA communities in marine environments

Since DNRA is an anaerobic process, marine DNRA communities are mostly restricted to anoxic environments such as sediments and OMZs (Table 1). However, there are relatively few studies on DNRA communities in those marine systems compared to the number of studies on microbes involved in other N-cycling processes.

Open oceans and deep-sea environments

Only a few studies on DNRA distribution have been conducted in open oceans, most of them in OMZs. In the Arabian sea OMZ, DNRA is coupled with anammox (Jensen et al., 2011), and is carried out by microorganisms with divergent nrfA genes (Lüke et al., 2016). In Baltic Sea sediments nrfA has been found in lower abundance than genes involved in denitrification, possibly due to the combination of low-sulfide, oligotrophic and hyposaline conditions of this environment (Rasigraf et al., 2017; Reyes et al., 2017). DNRA has also been detected in the ETNP and ETSP OMZs, where it may supply most of the NH4+ needed for anammox (Lam et al., 2009; Pajares et al., 2019). However, several studies have reported low or undetectable nrfA genes and low DNRA rates in the ETSP, suggesting that this process may be sporadic (Kalvelage et al., 2013; Schunck et al., 2013) or that anammox bacteria could perform both DNRA and anammox producing their own NH4+ from NO3 (Kartal et al., 2007; De Brabandere et al., 2014).

DNRA communities have also been found in deep-sea sediments, where microbes involved in DNRA, nitrification and anammox are more abundant than in shallow sediments (Yu et al., 2018). More studies are needed to confirm the importance of DNRA in deep-sea environments.

Estuarine zones

Diversity and abundance of the nrfA gene in estuaries are high and often change along salinity and NO3 gradients (e.g., Papaspyrou et al., 2014; Song et al., 2014; Smith C. J. et al., 2015). There are exceptions such as in the Yellow River estuary, where the abundance and activity of DNRA communities are not affected by either type of gradient (Bu et al., 2017). Additionally, DNRA communities from estuarine sediments are site-specific and could vary significantly at a small spatial scale (Decleyre et al., 2015; Zheng et al., 2016). For example, in the well-studied Colne estuary (United Kingdom), DNRA communities embedded in deeper anoxic sediments are more homogeneous compared to those in the surface (Takeuchi, 2006). Furthermore, in situ rates of denitrification and DNRA along with gene markers for nitrate reduction (narG), denitrification (nirS), and DNRA (nrfA) decrease toward the mouth of that estuary where the NO3 concentration is lower, while denitrification potential also decrease but DNRA potential increase (Smith et al., 2007; Dong et al., 2009; Papaspyrou et al., 2014; Smith C. J. et al., 2015), indicating that DNRA microorganisms are more competitive than denitrifiers when the ratio of electron donors to electron acceptors increase, which stimulates DNRA relative to denitrification. Finally, higher nrfA abundance and DNRA rates have been found in estuarine sediments richer in organic C and S–2 (Song et al., 2014; Yin et al., 2017).

N-Loss Processes

The oceanic N budget balance leans more toward higher losses (between ∼275–481 Tg N yr–1) than inputs (between ∼265–294 Tg N yr–1) (Codispoti et al., 2001; Codispoti, 2007; Gruber and Galloway, 2008; Voss et al., 2013). The N release from the ocean is mainly caused by denitrification and anammox in a theoretical 71:29 ratio, assuming that anammox consumes all NH4+ produced from mineralization of C and N in a 106:16 ratio coupled to denitrification (Dalsgaard et al., 2012). The most important factor over marine N loss is O2 given that denitrification and anammox occur in environments where O2 is nearly or fully depleted, such as OMZs and sediments, which are responsible for 30–50% and 50–70% of N loss, respectively (Codispoti et al., 2001; Devol, 2015; Na et al., 2018). The interaction of denitrification and anammox with other N processes also affects marine N loss. As discussed below, DNRA and denitrification coexist in anoxic environments, but DNRA may be favored in environments with low NO3 and high organic C (Kraft et al., 2014). DNRA interaction with anammox could enhance N loss, because DNRA feeds anammox by increasing NH4+ concentrations (Jensen et al., 2011). Nitrate/nitrite-dependent anaerobic methane oxidation (N-damo) has recently identified as a N-loss process (Padilla et al., 2016), but its contribution to the global marine N loss has not yet been investigated.

Among dissolved gaseous N compounds, marine N2O has caught the most attention of the scientific community in the last years (Bange et al., 2010; Martinez-Rey et al., 2015), because it is a potent greenhouse gas and an ozone-depleting agent that is mainly produced by NH3 oxidation and denitrification (Freing et al., 2012). Estimates of global oceanic N2O emissions range between 3.8 Tg N yr–1 (Ciais et al., 2013) and 4.3 Tg N yr–1 (Battaglia and Joos, 2018), ∼35% of total N2O natural emissions (Syakila and Kroeze, 2011). The highest oceanic N2O concentrations and fluxes occur in coastal upwelling ecosystems (Nevison et al., 2004; Arévalo-Martínez et al., 2015) and OMZs (e.g., Naqvi and Noronha, 1991; Kock et al., 2016; Bourbonnais et al., 2017; Casciotti et al., 2018), in which it is produced near the oxycline where a decoupling between N2O production from both NH3 oxidation and denitrification and consumption by denitrification occurs (Farías et al., 2009; Dalsgaard et al., 2014; Babbin et al., 2015; Ji et al., 2015), as the latter process is less O2 tolerant.

Denitrification

Denitrification is a respiratory pathway performed by diverse facultative anaerobic microorganisms in which NO3 is respired to NO2 (discussed in the DNRA section), followed by stepwise reductions to NO, N2O, and N2 (Zumft, 1997). Denitrification is a modular pathway, in which a microorganism may not always possess the full set of enzymes and thus perform only a subset of steps within the pathway (Graf et al., 2014).

Two isofunctional but structurally divergent periplasmic enzymes catalyze the reduction of NO2 to NO (Simon and Klotz, 2013): a Cu-containing nitrite reductase (encoded by nirK) and a haem-containing cd1 nitrite reductase (encoded by nirS), which are thought to be mutually exclusive in the genome of denitrifying organisms (Jones et al., 2008), although some exceptions have been found (Graf et al., 2014). Because this is the first committed step of the pathway to a N gaseous product, nir genes are the most widely used markers for denitrifiers (e.g., Braker et al., 2000; Mosier and Francis, 2010; Pajares et al., 2019). The nir genes are present in many other microorganisms, including anammox bacteria, nitrite and methane-oxidizing bacteria, AOA and AOB (Kuypers et al., 2018). Moreover, several studies have shown evidence of niche differentiation between nirK and nirS communities (Jones and Hallin, 2010; Wittorf et al., 2016; Pajares et al., 2017). Furthermore, nirS-denitrifiers seem to have a complete denitrification pathway (including nor and nos genes); thus, they are more likely to completely reduce NO2 to N2 (Graf et al., 2014).

The conversion of NO to N2O is carried out mainly by the nitric oxide reductases cNOR (a cytochrome c-dependent complex) or qNOR (a quinol-dependent complex), whose active sites are encoded by two variants of the same gene (cnorB and qnorB, respectively) (Simon and Klotz, 2013). The cNOR has also been found in AOB (Casciotti and Ward, 2005), while qNOR has also been found in N-damo and non-denitrifying microorganisms, where it may play a detoxifying role (Jones et al., 2008; Wu et al., 2011). Both qnorB and cnorB have been little used as biomarkers for marine NO-reducing denitrifiers (Braker and Tiedje, 2003; Ganesh et al., 2015).

The final step in the denitrification pathway is the reduction of N2O to N2. It is catalyzed by the nitrous oxide reductase (NOS), which is encoded in the nosZ gene and is frequently used as a biomarker of N2O-reducing denitrifiers in marine systems (e.g., Bowles et al., 2012; Wittorf et al., 2016). There are two phylogenetically distinct nosZ clades: clade I includes organisms with a complete denitrification pathway, whereas clade II includes organisms that frequently lack other denitrification genes (Jones et al., 2013).

Denitrification is mainly a heterotrophic process, although autotrophic denitrifiers, which use H2 or S compounds as electron donors, have been found in many marine environments, including OMZs (Lam and Kuypers, 2011, and references therein), hydrothermal vent sediments and microbial mats (e.g., Shao et al., 2011; Bowles et al., 2012).

Finally, a partial denitrification pathway has been reported in marine AOA and AOB. In the called “nitrifier denitrification,” NO2 is reduced to N2O via a NO intermediate under suboxic or anoxic conditions (Frame and Casciotti, 2010; Zhu et al., 2013). Nitrifier denitrification was originally thought to be restricted within some AOB harboring Nir and Nor enzymes (Stein, 2011). However, the observation of high N2O production rates under low O2 concentrations for N. maritimus suggests that marine AOA might play an important role in N2O production via this pathway (Löscher et al., 2012) or via a hybrid formation (Kozlowski et al., 2016). Nitrifier denitrification has been observed in the lower euphotic zone of the open ocean (Wilson et al., 2014) and OMZs (Löscher et al., 2012; Bourbonnais et al., 2017).

Factors affecting denitrification in marine systems

Denitrification is limited to environments where O2 is nearly fully depleted. It has been reported that nirS, norB and nosZ transcripts strongly decrease in O2 concentrations > 200 nM (Dalsgaard et al., 2014), and nirS is rarely present in well-oxygenated waters (Jayakumar et al., 2004; Ward et al., 2009). Furthermore, O2 availability is associated with the habitat partitioning of NO2 and N2O reducers, with nirS- and nosZI-type denitrifiers prevailing under lower O2 regimes (Kim et al., 2011; Wittorf et al., 2016).

Heterotrophic denitrifiers depend on a supply of organic matter, and incubation experiments in OMZs suggest that organic C is a major driver of denitrification, which might be linked to the episodic supply of organic substrates from productive surface waters (Ward et al., 2008; Babbin et al., 2014). The composition and stoichiometry of the source organic matter may also determine the dominant N-loss process: fresh organic matter with higher C:N ratio stimulates denitrification over anammox because denitrification uses organic matter directly while anammox uses NH4+ from organic matter degradation (Babbin et al., 2014; Chang et al., 2014). Furthermore, N2O and N2 production associated with denitrifying communities have been found in particles, whereas other N processes are more associated with free-living communities in OMZs (Ganesh et al., 2015; Fuchsman et al., 2017). The structure and abundance of denitrifiers in OMZs is also correlated with NO3 and NO2 concentrations (Liu et al., 2003; Castro-Gonzalez et al., 2005; Jayakumar and Ward, 2013). Additionally, chemolithotrophic denitrification may be responsible for N2 production in OMZs where hydrogen sulfide (H2S) accumulates (Galán et al., 2014).

The input and type of organic matter and salinity are among the key factors controlling denitrification rates and denitrifier community distribution in estuaries (e.g., Mosier and Francis, 2010; Eyre et al., 2013; Francis et al., 2013; Zhang Y. et al., 2014; Lee and Francis, 2017). Since NirK and NosZ require Cu, it could represent a regulating factor in denitrification and the production of N2O in marine environments (Granger and Ward, 2003). However, it has been observed that increasing concentrations of Cu decrease the abundance and diversity of denitrifiers and inhibit denitrification rates in estuarine sediments (Magalhães et al., 2011). As mentioned before, denitrification and DNRA compete for NO3, and factors such as low S–2 concentrations (which inhibit the last two steps of denitrification), cold temperatures, and a low C:NO3 ratio favor denitrification over DNRA (Burgin and Hamilton, 2007; Smith C. J. et al., 2015).

Distribution of denitrifier communities in marine environments

Although denitrifying microorganisms can be found in any marine environment, denitrification is typically restricted to suboxic or anoxic environments such as OMZs and sediments (Table 1).

Open oceans and deep-sea environments

OMZs are considered one of the major oceanic sites of denitrification. For example, denitrification is the dominant N-loss pathway in the Arabian Sea OMZ (Ward et al., 2009), where denitrifiers dominate over anammox bacteria (Jayakumar et al., 2009; Sokoll et al., 2012); although a recent report has found higher abundance of anammox genes over denitrifying genes in this OMZ (Bandekar et al., 2018). Depth distributions of nir genes follow the same pattern in the Arabian Sea, ETNP and ETSP, where they are associated with the secondary NO2 maximum in oxygen-depleted waters (Bandekar et al., 2018; Pajares et al., 2019). However, the denitrifier community composition of these sites seems to be different (Jayakumar and Ward, 2013; Bandekar et al., 2018). In the ETNP, narG belonging to SAR11 clades is the most abundant denitrifying gene (Tsementzi et al., 2016), while nirK dominates over nirS (Fuchsman et al., 2017). In the Black Sea, nirK-based communities vary with depth, while the composition of both nirK and nirS genes changes at the bottom of this suboxic zone (Oakley et al., 2007). Great genomic potential for full denitrification to N2 but less genomic potential for anammox and DNRA have been found in Baltic Sea sediments (Rasigraf et al., 2017; Reyes et al., 2017). Additionally, the composition of nirS-based communities is site-specific in this environment and varies along biogeochemical gradients in the water column, while it is uniform in the sediment (Falk et al., 2006; Hannig et al., 2006). Finally, the nosZ-based communities have a strong biogeographical separation, thus the communities from surface ocean waters differ from those in OMZs (Jayakumar et al., 2018).

Few studies of denitrifier communities have been conducted in deep-sea sediments and hydrothermal vents, where chemolithotrophic denitrification seems to be an important process given the high concentration of reduced S species in such environments (Shao et al., 2011; Bowles et al., 2012). In addition, nirS sequences have been retrieved from these systems (Bourbonnais et al., 2014), where nirK-type denitrifiers were undetected (Tamegai et al., 2007).

Estuaries and coastal environments

Denitrification is often the major process driving N removal from coastal and estuarine environments (Damashek and Francis, 2018, and references therein). Sediments provide ideal conditions for this process, due to the narrow spatial scale for diffusion across redox boundaries. Therefore, most studies have documented the diversity and activity of denitrifiers in estuary sediments (e.g., Abell et al., 2010; Magalhães et al., 2011; Wang et al., 2014; Smith J. M. et al., 2015), with a few of them in estuary waters (e.g., Santoro et al., 2006; Zhang Y. et al., 2014; Smith C. J. et al., 2015). Denitrifiers often change along the estuarine salinity gradient, with distinct communities in fresh and marine regions (e.g., Abell et al., 2013; Francis et al., 2013; Lee and Francis, 2017). For instance, in the San Francisco Bay estuary, the abundance of nirK is higher in the riverine zone, whereas nirS is more abundant in marine zones (Mosier and Francis, 2010). Additionally, denitrification rates and the abundance of nitrate and nitrite genes usually decline from the estuary head toward the mouth, where NO3 concentrations are lower (Smith et al., 2007; Dong et al., 2009).

Other environments

Denitrification also occurs in other niches outside anoxic sediments and OMZs. For example, the low-oxygen environment within Trichodesmium colonies allows the growth of active denitrifiers harboring nosZ genes, representing a potential sink for N2O within oceanic surface waters (Wyman et al., 2013; Coates and Wyman, 2017). Diverse bacteria harboring nir genes have been also found in corals and sponges (Hoffmann et al., 2009; Yang et al., 2013). Additionally, sinking copepod carcasses have anoxic interiors that support the expression of nirS genes, representing hotspots of pelagic denitrification (Glud et al., 2015). Finally, certain benthic foraminifera are capable of accumulating and respiring NO3 through denitrification (Risgaard-Petersen et al., 2006; Pina-Ochoa et al., 2010), which is their preferred respiration pathway in OMZs, contributing substantially to total benthic NO3 loss in these environments (Glock et al., 2013, 2019).

Nitrate/Nitrite-Dependent Anaerobic Methane Oxidation (N-Damo)

Anaerobic CH4 oxidation coupled with denitrification (N-damo) was discovered in 2006 and constitutes a unique link between the C and N cycles (Raghoebarsing et al., 2006).

The N-damo process is carried out by ANME archaea and NC10 bacteria. Ca. Methanoperedens nitroreducens (ANME-2d) is one of the microorganisms capable of coupling the anaerobic CH4 oxidation to NO3 reduction to NO2 (Haroon et al., 2013), while Ca. Methylomirabilis oxyfera (a member of the NC10 phylum) is capable of coupling the anaerobic CH4 oxidation to NO2 reduction to N2 without the presence of ANME archaea (Ettwig et al., 2010). The metabolism of Ca. M. nitroreducens includes genes related to reverse methanogenesis (Haroon et al., 2013; Timmers et al., 2017), such as the methyl coenzyme-M reductase gene (mcrA), which has been recently used as a biomarker for methanogens and ANME archaea in marine sediments (Vaksmaa et al., 2017).

The metabolism of Ca. M. oxyfera is also complex and unusual, because despite being considered an anaerobic microorganism, it is able to oxidize CH4 using enzymes found in aerobic methanotrophs (Ettwig et al., 2010) such as the particulate methane-monooxygenase (pMMO), encoded in the pmoA gene, which has been used as a biomarker of N-damo bacteria in marine systems (e.g., Chen et al., 2016; Padilla et al., 2016). Metagenomic evidence suggests that Ca. M. oxyfera possesses an “intra-aerobic” metabolism consisting of an intracellular production of O2 by dismutating NO into O2 and N2 (Ettwig et al., 2010), although this is yet to be further proven. Its genome also encodes NirS and qNOR, which may participate in detoxifying processes (Wu et al., 2011).

Factors affecting N-damo and its distribution in marine systems

The N-damo process has just begun to be studied, and only a few works on these microorganisms in marine environments are available (Table 1). Most of these works has focused on NC10 bacteria and thus information on N-damo archaea is very scarce. The mcrA gene and nar transcripts affiliated to M. nitroreducens-like archaea were recently retrieved from the North Sea sediments (Vaksmaa et al., 2017) and the ETNP OMZ (Thamdrup et al., 2019), respectively, revealing that ANME-2d archaea have niches in marine ecosystems and their roles need to be further explored.

N-damo has been detected in OMZs, which represent a niche for NC10 bacteria (Padilla et al., 2016; Chronopoulou et al., 2017). For example, in the ETNP OMZ, active NC10 bacteria are abundant in the anoxic zone with high NO2 and CH4 concentrations, suggesting that anaerobic NH4+ oxidation is coupled to NO3 reduction and denitrification (Padilla et al., 2016; Thamdrup et al., 2019). M. oxyfera-like bacteria have also been detected in estuarine and coastal sediments, where they show great diversity and a depth-specific distribution influenced by redox potential, water content and total organic C (Li-dong et al., 2014; Zhang et al., 2018). Moreover, the activity of this community in coastal sediments vary seasonally and spatially and seem to be highly influenced by NO3 (Shen et al., 2016; Wang et al., 2017), NH4+, NO2 (Chen et al., 2014, 2015b) and salinity (Chen et al., 2015a; Shen et al., 2016).

The importance of N-damo microorganisms in the C and N cycles, in addition to the small number of studies on their distribution, clearly warrant further study to ascertain the drivers of these communities in different marine ecosystems.

Anammox

Anammox consists in the conversion of NH4+ and NO2 to N2 in the absence of O2. In this process, the initial NO2 reduction to NO is believed to be catalyzed by NirS, which has been confirmed in the genomes of Ca. Kuenenia stuttgartiensis (Strous et al., 2006) and Ca. Scalindua (van de Vossenberg et al., 2008). The production of N2H4 from NH4+ and NO is catalyzed by the hydrazine synthase (HZS). The N2H4 is subsequently oxidized to N2 by the hydrazine dehydrogenase (HDH), also known as hydrazine oxidase (HZO) (Jetten et al., 2009; Kartal et al., 2011; Simon and Klotz, 2013). Various functional genes have been used as anammox biomarkers in marine systems: Scalindua-like nirS, coding for a NirS specific to Ca. Scalindua, the dominant anammox bacteria in marine OMZs (Lam et al., 2009); hzoAB (Hirsch et al., 2011; Lisa et al., 2014), coding for part of the HDH and with numerous divergent copies in a number of anammox bacteria (Strous et al., 2006); and hzsA, coding for part of the HZS, which has been suggested as the most suitable biomarker for the process (Harhangi et al., 2012; Han et al., 2017).

Until now, 10 Candidatus species belonging to five genera have been reported as responsible for anammox, all of them within a deep, monophyletic branch in the order Planctomycetales: Kuenenia, Anammoxoglobus and Jettenia with one species each, Brocadia with three species, and Scalindua with four (Kartal et al., 2012; van de Vossenberg et al., 2013). Anammox bacteria are slow-growing anaerobic autotrophs with great affinity for NO2 and NH4+ (Jetten et al., 2009) that possess a unique capability of producing and converting N2H4 in a ladderane lipid membrane called anammoxosome (Kartal et al., 2012).

Anammox coupled to the reduction of sulfate (Sulfammox) and Fe+3 (Feammox) has been recently reported in coastal sediments, where both processes may promote significant N losses (Rios-Del Toro et al., 2018). Further studies are required to elucidate the key microbial organisms and mechanisms involved in N2 production by Sulfammox and Feammox.

Factors affecting anammox in marine systems

Although the presence of anammox bacteria may not be indicative of high anammox activity, several studies have shown that anammox bacterial abundance correlates with anammox rates in marine environments (e.g., Hou et al., 2013; Bale et al., 2014; Lisa et al., 2014). In general, anammox activity is mainly regulated by O2 and inorganic N concentrations and seems to be coupled with the NO2 liberated during aerobic NH4+ oxidation (Lam et al., 2007) and NO3 reduction (Thamdrup and Dalsgaard, 2002), and the NH4+ liberated during denitrification (Dalsgaard et al., 2003) and DNRA (Jensen et al., 2011). Despite being obligated anaerobes active only at O2 concentrations below 2 μM, anammox bacteria are resistant to O2 exposure; nevertheless, the process is inhibited at high O2 concentrations (Jetten et al., 2009). For example, studies have shown that O2 and NO2 co-limit the distribution of anammox bacteria in OMZs (Dalsgaard et al., 2003; Lam et al., 2007; Pitcher et al., 2011a; Kong et al., 2013), although NH4+ appears to limit the process in these systems (Lam and Kuypers, 2011). Furthermore, the availability of inorganic N regulates anammox activity in coastal and estuarine sediments (e.g., Trimmer et al., 2005; Nicholls and Trimmer, 2009; Teixeira et al., 2016) in which the fluctuating availability of O2, NO3 and NO2 typically favors denitrifying microorganisms over anammox bacteria (Risgaard-Petersen et al., 2005).

In many marine environments anammox is highly dependent on salinity (Rich et al., 2008; Dale et al., 2009; Sonthiphand et al., 2014), temperature (Shehzad et al., 2016; Qian et al., 2018), but mostly on organic matter content (see Section Factors affecting denitrification in marine systems; e.g., Trimmer and Engström, 2011; Babbin et al., 2014). For example, recent studies have demonstrated that organic N substrates could support anammox in OMZs (Babbin et al., 2017; Ganesh et al., 2018), particularly in productive shelf waters (Kalvelage et al., 2013). The contribution of anammox to N2 loss in sediments seems to be higher at greater water depths where mineralization rates are lower and, therefore, denitrification too. However, anammox rates tend to decrease in deeper sediments because is limited by the NH4+ availability (Thamdrup, 2012, and references therein). Conversely, high organic C concentrations in shallow sediments usually stimulate denitrification while suppressing anammox because of the competition for NO2 (Nicholls and Trimmer, 2009; Brin et al., 2014). Nevertheless, a number of studies have found positive correlations between organic C content and anammox rates in marine sediments caused by high production of NH4+ or NO2 from remineralization and nitrification (Trimmer et al., 2003; Hou et al., 2013; Lisa et al., 2015). These contradictions show that understanding the relationship between organic C content and anammox is still an open question.

Distribution of anammox bacteria in marine environments

Anammox bacteria are present and active in a wide range of oxygen-depleted marine environments (Table 1) such as the OMZs (e.g., Jensen et al., 2011; Rich et al., 2018), eutrophic bays (e.g., Dang et al., 2010a; Lisa et al., 2014), estuarine sediments (e.g., Trimmer et al., 2005; Li et al., 2011), fjord sediments (Risgaard-Petersen et al., 2004; Brandsma et al., 2011), Arctic sediments (Rysgaard et al., 2004), deep-sea sediments (Hong et al., 2011a; Shao et al., 2014), and hydrothermal vents (Byrne et al., 2009). Below, we summarize the main findings from many studies on the distribution of anammox bacteria in representative marine environments.

Open oceans

OMZs are ideal environments for the growth of anammox bacteria. These bacteria are found in different OMZs such as those in the Black Sea (Kuypers et al., 2003), Golfo Dulce (Dalsgaard et al., 2003), ETNP (Rush et al., 2012; Kong et al., 2013), ETSP (Galán et al., 2009; Kalvelage et al., 2013), Colombian Pacific (Castro-González et al., 2014), Arabian Sea (Jaeschke et al., 2007; Lam et al., 2011), Eastern Indian Ocean (Qian et al., 2018) and Namibian upwelling system (Woebken et al., 2007; Kalvelage et al., 2011), where the anammox process accounts for between one-fifth and all of N2 production (Dalsgaard et al., 2005). In fact, anammox may be the dominant N-loss pathway in the OMZs of Namibia (Kuypers et al., 2005) and ETSP (Hamersley et al., 2007); although higher denitrification rates have also been found in the ETSP, suggesting that both processes may be temporally and/or spatially separated (Dalsgaard et al., 2012).

A low diversity of anammox communities has been detected in OMZs (Schmid et al., 2007; Kong et al., 2013), in which two clades of Ca. Scalindua typically predominate: Clade 1 (Ca. Scalindua sorokinii/brodae) and clade 2 (Ca. Scalindua arabica) (Woebken et al., 2008). Ca. Scalindua species also split into two clusters in the Black Sea: Ca. Scalindua richardsii, present in the upper suboxic zone at high NO2 and NO3 and low NH4+ concentrations, and Ca. Scalindua sorokinii, present in the lower suboxic zone at high NH4+ and low NO3 concentrations (Fuchsman et al., 2012).

Estuaries and coastal environments

Anammox has been reported mainly in eutrophic estuaries (e.g., Trimmer et al., 2003; Risgaard-Petersen et al., 2004; Lisa et al., 2015) and coastal sediments (e.g., Engström et al., 2005; Tal et al., 2005; Dang et al., 2013), where the distribution of anammox bacterial diversity and activity is mostly affected by temperature, salinity, NO3 and organic N substrates (Hou et al., 2013; Brin et al., 2014; Sonthiphand et al., 2014). Ca. Scalindua typically dominates throughout estuarine sediments (Tal et al., 2005; Rich et al., 2008; Dang et al., 2010a) while Ca. Brocadia, Ca. Kuenenia, Ca. Anammoxoglobous and Ca. Jettenia are mainly found in fresh to oligohaline sediments (Dale et al., 2009; Hirsch et al., 2011).

Deep-sea and other environments

Deep-sea and other extreme environments harbor a great diversity and abundance of Ca. Scalindua species (Hong et al., 2011a, b; Shehzad et al., 2016). Anammox bacteria are also active in hydrothermal vent areas such as those in the Mid-Atlantic Ridge, where anammox occurs as high as 85°C (Byrne et al., 2009), the Okhotsk Sea, where hzo is highly abundant (Shao et al., 2014), and the Guaymas Basin, where Ca. Scalindua species are more abundant in cold hydrocarbon-rich sediments than hydrothermal vents (Russ et al., 2013).

Effects of Anthropogenic Activity on the Marine Nitrogen Cycle

The marine N cycle is being largely perturbed by human activity. Anthropogenic activities pertaining to the production of artificial fertilizers and fossil fuel combustion are mainly responsible for this imbalance, affecting the marine N cycle directly or indirectly (Figure 3). Direct alterations include the N inputs through riverine discharges and atmospheric deposition (Duce et al., 2008; Lee et al., 2016; Jickells et al., 2017) that cause eutrophication and the formation of anoxic or hypoxic areas in coastal areas (“dead zones”), impacting primary production and the marine trophic web (Vaquer-Sunyer and Duarte, 2008). Indirect alterations include activities that increase the atmospheric concentration of greenhouse gases, leading to ocean warming, acidification and deoxygenation. The impacts of these alterations on the marine N cycle remain highly uncertain (Gruber, 2016; Hutchins and Fu, 2017) and have been covered by multiple reviews (e.g., Voss et al., 2013; Wannicke et al., 2018).

FIGURE 3

Many studies have been conducted on the response of BNF in the future ocean. Recent models indicate that increased atmospheric N deposition will slow down BNF rates due to the enhanced availability of fixed N in the surface ocean (Somes et al., 2016; Yang and Gruber, 2016; Jickells et al., 2017). However, these models do not take in consideration other future ocean scenarios such as ocean acidification or warming. Several studies show that ocean acidification does not seem to have an effect on C and N2 fixation rates in mixed diazotrophic assemblages (Law et al., 2012; Böttjer et al., 2014). Conversely, other studies have documented the increase of C and N2 fixation rates in Trichodesmium and UCYN-B cultures when CO2 levels are increased to those expected in the future ocean (e.g., Lomas et al., 2012; Hutchins et al., 2015; Rees et al., 2017). This species-specific response of N2 fixation to ocean acidification may impact on the dominance of diazotrophic groups and also alter new N supply to the ocean; although this response seems to be dependent on light, P, and Fe (Hutchins et al., 2013). More studies on this topic are needed, since ocean acidification may lead to a decrease in the bioavailability of Fe (Shi et al., 2010), which may in turn lead to a decrease in BNF. Furthermore, ocean warming will likely cause an expansion of habitats suitable for diazotrophs and an increase of BNF (Hutchins et al., 2009; Sohm et al., 2011b), leading to an increase of available N for further processes in the N cycle.

Nitrification rates may decrease as a consequence of ocean acidification. Experiments have demonstrated decreases in NH3 oxidation due to the incremental protonation of NH3 to NH4+ as seawater pH decreases (Beman et al., 2011; Kitidis et al., 2011). A decrease in nitrification rates may reduce the supply of NO2 and NO3 to other N-cycling processes such as denitrification, anammox and DNRA, turning nitrification into a “N cycle bottleneck” (Hutchins et al., 2009) and putting NO3-consumers in disadvantage over NH4+-consumers (Yool et al., 2007). Furthermore, a decrease in nitrification rates due to ocean acidification could reduce N2O production between 2.4 and 44% (Beman et al., 2011; Rees et al., 2016). In contrast, nitrification rates might exhibit an increase due to a “CO2-fertilization” effect (Hutchins et al., 2009); however, this assumption need to be further demonstrated, as evidence suggest that this is unlikely to happen given that AOA lack RuBisCo (Walker et al., 2010) and AOB possess mechanisms to reduce their sensibility to CO2 (Chain et al., 2003).

Little is known about how ocean warming may affect nitrification, but studies suggest that ammonia oxidizers may be relatively insensitive to changing temperature (Horak et al., 2013; Baer et al., 2014). Conversely, the global proliferation of suboxic waters as consequence of deoxygenation could promote nitrification, since this process occurs in transitional regions around OMZs where O2 is low but not fully depleted (Newell et al., 2011; Peng et al., 2015; Bristow et al., 2016).

Ammonia oxidation and denitrification are the major sources of marine N2O, but their contribution to the global N2O budget and the factors controlling its production and consumption are still being investigated. Moreover, the consequences of anthropogenic activities on N-loss processes have not been properly investigated. No direct effect of ocean acidification has been observed on these processes (Wannicke et al., 2018); although an increase in marine pCO2 may result in an elevated C:N ratio, indirectly enhancing denitrification (Hutchins et al., 2009) and decreasing anammox (Babbin et al., 2014). Models have also suggested that increased atmospheric N deposition and deoxygenation could enhance denitrification (Keeling et al., 2010; Somes et al., 2016; Yang and Gruber, 2016; Jickells et al., 2017), which in turn may increase by 21% the marine N2O production (Battaglia and Joos, 2018).

Alterations in the N cycling will also have mayor consequences for marine C cycling. However, the understanding of these consequences is poor due to the lack of enough global models. Some of these collateral alterations include modifications to CO2 budgets as result of elevated primary production due to the increase of available N entering marine ecosystems. Calculations suggest that atmospheric N deposition represents ∼32% of the total N entering the ocean, which translates into ∼3% of the annual new marine production (∼0.3 Pg C yr–1) (Duce et al., 2008). Other authors have estimated that anthropogenic atmospheric N inputs are currently leading to an increase in primary production and CO2 uptake of 0.15 Pg C yr–1 (Jickells et al., 2017). However, the resulting reduction in radiative forcing will be offset by increases in marine N2O emissions (Suntharalingam et al., 2012). Further, the CO2 budgets could also be altered as result of an increase of hypoxia and denitrification generated by N inputs in coastal environments. In addition, the dominance of either denitrification or anammox in expanding dead zones and OMZs will impact global C and N budgets. In marine environments dominated by denitrification, CO2 and N2O emissions are likely to increase, while in environments dominated by anammox, atmospheric CO2 uptake is likely to increase (Koeve and Kähler, 2010; Suntharalingam et al., 2012).

Conclusion and Perspectives

In this review, we have provided a panorama of the genetics, ecology and distribution of marine N-cycling microbes and the processes they mediate. These processes are more widely distributed than previously thought, given that they have been found in unpredicted marine environments. Plus, many new metabolic N pathways have been reported over the past few years, completely changing the paradigm of the classic marine N cycle. Additionally, we have examined the potential effects of human activity on N processes; such activity has led to an alteration of the natural balance of the marine N cycle, with consequences that we are just beginning to experience and comprehend. Many models have been developed to help us foresee the consequences of anthropogenic activities on the marine N cycle. However, these mathematical representations of the future cannot be completely trusted as they have been developed based on our current understating of the N processes, and we still have a long way to go given that new discoveries are made every day. Thus, we need to build models based on an holistic view of the processes and scenarios, using all the available information and taking into consideration all the possible natural settings. To do this, we should first understand the functioning of the microorganisms involved in the marine N processes. Finally, we identify potential priority research topics regarding marine microbial N cycle in which future investigation should be directed (Box 1).

BOX 1. Priority research topics on the marine N cycle.

∙ Further studying of the physiology, metabolism, genetics, and ecology of microorganisms participating in novel and previously established N-cycling processes (e.g., UCYN groups, heterotrophic diazotrophs, AOA clades, NOB, DNRA communities, ANME-2d, NC10 bacteria, anammox bacteria).

∙ Exploring N processes in understudied marine systems (e.g., BNF in coastal zones, nitrification and denitrification in coral reefs, comammox in the ocean, anaerobic N processes in sinking particles, and N processes in deep sea environments).

∙ Investigating the interactions and couplings between N cycle processes.

∙ A more comprehensive understanding of the environmental and ecological interaction between N-gain and N-loss processes in order to advance toward a more robust estimates and predictions of the marine N budget. ∙ A mechanistic understanding of the potential effects of anthropogenic activity on marine N processes and their interaction with other biogeochemical processes.

Statements

Author contributions

All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.

Funding

Funding for this work was granted by PAPIIT-UNAM No. IA201617. RR’s Master studies were supported by a CONACYT scholarship. Financial support for language editing and article processing fee was provided by the Instituto de Ciencias del Mar y Limnología (UNAM).

Acknowledgments

This manuscript has been released as a pre-print at https://www.biogeosciences-discuss.net/bg-2018-279/ (Ramos and Pajares, 2018). We would like to thank the reviewers and the scientific community for their valuable feedback that have greatly improved this manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  • 1

    AbellG.RevillA. T.SmithC.BissettA. P.VolkmanJ. K.RobertS. S. (2010). Archaeal ammonia oxidizers and nirS-type denitrifiers dominate sediment nitrifying and denitrifying populations in a subtropical macrotidal estuary.ISME J.4286300. 10.1038/ismej.2009.105

  • 2

    AbellG.RossD.KeaneJ.OakesJ.EyreB.RobertS.et al (2013). Nitrifying and denitrifying microbial communities and their relationship to nutrient fluxes and sediment geochemistry in the Derwent Estuary, Tasmania.Aquat. Microb. Ecol.706375. 10.3354/ame01642

  • 3

    AgawinN. S. R.BenavidesM.BusquetsA.FerriolP.StalL. J.ArísteguiJ. (2014). Dominance of unicellular cyanobacteria in the diazotrophic community in the Atlantic Ocean.Limnol. Oceanogr.59623637. 10.4319/lo.2014.59.2.0623

  • 4

    AgoguéH.BrinkM.DinasquetJ.HerndlG. J. (2008). Major gradients in putatively nitrifying and non-nitrifying archaea in the deep North Atlantic.Nature456788791. 10.1038/nature07535

  • 5

    AllenA. E.BoothM. G.FrischerM. E.VerityP. G.ZehrJ. P.ZaniS. (2001). Diversity and detection of nitrate assimilation genes in marine bacteria.Appl. Environ. Microbiol.6753435348. 10.1128/AEM.67.11.5343-5348.2001

  • 6

    Alonso-SáezL.WallerA. S.MendeD. R.BakkerK.FarnelidH.YagerP. L.et al (2012). Role for urea in nitrification by polar marine Archaea.Proc. Natl. Acad. Sci. U.S.A.1091798917994. 10.1073/pnas.1201914109

  • 7

    Arévalo-MartínezD. L.KockA.LöscherC. R.SchmitzR. A.BangeH. W. (2015). Massive nitrous oxide emissions from the Tropical South Pacific Ocean.Nat. Geosci.8530533. 10.1038/ngeo2469

  • 8

    ArpD. J.ChainP. S. G.KlotzM. G. (2007). The impact of genome analyses on our understanding of ammonia-oxidizing bacteria.Annu. Rev. Microbiol.61503528. 10.1146/annurev.micro.61.080706.093449

  • 9

    AtkinsonS. J.MowatC. G.ReidG. A.ChapmanS. K. (2007). An octaheme c-type cytochrome from Shewanella oneidensis can reduce nitrite and hydroxylamine.FEBS Lett.58138053808. 10.1016/j.febslet.2007.07.005

  • 10

    BabbinA. R.BianchiD.JayakumarA.WardB. B. (2015). Rapid nitrous oxide cycling in the suboxic ocean.Science34811271129. 10.1126/science.aaa8380

  • 11

    BabbinA. R.KeilR. G.DevolA. H.WardB. B. (2014). Organic matter stoichiometry, flux, and oxygen control nitrogen loss in the ocean.Science344406408. 10.1126/science.1248364

  • 12

    BabbinA. R.PetersB. D.MordyC. W.WidnerB.CasciottiK. L.WardB. B. (2017). Multiple metabolisms constrain the anaerobic nitrite budget in the Eastern Tropical South Pacific.Global Biogeochem. Cycles31258271. 10.1002/2016GB005407

  • 13

    BaerS. E.ConnellyT. L.SiplerR. E.YagerP. L.BronkD. A. (2014). Effect of temperature on rates of ammonium uptake and nitrification in the western coastal Arctic during winter, spring, and summer.Global Biogeochem. Cycles2814551466. 10.1002/2013GB004765

  • 14

    BakerB. J.LesniewskiR. A.DickG. J. (2012). Genome- enabled transcriptomics reveals archaeal populations that drive nitrification in a deep-sea hydrothermal plume.ISME J.622692279. 10.1038/ismej.2012.64

  • 15

    BakerB. J.SheikC. S.TaylorC. A.JainS.BhasiA.CavalcoliJ. D.et al (2013). Community transcriptomic assembly reveals microbes that contribute to deep-sea carbon and nitrogen cycling.ISME J.719621973. 10.1038/ismej.2013.85

  • 16

    BaleN. J.VillanuevaL.FanH.StalL. J.HopmansE. C.SchoutenS.et al (2014). Occurrence and activity of anammox bacteria in surface sediments of the southern North Sea.FEMS Microbiol. Ecol.8999110. 10.1111/1574-6941.12338

  • 17

    BandekarM.RamaiahN.MeenaR. M. (2018). Diversity and abundance of denitrifying and anammox bacteria from the Arabian Sea oxygen minimum zone.Deep Sea Res. Part II Top. Stud. Oceanogr.1561926. 10.1016/j.dsr2.2018.08.008

  • 18

    BangeH. W.FreingA.KockA.LöscherC. R. (2010). “Marine pathways to nitrous oxide,” in Nitrous Oxide and Climate Change, ed.SmithK., (London: Earthscan), 3662.

  • 19

    BattagliaG.JoosF. (2018). Marine N2O emissions from nitrification and denitrification constrained by modern observations and projected in multimillennial global warming simulations.Global Biogeochem. Cycles3292121. 10.1002/2017GB005671

  • 20

    BemanJ. M.FrancisC. A. (2006). Diversity of ammonia-oxidizing archaea and bacteria in the sediments of a hypernutrified subtropical estuary: bahia del Tobari, Mexico.Appl. Environ. Microbiol.7277677777. 10.1128/AEM.00946-946

  • 21

    BemanJ. M.ChowC.-E.KingA. L.FengY.FuhrmanJ. A.AnderssonA.et al (2011). Global declines in oceanic nitrification rates as a consequence of ocean acidification.Proc. Natl. Acad. Sci. U.S.A.108208213. 10.1073/pnas.1011053108

  • 22

    BemanJ. M.Leilei ShihJ.PoppB. N. (2013). Nitrite oxidation in the upper water column and oxygen minimum zone of the Eastern Tropical North Pacific Ocean.ISME J.721922205. 10.1038/ismej.2013.96

  • 23

    BemanJ. M.PoppB. N.AlfordS. E. (2012). Quantification of ammonia oxidation rates and ammonia-oxidizing archaea and bacteria at high resolution in the Gulf of California and Eastern Tropical North Pacific Ocean.Limnol. Oceanogr.57711726. 10.4319/lo.2012.57.3.0711

  • 24

    BemanJ. M.PoppB. N.FrancisC. A. (2008). Molecular and biogeochemical evidence for ammonia oxidation by marine crenarchaeota in the Gulf of California.ISME J.2429441. 10.1038/ismej.2007.118

  • 25

    BemanJ. M.RobertsK. J.WegleyL.RohwerF.FrancisC. A. (2007). Distribution and diversity of archaeal ammonia monooxygenase genes associated with corals.Appl. Environ. Microbiol.7356425647. 10.1128/AEM.00461-467

  • 26

    BemanJ. M.SachdevaR.FuhrmanJ. A. (2010). Population ecology of nitrifying archaea and bacteria in the Southern California bight.Environ. Microbiol.1212821292. 10.1111/j.1462-2920.2010.02172.x

  • 27

    BenavidesM.BednarzV. N.Ferrier-PagèsC. (2017a). Diazotrophs: overlooked key players within the coral symbiosis and tropical reef ecosystems?Front. Mar. Sci.4:10. 10.3389/fmars.2017.00010

  • 28

    BenavidesM.BerthelotH.DuhamelS.RaimbaultP.BonnetS. (2017b). Dissolved organic matter uptake by Trichodesmium in the Southwest Pacific.Sci. Rep.7:41315. 10.1038/srep41315

  • 29

    BenavidesM.BonnetS.HernándezN.Martínez-PérezA. M.Nieto-CidM.Álvarez-SalgadoX. A.et al (2016a). Basin-wide N2 fixation in the deep waters of the Mediterranean Sea.Global Biogeochem. Cycles30952961. 10.1002/2015GB005326

  • 30

    BenavidesM.HoulbrèqueF.CampsM.LorrainA.GrossoO.BonnetS. (2016b). Diazotrophs: a non-negligible source of nitrogen for the tropical coral Stylophora pistillata.J. Exp. Biol.21926082612. 10.1242/jeb.139451

  • 31

    BenavidesM.MoisanderP. H.BerthelotH.DittmarT.GrossoO.BonnetS. (2015). Mesopelagic N2 fixation related to organic matter composition in the Solomon and Bismarck Seas (Southwest Pacific).PLoS One10:e0143775. 10.1371/journal.pone.0143775

  • 32

    Bentzon-TiliaM.TravingS. J.MantikciM.Knudsen-LeerbeckH.HansenJ. L. S.MarkagerS.et al (2015). Significant N2 fixation by heterotrophs, photoheterotrophs and heterocystous cyanobacteria in two temperate estuaries.ISME J.9273285. 10.1038/ismej.2014.119

  • 33

    BergC.VandiekenV.ThamdrupB.JürgensK. (2015). Significance of archaeal nitrification in hypoxic waters of the Baltic Sea.ISME J.913191332. 10.1038/ismej.2014.218

  • 34

    BergmanB.CarpenterE. J. (1991). Nitrogenase confined to randomly distributed trichomes in the marine cyanobacterium Trichodesmium thiebautii.J. Phycol.27158165. 10.1111/j.0022-3646.1991.00158.x

  • 35

    Berman-FrankI.CullenJ. T.ShakedY.SherrellR. M.FalkowskiP. G. (2001a). Iron availability, cellular iron quotas, and nitrogen fixation in Trichodesmium.Limnol. Oceanogr.4612491260. 10.4319/lo.2001.46.6.1249

  • 36

    Berman-FrankI.LundgrenP.ChenY.-B.KüpperH.KolberZ.BergmanB.et al (2001b). Segregation of nitrogen fixation and oxygenic photosynthesis in the marine cyanobacterium Trichodesmium.Science29415341537. 10.1126/science.1064082

  • 37

    BernhardA. E.DonnT.GiblinA. E.StahlD. A. (2005). Loss of diversity of ammonia-oxidizing bacteria correlates with increasing salinity in an estuary system.Environ. Microbiol.712891297. 10.1111/j.1462-2920.2005.00808.x

  • 38

    BernhardA. E.LandryZ. C.BlevinsA.de la TorreJ. R.GiblinA. E.StahlD. A. (2010). Abundance of ammonia-oxidizing archaea and bacteria along an estuarine salinity gradient in relation to potential nitrification rates.Appl. Environ. Microbiol.7612851289. 10.1128/AEM.02018-2019

  • 39

    BertagnolliA. D.UlloaO. (2017). Hydrography shapes community composition and diversity of amoA-containing thaumarchaeota in the coastal waters off central Chile.Environ. Microbiol. Rep.9717728. 10.1111/1758-2229.12579

  • 40

    BerthelotH.BenavidesM.MoisanderP. H.GrossoO.BonnetS. (2017). High-nitrogen fixation rates in the particulate and dissolved pools in the Western Tropical Pacific (Solomon and Bismarck Seas).Geophys. Res. Lett.4484148423. 10.1002/2017GL073856

  • 41

    BlaisM.TremblayJ.-E.JungblutA. D.GagnonJ.MartinJ.ThalerM.et al (2012). Nitrogen fixation and identification of potential diazotrophs in the Canadian Arctic.Global Biogeochem. Cycles26:GB3022. 10.1029/2011GB004096

  • 42

    BombarD.PaerlR. W.RiemannL. (2016). Marine non-cyanobacterial diazotrophs: moving beyond molecular detection.Trends Microbiol.24916927. 10.1016/j.tim.2016.07.002

  • 43

    BonnetS.BiegalaI. C.DutrieuxP.SlemonsL. O.CaponeD. G. (2009). Nitrogen fixation in the Eestern Equatorial Pacific: rates, diazotrophic cyanobacterial size class distribution, and biogeochemical significance.Global Biogeochem. Cycles23:GB3012. 10.1029/2008GB003439

  • 44

    BonnetS.DekaezemackerJ.Turk-KuboK. A.MoutinT.HamersleyR. M.GrossoO.et al (2013). Aphotic N2 fixation in the Eastern Tropical South Pacific Ocean.PLoS One8:e81265. 10.1371/journal.pone.0081265

  • 45

    BonnetS.RodierM.Turk-KuboK. A.GermineaudC.MenkesC.GanachaudA.et al (2015). Contrasted geographical distribution of N2 fixation rates and nifH phylotypes in the Coral and Solomon Seas (southwestern Pacific) during austral winter conditions.Global Biogeochem. Cycles2918741892. 10.1002/2015GB005117

  • 46

    BöttjerD.KarlD. M.LetelierR. M.VivianiD. A.ChurchM. J. (2014). Experimental assessment of diazotroph responses to elevated seawater pCO2 in the North Pacific subtropical gyre.Global Biogeochem. Cycles28601616. 10.1002/2013GB004690

  • 47

    BourbonnaisA.JuniperS. K.ButterfieldD. A.AndersonR. E.LehmannM. F. (2014). Diversity and abundance of bacteria and nirS-encoding denitrifiers associated with the juan de fuca ridge hydrothermal system.Ann. Microbiol.6416911705. 10.1007/s13213-014-0813-813

  • 48

    BourbonnaisA.LetscherR. T.BangeH. W.ÉchevinV.LarkumJ.MohnJ.et al (2017). N2O production and consumption from stable isotopic and concentration data in the peruvian coastal upwelling system.Global Biogeochem. Cycles31678698. 10.1002/2016GB005567

  • 49

    BouskillN. J.EveillardD.ChienD.JayakumarA.WardB. B. (2012). Environmental factors determining ammonia-oxidizing organism distribution and diversity in marine environments.Environ. Microbiol.14714729. 10.1111/j.1462-2920.2011.02623.x

  • 50

    BowlesM. W.NigroL. M.TeskeA. P.JoyeS. B. (2012). Denitrification and environmental factors influencing nitrate removal in Guaymas Basin hydrothermally altered sediments.Front. Microbiol.3:377. 10.3389/fmicb.2012.00377

  • 51

    BrakerG.TiedjeJ. M. (2003). Nitric oxide reductase (norB) genes from pure cultures and environmental samples.Appl. Environ. Microbiol.6934763483. 10.1128/AEM.69.6.3476-3483.2003

  • 52

    BrakerG.ZhouJ.WuL.DevolA. H.TiedjeJ. M. (2000). Nitrite reductase genes (nirK and nirS) as functional markers to investigate diversity of denitrifying bacteria in Pacific northwest marine sediment communities.Appl. Environ. Microbiol.6620962104. 10.1128/AEM.66.5.2096-2104.2000

  • 53

    BrandsmaJ.van de VossenbergJ.Risgaard-PetersenN.SchmidM. C.EngströmP.EureniusK.et al (2011). A multi-proxy study of anaerobic ammonium oxidation in marine sediments of the Gullmar Fjord.Sweden. Environ. Microbiol. Rep.3360366. 10.1111/j.1758-2229.2010.00233.x

  • 54

    BrinL. D.GiblinA. E.RichJ. J. (2014). Environmental controls of anammox and denitrification in southern New England estuarine and shelf sediments.Limnol. Oceanogr.59851860. 10.4319/lo.2014.59.3.0851

  • 55

    BristowL. A.CallbeckC. M.LarsenM.AltabetM. A.DekaezemackerJ.ForthM.et al (2017). N2 production rates limited by nitrite availability in the Bay of Bengal oxygen minimum zone.Nat. Geosci.102429. 10.1038/ngeo2847

  • 56

    BristowL. A.DalsgaardT.TianoL.MillsD. B.BertagnolliA. D.WrightJ. J.et al (2016). Ammonium and nitrite oxidation at nanomolar oxygen concentrations in oxygen minimum zone waters.Proc. Natl. Acad. Sci. U.S.A.1131060110606. 10.1073/pnas.1600359113

  • 57

    BristowL. A.SarodeN.CarteeJ.Caro-QuinteroA.ThamdrupB.StewartF. J. (2015). Biogeochemical and metagenomic analysis of nitrite accumulation in the Gulf of Mexico hypoxic zone.Limnol. Oceanogr.6017331750. 10.1002/lno.10130

  • 58

    BuC.WangY.GeC.AhmadH. A.GaoB.NiS.-Q. (2017). Dissimilatory nitrate reduction to ammonium in the yellow river estuary: rates, abundance, and community diversity.Sci. Rep.7:6830. 10.1038/s41598-017-06404-6408

  • 59

    BuchwaldC.SantoroA. E.StanleyR. H. R.CasciottiK. L. (2015). Nitrogen cycling in the secondary nitrite maximum of the Eastern Tropical North Pacific off Costa Rica.Global Biogeochem. Cycles2920612081. 10.1002/2015GB005187

  • 60

    BurginA. J.HamiltonS. K. (2007). Have we overemphasized the role of denitrification in aquatic ecosystems? A review of nitrate removal pathways.Front. Ecol. Environ.58996. 10.1890/1540-929520075

  • 61

    BurnsJ. A.ZehrJ. P.CaponeD. G. (2002). Nitrogen-fixing phylotypes of chesapeake bay and neuse river estuary sediments.Microb. Ecol.44336343. 10.1007/s00248-002-1000-1009

  • 62

    ByrneN.StrousM.CrépeauV.KartalB.BirrienJ.-L.SchmidM.et al (2009). Presence and activity of anaerobic ammonium-oxidizing bacteria at deep-sea hydrothermal vents.ISME J.3117123. 10.1038/ismej.2008.72

  • 63

    CabelloA. M.Cornejo-CastilloF. M.RahoN.BlascoD.VidalM.AudicS.et al (2016). Global distribution and vertical patterns of a prymnesiophyte–cyanobacteria obligate symbiosis.ISME J.10693706. 10.1038/ismej.2015.147

  • 64

    CaffreyJ. M.BanoN.KalanetraK.HollibaughJ. T. (2007). Ammonia oxidation and ammonia-oxidizing bacteria and archaea from estuaries with differing histories of hypoxia.ISME J.1660662. 10.1038/ismej.2007.79

  • 65

    CaoH.HongY.LiM.GuJ. D. (2011). Diversity and abundance of ammonia-oxidizing prokaryotes in sediments from the coastal Pearl River Estuary to the South China Sea.Antonie Van Leeuwenhoek100545556. 10.1007/s10482-011-9610-9611

  • 66

    CaoH.HongY.LiM.GuJ. D. (2012). Lower abundance of ammonia-oxidizing archaea than ammonia-oxidizing bacteria detected in the subsurface sediments of the northern South China Sea.Geomicrobiol. J.29332339. 10.1080/01490451.2011.559304

  • 67

    CaoH.ShaoZ.LiJ.ZhangW.QianP. Y. (2015). Phylogenetic diversity of nitrogen-utilizing genes in hydrothermal chimneys from 3 middle ocean ridges.Extremophiles1911731182. 10.1007/s00792-015-0788-784

  • 68

    CaponeD. G. (1997). Trichodesmium, a globally significant marine cyanobacterium.Science27612211229. 10.1126/science.276.5316.1221

  • 69

    CaponeD. G.BurnsJ. A.MontoyaJ. P.SubramaniamA.MahaffeyC.GundersonT.et al (2005). Nitrogen fixation by Trichodesmium spp.: an important source of new nitrogen to the tropical and subtropical North Atlantic Ocean.Global Biogeochem. Cycles19:GB2024. 10.1029/2004GB002331

  • 70

    CaponeD.SubramaniamA.MontoyaJ.VossM.HumborgC.JohansenA.et al (1998). An extensive bloom of the N2-fixing cyanobacterium Trichodesmium erythraeum in the central Arabian Sea.Mar. Ecol. Prog. Ser.172281292. 10.3354/meps172281

  • 71

    CarantoJ. D.LancasterK. M. (2017). Nitric oxide is an obligate bacterial nitrification intermediate produced by hydroxylamine oxidoreductase.Proc. Natl. Acad. Sci. U.S.A.11482178222. 10.1073/pnas.1704504114

  • 72

    CarantoJ. D.VilbertA. C.LancasterK. M. (2016). Nitrosomonas europaea cytochrome P460 is a direct link between nitrification and nitrous oxide emission.Proc. Natl. Acad. Sci. U.S.A.1131470414709. 10.1073/pnas.1611051113

  • 73

    CardiniU.BednarzV. N.NaumannM. S.van HoytemaN.RixL.FosterR. A.et al (2015). Functional significance of dinitrogen fixation in sustaining coral productivity under oligotrophic conditions.Proc. Biol. Sci.282:20152257. 10.1098/rspb.2015.2257

  • 74

    CardosoJ.van BleijswijkJ.WitteH.van DuylF. (2013). Diversity and abundance of ammonia-oxidizing archaea and bacteria in tropical and cold-water coral reef sponges.Aquat. Microb. Ecol.68215230. 10.3354/ame01610

  • 75

    CariniP.DupontC. L.SantoroA. E. (2018). Patterns of thaumarchaeal gene expression in culture and diverse marine environments.Environ. Microbiol.2021122124. 10.1111/1462-2920.14107

  • 76

    CasciottiK. L.BuchwaldC. (2012). Insights on the marine microbial nitrogen cycle from isotopic approaches to nitrification.Front. Microbiol.3:356. 10.3389/fmicb.2012.00356

  • 77

    CasciottiK. L.WardB. B. (2005). Phylogenetic analysis of nitric oxide reductase gene homologues from aerobic ammonia-oxidizing bacteria.FEMS Microbiol. Ecol.52197205. 10.1016/j.femsec.2004.11.002

  • 78

    CasciottiK. L.ForbesM.VedamatiJ.PetersB. D.MartinT. S.MordyC. W. (2018). Nitrous oxide cycling in the Eastern Tropical South Pacific as inferred from isotopic and isotopomeric data.Deep Sea Res. Part II Top. Stud. Oceanogr.156155167. 10.1016/j.dsr2.2018.07.014

  • 79

    Castro-GonzalezM.BrakerG.FariasL.UlloaO. (2005). Communities of nirS-type denitrifiers in the water column of the oxygen minimum zone in the Eastern South Pacific.Environ. Microbiol.712981306. 10.1111/j.1462-2920.2005.00809.x

  • 80

    Castro-GonzálezM.MolinaV.Rodríguez-RubioE.UlloaO. (2014). The first report of a microdiverse anammox bacteria community in waters of Colombian Pacific, a transition area between prominent oxygen minimum zones of the Eastern Tropical Pacific.Environ. Microbiol. Rep.6595604. 10.1111/1758-2229.12165

  • 81

    ChainP.LamerdinJ.LarimerF.RegalaW.LaoV.LandM.et al (2003). Complete genome sequence of the ammonia-oxidizing bacterium and obligate chemolithoautotroph Nitrosomonas europaea.J. Bacteriol.18527592773. 10.1128/JB.185.9.2759-2773.2003

  • 82

    ChangB. X.RichJ. R.JayakumarA.NaikH.PratiharyA. K.KeilR. G.et al (2014). The effect of organic carbon on fixed nitrogen loss in the eastern tropical South Pacific and Arabian Sea oxygen deficient zones.Limnol. Oceanogr.5912671274. 10.4319/lo.2014.59.4.1267

  • 83

    ChenJ.DickR.LinJ.-G.GuJ.-D. (2016). Current advances in molecular methods for detection of nitrite-dependent anaerobic methane oxidizing bacteria in natural environments.Appl. Microbiol. Biotechnol.10098459860. 10.1007/s00253-016-7853-7855

  • 84

    ChenJ.JiangX.-W. W.GuJ.-D. D. (2015a). Existence of novel phylotypes of nitrite-dependent anaerobic methane-oxidizing bacteria in surface and subsurface sediments of the South China Sea.Geomicrobiol. J.32110. 10.1080/01490451.2014.917742

  • 85

    ChenJ.ZhouZ.GuJ.-D. (2015b). Complex community of nitrite-dependent anaerobic methane oxidation bacteria in coastal sediments of the Mai Po wetland by PCR amplification of both 16S rRNA and pmoA genes.Appl. Microbiol. Biotechnol.9914631473. 10.1007/s00253-014-6051-6056

  • 86

    ChenJ.ZhouZ.-C.GuJ.-D. (2014). Occurrence and diversity of nitrite-dependent anaerobic methane oxidation bacteria in the sediments of the South China Sea revealed by amplification of both 16S rRNA and pmoA genes.Appl. Microbiol. Biotechnol.9856855696. 10.1007/s00253-014-5733-5734

  • 87

    CheungS.SuzukiK.SaitoH.UmezawaY.XiaX.LiuH. (2017). Highly heterogeneous diazotroph communities in the kuroshio current and the Tokara Strait Japan.PLoS One12:e0186875. 10.1371/journal.pone.0186875

  • 88

    ChristmanG. D.CottrellM. T.PoppB. N.GierE.KirchmanD. L. (2011). Abundance, diversity, and activity of ammonia-oxidizing prokaryotes in the coastal arctic ocean in summer and winter.Appl. Environ. Microbiol.7720262034. 10.1128/AEM.01907-1910

  • 89

    ChronopoulouP. M.ShelleyF.PritchardW. J.MaanojaS. T.TrimmerM. (2017). Origin and fate of methane in the Eastern Tropical North Pacific oxygen minimum zone.ISME J.1113861399. 10.1038/ismej.2017.6

  • 90

    ChurchM. J.WaiB.KarlD. M.DeLongE. F. (2010). Abundances of crenarchaeal amoA genes and transcripts in the Pacific Ocean.Environ. Microbiol.12679688. 10.1111/j.1462-2920.2009.02108.x

  • 91

    CiaisP.SabineC.BalaG.BoppL.BrovkinV.CanadellJ.et al (2013). “Carbon and other biogeochemical cycles,” in Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change, edsStockerT. F.QinD.PlattnerG. K.TignorM.AllenS. K.BoschungJ.et al (Geneva: IPCC), 465570.

  • 92

    CoatesC. J.WymanM. (2017). A denitrifying community associated with a major, marine nitrogen fixer.Environ. Microbiol.1949784992. 10.1111/1462-2920.14007

  • 93

    CodispotiL. A. (2007). An oceanic fixed nitrogen sink exceeding 400 Tg N a−1 vs the concept of homeostasis in the fixed-nitrogen inventory.Biogeosciences4233253. 10.5194/bg-4-233-2007

  • 94

    CodispotiL. A.BrandesJ. A.ChristensenJ. P.DevolA. H.NaqviS. W. A.PaerlH. W.et al (2001). The oceanic fixed nitrogen and nitrous oxide budgets: moving targets as we enter the anthropocene?Sci. Mar.6585105. 10.3989/scimar.2001.65s285

  • 95

    DaimsH.LebedevaE. V.PjevacP.HanP.HerboldC.AlbertsenM.et al (2015). Complete nitrification by Nitrospira bacteria.Nature528504509. 10.1038/nature16461

  • 96

    DaimsH.LückerS.WagnerM. (2016). A new perspective on microbes formerly known as nitrite-oxidizing bacteria.Trends Microbiol.24699712. 10.1016/j.tim.2016.05.004

  • 97

    DaleO. R.TobiasC. R.SongB. (2009). Biogeographical distribution of diverse anaerobic ammonium oxidizing (anammox) bacteria in Cape Fear River Estuary.Environ. Microbiol.1111941207. 10.1111/j.1462-2920.2008.01850.x

  • 98

    DalsgaardT.CanfieldD. E.PetersenJ.ThamdrupB.Acuña-GonzálezJ. (2003). N2 production by the anammox reaction in the anoxic water column of Golfo Dulce Costa Rica.Nature422606608. 10.1038/nature01526

  • 99

    DalsgaardT.StewartF. J.ThamdrupB.De BrabandereL.RevsbechN. P.UlloaO.et al (2014). Oxygen at nanomolar levels reversibly suppresses process rates and gene expression in anammox and denitrification in the oxygen minimum zone off northern Chile.mBio5:e1966-14. 10.1128/mBio.01966-1914

  • 100

    DalsgaardT.ThamdrupB.CanfieldD. E. (2005). Anaerobic ammonium oxidation (anammox) in the marine environment.Res. Microbiol.156457464. 10.1016/j.resmic.2005.01.011

  • 101

    DalsgaardT.ThamdrupB.FaríasL.RevsbechN. P. (2012). Anammox and denitrification in the oxygen minimum zone of the Eastern South Pacific.Limnol. Oceanogr.5713311346. 10.4319/lo.2012.57.5.1331

  • 102

    DamashekJ.FrancisC. A. (2018). Microbial nitrogen cycling in estuaries: from genes to ecosystem processes.Estuaries Coasts41626660. 10.1007/s12237-017-0306-302

  • 103

    DangH.ChenR.WangL.GuoL.ChenP.TangZ.et al (2010a). Environmental factors shape sediment anammox bacterial communities in hypernutrified Jiaozhou Bay, China.Appl. Environ. Microbiol.7670367047. 10.1128/AEM.01264-1210

  • 104

    DangH.LiJ.ZhangX.LiT.TianF.JinW. (2009a). Diversity and spatial distribution of amoA-encoding archaea in the deep-sea sediments of the tropical west Pacific continental margin.J. Appl. Microbiol.10614821493. 10.1111/j.1365-2672.2008.04109.x

  • 105

    DangH.LuanX.ChenR.ZhangX.GuoL.KlotzM. G. (2010b). Diversity, abundance and distribution of amoA-encoding archaea in deep-sea methane seep sediments of the Okhotsk Sea.FEMS Microbiol. Ecol.72370385. 10.1111/j.1574-6941.2010.00870.x

  • 106

    DangH.LuanX.ZhaoJ.LiJ. (2009b). Diverse and novel nifH and nifH-like gene sequences in the deep-sea methane seep sediments of the Okhotsk Sea.Appl. Environ. Microbiol.7522382245. 10.1128/AEM.02556-2558

  • 107

    DangH.ZhouH.ZhangZ.YuZ.HuaE.LiuX.et al (2013). Molecular detection of Candidatus Scalindua pacifica and environmental responses of sediment anammox bacterial community in the Bohai Sea China.PLoS One8:e61330. 10.1371/journal.pone.0061330

  • 108

    De BrabandereL.CanfieldD. E.DalsgaardT.FriederichG. E.RevsbechN. P.UlloaO.et al (2014). Vertical partitioning of nitrogen-loss processes across the oxic-anoxic interface of an oceanic oxygen minimum zone.Environ. Microbiol.1630413054. 10.1111/1462-2920.12255

  • 109

    De CorteD.YokokawaT.VarelaM. M.AgoguéH.HerndlG. J. (2009). Spatial distribution of bacteria and archaea and amoA gene copy numbers throughout the water column of the eastern Mediterranean Sea.ISME J.3147158. 10.1038/ismej.2008.94

  • 110

    DecleyreH.HeylenK.Van ColenC.WillemsA. (2015). Dissimilatory nitrogen reduction in intertidal sediments of a temperate estuary: small scale heterogeneity and novel nitrate-to-ammonium reducers.Front. Microbiol.6:1124. 10.3389/fmicb.2015.01124

  • 111

    DekaezemackerJ.BonnetS. (2011). Sensitivity of N2 fixation to combined nitrogen forms (NO3 and NO4+) in two strains of the marine diazotroph Crocosphaera watsonii (Cyanobacteria).Mar. Ecol. Prog. Ser.4383346. 10.3389/fmicb.2012.00374

  • 112

    DekasA. E.ChadwickG. L.BowlesM. W.JoyeS. B.OrphanV. J. (2014). Spatial distribution of nitrogen fixation in methane seep sediment and the role of the ANME archaea.Environ. Microbiol.1630123029. 10.1111/1462-2920.12247

  • 113

    DekasA. E.FikeD. A.ChadwickG. L.Green-SaxenaA.FortneyJ.ConnonS. A.et al (2018). Widespread nitrogen fixation in sediments from diverse deep-sea sites of elevated carbon loading.Environ. Microbiol.2042814296. 10.1111/1462-2920.14342

  • 114

    DekasA. E.PoretskyR. S.OrphanV. J. (2009). Deep-sea archaea fix and share nitrogen in methane-consuming microbial consortia.Science326422426. 10.1126/science.1178223

  • 115

    DelmontT. O.QuinceC.ShaiberA.EsenO. C.LeeS. T.RappéM. S.et al (2018). Nitrogen-fixing populations of Planctomycetes and Proteobacteria are abundant in surface ocean metagenomes.Nat. Microbiol.3804813. 10.1038/s41564-018-0176-179

  • 116

    DeLongE. F.PrestonC. M.MincerT.RichV.HallamS. J.FrigaardN. U.et al (2006). Community genomics among stratified microbial assemblages in the ocean’s interior.Science311496503. 10.1126/science.1120250

  • 117

    DeutschC.SarmientoJ. L.SigmanD. M.GruberN.DunneJ. P. (2007). Spatial coupling of nitrogen inputs and losses in the ocean.Nature445163167. 10.1038/nature05392

  • 118

    DevolA. H. (2015). Denitrification, anammox, and N2 production in marine sediments.Ann. Rev. Mar. Sci.7403423. 10.1146/annurev-marine-010213-135040

  • 119

    DongL. F.Naqasima SobeyM.SmithC. J.RusmanaI.PhillipsW.StottA.et al (2011). Dissimilatory reduction of nitrate to ammonium, not denitrification or anammox, dominates benthic nitrate reduction in tropical estuaries.Limnol. Oceanogr.56279291. 10.4319/lo.2011.56.1.0279

  • 120

    DongL. F.SmithC. J.PapaspyrouS.StottA.OsbornA. M.NedwellD. B. (2009). Changes in benthic denitrification, nitrate ammonification, and anammox process rates and nitrate and nitrite reductase gene abundances along an estuarine nutrient gradient (the Colne Estuary, United Kingdom).Appl. Environ. Microbiol.7531713179. 10.1128/AEM.02511-2518

  • 121

    DuceR. A.LaRocheJ.AltieriK.ArrigoK. R.BakerA. R.CaponeD. G.et al (2008). Impacts of atmospheric anthropogenic nitrogen on the open ocean.Science320893897. 10.1126/science.1150369

  • 122

    EngströmP.DalsgaardT.HulthS.AllerR. C. (2005). Anaerobic ammonium oxidation by nitrite (anammox): implications for N2 production in coastal marine sediments.Geochim. Cosmochim. Acta6920572065. 10.1016/j.gca.2004.09.032

  • 123

    EttwigK. F.ButlerM. K.Le PaslierD.PelletierE.MangenotS.KuypersM. M. M.et al (2010). Nitrite-driven anaerobic methane oxidation by oxygenic bacteria.Nature464543548. 10.1038/nature08883

  • 124

    EugsterO.GruberN. (2012). A probabilistic estimate of global marine N-fixation and denitrification.Global Biogeochem. Cycles26:GB4013. 10.1029/2012GB004300

  • 125

    EyreB. D.MaherD. T.SquireP. (2013). Quantity and quality of organic matter (detritus) drives N2 effluxes (net denitrification) across seasons, benthic habitats, and estuaries.Global Biogeochem. Cycles2710831095. 10.1002/2013GB004631

  • 126

    FalkS.HannigM.BrakerG.WardengaR.KösterM.JürgensK.et al (2006). nirS-containing denitrifier communities in the water column and sediment of the Baltic Sea.Biogeosci. Discuss.3697727. 10.5194/bgd-3-697-2006

  • 127

    FalkowskiP. G. (1997). Evolution of the nitrogen cycle and its influence on the biological sequestration of CO2 in the ocean.Nature387272275. 10.1038/387272a0

  • 128

    FanH.BolhuisH.StalL. J. (2015a). Drivers of the dynamics of diazotrophs and denitrifiers in North Sea bottom waters and sediments.Front. Microbiol.6:738. 10.3389/fmicb.2015.00738

  • 129

    FanH.BolhuisH.StalL. J. (2015b). Nitrification and nitrifying bacteria in a coastal microbial mat.Front. Microbiol.6:1367. 10.3389/fmicb.2015.01367

  • 130

    FaríasL.Castro-GonzálezM.CornejoM.CharpentierJ.FaúndezJ.BoontanonN.et al (2009). Denitrification and nitrous oxide cycling within the upper oxycline of the Eastern Tropical South Pacific oxygen minimum zone.Limnol. Oceanogr.54132144. 10.4319/lo.2009.54.1.0132

  • 131

    FarnelidH.AnderssonA. F.BertilssonS.Al-SoudW. A.HansenL. H.SørensenS.et al (2011). Nitrogenase gene amplicons from global marine surface waters are dominated by genes of non-cyanobacteria.PLoS One6:e19223. 10.1371/journal.pone.0019223

  • 132

    FarnelidH.Bentzon-TiliaM.AnderssonA. F.BertilssonS.JostG.LabrenzM.et al (2013). Active nitrogen-fixing heterotrophic bacteria at and below the chemocline of the central Baltic Sea.ISME J.714131423. 10.1038/ismej.2013.26

  • 133

    FarnelidH.Turk-KuboK.Muñoz-MarínM.ZehrJ. (2016). New insights into the ecology of the globally significant uncultured nitrogen-fixing symbiont UCYN-A.Aquat. Microb. Ecol.77125138. 10.3354/ame01794

  • 134

    FarnelidH.Turk-KuboK.PlougH.OssolinskiJ. E.CollinsJ. R.Van MooyB. A. S.et al (2019). Diverse diazotrophs are present on sinking particles in the North Pacific subtropical gyre.ISME J.13170182. 10.1038/s41396-018-0259-x

  • 135

    FernandezC.FaríasL.UlloaO. (2011). Nitrogen fixation in denitrified marine waters.PLoS One6:e20539. 10.1371/journal.pone.0020539

  • 136

    FernandezC.GonzálezM. L.MuñozC.MolinaV.FariasL. (2015). Temporal and spatial variability of biological nitrogen fixation off the upwelling system of central Chile (35-38.5°S).J. Geophys. Res. Ocean.12033303349. 10.1002/2014JC010410

  • 137

    Fernández-MéndezM.Turk-KuboK. A.ButtigiegP. L.RappJ. Z.KrumpenT.ZehrJ. P.et al (2016). Diazotroph diversity in the sea ice, melt ponds, and surface waters of the Eurasian Basin of the central Arctic Ocean.Front. Microbiol.7:1884. 10.3389/fmicb.2016.01884

  • 138

    Finzi-HartJ. A.Pett-RidgeJ.WeberP. K.PopaR.FallonS. J.GundersonT.et al (2009). Fixation and fate of C and N in the cyanobacterium Trichodesmium using nanometer-scale secondary ion mass spectrometry.Proc. Natl. Acad. Sci.U.S.A.10663456350. 10.1073/pnas.0810547106

  • 139

    FosterR. A.SubramaniamA.ZehrJ. P. (2009). Distribution and activity of diazotrophs in the Eastern Equatorial Atlantic.Environ. Microbiol.11741750. 10.1111/j.1462-2920.2008.01796.x

  • 140

    FosterR. A.SubramaniamA.MahaffeyC.CarpenterE. J.CaponeD. G.ZehrJ. P. (2007). Influence of the Amazon River plume on distributions of free-living and symbiotic cyanobacteria in the western tropical north Atlantic Ocean.Limnol. Oceanogr.52517532. 10.4319/lo.2007.52.2.0517

  • 141

    FrameC. H.CasciottiK. L. (2010). Biogeochemical controls and isotopic signatures of nitrous oxide production by a marine ammonia-oxidizing bacterium.Biogeosciences726952709. 10.5194/bg-7-2695-2010

  • 142

    FrancisC. A.O’MullanG. D.WardB. B. (2003). Diversity of ammonia monooxygenase (amoA) genes across environmental gradients in Chesapeake Bay sediments.Geobiology1129140. 10.1046/j.1472-4669.2003.00010.x

  • 143

    FrancisC. A.O’MullanG. D.CornwellJ. C.WardB. B. (2013). Transitions in nirS-type denitrifier diversity, community composition, and biogeochemical activity along the Chesapeake Bay estuary.Front. Microbiol.4:237. 10.3389/fmicb.2013.00237

  • 144

    FrancisC. A.RobertsK. J.BemanJ. M.SantoroA. E.OakleyB. B. (2005). Ubiquity and diversity of ammonia-oxidizing archaea in water columns and sediments of the ocean.Proc. Natl. Acad. Sci. U.S.A.1021468314688. 10.1073/pnas.0506625102

  • 145

    FreingA.WallaceD. W. R.BangeH. W. (2012). Global oceanic production of nitrous oxide.Philos. Trans. R. Soc. B Biol. Sci.36712451255. 10.1098/rstb.2011.0360

  • 146

    FuchsmanC. A.DevolA. H.SaundersJ. K.McKayC.RocapG. (2017). Niche partitioning of the N cycling microbial community of an offshore oxygen deficient zone.Front. Microbiol.8:2384. 10.3389/fmicb.2017.02384

  • 147

    FuchsmanC. A.StaleyJ. T.OakleyB. B.KirkpatrickJ. B.MurrayJ. W. (2012). Free-living and aggregate-associated Planctomycetes in the Black Sea.FEMS Microbiol. Ecol.80402416. 10.1111/j.1574-6941.2012.01306.x

  • 148

    FulweilerR. W.NixonS. W.BuckleyB. A.GrangerS. L. (2007). Reversal of the net dinitrogen gas flux in coastal marine sediments.Nature448180182. 10.1038/nature05963

  • 149

    FüsselJ.LamP.LavikG.JensenM. M.HoltappelsM.GünterM.et al (2012). Nitrite oxidation in the Namibian oxygen minimum zone.ISME J.612001209. 10.1038/ismej.2011.178

  • 150

    FüsselJ.LückerS.YilmazP.NowkaB.van KesselM. A. H. J.BourceauP.et al (2017). Adaptability as the key to success for the ubiquitous marine nitrite oxidizer Nitrococcus.Sci. Adv.3:e1700807. 10.1126/sciadv.1700807

  • 151

    GalánA.FaúndezJ.ThamdrupB.SantibáñezJ. F.FaríasL. (2014). Temporal dynamics of nitrogen loss in the coastal upwelling ecosystem off central Chile: evidence of autotrophic denitrification through sulfide oxidation.Limnol. Oceanogr.5918651878. 10.4319/lo.2014.59.6.1865

  • 152

    GalánA.MolinaV.ThamdrupB.WoebkenD.LavikG.KuypersM. M. M.et al (2009). Anammox bacteria and the anaerobic oxidation of ammonium in the oxygen minimum zone off northern Chile.Deep Sea Res. Part II Top. Stud. Oceanogr.5610211031. 10.1016/j.dsr2.2008.09.016

  • 153

    GaneshS.BertagnolliA. D.BristowL. A.PadillaC. C.BlackwoodN.AldunateM.et al (2018). Single cell genomic and transcriptomic evidence for the use of alternative nitrogen substrates by anammox bacteria.ISME J.1227062722. 10.1038/s41396-018-0223-229

  • 154

    GaneshS.BristowL. A.LarsenM.SarodeN.ThamdrupB.StewartF. J. (2015). Size-fraction partitioning of community gene transcription and nitrogen metabolism in a marine oxygen minimum zone.ISME J.926822696. 10.1038/ismej.2015.44

  • 155

    GardnerW. S.McCarthyM. J. (2009). Nitrogen dynamics at the sediment-water interface in shallow, sub-tropical Florida Bay: why denitrification efficiency may decrease with increased eutrophication.Biogeochemistry95185198. 10.1007/s10533-009-9329-9325

  • 156

    GardnerW. S.McCarthyM. J.AnS.SobolevD.SellK. S.BrockD. (2006). Nitrogen fixation and dissimilatory nitrate reduction to ammonium (DNRA) support nitrogen dynamics in Texas estuaries.Limnol. Oceanogr.51558568. 10.4319/lo.2006.51.1_part_2.0558

  • 157

    GiblinA. E.WestonN. B.BantaG. T.TuckerJ.HopkinsonC. S. (2010). The effects of salinity on nitrogen losses from an oligohaline estuarine sediment.Estuaries Coasts3310541068. 10.1007/s12237-010-9280-9287

  • 158

    GlockN.RoyA.-S.RomeroD.WeinT.WeissenbachJ.RevsbechN. P.et al (2019). Metabolic preference of nitrate over oxygen as an electron acceptor in foraminifera from the Peruvian oxygen minimum zone.Proc. Natl. Acad. Sci. U.S.A.11628602865. 10.1073/pnas.1813887116

  • 159

    GlockN.SchönfeldJ.EisenhauerA.HensenC.MallonJ.SommerS. (2013). The role of benthic foraminifera in the benthic nitrogen cycle of the Peruvian oxygen minimum zone.Biogeosciences1047674783. 10.5194/bg-10-4767-2013

  • 160

    GludR. N.GrossartH.-P.LarsenM.TangK. W.ArendtK. E.RysgaardS.et al (2015). Copepod carcasses as microbial hot spots for pelagic denitrification.Limnol. Oceanogr.6020262036. 10.1002/lno.10149

  • 161

    GoebelN. L.TurkK. A.AchillesK. M.PaerlR.HewsonI.MorrisonA. E.et al (2010). Abundance and distribution of major groups of diazotrophic cyanobacteria and their potential contribution to N2 fixation in the Tropical Atlantic Ocean.Environ. Microbiol.1232723289. 10.1111/j.1462-2920.2010.02303.x

  • 162

    GradovilleM. R.BombarD.CrumpB. C.LetelierR. M.ZehrJ. P.WhiteA. E. (2017). Diversity and activity of nitrogen-fixing communities across ocean basins.Limnol. Oceanogr.6218951909. 10.1002/lno.10542

  • 163

    GrafD. R. H.JonesC. M.HallinS. (2014). Intergenomic comparisons highlight modularity of the denitrification pathway and underpin the importance of community structure for N2O emissions.PLoS One9:e114118. 10.1371/journal.pone.0114118

  • 164

    GrangerJ.WardB. B. (2003). Accumulation of nitrogen oxides in copper-limited cultures of denitrifying bacteria.Limnol. Oceanogr.48313318. 10.4319/lo.2003.48.1.0313

  • 165

    GrosseJ.BombarD.DoanH. N.NguyenL. N.VossM. (2010). The Mekong River plume fuels nitrogen fixation and determines phytoplankton species distribution in the South China Sea during low and high discharge season.Limnol. Oceanogr.5516681680. 10.4319/lo.2010.55.4.1668

  • 166

    GroverR.Ferrier-PagèsC.MaguerJ. F.EzzatL.FineM. (2014). Nitrogen fixation in the mucus of Red Sea corals.J. Exp. Biol.21739623963. 10.1242/jeb.111591

  • 167

    GruberN. (2008). The Marine Nitrogen Cycle: Overviews and Challenges in Nitrogen in the Marine Environment.Amsterdam: Elsevier.

  • 168

    GruberN. (2016). Elusive marine nitrogen fixation.Proc. Natl. Acad. Sci. U.S.A.11342464248. 10.1073/pnas.1603646113

  • 169

    GruberN.GallowayJ. (2008). An Earth-system perspective of the global nitrogen cycle.Nature451293296. 10.1038/nature06592

  • 170

    HallamS. J.MincerT. J.SchleperC.PrestonC. M.RobertsK.RichardsonP. M.et al (2006). Pathways of carbon assimilation and ammonia oxidation suggested by environmental genomic analyses of marine Crenarchaeota.PLoS Biol.4:e95. 10.1371/journal.pbio.0040095

  • 171

    HalmH.LamP.FerdelmanT. G.LavikG.DittmarT.LarocheJ.et al (2012). Heterotrophic organisms dominate nitrogen fixation in the South Pacific Gyre.ISME J.612381249. 10.1038/ismej.2011.182

  • 172

    HamersleyM. R.LavikG.WoebkenD.RattrayJ. E.LamP.HopmansE. C.et al (2007). Anaerobic ammonium oxidation in the Peruvian oxygen minimum zone.Limnol. Ocean.52923933. 10.4319/lo.2007.52.3.0923

  • 173

    HamersleyM. R.TurkK. A.LeinweberA.GruberN.ZehrJ. P.GundersonT.et al (2011). Nitrogen fixation within the water column associated with two hypoxic basins in the Southern California Bight.Aquat. Microb. Ecol.63193205. 10.3354/ame01494

  • 174

    HanP.KlümperU.WongA.LiM.LinJ.-G. G.QuanZ.et al (2017). Assessment of molecular detection of anaerobic ammonium-oxidizing (anammox) bacteria in different environmental samples using PCR primers based on 16S rRNA and functional genes.Appl. Microbiol. Biotechnol.10176897702. 10.1007/s00253-017-8502-8503

  • 175

    HannigM.BrakerG.DippnerJ.JürgensK. (2006). Linking denitrifier community structure and prevalent biogeochemical parameters in the pelagial of the central Baltic Proper (Baltic Sea).FEMS Microbiol. Ecol.57260271. 10.1111/j.1574-6941.2006.00116.x

  • 176

    HardingK.Turk-KuboK. A.SiplerR. E.MillsM. M.BronkD. A.ZehrJ. P. (2018). Symbiotic unicellular cyanobacteria fix nitrogen in the Arctic Ocean.Proc. Natl. Acad. Sci. U.S.A.1151337113375. 10.1073/pnas.1813658115

  • 177

    HarhangiH. R.Le RoyM.van AlenT.HuB.Lan GroenJ.KartalB.et al (2012). Hydrazine synthase, a unique phylomarker with which to study the presence and biodiversity of anammox bacteria.Appl. Environ. Microbiol.78752758. 10.1128/AEM.07113-7111

  • 178

    HaroonM. F.HuS.ShiY.ImelfortM.KellerJ.HugenholtzP.et al (2013). Anaerobic oxidation of methane coupled to nitrate reduction in a novel archaeal lineage.Nature500567570. 10.1038/nature12375

  • 179

    HeH.ZhenY.MiT.FuL.YuZ. (2018). Ammonia-oxidizing archaea and bacteria differentially contribute to ammonia oxidation in sediments from adjacent waters of Rushan Bay China.Front. Microbiol.9:116. 10.3389/fmicb.2018.00116

  • 180

    HeissE. M.FulweilerR. W. (2016). Coastal water column ammonium and nitrite oxidation are decoupled in summer.Estuar. Coast. Shelf Sci.178110119. 10.1016/j.ecss.2016.06.002

  • 181

    HenkeB. A.Turk-KuboK. A.BonnetS.ZehrJ. P. (2018). Distributions and abundances of sublineages of the N2-fixing cyanobacterium Candidatus Atelocyanobacterium thalassa (UCYN-A) in the new caledonian coral lagoon.Front. Microbiol.9:554. 10.3389/fmicb.2018.00554

  • 182

    HirschM. D.LongZ. T.SongB. (2011). Anammox bacterial diversity in various aquatic ecosystems based on the detection of hydrazine oxidase genes (hzoA/hzoB).Microb. Ecol.61264276. 10.1007/s00248-010-9743-9741

  • 183

    HoffmannF.RadaxR.WoebkenD.HoltappelsM.LavikG.RappH. T.et al (2009). Complex nitrogen cycling in the sponge Geodia barretti.Environ. Microbiol.1122282243. 10.1111/j.1462-2920.2009.01944.x

  • 184

    HollC. M.WaiteA. M.PesantS.ThompsonP. A.MontoyaJ. P. (2007). Unicellular diazotrophy as a source of nitrogen to leeuwin current coastal eddies.Deep Sea Res. Part II Top. Stud. Oceanogr.5410451054. 10.1016/j.dsr2.2007.02.002

  • 185

    HongY. G.LiM.CaoH.GuJ. D. (2011a). Residence of habitat-specific anammox bacteria in the deep-sea subsurface sediments of the South China Sea: analyses of marker gene abundance with physical chemical parameters.Microb. Ecol.623647. 10.1007/s00248-011-9849-9840

  • 186

    HongY. G.YinB.ZhengT. L. (2011b). Diversity and abundance of anammox bacterial community in the deep-ocean surface sediment from Equatorial Pacific.Appl. Microbiol. Biotechnol.8912331241. 10.1007/s00253-010-2925-2924

  • 187

    HorakR. E. A.QinW.BertagnolliA. D.NelsonA.HealK. R.HanH.et al (2018). Relative impacts of light, temperature, and reactive oxygen on thaumarchaeal ammonia oxidation in the North Pacific Ocean.Limnol. Oceanogr.63741757. 10.1002/lno.10665

  • 188

    HorakR. E. A.QinW.SchauerA. J.ArmbrustE. V.IngallsA. E.MoffettJ. W.et al (2013). Ammonia oxidation kinetics and temperature sensitivity of a natural marine community dominated by archaea.ISME J.720232033. 10.1038/ismej.2013.75

  • 189

    HouL.XieX.WanX.KaoS.-J.JiaoN.ZhangY. (2018). Niche differentiation of ammonia and nitrite oxidizers along a salinity gradient from the Pearl River Estuary to the South China Sea.Biogeosciences1551695187. 10.5194/bg-15-5169-2018

  • 190

    HouL.ZhengY.LiuM.GongJ.ZhangX.YinG.et al (2013). Anaerobic ammonium oxidation (anammox) bacterial diversity, abundance, and activity in marsh sediments of the Yangtze Estuary.J. Geophys. Res. Biogeosci.11812371246. 10.1002/jgrg.20108

  • 191

    HowarthR. W.MarinoR.LaneJ.ColeJ. J. (1988). Nitrogen fixation in freshwater, estuarine, and marine ecosystems. 1. Rates and importance.Limnol. Oceanogr.33669687. 10.4319/lo.1988.33.4part2.0669

  • 192

    HutchinsD. A.FuF. X. (2017). Microorganisms and ocean global change.Nat. Microbiol.2:17058. 10.1038/nmicrobiol.2017.58

  • 193

    HutchinsD. A.FuF.-X.WebbE. A.WalworthN.TagliabueA. (2013). Taxon-specific response of marine nitrogen fixers to elevated carbon dioxide concentrations.Nat. Geosci.6790795. 10.1038/NGEO1858

  • 194

    HutchinsD. A.WalworthN. G.WebbE. A.SaitoM. A.MoranD.McIlvinM. R.et al (2015). Irreversibly increased nitrogen fixation in Trichodesmium experimentally adapted to elevated carbon dioxide.Nat. Commun.6:8155. 10.1038/ncomms9155

  • 195

    HutchinsD.MulhollandM.FuF. (2009). Nutrient cycles and marine microbes in a CO2-enriched ocean.Oceanography22128145. 10.5670/oceanog.2009.103

  • 196

    JaeschkeA.HopmansE. C.WakehamS. G.SchoutenS.Sinninghe DamstéJ. S. (2007). The presence of ladderane lipids in the oxygen minimum zone of the Arabian Sea indicates nitrogen loss through anammox.Limnol. Oceanogr.52780786. 10.4319/lo.2007.52.2.0780

  • 197

    JayakumarA.Al-RshaidatM. M. D.WardB. B.MulhollandM. R. (2012). Diversity, distribution, and expression of diazotroph nifH genes in oxygen-deficient waters of the Arabian Sea.FEMS Microbiol. Ecol.82597606. 10.1111/j.1574-6941.2012.01430.x

  • 198

    JayakumarA.BalachandranD.ReesA. P.KearnsP. J.BowenJ. L.WardB. B. (2018). Community composition of nitrous oxide reducing bacteria investigated using a functional gene microarray.Deep Sea Res. Part II Top. Stud. Oceanogr.1564450. 10.1016/j.dsr2.2018.10.002

  • 199

    JayakumarA.O’MullanG. D.NaqviS. W. A. A.WardB. B. (2009). Denitrifying bacterial community composition changes associated with stages of denitrification in oxygen minimum zones.Microb. Ecol.58350362. 10.1007/s00248-009-9487-y

  • 200

    JayakumarD.WardB. B. (2013). Community composition of bacteria involved in fixed nitrogen loss in the water column of two major oxygen minimum zones in the ocean.Aquat. Microb. Ecol.70245259. 10.3354/ame01654

  • 201

    JayakumarD.FrancisC. A.NaqviS. W. A.WardB. B. (2004). Diversity of nitrite reductase genes (nirS) in the denitrifying water column of the coastal Arabian Sea.Aquat. Microb. Ecol.346978. 10.3354/ame034069

  • 202

    JensenM. M.LamP.RevsbechN. P.NagelB.GayeB.JettenM. S. M. S.et al (2011). Intensive nitrogen loss over the Omani Shelf due to anammox coupled with dissimilatory nitrite reduction to ammonium.ISME J.516601670. 10.1038/ismej.2011.44

  • 203

    JettenM. S. M.NiftrikL.van, StrousM.KartalB.KeltjensJ. T.et al (2009). Biochemistry and molecular biology of anammox bacteria.Crit. Rev. Biochem. Mol. Biol.446584. 10.1080/10409230902722783

  • 204

    JiQ.BabbinA. R.JayakumarA.OleynikS.WardB. B. (2015). Nitrous oxide production by nitrification and denitrification in the Eastern Tropical South Pacific oxygen minimum zone.Geophys. Res. Lett.42:764. 10.1002/2015GL066853

  • 205

    JickellsT. D.BuitenhuisE.AltieriK.BakerA. R.CaponeD.DuceR. A.et al (2017). A reevaluation of the magnitude and impacts of anthropogenic atmospheric nitrogen inputs on the ocean.Global Biogeochem. Cycles31289305. 10.1002/2016GB005586

  • 206

    JinT.ZhangT.YeL.LeeO. O.WongY. H.QianP. Y. (2011). Diversity and quantity of ammonia-oxidizing archaea and bacteria in sediment of the Pearl River Estuary, China.Appl. Microbiol. Biotechnol.9011371145. 10.1007/s00253-011-3107-3108

  • 207

    JonesC. M.HallinS. (2010). Ecological and evolutionary factors underlying global and local assembly of denitrifier communities.ISME J.4633641. 10.1038/ismej.2009.152

  • 208

    JonesC. M.GrafD. R.BruD.PhilippotL.HallinS. (2013). The unaccounted yet abundant nitrous oxide-reducing microbial community: a potential nitrous oxide sink.ISME J.7417426. 10.1038/ismej.2012.125

  • 209

    JonesC. M.StresB.RosenquistM.HallinS. (2008). Phylogenetic analysis of nitrite, nitric oxide, and nitrous oxide respiratory enzymes reveal a complex evolutionary history for denitrification.Mol. Biol. Evol.2519551966. 10.1093/molbev/msn146

  • 210

    KalvelageT.JensenM. M.ContrerasS.RevsbechN. P.LamP.GünterM.et al (2011). Oxygen sensitivity of anammox and coupled N-cycle processes in oxygen minimum zones.PLoS One6:e29299. 10.1371/journal.pone.0029299

  • 211

    KalvelageT.LavikG.LamP.ContrerasS.ArteagaL.LoscherC. R.et al (2013). Nitrogen cycling driven by organic matter export in the South Pacific oxygen minimum zone.Nat. Geosci.6228234. 10.1038/ngeo1739

  • 212

    KampA.de BeerD.NitschJ. L.LavikG.StiefP. (2011). Diatoms respire nitrate to survive dark and anoxic conditions.Proc. Natl. Acad. Sci. U.S.A.10856495654. 10.1073/pnas.1015744108

  • 213

    KarlD.MichaelsA.BergmanB.CaponeD.CarpenterE.LetelierR.et al (2002). Dinitrogen fixation in the world’s oceans.Biogeochemistry574798. 10.1007/978-94-017-3405-9-2

  • 214

    KartalB.KuypersM. M. M. M.LavikG.SchalkJ.Op Den, CampH. J. M. M.et al (2007). Anammox bacteria disguised as denitrifiers: nitrate reduction to dinitrogen gas via nitrite and ammonium.Environ. Microbiol.9635642. 10.1111/j.1462-2920.2006.01183.x

  • 215

    KartalB.MaalckeW. J.de AlmeidaN. M.CirpusI.GloerichJ.GeertsW.et al (2011). Molecular mechanism of anaerobic ammonium oxidation.Nature479127130. 10.1038/nature10453

  • 216

    KartalB.van NiftrikL.KeltjensJ. T.Op, den CampH. J. M.JettenM. S. M. (2012). Anammox–growth physiology, cell biology, and metabolism.Adv. Microb. Physiol.60211262. 10.1016/B978-0-12-398264-3.00003-6

  • 217

    KeelingR. F.KörtzingerA.GruberN. (2010). Ocean deoxygenation in a warming world.Ann. Rev. Mar. Sci.2199229. 10.1146/annurev.marine.010908.163855

  • 218

    KimO.-S.ImhoffJ. F.WitzelK.-P.JunierP. (2011). Distribution of denitrifying bacterial communities in the stratified water column and sediment–water interface in two freshwater lakes and the Baltic Sea.Aquat. Ecol.4599112. 10.1007/s10452-010-9335-9337

  • 219

    KitidisV.LaverockB.McNeillL. C.BeesleyA.CummingsD.TaitK.et al (2011). Impact of ocean acidification on benthic and water column ammonia oxidation.Geophys. Res. Lett.38:L21603. 10.1029/2011GL049095

  • 220

    KitsD. K.SedlacekC. J.LebedevaE. V.HanP.BulaevA.PjevacP.et al (2017). Kinetic analysis of a complete nitrifier reveals an oligotrophic lifestyle.Nature549269272. 10.1038/nature23679

  • 221

    KnappA. N. (2012). The sensitivity of marine N2 fixation to dissolved inorganic nitrogen.Front. Microbiol.3:374. 10.3389/fmicb.2012.00374

  • 222

    KnappA. N.CasciottiK. L.BerelsonW. M.ProkopenkoM. G.CaponeD. G. (2016). Low rates of nitrogen fixation in Eastern Tropical South Pacific surface waters.Proc. Natl. Acad. Sci. U.S.A.11343984403. 10.1073/pnas.1515641113

  • 223

    KnappA. N.DekaezemackerJ.BonnetS.SohmJ. A.CaponeD. G. (2012). Sensitivity of Trichodesmium erythraeum and Crocosphaera watsonii abundance and N2 fixation rates to varying NO3 and PO43 concentrations in batch cultures.Aquat. Microb. Ecol.66223236. 10.3354/ame01577

  • 224

    KochH.LückerS.AlbertsenM.KitzingerK.HerboldC.SpieckE.et al (2015). Expanded metabolic versatility of ubiquitous nitrite-oxidizing bacteria from the genus Nitrospira.Proc. Natl. Acad. Sci. U.S.A.1121137111376. 10.1073/pnas.1506533112

  • 225

    KockA.Arévalo-MartínezD. L.LöscherC. R.BangeH. W. (2016). Extreme N2O accumulation in the coastal oxygen minimum zone off Peru.Biogeosciences13827840. 10.5194/bg-13-827-2016

  • 226

    KoeveW.KählerP. (2010). Heterotrophic denitrification vs. autotrophic anammox – quantifying collateral effects on the oceanic carbon cycle.Biogeosciences723272337. 10.5194/bg-7-2327-2010

  • 227

    KongL.JingH.KataokaT.BuchwaldC.LiuH. (2013). Diversity and spatial distribution of hydrazine oxidoreductase (hzo) gene in the oxygen minimum zone off Costa Rica.PLoS One8:e78275. 10.1371/journal.pone.0078275

  • 228

    KönnekeM.BernhardA. E.de la TorreJ. R.WalkerC. B.WaterburyJ. B.StahlD. A. (2005). Isolation of an autotrophic ammonia-oxidizing marine archaeon.Nature437543546. 10.1038/nature03911

  • 229

    KozlowskiJ. A.StieglmeierM.SchleperC.KlotzM. G.SteinL. Y. (2016). Pathways and key intermediates required for obligate aerobic ammonia-dependent chemolithotrophy in bacteria and Thaumarchaeota.ISME J.1018361845. 10.1038/ismej.2016.2

  • 230

    KraftB.TegetmeyerH. E.SharmaR.KlotzM. G.FerdelmanT. G.HettichR. L.et al (2014). The environmental controls that govern the end product of bacterial nitrate respiration.Science345676679. 10.1126/science.1254070

  • 231

    KumarP. K.SinghA.RameshR.NallathambiT. (2017). N2 fixation in the eastern Arabian Sea: probable role of heterotrophic diazotrophs.Front. Mar. Sci.4:80. 10.3389/fmars.2017.00080

  • 232

    KustkaA.CarpenterE. J.Sañudo-WilhelmyS. A. (2002). Iron and marine nitrogen fixation: progress and future directions.Res. Microbiol.153255262. 10.1016/S0923-2508(02)01325-1326

  • 233

    KuypersM. M. M.LavikG.WoebkenD.SchmidM.FuchsB. M.AmannR.et al (2005). Massive nitrogen loss from the Benguela upwelling system through anaerobic ammonium oxidation.Proc. Natl. Acad. Sci. U.S.A.10264786483. 10.1073/pnas.0502088102

  • 234

    KuypersM. M. M.MarchantH. K.KartalB. (2018). The microbial nitrogen-cycling network.Nat. Rev. Microbiol.16263276. 10.1038/nrmicro.2018.9

  • 235

    KuypersM. M. M.SliekersA. O.LavikG.SchmidM.JørgensenB. B.KuenenJ. G.et al (2003). Anaerobic ammonium oxidation by anammox bacteria in the Black Sea.Nature422608611. 10.1038/nature01472

  • 236

    LamP.KuypersM. M. M. (2011). Microbial nitrogen cycling processes in oxygen minimum zones.Ann. Rev. Mar. Sci.3317345. 10.1146/annurev-marine-120709-142814

  • 237

    LamP.JensenM. M.KockA.LettmannK. A.PlancherelY.LavikG.et al (2011). Origin and fate of the secondary nitrite maximum in the Arabian Sea.Biogeosciences815651577. 10.5194/bg-8-1565-2011

  • 238

    LamP.JensenM. M.LavikG.McGinnisD. F.MullerB.SchubertC. J.et al (2007). Linking crenarchaeal and bacterial nitrification to anammox in the Black Sea.Proc. Natl. Acad. Sci. U.S.A.10471047109. 10.1073/pnas.0611081104

  • 239

    LamP.LavikG.JensenM. M.van de VossenbergJ.SchmidM.WoebkenD.et al (2009). Revising the nitrogen cycle in the peruvian oxygen minimum zone.Proc. Natl. Acad. Sci. U.S.A.10647524757. 10.1073/pnas.0812444106

  • 240

    LancasterK. M.CarantoJ. D.MajerS. H.SmithM. A. (2018). Alternative bioenergy: updates to and challenges in nitrification metalloenzymology.Joule2421441. 10.1016/j.joule.2018.01.018

  • 241

    LandolfiA.KählerP.KoeveW.OschliesA. (2018). Global marine N2 fixation estimates: from observations to models.Front. Microbiol.9:2112. 10.3389/fmicb.2018.02112

  • 242

    LangloisR. J.HummerD.LaRocheJ. (2008). Abundances and distributions of the dominant nifH phylotypes in the Northern Atlantic Ocean.Appl. Environ. Microbiol.7419221931. 10.1128/AEM.01720-1727

  • 243

    LangloisR.GroßkopfT.MillsM.TakedaS.LaRocheJ. (2015). Widespread distribution and expression of Gamma A (UMB), an uncultured, diazotrophic, γ-proteobacterial nifH phylotype.PLoS One10:e0128912. 10.1371/journal.pone.0128912

  • 244

    LawC. S.BreitbarthE.HoffmannL. J.McGrawC. M.LangloisR. J.LaRocheJ.et al (2012). No stimulation of nitrogen fixation by non-filamentous diazotrophs under elevated CO2 in the south Pacific.Glob. Chang. Biol.1830043014. 10.1111/j.1365-2486.2012.02777.x

  • 245

    LeeJ. A.FrancisC. A. (2017). Deep nirS amplicon sequencing of san francisco bay sediments enables prediction of geography and environmental conditions from denitrifying community composition.Environ. Microbiol.1948974912. 10.1111/1462-2920.13920

  • 246

    LeeR. Y.SeitzingerS.MayorgaE. (2016). Land-based nutrient loading to LMEs: a global watershed perspective on magnitudes and sources.Environm. Develop.17220229. 10.1016/j.envdev.2015.09.006

  • 247

    LemaK. A.WillisB. L.BournebD. G. (2012). Corals form characteristic associations with symbiotic nitrogen-fixing bacteria.Appl. Environ. Microbiol.7831363144. 10.1128/AEM.07800-7811

  • 248

    LevipanH. A.MolinaV.FernandezC. (2014). Nitrospina-like bacteria are the main drivers of nitrite oxidation in the seasonal upwelling area of the Eastern South Pacific (Central Chile 36°S).Environ. Microbiol. Rep.6565573. 10.1111/1758-2229.12158

  • 249

    LiJ.NedwellD. B.BeddowJ.DumbrellA. J.McKewB. A.ThorpeE. L.et al (2015). amoA gene abundances and nitrification potential rates suggest that benthic ammonia-oxidizing bacteria and not archaea dominate N cycling in the colne estuary.U. K. Appl. Environ. Microbiol.81159165. 10.1128/AEM.02654-2614

  • 250

    LiM.CaoH.HongY.-G.GuJ.-D. (2011). Seasonal dynamics of anammox bacteria in estuarial sediment of the Mai Po nature reserve revealed by analyzing the 16S rRNA and hydrazine oxidoreductase (hzo) genes.Microb. Environ.261522. 10.1264/jsme2.ME10131

  • 251

    Li-dongS.QunZ.ShuaiL.PingD.Jiang-ningZ.Dong-qingC.et al (2014). Molecular evidence for nitrite-dependent anaerobic methane-oxidising bacteria in the Jiaojiang Estuary of the East Sea (China).Appl. Microbiol. Biotechnol.9850295038. 10.1007/s00253-014-5556-5553

  • 252

    LipsewersY. A.BaleN. J.HopmansE. C.SchoutenS.Sinninghe DamstéJ. S.VillanuevaL. (2014). Seasonality and depth distribution of the abundance and activity of ammonia oxidizing microorganisms in marine coastal sediments (North Sea).Front. Microbiol.5:472. 10.3389/fmicb.2014.00472

  • 253

    LisaJ. A.SongB.TobiasC. R.HinesD. E. (2015). Genetic and biogeochemical investigation of sedimentary nitrogen cycling communities responding to tidal and seasonal dynamics in cape fear river estuary.Estuar. Coast. Shelf Sci.167A313A323. 10.1016/j.ecss.2015.09.008

  • 254

    LisaJ.SongB.TobiasC.DuernbergerK. (2014). Impacts of freshwater flushing on anammox community structure and activities in the New River Estuary.U.S.A. Aquat. Microb. Ecol.721731. 10.3354/ame01682

  • 255

    LiuX.TiquiaS. M.HolguinG.WuL.NoldS. C.DevolA. H.et al (2003). Molecular diversity of denitrifying genes in continental margin sediments within the oxygen-deficient zone off the Pacific coast of Mexico.Appl. Environ. Microbiol.6935493560. 10.1128/AEM.69.6.3549-3560.2003

  • 256

    LoescherC. R.GroßkopfT.DesaiF. D.GillD.SchunckH.CrootP. L.et al (2014). Facets of diazotrophy in the oxygen minimum zone waters off Peru.ISME J.821802192. 10.1038/ismej.2014.71

  • 257

    LomasM.HopkinsonB.LoshJ.RyanD.ShiD.XuY.et al (2012). Effect of ocean acidification on cyanobacteria in the Subtropical North Atlantic.Aquat. Microb. Ecol.66211222. 10.3354/ame01576

  • 258

    LöscherC. R.KockA.KönnekeM.LarocheJ.BangeH. W.SchmitzR. A. (2012). Production of oceanic nitrous oxide by ammonia-oxidizing archaea.Biogeosciences924192429. 10.5194/bg-9-2419-2012

  • 259

    LückerS.WagnerM.MaixnerF.PelletierE.KochH.VacherieB. (2010). A Nitrospira metagenome illuminates the physiology and evolution of globally important nitrite-oxidizing bacteria.Proc. Natl. Acad. Sci. U.S.A.1071347913484. 10.1073/pnas.1003860107

  • 260

    LükeC.SpethD. R.KoxM. A. R.VillanuevaL.JettenM. S. M. (2016). Metagenomic analysis of nitrogen and methane cycling in the Arabian Sea oxygen minimum zone.PeerJ4:e1924. 10.7717/peerj.1924

  • 261

    LuoH.TolarB. B.SwanB. K.ZhangC. L.StepanauskasR.MoranA. M.et al (2014). Single-cell genomics shedding light on marine Thaumarchaeota diversification.ISME J.8732736. 10.1038/ismej.2013.202

  • 262

    LuoY.-W.DoneyS. C.AndersonL. A.BenavidesM.Berman-FrankI.BodeA.et al (2012). Database of diazotrophs in global ocean: abundance, biomass and nitrogen fixation rates.Earth Syst. Sci. Data44773. 10.5194/essd-4-47-2012

  • 263

    LuoZ.-H.XuW.LiM.GuJ.-D.ZhongT.-H. (2015). Spatial distribution and abundance of ammonia-oxidizing microorganisms in deep-sea sediments of the Pacific Ocean.Antonie Van Leeuwenhoek108329342. 10.1007/s10482-015-0485-484

  • 264

    MagalhãesC. M.MachadoA.MatosP.BordaloA. A. (2011). Impact of copper on the diversity, abundance and transcription of nitrite and nitrous oxide reductase genes in an urban European estuary.FEMS Microbiol. Ecol.77274284. 10.1111/j.1574-6941.2011.01107.x

  • 265

    Martens-HabbenaW.BerubeP. M.UrakawaH.de la TorreJ. R.StahlD. A. (2009). Ammonia oxidation kinetics determine niche separation of nitrifying archaea and bacteria.Nature461976979. 10.1038/nature08465

  • 266

    Martínez-GarcíaM.StiefP.Díaz-ValdésM.WannerG.Ramos-EspláA.DubilierN.et al (2008). Ammonia-oxidizing crenarchaeota and nitrification inside the tissue of a colonial ascidian.Environ. Microbiol.1029913001. 10.1111/j.1462-2920.2008.01761.x

  • 267

    Martínez-PérezC.MohrW.LöscherC. R.DekaezemackerJ.LittmannS.YilmazP.et al (2016). The small unicellular diazotrophic symbiont. UCYN-A, is a key player in the marine nitrogen cycle.Nat. Microbiol.1:16163. 10.1038/nmicrobiol.2016.163

  • 268

    Martinez-ReyJ.BoppL.GehlenM.TagliabueA.GruberN. (2015). Projections of oceanic N2O emissions in the 21st century using the IPSL earth system model.Biogeosciences1241334148. 10.5194/bg-12-4133-2015

  • 269

    MartinyA. C.KathuriaS.BerubeP. M. (2009). Widespread metabolic potential for nitrite and nitrate assimilation among Prochlorococcus ecotypes.Proc. Natl. Acad. Sci. U.S.A.1061078710792. 10.1073/pnas.0902532106

  • 270

    MehtaM. P.BarossJ. A. (2006). Nitrogen fixation at 92°C by a hydrothermal vent archaeon.Science31417831786. 10.1126/science.1134772

  • 271

    MehtaM. P.ButterfieldD. A.BarossJ. A. (2003). Phylogenetic diversity of nitrogenase (nifH) genes in deep-sea and hydrothermal vent environments of the Juan de Fuca Ridge.Appl. Environ. Microbiol.69960970. 10.1128/AEM.69.2.960-970.2003

  • 272

    MerbtS. N.StahlD. A.CasamayorE. O.MartíE.NicolG. W.ProsserJ. I. (2012). Differential photoinhibition of bacterial and archaeal ammonia oxidation.FEMS Microbiol. Lett.3274146. 10.1111/j.1574-6968.2011.02457.x

  • 273

    MesserL. F.MahaffeyC.RobinsonC.JeffriesT. C.BakerK. G.Bibiloni IsakssonJ.et al (2016). High levels of heterogeneity in diazotroph diversity and activity within a putative hotspot for marine nitrogen fixation.ISME J.1014991513. 10.1038/ismej.2015.205

  • 274

    MesserL.DoubellM.JeffriesT.BrownM.SeymourJ. (2015). Prokaryotic and diazotrophic population dynamics within a large oligotrophic inverse estuary.Aquat. Microb. Ecol.74115. 10.3354/ame01726

  • 275

    MilliganA. J.Berman-FrankI.GerchmanY.DismukesG. C.FalkowskiP. G. (2007). Light-dependent oxygen consumption in nitrogen-fixing cyanobacteria plays a key role in nitrogenase protection 1.J. Phycol.43845852. 10.1111/j.1529-8817.2007.00395.x

  • 276

    MillsM. M.RidameC.DaveyM.La RocheJ.GeiderR. J. (2004). Iron and phosphorus co-limit nitrogen fixation in the Eastern Tropical North Atlantic.Nature429292294. 10.1038/nature02550

  • 277

    MincerT. J.ChurchM. J.TaylorL. T.PrestonC.KarlD. M.DeLongE. F. (2007). Quantitative distribution of presumptive archaeal and bacterial nitrifiers in Monterey Bay and the North Pacific Subtropical Gyre.Environ. Microbiol.911621175. 10.1111/j.1462-2920.2007.01239.x

  • 278

    MohamedN. M.SaitoK.TalY.HillR. T. (2010). Diversity of aerobic and anaerobic ammonia-oxidizing bacteria in marine sponges.ISME J.43848. 10.1038/ismej.2009.84

  • 279

    MoisanderP. H.BeinartR. A.HewsonI.WhiteA. E.JohnsonK. S.CarlsonC. A.et al (2010). Unicellular cyanobacterial distributions broaden the oceanic N2 fixation domain.Science32715121514. 10.1126/science.1185468

  • 280

    MoisanderP. H.BenavidesM.BonnetS.Berman-FrankI.WhiteA. E.RiemannL. (2017). Chasing after non-cyanobacterial nitrogen fixation in marine pelagic environments.Front. Microbiol.8:1736. 10.3389/fmicb.2017.01736

  • 281

    MoisanderP. H.MorrisonA. E.WardB. B.JenkinsB. D.ZehrJ. P. (2007a). Spatial-temporal variability in diazotroph assemblages in Chesapeake Bay using an oligonucleotide nifH microarray.Environ. Microbiol.918231835. 10.1111/j.1462-2920.2007.01304.x

  • 282

    MoisanderP. H.PaerlH.DybleJ.SivonenK. (2007b). Phosphorus limitation and diel control of nitrogen-fixing cyanobacteria in the Baltic Sea.Mar. Ecol. Prog. Ser.3454150. 10.3354/meps06964

  • 283

    MoisanderP. H.SerrosT.PaerlR. W.BeinartR. A.ZehrJ. P. (2014). Gammaproteobacterial diazotrophs and nifH gene expression in surface waters of the South Pacific Ocean.ISME J.819621973. 10.1038/ismej.2014.49

  • 284

    MolinaV.BelmarL.UlloaO. (2010). High diversity of ammonia-oxidizing archaea in permanent and seasonal oxygen-deficient waters of the Eastern South Pacific.Environ. Microbiol.1224502465. 10.1111/j.1462-2920.2010.02218.x

  • 285

    MonteiroF. M.DutkiewiczS.FollowsM. J. (2011). Biogeographical controls on the marine nitrogen fixers.Global Biogeochem. Cycles25:GB2003. 10.1029/2010GB003902

  • 286

    MonteiroF. M.FollowsM. J.DutkiewiczS. (2010). Distribution of diverse nitrogen fixers in the global ocean.Global Biogeochem. Cycles24:GB3017. 10.1029/2009GB003731

  • 287

    MonteiroM.SénecaJ.TorgoL.ClearyD.GomesN.SantoroA.et al (2017). Environmental controls on estuarine nitrifying communities along a salinity gradient.Aquat. Microb. Ecol.80167180. 10.3354/ame01847

  • 288

    MooreM. C.MillsM. M.AchterbergE. P.GeiderR. J.LaRocheJ.LucasM. I.et al (2009). Large-scale distribution of Atlantic nitrogen fixation controlled by iron availability.Nat. Geosci.2867871. 10.1038/ngeo667

  • 289

    Moreira-CoelloV.Mouriño-CarballidoB.MarañónE.Fernández-CarreraA.BodeA.SintesE.et al (2019). Temporal variability of diazotroph community composition in the upwelling region off NW Iberia.Sci. Rep.9:3737. 10.1038/s41598-019-39586-39584

  • 290

    Moreno-ViviánC.CabelloP.Martínez-LuqueM.BlascoR.CastilloF. (1999). Prokaryotic nitrate reduction: molecular properties and functional distinction among bacterial nitrate reductases.J. Bacteriol.18165736584.

  • 291

    MosierA. C.FrancisC. A. (2008). Relative abundance and diversity of ammonia-oxidizing archaea and bacteria in the San Francisco Bay Estuary.Environ. Microbiol.1030023016. 10.1111/j.1462-2920.2008.01764.x

  • 292

    MosierA. C.FrancisC. A. (2010). Denitrifier abundance and activity across the San Francisco Bay Estuary.Environ. Microbiol. Rep.2667676. 10.1111/j.1758-2229.2010.00156.x

  • 293

    MulhollandM. R.BernhardtP. W.Blanco-GarciaJ. L.ManninoA.HydeK.MondragonE.et al (2012). Rates of dinitrogen fixation and the abundance of diazotrophs in North American coastal waters between cape hatteras and georges Bank.Limnol. Oceanogr.5710671083. 10.4319/lo.2012.57.4.1067

  • 294

    MulhollandM. R.Bernhardt, WidnerB. N.SeldenC. R.ChappellP. D.ClaytonS.et al (2019). High rates of N2 fixation in temperate, Western North Atlantic coastal waters expand the realm of marine diazotrophy.Global Biogeochem. Cycles33826840. 10.1029/2018GB006130

  • 295

    Muñoz-MarínM.delC.ShilovaI. N.ShiT.FarnelidH.CabelloA. M.et al (2018). The transcriptional cycle is suited to daytime N2 fixation in the unicellular cyanobacterium “Candidatus Atelocyanobacterium thalassa” (UCYN-A).mBio10:e2495-18. 10.1128/mBio.02495-2418

  • 296

    NaT.ThamdrupB.KimB.KimS.-H.VandiekenV.KangD.-J.et al (2018). N2 production through denitrification and anammox across the continental margin (shelf-slope-rise) of the Ulleung Basin.East Sea. Limnol. Oceanogr.63S410S424. 10.1002/lno.10750

  • 297

    NakagawaT.MoriK.KatoC.TakahashiR.TokuyamaT. (2007). Distribution of cold-adapted ammonia-oxidizing microorganisms in the deep-ocean of the northeastern Japan Sea.Microbes Environ.22365372. 10.1264/jsme2.22.365

  • 298

    NaqviS. W. A.NoronhaR. J. (1991). Nitrous oxide in the Arabian Sea.Deep Sea Res. Part A Oceanogr. Res. Pap.38871890. 10.1016/0198-0149(91)90023-90029

  • 299

    NevisonC. D.LuekerT. J.WeissR. F. (2004). Quantifying the nitrous oxide source from coastal upwelling.Global Biogeochem. Cycles18:GB1018. 10.1029/2003GB002110

  • 300

    NewellS. E.BabbinA. R.JayakumarD.WardB. B.JayakumarA.WardB. B. (2011). Ammonia oxidation rates and nitrification in the Arabian Sea.Global Biogeochem. Cycles25:GB4016. 10.1029/2010GB003940

  • 301

    NewellS. E.FawcettS. E.WardB. B. (2013). Depth distribution of ammonia oxidation rates and ammonia-oxidizer community composition in the Sargasso Sea.Limnol. Oceanogr.5814911500. 10.4319/lo.2013.58.4.1491

  • 302

    NgugiD. K.BlomJ.StepanauskasR.StinglU. (2016). Diversification and niche adaptations of Nitrospina-like bacteria in the polyextreme interfaces of Red Sea brines.ISME J.1013831399. 10.1038/ismej.2015.214

  • 303

    NichollsJ.TrimmerM. (2009). Widespread occurrence of the anammox reaction in estuarine sediments.Aquat. Microb. Ecol.55105113. 10.3354/ame01285

  • 304

    NunouraT.NishizawaM.KikuchiT.TsubouchiT.HiraiM.KoideO.et al (2013). Molecular biological and isotopic biogeochemical prognoses of the nitrification-driven dynamic microbial nitrogen cycle in hadopelagic sediments.Environ. Microbiol.1530873107. 10.1111/1462-2920.12152

  • 305

    NunouraT.TakakiY.HiraiM.ShimamuraS.MakabeA.KoideO.et al (2015). Hadal biosphere: insight into the microbial ecosystem in the deepest ocean on Earth.Proc. Natl. Acad. Sci. U.S.A.112E1230E1236. 10.1073/pnas.1421816112

  • 306

    OakleyB. B.FrancisC. A.RobertsK. J.FuchsmanC. A.SrinivasanS.StaleyJ. T. (2007). Analysis of nitrite reductase (nirK and nirS) genes and cultivation reveal depauperate community of denitrifying bacteria in the Black Sea suboxic zone.Environ. Microbiol.9118130. 10.1111/j.1462-2920.2006.01121.x

  • 307

    OlsonN. D.AinsworthT. D.GatesR. D.TakabayashiM. (2009). Diazotrophic bacteria associated with Hawaiian Montipora corals: diversity and abundance in correlation with symbiotic dinoflagellates.J. Exp. Mar. Bio. Ecol.371140146. 10.1016/j.jembe.2009.01.012

  • 308

    OlsonR. (1981). Differential photoinhibition of marine nitrifying bacteria: a possible mechanism for the formation of the primary nitrite maximum.J. Mar. Res.39227238.

  • 309

    OrenA. (2011). Thermodynamic limits to microbial life at high salt concentrations.Environ. Microbiol.1319081923. 10.1111/j.1462-2920.2010.02365.x

  • 310

    PachiadakiM. G.SintesE.BergauerK.BrownJ. M.RecordN. R.SwanB. K.et al (2017). Major role of nitrite-oxidizing bacteria in dark ocean carbon fixation.Science35810461051. 10.1126/science.aan8260

  • 311

    PadillaC. C.BristowL.SarodeN.Garcia-RobledoE.Gómez RamírezE.BensonC. R.et al (2016). NC10 bacteria in marine oxygen minimum zones.ISME J.1020672071. 10.1038/ismej.2015.262

  • 312

    PajaresS.Merino-IbarraM.MacekM.AlcocerJ. (2017). Vertical and seasonal distribution of picoplankton and functional nitrogen genes in a high-altitude warm-monomictic tropical lake.Freshw. Biol.6211801193. 10.1111/fwb.12935

  • 313

    PajaresS.Soto-JiménezM.Merino-IbarraM. (2019). Molecular and isotopic evidence of the distribution of nitrogen-cycling microbial communities in the oxygen minimum zone of the Tropical Mexican Pacific.FEMS Microbiol. Ecol.95:fiz143. 10.1093/femsec/fiz143

  • 314

    PapaspyrouS.SmithC. J.DongL. F.WhitbyC.DumbrellA. J.NedwellD. B. (2014). Nitrate reduction functional genes and nitrate reduction potentials persist in deeper estuarine sediments Why?PLoS One9:e94111. 10.1371/journal.pone.0094111

  • 315

    PedneaultE.GalandP. E.PotvinM.TremblayJ.LovejoyC. (2015). Archaeal amoA and ureC genes and their transcriptional activity in the Arctic Ocean.Sci. Rep.4:4661. 10.1038/srep04661

  • 316

    PengX.FuchsmanC. A.JayakumarA.OleynikS.Martens-HabbenaW.DevolA. H.et al (2015). Ammonia and nitrite oxidation in the Eastern Tropical North Pacific.Global Biogeochem. Cycles2920342049. 10.1002/2015GB005278

  • 317

    PengX.FuchsmanC. A.JayakumarA.WarnerM. J.DevolA. H.WardB. B. (2016). Revisiting nitrification in the Eastern Tropical South Pacific: a focus on controls.J. Geophys. Res. Ocean12116671684. 10.1002/2015JC011455

  • 318

    Pina-OchoaE.HogslundS.GeslinE.CedhagenT.RevsbechN. P.NielsenL. P.et al (2010). Widespread occurrence of nitrate storage and denitrification among Foraminifera and Gromiida.Proc. Natl. Acad. Sci. U.S.A.10711481153. 10.1073/pnas.0908440107

  • 319

    PitcherA.VillanuevaL.HopmansE. C.SchoutenS.ReichartG. J.Sinninghe DamstéJ. S. (2011a). Niche segregation of ammonia-oxidizing archaea and anammox bacteria in the Arabian Sea oxygen minimum zone.ISME J.518961904. 10.1038/ismej.2011.60

  • 320

    PitcherA.WuchterC.SiedenbergK.SchoutenS.Sinninghe DamstéJ. S. (2011b). Crenarchaeol tracks winter blooms of ammonia-oxidizing Thaumarchaeota in the coastal North Sea.Limnol. Oceanogr.5623082318. 10.4319/lo.2011.56.6.2308

  • 321

    PogoreutzC.RädeckerN.CárdenasA.GärdesA.WildC.VoolstraC. R. (2017). Nitrogen fixation aligns with nifH abundance and expression in two coral trophic functional groups.Front. Microbiol.8:1187. 10.3389/fmicb.2017.01187

  • 322

    PreislerA.de BeerD.LichtschlagA.LavikG.BoetiusA.JørgensenB. B. (2007). Biological and chemical sulfide oxidation in a Beggiatoa inhabited marine sediment.ISME J.1341353. 10.1038/ismej.2007.50

  • 323

    PrestonC. M.WuK. Y.MolinskiT. F.DeLongE. F. (1996). A psychrophilic crenarchaeon inhabits a marine sponge: Cenarchaeum symbiosum gen. nov., sp. nov.Proc. Natl. Acad. Sci. U.S.A.9362416246. 10.1073/pnas.93.13.6241

  • 324

    PurkholdU.Pommerening-RoserA.JuretschkoS.SchmidM. C.KoopsH.-P.WagnerM. (2000). Phylogeny of all recognized species of ammonia oxidizers based on comparative 16S rRNA and amoA sequence analysis: implications for molecular diversity surveys.Appl. Environ. Microbiol.6653685382. 10.1128/AEM.66.12.5368-5382.2000

  • 325

    QianG.WangJ.KanJ.ZhangX.XiaZ.ZhangX.et al (2018). Diversity and distribution of anammox bacteria in water column and sediments of the eastern Indian Ocean.Int. Biodeterior. Biodegr.1335262. 10.1016/j.ibiod.2018.05.015

  • 326

    QinW.AminS. A.Martens-HabbenaW.WalkerC. B.UrakawaH.DevolA. H.et al (2014). Marine ammonia-oxidizing archaeal isolates display obligate mixotrophy and wide ecotypic variation.Proc. Natl. Acad. Sci. U.S.A.1111250412509. 10.1073/pnas.1324115111

  • 327

    RadaxR.HoffmannF.RappH. T.LeiningerS.SchleperC. (2012). Ammonia-oxidizing archaea as main drivers of nitrification in cold-water sponges.Environ. Microbiol.14909923. 10.1111/j.1462-2920.2011.02661.x

  • 328

    RädeckerN.PogoreutzC.VoolstraC. R.WiedenmannJ.WildC. (2015). Nitrogen cycling in corals: the key to understanding holobiont functioning?Trends Microbiol.23490497. 10.1016/j.tim.2015.03.008

  • 329

    RaghoebarsingA. A.PolA.van de Pas-SchoonenK. T.SmoldersA. J. P.EttwigK. F.RijpstraW. I. C.et al (2006). A microbial consortium couples anaerobic methane oxidation to denitrification.Nature440918921. 10.1038/nature04617

  • 330

    RahavE.Bar-ZeevE.OhayonS.ElifantzH.BelkinN.HerutB.et al (2013). Dinitrogen fixation in aphotic oxygenated marine environments.Front. Microbiol.4:227. 10.3389/fmicb.2013.00227

  • 331

    RamosR.PajaresS. (2018). Reviews and syntheses: processes and functional genes involved in nitrogen cycling in marine environments.Biogeosci. Discuss. [Preprint]. 10.5194/bg-2018-2279

  • 332

    RaniS.KohH. W.RheeS. K.FujitaniH.ParkS. J. (2017). Detection and diversity of the nitrite oxidoreductase alpha subunit (nxrA) gene of Nitrospina in marine sediments.Microb. Ecol.73111122. 10.1007/s00248-016-0897-893

  • 333

    RasigrafO.SchmittJ.JettenM. S. M. M.LükeC. (2017). Metagenomic potential for and diversity of N-cycle driving microorganisms in the Bothnian Sea sediment.Microbiologyopen6:e00475. 10.1002/mbo3.475

  • 334

    ReesA. P.BrownI. J.JayakumarA.WardB. B. (2016). The inhibition of N2O production by ocean acidification in cold temperate and polar waters.Deep. Res. Part II Top. Stud. Oceanogr.12793101. 10.1016/j.dsr2.2015.12.006

  • 335

    ReesA. P.Turk-KuboK. A.Al-MoosawiL.AlliouaneS.GazeauF.HoganM. E.et al (2017). Ocean acidification impacts on nitrogen fixation in the coastal western Mediterranean Sea.Estuar. Coast. Shelf Sci.1864557. 10.1016/j.ecss.2016.01.020

  • 336

    ReyesC.SchneiderD.LipkaM.ThürmerA.BöttcherM. E.FriedrichM. W. (2017). Nitrogen metabolism genes from temperate marine sediments.Mar. Biotechnol.19175190. 10.1007/s10126-017-9741-9740

  • 337

    RichJ. J.ArevaloP.ChangB. X.DevolA. H.WardB. B. (2018). Anaerobic ammonium oxidation (anammox) and denitrification in Peru margin sediments.J. Mar. Syst. (in press). 10.1016/j.jmarsys.2018.09.007

  • 338

    RichJ. J.DaleO. R.SongB.WardB. B. (2008). Anaerobic ammonium oxidation (anammox) in Chesapeake Bay sediments.Microb. Ecol.55311320. 10.1007/s00248-007-9277-9273

  • 339

    RiemannL.FarnelidH.StewardG. F. (2010). Nitrogenase genes in non-cyanobacterial plankton: prevalence, diversity and regulation in marine waters.Aquat. Microb. Ecol.61235247. 10.3354/ame01431

  • 340

    Rios-Del ToroE. E.ValenzuelaE. I.López-LozanoN. E.Cortés-MartínezM. G.Sánchez-RodríguezM. A.Calvario-MartínezO.et al (2018). Anaerobic ammonium oxidation linked to sulfate and ferric iron reduction fuels nitrogen loss in marine sediments.Biodegradation29429442. 10.1007/s10532-018-9839-9838

  • 341

    Risgaard-PetersenN.LangezaalA. M.IngvardsenS.SchmidM. C.JettenM. S. M.Op.et al (2006). Evidence for complete denitrification in a benthic foraminifer.Nature4439396. 10.1038/nature05070

  • 342

    Risgaard-PetersenN.MeyerR.RevsbechN. (2005). Denitrification and anaerobic ammonium oxidation in sediments: effects of microphytobenthos and NO3.Aquat. Microb. Ecol.406776. 10.3354/ame040067

  • 343

    Risgaard-PetersenN.MeyerR.SchmidM.JettenM.Enrich-PrastA.RysgaardS.et al (2004). Anaerobic ammonium oxidation in an estuarine sediment.Aquat. Microb. Ecol.36293304. 10.3354/ame036293

  • 344

    RobertsonE. K.RobertsK. L.BurdorfL. D. W.CookP.ThamdrupB. (2016). Dissimilatory nitrate reduction to ammonium coupled to Fe(II) oxidation in sediments of a periodically hypoxic estuary.Limnol. Oceanogr.61365381. 10.1002/lno.10220

  • 345

    RotthauweJ.WitzelK. (1997). The ammonia monooxygenase structural gene amoA as a functional marker: molecular fine-scale analysis of natural ammonia-oxidizing populations.Appl. Environ. Microbiol.6347044712.

  • 346

    RushD.WakehamS. G.HopmansE. C.SchoutenS.Sinninghe DamstéJ. S. (2012). Biomarker evidence for anammox in the oxygen minimum zone of the Eastern Tropical North Pacific.Org. Geochem.538087. 10.1016/j.orggeochem.2012.02.005

  • 347

    RussL.KartalB.op den CampH. J. M.SollaiM.Le BruchecJ.CapraisJ. C.et al (2013). Presence and diversity of anammox bacteria in cold hydrocarbon-rich seeps and hydrothermal vent sediments of the Guaymas Basin.Front. Microbiol.4:219. 10.3389/fmicb.2013.00219

  • 348

    RysgaardS.GludR. N.Risgaard-PetersenN.DalsgaardT. (2004). Denitrification and anammox activity in Arctic marine sediments.Limnol. Oceanogr.4914931502. 10.4319/lo.2004.49.5.1493

  • 349

    SantoroA. E.BoehmA. B.FrancisC. (2006). Denitrifier community composition along a nitrate and salinity gradient in a coastal aquifer.Appl. Environ. Microbiol.7221022109. 10.1128/AEM.72.3.2102-2109.2006

  • 350

    SantoroA. E.BuchwaldC.McIlvinM. R.CasciottiK. L. (2011). Isotopic signature of N2O produced by marine ammonia-oxidizing archaea.Science33312821285. 10.1126/science.1208239

  • 351

    SantoroA. E.CasciottiK. L.FrancisC. A. (2010). Activity, abundance and diversity of nitrifying archaea and bacteria in the central California current.Environ. Microbiol.1219892006. 10.1111/j.1462-2920.2010.02205.x

  • 352

    SantoroA. E.SaitoM. A.GoepfertT. J.LamborgC. H.DupontC. L.DiTullioG. R. (2017). Thaumarchaeal ecotype distributions across the equatorial Pacific Ocean and their potential roles in nitrification and sinking flux attenuation.Limnol. Oceanogr.6219842003. 10.1002/lno.10547

  • 353

    SchaeferS. C.HollibaughJ. T. (2017). Temperature decouples ammonium and nitrite oxidation in coastal waters.Environ. Sci. Technol.5131573164. 10.1021/acs.est.6b03483

  • 354

    SchmidM. C.Risgaard-PetersenN.van de VossenbergJ.KuypersM. M. M.LavikG.PetersenJ.et al (2007). Anaerobic ammonium-oxidizing bacteria in marine environments: widespread occurrence but low diversity.Environ. Microbiol.914761484. 10.1111/j.1462-2920.2007.01266.x

  • 355

    SchunckH.LavikG.DesaiD. K.GroßkopfT.KalvelageT.LöscherC. R.et al (2013). Giant hydrogen sulfide plume in the oxygen minimum zone off Peru supports chemolithoautotrophy.PLoS One8:e68661. 10.1371/journal.pone.0068661

  • 356

    SeverinI.AcinasS. G.StalL. J. (2010). Diversity of nitrogen- fixing bacteria in cyanobacterial mats.FEMS Microbiol. Ecol.73514525. 10.1111/j.1574-6941.2010.00925.x

  • 357

    SeverinI.Bentzon-TiliaM.MoisanderP. H.RiemannL. (2015). Nitrogenase expression in estuarine bacterioplankton influenced by organic carbon and availability of oxygen.FEMS Microbiol. Lett.362:fnv105. 10.1093/femsle/fnv105

  • 358

    ShaoM.-F.ZhangT.FangH. H.-P.LiX. (2011). The effect of nitrate concentration on sulfide-driven autotrophic denitrification in marine sediment.Chemosphere8316. 10.1016/j.chemosphere.2011.01.042

  • 359

    ShaoS.LuanX.DangH.ZhouH.ZhaoY.LiuH.et al (2014). Deep-sea methane seep sediments in the Okhotsk Sea sustain diverse and abundant anammox bacteria.FEMS Microbiol. Ecol.87503516. 10.1111/1574-6941.12241

  • 360

    ShehzadA.LiuJ.YuM.QismatS.LiuJ.ZhangX.-H. (2016). Diversity, community composition and abundance of anammox bacteria in sediments of the north marginal seas of China.Microbes Environ.31111120. 10.1264/jsme2.ME15140

  • 361

    ShenL.HuB.LiuS.ChaiX.HeZ.RenH.et al (2016). Anaerobic methane oxidation coupled to nitrite reduction can be a potential methane sink in coastal environments.Appl. Microbiol. Biotechnol.10071717180. 10.1007/s00253-016-7627-7620

  • 362

    ShiD.XuY.HopkinsonB. M.MorelF. M. M. (2010). Effect of ocean acidification on iron availability to marine phytoplankton.Science327676679. 10.1126/science.1183517

  • 363

    ShiozakiT.BombarD.RiemannL.HashihamaF.TakedaS.YamaguchiT.et al (2017). Basin scale variability of active diazotrophs and nitrogen fixation in the North Pacific, from the tropics to the subarctic Bering Sea.Global Biogeochem. Cycles319961009. 10.1002/2017GB005681

  • 364

    ShiozakiT.FujiwaraA.IjichiM.HaradaN.NishinoS.NishiS.et al (2018). Diazotroph community structure and the role of nitrogen fixation in the nitrogen cycle in the Chukchi Sea (western Arctic Ocean).Limnol. Oceanogr.6321912205. 10.1002/lno.10933

  • 365

    ShiozakiT.IjichiM.IsobeK.HashihamaF.NakamuraK.EhamaM.et al (2016). Nitrification and its influence on biogeochemical cycles from the equatorial Pacific to the Arctic Ocean.ISME J.1021842197. 10.1038/ismej.2016.18

  • 366

    ShiozakiT.IjichiM.KodamaT.TakedaS.FuruyaK. (2014). Heterotrophic bacteria as major nitrogen fixers in the euphotic zone of the Indian Ocean.Global Biogeochem. Cycles2810961110. 10.1002/2014GB004886

  • 367

    ShiozakiT.NagataT.IjichiM.FuruyaK. (2015). Nitrogen fixation and the diazotroph community in the temperate coastal region of the northwestern North Pacific.Biogeosciences1247514764. 10.5194/bg-12-4751-2015

  • 368

    ShortS. M.JenkinsB. D.ZehrJ. P. (2004). Spatial and temporal distribution of two diazotrophic bacteria in the Chesapeake Bay.Appl. Environ. Microbiol.7021862192. 10.1128/AEM.70.4.2186-2192.2004

  • 369

    SiboniN.Ben-DovE.SivanA.KushmaroA. (2008). Global distribution and diversity of coral-associated archaea and their possible role in the coral holobiont nitrogen cycle.Environ. Microbiol.1029792990. 10.1111/j.1462-2920.2008.01718.x

  • 370

    SimonJ.KlotzM. G. (2013). Diversity and evolution of bioenergetic systems involved in microbial nitrogen compound transformations.Biochim. Biophys. Acta Bioenerg.1827114135. 10.1016/j.bbabio.2012.07.005

  • 371

    SinghA.BachL. T.FischerT.HaussH.KikoR.PaulA. J.et al (2017). Niche construction by non-diazotrophs for N2 fixers in the Eastern Tropical North Atlantic Ocean.Geophys. Res. Lett.4469046913. 10.1002/2017GL074218

  • 372

    SintesE.BergauerK.De CorteD.YokokawaT.HerndlG. J. (2013). Archaeal amoA gene diversity points to distinct biogeography of ammonia-oxidizing Crenarchaeota in the ocean.Environ. Microbiol.1516471658. 10.1111/j.1462-2920.2012.02801.x

  • 373

    SiplerR. E.GongD.BaerS. E.SandersonM. P.RobertsQ. N.MulhollandM. R.et al (2017). Preliminary estimates of the contribution of Arctic nitrogen fixation to the global nitrogen budget.Limnol. Oceanogr. Lett.2159166. 10.1002/lol2.10046

  • 374

    SlobodkinaG. B.MardanovA. V.RavinN. V.FrolovaA. A.ChernyhN. A.Bonch-OsmolovskayaE. A.et al (2017). Respiratory ammonification of nitrate coupled to anaerobic oxidation of elemental sulfur in deep-sea autotrophic thermophilic bacteria.Front. Microbiol.8:87. 10.3389/fmicb.2017.00087

  • 375

    SmithC. J.DongL. F.WilsonJ.StottA.OsbornA. M.NedwellD. B. (2015). Seasonal variation in denitrification and dissimilatory nitrate reduction to ammonia process rates and corresponding key functional genes along an estuarine nitrate gradient.Front. Microbiol.6:542. 10.3389/fmicb.2015.00542

  • 376

    SmithC. J.NedwellD. B.DongL. F.OsbornA. M. (2007). Diversity and abundance of nitrate reductase genes (narG and napA), nitrite reductase genes (nirS and nrfA), and their transcripts in estuarine sediments.Appl. Environ. Microbiol.7336123622. 10.1128/AEM.028942896

  • 377

    SmithJ. M.CasciottiK. L.ChavezF. P.FrancisC. A. (2014a). Differential contributions of archaeal ammonia oxidizer ecotypes to nitrification in coastal surface waters.ISME J.817041714. 10.1038/ismej.2014.11

  • 378

    SmithJ. M.ChavezF. P.FrancisC. A. (2014b). Ammonium uptake by phytoplankton regulates nitrification in the sunlit ocean.PLoS One9:e108173. 10.1371/journal.pone.0108173

  • 379

    SmithJ. M.DamashekJ.ChavezF. P.FrancisC. A. (2016). Factors influencing nitrification rates and the abundance and transcriptional activity of ammonia-oxidizing microorganisms in the dark Northeast Pacific Ocean.Limnol. Oceanogr.61596609. 10.1002/lno.10235

  • 380

    SmithJ. M.MosierA. C.FrancisC. A. (2015). Spatiotemporal relationships between the abundance, distribution, and potential activities of ammonia-oxidizing and denitrifying microorganisms in intertidal sediments.Microb. Ecol.691324. 10.1007/s00248-014-0450-451

  • 381

    SohmJ. A.HiltonA. A.NobleA. E.ZehrJ. P.SaitoM. A.WebbE. A. (2011a). Nitrogen fixation in the South Atlantic gyre and the benguela upwelling system.Geophys. Res. Lett.38:L16608. 10.1029/2011GL048315

  • 382

    SohmJ. A.WebbE. A.CaponeD. G. (2011b). Emerging patterns of marine nitrogen fixation.Nat. Rev. Microbiol.9499508. 10.1038/nrmicro2594

  • 383

    SokollS.HoltappelsM.LamP.CollinsG.SchlüterM.LavikG.et al (2012). Benthic nitrogen loss in the Arabian Sea off Pakistan.Front. Microbiol.3:395. 10.3389/fmicb.2012.00395

  • 384

    SomesC. J.LandolfiA.KoeveW.OschliesA. (2016). Limited impact of atmospheric nitrogen deposition on marine productivity due to biogeochemical feedbacks in a global ocean model.Geophys. Res. Lett.4345004509. 10.1002/2016GL068335

  • 385

    SongB.LisaJ. A.TobiasC. R. (2014). Linking DNRA community structure and activity in a shallow lagoonal estuarine system.Front. Microbiol.5:460. 10.3389/fmicb.2014.00460

  • 386

    SonthiphandP.HallM. W.NeufeldJ. D. (2014). Biogeography of anaerobic ammonia-oxidizing (anammox) bacteria.Front. Microbiol.5:399. 10.3389/fmicb.2014.00399

  • 387

    SpieckE.KeuterS.WenzelT.BockE.LudwigW. (2014). Characterization of a new marine nitrite oxidizing bacterium, Nitrospina watsonii sp. nov., a member of the newly proposed phylum “Nitrospinae.Syst. Appl. Microbiol.37170176. 10.1016/j.syapm.2013.12.005

  • 388

    StaalM.RabouilleS.StalL. J. (2007). On the role of oxygen for nitrogen fixation in the marine cyanobacterium Trichodesmium sp.Environ. Microbiol.9727736. 10.1111/j.1462-2920.2006.01195.x

  • 389

    StalL. J. (2009). Is the distribution of nitrogen-fixing cyanobacteria in the oceans related to temperature?Environ. Microbiol.1116321645. 10.1111/j.1758-2229.2009.00016.x

  • 390

    SteinL. Y. (2011). Surveying N2O-producing pathways in bacteria.Methods Enzymol.486131152. 10.1016/B978-0-12-381294-0.00006-7

  • 391

    StenegrenM.CaputoA.BergC.BonnetS.FosterR. A. (2018). Distribution and drivers of symbiotic and free-living diazotrophic cyanobacteria in the Western Tropical South Pacific.Biogeosciences1515591578. 10.5194/bg-15-1559-2018

  • 392

    StiefP.Fuchs-OcklenburgS.KampA.ManoharC.-S.HoubrakenJ.BoekhoutT.et al (2014). Dissimilatory nitrate reduction by Aspergillus terreus isolated from the seasonal oxygen minimum zone in the Arabian Sea.BMC Microbiol.14:35. 10.1186/1471-2180-14-35

  • 393

    StieglmeierM.MooshammerM.KitzlerB.WanekW.Zechmeister-BoltensternS.RichterA.et al (2014). Aerobic nitrous oxide production through N-nitrosating hybrid formation in ammonia-oxidizing archaea.ISME J.811351146. 10.1038/ismej.2013.220

  • 394

    StrousM.PelletierE.MangenotS.RatteiT.LehnerA.TaylorM. W.et al (2006). Deciphering the evolution and metabolism of an anammox bacterium from a community genome.Nature440790794. 10.1038/nature04647

  • 395

    SunX.JiQ.JayakumarA.WardB. B. (2017). Dependence of nitrite oxidation on nitrite and oxygen in low-oxygen seawater.Geophys. Res. Lett.4478837891. 10.1002/2017GL074355

  • 396

    SunX.KopL. F. M.LauM. C. Y.FrankJ.JayakumarA.LückerS.et al (2019). Uncultured nitrospina-like species are major nitrite oxidizing bacteria in oxygen minimum zones.ISME J.1323912402. 10.1038/s41396-019-0443-447

  • 397

    SuntharalingamP.BuitenhuisE.Le QuéréC.DentenerF.NevisonC.ButlerJ. H.et al (2012). Quantifying the impact of anthropogenic nitrogen deposition on oceanic nitrous oxide.Geophys. Res. Lett.3916. 10.1029/2011GL050778

  • 398

    SyakilaA.KroezeC. (2011). The global nitrous oxide budget revisited.Greenh. Gas Meas. Manag.11726. 10.3763/ghgmm.2010.0007

  • 399

    TaitK.KitidisV.WardB.CummingsD.JonesM.SomerfieldP.et al (2014). Spatio-temporal variability in ammonia oxidation and ammonia-oxidising bacteria and archaea in coastal sediments of the western english channel.Mar. Ecol. Prog. Ser.5114158. 10.3354/meps10933

  • 400

    TakeuchiJ. (2006). Habitat segregation of a functional gene encoding nitrate ammonification in estuarine sediments.Geomicrobiol. J.237587. 10.1080/01490450500533866

  • 401

    TalY.WattsJ. E. M.SchreierH. J. (2005). Anaerobic ammonia-oxidizing bacteria and related activity in baltimore inner harbor sediment.Appl. Environ. Microbiol.7118161821. 10.1128/AEM.71.4.1816-1821.2005

  • 402

    TamegaiH.AokiR.ArakawaS.KatoC. (2007). Molecular analysis of the nitrogen cycle in deep-sea microorganisms from the nankai trough: genes for nitrification and denitrification from deep-sea environmental DNA.Extremophiles11269275. 10.1007/s00792-006-0035-30

  • 403

    TangW.WangS.Fonseca-BatistaD.DehairsF.GiffordS.GonzalezA. G.et al (2019). Revisiting the distribution of oceanic N2 fixation and estimating diazotrophic contribution to marine production.Nat. Commun.10:831. 10.1038/s41467-019-08640-8640

  • 404

    TeixeiraC.MagalhãesC.JoyeS. B.BordaloA. A. (2016). Response of anaerobic ammonium oxidation to inorganic nitrogen fluctuations in temperate estuarine sediments.J. Geophys. Res. Biogeosci.12118291839. 10.1002/2015JG003287

  • 405

    ThamdrupB. (2012). New pathways and processes in the global nitrogen cycle.Annu. Rev. Ecol. Evol. Syst.43407428. 10.1146/annurev-ecolsys-102710-145048

  • 406

    ThamdrupB.DalsgaardT. (2002). Production of N2 through anaerobic ammonium oxidation coupled to nitrate reduction in marine sediments.Appl. Environ. Microbiol.6813121318. 10.1128/AEM.68.3.1312-1318.2002

  • 407

    ThamdrupB.SteinsdóttirH. G. R.BertagnolliA. D.PadillaC. C.PatinN. V.Garcia-RobledoE.et al (2019). Anaerobic methane oxidation is an important sink for methane in the ocean’s largest oxygen minimum zone.Limnol. Oceanogr.6425692585. 10.1002/lno.11235

  • 408

    ThompsonA. W.FosterR. A.KrupkeA.CarterB. J.MusatN.VaulotD.et al (2012). Unicellular cyanobacterium symbiotic with a single-celled eukaryotic alga.Science33715461550. 10.1126/science.1222700

  • 409

    ThompsonA.CarterB. J.Turk-KuboK.MalfattiF.AzamF.ZehrJ. P. (2014). Genetic diversity of the unicellular nitrogen-fixing cyanobacteria UCYN-A and its prymnesiophyte host.Environ. Microbiol.1632383249. 10.1111/1462-2920.12490

  • 410

    TiedjeJ. M. (1988). “Ecology of denitrification and dissimilatory nitrate reduction to ammonium,” in Environmental Microbiology of Anaerobes, ed.ZehnderA. J. B., (New York, NY: John Wiley & Sons), 179244.

  • 411

    TikhonovaT. V.SlutskyA.AntipovA. N.BoykoK. M.PolyakovK. M.SorokinD. Y.et al (2006). Molecular and catalytic properties of a novel cytochrome c nitrite reductase from nitrate-reducing haloalkaliphilic sulfur-oxidizing bacterium thioalkalivibrio nitratireducens.Biochim. Biophys. Acta Proteins Proteom.1764715723. 10.1016/j.bbapap.2005.12.021

  • 412

    TimmersP. H. A.WelteC. U.KoehorstJ. J.PluggeC. M.JettenM. S. M.StamsA. J. M. (2017). Reverse methanogenesis and respiration in methanotrophic archaea.Archaea2017122. 10.1155/2017/1654237

  • 413

    TrimmerM.EngströmP. (2011). “Distribution, activity, and ecology of anammox bacteria in aquatic environments,” in Nitrification, edsWardB. B.ArpD. J.KlotzM. G., (Washington, D.C: ASM Press), 201235.

  • 414

    TrimmerM.ChronopoulouP.-M.MaanojaS. T.Upstill-GoddardR. C.KitidisV.PurdyK. J. (2016). Nitrous oxide as a function of oxygen and archaeal gene abundance in the North Pacific.Nat. Commun.7:13451. 10.1038/ncomms13451

  • 415

    TrimmerM.NichollsJ. C.DeflandreB. (2003). Anaerobic ammonium oxidation measured in sediments along the Thames Estuary, United Kingdom.Appl. Environ. Microbiol.6964476454. 10.1128/AEM.69.11.6447-6454-2003

  • 416

    TrimmerM.NichollsJ. C.MorleyN.DaviesC. A.AldridgeJ. (2005). Biphasic behavior of anammox regulated by nitrite and nitrate in an estuarine sediment.Appl. Environ. Microbiol.7119231930. 10.1128/AEM.71.4.1923-1930.2005

  • 417

    TsementziD.WuJ.DeutschS.NathS.Rodriguez-RL. M.BurnsA. S.et al (2016). SAR11 bacteria linked to ocean anoxia and nitrogen loss.Nature536179183. 10.1038/nature19068

  • 418

    TullyB. J.HeidelbergJ. F. (2016). Potential mechanisms for microbial energy acquisition in oxic deep-sea sediments.Appl. Environ. Microbiol.8242324243. 10.1128/AEM.01023-1016

  • 419

    TurkK. A.ReesA. P.ZehrJ. P.PereiraN.SwiftP.ShelleyR.et al (2011). Nitrogen fixation and nitrogenase (nifH) expression in tropical waters of the Eastern North Atlantic.ISME J.512011212. 10.1038/ismej.2010.205

  • 420

    Turk-KuboK. A.AchillesK. M.SerrosT. R. C.OchiaiM.MontoyaJ. P.ZehrJ. P. (2012). Nitrogenase (nifH) gene expression in diazotrophic cyanobacteria in the Tropical North Atlantic in response to nutrient amendments.Front. Microbiol.3:386. 10.3389/fmicb.2012.00386

  • 421

    Turk-KuboK. A.ConnellP.CaronD.HoganM. E.FarnelidH. M.ZehrJ. P. (2018). In situ diazotroph population dynamics under different resource ratios in the North Pacific Subtropical Gyre.Front. Microbiol.9:1616. 10.3389/fmicb.2018.01616

  • 422

    Turk-KuboK. A.FarnelidH. M.ShilovaI. N.HenkeB.ZehrJ. P. (2017). Distinct ecological niches of marine symbiotic N2-fixing cyanobacterium Candidatus Atelocyanobacterium thalassa sublineages.J. Phycol.53451461. 10.1111/jpy.12505

  • 423

    Turk-KuboK. A.FrankI. E.HoganM. E.DesnuesA.BonnetS.ZehrJ. P. (2015). Diazotroph community succession during the VAHINE mesocosm experiment (New Caledonia lagoon).Biogeosciences1274357452. 10.5194/bg-12-7435-2015

  • 424

    UrakawaH.Martens-HabbenaW.HuguetC.de la TorreJ. R.IngallsA. E.DevolA. H.et al (2014). Ammonia availability shapes the seasonal distribution and activity of archaeal and bacterial ammonia oxidizers in the puget sound estuary.Limnol. Oceanogr.5913211335. 10.4319/lo.2014.59.4.1321

  • 425

    VajralaN.Martens-HabbenaW.Sayavedra-SotoL. A.SchauerA.BottomleyP. J.StahlD. A.et al (2013). Hydroxylamine as an intermediate in ammonia oxidation by globally abundant marine archaea.Proc. Natl. Acad. Sci. U.S.A.11010061011. 10.1073/pnas.1214272110

  • 426

    VaksmaaA.JettenM. S. M.EttwigK. F.LükeC. (2017). mcrA primers for the detection and quantification of the anaerobic archaeal methanotroph ‘Candidatus Methanoperedens nitroreducens.’.Appl. Microbiol. Biotechnol.10116311641. 10.1007/s00253-016-8065-8068

  • 427

    van de VossenbergJ.RattrayJ. E.GeertsW.KartalB.van NiftrikL.van DonselaarE. G.et al (2008). Enrichment and characterization of marine anammox bacteria associated with global nitrogen gas production.Environ. Microbiol.1031203129. 10.1111/j.1462-2920.2008.01643.x

  • 428

    van de VossenbergJ.WoebkenD.MaalckeW. J.WesselsH. J. C. T.DutilhB. E.KartalB.et al (2013). The metagenome of the marine anammox bacterium ‘Candidatus Scalindua profunda’ illustrates the versatility of this globally important nitrogen cycle bacterium.Environ. Microbiol.1512751289. 10.1111/j.1462-2920.2012.02774.x

  • 429

    van den BergE. M.RomboutsJ. L.KuenenJ. G.KleerebezemR.van LoosdrechtM. C. M. (2017). Role of nitrite in the competition between denitrification and DNRA in a chemostat enrichment culture.AMB Express7:91. 10.1186/s13568-017-0398-x

  • 430

    van KesselM. A. H. J.SpethD. R.AlbertsenM.NielsenP. H.Op, den CampH. J. M.et al (2015). Complete nitrification by a single microorganism.Nature528555559. 10.1038/nature16459

  • 431

    Vaquer-SunyerR.DuarteC. M. (2008). Thresholds of hypoxia for marine biodiversity.Proc. Natl. Acad. Sci. U.S.A.1051545215457. 10.1073/pnas.0803833105

  • 432

    VillarealT. (1991). Nitrogen-fixation by the cyanobacterial symbiont of the diatom genus Hemiaulus.Mar. Ecol. Prog. Ser.76201204. 10.3354/meps076201

  • 433

    VossM.BangeH. W.DippnerJ. W.MiddelburgJ. J.MontoyaJ. P.WardB. B. (2013). The marine nitrogen cycle: recent discoveries, uncertainties and the potential relevance of climate change.Philos. Trans. R. Soc. B368:20130121. 10.1098/rstb.2013.0121

  • 434

    WalkerC. B.de la TorreJ. R.KlotzM. G.UrakawaH.PinelN.ArpD. J.et al (2010). Nitrosopumilus maritimus genome reveals unique mechanisms for nitrification and autotrophy in globally distributed marine crenarchaea.Proc. Natl. Acad. Sci. U.S.A.10788188823. 10.1073/pnas.0913533107

  • 435

    WangJ.ShenL.HeZ.HuJ.CaiZ.ZhengP.et al (2017). Spatial and temporal distribution of nitrite-dependent anaerobic methane-oxidizing bacteria in an intertidal zone of the East China Sea.Appl. Microbiol. Biotechnol.10180078014. 10.1007/s00253-017-8521-8520

  • 436

    WangL.ZhengB.NanB.HuP. (2014). Diversity of bacterial community and detection of nirS- and nirK-encoding denitrifying bacteria in sandy intertidal sediments along Laizhou Bay of Bohai Sea.China. Mar. Pollut. Bull.88215223. 10.1016/j.marpolbul.2014.09.002

  • 437

    WannickeN.FreyC.LawC. S.VossM. (2018). The response of the marine nitrogen cycle to ocean acidification.Glob. Chang. Biol.2450315043. 10.1111/gcb.14424

  • 438

    WardB. B. B.DevolA. H.RichJ. J.ChangB. X.BulowS. E.NaikH.et al (2009). Denitrification as the dominant nitrogen loss process in the Arabian Sea.Nature4617881. 10.1038/nature08276

  • 439

    WardB. B.TuitC. B.JayakumarA.RichJ. J.MoffettJ.NaqviS. W. A. (2008). Organic carbon, and not copper, controls denitrification in oxygen minimum zones of the ocean.Deep Sea Res. Part I Oceanogr. Res. Pap.5516721683. 10.1016/j.dsr.2008.07.005

  • 440

    WatsonS. W.WaterburyJ. B. (1971). Characteristics of two marine nitrite oxidizing bacteria, nitrospina gracilis nov. gen. nov. sp. and Nitrococcus mobilis nov. gen. nov. sp.Arch. Mikrobiol.77203230. 10.1007/BF00408114

  • 441

    WelshA.Chee-SanfordJ. C.ConnorL. M.LöfflerF. E.SanfordR. A. (2014). Refined NrfA phylogeny improves PCR-based nrfA gene detection.Appl. Environ. Microbiol.8021102119. 10.1128/AEM.03443-3413

  • 442

    WenZ.LinW.ShenR.HongH.KaoS. J.ShiD. (2017). Nitrogen fixation in two coastal upwelling regions of the Taiwan Strait.Sci. Rep.7:17601. 10.1038/s41598-017-18006-18005

  • 443

    WilsonS. T.del ValleD. A.Segura-NogueraM.KarlD. M. (2014). A role for nitrite in the production of nitrous oxide in the lower euphotic zone of the oligotrophic North Pacific Ocean.Deep Sea Res. Part I Oceanogr. Res. Pap.854755. 10.1016/j.dsr.2013.11.008

  • 444

    WittorfL.Bonilla-RossoG.JonesC. M.BäckmanO.HulthS.HallinS. (2016). Habitat partitioning of marine benthic denitrifier communities in response to oxygen availability.Environ. Microbiol. Rep.8486492. 10.1111/1758-2229.12393

  • 445

    WoebkenD.BurowL. C.BehnamF.MayaliX.SchintlmeisterA.FlemingE. D.et al (2015). Revisiting N2 fixation in Guerrero Negro intertidal microbial mats with a functional single-cell approach.ISME J.9485496. 10.1038/ismej.2014.144

  • 446

    WoebkenD.BurowL. C.Prufert-BeboutL.BeboutB. M.HoehlerT. M.Pett-RidgeJ.et al (2012). Identification of a novel cyanobacterial group as active diazotrophs in a coastal microbial mat using NanoSIMS analysis.ISME J.614271439. 10.1038/ismej.2011.200

  • 447

    WoebkenD.FuchsB. M.KuypersM. M. M.AmannR. (2007). Potential interactions of particle-associated anammox bacteria with bacterial and archaeal partners in the Namibian upwelling system.Appl. Environ. Microbiol.7346484657. 10.1128/AEM.02774-2776

  • 448

    WoebkenD.LamP.KuypersM. M. M.NaqviS. W. A.KartalB.StrousM.et al (2008). A microdiversity study of anammox bacteria reveals a novel Candidatus Scalindua phylotype in marine oxygen minimum zones.Environ. Microbiol.1031063119. 10.1111/j.1462-2920.2008.01640.x

  • 449

    WuM. L.EttwigK. F.JettenM. S. M.StrousM.KeltjensJ. T.NiftrikL.et al (2011). A new intra-aerobic metabolism in the nitrite-dependent anaerobic methane-oxidizing bacterium Candidatus ‘Methylomirabilis oxyfera.’.Biochem. Soc. Trans.39243248. 10.1042/BST0390243

  • 450

    WuY.CaoY.WangC.WuM.AharonO.XuX. (2014). Microbial community structure and nitrogenase gene diversity of sediment from a deep-sea hydrothermal vent field on the Southwest Indian Ridge.Acta Oceanol. Sin.3394104. 10.1007/s13131-014-0544-540

  • 451

    WuchterC.AbbasB.CoolenM. J. L.HerfortL.van BleijswijkJ.TimmersP.et al (2006). Archaeal nitrification in the ocean.Proc. Natl. Acad. Sci. U.S.A.1031231712322. 10.1073/pnas.0600756103

  • 452

    WymanM.HodgsonS.BirdC. (2013). Denitrifying alphaproteobacteria from the Arabian Sea that express nosZ, the gene encoding nitrous oxide reductase, in oxic and suboxic waters.Appl. Environ. Microbiol.7926702681. 10.1128/AEM.03705-3712

  • 453

    XiaF.WangJ.-G.ZhuT.ZouB.RheeS.-K.QuanZ.-X. (2018). Ubiquity and diversity of complete ammonia oxidizers (comammox).Appl. Environ. Microbiol.84:e01390-18. 10.1128/AEM.01390-1318

  • 454

    XuW.LiM.DingJ.-F.GuJ.-D.LuoZ.-H. (2014). Bacteria dominate the ammonia-oxidizing community in a hydrothermal vent site at the mid-atlantic ridge of the South Atlantic Ocean.Appl. Microbiol. Biotechnol.9879938004. 10.1007/s00253-014-5833-5831

  • 455

    YangS.GruberN. (2016). The anthropogenic perturbation of the marine nitrogen cycle by atmospheric deposition: nitrogen cycle feedbacks and the 15N haber-bosch effect.Global Biogeochem. Cycles3014181440. 10.1002/2016GB005421

  • 456

    YangS.SunW.ZhangF.LiZ. (2013). Phylogenetically diverse denitrifying and ammonia-oxidizing bacteria in corals Alcyonium gracillimum and Tubastraea coccinea.Mar. Biotechnol.15540551. 10.1007/s10126-013-9503-9506

  • 457

    YinG.HouL.LiuM.LiX.ZhengY.GaoJ.et al (2017). DNRA in intertidal sediments of the Yangtze Estuary.J. Geophys. Res. Biogeosci.12219881998. 10.1002/2017JG003766

  • 458

    YoolA.MartinA. P.FernándezC.ClarkD. R. (2007). The significance of nitrification for oceanic new production.Nature4479991002. 10.1038/nature05885

  • 459

    YuT.LiM.NiuM.FanX.LiangW.WangF. (2018). Difference of nitrogen-cycling microbes between shallow bay and deep-sea sediments in the South China Sea.Appl. Microbiol. Biotechnol.102447459. 10.1007/s00253-017-8594-8599

  • 460

    ZakemE. J.Al-HajA.ChurchM. J.van DijkenG. L.DutkiewiczS.FosterS. Q.et al (2018). Ecological control of nitrite in the upper ocean.Nat. Commun.9:1206. 10.1038/s41467-018-03553-w

  • 461

    ZehrJ. P.KudelaR. M. (2011). Nitrogen cycle of the open ocean: from genes to ecosystems.Ann. Rev. Mar. Sci.3197225. 10.1146/annurev-marine-120709-142819

  • 462

    ZehrJ. P.PaerlH. W. (2008). “Molecular ecological aspects of nitrogen fixation in the marine environment,” in Microbial Ecology of the Oceans, ed.KirchmanD. L., (Hoboken, NJ: John Wiley & Sons, Inc.), 481525. 10.1002/9780470281840.ch13

  • 463

    ZehrJ. P.BenchS. R.CarterB. J.HewsonI.NiaziF.ShiT.et al (2008). Globally distributed uncultivated oceanic N2-fixing cyanobacteria lack oxygenic photosystem II.Science32211101112. 10.1126/science.1165340

  • 464

    ZehrJ. P.BenchS. R.MondragonE. A.McCarrenJ.DeLongE. F. (2007). Low genomic diversity in tropical oceanic N2-fixing cyanobacteria.Proc. Natl. Acad. Sci. U.S.A.1041780717812. 10.1073/pnas.0701017104

  • 465

    ZehrJ. P.JenkinsB. D.ShortS. M.StewardG. F. (2003). Nitrogenase gene diversity and microbial community structure: a cross-system comparison.Environ. Microbiol.5539554. 10.1046/j.1462-2920.2003.00451.x

  • 466

    ZehrJ. P.MellonM.ZaniS. (1998). New nitrogen-fixing microorganisms detected in oligotrophic oceans by amplification of nitrogenase (nifH) genes.Appl. Environ. Microbiol.6434443450.

  • 467

    ZehrJ. P.ShilovaI. N.FarnelidH. M.Muñoz-MarínM. C.Turk-KuboK. A. (2016). Unusual marine unicellular symbiosis with the nitrogen-fixing cyanobacterium UCYN-A.Nat. Microbiol.2:16214. 10.1038/nmicrobiol.2016.214

  • 468

    ZehrJ. P.WaterburyJ. B.TurnerP. J.MontoyaJ. P.OmoregieE.StewardG. F.et al (2001). Unicellular cyanobacteria fix N2 in the subtropical North Pacific Ocean.Nature412635638. 10.1038/35088063

  • 469

    ZehrJ.WardB. B. (2002). Nitrogen cycling in the ocean: new perspectives on processes and paradigms.Appl. Environ. Microbiol.6810151024. 10.1128/AEM.68.3.1015

  • 470

    ZhangF.PitaL.ErwinP. M.AbaidS.López-LegentilS.HillR. T. (2014). Symbiotic archaea in marine sponges show stability and host specificity in community structure and ammonia oxidation functionality.FEMS Microbiol. Ecol.90699707. 10.1111/1574-6941.12427

  • 471

    ZhangM.LuoY.LinL.LinX.HetharuaB.ZhaoW.et al (2018). Molecular and stable isotopic evidence for the occurrence of nitrite-dependent anaerobic methane-oxidizing bacteria in the mangrove sediment of Zhangjiang Estuary China.Appl. Microbiol. Biotechnol.10224412454. 10.1007/s00253-017-8718-8712

  • 472

    ZhangY.XieX.JiaoN.HsiaoS. S. Y.KaoS. J. (2014). Diversity and distribution of amoA-type nitrifying and nirS-type denitrifying microbial communities in the Yangtze River Estuary.Biogeosciences1121312145. 10.5194/bg-11-2131-2014

  • 473

    ZhengY.HouL.LiuM.LiuZ.LiX.LinX.et al (2016). Tidal pumping facilitates dissimilatory nitrate reduction in intertidal marshes.Sci. Rep.6:21338. 10.1038/srep21338

  • 474

    ZhengY.HouL.NewellS.LiuM.ZhouJ.ZhaoH.et al (2014). Community dynamics and activity of ammonia-oxidizing prokaryotes in intertidal sediments of the Yangtze Estuary.Appl. Environ. Microbiol.80408419. 10.1128/AEM.03035-3013

  • 475

    ZhuX.BurgerM.DoaneT. A.HorwathW. R. (2013). Ammonia oxidation pathways and nitrifier denitrification are significant sources of N2O and NO under low oxygen availability.Proc. Natl. Acad. Sci. U.S.A.11063286333. 10.1073/pnas.1219993110

  • 476

    ZumftW. G. (1997). Cell biology and molecular basis of denitrification.Microbiol. Mol. Biol. Rev.61533616.

Summary

Keywords

nitrogen processes, marine ecosystems, microbial community, functional nitrogen genes, anthropogenic activity, nitrous oxide

Citation

Pajares S and Ramos R (2019) Processes and Microorganisms Involved in the Marine Nitrogen Cycle: Knowledge and Gaps. Front. Mar. Sci. 6:739. doi: 10.3389/fmars.2019.00739

Received

03 June 2019

Accepted

13 November 2019

Published

29 November 2019

Volume

6 - 2019

Edited by

Lasse Riemann, University of Copenhagen, Denmark

Reviewed by

Mar Benavides, Institut de Recherche pour le Développement (IRD), France; Bo Thamdrup, University of Southern Denmark, Denmark; Robinson W. (Wally) Fulweiler, Boston University, United States

Updates

Copyright

*Correspondence: Silvia Pajares, ;

These authors have contributed equally to this work

This article was submitted to Aquatic Microbiology, a section of the journal Frontiers in Marine Science

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
