Abstract
Since the discovery of Endothelial Progenitor Cells (EPC) by Asahara and colleagues in 1997, an increasing number of preclinical studies have shown that EPC based therapy is feasible, safe, and efficacious in multiple disease states. Subsequently, this has led to several, mainly early phase, clinical trials demonstrating the feasibility and safety profile of EPC therapy, with the suggestion of efficacy in several conditions including ischemic heart disease, pulmonary arterial hypertension and decompensated liver cirrhosis. Despite the use of the common term “EPC,” the characteristics, manufacturing methods and subset of the cell type used in these studies often vary significantly, rendering clinical translation challenging. It has recently been acknowledged that the true EPC is the endothelial colony forming cells (ECFC). The objective of this review was to summarize and critically appraise the registered and published clinical studies using the term “EPC,” which encompasses a heterogeneous cell population, as a therapeutic agent. Furthermore, the preclinical data using ECFC from the PubMed and Web of Science databases were searched and analyzed. We noted that despite the promising effect of ECFC on vascular regeneration, no clinical study has stemmed from these preclinical studies. We showed that there is a lack of information registered on www.clinicaltrials.gov for EPC clinical trials, specifically on cell culture methods. We also highlighted the importance of a detailed definition of the cell type used in EPC clinical trials to facilitate comparisons between trials and better understanding of the potential clinical benefit of EPC based therapy. We concluded our review by discussing the potential and limitations of EPC based therapy in clinical settings.
Introduction
The term “putative endothelial cell progenitors” was pioneered by Asahara et al in their seminal publication in Science over two decades ago (1). They showed that this cell population can be successfully isolated from peripheral blood derived mononuclear cells of healthy volunteers, utilizing magnetic bead positive selection of two cell surface antigens, CD34, and Flk1. They also demonstrated that EPCs could home specifically to areas of ischemia. This forms the basis of vasculogenesis, whereby new blood vessels are formed by EPCs or angioblasts, which home, differentiate, proliferate, and incorporate into resident mature vessels in response to various stimuli such as ischemia (2). Prior to the discovery of this cell population, the principal mechanism of vascularization after an ischemic event was thought to be due to the process of angiogenesis, whereby new vessels are formed by direct migration, differentiation, and proliferation of the existing mature endothelial cells (3). Furthermore, the discovery of this novel EPC concept has overturned the previous dogma which suggested that vasculogenesis could only occur during embryogenesis. In fact, both vasculogenesis and angiogenesis may potentially have a synergistic role in postnatal revascularization.
The new paradigm shift in the understanding of vascular regeneration has led to multiple publications using the term “EPC.” Specifically, this term has been widely utilized in many studies as a surrogate biomarker to assess the risk of cardiovascular disease in human subjects (4–6) and as a potential novel therapeutic agent for vascular regeneration (7, 8). The initial nomenclature of EPC encompasses a heterogeneous cell population, including early EPC [or circulating angiogenic cells (CAC), myeloid angiogenic cells (MACs), pro-angiogenic haematopoietic cells (PACs)] and late EPC [or outgrowth endothelial cells, endothelial colony forming cells (ECFC)] (9–12).
Early EPCs typically are cultured on fibronectin coated plates and appear early in culture (4–7 days). They are defined as spindled shaped cells with low proliferative potential, with cells only surviving up to 4 weeks in culture (13, 14). Functionally, early EPCs neither form a colony in culture nor vessels in vitro in 2D Matrigel assays. They also do not integrate into pre-existing vessels. Despite this, they have been found to have pro-angiogenic paracrine capabilities, demonstrated by their ability to increase the number of tubules formed by mature endothelial cells (13). Medina et al. showed that early EPCs possessed an expression profile more similar to monocytes than endothelial cells, with cells expressing haematopoietic markers (RUNX1,WAS,LYN) as well as inflammatory markers (TLRs,CD14,HLAs) (12). Subsequently, Medina et al. showed that early EPCs were of myeloid origin as opposed to endothelial in origin (10). In contrast, late EPCs are cultured on collagen coated plates and tend to appear later in culture (usually after 1 week) as colonies with well circumscribed monolayers of cells pertaining a cobblestone morphology. Late EPCs behave functionally like endothelial cells with the ability to form vessels in 2D Matrigel angiogenesis assays. They also have an expression profile similar to mature endothelial cells (CD34+,VE-Cad+,vWF+) but have a much higher proliferation rate, and survival, with cells surviving up to 12 weeks. These cells secrete less angiogenic factors compared to early EPCs (9, 10, 12, 14). A more in depth comparison of these cell types can be found in a review by Hirschi et al. (15).
A recent Consensus Statement on Nomenclature of endothelial progenitors has discouraged the current liberal use of the term “EPCs,” and recommends the term “ECFC” instead. They have also proposed a more precise characterization of ECFCs based on a pre-defined cellular phenotype and function (10). This is a crucial step in defining the term “EPC” which will lead to the harmonization and standardization of the cell type used in clinical studies, thus allowing comparisons to be made across different studies.
The objective of this review was to search the current literature and critically appraise the current use of EPCs as therapeutic agents by summarizing: (a) clinical trials using EPCs as a therapeutic agent currently registered in www.clinicaltrials.gov; (b) published clinical trials using EPCs as a therapeutic agent; and (c) the efficacy of ECFCs in preclinical and clinical studies. We also highlight the potential and limitations of EPC based therapy in clinical settings.
Materials and Methods
Three separate literature searches were conducted to generate the data presented here (Appendices 1–3). “EPC” was used as the first search term and this was carried out using the www.clinicaltrials.gov database, focusing specifically on interventional therapies only. The second literature search focused on clinical trials in humans using the term “EPCs” as a therapeutic intervention using the PubMed and Web of Science databases published within the last 10 years. The third literature search (PubMed and Web of Science databases) was performed using the synonymous names of ECFCs, “Endothelial Colony Forming Cells or Outgrowth Endothelial Cells or Blood Outgrowth Endothelial Cells or Endothelial Outgrowth Cells or Late Endothelial Progenitor Cells or Late Outgrowth Endothelial Progenitor Cells,” as defined by Medina et al. (10) as the search term. Results were limited to primary interventional studies carried out within the last 10 years.
Results
Clinical Trials Using EPCs As Therapeutic Agent, Registered Under www.clinicaltrials.gov Registry
A total of 341 clinical trials were found when the term “EPC” was searched using the www.clinicaltrials.gov registry (22/09/05 to 12/04/17). Many of the registered trials related to the assessment of EPCs across various clinical states and were non-interventional in nature. There are 26 clinical trials which utilized EPCs as a therapeutic agent currently registered in www.clinicaltrials.gov (Table 1) with a total of 1,148 participants expected to be enrolled into the trials. Approximately two thirds of these registered clinical trials involved patients with ischemic conditions such as peripheral artery disease (n = 8), coronary artery disease (n = 7) and ischemic stroke (n = 2). The remaining conditions registered were pulmonary arterial hypertension (n = 4), liver cirrhosis (n = 2), lymphodema (n = 1), erectile dysfunction (n = 1), and traumatic bone defects (n = 1) (Table 1).

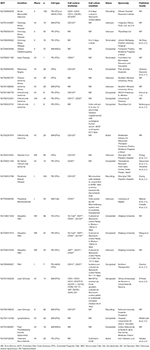

Table 1
| NCT | Condition | Phase | n | Cell type | Cell surface marker(s) | Cell culture condition | Status | Sponsor(s) | Published results |
|---|---|---|---|---|---|---|---|---|---|
| NCT00936819 | Acute Myocardial Infarction | II | 100 | PB-EPCs or eNOS-EPCs | CD31, CD34, CD14, CXCR4, VEGFR2 | 2-3 days culture in fibronectin coated plates | Recruiting | Ottawa Hospital Research Institute | NR |
| NCT01049867 | Coronary Artery Disease | I/II | 10 | BM-EPCs | CD133+ | NR | Unknown | Hospital y Clinica OCA, S.A. de C.V. | NR |
| NCT00384514 | Coronary Artery Disease | II | 24 | PB-EPCs | NR | NR | Unknown | TheraVitae Ltd | NR |
| NCT00289822 | Coronary Artery Disease | II | 75 | PB-EPCs | NR | 0 or 3 days culture | Terminated | Johann Wolfgang Goethe University Hospital | De Rosa et al. (16) |
| NCT00629096 | Dilated Cardiomyopathy | II | 27 | BM-MNCs | NR | NR | Completed | Fundación Pública Andaluza Progreso y Salud | NR |
| NCT00221182 | Heart Disease | I/II | 1 | PB-EPCs | CD34+ | NR | Terminated | Foundation for Biomedical Research and Innovation | NR |
| NCT00694642 | Refractory Angina | I/II | 28 | EPCs | CD133+ | N/A | Completed | Pilar Jimenez Quevedo | Jimenez-Quevedo et al. (17) |
| NCT02605707 | Chronic Ischemic Stroke | I/II | 30 | EPCs | NR | NR | Unknown | Southern Medical University, China | NR |
| NCT01468064 | Ischemic Stroke | I/II | 20 | BM-EPCs | NR | NR | Unknown | Southern Medical University, China | NR |
| NCT01595776 | Critical Limb Ischemia | I/II | 8 | PB-EPCs | CD133+ | NR | Completed | IRCCS Policlinico S. Mattteo | Arici et al. (18) |
| NCT02454231 | Critical Limb Ischemia | II/III | 45 | PB-EPCs | CD14+, CD34+ | NR | Completed | University of Florence | NR |
| NCT00523731 | Critical Limb Ischemia | I | 6 | PB-EPCs | NR | Cells cultured in X-vivo 15 serum free medium supplemented with autologous human serum, VEGF and heparin for 5 days | Completed | TheraVitae Ltd | Mutirangura et al. (19) |
| NCT02287974 | Critical Limb Ischemia | I/II | 20 | BM-EPCs | CD133+ | NR | Active | Andalusian Initiative for Advanced Therapies - Fundación Pública Andaluza Progreso y Salud | NR |
| NCT02474381 | Diabetic Foot | NR | 60 | EPCs | CD133+ | NR | Unknown | Shanghai 10th People's Hospital | Zhang et al. (20) |
| NCT00221143 | No Option Critical Limb Ischemia | I/II | 15 | PB-EPCs | CD34+ | NR | Completed | Translational Research Informatics Centre, Kobe, Hyogo, Japan | Kawamoto et al. (21), Kinoshita et al. (22) |
| NCT02915796 | Peripheral Arterial Disease | I | 345 | PB-EPCs | CD133+ | Mononuclear cells isolated, re-suspended in RPMI-1640 and then injected into the ischemic area | Recruiting | Shanghai 10th People's Hospital | Huang et al. (23) |
| NCT00306085 | Peripheral Atherosclerosis | I | 20 | BM-Cells | CD34+ | Cells sorted by the MarrowXpress system and immediately transplanted | Unknown | University of Naples | Malone et al. (24), Cobellis et al. (25) |
| NCT00641836 | Idiopathic PAH | NR | 98 | PB-EPCs | VE-Cad+, KDR+, CD34+, AC133+ | Cultured on fibronectin coated flasks in Medium 199 for 5 days | Completed | Zhejiang University | NR |
| NCT00257413 | Idiopathic PAH | NR | 31 | PB-EPCs | VE-Cad+, KDR+, CD34+, AC133+ | Cultured on fibronectin coated flasks in Medium 199 for 5 days | Completed | Zhejiang University | Wang et al. (26) |
| NCT00372346 | Idiopathic PAH | NR | 40 | PB-EPCs | vWF+, CD31+, CD34+ | Cultured on fibronectin coated flasks in EGM-2 for 10-14 days | Unknown | Zhejiang University | NR |
| NCT00469027 | PAH | I | 7 | PB-eNOS-EPCs | CD14+, CD31+ | Isolated and cultured on fibronectin coated flasks for 7-12 days | Completed | Northern Therapeutics | Granton et al. (27) |
| NCT01333228 | Liver Cirrhosis | I/II | 14 | BM-EPCs | CD31, CD34, CD14, VEGFR-2, VEGFR-1, CD133, CD90, CD117, vWF, CXCR1, CD45, ID1 | BM-EPCs isolated via Ficoll gradient, cultured on fibronectin coated plates in endothelial complete medium for 4 days | Completed | Clinica Universidad de Navarra + Universidad de Navarra | D'Avola et al. (28) |
| NCT03109236 | Liver Cirrhosis | III | 66 | BM-EPCs | CD133+ | NR | Recruiting | National University Hospital, Singapore | NR |
| NCT01112189 | Lymphedema | I/II | 20 | BM-EPCs | NR | NR | Completed | Hospital Universitario Dr. Jose E. Gonzalez | Maldonado et al. (29) |
| NCT01089387 | Post Prostatectomy Erectile Dysfunction | I/II | 18 | BM-MNCs | NR | NR | Completed | Institut National de la Santé Et de la Recherche Médicale, France | NR |
| NCT03103295 | Traumatic Bone Defects | I/II | 20 | PB-EPCs | NR | Cultured in EGM | Active | A.A. Partners, LLC | Vasyliev et al. (30) |
Clinical trials using EPCs as therapeutic agent, registered under www.clinicaltrials.gov registry (22nd Sept 2005–12th Apr 2017).
BM, Bone Marrow; eNOS, Endothelial Nitric Oxide Synthase; EPCs, Endothelial Progenitor Cells; MNC, Mononuclear Cells; N/A, Not Applicable; NR, Not Reported; PAH, Pulmonary Arterial Hypertension; PB, Peripheral Blood.
The majority of the 26 registered clinical trials specified the source for EPC in the registry (n = 19), such as bone marrow derived (n = 9) or peripheral blood derived (n = 10), but only 10 trials specified the cell surface markers used for EPC definition in the registry, including CD133+(n = 7), CD34+(n = 2), and CD14−(n = 1). The status of half of these trials were labeled as “complete” (n = 12). Two trials were labeled as “terminated.” Slow recruitment was noted for one of these two trials (NCT00221182). The other trial was subsequently published (NCT00289822) (16). The remaining trials were labeled as “active” (n = 2), “recruiting” (n = 3), and “unknown” (n = 7).
The results of this search showed that the term “EPC” has been widely used to encompass a heterogeneous population of cells. In addition, these results also highlight the paucity of information registered within the www.clinicaltrials.gov for these clinical trials, thereby preventing direct comparison with other trials. A detailed definition of the cell type used in clinical trials is warranted, to facilitate better understanding of the potential clinical benefit of EPC based therapy.
Published Clinical Trials Using EPCs As the Therapeutic Agent
Five relevant published clinical trials using EPCs were found following the PubMed and Web of Science database searches (01/05/2008 to 01/05/2018). These clinical trials involved various disease states including peripheral arterial disease (31, 32), coronary artery disease (33), pulmonary hypertension (34), and liver cirrhosis (28) (Supplementary Table 1). Despite using the term “EPC” as a therapeutic agent, the cell types used in all the five published trials differ, specifically, in their methods of cell isolation and culture, as well as the cell surface markers used for phenotypic characterization. Furthermore, the cell dose, and the route of administration varies between trials.
Lara-Hernandez et al. showed that intramuscular administration of EPCs into the ischemic limbs of 28 patients with no-option critical limb ischemia was safe and feasible (31). They used 50 mls of G-CSF mobilized blood and then selected for CD34+ and CD133+ cells. This treatment resulted in a significant reduction in the pain score of no option CLI patients with increased tissue perfusion and no adverse effects noted after a follow-up of 14 months (31). Tanaka et al. also isolated EPCs from G-CSF mobilized blood, but selected for CD34+ EPCs prior to intramuscular administration into non-healing diabetic feet. They demonstrated the safety of EPC therapy, no serious adverse events noted, coupled with increased vascular perfusion and complete wound closure after ~18 weeks (32).
Zhu et al. demonstrated the safety and feasibility of EPCs by injecting thymosin β1 pre-treated EPCs, into patients with ST segment elevated myocardial infarction, with some efficacy data showing improved exercise capacity and left ventricular function after 6 month follow-up (33). The EPCs used by Zhu et al. were cultured on fibronectin and phenotypically characterized as VE-Cadherin+, KDR+, CD34+, and CD133+ (33) cells. Similarly, Zhu et al demonstrated the safety and feasibility of intravenously administered CD34+, CD133+, and KDR+ EPCs into children with idiopathic pulmonary arterial hypertension (IPAH). Although safety was their primary endpoint, significant increases in exercise capacity and pulmonary hemodynamics were also noted (34).
D'Avola et al. showed that a single administration of EPCs (maximum of 100 × 106 cells) via the hepatic artery in 12 patients with decompensated liver cirrhosis is safe and feasible (28). No treatment-related severe adverse events were seen for up to 1 year of follow up. Extensive characterization of EPCs was performed following 7 days of ex vivo culture of fibronectin adherent mononuclear cells (from 50-100 mls of bone marrow aspirate) using extensive cell surface markers (CD31, CD34, CD14, VEGFR2, VEGFR1, CD133, CD90, CD117, vWF, CXCR4, ID1, and CD45) and functionality assessment with DiL-acetylated-LDL cholesterol uptake and lectin binding capacity as well as demonstration of tube-structure formation over Matrigel matrix (28).
While some of the clinical data from Table 1 was published, several of these papers were not included in this section for overall analysis for the following reasons: one paper did not use the term EPC but instead used the term “angiogenic precursor cells” (19), five papers included cells identified only using a single cell surface marker [e.g., CD133+ (17, 18, 20) or CD34+ (21, 29)], and one did not specifically define the cell type (24). It was concluded that these papers could not be classified according to our search criteria as being interventional EPC studies, and thus excluded. Two papers were published beyond the date range specified in our search (23, 26). Finally, two other papers from Table 1 met our classification criteria did not appear in our literature search (27, 30). Granton et al. used 7–50 × 106 peripheral blood eNOS modified EPCs for pulmonary arterial hypertension and showed an improvement in pulmonary resistance after treatment (27), whereas Vasyliev et al. used 20–60 × 106 autologous peripheral blood derived EPCs in a scaffold of allogeneic bone and fibrin gel for bone fracture repair and demonstrated an improvement in bone regeneration (30). Of note, neither study had a control group to compare against.
Overall, all trials were single arm trials, with four of the five published trials being early phase clinical trials and demonstrated safety and feasibility of EPC therapy. Only Zhu et al. conducted a randomized controlled trial (33).
Efficacy Data Using ECFCs
In the previous sections, we examined human interventional studies using “EPCs” as a therapeutic but had noted that the field is moving toward a cell type that is considered to be the “true EPC.” Thus, we examined the published data on ECFCs, the novel and “bone-fide” EPC, using the PubMed and Web of Science databases. From our search using all the relevant search terms, only 39 out of 1,316 papers retrieved used hECFCs as an interventional therapy in preclinical models (01/05/2008 to 01/05/2018) (Table 2). The majority of the published articles assessed the potential therapeutic role of ECFC in ischemic disease models including hindlimb ischemia (n = 20), cerebral ischemia (n = 4), retinal ischemia (n = 2), myocardial ischemia (n = 2), ischemic acute kidney injury (n = 1) and ischemic reperfusion injury (n = 1). However, ECFCs were also being investigated for other conditions such as islet graft retention (n = 3), vascular injury (n = 2), pulmonary arterial hypertension (n = 1), bronchopulmonary dysplasia (n = 1) and traumatic brain injury (n = 2). In these 39 papers, hECFCs were predominantly derived from the umbilical cord (n = 31), followed by peripheral blood (n = 6) (Table 2). However, despite a robust preclinical evidence to suggest the efficacy of ECFCs in several conditions, this cell type has yet to be tested in human clinical trials.
Table 2
| Condition | Cell source | Cell number | Cell surface marker(s) | Administration method | Recipient | n | Outcome | References |
|---|---|---|---|---|---|---|---|---|
| Hind Limb Ischemia | hUC-ECFCs or EPO Primed hUC-ECFCs | 1 × 105 | CD131+, EPOR+ | IV | Athymic Nude Mice | 5–7 | Primed ECFCs have improved graft efficiency, improved cell survival and improved angiogenic potential | Bennis et al. (35) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 105 | CD34+, CD31+, Tie-2+, KDR+, Flt-1+, CD144+, CD14−, CD45− | IV | Athymic Nude Mice | 10 | Improved residual muscle blood flow and increased collateral vessel formation | Sarlon et al. (36) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 106 | CD34, CD146, CD45, KDR | IM injection to 3 sites (In 10 mice VEGF was blocked) | C57BL/6 N mice | 50 | ECFC treated mice showed significantly better outcomes in recovery quality and length | Flex et al. (37) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 105 | CD34+, CD31+, Tie-2+, KDR+, Flt-1+, CD144+, CD14−, CD45− | IM injection to ischemic area | Athymic nude mice | 6 | Improved blood flow | Mena et al. (38) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 106 | NR | Injection into three sites (20 μl/each site) of the gracilis muscle in the medial thigh three times/ week | Male C57BL/6J mice | 8 | Improved blood flow | Kim et al. (39) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 105 cells dissolved in 500 μl of PBS | CD34+ | IV | NOD/Shi-scid, IL-2Rγnull mice | 15 | Improved blood flow | Goto et al. (40) |
| Hind Limb Ischemia | hUC-ECFCs | (i) CAC-CM (50 μl) (ii) ECFC-CM (50 μl) (iii) ECFC (2 × 105 cells/50 μl), (iv) CAC (106 cells/50 μl), (v) a mix containing CAC-CM (25 μl) and ECFC suspension (105cells/25 μl), or (vi) a mix containing CAC suspension (5 × 105cells/25 μl) and ECFC-CM (25 μl) | CD31+, CD144+, KDR+, VEGF+, Flk-1+, CD14−, CD45− | Matrigel implantation into ischemic site | C57BL/6 N mice | 3 | Endothelial cell retention and vascular maturation | Odent Grigorescu et al. (41) |
| Hind Limb Ischemia | hUC-ECFCs | 5 × 105 cells (IM) or 1 × 106 cells (IV) | CD34+, vWF+, CD133+, KDR+, CD31+, c-kit+, CXCR4+, CD144+, eNOS+, p-eNOS+, VEGFR2+ | IM or IV injection | Balb/C Nude Mice | 5 | Significantly enhanced blood perfusion, capillary density, proliferation and angiogenic cytokine secretion | Lee et al. (42) |
| Hind Limb Ischemia | hUC/PB-ECFCs & hMSCs | NR | CD31+, KDR+, CD34+ | IV | Nude Mice | 8–10 | Enhanced neovascularization | Schwarz et al. (43) |
| Hind Limb Ischemia | hUC-ECFC | 1 × 105 | CD34+ | IV | Type 2 diabetic C56BL/6 J male athymic Nude mice | 6 | Increased blood flow recovery and vascular density, with reduced inflammation | Mena et al. (44) |
| Hind Limb Ischemia | Egfl7 repressed hUC-ECFCs | 1 × 105 | CD31+, CD34+, CD144+, CD133−, CD45−, CD90− | IV | Athymic nude mice | 14 | Improved revascularisation | D'Audigier et al. (45) |
| Hind Limb Ischemia | hUC-ECFCs treated with epigenetic drugs (GSK-343 and panobinostat) | 5 × 105 | CD31+, CD34+, CD45− | IM | NOD/SCID and athymic nude CD1 female mice | 7–8 | Increased vasculogenesis | Fraineau et al. (46) |
| Hind Limb Ischemia | hBM-MSC conditioned medium + hUC-ECFCs | 1 × 105 | CD34+, CD144+, CD146+, KDR+, CD45−, CD14− | IV | NMRI-nude mice | 6 | Increased blood perfusion | Poitevin et al. (47) |
| Hind Limb Ischemia | Trichostatin A treated hUC-ECFCs | 5 × 105 | CD34+, CD31+, CD105+, CD144+, VEGFR2+, vWF+, CD45−, CD14− | IM | Athymic nude CD1 female mice | 3–4 | Enhanced vascular repair capacity | Palii et al. (48) |
| Hind Limb Ischemia | hUC-ECFCs | 1 × 106 | CD31+, Flk+, vWF+, eNOS+, phospho-eNOS+ | IV | Male C57BL/6J or BALB/c-nu/nu mice | 8 | Improved neovascularization and limb salvage | Heo et al. (49) |
| Hind Limb Ischemia | α6 knockdown hUC-ECFCs | 1 × 105 | CD31+, CD34+, CD144+, CD146+, CD45−, CD14− | IV | Male athymic nuce Foxn-1 mice | 5 | No ECFC integration or neovascularization | Bouvard et al. (50) |
| Hind Limb Ischemia | BMP2 or BMP4 treated hUC-ECFCs + hPB-ECFC | NR | VEGFR2+, CD31+, CD34+, CD45−, CD14− | IV | Nude mice | NR | Increased therapeutic potential of ECFCs exposed to BMP | Smadja et al. (51) |
| Hind Limb Ischemia | PB-ECFCs derived from white European and south Asian males | 3 × 105 | CD31+, CD144+, CD146+, CD309+, CD45−, CD14− | IV | Male immunodefic-ient CD1 nude mice | 5 | Superior recovery in ECFCs from white European compared to those from South Asian men | Cubbon et al. (52) |
| Hind Limb Ischemia | Non-diabetic controls (young + age matched) + type 2 diabetic hPB-ECFCs treated with globular adiponectin | 5 × 105 | CD34+, CD31+, VEGFR2+ | IV | Diabetic female athymic NMRI nu/nu mice | 4–8 | Increased and prolonged neovascularization in adiponectin treated diabetic ECFCs compared to untreated diabetic ECFCs | Leight et al. (53) |
| Hind Limb Ischemia | ECFCs + hBM-MSCs | NR (1:1 ratio) | NR | Retro-orbital injection | Athymic male nude mice | 6–7 | Significantly higher vessel perfusion in ECFC only group, and significantly higher density and foot perfusion after co-transplantation | Rossi et al. (54) |
| Ischemic retina | hUC-ECFCs | 1 × 103, 1 × 104, 1 × 105 | CD31+, CD105+, CD14−, and CD45− | Intravitreal Delivery | P13 mice | 1–8 | Low dose cohort showed best improvement | Reid et al. (8) |
| Ischemic retina | Low passage and late passage hPB-ECFCs + hUC-ECFCs | NR | VEGFR2+, Caveolin 1+,CD45−, CD14−, CD31+, CD105+, CD146+, CD34+ | Intravitreal injection | C57BL/6 mice | 6 | Late passage ECFCs had impaired vasoreparative properties | Medina et al. (55) |
| Ischemic Myocardium | OECs | 5 × 106 | CD45−, CD133+ | Intramyocardial injection | Rabbits | 8 | Improved cardiac function | Tan et al. (56) |
| Myocardial Infarction | hUC-ECFCs | 5 × 106 | CD31+, CD34+, CD105+, CD144+, CD146=, KDR, Tie-2+, CD45− | Intramyocardial injection | Male Sprague-Dawley rats | 5 | Increased angiogenesis and improved cardiac function | Kim et al. (57) |
| Ischemia Reperfusion Injury | hUC-ECFC + MPCs | 2 × 106 (2:3) | CD31+ | Intracoronary injection | Nude Rats | 3–17 | Higher LV dimensions, higher heart weight to tibia length ratio. Improved cardiac function | Kang et al. (58) |
| Ischemic AKI | hUC-ECFCs | 1 × 106 | CD31+, VEGFR2+, CD45−, CD14−, CD133− | IV | Male NOD-SCID (NOD.CB17-Prkdcscid/J) | 5-7 | ECFCs protect against ischemic AKI damage | Burger et al. (59) |
| Vascular Injury | MSC derived ECFCs | 5 × 105 | CD133+ CD34+ KDR+, vWF+, CD31−, CD45− | IV through tail vein | Male nude mice | 120 | Accelerated re-endotheliazation and inhibits neointimal hyperplasia | Wang et al. (60) |
| Vascular Injury | hPB-ECFCs pretreated with recombinant BMP4 | 5 × 105 | CD31+, KDR+, Tie-2+ | IV | Male NRMInu/nu athymic nude mice | 5 | Accelerated endothelial repair capacity | Xia et al. (61) |
| Traumatic Brain injury | hUC-ECFCs | 3 × 105 | CD34+, KDR+, vWF+, VE-Cad+, UEA-1+ | Intra-cerebroventricular Infusion | Balb/C Nude Mice | 36 | Reduced Evans blue extravasation, reduced brain water content. Increased microvascular density. Improved neurological function | Huang et al. (62) |
| Traumatic Brain injury | hUC-ECFC | 1 × 106 | CD31+, vWF+, VE-Cad+ | IV | Balb/C Nude Mice | 21 | Improved rate of neurologic disability. Increased microvessel density and proangiogenic growth factors SDF-1 + VEGF | Zhang et al. (63) |
| Cerebral Ischemia | hUC-ECFCs | 4 × 106 | CD146+ | IV via tail vein | Adult male Sprague–Dawley rats | 33 | Erythropoietin primed ECFCs showed best improvement | Garrigue et al. (64) |
| Transient Focal Cerebral Ischemia | hUC-ECFCs + EPO | 5 × 106 | NR | IV | Sprague-Dawley Rats | 24 | Completely restored neurological function | Pellegrini et al. (65) |
| Stroke (Middle Cerebral Artery Occlusion) | hUC derived ECFCs | 4 × 106 | CD54+, CD31+, CD146+, CD34+, CD144+, KDR+ CD45−, CD14−, CD133− | IV via femoral vein | Adult male Sprague-Dawley rats | 4–37 | Improved functionality | Moubarik et al. (66) |
| Ischemic Stroke | hUC-ECFCs | 1 × 106 | CD31+, CD34+, VEGFR2+, CD133− | Injected into the left ventricle | Male BALB/c-nu mice | NR | Functional recovery, improved angiogenesis + neurogenesis with reduced apoptosis | Ding et al. (67) |
| Islet Graft Retention | hPB-ECFC | 5 × 105 | NR | Infra-Kidney Transplantation | Hypergylcaemic NOD-SCID Mice | 6-9 | Improved β-cell survival and graft-vessel and β-cell volume | Coppens et al. (68) |
| Islet Graft Retention | hUC-ECFCs | 6 × 105 | CD31+, VE-Cad+, CD105+, vWF+, KDR+ | Infra-Kidney Islet Transplantation | Balb/C Nude Mice | 6-7 | Absence of blood inflammatory reaction | Kim et al. (69) |
| Islet Graft Retention | hUC-ECFCs | NR | VE-Cad+, KDR+, Flt-1+, eNOS+, vWF+, CD31+ | Intraportal Islet Transplantation | Diabetic Balb/C Nude Mice | 23 | Improved rate of neurologic disability. Increased microvessel density and proangiogenic growth factors SDF-1 + VEGF | Jung et al. (70) |
| PAH | hPB-ECFCs and hPB-EPCs | 1.5 × 106 | CD31+, KDR+, CD14−, CD34+ | IV | Male nude rats | 4–22 | ECFCs had poor retention and no efficacy. EPCs resulted in right ventricular hypertrophy and increased right ventricular systolic pressure | Ormiston et al. (71) |
| BD | hUC-ECFCs | 1 × 105 into mice, 2.5 × 105 into rats | CD31+, CD105+, CD144+, CD146+, CD14−, CD45− | IV | Rag–/– mice and RNU nude rats | 5 | No adverse effects with improvements in lung structure, exercise capacity and pulmonary hypertension | Alphonse et al. (72) |
Preclinical work using ECFCs as a therapeutic agent.
AKI, Acute Kidney Injury; BD, Bronchopulmonary Dysplasia; BM, Bone marrow; BOEC, Blood Outgrowth Endothelial Cells; CACs, Circulating Angiogenic Cells; CM, Conditioned Media; IM, Intramuscular; IV, Intravenous; KDR, Kinase Insert Domain Receptor; LV, Left Ventricular; MPCs, Mesenchymal Progenitor Cells; m/r/pECFCs, Murine/Rabbit/Porcine Endothelial Colony Forming Cells; MSCs, Mesenchymal Stem Cells; NR = Note reported; OECs, Outgrowth Endothelial Cells; PAEC, Pulmonary Arterial Endothelial cells; PAH, Pulmonary Arterial Hypertension; PB, Peripheral Blood; PMVEC, Pulmonary microvascular endothelial cells; SDF-1, Stromal Cell-Derived Factor-1; UC, Umbilical Cord; vWF, VonWillebrands Factor; VE-Cad, Vascular Endothelial Cadherin; VEGFR2, Vascular Endothelial Growth Factor Receptor 2.
Medina et al. highlighted the importance of ECFC identification with more than one surface marker (10). Despite the use of the term “ECFC,” four preclinical studies did not confirm the identity of ECFCs using surface expression markers, with eight studies utilizing only one surface expression marker. Of the papers which used multiple markers, the most commonly used surface markers were: CD34+ (n = 11), CD31+ (n = 16), VEGFR2/KDR+ (n = 13), and CD45− (n = 14).
Discussion
The results of our literature search showed that the term “EPC” has been widely used to encompass a heterogeneous population of cells in both the published and registered clinical studies, thereby, rendering direct comparison amongst studies impossible. Our findings also highlight the paucity of information registered within www.clinicaltrials.gov for these clinical trials, specifically, the cell phenotype that is being tested. Approximately half of the EPC clinical trials (11 out of 26 trials) did not define the culture conditions used for their therapeutic product, and a majority of the trials (17 out of 26 trials) did not specify the cell surface markers used to characterize the cell therapy product used in their trials. Whilst the results from many of the ongoing clinical trials are yet to be published/released, only 12 out of 26 trials have reached the completion phase.
From the published EPC human clinical trials, there is a marked inconsistency in terms of the culture conditions and characterization of EPCs with D'Avola et al. and Vasyliev et al using multiple different cell surface markers to identify the EPCs they used (28, 30), Lara-Hernandez et al. and Granton et al using two cell surface markers (27, 31), Tanaka et al. only utilizing one cell surface marker (32), and Zhu et al. and Zhu et al. did not mention the marker used for defining the EPCs in their studies (33, 34). This lack of standardization makes it difficult to compare the results of different clinical trials and will in the future hinder the translation of these therapies into medical practice. A similar lack of consistency is again observed with the methods to culture EPCs with some reports administering EPCs without prior culture (31, 32), some culturing on fibronectin before re-injection into the patient (27, 28, 33, 34), and Vaysilev et al. culturing cells on uncoated flasks with EGM-2 medium (30). Despite the positive results from the above papers, EPC therapy is still limited by the immunogenicity of allogeneic EPCs, along with its poor definition, isolation and expansion standardization, as outlined above.
From the above data it is clear that a detailed definition of the cell type used in clinical trials is warranted, to facilitate better understanding of the potential clinical benefit of EPC based therapy. Consistent with the recommended nomenclature by Medina et al. the term “ECFC,” a more accurate description of a specific cell type within the EPC population can be carried out, allowing the standardization of cell definition for potential therapeutic use (10).
In fact, currently, there are an increasing number of preclinical studies which have demonstrated the efficacy of ECFCs in various disease models (36, 40, 56, 59, 61, 65, 68, 73). These studies predominantly focus on ischemic conditions such as limb ischemia, cerebral ischemia, myocardial ischemia, ischemic reperfusion injury, and ischemic kidney injury. The likely reason for this is beyond the scope of this review article but it may be related to the angiogenic effect of these cells, which facilitate the revascularization in these ischemic states; however these cells may have other unexplained therapeutic effects, which may not be related to its angiogenic properties. However, similar to EPC studies, there is a lack of standardization of cell surface markers and culture protocols when producing ECFCs for therapeutic intervention between the different studies. This lack of standardization, while addressed by Medina et al. (10), has not yet been fully adopted by the field of vascular regeneration.
The ability to successfully isolate ECFCs is crucial prior to its consideration for clinical use. We and others have previously published methods for ECFC isolation (74–78). However, the yield of ECFCs varies depending on the method used (9). Most methods used collagen as the matrix molecule for cell seeding, rather than fibronectin, suggesting that the former molecule is a better cell selection method (74–78). Direct comparison between collagen and fibronectin by Colombo et al. showed the contrasting impact of the type of matrix molecule used for cell seeding on the pharmacodynamics of ECFC colonies. Seeding cells on fibronectin, as compared with collagen, resulted in earlier appearance of ECFC colonies. In contrast, ECFC colonies cultured on collagen demonstrated a better cell proliferation and lifespan, which might be IL-6 and IL-8 dependent (79). Interestingly, the immunophenotype and the ability for in vitro tubule formation remains similar despite the type of matrix molecule used for cell seeding (79).
Tasev et al. have further refined the ECFC isolation method with better cell expansion rates using platelet lysate supplemented culture medium, for large scale propagation for potential clinical use (80). Hofmann et al. have also described an easily applicable method for isolating ECFCs directly using adult human blood to generate more than 100 million functional ECFCs (77). They collected 5 ml of peripheral blood from patients and plated directly into a T75 flask discarding supernatants at various time points to remove any blood cells that were not ECFCs. Their method used human platelet lysate, thereby making it a xeno-free protocol, and they were able to consistently isolate and expand ECFCs up to 30 population doublings (81). Moreover, using the culture method outlined in their paper, ECFCs can be cryopreserved without resulting in genomic instability or changes in cell phenotype and function (81).
Siegel et al. have successfully produced an ECFC product by leukapheresis of peripheral blood in accordance with Good Manufacturing Products (GMP) standard (82). Their isolation method can produce approximately 1.44 × 108 ECFC per white blood cell, following leukaparesis of up to 6.8 liters of peripheral blood. These ECFCs showed a significant Dil-AcLDL uptake and showed CD29+, CD31+, CD34+, CD44+, CD105+, CD117+, CD133+, CD144+, CD146+, and VEGFR2+ expression. Furthermore, they showed that their ECFCs could reach up to twelve cumulative population doublings. More importantly, these ECFCs showed no evidence of telomerase activity, as well as capable of in vitro tubule formation and secretion of epidermal growth factor, HGF, VEGF-A, platelet derived growth factor-B, IL-8, and monocyte chemoattractant protein-1 (82).
The major limitations of ECFC therapy are the long culture times to generate a therapeutic dose, due to its low frequency in peripheral and cord blood, and that it can only be administered in an autologous fashion due to its inherent immunogenicity. Furthermore, despite the potential for ECFC cryopreservation for future use, the intrinsic function of autologous ECFC may be impaired due to the underlying diseased state such as diabetes mellitus, with Jarajapu et al. reporting to be able to isolate ECFC from three in every ten diabetic patients, compared to eight out of nine in non-diabetic controls (83). However, ECFCs can be genetically modified to augment their function in vivo which may facilitate correction of disease-induced cell dysfunction. Examples of genetic modification include β1 integrin overexpression to improve blood perfusion in CLI (40), erythropoietin overexpression to promote erythropoiesis (84), or GSK-3β inhibition which improves the angiogenic capabilities of ECFCs (85).
In addition to genetic modification, ECFCs can be combined with other cell types to improve a specific aspect of ECFC therapy, such as combining them with mesenchymal stem cells (MSCs) or mesenchymal progenitor cells to reduce the immunogenic effect of allogeneic ECFCs and to increase cell survival post transplantation (86). This is due to the anti-inflammatory effects of mesenchymal stem cells. Reports have also noted that MSCs can differentiate into pericyte like cells which act to stabilize the vasculature formed (86–90). Based on the results of the above studies, next generation vascular cell therapies will likely consist of genetically modified ECFCs or ECFC combination.
Conclusions
To date, EPC based therapy has been shown to be feasible and safe with suggestion of efficacy. However, it is important to note that only one trial included a control arm. While EPCs have been previously the favored cell type utilized for vascular therapeutics, they consist of a heterogeneous population of cells which will produce challenges in terms of GMP compliant cell manufacturing and definition of a cell product. “ECFCs,” as defined by Medina et al. have several advantages over EPCs as a therapeutic product, as outlined above, including being a more defined cell type with enhanced proliferation, and possessing the ability to form new vessels, while also integrating into pre-existing vasculature. The use of ECFCs facilitates the harmonization and standardization of the cell type used in clinical studies, allowing direct comparison between studies (10). To translate ECFCs into routine clinical practice, issues surrounding their immunogenicity will need to be overcome, along with the issues regarding the standardization of markers used to identify them. To date, there have been no clinical trials using this cell type.
Statements
Author contributions
CK, TO, and AL: conception and design of the study. CK, CL, MC, and AL: analysis and interpretation of data. CK, CL, and AL: drafting of the manuscript. All authors revised the manuscript critically for important intellectual content and final approval for the submission of the manuscript.
Acknowledgments
This work was supported by the Science Foundation Ireland (SFI) Investigator Programme (15/IA/3136).
Conflict of interest
TB is a founder, director and equity holder in Orbsen Therapeutics Ltd. TB and AL are both authors on a patent entitled ‘Osteopontin for the prediction and treatment of cardiovascular diseases' (US Patent Number: US8323968B2). The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmed.2018.00354/full#supplementary-material
