Front. Med., 13 May 2022
Sec. Regulatory Science
Volume 9 - 2022 |

METORY: Development of a Demand-Driven Blockchain-Based Dynamic Consent Platform Tailored for Clinical Trials

Ki Young Huh1 Sang-un Jeong2 Seol Ju Moon2 Min-Ji Kim2 Wooseok Yang3 Myeonggyu Jeong3 Ildae Song4 Yong-Geun Kwak2,5 SeungHwan Lee1* Min-Gul Kim2,5,6*
  • 1Department of Clinical Pharmacology and Therapeutics, Seoul National University College of Medicine and Hospital, Seoul, South Korea
  • 2Center for Clinical Pharmacology and Biomedical Research Institute, Jeonbuk National University Hospital, Jeonju, South Korea
  • 3Clinical Trial Center, Seoul National University Hospital, Seoul, South Korea
  • 4Department of Pharmaceutical Science and Technology, Kyungsung University, Busan, South Korea
  • 5Department of Pharmacology, School of Medicine, Jeonbuk National University, Jeonju, South Korea
  • 6Research Institute of Clinical Medicine of Jeonbuk National University, Jeonju, South Korea

The recent advent of the dynamic consent concept intensified the data integrity issue in clinical trials. Incorporating blockchain technology into a dynamic consent platform can be a feasible solution. Due to various clinical trial settings, a demand-driven development strategy is required. We developed a blockchain-based dynamic consent platform named METORY tailored for clinical trials. The platform consisted of three parts: web and mobile application user interface, study management platform, and blockchain platform. Hyperledger Fabric, an enterprise-grade private blockchain framework, was used to integrate blockchain into the study consent platform. We conducted user acceptance tests and applied feedback to the improvement of the platform. Identity and role-based access control was constructed by combining mobile-application-based certificate system and access control functionalities in Hyperledger fabric. Data were encrypted using SHA-256 prior to transmission to blockchain server and TLS protocol was used for in-transit encryption. File-system level encryption was separated implemented within the security measures from Amazon RDS. Users' experience in the clinical trial was acceptable in the ease and usefulness of the platform.


Written informed consent, which is mandated under Good Clinical Practice, should be obtained prior to any study-related procedure in clinical trials (1). The principle also obligates obtaining additional consent when the study protocol is amended (1). In practice, the principle has met several concerns with the advent of digitalization in clinical trials (2). A major concern is that traditional “written” consent cannot ensure proper understanding; therefore, the consent process should be dynamic and interactive (2).

Digitalization in clinical trials was accelerated after the coronavirus-19 pandemic in 2019 (3). In particular, electronic consent (eConsent) in clinical trials was actively implemented as the traditional consent process became unavailable during the pandemic (3, 4). Despite the widespread introduction of eConsent, several major issues have been posed (5, 6). One major concern is whether the study participants adequately understand the information (6). Another issue is security and trust, which requires strict control of access systems (6). The issues were aligned with recent discussions in data integrity, which was emphasized in Good Clinical Practice (7).

Attentions to eConsent in clinical trials are currently intense, coupled with novel clinical designs and decentralized clinical trials (5). As considerable data are generated or managed from electronic sources in this environment, conventional paper-based regulations are not properly working under these settings (5). However, there have been no consistent procedures to replace conventional paper consent with the electronic format (8). In addition, issues in the eConsent platform are associated with the design of the platform, wherein the entire information was conferred via electronic media (6, 8, 9).

The issues in implementing eConsent are also closely related to recent dynamic consent concepts in clinical trials. Dynamic consent is characterized by granular decisions from the study participants supported by an interactive digital interface (10). As dynamic consent requires point-by-point decisions from the study participants, it inevitably accompanies a larger number of interactions (11). Accordingly, data integrity and security issues could be intensified in implementing dynamic consent in clinical trials.

One approach to overcome the data integrity issue is the utilization of blockchain technology. Key features of blockchain are immutability and traceability of data, which could bolster data integrity in clinical trials (12). Several attempts have been made to integrate blockchain in dynamic consent (1315). Most of the attempts were related to dynamic consent models in biobanks (13, 15), wherein the dynamic concept was first introduced in contrast to broad consent (16).

Among the advantages of implementing blockchain in clinical trials, patient privacy is of great importance. Cryptographic algorithms intrinsically provided by blockchains could provide stable measures of patient privacy (17). The prototype blockchain bitcoin used 256-bit Secure Hash Algorithm (SHA-256) replacing IP address (17) and implemented in a consent module (18). Various other encryption algorithms are also attempted, and the inherent anonymization following encryption could be well aligned with clinical trials (19).

To the best of our knowledge, attempts at blockchain-based dynamic consent in clinical trials are relatively rare. The incorporation of blockchain in clinical trials has been mostly focused on data management and in the prototype stage (20, 21). The experience of the platforms in prospective clinical trials is even more limited, although evaluation using retrospective clinical trial data was tried (22).

To address complicated considerations in clinical trials (5), we developed a demand-driven blockchain-based dynamic consent platform tailored for clinical trials named METORY. We designed the platform from pragmatic perspectives, followed by iterative platform enhancement. In addition, we implemented the platform in an actual multicenter clinical trial to evaluate real-world user experience.

Materials and Methods

Overall Development Strategy

To optimize the development process, we adopted a prototype development approach. Prior to developing a prototype platform, a preliminary survey on the functions of the platform was planned. The prototype platform was built based on the survey results, and three-stage user acceptance tests were performed: core group (mainly with developers), single center, and multicenter levels. The feedback from the user acceptance tests was reflected on the further development of the platform. The final platform was implemented in an actual multicenter clinical trial, and user experience from the trial was collected (Figure 1).


Figure 1. Schematic representation of the development process.

Preliminary Survey on the Functions of the Platform

To define the main functions of the platform tailored for clinical trials, a preliminary survey was conducted on investigators and personnel in clinical trials. We organized questions with the multimedia components adapted from TransCelerate eConsent guidance (23). The included items were as follows: tiered approach of the interface, video, audio, pictures and diagrams, callout boxes, chats with investigators, knowledge review, section-based participant attestation, and electronic signature. Each question was provided with prototypal illustrations of the system. The questionnaire was sent via group emails of the Korean Society for Clinical Pharmacology, and responses were collected in November 2019.

Platform Development

The platform was divided into three parts: web and mobile application user interface, study management platform, and blockchain platform. Web and mobile application user interfaces were constructed separately for investigators and study participants. Study management parts comprised the web servers for investigators and study participants, application programming interface (API) for mobile applications, relational database management system (RDBMS) for study management to store study information, and a decentralized application (dApp) server which could access to blockchain platform. Web servers and APIs transmitted study information to RDBMS, while the web server for the investigators sent signed consent information to the dApp server. The dApp server requested access to the blockchain platform to record or create transactions or to add signed consent information on the block (Figure 2).


Figure 2. Data flow and architecture of the platform.

Blockchain platforms could be primarily classified into public, private, or federated blockchain (24). The following characteristics were taken into account on selecting the proper blockchain platform: (i) access control of trusted users, (ii) protocol efficiency, (iii) immutability of data, (iv) management of the platform, and (v) transaction approval rate (24). Availability of smart contract and data security functionalities was also considered as the platform was aimed at dynamic consent.

User Acceptance Test

User acceptance tests were initially performed with the first prototype platform within the core group consisting of developers and study personnel. The core group evaluated key functions of the platform, such as study, consent, subject management, and electronic consent process. Key functions were described as step-by-step scenarios, and the core group evaluated each step. The results of the user acceptance test were applied to improve the platform. The improved platform was then assessed in study personnel in a single study center, followed by those in another center to evaluate the multicenter scalability of the platform (Table 1).


Table 1. User acceptance test scenarios.

User Experience in the Multicenter Clinical Trial

The final platform was implemented in an actual decentralized and multicenter clinical trial using virtual drugs ( identifier: NCT05047016) (25). The study consisted of 2-week visits and home-based procedures. At the two visits, study participants completed the questionnaires regarding the user experience using the platform. The questionnaire included 5 abbreviated questions at Visit 1 and 16 full questions at Visit 2. Items in the questionnaire were adapted from the mHealth App Usability Questionnaire (26) and modified to be suitable for METORY. The results were summarized descriptively for each item. The clinical trial was approved by the institutional review board of Seoul National University Hospital and Jeonbuk National University Hospital and was conducted in accordance with the Declaration of Helsinki.


Preliminary Survey Results

A total of 61 investigators and study personnel responded to the survey. Among the responders, investigators who obtained consent accounted for the largest number (25%), followed by clinical research coordinators (15%) and investigators who did not obtain consent (13%). Most of the participants agreed to the importance of electronic consent (95%).

Regarding the contents of the electronic consent system, approximately three-quarters (76%) of the responders agreed to the importance of the video components in electronic consent. The chapter view interface was preferred (82%) to continuous content views (18%). Most of the multimedia components were considered necessary in the electronic consent system except for the knowledge review, wherein negative opinions (47.5%) were greater than positive opinions (18.7%). The opinions on the preferred response time to questions varied: immediately (34%), <2 h (24%), 2–6 h (6%), 6–24 h (34%), others (2%). The necessity of participant attestation (e.g., entering a statement such as “I have no further questions”) was agreed upon in 70% of the responders (Figure 3).


Figure 3. Summary of the preliminary survey on the functions of the platform.

Study and Consent Management

Study and consent management functions were constructed for investigators. The key functions were the creation and modification of a clinical trial, the management of informed consent forms and information provided to study subjects, and registering the advertisement of subject recruitment. All documents related to clinical trials needed to be approved by the ethical committees and managed in an unmodifiable form (e.g., portable document format).

The principal investigator could grant specific authorizations and functions for the investigators. For example, permissions to provide consent were exclusively granted to the delegated investigators with the physician's license. Other investigators were granted permission to browse the signed consent forms. The status of the consent process was provided as a dashboard to maximize convenience.

Informed consent forms and information provided to study participants were managed by the version group of the documents. A version group was set separately for each version of the informed consent forms. The original consent form that included the signature from the Institutional Review Board was converted a portable document format file and uploaded. When a study document was uploaded to a platform, the information related to the file (e.g., version and upload date) with the file itself was combined and converted into hash values. As a slight modification in the document could result in considerable changes in hash values, this system could provide the integrity of the data provided to the study participants. The hash values were recorded on the blocks in the blockchain platform. The hash values were stacked in the blockchain platform. The hash values and corresponding QR code were attached to the signed consent form for verification purposes (Figure 4).

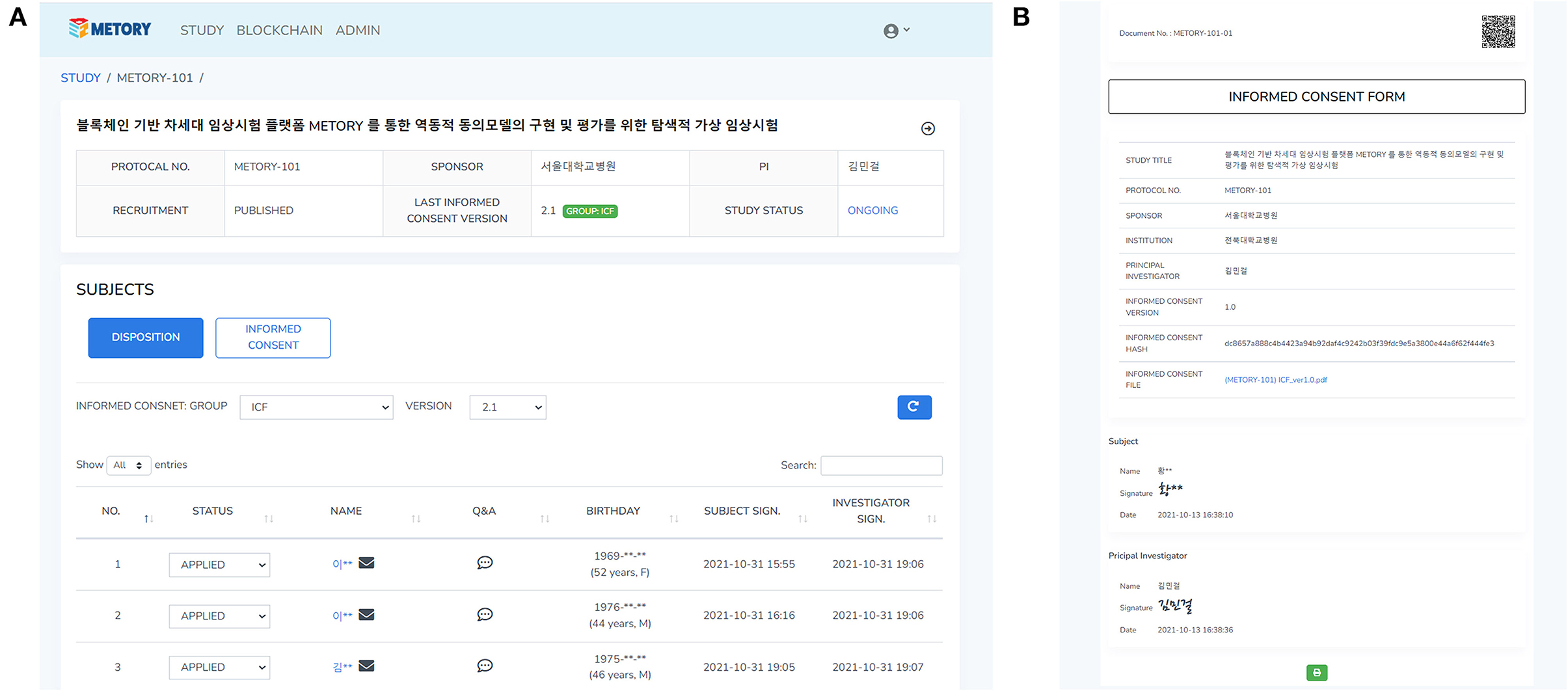

Figure 4. Web interface of the study and consent management: a dashboard for the study management (A), and the signed consent form where hash values were attached (B).

Authentication and Consent Process

A validated mobile-application-based certificate system broadly used in Korea was utilized for the initial authentication process. After the authentication process was completed, a unique code for each study participant was created and used to identify the study participant. The study participant could select the study to participate in after browsing the advertisement of subject recruitment provided by the investigators. A consent process was initiated after the subject's manifestation of readiness. The investigator then started giving instructions on the study, and the time was recorded. The study participant could read the informed consent form and related study information via the application. In addition, the approved informed consent form could be saved in the study participant's local device. After the instruction was completed, the study participant electronically signed an informed consent form via the application. The investigator could sign an informed consent form that the study participant had signed. Each step of the consent process was recorded on the blockchain platform. The study participant and the investigator could also interact on the chatting system constructed on the application during and after the consent process (Figure 5).

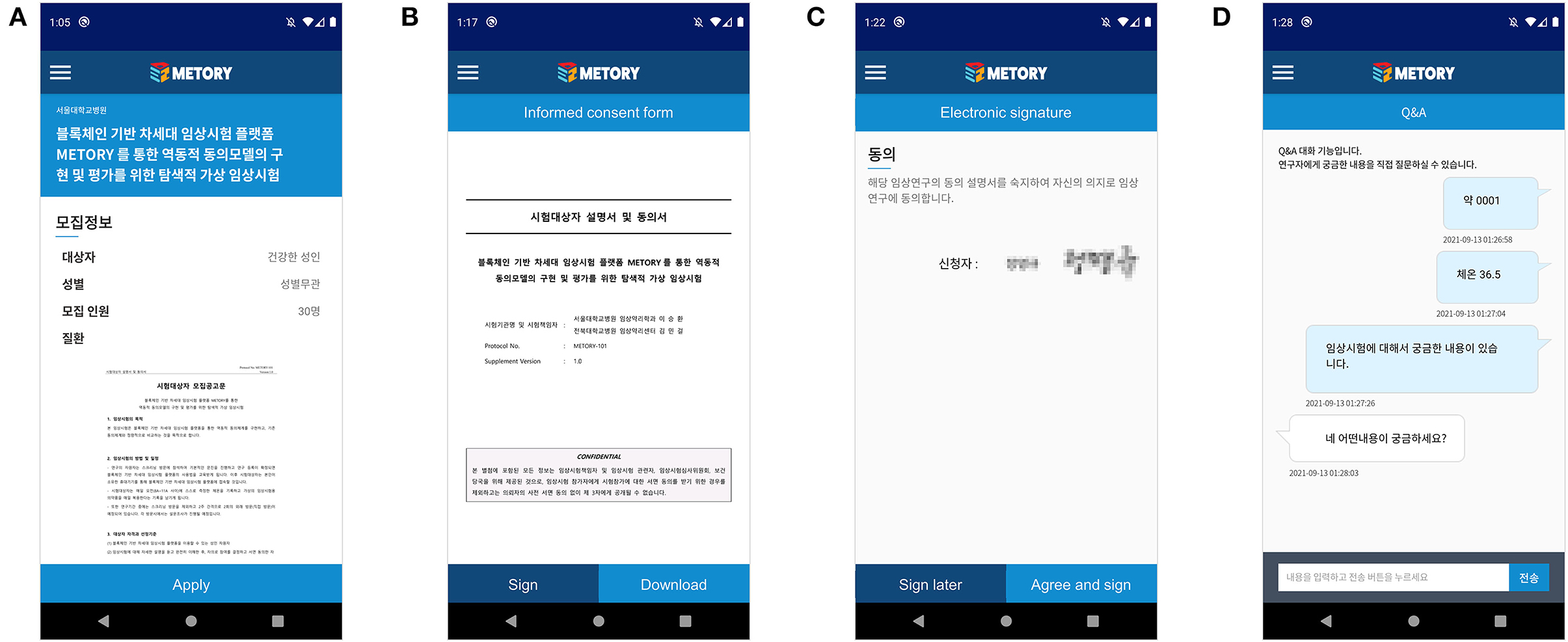

Figure 5. Mobile application interface of the consent process: participation in a study (A), access to the informed consent form (B), electronic signature (C), and chat-ting module between the subject and the investigator (D).

When an informed consent form was amended, investigators could create a new version group of the study. The disclosed study information was then substituted for the information in the latest version group. When the new version group was created, notifications of the new version were sent to the study participants via the application. Each study participant received a push alarm from the application and could access the amended informed consent form. Investigators could also send a text message to the study participants. Each informed consent form was verified by the hash values recorded on the blockchain platform. The study participants provided consent by signing a new informed consent form. The investigators could check the signed status of the version and then sign on the informed consent form, which was transmitted to the blockchain platform to ensure traceability.

Selection and Integration of Consent Information Into Blockchain Platform

Hyperledger Fabric, an enterprise-grade private blockchain framework (27), was finally selected. We gave the highest importance on the access control, which was recommended in following Good Clinical Practice (7). Access control functionality could not be easily developed using public blockchain platform (e.g., Bitcoin). Given that only trusted subjects and study personnel could participate in clinical trials, the exclusivity of private blockchain could be tolerated. Higher protocol efficiency and rapid transaction approval were also the key elements that were preferred to public blockchains (24). However, immutability of data was inevitably compromised in private blockchains, thus necessitating the use of off-chain storage of data in an external database server (28).

The framework could grant authorization exclusively to members who were enrolled through a trusted membership service provider. This private structure could ensure secure data processing among the participating centers of a clinical trial. The framework allocated nodes to each center, where the study information and user accounts were managed. This could guarantee a decentralized network structure among centers. Channels were used to construct functionalities related to study management; for instance, clinical data storage and consent data storage channels were constructed separately. The blockchain platform was connected to the study management platform by dApp. We used JSP and open JDK 8 for constructing blockchain server on Ubuntu version 18.09 and Apache Tomcat 8. The dApp was developed using software developer kit provided by Hyperledger Fabric using Javascript on Ubuntu version 18.09 and node.js version 10.13.0.

The consent data were appended to the blocks as follows. First, the client (a user in the study management platform) converted the consent information (e.g., signature) into a transaction that was compatible with the Hyperledger Fabric system using “chaincode,” a smart contract service provided by the Hyperledger Fabric framework. The transaction was validated by an endorsing peer, and then the results were sent to the client. The client then sent the validated transaction to orderer nodes that distributed the transactions to each peer. Each peer would verify and save the transaction (Figure 6).

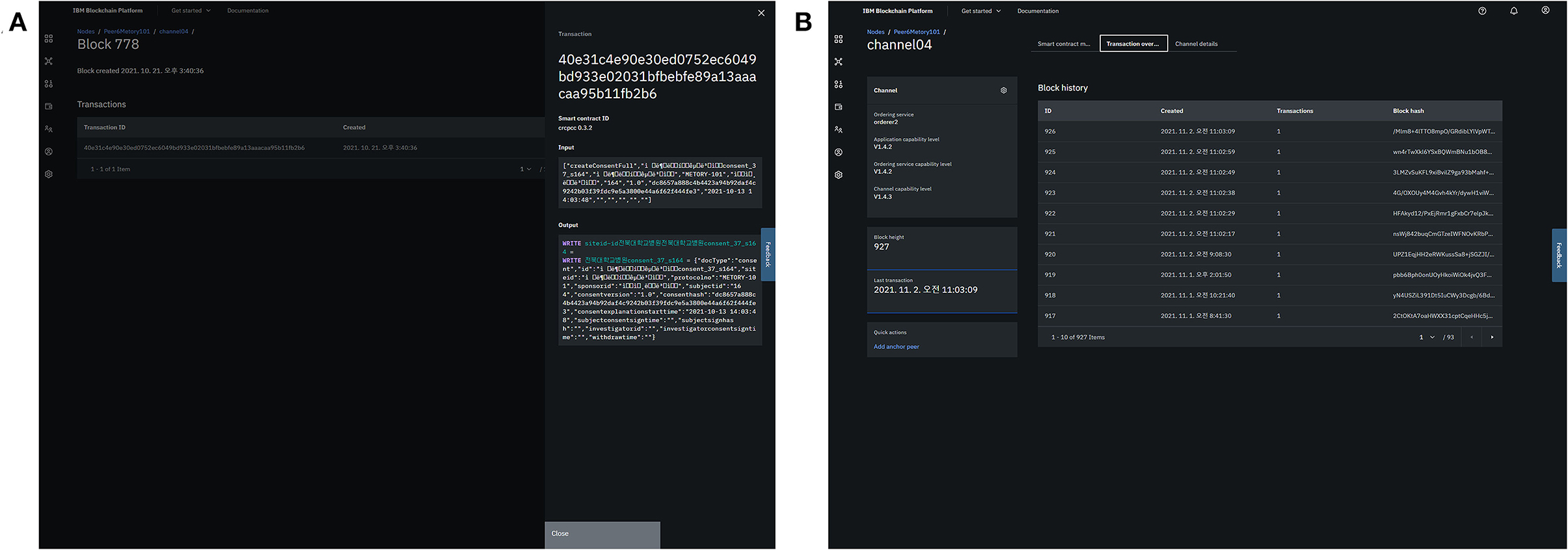

Figure 6. Integration of consent information into the blockchain platform: generation of a transaction (A) and appendage of the blocks (B).

Data security was based on a multi-level security approach. Our system allowed insertion of the data only by the approved users. Data created from the study management platform was hashed via SHA-256 before calling chaincode. The chaincode also restricted the form of data that could be transmitted to the blockchain platform. Data transmission between peers was encrypted via Transport Layer Security (TLS) protocol inside the blockchain platform. As Hyperledger Fabric recommends off-chain data storage in nature (28), file system-level security measures were separately implemented. Database system was constructed using Amazon Relational Database Service (RDS), which provided third-party resource monitoring and snapshot encrypted by Advanced Encryption Standard with a key size of 256 bits (AES-256) (28, 29). In addition, accessible IPs were restricted to authenticated users from the platform by setting security groups.

User Acceptance Test Results

A total of eight volunteers participated in a core group user acceptance test. The following 4 UAT scenarios were evaluated in the test: study management by the investigators, consent management by the investigators, subject management by the clinical research coordinators, and consent process by the study participants. The feedback was collected as user acceptance test reports and reflected on the platform. The subsequent user acceptance test was conducted on four professional clinical trial personnel in multiple centers. In this test, each tester evaluated both user interfaces for subjects and investigators. The center-level user acceptance test results are summarized in Table 2 by the user interface and functional aspect.


Table 2. Summary of the feedbacks from the professionals in the user acceptance test.

User Experience in the Multicenter Trial

A total of 60 subjects were enrolled in the clinical trial (30 subjects in each study center) and participated in the survey. The gender distribution of the subjects was 23:37 (male: female). The mean and standard deviation of the subjects' age was 40.0 ± 10.6 years, while the minimum and maximum were 20 and 67 years, respectively.

In terms of use and satisfaction section, ~90% of the subjects responded within the range of 5–7 (e.g., “The app was easy to use.”). System information arrangement (e.g., “The navigation was consistent when moving between screens.”) and usefulness sections (e.g., “The app improved my access to health care services.”) also showed the similar results. Negative responses were reported to the following items: “I could use the app even when the internet connection was poor or not available” (13.3%) and “This app has all the functions and capabilities I expect it to have (10.0%)” (Table 3).


Table 3. Summary of the user experience in the multicenter clinical trial.


We developed a blockchain-based dynamic consent platform tailored for clinical trials. The platform incorporated the private blockchain framework to optimize functions in clinical trials. Based on iterative user acceptance tests, the platform was tuned specifically for clinical trials, including decentralized settings. The user experience for the platform in the real-world implementation was generally positive.

Data security and privacy issues have been of importance in clinical trials using a digital system (30). Angeletti et al. (30) listed three key principles for privacy as follows: (i) privacy of patients and the confidentiality of health care data, (ii) integrity of healthcare data, and (iii) availability of health data for authorized persons. The second and third issue are closely related to authentication and access control issues.

We constructed both identity and role-based access control combining mobile-application-based certificate system and private blockchain framework. The structure was aimed to serve initial identification of participants and restriction of data flow within a clinical trial. We assumed relatively small number of study centers at this stage and preferred private blockchains to consortium ones. Thus, we chose Hyperledger Fabric among private blockchains in that it could easily allow only permissioned users to join after separate identification process. In addition, Hyperledger Fabric has been widely applied for decentralized access control with similar purpose, especially for untrustworthy Internet of Things (IoT) environments (3133).

Although Hyperldger Fabric has been widely applied for healthcare applications (28, 34), innate architecture-level concerns in the framework should also be considered (35). The security concerns of Hyperledger Fabric are classified into consensus, chaincode, network, and privacy preserving mechanism aspects (35). We paid special attention to the network aspect; Hyperledger Fabric adopts centralized membership service provider which manages registration. When the membership service provider were to be compromised, access control in the whole system would be disrupted (35). This issue is also applied in our platform and needs further investigation.

Another important concern lies in the external access of data through Hyperledger Fabric (36). Hyperledger Fabric supports only text-based data and connection to external database system is frequently recommended (28). In this situation, access to the external files must be consistent among peers in independent environments (36). A recent research found that external database supported in Hyperledger Fabric (e.g., LevelDB and CouchDB) could cause significant overhead, leading to transaction failure (37). As our system also incorporated external database system, the issue also should be solved in further development.

In addition, real-world application of eConsent also required sophisticated consensus. We found that most study personnel agreed to the necessity of eConsent (even prior to the coronavirus-19 pandemic) in our preliminary survey. However, despite the increasing need for eConsent, the format and actual effectiveness of eConsent is still under debate (38, 39). Our survey could give several clues to implementing eConsent in clinical settings, especially for which elements to be incorporated in the eConsent system.

Conveying proper understanding and ensuring security to the study participants are both crucial elements in eConsent. The results of the clinical trial revealed that informed consent that subjects gave did not always mean accurate understanding of the contents (25). The results were contradictory to the subjective feeling of understanding (“The app adequately acknowledged and provided information to let me know the progress of my action.”) in the questionnaires. The findings were aligned with the results of a previous randomized clinical trial with 734 patients, where eConsent with trust-enhanced components gave significantly greater satisfaction to patients than standard eConsent (40). Thus, eConsent needs to be implemented in a personalized manner and should balance the amount of information given to not overwhelm study participants (41).

There are several limitations to our studies. The platform we developed did not fully incorporate elements regarded as important in eConsent, such as callout box hyperlinks, due to technical difficulties. In addition, we evaluated the platform only in limited populations. Further investigations in various clinical trials are required. In-depth investigations for data security and privacy need to be performed in the further researches. Nonetheless, we successfully incorporated blockchain into a dynamic consent platform. The user experience in the actual clinical trial was also promising.

In conclusion, we developed a private blockchain-based dynamic consent platform tailored for clinical trials. The platform successfully functioned in an actual multicenter clinical trial with satisfactory user experiences.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

The clinical trial was approved by the Institutional Review Board of Seoul National University Hospital and Jeonbuk National University Hospital and was conducted in accordance with the Declaration of Helsinki. The patients/participants provided their written informed consent to participate in this study.

Author Contributions

KH, S-uJ, Y-GK, SL, and M-GK: conceptualization. KH, SL, and M-GK: methodology. S-uJ, M-JK, and M-GK: software. M-JK, WY, and MJ: validation. KH: formal analysis and data curation. SM and KH: investigation. M-GK and SL: resources and funding acquisition. KH and S-uJ: writing—original draft preparation, visualization, and project administration. IS, SL, and M-GK: writing—review and editing. Y-GK, SL, and M-GK: supervision. All authors contributed to the article and approved the submitted version.


This research was supported by a grant from the Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI), funded by the Ministry of Health and Welfare, and Republic of Korea (Grant Number: HI19C0332).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


1. Otte A, Maier-Lenz H, Dierckx RA. Good clinical practice: historical background and key aspects. Nucl Med Commun. (2005) 26:563–74. doi: 10.1097/01.mnm.0000168408.03133.e3

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Broekstra R, Maeckelberghe EL, Stolk RP. Written informed consent in health research is outdated. Eur J Public Health. (2017) 27:194–5. doi: 10.1093/eurpub/ckw198

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Waterhouse DM, Harvey RD, Hurley P, Levit LA, Kim ES, Klepin HD, et al. Early impact of COVID-19 on the conduct of oncology clinical trials and long-term opportunities for transformation: findings from an American Society of Clinical Oncology survey. JCO Oncol Pract. (2020) 16:417–21. doi: 10.1200/op.20.00275

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Jaton E, Stang J, Biros M, Staugaitis A, Scherber J, Merkle F, et al. The use of electronic consent for COVID-19 clinical trials: lessons for emergency care research during a pandemic and beyond. Acad Emerg Med. (2020) 27:1183–6. doi: 10.1111/acem.14141

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Khin NA, Grandinetti C, Dixey H, Yu B, Skeete R, Ayalew K, et al. Tackling challenging data integrity topics in 2020: update on good clinical practice perspectives from the US FDA and MHRA UK. Clin Pharmacol Ther. (2021). doi: 10.1002/cpt.2386

PubMed Abstract | CrossRef Full Text | Google Scholar

6. De Sutter E, Zaçe D, Boccia S, Di Pietro ML, Geerts D, Borry P, et al. Implementation of electronic informed consent in biomedical research and stakeholders' perspectives: systematic review. J Med Internet Res. (2020) 22:e19129. doi: 10.2196/19129

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Khin NA, Francis G, Mulinde J, Grandinetti C, Skeete R, Yu B, et al. Data integrity in global clinical trials: discussions from joint US food and drug administration and UK medicines and healthcare products regulatory agency good clinical practice workshop. Clin Pharmacol Ther. (2020) 108:949–63. doi: 10.1002/cpt.1794

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Chen C, Lee PI, Pain KJ, Delgado D, Cole CL, Campion TR Jr. Replacing paper informed consent with electronic informed consent for research in academic medical centers: a scoping review. AMIA Jt Summits Transl Sci Proc. (2020) 2020:80–8.

PubMed Abstract | Google Scholar

9. Wilbanks J. Design issues in E-consent. J Law Med Ethics. (2018) 46:110–8. doi: 10.1177/1073110518766025

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Prictor M, Lewis MA, Newson AJ, Haas M, Baba S, Kim H, et al. Dynamic consent: an evaluation and reporting framework. J Empir Res Hum Res Ethics. (2020) 15:175–86. doi: 10.1177/1556264619887073

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Wee R, Henaghan M, Winship I. Dynamic consent in the digital age of biology: online initiatives and regulatory considerations. J Prim Health Care. (2013) 5:341–7.

PubMed Abstract | Google Scholar

12. Shi S, He D, Li L, Kumar N, Khan MK, Choo KR. Applications of blockchain in ensuring the security and privacy of electronic health record systems: a survey. Comput Secur. (2020) 97:101966. doi: 10.1016/j.cose.2020.101966

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Mamo N, Martin GM, Desira M, Ellul B, Ebejer JP. Dwarna: a blockchain solution for dynamic consent in biobanking. Eur J Hum Genet. (2020) 28:609–26. doi: 10.1038/s41431-019-0560-9

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Kim TM, Lee S-J, Chang D-J, Koo J, Kim T, Yoon K-H, et al. DynamiChain: development of medical blockchain ecosystem based on dynamic consent system. Appl Sci. (2021) 11:1612. doi: 10.3390/app11041612

CrossRef Full Text | Google Scholar

15. Albalwy F, Brass A, Davies A. A Blockchain-based dynamic consent architecture to support clinical genomic data sharing (ConsentChain): proof-of-concept study. JMIR Med Inform. (2021) 9:e27816. doi: 10.2196/27816

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Stein DT, Terry SF. Reforming biobank consent policy: a necessary move away from broad consent toward dynamic consent. Genet Test Mol Biomarkers. (2013) 17:855–6. doi: 10.1089/gtmb.2013.1550

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Omar IA, Jayaraman R, Salah K, Yaqoob I, Ellahham S. Applications of blockchain technology in clinical trials: review and open challenges. Arab J Sci Eng. (2021) 46:3001–15. doi: 10.1007/s13369-020-04989-3

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Benchoufi M, Porcher R, Ravaud P. Blockchain protocols in clinical trials: Transparency and traceability of consent [version 5; peer review: 1 approved, 2 approved with reservations, 2 not approved]. F1000Res. (2017) 6:66. doi: 10.12688/f1000research.10531.5

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Agbo CC, Mahmoud QH, Eklund JM. Blockchain technology in healthcare: a systematic review. Healthcare. (2019) 7:56. doi: 10.3390/healthcare7020056

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Omar IA, Jayaraman R, Salah K, Simsekler MCE, Yaqoob I, Ellahham S. Ensuring protocol compliance and data transparency in clinical trials using Blockchain smart contracts. BMC Med Res Methodol. (2020) 20:224. doi: 10.1186/s12874-020-01109-5

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Benchoufi M, Altman D, Ravaud P. From clinical trials to highly trustable clinical trials: blockchain in clinical trials, a game changer for improving transparency? Front Blockchain. (2019) 2:e23. doi: 10.3389/fbloc.2019.00023

CrossRef Full Text | Google Scholar

22. Wong DR, Bhattacharya S, Butte AJ. Prototype of running clinical trials in an untrustworthy environment using blockchain. Nat Commun. (2019) 10:917. doi: 10.1038/s41467-019-08874-y

PubMed Abstract | CrossRef Full Text

23. Vanaken HI, Masand SN. Awareness and collaboration across stakeholder groups important for eConsent achieving value-driven adoption. Ther Innov Regul Sci. (2019) 53:724–35. doi: 10.1177/2168479019861924

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Casino F, Dasaklis TK, Patsakis C. A systematic literature review of blockchain-based applications: current status, classification and open issues. Telem Inform. (2019) 36:55–81. doi: 10.1016/j.tele.2018.11.006

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Huh KY, Moon SJ, Jeong SU, Kim MJ, Yang W, Jeong M, et al. Evaluation of a blockchain-based dynamic consent platform (METORY) in a decentralized and multicenter clinical trial using virtual drugs. Clin Transl Sci. (2022). doi: 10.1111/cts.13246

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Zhou L, Bao J, Setiawan IMA, Saptono A, Parmanto B. The mHealth app usability questionnaire (MAUQ): development and validation study. JMIR Mhealth Uhealth. (2019) 7:e11500. doi: 10.2196/11500

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Androulaki E, Barger A, Bortnikov V, Cachin C, Christidis K, Caro AD, et al. Hyperledger fabric: a distributed operating system for permissioned blockchains, Article 30. In: Proceedings of the Thirteenth EuroSys Conference (2018).

Google Scholar

28. Antwi M, Adnane A, Ahmad F, Hussain R. Habib ur Rehman M, Kerrache CA. The case of HyperLedger Fabric as a blockchain solution for healthcare applications. Blockchain Res Appl. (2021) 2:100012. doi: 10.1016/j.bcra.2021.100012

CrossRef Full Text | Google Scholar

29. Amazon Web Services. Security in Amazon RDS (2022). Available online at: (accessed April 15, 2022).

30. Angeletti F, Chatzigiannakis I, Vitaletti A. Towards an architecture to guarantee both data privacy and utility in the first phases of digital clinical trials. Sensors. (2018) 18:4175. doi: 10.3390/s18124175

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Rouhani S, Deters R. Blockchain based access control systems: State of the art and challenges. In: IEEE/WIC/ACM International Conference on Web Intelligence. Thessaloniki, Greece: Association for Computing Machinery (2019). p. 423–8.

Google Scholar

32. Uchibeke UU, Schneider KA, Kassani SH, Deters R, editors. Blockchain Access Control Ecosystem for Big Data Security. In: 2018 IEEE International Conference on Internet of Things (iThings) and IEEE Green Computing and Communications (GreenCom) and IEEE Cyber, Physical and Social Computing (CPSCom) and IEEE Smart Data (SmartData) (2018).

Google Scholar

33. Rouhani S, Pourheidari V, Deters R, editors. Physical access control management system based on permissioned blockchain. In: 2018 IEEE International Conference on Internet of Things (iThings) and IEEE Green Computing and Communications (GreenCom) and IEEE Cyber, Physical and Social Computing (CPSCom) and IEEE Smart Data (SmartData) (2018).

Google Scholar

34. Stamatellis C, Papadopoulos P, Pitropakis N, Katsikas S, Buchanan WJ. A Privacy-preserving healthcare framework using hyperledger fabric. Sensors. (2020) 20:6587. doi: 10.3390/s20226587

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Brotsis S, Kolokotronis N, Limniotis K, Bendiab G, Shiaeles S, editors. On the security and privacy of hyperledger fabric: challenges and open issues. In: 2020 IEEE World Congress on Services (SERVICES) (2020).

Google Scholar

36. Yamashita K, Nomura Y, Zhou E, Pi B, Jun S, editors. Potential risks of hyperledger fabric smart contracts. In: 2019 IEEE International Workshop on Blockchain Oriented Software Engineering (IWBOSE) (2019).

Google Scholar

37. Chacko JA, Mayer R, Jacobsen H-A. Why do my blockchain transactions fail? a study of hyperledger fabric. In: Proceedings of the 2021 International Conference on Management of Data. Association for Computing Machinery (2021). p. 221–34.

Google Scholar

38. Harle CA, Golembiewski EH, Rahmanian KP, Brumback B, Krieger JL, Goodman KW, et al. Does an interactive trust-enhanced electronic consent improve patient experiences when asked to share their health records for research? A randomized trial. J Am Med Inform Assoc. (2019) 26:620–9. doi: 10.1093/jamia/ocz015

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Soni H, Grando A, Murcko A, Bayuk M, Chandrashekar P, Mukundan M, et al. Current state of electronic consent processes in behavioral health: outcomes from an observational study. AMIA Annu Symp Proc. (2017) 2017:1607–16.

PubMed Abstract | Google Scholar

40. Golembiewski EH, Mainous AG 3rd, Rahmanian KP, Brumback B, Rooks BJ, Krieger JL, et al. An electronic tool to support patient-centered broad consent: a multi-arm randomized clinical trial in family medicine. Ann Fam Med. (2021) 19:16–23. doi: 10.1370/afm.2610

PubMed Abstract | CrossRef Full Text | Google Scholar

41. De Sutter E, Borry P, Geerts D, Huys I. Personalized and long-term electronic informed consent in clinical research: stakeholder views. BMC Med Ethics. (2021) 22:108. doi: 10.1186/s12910-021-00675-7

PubMed Abstract | CrossRef Full Text | Google Scholar
