Abstract
Ultrasound has been used to modulate neural activity in rodents and primates; however, combining ultrasound stimulation with in vivo imaging in freely moving animals has been challenging. Here, we design and validate a transducer to overcome these challenges in the rodent. We develop a head-mounted ultrasound transducer that can be combined with a fiber photometry system. This combination allows us to monitor ultrasound-evoked responses in striatal neurons in awake and freely moving animals. Together, this system allows for a high-resolution analysis of ultrasound-evoked biology at the level of both neural circuits and behavior in freely moving animals, critical to providing a mechanistic understanding of ultrasound neuromodulation.
Introduction
Ultrasound has been successfully used to modify targets within the mammalian brain. At high intensities, it can ablate tissues () for treating cancer () and other neurological conditions like epilepsy (; ); when combined with contrast agents, it can open the blood-brain-barrier (; ) and deliver small molecule drugs (; ) or viral vectors (). In contrast, ultrasound at lower intensities can directly modulate neuronal activity (; ; ). Moreover, ultrasound has been shown to both activate and inhibit neural activity (; ; ; ; ; ), with differential effects on excitatory and inhibitory neurons based on stimulus parameters (). Not surprisingly, the mechanisms underlying in vivo ultrasound-evoked neurostimulation remain unclear, but may include thermal- (), mechanical- (), auditory- (; ), or cavitation- () driven effects. Thus, despite the promise of fully non-invasive ultrasound-based neuromodulation, additional efforts are needed to establish the underlying mechanism, particularly within the mammalian brain.
Electrophysiology, with its excellent temporal resolution, is the preferred method for studying neuronal function (). However, using this method has limited use in vivo. While intracellular recordings can be made from a maximum of only a few individual cells (; ; ); extracellular recordings measuring activity from multiple cells lack cellular specificity (). Moreover, recording devices for measuring electrical signals from hundreds or thousands of neurons need to be miniaturized to reduce tissue damage (). In contrast, whole-brain imaging techniques, like fMRI, have contributed to understanding how neuronal circuits responding to external stimuli are distributed across large brain regions (; ), but have limited spatial and temporal resolution. One solution to these problems is to combine imaging techniques like two-photon microscopy or fiber photometry with fluorescent reporters, where neuronal circuits can be probed at cellular resolution in an intact brain (; ). Moreover, genetically encoded calcium indicators can be targeted to specific cell populations, whose activity can then be optically monitored at cellular and even sub-cellular resolution (; ; ).
A common method to monitor fluorescent signals uses an implanted fiber optic cannula (; ). Though invasive, this method (fiber photometry) is well-suited to record neural activity across cell populations in freely-moving animals (). In addition, fiber photometry can also be used to record signals from multiple locations in the rodent brain (; ). Moreover, the result is an aggregate of calcium changes from many neurons that cannot be easily resolved, but provides a complementary approach to microendoscopic or two-photon imaging (). Combining ultrasound stimulation with this imaging method would provide insights into the mechanisms underlying ultrasound-evoked neuromodulation.
Here, we develop a new, lightweight ultrasound transducer that can be mounted on the head of a freely moving animal and integrate this device with a fiber photometry system. This setup allows us to monitor calcium signals from striatal neurons in moving animals upon ultrasound stimulation.
Results

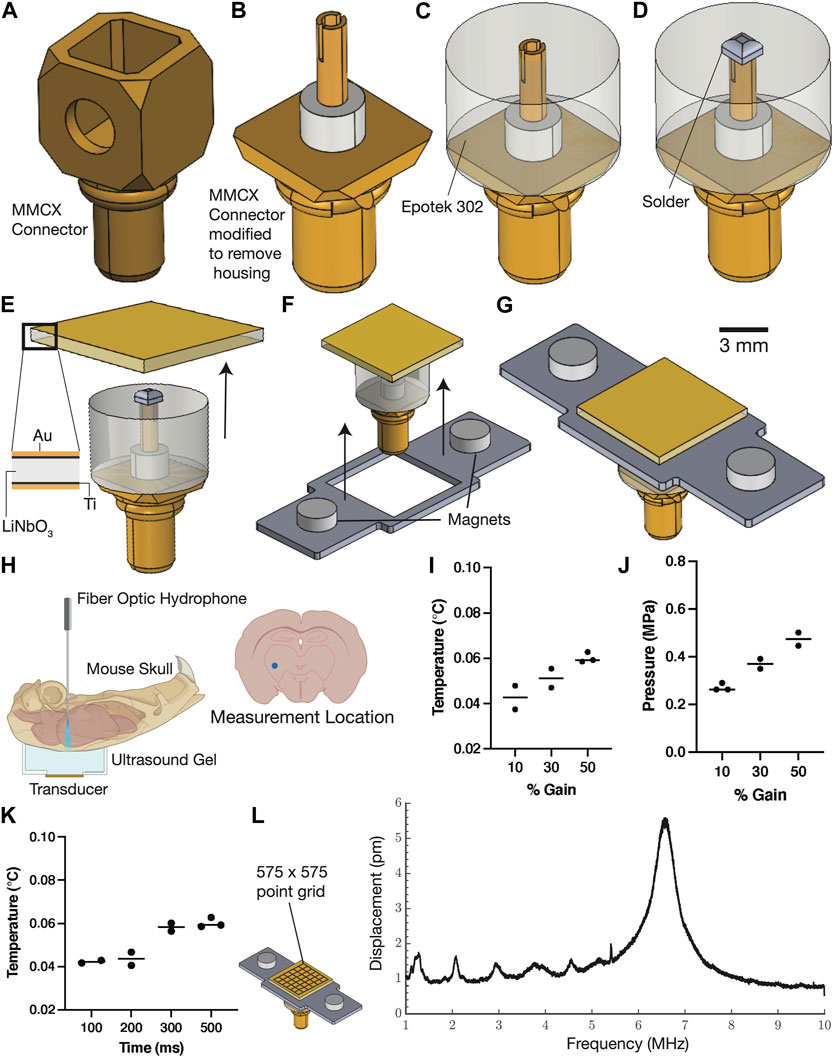

A new ultrasound transducer for modulating neural activity in freely moving mice
Most ultrasound applications use lead zirconate titanate (PZT) transducers, which are prone to heating and hysteresis at higher frequencies (). In contrast, transducers made from lithium niobate have been shown to have minimal heating and no hysteresis at frequencies typically used for neuromodulation (; ). We started with a micro-miniature coaxial swivel connector (MMCX, Figure 1A) and exposed the central pin and surrounding ceramic insulation using a Dremel benchtop drill (Figure 1B). Next, we added a layer of backing epoxy (Epotek 302, Epoxy Technologies Inc., Billerica, United States of America) onto the modified connector, leaving the lead tip exposed (Figure 1C). We fabricated a lithium niobate transducer (see Methods for details) and soldered it to the device to establish an electrical contact (Figure 1E). This device uses a custom-designed magnetic connector to attach to a matching plate on the animal’s head. The magnetic connector is designed to slide onto the device and is anchored in place using a backing epoxy (Figure 1F). The final assembly (Figure 1G) mass is ∼0.6 g and was characterized for its pressure outputs in an ex vivo preparation as previously described (Figure 1H ()). Ultrasound has been shown to cause heating in target tissues (). We monitored the temperature rise in the striatum using a fiber optic hydrophone and found that the change in temperature did not exceed 0.1°C (Figure 1I) during use. In addition, we found that the pressure through the intact skull was between 0.3–0.5 MPa (Figure 1K). We also analyzed the vibrational characteristics of this device using laser Doppler vibrometry and found that the fundamental thickness mode’s resonance frequency was 6.56 MHz (Figure 1L). This device was then used in combination with fiber photometry probes as described in later sections for analysis of neural activity in freely moving animals.
FIGURE 1

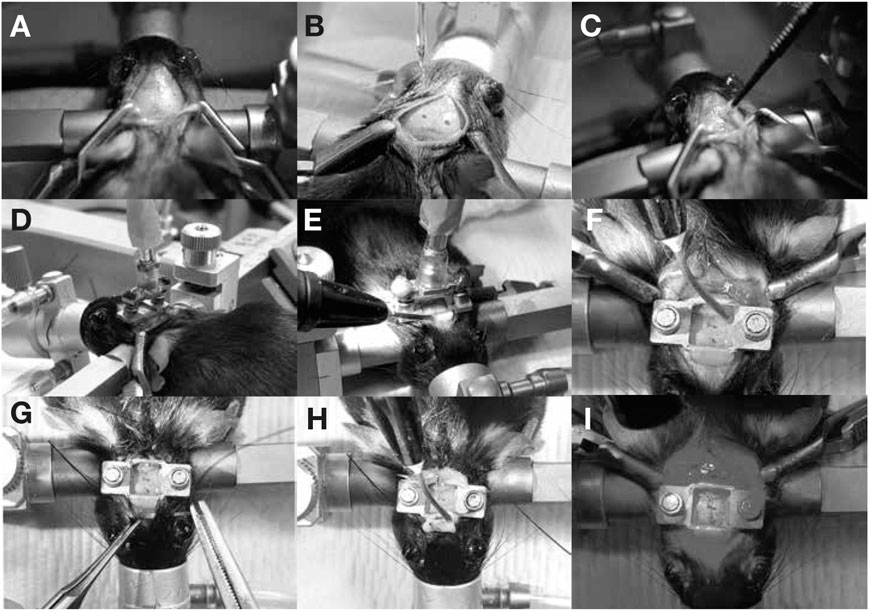

Stereotactic placement of the device on the head of an adult mouse
Previous studies have shown that ultrasound stimulation can evoke neuronal activity in both cortex and hippocampus (), but have yet to assess this in more ventral regions of the brain. To assess the feasibility of ultrasound stimulation in freely moving mice, the device was attached to a headplate mounted to the skull with dental cement and a fiber optic cannula was implanted to target the dorsal striatum using stereotactic coordinated (). To test whether a sparse population of neurons could be stimulated, we expressed a genetically encoded calcium indicator, GCaMP6s, in cholinergic neurons, which constitute about 2% of neurons in the dorsal striatum (). We mounted a ChAT::CRE transgenic mouse on a stereotax under anesthesia (Figure 2A) and injected a floxed virus expressing GCaMP6s (Figure 2B) using a calibrated nanoliter injection system (Nanoject II). The head plate was affixed to the device and the assembly was lowered over the injection site (Figure 2D). Next, the head plate was anchored in place using dental cement (Figures 2E, F). We then dried the exposed area and implanted a fiber optic cannula as previously described (; ). Finally, the scalp was sutured, and additional ultraviolet curable dental cement was used to firmly affix the head plate (Figures 2H, I). Mice were allowed to recover for two to 4 weeks prior to conducting studies with the head-mounted transducer.
FIGURE 2

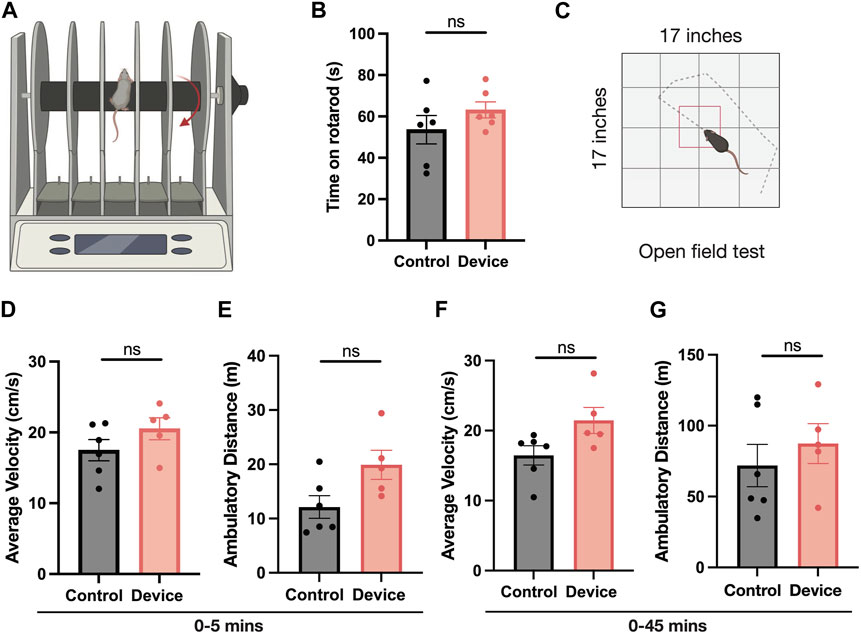

Assessing locomotor behavior with head-mounted transducer
To determine whether locomotor behaviors are affected by the presence of the ultrasound transducer, mice of several genotypes were assessed in rotarod (Figure 3A) and open-field assays (Figure 3C). Control mice, untethered by the transducer and cables, stayed on the rotarod an average of 53.6 s ( ± 6.9 s SEM), and an average of 63.2 s ( ± 3.9 s SEM) when connected via magnet and cables to the transducer (Figure 3B). These results did not reach significance in either direction, indicating that the presence of the tethered transducer did not affect the ability of the mice to maintain their coordination on the rotarod. In open-field assays, ambulatory behaviors measured by average distance and velocity in both the first 5 minutes (Figures 3D, E) and 45 min (Figures 3F, G) did not change significantly in the presence of the transducer either, indicating that the head-mounted transducer design is compatible with freely-moving mouse behavior and assays.
FIGURE 3

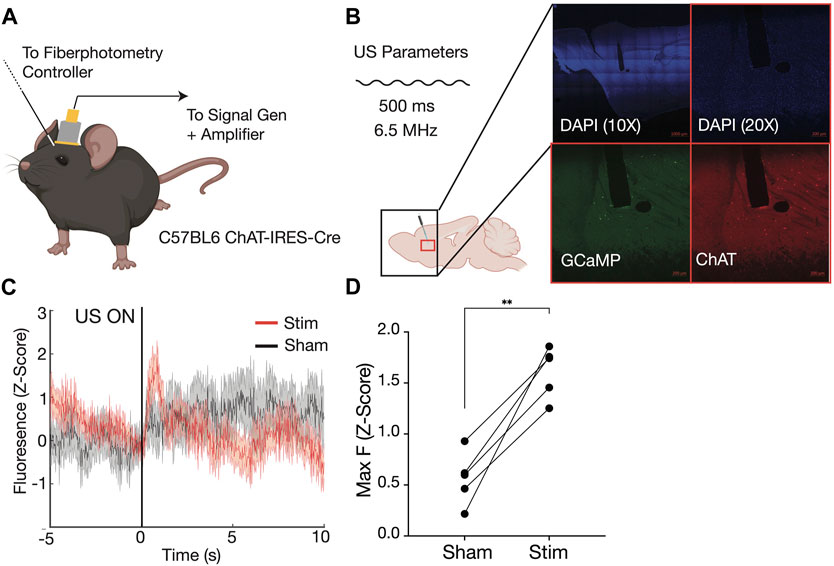

Ultrasound-evoked activation of striatum in freely moving mice
We used fiber photometry recordings to test whether transcranial ultrasound could evoke calcium activity in freely moving animals. After recovery from the protocol described above (Figure 4), mice were attached to the ultrasound delivery and fiber photometry systems (Figure 4A). We first confirmed that the fiber optic cannula was placed into the dorsal striatum and GCaMP6s expression was restricted to cholinergic neurons in the striatum (Figure 4B). All animals (N = 5) showed significant increases in cholinergic calcium activity upon ultrasound stimulation compared to controls (Figures 4C, D). Together, these results show that the custom-designed ultrasound device is capable of delivering sufficiently powerful ultrasound to endogenously activate striatal cholinergic neurons in an awake, freely moving animal, while avoiding the hindering of the animal’s movement in an open field or upon a rotating rod.
FIGURE 4
Discussion
We demonstrate the development of a novel method for integrating ultrasound neuromodulation tools with well-established readout techniques for neuronal activity. Specifically, we develop a new head-mounted transducer that can be combined with a fiber photometry system to stimulate striatal neurons in a freely moving mice. We designed, fabricated, and tested a small lightweight transducer that can be mounted on the head of freely moving mice. Although there are other works that use head-mounted transducers (; ), they have used lower frequencies, higher pressure inputs and do not present validation of the devices with rotarod and open field tests. This device can deliver stimuli with 0.3–0.5 MPa peak negative pressure in a deep brain region, the dorsal striatum. The mechanical index for the parameters listed in this study is 0.19, well below the U.S Federal Drug Administration’s mandated clinical safety threshold of 1.9 for bubble-free tissue, and is half the threshold for bubble-laden tissue (; ). These parameters are thus unlikely to cause cavitation in tissue and do not affect cell viability. Further, the frequency used in this study is well outside the hearing threshold for mice (1–100 kHz) (). Specifically, we show that we can activate calcium activity in cholinergic neurons without hindering the animal’s ability to explore freely or grasp a rotating rod. Moreover, the ultrasound transducer can be removed from the head plates (these are attached using a magnetic connector), allowing the animals to be returned to their home cages and be repeatedly tested, as is commonly done in most striatal-driven behaviors (; ). We used fiber photometry as a readout of ultrasound-evoked neuromodulation, however, recent studies have shown that these data primarily reflect non-somatic changes in calcium and might not correspond to spiking-related activity (). Consistently, we suggest that our device can be used to modify neuronal calcium levels in striatal neurons. More broadly, we suggest that this device can be combined with mouse genetics to probe the ultrasound and sonogenetic control of neuronal circuits and behaviors. Collectively, our system can be used to provide mechanistic insights into how ultrasound affects specific neuronal circuits and their associated behaviors.
Materials and methods
Animals
Animals used in this study were group housed in an American Association for the Accreditation of Laboratory Animal Care approved vivarium on a 12 h light/dark cycle, and all protocols were approved by the Institutional Animal Care and Use Committee of the Salk Institute for Biological Studies. C57BL/6 mice (JAX 000664), aged 10–14 weeks were used to measure ultrasound pressures in vivo. ChAT-Cre mice aged P22 and older were used for fiber photometry experiments. The mice were free to move when the ultrasound stimulus reported in this study was delivered.
Ex vivo hydrophone measurements
Hydrophone measurements were performed with a fiber-optic hydrophone (FOHS92, Precision Acoustics, Dorchester, UK) ex vivo. C57BL/6 mice (JAX 000664), aged 10–14 weeks, were sacrificed and decapitated. The skin over the skull was removed, followed by removal of the lower mandible, soft palate and hard palate. Once the ventral part of the brain was exposed, the mouse head preparation was placed dorsal side down on the diffuser assembly coupled with ultrasound gel, and the hydrophone tip was lowered into the ventral portion of the brain using a micromanipulator. Data from measurements made on at least three animals is shown.
Fiber photometry
A commercially available fiber photometry system (FP3002, Neurophotometrics, San Diego, CA) was used to measure calcium activity in vivo. Briefly, recordings were done by alternating 473 nm and 415 nm excitation light at 80 Hz, for a total of 40 Hz recordings in calcium dependent GCaMP6s and isosbestic (calcium independent) channels, respectively. Excitation power was adjusted to provide 50 μW of light at the tip of the patch cord, calibrated with a fiber optic power meter (PM20A, Thor Labs, Newton, NJ). For anesthetized recordings with the larger device, mice were anesthetized and held at 1% isoflurane, adjusted as needed to maintain sedation on the stereotactic frame without abolishing all measurable brain activity. The skin over the skull was removed and the transducer coupled to the skull with ultrasound gel. For awake, behavior-based recordings, the mouse was anesthetized to allow for careful attachment of the fiber optic cable. After the head-mounted device was attached via magnets and coupled with ultrasound gel, the mouse was allowed to wake up in its home cage, and ultrasound stimulations were delivered interspersed with control pulses.
Immunohistochemistry
Immunofluorescence was collected from free-floating 50 μm sections after extended (3 days) fixation in 4% paraformaldehyde or 10% formalin for better visualization of cannula lesion. Sections were blocked at room temperature for 1 h in blocking buffer (0.25% Triton-X and 5% donkey serum in 1x phosphate buffered saline (PBS). Up to three of the following primary antibodies were then applied for incubation in blocking buffer overnight at 4°C: chicken or rabbit polyclonal GFP (1:250 Aves GFP-1020 or ThermoFisher A6455, respectively) for labelling GCaMP6s positive neurons, goat polyclonal ChAT (1:250 EMD Millipore, AB144P) for labelling cholinergic neurons, and chicken polyclonal Parvalbumin (1:250 Encor Biotech, CPCA-PvalB) for labeling PV-interneurons. Following primary antibody incubation, sections were washed three times for 5 min each in PBS to reduce non-specific antibody binding effects. Secondary antibodies conjugated to fluorophores 488, 594, or 647 raised in donkey or goat (1:500) were applied for 3 hours at room temperature in blocking buffer. Nuclei were stained with DAPI (1:1000 ThermoFisher D1306) before washing sections three times in PBS for 5 min each. Sections were mounted on slides with a coverslip using ProLong Gold Antifade Mountant (P10144, ThermoFisher, Waltham, MA) and allowed to dry for 24 h before confocal imaging (LSM 880, Zeiss, Oberkochen, Germany).
Rotarod assay
ChAT-Cre mouse locomotor behaviour was evaluated on a Rotor-Rod (SD Instruments, San Diego, CA). Mice underwent a single day of training at a constant speed of 4 RPM for 3 min to acclimate to the Rotor-Rod. The next day, mice were placed on a rod that started at 0 RPM and gradually increased to 30 RPM over a 5-min period. The latency to fall off the rod was collected. Each mouse underwent 4 trials daily with a 20-min inter-trial interval in which mice were returned to their cages. The latency to fall off was averaged across the three best trials. This procedure was repeated across 5 days. The experimenter was blinded as to the identity of groups.
Ultrasound transducers
Single-crystal lithium niobate transducers operating in the fundamental thickness mode with lateral dimensions of 5 x 5 mm and a thickness of 500 μm were used in this study. The 128YX cut of lithium niobate was used and the fabrication process involved cleaning of the wafer with acetone, isopropyl alcohol, and ultra-pure deionized (DI) water followed by sputtering both sides with an adhesion layer of 20 nm titanium followed by 1 μm gold. The 36YX cut is typically recommended for thickness-mode transducers, but in low-loss, narrowband applications, it has been found that the 128YX cut produces superior coupling and output amplitude (). The deposition parameters were (with a Denton Discovery 635, Denton Vacuum LLC, New Jersey, United States of America) 5–10 nm of Ti at 1.2–1.6 A/s with the power set to 200W, with argon as the gas in the chamber at 2.3 mT and the stage rotating at 13RPM to ensure uniform deposition over the sample. The thickness of gold deposited was 1 μm at a rate of 7–9 A/s. Devices using the LN elements were driven using a waveform generator (33600 A, Keysight Inc, Santa Rosa, CA) and amplifier (VTC2057574, Vox Technologies, Richardson, TX), and input power was measured using an oscilloscope (Infiniivision MSOX 2024A, Keysight) mated to voltage (N2862B, Keysight) and current probes (CT1, Tektronix, Beaverton, OR) connected as near to the transducer as practicable. The gain on the amplifier was varied to adjust the pressure and the control pulses were run at zero amplifier gain during trials.
Open field
In the open field test, a 17″ x 17″ x 12” (Med Associates Inc., Fairfax, VT) was used to test the Locomotor abilities of mice. ChAT- Cre, DAT-Cre, or wildtype mice were placed in the center of the arena and their movement was tracked for 45 min. In test mice, head transducer was attached to the headplate, and the wires were threaded through a commutator to avoid tangles. The commutator was secured to a flexible arm above the arena and stabilized with a sturdy plank. If the transducer wires got tangled, the recording was paused, and the transducer was readjusted before resuming. 16- beam IR arrays along the X and Y-axis of the arena tracked the position of the mouse. Activity monitor software was used to analyze the average velocity and distance travelled in 60 s bins. Average velocity and distance travelled was calculated for the first 5 min and for the entire 45 min for each mouse. One device mouse lost device for 2 out of 45 min and one control mouse was removed for negligible ambulation.
Viral injections and implants
Intracranial injections were performed in a surgery work area under aseptic conditions. Mice were anesthetized via 5% isoflurane induction and held at 1% isoflurane (Somnosuite Kent Scientific, Torrington, CT) throughout surgery on a heating pad and stereotactic frame. After shaving and sterilization, a midline incision into skin to expose the skull was made, and the skull was leveled.
For cannula and head plate implantation, the skull was dried and primed with OptiBond primer (KerrDental, Orange, CA). A small craniotomy was made using a surgical drill (1.25 mm diameter) at the appropriate coordinates. Injections into dorsal striatum were made using a Nanoject III (Drummond Scientific, Broomall, PA) via glass micropipette loaded with virus. Virus was injected at 3 nL/s with 1 s pause until total volume was injected. The micropipette was withdrawn 10 min after full volume of virus was injected, after which a 200 μm fiber optic cannula (Neurophotometrics, San Diego, CA) was lowered into dorsal striatum 5 μm above the injection site. Using a minimal amount of light-curable dental cement, the cannula was affixed in place to the skull to provide maximal exposed skull for subsequent ultrasound experiments.
For behavior experiments, a custom-designed head plate was also affixed to the skull using dental cement just ventral to the cannula leaving the central portion of skull exposed.
Following surgery, the skin was either closed where possible via suture (AD Surgical, Sunnyvale, CA) or VetBond (3M, Two Harbors, MN). Mice were injected with buprenorphine (1 mg/kg) and monitored for at least 3 days post-surgery.
Injections were performed unilaterally into dorsal striatum using coordinates +1.0 AP, −2.3 ML, −3.5 DV for vertical injections and +1.7 AP, −2.3 ML, −3.5 DV for injections at 15* on AP axis when leaving more room for head plate for a total of 300 nL. AAV9 hSyn.GCaMP6s.WPRE.SV40 (Addgene #100843-AAV9) was injected at 1e13 into WT mice and AAV9 Syn.Flex.GCaMP6s.WPRE.SV40 (Addgene #100845-AAV9) was injected into ChATIRES−Cre mice.
Statements
Data availability statement
The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.
Ethics statement
The animal study was approved by the Institutional Animal Care and Use Committee of the Salk Institute for Biological Studies (protocol No. 15-00064, 10/25/2021). The study was conducted in accordance with the local legislation and institutional requirements.
Author contributions
AV: Conceptualization, Formal Analysis, Investigation, Methodology, Validation, Visualization, Writing–original draft. UM: Conceptualization, Formal Analysis, Investigation, Methodology, Validation, Visualization, Writing–original draft. JP: Investigation, Writing–original draft. JF: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Writing–review and editing. SC: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Writing–review and editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by funds from the W. M. Keck Foundation (JF), Brain Research Foundation (JF), NIH R01NS115591 (SC and JF), and MH111534 (SC).
Acknowledgments
We are grateful to the prototyping lab at the Qualcomm Institute and Steve Barry (Salk Machine Shop) for their help with fabricating the components of the MMCX devices and head plates, respectively. We would also like to thank Sage Aronson, PhD (Neurophotometrics LLC.), and Nick Hollon, PhD for their support in setting up fiberphotometry experiments. We thank members of the JF and SC labs for critical help, advice and inputs.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
