ORIGINAL RESEARCH article

Front. Bee Sci., 28 June 2024

Sec. Bee Genetics

Volume 2 - 2024 | https://doi.org/10.3389/frbee.2024.1401851

Phylogeography of the giant honey bees based on mitochondrial gene sequences

  • 1. Department of Biology, Radford University Carilion, Roanoke, VA, United States

  • 2. Kapi’olani Medical Center for Women & Children, Hawaii Pacific Health, Honolulu, HI, United States

  • 3. Department of Ecology & Evolutionary Biology, University of Kansas, Lawrence, KS, United States

Abstract

Our goal was to resolve phylogenetic relationships among Apis laboriosa, and the Apis dorsata subspecies A. d. dorsata, A. d. binghami, and A. d. breviligula, the last two of which have been proposed as full species by several authors. We carried out a phylogenetic analysis of the giant honey bees using mitochondrial cox1 and cox2 gene sequences analyzed with maximum likelihood methods. We obtained strong support for four clades within A. dorsata in the broad sense: the three subspecies or species mentioned above, and a fourth lineage from south India. However, our analysis did not resolve the phylogenetic relationships among the four lineages. The presence of two genetically distinguishable groups of “A. dorsata” in India parallels the presence there of two cavity-nesting honey bees, A. cerana cerana and A. c. indica (the black hill bees and yellow plains bees, respectively). This suggests that past climatic or geological events may have temporarily isolated Indian populations from populations of the Asian mainland, leading to divergence and possibly speciation of Indian giant and cavity-nesting bees, followed by recolonization of India by eastern Asian forms. Recognition of these distinct lineages is important for conservation planning, so that their individual distributions, ecologies, and migration patterns can be considered, and so that the genetic diversity they represent can be maintained.

Introduction

The giant honey bees have a geographic range centered on south and southeast Asia, extending northwest into Pakistan, eastwards through India, Bangladesh, Nepal, Bhutan, Myanmar, Thailand, southern China, and southeast Asia, and through the islands of Malaysia, Indonesia, and the Philippines (; ; ; ; ; ; ). Several earlier writers including and pointed out diversity among giant honey bee populations based on morphological and morphometric data. In particular they noted that the giant honey bees of the Himalayan region, the Indonesian island of Sulawesi, and the oceanic Philippine islands (i.e., those islands never connected to the Asian mainland) differed from one another and from the more widespread form found elsewhere. Maa divided honey bees into three genera—Micrapis, the dwarf honey bees, Megapis, the giant honey bees, and Apis, the cavity-nesting honey bees—and recognized four giant bee species: Megapis breviligula from the Philippines, M. binghami from Sulawesi and smaller nearby islands, M. laboriosa from high altitude Himalayan regions, and the more widespread M. dorsata. Ruttner, like most subsequent authors, recognized just one genus, Apis, and only one species of giant honey bee, Apis dorsata. He and many subsequent authors (e.g., , ) considered the Himalayan form a subspecies, A. d. laboriosa, but noted that additional information might confirm it as a distinct species.

The taxonomic status of A. laboriosa remained contentious for many years despite numerous studies. made detailed morphological comparisons of A. laboriosa from Nepal and A. dorsata collected from many parts of its range, documenting “distinct and stable differences between them” supporting species status of A. laboriosa. reported that they could find no morphological differences between male genitalia (the everted endophallus) of A. laboriosa and A. dorsata, but nonetheless supported species status of A. laboriosa on the basis of other morphological differences, habitat, the presence of two species of braulid parasites (Diptera: Bruaulidae, Megabraula) in nests of A. laboriosa but (apparently) not those of A. dorsata, and genetic differences revealed by allozyme electrophoresis.

However, some authors argued that the characters used to support species status of A. laboriosa—including habitat, color patterns, and morphometric characters—could represent intraspecific variation and adaptation to different habitats, and thus took the conservative position that more data were needed, particularly concerning reproductive isolation of populations occurring in sympatry (e.g., ; ). carried out morphometric comparisons of A. laboriosa and A. dorsata collected from Yunnan, Guangxi and Hainan provinces in China and again found significant differences between them. Collection sites for the two were in relatively close proximity (on the order of 200-300 km) but not strictly sympatric, and they were found at different elevations (A. laboriosa 1500 m and above, A. dorsata 1300 m and lower, though all but one collection was made at 700 m or lower).

More recently, new distributional records for A. laboriosa () reported A. dorsata and A. laboriosa foraging sympatrically at sites in Arunachal Pradesh, India and in northern Vietnam. , found distinct morphological, morphometric, and genetic differences between Indian populations of A. dorsata and A. laboriosa, both in sympatry and in allopatry, providing convincing support for the species status of A. laboriosa.

Until recently the species status of A. d. breviligula and A. d. binghami have received much less attention. included A. laboriosa, A. dorsata from Thailand and Sri Lanka, and A. binghami in a larger phylogenetic analysis of Apis species using both nuclear (EF-1α intron) and mitochondrial (ND2) sequence data. The giant honey bees were recovered as a monophyletic group and A. laboriosa was consistently recovered as a clade distinct from A. dorsata and A. d. binghami; however, A. dorsata and A. d. binghami were not consistently resolved as separate lineages. used both mitochondrial (cox2, ND2, and the large (16S) ribosomal subunit or rrnL) and nuclear (inositol 1,4,5-triphosphate receptor or itpr) gene sequences in their phylogenetic analysis of Apis taxa, also including the giant honey bees A. dorsata from Sabah, Malaysia, A. d. binghami, and A. laboriosa. Their analyses consistently recovered A. laboriosa as sister to A. dorsata and A. d. binghami. carried out a more comprehensive coverage of giant honey bees, including A. laboriosa, A. dorsata from Sabah, Malaysia and Palawan Island, the Philippines, A. d. binghami and A. d. breviligula in their phylogenentic analysis of Apis species, using the same set of genes as minus the mitochondrial ND2. Their results strongly supported the species status of A. d. breviligula from the Philippines, though the placement of A. d. binghami remained unresolved.

carried out a taxonomic study of giant honey bees using morphological characters. Their study included A. laboriosa, A. dorsata, and the island lineages A. d. binghami and A. d. breviligula. They found that A. dorsata from mainland Asia differs morphologically from A. d. binghami and A. d. breviligula but concluded that the latter two represent a single morphological species, A. binghami, with two subspecies, A. b. binghami and A. b. breviligula.

In this paper, we accept the species status of A. laboriosa. We use the names A. dorsata dorsata, A. d. breviligula and A. d. binghami for the other distinctive populations of giant honey bees because the species status of the latter two is still subject to investigation. We use the name “A. d. SouthIndia” to refer to a population that appears to be a cryptic unnamed species or subspecies (; ). “Apis dorsata in the broad sense” will refer to all giant honey bees excluding A. laboriosa.

The objective of this study is to carry out a phylogenetic analysis for populations of giant honey bees, including representatives from as much of their range as we could obtain, to test whether the lineages within A. dorsata in the broad sense are monophyletic, and to determine relationships among them. Samples include A. laboriosa [Nepal], A. d. dorsata [multiple populations], and the distinctive island populations A. d. binghami [Sulawesi and smaller nearby islands] and A. d. breviligula [the oceanic islands of the Philippines]. We also include the dwarf honey bees, A. florea and A. andreniformis, and the cavity-nesting honey bees A. mellifera and A. cerana as outgroups. We generated partial sequences of the mitochondrial cytochrome c oxidase subunit 1 (cox1) and cytochrome c oxidase subunit 2 (cox2) genes and used Maximum Likelihood methods in MEGA7 to construct phylogenetic trees.

Methods

Field methods

Samples used in this study were collected by multiple researchers from 1989 to 2018 using a variety of collection and preservation techniques. Table 1 gives locality and collection information, and sample IDs corresponding to those used in Figure 1. Most specimens were collected directly from colonies, though some bees were collected while they were foraging. Most specimens are adult worker bees, while a few are pupae collected directly from nests. Individual bees or bee thoraces were preserved in the field in liquid nitrogen (1988–1990) or in 95% ethanol (1991 onwards). Frozen specimens were later stored at −80°C. Ethanol-preserved specimens were stored at 4° to −20°C.

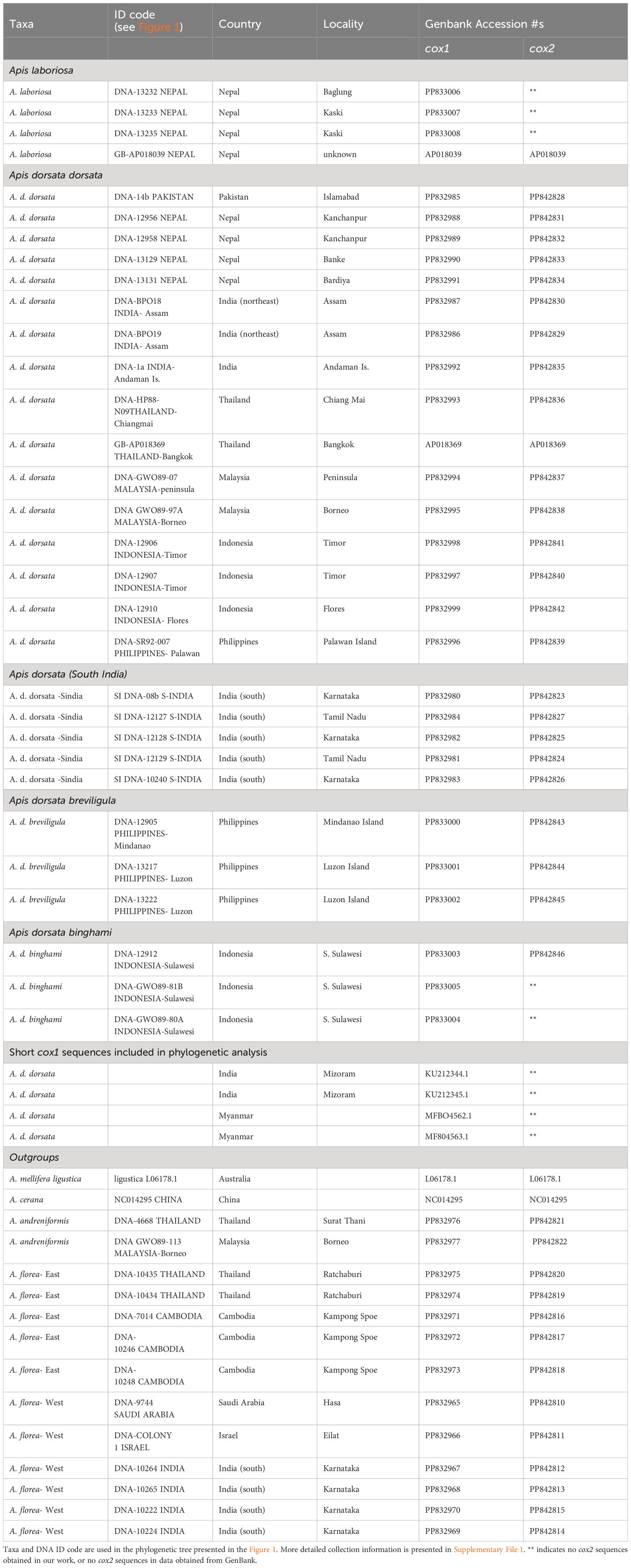

Table 1

TaxaID code (see Figure 1)CountryLocalityGenbank Accession #s
cox1cox2
Apis laboriosa
A. laboriosaDNA-13232 NEPALNepalBaglungPP833006**
A. laboriosaDNA-13233 NEPALNepalKaskiPP833007**
A. laboriosaDNA-13235 NEPALNepalKaskiPP833008**
A. laboriosaGB-AP018039 NEPALNepalunknownAP018039AP018039
Apis dorsata dorsata
A. d. dorsataDNA-14b PAKISTANPakistanIslamabadPP832985PP842828
A. d. dorsataDNA-12956 NEPALNepalKanchanpurPP832988PP842831
A. d. dorsataDNA-12958 NEPALNepalKanchanpurPP832989PP842832
A. d. dorsataDNA-13129 NEPALNepalBankePP832990PP842833
A. d. dorsataDNA-13131 NEPALNepalBardiyaPP832991PP842834
A. d. dorsataDNA-BPO18 INDIA- AssamIndia (northeast)AssamPP832987PP842830
A. d. dorsataDNA-BPO19 INDIA- AssamIndia (northeast)AssamPP832986PP842829
A. d. dorsataDNA-1a INDIA-Andaman Is.IndiaAndaman Is.PP832992PP842835
A. d. dorsataDNA-HP88-N09THAILAND-ChiangmaiThailandChiang MaiPP832993PP842836
A. d. dorsataGB-AP018369 THAILAND-BangkokThailandBangkokAP018369AP018369
A. d. dorsataDNA-GWO89-07 MALAYSIA-peninsulaMalaysiaPeninsulaPP832994PP842837
A. d. dorsataDNA GWO89-97A MALAYSIA-BorneoMalaysiaBorneoPP832995PP842838
A. d. dorsataDNA-12906 INDONESIA-TimorIndonesiaTimorPP832998PP842841
A. d. dorsataDNA-12907 INDONESIA-TimorIndonesiaTimorPP832997PP842840
A. d. dorsataDNA-12910 INDONESIA- FloresIndonesiaFloresPP832999PP842842
A. d. dorsataDNA-SR92-007 PHILIPPINES- PalawanPhilippinesPalawan IslandPP832996PP842839
Apis dorsata (South India)
A. d. dorsata -SindiaSI DNA-08b S-INDIAIndia (south)KarnatakaPP832980PP842823
A. d. dorsata -SindiaSI DNA-12127 S-INDIAIndia (south)Tamil NaduPP832984PP842827
A. d. dorsata -SindiaSI DNA-12128 S-INDIAIndia (south)KarnatakaPP832982PP842825
A. d. dorsata -SindiaSI DNA-12129 S-INDIAIndia (south)Tamil NaduPP832981PP842824
A. d. dorsata -SindiaSI DNA-10240 S-INDIAIndia (south)KarnatakaPP832983PP842826
Apis dorsata breviligula
A. d. breviligulaDNA-12905 PHILIPPINES- MindanaoPhilippinesMindanao IslandPP833000PP842843
A. d. breviligulaDNA-13217 PHILIPPINES- LuzonPhilippinesLuzon IslandPP833001PP842844
A. d. breviligulaDNA-13222 PHILIPPINES- LuzonPhilippinesLuzon IslandPP833002PP842845
Apis dorsata binghami
A. d. binghamiDNA-12912 INDONESIA-SulawesiIndonesiaS. SulawesiPP833003PP842846
A. d. binghamiDNA-GWO89-81B INDONESIA-SulawesiIndonesiaS. SulawesiPP833005**
A. d. binghamiDNA-GWO89-80A INDONESIA-SulawesiIndonesiaS. SulawesiPP833004**
Short cox1 sequences included in phylogenetic analysis
A. d. dorsataIndiaMizoramKU212344.1**
A. d. dorsataIndiaMizoramKU212345.1**
A. d. dorsataMyanmarMFBO4562.1**
A. d. dorsataMyanmarMF804563.1**
Outgroups
A. mellifera ligusticaligustica L06178.1AustraliaL06178.1L06178.1
A. ceranaNC014295 CHINAChinaNC014295NC014295
A. andreniformisDNA-4668 THAILANDThailandSurat ThaniPP832976PP842821
A. andreniformisDNA GWO89-113 MALAYSIA-BorneoMalaysiaBorneoPP832977PP842822
A. florea- EastDNA-10435 THAILANDThailandRatchaburiPP832975PP842820
A. florea- EastDNA-10434 THAILANDThailandRatchaburiPP832974PP842819
A. florea- EastDNA-7014 CAMBODIACambodiaKampong SpoePP832971PP842816
A. florea- EastDNA-10246 CAMBODIACambodiaKampong SpoePP832972PP842817
A. florea- EastDNA-10248 CAMBODIACambodiaKampong SpoePP832973PP842818
A. florea- WestDNA-9744 SAUDI ARABIASaudi ArabiaHasaPP832965PP842810
A. florea- WestDNA-COLONY 1 ISRAELIsraelEilatPP832966PP842811
A. florea- WestDNA-10264 INDIAIndia (south)KarnatakaPP832967PP842812
A. florea- WestDNA-10265 INDIAIndia (south)KarnatakaPP832968PP842813
A. florea- WestDNA-10222 INDIAIndia (south)KarnatakaPP832970PP842815
A. florea- WestDNA-10224 INDIAIndia (south)KarnatakaPP832969PP842814

Bee samples used in this study.

Taxa and DNA ID code are used in the phylogenetic tree presented in the Figure 1. More detailed collection information is presented in Supplementary File 1. ** indicates no cox2 sequences obtained in our work, or no cox2 sequences in data obtained from GenBank.

Figure 1

Laboratory methods

Genomic DNA was extracted from the mitochondrion-rich thoracic flight muscle tissue using DNA spin-columns, primarily the Qiagen DNEasy Blood and Tissue kit (www.Qiagen.com, Ann Arbor, MI USA) and the GenElute Mammalian Genomic DNA Miniprep kit (www.sigmaaldrich.com, St. Louis, MO USA) following the manufacturers’ recommendations. Extracted DNAs were stored at −20°C. Portions of the mitochondrial genome were amplified using the primers shown in Table 2. These sequences included a large portion of cox1, leucine tRNAUUR, a short non-coding sequence, and a portion of cox2. Figure 2 shows the relative position of the primers on the honey bee cox1 to cox2 sequences. Sanger sequencing was carried out at the Idaho State University Molecular Research Core Facility, Pocatello, ID. As only protein-coding sequence was included in the phylogenetic analysis, the tRNA and non-coding sequences were removed after alignment (see below) and the cox1 and cox2 sequences were concatenated. Some of the sequences were also obtained from Genbank (Table 1). The total number of sequences for each taxon and their geographic origins are summarized in Table 3.

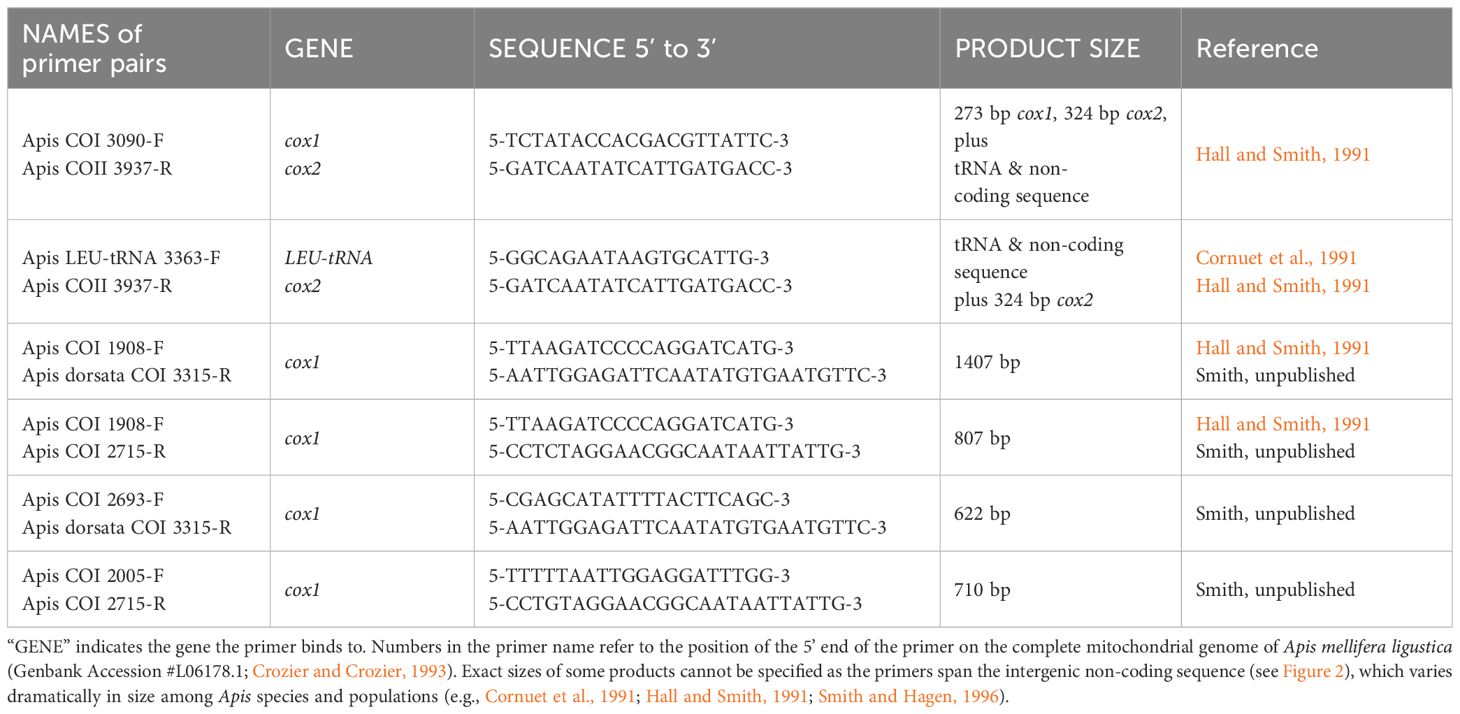

Table 2

NAMES of
primer pairs
GENESEQUENCE 5’ to 3’PRODUCT SIZEReference
Apis COI 3090-F
Apis COII 3937-R
cox1
cox2
5-TCTATACCACGACGTTATTC-3
5-GATCAATATCATTGATGACC-3
273 bp cox1, 324 bp cox2, plus
tRNA & non-coding sequence
Apis LEU-tRNA 3363-F
Apis COII 3937-R
LEU-tRNA
cox2
5-GGCAGAATAAGTGCATTG-3
5-GATCAATATCATTGATGACC-3
tRNA & non-coding sequence
plus 324 bp cox2

Apis COI 1908-F
Apis dorsata COI 3315-R
cox15-TTAAGATCCCCAGGATCATG-3
5-AATTGGAGATTCAATATGTGAATGTTC-3
1407 bp
Smith, unpublished
Apis COI 1908-F
Apis COI 2715-R
cox15-TTAAGATCCCCAGGATCATG-3
5-CCTCTAGGAACGGCAATAATTATTG-3
807 bp
Smith, unpublished
Apis COI 2693-F
Apis dorsata COI 3315-R
cox15-CGAGCATATTTTACTTCAGC-3
5-AATTGGAGATTCAATATGTGAATGTTC-3
622 bpSmith, unpublished
Apis COI 2005-F
Apis COI 2715-R
cox15-TTTTTAATTGGAGGATTTGG-3
5-CCTGTAGGAACGGCAATAATTATTG-3
710 bpSmith, unpublished

PCR primer sequences used in this study.

“GENE” indicates the gene the primer binds to. Numbers in the primer name refer to the position of the 5’ end of the primer on the complete mitochondrial genome of Apis mellifera ligustica (Genbank Accession #L06178.1; ). Exact sizes of some products cannot be specified as the primers span the intergenic non-coding sequence (see Figure 2), which varies dramatically in size among Apis species and populations (e.g., ; ; ).

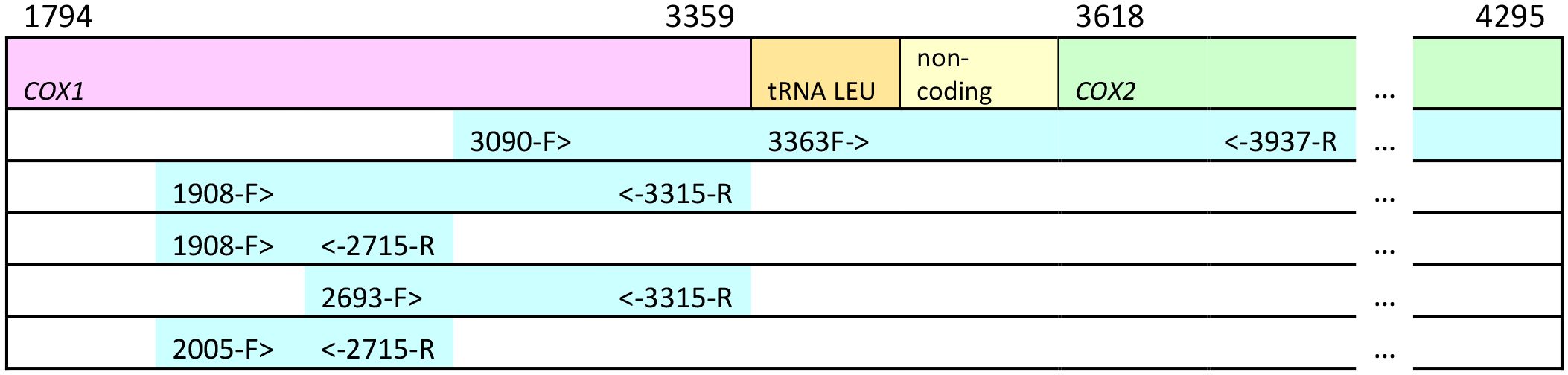

Figure 2

). Not drawn to scale.

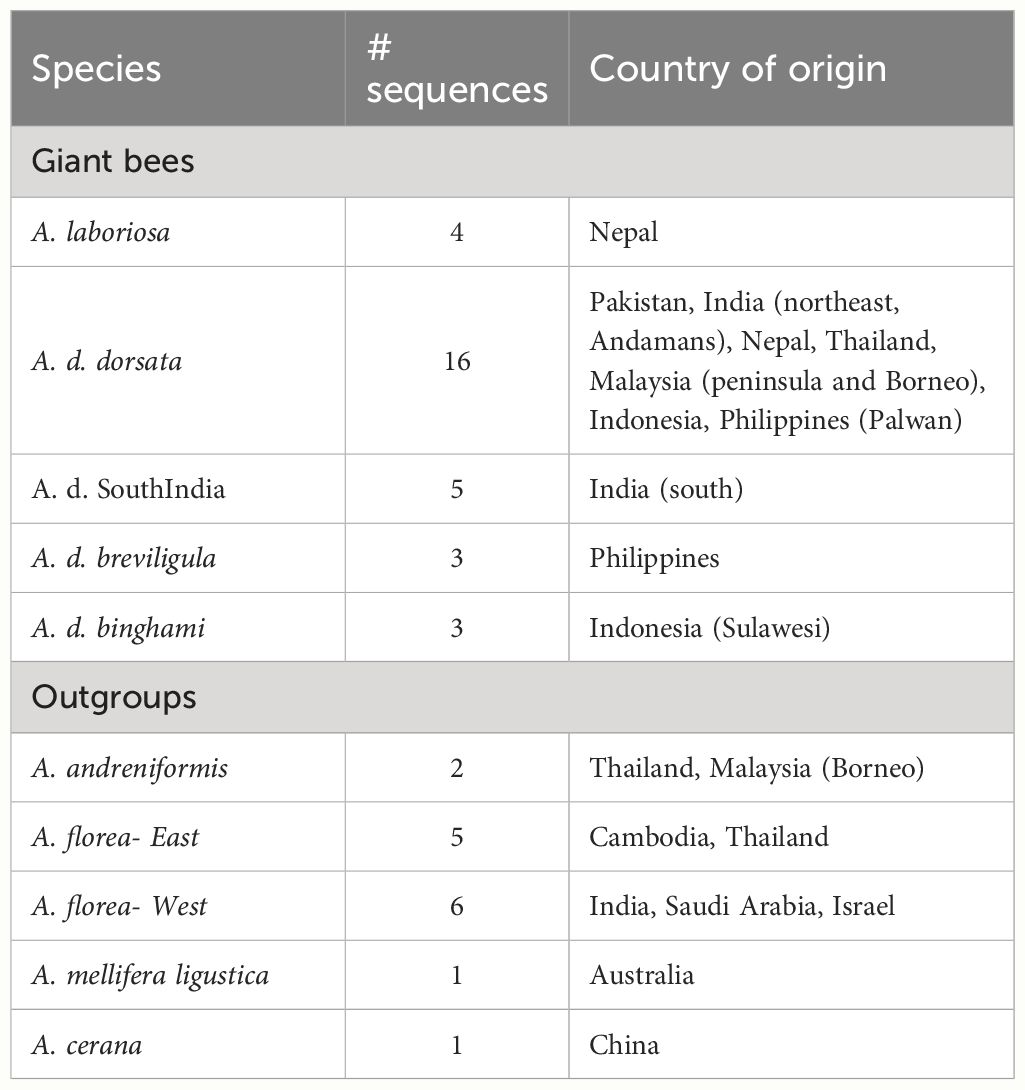

Table 3

Species# sequencesCountry of origin
Giant bees
A. laboriosa4Nepal
A. d. dorsata16Pakistan, India (northeast, Andamans), Nepal, Thailand, Malaysia (peninsula and Borneo), Indonesia, Philippines (Palwan)
A. d. SouthIndia5India (south)
A. d. breviligula3Philippines
A. d. binghami3Indonesia (Sulawesi)
Outgroups
A. andreniformis2Thailand, Malaysia (Borneo)
A. florea- East5Cambodia, Thailand
A. florea- West6India, Saudi Arabia, Israel
A. mellifera ligustica1Australia
A. cerana1China

Summary of the number of sequences used for each taxon and their geographic origins.

Phylogenetic analysis

Sequences were aligned manually with cox1 and cox2 sequences from Apis mellifera ligustica (; Genbank accession L06178) in MEGA7 (). Sequences were screened for missing bases and correct reading frame by translating DNA sequences to amino acid sequences. In total, 46 sequences were used in the phylogenetic analysis and another four Genbank sequences of A. dorsata dorsata from India (Mizoram) and Myanmar (Table 1) that were too short to include in the phylogenetic analysis were aligned with the larger data set to determine which sequences they matched most closely.

The best model of sequence evolution was selected using MEGA “Model Selection” analysis and the following conditions: maximum likelihood statistical methods, partial deletion of sites with missing data, coverage cutoff of 75%, all codon positions used, moderate branch swapping filter. The model of sequence evolution with the lowest Bayesian Information Criteria (BIC) score was selected for use in the phylogenetic analysis. This model (BIC score 13302.38) was a general time reversible model with non-uniform rates of evolution among sites (gamma distributed) and a fraction of sites seemingly invariable (GTR+G+I).

Phylogenetic trees were constructed using Maximum Likelihood methods in MEGA7 with the following settings: model of evolution gamma distributed with invariant sites (GTR+G+I) with 5 gamma categories, partial deletion of sites with missing data, 75% site coverage cutoff, all codon positions used, maximum likelihood heuristic method Subtree-Pruning-Regrafting-Fast, initial tree generated by Neighbor-Joining, moderate branch swap filter, 3 threads. Support for the branching patterns was evaluated with 1000 bootstrap replicates. Branches with less than 95% bootstrap support were collapsed. A coverage cutoff of 75% was chosen during model choice and tree-building to ensure that inclusion of shorter sequences did not result in elimination of informative data.

Results

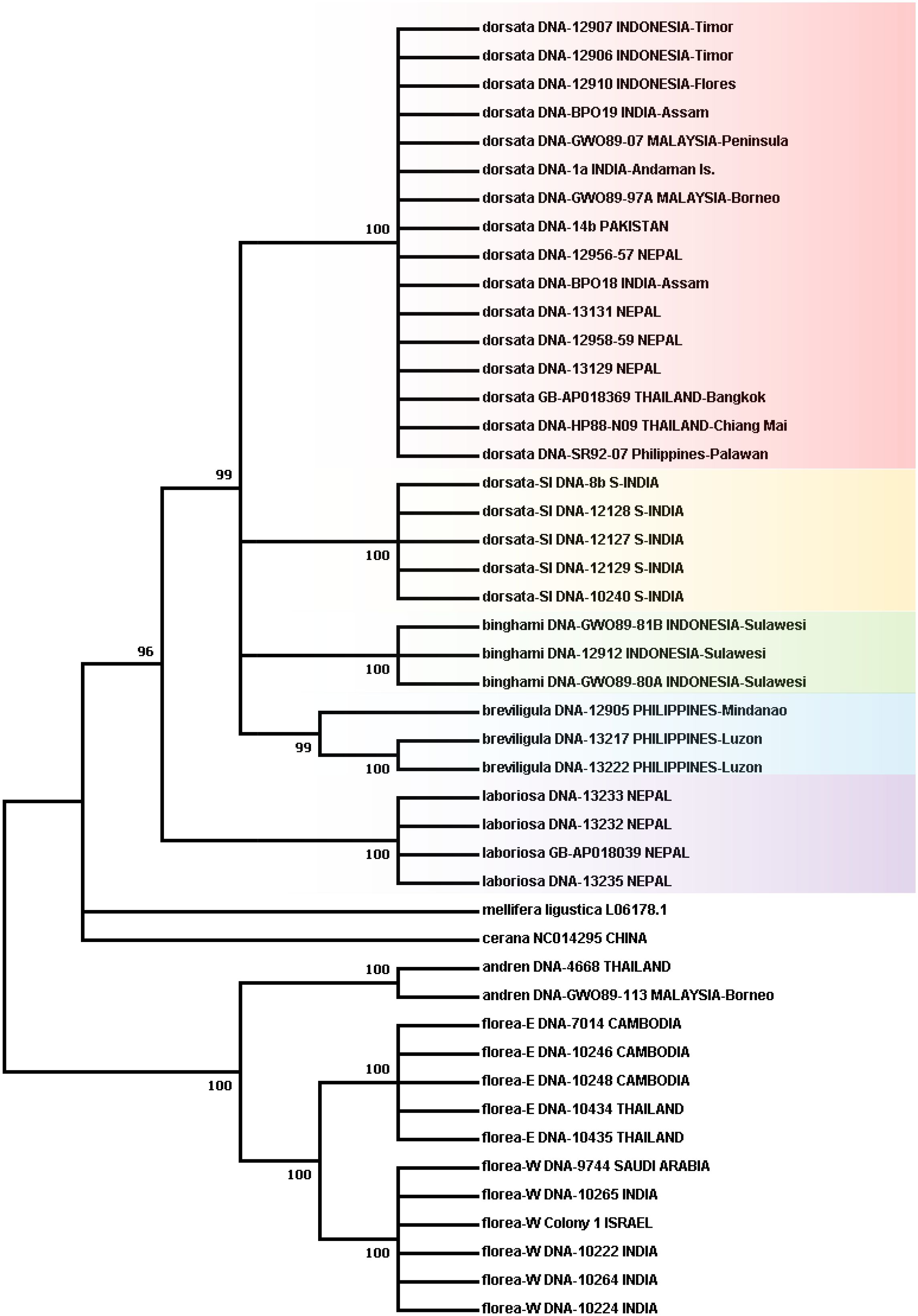

Figure 1 presents the phylogenetic tree obtained showing partitions with 95% bootstrap support or better. As has been found in other recent studies, A. laboriosa constitutes a well-supported lineage separate from and sister to all A. dorsata in the broad sense, further supporting its status as a distinct species. Within A. dorsata in the broad sense, we found four distinct lineages: A. d. breviligula from the oceanic Philippine islands, A. d. binghami from the Indonesian island of Sulawesi, A. d. SouthIndia, a genetically distinct population so far known only from southern India, and a more narrowly defined A. dorsata dorsata, represented by our samples from Pakistan, Nepal, northeastern India (Assam and the Andaman Islands), Thailand, Malaysia (Peninsular and Sabah, Borneo), the Philippine island of Palawan, and the Indonesian islands of Timor and Flores. The short sequences from Mizoram, India and Myanmar most closely matched those of the A. dorsata dorsata group and were clearly distinct from the A. d. SouthIndia group (Table 4).

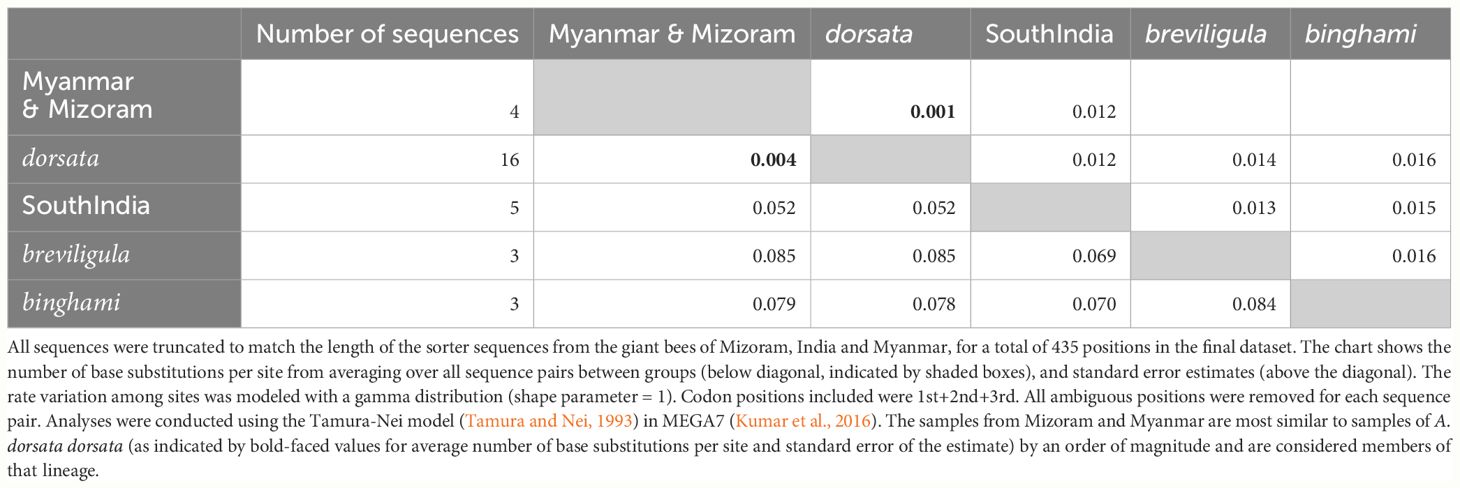

Table 4

Number of sequencesMyanmar & MizoramdorsataSouthIndiabreviligulabinghami
Myanmar & Mizoram40.0010.012
dorsata160.0040.0120.0140.016
SouthIndia50.0520.0520.0130.015
breviligula30.0850.0850.0690.016
binghami30.0790.0780.0700.084

Comparison of sequence similarity between samples of A. dorsata from Myanmar and Mizsoram, India (see Table 1) and the giant bee lineages A. dorsata dorsata, A. breviligula (or A. d. breviligula), A. binghami (or A. d. binghami) and a mitochondrially distinct giant bee found in southern India (A. d. SouthIndia).

All sequences were truncated to match the length of the sorter sequences from the giant bees of Mizoram, India and Myanmar, for a total of 435 positions in the final dataset. The chart shows the number of base substitutions per site from averaging over all sequence pairs between groups (below diagonal, indicated by shaded boxes), and standard error estimates (above the diagonal). The rate variation among sites was modeled with a gamma distribution (shape parameter = 1). Codon positions included were 1st+2nd+3rd. All ambiguous positions were removed for each sequence pair. Analyses were conducted using the Tamura-Nei model () in MEGA7 (). The samples from Mizoram and Myanmar are most similar to samples of A. dorsata dorsata (as indicated by bold-faced values for average number of base substitutions per site and standard error of the estimate) by an order of magnitude and are considered members of that lineage.

Unfortunately, although this analysis shows four well-supported lineages within A. dorsata in the broad sense, it does not resolve branching patterns among the four lineages.

Discussion

In this study we support the species status of A. laboriosa and show that Apis dorsata in the broad sense includes four genetically distinguishable lineages: A. dorsata dorsata, A. d. binghami, A. d. breviligula and A. d. SouthIndia, though our data do not resolve branching patterns among the four lineages. Regardless of whether these four lineages merit species status, recognition and continued investigation of these groups are important for the study of honey bee biogeography, for maintenance of existing diversity within the giant honey bees, and even for conservation of the Asian bee fauna.

Honey bee biogeography

Although color, morphometric and morphological differences among A. d. dorsata, A. d. binghami and A. d. breviligula have been reported (e.g., , but see ), there are no obvious morphological differences between A. d. SouthIndia and the widespread A. d. dorsata (). In their study of A. laboriosa and A. dorsata in India, examined specimens of A. dorsata from Arunachal Pradesh in the extreme northeast of India and Karnataka (specifically Bangalore) in south India. In a dendogram displaying morphometric similarity of the samples, the south India specimens did not form a discrete cluster but were mixed in among the specimens from northeast India. However, in their phylogenetic analysis of the same collections (using a 500 bp fragment of the mitochondrial cox1 gene), the samples from Arunachal Pradesh and south India formed two separate clades with 99% and 100% bootstrap support, respectively. To the best of our knowledge, there is no information on the geographical distributions of A. d. dorsata and A. d. SouthIndia. Although giant honeybees have been collected at points between southern and northern India, at the moment the only way to tell the two apart is by genetic testing.

The distinctive nature of A. d. breviligula and A. d. binghami compared to the more widespread A. d. dorsata has long been recognized (e.g., ; ). A. d. breviligula and A. d. binghami are primarily black, with white stripes on metasomal tergites 3,4, and 5 formed by short white hairs, while the metasomal terga 1-3 (and sometimes tergites 4-5)and sterna 1-2 are yellow to brown in A. dorsata dorsata (). In addition to differences in coloration, A. dorsata dorsata of mainland Asia differs from the two island taxa based on ocellus size and the spacing of the compound eyes and ocelli (). Whether the two island forms constitute separate species remains to be determined. found no morphological basis for separating the two, and considered them a single species, distinct from A. d. dorsata, with two subspecies: A. binghami binghami and A. b. breviligula. Evidence from mitochondrial gene sequences presented here retrieves A. d. binghami and A. d. breviligula as genetically distinct but is insufficient determine species status.

The fact that isolated island populations show traits distinct from those of mainland populations is not surprising. What is more surprising is the presence of a genetically distinct giant honey bee in southern India, along with the more widespread A. dorsata dorsata in northern India. However, a broader view of Indian Apis shows that this pattern has appeared more than once. India is also home to two cavity-nesting bees, the yellow or plains bee, and the hill or black bee ( and references cited therein; ). According to the yellow or plains bee corresponds to A. cerana indica Fabricius, 1798 while the black or hill bee corresponds to A. cerana cerana Fabricius, 1793. Genetic evidence collected over the past three decades (e.g., mitochondrial cox1, cox2 and non-coding sequences, ; ; mitochondrial and nuclear gene sequences, ; and genomic SNPs, ) support species status of the yellow Indian bee, as proposed by ; , and . The dwarf honey bee, Apis florea, also consists of two distinct groups revealed by mitochondrial cox1-cox2 sequences and nuclear SNPs (; , and Figure 1 of this study). These are an eastern lineage including populations from Thailand eastwards, and a western lineage including populations from India westward, including the invasive dwarf honey bee populations in Jordan and Israel, and probably those in east Africa as well. The “switchover” from East to West is apparently in the poorly sampled region from northeastern India through Bangladesh and Myanmar.

Why does India have a distinct variety of cavity-nesting bee, A. cerana indica, along with A. cerana cerana, and a distinct south Indian variety of giant honey bee along with A. dorsata dorsata in northern India? And why does it have a variety of A. florea different from that in eastern Asia? Answering these questions requires (1) information on the ranges of the species and putative species of Apis in India, particularly the distributions of the yellow and black cavity-nesting bees, and A. d. SouthIndia and A. dorsata dorsata, and (2) a phylogeny that resolves the branching patterns of the four lineages within A. dorsata in the broad sense. A robust phylogeny would provide information on the order and timing of diversification events. A time calibrated phylogeny could suggest specific geological and climatic events that could have promoted diversification, and help us determine if the dwarf, giant, and cavity nesting lineages responded to historical events with similar patterns of diversification.

Maintenance of diversity in the giant bees

At least three of the four lineages within A. dorsata in the broad sense exhibit migratory behavior. The vast majority of giant honey bee migration research has been carried out on populations that our study would place in A. d. dorsata (for example, ; ; ; ; ; ), which is not surprising, as it is the most widespread. investigated giant honey bee migration in Sri Lanka; though we have not sampled any giant bees from Sri Lanka, we predict that they are part of the A. d. SouthIndia clade, based on the fact that the south Indian plains bee, A. c. indica, is also found in Sri Lanka. At least one set of observations has been made on migration by A. d. binghami in Sulawesi (). , cited in reported that A. d. breviligula in the Philippines does not migrate.

Migration is typically a predictable annual response to seasonal patterns of rainfall and resource availability (e.g., ) or a response to erratically occurring masting events in which forest trees produce a superabundance of blossoms and resources (). Migrating bees appear to show fidelity to their nesting sites at either end of the migratory route (; ). This alone means that protecting a giant honey bee’s nesting and foraging habitat means protecting more than one location. Migrating colonies of giant honey bees may travel distances that require “rest stops” to forage. Recent work by , has shown that migrating A. d. dorsata in Thailand make use of “traditional” rest stops, where they forage for food and water for variable lengths of time before continuing their journey. These rest stops are likely to be crucial for successful migration. To maintain the genetic diversity represented by linages within A. dorsata in the broad sense, it will be necessary to maintain not only the endpoints of their migratory routes, but quite probably sufficient rest stops along the route too, in conditions that provide the bees with the forage, resting sites and nesting sites they need. This would require tracking migration routes and their timing and noting changes in migration timing or route due to climate change or habitat destruction.

Conservation

discuss the challenges facing bee research and bee conservation in Asia, noting, “If we do not know the species present, their distribution and threats, we cannot protect them.” They point to the eusocial bees as “flagship species” for bee conservation measures, as their economic value to humans—through pollination services and honey production—is generally known to the public. In particular, “the honey bee” is likely the only bee most people know, especially in urban populations. Although the giant bees are large, conspicuous, and widespread across the Asian continent, we are still discovering new diversity (at the species or subspecies level) and still lack basic information on the ranges of some lineages such as the south Indian giant bee.

Giant honey bees are not just major pollinators in Asian ecosystems. With their large, conspicuous open-air combs, large aggregations of nests, and migratory behavior, plus the well-publicized harvesting of cliff-side A. laboriosa nests, they are arguably the most charismatic of the Asian social bees. Public support for protection of giant honey bees would also have the effect of protecting habitat for the many other social and solitary Asian bee species.

Our results suggest avenues for additional research, particularly regarding Indian populations. What is the range of the South Indian giant honey bee, and what are its migration patterns? Is the range of the southern Indian cavity-nesting “plains bee” (currently A. cerana indica) congruent with the range of the southern Indian giant honey bee, suggesting similar biogeographic history? Does the south Indian giant honey bee differ in behavior or ecology from A. d. dorsata? And of course, will behavioral and genetic study of giant honey bees from a greater portion of their ranges (e.g., as in ) reveal more diversity?

Statements

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Ethics statement

Ethical approval was not required for the study as no human subjects, other vertebrates, or higher invertebrates were used. This study used preserved insect specimens collected from 1989 to 2018.

Author contributions

CB: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. SZ: Investigation, Methodology, Writing – review & editing. DS: Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This study was partially supported by National Science Foundation grants BSR-8918932 to DS and Fred Dyer and USDA-NIFA AFRI 2010-65-104-20533 to O. Rueppell and DS, and by an Undergraduate Research Award from the University of Kansas to SZ. We also benefited from the generosity of many bee-keepers and colleagues who shared specimens with us.

Acknowledgments

We would like to thank the many people who have helped us in the field and by collecting and donating specimens: Ahmed Al-Ghamdi, Nicola Bradbear, Fred Dyer, Steven Goodman, the late Randall Hepburn, Ben Oldroyd, Jurgen Paar, the late Herman Pechhacker, Stephen Petersen, the late Stefan Reyes, Benny Shalmon, Yong-Chao Su, and especially Gard Otis, who helped many bee researchers begin their studies of Asian honey bees. A very large portion of this work was completed by SZ (née Cluff) in partial fulfilment of the requirements for an Honors thesis and Bachelor of Science (Honors) degree in Biological Sciences at the University of Kansas.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/frbee.2024.1401851/full#supplementary-material
