Abstract
Analysis of presynaptic protein expression in glutamatergic and GABAergic central synapses performed in several laboratories and with different techniques is unveiling a complex scenario, largely because each presynaptic protein exists in several isoforms. The interpretation of these findings is generally based on the notion that each synapse and each synaptic vesicle contains one of the isoforms of each family of presynaptic proteins. We verified whether this interpretation is tenable by performing triple labeling and immunoisolation studies with the aim of detecting two isoforms of a given presynaptic protein in glutamatergic or GABAergic axon terminals and/or synaptic vesicles (SVs). Here, we show that: (1) the possibility that not all families of presynaptic proteins are expressed in all terminals must be taken into serious account; (2) the expression of a given protein isoform in a terminal does not exclude the expression of other isoforms of the same protein in the same terminal and in the same vesicle. These conclusions open new and interesting problems; their experimental analysis might improve our understanding of the physiology and pathophysiology of central synapses.
Introduction
Neurotransmitter release is a fundamental process in synaptic communication, and heterogeneous expression of presynaptic proteins appears to contribute to functional differences, e.g., release probability, strength, and plasticity (Staple et al., ). Analysis of differential protein expression in central synapses has thus become an important research line in contemporary neuroscience (e.g., Sugino et al., ; O'Rourke et al., ), one of extraordinary difficulty given the elevated number of presynaptic proteins related to transmitter release and the existence of several isoforms of most of them. To date, most studies have focused on differential expression of these proteins in the predominant types of CNS synapses, i.e., glutamatergic and GABAergic (Conti and Weinberg, ; Cherubini and Conti, ).
In previous studies, we reported the heterogeneous expression of couples of isoforms (synapsin [SYN] I and II; synaptophysin [SYP] I and II; synaptosomal-associated protein [SNAP]-25 and SNAP-23; synaptogyrin [SGYR] 1 and 3; vesicle-associated membrane protein [VAMP] 1 and 2; syntaxin [STX] 1A and 1B, synaptotagmin [SYT] 1 and 2; synaptic vesicle protein [SV2] A and B, Rab3a and c) in vesicular glutamate transporter (VGLUT) 1−, VGLUT2− and vesicular GABA transporter (VGAT)-positive (+) axon terminals in rat cerebral cortex, and showed that VGLUT1+, VGLUT2+, and VGAT+ cortical axon terminals exhibit distinct expression profiles of presynaptic proteins (Bragina et al., , , ).
Whereas these observations provide information on the expression of each isoform in glutamatergic and GABAergic terminals, they leave the question of the relative expression of the two members of a couple in a given terminal unanswered. The case is well exemplified by the distribution of STX1A and 1B in VGLUT1+ terminals: ~60% of VGLUT1+ terminals express STX1A, while ~40% express STX1B (Bragina et al., ). Based on the classical notion that each synapse (and each vesicle) contains at least one isoform of each family of presynaptic proteins (Jahn and Südhof, ), the most likely interpretation for this observation is that each VGLUT1 terminal expresses either STX1A or STX1B. To verify whether this interpretation is tenable, we performed triple labeling studies in order to detect two isoforms (the most expressed and functionally meaningful ones) of a given presynaptic protein in glutamatergic and/or GABAergic axon terminals.
Presynaptic proteins isoforms in glutamatergic and GABAergic terminals
Based on our previous data (Bragina et al., , , ) we analyzed SYT1 and 2 in VGLUT1+ and VGLUT2+ terminals; Rab3a and c in VGLUT1+, VGLUT2+, and VGAT+ terminals; and STX1A and B in VGLUT1+ and VGLUT2+ terminals. In all series, we also verified preliminarily the colocalization of each isoform in puncta expressing the different vesicular transporters. The results were in line with published data (Bragina et al., , ) (Figures 1A,B).
Figure 1
SYT series showed that ~55% of glutamatergic (VGLUT1+ and VGLUT2+) terminals expressed only isoform 1, ~13% express both isoforms (~75% of isoform 2 appeared coexpressed with isoform 1), and ~25% of glutamatergic terminals express neither SYT1 nor SYT2 (Figure 1B and Table 1). Rab3 isoforms are differentially expressed in VGLUT1, VGLUT2 and VGAT+ terminals: ~60% of VGLUT1+ terminals express only isoform Rab3a, ~8% express both Rab3a and Rab3c (the vast majority of isoform c is coexpressed with isoform a), and ~30% of VGLUT1+ terminals expressed neither Rab3a nor Rab3c (Figure 1B, Table 1). As for VGLUT2+ terminals, ~20% of them express Rab3a, ~12% express both Rab3a and Rab3c (about 50% isoform c colocalizes with isoform a), and ~60% simply lack these Rab3 isoforms (Figure 1B, Table 1). Finally, ~40% of VGAT+ terminals express Rab3a, ~30% express Rab3c, and ~30% express both isoforms (Figure 1B, Table 1). Regarding STX1A and B isoforms, our analysis shows that ~50% of VGLUT1+ terminals express both isoforms, <15% express either isoform, and ~40% express neither STX1A nor STX1B. Most (~65%) VGLUT2+ terminals express neither STX1A nor STX1B, ~15% of them express both STX1A and STX1B, while 15% express only STX1B (Figures 1A,B, Table 1).

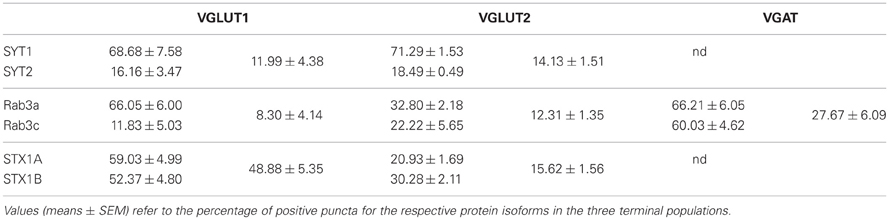

Table 1
| VGLUT1 | VGLUT2 | VGAT | ||||
|---|---|---|---|---|---|---|
| SYT1 | 68.68 ± 7.58 | 11.99 ± 4.38 | 71.29 ± 1.53 | 14.13 ± 1.51 | nd | |
| SYT2 | 16.16 ± 3.47 | 18.49 ± 0.49 | ||||
| Rab3a | 66.05 ± 6.00 | 8.30 ± 4.14 | 32.80 ± 2.18 | 12.31 ± 1.35 | 66.21 ± 6.05 | 27.67 ± 6.09 |
| Rab3c | 11.83 ± 5.03 | 22.22 ± 5.65 | 60.03 ± 4.62 | |||
| STX1A | 59.03 ± 4.99 | 48.88 ± 5.35 | 20.93 ± 1.69 | 15.62 ± 1.56 | nd | |
| STX1B | 52.37 ± 4.80 | 30.28 ± 2.11 | ||||
Quantitation of triple labeling studies.
Values (means ± SEM) refer to the percentage of positive puncta for the respective protein isoforms in the three terminal populations.
Two isoforms of a presynaptic protein on one synaptic vesicle?
Analysis of SYT1 and SYT2 expression indicates that SYT2+ terminals coexpress SYT1. SYT1/SYT2 coexpression may reflect the existence of synaptic vesicles (SVs) expressing both isoforms and that of different pools of SYT+ SVs in axon terminals.
To shed some light on this unexpected finding, we performed immunoisolation studies of rat neocortical (LS1 fraction) SVs expressing SYT1 to establish if the colocalization of SYT1 with with SYT2 occurs on the same vesicles. The enriched fractions (PELLET), together with supernatant fractions (SUP) and total crude vesicular fractions (INPUT) were immunoblotted for SYT1 and SYT2 (Figure 1C). The fraction immunoisolated for SYT1 showed strong labeling for SYT1, whereas the supernatant fraction hardly showed any SYT1 staining, indicating the quantitative isolation of SYT1-containing vesicles (91% of total input). The immunoisolation also resulted in a good co-purification of SYT2 (66% of total input), confirming the substantial coexpression of SYT2 with SYT1 at the synaptic vesicle level. VGLUT1, VGLUT2, and VGAT immunoblotting performed on the same SYT1-immunoisolated samples (data not shown) revealed a similar enrichment of glutamatergic and GABAergic vesicles (62 and 53% for glutamatergic and GABAergic vesicles, respectively).
Synaptotagmins form Ca2+-indipendent multimers on SVs surface, resulting in protein complexes in which each subunit binds Ca2+ ions (Fernandez-Chacon and Sudhof, ). The present demonstration that a large amount of SVs express both SYT1 and SYT2 suggests that SYT oligomers can be composed, to a large extent, by both SYT1 and SYT2.
Conclusion(s)
The present study was prompted by the need of verifying the assumption that in a given population of axon terminals the sum of terminals expressing different isoforms of a given presynaptic protein (either vesicular or of the plasma membrane) accounts for the whole population of terminals. Recent data gathered in our laboratories allow some initial stimulating conclusions: (1) the possibility that not all families of presynaptic proteins are expressed in all terminals must be taken into serious account. Clearly, we cannot rule out the possibility that other isoforms of a given presynaptic protein (either not tested in the present analysis or still unknown) are expressed at terminals apparently not expressing that protein; (2) conversely, the expression of a given protein isoform in a terminal does not exclude the expression of other isoforms of the same protein in the same terminal. The two cases are well exemplified by the distribution of STX1A and 1B in VGLUT1+ terminals: ~60% of VGLUT1+ terminals express STX1A while ~50% express STX1B, and triple-labeling studies show that ~50% of VGLUT1+ terminals express both isoforms, <15% express isoform A or B, and ~40% express neither STX1A nor STX1B; (3) in addition, the results of the immunoisolation studies, showing that a large percentage of SYT2 is co-expressed in SYT1-immunoisolated vesicles from rat neocortex imply that, within a single synapse, both proteins are sorted to the same synaptic vesicle.
The present observations indicate that molecular heterogeneity of glutamatergic and GABAergic synapses is by far more complex than previously thought. Thus, a combinatorial profile of the nerve terminal complement of protein involved in synaptic transmission can be figured out, with a changing spectrum of physiological properties among different neuronal populations, among neurons belonging to the same population (e.g., interneurons) or even among distinct nerve terminals belonging to the same neuron. The presynaptic protein heterogeneity can affect multiple properties of neurotransmitter release. For example, the distinct distribution of SNAP-25 isoforms, with SNAP-23 replacing the more widespread SNAP-25 in mature inhibitory neurons (Verderio et al., ) impacts with the Ca2+-dependence of release and the probability of release. Indeed, while SNAP-25 interacts with N− and P/Q-type Ca2+ channels and has an inhibitory action on the Ca2+ influx in response to depolarization (Wiser et al., ; Zhong et al., ), SNAP-23 has no such effect, resulting in higher Ca2+ influx and higher probability of release in inhibitory neurons than in excitatory neurons (Pozzi et al., ). Another interesting functional aspect in which a distinct proteomic spectrum of the nerve terminal can play a major role is the ratio between synchronous and asynchronous release. High frequency stimulation trains lead to delayed asynchronous release in excitatory and inhibitory synapses (Atluri and Regehr, ; Lu and Trussell, ). While some presynaptic proteins such as synaptotagmin-1, synapsin I and VAMP2 drive synchronous release, their isoforms synaptotagmin-7, synapsin II and VAMP4 are essential for asynchronous release (Geppert et al., ; Nishiki and Augustine, ; Maximov and Sudhof, ; Wen et al., ; Raingo et al., ; Medrihan et al., accepted). As long-lasting asynchronous GABA release can increase the effectiveness of inhibition (Lu and Trussell, ; Manseau et al., ), the isoform expression pattern plays a pivotal role in the synchronous-to-asynchronous release ratio and thereby in the control of excitability exerted by subpopulations of inhibitory neurons.
These conclusions open new and interesting problems; among these, the following appear of some interest. Since proteins that are not expressed in certain terminals play a role in synaptic plasticity (Fernandez-Chacon and Sudhof, ; Schlüter et al., ; Fujiwara et al., ), is it possible that different terminals display distinct presynaptic mechanisms participating in short- and long-term plasticity paradigms? Given that it is possible to facilitate or depress synaptic terminals of the same neuron independently of each other (Katz et al., ), is it conceivable that neurons synthesize all isoforms redundantly whereas only some terminals express them? Do axon terminals with more than one isoform of a given presynaptic protein express specific combination of isoforms, thus varying their efficiency in the formation of protein core complexes essential for vesicle exocytosis (Pérez-Branguli et al., )? Are SVs with redundant isoforms more likely to contribute to the formation of new synapses (Darcy et al., ; Staras et al., ; Dobie and Craig, )? How this scenario can be modified in diverse physiological conditions, including activity-dependent plasticity? How does the widespread presynaptic heterogeneity modify excitation/inhibition balance, thereby contributing to pathophysiology of neuropsychiatric diseases (Yizhar et al., ) and to cognitive decline of brain aging (Pinto et al., ; Hickmott and Dinse, )? Future research will shed light on these challenging questions that are fundamental to our understanding of information processing in the brain.
Conflict of interest statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Acknowledgments
Supported by MIUR (PRIN to Fiorenzo Conti and Fabio Benfenati; FIRB Giovani to Silvia Giovedì), and Università Politecnica delle Marche (to Fiorenzo Conti, Luca Bragina, and Giorgia Fattorini). We are indebted to the colleagues that collaborated in the original studies.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AtluriP. P.RegehrW. G. (1998). Delayed release of neurotransmitter from cerebellar granule cells. J. Neurosci. 18, 8214–8227.
2
BraginaL.CandiracciC.BarbaresiP.GiovedìS.BenfenatiF.ContiF. (2007). Heterogeneity of glutamatergic and GABAergic release machinery in cerebral cortex. Neuroscience146, 1829–1840. 10.1016/j.neuroscience.2007.02.060
3
BraginaL.FattoriniG.GiovedìS.MeloneM.BoscoF.BenfenatiF.et al. (2012). Analysis of synaptotagmin, SV2, and Rab3 expression in cortical glutamatergic and GABAergic axon terminals. Front. Cell. Neurosci. 5:32. 10.3389/fncel.2011.00032
4
BraginaL.GiovedìS.BarbaresiP.BenfenatiF.ContiF. (2010). Heterogeneity of glutamatergic and GABAergic release machinery in cerebral cortex: analysis of synaptogyrin, vesicle-associated membrane protein, and syntaxin. Neuroscience165, 934–943. 10.1016/j.neuroscience.2009.11.009
5
CherubiniE.ContiF. (2001). Generating diversity at GABAergic synapses. Trends Neurosci. 24, 155–162. 10.1016/S0166-2236(00)01724-0
6
ContiF.WeinbergR. J. (1999). Shaping excitation at glutamatergic synapses. Trends Neurosci. 22, 451–458. 10.1016/S0166-2236(99)01445-9
7
DarcyK. J.StarasK.CollinsonL. M.GodaY. (2006). Constitutive sharing of recycling synaptic vesicles between presynaptic boutons. Nat. Neurosci. 9, 315–321. 10.1038/nn1640
8
DobieF. A.CraigA. M. (2011). Inhibitory synapse dynamics: coordinated presynaptic and postsynaptic mobility and the major contribution of recycled vesicles to new synapse formation. J. Neurosci. 31, 10481–10493. 10.1523/JNEUROSCI.6023-10.2011
9
Fernandez-ChaconR.SudhofT. C. (1999). Genetics of synaptic vesicle function: toward the complete functional anatomy of an organelle. Annu. Rev. Physiol. 61, 753–776. 10.1146/annurev.physiol.61.1.753
10
FujiwaraT.MishimaT.KofujiT.ChibaT.TanakaK.YamamotoA.et al. (2006). Analysis of knock-out mice to determine the role of HPC-1/syntaxin 1A in expressing synaptic plasticity. J. Neurosci. 26, 5767–5776. 10.1523/JNEUROSCI.0289-06.2006
11
GeppertM.GodaY.HammerR. E.LiC.RosahlT. W.StevensC. F.et al. (1994). Synaptotagmin I: a major Ca2+ sensor for transmitter release at a central synapse. Cell79, 717–727. 10.1016/0092-8674(94)90556-8
12
HickmottP.DinseH. (2012). Effects of aging on properties of the local circuit in rat primary somatosensory cortex (S1) in vitro. Cereb. Cortex. [Epub ahead of print]. 10.1093/cercor/bhs248
13
JahnR.SüdhofT. C. (1994). Synaptic vesicles and exocytosis. Annu. Rev. Neurosci. 17, 219–246. 10.1146/annurev.ne.17.030194.001251
14
KatzP. S.KirkM. D.GovindC. K. (1993). Facilitation and depression at different branches of the same motor axon: evidence for presynaptic differences in release. J. Neurosci. 13, 3075–3089.
15
LuT.TrussellL. O. (2000). Inhibitory transmission mediated by asynchronous transmitter release. Neuron26, 683–694. 10.1016/S0896-6273(00)81204-0
16
ManseauF.MarinelliS.MéndezP.SchwallerB.PrinceD. A.HuguenardJ. R.et al. (2010). Desynchronization of neocortical networks by asynchronous release of GABA at autaptic and synaptic contacts from fast-spiking interneurons. PLoS Biol. 8:e1000492. 10.1371/journal.pbio.1000492
17
MaximovA.SudhofT. C. (2005). Autonomous function of synaptotagmin 1 in triggering synchronous release independent of asynchronous release. Neuron48, 547–554. 10.1016/j.neuron.2005.09.006
18
NishikiT.AugustineG. J. (2004). Synaptotagmin I synchronizes transmitter release in mouse hippocampal neurons. J. Neurosci. 24, 6127–6132. 10.1523/JNEUROSCI.1563-04.2004
19
O'RourkeN. A.WeilerN. C.MichevaK. D.SmithS. J. (2012). Deep molecular diversity of mammalian synapses: why it matters and how to measure it. Nat. Rev. Neurosci. 13, 365–379. 10.1038/nrn3170
20
Pérez-BranguliF.Ruiz-MontasellB.BlasiJ. (1999). Differential interaction patterns in binding assays between recombinant syntaxin 1 and synaptobrevin isoforms. FEBS Lett. 458, 60–64.
21
PintoJ. G. A.HornbyK. R.JonesD. G.MurphyK. M. (2010). Developmental changes in GABAergic mechanisms in human visual cortex across the lifespan. Front. Cell. Neurosci. 4:16. 10.3389/fncel.2010.00016
22
PozziD.CondliffeS.BozziY.ChikhladzeM.GrumelliC.Proux-GillardeauxV.et al. (2008). Activity-dependent phosphorylation of Ser187 is required for SNAP-25-negative modulation of neuronal voltage-gated calcium channels. Proc. Natl. Acad. Sci. U.S.A. 105, 323–328. 10.1073/pnas.0706211105
23
RaingoJ.KhvotchevM.LiuP.DariosF.LiY. C.RamirezD. M.et al. (2012). VAMP4 directs synaptic vesicles to a pool that selectively maintains asynchronous neurotransmission. Nat. Neurosci. 15, 738–745. 10.1038/nn.3067
24
SchlüterO. M.SchmitzF.JahnR.RosenmundC.SüdhofT. C. (2004). A complete genetic analysis of neuronal Rab3 function. J. Neurosci. 24, 6629–6637. 10.1523/JNEUROSCI.1610-04.2004
25
StapleJ. K.MorgenthalerF.CatsicasS. (2000). Presynaptic heterogeneity: vive la difference. News Physiol. Sci. 15, 45–49.
26
StarasK.BrancoT.BurdenJ. J.PozoK.DarcyK.MarraV.et al. (2010). A vesicle superpool spans multiple presynaptic terminals in hippocampal neurons. Neuron66, 37–44. 10.1016/j.neuron.2010.03.020
27
SuginoK.HempelC. M.MillerM. N.HattoxA. M.ShapiroP.WuC.et al. (2006). Molecular taxonomy of major neuronal classes in the adult mouse forebrain. Nat. Neurosci. 9, 99–107. 10.1038/nn1618
28
VerderioC.PozziD.PravettoniE.InverardiF.SchenkU.CocoS.et al. (2004). SNAP-25 modulation of calcium dynamics underlies differences in GABAergic and glutamatergic responsiveness to depolarization. Neuron41, 599–610. 10.1016/S0896-6273(04)00077-7
29
WenH.LinhoffM. W.McGinleyM. J.LiG. L.CorsonG. M.MandelG.et al. (2010). Distinct roles for two synaptotagmin isoforms in synchronous and asynchronous transmitter release at zebrafish neuromuscular junction. Proc. Natl. Acad. Sci. U.S.A. 107, 13906–13911. 10.1073/pnas.1008598107
30
WiserO.BennettM. K.AtlasD. (1996). Functional interaction of syntaxin and SNAP-25 with voltage-sensitive L- and N-type Ca2+ channels. EMBO J. 15, 4100–4110.
31
YizharO.FennoL. E.PriggeM.SchneiderF.DavidsonT. J.O'SheaD. J.et al. (2011). Neocortical excitation/inhibition balance in information processing and social dysfunction. Nature477, 171–178. 10.1038/nature10360
32
ZhongH.YokoyamaC. T.ScheuerT.CatterallW. A. (1999). Reciprocal regulation of P/Q-type Ca2+ channels by SNAP-25, syntaxin and synaptotagmin. Nat. Neurosci. 2, 939–941. 10.1038/14721
Summary
Keywords
GABA synapse, glutamate synapse, heterogeneity, SVs, isoforms
Citation
Bragina L, Fattorini G, Giovedì S, Bosco F, Benfenati F and Conti F (2013) Heterogeneity of presynaptic proteins: do not forget isoforms. Front. Cell. Neurosci. 7:8. doi: 10.3389/fncel.2013.00008
