Background: During early prenatal stages of brain development, serotonin (5-HT)-specific neurons migrate through somal translocation to form the raphe nuclei and subsequently begin to project to their target regions. The rostral cluster of cells, comprising the median and dorsal raphe (DR), innervates anterior regions of the brain, including the prefrontal cortex. Differential analysis of the mouse 5-HT system transcriptome identified enrichment of cell adhesion molecules in 5-HT neurons of the DR. One of these molecules, cadherin-13 (Cdh13) has been shown to play a role in cell migration, axon pathfinding, and synaptogenesis. This study aimed to investigate the contribution of Cdh13 to the development of the murine brain 5-HT system.
Methods: For detection of Cdh13 and components of the 5-HT system at different embryonic developmental stages of the mouse brain, we employed immunofluorescence protocols and imaging techniques, including epifluorescence, confocal and structured illumination microscopy. The consequence of CDH13 loss-of-function mutations on brain 5-HT system development was explored in a mouse model of Cdh13 deficiency.
Results: Our data show that in murine embryonic brain Cdh13 is strongly expressed on 5-HT specific neurons of the DR and in radial glial cells (RGCs), which are critically involved in regulation of neuronal migration. We observed that 5-HT neurons are intertwined with these RGCs, suggesting that these neurons undergo RGC-guided migration. Cdh13 is present at points of intersection between these two cell types. Compared to wildtype controls, Cdh13-deficient mice display increased cell densities in the DR at embryonic stages E13.5, E17.5, and adulthood, and higher serotonergic innervation of the prefrontal cortex at E17.5.
Conclusion: Our findings provide evidence for a role of CDH13 in the development of the serotonergic system in early embryonic stages. Specifically, we indicate that Cdh13 deficiency affects the cell density of the developing DR and the posterior innervation of the prefrontal cortex (PFC), and therefore might be involved in the migration, axonal outgrowth and terminal target finding of DR 5-HT neurons. Dysregulation of CDH13 expression may thus contribute to alterations in this system of neurotransmission, impacting cognitive function, which is frequently impaired in neurodevelopmental disorders including attention-deficit/hyperactivity and autism spectrum disorders.
Introduction
The factors involved in the developmental program that tightly regulates neuronal migration and circuit formation of the brain serotonin (5-HT) system remain largely unknown. The development of this complex system commences early in prenatal stages, with 5-HT initially being supplemented from placental source (Wallace and Lauder, 1983; Bonnin and Levitt, 2011). It begins with the migration of 5-HT specific neurons for the arrangement of nine anatomically distinct groups of cells known as the raphe nuclei. These nuclei are subdivided into two main clusters: a caudal cluster in the medulla (B1–B5), and a rostral cluster in the pons (B6–B9). The most rostral cluster, composed of the median raphe (MR) and dorsal raphe (DR), is responsible for the innervation of anterior regions of the brain (Alonso et al., 2013). The identity of the 5-HT neuron population comprising the rostral cluster is determined by a transcription code that shows some variation along dorsoventral and anteroposterior axes (Ye et al., 1998; Gaspar et al., 2003; Kiyasova and Gaspar, 2011).
Early serotonin signaling plays a crucial role in CNS functions (Daubert and Condron, 2010), and it has been shown that both increased and decreased serotonin neurotransmission at different periods of embryonic and postnatal life compromises cortical development (Gaspar et al., 2003; Vitalis et al., 2007; Teissier et al., 2017). Similarly, dysfunction of 5-HT transmission has been implicated in neurodevelopmental disorders and subsequent psychiatric conditions in which social cognitive functions are compromised (Lesch and Waider, 2012). For instance, reduced serotonin levels were found in the frontal cortex of fetal Down syndrome (Whittle et al., 2007), and local developmental perturbations of 5-HT were identified in the brain of children with autism (Chugani et al., 1999). In addition, autistic-like symptoms were induced in rodents when decreasing (Boylan et al., 2007) or increasing (McNamara et al., 2008) brain 5-HT during development.
Calcium-dependent cell adhesion molecules, also known as cadherins, are mediators in cell migration and neural circuit formation during early stages of development (Redies, 1995; Halbleib and Nelson, 2006; Takeichi, 2007). A transcriptome analysis of specific neuronal subpopulations from mouse hindbrain, performed by combining intersectional fate mapping, cell sorting, and genome-wide RNA-sequencing, identified several cell adhesion molecules in rostral raphe nuclei, with the expression of cadherin-13 (Cdh13) being specifically restricted to 5-HT neurons of the DR (Okaty et al., 2015).
CDH13 (also known as T-cadherin), is an atypical cadherin that lacks both transmembrane and cytoplasmic domains, and is instead attached to the cell membrane through a glycosylphosphatidylinositol anchor (Ranscht and Dours-Zimmermann, 1991). CDH13 regulates cell migration, neurite outgrowth, axon guidance and target finding via low-adhesive homophilic and heterophilic interactions (Ranscht and Bronner-Fraser, 1991; Fredette and Ranscht, 1994; Fredette et al., 1996; Takeuchi et al., 2000; Bai et al., 2006; Ciatto et al., 2010; Hayano et al., 2014). Particularly, it acts as a negative regulator in the projection of motor neurons. Moreover, CDH13 is required for the development and proper functioning of glutamatergic and GABAergic synapses (Paradis et al., 2007; Rivero et al., 2015).
CDH13 variation has been associated with neurodevelopmental and psychiatric disorders in numerous linkage, copy-number variant (CNVs), genome-wide association (GWAS), and whole-exome sequencing (WES) studies. Several studies have observed a reproducible association with attention-deficit/hyperactivity disorder (ADHD) (Lasky-Su et al., 2008; Lesch et al., 2008; Neale et al., 2008, 2010; Zhou et al., 2008; Lionel et al., 2011) and comorbid conditions, specifically substance use and dependence (Uhl et al., 2008a,b; Treutlein et al., 2009). Furthermore, common CDH13 variants have been associated with cognitive functioning (e.g., performance in working memory tasks) in ADHD patients (Arias-Vasquez et al., 2011). Other studies relate CDH13 to depression (Sibille et al., 2009; Terracciano et al., 2010), bipolar disorder (Xu et al., 2014) and schizophrenia (Borglum et al., 2014). Rare de novo and inherited deletions (and less frequent duplications) at the CDH13 locus have been linked to autism spectrum disorders (Sanders et al., 2011, 2015), indicating potential clinical relevance for loss-of-function mutations in CDH13. An association of CDH13 SNPs with the personality trait of extraversion (Terracciano et al., 2010) and extremely violent behavior (Tiihonen et al., 2015) was also reported. However, the pathogenetic mechanisms by which CDH13 variation influences behavior and the risk for neuropsychiatric disorders have not yet been clarified.
Given the role of CDH13 in cell migration, axon pathfinding, and synaptogenesis, the aim of this study was to characterize the expression pattern of Cdh13 during mouse brain development at different embryonic stages and to explore the relationship between Cdh13 and 5-HT system formation. Additionally, the consequence of CDH13 deficiency on brain 5-HT system development was investigated in a Cdh13 knockout mouse, a model for loss-of function mutations at the CDH13 locus presumed to cause neurodevelopmental disorders.
Materials and Methods
Animals
All experimental procedures involving live animals were approved by the boards of the University of Würzburg and the Government of Lower Franconia and performed in accordance with the guidelines for animal care and use provided by the European Community. All experiments were carried out using a constitutive Cdh13 knockout mouse line (Cdh13−/−, C57BI/6N genetic background) previously generated at the Division of Molecular Psychiatry, University of Würzburg (Rivero et al., 2015). Mice were housed in groups of 3–5 per cage at the facilities of the Center of Experimental Molecular Medicine, under a 12 h light/dark cycle with food and water ad libitum. For this study, Cdh13−/− and Cdh13+/+ embryos were produced by crossing heterozygous animals (Cdh13+/−). Timed breedings were conducted over night and midday controls of plug positive animals were considered as embryonic day (E) 0.5.
Embryo Retrieval and Tissue Preparation
Embryos
Timed-pregnant dams were sacrificed through an overdose of isoflurane, and embryos were extracted at three different developmental stages: E13.5, E15.5, and E17.5. The brains from E15.5 and E17.5 embryos were dissected, while for stage E13.5 the complete head was processed. A small sample of the most caudal part of each embryo was taken for genotyping of the Cdh13 locus (Rivero et al., 2015). Fixation of E13.5 heads as well as E15.5 and E17.5 brains was done by immersion in 4% paraformaldehyde (1xPBS; pH 7.5) at 4°C for 24 h, followed by cryoprotection in 10 and 20% sucrose solutions for 1 day each consecutively. The brains were frozen in isopentane cooled with dry ice and cryosectioned in coronal or sagittal 20 μm sections.
Adults
Adult mice were sacrificed at 2–3 months of age. This was done through an overdose of isoflurane followed by transcardial perfusion. Then the brains were dissected and kept in 4% paraformaldehyde (1xPBS; pH 7.5) overnight, and consecutively placed in 10 and 20% sucrose solutions for 1 day each for cryoprotection. The brains were then frozen in isopentane cooled with dry ice and cryosectioned in coronal or sagittal 20 μm sections.
Indirect Immunofluorescence
Brain sections were allowed to air dry for 30–45 min at room temperature and then washed in TBS and treated with citrate buffer, 10 mM, pH 6, at 80°C in a water bath for antigen retrieval. Sections were blocked with 10% normal horse serum and 0.2% Triton X-100 in TBS for 1 h, and then, incubated overnight at 4°C in a wet chamber with primary antibodies polyclonal goat anti-Cdh13 (1:200, R&D Systems, Minneapolis, USA, cat# AF3264), polyclonal rabbit anti-5-HT (1:500, Acris, Herford, Germany, cat# 20080), mouse anti-RC2 IgM monoclonal (1:60, Developmental Studies Hybridoma Bank, Iowa, USA, cat# AB531887), mouse anti-Nestin monoclonal (1:200, Santa Cruz Biotechnology, Dallas, USA, cat# SC-33677), rabbit anti-Serotonin (5-HT) transporter (1:500, Merck Millipore, cat# PC177L), rabbit anti-tryptophan hydroxylase 2 (TPH2) (1:1,000, self-produced; Gutknecht et al., 2008, 2009), and/or rabbit anti-OTX2 (1:500, Merck Millipore, cat# AB9566). The next day, sections were washed with TBS and incubated at room temperature with the corresponding secondary antibody, donkey anti-Goat IgG (H+L) Alexa Fluor 555, donkey anti-Mouse IgG (H+L) Alexa Fluor 488, donkey anti-Mouse IgM (H+L) Alexa Fluor 488, donkey anti-Rabbit IgG (H+L) Alexa Fluor 488, and/or donkey anti-Rabbit IgG (H+L) Alexa Fluor 647. Finally, 4′,6-Diamidin-2-phenylindol (DAPI) was applied as a nuclear counterstain to the sections, which were then embedded with Fluorogel as mounting medium (Electron Microscopy Sciences, Hatfield, USA).
Imaging
Stained sections were imaged using one or more of the following microscopy techniques: (1) epifluorescence, (2) confocal microscopy, and/or (3) structured illumination microscopy (SIM).
Epifluorescence
Images were obtained using an Olympus motorized inverted system microscope IX81, an X-Cite fluorescence illuminator, and an XM10 camera. Pictures were taken at 10x, 20x(air), and/or 40x(oil) magnifications through the three exposure channels for Alexa Fluor 488, Cy3/Alexa Fluor 555, and DAPI. Images were then processed using software CellSense (Olympus, Leinfelden-Echterdingen, Germany), and corrected for contrast and brightness using ImageJ v2.0.0 (Schneider et al., 2012).
Confocal Microscopy
Images were generated using a FluoView FV1000 confocal microscope (Olympus) with 20X UPlanSAPO, NA 0.75 (air) and 40X UPlanFLN, NA 1.30(oil) objectives. Stack images were taken by laser illumination at 561 nm (Alexa Fluor 555), 488 nm (Alexa Fluor 488), and 405 nm (DAPI). 12-bit raw images were processed with the imaging software Fluoview, version 4.1.a (Olympus).
Structured Illumination Microscopy (SIM)
Images were captured with a commercial inverted SIM microscope (Zeiss ELYRA, Oberkochen, Germany) using an oil-immersion objective (Plan-Apochromat 63 × /1.4 Oil Dic M27) (Gustafsson, 2000; Wegel et al., 2016). Excitation of the fluorophores was performed by laser illumination at 642 nm (Alexa Fluor 647), 561 nm (Alexa Fluor 555), 488 nm (Alexa Fluor 488), and 405 nm (DAPI) and fluorescence light was filtered by appropriate detection filters: LP 655 (Alexa Fluor 647), BP 570–620 + LP 750 (Alexa Fluor 555), BP 495–550 + LP 750 (Alexa Fluor 488), and BP 420–480 + LP 750 (DAPI). Images were recorded with five rotations and five phase steps of the illumination pattern. Recorded data were processed with the ZEN imaging software (Zeiss). They were processed under standard ELYRA settings of the manual mode, selecting the Raw Scale option to keep the original dynamic range and therefore ensure a reliable comparison of the actual sample and the control samples. Following the structured illumination processing, the four channels were aligned (ZEN imaging software).
Three-Dimensional Reconstruction
For three-dimensional (3D) visualization of SIM images, z-stacks with intervals of 125 nm were recorded (usually ~50 slices). 3D reconstruction and animation of the processed SIM images were performed in Imaris (Bitplane, Zurich, Switzerland). The fluorescence signal was represented by surface visualization. Resulting 3D renderings were animated by rotation and zooming and exported as.avi files.
Cell Density in Dorsal Raphe and Median Raphe
Cell density measurements were carried out at E13.5, E17.5, and in the adult brain on ImageJ v2.0.0 by an observer unaware of genotype. At E13.5 the complete DR was imaged and then selected as the region of interest (ROI) in each image. Within this ROI, five areas of 50 × 50 pixels were then randomly selected. Using the Cell Counter plugin, the number of 5-HT immunoreactive (ir) cells in these areas (including the cells on the left and bottom borders of the areas) was counted. This was done through the entire stack of images, using DAPI as a counterstaining to count only cells with a focused nucleus and therefore avoid double counts. Then the average number of cells for each brain was calculated. At E17.5 and in the adult brain, sections at a distance of 120 μm were imaged, ~4–5 images per brain. In these images, the DR was selected as the ROI and then all the 5-HT-ir cells for E17.5 and TPH2-ir cells for adult brains were counted using the Cell Counter plugin, avoiding double counts through the use of DAPI. Finally, the average number of cells per brain was calculated.
Area Measurement of Dorsal Raphe
The area of the DR was measured using ImageJ v2.0.0. Six sections stained for 5-HT where the DR was clearly visible were selected per brain and the area of the group of 5-HT-ir cells was measured. Images where the DR extended out of the image were excluded.
Serotonergic Fiber Number and Density in Prefrontal Cortex
The area of the 5-HT-ir fibers at E17.5 and 5-Htt-ir fibers in adult brains was measured using ImageJ v2.0.0 as described previously (Gomez et al., 2007). At E17.5, six images of the prefrontal cortex were taken per brain. A threshold was set for each image to balance the signal-to-noise ratio by an observer unaware of genotype, so that the serotonergic fibers were clearly distinguishable from the background. Then, the images were transformed into binary images in which only immunostained elements were visible. A ROI of 100 × 100 pixels in the center of the intermediate zone (IZ) was set and the area of the fibers was calculated using the “Analyze Particles” option. In the adult brain, images of infralimbic (IL) and cingulate (CG) cortices from three to four sections at intervals of 120 μm were taken at 20x magnification. After backgrounds were subtracted and fibers were skeletonized, an evenly spaced square grid (70 × 70 μm2) was laid over the composite images. Finally, the area of the fibers within this ROI was calculated using the “Analyze Particles” option.
Additionally, in the adult brain prefrontal cortex, the number of 5-Htt immunopositive fibers intersecting three applied lines within selected areas was counted manually by plotting an intensity profile (Supplementary Figure 1). Fibers that touched the edge of the square were not counted. The results were presented as the number of fibers per μm2.
Statistical Analysis
Statistical analysis was performed using Prism, version 7.0a (GraphPad Software, La Jolla, CA, USA). The normality of the data sets was verified using the Kolmogorow-Smirnow test and the Shapiro-Wilk test. Once a normal distribution was confirmed, a two-tailed unpaired t-test was applied.
Results
Cdh13 Follows a Caudal to Rostral Progression in the Developing Mouse Brain
In order to determine the regional and cellular specificity of Cdh13 at different developmental stages and to identify variation in the cellular arrangement as the embryo developed, we conducted an analysis of the expression pattern, using the Allen Developing Mouse Brain Atlas (http://developingmouse.brain-map.org/) as a reference. The earliest developmental stage studied was E13.5 because at earlier embryonic days (E10.5 and E11.5) Cdh13 immunoreactivity is very low in the brain (Rivero et al., 2015). At stage E13.5, Cdh13 protein is limited to the hindbrain and midbrain, and almost completely absent from more anterior regions (Figure 1A, top). At the following stage E15.5, Cdh13 is evenly distributed throughout the different areas of the brain, spreading homogenously from the hindbrain to the telencephalon (Figure 1A, middle). At the latest stage E17.5, the expression pattern shifts, with the most intense cellular immunoreactivity being detected in the developing cortical layers (Figure 1A, bottom). Therefore, Cdh13 expression follows a caudal-to-rostral trajectory through development, showing an early detection in fibers originating from the hindbrain, which spread throughout the brain and finally concentrate in the cortex.
Figure 1. Cdh13 in embryonic mouse brain at selected developmental stages. (A) Cdh13 immunoreactivity is prominent in the hindbrain at E13.5, extends to various brain regions including the cortex at E15.5 and displays a layer-associated expression in the cortex at E17.5. (B) Cdh13 is not localized in regions immunoreactive for Nestin (yellow arrow: area positive for Nestin). (C) Cdh13 is found in the hindbrain at E13.5 in two groups of fibers that extend longitudinally and transversally (D) Cdh13 immunoreactivity in the hindbrain is juxtaposed to Otx2 midbrain staining, delimiting the MHB at E13.5 (yellow dotted line: MHB). Orientation: sagittal. Scale bars in (A) 500 μm, in (B) 200 μm, in (C,D) 100 μm. Ctx, cortex; Hb, hindbrain; Mb, midbrain; Th, thalamus; OB, olfactory bulb.
Along with its caudal-to-rostral progression, Cdh13 is restricted to the migratory path as it advances, with little to no expression in areas of neurogenesis. Specifically, Cdh13 was not detected in ventricular zones positive for Nestin, a marker of neural stem cells or progenitor cells (Lendahl et al., 1990). Instead, Cdh13-immunoreactive fibers delimit these regions of neurogenesis both in cortical areas as well as in the developing hindbrain (Figure 1B).
Cdh13-positive fibers in the hindbrain are also found to follow two distinct perpendicular directions in some regions at E13.5 (Figure 1C). More specifically, in rhombomere 1, adjacent to the midbrain-hindbrain boundary (MHB), one group of fibers extends longitudinally from caudal regions of the hindbrain and progresses into the midbrain, while another group projects transversally, extending from the ventricular zone of the hindbrain to the corresponding floorplate. Double-staining with Otx2, a protein that delimits the caudal boundary of the MHB (Li and Joyner, 2001), confirms that Cdh13-positive fibers extend transversally in the hindbrain until this midbrain boundary at E13.5 (Figure 1D).
The migratory pattern of CDH13 in embryonic stages closely follows the temporal progression of serotonergic fibers that originate from the rostral raphe nuclei (Figure 2A). These 5-HT neurons start extending their axons along the midbrain basal plate following the same path as Cdh13-positive fibers down the fasciculus retroflexus to the hypothalamus, the striatum, and the septum (Figures 2B,C). The 5-HT positive axons reach the forebrain at ~E16 (Bonnin et al., 2011), the time point at which the maximum of Cdh13 immunoreactivity is also pronounced in the cortex. Moreover, at E13.5 there is strong Cdh13 immunoreactivity in the region caudal to the MHB and above the medial longitudinal fasciculus (mlf), which corresponds with the developing DR.
Figure 2. Cdh13 in 5-HT neurons of the dorsal raphe. (A) Cdh13 is highly expressed in the DR at E13.5. Cdh13 and 5-HTT-ir fibers follow the same trajectory from the hindbrain to the forebrain at E15.5 (B) and E17.5 (C). Orientation: sagittal. Scale bars: 100 μm. DR, dorsal raphe; TH, thalamus; HTH, hypothalamus; mlf, medial longitudinal fasciculus.
Cdh13 Is Expressed in 5-HT Neurons in the Dorsal Raphe and in the Developing Prefrontal Cortex
Based on the abundance of Cdh13 expression in the hindbrain at E13.5, the orientation and extension of serotonergic fibers co-localized with the Cdh13-expressing trajectory, and the detection of Cdh13 mRNA in 5-HT neurons in the DR of adult mice (Rivero et al., 2013), we predicted that Cdh13 is associated with the development of the 5-HT system, more specifically, the structural configuration of the DR. Examination of the hindbrain region revealed that bundles of 5-HT neurons with migratory morphology located in the DR are accompanied by Cdh13-positive fibers (Figure 2A), whereas Cdh13 expression is largely absent in the developing MR (Figure 3).
Figure 3. Cdh13 is not expressed in fibers in the median raphe. Representative images of the hindbrain region stained for Cdh13 and 5-HT. Cdh13 is not detected in the region corresponding to the developing MR (delimited area). Arrow indicates position of DR. Orientation: sagittal. Scale bar: 100 μm.
In order to precisely determine the patterning of Cdh13 protein on these neurons, we applied the super-resolution technique SIM, which provides a two-fold increase in resolution compared to confocal microscopy (Gustafsson, 2000; Wegel et al., 2016). The use of SIM allowed us to identify Cdh13 in the soma of 5-HT positive neurons with its characteristic punctate pattern around the cell membrane and clustering at some discrete locations (Figure 4A). Moreover, Cdh13 is not only limited to the cell body, but is also present on the 5-HT neuron extension, with punctate immunoreactivity at some specific parts of the neurite (Figure 4B). Immunofluorescence staining for the 5-HT transporter (5-Htt/Sert) showed that in some sites Cdh13 co-localizes with 5-Htt, confirming that it is present on axons of these neurons (Figure 4C).
Figure 4. Subcellular localization of Cdh13 in DR 5-HT neurons. Using SIM, Cdh13 is detected in the soma (A) and neurites (B) of 5-HT positive neurons, and is also localized in 5-Htt positive fibers (C) (yellow arrows indicate points of colocalization). Orientation: sagittal. Scale bars in (A) 100 μm, in (B,C) 10 μm in full images, 2 μm in the magnified boxed regions.
Given the role of Cdh13 in neurite outgrowth and axonal guidance processes, we also examined Cdh13 in the cortex at E17.5. At this developmental stage, 5-HT afferents from the DR start to innervate the cortex at the IZ and the marginal zone (MZ), with both layers showing strong immunoreactivity for Cdh13 (Figure 5). This temporal coincidence suggests co-localization of Cdh13 with serotonergic fibers, prompting us to attempt further structural differentiation. Cdh13 is also present in the developing cortical plate, however the pattern of expression is different. In the IZ, Cdh13 is mostly just individual punctuates, probably because this layer is composed mostly of projections and terminals, while in layers which constitute the cortical plate the expression is more fiber-like.
Figure 5. Cdh13 and 5-HT in prefrontal cortex at E17.5. (A) Cdh13 is expressed in cortex, including the PFC (delimited by a white rectangle). (B) In this region, 5-HT specific afferents innervate the intermediate (IZ) and marginal zones (MZ), both of which exhibit high immunoreactivity for Cdh13. Orientation: sagittal. Scale bar: 100 μm. IZ, intermediate zone; LV, lateral ventricle; MZ, marginal zone; OB, olfactory bulb.
Cdh13 Is Present at Intersecting Points between 5-HT Neurons and Radial Glial Cells
The foregoing analysis of expression patterns revealed that Cdh13 is present not only on 5-HT positive neurons of the DR, but may be found also on neighboring cells. These Cdh13-immunoreactive cell extensions migrate in parallel and appear to create a scaffold for 5-HT neurons. The pattern suggests that Cdh13 is present on radial glial cells (RGCs). By using an isoform of the intermediate filament protein Nestin (RC2), a marker for RGCs (Park et al., 2009), we detected consistent co-localization between Cdh13 and RC2 immunoreactivity in the developing hindbrain (Figure 6). This overlap of expression confirms the identity of Cdh13-positive cell extensions as being distinct from serotonergic neurites. Taken together, these findings support the view that RGCs might be used by 5-HT neurons as a supportive framework during migration.
Figure 6. Cdh13 in radial glia cells in the dorsal raphe at E13.5. Cdh13 overlaps with RC2 immunoreactivity, a marker for radial glia cells. Orientation: sagittal. Scale bar: 100 μm.
The presence of Cdh13 on both 5-HT neurons and adjacent RGCs suggests a role for Cdh13 in RGC-mediated locomotion of 5-HT neurons. Triple immunofluorescence staining for 5-HT, RC2, and Cdh13 (Figure 7A) and reconstruction of spatial alignment of the three molecules (Figure 7B, Supplementary Movies 1, 2) yielded two findings in support of this mechanistic association: first, some 5-HT neurons in the DR are intertwined with RGCs, an organization suggesting that these neurons are using RGC structure as a physical guide to migrate. Second, Cdh13 is present at some points of intersection between the 5-HT specific and RGC types, both at the soma and the extending neurites, which indicates that cooperativity, possibly by homophilic interaction, may contribute to the migration process.

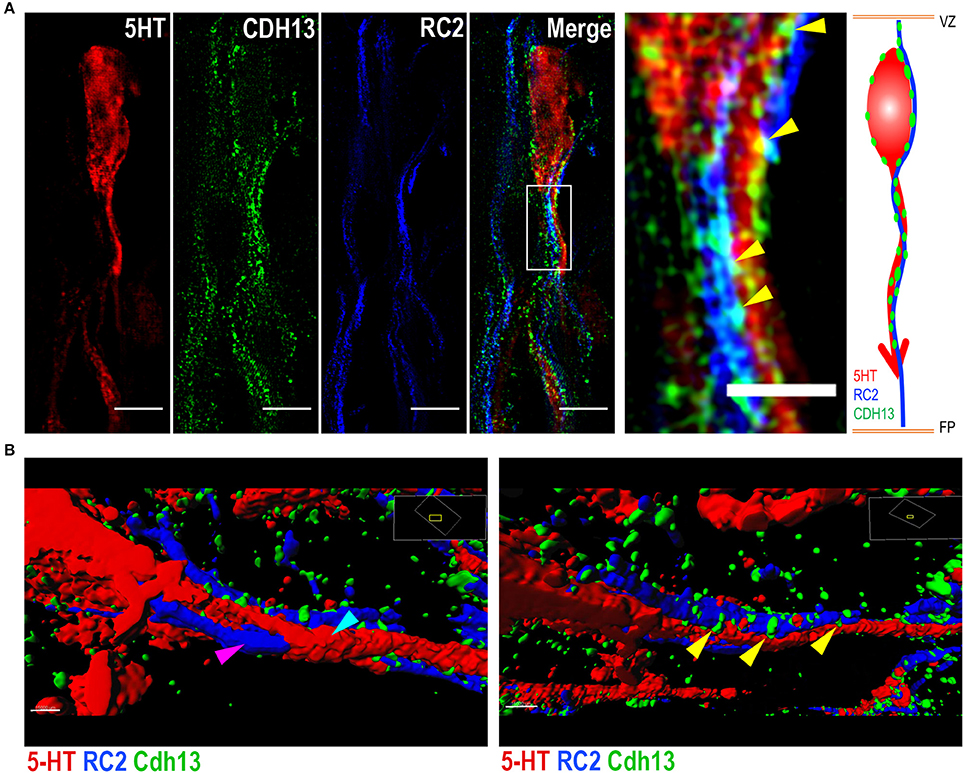

Figure 7. Cdh13 at points of intersection between 5-HT neurons and radial glial cells. Representative images of serotonergic fibers and radial glial cell (RGC) extensions triple-stained for 5-HT, RC2 and Cdh13. (A,B) Cdh13 (green) is present in both 5-HT neurons (red) and RGCs (blue), and at some points of intersection between these two cell types (yellow arrows). (B) Reconstruction of triple IF of 5-HT, RC2, and Cdh13 using Imaris. The 5-HT neuron (cyan arrow) is intertwined with the RGC fiber (magenta arrow). Cdh13 immunoreactivity is found at the interface between both cell types (Supplemental Videos 1 and 2). Orientation: sagittal. Scale bars in (A) 5 μm in full images, 2 μm in the magnified boxed region. FP, floor plate; VZ, ventricular zone.
Cdh13 Deficiency Affects the Cell Density of 5-HT Neurons in the Dorsal Raphe and Their Innervation of the Prefrontal Cortex
The evidence for a role of Cdh13 in 5-HT neuron migration and fiber extension prompted us to study the effects of Cdh13 deficiency on the development of the DR-cortex 5-HT subsystem. We first investigated the effect of Cdh13 inactivation in the formation of the DR by measuring the density of 5-HT positive neurons in Cdh13−/− animals at E13.5, E17.5, and adult mice. At E13.5, we found an increase of DR 5-HT neuron density in Cdh13−/− mice (P = 0.0014 vs. wildtype controls; Figure 8A), an effect that was not observed in the MR, where Cdh13 is not present (Figure 8B). Additionally, we observed a similar increase in the cell density of DR 5-HT positive neurons at E17.5 (P = 0.0227; Figure 9A) and in Tph2-ir neurons in the adult brain (P = 0.0191; Figure 9B), with a significant increase in Cdh13−/− mice compared to Cdh13+/+ animals. Moreover, there is a tendency at E13.5 for the area occupied by DR 5-HT neurons in Cdh13−/− mice to be smaller than in wildtype controls (P = 0.051; Figure 8A). However, this is not observed at E17.5 nor in the adult brain. We then investigated whether Cdh13 deficiency might also alter serotonergic innervation of the Prefrontal cortex (PFC) by determining the density of 5-HT positive fibers per defined area in the PFC at E17.5 and in the IL and CG cortices in the adult brain. We found an increase in serotonergic fiber density innervating at E17.5 in Cdh13−/− embryos (P = 0.042 vs. wildtype controls; Figure 10A). However, the similar analysis in the adult brain, measuring the number as well as the area occupied by 5-HTT-ir fibers in the PFC did not yield any significant results (Figures 10B,C).
Figure 8. Cdh13 deficiency affects the cell density and area of the dorsal raphe, but not the median raphe, at E13.5. (A) Representative images of DR stained with 5-HT are shown. A significantly higher number of serotonergic neurons (P = 0.0014) within a predetermined area (397.5 μm2) and a trend toward reduced DR area (P = 0.051) is observed in Cdh13−/− mice compared to wildtype controls. n = 8 per genotype. (B) Representative images of MR stained with 5-HT are shown. No significant differences in the density of serotonergic neurons in the MR between Cdh13−/− and wildtype embryos is observed. n = 4 per genotype. Orientation: sagittal. Scale bar in (A,B): 100 μm. Data are presented as mean ± s.e.m. #P < 0.1, **P < 0.01.

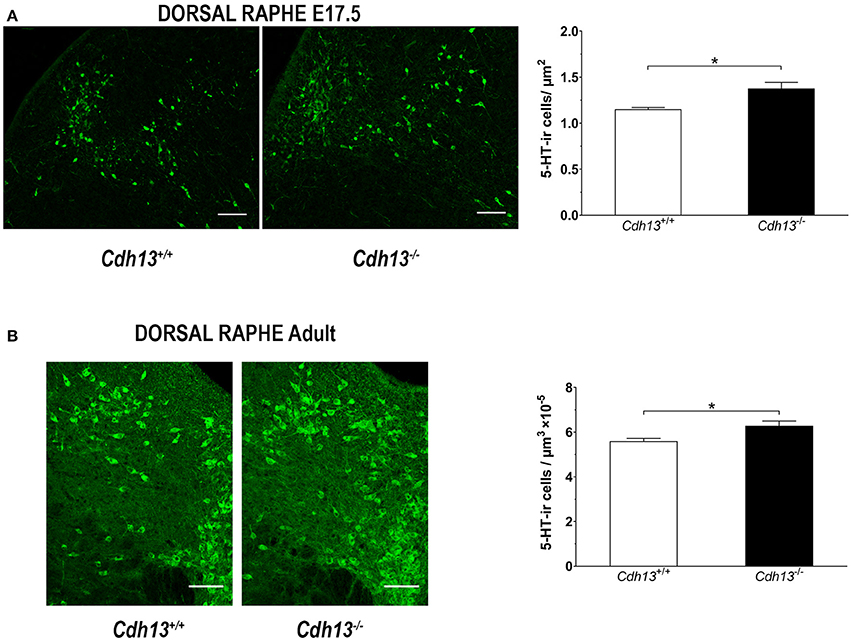

Figure 9. Cdh13 deficiency affects the cell density of the dorsal raphe at E17.5 and adulthood. Representative images of DR stained with 5-HT are shown for E17.5 (A) and adult (B) brains. A significantly higher density of serotonergic neurons is observed in Cdh13−/− mice compared to wildtype controls at E17.5 (A), P = 0.0227 and adult (B), P = 0.0191 brains. N = 6 per genotype. Orientation in E17.5 sections: sagittal. Orientation in adult sections: coronal. Scale bar: 100 μm. Data are presented as mean ± s.e.m. *P < 0.05.

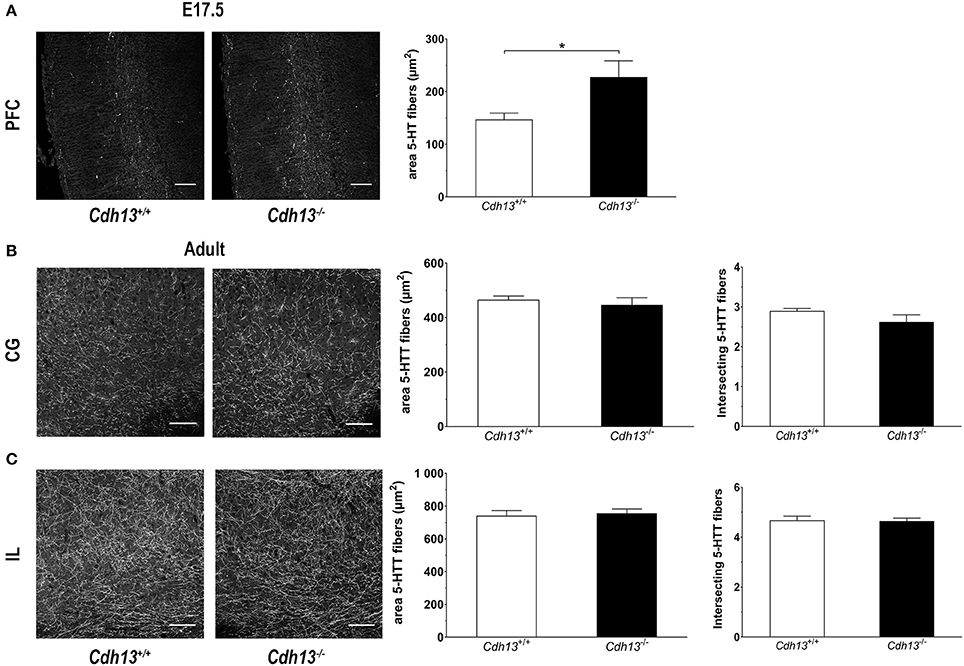

Figure 10. Cdh13 deficiency affects the serotonergic innervation of the prefrontal cortex at E17.5, but not in adulthood. (A) Representative images of PFC at E17.5 (stained with 5-HT) are shown. A larger area occupied by 5-HT-positive fibers is observed in Cdh13−/− mice compared to wildtype controls (P = 0.042). N = 7 per genotype. (B,C) No significant differences in the serotonergic innervation (stained with 5-htt) of the IL and CG cortex, measured by two different approaches (see Methods section), is observed in adult brains. Orientation in E17.5 sections: sagittal. Orientation in adult sections: coronal. Scale bar in (A,B) 100 μm. Data are presented as mean ± s.e.m. *P < 0.05.
Discussion
The development of the raphe nuclei and their projections to multiple areas is determined by both intrinsic and extrinsic molecular factors. In the present study, we identify a new molecular player in raphe neuron migration and development of forebrain projections. Our results demonstrate that Cdh13 delimits the MHB, a relevant organizer in the raphe nuclei formation, and that it is highly expressed on 5-HT specific neurons of the DR and on RGCs in this region. We additionally demonstrate that 5-HT neurons intertwine with these RGCs, a morphology that has not been observed in this cell type and suggest that these neurons undergo RGC-guided migration. Employing a super-resolution microscopy technique, we confirm the presence of Cdh13 at points of intersection between 5-HT neurons and RGCs. Furthermore, we show that Cdh13-deficient mice display increased cell densities in the DR at E13.5, E17.5, and in adulthood, as well as higher serotonergic innervation of the PFC at E17.5.
While previous studies have identified Cdh13 mRNA in 5-HT neurons of the adult murine brain (Wylie et al., 2010; Rivero et al., 2013; Okaty et al., 2015), our findings confirm that Cdh13 protein is present in this cell type in earlier prenatal stages. In addition, our data indicate that during prenatal development Cdh13 expression is most strongly detected in the DR, one of the major sources of 5-HT innervation to the forebrain (Lesch and Waider, 2012). A structurally detailed expression pattern of Cdh13 on both the soma and extending neurites of 5-HT neurons was achieved by super-resolution microscopy. Cdh13 also co-localizes with the 5-Htt along 5-HT extensions suggesting that it may contribute to target recognition and synaptogenesis.
In addition, the observation that 5-HT neurons are intertwined with RGCs in the hindbrain led us to consider that RGCs might be implicated in their migratory and axon guidance processes. RGCs assist migration of specific neuronal cell types and the projection of their neurites at late prenatal stages of neurodevelopment (Gupta et al., 2002). While the RGCs-assisted migratory mechanism has almost exclusively been established for the telencephalon, with the exception of studies focused on radial migration of granule neurons in the cerebellum (Edmondson and Hatten, 1987; Adams et al., 2002), the interaction between RGCs and 5-HT neurons has not been previously described. Through a three-dimensional reconstruction, we observe the grasping and intertwining of 5-HT neurons to RGCs similar to the first reconstruction of migrating neurons through RGC-mediated locomotion (Rakic, 1978, 2003).
Further analysis of the unique expression pattern of Cdh13 in the hindbrain revealed a strong localization in RGCs. It was previously reported that Cdh2 (N-cadherin) is present on radial glia cell extensions and required for migration as well as axon formation of cortical neurons (Shikanai et al., 2011; Xu et al., 2015). Although both Cdh13 and Cdh2 were identified on RGCs, the distribution of their expression in the raphe nuclei appears to be distinct, with Cdh2 being more restricted to the MR region (Okaty et al., 2015). While the function of Cdh2 expressed in the hindbrain remains unknown and interaction between RGCs and 5-HT neurons was not previously described, our results indicate that Cdh13 is present at the interface between 5-HT neurons and RGCs and thus might take part in the developmental formation of the DR.
Hawthorne et al. (2010) reported that in early developmental stages, 5-HT neurons migrate across the neuroepithelium through dynamin-mediated somal translocation, without the aid of RGCs. However, it is likely that numerous additional regulators contribute to the fine-tuning of this complex process at later prenatal stages. Our results complement this finding by showing that at subsequent stages, 5-HT neurons are intertwined with RGCs, an organization that suggests that they undergo RGC-mediated locomotion. Therefore, the principle of migration observed for cortical neurons which states that somal translocation occurs at early phases of development when the neuroepithelium is relatively thin and that in later phases the migration is guided by RGCs (Gupta et al., 2002; Nadarajah and Parnavelas, 2002), might also hold true for 5-HT neurons in the hindbrain.
Regarding the contribution of Cdh13 to the formation of the DR, we observe that the absence of Cdh13 modifies the cell density of the DR. In Cdh13-deficient animals, there is a higher number of 5-HT-producing cells per μm3. This increase was not only observed at prenatal stages of neurodevelopment, but also in Cdh13−/− adult mice. Previous findings reported that alterations in the MHB lead to a misplacement and/or reduction of 5-HT neurons (Brodski et al., 2003; Teraoka et al., 2004). Future studies in Cdh13 knockout mice will have to address potential alterations in the MHB, as fibers rich in Cdh13 meet the caudal boundary of Otx2 in the hindbrain, marking a clear limit in the MHB. Therefore, changes in the MHB in Cdh13-deficient mice might explain the differences found in cell density of the DR.
Already 1 day after 5-HT neurons from the rostral cluster are born (~E10-E11) they start projecting toward forebrain region. The rostral raphe cluster, which comprises the DR and MR, projects mainly to the forebrain, including the PFC (Lidov and Molliver, 1982; Wallace and Lauder, 1983). These projections reach the developing cortex at around E16, traveling through the outermost layer known as the MZ and below the cortical plate in the IZ (Wallace and Lauder, 1983). Then, perpendicular axons begin to extend, innervating along the cortical plate (Vitalis et al., 2013). Alterations in molecules implicated in anterior-posterior orientation, midline guidance as well as axon elongation and maintenance, have been shown to affect projection of 5-HT axons (Kiyasova and Gaspar, 2011).
Previous studies implicating CDH13 in neurite outgrowth and axonal pathfinding (Ranscht and Bronner-Fraser, 1991; Fredette and Ranscht, 1994; Fredette et al., 1996; Bai et al., 2006) prompted us to analyze the effect of Cdh13 deficiency on the serotonergic innervation of the developing PFC. The PFC has been associated with higher-order brain functions, such as attentional processes, working memory, and social cognition (Miller and Cohen, 2001; Blakemore, 2008). Our results revealed that at E17.5, Cdh13 is strongly expressed throughout the developing cortex, including the PFC, a time point at which innervation of 5-HT afferents is also starting to develop (Vitalis et al., 2013). Our data indicate that in Cdh13 knockout embryos, the innervation of serotonergic fibers in the PFC is increased. This is consistent with initial findings that Cdh13 functions as a negative regulator in neurite outgrowth (Ranscht and Bronner-Fraser, 1991; Fredette and Ranscht, 1994; Fredette et al., 1996; Bai et al., 2006). The mechanism underlying CDH13-mediated inhibition of axon growth is not well-understood. However, it is known that the growth associated protein-43 (GAP43), a phosphoprotein that is essential in the wiring of serotonergic circuits, interacts with neural cell adhesion molecules associated with neurite outgrowth and axon guidance, such as NCAM, L1 and CDH2 (Donovan et al., 2002). Likewise, CDH13 may also be among these cell adhesion molecules that GAP43 responds to, thus impacting projection of 5-HT neurons.
Disruption of CDH13 by rare de novo and inherited deletions was linked to autism spectrum disorders (Sanders et al., 2011, 2015); Van der Burgt, personal communication). The impact of CDH13 dysfunction on formation of the 5-HT system specifically and brain function (Rivero et al., 2015) in general may be relevant for the etiopathogenesis of neurodevelopmental disorders. The relationship between altered 5-HT system function and these conditions, including autistic syndromes, has been amply discussed and reviewed (Gaspar et al., 2003; Lesch and Waider, 2012; Kiser et al., 2015; Lesch, 2016). Increased levels of whole blood 5-HT were identified in a subgroup of patients with autism (Anderson et al., 1987; Launay et al., 1988; Gabriele et al., 2014) as well as first-degree relatives of autistic patients (Leboyer et al., 1999). The elevation of peripheral 5-HT may be due to a disruption in the control of 5-HT production during development, since 5-HT synthesis capacity in the brain of children with autism increases between the ages of 2 and 15 to above the normal adult standard, while in healthy children initially elevated levels of cerebral 5-HT later decrease to adult values (Chugani et al., 1999). Our findings of altered 5-HT system development in Cdh13-deficient mice resulting in serotonergic hyperinnervation of the cortex is in line with the notion of a CDH13-driven pathogenetic mechanism affecting brain 5-HT system function in neurodevelopmental disorders.
An association of common CDH13 variation with neurodevelopmental and psychiatric disorders, particularly ADHD (Lasky-Su et al., 2008; Lesch et al., 2008; Neale et al., 2008, 2010; Uhl et al., 2008a,b; Zhou et al., 2008; Treutlein et al., 2009; Lionel et al., 2011) and comorbid conditions, was reported. Common variation in genes coding for various components of 5-HT transmission (e.g., HTR1B, SLC6A4/5-HTT, TPH2) has previously been associated with a susceptibility to ADHD, which may epistatically interact with CDH13 variants. Alterations in the 5-HT system, such as reduced brain 5-HT function and 5-HT hyperinnervation, have been identified in animal model for ADHD (Banerjee and Nandagopal, 2015). 5-HT is believed to contribute to ADHD and its treatment indirectly through its interaction with the dopamine system (Gainetdinov et al., 1999). A relationship between CDH13 and the brain dopamine system has been recently described (Drgonova et al., 2016). Cdh13−/− mice displayed alterations in the cortex including increased dopaminergic innervation, reduced levels of dopamine and an altered dopamine/metabolites ratio. In addition to alterations in 5-HT system function, dysregulation of dopaminergic signaling has consistently been implicated in ADHD. This combined involvement of at least two monoaminergic systems may thus represent a basis for the pervasive pathogenetic mechanisms of ADHD.
In conclusion, our study provides evidence for a role of CDH13 in the development of the serotonergic system in early embryonic stages. Moreover, dysregulation of Cdh13 expression during development may contribute to alterations in 5-HT neuron migration and density in the DR as well as impaired organization of serotonergic innervation and circuit formation in frontal cortex, thus impacting cognitive function, which is frequently impaired in neurodevelopmental disorders.
Author Contributions
AF, OR, MS, and KL conceived and designed research; AF, OR, SW, DK, YG, HK, and LP performed research; AF, SW, YG, and HK analyzed data; AF, OR, SW, JW, PG, CJ, FE, TR, RB, MS, and KL interpreted data; PG, CJ, TR, and RB assisted with data analysis and interpretation; AF, OR, SW, DK, JW, TR, RB, MS, and KL wrote the manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We are grateful to E. Amendola and C. Gross for advice and help in generating Cdh13-deficient mice, G. Ortega y Schulte, N. Steigerwald, and C. Hamann for excellent technical assistance, and J. A. Navarro for his help in figure preparation. This work was supported by Deutsche Forschungsgemeinschaft (DFG: SFB/TR 166 to SW and MS; SFB TRR 58/A5 to KL; RTG 1253 to KL), the European Community (EC: AGGRESSOTYPE FP7/No. 602805 to KL and OR; ERA-Net NEURON/RESPOND: Research on serotonin in the pathogenesis of neurodevelopmental disorders/No. 01EW1602B to KL and FE), Fritz Thyssen Foundation (Az. 10.13.1185 to KL), and 5–100 Russian Academic Excellence Project (to KL). AF and DK were supported by grants of the German Excellence Initiative to the Graduate School of Life Sciences (GSLS), University of Würzburg. AF also received financial support from the Colombian Department of Science, Technology and Innovation (Colciencias). The funding entities had no role in the study design, data collection and analysis, decision to publish or preparation of the manuscript.
Supplementary Material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fncel.2017.00307/full#supplementary-material
Supplementary Figure 1. Counting of 5-HTT-ir fibers in the prefrontal cortex. (A) Illustrations of selected areas used for the counting of 5-HTT-ir fibers in the infralimbic (IL) and cingulate (CG) cortices. A grid of 70*70 μm (red) containing three yellow lines with intervals of 17.5 μm was placed over the binary image. (B) Example of the intensity profile of the measurements from one square, each peak represents a detected fiber.
Supplementary Movies 1 and 2. 3D reconstruction of triple IF of 5-HT, RC2, and Cdh13. Movies illustrating 3D reconstruction using Imaris. 5-HT-positive neurons are labeled in blue, RC2-fibers are labeled in red and Cdh13 immunofluorescence is represented in green.
Abbreviations
ADHD, Attention-deficit/hyperactivity disorder; CG, Cingulate cortex; CNV, Copy number variants. DR, Dorsal raphe; E, Embryonic day; IL, Infralimbic cortex; IZ, Intermediate zone; MHB, Mid-hindbrain boundary; MR, Median raphe; MZ, Marginal zone; PFC, Prefrontal cortex; RGCs, Radial glial cells; SIM, Structured illumination microscopy.
