REVIEW article

Front. Cell. Neurosci., 03 February 2022

Sec. Cellular Neuropathology

Volume 15 - 2021 | https://doi.org/10.3389/fncel.2021.794692

Current Concepts of Neural Stem/Progenitor Cell Therapy for Chronic Spinal Cord Injury

  • Department of Orthopedic Surgery, Graduate School of Medicine, Yamaguchi University, Ube, Japan

Abstract

Chronic spinal cord injury (SCI) is a devastating condition that results in major neurological deficits and social burden. It continues to be managed symptomatically, and no real therapeutic strategies have been devised for its treatment. Neural stem/neural progenitor cells (NSCs/NPCs) being used for the treatment of chronic SCI in experimental SCI models can not only replace the lost cells and remyelinate axons in the injury site but also support their growth and provide neuroprotective factors. Currently, several clinical studies using NSCs/NPCs are underway worldwide. NSCs/NPCs also have the potential to differentiate into all three neuroglial lineages to regenerate neural circuits, demyelinate denuded axons, and provide trophic support to endogenous cells. This article explains the challenging pathophysiology of chronic SCI and discusses key NSC/NPC-based techniques having the greatest potential for translation over the next decade.

Highlights

  • -

    The lack of repair following chronic SCI is a result of intrinsic neuronal cell factors and the extrinsic SCI environment.

  • -

    NSCs/NPCs exhibit a promising therapeutic strategy to complement clinical practice by replacing the three neuronal cell types; neurons, oligodendrocytes and astrocytes that are lost after SCI.

  • -

    The two main aims of NSCs/NPCs-based treatment for chronic SCI are replacing lost cells such as neurons and oligodendrocytes and providing the cells with a microenvironment that supports or enhances the ability of cells within a lesion to provide neuroprotection and promote regeneration.

  • -

    Chondroitin Sulfate Proteoglycans (CSPGs) are recognized mostly inhibitory effects and can hinder regeneration of axons across lesions in chronic SCI environment. Chondroitinase ABC (ChABC) is a bacterial enzyme that can effectively degrade CSPGs. ChABC pretreatment can ‘unlock’ the chronically injured spinal cord to produce a microenvironment conducive to regenerative NSCs/NPCs therapy

  • -

    NSCs/NPCs treatment has the promising attempts in treatment for chronic SCI from the previous preclinical trials. However there are still critical points in clinical studies.

  • -

    Several clinical trials are ongoing using NSCs/NPCs treatment in chronic SCI.

Introduction

Severe traumatic spinal cord injury (SCI) disrupts long descending and ascending nerve fibers as well as the orientated glial framework of white matter tracts, thus causing a loss of motor, sensory, and autonomic function. The subsequent formation of reactive tissue scarring and cystic cavitation results in the development of molecular and physical barriers to regenerative axonal growth as well as long term neurological deficits in chronic SCI (; Singh et al., 2014; ; ; ). It is estimated that worldwide, SCI effects from 250,000 to 500,000 people per year (Singh et al., 2014). Thanks to programs designed to prevent the debilitating long-term effects of SCI, many of these affected individuals remain healthy and productive. While these advances in care are dramatic, there remains a pressing need for treatments that can improve repair processes and recovery in individuals with longstanding SCI. Despite extensive research, no effective treatment has been developed to repair chronic SCI (Houle and Tessler, 2003; ; ; ; ).

Various cell populations can be used for the treatment of chronic SCI in experimental SCI models (Steeves et al., 2007; ; ; Hejcl et al., 2010; Ruff et al., 2012; ; Kadoya et al., 2016; Suzuki et al., 2017; Zhao et al., 2017; Nori et al., 2018; ; Ruzicka et al., 2019). Several clinical trials using stem cells are currently underway around the world (Fawcett et al., 20071; accessed 20 August 2021). Among these trials, therapies using exogenous neural stem cells (NSCs) appear to be particularly promising because of the ability of these cells to differentiate into all three neuroglial lineages to allow regeneration of neural circuits, demyelination of denuded axons, and trophic support of endogenous cells (Karimi-Abdolrezaee et al., 2006, 2010; Ruff et al., 2012; Kadoya et al., 2016; Suzuki et al., 2017).

This article explains the challenging pathophysiology of chronic SCI and discusses key neural stem cell and neural progenitor cell (NSC/NPC)-based techniques having the greatest potential for translation over the next decade.

Pathophysiology of Chronic Spinal Cord Injury

The primary injury triggers secondary injury in SCI. Secondary injury produces further chemical and mechanical damage to spinal tissues; leads to neuronal excitotoxicity caused by hemorrhage, high calcium accumulation, and enzymatic lipid hydrolysis; and increases reactive oxygen concentrations and glutamate levels (Tator and Fehlings, 1991; Proskuryakov et al., 2003; Ruff et al., 2012). Clinical manifestations of secondary injury include increased cell permeability, apoptotic signaling, ischemia, vascular damage, edema, excitotoxicity, ionic deregulation, inflammation, lipid peroxidation, free radical formation, demyelination, Wallerian degeneration, fibro-glial scarring, and cystic formation as shown in Figure 1 (de Leon et al., 1999; Fleming et al., 2006; ; ; Ruff et al., 2012; ; ; ; Hayashi et al., 2018).

FIGURE 1

Apoptosis is a morphologically defined type of programmed cell death that occurs in various different circumstances such as immune cell selection, carcinogenesis, and the development of necrosis (Proskuryakov et al., 2003). Typical posttraumatic necrosis occurs after SCI. Apoptotic cells have been found from 6 h to 3 weeks after injury, primarily in the spinal white matter (Ruff et al., 2012) and also within remote degenerating fiber tracts. Apoptosis appears to at least partially cause secondary degeneration occurring at the site of SCI and chronic demyelination of tracts leading away from the injury (; ; ; ).

A unique feature of the pathological change after SCI is the progressive enlargement of the lesion area, which usually results in cavity formation and is accompanied by reactive astrogliosis and chronic inflammation (; ; Yang et al., 2020). Reactive astrocytes line the spinal cavity to wall off the lesion core from normal spinal tissue (; Ruff et al., 2012; ).

The lack of repair following SCI is a result of intrinsic cell factors and the extrinsic injury environment (; ; ). To unlock the regenerative potential at the cell body level of the neuron, experimental efforts have focused on growth signaling pathways, individual genes associated with regeneration, and the transcriptional and epigenetic network (; ). Scar formation also plays a key role in limiting regeneration. The scar acts to spatially contain and isolate the damage, but additional gliotic scar formation, the development of cysts and syrinxes inside the lesion, and continuous Wallerian degeneration of the severed and injured axons are the main characteristics in the chronic stage (; ). Unfortunately, the application of stem cells at the chronic stage has not been reported to result in any clinically significant functional improvement.

American Spinal Cord Injury Association Impairment Scale

In clinical trials in chronic SCI, the methods of the measurement of neurological recovery is most important issues. The most standard measurement is American Spinal Cord Injury Association (ASIA) Impairment Scale. The International Standards for Neurological Classification of Spinal Cord Injury, commonly referred to as the ASIA Exam, was developed by the ASIA as a universal classification tool for spinal cord injuries based on a standardized sensory and motor assessment (). In clinical trials in chronic SCI, this scale is the most important assessment tool of recovery. The following ASIA Impairment Scale (AIS) designation is used in grading the degree of impairment (Table 1).

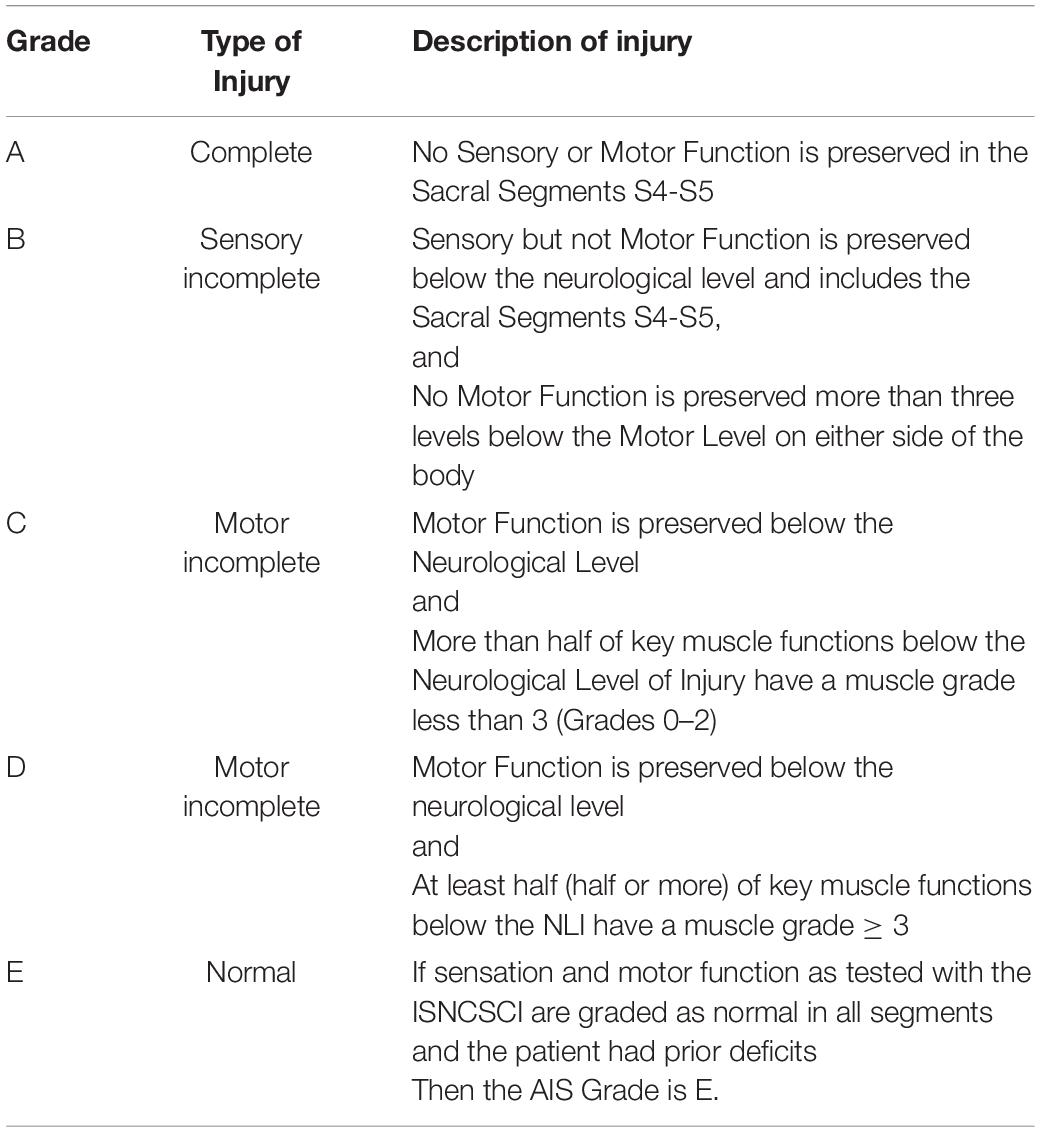

TABLE 1

GradeType of InjuryDescription of injury
ACompleteNo Sensory or Motor Function is preserved in the Sacral Segments S4-S5
BSensory incompleteSensory but not Motor Function is preserved below the neurological level and includes the Sacral Segments S4-S5,
and
No Motor Function is preserved more than three levels below the Motor Level on either side of the body
CMotor incompleteMotor Function is preserved below the Neurological Level
and
More than half of key muscle functions below the Neurological Level of Injury have a muscle grade less than 3 (Grades 0–2)
DMotor incompleteMotor Function is preserved below the neurological level
and
At least half (half or more) of key muscle functions below the NLI have a muscle grade ≥ 3
ENormalIf sensation and motor function as tested with the ISNCSCI are graded as normal in all segments
and the patient had prior deficits
Then the AIS Grade is E.

American Spinal Cord Injury Association impairment scale (AIS).

The scale involves both a motor and sensory examination to determine the sensory level and motor level for each side of the body, the single neurological level of injury and whether the injury is complete and incomplete ().

Chondroitin Sulfate Proteoglycans and Chondroitinase ABC

As a class of extracellular matrix molecule proteoglycans, chondroitin sulfate proteoglycans (CSPGs) are widely expressed within the central nervous system (CNS) and can be synthesized by all neural cell types (; ; ). Scar tissues produce many kinds of extracellular matrix components with growth-promoting properties, fibronectin and laminin, indicating possible repairing role of astrogliosis after CNS damage (Silver and Miller, 2004). In early phase, astrogliosis is a defense response of CNS to minimize and repair primary damage, including isolation of intact tissue from secondary lesion, maintenance of favorable environment for surviving neurons and generation of permissive substrates for neurite elongation (Karimi-Abdolrezaee et al., 2010).

However, after injury to the nervous system, high upregulation of CSPGs occurs in the glial scar. In addition, CSPGs exert mostly inhibitory effects and can hinder regeneration of axons across lesions in chronic SCI (; Silver and Silver, 2014). Despite these reports, some article revealed that tissues that strongly express CSPGs do not always exclude the entry of axons (Oakley and Tosney, 1991; Yaginuma and Oppenheim, 1991; ). In other papers reported that CSPGs coincides with developing axon pathways (Sheppard et al., 1991; ). Furthermore, several studies suggest that CSPG promote rather than inhibit neurite outgrowth (Streit et al., 1993).

It is still controversial whether scar-forming astrocytes are primary producing CSPGs. Some articles reported that ablating CSPG-producing cell types, astrocytes and NG2-OPCs, failed to improve axonal regeneration (Kuchibhotla et al., 2009; Filous et al., 2014; ). Thus, directly targeting CSPGs would be a better choice than the ablation of particular CSPG-producing cell types for therapeutic interventions to regulate CSPGs.

It is still controversial about the CSPGs effect, however, CSPGs are recognized mostly inhibitory effects and can hinder regeneration of axons across lesions in chronic SCI environment. Chondroitinase ABC (ChABC) is a bacterial enzyme that can effectively degrade CSPGs, including NG2 and was shown to promote functional gains after intrathecal administration in mouse models (; Jones et al., 2002). Additional evidence has also shown that combined administration of ChABC with NPCs enhances transplant survival and host axon remyelination (Ikegami et al., 2005; ). A more recent study of large-scale CSPG digestion by direct lentiviral ChABC gene delivery into rat spinal cords resulted in a reduced volume of cavitation and enhanced axon preservation. The treated rats also displayed improved sensorimotor function on behavioral and electrophysiological assessments (). We also reported that ChABC administration reduced chronic injury scar and significantly improved NSCs derived from induced pluripotent stem cell (iPSC-NSC) survival with clear differentiation into all three neuroglial lineages. ChABC pretreatment can ‘unlock’ the chronically injured spinal cord to produce a microenvironment conducive to regenerative iPSC therapy (Suzuki et al., 2017). The optimal delivery modality for exciting therapy with ChABC remains to be elucidated. In the future, chronic SCI research may focus on the exploration of human CNS-specific analogs of ChABC and their development.

Characteristics of Neural Stem/Neural Progenitor Cells

Neural stem cells are self-renewing, multipotent cells that initially produce the radial glial progenitor cells that generate the neurons and glia of all animal nervous systems during embryonic development (; ). Some neural progenitor stem cells remain in highly restricted regions of the adult vertebrate brain to produce neurons throughout life (). NSCs are primarily characterized by their capacity to differentiate into neurons, astrocytes, and oligodendrocytes.

Neural progenitor cells are the progenitor cells of the CNS that produce the glial and neuronal cell types present in the CNS. NPCs do not generate non-neural cells. Rather, NPCs can be generated in vitro by the differentiation of embryonic stem cells or iPSCs, which are derived from adult fibroblasts or blood cells (Takahashi and Yamanaka, 2006; Yamanaka, 2012). NPCs may differentiate into neural cells after transplantation into the injured spinal cord to replace lost or damaged cells, provide trophic support, restore connectivity, and facilitate regeneration (Ruff et al., 2012; Suzuki et al., 2017).

Neural stem cells can be derived from various regions along the neuroaxis during embryonic development and in adult life (Salewski et al., 2012). They have been isolated from both the subependymal zone of the adult mammalian brain and the ependymal and non-ependymal regions of adult mammalian spinal cord. Single adult NSCs can be isolated in vitro in the presence of growth factors such as epithelial growth factor (EGF) and fibroblast growth factor (FGF) that enable the formation and proliferation of clonally derived free-floating colonies. To promote the differentiation and survival of cellular subpopulations in vitro, they can be exposed to bone morphogenetic proteins to produce astrocytes (Salewski et al., 2012); insulin-like growth factor-I, interleukin-1, and neuregulin-1 to generate oligodendrocytes; and neurogenin-2 to produce neurons (Salewski et al., 2012).

In the terminology used here, NSCs are multipotent cells that can self-renew and proliferate without limit to produce progeny cells that terminally differentiate into neurons, astrocytes and oligodendrocytes. The non-stem cell progeny of NSCs are referred to as NPCs. In contrast to NSCs, NPCs have the capacity to proliferate and differentiate into more than one cell type. Thus, they can be unipotent, bipotent, or multipotent (Salewski et al., 2012). Unlike those of a stem cell, distinguishing features of a NPC are its limited proliferative ability and inability of self-renewal.

Cell-Based Therapies Using Neural Stem/Neural Progenitor Cells in Chronic Spinal Cord Injury

The two main aims of cell-based treatment for chronic SCI are replacing lost or injured cells such as neurons and oligodendrocytes and providing the cells with a microenvironment that supports or enhances the ability of cells within a lesion to provide neuroprotection and promote regeneration. NSCs/NPCs have the ability to replace the lost cells and remyelinate axons at the injury site and also to provide them with supportive growth and neuroprotective factors (; Lu et al., 2012; Salewski et al., 2012; ; ; Suzuki et al., 2017).

NSCs/NPCs could differentiate into neurons, oligodendrocytes and astrocytes. Grafted NSCs/NPCs survived in chronic SCI lesion, reduced cavity and promoted axonal regrowth (Lu et al., 2012; Salewski et al., 2012; Suzuki et al., 2017). In addition, differentiated oligodendrocytes promoted the remyelination of axons (Salewski et al., 2012). Differentiated motor neurons and interneurons made new neuronal circuits between host and grafted cells to make new synaptic connections (Suzuki et al., 2017). Also differentiated astrocytes supported to provide the new vascularization and supportive growth/neuroprotective factors (; ).

PubMed/Medline Search to Identify Experimental and Clinical Studies Describing Treatment of Chronic Spinal Cord Injury With Neural Stem/Neural Progenitor Cells

The PubMed/Medline database was searched in August 2021 [search strategy: “(neural stem cell) OR (neural progenitor cell) AND (chronic SCI)”]. Articles on cell transplantation within 4 weeks after SCI were excluded from the analysis, as were articles on other forms of cell transplantation without NSCs/NPCs and those lacking outcomes describing motor functional recovery. In total, 184 articles were initially identified, and 33 articles were ultimately selected based on the above criteria. There were 10 review articles, 16 basic research articles, and 6 articles on clinical transplantation (Tables 2, 3, 4).

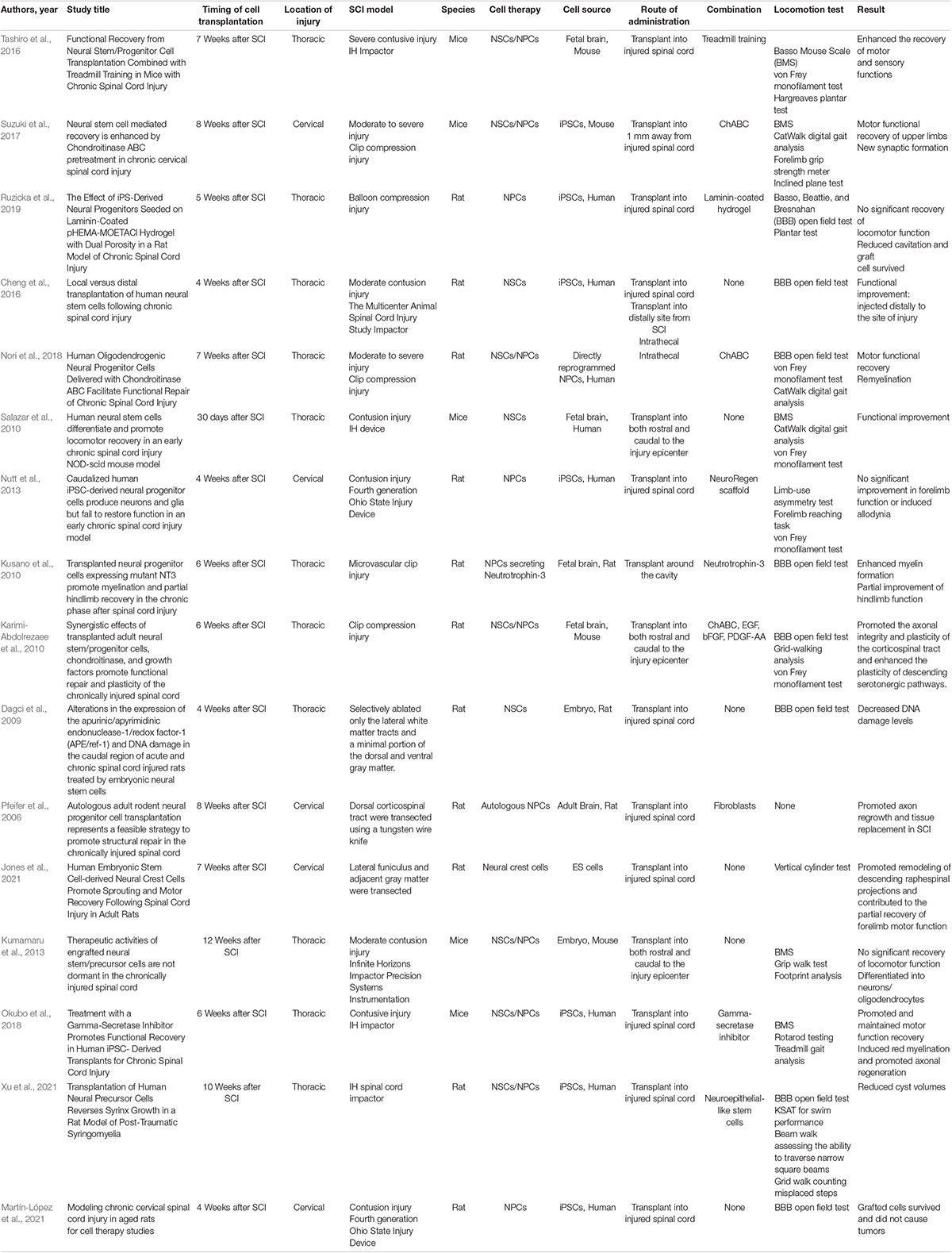

TABLE 2

Authors, yearStudy titleTiming of cell transplantationLocation of injurySCI modelSpeciesCell therapyCell sourceRoute of administrationCombinationLocomotion testResult
Tashiro et al., 2016Functional Recovery from Neural Stem/Progenitor Cell Transplantation Combined with Treadmill Training in Mice with Chronic Spinal Cord Injury7 Weeks after SCIThoracicSevere contusive injury
IH Impactor
MiceNSCs/NPCsFetal brain, MouseTransplant into injured spinal cordTreadmill training
Basso Mouse Scale (BMS)
von Frey monofilament test
Hargreaves plantar test
Enhanced the recovery of motor
and sensory
functions
Suzuki et al., 2017Neural stem cell mediated recovery is enhanced by Chondroitinase ABC pretreatment in chronic cervical spinal cord injury8 Weeks after SCICervicalModerate to severe injury
Clip compression injury
MiceNSCs/NPCsiPSCs, MouseTransplant into 1 mm away from injured spinal cordChABCBMS
CatWalk digital gait analysis
Forelimb grip strength meter
Inclined plane test
Motor functional recovery of upper limbs
New synaptic formation
Ruzicka et al., 2019The Effect of iPS-Derived Neural Progenitors Seeded on Laminin-Coated pHEMA-MOETACl Hydrogel with Dual Porosity in a Rat Model of Chronic Spinal Cord Injury5 Weeks after SCIThoracicBalloon compression injuryRatNPCsiPSCs, HumanTransplant into injured spinal cordLaminin-coated hydrogelBasso, Beattie, and Bresnahan
(BBB) open field test
Plantar test

No significant recovery of
locomotor function
Reduced cavitation and graft
cell survived
Local versus distal transplantation of human neural stem cells following chronic spinal cord injury4 Weeks after SCIThoracicModerate contusion injury
The Multicenter Animal Spinal Cord Injury Study Impactor
RatNSCsiPSCs, HumanTransplant into injured spinal cord
Transplant into distally site from SCI
Intrathecal
NoneBBB open field testFunctional improvement:
injected distally to
the site of injury
Nori et al., 2018Human Oligodendrogenic Neural Progenitor Cells Delivered with Chondroitinase ABC Facilitate Functional Repair of Chronic Spinal Cord Injury7 Weeks after SCIThoracicModerate to severe injury
Clip compression injury
RatNSCs/NPCsDirectly reprogrammed NPCs, HumanIntrathecalChABCBBB open field test
von Frey monofilament test
CatWalk digital gait analysis
Motor functional recovery
Remyelination
Salazar et al., 2010Human neural stem cells differentiate and promote locomotor recovery in an early chronic spinal cord injury NOD-scid mouse model30 days after SCIThoracicContusion injury
IH device
MiceNSCsFetal brain, HumanTransplant into both rostral and caudal to the injury epicenterNoneBMS
CatWalk digital gait analysis
von Frey monofilament test
Functional improvement
Nutt et al., 2013Caudalized human iPSC-derived neural progenitor cells produce neurons and glia but fail to restore function in an early chronic spinal cord injury model4 Weeks after SCICervicalContusion injury
Fourth generation Ohio State Injury Device
RatNPCsiPSCs, HumanTransplant into injured spinal cordNeuroRegen scaffold
Limb-use asymmetry test
Forelimb reaching task
von Frey monofilament test
No significant improvement in forelimb function or induced allodynia
Kusano et al., 2010Transplanted neural progenitor cells expressing mutant NT3 promote myelination and partial hindlimb recovery in the chronic phase after spinal cord injury6 Weeks after SCIThoracicMicrovascular clip injuryRatNPCs secreting Neutrotrophin-3Fetal brain, RatTransplant around the cavityNeutrotrophin-3BBB open field testEnhanced myelin formation
Partial improvement of hindlimb function
Karimi-Abdolrezaee et al., 2010Synergistic effects of transplanted adult neural stem/progenitor cells, chondroitinase, and growth factors promote functional repair and plasticity of the chronically injured spinal cord6 Weeks after SCIThoracicClip compression injuryRatNSCs/NPCsFetal brain, MouseTransplant into both rostral and caudal to the injury epicenterChABC, EGF, bFGF, PDGF-AA
BBB open field test
Grid-walking analysis
von Frey monofilament test
Promoted the axonal integrity and plasticity of the corticospinal tract and enhanced the plasticity of descending serotonergic pathways.
Dagci et al., 2009Alterations in the expression of the apurinic/apyrimidinic endonuclease-1/redox factor-1 (APE/ref-1) and DNA damage in the caudal region of acute and chronic spinal cord injured rats treated by embryonic neural stem cells4 Weeks after SCIThoracicSelectively ablated only the lateral white matter tracts and
a minimal portion of the dorsal and ventral gray matter.
RatNSCsEmbryo, RatTransplant into injured spinal cordNoneBBB open field testDecreased DNA damage levels
Pfeifer et al., 2006Autologous adult rodent neural progenitor cell transplantation represents a feasible strategy to promote structural repair in the chronically injured spinal cord8 Weeks after SCICervicalDorsal corticospinal tract were transected
using a tungsten wire knife
RatAutologous NPCsAdult Brain, RatTransplant into injured spinal cordFibroblastsNonePromoted axon regrowth and tissue replacement in SCI
Jones et al., 2021Human Embryonic Stem Cell-derived Neural Crest Cells Promote Sprouting and Motor Recovery Following Spinal Cord Injury in Adult Rats7 Weeks after SCICervicalLateral funiculus and adjacent gray matter
were transected
RatNeural crest cellsES cellsTransplant into injured spinal cordNoneVertical cylinder testPromoted remodeling of descending raphespinal projections and
contributed to the partial recovery of forelimb motor function
Kumamaru et al., 2013Therapeutic activities of engrafted neural stem/precursor cells are not dormant in the chronically injured spinal cord12 Weeks after SCIThoracicModerate contusion injury
Infinite Horizons Impactor Precision Systems Instrumentation
MiceNSCs/NPCsEmbryo, MouseTransplant into both rostral and caudal to the injury epicenterNone
BMS
Grip walk test
Footprint analysis

No significant recovery of locomotor function
Differentiated into neurons/
oligodendrocytes
Okubo et al., 2018Treatment with a Gamma-Secretase Inhibitor Promotes Functional Recovery in Human iPSC- Derived Transplants for Chronic Spinal Cord Injury6 Weeks after SCIThoracicContusive injury
IH impactor
MiceNSCs/NPCsiPSCs, HumanTransplant into injured spinal cordGamma-secretase inhibitor
BMS
Rotarod testing
Treadmill gait analysis
Promoted and maintained motor function recovery
Induced red myelination and promoted axonal regeneration
Xu et al., 2021Transplantation of Human Neural Precursor Cells Reverses Syrinx Growth in a Rat Model of Post-Traumatic Syringomyelia10 Weeks after SCIThoracicIH spinal cord impactorRatNSCs/NPCsiPSCs, HumanTransplant into injured spinal cord
Neuroepithelial-like stem cells

BBB open field test
KSAT for swim performance
Beam walk assessing the ability
to traverse narrow square beams
Grid walk counting misplaced steps
Reduced cyst volumes
Martín-López et al., 2021Modeling chronic cervical spinal cord injury in aged rats
for cell therapy studies
4 Weeks after SCICervicalContusion injury
Fourth generation Ohio State Injury Device
RatNPCsiPSCs, HumanTransplant into injured spinal cordNoneBBB open field testGrafted cells survived and did not cause tumors

Characteristics of included experimental studies for chronic SCI.

TABLE 3

Authors, yearStudy titleTiming of cell transplantationLocation of injuryCell therapyCell sourceRoute of administrationCombinationResult
A First-in-Human, Phase I Study of Neural Stem Cell Transplantation for Chronic Spinal Cord InjuryChronicTh2-T12NSCs (NSI-566)Human spinal cordTransplant into injured spinal cordNSI-566 transplanted in the spinal injury site of patients can be performed safely.
Levi et al., 2019Clinical Outcomes from a Multi-Center Study of Human Neural Stem Cell Transplantation in Chronic Cervical Spinal Cord InjuryChronic (4–24 months)C5-7NSCs (HuCNS-SC)®Human brainTransplant into injured spinal cord
Intramedullary free-hand (manual) transplantation
Cohorts I and II demonstrated a trend toward Upper Extremity Motor Score (UEMS) and Graded Redefined Assessment of Strength, Sensibility, and Prehension (GRASSP) motor gains in the treated participants.
Levi et al., 2018Emerging Safety of Intramedullary Transplantation of Human Neural Stem Cells in Chronic Cervical and Thoracic Spinal Cord InjuryChronicC5-7
Th2-T12
NSCs (HuCNS-SC)®Human brainTransplant into injured spinal cord
Intramedullary free-hand (manual) transplantation
A manual injection technique are safe and feasible.
Ghobrial et al., 2017Human Neural Stem Cell Transplantation in Chronic Cervical Spinal Cord Injury: Functional Outcomes at 12 Months in a Phase II Clinical TrialChronicCervical/
Thoracic
NSCs (HuCNS-SC)®Human brainTransplant into injured spinal cord
Intramedullary free-hand (manual) transplantation
Improvements in overall mean functional outcomes measures.
Moviglia et al., 2009Case report on the clinical results of a combined cellular therapy for chronic spinal cord injured patientsChronicCervical/
Thoracic
Autologous NSCsFeeding artery infusionBone marrow mononuclear cells
Effector T cells
Five of eight patients evolved from ASIA A to ASIA D.
Moviglia et al., 2006Combined protocol of cell therapy for chronic spinal cord injury. Report on the electrical and functional recovery of two patientsChronicCervical/
Thoracic
Autologous NSCsBMSCsFeeding artery infusionNeurorehabilitationEffective for the repair of chronic SCI.

Characteristics of included clinical trials for chronic SCI.

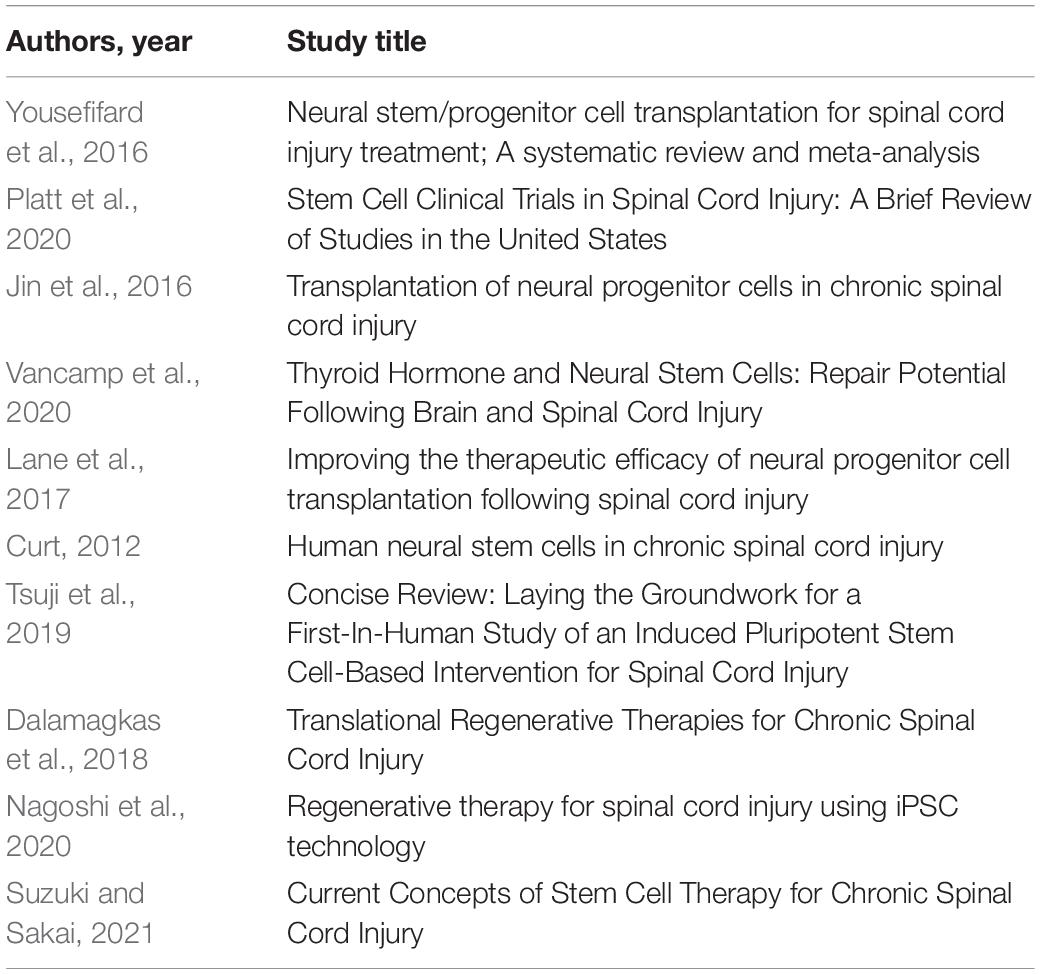

TABLE 4

Authors, yearStudy title
Yousefifard et al., 2016Neural stem/progenitor cell transplantation for spinal cord injury treatment; A systematic review and meta-analysis
Platt et al., 2020Stem Cell Clinical Trials in Spinal Cord Injury: A Brief Review of Studies in the United States
Jin et al., 2016Transplantation of neural progenitor cells in chronic spinal cord injury
Vancamp et al., 2020Thyroid Hormone and Neural Stem Cells: Repair Potential Following Brain and Spinal Cord Injury
Lane et al., 2017Improving the therapeutic efficacy of neural progenitor cell transplantation following spinal cord injury
Human neural stem cells in chronic spinal cord injury
Tsuji et al., 2019Concise Review: Laying the Groundwork for a First-In-Human Study of an Induced Pluripotent Stem Cell-Based Intervention for Spinal Cord Injury
Dalamagkas et al., 2018Translational Regenerative Therapies for Chronic Spinal Cord Injury
Nagoshi et al., 2020Regenerative therapy for spinal cord injury using iPSC technology
Suzuki and Sakai, 2021Current Concepts of Stem Cell Therapy for Chronic Spinal Cord Injury

Included review articles on chronic SCI.

Neural Stem/Neural Progenitor Cells Treatment for Chronic Spinal Cord Injury in Experimental Models

We show the characteristics of the included experimental studies for chronic SCI in Table 2. Several articles reported on the neurological changes occurring following the transplantation of NSCs/NPCs only in rat and mice models of chronic SCI (Kusano et al., 2010; Salazar et al., 2010; ; Tashiro et al., 2016; Suzuki et al., 2017; Nori et al., 2018; Okubo et al., 2018; Jones et al., 2021). However, the other articles revealed no significant recovery of locomotor function (Kumamaru et al., 2013; Nutt et al., 2013; Ruzicka et al., 2019; Martín-López et al., 2021).

The combinatory and synergic effects of other treatments with NSCs/NPCs transplantation were also reported. Rehabilitation was the most common combinatory treatment used clinically. Treadmill exercise combined with NPC transplantation was found to promote neuronal differentiation and regeneration and maturation of neural circuits. Further, it enhanced the recovery of motor and sensory functions even when the intervention took place during the chronic phase (Tashiro et al., 2016). Several previous articles reported on the use of a scaffold with cell transplantation: laminin-coated hydrogel and the NeuroRegen scaffold (Nutt et al., 2013; Ruzicka et al., 2019). Combinatory scaffold use reduced cavitation and supported graft-cell survival (Ruzicka et al., 2019).

Some papers revealed that NSCs/NPCs grafts reduced cyst volume and promoted axon regrowth through the synergic effect of combining cell grafts with fibroblasts or neuroepithelial-like stem cells (Pfeifer et al., 2006; Xu et al., 2021).

Synergic treatment with the neurotrophic factors EGF, bFGF, PDGF-AA, and NT-3 along with NSCs/NPCs transplantation was also reported and led to partial improvement of hindlimb function (Karimi-Abdolrezaee et al., 2010; Kusano et al., 2010).

The most promising combinatory treatment reported in these articles was the injection of ChABC prior to NSCs/NPCs transplantation. ChABC pretreatment work to ‘unlock’ the chronically injured spinal cord to produce a microenvironment conducive to regenerative NSC/NPC therapy (Karimi-Abdolrezaee et al., 2010; Suzuki et al., 2017; Nori et al., 2018). In addition, all three of these papers reported partial motor functional recovery following ChABC and NSCs/NPCs treatment.

One article revealed that the sites of cell injection were quite important to regenerate damaged spinal cord (). Among the articles we reviewed that reported neurologically functional recovery, all reported transplantation rostral and/or distal to the site of the SCI epicenter (Kusano et al., 2010; Salazar et al., 2010; ; Suzuki et al., 2017; Nori et al., 2018; Okubo et al., 2018; Jones et al., 2021).

These articles indicate that NSCs/NPCs injection sites and the synergic effects of ChABC and neurotrophic factors are important factors leading to motor functional recovery following chronic SCI as a combinatory treatment with NSCs/NPCs transplantation. Even if only NSCs/NPCs transplantation is performed, it can lead to and support histological regeneration occurring at the site of chronic SCI.

Neural Stem/Neural Progenitor Cells Treatment for Chronic Spinal Cord Injury in Clinical Studies

We show the characteristics of the included clinical studies for chronic SCI in Table 3. The transplanted NSCs/NPCs were autologous NSI-566 and HuCNS-SC® cells (Moviglia et al., 2006, 2009; Ghobrial et al., 2017; ; Levi et al., 2018, 2019). Cell sources were bone marrow mesenchymal stem cells (MSCs) and cells from the human spinal cord and brain. All of the articles revealed that transplantation of NSCs/NPCs in the site of the patients’ SCI can be performed safely. In addition, injection techniques including free-hand transplantation and infusion in the feeding artery were safe and feasible. One case report showed that five of eight patients evolved from ASIA (American Spinal Injury Association) class A to ASIA D (Moviglia et al., 2009). Injection of HuCNS-SC® cells was also reported to lead to improvement in overall mean functional outcome measures.

However, several critical points are still remain about the NSCs/NPCs source, safety, administration route and the optimal time-window of efficacy in clinical (Tsuji et al., 2019; Nagoshi et al., 2020; Suzuki and Sakai, 2021; Table 5). Ethical concerns still remain the use of NSCs/NPCs harvested from fetal or embryonic stem cells (Nagoshi et al., 2020). iPSCs is one of the ideal NSCs/NPCs source, however, still have the genetic and epigenetic abnormalities and subsequent tumorigenicity (Nagoshi et al., 2020). We have several administration route for cell grafts, intramedullary, intrathecal, intraventricular and intravascular. Each administration still have the advantages and disadvantages in clinical (Yamazaki et al., 2020). Many researchers have investigated the phases to determine the optimal time-window of efficacy for NSCs/NPCs therapy in animals (Tetzlaff et al., 2011). For grafted cell survival, the microenvironment in chronic phase was the most difficult one. However, the clinical study does not necessarily require double-arm study (Oh et al., 2016). Several complications following stem cell grafts in clinical were reported that transient neuropathic pain, transient deterioration in sensorimotor symptoms, subarachnoid hemorrhage, cerebrospinal fluid leakage, subcutaneous seroma, fever, transient hypertension, vomiting, urinary tract infection, abnormal blood profiles, pulmonary thromboembolism and general body ache (Jeong et al., 2020).

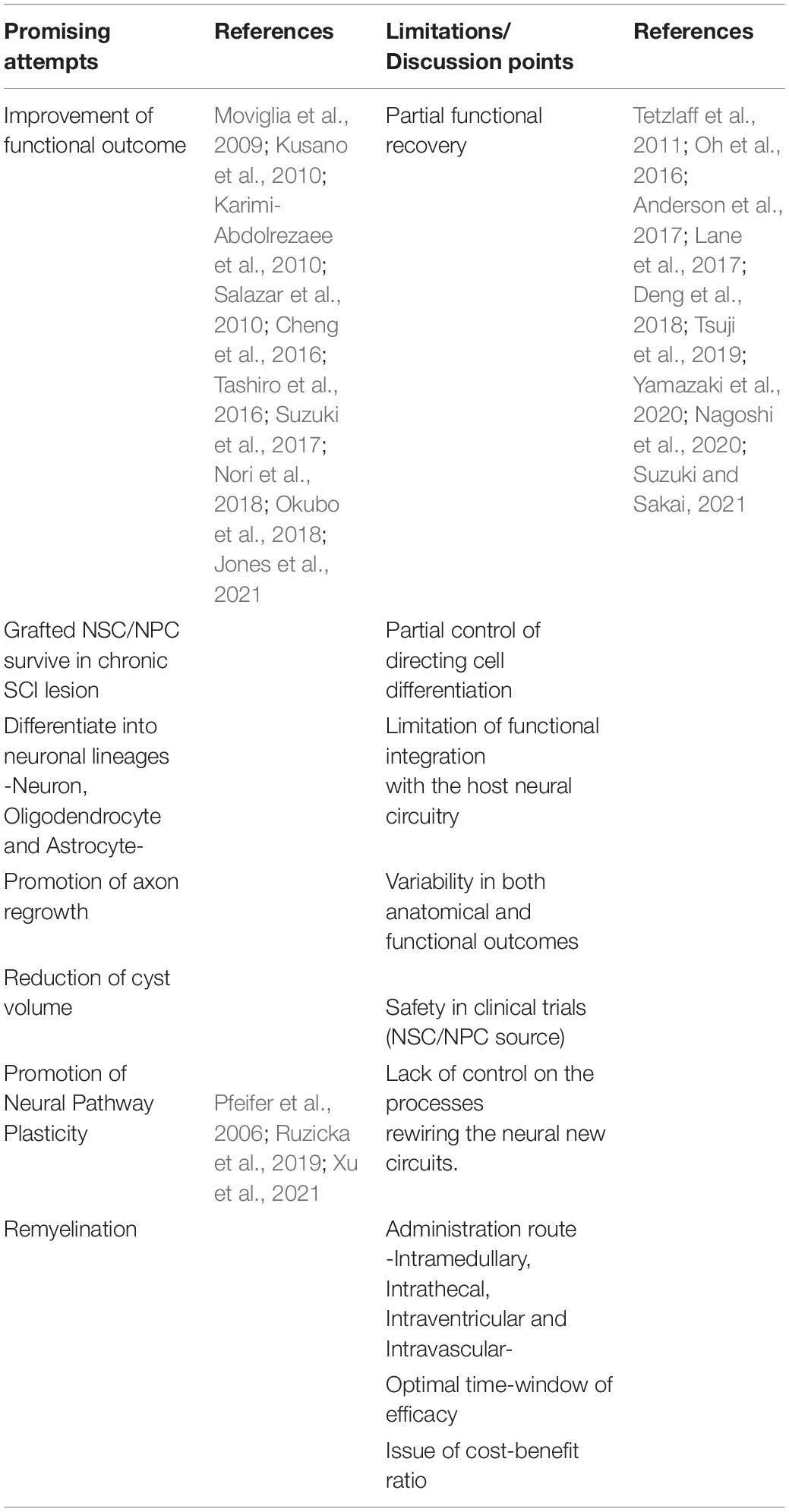

TABLE 5

Promising attemptsReferencesLimitations/
Discussion points
References
Improvement of functional outcomeMoviglia et al., 2009; Kusano et al., 2010; Karimi-Abdolrezaee et al., 2010; Salazar et al., 2010; ; Tashiro et al., 2016; Suzuki et al., 2017; Nori et al., 2018; Okubo et al., 2018; Jones et al., 2021Partial functional recoveryTetzlaff et al., 2011; Oh et al., 2016; ; Lane et al., 2017; Deng et al., 2018; Tsuji et al., 2019; Yamazaki et al., 2020; Nagoshi et al., 2020; Suzuki and Sakai, 2021
Grafted NSC/NPC survive in chronic SCI lesionPartial control of directing cell differentiation
Differentiate into neuronal lineages
-Neuron, Oligodendrocyte and Astrocyte-
Limitation of functional integration
with the host neural circuitry
Promotion of axon regrowthVariability in both anatomical and
functional outcomes
Reduction of cyst volume
Safety in clinical trials (NSC/NPC source)
Promotion of Neural Pathway Plasticity
Pfeifer et al., 2006; Ruzicka et al., 2019; Xu et al., 2021
Lack of control on the processes
rewiring the neural new circuits.
RemyelinationAdministration route
-Intramedullary, Intrathecal, Intraventricular and Intravascular-
Optimal time-window of efficacy
Issue of cost-benefit ratio

Promising attempts, limitations and discussing points in NSC/NPC treatment for chronic SCI.

There are still additional limitations of NSCs/NPCs treatment for chronic SCI in clinical studies. We could have only partial functional recovery and there were variability in both anatomical and functional outcomes in several articles (Lane et al., 2017; Table 5). For example, preclinical trials using HuCNS-SC® cells revealed no evidence of efficacy (). They mentioned that the data raised questions about the development and validation of potency/comparability assays for clinical testing of cell products.

Several critical points are still remain, however, NSCs/NPCs treatment has the promising attempts in treatment for chronic SCI from the many kinds of preclinical trials (Kusano et al., 2010; Salazar et al., 2010; Kumamaru et al., 2013; Nutt et al., 2013; ; Tashiro et al., 2016; Suzuki et al., 2017; Nori et al., 2018; Okubo et al., 2018; Ruzicka et al., 2019; Jones et al., 2021; Table 5). Grafted NSCs/NPCs survived in chronic SCI lesion and differentiated into neuronal lineages. The cell grafts also reduced cyst volume and promoted axon regrowth, remyelination and neural pathway plasticity. In addition, these therapeutic effects led to pathophysiological regeneration and motor/sensory functional recovery.

Review Articles on Neural Stem/Neural Progenitor Cells Treatment for Chronic Spinal Cord Injury

We list the review articles on NSCs/NPCs treatment for chronic SCI in Table 4. Many therapeutic approaches have been reviewed in these articles in the attempt to treat chronic SCI, and many studies reported that cellular transplantation offered the greatest promise in reconstituting the architecture of the damaged spinal cord (McDonald et al., 1999; ; Jin et al., 2016; Yousefifard et al., 2016; Lane et al., 2017; Dalamagkas et al., 2018; Tsuji et al., 2019; Nagoshi et al., 2020; Platt et al., 2020; Vancamp et al., 2020; Suzuki and Sakai, 2021). Most of the ongoing clinical trials are targeting acute to subacute SCI; however, several are including the chronic phase as well (Table 4). Some of the articles showed that the grafted NSCs/NPCs had a strong capacity to differentiate into neural cells and that they retained the secretory function of growth factors and regenerative molecules. However, two articles pointed out that the recovery of locomotor function was quite difficult following the transplantation of NSCs/NPCs only (Nagoshi et al., 2020; Suzuki and Sakai, 2021). Several review articles mentioned that combinatory therapy could be an appropriate strategy with the use of drug administration and rehabilitation, in addition to NSCs/NPCs transplantation in chronic SCI (Tsuji et al., 2019; Nagoshi et al., 2020; Suzuki and Sakai, 2021).

Some papers reviewed safety issues and their resolution for NSCs/NPCs derived from human iPSCs (Tsuji et al., 2019; Nagoshi et al., 2020; Table 5). The primary safety issue of concern was the risk of tumor formation (Tsuji et al., 2019; Nagoshi et al., 2020). One article listed five key issues involved in improving the safety of NSCs/NPCs derived from human iPSCs. First, not to use genetically unstable human iPSC; second, to prevent contamination by undifferentiated pluripotent cells; third, to prevent the transformation of progenitor cells into tumor; fourth, to minimize the risk of proliferation of differentiation-resistant abnormal cells; and fifth, to remove any abnormal cells after the transplantation (Deng et al., 2018; Tsuji et al., 2019).

Neurorehabilitation in Experimental and Clinical Studies Following Neural Stem/Neural Progenitor Cells Therapies for Chronic Spinal Cord Injury

We described about SCI rehabilitation in clinical studies on stem cell therapies using mesenchymal stem cells and olfactory ensheathing cells (OECs) in previous article (Suzuki and Sakai, 2021). However, only the article reported the combinatory treatment with treadmill training and NSCs/NPCs graft in chronic SCI in mice (Tashiro et al., 2016; Table 2). This article reported that treadmill training was started just after NSCs/NPCs transplantation. In addition, they revealed that the combined therapy enhanced these independent effects of each single therapy (Tashiro et al., 2016). In addition, only one article mentioned about the combinatory treatment with neurorehabilitation and NSCs/NPCs therapy in chronic SCI in clinical study (; Table 3). This clinical study reported only case reports following NSCs/NPCs graft, the rehabilitation was not same in each patient and not systematic neurorehabilitation program. Therefore, it is difficult to discuss about the efficacy of neurorehabilitation following NSCs/NPCs treatment in chronic SCI.

In this session we would like to discuss about the timing of rehabilitation and what kinds of rehabilitation were combined with several stem cell therapies in chronic SCI. In the transplantation of OECs, it was reported that the quality and quantity of rehabilitation influenced the long-term outcome in patients with chronic SCI (Huang et al., 2012). However, it was not describing about the timing of rehabilitation and what type of rehabilitation was performed (Huang et al., 2012). To our knowledge, unfortunately, this is the only study investigating the relationship between functional recoveries and the sufficient/insufficient of neurorehabilitation following stem cell treatment in chronic SCI patients (Tashiro et al., 2021). There were several combinatory treatment of stem cell therapy (Umbilical cord blood cell and BMSC) and neurorehabilitation in ongoing clinical trials (NCT03979742, NCT01354483, and NCT01393977, see footnote 1). However these clinical trials are ongoing, therefore, these data are not published now.

Ongoing Clinical Trials Currently Targeting Chronic Spinal Cord Injury that Use Neural Stem/Neural Progenitor Cells

We list the ongoing clinical trials currently targeting chronic SCI that use NSCs/NPCs in Table 6 (see footnote 1 [accessed 20 August 2021]). All of the ongoing clinical trials were started on the basis of the good results obtained in preclinical studies. In chronic SCI, phase 1 and 2 studies are now ongoing to transplant NSCs/NPCs using autologous fresh stem cells containing product or MSCs. Only the NCT02688049 study is transplanting the NeuroRegen scaffold with NSCs/NPCs.

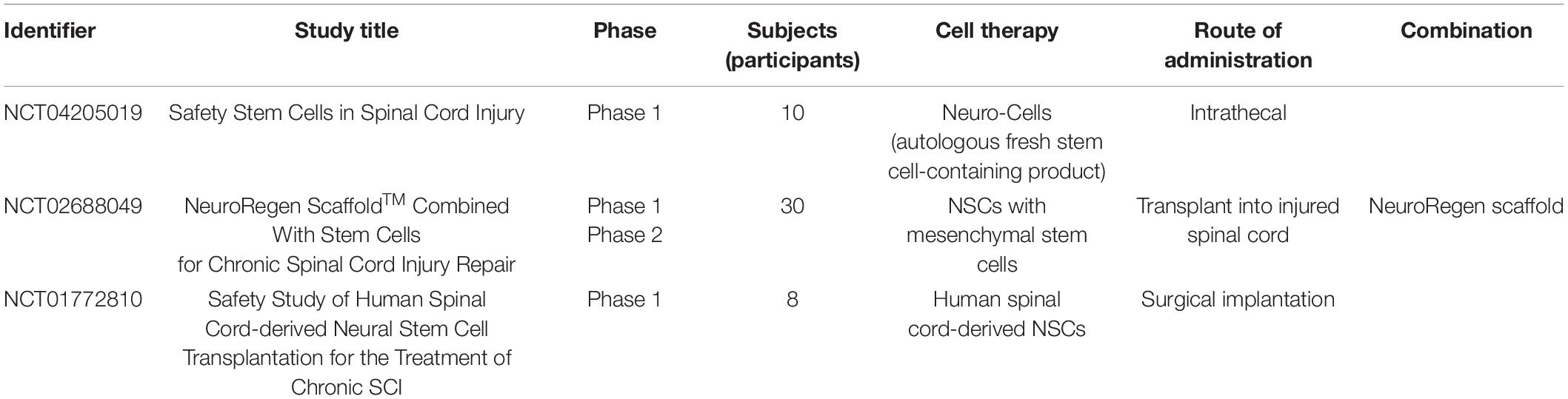

TABLE 6

IdentifierStudy titlePhaseSubjects
(participants)
Cell therapyRoute of administrationCombination
NCT04205019Safety Stem Cells in Spinal Cord InjuryPhase 110Neuro-Cells (autologous fresh stem cell-containing product)Intrathecal
NCT02688049NeuroRegen Scaffold Combined With Stem Cells
for Chronic Spinal Cord Injury Repair
Phase 1
Phase 2
30NSCs with mesenchymal stem cellsTransplant into injured spinal cordNeuroRegen scaffold
NCT01772810Safety Study of Human Spinal Cord-derived Neural Stem Cell Transplantation for the Treatment of Chronic SCIPhase 18Human spinal cord-derived NSCsSurgical implantation

Ongoing clinical trials currently targeting chronic SCI utilizing NSC/NPCs (https://www.clinicaltrials.gov/).

The NCT04205019 phase 1 clinical study begun on November 14, 2020, is an open clinical trial designed to investigate the safety of the intrathecal application of Neuro-Cells in the treatment of patients with end-stage (i.e., chronic) traumatic complete (AISA grade A) or incomplete (AISA grade B/C) SCI.

In the NCT02688049 phase 2 clinical study, patients with chronic SCI (ASIA grade A) are receiving NeuroRegen Scaffold with 10 million NSCs transplanted after localized scarring is cleared and after surgery patients undergo comprehensive rehabilitation, psychological, and nutritional measures. This clinical trial was started in January 2016.

The NCT01772810 trial is a phase 1 clinical study of SCI injury classified as AISA A in the UCSD Medical Center, Division of Neurosurgery that initially started in August 2014. The treatment is surgical implantation of human spinal cord-derived NSCs. The inclusion criterion is at least 1 year but no more than 2 years from time of injury to the time of surgery.

Future Candidates for Combinatory Treatment With Neural Stem/Neural Progenitor Cells Transplantation for Chronic Spinal Cord Injury

As previously mentioned, combinatory treatment with NSCs/NPCs is an important factor leading to improved recovery of locomotor function in chronic SCI. Several other approaches were reported in the treatment of chronic SCI, and we reviewed rehabilitation and scaffold treatment for chronic SCI as the most promising candidates for combinatory treatment with NSCs/NPCs.

Tissue Engineering Approaches for Chronic Spinal Cord Injury

Several scaffolds were reported for use in bridging defects in experimental models of chronic SCI (; Haggerty and Oudega, 2013; Pawar et al., 2015; ; Koffler et al., 2019). It was reported that anisotropic alginate hydrogel scaffolds promoted axonal growth across chronic spinal cord transections after scarring was removed (Huang et al., 2020). Both electrophysiological conductivity and locomotor function improved significantly after engraftment with this scaffold. Transplantation of human umbilical cord-derived MSCs seeded in collagen scaffolds reduced scar formation and promoted functional recovery in chronic SCI (Li et al., 2017; Wang et al., 2018). Some articles revealed the efficacy of Laminin-Coated pHEMA-MOETACl Hydrogel (Ruzicka et al., 2019), HPMA-RGD hydrogels (Hejcl et al., 2010), and chimeric self-assembling nanofiber (Tavakol et al., 2016). However, these were combined with iPSC-derived NPCs or MSCs. Three-dimensional aligned nanofiber-hydrogel scaffolds (Nguyen et al., 2017), self-assembling scaffolds, Taxol-modified collagen scaffolds (Yin et al., 2021), graphene oxide scaffolds (López-Dolado et al., 2016), and nanostructured composite scaffolds (Gelain et al., 2011) were reported for the treatment of chronic SCI. These articles revealed the possibility of recreating an anatomical, structural, and histological framework that could lead to the replacement of large hollow tissue gaps in the chronically injured spinal cord, thus encouraging axonal regeneration and neurological recovery.

In a clinical study, peripheral nerve grafts combined with a chitosan-laminin scaffold were grafted in chronic SCI patients and were reported to enhance regeneration (). The NeuroRegen scaffold was also reported to be transplanted into 51 chronic complete SCI patients, resulting in 16 patients achieving expansion of their sensation level and 30 patients experiencing enhanced reflexive defecation sensation or increased skin sweating below the injury site. Nearly half of the patients with chronic cervical SCI developed enhanced finger activity (Tang et al., 2021). The study also revealed that increased finger activity, enhanced trunk stability, defecation sensation, and recovery of autonomic neural function were observed in some patients following transplantation of the NeuroRegen scaffold combined with human MSCs (Zhao et al., 2017).

Rehabilitation Approaches for Chronic Spinal Cord Injury

In this section, we review the articles that mention rehabilitative training after chronic SCI in clinical studies. We focus on robotic-assisted gait training (RAGT) and functional electrical stimulation (FES) for enhancing the recovery of neuronal plasticity as new rehabilitation approaches.

One of the challenges in neurorehabilitation targeting the restoration of functional independence and quality of life is recovery of the ability to plan and execute movement again (Maier et al., 2019). Several researchers found that RAGT in SCI patients improved the cardiorespiratory, urinary, musculoskeletal, neuronal and somatosensory systems, due to body compensation and neural plasticity (Fleerkotte et al., 2014; Labruyère and van Hedel, 2014; Holanda et al., 2017; Nam et al., 2017). A review article that included 10 trials involving 502 participants showed that the acute RAGT groups showed significantly greater improvements in gait distance, leg strength, and functional level of mobility and independence than the over-ground training groups. Significantly greater improvements in speed and balance were also observed in the chronic RAGT group versus the group with no intervention (Nam et al., 2017). Another systematic review showed that significant progress was being made with robotic devices as an innovative and effective therapy for the rehabilitation of individuals with SCI (Holanda et al., 2017). However, Piira et al. (2019) reported in a clinical trial that RAGT did not improve walking function in patients with chronic incomplete SCI. Wearable powered robotic exoskeletons allow chronic complete SCI patients to perform over-ground walking. In addition, different exoskeleton software control of the smoothness of the gait pattern improves functional outcome, eliminating the relationship between anthropometric factors and gait performance (Guanziroli et al., 2019).

Some other papers revealed that neurorehabilitation using a voluntary driven exoskeletal (VDE) robot improved trunk function and voluntary contractions (Grasmücke et al., 2017; Okawara et al., 2022). VDE training immediately improved lower limb function and muscle activity and correct synergy control of the lower limb muscles during gait and also increased excitability in the primary somatosensory cortex (Sczesny-Kaiser et al., 2015; Shimizu et al., 2017; Matsuda et al., 2018; Tan et al., 2018).

Recently, gait training using the Alternating Hybrid Assistive Limb (HAL®) Robot was reported. By combining gait training using HAL-assisted and conventional gait training with physical therapy, the ability of patients with a chronic SCI to walk may be improved over a short period (Sczesny-Kaiser et al., 2015; Shimizu et al., 2017; Matsuda et al., 2018; Kanazawa et al., 2019). The potential for gait training using HAL to improve the ability of patients with chronic severe incomplete tetraplegic SCI to walk was also shown. HAL motion-assistive technologies contributed to improvement in patient walking ability by facilitating proper joint motion and loading and unloading muscle movements (Soma et al., 2021).

A systematic review of the clinical benefits of rehabilitation training in SCI reported that robotic-assisted treadmill training improved lower extremity function (95% CI 3.44, 6.56) compared with related controls, and FES also significantly increased upper extremity independence (95% CI 0.37, 5.48) (Duan et al., 2021).

FES treatment is one of the new challenges in active rehabilitation training for chronic SCI patients (Marquez-Chin and Popovic, 2020). Several clinical studies reported the efficacy of FES therapy for chronic SCI (; Popovic et al., 1999, 2011; Mangold et al., 2005; Thrasher et al., 2006; Kapadia et al., 2013, 2014). These articles reported increases in strength and improvement in drop foot and plantar flexion after training using a neuroprosthesis for walking after SCI (). The efficacy of FES treatment to restore the ability to walk following chronic SCI revealed significantly greater improvement in locomotion function with FES treatment compared with a non-FES treatment-controlled intervention (Thrasher et al., 2006). In one recent study, a phase I randomized control trial was conducted in the same population (chronic incomplete SCI between C2 and T12 levels) (Kapadia et al., 2014). The efficacy of 6 months use of the Bionic Glove was also shown to improve upper limb function (increased power grasp and/or range of movements) in individuals with tetraplegia resulting from SCI at the C5–C7 level (Popovic et al., 1999). Several studies reported improvements in grasping function or muscle strength in the majority of 11 individuals who received FES training using a neuroprosthesis for grasping (Popovic et al., 1999; Mangold et al., 2005; Kapadia et al., 2013).

Conclusion

Currently, numerous clinical and experimental studies have shown positive results in terms of functional improvement with neural stem/progenitor cell treatment in chronic SCI. There are still some inherent limitations in human chronic SCI trials. However, promising results have been reported in basis research and clinical trials. We are convinced that neural stem/progenitor cell therapy will provide the drastic treatment needed for chronic SCI patients in the near future.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Statements

Author contributions

HS and TS designed the review outline. HS, MF, TS, and NN drafted the manuscript. YI and MF provided critical review of the manuscript. All authors have read and agreed to the published version of the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  • 1

    AdamsM.CavanaghJ. F. R. (2004). International campaign for cures of spinal cord injury paralysis (ICCP): another step forward for spinal cord injury research.Spinal Cord42273280. 10.1038/sj.sc.3101597

  • 2

    AhujaC. S.FehlingsM. G. (2016). Concise review: bridging the gap: novel neuroregenerative and neuroprotective strategies in spinal cord injury.Stem Cells Transl. Med.5914924. 10.5966/sctm.2015-0381

  • 3

    AhujaC. S.WilsonJ. R.NoriS.KotterM. R. N.DruschelC.CurtA.et al (2017). Traumatic spinal cord injury.Nat. Rev. Dis. Primers3:17018. 10.1038/nrdp.2017.18

  • 4

    AlizadehA.DyckS. M.Karimi-AbdolrezaeeS. (2015). Myelin damage and repair in pathologic CNS: challenges and prospects.Front. Mol. Neurosci.8:35. 10.3389/fnmol.2015.00035

  • 5

    AmrS. M.GoudaA.KoptanW. T.GalalA. A.Abdel-FattahD. S.RashedL. A.et al (2014). Bridging defects in chronic spinal cord injury using peripheral nerve grafts combined with a chitosan-laminin scaffold and enhancing regeneration through them by co-transplantation with bone-marrow-derived mesenchymal stem cells: case series of 14 patients.J. Spinal Cord Med.375471. 10.1179/2045772312Y.0000000069

  • 6

    AndersonA. J.PilttiK. M.HooshmandM. J.NishiR. A.CummingsB. J. (2017). Preclinical efficacy failure of human CNS-derived stem cells for use in the pathway study of cervical spinal cord injury.Stem Cell Rep.8249263. 10.1016/j.stemcr.2016.12.018

  • 7

    AndersonM. A.BurdaJ. E.RenY.AoY.O’SheaT. M.KawaguchiR.et al (2016). Astrocyte scar formation aids central nervous system axon regeneration.Nature532195200. 10.1038/nature17623

  • 8

    AndrewsE. M.RichardsR. J.YinF. Q.ViapianoM. S.JakemanL. B. (2012). Alterations in chondroitin sulfate proteoglycan expression occur both at and far from the site of spinal contusion injury.Exp. Neurol.235174187. 10.1016/j.expneurol.2011.09.008

  • 9

    AngeliC. A.BoakyeM.MortonR. A.VogtJ.BentonK.ChenY.et al (2018). Recovery of over-ground walking after chronic motor complete spinal cord injury.N. Engl. J. Med.37912441250. 10.1056/NEJMoa1803588

  • 10

    AnwarM. A.Al ShehabiT. S.EidA. H. (2016). Inflammogenesis of secondary spinal cord injury.Front. Cell Neurosci.10:98. 10.3389/fncel.2016.00098

  • 11

    ArmourB. S.Courtney-LongE. A.FoxM. H.FredineH.CahillA. (2016). Prevalence and causes of paralysis-United States, 2013.Am. J. Public Health10618551857. 10.2105/AJPH.2016.303270

  • 12

    AshammakhiN.KimH. J.EhsanipourA.BiermanR. D.KaarelaO.XueC.et al (2019). Regenerative therapies for spinal cord injury.Tissue Eng. Part B Rev.25471491. 10.1089/ten.TEB.2019.0182

  • 13

    Asia and ISCoS International Standards Committee (2019). The 2019 revision of the International standards for neurological classification of spinal cord injury (ISNCSCI)-What’s new?Spinal Cord57815817.

  • 14

    AssinckP.DuncanG. J.HiltonB. J.PlemelJ. R.TetzlaffW. (2017). Cell transplantation therapy for spinal cord injury.Nat. Neurosci.20:637. 10.1038/nn.4541

  • 15

    AustinJ. W.KangC. E.BaumannM. D.DiDiodatoL.SatkunendrarajahK.WilsonJ. R.et al (2012). The effects of intrathecal injection of a hyaluronan-based hydrogel on inflammation, scarring and neurobehavioural outcomes in a rat model of severe spinal cord injury associated with arachnoiditis.Biomaterials3345554564. 10.1016/j.biomaterials.2012.03.022

  • 16

    AvramS.ShaposhnikovS.BuiuC.MerneaM. (2014). Chondroitin sulfate proteoglycans: structure-function relationship with implication in neural development and brain disorders.Biomed. Res. Int.2014:642798. 10.1155/2014/642798

  • 17

    BadhiwalaJ. H.AhujaC. S.FehlingsM. G. (2018). Time is spine: a review of translational advances in spinal cord injury.J. Neurosurg. Spine30118. 10.3171/2018.9.spine18682

  • 18

    BadnerA.VawdaR.LaliberteA.HongJ.MikhailM.JoseA.et al (2016). Early intravenous delivery of human brain stromal cells modulates systemic inflammation and leads to vasoprotection in traumatic spinal cord injury.Stem Cells Transl. Med.59911003. 10.5966/sctm.2015-0295

  • 19

    BajdT.KraljA.StefancicM.LavracN. (1999). Use of functional electrical stimulation in the lower extremities of incomplete spinal cord injured patients.Artif. Organs23403409. 10.1046/j.1525-1594.1999.06360.x

  • 20

    BandtlowC. E.ZimmermannD. R. (2000). Proteoglycans in the developing brain: new conceptual insights for old proteins.Physiol. Rev.8012671290. 10.1152/physrev.2000.80.4.1267

  • 21

    BareyreF. M.KerschensteinerM.RaineteauO.MettenleiterT. C.WeinmannO.SchwabM. E. (2004). The injured spinal cord spontaneously forms a new intraspinal circuit in adult rats.Nat. Neurosci.7269277. 10.1038/nn1195

  • 22

    Barnabé-HeiderF.GöritzC.SabelströmH.TakebayashiH.PfriegerF. W.MeletisK.et al (2010). Origin of new glial cells in intact and injured adult spinal cord.Cell Stem Cell7470482. 10.1016/j.stem.2010.07.014

  • 23

    BartusK.JamesN. D.DidangelosA.BoschK. D.VerhaagenJ.Yáñez-MuñozR. J.et al (2014). Large-scale chondroitin sulfate proteoglycan digestion with chondroitinase gene therapy leads to reduced pathology and modulates macrophage phenotype following spinal cord contusion injury.J. Neurosci.3448224836. 10.1523/JNEUROSCI.4369-13.2014

  • 24

    BeattieR.HippenmeyerS. (2017). Mechanisms of radial glia progenitor cell lineage progression.FEBS Lett.59139934008. 10.1002/1873-3468.12906

  • 25

    BeckK. D.NguyenH. X.GalvanM. D.SalazarD. L.WoodruffT. M.AndersonA. J. (2010). Quantitative analysis of cellular inflammation after traumatic spinal cord injury: evidence for a multiphasic inflammatory response in the acute to chronic environment.Brain133(Pt 2), 433447. 10.1093/brain/awp322

  • 26

    BickneseA. R.SheppardA. M.O’learyD. D.PearlmanA. L. (1994). Thalamocortical axons extend along a chondroitin sulfate proteoglycan enriched pathway coincident with the neocortical subplate and distinct from the efferent path.J. Neurosci.1435003510. 10.1523/JNEUROSCI.14-06-03500.1994

  • 27

    BleschA.TuszynskiM. H. (2009). Spinal cord injury: plasticity, regeneration and the challenge of translational drug development.Trends Neurosci.324147. 10.1016/j.tins.2008.09.008

  • 28

    BradburyE. J.BurnsideE. R. (2019). Moving beyond the glial scar for spinal cord repair.Nat. Commun.10:3879. 10.1038/s41467-019-11707-7

  • 29

    BradburyE. J.MoonL. D.PopatR. J.KingV. R.BennettG. S.PatelP. N.et al (2002). Chondroitinase ABC promotes functional recovery after spinal cord injury.Nature416636640. 10.1038/416636a

  • 30

    BurdaJ. E.SofroniewM. V. (2014). Reactive gliosis and the multicellular response to CNS damage and disease.Neuron81229248. 10.1016/j.neuron.2013.12.034

  • 31

    BurnsS.Biering-SørensenF.DonovanW.GravesD. E.JhaA.JohansenM.et al (2012). International standards for neurological classification of spinal cord injury, Revised 2011.Top Spinal Cord Inj. Rehabil.188599. 10.1310/sci1801-85

  • 32

    BurnsideE. R.De WinterF.DidangelosA.JamesN. D.AndreicaE.-C.Layard-HorsfallH.et al (2018). Immune-evasive gene switch enables regulated delivery of chondroitinase after spinal cord injury.Brain14123622381. 10.1093/brain/awy158

  • 33

    CarterL. M.StephenB.McMahonS. B.BradburyE. J. (2011). Delayed treatment with chondroitinase ABC reverses chronic atrophy of rubrospinal neurons following spinal cord injury.Exp. Neurol.228149156. 10.1016/j.expneurol.2010.12.023

  • 34

    ChedlyJ.SoaresS.MontembaultA.von BoxbergY.Veron-RavailleM.MouffleC.et al (2017). Physical chitosan microhydrogels as scaffolds for spinal cord injury restoration and axon regeneration.Biomaterials13891107. 10.1016/j.biomaterials.2017.05.024

  • 35

    ChengI.GithensM.SmithR. L.JohnstonT. R.ParkD. Y.StauffM. P.et al (2016). Local versus distal transplantation of human neural stem cells following chronic spinal cord injury.Spine J.16764769. 10.1016/j.spinee.2015.12.007

  • 36

    ClarkeD.JohanssonC.WilbertzJ.VeressB.NilssonE.KarlströmH.et al (2000). Generalized potential of adult neural stem cells.Science28816601663. 10.1126/science.288.5471.1660

  • 37

    CourtineG.SofroniewM. V. (2019). Spinal cord repair: advances in biology and technology.Nat. Med.25898908. 10.1038/s41591-019-0475-6

  • 38

    CourtineG.SongB.RoyR. R.ZhongH.HerrmannJ. E.AoY.et al (2008). Recovery of supraspinal control of stepping via indirect propriospinal relay connections after spinal cord injury.Nat. Med.146974. 10.1038/nm1682

  • 39

    CurtA. (2012). Human neural stem cells in chronic spinal cord injury.Expert Opin. Biol. Ther.12271273. 10.1517/14712598.2012.655722

  • 40

    CurtisE.MartinJ. R.GabelB.SidhuN.RzesiewiczT. K.MandevilleR.et al (2018). A first-in-human, phase i study of neural stem cell transplantation for chronic spinal cord injury.Cell Stem Cell22941.e6950.e6. 10.1016/j.stem.2018.05.014

  • 41

    DagciT.ArmaganG.KonyaliogluS.YalcinA. (2009). Alterations in the expression of the apurinic/apyrimidinic endonuclease-1/redox factor-1 (APE/ref-1) and DNA damage in the caudal region of acute and chronic spinal cord injured rats treated by embryonic neural stem cells.Physiol. Res.58427434. 10.33549/physiolres.931388

  • 42

    DalamagkasK.TsintouM.SeifalianA.SeifalianA. M. (2018). Translational regenerative therapies for chronic spinal cord injury.Int. J. Mol. Sci.19:1776. 10.3390/ijms19061776

  • 43

    de LeonR. D.TamakiH.HodgsonJ. A.RoyR. R.EdgertonV. R. (1999). Hindlimb locomotor and postural training modulates glycinergic inhibition in the spinal cord of the adult spinal cat.J. Neurophysiol.82359369. 10.1152/jn.1999.82.1.359

  • 44

    DengJ.ZhangY.XieY.ZhangL.TangP. (2018). Cell transplantation for spinal cord injury: tumorigenicity of induced pluripotent stem cell-derived neural stem/progenitor cells.Stem Cells Int.2018:5653787. 10.1155/2018/5653787

  • 45

    DuanR.QuM.YuanY.LinM.LiuT.HuangW.et al (2021). Clinical benefit of rehabilitation training in spinal cord injury: a systematic review and meta-analysis.Spine46E398E410. 10.1097/BRS.0000000000003789

  • 46

    FawcettJ. W.CurtA.SteevesJ. D.ColemanW. P.TuszynskiM. H.LammertseD.et al (2007). Guidelines for the conduct of clinical trials for spinal cord injury as developed by the ICCP panel: spontaneous recovery after spinal cord injury and statistical power needed for therapeutic clinical trials.Spinal Cord45190205. 10.1038/sj.sc.3102007

  • 47

    FilousA. R.TranA.HowellC. J.BuschS. A.EvansT. A.StallcupW. B.et al (2014). Entrapment via synaptic-like connections between NG2 proteoglycan+ cells and dystrophic axons in the lesion plays a role in regeneration failure after spinal cord injury.J. Neurosci.341636916384. 10.1523/JNEUROSCI.1309-14.2014

  • 48

    FleerkotteB. M.KoopmanB.BuurkeJ. H.van AsseldonkE. H.van der KooiH.RietmanJ. S. (2014). The effect of impedance-controlled robotic gait training on walking ability and quality in individuals with chronic incomplete spinal cord injury: an explorative study.J. Neuroeng. Rehabil.11:26. 10.1186/1743-0003-11-26

  • 49

    FlemingJ. C.NorenbergM. D.RamsayD. A.DekabanG. A.MarcilloA. E.SaenzA. D.et al (2006). The cellular inflammatory response in human spinal cords after injury.Brain12932493269. 10.1093/brain/awl296

  • 50

    GelainF.PanseriS.AntoniniS.CunhaC.DonegaM.LoweryJ. (2011). Transplantation of nanostructured composite scaffolds results in the regeneration of chronically injured spinal cords.ACS Nano5227236. 10.1021/nn102461w

  • 51

    GhobrialG. M.AndersonK. D.DididzeM.Martinez-BarrizonteJ.SunnG. H.GantK. L.et al (2017). Human neural stem cell transplantation in chronic cervical spinal cord injury: functional outcomes at 12 months in a phase II clinical trial.Neurosurgery648791. 10.1093/neuros/nyx24

  • 52

    GrasmückeD.ZieriacksA.JansenO.FisahnC.Sczesny-KaiserM.WesslingM.et al (2017). Against the odds: what to expect in rehabilitation of chronic spinal cord injury with a neurologically controlled Hybrid Assistive Limb exoskeleton. a subgroup analysis of 55 patients according to age and lesion level.Neurosurg. Focus42:E15. 10.3171/2017.2.FOCUS171

  • 53

    GuanziroliE.CazzanigaM.ColomboL.BasilicoS.LegnaniG.MolteniF. (2019). Assistive powered exoskeleton for complete spinal cord injury: correlations between walking ability and exoskeleton control.Eur. J. Phys. Rehabil. Med.55209216. 10.23736/S1973-9087.18.05308-X

  • 54

    HaggertyA. E.OudegaM. (2013). Biomaterials for spinal cord repair.Neurosci. Bull.29445459. 10.1007/s12264-013-1362-7

  • 55

    HayashiM.HinckleyC. A.DriscollS. P.MooreN. J.LevineA. J.HildeK. L.et al (2018). Graded arrays of spinal and supraspinal V2a interneuron subtypes underlie forelimb and hindlimb motor control.Neuron97869.e5884.e5. 10.1016/j.neuron.2018.01.023

  • 56

    HejclA.SedýJ.KapcalováM.ToroD. A.AmemoriT.LesnýP.et al (2010). HPMA-RGD hydrogels seeded with mesenchymal stem cells improve functional outcome in chronic spinal cord injury.Stem Cells Dev.1915351546. 10.1089/scd.2009.0378

  • 57

    HolandaL. J.SilvaP. M. M.AmorimT. C.LacerdaM. O.SimãoC. R.MoryaE. (2017). Robotic assisted gait as a tool for rehabilitation of individuals with spinal cord injury: a systematic review.J. Neuroeng. Rehabil.14:126. 10.1186/s12984-017-0338-7

  • 58

    HouleJ. D.TesslerA. (2003). Repair of chronic spinal cord injury.Exp. Neurol.182247260. 10.1016/s0014-4886(03)00029-3

  • 59

    HuangH.XiH.ChenL.ZhangF.LiuY. (2012). Long-term outcome of olfactory ensheathing cell therapy for patients with complete chronic spinal cord injury.Cell Transplant.21S23S31. 10.3727/096368912X633734

  • 60

    HuangL.WangY.ZhuM.WanX.ZhangH.LeiT.et al (2020). Anisotropic alginate hydrogels promote axonal growth across chronic spinal cord transections after scar removal.ACS Biomater. Sci. Eng.622742286. 10.1021/acsbiomaterials.9b01802

  • 61

    IkegamiT.NakamuraM.YamaneJ.KatohH.OkadaS.IwanamiA.et al (2005). Chondroitinase ABC combined with neural stem/progenitor cell transplantation enhances graft cell migration and outgrowth of growth-associated protein-43-positive fibers after rat spinal cord injury.Eur. J. Neurosci.2230363046. 10.1111/j.1460-9568.2005.04492.x

  • 62

    JeongS. K.ChoiI.JeonS. R. (2020). Current status and future strategies to treat spinal cord injury with adult stem cells.J. Korean Neurosurg. Soc.63153162. 10.3340/jkns.2019.0146

  • 63

    JinY.BouyerJ.ShumskyJ. S.HaasC.FischerI. (2016). Transplantation of neural progenitor cells in chronic spinal cord injury.Neuroscience3206982. 10.1016/j.neuroscience.2016.01.066

  • 64

    JonesI.NovikovaL. N.WibergM.CarlssonL.NovikovL. N. (2021). Human embryonic stem cell-derived neural crest cells promote sprouting and motor recovery following spinal cord injury in adult rats.Cell Transplant.30:963689720988245. 10.1177/0963689720988245

  • 65

    JonesL. L.YamaguchiY.StallcupW. B.TuszynskiM. H. (2002). NG2 is a major chondroitin sulfate proteoglycan produced after spinal cord injury and is expressed by macrophages and oligodendrocyte progenitors.J. Neurosci.2227922803. 10.1523/JNEUROSCI.22-07-02792.2002

  • 66

    KadoyaK.LuP.NguyenK.Lee-KubliC.KumamaruH.YaoL.et al (2016). Spinal cord reconstitution with homologous neural grafts enables robust corticospinal regeneration.Nat. Med.22479487.

  • 67

    KanazawaA.YoshikawaK.KosekiK.TakeuchiR.MutsuzakiH. (2019). A consecutive 25-week program of gait training, using the alternating Hybrid Assistive Limb (HAL ®) robot and conventional training, and its effects on the walking ability of a patient with chronic thoracic spinal cord injury: a single case reversal design.Medicina55:746. 10.3390/medicina55110746

  • 68

    KapadiaN.MasaniK.CatharineC. B.GiangregorioL. M.HitzigS. L.RichardsK.et al (2014). A randomized trial of functional electrical stimulation for walking in incomplete spinal cord injury: effects on walking competency.J. Spinal Cord Med.37511524. 10.1179/2045772314Y.0000000263

  • 69

    KapadiaN.ZivanovicV.PopovicM. R. (2013). Restoring voluntary grasping function in individuals with incomplete chronic spinal cord injury: pilot study.Top. Spinal Cord Inj. Rehabil.19279287. 10.1310/sci1904-279

  • 70

    Karimi-AbdolrezaeeS.EftekharpourE.WangJ.MorsheadC. M.FehlingsM. G. (2006). Delayed transplantation of adult neural precursor cells promotes remyelination and functional neurological recovery after spinal cord injury.J. Neurosci.2633773389. 10.1523/jneurosci.4184-05.2006

  • 71

    Karimi-AbdolrezaeeS.EftekharpourE.WangJ.SchutD.FehlingsM. G. (2010). Synergistic effects of transplanted adult neural stem/progenitor cells, chondroitinase, and growth factors promote functional repair and plasticity of the chronically injured spinal cord.J. Neurosci.3016571676. 10.1523/jneurosci.3111-09.2010

  • 72

    KofflerJ.ZhuW.QuX.PlatoshynO.DulinJ. N.BrockJ.et al (2019). Biomimetic 3D-printed scaffolds for spinal cord injury repair.Nat. Med.25263269. 10.1038/s41591-018-0296-z

  • 73

    KuchibhotlaK. V.LattaruloC. R.HymanB. T.BacskaiB. J. (2009). Synchronous hyperactivity and intercellular calcium waves in astrocytes inAlzheimer mice. Science323, 12111215. 10.1126/science.1169096

  • 74

    KumamaruH.SaiwaiH.KubotaK.KobayakawaK.YokotaK.OhkawaY.et al (2013). Therapeutic activities of engrafted neural stem/precursor cells are not dormant in the chronically injured spinal cord.Stem Cells3115351547. 10.1002/stem.1404

  • 75

    KusanoK.EnomotoM.HiraiT.TsoulfasP.SotomeS.ShinomiyaK.et al (2010). Transplanted neural progenitor cells expressing mutant NT3 promote myelination and partial hindlimb recovery in the chronic phase after spinal cord injury.Biochem. Biophys. Res. Commun.393812817. 10.1016/j.bbrc.2010.02.088

  • 76

    LabruyèreR.van HedelH. J. (2014). Strength training versus robot-assisted gait training after incomplete spinal cord injury: a randomized pilot study in patients depending on walking assistance.J. Neuroeng. Rehabil.11:4. 10.1186/1743-0003-11-4

  • 77

    LaneM. A.LeporeA. C.FischerI. (2017). Improving the therapeutic efficacy of neural progenitor cell transplantation following spinal cord injury.Expert Rev. Neurother.17433440. 10.1080/14737175.2017.1270206

  • 78

    LeviA. D.AndersonK. D.OkonkwoD. O.ParkP.BryceT. N.KurpadS. N.et al (2019). Clinical outcomes from a multi-center study of human neural stem cell transplantation in chronic cervical spinal cord injury.J. Neurotrauma36891902. 10.1089/neu.2018.5843

  • 79

    LeviA. D.OkonkwoD. O.ParkP.JenkinsA. L.IIIKurpadS. N.ParrA. M.et al (2018). Emerging safety of intramedullary transplantation of human neural stem cells in chronic cervical and thoracic spinal cord injury.Neurosurgery82562575. 10.1093/neuros/nyx250

  • 80

    LiX.TanJ.XiaoZ.ZhaoY.HanS.LiuD.et al (2017). Transplantation of hUC-MSCs seeded collagen scaffolds reduces scar formation and promotes functional recovery in canines with chronic spinal cord injury.Sci. Rep.7:43559. 10.1038/srep43559

  • 81

    López-DoladoE.González-MayorgaA.GutiérrezM. C.SerranoM. C. (2016). Immunomodulatory and angiogenic responses induced by graphene oxide scaffolds in chronic spinal hemisected rats.Biomaterials997281. 10.1016/j.biomaterials.2016.05.012

  • 82

    LuP.WangY.GrahamL.McHaleK.GaoM.WuD.et al (2012). Long-distance growth and connectivity of neural stem cells after severe spinal cord injury.Cell15012641273. 10.1016/j.cell.2012.08.020

  • 83

    MaierM.BallesterB. R.VerschureP. F. M. J. (2019). Principles of neurorehabilitation after stroke based on motor learning and brain plasticity mechanisms.Front. Syst. Neurosci.13:74. 10.3389/fnsys.2019.00074

  • 84

    MangoldS.KellerT.CurtA.DietzV. (2005). Transcutaneous functional electrical stimulation for grasping in subjects with cervical spinal cord injury.Spinal Cord43113. 10.1038/sj.sc.3101644

  • 85

    Marquez-ChinC.PopovicM. R. (2020). Functional electrical stimulation therapy for restoration of motor function after spinal cord injury and stroke: a review.Biomed. Eng. Online19:34. 10.1186/s12938-020-00773-4

  • 86

    Martín-LópezM.González-MuñozE.Gómez-GonzálezE.Sánchez-PernauteR.Márquez-RivasJ.Fernández-MuñozB. (2021). Modeling chronic cervical spinal cord injury in aged rats for cell therapy studies.J. Clin. Neurosci.947685. 10.1016/j.jocn.2021.09.042

  • 87

    MatsudaM.MatakiY.MutsuzakiH.YoshikawaK.TakahashiK.EnomotoK.et al (2018). Immediate effects of a single session of robot-assisted gait training using Hybrid Assistive Limb (HAL) for cerebral palsy.J. Phys. Ther. Sci.30207212. 10.1589/jpts.30.207

  • 88

    McDonaldJ. W.LiuX. Z.QuY.LiuS.MickeyS. K.TuretskyD.et al (1999). Transplanted embryonic stem cells survive, differentiate and promote recovery in injured rat spinal cord.Nat Med.514101412. 10.1038/70986

  • 89

    MovigliaG. A.Fernandez ViñaR.BrizuelaJ. A.SaslavskyJ.VrsalovicF.VarelaG.et al (2006). Combined protocol of cell therapy for chronic spinal cord injury. Report on the electrical and functional recovery of two patients.Cytotherapy8202209. 10.1080/14653240600736048

  • 90

    MovigliaG. A.VarelaG.BrizuelaJ. A.Moviglia BrandolinoM. T.FarinaP.EtchegarayG.et al (2009). Case report on the clinical results of a combined cellular therapy for chronic spinal cord injured patients.Spinal Cord47499503. 10.1038/sc.2008.164

  • 91

    NagoshiN.OkanoH.NakamuraM. (2020). Regenerative therapy for spinal cord injury using iPSC technology.Inflamm. Regen.40:40. 10.1186/s41232-020-00149-140

  • 92

    NamK. Y.KimH. J.KwonB. S.ParkJ. W.LeeH. J.YooA. (2017). Robot-assisted gait training (Lokomat) improves walking function and activity in people with spinal cord injury: a systematic review.J. Neuroeng. Rehabil.14:24. 10.1186/s12984-017-0232-3

  • 93

    NguyenL. H.GaoM.LinJ.WuW.WangJ.ChewS. Y. (2017). Three-dimensional aligned nanofibers-hydrogel scaffold for controlled non-viral drug/gene delivery to direct axon regeneration in spinal cord injury treatment.Sci. Rep.7:42212. 10.1038/srep42212

  • 94

    NoriS.KhazaeiM.AhujaC. S.YokotaK.AhlforsJ. E.LiuY.et al (2018). Human oligodendrogenic neural progenitor cells delivered with chondroitinase ABC facilitate functional repair of chronic spinal cord injury.Stem Cell Rep.1114331448. 10.1016/j.stemcr.2018.10.017

  • 95

    NuttS. E.ChangE. A.SuhrS. T.SchlosserL. O.MondelloS. E.MoritzC. T.et al (2013). Caudalized human iPSC-derived neural progenitor cells produce neurons and glia but fail to restore function in an early chronic spinal cord injury model.Exp. Neurol.248491503. 10.1016/j.expneurol.2013.07.010

  • 96

    OakleyR. A.TosneyK. W. (1991). Peanut agglutinin and chondroitin-6-sulfate are molecular markers for tissues that act as barriers to axon advance in the avian embryo.Dev. Biol.147187206. 10.1016/s0012-1606(05)80017-x

  • 97

    OhS. K.ChoiK. H.YooJ. Y.KimD. Y.KimS. J.JeonS. R. (2016). A phase III clinical trial showing limited efficacy of autologous mesenchymal stem cell therapy for spinal cord injury.Neurosurgery78436447. 10.1227/NEU.0000000000001056

  • 98

    OkawaraH.TashiroS.SawadaT.SugaiK.MatsubayashiK.KawakamiM.et al (2022). Neurorehabilitation using a voluntary driven exoskeletal robot improves trunk function in patients with chronic spinal cord injury: a single-arm study.Neural Regen. Res.17427432. 10.4103/1673-5374.317983

  • 99

    OkuboT.NagoshiN.KohyamaJ.TsujiO.ShinozakiM.ShibataS.et al (2018). Treatment with a gamma-secretase inhibitor promotes functional recovery in human iPSC- derived transplants for chronic spinal cord injury.Stem Cell Rep.1114161432. 10.1016/j.stemcr.2018.10.022

  • 100

    PawarK.CummingsB. J.ThomasA.SheaL. D.LevineA.PfaffS.et al (2015). Biomaterial bridges enable regeneration and re-entry of corticospinal tract axons into the caudal spinal cord after SCI: association with recovery of forelimb function.Biomaterials65112. 10.1016/j.biomaterials.2015.05.032

  • 101

    PfeiferK.VroemenM.CaioniM.AignerL.BogdahnU.WeidnerN. (2006). Autologous adult rodent neural progenitor cell transplantation represents a feasible strategy to promote structural repair in the chronically injured spinal cord.Regen. Med.1255266. 10.2217/17460751.1.2.255

  • 102

    PiiraA.LannemA. M.SørensenM.GlottT.KnutsenR.JørgensenL.et al (2019). Robot-assisted locomotor training did not improve walking function in patients with chronic incomplete spinal cord injury: a randomized clinical trial.J. Rehabil. Med.51385389. 10.2340/16501977-2547

  • 103

    PlattA.DavidB. T.FesslerA. R. G. (2020). Stem cell clinical trials in spinal cord injury: a brief review of studies in the United States.Medicines7:27. 10.3390/medicines7050027

  • 104

    PopovicD.StojanovićA.PjanovićA.RadosavljevićS.PopovicM.JovićS.et al (1999). Clinical evaluation of the bionic glove.Arch. Phys. Med. Rehabil.80299304. 10.1016/s0003-9993(99)90141-7

  • 105

    PopovicM. R.KapadiaN.ZivanovicV.FurlanJ. C.CravenB. C.McGillivrayC. (2011). Functional electrical stimulation therapy of voluntary grasping versus only conventional rehabilitation for patients with subacute incomplete tetraplegia: a randomized clinical trial.Neurorehabil. Neural Repair25433442. 10.1177/1545968310392924

  • 106

    ProskuryakovS. Y.KonoplyannikovA. G.GabaiV. L. (2003). Necrosis: a specific form of programmed cell death?Exp. Cell Res.283116. 10.1016/s0014-4827(02)00027-7

  • 107

    RuffC. A.WilcoxJ. T.FehlingsM. G. (2012). Cell-based transplantation strategies to promote plasticity following spinal cord injury.Exp. Neurol.2357890. 10.1016/j.expneurol.2011.02.010

  • 108

    RuzickaJ.RomanyukN.JirakovaK.HejclA.JanouskovaO.MachovaL. U.et al (2019). The effect of iPS-derived neural progenitors seeded on laminin-coated pHEMA-MOETACl hydrogel with dual porosity in a rat model of chronic spinal cord injury.Cell Transplant.28400412. 10.1177/0963689718823705

  • 109

    SalazarD. L.UchidaN.HamersF. P.CummingsB. J.AndersonA. J. (2010). Human neural stem cells differentiate and promote locomotor recovery in an early chronic spinal cord injury NOD-scid mouse model.PLoS One5:e12272. 10.1371/journal.pone.0012272

  • 110

    SalewskiR.HamidehH.FehlingsM. G. (2012). Neural Stem/Progenitor Cells for Spinal Cord Regeneration, Trends in Cell Signaling Pathways in Neuronal Fate Decision.London: IntechOpen.

  • 111

    Sczesny-KaiserM.HöffkenO.AachM.CrucigerO.GrasmückeD.MeindlR.et al (2015). HAL® exoskeleton training improves walking parameters and normalizes cortical excitability in primary somatosensory cortex in spinal cord injury patients.J. Neuroeng. Rehabil.12:68. 10.1186/s12984-015-0058-9

  • 112

    SheppardA. M.HamiltonS. K.PearlmanA. L. (1991). Changes in the distribution of extracellular matrix components accompany early morphogenetic events of mammalian cortical development.J. Neurosci.1139283942. 10.1523/JNEUROSCI.11-12-03928.1991

  • 113

    ShimizuY.KadoneH.KubotaS.SuzukiK.AbeT.UenoT.et al (2017). Voluntary ambulation by upper limb-triggered HAL(R) in patients with complete quadri/paraplegia due to chronic spinal cord injury.Front. Neurosci.11:649. 10.3389/fnins.2017.00649

  • 114

    SilverD. J.SilverJ. (2014). Contributions of chondroitin sulfate proteoglycans to neurodevelopment, injury, and cancer.Curr. Opin. Neurobiol.27171178. 10.1016/j.conb.2014.03.016

  • 115

    SilverJ.MillerJ. H. (2004). Regeneration beyond the glial scar.Nat. Rev. Neurosci.5146156. 10.1038/nrn1326

  • 116

    SinghA.TetreaultL.Kalsi-RyanS.NouriA.FehlingsM. G. (2014). Global prevalence and incidence of traumatic spinal cord injury.Clin. Epidemiol.6309331. 10.2147/CLEP.S68889

  • 117

    SomaY.KubotaS.KadoneH.ShimizuY.TakahashiH.HadaY.et al (2021). Hybrid assistive limb functional treatment for a patient with chronic incomplete cervical spinal cord injury.Int. Med. Case Rep. J.14413420. 10.2147/IMCRJ.S306558

  • 118

    SteevesJ. D.LammertseD.CurtA.FawcettJ. W.TuszynskiM. H.DitunnoJ. F.et al (2007). Guidelines for the conduct of clinical trials for spinal cord injury (SCI) as developed by the ICCP panel: clinical trial outcome measures.Spinal Cord45206221. 10.1038/sj.sc.3102010

  • 119

    StreitA.NolteC.RasonyT.SchachnerM. (1993). Interaction of astrochondrin with extracellular matrix components and its involvement in astrocyte process formation and cerebellar granule cell migration.J. Cell Biol.120799814. 10.1083/jcb.120.3.799

  • 120

    SuzukiH.AhujaC. S.SalewskiR. P.LiL.SatkunendrarajahK.NagoshiN.et al (2017). Neural stem cell mediated recovery is enhanced by Chondroitinase ABC pretreatment in chronic cervical spinal cord injury.PLoS One12:e0182339. 10.1371/journal.pone.0182339

  • 121

    SuzukiH.SakaiT. (2021). Current concepts of stem cell therapy for chronic spinal cord injury.Int. J. Mol. Sci.22:7435. 10.3390/ijms22147435

  • 122

    TakahashiK.YamanakaS. (2006). Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors.Cell126663676. 10.1016/j.cell.2006.07.024

  • 123

    TanC. K.KadoneH.WatanabeH.MarushimaA.YamazakiM.SankaiY.et al (2018). Lateral symmetry of synergies in lower limb muscles of acute post-stroke patients after robotic intervention.Front. Neurosci.12:276. 10.3389/fnins.2018.00276

  • 124

    TangF.TangJ.ZhaoY.ZhangJ.XiaoZ.ChenB.et al (2021). Long-term clinical observation of patients with acute and chronic complete spinal cord injury after transplantation of NeuroRegen scaffold.Sci. China Life Sci.[Epub ahead of print]. 10.1007/s11427-021-1985-5

  • 125

    TashiroS.NishimuraS.IwaiH.SugaiK.ZhangL.ShinozakiM.et al (2016). Functional recovery from neural stem/progenitor cell transplantation combined with treadmill training in mice with chronic spinal cord injury.Sci. Rep.6:30898. 10.1038/srep30898

  • 126

    TashiroS.TsujiO.ShinozakiM.ShibataT.YoshidaT.TomiokaY.et al (2021). Current progress of rehabilitative strategies in stem cell therapy for spinal cord injury: a review.NPJ Regen. Med.6:81. 10.1038/s41536-021-00191-7

  • 127

    TatorC.FehlingsM. G. (1991). Review of the secondary injury theory of acute spinal cord trauma with emphasis on vascular mechanisms.J. Neurosurg.751526. 10.3171/jns.1991.75.1.0015

  • 128

    TavakolS.SaberR.HoveiziE.AligholiH.AiJ.RezayatS. M. (2016). Chimeric self-assembling nanofiber containing bone marrow homing peptide’s motif induces motor neuron recovery in animal model of chronic spinal cord injury; an in vitro and in vivo investigation.Mol. Neurobiol.5332983308. 10.1007/s12035-015-9266-3

  • 129

    TetzlaffW.OkonE. B.Karimi-AbdolrezaeeS.HillC. E.SparlingJ. S.PlemelJ. R.et al (2011). A systematic review of cellular transplantation therapies for spinal cord injury.J. Neurotrauma2816111682. 10.1089/neu.2009.1177

  • 130

    ThrasherT. A.FlettH. M.PopovicM. R. (2006). Gait training regimen for incomplete spinal cord injury using functional electrical stimulation.Spinal Cord44357361. 10.1038/sj.sc.3101864

  • 131

    TsujiO.SugaiK.YamaguchiR.TashiroS.NagoshiN.KohyamaJ.et al (2019). Concise review: laying the groundwork for a first-in-human study of an induced pluripotent stem cell-based intervention for spinal cord injury.Stem Cells37613. 10.1002/stem.2926

  • 132

    VancampP.ButruilleL.DemeneixB. A.RemaudS. (2020). Thyroid hormone and neural stem cells: repair potential following brain and spinal cord injury.Front. Neurosci.14:875. 10.3389/fnins.2020.00875

  • 133

    WangY.HuaY.ZhangQ.YangJ.LiH.LiY.et al (2018). Using biomimetically mineralized collagen membranes with different surface stiffness to guide regeneration of bone defects.J. Tissue Eng. Regen. Med.1215451555. 10.1002/term.2670

  • 134

    XuN.XuT.MirasolR.HolmbergL.VincentP. H.LiX.et al (2021). Transplantation of human neural precursor cells reverses syrinx growth in a rat model of post-traumatic syringomyelia.Neurotherapeutics1812571272. 10.1007/s13311-020-00987-983

  • 135

    YaginumaH.OppenheimR. W. (1991). An experimental analysis of in vivo guidance cues used by axons of spinal interneurons in the chick embryo: evidence for chemotropism and related guidance mechanisms.J. Neurosci.1125982613.

  • 136

    YamanakaS. (2012). Induced pluripotent stem cells: past, present, and future.Cell Stem Cell10678684. 10.1016/j.stem.2012.05.005

  • 137

    YamazakiK.KawaboriM.SekiT.HoukinK. (2020). Clinical trials of stem cell treatment for spinal cord injury.Int. J. Mol. Sci.21:3994. 10.3390/ijms21113994

  • 138

    YangT.DaiY.ChenG.CuiS. (2020). Dissecting the dual role of the glial scar and scar-forming astrocytes in spinal cord injury.Front. Neurosci.14:78. 10.3389/fncel.2020.00078

  • 139

    YinW.XueW.ZhuH.ShenH.XiaoZ.WuS.et al (2021). Scar tissue removal-activated endogenous neural stem cells aid Taxol-modified collagen scaffolds in repairing chronic long-distance transected spinal cord injury.Biomater. Sci.947784792. 10.1039/d1bm00449b

  • 140

    YousefifardM.Rahimi-MovagharV.NasirinezhadF.BaikpourM.SafariS.SaadatS.et al (2016). Neural stem/progenitor cell transplantation for spinal cord injury treatment; A systematic review and meta-analysis.Neuroscience322377397. 10.1016/j.neuroscience.2016.02.034

  • 141

    ZhaoY.TangF.XiaoZ.HanG.WangN.YinN.et al (2017). Clinical study of NeuroRegen scaffold combined with human mesenchymal stem cells for the repair of chronic complete spinal cord injury.Cell Transplant.26891900. 10.3727/096368917X695038

Summary

Keywords

chronic spinal cord injury, neural stem/progenitor cell, glial scar, chondroitin sulfate proteoglycans, regenerative medicine

Citation

Suzuki H, Imajo Y, Funaba M, Nishida N, Sakamoto T and Sakai T (2022) Current Concepts of Neural Stem/Progenitor Cell Therapy for Chronic Spinal Cord Injury. Front. Cell. Neurosci. 15:794692. doi: 10.3389/fncel.2021.794692

Received

13 October 2021

Accepted

20 December 2021

Published

03 February 2022

Volume

15 - 2021

Edited by

Paul Lu, University of California, San Diego, United States

Reviewed by

Kirsten Haastert-Talini, Hannover Medical School, Germany; Tsukasa Kanchiku, Yamaguchi Rosai Hospital, Japan

Updates

Copyright

*Correspondence: Hidenori Suzuki,

This article was submitted to Cellular Neuropathology, a section of the journal Frontiers in Cellular Neuroscience

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
