Abstract
The decision making behaviors of humans and animals adapt and then satisfy an “operant matching law” in certain type of tasks. This was first pointed out by Herrnstein in his foraging experiments on pigeons. The matching law has been one landmark for elucidating the underlying processes of decision making and its learning in the brain. An interesting question is whether decisions are made deterministically or probabilistically. Conventional learning models of the matching law are based on the latter idea; they assume that subjects learn choice probabilities of respective alternatives and decide stochastically with the probabilities. However, it is unknown whether the matching law can be accounted for by a deterministic strategy or not. To answer this question, we propose several deterministic Bayesian decision making models that have certain incorrect beliefs about an environment. We claim that a simple model produces behavior satisfying the matching law in static settings of a foraging task but not in dynamic settings. We found that the model that has a belief that the environment is volatile works well in the dynamic foraging task and exhibits undermatching, which is a slight deviation from the matching law observed in many experiments. This model also demonstrates the double-exponential reward history dependency of a choice and a heavier-tailed run-length distribution, as has recently been reported in experiments on monkeys.
1. Introduction
Does the brain play dice? This is a controversial question about the underlying processes of the brain in making a choice from several alternatives: Does the brain decide deterministically with some internal decision variables? Or does it calculate the probability of choosing individual alternatives and cast a “biased die” (Sugrue et al., )? The former strategy is suggested according to our everyday experience. However, it is possible to think that choices emerge probabilistically by observing a sequence of decisions in a repetitive task. Herrnstein conducted a foraging experiment where a pigeon was placed into a box that was equipped with two keys and when a key was pressed it was rewarded with concurrent variable-interval schedules. He found a relationship between rewards and choices known as the “operant matching law” (Herrnstein, ). The law states that the fraction of the number of times one alternative is chosen against the total number of choices matches the fraction of the cumulative reward obtained from the alternative against the total reward. Behaviors satisfying the law have been observed in a variety of task paradigms and across species (de Villiers and Herrnstein, ; Gallistel, ; Anderson et al., ). Several learning models have been proposed to account for matching behavior (Corrado et al., ; Lau and Glimcher, ; Loewenstein and Seung, ; Soltani and Wang, ; Sakai and Fukai, ; Simen and Cohen, ). These models have a commonality in that a model learns the probabilities of choosing each alternative directly, and then a choice is made stochastically. However, it is yet unknown whether matching behaviors can be accounted for by a deterministic model.
Here, we propose deterministic Bayesian decision making models for a two-alternative choice task. Our models stand on the incorrect but conceivable postulate that animals have a belief that the choice made in one trial does not affect a reward in subsequent trials. The models estimate the unknown reward probabilities for each alternative and deterministically choose the alternative that has the highest reward probability according to the winner-take-all principle. We first study a model with belief that the environment does not change. Note that this is an extension of the fixed belief model (FBM) (Yu and Cohen, ) for the two-alternative choice task. We demonstrate that this model satisfies the matching law in a steady state in static foraging tasks, in which reward baiting probabilities are fixed, but not in dynamic foraging tasks, in which the reward baiting probabilities change abruptly. Then, we devise two models that forget past experience and exhibit matching behaviors even in dynamic tasks. Moreover, these models can explain undermatching, which is a phenomenon observed across different species (Baum, ; de Villiers and Herrnstein, ; Baum, ; Gallistel, ; Anderson et al., ; Sugrue et al., ; Lau and Glimcher, ). We test these models by comparing their predicted reward history dependencies and run-length distributions to those seen in a monkey experiment.
2. Results
We studied deterministic Bayesian decision making models that demonstrated matching behaviors in a foraging task. The foraging task is a decision making task that simulates a foraging environment where an animal chooses one out of several foraging alternatives. There are two alternatives in this study although our results do not depend on this. We employed discrete trial-to-trial tasks that have often been used in recent experiments (Sugrue et al., ; Corrado et al., ; Lau and Glimcher, ). Each alternative has binary baiting state fi (i ∈ {1, 2} is the index of an alternative), where fi = 1 if a reward is baited and fi = 0 otherwise. If fi = 0, a reward is baited (fi = 1) at the beginning of each trial by baiting probability λti, where t represents the number of the trial. If the baiting probabilities are fixed across trials, the task is called a static foraging task, otherwise it is called a dynamic foraging task (Sugrue et al., ). Suppose that rti indicates whether a subject receives a reward (rti = 1) or not (rti = 0), and cti indicates whether the subject chooses alternative i (cti = 1) or not (cti = 0) in trial t. When the subject chooses a baited alternative, i.e., fi = 1 and cti = 1, the baited reward is consumed (fi ← 0). This reward schedule is known as a “concurrent variable-interval schedule”(Baum and Rachlin, ).
Whichever alternative the subject chooses in the foraging task, the choice can affect the reward probabilities of alternatives in the future. Therefore, the optimal strategy is not to exclusively choose the foraging alternative that has the highest baiting probability. A behavioral strategy obeying the matching law is known to be nearly optimal for this task (Baum, ). Formally, the law states that where Rti and Cti correspond to the total reward obtained from alternative i and the number of choices of alternative i until trial t. It is known that human and animal behaviors in these kinds of tasks are well described by the generalized matching law (Baum, ) where s is sensitivity and k is bias. Equation (2) is equivalent to (1) if both s and k are unities.
2.1. Simple bernoulli estimators
First, we studied a simple normative Bayesian decision making model to clarify the underlying feasible computation for matching behaviors. Suppose that a subject makes a decision simply depending on its estimates of the reward probabilities for the alternatives. The estimate can be formally described as where Rt is a list of reward vectors rt = (rt1, rt2) from trials 1 to t and Ct is a list of choice vectors ct = (ct1, ct2) from trials 1 to t. The model employs a winner-take-all (WTA) strategy, i.e., it chooses the alternative that has the highest Pti. The model requires an assumption about a reward assignment mechanism to estimate Pt+1i. One simple and conceivable assumption is that a choice is rewarded according to hidden reward probability μti that is irrelevant to the past reward and choice history, i.e., p(rti = 1) = μti. This assumption is incorrect for our tasks but we have assumed that the model employs it and predicts μti by Bayesian inference. Hence, Pt+1i is given by the predictive distribution over μti: Note that p(μt + 1i = μ|Rt, Ct) can include a model's belief about the change of μti in between trials. Our first model assumes that μti is time invariant, i.e., p(μt + 1i = μ|Rt, Ct) = p(μti = μ|Rt, Ct). The posterior distribution for an alternative is not updated if the alternative is not chosen. If it is chosen, the posterior distribution is updated
We employ the Beta prior, p(μ0i = μ) = Beta(μ|a, b), which is a conjugate for the likelihood. Note that we set the hyper-parameters, a = b = 1, to make the prior non-informative in all simulations. Therefore, the posterior becomes a Beta distribution: From Equations (4) and (6), we obtain
This model is a natural extension of FBM (Yu and Cohen, ) to the two-alternative choice task (for this reason, we will refer to our model as FBM). An alternative is repeatedly chosen while its predictive distribution is higher than those of the other due to the WTA strategy. Because the empirical probability of reward for an alternative converges to its baiting probability in repeated choices, Pti gradually approaches to λi and the variance of Pti decreases. As a result, FBM tends to choose exclusively the high payoff alternative after a large number of observations. Hence, the matching law [Equation (1)] is satisfied in t → ∞ because such a exclusive choice unboundedly increases both Rti and Cti of the high payoff alternative.

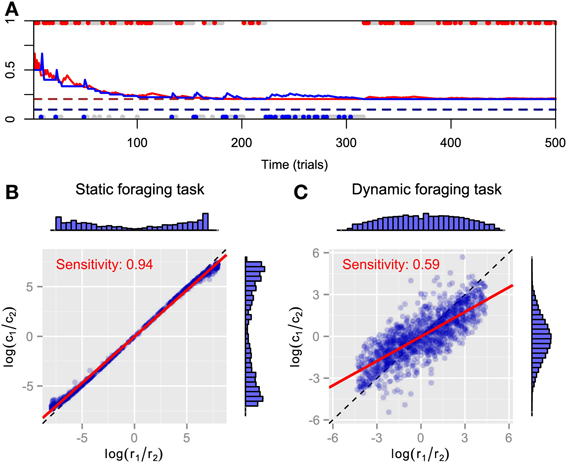

We simulated FBM in static and dynamic foraging tasks. The time course for the predictive distributions is shown in Figure 1A. As can be expected, both predictive distributions approach the respective baiting probabilities and FBM behavior converges to exclusive choice of the high payoff alternative in static foraging tasks. However, the steady-state choice behavior of animals in static concurrent VI schedules has not been thought to be exclusive (Baum, ; Davison and McCarthy, ; Baum et al., ). It might be that there are not enough trials for choice behavior to actually reach a steady state. Figures 1B,C plot the log ratios of rewards and choices in both tasks. The marginal histograms indicate the FBM's strong preference for the alternative that has the highest baiting probability, because most pairs of log ratios lie near the endpoints of the matching line. We found that bias is nearly zero and sensitivity is nearly one in the static foraging tasks (Figure 1B) by least-square fitting the generalized matching law [Equation (2)] to the data. Therefore, the model exhibits matching behavior in the static foraging tasks. However, the model no longer exhibits matching behavior in dynamic foraging tasks, a result that is inconsistent with the behavior of monkeys (Corrado et al., ) (Figure 1C). This can be because the model adheres to past experience and cannot adapt rapidly to changes in the environment.
Figure 1
2.2. Extended bernoulli estimators
One possible way of improving the model to enable it to rapidly adapt to changes in the environment is to introduce a forgetting mechanism for past rewards and choice history. We therefore assume a simple extended model, which utilizes only the L most recent rewards and choices for the estimates. Hence, the predictive distribution becomes We refer to this model as windowed FBM (WFBM).
Another possibility may be derived from the idea that humans and animals may innately believe their environment is volatile. Here, we propose a model that estimates time-varying reward probabilities. Although there are several ways to model a belief of a volatile environment, we assume our model believes that μti remains unchanged with probability α, or else (with probability 1 − α) changes completely. This idea is derived from the dynamic belief model (DBM), proposed by Yu and Cohen as a model of sequential effect (Yu and Cohen, ). Our model is a natural extension of DBM to a two-alternative choice task. Thus, we refer to our model as DBM. The transition of μti is modeled as a mixture of the posterior and prior distributions where 0 ≤ α ≤ 1 represents the model's expectations of the stability of the environment. However, the posterior distribution is no longer a Beta distribution: where we use Equation (3). Then, predictive distribution Pti is calculated with Equations (4), (10), and (11). Note that these models are equivalent to FBM when L → ∞ and α = 1.

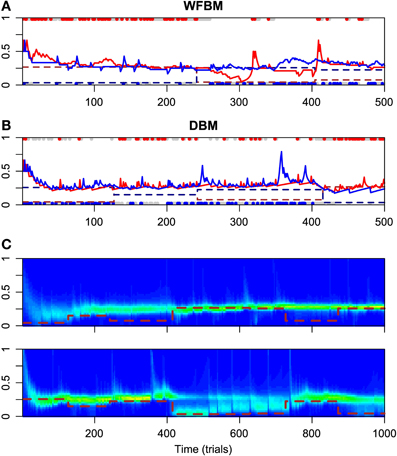

Figure 2 has the time courses for the predictive distributions of WFBM and DBM, and the posterior distributions of DBM in the dynamic foraging task. Neither model is stuck on one alternative and can follow the changes in schedules as expected. There is a clear difference in the predictive distribution trajectories. Because WFBM exploits recent samples, its predictive distribution for the unchosen alternative can approach the true baiting probability. DBM's predictive distribution for the unchosen alternative, on the other hand, is only retracted to the mean of the prior, i.e., 0.5. Both models demonstrate matching behaviors even in the dynamic foraging task (Figure 3). More precisely, the behaviors slightly deviate from the matching law toward an unbiased choice. This phenomenon is known as undermatching (Baum, ). Because the models' parameters L and α control the effect of past experience, the degree of undermatching is controlled by the parameters. The sensitivities that were fitted in the experiments were in a range of about 0.44 to 0.91 (Hinson and Staddon, ; Corrado et al., ; Lau and Glimcher, ). Hence, we basically focused on parameter regions 10 ≤ L and 0.9 ≤ α.
Figure 2
Figure 3

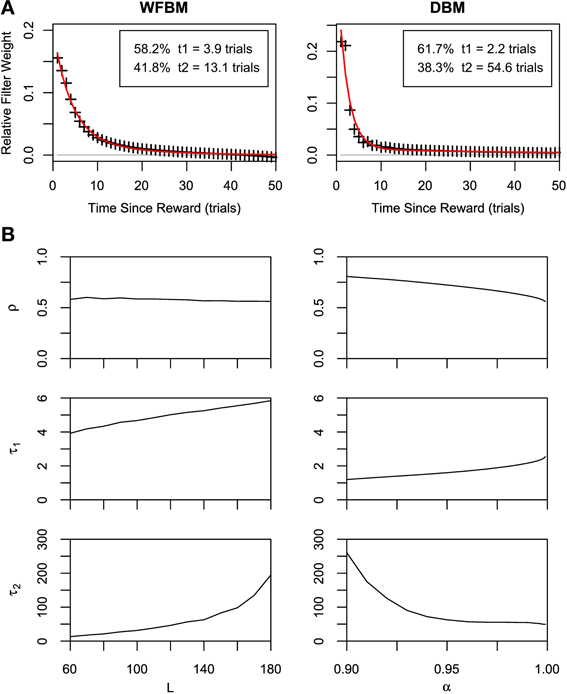

The dependence of choices on reward history has been studied in several monkey experiments. An exponential shaped dependency was first reported (Sugrue et al., ) and then heavier-tailed dependencies were reported (Corrado et al., ; Lau and Glimcher, ). We tested our models by calculating the dependence of choices on reward history (Figure 4A). Suppose that dependency is expressed with a linear filter kernel κ(i) as in previous studies. The kernel is calculated by minimizing the following Wiener-Hopf equation, Then, we fit the exponential filter and double-exponential filter that were introduced by Corrado et al. () to the normalized kernel: where τ0 and τ1 ≤ τ2 are time constants and 0 < ρ < 1 is the combining rate. Note that ϵ2 is identical to ϵ1 when τ1 = τ2. The double-exponential filter is rather more well-fitted than the single one for WFBM and DBM (likelihood ratio test, p « 0.001; adjusted r2 for double and single exponential filters are 0.99 and 0.98 for WFBM, and 0.94 and 0.85 for DBM). The kernel for WFBM has a negative value around L but it disappears if L is much longer than K. The kernel for DBM drops sharply and decays slowly. The sharp drop probably arose from the exponential decay of reward history, which is embedded in the posterior distributions [Equation (10)]. Because a decision is made due to the difference in two predictive distributions and both distributions decay at the same rate, the effect of one predictive distribution would have persisted slightly longer and hence the kernel included a longer exponential component. This characteristic is qualitatively consistent with the experimental results Corrado et al. (). The fitting parameters for the two monkeys in Corrado et al. () were ρ = 0.4, τ1 = 2.2, and τ2 = 17.0 (monkey F), and ρ = 0.25, τ1 = 0.9, and τ2 = 12.6 (monkey G). Although there were no suitable WFBM and DBM parameters that exactly matched their fitting parameters to those of the monkeys, similar values were obtained for smaller L and larger α (Figure 4B).
Figure 4

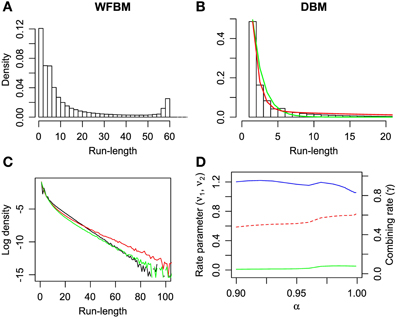

It is known that the probability of switching alternatives is nearly constant against the number of consecutive choices for one alternative (run length) in the concurrent VI schedule (Heyman and Luce, ). Hence, run lengths are distributed exponentially but, in a dynamic foraging task, the distribution seems to be a mixture of exponentials (Corrado et al., ). The distribution of WFBM does not monotonically decrease and there is a peak where the run length is nearly equal to L. Therefore, the distribution is neither an exponential nor a mixture of exponentials. This nature is consistent on different values of L. However, DBM demonstrates an exponential like distribution. We fitted single and double exponential functions, to the distribution, where l ≥ 1 is the run length, ν0 and ν1 < ν2 are the rate parameters and γ is the combining rate. The distribution is well-fitted by the double exponential function (Figure 5B; likelihood ratio test, p « 0.001; r2 for the double and single exponential functions are 0.99 for the former and 0.96 for the latter). The run-length distribution in monkey experiments has few frequencies of a very short run length; however our models have the largest frequency at the run length of 1 (Figures 5A,B). This difference can be due to the absence of change-over-delay (COD) in our schedule. If our model had and exploited prior knowledge about COD as well as the proposed model for the previous experiment (Corrado et al., ), the frequency at a run length of 1 could disappear. We simulated linear-nonlinear-Poisson (LNP) models that were fitted to the monkeys' experimental data in Corrado et al. () and compared run-length distributions (Figure 5C). Note that COD was not considered for the LNP models that was different from Corrado et al.'s approach Corrado et al. (). Because the absence of COD could affect the occurrence of short run lengths, log probability densities were compared to count differences at long run lengths. The calculated mean squared differences of DBM against LNP models for two monkeys corresponded to ~0.67 and 0.16. The double-exponential function is better than the single one in different α and the fitted parameters are slightly affected by α (Figure 5D).
Figure 5
2.2.1. Harvesting performance

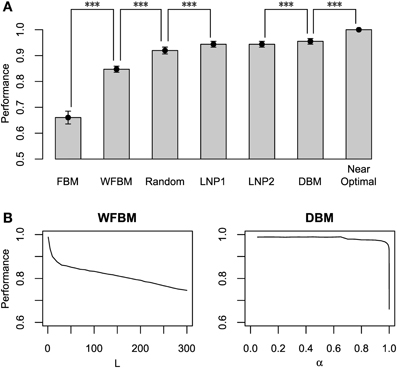

Figure 6A compares the harvesting performance of the models, which is normalized by the performance of a near-optimal probabilistic decision making model. The near-optimal model knows the details of the schedules, i.e., both the baiting probabilities and the change points. It distributes its choices according to the choice probabilities that on average maximize the total reward (Sakai and Fukai,
Figure 6

Normalized harvesting performance of each model. (A) Average normalized total rewards earned by each model divided by average total rewards of near-optimal model. Near-optimal model uses strategy that maximizes average total rewards proposed by Sakai and Fukai (
3. Discussion
We demonstrated that deterministic Bayesian decision making models can account for the matching law. We confirmed that a simple Bernoulli estimator with a deterministic decision policy demonstrated matching behavior in a static foraging task. We also studied an extended model that includes a belief about a changing environment. The belief effectively works to wipe out the past experience of the model and hence the model can capture three characteristics of behaviors observed in the experiments. First, our model accounts for undermatching, which is a well-known phenomenon in which choices deviate slightly from the matching law (Baum,
The previous models implicitly or explicitly use the strategy of probabilistic choice selection and they learn the choice probability of respective alternatives that satisfy the matching law (Corrado et al.,
We argued that matching behavior can be explained by a deterministic choice strategy at the computational level. Loewenstein and Seung (
Because matching behavior often deviates from optimal behavior in the sense of total reward maximization (Vaughan,
4. Materials and methods
4.1. Details of simulation
The reward schedule is analogous to the experiment by Corrado et al. (
Conflict of interest statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Acknowledgments
This work was partially supported by a Grant-in-Aid from the Japan Society for the Promotion of Science (JSPS) Fellows of the Ministry of Education, Culture, Sports, Science and Technology (No. 11J06433).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AndersonK. G.VelkeyA. J.WoolvertonW. L. (2002). The generalized matching law as a predictor of choice between cocaine and food in rhesus monkeys. Psychopharmacology163, 319–326. 10.1007/s00213-002-1012-7
2
BaumW. M. (1974). On two types of deviation from the matching law: Bias and undermatching. J. Exp. Anal. Behav. 22, 231–242. 10.1901/jeab.1974.22-231
3
BaumW. M. (1979). Matching, undermatching, and overmatching in studies of choice. J. Exp. Anal. Behav. 32, 269–281. 10.1901/jeab.1979.32-269
4
BaumW. M. (1981). Optimization and the matching law as accounts of instrumental behavior. J. Exp. Anal. Behav. 36, 387–403. 10.1901/jeab.1981.36-387
5
BaumW. M. (1982). Choice, changeover, and travel. J. Exp. Anal. Behav. 38, 35–49. 10.1901/jeab.1982.38-35
6
BaumW. M.RachlinH. C. (1969). Choice as time allocation1. J. Exp. Anal. Behav. 12, 861–874. 10.1901/jeab.1969.12-861
7
BaumW. M.SchwendimanJ. W.BellK. E. (1999). Choice, contingency discrimination, and foraging theory. J. Exp. Anal. Behav. 71, 355–373. 10.1901/jeab.1999.71-355
8
BernacchiaA.SeoH.LeeD.WangX. J. (2011). A reservoir of time constants for memory traces in cortical neurons. Nat. Neurosci. 14, 366–372. 10.1038/nn.2752
9
CorradoG. S.SugrueL. P.SeungH. S.NewsomeW. T. (2005). Linear-nonlinear-poisson models of primate choice dynamics. J. Exp. Anal. Behav. 84, 581–617. 10.1901/jeab.2005.23-05
10
DavisonM.McCarthyD. (1988). The Matching Law: A Research Review. Hillsdale, NJ: Lawrence Erlbaum Associates, Inc.
11
de VilliersP. A.HerrnsteinR. J. (1976). Toward a law of response strength. Psychol. Bull. 83, 1131–1153. 10.1037/0033-2909.83.6.1131
12
FusiS.AsaadW. F.MillerE. K.WangX. J. (2007). A neural circuit model of flexible sensorimotor mapping: learning and forgetting on multiple timescales. Neuron54, 319–333. 10.1016/j.neuron.2007.03.017
13
GallistelC. R. (1994). Foraging for brain stimulation: toward a neurobiology of computation. Cognition50, 151–170. 10.1016/0010-0277(94)90026-4
14
HerrnsteinR. J. (1961). Relative and absolute strength of response as a function of frequency of reinforcement. J. Exp. Anal. Behav. 4, 267–272. 10.1901/jeab.1961.4-267
15
HeymanG. M.LuceR. D. (1979). Operant matching is not a logical consequence of maximizing reinforcement rate. Learn. Behav. 7, 133–140. 10.3758/BF03209261
16
HinsonJ. M.StaddonJ. E. R. (1983). Matching, maximizing, and hill-climbing. J. Exp. Anal. Behav. 40, 321–331. 10.1901/jeab.1983.40-321
17
JaegerH.LukoeviiusM.PopoviciD.SiewertU. (2007). Optimization and applications of echo state networks with leaky-integrator neurons. Neural Netw. 20, 335–352. 10.1016/j.neunet.2007.04.016
18
KatahiraK.OkanoyaK.OkadaM. (2012). Statistical mechanics of reward-modulated learning in decision-making networks. Neural Comput. 24, 1230–1270. 10.1162/NECO_a_00264
19
LauB.GlimcherP. W. (2005). Dynamic response-by-response models of matching behavior in rhesus monkeys. J. Exp. Anal. Behav. 84, 555–579. 10.1901/jeab.2005.110-04
20
LoewensteinY. (2008). Robustness of learning that is based on covariance-driven synaptic plasticity. PLoS Comput. Biol. 4:e1000007. 10.1371/journal.pcbi.1000007
21
LoewensteinY.SeungH. S. (2006). Operant matching is a generic outcome of synaptic plasticity based on the covariance between reward and neural activity. Proc. Natl. Acad. Sci. U.S.A. 103, 15224–15229. 10.1073/pnas.0505220103
22
RoxinA.LedbergA. (2008). Neurobiological models of two-choice decision making can be reduced to a one-dimensional nonlinear diffusion equation. PLoS Comput. Biol. 4:e1000046. 10.1371/journal.pcbi.1000046
23
SakaiY.FukaiT. (2008a). The actor-critic learning is behind the matching law: matching versus optimal behaviors. Neural Comput. 20, 227–251. 10.1162/neco.2008.20.1.227
24
SakaiY.FukaiT. (2008b). When does reward maximization lead to matching law?PLoS ONE3:e3795. 10.1371/journal.pone.0003795
25
SimenP.CohenJ. D. (2009). Explicit melioration by a neural diffusion model. Brain Res. 1299, 95–117. 10.1016/j.brainres.2009.07.017
26
SoltaniA.WangX. J. (2006). A biophysically based neural model of matching law behavior: melioration by stochastic synapses. J. Neurosci. 26, 3731–3744. 10.1523/JNEUROSCI.5159-05.2006
27
SugrueL. P.CorradoG. S.NewsomeW. T. (2004). Matching behavior and the representation of value in the parietal cortex. Science304, 1782–1787. 10.1126/science.1094765
28
SugrueL. P.CorradoG. S.NewsomeW. T. (2005). Choosing the greater of two goods: neural currencies for valuation and decision making. Nat. Rev. Neurosci. 6, 363–375. 10.1038/nrn1666
29
VaughanW.Jr. (1981). Melioration, matching, and maximization. J. Exp. Anal. Behav. 36, 141–149. 10.1901/jeab.1981.36-141
30
YuA. J.CohenJ. D. (2009). Sequential effects: superstition or rational behavior, in Advances in Neural Information Processing Systems21, 1873–1880. Available online at: http://books.nips.cc/nips21.html
Summary
Keywords
decision making, operant matching law, Bayesian inference, dynamic foraging task, heavy-tailed reward history dependency
Citation
Saito H, Katahira K, Okanoya K and Okada M (2014) Bayesian deterministic decision making: a normative account of the operant matching law and heavy-tailed reward history dependency of choices. Front. Comput. Neurosci. 8:18. doi: 10.3389/fncom.2014.00018
