Skip to main content


Front.Electron., 06 January 2022
Sec. Flexible Electronics
This article is part of the Research Topic Flexible Oxide Semiconductor Based Thin-Film Transistors and Circuits View all 5 articles

The Influence of Climate Conditions and On-Skin Positioning on InGaZnO Thin-Film Transistor Performance

  • 1Faculty of Science and Technology, Free University of Bolzano-Bozen, Bolzano, Italy
  • 2Institute of Robotics and Intelligent Systems, ETH Zurich, Zurich, Switzerland

Thin-film transistors (TFTs) based on amorphous indium-gallium-zinc-oxide (a-IGZO) have proved promising features for flexible and lightweight electronics. To achieve technological maturity for commercial and industrial applications, their stability under extreme environmental conditions is highly required. The combined effects of temperature (T) from −30.0°C to 50.0°C and relative humidity (RH) stress from 0 to 95% on a-IGZO TFT is presented. The TFT performances and the parameters variation were analysed in two different experiments. First, the TFT response was extracted while undergoing the most extreme climate conditions on Earth, ranging from the African Desert (50.0°C, 22%) to Antarctic (−30.0°C, 0%). Afterwards, the device functionality was demonstrated in three parts of the human body (forehand, arm and foot) at low (35%), medium (60%) and high (95%) relative humidity for on-skin and wearable applications. The sensitivity to T/RH variations suggests the suitability of these TFTs as sensing element for epidermal electronics and artificial skin.

1 Introduction

The increased interest in flexible and imperceptible electronics has positively impacted on different applications, such as smart textiles Cherenack et al. (2010), epidermal electronics for healthcare Gao et al. (2016), and display technologies Geng et al. (2017). The key element for this rapid evolution is represented by conformable thin-film transistors (TFTs), with stable functionality while a mechanical strain is applied. Among the different TFT technologies, oxide semiconductors, and in particular amorphous Indium-Gallium-Zinc-Oxide (a-IGZO), have proved several advantages to fulfill the requirements for state-of-the-art applications, such as high electrical performance with mobility greater than 10 cm2/Vs, large-area processability, transparency and low deposition temperatures Yabuta et al. (2006), Nomura et al. (2004), Salvatore et al. (2014). The performances of a-IGZO TFTs fabrication on flexible substrate during tensile and compressive strain are extensively reported Park et al. (2009), Munzenrieder et al. (2011), Hasan et al. (2017), Billah et al. (2017), Münzenrieder et al. (2013). In addition to the mechanical stability, the electrical stability at any environmental condition (light exposure, moisture, temperature (T), relative humidity (RH)) is a key aspect for the employment of a-IGZO TFTs on a large scale Costa et al. (2019). Although different studies concerning the effects of the RH on the IGZO TFT operation have proved a reliable variation for the threshold voltage Knobelspies et al. (2018), Lee and Jeong (2018), Kim et al. (2017), no common trend in the variations of the other parameters was observed. The dependence of these variations on several parameters, such as light-excitation Zhou et al. (2014), Dong et al. (2019), Knobelspies et al. (2018), traps density Kim et al. (2011) and defects formation Lee and Jeong (2018), Park et al. (2008), fabrication process Hoshino et al. (2013), Corsino et al. (2020), have been investigated. The results were significantly affected by the active layer thickness, as well as the presence/absence of a passivation layer Park et al. (2008), Chowdhury et al. (2015), Dong et al. (2019), Hoshino et al. (2013) while high T (>150°C) enables the performance recovery Mativenga et al. (2021), Chowdhury et al. (2015), Hasan et al. (2017). On the other hand, the influence of T variation was shown to improve the drain current leading to a negative threshold voltage shift by increasing T Kim et al. (2011), Godo et al. (2010). Despite the impact of T and RH variations on TFTs performance was analysed, all experiments were performed varying one parameter only by keeping the other one constant.

Here, the effects of a simultaneous variation of both temperature and relative humidity were studied. a-IGZO TFTs were first characterized under specific environmental conditions, reproducing the main climate zones of our planet, ranging from Desert (50.0°C, 22%) to Antarctic (−30.0°C, 0%). Additionally, the device response was evaluated by simulating the environmental conditions in proximity of human skin. Here, temperatures associated with three body parts (forehead 35.0°C, arm 32.0°C, and foot 29.0°C) were selected and measurements were performed at three RH levels: normal skin humidity (60%), low humidity (35%), and ultra-high humidity (95%) Cravello and Ferri (2008), Choi and Loftness (2012). The results showed the suitability of IGZO TFTs as active electronics and sensor conditioning platform for both wearable and e-skin applications.

2 TFT Fabrication and Characterization

Figure 1A shows the schematic of the bottom-gate staggered TFT fabricated on a 50-μm thick polyimide foil as substrate. The fabrication process and the experiment are described in the following.


FIGURE 1. Bottom-gate staggered IGZO TFTs. (A) Optical picture and schematic. The W/L ratio of the transistor is 560 μm/60 μm. (B) Transfer characteristic and corresponding output (inset) at room conditions: temperature equals to 23.7°C and relative humidity equals to 55%.

2.1 Fabrication

The free-standing polyimide foil was cleaned by sonication in acetone and isopropanol for 5 min, respectively, and cured in a vacuum oven at 200°C overnight. 50-nm thick SiNx was deposited through plasma-enhanced chemical vapor deposition (PECVD) on both substrate sides as a buffer layer to ensure good mechanical and chemical stability during the fabrication. Then, the process was started with a 35-nm Cr metal gate deposited using electron beam evaporation and patterned through standard photolithography. 25-nm thick Al2O3 gate dielectric was deposited using atomic layer deposition (ALD) and 15-nm thick a-IGZO was sputtered at room temperature to form the active layer. Wet etching was performed to structure the semiconductor island and the vias. 10-nm Ti adhesive layer and 60-nm Au were deposited through electron beam evaporation to form the Source/Drain contacts and patterned by lift-off. Finally, an additional 25-nm thick Al2O3 was deposited to provide the device passivation. The maximum temperature of the process was 150°C, reached during the ALD. More details on the fabrication process can be found in Munzenrieder et al. (2011). An optical picture of the finalized device is shown in Figure 1A.

2.2 Experiment

The measurements were carried out within an Espec SH-262 climate chamber by setting temperature from −30.0°C to 50.0°C and RH from 0 to 95%. The experiment was conducted in dark to avoid light-induced instability on the IGZO active layer. The flexible TFT was fixed on a rigid glass substrate. The electronics characterization was performed through a Keithley 2614B source meter. The electrical interconnection between the device and the electronics setup was obtained by placing small pieces of Cu tapes at the edge of the polyimide stripe. Here, short Cu wires were glued through a silver conductive paste to connect the TFT pads and the tapes. Similarly, long Cu wires were glued and connected with the source meter. Data were recorded by means of a customized LabVIEW program.

2.3 Performance

The first measurement was performed at room T and RH (23.7°C, 55%) to evaluate the TFT performance. Figure 1B shows the TFT transfer characteristic and output. Note that the gate current (Ig) (not reported here) was in the range of 1 μA and the drain current (Id) was 0.17 mA for VGS = −6 V. These non-idealities were caused by the employed measurement setup (long Cu wires and source meter) since a Ig and an Ioff in the order of pico-ampere (pA) were obtained by performing the electronics characterization in a probe station using a parameter analyzer (Agilent Technology B1500A).

The extracted parameters were obtained as follows: threshold voltage VTH = −3.96 V, subthreshold swing SS = 314 mV/dec, on/off current ratio Ion/Ioff = 1.39 × 104, linear field-effect mobility μlin = 8.10 cm2/Vs. They were evaluated according to standard TFT model equations Sze and Ng (2006). The negative VTH defined the TFT functionality in depletion mode.

The mechanical stability of the device was analyzed at room conditions Munzenrieder et al. (2011), Münzenrieder et al. (2013). The influence of both tensile and compressive strain on the electronic parameters was evaluated when the IGZO TFTs were bent to a bending radius of 4 mm (corresponding to a tensile strain of 0.63%) Münzenrieder et al. (2013) and 9 mm (corresponding to a compressive strain of 0.27%) Munzenrieder et al. (2011).

3 Results and Discussion

3.1 Climate Zones

The TFT response to weather variations was evaluated by reproducing the most extreme climes on Earth planet, with their typical temperatures and relative humidity conditions as shown in Figure 2A. The transfer characteristics and the corresponding output were grouped for temperature below and above room T, in Figures 2B,C, respectively. For each weather condition, the transfer characteristic was acquired in the linear region (VDS = 0.1 V) and saturation region (VDS = 3 V). The gate current was not affected by climatic variations and remained constant in the microampere (μA) range. The electrical performance parameters are shown in Table 1 according to the order of the experiment. First, the TFT performances were evaluated from room T and RH (23.7°C, 55%) to negative temperatures. In particular, different climate conditions were simulated in the following order: Tundra (−2.0°C, 0%), Antarctic (−30.0°C, 0%), Taiga (−13.0°C, 0%), Greenlands (8.0°C, 60%), Rainforest (15.0°C, 80%). This protocol has allowed stable conditions (temperature and humidity) in the climate chamber during the TFT characterization. Within this region, a first positive shift of 0.22 V was observed from the initial condition to −30.0°C, 0% while the other parameters remained stable. Then, T was progressively increased up to 15.0°C as well as the RH from 0% to 80%. Here, an opposite shift of VTH was observed to a more negative value. This trend of VTH was in agreement with literature results showing how water vapour absorption induced charges accumulation on the active layer by depleting the channel Kim et al. (2017), Park et al. (2008). Coherently, the gradual reduction of VTH was observed up to Jungle conditions (26.0°C, 90%). Finally, a major impact of RH was observed when the device was brought to the high temperature zones with a reduction of RH. Specifically, the following geographical locations were mimicked: Savannah (29.0°C, 60%), and Desert (50.0°C, 22%). Despite T increasing up to 50.0°C between these two locations, the overall effect on VTH was a positive shift from −4.02 V to −3.86 V. An increase of the Ioff was denoted at high variations of the RH (ΔRH>30%), in agreement with Park et al. (2008). Accordingly, the Ion/Ioff ratio reduced of one order of magnitude down to 6.73 × 103 and the SS deteriorated. Differently from the other parameters, the linear mobility was not influenced by RH since it increased with T, showing a maximum variation of 10% at the highest T (50.0°C, Desert).


FIGURE 2. IGZO TFTs performance at different climate zones. (A) Schematic representation of the simulated geographical locations. The legend reports the associated T and RH conditions. Transfer characteristics and corresponding output (insets) at temperatures (B) lower and (C) greater than room T.

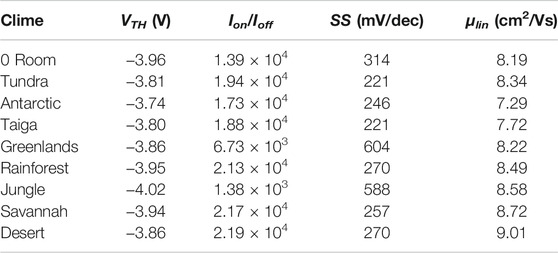

TABLE 1. TFT electrical performance parameters at different geographical locations.

3.2 On-Skin Applications

The TFT suitability for wearable applications and epidermal electronics was evaluated by testing the device at three RH (low 35%, normal 60%, high 95%) and three temperatures to resemble the different body locations, as highlighted in Figure 3A. In particular, the transfer characteristics and the corresponding output are shown in Figure 3B for the forehead at 35.0°C, in Figure 3C for the arm at 32.0°C, and in Figure 3D for the foot at 29.0°C. The performance parameters are shown in Table 2. The VTH dependence from both T and RH was coherent with expectations. The smallest value for VTH (−4.12 V) was measured in the forehead at 35.0°C, 95% by proving the impact of increasing both T and RH on this parameter. On the other hand, the positive shift of the VTH was observed according to the increase of RH, while keeping T constant Chowdhury et al. (2015). A clear influence on the TFT performance was observed at high humidity. Here, the Ioff was dramatically increased, deteriorating the Ion/Ioff ratio by two orders of magnitude. Furthermore, the SS increased to 1.5 V/dec at the hottest T and 95% meaning a less efficient TFT switching operation. Regarding the mobility variation, the results showed its dependence on both T and RH. A reduction of the linear mobility was observed when the RH changed from the normal condition (60%) to both high and low levels. This was coherent to previous experiments performed at constant T reporting the electronics characterization of two a-IGZO TFTs stored at ultra-dry condition (5%) and high humidity (95%) Lee and Jeong (2018).


FIGURE 3. IGZO TFTs performance for on-skin applications. (A) Simulated body locations. Transfer characteristics and corresponding output (insets) for (B) forehead, (C) arm, and (D) foot at three different RH levels: normal (60%), low (35%), high (95%). W/L equals to 560 μm/60 μm.


TABLE 2. TFT electrical performance parameters at different body locations.

After all the experiments, the TFT was again characterized at room T and RH (26.0°C, 55%). The results showed a variation of VTH of 0.2 V (VTH = −3.76 V), stable Ion/Ioff ratio (Ion/Ioff = 2.04 × 104) and an increase of the μlin less than 5% (μlin = 8.37 cm2/Vs) compared to the starting values (VTH = −3.96 V, Ion/Ioff = 1.39 × 104, μlin = 8.10 cm2/Vs). The stability of the IGZO TFT to T and RH conditions is linked with the presence of the Al2O3 passivation layer, preventing the device degradation due to moisture absorption Corsino et al. (2020), and oxygen vacancies formations Zhou et al. (2014).

4 Conclusion

In this work, the suitability of a-IGZO TFT as active electronics and sensor monitoring device was proved. The electronics parameters coherently changed under extreme T and RH variations while TFT operation was preserved. Evaluating the TFT performance at the corresponding T and RH conditions of several simulated geographical locations as well as human body parts, VTH has undergone a positive/negative shift according to the reduction/increase of both T and RH. A greater influence on switching operation was also observed at RH > 90%. The sensitivity to epidermal microclimate defined the a-IGZO TFTs as an appropriate candidate for health monitoring sensors. Future works have to consider the combined effect of T and RH with other triggering effects, such as illumination and/or mechanical stress, to support the functionality of the device as a part of a wearable integrated electronic system working at any environmental condition.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

FC conceived the work and wrote the article. FC, HSO, MCA, and MC carried out the experiments. MCA customized the labVIEW program. SP, NM, and GC supervised the work.


This work was partially supported by the Free University of Bozen (RTD Call FAST 2020, FERMI), by the Autonomous Province of Bozen-Bolzano/South Tyrol (Provincia Autonoma di Bolzano/Alto Adige–Ripartizione Innovazione, Ricerca, Universitá e Musei) through the International Joint Cooperation between South Tyrol-Switzerland (FLEXIBOTS, grant no.: 2/34), by the Autonomous Province of Bolzano-South Tyrol’s European Regional Development Fund (ERDF) Program (project codes EFRE/FESR 1068-Senslab), and by the Open Access Publishing Fund of the Free University of Bozen-Bolzano.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


Billah, M. M., Hasan, M. M., and Jang, J. (2017). Effect of Tensile and Compressive Bending Stress on Electrical Performance of Flexible A-IGZO TFTs. IEEE Electron. Device Lett. 38, 890–893. doi:10.1109/LED.2017.2707279

CrossRef Full Text | Google Scholar

Cherenack, K., Zysset, C., Kinkeldei, T., Münzenrieder, N., and Tröster, G. (2010). Woven Electronic Fibers with Sensing and Display Functions for Smart Textiles. Adv. Mater. 22, 5178–5182. doi:10.1002/adma.201002159

PubMed Abstract | CrossRef Full Text | Google Scholar

Choi, J.-H., and Loftness, V. (2012). Investigation of Human Body Skin Temperatures as a Bio-Signal to Indicate Overall thermal Sensations. Building Environ. 58, 258–269. doi:10.1016/j.buildenv.2012.07.003

CrossRef Full Text | Google Scholar

Chowdhury, M. D. H., Mativenga, M., Jae Gwang Um, J. G., Mruthyunjaya, R. K., Heiler, G. N., Tredwell, T. J., et al. (2015). Effect of SiO2 and SiO2/SiNx Passivation on the Stability of Amorphous Indium-Gallium Zinc-Oxide Thin-Film Transistors under High Humidity. IEEE Trans. Electron. Devices 62, 869–874. doi:10.1109/TED.2015.2392763

CrossRef Full Text | Google Scholar

Corsino, D. C., Bermundo, J. P. S., Fujii, M. N., Takahashi, K., Ishikawa, Y., and Uraoka, Y. (2020). Bias Stress and Humidity Exposure of Amorphous InGaZnO Thin-Film Transistors with Atomic Layer Deposited Al2O3 Passivation Using Dimethylaluminum Hydride at 200 °C. J. Phys. D: Appl. Phys. 53, 165103. doi:10.1088/1361-6463/ab6e97

CrossRef Full Text | Google Scholar

Costa, J. C., Pouryazdan, A., Panidi, J., Spina, F., Anthopoulos, T. D., Liedke, M. O., et al. (2019). Flexible IGZO TFTs and Their Suitability for Space Applications. IEEE J. Electron. Devices Soc. 7, 1182–1190. doi:10.1109/jeds.2019.2931614

CrossRef Full Text | Google Scholar

Cravello, B., and Ferri, A. (2008). Relationships between Skin Properties and Environmental Parameters. Skin Res. Technol. 14, 180–186. doi:10.1111/j.1600-0846.2007.00275.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Dong, C., Xu, J., Zhou, Y., Zhang, Y., and Xie, H. (2019). Light-illumination Stability of Amorphous InGaZnO Thin Film Transistors in Oxygen and Moisture Ambience. Solid-State Elect. 153, 74–78. doi:10.1016/j.sse.2018.12.020

CrossRef Full Text | Google Scholar

Gao, W., Emaminejad, S., Nyein, H. Y. Y., Challa, S., Chen, K., Peck, A., et al. (2016). Fully Integrated Wearable Sensor Arrays for Multiplexed In Situ Perspiration Analysis. Nature 529, 509–514. doi:10.1038/nature16521

PubMed Abstract | CrossRef Full Text | Google Scholar

Geng, D., Chen, Y. F., Mativenga, M., and Jang, J. (2017). Touch Sensor Array with Integrated Drivers and Comparator Using A-IGZO TFTs. IEEE Electron. Device Lett. 38, 391–394. doi:10.1109/LED.2017.2661405

CrossRef Full Text | Google Scholar

Godo, H., Kawae, D., Yoshitomi, S., Sasaki, T., Ito, S., Ohara, H., et al. (2010). Temperature Dependence of Transistor Characteristics and Electronic Structure for Amorphous In-Ga-Zn-Oxide Thin Film Transistor. Jpn. J. Appl. Phys. 49, 03CB04. doi:10.1143/jjap.49.03cb04

CrossRef Full Text | Google Scholar

Hasan, M. M., Billah, M. M., Naik, M. N., Um, J. G., and Jang, J. (2017). Bending Stress Induced Performance Change in Plastic Oxide Thin-Film Transistor and Recovery by Annealing at 300 °C. IEEE Electron. Device Lett. 38, 1035–1038. doi:10.1109/LED.2017.2718565

CrossRef Full Text | Google Scholar

Hoshino, K., Yeh, B., and Wager, J. F. (2013). Impact of Humidity on the Electrical Performance of Amorphous Oxide Semiconductor Thin-Film Transistors. Jnl Soc. Info Display 21, 310–316. doi:10.1002/jsid.184

CrossRef Full Text | Google Scholar

Kim, B., Chong, E., Hyung Kim, D., Woo Jeon, Y., Hwan Kim, D., and Yeol Lee, S. (2011). Origin of Threshold Voltage Shift by Interfacial Trap Density in Amorphous InGaZnO Thin Film Transistor under Temperature Induced Stress. Appl. Phys. Lett.Phys. Lett. 99, 062108. doi:10.1063/1.3615304

CrossRef Full Text | Google Scholar

Kim, K. S., Ahn, C. H., Kang, W. J., Cho, S. W., Jung, S. H., Yoon, D. H., et al. (2017). An All Oxide-Based Imperceptible Thin-Film Transistor with Humidity Sensing Properties. Materials 10, 530. doi:10.3390/ma10050530

PubMed Abstract | CrossRef Full Text | Google Scholar

Knobelspies, S., Bierer, B., Daus, A., Takabayashi, A., Salvatore, G., Cantarella, G., et al. (2018). Photo-Induced Room-Temperature Gas Sensing with A-IGZO Based Thin-Film Transistors Fabricated on Flexible Plastic Foil. Sensors 18, 358. doi:10.3390/s18020358

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, S.-U., and Jeong, J. (2019). Electrical Stability of Solution-Processed A-IGZO TFTs Exposed to High-Humidity Ambient for Long Periods. IEEE J. Electron. Devices Soc. 7, 26–32. doi:10.1109/JEDS.2018.2875755

CrossRef Full Text | Google Scholar

Mativenga, M., Haque, F., Billah, M. M., and Um, J. G. (2021). Origin of Light Instability in Amorphous IGZO Thin-Film Transistors and its Suppression. Sci. Rep. 11, 1–12. doi:10.1038/s41598-021-94078-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Munzenrieder, N., Cherenack, K. H., and Troster, G. (2011). The Effects of Mechanical Bending and Illumination on the Performance of Flexible IGZO TFTs. IEEE Trans. Electron. Devices 58, 2041–2048. doi:10.1109/TED.2011.2143416

CrossRef Full Text | Google Scholar

Munzenrieder, N., Petti, L., Zysset, C., Gork, D., Buthe, L., Salvatore, G. A., et al. (2013). “Investigation of Gate Material Ductility Enables Flexible A-IGZO TFTs Bendable to a Radius of 1.7 Mm,” in 2013 Proceedings of the European Solid-State Device Research Conference (ESSDERC) (IEEE), 362–365. doi:10.1109/ESSDERC.2013.6818893

CrossRef Full Text | Google Scholar

Nomura, K., Ohta, H., Takagi, A., Kamiya, T., Hirano, M., and Hosono, H. (2004). Room-temperature Fabrication of Transparent Flexible Thin-Film Transistors Using Amorphous Oxide Semiconductors. Nature 432, 488–492. doi:10.1038/nature03090

PubMed Abstract | CrossRef Full Text | Google Scholar

Park, J.-S., Jeong, J. K., Chung, H.-J., Mo, Y.-G., and Kim, H. D. (2008). Electronic Transport Properties of Amorphous Indium-Gallium-Zinc Oxide Semiconductor upon Exposure to Water. Appl. Phys. Lett. 92, 072104. doi:10.1063/1.2838380

CrossRef Full Text | Google Scholar

Park, J.-S., Kim, T.-W., Stryakhilev, D., Lee, J.-S., An, S.-G., Pyo, Y.-S., et al. (2009). Flexible Full Color Organic Light-Emitting Diode Display on Polyimide Plastic Substrate Driven by Amorphous Indium Gallium Zinc Oxide Thin-Film Transistors. Appl. Phys. Lett. 95, 013503. doi:10.1063/1.3159832

CrossRef Full Text | Google Scholar

Salvatore, G. A., Münzenrieder, N., Kinkeldei, T., Petti, L., Zysset, C., Strebel, I., et al. (2014). Wafer-scale Design of Lightweight and Transparent Electronics that Wraps Around Hairs. Nat. Commun. 5, 1–8. doi:10.1038/ncomms3982

CrossRef Full Text | Google Scholar

Sze, S. M., and Ng, K. K. (2006). Physics of Semiconductor Devices. Chichester, England, UK: Wiley.

Google Scholar

Yabuta, H., Sano, M., Abe, K., Aiba, T., Den, T., Kumomi, H., et al. (2006). High-mobility Thin-Film Transistor with Amorphous InGaZnO4 Channel Fabricated by Room Temperature Rf-Magnetron Sputtering. Appl. Phys. Lett. 89, 112123. doi:10.1063/1.2353811

CrossRef Full Text | Google Scholar

Zhou, D., Hu, Z., Wu, Q., Xu, L., Xie, H., and Dong, C. (2014). Light Illumination Stability of Amorphous InGaZnO Thin Film Transistors with Sputtered AlOxpassivation in Various Thicknesses. Jpn. J. Appl. Phys. 53, 121103. doi:10.7567/jjap.53.121103

CrossRef Full Text | Google Scholar

Keywords: thin-film transistors (TFTs), flexible electronics, oxide semiconductors, indium-gallium-zinc-oxide (IGZO), wearable electronics, humidity sensor, temperature sensor

Citation: Catania F, Oliveira HDS, Costa Angeli MA, Ciocca M, Pané S, Münzenrieder N and Cantarella G (2022) The Influence of Climate Conditions and On-Skin Positioning on InGaZnO Thin-Film Transistor Performance. Front. Electron. 2:786601. doi: 10.3389/felec.2021.786601

Received: 30 September 2021; Accepted: 18 November 2021;
Published: 06 January 2022.

Edited by:

Aftab M. Hussain, International Institute of Information Technology, India

Reviewed by:

Sandeep G. Surya, Dyson, United Kingdom
Sungsik Lee, Pusan National University, South Korea

Copyright © 2022 Catania, Oliveira, Costa Angeli, Ciocca, Pané, Münzenrieder and Cantarella. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Federica Catania,; Giuseppe Cantarella,

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
