Abstract
The integration and excision of various filamentous phage genomes into and out of their host chromosomes occurs by site-specific recombination. The mechanisms proposed for these events include reactions mediated by phage-encoded recombinases and host recombination systems. Site-specific integration of filamentous phages plays a vital role in a variety of biological functions of the host, such as phase variation of certain pathogenic bacterial virulence factors. The importance of these filamentous phages in bacterial evolution is rapidly increasing with the discovery of new phages that are involved in pathogenicity. Studies of the diversity of two different filamentous phages infecting the phytopathogen Ralstonia solanacearum provide us with novel insights into the dynamics of phage genomes, biological roles of prophages, and the regulation and importance of phage–host interactions.
Filamentous Phages and Pathogenic Bacteria
Bacteriophages of the genus Inovirus are filamentous particles containing a circular single-stranded (ss) DNA genome. This kind of phage does not lyse host cells, but it establishes a persistent association with the host, producing and releasing phage particles from the growing and dividing host cells. The genome of inoviruses, represented by the Escherichia coli F-pilus-specific phage Ff (f1, fd, or M13), is generally organized in a modular structure in which functionally related genes are grouped together (; ; ). Three functional modules are always present: the replication module (R), the structural module (S), and the assembly and secretion module (A-S; Figure 1A). The R module contains the genes encoding rolling-circle DNA replication and ssDNA-binding proteins pII, pV, and pX (). The S module contains genes for the major (pVIII) and minor coat proteins (pIII, pVI, pVII, and pIX). The gene gIII encodes the host recognition or adsorption protein pIII (). The A-S module contains the genes for morphogenesis and extrusion of the phage particles (gI and gIV; ). The gene gIV encodes protein pIV, an aqueous channel (secretin) in the outer membrane, through which phage particles exit from the host cells (). Although some phages encode their own secretins, others use host products (). For the general infection cycle of inoviruses, see recent reviews (; ).
FIGURE 1
In pathogenic bacteria of either animals or plants, filamentous phage infection has been demonstrated to affect virulence. Examples include (i) enhancing production of virulence factors such as extracellular polysaccharides (EPSs) in Xf- or Lf-infected Xanthomonas campestris (
Different Strategies for Filamentous Phage DNA Integration into the Host Genome
To date, four different integration mechanisms used by filamentous phages have been described (Table 1). Well-characterized filamentous coliphages, such as M13 and fd, typically do not take a lysogenic replication cycle and replicate exclusively as an episome in their host bacteria (

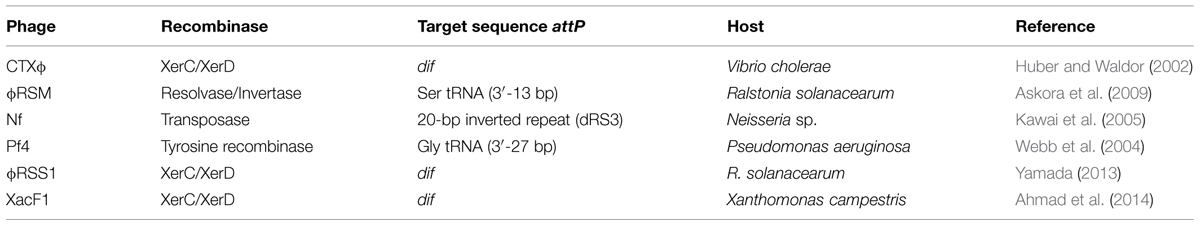

Table 1
| Phage | Recombinase | Target sequence attP | Host | Reference |
|---|---|---|---|---|
| CTXϕ | XerC/XerD | dif | Vibrio cholerae | |
| ϕRSM | Resolvase/Invertase | Ser tRNA (3′-13 bp) | Ralstonia solanacearum | |
| Nf | Transposase | 20-bp inverted repeat (dRS3) | Neisseria sp. | |
| Pf4 | Tyrosine recombinase | Gly tRNA (3′-27 bp) | Pseudomonas aeruginosa | |
| ϕRSS1 | XerC/XerD | dif | R. solanacearum | |
| XacF1 | XerC/XerD | dif | Xanthomonas campestris | |
Comparison of site-specific recombination systems in filamentous phages.
Structural and Biological Diversity of Two Different Filamentous Phages Infecting Ralstonia solanacearum
Ralstonia solanacearum is a Gram-negative β-proteobacterium that causes bacterial wilt disease in many important crops including tomato, potato, tobacco, eggplant, banana, ginger, and mulberry. Because of its wide geographic distribution and unusually broad host range (more than 50 plant families), it is responsible for significant crop losses worldwide (
Another type of filamentous phage of R. solanacearum revealed a different story of evolution. ϕRSM1, the first phage to be classified as a member of the ϕRSM-type phages is a longer filamentous particle (1.5 μm in length) containing ssDNA of 9,004 nt (with a GC content of 59.9%) as the genome (
As described above, two groups of filamentous phages of R. solanacearum have used different mechanisms for the evolution of genomic arrangements (Figure 1A). However, there may have been some opportunities for them to infect the same host cells by chance, which would have made it possible for the two types of phage to hybridize. Actually, such forms were detected (Figure 1B). A prophage (ϕRSM4) found in strain MAFF211271 showed a gene arrangement with the ϕRSM-type R module containing genes for an Int and regulator and with ϕRSS-type S and A-S modules (
Filamentous Phage Diversity and Effects on the Host Virulence and Evolution in R. solanacearum
Both ϕRSS-type and ϕRSM-type filamentous phages affect the host physiology including virulence. ϕRSS1-infected cells showed enhanced virulence on tobacco (
Thus, phages sometimes help host bacteria infect plants by enhancing bacterial virulence, and they sometimes interrupt bacterial infection of plants by repressing host genes involved in virulence. Such contradictory effects of these phages largely depend on the phage state, for example, replicating freely in the host, existing as a stable prophage (with Int), or expressing a special transcriptional regulator (
Hypothesis
Filamentous phages are widely disseminated and exist as prophage states in different strains of pathogenic bacteria. They might evolve rapidly and play roles in the introduction of new genes into their hosts. Therefore, it is highly likely that filamentous phages are mediating the ecological adaptation and virulence of their hosts and thus play significant roles in the evolution of bacterial species.
Supplementary Material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fgene.2015.00217
Statements
Acknowledgments
This study was supported in part by the JSPS Postdoctoral Fellowship for Foreign Researchers (P13086 to AA); the Research and Development Projects for Application in Promoting New Policy of Agriculture, Forestry, and Fisheries (No. 250037B to TY); and JST/BIOTEC Strategic Research Cooperative Program on Biotechnology (A1200357 to TY).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AddyH. S.AskoraA.KawasakiT.FujieM.YamadaT. (2012a). Loss of virulence of the phytopathogen Ralstonia solanacearum through infection by ϕRSM filamentous phages.Phytopathology102469–477. 10.1094/PHYTO-11-11-0319-R
2
AddyH. S.AskoraA.KawasakiT.FujieM.YamadaT. (2012b). The filamentous phage ϕRSS1 enhances virulence of phytopathogenic Ralstonia solanacearum on tomato.Phytopathology102244–251. 10.1094/PHYTO-10-11-0277
3
AhmadA. A.AskoraA.KawasakiT.FujieM.YamadaT. (2014). A novel filamentous phage causes loss of virulence to Xanthomonas axonopodis pv citri the causative agent of citrus canker disease.Front. Microbiol.5:321. 10.3389/fmicb.2014.00321
4
AskoraA.Abdel-HaliemM. E. F.YamadaT. (2012). Site-specific recombination systems in filamentous phages.Mol. Genet. Genom.287525–530. 10.1007/s00438-012-0700-1
5
AskoraA.KawasakiT.FujieM.YamadaT. (2011). Resolvase-like serine recombinase mediates integration/excision in the bacteriophage ϕRSM.J. Biosci. Bioeng.111109–116. 10.1016/j.jbiosc.2010.10.001
6
AskoraA.KawasakiT.FujieM.YamadaT. (2014). Insight into the diversity of ϕRSM phages infecting strains of the phytopathogen Ralstonia solanacearum complex: regulation and evolution.Mol. Genet. Genomics,289589–598. 10.1007/s00438-014-0835-3
7
AskoraA.KawasakiT.UsamiS.FujieM.YamadaT. (2009). Host recognition and integration of filamentous phage ϕRSM in the phytopathogen, Ralstonia solanacearum.Virology38469–76. 10.1016/j.virol.2008.11.007
8
Bich VanT. T.YoshidaS.MikiK.KondoA.KameiK. (2014). Genomic characterization of ϕRS603, a filamentous bacteriophage that is infectious to the phytopathogen Ralstonia solanacearum.Microbiol. Immunol.58697–700. 10.1111/1348-0421.12203
9
BilleE.ZaharJ. R.PerrinA.MorelleS.KrizP.JolleyK. A.et al (2005). A chromosomally integrated bacteriophageb in invasive meningococci.J. Exp. Med.2011905–1913. 10.1084/jem.20050112
10
CamposJ.MartinezE.IzquierdoY.FandoR. (2010). VEJϕ, a novel filamentous phage of Vibrio cholerae able to transduce the cholera toxin genes.Microbiology156108–115. 10.1099/mic.0.032235-0
11
CamposJ.MartinezE.SuzarteE.RodriguezB. E.MarreroK.SilvaY.et al (2003). A novel filamentous phage of Vibrio cholerae, integrates into the same chromosomal site as CTXϕ.J. Bacteriol.1855685–5696. 10.1128/JB.185.19.5685-5696.2003
12
DavisB. M.LawsonE. H.SandkvistM.SozhamannanS.AliA.WaldorM. K. (2000). Convergence of the secretory pathways for cholera toxin and the filamentous phage, CTXϕ.Science288333–335. 10.1126/science.288.5464.333
13
DavisB. M.WaldorM. K. (2003). Filamentous phages linked to virulence of Vibrio cholerae.Curr. Opin. Microbiol.635–42. 10.1016/S1369-5274(02)00005-X
14
de Mello VaraniA.SouzaR. C.NakayaH. I.de LimaW. C.de AlmeidP.KitajimaE. W.et al (2008). Origins of the Xylella fastidiosa prophage-like regions and their impact in genome differentiation.PLoS ONE3:e4059. 10.1371/journal.pone.0004059
15
DennyT. P. (2006). “Plant pathogenic Ralstonia species,” in Plant-Associated Bacteria,ed.GnanamanickamS. S. (Amsterdam: Springer) 573–644. 10.1007/978-1-4020-4538-7_16
16
DerbiseA.Chenal-FrancisqueV.PouillotF.FayolleC.PrevostM. C.MedigueC.et al (2007). A horizontally acquired filamentous phage c ontributes to the pathogenicity of the plague Bacillus.Mol. Microbiol.631145–1157. 10.1111/j.1365-2958.2006.05570.x
17
GonzalezE. T.AllenC. (2003). Characterization of a Ralstonia solanacearum operon required for polygalacturonate degradation and uptake of galacturonic acid.Mol. Plant Microbe Interact.16536–544.
18
HaywardA. C. (2000). “Ralstonia solanacearum,” in Encyclopedia of Microbiology, Vol. 4ed.LederbergJ. (San Diego, CA: Academic Press), 32–42.
19
HoriuchiK. (1997). Initiation mechanisms in replication of filamentous phage DNA.Genes Cells2425–432. 10.1046/j.1365-2443.1997.1360334.x
20
HuberK. E.WaldorM. K. (2002). Filamentous phage integration requires the host recombinases XerC and XerD.Nature417656–659. 10.1038/nature00782
21
IlyinaT. S. (2015). Filamentous bacteriophages and their role in the virulence and evolution of pathogenic bacteria.Mol. Genet. Microbiol. Virol.301–9. 10.3103/S0891416815010036
22
KamiuntenH.WakimotoS. (1982). Effect of the infection with filamentous phage Xf-2 on the properties of Xanthomonas campestris var oryzae.Ann. Phytopathol. Soc. Japan47627–636. 10.3186/jjphytopath.47.627
23
KawaiM.UchiyamaI.KobayashiI. (2005). Genome comparison in silico in Neisseria suggests integration of filamentous bacteriophages by their own transposase.DNA Res.12389–401. 10.1093/dnares/dsi021
24
KawasakiT.NagataS.FujiwaraA.SatsumaH.FujieM.UsamiS.et al (2007). Genomic characterization of the filamentous integrative bacteriophage ϕRSS1 and ϕRSM1 which infect Ralstonia solanacearum.J. Bacteriol.1895792–5802. 10.1128/JB.00540-07
25
LesterlinC.BarreF. X.CornetF. (2004). Genetic recombination and the cell cycle: what we have learned from chromosome dimers.Mol. Microbiol.541151–1160. 10.1111/j.1365-2958.2004.04356.x
26
Mai-ProchnowA.HuiJ. G. K.KjellebergS.RakonjacJ.McDougaldD.RiceS. A. (2015). Big things in small packages: the genetics of filamentous phage and effects on fitness of their host.FEMS Microbiol. Rev.10.1093/femsre/fuu007[Epub ahead of print].
27
MarcianoD. K.RusselM.SimonS. M. (1999). An aqueous channel for filamentous phage export.Science2841516–1519. 10.1126/science.284.5419.1516
28
MarvinD. A. (1998). Filamentous phage structure, infection and assembly.Curr. Opin. Struct. Biol.8150–158. 10.1016/S0959-440X(98)80032-8
29
ModelP.RusselM. (1988). “Filamentous bacteriophages,” in The BacteriophagesVol. 2ed.CalendarR. (New York, NY: Plenum Press) 375–456.
30
MooijM. J.DrenkardE.LlamasM. A.Vandenbroucke-GraulsC. M. J. E.SavelkoulP. H. M.AusubelF. M.et al (2007). Characterization of the integrated filamentous phage Pf5 and its involvement in small-colony formation.Microbiology1531790–1798. 10.1099/mic.0.2006/003533-0
31
MurugaiyanS.BaeJ. Y.WuJ.LeeS. D.UmH. Y.ChoiH. K.et al (2010). Characterization of filamentous bacteriophage PE226 infecting Ralstonia solanacearum strains.J. Appl. Microbipl.110296–303. 10.1111/j.1365-2672.2010.04882.x
32
RakonjacJ.BennetN. J.SpagnuoloJ.GagicD.RusselM. (2011). Filamentous bacteriophage: biology, phage display and nanotechnology applications.Curr. Issues Mol. Biol.1351–76.
33
RemenantB.Coupat-GoutalandB.GuidotA.CellierG.WickerE.AllenC.et al (2010). Genomes of three tomato pathogens within the Ralstonia solanacearum species complex reveal significant evolutionary divergence.BMC Genomics11:319. 10.1186/1471-2164-11-379
34
RiceS. A.TanC. H.MikkelsenP. J.KungV.WooJ.TayM.et al (2009). The biofilm life cycle and virulence of Pseudomonas aeruginosa are dependent on a filamentous prophage.ISME J.3271–282. 10.1038/ismej.2008.109
35
TsengY. H.LoM. C.LinK. C.PanC. C.ChangR. Y. (1990). Characterization of filamentous bacteriophage ϕLf from Xanthomonas campestris pv. campestris.J. Gen. Virol.711881–1884. 10.1099/0022-1317-71-8-1881
36
WangY. A.YuX.OvermanS.TsuboiM.TomasG. J.Jr.EgelmanE. H. (2006). The structure of a filamentous bacteriophage.J. Mol. Biol.361209–215. 10.1016/j.jmb.2006.06.027
37
WebbJ. S.LauM.KjellebergS. (2004). Bacteriophage and phenotypic variation in Pseudomonas aeruginosa biofilm development.J. Bacteriol.1868066–8073. 10.1128/JB.186.23.8066-8073.2004
38
YamadaT. (2012). “Bacteriophages of Ralstonia solanacearum: their diversity and utilization as biocontrol agents in agriculture,” in Bacteriophages, ed.KurtbokeI. (Rijeka: InTech-Open Access Publisher), 113–139.
39
YamadaT. (2013). Filamentous phages of Ralstonia solanacearum: double-edged swords for pathogenic bacteria.Front. Microbiol.4:325. 10.3389/fmicb.2013.00325
40
YamadaT.KawasakiT.NagataS.FujiwaraA.UsamiS.FujieM. (2007). New bacteriophages that infect the phytopathogen Ralstonia solanacearum.Microbiology1532630–2639. 10.1099/mic.0.2006/001453-0
Summary
Keywords
filamentous phage, integration, pathogenic bacteria, virulence change
Citation
Askora A and Yamada T (2015) Two different evolutionary lines of filamentous phages in Ralstonia solanacearum: their effects on bacterial virulence. Front. Genet. 6:217. doi: 10.3389/fgene.2015.00217
