Mouse Skull Mean Shape and Shape Robustness Rely on Different Genetic Architectures and Different Loci

\r\nCeferino Varn-Gonzlez,Ceferino Varón-González1,2Luisa F. PallaresLuisa F. Pallares3Vincent Debat&#x;Vincent Debat1Nicolas Navarro,*&#x;Nicolas Navarro2,4*
  • 1Institut de Systématique, Évolution, Biodiversité, ISYEB – UMR 7205 – CNRS, MNHN, UPMC, EPHE, UA, Muséum National d’Histoire Naturelle, Sorbonne Universités, Paris, France
  • 2Biogéosciences, UMR 6282 CNRS, Université Bourgogne Franche-Comté, Dijon, France
  • 3Lewis-Sigler Institute for Integrative Genomics, Princeton University, Princeton, NJ, United States
  • 4EPHE, PSL University, Dijon, France

The genetic architecture of skull shape has been extensively studied in mice and the results suggest a highly polygenic and additive basis. In contrast few studies have explored the genetic basis of the skull variability. Canalization and developmental stability are the two components of phenotypic robustness. They have been proposed to be emergent properties of the genetic networks underlying the development of the trait itself, but this hypothesis has been rarely tested empirically. Here we use outbred mice to investigate the genetic architecture of canalization of the skull shape by implementing a genome-wide marginal epistatic test on 3D geometric morphometric data. The same data set had been used previously to explore the genetic architecture of the skull mean shape and its developmental stability. Here, we address two questions: (1) Are changes in mean shape and changes in shape variance associated with the same genomic regions? and (2) Do canalization and developmental stability rely on the same loci and genetic architecture and do they involve the same patterns of shape variation? We found that unlike skull mean shape, among-individual shape variance and fluctuating asymmetry (FA) show a total lack of additive effects. They are both associated with complex networks of epistatic interactions involving many genes (protein-coding and regulatory elements). Remarkably, none of the genomic loci affecting mean shape contribute these networks despite their enrichment for genes involved in craniofacial variation and diseases. We also found that the patterns of shape FA and individual variation are largely similar and rely on similar multilocus epistatic genetic networks, suggesting that the processes channeling variation within and among individuals are largely common. However, the loci involved in these two networks are completely different. This in turn underlines the difference in the origin of the variation at these two levels, and points at buffering processes that may be specific to each level.

Introduction

In recent years, studies exploring the genetic basis of skull shape have proliferated due to advances in high-throughput phenotyping techniques (Bromiley et al., 2014; Young and Maga, 2015) and genomic data collection (Flint and Eskin, 2012). The study of shape is often focused on the differences among group means, these groups being for instance species or experimental treatments. This approach has allowed the identification of a large set of genes associated with variation in mean shape in the mammalian skull (Schoenebeck and Ostrander, 2013; Weinberg et al., 2018). In contrast, only few studies have explored the association between genetic variation and shape variance (Hallgrímsson et al., 2018), likely because mapping variance is computationally more demanding [but see for example Corty and Valdar (2018) for recent methodological advance] and requires larger sample sizes than the mean. As a result, little is known about the genetic basis and architecture of shape variance.

Phenotypic robustness can be defined as the ability of an organism to buffer the impact of internal (e.g., genetic variation) and external factors (e.g., environmental effects) on the phenotype. It has been the subject of a vast literature (reviewed in Debat and David, 2001; De Coster et al., 2013; Hallgrímsson et al., 2018). Two processes have been suggested to contribute to phenotypic robustness: developmental stability and canalization (Zakharov, 1992; Debat et al., 2000; Gonzalez et al., 2016). Developmental stability, defined as the ability to buffer random developmental noise (Debat and David, 2001; Gonzalez et al., 2016), is usually assessed by fluctuating asymmetry (FA; Palmer and Strobeck, 1986). Canalization is defined as the ability to buffer the phenotypic effects of mutations (i.e., genetic canalization) and the environment (i.e., environmental canalization) [see Meiklejohn and Hartl (2002) for a discussion]. Canalization has been traditionally quantified by the variation among individuals (e.g., Hallgrímsson et al., 2018).

Whether such a partition of phenotypic robustness into these two processes is biologically justified or rather reflects a mere methodological or semantic dichotomy is an open question. The link between developmental stability and canalization has been investigated in a diversity of models using geometric morphometrics and comparing the patterns of shape variation within and among individuals. In such studies, a similarity of patterns of shape variation is typically considered indicative of a similarity of developmental processes. The results obtained have been contrasted, ranging from complete congruence to strong divergence, and no consensus on the relative status of developmental stability and canalization has been achieved [e.g., Klingenberg and McIntyre, 1998; Debat et al., 2000; Hallgrímsson et al., 2002; Willmore et al., 2006; Takahashi et al., 2010; Breno et al., 2011; see Klingenberg (2015) for a review].

A large list of candidate genes has been associated with mouse craniofacial features by either genome-wide association studies or candidate gene experiments. The highly polygenic architecture of skull shape is widely acknowledged but there is no consensus regarding whether additive effects (Pallares et al., 2016; Weinberg et al., 2018) or epistatic effects (Hallgrímsson et al., 2014) are the predominant factors influencing skull shape. Most candidate genes associated additively with shape have developmental roles (Maga et al., 2015; Pallares et al., 2015b). In contrast, studies of developmental stability (Van Dongen, 1998; Leamy et al., 2015; Varón-González and Navarro, 2018) and canalization (Percival et al., 2017) more clearly support an epistatic basis for shape variability. Still, the knowledge of the genetic architecture of canalization and developmental stability is scarce compared to the amount of data on mean shape. Identifying the differences and similarities between the genetics of developmental stability and canalization may help to clarify their relationship.

Here we jointly investigate the genetic architecture of mean shape, canalization, and developmental stability using a single dataset. This approach allows the rigorous comparison among these three aspects of shape. We use outbred mice, thousands of SNPs, and 3D morphometric analyses of the mouse skull shape to perform a genome-wide association mapping. The loci associated with differences in mean skull shape were previously published in Pallares et al. (2015b) and the loci associated with developmental stability in Varón-González and Navarro (2018). We first estimate the genetic architecture of canalization and the associated loci. Using these data, we then address two main questions: (1) is the genetic architecture of the skull mean shape different from that of canalization and developmental stability? (2) Are the phenotypic patterns and the loci involved in the regulation of canalization and developmental stability different, indicative of different biological processes?

Materials and Methods

Mouse Samples

We analyzed 692 Carworth Farms White outbred mice, whose main feature is a lack of population structure (Parker et al., 2014). This dataset was previously used to map the genetic architecture of skull shape variation (Pallares et al., 2015b), and both genomic and morphometric data are publicly available (Pallares et al., 2015a). The genomic data correspond to the allele dosage for a set of 79,787 genomic markers once all markers with a maximum genotype probability lower than 0.5 or a minor allele frequency lower than 2% were discarded. The phenotypic dataset is composed of 44 3D landmarks (17 pairs and 10 unique landmarks located on the mid sagittal plan) recorded on each skull. For a detailed description of the data collection process, we encourage readers to visit the original publication (Pallares et al., 2015b).

Quantification of Skull Shape Variation and Phenotypic Robustness

Mean shape and inter-individual shape variation (canalization) were assessed using the symmetric component of shape variation: the 132 coordinates of the 44 3D landmarks were submitted to a full Procrustes superimposition with object symmetry (Dryden and Mardia, 1998; Mardia et al., 2000; Klingenberg et al., 2002) leading to symmetric variation spreading on 3 × 17 + 2 × 10 – 4 = 67 dimensions. A principal component (PC) analysis was run on the Procrustes coordinates to remove all null dimensions. This set of PCs embedded the full symmetric variation observed among individuals. Analyzing these variables was thus equivalent but computationally more efficient than working with the complete set of 132 coordinates.

An individual measure of canalization was computed as the distance from each individual shape to the expected mean shape given the allele dosage at some focal SNP. To obtain this individual measure of canalization, we first estimated the effect of the focal SNP on mean shape using a multivariate linear model between the shapes and the genotypes yiNq (mi, S) where, for a locus with an additive effect, mi = μ + aiα with ai is the allele dosage, α the q-dimensional additive effect, and S the residual variance–covariance matrix (Maga et al., 2015; Navarro and Maga, 2016; see Figure 1). This first step was required because we are interested in the variation around the population mean shape and many alleles associate with changes in mean (Rönnegård and Valdar, 2011). To understand why mean shape changes need to be taken into account for estimating the individual deviation, let us consider a simple hypothetical situation: imagine a given genetic marker for which one-third of the individuals are homozygous for one allele and two-third are homozygous for the alternative allele. Because of such unbalance, the population mean shape would be closer to the shape average of the majority genotype than to the shape average of the minority genotype. A simple estimation of shape variance based on distances from each individual to the population mean would thus be misleading: the individual shape distances would be systematically larger for the minority genotype than for the majority genotype, leading to an artifactual linear association between the marker and the shape variance. The effect of gene dosage upon mean shape should thus be accounted for in any estimation of shape variance.

FIGURE 1
www.frontiersin.org

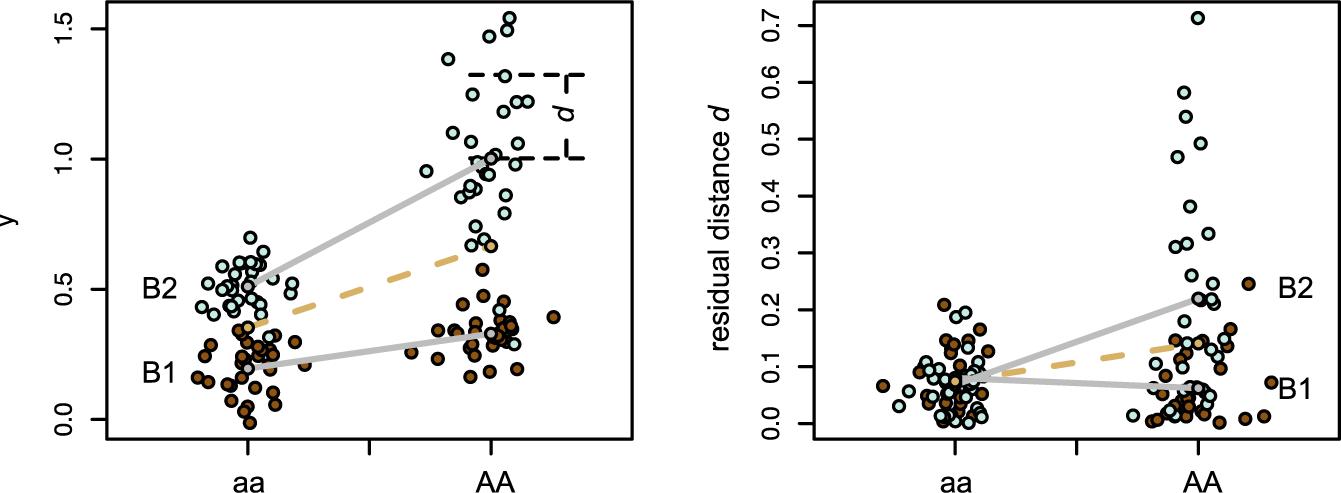

Figure 1. Test for genotype-specific variance. The dashed line corresponds to an additive model, the gray lines to the model integrating an epistatic interaction with the genetic background. Here, beside an epistatic interaction of the locus A with the background B on the mean phenotype, the genotype AA shows an increase in residual variance in the B2 background (left panel). This effect is captured with the epistatic modeling of the residual distance (right panel).

Once the effect of the focal marker on the mean shape was inferred, we estimated the distance from each individual shape to the predicted genetic effect for mean shape as: di=(yimi)tD1(yimi). The shape variance was thus assessed as the dispersion of the individual shapes around the predicted mean shape for their genotype. Taking D equals to identity matrix Iq leads to the Euclidean distance. The use of distances assumes that the potential QTLs affect the amount of population variation but not the direction of that variation. To alleviate the potential implications of ignoring the direction of variation, we estimated Mahalanobis distances taking D equals to the residual variance covariance matrix S with elements sjk=(n1)1i=1n(yijmij)t(yikmik) (Klingenberg and Monteiro, 2005). This distance allows accounting for the anisotropic variation typical of mammalian skull (Klingenberg, 2013), weighting more heavily the deviations that are in the directions of least variation at the population level.

Genome-Wide Association Scans

Although the relatedness among individuals is standardized in the mapping population used here (Pallares et al., 2015b), we applied a linear-mixed model in order to control for population structure (Speed and Balding, 2015). We estimated a genomic relatedness matrix with a leave-one-chromosome-out approach, a method designed to reduce the loss of power associated with the inclusion of SNPs in both the relatedness matrix and the linear model (Listgarden et al., 2012; Cheng et al., 2013). This matrix of genomic relatedness was then used to estimate the variance components and a phenotypic covariance matrix, which in turn helped to correct both genotypic (allele dosages) and phenotypic data for each chromosome. Corrected genotypic and residual distance data were then fitted in a linear model, which now had uncorrelated errors among individuals (Nicod et al., 2016).

Mean Shape

Genome-wide association mapping were run on the 67 PC from the symmetric shape to estimate which loci contribute additively to the mean shape variation. Such an association should be assessed preferentially using a multivariate model because the effect of loci generally does not align with the PCs (Maga et al., 2015) and loci with a large multivariate effect may only weakly participate to all PCs because of the projection. Such an approach can be quite challenging because of the large number of covariances to be estimated. Despite the potential large drop in power, genome scans with univariate mixed model on individual PCs found numerous genomic markers additively associated to the skull mean shape (Pallares et al., 2015b). In the following, we used these published results as an estimate of the genetic basis for mean shape variation. We should nevertheless keep in mind that additional loci may also contribute in a sizeable part to the mean shape variation and that epistasis was not specifically searched for in that study.

Canalization

The association tests estimated whether there are loci l associated with the average distance from each individual to the population mean shape given the locus genotypes m¯l=n1i=1nailαil (i.e., whether individuals that are on average further away from the population mean m¯l carry specific alleles and vice versa): di~N(d¯+ailγl,σ2), where γl is the additive effect of the locus l on the distance (Figure 1). This model looks for loci affecting environmental variance and therefore contributing to environmental canalization (Wagner et al., 1997).

Developmental Stability

The individual estimations of canalization used here are equivalent to the individual measures of FA calculated in a previous study (Varón-González and Navarro, 2018), where the genetic architecture of developmental stability was estimated from the asymmetric component of shape variation.

We defined two significance thresholds (5% and 10%) from the distribution of maximum negative log10 p derived from 1000 permutations of the corrected residual distances (Churchill and Doerge, 1994). Analyses were run in R version 3.4 (R Core Team, 2013).

Marginal Epistasis Scan for Canalization

The marginal epistasis test1 (Crawford et al., 2017) was applied to the distance data to test for epistatic effects among genomic regions in association with shape variance. The advantage of the marginal epistasis test is that it first fits a linear model for each genomic marker with a variance component representing epistatic variance of that marker with all the rest of the markers and then only the best-fitting markers are tested in pairwise comparisons. This first selection circumvents the intractable number of pairwise comparisons for all the markers. In our case, markers with a p < 10-6 in the Davies method were selected for further pairwise evaluation. The marginal epistasis tests were computed on Mahalanobis distances from the overall mean shape (i.e., mi = μ in the equations above) because they look simultaneously at a large number of genotypes. In contrast, and similarly to the additive genome scan, pairwise interactions were corrected for the effect on the multivariate genotype means and then ran on residual Mahalanobis distances. The interactions were considered significant when p < 0.001. Because our data do not show any significant effect of relatedness among individuals and the epistasis test is relatively robust against it (Crawford et al., 2017), no correction for population structure was applied. Only first-order epistasis was considered for two practical reasons. First, the inclusion of higher-order interactions would exponentially increase the number of potential interactions and their complexity. Second, these estimations would be increasingly data-hungry. Our sample comprises many individuals with one specific combination of just two markers but comparatively few individuals sharing specific combinations of many markers. This sample reduction for certain estimations would increase the relative importance of inaccuracies in our measures of developmental stability or canalization, affecting the reliability of the results.

Investigating Gene Ontology and Representing Genetic Networks

Our sample presents less linkage disequilibrium than other populations of mice (Nicod et al., 2016). Therefore, for a given marker we defined its associated candidate genes as all the genes closer to it than 200 kb. This window size would correspond to a correlation among markers (i.e., linkage disequilibrium) of about 0.6. For each marker found in a significant interaction we collected all of its overlapping candidate genes annotated in the Mus musculus reference genome (version m38.92) in Mouse Genome Informatics (Blake et al., 2017) and Ensemble (Yates et al., 2016). When no protein-coding genes were found, we reported other genomic elements, i.e., RNA genes, processed transcripts, and pseudogenes. Markers overlapping the same list of genes were merged in a single genomic region.

We obtained two reference gene lists in the MGI HMDC database searching for “Craniofacial” and “Growth/Size/Body” (http://www.informatics.jax.org/humanDisease.shtml; accessed 4 April 2018). Once redundancies between lists and human-specific genes were removed, we were left with 1044 and 2829 genes for “Craniofacial” and “Growth/Size/Body” categories, respectively. Then, we assessed the over-representation of candidate genes within the two lists with Fisher’s exact tests (Fisher, 1935).

Based on the results from the marginal epistasis test, we built a network to reflect the significant pairwise interactions among genomic markers associated with shape variance. To illustrate the role of each candidate gene we classified them as “Craniofacial” or “Growth/Size/Body” depending on the reference gene list in which they appear. The rest of protein-coding genes were labeled as “Other” and regulatory candidate genes as “Regulatory.” Hub scores, power, and betweenness centralities of the genomic regions in the epistatic network were computed to check for candidate genes with important roles within the networks and therefore to look for major epistatic controllers. Kleinberg’s hub centrality scores are the principal eigenvector of A ×t(A), where A is the adjacency matrix (Kleinberg, 1999). It is therefore a measure of the node’s connectivity. The betweenness centrality of a node, estimated as the number of times the shortest path between all possible pairs passes through that node, is correlated to the hub score, as the more connected one node is (hub score) the more paths will pass through it (betweenness). Finally, the power centrality for each candidate gene is estimated with the Bonacich’s (1987) approach: the algorithm computes the importance of a given node as a function of the number of its first and second-degree connections. A hub will be considered more important if it has many adjacent connections that are relatively isolated than if it is just another node within a complex and highly connected network. Positive values represent a cooperative relation with its connections, so the hub would be more powerful as its connections would also become more powerful; negative values are typical of antagonistic relationships. These measures were computed using the igraph package2 (Csardi and Nepusz, 2006).

Estimating and Comparing the Patterns of Shape Variation

Based on the same mouse population and phenotypic and genomic data used here, previous studies have mapped the loci contributing to skull mean shape (Pallares et al., 2015b) and those contributing to skull shape FA (Varón-González and Navarro, 2018). Given that the three studies use not only the same mouse sample, but also the same genomic markers and overall approach to deal with population structure, the comparison between the results is unbiased and straightforward.

Estimating G and E Matrices

The additive genetic covariance matrix (G matrix) corresponds roughly to the crossproduct of the frequency-weighted additive effects of all causal loci (Kelly, 2009). G was estimated from the genomic relatedness matrix using a linear mixed model on the symmetric component of shape variation and implemented in the sommer R package (Covarrubias-Pazaran, 2016). The patterns of shape variation described by G result from the interplay of additive genetic variance and the buffering effects of genetic canalization. The linear mixed model also provided the residual variance-covariance matrix E which results from the interplay between the non-additive genetic variance (part of the genetic variance not accounted for in the estimation of G), environmental variance, and the buffering effects of genetic and environmental canalization.

Because of the large dimensionality of the shape data, we used a block strategy to process first PC1 to PC10 (accounting for 62.3% of the total variance), which were estimated simultaneously together with their correlations, and then a second block from PC11 to PC67 (in average 0.66% of the total variance), which was modeled with diagonal variance components (i.e., with covariances set to zero) and allows to fit independently these 51 additional PCs. This strategy represents a compromise between an ideal but intractable solution estimating every dimension simultaneously and an efficient but formally incorrect approach assuming a complete match between genetic and phenotypic PCs, an assumption that is, in most cases, unrealistic. Another option would have been factor analysis (Meyer, 2009; Runcie and Mukherjee, 2013). This approach does not enforce any genetic correlations between phenotypic directions to zero, but rather forces the genetic variation to spread on a limited number of traits. While this could be relevant for some phenotypes, it may not be appropriate to inherently multivariate shapes, which show heritable variation in almost all directions (e.g., Klingenberg et al., 2010; Navarro and Maga, 2016).

Estimating P and FA Matrices

We investigated the patterns of shape variation at two more levels: the global phenotypic variation present in the sample as the phenotypic covariance matrix P and the stochastic component of shape variation with the covariance matrix of shape FA. P and FA covariance matrices were estimated from the superimposed Procrustes coordinates of the symmetric and asymmetric components of skull shape, respectively (Klingenberg et al., 2002). P results from the interplay between genetic and environmental influences on the phenotype and the buffering effect of canalization (i.e., genetic and environmental canalization). Similarly, the covariance matrix of shape FA results from the interplay between stochastic developmental noise affecting the two sides independently, and the buffering effect of developmental stability.

The heritability of shape was assessed with the general multivariate heritability formula: h2 = GP-1 (Lande, 1979). The main directions (i.e., eigenvectors) of the GP-1 matrix display shape features with the highest heritability. Therefore, these eigenvectors represent the shape changes that can potentially respond more rapidly to selection when the additive variance is high (Klingenberg and Leamy, 2001). These axes have been sometimes referred to as lines of evolutionary least resistance in the literature (Schluter, 1996), although this may not be relevant in absence of additive effects (Uller et al., 2018) as gene interactions should be taken into account to predict selective responses.

Matrix Comparisons

As G and P mostly differ by the environmental component of variation, included in P but not G, comparing them can tell us whether the environmental effects on shape variation fundamentally differ from those of genetic differences. Besides, comparing G and P is of interest in the context of evolutionary studies of selection: it has been suggested that P could be used as a surrogate for G, in cases where the estimation of G is not tractable (in non-model species for example). The validity of such an approach depends on the similarity between G and P, often assumed but seldom assessed (Bégin and Roff, 2004).

Comparing P and FA matrices has been used as an indirect test of the relationship between canalization and developmental stability: similar patterns of shape variation would be indicative of a similarity in the processes generating them (e.g., Klingenberg and McIntyre, 1998; Debat et al., 2000; Breuker et al., 2006). Canalization appears nonetheless more adequately measured after controlling for genetic and environmental variation (Hallgrímsson et al., 2018). Environmental variation is not controlled in our design besides randomization across individuals, and non-additive variance components are not estimated but in any case E appears more adequate than P to measure and compare canalization to developmental stability. E precisely describes the patterns of the shape variation that is used in the additive genome scan but it differs from the residual variation used in the epistasis tests where this non-additive variation was modeled.

There are many methods and metrics, more or less redundant, that allow comparing matrices (e.g., Teplitsky et al., 2014; Roff et al., 2012). A global distinction can be made between (1) methods deriving a single measure of global similarity (e.g., distances, correlations), which may or may not be sensitive to scaling and orientation, (2) methods based on the individual spectral decomposition of each matrix (e.g., comparison of the first eigenvectors), which can be very sensitive to the orientation, and (3) methods based on a common spectral decomposition (e.g., Krzanowski’s subspace analysis), which capture the overall similarity together with a decomposition of the matrix divergences. Subspace analyses [Krzanowski (1979); see Aguirre et al. (2014) for a recent application to G matrices] are much more informative than single metrics and are not biased by differences in orientation, contrary to comparisons based on individual spectral decomposition, which might be misleading because of trivial rank-order permutations or rotations of axes. Covariation patterns can indeed be globally similar despite the occasional lack of a strict match between PCs.

To assess similarities among patterns of covariation, we first computed the Krzanowski subspace of the set of the four matrices Mi:{P, G, E, FA} matrices. In addition to the overall simplicity of the estimations, this method uses the data contained in the covariance matrices and does not require further assumptions. The common subspace among the four covariance matrices is found with a simple equation: H=i=1pAiAit, where Ai is a matrix with a subset of the eigenvectors of Mi as columns. For the eigenvalues Δ of H less than p (here p = 4, the number of matrices to compare), at least one population cannot be inferred from a linear combination of the eigenvectors of Mi defining the subspace. We can estimate how similar the corresponding eigenvector bk of H is to each population’s subspace with the angle δi=cos1{(bktAiAitbk)0.5}. This estimation was obtained using the evolqg R package (Melo et al., 2016).

For comparison with earlier studies (e.g., Debat et al., 2000), we also computed overall similarity measures based on distances, correlations, and differences in integration. We then checked for a strict similarity of the main axis of variation computing the angles among the first eigenvectors. The overall distance among the four covariance matrices was measured as their pairwise Euclidean distance dE(Si,Sj)=||SiSj||=trace{(SiSj)t(SiSj)}, where Si is the sample covariance, symmetric, and positive semi-definite (Dryden et al., 2009). This distance is one of the possible measures applied in morphometrics (Klingenberg, 2013). We also computed matrix correlations based on element-wise correlations (Klingenberg and McIntyre, 1998). Both Euclidean distances and matrix correlations were based on the upper-triangular parts of the matrices only (including the block diagonal) because the off-diagonal elements would have appeared twice otherwise (Klingenberg and McIntyre, 1998). Significance of matrix correlation was tested by 10,000 random permutations of the landmarks. Triplets of xyz-coordinates were permuted together to preserve their association at each landmark.

The structure of the four matrices was further compared based on their degree of integration. Integration describes the strength of covariation among shape variables: the stronger the integration, the higher the variance that can be explained by a single linear combination of the shape variables (i.e., the first eigenvector). The strength of integration can thus be estimated by the unequal distribution of variance across dimensions of the shape space (i.e., decrease of eigenvalues; Wagner, 1984). We assessed integration accordingly as the ratio of the first two eigenvalues (referred to as the eccentricity, Jones et al., 2003).

Finally, we assessed the similarity of the patterns of maximal variation by estimating the angles among the first eigenvectors. Significance testing was achieved by comparing these angles to a set of 100,000 random angles of the same dimensionality (Klingenberg and McIntyre, 1998).

Shape spaces for FA and symmetric shapes are in orthogonal subspaces (Klingenberg et al., 2002) and unpaired landmarks were therefore discarded before comparisons. Comparisons between matrices derived from the symmetric shapes were also based on half configuration: one half of the paired configuration plus the unpair landmarks, as the paired landmarks would have appeared twice otherwise.

Results

Canalization Is Associated With an Epistatic Network

No association was found between genetic markers and shape variance when the additive genetic scan was used (Figure 2). In contrast, the epistasis test identified a preliminary set of 118 genomic markers (p < 10-6) to be explored further in pairwise analyses. The genetic architecture of skull shape canalization thus appears purely epistatic.

FIGURE 2
www.frontiersin.org

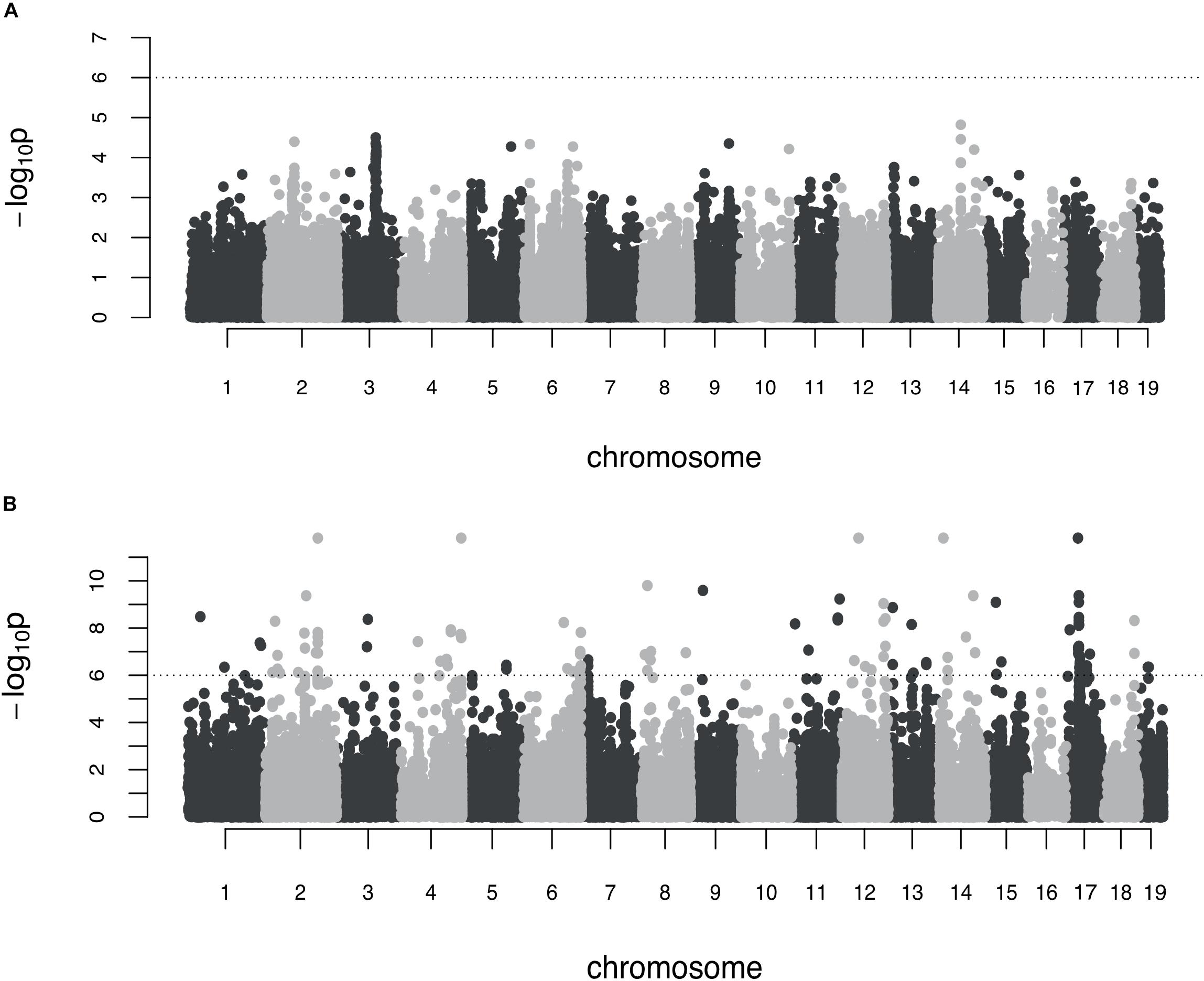

Figure 2. Genome-wide association on the symmetric shape variance (environmental canalization). (A) Additive genome scan. Each dot corresponds to the LOD score of one marker and the dashed line represents the significance threshold; (B) marginal epistasis genome scan (Davies method). The dashed line corresponds to the threshold set to select marker for subsequent pairwise analyses.

TABLE 1
www.frontiersin.org

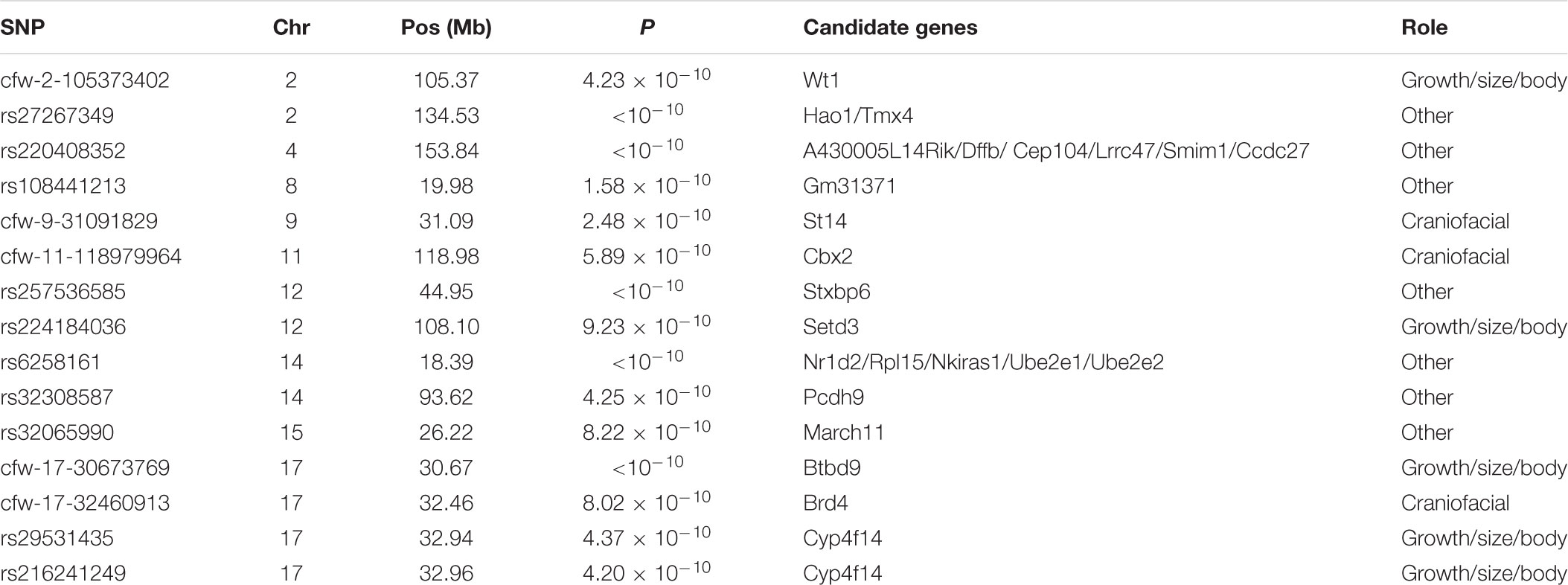

Table 1. Top-associated SNP in marginal epistasis genome scan (p < 10-9).

From the 15 markers that best associate with the general epistatic variance (p < 10-9), three overlapped with genes known to contribute to craniofacial variation, five with genes having an effect on growth, and seven with other protein-coding genes (Table 1). Although only two of the markers (rs216241249 and rs29531435) seemed to overlap regarding their best candidate gene, these 15 best-associated markers did not appear equally spread across the genome (four markers in chromosome 17 and two in chromosomes 2, 12, and 14).

In the second step of the epistasis test, where specific pairwise interactions were associated with shape symmetric variance, 385 pairwise interactions involving 111 genomic markers (80 when the markers with equal sets of candidate lists were merged) showed significant associations. These significant genomic markers overlapped with 893 candidate genes, 413 of which were protein-coding genes. Fisher’s exact test showed a significant over-representation of craniofacial genes (p = 2.1 × 10-6) as well as growth genes (p = 3.07 × 10-4) among these significant interactions. For example, one marker detected in the three most significant pairwise interactions was found overlapping with Rapgef2, a gene involved in abnormal size and neural features (Wei et al., 2007). From the significant 111 markers, 30 were classified as “Craniofacial,” 33 as “Growth,” 43 as “Other,” and 5 as “Regulatory.” These proportions were similar even after merging regions that overlapped: out of 80 markers 16 were classified as “Craniofacial,” 23 as “Growth,” 36 as “Other,” and 5 as “Regulatory” (χ2 = 1.68, p = 0.64).

Among the genomic markers appearing in significant pairwise interactions, 10 appeared in more than 16 interactions (Figure 3). Two of these highly connected markers overlapped with genes involved in craniofacial features, Tnf (20 interactions) (Alayan et al., 2007) and Ddr1 (17 interactions) (Dullin et al., 2007). The Tnf gene is indeed near Hsp1a, which encodes for the chaperon protein Hsp70: a protein that has been suggested to play a role in canalization in Drosophila (Takahashi et al., 2010). Two other of these markers were also overlapping growth genes as Rapgef2 and Cyp4f14 (Blake et al., 2017). The latter is the most connected candidate gene when we merged the genomic markers with the same candidate gene lists. Within this reduced list of genomic markers we also found Tnf and Hao1/Tmx4 (Visel et al., 2004; Masuda et al., 2009), as well as other new candidate genes as Brd4 (Houzelstein et al., 2002), Kras (Hernandez-Porras et al., 2014), or Plcb1 (Ballester et al., 2004).

FIGURE 3
www.frontiersin.org

Figure 3. Gene network based on the significant pairwise interactions obtained with the marginal epistasis test. Each node corresponds to the best candidate gene of one marker and its color represents the function of that candidate gene: candidate genes found in MGI HMDC databases for “Craniofacial” and “Growth/size/body” functions are classified in these two groups, the rest of protein-coding genes are labeled as “Other” and those genes that are not protein-coding are classified as “Regulatory.” Black circles correspond to candidate genes with high centrality measures and are discussed in the main text.

The analysis of the network obtained from the pairwise interactions showed different features among the epistatic candidate genes (Figure 4). Rapgef2 and Hsp1a had the largest hub scores, so they showed the largest connectivity within the network. Because hub scores and betweenness centrality are correlated, these two candidate genes also had very high betweenness centrality, although Hsp1a showed the lowest hub score and the highest betweenness centrality among the two. Ddr1 and Hao1 also showed very high centrality although relatively low hub scores: these genes might not interact much but they might interact with other genes that do interact a lot and therefore both Ddr1 and Hao1 may regulate important hubs. The power centrality is different, and candidate genes as Zfp808 and A430005L14Rik (on the positive side) or Smco2 (Blake et al., 2017) and Notch3/Brd4 (on the negative side) (Karst et al., 2010) showed high power centrality but low hub scores. We should note also Setbp1 (Piazza et al., 2018) which presented high power centrality and average hub score.

FIGURE 4
www.frontiersin.org

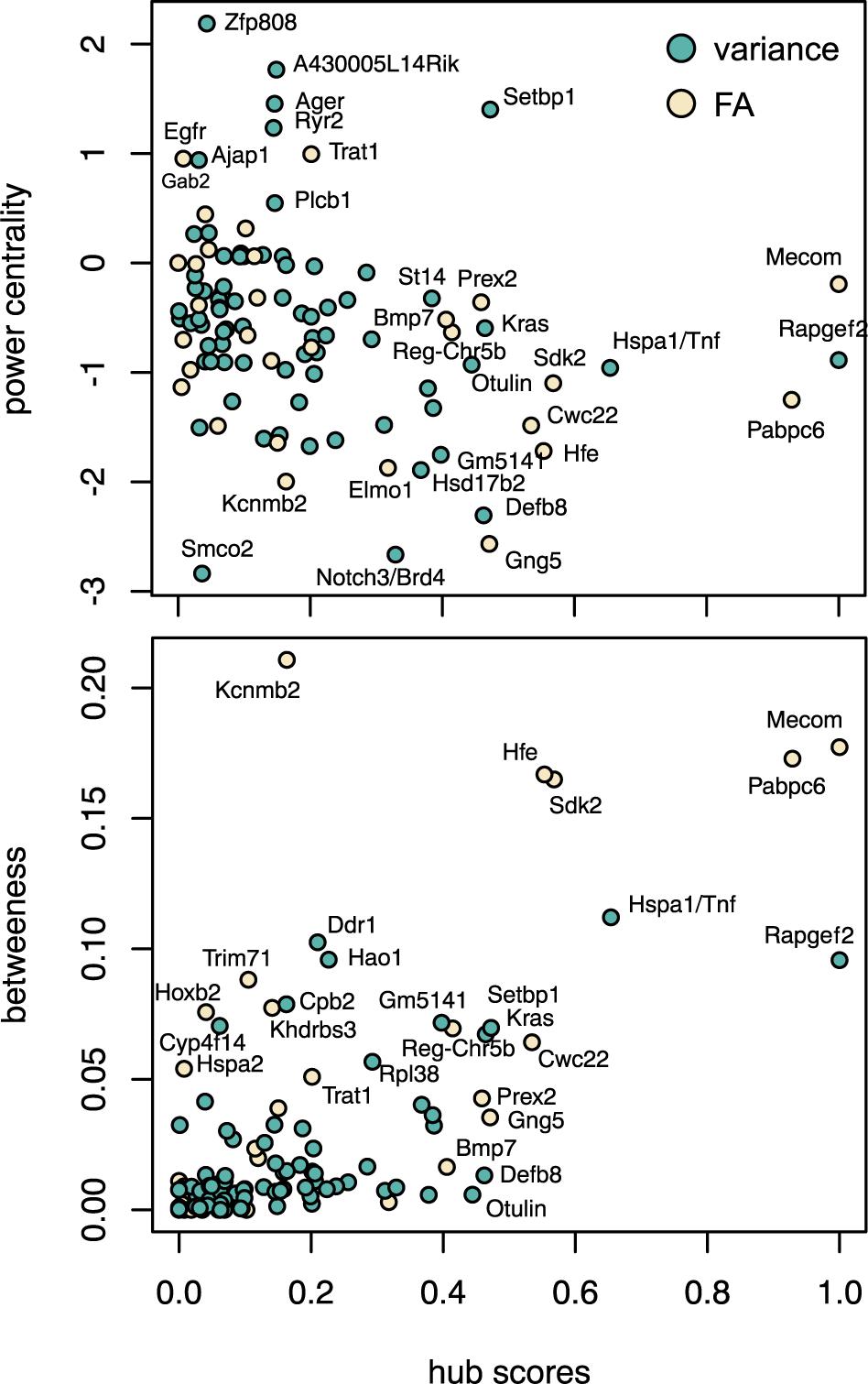

Figure 4. Centrality of interactive gene candidates in developmental stability and the canalization networks based on hub scores, power centrality, and betweenness.

The Genomic Markers for Mean Shape, Canalization, and Developmental Stability Are Different

In a previous study, Pallares et al. (2015a) detected 17 loci additively associated with the skull mean shape that explained about 45% of the total phenotypic variance. For developmental stability, Varón-González and Navarro (2018) did not detect any additive effect but rather a large number of loci epistatically associated with FA. From these two studies, it appears that the mean shape and its developmental stability do not share the same genetic architecture nor the same loci (Varón-González and Navarro, 2018).

None of the significant epistatic markers associated with canalization were common to mean shape or developmental stability. Indeed, when instead of the genomic markers we compared the genomic regions associated with each significantly associated marker (see the section “Materials and Methods,” Investigating Gene Ontology and Representing Genetic Networks), we only obtained 11 common protein-coding candidate genes between canalization and developmental stability: Arhgef4 (Blake et al., 2017), Chd5 (Diez-Roux et al., 2011), Kcnab2 (Perkowski and Murphy, 2011), Nphp4 (Won et al., 2011), Plekhg3 (Diez-Roux et al., 2011), Sptb (Bernstein, 1980), Churc1 (Diez-Roux et al., 2011), Fntb (Blake et al., 2017), Rab15 (Blake et al., 2017), Max (Hspa2) (Shen-Li et al., 2000), and Gpx2 (Diez-Roux et al., 2011).

Despite this overlap, the structure of the epistatic networks was very different: the common protein-coding genes did not show similar hub scores and connectivity (Figure 4). For FA, the candidate genes Mecom (Hoyt et al., 1997) and Pabpc6 (Diez-Roux et al., 2011) have the highest hub scores and very high betweenness centrality, equivalently to Rapgef2 and Hsp1a for canalization. We should note that Mecom and Setbp1, which have high power centrality in the canalization network, are thought to interact in a positive feedback loop (Piazza et al., 2018). The candidate genes that showed the highest and lowest power centrality within the FA network, Egfr (Miettinen et al., 1999), Gab2 (Wada et al., 2005), and Trat1 (Kolsch et al., 2006) on the positive side and Gng5 (Moon et al., 2014), Kcnmb2 (Martínez-Espinosa et al., 2014), and Elmo1 (Blake et al., 2017) on the negative side, were not shared by the canalization network either.

Genetic, Phenotypic, and FA Covariance Matrices Are Mostly Similar

The analysis of the GP-1 matrix showed that heritability is spread across many directions of the shape space (Figure 5b). Most of these directions (91%) showed heritability higher than 0.2 and a third of them (21 dimensions) accounted for more than 1% of the total additive variance. This means that these directions are actually operational for selection since they present substantial additive genetic variance.

The main patterns of variation appeared very similar among all matrices: the Kraznowski subspace analysis returned almost perfect Δ values for about half of the subspace (Δ1-5 > 3.99 and D1-11 > 3.90, which must be compared to a maximum value of 4; Figure 5c). For these dimensions, the angles δ between the subspace eigenvectors and the individual matrices were very small (δ1-5 < 5° and δ1-11 < 14°) showing the very good agreement between the variation described in the subspace and each reduced matrix (Figure 5d). The D value dropped afterward due to the divergence of the FA matrix, its δ angles deviating more, until reaching a value of 3 at dimension 22 over the 24 possible dimensions. When FA was excluded, the maximum D value (here 3) was obtained for all dimensionalities. These results suggest very similar patterns of variation among the first matrices eigenvectors, but then a marked difference of FA when the dimensionality becomes larger.

FIGURE 5
www.frontiersin.org

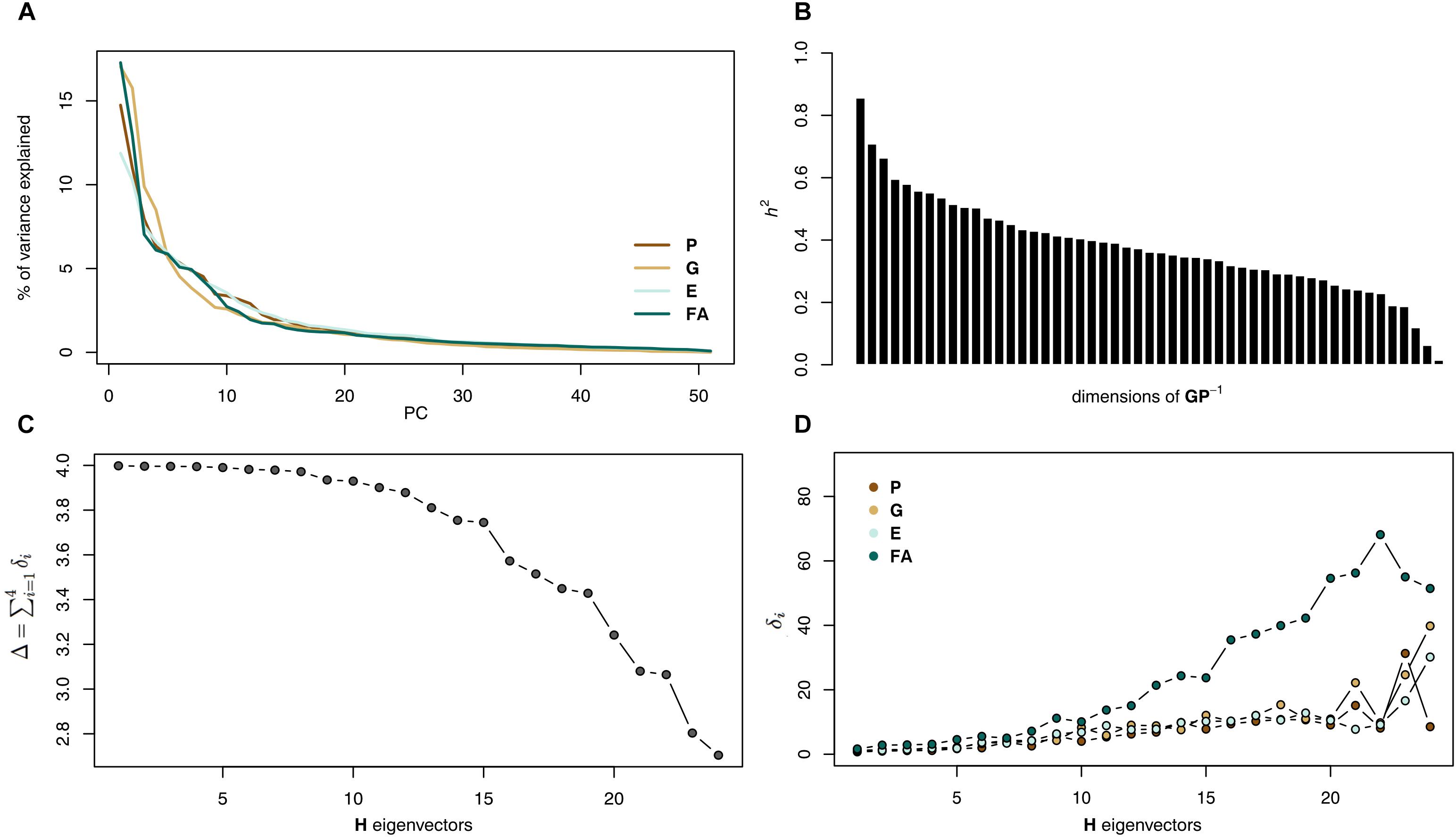

Figure 5. Heritability and covariance matrices analyses. (A) Heritability results: amount of heritability for each dimension. (B) Amount of variation for each dimension in the G, FA, and P covariance matrices. (C) Results from the Krzanowski analysis: variation of D (left) and of the angles δ (right) with the inclusion of eigenvectors. (D) Two-dimensional representation of the G, FA, and P covariance matrices. G shows less eccentricity (more integration) than the FA and P matrices and G and P shows a more similar pattern of variation (vertical in this example) than any of them with FA.

Analyses based on overall similarities between matrices suggested that FA is quite different (Table 2). Both the Euclidean distance and the element-wise matrix correlation supported this. Including the unpaired landmarks did not affect the comparison of the PGE matrices. P and FA matrices showed similar eccentricity (P = 1.80 and FA = 1.78), while the G matrix showed a more spherical shape (1.17) and E was intermediate (1.34). The greater sphericity of G is apparent beyond the two first PCs with a slower decreasing of the proportion of variance explained by each PC for this matrix than for P, E, and FA (Figure 5a). When the midline landmarks were added, G appeared more similar to P (2.85 and 2.69, respectively) and more concentrated than E (2.18) and FA was even more concentrated (3.76).

The comparison of the angles between the first eigenvectors yielded striking differences: P, G, and E eigenvectors were more similar than random vectors (Table 2) but this was not the case with the FA vector, which was no more similar to P, G, and E vectors than to random vectors. This result was partly due to a rank-order permutation between the first PCs as the angles between FA PC1 and PC2 from P, G, and E (74.2, 55.8, and 67.5°, respectively) are smaller than those observed between the PC1s, and the vectors are significantly more related to each other than two random vectors. The matches are nonetheless not perfect and it thus appears more adequate to consider several PCs altogether to get a less biased comparison of the patterns of shape variation.

Krzanowski subspace analysis should be favored over other methods: by estimating shared linear combinations it handles many of the possible trivial transformations that could arise between matrices and bias the comparison. Overall, we thus report a very strong congruence between the patterns of shape variation as described by the different matrices, and in particular between individual variation and FA within a large subspace, despite the limited similarity across major axes (PCs). The congruent pattern of shape changes shared across these axes (i.e., the eigenvectors of the subspace H) corresponds mainly to an expansion of the posterior part of the skull (Figure 6).

FIGURE 6
www.frontiersin.org

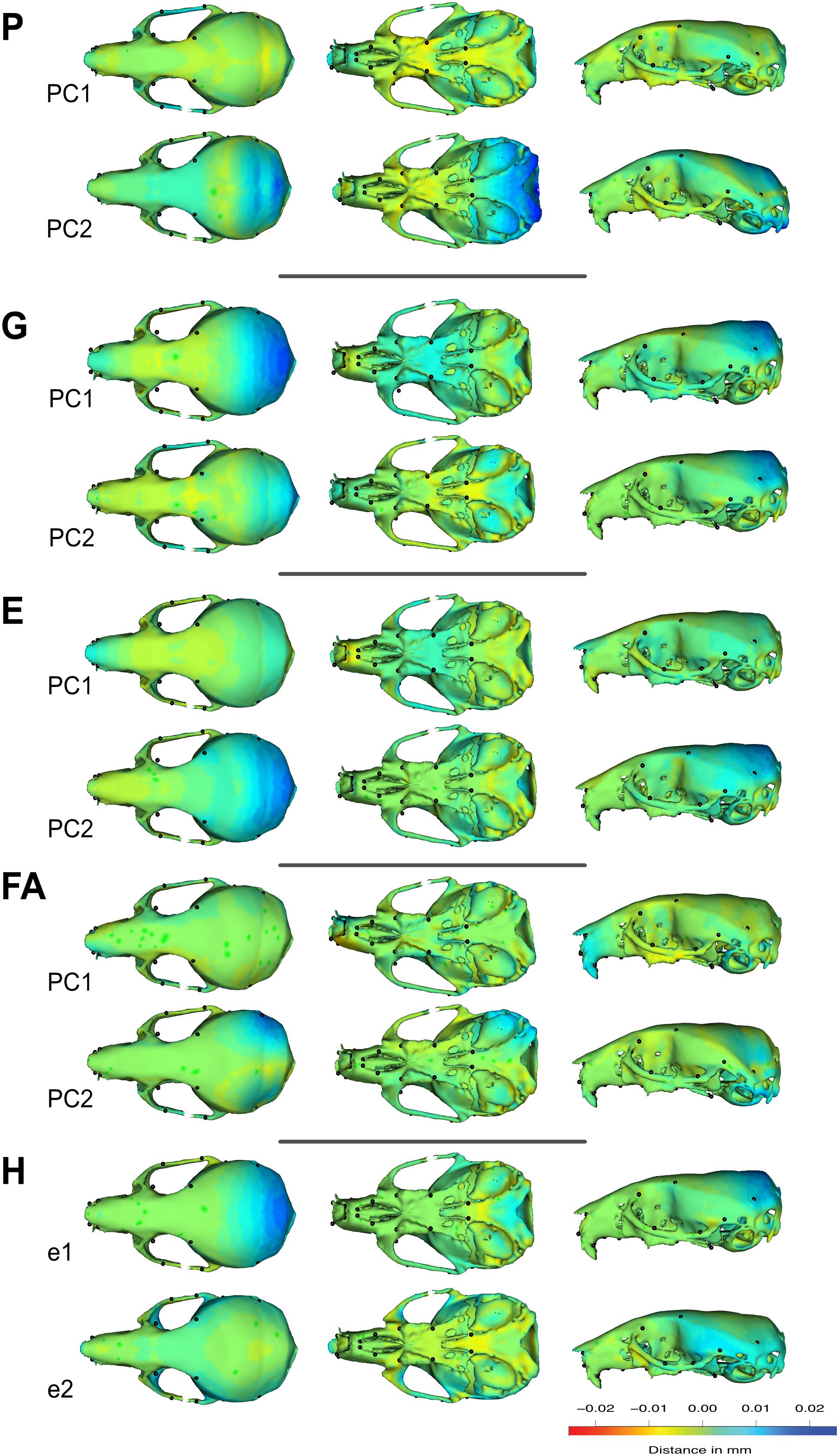

Figure 6. Visualization of the shape changes associated to the first eigenvector of the G, FA, and P matrices. Here, we present variation in three perspectives of the same skull. Color differences represent the areas and intensity of the variation expressed by the first or second eigenvector of the matrices (green: no variation; blue: expansion compared to the mean shape; red: contraction compared to the mean shape). As symmetric and asymmetric spaces are orthogonal, the estimation of the first eigenvector excluded the unpaired landmarks located on the mid plane of the skull. Comparison between FA patterns and others should be done on only one side of the skull.

Discussion

Skull shape is a polygenic multivariate trait associated with a vast number of genes and regulatory elements contributing to craniofacial and growth developmental pathways. Despite the large amounts of non-linear dynamics and epistasis in these pathways (Hallgrímsson et al., 2014) loci acting additively were detected (Pallares et al., 2015b). In this study, we found that developmental stability and canalization of skull shape are also influenced by a large number of genes, a set significantly enriched for protein coding genes known to contribute to craniofacial diseases, but contrary to mean shape, they present an entirely epistatic genetic architecture. The genetic networks underlying the two components of phenotypic robustness are strikingly different, as they share very few candidate genes. Developmental stability and canalization however showed very similar patterns of phenotypic variation.

Methodological Limits: Matrix Comparisons and Higher Order Epistasis

Matrix Comparisons

It is conceivable that part of the incongruence among studies investigating the relationship between canalization and DS might be related to the fact that similarities among patterns of variation are sometimes inferred strictly on the first few PCs (e.g., Klingenberg and McIntyre, 1998; Debat et al., 2000). The present study shows that the main pattern of covariance might be similar, with a nevertheless marked divergence between the PCs (e.g., FA PC1 is clearly different, but the global subspace is very similar). This is simply due to a global rotation of the axes: considered together, they contain roughly similar information, but they individually depict different aspects of shape variation (i.e., the variation is differently spread over the PCs). Although such rotation nevertheless indicates a phenotypic difference, it can completely mask the overall similarity. On the other hand, distances or correlation and subsequent multivariate ordination of matrices based on such metrics (e.g., Debat et al., 2006; Mitteroecker and Bookstein, 2009) may also be misleading because of their over-integrative nature.

TABLE 2
www.frontiersin.org

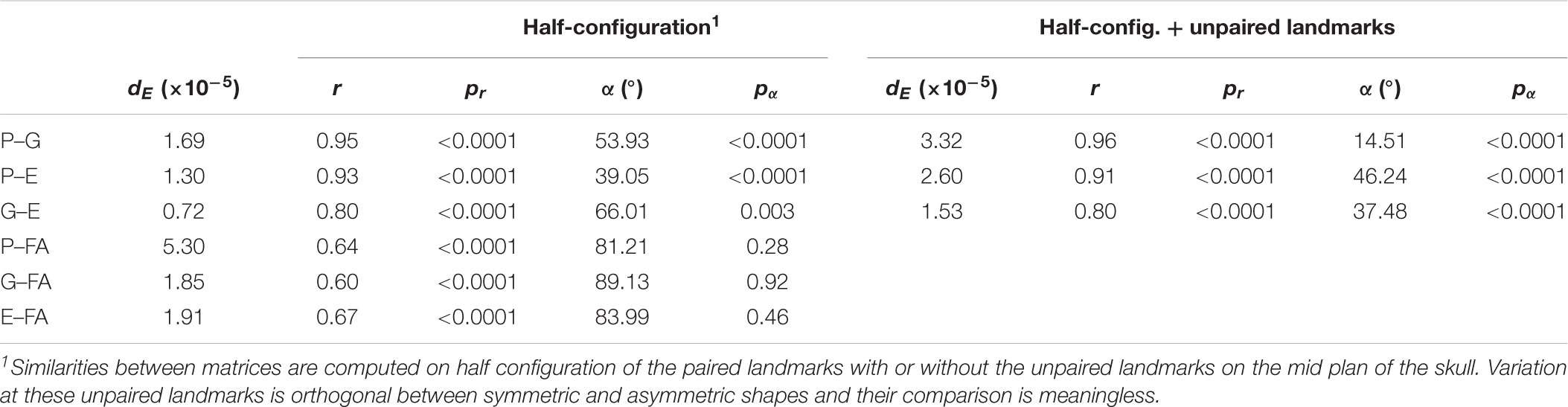

Table 2. Similarities between matrices.

Comparisons allowing both the assessment of the overall similarity and a hierarchical evaluation of this similarity such as the Krzanowski subspace should systematically be performed in conjunction with individual PCs or distance comparisons. In the present study, the subspace analysis indicated very strong similarities among all matrices for the main dimensions, although FA was more divergent at higher dimensions. This divergence could be genuine but could also result from the greater uncertainties in FA estimation compared to among-individual variation. Results from matrix distances or correlations depict a similar picture of relative similarities but miss the large common ground for the main patterns of variation. Emphasizing the importance of such a slight divergence would lead to consider canalization and developmental stability as distinct. On the contrary, the overall similarity observed among the main patterns of FA and phenotypic covariances suggests that variation stemming from different sources is similarly channeled throughout development along the same lines of shape variation in adults. This results plead for a similarity in the channeling processes (see below).

Higher Order Epistasis

Could the discrepancy between mean, canalization and development stability genetic networks be due to the fact that only first-order interactions were considered? This might indeed limit the resolution of the inferred networks: using higher order interactions might potentially allow detecting many additional genes and genetic interactions with connections reflecting smaller effects. As explained in the recent omnigenic theory (Boyle et al., 2017), pushed at its limit, this approach would ultimately identify networks including most or even all the genes of the genome, as all the genes are in a way or in another related to the development of complex traits. In that case, the direct comparison of the node networks might not be very informative and sensible information may rather be searched in wiring motifs for example. In practice, given the large differences in the genome scans we have found between the mean shape and the components of shape robustness, we would not expect higher-order interactions to change our main results that large additive components are found for shape but not for shape robustness.

Mean Shape and Shape Variability Have Different Genetics Bases

The genetic architecture of skull shape has been extensively studied. Although epistatic effects have been occasionally reported when searched [e.g., Wolf et al., 2005, 2006; see Hallgrímsson et al. (2014) for a discussion], additive effects have been frequently found and frequently proposed to play a significant role in shape (Pallares et al., 2014, 2015b; Maga et al., 2015; Weinberg et al., 2018). In contrast, this study and previous studies on FA (e.g., Leamy and Klingenberg, 2005; Burgio et al., 2009) point at a purely epistatic genetic basis for both FA and individual variation, suggesting a different genetic basis for the skull mean shape and its variability.

Additive and epistatic variations are not mutually exclusive as they refer to two statistical models and some genes can show additive effects when they have a strong effect in their interactions (Mackay, 2014; Huang and Mackay, 2016). Inversely, purely additive effect on individual variance or FA could be too small to be detected with our experimental design. In addition, the complexity of developmental processes can mask additive signals if for example one molecule expressed later in development overwrites a previous phenotypic signal, a likely situation given the non-linear properties of development (Hallgrímsson et al., 2009; Green et al., 2017). Finally, additive effects have been found for phenotypic robustness in QTL experiments (Gonzalez et al., 2016). The genetic architecture for mean shape and shape variance might thus be more similar than suggested by our results.

The contrast between the strong additive effects found in Pallares et al. (2015a) and the fully epistatic basis detected here for shape variance and for FA (Varón-González and Navarro, 2018) suggests a genuine difference. The additive basis suggests that major genes critically influence mean shape. In contrast, the purely epistatic basis for shape variation suggests that variation is not controlled by major buffering genes as it has been sometimes proposed (e.g., Rutherford and Lindquist, 1998), but rather by a large set of interacting genes that includes previously described buffering genes (e.g., Hsp1a which is a hub gene in the canalization epistatic network). These genes would differently contribute to the expression of variance: some probably producing variance when others reduce it. This second view is in agreement with other experimental studies (e.g., Varón-González and Navarro, 2018) and theoretical work (e.g., Geiler-Samerotte et al., 2016, 2018).

Regulatory elements might play a particularly important role in robustness (e.g., Frankel et al., 2010; Osterwalder et al., 2018), which could contribute to the epistatic effects detected. MicroRNAs, in particular, have been proposed to impact robustness (e.g., Li et al., 2009). They are important actors of development (Hornstein and Shomron, 2006; Wu et al., 2009; Kittelmann et al., 2018) and, as regulators of genetic effects, they can explain the differential effects of the same genotypes in different genetic backgrounds (Percival et al., 2017): e.g., by regulating protein levels in the system and therefore reducing variance (Siciliano et al., 2013). Gene enhancers might be duplicated to confer robustness against mutations (Frankel et al., 2010; Osterwalder et al., 2018) and that could explain why epistatic patterns are overwhelmingly detected for canalization and developmental stability.

Canalization and Developmental Stability: (Mostly) Similar Processes Buffering Different Sources of Variation?

Whether canalization and developmental stability correspond to the same biological process is a longstanding question. Here we show that, at least in the mice skull, they both rely on a polygenic epistatic basis and present a similar phenotypic expression, as captured by the correspondence in the patterns of shape variation among individuals (canalization) and within individuals (FA, developmental stability). Such a phenotypic resemblance is expected under the assumption of a common biological ground (Klingenberg and McIntyre, 1998; Debat et al., 2000). Yet, the similarity does not extend to the nature of the loci involved: skull canalization and developmental stability appear to involve different genes. The vast majority of the candidate genes identified were different and the network configurations (number and position of nodes) also differed.

Empirical analysis of the developmental origin of shape variation in mice (Hallgrímsson et al., 2009; Labonne et al., 2014) suggests that the patterns of covariation are variable throughout development. The similarity in the patterns of shape individual variance and shape asymmetry reported in this study suggests that variation is somehow constrained, channeled during development, along the same direction of phenotypic change. Such a channeling, that shows through the stereotyped patterns of variation produced, regardless the origin of the input variation, stochastic (asymmetric variation), or genetic and environmental (among individuals variation), is developmental robustness (Cheverud, 1982; Young and Badyaev, 2007; Hallgrímsson et al., 2009; Gonzalez et al., 2014). It suggests that the same processes influence developmental stability and canalization. In the same way, and keeping in mind that E not only depicts environmental effects but also non-additive genetic effects, the resemblance of E and G supports the view that genetic and environmental canalization rely on similar developmental processes, a contentious issue (e.g., Meiklejohn and Hartl, 2002; Siegal and Leu, 2014). Finally, the similarity of G and P suggests that P could be a valid surrogate of G in situations where G cannot be estimated (see discussions in Marroig and Cheverud, 2001). It suggests that the environmental component of shape variation included in P but not G is not very different from the genetic component, also pointing at a similarity of genetic and environmental canalization. Whether these results extend to other traits, models, and even mice populations is however unknown and any generalization should be considered cautiously.

In this context, the fact that the genetic networks for canalization and developmental stability are qualitatively different is difficult to interpret. If robustness is a general property of the developing skull similarly buffering individual variation and asymmetry, then we might expect similar or at least overlapping genetic architectures. Does the reported genetic difference suggest that canalization and DS are different processes? A difficulty is that the observed variation reflects both the sources of variation and the developmental processes modulating it: the difference between the two networks might thus result either from a difference in the sources of variation or from a difference in the developmental processes affecting it (or both, as distinguishing the sources of variation from the processes affecting it can be difficult). The sources of variation are likely somewhat different within and among individuals: specifically, developmental noise, originating in various phenomena, including stochastic gene expression or stochastic cellular divisions, is expected to have a higher relative importance for FA than for individual variation, which would in turn be dominated by processes with larger effects. In terms of developmental processes, genes affecting genetic or developmental noisiness [e.g., miRNA for stochastic gene expression (Schmiedel et al., 2015)]; factors involved in the regulation of the cell cycle for stochastic cellular variation (Neto-Silva et al., 2009; Debat et al., 2011; Faradji et al., 2011; Debat and Peronnet, 2013) might thus be more readily detected in the FA association mapping than for individual variation, thereby producing the observed difference between the networks. Canalization and developmental stability might thus partly differ in the processes generating and regulating some specific sources of variation among and within individuals. The channeling effect on shape variation might then occur at higher levels, or later on during morphogenesis, e.g., during tissue interactions or via the remodeling effects of mechanical demand and erase those differences (see Hallgrímsson et al., 2009).

Conclusion

The genetic architecture of the skull shape canalization appears entirely epistatic and composed by a large proportion of craniofacial genes, as was also found for developmental stability (Varón-González and Navarro, 2018). In contrast, a large number of loci are additively associated with skull mean shape in mice (Pallares et al., 2015b) suggesting that skull shape and its variability rely on different genetic bases. The two genetic networks underlying canalization and developmental stability differ entirely in the genes involved apparently pointing at two different buffering processes. This fundamental genetic difference contrasts with the similarity in the patterns of shape variation associated with these two components of robustness. The channeling of the produced variation within the same developmental pathways could explain that despite originating from different loci these variations are expressed in a similar fashion in the skull.

Canalization and developmental stability likely involve various processes acting at various scales and times during development. Some of these processes might be specific to the type of variation considered and would thus be different between developmental stability and canalization; other processes, like bone remodeling in reaction to biomechanical demand, might jointly alter variation both among and within individuals, reshaping covariation patterns characteristic of adults structures – these would contribute to both developmental stability and canalization. Such a mix of shared and specific processes might have contributed to the diversity of results obtained in the literature comparing those two components of phenotypic robustness.

Data Availability

The datasets analyzed for this study can be found in the Dryad repository (https://datadryad.org//resource/doi:10.5061/dryad.k543p) (Pallares et al., 2015a).

Ethics Statement

Here we re-used the data collected for a previously published study (Pallares et al., 2015b), so no new animal manipulations have been carried for this study.

Author Contributions

NN and CV-G designed the study. LP collected the data. NN performed the analyses. VD contributed to the discussion of the results. All authors contributed to writing the manuscript and approved its final version.

Funding

The data collection in this project was supported by a National Institute of Health grant (R01GM097737) received by Abraham A. Palmer from the University of California San Diego.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the editor and the two reviewers for their constructive comments. Calculations were performed using HPC resources from PSIUN CCUB (Centre de Calcul de l’Université de Bourgogne).
