Genetic Identification of Edible Bird’s Nest in Thailand Based on ARMS-PCR

  • 1. School of Nursing, Guangzhou University of Chinese Medicine, Guangzhou, China

  • 2. Shenzhen Hospital of Integrated Traditional Chinese and Western Medicine, Guangzhou University of Chinese Medicine, Shenzhen, China

  • 3. School of Physical Education and Health, Guangzhou University of Chinese Medicine, Guangzhou, China

  • 4. Laboratory Animal Center, Guangzhou University of Chinese Medicine, Guangzhou, China

  • 5. School of Pharmaceutical Sciences, Guangzhou University of Chinese Medicine, Guangzhou, China

  • 6. Guangzhou Tongkang Pharmaceutical Co., Ltd., Guangzhou, China

  • 7. Guangdong Provincial Key Laboratory of New Drug Development and Research of Chinese Medicine, Mathematical Engineering Academy of Chinese Medicine, Guangzhou University of Chinese Medicine, Guangzhou, China

  • 8. Guangdong Yunfu Vocational College of Chinese Medicine, Yunfu, China

Abstract

Edible bird’s nest (EBN) is a popular delicacy in the Asian Pacific region originating from Indonesia, Malaysia, Thailand and Vietnam, which consist of various potential medicine value in Traditional Chinese Medicine (TCM). Thailand is one of the main exporters of EBN. However, the genetic information of EBN, a key part of molecular biology, has yet to be reported in Thailand. It is necessary to explore the genetic information of EBN in Thailand based on a quick and simple method to help protect the rights and interests of consumers. This research aimed to systematically evaluate different methods of extracting EBN DNA to improve the efficiency of the analysis of cytochrome b (Cytb) and NADH dehydrogenase subunit 2 (ND2) gene sequences, the establishment of phylogenetic trees, and the genetic information of EBN in Thailand. Additionally, we aimed to develop a quick and simple method for identifying EBN from different species based on the genetic information and amplification-refractory mutation system PCR (ARMS-PCR). By comparing the four methods [cetyltrimethylammonium bromide (CTAB), sodium dodecyl sulfate (SDS), kit and guanidinium isothiocyanate methods] for EBN extraction, we found that the guanidinium isothiocyanate method was the optimal extraction method. Phylogenetic trees generated on the basis of Cytb and ND2 gene analyses showed that 26 samples of house EBN and 4 samples of cave EBN came from Aerodramus fuciphagus and Aerodramus maximus, respectively. In addition, to distinguish different samples from different species of Apodiformes, we designed 4 polymerase chain reaction (PCR) amplification primers based on the ND2 gene sequences of A. fuciphagus and A. maximus. The ARMS-PCR results showed band lengths for A. fuciphagus EBN of 533, 402, and 201 bp, while those for A. maximus EBN were 463, 317, and 201 bp. Collectively, the results showed that ARMS-PCR is a fast and simple method for the genetic identification of EBN based on designing specific original identification primers.

Introduction

Edible bird’s nest (EBN), produced by swiftlets of the Aerodramus genus (mainly Aerodramus fuciphagus and Aerodramus maximus) is constructed from viscous, sticky secretions of mucin glycoprotein from a pair of sublingual glands beneath the tongue of swiftlets (Looi et al., 2017). EBN has been esteemed as a nutritious food since the Yuan dynasty in China, which consist of various potential medicine value in Traditional Chinese Medicine (TCM). It is widely distributed in Indonesia, Malaysia, Thailand, Huaiji, and other Southeast Asian regions along the Pacific. Generally, there are two classification of EBN: house nests (found in swiftlet houses) and cave nests (found in natural caves) (Liu et al., 2020). With the development of the house nest industry and newly discovered properties of EBN, including neuroprotection and pro-conceptive effects, the consumption of EBN is gradually increasing (Careena et al., 2018; Albishtue et al., 2019). However, the EBN market value is estimated to range from $1000 to $50 000 per kg according to the swiftlet species (Liu et al., 2020). To increase profits, some unethical suppliers introduce cheaper adulterants into EBN, including high-protein and high-carbohydrate substances (Huang et al., 2019).

With the increasing occurrence of adulteration, there has been widespread interest in developing simple, sensitive and accurate techniques to check for the quality and authenticity of EBN, including physical and chemical techniques. For example, thermal analysis methods, gel electrophoresis technology, Fourier transform infrared spectroscopy (FTIR), Raman spectroscopy and the analysis of EBN fiber microstructure using arrays are applicable with the goal of the rapid authentication of EBN (Yang et al., 2014; Shim et al., 2017; Guo et al., 2018; Dai et al., 2020). Separation techniques have also been widely used, such as gas chromatography and liquid chromatography, which can analyze the composition of amino acids, saccharides, peptides, the polyunsaturated fatty acids, saturated fatty acids and mono-unsaturated fatty acids (Chua et al., 2015; Wong et al., 2018; Lee et al., 2020). At present, molecular biology is the most precise method for checking the quality of EBN. The loop-mediated isothermal amplification (LAMP) assay and polymerase chain reaction-restriction fragment length polymorphism (PCR-RFLP) analysis could be applicable for authenticating EBN (Lee et al., 2019; Liu et al., 2020). However, these techniques of genetic identification require expensive instrumentation and tedious sample preparation. On the other hand, the analysis of genetic information is generally carried out on the basis of sample-specific genes (Lee et al., 2017). Although, previous research have showed that the EBN samples in Indonesia derived from A. fuciphagus while the EBN samples in Huaiji derived from Apus nipalensis (Lin et al., 2009). EBNs from different producing areas show difference in genetic information. Thailand is one of the main exporters of EBN. However, the genetic information of EBN in Thailand has yet to be reported. Thus, it is urgent to develop a reliable and systematic method to clarify genetic information on EBN in Thailand.

Recently, many research suggested amplification-refractory mutation system PCR (ARMS-PCR) is the most rapid, reliable and cost-efficient genotyping method to identify genetic information (Alyethodi et al., 2018; Chao et al., 2018; Jin et al., 2020). Compared with PCR-RFLP, ARMS-PCR can detect the single nucleotide polymorphisms (SNPs) by four primers using only one PCR and needn’t restriction enzymes, probes and expensive equipment (Jin et al., 2020). Therefore, we hypothesized that ARMS-PCR was a reliable and simple method to identify genetic information on EBN in Thailand.

Materials and Methods

Samples and Chemicals

A total of 33 samples were purchased from Thailand, Indonesia and China by Guangzhou Tongkang Pharmaceutical Co., Ltd. (Table 1). Morphological identification was performed by Professor Xiaoping Lai and Professor Geng Li (Table 2). All samples were deposited in the Laboratory Animal Center of Guangzhou University of Chinese Medicine for future use. Cetyltrimethylammonium bromide (CTAB), Tris-base, Triton X-100, dichloromethane, isopropanol and Polyvinylpyrrolidone (PVP) were from Sigma-Aldrich Co., Ltd. (St. Louis, MO, United States). Sodium dodecyl sulfate (SDS) and ethylenediamine tetraacetic acid (EDTA) were from Biosharp Co., Ltd. (Hefei, Anhui, China). Buccal swab DNA extraction kit was from TIANGEN BIOTECH Co., Ltd. (Beijing, China). Guanidine isothiocyanate was from Solarbio Co., Ltd. (Beijing, China). Tris-HCl buffer and Tris-saturated phenol were from Leagene Biotechnology Co., Ltd. (Beijing, China). Dithiothreitol (DDT) was from Beyotime Co., Ltd. (Shanghai, China). Isoamylol and ethanol were from Sinopharm Chemical Reagent Co., Ltd. (Ningbo, China).

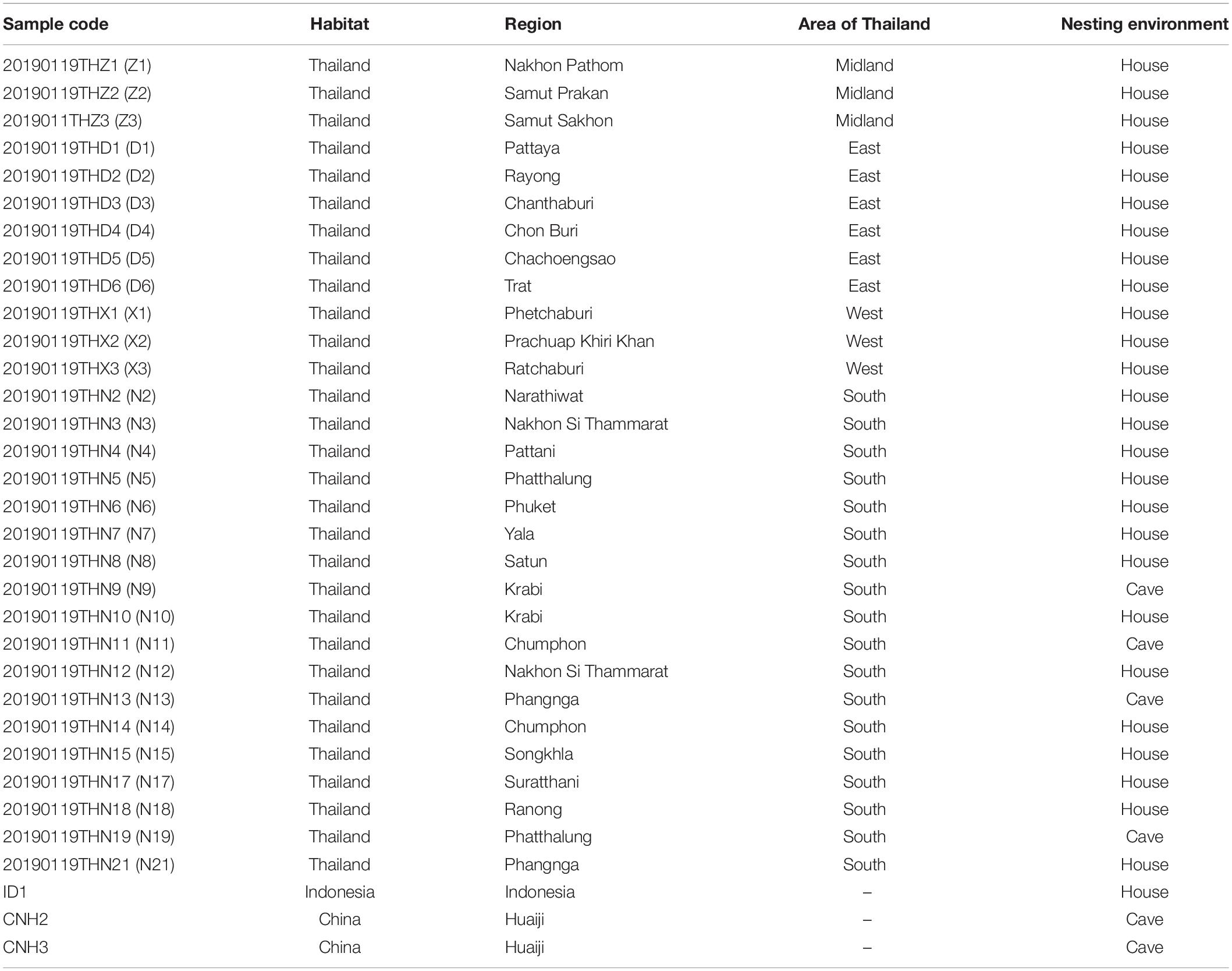

TABLE 1

Sample codeHabitatRegionArea of ThailandNesting environment
20190119THZ1 (Z1)ThailandNakhon PathomMidlandHouse
20190119THZ2 (Z2)ThailandSamut PrakanMidlandHouse
2019011THZ3 (Z3)ThailandSamut SakhonMidlandHouse
20190119THD1 (D1)ThailandPattayaEastHouse
20190119THD2 (D2)ThailandRayongEastHouse
20190119THD3 (D3)ThailandChanthaburiEastHouse
20190119THD4 (D4)ThailandChon BuriEastHouse
20190119THD5 (D5)ThailandChachoengsaoEastHouse
20190119THD6 (D6)ThailandTratEastHouse
20190119THX1 (X1)ThailandPhetchaburiWestHouse
20190119THX2 (X2)ThailandPrachuap Khiri KhanWestHouse
20190119THX3 (X3)ThailandRatchaburiWestHouse
20190119THN2 (N2)ThailandNarathiwatSouthHouse
20190119THN3 (N3)ThailandNakhon Si ThammaratSouthHouse
20190119THN4 (N4)ThailandPattaniSouthHouse
20190119THN5 (N5)ThailandPhatthalungSouthHouse
20190119THN6 (N6)ThailandPhuketSouthHouse
20190119THN7 (N7)ThailandYalaSouthHouse
20190119THN8 (N8)ThailandSatunSouthHouse
20190119THN9 (N9)ThailandKrabiSouthCave
20190119THN10 (N10)ThailandKrabiSouthHouse
20190119THN11 (N11)ThailandChumphonSouthCave
20190119THN12 (N12)ThailandNakhon Si ThammaratSouthHouse
20190119THN13 (N13)ThailandPhangngaSouthCave
20190119THN14 (N14)ThailandChumphonSouthHouse
20190119THN15 (N15)ThailandSongkhlaSouthHouse
20190119THN17 (N17)ThailandSuratthaniSouthHouse
20190119THN18 (N18)ThailandRanongSouthHouse
20190119THN19 (N19)ThailandPhatthalungSouthCave
20190119THN21 (N21)ThailandPhangngaSouthHouse
ID1IndonesiaIndonesiaHouse
CNH2ChinaHuaijiCave
CNH3ChinaHuaijiCave

Edible brd’s nest sample information.

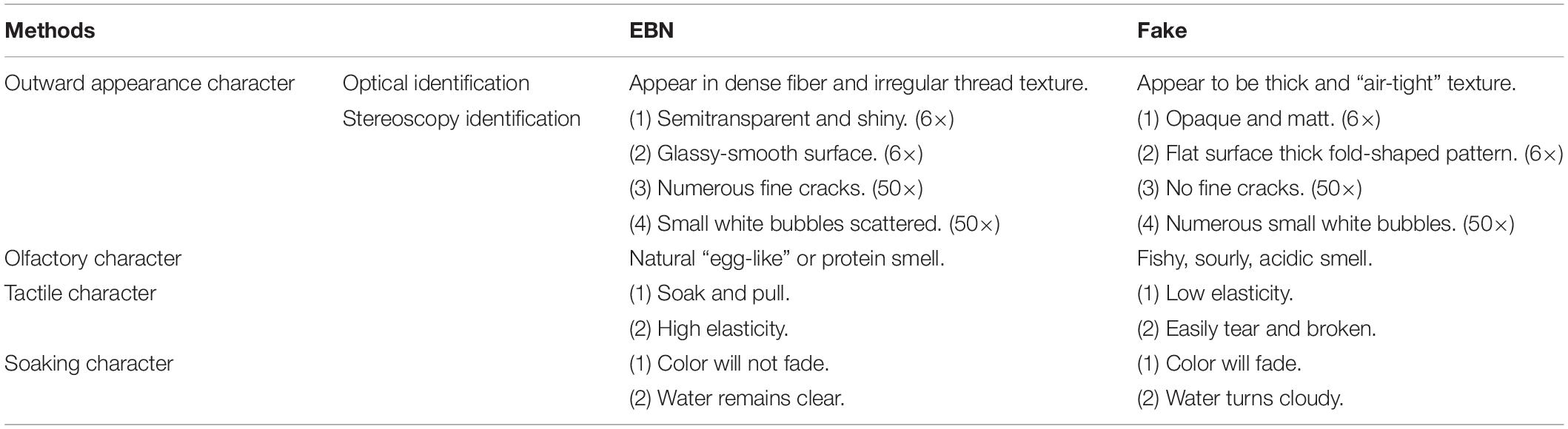

TABLE 2

MethodsEBNFake
Outward appearance characterOptical identificationAppear in dense fiber and irregular thread texture.Appear to be thick and “air-tight” texture.
Stereoscopy identification(1) Semitransparent and shiny. (6×)(1) Opaque and matt. (6×)
(2) Glassy-smooth surface. (6×)(2) Flat surface thick fold-shaped pattern. (6×)
(3) Numerous fine cracks. (50×)(3) No fine cracks. (50×)
(4) Small white bubbles scattered. (50×)(4) Numerous small white bubbles. (50×)
Olfactory characterNatural “egg-like” or protein smell.Fishy, sourly, acidic smell.
Tactile character(1) Soak and pull.(1) Low elasticity.
(2) High elasticity.(2) Easily tear and broken.
Soaking character(1) Color will not fade.(1) Color will fade.
(2) Water remains clear.(2) Water turns cloudy.

The key points of edible bird’s nest morphological identification.

DNA Extraction

All samples were ground in a mortar by freezing using liquid nitrogen. Then EBN powder was obtained and deposited at −80°C for further experiments. To develop an efficient and rapid DNA extraction protocol, four different methods for DNA extraction from EBN were evaluated. Total genomic DNA from the EBN samples was extracted using the CTAB method, SDS method, a buccal swab DNA extraction kit (kit method) and the guanidine isothiocyanate method (Attitalla, 2011; Kampmann et al., 2016; Green and Sambrook, 2018; Xia et al., 2019).

DNA Extraction via the CTAB Method

First, 25 mg of EBN powder from five samples such as N5, N6, ID1, CNH2, and CNH3, respectively, was dissolved at 65°C in 200 μL CTAB buffer (10 mM Tris-HCl, 0.8 mM EDTA, 0.49 M NaCl, 2% CTAB, 2% DTT, and 3% PVP) for 1 h. Then, an equal volume of phenol (Tris-saturated phenol, dichloromethane, isopropanol = 25:24:1, pH 8.0) was added to the supernatant. After centrifugation (10,000 r/min) for 10 min, the supernatant was collected, and an equal volume of dichloromethane/isoamylol (24:1) was added. Then, 5 M NaCl (1/20 of the volume) and absolute ethanol (2 times the supernatant volume) were added. The solution was sealed in an airtight manner and placed at −20°C for 30 min, followed by centrifugation at 7,000 r/min at 4°C for 5 min. The sediment was collected and washed with the following sequence: 70% 200 μL ethanol and 100% 200 μL ethanol. After air drying at room temperature, 30 μL of TE buffer (10 mM Tris-HCl and 1 mM EDTA, pH 8.0) was added to the samples, followed by incubation for 5 min, and the samples were then stored at −20°C.

DNA Extraction via the SDS Method

25 mg EBN powder (N5, N6, ID1, CNH2, and CNH3) was dissolved in 500 μL SDS buffer (10 M NaOH, 0.1 M EDTA, 0.1 M Tris-HCl, 0.5 M NaCl, 10% SDS, 2% DTT, and 3% PVP) and 200 μL TE buffer at 55°C for 1 h. Then, an equal volume of Tris-saturated phenol was added to the supernatant, followed by centrifugation (12,000 r/min) for 10 min. The supernatant was collected, and an equal volume of dichloromethane/isoamylol (24:1), 0.1 volume of 3 M sodium acetate and 2.5 times the volume of 100% ethanol were added successively. Then, the solution was sealed in an airtight manner and placed at −20°C for 120 min, followed by centrifugation at 12,000 r/min for 5 min. The sediment was collected and washed with 1 mL 70% ethanol. Finally, 30 μL TE buffer was added to the samples, followed by incubation for 5 min and storage at −20°C.

DNA Extraction With Buccal Swab DNA Extraction Kit

25 mg EBN powder (N5, N6, ID1, CNH2, and CNH3) was dissolved in 400 μL GA buffer and 20 μL protease K at 56°C for 1 h. Then, 400 μL GB buffer was added to the samples, which were placed at 70°C for 10 min. When the temperature of the solution dropped to room temperature, 200 μL of 100% ethanol was added. The solution and flocculent precipitate were removed from the adsorption column and centrifuged (12,000 r/min) for 30 s. Then, the sediment was washed in the following sequence: 500 μL GD buffer, followed by 600 μL PW buffer. After centrifugation at 12,000 r/min for 3 s, 30 μL TE buffer was added to the sediment, followed by incubation for 5 min and storage at −20°C.

DNA Extraction via the Guanidine Isothiocyanate Method

25 mg EBN powder (D1–6, Z1–3, X1–3, N2–15, N17–19, N21, ID1, CNH2, and CNH3) was dissolved in 200 μL TE buffer and 400 μL guanidine isothiocyanate buffer (5 M guanidine isothiocyanate, 0.1 M EDTA, 0.1 M Tris-HCl, 1.3% Triton X-100, and 3% PVP) at 55°C for 1 h. Then, 300 μL of saturated phenol and 300 μL of dichloromethane/isoamylol (24:1) were added to the solution. After centrifugation (13,000 r/min) for 10 min, the supernatant was collected, and an equal volume of dichloromethane was added. After centrifugation (13,000 r/min) for 10 min, isoamylol (0.8 volume) was added to the supernatant, which was then centrifuged (12,000 r/min) for 10 min. The sediment was collected and washed with 1 mL of 70% ethanol. Finally, the samples were dissolved in 25 μL TE buffer and stored at −20°C.

Analysis of DNA Purity and Concentration

The purity and concentration of DNA play a vital role in PCR, which is an important method of molecular analysis. Therefore, we sought to screen the best method of DNA extraction among common methods including the CTAB method, SDS method, kit method and guanidine isothiocyanate method according to the DNA mass concentration and A260/280 ratio. The DNA concentration and the ratio of the absorbance at 260 and 280 nm (A260/280 ratio) were evaluated on the same day as DNA extraction using a NanoDrop Lite spectrophotometer (Thermo Fisher Scientific, Waltham, MA, United States) (Sales et al., 2020). The A260/280 ratio was used to evaluate the purity of the DNA.

Polymerase Chain Reaction (PCR) Amplification and Sequencing

The inhibition of PCR amplification was detected for the EBN DNA obtained by the four different extraction methods. The cytochrome b (Cytb) gene and NADH dehydrogenase subunit 2 (ND2) gene were amplified by PCR with primers designed by Primer Premier 5.0 (Table 3). The amplification reaction system had a volume of 25 μL, including 1 μL of each primer (10 μM), 2 μL (100 ng) of genomic DNA, and 12.5 μL of 2× Master Mix (blue) buffer (Beyotime, Shanghai, China). The reaction mixture was placed into the PCR amplification instrument, and PCR amplification, was performed according to a previously reported procedure (Liu et al., 2020). The PCR conditions started with the initial denaturation at 94°C for 5 min, 40 cycles of 94°C for 30 s, 58°C for 90 s, and 72°C for 60 s, followed by a final extension at 72°C for 4 min. In addition, the size of the amplicons as shown in Table 3.

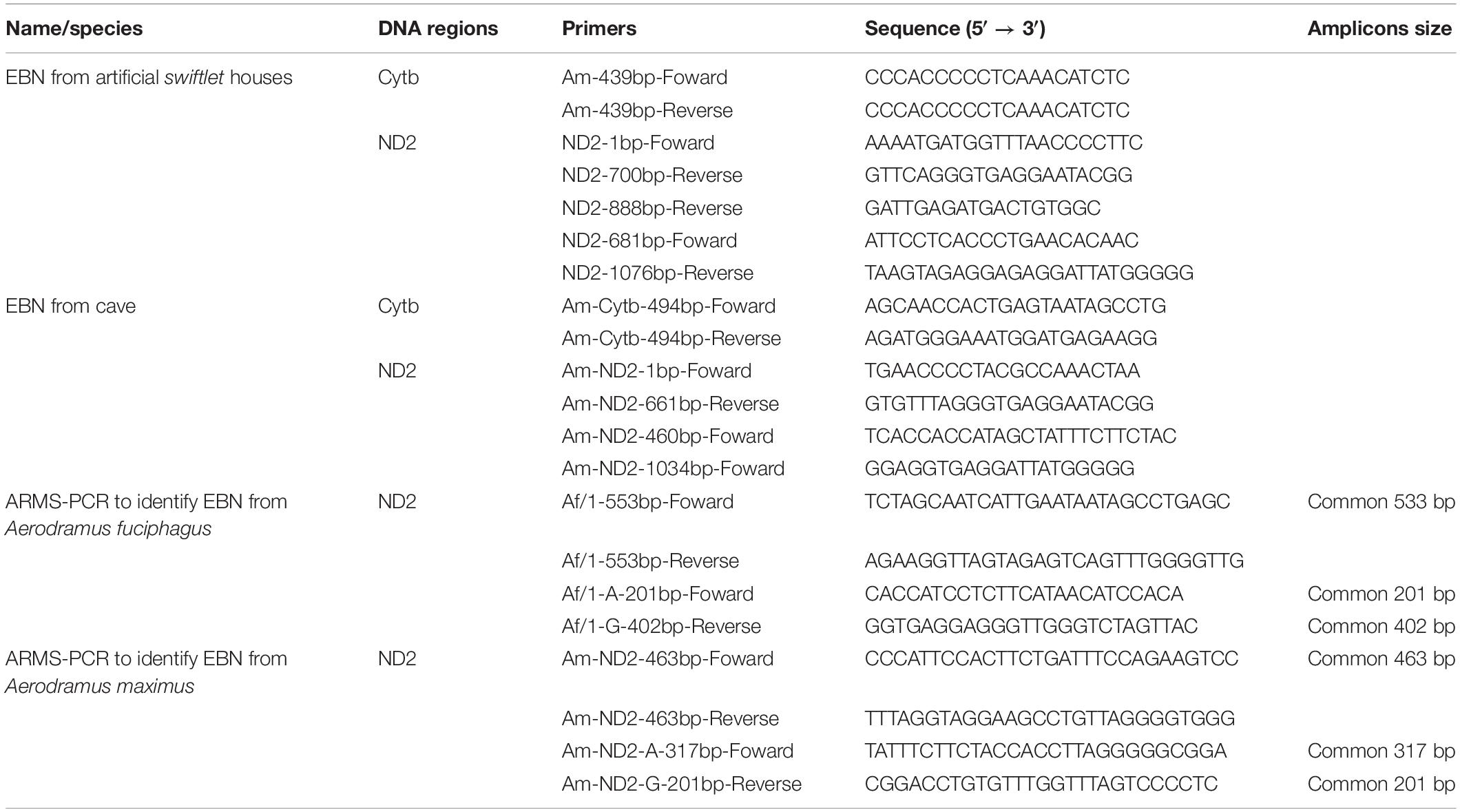

TABLE 3

Name/speciesDNA regionsPrimersSequence (5′ → 3′)Amplicons size
EBN from artificial swiftlet housesCytbAm-439bp-FowardCCCACCCCCTCAAACATCTC
Am-439bp-ReverseCCCACCCCCTCAAACATCTC
ND2ND2-1bp-FowardAAAATGATGGTTTAACCCCTTC
ND2-700bp-ReverseGTTCAGGGTGAGGAATACGG
ND2-888bp-ReverseGATTGAGATGACTGTGGC
ND2-681bp-FowardATTCCTCACCCTGAACACAAC
ND2-1076bp-ReverseTAAGTAGAGGAGAGGATTATGGGGG
EBN from caveCytbAm-Cytb-494bp-FowardAGCAACCACTGAGTAATAGCCTG
Am-Cytb-494bp-ReverseAGATGGGAAATGGATGAGAAGG
ND2Am-ND2-1bp-FowardTGAACCCCTACGCCAAACTAA
Am-ND2-661bp-ReverseGTGTTTAGGGTGAGGAATACGG
Am-ND2-460bp-FowardTCACCACCATAGCTATTTCTTCTAC
Am-ND2-1034bp-FowardGGAGGTGAGGATTATGGGGG
ARMS-PCR to identify EBN from Aerodramus fuciphagusND2Af/1-553bp-FowardTCTAGCAATCATTGAATAATAGCCTGAGCCommon 533 bp
Af/1-553bp-ReverseAGAAGGTTAGTAGAGTCAGTTTGGGGTTG
Af/1-A-201bp-FowardCACCATCCTCTTCATAACATCCACACommon 201 bp
Af/1-G-402bp-ReverseGGTGAGGAGGGTTGGGTCTAGTTACCommon 402 bp
ARMS-PCR to identify EBN from Aerodramus maximusND2Am-ND2-463bp-FowardCCCATTCCACTTCTGATTTCCAGAAGTCCCommon 463 bp
Am-ND2-463bp-ReverseTTTAGGTAGGAAGCCTGTTAGGGGTGGG
Am-ND2-A-317bp-FowardTATTTCTTCTACCACCTTAGGGGGCGGACommon 317 bp
Am-ND2-G-201bp-ReverseCGGACCTGTGTTTGGTTTAGTCCCCTCCommon 201 bp

Polymerase chain reaction primers.

The PCR products were detected by performing agarose gel electrophoresis in 0.5× TBE buffer for 25 min at 180 V. Then, the gels were placed on a gel imager to evaluate the effect of PCR amplification. The PCR solution was sent to Beijing Qingke Biotechnology Co., Ltd. for bi-directional DNA sequencing.

Sequencing of Cytb and ND2 Gene Fragments, Sequence Comparison, and Phylogenetic Analysis

Low-mass sequences and primer regions were removed using GeneStudio v.2.2.0.0, and images of the peaks obtained by sequencing were spliced and proofread. Then, an online search in the NCBI database1 was performed to obtain the sequences that were the most similar to those of the samples. The Cytb sequences of A. fuciphagus, A. maximus, Aerodramus fuciphagus germani and Amazilia tzacatl were downloaded from NCBI and combined with the sample sequences to form dataset 1. In addition, the ND2 sequences of A. fuciphagus, A. maximus, A. fuciphagus germani, and A. tzacatl were downloaded from NCBI and combined with the sample sequences to form dataset 2. After alignment using MAFFT v7.308, gBlocks was used to identify conserved fragments in the datasets (Katoh and Standley, 2013). Then, to ensure the accuracy of the analysis, the displacement of each dataset was calculated with DAMBE v7.0 (Xia, 2018). In addition, the X-value of each base substitution model was calculated with jModelTest v2.17, and the optimum base substitution model was selected based on the Akaike information criterion (AIC) standard (Darriba et al., 2012). Finally, the evolutionary distance among the samples were determined with MEGA-X based on kimura 2-parameter model (K2P). Maximum likelihood (ML) trees were constructed using MEGA-X, the reliability of the topology was evaluated using bootstrap values derived from 1,000 repetitions. The ML trees were visualized on the ITOL server2.

ARMS-PCR Analysis Based on the ND2 Gene

Traditional methods of genetic identification present several disadvantages, such as their time-consuming nature and the complicated steps involved. Thus, we designed primers according to the sequence of ND2 for quickly identifying EBNs produced by A. fuciphagus or A. maximus. Four pairs of primers were designed with Primer Premier 5.0 according to the ND2 sequence of A. fuciphagus downloaded at NCBI3. Then, the samples were amplified in an amplification reaction system of 20 μL, including 0.5 μL of each primer, 7 μL (350 ng) genomic DNA, 1 μL MgCl2, 2 μL dNTPs, 0.5 μL Taq DNA polymerase, and 7.5 μL of 2× Master Mix Buffer. The solution was placed in the PCR amplification instrument, and PCR amplification was performed. The PCR conditions started with the initial denaturation at 95°C for 5 min, 40 cycles of 95°C for 30 s, 65°C for 30 s, and 72°C for 60 s, followed by a final extension at 72°C for 10 min. Furthermore, the PCR products were evaluated by agarose gel electrophoresis in 0.5× TBE buffer for 50 min at 100 V. Then, the gels were placed in a gel imager to detect the results.

Statistical Analysis

The results were analyzed with SPSS 22.0 software (SPSS, Inc., Chicago, IL, United States) and expressed as the mean ± standard deviation. The data were analyzed by one-way analysis of variance (ANOVA) and Least-Signification Difference (LSD). P < 0.05 was considered to indicate significant differences.

Results

Evaluation of the Four Methods of DNA Extraction

As shown in Table 4, the DNA mass concentration and A260/280 ratio obtained following extraction via the guanidine isothiocyanate method were 51.381 ± 29.011 ng/μL and 1.654 ± 0.153, respectively. This revealed that the guanidine isothiocyanate method resulted in less protein and RNA contamination and was the most stable method for extracting EBN DNA. In addition, the results obtained from the four methods showed that all EBN DNA samples obtained via the guanidine isothiocyanate method were amplified successfully with a clear single band (Figure 1). These results suggest that the guanidine isothiocyanate method is suitable for extracting EBN DNA.

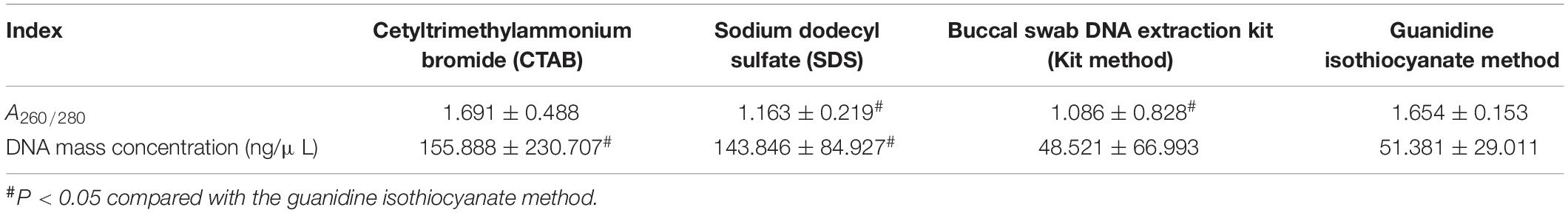

TABLE 4

IndexCetyltrimethylammonium bromide (CTAB)Sodium dodecyl sulfate (SDS)Buccal swab DNA extraction kit (Kit method)Guanidine isothiocyanate method
A260/2801.691 ± 0.4881.163 ± 0.219#1.086 ± 0.828#1.654 ± 0.153
DNA mass concentration (ng/μ L)155.888 ± 230.707#143.846 ± 84.927#48.521 ± 66.99351.381 ± 29.011

Concentration and purity of extracted edible bird’s nest DNA determined with the cetyltrimethylammonium bromide, sodium dodecyl sulfate, buccal swab DNA extraction kit and guanidine isothiocyanate methods.

#P < 0.05 compared with the guanidine isothiocyanate method.

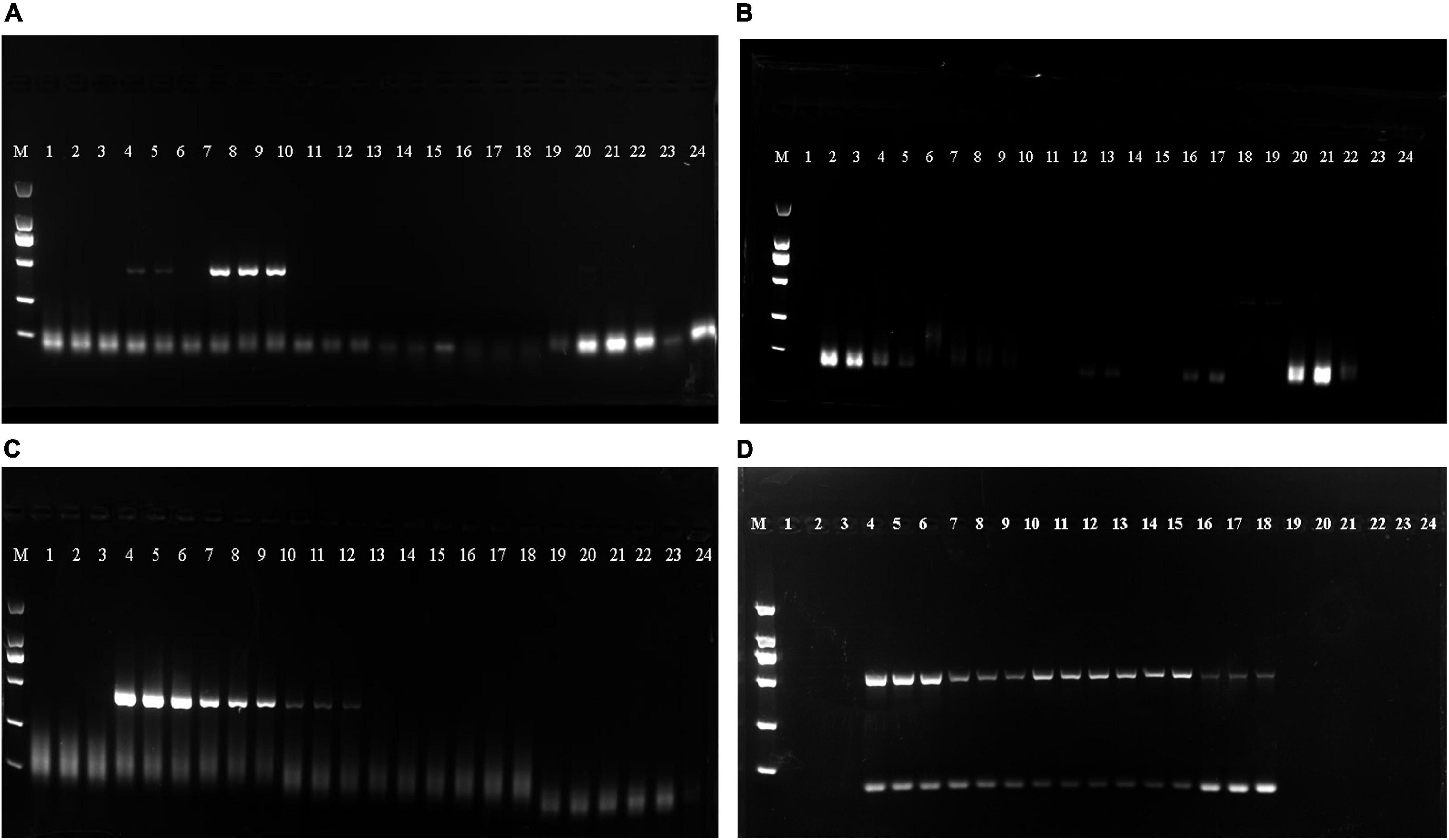

FIGURE 1

Sequencing of Cytb and ND2 Gene Fragments

According to the higher copy number and faster evolutionary mutation rate of mitochondrial DNA (mtDNA) in EBN, the Cytb and ND2 genes are commonly used for genetic identification. Therefore, we explored a more suitable gene for ARMS-PCR analysis via Basic Local Alignment Search Tool (BLAST) and K2P evolutionary distance analysis. First, we evenly cut the sequences of the Cytb and ND2 gene fragments from all samples by using MEGA-X. Then, we obtained gene sequences of Cytb and ND2 with lengths of 356 and 726 bp, respectively. The BLAST results showed that the samples mainly came from two species, A. fuciphagus and A. maximus. According to the gene sequences of Cytb and ND2, samples Z1–Z3, D1–D6, X1–X3, N2–N8, N12, N14–15, N17–N21, and ID1 showed 97–100% similarity to A. fuciphagus, while samples N9, N11, N13, and N19 showed 97–100% similarity to A. maximus (Tables 5, 6). Subsequently, the results of K2P evolutionary distance analysis showed that the evolutionary distance between the Cytb sequences of the samples ranged from 0.003 to 0.050 (Figure 2). The distance between the ND2 sequences of the samples ranged from 0.001 to 2.135 (Figure 3). Samples Z1–Z3, D1–D6, X1–X3, N2–N8, N12, N14–15, N17–N21, and ID1 exhibited evolutionary distances ranging from 0 to 0.023, while samples N9, N11, N13, and N19 exhibited large evolutionary distances from other samples, which was consistent with the BLAST results.

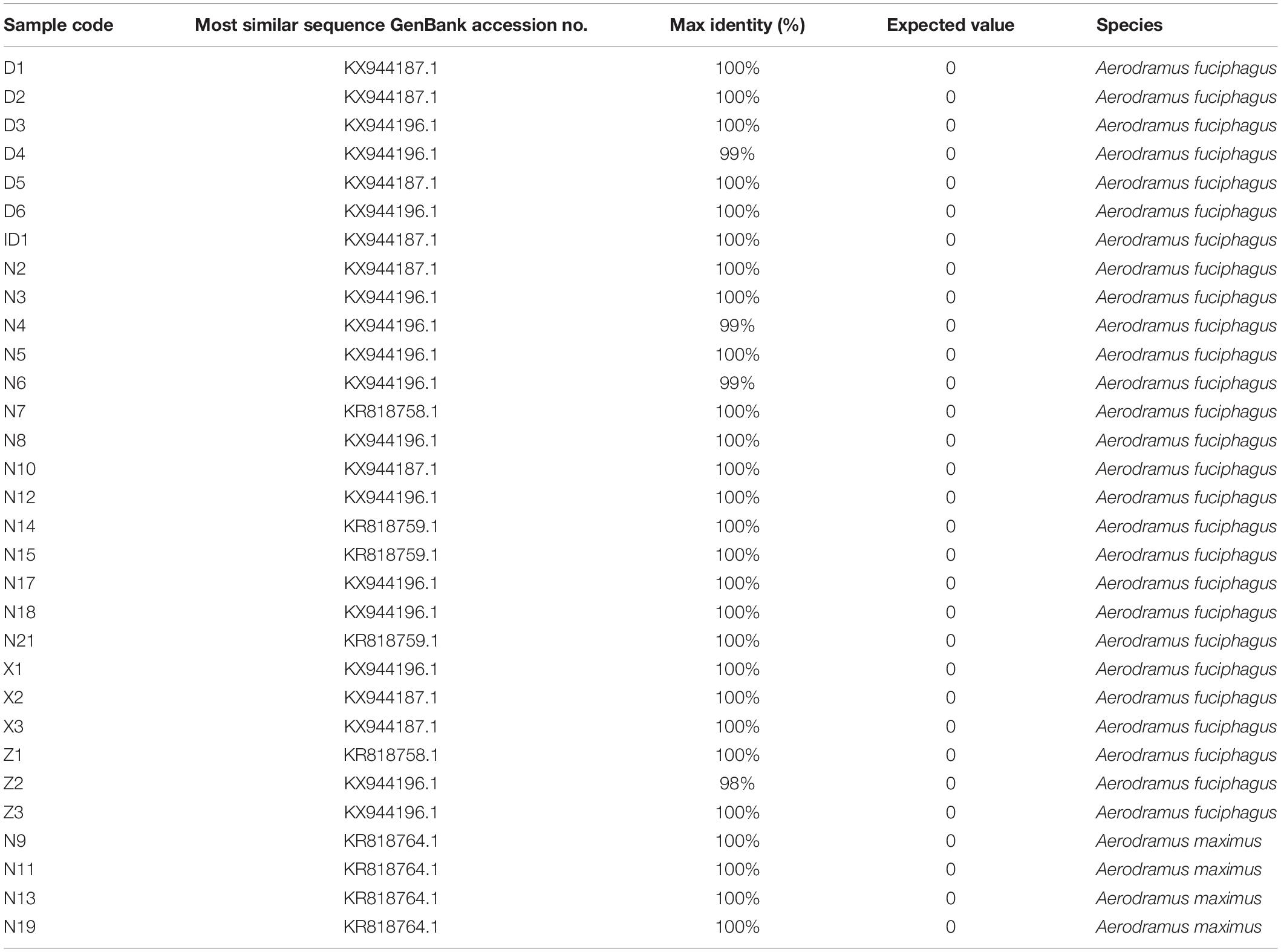

TABLE 5

Sample codeMost similar sequence GenBank accession no.Max identity (%)Expected valueSpecies
D1KX944187.1100%0Aerodramus fuciphagus
D2KX944187.1100%0Aerodramus fuciphagus
D3KX944196.1100%0Aerodramus fuciphagus
D4KX944196.199%0Aerodramus fuciphagus
D5KX944187.1100%0Aerodramus fuciphagus
D6KX944196.1100%0Aerodramus fuciphagus
ID1KX944187.1100%0Aerodramus fuciphagus
N2KX944187.1100%0Aerodramus fuciphagus
N3KX944196.1100%0Aerodramus fuciphagus
N4KX944196.199%0Aerodramus fuciphagus
N5KX944196.1100%0Aerodramus fuciphagus
N6KX944196.199%0Aerodramus fuciphagus
N7KR818758.1100%0Aerodramus fuciphagus
N8KX944196.1100%0Aerodramus fuciphagus
N10KX944187.1100%0Aerodramus fuciphagus
N12KX944196.1100%0Aerodramus fuciphagus
N14KR818759.1100%0Aerodramus fuciphagus
N15KR818759.1100%0Aerodramus fuciphagus
N17KX944196.1100%0Aerodramus fuciphagus
N18KX944196.1100%0Aerodramus fuciphagus
N21KR818759.1100%0Aerodramus fuciphagus
X1KX944196.1100%0Aerodramus fuciphagus
X2KX944187.1100%0Aerodramus fuciphagus
X3KX944187.1100%0Aerodramus fuciphagus
Z1KR818758.1100%0Aerodramus fuciphagus
Z2KX944196.198%0Aerodramus fuciphagus
Z3KX944196.1100%0Aerodramus fuciphagus
N9KR818764.1100%0Aerodramus maximus
N11KR818764.1100%0Aerodramus maximus
N13KR818764.1100%0Aerodramus maximus
N19KR818764.1100%0Aerodramus maximus

Basic local alignment search tool analysis results for cytochrome b (Cytb) gene sequences.

TABLE 6

Sample codeMost similar sequence GenBank accession no.Max identity (%)Expected valueSpecies
D1KX944200.197%0Aerodramus fuciphagus
D2KX944200.199%0Aerodramus fuciphagus
D3KX944200.198%0Aerodramus fuciphagus
D4KX944200.197%0Aerodramus fuciphagus
D5KR905637.198%0Aerodramus fuciphagus
D6KX944209.1100%0Aerodramus fuciphagus
ID1KX944200.198%0Aerodramus fuciphagus
N2KX944200.198%0Aerodramus fuciphagus
N3KX944200.199%0Aerodramus fuciphagus
N4KX944200.1100%0Aerodramus fuciphagus
N5KR905637.199%0Aerodramus fuciphagus
N6KR905637.1100%0Aerodramus fuciphagus
N7KR905637.1100%0Aerodramus fuciphagus
N8KX944209.1100%0Aerodramus fuciphagus
N10AY294491.199%0Aerodramus fuciphagus
N12KR905637.199%0Aerodramus fuciphagus
N14KX944209.199%0Aerodramus fuciphagus
N15KX944209.1100%0Aerodramus fuciphagus
N17KX944200.198%0Aerodramus fuciphagus
N18KX944200.198%0Aerodramus fuciphagus
N21KX944209.1100%0Aerodramus fuciphagus
X1KX944200.1100%0Aerodramus fuciphagus
X2KX944200.199%0Aerodramus fuciphagus
X3KX944200.198%0Aerodramus fuciphagus
Z1KR905637.198%0Aerodramus fuciphagus
Z2KX944200.1100%0Aerodramus fuciphagus
Z3KX944199.1100%0Aerodramus fuciphagus
N9AY294510.197%0Aerodramus maximus
N11AY294510.197%0Aerodramus maximus
N13AY294510.197%0Aerodramus maximus
N19AY294510.197%0Aerodramus maximus

Basic local alignment search tool analysis results for NADH dehydrogenase subunit 2 (ND2) gene sequences.

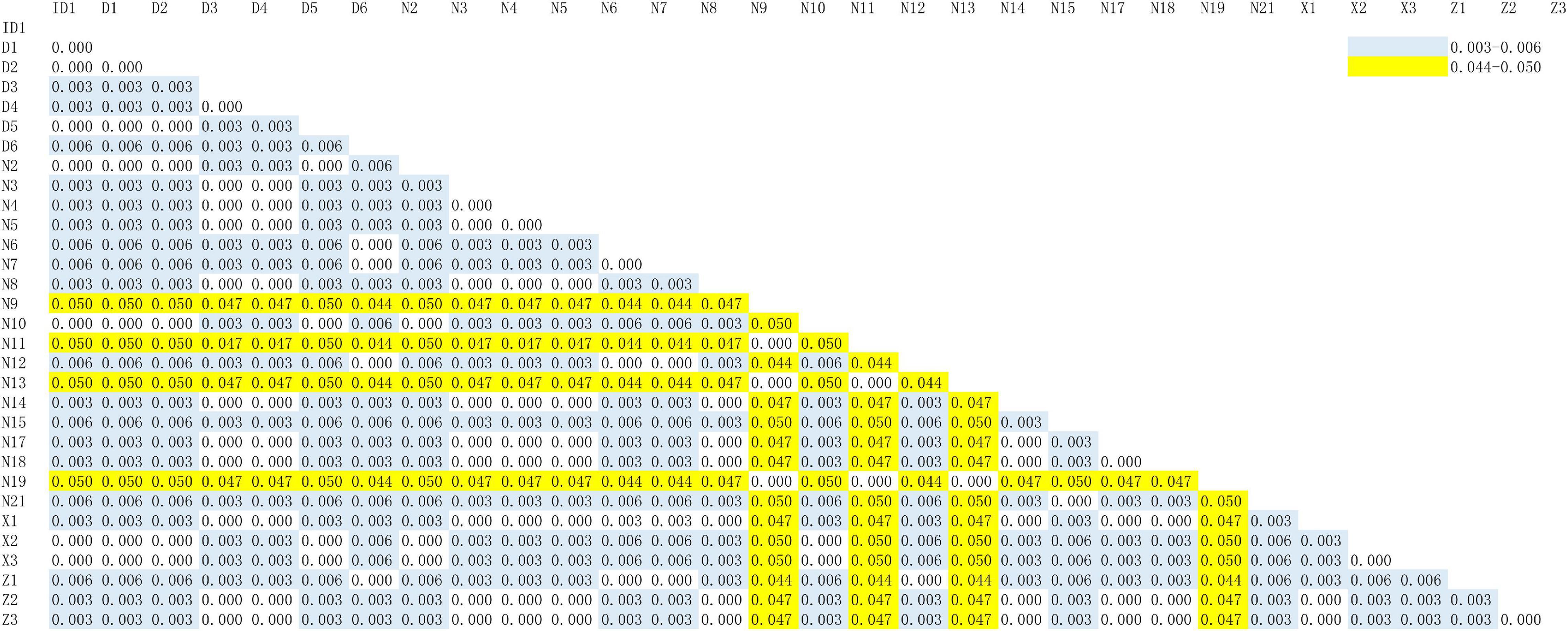

FIGURE 2

FIGURE 3

Phylogenetic Analysis

Furthermore, based on the Cytb and ND2 gene sequences, we constructed two ML trees to evaluate the evolutionary relationships among the EBNs. As shown in Figure 4, samples N9, N11, N13, and N19 were grouped with A. maximus at a confidence level of 98%, indicating that these samples almost certainly came from A. maximus. Samples N15 and N21 were grouped with A. fuciphagus and A. fuciphagus germani at a 53% confidence level. As shown in Figure 5, samples N9, N11, N13, and N19 were grouped with A. maximus at a confidence level of 66%. Samples Z1–Z3, D1–D6, X1–X3, N2–N8, N12, N14–15, N17–N21, and ID1 were grouped with A. fuciphagus and A. fuciphagus germani at a 71% confidence level, which indicates that these samples came from either A. fuciphagus or A. fuciphagus germani. The above results suggest that ND2, which contains more mutation sites than Cytb, is a more suitable gene for ARMS-PCR analysis to distinguish the genetic information of EBN.

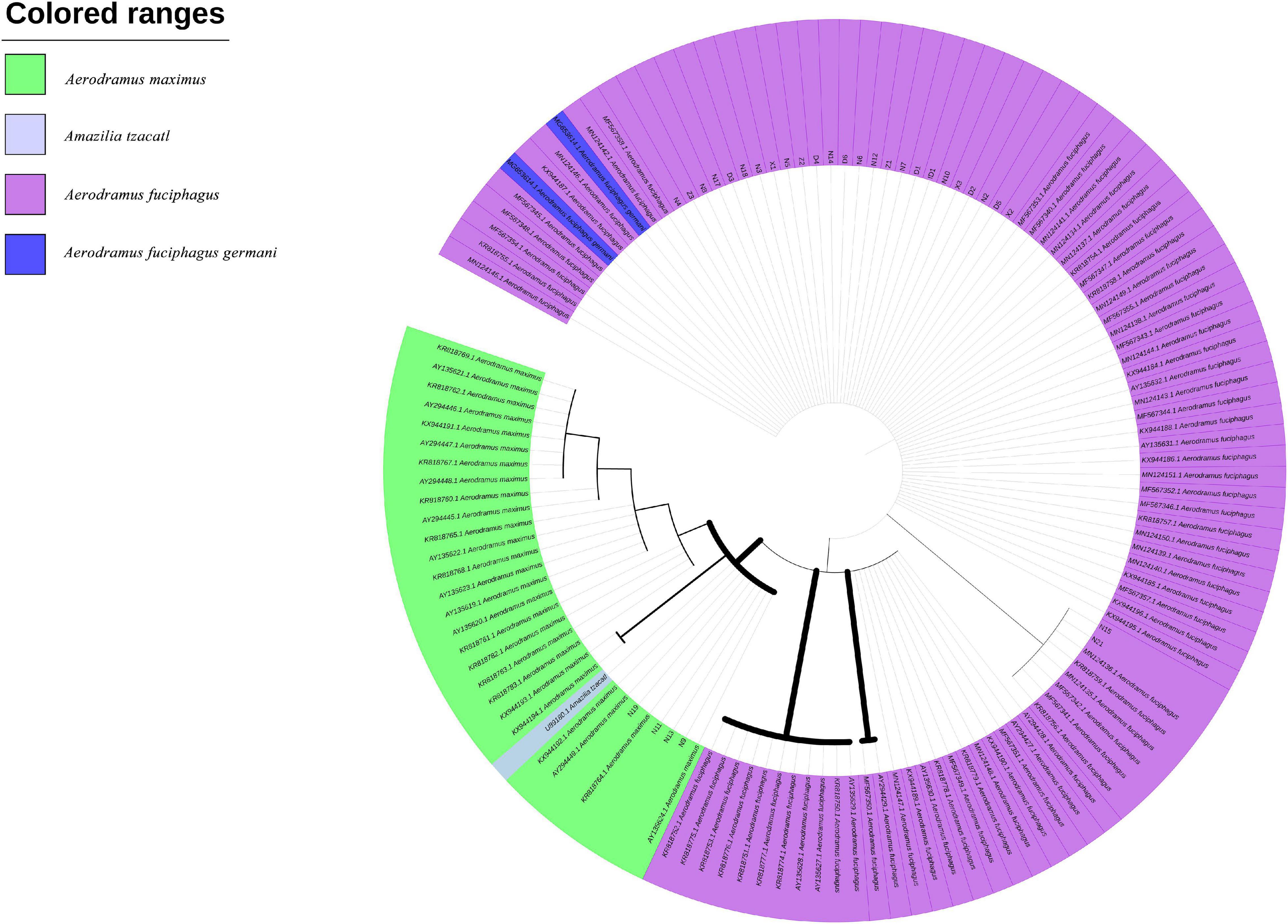

FIGURE 4

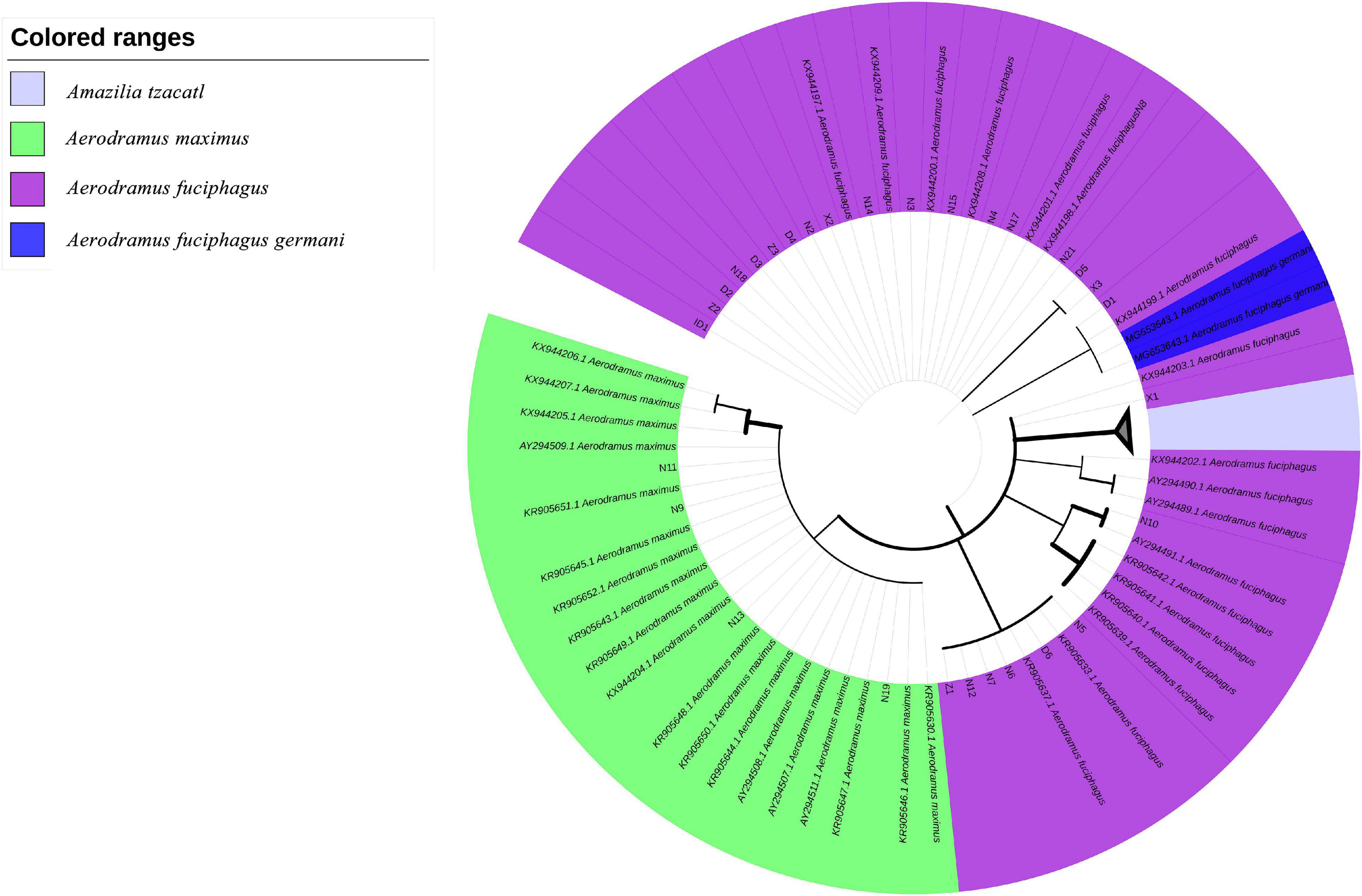

FIGURE 5

Genetic Identification of EBN Species via ARMS-PCR

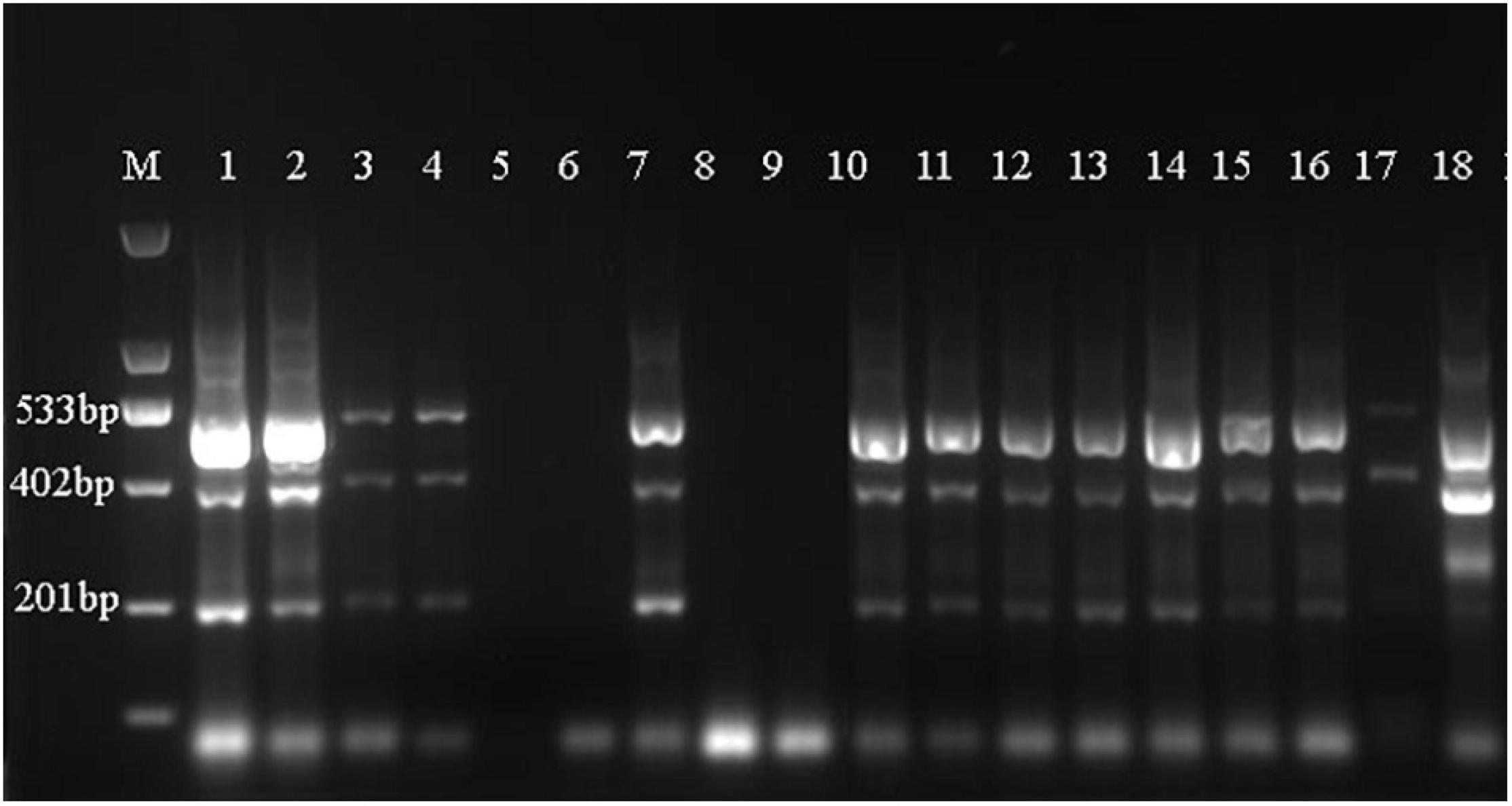

As shown in Figure 6, samples D1–3, Z1–3, X1–3, N5–8, and N14 were shown to belong to A. fuciphagus. The results suggested that the A. fuciphagus sequence could be digested into three fragments of 533, 402, and 201 bp, whereas the sequence of A. maximus did not follow the same pattern (Figure 6). In addition, compared with sample N5, samples N9, N11, N13, and N19 were identified to belong to A. maximus according to the visualization of three bands of 463, 317, and 201 bp (Figure 7).

FIGURE 6

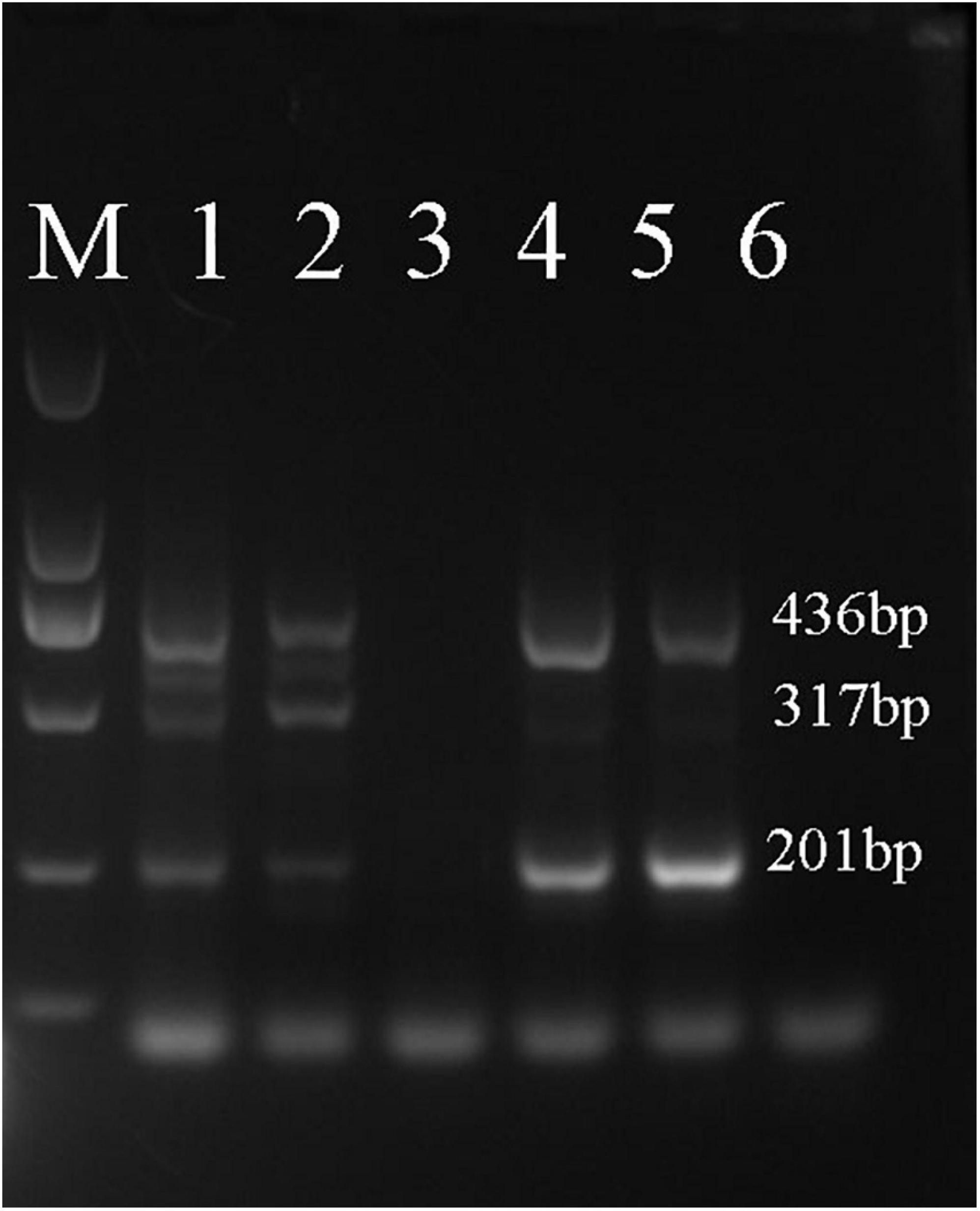

FIGURE 7

Discussion

Since EBN is considered a natural food product produced from swiftlet’s saliva which consist of various potential medicine value in Traditional Chinese Medicine (TCM). There is an urgent need to develop stable and efficient identification methods for EBN genetic identification. At present, sample-specific EBN genes that can be amplified and replicated by PCR are viable targets for the assessment of food quality. However, the efficient extraction and purification of DNA are vital for successful amplification (Vázquez-Novelle et al., 2005). Thus, we primarily assessed four different methods of DNA extraction. The guanidine isothiocyanate method is a rapid quantitative extraction method that does not rely on labor-intensive standard methodology (Lippke et al., 1987). Several reports have shown that the guanidine isothiocyanate method can extract proteins and RNA with significantly equivalent results (Monteiro et al., 2016; Siala et al., 2017; Joy et al., 2018). Our results also showed that the guanidine isothiocyanate method produced a clear single band in a shorter time than the other three methods (Figure 1). Therefore, we further distinguished the genetic information of EBN from Thailand by using the guanidine isothiocyanate method for DNA extraction.

Bioinformatics helps us understand complex biological problems by investigating similarities and differences that exist in polynucleic acids at the sequence level by using alignment algorithms, including dynamic programming and BLAST. BLAST is not only a sequence similarity search program but is also one of the most widely used bioinformatics research tools (Johnson et al., 2008). As shown by the BLAST, K2P distance and ML tree results, both the Cytb and ND2 genes can be used to genetically distinguish the source of EBNs (Figures 25 and Tables 5, 6). Furthermore, we identified 26 samples of house EBN in Thailand (Z1–Z3, D1–D6, X1–X3, N2–N8, N12, N14–15, N17–N21, and ID1) and 4 samples of cave EBN in Thailand (N9, N11, N13, and N19) belonging to A. fuciphagus and A. maximus, respectively. In accordance with the present results, previous studies have demonstrated that swiftlets producing white nest and living in swiftlet houses in Thailand should be considered members of a single panmictic population due to high gene flow between colonies and large population sizes (Aowphol et al., 2008). However, the above results based on the sequencing of Cytb and ND2 gene fragments could accurately genetically distinguish the EBNs from Thailand. This method is time consuming, has a high cost and cannot be generalized for application in the EBN market to identify EBN. On the other hand, the market value of different species differs greatly. The market values of A. germani, A. fuciphagus, A. maximus, and Apus EBNs are $46,000 per kg, $24,000 per kg, $15,000 per kg, and $10,000 per kg, respectively (Liu et al., 2020). Thus, there is an urgent need to develop simple, sensitive, accurate techniques to check the quality of EBNs.

ARMS-PCR is a simple, reliable and non-isotopic method that uses a set of 4 primers in a single PCR run to allow genotyping solely by the inspection of reaction mixtures after agarose gel electrophoresis (Newton et al., 1989; Rubio et al., 2008). The basis of ARMS-PCR is that each inner primer specifically matches one of the alleles associated with a SNP and includes a mismatch at position -2 from the 3′ terminus (Sauer et al., 2000). Recently, ARMS-PCR has been widely used to detect polymorphisms in genes such as NFKB1 ATTG, BRAF, and EGFR (T790M) (Chao et al., 2018; Li et al., 2019a, b). Thus, we further developed a novel method to distinguish the genetic information of EBN based on ARMS-PCR by using the ND2 gene, which exhibits more mutation sites than Cytb. First, we designed 2 primers located on either side of a SNP site and 2 primers with different upstream and downstream distances from the SNP site according to the ND2 gene sequences of A. fuciphagus and A. maximus. Then, we could rapidly identify EBNs derived from A. fuciphagus or A. maximus according to the size of the bands obtained from agarose gel electrophoresis. Consistent with the above results, samples D1–3, Z1–3, X1–3, N5–8, and N14 were found to belong to A. fuciphagus, for which three bands of 533, 402, and 201 bp were obtained upon agarose gel electrophoresis (Figure 6). Samples N9, N11, N13, and N19 were shown to belong to A. maximus, according to the visualization of three bands of 463, 317, and 201 bp (Figure 7). These results indicate that ARMS-PCR, a rapid, reliable and sensitive method for the genetic identification of EBNs between A. maximus and A. fuciphagus.

Conclusion

The purpose of the current study was to develop a rapid, reliable and sensitive method for replenishing different genetic information of EBN in Thailand to identify EBN from different species. The first major finding was that the guanidine isothiocyanate method is suitable for extracting EBN DNA. The second major finding was that 26 samples of house EBN in Thailand and 4 samples of cave EBN in Thailand belonged to A. fuciphagus and A. maximus, respectively. Finally, we found that ARMS-PCR was a rapid, reliable, and sensitive method for the genetic identification of EBN.

Statements

Data availability statement

The datasets generated for this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

LY and DL designed the research. YF, PL, and KL performed the study. DL and WZ analyzed the data. YF and DL wrote the manuscript. GL and XL revised the manuscript. MW, YL, and YW provided technical support. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the projects of the National Natural Science Foundation of China (81173498), the Guangdong Provincial Science and Technology Planning Project (2017A050506045), Dapeng New District Industrial Development Fund Support Project (KY20180107), and Special Innovation Project of Guangdong Provincial Education Department (2018KTSCX036).

Conflict of interest

YL was employed by the company Guangzhou Tongkang Pharmaceutical Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.632232/full#supplementary-material

References

  • 1

    AlbishtueA. A.YimerN.ZakariaM. Z. A.HaronA. W.BabjiA. S.AbubakarA. A.et al (2019). Effects of EBN on embryo implantation, plasma concentrations of reproductive hormones, and uterine expressions of genes of PCNA, steroids, growth factors and their receptors in rats.Theriogenology126310319. 10.1016/j.theriogenology.2018.12.026

  • 2

    AlyethodiR. R.SinghU.KumarS.AlexR.DebR.SengarG. S.et al (2018). T-ARMS PCR genotyping of SNP rs445709131 using thermostable strand displacement polymerase.BMC Res. Notes11:132. 10.1186/s13104-018-3236-6

  • 3

    AowpholA.VorisH. K.FeldheimK. A.HarnyuttanakornP.ThirakhuptK. (2008). Genetic homogeneity among colonies of the white-nest swiftlet (Aerodramus fuciphagus) in Thailand.Zool. Sci.25372380. 10.2108/zsj.25.372

  • 4

    AttitallaI. H. (2011). Modified CTAB method for high quality genomic DNA extraction from medicinal plants.Pak. J. Biol. Sci.14998999.

  • 5

    CareenaS.SaniD.TanS. N.LimC. W.HassanS.NorhafizahM.et al (2018). Effect of Edible Bird’s Nest Extract on Lipopolysaccharide-Induced Impairment of Learning and Memory in Wistar Rats.Evid. Based Complem. Alternat. Med.2018:9318789. 10.1155/2018/9318789

  • 6

    ChaoJ.ChaiL.YinX.ZhouZ.XuS.ZhuW.et al (2018). Application of Single-Tube Tri-Primer ARMS-PCR to Detect the NFKB1 ATTG Insertion/Deletion Polymorphism.Genet. Test Mol. Biomarkers22443447. 10.1089/gtmb.2018.0034

  • 7

    ChuaY. G.ChanS. H.BloodworthB. C.LiS. F.LeongL. P. (2015). Identification of edible Bird’s nest with amino acid and monosaccharide analysis.J. Agric. Food Chem.63279289. 10.1021/jf503157n

  • 8

    DaiY.CaoJ.WangY.ChenY.JiangL. (2020). A comprehensive review of edible bird’s nest.Food Res. Internat.2020:109875. 10.1016/j.foodres.2020.109875

  • 9

    DarribaD.TaboadaG. L.DoalloR.PosadaD. (2012). jModelTest 2: more models, new heuristics and parallel computing.Nat. Methods9:772. 10.1038/nmeth.2109

  • 10

    GreenM. R.SambrookJ. (2018). A Single-Step Method for the Simultaneous Preparation of DNA, RNA, and Protein from Cells and Tissues.Cold Spring Harb. Protoc.2018:rot093500. 10.1101/pdb.prot093500

  • 11

    GuoL.WuY.LiuM.GeY.ChenY. (2018). Rapid authentication of edible bird’s nest by FTIR spectroscopy combined with chemometrics.J. Sci. Food Agric.9830573065. 10.1002/jsfa.8805

  • 12

    HuangX.LiZ.ZouX.ShiJ.Elrasheid TahirH.XuY.et al (2019). A low cost smart system to analyze different types of edible Bird’s nest adulteration based on colorimetric sensor array.J. Food Drug. Anal.27876886. 10.1016/j.jfda.2019.06.004

  • 13

    JinC.LiZ.ZhengX.ShenK.ChaoJ.DongY.et al (2020). Development and validation of T-ARMS-PCR to detect CYP2C1917 allele.J. Clin. Lab Anal.34:e23005. 10.1002/jcla.23005

  • 14

    JohnsonM.ZaretskayaI.RaytselisY.MerezhukY.McGinnisS.MaddenT. L. (2008). NCBI BLAST: a better web interface.Nucleic Acids Res.36W5W9. 10.1093/nar/gkn201

  • 15

    JoyA. P.AyreD. C.ChuteI. C.BeauregardA. P.WajnbergG.GhoshA.et al (2018). Proteome profiling of extracellular vesicles captured with the affinity peptide Vn96: comparison of Laemmli and TRIzol© protein-extraction methods.J. Extracell. Vesicles7:1438727. 10.1080/20013078.2018.1438727

  • 16

    KampmannM. L.BuchardA.BørstingC.MorlingN. (2016). High-throughput sequencing of forensic genetic samples using punches of FTA cards with buccal swabs.Biotechniques61149151. 10.2144/000114453

  • 17

    KatohK.StandleyD. M. (2013). MAFFT multiple sequence alignment software version 7: improvements in performance and usability.Mol. Biol. Evol.30772780. 10.1093/molbev/mst010

  • 18

    LeeM. S.HuangJ. Y.LienY. Y.SheuS. C. (2019). The rapid and sensitive detection of edible bird’s nest (Aerodramus fuciphagus) in processed food by a loop-mediated isothermal amplification (LAMP) assay.J. Food Drug Anal.27154163. 10.1016/j.jfda.2018.08.003

  • 19

    LeeT.LeeC.NurulA. A.SupparmaniamK.WongS.ZnatiM.et al (2020). Characterization of Polar and Non-Polar Compounds of House Edible Bird’s Nest (EBN) from Johor. Malaysia.Chem. Biodivers17:e1900419. 10.1002/cbdv.201900419

  • 20

    LeeT. H.WaniW. A.KoayY. S.KavitaS.TanE. T. T.ShreazS. (2017). Recent advances in the identification and authentication methods of edible bird’s nest.Food Res. Int.100(Pt 1), 1427. 10.1016/j.foodres.2017.07.036

  • 21

    LiX.LiE.DuJ.WangJ.ZhengB. (2019a). BRAF mutation analysis by ARMS-PCR refines thyroid nodule management.Clin. Endocrinol.91834841. 10.1111/cen.14079

  • 22

    LiY.XuY.WuX.HeC.LiuQ.WangF. (2019b). Comprehensive analysis of EGFR T790M detection by ddPCR and ARMS-PCR and the effect of mutant abundance on the efficacy of osimertinib in NSCLC patients.J. Thorac. Dis.1130043014. 10.21037/jtd.2019.07.42

  • 23

    LinJ.-R.ZhouH.LaiX.-P.HouY.XianX.-M.ChenJ.-N.et al (2009). Genetic identification of edible birds’ nest based on mitochondrial DNA sequences.Food Res. Int.4210531061. 10.1016/j.foodres.2009.04.014

  • 24

    LippkeJ. A.StrzempkoM. N.RaiaF. F.SimonS. L.FrenchC. K. (1987). Isolation of intact high-molecular-weight DNA by using guanidine isothiocyanate.Appl. Environ. Microbiol.5325882589. 10.1128/aem.53.10.2588-2589.1987

  • 25

    LiuK.WuM.LinX.LonanP.ChenS.WuY.et al (2020). Molecular analysis of edible bird’s nest and rapid authentication of Aerodramus fuciphagus from its subspecies by PCR-RFLP based on the cytb gene.Anal. Methods1227102717. 10.1039/c9ay02548k

  • 26

    LooiQ. H.AminH.AiniI.ZukiM.OmarA. R. (2017). De novo transcriptome analysis shows differential expression of genes in salivary glands of edible bird’s nest producing swiftlets.BMC Genom.18:504. 10.1186/s12864-017-3861-9

  • 27

    MonteiroM. B.Santos-BezerraD. P.ThiemeK.PassarelliM.MachadoU. F.LinC. J.et al (2016). Optimization of total RNA isolation from human urinary sediment.Clin. Chim. Acta462158161. 10.1016/j.cca.2016.09.018

  • 28

    NewtonC. R.GrahamA.HeptinstallL. E.PowellS. J.SummersC.KalshekerN.et al (1989). Analysis of any point mutation in DNA. The amplification refractory mutation system (ARMS).Nucleic Acids Res.1725032516. 10.1093/nar/17.7.2503

  • 29

    RubioM.CarantaC.PalloixA. (2008). Functional markers for selection of potyvirus resistance alleles at the pvr2-eIF4E locus in pepper using tetra-primer ARMS-PCR.Genome51767771. 10.1139/g08-056

  • 30

    SalesK.MirandaD. E. O.da SilvaF. J.OtrantoD.FigueredoL. A.Dantas-TorresF. (2020). Evaluation of different storage times and preservation methods on phlebotomine sand fly DNA concentration and purity.Parasit. Vectors13:399. 10.1186/s13071-020-04270-4

  • 31

    SauerS.LechnerD.BerlinK.LehrachH.EscaryJ. L.FoxN.et al (2000). A novel procedure for efficient genotyping of single nucleotide polymorphisms.Nucleic Acids Res.28:E13. 10.1093/nar/28.5.e13

  • 32

    ShimE. K.ChandraG. F.LeeS. Y. (2017). Thermal analysis methods for the rapid identification and authentication of swiftlet (Aerodramus fuciphagus) edible bird’s nest - A mucin glycoprotein.Food Res. Int.95918. 10.1016/j.foodres.2017.02.018

  • 33

    SialaM.BarbanaA.SmaouiS.HachichaS.MarouaneC.KammounS.et al (2017). Screening and Detecting Salmonella in Different Food Matrices in Southern Tunisia Using a Combined Enrichment/Real-Time PCR Method: Correlation with Conventional Culture Method.Front. Microbiol.8:2416. 10.3389/fmicb.2017.02416

  • 34

    Vázquez-NovelleM. D.PazosA. J.AbadM.SánchezJ. L.Pérez-ParalléM. L. (2005). Eight-hour PCR-based procedure for the detection of Salmonella in raw oysters.FEMS Microbiol. Lett.243279283. 10.1016/j.femsle.2004.12.016

  • 35

    WongZ. C. F.ChanG. K. L.WuK. Q. Y.PoonK. K. M.ChenY.DongT. T. X.et al (2018). Complete digestion of edible bird’s nest releases free N-acetylneuraminic acid and small peptides: an efficient method to improve functional properties.Food Funct.951395149. 10.1039/c8fo00991k

  • 36

    XiaX. (2018). DAMBE7: New and Improved Tools for Data Analysis in Molecular Biology and Evolution.Mol. Biol. Evol.3515501552. 10.1093/molbev/msy073

  • 37

    XiaY.ChenF.DuY.LiuC.BuG.XinY.et al (2019). A modified SDS-based DNA extraction method from raw soybean.Biosci. Rep.39:bsr20182271. 10.1042/bsr20182271

  • 38

    YangM.CheungS. H.LiS. C.CheungH. Y. (2014). Establishment of a holistic and scientific protocol for the authentication and quality assurance of edible bird’s nest.Food Chem.151271278. 10.1016/j.foodchem.2013.11.007

Summary

Keywords

edible bird’s nest, ARMS-PCR, ND2, genetic information, guanidinium isothiocyanate, Aerodramus fuciphagus, Aerodramus maximus

Citation

Lv D, Fan Y, Zhong W, Lonan P, Liu K, Wu M, Wu Y, Liang Y, Lai X, Li G and Yu L (2021) Genetic Identification of Edible Bird’s Nest in Thailand Based on ARMS-PCR. Front. Genet. 12:632232. doi: 10.3389/fgene.2021.632232

Received

24 November 2020

Accepted

12 February 2021

Published

08 March 2021

Volume

12 - 2021

Edited by

Alison G. Nazareno, Federal University of Minas Gerais, Brazil

Reviewed by

Ting Hun Lee, University of Technology Malaysia, Malaysia; Fábio De Almeida Vieira, Federal University of Rio Grande do Norte, Brazil

Updates

Copyright

*Correspondence: Xiaoping Lai, Geng Li, Liangwen Yu,

This article was submitted to Evolutionary and Population Genetics, a section of the journal Frontiers in Genetics

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
