Abstract
Maize flowering time is an important agronomic trait, which has been associated with variations in the genome size and heterochromatic knobs content. We integrated three steps to show this association. Firstly, we selected inbred lines varying for heterochromatic knob composition at specific sites in the homozygous state. Then, we produced homozygous and heterozygous hybrids for knobs. Second, we measured the genome size and flowering time for all materials. Knob composition did not affect the genome size and flowering time. Finally, we developed an association study and identified a knob marker on chromosome 9 showing the strongest association with flowering time. Indeed, modelling allele substitution and dominance effects could offer only one heterochromatic knob locus that could affect flowering time, making it earlier rather than the knob composition.
Introduction
The relationship between heterochromatic knobs, genome size, and flowering time (FT) in maize is a long debate. Knobs have intrigued geneticists for more than 100 years, and since their discovery, their functions remain under investigation. These maize genome regions are constitutive heterochromatin with late replication during the cell cycle (), extensively composed of two highly repetitive satellite DNA families, 180-kb, and TR-1 (; ). An eminent observation was their wide variability among landraces, inbred lines, and hybrids, following a biogeographic distribution (; ), suggesting a possible role affecting the expression of some phenotypic features as flowering time ().
Moreover, other exciting aspects of the heterochromatic knobs in the maize genome have been elucidated by several studies. Knobs have been shown to affect local recombination (; ) and genes adjacent to these regions reduce their expression level (). The meiotic drive mechanism influences the number of knobs in different species of Zea (; ; ). Such a system would favor knob transmissions preferentially during female meiosis by a knob neocentromere activity, which might have contributed to maize genome remodeling throughout its evolutionary history. Response to abiotic stress was observed in maize plants from the transcriptional activation of the knob repetitive sequences, being this activation selective, temporary, and accompanied by epigenetic changes (). Lastly, associations between heterochromatic knobs and agronomic traits have also been reported ().
There is a growing interest in the role of variation of genomic content in creating phenotypic modifications within a species. These changes are due to copy number variation (CNV), which has been used to describe duplications, deletions, and insertions in individuals of a species, and presence/absence variation (PAV) that describes the presence or not of sequences on the genome of different individuals of the same species. Together, they form the pan-genome of species (). Maize is also a model species for studies of pan-genome. Differences in chromosomal structure between maize landraces were firstly identified through cytogenetic studies. Barbara McClintock and colleagues analyzed the content and size of heterochromatic knobs to characterize this variation in the genome (). Currently, modern cytogenomic techniques have sampled the wide variation of the copy numbers resulting from repetitive sequences, which make up most of the maize genome (; ; ; ).
Moreover, quantification of DNA content through flow cytometry has documented significant variability in the maize genome size (GS) between landraces and inbred lines (; ). New combinations of alleles arise from the variation of genomic content within species, contributing to phenotypic variation (). Therefore, this can have an influence on several important characteristics, including flowering time (). Flowering time is a quantitative trait of extreme relevance for cultivated plants since it controls plant adaptation to the environment. Breeding programs through this feature outline strategies to make earlier or later varieties, allowing their expansion to other regions and consequently increasing yield ().
Recent studies on maize genome present the triangle formed between genome size, knob content, and flowering time in natural populations. These surveys have considered just the knob numbers or estimated the knob abundances by low coverage sequencing (; ; ). However, few studies have evaluated the knob effect depending on its homozygous or heterozygous condition (). These authors reported that heterozygotes for knobs had earlier flowering time in comparison with homozygotes. Different researchers have attributed variation in maize genome size to heterochromatin content differences, especially in knobs (; ; ) However, knob content not corresponding with genome size was also reported (). Moreover, it is proposed that there is a relationship between decreased genome sizes in high altitudes with reduced flowering time. Besides, the same association is observed for knob abundance occurring along altitudinal clines (; ). However, no experimental design has isolated the effects of homozygous or heterozygous knobs and test whether they are correlated with flowering time. In this case, the relationship between knobs and flowering time remains unclear.
Here, we derived a panel of sister inbred lines and their hybrids to verify the association between genome size, knob constitution, and flowering time for male (MF) and female (FF) inflorescences. Firstly, in chronological order, inbred lines with variable presence or absence of the knobs K3L, K5L, K7S, and K9S were derived until S9 generation from a segregating single seed of a Flint variety (). Then, we created hybrids between inbred lines, and finally, we started to estimate the genome size and flowering time.
These near-isogenic inbred lines and their hybrids, varying for knob positions at K3L, K5L, K7S, and K9S were used to assay flowering time under controlled environmental conditions and their genome size was measured by flow cytometry. All data were used to analyze the genome association study. We expected that using sister inbred lines and their hybrids possessing a common genetic background, the influence of knobs on genome size and flowering time could be clearly detected ().
Materials and Methods
Plant Material
Origin of the Maize Inbred Lines and Knob Composition
For this research, the development process of inbred lines was idealized in the Department of Genetics at “Luiz de Queiroz” College of Agriculture – ESALQ, University of São Paulo – USP. The initial biological material was a commercial variety Jac-Duro (JD – composed of Cateto varieties, Flint type endosperm), donated by Agroceres Seeds, Brazil. Initially, the variety segregated for the knob positions K3L, K5L, K7S, K9S (where “K" refers to a knob, number corresponds to chromosome, L or S is for long and short arm, respectively), and it was homozygous for knob positions at K6L2, K6L3, K7L, and K8L1, K8L2. Thus, over the self-fertilization cycles, the inbred lines were analyzed by C-banding until they become homozygous for specific knob positions (Supplementary Table S1). The knobs K6L2 and K6L3, and K8L1 and K8L2 visualized at pachytene are seen as a unique band in somatic chromosomes using C-banding or FISH (). Analyses of the C-Band frequency in somatic chromosomes were performed on S2 (240–14–4) and S3 (240–14–1 and 240–14–2) until S9 progenies (). The S3 240–14–1 progeny segregated for two knob positions: K3L and K9S, and progeny 240–14–2 for one locus: K9S. The S2 240–14–4 progeny segregated for the four loci: K3L, K5L, K7S, and K9S. All the inbred lines maintained the homozygous knobs for the positions K6L2, K6L3, K7L, and K8L1 and K8L2. S4 and S5 inbred lines were obtained from these progenies, derived from two self-fertilization cycles that became denominated in S5 = 14-1-3 and 14-2-1 and S4 = 14-4-1 and 14-4-4. This designation was abbreviated for JD 1-3, JD 2-1, JD 4-1, and JD 4-4 to characterize the four families of lines. The inbred lines used in this research were derived until S9 progenies (Supplementary Table S1) (), and the hybrids were obtained from crosses between JD 1-3 and JD 4-4 inbred lines (Supplementary Table S2). Therefore, we have a broad panel of heterochromatic knob combinations, which can be homozygous for the presence or absence or even heterozygous in the hybrids. Figure 1 illustrates these conditions and Figure 2 shows a sample of the inbred lines and hybrids. described the karyotype of these lines through the analysis of pachytene and somatic chromosomes using C-banding and FISH procedures.
FIGURE 1
FIGURE 2
Methods
Fluorescence In Situ Hybridization - FISH
The 180 bp repetitive DNA sequence probe present in the knobs () was used to map the inbred lines and hybrids. The steps of pre-treatment and in situ hybridization were based on . Each chromosome preparation was conducted using 20 μL of a probe mixture containing the 180 bp probe. The probe mixture was denatured by heating at 96°C for 10 min, cooled on ice, and then dropped onto the slide preparations and covered with a coverslip. Preparations were denatured in a thermocycler at 93°C for 10 min. The hybridization was performed at 37°C for 16 h. Following the hybridization, slides were washed twice in 2x SSC at 37°C and 42°C for 5 min, twice in 20% formamide in 0.5 x SSC at 42°C (74% stringency) for 10 min and once in 0.5x SSC for 5 min at the same temperature. The probe of the 180 bp knob repeat was directly labeled by random priming with 6-Carboxyfluorescein (FAM). The slides were counterstained with 0.2 μg/ml 4,6-diamidino-2-phenylindole (DAPI) and mounted in 5 μL of Vectashield H-1000.
Genome Size Measurements
The genome size of the inbred lines and hybrids was estimated following . For these analyses, Z. mays ‘CE-777’ was used as an internal standard. Young leaves of the sample and standard were chopped into a Petri dish containing a solution of 0.5 ml of OTTO I nuclear extraction buffer (). To this solution it was added 2.0 mM of dithiothreitol and 50 μg/ml of RNase. Later, it was added the same volume of buffer solution. This homogenate was filtered, centrifuged for 10 min and resuspended in OTTO I buffer. The samples were stained in 1.5 ml of OTTO-I:OTTO-II (1:2) staining buffer (), supplemented with 50 mM dithiothreitol, 50 µL RNase, and 75 µM propidium iodide, for 20 min, to define the size of the nuclear genome (). Five replicates were used for each sample.
Nuclear suspensions were analyzed in a Partec PAS® flow cytometer (Partec® Gmbh, Munster, Germany), equipped with a laser source (488 nm) and a UV lamp (388 nm). The histograms were used to measure the nuclear genome by comparing fluorescence peaks corresponding to the G0/G1 stages of the standard (CE 777) and samples (inbred lines and hybrids). The genome size measurements were performed at the Laboratório de Pesquisa em Citogenética e Citometria, at the Federal University of Viçosa.
Experimental Design to Analyze Flowering Time
Two experiments were conducted in a greenhouse under 28°C/25°C day/light and 12 h light/12 h dark in two subsequent years (2018/2019), for the analysis of flowering time. The first assay totaling 8 inbred lines (parents) and 35 hybrids. The experiment was carried out in a completely randomized design, with 3 replicates for parents (24 plants) and 5 replicates for hybrids (175 plants). The second assay was performed with 20 inbred lines with 5 replicates each one, totalizing 100 plants. Both experiments were conducted from February to June, and the maize plants were planted in 20 L pots with 50 cm spacing between them. Flowering time was calculated as the number of days from planting until the first day of flowering. Inbred lines and hybrids with different knob constitutions were evaluated individually for male flowering (MF) and female flowering (FF).
Association Study
A Mixed Linear Model (MLM) was run by the FarmCPU R package () to determine the knob-trait associations. The MLM equation used in the analysis was as follows:where: y is the adjusted mean (BLUE) of the genotypes for the studied traits; α is the vector of fixed effects of the knobs; β is the vector of fixed effect of the population structure (first principal components used, depending on the trait); υ is the random effect of the relative kinship, where is the error term, where ε S, P, and K are incidence matrices that relate the independent vector effects from each matrix with the dependent y vector.
The additive and heterozygous (dis)advantage models were applied in adapted GWAS analyses using specifics encodings for the knob matrix (in this case, replacing SNPs). Heterochromatic knobs present a Mendelian inheritance pattern; therefore, individuals could be homozygous for knobs, homozygous for absence, or heterozygous for knobs (). This feature can be used analogously to the SNP marker, which is co-dominant bi-allelic, precisely as the knobs behavior. Concerning the additive knob effect with two alleles (A1 and A2), the knob matrix was coded by 0 (A1A1), 1(A1A2), and 2 (A2 A2), considering the A2 as the minor allele or knob absence. In this context, the additive GWAS model assumes a linear change in the phenotype regarding the minor allele number of copies. On the other hand, in the heterozygous (dis)advantage GWAS model, the homozygous genotypes (A1A1 or A2A2) were assumed to have the same effect. In contrast, the heterozygous genotypes have a different one, implying an increase or decrease in the trait effect. Therefore, the knob matrix was coded by 0 (A1A1), 1 (A1A2), and 0 (A2A2) ().
To determine the p-value threshold, we used a resampling method. Therefore, first, the phenotypic values are shuffled, breaking their association with markers, and then the random association between all markers to the phenotype is estimated, and the corresponding best marker score (minimum p-value obtained among all markers) is recorded. This procedure was repeated 50 times for each trait, and the 95% quantile from the 50 best scores was defined as the threshold to declare a significant association.
Results
Knob Composition and Maize Genome Size
The genome size of the inbred lines and hybrids was measured to test whether knob composition contributes to the DNA content variation. Supplementary Table S2 shows the values of genome size and knob composition of the materials. Each inbred line and hybrid can have different knob configurations at the K3L, K5L, K7S, and K9S positions on the chromosomes. These combinations can be homozygous for presence or absence of knobs in the lines or heterozygous in the hybrids (Figures 1, 2). Note that there are hybrids homozygous and heterozygous for knobs.
The genome size was considered a quantitative trait, and its heritability was estimated at 26%. The hybrids presented a higher mean genome size than inbred lines, showing 5,477 Mbp (2C = 5.6 pg) and 5,281 Mbp (2C = 5.4 pg), respectively (Figure 3). However, no significant differences in genome sizes were found for either the inbred lines or the hybrids. Even when homozygotes were compared with heterozygotes, no differences were observed (Supplementary Figure S1).
FIGURE 3
The results showed that knob dosages are not enough to explain the genome size increase or decrease in the inbred lines and hybrids. However, genome size varied broadly, despite the same knob composition. For instance, the hybrids presenting the highest (441311/2 × 441324/1, 2C = 6.31 pg) and the smallest genome size (442213/1 × 441311/2, 2C = 4.72 pg) share the same knob constitution (Supplementary Table S2). For inbred lines, the largest genome size (131311/1–04, 2C = 5.69 pg) has a lower number of knobs than the smallest genome (442213/1, 2C = 4.65 pg), which is homozygous for knob presence in the four positions described (Supplementary Table S2).
An adapted genome-wide association study (GWAS), with the heterochromatic knob full panel to identify associations with genome size and flowering time, was performed, where the knobs were used as genetic markers. Our hypotheses were that knobs on the K3L, K5L, K7S and K9S positions correlate with genome size and male and female flowering. To test our hypothesis, we used the inbred lines and hybrids panel, to which all knobs were mapped. The panel has a matrix-like structure with different knob combinations for presence (++ or 1) or absence (00 or −1) when homozygous and as heterozygous when just one of the homologous has a knob (+0 or 0). Firstly, only the allele substitution effect model was performed, and no significant association was found between knobs and genome size (Supplementary Figure S2). Moreover, this information was supported by a null correlation between genome size and knob dosage classes (Table 1).

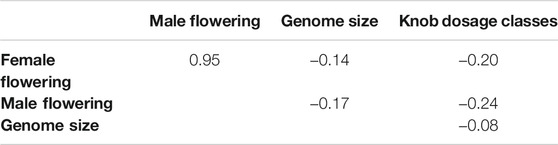

TABLE 1
| Male flowering | Genome size | Knob dosage classes | |
|---|---|---|---|
| Female flowering | 0.95 | −0.14 | −0.20 |
| Male flowering | −0.17 | −0.24 | |
| Genome size | −0.08 |
Pearson’s correlation between traits and knobs.
The Knob On 9S (K9S) Association With Flowering Time
Days to MF and FF were evaluated individually (Supplementary Table S2) and heritability was estimated to be 51% for MF and 41% for FF. The mean values for days to MF and FF for hybrids were 63 and 64 days, respectively, while the FT for inbred lines was 70 days for MF and 72 days for FF (Figure 3). Heterochromatic knob configurations as heterozygotes exhibited shorter flowering times than those in homozygous states (Supplementary Figure S1). The flowering time data were also plotted showing its amplitude inside the inbred line families and hybrids (Figure 4). It was observed synchronicity for both traits (MF and FF) within each group analyzed, and hybrids had shorter flowering time than inbred line families.
FIGURE 4
Further, the flowering time amplitude of hybrids was much smaller than the other groups, ranging mainly between 60 and 70 days, in agreement with the observed mean values. A broader variation in flowering time was observed for inbred line families (58–114 days), with distribution densities mainly varying between 60 and 80 days. The JD 4-4 family had a smaller flowering time distribution for FF and FM among families.
Negative values for Pearson’s correlation were found comparing female and male flowering time with knob dosage classes (Table 1). The knob combinations were used to create dosage classes and test their effects on genome size and flowering time. The knob dosage classes were not correlated with the flowering time, i.e., an increase in knob numbers did not correlate with late flowering time. It was possible to observe that the mean values of MF and FF were very similar for each knob dosage class (Figure 5). It was also interesting to note that the inbred lines with only two knobs (dosage class = 2) flowered later than those with other dosage classes (dosage class = 3–8). Figure 5 also shows that the knob dosage classes did not alter the genome size.
FIGURE 5
Furthermore, two GWAS models to illustrate the interactions between flowering time and knob conditions were used. The first model took into account only the allele substitution effect of the markers (Figures 6A, B, and Supplementary Figure S3), and the second considered the dominance effect (Figures 6C,D, and Supplementary Figure S4). This analysis showed only one significant marker-trait association for both allele substitution and dominance effect models regarding flowering time. This significant association was observed just for the knob on the short arm of chromosome 9 (K9S) (Figure 6). Regardless of the GWAS model, the knob marker on chromosome 9 displayed the same performance concerning the flowering time, showing the p-value highly significant (Table 2), while for the knobs K3L, K5L and K7S the p-value was not significant for flowering time and genome size (Supplementary Table S3).
FIGURE 6
TABLE 2
| Trait | Marker | Chr. | Position | p-value | MAF | Effect (A or D) h2 | |
|---|---|---|---|---|---|---|---|
| MF | K9S | 9 | Short Arm | 1.32 × 10–2 | 0.17 | −0.51 (A) | 0.05 |
| K9S | 9 | Short Arm | 4.21 × 10–3 | 0.46 | −1.41 (D) | 0.15 | |
| FF | K9S | 9 | Short Arm | 2.12 × 10–2 | 0.17 | −0.45 (A) | 0.05 |
| K9S | 9 | Short Arm | 3.75 × 10–3 | 0.46 | −1.53 (D) | 0.02 | |
Significant marker-trait association for flowering time. Male flowering (MF), female flowering (FF), knob in the short arm of chromosome 9 (K9S), p-value Bonferroni test, minor allele frequency (MAF), allele substitution model (A), dominance model (D), and heritability (h2).
Regarding the allele substitution effect model, the presence of the K9S was negatively correlated with the MF and FF of the inbred lines and hybrids by -0.45 and −0.51 days, respectively. While on the dominance effect model, this effect was even more significant, negatively correlated with flowering time in one and a half days (MF = -1.40 and FF = - 1.53) (Figure 7). Only the knob on chromosome 9 significantly associated with a reduction in the flowering time in the inbred lines and hybrids. This correlation in flowering time was observed for the presence of the knob in the homozygous or heterozygous configuration. The heritability of the marker for both models varied from 0.02 to 0.15 (Table 2). Our analysis also showed slight effects of the knobs K3L, K5L and K7S on flowering time, albeit these were not significant (Supplementary Table S3). These results showed that the knob composition was not essential to model the genotype effects on the trait. The flowering time violin plot (Figure 4) also supported the GWAS analyses (Figure 6), since all hybrids are homozygous or heterozygous for the K9S, corroborating the specific contribution of this knob or factors closely linked to it or embedded within it.
FIGURE 7
Discussion
Knob Composition Did Not Correlate With Maize Genome Size
In our study no pattern was observed, which indicates that there is not a linear relationship between the number of knobs present in the lines and hybrids with the increase or decrease in the DNA content. Interestingly, the hybrids presenting the highest and the smallest genome size share the same knob constitution. For inbred lines, the largest genome size has a lower number of knobs than the smallest genome size, which is homozygous for knob presence in the four positions described.
There is a wide variability of genome size in natural maize populations. The maize genome size associated with knob numbers and with flowering time is reported in some studies. Most of these studies have shown positive correlations between genome size and knob content (; ; ; ). However, in some studies, a positive correlation between genome size and knob composition was not found (; ). A recent study provided evidence that natural selection plays a substantial role in reducing the maize genome size at high altitudes (). The authors also showed that the abundance of transposable elements (TEs) and heterochromatic knobs are significantly correlated with altitude, and the knobs act as significant effect loci in the genome size. Unlike what they found, our data did not show this same relationship.
Our results corroborate the surveys showing no significant correlation between maize population genome size and heterochromatin percentage. One hypothesis is that as our materials differ in the composition of only four knob positions, measurements by flow cytometry would not detect slight differences in genome size due to knobs. Furthermore, we might infer that differences in the genome size among our inbred lines and hybrids may result from transposable element (TE) variability, once the loss of TE during selfing has been demonstrated (). Knobs are additional material in the chromosomes and alter the length of somatic chromosome arms (), therefore they should increase the genome size, but this effect could be masked by TE variability.
Genome Size and Knob Composition Did Not Affect Maize Flowering Time
The genetic architecture of flowering time in maize has been widely studied, given that this trait reflects the plant adaptation to the environment. Since maize is distributed throughout America and is adapted to a wide range of environments, understanding how flowering time is regulated is of paramount importance and generates valuable information for breeding programs (). Besides this study, in the last 2 decades, the days to flowering time in maize was dissected using different approaches such as linkage and association mapping (; ; ; ), population genetics (; ), archaeological DNA studies (), genome-wide association studies (; ; ; ), and gene analysis (; ; ; ). In inbred maize lines, the genetic architecture of flowering time has been attributed to the cumulative effect of numerous quantitative trait loci (QTL), each with a small impact on this trait ().
Besides these reports on the genetic control of maize flowering, a positive relationship between genome size and flowering in maize have been reported (; ; ). In addition, significant positive correlations between genome size, knob abundance, and flowering time were found in maize inbred lines (). However, in this study, these correlations were lost when a kinship matrix was introduced in the analyses. The authors performed an association study where genome size was also correlated with flowering time. Three genomic regions associated with genome size were found, and mapped close to the knob region on chromosome 8 (). In contrast, another study analyzing maize landraces in northern Argentina found no correlation between genome size and days to flowering time (). Nevertheless, in this study a positive relationship between the days to flowering time and heterochromatin percentage was observed. Another report argued that repetitive sequences would have indirect effects on flowering time due to their impact on genome size and might depend on the environment (). However, this effect was not found in our study since there was no relationship between genome size, knob composition and flowering time. It is interesting to note that the heterozygotes had an early flowering time in comparison with lines. This result is in agreement with the findings by that also showed a positive correlation between knob content and flowering time.
In fact, the relationship between genome size and phenotype in plants has been reported (). Especially, the genome size has been correlated with the duration of the cell cycle and this feature could affect the vegetative cycle. We could argue that as knobs have late replication in the mitotic cycle, they would replicate simultaneously, and then, differences in their number would not affect the duration of the cell cycle. However, if we compare populations differing in the size of knobs, we could suppose that the larger knobs would increase the duration of the mitotic cycle. As in our study we compared lines differing in few knobs approximately with the same size, differences in flowering time were not observed.
Another group of studies had already indicated that gene groups responsible for the plant morphological and physiological traits would be correlated with the presence of knobs (; ). According to the authors, once close to these knobs, recombination in adjacent regions was suppressed, influencing such traits. More recently, through fluorescent in situ hybridization (FISH), it was demonstrated that knobs are located in areas dense in genes, where large knobs can reduce recombination locally (). Comparisons between European maize genomes and US Corn Belt revealed variation in their repetitive sequences and gene content. The germplasms were separated by the intensity and position of knob regions. However, additional sites with small arrangements of knobs conserved in flint and dent lines were observed. This study also showed that the knob sequences could affect genes surrounded by them, decreasing their expression level ().
In our study, the heterochromatic knob mapped on the short arm of chromosome 9 was strongly associated with early flowering time. Flowering time-related QTLs have been found across the maize genome (; ; ). In chromosome 9, flowering time-related QTLs were found, and some genes were identified (; ). The main gene located in chromosome 9 was ZmCCT9 (photoperiod sensitive) and mapped on the long arm, opposite to the knob position. Other candidate genes were found along this chromosome, but the precise location was not defined yet (; ). Further studies should be carried out to map a gene influencing flowering time near the knob on the short arm of chromosome 9.
Hence, other knob regions are targets to find possible candidate genes linked to the heterochromatin due to the inhibition of crossing over on their neighborhood. That leads us to infer that heterochromatic knobs may also have a role in the maize genome, affecting certain phenotypic traits.
Concluding Remarks
Despite more than 100 years of studies on maize genetics, the role of knobs remains a current issue and has shown that these regions are a substantial fraction of the maize genome. Elimination dynamics of components of the maize genome over successive self-fertilizations were reported (). The authors comparing gene content, ribosomal DNA, B chromosomes, TEs, and knobs, showed TEs were the most significantly lost genome fraction. The results provide insights into the constitutive role played by knobs in the maize genome. Like TEs, knobs are repetitive sequences, which make up about 10% of the maize genome and, for unknown reasons, are not totally eliminated after generations of self-fertilization. That strengthens the hypothesis that heterochromatic knobs may have an important role within the maize genome, even composed almost exclusively by repetitive sequences. It is interesting to note that over nine cycles of self-fertilizations, the lines used in the present study did not lose all the knobs and even some lines of the JD-4 family conserved all of them.
Throughout the maize genome evolution, it was proposed that flowering time was a trait influenced by changes in the genome size. At high altitudes, maize flowering time was shorter than at low altitudes, followed by a smaller genome (; ; ; ). At the same time, most studies have also indicated a positive correlation between the genome size and the knob abundance (; ).
We found no significant association between knobs and genome size from our data. The analyses of adapted GWAS carried out showed the contribution of a single locus for the early maize flowering time: the knob present in the short arm of chromosome 9 was associated with reduced flowering time when homozygous or heterozygous. Our results suggest a role of the knobs in the flowering time, different from those previously described. For the first time, maize inbred lines were selected with knobs in specific locations, and their hybrids were developed to carry heterozygous and homozygous knobs. Although the lines have a common origin, they differ in knob composition and in the response to culture in vitro ().
The maize flowering time is a complex trait, and several studies have provided insights into its genetic architecture. To this complexity, we add our data suggesting that components linked or embedded in specific heterochromatic knobs, are capable of affecting the maize flowering time. Furthermore, as knobs suppress local recombination (), some genes would be associated with them.
As our results show, repetitive sequences might carry some linked or hidden components into their heterochromatic structure that affect some phenotypic traits. The search and study of such interactions require a great deal of work to cytologically score knob transmission into the pedigree, monitored by karyotype assembly over the time of the inbred lines derivation, and finally in the hybrids. Therefore, this collection of maize inbred lines represents an essential tool for further studies, shortening the time to address interactions between phenotypic traits and heterochromatic knobs. This kind of study is even more important for maize since its genome comprises more than 85% of repetitive sequences ().
We could infer that there would be an interaction between genes controlling flowering time, knob composition and genome size. In addition, transposable elements also contribute to genome size. So, if populations with high content of larger knobs are compared with populations with few smaller knobs, perhaps the effect of knobs on flowering time would be detected, if the effect of genes controlling flowering time were not higher.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
MA-P and MM designed the idea; MA-P, MM and RC designed the experiments, RF-N designed and carried out statistical analysis; RC and WC performed flow cytometry analysis; RC carried out cytogenetic analysis, field experiments and managed the results; RC, MM and MA-P wrote the paper.
Funding
RC was supported by scholarship from Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brasil (CAPES) and Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq); MM is PET- MEC fellowship.
Acknowledgments
We are in debt to Silvia Cristina Menuzzo-Molina for her technical assistance during the development of this project. Also, by the reviewers for their careful and kind critical reading and comments.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.799681/full#supplementary-material
Supplementary Figure S1Flowering time and Genome Size versus knob condition. Boxplots show the comparison between male and female flowering time (days) and genome size (picograms) regarding heterozygous knobs or homozygous knobs. The boxes indicate the first quartile (lower line), the second quartile or mean (central line), and the third quartile (upper line). Additionally, the whiskers represent the standard deviation with the dots as the outliers.
Supplementary Figure S2QQ-plot and Manhattan plot of GWAS for Genome size. Plots characterize the allele substitution effect. Significant associations are not found. The x axis shows the knobs K3L, K5L, K7S and K9S. The y axis shows the logarithm of the value of significance.
Supplementary Figure S3QQ-plot of GWAS of flowering time. Plots characterize the allele substitution effect for (A) male flowering (mf) and (B) female flowering (ff) time. The dots represent the knobs K3L, K5L, K7S and K9S, respectively.
Supplementary Figure S4QQ-plot of GWAS of flowering time. Plots characterize the dominance effect for (A) male flowering (mf) and (B) female flowering (ff) time. The dots represent the knobs K3L, K5L, K7S and K9S respectively.
