Siyi Fu1,2,3,4
Chenggong Zhang1,2,3*
Hao Liu1,2,3Liubin Wei5Hongping Bao5Xingchao Ye2Zhongtang Su1,2,3Hongde Chen1,2,3Liangbiao Lin1,2,3- 1State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation (Chengdu University of Technology), Chengdu, China
- 2Institute of Sedimentary Geology, Chengdu University of Technology, Chengdu, China
- 3Key Laboratory of Deep-time Geography and Environment Reconstruction and Applications of Ministry of Natural Resource, Chengdu University of Technology, Chengdu, China
- 4College of Petroleum Engineering, China University of Petroleum, Beijing, China
- 5Exploration and Development Research Institute of PetroChina Changqing Oilfield Company, Xi’an, China
Introduction: The carbonate-evaporite system contains substantial hydrocarbon resources and serves as an excellent subject for studying dolomitization problem. In the Ordos Basin, the fifth member of the Ordovician Majiagou Formation have extensive carbonate-evaporite deposits.
Methods: This study utilizes extensive drilling data, thin section microscopic examination, scanning electron microscopy, and a variety of geochemical analyses to investigate the origins of evaporites and the genesis of dolomites within this formation.
Results: Our findings indicate that the fifth member of the Majiagou Formation primarily contains two types of evaporites (halite and anhydrite) and five types of dolomites: micritic (Dol-1), fine-crystalline fabric-obliterative dolomite (Dol-2), fabric-retentive dolomite (Dol-3), microbial mats-associated dolomite (Dol-4), and medium–coarse crystalline dolomite (Dol-5). The evaporites, originating from seawater (sulfur isotope compositions ranging from 23.0 to 27.9 ‰), exhibit a planar distribution controlled by paleotopography and evaporation intensity, with distinct deposition centers for gypsum and halite. The eastern part of the study area is dominated by halite deposits, while both gypsum and halite are developed in the central region, and the western part is primarily characterized by gypsum deposition. LA-ICP-MS data indicate varying concentrations of MgCO3 (34.4-44.3 wt%) and CaCO3 (45.4-58.9 wt%), as well as trace elements including Na, Al, Si, K, Cu, Ba, Mn, and Fe. REE patterns and δCe/δEu anomalies provide insights into dolomitization mechanisms.
Discussion: The formation of dolomites occurred in distinct stages. The first stage, from the penecontemporaneous to shallow burial periods, the formation of Dol-1, Dol-2, and Dol-3 through seepage-reflux dolomitization and evaporative pumping. Dol-4 also formed during this stage, closely associated with microbial dolomitization and influenced by tidal transport. The second stage, during deep burial, resulted in Dol-5, which can be further categorized into Dol-5-1, formed by continued dolomitization from pore fluids, and Dol-5-2, formed through hydrothermal processes. The intensity of dolomitization is closely linked to the distribution of evaporites. Carbonates underlying gypsum strata exhibit a higher degree of dolomitization compared to those beneath halite strata. This is due to gypsum absorbing Ca2+ and releasing high-salinity brine during its transformation to anhydrite, thereby increasing the Mg2+/Ca2+ ratio in formation fluids. Consequently, the hydrocarbon resource potential of carbonate strata beneath gypsum layers is likely higher than that of those beneath halite layers.
Introduction
Carbonate–evaporite sequences are usually of interest to the oil industry because giant hydrocarbon accumulations have previously been discovered in dolomite reservoirs that are associated with evaporites (Kirkland and Evans, 1981; Wani and Al-Kabli, 2005; Warren, 2006; Jin et al., 2010; Peyravi et al., 2015; Shen et al., 2016; Jafarian et al., 2017; Kakemem et al., 2021). Therefore, the mechanism and timing of dolomite formation in carbonate–evaporite systems are aspects of commercial significance (Lu and Meyers, 1998; Lonnee and Machel, 2006; Ryan et al., 2020). The platform-scale dolomitization of limestone has been intensively studied, and several mechanisms, including evaporative pumping (Hsü and Siegenthaler, 1969; Iannace et al., 2011; Haas et al., 2015; Fu et al., 2019), seepage–reflux (Adams and Rhodes, 1960; Kaufman, 1994; Xiong et al., 2018), burial fluids (Qing and Mountjoy, 1994; Warren, 2000; Yang et al., 2018), hydrothermal (Middleton et al., 1993; Machel and Lonnee, 2002; Zhu et al., 2015; Dong et al., 2020), and microbial dolomitization (Vasconcelos et al., 1995; Lith et al., 2010), have been proposed. However, in carbonate–evaporite successions, the distribution of dolomite is not contiguous, and thus, existing models cannot adequately explain dolomitization. Recent studies have specifically investigated dolomitization processes for the deposition of dolostone in the evaporite settings, such as the change of salinity fluctuations (Kim et al., 2023), the microbial induced (Liu et al., 2019; Chang et al., 2020), and also hydrothermal dolomitization.
The Ordos Basin, which covers an area of approximately 250,000 km2, contains the largest oil and gas field in China (Yang et al., 2008). The Ordovician Majiagou Formation in this basin has remained an active exploration target since the discovery of hydrocarbons in the formation in the early 1980s. According to previous studies, major carbonate–evaporite successions developed in the Majiagou Formation (Xiao et al., 2021), where evaporite layers attained a maximum thickness of 150 m, and these extend laterally over an area of approximately 50,000 km2. Although a series of study have been conducted on the evaporite-associated dolomites formation in the Majiagou Formation (Fu et al., 2019; Ding et al., 2021), but they still regard it as the thick layer dolomite, without considering the influence of evaporite on the dolomitization process. Therefore, this formation provides an opportunity to understand dolomitization associated with evaporites. In the present study, the mineralogy of the carbonate–evaporite succession was described and interpreted based on big data obtained from wells and outcrops that were partly provided by the Changqing PetroChina Oilfield Company. In addition, S isotopes, LA-ICP-MS in-situ trace and rare earth elements, and fluid inclusion homogenization temperature data will help us try to solve the problem of the nature and origin of dolomitization in the carbonate–evaporite depositional system.
Geological setting
The Ordos Basin is an intracratonic basin in Northern China, and it covers an area of approximately 25 × 104 km2 (Figure 1a). During the Ordovician, owing to subduction of the Qinling–Qilian paleo-ocean crust, the Ordos Basin developed between uplifts in the center–west of the area. Consequently, the East Ordos Basin evolved into a restricted open platform, which involved an intracratonic epeiric sea, with successive development of paleo-uplifts, restricted platforms, and evaporitic lagoon from west to east (Figure 1a), and sediments dominantly comprised interbedded shallow carbonates and evaporites (Chen et al., 2014) (Figure 1b). The Ordovician Majiagou Formation has been partitioned into six members (Ma 1–Ma 6) (Yang and Bao, 2011; Xiao et al., 2021), from the bottom to the top, and the fifth member (Ma 5) hosts the thickest evaporite layer. The Ma 5 has been divided into ten sub-members (Ma 51–Ma 510) (Figure 1c). The Ma 51–Ma 54, which exhibit evidence of karstification, comprise mainly muddy dolomite. The Ma55 contains mostly limestone, fine-crystalline dolomite and microbial dolomite. The Ma 56–Ma 510 principally involve evaporites and carbonate, and the Ma 56, Ma 58, and Ma 510 contain multiple evaporites sedimentation, whereas the Ma 57 and Ma 59 involve mainly dolomites and few limestone (Xiong et al., 2019) (Figure 1c). Evaporites in the Ma 56 are the most widely distributed in the East Ordos Basin, and these vary in thickness from 20 to 300 m. Thus, the Ma 56 is often considered the boundary between sub- and pre-salt strata in the basin (Fu et al., 2019; Xiao et al., 2021), and the Ma 57 to Ma 59 (pre-salt strata), constitute the focus of the present study.

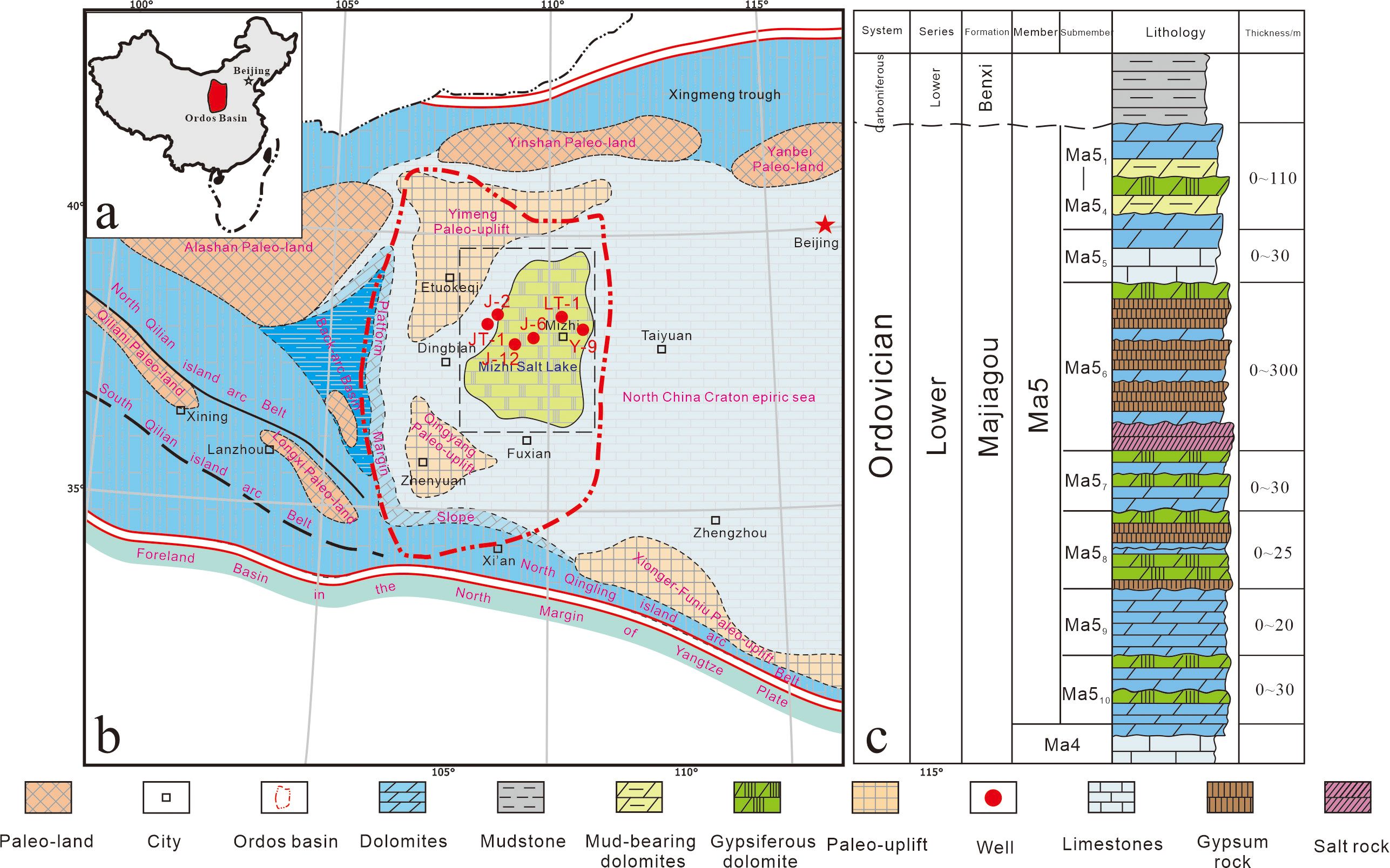

Figure 1. (a) Geological location of the Ordos Basin; (b) Paleogeographic map of the Majiagou Formation, location of sampled wells; (c) Lithology of the fifth member of Majiagou Formation.
The thermal and tectonic history of the Ordos Basin has been intensively investigated (Zhao et al., 1996; Ren et al., 2014). Caledonian tectonic movements between the Late Ordovician and Middle Carboniferous uplifted and exposed sediments of the Majiagou Formation in the Ordos Basin. Consequently, numerous karst structures have formed on the Ma 5, and these host the Jingbian gas field (Li et al., 2008). Nevertheless, Ma 56 to Ma 510 were minimally impacted by karstification because of their distances from the weathering crust and the barrier effect of evaporites on the carbonates. In the Late Permian, sediments in the Ordos Basin were then buried to depths of approximately 3000 m, and sediments in the Majiagou Formation subsided further to depths exceeding 4500 m in the Middle Cretaceous. Starting from approximately 60 Ma, uplift and erosion of approximately 1000 m occurred in response to activities in the Qinghai–Tibet Plateau that were caused by the collision of the Indian and Eurasian plates during the Himalayan Orogeny (Zhao et al., 1996).
Samples and analytical methods
The 148 samples analyzed in the present study were collected from 26 wells, and six of these (wells JT-1, J-2, J-6, J-12, LT-1, and Y-9) penetrated the entire succession of the Majiagou Formation are the key wells (Figure 1b). In the east of the study area, the thick halite in wells LT-1 and Y9 revealed its continuous deposition in the Ma 56. Conversely, in the center of the study area, wells J-6 and J-12 showed that the Ma 56 contains mainly anhydrite and gypsiferous dolomite. In the west, wells J-2 and JT-1 demonstrated that the Ma 56 is dominated by dolomite, whereas anhydrite is rare. The sequential collection of samples from different locations can facilitate understanding of the correlation between evaporites and dolomite. Petrographic studies using 148 thin sections that were stained with Alizarin Red S in the State Key Laboratory for Oil and Reservoir Geology and Exploration, Chengdu University of Technology, enabled detailed characterization of dolomite types.
Based on the examination of cores, 16 dolomite samples were selected for field emission scanning electron microscopy (FE-SEM) in the State Key Laboratory for Oil and Gas Reservoir Geology and Exploitation, Chengdu University of Technology. FE-SEM investigations were performed using a Quanta 250 FEG equipped with an Oxford INCAx-max20 system. The best resolution in the high-vacuum mode was approximately 1.2 nm and the magnification ranged from 50 to 106.
Homogenization temperature experiments were conducted in the same laboratory on 26 samples using the THMSG-600 heating–cooling stage that was designed and manufactured by Linkam (UK). Prior to inclusion temperature measurements, standards were utilized to test the heating and cooling system, as well as to calibrate the instrument. Homogeneous temperatures (a precision of 0.1°C) were obtained via cyclic testing using a heating rate of 5°C/min, and the temperature in the laboratory was 23.5°C.
Sulfur isotope analyses of halite, anhydrite, and gypsiferous dolomite were conducted in the Institute of Geology and Geophysics, Chinese Academy of Sciences, using a MAT 251 mass spectrometer. Details on the sulfur extraction from carbonate samples for isotope analysis are available in Wotte et al. (2012). The precision for the δ34S analysis was better than 0.3‰, and the Canyon Diablo troilite (CDS) was utilized as the standard (Cai et al., 2001).
Major and trace element analyses were conducted using an LA-ICP-MS in the State Key Laboratory of Ore Deposit Geochemistry, Institute of Geochemistry, Chinese Academy of Sciences. Measurements were performed using an Agilent 7500x ICP-MS that is equipped with a GeoLas Pro 193 nm ArF excimer laser. Elemental concentrations were calibrated against multiple reference materials (GOR128-G, ATHO-G, StHs6/80-G, and T1-G) and internal standards (Chen et al., 2011). Data correction and calibration were performed using the ICPMSDataCal (Liu et al., 2008a; Liu et al., 2008b). Surfaces of samples were ablated using laser pulses (4 Hz) for approximately 40 s after monitoring of the gas blank for 20 s, and the associated signals were used to select intervals that excluded inclusions and zoning (Zhao and Zhou, 2015). The normalization for rare earth elements is exemplified by europium (Eu), where the measured concentration is normalized against the North American Shale Composite (NASC) reference value to obtain EuN. The anomaly parameter δEu is subsequently derived through the relationship: δEu = 2EuN/(SmN + GdN), incorporating adjacent element ratios to mitigate chondritic normalization artifacts.
Results
Mineralogy and petrography
Petrographic observations showed that the dominant evaporite minerals in samples that were analyzed are halite and anhydrite. Dolomites in the study area can be divided into the following types: micritic (Dol-1), fine-crystalline fabric-obliterative dolomite (Dol-2), fabric-retentive dolomite (Dol-3), microbial mats-associated dolomite (Dol-4), and medium–coarse crystalline dolomite (Dol-5). Among the carbonate–evaporite sequences in the study area, Dol-1 and Dol-2 are the most common.
Halites
Petrographic analysis reveals two types of halite development in the Ma 5 sub-members of the Ordos Basin that exhibit similar mineral assemblages. The type 1 halite comprises light gray pore-filling materials, which are characterized by irregular shapes and sizes of 0.1–15 mm (Figure 2a). This halite type is common in the uppermost parts of the Ma 57 and Ma 59. The type 2 halite exhibits textures that vary from massive to bedded (Figure 2b), and this is frequent in the Ma 56 and Ma 58. The type 2 halite displays varying colors, including gray, white, and red (Figure 2c). In vertical succession, the gray halite is usually at the base, followed by the white and red varieties (Figure 2d).
Figure 2. Well core images of halite features. (a) Well J12, 3647.95 m. Numerous dissolved pores have been filled by halite (red arrows). (b) Well Y9, 2576.2 m. Gray to white halite with thinly laminated anhydrite. (c) Well Y9, 2440.1 m. Close - up of the red halite. (d) Well F5, 2308.37 - 2317.00 m. Panoramic view of the part of the halite showing three distinct halite beds, gray halite (red box), white halite (blue box) and red halite (yellow box) from the lower to the upper parts.
Anhydrites
The anhydrite types that were identified in samples analyzed can be grouped into the following: bedded (Figure 3a), nodular (Figure 3b), and vug-filling (Figure 3c).
Figure 3. Well core images of anhydrite features. (a) Well J12, 3623.51 m. Bedded anhydrite with muddy stripes. (b) Well J12, 3660.60 m. Anhydrite nodules (red arrows). (c) Well J12, 3661.48 m. Numerous dissolved pores have been filled by anhydrite (red arrows). (d) Well JT1, 2541.20 m. Details of anhydrite crystal. Cross polar. (e) Well J6, 3615.84 m. Detail of anhydrite filling micro-fractures. Cross polar.
Bedded anhydrites mainly occur in the Ma 56 and Ma 58, and these range in thickness from < 10 cm to several meters. The cumulative thickness of bedded anhydrites in well J-4 exceeds 80 cm in the middle of study area. Microcracks filled with argillaceous materials and deformation structures in these bedded anhydrites are attributed to the fluid characteristics of evaporites (Warren, 2006). Under a microscope, bedded anhydrites commonly occur as prismatic, cuboidal, or parallel veins of crystals (Figure 3d).
Nodular anhydrites are common between the mudstone and dolomite layers in M56 and M58. These nodules vary in size from a few mm to 5 cm, and their shapes vary from oval to irregular. Locally, these nodules represent up to 80% of the volumetric fraction of samples, and dolomites occur as thin laminae on their surfaces, thereby producing a chicken-wire structure.
Vug-filling anhydrites are found in dolomicrite and fine-crystalline dolomite reservoirs. Vugs display irregular shapes, and the milky white anhydrites are typically 1–10 mm in length. Under a polarized light microscope, these anhydrites occur as blocky and prismatic crystals (Figure 3e).
Dolomites
The Dol-1 comprises crystals that are < 20 μm, and this occurs at times as discontinuous horizontal veins (Figure 4a). The Dol-1 is associated with argillite, pyrite, and gypsum (Figures 4b, c), which suggests that it is part of a tidal-flat facies that involved high evaporation. In this dolomite, primary pores are undeveloped, but occasional dissolution pores and fractures that are filled with anhydrite are present. The intrusion of anhydrite crystals into the Dol-1 indicates that the former was formed earlier (Figure 4c).

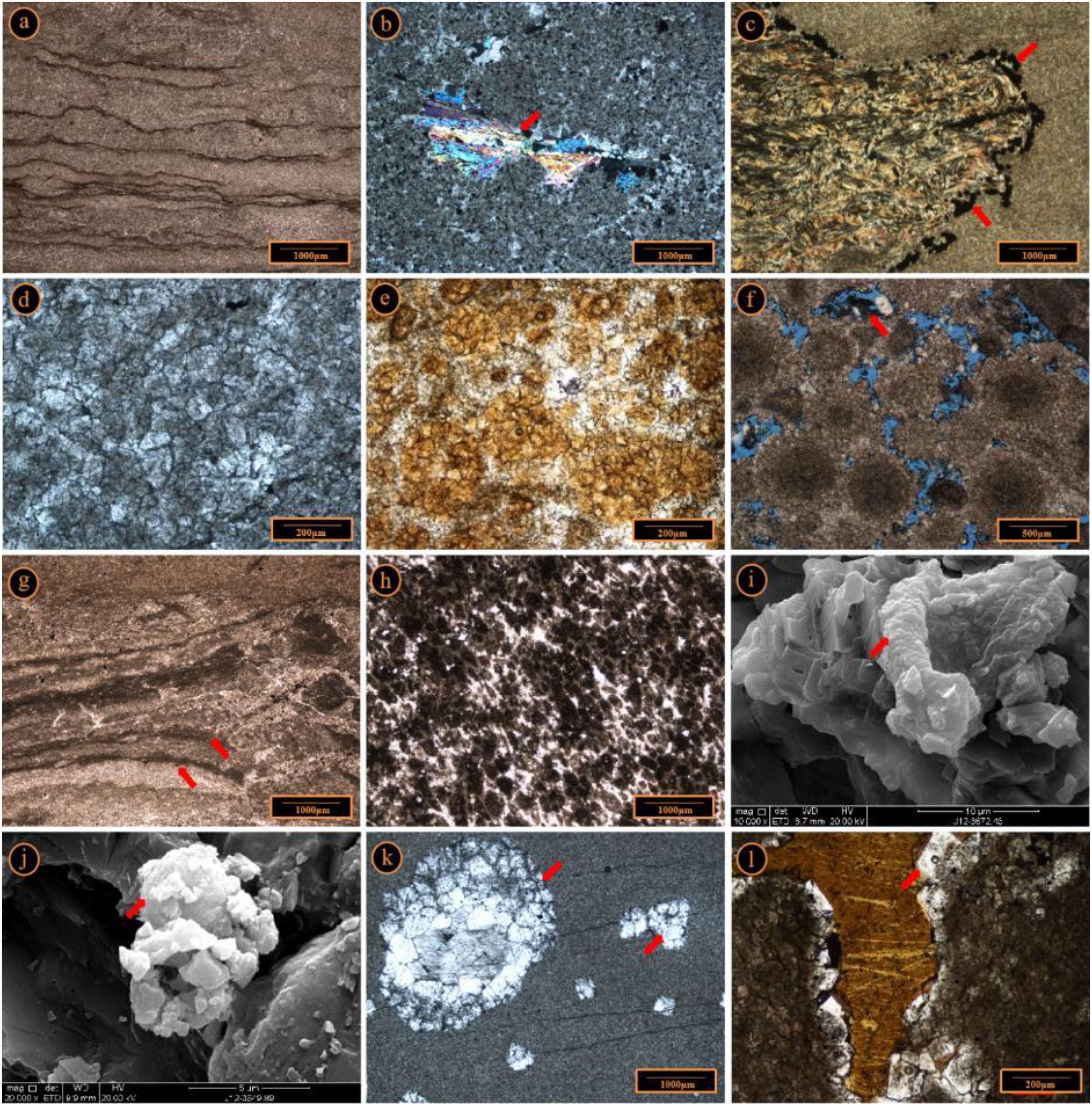

Figure 4. Microphotographs of different types of dolomites. (a) Well J6, 3573.37 m. Dol-1 with thin-layered mudstone. Transmitted light. (b) Well J6, 3562.17 m. Anhydrite (red arrow), Dol-1. Cross polar. (c) Well J12, 3620.11 m. Detail of anhydrite rushed into the dolomite, note the boundaries of pyrite (red arrows), Dol-1. Cross polar.(d) Well J6, 3670.50 m. Dol-2. Transmitted light. (e) Well J12. 3616.75m. Fabric-retentive dolomites composed of brown particles and white cements, Dol-3. Transmitted light. (f) Well T38, 3612.00 m. Oolitic dolomite, interparticle dissolution pore have been filled by organic matter (red arrow) and quartz, Dol-3. Transmitted light.(g) Well J12, 3649.80 m. Details of layered stromatolite dolomite, Dol-4. Transmitted light. (h) Well J6, 3585.07 m. Detalis of Thrombolite dolomite, Dol-4. Transmitted light. (i) Well J12, 3649.89 m. Close-up view of spherical extracellular polymeric substances, Dol-4. SEM. (j) Well J12, 3672.43 m. Close-up view of tubular extracellular polymeric substances, Dol-4. SEM. (k) Well JT1, 2529.1 m. Example of medium to coarse crystalline dolomite (red arrows), Dol-5. Transmitted light. (l) Well J12, 3620.11 m. Example of serrated dolomite cement (red arrows), Dol-5. Transmitted light.
The Dol-2 is the most common type of dolomite in the study area, and because the size of its crystals ranges from 20 –150 μm, its primary structure is difficult to observation under the microscope. This dolomite type is dominated by dark euhedral to subhedral crystals (Figure 4d), and these crystals are locally associated with stylolites.
The Dol-3, which is assigned a high-energy environment in tidal flat facies, primarily contains particles ranging in size from 200–500 μm, and these involve irregular crystals of 50–100 μm (Figure 4e). Interstices between these particles are filled with fine (10–30 μm) dolomite cement, whereas pores associated with intergranular dissolution are typically filled with organic matter and quartz (Figure 4f).
The Dol-4 is commonly observed in M57 and M59 sub-members, and it is characterized by agglutinated, calcified, and spar-encrusted microbe macro-fabrics (Riding, 2000). It comprises stromatolitic and thrombolitic dolomites (Figures 4g, h). In the study area, thrombolites appear to be primary, whereas stromatolites are secondary. SEM observations reveal that some of these dolomites were microbially precipitated. Spherical and tubular extracellular polymeric substances (EPS) on surfaces of crystals of this dolomite support its association with microbes (Figures 4i, j).
The Dol-5 can be further subdivided into two types: Type 1 (Dol-5-1) predominantly occurs as euhedral to subhedral crystals in paragenetic association with Dol-1 and Dol-2, showing crystals varying in size from 200–1000 μm (Figure 4k). These crystals are brighter than those of surrounding rocks, and some crystals exhibited a wavy extinction. Type 2 is serrated dolomite cement, which is characterized by grain sizes of 200–300 μm. It is mainly developed along the edges of intergranular solution pores in fine crystalline dolomites (Figure 4l). Crystals of this type of dolomite, which are commonly serrated and rectangular, are also generally brighter than those of surrounding fine crystalline dolomites.
Fluid inclusions
Considering that fluid inclusion data for the Dol-1, Dol-2, and Dol-3 have been reported in previous studies (Su et al., 2017), in the present study, analysis of fluid inclusions was conducted primarily using samples of the Dol-5, and results are presented in Table 1. Homogenization temperatures were determined using nine samples (Figure 5), and these yielded 29 points for the type 1 Dol-5 (Dol-5-1) and 18 for the type 2 (Dol-5-2). Therefore, 47 temperature measurements were obtained from these dominantly single-phase and liquid-filled inclusions. Shapes of the inclusions range from irregular to globular, and the longest diameters vary between 1 μm and 12 μm. The clustering of homogenization temperatures indicate that initial characteristics of the inclusions were minimally altered (Jiang et al., 2014). Coarse dolomites associated with the dolomicrite (Dol-5-1) produced mean homogenization temperatures ranging from 110–130 °C, whereas dolomite cements (Dol-5-2) display homogenization temperatures varying from 80–100°C (Figure 6).

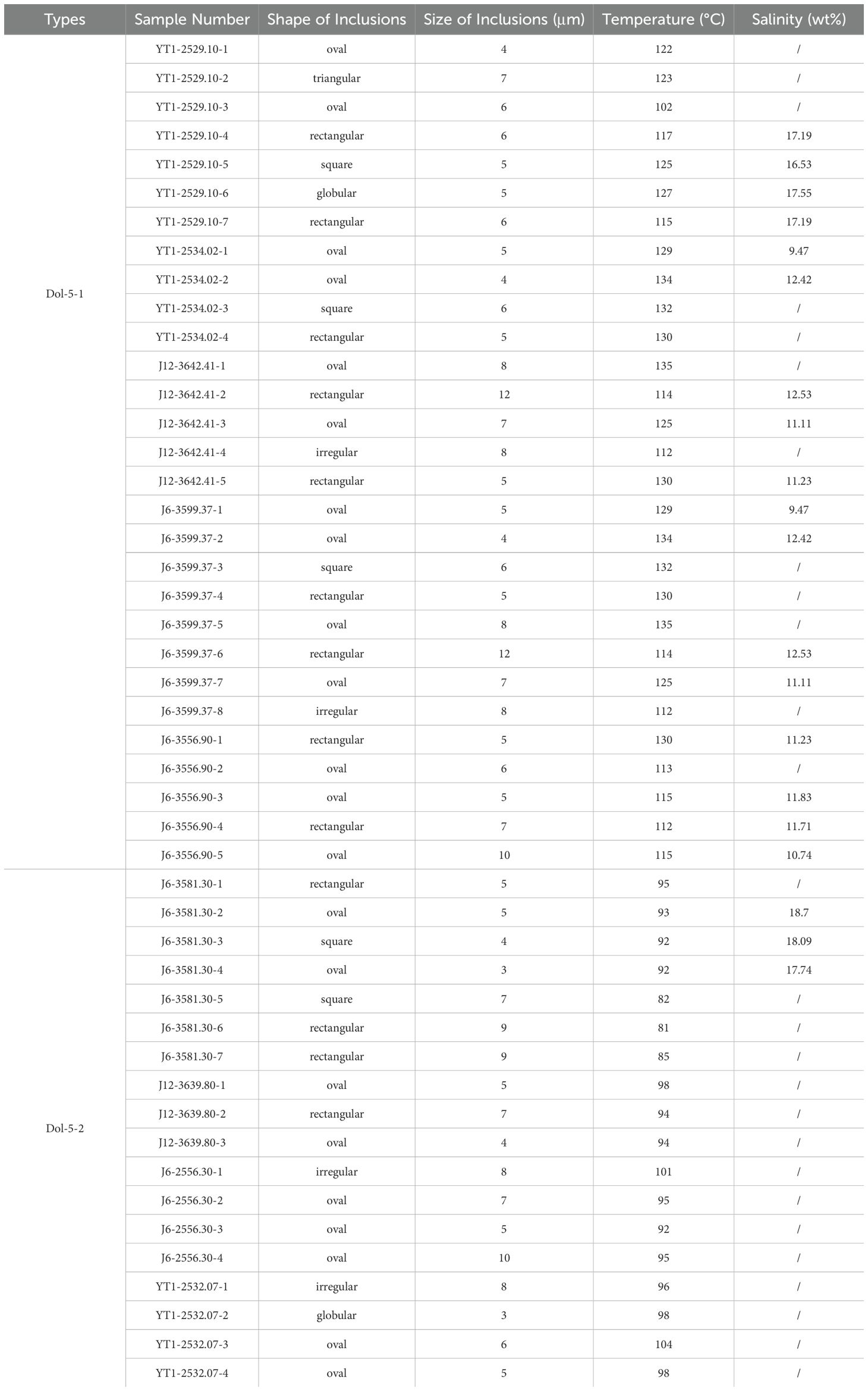

Table 1. Homogenization temperatures of Dol-5 analysis.
Figure 5. Photomicrographs of hydrocarbon inclusions under transmitted light and UV light. (a, b) Well YT1, 2529.1 m. Hydrocarbon inclusions in Dol-5–1 across cleavage crack. Transmitted light. (c) Well J6, 3581.30 m. Hydrocarbon inclusions in Dol-5-2. Transmitted light. (d) Well J6,3581.30 M. Hydrocarbon inclusions in Dol-5–2 with blue fluorescence. UV light.

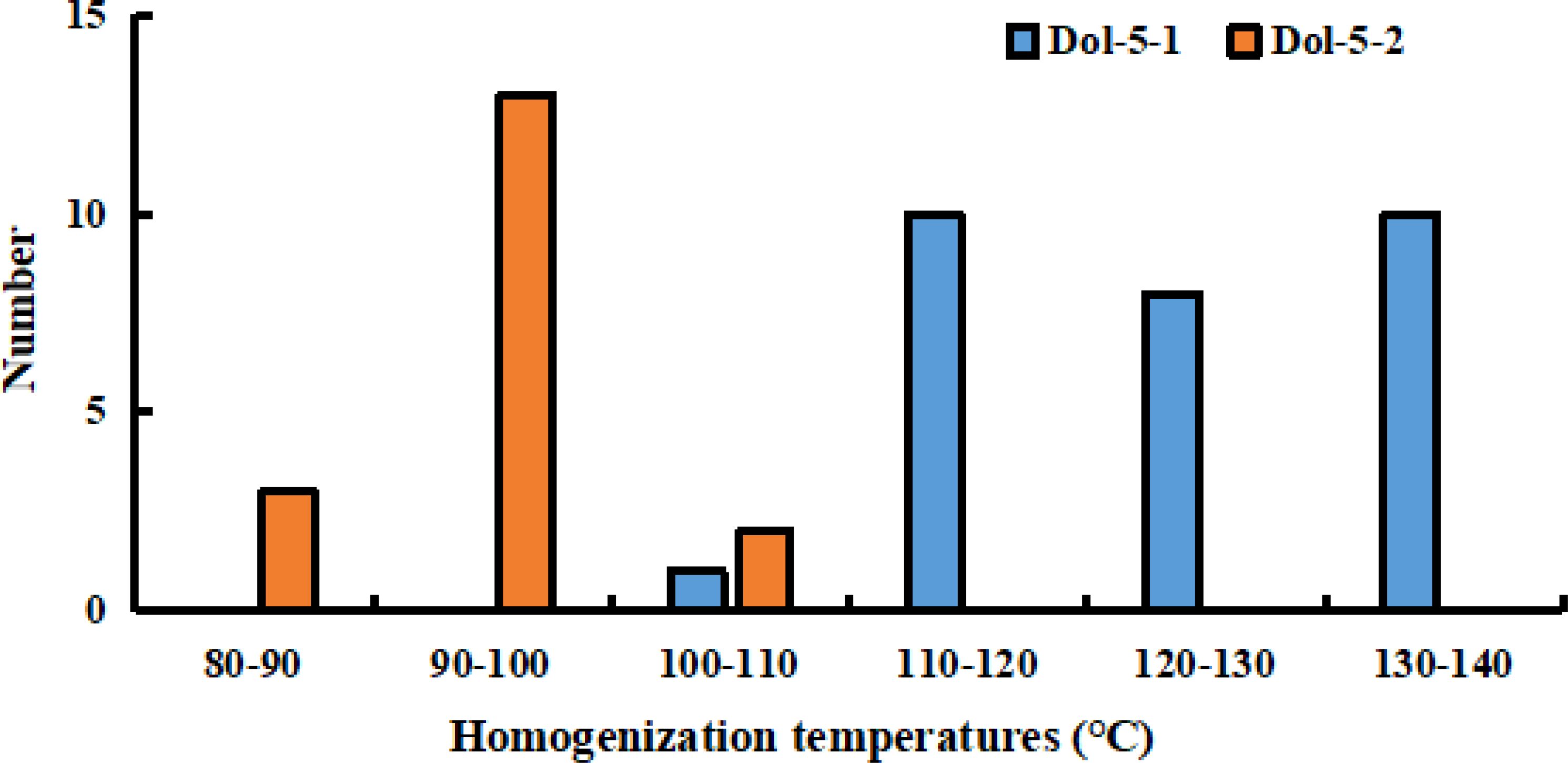

Figure 6. Homogenization temperatures measured from inclusions of Dol-5 from the Ordovician Majiagou Formation.
S isotope compositions
Evaporite samples that were analyzed produced δ34S values ranging from 23.0–27.9 ‰ (Table 2), whereas anhydrites associated with dolomite values varying from 23.0–27.8 ‰. Data for bedded anhydrites and halites range from 24.5 to 28.8 ‰ and 26.4 to 27.0 ‰, respectively.

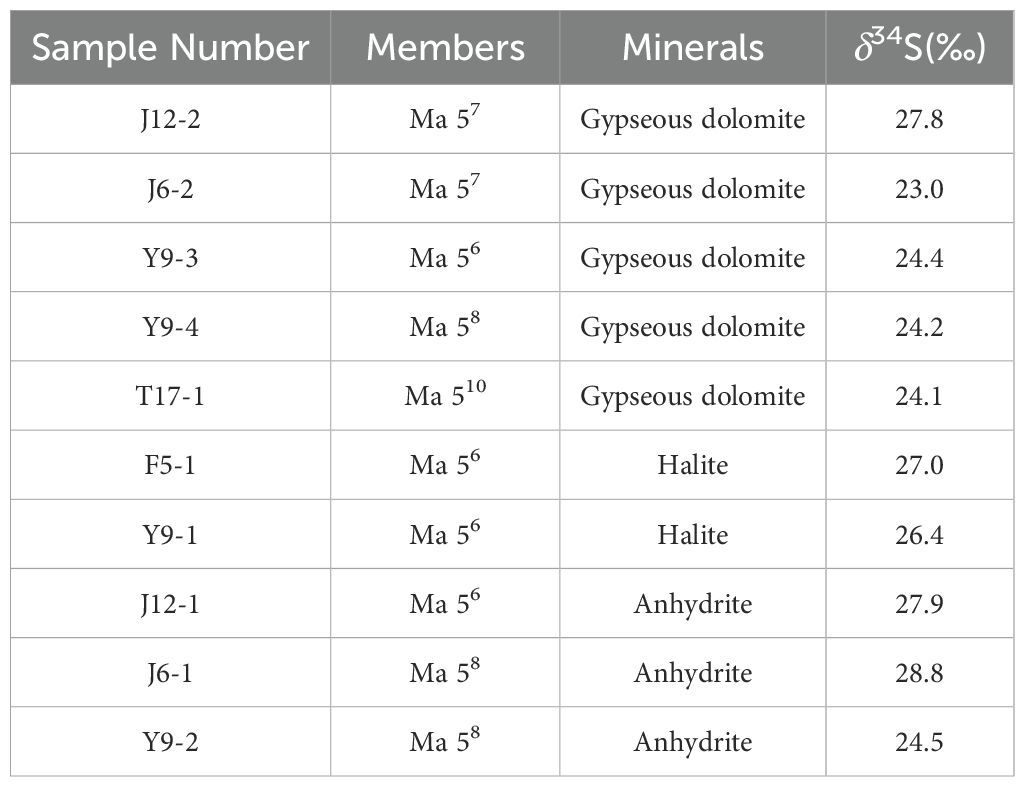

Table 2. δ34S values of evaporites in the Ordovician Ma 5 Formation.
Major and trace elements
Some spots of analyses of major and trace elements in various types of dolomites using LA-ICP-MS are shown in Figures 7, 8. Elemental composition data for dolomites are partly shown in Tables 3, 4.

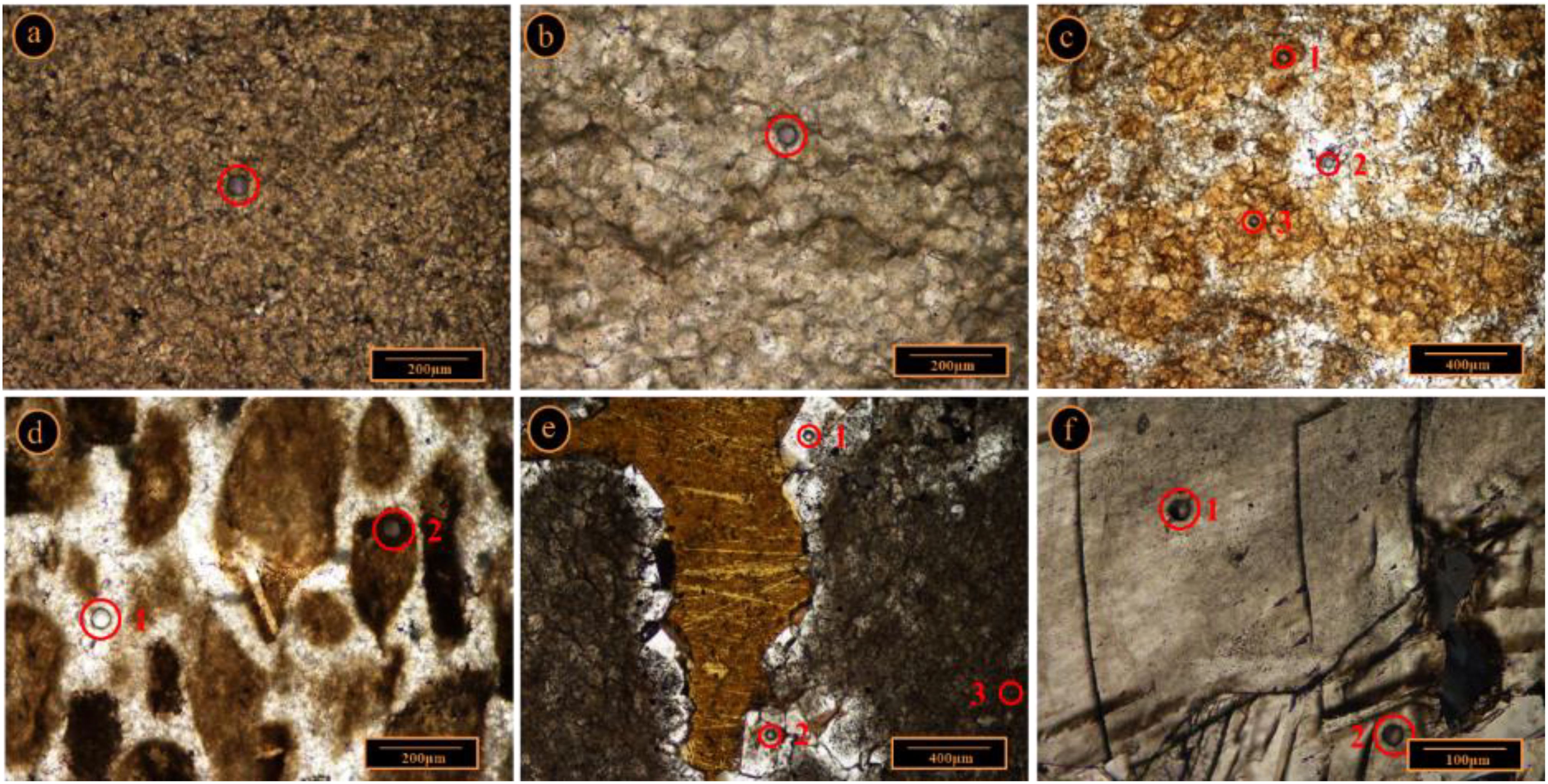

Figure 7. Photomicrographs of the spots of LA-ICP-MS analysis. (a) Well YT1-2529.10 m. Dol -1. (b) Well J6-3570.50 m. Dol -2. (c) Well J12-3616.75 m. Dol -3 (spots 1, 3) and dolomite cement (spot 2). (d) Well J6-3585.07 m. Dol -4 (spot 2) and bright dolomite (spot 1). (e) Well J12-3642.41 m. Dol 5 (spots 1, 2) and the surrounding dolomite (spot 3). (f) Well YT1-2529.10 m. Dol -5.

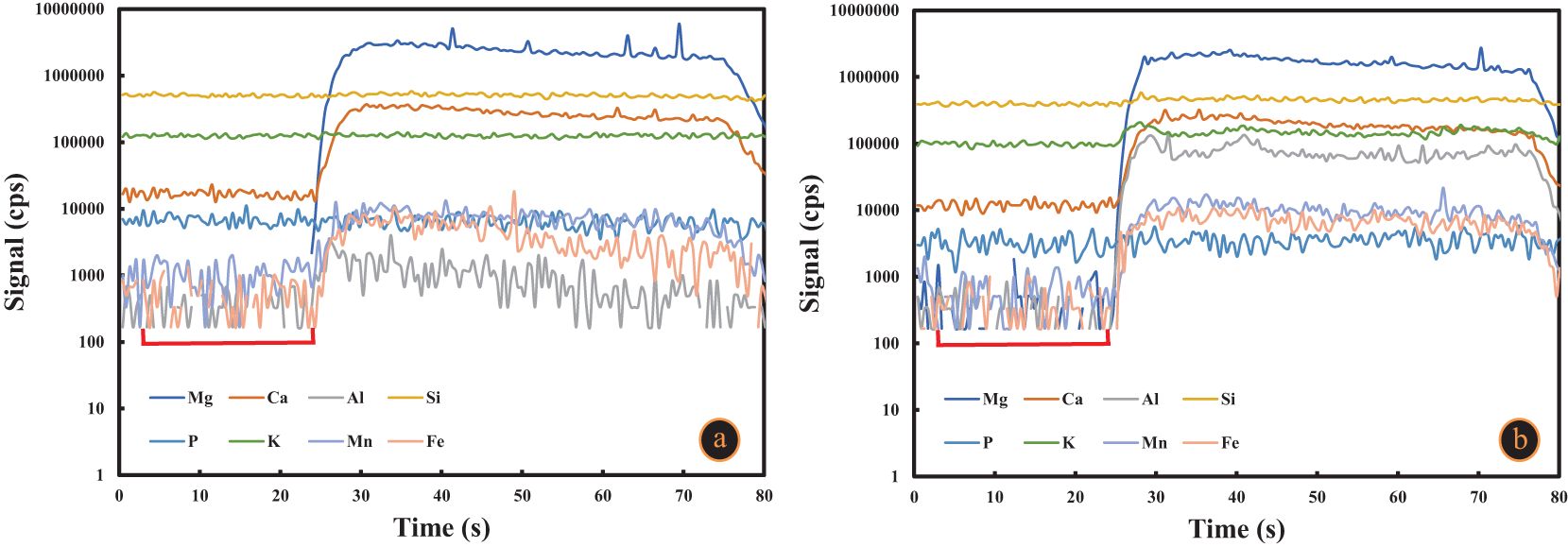

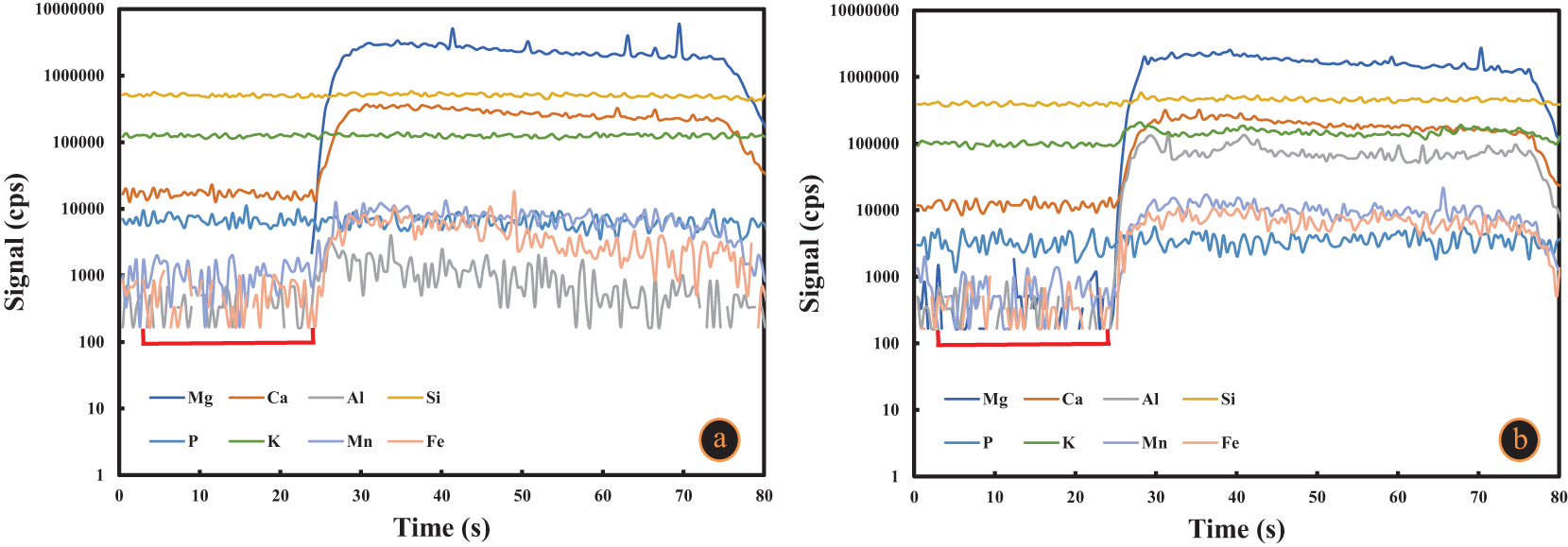

Figure 8. (a) Representative single-spot LA-ICP-MS spectra for part elements in the fig.8c spot 3. (b) Representative single-spot LA-ICP-MS spectra for part elements in the fig8f spot 1.

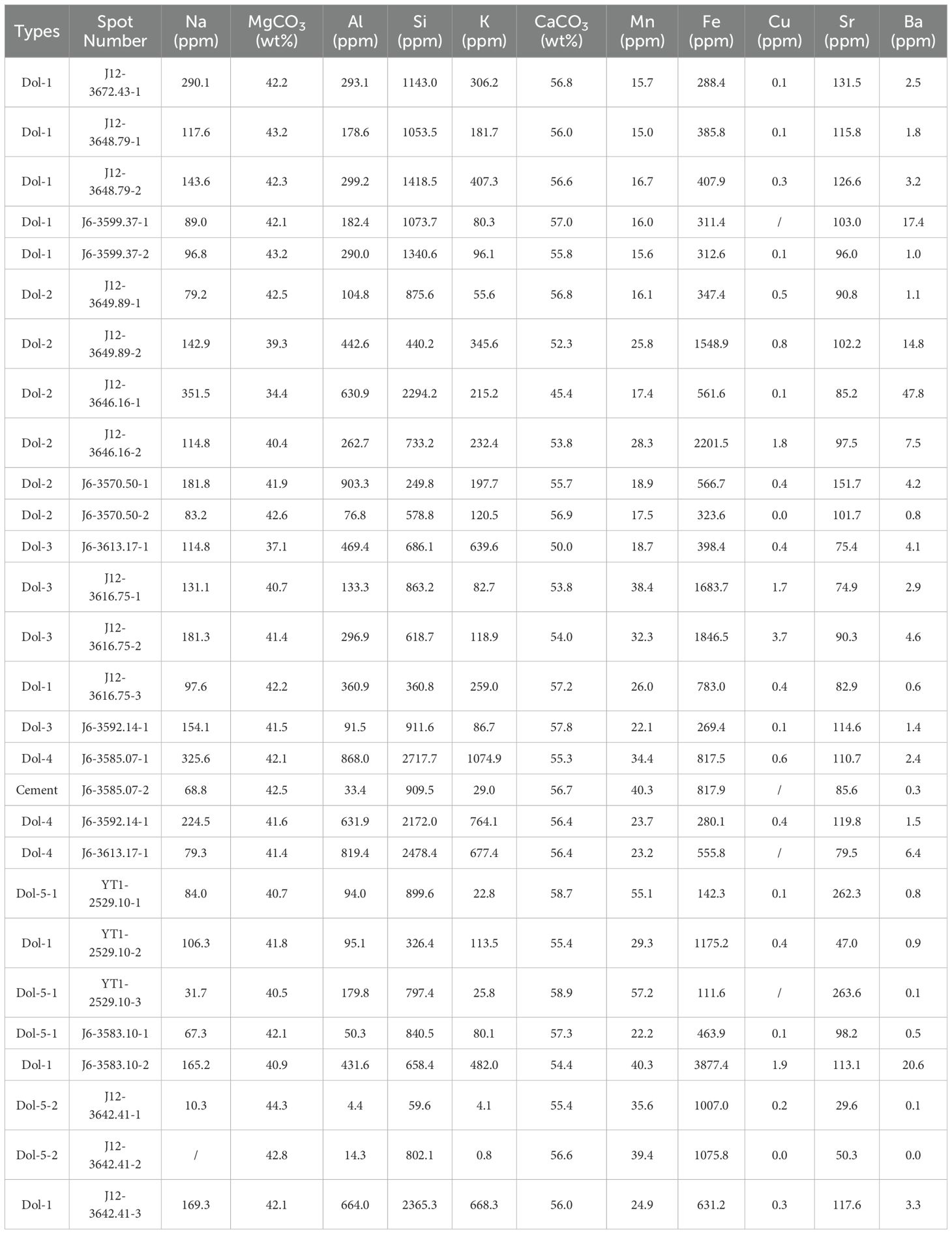

Table 3. LA-ICP-MS data of the M5 dolomites in the Ordos Basin.
Table 4. LA-ICP-MS data of the M5 dolomites in the Ordos Basin.
The MgCO3 and CaCO3 concentrations of different types of dolomite in the M5 member ranges from 34.4 to 44.3% and 45.4 to 58.9%, respectively. The Na, Al and Si concentration in dolomite between 10.3 to 351.5 ppm, 4.4 to 903.3 ppm and 59.6 to 2717.6 ppm, respectively. The K, Cu and Ba concentration in dolomite between 0.8 to 1074.9 ppm, 0.1 to 3.7 ppm and 0.1 to 47.8 ppm, respectively. Mn and Fe concentration in dolomite ranges between 15.0 to 57.2 ppm and 111.6 to 3877.4 ppm, respectively.
The ΣREE values of Dol-1, Dol-2, Dol-3, Dol-5 dolomites range from 2.17 to 19.98 ppm, whereas the ΣREE values of Dol-4 range from 1396.71 to 1841.32. The REE date in this paper has been normalized to the North America Shale Composite (Haskin et al., 1968). The δCe and δEu of different dolomite range from 0.84 to 2.30 and 0.05 to 2.05, respectively.
Distribution of evaporites
Based on data from more than 200 wells, the Ma 56 was found to contain the most extensive and thickest evaporites in the study area. Thickness distribution maps of the bedded anhydrite and halite in the Ordos Basin for this sub-member are shown in Figure 9. The occurrence of evaporites spans a distance of approximately 340 km in the North–south direction and approximately 160 km in the East–west direction. Regarding halite, the thickest occurrence of approximately 150 m is near well Y9 in the Eastern Ordos Basin. It extends over lateral distances of approximately 260 km from the north to south and 100 km from the east to west. Conversely, the bedded anhydrite is thickest (40 m) near well JT1 in the Western Ordos Basin.

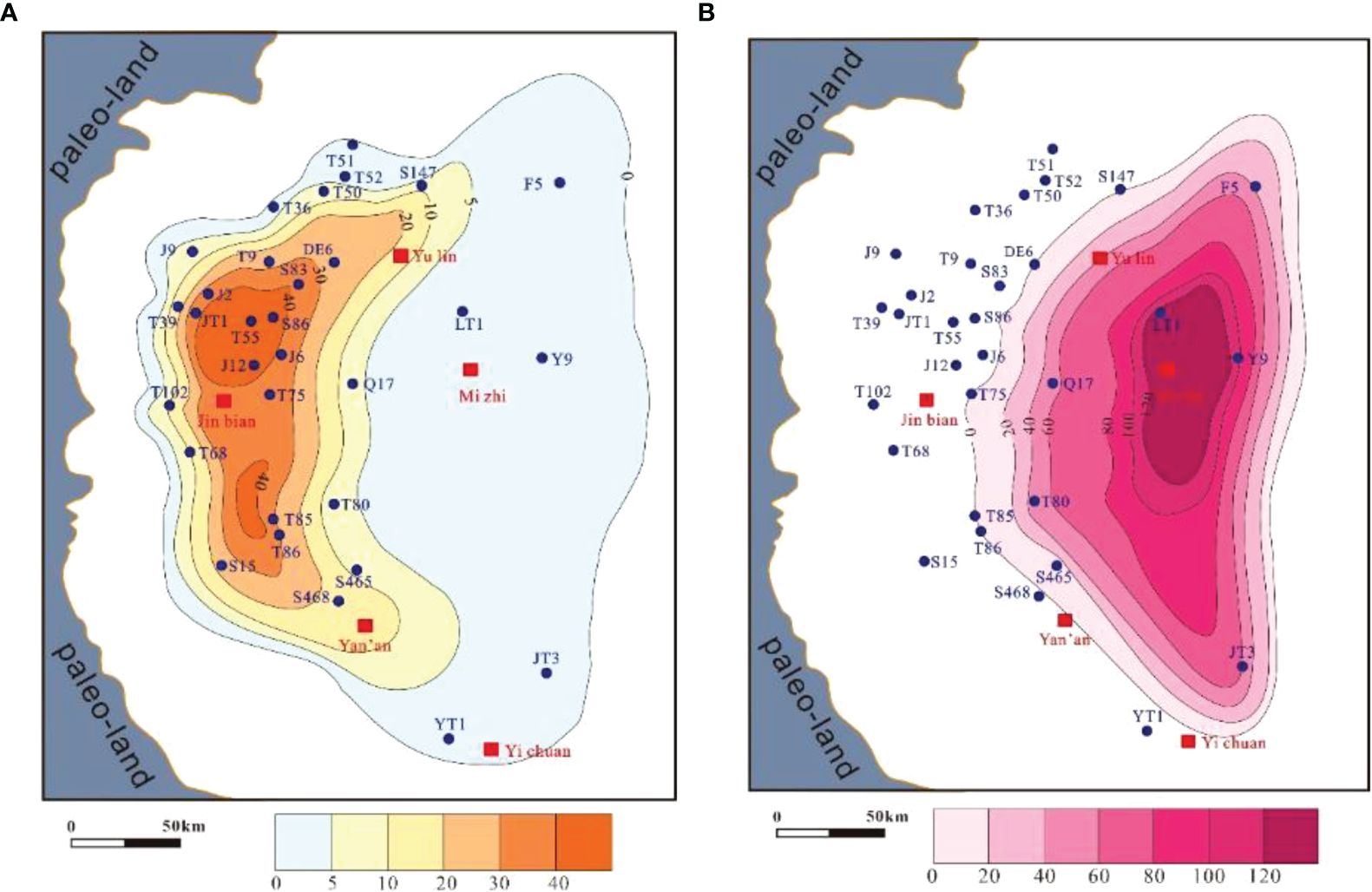

Figure 9. (A) Thickness distribution map of anhydrite of M 5 Member in the Ordos Basin. (B) Thickness distribution map of halite of M 5 Member in the Ordos Basin.
Stratigraphic correlation of the Majiagou Formation from the west to the east of the Ordos Basin (Figure 10) reveals similar distribution characteristics for evaporites. Halite is widely distributed in the central portion of the eastern region, whereas anhydrite is mainly distributed in the west. Further, dolomite contents of carbonates decrease considerably from the west to east.

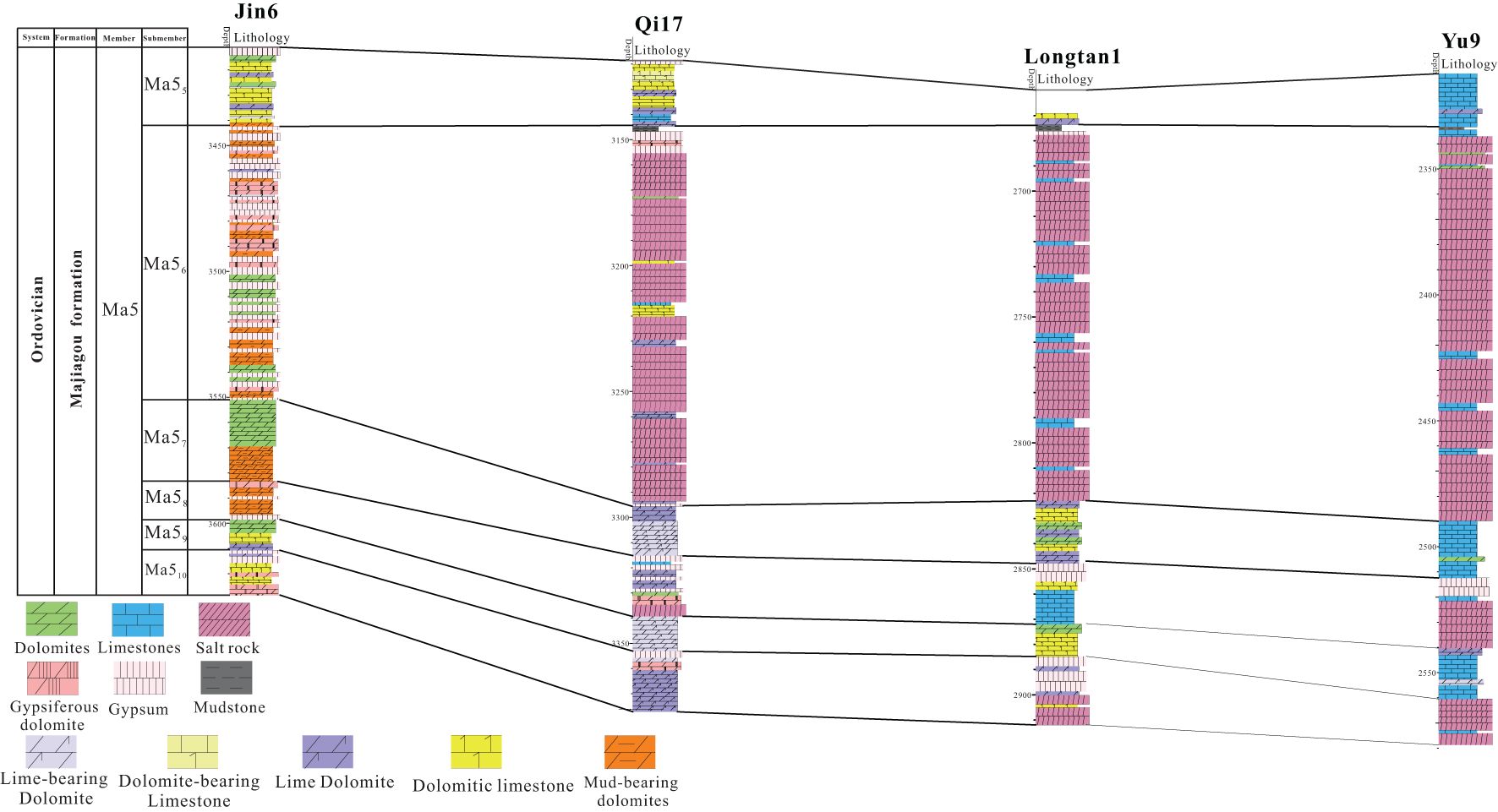

Figure 10. The cross section (from J6 to Y9) shows lithologies and thickness of the M 5 Member.
Discussion
Salt minerals
The origin of evaporites has been usually explained using two models. In the first, during the active tectonic period, the associated high temperatures and squeezing induced upwelling of brines from depth, and rapid cooling of these brines caused precipitation of salts. Owing to its high density and strong fluidity, salts accumulated gradually in the depression, thereby forming evaporites in the center of the basin (Manzi et al., 2012; Zhou et al., 2011; Zhang et al., 2016). In the second, in many studies, evaporites in sedimentary basins are assigned an origin from seawater (Treesh and Friedman, 1974; Ji et al., 2005). Arid and hot conditions promote the continuous evaporation of restricted seawater. If the addition of external seawater is considerably lower than the intensity of evaporation, the salinity of the restricted seawater continuously increases, and eventually precipitation occurs and different types of evaporites are deposited. The δ34S data can adequately explain the source of evaporites (Jiang et al., 2014). Those δ34S values of halite and anhydrite from the Majiagou Formation varying from 24.2‰ to 28.8‰, and these values are within the range of 26.0–34.0‰ that were reported for anhydrites derived from Ordovician seawater by Claypool et al. (1980). As mentioned earlier, hydrothermal mineral is not developed by our observation. These results suggest that sulfur in samples from the study area was derived from seawater rather than from brines in deep sections of the basin.
Minerals from the edge to the center of the lagoon generally comprise a transition from carbonates to anhydrite/gypsum, followed by halite, and this is caused by changes in the seawater salinity (Hovorka, 1992; Manaa and Aref, 2022). Warren (2006) noted that minerals present depend on the evaporation intensity. As seawater evaporation reaches 68%, precipitation of gypsum is initiated, whereas that of halite commences at an evaporation value of 88%. In addition, the deposition of evaporite minerals is affected by the accommodation space, evaporation rate, and seawater replenishment intensity (Hsü et al., 1978; Sun et al., 1995; Schreiber and Tabakh, 2000; Natalicchio et al., 2021; Mitchell et al., 2021). As shown in Figure 10, the depocenter of evaporites in the study area was around Mizhi, and the boundary between the anhydrite and halite deposition areas is near Jingbian. A paleotopographic map of the Ma 56 in the study area was drawn using the Ma 55 as the standard layer. The map revealed the development of two relatively depressed (I and II) and three relatively uplifted (III, IV, and V) areas (Figure 11). The boundary between the anhydrite and halite deposition areas coincides with the uplift zone. Therefore, the concave paleotopographic structure associated with uplift caused differences in the deposition of evaporites.

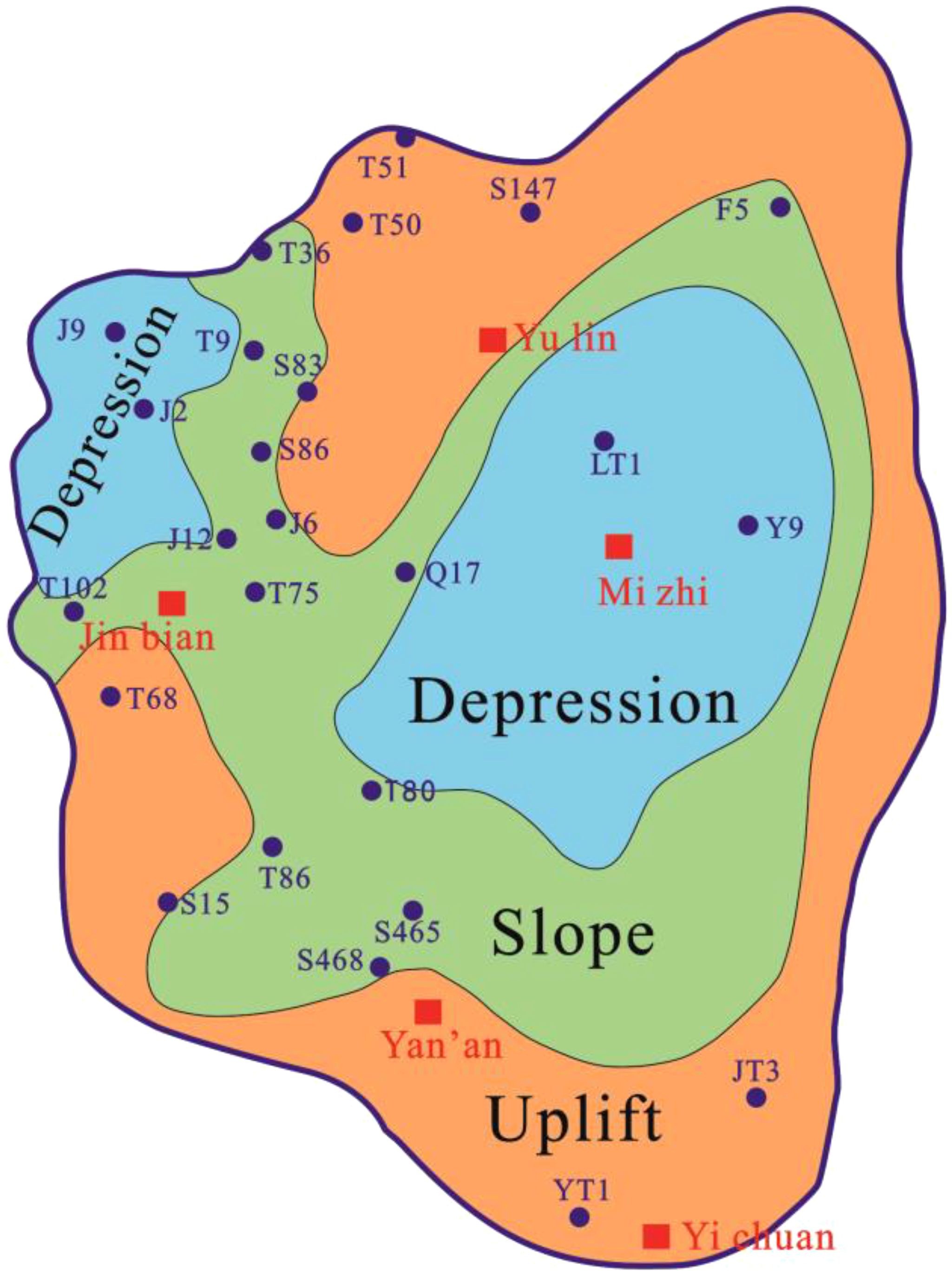

Figure 11. Paleogeomorphology of the Pre- M 56 deposition in the Ordos Basin.
The area in the west of the study area where anhydrite was commonly deposited is a supratidal (sabkha) environment. The weak hydrodynamic conditions and restricted water column explains the nodular and elongated morphologies of the anhydrites. However, disturbed mud layers are common on surfaces of cores, and these indicate that the water column was unstable, and this limited the precipitation of evaporites. The common anhydrite–carbonate cycles in the study area illustrate that multiple sub-transgression–regression cycles occurred in the five members of the Majiagou Formation during the major regression. Regarding the east–central parts of the study area where halite was predominantly deposited, depressions were deeper and associated with higher accommodation than in the west. The submarine uplift blocked communication between the depressions and external seawater, thereby restricting them to evaporation environments. At the edge of the east–central area, a thin layer of anhydrite was deposited, while the remaining heavy brine (possibly including heavy brine transported from the west), under the action of water stratification, accumulated from the periphery towards lowlands. This explains the increase in the amount of brine in the low-lying areas, where salinity gradually increased to produce thick halite layers under stable conditions. On surfaces of cores from well F5, halite layers change from dark gray to white, and then to red, from the bottom to the top (Figure 2d). This is because the oldest halite deposits contain mud and carbonate rocks. However, seawater recharge temporarily reduced salinity of the water column, and dissolution of previously deposited halite released some of the mud and carbonate particles, and this accounts for the thin layers of mud or carbonate rocks. The formation of these layers prevented further dissolution of halite, and a drop in the sea level re-ignited seawater evaporation and downward transportation of brines produced. Halite that was deposited subsequently contains minor muds and carbonates, and this explains its light color. However, salinity of the seawater increased further with increasing evaporation, and the additional halite that was deposited involves K and Mg minerals, and these account for its red color (Eggenkamp et al., 1995). Bao et al. (2004) reported markedly higher K concentrations from the red (0.104–0.220%) relative to the gray and white (0.03–0.06%) halites.
Dolomitization
In addition to petrological and diagenetic characteristics, the origins of different dolomite types were also investigated. The common occurrence of the < 20 μm Dol-1 particles in mud and gypsum suggests that this dolomite type was typically formed during syngenetic to penecontemporaneous periods. Normalized REE patterns for the Dol-1 are similar to those of the micrite (Figure 12a), and these are characterized by weak positive Ce anomalies and almost no Eu anomaly. These results suggest that the Dol-1 is a product of the interaction between evaporating seawater and primary sediments. The bird’s-eye formation is evident in sections of its cores, where some gypsum that was incorporated as filling has been dissolved (Figure 3a). Yang et al. (2018) and Xiang et al. (2020) provided evidence from stable isotopes (C, O, Sr) that fluids that produced dolomicrite in the five members of the Majiagou Formation originated from seawater. Results that are presented in the present study suggest that the Dol-1 was formed in a tidal flat that involved intense evaporation.

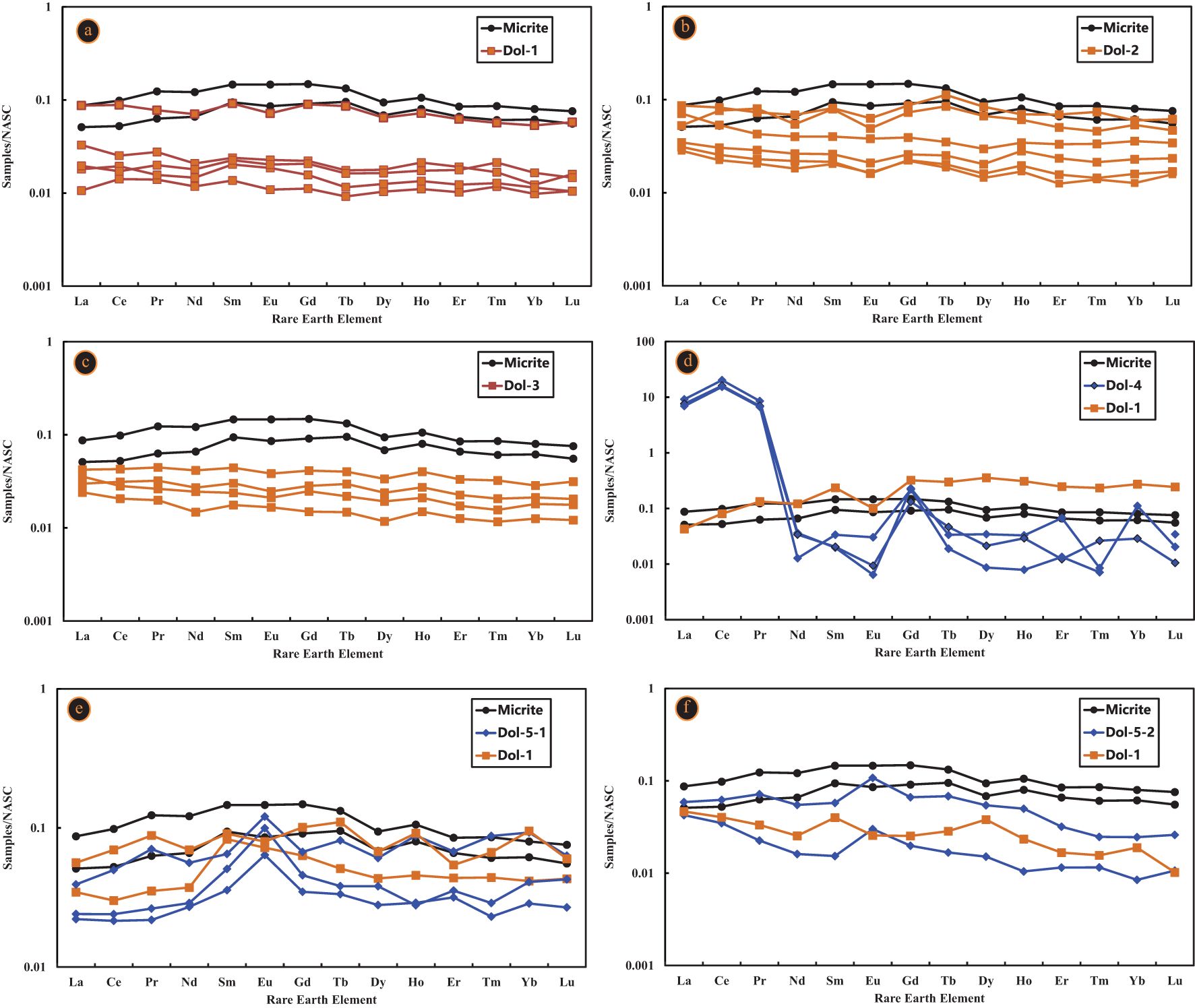

Figure 12. North America Shale Composite (NASC; Haskin et al., 1968) normalized REE assemblage patterns of the M5 Member dolomites in the eastern Ordos Basin. (a) Micrite and Dol-1. (b) Micrite and Dol-2. (c) Micrite and Dol-3. (d) Micrite, Dol-4 and Dol-1. (e) Micrite, Dol-5-1 and Dol-1. (f) Micrite, Dol-5-1 and Dol-1.
Conversely, the 50 to 100 μm subhedral to euhedral crystals of the Dol-2, which exhibit comparable sizes in a sample, indicate that this type of dolomite was exposed to weak recrystallization. The similarity of its normalized REE patterns to those of the Dol-1 and micrite indicates that the associated dolomitization fluid originated from seawater (Figure 12b). This dolomite type is usually characterized by brown edges that are attributed to oxidation. The Dol-2 is commonly associated with the Dol-1 in cores. Evidently, this dolomite type was formed via the seepage–reflux dolomitization, and some fine dolomites that exhibit effects of dolomitization were probably formed by further dolomitization of the Dol-1 or Dol-3.
Original crystals are visible in the Dol-3, and these generally vary in size from 50 to 100 μm. Crystals of the associated cement are brighter and finer (10 to 20 μm) compared to those of the Dol-3. The similarity of its normalized REE patterns to those of the Dol-3 and micrite indicates that the associated dolomitization fluid originated from seawater (Figure 12c). In the sample J12-3616.75, The ∑REEs vary from 3.30 to 5.09 ppm for the Dol-3 (spots 1 and 3) and 11.82 ppm for the cement (spot 2). Dolomites cement has a significantly higher ∑REE than Dol-3. Particles are preferentially dolomitized by Mg-rich fluids because the relatively high porosity and permeability than cements that facilitates seepage dolomitization. The δCe values for the Dol-3 range from 0.91 to 1.01, and these values are similar for cement samples (δCe=0.90), which indicates that the dolomitization fluid was characterized by sea water. The δEu values of dolomite cements have significant positive anomalies than Dol-3. The positive Eu anomalies are attributed to effects of the hydrothermal activities (Hecht et al., 1999) or reducing environment (Khan et al., 2012). Minerals linked to hydrothermal activities are insignificant in the study area, and the concentrations of Mn and Fe for dolomite and cement samples show minor differences. These results suggest that the positive Eu anomaly is not associated with hydrothermal activities. The positive δEu anomaly of dolomite in the cement is related to the reducing environment. Eu3+ is reduced to Eu2+ under reducing conditions, and because the charge and ionic radius of Eu2+ are similar to those of Ca2+, Eu2+ can replace Ca2+ in dolomite, thereby leading to a positive Eu anomaly. These results also indicate that the timing of dolomitization for the Dol-3 and cement differ. The powder samples used to generate geochemical data for fabric-retentive dolomites are worth considering.
∑REE values for the Dol-4 are high compared to those of other dolomites, and these range from 1396.71 to 1841.32 ppm. There is a great difference normalized REE patterns between the Dol-4 and micrite (Figure 12d). Elevated REEs in this dolomite type are linked to absorption by cell walls of microbes. Compared to the Dol-1 and micrite, the Dol-4 exhibits obvious positive Ce anomalies, and these range from 2.21 to 2.30. In an environment, Ce is sensitive to the redox condition because Ce3+ in a fluid is easily oxidized to Ce4+ under oxidizing conditions. Compared with Ce3+, Ce4+ is insoluble, weakly mobile, and it easily adheres to surfaces of sediments (De Baar et al., 1991; Alibo et al., 1999). These properties explain the negative anomalies of Ce in fluids and positive anomalies in sediments. The lack of prominent Eu anomalies in the Dol-4 indicates that it was deposited in an oxidizing environment. SEM observations revealed the presence of nanoglobule and filiform textures (Figures 5i, j), and these are characteristics of microbial dolomite. Therefore, the high ∑REEs and morphologies of extracellular polymeric substances (EPS) in the Dol-4 suggest that its formation was closely related to microbial activities. Moreover, Liu et al. (2019) reported that planktonic aerobic heterotrophic bacteria in saline lakes can catalyze the formation of primary dolomite, demonstrating that some types of dolomite may represent a biotically induced origin.
The formation of coarse dolomite has been investigated in many studies (Qing and Mountjoy, 1994; Jiang et al., 2016; Noorian et al., 2022). However, conflicting observations have been advanced on the significance of hydrothermal activities in the formation of coarse dolomite. The resemblance of the normalized REE pattern of the Dol-5–1 to those of the Dol-1 suggests that it is related to surrounding dolomites (Figure 12e). The Dol-5–1 exhibits significant Eu anomalies, and these range from 1.80 to 2.05, with an average value of 1.88. This mean value is markedly higher than the 0.90 that was obtained for surrounding dolomites, and this difference suggests that the formation of the Dol-5–1 was probably linked to hydrothermal activities. Zhen et al. (1999) reported homogeneous temperatures of 174.8 to 182.0°C from fluid inclusions in Dol-5–1 in the study area. In the present study, an average homogenization temperature of 130°C was obtained for this type of dolomite. Therefore, according to results that have been presented, the formation of the Dol-5–1 is linked to hydrothermal activities. In the past, the Ordos Basin was considered a stable cratonic basin without large-scale fracture activity in the basement. However, recently, studies have revealed that several fractures are present beneath the sedimentary cover (Wang et al., 2005; Xu et al., 2018), and thus, major fractures probably developed deep in the Ordos Basin.
In the study area, the serrated dolomite cement is another type of coarse dolomite (Dol-5-2). The normalized REE pattern of the Dol-5–2 is similar to those of surrounding dolomites, and these data involve no obvious Ce or Eu anomaly (Figure 12f). Homogeneous temperatures from inclusions in the Dol-5–2 range from 81 to 104°C, and the average is 93.6°C (Figure 7). These results indicate that the formation of the Dol-5–2 was not influenced by hydrothermal fluids, but rather, it probably involved self-regulating dolomitization of early dolomites. During burial, compaction promotes dissolution of dolomite, but in this relatively closed system, re-precipitation occurs. Owing to the close association between the Dol-5–2 and pores, residual brine in these pores probably contributed to its formation.
Effect of evaporites on dolomitization
The importance of evaporites that are associated with dolomite reservoirs has been highlighted in several studies (Wani and Al-Kabli, 2005; Peyravi et al., 2015). Evaporites are excellent cap rocks because of their low porosity and permeability, as well as resistance to the impacts of diagenesis (Kirkland and Evans, 1981; Jin et al., 2010). In an arid climate, thick evaporites can form, and a restricted environment facilitates seepage-reflux and capillary-concentration dolomitization (Sibley, 1980; Shen et al., 2016). During accumulation in a reservoir, high-maturity hydrocarbons can react with evaporite minerals under high-temperature conditions to generate H2S via thermochemical sulfate reduction (TSR). This reaction is important for the formation of high-quality reservoirs (Zhu et al., 2006; Jiang et al., 2018). However, the effect of evaporites on the formation of dolomite is another important aspect that remains controversial.
In the present study, the extent of dolomitization in the study area appears related to the type of associated evaporite mineral. Carbonates associated with anhydrite are mostly dolomitized, whereas those linked with halite exhibit partial or no dolomitization (Figure 10). Halite appears to prevent seepage of high Mg2+ fluids, and this limits dolomitization when it occurs with carbonates. Conversely, dolomitization seems related to the conversion of gypsum to anhydrite. During burial, the dehydration of gypsum to form anhydrite can absorption of Ca2+, thereby elevating the Mg2+/Ca2+ in pore waters in a closed system. The high Mg2+ fluids can then migrate via fractures and cause dolomitization of sediments. Therefore, carbonates associated with anhydrite are more susceptible to dolomitization than those linked with halite. This is a new evidence in the study of dolomite problem.
Process of dolomitization
The process of multistage dolomitization in the M5 member in the Ordos Basin can be reconstructed by facies, diagenetic paragenesis and geochemical results, considering the available regional geological and burial history data. The formation process of dolomite in the study can be divided into two phases.
During the initial penecontemporaneous to shallow burial period of the Majiagou Formation, the central paleo uplift created a barrier that restricted water circulation within the study area. Coupled with a dry and hot climate, this led to a progressive increase in seawater salinity. The resulting high-salinity seawater rapidly metasomatized the semi-consolidated sediments, producing Dol-1 and Dol-2 (Figure 13a). Concurrently, sulfate-reducing bacteria in the center of the salinized lake basin facilitated the precipitation of high-magnesium calcite through photosynthesis in a high-salinity brine environment. Over time, the crystal lattice of high-magnesium calcite underwent continuous adjustment, leading to crystal growth and the formation of microbial cell aggregated dolomite. This Dol-4 was subsequently transported to the tidal flat facies zone by tidal forces (Figure 13a). As evaporation continued and gypsum salt rock precipitated, high-salinity seawater rich in Mg2+ infiltrated downward through the permeable original sedimentary layers, driven by salinity gradients. Simultaneously, porewater in the sediments reached gypsum saturation and initiated brine reflux driven by water density differences (Rahimpour-Bonab et al., 2010). This seepage reflux dolomitization process persisted for an extended period, spanning from the penecontemporaneous to the shallow burial stages, resulting in extensive dolomite (Dol-1, Dol-2 and Dol-3) distribution throughout the study area (Figure 13b).

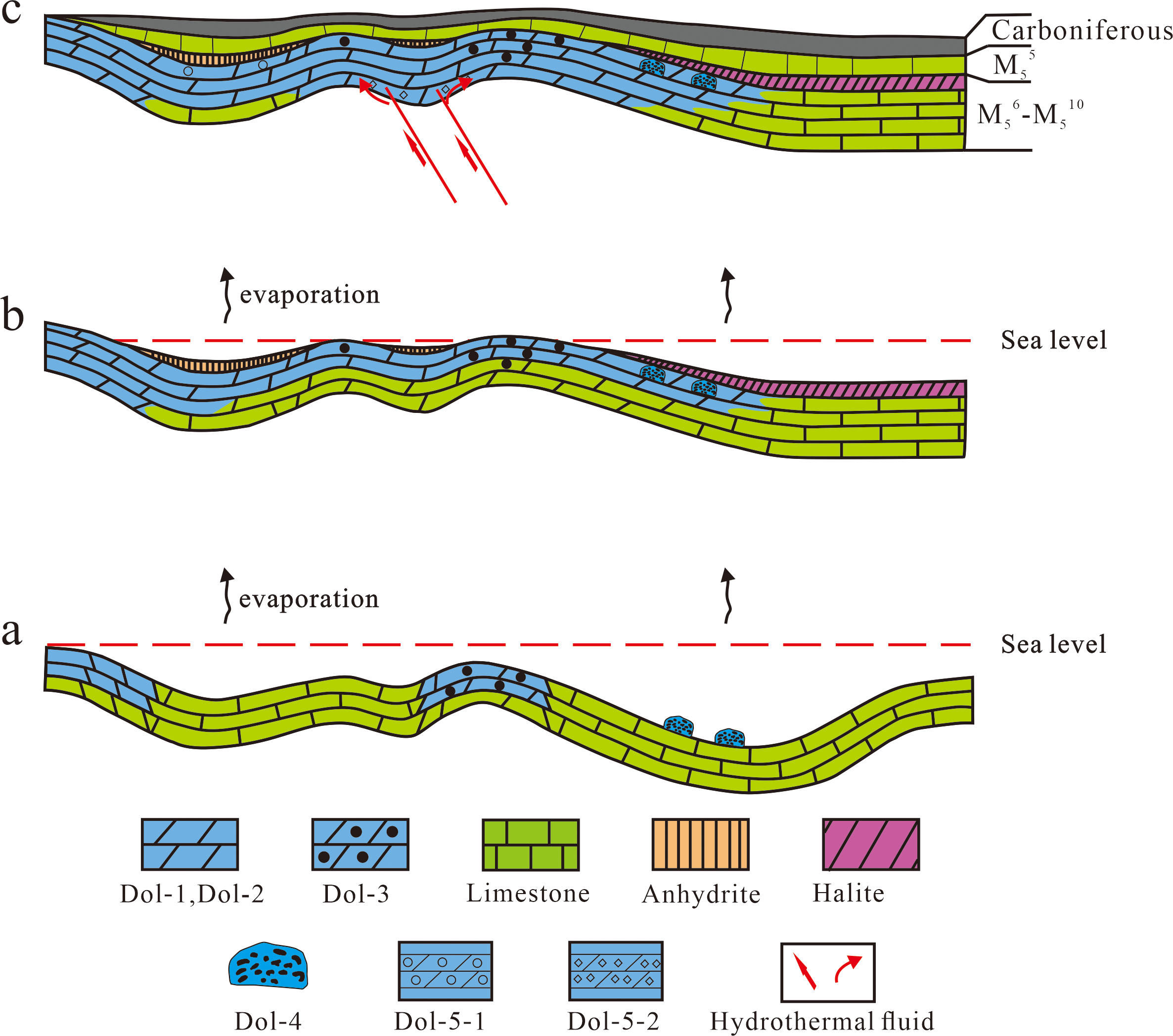

Figure 13. Schematic drawing explaining the dolomitization models of the Fifth Member of Majiagou Formation in the Ordos Basin. (a) Dol-1. Dol-2 and Dol-4 were formed during the initial penecontemporaneous to shallow burial period. (b) The extensive development of Dol-1, Dol-2, and Dol-3 by seepage reflux dolomitization. (c) Dol-5 was formed in the deep burial period.
The second stage corresponds to the deep burial period. Here, the pressure from overlying strata results in elevated temperatures and pressures within the pre-salt sequences. Fluids rich in Mg2+, released from overlying Carboniferous clastic rocks abundant in aluminosilicate, could infiltrate pre-salt sequences via strata with high permeability or through concealed fissures and faults, facilitating burial dolomitization (Dol-2, Dol-5). Additionally, the original brine trapped within the eastern gypsum salt rock can migrate along the strata, supplying Mg2+ for dolomitization. Geochemical analyses of Dol-5–1 suggest the presence of hydrothermal dolomitization (Figure 13c). While the source of hydrothermal fluids in the Ordos Basin remains contentious, current studies indicate an absence of large-scale basement fault activity necessary for hydrothermal fluid upwelling. Nonetheless, Ren et al. (2007) posited a significant tectonic thermal event during the late Mesozoic, evidenced by notable anomalies in organic matter reflectivity (Ro) near the top surface of the Ordovician. Moreover, although large-scale basement faults have not been conclusively identified in the study area, several hidden basement faults have been detected beneath the sedimentary cover (Zhao et al., 2003), supporting the potential for hydrothermal dolomite development.
Conclusions
1. Within the study area, five distinct types of dolomite have been identified: micritic (Dol-1), fine-crystalline fabric-obliterative dolomite (Dol-2), fabric-retentive dolomite (Dol-3), microbial mats-associated dolomite (Dol-4), and medium–coarse crystalline dolomite (Dol-5). Geochemical data reveal that the formation of Dol-1, Dol-2, and Dol-3 primarily resulted from seepage-reflux dolomitization and evaporative pumping dolomitization. Dol-4 exhibits clear microbial origins, with associated carbonate particles displaying elongated to elliptical shapes, indicating transport by tidal forces from the gypsum lake basin to the intertidal and supratidal zones after formation. Dol-5-1, despite its relatively high δEu values, exhibits a rare earth element distribution pattern similar to the surrounding rock, this suggests that Dol-5–1 was essentially a result of hydrothermal alteration of the host rock. While Dol-5-2, formed from further dolomitization by high Mg2+ fluids within burial period pores.
2. In the study area, evaporite types are predominantly gypsum and halite. Sulfur isotope analyses indicate that these evaporites originated from seawater evaporation. The planar distribution of gypsum and halite exhibits certain differences, attributed to paleotopography and varying evaporation intensities. Carbonates underlying gypsum strata exhibit a higher degree of dolomitization compared to those beneath halite strata. This increased dolomitization is due to gypsum absorbing Ca2+ and releasing high-salinity brine during its transformation to anhydrite, thereby enhancing the Mg2+/Ca2+ ratio in the formation fluids.
