Abstract
Background:
Birt-Hogg-Dubé syndrome (BHD) is a rare autosomal dominant inherited disorder caused by germline mutations in folliculin (FLCN). Despite our significantly evolved understanding of BHD over the past decades, no bibliometric analyses have been conducted in this field. This study aimed to analyze and visualize the characteristics of publication outputs, the research hotspots, and scientific frontiers about BHD using bibliometric analysis.
Methods:
All relevant literature on BHD was culled from the Web of Science Core Collection (WoSCC) database. Valid data were extracted from the articles and visually analyzed using CiteSpace and VOSviewer.
Results:
A total of 751 qualifying papers were included. Publication outputs concerning BHD increased over time. The dominant position of the United States and Japan in BHD research field was evident. National Cancer Institute (the USA) and Yokohama City University (Japan) were the two most productive organizations. W. Marston Linehan exerted a considerable publication impact and had made the most remarkable contributions in the field of BHD. Plos One was the journal with the highest publication outputs, and half of the top 10 journals and co-cited journals belonged to Q1 or Q2. Keyword citation bursts revealed that management, tumor suppressor, flcn gene, spectrum, diagnosis, risk, computed tomography were the emerging research hotspots.
Conclusion:
Research on BHD is prosperous. International cooperation between countries and organizations is also expected to deepen and strengthen in the future. Our results indicated that FLCN-associated pathways involved in the pathogenesis of BHD, specific options for early diagnosis, and molecular-targeting therapies will remain research hotspots in the future.
Introduction
Birt-Hogg-Dubé syndrome (BHD, OMIM#135150) is an inherited autosomal dominant disorder that may involve multiple organs including the skin, the lung, and the kidney. This syndrome was actually first described in 1975 by Otto P. Hornstein and Monika Knickenberg from Germany. They pointed out that the occurrence of multiple “perifollicularfibromas” represented an autosomal dominant trait indicating extracutaneous cancer proneness (1). Two years later, Arthur R.Birt, Georgina R. Hogg, and W. James Dubé delineated similar hereditary skin lesions for which they proposed the name “fibrofolliculoma”, without mentioning extracutaneous cancer proneness (2). Then, the disease was named “Birt-Hogg-Dubé syndrome” after the three Canadian physicians. Nowadays, many scholars believe that “fibrofolliculoma” is identical to “perifollicular fibroma” (3). Thus, these two diseases are basically the same. Although BHD is more widely accepted, we should not forget the persons who first discovered the disease.
As a rare syndrome, its exact incidence is unknown (with only 600 families reported worldwide) (4). BHD is one of the three major reasons for cystic lung disease with lymphangioleiomyomatosis (LAM) and pulmonary Langerhans cell histiocytosis (PLCH). Unlike LAM, BHD has no gender predilection (5) and shows a tendency to affect patients in their thirties to forties (6). In 2001, a BHD-related gene locus was located to chromosome 17p11.2 by linkage analysis (7, 8). One year later, germline mutations in FLCN gene, encoding the protein folliculin, was identified as the causative gene of BHD (9).
The clinical expression of BHD typically includes cutaneous fibrofolliculomas, multiple pulmonary cysts, recurrent spontaneous pneumothorax, and renal tumors of various histological types (10). Early diagnosis of the syndrome, prompt management for probands and affected family members, early detection and therapeutics of renal cancer, and prevention of pneumothorax are the cornerstones in the management of BHD (10, 11). A diagnostic algorithm proposed by Menko et.al. is listed in Table 1. Notwithstanding remarkable progress in our understanding of BHD over the past several decades, comprehensive reports that can benefit researchers to obtain an intuitive overview and reveal trends in the BHD research field are still absent.

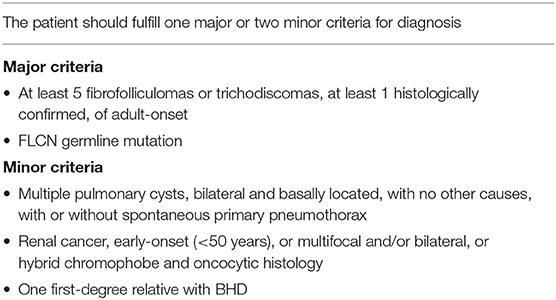

Table 1
| The patient should fulfill one major or two minor criteria for diagnosis |
|---|
| Major criteria |
| • At least 5 fibrofolliculomas or trichodiscomas, at least 1 histologically confirmed, of adult-onset |
| • FLCN germline mutation |
| Minor criteria |
| • Multiple pulmonary cysts, bilateral and basally located, with no other causes, with or without spontaneous primary pneumothorax |
| • Renal cancer, early-onset (<50 years), or multifocal and/or bilateral, or hybrid chromophobe and oncocytic histology |
| • One first-degree relative with BHD |
Diagnostic criteria for Birt–Hogg–Dubé syndrome.
Bibliometric analysis is the use of mathematical and statistical methods to analyze large amounts of heterogeneous literature (12). Combining with visualizing processing applications like CiteSpace (13) and VOSviewer (14), bibliometric analysis can not only analyze the contributions of numerous authors, journals, organizations, and countries/regions, but also can predict the hotspots and trends of a specific research field, providing the basis for the future study (15, 16). However, there is still no bibliometric analysis available in BHD research field. In the present study, we aimed at exploring the hotspots and trends in BHD research by analyzing scientific literature from 2001 to 2021, to provide new visions for future scholars, especially for those who have curiosity but are novices in this field.
Materials and Methods
Data Collection
All historic achievements were culled from the Web of Science Core Collection database. Editions selected “Science Citation Index Expanded (SCI-EXPANDED)”. The search string was set to TS = (“Birt-Hogg-Dubé Syndrome” OR “BHD” OR “Hornstein–Knickenberg Syndrome”). The publication period was limited from 2001 to 2021. Of various publication types, only articles and review articles written in English were included. Record content chose full record and cited references. Then exported and saved the record as plain text files, and stored in the format of download_txt. The whole process was completed within 1 day (March 6, 2022).
Data Analysis
Coherent data were imported into CiteSpace and VOSviewer to perform visual analysis. In the atlas, circles stand for countries/regions, organizations, authors, and keywords; lines between circles represent collaboration or co-citation relationships; a spectrum of colors depicts the temporal order of observations.
CiteSpace version 5.8.R3 (Drexel University, Philadelphia, PA, USA) was used to visualize the intercountry and institutional analysis and the author's cooperation. Developed by Chen, Citespace is an application for progressive knowledge domain visualization (17). It is especially suitable for analyzing and visualizing patterns and trends of scientific literature. The main goal of knowledge domain visualization is to identify key points in the development of the research field. CiteSpace provides a visual aid that depicts the hotspots and evolution processes of research and predicts the future trends of the domain intuitively (13, 18).
VOSviewer version 1.6.17 (Leiden University, Leiden, Netherlands) was chosen for drawing the maps of the references and journal co-citation analysis, as well as keyword co-occurrence. Unlike the conventional tools for building and viewing bibliometric networks, VOSviewer focuses on the graphic representation of knowledge mappings. It is particularly useful to display sizable bibliometrics in an easy-to-explain way (14).
Results
The Trend of Publication Outputs

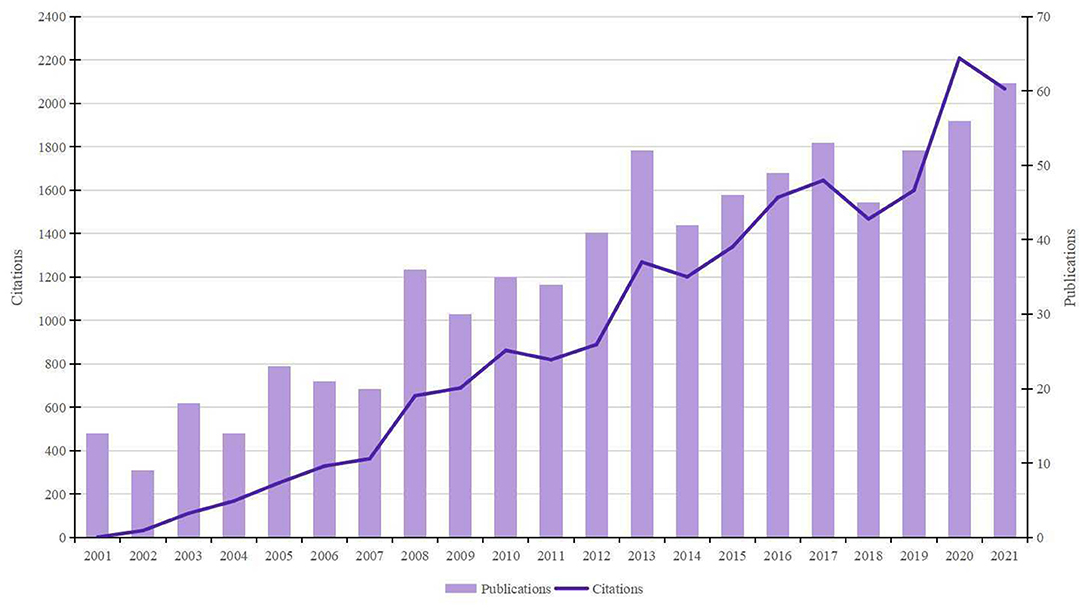

As shown in Figure 1, the number of papers concerning BHD displayed a significant upward trend. A total of 751 publications (650 articles and 101 reviews) met the search strategy. The total citations were 13,604, and the average citations were 26.25 per item. The h-index of all papers was 66. 2021 was the peak year of publication outputs with 61 articles.
Figure 1
Contribution of Countries/Regions and Organizations

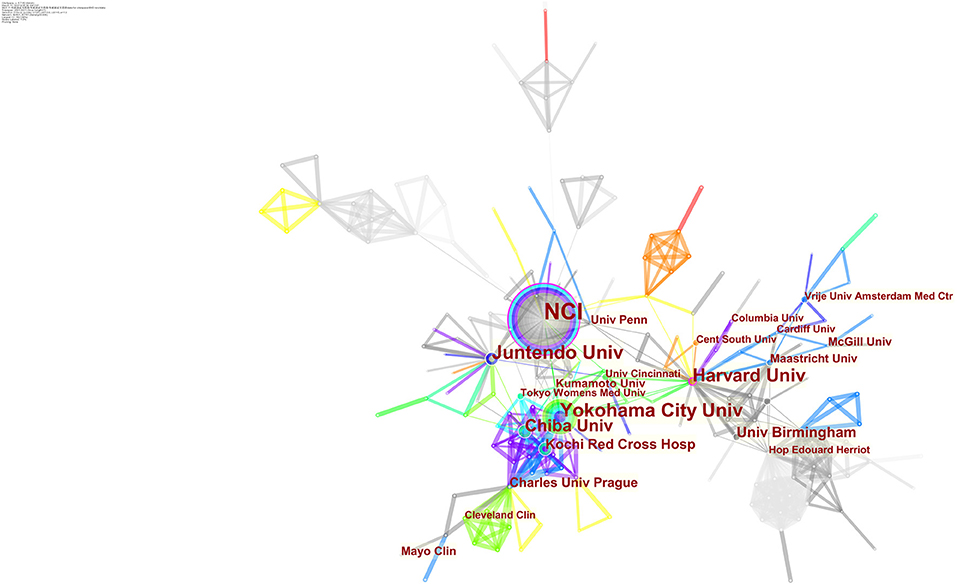

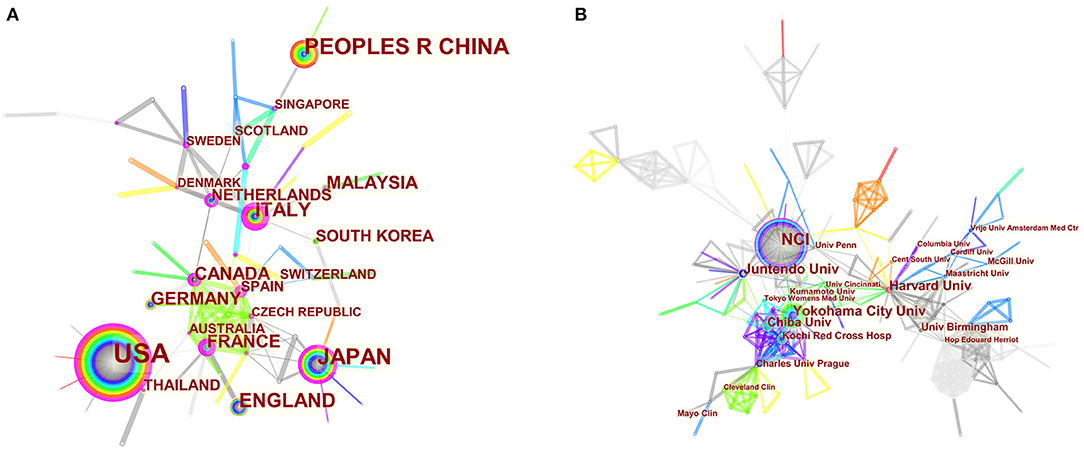

The maps of intercountry (Figure 2A) and inter-organizational cooperation (Figure 2B) were plotted using CiteSpace. As shown in Tables 2, 3, we ranked the top 5 most productive countries/regions and organizations in this field. The largest contributor was the United States (n = 250, 33.3%), followed by China (n = 99, 13.2%), Japan (n = 96, 12.8%), England (n = 56, 7.5%) and Italy (n = 53, 7.1%). The outputs from the two most productive countries were nearly half of the total. Organizations with the highest number of papers were National Cancer Institute (the USA), and Yokohama City University (Japan) ranked second. Countries such as Italy, Canada, France, Spain, the USA, Japan, and China had a high degree of centrality, as indicated by the nodes' purple outer rings in Figure 2A. Centrality is a measure associated with the transformative potential of a scientific contribution. Such nodes tend to bridge different stages of the development of a scientific field (19). There is some active cooperation among countries and organizations, for example, Spain, Canada, Yokohama City University, Chiba University, National Cancer Institute. However, most of them were dispersed and lack intensive cooperation.
Figure 2

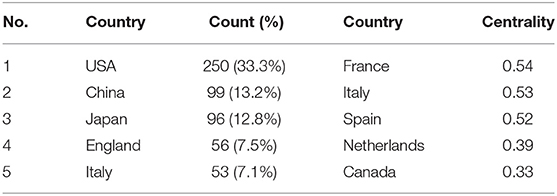

Table 2
| No. | Country | Count (%) | Country | Centrality |
|---|---|---|---|---|
| 1 | USA | 250 (33.3%) | France | 0.54 |
| 2 | China | 99 (13.2%) | Italy | 0.53 |
| 3 | Japan | 96 (12.8%) | Spain | 0.52 |
| 4 | England | 56 (7.5%) | Netherlands | 0.39 |
| 5 | Italy | 53 (7.1%) | Canada | 0.33 |
The top 10 countries/regions for publications and centrality in BHD research.

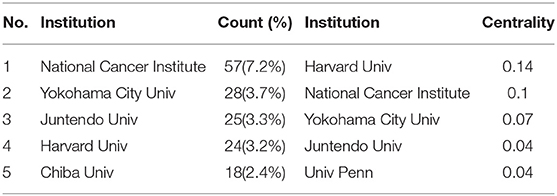

Table 3
| No. | Institution | Count (%) | Institution | Centrality |
|---|---|---|---|---|
| 1 | National Cancer Institute | 57(7.2%) | Harvard Univ | 0.14 |
| 2 | Yokohama City Univ | 28(3.7%) | National Cancer Institute | 0.1 |
| 3 | Juntendo Univ | 25(3.3%) | Yokohama City Univ | 0.07 |
| 4 | Harvard Univ | 24(3.2%) | Juntendo Univ | 0.04 |
| 5 | Chiba Univ | 18(2.4%) | Univ Penn | 0.04 |
The top 5 institutions for publications and centrality in BHD research.
Authors and Co-cited Authors

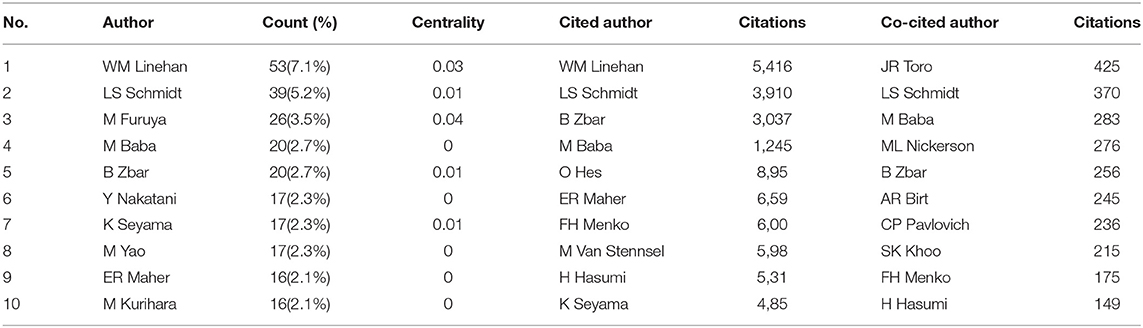

Table 4 lists the top 10 most active authors, authors with the highest citations, and co-cited authors. WM Linehan was the most productive scholar with the highest number of publications as well as citations, followed by LS Schmidt. Generally, centrality >0.1 is regarded as relatively essential nodes. However, the highest centrality of authors is 0.04 (M Furuya and JP Gille) and WM Linehan ranked the third (0.03), others are 0.01 or 0. This may be due to the scholars in the BHD research field lacking in cooperation and having a relatively small impact on each others' work. Figure 3 generated by CiteSpace demonstrated the scholars' cooperation relationships. There is an obvious cooperation network between different scholars, for example, WM Linehan, LS Schmidt, M Baba, JR Toro.
Table 4
| No. | Author | Count (%) | Centrality | Cited author | Citations | Co-cited author | Citations |
|---|---|---|---|---|---|---|---|
| 1 | WM Linehan | 53(7.1%) | 0.03 | WM Linehan | 5,416 | JR Toro | 425 |
| 2 | LS Schmidt | 39(5.2%) | 0.01 | LS Schmidt | 3,910 | LS Schmidt | 370 |
| 3 | M Furuya | 26(3.5%) | 0.04 | B Zbar | 3,037 | M Baba | 283 |
| 4 | M Baba | 20(2.7%) | 0 | M Baba | 1,245 | ML Nickerson | 276 |
| 5 | B Zbar | 20(2.7%) | 0.01 | O Hes | 8,95 | B Zbar | 256 |
| 6 | Y Nakatani | 17(2.3%) | 0 | ER Maher | 6,59 | AR Birt | 245 |
| 7 | K Seyama | 17(2.3%) | 0.01 | FH Menko | 6,00 | CP Pavlovich | 236 |
| 8 | M Yao | 17(2.3%) | 0 | M Van Stennsel | 5,98 | SK Khoo | 215 |
| 9 | ER Maher | 16(2.1%) | 0 | H Hasumi | 5,31 | FH Menko | 175 |
| 10 | M Kurihara | 16(2.1%) | 0 | K Seyama | 4,85 | H Hasumi | 149 |
The top 5 authors, cited authors, and co-cited authors in BHD research.
Figure 3
Co-cited authors are two or more authors who are cited together by later publications, and they build a co-citation relationship. Eight authors had a citation frequency of more than 200 times. JR Toro (425) was the most frequently cited author, followed by LS Schmidt (370).
Journals and Co-cited Journals
446 academic journals were involved in the BHD research field. Plos One contributed the majority of articles (19, 2.5%), and Proceedings of the National Academy of Sciences of the United States of America (PNAS) had the highest impact factor among the top 10 journals.
The number of times that an academic journal is co-cited, is one of the indicators to measure whether the journal has notable influence in a domain. Four journals had been co-cited more than 500 times among the top 10 co-cited journals. PNAS had the highest level of co-citations (666), followed by Journal of Medical Genetics (653). As shown in Table 5, most of the top 10 journals and co-cited journals belong to Q1 or Q2 based on the newest journal citation reports (JCR) in 2020.

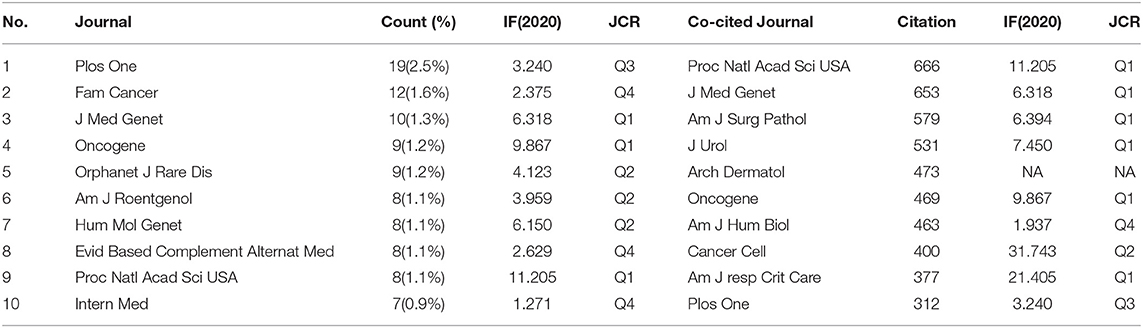

Table 5
| No. | Journal | Count (%) | IF(2020) | JCR | Co-cited Journal | Citation | IF(2020) | JCR |
|---|---|---|---|---|---|---|---|---|
| 1 | Plos One | 19(2.5%) | 3.240 | Q3 | Proc Natl Acad Sci USA | 666 | 11.205 | Q1 |
| 2 | Fam Cancer | 12(1.6%) | 2.375 | Q4 | J Med Genet | 653 | 6.318 | Q1 |
| 3 | J Med Genet | 10(1.3%) | 6.318 | Q1 | Am J Surg Pathol | 579 | 6.394 | Q1 |
| 4 | Oncogene | 9(1.2%) | 9.867 | Q1 | J Urol | 531 | 7.450 | Q1 |
| 5 | Orphanet J Rare Dis | 9(1.2%) | 4.123 | Q2 | Arch Dermatol | 473 | NA | NA |
| 6 | Am J Roentgenol | 8(1.1%) | 3.959 | Q2 | Oncogene | 469 | 9.867 | Q1 |
| 7 | Hum Mol Genet | 8(1.1%) | 6.150 | Q2 | Am J Hum Biol | 463 | 1.937 | Q4 |
| 8 | Evid Based Complement Alternat Med | 8(1.1%) | 2.629 | Q4 | Cancer Cell | 400 | 31.743 | Q2 |
| 9 | Proc Natl Acad Sci USA | 8(1.1%) | 11.205 | Q1 | Am J resp Crit Care | 377 | 21.405 | Q1 |
| 10 | Intern Med | 7(0.9%) | 1.271 | Q4 | Plos One | 312 | 3.240 | Q3 |
The top 10 journals and co-cited journals related to BHD.
Co-cited References and References Burst

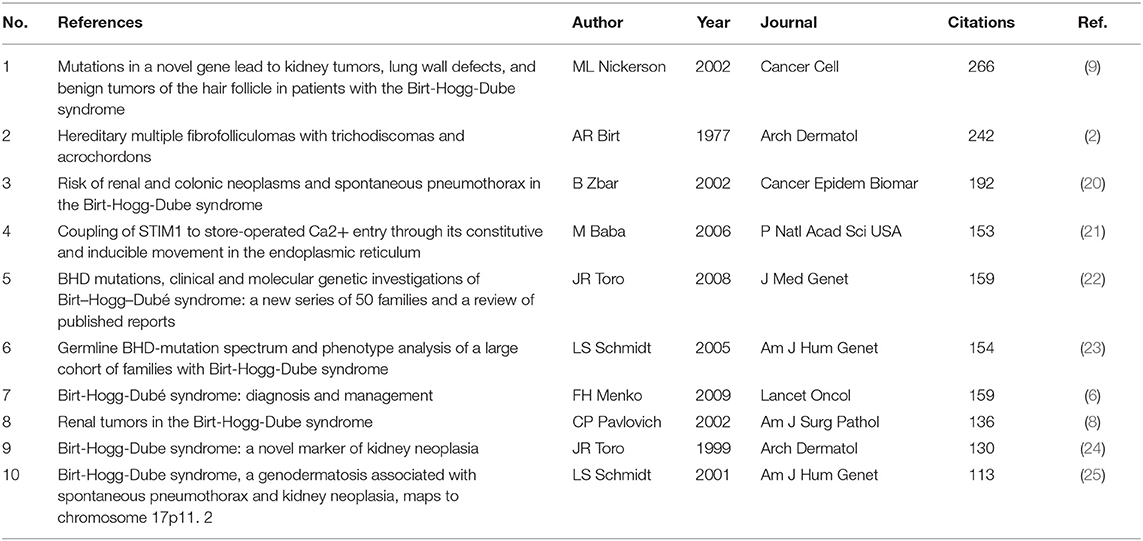

Co-citation implies that two or more articles are cited simultaneously by more than one later publication. It is a quantification to measure the degree of relationship between references. Table 6 presents the ten most often co-cited references among the 106 references retrieved. Figure 4 discloses the top 25 references with the strongest citation bursts. It provides evidence that a particular article is associated with a surge of citations. In other words, articles with strong citation bursts are paid much attention by scholars in the scientific community (26). The first paper as ranked by both co-citation and burst strength is published in Cancer Cell by ML Nickerson in 2002 (9). The majority of them have been cited frequently during 2001–2021. We can infer that the research concerning BHD may continue to be prosperous in the future.
Table 6
| No. | References | Author | Year | Journal | Citations | Ref. |
|---|---|---|---|---|---|---|
| 1 | Mutations in a novel gene lead to kidney tumors, lung wall defects, and benign tumors of the hair follicle in patients with the Birt-Hogg-Dube syndrome | ML Nickerson | 2002 | Cancer Cell | 266 | (9) |
| 2 | Hereditary multiple fibrofolliculomas with trichodiscomas and acrochordons | AR Birt | 1977 | Arch Dermatol | 242 | (2) |
| 3 | Risk of renal and colonic neoplasms and spontaneous pneumothorax in the Birt-Hogg-Dube syndrome | B Zbar | 2002 | Cancer Epidem Biomar | 192 | (20) |
| 4 | Coupling of STIM1 to store-operated Ca2+ entry through its constitutive and inducible movement in the endoplasmic reticulum | M Baba | 2006 | P Natl Acad Sci USA | 153 | (21) |
| 5 | BHD mutations, clinical and molecular genetic investigations of Birt–Hogg–Dubé syndrome: a new series of 50 families and a review of published reports | JR Toro | 2008 | J Med Genet | 159 | (22) |
| 6 | Germline BHD-mutation spectrum and phenotype analysis of a large cohort of families with Birt-Hogg-Dube syndrome | LS Schmidt | 2005 | Am J Hum Genet | 154 | (23) |
| 7 | Birt-Hogg-Dubé syndrome: diagnosis and management | FH Menko | 2009 | Lancet Oncol | 159 | (6) |
| 8 | Renal tumors in the Birt-Hogg-Dube syndrome | CP Pavlovich | 2002 | Am J Surg Pathol | 136 | (8) |
| 9 | Birt-Hogg-Dube syndrome: a novel marker of kidney neoplasia | JR Toro | 1999 | Arch Dermatol | 130 | (24) |
| 10 | Birt-Hogg-Dube syndrome, a genodermatosis associated with spontaneous pneumothorax and kidney neoplasia, maps to chromosome 17p11. 2 | LS Schmidt | 2001 | Am J Hum Genet | 113 | (25) |
The top 10 co-cited references related to BHD.
Figure 4
The Analysis of Hotspots and Frontiers

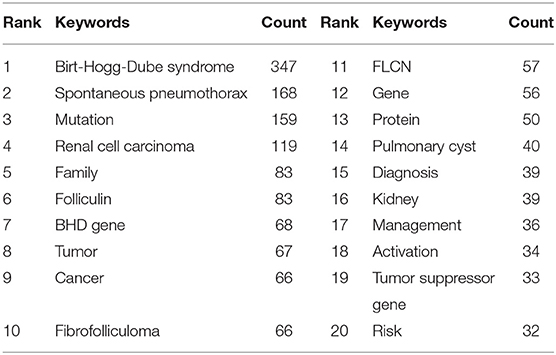

Research topic and essences are summarized by keywords. High-frequency keywords generally are the dominant research direction. Keyword co-occurrence analysis offers assistance to find research hotspots and predicts research trends in a certain field (17). According to Table 7, the top 10 keywords with the highest frequency in 2001–2021 are Birt-Hogg-Dubé syndrome (347), spontaneous pneumothorax (168), mutation (159), renal cell carcinoma (119), family (83), folliculin (83), BHD gene (68), tumor (67), cancer (66), fibrofolliculoma (66).
Table 7
| Rank | Keywords | Count | Rank | Keywords | Count |
|---|---|---|---|---|---|
| 1 | Birt-Hogg-Dube syndrome | 347 | 11 | FLCN | 57 |
| 2 | Spontaneous pneumothorax | 168 | 12 | Gene | 56 |
| 3 | Mutation | 159 | 13 | Protein | 50 |
| 4 | Renal cell carcinoma | 119 | 14 | Pulmonary cyst | 40 |
| 5 | Family | 83 | 15 | Diagnosis | 39 |
| 6 | Folliculin | 83 | 16 | Kidney | 39 |
| 7 | BHD gene | 68 | 17 | Management | 36 |
| 8 | Tumor | 67 | 18 | Activation | 34 |
| 9 | Cancer | 66 | 19 | Tumor suppressor gene | 33 |
| 10 | Fibrofolliculoma | 66 | 20 | Risk | 32 |
Top 20 keywords related to BHD.

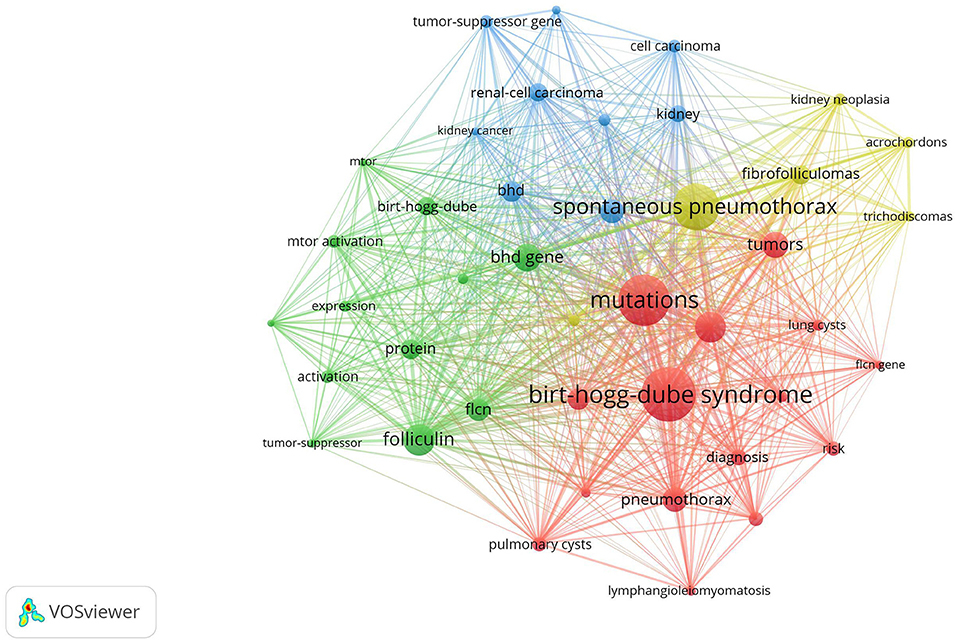

Clustered keywords reflect knowledge structure in a particular topic. We use VOSviewer software for this process. Nodes and labels constitute a unit, and units with different colors make up different clusters. There are red, green, blue, and yellow clusters as shown in Figure 5, which respectively represent four research directions. The main keywords of the red cluster are diagnosis, families, mutations, management, pneumothorax, lung cysts, lymphangiomyomatosis. The green cluster covers folliculin, flcn, BHD gene, expression, mTOR activation, identification, protein, polycystic kidneys. The blue cluster mainly includes renal-cell carcinoma, Hippel-Lindau-disease, kidney, kidney cancer, tumor-suppressor gene, and of the yellow cluster are spontaneous pneumothorax acrochordon, fibrofolliculoma, trichodiscoma, kidney neoplasia.
Figure 5
Strong citation bursts can unveil hot words at the frontier of research. Table 8 listed the top 20 keywords with the strongest citation bursts and sorted them by their strength. The top five hotspots were: tumor suppressor gene (10.38), BHD gene (8.52), kidney neoplasia (8.44), folliculin (8.16), acrochordon (7.56). Besides, keywords such as “management”, “tumor suppressor”, “flcn”, “spectrum”, “diagnosis” turned up constantly during the past 5 years (Table 9).

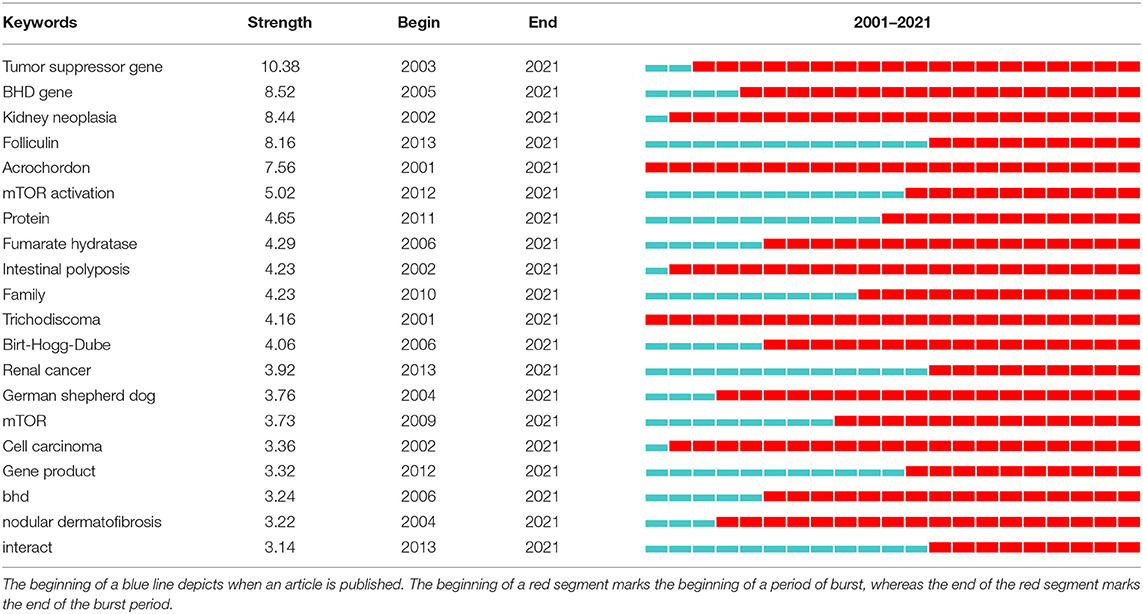

Table 8
| Keywords | Strength | Begin | End | 2001–2021 |
|---|---|---|---|---|
| Tumor suppressor gene | 10.38 | 2003 | 2021 |  |
| BHD gene | 8.52 | 2005 | 2021 |  |
| Kidney neoplasia | 8.44 | 2002 | 2021 |  |
| Folliculin | 8.16 | 2013 | 2021 |  |
| Acrochordon | 7.56 | 2001 | 2021 |  |
| mTOR activation | 5.02 | 2012 | 2021 |  |
| Protein | 4.65 | 2011 | 2021 |  |
| Fumarate hydratase | 4.29 | 2006 | 2021 |  |
| Intestinal polyposis | 4.23 | 2002 | 2021 |  |
| Family | 4.23 | 2010 | 2021 |  |
| Trichodiscoma | 4.16 | 2001 | 2021 |  |
| Birt-Hogg-Dube | 4.06 | 2006 | 2021 |  |
| Renal cancer | 3.92 | 2013 | 2021 |  |
| German shepherd dog | 3.76 | 2004 | 2021 |  |
| mTOR | 3.73 | 2009 | 2021 |  |
| Cell carcinoma | 3.36 | 2002 | 2021 |  |
| Gene product | 3.32 | 2012 | 2021 |  |
| bhd | 3.24 | 2006 | 2021 |  |
| nodular dermatofibrosis | 3.22 | 2004 | 2021 |  |
| interact | 3.14 | 2013 | 2021 |  |
Top 20 keywords with the strongest citation bursts.
The beginning of a blue line depicts when an article is published. The beginning of a red segment marks the beginning of a period of burst, whereas the end of the red segment marks the end of the burst period.

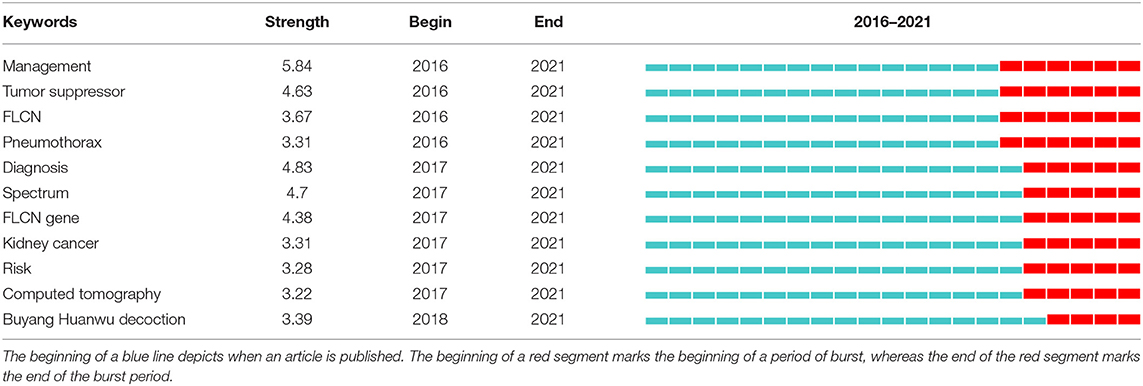

Table 9
| Keywords | Strength | Begin | End | 2016–2021 |
|---|---|---|---|---|
| Management | 5.84 | 2016 | 2021 |  |
| Tumor suppressor | 4.63 | 2016 | 2021 |  |
| FLCN | 3.67 | 2016 | 2021 |  |
| Pneumothorax | 3.31 | 2016 | 2021 |  |
| Diagnosis | 4.83 | 2017 | 2021 |  |
| Spectrum | 4.7 | 2017 | 2021 |  |
| FLCN gene | 4.38 | 2017 | 2021 |  |
| Kidney cancer | 3.31 | 2017 | 2021 |  |
| Risk | 3.28 | 2017 | 2021 |  |
| Computed tomography | 3.22 | 2017 | 2021 |  |
| Buyang Huanwu decoction | 3.39 | 2018 | 2021 |  |
The strongest citation bursts keywords after 2016.
The beginning of a blue line depicts when an article is published. The beginning of a red segment marks the beginning of a period of burst, whereas the end of the red segment marks the end of the burst period.
Discussion
General Information
Bibliometric indicators such as the number of publications and citations are usually regarded as two major perspectives to evaluate study quality. In general, the number of papers was the yardstick of productivity, and the number of citations without self-citations was applied to measure the impact. It can be seen in Figure 1 that the overall number of publications and citations is on the rise. The amount of literature showed steady growth in the past 20 years, with nearly 5 times more publications in 2021 than in 2001. This reminds us that although major advances in our understanding of BHD over the past several decades, some pivotal questions remain unanswered and research on BHD has still attracted great attention from scholars.
From the perspective of countries and organizations' contributions, we can see that the United States, China, and Japan are the leading countries where BHD research is occurring. Although China ranked second place, all the top 5 organizations were in the other two countries. Centrality is an index to quantify the value of a node that acts as a bridge in the entire network structure. Normally, centrality values >0.1 are considered relatively important nodes. France (0.54) ranked the first, followed by Italy (0.53); National Cancer Institute (the USA) and Yokohama City University (Japan) were the top two organizations of publication outputs, as well as centrality, which reveals they played key parts in BHD research field and bridged in the network of global cooperation. However, from Figures 2A,B, the distribution of countries and organizations were dispersed, the breadth and intensity of major cooperation were not ideal. We can tell that there was less international cooperation and exchange of academic findings. For example, there is a lack of academic collaboration between the top two productive countries—China and the USA; Most collaborating organizations were limited to domestic ones. Considering its rarity, this situation consequently hinders the clinical and fundamental research of BHD. Therefore, it is strongly advised that organizations worldwide should remove academic barriers and enhance cooperation to boost the development of BHD research.
As for authors, W. Marston Linehan contributed the most (53, 7.1%), followed by Laura S Schmidt (39, 5.2%), Mitsuko Furuya (26, 3.5%), Masaya Baba (20, 2.7%), and Berton Zbar (20, 2.7%). It is noteworthy that W. Marston Linehan had the highest citations (5,416), which indicates the most outstanding contributions he had made in the field of BHD during the last 20 years. Dr. Linehan is chief of the Urologic Oncology Branch at the National Cancer Institute, part of the National Institutes of Health in the United States. Since pioneering the research of the genetic basis of kidney cancers, Dr. Linehan and his team have identified six renal cancer genes and five new inherited kidney diseases including BHD. By studying patients and families with kidney cancer (22, 23), he was part of the team which identified FLCN, the causative genes for BHD in 2002 (9). He and his colleagues defined the clinical features (27) and provided the basis for the development of new therapeutic strategies for BHD based on understanding the molecular pathway of FLCN (28, 29).
According to the journals and co-cited journals in Table 5, the Plos One was the most productive one with 19 published papers, and PNAS had the highest frequency of co-citations. Nearly all the journals in Table 5 belong to Q1 or Q2. The analysis of the literature sources is helpful to find the core journals in the research field. It can be seen that most cited articles are from high-impact journals, suggesting that the study on BHD is regarded of high value by scholars worldwide.
As shown in Table 6, the most frequently co-cited paper was published by ML Nickerson et.al. in Cancer Cell in 2002 (9), which reported FLCN gene was identified as the causative gene of BHD. This pioneering finding considerably changed our concepts of the pathogenesis of BHD.
The Hotspots and Frontiers
Keyword co-occurrence analysis aims at comprehending the distribution and development of research hotspots in a specific field. As demonstrated in Table 7, spontaneous pneumothorax (168), mutation (159), renal cell carcinoma (119), family (83), folliculin (83), BHD gene (68), cancer (66), fibrofolliculoma (66), pulmonary cyst (40), diagnosis (39), management (36), and tumor suppressor gene (33) were keywords with high occurrence frequency. Cluster analysis based on keywords eventually generated four clusters. According to these two analyses, we determine the research hotspots and frontiers in the field of BHD. The four main contents are summarized as follows:
Genetics and Pathogenesis of BHD
Since its discovery in 2002, FLCN remains the only gene involved in BHD to date. Although the exact function of this tumor suppressor gene remains incompletely resolved, it is believed to be involved in the modulation of cell growth, proliferation, and survival through the mammalian target of rapamycin (mTOR) signaling pathway (29, 30). The majority of FLCN mutations are protein-truncating, which likely lead to a dysfunction of folliculin (31). Mutations are mainly inherited from an affected parent, but can also occur in people without a family history (32). Although no obvious association relationship between the type or the position of FLCN variants and the phenotype of BHD has been established (27), a few studies, have shown several possible genotype–phenotype correlations (33–35). For instance, Toro et al. reported an increased risk of pulmonary cysts in patients carrying mutations in exon 9, as well as more pneumothoraces in patients with variants in exon 9 and 12 (33).
The mechanisms contributing to the formation of pulmonary cyst is not yet completely understood. Evidence has emerged that several dysregulated signaling pathways are involved in the process, including mTOR, AMPK, and impaired cellular adhesion (36). A recent “stretch hypothesis” proposes that cysts could arise because of enhanced cell-cell adhesion and recurrent stretch-induced stress caused by respiration, thus resulting in the expansion of alveolar spaces, especially in lung regions with larger alveolar volume changes (37). This explains the lower lobe predominant pulmonary cysts that occur in up to 90% of patients with BHD. More recent data found that FLCN-deficient mesenchymal-lineage cells have defective Wnt pathway activity via inhibition of transcription factor TFE3, which suggests that Wnt-dependent cell-cell communication during lung development may lead to lung cyst pathogenesis in BHD (38).
Clinical Manifestations of BHD
BHD is characterized by considerable phenotypic heterogeneity. Carriers of FLCN gene variants may be asymptomatic or with varying levels of pulmonary, cutaneous, or renal manifestations (24, 39). Other clinical findings include tumors other than renal ones, such as colon polyps. The combination of colon polyps and fibrofolliculomas is reported by Hornstein and Knickenberg in 1975 (1). It is still unclear whether BHD is linked with the elevated risk of colon adenoma and cancer.
Pulmonary Manifestations
More than 80% of patients with BHD have multiple bilateral lung cysts (20, 33). There is a 50-times higher risk of pneumothorax for BHD-affected individuals than in the general population (20), and the relapse rate was 75–82% with 3.6 average episodes (33, 40). Changes in atmospheric pressure coming from air travel or diving may lead to an increased risk for developing pneumothorax (41). Lung involvement has no sex predilection and is not related to smoking (33).
Apart from pneumothorax, pulmonary cysts in BHD are usually asymptomatic or only result in mild cough or dyspnoea on exertion. Respiratory function data in BHD have been reported in a few studies (42–45). A large retrospective analysis (n = 96) showed that lung function at baseline was not affected except for slightly increased residual volume (RV) and reduced carbon monoxide (DLco), and no significant deterioration of lung function during 6-year follow-up (43). In other words, lung involvement in BHD does not bring about the progressive decline of lung function and chronic respiratory insufficiency compared with other cystic lung diseases such as LAM or PLCH.
Cutaneous Manifestations
Although cutaneous involvement is common in BHD, potentially as many as 25% of patients may not present with skin lesions (27, 33, 44), and it seems to be less usual (46) and less typical (47) in Asian patients. In general, skin lesions appear as multiple, white-to-flesh colored, smooth, dome-shaped papules. These lesions are mainly on the face, the neck, and sometimes on the trunk or the ears (6). Birt and his colleagues described fibrofolliculomas, trichodiscomas, and acrochordons as a triad of cutaneous lesions that characterize BHD (2). At present, fibrofolliculomas and trichodiscomas are regarded as part of a morphological spectrum. Their identification should raise the suspicion of BHD and prompt further investigations to confirm the diagnosis. Acrochordons, also known as skin tags, are not specific to BHD (6). BHD-associated skin lesions such as angiofibroma may lead to tuberous sclerosis complex (TSC), a differential diagnosis of BHD (48).
Renal Manifestations
Renal tumors occur in about 30% of cases (20) at an average age of 50 years (8, 49). It has also been reported in a 20-year-old patient (50). The most threatening manifestation is renal cancer and the risk of developing it is a seven-time increase for BHD patients (20). Renal tumors are multifocal or bilateral in more than 50% of patients with BHD (20, 49). Oncocytomas are the only benign renal tumors of BHD (about 5% of cases). Chromophobe renal cell carcinoma (RCC) accounts for 34% of renal masses in BHD (51). Approximately 50% of kidney neoplasia in BHD are hybrid chromophobe RCC-oncocytoma (51). These two tumors are typical for patients with BHD, accounting for more than 70–80% of FLCN-correlated renal tumors, both associated with low malignant potential (10). Other histological subtypes also appear, such as clear cell RCC and papillary RCC, and some mixed patterns (49, 50). Benign renal cysts have been reported in BHD patients and whether they are part of the syndrome is currently uncertain (24, 52).
Diagnosis of BHD
Considering its rarity and the broad spectrum of clinical manifestations, the identification of BHD is challenging and might result in a diagnostic delay (40). The symptoms of BHD are often underestimated and improperly assessed, which results in under-diagnosis and underestimation of the number of cases in many regions of the world. Confirmation of BHD diagnosis depends on a combination of clinical manifestations and FLCN gene testing. If there is suspicion of BHD, it is recommended to thoroughly search for individual and family history of pulmonary cysts, skin lesions, pneumothorax, and kidney neoplasia, as they are highly predictive of BHD diagnosis. Risky family members should be taken diagnostic radiology exams for lung and kidney involvement. A presymptomatic gene test should also be considered when the familial mutation is known (6). It is worth noting that BHD should be differentiated from other syndromes with similar signs and symptoms, such as LAM or TSC.
Management of BHD
Different manifestations of BHD are controlled in different ways. Although there is no danger of malignant transformation, skin lesions associated with psychological burden should not be underestimated. However, therapeutic strategies are limited at present. As no specific therapy for BHD-associated cystic lung disease, pleurodesis should be considered following the initial pneumothorax to decrease the risk of the recurrent episodes (40). Patients should also be discouraged from diving and smoking. Given that BHD rarely result in the decline of lung function and chronic respiratory insufficiency like other cystic lung diseases, it is inadvisable to perform regular follow-up with lung function tests or pulmonary high resolution computed tomography (HRCT) in most patients (10). CT scans, ultrasounds, or MRIs of the kidneys should be conducted regularly on all BHD patients since diagnosis or starting from the age of 20 years (53). Annual renal MRI is the preferred imaging modality, with high sensitivity and no radiation complications (53, 54). As most renal tumors of BHD have low malignant potential and may develop over time, partial nephrectomy is recommended to be postponed until the largest mass reaches 3 cm in diameter. Although mTOR inhibitors, such as everolimus, have shown a beneficial effect in BHD patients (55), more clinical studies are needed to evaluate its efficacy of it in BHD-associated renal tumors.
Conclusions
This study summarizes the research status of BHD in the past two dacades. BHD-associated publications are increasing over time. Different countries/regions and organizations need to deepen and strengthen their cooperation. The majority of the papers regarding BHD are published in and cited from the international influential journals, indicating that BHD has gained much attention. Some questions remain unanswered, such as the exact function of folliculin and the mechanisms leading to the formation of lung cysts following folliculin dysfunction. Those issues need to be put on the front burner. This study provides assistance for scholars to find core literature and partners in BHD, contributes direction for journals publication, and guidelines identifying research hotspots in this field.
Funding
This work was supported by the National Natural Science Foundation of China (Grant No. 82074262).
Publisher's Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author/s.
Author contributions
SL and GL conceived the study. SL, KX, and XL collected the data. HX, MH, XX, and JL re-examined the data. SL, LZ, YD, and YL analyzed the data. SL wrote the manuscript. XC and GL reviewed and revised the manuscript. All authors contributed to the article and approved the submitted version.
Acknowledgments
The authors thank Guang'anmen Hospital, China Academy of Chinese Medical Sciences, for their support of this work and the reviewers for allowing us to make improvements to the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1.
HornsteinOPKnickenbergM. Perifollicular fibromatosis cutis with polyps of the colon–a cutaneo-intestinal syndrome sui generis. Arch Dermatol Res. (1975) 253:161–75. 10.1007/BF00582068
2.
BirtARHoggGRDubéWJ. Hereditary multiple fibrofolliculomas with trichodiscomas and acrochordons. Arch Dermatol. (1977) 113:1674–7. 10.1001/archderm.1977.01640120042005
3.
HappleR. Hornstein-Knickenberg syndrome vs. Birt-Hogg-Dubé syndrome: a critical review of an unjustified designation. J Eur Acad Dermatol Venereol. (2020) 34:885–7. 10.1111/jdv.16190
4.
What is BHD: The BHD Foundation 2021. Available from: https://bhdsyndrome.org/for-families/what-is-bhd/ (updated 2021)
5.
GuptaNSeyamaKMcCormackFX. Pulmonary manifestations of Birt-Hogg-Dubé syndrome. Fam Cancer. (2013) 12:387–96. 10.1007/s10689-013-9660-9
6.
MenkoFHVan SteenselMAGiraudSFriis-HansenLRichardSUngariSet al. Birt-Hogg-Dubé syndrome: diagnosis and management. Lancet Oncol. (2009) 10:1199–206. 10.1016/S1470-2045(09)70188-3
7.
KhooSKBradleyMWongFKHedbladM-ANordenskjöldMTehBT. Birt-Hogg-Dube syndrome: mapping of a novel hereditary neoplasia gene to chromosome 17p12-q11. 2 Oncogene. (2001) 20:5239–42. 10.1038/sj.onc.1204703
8.
PavlovichCPWaltherMMEylerRAHewittSMZbarBLinehanWMet al. Renal tumors in the Birt-Hogg-Dube syndrome. Am J Surg Pathol. (2002) 26:1542–52. 10.1097/00000478-200212000-00002
9.
NickersonMLWarrenMBToroJRMatrosovaVGlennGTurnerMLet al. Mutations in a novel gene lead to kidney tumors, lung wall defects, and benign tumors of the hair follicle in patients with the Birt-Hogg-Dube syndrome. Cancer Cell. (2002) 2:157–64. 10.1016/S1535-6108(02)00104-6
10.
DaccordCGoodJ-MMorrenM-ABonnyOHohlDLazorR. Birt–Hogg–Dubé syndrome. Eur Respir Rev. (2020) 29:200042. 10.1183/16000617.0042-2020
11.
GuptaSKangHCGaneshanDMoraniAGautamRChoykePLet al. The ABCs of BHD: an in-depth review of Birt-Hogg-Dubé syndrome. AJR Am J Roentgenol. (2017) 209:1291–6. 10.2214/AJR.17.18071
12.
GuDLiJLiXLiangC. Visualizing the knowledge structure and evolution of big data research in healthcare informatics. Int J Med Inform. (2017) 98:22–32. 10.1016/j.ijmedinf.2016.11.006
13.
ChenC. CiteSpace II: Detecting and visualizing emerging trends and transient patterns in scientific literature. J Am Soc Inform Sci Technol. (2006) 57:359–77. 10.1002/asi.20317
14.
Van EckNJWaltmanL. Software survey: VOSviewer, a computer program for bibliometric mapping. Scientometrics. (2010) 84:523–38. 10.1007/s11192-009-0146-3
15.
MaDYangBGuanBSongLLiuQFanYet al. A Bibliometric Analysis of Pyroptosis From 2001 to 2021. Front Immunol. (2021) 12:731933. 10.3389/fimmu.2021.731933
16.
CooperID. Bibliometrics basics. J Med Lib Assoc JMLA. (2015) 103:217. 10.3163/1536-5050.103.4.013
17.
ChenC. Searching for intellectual turning points: Progressive knowledge domain visualization. Proc Nat Acad Sci. (2004) 101:5303–10. 10.1073/pnas.0307513100
18.
SynnestvedtMBChenCHolmesJH editors. CiteSpace II: Visualization and Knowledge Discovery in Bibliographic Databases. AMIA Annual Symposium Proceedings. (2005). American Medical Informatics Association.
19.
ChenCHuZLiuSTsengH. Emerging trends in regenerative medicine: a scientometric analysis in CiteSpace. Expert Opin Biol Ther. (2012) 12:593–608. 10.1517/14712598.2012.674507
20.
ZbarBAlvordWGGlennGTurnerMPavlovichCPSchmidtLet al. Risk of renal and colonic neoplasms and spontaneous pneumothorax in the Birt-Hogg-Dube syndrome. Cancer Epidemiol Prevent Biomark. (2002) 11:393–400.
21.
BabaYHayashiKFujiiYMizushimaAWataraiHWakamoriMet al. Coupling of STIM1 to store-operated Ca2+ entry through its constitutive and inducible movement in the endoplasmic reticulum. Proc Natl Acad Sci USA. (2006) 103:16704–9. 10.1073/pnas.0608358103
22.
ToroJRWeiMHGlennGMWeinreichMToureOVockeCet al. BHD mutations, clinical and molecular genetic investigations of Birt-Hogg-Dubé syndrome: a new series of 50 families and a review of published reports. J Med Genet. (2008) 45:321–31. 10.1136/jmg.2007.054304
23.
SchmidtLSNickersonMLWarrenMBGlennGMToroJRMerinoMJet al. Germline BHD-mutation spectrum and phenotype analysis of a large cohort of families with Birt-Hogg-Dubé syndrome. Am J Hum Genet. (2005) 76:1023–33. 10.1086/430842
24.
ToroJRGlennGDurayPDarlingTWeirichGZbarBet al. Birt-Hogg-Dubé syndrome: a novel marker of kidney neoplasia. Arch Dermatol. (1999) 135:1195–202. 10.1001/archderm.135.10.1195
25.
SchmidtLSWarrenMBNickersonMLWeirichGMatrosovaVToroJR.et al. Birt-Hogg-Dubé syndrome, a genodermatosis associated with spontaneous pneumothorax and kidney neoplasia, maps to chromosome 17p112. Am J Hum Genet. (2001) 69:876–82. 10.1086/323744
26.
ChenC. The citespace manual. College of Comput Inform. (2014) 1:1–84. Available online at: https://www.researchgate.net/profile/Arsev-Aydinoglu-2/publication/274377526_Collaborative_interdisciplinary_astrobiology_research_a_bibliometric_study_of_the_NASA_Astrobiology_Institute/links/5670463b08ae0d8b0cc0e112/Collaborativeinterdisciplinary-astrobiology-research-a-bibliometric-studyof-the-NASA-Astrobiology-Institute.pdf
27.
SchmidtLSLinehanWM. Molecular genetics and clinical features of Birt-Hogg-Dubé syndrome. Nat Rev Urol. (2015) 12:558–69. 10.1038/nrurol.2015.206
28.
LinehanWMBratslavskyGPintoPASchmidtLSNeckersLBottaroDPet al. Molecular diagnosis and therapy of kidney cancer. Annu Rev Med. (2010) 61:329–43. 10.1146/annurev.med.042808.171650
29.
BabaMHongSBSharmaNWarrenMBNickersonMLIwamatsuAet al. Folliculin encoded by the BHD gene interacts with a binding protein, FNIP1, and AMPK, and is involved in AMPK and mTOR signaling. Proc Natl Acad Sci USA. (2006) 103:15552–7. 10.1073/pnas.0603781103
30.
HartmanTRNicolasEKlein-SzantoAAl-SaleemTCashTPSimonMCet al. The role of the Birt–Hogg–Dubé protein in mTOR activation and renal tumorigenesis. Oncogene. (2009) 28:1594–604. 10.1038/onc.2009.14
31.
LimDHRehalPKNahorskiMSMacdonaldFClaessensTVan GeelMet al. A new locus-specific database (LSDB) for mutations in the folliculin (FLCN) gene. Hum Mutat. (2010) 31:E1043–E51. 10.1002/humu.21130
32.
MenkoFHJohannesmaPCVan MoorselaarRJAReinhardRVan WaesbergheJHThunnissenEet al. A de novoFLCN mutation in a patient with spontaneous pneumothorax and renal cancer) a clinical and molecular evaluation. Fam Cancer. (2013) 12:373–9. 10.1007/s10689-012-9593-8
33.
ToroJRPautlerSEStewartLGlennGMWeinreichMToureOet al. Lung cysts, spontaneous pneumothorax, and genetic associations in 89 families with Birt-Hogg-Dubé syndrome. Am J Respir Crit Care Med. (2007) 175:1044–53. 10.1164/rccm.200610-1483OC
34.
NahorskiMSLimDHMartinLGilleJJMcKayKRehalPKet al. Investigation of the Birt–Hogg–Dube tumour suppressor gene (FLCN) in familial and sporadic colorectal cancer. J Med Genet. (2010) 47:385–90. 10.1136/jmg.2009.073304
35.
SattlerECSyunyaevaZMansmannUSteinleinOK. Genetic risk factors for spontaneous pneumothorax in Birt-Hogg-Dube syndrome. Chest. (2020) 157:1199–206. 10.1016/j.chest.2019.12.019
36.
KhabibullinDMedvetzDAPinillaMHariharanVLiCHergrueterAet al. Folliculin regulates cell-cell adhesion, AMPK, and mTORC1 in a cell-type-specific manner in lung-derived cells. Physiol Rep. (2014) 2:e12107. 10.14814/phy2.12107
37.
KennedyJCKhabibullinDHenskeEP. Mechanisms of pulmonary cyst pathogenesis in Birt-Hogg-Dube syndrome: The stretch hypothesis. Semin Cell Dev Biol. (2016) 52:47–52. 10.1016/j.semcdb.2016.02.014
38.
KennedyJCKhabibullinDHougardTNijmehJShiWHenskeEP. Loss of FLCN inhibits canonical WNT signaling via TFE3. Hum Mol Genet. (2019) 28:3270–81. 10.1093/hmg/ddz158
39.
SattlerESteinleinOK. Delayed diagnosis of Birt-Hogg-Dubé syndrome due to marked intrafamilial clinical variability: a case report. BMC Med Genet. (2018) 19:1–4. 10.1186/s12881-018-0558-0
40.
GuptaNKoprasEJHenskeEPJamesLEEl-ChemalySVeeraraghavanSet al. Spontaneous pneumothoraces in patients with Birt-Hogg-Dubé syndrome. Ann Am Thorac Soc. (2017) 14:706–13. 10.1513/AnnalsATS.201611-886OC
41.
JohannesmaPCvan de BeekIvan der WelJWPaulMAHouwelingACJonkerMAet al. Risk of spontaneous pneumothorax due to air travel and diving in patients with Birt-Hogg-Dubé syndrome. Springerplus. (2016) 5:1506. 10.1186/s40064-016-3009-4
42.
TomassettiSCarloniAChilosiMMaffeAUngariSSverzellatiNet al. Pulmonary features of Birt-Hogg-Dubé syndrome: cystic lesions and pulmonary histiocytoma. Respir Med. (2011) 105:768–74. 10.1016/j.rmed.2011.01.002
43.
DaccordCCottinVPrévotGUzunhanYMornexJBonniaudPet al. Lung function in Birt-Hogg-Dubé syndrome: a retrospective analysis of 96 patients. Orphanet J Rare Dis. (2020) 15:1–8. 10.1186/s13023-020-01402-y
44.
SkolnikKTsaiWHDornanKPerrierRBurrowesPWDavidsonWJ. Birt-Hogg-Dubé syndrome: a large single family cohort. Respir Res. (2016) 17:22. 10.1186/s12931-016-0339-2
45.
LeeJHJeonMJSongJSChaeEJChoiJHKimGHet al. Birt-Hogg-Dubé syndrome in Korean: clinicoradiologic features and long term follow-up. Korean J Intern Med. (2019) 34:830–40. 10.3904/kjim.2018.119
46.
FuruyaMYaoMTanakaRNagashimaYKurodaNHasumiHet al. Genetic, epidemiologic and clinicopathologic studies of Japanese Asian patients with Birt-Hogg-Dubé syndrome. Clin Genet. (2016) 90:403–12. 10.1111/cge.12807
47.
KamadaTYoshikawaYShiraseTFuruyaMYutakaY. Perifollicular fibromas associated with Birt-Hogg-Dubé syndrome. J Dermatol. (2015) 42:1194–5. 10.1111/1346-8138.13091
48.
PithadiaDJTreichelAMLeeCRCowenEWLinehanWMMossJet al. Birt-Hogg-Dubé syndrome initially diagnosed as tuberous sclerosis complex. JAAD Case Rep. (2019) 5:368–71. 10.1016/j.jdcr.2019.02.009
49.
PavlovichCPGrubbRL3rdHurleyKGlennGMToroJSchmidtLSet al. Evaluation and management of renal tumors in the Birt-Hogg-Dubé syndrome. J Urol. (2005) 173:1482–6. 10.1097/01.ju.0000154629.45832.30
50.
BenusiglioPRGiraudSDeveauxSMéjeanACorreasJMJolyDet al. Renal cell tumour characteristics in patients with the Birt-Hogg-Dubé cancer susceptibility syndrome: a retrospective, multicentre study. Orphanet J Rare Dis. (2014) 9:163. 10.1186/s13023-014-0163-z
51.
ChoykePLGlennGMWaltherMMZbarBLinehanWM. Hereditary renal cancers. Radiology. (2003) 226:33–46. 10.1148/radiol.2261011296
52.
KlugerNGiraudSCoupierIAvrilMFDereureOGuillotBet al. Birt-Hogg-Dubé syndrome: clinical and genetic studies of 10 French families. Br J Dermatol. (2010) 162:527–37. 10.1111/j.1365-2133.2009.09517.x
53.
StamatakisLMetwalliARMiddeltonLAMarston LinehanW. Diagnosis and management of BHD-associated kidney cancer. Fam Cancer. (2013) 12:397–402. 10.1007/s10689-013-9657-4
54.
SchmidtLSLinehanWM. Clinical features, genetics and potential therapeutic approaches for Birt-Hogg-Dubé Syndrome. Expert Opin Orphan Drugs. (2015) 3:15–29. 10.1517/21678707.2014.987124
55.
NakamuraMYaoMSanoFSakataRTatenumaTMakiyamaKet al. A case of metastatic renal cell carcinoma associated with Birt-Hogg-Dubé syndrome treated with molecular-targeting agents. Hinyokika kiyo Acta urologica Japonica. (2013) 59:503–6.
Summary
Keywords
Birt-Hogg-Dubé syndrome (BHD), FLCN, folliculin, bibliometric analysis, CiteSpace, VOSviewer
Citation
Liu S, Xia K, Liu X, Duan Y, Hu M, Xia H, Lv J, Zhang L, Liu Y, Xia X, Li G and Cui X (2022) Bibliometric Analysis of Birt-Hogg-Dubé Syndrome From 2001 to 2021. Front. Med. 9:857127. doi: 10.3389/fmed.2022.857127
Received
18 January 2022
Accepted
11 March 2022
Published
11 April 2022
Volume
9 - 2022
Edited by
Sevket Ozkaya, Bahçeşehir University, Turkey
Reviewed by
Elzbieta Radzikowska, National Institute of Tuberculosis and Lung Diseases, Poland; Andy Wai Kan Yeung, University of Hong Kong, China
Updates
Copyright
© 2022 Liu, Xia, Liu, Duan, Hu, Xia, Lv, Zhang, Liu, Xia, Li and Cui.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Guangxi Li lgx0410@163.comXiangning Cui cuixiangning@126.com
This article was submitted to Pulmonary Medicine, a section of the journal Frontiers in Medicine
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
