SYSTEMATIC REVIEW article

Front. Med., 08 July 2022

Sec. Intensive Care Medicine and Anesthesiology

Volume 9 - 2022 | https://doi.org/10.3389/fmed.2022.921016

Network Meta-Analysis of Perioperative Analgesic Effects of Different Interventions on Postoperative Pain After Arthroscopic Shoulder Surgery Based on Randomized Controlled Trials

    WJ

    Wu Jiangping 1,2

    QX

    Quan Xiaolin 1,2

    SH

    Shu Han 1,2*

    XZ

    Xiaolan Zhou 3*

    NM

    Nie Mao 1,2

    DZ

    Deng Zhibo 1,2

    GT

    Gong Ting 1,2

    HS

    Hu Shidong 1,2

    LX

    Li Xiangwei 1,2

    YX

    Yuan Xin 1,2

    SG

    Shu Guoyin 1,2

  • 1. Center for Joint Surgery, Department of Orthopedic Surgery, The Second Affiliated Hospital of Chongqing Medical University, Chongqing, China

  • 2. Chongqing Clinical Research Center for Geriatrics and Gerontology, Chongqing, China

  • 3. Medical Record Statistics Section, The Second Hospital of Chongqing Medical University, Chongqing, China

Article metrics

View details

7

Citations

4,1k

Views

1,4k

Downloads

Abstract

Background:

Shoulder arthroscopic surgery is a common surgical method used in orthopedics. However, severe postoperative pain can significantly limit the early joint movement of patients and adversely affect the impact of the surgery. At present, there is no consistent and effective analgesic scheme for the management of postoperative pain after arthroscopic surgery of the shoulder.

Purpose:

The aim of this study was to search for the most effective analgesic scheme to control pain in the perioperative period of arthroscopic surgery of the shoulder.

Study Design:

Network meta-analysis.

Methods:

We searched 5 different databases (i.e., Medline, PubMed, Embase, Web of Science, and the Cochrane Library) from January 2011 to January 2021 for English literature. Thereafter, we sifted out randomized controlled trials (RCTs), which compared different intervention schemes for pain management after shoulder arthroscopy and selected only 12 h, 24 h, or 48 h after the patient leaves the operating room as an optimal period for administration of analgesic intervention schemes. Only patients with shoulder disease who have undergone arthroscopic shoulder surgery were included in this study. The Cochrane “risk of bias” was used for the quality assessment. Moreover, some additional tests were performed to enhance the credibility of the results.

Results:

Twenty-nine RCTs involving 1,885 patients were included in this frequentist network meta-analysis (NMA). These articles mainly were divided into two distinct groups, namely, the nerve block group and the non-nerve block group. Regarding the nerve block group, at postoperative 12 h, the intervention suprascapular nerve block + interscalene nerve block (SSNB + INB) was ranked first, whereas INB + intra-articular injection (INB + IAI) was ranked first at 24 h and 48 h postoperation. In the non-nerve block group, external application (EA) was ranked first at postoperative 12 h, but oral administration (OA) exhibited a better analgesic effect at postoperative 24 h and postoperative 48 h.

Conclusion:

We conclude that the analgesic effect of SSNB+INB was the best at postoperative 12 h, and INB+IAI was the best at postoperative 24 h and 48 h in the nerve block group. For the non-nerve block group, the effect of EA was the best at postoperative 12 h, and the analgesic effect of OA at postoperative 24 h and 48 h was significantly better than any other interventions.

Systematic Review Registration:

https://www.crd.york.ac.uk/prospero/, identifier: CRD42021286777.

Introduction

Shoulder pain has become a common musculoskeletal disease, in which the rotator cuff gets torn, and a frozen shoulder is commonly observed. Despite the well-documented postoperative pain, a disturbing sensory and emotional experience linked with actual or potential tissue damage can occur, which might develop within the first 48 h (1). Shoulder arthroscopic surgery is one of the most frequently performed surgeries in orthopedics with multitudinous surgical indications, such as rotator cuff tears, instability, and frozen shoulder (24). Postoperative pain can significantly limit the early activity of patients, thereby affecting the clinical effect of the operation. Thus, effective pain management after arthroscopic shoulder surgery can allow patients to get discharged earlier, reduce the risk for readmission, and thereby improve the ultimate outcome after surgery (5, 6). Currently, two main measures, i.e., subjective pain scales and quantity of postoperative narcotic consumption, are used to assess the patient pain levels. At present, the pain scales used in the mainstream include the visual analog scale (VAS) and numeric rating scale (NRS), which are both repeatable and reliable, depending on the subjective patient reporting (7, 8).

A number of previous studies have evaluated different kinds of available postoperative pain management strategies after arthroscopic surgery of the shoulder (3, 5, 9, 10). These include oral administration (OA), intra-articular injection (IAI), external application (EA), intravenous administration (IVA), and regional nerve block, which can yield different analgesic conclusions. For instance, Toma et al. (10) recommended that interscalene brachial plexus blockade could be the first-choice regional analgesic technique. Michell Ruiz-Suarez and Barber (5) reported that postoperative pain management should include three distinct stages, namely, preoperative, intraoperative, and postoperative.

Moreover, preemptive analgesia with oral medications can be taken before operation (11), a regional nerve block can be used during operation (12), and an analgesic pump can be used after operation (13). At present, two kinds of analgesia, namely, single analgesia and multimode analgesia are mainly used; however, which analgesic scheme among these two has the best effect remains unclear.

Some traditional systematic reviews have focused on this topic, but they have only included two therapies or did not effectively compare the analgesic efficacy of a combination of the numerous intervention measures due to limitations in the methodology used (3, 1416). In addition, there are also some meta-analyses that have been examined on this topic. Changjiao et al. (16) and Kay et al. (17) have reported that the analgesic effect of interscalene nerve block (INB) was significantly better than suprascapular nerve block (SSNB), and SSNB can be an alternative to INB. Ul Huda et al. (15) suggested that preoperative use of gabapentin might effectively reduce the incidence of postoperative nausea and vomiting, whereas White et al. (14) reported that anterior SSNB could display fewer complications than INB. The latter also suggested that anterior SSNB could be more suitable for shoulder arthroscopic surgery in terms of complications. However, there was no accepted and consistent conclusion reached based on all these prior studies. This study aimed to explore the most effective analgesic scheme that can be employed in the perioperative period of shoulder arthroscopy through network meta-analysis (NMA).

Methods

This NMA was performed according to the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines (18), and our review was registered with PROSPERO (CRD42021286777).

Eligibility Criteria

We included RCTs of patients with shoulder disease for comparing the different interventions used in pain management after shoulder arthroscopy. The selected intervention types included the following: eight regional nerve blocks, IAI, IVA, OA, and EA. Regional nerve block included INB, SSNB, axillary nerve block (ANB), supraclavicular nerve block (SCNB), stellate ganglion block (SGB), infraclavicular-suprascapular block (ICSCB), and costoclavicular block (CCB). In addition to the analgesic methods of high thoracic erector spine plane block (HTESPB), CEBs have been found to be similar to regional nerve block methods, and therefore, they were also classified as the regional nerve block group. IAIs of narcotic drugs, such as bupivacaine, magnesium sulfate, and liposomal bupivacaine, were also considered. It has been established that the subacromial injection anesthetics can communicate with the joint during surgery; therefore, we also attributed subacromial injection to IAIs, such as Merivirta et al. (19, 20). IVA included intravenous ketoprofen and intravenous ketamine, oral drugs included oral ibuprofen or pregabalin, EA included fentanyl patch, and some interventions were a combination of the above. Refer to Table 1 for the intervention groups in detail, and we have classified all the interventions into two distinct types, including the nerve block group with nerve block during the surgery and the non-nerve block group without nerve block in one surgery.

Table 1

Nerve block group Non-nerve block group
Interventions SSNB+ANB IAI
INB+SSNB OA
INB+OA IVA
INB+IAI EA
INB -
CEB
SGB
CCB
ANB
SCNB
SSNB
HTESPB
ICSCB

Interventions on postoperative pain after arthroscopic shoulder surgery studied in this network meta-analysis.

INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; SGB, stellate ganglion block; ICSCB, infraclavicular-suprascapular blocks; CCB, costoclavicular blocks; ANB, axillary nerve block; IAI, intra-articular injection; OA, oral administration; EA, external application; IVA, intravenous administration.

The inclusion criteria consisted of the following:

Patient

Those who have been diagnosed with shoulder joint diseases, such as rotator cuff tears, instability, and frozen shoulder, and underwent shoulder arthroscopic surgery, regardless of age, sex, course of the disease, underlying diseases, and other differences among the various groups in the same study.

Experimental Design

It consisted of the comparison of the two intervention measures (Table 1).

Outcome Measures

The determination of VAS or the NRS at postoperative 12 h, 24 h, and 48 h.

Study Design

RCTs that have reported different intervention measures in the management of postoperative pain.

Systematic Search

We extensively searched English articles in Medline, PubMed, Embase, Web of Science, and the Cochrane library using the following keywords: arthroscopic shoulder surgery, postoperative pain, pain, therapeutics, and randomized controlled trial (RCT). The search was carried out by using the combination of the keywords above and their free words, and all databases were set from January 2011 to January 2021.

Study Selection

We (W.J.P. and D.Z.B.) assessed the credibility of these potential articles with the above criteria and resolved the differences after consulting and discussing with the senior author (N.M.). Finally, useful data were extracted independently and reviewed by the senior author.

Data Extraction

The extracted data included publication time, author, article and intervention type, the characteristics of the subjects, mean patient age, the ratio of the male to female, the number of patients in each arm, male percentage, outcome representation method, and time point of outcome index. The outcome index selected by us was the value of postoperative pain score, which was divided into three distinct groups, namely, postoperative 12 h, postoperative 24 h, and postoperative 48 h, according to the time point of the outcome, and the outcome was expressed as mean ± standard difference (M ± SD). Both VAS and NRS were scored 0–10, so it was deemed appropriate to include them in the same meta-analysis (15).

Quality Assessment

The Cochrane “risk of bias” tool was used to evaluate the methodological quality of the selected articles (21).

Statistical Analysis

Pooling the different instruments that report on a common domain typically is conducted by converting each instrument to SD units and combining their effects across the studies as the standardized mean difference (SMD). However, this approach has major limitations, including difficulties in interpretation and vulnerability to the baseline heterogeneity of enrolled patients (22, 23). Therefore, by using the linear transformation and assuming that instruments reporting on the shared domains might have similar measurement properties, we converted all the measures of pain intensity and physical functioning to 10-cm VASs (24), such as Rothe et al. (25).

Initially, we performed a conventional pairwise meta-analysis by using a DerSimonian–Laird random-effects model and then conducted a frequentist NMA by using the methodology of the multivariate meta-analysis by assuming a common heterogeneity parameter (26), using the mv-meta command and the network suite in Stata (SE 15.1) (27). The results were expressed by mean difference (MD) and 95% CI.

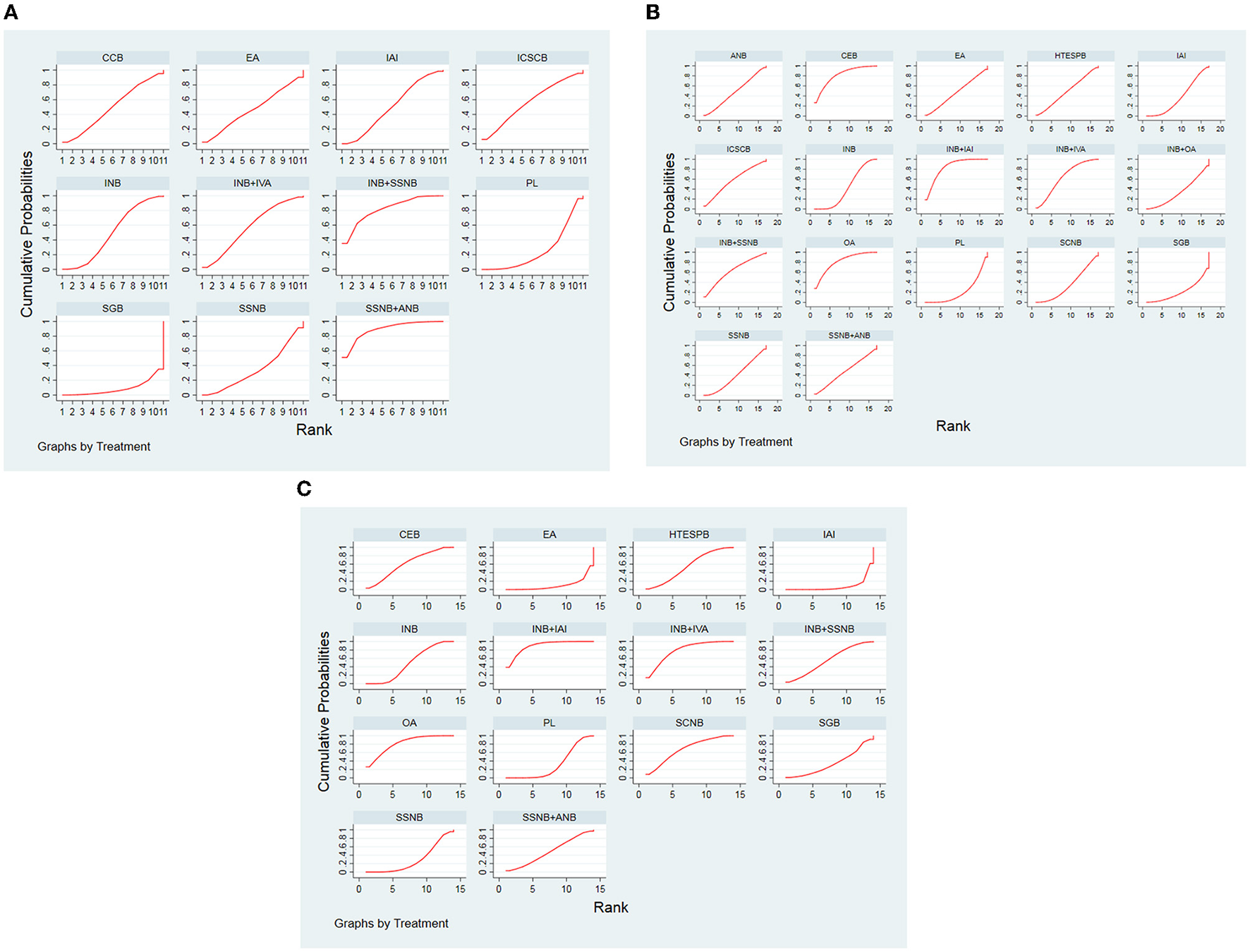

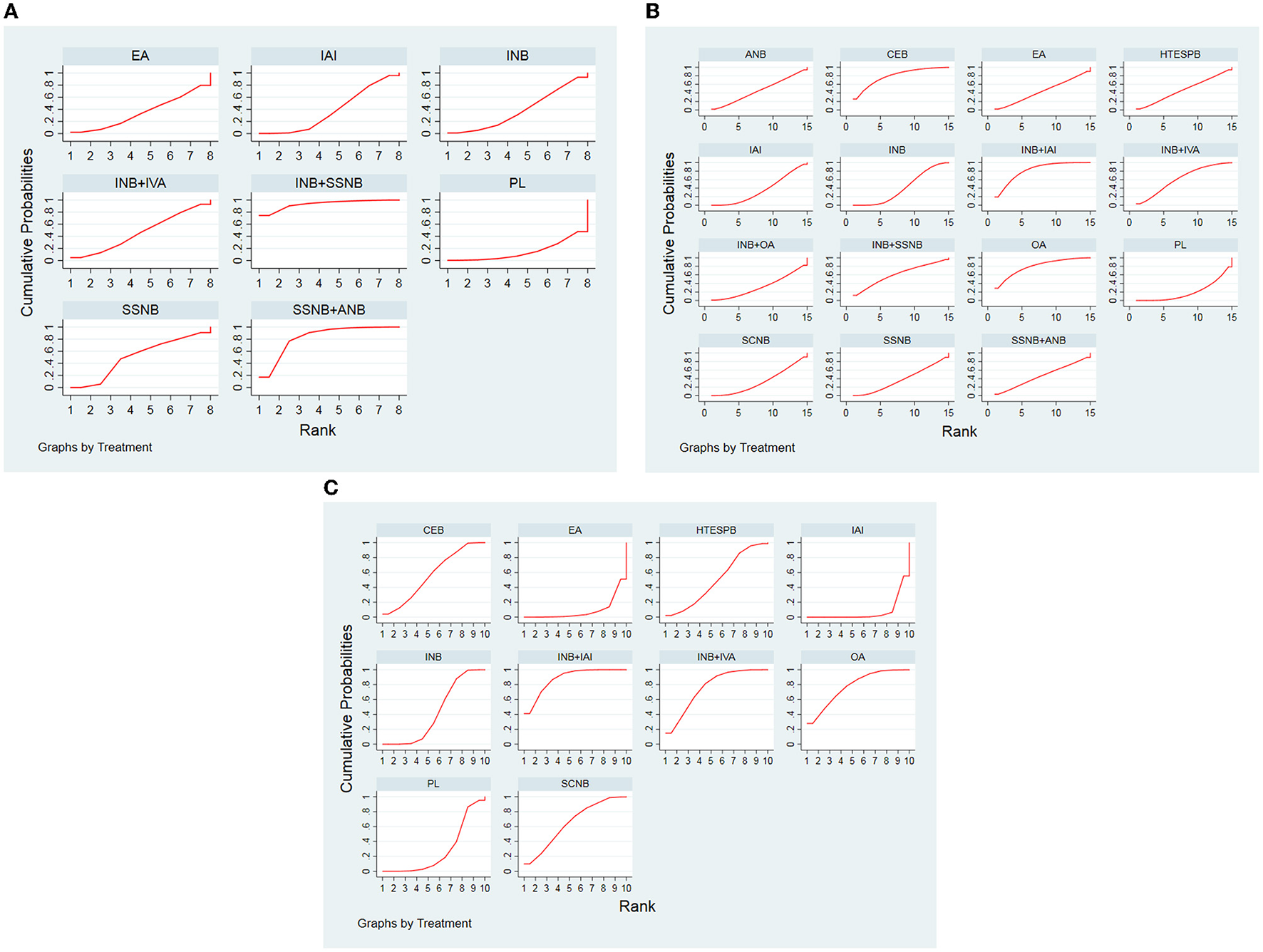

In addition, the ranking probabilities for all the different protocols were calculated, and the results were reported as the (surface under the cumulative ranking curve) (28): 100% meant the best treatment, whereas 0% meant the worst treatment. We ranked the analgesic effects of the various intervention measures, after combining them with the outcomes of the NMA.

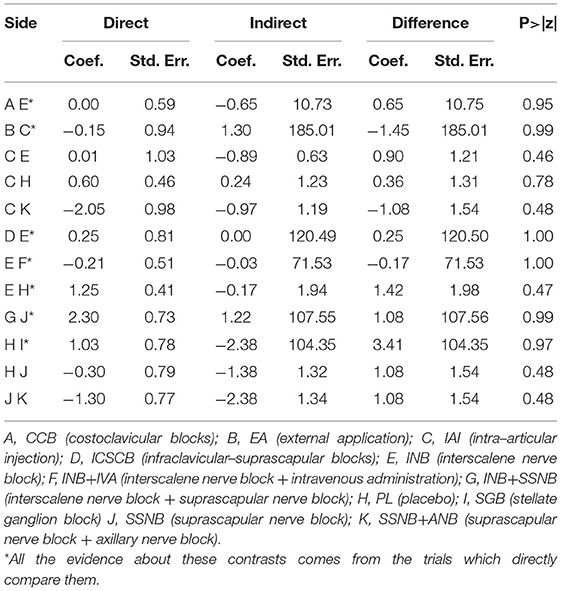

Inconsistency Analysis

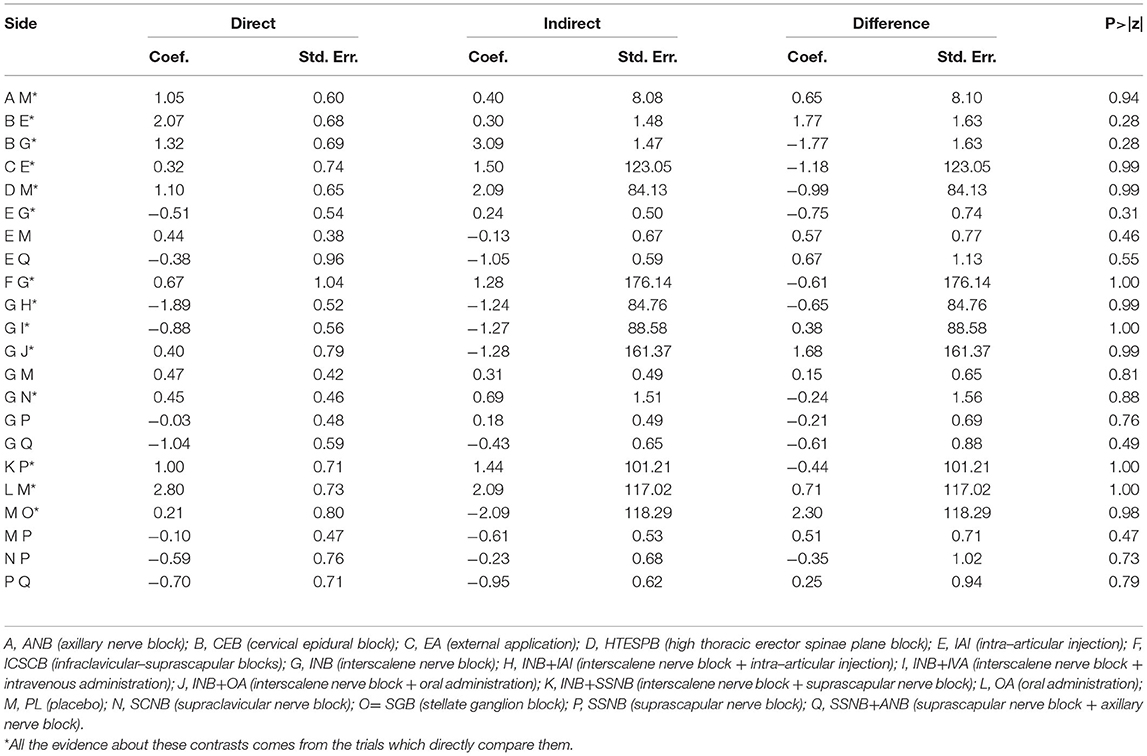

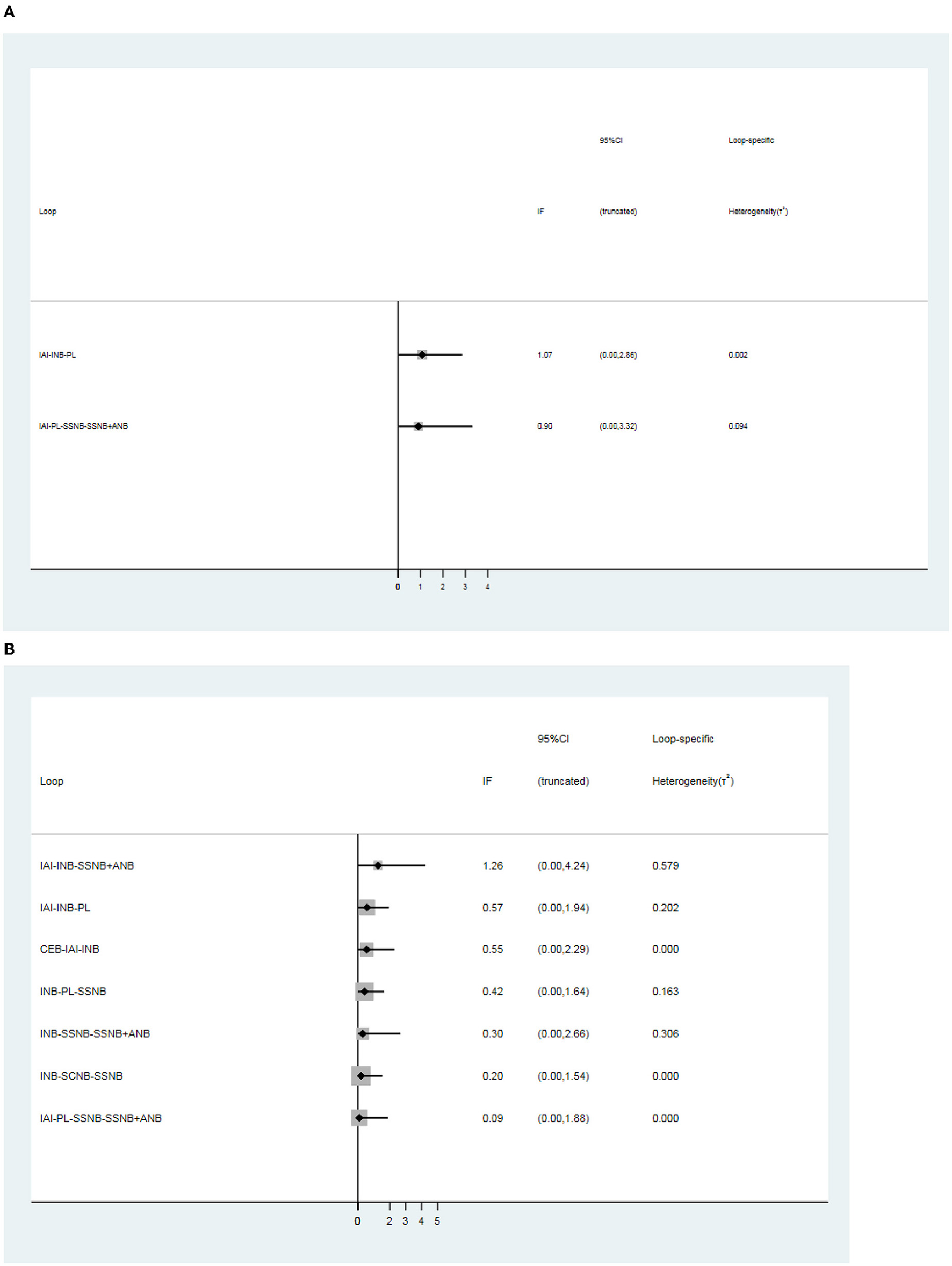

We calculated the inconsistency between the direct and indirect evidence at home and abroad by evaluating the potential differences in all the closed loops of the network and by comparing the suitability and conciseness of consistency and inconsistency of the models (27), which was assessed using the node-splitting method (29).

Additional Analysis

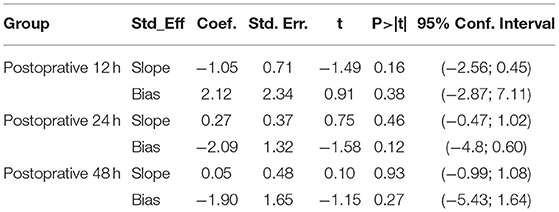

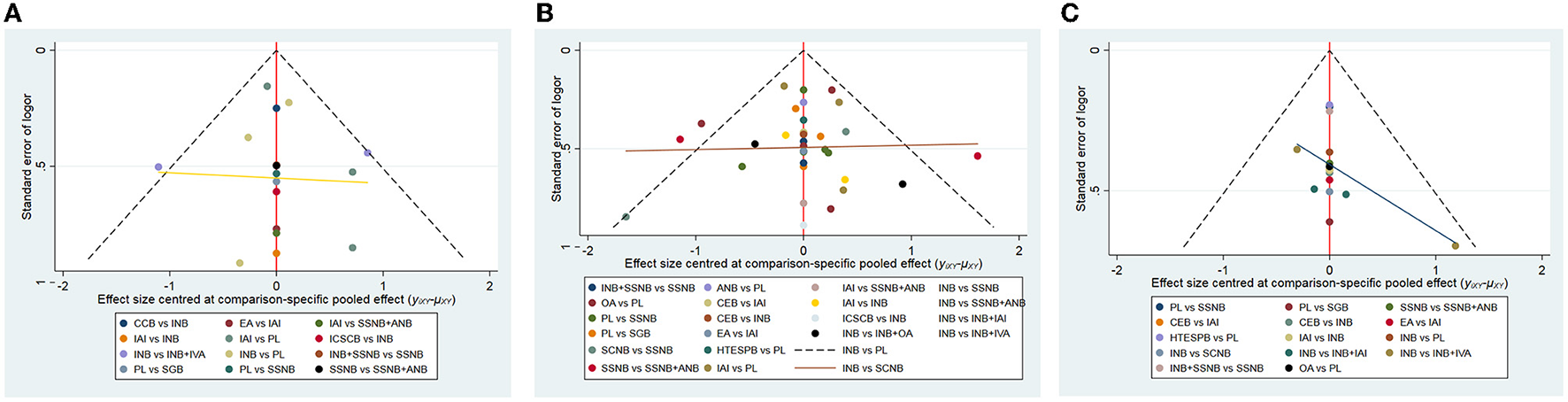

Publication bias was analyzed by using Egger's test. We screened the studies with a sample size of <40 patients in order to conduct the sensitivity analyses and calculated the rank probabilities again. The results were considered reliable in case of the insignificant difference between the latter and the former outcomes. A comparison-adjusted funnel plot was then plotted to evaluate the risk of bias as an asymmetric plot can only indicate a small study effect (28).

Results

Eligible Studies

After a systematic search, 547 records were found, among which we included only 29 reports that were published between 2011 and 2021 (Figure 1) (11, 12, 19, 20, 25, 3053). Among these 29 articles, the average number of patients per article was 65 (range, 30–114), and the average age varied from 29 to 63 years. Generally speaking, we included 1,885 patients, and in Table 2, we have summarized the key details of each article. Of these 29 articles, 12 articles used the NRS 0–10 score scale, 16 articles used the VAS 0–10 score scale, and 1 article used NRS 0–100 score scale (25). The results of 15 articles described the pain scores at postoperative 12 h, 28 articles included scores at postoperative 24 h, and 14 articles included scores at 48 h after the surgery (Figure 2). The network for eligible comparisons of the three different groups is presented in Figure 2.

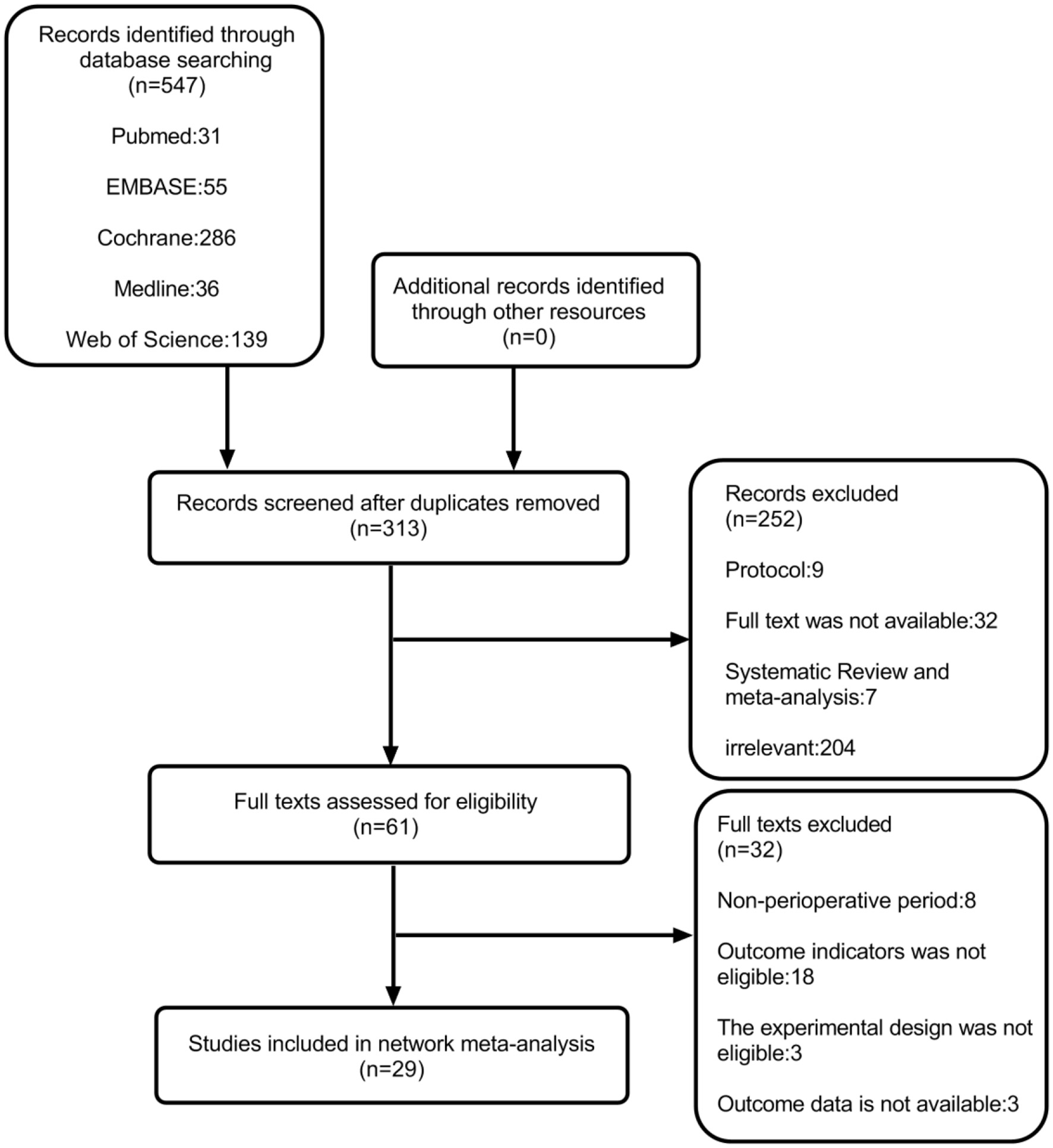

Figure 1

Figure 1

PRISMA flowchart of study selection.

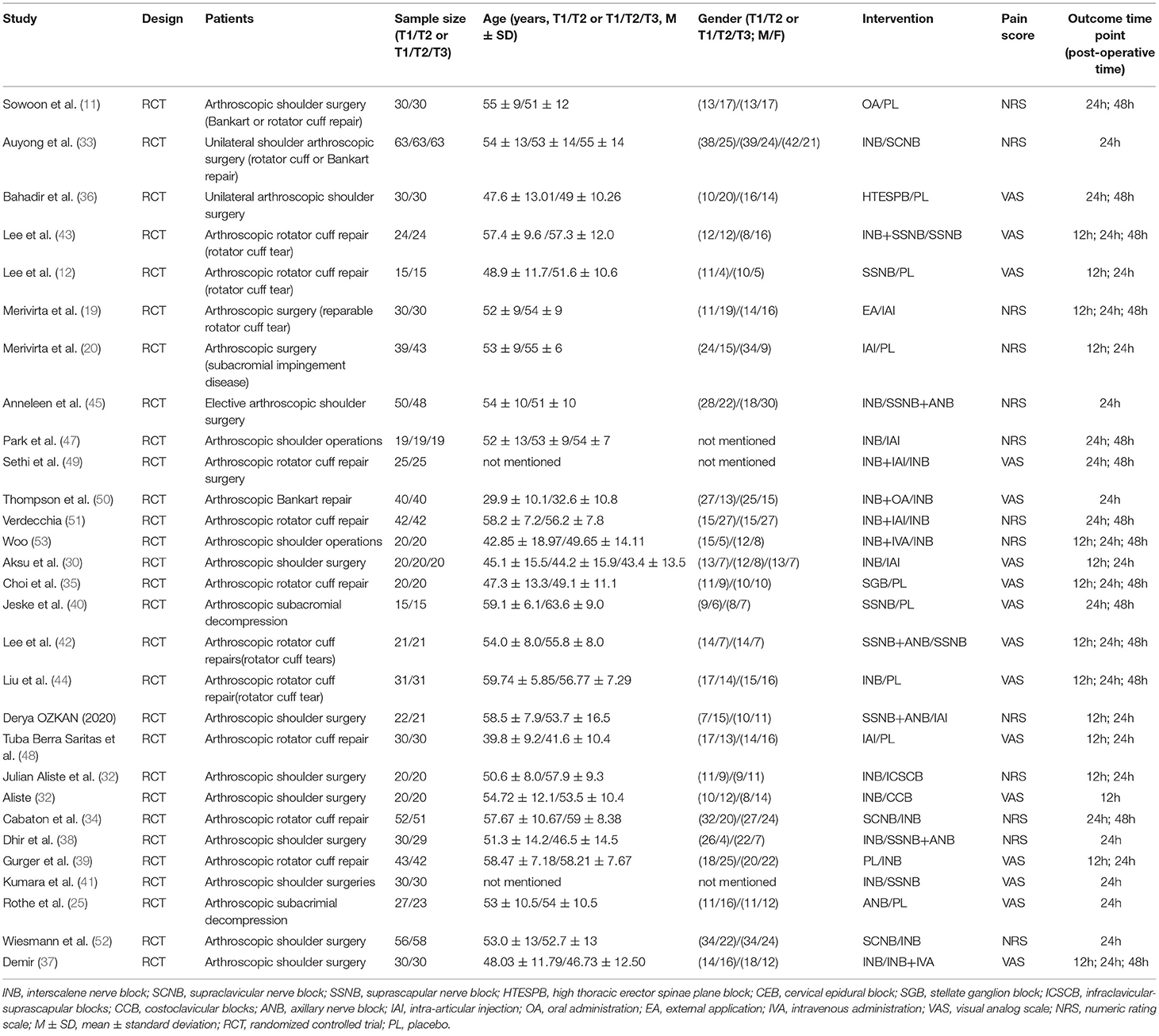

Table 2

Study Design Patients Sample size (T1/T2 or T1/T2/T3) Age (years, T1/T2 or T1/T2/T3, M ± SD) Gender (T1/T2 or T1/T2/T3; M/F) Intervention Pain score Outcome time point (post-operative time)
Sowoon et al. (11) RCT Arthroscopic shoulder surgery (Bankart or rotator cuff repair) 30/30 55 ± 9/51 ± 12 (13/17)/(13/17) OA/PL NRS 24h; 48h
Auyong et al. (33) RCT Unilateral shoulder arthroscopic surgery (rotator cuff or Bankart repair) 63/63/63 54 ± 13/53 ± 14/55 ± 14 (38/25)/(39/24)/(42/21) INB/SCNB NRS 24h
Bahadir et al. (36) RCT Unilateral arthroscopic shoulder surgery 30/30 47.6 ± 13.01/49 ± 10.26 (10/20)/(16/14) HTESPB/PL VAS 24h; 48h
Lee et al. (43) RCT Arthroscopic rotator cuff repair (rotator cuff tear) 24/24 57.4 ± 9.6 /57.3 ± 12.0 (12/12)/(8/16) INB+SSNB/SSNB VAS 12h; 24h; 48h
Lee et al. (12) RCT Arthroscopic rotator cuff repair (rotator cuff tear) 15/15 48.9 ± 11.7/51.6 ± 10.6 (11/4)/(10/5) SSNB/PL VAS 12h; 24h
Merivirta et al. (19) RCT Arthroscopic surgery (reparable rotator cuff tear) 30/30 52 ± 9/54 ± 9 (11/19)/(14/16) EA/IAI NRS 12h; 24h; 48h
Merivirta et al. (20) RCT Arthroscopic surgery (subacromial impingement disease) 39/43 53 ± 9/55 ± 6 (24/15)/(34/9) IAI/PL NRS 12h; 24h
Anneleen et al. (45) RCT Elective arthroscopic shoulder surgery 50/48 54 ± 10/51 ± 10 (28/22)/(18/30) INB/SSNB+ANB NRS 24h
Park et al. (47) RCT Arthroscopic shoulder operations 19/19/19 52 ± 13/53 ± 9/54 ± 7 not mentioned INB/IAI NRS 24h; 48h
Sethi et al. (49) RCT Arthroscopic rotator cuff repair surgery 25/25 not mentioned not mentioned INB+IAI/INB VAS 24h; 48h
Thompson et al. (50) RCT Arthroscopic Bankart repair 40/40 29.9 ± 10.1/32.6 ± 10.8 (27/13)/(25/15) INB+OA/INB VAS 24h
Verdecchia (51) RCT Arthroscopic rotator cuff repair 42/42 58.2 ± 7.2/56.2 ± 7.8 (15/27)/(15/27) INB+IAI/INB NRS 24h; 48h
Woo (53) RCT Arthroscopic shoulder operations 20/20 42.85 ± 18.97/49.65 ± 14.11 (15/5)/(12/8) INB+IVA/INB NRS 12h; 24h; 48h
Aksu et al. (30) RCT Arthroscopic shoulder surgery 20/20/20 45.1 ± 15.5/44.2 ± 15.9/43.4 ± 13.5 (13/7)/(12/8)/(13/7) INB/IAI VAS 12h; 24h
Choi et al. (35) RCT Arthroscopic rotator cuff repair 20/20 47.3 ± 13.3/49.1 ± 11.1 (11/9)/(10/10) SGB/PL VAS 12h; 24h; 48h
Jeske et al. (40) RCT Arthroscopic subacromial decompression 15/15 59.1 ± 6.1/63.6 ± 9.0 (9/6)/(8/7) SSNB/PL VAS 24h; 48h
Lee et al. (42) RCT Arthroscopic rotator cuff repairs(rotator cuff tears) 21/21 54.0 ± 8.0/55.8 ± 8.0 (14/7)/(14/7) SSNB+ANB/SSNB VAS 12h; 24h; 48h
Liu et al. (44) RCT Arthroscopic rotator cuff repair(rotator cuff tear) 31/31 59.74 ± 5.85/56.77 ± 7.29 (17/14)/(15/16) INB/PL VAS 12h; 24h; 48h
Derya OZKAN (2020) RCT Arthroscopic shoulder surgery 22/21 58.5 ± 7.9/53.7 ± 16.5 (7/15)/(10/11) SSNB+ANB/IAI NRS 12h; 24h
Tuba Berra Saritas et al. (48) RCT Arthroscopic rotator cuff repair 30/30 39.8 ± 9.2/41.6 ± 10.4 (17/13)/(14/16) IAI/PL VAS 12h; 24h
Julian Aliste et al. (32) RCT Arthroscopic shoulder surgery 20/20 50.6 ± 8.0/57.9 ± 9.3 (11/9)/(9/11) INB/ICSCB NRS 12h; 24h
Aliste (32) RCT Arthroscopic shoulder surgery 20/20 54.72 ± 12.1/53.5 ± 10.4 (10/12)/(8/14) INB/CCB VAS 12h
Cabaton et al. (34) RCT Arthroscopic rotator cuff repair 52/51 57.67 ± 10.67/59 ± 8.38 (32/20)/(27/24) SCNB/INB NRS 24h; 48h
Dhir et al. (38) RCT Arthroscopic shoulder surgery 30/29 51.3 ± 14.2/46.5 ± 14.5 (26/4)/(22/7) INB/SSNB+ANB NRS 24h
Gurger et al. (39) RCT Arthroscopic rotator cuff repair 43/42 58.47 ± 7.18/58.21 ± 7.67 (18/25)/(20/22) PL/INB VAS 12h; 24h
Kumara et al. (41) RCT Arthroscopic shoulder surgeries 30/30 not mentioned not mentioned INB/SSNB VAS 24h
Rothe et al. (25) RCT Arthroscopic subacrimial decompression 27/23 53 ± 10.5/54 ± 10.5 (11/16)/(11/12) ANB/PL VAS 24h
Wiesmann et al. (52) RCT Arthroscopic shoulder surgery 56/58 53.0 ± 13/52.7 ± 13 (34/22)/(34/24) SCNB/INB NRS 24h
Demir (37) RCT Arthroscopic shoulder surgery 30/30 48.03 ± 11.79/46.73 ± 12.50 (14/16)/(18/12) INB/INB+IVA VAS 12h; 24h; 48h

Characteristics of the included studies.

INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; SGB, stellate ganglion block; ICSCB, infraclavicular-suprascapular blocks; CCB, costoclavicular blocks; ANB, axillary nerve block; IAI, intra-articular injection; OA, oral administration; EA, external application; IVA, intravenous administration; VAS, visual analog scale; NRS, numeric rating scale; M ± SD, mean ± standard deviation; RCT, randomized controlled trial; PL, placebo.

Figure 2

Figure 2

Network plot of treatment comparisons. (A) (Network 1) Network plot of treatment comparisons for postoperative 12 h. The size of the blue area indicates the sample size of each group, and the thickness indicates the results of comparisons between two groups. (B) (Network 2) Network plot of treatment comparisons for postoperative 24 h. The size of the blue area indicates the sample size of each group, and the thickness indicates the results of comparisons between two groups. (C) (Network 3) Network plot of treatment comparisons for postoperative 48 h. The size of the blue area indicates the sample size of each group, and the thickness indicates the results of comparisons between two groups. INB, interscalene nerve block; SSNB, suprascapular nerve block; SCNB, supraclavicular nerve block; ICSCB, infraclavicular-suprascapular blocks; CCB, costoclavicular blocks; ANB, axillary nerve block; IAI, intra-articular injection; EA, external application; IVA, intravenous administration; SGB, stellate ganglion block; PL, placebo; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; ANB, axillary nerve block; OA, oral administration.

Quality Assessment

We found that no study was highly risky for the random sequence generation and selective reporting after being assessed for the quality. A total of 52% were considered to have a low risk for allocation concealment, whereas 45% of the studies had a high risk for incomplete results, and none of the studies displayed a high risk for selective reporting. A total of 62% of the literature implemented blind methods for experimenters and subjects, 55% of the recorders were blind, and among them, 38% of the articles applied the blind method for all the participants. The detailed results are shown in Figure 3. We also used the ROB2.0 risk assessment tool to assess the quality of incorporated references, the detailed results are shown in Figure 4 and Table 3. Finally, we used GRADE criteria to assess the quality of evidence (Table 4).

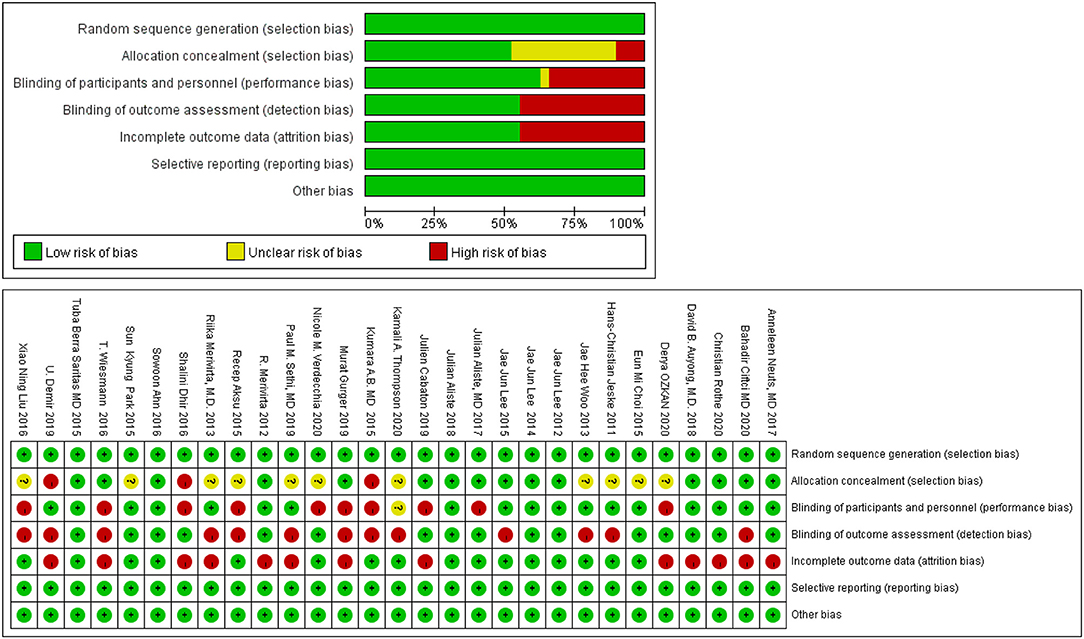

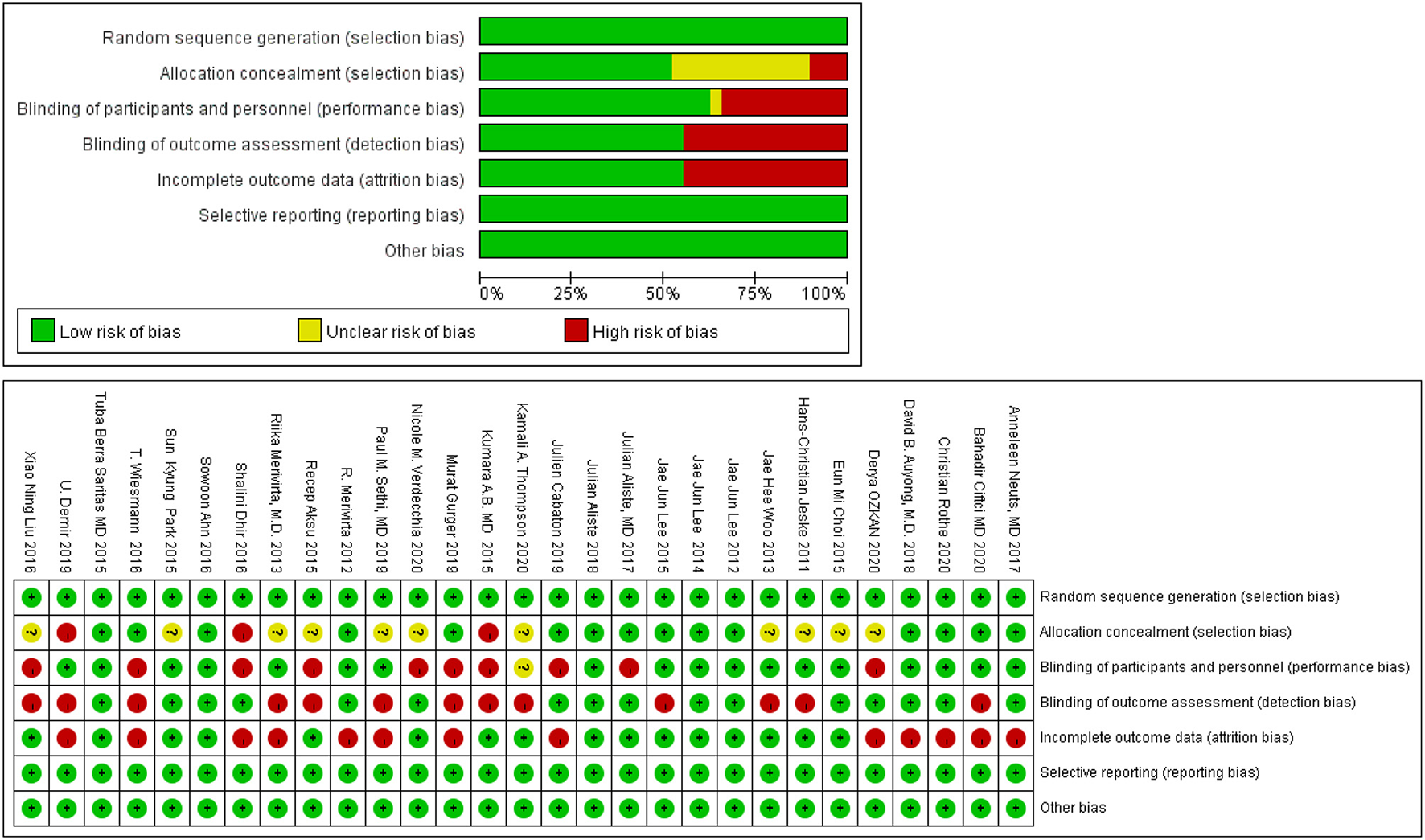

Figure 3

Figure 3

Quality assessment.

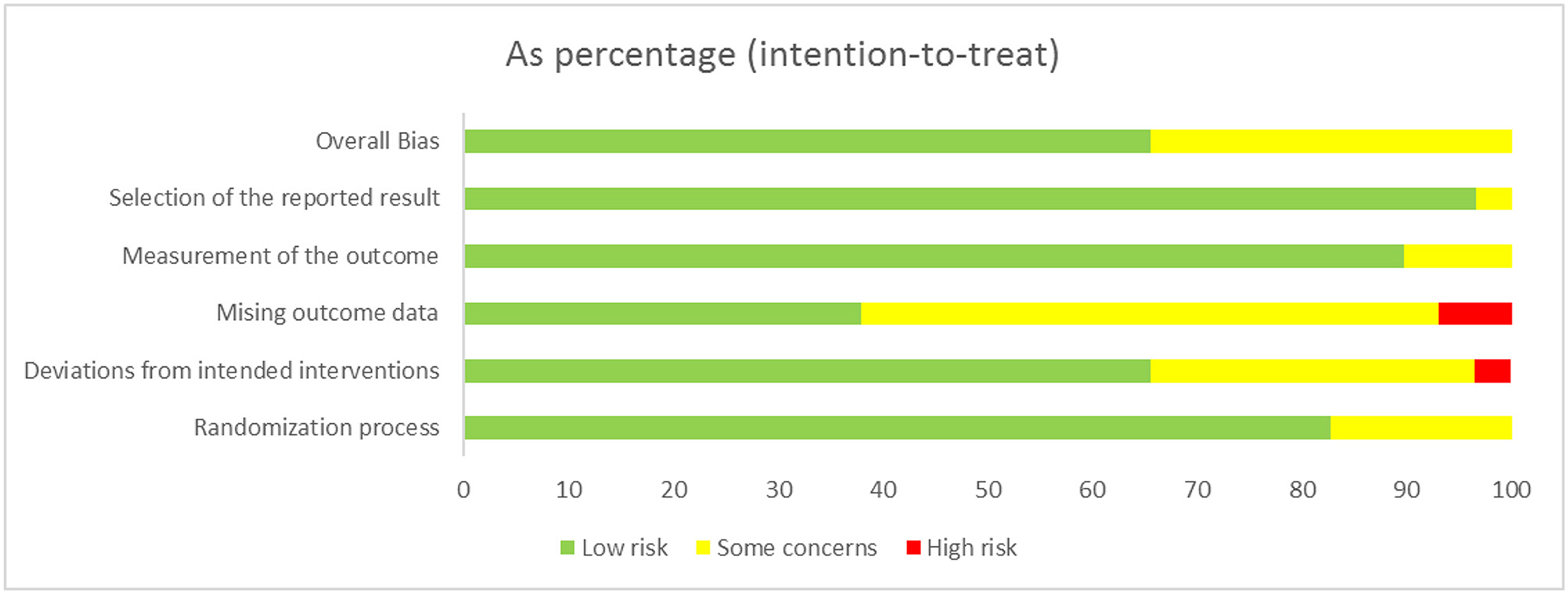

Figure 4

Figure 4

Quality assessment (ROB2.0).

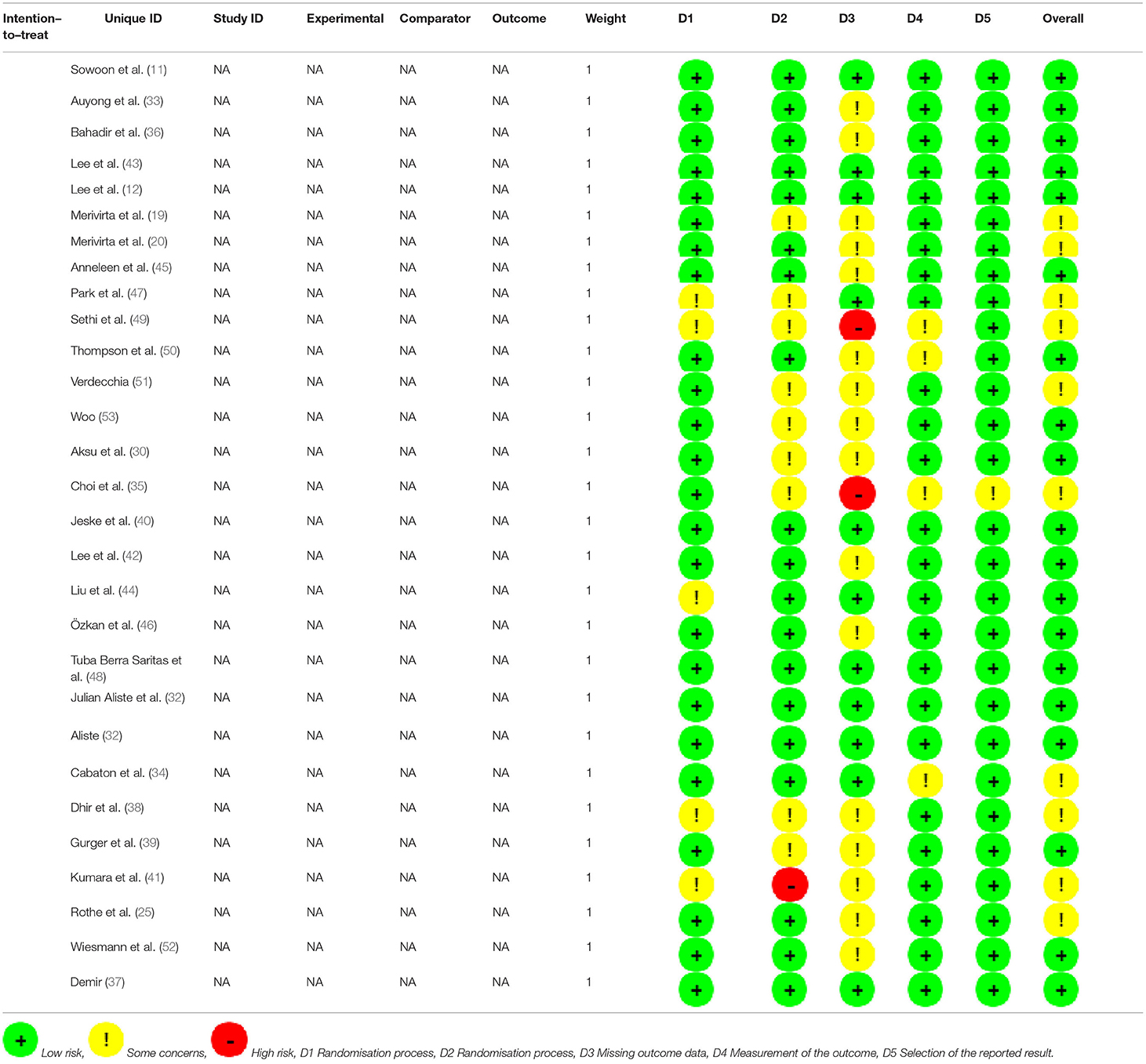

Table 3

Intention–to–treat Unique ID Study ID Experimental Comparator Outcome Weight D1 D2 D3 D4 D5 Overall
Sowoon et al. (11) NA NA NA NA 1
Auyong et al. (33) NA NA NA NA 1
Bahadir et al. (36) NA NA NA NA 1
Lee et al. (43) NA NA NA NA 1
Lee et al. (12) NA NA NA NA 1
Merivirta et al. (19) NA NA NA NA 1
Merivirta et al. (20) NA NA NA NA 1
Anneleen et al. (45) NA NA NA NA 1
Park et al. (47) NA NA NA NA 1
Sethi et al. (49) NA NA NA NA 1
Thompson et al. (50) NA NA NA NA 1
Verdecchia (51) NA NA NA NA 1
Woo (53) NA NA NA NA 1
Aksu et al. (30) NA NA NA NA 1
Choi et al. (35) NA NA NA NA 1
Jeske et al. (40) NA NA NA NA 1
Lee et al. (42) NA NA NA NA 1
Liu et al. (44) NA NA NA NA 1
Özkan et al. (46) NA NA NA NA 1
Tuba Berra Saritas et al. (48) NA NA NA NA 1
Julian Aliste et al. (32) NA NA NA NA 1
Aliste (32) NA NA NA NA 1
Cabaton et al. (34) NA NA NA NA 1
Dhir et al. (38) NA NA NA NA 1
Gurger et al. (39) NA NA NA NA 1
Kumara et al. (41) NA NA NA NA 1
Rothe et al. (25) NA NA NA NA 1
Wiesmann et al. (52) NA NA NA NA 1
Demir (37) NA NA NA NA 1

Quality assessment (ROB2.0).

Low risk, Some concerns, High risk, D1 Randomisation process, D2 Randomisation process, D3 Missing outcome data, D4 Measurement of the outcome, D5 Selection of the reported result.

Table 4

Characteristics of the included studies
Outcomes No. of studies Risk of bias Inconsistencya Indirectness Imprecision Publication bias Overall GRADE quality score
VAS at postoperative 12h 15 Not serious Not serious Not serious serious None ⊕⊕⊕O
Moderate
VAS at postoperative 24h 28 Not serious Not serious Not serious Not serious None ⊕⊕⊕
Advanced
VAS at postoperative 48h 14 Serious Not serious Not serious Not serious None ⊕⊕⊕O
Moderate

Quality of evidence according to the GRADE criteria.

VAS, Visual Analog Scale Score. aIndicates studies differed in the age of participants and in the detailed postoperative interventions.

Pair-Wise Meta-Analysis

We entered all the data that were suitable for the traditional pairwise meta-analysis into STATA 15.1, developed random-effects models, and then evaluated the SMDs and 95% CIs.

All the data, which were suitable for the conventional pairwise meta-analysis, were entered into STATA 15.1, and then the random-effects models were developed. Thereafter, the SMDs and 95% CIs were evaluated. In the postoperative 12 h group, 17 pairs of pain score comparisons were performed among which 9 had 95% CIs beyond the null value, thus suggesting significant differences, as follows: 1 pair of INB + SSNB vs. SSNB (SMD −1.34, 95% CI −1.97 to −0.71), 3 pairs of IAI vs. placebo (PL) (SMD −0.39, 95% CI −0.71 to −0.08), 3 pairs of INB vs. PL (SMD −0.94, 95% CI −1.49 to −0.39), 1 pair of SSNB+ANB vs. SSNB (SMD −0.81, 95% CI −1.44 to −0.18), and 1 pair of SSNB+ANB vs. IAI (SMD −0.79, 95% CI −1.41 to −0.17). The differences in the remaining 8 comparisons were considered insignificant. Regarding the postoperative 24 h group, 34 pairs of pain score comparisons were performed while 9 of which had 95% CIs beyond the null value, thus suggesting significant differences, as follows: 1 pair of OA vs. PL (SMD −1.49, 95% CI −2.06 to −0.91), 1 pair of HTESPB vs.PL (SMD −0.80, 95% CI −1.33 to −0.27), 1 pair of INB + SSNB vs. SSNB (SMD −0.62, 95% CI 0.40 to 2.44), 3 pairs of IAI vs.PL (SMD −0.40, 95% CI −0.71 to −0.09), 1 pair of CEB to IAI (SMD −2.23, 95% CI −3.36 to −1.09), 1 pair of INB vs. CEB (SMD 1.42,95% CI 0.40 to 2.44), and 1 pair of ANB vs. PL (SMD −1.17, 95% CI −1.78 to −0.57). We found no significant differences in the remaining 25 comparisons. Regarding the postoperative 48 h group, 16 pairs of pain score comparisons were performed among which 7 had 95% CIs beyond the null value, thus suggesting significant differences, as follows: 1 pair of OA vs. PL (SMD −0.94, 95% CI −1.47 to −0.40), 1 pair of HTESPB vs. PL (SMD −0.80, 95% CI −1.32 to −0.27), 1 pair of INB + SSNB vs. SSNB (SMD −0.93, 95% CI −1.53 to −0.33), 1 pair of INB vs. IAI (SMD −1.88, 95% CI −2.98 to −0.78), 1 pair of CEB vs. IAI (SMD −2.27, 95% CI −3.45 to −1.09), and 2 pairs of INB + IAI vs. INB (SMD −0.64, 95% CI −0.98 to −0.29). We found no significant differences in the remaining 9 comparisons. We have shown the results in the upper triangle of Tables 57, and the significant differences have been shaded.

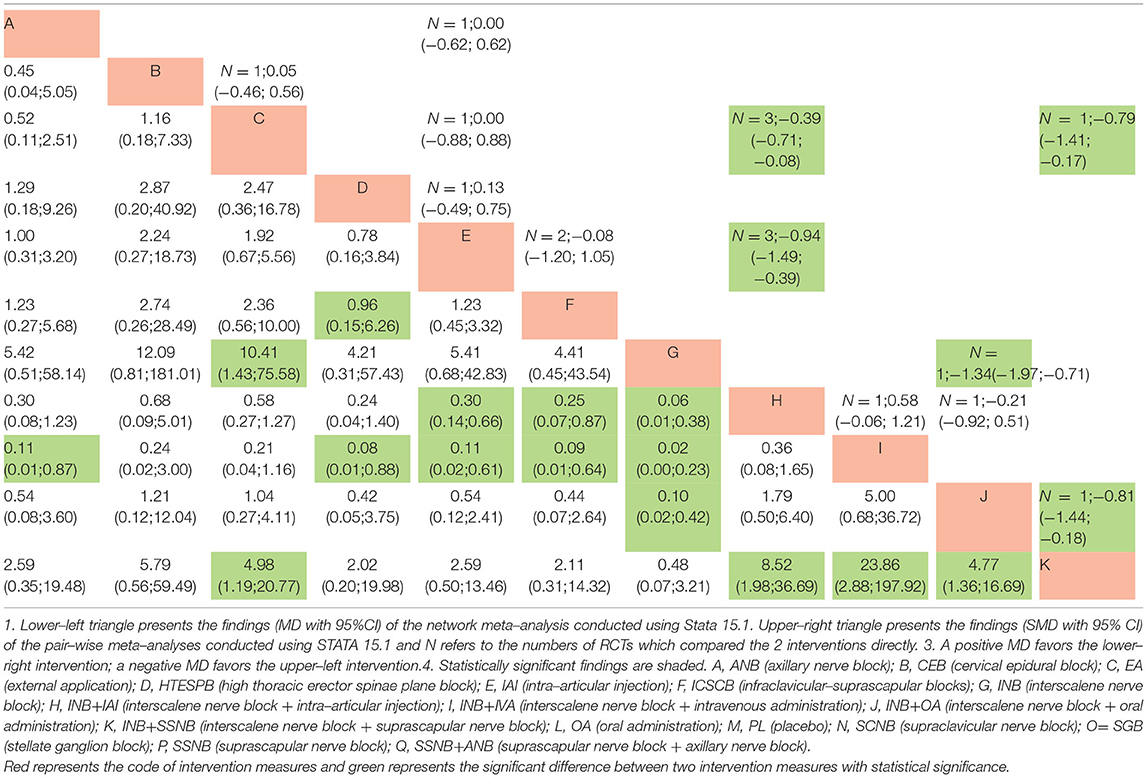

Table 5

A N = 1;0.00 (−0.62; 0.62)
0.45 (0.04;5.05) B N = 1;0.05 (−0.46; 0.56)
0.52 (0.11;2.51) 1.16 (0.18;7.33) C N = 1;0.00 (−0.88; 0.88) N = 3;−0.39 (−0.71; −0.08) N = 1;−0.79 (−1.41; −0.17)
1.29 (0.18;9.26) 2.87 (0.20;40.92) 2.47 (0.36;16.78) D N = 1;0.13 (−0.49; 0.75)
1.00 (0.31;3.20) 2.24 (0.27;18.73) 1.92 (0.67;5.56) 0.78 (0.16;3.84) E N = 2;−0.08 (−1.20; 1.05) N = 3;−0.94 (−1.49; −0.39)
1.23 (0.27;5.68) 2.74 (0.26;28.49) 2.36 (0.56;10.00) 0.96 (0.15;6.26) 1.23 (0.45;3.32) F
5.42 (0.51;58.14) 12.09 (0.81;181.01) 10.41 (1.43;75.58) 4.21 (0.31;57.43) 5.41 (0.68;42.83) 4.41 (0.45;43.54) G N = 1;−1.34(−1.97;−0.71)
0.30 (0.08;1.23) 0.68 (0.09;5.01) 0.58 (0.27;1.27) 0.24 (0.04;1.40) 0.30 (0.14;0.66) 0.25 (0.07;0.87) 0.06 (0.01;0.38) H N = 1;0.58 (−0.06; 1.21) N = 1;−0.21 (−0.92; 0.51)
0.11 (0.01;0.87) 0.24 (0.02;3.00) 0.21 (0.04;1.16) 0.08 (0.01;0.88) 0.11 (0.02;0.61) 0.09 (0.01;0.64) 0.02 (0.00;0.23) 0.36 (0.08;1.65) I
0.54 (0.08;3.60) 1.21 (0.12;12.04) 1.04 (0.27;4.11) 0.42 (0.05;3.75) 0.54 (0.12;2.41) 0.44 (0.07;2.64) 0.10 (0.02;0.42) 1.79 (0.50;6.40) 5.00 (0.68;36.72) J N = 1;−0.81 (−1.44; −0.18)
2.59 (0.35;19.48) 5.79 (0.56;59.49) 4.98 (1.19;20.77) 2.02 (0.20;19.98) 2.59 (0.50;13.46) 2.11 (0.31;14.32) 0.48 (0.07;3.21) 8.52 (1.98;36.69) 23.86 (2.88;197.92) 4.77 (1.36;16.69) K

Results of treatment comparisons for postoperative 24 h.

1. Lower–left triangle presents the findings (MD with 95%CI) of the network meta–analysis conducted using Stata 15.1. Upper–right triangle presents the findings (SMD with 95% CI) of the pair–wise meta–analyses conducted using STATA 15.1 and N refers to the numbers of RCTs which compared the 2 interventions directly. 3. A positive MD favors the lower–right intervention; a negative MD favors the upper–left intervention.4. Statistically significant findings are shaded. A, ANB (axillary nerve block); B, CEB (cervical epidural block); C, EA (external application); D, HTESPB (high thoracic erector spinae plane block); E, IAI (intra–articular injection); F, ICSCB (infraclavicular–suprascapular blocks); G, INB (interscalene nerve block); H, INB+IAI (interscalene nerve block + intra–articular injection); I, INB+IVA (interscalene nerve block + intravenous administration); J, INB+OA (interscalene nerve block + oral administration); K, INB+SSNB (interscalene nerve block + suprascapular nerve block); L, OA (oral administration); M, PL (placebo); N, SCNB (supraclavicular nerve block); O= SGB (stellate ganglion block); P, SSNB (suprascapular nerve block); Q, SSNB+ANB (suprascapular nerve block + axillary nerve block).

Red represents the code of intervention measures and green represents the significant difference between two intervention measures with statistical significance.

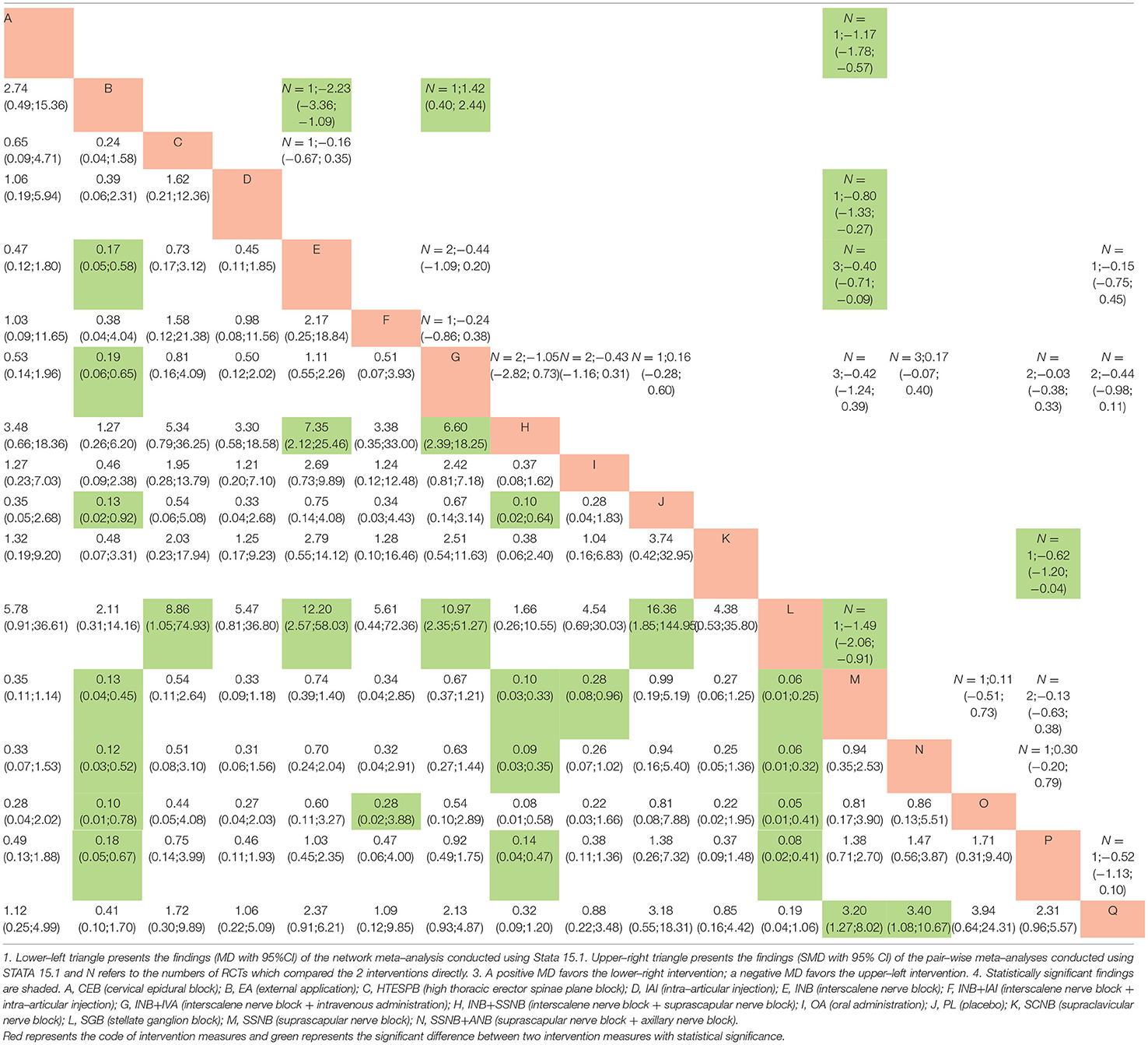

Table 6

A N = 1;−1.17 (−1.78; −0.57)
2.74 (0.49;15.36) B N = 1;−2.23 (−3.36; −1.09) N = 1;1.42 (0.40; 2.44)
0.65 (0.09;4.71) 0.24 (0.04;1.58) C N = 1;−0.16 (−0.67; 0.35)
1.06 (0.19;5.94) 0.39 (0.06;2.31) 1.62 (0.21;12.36) D N = 1;−0.80 (−1.33; −0.27)
0.47 (0.12;1.80) 0.17 (0.05;0.58) 0.73 (0.17;3.12) 0.45 (0.11;1.85) E N = 2;−0.44 (−1.09; 0.20) N = 3;−0.40 (−0.71; −0.09) N = 1;−0.15 (−0.75; 0.45)
1.03 (0.09;11.65) 0.38 (0.04;4.04) 1.58 (0.12;21.38) 0.98 (0.08;11.56) 2.17 (0.25;18.84) F N = 1;−0.24 (−0.86; 0.38)
0.53 (0.14;1.96) 0.19 (0.06;0.65) 0.81 (0.16;4.09) 0.50 (0.12;2.02) 1.11 (0.55;2.26) 0.51 (0.07;3.93) G N = 2;−1.05 (−2.82; 0.73) N = 2;−0.43 (−1.16; 0.31) N = 1;0.16 (−0.28; 0.60) N = 3;−0.42 (−1.24; 0.39) N = 3;0.17 (−0.07; 0.40) N = 2;−0.03 (−0.38; 0.33) N = 2;−0.44 (−0.98; 0.11)
3.48 (0.66;18.36) 1.27 (0.26;6.20) 5.34 (0.79;36.25) 3.30 (0.58;18.58) 7.35 (2.12;25.46) 3.38 (0.35;33.00) 6.60 (2.39;18.25) H
1.27 (0.23;7.03) 0.46 (0.09;2.38) 1.95 (0.28;13.79) 1.21 (0.20;7.10) 2.69 (0.73;9.89) 1.24 (0.12;12.48) 2.42 (0.81;7.18) 0.37 (0.08;1.62) I
0.35 (0.05;2.68) 0.13 (0.02;0.92) 0.54 (0.06;5.08) 0.33 (0.04;2.68) 0.75 (0.14;4.08) 0.34 (0.03;4.43) 0.67 (0.14;3.14) 0.10 (0.02;0.64) 0.28 (0.04;1.83) J
1.32 (0.19;9.20) 0.48 (0.07;3.31) 2.03 (0.23;17.94) 1.25 (0.17;9.23) 2.79 (0.55;14.12) 1.28 (0.10;16.46) 2.51 (0.54;11.63) 0.38 (0.06;2.40) 1.04 (0.16;6.83) 3.74 (0.42;32.95) K N = 1;−0.62 (−1.20; −0.04)
5.78 (0.91;36.61) 2.11 (0.31;14.16) 8.86 (1.05;74.93) 5.47 (0.81;36.80) 12.20 (2.57;58.03) 5.61 (0.44;72.36) 10.97 (2.35;51.27) 1.66 (0.26;10.55) 4.54 (0.69;30.03) 16.36 (1.85;144.95) 4.38 (0.53;35.80) L N = 1;−1.49 (−2.06; −0.91)
0.35 (0.11;1.14) 0.13 (0.04;0.45) 0.54 (0.11;2.64) 0.33 (0.09;1.18) 0.74 (0.39;1.40) 0.34 (0.04;2.85) 0.67 (0.37;1.21) 0.10 (0.03;0.33) 0.28 (0.08;0.96) 0.99 (0.19;5.19) 0.27 (0.06;1.25) 0.06 (0.01;0.25) M N = 1;0.11 (−0.51; 0.73) N = 2;−0.13 (−0.63; 0.38)
0.33 (0.07;1.53) 0.12 (0.03;0.52) 0.51 (0.08;3.10) 0.31 (0.06;1.56) 0.70 (0.24;2.04) 0.32 (0.04;2.91) 0.63 (0.27;1.44) 0.09 (0.03;0.35) 0.26 (0.07;1.02) 0.94 (0.16;5.40) 0.25 (0.05;1.36) 0.06 (0.01;0.32) 0.94 (0.35;2.53) N N = 1;0.30 (−0.20; 0.79)
0.28 (0.04;2.02) 0.10 (0.01;0.78) 0.44 (0.05;4.08) 0.27 (0.04;2.03) 0.60 (0.11;3.27) 0.28 (0.02;3.88) 0.54 (0.10;2.89) 0.08 (0.01;0.58) 0.22 (0.03;1.66) 0.81 (0.08;7.88) 0.22 (0.02;1.95) 0.05 (0.01;0.41) 0.81 (0.17;3.90) 0.86 (0.13;5.51) O
0.49 (0.13;1.88) 0.18 (0.05;0.67) 0.75 (0.14;3.99) 0.46 (0.11;1.93) 1.03 (0.45;2.35) 0.47 (0.06;4.00) 0.92 (0.49;1.75) 0.14 (0.04;0.47) 0.38 (0.11;1.36) 1.38 (0.26;7.32) 0.37 (0.09;1.48) 0.08 (0.02;0.41) 1.38 (0.71;2.70) 1.47 (0.56;3.87) 1.71 (0.31;9.40) P N = 1;−0.52 (−1.13; 0.10)
1.12 (0.25;4.99) 0.41 (0.10;1.70) 1.72 (0.30;9.89) 1.06 (0.22;5.09) 2.37 (0.91;6.21) 1.09 (0.12;9.85) 2.13 (0.93;4.87) 0.32 (0.09;1.20) 0.88 (0.22;3.48) 3.18 (0.55;18.31) 0.85 (0.16;4.42) 0.19 (0.04;1.06) 3.20 (1.27;8.02) 3.40 (1.08;10.67) 3.94 (0.64;24.31) 2.31 (0.96;5.57) Q

Results of treatment comparisons for postoperative 24 h.

1. Lower–left triangle presents the findings (MD with 95%CI) of the network meta–analysis conducted using Stata 15.1. Upper–right triangle presents the findings (SMD with 95% CI) of the pair–wise meta–analyses conducted using STATA 15.1 and N refers to the numbers of RCTs which compared the 2 interventions directly. 3. A positive MD favors the lower–right intervention; a negative MD favors the upper–left intervention. 4. Statistically significant findings are shaded. A, CEB (cervical epidural block); B, EA (external application); C, HTESPB (high thoracic erector spinae plane block); D, IAI (intra–articular injection); E, INB (interscalene nerve block); F, INB+IAI (interscalene nerve block + intra–articular injection); G, INB+IVA (interscalene nerve block + intravenous administration); H, INB+SSNB (interscalene nerve block + suprascapular nerve block); I, OA (oral administration); J, PL (placebo); K, SCNB (supraclavicular nerve block); L, SGB (stellate ganglion block); M, SSNB (suprascapular nerve block); N, SSNB+ANB (suprascapular nerve block + axillary nerve block).

Red represents the code of intervention measures and green represents the significant difference between two intervention measures with statistical significance.

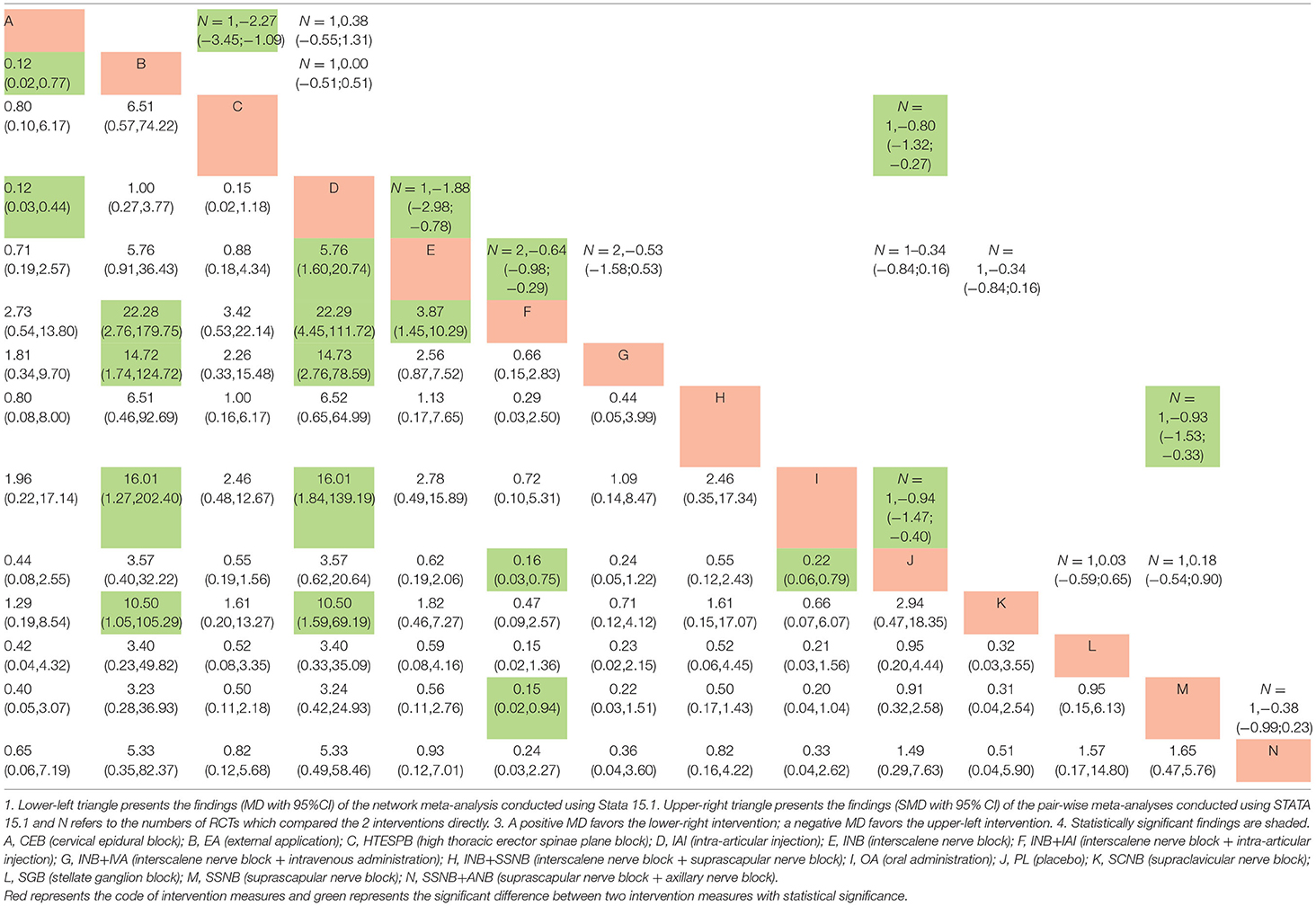

Table 7

A N = 1,−2.27 (−3.45;−1.09) N = 1,0.38 (−0.55;1.31)
0.12 (0.02,0.77) B N = 1,0.00 (−0.51;0.51)
0.80 (0.10,6.17) 6.51 (0.57,74.22) C N = 1,−0.80 (−1.32; −0.27)
0.12 (0.03,0.44) 1.00 (0.27,3.77) 0.15 (0.02,1.18) D N = 1,−1.88 (−2.98; −0.78)
0.71 (0.19,2.57) 5.76 (0.91,36.43) 0.88 (0.18,4.34) 5.76 (1.60,20.74) E N = 2,−0.64 (−0.98; −0.29) N = 2,−0.53 (−1.58;0.53) N = 1–0.34 (−0.84;0.16) N = 1,−0.34 (−0.84;0.16)
2.73 (0.54,13.80) 22.28 (2.76,179.75) 3.42 (0.53,22.14) 22.29 (4.45,111.72) 3.87 (1.45,10.29) F
1.81 (0.34,9.70) 14.72 (1.74,124.72) 2.26 (0.33,15.48) 14.73 (2.76,78.59) 2.56 (0.87,7.52) 0.66 (0.15,2.83) G
0.80 (0.08,8.00) 6.51 (0.46,92.69) 1.00 (0.16,6.17) 6.52 (0.65,64.99) 1.13 (0.17,7.65) 0.29 (0.03,2.50) 0.44 (0.05,3.99) H N = 1,−0.93 (−1.53; −0.33)
1.96 (0.22,17.14) 16.01 (1.27,202.40) 2.46 (0.48,12.67) 16.01 (1.84,139.19) 2.78 (0.49,15.89) 0.72 (0.10,5.31) 1.09 (0.14,8.47) 2.46 (0.35,17.34) I N = 1,−0.94 (−1.47; −0.40)
0.44 (0.08,2.55) 3.57 (0.40,32.22) 0.55 (0.19,1.56) 3.57 (0.62,20.64) 0.62 (0.19,2.06) 0.16 (0.03,0.75) 0.24 (0.05,1.22) 0.55 (0.12,2.43) 0.22 (0.06,0.79) J N = 1,0.03 (−0.59;0.65) N = 1,0.18 (−0.54;0.90)
1.29 (0.19,8.54) 10.50 (1.05,105.29) 1.61 (0.20,13.27) 10.50 (1.59,69.19) 1.82 (0.46,7.27) 0.47 (0.09,2.57) 0.71 (0.12,4.12) 1.61 (0.15,17.07) 0.66 (0.07,6.07) 2.94 (0.47,18.35) K
0.42 (0.04,4.32) 3.40 (0.23,49.82) 0.52 (0.08,3.35) 3.40 (0.33,35.09) 0.59 (0.08,4.16) 0.15 (0.02,1.36) 0.23 (0.02,2.15) 0.52 (0.06,4.45) 0.21 (0.03,1.56) 0.95 (0.20,4.44) 0.32 (0.03,3.55) L
0.40 (0.05,3.07) 3.23 (0.28,36.93) 0.50 (0.11,2.18) 3.24 (0.42,24.93) 0.56 (0.11,2.76) 0.15 (0.02,0.94) 0.22 (0.03,1.51) 0.50 (0.17,1.43) 0.20 (0.04,1.04) 0.91 (0.32,2.58) 0.31 (0.04,2.54) 0.95 (0.15,6.13) M N = 1,−0.38 (−0.99;0.23)
0.65 (0.06,7.19) 5.33 (0.35,82.37) 0.82 (0.12,5.68) 5.33 (0.49,58.46) 0.93 (0.12,7.01) 0.24 (0.03,2.27) 0.36 (0.04,3.60) 0.82 (0.16,4.22) 0.33 (0.04,2.62) 1.49 (0.29,7.63) 0.51 (0.04,5.90) 1.57 (0.17,14.80) 1.65 (0.47,5.76) N

Results of treatment comparisons for postoperative 48 h.

1. Lower-left triangle presents the findings (MD with 95%CI) of the network meta-analysis conducted using Stata 15.1. Upper-right triangle presents the findings (SMD with 95% CI) of the pair-wise meta-analyses conducted using STATA 15.1 and N refers to the numbers of RCTs which compared the 2 interventions directly. 3. A positive MD favors the lower-right intervention; a negative MD favors the upper-left intervention. 4. Statistically significant findings are shaded. A, CEB (cervical epidural block); B, EA (external application); C, HTESPB (high thoracic erector spinae plane block); D, IAI (intra-articular injection); E, INB (interscalene nerve block); F, INB+IAI (interscalene nerve block + intra-articular injection); G, INB+IVA (interscalene nerve block + intravenous administration); H, INB+SSNB (interscalene nerve block + suprascapular nerve block); I, OA (oral administration); J, PL (placebo); K, SCNB (supraclavicular nerve block); L, SGB (stellate ganglion block); M, SSNB (suprascapular nerve block); N, SSNB+ANB (suprascapular nerve block + axillary nerve block).

Red represents the code of intervention measures and green represents the significant difference between two intervention measures with statistical significance.

Network Meta–Analysis

All the differences of the possible comparisons were evaluated, and the results as the MDs and 95% CIs were obtained, which have been listed in the lower triangle of Tables 57 with the various significant differences being shaded.

Regarding the postoperative 12 h group, among the significant results, INB + SSNB vs. SSNB, INB vs. PL, SSNB + ANB vs. SSNB, and SSNB + ANB vs. IAI exhibited similar results to those of the above traditional meta–analysis. However, 1 comparison–AI vs. PL–had no significant difference, which is the difference between the NMA and the traditional meta–analysis, in which the difference between different interventions vs. PL was compared, and it was found that the top two interventions were SSNB + ANB (MD 0.06, 95% CI 0.01 to 0.38) and INB + SSNB (MD 0.12, 95% CI 0.03 to 0.51).

Regarding the postoperative 24 h group, among the significant results, OA vs. PL, CEB vs. IAI, and INB vs. CEB exhibited similar results to those of the above–discussed traditional meta–analysis. In addition, 4 distinct comparisons that included HTESPB vs. PL, INB + SSNB vs. SSNB, IAI vs. PL, and ANB vs. PL exhibited no significant differences, which may be due to the variation between the NMA and the traditional meta–analysis. Among these results, the differences between the various interventions vs. PL were also compared, and it was found that the top two interventions were OA (MD 0.06, 95% CI 0.01 to 0.25) and INB + IAI (MD 0.10, 95% CI 0.03 to 0.33).

Regarding the postoperative 48 h group, among the observed significant results, OA vs. PL, INB vs. IAI, CEB vs. IAI, and INB+IAI vs. INB exhibited similar results to those of the above–reported traditional meta–analysis. Moreover, 2 comparisons that consisted of HTESPB vs. PL and INB + SSNB vs. SSNB exhibited no significant differences, which might be due to the variation between the NMA and the traditional meta–analysis. We adapted the above steps and found that the top two interventions were INB + IAI (MD 0.16, 95% CI 0.03 to 0.75) and OA (MD 0.22, 95% CI 0.06 to 0.79).

Rank Probability

The order of the curative effect of the intervention measures was obtained after the calculation. Based on the area under the curve, we could find out about intervention, which was the most effective (Figure 5).

Figure 5

Figure 5

(A) SUCRA for results of postoperative 12 h. (B) SUCRA for results of postoperative 24 h. (C) SUCRA for results of postoperative 48 h. The area under the curve represents the cumulative rank probability of each treatment; with larger areas signifying higher probabilities. INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; SGB, stellate ganglion block; ICSCB, infraclavicular-suprascapular blocks; CCB, costoclavicular blocks; ANB, axillary nerve block; IAI, intra-articular injection; OA, oral administration; EA, external application; IVA, intravenous administration; PL, placebo.

For the postoperative 12 h group, the best analgesic effect was found in SSNB + ANB, whereas in the non–nerve block group, EA was ranked first.

Regarding the postoperative 24 h and 48 h group, the analgesic effect of INB + IAI was best among other treatment options in the nerve block, but OA ranked first at postoperative 12 h.

Inconsistency Analyses

There was 1 quadrilateral loop (IAI–PL–SSNB–SSNB + ANB) and 1 triangle loop (IAI–INB–PL) in network 1. In network 2, 1 quadrilateral loop (IAI–PL–SSNB–SSNB + ANB) and 6 different triangle loops (IAI–INB–PL, IAI–INB–SSNB + ANB, CEB–IAI–INB, INB–PL–SSNB, INB–SSNB–SSNB + ANB, and INB–SCNB–SSNB) were found. In network 3, 1 triangle loop (CEB–IAI–INB) was found, but the triangle loop (CEB–IAI–INB) was disregarded, which was derived from the same article, and testing inconsistency in network 3 was not needed. The evaluation of inconsistency of network 1 and network 2 at the global showed no significant inconsistency, with p–values of 0.86 and 0.99, respectively. There was no consistency observed in these loops of network 1 and network 2 (Figure 6). In addition, no inconsistency was found between any comparison pairs in network 1 and network 2 through the node–splitting test (Tables 8, 9).

Figure 6

Figure 6

Loops analysis for inconsistency of network meta-analysis. [(A) postoperative 12 h., (B) postoperative 24 h]. When the 95% confidence interval (CI) includes 0; it means that inconsistency is low risk. INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; CEB, cervical epidural block; ANB, axillary nerve block; IAI, intra-articular injection; PL, placebo.

Table 8

Side Direct Indirect Difference P>|z|
Coef. Std. Err. Coef. Std. Err. Coef. Std. Err.
A E* 0.00 0.59 −0.65 10.73 0.65 10.75 0.95
B C* −0.15 0.94 1.30 185.01 −1.45 185.01 0.99
C E 0.01 1.03 −0.89 0.63 0.90 1.21 0.46
C H 0.60 0.46 0.24 1.23 0.36 1.31 0.78
C K −2.05 0.98 −0.97 1.19 −1.08 1.54 0.48
D E* 0.25 0.81 0.00 120.49 0.25 120.50 1.00
E F* −0.21 0.51 −0.03 71.53 −0.17 71.53 1.00
E H* 1.25 0.41 −0.17 1.94 1.42 1.98 0.47
G J* 2.30 0.73 1.22 107.55 1.08 107.56 0.99
H I* 1.03 0.78 −2.38 104.35 3.41 104.35 0.97
H J −0.30 0.79 −1.38 1.32 1.08 1.54 0.48
J K −1.30 0.77 −2.38 1.34 1.08 1.54 0.48

Node–splitting test for inconsistency of network meta–analysis (postoperative 12 h).

A, CCB (costoclavicular blocks); B, EA (external application); C, IAI (intra–articular injection); D, ICSCB (infraclavicular–suprascapular blocks); E, INB (interscalene nerve block); F, INB+IVA (interscalene nerve block + intravenous administration); G, INB+SSNB (interscalene nerve block + suprascapular nerve block); H, PL (placebo); I, SGB (stellate ganglion block) J, SSNB (suprascapular nerve block); K, SSNB+ANB (suprascapular nerve block + axillary nerve block).

*All the evidence about these contrasts comes from the trials which directly compare them.

Table 9

Side Direct Indirect Difference P>|z|
Coef. Std. Err. Coef. Std. Err. Coef. Std. Err.
A M* 1.05 0.60 0.40 8.08 0.65 8.10 0.94
B E* 2.07 0.68 0.30 1.48 1.77 1.63 0.28
B G* 1.32 0.69 3.09 1.47 −1.77 1.63 0.28
C E* 0.32 0.74 1.50 123.05 −1.18 123.05 0.99
D M* 1.10 0.65 2.09 84.13 −0.99 84.13 0.99
E G* −0.51 0.54 0.24 0.50 −0.75 0.74 0.31
E M 0.44 0.38 −0.13 0.67 0.57 0.77 0.46
E Q −0.38 0.96 −1.05 0.59 0.67 1.13 0.55
F G* 0.67 1.04 1.28 176.14 −0.61 176.14 1.00
G H* −1.89 0.52 −1.24 84.76 −0.65 84.76 0.99
G I* −0.88 0.56 −1.27 88.58 0.38 88.58 1.00
G J* 0.40 0.79 −1.28 161.37 1.68 161.37 0.99
G M 0.47 0.42 0.31 0.49 0.15 0.65 0.81
G N* 0.45 0.46 0.69 1.51 −0.24 1.56 0.88
G P −0.03 0.48 0.18 0.49 −0.21 0.69 0.76
G Q −1.04 0.59 −0.43 0.65 −0.61 0.88 0.49
K P* 1.00 0.71 1.44 101.21 −0.44 101.21 1.00
L M* 2.80 0.73 2.09 117.02 0.71 117.02 1.00
M O* 0.21 0.80 −2.09 118.29 2.30 118.29 0.98
M P −0.10 0.47 −0.61 0.53 0.51 0.71 0.47
N P −0.59 0.76 −0.23 0.68 −0.35 1.02 0.73
P Q −0.70 0.71 −0.95 0.62 0.25 0.94 0.79

Node–splitting test for inconsistency of network meta–analysis (postoperative 24 h).

A, ANB (axillary nerve block); B, CEB (cervical epidural block); C, EA (external application); D, HTESPB (high thoracic erector spinae plane block); E, IAI (intra–articular injection); F, ICSCB (infraclavicular–suprascapular blocks); G, INB (interscalene nerve block); H, INB+IAI (interscalene nerve block + intra–articular injection); I, INB+IVA (interscalene nerve block + intravenous administration); J, INB+OA (interscalene nerve block + oral administration); K, INB+SSNB (interscalene nerve block + suprascapular nerve block); L, OA (oral administration); M, PL (placebo); N, SCNB (supraclavicular nerve block); O= SGB (stellate ganglion block); P, SSNB (suprascapular nerve block); Q, SSNB+ANB (suprascapular nerve block + axillary nerve block).

*All the evidence about these contrasts comes from the trials which directly compare them.

Additional Analysis

The publication bias of the 3 distinct networks was evaluated by using Egger's tests, and the result is shown in Table 10. The publication bias was only detected in network 2 (Table 6) due to the small amount of the subjects present in the studies included in this analysis. The rank possibility was recalculated by excluding these studies with <40 people. The results in postoperative 12 h changed significantly (Figures 7A–C). The small sample might produce bias, which can lead to the wrong ranking of ANB + SSNB (27). At present, it is considered that the larger sample size is more reliable for analysis. Moreover, in the network comparison, INB + SSNB was significantly better than ANB + SSNB, so it could be concluded that the analgesic effect of INB + SSNB ranked first in the 12 h group after the operation. A little asymmetry was found in the comparison–adjusted funnel plot, which suggested that there were small–study effects in the primary analysis (Figure 8).

Table 10

Group Std_Eff Coef. Std. Err. t P>|t| 95% Conf. Interval
Postoprative 12 h Slope −1.05 0.71 −1.49 0.16 (−2.56; 0.45)
Bias 2.12 2.34 0.91 0.38 (−2.87; 7.11)
Postoprative 24 h Slope 0.27 0.37 0.75 0.46 (−0.47; 1.02)
Bias −2.09 1.32 −1.58 0.12 (−4.8; 0.60)
Postoprative 48 h Slope 0.05 0.48 0.10 0.93 (−0.99; 1.08)
Bias −1.90 1.65 −1.15 0.27 (−5.43; 1.64)

Egger's test for publication bias of pairwise meta–analysis.

Figure 7

Figure 7

(A) SUCRA for results of postoperative 12 h. (B) SUCRA for results of postoperative 24 h. (C) SUCRA for results of postoperative 48 h. (After removing the article with less than 40 people). The area under the curve represents the cumulative rank probability of each treatment; with larger areas signifying higher probabilities. INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; ANB, axillary nerve block; IAI, intra-articular injection; OA, oral administration; EA, external application; IVA, intravenous administration; PL, placebo.

Figure 8

Figure 8

The comparison-adjusted funnel plot of network meta-analyses. [(A) postoperative 12 h, (B) postoperative 24 h, (C) postoperative 48 h]. INB, interscalene nerve block; SCNB, supraclavicular nerve block; SSNB, suprascapular nerve block; HTESPB, high thoracic erector spinae plane block; CEB, cervical epidural block; SGB, stellate ganglion block; ICSCB, infraclavicular-suprascapular blocks; CCB, costoclavicular blocks; ANB, axillary nerve block; IAI, intra-articular injection; OA, oral administration; EA, external application; IVA, intravenous administration; PL, placebo.

Discussion

In this NMA, all the RCTs that focused on the different intervention measures in the treatment of pain after shoulder arthroscopy were included. The analgesic effects of the different interventions at postoperative 12 h, 24 h, and 48 h were analyzed, respectively. The intervention measures were divided into two distinct categories, namely, the nerve block group and the non–nerve block group. The results of SUCRA showed that, first, the analgesic effect of the nerve block group was significantly better than that of the non–nerve block group at the three time points after the operation. Among them, the first regimen related to the nerve was SSNB + INB at postoperative 12 h, INB + IAI at 24 h after operation, and INB + IAI at 48 h after surgery. For the non–nerve block group, the effect of EA was found to be the best in the 12 h after operation, and the analgesic effect of OA at postoperative 24 h and 48 h was significantly better than that of other intervention measures.

There was no intervention reported with INB + IAI and OA in the original data in the postoperative 12 h group (Figure 2), which might be the reason for the difference in results between 12 h and 24 h after operation. In addition, in the network comparison, the analgesic effect of OA at 24 h after operation was found to be significantly better than that of other intervention measures; however, SUCRA was ranked third in the 24 h group after the operation. The possible reasons could be related to the inadequate sample size of the experiments, the environment in which each experiment was carried out, and other external conditions, which might have exerted a variable impact on the experiment and so on.

Clinical Implications

On the one hand, shoulder arthroscopic surgery is currently carried out successfully in a large number of affected patients. Thus, it can be implied that there are numerous patients undergoing shoulder arthroscopic surgery, and the postoperative pain can adversely slow down the recovery speed of the patients and affect the surgical effect on the patients. On the other hand, there is no unified and optimal scheme for postoperative analgesia after shoulder arthroscopic surgery. At present, the use of INB as the best nerve block has been recommended for postoperative pain after arthroscopic surgery (10), and it has been suggested to take analgesic drugs before and after shoulder arthroscopy. Moreover, IVA of dexamethasone can markedly increase the duration of anesthesia, reduce the use of anesthetic drugs, and alleviate the pain rebound after the disappearance of the anesthetic effect. Patients with pain can use opioid analgesics as per their requirements (3).

Dexamethasone or dexmedetomidine (54, 55), magnesium sulfate (56), or clonidine (57) can also be added to nerve block drugs, and intravenous anesthesia adjuvant drugs, such as ketamine (58), can also be injected into patients before and after the nerve block. A number of studies reported in the literature have been found to only block the upper trunk of the brachial plexus, which can achieve an effective analgesic effect equivalent to INB and can effectively reduce unilateral diaphragm paralysis (59). Moreover, the effect of continuous intermuscular sulcus nerve block has been found to be better than that of the single injection of intermuscular sulcus nerve block (60), and increasing drug concentration might effectively improve the anesthetic effect (61). Moreover, different types, concentrations, and volumes of local anesthetics may lead to significant clinical heterogeneity. Therefore, this point cannot be ignored in practical application.

Overall, the conclusion was drawn from this study that in the nerve block group, the analgesic effect of SSNB + INB was the best at postoperative 12 h, whereas INB + IAI was superior at postoperative 24 h and 48 h. For the non–nerve block group, the effect of EA was the best in the postoperative 12 h, and the analgesic effect of OA at postoperative 24 h and 48 h was significantly better as compared with other intervention measures.

In addition, in the non–nerve block group, patients can choose oral medicine before and after operation (11, 50), they can receive pain management education before operation (62), patients used an analgesic pump device after operation (13), and opioid analgesics were used after the operation, such as topical analgesic patch (19). Stellate ganglion block was not recommended because its analgesic effect was found to be significantly lower than that of other intervention strategies, and we recommended the application of a combination of multiple interventions to maximize the analgesic effect and reduce the side effects of a single drug.

However, this study does not include the various complications in the analysis, and the lowest incidences of complications in SSNB + ANB and INB + IAI intervention programs were unknown. In addition, it has been shown that injecting anesthetics into the articular cavity might damage the cartilage of patients and cause unexpected damage (63), so one should try to avoid injecting anesthetics directly on the surface of the cartilage and minimize the trauma.

Implications for Future Research

According to the meta–analysis, the best analgesic effects were that of SSNB + INB, INB + IAI, and INB + IAI at the 3 time points after the operation, respectively. However, at postoperative 12 h, it was not clear whether the analgesic effect of SSNB + INB or INB + IAI was better, and hence clinical trials are needed to verify their efficacies in the future.

In addition, in the intervention control measures of each experiment, there were some other routine intervention measures used, which were not included in this NMA, such as the use of the postoperative analgesic pump, postoperative ice compress wound (64), and so on. Therefore, in addition to the above conclusions, we proposed that analgesics can be taken in advance before operation and use of nerve block such as INB plus IAI analgesics combined with postoperative analgesics, and cryotherapy in the ward, which may be the best analgesic intervention measures at the present.

In the future, high–quality RCTs should continue to be conducted to analyze the best multimode analgesic regimen for perioperative pain after shoulder arthroscopy.

Limitations

This study is also associated with a few limitations. First, this article did not describe the possible side effects of each intervention, but we can conduct another relevant meta–analysis in the future to address this issue. Second, the lack of blind methods in some studies may lead to potential deviations in the effect. In addition, the risk that results may be influenced by the quality of the included RCTs of this article cannot be completely avoided, like any other meta–analysis. Moreover, the bias can also be introduced by the loss of patients during the follow–up, so it might be possible that the major complications were not properly reported. Finally, the inclusion of the various surgical methods and shoulder diseases in the literature is complex, and the meta–analysis of the surgical methods is not subdivided, which may cause potential bias. These can be further subdivided in the future when there are several other related clinical trials have been conducted.

Conclusion

The analgesic effect of SSNB + INB was the best at postoperative 12 h, and INB + IAI was the best at postoperative 24 h and 48 h in the nerve block group. For the non–nerve block group, the effect of EA was the best at postoperative 12 h, and the analgesic effect of OA at postoperative 24 h and 48 h was significantly better than any other interventions.

Funding

NM was supported by the Kuanren Talents Program of the Second Affiliated Hospital of Chongqing Medical University.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Statements

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author/s.

Author contributions

WJ and QX collected data and wrote and revised the articles. LX, HS, YX, SG, NM, GT, DZ, SH, and XZ revised the articles. All authors contributed to the article and approved the submitted version.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

    Abbreviations

  • INB

    interscalene nerve block

  • SCNB

    supraclavicular nerve block

  • SSNB

    suprascapular nerve block

  • HTESPB

    high thoracic erector spine plane block

  • CEB

    cervical epidural block

  • SGB

    stellate ganglion block

  • ICSCB

    infraclavicular-suprascapular block

  • CCB

    costoclavicular block

  • ANB

    axillary nerve block

  • IAI

    intra-articular injection

  • PL

    placebo

  • OA

    oral administration

  • EA

    external application

  • IVA

    intravenous administration

  • SUCRA

    surface under the cumulative ranking curve

  • VAS

    visual analog scale

  • NRS

    numeric rating scale

  • M ± SD

    = mean ± standard deviation

  • MD and 95%CI

    mean difference and 95% confidence interval

  • SMD

    standard mean difference

  • RCT

    randomized controlled trial

  • NMA

    network meta-analysis.

References

  • 1.

    Ganapathy S Amendola A Lichfield R Fowler PJ Ling E . Elastomeric pumps for ambulatory patient controlled regional analgesia. Can J Anaesth. (2000) 47:897902. 10.1007/BF03019672

  • 2.

    Mather RC . 3rd, Koenig L, Acevedo D, Dall TM, Gallo P, Romeo A, et al. The societal and economic value of rotator cuff repair. J Bone Joint Surg Am. (2013) 95:19932000. 10.2106/JBJS.L.01495

  • 3.

    Warrender WJ Syed UAM Hammoud S Emper W Ciccotti MG Abboud JA et al . Pain management after outpatient shoulder arthroscopy: a systematic review of randomized controlled trials. Am J Sports Med. (2017) 45:167686. 10.1177/0363546516667906

  • 4.

    Ensor KL Kwon YW Dibeneditto MR Zuckerman JD Rokito AS . The rising incidence of rotator cuff repairs. J Shoulder Elbow Surg. (2013) 22:162832. 10.1016/j.jse.2013.01.006

  • 5.

    Ruiz-Suarez M Barber FA . Postoperative pain control after shoulder arthroscopy. Orthopedics. (2008) 31:1130. 10.3928/01477447-20081101-25

  • 6.

    Safran MR Benedetti RS Bartolozzi AR 3rd Mandelbaum BR . Lateral ankle sprains: a comprehensive review: part 1: etiology, pathoanatomy, histopathogenesis, and diagnosis. Med Sci Sports Exerc. (1999) 31(7 Suppl):S429-437. 10.1097/00005768-199907001-00004

  • 7.

    Adam F Ménigaux C Sessler DI Chauvin M . A single preoperative dose of gabapentin (800 milligrams) does not augment postoperative analgesia in patients given interscalene brachial plexus blocks for arthroscopic shoulder surgery. Anesth Analg. (2006) 103:127882. 10.1213/01.ane.0000237300.78508.f1

  • 8.

    Al-Kaisy A McGuire G Chan VW Bruin G Peng P Miniaci A et al . Analgesic effect of interscalene block using low-dose bupivacaine for outpatient arthroscopic shoulder surgery. Reg Anesth Pain Med. (1998) 23:46973. 10.1097/00115550-199823050-00007

  • 9.

    Uquillas CA Capogna BM Rossy WH Mahure SA Rokito AS . Postoperative pain control after arthroscopic rotator cuff repair. J Shoulder Elbow Sur. (2016) 25:120413. 10.1016/j.jse.2016.01.026

  • 10.

    Toma O Persoons B Pogatzki-Zahn E Van de Velde M Joshi GP . PROSPECT guideline for rotator cuff repair surgery: systematic review and procedure-specific postoperative pain management recommendations. Anaesthesia. (2019) 74:132031. 10.1111/anae.14796

  • 11.

    Ahn S Byun SH Park K Ha JL Kwon B Kim JC . Analgesic efficacy of preemptive pregabalin administration in arthroscopic shoulder surgery: a randomized controlled trial. Can J Anaesth. (2016) 63:2839. 10.1007/s12630-015-0510-0

  • 12.

    Lee JJ Hwang JT Kim DY Lee SS Hwang SM Lee NR et al . Effects of arthroscopy-guided suprascapular nerve block combined with ultrasound-guided interscalene brachial plexus block for arthroscopic rotator cuff repair: a randomized controlled trial. Knee Surg Sports Traumatol Arthrosc. (2017) 25:21218. 10.1007/s00167-016-4198-7

  • 13.

    Oh YN Kim KN Jeong MA Kim DW Kim JY Ki HS . Effects of nefopam with fentanyl in intravenous patient-controlled analgesia after arthroscopic orthopedic surgery: a prospective double-blind randomized trial. Turk J Med Sci. (2018) 48:1429. 10.3906/sag-1707-113

  • 14.

    White L Reardon D Davis K Velli G Bright M . Anterior suprascapular nerve block versus interscalene brachial plexus block for arthroscopic shoulder surgery: a systematic review and meta-analysis of randomized controlled trials. J Anesth. (2022) 36:1725. 10.1007/s00540-021-03000-z

  • 15.

    Ul Huda A Jordan RW Daggett M Saithna A . Pre-medication with Gabapentin is associated with significant reductions in nausea and vomiting after shoulder arthroscopy: a meta-analysis. OTSR. (2019) 105:148793. 10.1016/j.otsr.2019.09.023

  • 16.

    Sun C Ji X Zhang X Ma Q Yu P Cai X et al . Suprascapular nerve block is a clinically attractive alternative to interscalene nerve block during arthroscopic shoulder surgery: a meta-analysis of randomized controlled trials. J Orthop Surg Res. (2021) 16:376. 10.1186/s13018-021-02515-1

  • 17.

    Kay J Memon M Hu T Simunovic N Duong A Paul J Athwal G Ayeni OR . Suprascapular nerve blockade for postoperative pain control after arthroscopic shoulder surgery: a systematic review and meta-analysis. Orthop J Sports Med. (2018) 6:2325967118815859. 10.1177/2325967118815859

  • 18.

    Hutton B Salanti G Caldwell DM Chaimani A Schmid CH Cameron C et al . The PRISMA extension statement for reporting of systematic reviews incorporating network meta-analyses of health care interventions: checklist and explanations. Ann Intern Med. (2015) 162:77784. 10.7326/M14-2385

  • 19.

    Merivirta R Äärimaa V Aantaa R Koivisto M Leino K Liukas A et al . Postoperative fentanyl patch versus subacromial bupivacaine infusion in arthroscopic shoulder surgery. Arthroscopy. (2013) 29:112934. 10.1016/j.arthro.2013.04.018

  • 20.

    Merivirta R Kuusniemi KS Aantaa R Hurme SA Aärimaa V Leino KA . The analgesic effect of continuous subacromial bupivacaine infusion after arthroscopic shoulder surgery: a randomized controlled trial. Acta Anaesthesiol Scand. (2012) 56:2106. 10.1111/j.1399-6576.2011.02606.x

  • 21.

    Cumpston M Li T Page MJ Chandler J Welch VA Higgins JP et al . Updated guidance for trusted systematic reviews: a new edition of the cochrane handbook for systematic reviews of interventions. Cochrane Database Syst Rev. (2019) 10:Ed000142. 10.1002/14651858.ED000142

  • 22.

    Busse JW Bartlett SJ Dougados M Johnston BC Guyatt GH Kirwan JR et al . Optimal strategies for reporting pain in clinical trials and systematic reviews: recommendations from an OMERACT 12 workshop. J Rheumatol. (2015) 42:196270. 10.3899/jrheum.141440

  • 23.

    Johnston BC Alonso-Coello P Friedrich JO Mustafa RA Tikkinen KAO Neumann I . Do clinicians understand the size of treatment effects? a randomized survey across 8 countries. CMAJ. (2016) 188:2532. 10.1503/cmaj.150430

  • 24.

    Thorlund K Walter SD Johnston BC Furukawa TA Guyatt GH . Pooling health-related quality of life outcomes in meta-analysis-a tutorial and review of methods for enhancing interpretability. Res Synth Methods. (2011) 2:188203. 10.1002/jrsm.46

  • 25.

    Rothe C Lund J Jenstrup MT Steen-Hansen C Lundstrøm LH Andreasen AM et al . A randomized controlled trial evaluating the impact of selective axillary nerve block after arthroscopic subacromial decompression. BMC Anesthesiol. (2020) 20:33. 10.1186/s12871-020-0952-y

  • 26.

    White IR Barrett JK Jackson D Higgins JP . Consistency and inconsistency in network meta-analysis: model estimation using multivariate meta-regression. Res Synth Methods. (2012) 3:11125. 10.1002/jrsm.1045

  • 27.

    Chaimani A Higgins JP Mavridis D Spyridonos P Salanti G . Graphical tools for network meta-analysis in STATA. PLoS ONE. (2013) 8:e76654. 10.1371/journal.pone.0076654

  • 28.

    Salanti G Ades AE Ioannidis JP . Graphical methods and numerical summaries for presenting results from multiple-treatment meta-analysis: an overview and tutorial. J Clin Epidemiol. (2011) 64:16371. 10.1016/j.jclinepi.2010.03.016

  • 29.

    Dias S Welton NJ Caldwell DM Ades AE . Checking consistency in mixed treatment comparison meta-analysis. Stat Med. (2010) 29:93244. 10.1002/sim.3767

  • 30.

    Aksu R Biçer C Ülgey A Bayram A Güneş I Güney A et al . Comparison of interscalene brachial plexus block and intra-articular local anesthetic administration on postoperative pain management in arthroscopic shoulder surgery. Braz J Anesthesiol. (2015) 65:2229. 10.1016/j.bjane.2014.06.005

  • 31.

    Aliste J Bravo D Finlayson RJ Tran DQ . A randomized comparison between interscalene and combined infraclavicular-suprascapular blocks for arthroscopic shoulder surgery. Can J Anaesth. (2018) 65:2807. 10.1007/s12630-017-1048-0

  • 32.

    Aliste J Bravo D Layera S Fernandez D Jara A Maccioni C et al . Randomized comparison between interscalene and costoclavicular blocks for arthroscopic shoulder surgery. Reg Anesth Pain Med. (2019) 44:4727. 10.1136/rapm-2018-100055

  • 33.

    Auyong DB Hanson NA Joseph RS Schmidt BE Slee AE Yuan SC . Comparison of anterior suprascapular, supraclavicular, and interscalene nerve block approaches for major outpatient arthroscopic shoulder surgery a randomized, double-blind, noninferiority trial. Anesthesiology. (2018) 129:4757. 10.1097/ALN.0000000000002208

  • 34.

    Cabaton J Nove-Josserand L Mercadal L Vaudelin T . Analgesic efficacy of ultrasound-guided interscalene block vs. supraclavicular block for ambulatory arthroscopic rotator cuff repair A randomised noninferiority study. Eur J Anaesthesio. (2019) 36:77886. 10.1097/EJA.0000000000001065

  • 35.

    Choi EM Kim EM Chung MH Park JH Lee HK Choi YR Lee M . Effects of ultrasound-guided stellate ganglion block on acute pain after arthroscopic shoulder surgery. Pain Physician. (2015) 18:E37988. 10.36076/ppj.2015/18/E379

  • 36.

    Ciftci B Ekinci M Golboyu BE Kapukaya F Atalay YO Kuyucu E et al . High thoracic erector spinae plane block for arthroscopic shoulder surgery: a randomized prospective double-blind study. Pain Med. (2021) 22:77683. 10.1093/pm/pnaa359

  • 37.

    Demir U Ince I Aksoy M Dostbil A Ari MA Sulak MM et al . The effect of pre-emptive dexketoprofen administration on postoperative pain management in patients with ultrasound guided interscalene block in arthroscopic shoulder surgery. J Invest Surg. (2021) 34:828. 10.1080/08941939.2019.1576809

  • 38.

    Dhir S Sondekoppam RV Sharma R Ganapathy S Athwal GS . A comparison of combined suprascapular and axillary nerve blocks to interscalene nerve block for analgesia in arthroscopic shoulder surgery: an equivalence study. Reg Anesth Pain Med. (2016) 41:56471. 10.1097/AAP.0000000000000436

  • 39.

    Gurger M Ozer AB . A comparison of continuous interscalene block versus general anesthesia alone on the functional outcomes of the patients undergoing arthroscopic rotator cuff repair. Eur J Orthop Surg Traumatol. (2019) 29:165966. 10.1007/s00590-019-02482-8

  • 40.

    Jeske HC Kralinger F Wambacher M Perwanger F Schoepf R Oberladstaetter J et al . A randomized study of the effectiveness of suprascapular nerve block in patient satisfaction and outcome after arthroscopic subacromial decompression. Arthroscopy. (2011) 27:132328. 10.1016/j.arthro.2011.05.016

  • 41.

    Kumara AB Gogia AR Bajaj JK Agarwal N . Clinical evaluation of post-operative analgesia comparing suprascapular nerve block and interscalene brachial plexus block in patients undergoing shoulder arthroscopic surgery. J Clin Orthop Trauma. (2016):34–9. 10.1016/j.jcot.2015.09.003

  • 42.

    Lee JJ Kim DY Hwang JT Lee SS Hwang SM Kim GH Jo Jo YG: Effect of ultrasonographically guided axillary nerve block combined with suprascapular nerve block in arthroscopic rotator cuff repair: a randomized controlled trial . Arthroscopy. (2014) 30906–914. 10.1016/j.arthro.2014.03.014

  • 43.

    Lee JJ Yoo Y-S Hwang J-T Kim D-Y Jeon S-J Hwang SM et al . Efficacy of direct arthroscopy-guided suprascapular nerve block after arthroscopic rotator cuff repair: a prospective randomized study. Knee Surg Sports Traumatol Arthrosc. (2015) 23:5626. 10.1007/s00167-013-2451-x

  • 44.

    Liu XN Noh YM Yang CJ Kim JU Chung MH Noh KC . effects of a single-dose interscalene block on pain and stress biomarkers in patients undergoing arthroscopic rotator cuff repair: a randomized controlled trial. Arthroscopy. (2017) 33:91826. 10.1016/j.arthro.2016.09.018

  • 45.

    Neuts A Stessel B Wouters PF Dierickx C Cools W Ory JP et al . Selective suprascapular and axillary nerve block versus interscalene plexus block for pain control after arthroscopic shoulder surgery: a noninferiority randomized parallel-controlled clinical trial. Reg Anesth Pain Med. (2018) 43:73844. 10.1097/AAP.0000000000000777

  • 46.

    Özkan D Cemaloglu S Catma FM Akkaya T . Effects of suprascapular and axillary nerve block on postoperative pain relief sevoflurane consumption and visual clarity in arthroscopic shoulder surgery. Agri. (2020) 32:17. 10.14744/agri.2019.04875

  • 47.

    Park SK Choi YS Choi SW Song SW . A comparison of three methods for postoperative pain control in patients undergoing arthroscopic shoulder surgery. Korean J Pain. (2015) 28:4551. 10.3344/kjp.2015.28.1.45

  • 48.

    Saritas TB Borazan H Okesli S Yel M Otelcioglu S . Is intra-articular magnesium effective for postoperative analgesia in arthroscopic shoulder surgery?Pain Res Manag. (2015) 20:358. 10.1155/2015/648063

  • 49.

    Sethi PM Brameier DT Mandava NK Miller SR . Liposomal bupivacaine reduces opiate consumption after rotator cuff repair in a randomized controlled trial. J Shoulder Elbow Surg. (2019) 28:81927. 10.1016/j.jse.2019.01.008

  • 50.

    Thompson KA Klein D Alaia MJ Strauss EJ Jazrawi LM Campbell KA . Opioid use is reduced in patients treated with nsaids after arthroscopic bankart repair: a randomized controlled study. Arthrosc Sports Med Rehabil. (2020) 3:e1522. 10.1016/j.asmr.2020.08.003

  • 51.

    Verdecchia NM Rodosky MW Kentor M Orebaugh SL . Liposomal bupivacaine infiltration in the surgical site for analgesia after rotator cuff repair: a randomized, double blinded, placebo-controlled trial. J Shoulder Elbow Surg. (2020) 30:98693. 10.1016/j.jse.2020.10.035

  • 52.

    Wiesmann T Feldmann C Müller HH Nentwig L Beermann A El-Zayat BF et al . Phrenic palsy and analgesic quality of continuous supraclavicular vs. interscalene plexus blocks after shoulder surgery. Acta Anaesthesiol Scand. (2016) 60:114251. 10.1111/aas.12732

  • 53.

    Woo JH Kim YJ Baik HJ Han JI Chung RK . Does intravenous ketamine enhance analgesia after arthroscopic shoulder surgery with ultrasound guided single-injection interscalene block?: a randomized, prospective, double-blind trial. J Korean Med Sci. (2014) 29:10016. 10.3346/jkms.2014.29.7.1001

  • 54.

    Schnabel A Reichl SU Weibel S Kranke P Zahn PK Pogatzki-Zahn EM et al . Efficacy and safety of dexmedetomidine in peripheral nerve blocks: A meta-analysis and trial sequential analysis. Eur J Anaesthesiol. (2018) 35:74558. 10.1097/EJA.0000000000000870

  • 55.

    Abdallah FW Johnson J Chan V Murgatroyd H Ghafari M Ami N et al . Intravenous dexamethasone and perineural dexamethasone similarly prolong the duration of analgesia after supraclavicular brachial plexus block: a randomized, triple-arm, double-blind, placebo-controlled trial. Reg Anesth Pain Med. (2015) 40:12532. 10.1097/AAP.0000000000000210

  • 56.

    Arcioni R Palmisani S Tigano S Santorsola C Sauli V Romanò S et al . Combined intrathecal and epidural magnesium sulfate supplementation of spinal anesthesia to reduce post-operative analgesic requirements: a prospective, randomized, double-blind, controlled trial in patients undergoing major orthopedic surgery. Acta Anaesthesiol Scand. (2007) 51:4829. 10.1111/j.1399-6576.2007.01263.x

  • 57.

    El Saied AH Steyn MP Ansermino JM . Clonidine prolongs the effect of ropivacaine for axillary brachial plexus blockade. Can J Anaesth. (2000) 47:9627. 10.1007/BF03024866

  • 58.

    Lee IO Kim WK Kong MH Lee MK Kim NS Choi YS et al . No enhancement of sensory and motor blockade by ketamine added to ropivacaine interscalene brachial plexus blockade. Acta Anaesthesiol Scand. (2002) 46:8216. 10.1034/j.1399-6576.2002.460711.x

  • 59.

    Burckett-St Laurent D Chan V Chin KJ . Refining the ultrasound-guided interscalene brachial plexus block: the superior trunk approach. Can J Anaesth. (2014) 61:1098102. 10.1007/s12630-014-0237-3

  • 60.

    Borgeat A Schäppi B Biasca N Gerber C . Patient-controlled analgesia after major shoulder surgery: patient-controlled interscalene analgesia versus patient-controlled analgesia. Anesthesiology. (1997) 87:13437. 10.1097/00000542-199712000-00013

  • 61.

    Krone SC Chan VW Regan J Peng P Poate EM McCartney C et al . Analgesic effects of low-dose ropivacaine for interscalene brachial plexus block for outpatient shoulder surgery-a dose-finding study. Reg Anesth Pain Med. (2001) 26:43943. 10.1097/00115550-200109000-00009

  • 62.

    Cheesman Q DeFrance M Stenson J Weekes D Feldman J Abboud J et al . The effect of preoperative education on opioid consumption in patients undergoing arthroscopic rotator cuff repair: a prospective, randomized clinical trial-2-year follow-up. J Shoulder Elbow Surg. (2020) 29:174350. 10.1016/j.jse.2020.04.036

  • 63.

    Yeh PC Kharrazi FD . Postarthroscopic glenohumeral chondrolysis. J Am Acad Orthop Surg. (2012) 20:10212. 10.5435/JAAOS-20-02-102

  • 64.

    Kraeutler MJ Reynolds KA Long C McCarty EC . Compressive cryotherapy versus ice-a prospective, randomized study on postoperative pain in patients undergoing arthroscopic rotator cuff repair or subacromial decompression. J Shoulder Elbow Surg. (2015) 24:8549. 10.1016/j.jse.2015.02.004

Summary

Keywords

arthroscopic shoulder surgery, postoperative pain, network meta-analysis, randomized controlled trials, pair-wise meta-analysis

Citation

Jiangping W, Xiaolin Q, Han S, Zhou X, Mao N, Zhibo D, Ting G, Shidong H, Xiangwei L, Xin Y and Guoyin S (2022) Network Meta-Analysis of Perioperative Analgesic Effects of Different Interventions on Postoperative Pain After Arthroscopic Shoulder Surgery Based on Randomized Controlled Trials. Front. Med. 9:921016. doi: 10.3389/fmed.2022.921016

Received

20 April 2022

Accepted

13 June 2022

Published

08 July 2022

Volume

9 - 2022

Edited by

Paphon Sa-ngasoongsong, Mahidol University, Thailand

Reviewed by

Sangseok Lee, Inje University Sanggye Paik Hospital, South Korea; Hideto Yasuda, Jichi Medical University Saitama Medical Center, Japan

Updates

Copyright

*Correspondence: Shu Han Xiaolan Zhou

This article was submitted to Intensive Care Medicine and Anesthesiology, a section of the journal Frontiers in Medicine

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
