Abstract
Objectives:
This study aimed to assess the effectiveness of iguratimod (IGU) as an alternative treatment for systemic sclerosis (SSc), especially in the prevention of ischemic digital ulcers (DUs).
Methods:
We constructed two cohorts from the Renji SSc registry. In the first cohort, SSc patients receiving IGU were observed prospectively with effectiveness and safety. In the second cohort, we picked up all the DU patients with at least a 3-month follow-up to investigate the prevention of IGU on ischemic DU.
Results:
From 2017 to 2021, 182 SSc patients were enrolled in our SSc registry. A total of 23 patients received IGU. With a median follow-up of 61 weeks (IQR: 15–82 weeks), the drug persistence was 13/23. In total, 91.3% of the patients (21/23) became free of deterioration in the last visit with IGU. Of note, 10 patients withdrew from the study due to the following reasons: two patients withdrew due to deterioration, three due to incompliance, and five due to mild-to-moderate side effects. All the patients with side effects recovered fully after stopping IGU. Of note, 11 patients had ischemic DU, and 8 out of 11 (72.7%) patients had no new occurrence of DU during the follow-up. In the second cohort of 31 DU patients receiving a combination of vasoactive agents with a median follow-up of 47 weeks (IQR, 16–107 weeks), IGU treatment was protective of new DU occurrence (adjusted risk ratio = 0.25; 95% CI, 0.05–0.94; adjusted odds ratio = 0.07; and 95% CI, 0.01–0.49).
Conclusion:
Our study for the first time describes the potential of IGU possibly as an alternative treatment for SSc. To our surprise, this study provides a hint that IGU treatment can be used for the prevention of the occurrence of ischemic DU and merits further investigation.
Introduction
Systemic sclerosis (SSc) is an autoimmune disease that affects a variety of tissues and organs and is characterized by immune disorders, microvascular damage, and fibrosis (1, 2). The pathogenesis is complicated and unclear. Immunosuppression is a major strategy to treat SSc, especially for inflammatory and fibrotic symptoms, such as skin thickening (3, 4), interstitial lung disease (ILD) (5–7), heart involvement, and arthritis. Although a massive advance in treatment has been achieved for SSc patients, given the high heterogenicity of both clinical manifestation and disease progression, unmet therapeutic requests are still the central issue of SSc. Not only is SSc one of the highest lethality autoimmune diseases, but it can also increase the burden of living due to non-fatal complications such as digital ulcers (8, 9).
Iguratimod (IGU) is a novel anti-rheumatic medicine that has been licensed in East Asia as a disease-modifying anti-rheumatic drug (DMARD) for the treatment of rheumatoid arthritis (RA) (10). In the phase III clinical trial performed in Japan, IGU showed superiority over placebo and non-inferiority to salazosulfapyridine (SASP) (11). Our team completed the phase III clinical trial in China and found that IGU was non-inferior to methotrexate (MTX), with fewer and milder side effects (12). A post-marketing surveillance study involving more than 2,000 patients for 52 weeks provided real-world evidence that IGU was safe and effective in RA patients (13). In addition, IGU showed add-on efficacy in RA patients with inadequate response to methotrexate (14), methotrexate–cyclosporin A–hydroxychloroquine–prednisone (15), or biological DMARDs (16, 17).
IGU is typically thought of as an anti-inflammatory and immunoregulatory drug that can reduce the production of inflammatory cytokines, such as interleukin (IL)-1, IL-6, IL-8, and tumor necrosis factor (TNF), regulate the subpopulation of B cells, decrease the production of immunoglobulin, and stop the proliferation of pro-inflammatory T cells (18). On top of anti-inflammation, IGU has shown potential efficacy on fibrotic complications with autoimmune diseases. We and other researchers previously showed that IGU ameliorated bleomycin (BLM)-induced pulmonary and cutaneous fibrosis in animal experiments (19, 20). In a preliminary observation for RA-ILD, IGU showed a possible benefit to lung function (21). This study aimed to describe the effectiveness and safety of IGU treatment in our SSc registry patients.
Methods
Patients and study design
All patients were selected from a prospective, observational SSc registry of Renji Hospital, established in 2017. Patients with other co-existing autoimmune diseases, such as systemic lupus erythematosus (SLE), Sjögren's syndrome (SS), or rheumatoid arthritis (RA), were excluded. ILD patients in this registry were all confirmed by high-resolution computed tomography (HRCT). Pulmonary hypertension (PH) was diagnosed by right heart catheter or echocardiography (peak tricuspid regurgitation velocity of >3.4 m/s). This study was approved by the Ethics Committee of Renji Hospital, Shanghai, China.
Of the 182 patients in the SSc registry of Renji Hospital, we constructed two cohorts. Participants gave written informed consent. Patients included in the two cohorts of this study were required to fulfill the 2013 ACR/EUALR or 1980 ACR classification criteria (22). The first cohort includes all those who received IGU from March 2017 to March 2022. The baseline information at the start date of IGU, reasons for IGU use, and follow-up information were analyzed. Disease worsening would be recorded with the presence of at least one of the following: ≥25% increase in mRSS and an increase in mRSS of >5 points; a new renal crisis; a new ILD on HRCT; an absolute decline in FVC of ≥ 10% predicted; a new onset of the left ventricular heart failure (LVEF ≤45%); a new onset of pulmonary hypertension (on RHC); a significant gastrointestinal dysmotility requiring parenteral or enteral nutrition; or significant digital ischemia with gangrene or requiring amputation (23–27). The addition of any anti-fibrotic treatment, such as nintedanib during IGU treatment, would also be considered as disease worsening.
The second cohort was created to investigate the preventative effect of IGU on DU occurrence. All patients should have at least a 3-month follow-up record of DU. The ischemic DU was defined as located at or distal to the proximal interphalangeal joint, present in the case of a break in the skin with a loss of epithelialization, according to the physician, and not located over subcutaneous calcifications or over extensor surfaces of joints (28–30). The follow-up started for those who received the IGU treatment, and it started from the inclusion date of the Renji registry if the patients did not receive IGU. The primary endpoint of observation was any new occurrence of ischemic DU during the follow-up.
Statistical analysis
The baseline clinical characteristics of the study participants were summarized using medians with IQRs for continuous variables and proportions for categorical outcomes. The Mann–Whitney test was used for group comparison of continuous variables. Fisher's exact chi-squared test or the likelihood-ratio test was used for group comparison of categorical outcomes. The alternative hypothesis was accepted at a statistical significance level of p < 0.05 on all applied statistical tests. Analyses were conducted using IBM SPSS Statistics 25.0. A multivariate analysis using Poisson regression was used to calculate adjusted relative risk (RR) with 95% CI. Logistic regression was used to calculate the adjusted odds ratio (OR) with 95% CI. Data were analyzed using R language software (Version R 4.2.1).
Results
IGU was a plausible alternative treatment for SSc
Of the 182 patients in the Renji SSc registry, 23 had a history of IGU treatment. They were 20 women and three men. The median age of the patients in the study group was 53.0 years (IQR, 37.0–66.0 years). The median duration of SSc was 3.0 years (IQR: 2.0–9.0 years). In total, 11 of these patients had diffuse cutaneous systemic sclerosis (dcSSc), 11 of them had limited cutaneous systemic sclerosis (lcSSc), and one patient had sine SSc. IGU was a secondary treatment in most cases (21/23). The most common justification for initiating IGU treatment was an unsatisfactory control of cutaneous symptoms, synovitis, ILD, or intolerance of previous immunosuppressants (IS). For all these 23 patients, IGU was used with no other IS or biologics. In all patients, the dosage of glucocorticoids was <10 mg daily. Major clinical characteristics are shown in Table 1.

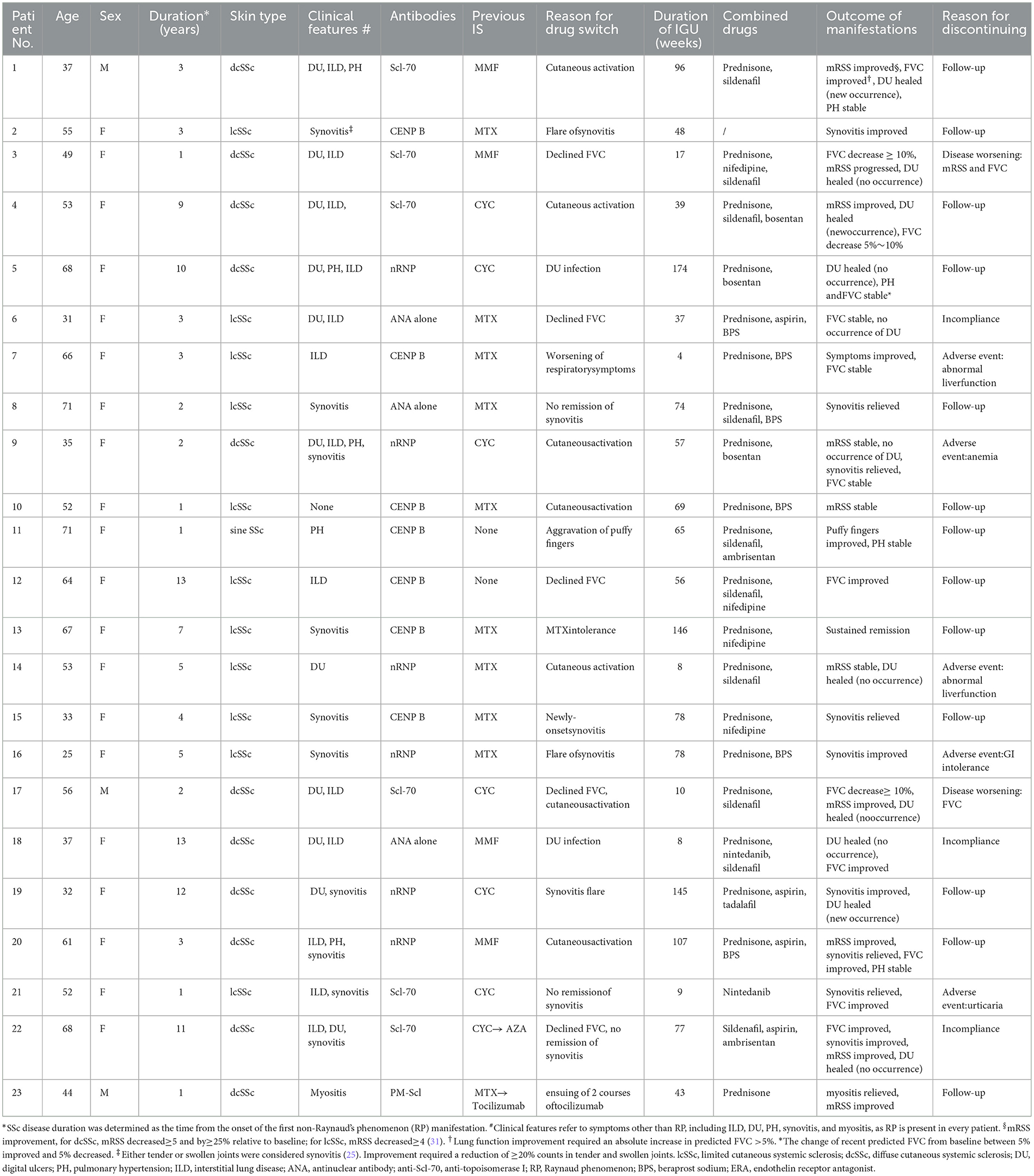

Table 1
| Pati ent No. | Age | Sex | Duration*(years) | Skin type | Clinical features # | Antibodies | Previous IS | Reason for drug switch | Duration of IGU (weeks) | Combined drugs | Outcome of manifestations | Reason for discontinuing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 37 | M | 3 | dcSSc | DU, ILD, PH | Scl-70 | MMF | Cutaneous activation | 96 | Prednisone, sildenafil | mRSS improved§, FVC improved†, DU healed (new occurrence), PH stable | Follow-up |
| 2 | 55 | F | 3 | lcSSc | Synovitis‡ | CENP B | MTX | Flare ofsynovitis | 48 | / | Synovitis improved | Follow-up |
| 3 | 49 | F | 1 | dcSSc | DU, ILD | Scl-70 | MMF | Declined FVC | 17 | Prednisone, nifedipine, sildenafil | FVC decrease ≥ 10%, mRSS progressed, DU healed (no occurrence) | Disease worsening: mRSS and FVC |
| 4 | 53 | F | 9 | dcSSc | DU, ILD, | Scl-70 | CYC | Cutaneous activation | 39 | Prednisone, sildenafil, bosentan | mRSS improved, DU healed (newoccurrence), FVC decrease 5%~10% | Follow-up |
| 5 | 68 | F | 10 | dcSSc | DU, PH, ILD | nRNP | CYC | DU infection | 174 | Prednisone, bosentan | DU healed (no occurrence), PH andFVC stable* | Follow-up |
| 6 | 31 | F | 3 | lcSSc | DU, ILD | ANA alone | MTX | Declined FVC | 37 | Prednisone, aspirin, BPS | FVC stable, no occurrence of DU | Incompliance |
| 7 | 66 | F | 3 | lcSSc | ILD | CENP B | MTX | Worsening of respiratorysymptoms | 4 | Prednisone, BPS | Symptoms improved, FVC stable | Adverse event: abnormal liverfunction |
| 8 | 71 | F | 2 | lcSSc | Synovitis | ANA alone | MTX | No remission of synovitis | 74 | Prednisone, sildenafil, BPS | Synovitis relieved | Follow-up |
| 9 | 35 | F | 2 | dcSSc | DU, ILD, PH, synovitis | nRNP | CYC | Cutaneousactivation | 57 | Prednisone, bosentan | mRSS stable, no occurrence of DU, synovitis relieved, FVC stable | Adverse event:anemia |
| 10 | 52 | F | 1 | lcSSc | None | CENP B | MTX | Cutaneousactivation | 69 | Prednisone, BPS | mRSS stable | Follow-up |
| 11 | 71 | F | 1 | sine SSc | PH | CENP B | None | Aggravation of puffy fingers | 65 | Prednisone, sildenafil, ambrisentan | Puffy fingers improved, PH stable | Follow-up |
| 12 | 64 | F | 13 | lcSSc | ILD | CENP B | None | Declined FVC | 56 | Prednisone, sildenafil, nifedipine | FVC improved | Follow-up |
| 13 | 67 | F | 7 | lcSSc | Synovitis | CENP B | MTX | MTXintolerance | 146 | Prednisone, nifedipine | Sustained remission | Follow-up |
| 14 | 53 | F | 5 | lcSSc | DU | nRNP | MTX | Cutaneous activation | 8 | Prednisone, sildenafil | mRSS stable, DU healed (no occurrence) | Adverse event: abnormal liverfunction |
| 15 | 33 | F | 4 | lcSSc | Synovitis | CENP B | MTX | Newly-onsetsynovitis | 78 | Prednisone, nifedipine | Synovitis relieved | Follow-up |
| 16 | 25 | F | 5 | lcSSc | Synovitis | nRNP | MTX | Flare ofsynovitis | 78 | Prednisone, BPS | Synovitis improved | Adverse event:GI intolerance |
| 17 | 56 | M | 2 | dcSSc | DU, ILD | Scl-70 | CYC | Declined FVC, cutaneousactivation | 10 | Prednisone, sildenafil | FVC decrease≥ 10%, mRSS improved, DU healed (nooccurrence) | Disease worsening: FVC |
| 18 | 37 | F | 13 | dcSSc | DU, ILD | ANA alone | MMF | DU infection | 8 | Prednisone, nintedanib, sildenafil | DU healed (no occurrence), FVC improved | Incompliance |
| 19 | 32 | F | 12 | dcSSc | DU, synovitis | nRNP | CYC | Synovitis flare | 145 | Prednisone, aspirin, tadalafil | Synovitis improved, DU healed (new occurrence) | Follow-up |
| 20 | 61 | F | 3 | dcSSc | ILD, PH, synovitis | nRNP | MMF | Cutaneousactivation | 107 | Prednisone, aspirin, BPS | mRSS improved, synovitis relieved, FVC improved, PH stable | Follow-up |
| 21 | 52 | F | 1 | lcSSc | ILD, synovitis | Scl-70 | CYC | No remissionof synovitis | 9 | Nintedanib | Synovitis relieved, FVC improved | Adverse event:urticaria |
| 22 | 68 | F | 11 | dcSSc | ILD, DU, synovitis | Scl-70 | CYC → AZA | Declined FVC, no remission of synovitis | 77 | Sildenafil, aspirin, ambrisentan | FVC improved, synovitis improved, mRSS improved, DU healed (no occurrence) | Incompliance |
| 23 | 44 | M | 1 | dcSSc | Myositis | PM-Scl | MTX → Tocilizumab | ensuing of 2 courses oftocilizumab | 43 | Prednisone | myositis relieved, mRSS improved | Follow-up |
Demographic information, clinical features, and major outcomes for all patients.
SSc disease duration was determined as the time from the onset of the first non-Raynaud's phenomenon (RP) manifestation.
#Clinical features refer to symptoms other than RP, including ILD, DU, PH, synovitis, and myositis, as RP is present in every patient.
§mRSS improvement, for dcSSc, mRSS decreased≥5 and by≥25% relative to baseline; for lcSSc, mRSS decreased≥4 (31).
Lung function improvement required an absolute increase in predicted FVC >5%. *The change of recent predicted FVC from baseline between 5% improved and 5% decreased.
Either tender or swollen joints were considered synovitis (25). Improvement required a reduction of ≥20% counts in tender and swollen joints. lcSSc, limited cutaneous systemic sclerosis; dcSSc, diffuse cutaneous systemic sclerosis; DU, digital ulcers; PH, pulmonary hypertension; ILD, interstitial lung disease; ANA, antinuclear antibody; anti-Scl-70, anti-topoisomerase I; RP, Raynaud phenomenon; BPS, beraprost sodium; ERA, endothelin receptor antagonist.
During the follow-up with a median of 61 weeks (IQR: 15–82 weeks), the IGU persistence was 56.5% (13/23). Overall, 91.3% of the patients (21/23) had no deterioration until the last visit with IGU. In total, 10 patients had synovitis, and all of them had improvement or remission. Of 13 patients with HRCT-confirmed ILD, an improvement of >5% in predicted FVC was observed in six patients, FVC change between 5% improved and 5% decreased was observed in four patients, FVC decreased between 5% and 10% was observed in one patient, and two patients had an absolute decrease in FVC of ≥ 10%. In total, 11 patients had ischemic Dus; of which, nine of them had current ischemic DUs at the start date of IGU. All nine current DU patients healed, and unexpectedly, 8 out of 11 (72.7%) patients had no new DU occurrence during the follow-up. No escalation of risk stratification for PH was observed.
A total of 10 patients withdrew from the study. Of which, two patients withdrew due to deterioration: one worsening case had declined FVC, and another had both worsening FVC and mRSS. Both discontinued IGU. In total, 3 out of 10 patients discontinued IGU because of incompliance, two of them stopped IGU because of satisfactory disease control (pt6 and pt22), and one was unwilling to use IGU (pt18). Regarding safety issues, five out of 10 patients had adverse events during IGU administration. We stopped IGU for all of them due to the most cautious safety concerns. Two patients had elevated alanine transaminase less than three times the upper normal limit, one had gastrointestinal (GI) intolerant, one had mild anemia, and one had urticaria. The anemia, GI intolerance, and urticaria were all late onsets. All these patients recovered fully after discontinuing IGU, with or without symptomatic treatment. There was no infection case.
IGU in preventing ischemic DU occurrence
To confirm the effect of ischemic DU in the IGU cohort, we constructed the second cohort of 31 patients with current or historical ischemic DU from the Renji SSc registry. The clinical and demographic characteristics of patients are shown in Table 2. Every patient had at least a history of the usage of vasodilators during follow-up. With a median follow-up of 47 weeks (IQR, 16–107 weeks), three (27.3%) patients in the IGU arm had new DU occurrence, while 15 (75%) patients without IGU had DU occurrence. There were no statistical differences in demographics. In dichotomous analysis, only new DU occurrences were statistically different between the IGU group and non-IGU group (P=0.021). Most known risk factors for DU occurrence (sex, skin subtype, disease onset age, ESR, autoantibodies, ILD, smoke, and PH) were not significantly different between the IGU group and the non-IGU group, as shown in Table 2.

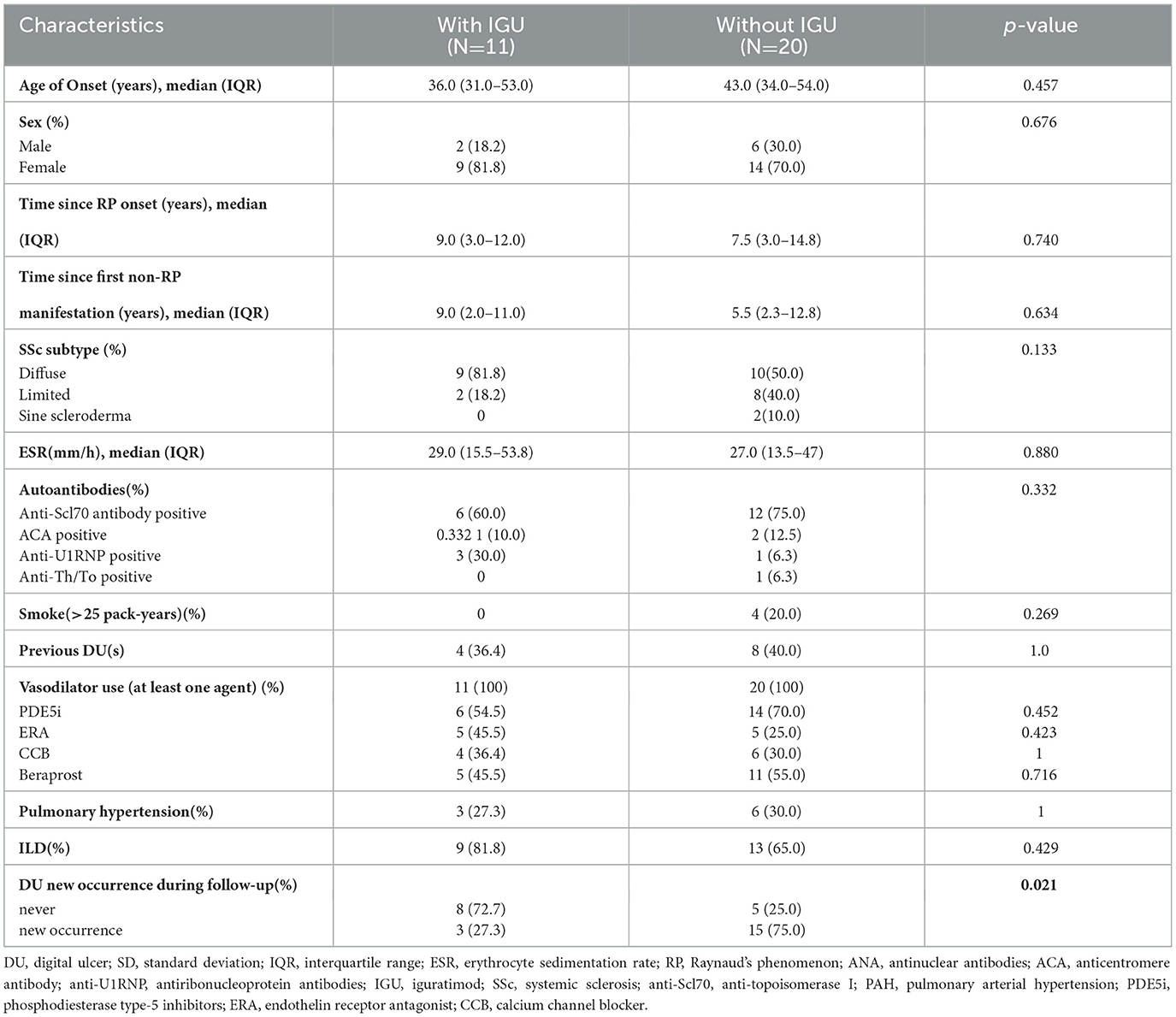

Table 2
| Characteristics | With IGU (N=11) | Without IGU (N=20) | p-value |
|---|---|---|---|
| Age of Onset (years), median (IQR) | 36.0 (31.0–53.0) | 43.0 (34.0–54.0) | 0.457 |
| Sex (%) | 0.676 | ||
| Male Female | 2 (18.2) 9 (81.8) | 6 (30.0) 14 (70.0) | |
| Time since RP onset (years), median | |||
| (IQR) | 9.0 (3.0–12.0) | 7.5 (3.0–14.8) | 0.740 |
| Time since first non-RP | |||
| manifestation (years), median (IQR) | 9.0 (2.0–11.0) | 5.5 (2.3–12.8) | 0.634 |
| SSc subtype (%) | 0.133 | ||
| Diffuse Limited Sine scleroderma | 9 (81.8) 2 (18.2) 0 | 10(50.0) 8(40.0) 2(10.0) | |
| ESR(mm/h), median (IQR) | 29.0 (15.5–53.8) | 27.0 (13.5–47) | 0.880 |
| Autoantibodies(%) | 0.332 | ||
| Anti-Scl70 antibody positive ACA positive Anti-U1RNP positive Anti-Th/To positive | 6 (60.0) 0.332 1 (10.0) 3 (30.0) 0 | 12 (75.0) 2 (12.5) 1 (6.3) 1 (6.3) | |
| Smoke(>25 pack-years)(%) | 0 | 4 (20.0) | 0.269 |
| Previous DU(s) | 4 (36.4) | 8 (40.0) | 1.0 |
| Vasodilator use (at least one agent) (%) | 11 (100) | 20 (100) | |
| PDE5i ERA CCB Beraprost | 6 (54.5) 5 (45.5) 4 (36.4) 5 (45.5) | 14 (70.0) 5 (25.0) 6 (30.0) 11 (55.0) | 0.452 0.423 1 0.716 |
| Pulmonary hypertension(%) | 3 (27.3) | 6 (30.0) | 1 |
| ILD(%) | 9 (81.8) | 13 (65.0) | 0.429 |
| DU new occurrence during follow-up(%) | 0.021 | ||
| never new occurrence | 8 (72.7) 3 (27.3) | 5 (25.0) 15 (75.0) |
Baseline characteristics of the study participants with digital ulcers.
DU, digital ulcer; SD, standard deviation; IQR, interquartile range; ESR, erythrocyte sedimentation rate; RP, Raynaud's phenomenon; ANA, antinuclear antibodies; ACA, anticentromere antibody; anti-U1RNP, antiribonucleoprotein antibodies; IGU, iguratimod; SSc, systemic sclerosis; anti-Scl70, anti-topoisomerase I; PAH, pulmonary arterial hypertension; PDE5i, phosphodiesterase type-5 inhibitors; ERA, endothelin receptor antagonist; CCB, calcium channel blocker.
Both RR and OR for the IGU in preventing DU occurrence are presented in Figure 1. Overall, IGU usage was demonstrated to be effective in reducing the occurrence of DU. Adjusted by the age of SSc onset and skin subtype, exposure to IGU still appeared to be significantly associated with less occurrence of DU. With an additional adjustment for ILD, the OR was still significant, while the upper limit of 95% confidence interval of RR was slightly >1.

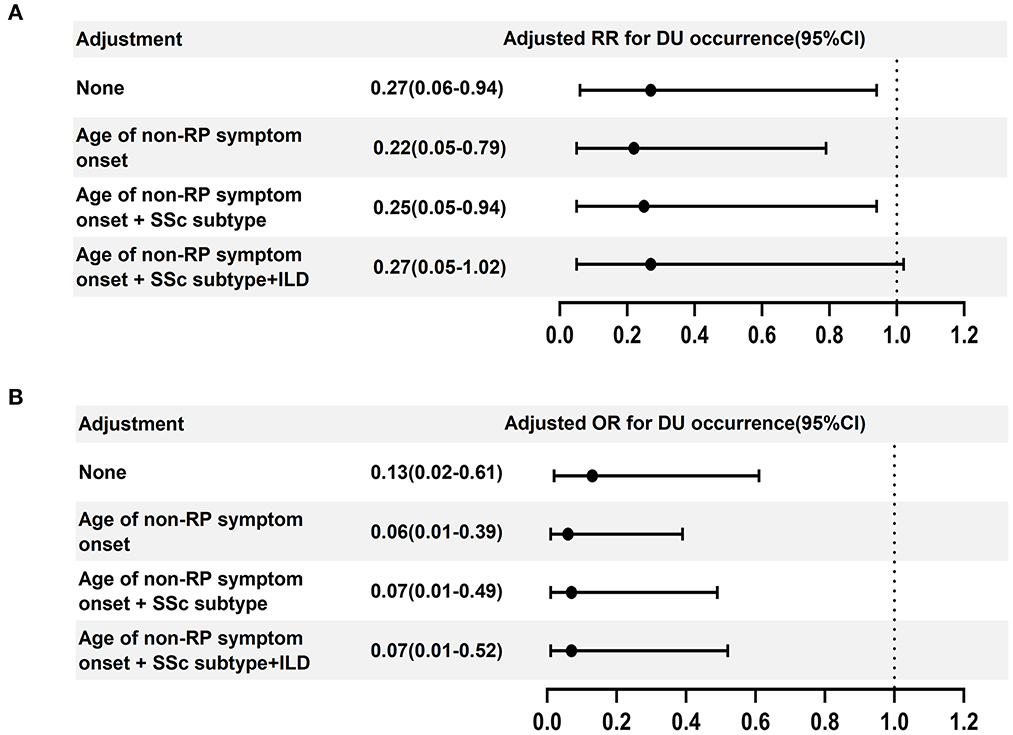

Figure 1
Forest plot displaying the association of the outcome (new occurrence of ischemic DUs) with IGU treatment. (A) aRR and 95% CI and (B) aOR and 95% CI of IGU treatment associated with DU occurrence. ILD, interstitial lung disease; CI, confidence intervals; DU, digital ulcer.
Discussion
This is the first report of IGU as the treatment for SSc patients. As a disease-modifying drug for RA, IGU has been discovered to reduce inflammation via the nuclear factor (NF)-κ. IGU interferes with TNF-α-induced translocation of NF-κB and suppresses TNF-α-induced production of IL-6, IL-8, and monocyte chemoattractant protein 1 (MCP1) (32, 33). In addition, IGU selectively disturbs Act1–TRAF5 connections and TRAF5–Ikki interactions, interrupting IL-17 signaling (34). IGU inhibits macrophage migration inhibitory factor (MIF) tautomerase activity and prevents MIF-induced proinflammatory effects, therefore sparing steroids (35). COX-2 activity and transcription are both inhibited by IGU (36).
Besides anti-inflammation, recent studies shed some light on the anti-fibrotic effect of IGU. We have identified early growth response 1 (EGR1) as one of the most downregulated genes by IGU (20), which not only has an EGR1 signature in SSc but forms a positive feedback loop with TGF-β. Treatment with IGU effectively disrupts this loop. IGU also suppresses TGF-β signaling directly by partially inhibiting Smad2 phosphorylation (37). In addition, IGU has shown negative effects on matrix metalloproteinase-9, dampening the self-control of fibrosis in normal tissue (38).
In this preliminary observation, applied as a secondary treatment in most cases, IGU successfully prevented deterioration in 91.3% of cases. To our surprise, IGU demonstrated a positive effect on ischemic DU. In total, 72.7% (8/11) of IGU-treated patients had no new DU occurrence during follow-up with a median of 39 weeks (IQR: 10–96 weeks). In the clinical trials, the occurrence of DU was observed in 66.3% of patients with bosentan in 24 weeks (39) and 35.9–45.2% of subjects with macitentan in 16 weeks (30). DU is not only a major reason for patient bitterness (9) but a significant risk factor for cardiovascular complications of SSc (40) and a major component predictor of overall deterioration (23). Unfortunately, no immune suppressive treatment has been proven beneficial for ischemic DU.
Given these, we constructed a DU cohort to confirm the effect of IGU. We compared most of the known clinical risk factors for the new DUs, including the onset of the disease at a younger age (41–43), dcSSc (42, 44, 45), DU(s) ever (44, 45), elevated ESR (46), anti-TOPO (41, 47), presence of ILD (42), certain capillaroscopic phenotype (47, 48), and heavy smoking (>25 pack-years) (49), as well as some risk factors with conflicting results, such as sex (41, 46, 50), disease duration (42, 51), and presence of PH (42, 43). None of these factors was statistically different between patients with and without IGU therapy. This is a prospective cohort study that normally reports RR, but the sample size is small and the frequency of DU new occurrence is high, and it is more appropriate to describe diseases of high incidence with OR, therefore both RR and OR are presented. Adjusted by the age of disease onset and skin subtype, the RR and OR still significantly confirmed the protective effect of IGU on ischemic DU.
Regarding other clinical dimensions, we observed that all synovitis patients responded to IGU, as expected, with the effect of IGU in RA. As implied in a previous observation in RA-ILD, among the 13 SSc-ILD patients, six patients had improved FVC, four had stable lung function, and two had progression in ILD. Most patients (22/23) did not have mRSS progression, which fitted the natural history of SSc. Based on such a preliminary observation, it cannot be concluded whether IGU is beneficial for treating the lung and skin involvement of SSc. We did not analyze the GI involvement, although 18 of 23 patients had recorded symptoms and nine patients had records of GI symptomatic treatment (Supplementary Table). No escalation of GI treatment was observed. However, it was difficult to assess the IGU effect on GI involvement, as the symptoms were diverse and mild, as well as the symptomatic treatment was frequently adjusted during the follow-up.
No new side effects of IGU were observed in our SSc cohort. In total, five out of 23 patients had adverse events, including one mild anemia, one GI discomfort, one wheal response, and two liver injury (ALT less than three times the upper limit of normal), which all have been reported in previous RA studies (12, 52). Out of caution, we discontinued IGU in all five patients to optimize patient benefits.
Our study has strengths and limitations. Our study for the first time showed a hint of a DMARD beneficial for the treatment of SSc-DU. We do not have any clue on the mechanism of this phenomenon yet, with either our previous studies or other published literature on IGU cited above. This would be a very interesting question for the following research. Nevertheless, this is a preliminary single-center study with a small sample size, which might weaken the representativeness of the study population, such as the nominal high occurrence of new DU in the control group, compared with previous records (30, 39), and draws more caution to the result interpretation. Therefore, a larger, multi-center study is needed for further evidence. In addition, the descriptive part of the IGU efficacy on general SSc did not include a control group, although a statistically powerful control group for general SSc demands a huge sample size, given the high heterogeneity of the disease.
Conclusion
For the first time, this study showed IGU treatment for SSc in the context of clinical practice. Although tested in a limited number of patients, it implies the possibility of IGU as an alternative treatment for SSc with acceptable tolerance and, unexpectedly, provides a hint of the first IS treatment protective of ischemic DU, which merits further investigation of IGU in SSc both clinically and scientifically.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding authors.
Ethics statement
The studies involving human participants were reviewed and approved by the Ethics Committee of Renji Hospital, Shanghai, China. The patients/participants provided their written informed consent to participate in this study.
Author contributions
QRY and BL carried out the study and wrote the manuscript with support from JYW, HLY, and QQL. QRY and LJL initiated and designed the project. All authors discussed the results and contributed to the final manuscript, read, and approved the final manuscript.
Funding
This study was supported by the National Natural Science Foundation of China (81974251) and the Shanghai Municipal Commission of Health and Family Planning (20204Y0088).
Acknowledgments
The authors really appreciate all members who contributed to this manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmed.2023.1113408/full#supplementary-material
References
1.
Krieg T Meurer M . Systemic scleroderma. Clinical and pathophysiologic aspects. J Am Acad Dermatol. (1988) 18:457–81. 10.1016/S0190-9622(88)70070-5
2.
Brown M O'Reilly S . The immunopathogenesis of fibrosis in systemic sclerosis. Clin Exp Immunol. (2019) 195:310–21. 10.1111/cei.13238
3.
Ebata S Yoshizaki A Oba K Kashiwabara K Ueda K Uemura Y et al . Safety and efficacy of rituximab in systemic sclerosis (DESIRES): a double-blind, investigator-initiated, randomised, placebo-controlled trial. The Lancet Rheumatology. (2021) 3:e489–97. 10.1016/S2665-9913(21)00107-7
4.
Elhai M Boubaya M Distler O Smith V Matucci-Cerinic M Alegre Sancho JJ et al . Outcomes of patients with systemic sclerosis treated with rituximab in contemporary practice: a prospective cohort study. Ann Rheum Dis. (2019) 78:979–87. 10.1136/annrheumdis-2018-214816
5.
Namas R Tashkin DP Furst DE Wilhalme H Tseng CH Roth MD et al . Efficacy of mycophenolate mofetil and oral cyclophosphamide on skin thickness: post hoc analyses from two randomized placebo-controlled trials. Arthritis Care Res. (2018) 70:439–44. 10.1002/acr.23282
6.
Volkmann ER Tashkin DP Sim M Li N Khanna D Roth MD et al . Cyclophosphamide for systemic sclerosis-related interstitial lung disease: a comparison of scleroderma lung study I and II. J Rheumatol. (2019) 46:1316–25. 10.3899/jrheum.180441
7.
Khanna D Lin CJF Furst DE Goldin J Kim G Kuwana M et al . Tocilizumab in systemic sclerosis: a randomised, double-blind, placebo-controlled, phase 3 trial. Lancet Respir Med. (2020) 8:963–74.
8.
Hao Y Hudson M Baron M Carreira P Stevens W Rabusa C et al . Early mortality in a multinational systemic sclerosis inception cohort. Arthritis Rheumatol. (2017) 69:1067–77. 10.1002/art.40027
9.
Zelenietz C Pope J . Differences in disability as measured by the Health Assessment Questionnaire between patients with and without digital ulcers in systemic sclerosis: a post hoc analysis of pooled data from two randomised controlled trials in digital ulcers using bosentan. Ann Rheum Dis. (2010) 69:2055–6. 10.1136/ard.2009.122960
10.
Xie S Li S Tian J Li F . Iguratimod as a new drug for rheumatoid arthritis: current landscape. Front Pharmacol. (2020) 11:73. 10.3389/fphar.2020.00073
11.
Hara M Abe T Sugawara S Mizushima Y Hoshi K Irimajiri S et al . Efficacy and safety of iguratimod compared with placebo and salazosulfapyridine in active rheumatoid arthritis: a controlled, multicenter, double-blind, parallel-group study. Mod Rheumatol. (2007) 17:1–9. 10.1007/s10165-006-0542-y
12.
Lu LJ Bao CD Dai M Teng JL Fan W Du F et al . Multicenter, randomized, double-blind, controlled trial of treatment of active rheumatoid arthritis with T-614 compared with methotrexate. Arthritis Rheum. (2009) 61:979–87. 10.1002/art.24643
13.
Mimori T Harigai M Atsumi T Fujii T Kuwana M Matsuno H et al . Safety and effectiveness of iguratimod in patients with rheumatoid arthritis: Final report of a 52-week, multicenter postmarketing surveillance study. Mod Rheumatol. (2018) 7:1–10. 10.1080/14397595.2018.1460230
14.
Hara M Ishiguro N Katayama K Kondo M Sumida T Mimori T et al . Safety and efficacy of combination therapy of iguratimod with methotrexate for patients with active rheumatoid arthritis with an inadequate response to methotrexate: an open-label extension of a randomized, double-blind, placebo-controlled trial. Mod Rheumatol. (2014) 24:410–8. 10.3109/14397595.2013.843756
15.
Zheng N Guo C Wu R . Iguratimod is effective in refractory rheumatoid arthritis patients with inadequate response to methotrexate-cyclosporin A-hydroxychloroquine-prednisone. Scand J Rheumatol. (2018) 5:1–3. 10.1080/03009742.2017.1376109
16.
Yoshikawa A Yoshida S Kimura Y Tokai N Fujiki Y Kotani T et al . Add-on iguratimod as a therapeutic strategy to achieve remission in patients with rheumatoid arthritis inadequately responding to biological DMARDs: a retrospective study. Mod Rheumatol. (2018) 28:227–34. 10.1080/14397595.2017.1336865
17.
Ebina K Miyama A Tsuboi H Kaneshiro S Nishikawa M Owaki H et al . The add-on effectiveness and safety of iguratimod in patients with rheumatoid arthritis who showed an inadequate response to tocilizumab. Mod Rheumatol. (2018) 29:1–19. 10.1080/14397595.2018.1486939
18.
Jiang H Gao H Wang Q Wang M Wu B . Molecular mechanisms and clinical application of Iguratimod: a review. Biomed Pharmacother. (2020) 122:109704. 10.1016/j.biopha.2019.109704
19.
Han Q Zheng Z Liang Q Fu X Yang F Xie R et al . Iguratimod reduces B-cell secretion of immunoglobulin to play a protective role in interstitial lung disease. Int Immunopharmacol. (2021) 97:107596. 10.1016/j.intimp.2021.107596
20.
Yan Q Shen L Morales-Cano D Chen X . THU0355 iguratimod might treat scleroderma with interrupted EGR1/TGF-β. LOOP. Ann Rheum Dis. (2019) 78:459. 10.1136/annrheumdis-2019-eular.2421
21.
Shu P Shao SQ Cai XN Zhou DM Ma H Lu L et al . Iguratimod attenuates general disease activity and improves lung function in rheumatoid arthritis-associated interstitial lung disease patients. Eur Rev Med Pharmacol Sci. (2021) 25:4687–92. 10.26355/eurrev_202107_26379
22.
van den Hoogen F Khanna D Fransen J Johnson SR Baron M Tyndall A et al . 2013 classification criteria for systemic sclerosis: an American College of Rheumatology/European League against Rheumatism collaborative initiative. Arthritis Rheum. (2013) 65:2737–47. 10.1002/art.38098
23.
Becker M Graf N Sauter R Allanore Y Curram J Denton CP et al . Predictors of disease worsening defined by progression of organ damage in diffuse systemic sclerosis: a European Scleroderma Trials and Research (EUSTAR) analysis. Ann Rheum Dis. (2019) 78:1242–8. 10.1136/annrheumdis-2019-215145
24.
Maurer B Graf N Michel BA Müller-Ladner U Czirják L Denton CP et al . Prediction of worsening of skin fibrosis in patients with diffuse cutaneous systemic sclerosis using the EUSTAR database. Ann Rheum Dis. (2015) 74:1124–31. 10.1136/annrheumdis-2014-205226
25.
Clements P Allanore Y Furst DE Khanna D . Points to consider for designing trials in systemic sclerosis patients with arthritic involvement. Rheumatology. (2017) 56:v23–6. 10.1093/rheumatology/kex194
26.
Maher TM Brown KK Kreuter M Devaraj A Walsh SLF Lancaster LH et al . Effects of nintedanib by inclusion criteria for progression of interstitial lung disease. Eur Respir J. (2022) 59:2. 10.1183/13993003.04587-2020
27.
Khanna D Huang S Lin CJF Spino C . New composite endpoint in early diffuse cutaneous systemic sclerosis: revisiting the provisional american college of rheumatology composite response index in systemic sclerosis. Ann Rheum Dis. (2021) 80:641–50. 10.1136/annrheumdis-2020-219100
28.
Hachulla E Hatron PY Carpentier P Agard C Chatelus E Jego P et al . Efficacy of sildenafil on ischaemic digital ulcer healing in systemic sclerosis: the placebo-controlled SEDUCE study. Ann Rheum Dis. (2016) 75:1009–15. 10.1136/annrheumdis-2014-207001
29.
Suliman YA Bruni C Johnson SR Praino E Alemam M Borazan N et al . Defining skin ulcers in systemic sclerosis: systematic literature review and proposed world scleroderma foundation (WSF) definition. J Scleroderma Related Disorders. (2017) 2:115–20. 10.5301/jsrd.5000236
30.
Khanna D Denton CP Merkel PA Krieg T Le Brun FO Marr A et al . Effect of macitentan on the development of new ischemic digital ulcers in patients with systemic sclerosis: DUAL-1 and DUAL-2 randomized clinical trials. JAMA. (2016) 315:1975–88. 10.1001/jama.2016.5258
31.
Khanna D Clements PJ Volkmann ER Wilhalme H Tseng CH Furst DE et al . Minimal clinically important differences for the modified rodnan skin score: results from the scleroderma lung studies (SLS-I and SLS-II). Arthritis Res Ther. (2019) 21:23. 10.1186/s13075-019-1809-y
32.
Aikawa Y Yamamoto M Yamamoto T Morimoto K Tanaka K . An anti-rheumatic agent T-614 inhibits NF-kappaB activation in LPS- and TNF-alpha-stimulated THP-1 cells without interfering with IkappaBalpha degradation. Inflamm Res. (2002) 51:188–94. 10.1007/PL00000291
33.
Kohno M Aikawa Y Tsubouchi Y Hashiramoto A Yamada R Kawahito Y et al . Inhibitory effect of T-614 on tumor necrosis factor-alpha induced cytokine production and nuclear factor-kappaB activation in cultured human synovial cells. J Rheumatol. (2001) 28:2591–6.
34.
Luo Q Sun Y Liu W Qian C Jin B Tao F et al . A novel disease-modifying antirheumatic drug, iguratimod, ameliorates murine arthritis by blocking IL-17 signaling, distinct from methotrexate and leflunomide. J Immunol. (2013) 191:4969–78. 10.4049/jimmunol.1300832
35.
Bloom J Metz C Nalawade S Casabar J Cheng KF He M et al . Identification of iguratimod as an inhibitor of macrophage migration inhibitory factor (MIF) with steroid-sparing potential. J Biol Chem. (2016) 291:26502–14. 10.1074/jbc.M116.743328
36.
Tanaka K Kawasaki H Kurata K Aikawa Y Tsukamoto Y Inaba T . T-614, a novel antirheumatic drug, inhibits both the activity and induction of cyclooxygenase-2 (COX-2) in cultured fibroblasts. Jpn J Pharmacol. (1995) 67:305–14. 10.1254/jjp.67.305
37.
Xie X Gan H Tian J Li F Chen J Wang J et al . Iguratimod inhibits skin fibrosis by regulating TGF-β1/Smad signalling pathway in systemic sclerosis. Eur J Clin Invest. (2022) 52:e13791. 10.1111/eci.13791
38.
Zhao L Mu B Zhou R Cheng Y Huang C . Iguratimod ameliorates bleomycin-induced alveolar inflammation and pulmonary fibrosis in mice by suppressing expression of matrix metalloproteinase-9. Int J Rheum Dis. (2019) 22:686–94. 10.1111/1756-185X.13463
39.
Matucci-Cerinic M Denton CP Furst DE Mayes MD Hsu VM Carpentier P et al . Bosentan treatment of digital ulcers related to systemic sclerosis: results from the RAPIDS-2 randomised, double-blind, placebo-controlled trial. Ann Rheum Dis. (2011) 70:32–8. 10.1136/ard.2010.130658
40.
Mihai C Landewé R van der Heijde D Walker UA Constantin PI Gherghe AM et al . Digital ulcers predict a worse disease course in patients with systemic sclerosis. Ann Rheum Dis. (2016) 75:681–6. 10.1136/annrheumdis-2014-205897
41.
Xu D Li MT Hou Y Wang Q Hu CJ Song N et al . Clinical characteristics of systemic sclerosis patients with digital ulcers in China. Clin Exp Rheumatol. (2013) 31:46–9.
42.
Khimdas S Harding S Bonner A Zummer B Baron M Pope J . Associations with digital ulcers in a large cohort of systemic sclerosis: results from the Canadian Scleroderma Research Group registry. Arthritis Care Res. (2011) 63:142–9. 10.1002/acr.20336
43.
Caramaschi P Martinelli N Volpe A Pieropan S Tinazzi I Patuzzo G et al . A score of risk factors associated with ischemic digital ulcers in patients affected by systemic sclerosis treated with iloprost. Clin Rheumatol. (2009) 28:807–13. 10.1007/s10067-009-1155-6
44.
Mihai C Distler O Gheorghiu AM Constantin PI Dobrota R Jordan S et al . Incidence and risk factors for gangrene in patients with systemic sclerosis from the EUSTAR cohort. Rheumatology. (2020) 59:2016–23. 10.1093/rheumatology/kez558
45.
Brand M Hollaender R Rosenberg D Scott M Hunsche E Tyndall A et al . An observational cohort study of patients with newly diagnosed digital ulcer disease secondary to systemic sclerosis registered in the EUSTAR database. Clin Exp Rheumatol. (2015) 33:S47–54.
46.
Manfredi A Sebastiani M Carraro V Iudici M Bocci M Vukatana G et al . Prediction risk chart for scleroderma digital ulcers: a composite predictive model based on capillaroscopic, demographic and clinico-serological parameters. Clin Hemorheol Microcirc. (2015) 59:133–43. 10.3233/CH-141809
47.
Horimoto AMC de Souza AS Rodrigues SH Kayser C . Risk of digital ulcers occurrence in systemic sclerosis: a cross-sectional study. Adv Rheumatol. (2019) 59:14. 10.1186/s42358-019-0057-9
48.
Sebastiani M Manfredi A Vukatana G Moscatelli S Riato L Bocci M et al . Predictive role of capillaroscopic skin ulcer risk index in systemic sclerosis: a multicentre validation study. Ann Rheum Dis. (2012) 71:67–70. 10.1136/annrheumdis-2011-200022
49.
Jaeger VK Valentini G Hachulla E Cozzi F Distler O Airó P et al . Brief Report: smoking in systemic sclerosis: a longitudinal european scleroderma trials and research group study. Arthritis Rheumatol. (2018) 70:1829–34. 10.1002/art.40557
50.
Elhai M Avouac J Walker UA Matucci-Cerinic M Riemekasten G Airò P et al . A gender gap in primary and secondary heart dysfunctions in systemic sclerosis: a EUSTAR prospective study. Ann Rheum Dis. (2016) 75:163–9. 10.1136/annrheumdis-2014-206386
51.
Hunzelmann N Riemekasten G Becker MO Moinzadeh P Kreuter A Melchers I et al . The Predict Study: low risk for digital ulcer development in patients with systemic sclerosis with increasing disease duration and lack of topoisomerase-1 antibodies. Br J Dermatol. (2016) 174:1384–7. 10.1111/bjd.14367
52.
Mimori T Harigai M Atsumi T Fujii T Kuwana M Matsuno H et al . Safety and effectiveness of 24-week treatment with iguratimod, a new oral disease-modifying antirheumatic drug, for patients with rheumatoid arthritis: interim analysis of a post-marketing surveillance study of 2679 patients in Japan. Mod Rheumatol. (2016) 10:1–11. 10.1080/14397595.2016.1265695
Summary
Keywords
systemic sclerosis, iguratimod, digital ulcer, alternative therapy, prevention
Citation
Yan Q, Liu B, Wang J, Yin H, Li Q and Lu L (2023) Iguratimod as an alternative therapy for systemic sclerosis and prevention of the occurrence of ischemic digital ulcer. Front. Med. 10:1113408. doi: 10.3389/fmed.2023.1113408
Received
01 December 2022
Accepted
06 April 2023
Published
05 May 2023
Volume
10 - 2023
Edited by
Steven O'Reilly, STipe Therapeutics, Denmark
Reviewed by
Simone Parisi, University Hospital of the City of Health and Science of Turin, Italy; Leixi Xue, Second Affiliated Hospital of Soochow University, China
Updates
Copyright
© 2023 Yan, Liu, Wang, Yin, Li and Lu.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Liangjing Lu lu_liangjing@163.comQingran Yan yanqingran@163.com
†These authors have contributed equally to this work and share first authorship
‡ORCID: Liangjing Lu orcid.org/0000-0001-9116-6038
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
