Abstract
Objective:
This study explored the efficacy of acupuncture and metformin in enhancing insulin sensitivity among women with polycystic ovary syndrome (PCOS) and insulin resistance (IR), distinguishing between overweight/obese and lean groups.
Methods:
A post-hoc analysis of a randomized trial (NCT02491333) was undertaken. Participants were women aged 18–40 with PCOS and IR. They were randomized to receive true acupuncture with a placebo, metformin with sham acupuncture, or sham acupuncture with a placebo for 4 months, with follow-up visits over 3 months. Our study, involving 339 women, assessed the differential impact of acupuncture and metformin on insulin sensitivity in overweight/obese [body mass index (BMI) ≥ 24] versus lean women (BMI < 24). Primary outcomes measured changes in the Homeostatic Model Assessment of Insulin Resistance (HOMA-IR) at 4 and 7 months. Secondary outcomes assessed changes in glucose area under the curve (glucoseAUC) during the oral glucose tolerance test (OGTT) and BMI changes at 4 months.
Results:
Overweight/obese participants were generally older with higher measurements in various health metrics, but lower levels in specific hormonal metrics compared to lean women (p < 0.05). Among overweight/obese women, metformin outperformed acupuncture in reducing HOMA-IR levels (p = 0.004) and showed a significant drop from the baseline after 4 months (p < 0.05). In contrast, acupuncture’s effect on HOMA-IR did not significantly differ from sham acupuncture at 4 and 7 months. For lean women, metformin and acupuncture showed comparable improvements in HOMA-IR, with notable declines at 4 and 7 months (p < 0.05). Acupuncture proved more beneficial for lean women than their overweight/obese counterparts after 4 months (p = 0.021).
Conclusion:
In overweight/obese women with PCOS and IR, acupuncture was less effective than metformin in enhancing insulin sensitivity. However, in lean women, acupuncture’s efficacy was comparable to metformin. Further studies are required to validate these observations.
Introduction
Polycystic ovary syndrome (PCOS) significantly impacts women in their reproductive years (1). This condition is marked by chronic anovulation and hyperandrogenism. Alarmingly, nearly 40% of women with PCOS also suffer from insulin resistance (IR) (2). Obesity intensifies both the reproductive and metabolic challenges tied to PCOS. Between 35 and 60% of obese women with PCOS display a connection between the pathological mechanisms of IR and PCOS (3, 4). Additionally, weight gain can heighten IR (5). Research indicates that weight loss can effectively diminish androgen levels in PCOS patients while enhancing glucose and lipid metabolism (6). Standard PCOS treatments often involve the insulin sensitizer, metformin, coupled with lifestyle modifications (7). This strategy seeks to decrease androgen concentrations and bolster insulin sensitivity.
In recent times, acupuncture, an integral part of traditional Chinese medicine, has emerged as a promising and safe therapeutic alternative for PCOS (8). Acupuncture seems to regulate the body by stimulating sensory nerve fibers, which in turn adjust sympathetic activity in the ovaries and central nervous system (9, 10). A thorough review revealed that acupuncture may ameliorate various metabolic disorders leading to IR, such as hyperglycemia, obesity, hyperphagia, hyperlipidemia, inflammation, and impaired sympathetic nervous activity (11). Some research also suggests acupuncture can enhance insulin sensitivity alongside antidiabetic medications (12, 13).
While past research indicates that acupuncture might be less potent than metformin in enhancing insulin sensitivity, it appears superior in optimizing glucose metabolism in women with PCOS and IR (14). Notably, data comparing the efficacy of acupuncture and metformin among overweight/obese versus lean women with PCOS and IR remains scarce. Our study offers a post-hoc analysis from a randomized controlled trial, aiming to assess the effectiveness of acupuncture and metformin in boosting insulin sensitivity in women with PCOS and IR, categorized by distinct body mass index (BMI) groups.
Methods
Study design
The study design and subject eligibility criteria have been delineated in a prior publication (NCT02491333) (14). This research compared the effectiveness of true/sham acupuncture and metformin/placebo in enhancing insulin sensitivity among women with PCOS and IR. Out of the original participants, 339 were considered for this post hoc analysis, excluding 3 due to unrecorded baseline BMI data.
Participants
As previously described, eligible participants were women aged 18–40 with a BMI >18.5 kg/m2, diagnosed with PCOS and IR, and with a HOMA-IR ≥ 2.14. Participants were randomized to receive either genuine acupuncture paired with placebo, metformin alongside sham acupuncture (0.5 g thrice daily), or sham acupuncture with placebo over 4 months, followed by three monthly follow-up sessions. Acupuncture (both true and sham) was administered three times weekly, with metformin or placebo dosage set at 0.5 g three times daily. Based on BMI guidelines for a Chinese cohort, individuals with BMI < 24 were labeled as lean, while those with BMI ≥ 24 were categorized as overweight/obese (15). PCOS was defined per the revised 2004 Rotterdam criteria (16), necessitating at least two of these symptoms: oligomenorrhea/amenorrhea, biochemical/clinical hyperandrogenism, or polycystic ovary morphology (PCOM). The HOMA-IR formula is given by: fasting blood glucose (FPG) (mmol/L) × fasting insulin (FINS) (μU/mL)/22.5, where a score of ≥2.14 indicates IR (17). Participants were those not seeking immediate pregnancy and committed to barrier contraception for 7 months. Exclusions encompassed women with disorders such as hyperprolactinemia, FSH >15 mIU/mL, hypothyroidism, diabetes, Cushing’s syndrome, certain cancers, and others.
Outcomes
The primary outcome was the alteration in HOMA-IR levels between the baseline, 4-month, and 7-month marks. Secondary outcomes revolved around changes from the baseline to the 4-month point in aspects including anthropometry [BMI, waist-to-hip ratio (WHR), Acne (Rosenfield score), and hirsutism (determined by Ferriman–Gallwey score)], metabolic profiles (FPG, FINS, glucoseAUC, insulinAUC, HOMA-β, C-peptide, and hemoglobin A1c), and hormonal profiles [LH to FSH ratio (LH/FSH), total testosterone, and free androgen index (FIA)].
Statistical analysis
Participants were grouped by their initial BMI. Continuous variables are either denoted as mean ± SD or as medians with interquartile ranges. To compare continuous variables, either the ANOVA test (for normal distributions) or the Kruskal-Wallis H test (for non-normal distributions) was employed. The Student’s t-test facilitated two-group comparisons, while the ANOVA was for three-group contrasts. Both univariable and multivariable binary logistic regressions ascertained the risk factors affecting HOMA-IR improvement after 4 months of treatment. A p < 0.05 was deemed statistically significant. Calculations utilized the IBM SPSS Statistics 25 and STATA MP 14.0 software.1
Results
Participant flow
A total of 339 women were enrolled in the post hoc analysis, 110 (32.45%) were lean and 229 (67.55%) were overweight/obese. Overweight/obese women who participated in the study were generally older and had higher levels of Waist, WHR, Acne score, baseline HOMA-IR, FPG, FINS, GlucoseAUC, InsulinAUC, HOMA-β, C-peptide, HbA1C, TG, low-density lipoprotein cholesterol (LDL-C), and FAI, but had lower levels of baseline HDL-C, ApoA-1, Apo B, LH, FSH, LH/FSH, Total T, and SHBG (Table 1, p < 0.05). Among the 110 lean women, 37 (33.63%) were placed into the true acupuncture + placebo group, 36 (32.75%) were placed into the sham acupuncture + metformin group, and 37 (33.63%) were placed into the sham acupuncture + placebo group. They shared similar baseline characteristics (Table 2, p > 0.05). Among the 229 overweight/obese women, 75 (32.75%) were placed into the true acupuncture + placebo group, 77 (33.63%) were placed into the sham acupuncture + metformin group, and 77 (33.63%) were placed into the sham acupuncture + placebo group. They also shared similar baseline characteristics (Table 2, p > 0.05).

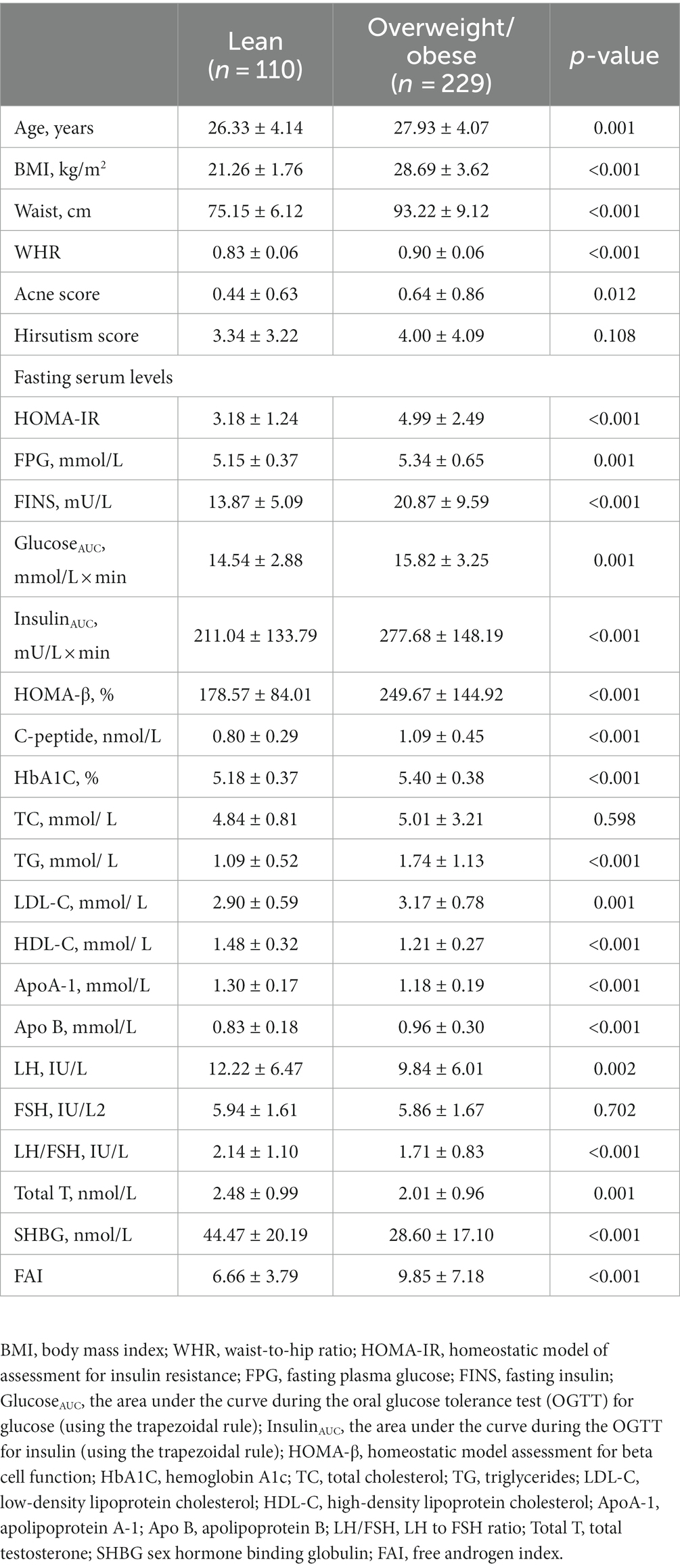

Table 1
| Lean (n = 110) |
Overweight/obese (n = 229) |
p-value | |
|---|---|---|---|
| Age, years | 26.33 ± 4.14 | 27.93 ± 4.07 | 0.001 |
| BMI, kg/m2 | 21.26 ± 1.76 | 28.69 ± 3.62 | <0.001 |
| Waist, cm | 75.15 ± 6.12 | 93.22 ± 9.12 | <0.001 |
| WHR | 0.83 ± 0.06 | 0.90 ± 0.06 | <0.001 |
| Acne score | 0.44 ± 0.63 | 0.64 ± 0.86 | 0.012 |
| Hirsutism score | 3.34 ± 3.22 | 4.00 ± 4.09 | 0.108 |
| Fasting serum levels | |||
| HOMA-IR | 3.18 ± 1.24 | 4.99 ± 2.49 | <0.001 |
| FPG, mmol/L | 5.15 ± 0.37 | 5.34 ± 0.65 | 0.001 |
| FINS, mU/L | 13.87 ± 5.09 | 20.87 ± 9.59 | <0.001 |
| GlucoseAUC, mmol/L × min | 14.54 ± 2.88 | 15.82 ± 3.25 | 0.001 |
| InsulinAUC, mU/L × min | 211.04 ± 133.79 | 277.68 ± 148.19 | <0.001 |
| HOMA-β, % | 178.57 ± 84.01 | 249.67 ± 144.92 | <0.001 |
| C-peptide, nmol/L | 0.80 ± 0.29 | 1.09 ± 0.45 | <0.001 |
| HbA1C, % | 5.18 ± 0.37 | 5.40 ± 0.38 | <0.001 |
| TC, mmol/ L | 4.84 ± 0.81 | 5.01 ± 3.21 | 0.598 |
| TG, mmol/ L | 1.09 ± 0.52 | 1.74 ± 1.13 | <0.001 |
| LDL-C, mmol/ L | 2.90 ± 0.59 | 3.17 ± 0.78 | 0.001 |
| HDL-C, mmol/ L | 1.48 ± 0.32 | 1.21 ± 0.27 | <0.001 |
| ApoA-1, mmol/L | 1.30 ± 0.17 | 1.18 ± 0.19 | <0.001 |
| Apo B, mmol/L | 0.83 ± 0.18 | 0.96 ± 0.30 | <0.001 |
| LH, IU/L | 12.22 ± 6.47 | 9.84 ± 6.01 | 0.002 |
| FSH, IU/L2 | 5.94 ± 1.61 | 5.86 ± 1.67 | 0.702 |
| LH/FSH, IU/L | 2.14 ± 1.10 | 1.71 ± 0.83 | <0.001 |
| Total T, nmol/L | 2.48 ± 0.99 | 2.01 ± 0.96 | 0.001 |
| SHBG, nmol/L | 44.47 ± 20.19 | 28.60 ± 17.10 | <0.001 |
| FAI | 6.66 ± 3.79 | 9.85 ± 7.18 | <0.001 |
Baseline clinical characteristics of the study population.
BMI, body mass index; WHR, waist-to-hip ratio; HOMA-IR, homeostatic model of assessment for insulin resistance; FPG, fasting plasma glucose; FINS, fasting insulin; GlucoseAUC, the area under the curve during the oral glucose tolerance test (OGTT) for glucose (using the trapezoidal rule); InsulinAUC, the area under the curve during the OGTT for insulin (using the trapezoidal rule); HOMA-β, homeostatic model assessment for beta cell function; HbA1C, hemoglobin A1c; TC, total cholesterol; TG, triglycerides; LDL-C, low-density lipoprotein cholesterol; HDL-C, high-density lipoprotein cholesterol; ApoA-1, apolipoprotein A-1; Apo B, apolipoprotein B; LH/FSH, LH to FSH ratio; Total T, total testosterone; SHBG sex hormone binding globulin; FAI, free androgen index.

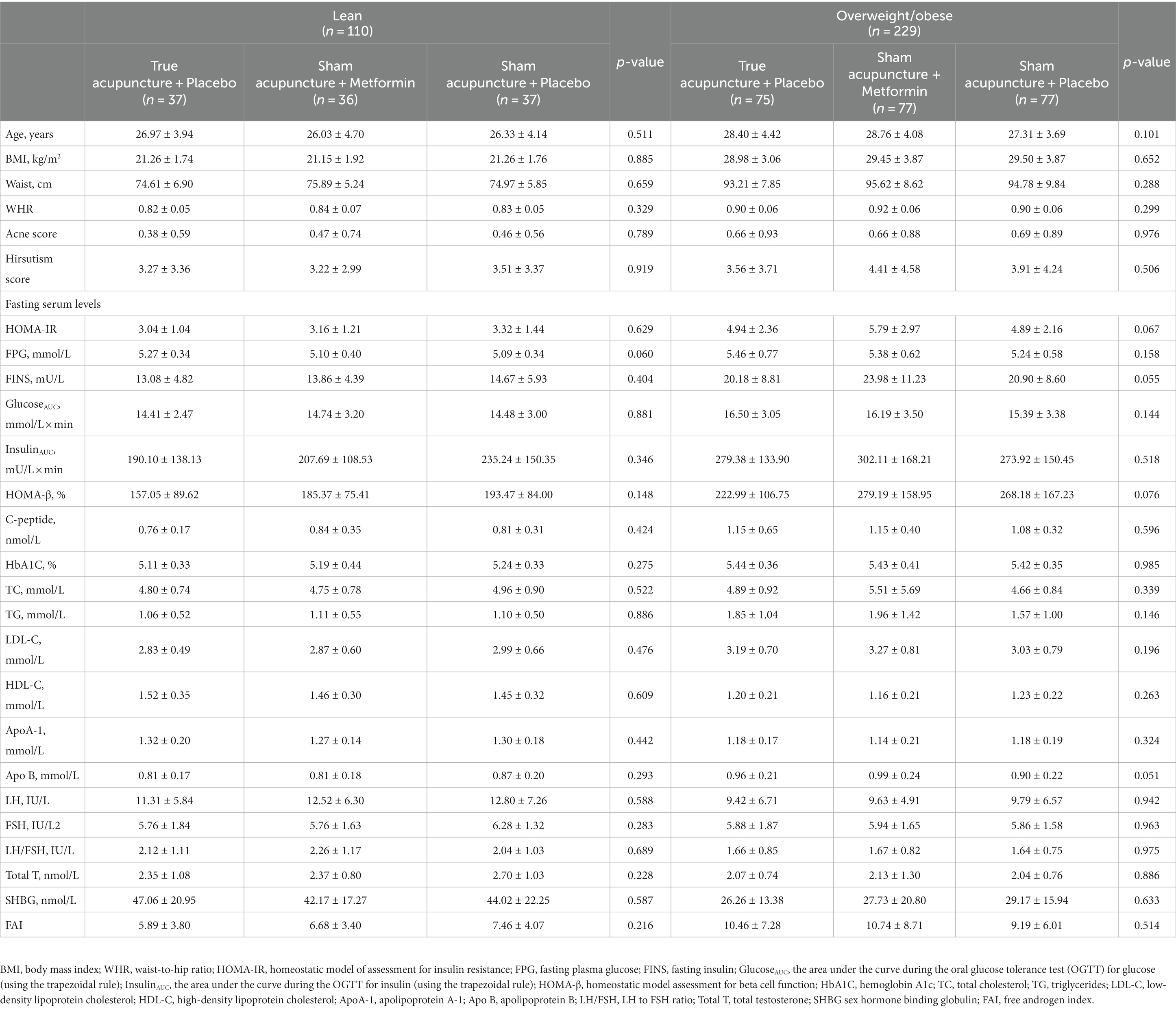

Table 2
| Lean (n = 110) |
p-value | Overweight/obese (n = 229) |
p-value | |||||
|---|---|---|---|---|---|---|---|---|
| True acupuncture + Placebo (n = 37) |
Sham acupuncture + Metformin (n = 36) |
Sham acupuncture + Placebo (n = 37) |
True acupuncture + Placebo (n = 75) |
Sham acupuncture + Metformin (n = 77) |
Sham acupuncture + Placebo (n = 77) |
|||
| Age, years | 26.97 ± 3.94 | 26.03 ± 4.70 | 26.33 ± 4.14 | 0.511 | 28.40 ± 4.42 | 28.76 ± 4.08 | 27.31 ± 3.69 | 0.101 |
| BMI, kg/m2 | 21.26 ± 1.74 | 21.15 ± 1.92 | 21.26 ± 1.76 | 0.885 | 28.98 ± 3.06 | 29.45 ± 3.87 | 29.50 ± 3.87 | 0.652 |
| Waist, cm | 74.61 ± 6.90 | 75.89 ± 5.24 | 74.97 ± 5.85 | 0.659 | 93.21 ± 7.85 | 95.62 ± 8.62 | 94.78 ± 9.84 | 0.288 |
| WHR | 0.82 ± 0.05 | 0.84 ± 0.07 | 0.83 ± 0.05 | 0.329 | 0.90 ± 0.06 | 0.92 ± 0.06 | 0.90 ± 0.06 | 0.299 |
| Acne score | 0.38 ± 0.59 | 0.47 ± 0.74 | 0.46 ± 0.56 | 0.789 | 0.66 ± 0.93 | 0.66 ± 0.88 | 0.69 ± 0.89 | 0.976 |
| Hirsutism score | 3.27 ± 3.36 | 3.22 ± 2.99 | 3.51 ± 3.37 | 0.919 | 3.56 ± 3.71 | 4.41 ± 4.58 | 3.91 ± 4.24 | 0.506 |
| Fasting serum levels | ||||||||
| HOMA-IR | 3.04 ± 1.04 | 3.16 ± 1.21 | 3.32 ± 1.44 | 0.629 | 4.94 ± 2.36 | 5.79 ± 2.97 | 4.89 ± 2.16 | 0.067 |
| FPG, mmol/L | 5.27 ± 0.34 | 5.10 ± 0.40 | 5.09 ± 0.34 | 0.060 | 5.46 ± 0.77 | 5.38 ± 0.62 | 5.24 ± 0.58 | 0.158 |
| FINS, mU/L | 13.08 ± 4.82 | 13.86 ± 4.39 | 14.67 ± 5.93 | 0.404 | 20.18 ± 8.81 | 23.98 ± 11.23 | 20.90 ± 8.60 | 0.055 |
| GlucoseAUC, mmol/L × min | 14.41 ± 2.47 | 14.74 ± 3.20 | 14.48 ± 3.00 | 0.881 | 16.50 ± 3.05 | 16.19 ± 3.50 | 15.39 ± 3.38 | 0.144 |
| InsulinAUC, mU/L × min | 190.10 ± 138.13 | 207.69 ± 108.53 | 235.24 ± 150.35 | 0.346 | 279.38 ± 133.90 | 302.11 ± 168.21 | 273.92 ± 150.45 | 0.518 |
| HOMA-β, % | 157.05 ± 89.62 | 185.37 ± 75.41 | 193.47 ± 84.00 | 0.148 | 222.99 ± 106.75 | 279.19 ± 158.95 | 268.18 ± 167.23 | 0.076 |
| C-peptide, nmol/L | 0.76 ± 0.17 | 0.84 ± 0.35 | 0.81 ± 0.31 | 0.424 | 1.15 ± 0.65 | 1.15 ± 0.40 | 1.08 ± 0.32 | 0.596 |
| HbA1C, % | 5.11 ± 0.33 | 5.19 ± 0.44 | 5.24 ± 0.33 | 0.275 | 5.44 ± 0.36 | 5.43 ± 0.41 | 5.42 ± 0.35 | 0.985 |
| TC, mmol/L | 4.80 ± 0.74 | 4.75 ± 0.78 | 4.96 ± 0.90 | 0.522 | 4.89 ± 0.92 | 5.51 ± 5.69 | 4.66 ± 0.84 | 0.339 |
| TG, mmol/L | 1.06 ± 0.52 | 1.11 ± 0.55 | 1.10 ± 0.50 | 0.886 | 1.85 ± 1.04 | 1.96 ± 1.42 | 1.57 ± 1.00 | 0.146 |
| LDL-C, mmol/L | 2.83 ± 0.49 | 2.87 ± 0.60 | 2.99 ± 0.66 | 0.476 | 3.19 ± 0.70 | 3.27 ± 0.81 | 3.03 ± 0.79 | 0.196 |
| HDL-C, mmol/L | 1.52 ± 0.35 | 1.46 ± 0.30 | 1.45 ± 0.32 | 0.609 | 1.20 ± 0.21 | 1.16 ± 0.21 | 1.23 ± 0.22 | 0.263 |
| ApoA-1, mmol/L | 1.32 ± 0.20 | 1.27 ± 0.14 | 1.30 ± 0.18 | 0.442 | 1.18 ± 0.17 | 1.14 ± 0.21 | 1.18 ± 0.19 | 0.324 |
| Apo B, mmol/L | 0.81 ± 0.17 | 0.81 ± 0.18 | 0.87 ± 0.20 | 0.293 | 0.96 ± 0.21 | 0.99 ± 0.24 | 0.90 ± 0.22 | 0.051 |
| LH, IU/L | 11.31 ± 5.84 | 12.52 ± 6.30 | 12.80 ± 7.26 | 0.588 | 9.42 ± 6.71 | 9.63 ± 4.91 | 9.79 ± 6.57 | 0.942 |
| FSH, IU/L2 | 5.76 ± 1.84 | 5.76 ± 1.63 | 6.28 ± 1.32 | 0.283 | 5.88 ± 1.87 | 5.94 ± 1.65 | 5.86 ± 1.58 | 0.963 |
| LH/FSH, IU/L | 2.12 ± 1.11 | 2.26 ± 1.17 | 2.04 ± 1.03 | 0.689 | 1.66 ± 0.85 | 1.67 ± 0.82 | 1.64 ± 0.75 | 0.975 |
| Total T, nmol/L | 2.35 ± 1.08 | 2.37 ± 0.80 | 2.70 ± 1.03 | 0.228 | 2.07 ± 0.74 | 2.13 ± 1.30 | 2.04 ± 0.76 | 0.886 |
| SHBG, nmol/L | 47.06 ± 20.95 | 42.17 ± 17.27 | 44.02 ± 22.25 | 0.587 | 26.26 ± 13.38 | 27.73 ± 20.80 | 29.17 ± 15.94 | 0.633 |
| FAI | 5.89 ± 3.80 | 6.68 ± 3.40 | 7.46 ± 4.07 | 0.216 | 10.46 ± 7.28 | 10.74 ± 8.71 | 9.19 ± 6.01 | 0.514 |
Baseline characteristics of lean and overweight/obese groups under different treatments.
BMI, body mass index; WHR, waist-to-hip ratio; HOMA-IR, homeostatic model of assessment for insulin resistance; FPG, fasting plasma glucose; FINS, fasting insulin; GlucoseAUC, the area under the curve during the oral glucose tolerance test (OGTT) for glucose (using the trapezoidal rule); InsulinAUC, the area under the curve during the OGTT for insulin (using the trapezoidal rule); HOMA-β, homeostatic model assessment for beta cell function; HbA1C, hemoglobin A1c; TC, total cholesterol; TG, triglycerides; LDL-C, low-density lipoprotein cholesterol; HDL-C, high-density lipoprotein cholesterol; ApoA-1, apolipoprotein A-1; Apo B, apolipoprotein B; LH/FSH, LH to FSH ratio; Total T, total testosterone; SHBG sex hormone binding globulin; FAI, free androgen index.
Primary outcome
For the overweight/obese women, true acupuncture was found to be less effective than metformin in improving HOMA-IR levels at 4 months after the baseline visit (Table 3, p = 0.004) but the efficacy was similar after 7 months (Table 3, p = 0.471). There were no significant declines in HOMA-IR levels compared to baseline at either 4 or 7 months after the baseline visit (p > 0.05). In contrast, for the lean women group, true acupuncture had similar efficacy to metformin and markedly decreased HOMA-IR at both 4 and 7 months after the baseline visit (p < 0.001). The sham acupuncture group also showed a significant decrease in HOMA-IR levels after 4 months (p = 0.018), but this effect was not observed after 7 months (p = 0.059). Compared with the overweight/obese women, the efficacy of true acupuncture was much better for the lean women after 4 months (p = 0.021). Interestingly, the efficacy of true acupuncture between overweight/obese and lean women was similar after 7 months (p = 0.110). Moreover, in the multivariate analysis of HOMA-IR improvement after 4 months of true acupuncture treatment, overweight/obese (OR: 0.217, 95% CI:0.052–0.900, p = 0.035), FAI (OR:0.840, 95% CI:0.714–0.988, p = 0.035), and HDL-C (OR:35.138, 95% CI:2.249–548.887, p = 0.011, Table 4) independently increased the risk of HOMA-IR improving; FAI (OR:1.161, CI:1.018–1.326, p = 0.026) and FPG (OR:3.203, CI:1.171–8.759, p = 0.023) independently increased the risk of HOMA-IR improving after 4 months of metformin treatment (Table 5).
Table 3
| True acupuncture + Placebo | Sham acupuncture + Metformin | Sham acupuncture + Placebo | p-value | ||
|---|---|---|---|---|---|
| Lean | Follow-up at 4 months after baseline visit | 35 | 31 | 33 | |
| HOMA-IR at 4 months after baseline visit | 2.27 ± 1.09 | 2.41 ± 1.30 | 2.72 ± 1.23 | 0.301 | |
| Follow-up at 7 months after baseline visit | 33 | 28 | 28 | ||
| HOMA-IR at 7 months after baseline visit | 2.32 ± 0.93 | 2.52 ± 0.99 | 2.54 ± 1.22 | 0.652 | |
| mΔ | −0.73 ± 1.08 | −0.64 ± 1.37 | −0.54 ± 1.26 | 0.818 | |
| yΔ | −0.72 ± 0.81 | −0.54 ± 1.06 | −0.71 ± 1.91 | 0.845 | |
| m p-value | <0.001 | 0.014 | 0.018 | ||
| y p-value | <0.001 | 0.012 | 0.059 | ||
| Overweight/obese | Follow-up at 4 months after baseline visit | 65 | 65 | 62 | |
| HOMA-IR at 4 months after baseline visit | 4.56 ± 2.85 | 4.62 ± 2.40 | 5.01 ± 2.94 | 0.599 | |
| Follow-up at 7 months after baseline visit | 61 | 54 | 58 | ||
| HOMA-IR at 7 months after baseline visit | 5.05 ± 6.54 | 5.01 ± 3.07 | 4.57 ± 2.33 | 0.808 | |
| mΔ | −0.03 ± 1.99 | −0.98 ± 2.08 | 0.18 ± 2.29 | 0.004†| |
| yΔ | 0.46 ± 5.58 | −0.26 ± 2.51 | −0.03 ± 3.85 | 0.471 | |
| m p-value | 0.992 | <0.001 | 0.519 | ||
| y p-value | 0.524 | 0.442 | 0.310 | ||
| a p-value | 0.021 | 0.347 | 0.105 | ||
| b p-value | 0.110 | 0.485 | 0.419 |
Changes in HOMA-IR between groups.
mΔ Change from baseline to 4 months after the baseline visit. yΔ Changes from baseline to 7 months after the baseline visit. mp-value: baseline versus 4 months after the baseline visit. yp-value: baseline versus 7 months after the baseline visit. ap-value: comparison of mΔ between the lean and overweight/obese groups. bp-value: comparison of yΔ between the lean and overweight/obese groups. †True acupuncture + Placebo vs Sham acupuncture + Metformin.
Table 4
| Univariate analysis | Multivariate analysis | |||||
|---|---|---|---|---|---|---|
| OR | 95%CI | p-value | OR | 95%CI | p-value | |
| Overweight/obese | 0.284 | 0.108–0.748 | 0.011 | 0.217 | 0.052–0.900 | 0.035 |
| FAI | 0.871 | 0.792–0.958 | 0.005 | 0.840 | 0.714–0.988 | 0.035 |
| SHBG | 1.040 | 1.011–1.070 | 0.006 | 0.999 | 0.949–1.051 | 0.961 |
| FPG | 2.996 | 1.057–8.486 | 0.039 | 4.075 | 0.825–20.120 | 0.085 |
| HDL-C | 8.178 | 1.608–41.589 | 0.011 | 35.138 | 2.249–548.887 | 0.011 |
Univariate and multivariate logistic regression for HOMA-IR improvement in 100 patients after 4 months of true acupuncture treatment.
HOMA-IR, homeostatic model of assessment for insulin resistance; FAI, free androgen index; SHBG, sex hormone binding globulin; FPG, fasting plasma glucose; HDL-C, high-density lipoprotein cholesterol; OR, odds ratio; CI, confidence interval.
Table 5
| Univariate analysis | Multivariate analysis | |||||
|---|---|---|---|---|---|---|
| OR | 95%CI | p-value | OR | 95%CI | p-value | |
| Overweight/obese | 0.800 | 0.315–2.027 | 0.637 | 0.668 | 0.201–2.224 | 0.511 |
| FAI | 1.071 | 0.984–1.166 | 0.111 | 1.161 | 1.018–1.325 | 0.026 |
| SHBG | 1.008 | 0.985–1.032 | 0.504 | 1.021 | 0.977–1.067 | 0.352 |
| FPG | 2.297 | 0.942–5.604 | 0.068 | 3.203 | 1.171–8.759 | 0.023 |
| HDL-C | 1.816 | 0.431–7.660 | 0.416 | 1.767 | 0.269–11.614 | 0.553 |
Univariate and multivariate logistic regression for HOMA-IR improvement in 96 patients after 4 months of metformin treatment.
HOMA-IR, homeostatic model of assessment for insulin resistance; FAI, free androgen index; SHBG sex hormone binding globulin; FPG, fasting plasma glucose; HDL-C, high-density lipoprotein cholesterol; OR, odds ratio; CI, confidence interval.
Secondary outcomes
At the 4-month follow-up visit, the overweight/obese women who received true acupuncture treatment showed a significant improvement in glucoseAUC compared to those who received metformin or sham acupuncture (Table 6, p = 0.019). Metformin was found to be more effective than true acupuncture in decreasing BMI, FPG, and FAI, as well as improving HOMA-β (Table 6, p < 0.05). No significant differences were observed among lean women (Table 6, p > 0.05).

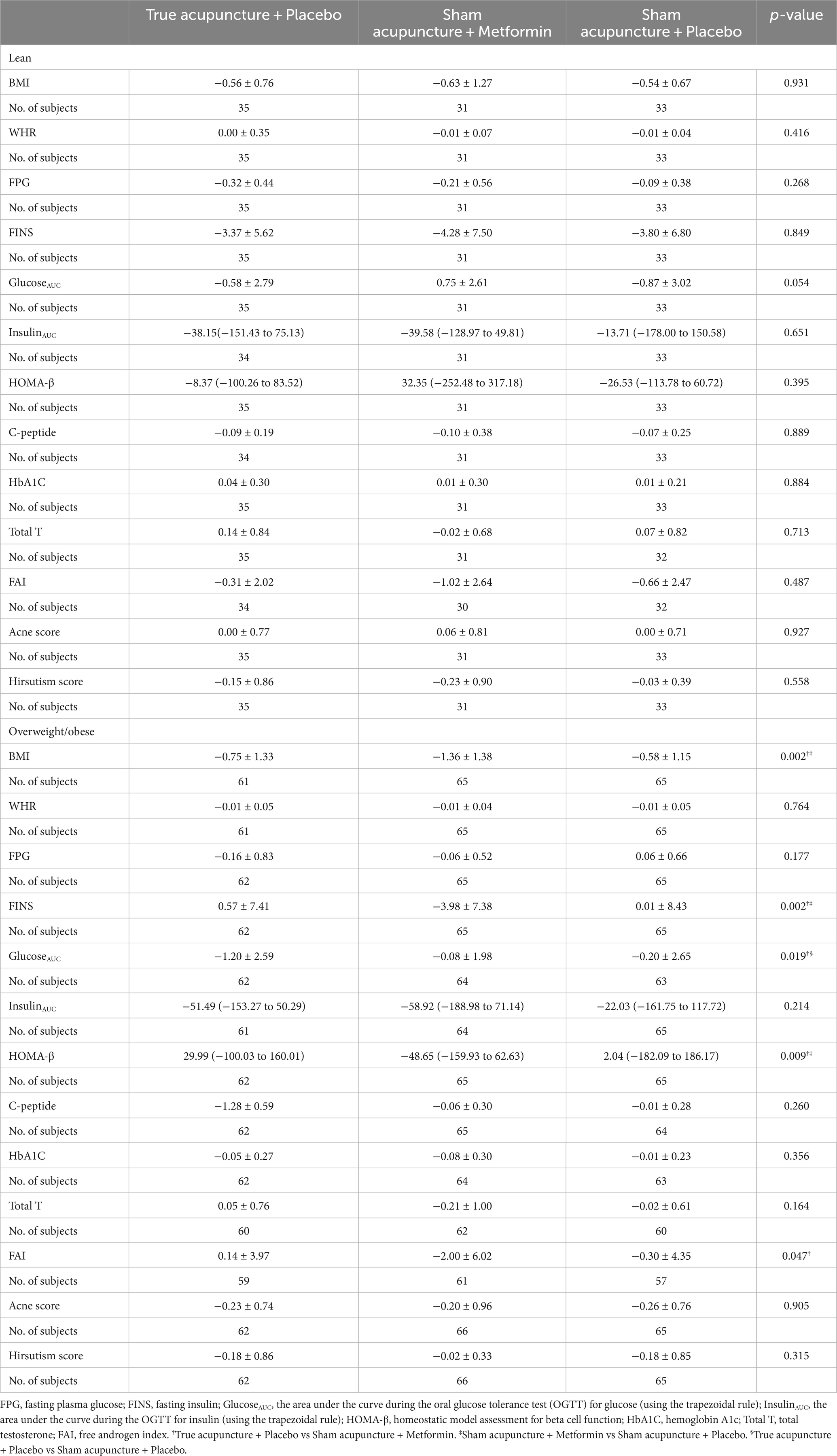

Table 6
| True acupuncture + Placebo | Sham acupuncture + Metformin | Sham acupuncture + Placebo | p-value | |
|---|---|---|---|---|
| Lean | ||||
| BMI | −0.56 ± 0.76 | −0.63 ± 1.27 | −0.54 ± 0.67 | 0.931 |
| No. of subjects | 35 | 31 | 33 | |
| WHR | 0.00 ± 0.35 | −0.01 ± 0.07 | −0.01 ± 0.04 | 0.416 |
| No. of subjects | 35 | 31 | 33 | |
| FPG | −0.32 ± 0.44 | −0.21 ± 0.56 | −0.09 ± 0.38 | 0.268 |
| No. of subjects | 35 | 31 | 33 | |
| FINS | −3.37 ± 5.62 | −4.28 ± 7.50 | −3.80 ± 6.80 | 0.849 |
| No. of subjects | 35 | 31 | 33 | |
| GlucoseAUC | −0.58 ± 2.79 | 0.75 ± 2.61 | −0.87 ± 3.02 | 0.054 |
| No. of subjects | 35 | 31 | 33 | |
| InsulinAUC | −38.15(−151.43 to 75.13) | −39.58 (−128.97 to 49.81) | −13.71 (−178.00 to 150.58) | 0.651 |
| No. of subjects | 34 | 31 | 33 | |
| HOMA-β | −8.37 (−100.26 to 83.52) | 32.35 (−252.48 to 317.18) | −26.53 (−113.78 to 60.72) | 0.395 |
| No. of subjects | 35 | 31 | 33 | |
| C-peptide | −0.09 ± 0.19 | −0.10 ± 0.38 | −0.07 ± 0.25 | 0.889 |
| No. of subjects | 34 | 31 | 33 | |
| HbA1C | 0.04 ± 0.30 | 0.01 ± 0.30 | 0.01 ± 0.21 | 0.884 |
| No. of subjects | 35 | 31 | 33 | |
| Total T | 0.14 ± 0.84 | −0.02 ± 0.68 | 0.07 ± 0.82 | 0.713 |
| No. of subjects | 35 | 31 | 32 | |
| FAI | −0.31 ± 2.02 | −1.02 ± 2.64 | −0.66 ± 2.47 | 0.487 |
| No. of subjects | 34 | 30 | 32 | |
| Acne score | 0.00 ± 0.77 | 0.06 ± 0.81 | 0.00 ± 0.71 | 0.927 |
| No. of subjects | 35 | 31 | 33 | |
| Hirsutism score | −0.15 ± 0.86 | −0.23 ± 0.90 | −0.03 ± 0.39 | 0.558 |
| No. of subjects | 35 | 31 | 33 | |
| Overweight/obese | ||||
| BMI | −0.75 ± 1.33 | −1.36 ± 1.38 | −0.58 ± 1.15 | 0.002†‡ |
| No. of subjects | 61 | 65 | 65 | |
| WHR | −0.01 ± 0.05 | −0.01 ± 0.04 | −0.01 ± 0.05 | 0.764 |
| No. of subjects | 61 | 65 | 65 | |
| FPG | −0.16 ± 0.83 | −0.06 ± 0.52 | 0.06 ± 0.66 | 0.177 |
| No. of subjects | 62 | 65 | 65 | |
| FINS | 0.57 ± 7.41 | −3.98 ± 7.38 | 0.01 ± 8.43 | 0.002†‡ |
| No. of subjects | 62 | 65 | 65 | |
| GlucoseAUC | −1.20 ± 2.59 | −0.08 ± 1.98 | −0.20 ± 2.65 | 0.019†§ |
| No. of subjects | 62 | 64 | 63 | |
| InsulinAUC | −51.49 (−153.27 to 50.29) | −58.92 (−188.98 to 71.14) | −22.03 (−161.75 to 117.72) | 0.214 |
| No. of subjects | 61 | 64 | 65 | |
| HOMA-β | 29.99 (−100.03 to 160.01) | −48.65 (−159.93 to 62.63) | 2.04 (−182.09 to 186.17) | 0.009†‡ |
| No. of subjects | 62 | 65 | 65 | |
| C-peptide | −1.28 ± 0.59 | −0.06 ± 0.30 | −0.01 ± 0.28 | 0.260 |
| No. of subjects | 62 | 65 | 64 | |
| HbA1C | −0.05 ± 0.27 | −0.08 ± 0.30 | −0.01 ± 0.23 | 0.356 |
| No. of subjects | 62 | 64 | 63 | |
| Total T | 0.05 ± 0.76 | −0.21 ± 1.00 | −0.02 ± 0.61 | 0.164 |
| No. of subjects | 60 | 62 | 60 | |
| FAI | 0.14 ± 3.97 | −2.00 ± 6.02 | −0.30 ± 4.35 | 0.047†|
| No. of subjects | 59 | 61 | 57 | |
| Acne score | −0.23 ± 0.74 | −0.20 ± 0.96 | −0.26 ± 0.76 | 0.905 |
| No. of subjects | 62 | 66 | 65 | |
| Hirsutism score | −0.18 ± 0.86 | −0.02 ± 0.33 | −0.18 ± 0.85 | 0.315 |
| No. of subjects | 62 | 66 | 65 | |
The changes in secondary outcomes at 4 months after the baseline visit.
FPG, fasting plasma glucose; FINS, fasting insulin; GlucoseAUC, the area under the curve during the oral glucose tolerance test (OGTT) for glucose (using the trapezoidal rule); InsulinAUC, the area under the curve during the OGTT for insulin (using the trapezoidal rule); HOMA-β, homeostatic model assessment for beta cell function; HbA1C, hemoglobin A1c; Total T, total testosterone; FAI, free androgen index. †True acupuncture + Placebo vs Sham acupuncture + Metformin. ‡Sham acupuncture + Metformin vs Sham acupuncture + Placebo. §True acupuncture + Placebo vs Sham acupuncture + Placebo.
Discussion
A post hoc analysis of the effect of acupuncture and metformin on insulin sensitivity in women with PCOS and IR across different BMI subgroups was performed. As a result of the present study, the following main findings were found. (1) Overweight/obese women who participated in the study were generally older and had higher levels of Waist, WHR, Acne score, baseline HOMA-IR, FPG, FINS, GlucoseAUC, InsulinAUC, HOMA-β, C-peptide, HbA1C, TG, LDL-C, and FAI, but had lower levels of baseline HDL-C, ApoA-1, Apo B, LH, FSH, LH/FSH, Total T, and SHBG. (2) True acupuncture was less effective than metformin in improving HOMA-IR at 4 months after the baseline visit and the efficacy was similar at 7 months after the baseline visit for overweight/obese women with PCOS and IR. (3) HOMA-IR levels did not markedly decline either at 4 or 7 months after the baseline visit after true acupuncture treatment for overweight/obese women with PCOS and IR. (4) For the lean women group, true acupuncture had similar efficacy to metformin and markedly decreased HOMA-IR at both 4 and 7 months after the baseline visit. (5) Compared with overweight/obese women with PCOS and IR, the efficacy of true acupuncture was much better for lean women at 4 months after baseline visit. (6) The efficacy of true acupuncture between overweight/obese and lean women with PCOS and IR was similar 7 months after the baseline visit. (7) Being overweight/obese, FAI, and HDL-C levels independently increased the risk of HOMA-IR improving at 4 months after the baseline visit. (8) True acupuncture significantly improved the glucoseAUC compared with metformin or sham acupuncture, and metformin was superior to true acupuncture in decreasing BMI, FPG, and FAI and improving HOMA-β for the overweight/obese women with PCOS and IR, however, no significant differences were observed among the lean women. The post hoc analysis study demonstrated the differences in acupuncture and metformin in improving insulin sensitivity in women with PCOS IR between the overweight/obese and lean groups.
PCOS is a common clinical disease often associated with IR. It is widely believed that acupuncture can reduce obesity and type 2 diabetes by increasing insulin sensitivity (13). After acupuncture treatment, prospective studies showed significant improvements in HOMA-IR in women with PCOS and IR (18, 19). The original study found that true acupuncture decreased HOMA-IR in line with previous non-randomized studies, but it was not superior to metformin or sham acupuncture (14). However, there is little data on the differences between overweight/obese and lean patients with PCOS and IR after acupuncture treatment. Moreover, there is no study comparing the efficacy of acupuncture and metformin treatment in patients with PCOS and IR between overweight/obese and lean groups. Therefore, this post hoc analysis aimed to investigate the effectiveness of acupuncture and metformin in improving insulin sensitivity between overweight/obese and lean patients. In the post hoc analysis of the randomized controlled trial, it was found that true acupuncture had similar efficacy to metformin and significantly reduced HOMA-IR levels for lean women, regardless of whether they were assessed at 4 or 7 months after the baseline visit. Interestingly, the sham acupuncture group also experienced a significant decline in HOMA-IR levels after 4 months, which is not surprising given that sham acupuncture is not an inert procedure. As a result, the expected difference between true and sham acupuncture after 4 months of treatment was 20%. However, the efficacy of true acupuncture was not obvious for the overweight/obese women group. In addition, true acupuncture improved glucose metabolism by reducing glucoseAUC for the overweight/obese women group when compared to metformin which was in line with the original study (14). The improved glucose metabolism observed with acupuncture is important because this might reduce the risk of type 2 diabetes. However, the efficacy was not observed in the lean women group. All of this information suggested that acupuncture can be used as an auxiliary treatment for PCOS patients with IR and BMI management is meaningful for PCOS patients with IR to achieve better acupuncture efficacy. This association may be important for clinicians to consider in the context of acupuncture treatment.
PCOS is a prevalent condition that affects women of reproductive age and has various reproductive, metabolic, and psychological implications and lean women present with IR in a form that is mechanistically different from IR caused by overweight and obesity, which further exacerbate IR5. Adiponectin and leptin are two factors that have been extensively studied in relation to overweight/obese women. Wang et al. (20) suggested that low levels of serum adiponectin and high levels of serum resistin may have significant roles in the development of insulin resistance in PCOS patients. A previous study found that lean women with PCOS had higher levels of serum leptin, whereas this was not the case for overweight/obese women. Adiponectin demonstrated a negative correlation with insulin resistance, BMI, total testosterone, triglyceride, and LDL levels. In contrast, leptin showed an opposite correlation pattern, reversing the trends noted with adiponectin in relation to insulin resistance, BMI, total testosterone, triglyceride, and LDL levels. Additionally, a negative association was observed between adiponectin and leptin levels (21). Therefore, overweight/obesity may have an important impact on metabolic complications in women with PCOS. When studying the efficacy of treatment in women with PCOS, it is crucial to consider overweight/obese and lean women separately. According to international evidence-based guidelines for PCOS, managing BMI is considered the primary treatment approach. In the multivariate logistic regression for HOMA-IR improvement after 4 months of acupuncture treatment, being overweight/obese was an independent risk factor. These data demonstrate that overweight/obesity may affect the therapeutic effect of acupuncture. While further research is required to validate whether being overweight or obese is an independent risk factor for improved insulin sensitivity after acupuncture treatment, this possibility can be explained through plausible mechanisms. Firstly, certain studies have demonstrated a correlation between decreased insulin sensitivity and lower levels of HDL-C (22, 23), which corresponded with our outcome in the logistic regression analysis. Therefore, it may be the reason that overweight/obese patients with lower levels of HDL-C do not achieve similar efficacy to lean patients. Furthermore, a probable theory suggests that PCOS is associated with hyperandrogenism and overweight/obese patients, with high levels of FAI, may aggravate IR by increasing circulating irisin (24) and we did not observe an obvious improvement in FAI after acupuncture treatment among overweight/obese patients. Another potential reason for the development of IR in patients with PCOS is the role of vitamin D, independent of BMI. It has been suggested that vitamin D signaling through the vitamin D receptor (VDR) improves the expression of insulin receptor mRNA, leading to enhanced insulin production and release (25). Additionally, it has been found that vitamin D can directly inhibit certain pro-inflammatory cytokines that contribute to the development of IR. Notably, there is evidence indicating that vitamin D deficiency is common among obese individuals with PCOS (26). Further studies are needed to confirm this.
This study undoubtedly has some limitations. First, when considering the outcomes for overweight/obese patients, it should be noted that these were exploratory post hoc subgroup analyses of the original trial that were not prespecified in the study designs, therefore, the result needs to be treated with caution. Second, the number of patients was relatively small and may have resulted in statistical bias. In China, women with PCOS are typically treated with personalized acupuncture and moxibustion, following the principles of Chinese medicine. However, in this study, a fixed acupuncture protocol was used. It is worth considering that a personalized protocol, similar to the approach used in treating other medical conditions, may yield better results. Therefore, future research should focus on conducting additional studies with longer follow-up periods.
Conclusion
The present study demonstrates that for overweight/obese women with PCOS and IR, acupuncture appeared to be less effective than metformin in improving insulin sensitivity but acupuncture shared a similar efficacy with metformin for lean women. Therefore, overweight/obesity may affect the effectiveness of acupuncture treatment. Further dedicated studies are needed to confirm these findings.
Statements
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.
Ethics statement
The studies involving human participants were reviewed and approved by the Institutional Review Board of the First Hospital of Guangzhou Medical University. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study.
Author contributions
ZW and DS: concept and design, critical revision of the manuscript for important intellectual content, and study supervision. JC and ZD: drafting of the manuscript. GN: statistical analysis. All authors: acquisition, analysis and interpretation of data. All authors read and approved the final manuscript.
Funding
This study was supported by the Health Research Board (HRB) in Ireland (Grant Reference: SS-2023-054).
Acknowledgments
The authors gratefully thank Qidan Wen, Min Hu, Maohua Lai, Juan Li, Zhenxing Hu, Kewei Quan, Jia Liu, Hua Liu, Yanbing Meng, Suling Wang, Xiaohui Wen, Chuyi Yu, Shuna Li, Shiya Huang, Yanhua Zheng, Han Lin, Xingyan Liang, Lingjing Lu, Zhefen Mai, Chunren Zhang, Taixiang Wu, Ernest H. Y. Ng, Elisabet Stener-Victorin, and Hongxia Ma for sharing their data and thank all the patients for participating in this project.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
BMI, Body mass index; WHR, Waist-to-hip ratio; HOMA-IR, Homeostatic model of assessment for insulin resistance; FPG, Fasting plasma glucose; FINS, Fasting insulin; GlucoseAUC, The area under the curve during the oral glucose tolerance test (OGTT) for glucose (using the trapezoidal rule); InsulinAUC, The area under the curve during the OGTT for insulin (using the trapezoidal rule); HOMA-β, Homeostatic model assessment for beta cell function; HbA1C, Hemoglobin A1c; TC, Total cholesterol; TG, Triglycerides; LDL-C, Low-density lipoprotein cholesterol; HDL-C, High-density lipoprotein cholesterol; ApoA-1, Apolipoprotein A-1; Apo B, Apolipoprotein B; LH/FSH, LH to FSH ratio; Total T, Total testosterone; SHBG, Sex hormone binding globulin; FAI, Free androgen index.
Footnotes
References
1.
Escobar-Morreale HF . Polycystic ovary syndrome: definition, aetiology, diagnosis and treatment. Nat Rev Endocrinol. (2018) 14:270–84. doi: 10.1038/nrendo.2018.24
2.
Lakkakula BVKS Thangavelu M Godla UR . Genetic variants associated with insulin signaling and glucose homeostasis in the pathogenesis of insulin resistance in polycystic ovary syndrome: a systematic review. J Assist Reprod Genet. (2013) 30:883–95. doi: 10.1007/s10815-013-0030-1
3.
Badawy A Elnashar A . Treatment options for polycystic ovary syndrome. Int J Women's Health. (2011) 3:25–35. doi: 10.2147/IJWH.S11304
4.
Cassar S Misso ML Hopkins WG Shaw CS Teede HJ Stepto NK . Insulin resistance in polycystic ovary syndrome: a systematic review and meta-analysis of euglycaemic-hyperinsulinaemic clamp studies. Hum Reprod. (2016) 31:2619–31. doi: 10.1093/humrep/dew243
5.
Stepto NK Cassar S Joham AE Hutchison SK Harrison CL Goldstein RF et al . Women with polycystic ovary syndrome have intrinsic insulin resistance on euglycaemic-hyperinsulaemic clamp. Hum Reprod. (2013) 28:777–84. doi: 10.1093/humrep/des463
6.
Stamets K Taylor DS Kunselman A Demers LM Pelkman CL Legro RS . A randomized trial of the effects of two types of short-term hypocaloric diets on weight loss in women with polycystic ovary syndrome. Fertil Steril. (2004) 81:630–7. doi: 10.1016/j.fertnstert.2003.08.023
7.
Tarkun I Dikmen E Cetinarslan B Cantürk Z . Impact of treatment with metformin on adipokines in patients with polycystic ovary syndrome. Eur Cytokine Netw. (2010) 21:272–7. doi: 10.1684/ecn.2010.0217
8.
Zhao L Li D Zheng H Chang X Cui J Wang R et al . Acupuncture as adjunctive therapy for chronic stable angina: a randomized clinical trial. JAMA Intern Med. (2019) 179:1388–97. doi: 10.1001/jamainternmed.2019.2407
9.
Liang F Koya D . Acupuncture: is it effective for treatment of insulin resistance?Diabetes Obes Metab. (2010) 12:555–69. doi: 10.1111/j.1463-1326.2009.01192.x
10.
Zheng R Qing P Han M Song J Hu M Ma H et al . The effect of acupuncture on glucose metabolism and lipid profiles in patients with PCOS: a systematic review and meta-analysis of randomized controlled trials. Evid Based Complement Alternat Med. (2021) 2021:1–11. doi: 10.1155/2021/5555028
11.
Wen J Chen X Yang Y Liu J Li E Liu J et al . Acupuncture medical therapy and its underlying mechanisms: a systematic review. Am J Chin Med. (2021) 49:1–23. doi: 10.1142/S0192415X21500014
12.
Li SQ Chen JR Liu ML Wang YP Zhou X Sun X . Effect and safety of acupuncture for type 2 diabetes mellitus: a systematic review and meta-analysis of 21 randomised controlled trials. Chin J Integr Med. (2022) 28:463–71. doi: 10.1007/s11655-021-3450-2
13.
Firouzjaei A Li GC Wang N Liu WX Zhu BM . Comparative evaluation of the therapeutic effect of metformin monotherapy with metformin and acupuncture combined therapy on weight loss and insulin sensitivity in diabetic patients. Nutr Diabetes. (2016) 6:e209. doi: 10.1038/nutd.2016.16
14.
Wen Q Hu M Lai M Li J Hu Z Quan K et al . Effect of acupuncture and metformin on insulin sensitivity in women with polycystic ovary syndrome and insulin resistance: a three-armed randomized controlled trial. Hum Reprod. (2022) 37:542–52. doi: 10.1093/humrep/deab272
15.
Chen K Shen Z Gu W Lyu Z Qi X Mu Y et al . Prevalence of obesity and associated complications in China: a cross-sectional, real-world study in 15.8 million adults. Diabetes Obes Metab. (2023) 25:3390–9. doi: 10.1111/dom.15238
16.
Rotterdam ESHRE/ASRM-Sponsored PCOS Consensus Workshop Group . Revised 2003 consensus on diagnostic criteria and long-term health risks related to polycystic ovary syndrome (PCOS). Hum Reprod. (2004) 19:41–7. doi: 10.1093/humrep/deh098
17.
Chen X Yang D Li L Feng S Wang L . Abnormal glucose tolerance in Chinese women with polycystic ovary syndrome. Hum Reprod. (2006) 21:2027–32. doi: 10.1093/humrep/del142
18.
El-Shamy FF El-Kholy SS El-Rahman MMA . Effectiveness of laser acupoints on women with polycystic ovarian syndrome: a randomized controlled trial. J Lasers Med Sci. (2018) 9:113–20. doi: 10.15171/jlms.2018.22
19.
Stener-Victorin E Maliqueo M Soligo M Protto V Manni L Jerlhag E et al . Changes in HbA1c and circulating and adipose tissue androgen levels in overweight-obese women with polycystic ovary syndrome in response to electroacupuncture. Obes Sci Pract. (2016) 2:426–35. doi: 10.1002/osp4.78
20.
Wang Y Xie X Zhu W . Serum adiponectin and resistin levels in patients with polycystic ovarian syndrome and their clinical implications. J Huazhong Univ Sci Technolog Med Sci. (2010) 30:638–42. doi: 10.1007/s11596-010-0556-8
21.
Chen CI Hsu MI Lin SH Chang YCI Hsu CS Tzeng CR . Adiponectin and leptin in overweight/obese and lean women with polycystic ovary syndrome. Gynecol Endocrinol. (2015) 31:264–8. doi: 10.3109/09513590.2014.984676
22.
Chung ST Katz LEL Stettler-Davis N Shults J Sherman A Ha J et al . The relationship between lipoproteins and insulin sensitivity in youth with obesity and abnormal glucose tolerance. J Clin Endocrinol Metab. (2022) 107:1541–51. doi: 10.1210/clinem/dgac113
23.
Li N Fu J Koonen DP Kuivenhoven JA Snieder H Hofker MH . Are hypertriglyceridemia and low HDL causal factors in the development of insulin resistance?Atherosclerosis. (2014) 233:130–8. doi: 10.1016/j.atherosclerosis.2013.12.013
24.
Li H Xu X Wang X Liao X Li L Yang G et al . Free androgen index and irisin in polycystic ovary syndrome. J Endocrinol Investig. (2016) 39:549–56. doi: 10.1007/s40618-015-0403-7
25.
Barrea L Frias-Toral E Pugliese G Garcia-Velasquez E Los Angeles Carignano MDE Savastano S et al . Vitamin D in obesity and obesity-related diseases: an overview. Minerva Endocrinol. (2021) 46:177–92. doi: 10.23736/S2724-6507.20.03299-X
26.
Muscogiuri G Policola C Prioletta A Sorice GP Mezza T Lassandro A et al . Low levels of 25 (OH) D and insulin-resistance: 2 unrelated features or a cause-effect in PCOS?Clin Nutr. (2012) 31:476–80. doi: 10.1016/j.clnu.2011.12.010
Summary
Keywords
acupuncture, body mass index, polycystic ovary syndrome, insulin resistance, insulin sensitivity, metformin
Citation
Cao J, Nie G, Dai Z, Shan D and Wei Z (2023) Comparative effects of acupuncture and metformin on insulin sensitivity in overweight/obese and lean women with polycystic ovary syndrome and insulin resistance: a post hoc analysis of a randomized trial. Front. Med. 10:1232127. doi: 10.3389/fmed.2023.1232127
Received
31 May 2023
Accepted
23 November 2023
Published
14 December 2023
Volume
10 - 2023
Edited by
Simcha Yagel, Hadassah Medical Center, Israel
Reviewed by
Ling Zhao, Chengdu University of Traditional Chinese Medicine, China; Ravindra Shukla, All India Institute of Medical Sciences, Jodhpur, India
Updates
Copyright
© 2023 Cao, Nie, Dai, Shan and Wei.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Zhihong Wei, weizhihong2022@163.comDan Shan, D.Shan6@universityofgalway.ie
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
