ORIGINAL RESEARCH article

Front. Med., 14 April 2025

Sec. Pulmonary Medicine

Volume 12 - 2025 | https://doi.org/10.3389/fmed.2025.1564099

Nomogram model for predicting pressure injury in COPD patients using SII: a Chinese clinical study

  • 1. The Second Affiliated Hospital of Guangdong Medical University, Zhanjiang, Guangdong, China

  • 2. Affiliated Hospital of Guangdong Medical University, Zhanjiang, Guangdong, China

  • 3. The First Clinical School of Medicine, Zhengzhou University, Zhengzhou, Henan, China

  • 4. State Key Laboratory of Respiratory Disease, The First Affiliated Hospital of Guangzhou Medical University, National Clinical Research Center for Respiratory Disease, Guangzhou Institute of Respiratory Health, Guangzhou Medical University, Guangzhou, Guangdong, China

Article metrics

View details

1,8k

Views

613

Downloads

Abstract

Objectives:

This study aims to investigate the association between the Systemic Immune-Inflammation Index (SII) and the development of pressure injuries (PI) in patients with chronic obstructive pulmonary disease (COPD). Additionally, a nomogram model based on the SII will be constructed to predict the probability of pressure injury (PI) occurrence in patients with COPD.

Methods:

A retrospective analysis was performed on the clinical data of 844 patients with COPD who were admitted to the Affiliated Hospital of Guangdong Medical University between June 2018 and December 2019. Logistic regression analysis was employed to identify risk factors associated with the development of PI, and the Wald chi-square test was used to select variables for constructing a predictive nomogram. The performance of the nomogram was assessed, followed by internal validation. Additionally, clinical data from 452 patients with COPD admitted to the Second Affiliated Hospital of Guangdong Medical University between January 2024 and December 2024 were prospectively collected for external validation.

Results:

A total of 844 patients with COPD were included in this study, with 590 cases in the training group and 254 cases in the internal validation group. The predictors included in the nomogram model were age, respiratory rate [Breathe (R)], duration of COPD history, Serum albumin (ALB), SII, paralysis, edema, and activities of daily living (ADL). The nomogram demonstrated strong predictive performance and calibration. The area under the curve and 95% confidence intervals were 0.77 (0.72–0.82) for the training group, 0.77 (0.70–0.85) for the internal validation group, and 0.73 (0.66–0.81) for the external validation group.

Conclusion:

This study identified the SII, age, respiratory rate, duration of COPD history, ALB, paralysis, and ADL as independent risk factors for the development of PI in patients with COPD. A nomogram model was successfully developed based on SII and validated through both internal and external testing. The findings suggest that SII is a reliable predictor of PI development in patients with COPD, and the model demonstrates strong predictive performance.

1 Background

Chronic obstructive pulmonary disease (COPD) is a chronic inflammatory airway disorder marked by irreversible airflow limitation, progressively worsening over time, severely compromising patients’ quality of life and potentially threatening their survival (1, 2). Initially, symptoms such as shortness of breath occur only during physical exertion, but they progressively worsen, affecting both daily activities and even rest. Some patients, particularly those with severe disease or during acute exacerbations, may present with wheezing and audible respiratory sounds (3). In advanced stages of COPD or in patients with comorbid pulmonary heart disease, reduced mobility and prolonged bed rest increase the risk of pressure injury (PI). PI also known as pressure ulcers or bedsores, were redefined by the National Pressure Injury Advisory Panel (NPIAP) in 2016 (4). PI are common, chronic wounds that are difficult to heal, often associated with reduced mobility, prolonged sitting or lying, increased pressure, disease-related factors, and poor nutritional status (5). They are primarily observed in immobile patients, such as those who are bedridden or wheelchair-bound, and represent a significant health issue, affecting approximately 0.5% of the global population (6). A clinical survey conducted in 12 teaching and general hospitals in China reported a prevalence of 1.58% and an incidence of 0.63% of PI among hospitalized patients (7). The clinical care and treatment of PI are challenging, often requiring extended treatment durations and incurring significant costs, thereby imposing a substantial economic burden on both patients and society (8). It is estimated that 3 million patients in the United States receive treatment for PI annually, with associated costs totaling $17.8 billion (9). Globally, preventing PI is widely considered more critical than treating them. Accurate and objective risk assessment is crucial for effective PI prevention, as the precision and efficiency of risk prediction directly influence preventive outcomes. In recent years, extensive research on PI risk prediction has been conducted globally, offering methods with greater specificity compared to traditional scales (10).

Inflammatory markers are recognized as significant risk factors for PI development (11). Systemic inflammatory responses may lead to oxidative stress through the increased production of reactive oxygen and nitrogen species, which reduces antioxidant defenses and directly damages tissues, thereby impairing the healing process (12). Hu et al. first introduced the systemic immune-inflammation index (SII) (13), which reflects the balance between inflammatory and immune responses in the body (14, 15). SII is a novel scoring system for assessing immune system function, combining the neutrophil-to-lymphocyte ratio (NLR) and the platelet-to-lymphocyte ratio (PLR) (13). Elevated SII is associated with increased neutrophil and platelet counts, or decreased lymphocyte counts. By integrating platelets, neutrophils and lymphocytes into a single parameter, SII is expected to be a more comprehensive and reliable indicator than any individual parameter.

The correlation between elevated SII levels and the high prevalence of COPD is well established (3, 16). The underlying mechanisms include activated neutrophils secreting serine proteases and generating oxidative stress, leading to excessive mucus production, alveolar destruction, and corticosteroid resistance, which are exacerbated in hypoxic COPD patients (17–19), as well as platelets contributing to alveolar integrity loss, pulmonary vascular remodeling, and hypoxia dysregulation in COPD pathogenesis (20).

This study aims to construct and validate a nomogram model based on SII for predicting the development of PI in patients with COPD. By analyzing the correlation between COPD and PI development, this study seeks to provide clinicians with an evidence-based tool for predicting the risk of PI development in patients with COPD.

2 Materials and methods

2.1 General data

Data for the training and internal validation groups were collected from 844 COPD patients admitted to the Affiliated Hospital of Guangdong Medical University between June 2018 and December 2019. Of these patients, 159 had PI, while 685 did not. The 844 patients were randomly divided into a training group and an internal validation group in a 7:3 ratio using RStudio, resulting in 590 and 254 cases, respectively. External validation data were gathered from 452 COPD patients admitted to the Second Affiliated Hospital of Guangdong Medical University between January 2024 and December 2024.

All included patients satisfied the diagnostic criteria for COPD (21). The exclusion criteria were as follows: (1) Patients with severe dermatological conditions, such as systemic lupus erythematosus or psoriasis, were excluded. (2) Patients with non-pressure injuries, such as cuts or burns, were excluded. (3) Patients with incomplete or missing data were excluded. This study was conducted in accordance with the Declaration of Helsinki and approved by the Medical Ethics Committee of the Second Affiliated Hospital of Guangdong Medical University (PJKT2024-050). Informed consent was obtained from all participants involved in the study. For participants unable to provide consent directly, consent was obtained from their legal guardians.

2.2 Investigation methods

Clinical data collected from the participants comprised the following: (1) General information: age, sex, blood pressure, pulse, respiratory rate, duration of COPD history, and activities of daily living (ADL) were recorded. (2) Comorbidities: multimorbidity, diabetes, hypertension, hyperlipidemia, coronary heart disease, paralysis, edema, and pressure injuries were documented. (3) Medication history: anticoagulants/antiplatelet drugs, sedatives/hypnotics, glucocorticoids, and vasopressors were reviewed. (4) Laboratory data: white blood cell count, red blood cell count, platelet count, neutrophil count, lymphocyte count, Serum albumin (ALB), FEV1/FVC, predictive value of FEV1, PaO2, and PaCO2 were recorded. The diagnosis of pressure injuries was established according to international diagnostic standards (22). The patient’s ADL are assessed using the Barthel Index, which covers 10 basic daily activities such as eating, bathing, dressing, toileting, and walking. Each activity is scored based on the patient’s level of independence, with a total score ranging from 0 to 100. Measurement of the SII Index: The SII index was calculated using baseline peripheral blood test results (platelet count, neutrophil count, and lymphocyte count), as described in previous literature (13). Specifically, the SII index was calculated using the following formula: SII = (platelet count × neutrophil count)/lymphocyte count.

2.3 Statistical analysis

All statistical analyses were conducted using SPSS 25.0 and RStudio, with statistical significance defined as P < 0.05. Continuous variables were presented as mean ± standard deviation (SD), while categorical variables were reported as frequencies and proportions. For categorical variables, either the Chi-square test (X2) or Fisher’s exact test was employed. The t-test and the Wilcoxon rank-sum test were applied to continuous variables.

Baseline analyses were performed on the training group. Variables with a P-value < 0.05 were included in the logistic regression analysis. The Wald chi-square test (bidirectional) was employed to select predictors for constructing a nomogram to predict the occurrence of PI in COPD patients.

The receiver operating characteristic (ROC) curve was used to calculate the area under the curve (AUC) to assess the discriminatory ability of the model. Comparisons were made regarding the model’s AUC, accuracy, sensitivity, and specificity. Additionally, calibration curves and decision curve analysis (DCA) were used to assess the model’s calibration and clinical applicability, respectively.

3 Results

3.1 Balance test of patients in the training and internal validation groups

As shown in Table 1, no statistically significant differences were found in the clinical characteristics between the training and internal validation groups, indicating a satisfactory balance.

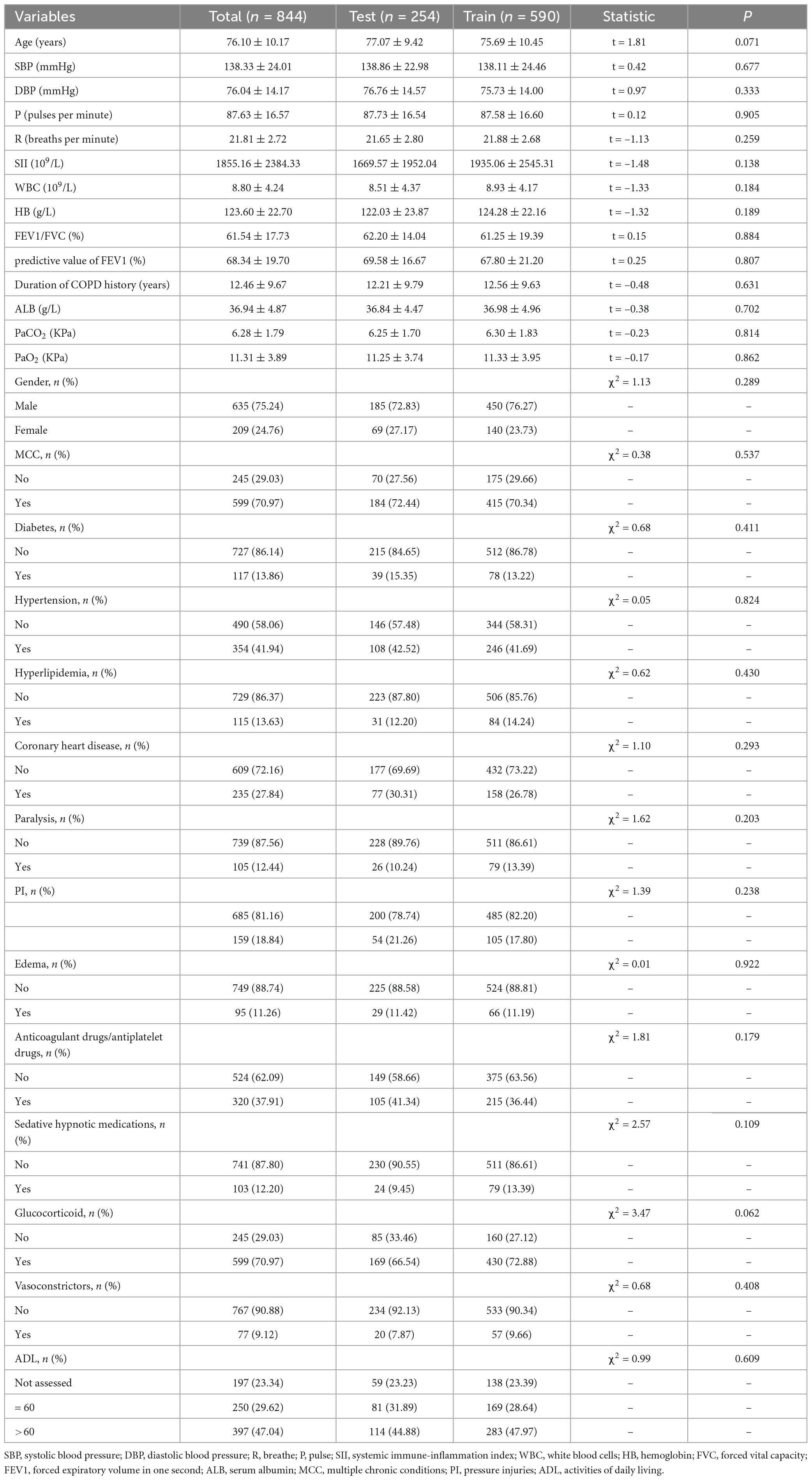

TABLE 1

Variables Total (n = 844) Test (n = 254) Train (n = 590) Statistic P
Age (years) 76.10 ± 10.17 77.07 ± 9.42 75.69 ± 10.45 t = 1.81 0.071
SBP (mmHg) 138.33 ± 24.01 138.86 ± 22.98 138.11 ± 24.46 t = 0.42 0.677
DBP (mmHg) 76.04 ± 14.17 76.76 ± 14.57 75.73 ± 14.00 t = 0.97 0.333
P (pulses per minute) 87.63 ± 16.57 87.73 ± 16.54 87.58 ± 16.60 t = 0.12 0.905
R (breaths per minute) 21.81 ± 2.72 21.65 ± 2.80 21.88 ± 2.68 t = –1.13 0.259
SII (109/L) 1855.16 ± 2384.33 1669.57 ± 1952.04 1935.06 ± 2545.31 t = –1.48 0.138
WBC (109/L) 8.80 ± 4.24 8.51 ± 4.37 8.93 ± 4.17 t = –1.33 0.184
HB (g/L) 123.60 ± 22.70 122.03 ± 23.87 124.28 ± 22.16 t = –1.32 0.189
FEV1/FVC (%) 61.54 ± 17.73 62.20 ± 14.04 61.25 ± 19.39 t = 0.15 0.884
predictive value of FEV1 (%) 68.34 ± 19.70 69.58 ± 16.67 67.80 ± 21.20 t = 0.25 0.807
Duration of COPD history (years) 12.46 ± 9.67 12.21 ± 9.79 12.56 ± 9.63 t = –0.48 0.631
ALB (g/L) 36.94 ± 4.87 36.84 ± 4.47 36.98 ± 4.96 t = –0.38 0.702
PaCO2 (KPa) 6.28 ± 1.79 6.25 ± 1.70 6.30 ± 1.83 t = –0.23 0.814
PaO2 (KPa) 11.31 ± 3.89 11.25 ± 3.74 11.33 ± 3.95 t = –0.17 0.862
Gender, n (%) χ2 = 1.13 0.289
Male 635 (75.24) 185 (72.83) 450 (76.27) – –
Female 209 (24.76) 69 (27.17) 140 (23.73) – –
MCC, n (%) χ2 = 0.38 0.537
No 245 (29.03) 70 (27.56) 175 (29.66) – –
Yes 599 (70.97) 184 (72.44) 415 (70.34) – –
Diabetes, n (%) χ2 = 0.68 0.411
No 727 (86.14) 215 (84.65) 512 (86.78) – –
Yes 117 (13.86) 39 (15.35) 78 (13.22) – –
Hypertension, n (%) χ2 = 0.05 0.824
No 490 (58.06) 146 (57.48) 344 (58.31) – –
Yes 354 (41.94) 108 (42.52) 246 (41.69) – –
Hyperlipidemia, n (%) χ2 = 0.62 0.430
No 729 (86.37) 223 (87.80) 506 (85.76) – –
Yes 115 (13.63) 31 (12.20) 84 (14.24) – –
Coronary heart disease, n (%) χ2 = 1.10 0.293
No 609 (72.16) 177 (69.69) 432 (73.22) – –
Yes 235 (27.84) 77 (30.31) 158 (26.78) – –
Paralysis, n (%) χ2 = 1.62 0.203
No 739 (87.56) 228 (89.76) 511 (86.61) – –
Yes 105 (12.44) 26 (10.24) 79 (13.39) – –
PI, n (%) χ2 = 1.39 0.238
685 (81.16) 200 (78.74) 485 (82.20) – –
159 (18.84) 54 (21.26) 105 (17.80) – –
Edema, n (%) χ2 = 0.01 0.922
No 749 (88.74) 225 (88.58) 524 (88.81) – –
Yes 95 (11.26) 29 (11.42) 66 (11.19) – –
Anticoagulant drugs/antiplatelet drugs, n (%) χ2 = 1.81 0.179
No 524 (62.09) 149 (58.66) 375 (63.56) – –
Yes 320 (37.91) 105 (41.34) 215 (36.44) – –
Sedative hypnotic medications, n (%) χ2 = 2.57 0.109
No 741 (87.80) 230 (90.55) 511 (86.61) – –
Yes 103 (12.20) 24 (9.45) 79 (13.39) – –
Glucocorticoid, n (%) χ2 = 3.47 0.062
No 245 (29.03) 85 (33.46) 160 (27.12) – –
Yes 599 (70.97) 169 (66.54) 430 (72.88) – –
Vasoconstrictors, n (%) χ2 = 0.68 0.408
No 767 (90.88) 234 (92.13) 533 (90.34) – –
Yes 77 (9.12) 20 (7.87) 57 (9.66) – –
ADL, n (%) χ2 = 0.99 0.609
Not assessed 197 (23.34) 59 (23.23) 138 (23.39) – –
= 60 250 (29.62) 81 (31.89) 169 (28.64) – –
>60 397 (47.04) 114 (44.88) 283 (47.97) – –

Baseline balance test between the training group and internal validation group.

SBP, systolic blood pressure; DBP, diastolic blood pressure; R, breathe; P, pulse; SII, systemic immune-inflammation index; WBC, white blood cells; HB, hemoglobin; FVC, forced vital capacity; FEV1, forced expiratory volume in one second; ALB, serum albumin; MCC, multiple chronic conditions; PI, pressure injuries; ADL, activities of daily living.

3.1.1 Baseline characteristics of the training group

The baseline characteristics of the training group are summarized in Table 2. A total of 485 non-PI patients and 105 PI patients were included, with a mean age of 75.69 ± 10.45 years. Of these, 450 (76.27%) were male, and 140 (23.73%) were female. PI patients exhibited characteristics such as older age, COPD has a long course of disease, lower ALB levels, higher pulse rate, respiratory rate, white blood cell count, and SII levels (Table 2).

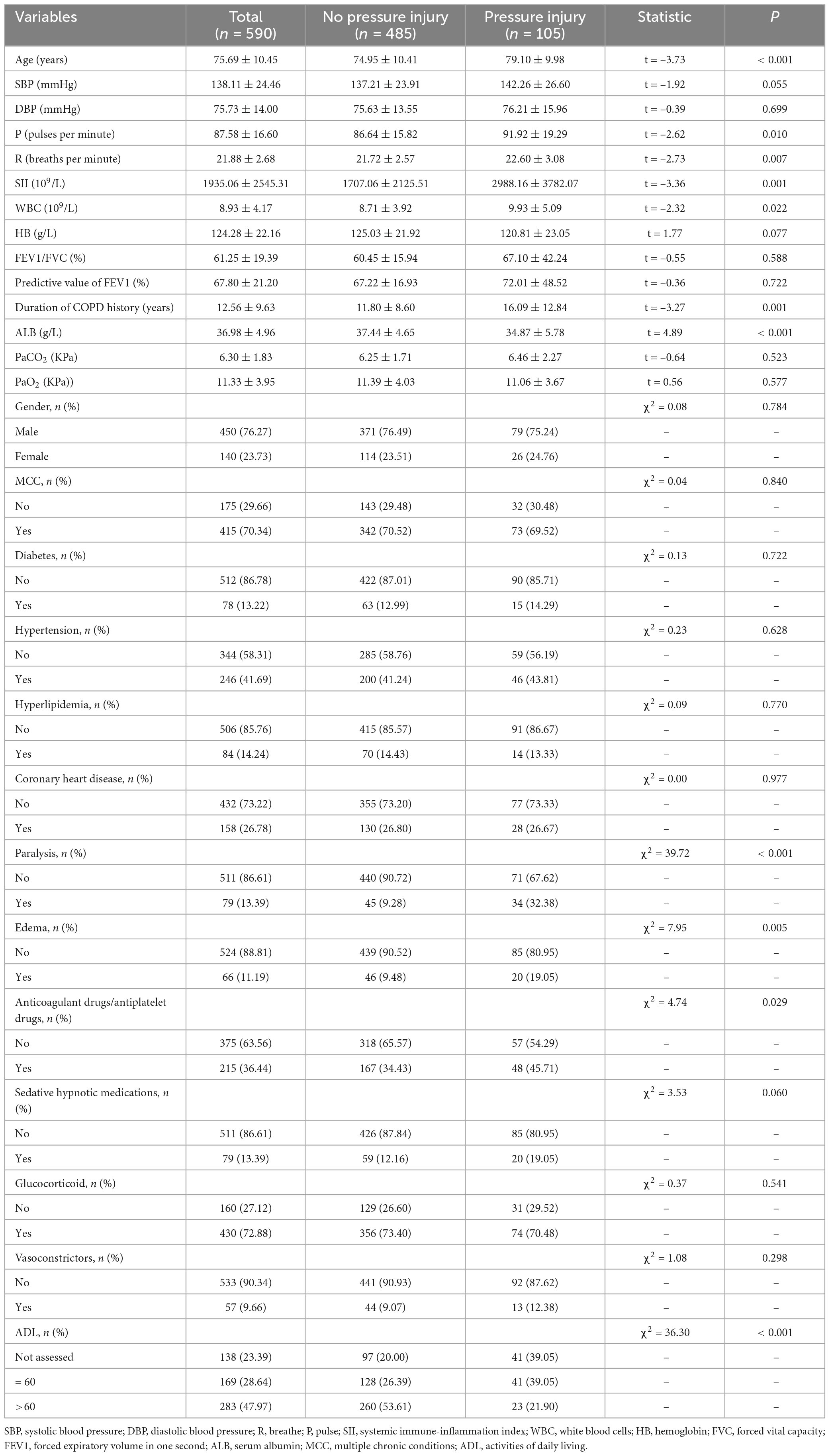

TABLE 2

Variables Total (n = 590) No pressure injury (n = 485) Pressure injury (n = 105) Statistic P
Age (years) 75.69 ± 10.45 74.95 ± 10.41 79.10 ± 9.98 t = –3.73 < 0.001
SBP (mmHg) 138.11 ± 24.46 137.21 ± 23.91 142.26 ± 26.60 t = –1.92 0.055
DBP (mmHg) 75.73 ± 14.00 75.63 ± 13.55 76.21 ± 15.96 t = –0.39 0.699
P (pulses per minute) 87.58 ± 16.60 86.64 ± 15.82 91.92 ± 19.29 t = –2.62 0.010
R (breaths per minute) 21.88 ± 2.68 21.72 ± 2.57 22.60 ± 3.08 t = –2.73 0.007
SII (109/L) 1935.06 ± 2545.31 1707.06 ± 2125.51 2988.16 ± 3782.07 t = –3.36 0.001
WBC (109/L) 8.93 ± 4.17 8.71 ± 3.92 9.93 ± 5.09 t = –2.32 0.022
HB (g/L) 124.28 ± 22.16 125.03 ± 21.92 120.81 ± 23.05 t = 1.77 0.077
FEV1/FVC (%) 61.25 ± 19.39 60.45 ± 15.94 67.10 ± 42.24 t = –0.55 0.588
Predictive value of FEV1 (%) 67.80 ± 21.20 67.22 ± 16.93 72.01 ± 48.52 t = –0.36 0.722
Duration of COPD history (years) 12.56 ± 9.63 11.80 ± 8.60 16.09 ± 12.84 t = –3.27 0.001
ALB (g/L) 36.98 ± 4.96 37.44 ± 4.65 34.87 ± 5.78 t = 4.89 < 0.001
PaCO2 (KPa) 6.30 ± 1.83 6.25 ± 1.71 6.46 ± 2.27 t = –0.64 0.523
PaO2 (KPa)) 11.33 ± 3.95 11.39 ± 4.03 11.06 ± 3.67 t = 0.56 0.577
Gender, n (%) χ2 = 0.08 0.784
Male 450 (76.27) 371 (76.49) 79 (75.24) – –
Female 140 (23.73) 114 (23.51) 26 (24.76) – –
MCC, n (%) χ2 = 0.04 0.840
No 175 (29.66) 143 (29.48) 32 (30.48) – –
Yes 415 (70.34) 342 (70.52) 73 (69.52) – –
Diabetes, n (%) χ2 = 0.13 0.722
No 512 (86.78) 422 (87.01) 90 (85.71) – –
Yes 78 (13.22) 63 (12.99) 15 (14.29) – –
Hypertension, n (%) χ2 = 0.23 0.628
No 344 (58.31) 285 (58.76) 59 (56.19) – –
Yes 246 (41.69) 200 (41.24) 46 (43.81) – –
Hyperlipidemia, n (%) χ2 = 0.09 0.770
No 506 (85.76) 415 (85.57) 91 (86.67) – –
Yes 84 (14.24) 70 (14.43) 14 (13.33) – –
Coronary heart disease, n (%) χ2 = 0.00 0.977
No 432 (73.22) 355 (73.20) 77 (73.33) – –
Yes 158 (26.78) 130 (26.80) 28 (26.67) – –
Paralysis, n (%) χ2 = 39.72 < 0.001
No 511 (86.61) 440 (90.72) 71 (67.62) – –
Yes 79 (13.39) 45 (9.28) 34 (32.38) – –
Edema, n (%) χ2 = 7.95 0.005
No 524 (88.81) 439 (90.52) 85 (80.95) – –
Yes 66 (11.19) 46 (9.48) 20 (19.05) – –
Anticoagulant drugs/antiplatelet drugs, n (%) χ2 = 4.74 0.029
No 375 (63.56) 318 (65.57) 57 (54.29) – –
Yes 215 (36.44) 167 (34.43) 48 (45.71) – –
Sedative hypnotic medications, n (%) χ2 = 3.53 0.060
No 511 (86.61) 426 (87.84) 85 (80.95) – –
Yes 79 (13.39) 59 (12.16) 20 (19.05) – –
Glucocorticoid, n (%) χ2 = 0.37 0.541
No 160 (27.12) 129 (26.60) 31 (29.52) – –
Yes 430 (72.88) 356 (73.40) 74 (70.48) – –
Vasoconstrictors, n (%) χ2 = 1.08 0.298
No 533 (90.34) 441 (90.93) 92 (87.62) – –
Yes 57 (9.66) 44 (9.07) 13 (12.38) – –
ADL, n (%) χ2 = 36.30 < 0.001
Not assessed 138 (23.39) 97 (20.00) 41 (39.05) – –
= 60 169 (28.64) 128 (26.39) 41 (39.05) – –
>60 283 (47.97) 260 (53.61) 23 (21.90) – –

Baseline characteristics of the training group.

SBP, systolic blood pressure; DBP, diastolic blood pressure; R, breathe; P, pulse; SII, systemic immune-inflammation index; WBC, white blood cells; HB, hemoglobin; FVC, forced vital capacity; FEV1, forced expiratory volume in one second; ALB, serum albumin; MCC, multiple chronic conditions; ADL, activities of daily living.

3.2 Univariate and multivariate analyses

Table 3 summarizes the results of the univariate and multivariate analyses for the training group. Variables with P < 0.05 in the baseline analysis of the training group were selected for inclusion in the univariate logistic regression analysis. The univariate analysis indicated that SII, age, respiratory rate (R), pulse rate (P), white blood cell count (WBC), duration of COPD history, ALB, paralysis, edema, ADL score, and use of anticoagulant/antiplatelet drugs were significantly associated with the occurrence of PI in COPD patients.

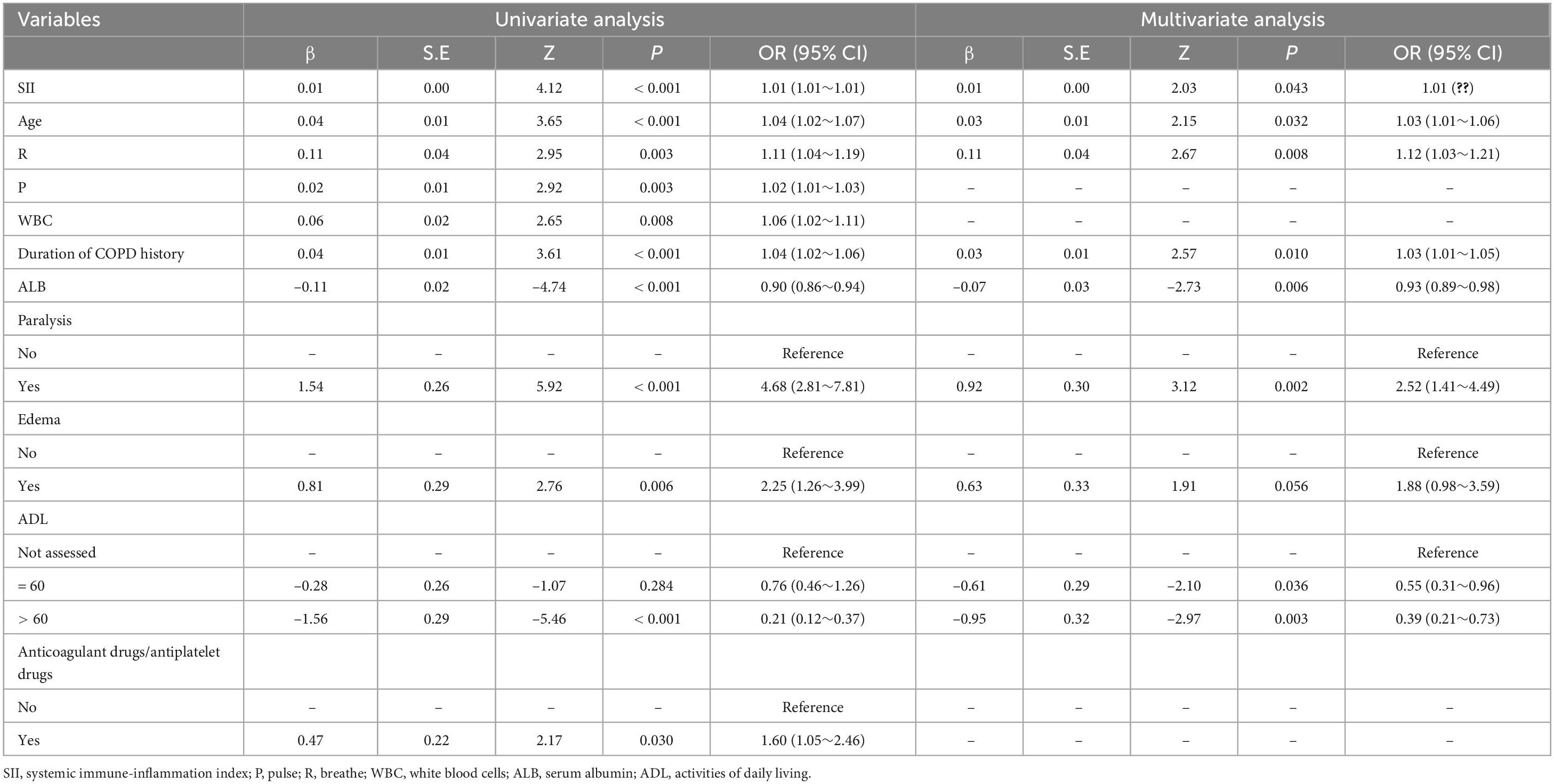

TABLE 3

Variables Univariate analysis Multivariate analysis
β S.E Z P OR (95% CI) β S.E Z P OR (95% CI)
SII 0.01 0.00 4.12 < 0.001 1.01 (1.01∼1.01) 0.01 0.00 2.03 0.043 1.01 (1.01∼1.01)
Age 0.04 0.01 3.65 < 0.001 1.04 (1.02∼1.07) 0.03 0.01 2.15 0.032 1.03 (1.01∼1.06)
R 0.11 0.04 2.95 0.003 1.11 (1.04∼1.19) 0.11 0.04 2.67 0.008 1.12 (1.03∼1.21)
P 0.02 0.01 2.92 0.003 1.02 (1.01∼1.03) – – – – –
WBC 0.06 0.02 2.65 0.008 1.06 (1.02∼1.11) – – – – –
Duration of COPD history 0.04 0.01 3.61 < 0.001 1.04 (1.02∼1.06) 0.03 0.01 2.57 0.010 1.03 (1.01∼1.05)
ALB –0.11 0.02 –4.74 < 0.001 0.90 (0.86∼0.94) –0.07 0.03 –2.73 0.006 0.93 (0.89∼0.98)
Paralysis
No – – – – Reference – – – – Reference
Yes 1.54 0.26 5.92 < 0.001 4.68 (2.81∼7.81) 0.92 0.30 3.12 0.002 2.52 (1.41∼4.49)
Edema
No – – – – Reference – – – – Reference
Yes 0.81 0.29 2.76 0.006 2.25 (1.26∼3.99) 0.63 0.33 1.91 0.056 1.88 (0.98∼3.59)
ADL
Not assessed – – – – Reference – – – – Reference
= 60 –0.28 0.26 –1.07 0.284 0.76 (0.46∼1.26) –0.61 0.29 –2.10 0.036 0.55 (0.31∼0.96)
> 60 –1.56 0.29 –5.46 < 0.001 0.21 (0.12∼0.37) –0.95 0.32 –2.97 0.003 0.39 (0.21∼0.73)
Anticoagulant drugs/antiplatelet drugs
No – – – – Reference – – – – –
Yes 0.47 0.22 2.17 0.030 1.60 (1.05∼2.46) – – – – –

Univariate and multivariate analyses in the training group.

SII, systemic immune-inflammation index; P, pulse; R, breathe; WBC, white blood cells; ALB, serum albumin; ADL, activities of daily living.

In the multivariate logistic regression analysis, the following variables were identified as independent risk factors for the occurrence of PI in COPD patients:

  • •

    SII (p = 0.043; OR = 1.01)

  • •

    Age (p = 0.032; OR = 1.03)

  • •

    Respiratory rate (R) (p = 0.008; OR = 1.12)

  • •

    Duration of COPD history (p = 0.010; OR = 1.03)

  • •

    ALB (p = 0.006; OR = 0.93)

  • •

    Paralysis (p < 0.002; OR = 2.43)

  • •

    ADL score > 60 (p < 0.003; OR = 0.39)

3.3 Development of the nomogram model for predicting PI in COPD patients

Based on the results of the multivariate analysis, a nomogram model was developed to predict the occurrence of PI in COPD patients (Figure 1). The model incorporates eight variables: SII, age, respiratory rate, duration of COPD history, ALB, paralysis, edema, and ADL score. This nomogram allows for the calculation of PI risk in COPD patients.

FIGURE 1

FIGURE 1

Nomogram for predicting pressure injuries (PI) in chronic obstructive pulmonary disease (COPD) patients; R, breathe; SII, systemic immune-inflammation index; ALB, serum albumin; ADL, activities of daily living.

For example, applying the model to a 65 years-old COPD patient with a respiratory rate of 28 breaths/min, an SII of 1,000 × 109/L, an ALB of 45 g/L, the duration of COPD history was 10 years, paralysis, no edema, and an ADL score of 45 points yields a total score of 176. According to the nomogram, the predicted risk of PI occurrence for this patient is 33%.

3.4 Validation and predictive accuracy of the nomogram model

The predictive performance of the nomogram was validated in both the training and validation cohorts. Using R software, the AUC for the initial model (Model 1) in the training cohort was 0.64 (95% CI: 0.58–0.70), while the adjusted model (Model 2) improved the AUC to 0.77 (95% CI: 0.72–0.82). In the internal validation cohort, the AUC for Model 1 was 0.58 (95% CI: 0.49–0.67), while Model 2 improved the AUC to 0.77 (95% CI: 0.70–0.85). For the external validation cohort, the AUC for Model 1 was 0.57 (95% CI: 0.48–0.66), while Model 2 achieved an AUC of 0.73 (95% CI: 0.66–0.81) (Table 4).

TABLE 4

Data Model AUC (95% CI) Accuracy (95% CI) Sensitivity (95% CI) Specificity (95% CI)
Train Model 1 0.64 (0.58–0.70) 0.64 (0.60–0.68) 0.65 (0.60–0.69) 0.62 (0.53–0.71)
Model 2 0.77 (0.72–0.82) 0.76 (0.72–0.79) 0.78 (0.74–0.81) 0.66 (0.57–0.75)
Internal validation Model 1 0.58 (0.49–0.67) 0.56 (0.49–0.62) 0.52 (0.45–0.59) 0.69 (0.56–0.81)
Model 2 0.77 (0.70–0.85) 0.76 (0.71–0.81) 0.81 (0.75–0.86) 0.61 (0.48–0.74)
External validation Model 1 0.57 (0.48–0.66) 0.73 (0.68–0.77) 0.76 (0.72–0.80) 0.42 (0.28–0.56)
Model 2 0.73 (0.66–0.81) 0.64 (0.59–0.68) 0.62 (0.58–0.67) 0.77 (0.65–0.89)

Predictive performance analysis of the pressure injuries (PI) nomogram for chronic obstructive pulmonary disease (COPD) patients.

Model 1: SII; Model 2: SII; Age: R; Duration of COPD history: ALB; Paralysis: Edema; ADL. SII, systemic immune-inflammation index; R, breathe; ALB, serum albumin; ADL, activities of daily living.

For the training cohort, the accuracy, sensitivity, and specificity of Model 1 were 0.64 (95% CI: 0.60–0.68), 0.65 (95% CI: 0.60–0.69), and 0.62 (95% CI: 0.53–0.71), respectively. After adjustment, Model 2 demonstrated improved accuracy, sensitivity, and specificity of 0.76 (95% CI: 0.72–0.79), 0.78 (95% CI: 0.74–0.81), and 0.66 (95% CI: 0.56–0.81), respectively (Table 4).

The results indicate that SII is a reliable predictor of PI occurrence in COPD patients, and the adjusted Model 2 exhibits superior discriminatory ability (Figure 2). Calibration curves for the nomogram demonstrated good agreement between predicted and observed risks in the training cohort, as well as in the internal and external validation cohorts (Figure 3). The decision curve analysis showed that the net benefit of the predictive model was higher within the threshold probability range of 10–90% (Figure 4).

FIGURE 2

FIGURE 2

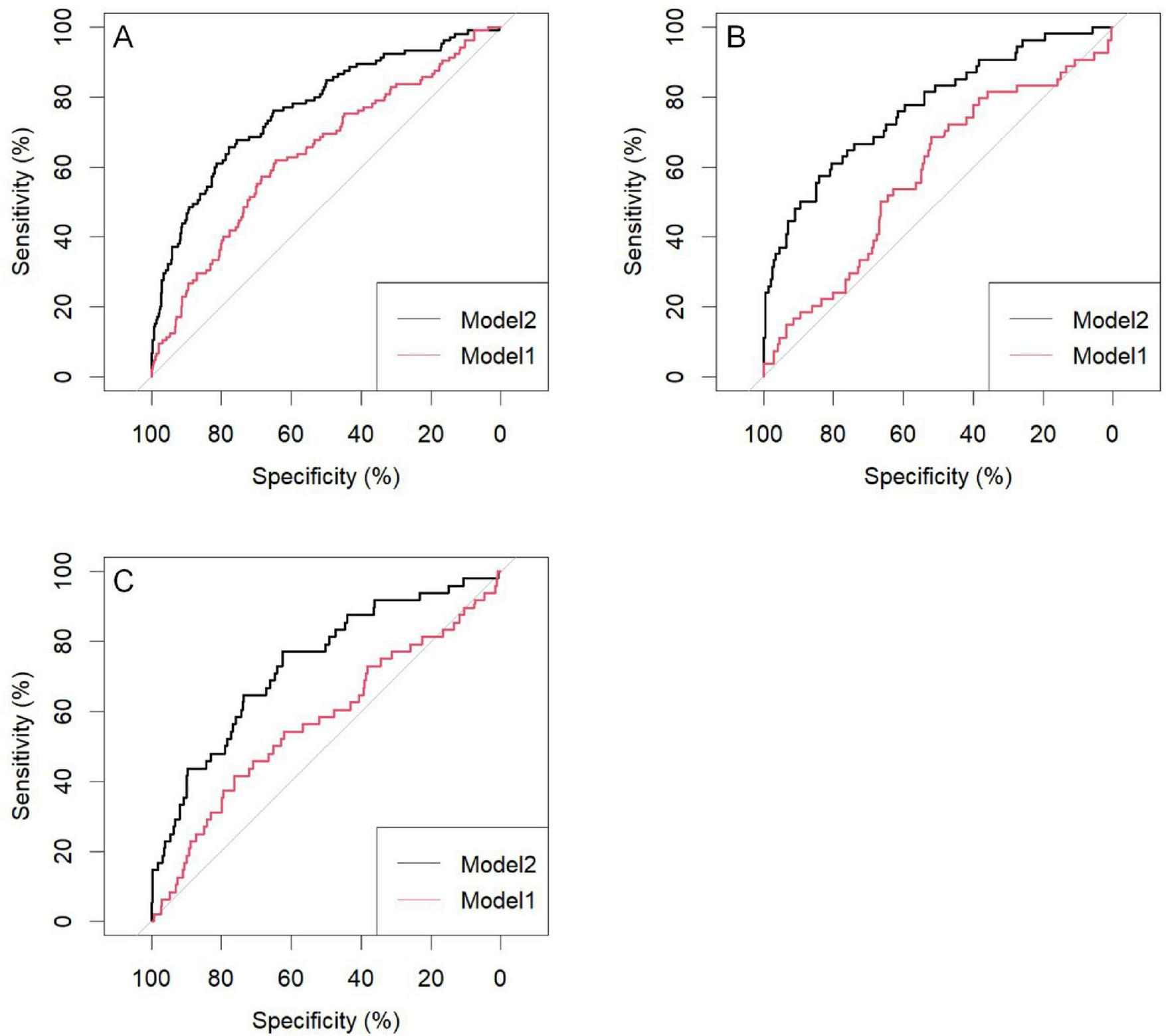

Area under the curve of the pressure injuries (PI) nomogram in chronic obstructive pulmonary disease (COPD) patients; (A) Training group; (B) Internal validation group; (C) External validation group; Model 1: SII; Model 2: SII: age; R: duration of COPD history; ALB: paralysis; Edema: ADL. SII, systemic immune-inflammation index; R, breathe; ALB, serum albumin; ADL, activities of daily living.

FIGURE 3

FIGURE 3

Optimized calibration plot of the nomogram for predicting pressure injuries (PI) probability in chronic obstructive pulmonary disease (COPD) patients; (A) Training group; (B) Internal validation group; (C) External validation group.

FIGURE 4

FIGURE 4

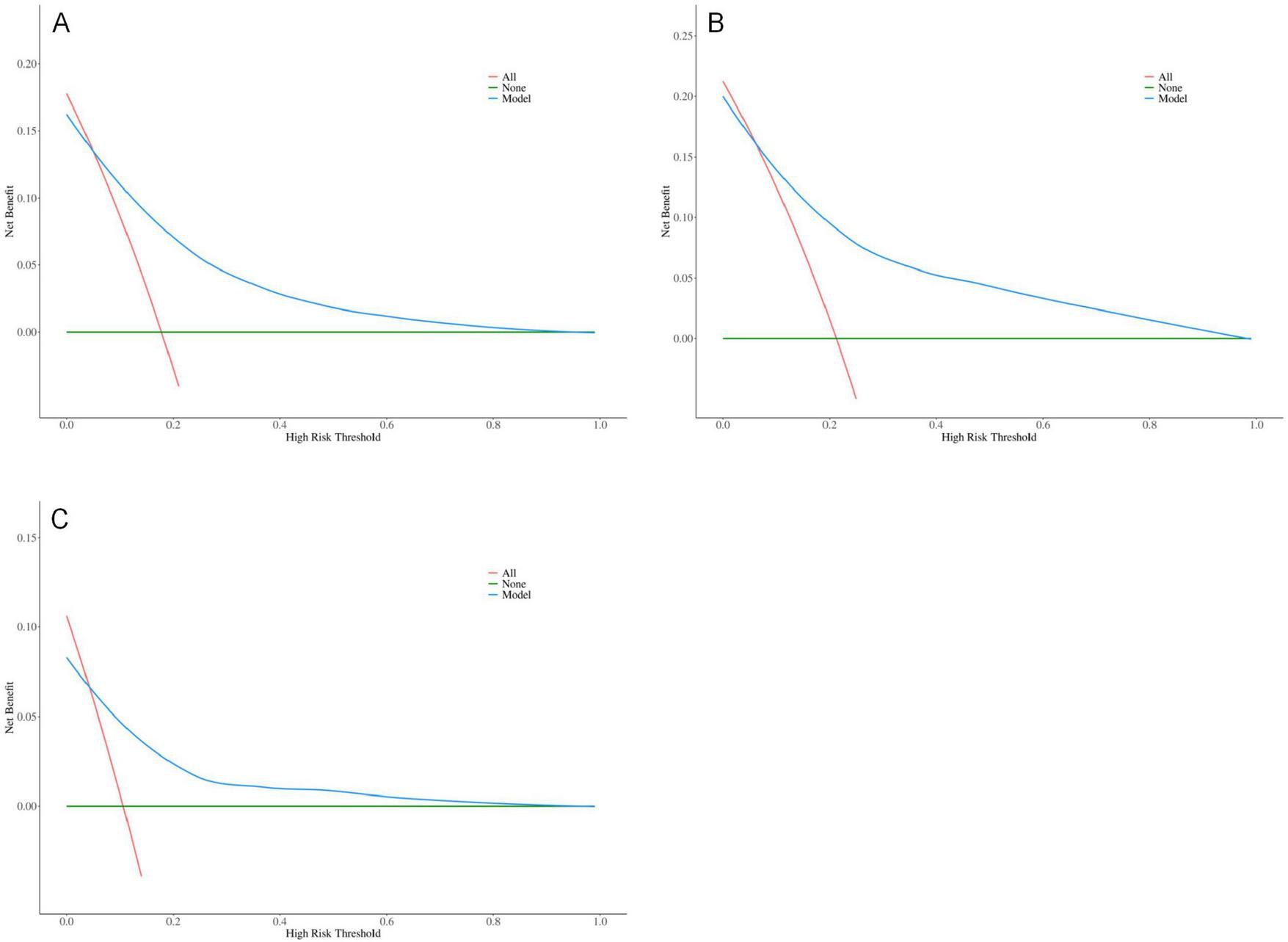

Optimized decision curve analysis of the pressure injuries (PI) nomogram for chronic obstructive pulmonary disease (COPD) patients; (A) Training group; (B) Internal validation group; (C) External validation group.

4 Discussion

Chronic obstructive pulmonary disease is a significant global health issue characterized by high incidence, disability, and mortality rates. With improvements in economic conditions, genetics, risk exposures, and living standards since the 20th century, COPD has become the third leading cause of death worldwide (23). This disease not only severely impacts physical and mental health but also imposes a substantial economic burden on both families and societies. It is projected that by 2030, the global economic cost of COPD will rise to 4.8 billion USD (24). Once COPD develops, it is irreversible, and management primarily focuses on alleviating symptoms and slowing disease progression through medication and appropriate exercise. As the prevalence of COPD increases, the incidence of PI among these patients also rises. The primary causes of PI in COPD patients are multifactorial (25): (1) Posture and Ventilation: During acute exacerbations or in patients with heart failure, COPD patients often adopt semi-reclined or sitting positions to alleviate dyspnea. These positions help reduce respiratory resistance, improve lung ventilation, and ease the heart’s workload. However, they place pressure on specific body regions, such as the sacral area, trochanter, and heels, increasing the risk of PI. (2) CO2 Retention: Many COPD patients experience CO2 retention, which causes skin capillaries to dilate, making the skin moist and warm. This condition further exacerbates the risk of PI development. (3) Shear Forces: Elevation of the head by 50–60 degrees increases shear forces on the skin, especially when patients are repositioned in semi-reclined positions, leading to frictional damage and heightened risk of PI. (4) Nutritional Deficiency: Reduced oxygen levels and CO2 retention contribute to mucosal damage, leading to decreased intake and poor digestion. These conditions result in nutritional deficiencies that increase the risk of PI. (5) Edema: Due to factors such as nutritional deficiencies, hypoalbuminemia, and heart failure, COPD patients often develop edema, particularly in those who are obese. Pressure and friction from edema can contribute to PI formation. (6) Age: Research has shown that 78% of PI patients are over 60 years old, a demographic that aligns with the typical age range of COPD patients. It can be seen that there are various factors contributing to pressure injuries.

In this study, we investigated the correlation between the SII and PI in patients with COPD. Based on SII, we constructed a bar chart model to predict the probability of PI occurrence in COPD patients. We found that the SII, age, respiratory rate, duration of COPD history, ALB, paralysis, and ADL are independent risk factors for the development of PI in COPD patients, and SII is a reliable predictor of PI development in COPD patients.

We analyzed the clinical data of 844 COPD patients, with 590 patients in the training cohort and 254 in the internal validation cohort. No statistically significant differences were found in clinical features between the training group and the internal validation group. Univariate analysis found that SII, age, respiratory rate, pulse rate, WBC, duration COPD history, ALB, paralysis, edema, ADL score, and use of anticoagulant/antiplatelet drugs were associated with the occurrence of PI in COPD patients. Multivariate logistic regression analysis found that SII, age, respiratory rate, duration of COPD history ALB, paralysis, and ADL were independent risk factors for the occurrence of PI in COPD patients. Based on the results of the multivariate analysis, a nomogram model of PI in COPD patients was established to calculate the occurrence probability of PI in COPD patients. Calibration curves demonstrated strong consistency between predicted and observed risks across all cohorts, indicating high predictive accuracy and reliability. Previous studies have shown that SII, ALB, ADL score, edema, and other factors are independent risk factors for PI, with ALB being a key indicator of long-term nutritional status and a predictor of PI occurrence (26, 27). In past, surveys by Baumgarten and Bengquist reported that their research found that the incidence of PI was 2.5 times higher in those who were limited to chairs or beds than in patients who could move around normally, which also shows that the ability to live independently is related to injuries, similar to the results of this study, and that physical activity and mobility are all reduced, and daily activities need to rely on others to complete, thus increasing risk factors such as skin pressure and the occurrence of PI (28, 29). At the same time, Edsberg LE have shown that edema is a risk factor for PI, edema leads to circulatory disorders, making the skin pale and cold (30). The skin’s resistance decreases, making it prone to secondary PI. SII is an indicator of inflammation, and earlier existing studies have shown that inflammatory markers can serve as the risk prediction of pressure injury, which is consistent with the results of this study (31–35). The pathophysiology of PI is complex and not fully understood. When normal people exercise or receive an external force, when these forces are excessive and (or) the body is not fully prepared, it can lead to tissue rupture and ulcers. Pressure-induced damage can be regarded as a biomechanical problem, but external force alone is often not sufficient to cause damage. While mechanical forces alone can cause tissue breakdown, clinical events often involve a cascade of responses influenced by both internal and external factors. Several hypotheses regarding the pathophysiology of PI suggest that ischemia/reperfusion injury, increased capillary permeability, soft tissue edema, and inflammatory responses all contribute to PI development (36–45). Recent study have highlighted the pivotal role of neutrophil-mediated inflammatory responses in ischemia/reperfusion injury (45). However, ischemia/reperfusion is the most important mechanism for the formation of pressure injuries (46). The prolonged expression of inflammatory markers results in the production of destructive enzymes that degrade cellular matrices, thereby hindering wound healing. Consequently, understanding the inflammatory markers and apoptotic mechanisms involved in deep tissue injury caused by PI offers valuable insights into potential therapeutic targets for prevention and treatment.

However, there are limitations to this study. As a cross-sectional, dual-center analysis, this study does not establish a causal relationship between the identified risk factors and the development of PI in COPD patients. Future large-scale, prospective randomized controlled trials are needed to further elucidate the relationship between SII and PI in COPD patients. These studies should aim to identify critical threshold values for SII and investigate the underlying biological mechanisms that could facilitate early detection and targeted prevention strategies for PI in this patient population.

5 Conclusion

This study identifies the SII, age, respiratory rate, paralysis, Duration of COPD history, ALB, and ADL as independent risk factors for the occurrence of PI in patients with COPD. A nomogram model based on the SII was developed to predict the risk of PI in COPD patients, with both internal and external validations confirming its accuracy. The SII is a reliable predictor for PI occurrence in COPD patients, and the nomogram model demonstrates strong predictive performance.

Statements

Data availability statement

The original contributions presented in this study are included in this article/supplementary material, further inquiries can be directed to the corresponding authors.

Ethics statement

The studies involving humans were approved by the Medical Ethics Committee of the Second Affiliated Hospital of Guangdong Medical University (PJKT2024-050). The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study.

Author contributions

YC: Writing – original draft, Writing – review and editing. HC: Writing – original draft, Writing – review and editing. ZC: Writing – original draft, Writing – review and editing. QC: Writing – original draft, Writing – review and editing. YS: Methodology, Writing – review and editing. FC: Methodology, Writing – review and editing. JP: Methodology, Writing – review and editing. YY: Methodology, Writing – review and editing. ZH: Formal Analysis, Writing – review and editing. WL: Formal Analysis, Writing – review and editing. HL: Formal Analysis, Writing – review and editing. TS: Formal Analysis, Writing – review and editing. JC: Formal Analysis, Writing – review and editing. WC: Resources, Writing – review and editing. BZ: Resources, Writing – review and editing. RC: Resources, Writing – review and editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This study was funded by the Natural Science Foundation of Basic and Applied Basic Research Fund of Guangdong Province (2022A1515012375), the Guangdong Medical Research Fund Project (A2024728, A2024723), the Science and Technology Development Special Project of Zhanjiang City (2022A01142, 2022A01110, 2021A05086, 2021A05088), and the Guangdong Medical University Clinical and Basic Science Innovation Special Fund (GDMULCJC2024075, GDMULCJC2024076, GDMULCJC2024083).

Acknowledgments

We would also like to thank everyone who has helped with our research.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The authors declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1.

    Christenson S Smith B Bafadhel M Putcha N . Chronic obstructive pulmonary disease.Lancet. (2022) 399:2227–42. 10.1016/S0140-6736(22)00470-6

  • 2.

    Wang Z Locantore N Haldar K Ramsheh M Beech A Ma W et al Inflammatory endotype-associated airway microbiome in chronic obstructive pulmonary disease clinical stability and exacerbations: A multicohort longitudinal analysis. Am J Respir Crit Care Med. (2021) 203:1488–502. 10.1164/rccm.202009-3448OC

  • 3.

    Zhang Y Tan X Hu S Cui Z Chen W . Relationship between systemic immune-inflammation index and risk of respiratory failure and death in COPD: A retrospective cohort study based on the MIMIC-IV database.Int J Chron Obstruct Pulmon Dis. (2024) 19:459–73. 10.2147/COPD.S446364

  • 4.

    Edsberg L Black J Goldberg M McNichol L Moore L Sieggreen M . Revised national pressure ulcer advisory panel pressure injury staging system: Revised pressure injury staging system.J Wound Ostomy Continence Nurs. (2016) 43:585–97. 10.1097/WON.0000000000000281

  • 5.

    Casimiro C García-de-Lorenzo A Usán L . Prevalence of decubitus ulcer and associated risk factors in an institutionalized Spanish elderly population.Nutrition. (2002) 18:408–14. 10.1016/s0899-9007(01)00805-x

  • 6.

    Donini L De Felice M Tagliaccica A De Bernardini L Cannella C . Nutritional status and evolution of pressure sores in geriatric patients.J Nutr Health Aging. (2005) 9:446–54.

  • 7.

    Jiang Q Li X Qu X Liu Y Zhang L Su C et al The incidence, risk factors and characteristics of pressure ulcers in hospitalized patients in China. Int J Clin Exp Pathol. (2014) 7:2587–94.

  • 8.

    Westbrook J Li L Lehnbom E Baysari M Braithwaite J Burke R et al What are incident reports telling us? A comparative study at two Australian hospitals of medication errors identified at audit, detected by staff and reported to an incident system. Int J Qual Health Care. (2015) 27:1–9. 10.1093/intqhc/mzu098

  • 9.

    Black J Baharestani M Cuddigan J Dorner B Edsberg L Langemo D et al National pressure ulcer advisory panel’s updated pressure ulcer staging system. Adv Skin Wound Care. (2007) 20:269–74. 10.1097/01.ASW.0000269314.23015.e9

  • 10.

    Tschannen D Anderson C . The pressure injury predictive model: A framework for hospital-acquired pressure injuries.J Clin Nurs. (2020) 29:1398–421. 10.1111/jocn.15171

  • 11.

    Jin F Fu Y Zhang Y Yan J Zhou K Liu H . Effect of intraoperative pressure ulcer preventive nursing on inflammatory markers in patients with high-risk pressure ulcers: A protocol of systematic review and meta-analysis.Medicine. (2020) 99:e20254. 10.1097/MD.0000000000020254

  • 12.

    Khlifi L Graiet H Sahli S Ben-Hadj-Mohamed M Khelil S Bouzidi N et al Evidence of metabolic imbalance and oxidative stress among patients suffering from pressure ulcers. J Dermatolog Treat. (2019) 30:414–21. 10.1080/09546634.2018.1527991

  • 13.

    Hu B Yang X Xu Y Sun Y Sun C Guo W et al Systemic immune-inflammation index predicts prognosis of patients after curative resection for hepatocellular carcinoma. Clin Cancer Res. (2014) 20:6212–22. 10.1158/1078-0432.CCR-14-0442

  • 14.

    Jiao Y Zhang X Liu M Sun Y Ma Z Gu X et al Systemic immune-inflammation index within the first postoperative hour as a predictor of severe postoperative complications in upper abdominal surgery: A retrospective single-center study. BMC Gastroenterol. (2022) 22:403. 10.1186/s12876-022-02482-9

  • 15.

    He R Zhu Q Wang Y Chen G Chen S Wang Y . Influence of respiratory function training under the mode of mutual-assisted patients on postoperative pulmonary infection and immune function on lung cancer.Am J Transl Res. (2021) 13:9260–8.

  • 16.

    Ye C Yuan L Wu K Shen B Zhu C . Association between systemic immune-inflammation index and chronic obstructive pulmonary disease: A population-based study.BMC Pulm Med. (2023) 23:295. 10.1186/s12890-023-02583-5

  • 17.

    Barnes P . Inflammatory endotypes in COPD.Allergy. (2019) 74:1249–56. 10.1111/all.13760

  • 18.

    Barnes P . Inflammatory mechanisms in patients with chronic obstructive pulmonary disease.J Allergy Clin Immunol. (2016) 138:16–27. 10.1016/j.jaci.2016.05.011

  • 19.

    Lodge K Vassallo A Liu B Long M Tong Z Newby P et al Hypoxia increases the potential for neutrophil-mediated endothelial damage in chronic obstructive pulmonary disease. Am J Respir Crit Care Med. (2022) 205:903–16. 10.1164/rccm.202006-2467OC

  • 20.

    Mallah H Ball S Sekhon J Parmar K Nugent K . Platelets in chronic obstructive pulmonary disease: An update on pathophysiology and implications for antiplatelet therapy.Respir Med. (2020) 171:106098. 10.1016/j.rmed.2020.106098

  • 21.

    Agustí A Celli B Criner G Halpin D Anzueto A Barnes P et al Global initiative for chronic obstructive lung disease 2023 report: GOLD executive summary. Am J Respir Crit Care Med. (2023) 207:819–37. 10.1164/rccm.202301-0106PP

  • 22.

    Kottner J Cuddigan J Carville K Balzer K Berlowitz D Law S et al Prevention and treatment of pressure ulcers/injuries: The protocol for the second update of the international Clinical Practice Guideline 2019. J Tissue Viabil. (2019) 28:51–8. 10.1016/j.jtv.2019.01.001

  • 23.

    Balbirsingh V Mohammed A Turner A Newnham M . Cardiovascular disease in chronic obstructive pulmonary disease: A narrative review.Thorax. (2022) [Online ahead of print]. 10.1136/thoraxjnl-2021-218333

  • 24.

    Rossaki F Hurst J van Gemert F Kirenga B Williams S Khoo E et al Strategies for the prevention, diagnosis and treatment of COPD in low- and middle- income countries: The importance of primary care. Expert Rev Respir Med. (2021) 15:1563–77. 10.1080/17476348.2021.1985762

  • 25.

    Dhainaut J Bons J Bricard C Monsallier J . Improved oxygenation in patients with extensive unilateral pneumonia using the lateral decubitus position.Thorax. (1980) 35:792–3. 10.1136/thx.35.10.792

  • 26.

    Senturan L Karabacak U Ozdilek S Alpar S Bayrak S Yüceer S et al The relationship among pressure ulcers, oxygenation, and perfusion in mechanically ventilated patients in an intensive care unit. J Wound Ostomy Continence Nurs. (2009) 36:503–8. 10.1097/WON.0b013e3181b35e83

  • 27.

    Idowu O Yinusa W Gbadegesin S Adebule G . Risk factors for pressure ulceration in a resource constrained spinal injury service.Spinal Cord. (2011) 49:643–7. 10.1038/sc.2010.175

  • 28.

    Baumgarten M Margolis D van Doorn C Gruber-Baldini A Hebel J Zimmerman S et al Black/White differences in pressure ulcer incidence in nursing home residents. J Am Geriatr Soc. (2004) 52:1293–8. 10.1111/j.1532-5415.2004.52358.x

  • 29.

    Bergquist S . Pressure ulcer prediction in older adults receiving home health care: Implications for use with the OASIS.Adv Skin Wound Care. (2003) 16:132–9. 10.1097/00129334-200305000-00011

  • 30.

    Edsberg L Langemo D Baharestani M Posthauer M Goldberg M . Unavoidable pressure injury: State of the science and consensus outcomes.J Wound Ostomy Continence Nurs. (2014) 41:313–34. 10.1097/WON.0000000000000050

  • 31.

    Xu W Yu X Jiang H Wang Y Ye Y . A nomogram prediction of pressure injury in critical ill patients: A retrospective cohort study.Int Wound J. (2022) 19:826–33. 10.1111/iwj.13680

  • 32.

    Choi B Kim M Kim S . Risk prediction models for the development of oral-mucosal pressure injuries in intubated patients in intensive care units: A prospective observational study.J Tissue Viability. (2020) 29:252–7. 10.1016/j.jtv.2020.06.002

  • 33.

    Sprigle S McNair D Sonenblum S . Pressure ulcer risk factors in persons with mobility-related disabilities.Adv Skin Wound Care. (2020) 33:146–54. 10.1097/01.ASW.0000653152.36482.7d

  • 34.

    Xu J Chen D Deng X Pan X Chen Y Zhuang X et al Development and validation of a machine learning algorithm-based risk prediction model of pressure injury in the intensive care unit. Int Wound J. (2022) 19:1637–49. 10.1111/iwj.13764

  • 35.

    McEvoy N Patton D Curley G Boland F Kearney C Hogan G et al Biomarkers for the early detection of pressure ulcers in the intensive care setting: A comparison between sub-epidermal moisture measurements and interleukin-1α. Int Wound J. (2023) 20:831–44. 10.1111/iwj.13930

  • 36.

    Michocki R Lamy P . The care of decubitus ulcers pressure sores.J Am Geriatr Soc. (1976) 24(5):217–24. 10.1111/j.1532-5415.1976.tb06782.x

  • 37.

    Grey J Harding K Enoch S . Pressure ulcers.BMJ. (2006) 332:472–5. 10.1136/bmj.332.7539.472

  • 38.

    Moore Z Patton D Rhodes S O’Connor T . Subepidermal moisture (SEM) and bioimpedance: A literature review of a novel method for early detection of pressure-induced tissue damage (pressure ulcers).Int Wound J. (2017) 14:331–7. 10.1111/iwj.12604

  • 39.

    Mak A Zhang M Tam E . Biomechanics of pressure ulcer in body tissues interacting with external forces during locomotion.Annu Rev Biomed Eng. (2010) 12:29–53. 10.1146/annurev-bioeng-070909-105223

  • 40.

    Thomas D . Does pressure cause pressure ulcers? An inquiry into the etiology of pressure ulcers.J Am Med Dir Assoc. (2010) 11:397–405. 10.1016/j.jamda.2010.03.007

  • 41.

    Suleman L Percival S . Biofilm-infected pressure ulcers: Current knowledge and emerging treatment strategies.Adv Exp Med Biol. (2015) 831:29–43. 10.1007/978-3-319-09782-4_3

  • 42.

    Dealey C Brindle C Black J Alves P Santamaria N Call E et al Challenges in pressure ulcer prevention. Int Wound J. (2015) 12:309–12. 10.1111/iwj.12107

  • 43.

    Dinsdale S . Decubitus ulcers: Role of pressure and friction in causation.Arch Phys Med Rehabil. (1974) 55:147–52.

  • 44.

    Brienza D Antokal S Herbe L Logan S Maguire J Van Ranst J et al Friction-induced skin injuries-are they pressure ulcers? An updated NPUAP white paper. J Wound Ostomy Continence Nurs. (2015) 42:62–4. 10.1097/WON.0000000000000102

  • 45.

    Jiang L Tu Q Wang Y Zhang E . Ischemia-reperfusion injury-induced histological changes affecting early stage pressure ulcer development in a rat model.Ostomy Wound Manage. (2011) 57:55–60.

  • 46.

    Siu P Tam E Teng B Pei X Ng J Benzie I et al Muscle apoptosis is induced in pressure-induced deep tissue injury. J Appl Physiol. (2009) 107:1266–75. 10.1152/japplphysiol.90897.2008

Summary

Keywords

systemic immune-inflammation index, COPD, pressure injury, nomogram, inflammation

Citation

Cai Y, Chen H, Chen Z, Chen Q, Su Y, Chen F, Pan J, Yang Y, Hu Z, Li W, Liao H, Sun T, Cheng J, Chen W, Zhang B and Chen R (2025) Nomogram model for predicting pressure injury in COPD patients using SII: a Chinese clinical study. Front. Med. 12:1564099. doi: 10.3389/fmed.2025.1564099

Received

22 January 2025

Accepted

27 March 2025

Published

14 April 2025

Volume

12 - 2025

Edited by

Ozgur Karcioglu, University of Health Sciences (Turkey), Türkiye

Reviewed by

Buğra İlhan, Kırıkkale University, Türkiye

Adnan Karadaş, Ministry of Health (Turkey), Türkiye

Updates

Copyright

*Correspondence: Wenliang Chen, Baozhi Zhang, Riken Chen,

†These authors have contributed equally to this work

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
