Abstract
Almost all DNA polymerases (pols) exhibit bell-shaped activity curves as a function of both pH and Mg2+ concentration. The pol activity is reduced when the pH deviates from the optimal value. When the pH is too low the concentration of a deprotonated general base (namely, the attacking 3′-hydroxyl of the 3′ terminal residue of the primer strand) is reduced exponentially. When the pH is too high the concentration of a protonated general acid (i.e., the leaving pyrophosphate group) is reduced. Similarly, the pol activity also decreases when the concentration of the divalent metal ions deviates from its optimal value: when it is too low, the binding of the two catalytic divalent metal ions required for the full activity is incomplete, and when it is too high a third divalent metal ion binds to pyrophosphate, keeping it in the replication complex longer and serving as a substrate for pyrophosphorylysis within the complex. Currently, there is a controversy about the role of the third metal ion which we will address in this review.
Introduction
The first DNA polymerase (pol) was discovered by Arthur Kornberg and others (; ), and was shown to be responsible for faithfully copying double-stranded DNA through Watson-Crick basepairing between template and primer strands and between the templating nucleotide and incoming dNTPs. It catalyzed the polymerization reaction with a rate enhancement of over 1017-fold relative to the uncatalyzed reaction (; ). This unique ability for rate enhancement can be attributed to the stabilization provided by this enzyme specifically only to the transition state (TS) relative to the enzyme-substrate (ES) or enzyme-product (EP) complexes as shown by the steady-state kinetics (Figure 1) (; ). The pol-catalyzed reaction absolutely requires divalent Mg2+ ions (; ; ). When the logarithm of the steady-state rate was plotted as a function of [Mg2+], the slope was +2.0 (not 3) before [Mg2+] reached the maximal rate (). Beyond its optimal concentration, the rate decreased linearly with the increasing concentration, with a slope of -1.0 in both linear and log plots (; ; ; ). The slopes of these plots suggest that pols bind two divalent metal ions for catalytic enhancement and a third divalent metal ion for inhibition according to classic enzymology ().

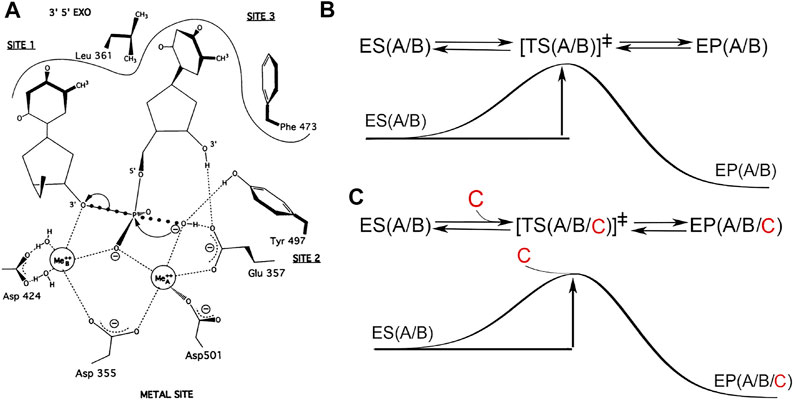

FIGURE 1
Based on extensive biochemical data, Thomas A. Steitz proposed a two-metal-ion catalytic mechanism for phosphoryltransfer (PT) reactions (Figure 1) (). More recently, the discovery that a third divalent metal ion binds to the two products in the pol EP complex (but not to the enzyme itself or to the ES complex) led to the proposal of an alternate mechanism that assumes that the third divalent metal ion is directly invovled in catalysis of the chemical step of the pol reaction (; ). We have some concerns about this proposed mechanism and about the underlying assumption because we predict that this third metal ion could also bind the two products outside of an enzyme in solution in the uncatalyzed reaction in the same way as it was observed within the pol complex, without directly interacting with the enzyme itself. If this is the case, this metal ion cannot be assigned to be part of the enzyme-catalyzed rate enhancement in the pol reaction.
The pol active site is formed by several negatively charged residues that serve to bind metal ions. These metal ions and positively charged residues bind triphosphate groups or pyrophosphates and phosphate groups from substrates and products. These charged residues are kept apart from each other so that no direct interaction can occur between them. As a result, substrates and products can readily bind to these charged pol active site residues. Whether simple electrostatic potential (ESP) interactions play an important role in the enzyme-catalyzed PT reactions remains debatable because a similar ESP interaction could be generated by the metal ions outside of an enzyme when bound in a similar manner to the substrates in non-enzymatic reaction (). However, the ESP of an enzyme active site cannot be simply described by positive or negative charges only. Rather, it is composed of many long-range ESP terms from all charged residues of enzymes nearby in so-called local ESP frustration with very steep gradients (). It is likely that these unique ESP gradients help to improve the base selectivity of pols on the basis of small energetic differences in basepairing geometry.
Two-Metal-Ion Mechanism in Enzyme-Catalyzed Phosphotransfer Reactions
In 1985 Thomas Steitz and others determined the first polymerase structure, namely, the large fragment of E. coli pol I or the Klenow fragment (KF) in complex with dTMP bound in the exonuclease active site (; ; ). Following that in 1991 Lorena Beese and Thomas Steitz provided direct evidence for the two-metal-ion catalysis for a PT reaction at the exonuclease active site of the KF (). In 1992 Thomas Steitz and others published the second DNA polymerase structure, HIV-1 RT in complex with an inhibitor, and suggested that all DNA polymerases exhibit a hand-like architecture and have highly conserved carboxylates for binding of two metal ions (). In 1993 Thomas and Joan Steitz further extended the requirement for two metal ions that are necessary for catalytic RNA to have a high catalytic function (Figure 1) (). The two-metal-ion catalytic mechanism has been found to be involved in many known enzymatic processing of nucleic acids ().
Human/rat pol β and RB69 DNA pol are the three most extensively studied DNA pols using both X-ray crystallography (by Joseph Kraut, Samuel Wilson and others) and biochemistry (by Zucai Suo, Min-Daw Tsai and others), as well as by combined approaches (used by us and others) (; ; ; ; ; ; ; ; ; ; ; ; ; ; ). Other pols that have been extensively studied using both kinetic and structural methods include Dpo4, which binds additional divalent metal ions to the primer/template DNA duplex outside the pol active site (; ). The fact that these metal ions bind makes it very challenging to correlate structures with kinetics, particularly in the chemical step of the pol reaction. In addition to catalysis, divalent metal ions can also modulate noncovalent kinetic behaviors ().
The Observation of a Third Metal Ion in the Enzyme-Product Complexes of DNA Polymerases
Wei Yang and others were the first to observe binding of a third divalent metal ion in replication complexes of low-efficiency and low-fidelity lesion-bypass DNA pols (; ). Because the reaction catalyzed by these pols is rather slow, intermediate structures have been characterized by time-resolved X-ray crystallography when crystals were frozen at different times after initiation of the pol reaction (; ; ; ; ). Yang and others observed a strong correlation between the formation of products and the binding of this third metal ion (; ). In these structures, both ES and EP complexes were simultaneously observed as an inter-convertible mixture at various time points. However, these EP complexes had an extra divalent metal ion bound, which was not found in the other pol complexes discussed above.
One interpretation is that this third metal ion is involved in catalyzing the chemical step in the pol reaction, which would fundamentally change the paradigm of the two-metal-ion catalytic mechanism (; ). If, on the other hand, the classic TS theory can fully explain these observations as discussed below, there is no need for revising the original mechanism (; ; ; ; ). Theoretical calculations can only address whether a given hypothetical chemical mechanism is compatible with chemical principles, but often do not address whether the given mechanism is consistent with existing experimental data. By definition, an enzyme and its cofactors are not reactants or products and not a consumable part of the reaction, thus they remain unchanged in any enzymatic reaction. With this definition, it is hard to classify this third divalent metal ion as a cofactor because it does not directly interact with the enzyme itself but only binds products without an involvement of the enzyme at all (Figure 1).
Classic View of the Enzyme-Catalyzed Reaction and Its Application to the Presence of a Third Metal Ion
An enzyme does not change the equilibrium of the reaction it catalyzes (). It only accelerates the rate of both forward and reverse reactions by the same amount, i.e., it simply lowers the free energy barrier of the reaction. Joseph Kraut noted in 1988 that the classic TS theory originally proposed by Linus Pauling was simple, and yet many investigators who attempted to revise it often misunderstood it, including Kraut himself before 1988 (; ; ). All elementary reactions must be fully reversible, including the reactions of the polymerization-pyrophosphorylysis pair (). The reason DNA pols catalyze DNA synthesis irreversibly in vivo is because the pyrophosphate product is continuously degraded by cellular pyrophosphatases and dNTP substrates are continuously resupplied. However, evidence also exists that E. coli pol IV and S. cerevisiea Rev1 are capable of directly hydrolyzing pyrophosphate, making the polymerization reaction irreversible (; ). The classic TS theory postulates that the TS is a saddle point on the energy landscape with the spatial gradient being zero, i.e., the highest energy point on the reaction trejactory but also the lowest energy point in all other directions with a fixed chemical composition. At the TS, the vibration frequency of an existing bond being broken for formation of a new bond determines the rate of the chemical reaction for either polymerization or pyrophosphorylysis (). This property suggests that rate of the chemical reaction at the TS is independent of the TS concentration and is zero order whereas the experimentally observed rate is proportional to the concentration of the TS. Any metal ion must be part of both the ES and EP complexes before it can be considered as part of the TS along the reaction coordinate.
A new metal ion cannot enter the TS saddle point as part of the EP complexes but not as part of the ES complex. If the third metal ion are indeed part of the TS, as hypothesized by some investigators (), the concentration of the TS would be proportional to the cube of the metal ion concentration when the metal ion concentration is below the saturation point of the tightest bound catalytically metal ion. The logarithm of the pol activity (which is proportional to the concentration of the TS versus the concentration of metal ions) should have a slope of three (). If the third metal ion binds only weakly with a much larger dissociation constant than the first two metal ions, the metal ion-dependent activation phase would be biphasic (). The logarithm of the pol activity in the first phase has a slope of three when the metal ion concentration is below the saturation point of the first two metal ions. The second phase occurs when the metal ion concentration is below the saturation point of the third metal ion but above that of the first two metal ions. The slope of this new phase is one. Currently, there are no data to support the hypothesis proposed by Stevens and Hammes-Schiffer for any pol.
For pyrophosphorylysis, this third metal ion may be characterized as part of substrate-assisted catalysis as it is part of the ES complex (it should be noted that the terms substrate and product are reversed in the forward and reverse reactions) (Figure 1). However, if this third metal ion leaves before the ES complex approaches to the TS (which by definition is at the highest energy point of the reaction coordinate at the saddle point of the energy landscape of the reaction), it cannot contribute to stabilization of the TS. Therefore, it cannot be assigned for any function in pyrophosphorylysis; and if it has no function in pyrophosphorylsis, it cannot have any function in polymerization either, in accordance with the full reversibility principle of any elemental reaction according to the TS theory. Even so, it could still play an indirect role only in the overall reaction of pyrophosphorylysis asymmetrically (but not in polymerization) by retaining the pyrophosphate substrate longer in the ES complex, i.e., increasing the local concentration of the substrate.
When the EP complex of pyrophospholysis is extrapolated from the ES complex, this third metal ion is expected to interact with two phosphate oxygens of Pα of the dNTP product, one with the non-bridging O and the other with the bridging O between the α- and β-phosphate groups. Within an idealized hexacoordination of a Mg2+ complex ion (), the distance between its two adjacent O ligands is 2.94 Å, which is the distance that the third metal ion is observed in the various pol structures (; ). Within the same Pα phosphate group, the distance between its two O atoms is 2.46 Å (which is shorter by 0.48 Å than the idealized value for simultaneous coordination to any Mg2+ ion). If two O atoms of the given phosphate group could become two adjacent ligands for a Mg2+ ion with ideal coordination bond length of 2.17 Å, the coordination bond angle O-Mg-O would be 75° (which is a 15° deviation from the ideal value), and if the coordination bond angle to the Mg2+ ion would maintain 90°, its coordination bond length would be 1.81 Å (which is a 0.36 Å deviation from the ideal value). With this coordination geometry, other O ligands of Mg2+ ion could sterically clash with the O atoms of both α- and β-phosphates of the incoming dNTP. Therefore, on these theoretical grounds, within the energy landscape of the reaction diagram, a Mg2+ ion can never be simultaneously coordinate two O atoms of the same phosphate group for stable geometry (particularly if the coordination involves a bridging O atom of reduced charge) as observed in the two products. Because this third Mg2+ ion stabilizes only the pyrophosphorylysis ES complex but not the pyrophosphorolysis EP complex, its binding would increase the TS barrier of the reaction. This third metal ion must first leave before pyrophosphorylysis can take place and thus is not part of the catalytic apparatus. The coordination geometry of Mn-O is very similar to Mg-O, although variation of Mn-O coordination bond lengths is larger due to the involvement of its 3d electrons compared to that of Mg-O (; ). Due to different rigidities of metal ion coordination octahedra, the two divalent metal ions could have very different degrees of covalency in their coordination bonds.
Kinetics of Binding of the Third Divalent Ion in Crystal Structures
Does the third divalent metal ion bind to the replication complex immediately before the catalysis of the chemical step of the pol reaction or shortly after it? The kinetic consequences in a crystal differ between these two events (). If the metal ion binds before catalysis, the concentration or the occupancy of this metal ion in the crystals will be larger than the fraction of the formed product. This is especially true if the time is extrapolated to t = 0. If it binds after catalysis, the situation is reversed when t = 0. With increasing time, the situation becomes more complex because the diffusion rates of this third divalent metal ion and the pyrophosphate product away from the replication complex could vary with time.
The fraction of the newly formed bond between the primer-terminal O3′ and Pα of the triphosphate and that of the bond breaking between the Pα and Pβ phosphates of the triphosphate in the complexes can be directly evaluated by the electron density at the midpoint of the corresponding atoms in each pair of the two bonds (Figure 2) (). The relative occupancy of the third metal ion relative to the first two metal ions can be quantitatively estimated using analytic procedures (Figure 3) (). This analysis shows that the occupancy of this third divalent metal ion is always smaller than that of the product formation at any time point, including when the time is extrapolated to the t = 0 point. This result suggests that the third metal ion is not involved directly in catalysis of the chemical step of the pol reaction.

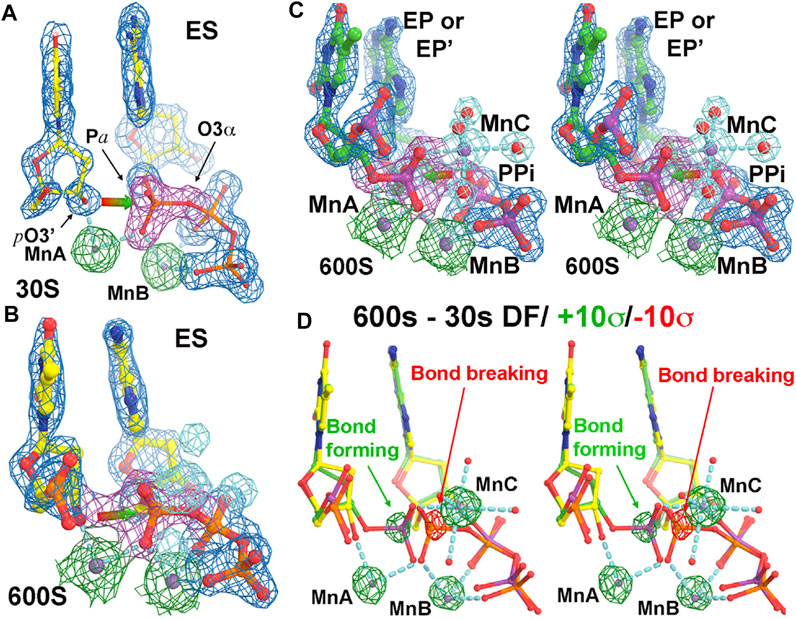

FIGURE 2

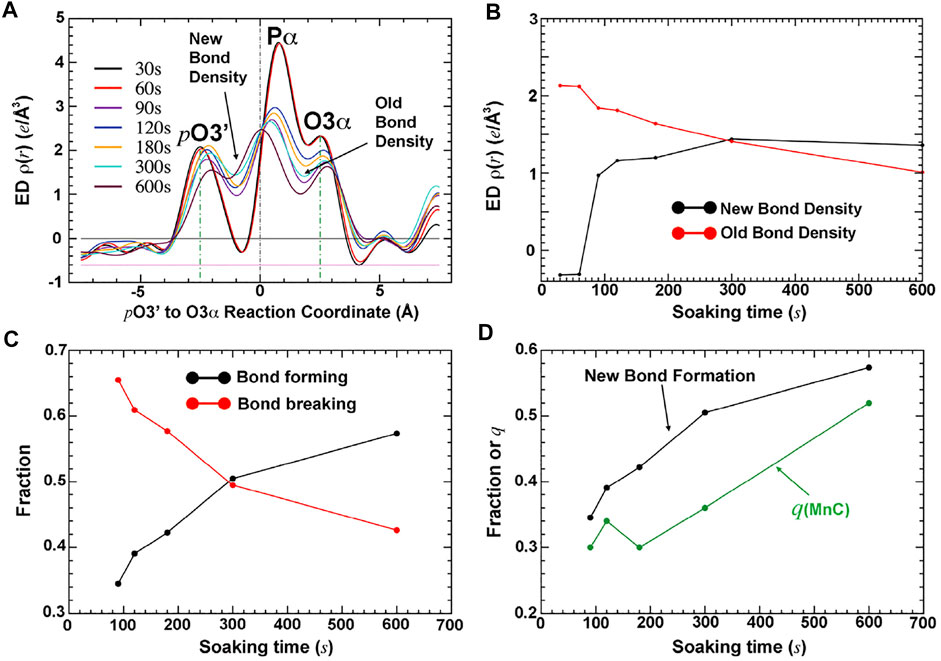

FIGURE 3
Universal Bell-Shaped Pol Activity Curves as a Function of Divalent Metal Ions and pH
Min-Daw Tsai noted that many kinetic data generated from his laboratory on pol β could be fully explained using the two-metal-ion catalytic mechanism previously known at the time, but could be equally well explained using the new three metal ion-based catalytic mechanism, i.e., his data cannot distinguish between the two mechanisms (; ). He suggested that new kinetic experiments might be needed to distinguish these two mechanisms. However, extensive kinetic data already exist in the literature that allow one to discriminate between them, even before the classic two-metal-ion catalytic mechanism was proposed. These results are briefly reviewed below (Figure 4), which include data from both pol β and pol η that strongly support the two-metal-ion catalytic mechanism but cannot be explained by a three-metal-ion mechanism.

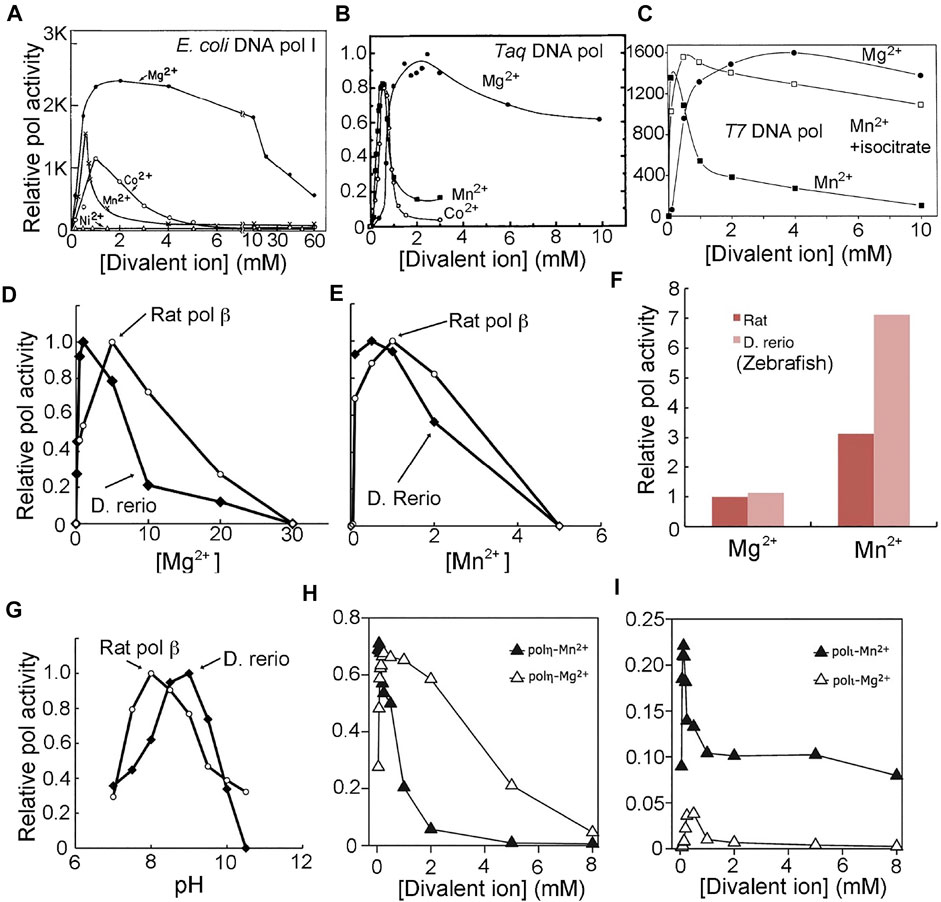

FIGURE 4
During the initial partial purification of E. coli DNA pol I, it was found that its pol activity absolutely required divalent metal ions and was pH dependent (; ; ). When the pH deviated from its optimal value or when the concentration of divalent metal ions deviated from their optimal value, the pol activity was reduced. Thus the bell-shaped pol activity profile as a function of pH remains universal, and is a hallmark of general acid-general base catalysis. If one acid is involved in catalysis, the overall activity is linearly proportional to the concentration of the acid, which would be exponentially reduced with increasing pH. The slope of the log of activity versus pH plot is based on the Brønsted equation (; ). If one base is involved, the overall activity is proportional to the concentration of the base, which would decrease with decreasing pH. The bell-shaped pol activity curve as a function of pH for DNA pols suggests that both acid(s) and base(s) are involved in catalysis. The slope of the plot based on the Brønsted equation shows that there is one acid and one base involved in catalysis, which is consistent with hydrogen/dueterium (H/D) effects of the pol reaction catalyzed by DNA pols (; ).
Similarly, a bell-shaped pol activity curve as a function of divalent metal ion concentration for DNA polymerases indicates that divalent metal ions act both as an activation cofactor and as an inhibitor in the overall pol reaction (Figure 4). The semi-log activity versus log[Mg2+] or log[Mn2+] plot, known as Hill-Langmuir plot, provides the cooperativity Hill coefficients for activation and inhibition of the pol activity, where the coefficient is 2 for the activation phase (). The optimal metal ion concentration for pol activity is pH dependent, and the optimal pH is dependent on the metal ion concentration because the binding of metal ion can alter the pKa value of the general base.
The DNA pol from bacteriophage T4 exhibits pol activity profiles that follow bell-shaped curves for both pH and divalent metal ions (). In the most recent studies on a DNA pol from a closely-related bacteriophage, RB69, Konigsberg and others showed that the pol activity was reduced by ∼ 2-fold when [Mn2+] increased from 10 to 20 mM with the estimated slope of −1 in the plot of log activity versus log[Mn2+] (; ). The optimal activity of E. coli DNA pol I is at 0.07 mM [Mn2+], and was reduced by more than 3-fold when [Mn2+] increased to 0.21 mM (3-fold), highlighting the inhibitory effect of Mn2+ ion on its pol activity (Figure 4A) (). The estimated slope of the log activity vs log[Mn2+] plot is −1.0 unit, indicating that there is just a single inhibitory binding site. At all pHs, the pol activity on the inhibitory side of the profiles is reduced by approximately 2-fold for every 2-fold increase of divalent metal ion concentration for all DNA pols (Figure 4), implying that there is only a single inhibitory divalent metal ion-binding site according to the Hill-Langmuir plot of the log activity-versus-log concentration for divalent metal ions.
Ekaterina Frank and Roger Woodgate have determined the activity profile of human pol η as a function of both Mn2+ and Mg2+ ions (Figure 4H) (). With Mn2+, the optimal condition is << 0.1 mM in solution. At ∼1 mM [Mn2+], the activity is reduced by 3-fold relative to the optimal [Mn2+] condition, and at ∼2 mM [Mn2+], the activity is reduced by 10-fold. Gao and Yang have determined that the binding affinity of MnA and that of MnB in crystal is <0.5 mM, and that of MnC is about 3.2 ± 1.5 mM (). Subtle differences in kinetic parameters between solutions and crystals is expected because, in crystals, slower diffusion rates can play a role. The MnC site, with weaker affinity in crystals, likely corresponds to an inhibitory site according to the pol activity profile discussed above (Figure 4H). The bell-shaped activity profiles as a function of pH can be readily explained by the deprotonation and protonation processes associated with catalysis. For example, from the maximal activity of rat or zebrafish pol β, the value of log activity versus pH (i.e., −log [H+]) decreases with increasing or decreasing pH, and the slope of the resulting lines has a unit value (Figure 4G) ().
The bell-shaped pol activity profiles as a function of both pH and divalent metal ions have universally been observed for all DNA polymerases (). This feature has also been described for human/rat DNA pol α, β, γ, λ, and η, for Taq DNA pol, bacterial and archael DNA pol Dpo4, for T7 DNA pol, T4, and RB69 pol, and for avian myeloblastosis viral DNA pol as well as for Ty1 and HIV-1 RT (Figure 4) (; ; ; ; ; ; ; ; ; ; ; ; ; ).
Kinetic Assignment of the Third Divalent Metal Ion as an Inhibitor of the Pol Activity
Linda Rehra-Kranz and others have studied the Mn2+-dependent inhibition of the pyrophosphorylysis reaction by the L412M mutant T4 DNA pol using externally supplied pyrophosphate (PPi) (). They showed that a high concentration of Mn2+ ion clearly inhibited pyrophosphorylysis within the ranges of both the [Mn2+] and [PPi] that they studied. However, the nature of the inhibition could not be easily described using classic kinetic schemes because there was a significant amount of the Mn2+-PPi complex formation, and because Mn2+ ion was both an activator and an inhibitor. The half maximal inhibitory concentration (IC50) of Mn2+ ion was >3 mM when [PPi] = 4 mM, and IC50([Mn2+]) was ∼2 mM when [PPi] = 2 mM, and IC50([Mn2+]) was ∼1 mM when [PPi] = 1 mM, and so on. However, these IC50 values are not very meaningful because they there was no report on the activation phase of the reaction, nor the maximal activity at the optimal [Mn2+]. Upon comparison with the typical pol activity curves as a function of [Mn2+] for DNA pols (Figure 4), the [Mn2+] used in their studies was clearly on the inhibitory side of the curve. Thus, the inhibitory Mn2+ ion most likely corresponds to the binding at the third Mn2+ site.
Given that the third Mn2+ site does not bind to the ES complex of the polymerization reaction but binds only to a non-productive ES complex for pyrophosphorylysis, its apparent inhibition with respect to the pol activity profile of the steady-state reaction is only indirect. We propose that this third Mn2+ site helps to retain the pyrophosphate product longer than usual within the ternary complex, thus increasing its local concentration and making pyrophosphorylysis increasingly likely. Our proposal is also based the fact that the unreleased pyrophosphate product is the only source of substrate for pyrophosphorylysis. Consistent with our proposal is the observation that when citrate or isocitrate is included in the Mn2+ ion-containing reaction, the third Mn2+ ion, which has relatively low affinity, can be removed so that the Mn2+-dependent inhibition can be eliminated and the maximal pol activity can be restored (Figure 4C) ().
Concluding Remarks
The existing biochemical and structural literature on DNA pols is fully consistent with the generalized mechanism of the two-metal-ion catalysis proposed by Thomas Steitz together with the existing TS theory for enzymatic reactions. This review provides a structural basis for the bell-shaped activity profiles of DNA pols as a function of pH and divalent metal ion concentrations. Weak binding of a third divalent metal ion appears to be responsible for retaining pyrophosphate, allowing extra time for pyrophosphorylysis. This could be important for hydrolysis of incorrectly incorporated nucleotide residues for some DNA pols before mismatches are transferred to the exonuclease site.
Statements
Author contributions
JW wrote the draft review. WK and JW finished the final version of the review/prospective manuscript.
Funding
Funding was provided by a grant to WK by Franklin Konigsberg.
Acknowledgments
Authors thank Drs. Satwik Kamtekar, and Soo Hyun Eom for insightful suggestions for this review and Dr. Janice Pata for editing this manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AhnJ.WerneburgB. G.TsaiM.-D. (1997). DNA Polymerase β: Structure−Fidelity Relationship from Pre-steady-state Kinetic Analyses of All Possible Correct and Incorrect Base Pairs for Wild Type and R283A Mutant. Biochemistry36, 1100–1107. 10.1021/bi961653o
2
BatraV. K.BeardW. A.ShockD. D.KrahnJ. M.PedersenL. C.WilsonS. H. (2006). Magnesium-induced Assembly of a Complete DNA Polymerase Catalytic Complex. Structure14, 757–766. 10.1016/j.str.2006.01.011
3
BeeseL. S.SteitzT. A. (1991). Structural Basis for the 3′-5′ Exonuclease Activity of Escherichia coli DNA Polymerase I: a Two Metal Ion Mechanism. EMBO J.10, 25–33. 10.1002/j.1460-2075.1991.tb07917.x
4
BessmanM. J.LehmanI. R.SimmsE. S.KornbergA. (1958). Enzymatic Synthesis of Deoxyribonucleic Acid. J. Biol. Chem.233, 171–177. 10.1016/s0021-9258(19)68049-x
5
BoltonE. C.MildvanA. S.BoekeJ. D. (2002). Inhibition of Reverse Transcription In Vivo by Elevated Manganese Ion Concentration. Mol. Cel9, 879–889. 10.1016/s1097-2765(02)00495-1
6
BrønstedJ. N.PedersenK. J. (1924). Stöchimetrie und Berwandtschaftslehre. Z. für Phys Chem.108, 185–125.
7
BrutlagD.AtkinsonM. R.SetlowP.KornbergA. (1969). An Active Fragment of DNA Polymerase Produced by Proteolytic Cleavage. Biochem. Biophys. Res. Commun.37, 982–989. 10.1016/0006-291x(69)90228-9
8
CastroC.SmidanskyE.MaksimchukK. R.ArnoldJ. J.KorneevaV. S.GotteM.et al (2007). Two Proton Transfers in the Transition State for Nucleotidyl Transfer Catalyzed by RNA- and DNA-dependent RNA and DNA Polymerases. Proc. Natl. Acad. Sci.104, 4267–4272. 10.1073/pnas.0608952104
9
CastroC.SmidanskyE. D.ArnoldJ. J.MaksimchukK. R.MoustafaI.UchidaA.et al (2009). Nucleic Acid Polymerases Use a General Acid for Nucleotidyl Transfer. Nat. Struct. Mol. Biol.16, 212–218. 10.1038/nsmb.1540
10
DahlJ. M.LiebermanK. R.WangH. (2016). Modulation of DNA Polymerase Noncovalent Kinetic Transitions by Divalent Cations. J. Biol. Chem.291, 6456–6470. 10.1074/jbc.m115.701797
11
DissanayakeT.SwailsJ. M.HarrisM. E.RoitbergA. E.YorkD. M. (2015). Interpretation of pH-Activity Profiles for Acid-Base Catalysis from Molecular Simulations. Biochemistry54, 1307–1313. 10.1021/bi5012833
12
DubeD. K.LoebL. A. (1975). Manganese as a Mutagenic Agent during In Vitro DNA Synthesis. Biochem. Biophys. Res. Commun.67, 1041–1046. 10.1016/0006-291x(75)90779-2
13
FershtA. (2017). Structure and Mechanism in Protein Science: A Guide to Enzyme Catalysis and Protein Folding. New Jersey: World Scientific.
14
FialaK. A.SuoZ. (2004). Pre-steady-state Kinetic Studies of the Fidelity of Sulfolobus Solfataricus P2 DNA Polymerase IV. Biochemistry43, 2106–2115. 10.1021/bi0357457
15
FrankE. G.WoodgateR. (2007). Increased Catalytic Activity and Altered Fidelity of Human DNA Polymerase ι in the Presence of Manganese. J. Biol. Chem.282, 24689–24696. 10.1074/jbc.m702159200
16
FranklinM. C.WangJ.SteitzT. A. (2001). Structure of the Replicating Complex of a Pol α Family DNA Polymerase. Cell105, 657–667. 10.1016/s0092-8674(01)00367-1
17
FreibergerM. I.GuzovskyA. B.WolynesP. G.ParraR. G.FerreiroD. U. (2019). Local Frustration Around Enzyme Active Sites. Proc. Natl. Acad. Sci. USA116, 4037–4043. 10.1073/pnas.1819859116
18
FreudenthalB. D.BeardW. A.ShockD. D.WilsonS. H. (2013). Observing a DNA Polymerase Choose Right from Wrong. Cell154, 157–168. 10.1016/j.cell.2013.05.048
19
GaoY.YangW. (2016). Capture of a Third Mg2+ Is Essential for Catalyzing DNA Synthesis. Science352, 1334–1337. 10.1126/science.aad9633
20
GoulianM.LucasZ. J.KornbergA. (1968). Enzymatic Synthesis of Deoxyribonucleic Acid. J. Biol. Chem.243, 627–638. 10.1016/s0021-9258(18)93650-1
21
IrimiaA.LoukachevitchL. V.EoffR. L.GuengerichF. P.EgliM. (2010). Metal-ion Dependence of the Active-Site Conformation of the Translesion DNA Polymerase Dpo4 fromSulfolobus Solfataricus. Acta Acta Crystallogr. Sect. F. Struct. Biol. Cryst. Commun.66, 1013–1018. 10.1107/s1744309110029374
22
IshidoT.YamazakiN.IshikawaM.HiranoK. (2011). Characterization of DNA Polymerase β from Danio rerio by Overexpression in E. coli Using the In Vivo/In Vitro Compatible pIVEX Plasmid. Microb. Cel Fact10, 84. 10.1186/1475-2859-10-84
23
JamsenJ. A.BeardW. A.PedersenL. C.ShockD. D.MoonA. F.KrahnJ. M.et al (2017). Time-lapse Crystallography Snapshots of a Double-Strand Break Repair Polymerase in Action. Nat. Commun.8, 253. 10.1038/s41467-017-00271-7
24
KlenowH.HenningsenI. (1970). Selective Elimination of the Exonuclease Activity of the Deoxyribonucleic Acid Polymerase from Escherichia coli B by Limited Proteolysis. Proc. Natl. Acad. Sci.65, 168–175. 10.1073/pnas.65.1.168
25
KnowlesJ. R. (1980). Enzyme-catalyzed Phosphoryl Transfer Reactions. Annu. Rev. Biochem.49, 877–919. 10.1146/annurev.bi.49.070180.004305
26
KohlstaedtL. A.WangJ.FriedmanJ. M.RiceP. A.SteitzT. A. (1992). Crystal Structure at 3.5 Å Resolution of HIV-1 Reverse Transcriptase Complexed with an Inhibitor. Science256, 1783–1790. 10.1126/science.1377403
27
KokoskaR. J.BebenekK.BoudsocqF.WoodgateR.KunkelT. A. (2002). Low Fidelity DNA Synthesis by a Y Family DNA Polymerase Due to Misalignment in the Active Site. J. Biol. Chem.277, 19633–19638. 10.1074/jbc.m202021200
28
KornbergA.BakerT. A. (1992). DNA Replication. 2nd edn. New York: W. H. Freeman.
29
KotturJ.NairD. T. (2018). Pyrophosphate Hydrolysis Is an Intrinsic and Critical Step of the DNA Synthesis Reaction. Nucleic Acids Res.46, 5875–5885. 10.1093/nar/gky402
30
KrautJ. (1988). How Do Enzymes Work?Science242, 533–540. 10.1126/science.3051385
31
LassilaJ. K.ZalatanJ. G.HerschlagD. (2011). Biological Phosphoryl-Transfer Reactions: Understanding Mechanism and Catalysis. Annu. Rev. Biochem.80, 669–702. 10.1146/annurev-biochem-060409-092741
32
LawyerF. C.StoffelS.SaikiR. K.ChangS. Y.LandreP. A.AbramsonR. D.et al (1993). High-level Expression, Purification, and Enzymatic Characterization of Full-Length Thermus Aquaticus DNA Polymerase and a Truncated Form Deficient in 5' to 3' Exonuclease Activity. Genome Res.2, 275–287. 10.1101/gr.2.4.275
33
LehmanI. R.BessmanM. J.SimmsE. S.KornbergA. (1958). Enzymatic Synthesis of Deoxyribonucleic Acid. J. Biol. Chem.233, 163–170. 10.1016/s0021-9258(19)68048-8
34
MaegleyK. A.AdmiraalS. J.HerschlagD. (1996). Ras-catalyzed Hydrolysis of GTP: a New Perspective from Model Studies. Proc. Natl. Acad. Sci.93, 8160–8166. 10.1073/pnas.93.16.8160
35
NakamuraT.ZhaoY.YamagataY.HuaY.-j.YangW. (2012). Watching DNA Polymerase η Make a Phosphodiester Bond. Nature487, 196–201. 10.1038/nature11181
36
OllisD. L.BrickP.HamlinR.XuongN. G.SteitzT. A. (1985). Structure of Large Fragment of Escherichia coli DNA Polymerase I Complexed with dTMP. Nature313, 762–766. 10.1038/313762a0
37
PalermoG.CavalliA.KleinM. L.Alfonso-PrietoM.Dal PeraroM.De VivoM. (2015). Catalytic Metal Ions and Enzymatic Processing of DNA and RNA. Acc. Chem. Res.48, 220–228. 10.1021/ar500314j
38
PaulingL. (1946). Molecular Architecture and Biological Reactions. Chem. Eng. News Archive24, 1375–1377. 10.1021/cen-v024n010.p1375
39
PaulingL. (1948). Chemical Achievement and hope for the Future. Am. Sci.36, 51–58.
40
PavlovM.SiegbahnP. E. M.SandströmM. (1998). Hydration of Beryllium, Magnesium, Calcium, and Zinc Ions Using Density Functional Theory. J. Phys. Chem. A.102, 219–228. 10.1021/jp972072r
41
PelletierH.SawayaM. R.KumarA.WilsonS. H.KrautJ. (1994). Structures of Ternary Complexes of Rat DNA Polymerase β, a DNA Template-Primer, and ddCTP. Science264, 1891–1903. 10.1126/science.7516580
42
PereraL.BeardW. A.PedersenL. G.WilsonS. H. (2017). Hiding in plain Sight: The Bimetallic Magnesium Covalent Bond in Enzyme Active Sites. Inorg. Chem.56, 313–320. 10.1021/acs.inorgchem.6b02189
43
RaperA. T.ReedA. J.SuoZ. (2018). Kinetic Mechanism of DNA Polymerases: Contributions of Conformational Dynamics and a Third Divalent Metal Ion. Chem. Rev.118, 6000–6025. 10.1021/acs.chemrev.7b00685
44
ReedA. J.SuoZ. (2017). Time-dependent Extension from an 8-oxoguanine Lesion by Human DNA Polymerase Beta. J. Am. Chem. Soc.139, 9684–9690. 10.1021/jacs.7b05048
45
ReedA. J.VyasR.RaperA. T.SuoZ. (2017). Structural Insights into the post-chemistry Steps of Nucleotide Incorporation Catalyzed by a DNA Polymerase. J. Am. Chem. Soc.139, 465–471. 10.1021/jacs.6b11258
46
Reha-KrantzL. J.WoodgateS.GoodmanM. F. (2014). Engineering Processive DNA Polymerases with Maximum Benefit at Minimum Cost. Front. Microbiol.5, 380. 10.3389/fmicb.2014.00380
47
SasakiS.FujinoK.TakéuchiY. (1979). X-ray Determination of Electron-Density Distributions in Oxides, MgO, MnO, CoO, and NiO, and Atomic Scattering Factors of Their Constituent Atoms. Proc. Jpn. Acad. Ser. B: Phys. Biol. Sci.55, 43–48. 10.2183/pjab.55.43
48
SawayaM. R.PelletierH.KumarA.WilsonS. H.KrautJ. (1994). Crystal Structure of Rat DNA Polymerase β: Evidence for a Common Polymerase Mechanism. Science264, 1930–1935. 10.1126/science.7516581
49
SchroederG. K.LadC.WymanP.WilliamsN. H.WolfendenR. (2006). The Time Required for Water Attack at the Phosphorus Atom of Simple Phosphodiesters and of DNA. Proc. Natl. Acad. Sci.103, 4052–4055. 10.1073/pnas.0510879103
50
ShowalterA. K.LamarcheB. J.BakhtinaM.SuM.-I.TangK.-H.TsaiM.-D. (2006). Mechanistic Comparison of High-Fidelity and Error-Prone DNA Polymerases and Ligases Involved in DNA Repair. Chem. Rev.106, 340–360. 10.1021/cr040487k
51
SiroverM. A.DubeD. K.LoebL. A. (1979). On the Fidelity of DNA Replication. Metal Activation of Escherichia coli DNA Polymerase I. J. Biol. Chem.254, 107–111. 10.1016/s0021-9258(17)30278-8
52
SlaterJ. P.TamirI.LoebL. A.MildvanA. S. (1972). The Mechanism of Escherichia coli Deoxyribonucleic Acid Polymerase I. J. Biol. Chem.247, 6784–6794. 10.1016/s0021-9258(19)44655-3
53
StarnesM. C.ChengY. C. (1989). Human Immunodeficiency Virus Reverse Transcriptase-Associated RNase H Activity. J. Biol. Chem.264, 7073–7077. 10.1016/s0021-9258(18)83542-6
54
SteitzT. A.SteitzJ. A. (1993). A General Two-Metal-Ion Mechanism for Catalytic RNA. Proc. Natl. Acad. Sci.90, 6498–6502. 10.1073/pnas.90.14.6498
55
SteitzT. A. (1999). DNA Polymerases: Structural Diversity and Common Mechanisms. J. Biol. Chem.274, 17395–17398. 10.1074/jbc.274.25.17395
56
StevensD. R.Hammes-SchifferS. (2018). Exploring the Role of the Third Active Site Metal Ion in DNA Polymerase η with QM/MM Free Energy Simulations. J. Am. Chem. Soc.140, 8965–8969. 10.1021/jacs.8b05177
57
TaborS.RichardsonC. C. (1989). Effect of Manganese Ions on the Incorporation of Dideoxynucleotides by Bacteriophage T7 DNA Polymerase and Escherichia coli DNA Polymerase I. Proc. Natl. Acad. Sci.86, 4076–4080. 10.1073/pnas.86.11.4076
58
TsaiM. D. (2019). Catalytic Mechanism of DNA Polymerases-Two Metal Ions or Three?Protein Sci.28, 288–291. 10.1002/pro.3542
59
VashishthaA. K.KonigsbergW. H. (2016). Effect of Different Divalent Cations on the Kinetics and Fidelity of RB69 DNA Polymerase. Biochemistry55, 2661–2670. 10.1021/acs.biochem.5b01350
60
VashishthaA. K.WangJ.KonigsbergW. H. (2016). Different Divalent Cations Alter the Kinetics and Fidelity of DNA Polymerases. J. Biol. Chem.291, 20869–20875. 10.1074/jbc.r116.742494
61
VyasR.ReedA. J.TokarskyE. J.SuoZ. (2015). Viewing Human DNA Polymerase β Faithfully and Unfaithfully Bypass an Oxidative Lesion by Time-dependent Crystallography. J. Am. Chem. Soc.137, 5225–5230. 10.1021/jacs.5b02109
62
VyasR.ReedA. J.RaperA. T.ZahurancikW. J.WallenmeyerP. C.SuoZ. (2017). Structural Basis for the D-Stereoselectivity of Human DNA Polymerase β. Nucleic Acids Res.45, 6228–6237. 10.1093/nar/gkx252
63
WangJ.SmithlineZ. B. (2019). Crystallographic Evidence for Two‐metal‐ion Catalysis in Human Pol η. Protein Sci.28, 439–447. 10.1002/pro.3541
64
WangJ.SattarA. K. M. A.WangC. C.KaramJ. D.KonigsbergW. H.SteitzT. A. (1997). Crystal Structure of a Pol α Family Replication DNA Polymerase from Bacteriophage RB69. Cell89, 1087–1099. 10.1016/s0092-8674(00)80296-2
65
WeaverT. M.CortezL. M.KhoangT. H.WashingtonM. T.AgarwalP. K.FreudenthalB. D. (2020). Visualizing Rev1 Catalyze Protein-Template DNA Synthesis. Proc. Natl. Acad. Sci. USA117, 25494–25504. 10.1073/pnas.2010484117
66
WhitakerA. M.FreudenthalB. D. (2020). History of DNA Polymerase β X-ray Crystallography. DNA Repair93, 102928. 10.1016/j.dnarep.2020.102928
67
WuW. J.YangW.TsaiM. D. (2017). How DNA Polymerases Catalyse Replication and Repiar with Contrasting Fidelity. Nat. Rev. Chem.1, 0068. 10.1038/s41570-017-0068
68
XiaS.KonigsbergW. H. (2014). RB69 DNA Polymerase Structure, Kinetics, and Fidelity. Biochemistry53, 2752–2767. 10.1021/bi4014215
69
XiaS.WangM.BlahaG.KonigsbergW. H.WangJ. (2011). Structural Insights into Complete Metal Ion Coordination from Ternary Complexes of B Family RB69 DNA Polymerase. Biochemistry50, 9114–9124. 10.1021/bi201260h
70
XiaS.WangJ.KonigsbergW. H. (2013). DNA Mismatch Synthesis Complexes Provide Insights into Base Selectivity of a B Family DNA Polymerase. J. Am. Chem. Soc.135, 193–202. 10.1021/ja3079048
71
YangW.WengP. J.GaoY. (2016). A New Paradigm of DNA Synthesis: Three-Metal-Ion Catalysis. Cell Biosci.6, 51. 10.1186/s13578-016-0118-2
72
YoonH.WarshelA. (2017). Simulating the Fidelity and the Three Mg Mechanism of Pol η and Clarifying the Validity of Transition State Theory in Enzyme Catalysis. Proteins85, 1446–1453. 10.1002/prot.25305
