Abstract
Despite numerous clinical studies, which have investigated the therapeutic potential of repetitive transcranial magnetic stimulation (rTMS) in various brain diseases, our knowledge of the cellular and molecular mechanisms underlying rTMS-based therapies remains limited. Thus, a deeper understanding of rTMS-induced neural plasticity is required to optimize current treatment protocols. Studies in small animals or appropriate in vitro preparations (including models of brain diseases) provide highly useful experimental approaches in this context. State-of-the-art electrophysiological and live-cell imaging techniques that are well established in basic neuroscience can help answering some of the major questions in the field, such as (i) which neural structures are activated during TMS, (ii) how does rTMS induce Hebbian plasticity, and (iii) are other forms of plasticity (e.g., metaplasticity, structural plasticity) induced by rTMS? We argue that data gained from these studies will support the development of more effective and specific applications of rTMS in clinical practice.
INTRODUCTION
, an Italian physician from Bologna, was among the first to demonstrate that electrical energy drives body function. He reported that the stimulation of the frog’s sciatic nerve with a metal rod (charged with static electricity) caused contractions of the innervated muscle. Ever since this observation the question of how electrical signals in neural tissue translate into complex human behavior, both under physiological and pathological conditions, has attracted the interest of scientists and physicians around the world. Two centuries after Galvani’s famous experiments, Barker and colleagues carried out a set of analogous experiments in human subjects. To evoke muscle contractions though, stimulated the brain, i.e., the motor cortex, of their subjects by employing a novel non-invasive stimulation technique termed transcranial magnetic stimulation (TMS). These experiments opened several new scientific avenues and provided a means to non-invasively assess cortical excitability and function in patients with brain diseases (for review see, ).
Transcranial magnetic stimulation is based on the physical principle of electromagnetic induction: a strong electric current of up to several kA is discharged briefly (<1 ms duration) through a TMS coil. This generates a short-lived, but strong electromagnetic field, which penetrates the scalp and skull and induces an electric field in the underlying brain tissue. By this mechanism TMS allows for the non-invasive activation of the cerebral cortex in awake and non-anesthetized human subjects (Figure 1A). More recently, experimental evidence has been provided that repetitive TMS (rTMS), i.e., trains of several hundred pulses can change the excitability of the human cortex for hours beyond the stimulation period (for review see, Ziemann et al., 2008). This observation has driven interest toward a therapeutic use of rTMS in neurological and neuropsychiatric disorders associated with alterations in cortical excitability (Ziemann, 2005; ; ). However, the cellular and molecular mechanisms underlying rTMS-induced neural plasticity remain not well understood. Considering data, which demonstrate a substantial inter- and intra-individual variability of rTMS-induced after-effects (; ; ), a better understanding of how TMS affects neural tissue is urgently needed.

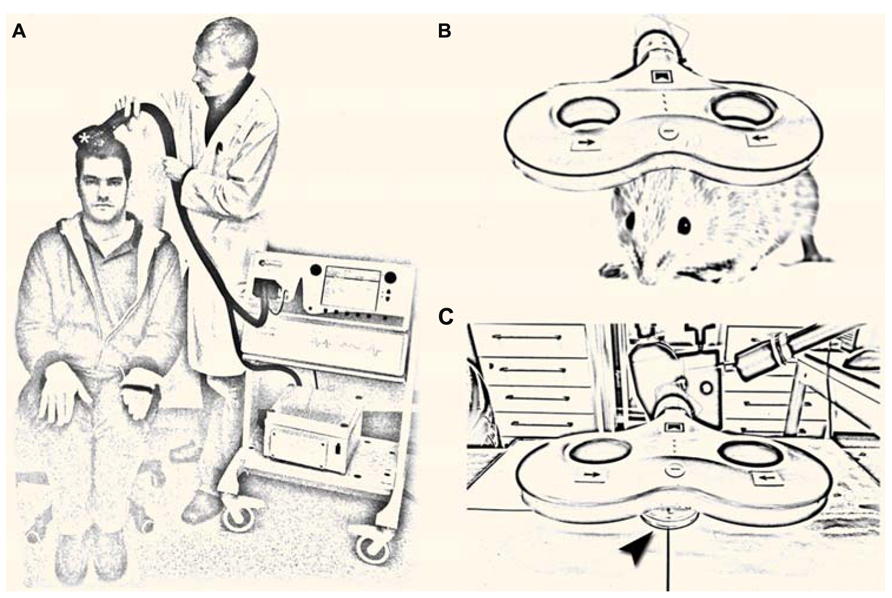

FIGURE 1
Repetitive magnetic stimulation (rMS) of small animals and appropriate in vitro preparations represent suitable and highly useful experimental approaches in this context (Figures 1B,C). Several of these models have already been used successfully (e.g., ; ; ; ; ; Wang et al., 2011; ; ) and new important insights have been gained by these studies. Still, our knowledge of rMS-induced neural plasticity remains limited. The major focus of this perspective article is to discuss some of the open questions in the field and to illustrate how experimental approaches that are well established in basic neuroscience might help in addressing these questions. This attempt may provide a framework for future studies and could also attract the expertise of neuroscientists from other fields to join the endeavor of unraveling the cellular and molecular mechanisms of rTMS-induced neural plasticity.
WHAT MAKES TMS DISTINCT FROM LOCAL ELECTRICAL STIMULATION?
In contrast to local electrical stimulation, i.e., a classic experimental approach to induce long-term structural and functional changes of neurons (; ; ; ); for recent reviews see, e.g., ; ), TMS induces a widespread electric field that covers a comparatively large volume of neural tissue (up to several cm3; ). This makes it difficult to predict which structures will be activated in the stimulated tissue. In recent years computational modeling has been used to estimate the electric field induced by TMS and to compute its effects on individual neurons (e.g., ; ). However, the question of which and how neural structures are activated in a given network by TMS remains unclear. Whereas local electrical stimulation can be used to activate a specific input to a neuron by depolarizing axons that are close to the stimulation electrode, it is not clear whether TMS acts strictly via the depolarization of a specific set of axons. In fact, it is conceivable that not only the afferent input, but also the target neuron itself (and other neural structures within the electric field, i.e., within the stimulated network) will be depolarized by TMS, which may generate activation patterns distinct from local electrical stimulation (c.f., ). Thus, a central question that needs to be addressed is: which neural structures are activated by TMS during the stimulation, i.e., are specific cells or even specific subcellular compartments depolarized by TMS?
WHICH NEURAL STRUCTURES ARE ACTIVATED DURING TMS?
While evidence has been provided that axons are the primary target of TMS (Figure 2A; ; ; ), it is not known whether all axons of a particular orientation within the induced electric field will be depolarized. Considering the diverse functional and structural properties of neurons, differential effects on axons of inhibitory and excitatory neurons or even specific subtypes of a class of neurons are possible. In addition, TMS may depolarize certain axons at multiple locations or produce complex spike trains by activating recurrent networks (), even though single TMS pulses are applied. Likewise, the depolarization of specific axons may not only lead to the induction of anterograde propagating action potentials (aAPs), but will also produce backward propagating action potentials (bAPs), which can propagate into the dendritic tree and depolarize dendrites of a target neuron (). Thus, specific pre- and postsynaptic structures may be activated by TMS within the stimulated network (Figure 2A). Furthermore, direct or indirect effects on glial cells, mitochondria, intracellular calcium stores, and calcium buffers, polyribosomes, translation/transcription factors, specific molecular complexes such as adhesion molecules, ligand- or voltage-gated channels/receptors, metabotropic receptors, postsynaptic scaffolds, and other cellular and molecular structures (Figure 2B) cannot be ruled out at present and thus warrant further investigation. Finally, the role of the stimulation parameters, e.g., size and geometry of the TMS coil, orientation of the coil relative to the stimulated tissue, distance from tissue, temporal dynamics of the electromagnetic field, and the stimulation protocol need to be considered (). Hence, we are confronted with an enormous parameter space which can only be assessed systematically by acquiring functional data under highly controlled and standardized experimental conditions (ideally at the level of single identified cells).
FIGURE 2
Clearly, electrophysiological recordings of intact animals or suitable in vitro preparations represent the gold standard approach to determine the effects of TMS during stimulation. While local field potential recordings (e.g., single- or multi-electrode recordings) allow for the assessment of neural population activity (down to the level of single units), patch-clamp recordings (single- or multi-cell recordings, dual somato-dendritic recordings, recordings from astrocytes) are required to directly record TMS-induced changes in voltage, current, and firing rate of individual cells. However, these (and other suitable electrophysiological) experiments are not trivial to perform during stimulation due to the strong electromagnetic field that is generated by TMS.
An interesting solution to this problem is optical functional imaging (). Together with recent advances in microscopy it has become possible to visualize activity in neural tissue at high temporal and spatial resolution using proper chemical or biological sensors, even at the network level (). The development of novel indicators allows not only to image changes in membrane potential (; ; ) and monitor calcium transients (; ; ), but to determine changes in intracellular chloride concentrations (; ), cGMP levels (), shifts in pH (), and other functionally relevant molecules, both in vitro and in vivo (). Furthermore, transgenic animals, (in utero) electroporation or transfection with viral vectors can be used to express genetically encoded biosensors (and/or other proteins) in selected cells, which allows for the assessment of specific cell types within neural networks (). In addition, optogenetic approaches [e.g., the light-induced depolarization or hyperpolarization of neural structures; (; see also )] can be used to discern critical elements within the stimulated tissue during TMS. In combination with pharmacological and other genetic approaches these “contact-free” techniques represent state-of-the-art approaches to identify the neural structures that are activated during TMS, and to test for their contribution to rTMS-induced plasticity.
HOW DOES rTMS INDUCE NEURAL PLASTICITY?
During the past years experimental evidence has emerged which suggests that rTMS-induced after-effects are mediated by “long-term potentiation (LTP)-like” mechanisms (Ziemann et al., 2008). This “evidence” is based on physiological characteristics and pharmacological analogies between studies performed at the system level in human subjects and data obtained from animal models using classic LTP-experiments (see, ). Yet, it has not been conclusively demonstrated at the single cell level that magnetic stimulation increases excitatory synaptic strength of cortical neurons. Using organotypic entorhino-hippocampal slice cultures we were recently able to provide experimental evidence that rMS can induce functional and structural changes of CA1 pyramidal neurons (), which are consistent with a LTP of AMPA-R mediated synaptic transmission as seen after local electrical stimulation (). In contrast to classic LTP-protocols, however, in our study NMDA-R-mediated strengthening of excitatory postsynapses and an enlargement of dendritic spines were induced by a 10 Hz rMS-protocol, i.e., at comparatively low stimulation frequencies (). Given the considerations above on TMS-effects during stimulation (Figure 2A) one may hypothesize that the induction of LTP at low stimulation frequencies is explained by the highly efficient recruitment of Hebbian-type plasticity mechanisms () via the simultaneous (and repeated) activation of pre- and postsynaptic structures during rMS. Indeed, compartmental modeling suggests that a cooperative effect of bAP-induced dendritic depolarization and aAP-induced synaptic transmission seems sufficient to explain some of the observed rMS-induced effects on excitatory synapses of cultured CA1 pyramidal neurons (unpublished work). However, direct evidence for this “bAP-aAP theory” is currently missing. It also remains to be shown whether the precise timing of bAP-induced dendritic depolarization and aAP-mediated synaptic transmission (which will be delayed at neurochemical synapses) can lead to differential effects along the dendritic tree (for a recent review on spike timing dependent plasticity see, ). Moreover, rMS-induced plasticity of inhibitory synapses and intrinsic cellular properties need to be assessed in this context (Figure 2B).
Apparently, these considerations do not take the specific fiber and cytoarchitecture of the stimulated network into account. It will therefore be important to compare the effects of a given r(T)MS-protocol in different brain regions (e.g., hippocampal region CA1 vs. dentate gyrus; ideally different neocortical regions). These studies can provide new important insights on the role of local circuitries in rTMS-induced plasticity. As discussed by , however, a major limitation of performing these experiments in the intact animal is the comparatively small brain size. The smallest coils available are still too large to selectively stimulate specific cortical regions of mice or other small animals.
ARE OTHER FORMS OF PLASTICITY INDUCED BY rTMS
Several studies in human subjects have demonstrated rTMS-effects on cortical plasticity in the absence of detectable after-effects on cortical excitability (e.g., ; Wankerl et al., 2010; ). Hence, it appears important to consider rTMS-effects, which modulate the ability of neurons to express synaptic plasticity without (or beyond) changing the excitability of the stimulated network. The term metaplasticity describes this ability of neurons to change their state which influences the direction, magnitude and duration of future synaptic changes (for a recent review see, ). It has been proposed that such “state-dependency” of synaptic plasticity could explain part of the inter- and intra-individual variability of rTMS-induced after-effects (). Conversely, it has been suggested that rTMS can “prime,” i.e., change the plasticity state of neuronal networks (Ziemann and Siebner, 2008). Thus, rTMS may be used as a therapeutic tool to modulate, or even restore the ability of neurons to express synaptic plasticity under pathological conditions.
A straightforward approach to test for rMS-induced metaplasticity at the cellular level is combining rMS-experiments with classic LTP- or long-term depression (LTD)-protocols (i.e., local high- or low-frequency electrical stimulation). Our work in organotypic slice cultures () has shown that the rMS-induced increase in excitatory synaptic strength of CA1 pyramidal neurons returns back to baseline 6–8 h following stimulation. It will now be interesting to test for metaplasticity by comparing the ability to induce LTP and/or LTD in cultures 6–8 h after magnetic stimulation with LTP/LTD-induction in age-and time-matched non-stimulated control cultures. A systematic evaluation of rMS-induced metaplasticity should include the assessment of (i) different intervals between rMS and classic LTP/LTD-induction, (ii) the effects of different rMS-protocols (including multiple sessions of rMS), and (iii) the molecular mechanisms of rMS-induced metaplasticity (e.g., by using pharmacological and/or genetic approaches). Likewise, rTMS-effects on synaptic tagging and capture () and homeostatic synaptic plasticity (; ; ) should be evaluated. A better understanding of rMS-induced metaplasticity (and other non-Hebbian forms of plasticity) may thus help to devise rTMS-based priming strategies for optimized learning by physical exercise, language, or cognitive training in clinical neuro-restoration.
ARE STRUCTURAL CHANGES OF NEURONS INDUCED BY rTMS?
The induction of structural plasticity, i.e., the activity-dependent re-wiring of neuronal networks is another interesting mechanism by which rTMS could assert long-lasting effects on neuronal circuits. Changes in dendritic spine/synapse numbers, dendritic remodeling, and/or axonal sprouting can all affect connectivity and thus function of neuronal networks. During the past decade advances in live-cell imaging and in vivo microscopy have made it possible to monitor structural plasticity for long periods of time (weeks and months) at high resolution both in vitro and in vivo (). It has become possible to monitor structures down to the level of single molecules using modern diffraction-breaking imaging techniques (for recent review see, ). These new techniques open up a window to rMS-induced changes at the subcellular (e.g., mitochondria, intracellular calcium stores) and molecular level (e.g., postsynaptic scaffolds; Figure 2B; see also ). Since live-cell imaging techniques have only been used in a single rMS-study so far (), we expect a wealth of important new data on rMS-induced structural plasticity during the next years.
HOW CAN KNOWLEDGE ON THE CELLULAR AND MOLECULAR MECHANISMS OF rTMS BE TRANSLATED INTO CLINICAL PRACTICE?
A major advantage of investigating the cellular and molecular mechanisms of rMS using appropriate animal models or in vitro preparations (e.g., of the hippocampus or neocortex) is the fact that various forms of plasticity (LTP/LTD, STDP of excitatory and inhibitory synapses, intrinsic cellular plasticity, metaplasticity, structural plasticity) have been studied in great detail using these models during the past decades. Data on rMS-induced neural plasticity can therefore be compared with results obtained in these in vivo or in vitro studies, which will facilitate the identification of the molecular mechanisms underlying rTMS-induced plasticity.
Since animal models of a large variety of brain diseases exist, it will be important to also study mechanisms of rTMS-induced neural plasticity in these models. Together with experiments performed under physiological conditions this knowledge will be helpful in addressing some of the current limitations/questions regarding the therapeutic use of rTMS. For example, it is not clear how rTMS-induced Hebbian plasticity, i.e., an increase in cortical excitability independent of a specific task, links to behavioral effects and could thus modulate the course of a neurological/neuropsychiatric disease. Accordingly, future studies in animal models need to address the question of whether it is rTMS-induced Hebbian plasticity and/or the induction of metaplasticity and/or interference with other plasticity-forms such as structural plasticity [or denervation-induced homeostatic plasticity (Vlachos et al., 2013)], which underlies the therapeutic effects of rTMS. These studies will also be helpful to confirm (or re-interpret) results obtained in human studies in which rTMS has been applied in conjunction with pharmacological treatments (e.g., ; ; ; for review see ).
Eventually the knowledge gained from animal studies may be translated into clinical practice (i) by optimizing the efficacy and specificity of the stimulation to induce and/or modulate certain forms of neural plasticity with rTMS; (ii) by using knowledge about the state-dependency of rTMS-induced plasticity (e.g., by understanding the role of genetic polymorphisms, neuromodulators, metaplasticity, or homeostatic synaptic plasticity); or (iii) by combining rTMS with pharmacological interventions in order to support specific rTMS effects [an approach termed “pharmaco-TMS”; (Ziemann, 2011)]. A better knowledge of the cellular and molecular mechanisms of rMS will therefore help to optimize rTMS-based therapies and could be a step toward “personalized” rTMS-treatments of patients with neurological or neuropsychiatric diseases.
Statements
Acknowledgments
We thank Drs. T. Deller, P. Jedlicka, and U. Ziemann for helpful discussions.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
REFERENCES
1
AkerboomJ.Carreras CalderónN.TianL.WabnigS.PriggeM.TolöJ.et al (2013). Genetically encoded calcium indicators for multi-color neural activity imaging and combination with optogenetics.Front. Mol. Neurosci.6:2. 10.3389/fnmol.2013.00002
2
BarkerA. T.JalinousR.FreestonI. L. (1985). Non-invasive magnetic stimulation of human motor cortex.Lancet11106–1107. 10.1016/S0140-6736(85)92413-4
3
BasserP. J. (1994). Focal magnetic stimulation of an axon.IEEE Trans. Biomed. Eng.41601–606. 10.1109/10.293248
4
BasserP. J.RothB. J. (1991). Stimulation of a myelinated nerve axon by electromagnetic induction.Med. Biol. Eng. Comput.29261–268. 10.1007/BF02446708
5
BenaliA.TrippeJ.WeilerE.MixA.Petrasch-ParwezE.GirzalskyW.et al (2011). Theta-burst transcranial magnetic stimulation alters cortical inhibition.J. Neurosci.311193–1203. 10.1523/JNEUROSCI.1379-10.2011
6
BerglundK.KunerT.FengG.AugustineG. J. (2011). Imaging synaptic inhibition with the genetically encoded chloride indicator Clomeleon.Cold Spring Harb. Protoc.20111492–1497. 10.1101/pdb.prot066985
7
BhargavaY.Hampden-SmithK.ChachlakiK.WoodK. C.VernonJ.AllerstonC. K.et al (2013). Improved genetically-encoded, FlincG-type fluorescent biosensors for neural cGMP imaging.Front. Mol. Neurosci.6:26. 10.3389/fnmol.2013.00026
8
BlissT. V.LomoT. (1973). Long-lasting potentiation of synaptic transmission in the dentate area of the anaesthetized rabbit following stimulation of the perforant path.J. Physiol.232331–356.
9
BoschM.HayashiY. (2012). Structural plasticity of dendritic spines.Curr. Opin. Neurobiol.22383–388. 10.1016/j.conb.2011.09.002
10
BregestovskiP.WaseemT.MukhtarovM. (2009). Genetically encoded optical sensors for monitoring of intracellular chloride and chloride-selective channel activity.Front. Mol. Neurosci.2:15. 10.3389/neuro.02.015.2009
11
ChenT. W.WardillT. J.SunY.PulverS. R.RenningerS. L.BaohanA.et al (2013). Ultrasensitive fluorescent proteins for imaging neuronal activity.Nature499295–300. 10.1038/nature12354
12
ChoquetD.TrillerA. (2013). The dynamic synapse.Neuron80691–703. 10.1016/j.neuron.2013.10.013
13
ChipchaseL.SchabrunS.CohenL.HodgesP.RiddingM.RothwellJ.et al (2012). A checklist for assessing the methodological quality of studies using transcranial magnetic stimulation to study the motor system: an international consensus study.Clin. Neurophysiol.1231698–1704. 10.1016/j.clinph.2012.05.003
14
ColganL. A.YasudaR. (2013). Plasticity of dendritic spines: subcompartmentalization of signaling.Annu. Rev. Physiol.7616.2–16.21. 10.1146/annurev-physiol-021113-170400
15
DavisG. W. (2013). Homeostatic signaling and the stabilization of neural function.Neuron80718–728. 10.1016/j.neuron.2013.09.044
16
de AndradeD. C.MhallaA.AdamF.TexeiraM. J.BouhassiraD. (2011). Neuropharmacological basis of rTMS-induced analgesia: the role of endogenous opioids.Pain152320–326. 10.1016/j.pain.2010.10.032
17
DeisserothK.SchnitzerM. J. (2013). Engineering approaches to illuminating brain structure and dynamics.Neuron80568–577. 10.1016/j.neuron.2013.10.032
18
EdgleyS. A.EyreJ. A.LemonR. N.MillerS. (1997). Comparison of activation of corticospinal neurons and spinal motor neurons by magnetic and electrical transcranial stimulation in the lumbosacral cord of the anaesthetized monkey.Brain120839–853. 10.1093/brain/120.5.839
19
EdwardsM. J.TalelliP.RothwellJ. C. (2008). Clinical applications of transcranial magnetic stimulation in patients with movement disorders.Lancet Neurol.7827–840. 10.1016/S1474-4422(08)70190-X
20
FeldmanD. E. (2012). The spike-timing dependence of plasticity.Neuron75556–571. 10.1016/j.neuron.2012.08.001
21
FifkováE.AndersonC. L. (1981). Stimulation-induced changes in dimensions of stalks of dendritic spines in the dentate molecular layer.Exp. Neurol.74621–627. 10.1016/0014-4886(81)90197-7
22
FifkováE.Van HarreveldA. (1977). Long-lasting morphological changes in dendritic spines of dentate granular cells following stimulation of the entorhinal area.J. Neurocytol.6211–230. 10.1007/BF01261506
23
FonoffE. T.DaleC. S.PaganoR. L.PaccolaC. C.BallesterG.TeixeiraM. J.et al (2009). Antinociception induced by epidural motor cortex stimulation in naive conscious rats is mediated by the opioid system.Behav. Brain Res.19663–70. 10.1016/j.bbr.2008.07.027
24
FunkeK.BenaliA. (2011). Modulation of cortical inhibition by rTMS – findings obtained from animal models.J. Physiol.5894423–4434. 10.1113/jphysiol.2011.206573
25
GalvaniA. (1791). De viribus electricitatis in motu musculari commentaris.Bononien Sci. Art Instit. Acad. Comm.7363–418.
26
GeorgeM. S.TaylorJ. J.ShortE. B. (2013). The expanding evidence base for rTMS treatment of depression.Curr. Opin. Psychiatry2613–18. 10.1097/YCO.0b013e32835ab46d
27
GersnerR.KravetzE.FeilJ.PellG.ZangenA. (2011). Long-term effects of repetitive transcranial magnetic stimulation on markers for neuroplasticity: differential outcomes in anesthetized and awake animals.J. Neurosci.317521–7526. 10.1523/JNEUROSCI.6751-10.2011
28
GrayE. G. (1959). Axo-somatic and axo-dendritic synapses of the cerebral cortex: an electron microscope study.J. Anat.93420–433.
29
GreweB. F.LangerD.KasperH.KampaB. M.HelmchenF. (2010). High-speed in vivo calcium imaging reveals neuronal network activity with near-millisecond precision.Nat. Methods7399–405. 10.1038/nmeth.1453
30
GrienbergerC.KonnerthA. (2012). Imaging calcium in neurons.Neuron73862–885. 10.1016/j.neuron.2012.02.011
31
GrinvaldA.HildesheimR. (2004). VSDI: a new era in functional imaging of cortical dynamics.Nat. Rev. Neurosci.5874–885. 10.1038/nrn1536
32
HallettM. (2007). Transcranial magnetic stimulation: a primer.Neuron55187–199. 10.1016/j.neuron.2007.06.026
33
HamadaM.MuraseN.HasanA.BalaratnamM.RothwellJ. C. (2013). The role of interneuron networks in driving human motor cortical plasticity.Cereb. Cortex231593–1605. 10.1093/cercor/bhs147
34
HamadaM.TeraoY.HanajimaR.ShirotaY.Nakatani-EnomotoS.FurubayashiT.et al (2008). Bidirectional long-term motor cortical plasticity and metaplasticity induced by quadripulse transcranial magnetic stimulation.J. Physiol.5863927–3947. 10.1113/jphysiol.2008.152793
35
HebbD. O. (1949). The Organization of Behavior: a Neuropsychological Theory.New York: Wiley.
36
HoogendamJ. M.RamakersG. MDi LazzarroV. (2010). Physiology of repetitive transcranial magnetic stimulation of the human brain.Brain Stimul.395–118. 10.1016/j.brs.2009.10.005
37
HoltmaatA.BonhoefferT.ChowD. K.ChuckowreeJ.De PaolaV.HoferS. B.et al (2009). Long-term, high-resolution imaging in the mouse neocortex through a chronic cranial window.Nat. Protoc.41128–1144. 10.1038/nprot.2009.89
38
HulmeS. R.JonesO. D.AbrahamW. C. (2013). Emerging roles of metaplasticity in behaviour and disease.Trends Neurosci.36353–362. 10.1016/j.tins.2013.03.007
39
LevkovitzY.MarxJ.GrisaruN.SegalM. (1999). Long-term effects of transcranial magnetic stimulation on hippocampal reactivity to afferent stimulation.J. Neurosci.193198–3203.
40
MaarrawiJ.PeyronR.MertensP.CostesN.MagninM.SindouM.et al (2007). Motor cortex stimulation for pain control induces changes in the endogenous opioid system.Neurology69827–834. 10.1212/01.wnl.0000269783.86997.37
41
MalenkaR. C.BearM. F. (2004). LTP and LTD: an embarrassment of riches.Neuron445–21. 10.1016/j.neuron.2004.09.012
42
MarshelJ. H.DeisserothK. (2013). Genetically encoded voltage sensor goes live.Nat. Biotechnol.31994–995. 10.1038/nbt.2738
43
MeyerJ. F.WolfB.GrossG. W. (2009). Magnetic stimulation and depression of mammalian networks in primary neuronal cell cultures.IEEE Trans. Biomed. Eng.561512–1523. 10.1109/TBME.2009.2013961
44
MixA.BenaliA.FunkeK. (2013). Strain differences in the effect of rTMS on cortical expression of calcium-binding proteins in rats.Exp. Brain Res. 10.1007/s00221-013-3751-3756[Epub ahead of print].
45
Müller-DahlhausJ. F.OrekhovY.LiuY.ZiemannU. (2008). Interindividual variability and age-dependency of motor cortical plasticity induced by paired associative stimulation.Exp. Brain Res.187467–475. 10.1007/s00221-008-1319-7
46
MurakamiT.Müller-DahlhausF.LuM. K.ZiemannU. (2012). Homeostatic metaplasticity of corticospinal excitatory and intracortical inhibitory neural circuits in human motor cortex.J. Physiol.5905765–5781. 10.1113/jphysiol.2012.238519
47
NitscheM. A.Müller-DahlhausF.PaulusW.ZiemannU. (2012). The pharmacology of neuroplasticity induced by non-invasive brain stimulation: building models for the clinical use of CNS active drugs.J. Physiol.5904641–4662. 10.1113/jphysiol.2012.232975
48
OpitzA.WindhoffM.HeidemannR. M.TurnerR.ThielscherA. (2011). How the brain tissue shapes the electric field induced by transcranial magnetic stimulation.Neuroimage58849–859. 10.1016/j.neuroimage.2011.06.069
49
PackerA. M.RoskaB.HausserM. (2013). Targeting neurons and photons for optogenetics.Nat. Neurosci.16805–815. 10.1038/nn.3427
50
PerronA.MutohH.AkemannW.GautamS. G.DimitrovD.IwamotoY.et al (2009). Second and third generation voltage-sensitive fluorescent proteins for monitoring membrane potential.Front. Mol. Neurosci.2:5. 10.3389/neuro.02.005.2009
51
RaimondoJ. V.IrkleA.WefelmeyerW.NeweyS. E.AkermanC. J. (2012). Genetically encoded proton sensors reveal activity-dependent pH changes in neurons.Front. Mol. Neurosci.5:68. 10.3389/fnmol.2012.00068
52
RedondoR. L.MorrisR. G. (2011). Making memories last: the synaptic tagging and capture hypothesis.Nat. Rev. Neurosci.1217–30. 10.1038/nrn2963
53
RiddingM. C.ZiemannU. (2010). Determinants of the induction of cortical plasticity by non-invasive brain stimulation in healthy subjects.J. Physiol.5882291–2304. 10.1113/jphysiol.2010.190314
54
RotemA.MosesE. (2008). Magnetic stimulation of one-dimensional neuronal cultures.Biophys. J.945065–5078. 10.1529/biophysj.107.125708
55
ScanzianiM.HausserM. (2009). Electrophysiology in the age of light.Nature461930–939. 10.1038/nature08540
56
Smedemark-MarguliesN.TrapaniJ. G. (2013). Tools, methods, and applications for optophysiology in neuroscience.Front. Mol. Neurosci.6:18. 10.3389/fnmol.2013.00018
57
SpacekJ. (1985). Three-dimensional analysis of dendritic spines. II. Spine apparatus and other cytoplasmic components.Anat. Embryol. (Berl.)171235–243. 10.1007/BF00341418
58
StuartG. J.SakmannB. (1994). Active propagation of somatic action potentials into neocortical pyramidal cell dendrites.Nature36769–72. 10.1038/367069a0
59
TecchioF.ZappasodiF.PasqualettiP.De GennaroL.PellicciariM. C.ErcolaniM.et al (2008). Age dependence of primary motor cortex plasticity induced by paired associative stimulation.Clin. Neurophysiol.119675–682. 10.1016/j.clinph.2007.10.023
60
TokayT.HollN.KirschsteinT.ZschorlichV.KohlingR. (2009). High-frequency magnetic stimulation induces long-term potentiation in rat hippocampal slices.Neurosci. Lett.461150–154. 10.1016/j.neulet.2009.06.032
61
TonnesenJ.NagerlU. V. (2013). Superresolution imaging for neuroscience.Exp. Neurol.24233–40. 10.1016/j.expneurol.2012.10.004
62
TurrigianoG. (2012). Homeostatic synaptic plasticity: local and global mechanisms for stabilizing neuronal function.Cold Spring Harb. Perspect. Biol.4a005736 10.1101/cshperspect.a005736
63
TyeK. M.DeisserothK. (2012). Optogenetic investigation of neural circuits underlying brain disease in animal models.Nat. Rev. Neurosci.13251–266. 10.1038/nrn3171
64
Van HarreveldAFifkováE. (1975). Swelling of dendritic spines in the fascia dentata after stimulation of the perforant fibers as a mechanism of post-tetanic potentiation.Exp. Neurol.49736–749. 10.1016/0014-4886(75)90055-2
65
VitureiraN.LetellierM.GodaY. (2012). Homeostatic synaptic plasticity: from single synapses to neural circuits.Curr. Opin. Neurobiol.22516–521. 10.1016/j.conb.2011.09.006
66
VlachosA.Müller-DahlhausF.RosskoppJ.LenzM.ZiemannU.DellerT. (2012). Repetitive magnetic stimulation induces functional and structural plasticity of excitatory postsynapses in mouse organotypic hippocampal slice cultures.J. Neurosci.3217514–17523. 10.1523/JNEUROSCI.0409-12.2012
67
VlachosA.HeliasM.BeckerD.DiesmannM.DellerT. (2013). NMDA-receptor inhibition increases spine stability of denervated mouse dentate granule cells and accelerates spine density recovery following entorhinal denervation in vitro.Neurobiol. Dis.59267–276. 10.1016/j.nbd.2013.07.018
68
WangH. Y.CrupiD.LiuJ.StuckyA.CruciataG.Di RoccoA.et al (2011). Repetitive transcranial magnetic stimulation enhances BDNF-TrkB signaling in both brain and lymphocyte.J. Neurosci.3111044–11054. 10.1523/JNEUROSCI.2125-11.2011
69
WankerlK.WeiseD.GentnerR.RumpfJ. J.ClassenJ. (2010). L-type voltage-gated Ca2+ channels: a single molecular switch for long-term potentiation/long-term depression-like plasticity and activity-dependent metaplasticity in humans.J. Neurosci.306197–6204. 10.1523/JNEUROSCI.4673-09.2010
70
ZiemannU. (2005). Improving disability in stroke with RTMS.Lancet Neurol.4454–455. 10.1016/S1474-4422(05)70126-5
71
ZiemannU. (2011). Transcranial magnetic stimulation at the interface with other techniques: a powerful tool for studying the human cortex.Neuroscientist17368–381. 10.1177/1073858410390225
72
ZiemannU.PaulusW.NitscheM. A.Pascual-LeoneA.ByblowW. D.BerardelliA.et al (2008). Consensus: motor cortex plasticity protocols.Brain Stimul.1164–182. 10.1016/j.brs.2008.06.006
73
ZiemannU.SiebnerH. R. (2008). Modifying motor learning through gating and homeostatic metaplasticity.Brain Stimul.160–66. 10.1016/j.brs.2007.08.003
