REVIEW article

Front. Mol. Neurosci., 14 December 2021

Sec. Brain Disease Mechanisms

Volume 14 - 2021 | https://doi.org/10.3389/fnmol.2021.767041

Neuroinflammation in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia and the Interest of Induced Pluripotent Stem Cells to Study Immune Cells Interactions With Neurons

  • Sorbonne Université, Institut du Cerveau – Paris Brain Institute – ICM, INSERM, CNRS, AP-HP, Hôpital de la Pitié-Salpêtrière, Paris, France

Abstract

Inflammation is a shared hallmark between amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD). For long, studies were conducted on tissues of post-mortem patients and neuroinflammation was thought to be only bystander result of the disease with the immune system reacting to dying neurons. In the last two decades, thanks to improving technologies, the identification of causal genes and the development of new tools and models, the involvement of inflammation has emerged as a potential driver of the diseases and evolved as a new area of intense research. In this review, we present the current knowledge about neuroinflammation in ALS, ALS-FTD, and FTD patients and animal models and we discuss reasons of failures linked to therapeutic trials with immunomodulator drugs. Then we present the induced pluripotent stem cell (iPSC) technology and its interest as a new tool to have a better immunopathological comprehension of both diseases in a human context. The iPSC technology giving the unique opportunity to study cells across differentiation and maturation times, brings the hope to shed light on the different mechanisms linking neurodegeneration and activation of the immune system. Protocols available to differentiate iPSC into different immune cell types are presented. Finally, we discuss the interest in studying monocultures of iPS-derived immune cells, co-cultures with neurons and 3D cultures with different cell types, as more integrated cellular approaches. The hope is that the future work with human iPS-derived cells helps not only to identify disease-specific defects in the different cell types but also to decipher the synergistic effects between neurons and immune cells. These new cellular tools could help to find new therapeutic approaches for all patients with ALS, ALS-FTD, and FTD.

Introduction

Inflammation is a pathological hallmark shared by many neurodegenerative diseases. Its physiological function is to defend our organism against various insults implying different cell types and molecular pathways. In many neurodegenerative diseases, insults may come from the different disease-affected cells that can degenerate and die or that can secrete abnormal proteins that become immunogenic. Today, it is well documented that inflammation is not just an inert bystanding secondary reaction. Its modulation could be of interest in a therapeutic perspective, especially for patients with sporadic forms of diseases. Modulating the inflammatory response could then be a strategy to slow disease progression.

This review focuses on amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD), two neurodegenerative diseases with some overlapping clinical presentations, pathological mechanisms, and genetics. Firstly, we will present the current knowledge about inflammation in patients, new hypotheses brought by animal studies and the current state of clinical trials targeting inflammation. Next, we will discuss involvements of both innate and adaptive immune responses and the sequence of inflammatory events. This sequence of events could be a key to identify a time window that could be precisely targeted to twist the immune system in the right direction and slow down disease progression. With a detailed picture of inflammatory events in ALS and FTD, the current possibilities offered by the induced pluripotent stem cell (iPSC) technology to generate different human immune cell types and to study their intrinsic defects will be described. With the emergence of more integrated cellular approaches with different iPS-derived cell types, interactions and synergistic effects between immune cells and neurons could be deciphered and bring new insights for innovative therapeutic approaches for ALS and FTD.

Amyotrophic Lateral Sclerosis and Frontotemporal Dementia Pathologies

ALS and FTD disorders are two ends of a spectrum of neurodegenerative diseases. ALS clinical presentation is characterized by progressive paralysis of voluntary muscles due to loss of both upper and lower motor neurons (MNs), leading in most cases to the death of patients by respiratory failure. ALS shares clinical and pathological features with FTD, a type of dementia characterized by impaired judgment and executive skills. In FTD, the loss of neurons in the frontal and temporal cortices, sometimes accompanied with a loss of cortical MNs, correlates clinically with the symptoms of FTD (; ).

Mean survival is 3–5 years for ALS patients and up to 50% of the patients develop frontal lobe dysfunction or language impairment. Among FTD cases, some studies claim only 5–10% of patients with ALS signs (Rosso et al., 2003; ; ; Seelaar et al., 2007), while some others reach 50% (; ). These differences are certainly due to variability in disease definitions and assessments by clinicians. Some more recent studies indicate that FTD-ALS has a particularly poor prognosis with a survival of 2–5 years ().

At the genetic level, several genes with numerous pathogenic variants, are causal for ALS, ALS-FTD, and FTD (). The same genetic mutation can result in either ALS, FTD or both pathologies, suggesting roles of disease-specific modifiers. Also, as most mutated genes encode ubiquitously expressed proteins, all cell types can in theory be affected by the expression of the mutated protein, thus contributing to the complexity of the disease (). While mutations in the progranulin gene (GRN) and the microtubule-associated protein tau (MAPT) have been identified as major causes of familial FTD (), some other genes were linked only to ALS, including kinesin family member 5A (KIF5A) and SOD1 (superoxide dismutase 1). Of particular interest in the ALS-FTD spectrum, mutations in the C9orf72 gene which were identified in 2011, and made the link between both disorders (). In the Western hemisphere (and not in Asia), hexanucleotide repeat expansions in the C9orf72 gene have been identified in up to 40% of familial ALS (fALS) patients and 20% of fFTD patients, and in ∼6% of sporadic ALS (sALS) and sFTD patients (; Renton et al., 2011). Moreover, recent studies shed light on the role of some genes mutated in both ALS and FTD (TBK1, OPTN, and SQSTM1) and that are implicated in innate immune related functions (), warranting the importance of the contribution of immune cells in the pathology.

Inflammation in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia: A Shared Pathological Hallmark

First Observations in Post-mortem Tissues of Patients

Post-mortem studies brought the earliest observations suggesting of the presence of inflammatory signs in ALS and FTD patients.

Several ALS post-mortem case reports have described lower numbers of MNs in the spinal cord and to a lower extend of Betz cells in the cerebral cortex, accompanied by increased microglial activation and astrogliosis (; ; ; Schiffer et al., 1996; Saberi et al., 2015; ). There was no microgliosis in the dorsal horns of the spinal cord, strongly suggesting a specific response of microglial cells toward degenerating MNs. More recent studies identified the presence of immature and activated dendritic cells (DC) in ventral horns and corticospinal tracts of ALS patients () as well as the presence of activated CD68+ monocytes/macrophages/microglial cells and of CD4+ and CD8+ lymphocytes in the vicinity of MNs (; ). At the periphery, demyelination, axonal degeneration, macrophage activation, abnormal motor end plates, axonal sprouting, and atrophic muscles were described (; Tandan and Bradley, 1985; ).

In FTD patients, inflammatory signs are less obvious compared to ALS patients. Asymmetrical convolutional atrophy in frontal and anterior lobes were observed (; Tolnay and Probst, 2001; ). In the gray matter, microvacuolation and gliosis in laminae I–III were seen in conjunction with neuron loss, while neurons of lamina V were reported to be only mildly affected. Rare dystrophic neurites were described. In the white matter, mild gliosis was observed in subcortical fibers and loss of myelin was sometimes observed.

Thanks to these first studies, inflammatory signs were identified in ALS and FTD post-mortem tissues. Nevertheless, it is difficult to define when inflammation begins and if this is an early or late event as post-mortem tissues represent rather an end-stage of the pathology. However, the question of the sequence of the inflammatory events is crucial as inflammation can be beneficial or harmful for neurons depending on the disease stage. Today, this question is an open question that needs more investigation.

Human Studies to Decipher the Involvement of Inflammation in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

In humans, studies were conducted at several levels including brain imaging studies and biofluids analysis.

Imaging studies are valuable tools to assess cerebral changes, spreading patterns, network-wise propagations, and can also be used to detect inflammation. These imaging tools could even be used to detect biomarkers to define the conversion transition from a pre-symptomatic stage to a clinically manifest disease (; ). Positron Emission Tomography (PET) is a functional imaging technique using radioactive ligands to measure, amongst others, changes in metabolic processes. Different radioligands targeting specific cellular substrates are available for different imaging purposes depending on the studied cellular event. TSPO, which corresponds to the 18 kD translocator protein, is highly expressed on activated microglia and astrocytes (; ) and is helpful to visualize inflammation and/or gliosis. Several generations of TSPO radio-ligands exist, which differed regarding their binding specificities. The latest in use are [11C]PBR28 and [18F]DPA-714 which bind with higher specificities to TSPO in comparison to the previous generation of radioligands (; ). However, recent studies showed the presence of a polymorphism affecting the TSPO binding affinity, assessing the importance to take into account this parameter in studies involving heterogeneous populations of ALS or FTD patients. A new PET probe [18F]CB251 was recently published and seems to be more specific for TSPO regardless of polymorphisms (). This new probe will be of particular interest for future studies.

The overwhelming majority of imaging studies in patients are done in the brain. Studies in control subjects and ALS patients revealed an increased binding of [18F]DPA-714 () or [11C]-PBR28 (Schain and Kreisl, 2017) only to the motor cortex regions with positive correlations with the Upper Motor Neuron Burden Scale (UMNB) and negative ones with the Amyotrophic Lateral Sclerosis Functional Rating Scale – Revised (ALSFRS-R) (Zürcher et al., 2015; , ; Ratai et al., 2018). In FTD and ALS-FTD patients, increased TSPO binding were observed in cortical frontal, mesial temporal, subcortical regions, prefrontal cortex, hippocampal, and para-hippocampal regions (; Turner et al., 2004; ; ).

Despite numerous attempts to image the spinal cord in vivo () technological constraints (i.e., respiration, cardiac movements, and small cross-sectional area) have hindered reliable quantitative spinal cord imaging in patients (). Amongst the scarce imaging studies assessing ALS patient’s spinal cords, most of them used magnetic resonance imaging (MRI) techniques. Studies of metabolic changes in ALS patients’ spinal cords using whole body PET/computed tomography (CT) images are recent. Two independent studies identified increased [18F]-fluorodeoxyglucose (FDG) uptake in the spinal cord of patients. [18F]-FDG is thought to reflect cell metabolism without specificity for glial cells, but the observed hyper-metabolism in the spinal cord was suggested to represent an increased inflammation and gliosis due to accumulating glial cells in reaction to degenerating neuronal cells (). Further studies using specific radioligands will have to confirm these observations.

PET studies opened new perspectives regarding our understanding of pathology and inflammation in patients. To go a step further, it might now be possible to assess temporal changes during the disease course. Objectives are to observe cell reactivity as well as spreading of inflammation and gliosis in ALS and FTD patients’ brains and spinal cords. In the largest longitudinal ALS PET study, 10 patients underwent [11C]-PBR28 PET scans twice over a 6 months period. Results showed a stable [11C]-PBR28 uptake over this period of time (), suggesting a plateau of glial reactivity shortly after symptoms onset. These first results are very encouraging suggesting that the inflammation does not increase with time. Other longitudinal studies are now necessary to support these results. If asymptomatic subjects of patient’s families could be included in these studies, this could help understand the crucial question of when the neuroinflammatory response starts.

As a whole, imaging studies are particularly interesting as they offer insights in the status of brain and spinal cord pathological tissues at spatial and temporal levels. They also bear hope as a tool to detect biomarkers. Nevertheless, imaging studies still hold limitations for studying precisely microglial activation in ALS and FTD patients. As mentioned previously, TSPO is not highly cell-specific (), which limits data interpretations (Vivash and O’Brien, 2016). Thus, other radioligands targeting microglia more specifically are currently developed and first studies have already shown PET imaging with a tracer targeting the pro-inflammatory phenotype of activated microglial (; ). The next step is now to develop a tracer for the anti-inflammatory phenotype of microglia. This would allow for imaging of the different microglia activation states during disease evolution.

Circulating Inflammatory Cytokines and Chemokines in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

The presence of circulating inflammatory cytokines and chemokines in the blood and the cerebrospinal fluid (CSF) was extensively studied in ALS patients and to a lesser extent in FTD patients. Recently, studies showed that the pro-inflammatory and multifunctional IL-6 cytokine was increased in both ALS and FTD patients in comparison to controls (; ; ; ; Tortelli et al., 2020). Furthermore, the IL-6 level was suggested to be correlated with disease progression in ALS (). Apart from IL-6, ALS and FTD patients have distinct cytokines and chemokines circulatory profiles (see below and Table 1 that presents the different publications studying circulating inflammatory molecules in CSF and blood of ALS or FTD patients).

TABLE 1

CompartmentALSFTD
CNSIncreased circulating factors in CSF: cytokines and chemokines: IL-2, IL-4, IL-5, IL-7, IL-8, IL-9, IL-12, IL-15, IL-17, IFN-γ, TNF-α, eotaxin, CCL11, MIP-1α, MIP-1β, MCP-1, IP-10 (Tanaka et al., 2006; ; ; Tateishi et al., 2010; ); growth factors: FGF-2, VEGF, G-CSF, GM-CSF, PDGF-BB (Tanaka et al., 2006; ; Tateishi et al., 2010; ; ) Contradictory results: increase or decrease of IL-10 (Tanaka et al., 2006; )Increased circulating cytokines in the CSF: IL-8, IL-11, IL-23, MCP-1, IP-10, Eotaxin-3, TGF-β1, YKL40 (Sjögren et al., 2004; , , ; ; ; Teunissen et al., 2016) Decreased circulating cytokines in the CSF: IL-12, IL-15, IL-17, TNF-α, RANTES (Rentzos et al., 2006a; ; ) Increased inflammatory lipids in the CSF: LPC, PAF ()
BloodIncreased circulating factors linked with extracellular matrix remodeling: MMP9, TIMP2 (); oxidative stress markers: GSSG, 8-OHdG, MDA (); circulating cytokines/chemokines: IL-1β, IL-4, IL-8, IL-12p70, IL-13, IL-15, IL-17A, IL-18, TNF-α, MIP-1α, MCP-1, eotaxin (; ; ; ; ; ; ; Prado et al., 2018; Tortelli et al., 2020; ); growth factors: G-CSF, GM-CSF, bFGF, VEGF () Downregulation of inflammatory cytokines chemokines CCL5, CXC5R, TGF-β2, IL-10RA (; ), oxidative stress markers: GSH (; ) Contradictory results: increase or decrease of IL-2, IL-5, IL-6, IL-10, IFN-γ (; ; ; ; ; Prado et al., 2018; Tortelli et al., 2020; )Increased peripheral circulating cytokines IL-6, IL-8, IL-15, IL-17, CCL26, MCP-1, IP-10, TNF, FasL, TRAILR3 (; ; ) Decreased peripheral circulating cytokines IL-1α, IL-6, IL-12, IL-23, RANTES, TNF (Santos et al., 2014; )

Publications reporting CSF and blood circulating inflammatory molecules in ALS and FTD patients.

This table recapitulates circulating inflammatory molecules measured in the CSF and the blood of patients. The molecules can be secreted by several immune cell types. 8-OHdG, 8-hydroxydesoxyguanosine; bFGF, basic fibroblast growth factor; CCL5, C-C motif chemokine ligand 3; CCL11, C-C motif chemokine ligand 11; CCL26, C-C motif chemokine ligand 26; CXC5R, C-X-C motif chemokine receptor 5; FasL, Fas ligand; FGF-2, fibroblast growth factor 2; G-CSF, granulocyte-colony stimulating factor; GM-CSF, granulocyte-macrophage colony-stimulating factor; GSH, glutathione; GSSG, glutathione disulfure; IFN-γ, interferon-gamma; IL-1β, interleukin-1 beta; IL-2, interleukin-2; IL-4, interleukin-4; IL-5, interleukin-5; IL-6, interleukin-6; IL-7, interleukin-7; IL-8, interleukin-8; IL-9, interleukin-9; IL-10, interleukin-10; IL-10RA, interleukin 10 receptor subunit alpha; IL-11, inteleukin-11; IL-12, interleukin-12; IL-12p70, interleukin-12p70; IL-13, interleukin-13; IL-15, interleukin-15; IL-17, interleukin-17; IL-17A, interleukin-17A; IL-18, interleukin-18; IL-23, interleukin-23; IP-10, interferon gamma-induced protein 10; LPC, lysophosphatidylcholine; MCP-1, monocyte chemoattractant protein 1; MDA, malondialdehyde; MIP-1α, macrophage inflammatory protein-1 alpha; MIP-1β, macrophage inflammatory protein-1 beta; MMP9, matrix metallopeptidase 9; PAF, platelet-activating factor; PDGF-BB, platelet-derived growth factor-BB; RANTES, Regulated Upon Activation, Normally T-Expressed, and Presumably Secreted (or CCL5); TGF-β1, transforming growth factor beta 1; TGF-β2, transforming growth factor beta 2; TIMP2, tissue inhibitor of metalloproteinases 2; TNF-α, tumor necrosis factor alpha; TRAILR3, tumor-necrosis-factor related apoptosis inducing ligand receptor 3; VEGF, vascular endothelial growth factor; YKL-40, chitinase 3-like 1.

In ALS, a large panel of pro and anti-inflammatory cytokines and chemokines were described as deregulated in patients (reviewed in ). However, results are not always consistent amongst the different studies, probably because of the heterogeneity of the studied populations. Heterogeneity exists at different levels. First, in most reports the studied population has a mean ALSFRS-R with a large standard deviation and patient’s biofluids are analyzed at one single time point. Thus the inflammation status of the different patients may be different, making the results hard to interpret. Of note, the disease state is most of the time measured with the ALSFRS-R, but it does not necessarily reflect the pathological state at the cellular level. To date among the most promising biomarkers for ALS are neurofilaments heavy and light chains, measurable in CSF and blood and being used in many trials (; Xu et al., 2017; ; ). Second, some studies include patients diagnosed with the El Escorial criteria that categorize the disease as “possible,” “probable,” or “definite.” This classification could allow establishing if there is a correlation between the diagnosis categories and the amount of circulating factors. However, some other studies take all diagnostic cases as one single group of patients and do not take into account the diagnosis, making any correlation impossible. Third, the site of onset of the pathology (spinal vs bulbar) may also be a confounding factor if the two groups are not considered separately. Indeed, progression of the disease is very different between the two forms and so are probably the inflammatory events over time. Next, most studies include sporadic cases or compare familial and sporadic cases, which cannot be seen anymore as different groups. Better defining patient groups are needed. As we now know the importance of some mutated genes in the immune system, retrospective studies could be interesting to compare sub-groups based on their genotypes. (v) Finally, CSF and blood are distinct compartments as the CSF is part of the central nervous system (CNS) while circulating peripheral molecules are in the blood. Both compartments may contain different types and amounts of cytokines and chemokines depending on the state of the pathology.

Few longitudinal studies were conducted and no significant differences in cytokines and chemokines secretions were observed between two pathological time-points in patients (Saleh et al., 2009; ; Prado et al., 2018). As in most cases recruited patients were already in advanced stages of the disease, a hypothesis is that if inflammation is an early event, analysis was probably conducted too late. Having the opportunity to do this kind of analysis as early as possible after diagnosis could bring new insights of the inflammatory appearance and evolution with disease progression.

Amongst other factors measured in ALS patients’ biofluids, immunoglobulins (IgG), metabolic proteins, adipokines, iron-related proteins, and oxidative stress markers were found deregulated in patients (; ; ). These deregulations reflect metabolic and inflammatory dysfunctions which may be critical actors of pathogenesis. In vitro and in vivo studies demonstrated that IgG of ALS patients induced a selective MN’s death, presumably involving calcium (Yi et al., 2000; ; Pullen et al., 2004; ), supporting a direct role of immunological responses on the selective MN loss.

In FTD patients, most studies focused on CSF analysis. Analyses revealed altered secretions of inflammatory chemokines and cytokines as those found in ALS patients, such as IP-10, TNFα (Sjögren et al., 2004), TGFβ, CCL-2 (also called MCP-1) (), RANTES (), and IL-8 (). Some cytokines seemed more specific to cognitive aspects of the pathology as they were found deregulated in Alzheimer’s disease (AD) and FTD patients such as IL-11 (), IL-15 (Rentzos et al., 2006b), and IL-12 (Rentzos et al., 2006a). Interestingly, in clinical cases with FTLD-TDP and FTLD-tau (2 different FTD forms) pathologies, differences in some neuropeptides and chemokines secretions (IL-23 and IL-17) were observed, a signature that could help to distinguish the two forms when antemortem follow-ups are done (). Regarding blood analysis, no statistical differences of FTD patients’ serum cytokines compared to controls were found (). On the other hand, lipid assays showed increase triglyceride levels in patients correlated with body mass index, while HDL cholesterol levels were negatively correlated with this index (). More recently a serum lipidomic study focused more precisely on lipids implied in 3 key aspects of FTD pathology: inflammatory processes, mitochondrial dysfunction, and oxidative stress (). Amongst other findings, the data revealed specific increased lipid implicated in inflammatory responses, LPC and PAF (lysophosphatidylcholine and platelet-activating factor) which are known as second messengers or immediate response molecules and which act on various immune targets (T lymphocytes, microglia, macrophages, and neutrophils) (; ; Scholz and Eder, 2017). In contrast, they found a decrease in o-acyl-w-hydroxy fatty acids (OAHFA) which is known to exert anti-inflammatory effects. The significant inverse correlation between LPC and OAHFA variations suggests increased inflammation in FTD patients.

Taken together, these studies show that inflammatory events occur in ALS and FTD patients. What is now needed is a better understanding of the actual start and evolution of these inflammatory events in both pathologies, which would be important for targeted immunomodulating therapies.

The Role of the Immune System in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

Inflammation is a multifaceted reaction implying different cell types and molecular pathways. Figure 1 shows the different immune cells that can play roles during disease progression both in the CNS and the PNS. Below we describe the different cell types that are thought to play a role in inflammatory mechanisms in ALS and FTD, and how they might impact the disease progression.

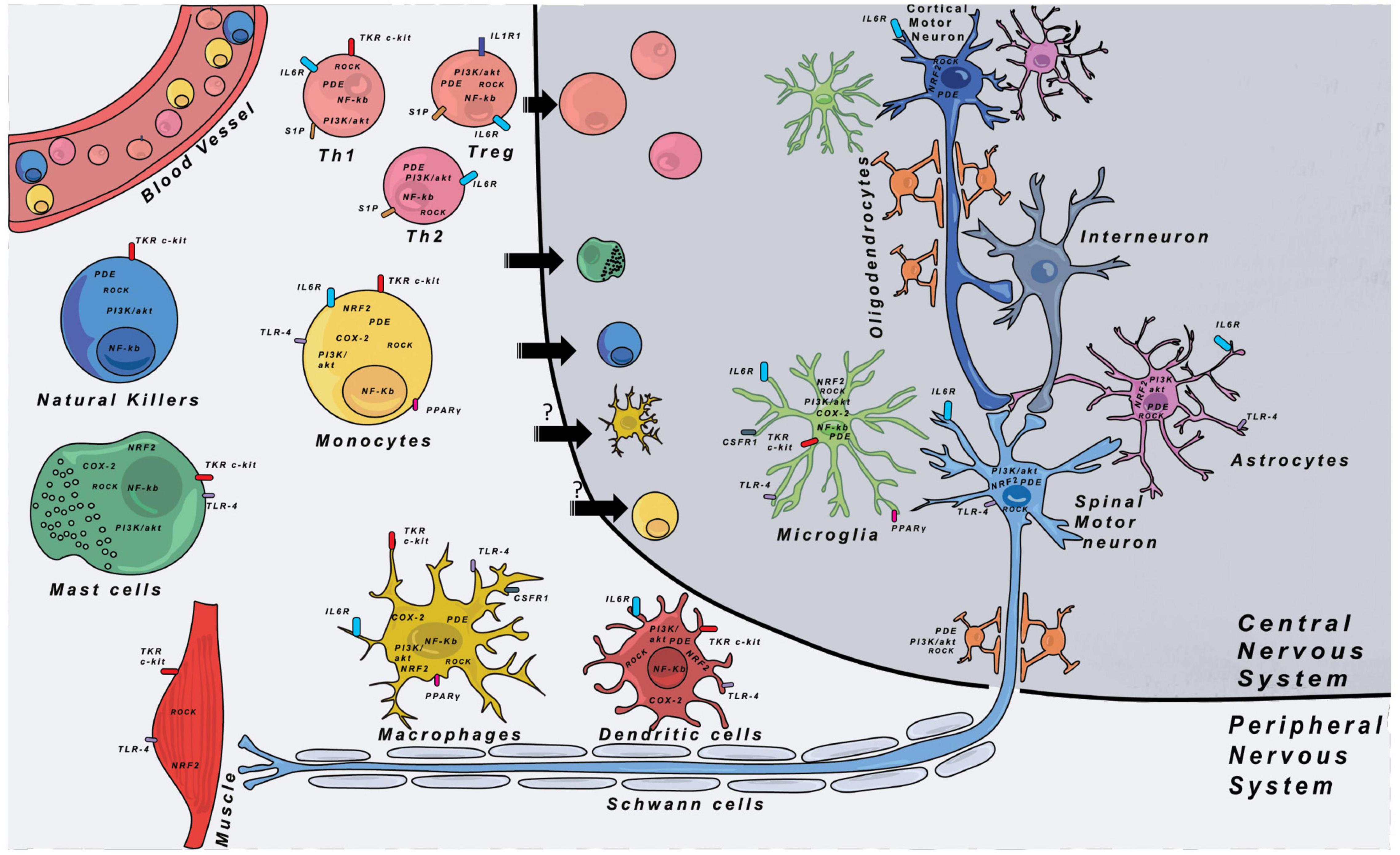

FIGURE 1

Innate Immunity in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

Innate immunity is the first line defense of the organism. It provides an immediate immune response against a non-self pathogen and is conserved amongst vertebrates and invertebrates. It encompasses a group of cell types that recognize attacks on the organism and facilitate the clearance of external pathogens. These cell types have specific functions depending on their tissue location and surrounding environment. Table 3 lists published data indicating the proposed implications of the different immune cell types both in animal models of ALS and FTD and in patients.

Phagocytes

Amongst phagocytes different subpopulations exist. Tissue resident macrophages are heterogeneous populations that can differ by their embryonic origin but also their tissue location where they acquire specific functions and distinct profiles.

Macrophages are antigen presenting cells (APC). The main role of APC is to process antigens and present them by major histocompatibility complex (MHC) at cell surface. The MHC-antigen complex is recognized by the T cell receptor (TCR), allowing T cell activation. APC also express many co-stimulatory molecules that participate in T cell activation. APC regroup several immune cell types in different tissues, including DC, macrophages, B cells and Langerhans cells (). Macrophages are less potent than DC but still enough to activate neighboring adaptive immune cells. Macrophage activation states are multiple (Xue et al., 2014). Depending on the insult they encounter, they can release different cytokines, chemokines, and other factors to drive inflammation by activating neighboring cells but also attracting blood immune cells to the site of injury. At the same time, their key phagocytic activities allow them to clean up cellular debris and thus decrease local inflammation. Microglia are the CNS resident macrophages but have a distinct embryonic origin compared to the majority of peripheral macrophages (; Schulz et al., 2012; ; ). Since decades, the understanding of the exact roles of microglia in the CNS is a field of intense research. These cells display extended prolongations allowing them to patrol the whole brain parenchyma within a matter of hours, making them very active cells in the CNS. While microglia have been long studied for their roles during brain development, their homeostatic roles in the adult are less clearly defined. However, during neuronal injury or neurodegeneration, they function as macrophages and appear to be the first line of response to neuronal suffering.

Today, accumulating evidence points to important roles of microglia in ALS and FTD. However, for a long time, the lack of specific marker to distinguish peripheral macrophages (able to invade the CNS) from microglia, made it difficult to study the two cell populations individually. Thus, especially for in vivo studies in ALS rodent models, often, both cell types were studied as a single population. In 2006, two independent studies demonstrated that decreasing expression of mutant human SOD1 (hSOD1) only in macrophages/microglia in a mutant hSOD1 ALS mouse model led to slowing of disease progression and increased survival (; ). In ALS, the degenerating spinal MN projects its longest part, the axon, into the periphery, and thus, the axon would be in contact with reacting macrophages and other peripheral immune cells, while the soma in the CNS would be in contact with microglia.

This particularity of the spinal MN led to the idea that in ALS it might be a promising approach to target directly the peripheral immune system and the macrophages along the peripheral motor nerves to slow neurodegeneration. This could be potentially an easier therapeutic approach than targeting microglia in the CNS, and by targeting neuroinflammation could be used for all ALS cases. This idea was applied in a recent article that demonstrated that gene expression patterns were very different during the disease in microglia and macrophages in mutant hSOD1 mice () showing that the two cell types can play different roles in the disease. In this study, replacement of peripheral mutant SOD1 macrophages by more neurotrophic macrophages decreased both sciatic nerve macrophage activation and CNS microglial activation (). This is particularly interesting as it shows that by modulating macrophages at the periphery it is possible to act on CNS inflammation. Interestingly, demonstrated that when this replacement was done at a pre-symptomatic stage, disease onset was delayed, but this was not sufficient to increase life expectancy, whereas when the macrophage replacement was done at disease onset, it was able to increase survival of ALS mice. The necessity of a precise timing for the macrophage replacement in this ALS model could give insights into the time window that has to be targeted to act on peripheral inflammation in ALS. Whereas most of the studies regarding the roles of phagocytes were done with the mutant SOD1 mouse model, in which phagocytes showed deleterious effects on disease progression, a recent study suggested potential neuroprotective effects of reactive microglia in one TDP-43 mouse model (Spiller et al., 2018). These results show that the involvement of phagocytes is context-dependent and thus has to be studied in several ALS models and in humans with different disease forms to understand their exact roles during the disease course.

In FTD and ALS, two of the most commonly found mutant genes (GRN, C9orf72) encode proteins that have critical roles in phagocytosis and endocytosis which are important for microglial functions (; ; Shatunov et al., 2010; ; ). Progranulin acts as an inflammatory modulator and its expression is significantly up-regulated in microglia in several models of neuronal injury (; ; Tanaka et al., 2013). In GRN knockout mice aberrant microglial activation upon stimulation and during aging was reported (Yin et al., 2009; ; ), leading to increased synaptic pruning or even neuronal loss. GRN deficient mice harbor obsessive-compulsive behaviors which seem to imply the TNFα signaling pathway predominant in microglial cells in the CNS (). This major immune reaction can be alleviated through restoration of progranulin level. Indeed, an overexpression of the latter in a mouse model of sciatic nerve injury led to accelerated axonal regrowth, restoration of neuro-muscular junctions, and recovery of sensory and motor functions (). Regarding C9orf72 studies, its deficiency in an animal model showed a hyper activation of the innate immune system with increased expression of IL-6 and IL-1β in microglia and upregulated inflammatory genes in the spinal cord (). Moreover, several studies reported a defective lysosomal system with important accumulations in innate immune cells (; Sullivan et al., 2016; ). Together these results show a prominent role of C9orf72 in microglial cells. The phagocytic machinery is essential for clearance of cell debris and maintenance of homeostasis. Disturbance in the correct functioning of this machinery could lead to aberrant neuroinflammation and thus could directly contribute to the disease process in ALS and FTD rather than being a simple secondary event to neuronal degeneration. Nonetheless, these results need to be interpreted cautiously as both models do not match haploinsufficiency found in ALS and FTD patients.

Aside from these studies in animal models, most human studies have used circulating blood monocytes, as access to tissue resident macrophages and microglial cells are unlikely possible in live patients.

In ALS patients, different studies have assessed peripheral monocyte populations. An increase of classical and a decrease of non-classical monocytes was observed not only in sALS and fALS patients, in line with findings in the mutant hSOD1 mice, but also in pre-symptomatic ALS mutant carriers (; Zondler et al., 2016), suggesting that this phenotype is an early event in the pathology. Moreover, circulating monocytes of ALS patients presented functional defects in phagocytosis and migration, and appeared to be skewed toward a more pro-inflammatory phenotype with a TNFα protein release positively correlating with progression rates, and a IL-6 protein release positively correlating with disease burden (Zondler et al., 2016; Zhao et al., 2017; ). Deep RNA sequencing of ALS monocytes revealed unique inflammation-related gene profiles, defects in migration and in the lysosomal pathway (Zondler et al., 2016; Zhao et al., 2017). While aforementioned studies were carried out on blood monocytes, a recent study observed that ALS monocytes-derived macrophages had increased IL-6 and TNFα secretion levels when activated toward a pro-inflammatory state, suggesting that blood monocyte-derived macrophages kept at least some of their in vivo characteristic defects when in culture (). Other studies are now needed to better understand the inflammatory states of ALS macrophages at different time-points of the pathology, and this could be assessed by using monocytes, easy accessible from alive patients.

In FTD patients, a study revealed increased monocytes in the CSF of patients with no change in the proportion of non-classical compared to classical monocytes (). Elevated monocyte levels correlated with structural cerebral defects in FTD typical affected regions assessed by structural MRI (). Further studies would be important to validate these alterations at a larger scale.

Dendritic Cells

Dendritic cells orchestrate innate and adaptive complex systems. DC are the most efficient APC to activate T cells into specific lineages because they display more MHC classes and co-stimulatory molecules compared to others APC (). In the periphery, immature DC patrol to find non-self antigens throughout tissues. The encounter with a pathogen or a danger signal triggers their maturation, antigen presentation on MHC-II and migration to secondary lymphoid organs where they activate CD4 or CD8 T cells. At steady-state level, DC can present self-antigens to T cells to avoid immune responses against self-proteins and induce tolerance. This process leads to the induction of regulatory T cells (Tregs) that express and secrete anti-inflammatory molecules to reduce inflammation ().

In sALS and fALS patient’s post-mortem tissues, immature and mature DC were predominantly observed in the degenerating corticospinal tracts, with increased mRNAs levels coding for DC surface markers and for the inflammatory chemokine CCL-2 (). Interestingly, patients with a rapid disease progression had more transcripts compared to patients with a slower progression. This suggests an active recruitment of DC by the inflamed CNS of ALS patients. A hypothesis is that besides the known CCL-2 sources (principally attributed to macrophage and microglia) and with a role of CCL-2 as a chemoattractant for monocytes and T cells, DC could be an additional CCL-2 source, therefore participating in inflammatory cell recruitment. In agreement with this hypothesis is that several studies described an increase of CCL-2 in ALS patient’s CSF (; ; Tateishi et al., 2010; ). Also in the blood of ALS patients, a subpopulation of circulating DC showed an increased production of CCL-2 in response to LPS (Rusconi et al., 2017).

Further analysis of circulating DC in blood of ALS and FTD patients would be of great interest if the different subpopulations of DC could be identified. cDC1 have the ability to highly cross-present antigen to CD8 T cells, while cDC2 is the most efficient DC subset to polarize naive CD4 T cells (). pDC are a main actor of antiviral responses by the production of type 1 interferon (IFN-1) (). Finally, it was shown that monocyte-derived DC (MoDC) can arise during inflammation. MoDC have been first observed in mice () and then in humans under inflammatory physiological and physiopathological conditions (Segura et al., 2013; Tang-Huau et al., 2018).

Mast Cells

Mast cells are long-lived tissue resident cells, implicated in many different inflammatory responses. As they encounter specific antigens, they activate and release numerous inflammatory mediators (i.e., histamine, cytokines, lysosomal enzymes, ATP, and serine proteases). They are generally located near structures mediating visceral sensory or neuroendocrine functions or close to the blood-brain-barrier (BBB). In the spinal cord under normal conditions, mast cells are present at the dura but not in the cord parenchyma (). Mast cells are also first line effectors through which pathogens can affect the gut-brain axis (; ).

In the past years, mast cells received increased attention, as they appeared to be an early responder to injury (Skaper et al., 2014). Studies have shown that when they are activated they are important mediators of the microglial inflammatory response, astrocyte activation and potential neuronal degeneration (Skaper et al., 2014; Zhang et al., 2016; ). They are also able to disrupt and permeabilize the BBB leading to toxins and immune cells penetration, exacerbating the inflammatory response.

In post-mortem spinal cords of ALS patients, increased Cox-2 mast cells – Cox-2 is a key mediator of the inflammation () – were detected while they were not present in controls (), Recently, mast cells were described near the altered microvascular elements and surrounding MN cell bodies (). In the mutant hSOD1 rat model, accumulation of mast cells was observed in ventral roots and spinal cords (Trias et al., 2018). Interestingly, mast cells were also found in the periphery and in particular in muscles, with infiltrations and degranulations correlating with paralysis progression (Trias et al., 2017). Mast cells are thought to be recruited along the degenerating nerve by the Stem Cell Factor (SCF) secreted from reactive Schwann cells and reactive macrophages (Trias et al., 2019). Very recently, a report showed that mast cells were interacting with astrocytes and MNs expressing SCF in the mutant hSOD1 mouse model (). Pharmacological inhibition of CSF-1R and c-kit with Masitinib [a tyrosine kinase inhibitor targeting the SCF receptor (c-kit) and the platelet derived growth factor (PDGF)] showed reduced immune cell infiltration and amelioration of neuromuscular junction (NMJ) integrity, suggesting an implication of mast cells in the axonopathy in periphery in the ALS pathology (Trias et al., 2016, 2020). Based on these encouraging results suggesting that mast cells participate to inflammatory reactions in ALS both in the CNS and PNS, clinical trials were launched with Masitinib (ongoing trials from AB Science). Whether mast cells are a driver or an amplifier of the ALS pathology remains to be determined. Their “early” implication in the pathology is suggested as at the symptomatic phase in mutant hSOD1 rats, mast cells have already increased in number. Assessing their presence at the pre-symptomatic stage would be of great interest to assess their earlier involvement.

In FTD patients, nothing is known about mast cells participation, but it would not be aberrant to see their increased reactivity as was observed in AD patients ().

Natural Killer Cells

Natural killer (NK) cells are classified as innate cytotoxic lymphocytes and are mainly known for their ability to kill virus-infected cells and tumor cells (). Few papers reported an increase of NK cells in ALS patients’ blood (; ). Very recently, described an infiltration of p46-positive NK cells in the spinal cord and motor cortex of patients with sALS. They also showed NK cell recruitment in the CNS of SOD1G93A mice. CCL-2 was shown to be involved directly in it or through other cell recruitment, since CCL-2 neutralization led to a decrease of NK cell infiltration. Interestingly, these data identified CCL-2 as an early damage signal of neural tissue. The depletion of NK cells in SOD1G93A mice, but also in TDP43A315T mice, increased survival and delayed paralysis onset. Functionally, control and SOD1G93A NK cells had a cytotoxic effect on SOD1G93A MNs, but not on control MNs, suggesting a kill-me signal coming from mutant MNs. Regarding the impact on other immune cells, they showed that NK-depleted SOD1G93A mice had a decreased number of microglia in spinal cord ventral horns, with a less inflammatory profile. NK depletion also induced an increase of Tregs (see below) in the ventral horns (). More studies deserve now to be done to better understand the involvement of NK cells in ALS.

In FTD patients, one study showed that NK cell percentages were not modified in patients’ blood samples ().

Altogether, these data support the critical role of innate immunity in ALS-associated neurodegeneration and to a lesser extend in FTD. Phagocytes, mast cells, DC, and NK cells are activated in early disease phases and thus may participate through positive or negative impacts on neuron degeneration.

Adaptive Immunity in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

The adaptive immune system, unlike innate immunity, is highly specific to the particular pathogen that induces it and can provide long lasting immune protection. This type of immunity is strictly confined to vertebrates as it arises in evolution less than 500 million years ago (). Amongst the cells that constitute this second line of immunity, major actors are T and B cells that can be subdivided in many subclasses that can play different inflammatory roles and serve different purposes during inflammatory events.

T Lymphocytes

The T lymphocyte population is composed of two main subpopulations: CD4 and CD8 T cells. They are both characterized by the expression of CD3 and T-cell receptor (TCR) at their membrane surface. During T cell activation, the TCR recognizes antigen peptides presented by APC on MHC-II for CD4 T cells and MHC-I for CD8 T cells. In addition to this TCR/MHC/peptide complex signal, co-stimulatory molecules interactions (the main one being CD28 binding to CD80/CD86) and cytokines are necessary for T cell activation ().

CD4 T Cells

CD4 T cells, also called T helper (Th) cells, help to set up an appropriate immune response against the encounter pathogen. To this aim, they provide signals to other immune cells that influence their activation and thus guide the immune response according to the pathogen to target. Naive Th cells are activated and polarized by APC, mainly DC, in secondary lymphoid organs. They are classified in several subsets, the main ones being Th1, Th2, Th17, and Treg cells. They are primarily defined by their transcription factor patterns of expressions and their cytokine productions (Table 2).

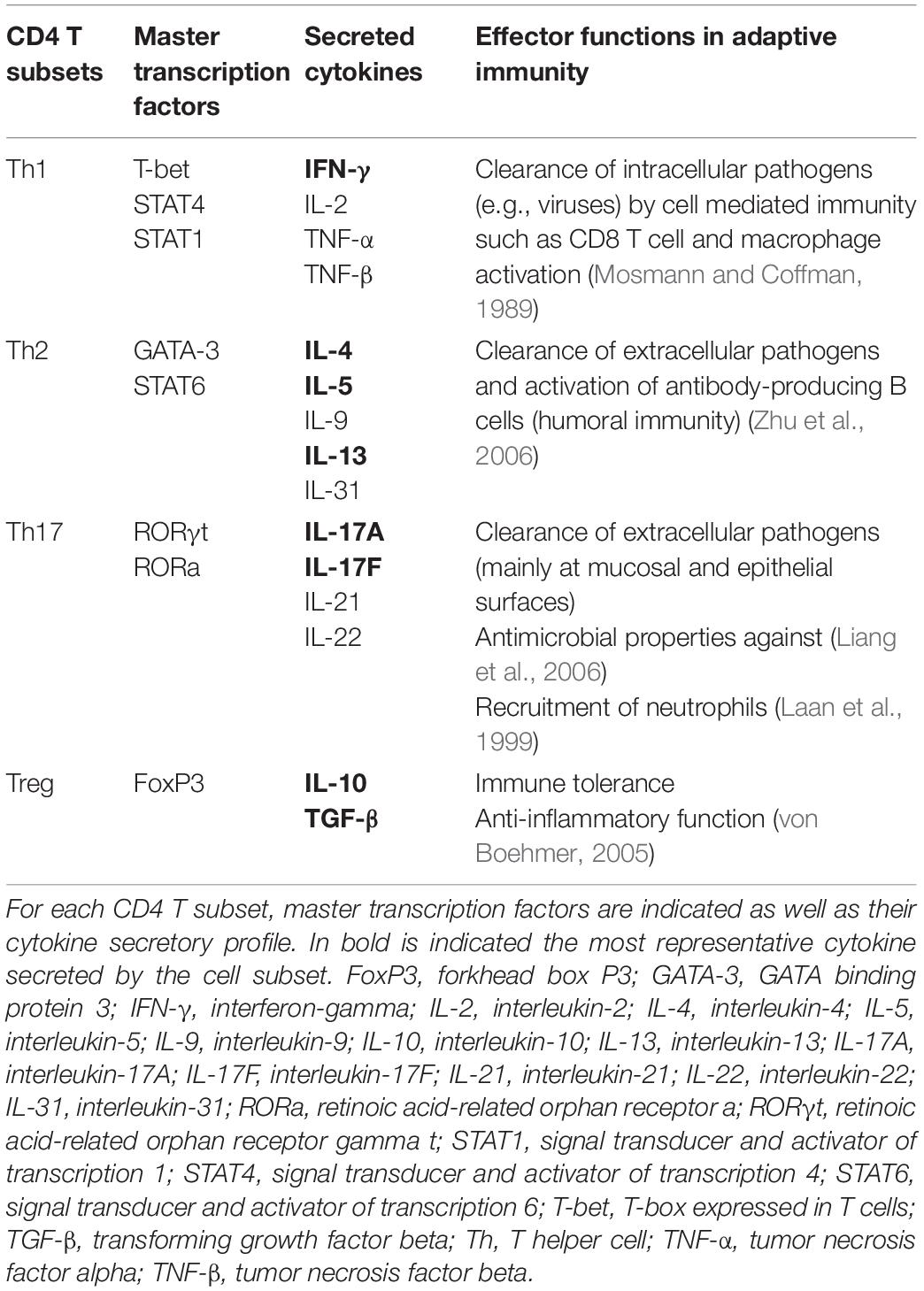

TABLE 2

CD4 T subsetsMaster transcription factorsSecreted cytokinesEffector functions in adaptive immunity
Th1T-betIFN-γClearance of intracellular pathogens (e.g., viruses) by cell mediated immunity such as CD8 T cell and macrophage activation ()
STAT4IL-2 TNF-α
STAT1TNF-β
Th2GATA-3IL-4Clearance of extracellular pathogens and activation of antibody-producing B cells (humoral immunity) (Zhu et al., 2006)
STAT6IL-5
IL-9
IL-13
IL-31
Th17RORγtIL-17AClearance of extracellular pathogens (mainly at mucosal and epithelial surfaces) Antimicrobial properties against () Recruitment of neutrophils ()
RORaIL-17F
IL-21
IL-22
TregFoxP3IL-10Immune tolerance Anti-inflammatory function (von Boehmer, 2005)
TGF-β

CD4 T helper cell subsets, their molecular signatures, and their main effector functions in immunity.

For each CD4 T subset, master transcription factors are indicated as well as their cytokine secretory profile. In bold is indicated the most representative cytokine secreted by the cell subset. FoxP3, forkhead box P3; GATA-3, GATA binding protein 3; IFN-γ, interferon-gamma; IL-2, interleukin-2; IL-4, interleukin-4; IL-5, interleukin-5; IL-9, interleukin-9; IL-10, interleukin-10; IL-13, interleukin-13; IL-17A, interleukin-17A; IL-17F, interleukin-17F; IL-21, interleukin-21; IL-22, interleukin-22; IL-31, interleukin-31; RORa, retinoic acid-related orphan receptor a; RORγt, retinoic acid-related orphan receptor gamma t; STAT1, signal transducer and activator of transcription 1; STAT4, signal transducer and activator of transcription 4; STAT6, signal transducer and activator of transcription 6; T-bet, T-box expressed in T cells; TGF-β, transforming growth factor beta; Th, T helper cell; TNF-α, tumor necrosis factor alpha; TNF-β, tumor necrosis factor beta.

In ALS, Th cells are described as major players in inflammation and disease progression. In the 1990s, CD4 T cell infiltrations were observed in spinal cords of ALS patients in proximity to degenerating areas (; ). At this time, the different Th cell subsets had not been all discovered. More recent studies on patient’s blood samples and on some patient’s CNS tissues focused more precisely on the different Th subpopulations and amongst the most deregulated subpopulations, Treg cells received a lot of attention. These cells were found significantly reduced in ALS patient’s blood compared to controls (; ; Saresella et al., 2013; Sheean et al., 2018; ). In their publication describing significant decreases of FoxP3 mRNAs in circulating leukocytes of ALS patients, showed that low FoxP3 mRNA levels correlated with a rapid progression of the disease and a poor survival of patients. Interestingly, similar results were observed in the SOD1G93A mouse model with decreased Treg cell numbers and increased ones of other Th subsets along disease progression (; Zhao et al., 2012). Recently, went one step further focusing on the impact of the disease on Treg functions. Treg are known to suppress both innate and adaptive immune reactions detrimental to the host and in particular they can suppress the activation/expansion of neurotoxic T lymphocytes. They demonstrated that Treg isolated from blood of ALS patients were less effective in their capacity to suppress proliferation of responder T lymphocytes. In addition, Treg cells of rapid progression patients (1–2 years, disease duration) exhibited an even more reduced suppression capacity compared to Treg cells of slow progression patients (4–6 years, disease duration). Thus, Treg cell suppressive capacity was inversely correlated with the disease progression speed (). All these results strongly suggesting a direct role of Treg in ALS led to the development of therapeutic proposals to induce Treg production in patients (see below).

Th1 (or IFN-γ-producing CD4 T cells) and Th17 (or IL-17-producing CD4 T cells) cells are increasingly considered as playing key roles in ALS inflammation. In most studies, these two Th subsets were usually studied together because of their pro-inflammatory properties, despite their distinct immunological functions. Th17 cells are already known to be pathogenic in inflammatory diseases such as multiple sclerosis or inflammatory bowel disease (Wu and Wan, 2020). In SOD1G93A mice abnormal CD4 T cell activation and abnormal Th17 cell numbers were described in the draining cervical lymph nodes prior to the onset of neurological symptoms (). In ALS patient’s blood, both Th1 and Th17 cells were shown to increase (Saresella et al., 2013; ) and IL-17 was measured in higher concentration (Rentzos et al., 2010). At the level of the CNS, showed an increase of Th1 mRNA markers in the spinal cord of ALS patients. Interestingly, they described an increase of T-bet mRNA in patients with rapid and slow disease progression but an increase of the IFN-γ mRNA only in patients with rapid progression of the disease. Very recently, a functional study focused on the effect of IL-17A on control or FUS-mutated MNs. The authors showed that IL-17A decreased MN survival and altered the neurite network in a dose-dependent manner and that the treatment with anti-IL17A and anti-IL-17A receptor helped to rescue dying MNs. All these observations were specific to IL-17A, as IL-17F treatment was not toxic to MN ().

Few studies reported a decrease of Th2 cells or Th2-associated markers in blood of ALS patients (; ). In the same way as for Treg cells, an inverse correlation of GATA-3 and IL-4 mRNA expressions was found with disease rate progression (). On the contrary, Saresella et al. (2013) showed an increase of CD4 GATA3 cells in patient’s blood and no change in CD4 IL-4 cells, while another study described a positive correlation between the percentage IL-13 cells within CD4 T cells and the disease progression rate and an inverse correlation between the percentage IL-13 cells within the CD4 T cell population and the ALSFRS-R score (Shi et al., 2007). These results are of particular interest as the two major Th2 cytokines, IL-4 and IL-13, have been shown to increase CCL-2 production by activated primary rat microglia and by an activated human monocytic cell line THP-1 (Szczepanik et al., 2001). Whether Th2 cells or Th2 cytokines have a neuroprotective or a neuro-inflammatory role seems to depend on the context.

Taken together, these data show that the composition of the total T cell population is modified in ALS patients compared to controls. The balance between the different subsets of Th appears to evolve over disease progression. Interestingly, specific correlations seem to exist between expressions of specific mRNA Th subtypes and ALS patient’s disease progression rate (). These markers could be of great interest as new biomarkers to monitor disease progression rate in ALS patients.

In FTD patients, while one study described a decrease of total T cell percentages in blood samples (), another study described a specific decrease of cytotoxic T lymphocyte antigen-4 (CTLA-4) CD4 T cells and no change of CD28 CD4 T cell frequency in patients’ blood (Santos et al., 2014). CD28 is a co-stimulatory immune checkpoint that promotes T cell activation, proliferation and response, whereas CTLA-4 is an immune checkpoint molecule exerting an inhibitory function on T cell proliferation and function. These two molecules compete for the same CD80/CD86 receptor (). Hence, this CTLA-4 deficiency could suggest a possible exacerbated activation of these CD4 T cells in FTD patients. Despite these studies, little is known about the role CD4 T cells in FTD. Given their rising importance in ALS, it would be worth investigating Th subsets in more details.

CD8 T Cells

The main function of CD8 T cells, also called cytotoxic T cells (CTL), consists in the elimination of cells infected with intracellular pathogens like viruses but also in elimination of tumor cells. CD8 T cells have been shown to play a determinant role in neurodegenerative diseases like multiple sclerosis (), but studies about their involvement in ALS remains sparse.

Similarly to Th cells, CD8 T cell infiltration were observed in the spinal cord and in the brain of ALS patients (; ; ). Contradictory results exist on the percentages of CD8 T cells in ALS patient’s blood. Some studies showed an increase (Rentzos et al., 2012; ) while others suggested a decrease () or no change (). In SOD1G93A mice, CD8 T cells were shown to progressively infiltrate spinal cords (; ; ), while observed CD8 T cell infiltration only at disease end-stage in SOD1G93A/CD4–/– mice. In 2018, a role of CD8 T cells and MHC-I in disease progression was described. In SOD1G93A mice defective for CD8 T cells and expressing little MHC-I, a dual role of MHC-I was shown with specific pathogenesis in the CNS and the PNS. In the CNS, without CD8 T cell infiltration and MHC-I microglia, inflammation was reduced, paralysis of forelimbs was delayed and survival of mice was extended. On the contrary in the PNS MN’s axons stability was affected leading to the acceleration of muscle atrophy (). This suggested that MHC-I-dependent interaction between either CD8 T cells or microglia is a key factor triggering neuroinflammation, and also that a slow-down of disease progression may be obtained through activation of the MHC-I signaling in the periphery to protect the axon-muscle connectivity.

In FTD, CD8 T cells were detected in the cortex of patients with tauP301L mutation (). Same observations were made in a mouse model of tauopathy and interestingly the depletion of peripheral T cells using an anti-CD3 antibody abolished CD8 infiltration in the cortex but also restored cognitive capacity of mutant mice, suggesting a crucial role of these T cells in cognitive impairment ().

B Lymphocytes

B cells are the center of adaptive humoral immunity and, by antigen-specific immunoglobulin production, they mediated extracellular pathogen elimination. Evidences of B cell implication in ALS is very limited. Auto-antibodies against proteins of spinal cord cells were detected in the serum and the CSF of some ALS patients (, ; Puentes et al., 2014). Auto-antibodies have also been detected in SOD1G93A mice without any impact on disease progression (). It remains unclear if auto-antibodies may be a consequence of MN death and if they could participate to MN degeneration and inflammation aggravation. A recent study investigated the impact of regulatory B (Breg) cell adoptive transfer on disease progression in SOD1G93A mice (). Similarly to Treg, Breg are immunosuppressive B cells involved in immune homeostasis and tolerance maintenance (Rosser and Mauri, 2015; ). In mutant mice, Breg adoptive transfer increased Treg cell percentage in the CNS at 5 months after the transfer, but no impact on the survival was reported (). It would be of particular interest to understand why and how Breg cells impact Treg cells. As Treg cells are decreasing overtime in ALS patients, being able to increase their numbers, even in an indirect manner, could be of interest to delay disease progression. In FTD patients, only one study reported a decrease of B cell percentage in the blood of patients (). More investigations are now necessary to understand their role in FTD. Indeed, and more globally, current studies about immunity in FTD were more focused on dementia and FTD phenotypes were mainly compared to AD phenotypes. Considering the common spectrum of ALS and FTD, more comparative studies would help to understand whether these two neurodegenerative diseases share some immune deregulation and how inflammation really affects disease progression in FTD.

In conclusion, what is better understood today is which type of immune cell could be implicated in the disease, where it could play a role in the disease (Figure 1 and Table 3) and what they could secrete to protect/attack neurons or to eliminate debris and dead cells (Table 1). However, which cells are responsible for a specific secretion as well as which cells respond to specific factors remains largely elusive. Direct interactions between neurons and immune cells are still not well understood, as it remains impossible to have access to human brain and spinal cord tissues in alive patients.

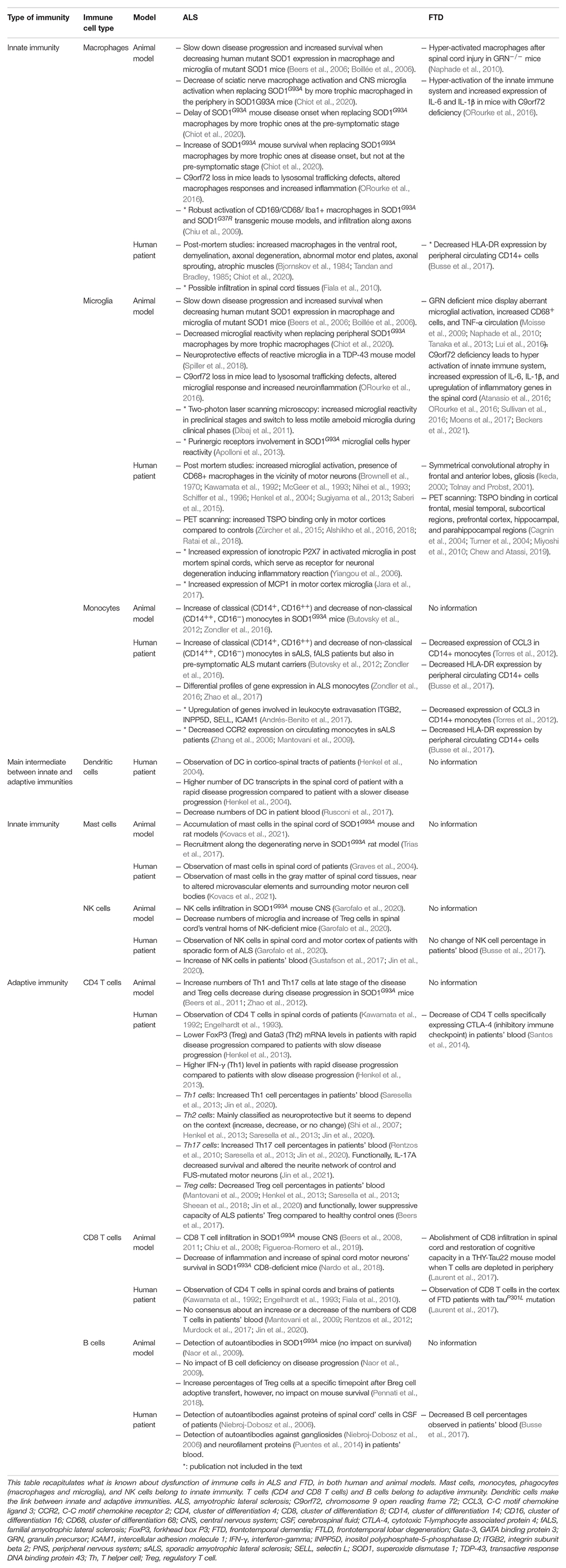

TABLE 3

Type of immunityImmune cell typeModelALSFTD
Innate immunityMacrophagesAnimal model− Slow down disease progression and increased survival when decreasing human mutant SOD1 expression in macrophage and microglia of mutant SOD1 mice (; ). − Decrease of sciatic nerve macrophage activation and CNS microglia activation when replacing SOD1G93A by more trophic macrophaged in the periphery in SOD1G93A mice (). − Delay of SOD1G93A mouse disease onset when replacing SOD1G93A macrophages by more trophic ones at the pre-symptomatic stage (). − Increase of SOD1G93A mouse survival when replacing SOD1G93A macrophages by more trophic ones at disease onset, but not at the pre-symptomatic stage (). − C9orf72 loss in mice leads to lysosomal trafficking defects, altered macrophages responses and increased inflammation (). − * Robust activation of CD169/CD68/Iba1+ macrophages in SOD1G93A and SOD1G37R transgenic mouse models, and infiltration along axons ().− Hyper-activated macrophages after spinal cord injury in GRN–/– mice (). − Hyper-activation of the innate immune system and increased expression of IL-6 and IL-1β in mice with C9orf72 deficiency ().
Human patient− Post-mortem studies: increased macrophages in the ventral root, demyelination, axonal degeneration, abnormal motor end plates, axonal sprouting, atrophic muscles (; Tandan and Bradley, 1985; ). − * Possible infiltration in spinal cord tissues ().− * Decreased HLA-DR expression by peripheral circulating CD14+ cells ().
MicrogliaAnimal model− Slow down disease progression and increased survival when decreasing human mutant SOD1 expression in macrophage and microglia of mutant SOD1 mice (; ). − Decreased microglial reactivity when replacing peripheral SOD1G93A macrophages by more trophic macrophages (). − Neuroprotective effects of reactive microglia in a TDP-43 mouse model (Spiller et al., 2018). − C9orf72 loss in mice lead to lysosomal trafficking defects, altered microglial response and increased neuroinflammation (). − * Two-photon laser scanning microscopy: increased microglial reactivity in preclinical stages and switch to less motile ameboid microglia during clinical phases (). − * Purinergic receptors involvement in SOD1G93A microglial cells hyper reactivity ().− GRN deficient mice display aberrant microglial activation, increased CD68+ cells, and TNF-α circulation (; ; Tanaka et al., 2013; ). − C9orf72 deficiency leads to hyper activation of innate immune system, increased expression of IL-6, IL-1β, and upregulation of inflammatory genes in the spinal cord (; ; Sullivan et al., 2016; ; ).
Human patient− Post mortem studies: increased microglial activation, presence of CD68+ macrophages in the vicinity of motor neurons (; ; ; ; Schiffer et al., 1996; ; Sugiyama et al., 2013; Saberi et al., 2015). − PET scanning: increased TSPO binding only in motor cortices compared to controls (Zürcher et al., 2015; , ; Ratai et al., 2018). − * Increased expression of ionotropic P2X7 in activated microglia in post mortem spinal cords, which serve as receptor for neuronal degeneration inducing inflammatory reaction (Yiangou et al., 2006). − * Increased expression of MCP1 in motor cortex microglia ().− Symmetrical convolutional atrophy in frontal and anterior lobes, gliosis (; Tolnay and Probst, 2001). − PET scanning: TSPO binding in cortical frontal, mesial temporal, subcortical regions, prefrontal cortex, hippocampal, and parahippocampal regions (; Turner et al., 2004; ; ).
MonocytesAnimal model− Increase of classical (CD14+, CD16++) and decrease of non-classical (CD14++, CD16) monocytes in SOD1G93A mice (; Zondler et al., 2016).No information
Human patient− Increase of classical (CD14+, CD16++) and decrease of non-classical (CD14++, CD16) monocytes in sALS, fALS patients but also in pre-symptomatic ALS mutant carriers (; Zondler et al., 2016). − Differential profiles of gene expression in ALS monocytes (Zondler et al., 2016; Zhao et al., 2017)− Decreased expression of CCL3 in CD14+ monocytes (Torres et al., 2012). − Decreased HLA-DR expression by peripheral circulating CD14+ cells ().
− * Upregulation of genes involved in leukocyte extravasation ITGB2, INPP5D, SELL, ICAM1 (). − * Decreased CCR2 expression on circulating monocytes in sALS patients (Zhang et al., 2006; ).− Decreased expression of CCL3 in CD14+ monocytes (Torres et al., 2012). − Decreased HLA-DR expression by peripheral circulating CD14+ cells ().
Main intermediate between innate and adaptive immunitiesDendritic cellsHuman patient− Observation of DC in cortico-spinal tracts of patients (). − Higher number of DC transcripts in the spinal cord of patient with a rapid disease progression compared to patient with a slower disease progression (). − Decrease numbers of DC in patient blood (Rusconi et al., 2017).No information
Innate immunityMast cellsAnimal model− Accumulation of mast cells in the spinal cord of SOD1G93A mouse and rat models (). − Recruitment along the degenerating nerve in SOD1G93A rat model (Trias et al., 2017).No information
Human patient− Observation of mast cells in spinal cord of patients (). − Observation of mast cells in the gray matter of spinal cord tissues, near to altered microvascular elements and surrounding motor neuron cell bodies ().
NK cellsAnimal model− NK cells infiltration in SOD1G93A mouse CNS (). − Decrease numbers of microglia and increase of Treg cells in spinal cord’s ventral horns of NK-deficient mice ().No information
Human patient− Observation of NK cells in spinal cord and motor cortex of patients with sporadic form of ALS (). − Increase of NK cells in patients’ blood (; ).No change of NK cell percentage in patients’ blood ().
Adaptive immunityCD4 T cellsAnimal model− Increase numbers of Th1 and Th17 cells at late stage of the disease and Treg cells decrease during disease progression in SOD1G93A mice (; Zhao et al., 2012).No information
Human patient− Observation of CD4 T cells in spinal cords of patients (; ). − Lower FoxP3 (Treg) and Gata3 (Th2) mRNA levels in patients with rapid disease progression compared to patients with slow disease progression (). − Higher IFN-γ (Th1) level in patients with rapid disease progression compared to patients with slow disease progression (). − Th1 cells: Increased Th1 cell percentages in patients’ blood (Saresella et al., 2013; ). − Th2 cells: Mainly classified as neuroprotective but it seems to depend on the context (increase, decrease, or no change) (Shi et al., 2007; ; Saresella et al., 2013; ). − Th17 cells: Increased Th17 cell percentages in patients’ blood (Rentzos et al., 2010; Saresella et al., 2013; ). Functionally, IL-17A decreased survival and altered the neurite network of control and FUS-mutated motor neurons (). − Treg cells: Decreased Treg cell percentages in patients’ blood (; ; Saresella et al., 2013; Sheean et al., 2018; ) and functionally, lower suppressive capacity of ALS patients’ Treg compared to healthy control ones ().− Decrease of CD4 T cells specifically expressing CTLA-4 (inhibitory immune checkpoint) in patients’ blood (Santos et al., 2014).
CD8 T cellsAnimal model− CD8 T cell infiltration in SOD1G93A mouse CNS (, ; ; ). − Decrease of inflammation and increase of spinal cord motor neurons’ survival in SOD1G93A CD8-deficient mice ().− Abolishment of CD8 infiltration in spinal cord and restoration of cognitive capacity in a THY-Tau22 mouse model when T cells are depleted in periphery ().
Human patient− Observation of CD4 T cells in spinal cords and brains of patients (; ; ). − No consensus about an increase or a decrease of the numbers of CD8 T cells in patients’ blood (; Rentzos et al., 2012; ; ).− Observation of CD8 T cells in the cortex of FTD patients with tauP301L mutation ().
B cellsAnimal model− Detection of autoantibodies in SOD1G93A mice (no impact on survival) (). − No impact of B cell deficiency on disease progression (). − Increase percentages of Treg cells at a specific timepoint after Breg cell adoptive transfert, however, no impact on mouse survival ().No information
Human patient− Detection of autoantibodies against proteins of spinal cord’ cells in CSF of patients (). − Detection of autoantibodies against gangliosides () and neurofilament proteins (Puentes et al., 2014) in patients’ blood.− Decreased B cell percentages observed in patients’ blood ().
*: publication not included in the text

Publications studying immune cell involvement in ALS and FTD pathologies.

This table recapitulates what is known about dysfunction of immune cells in ALS and FTD, in both human and animal models. Mast cells, monocytes, phagocytes (macrophages and microglia), and NK cells belong to innate immunity. T cells (CD4 and CD8 T cells) and B cells belong to adaptive immunity. Dendritic cells make the link between innate and adaptive immunities. ALS, amyotrophic lateral sclerosis; C9orf72, chromosome 9 open reading frame 72; CCL3, C-C motif chemokine ligand 3; CCR2, C-C motif chemokine receptor 2; CD4, cluster of differentiation 4; CD8, cluster of differentiation 8; CD14, cluster of differentiation 14; CD16, cluster of differentiation 16; CD68, cluster of differentiation 68; CNS, central nervous system; CSF, cerebrospinal fluid; CTLA-4, cytotoxic T-lymphocyte associated protein 4; fALS, familial amyotrophic lateral sclerosis; FoxP3, forkhead box P3; FTD, frontotemporal dementia; FTLD, frontotemporal lobar degeneration; Gata-3, GATA binding protein 3; GRN, granulin precursor; ICAM1, intercellular adhesion molecule 1; IFN-γ, interferon-gamma; INPP5D, inositol polyphosphate-5-phosphatase D; ITGB2, integrin subunit beta 2; PNS, peripheral nervous system; sALS, sporadic amyotrophic lateral sclerosis; SELL, selectin L; SOD1, superoxide dismutase 1; TDP-43, transactive response DNA binding protein 43; Th, T helper cell; Treg, regulatory T cell.

Clinical Trials to Modulate the Immune System

The complexity of the whole immune system and the numerous cell types involved in the different inflammatory pathways make difficult the understanding of the real impacts of therapeutic drugs on disease phenotypes. However, with the urgent need to find a cure or even a treatment to delay disease progression, clinical trials were launched and since the late 1990s several immune modulatory drugs or cell therapies have been tested in clinical trials for ALS.

Immune Modulatory Drugs

As shown in Table 4 and Figure 2, a large majority of considered immune modulatory drugs in ALS clinical trials are repositioned molecules previously tested in other diseases harboring inflammation. Their mechanisms of action are not presented here as they were described previously in details (). Table 4 lists trials according to their progress. Among tested molecules, most are antagonists of pro-inflammatory pathways reported to be deregulated in ALS patients. While some tested molecules induced adverse effects, most of them demonstrated safety and tolerability but their efficacy remains limited or negative. To date, most of the proposed molecules have a very large panel of targets and act on signaling pathways shared by many cells. While the two molecules accepted on the market (Riluzole and Edaravone) claim to act on neuroprotective functions for MNs, it turns out that for immune modulating trials the targets are broad with possible uncontrolled impacts on the disease pathology (Table 4). Today, eleven trials are either recruiting and/or active, targeting one or several molecules and pathways. Among these trials, one ongoing phase II aims to target T cells with low IL-2 dose (ld-IL-2). This trial has already shown some encouraging results with increased Treg cells (). In another phase II trial, RNS60, an anti-inflammatory drug, targets the p-Akt pro-survival pathway and NF-κB (). Compared to the ld-IL-2 trial the latter has 6 defined cell targets and 3 possible others, a non-specificity that could be responsible for uncontrolled modulations of several pathways. Fortunately, adverse effects were not reported. A Phase II/III trial (Ibudilast) uses a small molecule already tested in patients with multiple sclerosis. Contradictory results were reported and further studies are now necessary to understand the exact impact of Ibudilast on patients (; ). Finally, a phase III trial (Ravulizumab) uses a monoclonal antibody targeting the C5 complement to decrease inflammation. Disappointing results were announced in August 2021 and the trial was discontinued because of a lack of efficacy.

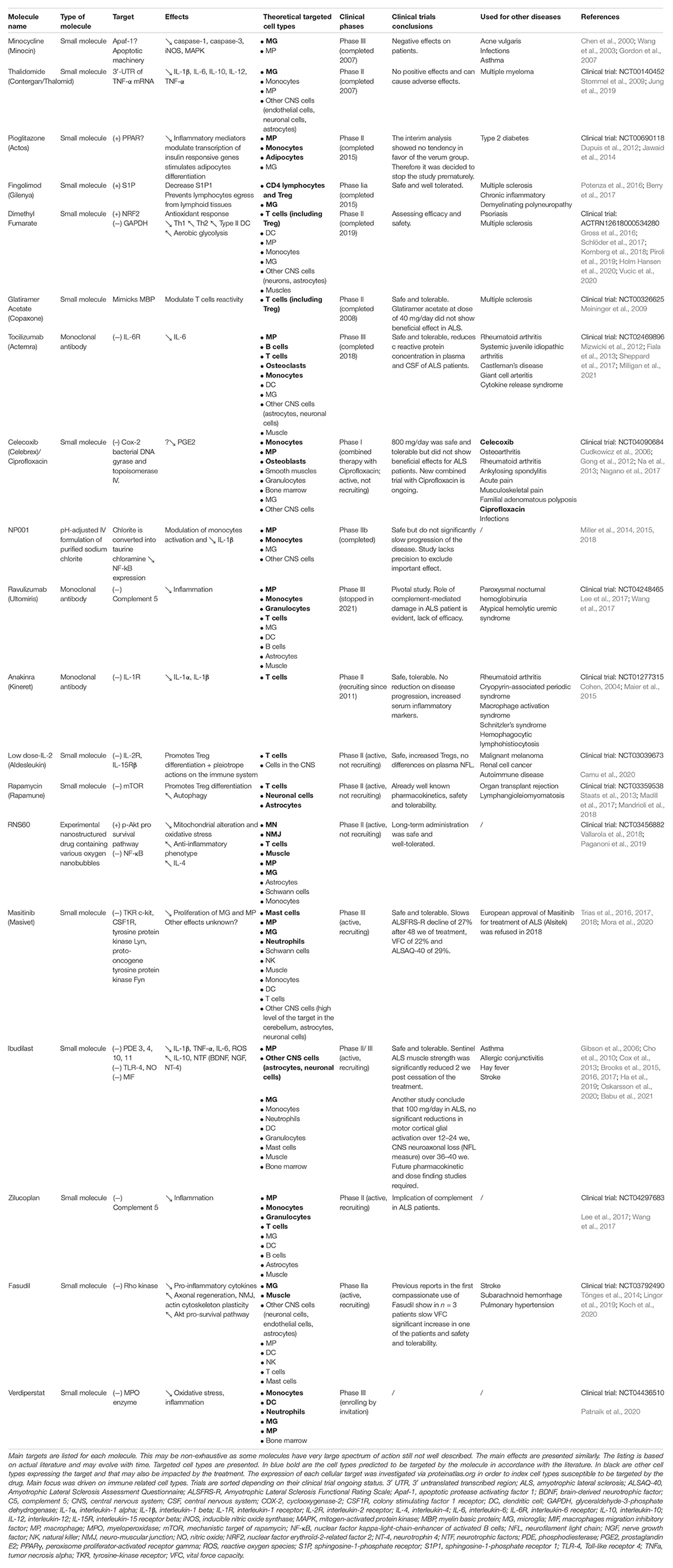

TABLE 4

Molecule nameType of moleculeTargetEffectsTheoretical targeted cell typesClinical phasesClinical trials conclusionsUsed for other diseasesReferences
Minocycline (Minocin)Small moleculeApaf-1? Apoptotic machinery↘ caspase-1, caspase-3, iNOS, MAPKMGPhase III (completed 2007)Negative effects on patients.Acne vulgaris Infections Asthma; Wang et al., 2003;
• MP
Thalidomide (Contergan/Thalomid)Small molecule3′-UTR of TNF-α mRNA↘ IL-1β, IL-6, IL-10, IL-12, TNF-αMGPhase II (completed 2007)No positive effects and can cause adverse effects.Multiple myelomaClinical trial: NCT00140452 Stommel et al., 2009;
• Monocytes
• MP
• Other CNS cells (endothelial cells, neuronal cells, astrocytes)
Pioglitazone (Actos)Small molecule(+) PPAR?↘ Inflammatory mediators modulate transcription of insulin responsive genes stimulates adipocytes differentiationMPPhase II (completed 2015)The interim analysis showed no tendency in favor of the verum group. Therefore it was decided to stop the study prematurely.Type 2 diabetesClinical trial: NCT00690118 ;
Monocytes
Adipocytes
• MG
Fingolimod (Gilenya)Small molecule(+) S1PDecrease S1P1 Prevents lymphocytes egress from lymphoid tissuesCD4 lymphocytes and TregPhase Iia (completed 2015)Safe and well tolerated.Multiple sclerosis Chronic inflammatory Demyelinating polyneuropathyPotenza et al., 2016;
MG
Dimethyl FumarateSmall molecule(+) NRF2 (−) GAPDHAntioxidant response ↘ Th1 ↖ Th2 ↖ Type II DC ↖ Aerobic glycolysisT cells (including Treg)Phase II (completed 2019)Assessing efficacy and safety.Psoriasis Multiple sclerosisClinical trial: ACTRN12618000534280 ; Schlöder et al., 2017; ; ; ; Vucic et al., 2020
• DC
• MP
• Monocytes
• MG
• Other CNS cells (neurons, astrocytes)
• Muscles
Glatiramer Acetate (Copaxone)Small moleculeMimicks MBPModulate T cells reactivityT cells (including Treg)Phase II (completed 2008)Safe and tolerable. Glatiramer acetate at dose of 40 mg/day did not show beneficial effect in ALS.Multiple sclerosisClinical trial: NCT00326625
Tocilizumab (Actemra)Monoclonal antibody(−) IL-6R↘ IL-6MPPhase III (completed 2018)Safe and tolerable, reduces c reactive protein concentration in plasma and CSF of ALS patients.Rheumatoid arthritis Systemic juvenile idiopathic arthritis Castleman’s disease Giant cell arteritis Cytokine release syndromeClinical trial: NCT02469896 ; ; Sheppard et al., 2017;
B cells
T cells
Osteoclasts
Monocytes
• DC
• MG
• Other CNS cells (astrocytes, neuronal cells)
• Muscle
Celecoxib (Celebrex)/ CiprofloxacinSmall molecule(–) Cox-2 bacterial DNA gyrase and topoisomerase IV.?↘ PGE2MonocytesPhase I (combined therapy with Ciprofloxacin; active, not recruiting)800 mg/day was safe and tolerable but did not show beneficial effects for ALS patients. New combined trial with Ciprofloxacin is ongoing.Celecoxib Osteoarthritis Rheumatoid arthritis Ankylosing spondylitis Acute pain Musculoskeletal pain Familial adenomatous polyposis Ciprofloxacin InfectionsClinical trial: NCT04090684 ; ; ;
MP
Osteoblasts
• Smooth muscles
• Granulocytes
• Bone marrow
• MG
• Other CNS cells
NP001pH-adjusted IV formulation of purified sodium chloriteChlorite is converted into taurine chloramine ↘ NF-kB expressionModulation of monocytes activation and ↘ IL-1βMPPhase IIb (completed)Safe but do not significantly slow progression of the disease. Study lacks precision to exclude important effect./, ,
Monocytes
• MG
• Other CNS cells
Ravulizumab (Ultomiris)Monoclonal antibody(−) Complement 5↘ InflammationMPPhase III (stopped in 2021)Pivotal study. Role of complement-mediated damage in ALS patient is evident, lack of efficacy.Paroxysmal nocturnal hemoglobinuria Atypical hemolytic uremic syndromeClinical trial: NCT04248465 ; Wang et al., 2017
Monocytes
Granulocytes
T cells
• MG
• DC
• B cells
• Astrocytes
• Muscle
Anakinra (Kineret)Monoclonal antibody(−) IL-1R↘ IL-1α, IL-1βT cellsPhase II (recruiting since 2011)Safe, tolerable. No reduction on disease progression, increased serum inflammatory markers.Rheumatoid arthritis Cryopyrin-associated periodic syndrome Macrophage activation syndrome Schnitzler’s syndrome Hemophagocytic lymphohistiocytosisClinical trial: NCT01277315 ;
Low dose-IL-2 (Aldesleukin)Small molecule(−) IL-2R, IL-15RβPromotes Treg differentiation + pleiotrope actions on the immune systemT cellsPhase II (active, not recruiting)Safe, increased Tregs, no differences on plasma NFL.Malignant melanoma Renal cell cancer Autoimmune diseaseClinical trial: NCT03039673
• Cells in the CNS
Rapamycin (Rapamune)Small molecule(−) mTORPromotes Treg differentiation ↖ AutophagyT cellsPhase II (active, not recruiting)Already well known pharmacokinetics, safety and tolerability.Organ transplant rejection LymphangioleiomyomatosisClinical trial: NCT03359538 Staats et al., 2013; ;
Neuronal cells
Astrocytes
RNS60Experimental nanostructured drug containing various oxygen nanobubbles(+) p-Akt pro survival pathway (−) NF-κB↘ Mitochondrial alteration and oxidative stress ↖ Anti-inflammatory phenotype ↖ IL-4MNPhase II (active, not recruiting)Long-term administration was safe and well-tolerated./Clinical trial: NCT03456882 Vallarola et al., 2018;
NMJ
T cells
Muscle
MP
MG
• Astrocytes
• Schwann cells
• Monocytes
Masitinib (Masivet)Small molecule(−) TKR c-kit, CSF1R, tyrosine protein kinase Lyn, proto-oncogene tyrosine protein kinase Fyn↘ Proliferation of MG and MP Other effects unknown?Mast cellsPhase III (active, recruiting)Safe and tolerable. Slows ALSFRS-R decline of 27% after 48 we of treatment, VFC of 22% and ALSAQ-40 of 29%.European approval of Masitinib for treatment of ALS (Alsitek) was refused in 2018Trias et al., 2016, 2017, 2018;
MP
MG
Neutrophils
• Schwann cells
• NK
• Muscle
• Monocytes
• DC
• T cells
• Other CNS cells (high level of the target in the cerebellum, astrocytes, neuronal cells)
IbudilastSmall molecule(−) PDE 3, 4, 10, 11 (−) TLR-4, NO (−) MIF↘ IL-1β, TNF-α, IL-6, ROS ↖ IL-10, NTF (BDNF, NGF, NT-4)MPPhase II/III (active, recruiting)Safe and tolerable. Sentinel ALS muscle strength was significantly reduced 2 we post cessation of the treatment.Asthma Allergic conjunctivitis Hay fever Stroke; ; ; , , ; ; ;
Other CNS cells (astrocytes, neuronal cells)
MGAnother study conclude that 100 mg/day in ALS, no significant reductions in motor cortical glial activation over 12–24 we, CNS neuroaxonal loss (NFL measure) over 36–40 we. Future pharmacokinetic and dose finding studies required.
• Monocytes
• Neutrophils
• DC
• Granulocytes
• Mast cells
• Muscle
• Bone marrow
ZilucoplanSmall molecule(−) Complement 5↘ InflammationMPPhase II (active, recruiting)Implication of complement in ALS patients./Clinical trial: NCT04297683 ; Wang et al., 2017
Monocytes
Granulocytes
T cells
• MG
• DC
• B cells
• Astrocytes
• Muscle
FasudilSmall molecule(−) Rho kinase↘ Pro-inflammatory cytokines ↖ Axonal regeneration, NMJ, actin cytoskeleton plasticity ↖ Akt pro-survival pathwayMGPhase IIa (active, recruiting)Previous reports in the first compassionate use of Fasudil show in n = 3 patients slow VFC significant increase in one of the patients and safety and tolerability.Stroke Subarachnoid hemorrhage Pulmonary hypertensionClinical trial: NCT03792490 Tönges et al., 2014; ;
Muscle
• Other CNS cells (neuronal cells, endothelial cells, astrocytes)
• MP
• DC
• NK
• T cells
• Mast cells
VerdiperstatSmall molecule(−) MPO enzyme↘ Oxidative stress, inflammationMonocytesPhase III (enrolling by invitation)//Clinical trial: NCT04436510
DC
Neutrophils
MG
MP
• Bone marrow

List of the different immune modulatory therapeutic approaches clinical trials.

Main targets are listed for each molecule. This may be non-exhaustive as some molecules have very large spectrum of action still not well described. The main effects are presented similarly. The listing is based on actual literature and may evolve with time. Targeted cell types are presented. In blue bold are the cell types predicted to be targeted by the molecule in accordance with the literature. In black are other cell types expressing the target and that may also be impacted by the treatment. The expression of each cellular target was investigated via proteinatlas.org in order to index cell types susceptible to be targeted by the drug. Main focus was driven on immune related cell types. Trials are sorted depending on their clinical trial ongoing status. 3′ UTR, 3′ untranslated transcribed region; ALS, amyotrophic lateral sclerosis; ALSAQ-40, Amyotrophic Lateral Sclerosis Assessment Questionnaire; ALSFRS-R, Amyotrophic Lateral Sclerosis Functional Rating Scale; Apaf-1, apoptotic protease activating factor 1; BDNF, brain-derived neurotrophic factor; C5, complement 5; CNS, central nervous system; CSF, central nervous system; COX-2, cyclooxygenase-2; CSF1R, colony stimulating factor 1 receptor; DC, dendritic cell; GAPDH, glyceraldehyde-3-phosphate dehydrogenase; IL-1α, interleukin-1 alpha; IL-1β, interleukin-1 beta; IL-1R, interleukin-1 receptor; IL-2R, interleukin-2 receptor; IL-4, interleukin-4; IL-6, interleukin-6; IL-6R, interleukin-6 receptor; IL-10, interleukin-10; IL-12, interleukin-12; IL-15R, interleukin-15 receptor beta; iNOS, inducible nitric oxide synthase; MAPK, mitogen-activated protein kinase; MBP, myelin basic protein; MG, microglia; MIF, macrophages migration inhibitory factor; MP, macrophage; MPO, myeloperoxidase; mTOR, mechanistic target of rapamycin; NF-κB, nuclear factor kappa-light-chain-enhancer of activated B cells; NFL, neurofilament light chain; NGF, nerve growth factor; NK, natural killer; NMJ, neuro-muscular junction; NO, nitric oxide; NRF2, nuclear factor erythroïd-2-related factor 2; NT-4, neurotrophin 4; NTF, neurotrophic factors; PDE, phosphodiesterase; PGE2, prostaglandin E2; PPARγ, peroxisome proliferator-activated receptor gamma; ROS, reactive oxygen species; S1P, sphingosine-1-phosphate receptor; S1P1, sphingosine-1-phosphate receptor 1; TLR-4, Toll-like receptor 4; TNFa, tumor necrosis alpha; TKR, tyrosine-kinase receptor; VFC, vital force capacity.

FIGURE 2

There are several reasons that may explain the failure of each trial and they have to be taken into account in future trials. First, most of the clinical trials include patients with heterogeneous disease states [in terms of disease form (sporadic and familial), durations, and site of onset]. These are among reasons why most studies do not include ALS-FTD patients. Mechanisms involved in the pathological progression at different disease steps may vary between patients. Thus modulating inflammation with such heterogeneity may erase effects attributable to one subgroup. Edaravone is a good example. No beneficial effect was found from the initial clinical trial conducted in a heterogeneous ALS population. However, post hoc analysis demonstrated beneficial effects in a clinical subset of ALS patients (; ). Second, the inflammatory reaction in patients is suspected to switch from protective to deleterious during disease progression, suggesting that might exist a therapeutic window to ensure treatment efficacy in patients. This parameter remains very difficult to monitor as there are no validated biomarker able to assess the disease state. Fortunately, recent advances in imaging techniques bring new hope for future trials. For instance, a recruiting phase II clinical trial will evaluate the brain microglia response in ALS patients by TSPO binding following multiple doses of BLZ945, an antagonist of the CSF1 receptor, using PET with [11C]-PBR28 (NCT04066244). Other markers closely monitored and already measured in patients are concentrations of neurofilaments light chain (NF-L) and heavy phosphorylated chains (pNF-H) in blood and CSF (; ; ). A consensus on pNF-H as an early biomarker should give the possibility to better follow the effects of any drug on specific markers (). The future relies on the urgent need to identify specific biomarkers linked to different ALS forms and to be able to identify when a molecule or another can have a positive impact on the disease progression in each patient. Finally, as 90% of ALS cases are sporadic, the diagnosis is done when symptoms are already present and when inflammatory events are already well advanced. In this situation, having the possibility to follow markers in patients before any symptom appearance could bring very important insights. have performed a systematic review of existing presymptomatic studies. They showed that studies suffered from small sample size, lack of controls, and rarely cohorts were followed until symptom manifestations. Objectives of these kind of studies are to be able to propose earlier diagnosis and thereby earlier therapeutic interventions or enrollment in clinical trials with homogenous sub-groups of patients. Personalized therapies are currently emerging, as exemplified by the antisens oligonucleotide Tofersen for SOD1 ALS patients () and even for presymptomatic SOD1 carriers in a new ongoing trial (NCT048569821).

Cell Transplantation

This second therapeutic approach implies transplantation of specific cell types in patients. More than 30 trials are listed on https://clinicaltrials.gov. provide in 2021 a meta-analysis of stem cell therapy in ALS. Among cell types available for transplantation, mesenchymal stem cells (MSC) have been the most widely tested autologous transplants through different techniques and route of administration (i.e., spinal cord, frontal lobe, and intrathecal) (; ; ). MSC represent interesting cell candidates as they are easy to culture in vitro and are able to be differentiated into bone stroma, cartilage, ligament, and fat depending on the surrounding molecules (; Verboket et al., 2018). Moreover, these cells express cytokines and growth factors that could brought in therapeutic contributions for neuronal protection and act on local inflammation (; Suzuki et al., 2008). Besides MSC, bone marrow cells (BMC) were also transplanted in patients (; Ruiz-López and Blanquer, 2016). These cells are a mixture of several cell types, containing lymphocytes, monocytes, and progenitor cells, giving them a strong regenerative potential (Verboket et al., 2018). Preclinical studies in animal models have shown safety and tolerability after transplantation of both cell types, as well as beneficial effects on pathogenic signatures (; ). In ALS trials, conclusions of the therapies have been difficult to draw, especially because of the small number of patients included (; ; ). Analysis of showed that the best results were obtained with intrathecal injections of MSC in patients but with only transient positive effects on clinical progression (ALSFRS-scores). This being, a major drawback of these transplantations has been that after all interventions respiratory functions were negatively impacted.

As described in the previous section, a clinical trial administrating IL-2 was launched in order to force the production of Tregs in ALS patients. No adverse effects were reported and an increased Tregs number was observed (). Thus, transposition to cell therapy has been considered. Thanks to protocols allowing Tregs ex vivo expansion (), a phase I clinical trial was launched to test further transplantation of ex vivo expanded Tregs. First results suggested safety with no clear conclusion as the study was under-powered for efficacy and did not have placebo or controls. However, from the results observed in the 3 transplanted patients, Tregs transplantation induced an increase in Tregs percentages, amelioration of Treg suppressive functions and a slowing down in the decrease of the ALSFRS-score. Unfortunately, these effects disappeared between rounds of Treg cell injections (Thonhoff et al., 2018). Nonetheless, a phase II is currently undergoing including 12 patients with placebo controls, despite cumbersome protocols for patients.

The use of such autologous cell transplantation therapies could be very interesting as they appear more adapted to a large number of ALS patients. However, for all cell types proposed, it seems imperative today to come back to preclinical studies to optimize cell type choices and administration routes and to better understand cell distributions and their mechanisms of action.

iPSC to Model Immune Reactivity in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia

As described above, immune reactions implying several cell types arise during disease progression in patients with ALS and FTD. As inflammatory responses can be beneficial or deleterious depending on signals in their environment, performing longitudinal studies would be very informative. Moreover, deciphering specific mechanisms involved in direct or indirect interactions between affected neurons and the different immune cells, that could be new targets of clinical trials, have to be done. However, whereas blood sampling may allow access to some immune cells of patients, biopsies of the brain and the spinal cord regions in which neurons are affected and in which tissue resident or infiltrated cells have to be analyzed, are not possible. Thanks to the iPSC technology described 14 years ago, researchers can now have access to human pluripotent cells that can be differentiated in theory into any cell type of the body. “In theory” as we know now that each protocol to differentiate iPSC into specific cell subtypes necessitates years of technical developments. Nevertheless, iPSC offer the unique opportunity to study intrinsic defects in iPS-derived mutant cells and interactions between different cell types in 2D and 3D co-cultures.

iPS-Derived Neurons

Until now, the vast majority of studies focused on iPS-derived neurons. Many reviews already present the unique capabilities of iPS-derived neurons to capture some key features of ALS and FTD in MNs and cortical neurons, respectively (; ; ; ). At first, protocols allowed only production of generic neurons with very poor purity. As technology advanced, many neuronal subtypes were able to be generated allowing to better understand the dichotomy between the ubiquitous expression of mutant genes in patients’ cells and the death of specific subtypes of neurons (Sances et al., 2016). Nevertheless, there are still improvements in progress to obtain in culture the most specific neuron subtypes. For example, for MNs, it is today possible to characterize in cultures if generated MNs are those of the lateral or medial motor column (LMC or MMC) (). Recently deciphered mechanisms allowing the expression of HOX genes involved in the identities of MNs along the rostro-caudal axis of the spinal cord. These different findings open the way to generate specific cervical to lumbar MNs of the LMC or MMC that may be differentially affected in ALS patients. Interactions between neurons and astrocytes were also reported in some publications (; ) and different results were reported regarding toxicity of astrocytes toward MNs depending on the studied ALS form, showing the necessity to pursue investigations.

Innate Immune Cells

Macrophages and Microglial Cells

Thanks to concomitant advances in the knowledge of macrophage biology, origin and diversity, protocols to generate macrophages have been progressively improved. For ALS, two subtypes of macrophages are of interest: microglial cells, the macrophages of the CNS, and peripheral macrophages located along the MN axon from the ventral root to the NMJ. For FTD, only microglial cells are of interest at first sight. To obtain macrophages/microglia from patients, first protocols were based on human monocytes isolated from blood and activated with cytokines in vitro. However, it has been shown that macrophages/microglia gradually loose their tissue identity in culture. It is now known that these macrophage-like cells are not capable to fully model tissue-resident macrophage populations that arise from embryonic precursors (; ; ). Moreover, macrophage activation exists as a spectrum of phenotypes and functional states challenging to reproduce in culture ().

As an alternative option to blood cells and as an infinite source of patient-specific cells, embryonic stem cells (ESC) and iPSC were tested for their capacity to be differentiated into macrophage-like cells. A great difficulty for such iPSC protocol developments was the capacity to generate tissue-resident macrophages and in particular macrophages of the CNS. Indeed, microglia and peripheral macrophages have different developmental origins and are in very different environments in vivo, suggesting that different protocols must be set up to mimic the diverse macrophage subtypes. Many reports and reviews describe and compare protocols allowing the generation of functional macrophage-like cells (; ; ; ). Clearly, iPSC require specific environmental signals for proper differentiation and maintenance of their identity (; ), suggesting that for ALS and FTD studies, iPS-derived microglia have to be co-cultured with either MNs or cortical neurons, respectively.

iPS-derived macrophage/microglia monoculture phenotypic defects were observed in different models (). Zhao et al. (2020) studied iPS-derived macrophages from C9ORF72(G4C2)n patients and control subjects and compared their immune-suppressive functions. Their results demonstrated that immunosuppressive functions of ALS macrophages were similar to controls, suggesting that an ALS mutation had no influence on this function in macrophages. Some other reports described (i) 2D co-cultures of microglia with neurons to mimic their neural environment, (ii) microglia generation in brain or spinal cord organoids, or (iii) xenotransplantation of microglial-like cells (; ; Tan et al., 2021). Current reports in 2D cultures between neurons and iPS-derived microglia studied their morphology and migration, their inflammatory responses and clearance capacity. Similarly, in 3D cultures and in organoids, observations were about migration, activation, proliferation, and physical interactions of microglia with other cells (). Most of current studies focused on microglia addition to organoids and modeling of Alzheimer’s or Parkinson‘s defects, making the proof that the different iPSC based models could bring new knowledge for ALS and FTD. Recently, the generation of microglia-like cells in human sensorimotor organoids derived from ALS iPSC was reported (), proving that these cells can arise and be phenotypically studied in these models.

Dendritic Cells, Mast Cells and Natural Killer Cells

To study DCs, it is possible, like for macrophages, to generate primary DC from peripheral blood-derived monocytes, and then to mature them into distinct DC subsets in vitro (Romani et al., 1994; Sallusto and Lanzavecchia, 1994). In their review of 2020, described the different protocols to generate DC and their subpopulations from iPSC. DCs were shown to be morphologically and functionally similar to their in vivo counterparts. Interestingly, the generation of DC offers the possibility to investigate their interactions with T cells derived from the same patient, as iPS-derived DC were shown to be able to stimulate allogeneic naïve T cells and autologous antigen-specific CD8+ T cells. These new cellular tools will be very helpful considering the limited availability of DC in blood and tissues.

Few protocols exist to differentiate iPSC into mast cells (; ; ; ). First protocols were long, with low yield, and a production of immature cells. Thanks to developmental studies (; ), the most recent protocol uses a sequential co-culture system which allow short-term cultures and efficient production of scalable quantities of functional mature mast cells, exhibiting the strongest innate immune responses (). Like macrophages, mast cells maturate in tissues under the influence of the local environment, suggesting that co-cultures with neurons might be the more relevant study model for ALS and FTD.

For NK cells, a recent review summarizes protocols to obtain these cells from human iPSC (Shankar et al., 2020). iPS-derived NK cells were shown to be phenotypically similar to primary NK cells as well as regarding their effector function. CD56 is a marker often used to define human NK cells (murine NK cells are CD56 negative). Two subpopulations (dim and bright) have been identified and play different roles (CD56 bright cells exhibit high cytokine secretion while CD56 dim exhibit high cytotoxicity). As it is unclear if these both cell types are generated from iPSC, further investigation will be necessary, before using those cells to conduct disease modeling.

Adaptive Immune Cells

Whereas protocols to generate cells of the innate immune system were set up quite rapidly, the differentiation of iPSC into cells of the adaptive immune system appeared much more challenging (). For B lymphocytes, first protocols just emerge and allow only to model the earliest stages of B lineage development (; ; Richardson et al., 2021). For T lymphocytes, whereas the first stages of iPSC differentiation into T progenitors were rapidly set up, some cell specificities are difficult to reproduce to obtain in vitro mature T lymphocytes. The particularity of the T-cell lineage is that the first stages of their differentiation occurs in the thymus. To reproduce the thymus environment and differentiate iPSC into T progenitors, co-cultures were performed between iPSC and stromal cells that express a Notch ligand. Notch was shown to be essential to induce T cell differentiation of progenitors, at the expense of B-cell differentiation. Recently, a stromal-cell free protocol was developed to generate the T cell lineage from blood-derived CD34-positive cells (; ), a strategy that has now to be transposed in iPSC differentiation protocols. Additionally, lymphocytes express at their surface different receptors forming a repertoire (TCRs for T cell receptors). The latter is crucial for the response of T lymphocytes in an antigen-specific manner to an unlimited number of unknown pathogens encountered throughout life. Interestingly iPS-derived T progenitors were shown to express a broad TCR repertoire (), suggesting that each iPSC clone has its own TCR repertoire. Current limitations of the iPSC protocols rely in the maturation of T lymphocytes and their positive selection. This selection consists in the maturation of double positive CD4–CD8 lymphocytes into simple positive cells. Whereas iPSC protocols not clearly demonstrated their ability to mimic this positive selection, a recent improvement was proposed with the generation of 3D artificial thymic organoids which allowed the generation and maturation of conventional T cells (). Having in mind the different roles played by T cell subtypes in neurodegenerative diseases, it will be crucial now to generate IPS-derived Th1, Th2, Th17, or Treg cells. Once generated, those cells will be of great interest for ALS and FDT modeling.

Modeling Immune Reactivity With Induced Pluripotent Stem Cell

In ALS and FTD, the original mono-centered pattern was for the neuron to degenerate and send out pain signals that alert cells in the environment. Thus for a long time the majority of studies focused on neurons analysis and how to avoid their degeneration (in patients, in animal models, and in cellular models) without too much consideration for other cells. In this context, iPSC-derived neurons made it possible to study different forms of ALS and FTD, including sporadic cases, and to show the progressive appearance of intrinsic defects in patients’ neurons. This is a major advantage of the iPSC technology that has made it possible to show different chronologies of appearance of neuronal dysfunctions from one patient to another () and that cannot be followed individually in patients. Thanks to iPSC modeling approaches, new therapeutic targets were identified and are currently being tested in patients (Wainger et al., 2014).

At the same time, genetic studies have shown that the majority of genes mutated in the different forms of ALS and FTD are expressed ubiquitously suggesting that all cells in the body can be altered in the pathology. The diagram has therefore evolved into an increasingly off-center diagram in which the neuron is no longer the central element but one element among others. Understanding the interactions between cells has therefore become a crucial issue in the understanding of neurodegenerative diseases in order to find new therapeutic avenues. Among the cells of interest are immune cells known to be activated in ALS and FTD. Unfortunately, as for neurons, these are cells that are difficult to access in patients. Thanks to protocols derived from iPSCs, it is now possible to study not only the intrinsic defects of these cells but also their interactions with neurons. It becomes possible to study inflammatory responses according to the normal or degenerative states of neurons, with the perspective of understanding how inflammation evolves and could therefore be controlled. These analyses, combined with those made in longitudinal studies in patients, could help identify the therapeutic window in which to intervene in the most beneficial way for patients.

Conclusion and Perspectives

The main conclusion from decades of studies on patients and animal models is that ALS and FTD are heterogeneous diseases at several levels and have to be seen as a group of different diseases rather than a single one, at least regarding mechanisms leading to neuron degeneration. To date ALS or FTD patients are often still classified according to external clinical signs and this is mainly due to a lack in early biomarkers that could help to better identify subgroups of patients. What we hope having shown in this review is the high complexity of inflammatory events intermingled one to another, a complexity that may be extended more largely to all neurodegenerative diseases. Many studies revealed some inflammatory signs in ALS and FTD patients, animal models and also now in iPSC models. Nonetheless we still do not really understand if the inflammation is a driver or consequence of the pathology. Although some key aspects start to be lighted, questions remain: when exactly the inflammation is beneficial or detrimental? Which immune cells are responsible for the inflammatory responses? How the inflammatory events may differ between diverse genetic forms, especially in patients harboring mutations in genes known to be linked with immune functions?

A disappointing observation made today is that decades of clinical trials with immunomodulatory molecules have failed to prove their beneficial effects. Some explanations linked to pre-clinical protocols may explain these failures, such as the lack of power in numerous studies and the use of one single animal model that might not recapitulate all disease forms. Also, the timing of drug administration is often in early or pre-symptomatic stages in pre-clinical studies, a stage that cannot be targeted in enrolled patients. In this review we wanted also to focus on the tested immune modulatory drugs together with their unstudied potential targets that could impact the disease course. Indeed, most of the tested molecules target generic molecules, making difficult the monitoring of the real effects of the therapeutics. Our conclusion is that we still lack diagnostic tools and knowledge regarding the inflammatory events in ALS and FTD. More investigations are necessary before being able to design a treatment that could efficiently modulate inflammatory events. The multicellular implication is now widely accepted knowing that most genes are ubiquitously expressed. Thus, the use of a single drug targeting one pathway may be outdated. More personalized medicine begins to appear as a mean of integrating all factors of heterogeneity.

Until recently, ALS and FTD animal models allowed the study of genetic forms of the diseases. However, a lack of models recapitulating sporadic cases, remains. Additionally, the impossibility to have access to patient’s CNS cells and the rapidity of the neurodegenerative processes make difficult longitudinal studies with patients. In this context, iPSC offer unique opportunities to bypass these limitations. With the development of iPSC differentiation protocols to generate immune cells, researchers have now at their disposal tools to ask questions about interactions between ALS- or FDT-affected neurons and immune cells in a human context. These models may allow also to study a sequence of events. Of course, these protocols are still new and imperfect: cultures are not always pure, some cell subtypes can still not be generated and iPSCs are known to have a more embryonic than adult genomic memory (as opposed to transdifferentiated cells that do not go through an embryonic stage for their generation). This being, the current literature since several years has made the proof that it is possible to model diseases like ALS and FTD with iPS-derived neurons. In the recent years, several drugs have been tested and approved for clinical trials based on preclinical studies on iPS-derived neuronal cells (; ). With regard to the innate and adaptive immune cells derived from iPSC, first papers showed that the generated cells were functional, more or less mature, and some functional intrinsic defects were shown, validating the use of these cells to identify further unknown mechanisms. To go one-step further, co-cultures are necessary to study interactions with neurons. Since few years, co-cultures, 3D cultures (e.g., microfluidic chips) as well as 3D brain and spinal organoids (; Tan et al., 2021) are developed and available to study interactions between either MNs or cortical neurons affected mainly in ALS and FTD, respectively, and the various immune cells. Even if iPS-derived macrophages/microglia were the first generated immune cells, there is no report yet about iPSC modeling of ALS or FTD macrophage/microglia co-cultures with neurons. In their recent study, describes the generation of human sensorimotor organoids with iPSC from ALS patients. They showed that these organoids contain microglia-like cells, but their study was not focused on the phenotypes of these cells, but rather on defects at the level of NMJs (). Another study describes the generation of cerebral organoids from iPSC of 3 FTD patients mutated in the tau gene (). Signs of neurodegeneration, fewer excitatory neurons and elevated levels of inflammation were observed in 6-month old cerebral organoids, showing that it was possible to recreate much of the damage seen in FTD. Moreover, they were able to prevent neuron death with an experimental drug. Even if microglial cells were not studied directly in these organoids, an inflammatory response was observed suggesting that this pathological feature could be modeled in such 3D models. Moreover, it was recently shown that exposure of brain models to serum mimics age associated BBB breakdown (), providing a platform to look for effective treatments for disorders with an age component like ALS and FTD.

As a final word, the iPSC technology grants new prospects to better understand and model inflammatory events in different FTD and ALS disease forms. Co-cultures are offering a new era of researches with more integrated models which we hope will lead to new ways to perform drug screening and offer adapted therapeutic opportunities for ALS and FTD patients.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Statements

Author contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work, and approved it for publication.

Funding

EL had a fellowship from the French Ministry of Research and the doctoral school “Cerveau, Cognition, Comportement” (ED3C). LK had a salary from Agence Nationale de la Recherche (ANR-AAPG2020 Neurovitas-ALS). This review was supported by Sorbonne Université, the Paris Brain Institute (ICM), the Institut National de la Santé Et de la Recherche Médicale (INSERM), and the Centre National de la Recherche Scientifique (CNRS).

Acknowledgments

We thank C.S. Lobsiger for the proofreading of the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  • 1

    AbelA. M.YangC.ThakarM. S.MalarkannanS. (2018). Natural killer cells: development, maturation, and clinical Utilization.Front. Immunol.9:1869. 10.3389/fimmu.2018.01869

  • 2

    AbrahamA.NefussyB.FainmesserY.EbrahimiY.KarniA.DroryV. E. (2019). Early post-marketing experience with edaravone in an unselected group of patients with ALS.Amyotroph. Lateral Scler. Frontotemporal. Degener.20260263. 10.1080/21678421.2019.1572191

  • 3

    AbramzonY. A.FrattaP.TraynorB. J.ChiaR. (2020). The overlapping genetics of amyotrophic lateral sclerosis and frontotemporal dementia.Front. Neurosci.14:42. 10.3389/fnins.2020.00042

  • 4

    AckermannM.DragonA. C.LachmannN. (2020). The immune-modulatory properties of iPSC-derived antigen-presenting cells.Transfus. Med. Hemother.47444453. 10.1159/000512721

  • 5

    AhmedR. M.MacMillanM.BartleyL.HallidayG. M.KiernanM. C.HodgesJ. R.et al (2014). Systemic metabolism in frontotemporal dementia.Neurology8318121818. 10.1212/WNL.0000000000000993

  • 6

    AlbertsB.JohnsonA.LewisJ.RaffM.RobertsK.WalterP. (2002). Innate Immunity. Molecular Biology of the Cell, 4th Edn, New York, NY: Garland Science/Taylor & Francis LLC.

  • 7

    AlshikhoM. J.ZürcherN. R.LoggiaM. L.CernasovP.ChondeD. B.GarciaD. I.et al (2016). Glial activation colocalizes with structural abnormalities in amyotrophic lateral sclerosis.Neurology8725542561. 10.1212/WNL.0000000000003427

  • 8

    AlshikhoM. J.ZürcherN. R.LoggiaM. L.CernasovP.ReynoldsB.PijanowskiO.et al (2018). Integrated magnetic resonance imaging and [11 C]-PBR28 positron emission tomographic imaging in amyotrophic lateral sclerosis.Ann. Neurol.8311861197. 10.1002/ana.25251

  • 9

    AlsulimanA.AppelS. H.BeersD. R.BasarR.ShaimH.KaurI.et al (2016). A robust, good manufacturing practice–compliant, clinical-scale procedure to generate regulatory T cells from patients with amyotrophic lateral sclerosis for adoptive cell therapy.Cytotherapy1813121324. 10.1016/j.jcyt.2016.06.012

  • 10

    AltmannC.VasicV.HardtS.HeidlerJ.HäusslerA.WittigI.et al (2016). Progranulin promotes peripheral nerve regeneration and reinnervation: role of notch signaling.Mol. Neurodegener.11:69. 10.1186/s13024-016-0132-1

  • 11

    AmorosoM. W.CroftG. F.WilliamsD. J.O’KeeffeS.CarrascoM. A.DavisA. R.et al (2013). Accelerated high-yield generation of limb-innervating motor neurons from human stem cells.J. Neurosci.33574586. 10.1523/JNEUROSCI.0906-12.2013

  • 12

    Andrés-BenitoP.MorenoJ.DomínguezR.AsoE.PovedanoM.FerrerI. (2017). Inflammatory gene expression in whole peripheral blood at early stages of sporadic amyotrophic lateral sclerosis.Front. Neurol.8:546. 10.3389/fneur.2017.00546

  • 13

    ApolloniS.ParisiC.PesaresiM. G.RossiS.CarrìM. T.CozzolinoM.et al (2013). The NADPH oxidase pathway is dysregulated by the P2X7 receptor in the SOD1-G93A microglia model of amyotrophic lateral sclerosis.J. Immunol.19051875195. 10.4049/jimmunol.1203262

  • 14

    AtanasioA.DecmanV.WhiteD.RamosM.IkizB.LeeH.-C.et al (2016). C9orf72 ablation causes immune dysregulation characterized by leukocyte expansion, autoantibody production, and glomerulonephropathy in mice.Sci. Rep.6:23204. 10.1038/srep23204

  • 15

    BabuS.HightowerB. G.ChanJ.ZürcherN. R.KivisäkkP.TsengC.-E. J.et al (2021). Ibudilast (MN-166) in amyotrophic lateral sclerosis- an open label, safety and pharmacodynamic trial.Neuroimage Clin.30:102672. 10.1016/j.nicl.2021.102672

  • 16

    BakerM.MackenzieI. R.Pickering-BrownS. M.GassJ.RademakersR.LindholmC.et al (2006). Mutations in progranulin cause tau-negative frontotemporal dementia linked to chromosome 17.Nature442916919. 10.1038/nature05016

  • 17

    BanchereauJ.SteinmanR. M. (1998). Dendritic cells and the control of immunity.Nature392245252. 10.1038/32588

  • 18

    BaronP.BussiniS.CardinV.CorboM.ContiG.GalimbertiD.et al (2005). Production of monocyte chemoattractant protein-1 in amyotrophic lateral sclerosis.Muscle Nerve32541544. 10.1002/mus.20376

  • 19

    BaucknehtM.LaiR.MiceliA.SchenoneD.CossuV.DoneganiM. I.et al (2020). Spinal cord hypermetabolism extends to skeletal muscle in amyotrophic lateral sclerosis: a computational approach to [18F]-fluorodeoxyglucose PET/CT images.EJNMMI Res.1023. 10.1186/s13550-020-0607-5

  • 20

    BeckersJ.TharkeshwarA. K.Van DammeP. (2021). C9orf72 ALS-FTD: recent evidence for dysregulation of the autophagy-lysosome pathway at multiple levels.Autophagy.1733063322. 10.1080/15548627.2021.1872189

  • 21

    BedeP.BokdeA. L. W.ByrneS.ElaminM.FaganA. J.HardimanO. (2012). Spinal cord markers in ALS: diagnostic and biomarker considerations.Amyotroph. Lateral Scler.13407415. 10.3109/17482968.2011.649760

  • 22

    BeersD. R.HenkelJ. S.XiaoQ.ZhaoW.WangJ.YenA. A.et al (2006). Wild-type microglia extend survival in PU.1 knockout mice with familial amyotrophic lateral sclerosis.Proc. Natl. Acad. Sci. U.S.A.1031602116026. 10.1073/pnas.0607423103

  • 23

    BeersD. R.HenkelJ. S.ZhaoW.WangJ.AppelS. H. (2008). CD4+ T cells support glial neuroprotection, slow disease progression, and modify glial morphology in an animal model of inherited ALS.Proc. Natl. Acad. Sci. U.S.A.1051555815563. 10.1073/pnas.0807419105

  • 24

    BeersD. R.HenkelJ. S.ZhaoW.WangJ.HuangA.WenS.et al (2011). Endogenous regulatory T lymphocytes ameliorate amyotrophic lateral sclerosis in mice and correlate with disease progression in patients with amyotrophic lateral sclerosis.Brain13412931314. 10.1093/brain/awr074

  • 25

    BeersD. R.ZhaoW.WangJ.ZhangX.WenS.NealD.et al (2017). ALS patients’ regulatory T lymphocytes are dysfunctional, and correlate with disease progression rate and severity.JCI Insight2:e89530. 10.1172/jci.insight.89530

  • 26

    BelzilV. V.KatzmanR. B.PetrucelliL. (2016). ALS and FTD: an epigenetic perspective.Acta Neuropathol.132487502. 10.1007/s00401-016-1587-4

  • 27

    BenatarM.WuuJ.AndersenP. M.LombardiV.MalaspinaA. (2018). Neurofilament light: a candidate biomarker of presymptomatic amyotrophic lateral sclerosis and phenoconversion.Ann. Neurol.84130139. 10.1002/ana.25276

  • 28

    BenatarM.ZhangL.WangL.GranitV.StatlandJ.BarohnR.et al (2020). Validation of serum neurofilaments as prognostic and potential pharmacodynamic biomarkers for ALS.Neurology95e59e69. 10.1212/WNL.0000000000009559

  • 29

    BerryJ. D.PaganoniS.AtassiN.MacklinE. A.GoyalN.RivnerM.et al (2017). Phase IIa trial of fingolimod for amyotrophic lateral sclerosis demonstrates acceptable acute safety and tolerability.Muscle Nerve5610771084. 10.1002/mus.25733

  • 30

    BetlazarC.Harrison-BrownM.MiddletonR. J.BanatiR.LiuG.-J. (2018). Cellular sources and regional variations in the expression of the neuroinflammatory marker translocator protein (TSPO) in the normal brain.Int. J. Mol. Sci.19:2707. 10.3390/ijms19092707

  • 31

    BianG.GuY.XuC.YangW.PanX.ChenY.et al (2021). Early development and functional properties of tryptase/chymase double-positive mast cells from human pluripotent stem cells.J. Mol. Cell Biol.13104115. 10.1093/jmcb/mjaa059

  • 32

    BjornskovE. K.NorrisF. H.Jr.Mower-KubyJ. (1984). Quantitative Axon Terminal and End-plate Morphology in Amyotrophic Lateral Sclerosis.Arch. Neurol.41527530. 10.1001/archneur.1984.04050170073021

  • 33

    BlascoH.GarconG.PatinF.Veyrat-DurebexC.BoyerJ.DevosD.et al (2017). Panel of oxidative stress and inflammatory biomarkers in als: a pilot study.Can. J. Neurol. Sci.449095. 10.1017/cjn.2016.284

  • 34

    BohlD.PochetR.MitrecicD.NicaiseC. (2016). Modelling and treating amyotrophic lateral sclerosis through induced-pluripotent stem cells technology.Curr. Stem Cell Res. Ther.11301312. 10.2174/1574888x10666150528144303

  • 35

    BohlenC. J.BennettF. C.TuckerA. F.CollinsH. Y.MulinyaweS. B.BarresB. A. (2017). Diverse requirements for microglial survival, specification, and function revealed by defined-medium cultures.Neuron94759773.e8. 10.1016/j.neuron.2017.04.043

  • 36

    BöiersC.RichardsonS. E.LaycockE.ZriwilA.TuratiV. A.BrownJ.et al (2018). A human IPS model implicates embryonic b-myeloid fate restriction as developmental susceptibility to b acute lymphoblastic leukemia-associated ETV6-RUNX1.Dev. Cell44362377.e7. 10.1016/j.devcel.2017.12.005

  • 37

    BoilléeS.YamanakaK.LobsigerC. S.CopelandN. G.JenkinsN. A.KassiotisG.et al (2006). Onset and progression in inherited ALS determined by motor neurons and microglia.Science31213891392. 10.1126/science.1123511

  • 38

    BossùP.SalaniF.AlbericiA.ArchettiS.BellelliG.GalimbertiD.et al (2011). Loss of function mutations in the progranulin gene are related to pro-inflammatory cytokine dysregulation in frontotemporal lobar degeneration patients.J. Neuroinflammation8:65. 10.1186/1742-2094-8-65

  • 39

    BowlesK. R.SilvaM. C.WhitneyK.BertucciT.BerlindJ. E.LaiJ. D.et al (2021). ELAVL4, splicing, and glutamatergic dysfunction precede neuron loss in MAPT mutation cerebral organoids.Cell18745474563.e17. 10.1016/j.cell.2021.07.003

  • 40

    BrightF.WerryE. L.Dobson-StoneC.PiguetO.IttnerL. M.HallidayG. M.et al (2019). Neuroinflammation in frontotemporal dementia.Nat. Rev. Neurol.15540555. 10.1038/s41582-019-0231-z

  • 41

    BrodovitchA.BoucrautJ.DelmontE.ParlantiA.GrapperonA.-M.AttarianS.et al (2021). Combination of serum and CSF neurofilament-light and neuroinflammatory biomarkers to evaluate ALS.Sci. Rep.11:703. 10.1038/s41598-020-80370-6

  • 42

    BrooksB.BravverE.SanjakM.LangfordV.GravesD.MooreL.et al (2016). Adaptive design single center phosphodiesterase type 4 (PDE4) inhibitor - ibudilast (MN-166-ALS-1201) phase 1b/2a clinical trial double-blind (DB) with open label extensions (OLE) [NCT02238626] for Amyotrophic Lateral Sclerosis (ALS) Patients [1] not requiring non-invasive ventilation (no-NIV) up to 5 Years (Early Cohort-EC) and [2] requiring non-invasive ventilation (NIV) up to 10 years(Advanced NIV Cohort-ANC) from disease onset - behavior of creatinine as a biomarker in short clinical trials.Neurology86(Suppl. 16):P5.003.

  • 43

    BrooksB.BravverE.SanjakM.LangfordV.LaryC.AlwanM.et al (2015). A Single-center, randomized, double-blind, placebo-controlled, six-month clinical trial followed by an open-label extension to evaluate the safety, tolerability and clinical endpoint responsiveness of the phosphodiesterase type 4 (PDE4) inhibitor ibudilast (MN-166) in subjects with amyotrophic lateral sclerosis (ALS) - STEP-IBUDILAST-ALS-DB-OLE-1.Neurology84(Suppl. 14):I8–1B.

  • 44

    BrooksB. R.BravverE.SanjakM.LangfordV.MooreL.SmithN.et al (2017). Adaptive design single center phosphodiesterase type 4 (PDE4) inhibitor – ibudilast (MN-166-ALS-1201) Phase 1b / 2a Clinical Trial Double - Blind (DB) with open label extension (OLE) [NCT02238626] for amyotrophic lateral sclerosis (ALS) patients [1] Not requiring non-invasive ventilation (no NIV) up to 5 years (Early Cohort – EC) and [2] requiring non-invasive ventilation (NIV) up to 10 years (Advanced NIV Cohort – ANC) from disease onset – report of clinical Trial DB, OLE and post-treatment cessation epochs – per-protocol (PP) treatment completion associated with improved survival and post treatment cessation loss of muscle strength.Neurology88(Suppl. 16):P3.127.

  • 45

    BrownellB.OppenheimerD. R.HughesJ. T. (1970). The central nervous system in motor neurone disease.J. Neurol. Neurosurg. Psychiatry33338357. 10.1136/jnnp.33.3.338

  • 46

    BudzyńskiJ.KłopockaM. (2014). Brain-gut axis in the pathogenesis of Helicobacter pylori infection.World J. Gastroenterol.2052125225. 10.3748/wjg.v20.i18.5212

  • 47

    BurrellJ. R.HallidayG. M.KrilJ. J.IttnerL. M.GötzJ.KiernanM. C.et al (2016). The frontotemporal dementia-motor neuron disease continuum.Lancet388919931. 10.1016/S0140-6736(16)00737-6

  • 48

    BusseM.MichlerE.von HoffF.DobrowolnyH.HartigR.FrodlT.et al (2017). Alterations in the peripheral immune system in dementia.J. Alzheimers Dis.5813031313. 10.3233/JAD-161304

  • 49

    ButovskyO.SiddiquiS.GabrielyG.LanserA. J.DakeB.MurugaiyanG.et al (2012). Modulating inflammatory monocytes with a unique microRNA gene signature ameliorates murine ALS.J. Clin. Invest.12230633087. 10.1172/JCI62636

  • 50

    CagninA.RossorM.SampsonE. L.MackinnonT.BanatiR. B. (2004). In vivo detection of microglial activation in frontotemporal dementia.Ann. Neurol.56894897. 10.1002/ana.20332

  • 51

    CamuW.MickunasM.VeyruneJ.-L.PayanC.GarlandaC.LocatiM.et al (2020). Repeated 5-day cycles of low dose aldesleukin in amyotrophic lateral sclerosis (IMODALS): a phase 2a randomised, double-blind, placebo-controlled trial.EBioMedicine59:102844. 10.1016/j.ebiom.2020.102844

  • 52

    ChambersC. A.KuhnsM. S.EgenJ. G.AllisonJ. P. (2001). CTLA-4-mediated inhibition in regulation of T cell responses: mechanisms and manipulation in tumor immunotherapy.Annu. Rev. Immunol.19565594. 10.1146/annurev.immunol.19.1.565

  • 53

    ChangC.-W.LaiY.-S.LambL. S.TownesT. M. (2014). Broad T-cell receptor repertoire in T-lymphocytes derived from human induced pluripotent stem cells.PLoS One9:e97335. 10.1371/journal.pone.0097335

  • 54

    ChangM. Y.TsoiC.WightT. N.ChaitA. (2003). Lysophosphatidylcholine regulates synthesis of biglycan and the proteoglycan form of macrophage colony stimulating factor.Arterioscler. Thromb. Vasc. Biol.23809815. 10.1161/01.ATV.0000069208.20268.D0

  • 55

    ChenC. (2010). COX-2’s new role in inflammation.Nat. Chem. Biol.6401402. 10.1038/nchembio.375

  • 56

    ChenM.OnaV. O.LiM.FerranteR. J.FinkK. B.ZhuS.et al (2000). Minocycline inhibits caspase-1 and caspase-3 expression and delays mortality in a transgenic mouse model of Huntington disease.Nat. Med.6797801. 10.1038/77528

  • 57

    ChenX.SunG.TianE.ZhangM.DavtyanH.BeachT. G.et al (2021). modeling sporadic Alzheimer’s disease in human brain organoids under serum exposure.Adv. Sci. (Weinh)8:e2101462. 10.1002/advs.202101462

  • 58

    ChenY.WangH.YingZ.GaoQ. (2020). Ibudilast enhances the clearance of SOD1 and TDP-43 aggregates through TFEB-mediated autophagy and lysosomal biogenesis: the new molecular mechanism of ibudilast and its implication for neuroprotective therapy.Biochem. Biophys. Res. Commun.526231238. 10.1016/j.bbrc.2020.03.051

  • 59

    ChewS.AtassiN. (2019). Positron emission tomography molecular imaging biomarkers for amyotrophic lateral sclerosis.Front. Neurol.10:135. 10.3389/fneur.2019.00135

  • 60

    ChiotA.ZaïdiS.IltisC.RibonM.BerriatF.SchiaffinoL.et al (2020). Modifying macrophages at the periphery has the capacity to change microglial reactivity and to extend ALS survival.Nat. Neurosci.2313391351. 10.1038/s41593-020-00718-z

  • 61

    ChipikaR. H.SiahW. F.McKennaM. C.Li Hi ShingS.HardimanO.BedeP. (2020). The presymptomatic phase of amyotrophic lateral sclerosis: are we merely scratching the surface?J. Neurol.26846074629. 10.1007/s00415-020-10289-5

  • 62

    ChiuI. M.ChenA.ZhengY.KosarasB.TsiftsoglouS. A.VartanianT. K.et al (2008). T lymphocytes potentiate endogenous neuroprotective inflammation in a mouse model of ALS.Proc. Natl. Acad. Sci. U.S.A.1051791317918. 10.1073/pnas.0804610105

  • 63

    ChiuI. M.PhatnaniH.KuligowskiM.TapiaJ. C.CarrascoM. A.ZhangM.et al (2009). Activation of innate and humoral immunity in the peripheral nervous system of ALS transgenic mice.Proc. Natl. Acad. Sci. U.S.A.1062096020965. 10.1073/pnas.0911405106

  • 64

    ChoY.CrichlowG. V.VermeireJ. J.LengL.DuX.HodsdonM. E.et al (2010). Allosteric inhibition of macrophage migration inhibitory factor revealed by ibudilast.Proc. Natl. Acad. Sci. U.S.A.1071131311318. 10.1073/pnas.1002716107

  • 65

    CohenS. B. (2004). The use of anakinra, an interleukin-1 receptor antagonist, in the treatment of rheumatoid arthritis.Rheum. Dis. Clin. North Am.30365380,vii. 10.1016/j.rdc.2004.01.005

  • 66

    ConteC.SichettiM.TrainaG. (2020). Gut–brain axis: focus on neurodegeneration and mast cells.Appl. Sci.10:1828. 10.3390/app10051828

  • 67

    CorciaP.TauberC.VercoullieJ.ArlicotN.PrunierC.PralineJ.et al (2012). Molecular imaging of microglial activation in amyotrophic lateral sclerosis.PLoS One7:e52941. 10.1371/journal.pone.0052941

  • 68

    CoxG. M.KithcartA. P.PittD.GuanZ.AlexanderJ.WilliamsJ. L.et al (2013). Macrophage migration inhibitory factor potentiates autoimmune-mediated neuroinflammation.J. Immunol.19110431054. 10.4049/jimmunol.1200485

  • 69

    CrutsM.GijselinckI.van der ZeeJ.EngelborghsS.WilsH.PiriciD.et al (2006). Null mutations in progranulin cause ubiquitin-positive frontotemporal dementia linked to chromosome 17q21.Nature442920924. 10.1038/nature05017

  • 70

    CudkowiczM. E.ShefnerJ. M.SchoenfeldD. A.ZhangH.AndreassonK. I.RothsteinJ. D.et al (2006). Trial of celecoxib in amyotrophic lateral sclerosis.Ann. Neurol.602231. 10.1002/ana.20903

  • 71

    DeansR. J.MoseleyA. B. (2000). Mesenchymal stem cells: biology and potential clinical uses.Exp. Hematol.28875884. 10.1016/s0301-472x(00)00482-3

  • 72

    DedaH.InciM.KürekçiA.SavA.KayıhanK.ÖzgünE.et al (2009). Treatment of amyotrophic lateral sclerosis patients by autologous bone marrow-derived hematopoietic stem cell transplantation: a 1-year follow-up.Cytotherapy111825. 10.1080/14653240802549470

  • 73

    DeJesus-HernandezM.MackenzieI. R.BoeveB. F.BoxerA. L.BakerM.RutherfordN. J.et al (2011). Expanded GGGGCC hexanucleotide repeat in noncoding region of C9ORF72 causes chromosome 9p-linked FTD and ALS.Neuron72245256. 10.1016/j.neuron.2011.09.011

  • 74

    DemestreM.PullenA.OrrellR. W.OrthM. (2005). ALS-IgG-induced selective motor neurone apoptosis in rat mixed primary spinal cord cultures.J. Neurochem.94268275. 10.1111/j.1471-4159.2005.03184.x

  • 75

    DibajP.SteffensH.ZschüntzschJ.NadrignyF.SchomburgE. D.KirchhoffF.et al (2011). In Vivo imaging reveals distinct inflammatory activity of CNS microglia versus PNS macrophages in a mouse model for ALS.PLoS One6:e17910. 10.1371/journal.pone.0017910

  • 76

    DjouadF.CharbonnierL.-M.BouffiC.Louis-PlenceP.BonyC.ApparaillyF.et al (2007). Mesenchymal stem cells inhibit the differentiation of dendritic cells through an interleukin-6-dependent mechanism.Stem Cells2520252032. 10.1634/stemcells.2006-0548

  • 77

    DuY.ZhaoW.ThonhoffJ. R.WangJ.WenS.AppelS. H. (2020). Increased activation ability of monocytes from ALS patients.Expe. Neurol.328:113259. 10.1016/j.expneurol.2020.113259

  • 78

    DupuisL.DenglerR.HenekaM. T.MeyerT.ZierzS.KassubekJ.et al (2012). A randomized, double blind, placebo-controlled trial of pioglitazone in combination with riluzole in amyotrophic lateral sclerosis.PLoS One7:e37885. 10.1371/journal.pone.0037885

  • 79

    DzionekA.FuchsA.SchmidtP.CremerS.ZyskM.MiltenyiS.et al (2000). BDCA-2, BDCA-3, and BDCA-4: three markers for distinct subsets of dendritic cells in human peripheral blood.J. Immunol.16560376046. 10.4049/jimmunol.165.11.6037

  • 80

    EhrhartJ.SmithA. J.Kuzmin-NicholsN.ZesiewiczT. A.JahanI.ShytleR. D.et al (2015). Humoral factors in ALS patients during disease progression.J. Neuroinflammation12:127. 10.1186/s12974-015-0350-4

  • 81

    El MendiliM. M.QuerinG.BedeP.PradatP.-F. (2019). Spinal cord imaging in amyotrophic lateral sclerosis: historical concepts—novel techniques.Front. Neurol.10:350. 10.3389/fneur.2019.00350

  • 82

    EngelhardtJ. I.TajtiJ.AppelS. H. (1993). Lymphocytic infiltrates in the spinal cord in amyotrophic lateral sclerosis.Arch. Neurol.503036. 10.1001/archneur.1993.00540010026013

  • 83

    FattorelliN.Martinez-MurianaA.WolfsL.GericI.De StrooperB.MancusoR. (2021). Stem-cell-derived human microglia transplanted into mouse brain to study human disease.Nat. Protoc.1610131033. 10.1038/s41596-020-00447-4

  • 84

    FerrariR.KapogiannisD.HueyD.MomeniE. P. (2011). FTD and ALS: a tale of two diseases.Curr. Alzheimer Res.8273294. 10.2174/156720511795563700

  • 85

    FerrariR.ManzoniC.HardyJ. (2019). Genetics and molecular mechanisms of frontotemporal lobar degeneration: an update and future avenues.Neurobiol. Aging7898110. 10.1016/j.neurobiolaging.2019.02.006

  • 86

    FialaM.ChattopadhayM.La CavaA.TseE.LiuG.LourencoE.et al (2010). IL-17A is increased in the serum and in spinal cord CD8 and mast cells of ALS patients.J Neuroinflammation7:76. 10.1186/1742-2094-7-76

  • 87

    FialaM.MizwickiM. T.WeitzmanR.MagpantayL.NishimotoN. (2013). Tocilizumab infusion therapy normalizes inflammation in sporadic ALS patients.Am. J. Neurodegener. Dis.2129139.

  • 88

    Figueroa-RomeroC.GuoK.MurdockB. J.Paez-ColasanteX.BassisC. M.MikhailK. A.et al (2019). Temporal evolution of the microbiome, immune system and epigenome with disease progression in ALS mice.Dis. Model. Mech.1: dmm041947. 10.1242/dmm.041947

  • 89

    FrenchA.YangC.-T.TaylorS.WattS. M.CarpenterL. (2015). Human induced pluripotent stem cell-derived B lymphocytes express sIgM and can be generated via a hemogenic endothelium intermediate.Stem Cells Dev. 2410821095. 10.1089/scd.2014.0318

  • 90

    FujimoriK.IshikawaM.OtomoA.AtsutaN.NakamuraR.AkiyamaT.et al (2018). Modeling sporadic ALS in iPSC-derived motor neurons identifies a potential therapeutic agent.Nat. Med.2415791589. 10.1038/s41591-018-0140-5

  • 91

    FurukawaT.MatsuiN.FujitaK.NoderaH.ShimizuF.MiyamotoK.et al (2015). CSF cytokine profile distinguishes multifocal motor neuropathy from progressive muscular atrophy.Neurol. Neuroimmunol. Neuroinflamm.2:e138. 10.1212/NXI.0000000000000138

  • 92

    GaianiA.MartinelliI.BelloL.QuerinG.PuthenparampilM.RuggeroS.et al (2017). Diagnostic and prognostic biomarkers in amyotrophic lateral sclerosis: neurofilament light chain levels in definite subtypes of disease.JAMA Neurol. 74525532. 10.1001/jamaneurol.2016.5398

  • 93

    GalimbertiD.BonsiR.FenoglioC.SerpenteM.CioffiS. M. G.FumagalliG.et al (2015). Inflammatory molecules in Frontotemporal Dementia: Cerebrospinal fluid signature of progranulin mutation carriers.Brain Behav. Immun.49182187. 10.1016/j.bbi.2015.05.006

  • 94

    GalimbertiD.SchoonenboomN.ScheltensP.FenoglioC.VenturelliE.PijnenburgY. A. L.et al (2006). Intrathecal chemokine levels in Alzheimer disease and frontotemporal lobar degeneration.Neurology66146147. 10.1212/01.wnl.0000191324.08289.9d

  • 95

    GalimbertiD.VenturelliE.FenoglioC.GuidiI.VillaC.BergamaschiniL.et al (2008). Intrathecal levels of IL-6, IL-11 and LIF in Alzheimer’s disease and frontotemporal lobar degeneration.J. Neurol.255539544. 10.1007/s00415-008-0737-6

  • 96

    GarofaloS.CocozzaG.PorziaA.InghilleriM.RaspaM.ScavizziF.et al (2020). Natural killer cells modulate motor neuron-immune cell cross talk in models of Amyotrophic Lateral Sclerosis.Nat. Commun.11:1773. 10.1038/s41467-020-15644-8

  • 97

    GentekR.GhigoC.HoeffelG.BulleM. J.MsallamR.GautierG.et al (2018). Hemogenic endothelial fate mapping reveals dual developmental origin of mast cells.Immunity4811601171.e5. 10.1016/j.immuni.2018.04.025

  • 98

    GibbonsL.RollinsonS.ThompsonJ. C.RobinsonA.DavidsonY. S.RichardsonA.et al (2015). Plasma levels of progranulin and interleukin-6 in frontotemporal lobar degeneration.Neurobiol. Aging361603.e11603.e4. 10.1016/j.neurobiolaging.2014.10.023

  • 99

    GibsonL. C. D.HastingsS. F.McPheeI.ClaytonR. A.DarrochC. E.MackenzieA.et al (2006). The inhibitory profile of Ibudilast against the human phosphodiesterase enzyme family.Eur. J. Pharmacol.5383942. 10.1016/j.ejphar.2006.02.053

  • 100

    GinhouxF.GreterM.LeboeufM.NandiS.SeeP.GokhanS.et al (2010). Fate Mapping analysis reveals that adult microglia derive from primitive macrophages.Science330841845. 10.1126/science.1194637

  • 101

    GinhouxF.SchultzeJ. L.MurrayP. J.OchandoJ.BiswasS. K. (2016). New insights into the multidimensional concept of macrophage ontogeny, activation and function.Nat. Immunol.173440. 10.1038/ni.3324

  • 102

    GoldmanJ. S.FarmerJ. M.WoodE. M.JohnsonJ. K.BoxerA.NeuhausJ.et al (2005). Comparison of family histories in FTLD subtypes and related tauopathies.Neurology6518171819. 10.1212/01.wnl.0000187068.92184.63

  • 103

    Gomez PerdigueroE.KlapprothK.SchulzC.BuschK.AzzoniE.CrozetL.et al (2015). Tissue-resident macrophages originate from yolk-sac-derived erythro-myeloid progenitors.Nature518547551. 10.1038/nature13989

  • 104

    GongL.ThornC. F.BertagnolliM. M.GrosserT.AltmanR. B.KleinT. E. (2012). Celecoxib pathways: pharmacokinetics and pharmacodynamics.Pharmacogenet. Genomics22310318. 10.1097/FPC.0b013e32834f94cb

  • 105

    Gonzalez-GarzaM. T.MartinezH. R.Cruz-VegaD. E.Hernandez-TorreM.Moreno-CuevasJ. E. (2018). Adipsin, MIP-1b, and IL-8 as CSF BIOMARKER PANELS for ALS DIagnosis.Dis. Markers2018:3023826. 10.1155/2018/3023826

  • 106

    GordonP. H.MooreD. H.MillerR. G.FlorenceJ. M.VerheijdeJ. L.DoorishC.et al (2007). Efficacy of minocycline in patients with amyotrophic lateral sclerosis: a phase III randomised trial.Lancet Neurol.610451053. 10.1016/S1474-4422(07)70270-3

  • 107

    GosselinD.SkolaD.CoufalN. G.HoltmanI. R.SchlachetzkiJ. C. M.SajtiE.et al (2017). An environment-dependent transcriptional network specifies human microglia identity.Science356:eaal3222. 10.1126/science.aal3222

  • 108

    GravesM.FialaM.DinglasanL. A.LiuN.SayreJ.ChiappelliF.et al (2004). Inflammation in amyotrophic lateral sclerosis spinal cord and brain is mediated by activated macrophages, mast cells and T cells.Amyotrophic Lateral Scler. Motor Neuron Dis.5213219. 10.1080/14660820410020286

  • 109

    GreavesC. V.RohrerJ. D. (2019). An update on genetic frontotemporal dementia.J. Neurol.26620752086. 10.1007/s00415-019-09363-4

  • 110

    GrossC. C.Schulte-MecklenbeckA.KlinsingS.Posevitz-FejfárA.WiendlH.KlotzL. (2016). Dimethyl fumarate treatment alters circulating T helper cell subsets in multiple sclerosis.Neurol. Neuroimmunol. Neuroinflamm.3:e183. 10.1212/NXI.0000000000000183

  • 111

    GuoJ.YangX.GaoL.ZangD. (2017). Evaluating the levels of CSF and serum factors in ALS.Brain Behav.7:e00637. 10.1002/brb3.637

  • 112

    GuptaP. K.PrabhakarS.SharmaS.AnandA. (2011). Vascular endothelial growth factor-A (VEGF-A) and chemokine ligand-2 (CCL2) in amyotrophic lateral sclerosis (ALS) patients.J. Neuroinflammation8:47. 10.1186/1742-2094-8-47

  • 113

    GustafsonM. P.StaffN. P.BornschleglS.ButlerG. W.MaasM. L.KazamelM.et al (2017). Comprehensive immune profiling reveals substantial immune system alterations in a subset of patients with amyotrophic lateral sclerosis.PLoS One12:e0182002. 10.1371/journal.pone.0182002

  • 114

    HaW.Sevim-NalkiranH.ZamanA. M.MatsudaK.KhasrawM.NowakA. K.et al (2019). Ibudilast sensitizes glioblastoma to temozolomide by targeting Macrophage Migration Inhibitory Factor (MIF).Sci. Rep.9:2905. 10.1038/s41598-019-39427-4

  • 115

    HaenselerW.RajendranL. (2019). Concise review: modeling neurodegenerative diseases with human pluripotent stem cell-derived microglia.Stem Cells37724730. 10.1002/stem.2995

  • 116

    HagemeyerN.KierdorfK.FrenzelK.XueJ.RingelhanM.AbdullahZ.et al (2016). Transcriptome-based profiling of yolk sac-derived macrophages reveals a role for Irf8 in macrophage maturation.EMBO J.3517301744. 10.15252/embj.201693801

  • 117

    HanK. H.HongK. H.KoJ.RheeK. S.HongM. K.KimJ. J.et al (2004). Lysophosphatidylcholine up-regulates CXCR4 chemokine receptor expression in human CD4 T cells.J. Leukocyte Biol.76195202. 10.1189/jlb.1103563

  • 118

    HaniffaM.CollinM.GinhouxF. (2013). Ontogeny and functional specialization of dendritic cells in human and mouse.Adv. Immunol.120149. 10.1016/B978-0-12-417028-5.00001-6

  • 119

    HarchaP. A.GarcésP.ArredondoC.FernándezG.SáezJ. C.van ZundertB. (2021). Mast cell and astrocyte hemichannels and their role in Alzheimer’s disease, ALS, and harmful stress conditions.Int. J. Mol. Sci.22:1924. 10.3390/ijms22041924

  • 120

    HasselmannJ.Blurton-JonesM. (2020). Human iPSC-derived microglia: a growing toolset to study the brain’s innate immune cells.Glia68721739. 10.1002/glia.23781

  • 121

    HawrotJ.ImhofS.WaingerB. J. (2020). Modeling cell-autonomous motor neuron phenotypes in ALS using iPSCs.Neurobiol. Dis.134:104680. 10.1016/j.nbd.2019.104680

  • 122

    HedegaardA.StodolakS.JamesW. S.CowleyS. A. (2020). Honing the Double-Edged Sword: Improving Human iPSC-Microglia Models.Front Immunol11:614972. 10.3389/fimmu.2020.614972

  • 123

    HenkelJ. S.BeersD. R.WenS.RiveraA. L.ToennisK. M.AppelJ. E.et al (2013). Regulatory T-lymphocytes mediate amyotrophic lateral sclerosis progression and survival.EMBO Mol. Med.56479. 10.1002/emmm.201201544

  • 124

    HenkelJ. S.EngelhardtJ. I.SiklósL.SimpsonE. P.KimS. H.PanT.et al (2004). Presence of dendritic cells, MCP-1, and activated microglia/macrophages in amyotrophic lateral sclerosis spinal cord tissue: Dendritic Cells and MCP-1 in ALS.Ann. Neurol.55221235. 10.1002/ana.10805

  • 125

    Holm HansenR.Højsgaard ChowH.ChristensenJ. R.SellebjergF.von EssenM. R. (2020). Dimethyl fumarate therapy reduces memory T cells and the CNS migration potential in patients with multiple sclerosis.Mult. Scler. Relat. Disord.37:101451. 10.1016/j.msard.2019.101451

  • 126

    HorJ. H.SohE. S.-Y.TanL. Y.LimV. J. W.SantosaM. M.Winantoet al (2018). Cell cycle inhibitors protect motor neurons in an organoid model of spinal muscular atrophy.Cell Death Dis.9:1100. 10.1038/s41419-018-1081-0

  • 127

    HuW. T.Chen-PlotkinA.GrossmanM.ArnoldS. E.ClarkC. M.ShawL. M.et al (2010). Novel CSF biomarkers for frontotemporal lobar degenerations.Neurology7520792086. 10.1212/WNL.0b013e318200d78d

  • 128

    HuangF.ZhuY.Hsiao-NakamotoJ.TangX.DugasJ. C.Moscovitch-LopatinM.et al (2020). Longitudinal biomarkers in amyotrophic lateral sclerosis.Ann. Clin. Transl. Neurol.711031116. 10.1002/acn3.51078

  • 129

    HusebyE. S.HusebyP. G.ShahS.SmithR.StadinskiB. D. (2012). Pathogenic CD8 T cells in multiple sclerosis and its experimental models.Front. Immunol.3:64. 10.3389/fimmu.2012.00064

  • 130

    IgarashiA.EbiharaY.KumagaiT.HiraiH.NagataK.TsujiK. (2018). Mast cells derived from human induced pluripotent stem cells are useful for allergen tests.Allergol. Int.67234242. 10.1016/j.alit.2017.08.008

  • 131

    IkedaK. (2000). Neuropathological discrepancy between Japanese Pick’s disease without Pick bodies and frontal lobe degeneration type of frontotemporal dementia proposed by Lund and Manchester Group.Neuropathology207682. 10.1046/j.1440-1789.2000.00270.x

  • 132

    IkunoT.ItoS.InoueT. (2019). Human induced pluripotent stem cell-derived mast cells useful for in vitro mast cell activation assay exhibiting phenotypes and morphological characteristics of human mast cells.J. Toxicol. Sci.44789797. 10.2131/jts.44.789

  • 133

    InabaK.PackM.InabaM.SakutaH.IsdellF.SteinmanR. M. (1997). High levels of a major histocompatibility complex II-self peptide complex on dendritic cells from the T cell areas of lymph nodes.J. Exp. Med.186665672. 10.1084/jem.186.5.665

  • 134

    ItalianiP.CarlesiC.GiungatoP.PuxedduI.BorroniB.BossùP.et al (2014). Evaluating the levels of interleukin-1 family cytokines in sporadic amyotrophic lateral sclerosis.J. Neuroinflammation11:94. 10.1186/1742-2094-11-94

  • 135

    JanssenB.VugtsD. J.WindhorstA. D.MachR. H. (2018). PET imaging of microglial activation-beyond targeting TSPO.Molecules23:E607. 10.3390/molecules23030607

  • 136

    JaraJ. H.GençB.StanfordM. J.PytelP.RoosR. P.WeintraubS.et al (2017). Evidence for an early innate immune response in the motor cortex of ALS.J. Neuroinflammation14:129. 10.1186/s12974-017-0896-4

  • 137

    JawaidA.PaganoniS.SchulzP. E. (2014). Trials of anti-diabetic drugs in amyotrophic lateral sclerosis: proceed with caution?Neurodegener. Dis.13205208. 10.1159/000353158

  • 138

    JinM.AkgünK.ZiemssenT.KippM.GüntherR.HermannA. (2021). Interleukin-17 and Th17 lymphocytes directly impair motoneuron survival of wildtype and fus-als mutant human iPSCs.Int. J. Mol. Sci.22:8042. 10.3390/ijms22158042

  • 139

    JinM.GüntherR.AkgünK.HermannA.ZiemssenT. (2020). Peripheral proinflammatory Th1/Th17 immune cell shift is linked to disease severity in amyotrophic lateral sclerosis.Sci Rep105941. 10.1038/s41598-020-62756-8

  • 140

    JohnsonJ. K.DiehlJ.MendezM. F.NeuhausJ.ShapiraJ. S.FormanM.et al (2005). Frontotemporal lobar degeneration: demographic characteristics of 353 patients.Arch. Neurol.62925930. 10.1001/archneur.62.6.925

  • 141

    JonesM. K.NairA.GuptaM. (2019). Mast Cells in Neurodegenerative Disease.Front. Cell. Neurosci.13:171. 10.3389/fncel.2019.00171

  • 142

    JungY. J.TweedieD.ScerbaM. T.GreigN. H. (2019). Neuroinflammation as a factor of neurodegenerative disease: thalidomide analogs as treatments.Front. Cell Dev. Biol.7:313. 10.3389/fcell.2019.00313

  • 143

    KambayashiT.LauferT. M. (2014). Atypical MHC class II-expressing antigen-presenting cells: can anything replace a dendritic cell?Nat. Rev. Immunol.14719730. 10.1038/nri3754

  • 144

    KansalK.MareddyM.SloaneK. L.MincA. A.RabinsP. V.McGreadyJ. B.et al (2016). Survival in frontotemporal dementia phenotypes: a meta-analysis.Dement. Geriatr. Cogn. Disord.41109122. 10.1159/000443205

  • 145

    KapsenbergM. L. (2003). Dendritic-cell control of pathogen-driven T-cell polarization.Nat. Rev. Immunol.3984993. 10.1038/nri1246

  • 146

    KarussisD.KarageorgiouC.Vaknin-DembinskyA.Gowda-KurkalliB.GomoriJ. M.KassisI.et al (2010). Safety and immunological effects of mesenchymal stem cell transplantation in patients with multiple sclerosis and amyotrophic lateral sclerosis.Arch. Neurol.6711871194. 10.1001/archneurol.2010.248

  • 147

    KautsM.-L.De LeoB.Rodríguez-SeoaneC.RonnR.GlykofrydisF.MaglittoA.et al (2018). Rapid mast cell generation from Gata2 reporter pluripotent stem cells.Stem Cell Rep.1110091020. 10.1016/j.stemcr.2018.08.007

  • 148

    KawamataT.AkiyamaH.YamadaT.McGeerP. L. (1992). Immunologic reactions in amyotrophic lateral sclerosis brain and spinal cord tissue.Am. J. Pathol.140691707.

  • 149

    KhalidS. I.AmpieL.KellyR.LadhaS. S.DardisC. (2017). Immune modulation in the treatment of amyotrophic lateral sclerosis: a review of clinical trials.Front. Neurol.8:486. 10.3389/fneur.2017.00486

  • 150

    KierdorfK.ErnyD.GoldmannT.SanderV.SchulzC.PerdigueroE. G.et al (2013). Microglia emerge from erythromyeloid precursors via Pu.1- and Irf8-dependent pathways.Nat. Neurosci.16273280. 10.1038/nn.3318

  • 151

    KimH.KimH. Y.ChoiM. R.HwangS.NamK.-H.KimH.-C.et al (2010). Dose-dependent efficacy of ALS-human mesenchymal stem cells transplantation into cisterna magna in SOD1-G93A ALS mice.Neurosci. Lett.468190194. 10.1016/j.neulet.2009.10.074

  • 152

    KimH. Y.KimH.OhK.-W.OhS.-I.KohS.-H.BaikW.et al (2014). Biological markers of mesenchymal stromal cells as predictors of response to autologous stem cell transplantation in patients with amyotrophic lateral sclerosis: an investigator-initiated trial and in vivo study.Stem Cells3227242731. 10.1002/stem.1770

  • 153

    KimK.KimH.BaeS.-H.LeeS.-Y.KimY.-H.NaJ.et al (2020). [18F]CB251 PET/MR imaging probe targeting translocator protein (TSPO) independent of its Polymorphism in a Neuroinflammation Model.Theranostics1093159331. 10.7150/thno.46875

  • 154

    KochJ. C.KuttlerJ.MaassF.LengenfeldT.ZielkeE.BährM.et al (2020). Compassionate Use of the ROCK Inhibitor Fasudil in Three Patients With Amyotrophic Lateral Sclerosis.Front Neurol11:173. 10.3389/fneur.2020.00173

  • 155

    KornbergM. D.BhargavaP.KimP. M.PutluriV.SnowmanA. M.PutluriN.et al (2018). Dimethyl fumarate targets GAPDH and aerobic glycolysis to modulate immunity.Science360449453. 10.1126/science.aan4665

  • 156

    KovacsM.AlamónC.MacielC.VarelaV.IbarburuS.TarragóL.et al (2021). The pathogenic role of c-Kit+ mast cells in the spinal motor neuron-vascular niche in ALS.Acta Neuropathol. Commun.9:136. 10.1186/s40478-021-01241-3

  • 157

    KovarovaM.LatourA. M.ChasonK. D.TilleyS. L.KollerB. H. (2010). Human embryonic stem cells: a source of mast cells for the study of allergic and inflammatory diseases.Blood11536953703. 10.1182/blood-2009-08-237206

  • 158

    KrabbeG.MinamiS. S.EtchegarayJ. I.TanejaP.DjukicB.DavalosD.et al (2017). Microglial NFκB-TNFα hyperactivation induces obsessive-compulsive behavior in mouse models of progranulin-deficient frontotemporal dementia.Proc. Natl. Acad. Sci. U.S.A.11450295034. 10.1073/pnas.1700477114

  • 159

    KreislW. C.FujitaM.FujimuraY.KimuraN.JenkoK. J.KannanP.et al (2010). Comparison of [11C]-(R)-PK 11195 and [11C]PBR28, two radioligands for translocator protein (18 kDa) in human and monkey: implications for positron emission tomographic imaging of this inflammation biomarker.NeuroImage4929242932. 10.1016/j.neuroimage.2009.11.056

  • 160

    KuhleJ.LindbergR. L. P.RegeniterA.MehlingM.SteckA. J.KapposL.et al (2009). Increased levels of inflammatory chemokines in amyotrophic lateral sclerosis.Eur. J. Neurol.16771774. 10.1111/j.1468-1331.2009.02560.x

  • 161

    LaanM.CuiZ. H.HoshinoH.LötvallJ.SjöstrandM.GruenertD. C.et al (1999). Neutrophil recruitment by human IL-17 via C-X-C chemokine release in the airways.J. Immunol.16223472352.

  • 162

    LaurentC.DorothéeG.HunotS.MartinE.MonnetY.DuchampM.et al (2017). Hippocampal T cell infiltration promotes neuroinflammation and cognitive decline in a mouse model of tauopathy.Brain140184200. 10.1093/brain/aww270

  • 163

    LavinY.WinterD.Blecher-GonenR.DavidE.Keren-ShaulH.MeradM.et al (2014). Tissue-resident macrophage enhancer landscapes are shaped by the local microenvironment.Cell15913121326. 10.1016/j.cell.2014.11.018

  • 164

    LavisseS.GuillermierM.HérardA.-S.PetitF.DelahayeM.Van CampN.et al (2012). Reactive astrocytes overexpress TSPO and are detected by TSPO positron emission tomography imaging.J. Neurosci.321080910818. 10.1523/JNEUROSCI.1487-12.2012

  • 165

    LeeC. Z. W.KozakiT.GinhouxF. (2018). Studying tissue macrophages in vitro: are iPSC-derived cells the answer?Nat. Rev. Immunol.18716725. 10.1038/s41577-018-0054-y

  • 166

    LeeJ. D.KumarV.FungJ. N. T.RuitenbergM. J.NoakesP. G.WoodruffT. M. (2017). Pharmacological inhibition of complement C5a-C5a1 receptor signalling ameliorates disease pathology in the hSOD1G93A mouse model of amyotrophic lateral sclerosis.Br. J. Pharmacol.174689699. 10.1111/bph.13730

  • 167

    LeeS.HuangE. J. (2017). Modeling ALS and FTD with iPSC-derived neurons.Brain Res.16568897. 10.1016/j.brainres.2015.10.003

  • 168

    LeónB.López-BravoM.ArdavínC. (2007). Monocyte-derived dendritic cells formed at the infection site control the induction of protective T helper 1 responses against Leishmania.Immunity26519531. 10.1016/j.immuni.2007.01.017

  • 169

    LewisC. M.SuzukiM. (2014). Therapeutic applications of mesenchymal stem cells for amyotrophic lateral sclerosis.Stem Cell Res. Ther.5:32. 10.1186/scrt421

  • 170

    LiZ.LiuS.XuJ.ZhangX.HanD.LiuJ.et al (2018). Adult connective tissue-resident mast cells originate from late erythro-myeloid progenitors.Immunity49640653.e5. 10.1016/j.immuni.2018.09.023

  • 171

    LiangS. C.TanX.-Y.LuxenbergD. P.KarimR.Dunussi-JoannopoulosK.CollinsM.et al (2006). Interleukin (IL)-22 and IL-17 are coexpressed by Th17 cells and cooperatively enhance expression of antimicrobial peptides.J. Exp. Med.20322712279. 10.1084/jem.20061308

  • 172

    LinesG.CaseyJ. M.PrezaE.WrayS. (2020). Modelling frontotemporal dementia using patient-derived induced pluripotent stem cells.Mol. Cell Neurosci.109:103553. 10.1016/j.mcn.2020.103553

  • 173

    LingorP.WeberM.CamuW.FriedeT.HilgersR.LehaA.et al (2019). ROCK-ALS: protocol for a randomized, placebo-controlled, double-blind phase iia trial of safety, tolerability and efficacy of the rho kinase (ROCK) inhibitor fasudil in amyotrophic lateral sclerosis.Front. Neurol.10:293. 10.3389/fneur.2019.00293

  • 174

    LiptonA. M.WhiteC. L.BigioE. H. (2004). Frontotemporal lobar degeneration with motor neuron disease-type inclusions predominates in 76 cases of frontotemporal degeneration.Acta Neuropathol.108379385. 10.1007/s00401-004-0900-9

  • 175

    LuC.-H.AllenK.OeiF.LeoniE.KuhleJ.TreeT.et al (2016). Systemic inflammatory response and neuromuscular involvement in amyotrophic lateral sclerosis.Neurol. Neuroimmunol. Neuroinflamm.3:e244. 10.1212/NXI.0000000000000244

  • 176

    LuiH.ZhangJ.MakinsonS. R.CahillM. K.KelleyK. W.HuangH.-Y.et al (2016). Progranulin deficiency promotes circuit-specific synaptic pruning by microglia via complement activation.Cell165921935. 10.1016/j.cell.2016.04.001

  • 177

    LyadovaI.GerasimovaT.NenashevaT. (2021). macrophages derived from human induced pluripotent stem cells: the diversity of protocols, future prospects, and outstanding questions.Front. Cell Dev. Biol.9:640703. 10.3389/fcell.2021.640703

  • 178

    MackenzieI. R. A.FeldmanH. H. (2005). Ubiquitin immunohistochemistry suggests classic motor neuron disease, motor neuron disease with dementia, and frontotemporal dementia of the motor neuron disease type represent a clinicopathologic spectrum.J. Neuropathol. Exp. Neurol.64730739. 10.1097/01.jnen.0000174335.27708.0a

  • 179

    MadillM.McDonaghK.MaJ.VajdaA.McLoughlinP.O’BrienT.et al (2017). Amyotrophic lateral sclerosis patient iPSC-derived astrocytes impair autophagy via non-cell autonomous mechanisms.Mol. Brain10:22. 10.1186/s13041-017-0300-4

  • 180

    MaierA.DeigendeschN.MüllerK.WeishauptJ. H.KrannichA.RöhleR.et al (2015). Interleukin-1 antagonist anakinra in amyotrophic lateral sclerosis–a pilot study.PLoS One10:e0139684. 10.1371/journal.pone.0139684

  • 181

    MandrioliJ.D’AmicoR.ZucchiE.GessaniA.FiniN.FasanoA.et al (2018). Rapamycin treatment for amyotrophic lateral sclerosis: Protocol for a phase II randomized, double-blind, placebo-controlled, multicenter, clinical trial (RAP-ALS trial).Medicine (Baltimore)97:e11119. 10.1097/MD.0000000000011119

  • 182

    MantovaniS.GarbelliS.PasiniA.AlimontiD.PerottiC.MelazziniM.et al (2009). Immune system alterations in sporadic amyotrophic lateral sclerosis patients suggest an ongoing neuroinflammatory process.J. Neuroimmunol.2107379. 10.1016/j.jneuroim.2009.02.012

  • 183

    MartensL. H.ZhangJ.BarmadaS. J.ZhouP.KamiyaS.SunB.et al (2012). Progranulin deficiency promotes neuroinflammation and neuron loss following toxin-induced injury.J. Clin. Invest.12239553959. 10.1172/JCI63113

  • 184

    MazziniL.MareschiK.FerreroI.VassalloE.OliveriG.NasuelliN.et al (2008). Stem cell treatment in amyotrophic lateral sclerosis.J. Neurol. Sci.2657883. 10.1016/j.jns.2007.05.016

  • 185

    McGeerP. L.KawamataT.WalkerD. G.AkiyamaH.TooyamaI.McGeerE. G. (1993). Microglia in degenerative neurological disease.Glia78492. 10.1002/glia.440070114

  • 186

    MeiningerV.DroryV. E.LeighP. N.LudolphA.RobberechtW.SilaniV. (2009). Glatiramer acetate has no impact on disease progression in ALS at 40 mg/day: a double- blind, randomized, multicentre, placebo-controlled trial.Amyotroph Lateral Scler10378383. 10.3109/17482960902803432

  • 187

    MichaloudiH.BatziosC.ChiotelliM.GrivasI.PapadopoulosG. C. (2008). Mast cells populations fluctuate along the spinal dura mater of the developing rat.Brain Res.1226817. 10.1016/j.brainres.2008.05.057

  • 188

    MillerR.KatzJ.BlockG.NP001-10-003 Study Group (2018). Randomized Phase 2B trial of NP001, a Novel Immune Regulator, in ALS.Neurology90(Suppl. 15):S38.004.

  • 189

    MillerR. G.BlockG.KatzJ. S.BarohnR. J.GopalakrishnanV.CudkowiczM.et al (2015). Randomized phase 2 trial of NP001, a novel immune regulator: Safety and early efficacy in ALS.Neurol. Neuroimmunol. Neuroinflamm.2:e100. 10.1212/NXI.0000000000000100

  • 190

    MillerR. G.ZhangR.BlockG.KatzJ.BarohnR.KasarskisE.et al (2014). NP001 regulation of macrophage activation markers in ALS: a phase I clinical and biomarker study.Amyotroph. Lateral Scler. Frontotemporal. Degener.15601609. 10.3109/21678421.2014.951940

  • 191

    MillerT.CudkowiczM.ShawP. J.AndersenP. M.AtassiN.BucelliR. C.et al (2020). Phase 1-2 trial of antisense oligonucleotide tofersen for SOD1 ALS.N. Engl. J. Med.383109119. 10.1056/NEJMoa2003715

  • 192

    MillerZ. A.RankinK. P.Graff-RadfordN. R.TakadaL. T.SturmV. E.ClevelandC. M.et al (2013). TDP-43 frontotemporal lobar degeneration and autoimmune disease.J. Neurol. Neurosurg. Psychiatry84956962. 10.1136/jnnp-2012-304644

  • 193

    MilliganC.AtassiN.BabuS.BarohnR. J.CaressJ. B.CudkowiczM. E.et al (2021). Tocilizumab is safe and tolerable and reduces C-reactive protein concentrations in the plasma and cerebrospinal fluid of ALS patients.Muscle Nerve64309320. 10.1002/mus.27339

  • 194

    MitchellR. M.FreemanW. M.RandazzoW. T.StephensH. E.BeardJ. L.SimmonsZ.et al (2009). A CSF biomarker panel for identification of patients with amyotrophic lateral sclerosis.Neurology721419. 10.1212/01.wnl.0000333251.36681.a5

  • 195

    MitchellR. M.SimmonsZ.BeardJ. L.StephensH. E.ConnorJ. R. (2010). Plasma biomarkers associated with ALS and their relationship to iron homeostasis.Muscle Nerve4295103. 10.1002/mus.21625

  • 196

    MiyoshiM.ShinotohH.WszolekZ. K.StrongoskyA. J.ShimadaH.ArakawaR.et al (2010). In vivo detection of neuropathologic changes in presymptomatic MAPT mutation carriers: a PET and MRI study.Parkinsonism Relat. Disord.16404408. 10.1016/j.parkreldis.2010.04.004

  • 197

    MizwickiM. T.FialaM.MagpantayL.AzizN.SayreJ.LiuG.et al (2012). Tocilizumab attenuates inflammation in ALS patients through inhibition of IL6 receptor signaling.Am. J. Neurodegener. Dis.1305315.

  • 198

    MoensT. G.PartridgeL.IsaacsA. M. (2017). Genetic models of C9orf72: what is toxic?Curr. Opin. Genet. Dev.4492101. 10.1016/j.gde.2017.01.006

  • 199

    MoisseK.VolkeningK.Leystra-LantzC.WelchI.HillT.StrongM. J. (2009). Divergent patterns of cytosolic TDP-43 and neuronal progranulin expression following axotomy: implications for TDP-43 in the physiological response to neuronal injury.Brain Res.1249202211. 10.1016/j.brainres.2008.10.021

  • 200

    MokK.TraynorB. J.SchymickJ.TienariP. J.LaaksovirtaH.PeuralinnaT.et al (2012). Chromosome 9 ALS and FTD locus is probably derived from a single founder.Neurobiol. Aging33209.e38. 10.1016/j.neurobiolaging.2011.08.005

  • 201

    Montel-HagenA.CrooksG. M. (2019). From pluripotent stem cells to T cells.Exp. Hematol.712431. 10.1016/j.exphem.2018.12.001

  • 202

    Montel-HagenA.SeetC. S.LiS.ChickB.ZhuY.ChangP.et al (2019). Organoid-Induced Differentiation of Conventional T Cells from Human Pluripotent Stem Cells.Cell Stem Cell24376389.e8, 10.1016/j.stem.2018.12.011

  • 203

    MoraJ. S.GengeA.ChioA.EstolC. J.ChaverriD.HernándezM.et al (2020). Masitinib as an add-on therapy to riluzole in patients with amyotrophic lateral sclerosis: a randomized clinical trial.Amyotroph. Lateral Scler. Frontotemporal. Degener.21514. 10.1080/21678421.2019.1632346

  • 204

    Morata-TarifaC.AzkonaG.GlassJ.MazziniL.Sanchez-PernauteR. (2021). Looking backward to move forward: a meta-analysis of stem cell therapy in amyotrophic lateral sclerosis.NPJ Regen. Med.6:20. 10.1038/s41536-021-00131-5

  • 205

    Moreno-MartinezL.CalvoA. C.MuñozM. J.OstaR. (2019). Are circulating cytokines reliable biomarkers for amyotrophic lateral sclerosis?Int. J. Mol. Sci.20:2759. 10.3390/ijms20112759

  • 206

    MosmannT. R.CoffmanR. L. (1989). TH1 and TH2 cells: different patterns of lymphokine secretion lead to different functional properties.Annu. Rev. Immunol.7145173. 10.1146/annurev.iy.07.040189.001045

  • 207

    MouilleauV.VaslinC.RobertR.GribaudoS.NicolasN.JarrigeM.et al (2021). Dynamic extrinsic pacing of the HOX clock in human axial progenitors controls motor neuron subtype specification.Development148:dev194514. 10.1242/dev.194514

  • 208

    MurdockB. J.ZhouT.KashlanS. R.LittleR. J.GoutmanS. A.FeldmanE. L. (2017). Correlation of peripheral immunity with rapid amyotrophic lateral sclerosis progression.JAMA Neurol.7414461454. 10.1001/jamaneurol.2017.2255

  • 209

    NaY.-R.YoonY.-N.SonD.-I.SeokS.-H. (2013). Cyclooxygenase-2 inhibition blocks M2 macrophage differentiation and suppresses metastasis in murine breast cancer model.PLoS One8:e63451. 10.1371/journal.pone.0063451

  • 210

    NaganoA.AriokaM.Takahashi-YanagaF.MatsuzakiE.SasaguriT. (2017). Celecoxib inhibits osteoblast maturation by suppressing the expression of Wnt target genes.J. Pharmacol. Sci.1331824. 10.1016/j.jphs.2016.11.003

  • 211

    NaorS.KerenZ.BronshteinT.GorenE.MachlufM.MelamedD. (2009). Development of ALS-like disease in SOD-1 mice deficient of B lymphocytes.J. Neurol.25612281235. 10.1007/s00415-009-5097-3

  • 212

    NaphadeS. B.KigerlK. A.JakemanL. B.KostykS. K.PopovichP. G.KuretJ. (2010). Progranulin expression is upregulated after spinal contusion in mice.Acta Neuropathol.119123133. 10.1007/s00401-009-0616-y

  • 213

    NarayanaswamiV.DahlK.Bernard-GauthierV.JosephsonL.CummingP.VasdevN. (2018). Emerging PET radiotracers and targets for imaging of neuroinflammation in neurodegenerative diseases: outlook beyond TSPO.Mol. Imaging17:1536012118792317. 10.1177/1536012118792317

  • 214

    NardoG.TroleseM. C.VerderioM.MarianiA.de PaolaM.RivaN.et al (2018). Counteracting roles of MHCI and CD8+ T cells in the peripheral and central nervous system of ALS SOD1G93A mice.Mol. Neurodegener.13:42. 10.1186/s13024-018-0271-7

  • 215

    NetsrithongR.SuwanpitakS.BoonkaewB.TrakarnsangaK.ChangL.-J.TipgomutC.et al (2020). Multilineage differentiation potential of hematoendothelial progenitors derived from human induced pluripotent stem cells.Stem Cell Res. Ther.11:481. 10.1186/s13287-020-01997-w

  • 216

    NeumannM.SampathuD. M.KwongL. K.TruaxA. C.MicsenyiM. C.ChouT. T.et al (2006). Ubiquitinated TDP-43 in frontotemporal lobar degeneration and amyotrophic lateral sclerosis.Science314130133. 10.1126/science.1134108

  • 217

    NgoS. T.SteynF. J.HuangL.MantovaniS.PflugerC. M. M.WoodruffT. M.et al (2015). Altered expression of metabolic proteins and adipokines in patients with amyotrophic lateral sclerosis.J. Neurol. Sci.3572227. 10.1016/j.jns.2015.06.053

  • 218

    NiA.YangT.Mesnard-HoaglinN. A.GutierrezR.StubbsE. B.McGuireS. O.et al (2016). Th17 cell response in SOD1G93A mice following motor nerve injury.Mediat. Inflamm.2016:6131234. 10.1155/2016/6131234

  • 219

    NianiasA.ThemeliM. (2019). Induced pluripotent stem cell (iPSC)-derived lymphocytes for adoptive cell immunotherapy: recent advances and challenges.Curr. Hematol. Malig. Rep.14261268. 10.1007/s11899-019-00528-6

  • 220

    Niebroj-DoboszI.DziewulskaD.JanikP. (2006). Auto-antibodies against proteins of spinal cord cells in cerebrospinal fluid of patients with amyotrophic lateral sclerosis (ALS).Folia Neuropathol.44191196.

  • 221

    Niebroj-DoboszI.JanikP.KwiecińskiH. (2004). Serum IgM anti-GM1 ganglioside antibodies in lower motor neuron syndromes.Eur. J. Neurol.111316. 10.1046/j.1351-5101.2003.00697.x

  • 222

    NiheiK.McKeeA. C.KowallN. W. (1993). Patterns of neuronal degeneration in the motor cortex of amyotrophic lateral sclerosis patients.Acta Neuropathol.865564. 10.1007/BF00454899

  • 223

    ObalI.SiklósL.EngelhardtJ. I. (2002). Altered calcium in motoneurons by IgG from human motoneuron diseases.Acta Neurol. Scand.106282291. 10.1034/j.1600-0404.2002.01252.x

  • 224

    OecklP.JardelC.SalachasF.LamariF.AndersenP. M.BowserR.et al (2016). Multicenter validation of CSF neurofilaments as diagnostic biomarkers for ALS.Amyotrophic. Lateral Scler. Frontotemporal Degener.17404413. 10.3109/21678421.2016.1167913

  • 225

    OkadaM.YamashitaS.UeyamaH.IshizakiM.MaedaY.AndoY. (2018). Long-term effects of edaravone on survival of patients with amyotrophic lateral sclerosis.eNeurologicalSci111114. 10.1016/j.ensci.2018.05.001

  • 226

    OkanoH.YasudaD.FujimoriK.MorimotoS.TakahashiS. (2020). Ropinirole, a new ALS Drug candidate developed using iPSCs.Trends Pharmacol. Sci.4199109. 10.1016/j.tips.2019.12.002

  • 227

    ORourkeJ. G.BogdanikL.YanezA.LallD.WolfA. J.MuhammadA. K. M. G.et al (2016). C9orf72 is required for proper macrophage and microglial function in mice.Science35113241329. 10.1126/science.aaf1064

  • 228

    OskarssonB.DojilloJ.MakhayM.MatsudaK. (2020). COMBAT-ALS phase 2b/3 trial of MN-166 (Ibudilast) in ALS: study design and trial update (5149).Neurology94(Suppl. 7):I8-1B.

  • 229

    PaganoniS.AlshikhoM. J.LuppinoS.ChanJ.PothierL.SchoenfeldD.et al (2019). A pilot trial of RNS60 in amyotrophic lateral sclerosis.Muscle Nerve59303308. 10.1002/mus.26385

  • 230

    PatnaikA.AxfordL.DengL.CohickE.RenX.LoiS.et al (2020). Discovery of a novel indole pharmacophore for the irreversible inhibition of myeloperoxidase (MPO).Bioorg. Med. Chem.28:115548. 10.1016/j.bmc.2020.115548

  • 231

    PawlowskiM.LuegG.GrossC. C.JohnenA.KrämerJ.WeckesserM.et al (2018). Relevance of raised cerebrospinal fluid monocyte levels in patients with frontotemporal dementia.Neurobiol. Aging624552. 10.1016/j.neurobiolaging.2017.09.032

  • 232

    PengB.MingY.YangC. (2018). Regulatory B cells: the cutting edge of immune tolerance in kidney transplantation.Cell Death Dis.9:109. 10.1038/s41419-017-0152-y

  • 233

    PennatiA.AsressS.GlassJ. D.GalipeauJ. (2018). Adoptive transfer of IL-10+ regulatory B cells decreases myeloid-derived macrophages in the central nervous system in a transgenic amyotrophic lateral sclerosis model.Cell Mol. Immunol.15727730. 10.1038/cmi.2017.152

  • 234

    PereiraJ. D.DuBreuilD. M.DevlinA.-C.HeldA.SapirY.BerezovskiE.et al (2021). Human sensorimotor organoids derived from healthy and amyotrophic lateral sclerosis stem cells form neuromuscular junctions.Nat. Commun.12:4744. 10.1038/s41467-021-24776-4

  • 235

    PhanK.HeY.PickfordR.BhatiaS.KatzeffJ. S.HodgesJ. R.et al (2020). Uncovering pathophysiological changes in frontotemporal dementia using serum lipids.Sci. Rep.10:3640. 10.1038/s41598-020-60457-w

  • 236

    PiroliG. G.ManuelA. M.PatelT.WallaM. D.ShiL.LanciS. A.et al (2019). Identification of novel protein targets of dimethyl fumarate modification in neurons and astrocytes reveals actions independent of Nrf2 stabilization.Mol. Cell Proteomics18504519. 10.1074/mcp.RA118.000922

  • 237

    PoesenK.Van DammeP. (2019). Diagnostic and prognostic performance of neurofilaments in ALS.Front. Neurol.9:1167. 10.3389/fneur.2018.01167

  • 238

    PotenzaR. L.De SimoneR.ArmidaM.MazziottiV.PèzzolaA.PopoliP.et al (2016). Fingolimod: a disease-modifier drug in a mouse model of amyotrophic lateral sclerosis.Neurotherapeutics13918927. 10.1007/s13311-016-0462-2

  • 239

    PradoL.deG. R.RochaN. P.de SouzaL. C.BicalhoI. C. S.GomezR. S.et al (2018). Longitudinal assessment of clinical and inflammatory markers in patients with amyotrophic lateral sclerosis.J. Neurol. Sci.3946974. 10.1016/j.jns.2018.08.033

  • 240

    PuentesF.ToppingJ.KuhleJ.van der StarB. J.DouiriA.GiovannoniG.et al (2014). Immune reactivity to neurofilament proteins in the clinical staging of amyotrophic lateral sclerosis.J. Neurol. Neurosurg. Psychiatry85274278. 10.1136/jnnp-2013-305494

  • 241

    PullenA. H.DemestreM.HowardR. S.OrrellR. W. (2004). Passive transfer of purified IgG from patients with amyotrophic lateral sclerosis to mice results in degeneration of motor neurons accompanied by Ca2+ enhancement.Acta Neuropathol.1073546. 10.1007/s00401-003-0777-z

  • 242

    RataiE.-M.AlshikhoM. J.ZürcherN. R.LoggiaM. L.CebullaC. L.CernasovP.et al (2018). Integrated imaging of [11C]-PBR28 PET, MR diffusion and magnetic resonance spectroscopy 1H-MRS in amyotrophic lateral sclerosis.NeuroImage20357364. 10.1016/j.nicl.2018.08.007

  • 243

    RentonA. E.MajounieE.WaiteA.Simón-SánchezJ.RollinsonS.GibbsJ. R.et al (2011). A Hexanucleotide repeat expansion in C9ORF72 is the cause of chromosome 9p21-linked ALS-FTD.Neuron72257268. 10.1016/j.neuron.2011.09.010

  • 244

    RentzosM.EvangelopoulosE.SeretiE.ZouvelouV.MarmaraS.AlexakisT.et al (2012). Alterations of T cell subsets in ALS: a systemic immune activation?Acta Neurol. Scand.125260264. 10.1111/j.1600-0404.2011.01528.x

  • 245

    RentzosM.RombosA.NikolaouC.ZogaM.ZouvelouV.DimitrakopoulosA.et al (2010). Interleukin-17 and interleukin-23 are elevated in serum and cerebrospinal fluid of patients with ALS: a reflection of Th17 cells activation?Acta Neurol. Scand.122425429. 10.1111/j.1600-0404.2010.01333.x

  • 246

    RentzosM.ZogaM.ParaskevasG. P.KapakiE.RombosA.NikolaouC.et al (2006b). IL-15 is elevated in cerebrospinal fluid of patients with Alzheimer’s disease and frontotemporal dementia.J. Geriatr. Psychiatry Neurol.19114117. 10.1177/0891988706286226

  • 247

    RentzosM.ParaskevasG. P.KapakiE.NikolaouC.ZogaM.RombosA.et al (2006a). Interleukin-12 is reduced in cerebrospinal fluid of patients with Alzheimer’s disease and frontotemporal dementia.J. Neurol. Sci.249110114. 10.1016/j.jns.2006.05.063

  • 248

    RichardsonS. E.GhazanfariR.ChhetriJ.EnverT.BöiersC. (2021). In vitro differentiation of human pluripotent stem cells into the B lineage using OP9-MS5 co-culture.Star Protoc.2:100420. 10.1016/j.xpro.2021.100420

  • 249

    RomaniN.GrunerS.BrangD.KämpgenE.LenzA.TrockenbacherB.et al (1994). Proliferating dendritic cell progenitors in human blood.J. Exp. Med.1808393. 10.1084/jem.180.1.83

  • 250

    RosserE. C.MauriC. (2015). Regulatory B cells: origin, phenotype, and function.Immunity42607612. 10.1016/j.immuni.2015.04.005

  • 251

    RossoS. M.Donker KaatL.BaksT.JoosseM.de KoningI.PijnenburgY.et al (2003). Frontotemporal dementia in The Netherlands: patient characteristics and prevalence estimates from a population-based study.Brain12620162022. 10.1093/brain/awg204

  • 252

    Ruiz-LópezF. J.BlanquerM. (2016). Autologous bone marrow mononuclear cells as neuroprotective treatment of amyotrophic lateral sclerosis.Neural. Regen. Res.11568569. 10.4103/1673-5374.180730

  • 253

    RusconiM.GerardiF.SantusW.LizioA.SansoneV. A.LunettaC.et al (2017). Inflammatory role of dendritic cells in Amyotrophic Lateral Sclerosis revealed by an analysis of patients’ peripheral blood.Sci. Rep.7:7853. 10.1038/s41598-017-08233-1

  • 254

    SaberiS.StaufferJ. E.SchulteD. J.RavitsJ. (2015). Neuropathology of amyotrophic lateral sclerosis and its variants.Neurol. Clin.33855876. 10.1016/j.ncl.2015.07.012

  • 255

    SalehI. A.ZesiewiczT.XieY.SullivanK. L.MillerA. M.Kuzmin-NicholsN.et al (2009). Evaluation of humoral immune response in adaptive immunity in ALS patients during disease progression.J. Neuroimmunol.21596101. 10.1016/j.jneuroim.2009.07.011

  • 256

    SallustoF.LanzavecchiaA. (1994). Efficient presentation of soluble antigen by cultured human dendritic cells is maintained by granulocyte/macrophage colony-stimulating factor plus interleukin 4 and downregulated by tumor necrosis factor alpha.J. Exp. Med.17911091118. 10.1084/jem.179.4.1109

  • 257

    SancesS.BruijnL. I.ChandranS.EgganK.HoR.KlimJ. R.et al (2016). Modeling ALS with motor neurons derived from human induced pluripotent stem cells.Nat. Neurosci.19542553. 10.1038/nn.4273

  • 258

    SantosR. R.TorresK. C.LimaG. S.FiamonciniC. M.MapaF. C.PereiraP. A.et al (2014). Reduced frequency of T lymphocytes expressing CTLA-4 in frontotemporal dementia compared to Alzheimer’s disease.Prog. Neuropsychopharmacol. Biol. Psychiatry4815. 10.1016/j.pnpbp.2013.06.019

  • 259

    SaresellaM.PianconeF.TortorellaP.MarventanoI.GattiA.CaputoD.et al (2013). T helper-17 activation dominates the immunologic milieu of both amyotrophic lateral sclerosis and progressive multiple sclerosis.Clin. Immunol.1487988. 10.1016/j.clim.2013.04.010

  • 260

    SchainM.KreislW. C. (2017). Neuroinflammation in neurodegenerative disorders-a review.Curr. Neurol. Neurosci. Rep.17:25. 10.1007/s11910-017-0733-2

  • 261

    SchifferD.CorderaS.CavallaP.MigheliA. (1996). Reactive astrogliosis of the spinal cord in amyotrophic lateral sclerosis.J. Neurol. Sci.1392733. 10.1016/0022-510X(96)00073-1

  • 262

    SchlöderJ.BergesC.LuessiF.JonuleitH. (2017). Dimethyl fumarate therapy significantly improves the responsiveness of T cells in multiple sclerosis patients for immunoregulation by regulatory T cells.Int. J. Mol. Sci.18:E271. 10.3390/ijms18020271

  • 263

    ScholzH.EderC. (2017). Lysophosphatidylcholine activates caspase-1 in microglia via a novel pathway involving two inflammasomes.J. Neuroimmunol.310107110. 10.1016/j.jneuroim.2017.07.004

  • 264

    SchulzC.PerdigueroE. G.ChorroL.Szabo-RogersH.CagnardN.KierdorfK.et al (2012). A lineage of myeloid cells independent of Myb and hematopoietic stem cells.Science3368690. 10.1126/science.1219179

  • 265

    SeelaarH.SchelhaasH. J.AzmaniA.KüstersB.RossoS.Majoor-KrakauerD.et al (2007). TDP-43 pathology in familial frontotemporal dementia and motor neuron disease without Progranulin mutations.Brain13013751385. 10.1093/brain/awm024

  • 266

    SeguraE.TouzotM.BohineustA.CappuccioA.ChiocchiaG.HosmalinA.et al (2013). Human inflammatory dendritic cells induce Th17 cell differentiation.Immunity38336348. 10.1016/j.immuni.2012.10.018

  • 267

    ShankarK.CapitiniC. M.SahaK. (2020). Genome engineering of induced pluripotent stem cells to manufacture natural killer cell therapies.Stem Cell Res. Ther.11:234. 10.1186/s13287-020-01741-4

  • 268

    ShatunovA.MokK.NewhouseS.WealeM. E.SmithB.VanceC.et al (2010). Chromosome 9p21 in sporadic amyotrophic lateral sclerosis in the UK and seven other countries: a genome-wide association study.Lancet Neurol.9986994. 10.1016/S1474-4422(10)70197-6

  • 269

    SheeanR. K.McKayF. C.CretneyE.ByeC. R.PereraN. D.TomasD.et al (2018). Association of regulatory T-cell expansion with progression of amyotrophic lateral sclerosis: a study of humans and a transgenic mouse model.JAMA Neurol.75681689. 10.1001/jamaneurol.2018.0035

  • 270

    SheppardM.LaskouF.StapletonP. P.HadaviS.DasguptaB. (2017). Tocilizumab (Actemra).Hum. Vaccin. Immunother.1319721988. 10.1080/21645515.2017.1316909

  • 271

    ShiN.KawanoY.TateishiT.KikuchiH.OsoegawaM.OhyagiY.et al (2007). Increased IL-13-producing T cells in ALS: positive correlations with disease severity and progression rate.J. Neuroimmunol.182232235. 10.1016/j.jneuroim.2006.10.001

  • 272

    SjögrenM.FolkessonS.BlennowK.TarkowskiE. (2004). Increased intrathecal inflammatory activity in frontotemporal dementia: pathophysiological implications.J. Neurol. Neurosurg. Psychiatry7511071111. 10.1136/jnnp.2003.019422

  • 273

    SkaperS. D.FacciL.GiustiP. (2014). Mast cells, glia and neuroinflammation: partners in crime?Immunology141314327. 10.1111/imm.12170

  • 274

    SpillerK. J.RestrepoC. R.KhanT.DominiqueM. A.FangT. C.CanterR. G.et al (2018). Microglia-mediated recovery from ALS-relevant motor neuron degeneration in a mouse model of TDP-43 proteinopathy.Nat. Neurosci.21329340. 10.1038/s41593-018-0083-7

  • 275

    StaatsK. A.HernandezS.SchönefeldtS.Bento-AbreuA.DooleyJ.Van DammeP.et al (2013). Rapamycin increases survival in ALS mice lacking mature lymphocytes.Mol. Neurodegener.8:31. 10.1186/1750-1326-8-31

  • 276

    StommelE. W.CohenJ. A.FadulC. E.CogbillC. H.GraberD. J.KingmanL.et al (2009). Efficacy of thalidomide for the treatment of amyotrophic lateral sclerosis: a phase II open label clinical trial.Amyotroph. Lateral. Scler.10393404. 10.3109/17482960802709416

  • 277

    SugiyamaM.TakaoM.HatsutaH.FunabeS.ItoS.ObiT.et al (2013). Increased number of astrocytes and macrophages/microglial cells in the corpus callosum in amyotrophic lateral sclerosis.Neuropathology33591599. 10.1111/neup.12027

  • 278

    SullivanP. M.ZhouX.RobinsA. M.PaushterD. H.KimD.SmolkaM. B.et al (2016). The ALS/FTLD associated protein C9orf72 associates with SMCR8 and WDR41 to regulate the autophagy-lysosome pathway.Acta Neuropathol. Commun.4:51. 10.1186/s40478-016-0324-5

  • 279

    SuzukiM.McHughJ.TorkC.ShelleyB.HayesA.BellantuonoI.et al (2008). Direct muscle delivery of GDNF with human mesenchymal stem cells improves motor neuron survival and function in a rat model of familial ALS.Mol. Ther.1620022010. 10.1038/mt.2008.197

  • 280

    SzczepanikA. M.FunesS.PetkoW.RingheimG. E. (2001). IL-4, IL-10 and IL-13 modulate A beta(1–42)-induced cytokine and chemokine production in primary murine microglia and a human monocyte cell line.J. Neuroimmunol.1134962. 10.1016/s0165-5728(00)00404-5

  • 281

    TanH.-Y.ChoH.LeeL. P. (2021). Human mini-brain models.Nat. Biomed. Eng.51125. 10.1038/s41551-020-00643-3

  • 282

    TanakaM.KikuchiH.IshizuT.MinoharaM.OsoegawaM.MotomuraK.et al (2006). Intrathecal upregulation of granulocyte colony stimulating factor and its neuroprotective actions on motor neurons in amyotrophic lateral sclerosis.J. Neuropathol. Exp. Neurol.65816825. 10.1097/01.jnen.0000232025.84238.e1

  • 283

    TanakaY.MatsuwakiT.YamanouchiK.NishiharaM. (2013). Exacerbated inflammatory responses related to activated microglia after traumatic brain injury in progranulin-deficient mice.Neuroscience2314960. 10.1016/j.neuroscience.2012.11.032

  • 284

    TandanR.BradleyW. G. (1985). Amyotrophic lateral sclerosis: Part 1. Clinical features, pathology, and ethical issues in management.Ann. Neurol.18271280. 10.1002/ana.410180302

  • 285

    Tang-HuauT.-L.GueguenP.GoudotC.DurandM.BohecM.BaulandeS.et al (2018). Human in vivo-generated monocyte-derived dendritic cells and macrophages cross-present antigens through a vacuolar pathway.Nat. Commun.9112. 10.1038/s41467-018-04985-0

  • 286

    TateishiT.YamasakiR.TanakaM.MatsushitaT.KikuchiH.IsobeN.et al (2010). CSF chemokine alterations related to the clinical course of amyotrophic lateral sclerosis.J. Neuroimmunol.2227681. 10.1016/j.jneuroim.2010.03.004

  • 287

    TeunissenC. E.EliasN.Koel-SimmelinkM. J. A.Durieux-LuS.MalekzadehA.PhamT. V.et al (2016). Novel diagnostic cerebrospinal fluid biomarkers for pathologic subtypes of frontotemporal dementia identified by proteomics.Alzheimers Dement. (Amst)28694. 10.1016/j.dadm.2015.12.004

  • 288

    ThonhoffJ. R.SimpsonE. P.AppelS. H. (2018). Neuroinflammatory mechanisms in amyotrophic lateral sclerosis pathogenesis.Curr. Opin.Neurol.31635639. 10.1097/WCO.0000000000000599

  • 289

    TolnayM.ProbstA. (2001). Frontotemporal lobar degeneration. An update on clinical, pathological and genetic findings.Gerontology4718. 10.1159/000052763

  • 290

    TöngesL.GüntherR.SuhrM.JansenJ.BalckA.SaalK.-A.et al (2014). Rho kinase inhibition modulates microglia activation and improves survival in a model of amyotrophic lateral sclerosis.Glia62217232. 10.1002/glia.22601

  • 291

    TorresK. C. L.SantosR. R.de LimaG. S. F.FerreiraR. O. S.MapaF. C.PereiraP. A.et al (2012). Decreased expression of CCL3 in monocytes and CCR5 in lymphocytes from frontotemporal dementia as compared with Alzheimer’s disease patients.J. Neuropsychiatry Clin. Neurosci.24E11E12. 10.1176/appi.neuropsych.11060143

  • 292

    TortelliR.ZeccaC.PiccininniM.BenmahamedS.Dell’AbateM. T.BarulliM. R.et al (2020). Plasma inflammatory cytokines are elevated in ALS.Front. Neurol.11:552295. 10.3389/fneur.2020.552295

  • 293

    TriasE.BeilbyP. R.KovacsM.IbarburuS.VarelaV.Barreto-NúñezR.et al (2019). Emergence of microglia bearing senescence markers during paralysis progression in a rat model of inherited ALS.Front. Aging Neurosci.11:42. 10.3389/fnagi.2019.00042

  • 294

    TriasE.IbarburuS.Barreto-NúñezR.BabdorJ.MacielT. T.GuilloM.et al (2016). Post-paralysis tyrosine kinase inhibition with masitinib abrogates neuroinflammation and slows disease progression in inherited amyotrophic lateral sclerosis.J. Neuroinflammation13:177. 10.1186/s12974-016-0620-9

  • 295

    TriasE.IbarburuS.Barreto-NúñezR.VarelaV.MouraI. C.DubreuilP.et al (2017). Evidence for mast cells contributing to neuromuscular pathology in an inherited model of ALS.JCI Insight2:95934. 10.1172/jci.insight.95934

  • 296

    TriasE.KingP. H.SiY.KwonY.VarelaV.IbarburuS.et al (2018). Mast cells and neutrophils mediate peripheral motor pathway degeneration in ALS.JCI Insight3:123249. 10.1172/jci.insight.123249

  • 297

    TriasE.KovacsM.KingP. H.SiY.KwonY.VarelaV.et al (2020). Schwann cells orchestrate peripheral nerve inflammation through the expression of CSF1, IL-34, and SCF in amyotrophic lateral sclerosis.Glia6811651181. 10.1002/glia.23768

  • 298

    TurnerM. R.CagninA.TurkheimerF. E.MillerC. C. J.ShawC. E.BrooksD. J.et al (2004). Evidence of widespread cerebral microglial activation in amyotrophic lateral sclerosis: an [11C](R)-PK11195 positron emission tomography study.Neurobiol. Dis.15601609. 10.1016/j.nbd.2003.12.012

  • 299

    VallarolaA.SironiF.TortaroloM.GattoN.De GioiaR.PasettoL.et al (2018). RNS60 exerts therapeutic effects in the SOD1 ALS mouse model through protective glia and peripheral nerve rescue.J. Neuroinflammation15:65. 10.1186/s12974-018-1101-0

  • 300

    VerboketR.LeibleinM.SeebachC.NauC.JankoM.BellenM.et al (2018). Autologous cell-based therapy for treatment of large bone defects: from bench to bedside.Eur. J. Trauma. Emerg. Surg.44649665. 10.1007/s00068-018-0906-y

  • 301

    VivashL.O’BrienT. J. (2016). Imaging microglial activation with TSPO PET: lighting up neurologic diseases?J. Nuclear Med.57165168. 10.2967/jnumed.114.141713

  • 302

    von BoehmerH. (2005). Mechanisms of suppression by suppressor T cells.Nat. Immunol.6338344. 10.1038/ni1180

  • 303

    VucicS.RyderJ.MekhaelL.RdH.MathersS.NeedhamM.et al (2020). Phase 2 randomized placebo controlled double blind study to assess the efficacy and safety of tecfidera in patients with amyotrophic lateral sclerosis (TEALS Study): study protocol clinical trial (SPIRIT Compliant).Medicine (Baltimore)99:e18904. 10.1097/MD.0000000000018904

  • 304

    WaingerB. J.KiskinisE.MellinC.WiskowO.HanS. S. W.SandoeJ.et al (2014). Intrinsic membrane hyperexcitability of amyotrophic lateral sclerosis patient-derived motor neurons.Cell Rep.7111. 10.1016/j.celrep.2014.03.019

  • 305

    WangH. A.LeeJ. D.LeeK. M.WoodruffT. M.NoakesP. G. (2017). Complement C5a-C5aR1 signalling drives skeletal muscle macrophage recruitment in the hSOD1G93A mouse model of amyotrophic lateral sclerosis.Skelet Muscle7:10. 10.1186/s13395-017-0128-8

  • 306

    WangX.ZhuS.DrozdaM.ZhangW.StavrovskayaI. G.CattaneoE.et al (2003). Minocycline inhibits caspase-independent and -dependent mitochondrial cell death pathways in models of Huntington’s disease.Proc. Natl. Acad. Sci. U.S.A.1001048310487. 10.1073/pnas.1832501100

  • 307

    WuB.WanY. (2020). Molecular control of pathogenic Th17 cells in autoimmune diseases.Int. Immunopharmacol.80:106187. 10.1016/j.intimp.2020.106187

  • 308

    XuX.TayY.SimB.YoonS.-I.HuangY.OoiJ.et al (2017). Reversal of phenotypic abnormalities by CRISPR/Cas9-mediated gene correction in huntington disease patient-derived induced pluripotent stem cells.Stem Cell Rep.8619633. 10.1016/j.stemcr.2017.01.022

  • 309

    XueJ.SchmidtS. V.SanderJ.DraffehnA.KrebsW.QuesterI.et al (2014). Transcriptome-based network analysis reveals a spectrum model of human macrophage activation.Immunity40274288. 10.1016/j.immuni.2014.01.006

  • 310

    YiF. H.LautretteC.Vermot-DesrochesC.BordessouleD.CouratierP.WijdenesJ.et al (2000). In vitro induction of neuronal apoptosis by anti-Fas antibody-containing sera from amyotrophic lateral sclerosis patients.J. Neuroimmunol.109211220. 10.1016/S0165-5728(00)00288-5

  • 311

    YiangouY.FacerP.DurrenbergerP.ChessellI. P.NaylorA.BountraC.et al (2006). COX-2, CB2 and P2X7-immunoreactivities are increased in activated microglial cells/macrophages of multiple sclerosis and amyotrophic lateral sclerosis spinal cord.BMC Neurol.6:12. 10.1186/1471-2377-6-12

  • 312

    YinF.BanerjeeR.ThomasB.ZhouP.QianL.JiaT.et al (2009). Exaggerated inflammation, impaired host defense, and neuropathology in progranulin-deficient mice.J. Exp. Med.207117128. 10.1084/jem.20091568

  • 313

    ZhangR.GasconR.MillerR. G.GelinasD. F.MassJ.LanceroM.et al (2006). MCP-1 chemokine receptor CCR2 is decreased on circulating monocytes in sporadic amyotrophic lateral sclerosis (sALS).J. Neuroimmunol.1798793. 10.1016/j.jneuroim.2006.06.008

  • 314

    ZhangX.DongH.LiN.ZhangS.SunJ.ZhangS.et al (2016). Activated brain mast cells contribute to postoperative cognitive dysfunction by evoking microglia activation and neuronal apoptosis.J. Neuroinflamm.13:127. 10.1186/s12974-016-0592-9

  • 315

    ZhaoW.BeersD. R.HootenK. G.SieglaffD. H.ZhangA.Kalyana-SundaramS.et al (2017). Characterization of gene expression phenotype in amyotrophic lateral sclerosis monocytes.JAMA Neurol.74:677. 10.1001/jamaneurol.2017.0357

  • 316

    ZhaoW.BeersD. R.LiaoB.HenkelJ. S.AppelS. H. (2012). Regulatory T lymphocytes from ALS mice suppress microglia and effector T lymphocytes through different cytokine-mediated mechanisms.Neurobiol. Dis.48418428. 10.1016/j.nbd.2012.07.008

  • 317

    ZhaoW.BeersD. R.ThonhoffJ. R.ThomeA. D.FaridarA.WangJ.et al (2020). Immunosuppressive Functions of M2 Macrophages Derived from iPSCs of Patients with ALS and Healthy Controls.iScience23:101192. 10.1016/j.isci.2020.101192

  • 318

    ZhuJ.YamaneH.Cote-SierraJ.GuoL.PaulW. E. (2006). GATA-3 promotes Th2 responses through three different mechanisms: induction of Th2 cytokine production, selective growth of Th2 cells and inhibition of Th1 cell-specific factors.Cell Res.16310. 10.1038/sj.cr.7310002

  • 319

    ZondlerL.MüllerK.KhalajiS.BliederhäuserC.RufW. P.GrozdanovV.et al (2016). Peripheral monocytes are functionally altered and invade the CNS in ALS patients.Acta Neuropathol.132391411. 10.1007/s00401-016-1548-y

  • 320

    ZürcherN. R.LoggiaM. L.LawsonR.ChondeD. B.Izquierdo-GarciaD.YasekJ. E.et al (2015). Increased in vivo glial activation in patients with amyotrophic lateral sclerosis: assessed with [11C]-PBR28.Neuroimage Clin.7409414. 10.1016/j.nicl.2015.01.009

Summary

Keywords

ALS (amyotrophic lateral sclerosis), FTD (frontotemporal dementia), inflammation, immune system, iPSC (induced pluripotent stem cells), immune modulatory molecules

Citation

Liu E, Karpf L and Bohl D (2021) Neuroinflammation in Amyotrophic Lateral Sclerosis and Frontotemporal Dementia and the Interest of Induced Pluripotent Stem Cells to Study Immune Cells Interactions With Neurons. Front. Mol. Neurosci. 14:767041. doi: 10.3389/fnmol.2021.767041

Received

30 August 2021

Accepted

16 November 2021

Published

14 December 2021

Volume

14 - 2021

Edited by

Wenting Guo, VIB-KU Leuven Center for Brain & Disease Research, Belgium

Reviewed by

Philip Van Damme, KU Leuven, Belgium; Orion Furmanski, Uniformed Services University of the Health Sciences, United States

Updates

Copyright

*Correspondence: Delphine Bohl,

This article was submitted to Brain Disease Mechanisms, a section of the journal Frontiers in Molecular Neuroscience

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
