The feedback loop between calcineurin, calmodulin-dependent protein kinase II, and nuclear factor of activated T-cells regulates the number of GABAergic neurons during planarian head regeneration

Abstract

Disturbances in the excitatory/inhibitory balance of brain neural circuits are the main source of encephalopathy during neurodevelopment. Changes in the function of neural circuits can lead to depolarization or repeat rhythmic firing of neurons in a manner similar to epilepsy. GABAergic neurons are inhibitory neurons found in all the main domains of the CNS. Previous studies suggested that DjCamkII and DjCaln play a crucial role in the regulation of GABAergic neurons during planarian regeneration. However, the mechanisms behind the regeneration of GABAergic neurons have not been fully explained. Herein, we demonstrated that DjCamkII and DjCaln were mutual negative regulation during planarian head regeneration. DjNFAT exerted feedback positive regulation on both DjCaln and DjCamkII. Whole-mount in situ hybridization (WISH) and fluorescence in situ hybridization (FISH) revealed that DjNFAT was predominantly expressed in the pharynx and parenchymal cells in intact planarian. Interestingly, during planarian head regeneration, DjNFAT was predominantly located in the newborn brain. Down-regulation of DjNFAT led to regeneration defects in the brain including regenerative brain became small and the lateral nerves cannot be regenerated completely, and a decreasein the number of GABAergic neurons during planarian head regeneration. These findings suggest that the feedback loop between DjCaln, DjCamkII, and DjNFAT is crucial for the formation of GABAergic neurons during planarian head regeneration.

Introduction

Disturbances in the excitatory/inhibitory balance of brain neural circuits are the main source of encephalopathy during neurodevelopment. Once the function of neural circuits changes, the neurons in the corresponding circuits will depolarize or repeatedly fire rhythmically, which is a pattern closely related to the occurrence of epilepsy. γ-Aminobutyric acid (GABA) is the major inhibitory neurotransmitter in the central nervous system (CNS) and thereby plays a crucial role in the balance between inhibitory and excitatory neural circuits (Watanabe et al., 2002). GABAergic neurons are produced in all the main domains of the CNS, where they develop from discrete regions of the neuroepithelium. Therefore, it is expected that dysfunctions in the GABAergic system lead to neurodegenerative diseases, such as Parkinson’s disease (PD) and Huntington’s disease (HD) (Kleppner and Tobin, 2001; Galvan and Wichmann, 2007; Gajcy et al., 2010). Therefore, a certain degree of GABAergic neuron regeneration is essential to maintain the excitatory/inhibitory balance. In addition, it is widely accepted that continuous neurogenesis takes place in the adult hippocampus throughout the life of mammals, including humans (Eriksson et al., 1998; Zhao et al., 2008). The newborn neurons mostly differentiate into excitatory granular cells and functionally integrate into the preexisting hippocampal neural circuitry (Cameron and McKay, 2001; van Praag et al., 2002; Toni et al., 2007). However, little is known about the number of newborn cells that can regenerate and differentiate into inhibitory GABAergic interneurons in the damaged brain.

Calcineurin (Caln), also called protein phosphatase B (PP2B), is a Ca²⁺/calmodulin-dependent serine/threonine phosphatase that was first described in a bovine brain 40 years ago (Ho et al., 1976; Wang and Desai, 1976). The protein has a 60 kDa catalytic subunit (Caln A) and a 19 kDa regulatory subunit (Caln B) (Rusnak and Mertz, 2000; Li et al., 2011). Caln is located in the brain abundantly (Goto et al., 1986; Kuno et al., 1992). In neurons, Caln is localized in multiple organelles, such as cytoplasm, endoplasmic reticulum, and Golgi apparatus (Bram et al., 1993; Mehta and Zhang, 2014; Cardenas and Marengo, 2016). Studies indicate that GABA is regulated by Caln in synaptogenesis, for the reorganization and development of an adult CNS (Hayama et al., 2013; Toyoda et al., 2015; Wang et al., 2015).

Nuclear factor of activated T-cells (NFAT) can be dephosphorylated by Caln in order to translocate into the nucleus and become activated (Shaw et al., 1988; Schulz and Yutzey, 2004; Boothby, 2010). In the peripheral nervous system, Caln/NFAT signaling plays a critical role in the survival, proliferation, and differentiation of neural and glial precursor cells, especially during tissue regeneration (Serrano-Perez et al., 2015). Moreover, the neurotrophin nerve growth factor (NGF) regulates the up-regulation of the plasminogen activation system and synaptic protein plasminogen activator inhibitor 1 (PAI-1) in primary mouse hippocampal neurons through Caln/NFAT (Stefos et al., 2013). In mice, GABA_A receptors promote anxiety behavior and hippocampal neurogenesis through Caln/NFAT4, indicating that this signaling pathway may serve as a potential drug target for the treatment of mood disorders (Quadrato et al., 2014). Meanwhile, the transcription factor NFAT5 is expressed in the anterior blastema of tail fragments after 3 days into regeneration in planarian Schmidtea mediterranea (Suzuki-Horiuchi et al., 2021).

In human T Cells, activation of Ca²⁺/calmodulin-dependent protein kinase II (CamKII) can reduce the efficiency of NFAT by nearly 35% (Hama et al., 1995). In cardiomyocytes, the activation of cytoplasmic CamKII inhibits calmodulin and NFAT through phosphorylation (MacDonnell et al., 2009). In budding yeast, a lack of the CamKII homologue CMK2 increased the level of calcium/calcineurin signaling, as well as the expression levels of PMR1 and PMC1. The expression of target genes including CMK2, RCN1, PMR1, and PMC1 is dependent on the activation of Crz1 (Mehta et al., 2009; Xu et al., 2019). These results indicate that CamKII is a negative feedback controller of the Caln/NFAT signaling pathway. However, whether there is a mutual regulation relationship between CamKII, Caln and NFAT or not in the neurons regeneration process has not been previously reported.

Planarians are often used as model organisms in the study of CNS regeneration due to their powerful regeneration ability (Newmark and Sanchez Alvarado, 2002; Elliott and Sanchez Alvarado, 2013). The planarian brain comprises of neurons similar to those found in humans, including dopaminergic, cholinergic, GABAergic, and serotonergic neurons (Nishimura et al., 2007a,b, 2008, 2010). Ca²⁺ signaling plays an important role in neuromuscular signaling and anterior-posterior patterning in planarians regeneration (Nogi et al., 2009). The knockdown of certain voltage-operated Ca²⁺ channels results in different regenerative polarities (Zhang et al., 2011). And knockdown of a specific voltage-operated Ca²⁺ channel (Ca_v1B) that impairs muscle function creates an environment permissive for anteriorization in planarian regeneration (Chan et al., 2017). As previously stated, we found that DjCamKII and DjCaln were both expressed in the brain. Furthermore, DjCamKII (RNAi) or DjCaln (RNAi) regenerated brains became slim and could not regenerate their lateral nerve. As such, down-regulation of DjCamKII or DjCaln led to a significant decrease in GAD and affected the number of GABAergic neurons during the planarian head regeneration (Zhen et al., 2020). However, the mechanism behind how CamKII and Caln regulate the formation of GABAergic neurons during the planarian head regeneration is not clear. The present study aims to examine how Caln, CamkII, and NFAT affect the number of GABAergic neurons during head regeneration in the planarian Dugesia japonica.

Materials and methods

Animals

A clonal strain of the planarian D. japonica, originally obtained from Boshan, China, was established in our laboratory and used in all experiments (Zhen et al., 2020). The D. japonica planarians were cultured in Lushan spring water at 20°C. Before use in experiments, all planarians were starved for at least 7 days. For the regeneration experiments, the planarian heads were removed and the fragments were used for experiments at 1, 3, 5, 7, and 10 days after amputation.

In situ hybridization

Whole-mount in situ hybridization, digoxigenin (DIG)-labeled antisense RNA probes, and fluorescence in situ hybridization (FISH), Fluorescein-labeled antisense RNA probes, were synthesized using an in vitro labeling kit (Roche, Basel, Switzerland). The RNA probes-DjCaln, DjCamKII, DjNFAT, and DjGAD primers were designed by Primer Premier 5.0 (Supplementary Table 1). Hybridizations were carried out by incubation with the antisense RNA probe (1 ng/μl) at 56°C for 16 h. After hybridization, 10% horse serum was blocked at room temperature for 2 h after maleic acid buffer washing. Then, antibodies were diluted in maleic acid buffer containing Tween 20 (MABT) with 10% of horse serum for WISH (anti-DIG-AP, 1:2,000, Roche, Basel, Switzerland) and FISH (anti-DIG-POD, 1:500, and anti-FITC-POD, 1:500, Roche, Basel, Switzerland). Then, a mixture of 5 bromo, 4 chloro, 3-indolyl phosphate, and nitroblue tetrazolium (Roche, Basel, Switzerland) was utilized for color development in WISH, while Cy3-Tyramide and FITC Tyramide (Roche, Basel, Switzerland) [0.001% H₂O₂ in PBST (0.01% Tween 20)] was utilized in FISH. The numbers of gad⁺ and TH⁺ neurons in the brain region were counted manually under a confocal microscope (Laser confocal, Leica TCS SP8 MP, Germany) (Hill and Petersen, 2015; Brown et al., 2018). Particles of H3p⁺ and TPH⁺ cells were counted using ImageJ, version 6.0 (National Institutes of Health, United States), and Chat⁺ cells were counted from a zseries of images using three-dimensional segmentation software in Imaris (Hill and Petersen, 2015). Cell counts were statistically analyzed using GraphPad Prism 8 software.

Ribonucleic acid interference

The template of double-stranded RNA was synthesized by PCR. The dsRNA-DjCaln, DjCamKII, and DjNFAT primers were designed by Primer Premier 5.0 (Supplementary Table 1). dsRNA was synthesized using MEGAscriptTM RNAi Kit (Invitrogen, United States), and then planarians were soaked in 50 ng/μl dsRNA for 5 h and then transferred to the culture medium (Orii et al., 2003). Control animals were treated with dsRNA of the green fluorescent protein (GFP) (Fraguas et al., 2021).

Immunohistochemistry

Immunostaining with the mouse monoclonal antibody anti-SYNAPSIN (1:300, 3C11, AB Company, United States) and anti-phosphohistone-H3 (S10) (1:200, Cell Signaling Technology, Danvers, United States) were performed as previously described (Cowles et al., 2012; Lu et al., 2017). First, the planarians were euthanized with 2% of HCl and fixed in paraformaldehyde with phosphate-buffered saline (PBS) at 37°C for 1 h. Then, planarians were dehydrated with 100% of methanol and incubated with the primary antibodies anti-SYNAPSIN and anti-phosphohistone-H3. Incubation with secondary antibodies (1:200, rabbit anti-mouse, and goat anti-rabbit, marked with HRP, Bioss, United States) was performed overnight at 4°C. The samples were then observed using a laser confocal microscope (Leica TCS SP8 MP).

Western blot

Protein expressions of DjCaln and DjCamkII were quantified with Western blot using the primary antibodies anti-DjCaln and anti-DjCamkII antibodies at 1:500 dilutions. Western blotting was performed as previously described (Gao et al., 2017). Briefly, planarian protein was extracted into PBS buffer, boiled for 20 min, and subjected to SDS-PAGE analysis. After the protein transfer to polyvinylidene fluoride membranes, membranes were blocked with 5% skim milk for 2 h at room temperature (RT). Then, membranes were incubated with primary antibodies (anti-DjCaln and anti-DjCamkII) followed by secondary antibodies (goat anti-rabbit horseradish peroxidase (HRP)-conjugated antibody, 1:5,000, Bioss, United States) overnight at 4°C. Protein signals were observed after treatment with enhanced chemiluminescence solution (Thermo, United States). The quantitation was performed by measuring the optical density of bands with ImageJ, version 6.0 (National Institutes of Health).

Quantitative real-time PCR

Expressions of DjCamKII, DjCaln, and DjNFAT mRNA were quantified using qPCR as previously described (Lu et al., 2017). DjCamKII, DjCaln, and DjNFAT primers were designed by Primer Premier, version 5.0 (Supplementary Table 1). The β-actin gene was used as the internal reference. Briefly, total RNA was extracted with TRIol reagent (Invitrogen, United States). The reaction was carried out under the following conditions: initial denaturation at 95°C for 10 s followed by 35 cycles of denaturation at 95°C for 30 s, annealing for 30 s at 55°C, and extension at 72°C for 45 s. The qPCR amplification cycles were performed on the ABI 7,500 real-time PCR system (Applied Biosystems, United States) using the quick-start Universal SYBR Green Master (Roche, Switzerland). Relative expressions compared to β-actin were calculated using the 2^–ΔΔct method.

Statistical analysis

Results are presented as mean ± SD. Comparisons between groups were carried out using multiple t-tests. For all analyses, *P < 0.05 and ^**P < 0.01 were considered statistically significant. Statistical analyses were carried out using SPSS statistical software for Windows, version 16.0 (SPSS).

Results

Regulatory relationship between DjCaln and DjCamkII during planarian head regeneration

To study the regulation between DjCaln and DjCamkII during planarian regeneration, the mRNA and protein levels of DjCaln and DjCamkII were quantified by qPCR and Western blot. Down-regulation of DjCaln led to significant up-regulation of the expression of DjCamkII mRNA at 5, 7, and 10 days during planarian head regeneration (Figure 1A). Down-regulation of DjCamkII also led to significant up-regulation of the expression of DjCaln mRNA at 5, 7, and 10 days of during planarian head regeneration (Figure 1B). Western blot results showed that when the expression of DjCaln protein decreased, the expression of DjCamkII protein significantly increased at 5, 7, and 10 days of during planarian head regeneration (Figures 2A,B). When the expression of DjCamkII protein decreased, the expression of DjCaln protein significantly increased at 5, 7, and 10 days of during planarian head regeneration (Figures 2C,D). These results revealed that DjCamkII and DjCaln were mutual negative regulation during planarian head regeneration.

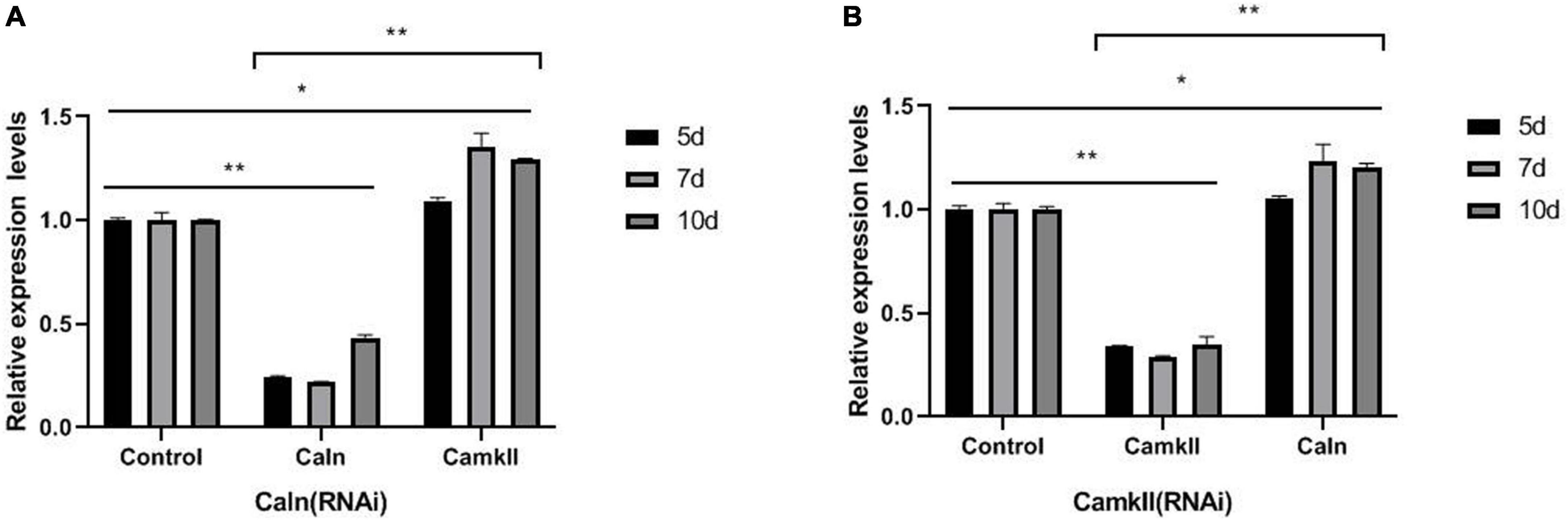

FIGURE 1

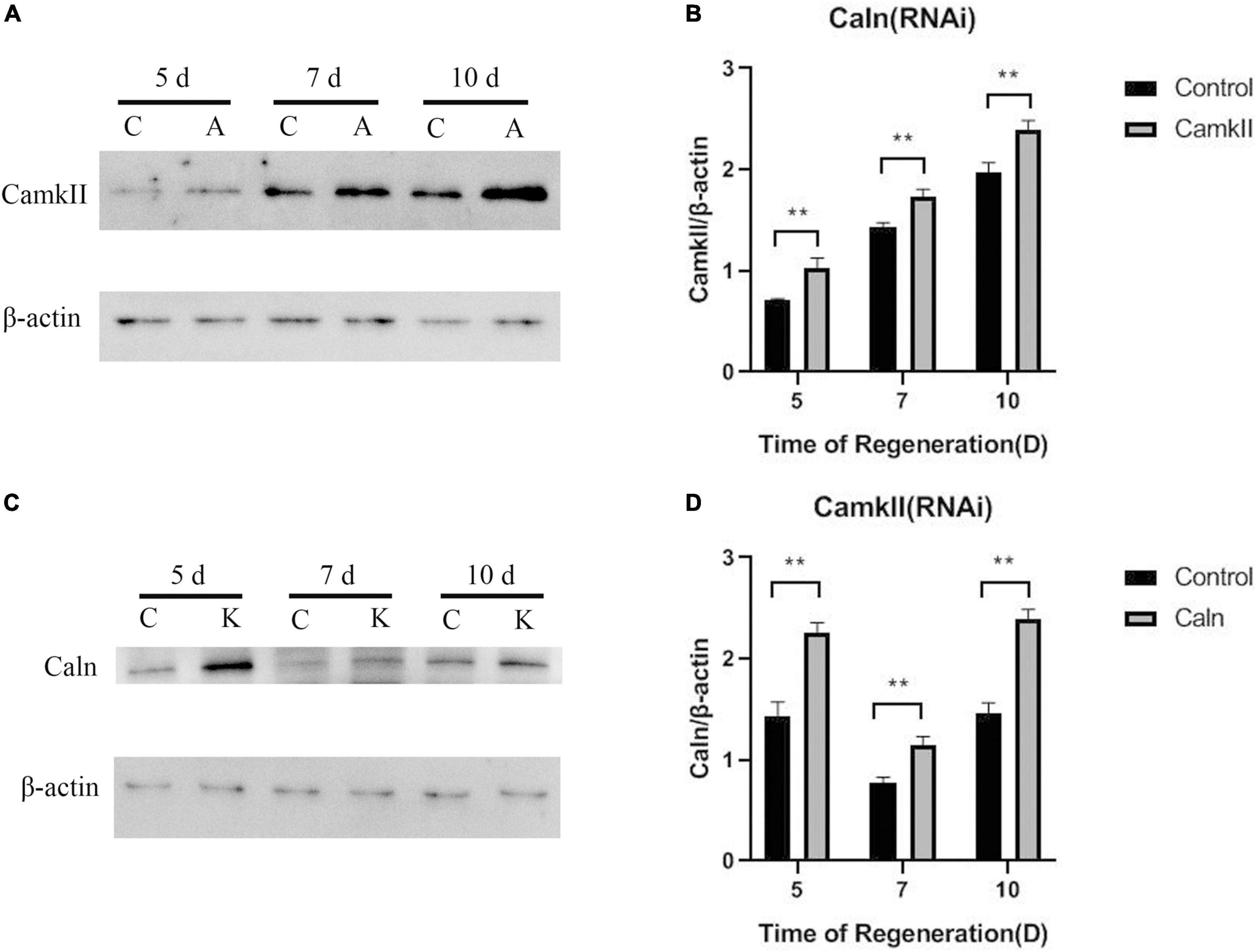

FIGURE 2

DjNFAT promotes the expressions of DjCaln and DjCamkII by positive feedback during planarian head regeneration

Caln activated NFATs by dephosphorylating multiple N-terminal phosphoserine residues in the regulatory domain (Muller et al., 2009). To explore the relationship between DjCaln, DjCamkII, and DjNFAT, qPCR was performed in DjCaln (RNAi), DjCamkII (RNAi), or DjNFAT (RNAi) regenerative planarians. The results demonstrated that the expression of DjNFAT was significantly decreased in DjCaln (RNAi) or DjCamkII (RNAi) regenerative planarians (Figures 3A,B). Down-regulation of DjNFAT led to a significant decrease in the expression of DjCaln and DjCamkII mRNA (Figure 4A), as well as DjCaln and DjCamkII protein levels (Figures 4B–E) at 5, 7, and 10 days during planarian head regeneration. These results illustrated that DjNFAT promoted the expression of DjCaln and DjCamkII by positive feedback during planarian head regeneration.

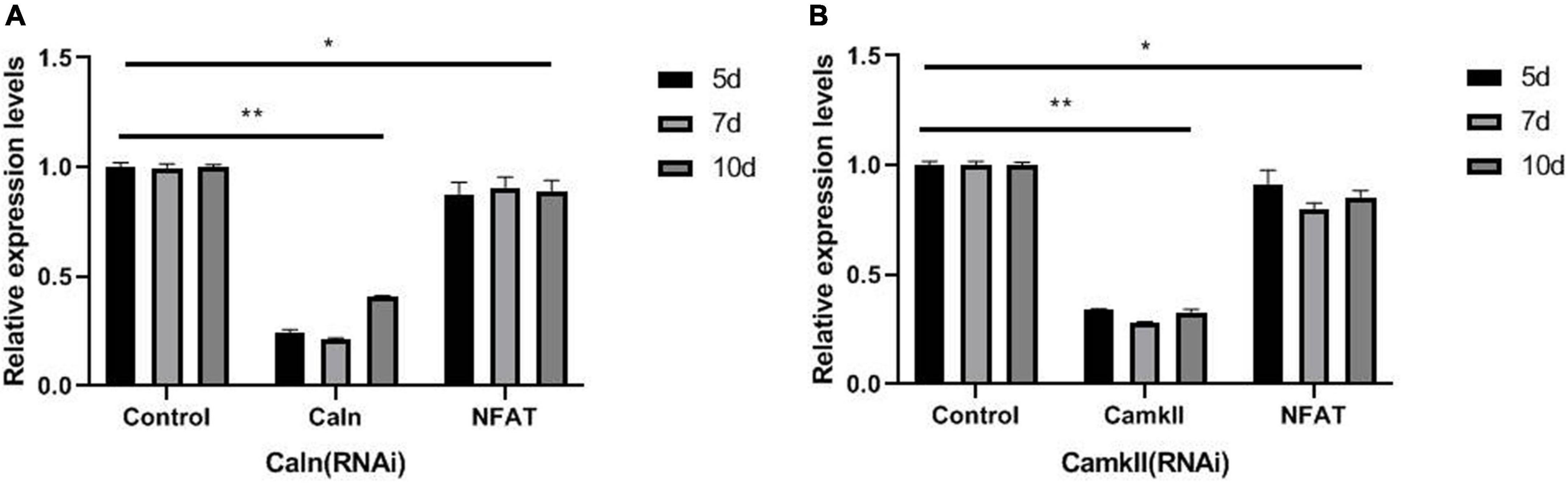

FIGURE 3

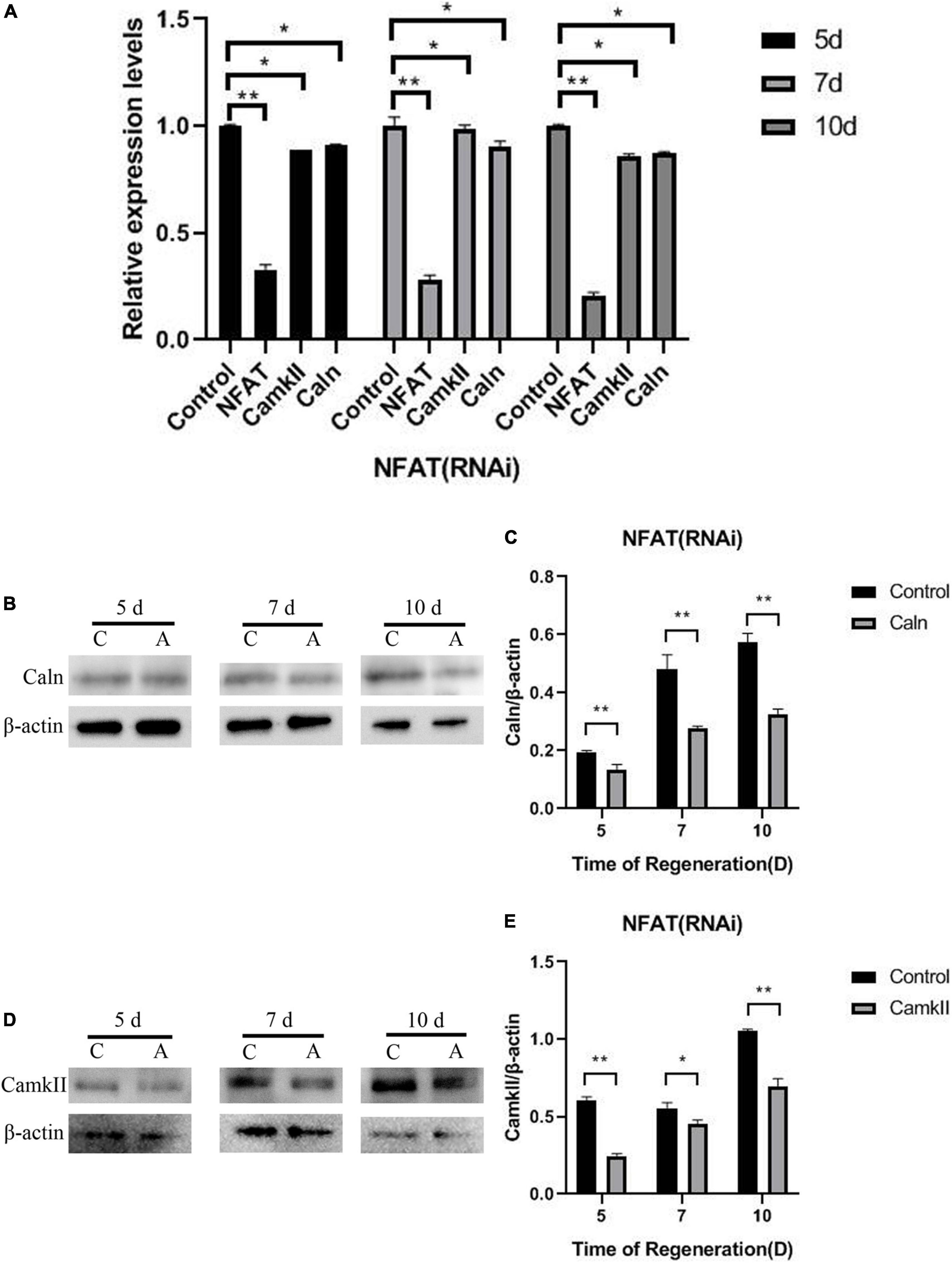

FIGURE 4

Expression patterns of DjNFAT in adult and regenerating planarians

During the regeneration, DjCamKII and DjCaln were abundant in the regenerated brain (Zhen et al., 2020). To determine whether DjNFAT was involved in brain regeneration, the expression of DjNFAT was examined using WISH in decapitated animals as they formed a new brain. The results showed that, in intact planarians, DjNFAT was mainly expressed in the pharynx and parenchymal cells (Figure 5A). In head regeneration, at 1 and 3 days into regeneration, the positive signal of DjNFAT was predominantly detected at the wound (Figures 5C,D). Then the primordium of the brain continued to change as the regenerated brain began to undergo a pattern formation, in which a positive signal of DjNFAT was detected at 5 days of regeneration (Figure 5E). The regeneration of the brain was basically completed at 7 days of regeneration, and the DjNFAT positive signal was further strengthened (Figure 5F). At 10 days of regeneration, the DjNFAT positive signal of the regenerated brain reached the strongest level, and the regeneration of the lateral nerves was complete (Figure 5G). Using qPCR, changes in the expression of DjNFAT mRNA during the head regenerative process were detected, and the results showed that over time, the expression of DjNFAT gradually increased, peaking at 10 days of regeneration, which was consistent with the results of WISH (P < 0.01) (Figure 5B). In general, the above results indicated that DjNFAT was widely expressed in intact and regenerative planarians.

FIGURE 5

DjNFAT deficiency resulted in brain defects during planarian head regeneration

Trunk fragments of control (RNAi) and DjNFAT (RNAi) planarians were stained with anti-phosphohistone H3 (H3P) on days 1, 3, and 5 of regeneration (Brown et al., 2018). The number of dividing cells during regeneration was determined and no significant differences were found between control (RNAi) and DjNFAT (RNAi), suggesting that a gross proliferation defect was not present (Supplementary Figure 2). DjNFAT (RNAi) regenerating trunk fragments showed a normal regionalized expression of ston2 (Supplementary Figure 1; Zeng et al., 2018), suggesting that DjNFAT did not affect neoblast proliferation and brain patterning.

The knockdown of DjCamKII and DjCaln led to defects in regenerated brains including incompact phenotypes at the posterior of the new brain, and lateral branches that could not regenerate (Zhen et al., 2020). To study the function of the DjNFAT gene in brain regeneration, RNAi was carried out by socking technique commonly used in planarians research. Immunostaining with an anti-SYNORF1 antibody against synapsin (Cebria, 2008) revealed that DjNFAT-RNAi treatment caused apparent brain defects at 7 and 10 days of regeneration (Figure 6). Compared to control animals (Figures 6A–C), DjNFAT-RNAi regenerated animals were found that the regenerative brain became small and the lateral nerves cannot be regenerated completely (Figures 6D–F). Hence, these results implied that DjNFAT was required for the formation of a functional brain during planarian head regeneration.

FIGURE 6

DjNFAT inhibition influences the number of GABAergic neurons during the planarian head regeneration

To confirm whether or not DjNFAT might affect the number of certain types of neurons at 5, 7, and 10 days during neurogenesis, the neurotransmitter synthesizing enzymes were used as the neuron markers in FISH to measure the numbers of neurons in decapitated planarians after DjNFAT-RNAi treatment. The results revealed that the numbers of choline acetyltransferase (DjChat, cholinergic neurons), tyrosine hydroxylase (DjTH, dopaminergic neurons), tryptophan hydroxylase (DjTPH, serotonergic neurons) positive-neurons were similar to the controls in the regenerated planarians, suggesting that DjNFAT-RNAi could not influence the regeneration of planarian cholinergic, dopaminergic or serotonergic neurons (Supplementary Figure 3).

As previously presented, knockdown of DjCamKII or DjCaln led to GABAergic neurons decreased during planarian head regeneration (Zhen et al., 2020). To confirm whether DjNFAT also affected the number of GABAergic neurons at 5, 7, and 10 days during neurogenesis, WISH was used to measure the number of GABAergic neurons after DjNFAT (RNAi), with the help of neurotransmitter synthase GAD as GABAergic neuron marker. Compared with the control group, the number of DjGAD-positive neurons in planarian regenerated significantly decreased (Figures 7A,B). FISH analysis showed that the number of DjGAD-expressing cells in the newborn brain area was significantly reduced at 5, 7, and 10 days after DjNFAT RNAi (Figure 7B). The expression level of DjGAD protein in DjNFAT (RNAi) planarians was detected by Western blot. Compared with control animals, the results showed that DjGAD protein decreased in the regeneration period (Figures 7C,D), which indicated that DjNFAT may affect the number of GABAergic neurons during planarian head regeneration through transcriptional regulation of GAD.

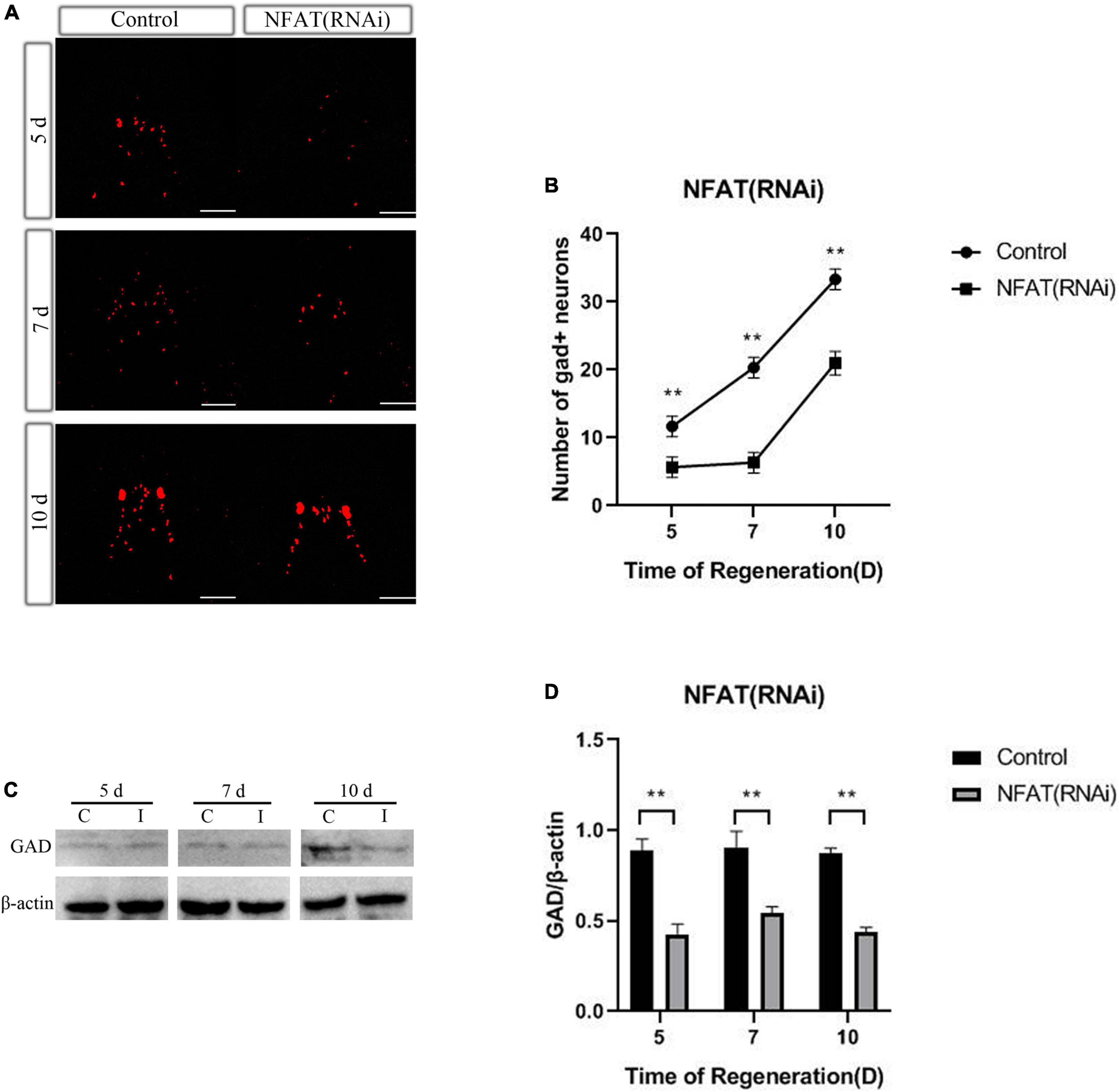

FIGURE 7

Discussion

The most remarkable characteristic of the planarian resides in its strong regeneration ability. The planarian brain comprises of different types of neurons, including the same type of neurons found in humans, such as dopaminergic, cholinergic, GABAergic, and serotonergic neurons (Nishimura et al., 2007a,b, 2008, 2010). As such, understanding the neural regeneration mechanism of planarians can shed light on how humans make and reintegrate new neurons. As previously explained, down-regulation of DjCamKII or DjCaln led to the number of GABAergic neurons decreased during planarian head regeneration (Zhen et al., 2020). In this study, the mechanism by which Wnt/Ca²⁺ signaling pathway regulates the formation of GABAergic neurons during planarian neurogenesis was examined. The relationship between DjCamKII and DjCaln suggests a mutual negative regulation during planarian head regeneration. Additionally, knockdown of DjCaln or DjCamKII reduced the expression of DjNFAT, while knockdown of DjNFAT could reduce both the mRNA and protein expressions of DjCaln and DjCamKII. DjNFAT exerted feedback positive regulation on both DjCaln and DjCamkII. DjNFAT was predominantly expressed in the pharynx and parenchymal cells of the intact planarian, but located in the newborn brain during planarian head regeneration. Down-regulation of DjNFAT affected the number of GABAergic neurons and the expression level of DjGAD protein during planarian head regeneration. These findings suggest that the feedback loop between DjCaln, DjCamkII, and DjNFAT is essential for the number of GABAergic neurons during planarian head regeneration.

Previous studies demonstrated that CamKII can mediate phosphorylation of Caln (Hashimoto et al., 1988; Hashimoto and Soderling, 1989; Martensen et al., 1989) and CaMKIIδ_c can directly phosphorylate Caln to negatively regulate Calcineurin/NFAT signaling in cardiac myocytes (MacDonnell et al., 2009). In budding yeast, the lack of CMK2 up-regulated the level of calcium/calcineurin signaling and augmented the expression levels of Crz1-dependent PMR1 and PMC1 (Xu et al., 2019). In Human T Cells, CaMKII down-regulated both Calcineurin and Protein Kinase C mediated pathways for cytokine gene transcription (Hama et al., 1995). Consistent with previous reports, down-regulation of DjCaln led to increase in the expressions of DjCamkII mRNA and protein at 5, 7, and 10 days during planarian head regeneration. Down-regulation of DjCamkII also led to the increase in the expression of DjCaln mRNA and protein decreased at 5, 7, and 10 days during planarian head regeneration (Figures 1, 2). These results indicated that DjCamKII and DjCaln suggest a mutual negative regulation during planarian head regeneration. Knockdown of DjCaln or DjCamKII reduced the expression of DjNFAT, while the expression of DjCamkII and DjCaln decreased after down-regulation of DjNFAT (Figures 3, 4), which was a feedback positive regulation of DjCamkII and DjCaln by DjNFAT. These results indicated that DjNFAT exerted feedback positive regulation on both DjCaln and DjCamkII during planarian head regeneration (Figure 8).

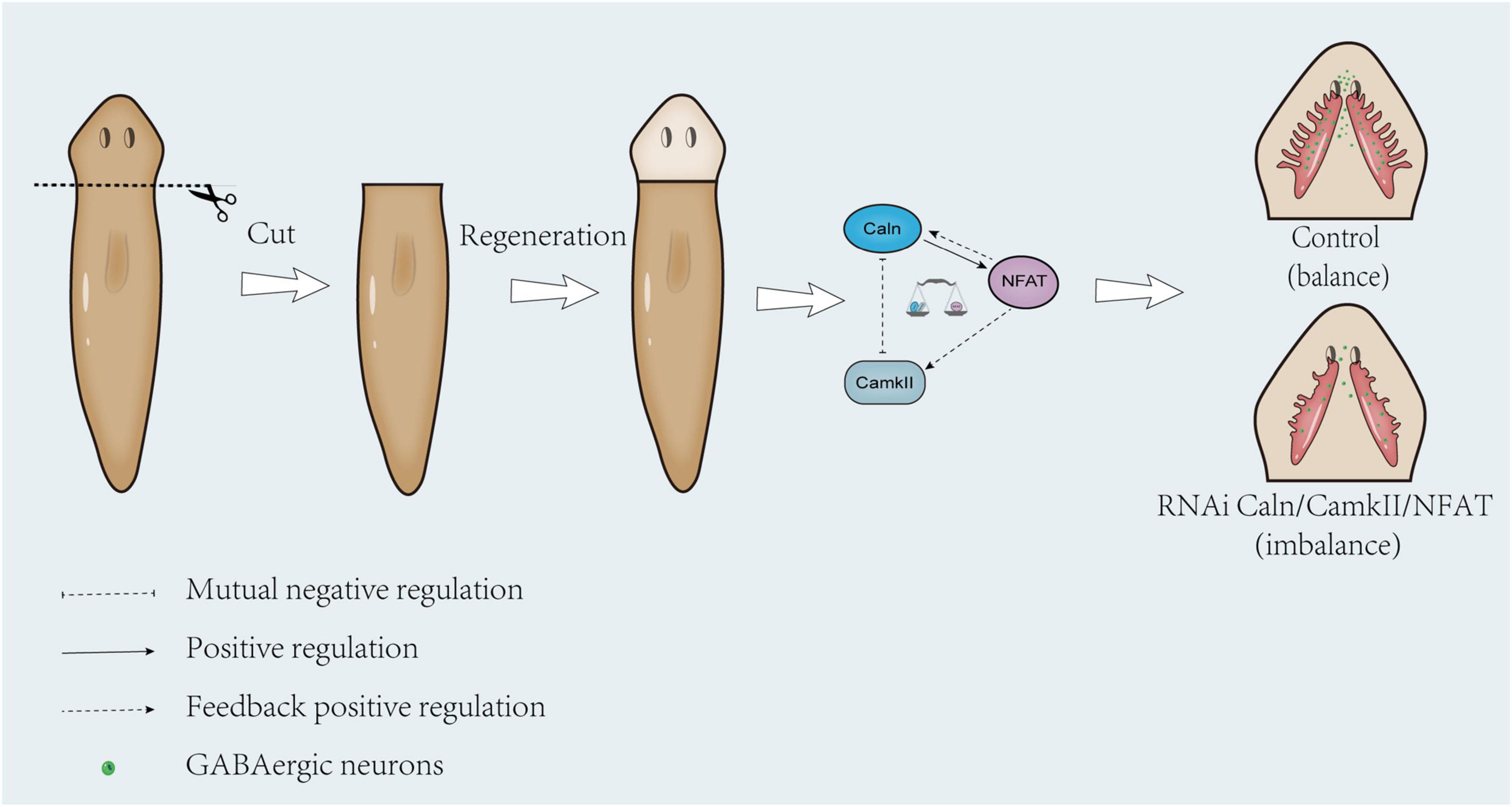

FIGURE 8

The NFAT protein is part of the family of transcription factors, which usually exists in a hyperphosphorylated state in the cytoplasm (Shaw et al., 1988; Schulz and Yutzey, 2004; Boothby, 2010). The NFATs play a role in many vertebrate developmental systems, including the nervous system (Crabtree and Olson, 2002; Schulz and Yutzey, 2004; Macian, 2005). NFATs (NFATc1–c4) are expressed in neurons (Canellada et al., 2008). For example, NFATc3 and NFATc4 are highly expressed in primary hippocampal neurons (Vihma et al., 2016). The transcription factor Nfat5 was expressed in the anterior blastema of the tail fragments after 3 days into regeneration in planarian S. mediterranea (Suzuki-Horiuchi et al., 2021). In contrast to previous studies, in this paper, the results showed that DjNFAT was mainly expressed in the pharynx and parenchymal cells in intact planarians (Figure 5A). During planarian head regeneration, DjNFAT was located in the blastema at 3 days and perceptible in the brain at 10 days during head regeneration in planarian D. japonica (Figures 5C–G). As previously mentioned, DjNFAT was difficult to detect in the brain under homeostatic conditions. However, its expression became readily apparent soon after amputation, indicating that DjNFAT might participate in newborn brain regeneration.

Studies found that calcineurin and NFAT are essential for neuregulin and ErbB signaling, neural crest diversification, and differentiation of Schwann cells (Kao et al., 2009). Caln/NFAT4 signaling pathway is a key mechanism for the disruption of synaptic remodeling and homeostasis in the hippocampus after acute injury (Furman et al., 2016). Caln/NFAT is also essential in driving glutamate dysregulation and neuronal hyperactivity during AD (Sompol et al., 2017). Moreover, Caln/NFAT signaling plays an important role in the shaping of the synaptic connectivity of thalamocortical and nucleus reticularis thalami GABAergic neurons mediated by slow-wave sleep (Pigeat et al., 2015). As previously described, knockdown of DjCaln or DjCamkII led to regenerated brains defects including partial deletions and lateral branches not regenerated. And the number of GABAergic neurons also decreased during planarian head regeneration (Zhen et al., 2020). In this study, down-regulation of DjNFAT caused defects in regenerated brains including newborn brain small and lateral nerve cannot regenerate (Figure 6). The number of GABAergic neurons in DjNFAT (RNAi) planarians was significantly reduced (Figures 7A,B), which is consistent with DjCaln-RNAi or DjCamkII-RNAi animals (Zhen et al., 2020). In addition, the expression level of DjGAD protein in DjNFAT knockdown planarians was down-regulated (Figures 7C,D), which means that DjNFAT could regulate the GABAergic neurons during planarian head regeneration. Thus, we conclude that the feedback loop between DjCaln, DjCamkII, and DjNFAT regulates the number of GABAergic neurons during planarian head regeneration (Figure 8).
