Insights into CO oxidation on Au/TiO2-HMor zeolite catalysts at low temperature

R. CamposecoR. CamposecoN. A. Snchez-FloresN. A. Sánchez-FloresR. Zanella
R. Zanella*
  • Instituto De Ciencias Aplicadas y Tecnología, Universidad Nacional Autónoma De México, Mexico City, Mexico

The effect of combining TiO2 and mordenite zeolite (HMOR), employed as support of gold nanoparticles, on the CO oxidation reaction at low temperature is studied. The amount of TiO2 encapsulated into HMOR was varied and the catalyst efficiency was investigated. The deposition-precipitation with urea (DPU) method was used to deposit gold nanoparticles; likewise, the synthesis of monometallic catalysts based on TiO2 and HMOR is reported. The synthesized materials were characterized by X-ray diffraction (XRD), nitrogen adsorption, X-ray photoelectron spectroscopy (XPS), Fourier-transform infrared spectroscopy (FTIR), and transmission electron microscopy (TEM). The addition of TiO2 influenced the properties of the TiO2-HMOR composite, and its catalytic performance in the CO oxidation from 20°C. It was established that the 5Au/(28)TiO2-HMOR composite was the most active catalyst at lower temperatures, which was ascribed to the close contact among the components of the TiO2-HMOR composite, gold dispersion, gold and TiO2 loadings, and Au and Ti species present in the catalysts.

1 Introduction

Zeolite is a porous alumino-silicate material with a characteristic three-dimensional structure that has been extensively employed as ion exchanger, adsorbent, and catalyst (Sircar et al., 2003; Farrusseng and Tuel, 2016). In the case of mordenite (HMOR), it is a zeolite that is used principally as a catalyst for different reactions such as hydrocracking, alkylation, and reforming (Vermeiren and Gilson, 2009; Vogt and Weckhuysen, 2015). On the other hand, gold nanoparticles have been deposited on zeolites, prepared as dealuminated or non-dealuminated mordenite, finding that the dealuminated support was responsible for the stability of Au1+ species and its participation in the catalytic CO oxidation (Simakov et al., 2008). Likewise, gold nanoparticles supported on Y-type zeolite, pretreated with helium at 500°C, were found to be smaller and more uniformly distributed than those on Y-type zeolite without any surface pretreatment (Chen et al., 2005). Moreover, it has been shown that the modification of zeolites with different metal ions such as Fe, Ce and Ti (Tuzovskaya et al., 2007) leads to the improvement of their acidic properties and catalytic performance, as well as the stabilization of gold species (Lin et al., 2002).

Earlier studies have reported that the use of zeolites as carriers in TiO2 synthesis provokes TiO2 particle sizes that are smaller than the ones of bare TiO2 (Fernandez-Catala et al., 2020), making the use of zeolites desirable for obtaining high dispersion of TiO2 nanoparticles. In accordance with previous studies, the support for gold catalysts has a significant effect on their performance, mainly for oxidation reactions (Chen et al., 2017). In this way, it has been informed that zeolites are an excellent matrix due to advantages such as high surface area and the ability to stabilize small gold particles within their small and well-size-controlled pores (Yan et al., 2004). Nevertheless, zeolite catalysts are thought of as inert supports, presenting poor catalytic activity when interacting with gold nanoparticles (Smolentseva et al., 2006), because they sinter easily when the Au/zeolite catalyst activation temperature increases. This happens because SiO2 and related materials present a weak metal-support interaction with gold (Petcu et al., 2022). Recently, zeolites also began their path to be more efficient, for example, Ichikawa et al. incorporated Au(I) ions into the NaY zeolite by a solid-vapor reaction using Au2Cl6 (Mohamed et al., 2001); also, Au/HMordenite has been used as a catalyst in the oxidation of CO, showing activity between 50°C and 250°C (Tuzovskaya et al., 2007). In another way, the incorporation of cerium into the Au/Ce/Mordenite catalyst significantly increased the oxidation of CO, which reached 100% conversion at 125°C (Qi et al., 2012). Likewise, manganese caused a similar effect on the Mn/Au/Mordenite catalyst, where the gold particles were smaller (2–15 nm) than those of a catalyst without manganese (7–50 nm) and most importantly, there was a considerable increase in the CO oxidation activity (Zamaro et al., 2015). However, there is a lack of information about the behavior of Au supported on the TiO2-HMOR zeolite as a potential catalyst for the CO oxidation reaction.

Studies on TiO2-zeolite composites have been mainly focused on photocatalysis applications (Hu et al., 2021), however, works employing these materials in catalytic thermal oxidation reactions have been more limited. In this work, a series of TiO2-HMOR zeolite catalysts, in which the TiO2 loading was varied (7, 21 and 28 wt%) and gold nanoparticles with the same loading (5 wt%) were incorporated, was employed to examine their catalytic properties in the CO oxidation. It is shown that these composites were active from 0°C and the characterization of the Au/TiO2-HMOR zeolite catalysts revealed that the dispersion of gold and creation of Ti4+/Ti3+ and Au1+/Au0 species are important factors to remarkably enhance their activity in the CO oxidation reaction.

2 Experimental

2.1 Preparation of the zeolite HMOR and TiO2-HMOR samples

Mordenite CBV 20A with Si/Al of 20 in ammonia form (crystal diameter of 100–200 nm, purchased from Zeolyst International) was transformed into the acid form (HMOR) by calcination at 580°C for 3 h in air flow. Three samples of 1g of TiO2-HMOR were prepared by incipient wetness impregnation, which were named as (7)TiO2-HMOR, (21)TiO2-HMOR and (28)TiO2-HMOR according to the titanium oxide composition (7, 21 or 28 wt%).

Initially, TiO2-Degussa P25 (47 m2 g−1, nonporous, 70% anatase and 30% rutile, purity >99.5%, purchased from Sigma-Aldrich) was dissolved in ethanol and mixed ultrasonically for 5 min. Then, the mixture was left and mixed with HMOR for 5 min in a porcelain crucible. After this action, the mixture was dried at 110°C overnight and calcined at 450°C for 6 h in air flow.

2.2 Incorporation of gold into the TiO2-HMOR samples

Gold (HAuCl4·3H2O 99.99% trace metals basis were purchased from Sigma-Aldrich) particles were obtained by the deposition-precipitation with urea (DPU) method. The gold concentration was 5 wt%. A sample containing 2 wt% of gold was also prepared on TiO2 for comparison. For the preparation of the samples, 500 mg of 5Au/TiO2, 5Au/HMOR, 5Au/(7)TiO2-HMOR, 5Au/(21)TiO2-HMOR and 5Au/(28)TiO2-HMOR were added to this solution under constant stirring; thereafter, the suspension temperature was increased up to 80°C and stirring was kept constant for 16 h. After the DPU procedure, all the samples were centrifuged, washed with water at 50°C four times and then centrifuged and dried under vacuum for 2.5 h at 80°C.

2.3 Carbon monoxide oxidation test

In a flow reactor, the CO oxidation reaction was studied at atmospheric pressure, using 40 mg of dried catalyst that was first activated in-situ at a flow rate of 40 mL min−1 of hydrogen or air, with a heating rate of 2°C min−1 up to the final chosen temperature, between 250°C and 400°C, followed by a temperature plateau of 2 h. The feed gas mixture (1 vol% of CO and 1 vol% of O2 balanced with N2) was introduced with a total flow rate of 100 mL min−1 and a heating rate of 2°C min−1. The gases were analyzed with an online gas chromatograph (6890N, Agilent Technologies) equipped with a FID detector, HP Plot Q column and a methanizer. Stability tests of the catalysts versus time on stream were performed at 20°C during a continuous run of 24 h, employing 40 mg of catalyst activated in-situ in hydrogen at the same heating rate and temperature plateau as described above; likewise, in order to measure the reaction rates and activation energies, experimental conditions were determined so as to perform these measurements under kinetic regime. Consequently, the reaction rates and Arrhenius plots were determined with catalysts with a dilution of 50%, due to the high activity displayed by the catalysts. The turnover frequencies (TOF) of CO molecules converted per surface atom of gold particles and per second were determined from the reaction rates obtained under the kinetic regime and gold dispersion (surface atoms/total atoms in the particle).

2.4 Characterization techniques

X-ray diffraction patterns were acquired at room temperature with Cu Kα radiation in a Bruker Advance D-8 diffractometer having a theta–theta configuration and a graphite secondary-beam monochromator. The data were collected for scattering angles (2θ) ranging from 4° to 80° with a step size of 0.01° for 2 s per point.

Images of the samples were obtained by HR-TEM analyses, employing a JEOL 2200FS microscope operating at 200 kV and equipped with a Schottky-type field emission gun and an ultrahigh resolution pole piece (Cs = 0.5 mm, point-to-point resolution, 0.190 nm). The textural properties were obtained by means of an ASAP-2000 analyzer from Micromeritics.

The specific surface area (SBET) was calculated from the Brunauer–Emmett–Teller (BET) equation from N2 physisorption at 77 K. The pore size distribution was calculated by the Barrett–Joyner–Halenda (BJH) method from the desorption branch.

H2-TPR profiles were produced on a Micromeritics AutoChem II chemisorption analyzer unit under flow of a 10% H2/Ar gas mixture (25 mL min−1) with a heating rate of 10°C min−1 from room temperature to 600°C.

DRIFTS results of in-situ CO oxidation were collected on an FTIR spectrometer (Nicolet iS50R FTIR) equipped with a Harrick DRIFT cell in the 400–4000 cm−1 interval with 128 scans at a resolution of 4 cm−1 using ZnSe windows. In a typical experiment, the powder samples were pretreated in air (40 mL min−1) at 200°C for 2 h to remove the residuals. After cooling down to 20°C, a background spectrum was collected at 4-cm−1 resolution for 128 scans in N2 atmosphere.

3 Results

3.1 XRD results

The X-ray diffraction (XRD) patterns of the TiO2, HMOR and TiO2-HMOR composites with gold addition are plotted in Figure 1. According to earlier studies, 5Au/TiO2 mainly revealed the feature peaks assigned to the anatase and rutile phases (Kim et al., 2021). Regarding the 5Au/(28)TiO2-HMOR composite, it did not clearly show the diffraction peaks related to the presence of TiO2, however, an increase in the intensity of the peak at 2 theta at 25.3° and 37.8° could reveal the presence of the TiO2 anatase phase, see Figure 1. In this sense, the outcomes of the XRD patterns for 5Au/(28)TiO2-HMOR indicate that the structural damage was insignificant during the ion-exchange process and that TiO2 particles, occupying the mordenite cavities, were too small to be perceived by XRD, displaying negligible crystallite phases (anatase or rutile) like those observed in 5Au/TiO2. The absence of peaks related to gold species was an evidence of good dispersion of Au in the 5Au/(28)TiO2-HMOR material, see Figure 1. The surface areas of TiO2 and the 5Au/HMOR and 5Au/(28)TiO2-HMOR composites are given in Table 1. The measured surface area of TiO2 (47 m2/g) was notably lower than the ones of the 5Au/HMOR and 5Au/(28)TiO2-HMOR catalysts, 445 and 313 m2/g, respectively. These results clearly revealed the presence of TiO2 and gold inside the pores of HMOR zeolite, which showed a surface area of (560 m2/g). The decrease in the measured surface area of the catalysts could be due to a partial obstruction of HMOR pores by both the Au metal particles and TiO2 crystals.

FIGURE 1
www.frontiersin.org

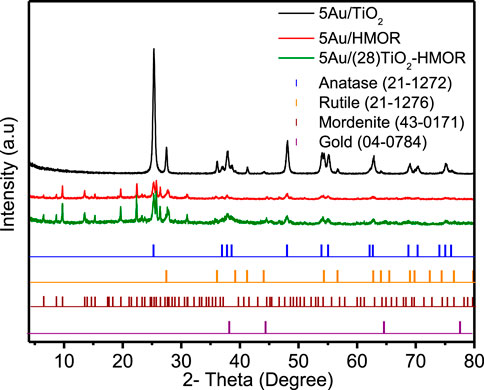

FIGURE 1. XRD patterns of TiO2 and the 5Au/HMOR and 5Au/(28)TiO2-HMOR composites. The JPDCS are shown for comparison purposes: TiO2 anatase and rutile phases, gold, and mordenite zeolite = HMOR.

TABLE 1
www.frontiersin.org

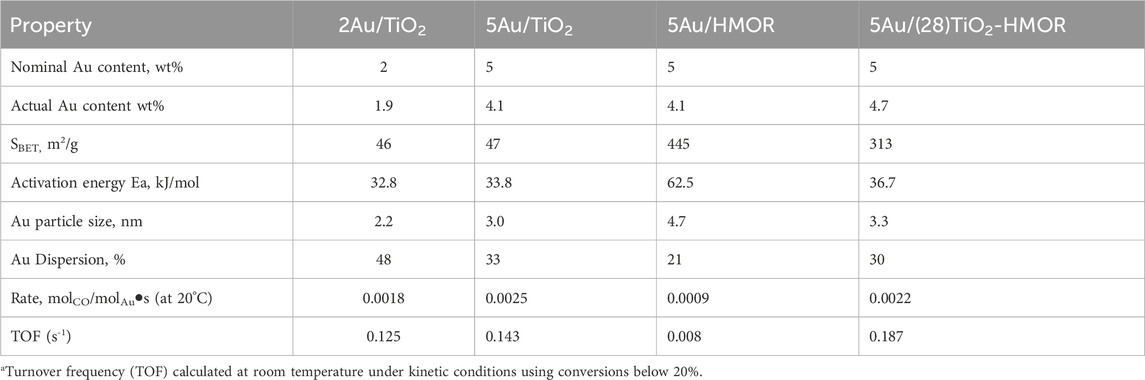

TABLE 1. Properties of the 2Au/TiO2, 5Au/TiO2, 5Au/HMOR, and 5Au/(28)TiO2-HMOR composite catalysts treated at 300°C under H2 atmosphere, and kinetic data during the CO oxidation reaction.

3.2 HRTEM/STEM morphology

Figure 2 shows HRTEM/STEM micrographs for the 5Au/HMOR and 5Au/(28)TiO2-HMOR samples. It was feasible to quantify the size of the gold nanoparticles deposited in all the samples. For 5Au/TiO2, the average gold diameter was ∼3 nm, while the gold nanoparticles deposited on the mordenite zeolite showed an average diameter of ∼4.7 nm, see Figures 2A, B, while the 5Au/(28)TiO2-HMOR composite displayed nanoparticles close to ∼3 nm in size, very similar to the one of the 5Au/TiO2 sample, see Figure 3C. The 5Au/(28)TiO2-HMOR composites revealed a good Au dispersion, indicating good interaction between gold and the TiO2-HMOR composite, while 5Au/HMOR showed a poorer dispersion of gold because of the weak gold/mordenite surface interaction. In Supplementary Figure S1, HRTEM micrographs show that by using the deposition-precipitation with urea method, gold nanoparticles were deposited on the surface of TiO2, HMOR and TiO2-HMOR interface.

FIGURE 2
www.frontiersin.org

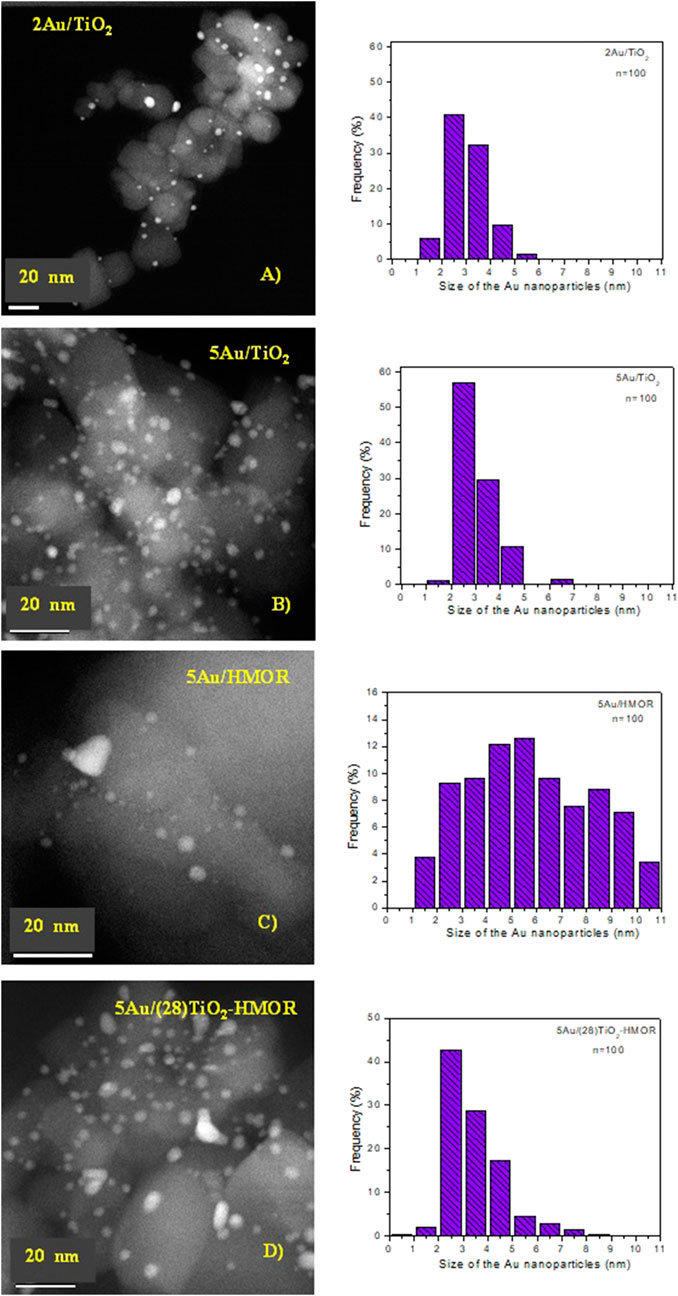

FIGURE 2. HRTEM/STEM images of the (A) 2Au/TiO2, (B)5Au/TiO2, (C)5Au/HMOR and (D)5Au/(28)TiO2-HMOR composites and their corresponding histograms by counting 100 particles thermally treated at 300°C under hydrogen atmosphere.

FIGURE 3
www.frontiersin.org

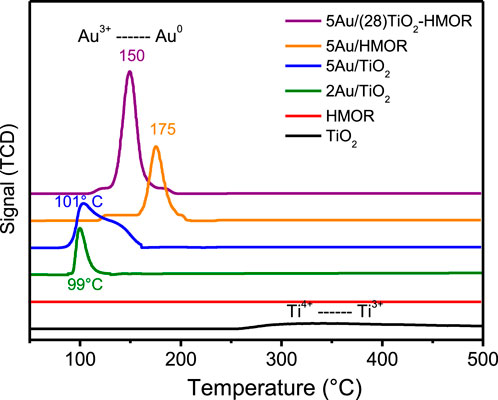

FIGURE 3. H2/TPR profiles of the 2Au/TiO2, 5Au/TiO2, 5Au/HMOR and 5Au/(28)TiO2-HMOR composites with gold addition.

3.3 H2/TPR

Figure 3 exhibits the H2/TPR profile of the as-prepared materials dried under vacuum at 80°C. The H2/TPR profiles of the 5Au/HMOR and 5Au/(28)TiO2-HMOR materials displayed a well-resolved peak with maxima at ∼ 175°C and ∼ 150°C, respectively. In contrast, the 2Au/TiO2 and 5Au/TiO2 materials showed one wide peak with maximum at ∼ 100°C, associated with gold reduction; these peaks can be assigned to the reduction of Au3+ species, deposited during the synthesis process, toward Au0, which is in agreement with previous studies (Zhang et al., 2018; Huang et al., 2022). A weak hydrogen consumption peak with maximum at ∼ 350°C for the TiO2-25 Evonik support could be assigned to the reduction of Ti4+ to Ti3+, according to Huang et al. (Huang et al., 2022); see also Supplementary Figure S2. Hence, the reduction peaks observed at 100, 150°C and 175°C could be linked to the successive reduction of Au3+ toward Au0 (Zhang et al., 2018). It is worth mentioning that the result of the TPR profiles of the materials with similar gold contents is different in the reduction temperature interval of gold species. These differences could be related to gold dispersion and TiO2 content present in the mordenite zeolite materials, which may affect the temperature of gold reduction. It can be seen that the reduction of gold happened within the interval between 90°C and 220°C.

3.4 XPS

Figure 4 shows the XPS spectra of the 5Au/TiO2, 5Au/HMOR and 5Au/(28)TiO2-HMOR samples. The deconvolution shows four peaks assigned to Au0 (Au4f7/2 and Au4f5/2 situated at 83.5 and 87.5 eV, severally) and to Au1+ (Au4f7/2 and Au4f5/2 detected at 85.0 and 88.5 eV, respectively) (Sahoo and Ke, 2021). The main difference is observed in the presence and quantity of Au1+, where the peak corresponding to this species was less intense than the one for the 5Au/TiO2 material, followed by the 5Au/HMOR and 5Au/(28)TiO2-HMOR samples, respectively. The peaks related to Au0 were more noticeable than the peaks earmarked to ionic gold, evidencing the transition from Au3+ to Au0 by the thermal treatment under hydrogen atmosphere. Thus, it is suggested that the presence of Au1+ may be related to the stronger interaction between gold particles and TiO2 as well as to the TiO2 and HMOR support when the sample was thermally treated under hydrogen atmosphere. According to the deconvolution results, the percentages of gold species in the catalysts were: for 5Au/TiO2, Au0 (87%) and Au1+ (13%); for 5Au/HMOR, Au0 (72%) and Au1+ (28%); and for 5Au/(28)TiO2-HMOR, Au0 (64%) and Au1+ (36%). However, as the intensity of the 4f gold peaks is different, the dominant presence of metallic gold (Au0) was observed in all the samples. The results evidenced the significance of Au1+ in the CO oxidation reaction at low temperature (see Table 1 and CO oxidation results below). In this line, the interaction between gold nanoparticles and the TiO2, HMOR and TiO2-HMOR supports is totally different. Gold nanoparticles supported on TiO2, TiO2-HMOR and HMOR revealed the existence of Au0 and Au1+ species, the latter at lower proportion. Moreover, shifts in the position of the peaks corresponding to the metallic gold species of 0.2 eV, between TiO2 and TiO2-HMOR, and of 0.8 eV with regard to HMOR were observed, evidencing that a strong interaction between Au and TiO2 took place, which meant electron transfer between the Au particles and TiO2-HMOR support, mainly observed with the incorporation of 28 wt% of TiO2 and 5 wt% of gold.

FIGURE 4
www.frontiersin.org

FIGURE 4. XPS spectra of 5Au/TiO2, 5Au/HMOR and 5Au/(28)TiO2-HMOR reduced in H2 at 300°C.

3.5 CO adsorption followed by DRIFTS

Figure 5 shows the comparison of the CO-DRIFT spectra after 30 min of CO exposure at room temperature for the 5Au/TiO2, 5Au/HMOR, and 5Au/(28)TiO2-HMOR composite catalysts reduced in-situ under H2 at 300°C. The band at 2175 cm-1, whose intensity is very similar in all the catalysts, is associated with the presence of CO in gas phase. For 5Au/TiO2, the occurrence of a single carbonyl band at 2107 cm−1 associated with linear CO adsorbed on low coordinated surface Au0 atoms was observed (Atwi et al., 2020). The 5Au/HMOR sample does not present bands ascribed to CO adsorption. In the case of the 5Au/(28)TiO2-HMOR composite, the band at 2107 cm−1, related to CO adsorbed on Au0, was noted. An additional contribution at 2047 cm-1 is observed in the 5Au/TiO2 and 5Au/(28)TiO2-HMOR composites, which is associated with CO adsorption by distinct gold species, denoting the appearance of Au1+-CO, Auδ−-CO, and Au3+-CO species (Feyzbar-Khalkhali-Nejad et al., 2021). In the case of 5Au/HMOR, these adsorption signals were not evident, demonstrating that the quantity of bridging CO species on Au is null. Moreover, the strength of the bands of CO linearly adsorbed on Au0 is more intense in 5Au/TiO2 and 5Au/(28)TiO2-HMOR than the one observed in 5Au/HMOR, Figure 5. These results also suggest the existence of an interaction between metallic Au and TiO2 in the 2Au/TiO2, 5Au/TiO2 and 5Au/(28)TiO2-HMOR catalysts. In summary, when the 2Au/TiO2, 5Au/TiO2, 5Au/HMOR, and 5Au/(28)TiO2-HMOR composite catalysts were reduced in-situ under H2 at 300°C, gold was reduced forming Au0-CO as well as Au1+-CO as shown in Figure 5. These results suggest that Au had an interaction that induced a modification in the adsorption properties of the 2Au/TiO2, 5Au/TiO2, and 5Au/(28)TiO2-HMOR catalyst surfaces, resulting in more active surfaces at low temperature, thus influencing the performance of the catalysts, as shown in the next section.

FIGURE 5
www.frontiersin.org

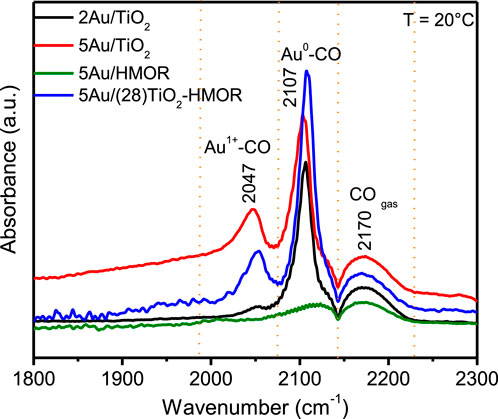

FIGURE 5. In-situ DRIFTS of the CO adsorption for the 2Au/TiO2, 5Au/TiO2, 5Au/HMOR, and 5Au/(28)TiO2-HMOR composite catalysts treated at 300°C and reduced under H2.

3.6 Catalytic activity in the CO oxidation reaction

The carbon monoxide oxidation activity as a function of the reaction temperature for the 5Au/TiO2, 5Au/HMOR and 5Au/(28)TiO2-HMOR samples under dry reaction conditions was evaluated, and the test results are depicted in Figure 6A. It is observed that the temperature for complete conversion of CO for the 5Au/(28)TiO2-HMOR sample was lower than the ones for the 5Au/(21)TiO2-HMOR and 5Au/(7)TiO2-HMOR samples, suggesting that the presence of TiO2 and Au nanoparticles promoted significantly the CO oxidation from 0°C, mainly when the TiO2 actual content was 28 wt%, which showed complete CO conversion at 70°C. It is noticed that the CO catalytic activity decreased when the TiO2 content reached 7 and 21 wt%, which was possibly due to the fact that part of the active sites was not in interaction with TiO2 in HMOR. The 5Au-TiO2 catalyst displayed much higher catalytic activity than 5Au/HMOR (Table 1). The incorporation of 5 wt% of gold into TiO2 enhanced the CO oxidation at 50°C (87% of conversion), whereas 5Au/HMOR showed poorer performance, only 38% of conversion was reached at 250°C; likewise, 5Au/(28)TiO2-HMOR improved the CO oxidation at 50°C (94% of conversion) with regard to 5Au/HMOR and 5Au/TiO2. As a comparison, the T90 values were 87, 94% and 92% of conversion for the Au/TiO2 catalyst for 1, 2, and 5 wt% of Au loading, respectively, see Figure 6B, suggesting that the addition of a higher gold loading on TiO2 did not have a great impact on the conversion at low temperature, as it occurred with the TiO2/HMOR composite, see Figure 6E. Also, it is interesting to note that the 5Au/(28)TiO2-HMOR catalyst thermally treated at 300°C in H2 was more active than the one thermally treated in air at 300°C.

FIGURE 6
www.frontiersin.org

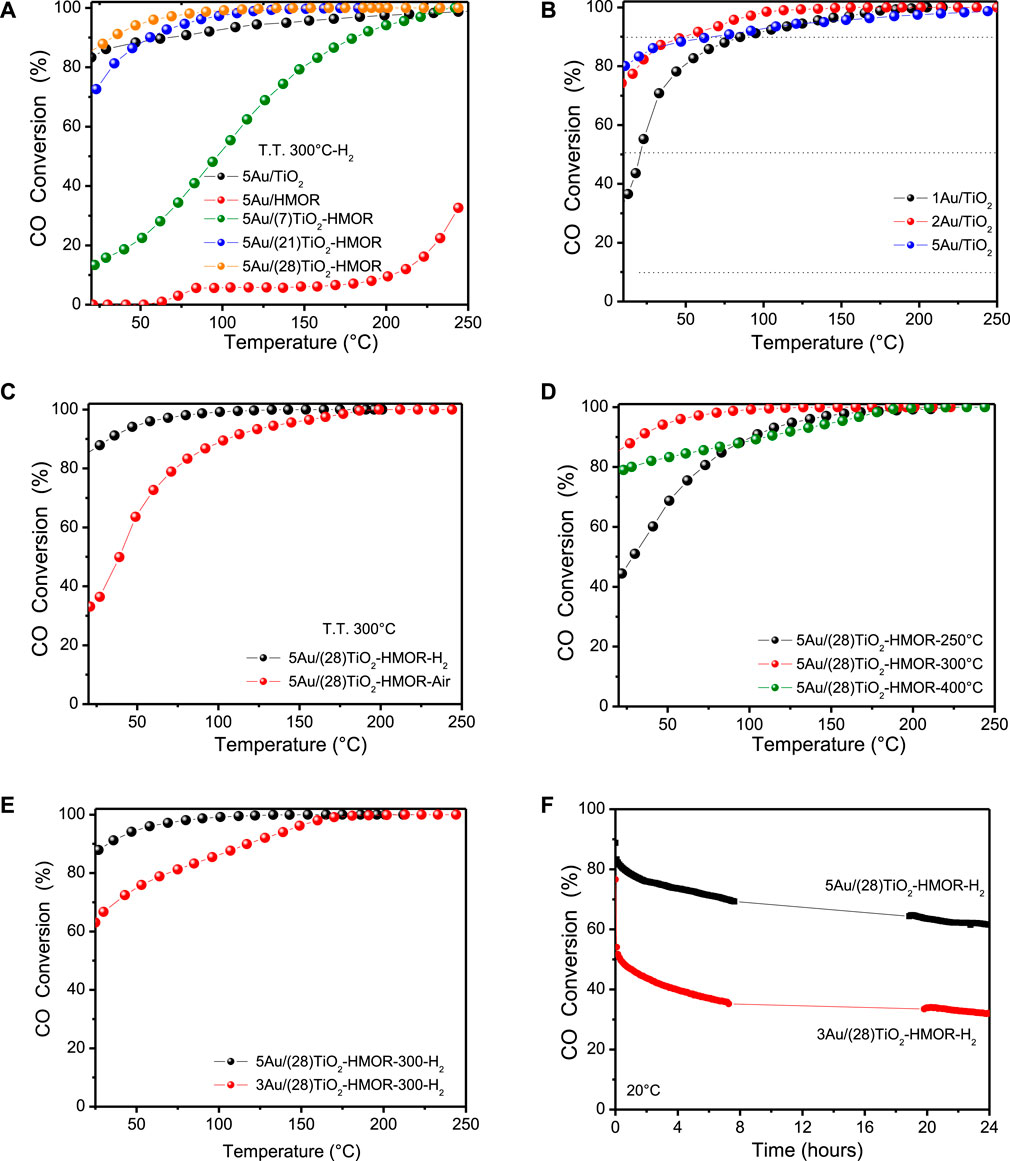

FIGURE 6. Temperature profiles and performance displayed by the tested catalysts: (A) 5Au/TiO2, 5Au/HMOR and 5Au/(28)TiO2-HMOR; (B) Temperature profiles and performance displayed by the Au/TiO2 catalysts with different loads; (C) comparison of CO conversions as functions of the reaction temperature for the 5Au/(28)TiO2-HMOR catalysts at different temperatures, treated under H2; (D) comparison of CO conversions for the 5Au/(28)TiO2-HMOR catalysts with different atmospheres; (E) effect of gold loadings (3 and 5 wt%) for samples thermally treated in hydrogen flow at 300°C; and (F) temporal stability for 24 h for 3Au/(28)TiO2-HMOR and 5Au/(28)TiO2-HMOR at 20°C under dry conditions.

Afterwards, the most active catalyst composition, 5Au/(28)TiO2-HMOR, was chosen to further investigate different parameters such as temperature, gas treatment and stability, as shown in Figure 6 C, D and E. The thermal treatment in the activation of a catalyst is a variable that also affects its performance. The CO oxidation outcomes for 5Au/(28)TiO2-HMOR activated at different temperatures under hydrogen atmosphere are shown in Figure 5B. First, the 5Au/(28)TiO2-HMOR sample treated at 300°C was the one that showed the highest initial conversion and the one that reached 100% CO oxidation at lower temperature (100°C). Then, the catalyst that was activated with H2 at 400°C, presented activity that was lower than that of the 5Au/(28)TiO2-HMOR sample at 300 °C whose initial CO conversion was 79% at 20°C. On the other hand, the same catalyst treated at 250 °C had much lower initial activity and showed 44.4% of conversion at 20°C.

Therefore, the catalysts activated at 400°C and 250°C not only lowered their activity at room temperature, but also required higher temperature to reach 100% of conversion. In Figure 6C, it is observed that 100% of CO conversion was reached at reaction temperatures near 200°C; therefore, a thermal treatment at 300°C in H2 produced the most active 5Au/(28)TiO2-HMOR catalysts. Otherwise, since the best activation temperature was 300°C, this temperature was used to thermally treat the same sample under air flow, however, that sample showed lower initial CO conversion (33.1%), and reached 100% of CO conversion at 200°C, which is similar to the performance of the 5Au/(28)TiO2-HMOR catalyst activated at 300°C in hydrogen flow, Figure 6D. In this sense, in earlier studies about the synthesis of gold catalysts, Au3+ species were identified after drying the sample; therefore, the thermal treatment using either H2 or air atmosphere reduced Au3+ toward Au0 (Qwabe et al., 2019), and it has been shown that even during a thermal treatment under air, the gold precursor decomposes with temperature to form Au0 due to the instability of Au2O3 (Bond, 2001). On the other hand, previous studies have mentioned that thermal treatment under H2 has resulted in smaller gold particles than those obtained under air, because H2 leads to stronger interaction between the gold particles and TiO2 support and prevents particle sintering (TsubotaCunningham et al., 1995).

Figure 6E shows the light-off CO oxidation curves for 5Au/(28)TiO2-HMOR thermally treated at 300°C under hydrogen atmosphere, varying the gold loading from 3 to 5 wt%. The CO conversion of 5Au/(28)TiO2-HMOR was 89% at 20°C, showing a T90 value of 27°C; the 3Au/(28)TiO2-HMOR catalyst displayed 62% of CO conversion at 20°C, and a T90 value of 125°C; then, the gold loading had a significant impact on the TiO2-HMOR sample behavior. In fact, gold particles loaded on oxides that have been tested in the oxidation of CO have demonstrated that the catalytic activity is influenced by both the annealing temperature and gold loading (Haruta et al., 1993). Moreover, Figure 6F presents the stability at 20°C for the 3Au/(28)TiO2-HMOR and 5Au/(28)TiO2-HMOR catalyst thermally treated under hydrogen atmosphere at 300°C. Slight deactivation occurred during the first 24 h and then, the CO conversion remained almost stable mainly for the 5Au/(28)TiO2-HMOR catalyst.

The behavior of the 5Au/(28)TiO2-HMOR catalyst in the CO oxidation was compared with other catalysts reported in the literature, see Table 2. According to the results obtained in this study in terms of characterization and catalytic activity for CO oxidation at low temperature, the most promising outlook seems to indicate that the incorporation of TiO2 into HMOR exerts an important effect on the final properties of the composite. The Au/HMOR zeolite itself presents poor performance in the oxidation of CO; likewise, the combination of TiO2 and zeolite showed interesting properties, such as small and more homogenous metal gold size and a suitable porous structure, allowing improved catalytic activity of the 5Au/(28)TiO2-HMOR composite with regard to 5Au/-HMOR; due to these reasons, the 5Au/(28)TiO2-HMOR composite is an efficient alternative for CO oxidation at low temperature compared with similar catalysts reported in the literature using the zeolite mordenite as support, see Table 2.

TABLE 2
www.frontiersin.org

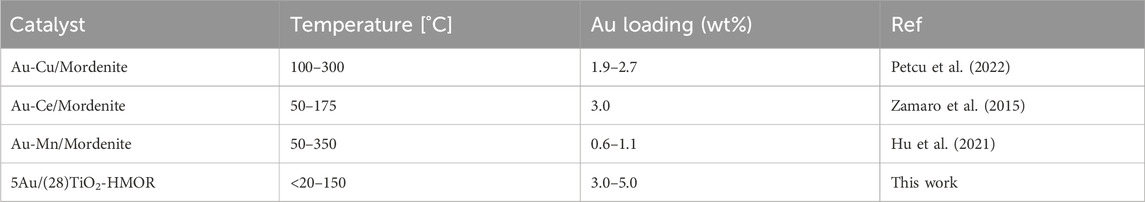

TABLE 2. Comparison chart of reaction temperatures for the CO oxidation reaction using gold-mordenite catalysts.

4 Conclusion

Mordenite zeolite as a support of gold nanoparticles is not suitable as a catalytic material in the oxidation of CO. However, the incorporation of TiO2 into mordenite and the deposition of gold nanoparticles allow the synthesis of efficient catalytic materials for the CO oxidation process at low temperatures. Hence, the addition of TiO2 to mordenite promotes the partial covering of the structural channels of the zeolite. Additionally, it was possible to observe increasing efficiency at room temperature (20°C) in the CO oxidation, mainly in terms of the turnover frequency as the TiO2 content in the mordenite zeolite grew up to 28 wt%, considering that the pure TiO2 support showed efficiency of 97% at room temperature and which indicates that a support prepared with 28% TiO2 displayed very close efficiency. This fact enabled the assertion that the intrinsic porosity of the zeolite allowed better diffusion of CO through the catalyst and that the gold nanoparticles were more exposed due to the surface area of the composite because of the structural channels, high gold dispersion, TiO2 and HMOR interaction and presence of Au1+ species that allowed CO oxidation at low temperatures.
