Abstract
Ticks and the diseases they transmit are of huge veterinary, medical and economic importance worldwide. Control of ticks attacking livestock and companion animals is achieved primarily by application of chemical or plant-based acaricides. However, ticks can rapidly develop resistance to any new product brought onto the market, necessitating an ongoing search for novel active compounds and alternative approaches to tick control. Many aspects of tick and tick-borne pathogen research have been facilitated by the application of continuous cell lines derived from some of the most economically important tick species. These include cell lines derived from acaricide-susceptible and resistant ticks, cell sub-lines with in vitro-generated acaricide resistance, and genetically modified tick cells. Although not a replacement for the whole organism, tick cell lines enable studies at the cellular and molecular level and provide a more accessible, more ethical and less expensive in vitro alternative to in vivo tick feeding experiments. Here we review the role played by tick cell lines in studies on acaricide resistance, mode-of-action of acaricides, identification of potential novel control targets through better understanding of tick metabolism, and anti-tick vaccine development, that may lead to new approaches to control ticks and tick-borne diseases.
Introduction
Ticks are obligate, haematophagous ectoparasites. Like mosquitoes, they cause problems to their hosts both from skin irritation and damage during blood feeding and by transmitting numerous pathogens including viruses, bacteria and protozoa. Consequently, ticks and tick-borne pathogens (TBPs) are of huge veterinary, medical and economic importance due to their negative impact on the health of humans and domestic animals (). Therefore, many control strategies have been devised to eliminate or avoid ticks and reduce the spread of TBPs, such as personal protection, landscape management, chemicals, vaccination, and biological control (). Amongst these, chemical control using a variety of acaricidal compounds is still the main strategy for controlling ticks affecting livestock and companion animals. However, many tick species develop resistance to these chemicals, which has led to attempts to find natural alternatives by studying the effects of some natural products on ticks and TBPs (). Globally, the most economically important species, the invasive Asian cattle tick Rhipicephalus (Boophilus) microplus, is also the most notorious for rapid development of resistance to every new acaricidal product brought onto the market (; ). Acaricide-resistant R. microplus are widespread throughout tropical and sub-tropical Asia, Latin America and Australia (), and are rapidly spreading in Southern, Central and West Africa (; ).
Tick cell lines have an invaluable role to play in many aspects of tick and TBP research including tick biology, host-vector-pathogen relationships, genetic manipulation, genomics and proteomics (). In addition, tick cell lines play a major role as essential tools in in vitro studies to examine and assess the impact of chemical molecules and vaccines against ticks and TBPs, as well as to investigate the mechanisms of resistance and tick metabolism which can lead to the development of novel approaches to control ticks and TBPs (). While >60 continuous cell lines have now been established from 16 ixodid and three argasid tick species (), studies on tick and pathogen control have predominantly centered around cell lines derived from, not surprisingly, R. microplus. A smaller number of studies have used cell lines derived from other tropical Rhipicephalus species of veterinary importance, from Ixodes ricinus, a European tick that feeds on a wide range of domestic and wild animal hosts as well as attacking humans, and from the medically important North American species Ixodes scapularis (Table 1).
TABLE 1
| Tick species | Distribution | Economic importance | Cell line | Geographic origin of parent ticks | Original references |
| Rhipicephalus microplus | Worldwide tropical and sub-tropical | Serious ectoparasitic pest of cattle; transmits anaplasmosis and babesiosis; high propensity to develop acaricide resistance | BmVIII-SCC | Mexico | |
| BME26 | Mexico | ||||
| BME/CTVM2 | Costa Rica | ||||
| BME/CTVM5 | Colombia | ||||
| BME/CTVM6 | Colombia | ||||
| BME/CTVM23 | Mozambique | ||||
| BME/CTVM30 | Mozambique | ||||
| Rhipicephalus appendiculatus | East, Central and Southern Africa | Transmits East Coast fever of cattle and Nairobi sheep disease | RAN/CTVM3 | Kenya | |
| RA243 | East Africa | ||||
| Rhipicephalus evertsi | Sub-Saharan Africa | Transmits equine babesiosis, bovine anaplasmosis and causes tick toxicosis in ruminants | REN/CTVM32 | South Africa | |
| Rhipicephalus sanguineus | Worldwide tropical, sub-tropical and temperate | Transmits canine babesiosis, ehrlichioses and human rickettsioses | RSE/PILS35 | France | |
| RML-RSE | United States | ; | |||
| Ixodes ricinus | Europe | Transmits borreliosis, neoehrlichiosis, anaplasmosis, babesiosis, tick-borne encephalitis, louping ill | IRE/CTVM19 | United Kingdom | |
| IRE/CTVM20 | United Kingdom | ||||
| Ixodes scapularis | North America | Transmits Lyme borreliosis, human anaplasmosis and babesiosis, Powassan encephalitis | IDE8 | United States | |
| ISE6 | United States |

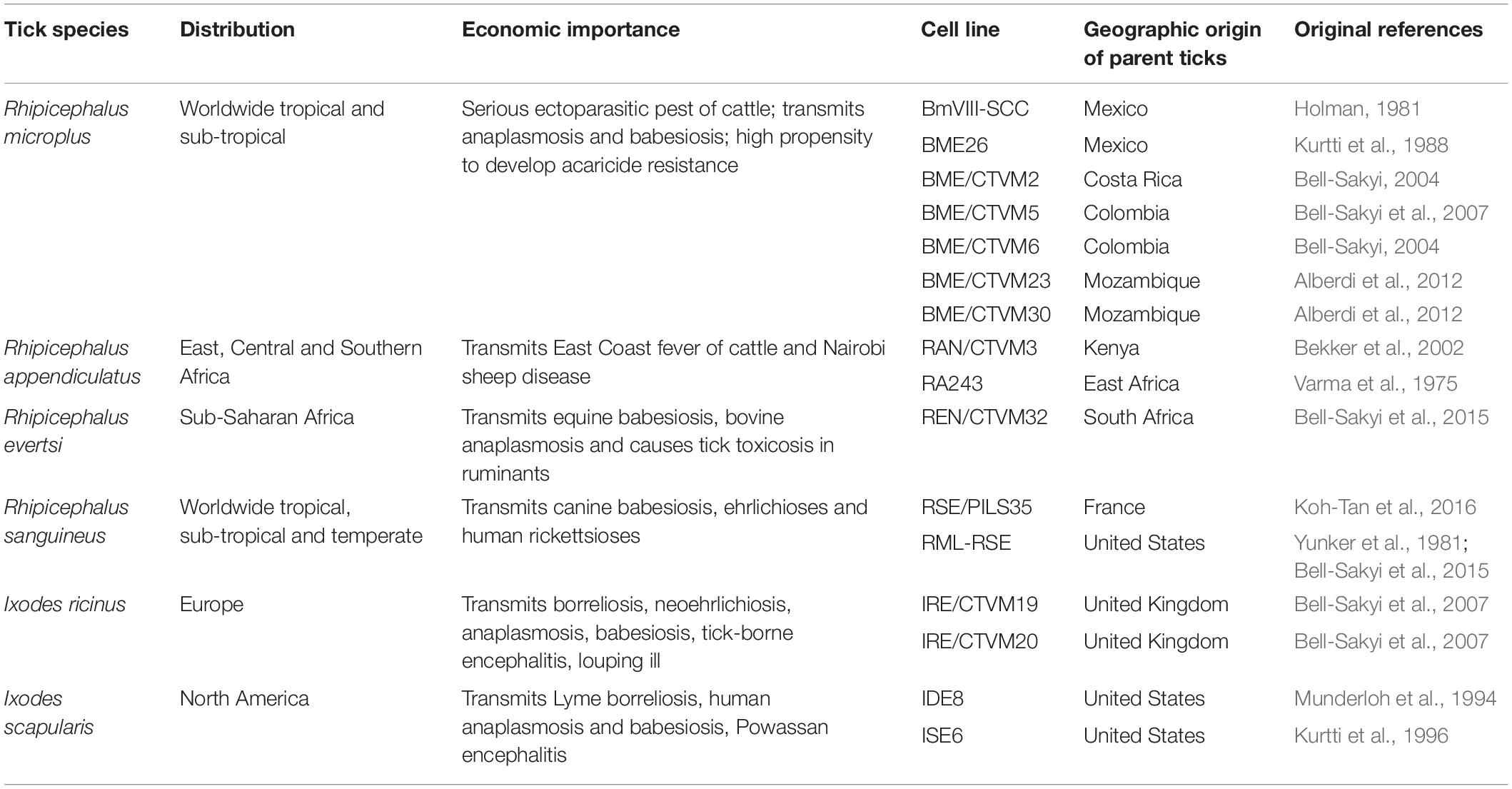

Tick cell lines used in studies on tick control reviewed in this article.
This Mini Review focuses on the role of tick cell lines in studies on control of ticks and the few studies dealing with approaches to combined control of ticks and TBPs. While tick cell lines have been used in many studies contributing to aspects of pathogen control per se, these are beyond the scope of our review. Here we review selected studies to highlight how tick cell lines can contribute to tick control research, bearing in mind that results gained in vitro should be validated in vivo.
Tick Cell Lines in Studies on Acaricide Resistance
Tick cell lines have been investigated for their potential as cheap and ethical tools to study acaricide resistance. Some studies focused on establishing drug-resistant cell lines which provide a useful tool to study and understand the mechanisms of resistance, an important step toward improving detection and prevention of tick resistance against acaricides. Tick cell lines are also a useful resource for identifying genes responsible for acaricide resistance and some published studies have focused on this aspect.
Generation and Application of Acaricide-Resistant Tick Cell Lines
generated three organophosphate-resistant R. microplus cell sub-lines by exposing the R. microplus BmVIII-SCC cell line (), originally derived from embryos of acaricide-susceptible ticks, to gradually increasing concentrations of the organophosphate compound coumaphos (Table 2). They then assessed the levels of esterase, an enzyme that, when present at high levels, is responsible for causing resistance by modifying the organophosphate target site to be less sensitive. After exposure to coumaphos, there were higher levels of esterase in the resistant sub-lines compared to the original susceptible cell line. These findings, which were in line with previous in vivo studies (; ), validated the use of tick cell lines to study development of resistance in ticks, which could thereafter help to determine a suitable approach to formulating acaricides that would be less likely to induce resistance.
TABLE 2
| Name | Chemical class | Route of application to animals | Mode of action |
| Amitraz | Amidines | Spot-on, spraying and dipping | Has an antagonistic effect on octopaminergic G protein-coupled receptors of the nerve cells causing paralysis and hyperexcitation in ticks |
| Coumaphos | Organophosphate compounds | Spraying and dipping | Acts on the nervous system as an inhibitor of transmission of nervous signals causing paralysis in the parasite |
| Fipronil | Phenylpyrazole compounds | Pour-on, spot-on and spraying | Inhibitor of GABA (gamma-aminobutyric acid), a key neurotransmitter in the central nervous system. |
| Ivermectin | Avermectins (macrocyclic lactones) | Pour-on, orally and by injection | Acts as inhibitor of GABA causing neuromuscular blockage, also opens chloride ion channels in membranes of the nervous system and further depresses neuronal function. |
| Paraquat | Dipyridylium (viologen) | Not applied to animals | A highly toxic herbicide known to induce oxidative stress in cells because of its ability to induce generation of superoxide ions |
| Permethrin | Synthetic pyrethroids | Pour-on, spot-on, spraying and dipping | Acts on the membrane of nerve cells blocking the closure of the ion gates of the sodium channel during re-polarization, and thereby disrupts transmission of nervous impulses. |
Acaricides and pesticides used with tick cell lines in studies on tick control reviewed in this article.
This group then used the coumaphos-resistant R. microplus cell sub-lines to evaluate the mechanisms that may contribute to acaricide resistance by further characterizing them compared to susceptible control cells (). In addition to higher esterase levels, they found that the resistant cells exhibited higher levels of intracellular calcium and glutathione, decreased glutathione S-transferase activity, and reduced plasma and mitochondrial membrane potentials. Their results were consistent with the in vivo observations of increased esterase activity in organophosphate-resistant ticks, as well as resistance mechanisms found in other cell systems. One of the coumaphos-resistant R. microplus cell sub-lines played an important role in a further study () that identified amino acid substitutions in the protein encoded by the phospholipid hydroperoxide glutathione peroxidase (PHGPx) gene in susceptible and resistant R. microplus, highlighting the possibility of its relationship with acaricide resistance in these tick populations.
A study conducted by also focused on understanding the mechanisms of acaricide resistance in R. microplus. In this study, the authors established an ivermectin-resistant sub-line (BME26-IVM) of the R. microplus embryo-derived cell line BME26 (; ) by exposing susceptible cells to increasing concentrations of ivermectin (Table 2) over 46 weeks. Using the BME26-IVM sub-line, the contribution of the ATP-binding cassette (ABC) transporter mechanism was investigated by evaluating mRNA expression using quantitative RT-PCR. This study demonstrated increased levels of ABC transporter gene transcripts in the ivermectin-resistant cells compared to the original susceptible BME26 cells.
Effect of Acaricide Treatment of “Susceptible” Tick Cell Lines on Expression of Genes Associated With Resistance
Taking a different approach and using a cell line expected to be susceptible to ivermectin, evaluated the expression of selected members of the ABC transporter subfamily B genes encoding P-glycoproteins (PgPs) in the I. ricinus embryo-derived cell line IRE/CTVM19 following treatment with ivermectin. The authors showed that ABC pump expression was not significantly modulated by ivermectin treatment, and expression of one of the subfamily genes was not detected. Interestingly, this study revealed that the IRE/CTVM19 cell line was able to tolerate a much higher concentration of ivermectin (30 μg/ml) than the R. microplus-derived line BME26 that did not survive after exposure to 12.5 μg/ml ivermectin (). This could have been due to biological differences between the two tick species from which the cell lines were derived, differences in the phenotypic composition of the cell lines and/or in the culture conditions used. This should be considered when conducting such in vitro experiments using tick cell lines.
In a further study, treated IRE/CTVM19 cultures with different concentrations of the acaricides permethrin, amitraz and fipronil (Table 2). They assessed cell viability, morphology, metabolic activity and expression of ABC genes at day 10 post-treatment. In general, the results showed that fipronil had the greatest significant negative effects on cell viability and metabolic activity, followed by permethrin, while amitraz only caused a significant decrease in these parameters at the highest concentration tested. The negative effects of fipronil and permethrin were confirmed by their effects on ABC gene expression with upregulation of ABCB6, ABCB8, and ABCB10, while amitraz had little or no effect on expression of any of the ABC genes tested.
Exploiting Tick Cell Lines Derived From Susceptible and Resistant Ticks to Identify Genes Involved in Acaricide Resistance
For some of the currently available R. microplus cell lines, the acaricide resistance status of the parent ticks from which the cultures were derived is known. As already mentioned, the parent BmVIII-SCC and BME26 cells used by, respectively, and to derive acaricide-resistant sub-lines in vitro were originally susceptible to the compounds used, implying that the parent ticks of both lines, originally from Mexico, were also acaricide-susceptible. Two additional R. microplus cell lines, BME/CTVM2 () and BME/CTVM4 (), were derived from known acaricide-susceptible ticks from Costa Rica, while two other cell lines, BME/CTVM5 () and BME/CTVM6 () were derived from Colombian ticks known to be resistant to organophosphates, organochlorines and amitraz (). While these cells whose natural resistance status derives from their parent ticks offer a potentially very interesting complement to the in vitro-derived resistant R. microplus cell lines of and , to date they have only been exploited in a single study. investigated the expression of the β-adrenergic octopamine receptor (βAOR) gene, associated with amitraz resistance, and the ATP-binding cassette B10 (ABCB10) gene, associated with macrocyclic lactone resistance, in tick cell lines derived from R. microplus, including BmVIII-SCC, BME/CTVM2, BME/CTVM5 and BME/CTVM6, Rhipicephalus appendiculatus, Rhipicephalus sanguineus, and Rhipicephalus evertsi (Table 1). Expression of the βAOR gene was detected in all the Rhipicephalus spp. cell lines, but in BME/CTVM6, derived from amitraz-resistant ticks, a novel larger amplicon was detected. This was found to encode a 12-amino acid insertion identified as a duplication of the immediately upstream sequence; the insertion was also present in genomic DNA from BME/CTVM5 cells, similarly derived from amitraz-resistant ticks, but transcription of the novel amplicon was not detectable. Expression of the ABC10 gene was approximately seven-fold higher in BME/CTVM6 cells compared to all other cell lines examined including BME/CTVM5. These findings suggest that BME/CTVM6 cells in particular could be a useful model system for studying resistance to multiple acaricide groups in R. microplus; further experiments are needed to determine whether additional genes are mutated in this cell line.
Tick Cell Lines Elucidate Novel Aspects of Tick Cell Metabolism to Identify Potential Control Targets
Tick cell lines have also played a valuable role in the study of tick cell metabolism which can help in developing novel control methods. investigated the role of protein kinase B (AKT) and glycogen synthase kinase 3 (GSK3) in glycogen metabolism and cell viability using the R. microplus cell line BME26, and the results revealed an antagonistic role for AKT and GSK3. A reduction in AKT caused a decrease in glycogen content, cell viability and altered cell membrane permeability, whereas the inhibition of GSK3 promoted an increase in glycogen content.
To better understand energy metabolism during embryonic development in ticks, used the BME26 cell line to evaluate several genes involved in gluconeogenesis, glycolysis and glycogen metabolism, the major pathways for carbohydrate catabolism and anabolism. Their results showed that several genes displayed mutual regulation in response to glucose treatment, and the transcription of gluconeogenic genes in tick cells is controlled by GSK3.
The BME26 cell line also played an essential and effective role in the first report on characterization of a cell cycle protein in arachnids, and the reversal of its functions with an inhibitor (). The BME26 cell line was used in an in vitro inhibition assay to determine the inhibitory effects of roscovitine, a purine derivative, on tick cyclin-dependent kinases (CDKs), which are essential for cell cycle progression, and the results suggested that CDKs may present an alternative strategy for designing a novel acaricide that targets both oogenesis and embryogenesis processes.
The I. scapularis embryo-derived tick cell line ISE6 () is the one of the most widely used tick cell lines due to its susceptibility to a wide range of TBPs (). ISE6 cells were used by to study possible control of infection with the obligate intracellular bacterium Anaplasma phagocytophilum, causative agent of disease in humans, ruminants, horses and dogs, by increasing the synthesis of phosphoenolpyruvate from tyrosine. Ferritins (FER) are iron-storage proteins that act to store excess iron available in the cellular iron pool by the binding and oxidation of the ferrous ion (Fe2+) and the formation of ferric ion (Fe3+) in the FER core cavity (). were able to induce intracellular ferritin (FER1) protein expression by exposing ISE6 cells to various concentrations of ferrous sulfate. They showed that silencing of FER1 expression by RNA interference led to a decrease in ISE6 cell proliferation and an increase in mortality, concluding that ISE6 cells could be a good tool to further understanding of the mechanism of FER1 action. Thereafter, characterized the activity of an iron-inducible tick promoter derived from the tick Haemaphysalis longicornis, previously identified by , in ISE6 cells, which could be a valuable tool in the development of a gene-manipulation system to control ticks and TBPs. established methods to visualize H2O2 in ISE6 cells using an intracellular H2O2 probe and observed that paraquat, known to induce oxidative stress in mammalian cells (Table 2), was also effective in this respect in ISE6 tick cells. Iron derived from host blood may react with oxygen in the tick’s body and lead to high levels of H2O2, causing oxidative stress such as DNA strand breaks, lipid peroxidation and degradation of other molecules (; ).
Genetic Manipulation of Tick Cell Lines
The development of new strategies for control of ticks could be greatly enhanced by exploring genetic manipulation of ticks and tick cell lines. Demonstrating proof of concept, first reported stable transfection of the I. scapularis cell line ISE6 with a gene encoding a fluorescent protein using the Sleeping Beauty transposon system. In a different approach, reported retroviral transfection of primary R. microplus cell cultures with green fluorescent protein; fluorescence was detectable for up to 2 weeks following retroviral transfection. Using yet another approach, achieved the expression of transgenes in R. microplus ticks and the cell line BME/CTVM2 using Agrobacterium tumefaciens T-DNA constructs; evidence of transcription and protein synthesis were detectable for 2–3 weeks by fluorescence microscopy, western blot analyses and RT-PCR. These studies demonstrate that genetic manipulation approaches used with other animal cell systems can equally be applied to tick cell lines, and raise the possibility of modifying ticks to render them incapable of developing acaricide resistance.
Tick Cell Lines Contribute to Anti-Tick Vaccine Development
Vaccination with recombinant tick antigens represents a promising tick control strategy. Vaccines containing recombinant tick antigens demonstrated advantages including reduction in acaricide application, cost-effectiveness and reducing the prevalence of tick-borne diseases through reducing exposure of cattle to infected ticks. However, the efficacies of these vaccines vary considerably between tick species and geographic location (). Tick cell lines have played a central role in identifying tick protective antigens to produce a variety of vaccines that contribute to the prevention and control of tick infestations and TBP infections. For example, three embryo-derived tick cell lines, R. microplus BME/CTVM2 and I. scapularis IDE8 () and ISE6, were used in a study conducted by to identify tick proteins involved in tick-pathogen interactions. The aim was to identify candidate protective antigens that could be used as vaccines for the control of cattle infestations with R. microplus ticks and infection with the TBPs Anaplasma marginale and Babesia bigemina transmitted by R. microplus. As an important part of the experiment, antibodies produced against the R. microplus protein subolesin were tested using immunofluorescence and showed positive reactions in the three cell lines, but no effect was observed on pathogen DNA levels. In contrast, using the I. scapularis cell line ISE6 and the I. ricinus cell line IRE/CTVM20 (), determined that two candidate tick-protective antigens – I. scapularis lipocalin (ISCW005600) and lectin pathway inhibitor (AAY66632), and their I. ricinus homologs – constitute candidate protective antigens for the control of tick infestations as well as A. phagocytophilum infection. They showed that anti ISCW005600 and AAY66632 IgG significantly increased the percentage of apoptotic tick cells and decreased pathogen infection, which could help in the development of effective anti-tick and anti-pathogen vaccines.
Conclusion
Ticks and TBPs have huge negative impacts on global livestock and public health and national economies. Scientific research has focused on creating and developing a variety of strategies to prevent and control ticks and TBPs. Tick cell lines represent essential tools in this area of research: in vitro-generated acaricide-resistant cell lines, cell lines derived from acaricide-resistant and susceptible ticks, genetically modified cell lines and cell lines supporting growth of intracellular TBPs all have a role to play. Experimental parameters can be easily controlled, effects at the cellular and molecular level can be determined, and cell lines reduce, while not ultimately replacing, the need for expensive in vivo studies involving maintenance of tick colonies and feeding on laboratory animals. As the numbers of cell lines derived from economically important tick species increase, so do the opportunities for exploiting them in a wide range of studies. For example, the potential for developing high-throughput preliminary screens of novel, potentially acaricidal compounds using cell lines from multiple tick species remains unexplored; such screens could greatly increase the number of active compounds identified for further testing at relatively low cost, and could be applied both to compound libraries held by pharmaceutical companies and to natural plant products. It is anticipated that gene editing of tick cell lines by technologies such as CRISPR will add another facet to the control portfolio. The Tick Cell Biobank (), which houses all the cell lines mentioned in this review as well as cell lines derived from many other species of veterinary and medical concern, will continue to underpin research on tick and TBP control.
Statements
Author contributions
AA-R drafted the manuscript, LB-S edited the draft and both authors produced and agreed the final version.
Funding
AA-R is supported by the Council for At-Risk Academics (CARA) and the University of Liverpool. LB-S is supported by the United Kingdom Biotechnology and Biological Sciences Research Council grant number BB/P024270/1.
Acknowledgments
We would like to thank staff of the Council for At-Risk Academics (CARA) and Dr. Benjamin Makepeace for their instrumental roles in bringing AA-R to the University of Liverpool.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest. The reviewer UM declared a past co-authorship with one of the authors LB-S to the handling Editor.
References
1
AbbasR. Z.ZamanM. A.ColwellD. D.GilleardJ.IqbalZ. (2014). Acaricide resistance in cattle ticks and approaches to its management: the state of play.Vet. Parasitol.2036–20. 10.1016/j.vetpar.2014.03.006
2
AlberdiM. P.DalbyM. J.Rodriguez-AndresJ.FazakerleyJ. K.KohlA.Bell-SakyiL. (2012). Detection and identification of putative bacterial endosymbionts and endogenous viruses in tick cell lines.Ticks Tick Borne Dis.3137–146. 10.1016/j.ttbdis.2012.05.002
3
AntunesS.MerinoO.MosquedaJ.Moreno-CidJ. A.Bell-SakyiL.FragkoudisR.et al (2014). Tick capillary feeding for the study of proteins involved in tick-pathogen interactions as potential antigens for the control of tick infestation and pathogen infection.Parasit. Vectors7:42. 10.1186/1756-3305-7-42
4
BekkerC. P. J.Bell-SakyiL.PaxtonE. A.MartinezD.BensaidA.JongejanF. (2002). Transcriptional analysis of the major antigenic protein 1 multigene family of Cowdria ruminantium.Gene285193–201. 10.1016/s0378-1119(02)00408-0
5
Bell-SakyiL. (2004). Ehrlichia ruminantium grows in cell lines from four ixodid tick genera.J. Comp. Pathol.130285–293. 10.1016/j.jcpa.2003.12.002
6
Bell-SakyiL.DarbyA.BaylisM.MakepeaceB. L. (2018). The tick cell biobank: a global resource for in vitro research on ticks, other arthropods and the pathogens they transmit.Ticks Tick Borne Dis.91364–1371. 10.1016/j.ttbdis.2018.05.015
7
Bell-SakyiL.PalomarA.BradfordE. L.ShkapV. (2015). Propagation of the Israeli vaccine strain of Anaplasma centrale in tick cell lines.Vet. Microbiol.179270–276. 10.1016/j.vetmic.2015.07.008
8
Bell-SakyiL.ZweygarthE.BlouinE. F.GouldE. A.JongejanF. (2007). Tick cell lines: tools for tick and tick-borne disease research.Trends Parasitol.23450–457. 10.1016/j.pt.2007.07.009
9
Cabezas-CruzA.EspinosaP. J.ObregonD. A.AlberdiP.de la FuenteJ. (2017). Ixodes scapularis tick cells control Anaplasma phagocytophilum infection by increasing the synthesis of phosphoenolpyruvate from tyrosine.Front. Cell. Infect. Microbiol.7:375. 10.3389/fcimb.2017.00375
10
ContrerasM.AlberdiP.Fernandez de MeraI. G.KrullC.NijhofA.VillarM.et al (2017). Vaccinomics approach to the identification of candidate protective antigens for the control of tick vector infestations and Anaplasma phagocytophilum infection.Front. Cell. Infect. Microbiol.7:360. 10.3389/fcimb.2017.00360
11
Cossio-BayugarR.BarhoumiR.BurghardtR. C.WagnerG. G.HolmanP. J. (2002a). Basal cellular alterations of esterase, glutathione, glutathione S-transferase, intracellular calcium, and membrane potentials in coumaphos-resistant Boophilus microplus (Acari: Ixodidae) cell lines.Pesticide Biochem. Physiol.721–9. 10.1006/pest.2001.2578
12
Cossio-BayugarR.MirandaE.HolmanP. J. (2005). Molecular cloning of a phospholipid-hydroperoxide glutathione peroxidase gene from the tick Boophilus microplus (Acari: Ixodidae).Insect Biochem. Molec. Biol.351378–1387. 10.1016/j.ibmb.2005.08.008
13
Cossio-BayugarR.Miranda-MirandaE. (2007). Heterologus gene expression in a cattle tick Rhipicephalus microplus embryonic cell culture.J. Anim. Vet. Adv.61214–1218.
14
Cossio-BayugarR.WagnerG. G.HolmanP. J. (2002b). In vitro generation of organophosphate resistant Boophilus microplus (Acari: Ixodidae) cell lines.J. Med. Entomol.39278–284. 10.1603/0022-2585-39.2.278
15
Da SilvaR. M.NoceB. D.WalteroC. F.CostaE. P.de AbreuL. A.GithakaN. W.et al (2015). Non-classical gluconeogenesis-dependent glucose metabolism in Rhipicephalus microplus embryonic cell line BME26.Int. J. Mol. Sci.161821–1839. 10.3390/ijms16011821
16
De AbreuL. A.CalixtoC.WalteroC. F.Della NoceB. P.GithakaN. W.SeixasA.et al (2013). The conserved role of the AKT/GSK3 axis in cell survival and glycogen metabolism in Rhipicephalus Boophilus microplus embryo tick cell line BME26.Biochim. Biophys. Acta18302574–2582. 10.1016/j.bbagen.2012.12.016
17
de la FuenteJ.AlmazánC.CanalesM.Pérez de la LastraJ. M.KocanK. M.WilladsenP. (2007). A ten-year review of commercial vaccine performance for control of tick infestations on cattle.Anim. Health Res. Rev.823–28. 10.1017/s1466252307001193
18
de la FuenteJ.Estrada-PenaA.VenzalJ. M.KocanK. M.SonenshineD. E. (2008). Overview: ticks as vectors of pathogens that cause disease in humans and animals.Front. Biosci.13:6938–6946. 10.2741/3200
19
EstevesE.LaraF. A.LorenziniD. M.CostaG. H. N.FukuzawaA. H.PressinottiL. N.et al (2008). Cellular and molecular characterization of an embryonic cell line (BME26) from the tick Rhipicephalus (Boophilus) microplus.Insect Biochem. Mol. Biol.38568–580. 10.1016/j.ibmb.2008.01.006
20
GalayR. L.Umemiya-ShirafujiR.MochizukiM.FujisakiK.TanakaT. (2015). Iron metabolism in hard ticks (Acari: Ixodidae): the antidote to their toxic diet.Parasitol. Int.64182–189. 10.1016/j.parint.2014.12.005
21
GomesH.RomeiroN. C.BrazG. R. C.de OliveiraE. A. G.RodriguesC.da FonsecaR. N.et al (2013). Identification and structural-functional analysis of cyclin-dependent kinases of the cattle tick Rhipicephalus (Boophilus) microplus.PLoS One8:e76128. 10.1371/journal.pone.0076128
22
HernandezE. P.KusakisakoK.HattaT.TanakaT. (2019). Characterization of an iron-inducible Haemaphysalis longicornis tick-derived promoter in an Ixodes scapularis-derived tick cell line (ISE6).Parasit. Vectors12:321. 10.1186/s13071-019-3574-9
23
HernandezE. P.KusakisakoK.TalactacM. R.GalayR. L.YoshiiK.TanakaT. (2018). Induction of intracellular ferritin expression in embryo-derived Ixodes scapularis cell line (ISE6).Sci. Rep.8:16566. 10.1038/s41598-018-34860-3
24
HolmanP. J. (1981). Partial characterization of a unique female diploid cell strain from the tick Boophilus microplus (Acari: Ixodidae).J. Med. Entomol.1884–88. 10.1093/jmedent/18.1.84
25
JonssonN. N.HopeM. (2007). Progress in the epidemiology and diagnosis of amitraz resistance in the cattle tick Boophilus microplus.Vet. Parasitol.146193–198. 10.1016/j.vetpar.2007.03.006
26
Koh-TanH. H. C.StrachanE.CooperK.Bell-SakyiL.JonssonN. N. (2016). Identification of a novel β-adrenergic octopamine receptor-like gene (βAOR-like) and increased ATP-binding cassette B10 (ABCB10) expression in a Rhipicephalus microplus cell line derived from acaricide-resistant ticks.Parasit. Vectors9:425.
27
KurttiT. J.FelsheimR. F.MattilaJ. T.BaldridgeG. D.BurkhardtN. Y.MunderlohU. G. (2006). Stable transformation of a tick (Ixodes scapularis) cell line with the Sleeping Beauty transposon system.Soc. Vitro Biol. J.42:32.
28
KurttiT. J.MunderlohU. G.AhlstrandG. G. (1988). Tick tissue and cell culture in vector research.Adv. Dis. Vector Res.587–109.
29
KurttiT. J.MunderlohU. G.AndreadisT. G.MagnarelliL. A.MatherT. N. (1996). Tick cell culture isolation of an intracellular prokaryote from the tick Ixodes scapularis.J. Invert. Pathol.67318–321. 10.1006/jipa.1996.0050
30
KusakisakoK.HernandezE. P.TalactacM. R.YoshiiK.Umemiya-ShirafujiR.FujisakiK.et al (2018a). Peroxiredoxins are important for the regulation of hydrogen peroxide concentrations in ticks and tick cell line.Ticks Tick Borne Dis.9872–881. 10.1016/j.ttbdis.2018.03.016
31
KusakisakoK.IdoA.MasatanT.MorokumaH.HernandezE. P.TalactacM. R.et al (2018b). Transcriptional activities of two newly identified Haemaphysalis longicornis tick-derived promoter regions in the Ixodes scapularis tick cell line (ISE6).Insect Mol. Biol.27590–602. 10.1111/imb.12497
32
Machado-FerreiraE.Balsemão-PiresE.DietrichG.HojgaardA.VizzoniV. F.ScolesG.et al (2015). Transgene expression in tick cells using Agrobacterium tumefaciens.Exp. Appl. Acarol.67269–287. 10.1007/s10493-015-9949-5
33
MangiaC.VismarraA.GenchiM.EpisS.BandiC.GrandiG.et al (2018). Exposure to amitraz, fipronil and permethrin affects cell viability and ABC transporter gene expression in an Ixodes ricinus cell line.Parasit. Vectors11:437. 10.1186/s13071-018-3020-4
34
MangiaC.VismarraA.KramerL.Bell-SakyiL.PorrettaD.OtrantoM.et al (2016). Evaluation of the in vitro expression of ATP binding-cassette (ABC) proteins in an Ixodes ricinus cell line exposed to ivermectin.Parasit. Vectors9:215. 10.1186/s13071-016-1497-2
35
MirandaE.Cossio-BayugarR.Tellez-AlanisM. R.Garcia-VazquezZ.Rosario-CruzR.Ortiz-EstradaM. (1995). An enzymatic marker for ixodicide resistance detection in the cattle tick Boophilus microplus.Adv. Agric. Res.41–8.
36
MunderlohU. G.LiuY.WangM.ChenC.KurttiT. J. (1994). Establishment, maintenance and description of cell lines from the tick Ixodes scapularis.J. Parasitol.80533–543.
37
NyangiweN.YawaM.MuchenjeV. (2018). Driving forces for changes in geographic range of cattle ticks (Acari: Ixodidae) in Africa: a review.South Afr. J. Anim. Sci.48829–841.
38
OliverJ. D.ChavezA. S.FelsheimR. F.KurttiT. J.MunderlohU. G. (2015). An Ixodes scapularis cell line with a predominantly neuron-like phenotype.Exp. Appl. Acarol.66427–442. 10.1007/s10493-015-9908-1
39
PohlP. C.CarvalhoD. D.DaffreS.da Silva VazI.MasudaA. (2014). In vitro establishment of ivermectin-resistant Rhipicephalus microplus cell line and the contribution of ABC transporters on the resistance mechanism.Vet. Parasitol.204316–322. 10.1016/j.vetpar.2014.05.042
40
Rodriguez-VivasR. I.JonssonN. N.BhushanC. (2018). Strategies for the control of Rhipicephalus microplus ticks in a world of conventional acaricide and macrocyclic lactone resistance.Parasitol. Res.1173–29. 10.1007/s00436-017-5677-5676
41
Rosario-CruzR.Miranda-MirandaE.Garcia-VazquezZ.Ortiz-EstradaM. (1997). Detection of esterase activity in susceptible and organophosphate resistant strains of the cattle tick Boophilus microplus.Bull. Entomol. Res.87197–202. 10.1017/s0007485300027358
42
SilatsaB. A.SimoG.GithakaN.MwauraS.KamgaR. M.OumarouF.et al (2019). A comprehensive survey of the prevalence and spatial distribution of ticks infesting cattle in different agro-ecological zones of Cameroon.Parasit. Vectors12:489. 10.1186/s13071-019-3738-7
43
StaffordK. C.WilliamsS. C.MolaeiG. (2017). Integrated pest management in controlling ticks and tick-associated diseases.J. Integr. Pest Manag.8:28. 10.1093/jipm/pmx018
44
VarmaM. G. R.PudneyM.LeakeC. J. (1975). The establishment of three cell lines from the tick Rhipicephalus appendiculatus (Acari: Ixodidae) and their infection with some arboviruses.J. Med. Entomol.11698–706. 10.1093/jmedent/11.6.698
45
YunkerC. E.CoryJ.MeibosH. (1981). Continuous cell lines from embryonic tissues of ticks (Acari: Ixodidae).In Vitro17139–142. 10.1007/bf02618071
Summary
Keywords
Rhipicephalus microplus, Ixodes spp., control, tick cell line, acaricide, resistance, metabolism, anti-tick vaccine
Citation
Al-Rofaai A and Bell-Sakyi L (2020) Tick Cell Lines in Research on Tick Control. Front. Physiol. 11:152. doi: 10.3389/fphys.2020.00152
Received
16 December 2019
Accepted
12 February 2020
Published
25 February 2020
Volume
11 - 2020
Edited by
Itabajara Silva Vaz Jr., Federal University of Rio Grande do Sul, Brazil
Reviewed by
Eliane Esteves, University of São Paulo, Brazil; Ulrike G. Munderloh, University of Minnesota Twin Cities, United States
Updates
Copyright
© 2020 Al-Rofaai and Bell-Sakyi.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Lesley Bell-Sakyi, L.Bell-Sakyi@liverpool.ac.uk
This article was submitted to Invertebrate Physiology, a section of the journal Frontiers in Physiology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
