Sebastián Espinel-Ríos- Department of Chemical and Biological Engineering, Princeton University, Princeton, NJ, United States
1 Introduction
Biotechnology is a key enabler of a future bio-based and circular economy, supporting the sustainable production of chemicals, materials, fuels, and energy, while also enhancing human health through the production of pharmaceuticals and food ingredients (Yang et al., 2017; Lokko et al., 2018; Kim et al., 2023). Compared to petrochemical or thermochemical processes, bioproduction systems are generally more environmentally friendly, as they operate under milder conditions, generate less waste, and often use renewable or waste-derived feedstocks. Beyond Earth, biotechnology is also crucial for future space biomanufacturing (Berliner et al., 2022; Vengerova et al., 2024), providing essential goods and services for human space exploration while minimizing resource transportation from Earth.
Nevertheless, optimizing and controlling bioprocesses remain challenging due to the inherent complexity of cells, the catalysts in cell-based biomanufacturing. Cells exhibit multiscale, multirate, nonlinear, and uncertain dynamics (Ullah and Wolkenhauer, 2011; Glass et al., 2021; Luo et al., 2021; Hartmann et al., 2022), which are nontrivial to capture in mathematical models. Uncertainties arise from factors such as stochasticity in gene expression and reaction networks, as well as environmental disturbances, all of which can lead to suboptimal and inconsistent bioprocess performance if not effectively addressed. These complexities and uncertainties ultimately limit the competitiveness of biotechnologies and hinder their broader commercial and industrial adoption.
Two major systems disciplines support biotechnology. On one hand, Systems Biology (SB) provides mathematical and computational methods to understand biological phenomena across different omics levels and scales (e.g., genomics, transcriptomics, proteomics, fluxomics, and metabolomics) (Noble, 2010; Otero and Nielsen, 2010; Kildegaard et al., 2013; Bellomo et al., 2015; Tavassoly et al., 2018). This field is supported by scientists with backgrounds in different areas, including biology, bioinformatics, mathematics, and physics. On the other hand, Process Systems Engineering (PSE) focuses on mathematical modeling and computer-aided methods for the design, optimization, and control of production processes, typically at a macroscopic scale, considering process-level material and energy balances (Pistikopoulos et al., 2021; Vassiliadis et al., 2024; Daoutidis et al., 2024). PSE finds its roots mainly in the chemical and process engineering communities.
Although PSE provides powerful methods for modeling, optimization, and control of complex dynamic systems, its application to biotechnology is often restricted to the macroscopic bioreactor level. For instance, mathematical models frequently oversimplify metabolic pathways by lumping them into macroscopic and phenomenological structures (Muloiwa et al., 2020; Straathof, 2023). As such, this neglects the intracellular domain and its potential degrees of freedom for advanced applications, such as the dynamic fine-tuning of metabolic fluxes to manage intrinsic metabolic trade-offs (e.g., growth vs production modes). Conversely, while SB enhances our understanding of cellular processes and enables rational genetic and metabolic engineering interventions for designing cell factories (Von Kamp et al., 2017; Schneider et al., 2020; Foster et al., 2021; Bekiaris and Klamt, 2021), a critical gap remains between cell factory design and process-level and plant-wide optimization and control.
In addition, we are currently in the era of the Fourth Industrial Revolution (Industry 4.0), where the goal is to fully digitalize and automate industrial processes by leveraging advanced modeling, real-time learning, and adaptive model-based optimization and control (Pandey et al., 2024; Isoko et al., 2024). In this context, this opinion paper highlights the need for the next generation of bioengineers to adopt a systems-of-systems perspective to bridge existing gaps between SB and PSE, enabling biotechnology to align with Industry 4.0 and fully realize its potential. Achieving this requires integrating SB and PSE into a unified framework, potentially leading to the formalization of a new discipline and scientific community: Biotechnology Systems Engineering (BSE). This paradigm shift entails fostering interdisciplinary education, curriculum development, and dedicated publication and conference platforms to support its growth and consolidation. However, formalizing such a holistic framework presents challenges, including differences in scope and research cultures, ranging from an explanatory-driven and mechanistic-oriented focus of SB to an application-driven and performance-oriented focus of PSE.
2 Discussion
This section first outlines the core capabilities of SB and PSE for biotechnological production. Then, an overview of the BSE framework is presented (cf. Figure 1), along with key potential actions to formalize it as a new discipline and community.

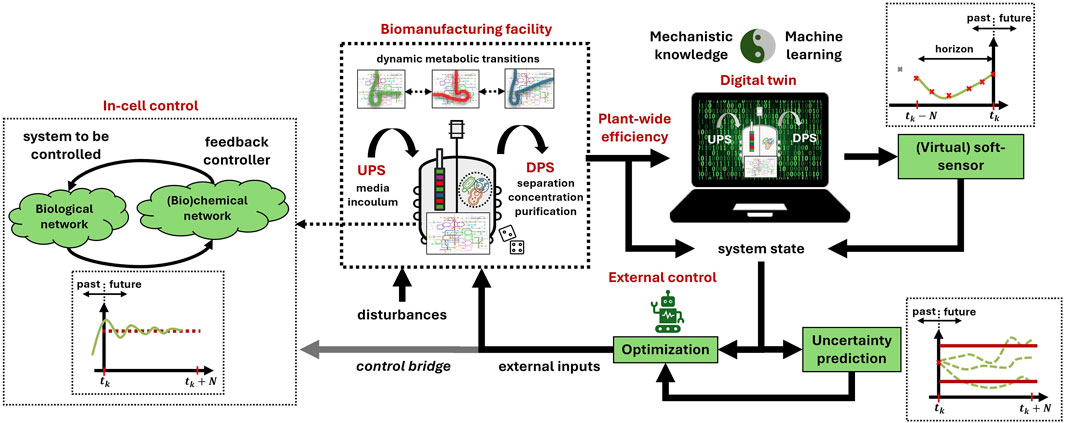

Figure 1. Overview of Biotechnology Systems Engineering (BSE) as a unifying framework integrating Systems Biology (SB) and Process Systems Engineering (PSE). The scheme focuses on multi-scale modeling and multi-level control in bioprocesses with plant-wide awareness and under uncertainty. The ultimate goal of BSE is to optimize plant-wide efficiency through adaptive learning, continuous model updating, and self-adaptive optimization and control. Digital twins, supported by mathematical modeling, integrate mechanistic approaches with machine learning to enhance model generalization and predictive capabilities. BSE models link bioreactor dynamics to the overall economic and sustainability aspects of the biomanufacturing facility. Multi-scale control synergistically integrates external controllers with in-cell controllers encoded by biochemical networks, aiming to maximize the efficiency of metabolism in the context of the plant-wide performance. Soft sensors and biosensors further support state estimation when only partial measurements are available. UPS: upstream processing, DPS: downstream processing.
2.1 Systems Biology
The rise of high-throughput experimental platforms has moved biotechnology into the domain of big data (Shukla et al., 2022). Multi-omics data plays a crucial role in constructing and validating mathematical models in SB (Cotten and Reed, 2013; Kim et al., 2016; Kong et al., 2024). Genomics defines the cell’s metabolic potential, determining which enzymes can, in principle, be synthesized. Transcriptomics provides insights into regulatory mechanisms that influence enzyme expression. Proteomics quantifies enzyme abundance, directly linking metabolic fluxes to catalytic capacity. Fluxomics quantifies metabolic fluxes across metabolic pathways, giving information on the cell’s metabolic flux distribution. Finally, metabolomics determines intracellular metabolite concentrations, offering insight into the dynamics of metabolic intermediates.
Mathematical models of metabolism in SB often begin with genome-scale or reduced stoichiometric networks that link genes, proteins, and reactions (Cotten and Reed, 2013; Erdrich et al., 2015; Kim et al., 2016; Kong et al., 2024). The stoichiometric network serves as a foundation for building mass balances of metabolites, where metabolic fluxes function as reaction rates. A fundamental challenge is the parameterization of these metabolic fluxes, leading to two distinct modeling approaches: 1) constraint-based modeling and 2) kinetic modeling.
Constraint-based modeling treats metabolic fluxes as decision variables in a biologically inspired optimization problem, addressing system underdetermination (i.e., more unknowns fluxes than mass-balance equations) (Mahadevan et al., 2002; Gottstein et al., 2016; Volkova et al., 2020; Moulin et al., 2021). This optimization considers a biologically relevant objective function, such as maximizing growth, and is subject to biological and physiological constraints, with mass-balance constraints at its core. Often solved under pseudo-steady-state assumption of intracellular metabolism, constraint-based modeling provides a snapshot of the metabolic flux distribution for a given temporal metabolic state. This approach can be adapted to capture dynamic cellular behavior, e.g., of biomass and extracellular species, by discretizing a dynamic optimization problem over time or approximating local fluxes at discrete time points.
In contrast to constraint-based approaches, kinetic modeling explicitly describes fluxes as time-dependent functions governed by enzyme kinetics and metabolite concentrations (Van Rosmalen et al., 2021; Lu et al., 2021; Saa and Nielsen, 2017). This offers in principle more insight into the cell, capturing accumulation of both metabolic intermediates and extracellular species. However, such models are often highly nonlinear, which can be numerically difficult to handle (e.g., in model-based optimization and control tasks), and can make measuring states, as well as model parametrization, more challenging.
Computational methods based on constraint-based and kinetic modeling have enabled the identification of promising metabolic engineering interventions, such as gene deletions to enhance production pathway efficiency, addressing growth-production trade-offs, and designing stable microbial consortia (Von Kamp et al., 2017; Schneider et al., 2020; Foster et al., 2021; Bekiaris and Klamt, 2021). Additionally, mechanistic models in SB provide valuable insights into metabolic pathway utilization. For instance, they can predict metabolic flux distributions under specific conditions (Gerken-Starepravo et al., 2022; Pennington et al., 2024; Boecker et al., 2021; Boecker et al., 2022) and aid in identifying potential dynamic metabolic control strategies, where key fluxes are subjected to modulation (Jabarivelisdeh and Waldherr, 2018; Boecker et al., 2021; Espinel-Ríos et al., 2022a; Espinel-Ríos and Avalos, 2024b). Machine learning can be incorporated or assist in both constraint-based and kinetic modeling for more efficient model parameterization and enhanced predictability, as well as to facilitate and guide strain design (Li et al., 2022; Kundu et al., 2024; Choudhury et al., 2024).
2.2 Process Systems Engineering
PSE in biotechnology generally emphasizes macroscopic and environmental variables such as feed rates, oxygen availability, light, temperature, and pH, which can serve as degrees of freedom or targets in process optimization and control (Mears et al., 2017; Petsagkourakis et al., 2020; Treloar et al., 2020; Harcum et al., 2022; Chai et al., 2022; Espinel-Ríos et al., 2023a; Espinel-Ríos et al., 2024a; Espinel-Ríos et al., 2024b; Hoffman et al., 2025; Lee et al., 2025). These manipulatable variables often aim to maintain favorable growth and production conditions, or induce specific metabolic states. Various control strategies, including proportional-integral-derivative (PID) control, model predictive control (MPC), and reinforcement learning (RL), have been employed in those contexts.
In brief, PID control adjusts system inputs using proportional, integral, and derivative gains based on the tracking error (Åström and Murray, 2021). MPC, in contrast, employs a dynamic model of the system to solve a sequence of constrained open-loop optimizations based on the current system state (Rawlings et al., 2020). RL, a machine-learning-based control approach, enables an agent to iteratively learn an optimal control policy by interacting with the process and maximizing performance through reward-based feedback (Sutton and Barto, 2018).
It is worth mentioning that PSE increasingly incorporates uncertainty-aware and adaptive modeling, optimization, and control strategies toward enhancing robustness (Petsagkourakis et al., 2020; Morabito et al., 2021; Morabito et al., 2022; Espinel-Ríos et al., 2023b; Pennington et al., 2024; Espinel-Ríos et al., 2025). Additionally, soft or virtual sensors play a crucial role in PSE by enabling real-time state estimation using only a subset of available measurements (Randek and Mandenius, 2018; Elsheikh et al., 2021; Espinel-Ríos et al., 2022b; Espinel-Ríos et al., 2023c; Espinel-Ríos et al., 2024; Espinel-Ríos and Avalos, 2024a). More recently, machine-learning approaches have been incorporated into macroscopic and phenomenological models, as typically used in PSE, to create hybrid models (Tsopanoglou and Jiménez Del Val, 2021; Agharafeie et al., 2023; Mahanty, 2023). These gray-box models help to alleviate the negative effects of possible model oversimplifications, wrong model assumptions, and in general the lack of insight into intracellular mechanisms.
PSE also addresses the techno-economic feasibility and life-cycle assessment of biomanufacturing facilities, typically based on macroscopic mass and energy balances across unit operations (Fu et al., 2023; Wowra et al., 2023; Malinov et al., 2024). This broader perspective acknowledges that a bioprocess factory extends beyond the bioreactor and requires the integration of upstream and downstream processes, which ultimately determine its viability and sustainability. Upstream operations include media preparation and inoculum development, while downstream processes involve product separation, concentration, and purification.
2.3 Enter Biotechnology Systems Engineering
To recapitulate, PSE and SB have traditionally operated as separate paradigms in biotechnology, largely due to their origins in distinct scientific communities. PSE prioritizes the optimal operation of the production facility, with the bioreactor at the core, and extends to plant-wide techno-economic feasibility and life-cycle assessment. In contrast, SB typically focuses on local cellular objectives, such as maximizing the flux through the product-of-interest pathway facilitated by metabolic network engineering.
BSE aims to establish an integrated framework that merges SB and PSE to fully exploit biotechnology’s potential. This shift requires moving beyond purely intracellular, process-level, or plant-wide models toward multi-scale modeling schemes that effectively integrate these domains. To this end, BSE should drive the development of mathematical models incorporating, e.g., gene expression, resource allocation, regulatory mechanisms, and metabolic reactions while linking cellular behavior and phenotypes to varying external control inputs, process operating conditions, bioreactor designs, initial conditions, process disturbances, and system uncertainties. This holistic integration is essential for developing predictive and generalizable bioprocess digital twins, unlocking new degrees of freedom across scales for advanced bioprocess design, optimization, and control. In this regard, model reduction techniques (Ali Eshtewy and Scholz, 2020; Van Rosmalen et al., 2021) can assist in the development of digital twins, rendering smaller models while preserving the information and knowledge from the larger-order system.
Leveraging multi-scale modeling and digital twins, BSE should also drive the development of multi-level control strategies, integrating external process control (e.g., MPC or RL) with in-cell control mechanisms. Unlike traditional external control approaches in PSE, in-cell control relies on intracellular regulatory systems, such as (bio)chemical reaction networks, to encode control-like behavior (e.g., PID-like control) without user intervention after deployment. These controllers operate with instantaneous feedback and response, leveraging the intrinsic speed of chemical reactions, and have been shown to be robust against noisy biological networks (Chevalier et al., 2019; Filo et al., 2023; Alexis et al., 2024).
In this multi-level control framework, external control serves a supervisory role, dynamically adjusting setpoints for in-cell controllers or correcting deviations in their performance. This is particularly relevant when real-time monitoring and targeted actuation within intracellular networks may not be feasible. Therefore, such tasks can be delegated to in-cell controllers. Genetically encoded biosensors (e.g., fluorescence-based) can facilitate the implementation of such multi-level control strategies by providing real-time monitoring of cellular wellbeing, pathway utilization, or protein expression (Polizzi and Kontoravdi, 2015; Thorn, 2017; Zhang et al., 2022).
Since metabolic rates determine the catalytic efficiency of bioprocesses, real-time modulation of the metabolic flux distribution, within the context of plant-wide efficiency, should be a key focus for multi-level controllers. For example, external controllers can dynamically adjust the setpoints of in-cell controllers that are designed to achieve robust gene expression of target metabolic enzyme levels over desired periods. This approach would synergistically integrate control frameworks such as metabolic cybergenetics (Carrasco-López et al., 2020; Espinel-Ríos et al., 2024; Espinel-Ríos and Avalos, 2024a) with in-cell controllers.
To fully realize the potential of multi-level controllers in BSE, experimental validation is essential. Thus, the ease of implementation should be assessed throughout the research and development process, and these controllers must be tested for robustness against system uncertainties and disturbances. However, this should not discourage research into novel, more theoretically driven control methodologies, even if their experimental implementation is nontrivial. In such cases, identifying and understanding the gaps to experimental implementation can increase the likelihood of future realization. I believe the stage for experimental realization of multi-level controllers in BSE is favorable given the previous success in the areas of synthetic biology and cybergenetics. For instance, following separate strategies in control design, the experimental implementation of in-cell controllers has demonstrated their feasibility in modulating gene expression (Aoki et al., 2019; Frei et al., 2022), while external controllers have also been validated in both open-loop (Espinel-Ríos et al., 2024a) and closed-loop systems (Milias-Argeitis et al., 2016; Gutiérrez Mena et al., 2022) for similar purposes.
In the spirit of democratizing access to knowledge, BSE should prioritize open-source computational tools and bioreactor systems. This would empower institutions worldwide, particularly in developing regions, to advance research and innovation in BSE. These efforts promise to accelerate the development of bio-based technological platforms, fostering the widespread adoption of biotechnologies and ultimately contributing to global economic growth and sustainability. There are ongoing initiatives that embrace ideas related to knowledge democratization and modeling standardization in SB, from which BSE could benefit and build upon. For example, the Systems Biology Markup Language (SBML) is a standard format for exchanging biological models (Keating et al., 2020). Similarly, the CURE principles (Credibility, Understandability, Reproducibility, and Extensibility) advocate for better practices in biological modeling (Sauro et al., 2025).
To establish BSE as a field, undergraduate and graduate curricula should explicitly and purposely integrate SB and PSE in a holistic manner. Open-source computational tools should play a central role in education, enabling students to design, implement, and test a wide range of modeling, optimization, and control strategies in a cost-effective and safe environment. These tools would provide an affordable alternative to traditional wet-lab experimentation, which can be impractical or prohibitively expensive in some contexts. Yet, hands-on experimental work remains invaluable for bridging the gap between theory and practice. For example, open-source and accessible bioreactor systems, such as Chi.Bio platforms (Steel et al., 2020), could offer a powerful learning environment by allowing direct integration with user-coded software. Furthermore, BSE could benefit from existing open-source process simulators and techno-economic analysis software, such as BioSTEAM (Cortes-Peña et al., 2020), to facilitate innovation in sustainable process design when dealing with biotechnological production systems.
In addition, the educational approach in BSE should foster a generalist mindset. As an engineering discipline, BSE’s main driver should be the pursuit of technological innovation and problem-solving. Thus, a key focus should be on developing integrated frameworks that maximize the efficiency and productivity of bioproduction systems. While specialists are crucial for advancing their respective fields, BSE should aim to bridge disciplines by identifying gaps and integrating methodologies in ways that specialists may not immediately consider. In this context, I envision BSE playing a pivotal role in generating future leaders who will drive biotechnology to the next level of competitiveness, business innovation, and technological readiness.
BSE would benefit from specialized publication avenues and dedicated conferences, providing forums for collaboration and knowledge exchange. Additionally, BSE-focused student competitions, mirroring synthetic-biology-driven initiatives like iGEM (International Genetically Engineered Machine) (Zhan et al., 2023), could boost innovation and out-of-the-box thinking in bioproduction, while proactively incorporating BSE principles. These competitions could follow a two-stage structure, beginning with simulation-based approaches and progressing to hardware-based implementations, supported by accessible open-source bioreactors and funding for selected teams. Universities and the private sector could further support these initiatives by offering infrastructure, mentorship, and technical resources. Such competitions should have differentiated tracks, e.g., a scientific track focused on advancing methods and working frameworks, and an entrepreneurial track aimed at business development and fostering startup creation. This structure would provide an inclusive environment for people with different interests.
Finally, to some extent, other researchers and academics have also proposed systems-of-systems frameworks with motivations aligned to BSE (cf. e.g., (Koutinas et al., 2012; Kiss et al., 2015; Ko et al., 2020; Carrasco-López et al., 2020; Ohkubo et al., 2024)), indicating that this paradigm shift is already underway. Developing BSE methodologies is a key focus of my ongoing research. I strongly believe that equipping the next generation of bioengineers with a systems-of-systems framework as in BSE has the potential to revolutionize biotechnology.
Author contributions
SE-R: Conceptualization, Writing – original draft, Writing – review and editing.
Funding
The author(s) declare that no financial support was received for the research and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Agharafeie, R., Ramos, J. R. C., Mendes, J. M., and Oliveira, R. (2023). From shallow to deep bioprocess hybrid modeling: advances and future perspectives. Fermentation 9, 922. doi:10.3390/fermentation9100922
Alexis, E., Espinel-Ríos, S., Kevrekidis, I. G., and Avalos, J. L. (2024). Biochemical implementation of acceleration sensing and PIDA control. bioRxiv. doi:10.1101/2024.07.02.601775
Ali Eshtewy, N., and Scholz, L. (2020). Model reduction for kinetic models of biological systems. Symmetry 12, 863. doi:10.3390/sym12050863
Aoki, S. K., Lillacci, G., Gupta, A., Baumschlager, A., Schweingruber, D., and Khammash, M. (2019). A universal biomolecular integral feedback controller for robust perfect adaptation. Nature 570, 533–537. doi:10.1038/s41586-019-1321-1
Åström, K. J., and Murray, R. M. (2021). Feedback systems: an introduction for scientists and engineers (Princeton: Princeton University Press), 2 edn.
Bekiaris, P. S., and Klamt, S. (2021). Designing microbial communities to maximize the thermodynamic driving force for the production of chemicals. PLOS Comput. Biol. 17, e1009093. doi:10.1371/journal.pcbi.1009093
Bellomo, N., Elaiw, A., Althiabi, A. M., and Alghamdi, M. A. (2015). On the interplay between mathematics and biology: hallmarks toward a new systems biology. Phys. Life Rev. 12, 44–64. doi:10.1016/j.plrev.2014.12.002
Berliner, A. J., Lipsky, I., Ho, D., Hilzinger, J. M., Vengerova, G., Makrygiorgos, G., et al. (2022). Space bioprocess engineering on the horizon. Commun. Eng. 1, 13. doi:10.1038/s44172-022-00012-9
Boecker, S., Espinel-Ríos, S., Bettenbrock, K., and Klamt, S. (2022). Enabling anaerobic growth of Escherichia coli on glycerol in defined minimal medium using acetate as redox sink. Metab. Eng. 73, 50–57. doi:10.1016/j.ymben.2022.05.006
Boecker, S., Slaviero, G., Schramm, T., Szymanski, W., Steuer, R., Link, H., et al. (2021). Deciphering the physiological response of Escherichia coli under high ATP demand. Mol. Syst. Biol. 17, e10504. doi:10.15252/msb.202110504
Carrasco-López, C., García-Echauri, S. A., Kichuk, T., and Avalos, J. L. (2020). Optogenetics and biosensors set the stage for metabolic cybergenetics. Curr. Opin. Biotechnol. 65, 296–309. doi:10.1016/j.copbio.2020.07.012
Chai, W. Y., Teo, K. T. K., Tan, M. K., and Tham, H. J. (2022). Fermentation process control and optimization. Chem. Eng. and Technol. 45, 1731–1747. doi:10.1002/ceat.202200029
Chevalier, M., Gómez-Schiavon, M., Ng, A. H., and El-Samad, H. (2019). Design and analysis of a proportional-integral-derivative controller with biological molecules. Cell. Syst. 9, 338–353.e10. doi:10.1016/j.cels.2019.08.010
Choudhury, S., Narayanan, B., Moret, M., Hatzimanikatis, V., and Miskovic, L. (2024). Generative machine learning produces kinetic models that accurately characterize intracellular metabolic states. Nat. Catal. 7, 1086–1098. doi:10.1038/s41929-024-01220-6
Cortes-Peña, Y., Kumar, D., Singh, V., and Guest, J. S. (2020). BioSTEAM: a fast and flexible platform for the design, simulation, and techno-economic analysis of biorefineries under uncertainty. ACS Sustain. Chem. and Eng. 8, 3302–3310. doi:10.1021/acssuschemeng.9b07040
Cotten, C., and Reed, J. L. (2013). Mechanistic analysis of multi-omics datasets to generate kinetic parameters for constraint-based metabolic models. BMC Bioinforma. 14, 32. doi:10.1186/1471-2105-14-32
Daoutidis, P., Lee, J. H., Rangarajan, S., Chiang, L., Gopaluni, B., Schweidtmann, A. M., et al. (2024). Machine learning in process systems engineering: challenges and opportunities. Comput. and Chem. Eng. 181, 108523. doi:10.1016/j.compchemeng.2023.108523
Elsheikh, M., Hille, R., Tatulea-Codrean, A., and Krämer, S. (2021). A comparative review of multi-rate moving horizon estimation schemes for bioprocess applications. Comput. and Chem. Eng. 146, 107219. doi:10.1016/j.compchemeng.2020.107219
Erdrich, P., Steuer, R., and Klamt, S. (2015). An algorithm for the reduction of genome-scale metabolic network models to meaningful core models. BMC Syst. Biol. 9, 48. doi:10.1186/s12918-015-0191-x
Espinel-Ríos, S., and Avalos, J. L. (2024a). Hybrid physics-informed metabolic cybergenetics: process rates augmented with machine-learning surrogates informed by flux balance analysis. Industrial and Eng. Chem. Res. 63, 6685–6700. doi:10.1021/acs.iecr.4c00001
Espinel-Ríos, S., and Avalos, J. L. (2024b). Linking intra- and extra-cellular metabolic domains via neural-network surrogates for dynamic metabolic control. IFAC-PapersOnLine 58, 115–120. doi:10.1016/j.ifacol.2024.10.020
Espinel-Ríos, S., Behrendt, G., Bauer, J., Morabito, B., Pohlodek, J., Schütze, A., et al. (2024a). Experimentally implemented dynamic optogenetic optimization of ATPase expression using knowledge-based and Gaussian-process-supported models. Process Biochem. 143, 174–185. doi:10.1016/j.procbio.2024.04.032
Espinel-Ríos, S., Bettenbrock, K., Klamt, S., Avalos, J. L., and Findeisen, R. (2023a). Machine learning-supported cybergenetic modeling, optimization and control for synthetic microbial communities. Comput. Aided Chem. Eng. (Elsevier) 52, 2601–2606. doi:10.1016/B978-0-443-15274-0.50413-3
Espinel-Ríos, S., Bettenbrock, K., Klamt, S., and Findeisen, R. (2022a). Maximizing batch fermentation efficiency by constrained model-based optimization and predictive control of adenosine triphosphate turnover. AIChE J. 68, e17555. doi:10.1002/aic.17555
Espinel-Ríos, S., Kok, R., Klamt, S., Avalos, J. L., and Findeisen, R. (2023b). “Batch-to-batch optimization with model adaptation leveraging Gaussian processes: the case of optogenetically assisted microbial consortia,” in 2023 23rd international conference on control, automation and systems (ICCAS) (IEEE), 1292–1297. doi:10.23919/ICCAS59377.2023.10316811
Espinel-Ríos, S., Mo, J. Q., Zhang, D., del Rio-Chanona, E. A., and Avalos, J. L. (2024b). Enhancing reinforcement learning for population setpoint tracking in co-cultures. arXiv. doi:10.48550/ARXIV.2411.09177
Espinel-Ríos, S., Montaño López, J., and Avalos, J. L. (2025). Omics-driven hybrid dynamic modeling of bioprocesses with uncertainty estimation. Biochem. Eng. J. 216, 109637. doi:10.1016/j.bej.2025.109637
Espinel-Ríos, S., Morabito, B., Bettenbrock, K., Klamt, S., and Findeisen, R. (2022b). Soft sensor for monitoring dynamic changes in cell composition. IFAC-PapersOnLine 55, 98–103. doi:10.1016/j.ifacol.2023.01.022
Espinel-Ríos, S., Morabito, B., Pohlodek, J., Bettenbrock, K., Klamt, S., and Findeisen, R. (2024). Toward a modeling, optimization, and predictive control framework for fed-batch metabolic cybergenetics. Biotechnol. Bioeng. 121, 366–379. doi:10.1002/bit.28575
Espinel-Ríos, S., Slaviero, G., Bettenbrock, K., Klamt, S., and Findeisen, R. (2023c). Monitoring intracellular metabolite concentrations by moving horizon estimation based on kinetic modeling. IFAC-PapersOnLine 56, 4608–4613. doi:10.1016/j.ifacol.2023.10.968
Filo, M., Chang, C.-H., and Khammash, M. (2023). Biomolecular feedback controllers: from theory to applications. Curr. Opin. Biotechnol. 79, 102882. doi:10.1016/j.copbio.2022.102882
Foster, C. J., Wang, L., Dinh, H. V., Suthers, P. F., and Maranas, C. D. (2021). Building kinetic models for metabolic engineering. Curr. Opin. Biotechnol. 67, 35–41. doi:10.1016/j.copbio.2020.11.010
Frei, T., Chang, C.-H., Filo, M., Arampatzis, A., and Khammash, M. (2022). A genetic mammalian proportional–integral feedback control circuit for robust and precise gene regulation. Proc. Natl. Acad. Sci. 119, e2122132119. doi:10.1073/pnas.2122132119
Fu, R., Kang, L., Zhang, C., and Fei, Q. (2023). Application and progress of techno-economic analysis and life cycle assessment in biomanufacturing of fuels and chemicals. Green Chem. Eng. 4, 189–198. doi:10.1016/j.gce.2022.09.002
Gerken-Starepravo, L., Zhu, X., Cho, B. A., Vega-Ramon, F., Pennington, O., Antonio Del Río-Chanona, E., et al. (2022). An MIQP framework for metabolic pathways optimisation and dynamic flux analysis. Digit. Chem. Eng. 2, 100011. doi:10.1016/j.dche.2022.100011
Glass, D. S., Jin, X., and Riedel-Kruse, I. H. (2021). Nonlinear delay differential equations and their application to modeling biological network motifs. Nat. Commun. 12, 1788. doi:10.1038/s41467-021-21700-8
Gottstein, W., Olivier, B. G., Bruggeman, F. J., and Teusink, B. (2016). Constraint-based stoichiometric modelling from single organisms to microbial communities. J. R. Soc. Interface 13, 20160627. doi:10.1098/rsif.2016.0627
Gutiérrez Mena, J., Kumar, S., and Khammash, M. (2022). Dynamic cybergenetic control of bacterial co-culture composition via optogenetic feedback. Nat. Commun. 13, 4808. doi:10.1038/s41467-022-32392-z
Harcum, S. W., Elliott, K. S., Skelton, B. A., Klaubert, S. R., Dahodwala, H., and Lee, K. H. (2022). PID controls: the forgotten bioprocess parameters. Discov. Chem. Eng. 2, 1. doi:10.1007/s43938-022-00008-z
Hartmann, F. S., Udugama, I. A., Seibold, G. M., Sugiyama, H., and Gernaey, K. V. (2022). Digital models in biotechnology: towards multi-scale integration and implementation. Biotechnol. Adv. 60, 108015. doi:10.1016/j.biotechadv.2022.108015
Hoffman, S. M., Espinel-Ríos, S., Lalwani, M. A., Kwartler, S. K., and Avalos, J. L. (2025). Balancing doses of EL222 and light improves optogenetic induction of protein production in Komagataella phaffii. bioRxiv. doi:10.1101/2024.12.31.630935
Isoko, K., Cordiner, J. L., Kis, Z., and Moghadam, P. Z. (2024). Bioprocessing 4.0: a pragmatic review and future perspectives. Digit. Discov. 3, 1662–1681. doi:10.1039/D4DD00127C
Jabarivelisdeh, B., and Waldherr, S. (2018). Optimization of bioprocess productivity based on metabolic-genetic network models with bilevel dynamic programming. Biotechnol. Bioeng. 115, 1829–1841. doi:10.1002/bit.26599
Keating, S. M., Waltemath, D., König, M., Zhang, F., Dräger, A., Chaouiya, C., et al. (2020). SBML Level 3: an extensible format for the exchange and reuse of biological models. Mol. Syst. Biol. 16, e9110. doi:10.15252/msb.20199110
Kildegaard, H. F., Baycin-Hizal, D., Lewis, N. E., and Betenbaugh, M. J. (2013). The emerging CHO systems biology era: harnessing the ‘omics revolution for biotechnology. Curr. Opin. Biotechnol. 24, 1102–1107. doi:10.1016/j.copbio.2013.02.007
Kim, G. B., Choi, S. Y., Cho, I. J., Ahn, D.-H., and Lee, S. Y. (2023). Metabolic engineering for sustainability and health. Trends Biotechnol. 41, 425–451. doi:10.1016/j.tibtech.2022.12.014
Kim, M., Rai, N., Zorraquino, V., and Tagkopoulos, I. (2016). Multi-omics integration accurately predicts cellular state in unexplored conditions for Escherichia coli. Nat. Commun. 7, 13090. doi:10.1038/ncomms13090
Kiss, A. A., Grievink, J., and Rito-Palomares, M. (2015). A systems engineering perspective on process integration in industrial biotechnology. J. Chem. Technol. and Biotechnol. 90, 349–355. doi:10.1002/jctb.4584
Ko, Y.-S., Kim, J. W., Lee, J. A., Han, T., Kim, G. B., Park, J. E., et al. (2020). Tools and strategies of systems metabolic engineering for the development of microbial cell factories for chemical production. Chem. Soc. Rev. 49, 4615–4636. doi:10.1039/D0CS00155D
Kong, Y., Chen, H., Huang, X., Chang, L., Yang, B., and Chen, W. (2024). Precise metabolic modeling in post-omics era: accomplishments and perspectives. Crit. Rev. Biotechnol. 45, 683–701. doi:10.1080/07388551.2024.2390089
Koutinas, M., Kiparissides, A., Pistikopoulos, E. N., and Mantalaris, A. (2012). Bioprocess systems engineering: transferring traditional process engineering principles to industrial biotechnology. Comput. Struct. Biotechnol. J. 3, e201210022. doi:10.5936/csbj.201210022
Kundu, P., Beura, S., Mondal, S., Das, A. K., and Ghosh, A. (2024). Machine learning for the advancement of genome-scale metabolic modeling. Biotechnol. Adv. 74, 108400. doi:10.1016/j.biotechadv.2024.108400
Lee, T. A., Morlock, J., Allan, J., and Steel, H. (2025). Directing microbial co-culture composition using cybernetic control. Cell. Rep. Methods 5, 101009. doi:10.1016/j.crmeth.2025.101009
Li, F., Yuan, L., Lu, H., Li, G., Chen, Y., Engqvist, M. K. M., et al. (2022). Deep learning-based kcat prediction enables improved enzyme-constrained model reconstruction. Nat. Catal. 5, 662–672. doi:10.1038/s41929-022-00798-z
Lokko, Y., Heijde, M., Schebesta, K., Scholtès, P., Van Montagu, M., and Giacca, M. (2018). Biotechnology and the bioeconomy—towards inclusive and sustainable industrial development. New Biotechnol. 40, 5–10. doi:10.1016/j.nbt.2017.06.005
Lu, H., Chen, Y., Nielsen, J., and Kerkhoven, E. J. (2021). “Kinetic models of metabolism,” in Metabolic engineering Editors J. Nielsen, G. Stephanopoulos, and S. Y. Lee 1 edn. (Wiley), 153–170. doi:10.1002/9783527823468.ch5
Luo, Y., Kurian, V., and Ogunnaike, B. A. (2021). Bioprocess systems analysis, modeling, estimation, and control. Curr. Opin. Chem. Eng. 33, 100705. doi:10.1016/j.coche.2021.100705
Mahadevan, R., Edwards, J. S., and Doyle, F. J. (2002). Dynamic flux balance analysis of diauxic growth in Escherichia coli. Biophysical J. 83, 1331–1340. doi:10.1016/S0006-3495(02)73903-9
Mahanty, B. (2023). Hybrid modeling in bioprocess dynamics: structural variabilities, implementation strategies, and practical challenges. Biotechnol. Bioeng. 120, 2072–2091. doi:10.1002/bit.28503
Malinov, N. G., Raudenbush-Henderson, K., Ding, C., Reddy, J. V., and Ierapetritou, M. G. (2024). End-to-end process flowsheet modeling for biopharmaceutical production: current state and future potential. Curr. Opin. Chem. Eng. 45, 101044. doi:10.1016/j.coche.2024.101044
Mears, L., Stocks, S. M., Sin, G., and Gernaey, K. V. (2017). A review of control strategies for manipulating the feed rate in fed-batch fermentation processes. J. Biotechnol. 245, 34–46. doi:10.1016/j.jbiotec.2017.01.008
Milias-Argeitis, A., Rullan, M., Aoki, S. K., Buchmann, P., and Khammash, M. (2016). Automated optogenetic feedback control for precise and robust regulation of gene expression and cell growth. Nat. Commun. 7, 12546. doi:10.1038/ncomms12546
Morabito, B., Pohlodek, J., Kranert, L., Espinel-Ríos, S., and Findeisen, R. (2022). Efficient and simple Gaussian process supported stochastic model predictive control for bioreactors using HILO-MPC. IFAC-PapersOnLine 55, 922–927. doi:10.1016/j.ifacol.2022.07.562
Morabito, B., Pohlodek, J., Matschek, J., Savchenko, A., Carius, L., and Findeisen, R. (2021). Towards risk-aware machine learning supported model predictive control and open-loop optimization for repetitive processes. IFAC-PapersOnLine 54, 321–328. doi:10.1016/j.ifacol.2021.08.564
Moulin, C., Tournier, L., and Peres, S. (2021). Combining kinetic and constraint-based modelling to better understand metabolism dynamics. Processes 9, 1701. doi:10.3390/pr9101701
Muloiwa, M., Nyende-Byakika, S., and Dinka, M. (2020). Comparison of unstructured kinetic bacterial growth models. South Afr. J. Chem. Eng. 33, 141–150. doi:10.1016/j.sajce.2020.07.006
Noble, D. (2010). Biophysics and systems biology. Philosophical Trans. R. Soc. A Math. Phys. Eng. Sci. 368, 1125–1139. doi:10.1098/rsta.2009.0245
Ohkubo, T., Sakumura, Y., Zhang, F., and Kunida, K. (2024). A hybrid in silico/in-cell controller that handles process-model mismatches using intracellular biosensing. Sci. Rep. 14, 27252. doi:10.1038/s41598-024-76029-1
Otero, J. M., and Nielsen, J. (2010). Industrial systems biology. Biotechnol. Bioeng. 105, 439–460. doi:10.1002/bit.22592
Pandey, K., Pandey, M., Kumar, V., Aggarwal, U., and Singhal, B. (2024). Bioprocessing 4.0 in biomanufacturing: paving the way for sustainable bioeconomy. Syst. Microbiol. Biomanufacturing 4, 407–424. doi:10.1007/s43393-023-00206-y
Pennington, O., Espinel Ríos, S., Sebastian, M. T., Dickson, A., and Zhang, D. (2024). A multiscale hybrid modelling methodology for cell cultures enabled by enzyme-constrained dynamic metabolic flux analysis under uncertainty. Metab. Eng. 86, 274–287. doi:10.1016/j.ymben.2024.10.013
Petsagkourakis, P., Sandoval, I., Bradford, E., Zhang, D., and Del Rio-Chanona, E. (2020). Reinforcement learning for batch bioprocess optimization. Comput. and Chem. Eng. 133, 106649. doi:10.1016/j.compchemeng.2019.106649
Pistikopoulos, E. N., Barbosa-Povoa, A., Lee, J. H., Misener, R., Mitsos, A., Reklaitis, G. V., et al. (2021). Process systems engineering – the generation next? Comput. and Chem. Eng. 147, 107252. doi:10.1016/j.compchemeng.2021.107252
Polizzi, K. M., and Kontoravdi, C. (2015). Genetically-encoded biosensors for monitoring cellular stress in bioprocessing. Curr. Opin. Biotechnol. 31, 50–56. doi:10.1016/j.copbio.2014.07.011
Randek, J., and Mandenius, C.-F. (2018). On-line soft sensing in upstream bioprocessing. Crit. Rev. Biotechnol. 38, 106–121. doi:10.1080/07388551.2017.1312271
Rawlings, J. B., Mayne, D. Q., and Diehl, M. (2020). Model predictive control: theory, computation, and design. Santa Barbara, California: Nob Hill Publishing, 2.
Saa, P. A., and Nielsen, L. K. (2017). Formulation, construction and analysis of kinetic models of metabolism: a review of modelling frameworks. Biotechnol. Adv. 35, 981–1003. doi:10.1016/j.biotechadv.2017.09.005
Sauro, H. M., Agmon, E., Blinov, M. L., Gennari, J. H., Hellerstein, J., Heydarabadipour, A., et al. (2025). From FAIR to CURE: guidelines for computational models of biological systems. ArXiv, arXiv:2502.15597v1. doi:10.48550/ARXIV.2502.15597
Schneider, P., Von Kamp, A., and Klamt, S. (2020). An extended and generalized framework for the calculation of metabolic intervention strategies based on minimal cut sets. PLOS Comput. Biol. 16, e1008110. doi:10.1371/journal.pcbi.1008110
Shukla, R., Yadav, A. K., Sote, W. O., Junior, M. C., and Singh, T. R. (2022). “Chapter 25 - systems biology and big data analytics,” in Bioinformatics. Editors D. B. Singh, and R. K. Pathak (Academic Press), 425–442. doi:10.1016/B978-0-323-89775-4.00005-5
Steel, H., Habgood, R., Kelly, C. L., and Papachristodoulou, A. (2020). In situ characterisation and manipulation of biological systems with Chi.Bio. PLOS Biol. 18, e3000794. doi:10.1371/journal.pbio.3000794
Straathof, A. J. (2023). Modelling of end-product inhibition in fermentation. Biochem. Eng. J. 191, 108796. doi:10.1016/j.bej.2022.108796
Sutton, R. S., and Barto, A. G. (2018). Reinforcement learning: an introduction. 2 edn. Cambridge, Massachusetts: The MIT Press.
Tavassoly, I., Goldfarb, J., and Iyengar, R. (2018). Systems biology primer: the basic methods and approaches. Essays Biochem. 62, 487–500. doi:10.1042/EBC20180003
Thorn, K. (2017). Genetically encoded fluorescent tags. Mol. Biol. Cell. 28, 848–857. doi:10.1091/mbc.e16-07-0504
Treloar, N. J., Fedorec, A. J. H., Ingalls, B., and Barnes, C. P. (2020). Deep reinforcement learning for the control of microbial co-cultures in bioreactors. PLOS Comput. Biol. 16, e1007783. doi:10.1371/journal.pcbi.1007783
Tsopanoglou, A., and Jiménez Del Val, I. (2021). Moving towards an era of hybrid modelling: advantages and challenges of coupling mechanistic and data-driven models for upstream pharmaceutical bioprocesses. Curr. Opin. Chem. Eng. 32, 100691. doi:10.1016/j.coche.2021.100691
Ullah, M., and Wolkenhauer, O. (2011). Stochastic modeling of biochemical networks. New York, NY: Springer, 115–171. doi:10.1007/978-1-4614-0478-1_5
Van Rosmalen, R., Smith, R., Martins Dos Santos, V., Fleck, C., and Suarez-Diez, M. (2021). Model reduction of genome-scale metabolic models as a basis for targeted kinetic models. Metab. Eng. 64, 74–84. doi:10.1016/j.ymben.2021.01.008
Vassiliadis, V. S., Mappas, V., Espaas, T. A., Dorneanu, B., Isafiade, A., Möller, K., et al. (2024). Reloading process systems engineering within chemical engineering. Chem. Eng. Res. Des. 209, 380–398. doi:10.1016/j.cherd.2024.07.066
Vengerova, G., Lipsky, I., Hutchinson, G. A., Averesch, N. J. H., and Berliner, A. J. (2024). Space bioprocess engineering as a potential catalyst for sustainability. Nat. Sustain. 7, 238–246. doi:10.1038/s41893-024-01305-x
Volkova, S., Matos, M. R. A., Mattanovich, M., and Marín De Mas, I. (2020). Metabolic modelling as a framework for metabolomics data integration and analysis. Metabolites 10, 303. doi:10.3390/metabo10080303
Von Kamp, A., Thiele, S., Hädicke, O., and Klamt, S. (2017). Use of CellNetAnalyzer in biotechnology and metabolic engineering. J. Biotechnol. 261, 221–228. doi:10.1016/j.jbiotec.2017.05.001
Wowra, K., Hegel, E., Scharf, A., Grünberger, A., and Rosenthal, K. (2023). Estimating environmental impacts of early-stage bioprocesses. Trends Biotechnol. 41, 1199–1212. doi:10.1016/j.tibtech.2023.03.011
Yang, D., Cho, J. S., Choi, K. R., Kim, H. U., and Lee, S. Y. (2017). Systems metabolic engineering as an enabling technology in accomplishing sustainable development goals. Microb. Biotechnol. 10, 1254–1258. doi:10.1111/1751-7915.12766
Zhan, Y., Ning, K., and Zhao, D. (2023). iGEM: the competition on synthetic biology. Singapore: Springer Nature, 23–30. doi:10.1007/978-981-99-2460-8_2
Keywords: biotechnology systems engineering, process systems engineering, systems biology, biotechnology, biomanufacturing
Citation: Espinel-Ríos S (2025) Biotechnology systems engineering: preparing the next generation of bioengineers. Front. Syst. Biol. 5:1583534. doi: 10.3389/fsysb.2025.1583534
Received: 26 February 2025; Accepted: 17 April 2025;
