STUDY PROTOCOL article
Volume 9 - 2022 | https://doi.org/10.3389/fcvm.2022.881703
Nicotinamide Riboside Supplementation for Treating Elevated Systolic Blood Pressure and Arterial Stiffness in Midlife and Older Adults
- 1Integrative Physiology of Aging Laboratory, Department of Integrative Physiology, University of Colorado, Boulder, Boulder, CO, United States
- 2Department of Kinesiology and Applied Physiology, University of Delaware, Newark, DE, United States
- 3Division of Renal Diseases and Hypertension, University of Colorado Anschutz Medical Campus, Aurora, CO, United States
Background: Aging is the primary risk factor for cardiovascular diseases, the leading cause of death worldwide. Age-related increases in systolic blood pressure (SBP) link advancing age to cardiovascular disease risk. A key mechanism mediating the increase in SBP with aging is stiffening of the large elastic arteries, which occurs due to increases in oxidative stress, inflammation, and vascular smooth muscle tone. Nicotinamide adenine dinucleotide (NAD+) is a key molecule in energy metabolism and cellular functioning which declines with advancing age and chronic disease. Dietary supplementation with NAD+ precursors, such as nicotinamide riboside, boosts NAD+ bioavailability and may improve cardiovascular health. Here, we present the protocol for a randomized, controlled trial investigating the efficacy of 3 months of oral supplementation with nicotinamide riboside for decreasing SBP and arterial stiffness in midlife and older adults with initial above-normal (120–159 mmHg) SBP (ClinicalTrials.gov Identifier: NCT03821623). The primary outcome is casual (resting) SBP and secondary outcomes include 24-h SBP and aortic stiffness. Other outcomes include assessment of safety; tolerability; adherence; diastolic BP; systemic NAD+ bioavailability; and circulating biomarkers of oxidative stress, inflammation, and sympathoadrenal activity.
Methods: A randomized, double-blind, placebo-controlled, single-site parallel-group design clinical trial will be conducted in 94 (47/group) midlife and older (age ≥ 50 years) adults with initial above-normal SBP. Participants will complete baseline testing and then will be randomized to either nicotinamide riboside (500 mg, 2×/day, NIAGEN®; ChromaDex Inc.) or placebo supplementation. Outcome measures will be assessed again after 3 months of treatment.
Discussion: This study is designed to establish the safety and efficacy of the NAD+ boosting compound, nicotinamide riboside, for reducing casual and 24-h SBP and aortic stiffness in midlife and older adults with above-normal SBP at baseline, a population at increased risk of cardiovascular diseases.
Clinical Trial Registration: [www.ClinicalTrials.gov], identifier [NCT03821623].
Background and Rationale
Aging is the primary risk factor for the development of cardiovascular diseases (CVD), the leading cause of death worldwide, as well as other chronic conditions (1, 2). The increased risk of CVD with advancing age is largely due to adverse changes to the vasculature, such as stiffening of the large elastic (i.e., aorta and carotid) arteries and resultant increases in systolic blood pressure (SBP) (3, 4). Arterial stiffening is mediated by changes to both the structural and functional components of the arterial wall induced by oxidative stress, inflammation, and sympathetic activation (5–9). It is estimated that only ∼30% of adults aged 50–59 years have healthy levels of arterial stiffness and BP and that the prevalence of so-called “healthy vascular aging” drops to only 1% in adults aged ≥ 70 years (10). Thus, establishing safe and efficacious strategies to lower SBP and improve vascular function is a biomedical necessity for reducing age-related CVD burden.
Advancing age is associated with declines in nicotinamide adenine dinucleotide (NAD+), a central coenzyme in energy metabolism and essential substrate for key enzymes involved in cellular functioning and homeostasis (11–15). Declines in NAD+ have been linked to multiple chronic diseases (16–18), such that boosting NAD+ bioavailability has emerged as a therapeutic strategy of interest for slowing or preventing age-related physiological dysfunction (14, 19, 20). Indeed, a number of on-going clinical trials are investigating the effects of NAD+-boosting compounds on key physiological outcomes that become impaired with aging, including glucose metabolism, insulin sensitivity, and skeletal muscle and cardiac function (17). However, there are limited published data or ongoing studies assessing the efficacy of increasing NAD+ bioavailability for improving BP and vascular function (Figure 1).

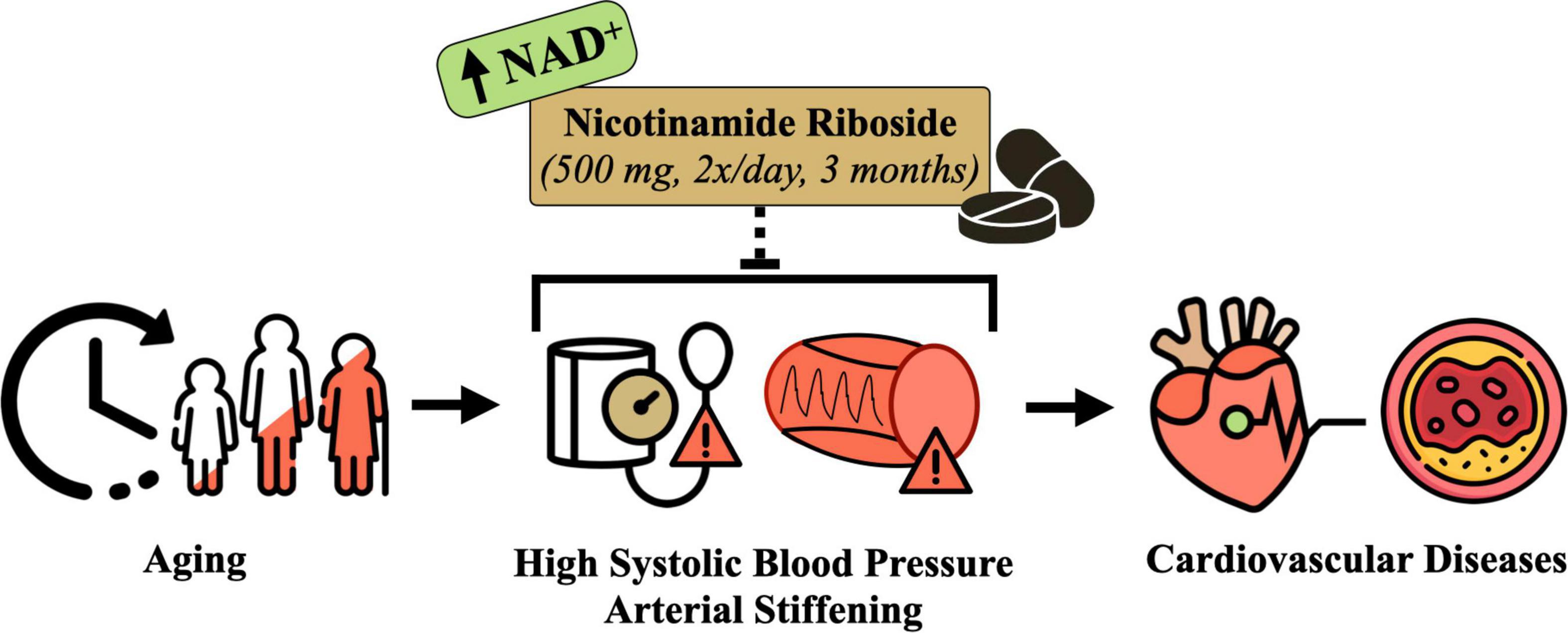

Figure 1. Conceptual overview of the hypothesized effects of nicotinamide riboside supplementation for treating elevated systolic blood pressure and arterial stiffness in midlife and older adults. Designed with resources from flaticon.com.
Our laboratory has utilized supplementation with the NAD+ precursors nicotinamide mononucleotide and nicotinamide riboside to restore NAD+ bioavailability (toward young levels) in preclinical and clinical studies, respectively (21, 22). These studies were conducted to provide initial evidence that these compounds are safe and efficacious for improving BP and/or vascular function in the context of healthy aging. We found that increasing NAD+ concentrations via dietary supplementation of nicotinamide mononucleotide lowered arterial stiffness in old mice (21), which provided initial proof-of-concept evidence that NAD+ precursors may be a beneficial intervention for CV aging. We then translated these findings into a pilot clinical study to gain preliminary insight into the safety and tolerability of nicotinamide riboside, a naturally occurring vitamin B3 derivative and commercially available dietary supplement (23), for improving NAD+ bioavailability in healthy midlife and older adults (22). We also leveraged this opportunity to assess the effects of nicotinamide riboside supplementation on physiological function to inform a subsequent larger clinical trial. Results from this crossover design pilot study suggested that 6 weeks of dietary supplementation with nicotinamide riboside was safe and well-tolerated, with no serious adverse events reported. Moreover, our data showed that nicotinamide riboside treatment effectively increased bioavailability of NAD+ and related NAD+ metabolites and lowered SBP (-4 mmHg), diastolic BP (DBP) (-2 mmHg), and arterial stiffness, assessed as carotid-femoral pulse wave velocity (CFPWV; –42 cm/s), in the overall group compared to placebo treatment. Importantly, post hoc exploratory subgroup analyses showed that the CV benefits of nicotinamide riboside supplementation may be greater in those with initial SBP in the above-normal (≥ 120 mmHg) vs. normal (< 120 mmHg) range, as SBP was reduced by 9 mmHg in the above-normal SBP subgroup. This reduction in SBP is clinically significant as it is associated with a 30–40% lower risk of CVD mortality (24). Thus, these encouraging preliminary results from our pilot clinical study led us to design the present protocol.
The current study (ClinicalTrials.gov Identifier: NCT03821623) is a phase IIa clinical trial investigating the efficacy of oral nicotinamide riboside supplementation for decreasing: (1) casual SBP; (2) 24-h SBP [a strong CVD risk factor independent of casual SBP (25–27)]; and (3) aortic stiffness in midlife and older adults with initial above-normal SBP (120–159 mmHg). We also will further assess the safety and tolerability of, and adherence to, the intervention as well as the potential underlying mechanisms that may mediate improvements in CV health with nicotinamide riboside treatment. To assess potential mechanisms of action, we will determine the effects of nicotinamide riboside supplementation on concentrations of NAD+; NAD+-related metabolites; and circulating markers of systemic oxidative stress, inflammation, and sympathoadrenal activity. We will address these aims by conducting a properly powered clinical trial with a clinically relevant treatment duration based on current BP treatment guidelines (3) investigating the effects of 3 months of nicotinamide riboside (500 mg, 2×/day) vs. placebo supplementation in midlife and older adults with above-normal SBP.
This is a randomized, double-blind, placebo-controlled, parallel-group design, phase IIa clinical trial assessing the safety and efficacy of 3 months of nicotinamide riboside vs. placebo supplementation in 94 (47/group) midlife and older (age ≥ 50 years) adults with above-normal SBP at baseline. The duration of nicotinamide riboside supplementation for the current study was chosen based on clinical guidelines for the treatment of high BP, which recommend that patients with elevated BP or hypertension undergo non-pharmacological therapy, alone or in combination with BP-lowering medication, for at least 3 months before reevaluation of BP goals and medication regimens (3). This treatment duration also will extend upon findings from our previous crossover design pilot study in which subjects were administered nicotinamide riboside and placebo for 6-week periods (22). Midlife and older men and women with SBP 120–159 mmHg will be eligible to participate provided they meet all criteria for inclusion and exclusion (Table 1).
All outcomes will be measured at baseline and after the 3-month supplementation period. All study outcomes (i.e., vascular measurements and blood sampling) will be collected after a > 5-h fast from food (water allowed) and caffeine, > 24-h abstention from alcohol and physical activity, and > 48-h abstention from dietary supplements and over the counter medications. Check-in visits will be performed without restrictions.
Casual Systolic Blood Pressure
Casual (resting) SBP and DBP will be measured and classified according to 2017 American College of Cardiology/American Heart Association guidelines (3). Subjects will rest quietly in the seated position for at least 5 min with their back supported, feet flat on the floor, and arm at heart level. BP will be measured in triplicate, with a 2-min recovery between each measure, over the brachial artery of the non-dominant arm via automated oscillometric sphygmomanometer (Mindray), validated according to the Association for the Advancement of Medical Instrumentation standards and regularly calibrated by the manufacturer (28). Casual SBP, DBP, and pulse pressure will be defined as the average of the 3 measurements. Casual BP will be measured on 2 separate days at least 24 h apart both at baseline and at the end of the 3-month treatment period (Figure 2) and averaged over the 2 measurement days. Casual BP also will be measured every 2 weeks during the supplementation period.

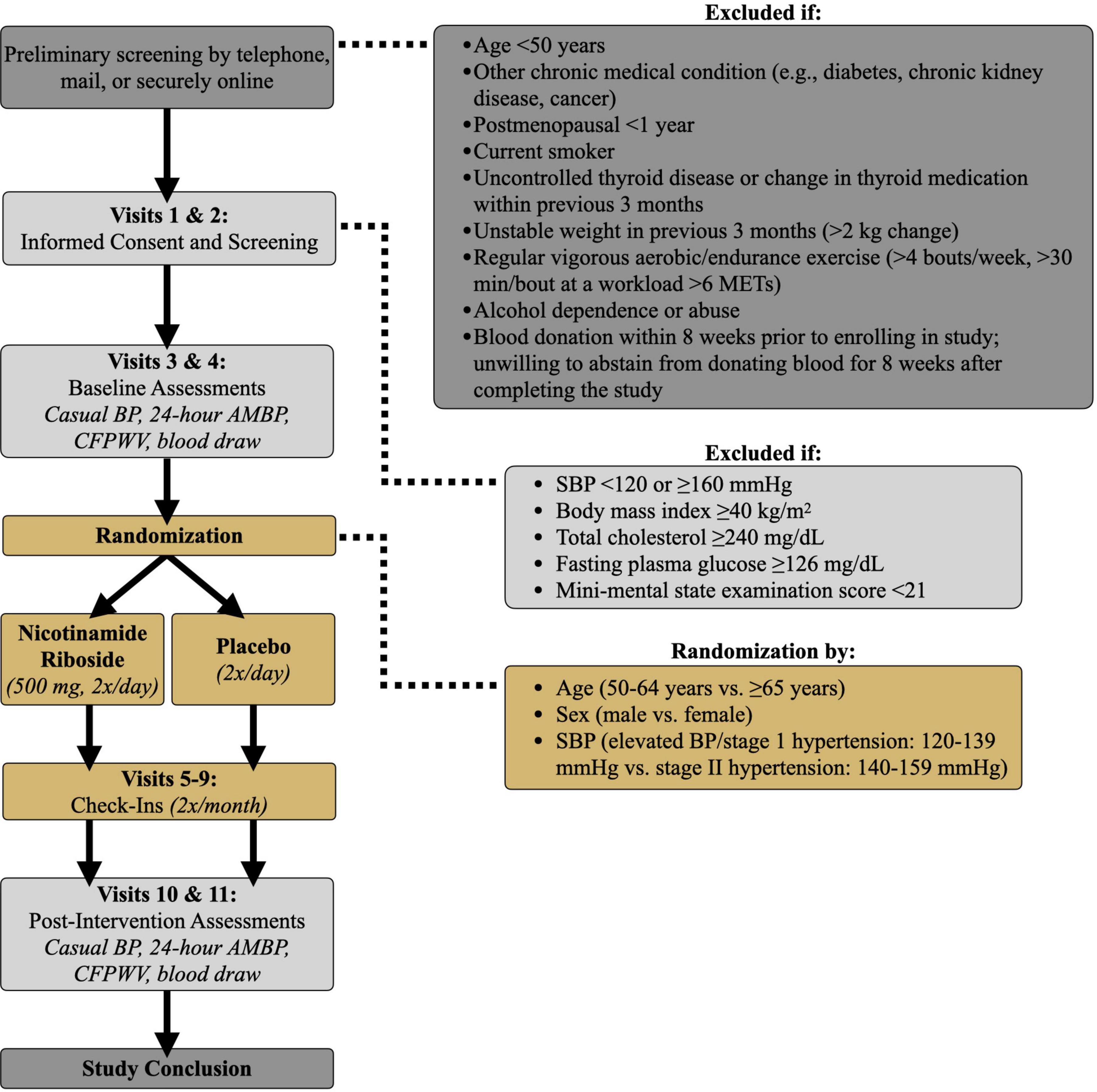

Figure 2. Study design. BP, blood pressure; AMBP, ambulatory blood pressure; SBP, systolic blood pressure; CFPWV, carotid-femoral pulse wave velocity; METs, metabolic equivalents.
Twenty-Four Hour Ambulatory Blood Pressure
Brachial artery BP will be measured every 20 min during the day (16-h period) and every 60 min at night (8-h period) over a 24-h period according to each participant’s individual sleep-wake cycle. BP will be measured via ambulatory BP monitoring (Oscar 2, SunTech Medical), validated according to British Hypertension Society standards (29). Participants will be outfitted with the ambulatory BP monitor by a trained investigator and given written and verbal instructions regarding monitor operation. The BP cuff will be placed securely over the non-dominant arm. Participants also will be given a diary to record physical activity or psychological events that occur over the 24-h period that may influence BP measurements. Ambulatory BP recordings will be analyzed for mean 24-h, daytime, and nighttime SBP, DBP, and pulse pressure.
Aortic stiffness will be determined via CFPWV, the gold standard, non-invasive technique for measurement of arterial stiffness in humans (30, 31). Pressure waveforms will be recorded using the Non-Invasive Hemodynamic Workstation (NIHem; Cardiovascular Engineering, Inc.) with simultaneous electrocardiograph (ECG) recording. Mean distance will be calculated as the distance between the suprasternal notch and femoral measurement site minus the distance between the suprasternal notch and carotid measurement site. Aortic transit time will be calculated as the time between the R-wave and foot of the femoral pressure wave minus the time between the R-wave and foot of the carotid pressure wave. CFPWV will be calculated as mean distance divided by transit time.
Safety and Tolerability
All subjects will report to the laboratory every 2 weeks during the 3-month treatment period (Visits 5–9, Figure 2) to meet with a study nurse. Safety, i.e., risk to the subject, will be assessed by recording the number and severity of adverse events. Tolerability, i.e., the degree to which overt adverse events are tolerated by participants, will be determined based on the number of participants that drop out of the study due to adverse events.
Subjects will be instructed to bring their pill containers to their bi-weekly check-in visits throughout the treatment period. The study nurse will count the number of pills remaining in the returned container and the percentage of prescribed pills consumed by participants will be used to assess adherence to the intervention.
Nicotinamide Adenine Dinucleotide+ Bioavailability
Assessment of the NAD+ metabolome (i.e., NAD+ and NAD+-related metabolites) will be performed using whole blood sampled before and after the 3-month intervention. EDTA-anticoagulated whole blood will be collected and mixed with a nucleotide internal standard containing uniformly labeled U13C yeast extract and heated deoxygenated buffered ethanol solution, as described previously (32). The sample will be microfuged at 13,200 g and 4°C and the supernatant stored at –80°C until analysis.
Venous blood samples from the antecubital area will be obtained following 20 min of quiet rest. Blood samples will be analyzed by the Colorado Clinical Translational Sciences Institute core laboratory for plasma endothelin-1 (potent vasoconstrictor; ELISA; R&D Systems), plasma norepinephrine (marker of sympathoadrenal activity; high-performance liquid chromatography; BioRad Labs), plasma oxidized low-density lipoprotein (marker of oxidative stress; ELISA; Mercordia), plasma total antioxidant status (marker of antioxidant defenses; colorometric method; Randox Laboratories), interleukin-1β and interleukin-6 (inflammatory markers; ELISA; R&D Systems).
Selection and Treatment of Subjects
Study Location and Timeline
All study visits will be performed at the Clinical Translational Research Center (CTRC) at the University of Colorado (CU) Boulder Campus. To account for an approximate 20% dropout rate, we plan to enroll 118 subjects to achieve our goal of completing testing on 94 participants.
Recruitment and Eligibility
Recruitment efforts will include newspaper, radio, and social media advertisements; CU Boulder campus email bulletins sent to faculty, staff, and students; and flyers handed out at senior centers and community fairs in the Boulder/Denver area. Interested individuals will contact the laboratory via telephone or email information provided in the recruitment materials and be directed to fill out a general screening form to determine their eligibility for the study. Potential participants who meet the initial inclusion/exclusion criteria will then be contacted and scheduled for consent and screening visits. Individuals who do not meet inclusion/exclusion criteria will also be notified. Individuals will be allowed to ask any questions they have about the study at any point in the pre-consent process. All email, phone, and/or mail communication with potential participants will be kept confidential.
Informed Consent and Screening
Informed consent will be obtained either in-person or electronically over Zoom and DocuSign platforms. A trained and approved member of the study team will give an overview of the study and all study procedures, and the participant will be given time to read through the informed consent document and invited to ask any questions. Both the participant and the investigator obtaining consent will sign the last page of the consent form and a copy of the signed consent form will be provided to the participant. All study procedures have been reviewed and approved by the Institutional Review Board (IRB) at CU Boulder (Protocol Number: 18-0644).
Following informed consent, participants will undergo screening assessments to further determine their eligibility for meeting enrollment criteria (Visits 1–2, Figure 2). Participants will be asked to abstain from non-prescribed over-the-counter medications and supplements for 48 h; food and caffeine for 12 h; and alcohol and strenuous exercise for 24 h. Consent and screening procedures will be performed within a 1-week period to determine if participants qualify for the study. Screening assessments will include:
• Resting BP and heart rate
• Height and body weight
• Medical history
• Questionnaires and paperwork
• Family medical history
• Physical activity via the Modifiable Activity Questionnaire (33, 34)
• Cognitive function via the Mini Mental State Exam (35)
• Screening blood collection.
Once all screening procedures have been performed, the participant’s results will be reviewed by the medical director on the research protocol. The medical director will approve of each individual’s eligibility for participation in the study. Subjects taking antihypertensive medications will be included provided they meet inclusion/exclusion criteria (Table 1). Medication regimen (prescription and dosing) must be stable for 3 months prior to enrollment and remain stable throughout the study.
Eligible participants who qualify for the study based on previous screening visits will undergo baseline experimental testing within a 10-day period (Visits 3 and 4, Figure 2). Participants will be asked to avoid any major lifestyle changes for the duration of the study such as changes in physical activity, diet, and body weight, unless changes are deemed necessary by their physician. Subjects also will be asked to maintain a stable medication regimen throughout the study and notify the study team should their physician recommend any immediate changes in medication. Physical activity will be recorded before and after the intervention via accelerometer (36) (GENEActive; 3-day recording) and the Community Healthy Activities Model Program for Seniors questionnaire (37). Automated Self-Administered 24-h dietary recall (38) (ASA24; National Cancer Institute) also will be completed to ensure participant dietary composition remains unchanged after vs. before the intervention.
Randomization and Blinding
After baseline assessments, participants will be randomized to 3 months of nicotinamide riboside or placebo supplementation. Block randomization will be employed based on age (50–64 years vs. ≥ 65 years), sex (male vs. female), and SBP (elevated BP/stage 1 hypertension: 120–139 mmHg vs. stage II hypertension: 140–159 mmHg). Randomization will be performed by a staff research assistant who is not involved with data acquisition or analysis and will remain unblinded for the duration of the study. The Microsoft Excel random number generator function will be used to assign participants to nicotinamide riboside or placebo treatment. Investigators responsible for collection and analysis of outcome measurements will be blinded to participant group assignment. Participants also will be blinded to their treatment group.
Participants assigned to the experimental treatment group will take 500 mg of nicotinamide riboside (NIAGEN®.; Chromadex, Inc.) twice per day (1,000 mg/day total) for 3 months. Each nicotinamide riboside capsule contains 250 mg of nicotinamide riboside chloride mixed with microcrystalline cellulose within a vegetarian capsule. Nicotinamide riboside is generally recognized as safe by the Federal Drug Administration (FDA; GRAS No. 635) and is being studied under an Investigational New Drug status (IND; No. 137994). Participants assigned to the placebo treatment group will take placebo pills twice a day for 3 months. Placebo pills contain microcrystalline cellulose within a vegetarian capsule. ChromaDex, Inc. will supply both nicotinamide riboside and placebo pills and ship them to the CU Boulder CTRC. Bottles containing 2-week supplies of nicotinamide riboside or placebo will be prepared by the CU Boulder CTRC pharmacy and labeled with the participant’s name and dosing instructions. The bottles will be distributed to each participant every 2 weeks by a study investigator who will provide verbal instructions for pill dosing and timing.
During the intervention period, participants will come to the CU Boulder CTRC every 2 weeks to provide a urine sample; measure BP, heart rate, and body weight; report any symptoms to a CTRC nurse; notify the study team of any medication changes; return unused pills; and receive their next 2-week pill supply (Visits 5–9, Figure 2).
After completing 3 months of either nicotinamide riboside or placebo treatment, participants will return to the CU Boulder CTRC for reassessment of all outcome measures within a 10-day period (Visits 10 and 11, Figure 2). Participants will continue to take their assigned pills throughout post-testing to maintain the treatment stimulus. However, on testing days, participants will not take nicotinamide riboside for at least 12 h prior to their visit and will wait to take their pills until after their visit ends to avoid any acute effects of the dose on our outcome measures. All post-assessment measurements will be identical to, and made under the same experimental conditions as, assessments performed at baseline.
Participants can withdraw their informed consent at any time and for any reason. Investigators may also remove participants from the study at any time due to significant non-compliance with the protocol (i.e., procedures, assessments); any adverse event that, in the opinion of the medical director, indicates that continuing in the study is not in the best interest of the participant; loss of the participant’s ability to freely provide consent; or other serious changes in physical or mental health.
Participants will be instructed to inform members of the study team or CTRC staff of any side effects or adverse events. Mild and moderate adverse events will be regularly reported to the IRB, NIH, and FDA. Serious adverse events will be reported to the CU Boulder IRB within 24 h of occurrence. An unanticipated adverse event which meets the CU Boulder IRB definition of an unanticipated problem (i.e., any unanticipated and undesirable effect arising from participation in research that results in an increased risk of harm or injury to a subject or which suggests the possibility of increased risks to other subjects) will be reported to the CU Boulder IRB using the corresponding form within 5 days of occurrence.
Statistical Design, Power, and Analysis Plan
Sample size calculations and pre-determined statistical power for this randomized, double-blind, placebo-controlled, parallel group design clinical trial are based on the primary outcome, casual SBP. Sample size and power were estimated based on preliminary data from our crossover design pilot trial on nicotinamide riboside supplementation in midlife and older adults (22). In subjects from our pilot trial who had initial above-normal SBP, the change from baseline in SBP with nicotinamide riboside supplementation was –12.8 mmHg (i.e., SBP decreased) and –4.2 mmHg with placebo treatment, resulting in a difference of 8.6 mmHg between treatment arms. The standard deviation of change was estimated as 11.6 mmHg for the nicotinamide riboside condition and 13.5 mmHg for the placebo condition. This yielded an estimated effect size of 0.68, which was used to determine the required sample size for the current protocol. It was determined that 47 subjects per group (94 total) would be required to achieve a power of 90% with a two-sided significance level of α = 0.05. To account for a potential drop-out rate of 20%, i.e., the rate observed in our pilot study, a total of 118 participants will be enrolled and equally randomized to an intervention group, with 59 participants/group.
Descriptive statistics will be provided for all baseline and outcome variables. Means and standard deviations will be calculated for all continuous variables, proportions will be calculated for categorical or ordinal variables, and 95% confidence intervals will be provided when appropriate. We will use the t-test to compare the change in outcome measures between nicotinamide riboside and placebo treatment groups because all outcome variables are continuous. All outcome variables will be assessed and confirmed for normality and data transformations will be performed, if necessary, prior to performing comparisons. All comparisons will be made on intention to treat principle and conclusions will be made using a two-sided significance level of α = 0.05. Furthermore, linear regression will be used to adjust for potential confounders such as age, baseline BP, and use of antihypertensive medications. We are aware that statistical significance does not imply clinical significance; thus, we will make clinical interpretations carefully.
All participant identities and records will be kept strictly confidential; only the principal investigator and research staff will have access to data from this study. Physical data will be stored in locking file cabinets in a secured-entry laboratory space. Electronic data will be stored on a laboratory server, which is accessed by individual user sign-on and passwords. The names of subjects will not be identified in any publication arising from this study. If individual participant data is presented in presentations or manuscripts, it will not be associated with any information that could be used to identify participants in the study.
Data Safety Monitoring
This research protocol is subject to oversight by an internal CTRC safety monitoring committee and an external safety officer, who is completely independent of the study team. Additionally, a physician investigator also will provide day-to-day medical oversight to ensure participant safety by serving as medical director on this protocol. The study team will be in regular contact with the medical director and review enrollment and safety data with the safety officer at least twice per year.
Based on the results from our previously published pilot study (22), we expect the following effects of 3 months of nicotinamide riboside vs. placebo supplementation in our proposed study population of adults aged 50 years and older with above-normal SBP (120–159 mmHg) at baseline.
Primary Outcome: We expect casual SBP to decrease.
Secondary Outcomes: We expect 24-h ambulatory SBP to decrease as a result of decreases in both daytime and nighttime SBP. We expect CFPWV (aortic stiffness) to decrease.
Other Outcomes: We expect nicotinamide riboside treatment to be safe, well-tolerated, and associated with high adherence. We expect casual and 24-h ambulatory DBP and pulse pressure will decrease. We expect concentrations of NAD+, NAD+-related metabolites, and total antioxidant status to increase and concentrations of endothelin-1, norepinephrine, oxidized low-density lipoprotein, interleukin-1β and interleukin-6 to decrease in response to nicotinamide riboside treatment.
The age-related increase in SBP serves as a key modifiable risk factor linking advancing age to chronic conditions such as CVD, chronic kidney disease, and cognitive decline (1, 3). Given that roughly two-thirds of adults 50 years and older have above-normal BP, this population is at high risk for disease development (1). Moreover, the number of midlife and older adults is projected to rise exponentially in the coming years (39). Together, these events create a biomedical need to investigate and identify novel strategies to prevent or slow declines in CV health to reduce the impending increase in chronic disease burden in the aging population (40).
Declines in intracellular NAD+ concentrations occur with advancing age and are associated with age-related chronic diseases (12, 14, 15). This may be due both to reductions in the synthesis of NAD+ as well as increases in the activity of NAD+-consuming enzymes, such as polyADP-ribose polymerases (PARPs), cyclic ADP-ribose synthases (e.g., CD38), and the mammalian family of sirtuins, which all affect key components of cellular homeostasis such as genome stability, mitochondrial function, and inflammation (11, 14, 41, 42). As such, compounds that increase NAD+ bioavailability may be viable therapies to improve physiological function with advancing age (19, 43). Indeed, administration of NAD+ precursors can effectively restore NAD+ bioavailability and improve physiological function in preclinical models of aging and age-related diseases (15, 21, 44). In midlife and older adults, supplementation with nicotinamide riboside may boost NAD+ bioavailability back toward young, healthy levels such that appropriate concentrations are available for enzymes involved in DNA repair, immune regulation, energy metabolism, and overall cellular maintenance (42).
Our initial crossover-designed pilot study was the first to report elevations in NAD+ concentrations after chronic supplementation of nicotinamide riboside in humans (22). In addition, the increase in NAD+ concentrations was associated with clinically significant reductions in SBP and arterial stiffness (22, 24, 45). Based on these encouraging results, we hypothesize that nicotinamide riboside treatment also may hold promise for improving CV function in humans, specifically reducing SBP and arterial stiffness, which may reduce the risk for developing age-related chronic diseases. Moreover, as available antihypertensive pharmacotherapies do not impact NAD+ bioavailability, supplementation with nicotinamide riboside may provide additional benefits for CV aging beyond prescription medications.
We have elected to use nicotinamide riboside based on the promising results of our pilot clinical trial; however, additional NAD+ precursors also are available for human research, such as nicotinamide mononucleotide and nicotinamide. Nicotinamide mononucleotide and nicotinamide are currently under investigation in healthy and patient populations for their potential beneficial effects on cardiac function, surgery-related acute kidney injury, glucose tolerance, insulin sensitivity, and cardiorespiratory fitness (17). However, the effects of NAD+ precursors other than nicotinamide riboside on vascular health remain to be determined in humans. Niacin (i.e., vitamin B3 or nicotinic acid) is a more thoroughly researched NAD+ precursor that may have a limited effect for reducing CV events or mortality (46, 47). However, niacin induces undesirable side effects (primarily “flushing”) at therapeutic doses, precluding it from regular clinical use. Moreover, niacin may not increase NAD+ concentrations as potently as nicotinamide riboside (48). Thus, given the initial safety, tolerability and efficacy of nicotinamide riboside for augmenting NAD+ concentrations and improving CV function (22), this specific compound warrants additional investigation.
This study will assess the safety and efficacy of 3 months of dietary supplementation with nicotinamide riboside for improving CV function in midlife and older adults with above-normal SBP at baseline. Our previous pilot study performed a majority of the procedures outlined in the current protocol and utilized the same intervention compound (22), whereas 24-h SBP, a key secondary outcome of the current trial, has been successfully assessed previously by our laboratory (49). Thus, we do not expect any significant problems in conducting this protocol. Should the hypothesized effects of the intervention occur, additional analyses beyond those outlined herein also could be performed to further assess potential mechanisms of action, such as reductions in chronic inflammation or endothelial activation.
Through the completion of this study, we will determine whether 3 months of nicotinamide riboside treatment: (1) lowers casual BP, 24-h BP, and aortic stiffness; and (2) is safe, tolerable, and associated with good adherence. We also will gain insight into the potential mechanisms that may mediate nicotinamide riboside-related improvements in CV function. This protocol serves as an essential next step in the translation of NAD+-boosting compounds for CV health. If our hypotheses and expected results are confirmed, data from this phase IIa clinical trial would provide the foundation for a multi-site phase III clinical trial to assess the efficacy of dietary supplementation with nicotinamide riboside in an even larger cohort while enabling further assessment of the compound’s safety profile through monitoring of adverse events. Moreover, results from this trial also may inform future clinical trials to extend any observed CV benefits of dietary supplementation with nicotinamide riboside to other clinical populations.
Thestudies involving human participants were reviewed and approved by the University of Colorado, Boulder, IRB. The patients/participants provided their written informed consent to participate in this study.
CM, DS, and DC conceived of the overall study design. ZY assisted with the design of statistical analyses. MC provided medical oversight on the study protocol. KF, DC, and DS drafted the manuscript. All authors refined and approved of the final manuscript.
This work was supported by the National Institutes of Health awards R01AG061514 (DS), F31HL154782 (KF), K01HL153326 (DC), and K01AG054731 (CM).
Conflict of Interest
The authors have a material transfer agreement with the ChromaDex External Research Program (CERP) to obtain the study compound.
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
We are grateful to Rachel Jackman, Narissa McCarty, and Aaron Lange for their coordination of the study protocol.
1. Tsao CW, Aday AW, Almarzooq ZI, Alonso A, Beaton AZ, Bittencourt MS, et al. Heart disease and stroke statistics-2022 update: a report from the American heart association. Circulation. (2022) 145:e153–639. doi: 10.1161/CIR.0000000000001052
2. Roth GA, Mensah GA, Johnson CO, Addolorato G, Ammirati E, Baddour LM, et al. Global burden of cardiovascular diseases and risk factors, 1990-2019: update from the GBD 2019 study. J Am Coll Cardiol. (2020) 76:2982–3021. doi: 10.1016/j.jacc.2020.11.010
3. Whelton PK, Carey RM, Aronow WS, Casey DE, Collins KJ, Dennison Himmelfarb C, et al. 2017 ACC/AHA/AAPA/ABC/ACPM/AGS/APhA/ASH/ASPC/NMA/PCNA Guideline for the prevention, detection, evaluation, and management of high blood pressure in adults: a report of the American college of cardiology/American heart association task force on clinical practice guidelines. Hypertension. (2018) 71:e13–115.
4. Seals DR, Edward F. Adolph distinguished lecture: the remarkable anti-aging effects of aerobic exercise on systemic arteries. J Appl Physiol. (2014) 117:425–39. doi: 10.1152/japplphysiol.00362.2014
5. Seals DR, Jablonski KL, Donato AJ. Aging and vascular endothelial function in humans. Clin Sci. (2011) 120:357–75. doi: 10.1042/cs20100476
6. Fleenor BS. Large elastic artery stiffness with aging: novel translational mechanisms and interventions. Aging Dis. (2013) 4:76–83.
7. Guzik TJ, Touyz RM. Oxidative stress, inflammation, and vascular aging in hypertension. Hypertension. (2017) 70:660–7. doi: 10.1161/HYPERTENSIONAHA.117.07802
8. Nardone M, Floras JS, Millar PJ. Sympathetic neural modulation of arterial stiffness in humans. Am J Physiol Heart Circ Physiol. (2020) 319:H1338–46. doi: 10.1152/ajpheart.00734.2020
9. Lakatta EG. Arterial and cardiac aging: major shareholders in cardiovascular disease enterprises: part III: cellular and molecular clues to heart and arterial aging. Circulation. (2003) 107:490–7. doi: 10.1161/01.cir.0000048894.99865.02
10. Niiranen TJ, Lyass A, Larson MG, Hamburg NM, Benjamin EJ, Mitchell GF, et al. Prevalence, correlates, and prognosis of healthy vascular aging in a Western community-dwelling cohort. Hypertension. (2017) 70:267–74. doi: 10.1161/HYPERTENSIONAHA.117.09026
11. Covarrubias AJ, Perrone R, Grozio A, Verdin E. NAD + metabolism and its roles in cellular processes during ageing. Nat Rev Mol Cell Biol. (2021) 22:119–41. doi: 10.1038/s41580-020-00313-x
12. McReynolds MR, Chellappa K, Baur JA. Age-related NAD+ decline. Exp Gerontol. (2020) 134:110888. doi: 10.1016/j.exger.2020.110888
13. Mouchiroud L, Houtkooper RH, Moullan N, Katsyuba E, Ryu D, Cantó C, et al. The NAD(+)/sirtuin pathway modulates longevity through activation of mitochondrial UPR and FOXO signaling. Cell. (2013) 154:430–41. doi: 10.1016/j.cell.2013.06.016
14. Strømland Ø, Diab J, Ferrario E, Sverkeli LJ, Ziegler M. The balance between NAD+ biosynthesis and consumption in ageing. Mech Ageing Dev. (2021) 199:111569. doi: 10.1016/j.mad.2021.111569
15. Fang EF, Lautrup S, Hou Y, Demarest TG, Croteau DL, Mattson MP, et al. NAD+ in aging: molecular mechanisms and translational implications. Trends Mol Med. (2017) 23:899–916. doi: 10.1016/j.molmed.2017.08.001
16. Lautrup S, Sinclair DA, Mattson MP, Fang EF. NAD + in brain aging and neurodegenerative disorders. Cell Metab. (2019) 30:630–55. doi: 10.1016/j.cmet.2019.09.001
17. Abdellatif M, Sedej S, Kroemer G. NAD + metabolism in cardiac health, aging, and disease. Circulation. (2021) 144:1795–817. doi: 10.1161/CIRCULATIONAHA.121.056589
18. Okabe K, Yaku K, Tobe K, Nakagawa T. Implications of altered NAD metabolism in metabolic disorders. J Biomed Sci. (2019) 26:34. doi: 10.1186/s12929-019-0527-8
19. Rajman L, Chwalek K, Sinclair DA. Therapeutic potential of NAD-boosting molecules: the in vivo evidence. Cell Metab. (2018) 27:529–47. doi: 10.1016/j.cmet.2018.02.011
20. Martens CR, Seals DR. Practical alternatives to chronic caloric restriction for optimizing vascular function with ageing. J Physiol. (2016) 594:7177–95. doi: 10.1113/JP272348
21. de Picciotto NE, Gano LB, Johnson LC, Martens CR, Sindler AL, Mills KF, et al. Nicotinamide mononucleotide supplementation reverses vascular dysfunction and oxidative stress with aging in mice. Aging Cell. (2016) 15:522–30. doi: 10.1111/acel.12461
22. Martens CR, Denman BA, Mazzo MR, Armstrong ML, Reisdorph N, McQueen MB, et al. Chronic nicotinamide riboside supplementation is well-tolerated and elevates NAD+ in healthy middle-aged and older adults. Nat Commun. (2018) 9:1286. doi: 10.1038/s41467-018-03421-7
23. Chi Y, Sauve AA. Nicotinamide riboside, a trace nutrient in foods, is a vitamin B3 with effects on energy metabolism and neuroprotection. Curr Opin Clin Nutr Metab Care. (2013) 16:657–61. doi: 10.1097/MCO.0b013e32836510c0
24. Lewington S, Clarke R, Qizilbash N, Peto R, Collins R. Age-specific relevance of usual blood pressure to vascular mortality: a meta-analysis of individual data for one million adults in 61 prospective studies. Lancet. (2002) 360:1903–13. doi: 10.1016/s0140-6736(02)11911-8
25. Mancia G, Verdecchia P. Clinical value of ambulatory blood pressure. Circ Res. (2015) 116:1034–45.
26. Clement DL, De Buyzere ML, De Bacquer DA, de Leeuw PW, Duprez DA, Fagard RH, et al. Prognostic value of ambulatory blood-pressure recordings in patients with treated hypertension. N Engl J Med. (2003) 348:2407–15.
27. Dolan E, Stanton A, Thijs L, Hinedi K, Atkins N, McClory S, et al. Superiority of ambulatory over clinic blood pressure measurement in predicting mortality. Hypertension. (2005) 46:156–61. doi: 10.1161/01.HYP.0000170138.56903.7a
28. Anwar Y, Tendler B, McCabe E, Mansoor G, White W. Evaluation of the datascope accutorr plus according to the recommendations of the association for the advancement of medical instrumentation. Blood Press Monit. (1997) 2:105–10.
29. Goodwin J, Bilous M, Winship S, Finn P, Jones SC. Validation of the Oscar 2 oscillometric 24-h ambulatory blood pressure monitor according to the British hypertension society protocol. Blood Press Monit. (2007) 12:113–7. doi: 10.1097/MBP.0b013e3280acab1b
30. Mitchell GF, Hwang S-J, Vasan RS, Larson MG, Pencina MJ, Hamburg NM, et al. Arterial stiffness and cardiovascular events: the Framingham heart study. Circulation. (2010) 121:505–11. doi: 10.1161/circulationaha.109.886655
31. Laurent S, Cockcroft J, Van Bortel L, Boutouyrie P, Giannattasio C, Hayoz D, et al. Expert consensus document on arterial stiffness: methodological issues and clinical applications. Eur Heart J. (2006) 27:2588–605. doi: 10.1093/eurheartj/ehl254
32. Demarest TG, Truong GTD, Lovett J, Mohanty JG, Mattison JA, Mattson MP, et al. Assessment of NAD+metabolism in human cell cultures, erythrocytes, cerebrospinal fluid and primate skeletal muscle. Anal Biochem. (2019) 572:1–8. doi: 10.1016/j.ab.2019.02.019
33. Vuillemin A, Oppert JM, Guillemin F, Essermeant L, Fontvieille AM, Galan P, et al. Self-administered questionnaire compared with interview to assess past-year physical activity. Med Sci Sports Exerc. (2000) 32:1119–24. doi: 10.1097/00005768-200006000-00013
34. Kriska AM, Knowler WC, LaPorte RE, Drash AL, Wing RR, Blair SN, et al. Development of questionnaire to examine relationship of physical activity and diabetes in Pima Indians. Diabetes Care. (1990) 13:401–11. doi: 10.2337/diacare.13.4.401
35. Folstein MF, Folstein SE, McHugh PR. Mini-mental state”. A practical method for grading the cognitive state of patients for the clinician. J Psychiatr Res. (1975) 12:189–98.
36. Matthews CE, Ainsworth BE, Thompson RW, Bassett DR. Sources of variance in daily physical activity levels as measured by an accelerometer. Med Sci Sports Exerc. (2002) 34:1376–81. doi: 10.1097/00005768-200208000-00021
37. Stewart AL, Mills KM, King AC, Haskell WL, Gillis D, Ritter PL. CHAMPS physical activity questionnaire for older adults: outcomes for interventions. Med Sci Sports Exerc. (2001) 33:1126–41. doi: 10.1097/00005768-200107000-00010
38. Subar AF, Kirkpatrick SI, Mittl B, Zimmerman TP, Thompson FE, Bingley C, et al. The automated self-administered 24-hour dietary recall (ASA24): a resource for researchers, clinicians, and educators from the national cancer institute. J Acad Nutr Diet. (2012) 112:1134–7. doi: 10.1016/j.jand.2012.04.016
39. Olshansky SJ, Goldman DP, Zheng Y, Rowe JW. Aging in America in the twenty-first century: demographic forecasts from the MacArthur foundation research network on an aging society. Milbank Q. (2009) 87:842–62. doi: 10.1111/j.1468-0009.2009.00581.x
40. Seals DR, Justice JN, LaRocca TJ. Physiological geroscience: targeting function to increase healthspan and achieve optimal longevity. J Physiol. (2016) 594:2001–24. doi: 10.1113/jphysiol.2014.282665
41. Chini CCS, Peclat TR, Warner GM, Kashyap S, Espindola-Netto JM, de Oliveira GC, et al. CD38 ecto-enzyme in immune cells is induced during aging and regulates NAD+ and NMN levels. Nat Metab. (2020) 2:1284–304. doi: 10.1038/s42255-020-00298-z
42. Imai S, Guarente L. NAD+ and sirtuins in aging and disease. Trends Cell Biol. (2014) 24:464–71. doi: 10.1016/j.tcb.2014.04.002
43. Matasic DS, Brenner C, London B. Emerging potential benefits of modulating NAD+ metabolism in cardiovascular disease. Am J Physiol Heart Circ Physiol. (2018) 314:H839–52. doi: 10.1152/ajpheart.00409.2017
44. Gomes AP, Price NL, Ling AJY, Moslehi JJ, Montgomery MK, Rajman L, et al. Declining NAD(+) induces a pseudohypoxic state disrupting nuclear-mitochondrial communication during aging. Cell. (2013) 155:1624–38. doi: 10.1016/j.cell.2013.11.037
45. Vaitkevicius PV, Fleg JL, Engel JH, O’Connor FC, Wright JG, Lakatta LE, et al. Effects of age and aerobic capacity on arterial stiffness in healthy adults. Circulation. (1993) 88:1456–62. doi: 10.1161/01.cir.88.4.1456
46. D’Andrea E, Hey SP, Ramirez CL, Kesselheim AS. Assessment of the role of niacin in managing cardiovascular disease outcomes: a systematic review and meta-analysis. JAMA Netw Open. (2019) 2:e192224. doi: 10.1001/jamanetworkopen.2019.2224
47. Schandelmaier S, Briel M, Saccilotto R, Olu KK, Arpagaus A, Hemkens LG, et al. Niacin for primary and secondary prevention of cardiovascular events. Cochrane Database Syst Rev. (2017) 6:CD009744.
48. Trammell SAJ, Schmidt MS, Weidemann BJ, Redpath P, Jaksch F, Dellinger RW, et al. Nicotinamide riboside is uniquely and orally bioavailable in mice and humans. Nat Commun. (2016) 7:12948. doi: 10.1038/ncomms12948
49. Craighead DH, Heinbockel TC, Freeberg KA, Rossman MJ, Jackman RA, Jankowski LR, et al. Time-efficient inspiratory muscle strength training lowers blood pressure and improves endothelial function, no bioavailability, and oxidative stress in midlife/older adults with above-normal blood pressure. J Am Heart Assoc. (2021) 10:e020980. doi: 10.1161/JAHA.121.020980
