Genetics of Resistance to Common Root Rot (Spot Blotch), Fusarium Crown Rot, and Sharp Eyespot in Wheat

  • 1. State Key Laboratory of North China Crop Improvement and Regulation, College of Plant Protection, Hebei Agricultural University, Baoding, China

  • 2. State Key Laboratory of Crop Stress Biology for Arid Areas, College of Plant Protection, Northwest A&F University, Xianyang, China

  • 3. College of Agronomy, Hebei Agricultural University, Baoding, China

  • 4. Institute of Advanced Agricultural Sciences, Peking University, Weifang, China

  • 5. National Key Laboratory of Wheat and Maize Crop Science, Agronomy College, Henan Agricultural University, Zhengzhou, China

Article metrics

View details

65

Citations

7k

Views

3,3k

Downloads

Abstract

Due to soil changes, high density planting, and the use of straw-returning methods, wheat common root rot (spot blotch), Fusarium crown rot (FCR), and sharp eyespot (sheath blight) have become severe threats to global wheat production. Only a few wheat genotypes show moderate resistance to these root and crown rot fungal diseases, and the genetic determinants of wheat resistance to these devastating diseases are poorly understood. This review summarizes recent results of genetic studies of wheat resistance to common root rot, Fusarium crown rot, and sharp eyespot. Wheat germplasm with relatively higher resistance are highlighted and genetic loci controlling the resistance to each disease are summarized.

Introduction

Long-term environmental changes have greatly affected crop diseases. For example, the higher temperatures associated with global warming may increase the severity of many plant diseases (Cohen and Leach, 2020). Bursts of wheat stem base rot diseases, including common root rot (spot blotch), Fusarium crown rot, and sharp eyespot, are highly correlated with crop rotation practices. The large-scale application of wheat-maize rotation in the North China wheat cultivation area has dramatically changed the organic carbon, fertilization state, and nitrogen balance of the soil (Zhao et al., 2006; Wang et al., 2015). The disease suppressive capacity of the soil microbiome is also highly dependent on crop rotational diversity (Peralta et al., 2018).

Pathogenic Profiles

Wheat common root rot is caused by Bipolaris sorokiniana infection (Figure 1A, teleomorph Cochliobolus sativus) in the root and stem base of wheat plants. Severe infections of this fungal pathogen in the root and crown of seedlings may kill plants. B. sorokiniana can also induce phenotypes of leaf spot (spot blotch, Helminthosporium leaf blight, or foliar blight, Figure 1B), seedling wilt, head blight, and black point in Triticeae crops (Kumar et al., 2002). The average yield loss caused by B. sorokiniana ranges from 15 to 20%, but under favorable heat and drought conditions this disease can decrease wheat production by 70% and reduce seed quality (Sharma and Duveiller, 2007). This fungal pathogen accumulates several toxins to kill or weaken plant cells, including prehelminthosporol, helminthosporol, helminthosporic acid, sorokinianin, and bipolaroxin (Kumar et al., 2002; Gupta et al., 2018). However, the potential negative effects of B. sorokiniana-infected wheat grains (black point) on food safety have not been investigated in detail. B. sorokiniana has a very wide host range, as it can infect wheat, barley, maize, rice, and many other grass species (Gupta et al., 2018). Multiple-year Triticeae crop rotations of wheat and barley greatly promote the severity of common root rot caused by B. sorokiniana (Conner et al., 1996). Maize crops and returned straws may also be infected by this fungus, so common root rot and spot blotch have been more frequently observed in areas of wheat cultivation in North China where methods of large-scale wheat-maize rotation and straw returning have been applied. Wheat resistance to B. sorokiniana was largely associated with accumulation of reactive oxygen species (ROS) and transcriptional activation of pathogenesis-related protein (PR) genes (Kumar et al., 2001; Wang et al., 2018b).

FIGURE 1

Fusarium crown rot (FCR) is caused by infection of Fusarium pseudograminearum (Figure 1C), or other Fusarium pathogens including F. culmorum, F. avenaceum, and F. graminearum. These fungal species infect the coleoptile, leaf sheath, and stem base of wheat seedlings, generating browning and decay phenotypes (Figure 1D). Fusarium pathogens are found globally in arid and semi-arid wheat planting areas (Kazan and Gardiner, 2018). FCR infection caused an estimated 35% yield loss of winter wheat in the Northwest Pacific region of the United States (Smiley et al., 2005). When FCR-infected plants are co-infected with Fusarium Head Blight (FHB), wheat seeds are likely to be contaminated by fungal toxins such as deoxynivalenol (DON) and nivalenol (NIV), which greatly threaten the health of human and livestock (Monds et al., 2005; Obanor and Chakraborty, 2014). Maize also can be infected with various Fusarium pathogens, and the fungi from infected plants can remain active in returned straw debris for as long as 5 years (Burgess et al., 2001). For these reasons, FCR is a growing threat to wheat cultivation in wheat-maize rotation regions in North China. Based on previous omics studies, wheat resistance to FCR was associated with transcriptional activations of transcription factor, cellular transport and detoxification genes, as well as protein accumulations in photosynthesis, secondary metabolite biosynthesis, phenylpropanoid biosynthesis, and glutathione metabolism (Powell et al., 2017; Qiao et al., 2021).

Wheat sharp eyespot (sheath blight) is caused by infection of Rhizoctonia cerealis (Figure 1E) in the root and stem base of wheat plants, generating disease symptoms of stem eyespot (Figure 1F), crown rot, seedling fatal damage, and head blight. Wheat sharp eyespot is a typical soil-borne fungal disease that is prevalent worldwide (Hamada et al., 2011). R. cerealis also has a broad host range, including many cereals. This fungal pathogen can survive in soil or on infected crop residues for a long time. Consequently, practices of wheat-maize rotation and straw-returning have greatly facilitated the burst of this disease in China during the last two decades (Ren et al., 2020). In 2005, approximately 8 million ha of wheat fields in China were infected with sharp eyespot, with an estimated yield loss of about 530,000 tons (McBeath and McBeath, 2010). Sharp eyespot also significantly decreases wheat grain quality (Lemańczyk and Kwaśna, 2013). Wheat resistance to sharp eyespot seemed to be dependent on a complex defense pathway including genes encoding nucleotide binding site-leucine rich repeat (NBS-LRR) protein, ethylene response factor (ERF) transcription factor, and AGC kinase (Zhu et al., 2014a, 2015, 2017).

These three diseases can have similar phenotypes, causing stem base rot and head blight, but there are differences as well. Common root rot caused by B. sorokiniana weakens infected wheat plants so they can be easily pulled out. Additionally the stem base and root system feel wet, and black and brown striped spots form on both the stem base and lower leaves (Figure 1B). For FCR caused by F. pseudograminearum, the stem base of the infected wheat plant becomes dry and fragile, and dark brown rot can be observed in the stem base (Figure 1D). For sharp eyespot caused by R. cerealis, lesions on the wheat stem are elliptical or have a “eye” shape, with sharply dark brown borders (Figure 1F).

Progress in Dissecting the Genetics of Wheat Resistance to Common Root Rot (Spot Blotch)

The use of wheat resistant cultivars remains the most efficient and economical way to control common root rot (spot blotch). However, there are currently insufficient germplasm resources with resistance to common root rot to meet the growing needs for global wheat breeding applications and there have been few studies to identify the genetic loci that control resistance to common root rot (Gupta et al., 2018). Early efforts focused on the introgression of common root rot resistant loci from Thinopyrum ponticum, a wheat relative (Li et al., 2004). Wheat breeding programs for common root rot resistance have had limited success because analysis of complex quantitative trait loci (QTL) is required (Joshi et al., 2004). Using bi-parental populations and linkage mapping, four genetic loci with major resistant effect were identified and designated as Sb genes. Sb1 was discovered in the bread wheat line “Saar,” was mapped to chromosome 7DS, and is associated with the wheat leaf rust resistance gene Lr34 (Lillemo et al., 2013). The Lr34/Yr18/Pm38 gene encodes a ATP-binding cassette (ABC) transporter that confers broad-spectrum resistance to multiple foliar fungal diseases, including leaf rust, stripe rust, and powdery mildew (Krattinger et al., 2009). Another minor QTL linked to Lr46 on chromosome 1BL was also identified from “Saar.” The Lr46 gene is associated with resistance to leaf rust in adult plants and is also associated with the stripe rust resistance gene Yr29 (William et al., 2003). The Sb2 gene was identified in bread wheat cultivar “Yangmai 6,” which significantly reduced the spot blotch disease severity on wheat leaves (Kumar et al., 2015). The Sb2 gene was mapped to chromosome 5BL between simple sequence repeat (SSR) markers of Xgwm639 and Xgwm1043. The Sb2 gene was later reported to be linked with the Tsn1 gene, which confers host-selective sensitivity to the fungal toxin ToxA produced by Pyrenophora tritici-repentis (Kumar et al., 2016). The Sb3 gene was discovered in the winter wheat line “621-7-1” based on its correlation with immune response to B. sorokiniana on leaves. Using bulked segregant analysis (BSA), Sb3 was mapped to chromosome 3BS, flanking SSR markers of Xbarc133 and Xbarc147 (Lu et al., 2016). The Sb4 gene was recently identified from two highly resistant wheat lines, “Zhongyu1211” and “GY17,” which prevented the infection of B. sorokiniana on both leaves and sheaths of wheat plants. Using RNA-based BSA and single-nucleotide polymorphism (SNP) mapping, Sb4 was delimitated to a 1.19 cM genetic interval region of chromosome 4BL, which contains 21 predicted genes in the corresponding “Chinese Spring” genome (Zhang et al., 2020). Future work should clone these Sb genes to further elucidate the mechanism of wheat resistance toward this devastating fungal pathogen.

Several other major QTLs have been discovered and preliminarily mapped using bi-parental populations. For example, two resistant QTLs derived from “Yangmai 6” were mapped to chromosomes 5B and 7D using microsatellite markers (Kumar et al., 2005). Three QTLs on chromosomes 5B, 6A, and 6D were identified based on analysis of SSR markers from the resistant genotype “G162” (Sharma et al., 2007). Four QTLs controlling resistance of wheat cultivar “Yangmai 6” to B. sorokiniana were mapped to chromosomes 2AL, 2BS, 5BL, and 6DL (Kumar et al., 2009). A total of seven QTLs providing resistance to B. sorokiniana infections were mapped in the wheat lines “Ning 8201” and “Chirya 3” (Kumar et al., 2010). Three QTLs on chromosomes 1BS, 3BS, and 5AS respectively explained 8.5, 17.6, and 12.3%, of the resistant effect in “SYN1,” a CIMMYT (International Maize and Wheat Improvement Center) synthetic-derived bread wheat line (Zhu et al., 2014b). From the Brazilian resistant cultivar “BH 1146,” two QTLs on chromosomes 7BL and 7DL were mapped using microsatellite markers (Singh et al., 2016). A prominent resistant QTL near the Vrn-A1 locus on chromosome 5AL was found in “BARTAI” and “WUYA” CIMMYT breeding lines (Singh et al., 2018). QTLs in Vrn-A1 and Sb2/Tsn1 loci were detected in two other CIMMYT breeding lines, “CASCABEL” and “KATH” (He et al., 2020).

Genome-wide association studies (GWAS) have been widely used to identify QTLs. Using 832 polymorphic Diversity Arrays Technology (DArT) markers, four QTLs resistant to spot blotch were mapped to chromosomes 1A, 3B, 7B, and 7D after analysis of 566 spring wheat germplasm (Adhikari et al., 2012). A phenotypic screening of 11 parental genotypes and 55 F2 lines identified “19HRWSN6” as a resistant source. Subsequent simple linear regression analysis revealed SSR markers on chromosomes 5B, 6A, and 7D associated with resistance to B. sorokiniana (Tembo et al., 2017). There has been recent progress in drafting the physical genome of hexaploid wheat (Appels et al., 2018), and high-throughput SNP toolkits are now available for GWAS on various complex traits of wheat (Sun et al., 2020). A total of 528 spring wheat genotypes from different geographic regions were tested for spot blotch resistance and eleven associated SNP markers were found by 9K SNP assay (Gurung et al., 2014). Another study evaluated the responses of 294 hard winter wheat genotypes to B. sorokiniana and performed GWAS by 15K SNP assay. Ten wheat genotypes with relatively high resistance were identified, and six major resistant QTLs were found to collectively explain 30% of the phenotypic variation (Ayana et al., 2018). A total of 159 spring wheat genotypes were screened for common root rot resistance and 24 QTLs were identified, with a major one on chromosome 7B that explained 14% of the phenotypic variation of spot blotch severity (Jamil et al., 2018). Another study profiled the resistant phenotype of 287 spring wheat germplasm and performed GWAS using 90K SNP array. Eight genetic loci were associated with incubation period, lesion number, and disease score of B. sorokiniana infection (Ahirwar et al., 2018). A recent study phenotyped 301 Afghan wheat germplasm and found that approximately 15% exhibited lower disease scores than the resistant control. A subsequent GWAS approach identified 25 marker-trait associations on more than 12 chromosomes, including previously identified Vrn-A1, and Sb2/Tsn1 loci (Bainsla et al., 2020). Another 141 spring wheat lines were collected for GWAS on spot blotch resistance. A total of 23 genomic loci were identified, including several stable QTLs on chromosomes 2B, 5B, and 7D, and a novel QTL on chromosome 3D (Tomar et al., 2020).

We have summarized the previously reported wheat germplasm with relatively higher resistance to B. sorokiniana (Table 1). These wheat materials may serve as valuable resources for the genetic improvement of wheat resistance to common root rot (spot blotch). We have also summarized detailed information of previously designated resistant QTLs (Table 1) and drafted their genomic distributions using the released genome of hexaploid wheat (Figure 2).

TABLE 1

QTL nameAssociated markers or SNPsResistant wheat germplasmsReferences
Sb1/Lr34*
Qsb
Qsb/Lr46/Yr29*
7DS: Xgwm295, csLV34
7DS: wPt-7654, gdm88
1BL: wmc719, hbe248, ncw1-V

Saar

Lillemo et al., 2013
Sb2/Tsn1*5BL: Xgwm499, Xgwm639, Xgwm1043YS116, CASCABELKumar et al., 2015, 2016;
Bainsla et al., 2020; He et al., 2020
Sb3*3BS: Xbarc147, XWGGC3957, XWGGC4320621-7-1Lu et al., 2016
Sb4*4B: TraesCS4B01G295400.1Zhongyu1211, GY17Zhang et al., 2020
Qsb5B: Xgwm544
7D: Xgwm437
Yangmai 6Kumar et al., 2005
Qsb5B: Xgwm67G162Sharma et al., 2007
QSb.bhu-2A
QSb.bhu-2B
QSb.bhu-5B
QSb.bhu-6D
2AL: Xbarc353, Xgwm445
2BS: Xgwm148, Xgwm374
5BL: Xgwm067, Xgwm371
6DL: Xbarc175, Xgwm732


Yangmai 6


Kumar et al., 2009
QSb.bhu-2A
QSb.bhu-2B
QSb.bhu-5B
QSb.bhu-7D
2AS: Xgwm425, Xbarc159
2BS: Xgwm148, Xbarc91
5BL: Xgwm067, Xgwm213
7DS:Xgwm111, Xgwm1168

Ning 8201

Kumar et al., 2010
QSb.bhu-2B
QSb.bhu-2D
QSb.bhu-3B
QSb.bhu-7B
QSb.bhu-7D
2BS: Xgwm148, Xgwm129
2DS: Xgwm455, Xgwm815
3BS: Xgwm533, Xgwm1037
7BS: Xgwm263, Xgwm255
7DS: Xgwm111, Xswm008


Chirya 3


Kumar et al., 2010
QSb.cim-1B
QSb.cim-3B
QSb.cim-5A
1B: Xwmc128, Xgwm374
3B: 990937| F| 0, 1123330| F| 0
5A: 1086218| F| 0, 982608| F| 0

SYN1, Mayoor, Tksn1081/Ae. squarrosa (222)
Zhu et al., 2014b
QSb.iiwbr-7B
QSb.iiwbr-7D
7BL: wmc758, wmc335
7DL: wmc653, barc121
BH 1146Singh et al., 2016

Qsb/Vrn-A1*

5AL: Vrn-A1
BARTAI, WUYA, CASCABEL, KATHSingh et al., 2018; Bainsla et al., 2020; He et al., 2020


Qsb
1A: wPt-730148, wPt-668214
3B: wPt-1159, wPt-5769
7B: wPt-2838
7D: wPt-664459
Chirya 7, Forma Vinda de Varmland (PI 192569), IWA8600074 (PI 623098), Trigo (PI 477878), Soprimo (PI 479890), CI 10112 (PI 78814), Florentino (PI 565255), AW 6635A/86 (PI 572693), IWA8611737 (PI 625572), NW56A (PI 429667)



Adhikari et al., 2012



Qsb
1B: wsnp_Ex_c24700_33953160
5A: wsnp_Ex_c15342_23592740, wsnp_Ku_c17951_27138894
5B: wsnp_Ex_rep_c70120_69069789, wsnp_Ku_c20701_30355248
6B: wsnp_Ex_c15785_24157360
7B: wsnp_Ex_c52527_56097039
PI25989, PI384237, PI384239, PI479802, PI479890, PI576639, PI245377, PI366685, PI481715, PI624517, PI481574, PI91235, PI350795, PI565213

Gurung et al., 2014

Qsb
5B:Xgwm544
6A:Xwgm570
7D:Xgwm437
19HRWSN6, 30SAWSN5Tembo et al., 2017
QSb.sdsu-2D.1
QSb.sdsu-3A.1
QSb.sdsu-4A.1
QSb.sdsu-4B.1
QSb.sdsu-5A.1
QSb.sdsu-7B.1
2D: Kukri_c31121_1460
3A: Excalibur_c46082_440
4A: IWA8475
4B: Excalibur_rep_c79414_306
5A: Kukri_rep_c104877_2166
7B: TA005844-0160

Duster, Colt, Custer, Intrada, MT0495, NE99495, OK04525, OK05122, OK05723W, Venango

Ayana et al., 2018





Qsb
1A: S1A_582293281
2A: S2A_16824871
3A: S3A_378506623
4B: S4B_554842477
5A: S5A_50162259
5B: S5B_513590441, S5B_504309131, S5B_528990456
6B: S6B_9296088, S6B_673978653
7A: S7A_483878120
7B: S7B_749474154
Chirya.3, Aust-53, Pak-13, SB12-6704, 7HTWSN-4516, 7HTWSN-4513, Aust-8, SB12-6703, Aust-66, SB12-6720, Aust-12, 7HTWSN-4522, 7HTWSN-4526, 7HTWSN-4412, 7HTWSN-4405, 7HTWSN-4517, H.Sat-8, Aust-59, Aust-29, 7HTWSN-4406, 7HTWSN-4510




Jamil et al., 2018



Qsb
1B: BobWhite_c17559_105
4A: BobWhite_c20322_153, BobWhite_c17524_242
5B: Tdurum_contig25513_123, tplb0027f13_1493
6A: wsnp_Ra_c2270_4383252
6B: BS00092845_51
7A: Ku_c15750_761



N. A.



Ahirwar et al., 2018



Qsb

1B: TraesCS1B01G416200
5A: TraesCS5A01G391400, TraesCS5A01G369700
0KATIA, DE9, OK82282//BOW/NKT/3/F4105, PSN/BOW//ROEK/3/MILAN, KAUZ 2*/OPATA//KAUZ, ALTAR84/AE.SQ//2*, CNDO/R143//ENTE/MEXI- 2/3/…, PAMIR-94 x, NING9415, RENESANSA, VORONA/CUPE


Bainsla et al., 2020












Qsb
1A: TraesCS1A01G018700
1B: TraesCS1B01G424000, TraesCS1B01G423900
1D: TraesCS1D01G012500, TraesCS1D01G012900
2B: TraesCS2B01G505200, TraesCS2B01G552700, TraesCS2B01G12400, TraesCS2B01G30100
3A: TraesCS3A01G107400, TraesCS3A01G103000
3B: TraesCS3B01G520100
3D: TraesCS3D01G537500
5A: TraesCS5A01G402700, TraesCS5A01G457100
5B: TraesCS5B01G066200, TraesCS5B01G224500, TraesCS5B01G521500
6A: TraesCS6A01G061900
7A: TraesCS7A01G504700, TraesCS7A01G530700
7B: TraesCS7B01G002400, TraesCS7B01G003000, TraesCS7B01G169400
7D: TraesCS7D01G067000, TraesCS7D01G081100, TraesCS7D01G221000












N. A.












Tomar et al., 2020

Genetics of resistance to common root rot (spot blotch) in wheat.

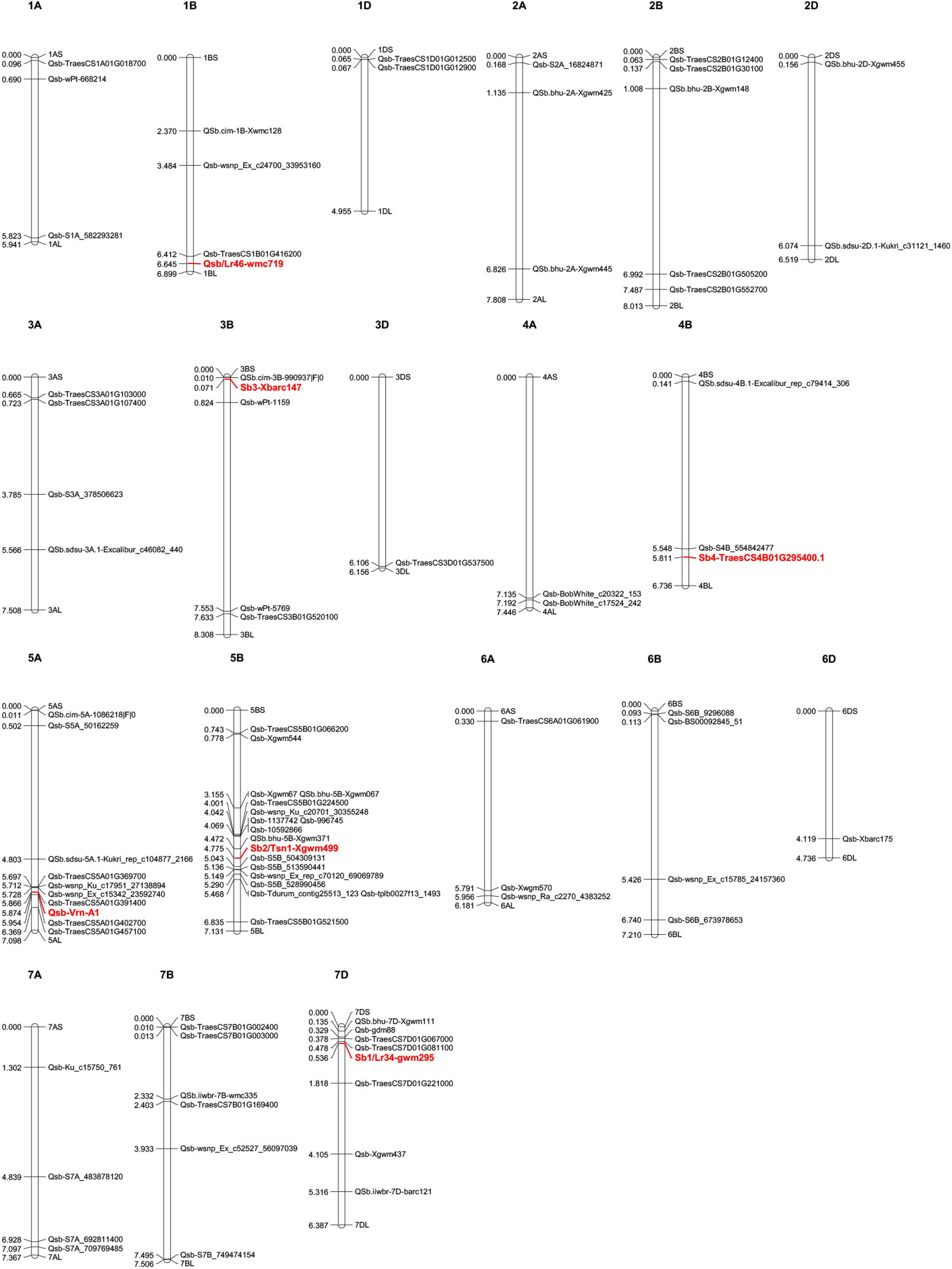

Genomic distribution of all these summarized resistant loci were drafted using associated markers and SNPs (bold labeled) that can be found in “Chinese Spring” wheat genome database. Stable QTLs with large effect or linked with designated genes were labeled with asterisk (*) and highlighted in Figure 2.

FIGURE 2

Genetic Loci Controlling Wheat Resistance to Fusarium Crown Rot

Since the causal agent of Fusarium head blight (FHB), Fusarium graminearum, can also induce the phenotype of Fusarium crown rot (Akinsanmi et al., 2006; Zhou et al., 2019), it is likely that FHB-resistant germplasm and genetic loci can be exploited to improve FCR resistance. For instance, the recently cloned FHB resistance gene Fhb7 encodes a glutathione S-transferase (GST) and provides broad-spectrum resistance to Fusarium diseases, including FCR induced by F. pseudograminearum, by detoxifying trichothecenes through de-epoxidation (Wang et al., 2020). However, an earlier investigation of the same wheat genotypes found no significant correlation of resistant phenotype or genetic loci conferring resistance to FHB and FCR (Li et al., 2010). A recent large-scale phenotyping of 205 Chinese wheat cultivars for resistance to both FHB and FCR also found no correlation in resistant phenotypes (Shi et al., 2020). Great efforts have also been made toward identification of FCR-resistant barley germplasm and genetic loci that control FCR resistance in barley (Liu and Ogbonnaya, 2015). Since recent review papers have already summarized QTLs conferring FHB resistance and susceptibility in wheat in detail (Buerstmayr et al., 2020; Fabre et al., 2020), here we have mainly focused on studies reporting wheat resistance to FCR induced by F. pseudograminearum and F. culmorum.

Genetic studies revealed a major FCR-resistant QTL on chromosome 3BL (Qcrs.cpi-3B). This resistant locus, Qcrs.cpi-3B, was identified in the wheat genotype “CSCR6” of the taxon Triticum spelta (Ma et al., 2010). In a wheat recombinant inbred line population of “Lang/CSCR6,” a QTL on chromosome 4B derived from “Lang” explained the soil-free FCR resistance (Yang et al., 2010). Another significant QTL on chromosome 6B was identified as responsible for FCR resistance during an introgression process for durum wheat using “CSCR6” as the donor parent (Ma et al., 2012b). Near-isogenic lines for the Qcrs.cpi-3B locus have been developed for both genetic research and breeding practice (Ma et al., 2012a). Subsequent transcriptome and allele specificity analysis revealed differentially expressed genes associated with the Qcrs.cpi-3B locus (Ma et al., 2014). Fine mapping of this QTL shortened the genetic interval to 0.7 cM, containing 63 coding genes in the reference wheat genome (Zheng et al., 2015). Future map-based cloning and identification of the functional gene in this large-effect QTL may help elucidate the molecular bases of wheat resistance to FCR.

Other resistant QTLs have been identified using bi-parental populations. Early investigation discovered a resistant locus near the dwarfing gene Rht1 on chromosome 4B from the wheat cultivar “Kukri” (Wallwork et al., 2004). Inherited from the wheat line “W21MMT70” with partial resistance to FCR, two QTLs were mapped to chromosomes 2D and 5D (Bovill et al., 2006). A major QTL on chromosome 1DL (QCr.usq-1D1) and several minor QTLs were identified in wheat line “2-49 (Gluyas Early/Gala)” using SSR markers (Collard et al., 2005, 2006). FCR resistance screening of 32 wheat genotypes identified “2-49,” “Aso zairai 11,” and “Ernie” as resistant sources. A QTL derived from “Ernie” was mapped to chromosome 3BL near markers wPt-1151 and wPt-1834 (Li et al., 2010). An Australian spring wheat cultivar “Sunco” showed partial resistance to FCR induced by F. pseudograminearum. Using bi-parental QTL mapping, a major QTL was identified on chromosome 3BL, between SSR markers Xgwm247 and Xgwm299 (Poole et al., 2012). These resistant sources of “W21MMT70,” “2-49,” and “Sunco” were then used for QTL pyramiding (Bovill et al., 2010). Four FCR-resistant QTLs were discovered, and their resistant alleles were derived from the bread wheat commercial variety “EGA Wylie.” Major QTLs on chromosomes 5DS and 2DL were consistently detected in all three populations and two minor QTLs were mapped to chromosome 4BS (Zheng et al., 2014). QTL mapping was also performed to find genetic loci controlling partial resistance to FCR in the four wheat germplasm “2-49,” “Sunco,” “IRN497,” and “CPI133817.” FCR resistance was evaluated in both seedlings and adult plants. Six QTLs among these resistant wheat genotypes were revealed (Martin et al., 2015). Stable QTLs on chromosomes 1DL and 3BL have been identified from wheat germplasm “2-49” and “Sunco,” respectively, in several studies.

A GWAS approach was used to screen 2,514 wheat genotypes for FCR resistance, and DArT and SSR markers identified two major QTLs on chromosome 3BL that explained 35 and 49% of the phenotypic variation (Liu et al., 2018). A set of 126 spring bread wheat lines from CIMMYT was phenotyped against FCR induced by F. culmorum and further genotyped using DArT markers, which resulted in the identification of three major QTLs on chromosomes 3B and 2D (Erginbasorakci et al., 2018). The use of GWAS for FCR resistance has greatly benefited from advanced high-throughput sequencing techniques and the released hexaploid wheat genome. A total of 234 Chinese wheat cultivars were evaluated for FCR resistance in four greenhouse experiments, with GWAS using a high-density 660K SNP assay. This revealed a major QTL on chromosome 6A, which was subsequently validated using a bi-parental population of “UC1110/PI610750” (Yang et al., 2019). The same team screened the FCR resistance of another 435 wheat introgression lines (generated by crossing of Yanzhan1 with other elite varieties) and performed GWAS using 660K SNP array. Most of the significant SNP associations were distributed on chromosome 4B and a gene encoding a dirigent protein (TaDIR-B1) was validated as a negative regulator of FCR resistance (Yang et al., 2021). A recent GWAS approach phenotyped 358 Chinese germplasm for FCR resistance, with less than 10% exhibiting a lower disease index. The wheat 55K SNP assay was applied for association analysis, resulting in detection of significant QTLs on chromosomes 1BS, 1DS, 5DS, 5DL, and 7BL (Jin et al., 2020). GWAS was also performed to evaluate FCR resistance of 161 wheat accessions under growth room and greenhouse conditions using F. culmorum as the pathogen. Using a 90K SNP array, a total of 15 QTLs for FCR resistance were detected with one major QTL on chromosome 3BS near the FHB resistance Fhb1 locus (Pariyar et al., 2020). A marker-assisted recurrent selection approach was next performed on two populations to pyramid minor FCR-resistant QTLs. Using 9K SNP array, a total of 23 marker-trait associations were identified by GWAS (Rahman et al., 2020).

In Table 2, we summarize wheat germplasm resistant to FCR induced by either F. pseudograminearum or F. culmorum. Identified QTLs controlling FCR resistance are also highlighted (Table 2), with their genomic distributions annotated using the wheat genome database (Figure 3).

TABLE 2

QTL nameAssociated markers or SNPsResistant wheat germplasmsReferences
Qcrs.cpi-3B*

Qcsr.cpi-4B
Qcr
Qcr
3BL: Xgwm0181, wPt-10505, wPt-2277
4BS: wPt-5334, wPt-4918, Xbarc199
5A: Xwmc110
6B: Xwmc494, Xgwm193, Xwmc397, Xbarc198, Xbarc178
CSCR6 (T. spelta), Lang, KennedyMa et al., 2010, 2012a, b, 2014; Yang et al., 2010; Zheng et al., 2015

Qcr
2BS: Xgdm086, Xbarc200
2D: Xwmc018, Xwmc190
5D: Xbarc205, barc143
W21MMT70, MendosBovill et al., 2006
Qcr
QCr.usq-1D.1
QCr.usq-2B.1
Qcr/Rht1*
Qcr
1AL: Xwmc120, Xwmc312
1DL: Xcfd19, Xwmc216
2BS: Xbarc349.1, Xgwm388
4BL: Xgwm165, Xgwm251
7BS: Xgwm400, Xwmc476
Kukri, 2-49 (Gluyas Early/Gala), JanzWallwork et al., 2004; Collard et al., 2005, 2006
QCr.usq-1D.1
QCr.usq-2B.2
QCr.usq-3B.1
QCr.usq-4B.1
Qcr
1DL: Xcfd19, wPt-9380
2B: wPt-5374, wPt-0434
3BL: wPt-7301, wPt-0365
4BS: wPt-4535, Xgwm251
7AS: wPt-4748, wPt-8418
2-49, W21MMT70, SuncoBovill et al., 2010
Qcr3B: wPt-1834, wPt-11512-49, Aso zairai 11, ErnieLi et al., 2010
Qcrs.wsu-3BL
Qcr
Qcr
3BL: Xgwm247, Xgwm299
3BS: wPt-5390, Xwmc777
7AS: wPt-3702
Sunco, Macon, OtisPoole et al., 2012
Qcrs.cpi-2D
Qcrs.cpi-4B.1
Qcrs.cpi-4B.2
Qcrs.cpi-5D
2DL: 1131013| F| 0, 1246993| F| 0
4BS: 100004319| F| 0, 2324159| F| 0
4BS: 1108472| F| 0, 1093616| F| 0
5DS: 1215315| F| 0, 1237596| F| 0
EGA WylieZheng et al., 2014







Qcr
1AS: Xbarc148, Xgwm164
1BS: Xcfd65, Xgwm11
1DL: Xcfd19, Xwmc216
2A: Xgwm95,Xcfa2043
2B: Xgwm630, Xcfa2278
2DS: Xgwm484, Xgwm102
3AL: Xcfa2134,Xcfa2262
3BL: Xgwm299,wPt-0021, Xwmc236, wPt-0365
4BS: Xwmc467, Xgwm165
4BS: Xbarc193, Xwmc349
6DL: Xcfd188, Xcfd47
6DL: Xbarc196, Xbarc273






2-49, Sunco, IRN497, CPI133817






Martin et al., 2015

Qcr
2DS: wPt-669517
3BS: wPt-2193, wPt-22988, wPt-732330, wPt-2766
2-49, Sunco, Altay-2000Erginbasorakci et al., 2018
QFCR.heau-2A
QFCR.heau-2D
Qcr-6AL*QFCR.heau-6A
Qcr-6B
Qcr-6D
2AS: Xwms382, wPt-7462, wPt-3757
2DS: Xcfd53
6AL: AX-111106634,AX-94534539
6AS: Xbarc3, Xwmc754
6B: SNP position 534,514,143
6D: SNP position 354,819,336
Xunmai 118, Kaimai 26, Yanke 316, Xuke 732, Zhonglemai 9, Jinmai 1, Shenzhou 209, Fannong 1, Jiyanmai 7, UC1110, PI610750Yang et al., 2019
TaDIR-B1*
Qcr
4B: TraesCS4B02G385500
4B: AX-111079978, AX-110977572
Bainong64Yang et al., 2021
Qcr

Qcr

Qcr
Qcr

Qcr
Qcr-5DL*

Qcr
Qcr
1BS: Affx-88612017, Affx-109495423
1DS: Affx-92108178, Affx-109205872
2AL: Affx-111557509
5DS: Affx-88597504, Affx-110248324
5AL: Affx-109253960
5DL: Affx-110484766, Affx-110079634
6BS: Affx-110282972
7BL: Affx-109846651, Affx-109540847
Henong 982, Shiyou 17, Bao 6818, Quanmai 890, 04 Zhong 36, Junda 129, Xu 10054, Fanmai 5, Lian 0809, Shixin 733, Shi05-6678, Han 06-5170, Luomai 8, Zhongyuanzhixing, Yangao 21, Xumai 33Jin et al., 2020
Qcr
Qcr

Qcr/Fhb1*
Qcr
Qcr
Qcr
Qcr

Qcr
Qcr
Qcr
Qcr
Qcr
2AL: Kukri_c57491_156
3AS: wsnp_Ra_c16278_24893033, CAP8_c1393_327
3BS: CAP12_rep_c3868_270
3DL: wsnp_Ex_c14027_21925404
4BS: wsnp_Ku_c12399_20037334
4BL: RAC875_rep_c72961_977
5BS: wsnp_Ku_c17875_27051169, Excalibur_c23304_353
5DS: RAC875_rep_c111521_246
5DL: Excalibur_c2795_1518
6BS: RAC875_c17297_341
6BL: BobWhite_c19298_97
6DS: BS00021881_51
VICTORYA, Katea, KOLLEGA, DORADE-5/3/BOW”S”/GEN//SHAHI, 2180*K/2163//?/3/W1062A*HVA114/W3416, L 4224 K 12, NE04424, TX69A509.2//BBY/FOX/3/GRK//NO64/PEX/4/CER/5/KAUZ//ALTAR 84/AOS, ID800994.W/MO88Pariyar et al., 2020
Qcr1A: BobWhite_c1027_1127, wsnp_Ku_c183_358844
1B: BS00070139_51, Tdurum_contig13117_1316
1D: wsnp_Ex_c3372_6195001
2D: BS00062567_51
3B: BS00072994_51, BS00079029_51, IACX11310
4A: BS00035307_51
4B: Ku_c3385_521
5B: BS00032003_51, BobWhite_c6094_447
6B: RAC875_c60007_199
7A: BobWhite_c33300_159, wsnp_JD_c1219_1766041
7B: wsnp_be352570B_Ta_2_1
AUS29529/2/2.49/Cunningham//Kennedy/3/Sunco, CSCR16/2/2.49/Cunningham//Kennedy/3/Sunco/2*PastorRahman et al., 2020
N. A.N. A.Cunmai633, LS4607, Pubing01, Hongyun2, Jimai216, Fengyunmai5, Huaihe15076, Luofeng2419, Yanfeng168, Zhengmai22, Zhoumai38, Zhoumai37, Lemai185, Xinmai38, Xinong733, Xinmai45, Guohemai12, Xinong625, Zhengmai162Shi et al., 2020

Genetic loci controlling wheat resistance to Fusarium crown rot.

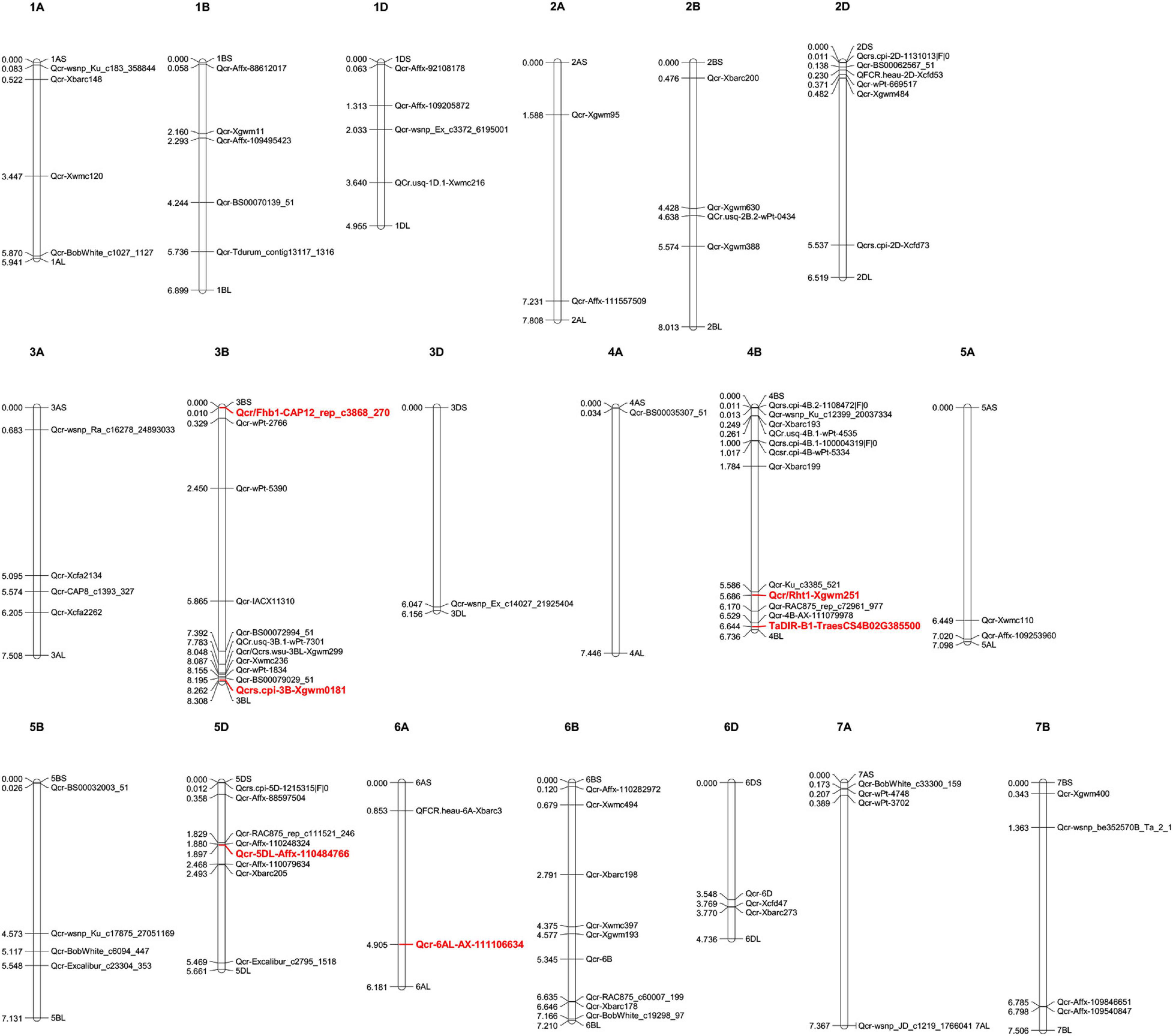

Genomic distribution of all these summarized resistant loci were drafted using associated markers and SNPs (bold labeled) that can be found in “Chinese Spring” wheat genome database. Stable QTLs with large effect or linked with designated genes were labeled with asterisk (*) and highlighted in Figure 3.

FIGURE 3

Genetic Determinants of Wheat Resistance to Sharp Eyespot

Wheat resistance to sharp eyespot is controlled by QTLs. However, additional efforts should focus on identification of resistant germplasm and genetic loci conferring resistance to this fungal disease. A recent large-scale screening of sharp eyespot resistant germplasm in Chinese wheat cultivars revealed no immune or highly resistant germplasm, and only 4% exhibiting moderate resistance to R. cerealis (Ren et al., 2020). Introgression of exogenous chromosome segments from wheat relatives might help generate novel resistant germplasms. For example, a wheat-rye 4R chromosome disomic addition line gained high resistance to sharp eyespot (An et al., 2019). Wheat cultivars “Luke” and “AQ24788-83” showed high resistance to R. cerealis and subsequent genetic investigations revealed seven significant sharp eyespot resistant QTLs on chromosomes 1A, 2B, 3B, 4A, 5D, 6B, and 7B (Chen et al., 2013; Guo et al., 2017). Using 90 K SNP and SSR markers, five QTLs on chromosomes 2BS, 4BS, 5AL, and 5BS controlling resistance to R. cerealis were identified from the wheat cultivar “CI12633” (Wu et al., 2017). Three QTLs controlling resistance of wheat cultivars “Niavt14” and “Xuzhou25” to R. cerealis were mapped to chromosomes 2B and 7D (Jiang et al., 2016). A recent study using the same population of “Niavt14/Xuzhou25” and 55K SNPs revealed three novel stable QTLs on chromosomes 1D, 6D, and 7A (Liu et al., 2020).

In Table 3, we summarize wheat germplasm resistant to R. cerealis. Reported QTLs controlling sharp eyespot resistance are highlighted (Table 3), with their genomic distributions annotated using the wheat genome database (Figure 4).

TABLE 3

QTL nameAssociated markers or SNPsResistant wheat germplasmsReferences
QSe.cau-1AS
QSe.cau-2BS
QSe.cau-3BS
QSe.cau-4AL
QSe.cau-5DL
QSe.cau-6BL
QSe.cau-7BL
1AS: barc148, wmc120
2BS: wmc154, barc200
3BS: wmc777, barc73
4AL: barc327, wmc776
5DL: gwm292, cfd29, gwm212
6BL: gwm626, barc187, wmc397
7BL: gwm611, wmc166, wmc581
Luke, AQ24788-83Chen et al., 2013; Guo et al., 2017
QSe.jaas-2BS

QSe.jaas-4BS

QSe.jaas-5AL.1

QSe.jaas-5AL.2

QSe.jaas-5BS
2BS: RAC875_c730_234, RAC875_c16697_1502
4BS: RAC875_c49792_228, Kukri_c34353_821
5AL: GENE-3601_145, Ku_c21002_908
5AL: IAAV3043, wsnp_Ex_c55777_58153636
5BS: wsnp_Ku_c11721_19085513, BS00068710_51
CI12633Wu et al., 2017
QSe.jaas-1D*

QSe..jaas-2B
QSe.jaas-6D

QSe.jaas-7A*

QSe.jaas-7D
1D: AX-111976732, AX-110490771
2B: AX-111049538
6D: AX-111481557, AX-109521374
7A: AX-109911760, AX-110041698
7D: AX-110667549, AX-110559985
Niavt 14, Xuzhou 25Jiang et al., 2016; Liu et al., 2020
N. A.N. A.Seedling resistance: CI12633, Banmangmai, Banjiemang, Ibis, Hongyouzi, Shaanhe6, Chinese Spring, Hongxingmai, Pingyuan 50, Linfen139, Chuanyu12, Yongfengnong2, Yunong202, Xinmai68, Huabei187, Jinmai50, Neixiang184 Adult plant resistance: Shaanhe6, CI12633, Banmangmai, Chinese Spring, Huomai, Banjiemang, Pingyuan50, Pingyang181, Yumai8, Qingfeng1, Hongyouzi, Hongxingmai, Libellula, Zhengmai8998Ren et al., 2020

Genetic determinants of wheat resistance to sharp eyespot.

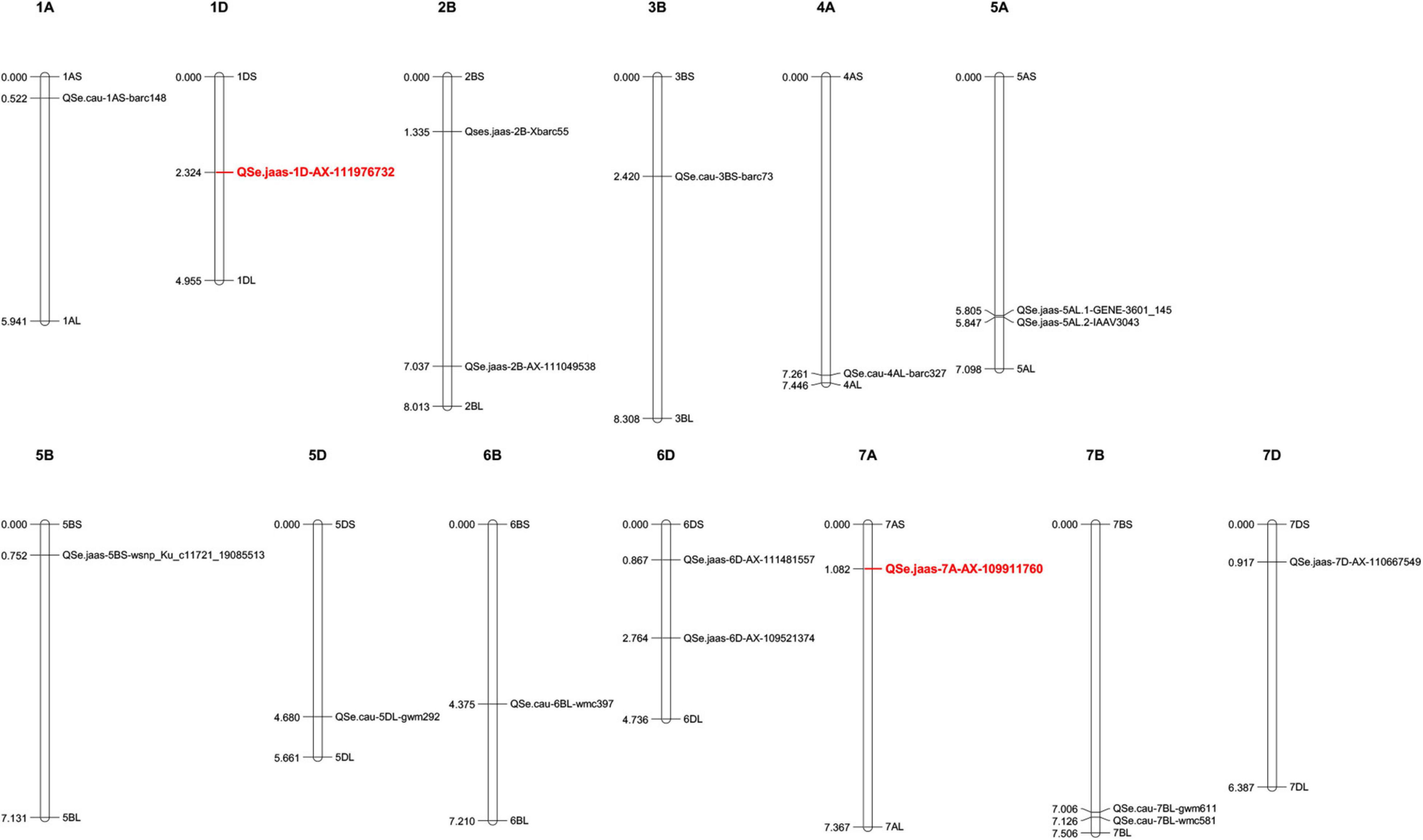

Genomic distribution of all these summarized resistant loci were drafted using associated markers (bold labeled) that can be found in “Chinese Spring” wheat genome database. Stable QTLs with large effect or linked with designated genes were labeled with asterisk (*) and highlighted in Figure 4.

FIGURE 4

Discussion

We have described three rot diseases that commonly infect the stem base of wheat plants (Figure 1). These diseases are major threats to wheat productions in wheat-maize rotation areas with large-scale application of straw returning. Wheat breeding is the most efficient way to control these devastating fungal diseases. However, as summarized in this review (Tables 13), there are few wheat germplasm with relative high resistance to B. sorokiniana, F. pseudograminearum, or R. cerealis. Large-scale screenings of resistant wheat germplasm are still urgently needed for effective wheat breeding applications. New germplasm resources including wheat relatives (e.g., introgression lines using Thinopyrum ponticum, Triticum spelta, and rye) may have great potential to improve wheat resistance to these root and crown rot fungal diseases.

Genetic improvement of wheat resistance to these diseases requires exploring novel QTLs that control resistance. There are several previously reported resistant QTLs (Tables 13) and their genomic distributions have been mapped based on the released wheat genome (Figures 24). Stable QTLs with large effect or linked with designated genes were highlighted. Chromosome location data for all these reported QTLs was provided in Supplementary Table 1. Some identified QTLs that confer resistance to B. sorokiniana are associated with loci responsible for wheat resistance to other foliar fungal diseases, such as Lr34/Yr18/Pm38, Lr46/Yr29, and Tsn1. Wheat leaves might restrain the infection of different foliar fungal diseases using similar molecular approaches mediated by resistant genes. Wheat germplasm with broad-spectrum resistant loci should be evaluated for potential resistance to spot blotch or common root rot induced by B. sorokiniana. Of QTLs that control resistance to Fusarium crown rot, ones that also have resistance to FHB may be more valuable, since the major causal agents of these diseases (F. pseudograminearum, F. culmorum, and F. graminearum) are very likely to co-exist in a cultivation environment. For genetic studies on QTLs controlling resistance to sharp eyespot, the large-scale screening of resistant wheat germplasm would greatly accelerate the identification of novel QTLs correlated with resistance to sharp eyespot. There is also an urgent need to employ GWAS technique to screen for more sharp eyespot resistant QTLs at the genome-wide level. To explore QTLs with potential co-resistance effects to all these three stem base rot diseases, we combined the chromosome distribution maps of all the reported QTLs in Supplementary Figure 1. Chromosome regions on 1AS, 3BL, 4BL, 5AL, 5BL, and 7AS are enriched with QTLs conferring resistance to these soil-borne necrotrophic fungal diseases. Constructing near-isogenic lines and using residual heterozygotes allow the use of fine mapping and further positional cloning for key gene/loci that control resistance. With advanced genomic and capture-sequencing techniques such as MutRenSeq, AgRenSeq, and Exome Capture, fast-cloning approaches might accelerate this time-consuming process (Steuernagel et al., 2016; Krasileva et al., 2017; Arora et al., 2019). Gene editing may also increase the rate of genetic improvement of wheat resistance to these fungal diseases (Wang et al., 2018a). Both forward and reverse genetic studies will provide valuable targets for the application of CRISPR-Cas9 in wheat. Nevertheless, the main restraints for fine-mapping and cloning of genes/QTLs conferring resistance to these stem base rot diseases are accurate phenotyping of large-scale segregation populations and functional validation of candidate resistance genes.

Efforts should also be made to convert traditional markers used previously to identify resistant QTLs (microsatellite, SSR, and DrAT) to SNP markers, as SNP markers may serve as valuable tools for high-throughput marker-assisted selection in wheat breeding. Progress in wheat genome research and increased availability of high-density SNP toolkits will facilitate the use of GWAS on collected wheat germplasm to more efficiently identify novel resistant sources and genetic loci.

Statements

Author contributions

XW, ZK, and WZ: conceptualization. JS, JZ, SZ, ML, and SP: data collection. XW: original draft preparation. SC and FC: review and editing. XW, ZK, and WZ: supervision. All authors read and agreed to the published version of the manuscript.

Funding

This work was supported by Provincial Natural Science Foundation of Hebei (C2021204008), Open Project Program of National Key Laboratory of Wheat and Maize Crop Science, Provincial Supporting Program of Hebei for the Returned Oversea Scholars (C20190180), Open Project Program of State Key Laboratory of North China Crop Improvement and Regulation (NCCIR2020KF-4), National Key R&D Program of China (2017YFD0300906), and Provincial Innovation Program of Hebei for Post-graduate Student (CXZZSS2021070).

Acknowledgments

The authors would like to thank Prof. Zaifeng Li from Hebei Agricultural University for discussion and input to this work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fgene.2021.699342/full#supplementary-material

Supplementary Figure 1

Combined chromosome distribution map for all the QTLs conferring resistance to common root rot (spot blotch), Fusarium crown rot, and sharp eyespot in wheat.

Supplementary Table 1

Chromosome location data for all the reported QTLs.

References

  • 1

    AdhikariT. B.GurungS.HansenJ. M.JacksonE. W.BonmanJ. M. (2012). Association mapping of quantitative trait loci in spring wheat landraces conferring resistance to bacterial leaf streak and spot blotch.Plant Genome5116.

  • 2

    AhirwarR. N.MishraV. K.ChandR.BudhlakotiN.MishraD. C.KumarS.et al (2018). Genome-wide association mapping of spot blotch resistance in wheat association mapping initiative (WAMI) panel of spring wheat (Triticum aestivum L.).PLoS One13:e0208196. 10.1371/journal.pone.0208196

  • 3

    AkinsanmiO. A.BackhouseD.SimpfendorferS.ChakrabortyS. (2006). Genetic diversity of Australian Fusarium graminearum and F. pseudograminearum.Plant Pathol.55494504. 10.1111/j.1365-3059.2006.01398.x

  • 4

    AnD.MaP.ZhengQ.FuS.LiL.HanF.et al (2019). Development and molecular cytogenetic identification of a new wheat-rye 4R chromosome disomic addition line with resistances to powdery mildew, stripe rust and sharp eyespot.Theor. Appl. Genet.132257272. 10.1007/s00122-018-3214-3

  • 5

    AppelsR.EversoleK.SteinN.FeuilletC.KellerB.RogersJ.et al (2018). Shifting the limits in wheat research and breeding using a fully annotated reference genome.Science361:eaar7191.

  • 6

    AroraS.SteuernagelB.GauravK.ChandramohanS.LongY.MatnyO.et al (2019). Resistance gene cloning from a wild crop relative by sequence capture and association genetics.Nat. Biotechnol.37139143. 10.1038/s41587-018-0007-9

  • 7

    AyanaG. T.AliS.SidhuJ. S.HernandezJ. L. G.TurnipseedB.SehgalS. K. (2018). Genome-wide association study for spot blotch resistance in hard winter wheat.Front. Plant Sci.9:926. 10.3389/fpls.2018.00926

  • 8

    BainslaN. K.PhukeR. M.HeX.GuptaV.BishnoiS. K.SharmaR. K.et al (2020). Genome-wide association study for spot blotch resistance in Afghan wheat germplasm.Plant Pathol.6911611171. 10.1111/ppa.13191

  • 9

    BovillW. D.HorneM.HerdeD. J.DavisM.WildermuthG. B.SutherlandM. W. (2010). Pyramiding QTL increases seedling resistance to crown rot (Fusarium pseudograminearum) of wheat (Triticum aestivum).Theor. Appl. Genet.121127136. 10.1007/s00122-010-1296-7

  • 10

    BovillW. D.MaW.RitterK.CollardB. C. Y.DavisM.WildermuthG. B.et al (2006). Identification of novel QTL for resistance to crown rot in the doubled haploid wheat population ‘W21MMT70’בMendos’.Plant Breed.125538543. 10.1111/j.1439-0523.2006.01251.x

  • 11

    BuerstmayrM.SteinerB.BuerstmayrH. (2020). Breeding for Fusarium head blight resistance in wheat—progress and challenges.Plant Breed.139429454. 10.1111/pbr.12797

  • 12

    BurgessL. W.BackhouseD.SummerellB. A.SwanL. J. (2001). “Crown rot in wheat—-Chapter 20,” inFusarium-Paul E Nelson Memorial Symposium, edsSummerellB. A.LeslieJ. F.BackhouseD.BrydenW. L.BurgessL. W. (St Paul, MIN: The American Phytopathological Society), 271294.

  • 13

    ChenJ.LiG. H.DuZ. Y.QuanW.ZhangH. Y.CheM. Z.et al (2013). Mapping of QTL conferring resistance to sharp eyespot (Rhizoctonia cerealis) in bread wheat at the adult plant growth stage.Theor. Appl. Genet.12628652878. 10.1007/s00122-013-2178-6

  • 14

    CohenS. P.LeachJ. E. (2020). High temperature-induced plant disease susceptibility: more than the sum of its parts.Curr. Opin. Plant Biol.56235241. 10.1016/j.pbi.2020.02.008

  • 15

    CollardB. C. Y.GramsR. A.BovillW. D.PercyC. D.JolleyR.LehmensiekA.et al (2005). Development of molecular markers for crown rot resistance in wheat: mapping of QTLs for seedling resistance in a ‘2-49’בJanz’ population.Plant Breed.124532537. 10.1111/j.1439-0523.2005.01163.x

  • 16

    CollardB. C. Y.JolleyR.BovillW. D.GramsR. A.WildermuthG. B.SutherlandM. W. (2006). Confirmation of QTL mapping and marker validation for partial seedling resistance to crown rot in wheat line ’2-49’.Crop Pasture Sci.57967973. 10.1071/ar05419

  • 17

    ConnerR. L.DuczekL. J.KozubG. C.KuzykA. D. (1996). Influence of crop rotation on common root rot of wheat and barley.Can. J. Plant Pathol.18247254. 10.1080/07060669609500620

  • 18

    ErginbasorakciG.SehgalD.SohailQ.OgbonnayaF. C.DreisigackerS.PariyarS. R.et al (2018). Identification of novel quantitative trait loci linked to crown rot resistance in spring wheat.Int. J. Mol. Sci.19:2666. 10.3390/ijms19092666

  • 19

    FabreF.RocherF.AlouaneT.LanginT.BonhommeL. (2020). Searching for FHB resistances in bread wheat: susceptibility at the crossroad.Front. Plant Sci.11:731. 10.3389/fpls.2020.00731

  • 20

    GuoY.DuZ.ChenJ.ZhangZ. (2017). QTL mapping of wheat plant architectural characteristics and their genetic relationship with seven QTLs conferring resistance to sheath blight.PLoS One12:e0174939. 10.1371/journal.pone.0174939

  • 21

    GuptaP. K.ChandR.VasisthaN. K.PandeyS. P.KumarU.MishraV. K.et al (2018). Spot blotch disease of wheat: the current status of research on genetics and breeding.Plant Pathol.67508531. 10.1111/ppa.12781

  • 22

    GurungS.MamidiS.BonmanJ. M.XiongM.BrownguediraG.AdhikariT. B. (2014). Genome-wide association study reveals novel quantitative trait loci associated with resistance to multiple leaf spot diseases of spring wheat.PLoS One9:e108179. 10.1371/journal.pone.0108179

  • 23

    HamadaM. S.YinY.ChenH.MaZ. (2011). The escalating threat of Rhizoctonia cerealis, the causal agent of sharp eyespot in wheat.Pest Manag. Sci.6714111419. 10.1002/ps.2236

  • 24

    HeX.DreisigackerS.SansaloniC.DuveillerE.SinghR. P.SinghP. K. (2020). QTL mapping for spot blotch resistance in two bi-parental mapping populations of bread wheat.Phytopathology11019801987. 10.1094/phyto-05-20-0197-r

  • 25

    JamilM.AliA.GulA.GhafoorA.IbrahimA. M. H.Mujeeb-KaziA. (2018). Genome-wide association studies for spot blotch (Cochliobolus sativus) resistance in bread wheat using genotyping-by-sequencing.Phytopathology10813071314. 10.1094/phyto-02-18-0047-r

  • 26

    JiangY.ZhuF.CaiS.WuJ.ZhangQ. (2016). Quantitative trait loci for resistance to Sharp Eyespot (Rhizoctonia cerealis) in recombinant inbred wheat lines from the cross Niavt 14× Xuzhou 25.Czech J. Genet. Plant Breed.52139144. 10.17221/74/2016-cjgpb

  • 27

    JinJ.DuanS.QiY.YanS.LiW.LiB.et al (2020). Identification of a novel genomic region associated with resistance to Fusarium crown rot in wheat.Theor. Appl. Genet.13320632073. 10.1007/s00122-020-03577-1

  • 28

    JoshiA. K.KumarS.ChandR.OrtizferraraG. (2004). Inheritance of resistance to spot blotch caused by Bipolaris sorokiniana in spring wheat.Plant Breed.123213219. 10.1111/j.1439-0523.2004.00954.x

  • 29

    KazanK.GardinerD. M. (2018). Fusarium crown rot caused by Fusarium Psudograminearum in cereal crops: recent progress and future prospects.Mol. Plant Pathol.1915471562. 10.1111/mpp.12639

  • 30

    KrasilevaK. V.Vasquez-GrossH. A.HowellT.BaileyP.ParaisoF.ClissoldL.et al (2017). Uncovering hidden variation in polyploid wheat.Proc. Natl. Acad. Sci. U.S.A.114E913E921.

  • 31

    KrattingerS. G.LagudahE. S.SpielmeyerW.SinghR. P.Huerta-EspinoJ.McfaddenH.et al (2009). A putative ABC transporter confers durable resistance to multiple fungal pathogens in wheat.Science32313601363. 10.1126/science.1166453

  • 32

    KumarJ.HückelhovenR.BeckhoveU.NagarajanS.KogelK.-H. (2001). A compromised Mlo pathway affects the response of barley to the necrotrophic fungus Bipolaris sorokiniana (teleomorph: Cochliobolus sativus) and its toxins.Phytopathology91127133. 10.1094/phyto.2001.91.2.127

  • 33

    KumarJ.SchaferP.HuckelhovenR.LangenG.BaltruschatH.SteinE.et al (2002). Bipolaris sorokiniana, a cereal pathogen of global concern: cytological and molecular approaches towards better control.Mol. Plant Pathol.3185195. 10.1046/j.1364-3703.2002.00120.x

  • 34

    KumarS.RoderM. S.SinghR. P.KumarS.ChandR.JoshiA. K.et al (2016). Mapping of spot blotch disease resistance using NDVI as a substitute to visual observation in wheat (Triticum aestivum L.).Mol. Breed.36:95.

  • 35

    KumarS.RoderM. S.TripathiS. B.KumarS.ChandR.JoshiA. K.et al (2015). Mendelization and fine mapping of a bread wheat spot blotch disease resistance QTL.Mol. Breed.35:218.

  • 36

    KumarU.JoshiA. K.KumarS.ChandR.RoderM. S. (2009). Mapping of resistance to spot blotch disease caused by Bipolaris sorokiniana in spring wheat.Theor. Appl. Genet.118783792. 10.1007/s00122-008-0938-5

  • 37

    KumarU.JoshiA. K.KumarS.ChandR.RoderM. S. (2010). Quantitative trait loci for resistance to spot blotch caused by Bipolaris sorokiniana in wheat (T. aestivum L.) lines ‘Ning 8201’ and ‘Chirya 3’.Mol. Breed.26477491. 10.1007/s11032-009-9388-2

  • 38

    KumarU.KumarS.TyagiK.ChandR.JoshiA. K. (2005). Microsatellite markers for resistance to spot blotch in spring wheat.Commun. Agric. Appl. Biol. Sci.70:59.

  • 39

    LemańczykG.KwaśnaH. (2013). Effects of sharp eyespot (Rhizoctonia cerealis) on yield and grain quality of winter wheat.Eur. J. Plant Pathol.135187200. 10.1007/s10658-012-0077-3

  • 40

    LiH.ConnerR. L.ChenQ.LiH.LarocheA.GrafR. J.et al (2004). The transfer and characterization of resistance to common root rot from Thinopyrum ponticum to wheat.Genome47215223. 10.1139/g03-095

  • 41

    LiH. B.XieG. Q.MaJ.LiuG. R.WenS. M.BanT.et al (2010). Genetic relationships between resistances to Fusarium head blight and crown rot in bread wheat (Triticum aestivum L.).Theor. Appl. Genet.121941950. 10.1007/s00122-010-1363-0

  • 42

    LillemoM.JoshiA. K.PrasadR.ChandR.SinghR. P. (2013). QTL for spot blotch resistance in bread wheat line Saar co-locate to the biotrophic disease resistance loci Lr34 and Lr46.Theor. Appl. Genet.126711719. 10.1007/s00122-012-2012-6

  • 43

    LiuC.GuoW.ZhangQ.FuB.YangZ.SukumaranS.et al (2020). Genetic dissection of adult plant resistance to sharp eyespot using an updated genetic map of Niavt14× Xuzhou25 winter wheat recombinant inbred line population.Plant Dis.1059971005. 10.1094/pdis-09-20-1924-re

  • 44

    LiuC.MaJ.LiH. B.LiuY. X.LiuG. R.WenS. M.et al (2018). The homoeologous regions on long arms of group 3 chromosomes in wheat and barley harbour major crown rot resistance loci.Czech J. Genet. Plant Breed.47109114.

  • 45

    LiuC.OgbonnayaF. C. (2015). Resistance to Fusarium crown rot in wheat and barley: a review.Plant Breed.134365372. 10.1111/pbr.12274

  • 46

    LuP.LiangY.LiD. F.WangZ.LiW.WangG.et al (2016). Fine genetic mapping of spot blotch resistance gene Sb3 in wheat (Triticum aestivum).Theor. Appl. Genet.129577589. 10.1007/s00122-015-2649-z

  • 47

    MaJ.LiH. B.ZhangC.YangX. M.LiuY.YanG.et al (2010). Identification and validation of a major QTL conferring crown rot resistance in hexaploid wheat.Theor. Appl. Genet.12011191128. 10.1007/s00122-009-1239-3

  • 48

    MaJ.StillerJ.ZhaoQ.FengQ.CavanaghC. R.WangP.et al (2014). Transcriptome and allele specificity associated with a 3BL locus for Fusarium crown rot resistance in bread wheat.PLoS One9:e113309. 10.1371/journal.pone.0113309

  • 49

    MaJ.YanG.LiuC. (2012a). Development of near-isogenic lines for a major QTL on 3BL conferring Fusarium crown rot resistance in hexaploid wheat.Euphytica183147152. 10.1007/s10681-011-0414-1

  • 50

    MaJ.ZhangC. Y.LiuY. X.YanG. J.LiuC. J. (2012b). Enhancing Fusarium crown rot resistance of durum wheat by introgressing chromosome segments from hexaploid wheat.Euphytica1866773. 10.1007/s10681-011-0492-0

  • 51

    MartinA.BovillW. D.PercyC. D.HerdeD. J.FletcherS.KellyA.et al (2015). Markers for seedling and adult plant crown rot resistance in four partially resistant bread wheat sources.Theor. Appl. Genet.128377385. 10.1007/s00122-014-2437-1

  • 52

    McBeathJ. H.McBeathJ. (2010). “Plant diseases, pests and food security,” inEnvironmental Change and Food Security in China.Advances in Global Change Research (Dordrecht: Springer), 117156. 10.1007/978-1-4020-9180-3_5

  • 53

    MondsR. D.CromeyM. G.LaurenD. R.MennaM. E. D.MarshallJ. W. (2005). Fusarium graminearum, F. cortaderiae and F. pseudograminearum in New Zealand: molecular phylogenetic analysis, mycotoxin chemotypes and co-existence of species.Fungal Biol.109410420. 10.1017/s0953756204002217

  • 54

    ObanorF.ChakrabortyS. (2014). Aetiology and toxigenicity of Fusarium graminearum and F. pseudograminearum causing crown rot and head blight in Australia under natural and artificial infection.Plant Pathol.6312181229. 10.1111/ppa.12200

  • 55

    PariyarS. R.ErginbasorakciG.DadshaniS.ChijiokeO. B.LeonJ.DababatA. A.et al (2020). Dissecting the genetic complexity of Fusarium crown rot resistance in wheat.Sci. Rep.10:3200.

  • 56

    PeraltaA. L.SunY.McdanielM. D.LennonJ. T. (2018). Crop rotational diversity increases disease suppressive capacity of soil microbiomes.Ecosphere9:e02235. 10.1002/ecs2.2235

  • 57

    PooleG. J.SmileyR. W.PaulitzT. C.WalkerC.CarterA. H.SeeD. R.et al (2012). Identification of quantitative trait loci (QTL) for resistance to Fusarium crown rot (Fusarium pseudograminearum) in multiple assay environments in the Pacific Northwestern US.Theor. Appl. Genet.12591107. 10.1007/s00122-012-1818-6

  • 58

    PowellJ. J.CarereJ.FitzgeraldT. L.StillerJ.CovarelliL.XuQ.et al (2017). The Fusarium crown rot pathogen Fusarium pseudograminearum triggers a suite of transcriptional and metabolic changes in bread wheat (Triticum aestivum L.).Ann. Bot.119853867.

  • 59

    QiaoF.YangX.XuF.HuangY.ZhangJ.SongM.et al (2021). TMT-based quantitative proteomic analysis reveals defense mechanism of wheat against the crown rot pathogen Fusarium pseudograminearum.BMC Plant Biol.21:82. 10.1186/s12870-021-02853-6

  • 60

    RahmanM.DaviesP.BansalU.PasamR.HaydenM.TrethowanR. (2020). Marker-assisted recurrent selection improves the crown rot resistance of bread wheat.Mol. Breed.40:28.

  • 61

    RenY.YuP.-B.WangY.HouW.-X.YangX.FanJ.-L.et al (2020). Development of a rapid approach for detecting sharp eyespot resistance in seedling-stage wheat and its application in Chinese Wheat Cultivars.Plant Dis.10416621667. 10.1094/pdis-12-19-2718-re

  • 62

    SharmaR. C.DuveillerE. (2007). Advancement toward new spot blotch resistant wheats in South Asia.Crop Sci.47961968. 10.2135/cropsci2006.03.0201

  • 63

    SharmaR. C.DuveillerE.JacqueminJ. M. (2007). Microsatellite markers associated with spot blotch resistance in spring wheat.J. Phytopathol.155316319. 10.1111/j.1439-0434.2007.01238.x

  • 64

    ShiS.ZhaoJ.PuL.SunD.HanD.LiC.et al (2020). Identification of new sources of resistance to crown rot and Fusarium head blight in Wheat.Plant Dis.10419791985. 10.1094/pdis-10-19-2254-re

  • 65

    SinghP. K.HeX.SansaloniC.JulianaP.DreisigackerS.DuveillerE.et al (2018). Resistance to spot blotch in two mapping populations of common wheat is controlled by multiple QTL of Minor Effects.Int. J. Mol. Sci.19:4054. 10.3390/ijms19124054

  • 66

    SinghV.SinghG.ChaudhuryA.OjhaA.TyagiB. S.ChowdharyA. K.et al (2016). Phenotyping at hot spots and tagging of QTLs conferring spot blotch resistance in bread wheat.Mol. Biol. Rep.4312931303. 10.1007/s11033-016-4066-z

  • 67

    SmileyR. W.GourlieJ. A.EasleyS. A.PattersonL. (2005). Pathogenicity of fungi associated with the wheat crown rot complex in Oregon and Washington.Plant Dis.89949957. 10.1094/pd-89-0949

  • 68

    SteuernagelB.PeriyannanS. K.Hernández-PinzónI.WitekK.RouseM. N.YuG.et al (2016). Rapid cloning of disease-resistance genes in plants using mutagenesis and sequence capture.Nat. Biotechnol.34652655. 10.1038/nbt.3543

  • 69

    SunC.DongZ.ZhaoL.RenY.ZhangN.ChenF. (2020). The Wheat 660K SNP array demonstrates great potential for marker−assisted selection in polyploid wheat.Plant Biotechnol. J.1813541360. 10.1111/pbi.13361

  • 70

    TemboB.SibiyaJ.TongoonaP.TemboL. (2017). Validation of microsatellite molecular markers linked with resistance to Bipolaris sorokiniana in wheat (Triticum aestivum L.).J. Agric. Sci.15510611068. 10.1017/s0021859617000144

  • 71

    TomarV.SinghR. P.PolandJ.SinghD.JoshiA. K.SinghP. K.et al (2020). Genome-wide association study and genomic prediction of spot blotch disease in wheat (Triticum aestivum L.) using genotyping by sequencing.Res. Square [Preprint].

  • 72

    WallworkH.ButtM.CheongJ.WilliamsK. J. (2004). Resistance to crown rot in wheat identified through an improved method for screening adult plants.Aust. Plant Pathol.3317. 10.1071/ap03073

  • 73

    WangH.SunS.GeW.ZhaoL.HouB.WangK.et al (2020). Horizontal gene transfer of Fhb7 from fungus underlies Fusarium head blight resistance in wheat.Science368:eaba5435. 10.1126/science.aba5435

  • 74

    WangJ.WangX.XuM.FengG.ZhangW.YangX.et al (2015). Contributions of wheat and maize residues to soil organic carbon under long-term rotation in north China.Sci. Rep.5:11409.

  • 75

    WangM.WangS.LiangZ.ShiW.GaoC.XiaG. (2018a). From genetic stock to genome editing: gene exploitation in wheat.Trends Biotechnol.36160172. 10.1016/j.tibtech.2017.10.002

  • 76

    WangX.BiW.GaoJ.YuX.WangH.LiuD. (2018b). Systemic acquired resistance, NPR1, and pathogenesis-related genes in wheat and barley.J. Integr. Agr.1724682477. 10.1016/s2095-3119(17)61852-5

  • 77

    WilliamM.SinghR. P.HuertaespinoJ.IslasS. O.HoisingtonD. A. (2003). Molecular marker mapping of leaf rust resistance gene Lr46 and its association with stripe rust resistance gene Yr29 in wheat.Phytopathology93153159. 10.1094/phyto.2003.93.2.153

  • 78

    WuX.ChengK.ZhaoR.ZangS.BieT.JiangZ.et al (2017). Quantitative trait loci responsible for sharp eyespot resistance in common wheat CI12633.Sci. Rep.7:11799.

  • 79

    YangX.MaJ.LiH.MaH.YaoJ.LiuC. (2010). Different genes can be responsible for crown rot resistance at different developmental stages of wheat and barley.Eur. J. Plant Pathol.128495502. 10.1007/s10658-010-9680-3

  • 80

    YangX.PanY.SinghP. K.HeX.RenY.ZhaoL.et al (2019). Investigation and genome-wide association study for Fusarium crown rot resistance in Chinese common wheat.BMC Plant Biol.19:153. 10.1186/s12870-019-1758-2

  • 81

    YangX.ZhongS.ZhangQ.RenY.SunC.ChenF. (2021). A loss−of−function of the dirigent gene TaDIR−B1 improves resistance to Fusarium crown rot in wheat.Plant Biotechnol. J.19866868. 10.1111/pbi.13554

  • 82

    ZhangP.GuoG.WuQ.ChenY.XieJ.LuP.et al (2020). Identification and fine mapping of spot blotch (Bipolaris sorokiniana) resistance gene Sb4 in wheat.Theor. Appl. Genet.13324512459. 10.1007/s00122-020-03610-3

  • 83

    ZhaoR.ChenX.ZhangF.ZhangH.SchroderJ. L.RomheldV. (2006). Fertilization and Nitrogen Balance in a Wheat–Maize Rotation System in North China.Agron. J.98938945. 10.2134/agronj2005.0157

  • 84

    ZhengZ.KilianA.YanG.LiuC. (2014). QTL conferring fusarium crown rot resistance in the elite bread wheat variety EGA Wylie.PLoS One9:e96011. 10.1371/journal.pone.0096011

  • 85

    ZhengZ.MaJ.StillerJ.ZhaoQ.FengQ.ChouletF.et al (2015). Fine mapping of a large-effect QTL conferring Fusarium crown rot resistance on the long arm of chromosome 3B in hexaploid wheat.BMC Genomics16:850. 10.1186/s12864-015-2105-0

  • 86

    ZhouH.HeX.WangS.MaQ.SunB.DingS.et al (2019). Diversity of the Fusarium pathogens associated with crown rot in the Huanghuai wheat−growing region of China.Environ. Microbiol.2127402754. 10.1111/1462-2920.14602

  • 87

    ZhuX.LuC.DuL.YeX.LiuX.CoulesA.et al (2017). The wheat NB−LRR gene Ta RCR 1 is required for host defence response to the necrotrophic fungal pathogen Rhizoctonia cerealis.Plant Biotechnol. J.15674687. 10.1111/pbi.12665

  • 88

    ZhuX.QiL.LiuX.CaiS.XuH.HuangR.et al (2014a). The wheat ethylene response factor transcription factor pathogen-induced ERF1 mediates host responses to both the necrotrophic pathogen Rhizoctonia cerealis and freezing stresses.Plant Physiol.16414991514. 10.1104/pp.113.229575

  • 89

    ZhuX.YangK.WeiX.ZhangQ.RongW.DuL.et al (2015). The wheat AGC kinase TaAGC1 is a positive contributor to host resistance to the necrotrophic pathogen Rhizoctonia cerealis.J. Exp. Bot.6665916603. 10.1093/jxb/erv367

  • 90

    ZhuZ.BonnettD.EllisM.SinghP. K.HeslotN.DreisigackerS.et al (2014b). Mapping resistance to spot blotch in a CIMMYT synthetic-derived bread wheat.Mol. Breed.3412151228. 10.1007/s11032-014-0111-6

Summary

Keywords

wheat, resistance, common rot root, spot blotch, Fusarium crown rot, sharp eyespot

Citation

Su J, Zhao J, Zhao S, Li M, Pang S, Kang Z, Zhen W, Chen S, Chen F and Wang X (2021) Genetics of Resistance to Common Root Rot (Spot Blotch), Fusarium Crown Rot, and Sharp Eyespot in Wheat. Front. Genet. 12:699342. doi: 10.3389/fgene.2021.699342

Received

23 April 2021

Accepted

21 May 2021

Published

23 June 2021

Volume

12 - 2021

Edited by

Pengtao Ma, Yantai University, China

Reviewed by

Caixia Lan, Huazhong Agricultural University, China; Jiajie Wu, Shandong Agricultural University, China

Updates

Copyright

*Correspondence: Xiaodong Wang, Zhensheng Kang, Wenchao Zhen,

These authors have contributed equally to this work

This article was submitted to Plant Genomics, a section of the journal Frontiers in Genetics

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
