Original Research ARTICLE

Front. Mar. Sci., 09 November 2018 | https://doi.org/10.3389/fmars.2018.00425

Managing Local Stressors for Coral Reef Condition and Ecosystem Services Delivery Under Climate Scenarios

Mariska Weijerman1,2*, Lindsay Veazey3, Susan Yee4, Kellie Vaché5, Jade M. S. Delevaux3, Mary K. Donovan6, Kim Falinski3, Joey Lecky1,3 and Kirsten L. L. Oleson1,3
  • 1Joint Institute of Marine and Atmospheric Research, University of Hawai‘i at Mānoa, Honolulu, HI, United States
  • 2Pacific Islands Fisheries Science Center, National Oceanic and Atmospheric Administration, Honolulu, HI, United States
  • 3Department of Natural Resources and Environmental Management, University of Hawai‘i at Mānoa, Honolulu, HI, United States
  • 4Gulf Ecology Division, U.S. Environmental Protection Agency, Gulf Breeze, FL, United States
  • 5Biological and Ecological Engineering, Oregon State University, Corvallis, OR, United States
  • 6Hawai‘i Institute of Marine Biology, University of Hawai‘i at Mānoa, Kānéohe, HI, United States

Coral reefs provide numerous ecosystem goods and services, but are threatened by multiple environmental and anthropogenic stressors. To identify management scenarios that will reverse or mitigate ecosystem degradation, managers can benefit from tools that can quantify projected changes in ecosystem services due to alternative management options. We used a spatially-explicit biophysical ecosystem model to evaluate socio-ecological trade-offs of land-based vs. marine-based management scenarios, and local-scale vs. global-scale stressors and their cumulative impacts. To increase the relevance of understanding ecological change for the public and decision-makers, we used four ecological production functions to translate the model outputs into the ecosystem services: “State of the Reef,” “Trophic Integrity,” “Fisheries Production,” and “Fisheries Landings.” For a case study of Maui Nui, Hawai‘i, land-based management attenuated coral cover decline whereas fisheries management promoted higher total fish biomass. Placement of no-take marine protected areas (MPAs) across 30% of coral reef areas led to a reversal of the historical decline in predatory fish biomass, although this outcome depended on the spatial arrangement of MPAs. Coral cover declined less severely under strict sediment mitigation scenarios. However, the benefits of these local management scenarios were largely lost when accounting for climate-related impacts. Climate-related stressors indirectly increased herbivore biomass due to the shift from corals to algae and, hence, greater food availability. The two ecosystem services related to fish biomass increased under climate-related stressors but “Trophic Integrity” of the reef declined, indicating a less resilient reef. “State of the Reef” improved most and “Trophic Integrity” declined least under an optimistic global warming scenario and strict local management. This work provides insight into the relative influence of land-based vs. marine-based management and local vs. global stressors as drivers of changes in ecosystem dynamics while quantifying the tradeoffs between conservation- and extraction-oriented ecosystem services.

Introduction

Coral reef ecosystems provide valuable resources. They buffer coastal erosion, provide a cornucopia of food resources, attract tourism dollars, supply construction and pharmaceutical materials, and provide recreational opportunities for humans and essential habitat for threatened and endemic organisms (Hoegh-Guldberg, 1999; Moberg and Folke, 1999; Spalding et al., 2017). Furthermore, nature-based solutions, such as using living reefs as natural barriers for storm protection, are more cost-effective than manufactured infrastructure (Daily and Matson, 2008).

Despite the importance of reef ecosystems, they are under threat on a local scale from coastal development, overfishing, invasive species, and pollution, and on a global scale from ocean acidification, warming, and hypoxia (Carlton and Scanlon, 1985; Jokiel and Coles, 1990; Pörtner et al., 2005; Hoegh-Guldberg et al., 2011; Prouty et al., 2014). Two extensive reviews on threats to coral reefs identified ocean warming and ocean acidification as prominent threats (Burke et al., 2011; Brainard et al., 2013). Increasing carbon dioxide (CO2) emissions are slowly causing the world's oceans to become warmer and more acidic. Ocean acidification reduces calcification rates of all calcifying organisms including corals. Intense or prolonged ocean warming can result in the expulsion of the symbiotic algae that live in the coral tissue leaving them looking “bleached” and is hence called coral bleaching. Bleached corals have a higher change of mortality as they become more susceptible to pathogens (Maynard et al., 2015b). These threats are projected to intensify in coming decades (Van Hooidonk et al., 2013; Maynard et al., 2015b). Chronic stressors can lead to a more degraded reef system that has tipped to an algal dominated benthos (Bellwood et al., 2004; Hughes et al., 2010), and a replacement of top predatory fishes (large slow growing fishes) with species with a high turnover (Heithaus et al., 2008; Ruttenberg et al., 2011; Maynard et al., 2015a). These shifts are a concern because ecological functions and economic values diminish on such reef systems. Effective, long-term conservation of coral reefs and the goods and services they provide requires addressing the most critical threats.

The development of policies to address threats and promote ecosystem services is dependent on an understanding of ecosystem dynamics and responses to major stressors. Ecosystem models can synthesize the present-day condition and project changes of a system as a result of management regulations, climate conditions, or human use. Spatially explicit ecosystem models can also quantify the relative impacts of land-based vs. marine-based threats (e.g., land-based pollutants vs. fishing; (Álvarez-Romero et al., 2011; Barbier et al., 2011) and local vs. global stressors (Gurney et al., 2013; Weijerman et al., 2015). These types of models can evaluate tradeoffs of alternative courses of action to mitigate threats (Hulme, 2005; Fung, 2009; Weijerman et al., 2016). More recently, ecosystem models have been coupled with economic concepts to translate ecological outcomes in terms of human wellbeing, such as ecosystem services (Orlando and Yee, 2017).

One such spatially-explicit, biophysical ecosystem model is the COral Reef Scenario Evaluation Tool, CORSET (Fung, 2009; Melbourne-Thomas et al., 2011a; Principe et al., 2012). It includes hydrodynamics (which defines the connectivity), ecological dynamics, and land-based (nutrient and sediment pollution) and marine-based (fishing) stressors as well as global climate-related stressors (hurricanes and ocean warming). Its main use is to evaluate tradeoffs of alternative management or climate-related scenarios (Melbourne-Thomas et al., 2011b). Building on the extensive work to estimate nutrient and sediment loads and fish extraction on a 500 × 500 m scale around the main Hawaiian Islands (Wedding et al., 2017), we were able to incorporate these local stressors into the adapted CORSET model, the Hawai‘i Reef dynamics Simulator or HIReefSim. Additionally, annual bleaching events were projected to start between 2035 and 2045 for the main Hawaiian Islands (Van Hooidonk et al., 2016). These projections were based on the results of an ensemble model of Intergovernmental Panel on Climate Change, Coupled Model Intercomparison Project Phase 5 (CMIP5), and as such, incorporated spatial variability in the effects of ocean warming on coral reefs. We used the projection of the Representative Concentration Pathway (RCP) 8.5 which estimates that by 2040 CO2 emissions have reached 480 ppm and the onset of annual bleaching has begun (Van Hooidonk et al., 2016).

While ecological indicators are being used explicitly in management and policy (Arkema et al., 2006; Levin et al., 2013), decision-makers and the public often relate more to direct experiences, such as fishing, recreation, or coastal protection (Yee et al., 2014). Goods and services provided by coral reef ecosystems have long been acknowledged (e.g., Moberg and Folke, 1999), however, the relatively recent field of ecosystem service modeling quantifies these direct benefits to humans from functioning ecosystems (Bagstad et al., 2013). One approach uses “ecological production functions” (EPFs) to translate environmental shifts into economic implications in a way that is meaningful to decision-makers and resource managers (Nelson et al., 2009; Orlando and Yee, 2017). EPFs calculate the provision of goods and services as a function of specific ecological attributes (de Groot et al., 2002). Defining an EPF relies on an ecological understanding of which attributes are important to ecological function, as well as an economic understanding of what functions are valuable to humans. While an EPF quantifies the potential supply of ecosystem goods and services based on ecosystem condition, the realized value will depend on human demand and access (Wainger and Boyd, 2009). Economic valuation requires another relationship, ecosystem service valuation functions, to derive the value society gets from direct (e.g., food and recreation) and indirect (e.g., shoreline protection) use and non-use (e.g., existence) of these goods and services (Compton et al., 2011; Yee et al., 2014). In this way, EPFs can be used to evaluate changes in potential provision of goods and services due to management, climate, and human use that affect the ecosystem, while valuation functions can calculate the cost/benefit of those changes.

To evaluate how different local management approaches [sediment mitigation and marine protected areas (MPA) establishment] could improve the provision of coral reef ecosystem goods and services, an ecosystem model that simulates impacts of both land- and marine-based management was parameterized for Maui Nui, Hawai‘i, i.e., the islands of Maui, Lāna‘i, Moloka‘i, and Kaho‘olawe. These management approaches were also combined with two future severities of climate-related stressors. Reefs of Maui Nui served as a case study, but this tool can be used in other areas with similar local and global threats (Melbourne-Thomas et al., 2011a; Kapur and Franklin, 2017). Although several studies have shown the mitigating effects of local management on coral degradation in the face of climate change (Hughes et al., 2007; Kennedy et al., 2013; McClanahan et al., 2014), other studies have shown that under a “business as usual” greenhouse gas emissions future (IPCC RCP8.5 trajectory), local management may be unable to prevent further degradation of coral reef ecosystems (Thompson and Dolman, 2010; Selig et al., 2012; Weijerman et al., 2015; Hughes et al., 2017).

Here, we ask two questions: (1) What is the relative importance of land- and marine-based management action? and (2) Can local management mitigate the effects of climate-related stressors? We expect that a combination of proactive local actions (sediment mitigation and fisheries controls) will attenuate declines in coral reef ecosystem goods and services delivery, but without local management, reefs will continue to decline, a trend exacerbated with more extreme future climate conditions.

Methods

Study Region

Our study area encompasses ~325 km2 of shallow coral reef habitat across the Hawaiian Islands of Maui, Molokai and Lāna‘i, i.e., Maui Nui (Figure 1; the island of Kaho‘olawe is excluded from this analysis due to lack of data). Of this area, 12 km2 (3.6% of total reef area) are classified as MPAs, with just over 9 km2 of the protected areas being designated as “no-take” area. The model domain consists of the shallow (0–30 m) reef zone around Maui Nui and is spatially represented by a 500 × 500 m grid cell network.

FIGURE 1
www.frontiersin.org

Figure 1. Modeled area of the Maui Nui complex consisting of the Hawaiian Islands: Maui, Moloka‘i, and Lāna‘i, with the inset figure showing the location of Maui Nui in the Hawaiian Archipelago. The pink “reef” area is the 0–30 m depth range included in the model. The outer edge of open water area (blue) is defined by the 200 m depth contour. White areas interior of this indicate gaps in bathymetry data.

HIReefSIM

HIReefSim (Hawai‘i Reef dynamics Simulator) is based on the framework of the Coral Reef Scenario Evaluation Tool (CORSET) developed by Fung (Fung, 2009) and adapted by Melbourne-Thomas et al. (2011a) and Principe et al. (2012). Model components include (1) 500 × 500 m gridded basemaps of the study region (see details below); (2) model dynamics (see details below); (3) larval connectivity zone delineations, which detail transition probabilities between larval sources and sinks; and (4) hurricane zone delineations, which were designed to represent grouped swaths of coastline that are similarly affected by storm events. Modeled stressors include land-based sediment and nutrient input, fishing, hurricane damage to corals and macroalgae, and climate-related coral mortalities due to coral bleaching.

Basemaps

The HIReefSim model defines two consumer functional species groups, herbivorous (algal grazers) and piscivorous (predatory) fishes, and five benthic functional groups: macroalgae, turf algae, crustose-coralline algae (CCA), and spawner and brooder corals. Boosted regression trees generated spatial predictive maps of these ecological variables based on observations from a compilation of underwater surveys and an extensive gridded predictor dataset (Table S1) (Stamoulis et al., 2016; Delevaux, 2017). Unlike in the instantiation of CORSET, urchins and large (>60 cm) piscivores were not included due to very low abundance of large piscivores and a lack of urchin data preventing the creation of predictive maps.

Dynamics

Coral reef ecosystems are extremely complex systems and influenced by a myriad of variables. HIReefSim only includes key ecological dynamics by using differential equations to estimate the interactions among the functional groups and their response to stressors in each grid cell (Supplementary Text S2). For example, ocean warming has led to global degradation of coral reefs with a consequent loss of structure followed by a decrease in fish biomass (Alvarez-Filip et al., 2009; Graham and Nash, 2013). Additionally, on a local scale, an increase in nutrients leads to an increase in the faster-growing macroalgae which in turn can reduce the growth of corals and impede coral recruitment. These are the key dynamics that are incorporated in the model (Figure 2), other stressors to coral reef ecosystems (e.g., ocean acidification, hypoxia, invasive species) are not included. Fung (2009) and Melbourne-Thomas et al. (2011a) give detailed descriptions of the model development, general model behavior, and sensitivity analyses. Kapur and Franklin (2017) describe the applicability of the CORSET model for Hawaiian reef systems. Here, only the main components of CORSET that form the basis for HIReefSim input are described (Supplementary Text S2 has details of model equations and parameter estimates). Estimates of ecological variables represent the current (~2004–2012) reef condition. The model has some stochasticity as it randomly selects the intensity, frequency, and region of impact to capture year-to-year variation in storms. The larval connectivity matrices were based on a pelagic duration of 45 days, calculated at the 50 m depth layer, for both corals and fishes (Wren and Kobayashi, 2016).

FIGURE 2
www.frontiersin.org

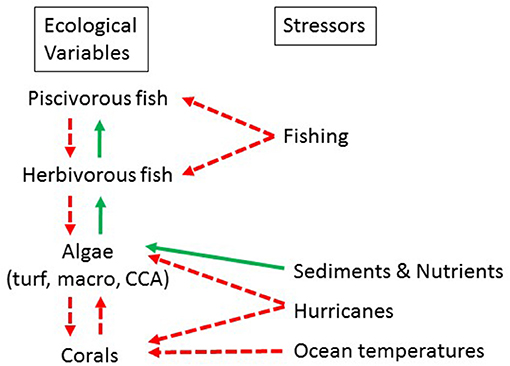

Figure 2. Dynamic relationships between ecological variables and external stressors to the variables. A solid green arrow indicates a positive relationship and a dashed red arrow indicates a negative one.

Modeled Stressors

Spatially explicit stressor functions included nutrification and sedimentation (changes modeled via parameter scaling), fishing (modeled as a spatial explicit reduction in fish biomass), and coral and macroalgal mortality resulting from wave action (severity dependent on hurricane zone; Figure 2; Table 1). The projected increase in bleaching-related coral mortalities was a non-spatial stressor, affecting all corals equally.

TABLE 1
www.frontiersin.org

Table 1. Spatially-explicit stressors used to force scenario simulations in HIReefSim.

Model Adaptations

A regional study using CORSET (Kapur and Franklin, 2017), concluded a seemingly sustainable herbivore fishery would be possible despite the projected decline in coral cover. However, a limitation of this simplified model is its broad groupings of fishes in just herbivores and piscivores and the lack of two-way dynamics in fish size and fishing effort. For example, model results show that herbivores increase but the composition of this group is likely dominated by large-bodied herbivores, such as the larger surgeonfishes (e.g., Acanthurus dussiemeri, A. xanthopterus), that escape piscivore predation because of their size. However, if fishing is not restricted, these larger-bodied fishes are key targets for spearfishers and an increase in spearfishing is not accounted for in the model. Additionally, reef structure is likely to erode due to coral cover decline, preventing fish recruits and juveniles from hiding (Alvarez-Filip et al., 2009; DeMartini et al., 2010; Graham and Nash, 2013) and increasing their accessibility to their predatory fishes (Rogers et al., 2014), ultimately leading to a decline in reef fish productivity (Gratwicke et al., 2005). Therefore, we included two scalars related to the structural complexity a coral reef provides for: (1) the survival of both herbivorous and piscivorous fish recruits given by the relationship survival (Frec) = aC / [1 + (a/b) * Cd], where C is coral cover, and a, b and d are fitted parameters (Table S2 in Supplementary Text S2; Gurney et al., 2013) and (2) the susceptibility of small and juvenile herbivorous fishes to predation with high coral cover leading to more hiding spaces and hence lower susceptibility to predation with the relationship refuge= min(H,Fpred *C)], where C is coral cover and H herbivore biomass and Fpred a fitted parameter (Table S2 in Supplementary Text S2) (Liu and Xing, 2012; Rogers et al., 2014).

Model Calibration and Validation

The model was validated using a two-fold approach (Melbourne-Thomas et al., 2011a,b):

• Calibrate model parameters to reproduce a community structure typical of stable, “healthy” Hawaiian reef in the absence of external stressors over long-term trajectories (40 years); and

• Evaluate whether the model can reproduce historic broad-scale dynamics for the Maui Nui region over the past 30 years (1985–2015), given a timeline of known stressors (Supplementary Text S3). Historic land-based stressors (derived from land use maps in 1920) were scaled to present-day values (Supplementary Text S3).

Results of model validation are presented in Supplementary Text S3. During calibration, it became apparent that the model was very sensitive to the parameters related to fish growth. For herbivores this was grazing pressure (gt, gm) and the biomass accumulation from grazing (mm, mt, me), and for piscivores this was prey availability (iph), predation pressure (gp) and biomass accumulation from predation (rp). We therefore randomly selected 50 values between the estimated ranges (Table S2) and assumed a normal distribution and ran each scenario 50 times to obtain uncertainty estimates related to these parameters.

Scenario Simulations

Fifteen scenarios of separate and coupled effects of climate-related stressors and management actions were simulated (Table 2). To define values for future baseline stressors (sediment and nutrient influx, herbivore and piscivore catches), annual projected population growth of 0.8% was used (DBEDT, 2016). Fishing pressure, along with sediment and nutrient runoff, was assumed to increase proportionally with the projected population growth. These stressors were further adjusted as specified within the scenario (Table 2).

TABLE 2
www.frontiersin.org

Table 2. Descriptions of 16 forecast simulations from 2010 to 2050.

To simulate climate change, we focused on hurricanes and bleaching-related coral mortality events. Both the frequency and intensity of cyclones in the North Pacific have increased, and sea surface temperatures (SST), which are directly correlated with storm intensity, are increasing as well (Emanuel, 2005). Murakami et al. (2013) project an average 267% increase in the number of cyclones that will reach the main Hawaiian Islands between 2075 and 2099 (0.75 annually increasing to 2 annually). To reflect these projections, we included hurricane events which directly impact Maui Nui an average of every 10 years for the running period of the climate change scenarios (Table 2). We specified that each hurricane event would reduce coral and macroalgae cover by 49% based on the average observed reduction in living bottom cover across the west coast of Hawai‘i island (Dollar and Tribble, 1993). With the projected increase in sea surface temperatures, bleaching events will likely become annual, seasonal occurrences in the next 15–25 years (Van Hooidonk et al., 2016). Taking into consideration the variability in these estimates (Peters et al., 2017), we modeled a “severe” climate-related stressor scenario where we assumed that annual bleaching is every other year and a “less severe” climate-related stressor scenario where we assumed two annual bleaching events per decade.

Ecological Production Functions (EPFs)

We applied four Ecological Production Functions (EPFs): “State of the Reef” (unitless), “Trophic Integrity of the Reef” (unitless), “Fisheries Production” (i.e., resource fish biomass in kg/km2), and “Fisheries Landings” (i.e., annual fish catch in kg/km2) to translate HIReefSim model output into values important for management applications (Principe et al., 2012; Yee et al., 2014). These EPFs represent a supporting service (first two EPFs), a potential provisioning service, and an actual provisioning service (Millennium Ecosystem Assessment, 2005), respectively, and roughly relate to biodiversity, ecosystem structure and function, conservation, and food yield outcomes. For each of the EPFs, the relative change from end to start of the simulation period (40 years) under the two climate change scenarios was calculated. To assess effectiveness, the relative change between the alternative management scenarios and current management was calculated. Based on model validation where the mean value of the 50 simulations described historical coral cover trajectory well (Supplementary Text S3), we used the scenario means for each parameter that described the EPF (see below) for each reef cell. We then present the resulting EPF values as a mean (and standard error) for all reef cells. We also show the spatial variation of each EPF under the different scenarios visually in maps.

State of the Reef

The ecological status of Maui Nui reefs was represented by the “State of the Reef,” a supporting ecosystem service defined as:

i=15wi× Ri    (1)

where wi is the weighting factor of each Ri, with Ri, representing the standardized value of five key indicators of reef structure: coral cover, macroalgal cover, total fish biomass, fish richness, and coral richness (Supplementary Text S4). An expert survey defined weighting factors as: (i) coral cover 30%; (ii) coral richness 20%, (iii) fish biomass 20%; (iv) fish richness 15% and (v) macroalgal cover 15% (Van Beukering and Cesar, 2004). Coral richness and fish richness values were based on Orlando and Yee (2017). The ecological indicator scores were scaled to the maximum value of each indicator.

Trophic Integrity

The trophic integrity was estimated by the ratio of calcifiers [corals (C) and CCA] and fleshy algae [turf (T) and macroalgae (MA)] and the trophic level of the fish community with herbivores (H) having a trophic level of 2 and piscivores (P) a trophic level of 4:

0.5*(C+CCAT+MA)+0.5*(2*HH+P+4*PH+P)    (2)

Ecological indicator scores were scaled to the maximum value of each indicator.

Fisheries Production

Present-day predicted biomass of resource fish species (defined as species that had ≥ 450 kg of average annual harvest from 2000 to 2010 in the state of Hawai‘i) was calculated as a ratio of total fish biomass (McCoy et al., 2018). This ratio was assumed to remain constant in the course of fluctuations in total fish biomass. Fisheries Production, therefore, represents the biomass of resource fish, a potential ecosystem service.

Fisheries Landings

The model directly calculates fish catch as a function of available fish biomass (basemap input layer) maximum fishing effort, and accessibility (last two dynamics estimated for Maui Nui, Supplementary Text S3). Fisheries Landings is a provisional ecosystem service.

Results

Local Management Strategies Can Attenuate Declines in Ecological Outcomes

Under the Current Management scenario, coral cover declined and was replaced by macroalgal cover (Figure 3A). Piscivore biomass also declined, to less than half the initial biomass but could recover in the last decade (Figure 3B), likely due to a shift in catch composition to predominantly herbivorous fishes (Figures 3C,D).

FIGURE 3
www.frontiersin.org

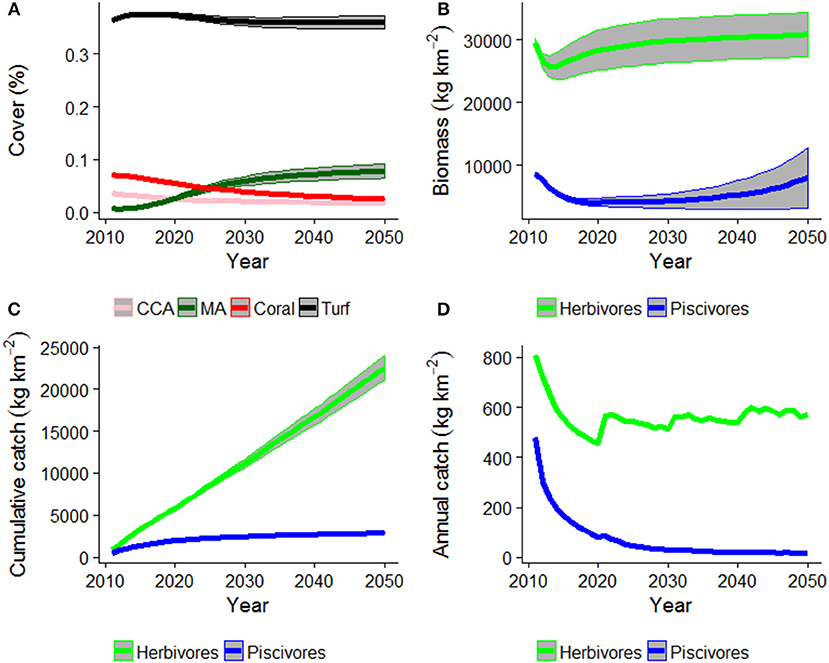

Figure 3. HIReefSim model estimated trajectories of (A) cover of crustose-coralline algae (CCA), macroalgae (MA), coral, and turf algae, (B) fish biomass, (C) fish cumulative catch, and (D) annual catches under the Current Management scenario. Shaded area is ± 1 standard error of the mean.

A continuation of current management attenuated the downward trend in coral cover. Comparing land-based management scenarios (high and low sediment mitigation, A scenarios) and marine-based management scenarios (additional no-take MPAs, B scenarios), sediment mitigation strongly impacted benthic composition, whereas fisheries management impacted fish biomass (Figure 4). For example, reduction of sediment input slowed the decline in coral cover compared to Current Management (Supplementary Figures S5.1, 5.2). Sediment mitigation exhibited a mixed effect on algal cover: it limited the space occupied by turf algae and CCA, but it had negligible effect on macroalgal cover (Figures S5.3–5.5). Fish biomass also responded to a change in benthic composition. In the high mitigation sediment reduction scenario (A1), herbivorous fish biomass declined slightly compared to Current Management (Figure S5.6) whereas piscivore biomass declined slightly under the low mitigation scenario (A2).

FIGURE 4
www.frontiersin.org

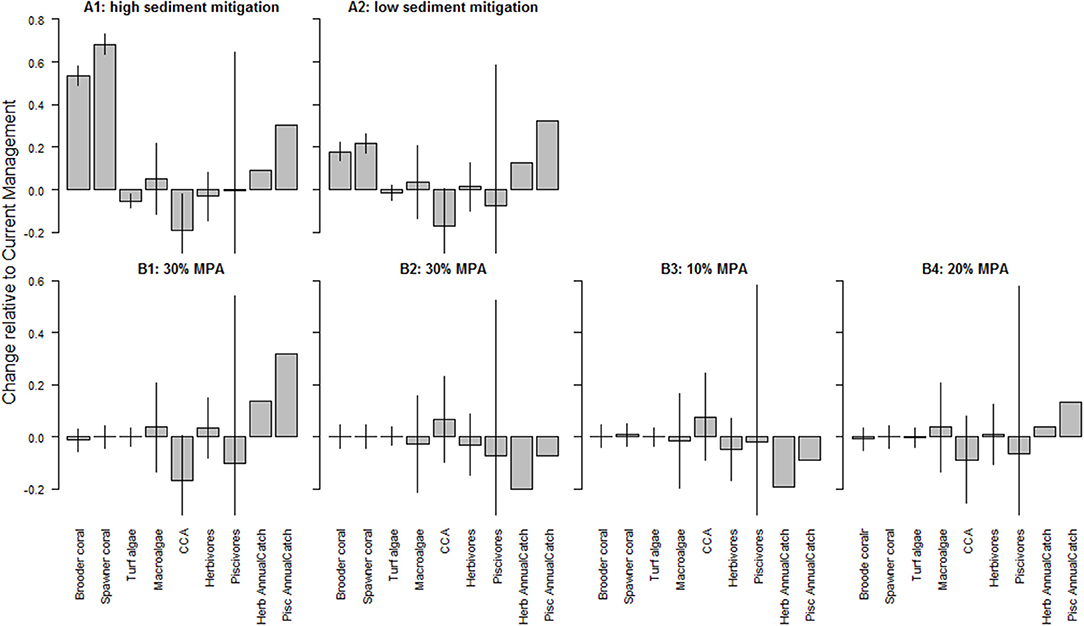

Figure 4. Changes in benthic cover (corals and algae) and fish (herbivores and piscivores) biomass compared to Current Management as a result of local management including (top row) high (A1) and low (A2) sediment mitigation and (bottom row) additional MPA establishments with B1 and B2 additional 30% randomly selected MPAs, B3 10% additional MPAs and B4 20% additional MPAs. A value of 0 indicates no change from the outcome in 2050 under Current Management, values > 0 indicate an improvement (or, more accurately, less of a decline from the Current Management), while values < 0 indicate a worsening of the decline relative to Current Management. The bars represent ± 1 standard error as a percentage of the mean. Annual catch was calculated post model simulations based on the results of cumulative catches of the 50 simulations per scenario and hence has no error bar. CCA is crustose coralline algae.

Marine-based management strategies had minimal impact on the trajectories of coral cover compared to the Current Management scenario (Figure 4, Figures S5.1, 5.2). CCA, however, did respond to MPA designations with decreases under one of the 30% MPA scenario (B1) and 20% MPA scenario (B4) but increased slightly under the other 30 and 10% MPA scenario (B2, B3 resp.; Figure 4, Figure S5.5). Interestingly, fish biomass hardly changed under MPA scenarios (Figure 4, Figure S5.6). The large error bar on the piscivore biomass also reflects the sensitivity of the model to the parameterization of fish-related variables.

The expansion of current MPA boundaries to include areas encompassing the top 10% (B3) and 20% (B4) of fish biomass and coral cover or the randomly placed 30% MPAs (B1 and B2) showed no clear pattern in the results. Striking is that the placement of the 30% no-take MPAs had opposite outcomes for fish catch which declined by up to 20% under B2 and increased to 32% under B1 (Figure 4) for herbivore and piscivore catches, respectively.

Local Management Strategies Have Mixed Results Under Climate-Related Stressor Scenarios

Model projections resulted in steep declines in coral cover from current levels, especially under the more severe climate-related stressors scenarios where hurricanes and thermal stress led to coral mortality (Figures S5.1, 5.2). Local management did somewhat mitigate the effects of a changing climate, with slightly more benefit (i.e., lower net loss) under the more severe scenario (Figure 5). Climate-related stressors were projected to have a positive effect on herbivorous fish biomass (Figure S5.6 “base”), while local management buffered losses in piscivorous fish biomass, which then resulted in decreased herbivore biomass especially under the stricter management scenarios (E and F; Figure S5.6 “scenario”). However, due to the large fluctuations in fish biomass, these differences in herbivore biomass were not statistically significant (Figure 5). Under all climate-related stressors and management scenarios (D-F), herbivores increased with 5–11 t/km2 across Maui Nui from 2015 to 2050 (Figure S5.6). These increases represent an ecologically valid outcome, given the overall increases in turf and macroalgal cover, which are food sources for herbivorous fishes (Figure 2). Hurricanes did result in temporary “dips” in the overall increase in macroalgal cover under both climate-related stressors scenarios but due to their relatively high growth rate, macroalgae recovered within a year. In general, under the climate scenarios, local management benefited corals and piscivores with a tradeoff in fisheries catches. These results were more pronounced under the stricter management scenario E and F, and under the higher climate stress scenario (Figure 5).

FIGURE 5
www.frontiersin.org

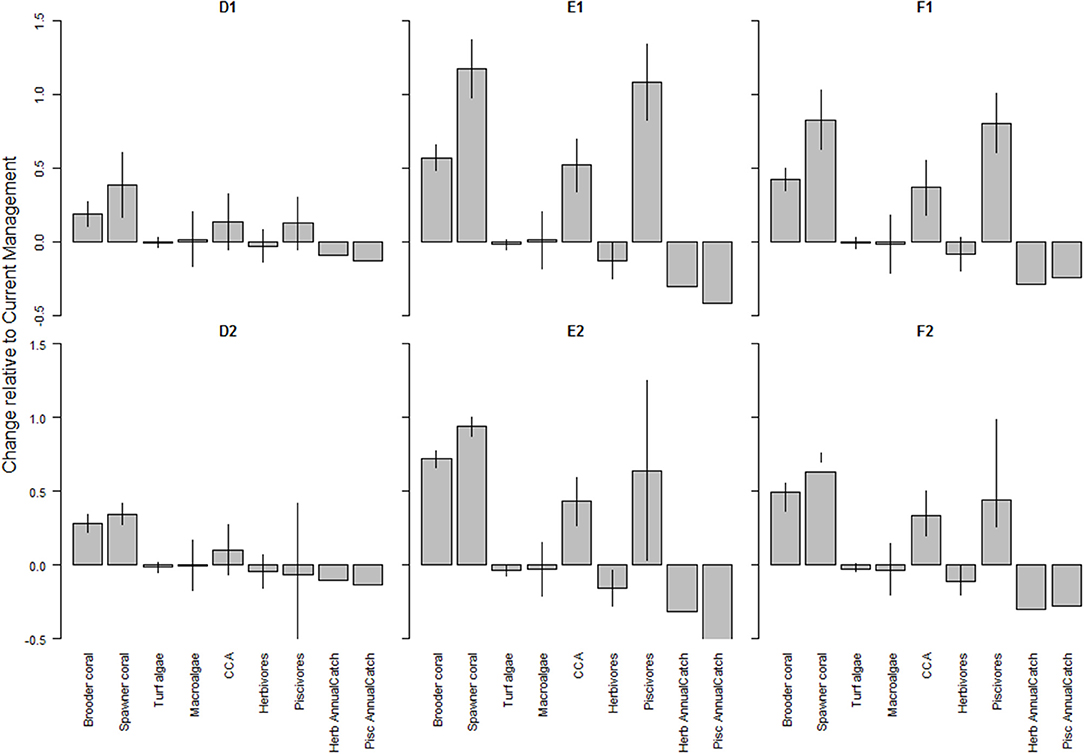

Figure 5. Changes in benthic cover (corals and algae) and fish (herbivores and piscivores) biomass as a result of local management under (top row) severe climate-related stressors and (bottom row) less severe climate-related stressors. A value of 0 indicates no change from the outcome in 2050 under Current Management, values > 0 indicate an improvement (or, more accurately, less of a decline from the Current Management), while values < 0 indicate a worsening of the decline relative to Current Management. The bars represent ± 1 standard error as a percentage of the mean. The local management scenarios include: (D) 10% no-take MPAs and low sediment mitigation, (E) 30% MPAs and strict sediment mitigation, and (F) 30% MPAs with an additional 20% reduced piscivore fishing effort and strict sediment mitigation. CCA is crustose coralline algae.

Implications for Ecosystem Goods and Services

Under a future scenario of severe climate stress and current management (C1, Figure 6), Trophic Integrity declined by 15% and Fisheries Landings by 6%. However, in the entire Maui Nui area, State of the Reef and Fisheries Production increased by up to 41%, but with large spatial variation. Across all scenarios, local management improved the Trophic Integrity of the reef (or dampened the decline) and the State of the Reef under the less severe climate change scenarios but had slightly negative effect on State of the Reef under severe climate change as well as on Fisheries Production and Fisheries Landings (Figure 6).

FIGURE 6
www.frontiersin.org

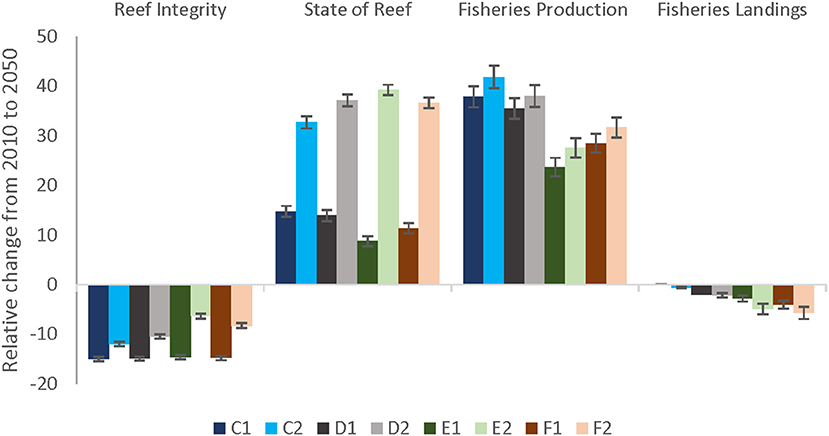

Figure 6. Relative change (%) from 2010 to 2050 of each scenario including severe (darker bars) and less severe (lighter bars) climate change impacts. The blue bars (C1, C2) represent a future projection of Current Management practices, population growth, and severe (bleaching-related coral mortalities every other year; C1) and less severe (mortalities every 5 years; C2) climate-related stressors, respectively. The effects of local management are also shown under two climate scenarios: severe climate-related stressors in darker colors (denoted by a 1) and less severe stressors in lighter colors (denoted by a 2). The local management scenarios include: (D–gray bars) 10% no-take MPAs and low sediment mitigation, (E– green bars) 30% MPAs and strict sediment mitigation, and (F–red bars) 30% MPAs with an additional 20% reduced piscivore fishing effort and strict sediment mitigation.

Local management could not prevent a decline in the Trophic Integrity; however, it did decrease the trajectory. Comparing Current Management (C1) to increasingly stringent local management of sediment and fishing stressors under severe climate-related stressors (D1, E1, and F1; darker colors in Figure 6), shows a trend of diminished decline in Trophic Integrity. Even larger improvements were evident under less severe climate-related stressors.

State of the Reef and Fisheries Production displayed improved results under all scenarios due to the increase in herbivore biomass that are components of these EPF. Model results showed a counterintuitive trend with management as both EPFs had lower values under severe climate scenarios compared to current management and Fisheries Production also decreased under less severe climate change. These lower values can be attributed to the smaller decreases in piscivore biomass due to management, leading to more predation pressure on herbivorous fish (Supplementary Figures S5.6, S5.7). On the other hand, State of the Reef clearly improved with local management under the less severe climate change scenarios (Figure 6).

Fisheries Landings were projected to decrease more compared to current management (C), especially under the scenarios including 30% MPAs (E, F). Due to the low piscivore biomass, an additional 20% reduced piscivore pressure (F) had almost no additional effect in landings (Figure 6).

Looking at the effectiveness of local management scenarios by comparing the end states of the EPFs of each scenario relative to current management, both the Trophic Integrity of the reef as well as the State of the Reef can benefit from additional management especially under less severe climate change (Figure 7). Fisheries Production fared less well, likely because of the increase in piscivore biomass (resulting in less herbivores) and the largest tradeoff was in Fisheries Landings.

FIGURE 7
www.frontiersin.org

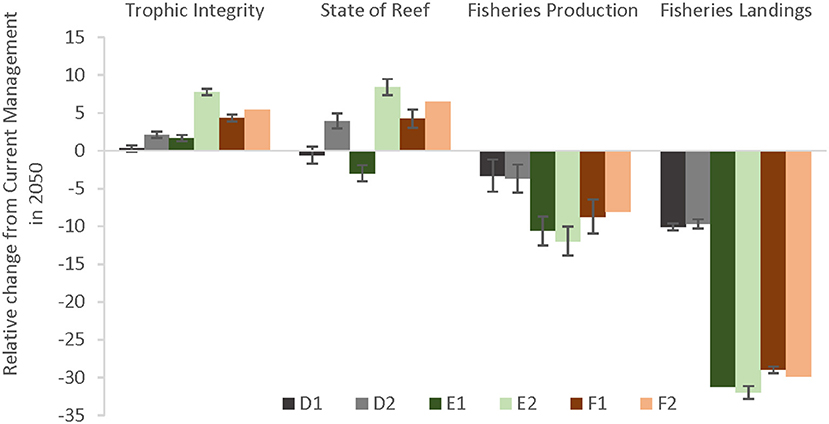

Figure 7. Effectiveness (% change) of additional management compared to Current Management in 2050 under two climate change scenarios. Severe climate-related stressors are represented by darker colors (denoted by a 1 in the scenario letter abbreviations) and less severe stressors in lighter colors (denoted by a 2). The local management scenarios include: (D–gray bars) 10% no-take MPAs and low sediment mitigation, (E–green bars) 30% MPAs and strict sediment mitigation, and (F–red bars) 30% MPAs with an additional 20% reduced piscivore fishing effort and strict sediment mitigation.

Spatial variation in the results of management can provide insights into where to target local management. For example, the southern coastlines of Moloka‘i and Maui showed declines for the State of the Reef and strict local management had little effect (Figure 8). By contrast, under less severe climate change, local management improved State of the Reef along the same coastlines (Figure 9). However, there were also some places (designated in blue) where management exacerbated declines. Generally, management had a positive impact along most of the coastlines (red areas in Figures 8, 9).

FIGURE 8
www.frontiersin.org

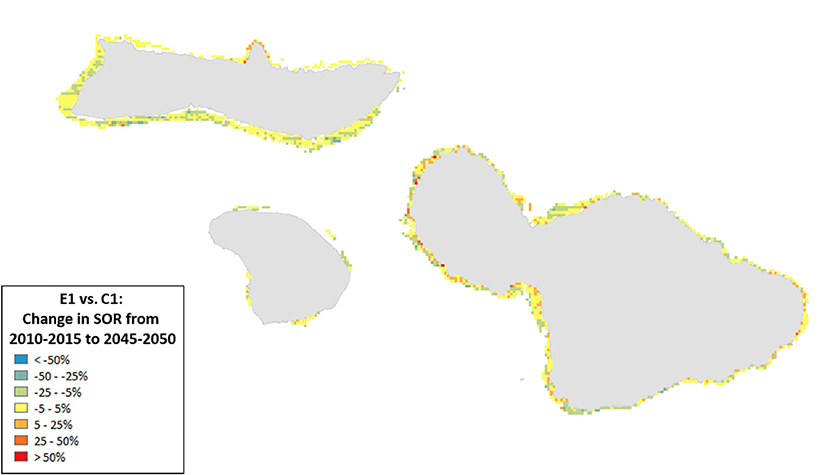

Figure 8. Ratio of the change in State of the Reef (2010–2050) for scenario E1 (high sediment mitigation, 30% MPAs) compared to C1 (Current Management) under severe climate-related stressors. A value of 0 indicates no change from the outcome in 2050 under Current Management, values > 0 indicate an improvement (or, more accurately, less of a decline from the Current Management), while values < 0 indicate a worsening of the decline relative to Current Management.

FIGURE 9
www.frontiersin.org

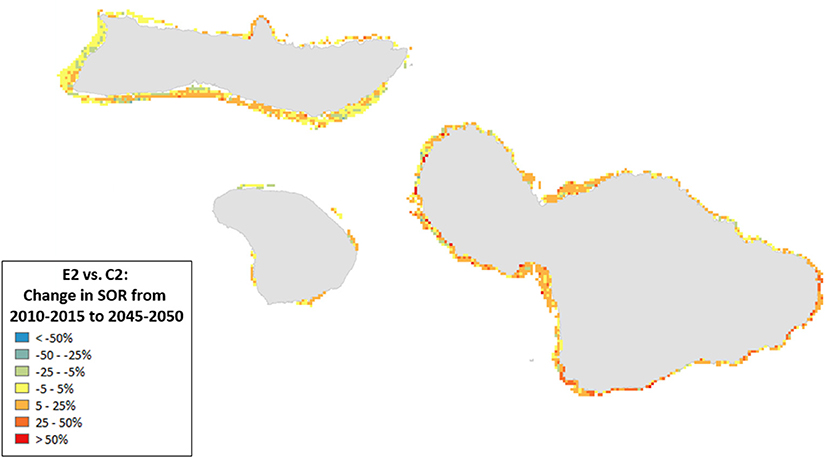

Figure 9. Ratio of the change in State of the Reef (2010–2050) for scenario E2 (high sediment mitigation, 30% MPAs) compared to C2 (Current Management) under less severe climate-related stressors. A value of 0 indicates no change from the outcome in 2050 under Current Management, values >0 indicate an improvement (or, more accurately, less of a decline from the Current Management), while values < 0 indicate a worsening of the decline relative to Current Management.

Spatial patterns in Fisheries Production showed improvement under all scenarios and along most coastlines but less so along the northern coastline of Moloka‘i (we note that this area had relatively high biomass at the initialization of the scenario runs; Figure 10). Although in general many areas showed improvement, all coastlines also experienced losses; up to 100% in some places (Supplementary Figures S6). Management that included a 20% reduction in piscivore fish catches (Scenario F) tended to decrease overall Fisheries Production due to an increase in piscivores that preyed on herbivores (Supplementary Figures S6). At the same time, certain areas showed improvements with management partially due to spatial arrangement of the MPAs.

FIGURE 10
www.frontiersin.org

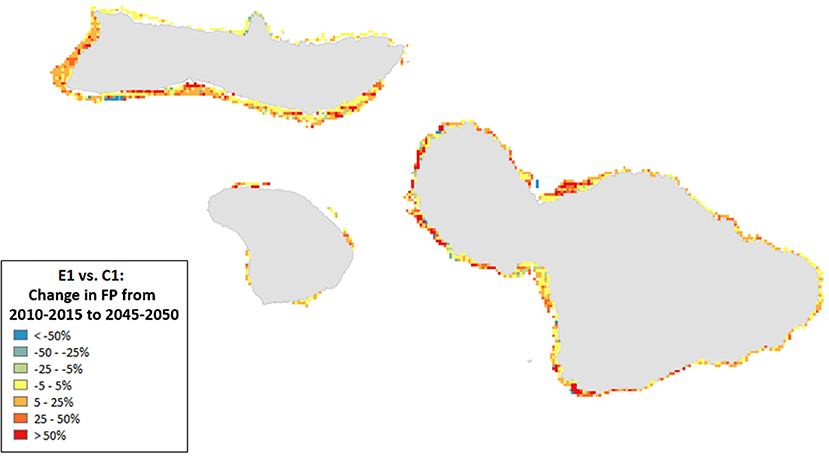

Figure 10. Ratio of change in Fisheries Production (2010–2050) for scenario E1 (high sediment mitigation, 30% MPAs) compared to C1 (Current Management) under severe climate-related stressors. A value of 0 indicates no change from the outcome in 2050 under Current Management, values >0 indicate an improvement (or, more accurately, less of a decline from the Current Management), while values < 0 indicate a worsening of the decline relative to Current Management.

Trophic Integrity improved most along the southern coastline of Moloka‘i and all around Maui (Supplementary Figures S6). As with the State of the Reef, the severity of climate change greatly influenced the results with much higher improvements under the less severe climate change scenarios.

Discussion

Marine resource managers are challenged with accounting for the cumulative effects of local and global stressors on coral reef ecosystems and the valuable services reefs provide to society. However, environmental conditions and human use can result in considerable spatial variability of both reef fish biomass as well as benthic community (Williams et al., 2015; Cinner et al., 2016; Gorospe et al., 2018). Managers can use spatially-explicit decision-support tools to prioritize areas of high ecosystem service value that could benefit from action. Scenarios of future conditions can guide decision-makers as to which of these actions are robust to projected climate impacts.

We evaluated the impacts of land-based vs. marine-based management and local vs. global stressors by assessing the relationships between different functional groups over time and under various management strategies and severities of climate-related stressors. As a metric for the effectiveness of these different strategies, four EPFs were used to model changes in ecosystem services; these ecosystem services best represented the economic interests of the State of Hawai‘i pertaining to reef structure and resilience and reef-derived benefits.

Management of Hawai‘i's valuable nearshore areas in the face of local and global stressors will need to be adaptive to changing conditions. As more people choose to live in or visit Hawai‘i, local stressors will continue to mount, sometimes in unexpected places or ways. Impacts from global climate change offer another dimension of surprise. HIReefSim is an important tool to support adaptive local marine resource decision making. Our results suggest that policies are needed to mitigate local threats, and that these policies should consider future risks of impacts from climate-related stressors, such as changing hurricane patterns and coral bleaching, and likely also sea level rise. In 2016, the governor of Hawai‘i pledged to “effectively manage” 30% of the marine areas along the coastline by 2030, launching a multi-year marine spatial planning process. Key results from our analysis offer a number of suggestions for adapting near-term management to long-term conditions. First of all, strict management of all local pressures (i.e., land-based and fisheries) is needed everywhere–not just across 30% of the nearshore area–to obtain the best results for reef state and trophic integrity under all climate change scenarios. Secondly, place matters. We found that spatial variation in the effects of local management was particularly high for reef state and fisheries production, and moderate for trophic integrity and fisheries landings, suggesting that fine-tuning place-based management could improve outcomes.

Does Local Management Matter in the Face of Climate-Related Stressors?

Yes, despite a decline in Trophic Integrity and State of the Reef EPFs, both these EPFs displayed a buffering effect of strict management on the degradation of coral reefs, mostly under the less severe climate change scenarios. However, as a tradeoff, Fisheries Landings decreased overall compared to today's levels but the maximum decrease was just under 6% (Figure 6). Average Fisheries Production increased between 42% (scenario C2) and 38% (scenario D2) mostly due to the increases in herbivore biomass correlated with increases in turf algae. In absolute terms, local sediment control was particularly critical in slowing the decline of reefs under severe climate change. In these scenarios, coral cover was more prone to decline rapidly, which underscores both the importance of reducing greenhouse gases and implementing proactive, stringent management policies to mitigate declines in coral cover (Ortiz et al., 2014; Hughes et al., 2017). These results correspond to other modeling studies. Weijerman et al. (2015) showed that reefs in Guam would experience devastating declines under projected annual bleaching events despite local management directed at reduced land-based pollution and fishing. The same result was found for a Caribbean reef where, under the projected greenhouse gas emissions of a business-as-usual scenario, corals failed to recover from frequent bleaching events (Ortiz et al., 2014). Reducing sediments is not a complete solution given that nutrients and other contaminants of concern are still present and may have a very different spatial signature. We focused on sediment impacts for this project based on the completeness and trustworthiness of available data layers, but future efforts may consider the impacts of other sources of land-based pollution.

Herbivores appeared to fare well under climate-related stressors as coral cover declined and algal cover increased (Figures 6, 7). The strong correlation between algae and herbivores could be explained by the control of bottom-up, not top-down, mechanisms. A comparison of piscivore biomass in the populated Main Hawaiian Islands (MHI) with the non-fished Northwestern Hawaiian Islands (NWHI) shows that piscivore biomass was about 10–44 times higher in the NWHI (Williams et al., 2011). Even within the MHI, relatively remote and inaccessible locations had about five times the biomass of apex predators compared to more open areas (Williams et al., 2008). Thus, the low biomass of piscivores observed in the MHI could explain why top-down effects may not be strong enough to explain some of the results, and suggests that strict fishery management is required to improve predation as an ecosystem function (Figure 5, Figure S5.7).

Alternatively, the increase in piscivores could be viewed as an undesired outcome since more piscivores led to elevated predation pressure on herbivores, reducing their biomass and the overall Fisheries Production (Figures 57). Ecologically, a higher trophic level (piscivores have a trophic level of 3.5–5 compared to a level of 2 for herbivores) of the fish community represents an ecosystem that is energetically more optimal and mature (Graham et al., 2017). Hence, for ecological reasons, one might want to strive to obtain a fish community with a high composition of piscivores. Economically, this also makes sense as in general piscivores sell for a higher price ($3.5–$5 per pound) compared to herbivores ($2–$3.5 per pound). Thus, although the results indicate a lower Fisheries Production under local management scenarios, this is not necessarily a bad thing; the Trophic Integrity of the Reef improved with more stringent management (E, F; Figure 7), and the reduced catch may not translate into large economic losses.

Wide-scale spatial variability across Maui Nui was projected for the EPFs, with declines of up to 100% across the northern shores of Maui and Moloka‘i for Fisheries Production, and large declines in State of the Reef along southern and eastern shores (where the impacts of hurricanes were projected to be highest), highlighting the importance of identifying areas where management will likely be most successful.

How Important Is It to Consider Both Land- and Marine-Based Threats in Local Management Action?

Effectively managing the entire coral reef ecosystem requires the combination of both land-based and marine-based approaches. Land-based management was most beneficial for the benthic community, especially coral cover, whereas marine-based management not only decreased macroalgal cover, opening up substrate for reef calcifying CCA, but most notably decreased the downward trend in piscivore biomass (Figure 3). Of equal importance in evaluating the effectiveness of marine-based management (MPAs) are the often-conflicting extraction and conservation objectives (Dichmont et al., 2013). If the objective of MPAs is to improve coral cover, MPA establishment proved less effective than reducing land-based pollution (Figure 3). MPAs can enhance the resilience of coral reef ecosystems through trophic interactions (Mellin et al., 2016) or lead to small increases in coral cover (Graham et al., 2011), but reducing the main local stressors that drive coral decline directly (such as sediment inputs) is more effective (ISRS, 2004) as the model results also showed. For maintaining or increasing key ecosystem functions under the projected impacts of climate-related stressors, no single management tool was effective, but a combination of both land-based and marine-based management was needed as well as a reduction in greenhouse gas emissions (Figures 57). These modeling results are corroborated by other studies (Dichmont et al., 2013; Weijerman et al., 2015; Arias-Gonzalez et al., 2017).

Random placement of no-take MPAs may not benefit the overall benthic community (Figure 3). For example, the 30% MPA designation in scenario B1 mitigated loss of fish biomass less than B2 for fish biomass, but improved the fate of corals (Figure 3). Placing MPAs in areas with currently the highest 10% of fish biomass and coral cover (B3) also increased the piscivore biomass but when (almost) doubling this area by making the current MPAs also no-take MPAs (B4), piscivore biomass did not double and catches stayed very similar (Figure 4). Likely, the areas which currently have the highest fish biomass are already somewhat exempt from high fishing pressure, either because they are difficult to access or because only few people live close by, underscoring the importance of MPA placements. A separate issue is whether MPAs can achieve desired outcomes, as that also depends largely on strong governance (Cinner et al., 2016) and compliance (Gill et al., 2017).

Conclusions

Overall, in the face of global threats, local management had mixed results for the ecosystem goods and services the reef provides. It abated the decline in Trophic Integrity of the reef and improved State of the Reef especially when both land-based and marine based approaches were combined but reducing greenhouse gas emissions is essential to avoid catastrophic loss of ecosystem services. Management that was more stringent required trading off Fisheries Production and Landings. By including extraction and reef resilience objectives in ecosystem goods and services, we provide a generalizable tool to clearly evaluate the tradeoff of these conflicting goals under various management and climate-related stressors. Based on the limitations of the model structure, a cautionary interpretation of the model's predicted long-term trajectory should be taken. Future work may want to improve the resource fish ratio, which we assumed to stay constant over the entire period. This assumption is unrealistic because fishers are likely to target specific species (e.g., jacks or other piscivores), causing community structure to shift. Furthermore, the results from the small number of MPA scenarios call for more thorough analysis, particularly with respect to their interaction with land-based pollution control. The model could also be used for evaluating the relative effectiveness of different fisheries management strategies, e.g., targeting different trophic groups. A similar endeavor could focus on compliance within those MPAs to test the effectiveness of restriction levels. Results of these improvements could greatly benefit the ongoing discussions of how to manage 30% of the coastline effectively.

Data Availability Statement

The raw data supporting the conclusions of this manuscript are available at http://olesonlab.org/data/.

Author Contributions

MW, LV, KO, JD, and SY: study design. KF, JL, and MD: data sources. MW, LV, KV, and SY: Coding. MW, LV, and KO: analysis/Interpretation. MW wrote the first draft of the manuscript. All authors wrote sections of the manuscript, contributed to manuscript revision, read and approved the submitted version.

Funding

Funding for this research was provided by PICSC G13AC00361, NOAA CRCP NA13NOS4820020, and NOAA CRCP NA17NOS4820076.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank the providers of the input data used to build our models, in particular Johanna Wren for the connectivity matrix, the Hawai‘i Monitoring and Research Collaborative for the underwater visual survey data, Bill Ward for regional hurricane impacts, as well as, contributions to the predictive model development by Kosta Stamoulis, Matt Poti, Bryan Costa, and Matt Kendall. The authors also thank Tayler Massey and Megan Barnes for their assistance and/or advice in the completion of this work and Brett Taylor and two reviewers for providing comments on earlier drafts. The views expressed in this article are those of the authors and do not necessarily reflect the views or policies of their respective agencies.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2018.00425/full#supplementary-material
