Response of Coastal Phytoplankton to High Inflows of Terrestrial Matter
- 1Department of Ecology and Environmental Science, Umeå University, Umeå, Sweden
- 2Umeå Marine Sciences Centre, Hörnefors, Sweden
- 3Department of Food and Environmental Sciences, Division of Microbiology and Biotechnology, University of Helsinki, Helsinki, Finland
- 4Novia University of Applied Sciences, Ekenäs, Finland
- 5Tvärminne Zoological Station, University of Helsinki, Hangö, Finland
Climate change scenarios project that precipitation will increase in northern Europe, causing amplified inflows of terrestrial matter (tM) and inorganic nutrients to coastal areas. How this will affect the plankton community is poorly understood. A mesocosm experiment was carried out to investigate the influence of two levels of tM inputs on the composition, size-structure and productivity of a natural coastal phytoplankton community from the northern Baltic Sea. The tM addition caused browning of the water and decreased underwater light levels, while the concentrations of dissolved organic carbon (DOC) and inorganic nutrients increased. Microphytoplankton were promoted by tM addition, while in the controls picophytoplankton dominated the phytoplankton community. Inorganic nutrient availability was instrumental in defining the phytoplankton community composition and size-structure. As a response to tM addition, the phytoplankton increased their chlorophyll a content. This physiological adaptation helped to maintain high primary production rates at the low tM enrichment, but at the high tM load the primary production decreased as did the biomass of mesozooplankton. The ciliate biomass was high when the mesozooplankton biomass was low, indicating that a trophic cascade occurred in the system. Structural equation modeling showed that tM borne DOC promoted ciliates, while primary and bacterial production were disfavored. Thus, DOC originating from soils had an indirect negative effect on the mesozooplankton by reducing their food availability. Although, a positive correlation between heterotrophic bacteria and phytoplankton suggested coupling between phytoplankton produced carbon and heterotrophs growth. The results from our study indicate that river-borne DOC and inorganic nutrients have a large impact on the phytoplankton community, driving the system to the dominance of large diatoms. However, since river-borne humic substances cause browning of the water, phytoplankton increase their light harvesting pigments. At moderate inflow this helps to support the primary production, but at high inflows of terrestrial material the primary production will decrease. As high river inflows have been projected to be a consequence of climate change, we foresee that primary production will decrease in coastal areas in the future, and the impacts of such changes on the food web could be significant.
Phytoplankton are the major primary producers in aquatic ecosystems (Field et al., 1998; Falkowski et al., 2004). They commonly constitute the base of pelagic food webs, thus changes in their taxonomic composition, size-structure and production due to anthropogenic activity and climate change can have complex and significant knock-on effects on the production at higher trophic levels (Chust et al., 2014; Rasconi et al., 2015). For example, periodically heavy rainfall will increase the transport of river-bond inorganic nutrients from the terrestrial system to the coast. The inorganic nutrient concentrations in the recipient waters will rise, which can promote phytoplankton growth (Dagg et al., 2004; Masotti et al., 2018). River flooding may therefore cause phytoplankton blooms and eutrophication in the recipient coastal ecosystems (Wasmund, 2002; Penna et al., 2004). However, if the river-water also holds high concentrations of colored humic rich matter, the eutrophication process could be counteracted (Andersson et al., 2013). The brownish color of the water causes increased light attenuation, and thus decreased water transparency. In such a scenario, phytoplankton growth would be light limited and their carbon production lowered. This may in turn lead to decreased fish production thus affecting human food resources.
Effects of river flooding on the coastal carbon cycle, induced by changes in the phytoplankton community, can vary (Roelke et al., 2013; Dorado et al., 2015). Increased inorganic nutrient levels would promote large microphytoplankton, such as diatoms (Shangguan et al., 2017a), since they have a competitive advantage when nutrient inputs are high (Legendre and Rassoulzadegan, 1995; Duarte et al., 2000). Furthermore, changes in the inorganic nutrient composition and their stoichiometry can drive the phytoplankton community to change the taxonomic composition and size-structure (Shangguan et al., 2017a, b; Swarbrick et al., 2019). On the other hand, low light levels would promote small phytoplankton, pico- and nanophytoplankton, because of their large surface to volume ratio and distribution of pigments along the outer cell wall (Raven, 1998; Marañón, 2015). This enables more efficient light harvesting in small cells compared to larger cells, where the light harvesting pigments are enclosed in inner cell organelles, i.e., in the chloroplasts (Raven, 1998; Kirk, 2011). However, since river water contains both inorganic nutrients and dissolved organic matter, freshwater inflows or flooding could either promote large or small phytoplankton cells. Moreover, where natural bacterial communities also make a significant part of the food web then the conversion of organic matter and the changes in bioavailability of it may also be critical factors (Asmala et al., 2013; Traving et al., 2017; Asmala et al., 2018). Thus overall, the phytoplankton response may be governed by the magnitude of the inflow and the inorganic nutrient and organic matter concentration in the river water.
Large and small phytoplankton cells can enter the food web, though this takes place at different trophic levels, implying that different shares of the organic carbon produced by phytoplankton reach higher trophic levels. At each trophic level, ∼70% of the energy (organic carbon) is lost due to respiration, sloppy feeding and excretion (Straile, 1997; Berglund et al., 2007). A simplified view is that the food web is size-structured and that the smallest picophytoplankton enter the food web at the flagellate level, while nanophytoplankton enter at the ciliate level and microphytoplankton at the mesozooplankton level (Legendre and Rassoulzadegan, 1995). This means that much less of the primary produced energy reaches higher trophic levels if the phytoplankton community is dominated by picophytoplankton than if the community is dominated by micro-sized phytoplankton (Sommer et al., 2002). In addition to that, there are quality differences between cyanobacteria and other phytoplankton groups (Peltomaa et al., 2017; Jónasdóttir, 2019). Cyanobacteria do not contain storage lipids, while many eukaryotic phytoplankton contain energy rich triacylglycerols (Nordbäck et al., 1998). All this emphasizes the need to understand how changing environmental conditions influence the composition, size-structure and productivity of the phytoplankton community.
To enable photosynthesis and growth at low light conditions phytoplankton often increase their content of light harvesting pigments, i.e., chlorophyll a (Markager, 1993; Dubinsky and Stambler, 2009). By this process phytoplankton may be able to maintain high primary production even though light levels and photosynthetic efficiency decrease (Halsey and Jones, 2015). However, with high terrestrial matter (tM) loading, the light may become too low to support primary production. Extreme inflows of tM may cause such a significant decrease in the under-water light conditions that a tipping point could be reached. Presently it is unknown how phytoplankton physiologically react to different loads of terrestrial matter. This is important to find out, since it gives a possibility to make ecological predictions of future climate change scenarios.
Changes in the phytoplankton community composition or size-structure can also be caused by zooplankton grazing under elevated tM loading conditions. Both increases and decreases of the zooplankton biomass have been found in tM-enrichment experiments, as well as alterations in the species composition (Carlsson et al., 1995; Berggren et al., 2010). Due to increased concentrations of nitrogen and phosphorus, intrinsic components of tM, primary production can be heightened, which can stimulate the zooplankton biomass (Klug, 2002; Kissman et al., 2013). Additionally, inorganic nutrients can regulate heterotrophic bacterial growth directly or indirectly via stimulation of autochthonous organic carbon production (Schweitzer and Simon, 1995; Vrede, 1999). On the other hand, if the light availability decreases due to the brown color of the tM, the primary production as well as the zooplankton biomass may decrease. Supply of tM however, also influences other food web components and can nurture the heterotrophic microbial food web, as the terrestrial organic carbon can be used as food source for heterotrophic bacteria (Kaartokallio et al., 2016). This in turn may promote growth of protozoa, which are used as food by mesozooplankton (Berggren et al., 2010; Faithfull et al., 2012). The bottom-up effects are major processes regulating the pelagic food web in oligotrophic ecosystems, while the top-down effects are more often observed in eutrophic ecosystems, where a positive correlation between mesozooplankton and picophytoplankton and heterotrophic bacteria occur due to decreased predation pressure on small cells (a trophic cascade) (Sanders et al., 1992). Furthermore, phytoplankton are not always the most important food source for coastal zooplankton. For example, Carlsson et al. (1995) showed that zooplankton did not significantly influence the phytoplankton community in a coastal area, since the dominant omnivorous zooplankton rather grazed on microzooplankton than on phytoplankton. Additionally, tM may selectively alter the zooplankton species composition, and thus the food web channeling and stoichiometry (Berggren et al., 2010; Faithfull et al., 2012). Cladocerans have relatively low N:P ratio and execute unselective grazing (Hambright et al., 2007). They consume different organisms within the microbial food web, for example bacteria, flagellates and ciliates, and preferentially P-rich phytoplankton (Riemann, 1985; Schatz and McCauley, 2007). In contrast, copepods have a relatively high N:P ratio and are selective grazers (Meunier et al., 2016). They prefer feeding on nano- and microplankton, such as ciliates and N-rich phytoplankton species (Cowles et al., 1988; Walve and Larsson, 1999). The interaction between the food web-base and the mesozooplankton community is thus highly complex and adjustable depending on external forcing, for example varying inorganic nutrient and tM load.
Increasing inflows of tM to coastal areas in northern Europe, such as the Baltic Sea, is one of the projected consequences of future climate change (Meier et al., 2012; Andersson et al., 2015). Regional climate projections estimate an increase in riverine inflow of 15–20% in the northern Baltic Sea area, which will be accompanied by an increase in colored tM loads and inputs enriched with both organic and inorganic nutrients (Meier et al., 2012). We performed an experimental study to elucidate how projected increases in tM inflows will affect the coastal phytoplankton composition, size-structure, production and physiological adaptation. The experiment was performed using natural seawater from a coastal area in the northern Baltic Sea, which included a complete food web from microorganisms to mesozooplankton, with planktivorous fish subsequently added. We hypothesized that: (1) increased inorganic nutrient concentrations via tM inputs would cause an increase in the phytoplankton cell-size, even though the light decreases, (2) photosynthetic efficiency would decrease with increasing tM load and that the phytoplankton would adapt to lower light by increasing their chlorophyll a content, (3) at low tM load this adaptation would help maintaining high primary production rates but at high tM load high primary production cannot be sustained, and (4) mesozooplankton would benefit from high primary production, and their functional feeding composition would follow the size-spectrum of the phytoplankton community.
Materials and Methods
The experiment was carried out from 21st of May to 25th of June 2012, using 12 indoor mesocosms located at the Umeå Marine Sciences Center (UMSC), Sweden (as described in Traving et al., 2017). The mecososm are 5 m high tanks with a volume of 2000 l (see Grubisic et al., 2012; Lefébure et al., 2013 for more details). On May 21st and 22nd, seawater was gently collected at a depth of 4 m from the Bothnian Sea (63°33′N, 19°56′E; salinity ∼4 and temperature ∼6°C) using a peristaltic pump, and transported in 1 m3 polythene containers to UMSC. Mesocosms were gently filled and enriched with inorganic nutrients (0.7 μmol l–1 nitrogen and 0.09 μmol l–1 phosphorus) to prevent nutrient limitation during a 7-day equilibration period prior to imposition of the treatments. The water contained a natural pelagic food web from bacteria to mesozooplankton, while larger organisms (e.g. fish) were excluded by using 1.5 mm mesh during collection. The final mesocosm temperature after a 7-day equilibration period reached 15°C and light was set to a cycle of 12 h light and 12 h dark. Illumination was supplied by 150 W metal halogen lamps (MASTERColour CDM-T 150W/942 G12 1CT) situated above each mesocosm, which provided photosynthetically active radiation (PAR) of 400 μmol photon m–2 s–1 at the surface. To ensure that the water column was replete with oxygen and well mixed, air was continuously bubbled into the mesocosms (20 ml s–1) in conjunction with thermal cycling that resulted in convective stirring of the water (full mixing of each mesocosm in circa 2–4 h period, unpublished testing data).
Temperature and thermal water cycling within tanks was controlled by an automated heating/cooling system (±0.5°C). One of four treatments was assigned randomly to each mesocosm. Water exchange (40 l, inclusive of sampling water collection) was carried out every second day and replacement water consisted of 0.2 μm filtered natural Bothnian Sea water.
The experiment started on 28th of May (Day 0) and lasted for 28 days. To disentangle the effect of tM borne organic and inorganic nutrients, triplicate mesocosm replication was established. Four treatments were applied. In the tML and tMH treatments, natural tM extracted from soils was added to mimic river inflow. The tM contained both organic matter and inorganic nutrients. Soils were collected at the beginning of May from the banks of the Reda River for tMH (Southern Baltic Proper, Poland) and Öre River for tML (Northern Bothnian Sea, Sweden). The sites were selected to be representative of catchment regions dominated by agriculture and forestry, respectively. The tM extracts were produced following the procedure outlined in Lefébure et al. (2013). To release organic, inorganic nutrients and heavy metals bound to soils, extracts were dispersed in filtered MQ water and mixed with an ion exchange resin (Amberlite IRC 748I) before being stored in the dark at 4°C for 48 h. Extracts were then filtered through a 90 μm mesh and the liquid phase was retained in acid washed tanks in the dark at 4°C for the duration of the experiment. Nutrient (inorganic and total) measurements of these extracts were made on filtered samples from the bulk extracts, and this information was used to create the treatments described below. Dissolved organic carbon (DOC), dissolved inorganic nitrogen and phosphorus (DIN, DIP), total nitrogen and phosphorus (Tot N, Tot P) concentrations were analyzed using a Shimadzu TOC-5000 carbon analyzer and a Braan and Luebbe TRAACS 800 autoanalyzer. The experiment was designed to mimic a future climate change scenario of increased river runoff in the Baltic Sea. The final concentration of DOC targeted was 6 mg l–1 in the tML treatment and 8 mg l–1 in the tMH treatment (overall additions), which is equivalent to an increased C concentration of 50 and 100% respectively, based on future scenario from Hägg et al. (2010). The two control treatments CtrlL and CtrlH were supplemented only with inorganic N and P to match inorganic nutrients concentrations of the respective tM treatments. Three days before the first sampling day, all mesocosms were supplied with a 22% boost of their respective overall additions, followed by daily equal additions to reach future C scenarios (Table 1). During the first day of the experiment (Day 0), seven young of the year (YOY), similarly sized, perch (Perca fluviatilis) were added per mesocosm to mimic natural predation. The fish survival during the experiment was high, with an average survival rate of 80%.

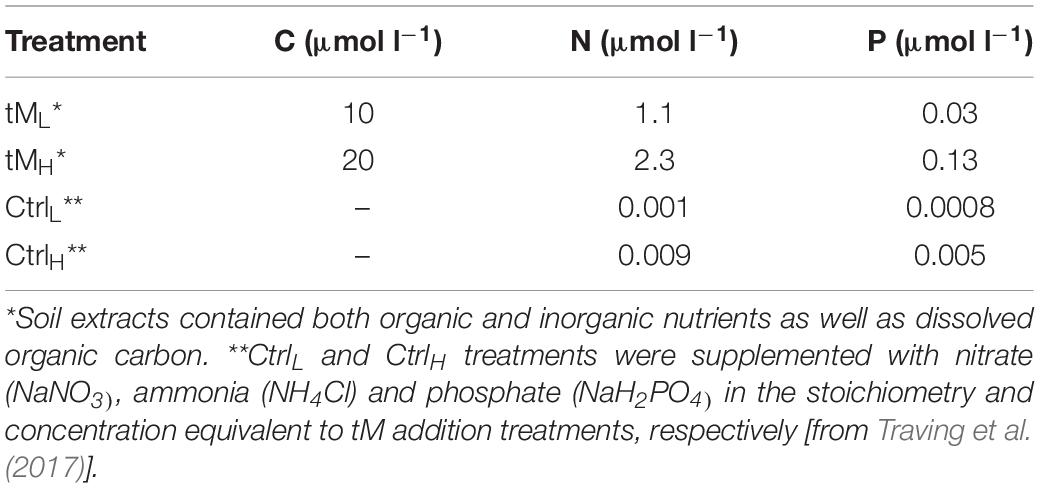

Table 1. Daily addition of C, N and P concentrations in the mesocosms (subsequent to initial addition of tM extracts).
All water samples were collected twice a week in the early morning (06.00 h) using a syphoning hose at 2 m depth, except those for microscopic identification of phytoplankton and zooplankton. These samples were taken at the beginning, middle and end of the experiment (Days 0, 17, and 28) using the same sampling device. Primary production incubation was performed immediately after sample collection and once the automatic light cycle had been initiated (07.00 h).
Vertical Photosynthetically Active Radiation (PAR) irradiance profiles were taken with a LICOR-193SA light sensor. Light measurements were carried out every 0.2 m from the surface to 0.6 m, and then at 0.5 m intervals down to 4.5 m. The light attenuation coefficient (Kd) was calculated from the slope of the linear regression of the natural logarithm of down-welling irradiance versus depth. Samples for inorganic nutrients Dissolved Inorganic Phosphorus (DIP: phosphate), Dissolved Inorganic Nitrogen (DIN: nitrate + nitrite and ammonium) and silicate were filtered through 0.2 μm cellulose-acetate filters and stored at −20°C, while unfiltered samples for total phosphorus (Tot P) and total nitrogen (Tot N) were directly stored at −20°C. All nutrients were analyzed using a Braan and Luebbe TRAACS 800 autoanalyzer, according to standard analytical methods (Grasshoff et al., 1983). The concentration of humic substances (HS) was measured from unfiltered water samples using a Perkin Elmer LS 30 fluorometer at 350/450 nm excitation/emission wavelengths, calibrated with a serial dilution of quinine sulfate solution (Hoge et al., 1993). DOC concentrations were analyzed on 0.22 μm filtered (Supor Membrane Syringe Filter, non-pyrogenic; Acrodisc®) and acidified samples (18 mM HCl, final concentration) using a Shimadzu TOC-5000 analyzer.
Colored dissolved organic matter (CDOM) absorbance was measured in water samples filtered through a 0.22 μm polycarbonate membrane and stored in amber glass bottles in the dark at 4°C until analysis. Absorbance values were recorded from 250 to 800 nm using a Shimadzu UVPC-2501 scanning spectrophotometer, with Milli-Q water as the blank. The absorption coefficient at 440 nm (g440) was calculated by multiplying the absorbance at specific wavelength with 2.303 and dividing by the length of the cuvette (Kirk, 2011).
Chlorophyll a and Primary Production
Samples for chlorophyll a (Chl a) (100 ml) were filtered onto 25 mm GF/F filters, extracted in 95% ethanol overnight and measured with a Perkin Elmer LS 30 fluorometer (433/674 nm excitation/emission wavelengths). Primary production (PP) rates were measured using the 14C method (Gargas, 1975). Samples were incubated with NaH14CO3 at a final concentration of 0.1 μCi ml–1 (14C Centralen Denmark, DHI, activity 100 μCi ml–1) at seven depths: surface, 0.1, 0.2, 0.4, 0.6, 1, and 2 meters, within each mesocosm. Additionally, one dark sample per tank was incubated. After ∼3 h of incubation, 5 ml of each sample were transferred to a scintillation vial, and gently bubbled with 150 μl of 6 M HCl for 30 min. Subsequently, 15 ml of scintillation fluid were added, and samples were measured using a Beckman 6500 scintillation counter. Average daily primary production was calculated in each mesocosm, using the light factor method (Gargas, 1975). PP:Chl a was calculated as an indicator of photosynthetic efficiency.
The 3H-thymidine incorporation method was used to measure bacterial production (BP) (Fuhrman and Azam, 1982). Four 1 ml seawater samples (one control and three samples) were incubated with 2 μl of 3H-thymidine (84 Ci mmol–1; PerkinElmer, MA, United States) (final concentration 24 nM) for 1 h at in situ temperature. This thymidine addition corresponded to the saturation level. The control sample was pre-killed by adding 100 μl of ice-cold 50% TCA and incubation at −20°C for 5 min. Cell production was calculated using a conversion factor of 1.4 × 1018 cells mol–1 of incorporated thymidine (Wikner and Hagström, 1999). Daily net production rates were calculated assuming stable uptake rates over the day and a bacterial carbon content of 20 fgC cell–1 (Lee and Fuhrman, 1987).
Plankton Identification and Enumeration
Samples for phytoplankton (>2 μm) identification and counting were preserved with 2% alkaline Lugol’s solution in 50 ml volumes. Samples were settled for 24–48 h and counted using the inverted microscope method (Utermöhl, 1958). Microphytoplankton (>20 μm) and nanophytoplankton (2–20 μm) samples were counted at 100× and 400× magnification, respectively. Zooplankton samples were preserved with 2% alkaline Lugol’s solution, counted on a stereomicroscope (Leica), and transformed into carbon biomass (Hernroth, 1985).
Samples for picophytoplankton and heterotrophic bacteria were preserved in 0.1% glutaraldehyde (final concentration) and frozen at −80°C (Marie et al., 2005) for later counts using a BD FACSVerseTM flow cytometer (BD Biosciences) equipped with a 488 nm laser (20 mW output) and a 640 mn laser (output 40 mW). Frozen samples were quickly thawed in a 30°C water bath and pre-filtered through a 50 μm mesh. Picophytoplankton samples were run with 3 μm microspheres (Fluoresbrite® plain YG, Polysciences) as internal standard. Picophytoplankton abundance was converted to biomass using carbon conversion factors: 120 fgC cell–1 for picocyanobacteria and 829 fgC cell–1 for picoeukaryotic phytoplankton, based on microscopic measurements of cell sizes and use of conversion factors (see below). Heterotrophic bacteria samples were diluted with 0.2 μm filtered seawater, stained with SYBR Green I (Invitrogen) (1:10000, final concentration) and kept in the dark at room temperature for 10 min. 1 μm microspheres (Fluoresbrite® plain YG, Polysciences) were added to each sample as internal standard and analyses were run at a low flow rate of 30 μL min–1 with an acquisition time of 2 min. Heterotrophic bacteria abundance was converted to biomass using carbon conversion factor: 20 fgC cell–1 (Lee and Fuhrman, 1987).
The phytoplankton cells were divided into different size-classes: pico- (<2 μm), nano- (2–20 μm), and micro- (>20 μm) phytoplankton based on measurements of the longest cell axis. Functional groups: AU (autotrophs), HT (heterotrophs), and MX (mixotrophs) were assigned according to Olenina et al. (2006). Filamentous cyanobacteria were assigned to the microphytoplankton category based on the size of single cells, as well as tightly clustered amalgamations of cells. Nutritional characteristics of plankton were identified based on cell morphology, size and described trophy (Tikkanen and Willen, 1992; Hällfors, 2004; Olenina et al., 2006). Further, the coloration of the smallest cells was used to support the trophy classification as Lugol’s solution stains Chl a brown. Phytoplankton biomass was calculated from the geometric shape of cells following Olenina et al. (2006) and cell carbon content was calculated according to Menden-Deuer and Lessard (2000). Total phytoplankton biomass (TB) was defined as the sum of the carbon biomass of autotrophs (including Mesodinium rubrum) and mixotrophs. The relative contribution to biomass of size classes and functional groups were calculated. Additionally, Chl a:C was estimated as an indicator of acclimation to changing light and nutrient conditions. This indicator was obtained by dividing the Chl a concentration by total phytoplankton carbon biomass.
Generalized linear mixed models (GLMM), followed by Tukey’s post hoc tests, were used to test the effect of treatments, days and their interactions on physicochemical variables and biological variables. Mesocosm tank was included as a random effect. The assumptions of normality were tested using the Shapiro-Wilk test. The fit of the model was estimated by interpreting the diagnostic plots (correlation between model residuals and the fitted values, normality of residuals, homoscedasticity of the residuals and possible data outliers). GLMM models were also performed to evaluate the effects of physicochemical and biological variables (PAR, PO4, NH4, NO3 + NO2, and zooplankton biomass) on phytoplankton related parameters, bacterial biomass and production and ciliate biomass. The remaining physicochemical variables measured during the experiment were not included in analysis due to high multicollinearity indicated by the variance inflation factor (VIP > 10). Physicochemical and biological variables were selected for the final model with a backward stepwise selection process based on based on Akaike’s Information Criterion (AIC). Changes in the total phytoplankton biomass composition were visualized by non-metric multidimensional scaling (NMDS), based on Bray-Curtis similarity. Redundancy analysis (RDA) was performed to identify factors influencing the size-structure of the phytoplankton community during the middle and end of the experiment. The relative biomass of pico- (<2 μm), nano- (2–20 μm) and micro- (>20 μm) phytoplankton were analyzed in relation to zooplankton biomass (Zooplankton), phosphate (PO4), ammonium (NH4), nitrate + nitrite (NO3 + NO2), and Photosynthetically Active Radiation (PAR). Additionally, the relationships between primary production (PP), bacterial production (BP), zooplankton biomass (ZP), and ciliate biomass (Ci) as endogenous variables and phosphate (PO4) and dissolved organic carbon (DOC) as exogenous variables were examined by structural equation modeling (SEM). Standardized path coefficients and R2 were calculated, while the goodness of fit of the model was tested by the Chi-square test. Non-parametric correlation (Spearman) analyses were used to test relationships between the relative biomass of major zooplankton groups and bacterial, ciliate biomass and the relative contribution of the size-structure of the phytoplankton. Day 0 was excluded from statistical analyses in order to examine physicochemical and biological variations after the treatments had taken effect. Data analyses were performed in Primer 6, Canoco 5, and R softwares.
Variation of Physicochemical Factors
Photosynthetically Active Radiation (PAR) decreased gradually over time in the mesocosms with tM load (33–4 μmol photon m–2 s–1), while in the controls (CtrlL and CtrlH) the PAR values were higher and generally more constant (on average 50 μmol photon m–2 s–1) (Tukey’s, p < 0.001) (Figure 1A). Humic substances, Kd, Tot N, DOC and g440 increased throughout the experiment in the tM mesocosms (HS: 26–47 μg l–1, Kd: 1.4–4.1 m–1, Tot N: 22–40 μmol–1, DOC: 6-9 mg l–1, g440: 2.6-9.7 m–1), while in the controls the values were relatively unchanged (on average HS: 22 μg l–1, Kd: 1 m–1, Tot N: 17 μmol–1, DOC: 5 mg l–1, g440: 1.7 m–1) (Figures 1B, 2A,C–E). The values of these variables were significantly higher in the tM supplemented mesocosms compared to the controls (Tukey’s, p < 0.001).
Figure 1. Temporal variation of physicochemical factors during the experiment: Photosynthetic Active Radiation (PAR) at 1 m (A) modified after Traving et al. (2017), humic substances (B), nitrate + nitrite (C), ammonium (D), phosphate (E), and silicate (F). Means ± standard error, n = 3.

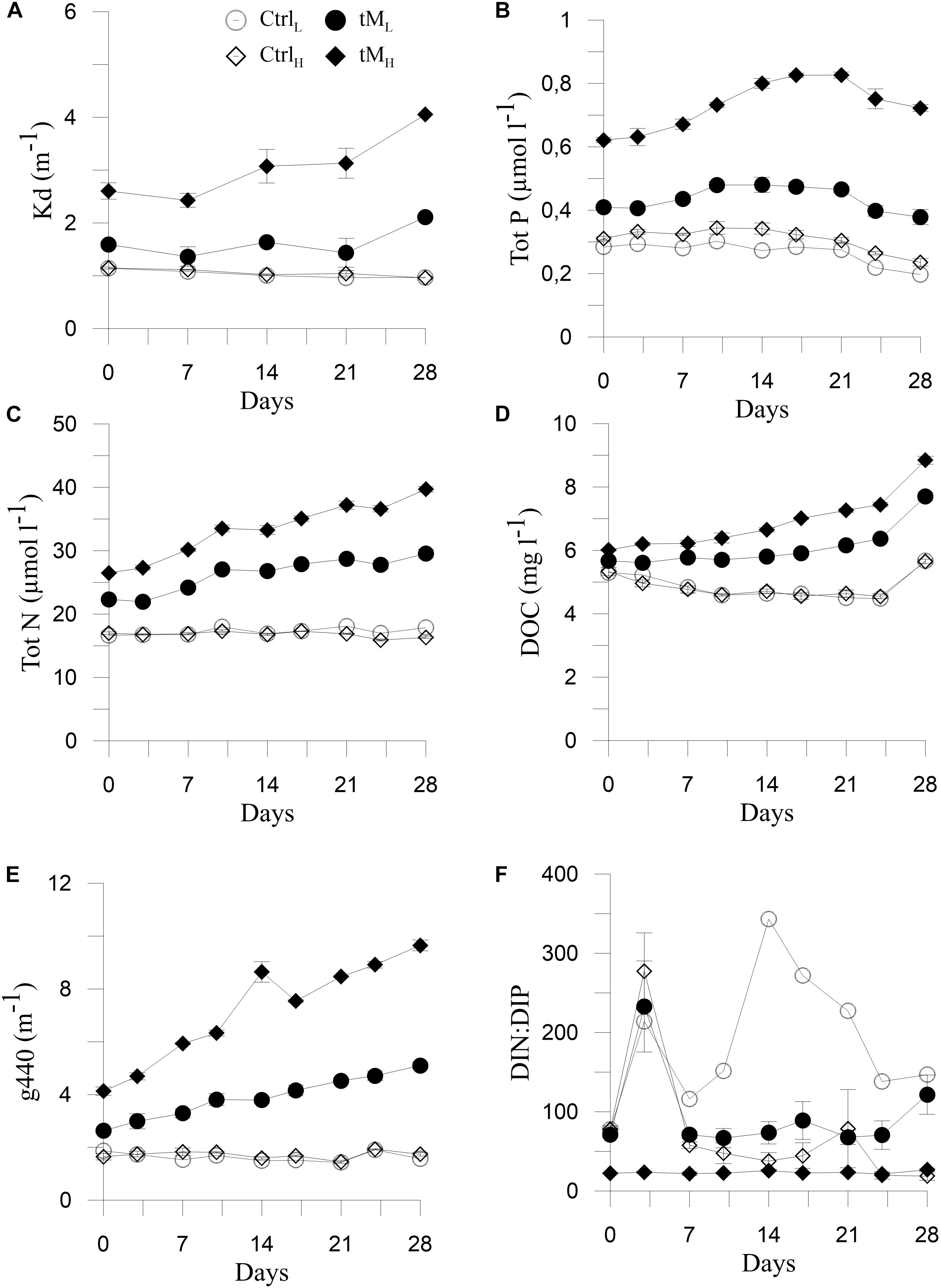

Figure 2. Temporal variation of physiochemical factors: Kd (A), Tot P (B), Tot N (C), DOC (D) modified after Traving et al. (2017), g440 (E), and DIN:DIP (F). Mean ± standard error, n = 3.
In general, nitrate + nitrite decreased steadily over time in all treatments and reached the lowest values on day 24 (Figure 1C). Higher nitrate + nitrite concentration was observed in tM treatments than in controls (1.4 ± 0.1 vs. 0.8 ± 0.1 μmol l–1). Ammonium, phosphate and Tot P peaked at the middle of the experiment, reaching maximum values in tM treatment (3.1 μmol–1 for ammonium, 0.18 μmol–1 for phosphate and 0.83 μmol–1 for Tot P, respectively) (Figures 1D,E, 2B). Inorganic nitrogen (nitrate + nitrite and ammonium), phosphate and Tot P concentrations were significantly higher in the tM mesocosms than in the controls (Tukey’s, p < 0.001). The higher concentrations of inorganic N and P in the tM treatments than in the controls were likely due to bacterial reduction of organic N and P to inorganic forms. Silicate showed a decreasing trend in all mesocosms, and at the end of the experiment, the silicate concentration was 1.5-fold lower in the tM mesocosms than in the controls (16.4 ± 2.1 vs. 23.8 ± 2.6 μmol–1) (Figure 1F). There was no significant difference in silicate concentration between treatments. Highest DIN:DIP ratio was observed in the control (CtrlL). In these mesocosms the ratio was 2-fold and 8-fold higher than in the remaining treatments, suggesting strong phosphorus limitation in CtrlL (Figure 2F).
Effect of tM Load on Phytoplankton Community Composition, Size-Structure and Nutritional Strategy
The taxonomic composition was similar in all mesocosms at the beginning of the experiment (Figures 3A, 4). Bacillariophyceae and Chlorophyceae were the dominant groups (Figures 3Aa-d). Noticeable taxa were Skeletonema marinoi (Cleve), Thalassiosira baltica, Chaetoceros wighamii (Brightwell) and Monoraphidium contortum (Komárková-Legnerová). The photosynthetic ciliate Mesodinium rubrum (Leegaard) also occurred abundantly at the initial phase of the experiment, constituting on average ∼10% of the total biomass in controls and ∼25% in tM treatments (Figures 3Aa-d). However, as the experiment progressed the phytoplankton composition showed differences between the controls and tM supplemented mesocosms (Figures 3A, 4). In the controls, unidentified picoeukaryotes dominated the phytoplankton community (Table 2 and Figures 3Aa-b), while in the tM supplemented mesocosms they constituted a smaller share (Figures 3Ac-d). Bacillariophyceae (diatoms) were promoted by tM load, and at the end of the experiment this group constituted on average ∼50% of the biomass in these mesocosms (Figures 3Ac-d). Diatoma tenuis (C. Agardh) and Synedra acus var. acus (Kützing) were the most abundantly occurring species.

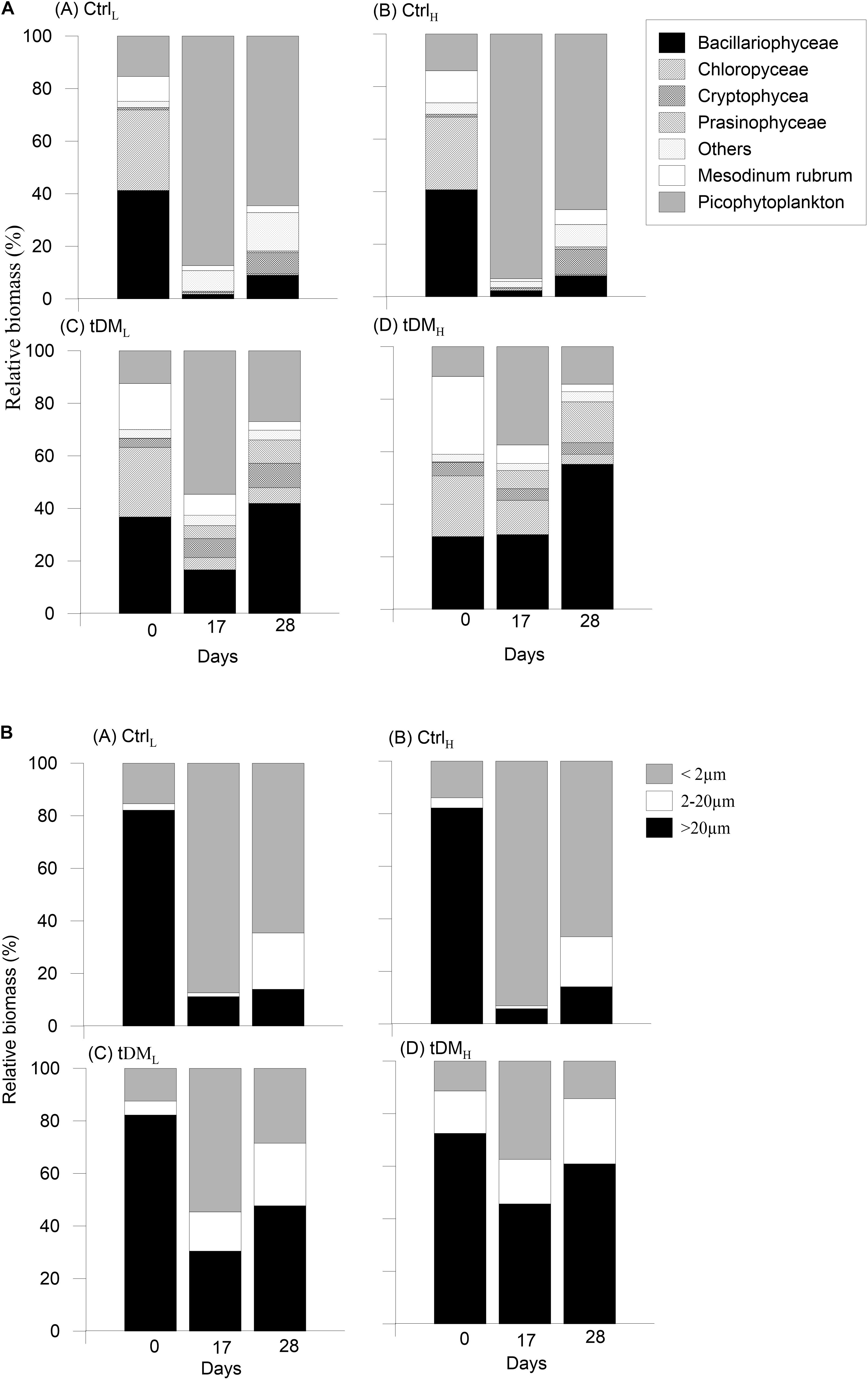

Figure 3. Phytoplankton taxonomic composition and size-structure at the start, middle and end of the experiment: biomass distribution of major phytoplankton taxa: Bacillariophyceae, Chlorophyceae, Cryptophyceae, Prasinophyceae, Others, Mesodinum rubrum and picophytoplankton (A), and biomass distribution of size-classes: pico- (<2 μm), nano- (2–20 μm), and microphytoplankton (>20 μm) (B).

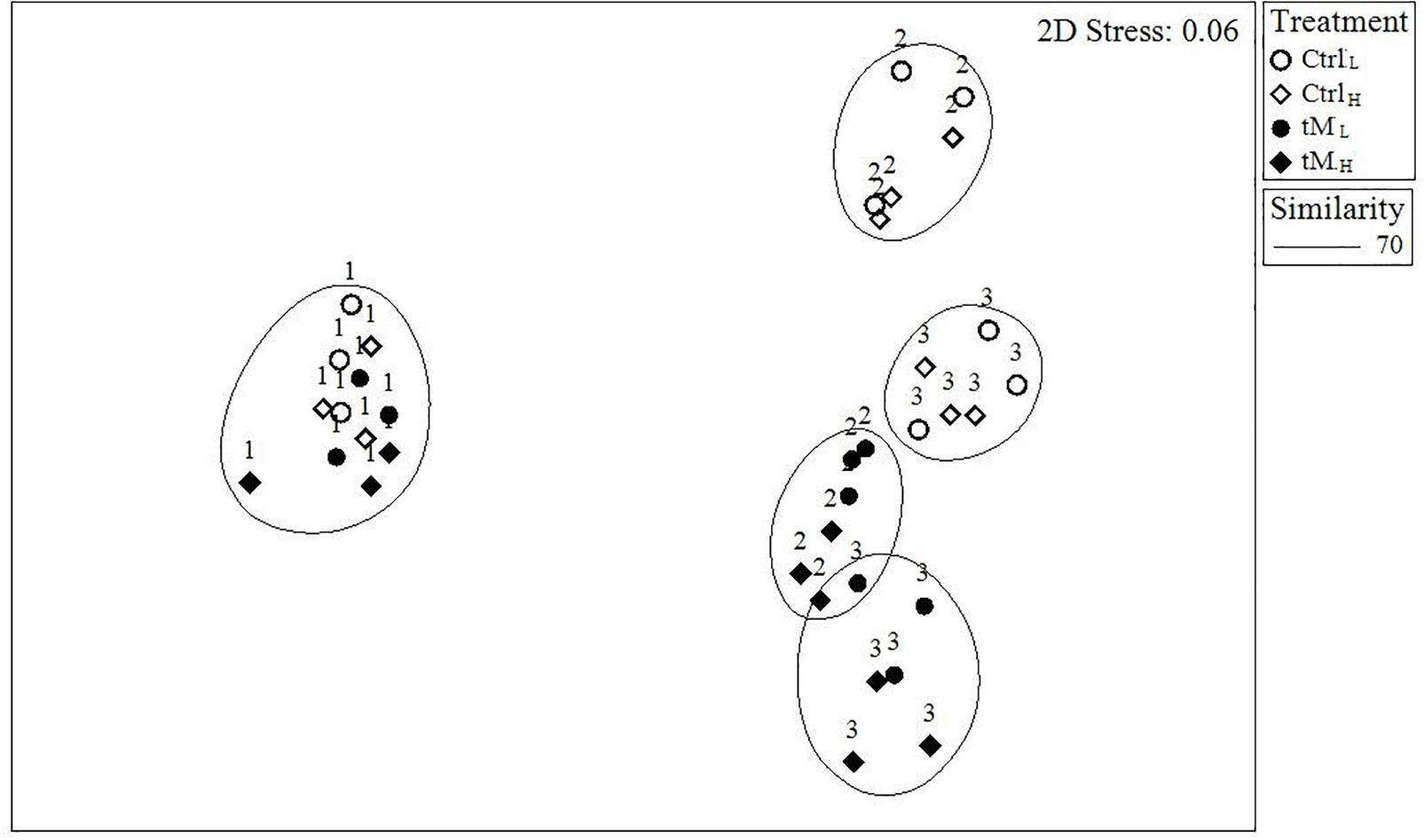

Figure 4. Non-metric multidimensional scaling (NMDS) plot of the phytoplankton community composition. Numbers display the sampling day (1 = Day 0, 2 = Day 17, and 3 = Day 28).

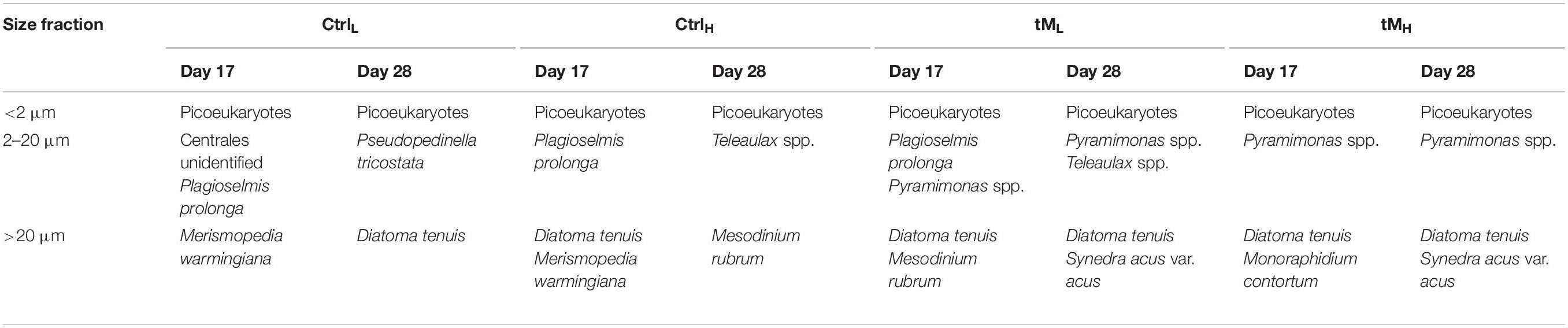

Table 2. Dominating phytoplankton taxa, constituting >25% of the biomass in different size classes, at day 17 and 28 of the mesocosm experiment.
At the start of the experiment, microphytoplankton was the dominant size group in all mesocosms, forming ∼80% of the biomass (Figures 3Ba-d). Their relative contribution decreased most strongly in the controls, falling to less than 10% in the middle of the experiment before increasing slightly by the end of the experiment, reaching ∼14%. In the tM supplemented mesocosms, the microphytoplankton contribution remained high throughout the experiment and ranging between 31 and 46% in the middle of the experiment and 48 and 61% at the end of the experiment. D. tenuis, M. rubrum, S. acus var. acus and M. contortum dominated this phytoplankton size group over the experiment (Table 2). Nanophytoplankton constituted a smaller part of the phytoplankton community, on average ∼1% of the total phytoplankton biomass in the controls and ∼15% in tM treatments in the middle of the experiment, while the highest share, ∼25%, was observed at the end of the experiment in all treatments (Figures 3Ba-d). Within the nanophytoplankton, Cryptophyceae and Prasinophyceae were the most abundant taxa, e.g., Plagioselmis prolonga (Butcher), Teleaulax spp. and Pyramimonas spp. (Table 2). Picophytoplankton showed maximum contribution in the middle of the experiment in all mesocosms, where they constituted 38–93% of the phytoplankton biomass (Figures 3Ba-d). The picophytoplankton share remained high in the controls all through the experiment, while in the tM mesocosms picophytoplankton decreased toward the end, constituting ∼20% of the phytoplankton biomass (Figures 3Ba-d).
The proportion of autotroph biomass was high in all treatments, constituting over 96% of the total phytoplankton biomass throughout the experiment. The contribution of heterotrophs and mixotrophs was minimal, contributing a maximum of ∼4% in the tM mesocosms in the middle of the experiment, and 2% in controls at the end of the experiment.
Relation Between Phytoplankton Size-Structure and Potentially Explanatory Factors
The influence of environmental conditions on the size-structure of the phytoplankton community was explored using Redundancy analyses (RDA). The first two RDA axes explained 83.6% of the phytoplankton size-structure (Table 3). RDA1 was mainly influenced by PAR and zooplankton biomass, and RDA2 had high scores of zooplankton biomass and inorganic nitrogen forms (nitrate + nitrite) (Figure 5). The environmental conditions within the controls contributed to higher relative contributions of picophytoplankton and zooplankton biomass, while microphytoplankton dominated in the tM enriched mesocosms, where PAR was low and inorganic nutrients high.

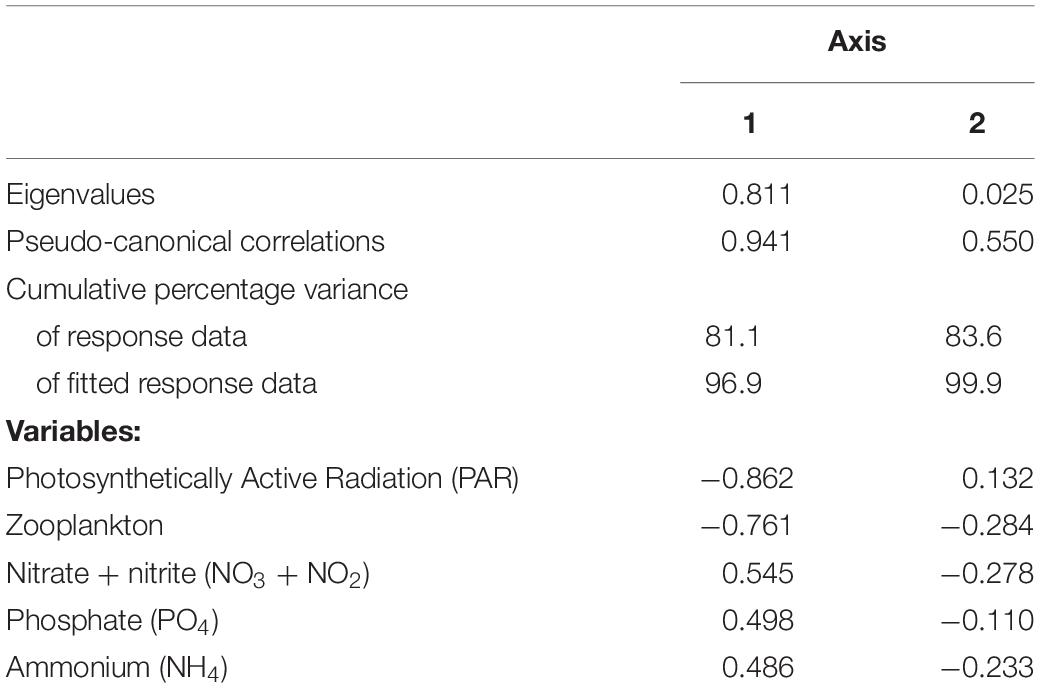

Table 3. Variable loadings for the first and second axis of the RDA performed on biological and physicochemical data.

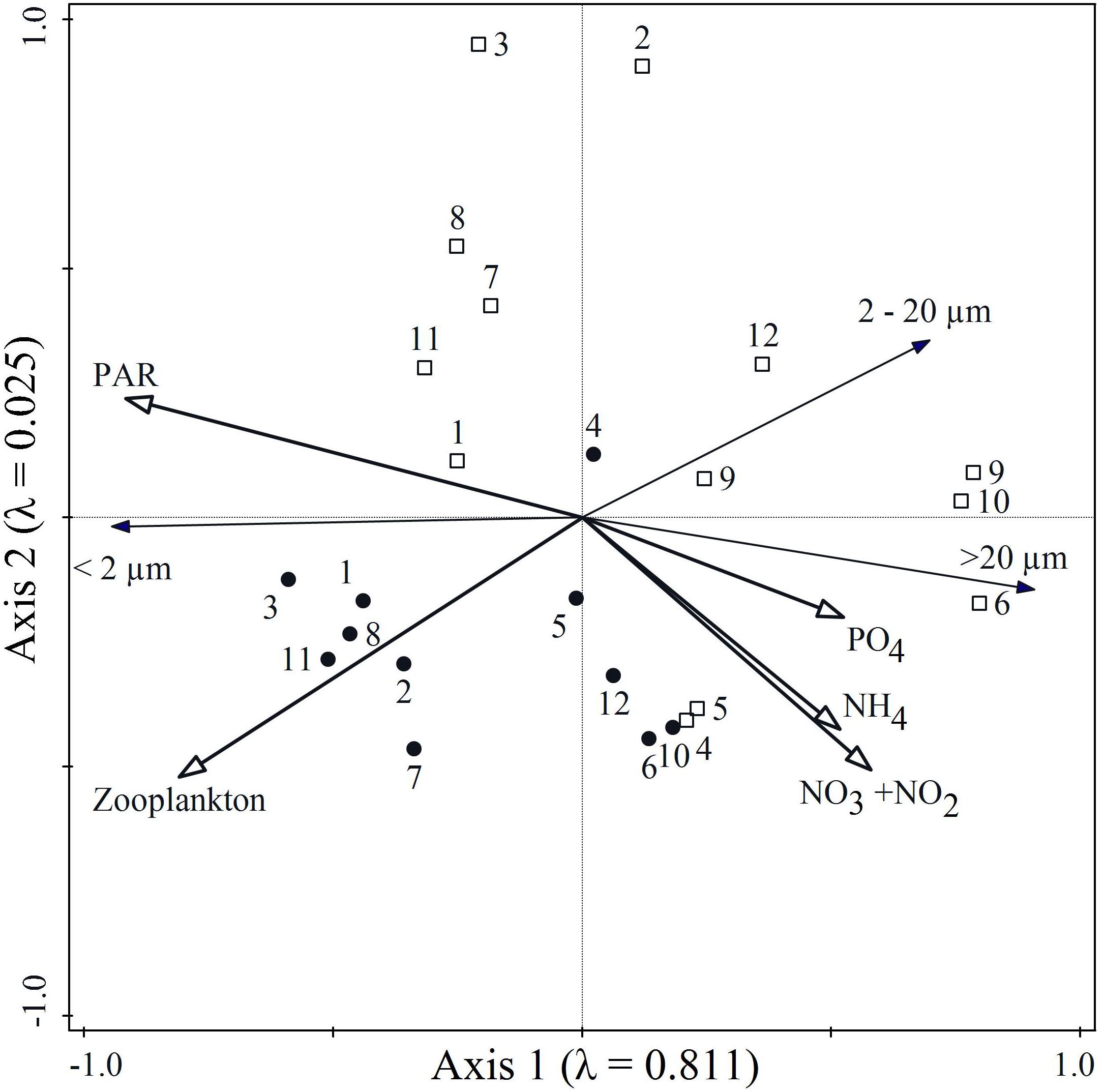

Figure 5. Redundancy analysis (RDA) of factors influencing the size-structure of the phytoplankton community during the middle and end of the experiment. The distribution of pico- (<2 μm), nano- (2–20 μm) and micro- (>20 μm) phytoplankton were analyzed in relation to zooplankton biomass (Zooplankton), phosphate (PO4), ammonium (NH4), nitrate + nitrite (NO3 + NO2) and Photosynthetically Active Radiation (PAR). Numbers display mesocosm numbers (CtrL (1,2,7), CtrH (3,8,11), tML (4,5,12), tMH (6,9,10), 🌑- Day 17; □ – Day 28).
Chlorophyll a, Total Phytoplankton Biomass and Chlorophyll a Content
In the controls the Chl a and total phytoplankton biomass showed an overall decreasing trend over time, with values that were 2–4 times lower at the end of the experiment than at the start (Figures 6A,B). In the tM enriched mesocosms, Chl a and total phytoplankton biomass decreased until the middle of the experiment and then slightly increased toward the end of the experiment (Figures 6A,B). The Chl a concentrations and total phytoplankton biomass were significantly lower in the tMH mesocosms compared to the other treatments (Tukey’s, p < 0.05). During the second part of the experiment the average Chl a and total phytoplankton biomass were the lowest in the tMH mesocosms (∼1.1 μg l–1 and ∼15 μg C l–1, respectively) (Figures 7A,B). Chl a concentration was positively correlated with ammonium while total phytoplankton biomass was negatively correlated with phosphorus (Supplementary Table S1). The Chl a content of the phytoplankton cells, measured as the Chl a:C ratio, was on average about 50% higher in the tM supplemented mesocosms than in the controls, largely due to increase phosphorus concentrations (Figure 7C and Supplementary Table S1).

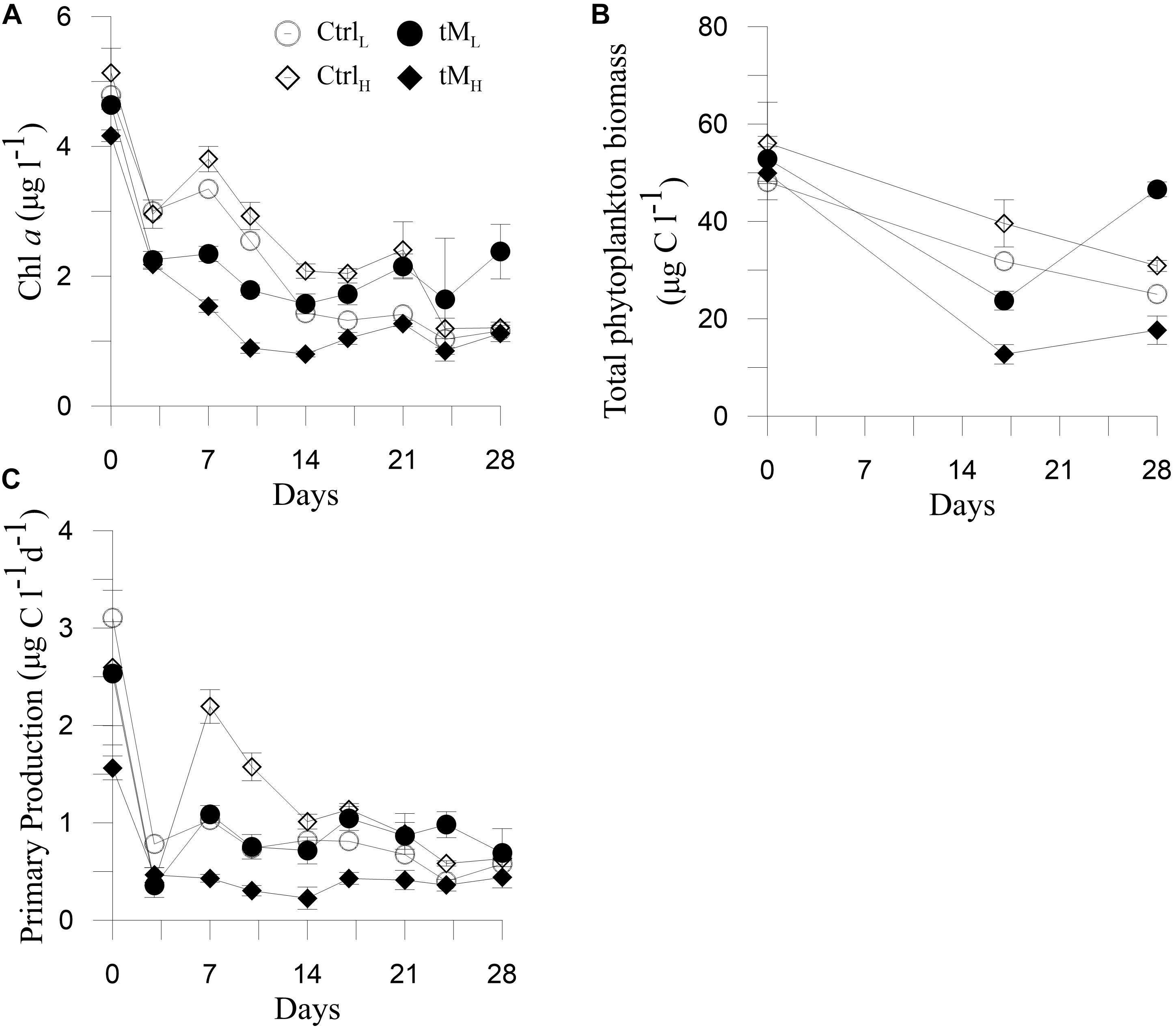

Figure 6. Temporal variation of Chl a (A) modified from Traving et al. (2017), total phytoplankton biomass (B) and primary production (C). Means ± standard error, n = 3.

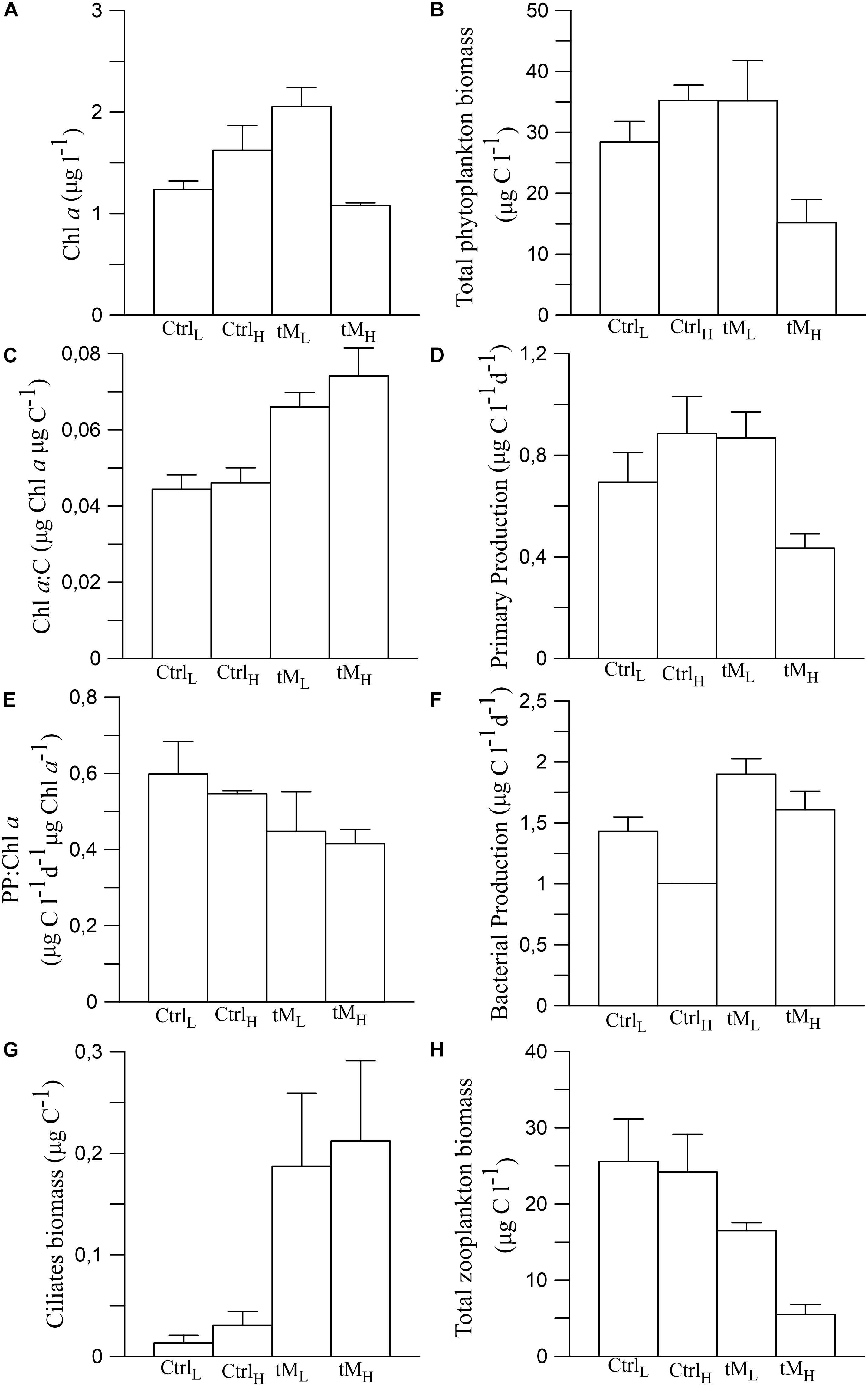

Figure 7. Average Chl a (A), total phytoplankton biomass (B), Chl a:C (C), primary production (D), PP:Chl a (E), bacterial production (F), ciliate biomass (G), and the zooplankton biomass (H) during the second part of the experiment (Day 17 and Day 28). Means ± standard error, n = 2.
Variation of Phytoplankton Primary Production and Photosynthetic Efficiency
Primary production ranged from 0.2 to 3.1 μg C l–1 d–1 during the experiment (Figure 6C). In the tM enriched mesocosms, primary production was significantly lower than in the controls (Figures 6C, 7D) (Tukey’s, p < 0.01). When the different treatments had taken effect, i.e., during the second half of the experiment, the low tM enrichment (tML) showed a positive effect on primary production compared to the control (CtrlL) (Figure 7D). In fact, the primary production was similar in the control (CtrlH) and tM enriched mesocosms (tML), while in the tMH mesocosms the primary production was approximately half of that in the other treatments (Figure 7D). The photosynthetic efficiency, i.e., the PP:Chl a ratio was higher in the controls than in the tM supplemented mesocosms (0.57 ± 0.03 vs. 0.43 ± 0.02) (Figure 7E). PP and PP:Chl a ratio were negatively correlated with phosphate and positively with zooplankton biomass and ammonium (Supplementary Table S1).
Bacterial Biomass and Productivity
Bacterial biomass generally increased until the middle of the experiment in all treatments after which it sharply declined (Figure 8A). A significantly higher bacterial biomass was observed in tML than tMH mesocosms (77.5 ± 7.0 vs. 64.8 ± 3.8 μg l–1) (Tukey’s, p < 0.001). Bacterial production ranged between 0.44 and 2.78 μg C l–1 d–1 and was on average 1.5 times lower in the CtrlH treatment compared to the remaining treatments, with relatively stable values throughout the experiment (Figure 8B). In both tM treatments, bacterial production followed a similar trend as bacterial biomass (Figure 8B). Bacterial production in tMH was significantly higher than in CtrlH (Tukey’s, p < 0.01). During the second part of the experiment, higher bacterial production was observed in tM addition treatments than in controls (Figure 7F). Bacterial biomass was positively correlated with zooplankton biomass and nitrate + nitrite concentration while bacterial production with ammonium (Supplementary Table S1).

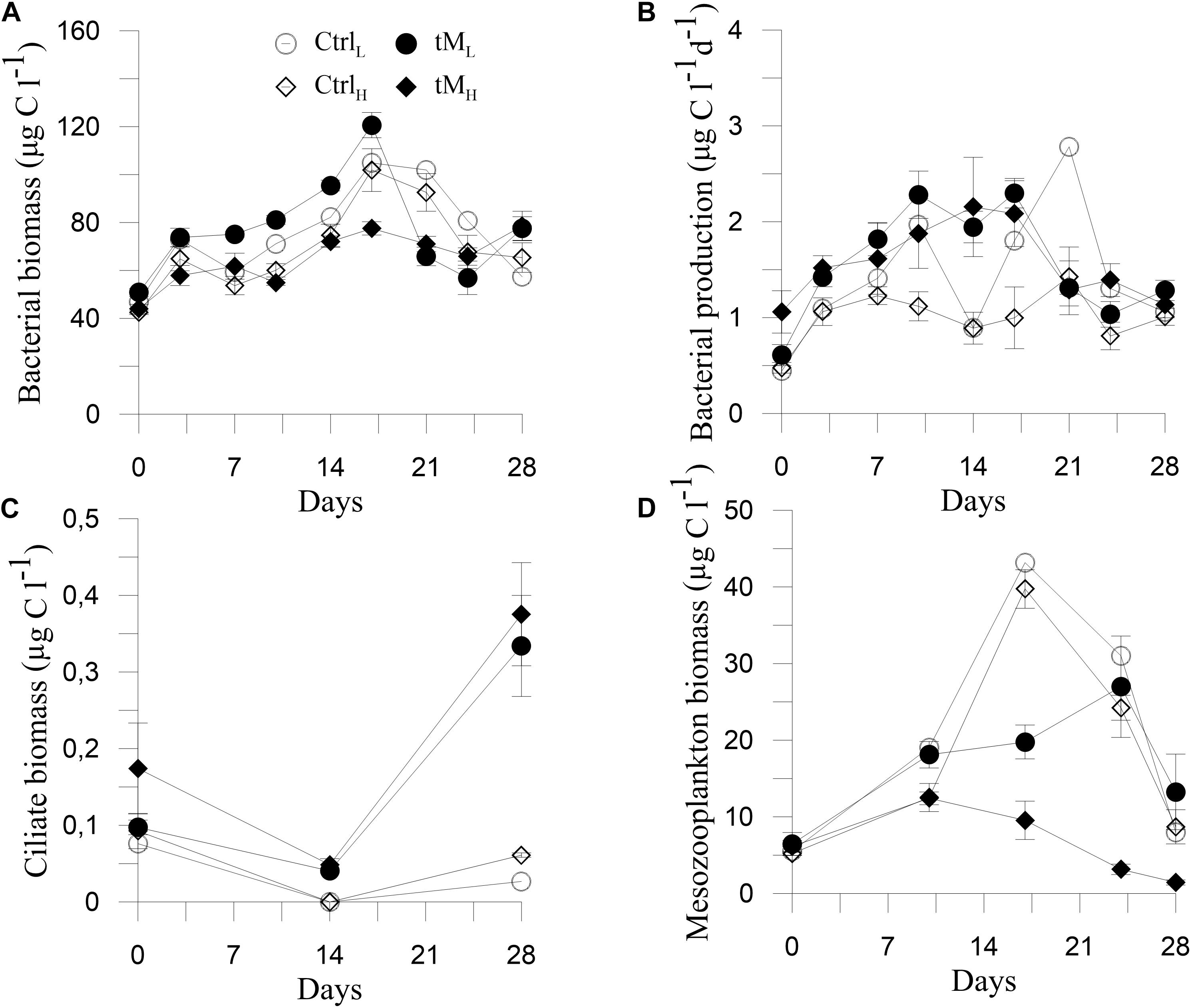

Figure 8. Temporal variation of bacterial biomass (A), bacterial production (B), ciliate biomass (C), and mesozooplankton biomass (D). Means ± standard error, n = 3.
Ciliates and Mesozooplankton Biomass
The ciliate biomass, which initially was 0.08 and 0.14 μg C l–1 in controls and tM mesocosms, slightly decreased in the middle of the experiment and then decreased to 0.04 and increased to 0.35 μg C l–1 by the end of the experiment, respectively (Figure 8C). A significant difference between tM treatments and their controls was observed (Tukey’s, p < 0.01). Ciliate biomass was negatively correlated with phosphate, PAR and ammonium (Supplementary Table S1). Mesozooplankton biomass increased from the start to the middle of the experiment and then decreased toward the end of the experiment. Higher mesozooplankton biomass was observed in the controls than in tM treatments (19.7 ± 2.6 vs. 11.7 ± 1.6 μg C l–1) (Figure 8D) (Tukey’s, p < 0.01). During the second part of the experiment, ciliate biomass was higher in tM addition mesocosms, while the opposite trend was observed in relation to the zooplankton biomass (Figures 7G,H). Structural equation modeling (SEM) showed that DOC promoted the ciliate biomass (standardized path coefficient 0.74, p < 0.05), and was negatively correlated with primary production and zooplankton biomass (standardized path coefficient −0.41 and −0.75, p < 0.05, respectively) (Figure 9). The model indicated that DOC hampered the bacterial production, and that bacterial and primary production were positively correlated. Overall, the SEM model showed a similar goodness of fit to the data (χ2 = 0.40, df = 2, p = 0.82).

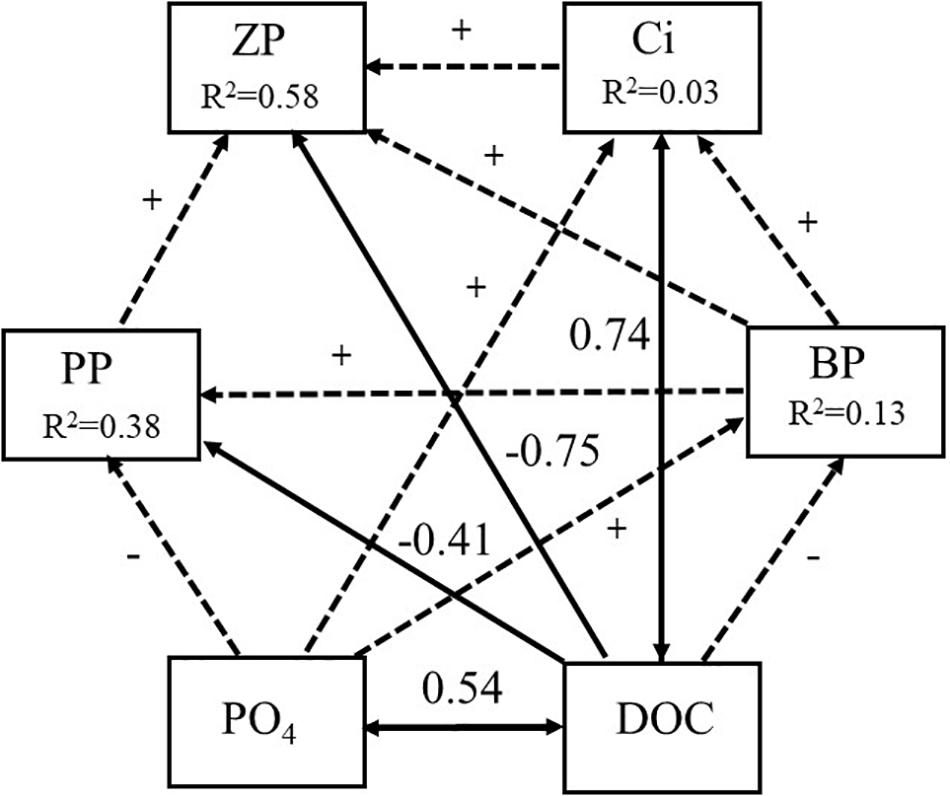

Figure 9. Path diagram for structural equation model relating phosphate (PO4) and dissolved organic carbon (DOC) to primary production (PP), bacterial production (BA), ciliate biomass (Ci) and zooplankton biomass (ZP) during the second part of the experiment (Day 17 and Day 28). Squared multiple correlation (R2) in boxes indicate the percent of variance explained through the model. The numbers next to arrow are standardized regression coefficients of the SEM model. Solid black arrows represent significant path (p < 0.05) while dash arrows non-significant paths (p > 0.05). Plus or minus indicate relationship between variables.
Mesozooplankton Community Composition
At the beginning of the experiment the zooplankton community was dominated by Limnocalanus macrurus, Eurytemora affinis and Synchaeta spp. in all treatments (Figure 10). On day 17, L. macrurus and Bosmina coregoni maritima made up on average ∼ 70 and ∼ 20% of the zooplankton biomass in the controls and ∼ 30 and ∼ 50% in the tM enriched treatments, respectively. At the end of the experiment, B. coregoni maritima dominated in the controls and tML treatment, while B. coregoni maritima and L. macrurus contributed equally ∼ 30% of the zooplankton biomass in tMH.

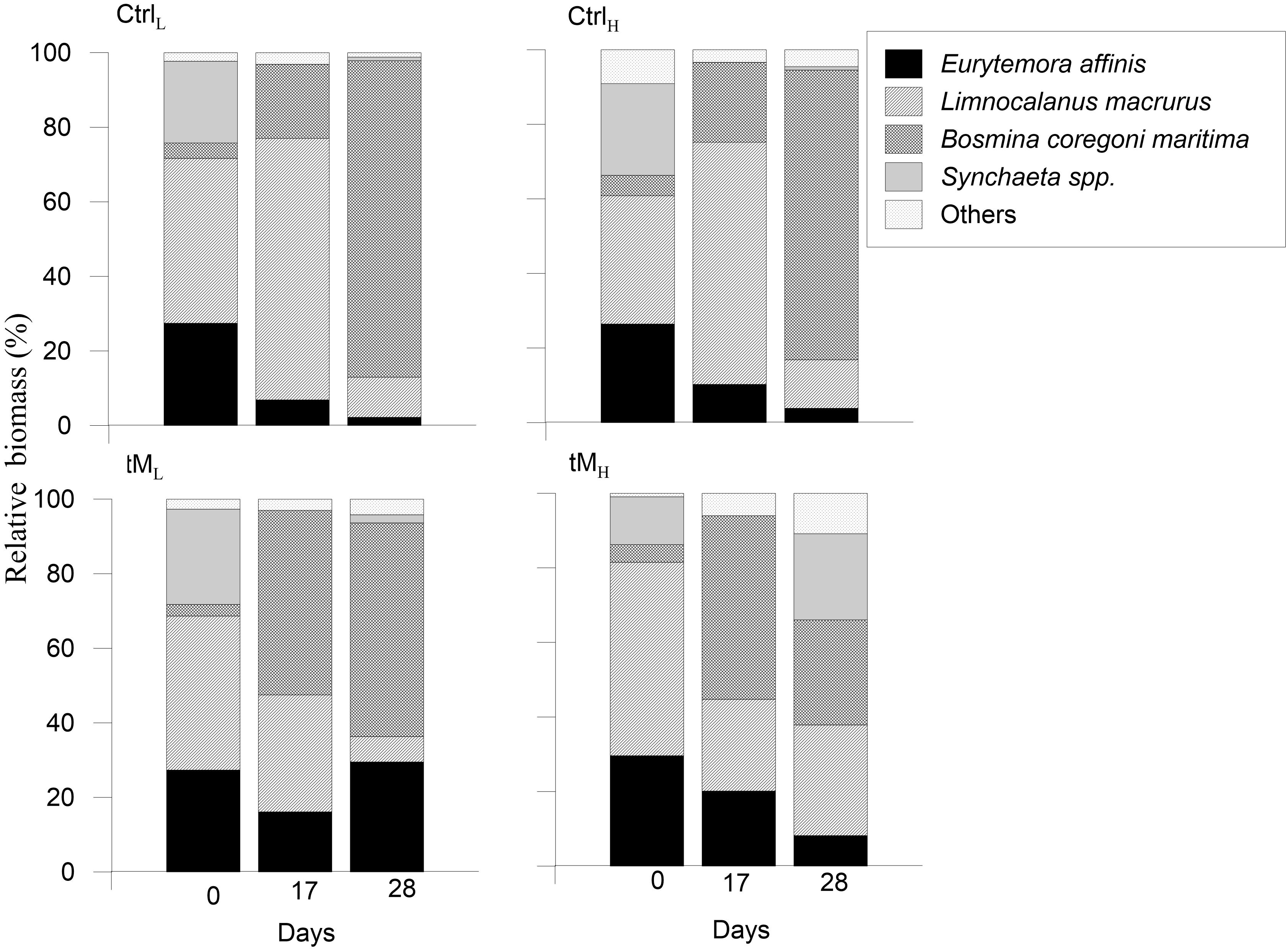

Figure 10. Mesozooplankton taxonomic composition at the start, middle and end of the experiment (Day 0, Day 17, and Day 28) in all treatments.
During the second part of the experiment, the relative contribution of L. macrurus was positively correlated with bacterial biomass (Spearman’s ϱ = 0.60, p < 0.01) and the relative contribution of picophytoplankton (Spearman’s ϱ = 0.49, p < 0.05), as well as negatively correlated with ciliate biomass (Spearman’s ϱ = −0.54, p < 0.01) and the relative contribution of nanophytoplankton (Spearman’s ϱ = −0.68, p < 0.01). The relative contribution of E. affinis was positively correlated with the relative contribution of microphytoplankton (Spearman’s ϱ = 0.47, p < 0.05), while the relative contribution of B. coregoni maritima increased with the higher relative contribution of nanophytoplankton (Spearman’s ϱ = 0.54, p < 0.01) and decreased with higher bacterial biomass (Spearman’s ϱ = −0.46, p < 0.05).
In natural aquatic ecosystems, the phytoplankton communities are controlled both by bottom-up and top-down factors (Andersson et al., 1996; Gruner et al., 2008; Hulot et al., 2014). In our study, the inorganic nutrient availability and light level played large roles in shaping the phytoplankton community. Among these two factors, the inorganic nutrient levels were found to be more important for the phytoplankton species composition and size-structure than the light levels. In the tM enriched mesocosms the nitrogen and phosphorus concentrations were 2-6-fold higher than in the controls, and in these mesocosms the phytoplankton community was dominated by microphytoplankton. On the contrary, picophytoplankton dominated the phytoplankton community in the controls. The results are in accordance with the theory that small cells have a competitive advantage at low inorganic nutrient concentrations (Raven, 1998), and that large phytoplankton cells have lower affinity for nutrients but higher maximum uptake capacity per cell under nutrient-rich conditions. Thus, in our experiment, inorganic nutrients were likely more important than light attenuation in shaping the size-structure of the phytoplankton community. Additionally, Bacillariophyceae and picophytoplankton, prefer different inorganic nitrogen forms (Glibert and Berg, 2009; Glibert et al., 2016). Studies performed in river influenced estuaries or mesocosm experiments showed a positive correlation between the relative contribution of Bacillariophyceae and the proportion of NO3 uptake while an increase in the picophytoplankton was related with NH4 uptake (Glibert and Berg, 2009; Glibert et al., 2016).
The PAR levels were 2-12-fold higher in the controls than in the tM mesocosms (across the experiment), which in principle could have promoted small cells in the tM mesocosms. Picophytoplankton are more efficient in catching light at low light levels than large cells, due to their distribution of pigments along the outer cell membrane. The PAR levels were 4–33 μmol photon m–2 s–1 in the tM mesocosms, which would be below or near the photosynthetic saturation levels. A previous study performed in the same coastal area showed that pico- and nanophytoplankton photosynthesis saturates at ∼20 μmol photon m–2 s–1, while microphytoplankton require 100–150 μmol photon m–2 s–1 for photosynthesis saturation (Andersson et al., 1994). These light level thresholds may vary due to physiological adaptations of the phytoplankton, but it still indicates that photosynthesis was saturated in the controls (PAR ∼50 μmol photon m–2 s–1), on the edge of saturation in the tML treatment, and light limited in tMH. However, we can conclude that light levels are of lower priority for governing the phytoplankton cell sizes than the nutrient levels, as microphytoplankton dominated in the inorganic nutrient-rich low-light tM-mesocosms and picophytoplankton dominated in the low-inorganic nutrient and high-light control-mesocosms.
We hypothesized that the photosynthetic efficiency, measured as the primary production to Chl a ratio, would decrease in the tM enriched mesocosms due to “overproduction” of chlorophyll to increase the light capture. This was indeed seen, even though there was a consecutive decrease of the photosynthetic efficiency from the low nutrient control to the high nutrient tM mesocosms (Figure 7E). Adjustment of the cell Chl a content is not only due to variations in the light level but also to other factors, such as alterations of the inorganic nutrient concentration (Geider et al., 1998; Staehr et al., 2002; Kirk, 2011). In fact, this is also what we observed in our experiment (Figure 7E). The Chl a:C ratios as well as the inorganic nutrient concentrations were lowest in the CtrlL treatment and highest in tMH. Additionally, the size-structure and taxonomic composition of the phytoplankton community have been shown to affect the cell Chl a content (Staehr et al., 2002). Smaller cells have higher Chl a:C ratios, due to larger surface-to-volume ratio and thus lower “self-shading” (Raven, 1998; Kirk, 2011). In our experiment a higher relative contribution of picophytoplankton was not followed by higher Chl a:C, suggesting that the higher chlorophyll content of the phytoplankton in the tMH treatment was due to acclimation of larger cells rather than to changes in the phytoplankton size-structure.
The light levels were similar in the controls, while both the inorganic nutrient levels and Chl a:C ratio were slightly higher in the CtrlH than in the CtrlL. This argues for a slightly higher role of inorganic nutrients than light, at least for the control mesocosms. High inorganic nutrient availability would allow the phytoplankton to allocate resources to build up their biomass and cell constituents including Chl a:C. Thus, in the tM-amended mesocosms light reduction in combination with high inorganic nutrient availability would drive the cells to produce higher amounts of chlorophyll.
Increased Chl a content of phytoplankton to maintain primary production at decreasing light levels was also a hypothesis of this experiment. This seems to be true in the low tM enriched mesocosms. In this treatment, the primary production was approximately as high as in the high nutrient control. However, the lowest primary production occurred in the high tM treatment. Under the higher level of tM addition the “overproduction” of Chl a did not help maintaining high primary production rates. If our experimental results also hold true in nature, then tM inflows causing DOC concentrations of ∼7–9 mg l–1 and humic substances concentrations exceeding 40 μg l–1, may be disadvantageous for coastal primary production. Of course, the effect would depend on the depth of the water column, but in coastal areas with a water depth of a couple of meters, tM inflows of such magnitudes would have a negative effect on primary production. However, our results also indicate that tM inflows can have a positive effect on coastal primary production if the tM carries nutrients to the recipient system and DOC and humic substances loads are not exceeded. In general, our experimental results are in agreement with an earlier field study, where Andersson et al. (2018) found that in the upper part of an estuary in the northern Baltic Sea river-borne tM had a hindering effect on primary production when the DOC concentration exceeded 6 mg l–1. Our results also match the proposed hump-shaped relationship between tM inflows to lake ecosystems and productivity (Seekell et al., 2015).
The SEM model provided a broad overview of the interactions taking place between major components of the food web and the major physicochemical drivers (phosphate and DOC). BP was identified as a positive pathway in relation to primary production, though likely the underlying interactions are more complex within these broad patterns reflecting the intricate balance between these biological components and common inorganic nutrient pools, and between the biological components themselves. In our study, both phytoplankton and heterotrophic bacterial growth depended on the same inorganic nutrient pool and phytoplankton were the major source of carbon for heterotrophs. Moreover, bacterial communities are also capable of releasing inorganic nutrients via the breakdown of organic matter, as was documented in this experiment (Traving et al., 2017), making the inorganic nutrient pool an even more critical factor, particularly in the tM treatments. DOC was identified as a major significant positive direct pathway for ciliate biomass, although a direct pathway via the microbial food web could not be confirmed. The SEM model showed also non-significant and negative pathway from DOC to BP, as well as significant and negative pathways from DOC to primary production and to zooplankton biomass. Thus, it is likely that the identified direct pathway from DOC to ciliate biomass overrode the measurable contribution of the microbial food web pathway since the tM additions were filtered through 90 μm mesh, likely providing a valuable source of particulate matter for ciliate biomass production. Though particulate matter was not measured in the experiment directly it was noted that the mesocosms receiving tM additions contained visible sedimentation by the end of the experiment and the particulate matter in question would have likely mirrored the DOC trends since the measured DOC values reflect the additions of tM (soil extract) that took place over the duration of the experiment.
In our experiment, picophytoplankton were positively correlated with mesozooplankton and negatively with ciliates, indicating that grazing exerted by higher trophic levels decreased predation pressure on the small cells (bacteria and picophytoplankton). Further, the proportion of nano- and microphytoplankton showed negative relationships with mesozooplankton, which were positively correlated with ciliates, as a consequence of the trophic cascade. This dynamic was observed mostly at the middle of the experiment, and did not differ markedly between the treatments, indicating that it was likely a general experimental effect, and not due to the addition of tM. In the Baltic Sea, field studies as well as mesocosm experiments have shown that the phytoplankton community is more driven by bottom-up than by top-down factors (Lagus et al., 2004; Legrand et al., 2015). Though mesozooplankton influenced the temporal phytoplankton dynamics, inorganic nutrients were the most important variables shaping phytoplankton composition and size-structure.
The mesozooplankton community seemed to be tightly linked to the taxonomic composition and size-structure of the phytoplankton community. Toward the end of the experiment, the cladoceran Bosmina coregoni maritima dominated the mesozooplankton community in the controls and the tML treatment. This zooplankton species is a filter-feeder known to feed on small prey, pico- and nanophytoplankton (Bleiwas and Stokes, 1985; Korosi et al., 2013) and in our experiment B. coregoni maritima was observed to increase with the higher relative contribution of nanophytoplankton and decreased with higher bacterial biomass. The zooplankton community likely adapted to the phytoplankton size-structure, as in the controls and the tML treatment the pico- and nanophytoplankton constituted 50–95% of the total phytoplankton biomass. By the end of the experiment the zooplankton community in the tMH treatment was equally distributed between Synchaeta spp., B. coregoni maritima and Limnocalanus macrurus. L. macrurus was the largest zooplankton taxa (>1000 μm) in the system, and it feeds on smaller zooplankton such as copepodites, nauplii and on larger phytoplankton (Warren, 1985). L. macrurus was positively correlated with bacterial biomass, the relative contribution of picophytoplankton and negatively with ciliate biomass and the relative contribution of nanophytoplankton. It is thus possible that L. macrurus fed on copepodites of Eurytemora affinis, which decreased toward the end of the experiment, as well as on B. coregoni maritima and other zooplankters. This could have been driven by high abundances of large diatoms that nurtured Synchaeta spp. and other zooplankton groups, which may have benefited from the dominance of large microphytoplankton. Taken together, it seems as if the composition of the mesozooplankton community was driven by phytoplankton size-structure, which in turn was governed by the inorganic nutrient availability. Furthermore, filter feeders may also have been supported by increased bacterial production and biomass in the tM treatments.
In conclusion, our study shows that phytoplankton size-structure and primary production were governed foremost by inorganic nutrients, including those associated with tM inputs, with light availability or grazing being secondary drivers. Higher tM promoted microphytoplankton, while the importance of picophytoplankton increased under nutrient limitation. Heterotrophic bacterial growth was tightly coupled with phytoplankton produced carbon. Furthermore, phytoplankton cells acclimated to lower light availability (e.g., moderate addition of tM) by increasing their cell chlorophyll content, allowing them to maintain photosynthetic efficiency at a similar level to the control conditions. This study demonstrates how variable the phytoplankton Chl a:C in coastal areas can be due to varying river inputs of freshwater, causing changes in the light and nutrient availability.
This study strongly indicates that an increase in river runoff, as predicted in future climate change scenarios for the region, would affect size-structure and production of phytoplankton depending on the amount of organic and inorganic nutrients associated with tM delivered to the ecosystem. Our study demonstrates that organic nutrients brought by the tM can be transformed to inorganic forms and utilized as growth substrate by coastal phytoplankton. The potential for climate related changes to have differing routes toward impacting higher trophic levels and ecosystem function are highlighted, and the potential for tipping points in the system due to reaching a critical load or light inhibition warrant further research.
