Sec. Marine Ecosystem Ecology
Volume 8 - 2021 | https://doi.org/10.3389/fmars.2021.674594
Distance-Based Sampling Methods for Assessing the Ecological Effects of Offshore Wind Farms: Synthesis and Application to Fisheries Resource Studies
- 1IBSS Corporation, Silver Spring, MD, United States
- 2Northeast Fisheries Science Center, National Oceanic and Atmospheric Administration – National Marine Fisheries Service, Woods Hole, MA, United States
Renewable energy, sustainable seafood, and a healthy marine ecosystem are integral elements of a sustainable blue economy. The rapid global advancement of offshore wind coupled with its potential to affect marine life compels an urgent need for robust methodologies to assess the impacts of this industry on fisheries resource species. Basic Before-After-Control-Impact (BACI) and Control-Impact (CI) designs are the most common experimental designs used to study the effects of offshore wind development on fisheries resources. These designs do not account for spatial heterogeneity which presents a challenge because empirical evidence shows that impact gradients occur at wind farms, with larger effect sizes close to turbine foundations that attenuate with increasing distance. Combining the before-after sampling design with distance-based methods could provide a powerful approach for characterizing both the spatial and temporal variance associated with wind development. Toward enhancing future monitoring designs for fisheries resource species at offshore wind farms, this paper aims to: (1) examine distance-based sampling methods that have been or could potentially be used to study impacts on fisheries resources at offshore wind farms including distance-stratified BACI, distance-stratified CI, Before-After-Gradient (BAG), and After-Gradient (AG) methods; (2) synthesize the methods and findings of studies conducted to date that have used distance-based methods to examine ecological impacts of offshore wind development for benthic macroinvertebrates, finfish, birds, and small mammals; (3) examine some of the central methodological elements and issues to consider in developing distance-based impact studies; and (4) offer recommendations for how to incorporate distance-based sampling methods into monitoring plans at offshore wind farms.
Offshore wind is a rapidly advancing industry around the world. Along the Atlantic coast of the United States, there are currently 17 commercial leases (Figure 1), and additional areas on the Pacific coasts of California and Hawaii are being explored for possible development. The potential effects of wind development on marine fisheries resource species (i.e., finfish and shellfish including mollusks and crustaceans), and their habitats have gained major attention because of their ecological and economic importance and because of the implications that these effects may have for fishing communities (Gill et al., 2020; Methratta et al., 2020; Perry and Heyman, 2020). Effects on these taxa may occur through several impact producing factors (IPFs) that occur during each stage of development and that span multiple spatial and temporal scales (Figure 2; Degraer et al., 2019, 2020; Dannheim et al., 2020; Gill et al., 2020; Hutchison et al., 2020; Mooney et al., 2020). Robust methods to detect biological responses to these IPFs are needed in order to inform mitigation practices and fisheries management (Wilding et al., 2017).
Figure 1. Map of the current offshore wind lease areas off of the Atlantic coast of the United States, and the New York Bight wind energy areas to be leased.

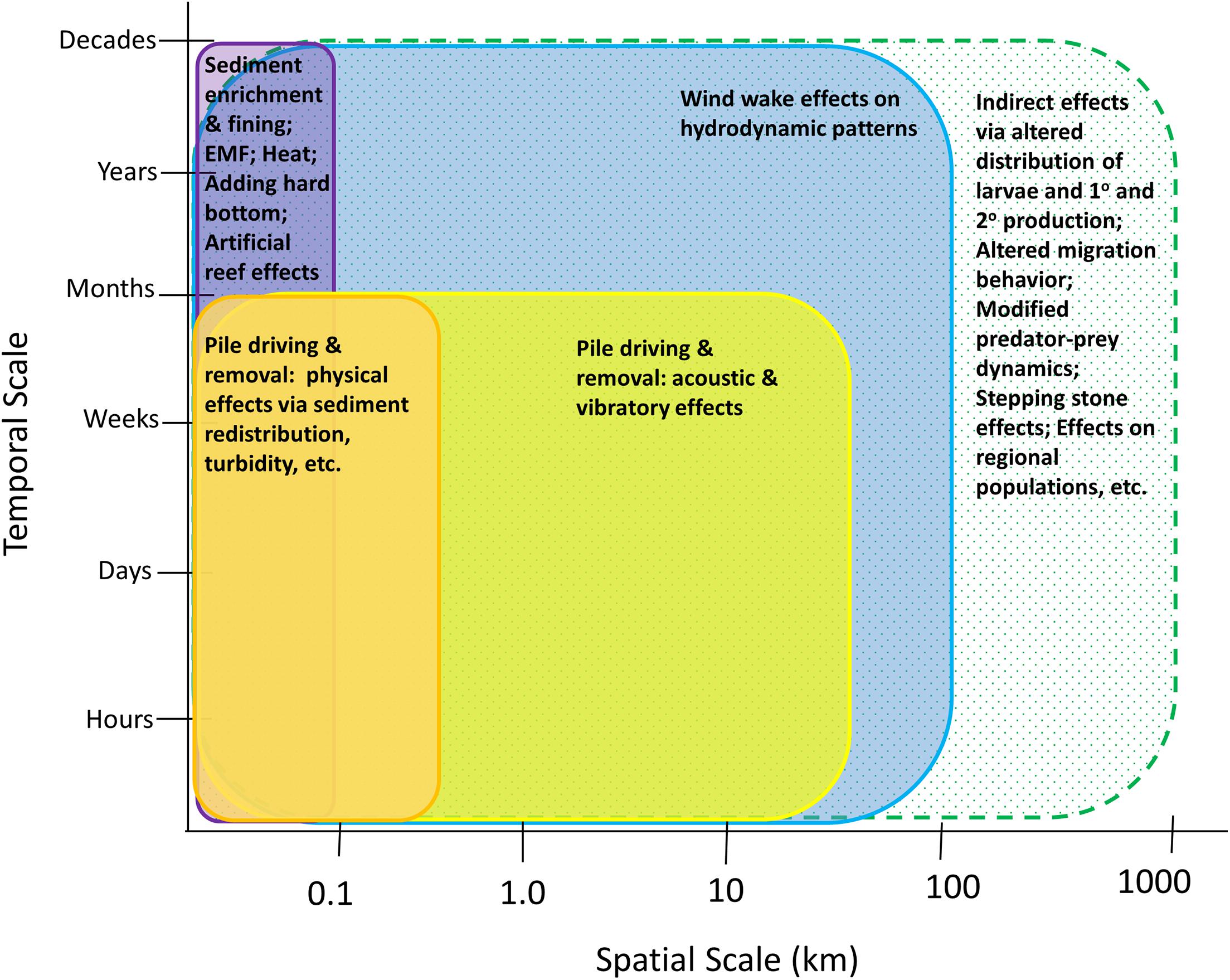

Figure 2. Hypothesized spatial and temporal scales of IPFs that may affect fisheries resource species during the construction and operation phases. Solid bars indicate IPFs and their effects; the hatched bar indicates the potential scales of indirect effects.
Statistically robust monitoring designs are essential for detecting the ecological impacts of anthropogenic development in marine ecosystems (Franco et al., 2015; Van Hoey et al., 2019; Christie et al., 2020). Perhaps the method that has received the most attention and application is the Before-After-Control-Impact or BACI design (Green, 1979) which samples a treatment and control site prior to and after the intervention and then identifies impacts through statistical comparisons of sampling locations and time periods. In marine ecosystems, BACI has proven to be a useful tool in demonstrating effects due to such anthropogenic interventions as sewage spills, aquaculture, and fisheries exclusion (Smith et al., 1999; Aguado-Giménez et al., 2012; Moland et al., 2013).
Basic BACI and Control-Impact (CI; similar to BACI but samples after the intervention only) are the most common experimental designs used to study effects on fisheries resource species at offshore wind farms (OWFs) (Methratta, 2020). Typically sites are selected through a simple random process within the impact and control locations; in some instances sampling stations are kept within a specific environmental envelope to reduce variability among sites (e.g., similar depths or distances from shore). A strength of BACI is its emphasis on baseline data collection which enables comparisons between pre and post-intervention patterns. Although common, BACI and CI studies have generally reported either weak or inconsistent effects of OWFs on fisheries resource species (e.g., Vandendriessche et al., 2015). The limitations of the BACI design in the OWF context (i.e., the assumption of spatial homogeneity, the uncertainly of the scale of OWF effects, and the difficulty in finding suitable controls) (Table 1; Methratta, 2020) have spurred an interest in enhancing or replacing the BACI experimental design (Lindeboom et al., 2015).

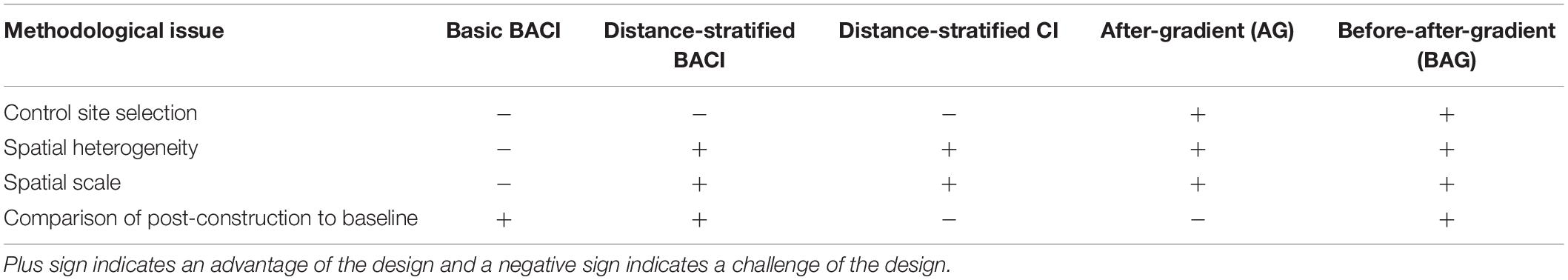

Table 1. Comparison of pros and cons of the simple BACI design with enhanced sampling methods that include distanced-based sampling.
Distance-based designs, in which samples are collected at relative distances from the OWF structures (Ellis and Schneider, 1997), offer several methodological advantages. Notably, they directly address issues of spatial heterogeneity and scale and can eliminate the need for a control (Table 1). The limited number of distance-based studies that have been conducted for fisheries resource species have revealed spatial gradients in the effects that OWFs have on these species following construction, with larger effect sizes near the structures that attenuate with increasing distance (e.g., Wilhelmsson et al., 2006; Methratta and Dardick, 2019). Lacking baseline information, these studies are unable to compare post-construction patterns with the reference condition, making it difficult to determine with certainty how the intervention interacted with the pre-construction ecosystem to drive the patterns observed. This highlights the need to collect robust baseline data to assess impacts at OWFs.
Impact assessment in aquatic and terrestrial ecosystems has long benefited from distance-based methods (e.g., Whittaker, 1967; Ellis and Schneider, 1997; Buckland et al., 2015). In coastal marine ecosystems, distance-based methods have demonstrated gradients around artificial reefs (e.g., Davis et al., 1982; Reeds et al., 2018), oil and gas platforms (Ellis and Schneider, 1997), and area closures (Harmelin-Vivien et al., 2008) in the distribution, abundance, and diversity of marine organisms. As with OWF investigations, these studies often collect data only after the intervention, focusing primarily on post-intervention spatial variation with less attention paid to pre vs. post intervention changes. Although in some instances post-intervention sampling is the only practicable option because structures are already in place at the time that a monitoring plan is conceived, the absence of “before” data limits the information that can be gained from the study. Combining the before-after sampling design with distance-based methods can provide a powerful approach for characterizing both the spatial and temporal variance associated with OWF development.
Toward enhancing future monitoring designs for fisheries resource species at offshore wind farms, the goals of this paper are to: (1) examine distance-based sampling methods that have been or could potentially be used to study impacts on fisheries resources at OWFs including distance-stratified BACI, distance-stratified CI, Before-After-Gradient (BAG), and After-Gradient (AG) methods; (2) synthesize the methods and findings of studies conducted to date that have used distance-based methods to examine ecological impacts for benthic macroinvertebrates, demersal finfish, birds, and small mammals; (3) examine some of the methodological elements and issues central to developing distance-based impact studies; and (4) offer recommendations for incorporating distance-based sampling methods into monitoring plans at OWFs.
Before-After-Control Impact Design: Overview and Application to Offshore Wind Studies
The Before-After-Control-Impact (BACI) design has been the cornerstone of experimental design in the field of ecological impact assessment for nearly four decades (e.g., Smokorowski and Randall, 2017). In that time, recommendations have been made for sample size selection, statistical analysis, and outcome interpretation (Underwood, 1992, 1994; Stewart-Oaten and Bence, 2001). Some of the central issues surrounding BACI discussed widely in the literature have included pseudoreplication (sensu Hurlbert, 1984), spatial autocorrelation, and temporal autocorrelation, with recommendations made for alternate designs such as paired control-impact sites (Stewart-Oaten et al., 1986), use of random time points (Underwood, 1991), and use of multiple controls (Underwood, 1991, 1992, 1993, 1994). Although no definitive consensus emerged from these papers on the best way to resolve the issues associated with BACI designs, these discussions have provided ecologists with a broader perspective of BACI issues and a larger suite of tools with which to modify the BACI design to answer specific questions in their systems. This is important because BACI remains one of the most popular methodologies in ecological impact assessment.
At OWFs, simple BACI and CI designs are the most common design used to study ecological impacts for fisheries resource species. In general, these studies have sought to examine how a single wind farm affects abundance, biomass, diversity, size, distribution, or community composition. Interactions with wind development, although typically studied as an overarching “wind farm effect,” are in reality an aggregate of multiple IPFs that may be operating in the system during each phase of development (Degraer et al., 2019; Dannheim et al., 2020; Gill et al., 2020; Hutchison et al., 2020; Mooney et al., 2020). Generally, studies using these designs have reported either weak or inconsistent effects for fish species (e.g., Vandendriessche et al., 2015). There are numerous reasons for this including that: the simple BACI design does not explicitly address spatial heterogeneity; the scales of IPFs and their direct and indirect ecological effects are often not known; and it is often difficult to find suitable control locations (Methratta, 2020). That our understanding of wind farm interactions with fisheries resource species remains limited despite more than two decades of offshore wind development worldwide suggests that the approaches used to study these effects need to be enhanced.
Distance-Based Sampling Methods at Offshore Wind Farms
A distance-stratified BACI design is similar to a simple BACI design except that the impact area would be spatially stratified with respect to distance from the turbines and sites then randomly selected within these strata. As a before-after design, BACI is able to compare post-construction patterns to baseline conditions and to potentially distinguish impacts from other dynamic factors (e.g., fishing pressure) when data on those factors are available (Christie et al., 2020). Enhancing BACI by creating distance strata would address spatial heterogeneity and allow for an exploration of the scale of effect (Table 1). However, this design retains the difficulties of finding suitable control locations and the reliance upon these controls to assess impacts. Although spatially stratified BACI is not a common approach for offshore wind studies, stratifying the BACI design by habitat has been reported. For example, Degraer et al. (2013) used a habitat-stratified BACI design to explore ecological responses in the two dominant habitats present within a wind farm (i.e., sand banks and gullies). In doing so, this study was able to partition out the variance attributable to habitat differences and demonstrate a significant positive wind farm effect on epibenthic biomass, sea star (Asterias rubens) density, and sole (Solea solea) density in sand bank habitats that did not occur in gully habitats (Degraer et al., 2013).
A BAG design samples at relative distances from the turbines in both the pre and post construction time periods (Figure 3; Table 1; Ellis and Schneider, 1997). As a before-after design, BAG retains the advantage of spatially stratified BACI in being able to compare post-construction patterns to baseline conditions and has the potential to distinguish impacts from other dynamic factors operating in and around the project area when these data are also available (Christie et al., 2020). BAG also has the additional advantage of not requiring a control location. Holding sampling effort constant, BAG has the potential to have greater statistical power compared to the basic BACI design because the variance associated with both spatial and temporal heterogeneity can be included in the explanatory terms of statistical models rather than being relegated to the error term (Mackenzie et al., 2013). There are no published examples of a BAG design for fisheries resource species at OWFs; however, this design has emerged as a leading approach in studying how small mammals and birds are affected by wind development (e.g., Thompson et al., 2010; Joint Nature Conservation Committee [JNCC], 2015) and has also been proposed as a method to study sea turtles at wind farms (Kraus et al., 2019). A related method, the Before-During-Gradient (BDG) design, samples distances both before and during the impact and has been used to examine effects of pile driving on small mammals (Tougaard et al., 2009; Dähne et al., 2013).
Figure 3. Diagram of gradient-based sampling design with data collected on-structure, within the scour protection, within a transition zone, and at a far-field distance.
After-Construction Only Designs
Distance-Stratified Control-Impact (CI)
Like distance-stratified BACI, distance-stratified CI would rely on a control to assess impacts. Because this design would sample only during the post-construction time period, baseline data are lacking, and thus pre and post construction patterns cannot be compared. Post-construction temporal variation could be explored if sampling were repeated through time. Nevertheless, in instances where the study design is conceived only after the turbines are installed, this approach could be useful for characterizing spatial patterns and effects. There are no reported examples of this design being used for fisheries resource studies at OWFs.
As with BAG, an After-Gradient (AG) design (Ellis and Schneider, 1997) samples at relative distances from the turbines and does not require a control; however, samples are collected in the post-construction time period only (e.g., Petersen and Fox, 2007; Table 1; Figure 3). As with distance-stratified CI, this design lacks the ability to compare post-construction effects to baseline conditions; however, there are several reported examples of its utility for characterizing post-construction spatial patterns and effects (e.g., Bergström et al., 2013; Stenberg et al., 2015). Post-construction spatio-temporal changes can also be explored if multiple time points are sampled after the intervention. This design has been used in the study of finfish, benthic invertebrates, and birds at wind farms (e.g., Coates et al., 2014).
What Has Been Learned From Distance-Based Sampling at Offshore Wind Farms So Far?
The current state of knowledge of spatial patterns at OWFs learned through the application of distance-based methods is synthesized in this section for benthic invertebrates (Table 2), demersal finfish (Table 3), small marine mammals (Table 4), and birds (Table 5). Each study summarized in Tables 2–5 reported an analysis of data collected for discrete distance categories, along continuous transects, or of tagged animals or echolocation clicks at relative distances from the turbines. Across taxa, distance-based studies have found distinct patterns along spatial gradients.

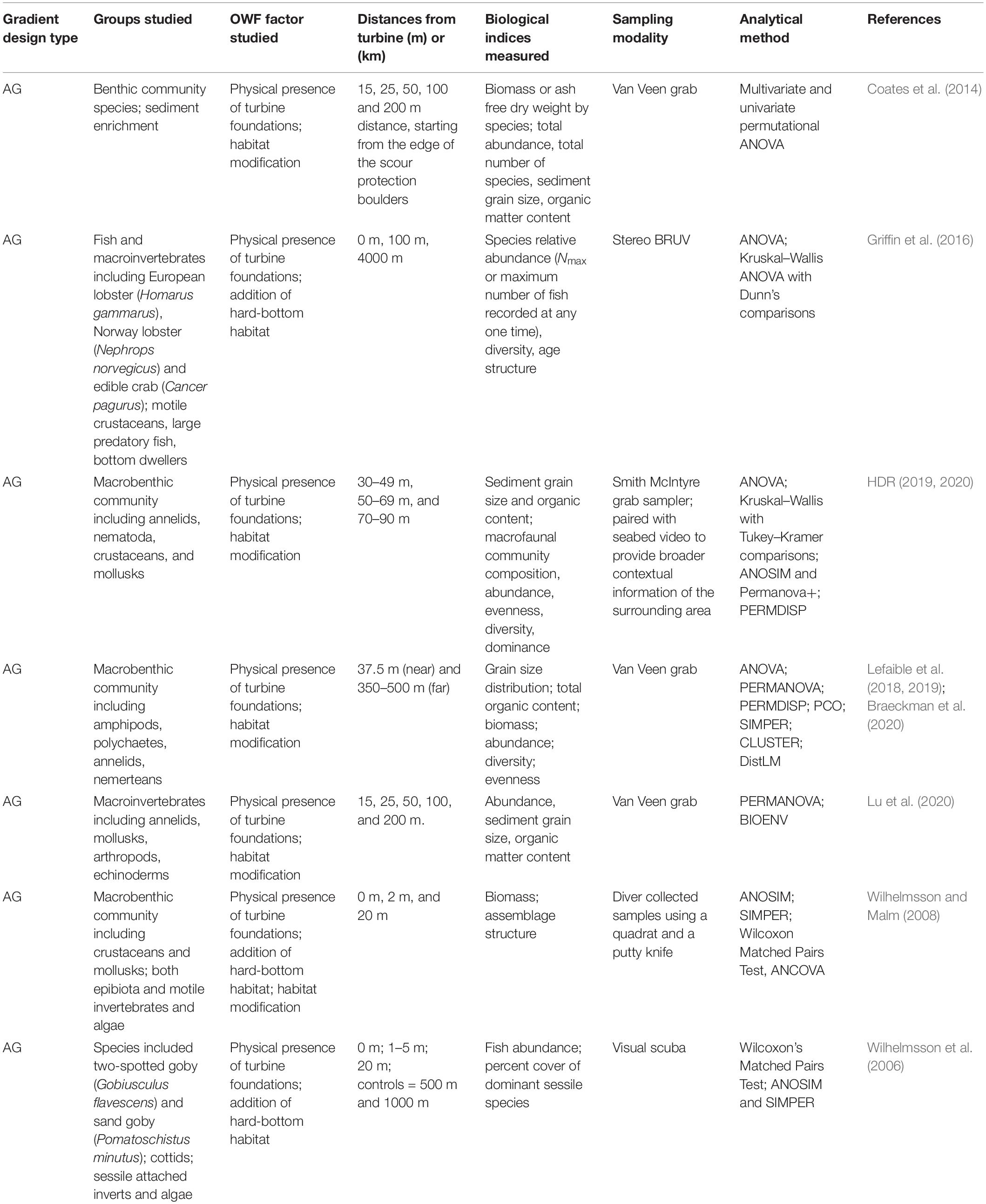

Table 2. Studies of benthic invertebrates that used a gradient design to examine the effects of OWF development.

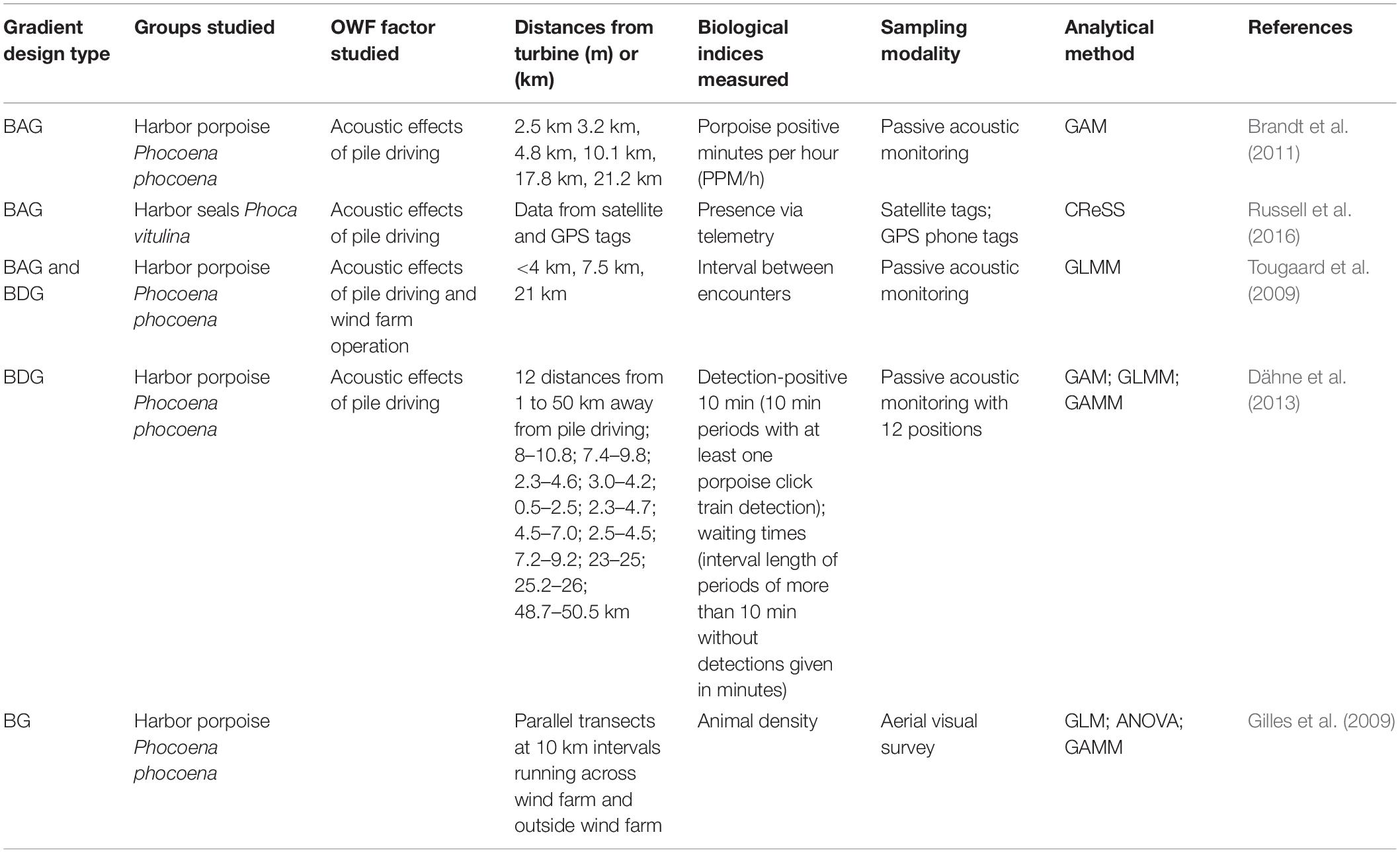

Table 4. Studies of marine mammals that used a gradient design to examine the effects of OWF development.

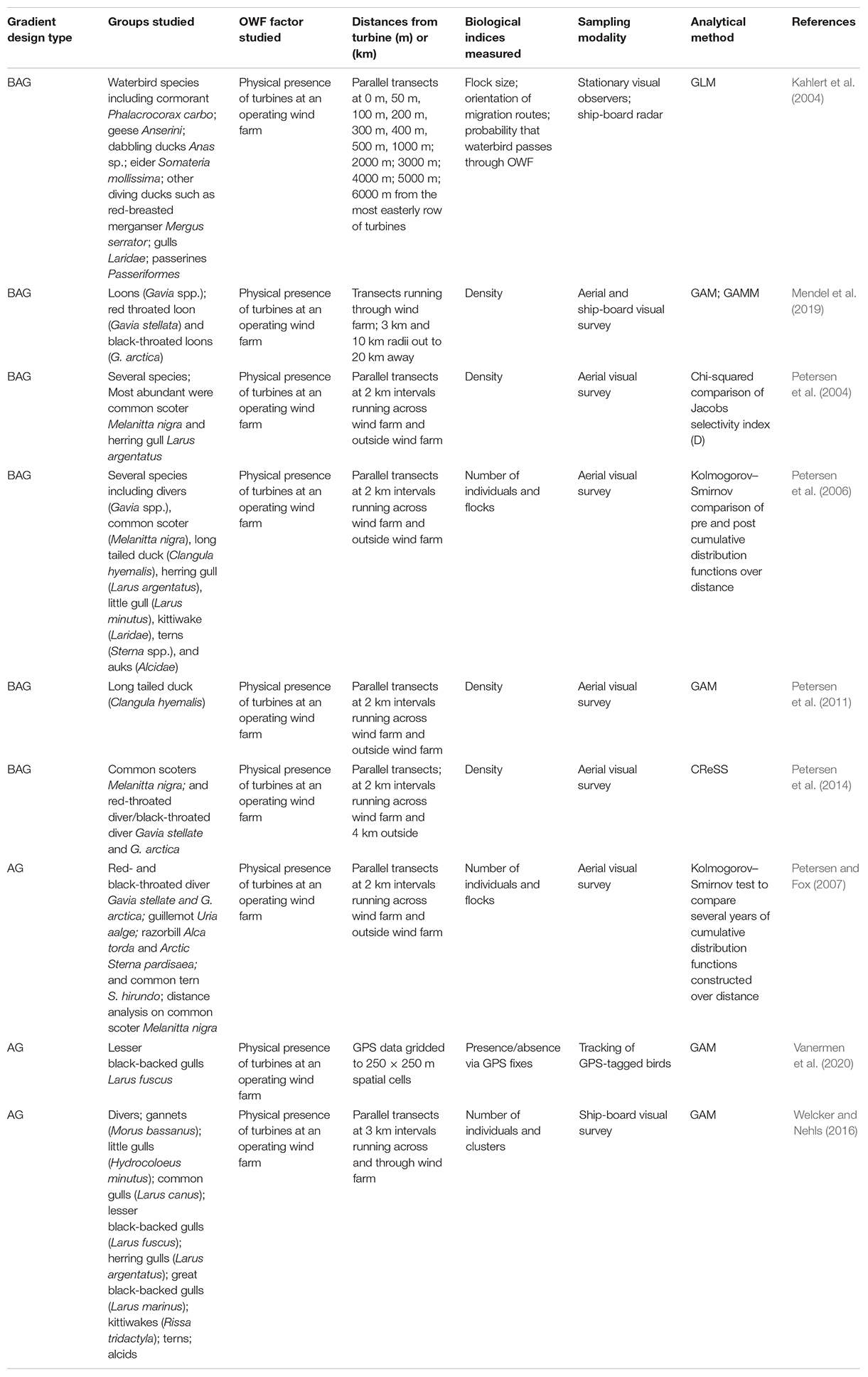

Table 5. Studies of avian species that used a gradient design to examine the effects of OWF development.
The primary distance-based sampling method for benthic invertebrates has been the After-Gradient design (Table 2). For sediment macrofauna, these studies have generally shown that sediment grain size increases with increasing distance from turbine structures while species abundance, density, and richness as well as sediment organic content decreases with increasing distance (Wilhelmsson and Malm, 2008; Coates et al., 2014; Griffin et al., 2016; Lefaible et al., 2019; Braeckman et al., 2020; HDR, 2020; Hutchison et al., 2020; Lu et al., 2020). Changes in sediment characteristics and benthic community composition near the foundations are attributed to deposition of organic materials that fall from the structures (De Mesel et al., 2015). For epibenthic invertebrates, changes in communities along spatial gradients have also been observed with distance-based methods. Wilhelmsson et al. (2006) found an increased percent cover of mussels (Mytilus trossulus) and decreased percent cover of algae (Polysiphonia fucoides and Rhodomela confervoides) closer to turbines. Griffin et al. (2016) reported that communities shifted from species more characteristic of hard bottom environments at the turbines (e.g., European lobster, Homarus gammarus; Edible crab, Cancer pagurus) to those more characteristic of soft bottoms (e.g., Norwegian Lobster, Nephrops norvegicus) further away from turbines. Studies by Lefaible et al. (2018, 2019) and Braeckman et al. (2020) found higher macroinvertebrate abundances and distinct patterns of community structure nearer to the turbine structures for two wind farms that were approximately 16 km apart; however, the dominant species near the turbines differed between the two wind farms. At Block Island Wind Farm in the United States, dense aggregations of blue mussels (Mytilus edulis) were reported under and around the foundations compared to distances further away 4 years following construction (HDR, 2020; Hutchison et al., 2020).
All distance-based studies of finfish at OWFs have used an After-Gradient design (Table 3). These studies have consistently demonstrated strong directional effects on demersal or reef-associated finfish. Reported effects have included higher levels of abundance and density at or very close to turbines (≤50 m) for species such as two-spotted goby (Gobiusculus flavescens), sand goby (Pomatoschistus Minutus), cod (Gadus morhua), eel (Anguilla anguilla), shorthorn sculpin (Myoxocephalus scorpius), goldsinny wrasse (Ctenolabrus rupestris), and Scyliorhinus species (Wilhelmsson et al., 2006; Bergström et al., 2013; Reubens et al., 2013; Griffin et al., 2016). Species richness, taxa richness, and species diversity were generally higher closer to turbine structures (Stenberg et al., 2015; Griffin et al., 2016), although Wilhelmsson et al. (2006) found lower species diversity closer to turbines due to the dominance of two-spotted goby (Gobiusculus flavescens) in the community. Concurrent with an AG study that collected samples at distances ranging from 20 to 140 m from the turbines, Bergström et al. (2013) also conducted a BACI study; the BACI study sampled randomly selected sites ranging from 130 to 1,350 m from turbine foundations and found no effects of offshore wind development on the fish community. The contrasting outcomes of these concurrent studies highlight the importance of the spatial scale of sampling and the possibility that important effects could be missed if the nearest sampling stations are >100+ m from turbine foundations.
Peer-reviewed field studies of pelagic finfish and invertebrates at offshore wind farms are scarce in the literature. Although pelagic fish have been reported to occur at turbines (e.g., Mavraki et al., 2019), studies that have included pelagic species have generally not employed distance-based methods and have not reported clear patterns in relation to OWF structures (Stenberg et al., 2015; Floeter et al., 2017; van Hal et al., 2017; Karama et al., 2021). In laboratory settings, the IPFs associated with OWF development have demonstrable effects on pelagic species (Jones et al., 2021; Klimely et al., 2021). Although rare in the OWF literature, pelagic species have been the frequent focus of research at other manmade offshore structures including oil and gas platforms and artificial reefs where clear evidence of an aggregation effect has been demonstrated (e.g., Munnelly et al., 2020). The spatial and temporal patterns of finfish including pelagic species at manmade structures other than wind turbines is the subject of many recent reviews (Bolser et al., 2020; Munnelly et al., 2020; Paxton et al., 2020; Snodgrass et al., 2020). Much more research is needed in order to understand the scope, scale, and magnitude of effect that OWF development has on pelagic fish and invertebrate species and distance-based methods could aid these efforts.
Distance-based approaches, including After-Gradient, Before-After-Gradient, and Before-During-Gradient designs, have demonstrated changes in activity patterns, spatial variation in recovery times, and spatial variability in relative density in response to pile driving activity primarily for harbor porpoise (Phocoena phocoena) at OWFs (Tougaard et al., 2009; Brandt et al., 2011; Dähne et al., 2013; Table 4). These studies placed passive acoustic monitoring devices at multiple distances from the source of impact and recorded echolocation clicks produced by passing animals before and then during (Dähne et al., 2013), after (Brandt et al., 2011), or both during and after (Tougaard et al., 2009) pile driving. In response to pile driving, porpoise activity was reduced by 100% for the first hour and remained below typical levels for 24–72 h out to a distance of 2.6 km from the pile driving site (Brandt et al., 2011). The period of inactivity decreased with increasing distance out to 17.8 km, and at 22 km and beyond, there was no measurable change in activity (Brandt et al., 2011). Dähne et al. (2013) reported a reduced detection rate within 10.8 km of pile driving and increased activity at 25 km and 50 km suggesting displacement of animals. Displacement was also reported by Tougaard et al. (2009) but there was no spatial gradient detected which the authors suggest is because the impact of pile driving on harbor porpoise extended beyond the 20 km extent of the study. Russell et al. (2016) used satellite and GPS phone tags to monitor the movement of harbor seals before and during pile driving and during operation, finding that animals were displaced as much as 25 km during pile driving but that there was no measureable displacement during operation. A pre-construction aerial gradient survey conducted by Gilles et al. (2009) identified spatial and seasonal gradients in porpoise density and potential foraging hotspots in areas where OWFs are currently licensed or planned.
Displacement following wind farm construction is the most common response reported for distance-based studies (primarily AG and BAG studies) of avian species at OWFs with reductions in abundance up to 92% reported in some instances (Petersen et al., 2004, 2014; Welcker and Nehls, 2016; Mendel et al., 2019) although attraction has been reported for some species (Welcker and Nehls, 2016; Table 5). Utilizing aerial digital, aerial visual, or ship-based visual surveys, these studies have generally found that density increased with increasing distance from wind farms. A reduction in loon (Red throated loon Gavia stellate and Black-throated loon G. arctica) density out to 16 km was observed by Mendel et al. (2019) while Petersen et al. (2004, 2014) found a reduction in divers (i.e., loons) (Red-throated diver Gavia stellata and Black-throated Divers Gavia arctica) out to 14 km and in Common scoter (Melanitta nigra) out to 10 km. Conversely, some studies have demonstrated attraction to OWFs for some species including Herring Gull (Larus argentatus), Little Gull (Hydrocoloeus minutus), and Arctic/Common tern (Sterna paradisaea/Sterna hirundo) (Petersen et al., 2004) perhaps for foraging opportunities. Welcker and Nehls (2016) identified the distance at which there was an asymptote in bird densities for several groups including alcids, divers, and little gulls. In a study of migratory patterns of several species of waterbirds, Kahlert et al. (2004) reported that these species avoided the wind farm particularly at closer distances (Table 5). Spatial heterogeneity within a wind farm was demonstrated by Vanermen et al. (2020) for lesser black-backed gulls which tended to avoid flying or perching in the wind farm center, but commonly perched on turbines at the edge of the wind farm.
Methodological Elements to Consider in Designing a Distance-Based Study for Finfish and Invertebrates
There are numerous methodological elements to consider in designing a monitoring plan for finfish and shellfish at OWFs (ROSA, 2021). This section focuses on four elements that are specific to distance-based sampling, using existing studies as examples. Many other elements such as sample size determination, statistical power, temporal sampling interval, and selection of the biological indicators to be measured are also extremely important elements of experimental design and are covered elsewhere in detail (e.g., Buckland et al., 2015; Franco et al., 2015; Schweiger et al., 2016; Wilding et al., 2017; Van Hoey et al., 2019).
Selection of Distance Intervals
Matching both the spatial extent and resolution of sampling with that of ecological responses to OWF development is key to detecting impact gradients (Wiens, 1989). Previous studies that utilized distance-based sampling for fisheries resource species at OWFs have either taken continuous measures along transects (e.g., van Hal et al., 2017), taken samples at discrete distances along transects, or within spatial strata at increasing distances from turbines (e.g., Bergström et al., 2013; Coates et al., 2014; Tables 2–5). Selection of distance intervals for discrete sampling requires consideration of the mobility of the study animals, the spacing of turbines, the distribution of habitat within the wind farm prior to and after construction, and the assumptions made about how study animals associate with wind farm structures and natural habitats. To date, narrower distance bands that are closer to OWF structures have been used for species that have limited motility or are sessile in adult phases; wider distance bands that extend further from the foundations have been used for species with moderate motility (e.g., at the structure, within the scour protection, within a transition zone, and at a far-field distance) (Figure 3 and Tables 2–5). In developing a continuous transect monitoring approach, additional considerations include the distance between transects, the directionality of transects, and how close transects come to the foundations. For both discrete and continuous sampling, the directionality of sampling relative to the turbine is an important consideration as oceanographic and environmental conditions may vary locally and regionally around turbine foundations (Hasager et al., 2015; Boon et al., 2018; van Berkel et al., 2020).
Perhaps the most important consideration in choosing distance intervals at which to sample relative to turbine structures is the hypothesis being considered and the underlying mechanism(s) believed to be driving potential changes. This is needed for both basic monitoring aimed at assessing the aggregate “wind farm effect” and targeted research projects that focus on specific, mechanism-based research questions (Hutchison et al., 2020). For targeted research studies examining the effect of a specific IPF, the choice of distance-based sampling intervals can be informed by understanding how the IPF varies across the wind farm area and the relationship between the IPF and the biological indices to be measured (Gill et al., 2020). Figure 2 depicts hypothesized spatial and temporal scales for IPFs that may affect fisheries resources and highlights that while direct effects may occur at scales similar to the IPFs driving them, the scales of indirect effects may extend further.
Although the distance-from-turbine effect has emerged in the literature as a consistent pattern across wind farms for finfish, benthic invertebrates, and sediment composition, some OWF-related IPFs may occur over much larger spatial scales (10s of km) (e.g., Mooney et al., 2020; van Berkel et al., 2020; Figure 2) and may therefore require a distance-based sampling strategy with broader spatial extent, resolution, and sampling intervals. For instance, hydrodynamic changes due to the presence of a wind farm occur over both local and broad scales; Locally, downstream turbulence, surface wave energy, and upwelling patterns are modified as currents pass by structures (Bakoday-Paskyabi et al., 2018), while at broad scales wind wakes may affect regional patterns of vertical stratification (Carpenter et al., 2016) up to 10s of km from the wind farm with potential implications for nutrient distribution, primary, and secondary production. This underscores the importance of considering the scale at which underlying mechanism(s) are hypothesized to be acting. In the case of ecological impacts due to hydrodynamic changes, distance-based sampling relative to individual turbines, the wind farm itself, and to other wind farms in the region may be relevant.
Choosing a sampling modality for fisheries resources that can be used in close proximity to turbine structures or in areas where sub-bottom cables occur presents logistical challenges. Traditional fisheries sampling methods such as bottom trawl or dredge are problematic because of the large areas over which they integrate data, potential interactions with structures, and the amount of physical disturbance that they would cause over the footprint of the wind farm to achieve the necessary level of sampling effort and precision. Sampling modalities that provide accurate and precise estimates of the abundance and distribution of the target species of interest while minimizing disturbance to the ecosystem are highly desirable. Another important consideration is choosing gear types that can be readily calibrated with gear used in regional long term monitoring programs so that data collected at OWFs can be integrated with those collected in wider regional surveys (e.g., Streich et al., 2018). Studies targeting benthic invertebrates have primarily sampled with grab samplers, diver collected samples, diver visual observation, or baited remote underwater video (BRUV) (Table 2). For finfish, some distance-based studies at OWFs have used traditional methods such as visual diver observation, fyke nets, and gillnets while others have employed more modern approaches such as BRUV, acoustic telemetry, and dual-frequency identification (DIDSON) sonar (Table 3). All of these sampling modalities were capable of sampling on or very near turbine foundations.
The development of wind energy in the offshore zone presents an opportunity to develop new and advance existing innovative technologies for research and monitoring. Examples of sampling technologies that have been used to study ecological patterns at and around manmade structures in the ocean and which could be useful for gradient studies at OWFs include hydroacoustics (Degraer et al., 2013; Reynolds et al., 2018) and remotely operated vehicles outfitted with cameras (Ajemian et al., 2015; Wetz et al., 2020). With advances in areas such as machine learning, meta-barcoding, and unmanned research vessels, new monitoring technologies are also emerging such as eDNA (Stoekle et al., 2020), autonomous vehicles combined with camera or passive acoustic technologies (Zemeckis et al., 2019; National Oceanic and Atmospheric Association [NOAA], 2020), and video systems that are integrated with motion-detection and computer vision (Sheehan et al., 2020). Regular monitoring of environmental variables that drive the distribution and abundance of natural resources at wind farms is also essential and could potentially be achieved in coordination with existing ocean observing platforms (Wilkin et al., 2017).
A wide variety of statistical methods have been used to evaluate significant ecological impacts in distance-based studies at OWFs (Tables 2–5). Key considerations in selecting an analytical approach are the assumptions made regarding the relationships among dependent and independent variables and their continuous covariables. In instances where linear or non-linear relationships are assumed, Generalized Linear Models (GLMs; McCullagh and Nelder, 1989) can be used as in Bergström et al. (2013) who applied GLMs to demonstrate declining abundance with distance from the turbine for total fish, cod (G. morhua), eel (Anguilla anguilla), shorthorn sculpin (Myoxocephalus Scorpius), and gold-sinny wrasse (Ctenolabrus rupestris). Curved or non-linear relationships can also be accommodated by Generalized Additive Models (GAMs) (Hastie and Tibshirani, 1990; Wood, 2006). GAMs have been employed to analyze bird and mammal data collected in distance-based studies at OWFs where they have revealed distinct spatial patterns (Brandt et al., 2011; Petersen et al., 2011; Tables 4, 5). Mackenzie et al. (2013) pointed out that with GAMs, the p-values calculated assume that there is no spatial-temporal correlation among model residuals which can be problematic when there are unexplained patterns in the model. Generalized Additive Mixed Models (GAMMs), an extension of GAMs that incorporates random effects, allow for non-linear relationships with covariables as well as spatial-temporal correlation within sampling units (e.g., transects) (Zuur et al., 2009). GAMMs have also been employed to demonstrate spatial patterns of effect at OWFs for birds and small mammals (Dähne et al., 2013; Mendel et al., 2019). Winiarski et al. (2014) used a density surface model approach that estimated bird abundance over each section of a survey transect, and then employed GAM to model transect segment-level abundance as a function of environmental covariates. Another analytical approach, Complex Regional Spatial Smoother (CReSS), offers a further advantage of spatial adaptability, allowing for greater flexibility in the modeled relationship with covariables throughout the covariable range by focusing on the portions of the range where model residuals are greatest (Scott-Hayward et al., 2013). This method was used by Petersen et al. (2014) to demonstrate the reduction and displacement of divers at an OWF. Additionally, non-parametric and multivariate approaches such as PERMANOVA, ANOSIM, and SIMPER (Clarke and Gorley, 2006; Anderson et al., 2008) have been employed to uncover abundance and community level differences along gradients of impact at OWFs particularly for benthic invertebrates and finfish (Tables 2, 3; e.g., Wilhelmsson and Malm, 2008; Coates et al., 2014; Lu et al., 2020).
Collection of Data Along an Impact Gradient Prior to the Impact
A common reasoning for not selecting a before-after distance-based sampling design such as BAG is the difficulty in collecting data along a distance-from-turbine gradient prior to the construction of the turbines. This difficulty arises because often the specific locations of turbines and associated scour protection zones are not precisely known >2 years in advance of construction when baseline studies would occur. Changes in the turbine design or layout are often made by developers during the permitting process (e.g., engineering innovations that occur during the permitting process may lead to larger, more efficient turbines that are preferred by developers). Changes also occur because of conflicts among stakeholders regarding the spacing of turbines or placement of transit lanes (e.g., Baird and Associates, 2019; RODA, 2020). One solution is to resolve these conflicts and make a final selection about the turbine design and layout well in advance of the start of construction. Alternatively or perhaps additionally, data collection throughout the development area during 2+ years of baseline studies could be used to develop spatially explicit models that generate a predicted surface of the abundance and distribution of target species which could provide the “before” data in impact assessment models (Petersen et al., 2011, 2014; Winiarski et al., 2014).
Offshore wind is becoming an integral component of the blue economy worldwide. Innovative and robust study methodologies are needed to develop a comprehensive and mechanism-based understanding of the interactions between OWFs and marine ecosystems (Wilding et al., 2017). In the United States, commercial scale offshore wind development is imminent and there is an opportunity, before large scale development commences, to develop methodologies that are able to measure ecological effects and distinguish them from natural variation and other concurrent factors that affect populations. Combining a before-after sampling design with distance-based methods could provide a powerful approach for characterizing both the spatial and temporal variance associated with wind development in the ocean.
Before-after designs offer the unique ability to make comparisons of post-construction patterns with the reference condition, enabling an examination of how the intervention may have driven the patterns observed. Understanding how the biological and physical environment changes following the intervention could provide the basis for the development of mechanistic hypotheses to be tested at OWFs. This is important for understanding not only changes from baseline due to the direct effects of wind development, but also those due to indirect effects that change in response to wind development (e.g., changes in the distribution of fishing effort) if those data are available. In instances when studies are only conceived after construction has occurred, AG and distanced-stratified CI could be useful in elucidating effects during the operational phase.
Of the designs explored here, BAG offers several methodological advantages: It can evaluate spatial heterogeneity and the spatial scale of effect, does not require a control, and compares pre-construction with post-construction patterns, making it arguably the most robust and most versatile of the distance-based methods. These advantages have elevated BAG to becoming a recommended design in the study of birds (Jackson and Whitfield, 2011; Joint Nature Conservation Committee [JNCC], 2015) and small mammals (Thompson et al., 2010; Bailey et al., 2014) at OWFs. Nevertheless, there remains no published examples of BAG studies for finfish or invertebrates. Several applications of the AG design at wind farms are reported in the literature, and these studies have yielded important information on demersal finfish and benthic invertebrates during OWF operation.
Distance-stratified BACI may be useful in answering research questions about effects that are expected to occur over a limited, well-defined spatial extent and when suitable controls can be identified. For example, hypotheses regarding the direct effects of adding hard bottom habitat on the abundance of slow moving or sessile species could be explored with this method because hard bottom habitat added (i.e., turbine foundations and scour protection) occurs in distinct areas that could be readily stratified with regard to distance and compared to a control. The difficulty of finding a suitable control in a busy multi-use coastal ocean remains, and this obstacle is made even more challenging by the shifting environmental baselines that oceans are facing (Kleisner et al., 2017). This challenge can be ameliorated by careful baseline sampling to ensure that controls are sufficiently similar to impact locations, and by the measurement of co-variables at both control and impact locations that may be important in driving patterns of abundance and distribution of target species.
Localized effects at the scale of a single wind farm may seem relatively small and inconsequential compared to the broader expanse of the ocean and ecosystem level processes. However, the potential for local-scale effects to have regional and/or ecosystem level implications could occur through a variety of processes including larval transport (Krone et al., 2013; Slavik et al., 2018), stepping stone effects (Coolen et al., 2020), consumption of reef-associated species by mobile predators (Reubens et al., 2014; Russell et al., 2016), and the translocation of carbon derived from reef-associated species beyond the footprint of the wind farm and into the regional ecosystem (Reubens et al., 2014; Carey et al., 2020; Degraer et al., 2020; Figure 2). The potential for such effects has been borne out by predictive models. For example, using a coupled hydrodynamic-ecosystem model, Slavik et al. (2018) found that OWF development in the southern North Sea may increase regional abundance of blue mussels (Mytilus edulis) and subsequently affect regional changes in primary production and water clarity. Barbut et al. (2020) used a coupled particle tracking-hydrodynamic model to demonstrate the potential for offshore wind development to overlap with flatfish spawning grounds in the North Sea, showing that this overlap could affect population dynamics. In a desktop analysis, Coolen et al. (2019) projected that having 5,000 turbines and associated scour structures in the Dutch North Sea by the year 2050 would have the potential to increase the Dutch edible crab population by 50 million individuals and the Atlantic cod population by hundreds of thousands. Satellite imagery shows that wind wakes (i.e., the effect of reduced wind speed on wave generation) can extend 10s of km from wind farms (Hasager et al., 2015). Changes in wave heights driven by wind wakes may impact the transport of suspended matter, affecting nutrient distribution with impacts extending to primary production and shellfish production (Carpenter et al., 2016; Boon et al., 2018). These studies suggest that offshore wind development has the potential to have non-trivial ecosystem level effects that extend far beyond the local scale of the footprint of an individual wind farm.
A regionally coordinated framework for research and monitoring could help to place local scale patterns within the context of the regional ocean through several pathways (Carey et al., 2020; Gill et al., 2020; Methratta et al., 2020; ROSA, 2021). First, using robust methodologies, a regional framework can inform our understanding of how local scale impacts on abundance, distribution, and vital population rates scale up to the regional level at which populations are managed (e.g., Barbut et al., 2020). Second, a regional framework is key to disentangling wind development impacts from effects caused by broader scale regional or ecosystem level scale phenomena such as changes in water temperature or primary production (e.g., Kleisner et al., 2017). Next, it could facilitate an integration of data collected at OWFs with those collected by long term regional scientific surveys (Methratta et al., 2020). Lastly, a regional framework could support the integration of accurate and precise estimates of biological indicators that can be used to inform the assessment of cross-sector tradeoffs within an integrated ecosystem assessment framework (Samhouri et al., 2014).
Conclusion and Recommendations
Coupling before-after methods with distance-based sampling could provide a powerful approach to studying OWF effects on fisheries resources. The sampling frameworks and statistical methods for such an approach are most advanced in the study of marine mammals and birds at OWFs. The rich knowledge base that exists for mammalian and avian research methods could provide a valuable resource for researchers studying effects on finfish and invertebrates at wind farm installations.
Toward the goal of enhancing the development and application of distance-based sampling of fisheries resources at OWFs, the following recommendations are made: (1) Select a sampling design such as BAG that has the ability to analyze spatial variability both before and after construction; (2) Define testable hypotheses based on specific IPFs; (3) Develop assumptions about the spatial scale of effects and the distance intervals to be studied based on the focal mechanism(s); (4) Collect baseline data to inform local-scale site selection, develop hypotheses, and enable pre vs. post construction comparisons. Baseline data collection should occur for a period of time that is long enough to characterize patterns of natural variation prior to construction; (5) In defining sampling distances for distance-based sampling designs, consider at minimum the ecology of the target species, the spatial patterns of the underlying mechanism(s) hypothesized to be playing a potential role, baseline data on habitat distribution and environmental variables, and turbine spacing; (6) Measure environmental co-variables along with biological responses and include these as covariates in statistical models; (7) Nest local scale distance-based studies into a regionally coordinated framework for research and monitoring that utilizes standardized approaches (e.g., sample size determination, experimental design, sampling gears, sampling protocol) across wind projects within a region. Conducted consistently across wind farms within a region, such an approach could provide an unparalleled ability to distinguish wind farm impacts from natural variation, synthesize results and draw valuable conclusions that can inform fisheries management and decisions; (8) Establish a standard set of analytical methodologies that integrate information from local to regional to ecosystem scales; (9) Continue to develop and advance innovative research, monitoring, and observing technologies and platforms that provide accurate and precise estimates of biological indices and environmental covariates while minimizing disturbance to the ecosystem; (10) Broaden opportunities for sharing ideas and methodological innovations across areas of ecological research.
EM conceived the idea for this work, conducted the review and synthesis of the literature, and wrote this manuscript.
Conflict of Interest
EM was employed by IBSS Corporation.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
I am grateful to the NOAA NMFS Offshore Wind Team and members of the International Council for the Exploration of the Sea, Working Group on Offshore Wind Development and Fisheries (ICES WGOWDF) for many thoughtful discussions on offshore wind and fisheries interactions. I am also grateful to Michael Fogarty, Andrew Lipsky, and the peer-reviewers assigned by the journal for providing constructive comments that improved this manuscript. The views expressed herein are those of the author and do not necessarily reflect the views of the Department of Commerce or its sub-agencies.
