A New Insight Into Amicula, a Genus of Tiny Marine Benthic Diatoms With the Description of Two New Tropical Species and the Largest Mitogenome Known for a Stramenopile

Introduction

Diatoms (Bacillariophyta), one of the largest groups of photosynthetic microeukaryotes, are characterized by a multi-part exoskeleton built of glass-like opaline biosilica (Round et al., 1990). With a global distribution across oceans, marine planktonic diatoms are considered the major primary producer on a global scale (Field et al., 1998, Smol and Stoermer, 2010). They play key roles in the sustainability of the littoral ecosystems (cf. Cox et al., 2020) including suspension feeders, thanks to their prominent place in the food web as primary producers (Houki et al., 2018).

The genus AmiculaWitkowski et al., 2000 is a rarely-reported genus of tiny (<10 um) marine diatoms, erected to accommodate a single species formerly described as Navicula specululum Witkowski (Witkowski, 1994, Witkowski et al., 2000). The genus is characterized by its very small size, the short raphe branches terminating below the apices, a distinct central nodule and the circumvalvar ring of areolae restricted to the valve margin. The transapical striae in Amicula are formed by large elliptical single areolae, occluded externally by cribra and internally by hymenate occlusions. Despite the very small size of the cells, light microscopy is usually sufficient to identify this genus but it is not possible to distinguish between different species without electron microscopy. Although described and documented from the central and western Baltic Sea as Navicula nolens (Simonsen, 1959) and Navicula specululum (Witkowski, 1994), the species was also illustrated, yet with an erroneous species name (i.e., Navicula amphipleuroides, Navarro, 1982) on mangrove prop roots in the Indian River Lagoon, Florida USA. The original description of Amicula specululum suggested a wide distribution, with the aforementioned Baltic Sea and Florida, evidenced also by records from Kenya (Witkowski et al., 2000; Witkowski, unpublished material). Since the description of the genus, no new species of Amicula have been described, but Amicula specululum was illustrated (though misidentified as Diploneis sp.) in Schmidt et al. (2018) from the Eastern Mediterranean and an unknown Amicula species with different areolar occlusions was identified as A. specululum (Nevrova and Petrov, 2019) from the Black Sea.

In the current article, we describe two new species, Amicula micronesica sp. nov. and Amicula vermiculata sp. nov., from the islands of Guam and near the Marquesas Keys in the Florida Keys archipelago USA, respectively. Their description is based on light and electron microscopy obtained on both wild samples and monoclonal cultures. Witkowski et al. (2000) did not attribute a position for Amicula in the broader classification of raphid diatoms when establishing the genus, as they could not find any characters shared between this genus and other raphid genera. Cox (2015), however, included Amicula among the Suborder of Naviculineae Hendey. Here, we introduced for the first time the use of molecular phylogenetics to assess the position of this genus. Additionally, we sequenced the mitochondrial and plastid genomes of A. micronesica. The mitogenome appears to be extremely complex and invaded by introns, representing the largest mitogenome ever obtained from a stramenopile.

Material and Methods

Isolation and Cultivation

Amicula micronesica was isolated from the sample collected on May 10, 2015, in Apra Harbor, Guam, USA (13° 27′ 12″ N, 144° 39′ 12.56″ E) and has previously received the isolate name GU52X-4 cfCalB7, with the voucher number HK478 in Edward C. Theriot’s lab at the University of Texas at Austin, Texas, USA. Amicula vermiculata was isolated from a sample collected using a Ponar grab sampler in 20 m water depth on February 15, 2013, near the Marquesas Keys in Florida Keys archipelago, Florida, USA (24° 40′ 53″ N, 82° 19′ 51″ W) and has been registered as SZCZCH282 in the Szczecin Culture Collection, Szczecin, Poland. Both strains were isolated with micropipettes and cultivated in 250 mL Erlenmeyer flasks with F/2 medium (Guillard, 1975). The SZCZCH282 strain was cultivated under a photoperiod of 14/10 h day/night, and an illumination of ca. 80 µmol photons m^-2 s^-1. Strain GU52X-4 cfCalB7 was maintained at 25°C in a Percival model I-36LL growth chamber under a 12/12 h day/night regimen.

Microscopy

The A. vermiculata strain SZCZCH282 was cultivated and prepared for examination at the University of Szczecin. The wild material from Florida and the monoclonal culture of SZCZCH282 were digested in 10% HCl to remove calcium carbonate and mineralize organic matter. After being washed several times with deionized water, they were boiled in 37% H₂O₂. The washing process with deionized water was again repeated several times. For light microscope (LM) observations, the suspension was pipetted onto cover slips, left at room temperature for 24 hours until evaporation and mounted onto glass slides using Naphrax^®. Frustules were imaged with a Zeiss Axio Imager A2 microscope equipped with a 100 × Plan Apochromatic objective with differential interference contrast (DIC) for oil immersion (NA 1.46). The images were captured with a Zeiss AxioCam ICc5 camera. For scanning electron microscopy (SEM) observations, specimens were collected onto a polycarbonate membrane filter with a 3-µm mesh size, attached to aluminum stubs and sputter-coated with 20 nm of gold using a Turbo-Pumped Sputter Coater Quorum Q 150OT ES. For transmission electron microscopy (TEM), a drop of cleaned suspension was placed onto a copper grid and left to dry at room temperature. Specimens were examined using a Hitachi SU 8010 microscope at the Podkarpackie Innovative Research Center of the Environment (PIRCE) at the University of Rzeszów. Observations were done with a HITACHI S-5500 microscope operated in STEM mode, which allows the same specimen to be observed in TEM and SEM modes in parallel. The Florida specimens were also observed and imaged using a JEOL-IT500HR field-emission scanning electron microscope operated at 5 kV and at a working distance of 9.4 mm.

For the strain HK478 of A. micronesica, the work was undertaken at the University of Texas at Austin. An aliquot of the culture was cleaned for microscopy using a 1:1:1 mix of culture, 37% H₂O₂ and concentrated nitric acid. This material was then washed with distilled water until the pH was neutral. Permanent mounts for LM were made by drying material onto glass coverslips and mounting to slides with Naphrax^® mounting medium. For SEM preparation, cleaned culture material was dried onto 12 mm round coverslips and mounted onto aluminum stubs. Stubs were then coated with iridium using a Cressington 208 Bench Top Sputter Coater and observed with a ZeissSUPRA 40 VP scanning electron microscope.

Sanger Sequencing of PCR Products

DNA was extracted from an exponentially growing culture of A. vermiculata using the Genomic DNA NucleoSpin^®Plant II Kit (Qiagen, Germany) according to the manufacturer`s instructions. This DNA preparation served as template for PCR amplification of the chloroplast rbcL gene, which was the only one obtained by this protocol in the course of the study. The PCR reaction (25 µL) contained 20 ng purified DNA template; 2.5 µL 10x Dream Taq buffer (including 20 mM MgCl₂), 1 µL Ultrapure dNTPs Set (5 mM each dATP, dCTP, dGTP, dTTP), 0.5 µL of each primer at a concentration of 10 µM and 0.15 µL Dream Taq DNA polymerase (5 U/µL). The primers for PCR amplification were taken from Alverson et al. (2007). Conditions for PCR amplification were as follows: 94°C for 2 min, 35 cycles of (94°C for 15 s, 55°C for 15 s, 53°C for 1.15 min), and final extension at 72°C for 7 min. The PCR product was visualized in 1% agarose (Maximus, Poland) gel, purified using the Exo-BAP kit (EURx, Gdańsk, Poland) and sent to the oligo.pl DNA Sequencing Laboratory IBB PAS (Warsaw, Poland) for Sanger sequencing with the BigDye Terminator v. 3.1 chemistry and ABI3730 xl sequencer.

Next Generation Sequencing

Total DNA was extracted from A. micronesica according to Doyle and Doyle (1990) and was then sent to the Beijing Genomics Institute for sequencing on the DNBSEQ platform. In total, about 40 M of clean 150 bp paired-end reads were obtained. Assembly of the filtered reads was performed using SPAdes 3.14.0 (Bankevich et al., 2012), with a k-mer of 125. Contigs corresponding to the plastid genome (plastome) were recovered from the assembly by a blastn command-line query using the plastomes of pennate species from the genus Haslea as reference. The contigs corresponding to the mitogenome were found by performing a blastx command line query using a database of mitochondrial protein sequences from raphid pennate diatoms. When needed, contigs were verified and joined together using the addSolexaReads.pl script of the Consed package (Gordon and Green, 2013). The identification of protein-coding genes was carried out following Turmel et al. (2017), whereas tRNAs were identified using tRNA-scan (Lowe and Eddy, 1997) and Arwen (Laslett & Canbäck, 2008). Maps of the organellar genomes were produced using the OGDRAW online server (Lohse et al., 2013).

Maximum Likelihood Phylogenetic Analyses

Two multigene maximum likelihood phylogenies were conducted using the RAxML ver. 8.2.7 (Stamatakis, 2014) software package. Alignments and analytical parameters followed those described in Majewska et al. (2021). One used a 3-gene dataset (SSU-rbcL-psbC) as in Majewska et al. (2021) and the other a 7-gene dataset (SSU-rbcL-psbC-psaA-psaB-psbA-atpB) as in Theriot et al. (2015). The 3-gene dataset included both A. micronesica and A. vermiculata, while the 7-gene dataset included only A. micronesica, as solely the rbcL sequence was available for A. vermiculata. All A. micronesica genes were obtained from the assembled sequencing reads reported above. In total, 429 and 209 taxa are represented in the 3-gene and 7-gene datasets, respectively. These datasets are available as Supplementary Data S1, S2.

Results

Type Species of the Amicula Genus

Family: Diploneidaceae

Genus: Amicula Witkowski, Lange-Bertalot & MetzeltinType species: Amicula specululum (Witkowski) Witkowski in Witkowski et al., 2000

Syn.: Navicula specululumWitkowski, 1994, Navicula nolens Simonsen, 1959 nom. inval., Navicula nolens Simonsen in Hinz et al., 2012

Frustules small, rectangular, relatively broad girdle composed of a few plain, open copulae. Valves elliptic to linear elliptic with broadly rounded apices, 5-9 µm long, 3-4 µm in width. Raphe short, straight with slightly expanded external central endings. External apical raphe ends slightly expanded, terminating prior to apices. Transapical striae arranged as a peripheral ring of single areolae along the valve margin, 30-32 in 10 µm. Each elliptic areola occluded by two rows of perforations.

Geographic distribution: Amicula specululum has been recorded from a broad range of habitats. Although the first described specimen originated from brackish waters of the Baltic Sea (ca. 7-8 psu), the species has also been documented in Florida by SEM (Navarro 1982; current study). Furthermore, it has been observed along the Kenya coast in Indian Ocean (Witkowski et al., 2000) and as an endosymbiont in the foraminiferan Pararotalia calcariformata from the Eastern Mediterranean Sea; however, the later endosymbiont was misidentified as Diploneis sp. (Schmidt et al., 2018, Figure 4:23). As identified and illustrated by Nevrova & Petrov (2019, Figure 4:30), the Amicula specululum specimen they isolated from the Black Sea appears to be A. vermiculata instead of A. specululum; solving its exact identity requires further study. Note that the presence of A. specululum in the Black Sea and in the Lagebaan Lagoon West Coast of South Africa has been confirmed in a separate study (Witkowski, unpublished results).

New Species

Amicula micronesica Lobban, Ashworth & Witkowski sp. nov.

Frustules with two chloroplasts, rectangular in girdle view with a few broad, unperforated open copulae. Valves broadly elliptical (smaller valves, Figure 3E) to linear elliptical (larger valves, Figure 3A) with broadly rounded apices, 3.2-9.8 µm long, 2.5-3.7 µm in width (n=15). Valve face flat at middle to slightly sloping towards mantle. Mantle very narrow and structureless. Raphe sternum externally not differentiated from valve face. Raphe branches straight and short; apical raphe ends slightly expanded, terminating prior to apices. Central raphe ends simple. Internal raphe sternum slightly elevated. Raphe branches with simple central raphe ends terminating in a small and indistinct helictoglossa at apices. Transapical striae developed marginally as single parallel row of elongated areolae, becoming radiate towards apices, 35-36 in 10 µm. Areolae externally occluded by cribra with digitate projections from areola walls and apparently hymenate occlusions internally.

Differential diagnosis: differing from A. specululum and A. vermiculata in very small sizes (<10 µm) and character of the areolae and from A. specululum in coarser stria density, 30-32 in 10 µm (Table 1). The shape of the cribrate occlusions differs among the three species, as those of A. specululum generally have two rows of perforations (Figure 1H) and those of A. vermiculata have vermiculate cribra (Figure 2C), while A. micronesica has digitate projections (Figure 3G).

FIGURE 1

Figure 1 Amicula specululum (Witkowski) Witkowski, Lange-Bertalot & Metzeltin the generitype of the genus. Figures(A–D). Light microscopic images of Amicula specululum from the type habitat in Puck Bay, Southern Baltic Sea. Figures(E, F, H, I). SEM images illustrating the valve exterior. Figures(G, J). TEM images from Puck Bay. Figures(F, H). specimens from the Western Baltic Sea. Figure(E). Specimen with well-developed cribrate areolae (black arrowhead). Note the short raphe branches and relatively large central nodule. Figures(F, H). Valve exterior with central raphe ending (black arrow) and apical raphe ending (white arrow). Figures(G, J). Cribrate areolae and short raphe branches illustrated in TEM.

FIGURE 2

Figure 2 Amicula vermiculata Chunlian Li, Frankovich, Wachnicka & Witkowski sp. nov. Figure(A). Light microscopic image of a wild specimen of A. vermiculata. Figures(B–D). LM image of the specimens from culture (strain SZCZCH282). Specimen in Figure(D) is selected as the holotype. Figure (E) is a live specimen from the culture. Figures(F, H, I). SEM images of A. vermiculata. Figure(G). Close up of A. vermiculata from culture imaged with TEM. Figure(F). Internal view of a specimen from natural sample. Note the internal raphe branches with internal central raphe end (white arrowhead) and apical raphe end with very small helictoglossa (black arrowhead). Figure(G). Close up of the internal valve view illustrating the hymenate areola occlusion (white arrow). Figure(H). Internal view of the specimen from the culture. Figure(I). External view of the specimen from culture; note the cribrate areola occlusions (white arrowhead) and the short raphe branches with external central raphe ends (black arrowhead) and external apical raphe end (black arrow).

FIGURE 3

Figure 3 Amicula micronesica Lobban, Ashworth & Witkowski sp. nov. Figures(A–D). Light microscopic images of A micronesica from the holotype slide, holotype specimen in Figures(B, E) Specimen of A micronesica from the culture with two plastids. Figures(F–I). Specimens of A micronesica illustrated in SEM. Figure(F) Specimen illustrating valve internal view with relatively short raphe branches and relatively large central nodule. Figure(G) Internal valve view illustrating the cribrate areola (white arrow) and remnants of the hymenate internal occlusions (white arrowhead). Figure(H) close up of the internal central raphe endings. Figure(I) Internal and external valve view note the external view of the areola occlusions (white arrowheads), the central external raphe end (white arrow) and external apical raphe end distant from the valve apex (black arrow).

TABLE 1

Table 1 Comparison table between the three species of the genus Amicula.

Holotype: Slide ANSP-GC20110 designated here (Figure 3B)., Academy of Natural Sciences at Drexel University, Philadelphia, USA, accession ANSP-GC20110

Isotype: slide SZCZ 28139 deposited in Diatom Collection of Andrzej Witkowski, Institute of Marine and Environmental Sciences, University of Szczecin, Szczecin, PolandType habitat: microalgal biofilm on sandy sediment surface, ca. 8 m depth, Guam, Piti Municipality, Apra Harbor, “Outhouse Beach” (13° 27′ 12″ N, 144° 39′ 12.56″ E), collected May 10, 2015 by C.S. Lobban and M. Schefter.Etymology: the species name refers to the Micronesian region of the Western Pacific, hence “micronesica”.Registration: Phycobank http://phycobank.org/103161

Geographic distribution: known so far only from the type habitat in Guam.Molecular markers: partial SSU (ON453966), rbcL (GenBank: MW324582) and psbC (GenBank: MW324636) genes, complete mitochondrial (GenBank: ON390794) and plastid (GenBank: ON390793) genomes.

Amicula vermiculata Chunlian Li, Wachnicka, Frankovich & Witkowski sp. nov.

Valves elliptical to narrowly elliptical with broadly rounded apices, 5.6-9.8 µm long, 3.1-3.8 µm wide. Raphe composed of two short branches. Internal central raphe ends simple, external central raphe ends slightly expanded. External apical raphe ends slightly expanded, terminating prior to apices. Internal apical raphe ends in small, indistinct helictoglossae at apices. Raphe sternum slightly elevated internally. Transapical striae arranged as a peripheral ring of single areolae along the valve margin, occluded externally by vermiculate cribra and apparently hymenate occlusions internally, 28-32 in 10 µm.

Differential diagnosis: differing from congeners in the vermiculate external areolar openings and from A. micronesica also in coarser stria density (Table 1).

Holotype: Slide No.: #MKA 330 designated here (Figure 2D) deposited in Academy of Natural Sciences at Drexel University, Philadelphia, USA, accession number ANSP-GC59349Isotype: slide SZCZCH282 deposited in Diatom Collection of Andrzej Witkowski, Institute of Marine and Environmental Sciences, University of Szczecin, Szczecin, PolandType habitat: Marquesas Keys (24° 40′ 53″ N, 82° 19′ 51″ W) on sediment from benthic grab sample, water depth = 20 m, sampled on February 15, 2013.

Etymology: species name is derived from the vermiculate shape of the cribra, hence “vermiculata”.Registration: Phycobank http://phycobank.org/103162

Geographic distribution: observed in the type habitat; not rare. It was also observed in Maria La Gorda (Western Cuba) in SEM (A. Witkowski unpublished observation)

Molecular markers: partial rbcL gene (GenBank: ON390792).

Molecular Phylogeny

The maximum likelihood phylogenies that were inferred using the 3-gene and 7-gene datasets both suggest a close relationship between Amicula and Diploneis (Figures 4, 5, respectively). The 7-gene phylogeny resolves A. micronesica as sister to Diploneis subovalis with 100% bootstrap support (bs), though it should be noted these taxa are the only representatives of their respective genera. In the same phylogeny, the Diploneis+Amicula clade is sister to a clade of Fallacia+Pinnularia+Caloneis, but this relationship is poorly supported (<50% bs). In the analysis of the 3-gene dataset with increased taxon sampling, however, the genus Diploneis is polyphyletic with respect to the A. micronesica and A. vermiculata clade. A clade of three Diploneis taxa (HK417, HK435, HK484; bs = 87%) is sister to Amicula plus the remaining Diploneis taxa in the dataset, but this relationship is weakly supported (bs = 54%). The complete trees are available as Supplementary Data S3 (3-gene tree) and S4 (7-gene tree).

FIGURE 4

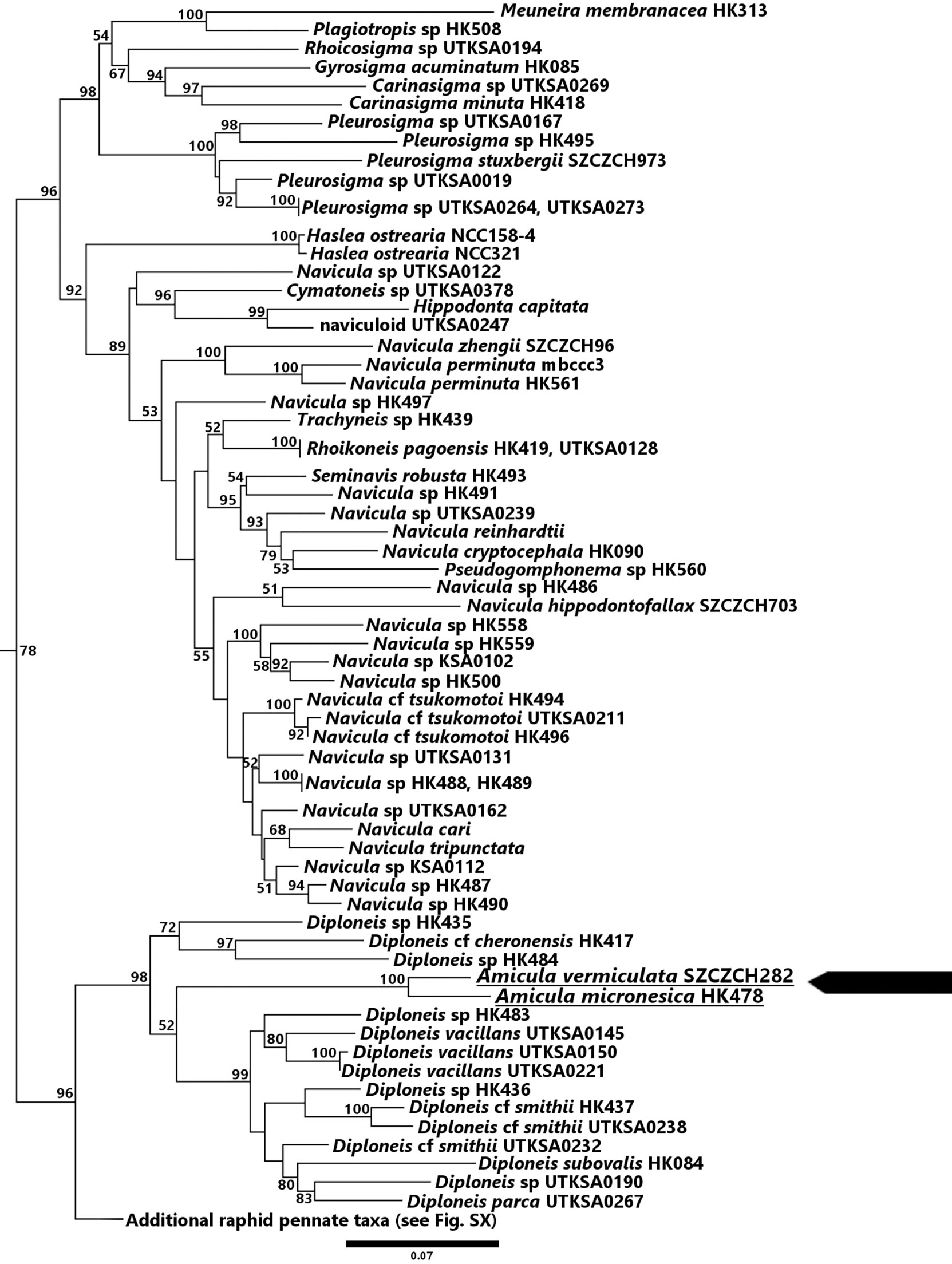

Figure 4 Maximum likelihood phylogenetic tree obtained from the 3-gene dataset. The tree with the best likelihood (-183463.790751) is shown.

FIGURE 5

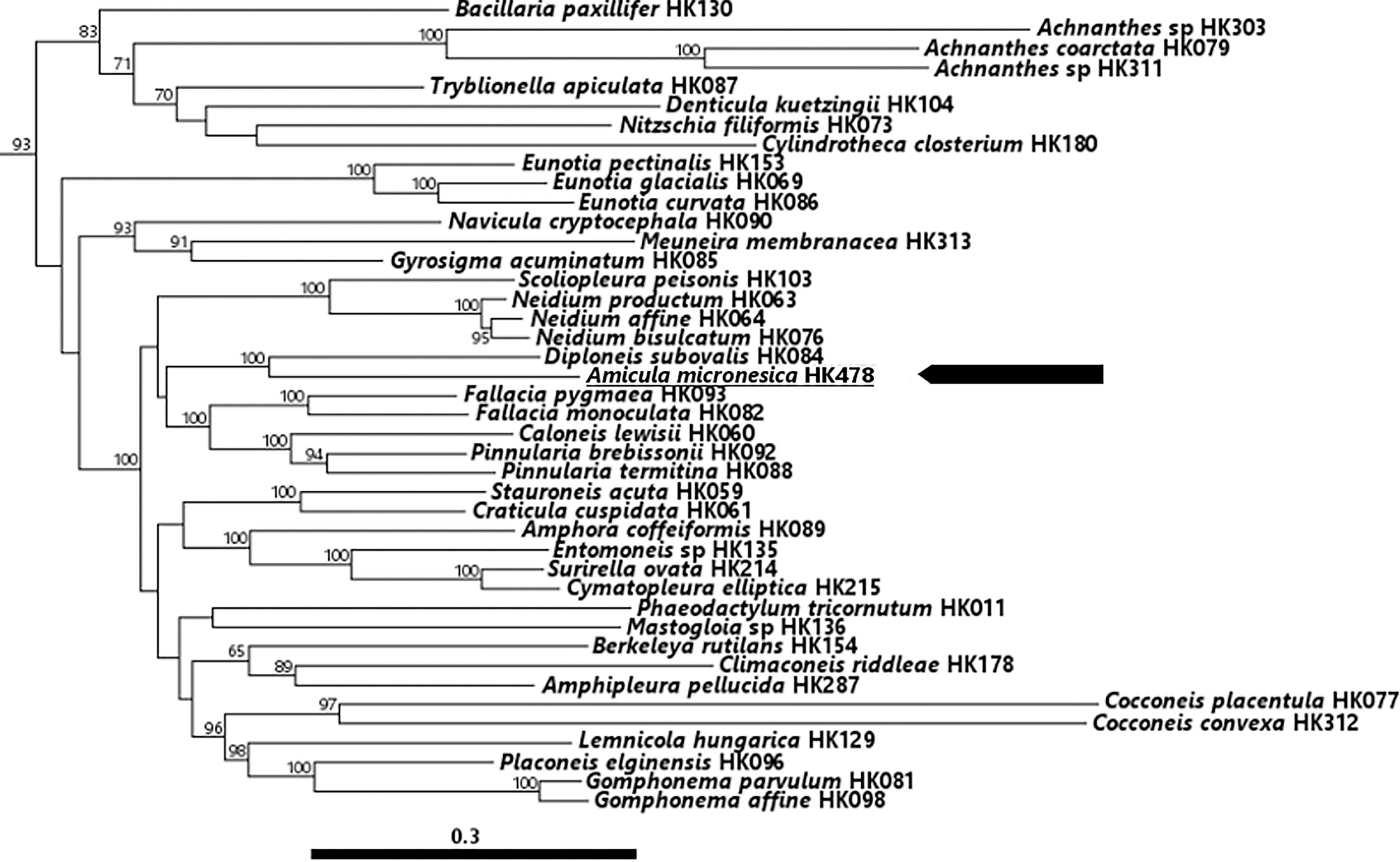

Figure 5 Maximum likelihood phylogenetic tree obtained from the 7-gene dataset. The tree with the best likelihood (-354816.345467) is shown.

Plastid Genome of Amicula micronesica

The A. micronesica plastid genome is 179134-bp long and features the typical quadripartite architecture found in other diatom plastomes (GenBank: ON390793) (Figure 6). The 80166-bp large single-copy region contains 67 protein coding genes, 18 non-conserved open-reading frames (ORF) and 17 tRNA genes, whereas the 41046-bp small single-copy region encodes 51 proteins and 6 tRNAs (Table 2). The 28961-bp inverted repeat region is gene-rich, comprising 10 protein-coding, 3 rRNA and 4 tRNA genes in addition to 12 non-conserved ORFs (Table 2). Interestingly, this region features the acpP gene that encodes a putative 80 amino-acid protein containing all the conserved domains of an acyl-carrier protein. (Yu et al., 2018). The A. micronesica genome also displays the bas1, syfB, thiG and thiS genes, which are often absent or present as pseudogenes in other diatom plastomes. However, the tsf gene was not identified.

FIGURE 6

Figure 6 Map of the plastid genome of Amicula micronesica.

TABLE 2

Table 2 Gene composition of the inverted repeat (IR) and single-copy regions (large, LSU; small, SSU) of the Amicula micronesica plastid genome.

Mitochondrial Genome of Amicula Micronesica

The A. micronesica mitogenome (GenBank: ON390794) has a minimum size of 177614 bp (Figure 7). Its size is most probably larger, considering that the presence of tandem repeats at both ends of the linear genome sequence prevented the circularization of the DNA molecule during assembly. However, for clarity, the mitogenome is being displayed as complete and circular on Figure 7. The 57 introns identified in the genome (Supplementary Data S5), all belonging to the group II intron family, account for 113645 bp, i.e., 64% of the genome size. With a total of 12 introns, the 36416-bp cox1 is the most intron-rich gene.

FIGURE 7

Figure 7 Map of the mitochondrial genome of Amicula micronesica.

The A. micronesica mitogenome contains 35 conserved protein-coding genes. Although the conserved orf151 (Pogoda et al., 2018) is included within this set of genes, it is located between rpl2 and rpl5 rather than in the ubiquitous tatC-orf157-rps11 cluster originally described by Pogoda et al. (2018). In addition to the conserved ORFs, 25 non-conserved ORF were annotated, 20 of which code for putative group II intron reverse transcriptases (RT) and/or maturases.

The A. micronesica mitogenome was annotated using the genetic code 4, instead of the universal code 1. Use of the latter code caused the appearance of several premature TGA stop codons within four conserved protein-coding genes (mttB (also known as tatC), nad2, rps10 and rps11), as well as in six intron-encoded ORFs. The latter ORFs and their products (in parentheses) consist of orf145 in rns (RT), orf164 in rnl (RT), orf306 in rnl (RT/maturase), orf751 in cox1 (RT/maturase), orf841 in nad7 (RT/maturase), and orf948 in cox1 (RT/HNH endonuclease).Among the 25 tRNA genes identified with tRNAscan in the A. micronesica mitogenome, none was found to encode the tRNA-Trp(uca) required to decode UGA codons as Trp. Analysis with ARWEN returned two additional tRNA genes with very degenerated secondary structures: one resides within cox3 and codes for a 60-bp tRNA with a 6-bp TV-loop and no D-loop, whereas the other resides in a non-coding region and codes for 63-bp tRNA lacking the TV-loop.

Discussion

Taxonomy

In the original description of Amicula, the classification of the genus within the Bacillariophyceae was not explicitly stated by the authors (Witkowski et al., 2000). Later, Cox (2015) included Amicula in the Order Naviculineae Hendey and listed it among a number of genera, mentioning that the positions of these genera among Naviculales are uncertain. Both maximum likelihood phylogenies inferred in our study placed Amicula among the Diploneidineae D.G. Mann and the Family Diploneidaceae D.G. Mann. Amicula is thus far the third genus reported in this family next to Diploneis (C.G. Ehrenberg) P.T. Cleve and the extinct genus Raphidodiscus H.L. Smith in T. Christian.

Due to the scarcity of distinctive morphological characters for Amicula, a search for characters shared between the two extant genera of the family is not easy but remains possible. In the most recent monograph on freshwater Diploneis, Lange-Bertalot et al. (2020) point out longitudinal canals as prominent character of the latter genus (cf. also Droop, 1998 for marine taxa). While these longitudinal canals are missing in Amicula, the two genera share a type of cribrate occlusion in exterior of the areolae and hymenate occlusions on the valve internal surface (Round et al., 1990, Lange-Bertalot et al., 2020). Interestingly, some freshwater Diploneis taxa possess cribra in the poroids along the longitudinal canal which strongly resemble the vermiculate cribra in A. vermiculata (Lange-Bertalot et al., 2020). Marine species related to Diploneis sejuncta (Schmidt) Jørgensen exhibit cribrate areola occlusions with hymenate internal membranes, which are similar to the “vermiculate” cribra illustrated here in Amicula (Droop, 1998). Droop (1998) considered this group of taxa an ancient lineage based on the striae separating the longitudinal canal from the raphe sternum, a character not observed in other Diploneis taxa. In his article, Droop (1998) reported those taxa related to D. sejuncta as extremely rare, suggesting that testing this hypothesis by molecular phylogenetic studies might be difficult if material cannot be located for cultures and DNA extraction. Yet, in our recent assessment of diatom biodiversity, these taxa were abundant in the coral reef habitats from Florida (Frankovich, unpublished observations) and Indonesia (Risjani et al., 2021).

A Complex Mitogenome

In addition to the taxonomic description of Amicula micronesica, we also described its organellar genomes, which include the largest mitogenome (177614 bp) found so far among stramenopiles. Diatom mitogenomes generally range from 32777 bp (in Melosira undulata) and 77356 bp (in Phaeodactlylum tricornutum) (Pogoda et al., 2018). Aside from the Amicula mitogenome, only two other diatom mitogenomes are known to exceed 100 kb: the 103605-bp mitogenome of Halamphora caladilacuna Stepanek and Kociolek, 2018 (Pogoda et al., 2018) and the yet undescribed 107979-bp mitogenome of Fragilaria crotonensis Kitton, 1869 (GenBank: JAKSYS010000135). The remarkable size of the A. micronesica mitogenome is clearly the result of massive invasion of group II introns at multiple sites within coding regions. Similarly, a large part of the increased size of the H. caladilacuna mitogenome can be explained by the proliferation of group II introns. In the latter genome, 21 group II introns are inserted in eight different genes, namely cox1 (8 introns), cox2 (1 intron), cox3 (1 intron), cob (1 intron), rps2 (1 intron), nad7 (1 intron), rrl (5 introns) and rrs (3 introns). In the A. micronesica mitogenome, a total of 57 introns are inserted in 17 genes that include all those listed above for H. caladilacuna, except rps2. By comparison, all other diatom mitogenomes available in public databases contain much fewer introns and these are restricted to cox1, rrl and rrs (Pogoda et al., 2018).

A third of the A. micronesica group II introns (nine in cox1, three in rnl, two in cox3 and rns, and one in nad5 and nad7) potentially encode proteins with reverse transcriptase, intron maturase, and/or HNH-endonuclease domains. These proteins may assist intron splicing and enable introns to integrate at cognate sites in intronless genes (Lambowitz and Belfort, 2015). In addition, they may facilitate the spread of group II introns at noncognate sites within the same genome (Lambowitz and Belfort, 2015). Only a few cases of intragenomic proliferation of group II introns have been previously documented for organelles. Such evidence has been reported for the chloroplasts in chlorophyte green algae (Brouard et al., 2016; Turmel et al., 2016), euglenids (Hallick et al., 1993; Pombert et al., 2012; Bennett and Triemer, 2015) and the red alga Porphyridium purpureum (Perrineau et al., 2015).Another interesting feature of the A. micronesica mitogenome is the use of genetic code 4 for translation. This is not the first time this code is documented for diatoms. It was previously reported for the first species whose mitogenome had been sequenced, namely Thalassiosira pseudonana Hasle & Heimdal 1970 (Oudot-Le Secq and Green, 2011). T. pseudonana is a Mediophycean species, and as such is genetically distant from the Bacillariophyceae. In contrast to the mitogenome of A. micronesica, the T. pseudonana mitogenome contains a functional trnW(tca) gene that codes for a tRNA-Trp(uca) capable of decoding the UGA codon. Sequencing of microalgal mitogenomes sometimes leads to the discovery of deviant, new genetic codes (Turmel et al., 2019) often involving the reading of the UGA codon as tryptophan instead of a stop codon (Turmel et al., 2010; Turmel et al., 2020). A list of deviant genetic codes in microalgal mitogenomes can be found in Noutahi et al. (2019).At this stage, four hypotheses can be proposed to explain the lack of a mitochondrial-encoded tRNA-Trp(uca) in A. micronesica. First, it is possible that the missing tRNA gene resides in the non-assembled portion of the mitogenome. As stated above, the complete mitogenome of A. micronesica could be larger than the assembled linear genome sequence, likely due to the presence of tandemly repeated sequences at the extremities of this sequence. A second hypothesis would be that the degenerated tRNA entirely missing the TV-loop, which was detected using ARWEN, could be functional. However, although non-standard forms of mitochondrial tRNA can be found among metazoans (Krahn et al., 2020), they are rather scarce among protists (Gray et al., 1998). A third hypothesis would be that a functional tRNA-Trp(uca) is imported from the cytosol. The need of tRNA importation among microalgae has been suspected for a long time among species of the genus Chlamydomonas (Gray et al., 1998). Finally, it is possible that the tRNA-Trp(cca) of A. micronesica undergoes post-transcriptional modification of its anticodon arm, allowing it to recognize both UGG and UGA codons. Such a mechanism was suggested to explain the use of code 4 in the mitogenome of Pycnococcus provasolii (Turmel et al., 2010).Unfortunately, a complete mitogenome sequence is not currently available for A. vermiculata. Therefore, we cannot assess nor predict if the distinctive features described in this study are shared between species of Amicula. With regards to the number of introns, earlier reports have shown that their number is strongly variable among species of the same genus (Pogoda et al., 2018) and even among populations of the same species (Gastineau et al., 2021). Interestingly, with 299 taxonomically accepted species, Diploneis, the sister genus to Amicula, is a far more speciose genus (Guiry and Guiry, 2022). Comparing the mitogenomes of the diverse Diploneis and species-depauperate Amicula would provide an interesting comparative dataset to investigate how different diversification rates in closely related genera have shaped organellar genomes during evolution.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below:. https://www.ncbi.nlm.nih.gov/genbank/, ON453966, MW324582, MW324636, ON390794, ON390793, ON390792.

Author Contributions

Sampling and isolation were performed by CLL, MA, AWi, TF, AWa, EG, CSL, PD, AB. Scanning electron microscopy was performed by MA, AWi, TF, CSL. Administration of the project was the responsibility of AWi and CL. Barcoding and phylogenies were done by MA and ET. Genomic analyses were performed by RG, MT, CL and CO. Writing the original draft was done by RG. All authors participated in manuscript revision. All authors contributed to the article and approved the submitted version.

Funding

Sampling in Marquesas, Florida and research on isolated Florida strain have been funded from National Science Centre in Cracow, Poland within the frame of the project: 2012/04/S/ST10/00017 granted to AWa and 2017/25/N/ST10/01729 granted to AB. The project also benefited from the support of the European Commission under the Horizon 2020 Research and Innovation Program GHaNA (The Genus Haslea, New marine resources for blue biotechnology and Aquaculture, grant agreement No (734708/GHANA/H2020-MSCA-RISE-2016) J.-L.M.) and also the 2017–2022 research funds granted for implementation of a co-financed international research project from the Polish Ministry of Science and Higher Education. This work was supported by the Natural Sciences and Engineering Research Council of Canada under Grant RGPIN-2017-04506.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

Friedel Hinz and Bank Beszteri are greatly acknowledged for sharing with us SEM images of Navicula nolens Simonsen. Dr. Mateusz Rybak from University of Rzeszów and Dr. Tomasz Płociński from Warsaw University of Technology are acknowledged for their help with Scanning Electron Microscope and Transmission Electron Microscope respectively. The authors also thank Tom Beasley for his generous assistance with electron microscopy at the Florida Center for Analytical and Electron Microscopy at Florida International University. This is contribution #1443 from the Institute of Environment, Florida International University.

Supplementary Material includes Supplementary Data S1 (3-gene dataset), S2 (7-gene dataset), S3 (full 3-gene tree), S4 (full 7-gene tree) and S5 (list of the introns in the mitogenome).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2022.941506/full#supplementary-material
