Assessing key influences on the distribution and life-history of Arctic and boreal Calanus: are online databases up to the challenge?

1 Introduction

Calanoid copepods of the genus Calanus are the dominant zooplankton in the sub-Arctic and Arctic seas (Conover and Huntley, 1991; Mauchline, 1998; Falk-Petersen et al., 2009). The Arctic Calanus complex comprises three species; Calanus hyperboreus, C. glacialis, and C. finmarchicus, which are thought to have core distributions in the Arctic continental slope, Arctic shelf and marginal seas, and Atlantic Ocean respectively (Falk-Petersen et al., 2009; Choquet et al., 2017), though sea-ice dynamics may be more important in shaping species core distributions in the Arctic Ocean (Ershova et al., 2021). From eggs to adult life-stages, they are vital in transferring energy between primary producers and higher trophic levels including stocks of herring, mackerel and cod, which in turn are prey for larger fish, seabirds, and mammals (Wassmann et al., 2006; Heath and Lough, 2007; Darnis et al., 2012; Langoy et al., 2012). In doing so, they contribute to the health and productivity of these polar ecosystems and to the goods and services they provide (Murphy et al., 2016).

Decades of basin-scale sampling campaigns and long term monitoring programmes have produced numerous observations of Calanus during spring and summer months. This research effort has revealed their complex physiological (Maps et al., 2014), behavioral (Sainmont et al., 2014; Banas et al., 2016), and morphological adaptations across latitudinal clines and varying seasonality. Key to their life cycle is an overwintering strategy known as diapause, where Calanus typically descend to depths of 400-2500m and enter a state of inactivity and reduced metabolism (Hirche, 1996; Maps et al., 2014). Overwintering behavior, onset and vertical distribution are dynamic, and thought to be influenced by multiple physical (e.g. bottom depth) and environmental (e.g. photoperiod and water mass depth) factors (Krumhansl et al., 2018). During diapause a store of high-energy wax ester lipids is used to fuel respiration, maturation, and reproduction (Jónasdóttir, 1999; Rey-Rassat et al., 2002; Saumweber and Durbin, 2006).

However, knowledge gaps in the overwintering ecology and distribution of Calanus have persisted due to the logistical and economic constraints of ship-borne sampling during the Arctic winter (Hop et al., 2021). Such data gaps have severe implications for the understanding of these key species because overwintering conditions account for a significant proportion of their yearly habitat - at least eight months for C. hyperboreus (Hirche, 1997). While modelling studies are able to utilize the limited empirical data to investigate overwintering strategies and processes, rigorous testing of their hypotheses will only be possible with increased effort to observe the timing, depth, behavior and physiology of diapausing copepods at finer spatial and temporal scales (Pierson et al., 2013).

Meanwhile, the last few decades have witnessed a transformation in the access of biodiversity data due to the concerted effort to digitize natural history collections and biological surveys on online databases and data portals (Soberon and Peterson, 2004). For example, the data available through the Global Biodiversity Information Facility (GBIF) reached 1.6 billion occurrence records in 2020, representing a growth of 1150% since 2012 (Heberling et al., 2021). The data held within these portals offer an unparalleled archive of life on Earth over the last few centuries, and have played a pivotal role in biodiversity research, most notably on fields relating to macroecology (Heberling et al., 2021). With a long and international history of Calanus research in northern seas (Barnard et al., 2004; Bandara et al., 2021b), the quantity of data and ease of access makes online databases an attractive source of information for undertaking novel Calanus studies, and has already been utilized to investigate long term shifts in the surface habitat of C. finmarchicus (Freer et al., 2022).

An in-depth analysis of the data available for these three Arctic and boreal Calanus species remains lacking. This is important to overcome, as while occurrences of Crustacea dominate data within databases covering northern European seas (Vandepitte et al., 2011; Ramirez et al., 2022), the quality of data remains equivocal for the few marine species investigated (Moudry and Devillers, 2020). Moreover, georeferencing uncertainty (Marcer et al., 2022), data quality (Maldonado et al., 2015) and uneven spatial and temporal coverage (Yesson et al., 2007; Ramirez et al., 2022) are inherent issues that must be understood before data are used or analyzed. If left unaccounted for, such issues have been shown to have unintended consequences when used to model species distributions (Beck et al., 2014; Marcer et al., 2022), predict species richness-environment relationships (Yang et al., 2013) or measure biodiversity change (Boakes et al., 2010).

As well as gaining a better understanding of available data, compiling current observations can also highlight gaps that can guide future sampling, as has been achieved for deep sea biodiversity data (Webb et al., 2010). Moreover, Kvile et al. (2019) compiled abundances of overwintering C. hyperboreus and C. glacialis, finding a lack of sampling in slope and central basin regions, as well as challenges associated with data collected via depth integrated net hauls. Assessing whether data stored on online portals also show these patterns will provide further evidence of under-sampled regions and depths that may help prioritize future research of the Arctic Calanus complex. Here we focus on GBIF and OBIS databases which are the two largest global scientific knowledge bases for marine species, although we acknowledge further datasets may exist that are yet to be integrated within these larger compilations. While processing these occurrence records, we also have an opportunity to add value to existing data. This includes associating the records to vertically and seasonally resolved environmental parameters, providing a unique insight into interspecific differences in these variables.

In this study we aimed to investigate the value and completeness of online databases for Calanus research in the high north. Using available Calanus occurrence records from OBIS and GBIF, we explore: i.) latitudinal, vertical and temporal biases in currently available data; ii.) regional temperature affinities of occurrences collected during typical “shallow summer” and “deep winter” life-cycle phases; and iii.) gaps in Calanus observations which should be targeted through the mobilization of existing data sources or future sampling efforts.

2 Materials and methods

2.1 Occurrence records and quality control

Georeferenced occurrence records of Calanus finmarchicus, C. glacialis and C. hyperboreus were compiled from the Oceanographic Biodiversity Information System (OBIS; www.obis.org) and the Global Biodiversity Information Facility (GBIF; www.gbif.org). To maintain consistency, all encounters were treated as presence only, i.e. no weighting was given to records with information on abundance, biomass or number of individuals and no absence records were included. Thus, the use of the term “records” hereafter relates to occurrence data that record the location and time of an encounter with a species, most commonly in the form of human observations or preserved specimens (Vandepitte et al., 2011). Citations for contributing datasets from OBIS and GBIF are available at See data availability statement to access citations of all contributing datasets from OBIS and GBIF. GBIF download information is also available at https://doi.org/10.15468/dl.fjggtx. All subsequent data processing and analysis were carried out in R v4.2.1 (R Core Team, 2022).

The following cleaning and filtering steps were applied to OBIS and GBIF data separately. Records were excluded if they were erroneously located on land, in the Pacific sector or southern; hemisphere were not identified to species level; had missing identifiers for month or year of collection. Duplicate records were removed as defined by records that had the following identical identifiers: species, longitude, latitude, year, month, day, minimum and maximum depth (OBIS), average depth (GBIF), life-stage. Lastly, cleaned OBIS and GBIF data were combined into a single dataset and duplicate occurrences between databases were removed using the same identical identifiers listed above.

We analyzed how the remaining records were distributed by collection year, and quantified the number of records that contained metadata within the fields “life-stage” and “sampling protocol” (i.e. gear type used to collect the record). This was repeated for GBIF and OBIS data separately and combined.

2.2 Spatial and temporal sampling effort

To create a three dimensional picture of Calanus records, we incorporated information on each record’s depth (average vertical depth of sample collection) and latitudinal position. The study region was then divided in to 1 degree latitudinal bins (30°-90°) and 50m depth bins (0-4000m). Using the combined OBIS+GBIF dataset, we populated this 60x80 matrix with the total number of records occurring within each matrix bin. Records that contained inaccurate depth information (i.e. average depth of collection was greater than bathymetric depth) were excluded and the matrix was log transformed before plotting.

Hereafter, analyses use records originating from the OBIS database only due to these data containing fields for maximum and minimum sampling depth, which are necessary to subset the data into discrete “shallow” and “deep” groupings.

To assess the proportion of records within different Arctic and boreal regions, records were assigned to one of eleven different geographic subareas based upon the International Hydrographic Organization (IHO) Sea Areas of the Arctic Ocean (IHO, 1953). For each species and season (Jan-Feb-Mar; Apr-May-Jun; Jul-Aug-Sep; Oct-Nov-Dec), the number of records within each region was calculated and visualized using spatial heatmaps. This was repeated for occurrences collected in the upper “shallow” water column (maximum net depth ≤ 200m), and occurrences collected from “deep” sampling strata (minimum net depth ≥ 400m).

2.3 Temperature and sea-ice associations

Occurrence records were matched to vertically resolved temperature data from the 2018 World Ocean Atlas (Locarnini et al., 2018). Raster grids of mean temperature were collated for nine vertical layers (0m, 50m, 100m, 200m, 400m, 600m, 800m, 1000m, 1500m), for each season (Jan-Feb-Mar; Apr-May-Jun; Jul-Aug-Sep; Oct-Nov-Dec) within two multi-decadal eras (1955-1984 and 1985-2017). These eras were chosen as they represent two different (cool and warm) oceanographic regimes in the northern North Atlantic, which are known to have affected zooplankton community dynamics and distribution (Beaugrand, 2009; Freer et al., 2022). For each occurrence record, temperature values were extracted from the most appropriate temperature grid in relation to the season, depth and year in which the record was collected. For example, a record collected in May 2002 with a mean net depth of 170m was assigned the environmental conditions from the 200m, Apr-May-Jun, 1985-2017 climatology. Similarly, occurrences were matched to seasonal sea-ice concentration data from the same two multi-decadal eras using gridded sea-ice concentration data from the National Snow and Ice Data Centre (Walsh et al., 2019). Any records collected outside of climatology years (i.e. before 1955) and containing inaccurate depth information (i.e. average collection depth greater than bathymetric depth) were excluded.

To explore how temperature associations changed with seasonal use of habitat, we further subset the “shallow” and “deep” groupings into “shallow summer” (representing records with a maximum depth ≤ 200m and between April-July only) and “deep winter” (representing records with a minimum depth ≥400m and between August and March only). These month/depth assignments follow the general seasonal vertical migration patterns known from Calanus observations (Hirche, 1996; Heath et al., 2000; Heath, 2003) and simulations (Bandara et al., 2021a), though we acknowledge that the timing of diapause entry and exit varies with latitude and local factors such as sea-ice extent, spring bloom timing etc. (Ji et al., 2012).

2.4 Overwinter depth associations

The bathymetric depth (i.e. total water column depth) and collection depth (i.e. average net depth) of records within the “deep winter” subset were compared between species using Kruskal-Wallis rank sum tests, after testing for normality (Shapiro-Wilk test) and equal variance (Brown-Forsythe test). Post-hoc pairwise comparisons were analyzed using Wilcoxon rank sum tests with the default “holm” adjusted p-values.

3 Results

3.1 Occurrence records and quality control

The OBIS and GBIF databases contained 243,680 and 208,857 records respectively for the three Calanus species combined (both databases consisted of approx. 85% C. finmarchicus, 8% C. glacialis, 7% C. hyperboreus). After cleaning and quality control steps, 86% of OBIS records and 55% of GBIF records remained (See Table 1 for a summary of records removed per cleaning step per database). After merging these two cleaned datasets and removing duplications, 230,416 (71% of combined records) remained. The majority of these records were present in the OBIS database, with GBIF providing an additional 9% of unique records (Table 1).

TABLE 1

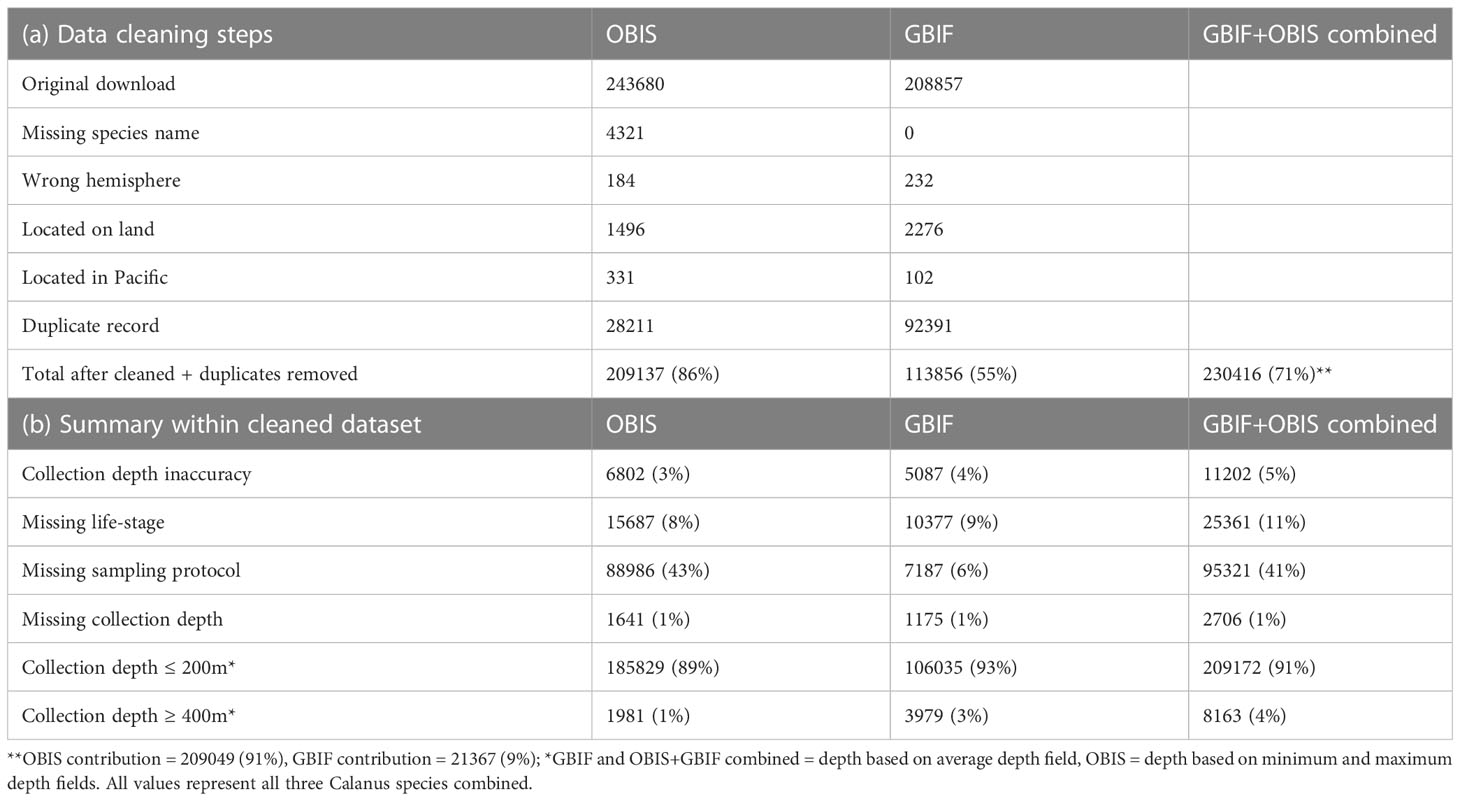

Table 1 Summary table of (a) the number of occurrence records removed after each cleaning and quality control step within each database and (b) the number of occurrence records (absolute number and % of cleaned dataset) falling within defined categories for each database separately and combined.

From the combined GBIF+OBIS dataset, the greatest number of records overall was from 1995 (Figure 1A), but this pattern differed when analyzing databases separately (Figures S1–2A). GBIF records peaked in 1966 (C. finmarchicus = 1966, C. hyperboreus and C. glacialis = 1995) whilst OBIS records peaked in 1998 (C. finmarchicus = 1997, C. glacialis = 2001 and C. hyperboreus = 2005).

FIGURE 1

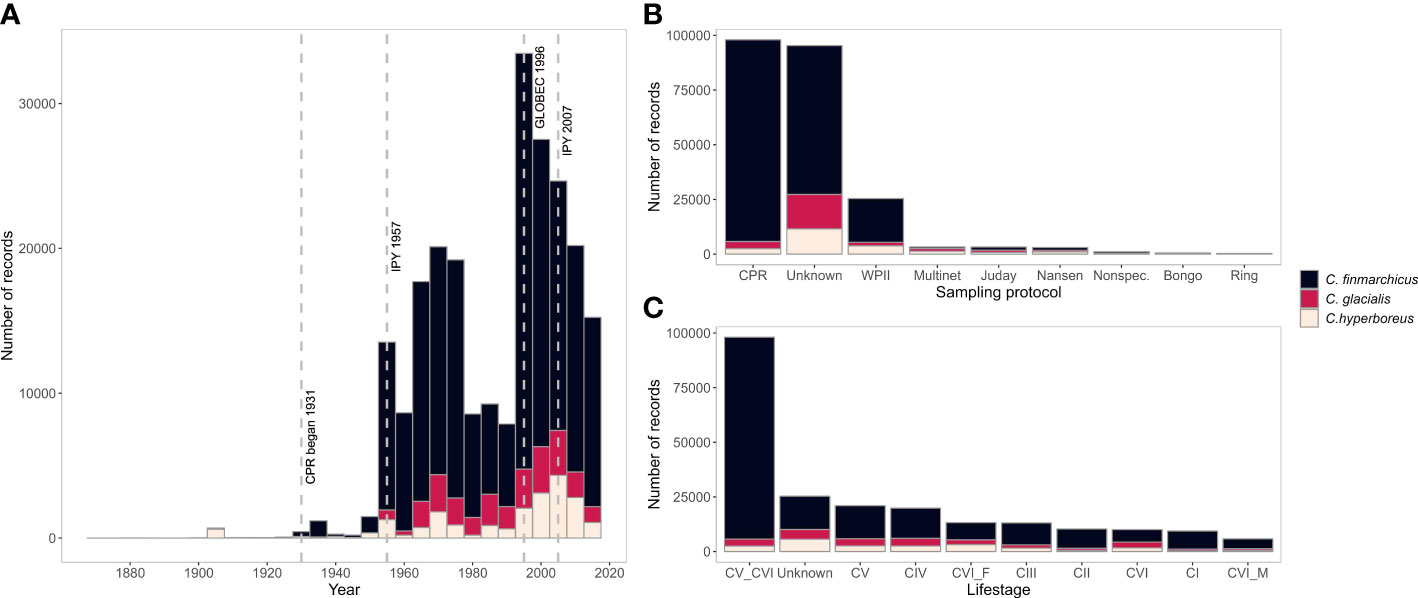

Figure 1 Histograms of cleaned and quality controlled OBIS and GBIF databases combined, indicating the frequency of species records available per (A) calendar year (B) sampling protocol (C) and life-stage. Dashed vertical lines on panel (A) represent years of significant data collection efforts; CPR, Continuous Plankton Recorder; IPY, International Polar Year; GLOBEC, Global Ocean Ecosystems Dynamics. Due to a high number of categories, only categories with more than 200 (B) and 4000 (C) occurrences were included.

Just 6% of GBIF data had no associated information on sampling protocol, compared to 43% of OBIS data which is carried over into the combined dataset (Figure 1B). The most popular sampling method for all three species within GBIF was the continuous plankton recorder (86% of records, Figure S1B) while WPII netting was the most popular method for C. hyperboreus within the OBIS data (Figure S2B). Overall, 11% of records in the combined dataset were not assigned to a life-stage category and the majority of records with life-stage information belonged to copepodite stages CIV-CVI (Figure 1C). This was similar across OBIS and GBIF databases however OBIS contained a greater spread of life-stage categories than GBIF (Figures S1–2C). Adult male and naupilus stages represented 2.5 and 1.5% of OBIS records compared to 0.5 and 0.1% of GBIF records respectively.

3.2 Spatial and temporal sampling effort

Across all three species, Calanus sampling was found to have strong vertical bias toward near-surface collections, with the number of records falling exponentially with depth (Figure 2A). In total, 68% of combined GBIF+OBIS records had an average collection depth <50m, 91% of records <200m and 60% of all records were collected between 40 and 60°N (Figure 2A). Records that were flagged as having depth inaccuracies were mostly located at latitudes >70°N (Figures 2B, C), further decreasing the number of records at northern latitudes.

FIGURE 2

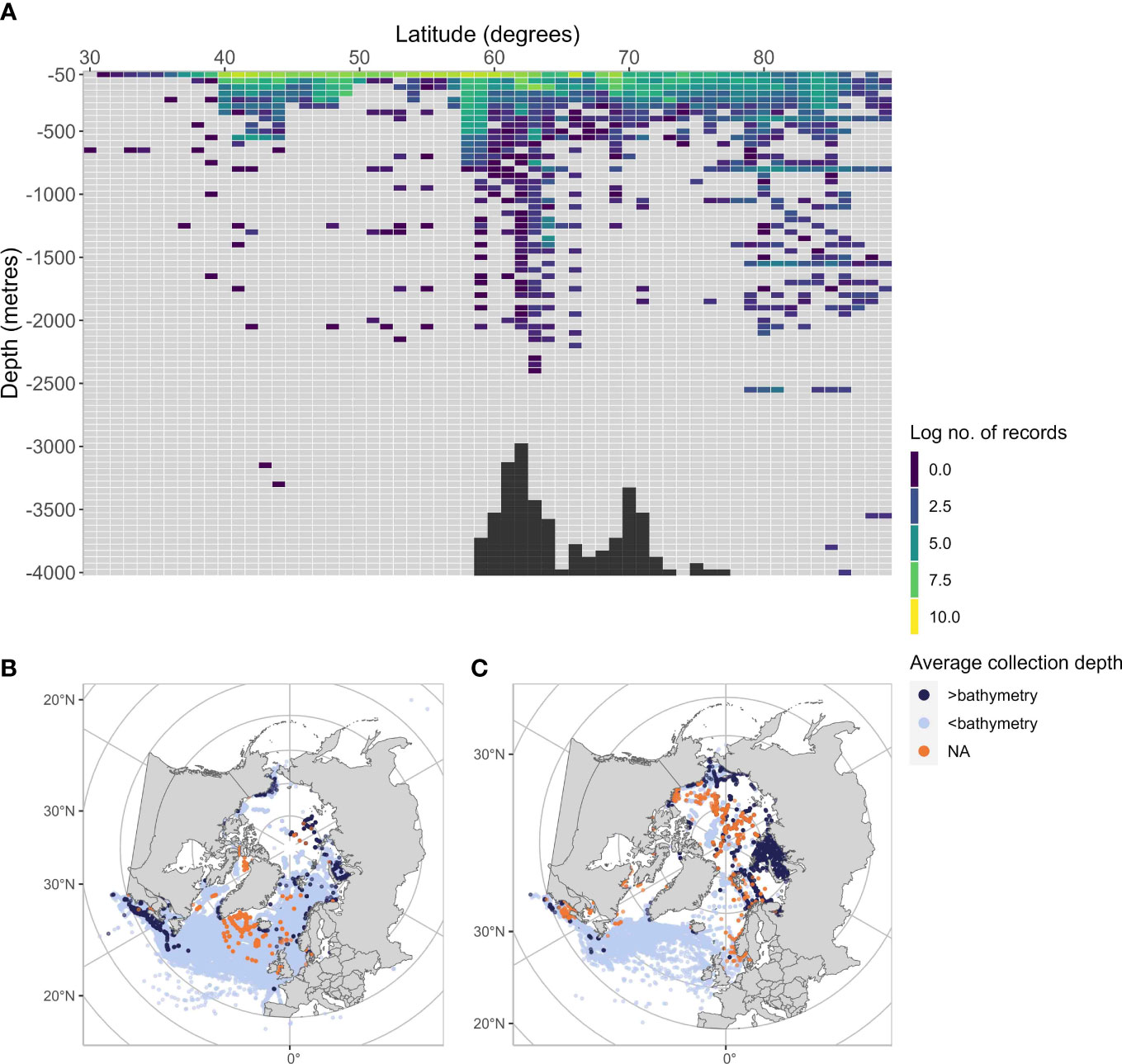

Figure 2 (A) The number of Calanus occurrence records within each unique combination of sample depth (50m) and latitude (1 degree) available via OBIS and GBIF combined. Records for all three species are combined, records for which average collection depth was missing or greater than bathymetric depth were removed, cells containing one record are shown as log=0, dark grey cells indicate maximum bathymetric depth. (B, C) maps showing locations of unique records present within OBIS and GBIF databases respectively. Records for which average collection depth was missing or deeper than bathymetric depth are highlighted.

Calanus sampling at shallow depths (≤200m) is widespread throughout the Arctic and boreal region (Figure 3). The majority of samples are located within the North Atlantic, Barents Sea and Norwegian Sea with variation across species and seasons. Calanus sampling at deeper depths (≥400m) is restricted to the basins of the Arctic and North Atlantic oceans and the Norwegian Sea, with greater variability within these basins across species and seasons (Figure 4). According to these data, C. hyperboreus has been sampled within the Arctic Ocean all year round, whilst samples of C. glacialis are present January-September and C. finmarchicus is absent at these depths except between July and September (Figure 4).

FIGURE 3

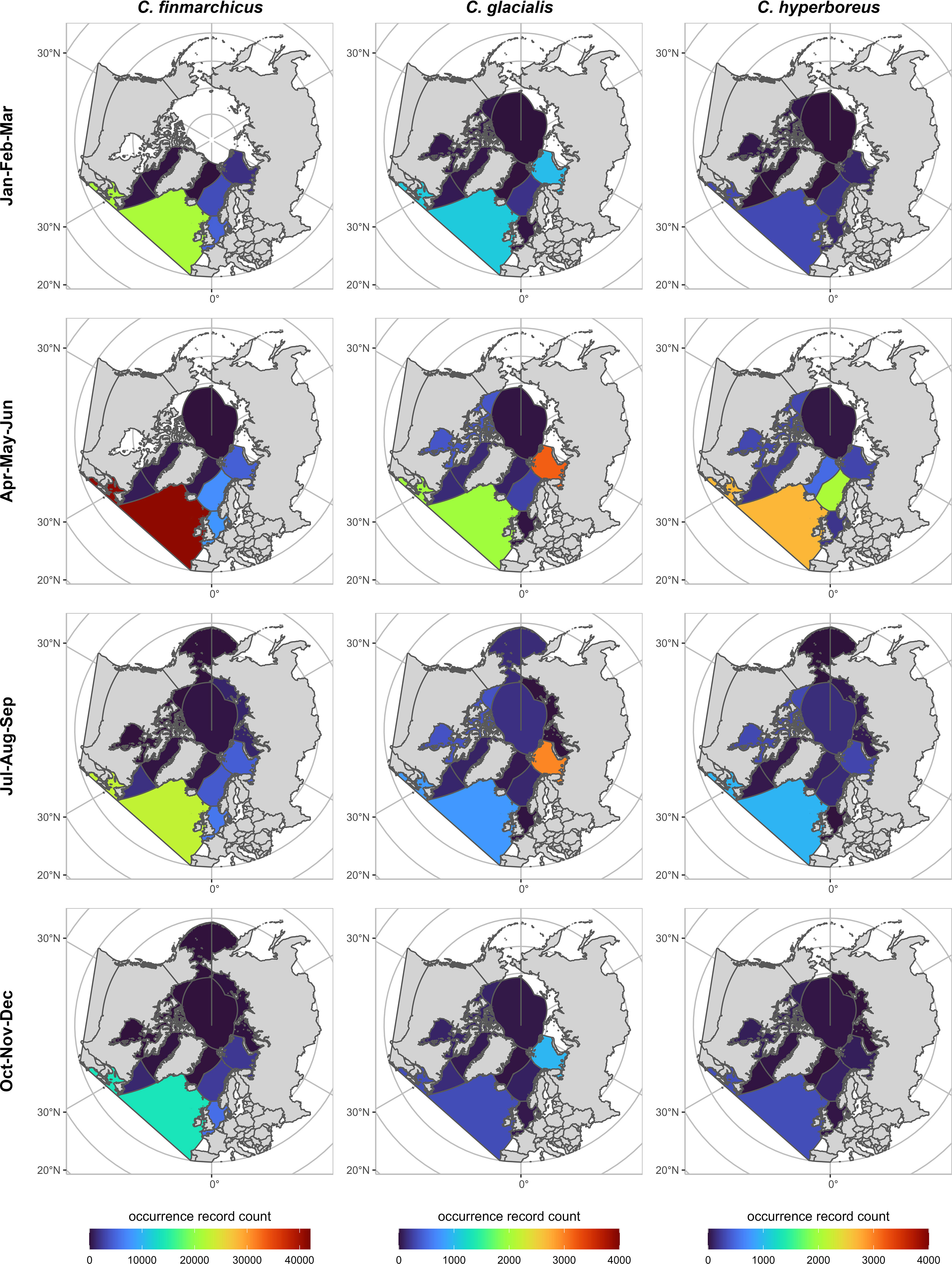

Figure 3 Heatmaps showing counts of occurrence records collected between 0-200m in different seasons within 11 Arctic and Subarctic regions for (left to right) Calanus finmarchicus, C. glacialis and C. hyperboreus. Note difference in scales between species. Records are from cleaned OBIS database only.

FIGURE 4

Figure 4 Heatmaps showing counts of occurrence records collected at depths equal to or deeper than 400m in different seasons within 11 Arctic and Subarctic regions for (left to right) Calanus finmarchicus, C. glacialis and C. hyperboreus. Note difference in scales between species. Records are from cleaned OBIS database only.

Assessing Calanus records based on month of collection, records collected at shallow depths (≤200m) were most numerous between April and June for all species (Figure 5A). Records collected at deeper depths (≥400m) were most numerous in April for C. finmarchicus and in August for C. glacialis and C. hyperboreus January and February contain almost no records (Figure 5B).

FIGURE 5

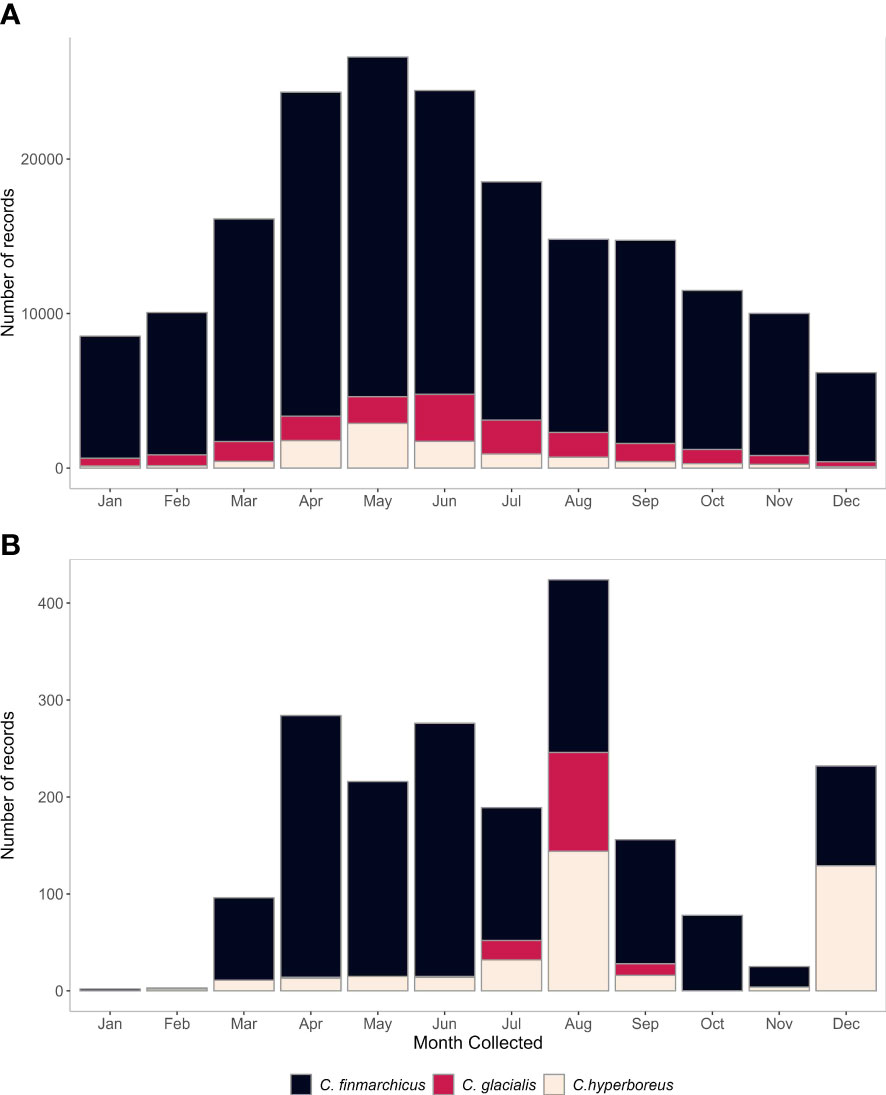

Figure 5 Monthly counts of occurrence records for each Calanus species collected (A) between 0-200m, and (B) equal to or deeper than 400m. Note difference in scales between panels (A, B). Records are from cleaned OBIS database only.

3.3 Temperature and sea-ice associations

During the summer shallow period, records show species-specific associations with temperature (Figure 6A). Densities of C. finmarchicus occurrences peak at ~10°C, whilst C. glacialis and C. hyperboreus densities are bi-modal, peaking at ~2 and 12°C for C. glacialis and ~1 and 8°C for C. hyperboreus (Figure 6A). During the deep winter period, C. glacialis and C. hyperboreus records exhibit a clear peak in density between -1 and 1°C (Figure 6B). A small proportion of C. finmarchicus occurrences also associate with this temperature range, but higher densities are found at ~8°C (Figure 6B). Focusing on records collected in Arctic waters (those from 66°N and above), 23% of records were located in regions of seasonal sea-ice concentrations ≥ 15%. The majority of records are in areas with absent or low average sea ice concentrations (mean sea ice concentration across all species records = 14%; Figure 6C).

FIGURE 6

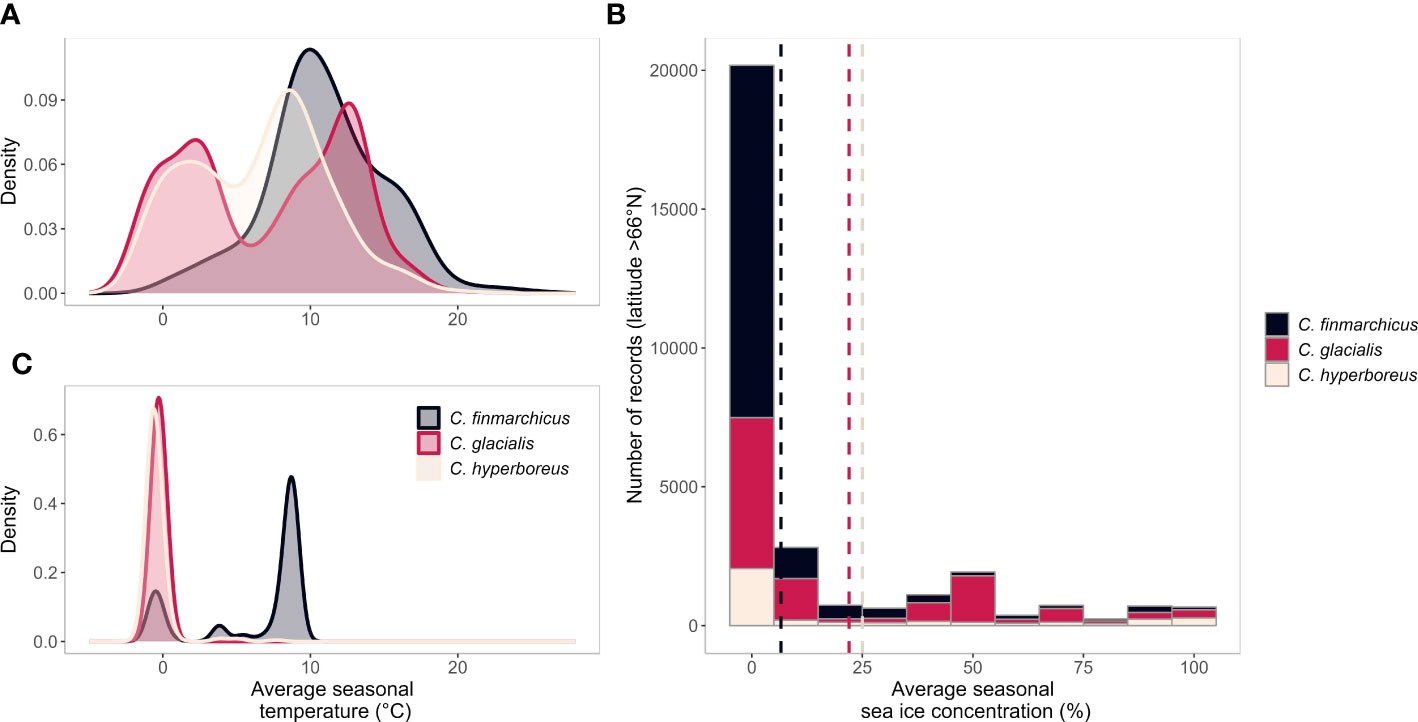

Figure 6 The density of records associated to average seasonal temperatures for records collected (A) during the “shallow summer” period, defined by records collected between 0-200m in April-July only and (C) the “deep winter” period, defined by records collected at depths ≥ 400m in August-March only. (B) The number of records (all three Calanus species combined) collected above 66° north. Associated with different average seasonal sea ice concentrations. Dashed vertical lines represent the mean sea ice concentration association for each species. Records are from cleaned OBIS database and between years 1955-2017 only. Records for which average collection depth was missing or greater than bathymetric depth were removed.

3.4 Overwinter depth associations

During the deep winter period, sampling was carried out at bathymetries between 600 and 4000m (Figure 7A). The bathymetric depth of sampling locations differed between species (Kruskal-Wallis: Chi² = 7.05, df = 2, p = 0.03), however post-hoc analysis found only marginal significance between C. finmarchicus and C. hyperboreus (p = 0.05). Collection depth was also significantly different between species (Kruskal-Wallis: Chi² = 245.9, df = 2, p = <0.001; Figure 7B), with post-hoc analysis indicating that the pairwise comparison between C. finmarchicus (median = 481.5 m) and C. hyperboreus (median = 1407.2 m) was significant (p = <0.001). All other pairwise comparisons were insignificant.

FIGURE 7

Figure 7 Boxplots of (A) bottom depth and (B) average collection depth associated with Calanus records (all three species combined) during the “Deep overwinter” period, defined as records collected ≥ 400m in August-March only. Boxplots show minimum, first quartile, median, third quartile, and maximum; outliers as dots. Records are from the cleaned OBIS database only and records for which average collection depth was missing or greater than bathymetric depth were removed.

4 Discussion

Calanus sampling efforts have historically favored shallow summer events, potentially resulting in spatial, temporal and vertical sampling biases that impede a full understanding of their life history and climate change response. Combining the GBIF and OBIS catalogues, we have assessed the extent of these biases and will discuss the extent and suitability of these data for understanding of Calanus biogeography across both summer and winter environments.

4.1 Occurrence quality control

Manual data quality control and cleaning procedures are known to be an important part of using online biodiversity databases (Maldonado et al., 2015; Veiga et al., 2017). 14% of OBIS data and 45% of GBIF Calanus records had to be removed due to missing, duplicate or poor quality information, which is largely in line with the 35-55% reported for marine mammal data (Moudry and Devillers, 2020). Nevertheless, even records that have essential fields such as geographic coordinates, year and month of collection, often lack auxiliary metadata that can be vital for their interpretation or inclusion in subsequent analyses. As an example, just under half of OBIS occurrence records lacked information on sampling protocol. This precludes knowledge on other aspects of the sample such as tow direction and mesh size of the net, which has consequences for interpreting other fields such as sample effort or depth of occurrence. Another notable factor was the lack of consistent reporting within the metadata fields themselves. Life-stage, for example, had 135 different entries, which had to be compressed in to 15 useful categories. Reporting of discrete life-stages is important as it would allow a more detailed understanding of the full overwintering stock of Calanus, and give new insights into the ecology of lesser known life-stages (Daase et al., 2018).

OBIS and GBIF datasets go through rigorous quality control procedures to meet standards for geographic location and taxonomy fields, however other fields are only recommended or optional to complete. Making fields on sampling protocol and life-stage mandatory, and/or creating a controlled vocabulary for these fields at the data submission stage would aid in the end user’s data cleaning process and help standardize community-wide quality of data reporting (Vandepitte et al., 2011). Moreover, it would further align these data with findable, accessible, interoperable, and reusable (FAIR) principles (Ramirez et al., 2022).

4.2 Sampling biases

Throughout the 150 years of Calanus sampling captured by OBIS and GBIF records, we see the possible influence of regional and global sampling initiatives in the number of records being collected. Records appear in earnest alongside the launch of the CPR in 1931, and a step change in the numbers of all three species correspond to the International Polar Year in 1957. C. finmarchicus records a peak at a similar time to the commencement of the GLOBEC programme in 1996, which focused on the North West Atlantic, while C. hyperboreus records peak in 2007, the same year as the most recent International Polar Year.

Our compilation reveals that sampling for Calanus has been most frequent at 40-60° north, in the upper 10m of the water column, after which records decline exponentially both spatially and with depth. This pattern is driven by the dominance of the Continuous Plankton Recorder (CPR) dataset, which has been surveying at a depth of ~7m across the North Sea and North Atlantic since 1931, providing an invaluable time series of basin-scale plankton dynamics (Batten et al., 2003; Richardson et al., 2006). As a consequence, data for the boreal species C. finmarchicus are much more numerous (approximately 8:1) than the other Arctic species. Given the value of CPR data to all aspects of plankton research and marine management (Brander et al., 2003), efforts to implement similar surveys at a wider range of latitudes, particularly in the high Arctic, would help resolve the core distribution patterns of Calanus, and how these are shaped by rapidly changing sea-ice conditions (Ershova et al., 2021; Tarling et al., 2021). For example, new northern CPR transects extending to a latitude of ~75°N begun over ten years ago and are providing temporally high-resolution data on the Calanus community within the Nordic Seas (Strand et al., 2020).

Records with an average sampling greater than 400m accounted for only 3.5% of all observations in the merged and cleaned GBIF+OBIS dataset. Of those, even fewer (2%) were collected in months important for diapause. Analysis of deep records (which are not influenced by the CPR survey) reveals reduced spatial coverage of sampling than in the upper 200m. As well as being more restricted to areas with suitably deep bathymetry, another explanation for the reduced availability of records is that the data are an incomplete representation of sampling effort. The compilation of diapausing Calanus records by Kvile et al. (2019) included records of C. glacialis and C. hyperboreus located in Western Arctic regions that are missing from the OBIS data we present. Nevertheless, the deep pelagic is the most understudied and under-sampled sectors of the water column (Webb et al., 2010). Increasing the frequency of discrete, deep observations, particularly in winter months, should be a priority for future Calanus sampling and data digitization efforts.

4.3 Temperature and sea-ice associations

Matching each occurrence to seasonal and depth-specific temperature information, we show that shallow summer records fall within expected species-specific temperature ranges from previous observational and modeling studies (Albouy-Boyer et al., 2016; Strand et al., 2020). However, high densities of C. glacialis at ~12°C is higher than the previously suggested critical threshold of ~6°C for the presence of this species (Carstensen et al., 2012). Associating Calanus records to sea-ice conditions highlights the extent of our sampling bias towards ice-free conditions, with only ~5% of all OBIS records coming from regions with seasonal ice concentration ≥15%. While this pattern may well reflect lower likelihood of presence of the boreal species C. finmarchicus, for Arctic species known to be present in ice conditions, this pattern likely comes from the greater logistical constraints of sampling in ice-covered areas and greater sampling effort in ice-free months. Such geographical and environmental biases are vital to take in to account when using these data within distribution models to avoid generating outputs that reflect habitat preference as well as sampling effort (Botella et al., 2020).

It is recognized that observations of overwintering Calanus remain incomplete and hinder our ability to understand this ecologically important life history strategy, or predict its vulnerability to changing conditions (Pierson et al., 2013; Baumgartner et al., 2017; Kvile et al., 2019; Bandara et al., 2021b). Our analysis finds that deep winter records fall within three temperature categories; a cold population (-1 to 2°C) containing all three species but dominated by C. glacialis and C. hyperboreus, an intermediate temperature population (~4 to 6°C) containing low densities of all three species, and a warm temperature population (~8°C) dominated by C. finmarchicus. These patterns align with previous diapause temperature estimates of between -1 and +11°C (Kaartvedt, 1996). The separation of cold and warm diapausing populations may link to the presence of diapausers in cold Norwegian Sea Deep Water (<0°C) north of the Iceland-Faroe Ridge, and in warmer Atlantic Current Water (2 to 6°C) and Labrador Sea Water (2 to 4°C) to the south and west of the Iceland-Faroe Ridge (Heath et al., 2000). Optimal diapause temperature in the Northwest Atlantic was estimated to be <5°C (Saumweber and Durbin, 2006) and locations with colder diapausing temperatures have been found to have greater abundance and higher lipid:total weight ratios of C. finmarchicus (Heath et al., 2004), thus being important epicenters of overwintering stock and carbon sequestration (Jonasdottir et al., 2019). However, despite our finding that C. glacialis and C. hyperboreus dominate these cold overwintering populations, their contribution to the lipid pump is largely unknown, and there remains high uncertainty in abundance estimates (Visser et al., 2017). The pan-Arctic assessment of winter depths and temperatures that we have compiled for these species will contribute to future efforts to fill this gap.

4.4 Limitations

When compiling data from multiple sources, regions and years, it is important to reflect on methodological limitations that may influence our findings. While OBIS and GBIF are the largest online portals for biodiversity information, this will not be a complete representation of all observations made. In fact, it is estimated that only 10% of biocollections worldwide have been digitized (Page et al., 2015), highlighting that biodiversity databases such as OBIS and GBIF are still in the initial stages of data compilation (Ball-Damerow et al., 2019). It is reassuring to find a high degree of overlap in the identity of Calanus records held within OBIS and GBIF databases but this overlap did not always extend to metadata fields; GBIF records contained more information on sampling protocol than OBIS, whilst the opposite was true for life-stage. The choice of database is therefore an important determinant of how readily accessible such information will be to researchers, and indicates that both databases can further improve how metadata fields are populated.

It is also possible that there are reporting errors within the data. While we are able to check some errors, such as reported collection depth being deeper than bathymetry, others may include misidentification of species as morphological criteria are known to be unreliable at distinguishing between C. finmarchicus and C. glacialis (Choquet et al., 2018). We also acknowledge limitations in our assignment of presence records to “shallow summer” or “deep winter” categories based upon their depth and month of collection. This simplistic approach allowed for broad-scale patterns to be assessed, however it will overlook some regional and intra- and inter-specific variability in timings of diapause entry and exit (Ji et al., 2012; Melle et al., 2014; Baumgartner et al., 2017).

Lastly, we note that our analyses based on presence-only data show where the species have been found, not necessarily where sampling happened but the species was absent. Acknowledging the lack of absence data is important when attempting to disentangle patterns of sampling bias and the underlying habitat suitability of a species, both of which will have the effect of increasing or decreasing the probability of presence of a species in a given locality (Phillips et al., 2009). While the addition of absence data would allow biogeographic studies to more accurately define the realized distribution of a species, the reporting of absences in the marine and pelagic environment is rare. This is due to the difficulty in separating a true absence (an absence due to real habitat unsuitability or geographical hindrance) from an “undetected presence” which may be due to species mobility, net avoidance, net size, or other random sampling variation (Coro et al., 2016).

4.5 Future data mobilization efforts

Here we have highlighted the extent of sampling and subsequent digitization efforts for Calanus across the Arctic and sub-Arctic. Identifying these circumpolar-scale data needs is important to support cost-effective progress toward greater coverage of observations, which are vital for biodiversity assessments, habitat models and other ecological and conservation research. Based on our findings, we advocate efforts to i) widen the spatial extent of sampling during spring/summer months, ii) increase the frequency of sampling during autumn/winter, particularly at depths below 400m and within sea-ice regions, and iii) improve the quality and quantity of metadata reporting.

We are undergoing a revolution in our understanding of the Arctic ecosystem in the winter (Berge et al., 2015), shifting from the traditional view of bottom-up regulation to one of plasticity, opportunism and top-down control, increasing the motivation and importance of wintertime observations. At the same time, the arrival of autonomous instruments in polar research, such as gliders, moorings, robotics and drones, have permitted a step-change in the capacity for year-round measurements of, for instance, ocean variables and sea-ice dynamics. Similar developments are a critical requirement to deliver 21^st century polar ecology (Kennicutt et al., 2016) and could involve, for example, real-time monitoring of species using environmental DNA and in-situ plankton imaging (Vilgrain et al., 2021), or using argo floats to replicate the trajectory, depth, and conditions of overwintering habitat (Campbell, 2008). Harnessing new and powerful sampling protocols will become increasingly valuable to fill in the gaps in our knowledge of Calanus biogeography, across all seasons and environments.

In the meantime, short-term gains for these identified gaps could lie within existing data that are yet to be made accessible within online portals. Meyer et al. (2015) analyzed the completeness of digitally accessible information for over 21,000 terrestrial vertebrate species. The authors found that factors affecting inventory completeness of a region included distance to data contributors, locally available research funding and political commitment to data sharing. Ramirez et al. (2022) came to similar conclusions after assessing the completeness of marine records within European seas. Thus, solutions to fill data gaps in Calanus can come from efforts to incentivize researchers to share their existing data online, to streamline existing data entry mechanisms, and to prioritize the integration of non-western data sources (Meyer et al., 2015). Arctic and neighboring nations have a long history of international cooperation. Leveraging these partnerships to enhance data acquisition within underrepresented geographic areas, or to develop data sharing networks across stakeholders, institutions and individual scientists will lead to a collective benefit in improving the fitness of not only Calanus data, but all Arctic biodiversity.

Data availability statement

The annotated source code necessary to reproduce analyses and figures is available in the Supplementary Material. Full details of the datasets used and created within this study are available at https://doi.org/10.5285/A5CBFBE1-6FA6-44CF-96FE-DB92C32B69D0.

Author contributions

JJF: Conceptualization, data compilation, analyses, and writing. GAT: Conceptualization, supervision, writing, project administration and funding. All authors contributed to the article and approved the submitted version.

Funding

JJF and GAT were supported by the DIAPOD (NE/P006213/1) and CHASE (NE/R012687/1) projects as part of the Changing Arctic Ocean Programme, with the former funded by the UKRI Natural Environment Research Council (NERC) and the latter, jointly by NERC and the German Federal Ministry of Education and Research (BMBF). Further support to JJF and GAT during manuscript writing was provided by BIOPOLE National Capability Multicentre Round 2 funding from the Natural Environment Research Council (NE/W004933/1).

Acknowledgments

We thank David Pond as DIAPOD principal investigator and all researchers and organizations who made their data publically accessible allowing their inclusion within this study.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer MD is currently organizing a Research Topic with the author GAT.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2023.908112/full#supplementary-material
